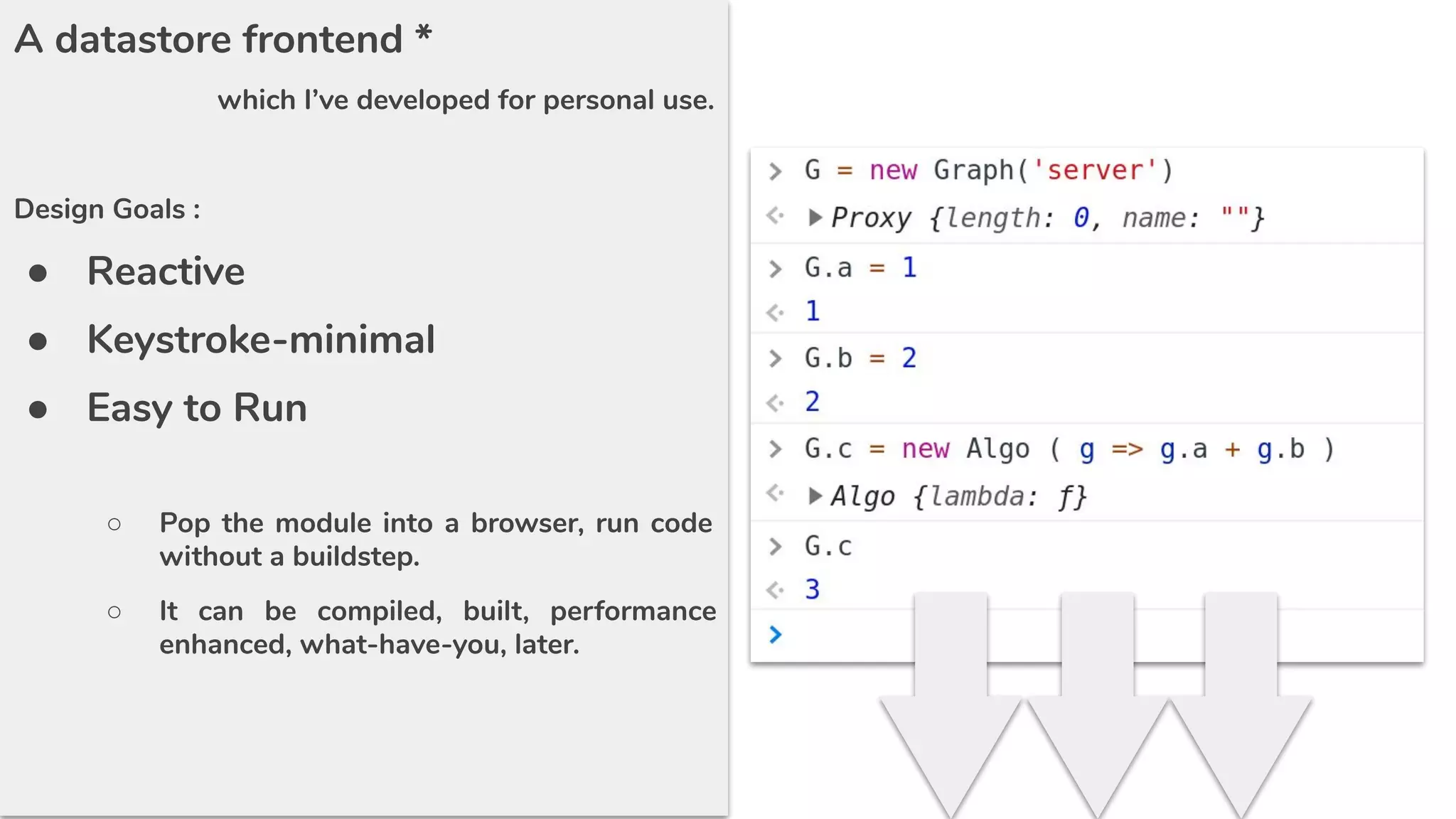

1. A datastore frontend *
which I’ve developed for personal use.
Design Goals :
● Reactive
● Keystroke-minimal
● Easy to Run
○ Pop the module into a browser, run code
without a buildstep.
○ It can be compiled, built, performance
enhanced, what-have-you, later.

2. It was a good idea, but it didn’t convert well to PDF. :( boo.
https://docs.google.com/presentation/d/1esYQhtpjGjE9KsLmrdkGLD64
2FO-jTEeEuHlg4h6MWk/edit#slide=id.g71b56e0717_0_34
Go here instead, to get a block of code that actually works.
class ArrowOut{constructor(e){return this.okey=e,this.reads=[],this.updates=[],this.deletes=[],this}}class ArrowIn{constructor(e){return
this.ikey=e,this.reads=[],this.updates=[],this.deletes=[],this}}globalThis.Algo=class{constructor(...e){if(1!==e.length)throw Error(`Algo.constructor :
expected one and only one argument, received (${e.length}) arguments`);if("function"!=typeof e[0])throw Error("Algo.constructor : typeof (argument
provided) was not 'function'");this.lambda=e[0];return this}};class
Datum{constructor(...e){switch(this.key,this.value,this.arrows={in:{},out:{}},this.log={reads:[],updates:[],deletes:[]},this.cache={stale:!1,hits:[],misses:[]},
e.length){case 1:switch(typeof e[0]){case"string":return this.key=e[0],this;case"object":return
this.key=Object.keys(e[0])[0],this.value=e[0][this.key],this;default:throw Error("Datum::constructor/1 called on n, wheren (typeof n) is
not 'string' or 'object'; branch undefined")}default:throw Error("datum.constructor/n called, branch for this arity is undefined.")}}}class
DatumReturner{constructor(e){return()=>e}}globalThis.Graph=class{constructor(...e){switch(this.vertices={},this.returner=(()=>this),this.datumHandler
=this.getDatumHandler(),this.serverHandler=this.getServerHandler(),this.server=new Proxy(this.returner,this.serverHandler),e.length){case
0:return{graph:this,server:this.server};case 1:switch(e[0]){case"server":return this.server;case"graph":return this;default:throw
Error("Graph.constructor/1 called, the argumentn was not understood.")}break;default:throw Error("Graph.constructor/n called, where
no branch wasn defined for arity-n.")}}deleteVertex(e){if(!(e in this.vertices))return!0;if("object"==typeof
this.vertices[e]("datum").value)for(const t in this.vertices)if(t.startsWith(e+".")&&!this.deleteVertex(t))return!1;return delete this.vertices[e],!(e in
this.vertices)}getVertex(e){if(!(e in this.vertices))return;let t=this.vertices[e]();return t instanceof Algo?t.lambda(this.server):"object"==typeof
t?this.vertices[e]:t}setVertex(...e){let t;switch(e.length){case 0:throw Error("graph.setVertex/0 called; unsupported arity.");case
1:console.warn("graph.setVertex/1 : rewrite & test for this branch");let r=e[0];t=new Datum(r),this.vertices[t.key]=new Proxy(new
DatumReturner(t),this.datumHandler)}let r=e[0],s=e[1];if(!this.deleteVertex(r))return!1;if(t=new Datum({[r]:s}),"object"==typeof s)for(const e in s){let
t=r+"."+e;if(!this.setVertex(t,s[e]))return!1}if(s instanceof Algo){let e=new Proxy({},{get:(e,s,n)=>{"causal"in
t.arrows.in||(t.arrows.in.causal=[]),t.arrows.in.causal.push(new ArrowIn(s));let a=this.vertices[s]("datum");"causal"in
a.arrows.out||(a.arrows.out.causal=[]),a.arrows.out.causal.push(new ArrowOut(r))}});s.lambda(e)}return this.vertices[t.key]=new Proxy(new
DatumReturner(t),this.datumHandler),this.vertices[t.key]()==e[1]}getDatumHandler(){let e=this;return{apply:function(t,r,s){switch(s.length){case 0:let
r=t();return"object"==typeof r.value?e.recoverEnumerableProperties(r):r.value;case 1:switch(s[0]){case"datum":return t();default:throw
Error("graph.datumHandler.apply/1 : the argument wasn not understood")}default:throw Error("graph.datumHandler.apply/n, where
arity-n has no defined branch")}},deleteProperty:function(t,r){return e.deleteVertex(r)},get:function(t,r,s){return
e.getVertex(t().key+"."+r)},set:function(t,r,s,n){return e.setVertex(t().key+"."+r,s)}}}getServerHandler(){let
e=this;return{apply:function(t,r,s){switch(s.length){case 0:return e.recoverEnumerableProperties({});case 1:switch(s[0]){case"graph":return
e;case"server":return e.server;default:throw Error("graph.serverHandler/1 called;n the argument was not
understood")}default:throw Error("graph.serverHandler/n called, where non branch is defined for
arity-n")}},deleteProperty:function(t,r){return e.deleteVertex(r)},get:function(t,r,s){return e.getVertex(r)},set:function(t,r,s,n){return
e.setVertex(r,s)}}}recoverEnumerableProperties(e){if(e instanceof Datum){for(const t in this.vertices)if(t.startsWith(e.key+".")){let
r=t.slice(e.key.length+1);r.includes(".")||(e.value[r]=this.vertices[t]())}return e.value}for(const t in
this.vertices)t.includes(".")||(e[t]=this.vertices[t]());return e}};

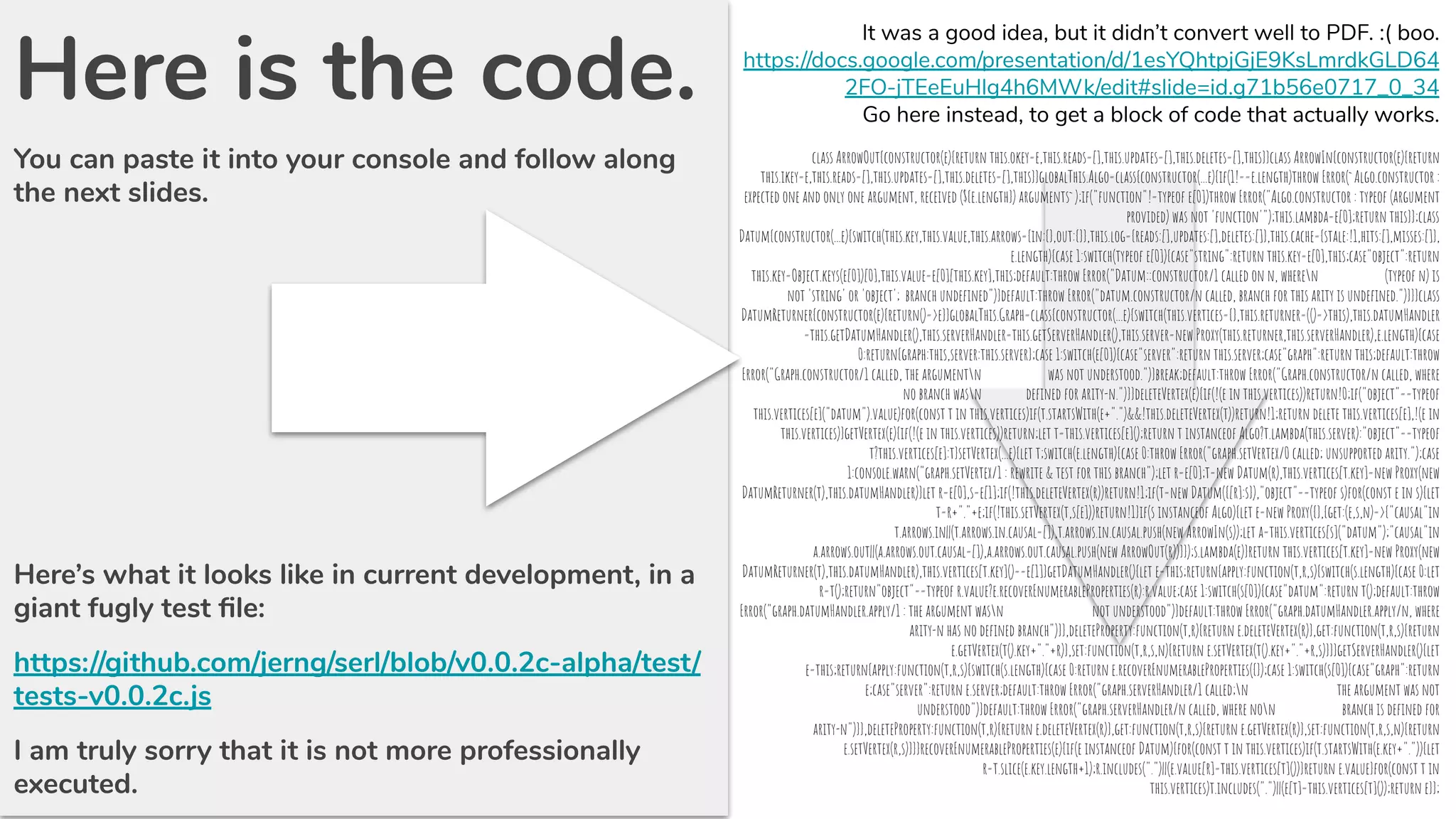

Here is the code.
You can paste it into your console and follow along
the next slides.
Here’s what it looks like in current development, in a
giant fugly test file:
https://github.com/jerng/serl/blob/v0.0.2c-alpha/test/
tests-v0.0.2c.js
I am truly sorry that it is not more professionally
executed.

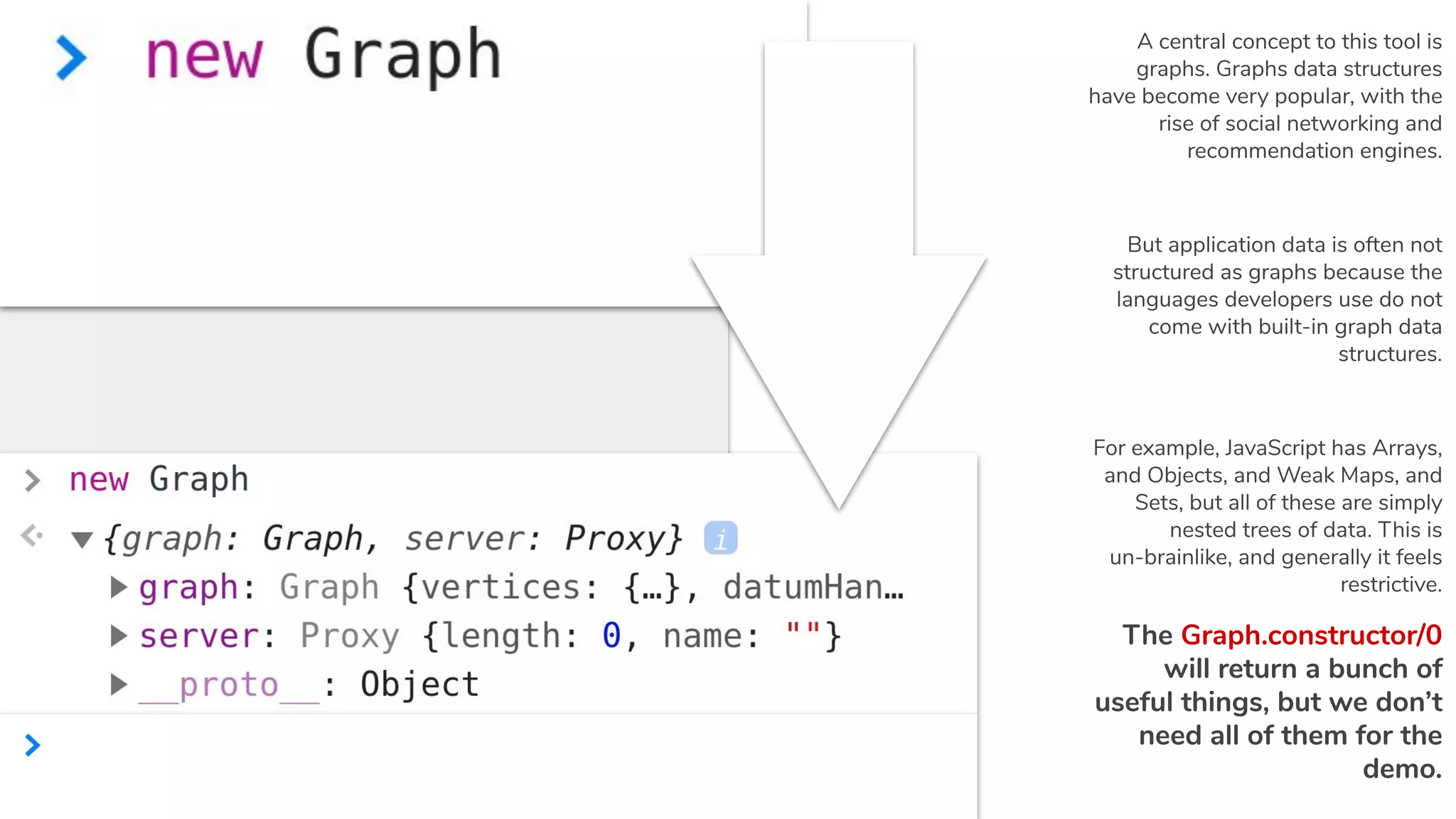

3. A central concept to this tool is
graphs. Graphs data structures
have become very popular, with the
rise of social networking and
recommendation engines.
But application data is often not
structured as graphs because the
languages developers use do not
come with built-in graph data
structures.
For example, JavaScript has Arrays,
and Objects, and Weak Maps, and
Sets, but all of these are simply
nested trees of data. This is
un-brainlike, and generally it feels
restrictive.
The Graph.constructor/0
will return a bunch of
useful things, but we don’t
need all of them for the
demo.

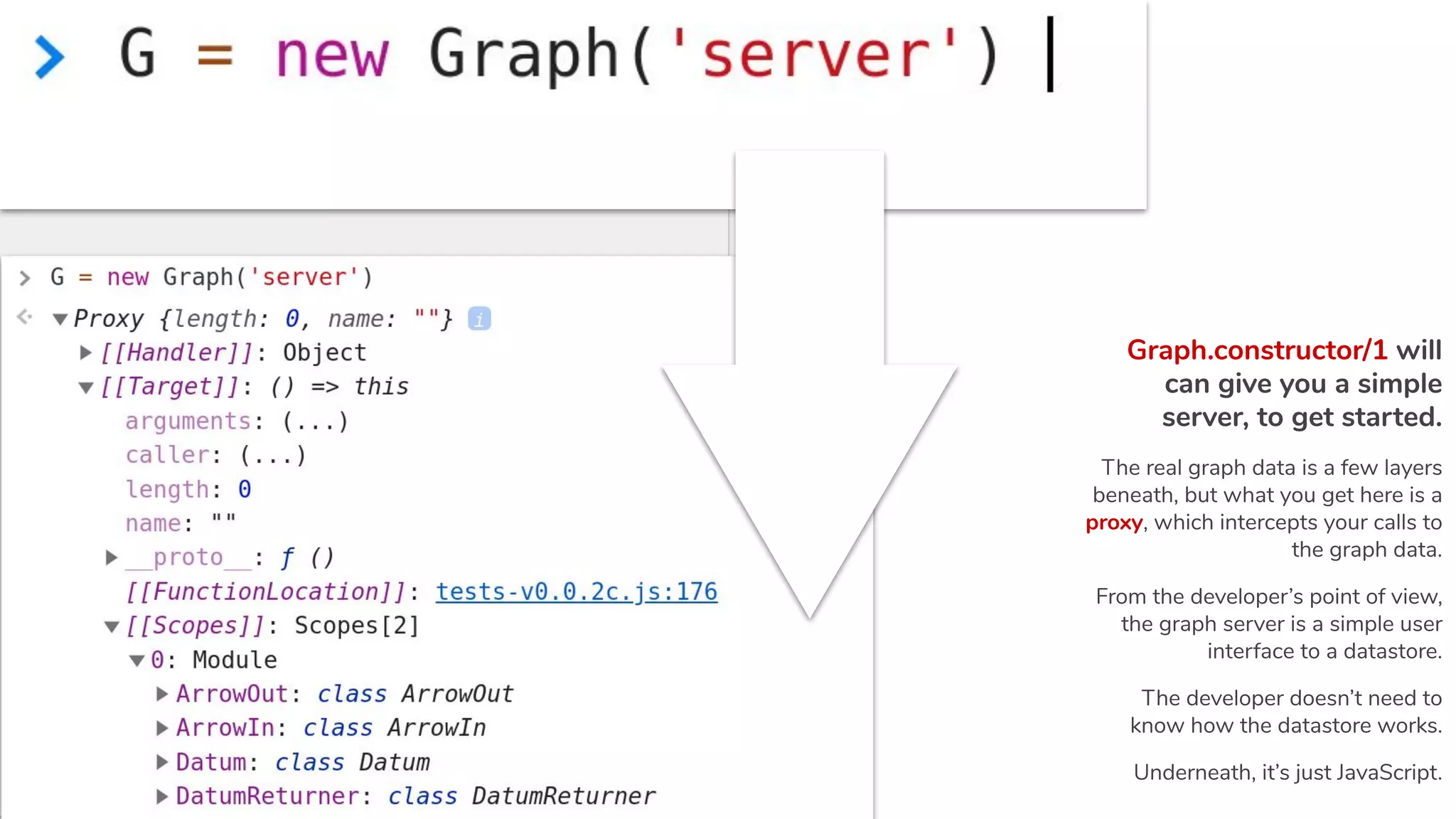

4. Graph.constructor/1 will
can give you a simple
server, to get started.
The real graph data is a few layers
beneath, but what you get here is a
proxy, which intercepts your calls to
the graph data.
From the developer’s point of view,
the graph server is a simple user
interface to a datastore.
The developer doesn’t need to
know how the datastore works.
Underneath, it’s just JavaScript.

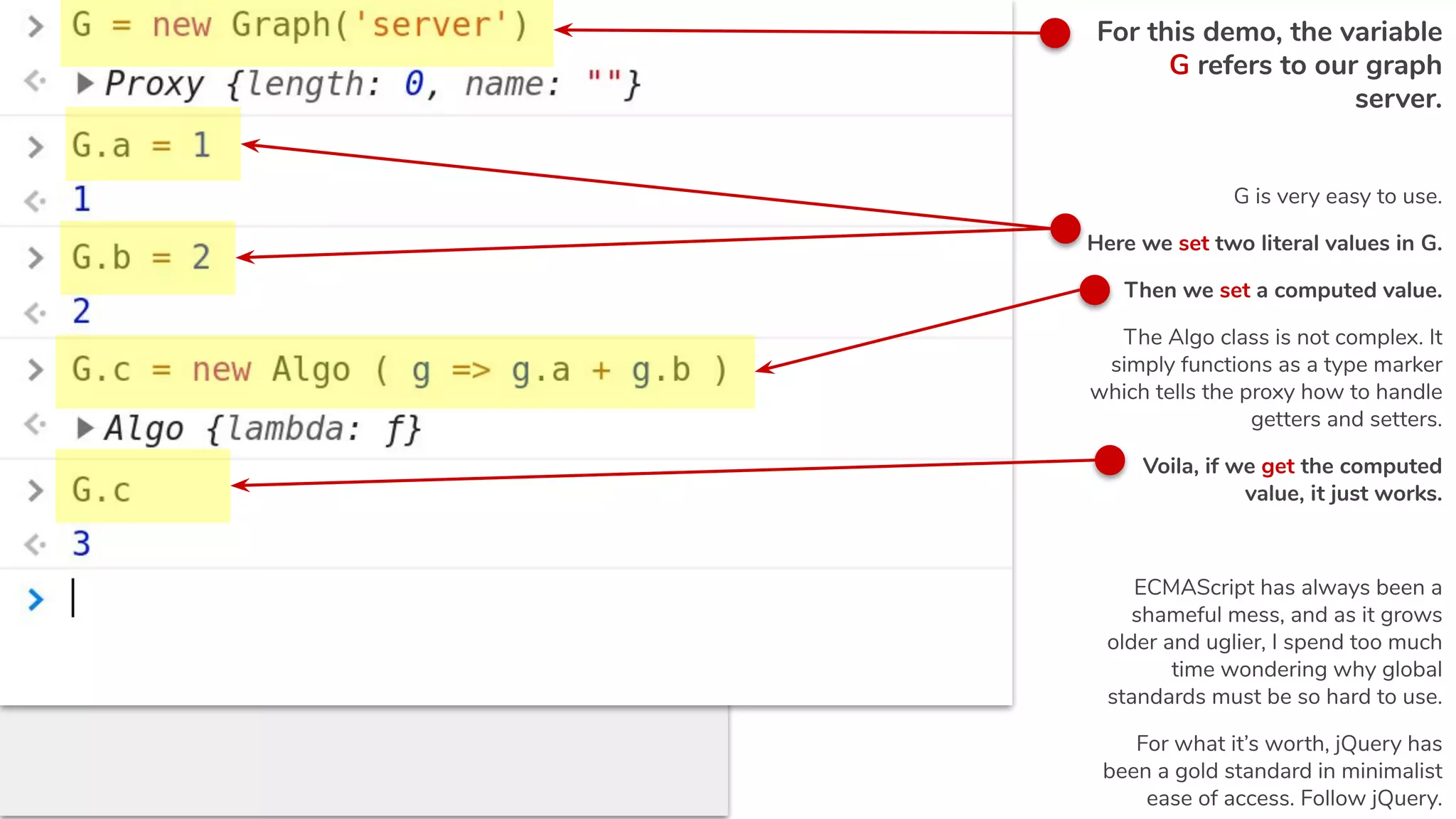

5. For this demo, the variable
G refers to our graph
server.
G is very easy to use.
Here we set two literal values in G.
Then we set a computed value.
The Algo class is not complex. It
simply functions as a type marker
which tells the proxy how to handle
getters and setters.
Voila, if we get the computed
value, it just works.
ECMAScript has always been a
shameful mess, and as it grows
older and uglier, I spend too much
time wondering why global
standards must be so hard to use.
For what it’s worth, jQuery has
been a gold standard in minimalist
ease of access. Follow jQuery.

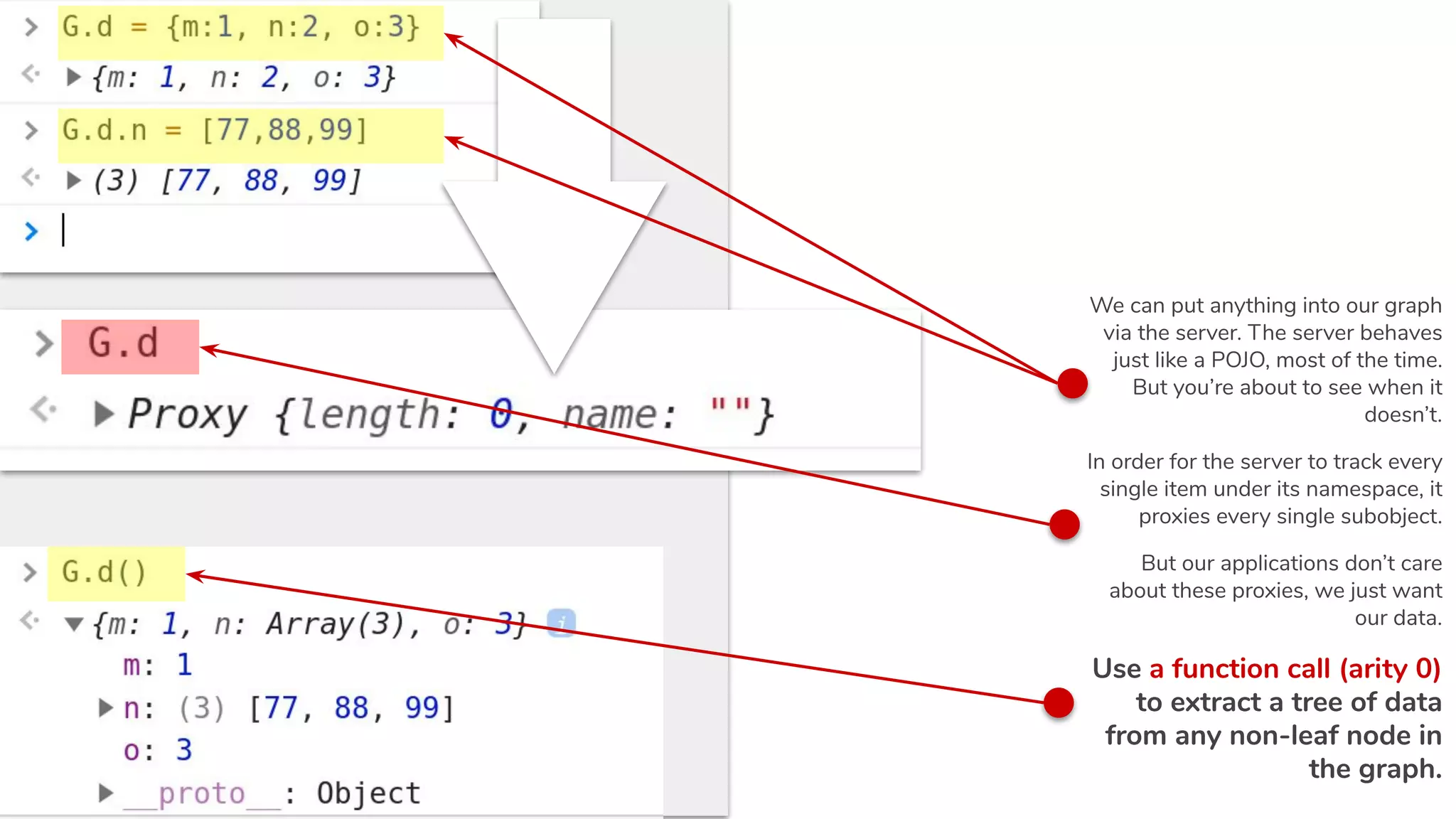

6. We can put anything into our graph
via the server. The server behaves
just like a POJO, most of the time.
But you’re about to see when it
doesn’t.
In order for the server to track every
single item under its namespace, it
proxies every single subobject.
But our applications don’t care
about these proxies, we just want
our data.
Use a function call (arity 0)
to extract a tree of data
from any non-leaf node in
the graph.

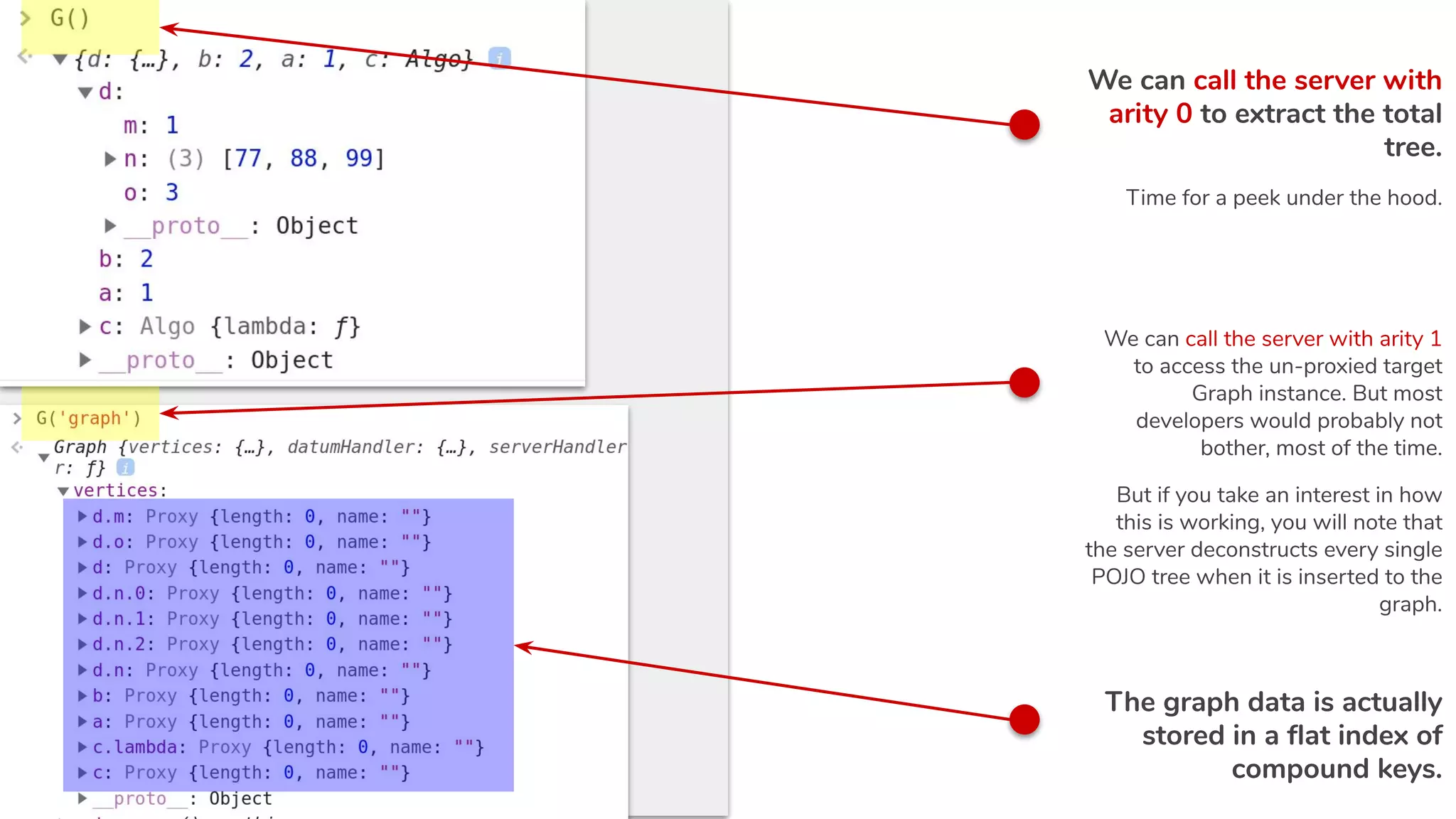

7. We can call the server with
arity 0 to extract the total
tree.
Time for a peek under the hood.
We can call the server with arity 1
to access the un-proxied target
Graph instance. But most
developers would probably not
bother, most of the time.
But if you take an interest in how
this is working, you will note that
the server deconstructs every single
POJO tree when it is inserted to the
graph.
The graph data is actually
stored in a flat index of
compound keys.

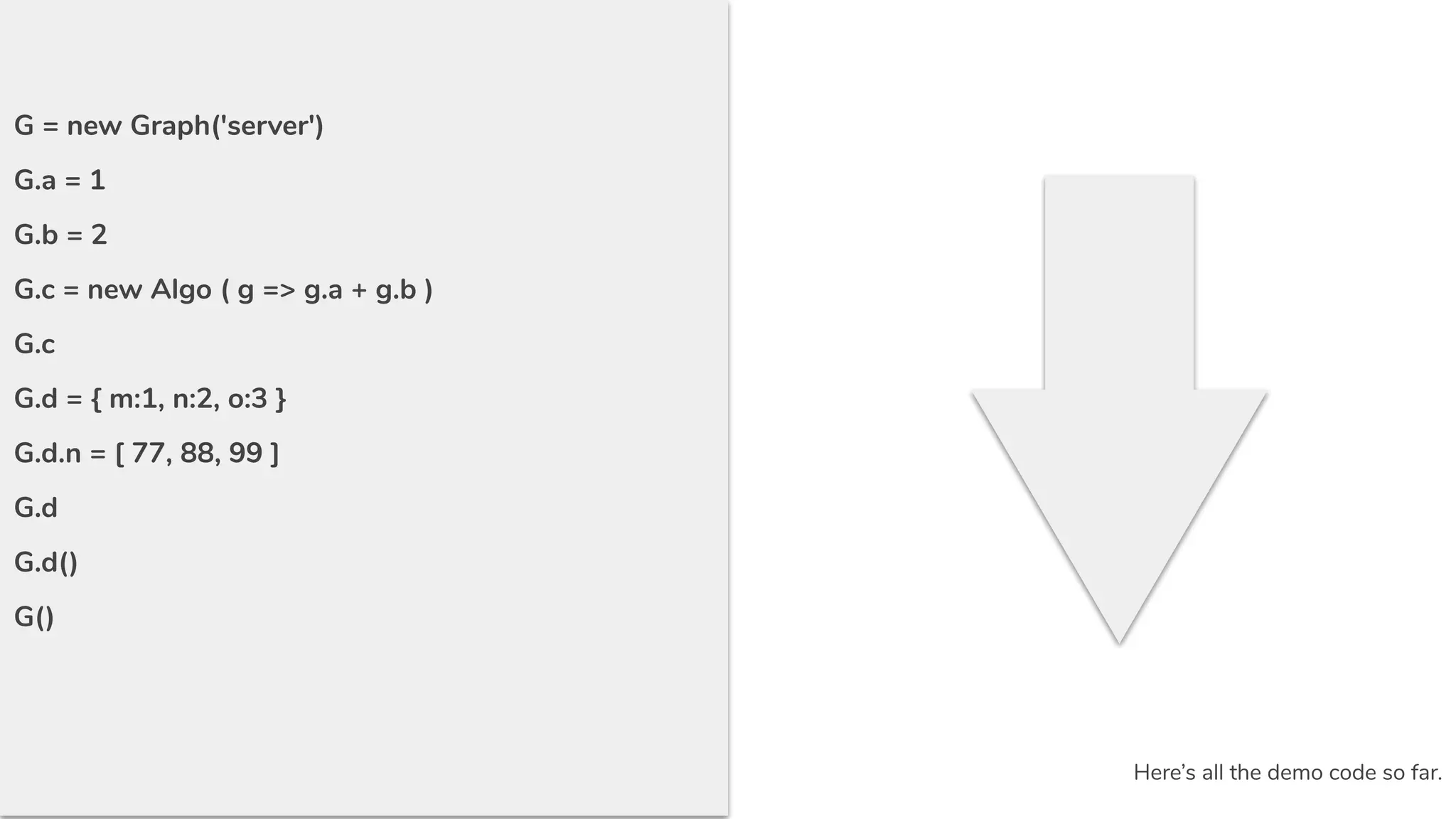

8. G = new Graph('server')
G.a = 1
G.b = 2
G.c = new Algo ( g => g.a + g.b )
G.c
G.d = { m:1, n:2, o:3 }
G.d.n = [ 77, 88, 99 ]
G.d
G.d()
G()
Here’s all the demo code so far.

9. I am kinda tired so I am going to take a break from
making slides.
That’s all for now, folks.
Thanks for reading.
More updates will follow.
Eventually.
My name is Jerng.
I run a cafe, and we have very few
resources, so we have to build a lot
of things by ourselves.
That seems to include JavaScript
frameworks too.
