The document discusses stacks in IT and distributed computing. It describes how hardware provides the foundation, with operating systems abstracting the hardware and providing platforms for applications. Distributed computing solutions like hypervisors allow linking of multiple computers, but lack widespread adoption. The document introduces BEAM and Erlang, developed by Ericsson, as a solution for distributed computing problems. BEAM is an emulator that can coordinate hardware, and Erlang is the language used to communicate with BEAM.

1. what is a stack in IT? We're talking about a silo of dependencies, like a tower, with the end-user sitting at the top.
Material science and E&E engineering are the foundations near the bottom, which give us hardware. Hardware is hardly a
firm foundation... it changes very often, like the currents in the sea, and so we have software operating systems like
Windows, Linux, and Android to deal with the frequent changes - giving us a longer term "ground floor", or "floating
platform", upon which to base applications that provide value to end-users of IT. Most recently, distributed computing is
becoming very trendy - and you must be aware of salespeak like "cloud computing" and "data centres". Unfortunately,
although some significant work has been done, at the research level, on operating systems that tie many separate
computers together, there are no dominant solutions in this space - no solutions that have a level of acceptance that is
as widespread as any of the aforementioned operating systems. The most popular solutions are currently a thin layer,
called hypervisors, that fit between operating systems designed to work on single computers, and the many separate
computers that need to be made to work together. The operating system remains a "single machine" model, and so it almost
forces all application development to implement its own way of dealing with the coordination of work that needs to be
done among many computers. So let's say now, that you're a programmer who is quite flexible, and can learn to speak any
language you like, and you need to write an application that runs on many computers at the same time - an easy example
for this crowd is an application that needs to serve 100,000 complex webpages per second. You might ask yourself, "which
is the hardware or software machine that already knows how to deal with most of the knitty-gritty of getting this job
done?" Once you had an answer, you might then ask what language that software or hardware speaks, and then you would
learn that language, so that you could communicate with the hardware or software that already knows how to get the job
done. It turns out that Ericsson has continuously developed and maintained for over 20 years, a piece of software that is
very clever at solving this problem problem, of getting many pieces of hardware to work together on performing a single
job that helps some end-user. Ericsson calls this clever machine the "BEAM emulator", and it calls the framework for
working with the BEAM emulator, "the Open Telecoms Platform (OTP)". So BEAM is this smart machine, and OTP is a pattern
that BEAM uses to think about distributed computing problems. Now how do we humans talk to BEAM? We would normally use a
language called Erlang. This is why it is valuable to learn Erlang. (Zooming out for a second, let's remember that
languages don't do work - people, or machines, do work, and we only use languages to communicate with machines, as if
they are little people.) The rest of today's talk is going to briefly cover three topics: 1) how BEAM gets distributed
computing done, with the help of OTP, 2) how the Erlang language works, and 3) how Erlang or any other language is made
comprehensible to BEAM (technically: I'm talking about BEAM as a compilation target).

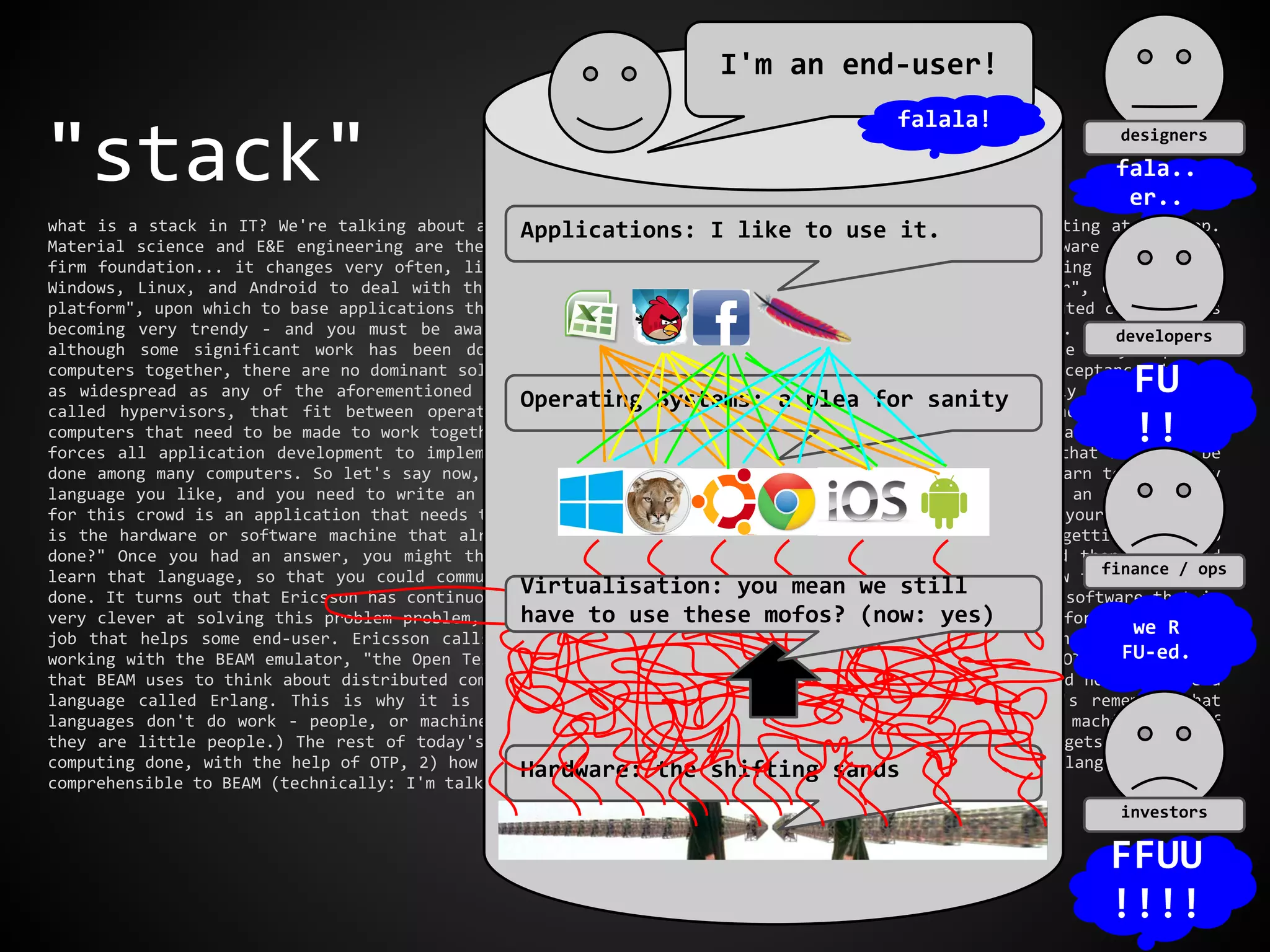

"stack"
I'm an end-user!
Hardware: the shifting sands
Operating Systems: a plea for sanity
Applications: I like to use it.
Virtualisation: you mean we still
have to use these mofos? (now: yes)
designers
falala!
fala..
er..
developers
FU
!!
finance / ops
we R
FU-ed.
investors
FFUU
!!!!

2. what is a stack in IT? We're talking about a silo of dependencies, like a tower, with the end-user sitting at the top.
Material science and E&E engineering are the foundations near the bottom, which give us hardware. Hardware is hardly a
firm foundation... it changes very often, like the currents in the sea, and so we have software operating systems like
Windows, Linux, and Android to deal with the frequent changes - giving us a longer term "ground floor", or "floating
platform", upon which to base applications that provide value to end-users of IT. Most recently, distributed computing is
becoming very trendy - and you must be aware of salespeak like "cloud computing" and "data centres". Unfortunately,
although some significant work has been done, at the research level, on operating systems that tie many separate
computers together, there are no dominant solutions in this space - no solutions that have a level of acceptance that is
as widespread as any of the aforementioned operating systems. The most popular solutions are currently a thin layer,
called hypervisors, that fit between operating systems designed to work on single computers, and the many separate
computers that need to be made to work together. The operating system remains a "single machine" model, and so it almost
forces all application development to implement its own way of dealing with the coordination of work that needs to be
done among many computers. So let's say now, that you're a programmer who is quite flexible, and can learn to speak any
language you like, and you need to write an application that runs on many computers at the same time - an easy example
for this crowd is an application that needs to serve 100,000 complex webpages per second. You might ask yourself, "which
is the hardware or software machine that already knows how to deal with most of the knitty-gritty of getting this job
done?" Once you had an answer, you might then ask what language that software or hardware speaks, and then you would
learn that language, so that you could communicate with the hardware or software that already knows how to get the job
done. It turns out that Ericsson has continuously developed and maintained for over 20 years, a piece of software that is
very clever at solving this problem problem, of getting many pieces of hardware to work together on performing a single
job that helps some end-user. Ericsson calls this clever machine the "BEAM emulator", and it calls the framework for
working with the BEAM emulator, "the Open Telecoms Platform (OTP)". So BEAM is this smart machine, and OTP is a pattern
that BEAM uses to think about distributed computing problems. Now how do we humans talk to BEAM? We would normally use a
language called Erlang. This is why it is valuable to learn Erlang. (Zooming out for a second, let's remember that
languages don't do work - people, or machines, do work, and we only use languages to communicate with machines, as if
they are little people.) The rest of today's talk is going to briefly cover three topics: 1) how BEAM gets distributed
computing done, with the help of OTP, 2) how the Erlang language works, and 3) how Erlang or any other language is made
comprehensible to BEAM (technically: I'm talking about BEAM as a compilation target).

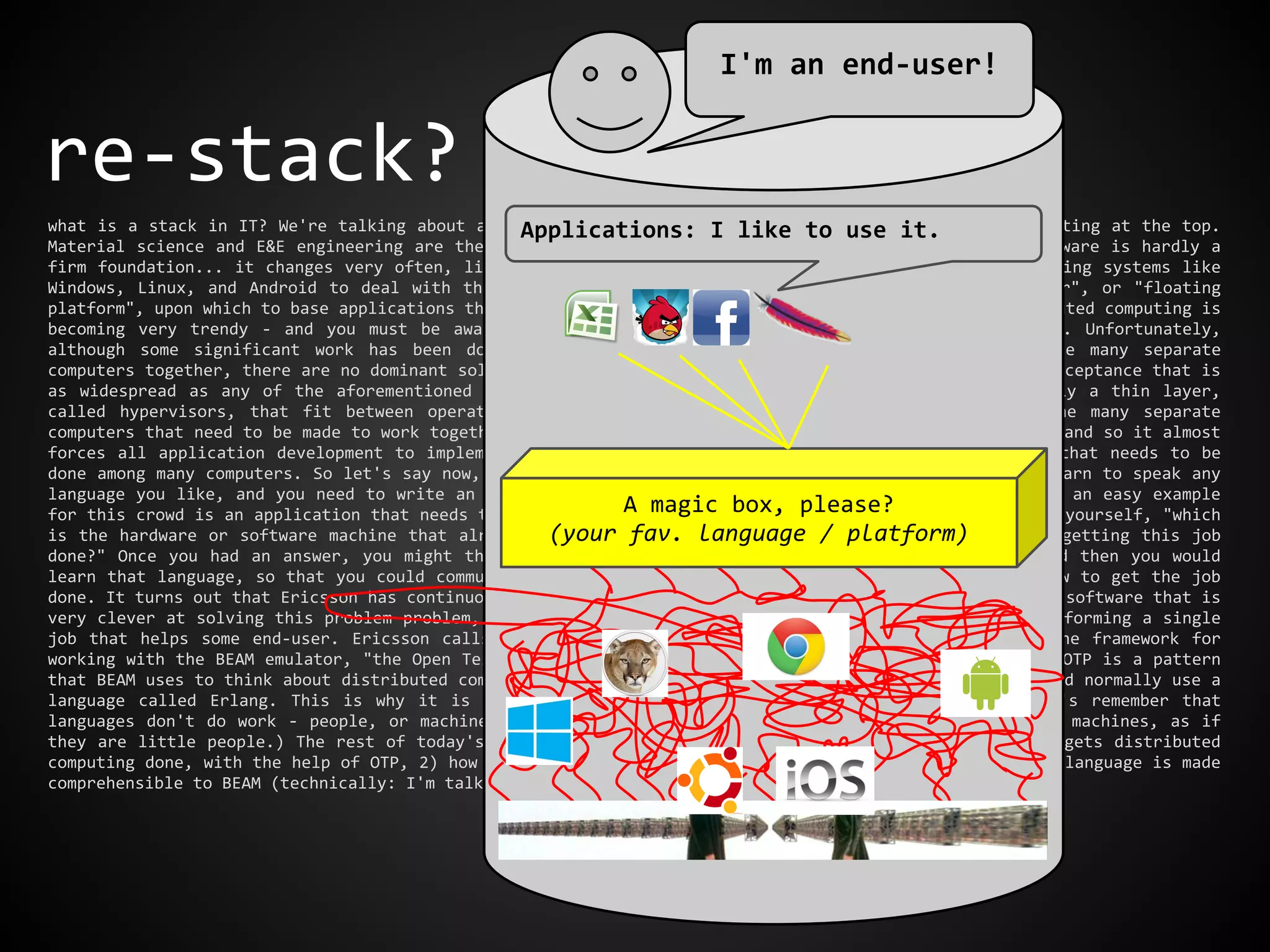

re-stack?
I'm an end-user!
Applications: I like to use it.
A magic box, please?
(your fav. language / platform)

3. what is a stack in IT? We're talking about a silo of dependencies, like a tower, with the end-user sitting at the top.
Material science and E&E engineering are the foundations near the bottom, which give us hardware. Hardware is hardly a
firm foundation... it changes very often, like the currents in the sea, and so we have software operating systems like
Windows, Linux, and Android to deal with the frequent changes - giving us a longer term "ground floor", or "floating
platform", upon which to base applications that provide value to end-users of IT. Most recently, distributed computing is
becoming very trendy - and you must be aware of salespeak like "cloud computing" and "data centres". Unfortunately,
although some significant work has been done, at the research level, on operating systems that tie many separate
computers together, there are no dominant solutions in this space - no solutions that have a level of acceptance that is
as widespread as any of the aforementioned operating systems. The most popular solutions are currently a thin layer,
called hypervisors, that fit between operating systems designed to work on single computers, and the many separate
computers that need to be made to work together. The operating system remains a "single machine" model, and so it almost
forces all application development to implement its own way of dealing with the coordination of work that needs to be
done among many computers. So let's say now, that you're a programmer who is quite flexible, and can learn to speak any
language you like, and you need to write an application that runs on many computers at the same time - an easy example
for this crowd is an application that needs to serve 100,000 complex webpages per second. You might ask yourself, "which
is the hardware or software machine that already knows how to deal with most of the knitty-gritty of getting this job
done?" Once you had an answer, you might then ask what language that software or hardware speaks, and then you would
learn that language, so that you could communicate with the hardware or software that already knows how to get the job
done. It turns out that Ericsson has continuously developed and maintained for over 20 years, a piece of software that is
very clever at solving this problem problem, of getting many pieces of hardware to work together on performing a single
job that helps some end-user. Ericsson calls this clever machine the "BEAM emulator", and it calls the framework for
working with the BEAM emulator, "the Open Telecoms Platform (OTP)". So BEAM is this smart machine, and OTP is a pattern
that BEAM uses to think about distributed computing problems. Now how do we humans talk to BEAM? We would normally use a
language called Erlang. This is why it is valuable to learn Erlang. (Zooming out for a second, let's remember that
languages don't do work - people, or machines, do work, and we only use languages to communicate with machines, as if
they are little people.) The rest of today's talk is going to briefly cover three topics: 1) how BEAM gets distributed
computing done, with the help of OTP, 2) how the Erlang language works, and 3) how Erlang or any other language is made
comprehensible to BEAM (technically: I'm talking about BEAM as a compilation target).
Erlang/OTP?
I'm an end-user!
Applications: I like to use it.
A candidate for something that
doesn't exist yet?

4. OS: Hardware Abstraction
(logical
cores)
(RAM address
space)
a=>4
b=>?
c=>7
etc.
HEAP
|v|
|s|<=
|f|
|k|
|_|
STACK
An OS Process
assigned this
space...
Other OS
Processes...
(hardware
cores)
(hardware
RAM)
1. An Erlang "Node a.k.a. Emulator a.k.a. VM" runs as an OS process.
2. Internally it can manage '00s, '000s, or '000,000s of Erlang
processes.
3. Erlang
processes
are spawned
just by
passing
functions
into
spawn().
4. Each
Erlang
process has
its own
heap and
stack (implemented in the OS process's heap).
5. Erlang processes can talk to each other via
message passing (messages are copied between Erlang
processes' mailboxes).
6. Erlang processes can be organised
into supervision trees which provide
nodes with a framework for communal
living and dying (very biological).
7. Architectural
difference from e.g.
Node.js:
Preemptive
Multitasking of
Erlang Processes
(time sharing)
One Scheduler per
logical core
Other Erlang nodes... Other OS processes...

5. -module(dummy_module).
-compile(native).
-compile(export_all).
dummy_function()->
A = lala,
B = "lala",
C = [$l,97,$l,$a],
D = <<"lala">>,
E = <<$l,$a,$l,97>>,
F = 437947750258039476268479386,
G = (3.142 + 2), % 5.142
H = "la" ++ [$l] ++ [97], % "lala"
[1,2,3] == [ 1 | [2,3] ], % true
I = {a,b,{d,e}},
J = lists:reverse([1,2,3]), % [3,2,1]
K = fun()->{ok,[A,B,G]} end,
K.
% Then elsewhere, running
% X = dummy_module:dummy_function(),
% X().
% would return
% {ok, [lala,"lala",5.14199999... 5]}
% declares the module name
% targets MIs instead of byte codes
% declaring the interface
%function_name()->
% VariableA = atom,
% VariableB = "string",
% VariableC = ditto, with less sugar,
% VariableD = <<"binary">>,
% VariableE = ditto, with less sugar,
% VariableF = integer of any size,
% Dynamic typing: floats + ints
% Dynamic typing: strings
% list [ head | tail ] syntax
% VariableI = 3-tuple
% VariableJ = module:function() call
% VariableK = 1st-class fn, closure
% dummy_function() can return the
closure
% . ends dummy_function's declaration
language layer; basic data types, and syntax - don't try to remember it right now
POPULAR: "patten matching" basically means
that you can use wild-cards in switch-cases,
even for calling different branches of a
function.

6. compilation : script, to abstract format... which goes into the module "compile"
Erlang has "leex" and "yecc"
which do similar work, and
output "Abstract Formatted
Erlang", which is fairly
regular/readable, and
probably a good compilation
target for beginners (like
me).
There's also a lower-level
format called Core Erlang.

7. compilation : byte code and/or native code... what comes out of the "compile"
module
LLVM backend
is
experimental
, but FYI :)

8. Further reading (top picks):
- http://LearnYouSomeErlang.com
(easy, prosaic, illustrated intro to everything)
Search for it (or I can Dropbox the PDFs to you):
- Vorreuter's presentation on Hacking Erlang
(on compiling custom/other languages to Erlang's Abstract
Format)
- Zhang's 2011 thesis: Erlang on many cores
(for a readable description of BEAM internals)
- Erl-llvm thesis with the Greek cover page
(more on lower-level & native compilation)
- A study of ETS table implementation and performance
(alternativs to Erlang's built-in in-memory key-value-store
architecture/algorithms)
- Erlang-embedded whitepaper
(on getting a 3MB disk footprint, 16MB runtime)
