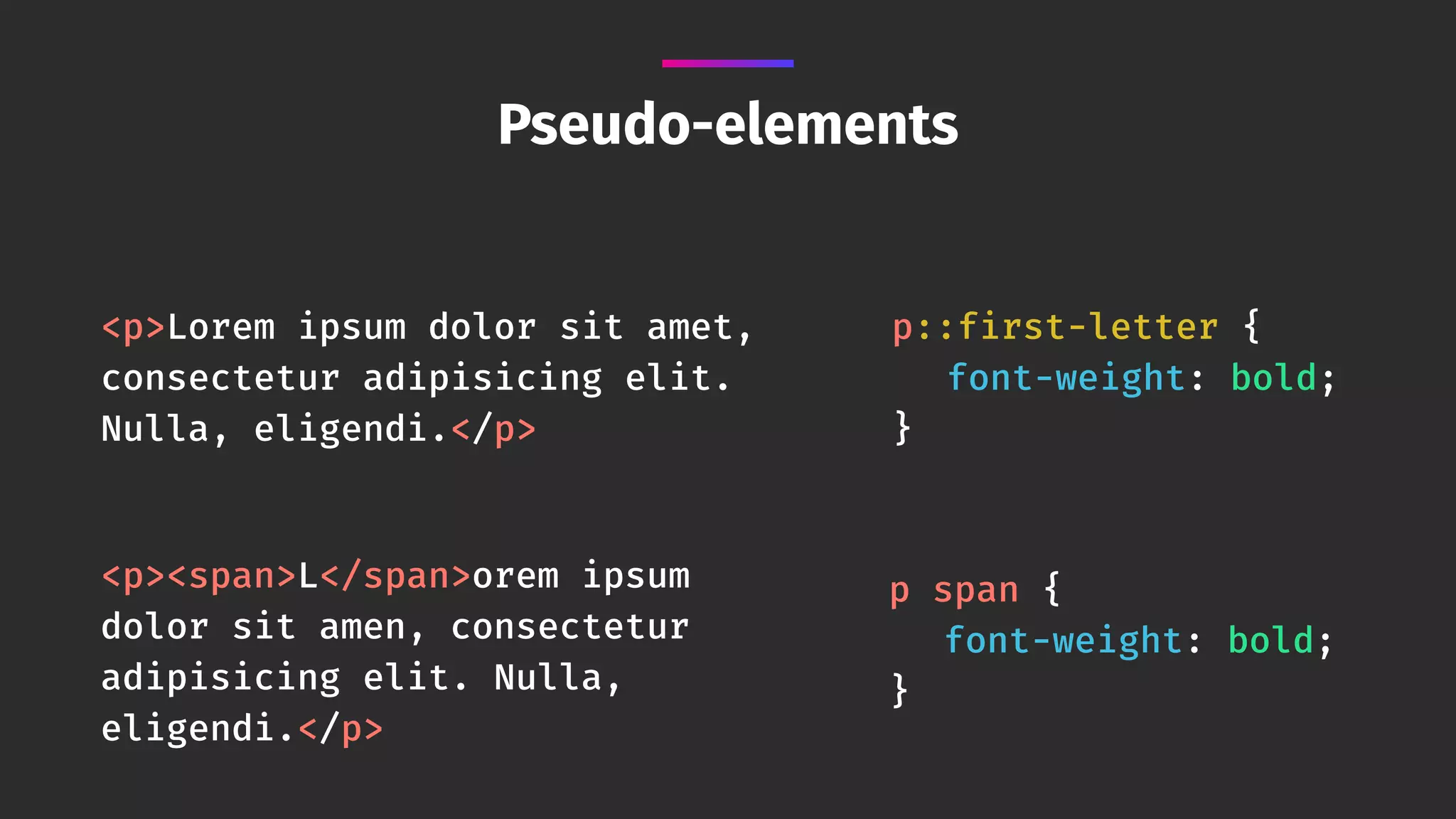

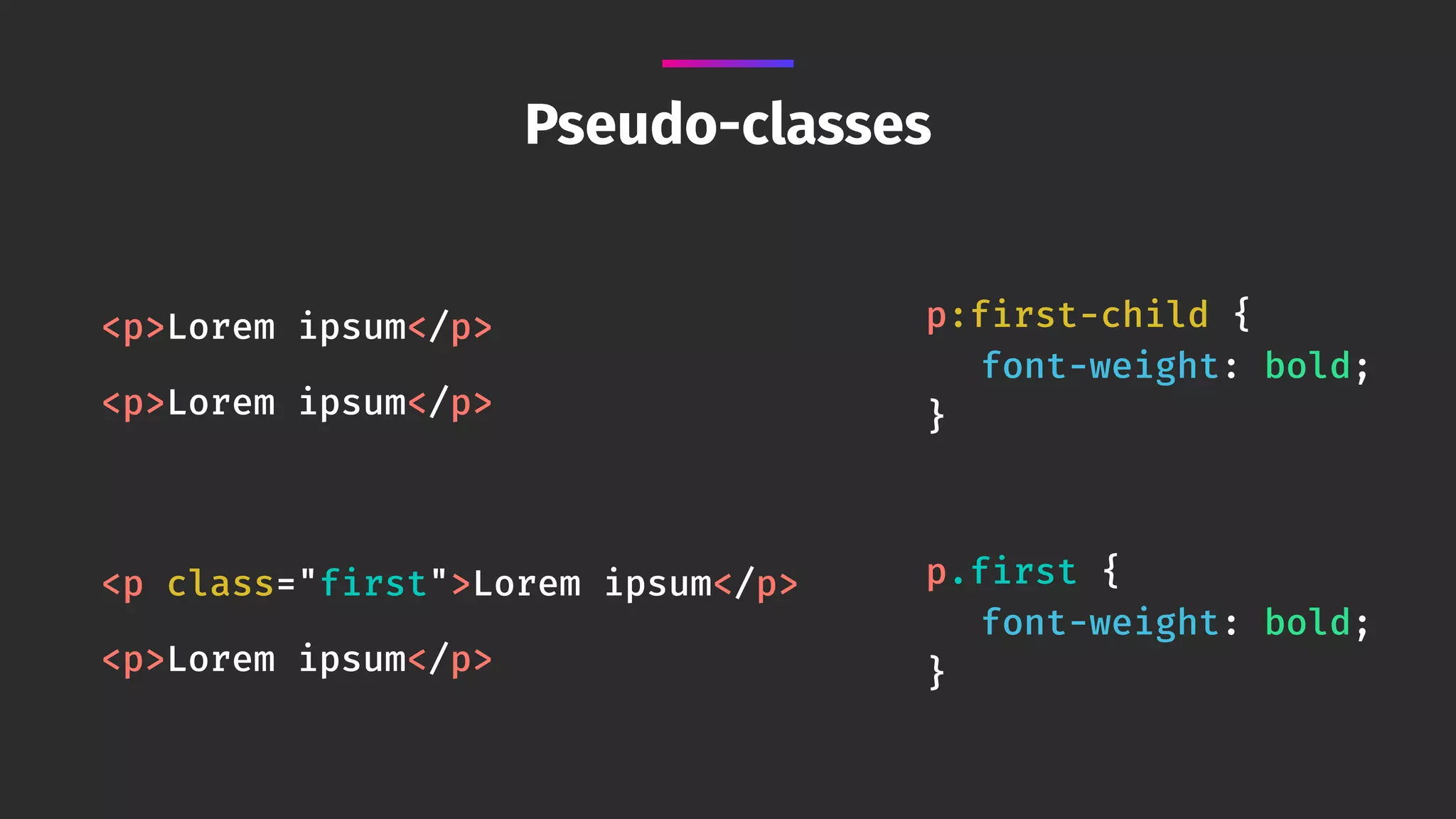

5. Pseudo-elements are often mistaken for
pseudo-classes.
A pseudo-element act like a new HTML
element in your code.
A pseudo-class helps you target precisely
one or several elements among others.
Pseudo-what?

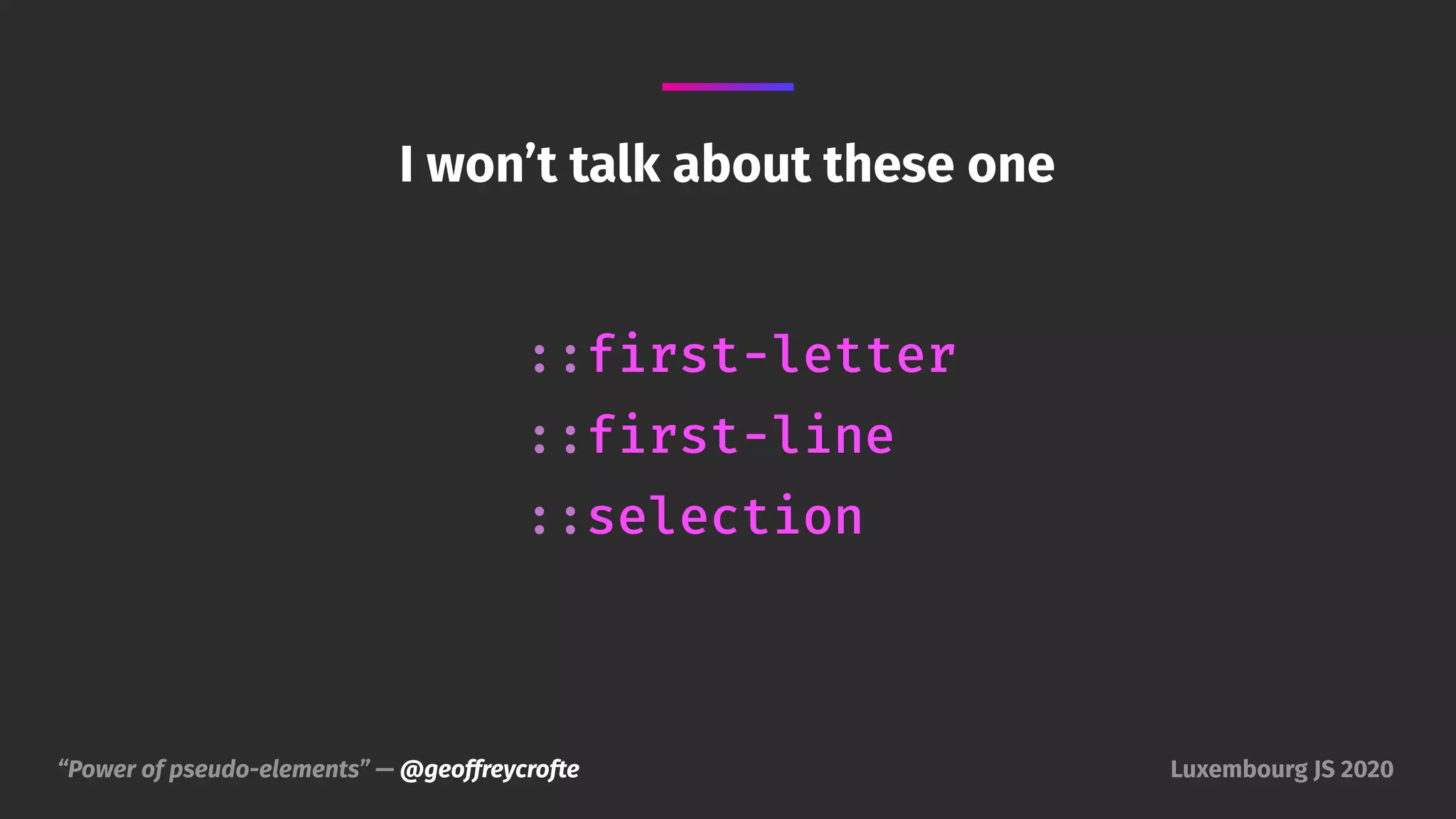

9. “Power of pseudo-elements” — @geoffreycrofte Luxembourg JS 2020
I won’t talk about these one
::first-letter
::first-line
::selection
10. Part of the “Generated Content”
Ask to the User-Agent to generate a content
that is not already in the DOM.
“Tree-Abiding Pseudo Elements”,
they respect the existing DOM structure.
What’s define those
11. A content is generated before or after the
content of the target.
You can manipulate this content with
(almost) all the CSS you want.
One common example are the <ul> and <ol>
elements. They generating content, dash
and numbers.
Principle

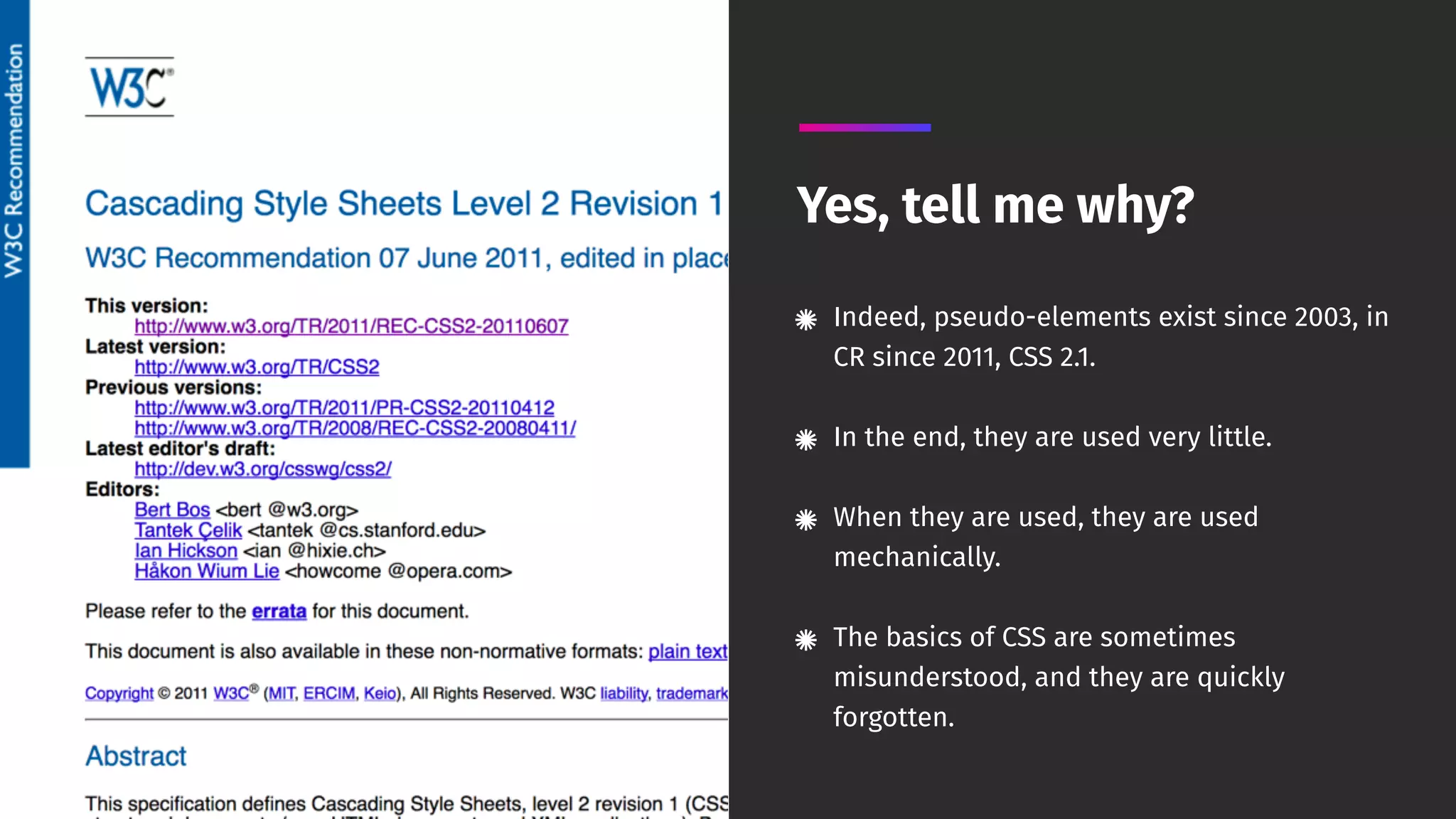

13. Indeed, pseudo-elements exist since 2003, in
CR since 2011, CSS 2.1.
In the end, they are used very little.
When they are used, they are used
mechanically.

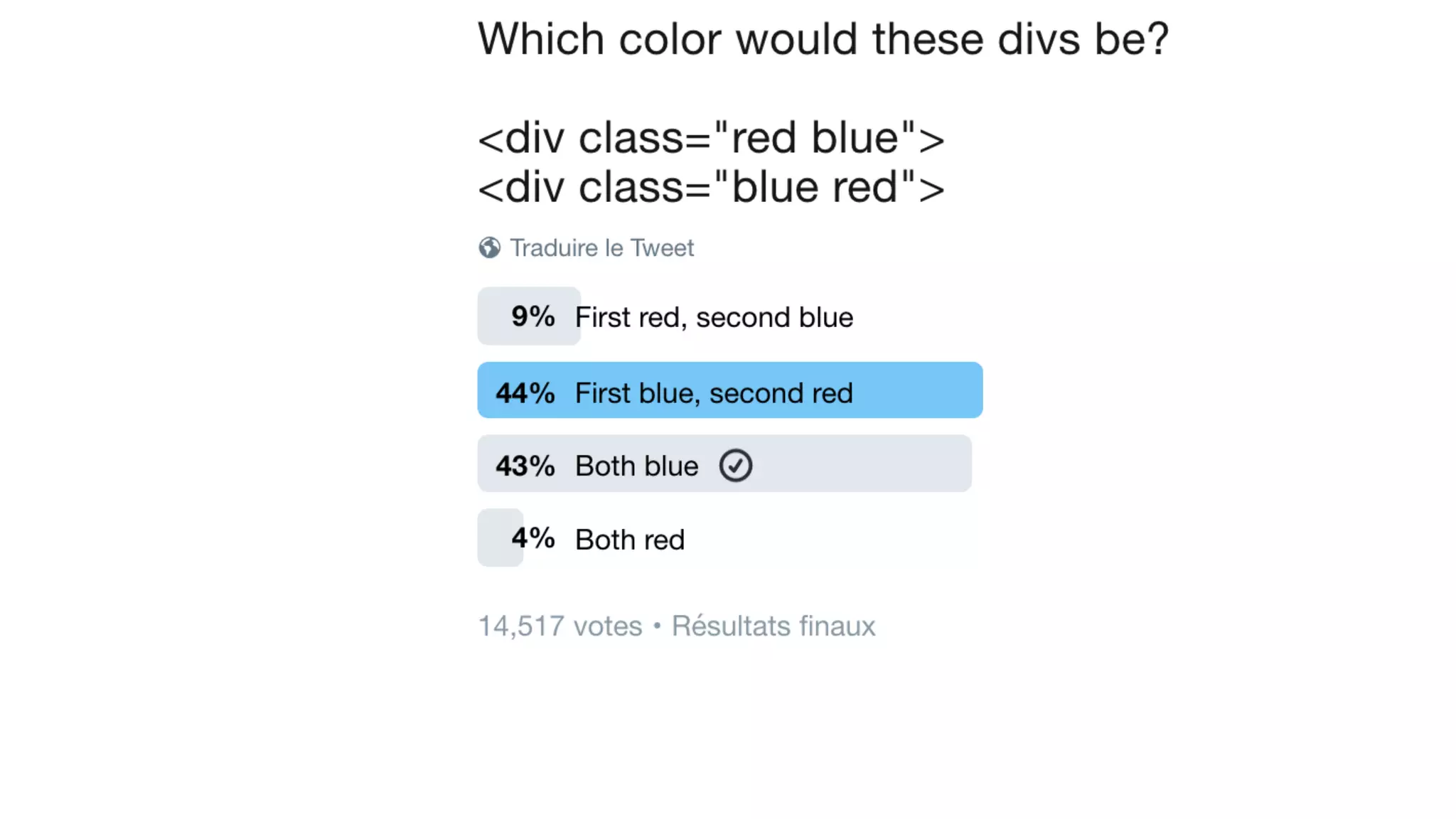

The basics of CSS are sometimes
misunderstood, and they are quickly
forgotten.
Yes, tell me why?
14.
15.
16. “Don’t forget that old CSS
still exists and is useful.
You don’t need to use something
fancy for every effect.”
— Rachel Andrew
Front-End Conference Zurich - 30, 31 Aug. 2018

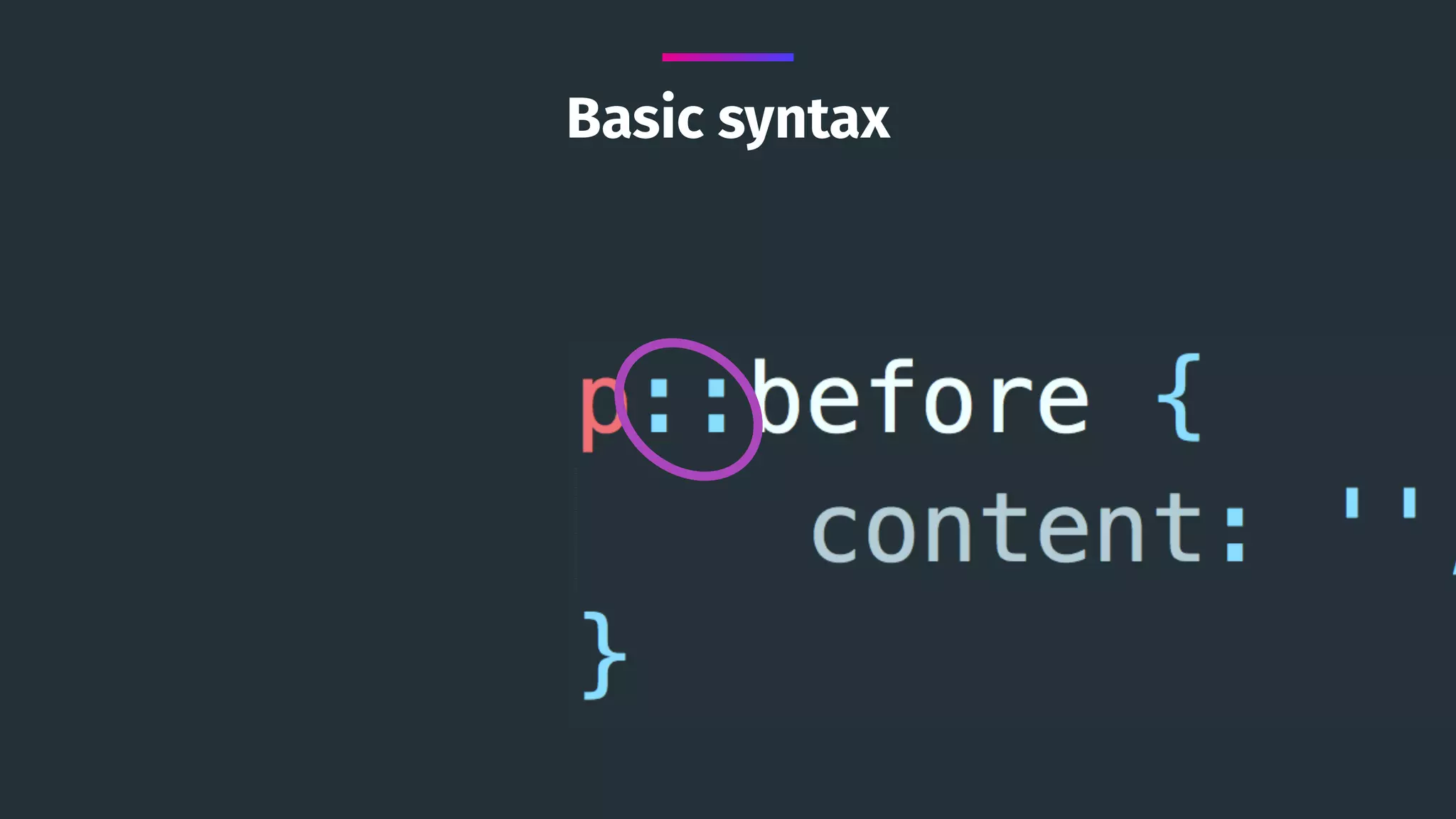

21. In CSS2.1 the first syntax of the pseudo-
element was using colon mark (“ : ”)
If you don’t need to support IE8, use (“ : : ”),
it’s a good way to mark the difference
between pseudo-class using : and pseudo-
element using : :
Modern browers support both syntax.
Good to know

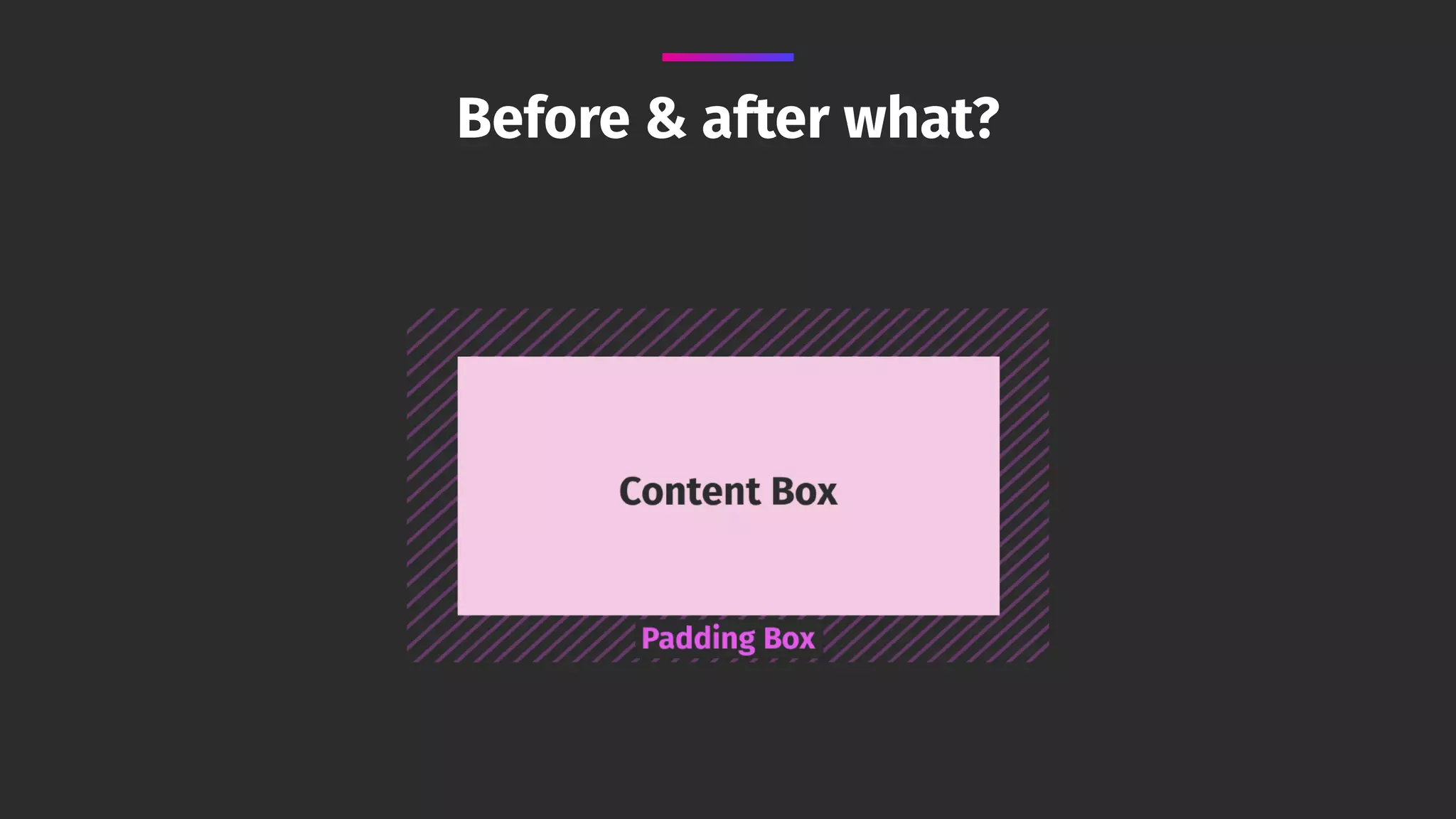

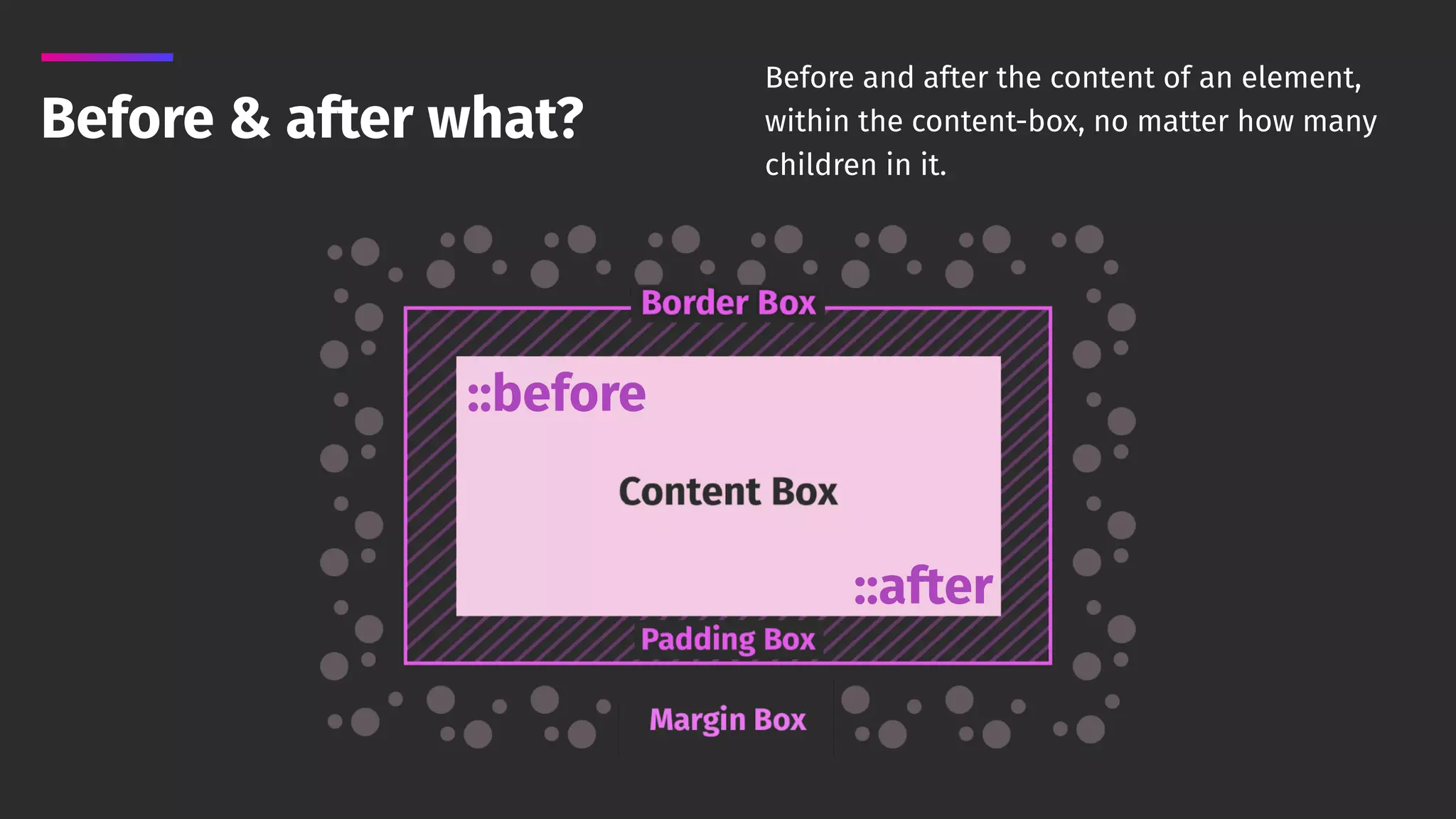

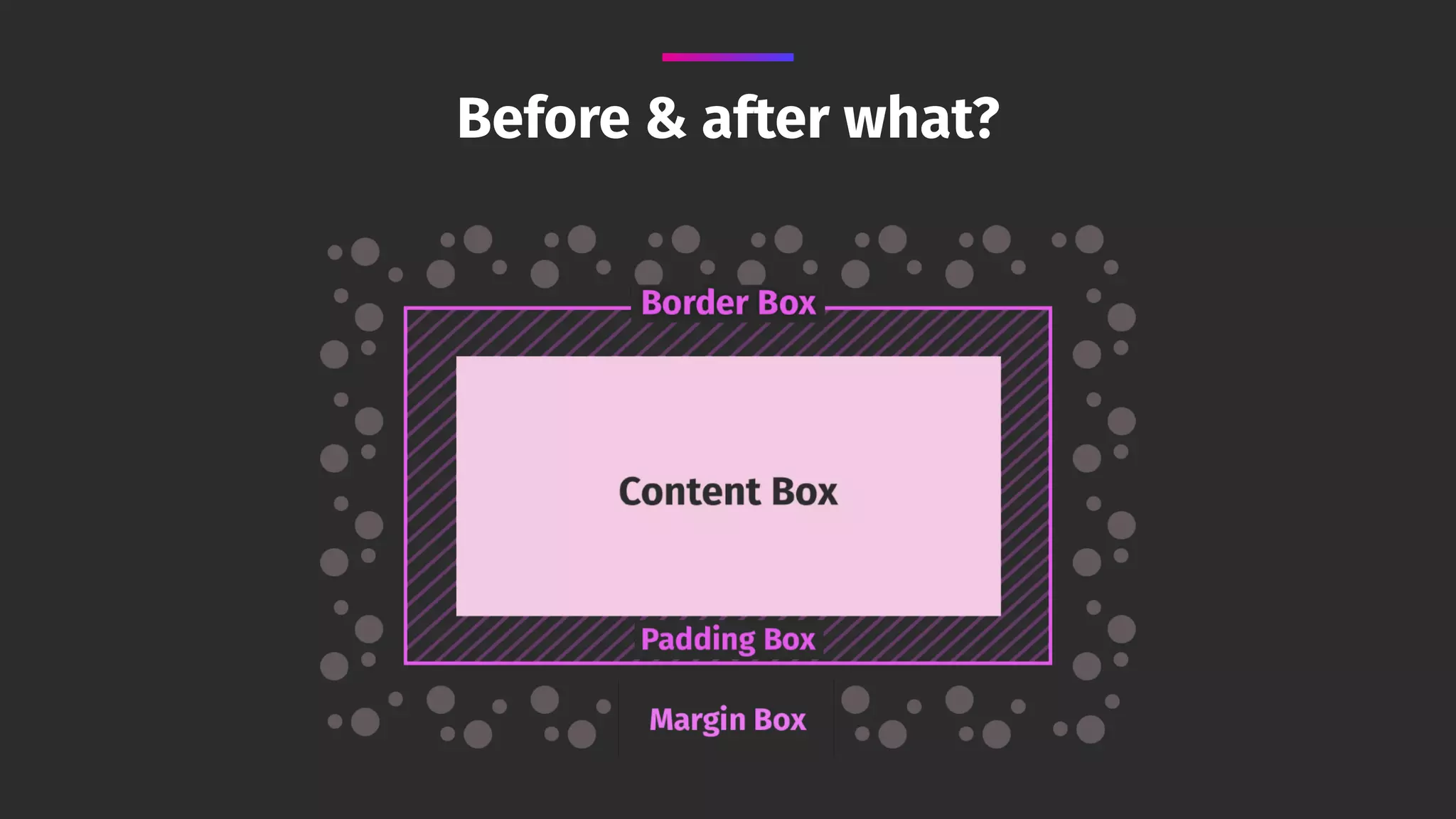

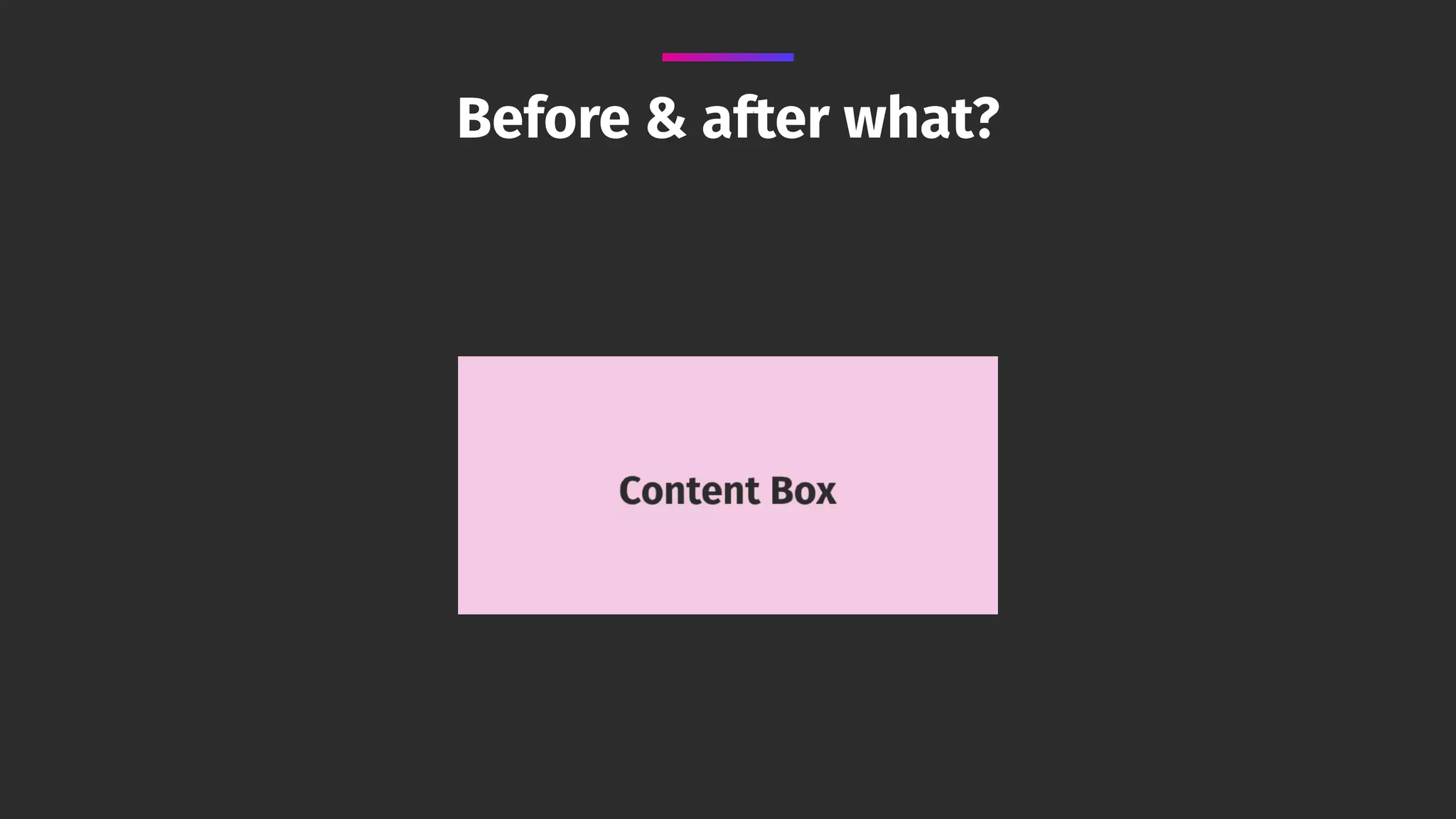

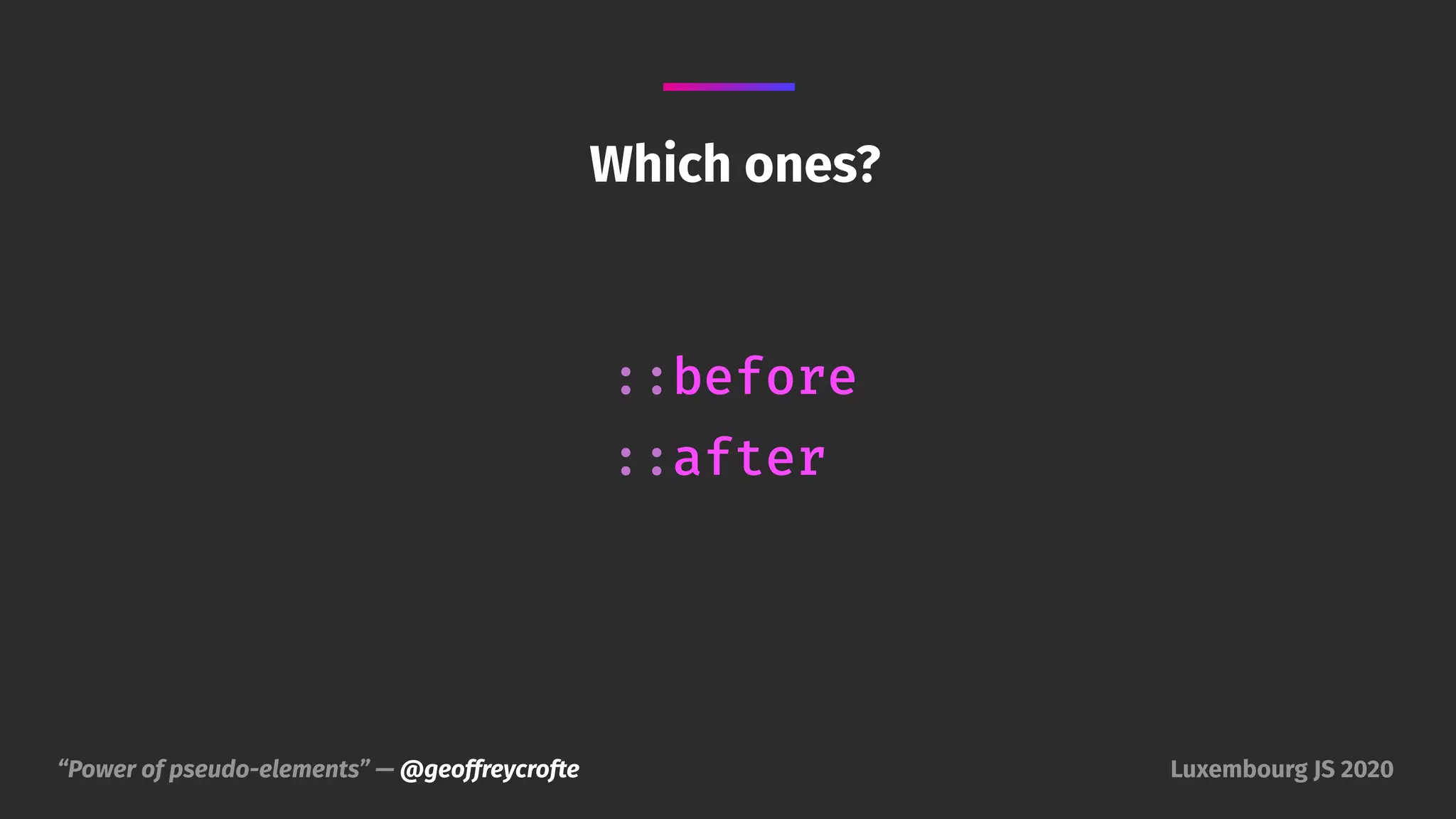

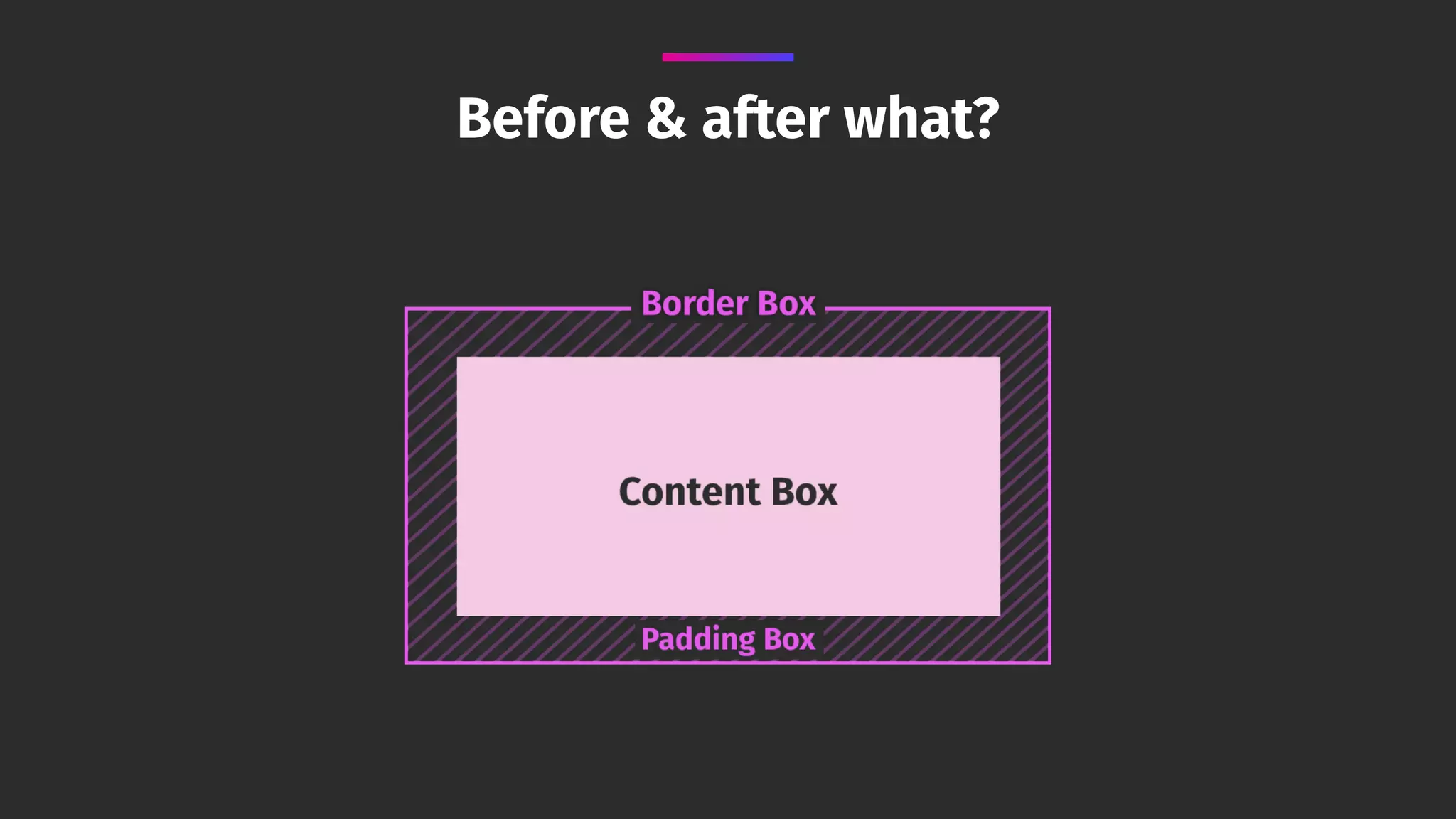

26. Before & after what?
::before
::after
Before and after the content of an element,
within the content-box, no matter how many
children in it.

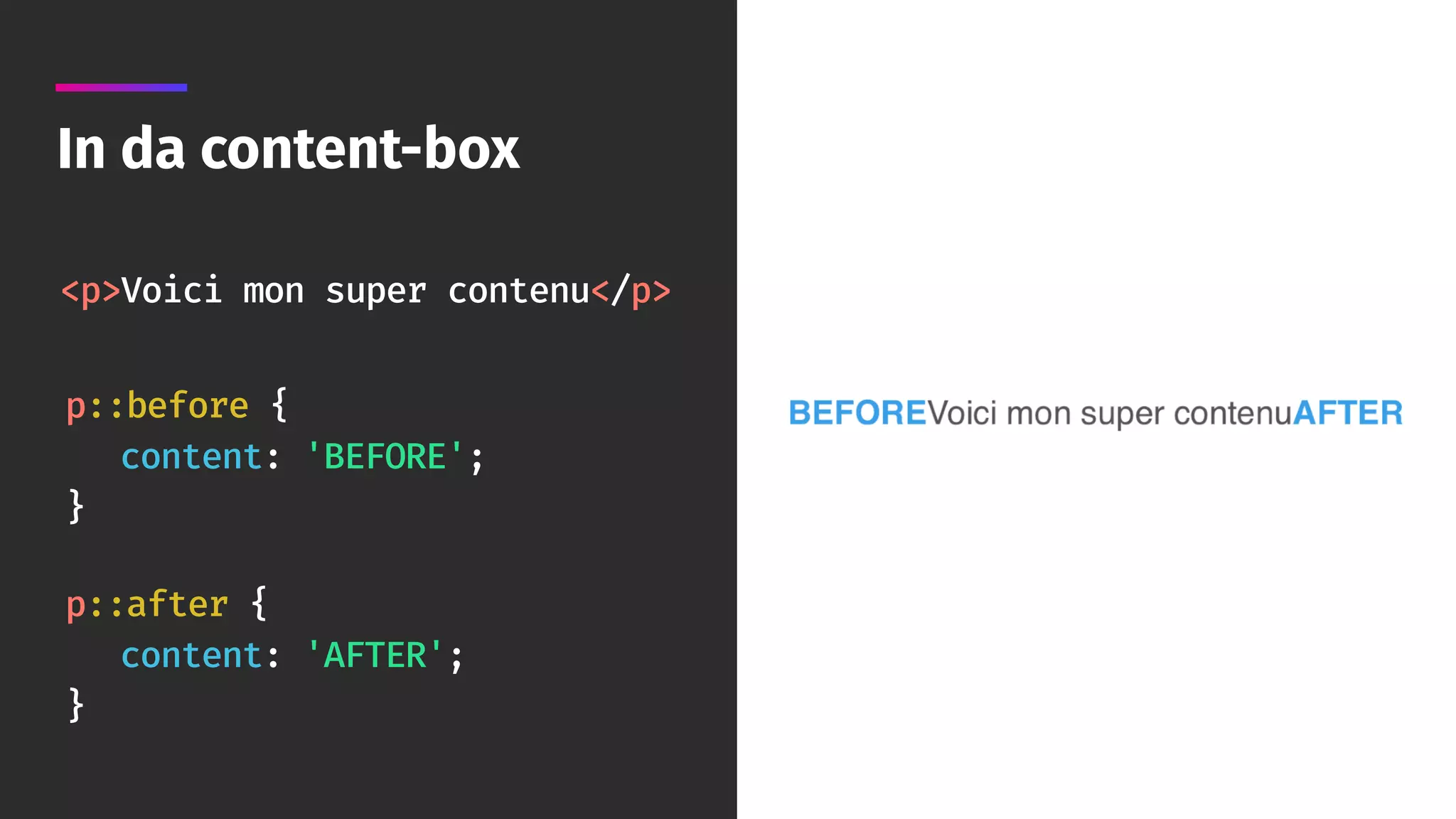

27. In da content-box
<p>Voici mon super contenu</p>
p::before {
content: 'BEFORE';
}
p::after {
content: 'AFTER';
}
BEFORELorem ipsum dolor sitAFTER

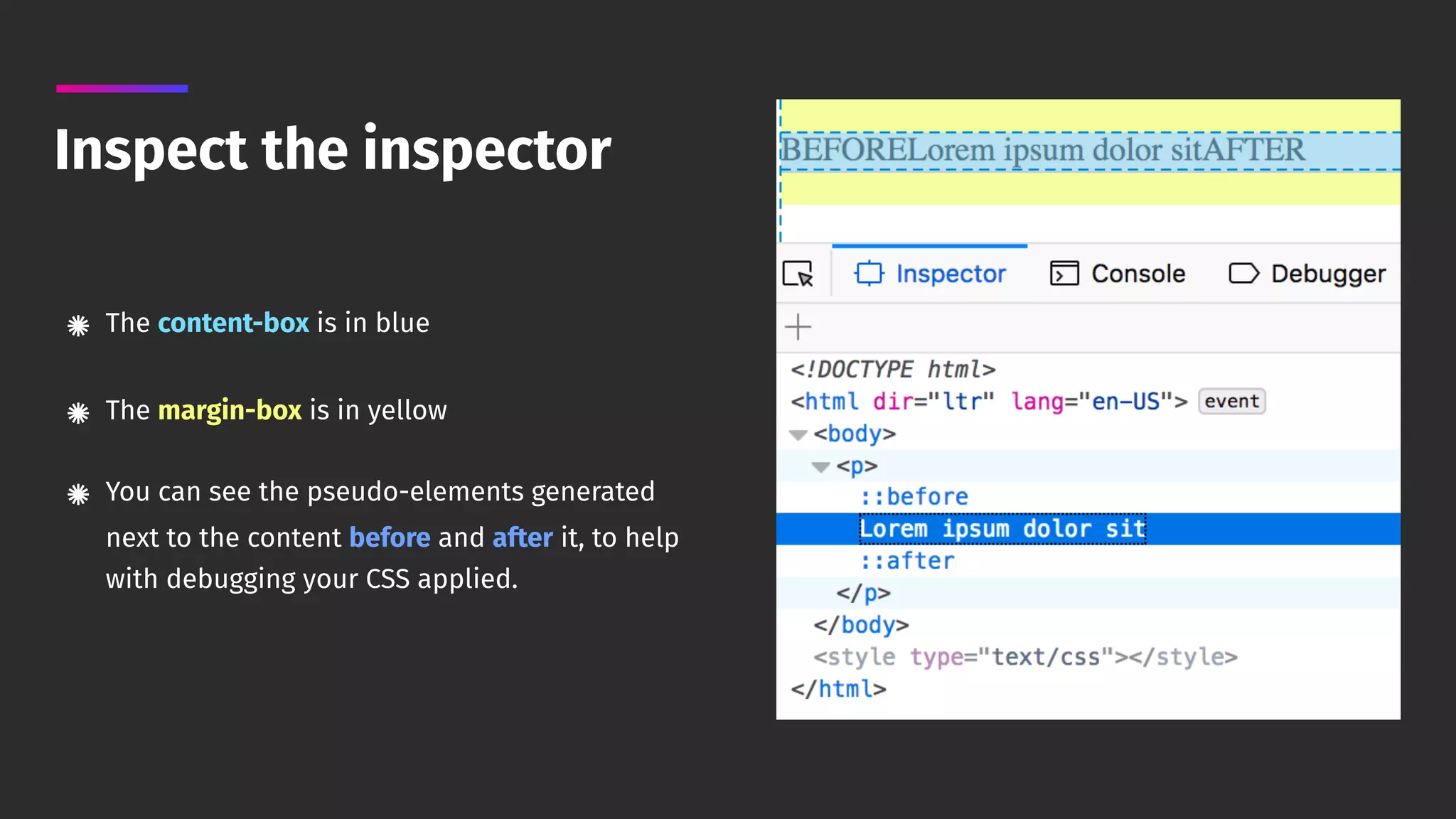

28. Inspect the inspector
The content-box is in blue
The margin-box is in yellow
You can see the pseudo-elements generated
next to the content before and after it, to help
with debugging your CSS applied.

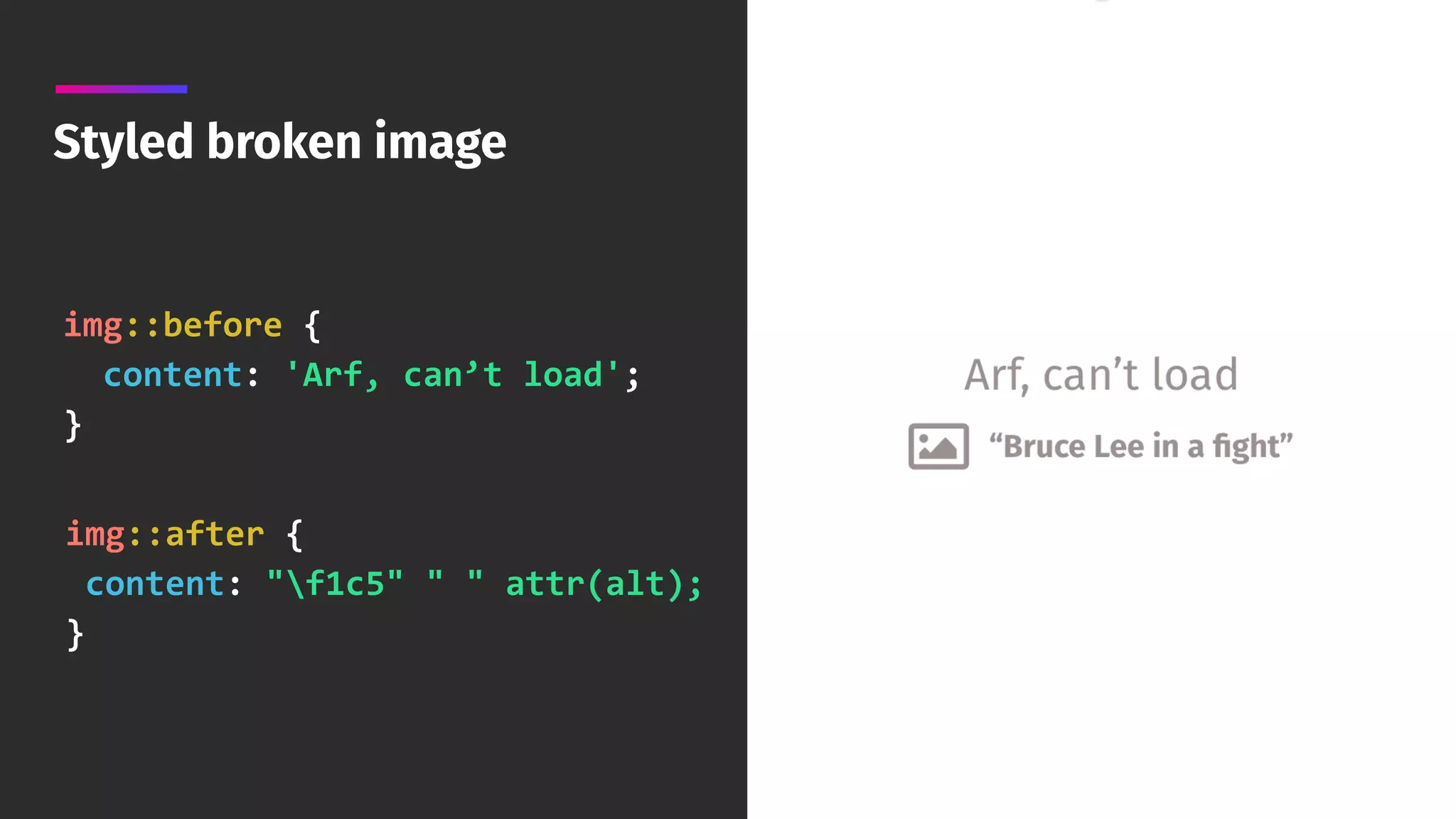

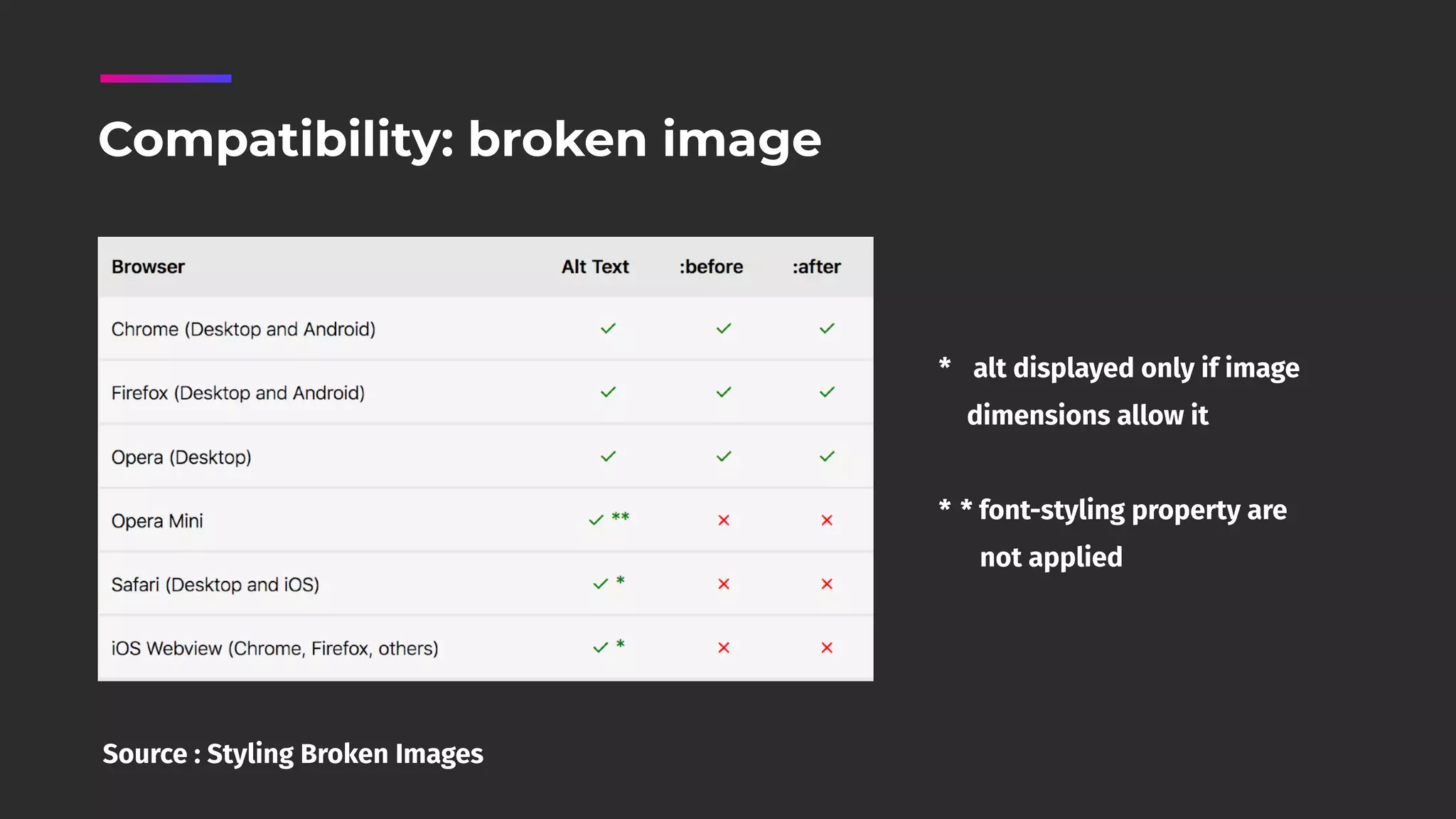

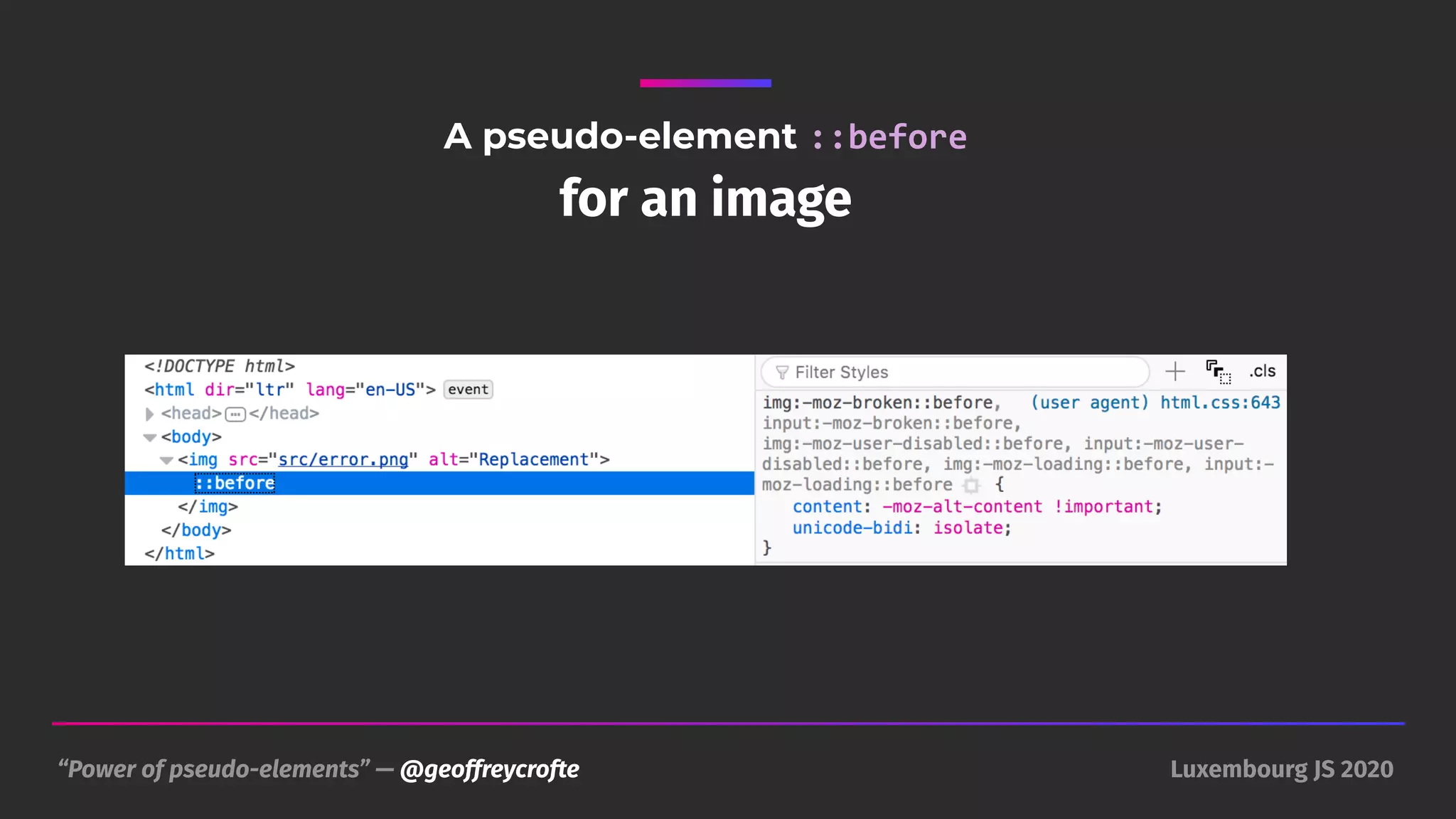

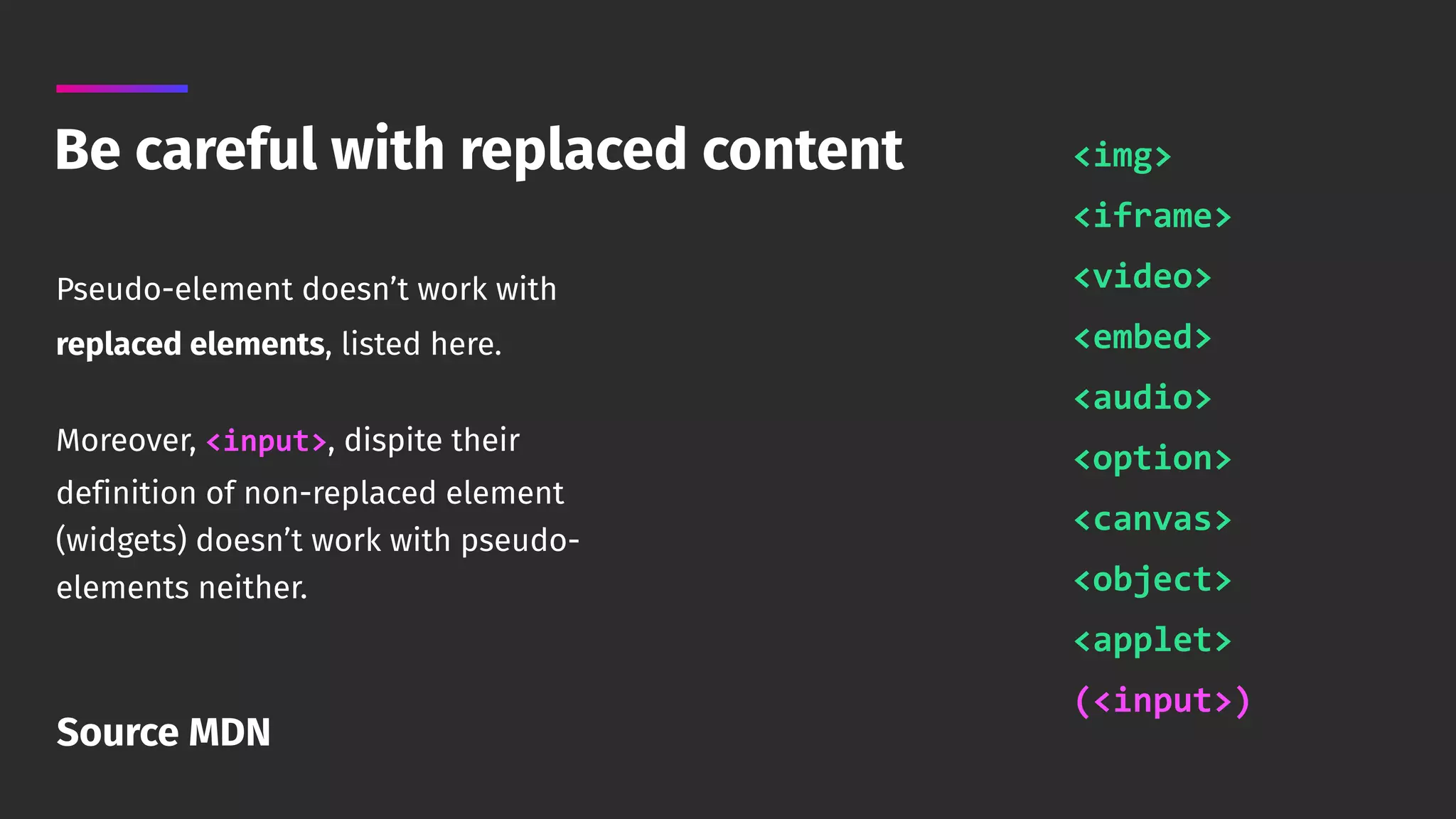

29. Be careful with replaced content
Pseudo-element doesn’t work with
replaced elements, listed here.
Moreover, <input>, dispite their
definition of non-replaced element
(widgets) doesn’t work with pseudo-
elements neither.
<img>
<iframe>
<video>
<embed>
<audio>
<option>
<canvas>
<object>
<applet>
(<input>)
Source MDN

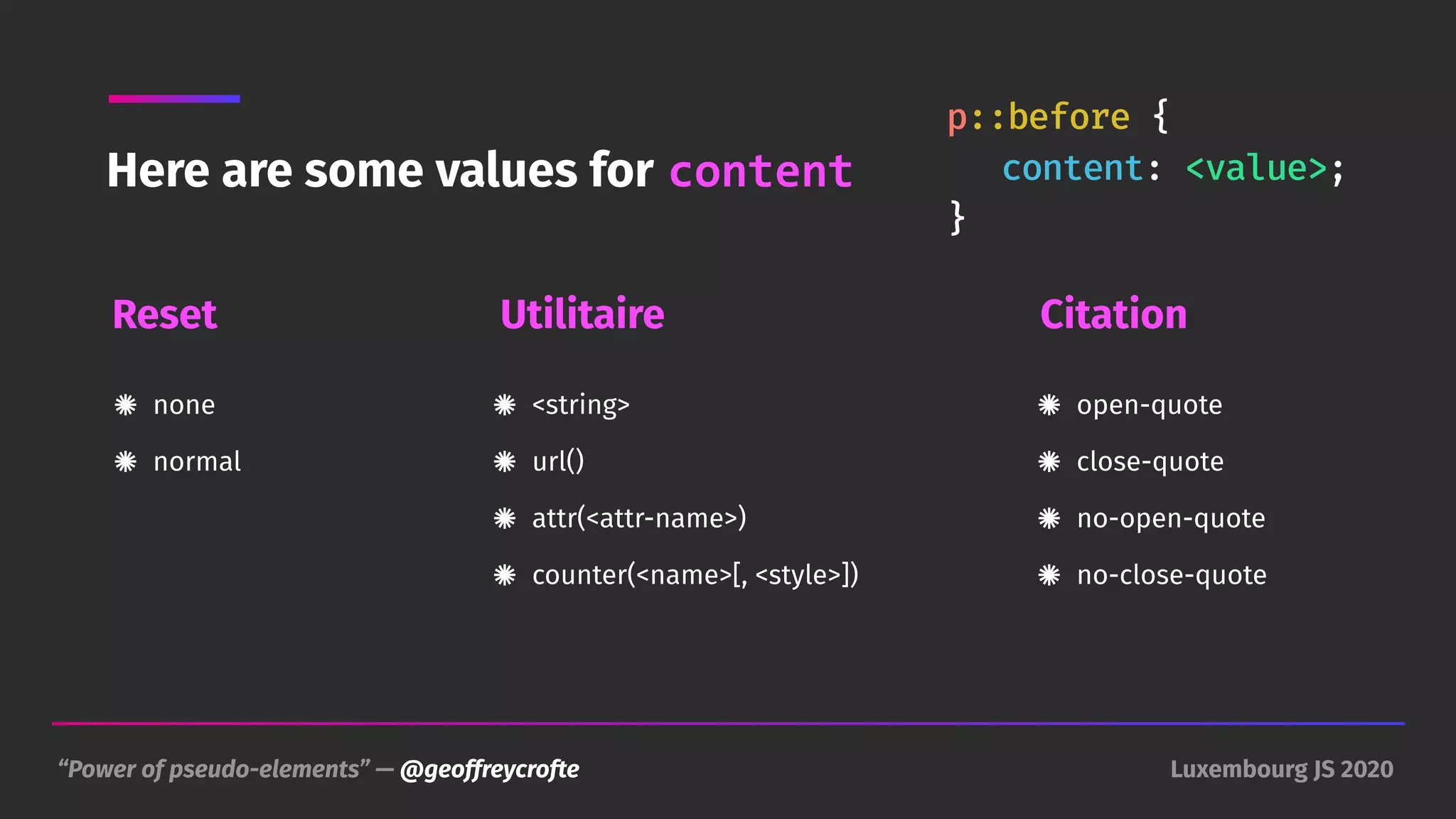

30. “Power of pseudo-elements” — @geoffreycrofte Luxembourg JS 2020

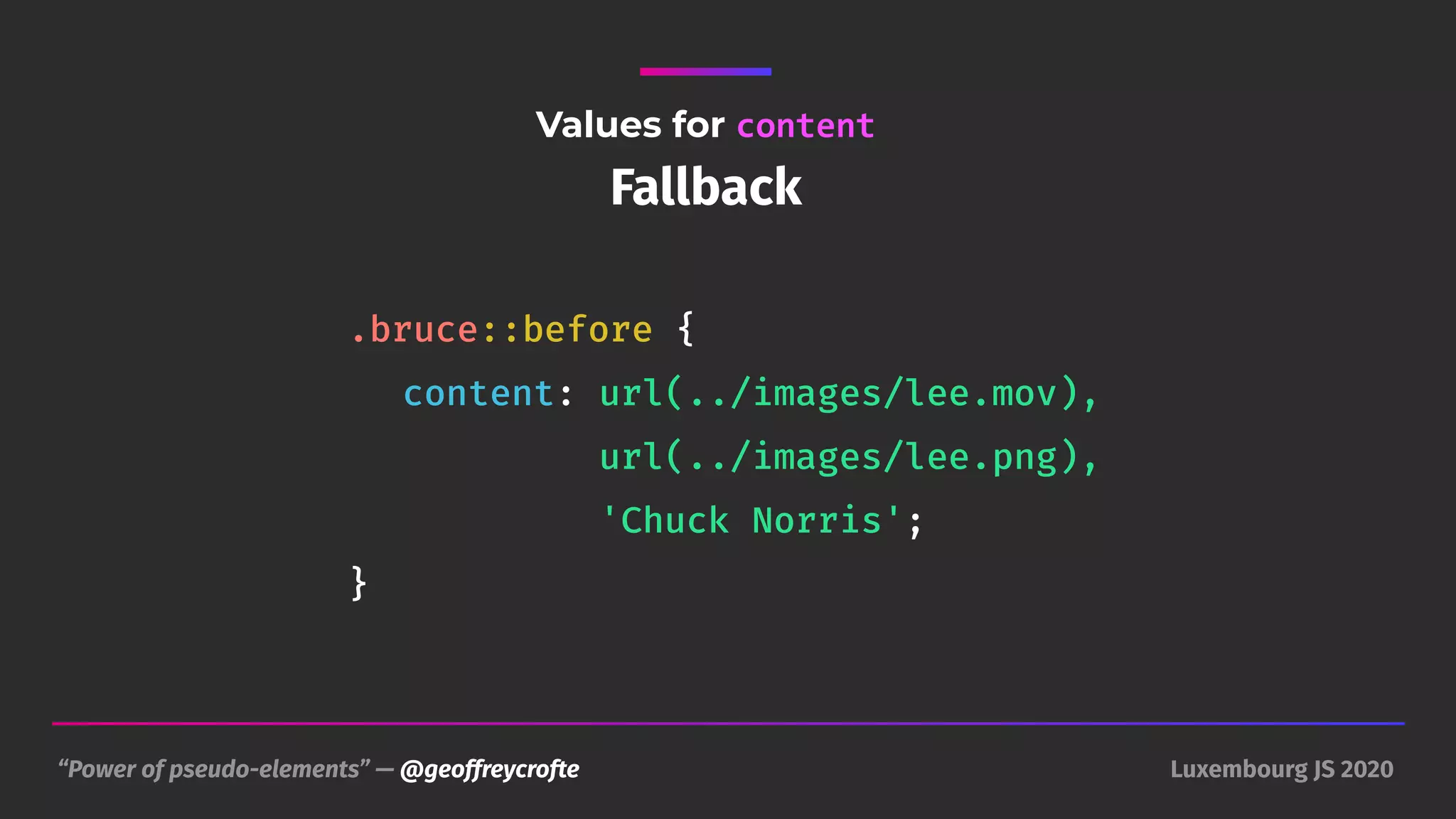

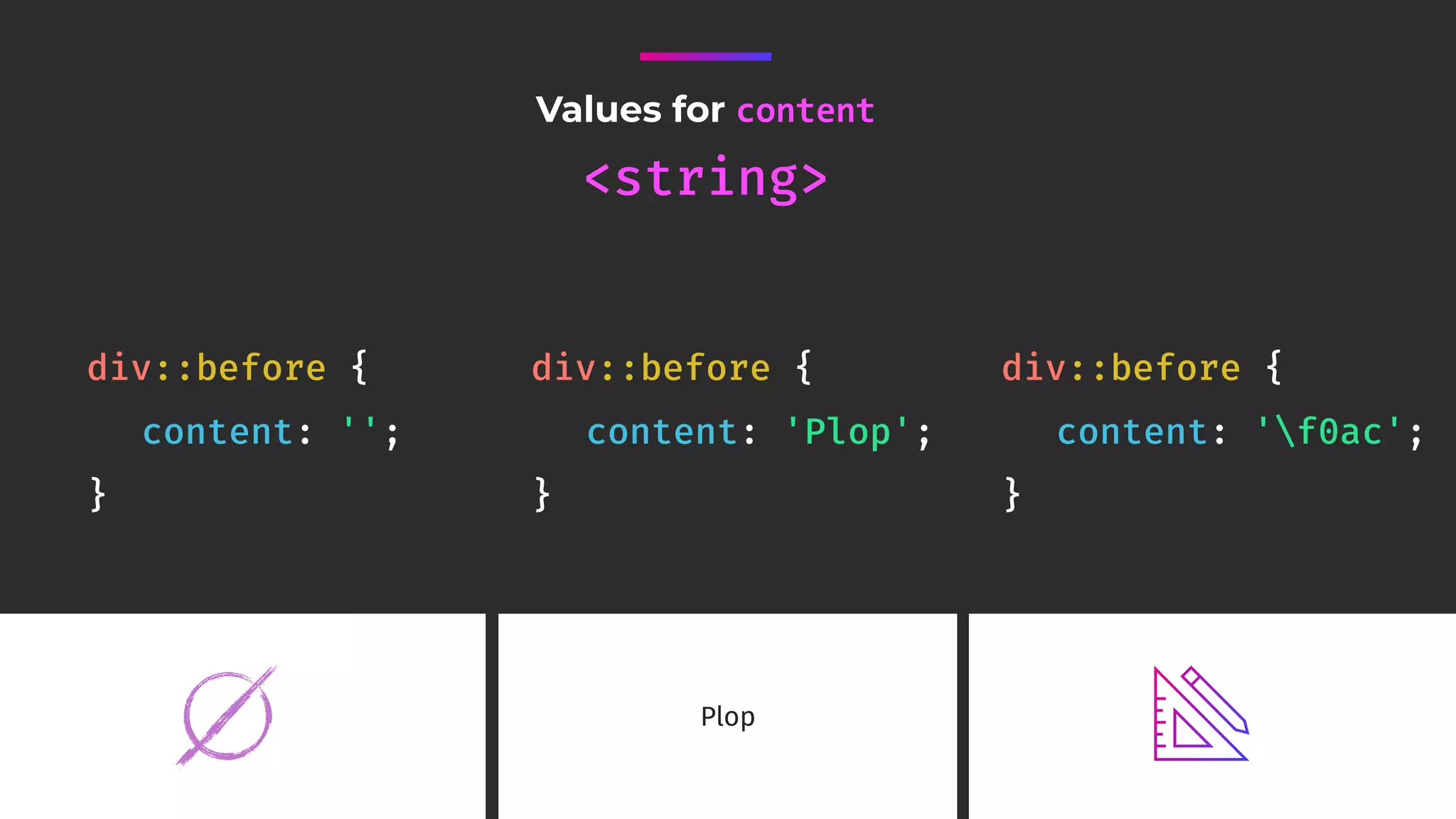

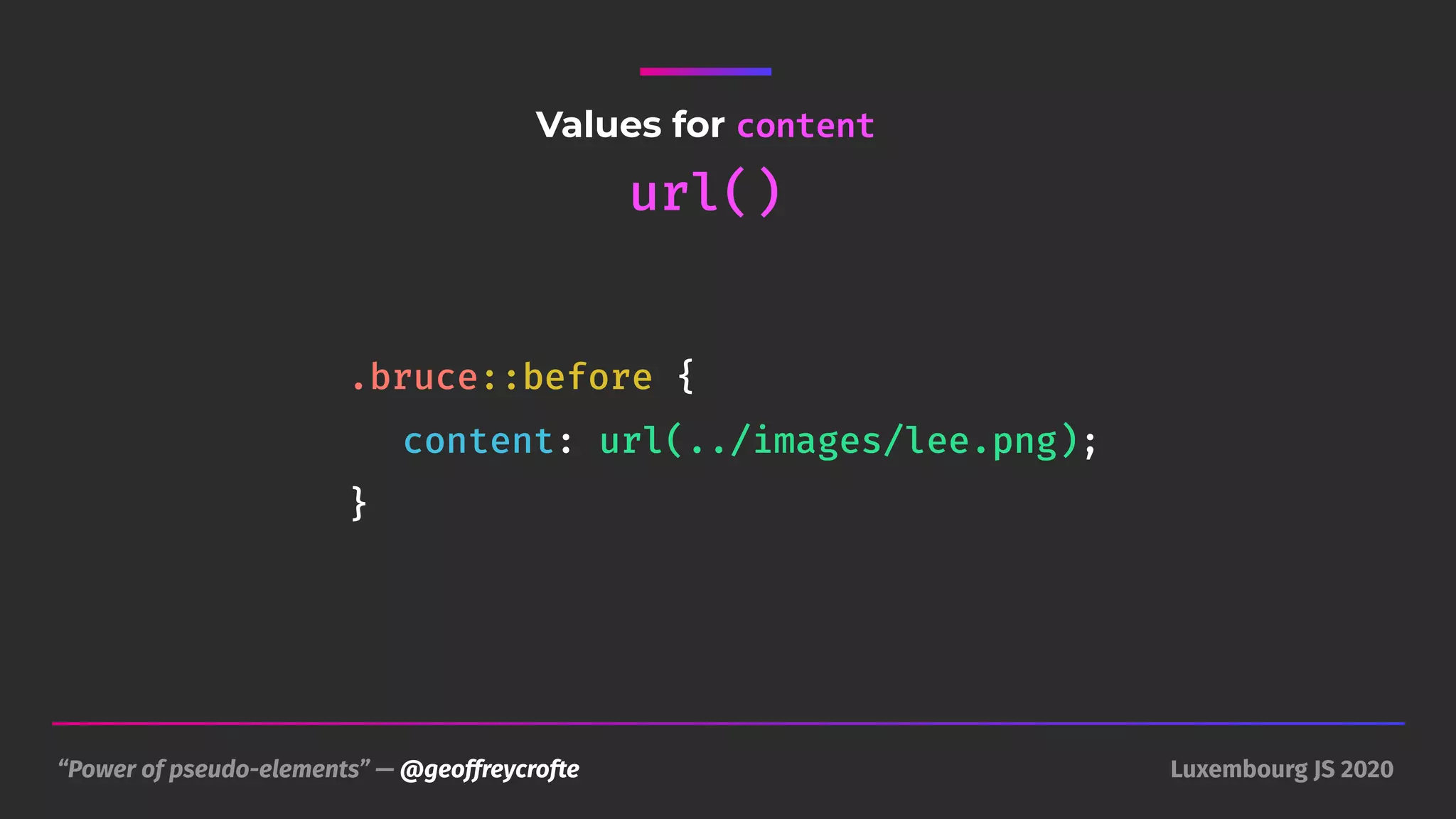

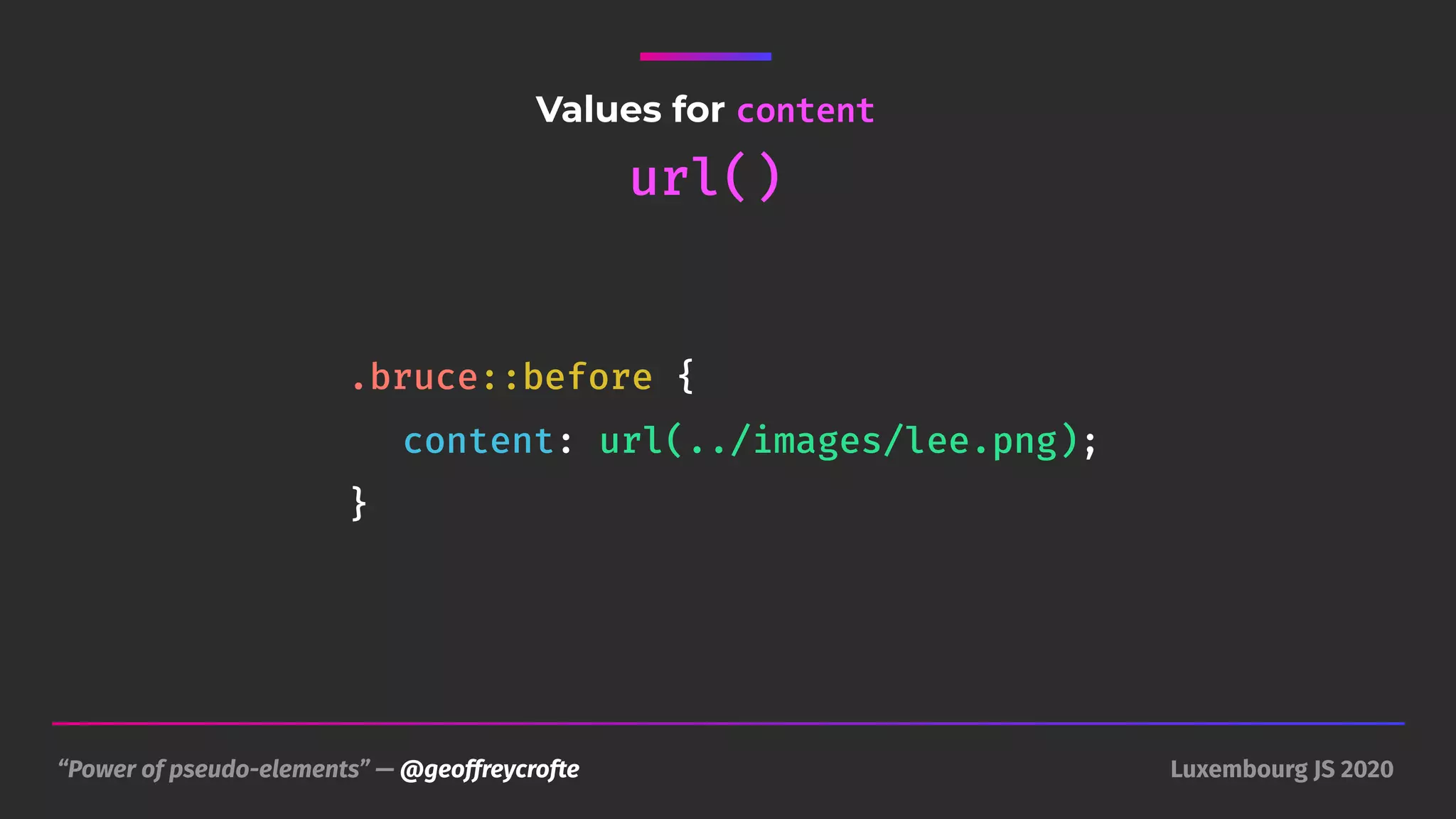

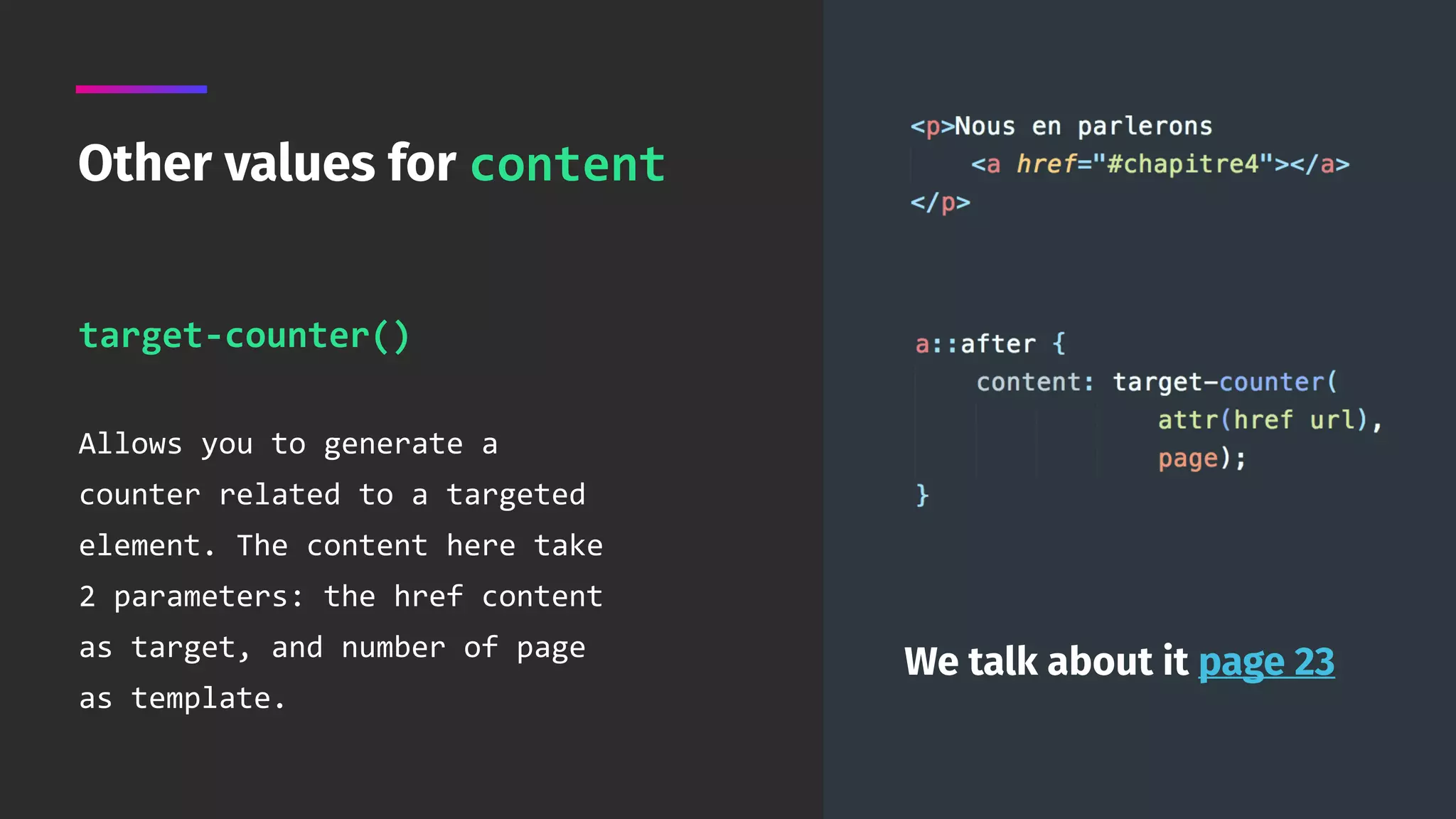

Here are some values for content
none
normal
Reset
<string>

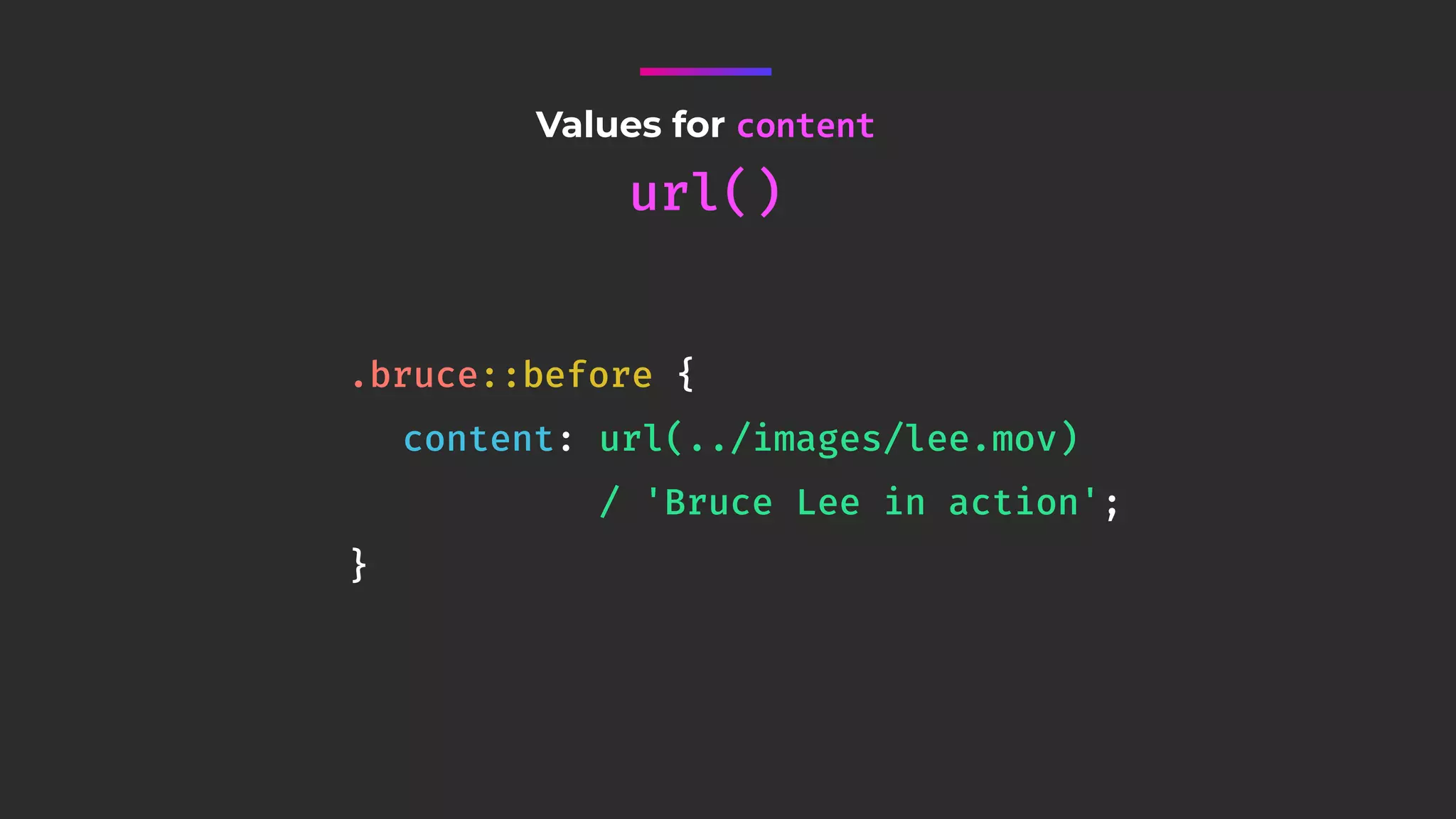

url()

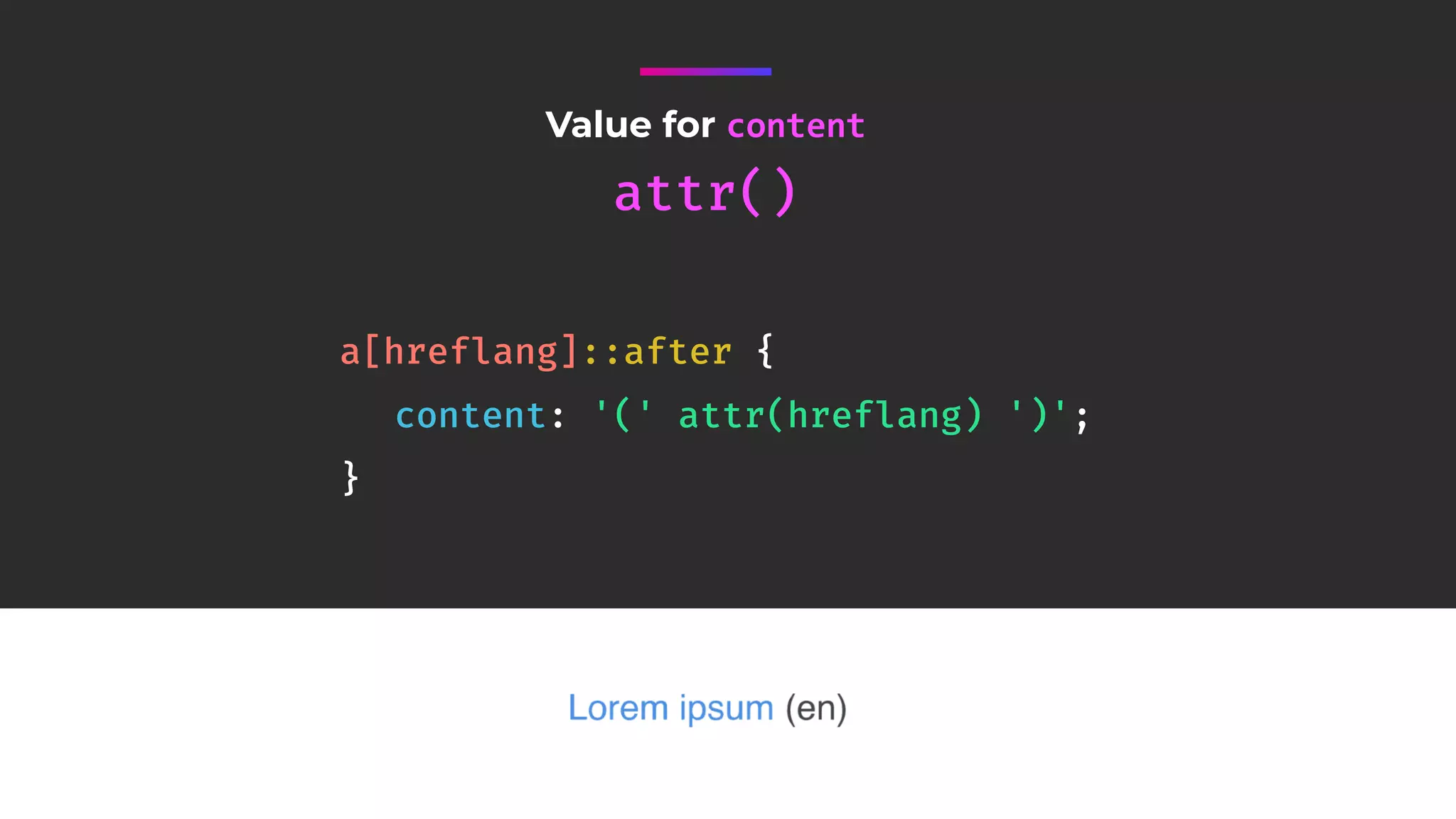

attr(<attr-name>)

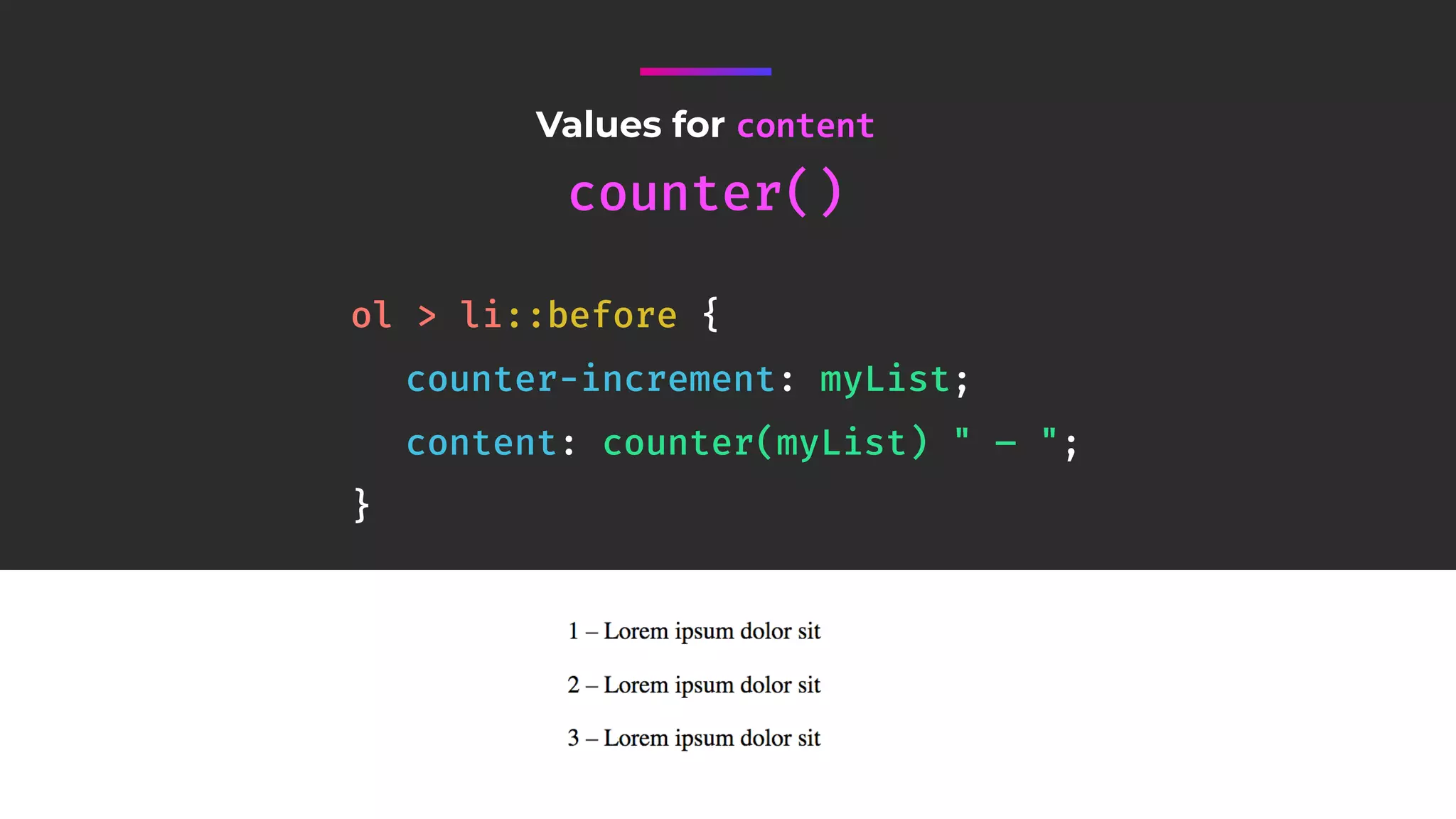

counter(<name>[, <style>])
Utilitaire
open-quote
close-quote
no-open-quote
no-close-quote
Citation

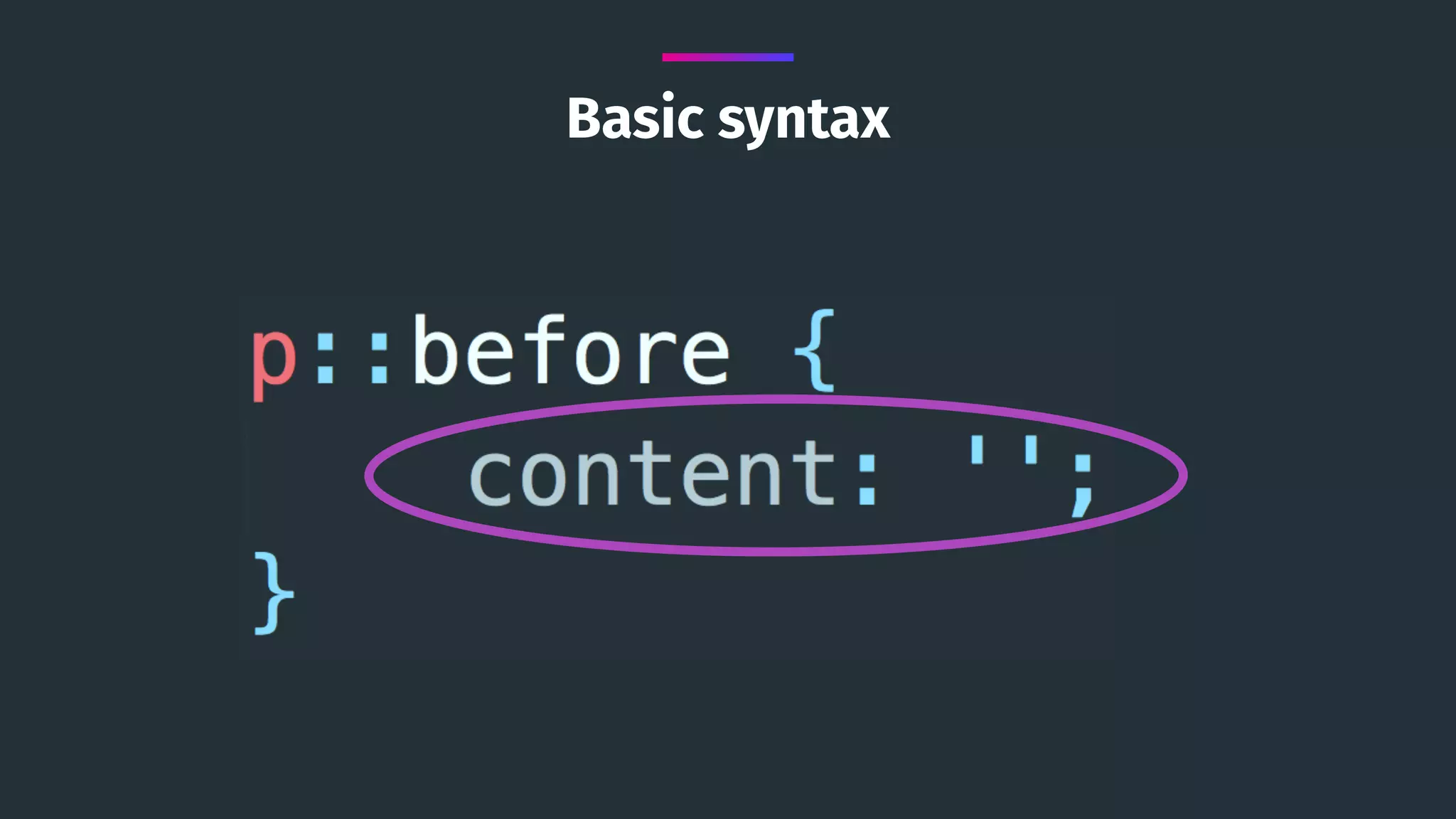

p::before {
content: <value>;
}

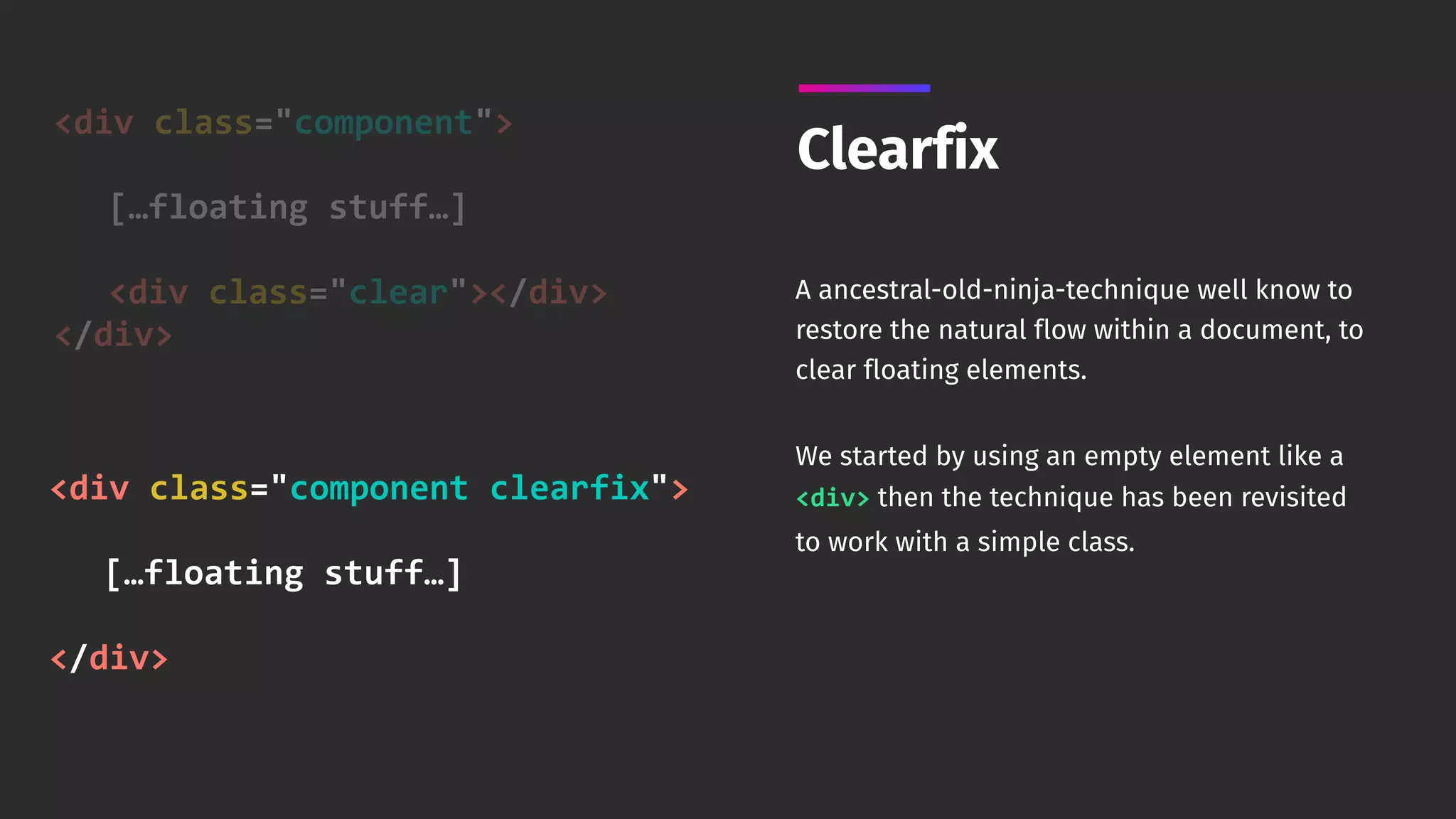

40. <div class="component">
[…floating stuff…]
<div class="clear"></div>
</div>
Clearfix
A ancestral-old-ninja-technique well know to
restore the natural flow within a document, to
clear floating elements.
We started by using an empty element like a
<div> then the technique has been revisited
to work with a simple class.
<div class="component clearfix">
[…floating stuff…]
</div>

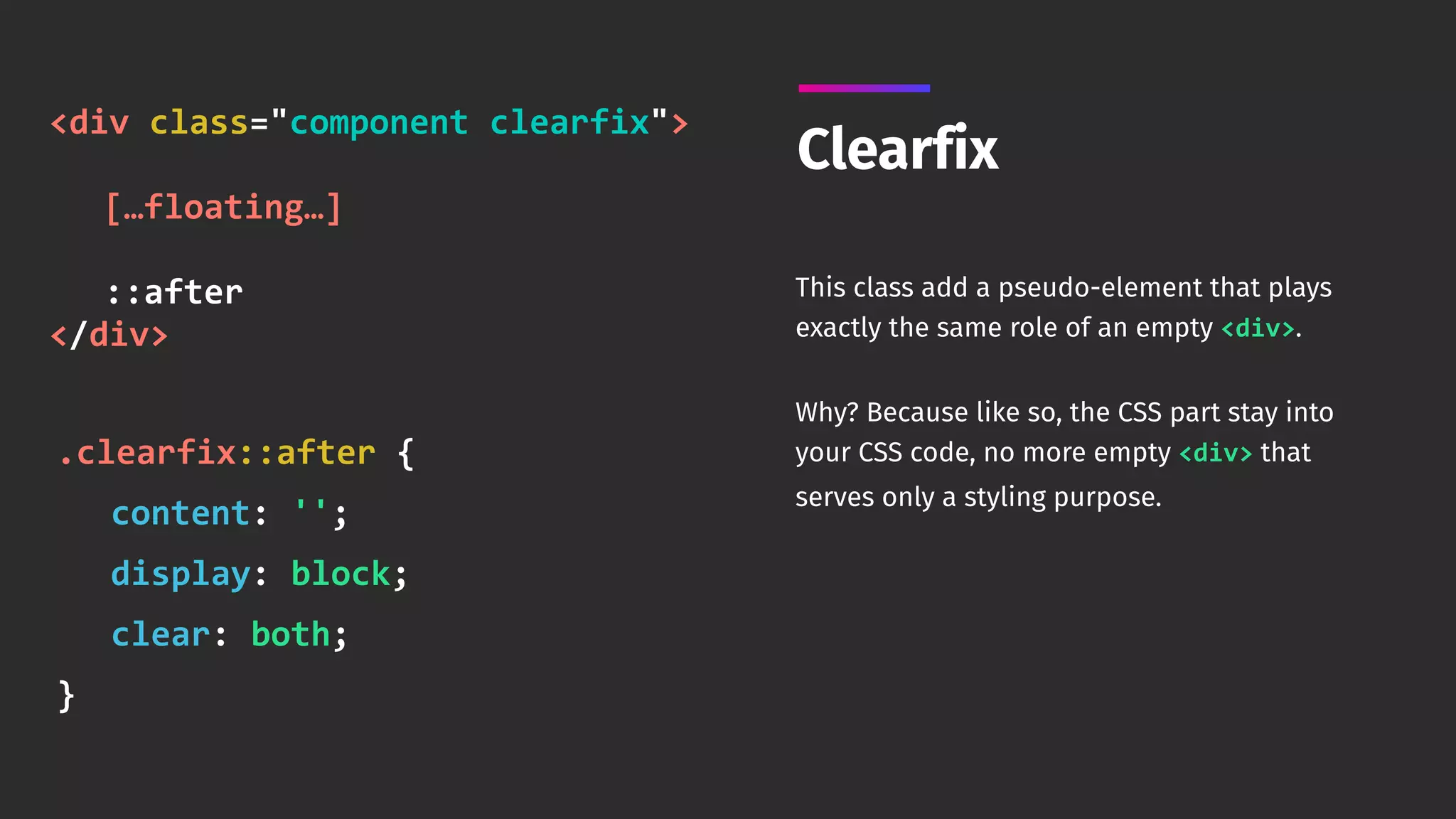

41. Clearfix
This class add a pseudo-element that plays
exactly the same role of an empty <div>.
Why? Because like so, the CSS part stay into
your CSS code, no more empty <div> that
serves only a styling purpose.
<div class="component clearfix">
[…floating…]
::after
</div>
.clearfix::after {
content: '';
display: block;
clear: both;
}

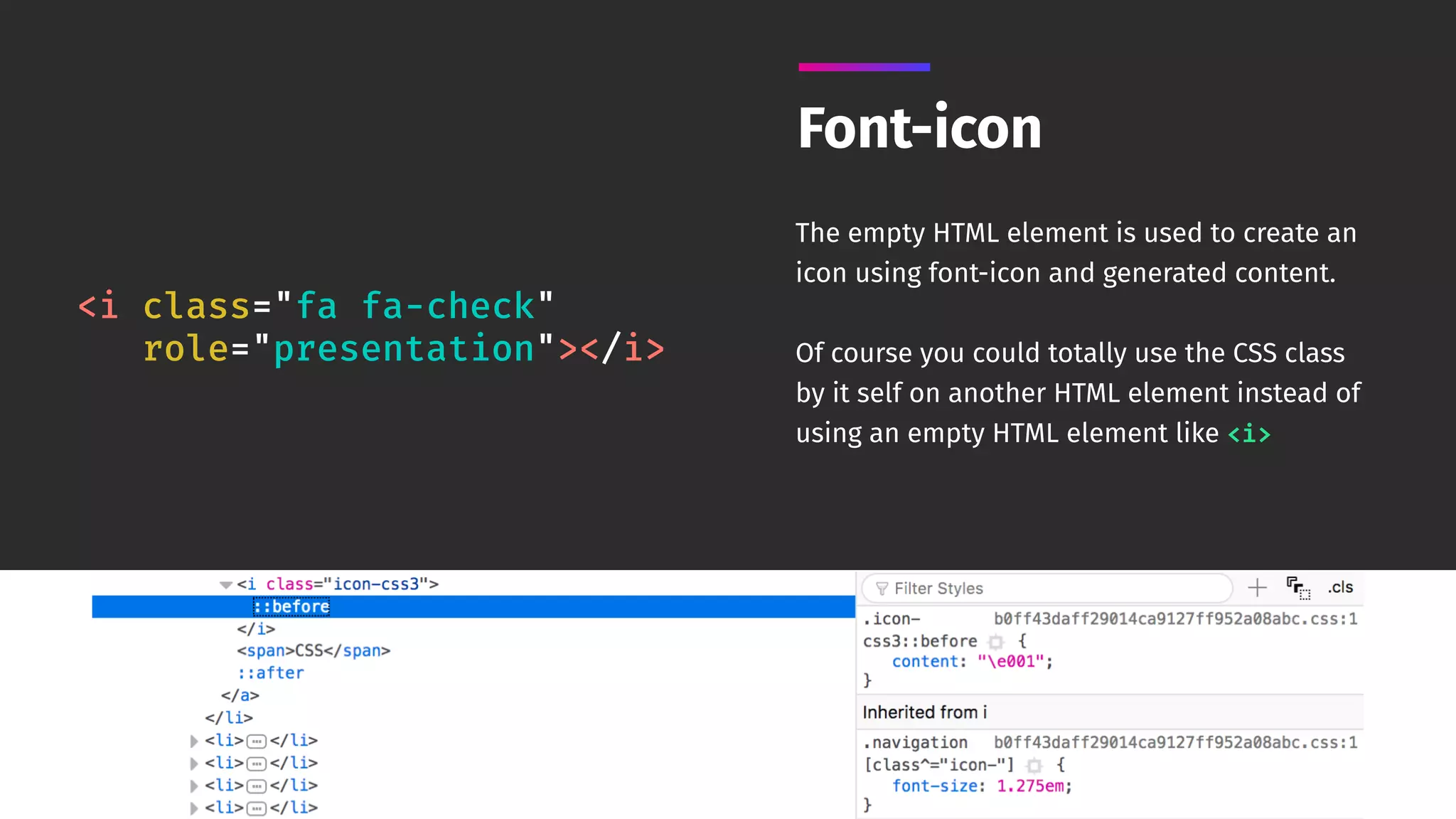

42. Font-icon
The empty HTML element is used to create an
icon using font-icon and generated content.
Of course you could totally use the CSS class
by it self on another HTML element instead of
using an empty HTML element like <i>
<i class="fa fa-check"
role="presentation"></i>

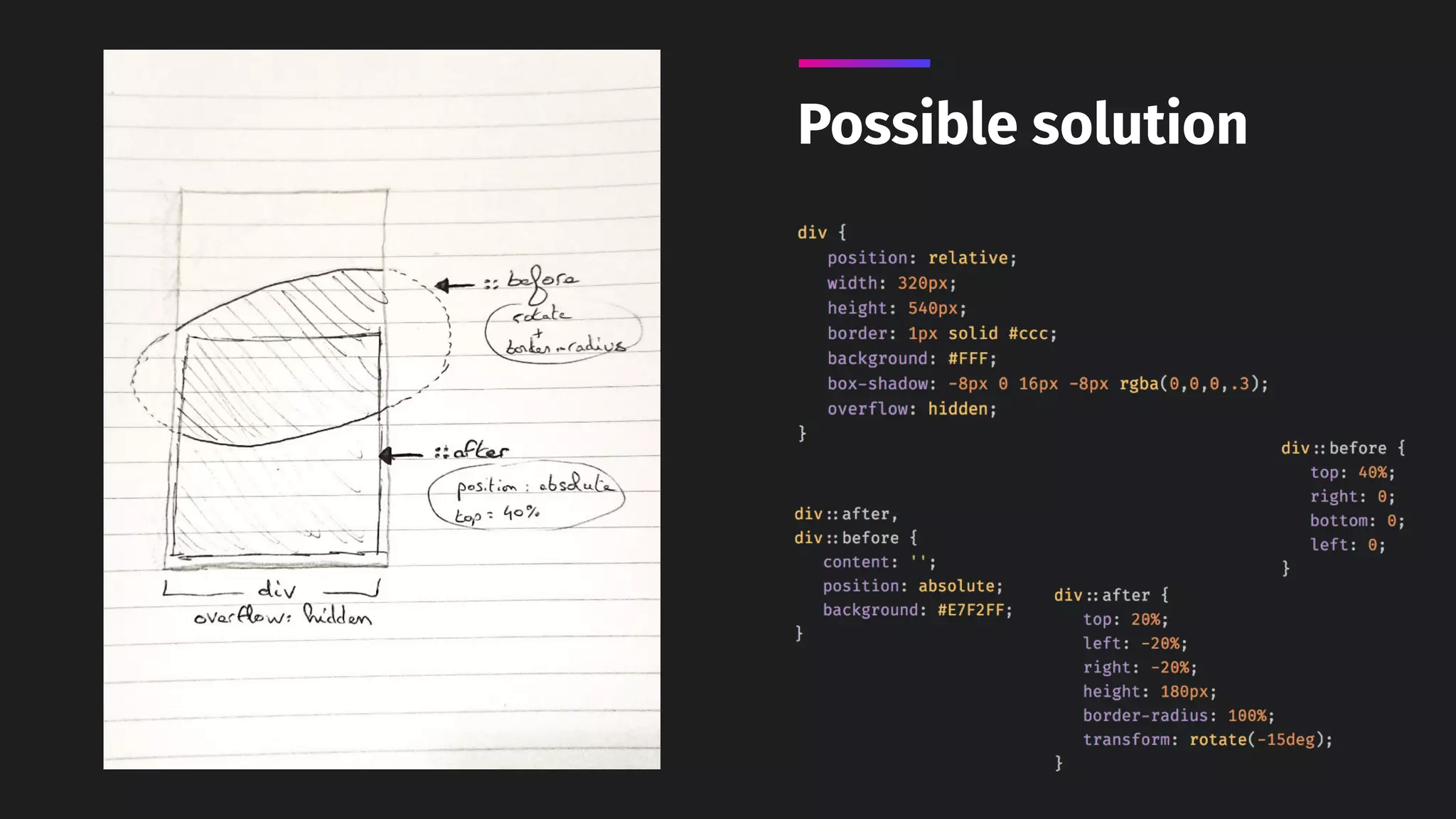

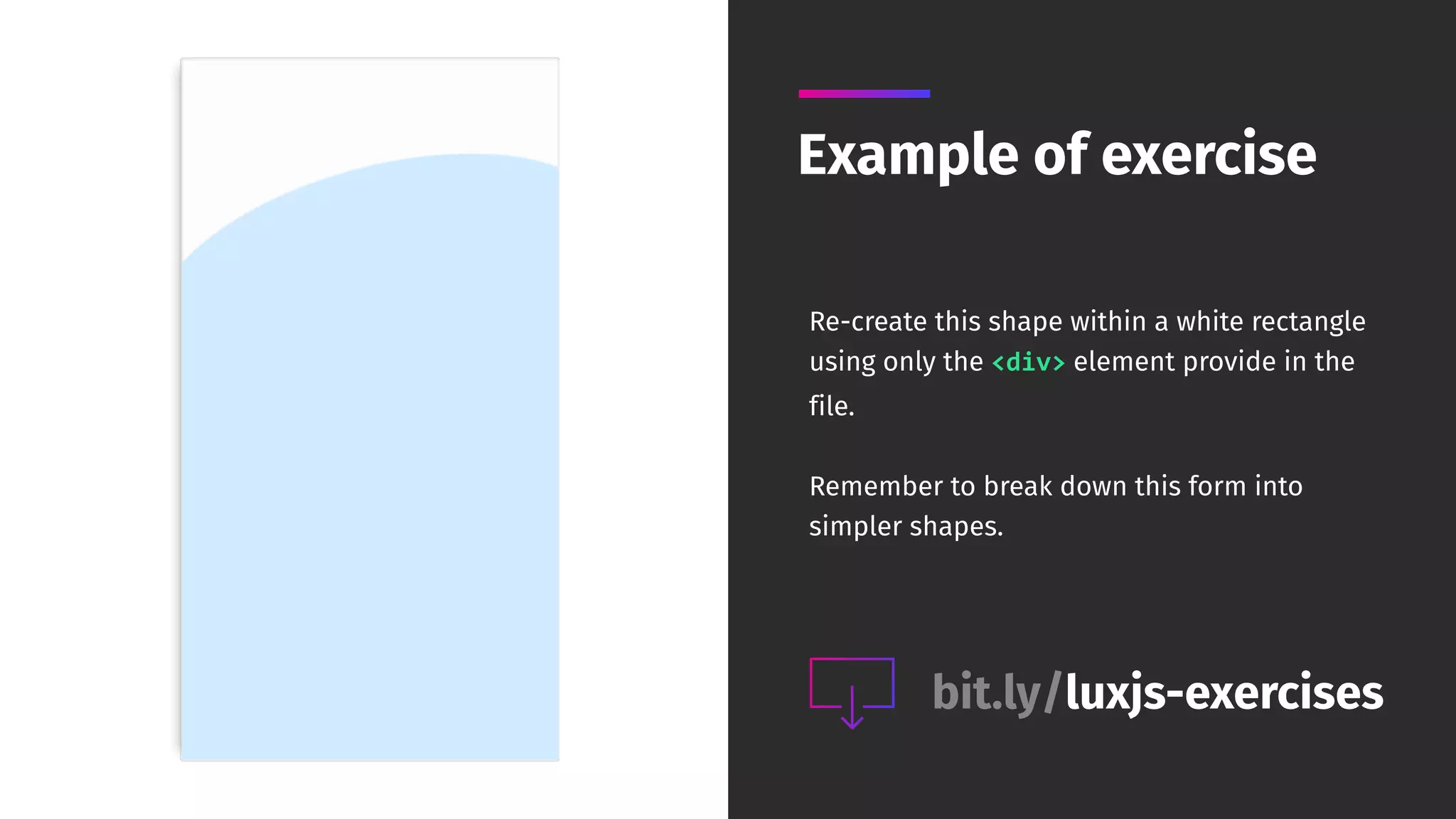

44. Example of exercise
Re-create this shape within a white rectangle
using only the <div> element provide in the
file.
Remember to break down this form into
simpler shapes.
bit.ly/luxjs-exercises

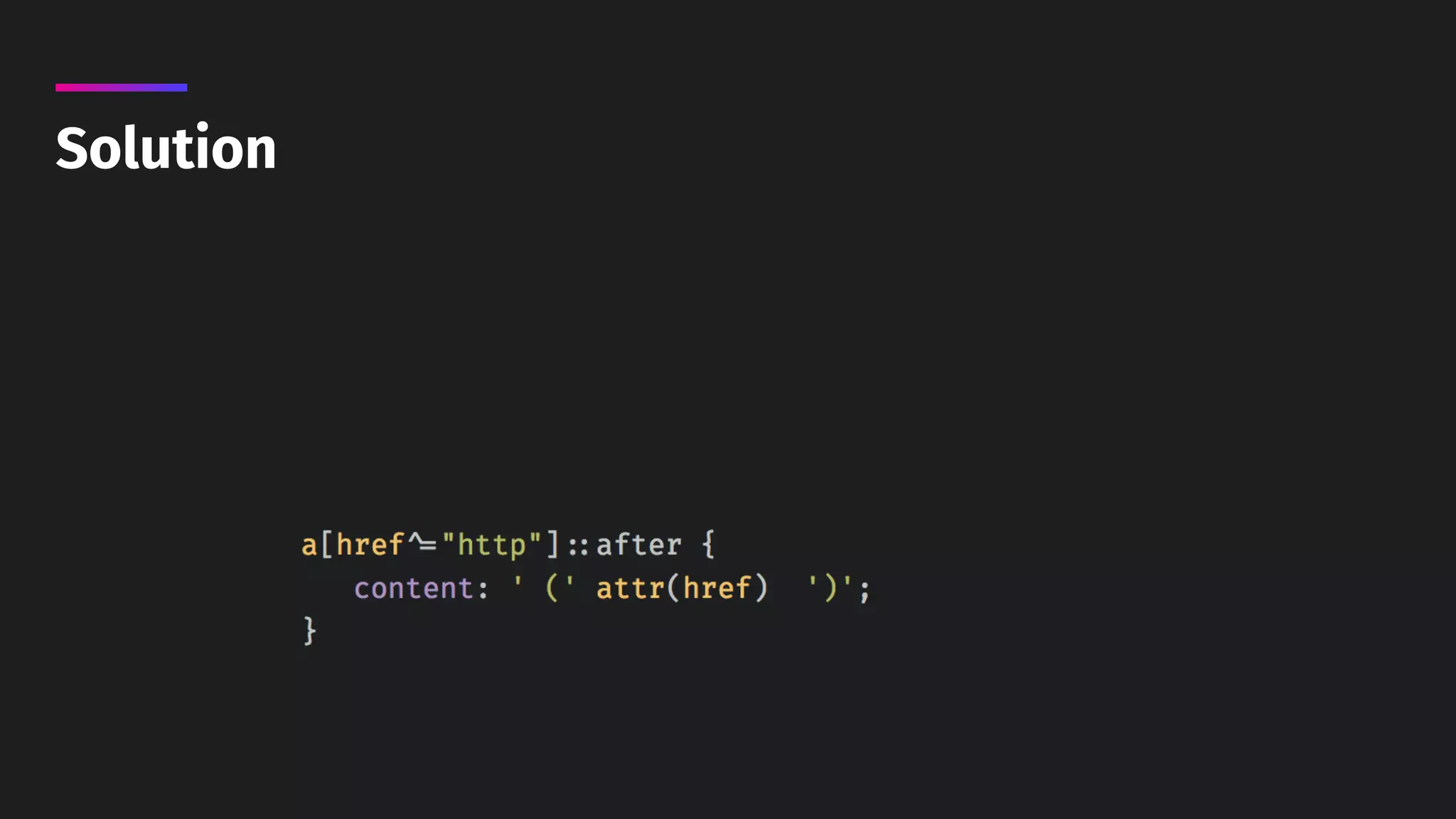

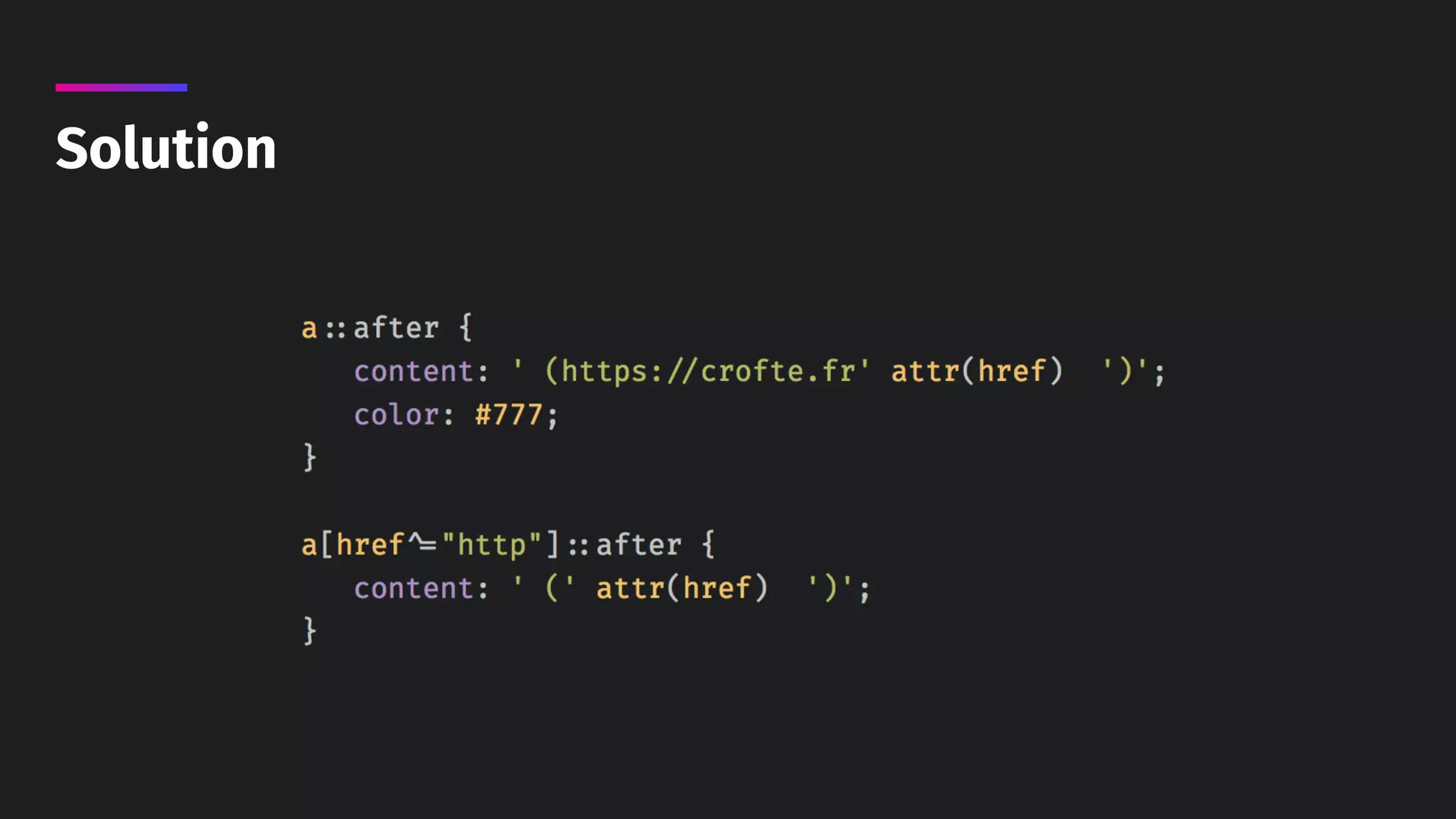

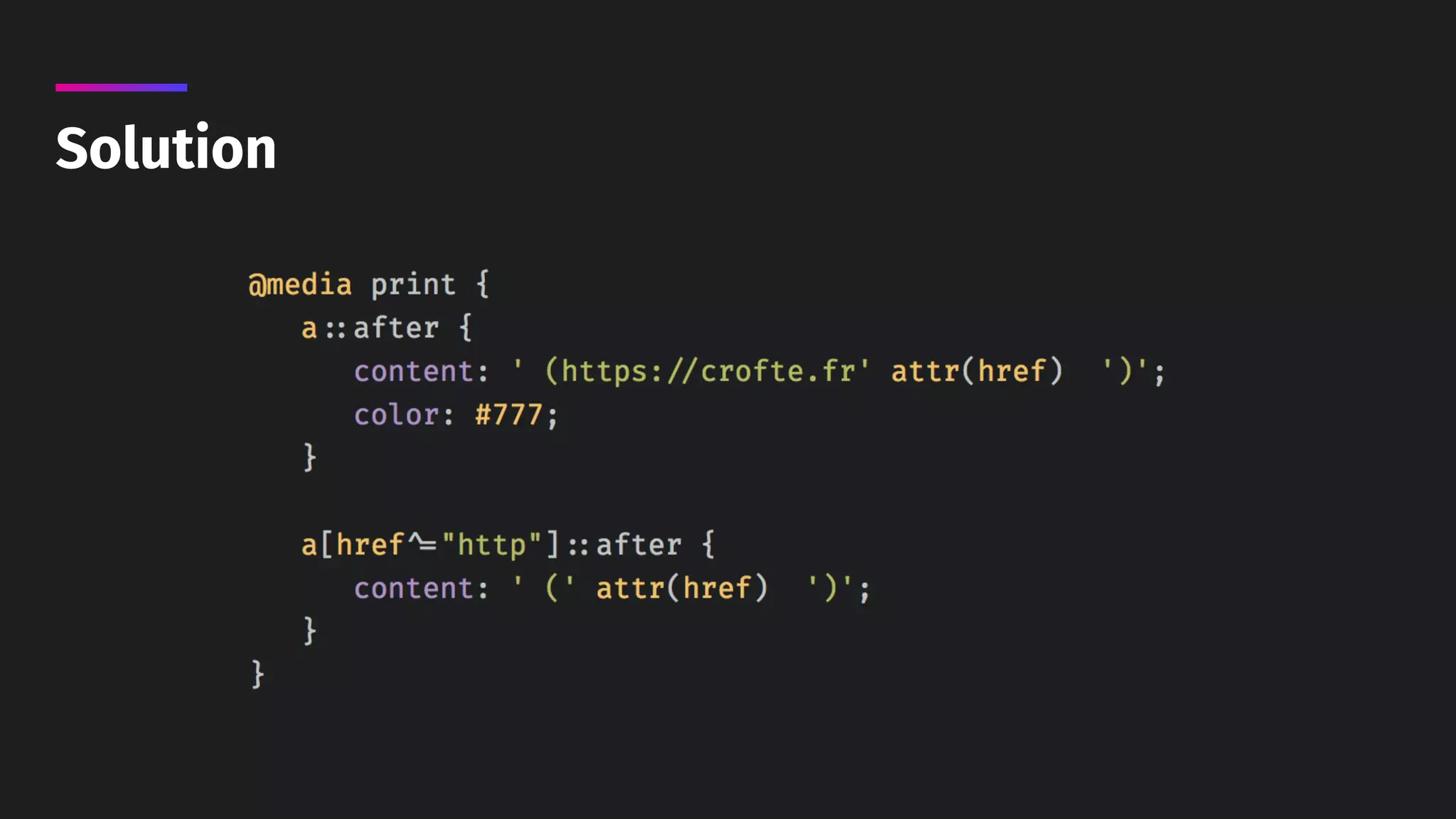

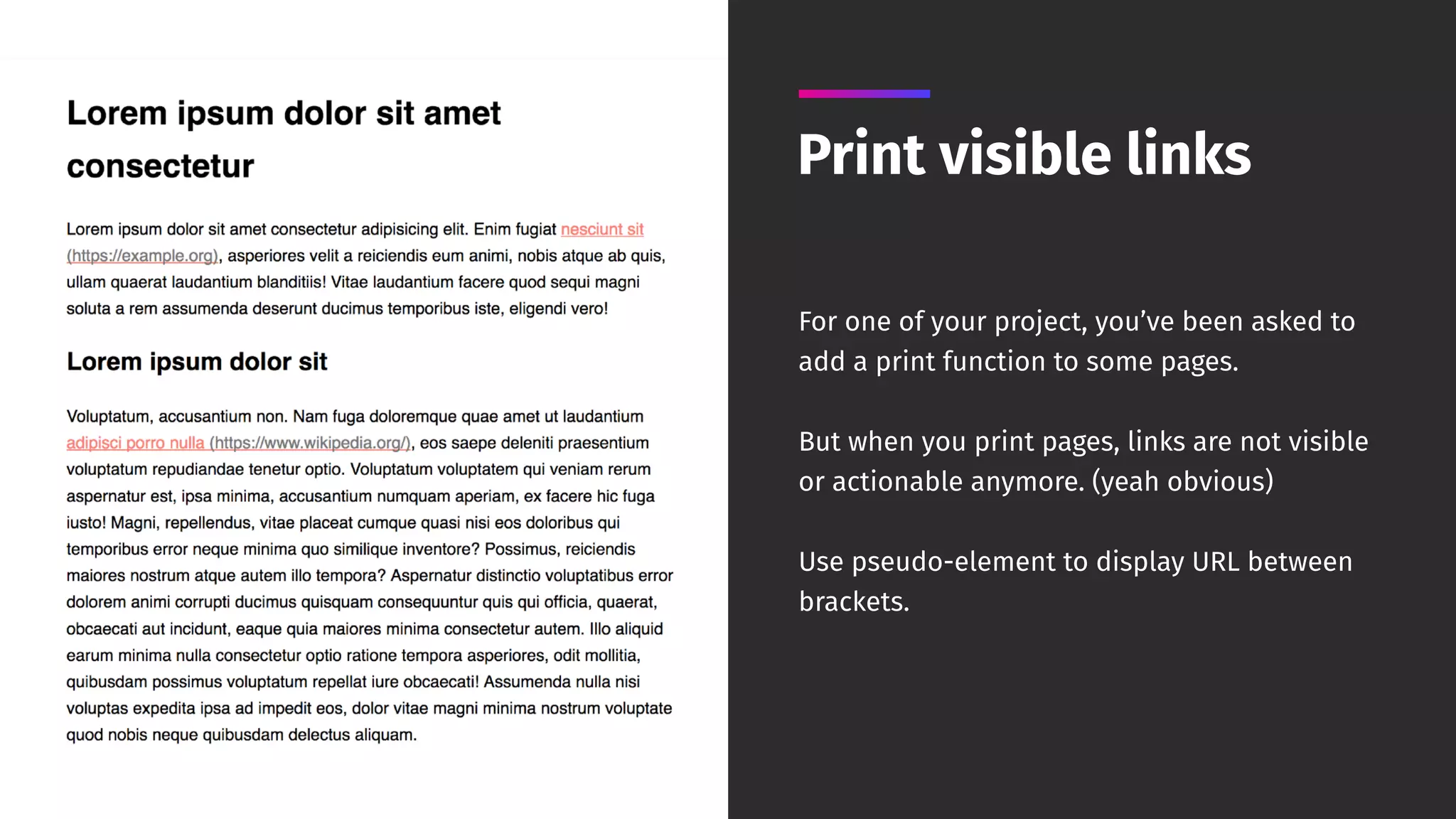

46. Print visible links
For one of your project, you’ve been asked to
add a print function to some pages.
But when you print pages, links are not visible
or actionable anymore. (yeah obvious)
Use pseudo-element to display URL between
brackets.

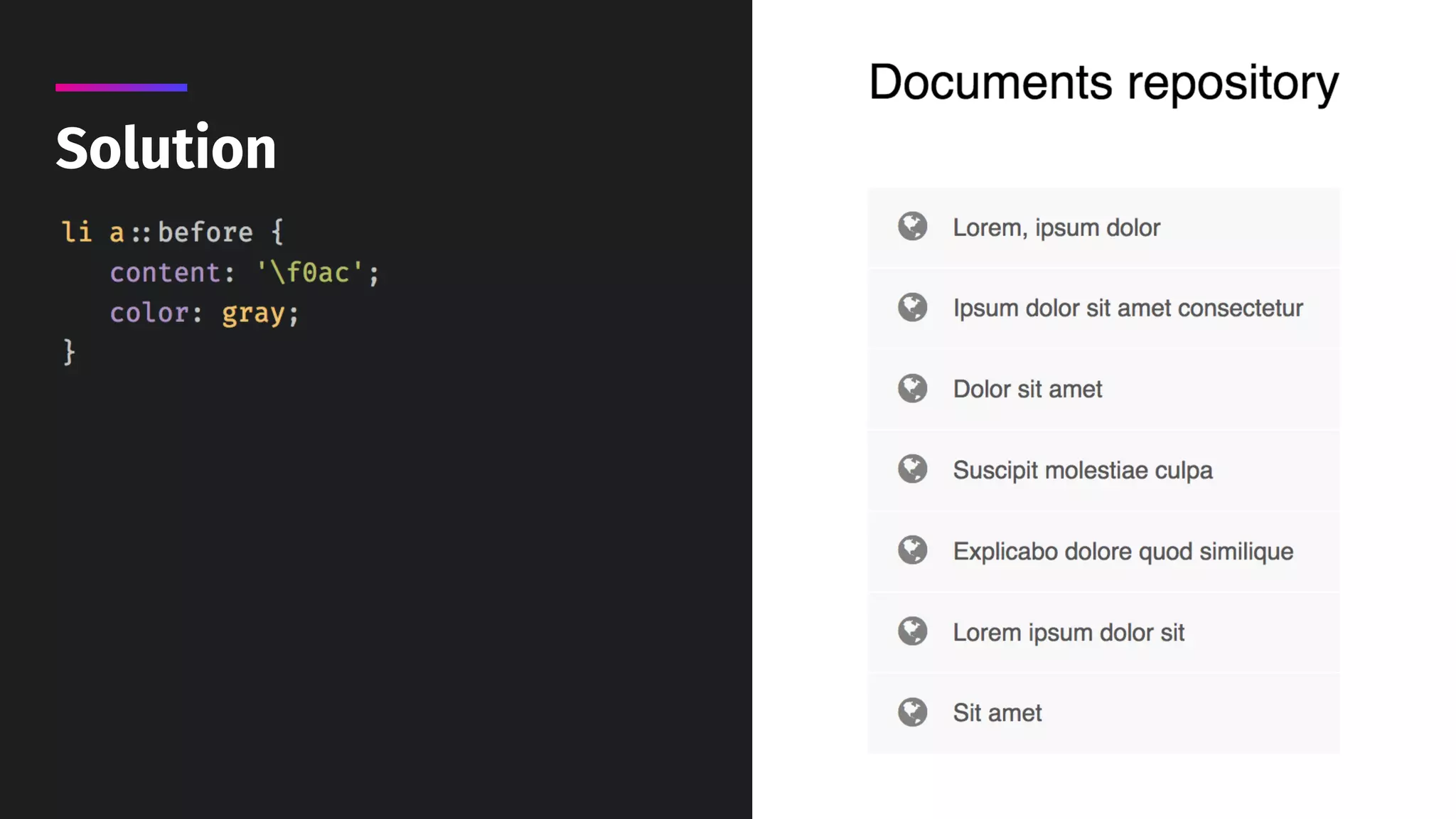

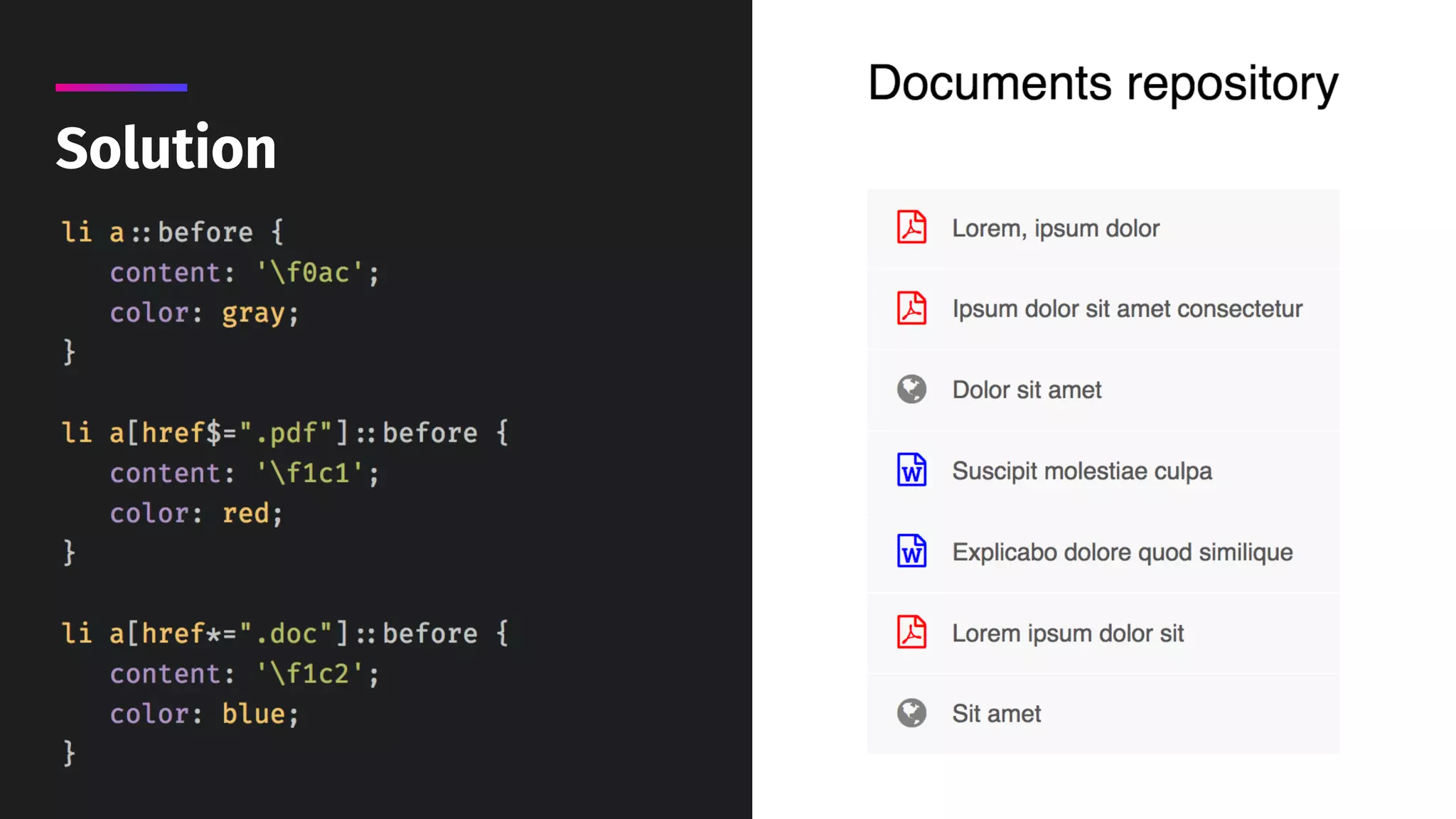

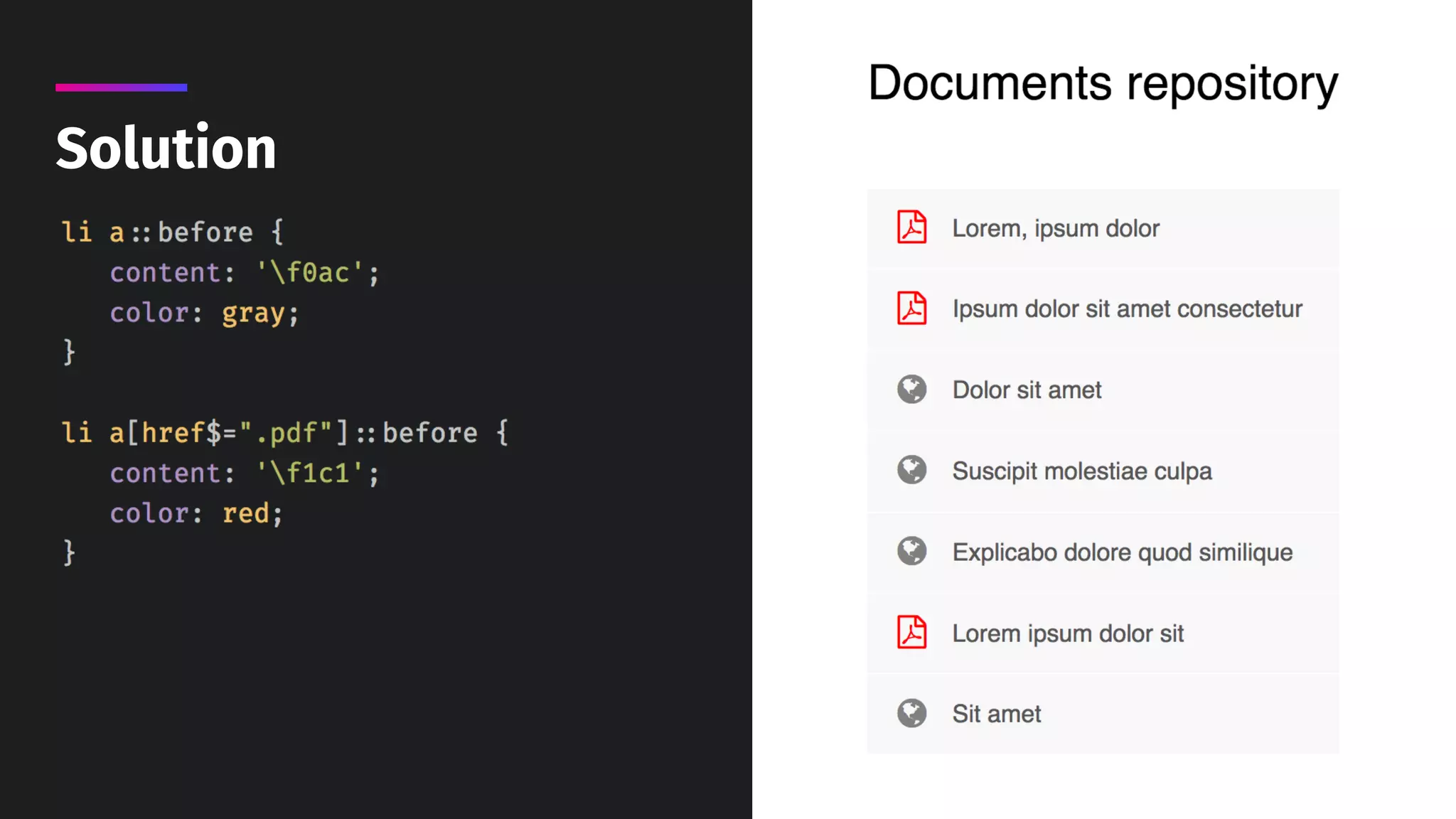

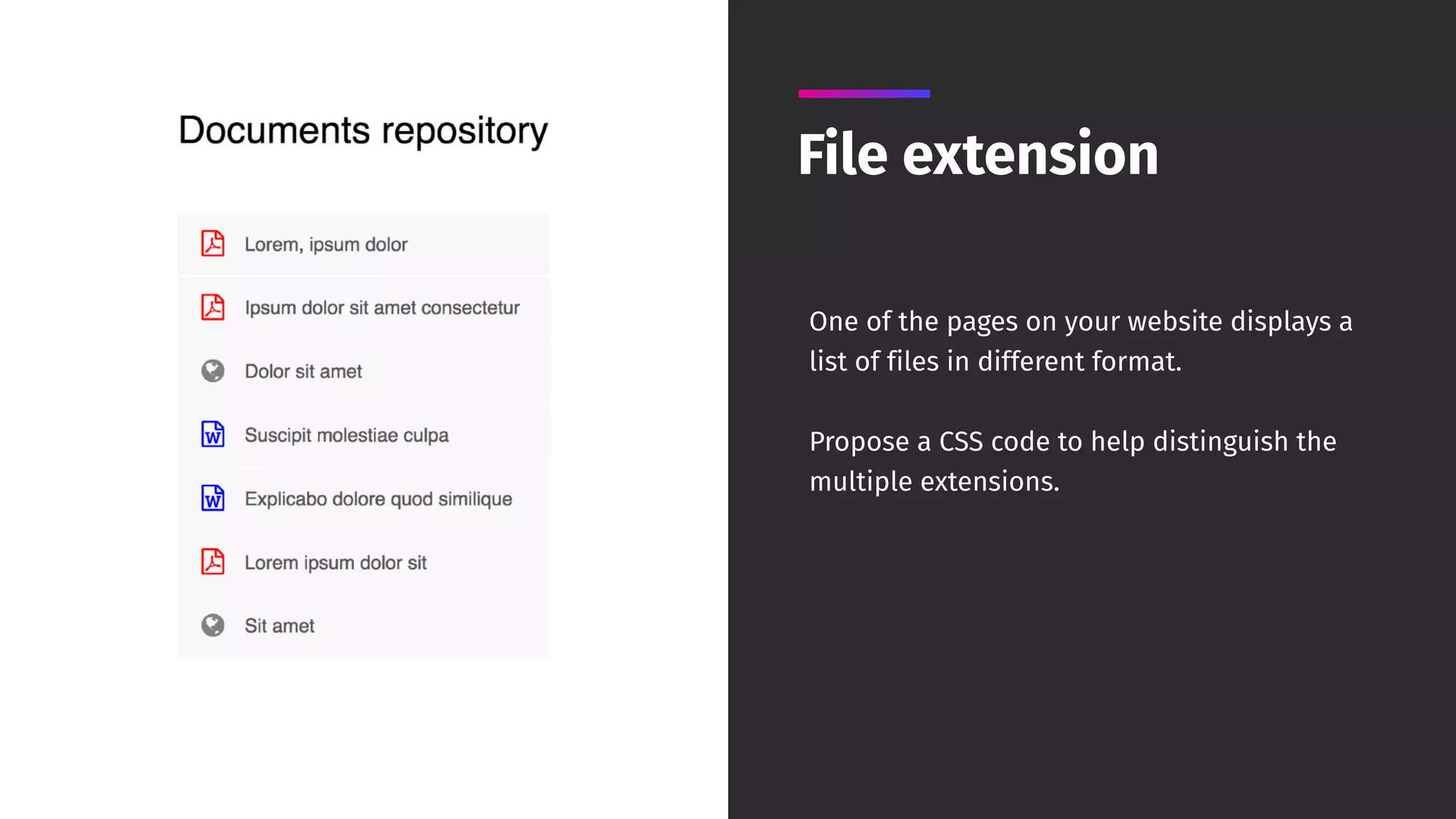

50. File extension
One of the pages on your website displays a
list of files in different format.
Propose a CSS code to help distinguish the
multiple extensions.

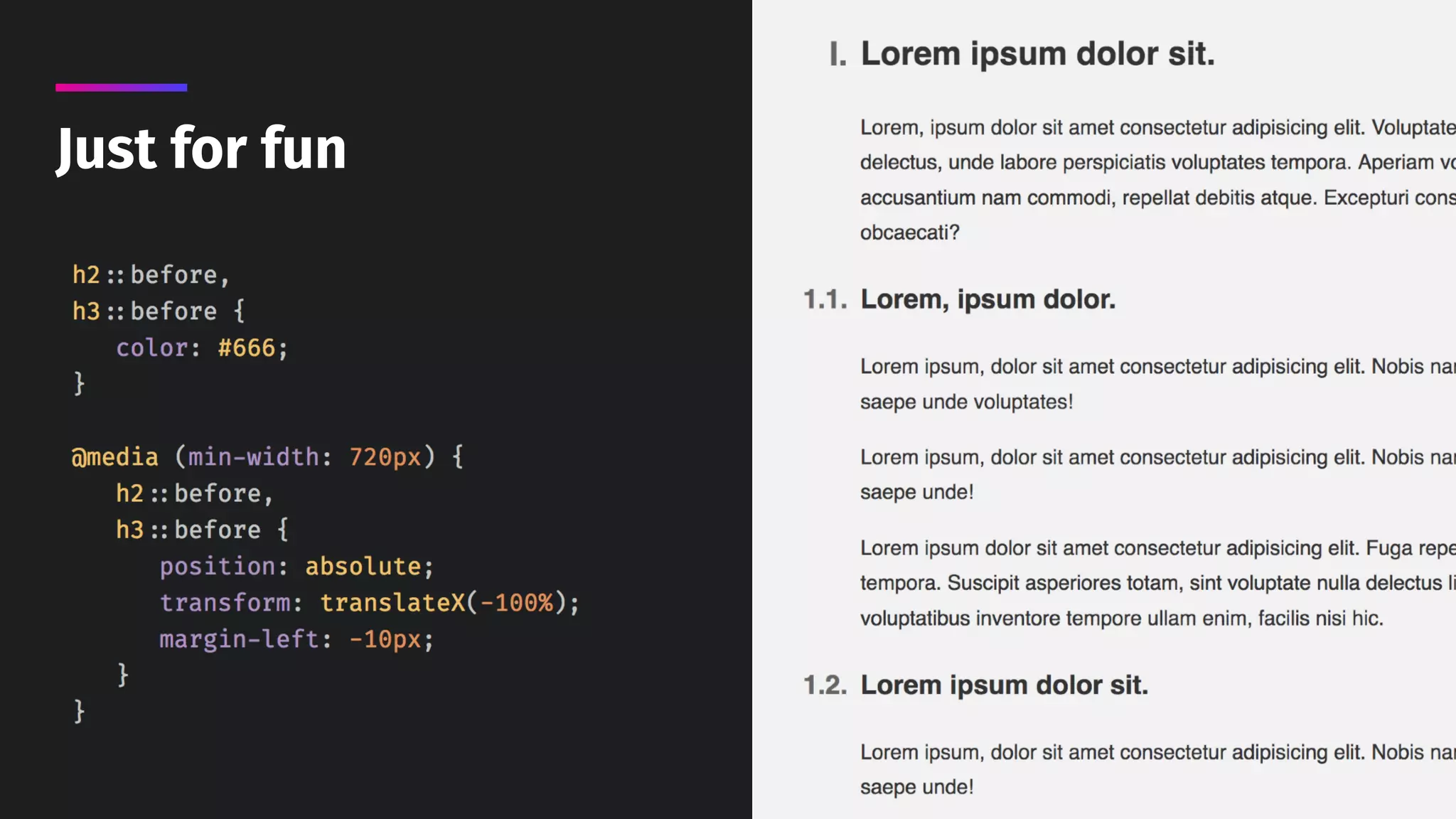

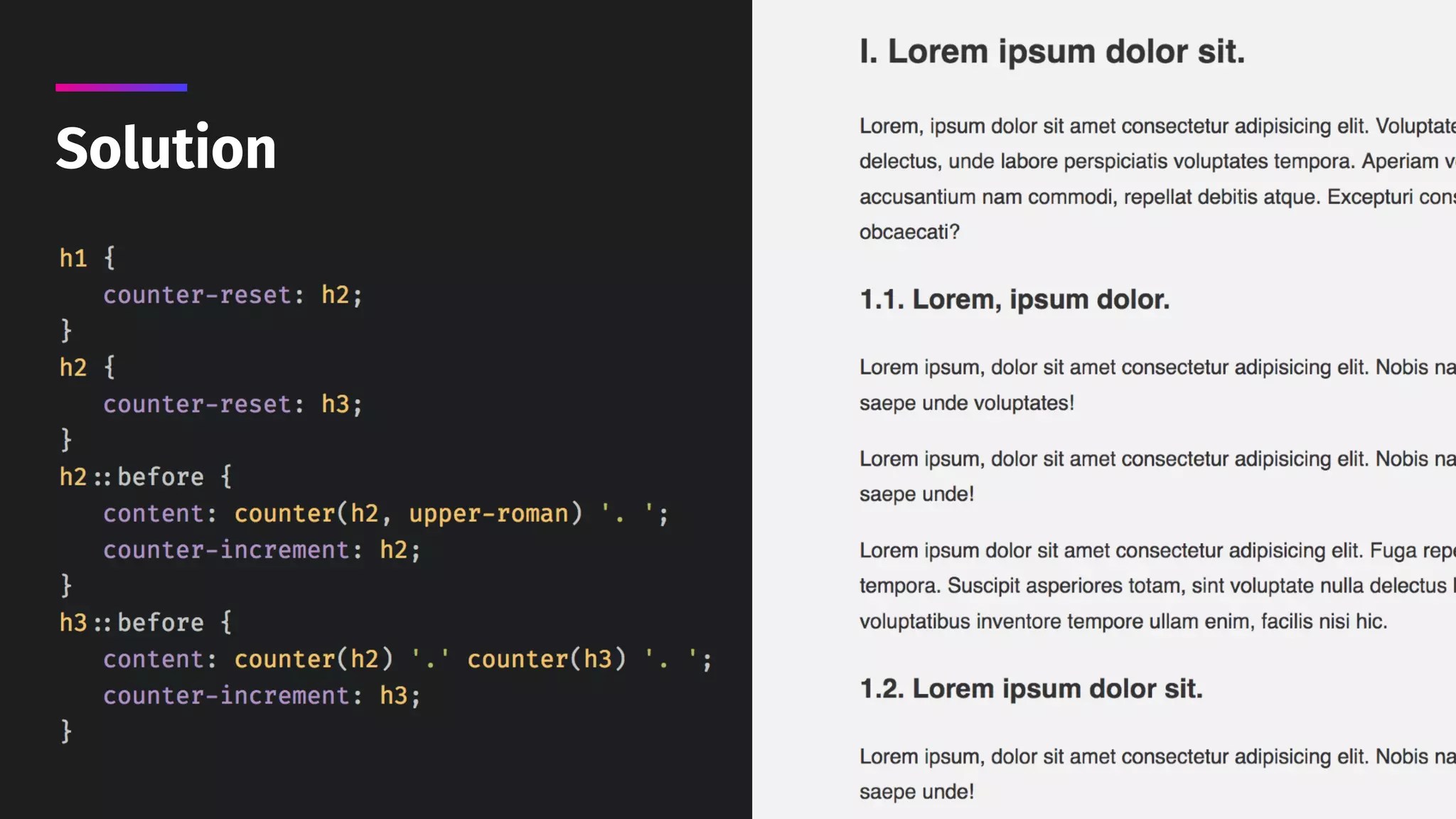

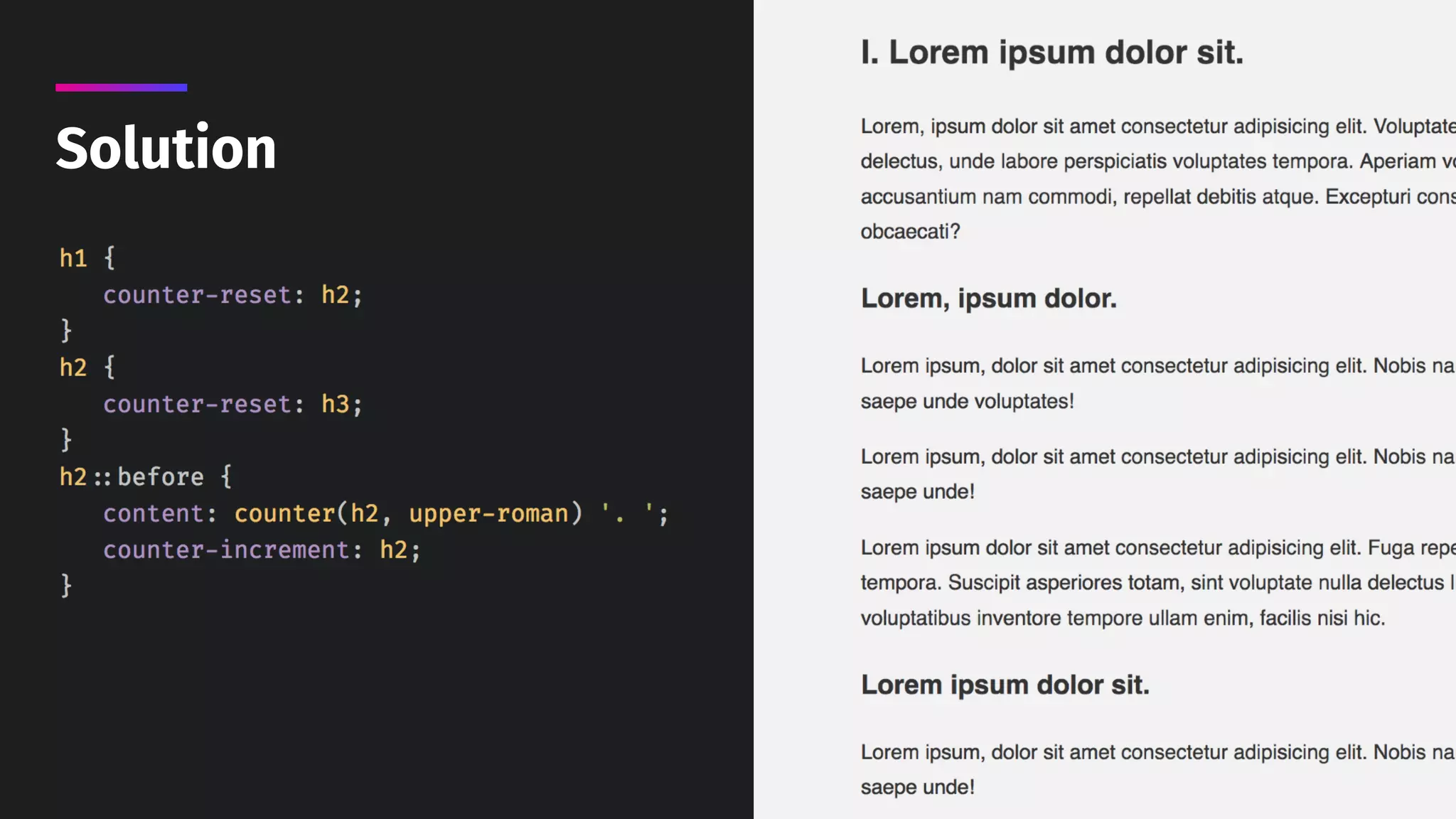

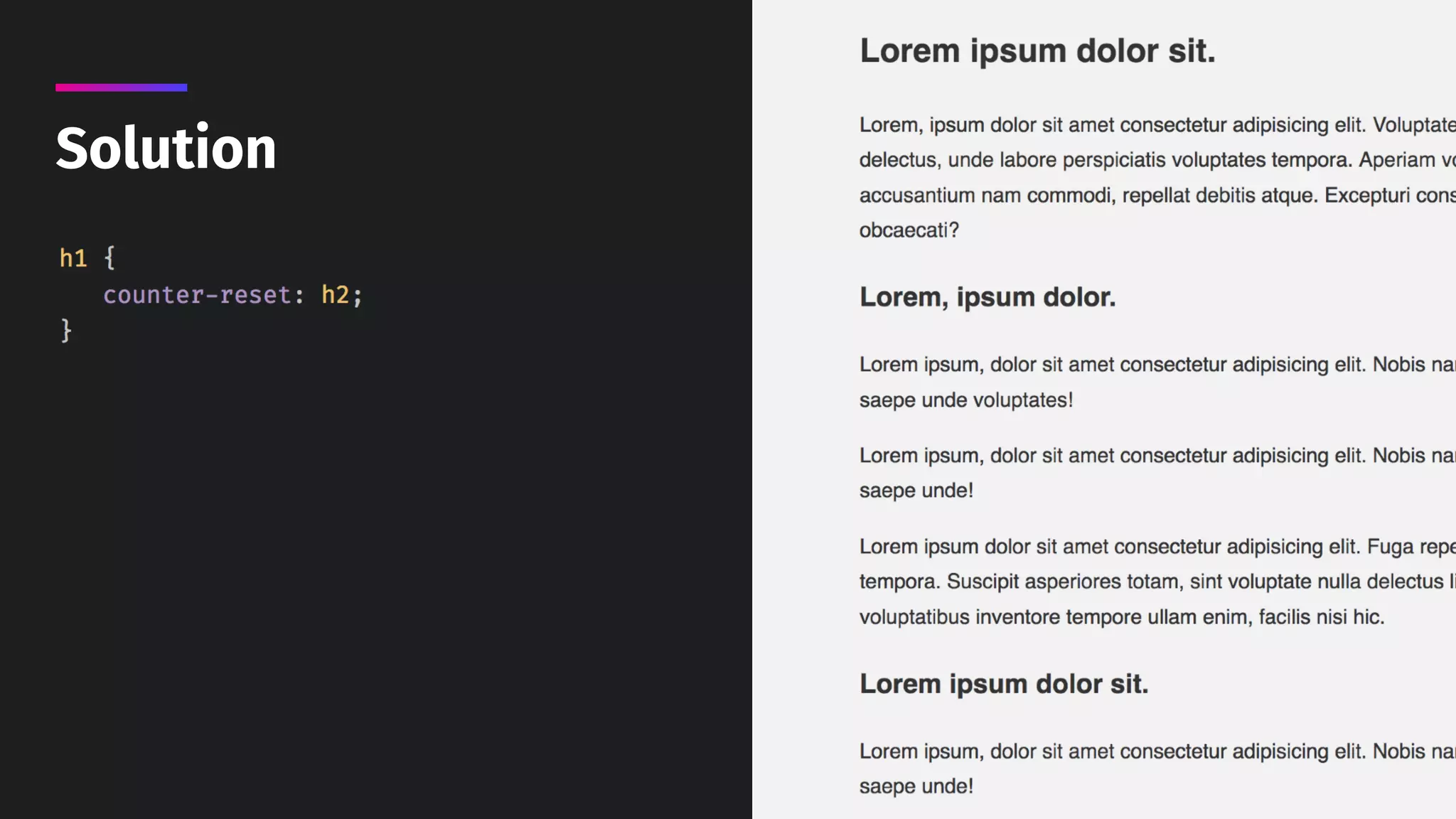

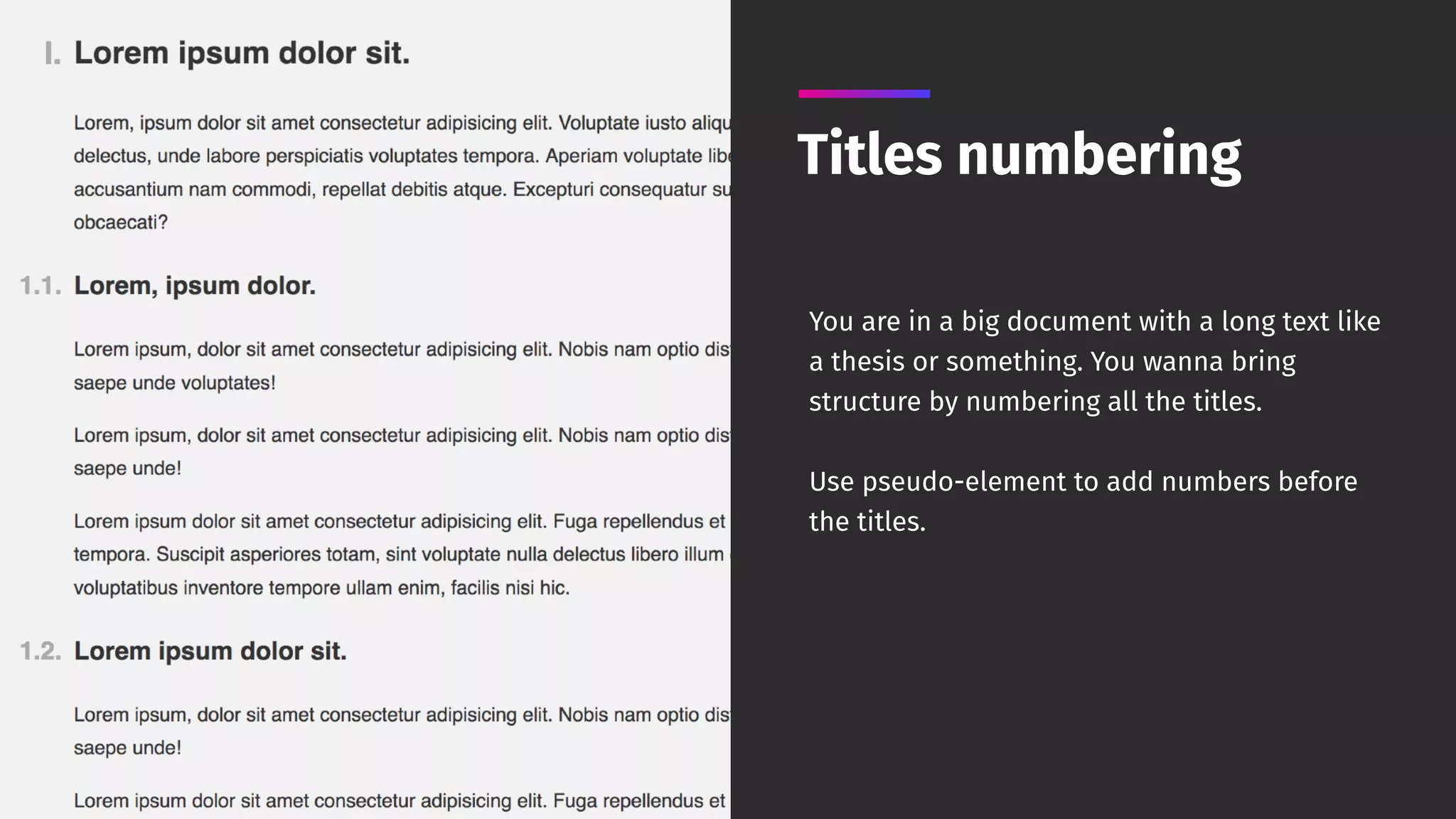

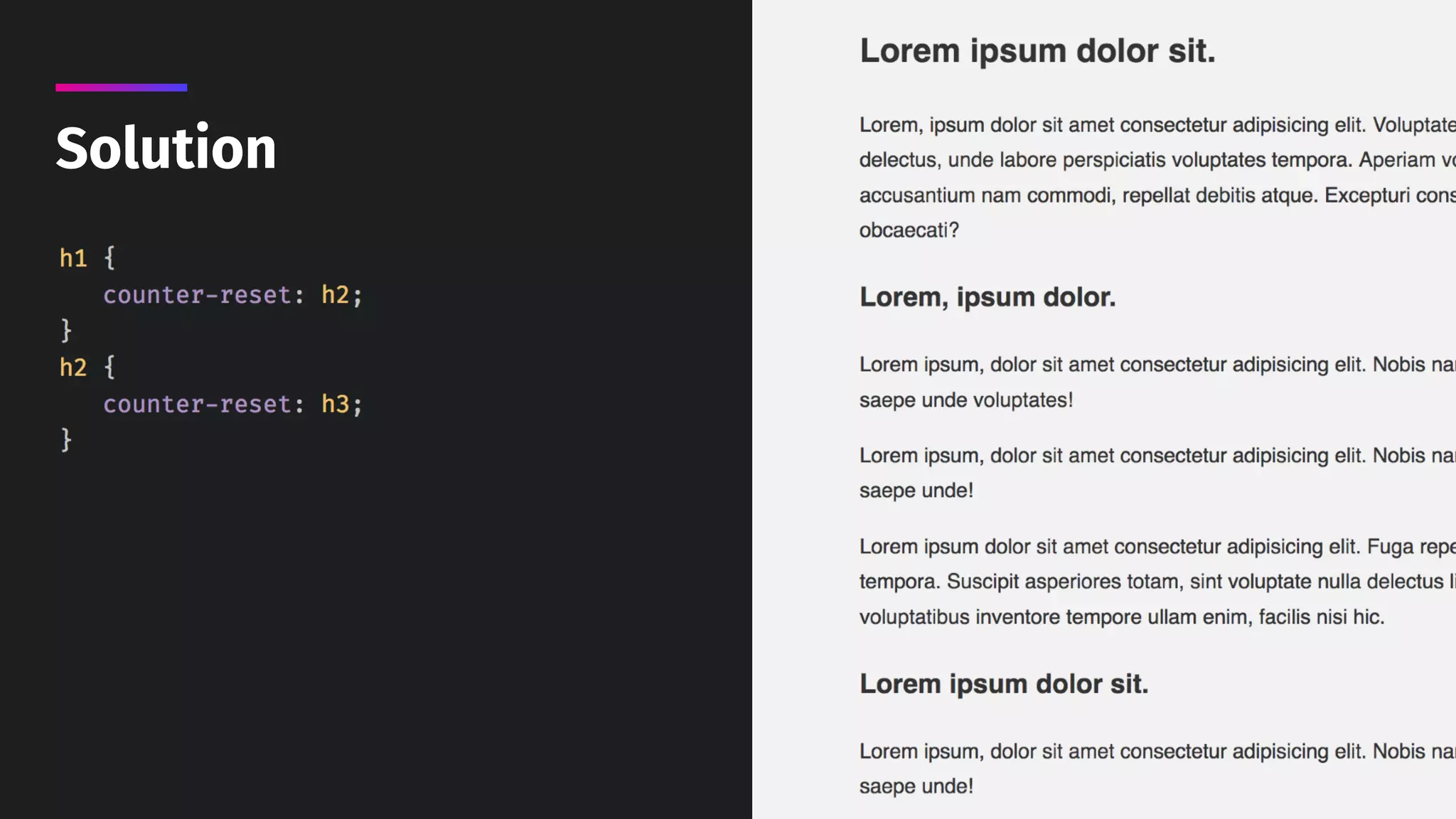

54. Titles numbering
You are in a big document with a long text like
a thesis or something. You wanna bring
structure by numbering all the titles.
Use pseudo-element to add numbers before
the titles.

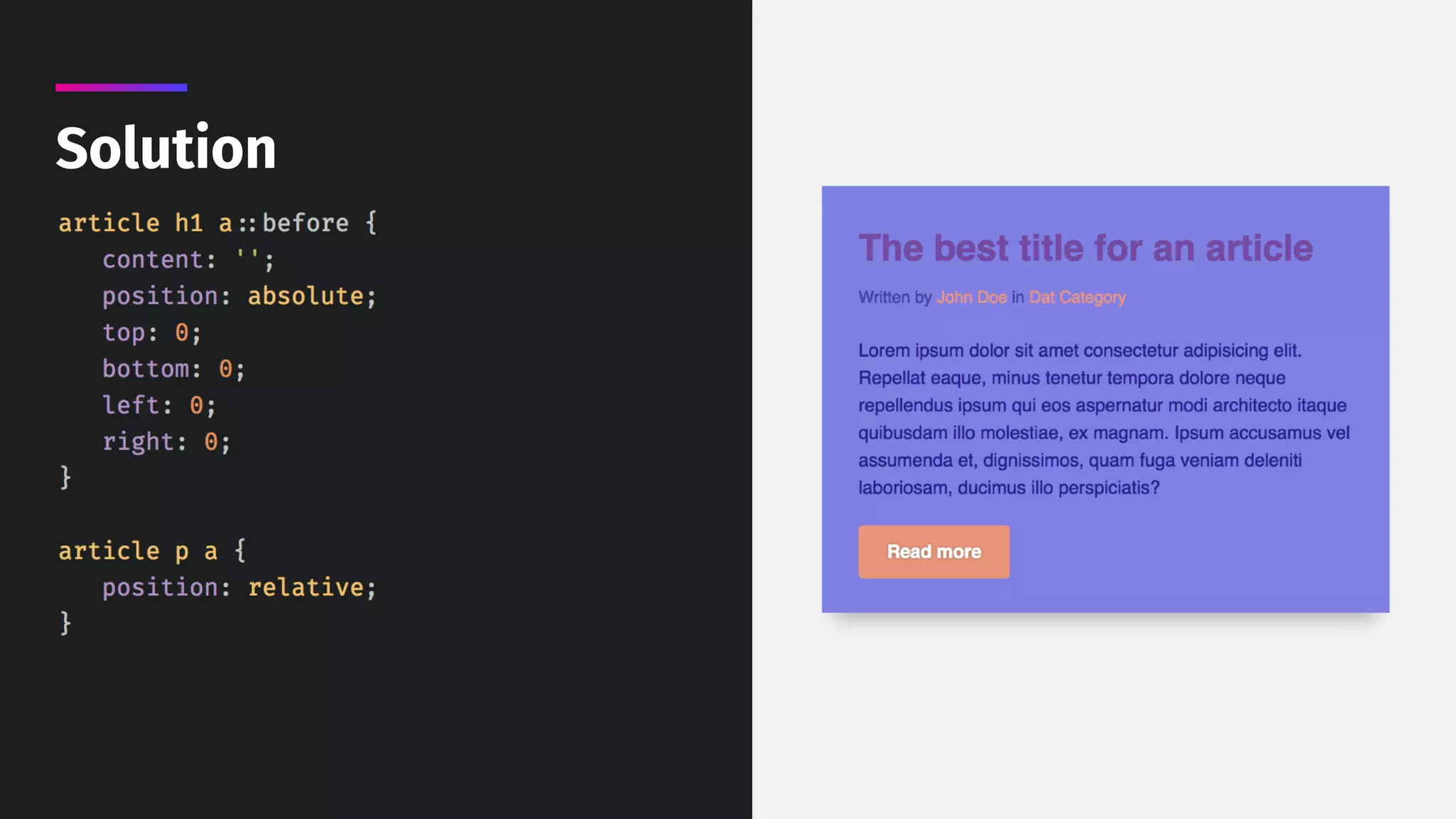

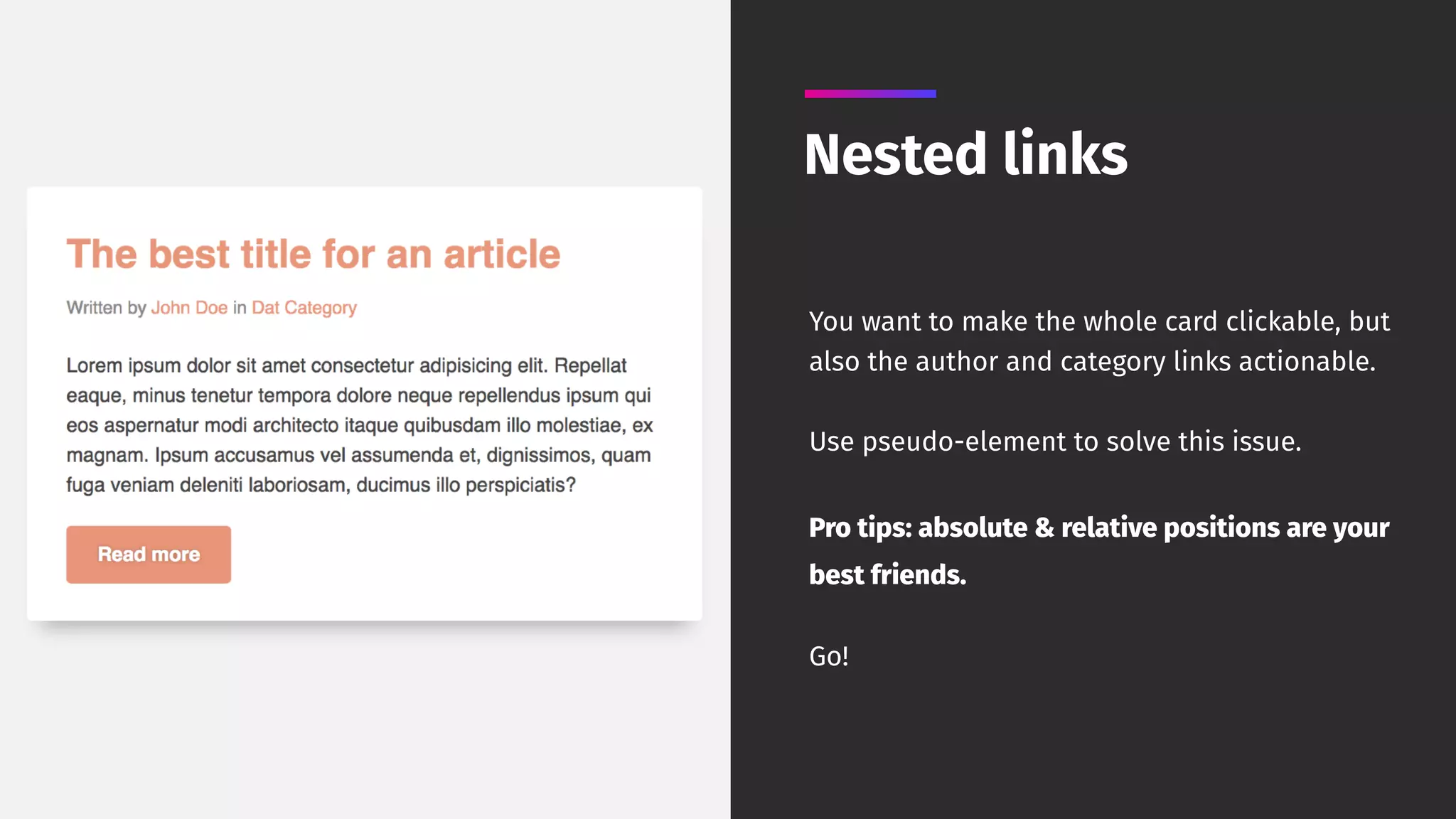

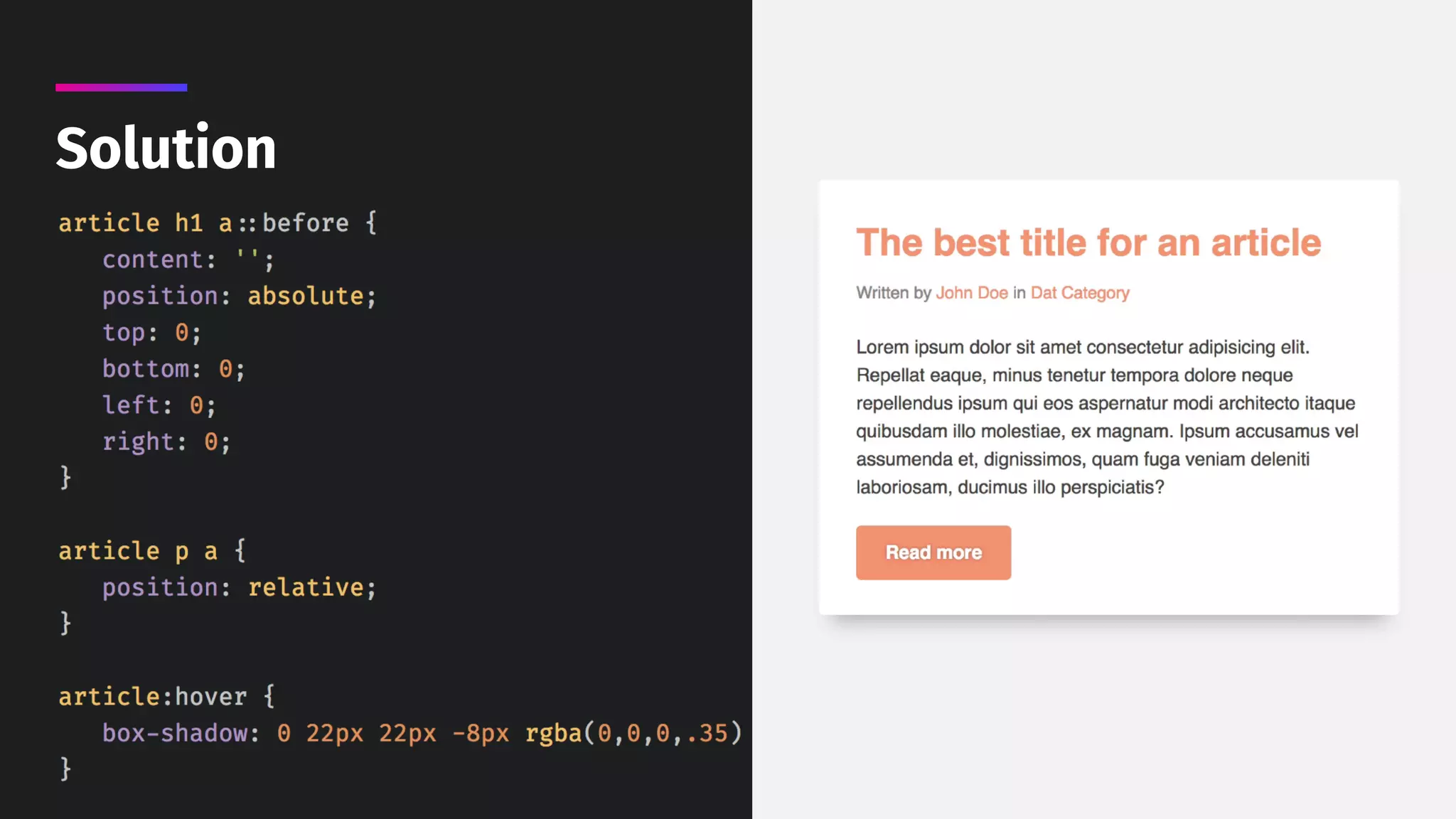

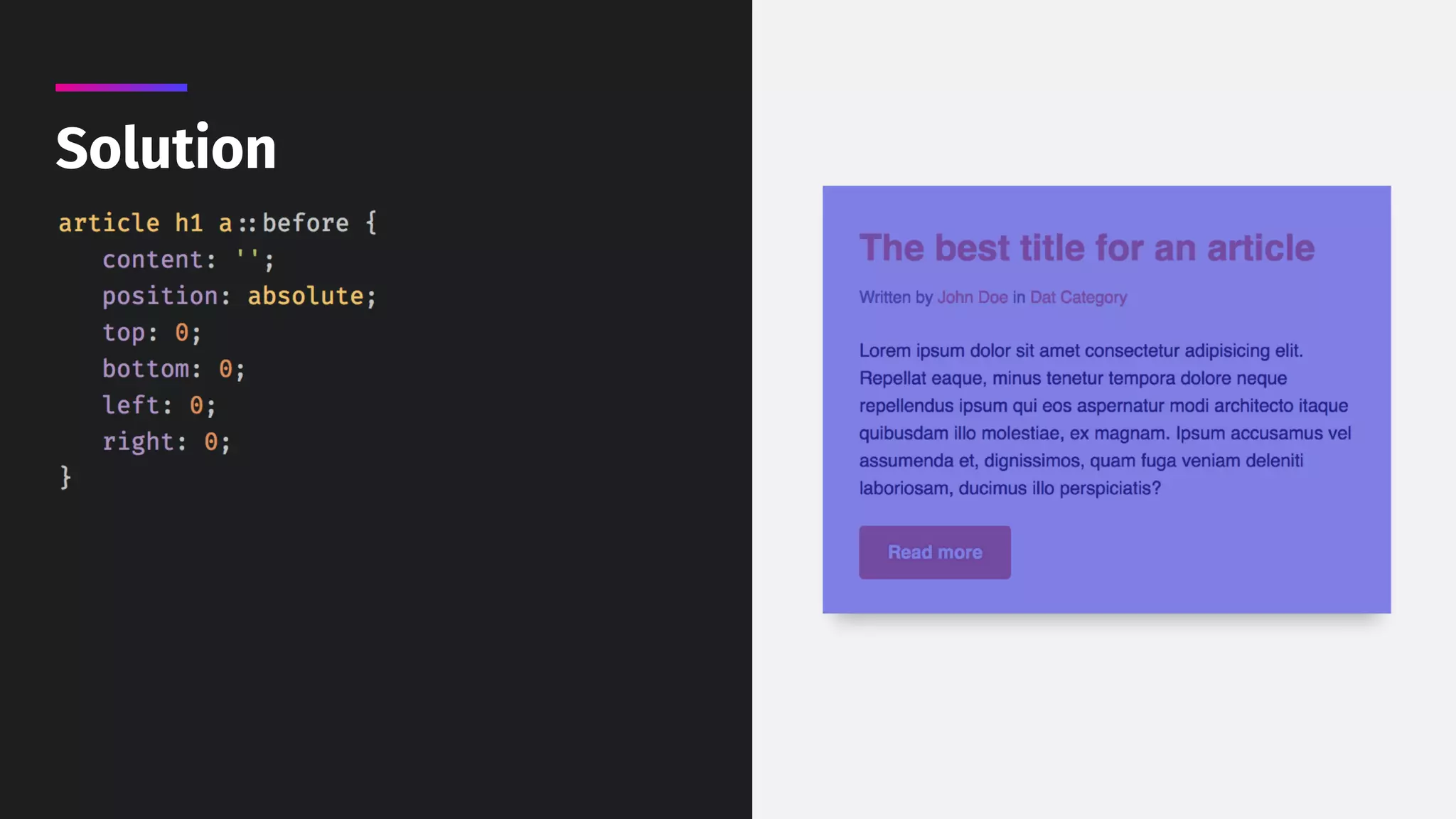

60. Nested links
You want to make the whole card clickable, but
also the author and category links actionable.
Use pseudo-element to solve this issue.
Pro tips: absolute & relative positions are your
best friends.
Go!

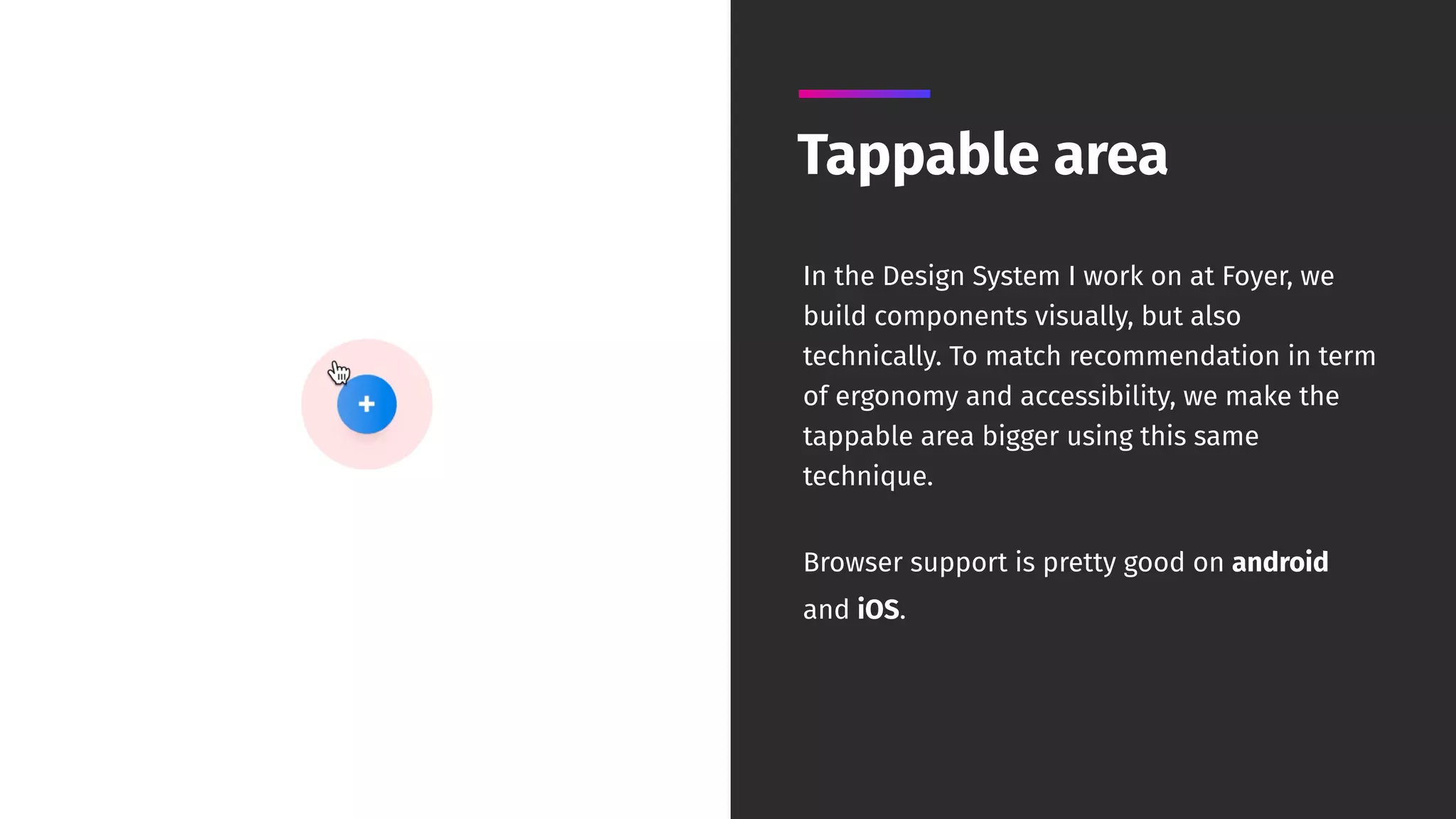

64. Tappable area
In the Design System I work on at Foyer, we
build components visually, but also
technically. To match recommendation in term
of ergonomy and accessibility, we make the
tappable area bigger using this same
technique.
Browser support is pretty good on android
and iOS.

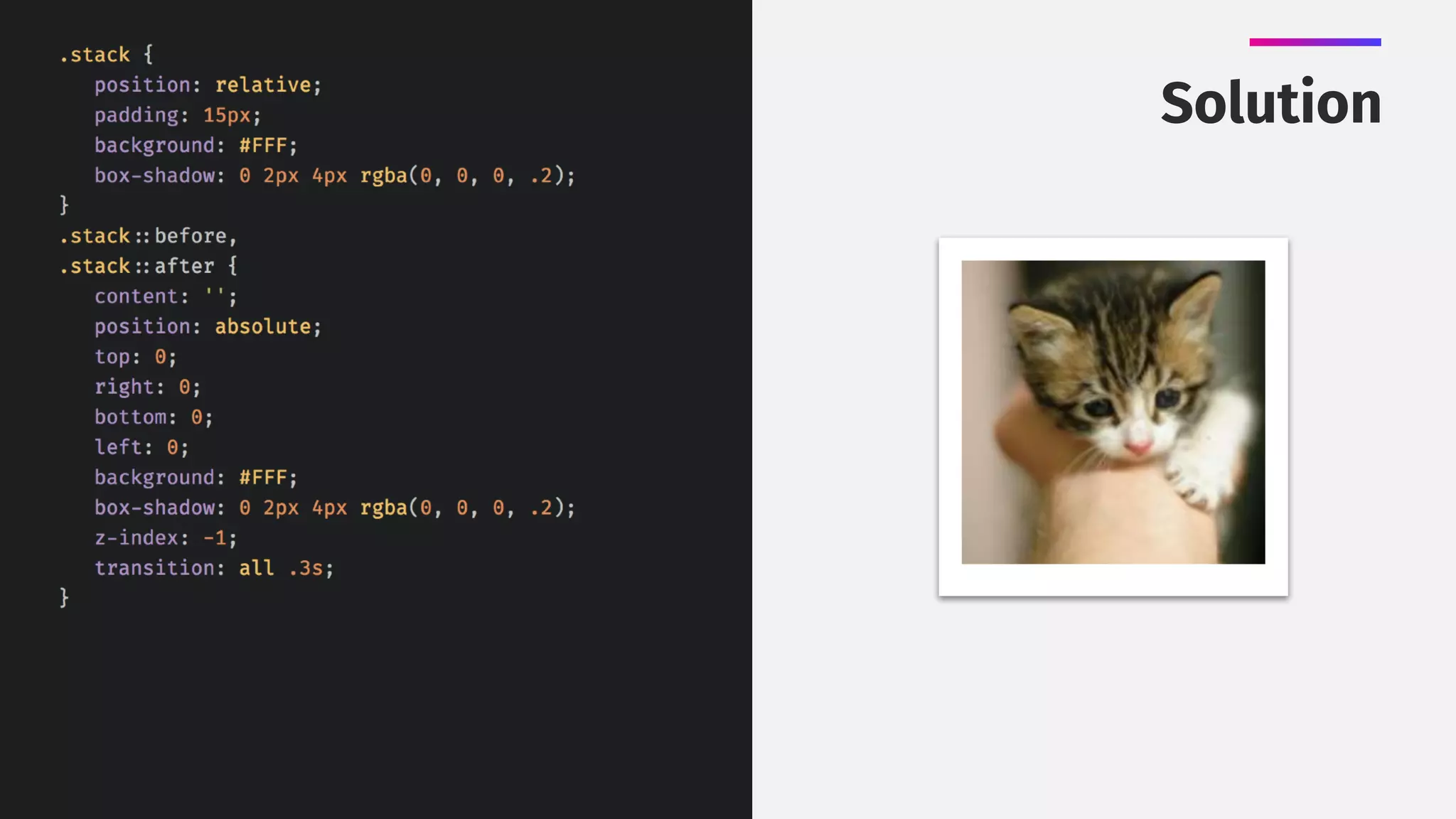

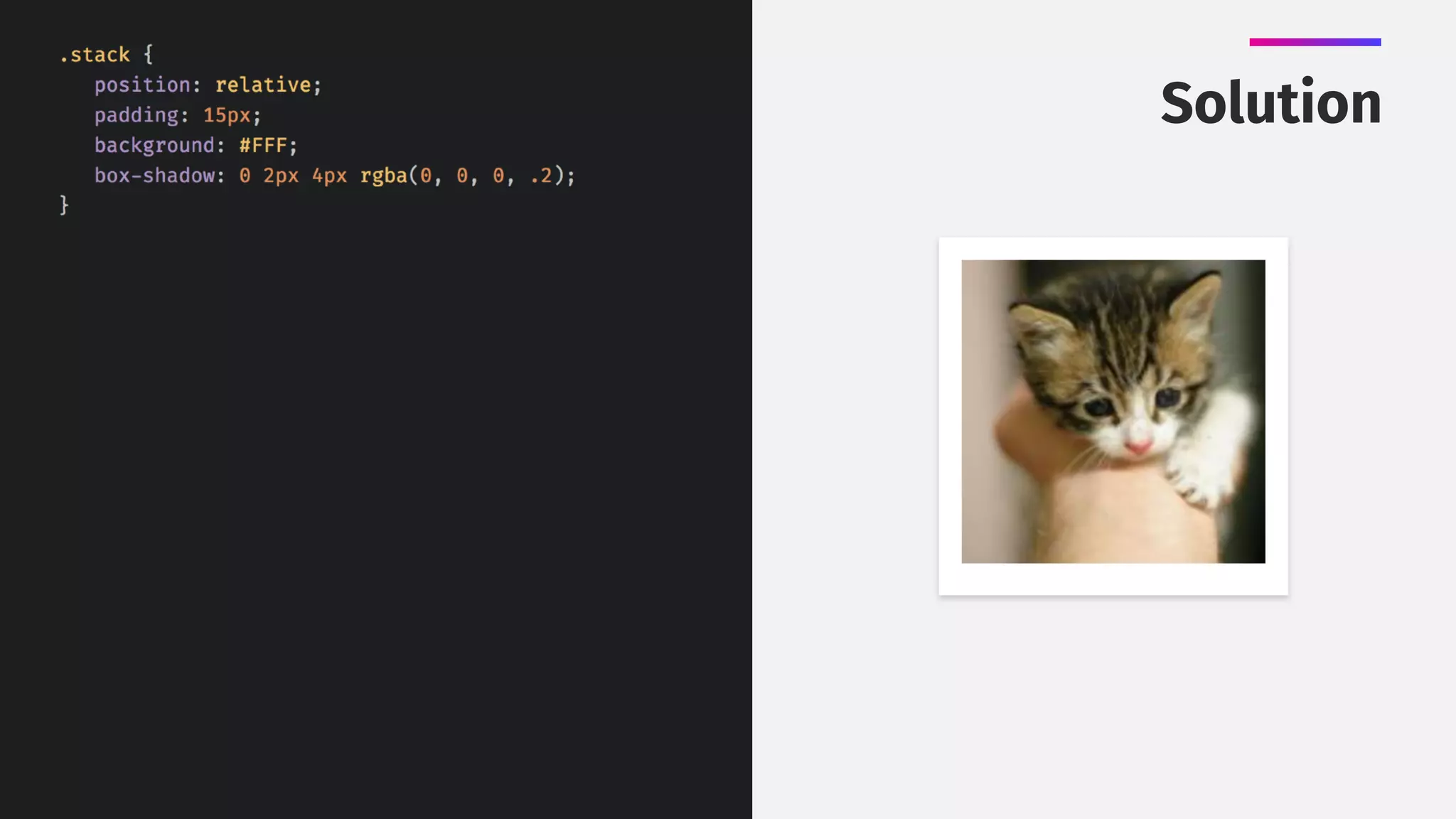

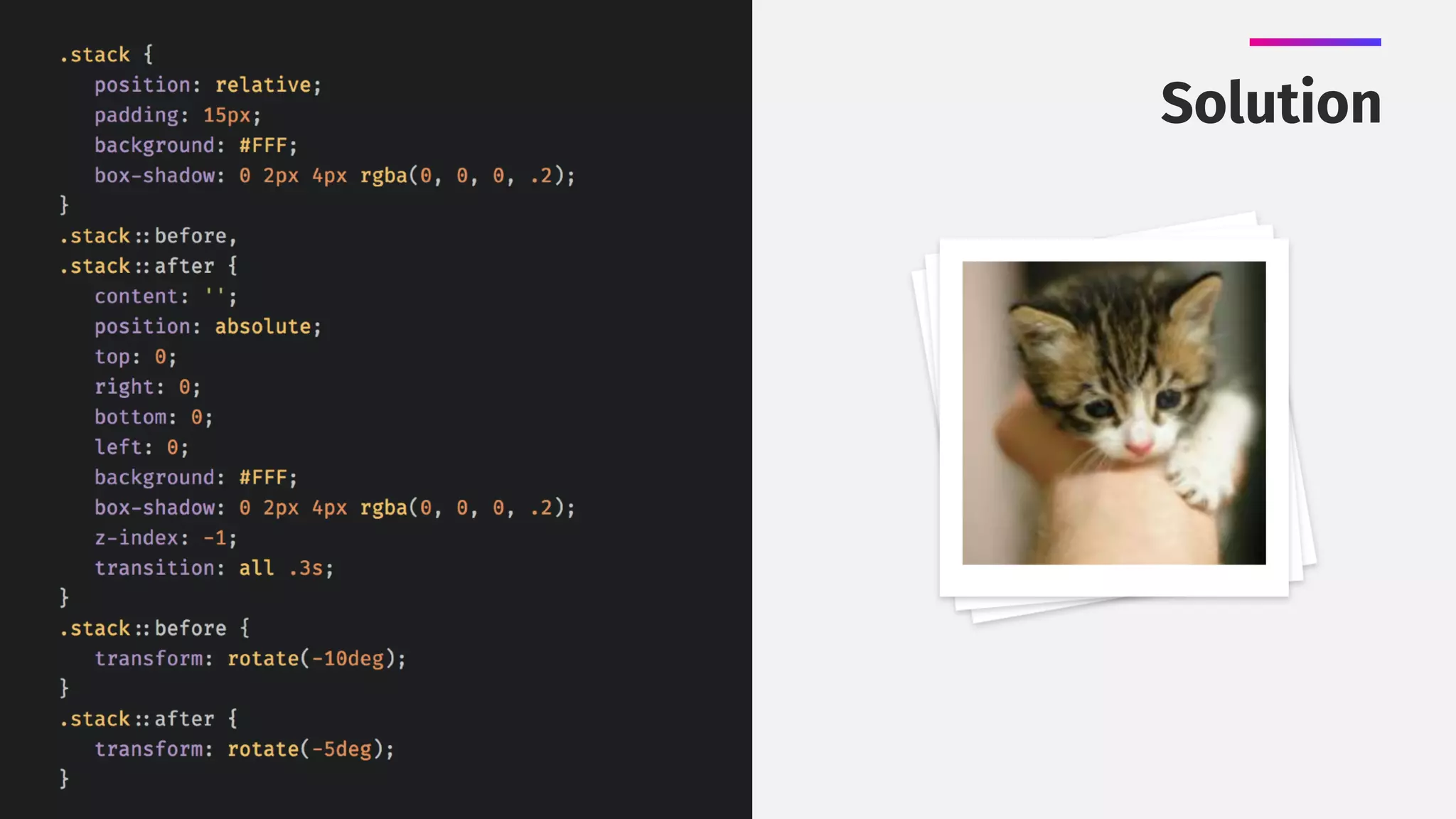

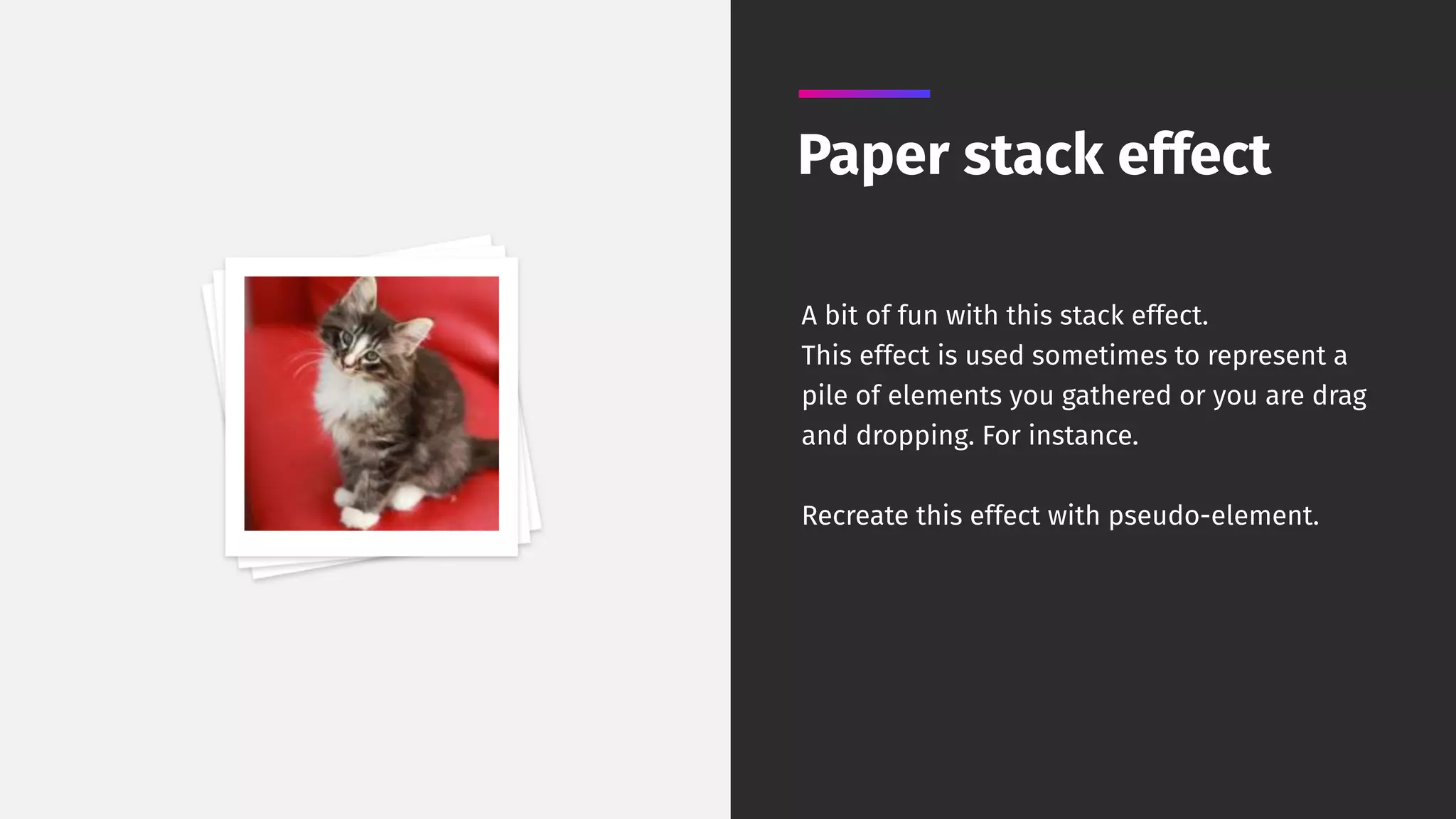

65. Paper stack effect
A bit of fun with this stack effect.
This effect is used sometimes to represent a
pile of elements you gathered or you are drag
and dropping. For instance.
Recreate this effect with pseudo-element.

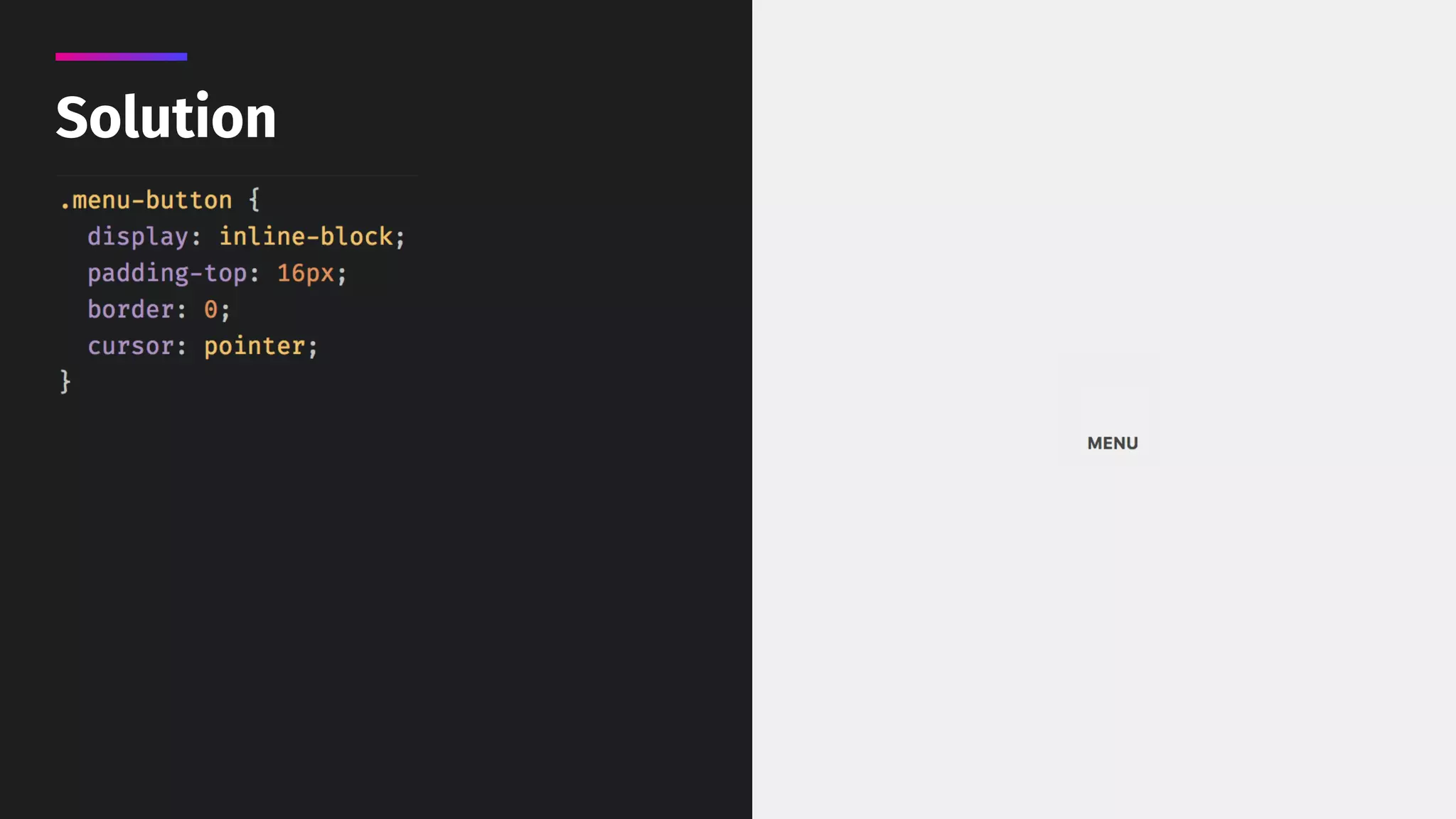

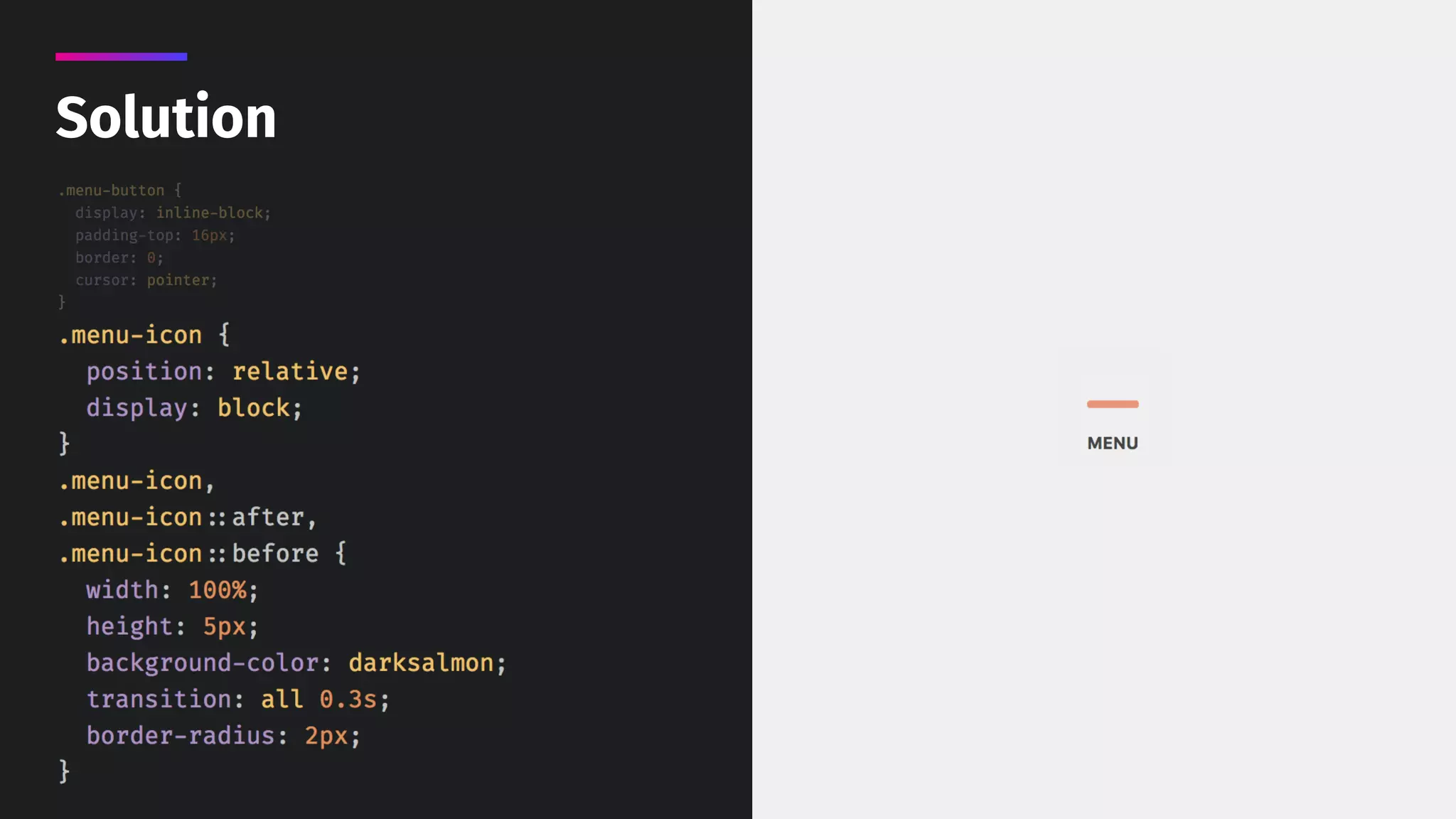

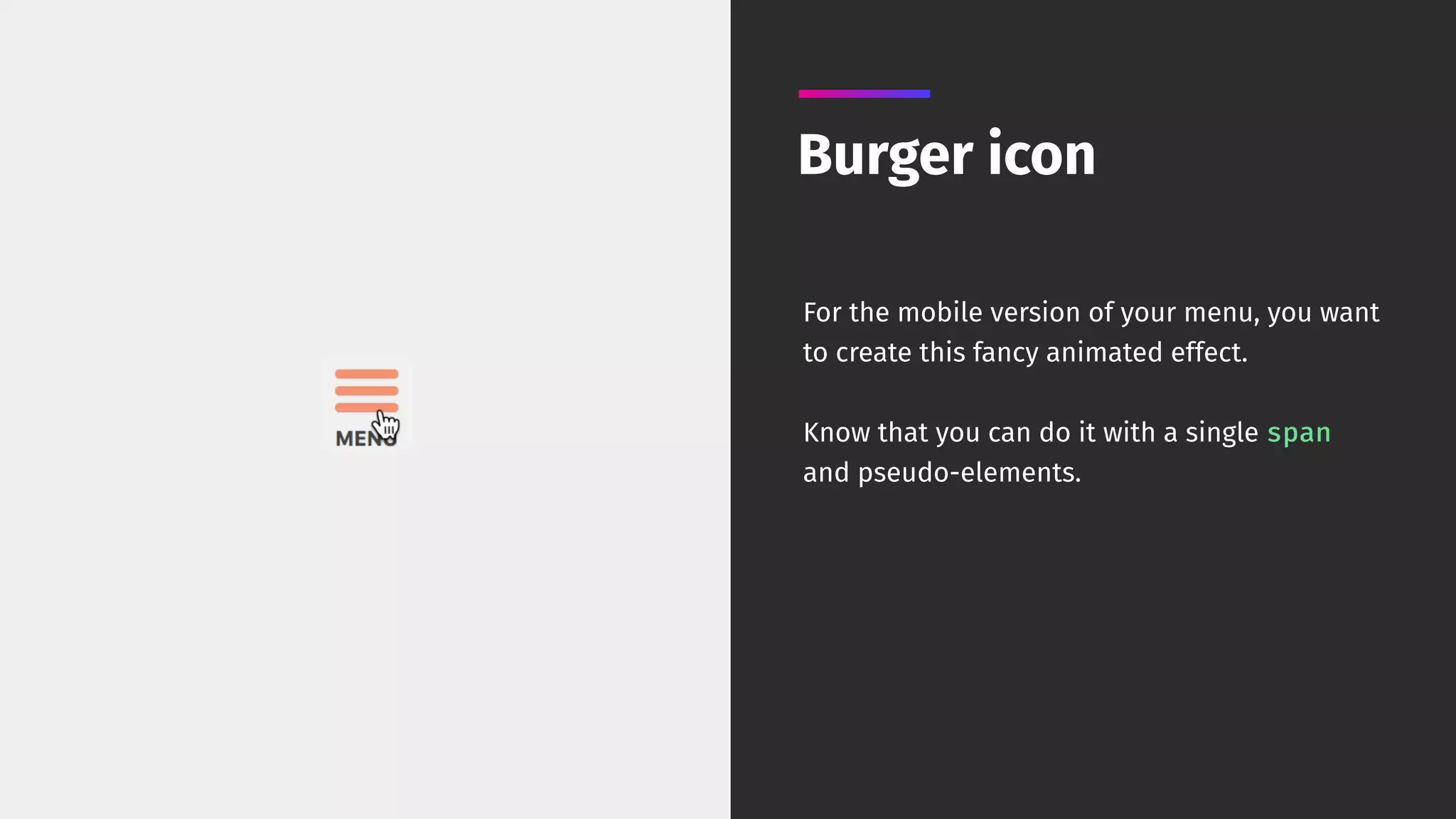

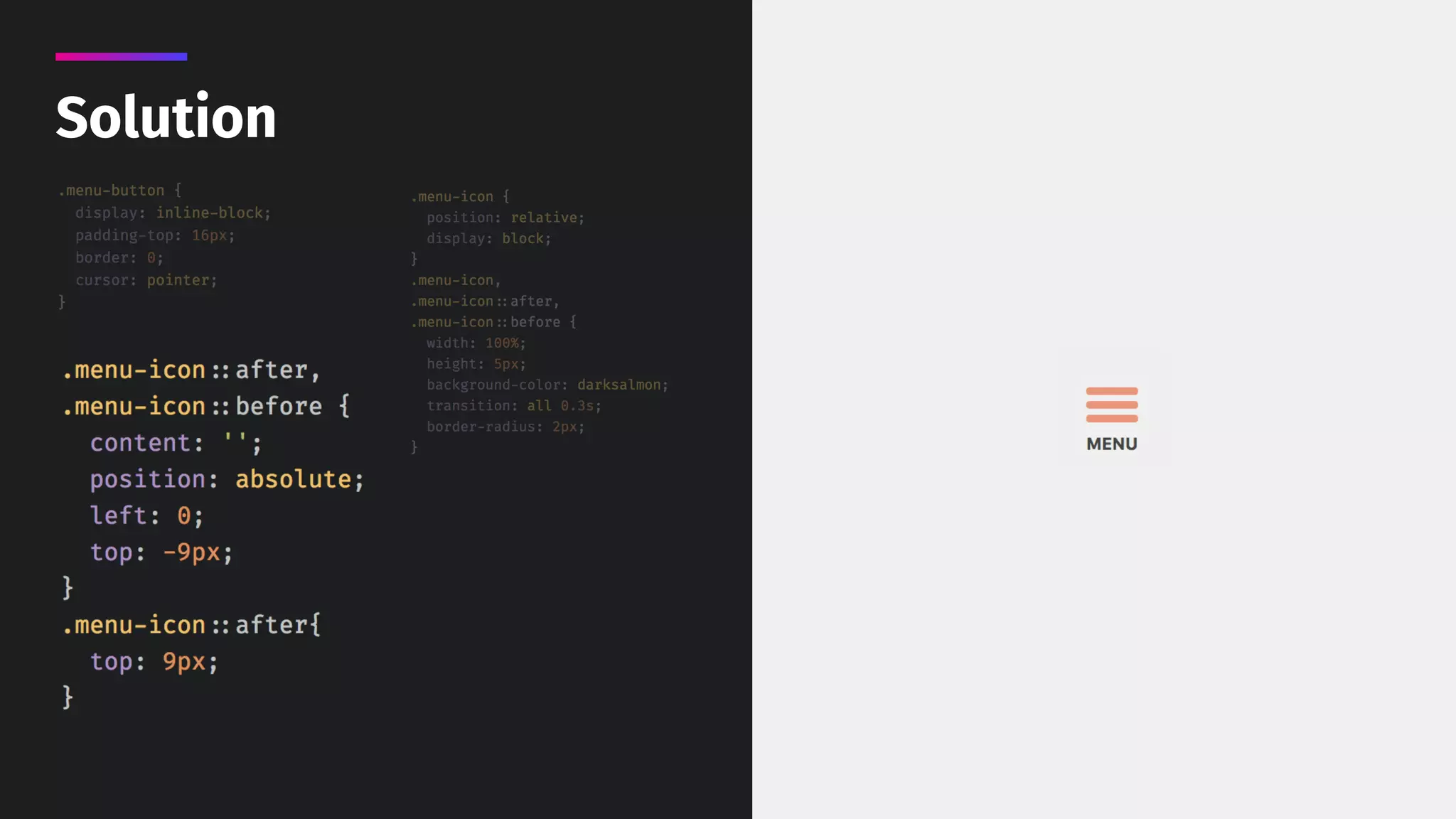

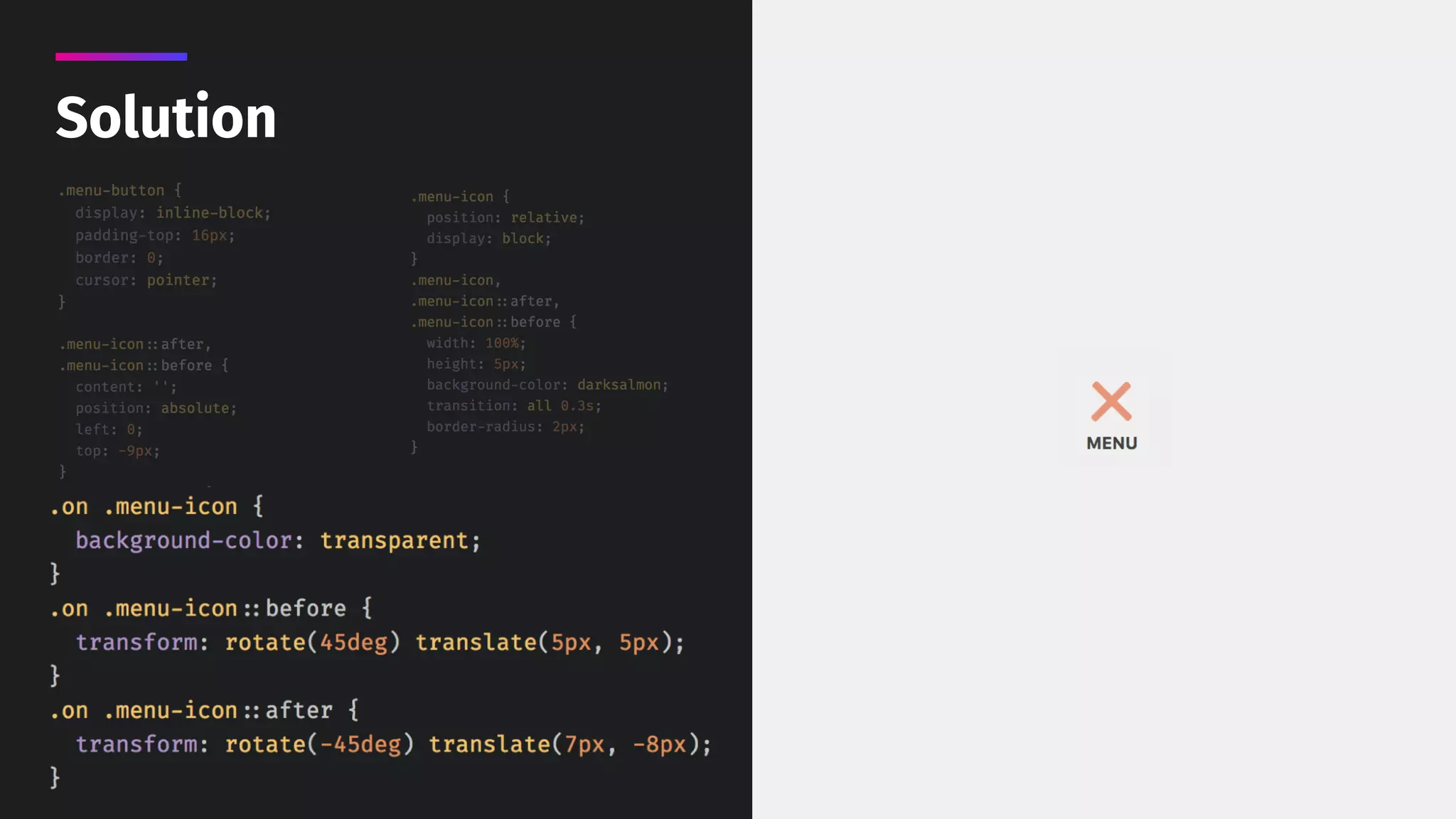

70. Burger icon
For the mobile version of your menu, you want
to create this fancy animated effect.
Know that you can do it with a single span
and pseudo-elements.

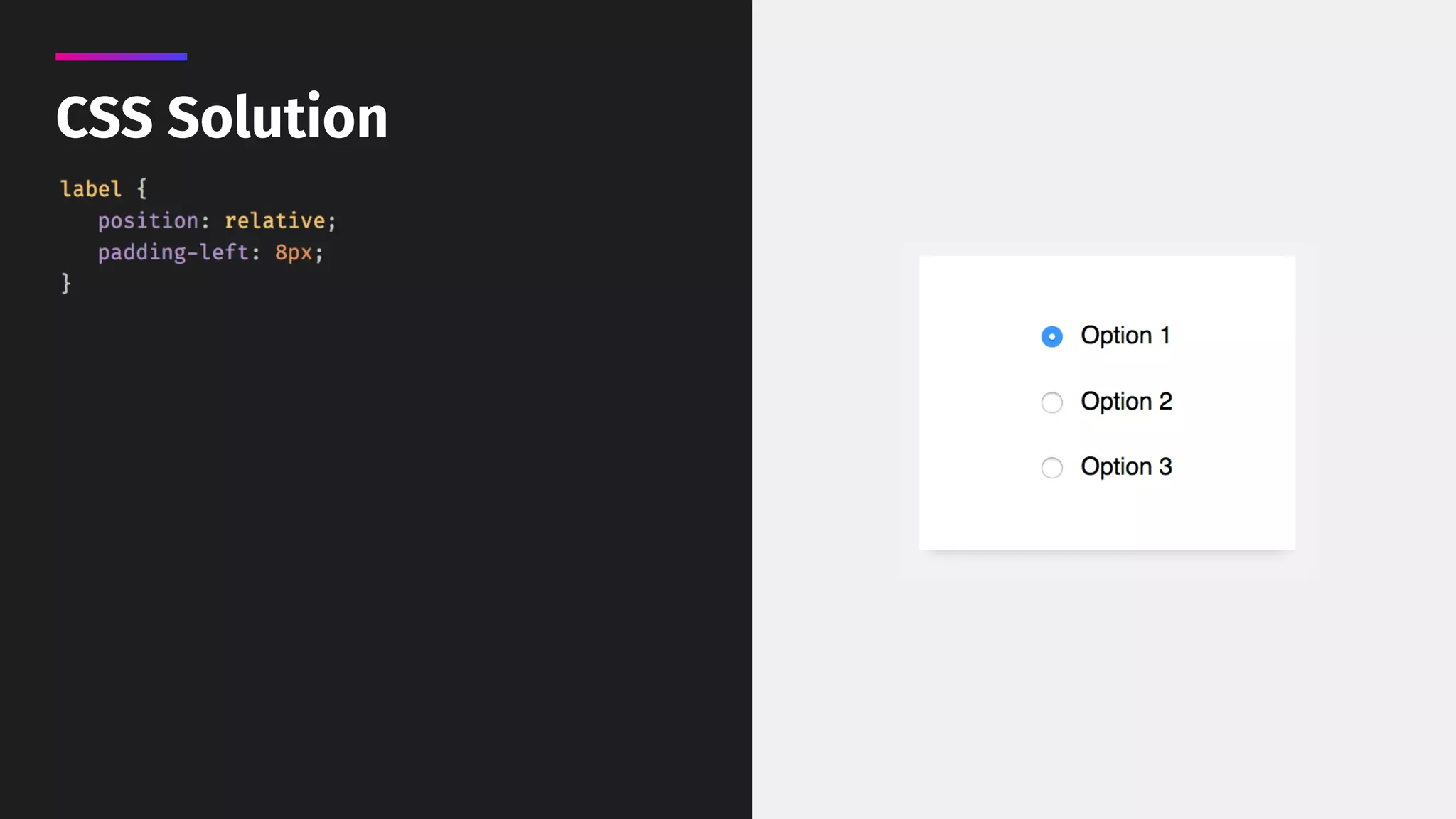

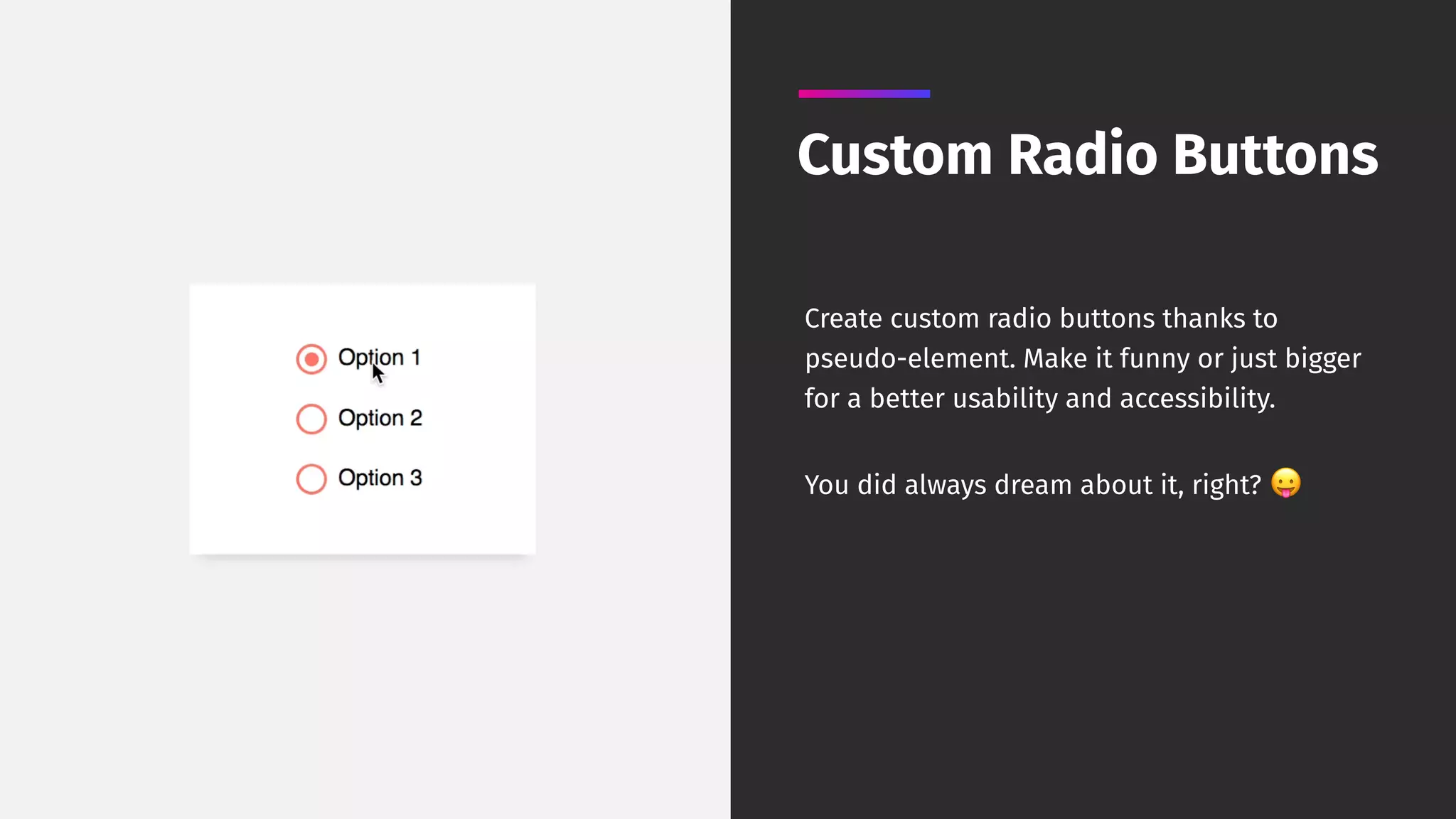

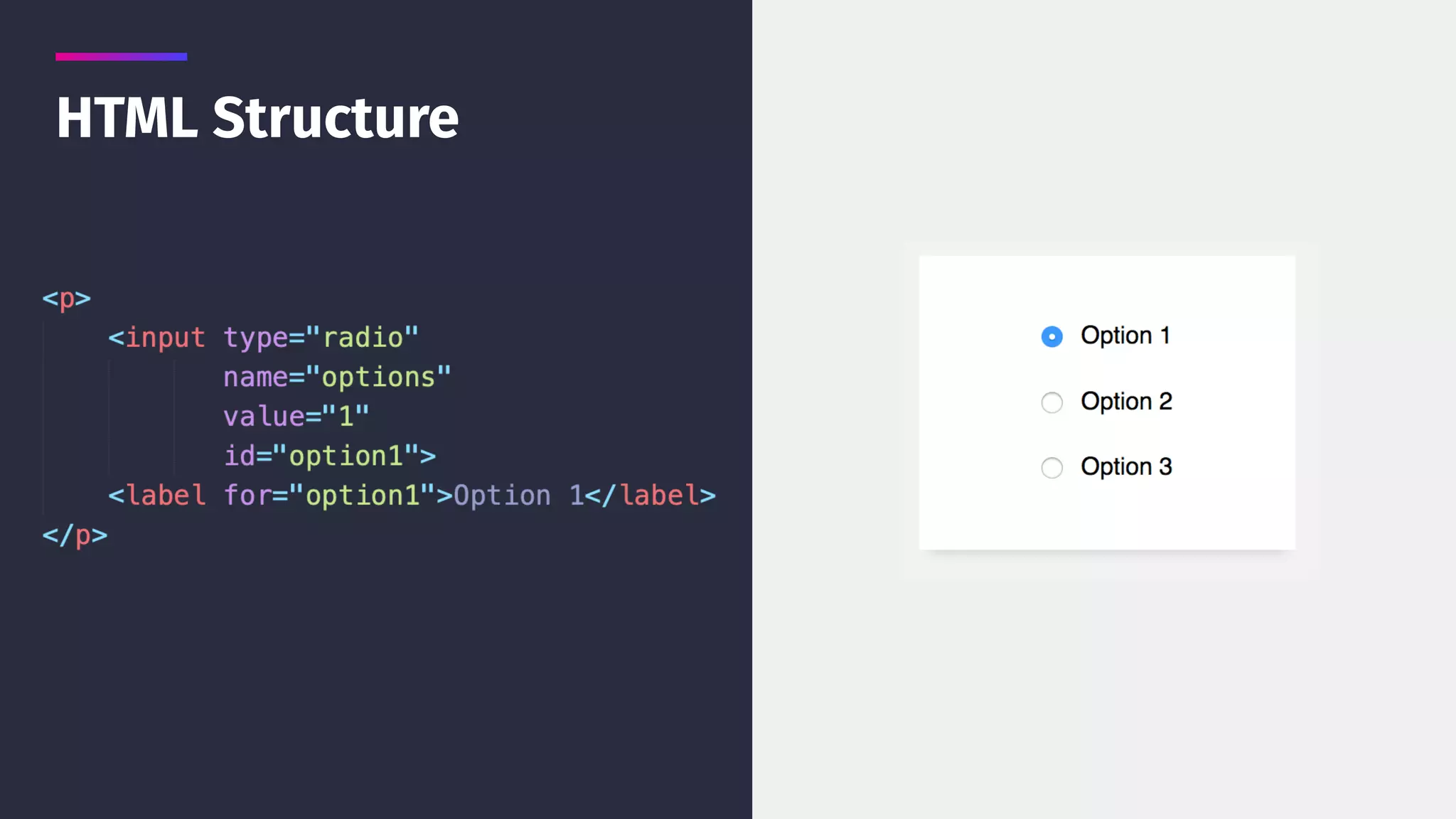

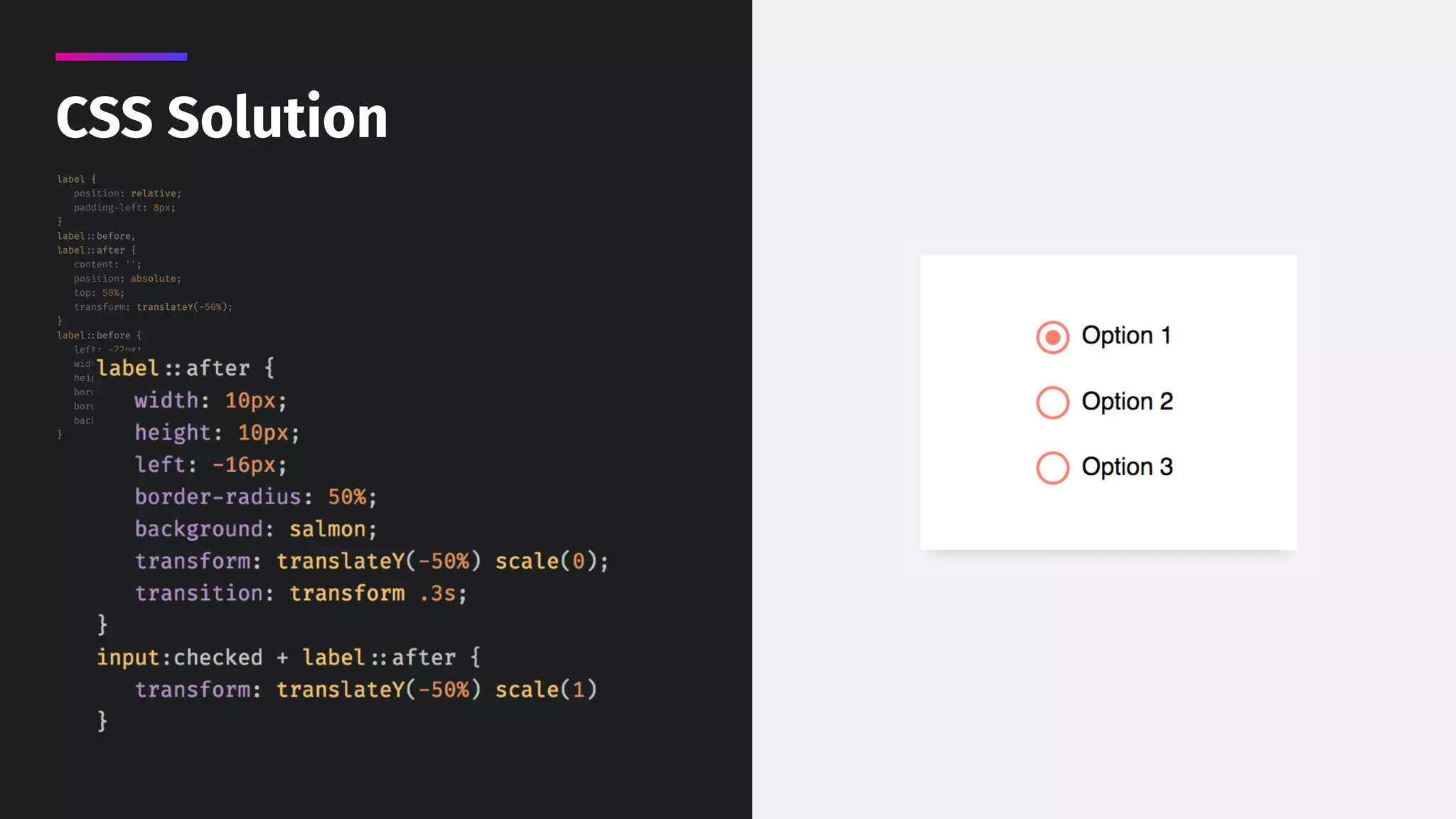

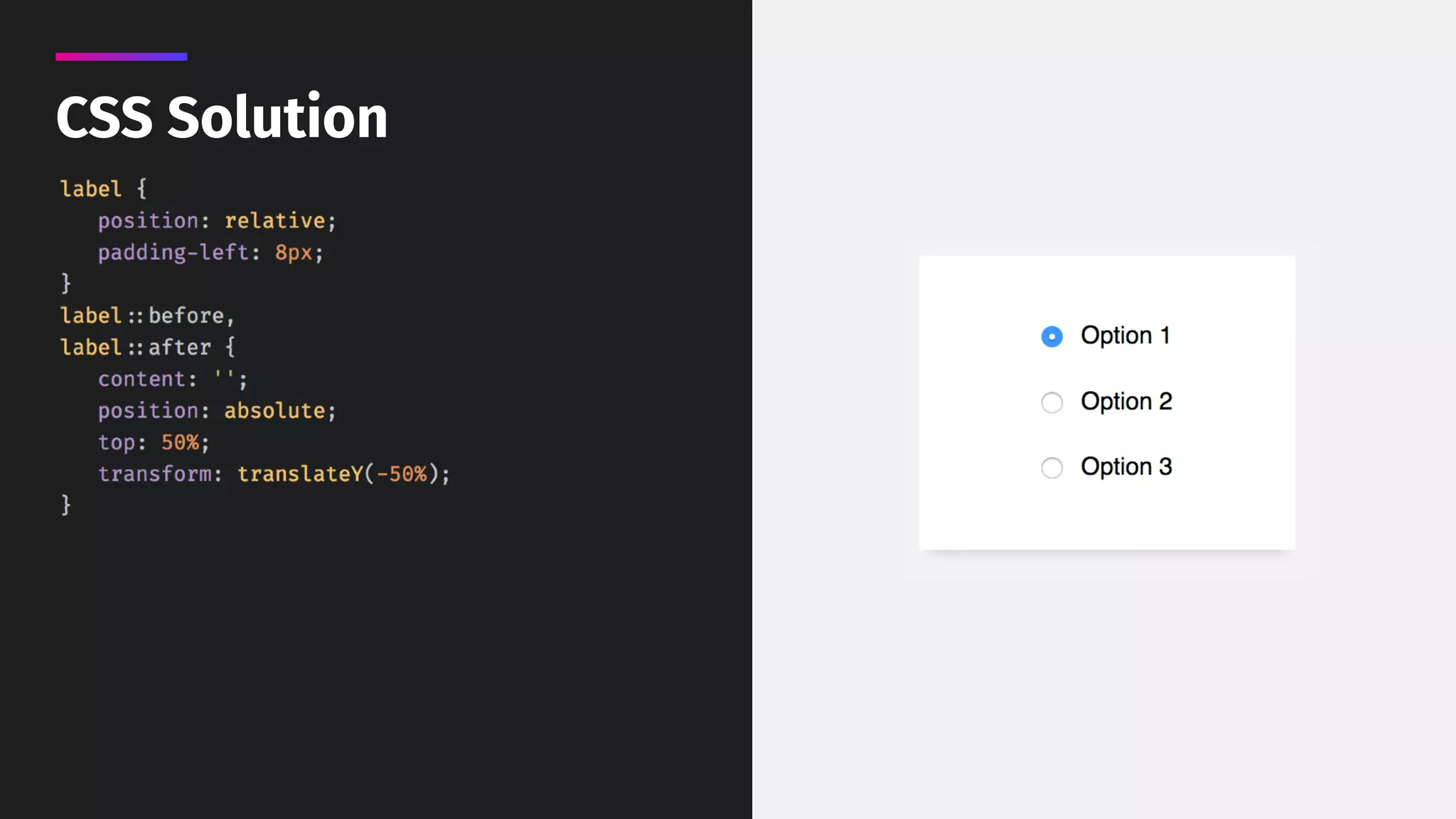

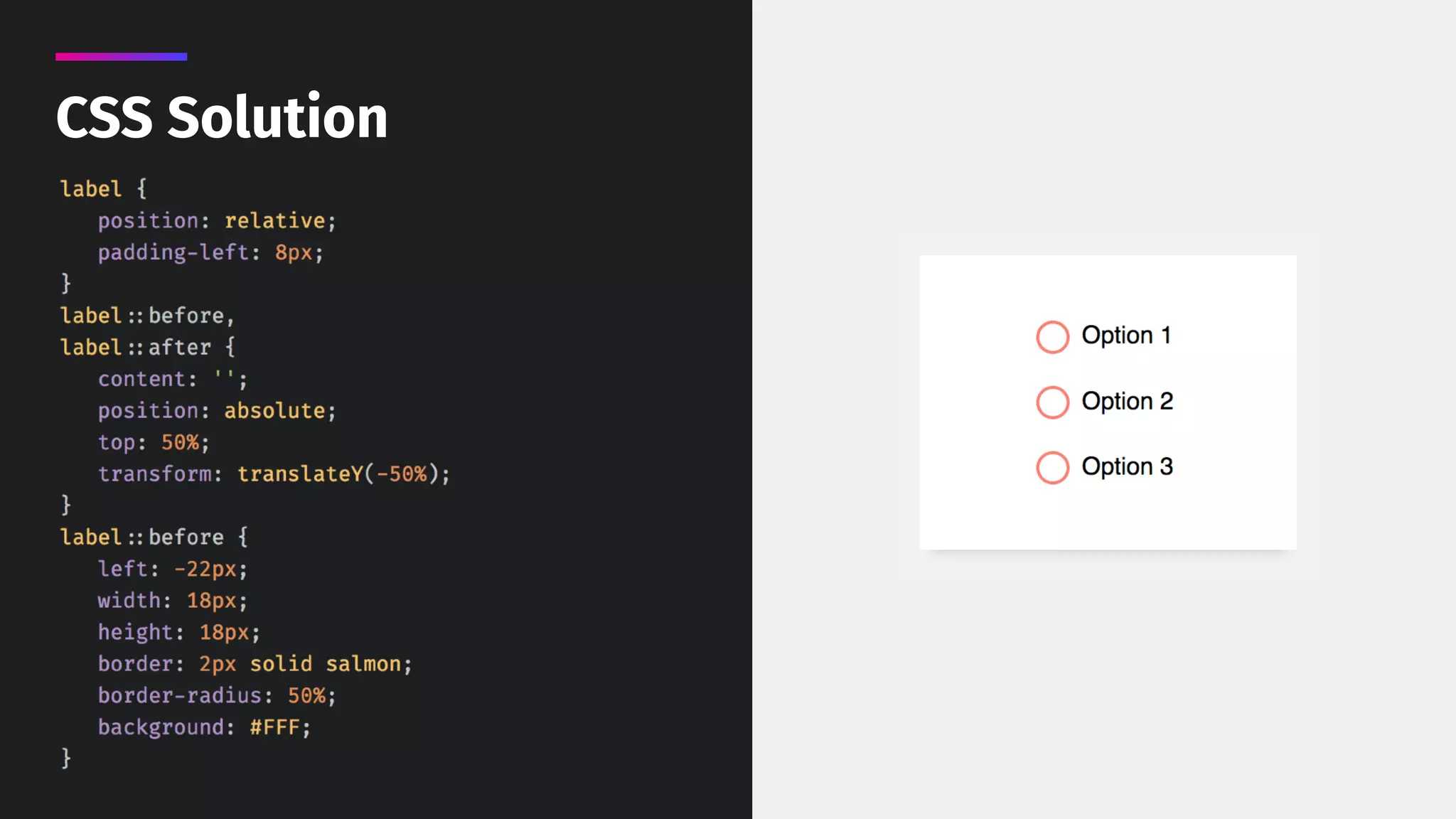

75. Custom Radio Buttons
Create custom radio buttons thanks to
pseudo-element. Make it funny or just bigger
for a better usability and accessibility.
You did always dream about it, right? 😛

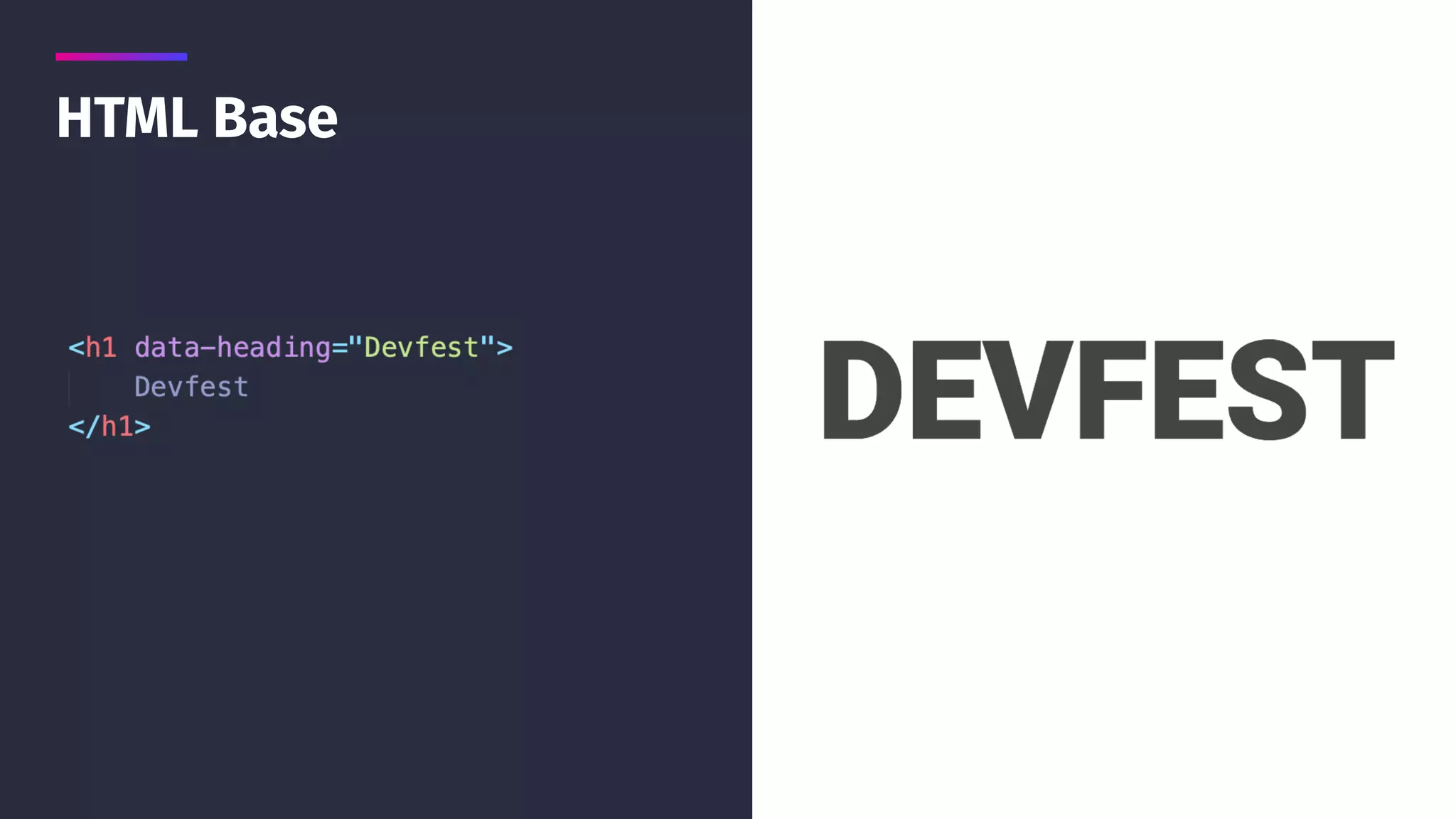

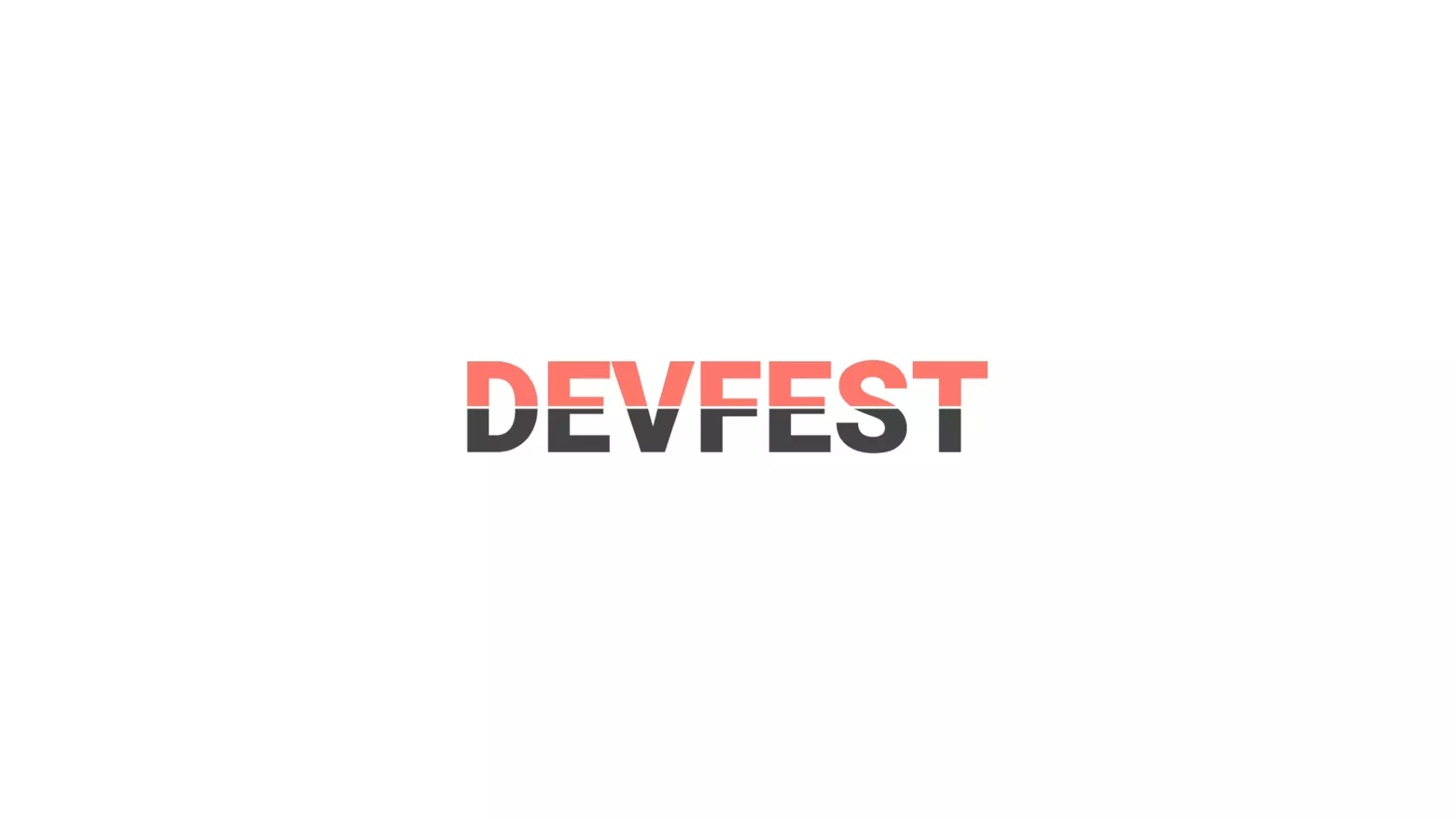

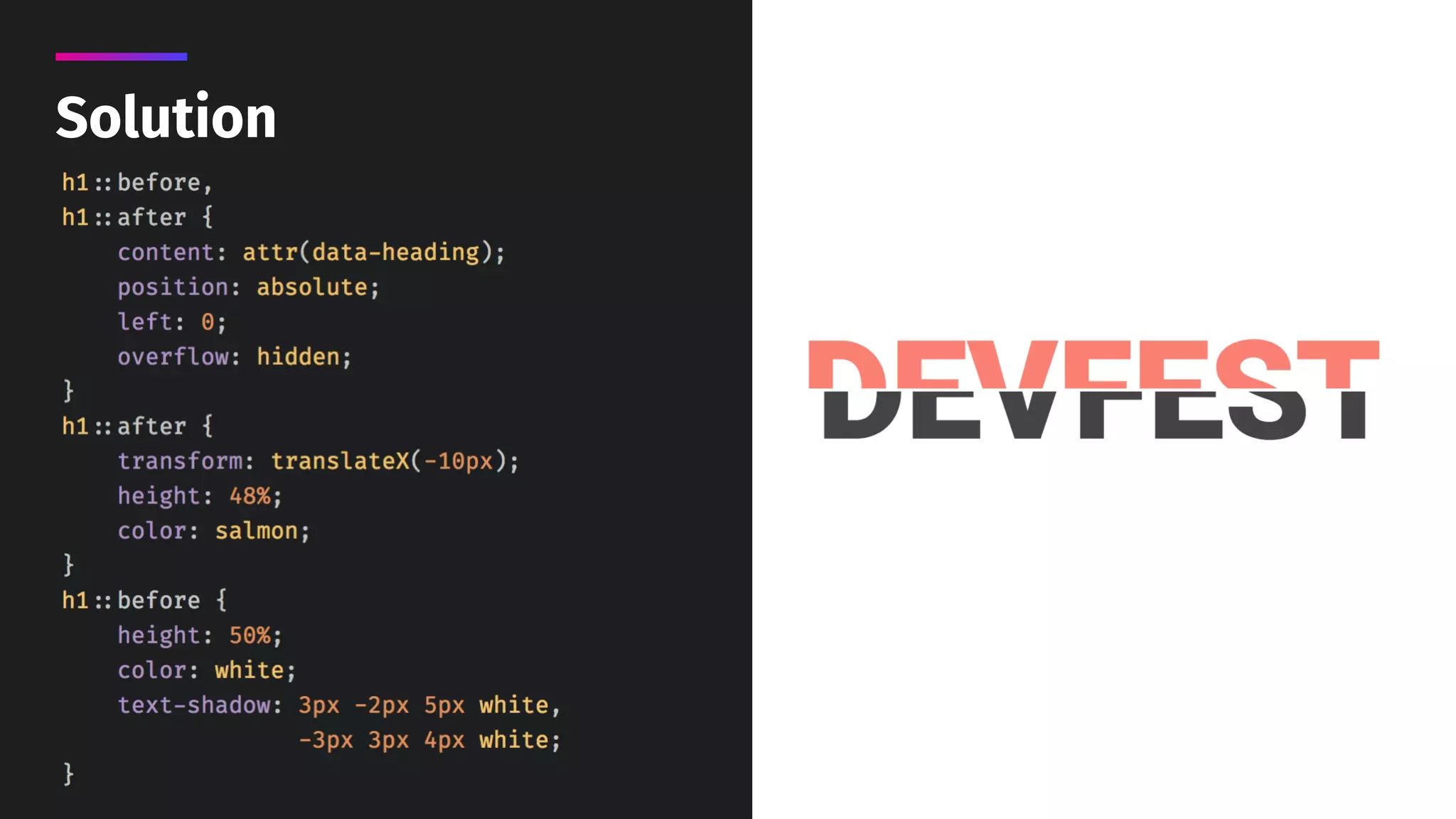

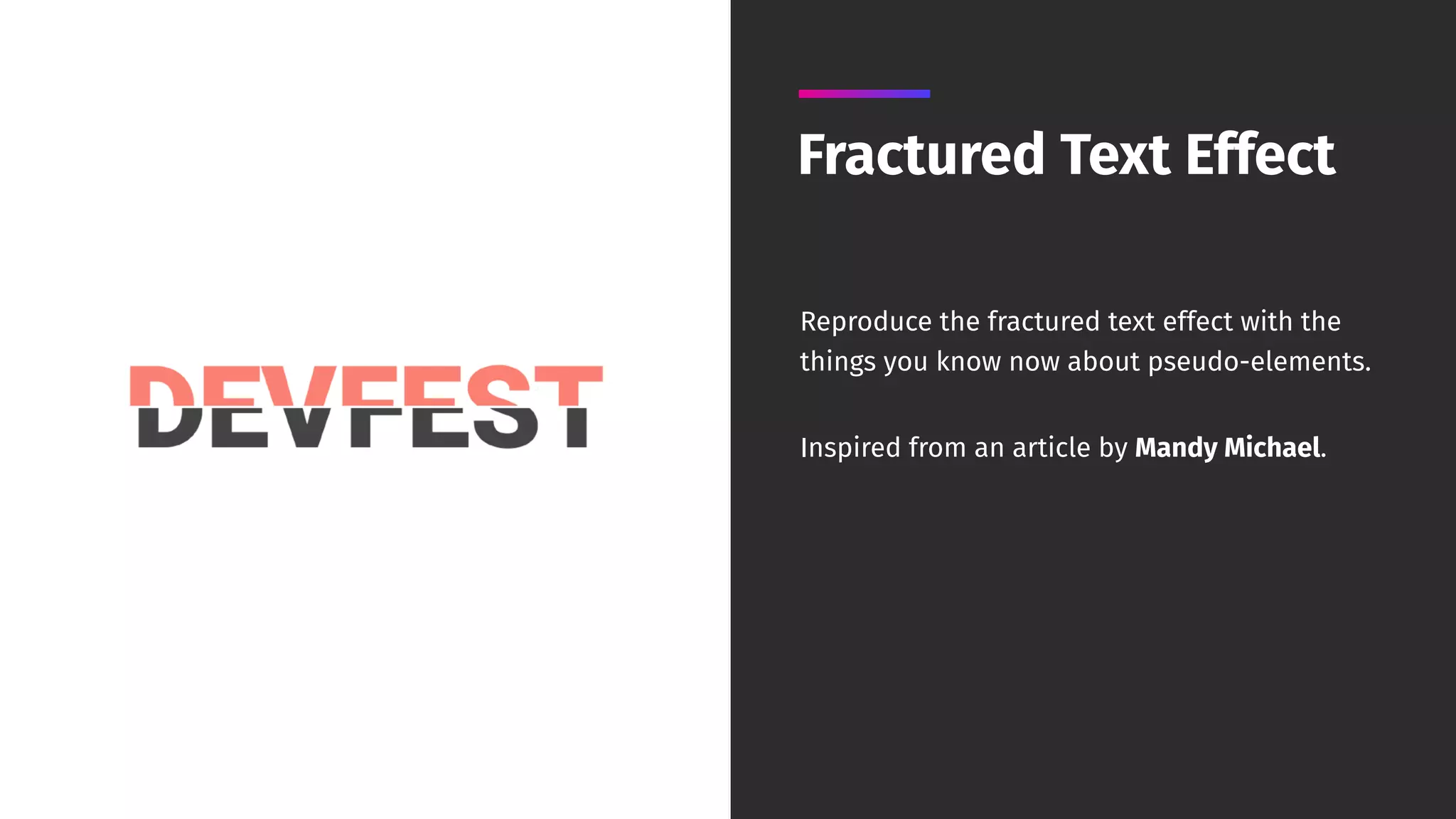

81. Fractured Text Effect
Reproduce the fractured text effect with the
things you know now about pseudo-elements.
Inspired from an article by Mandy Michael.

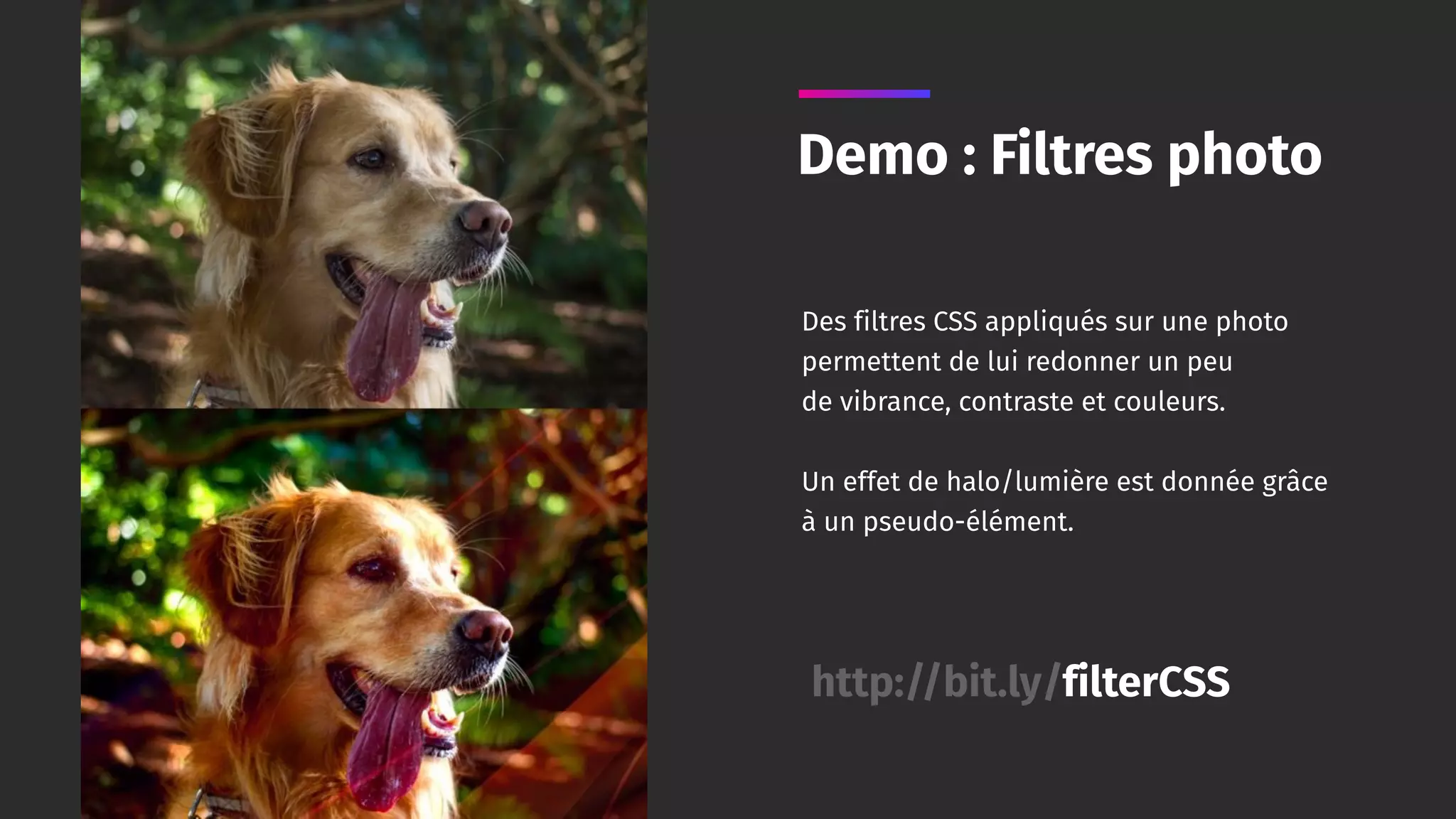

91. Demo : Filtres photo
Des filtres CSS appliqués sur une photo
permettent de lui redonner un peu
de vibrance, contraste et couleurs.
Un effet de halo/lumière est donnée grâce
à un pseudo-élément.
http://bit.ly/filterCSS

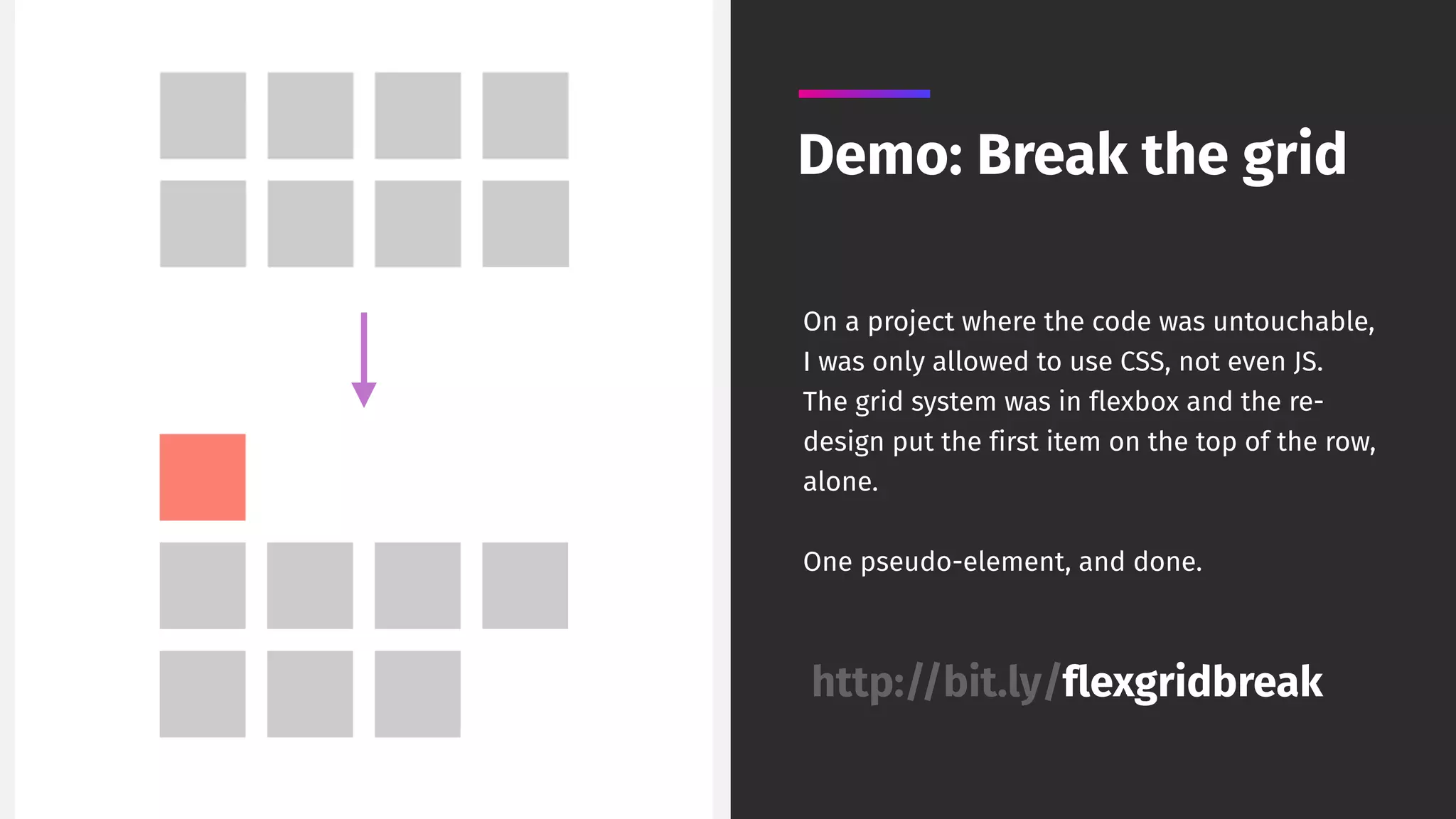

99. Demo: Break the grid
On a project where the code was untouchable,
I was only allowed to use CSS, not even JS.
The grid system was in flexbox and the re-
design put the first item on the top of the row,
alone.
One pseudo-element, and done.
http://bit.ly/flexgridbreak

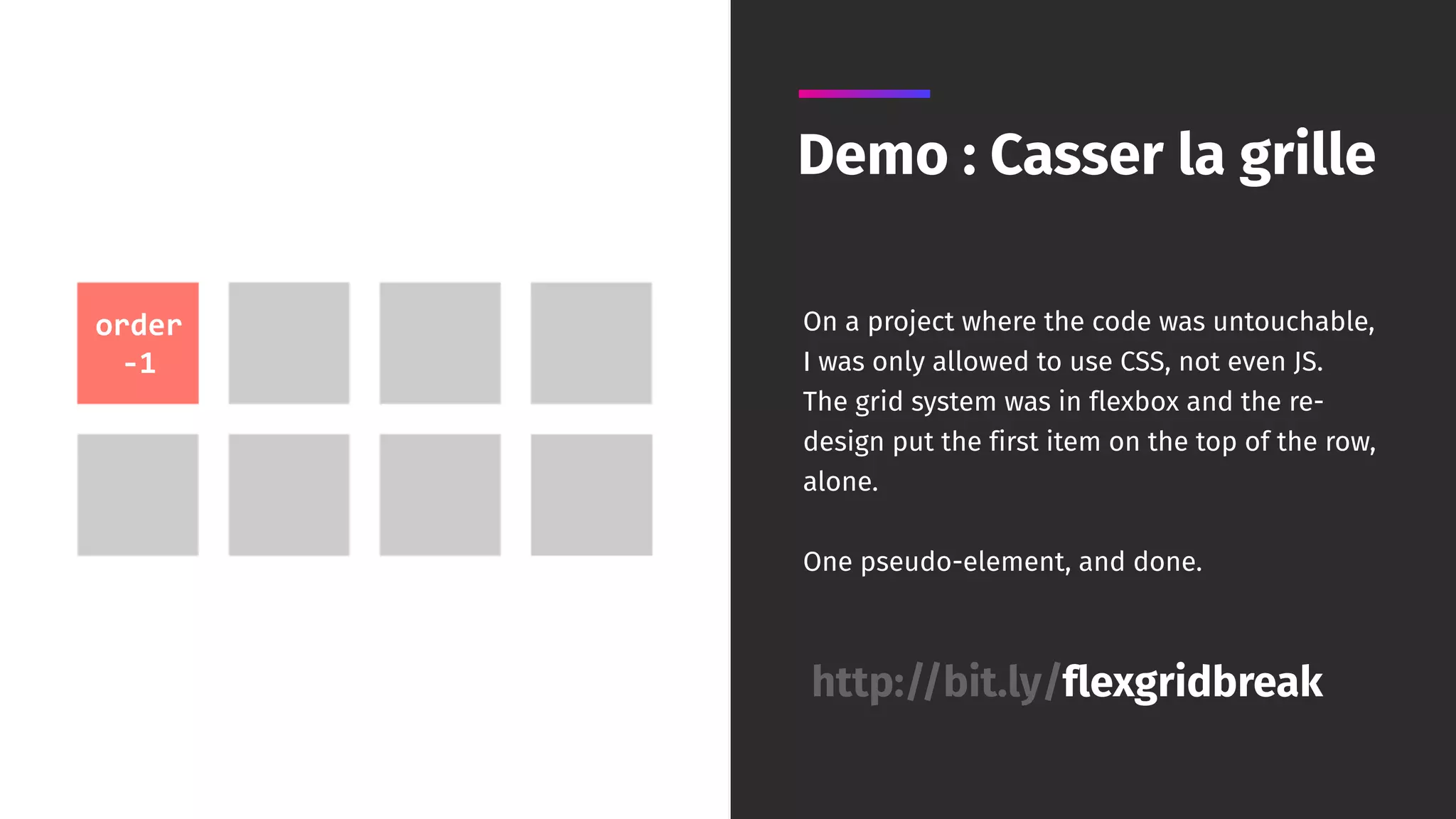

100. Demo : Casser la grille
http://bit.ly/flexgridbreak
order
-1
On a project where the code was untouchable,
I was only allowed to use CSS, not even JS.
The grid system was in flexbox and the re-
design put the first item on the top of the row,
alone.
One pseudo-element, and done.

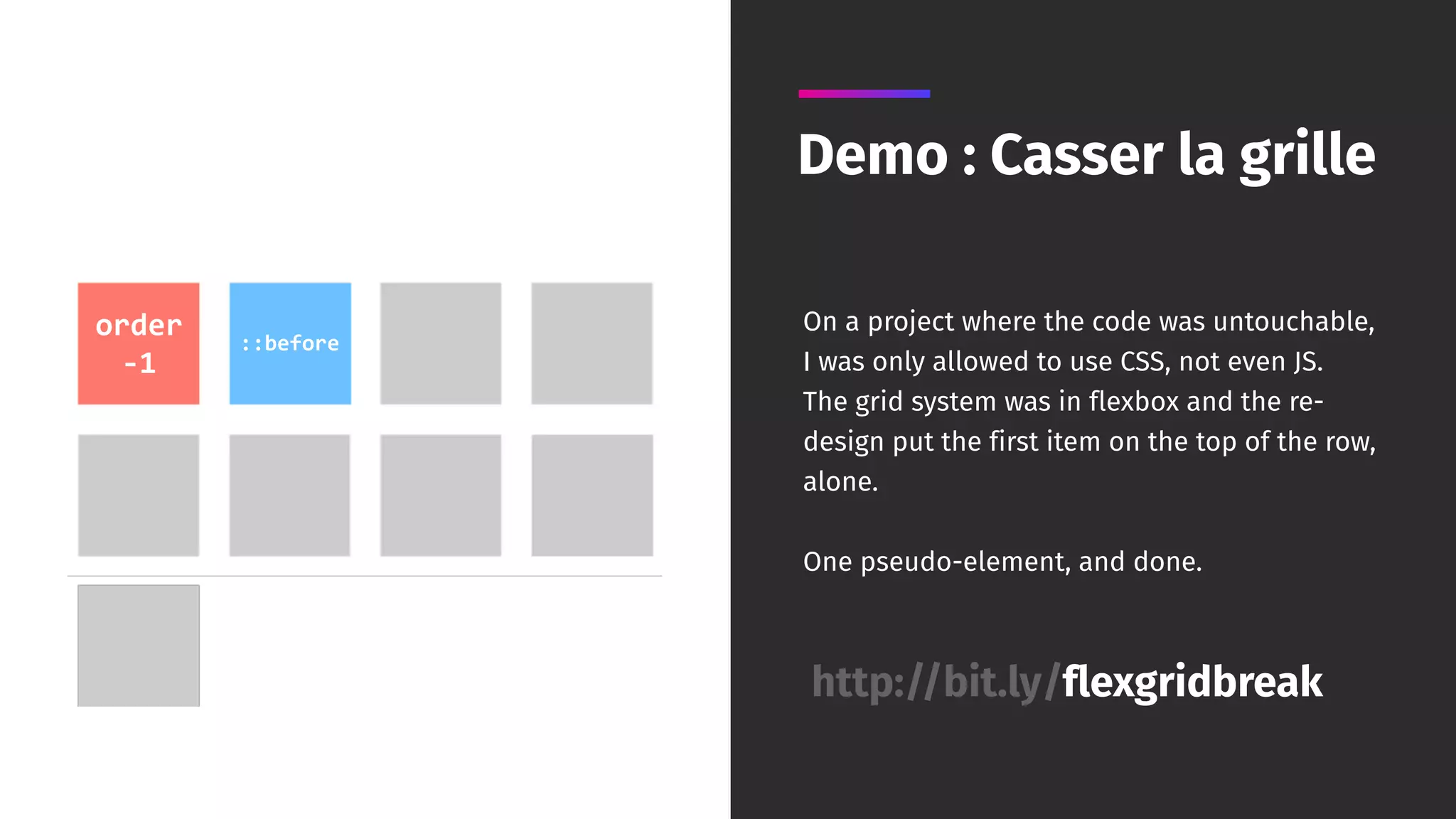

101. Demo : Casser la grille
http://bit.ly/flexgridbreak
order
-1
::before
On a project where the code was untouchable,
I was only allowed to use CSS, not even JS.
The grid system was in flexbox and the re-
design put the first item on the top of the row,
alone.
One pseudo-element, and done.

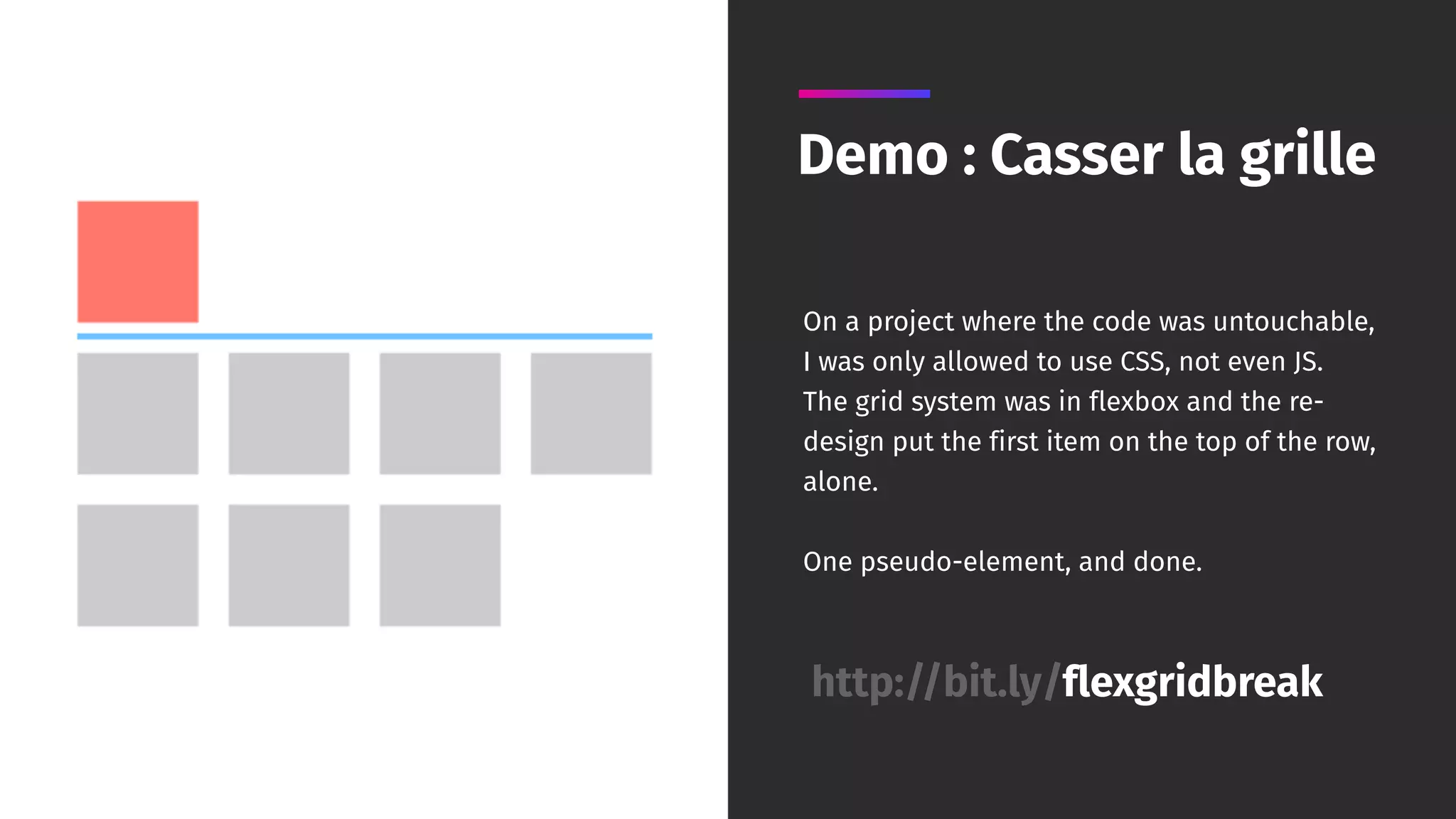

102. Demo : Casser la grille
http://bit.ly/flexgridbreak
On a project where the code was untouchable,
I was only allowed to use CSS, not even JS.
The grid system was in flexbox and the re-
design put the first item on the top of the row,
alone.
One pseudo-element, and done.

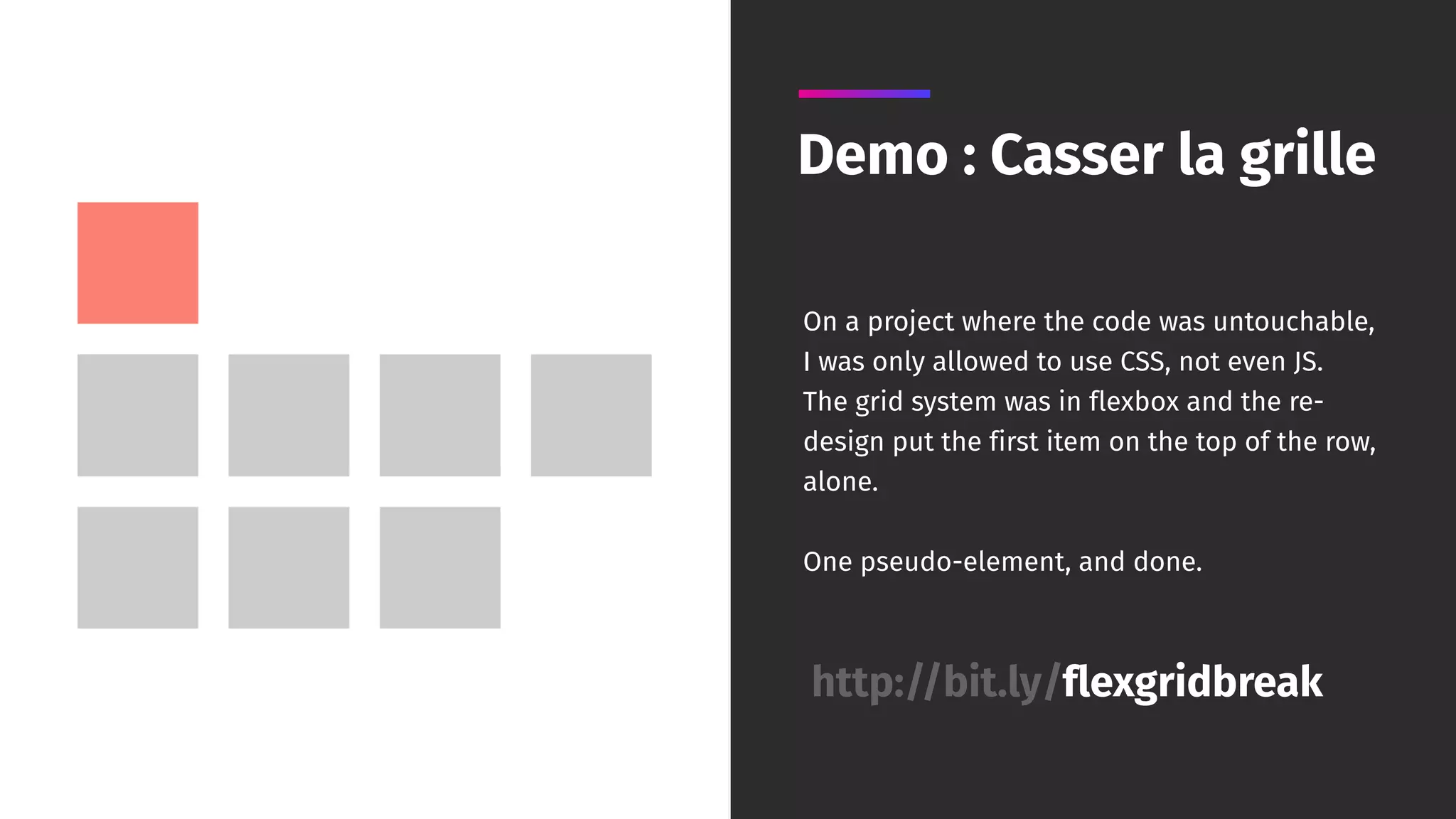

103. Demo : Casser la grille
http://bit.ly/flexgridbreak
On a project where the code was untouchable,
I was only allowed to use CSS, not even JS.
The grid system was in flexbox and the re-
design put the first item on the top of the row,
alone.
One pseudo-element, and done.

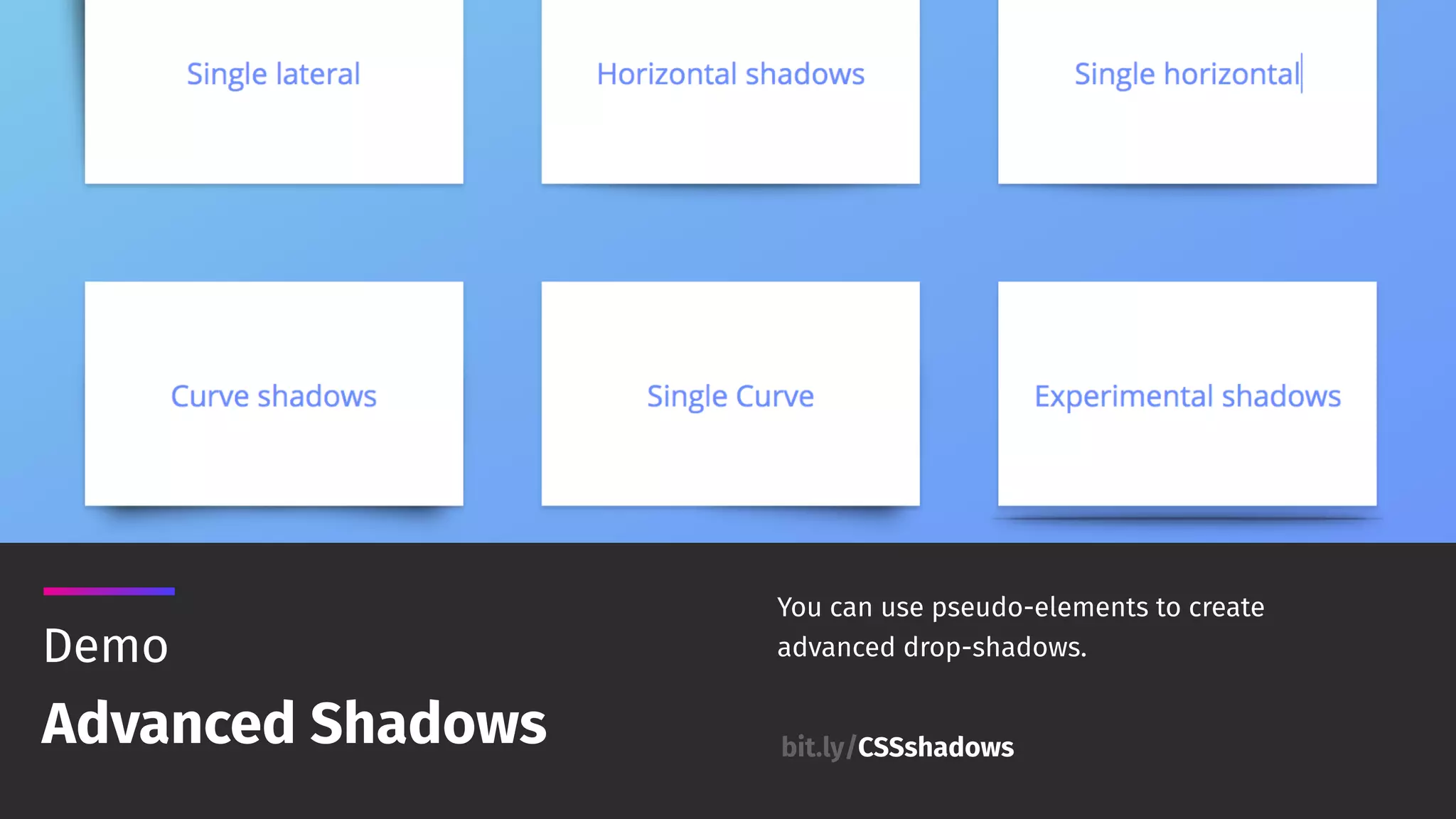

104. You can use pseudo-elements to create
advanced drop-shadows.Demo
Advanced Shadows bit.ly/CSSshadows

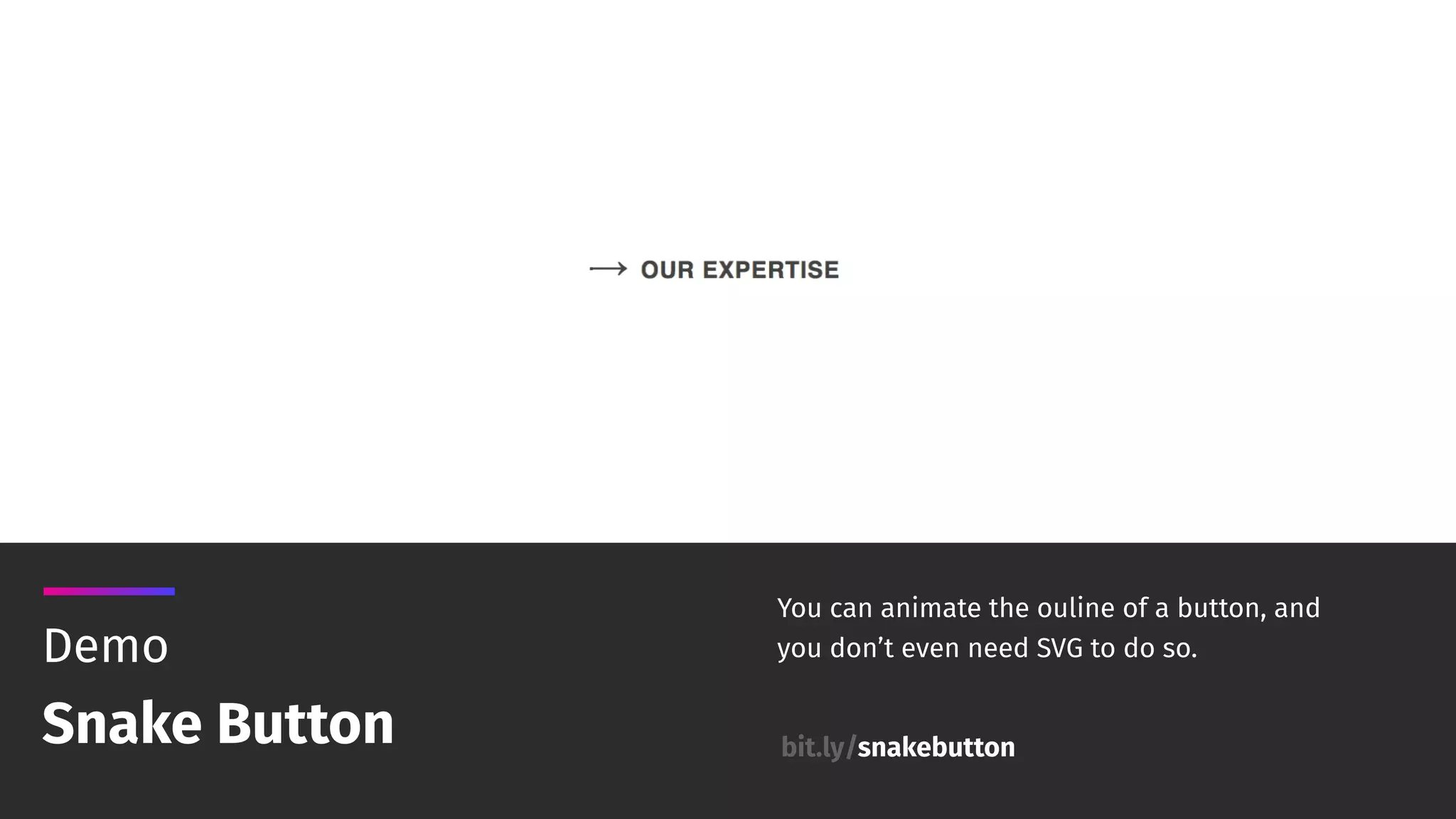

105. You can animate the ouline of a button, and
you don’t even need SVG to do so.Demo
Snake Button bit.ly/snakebutton

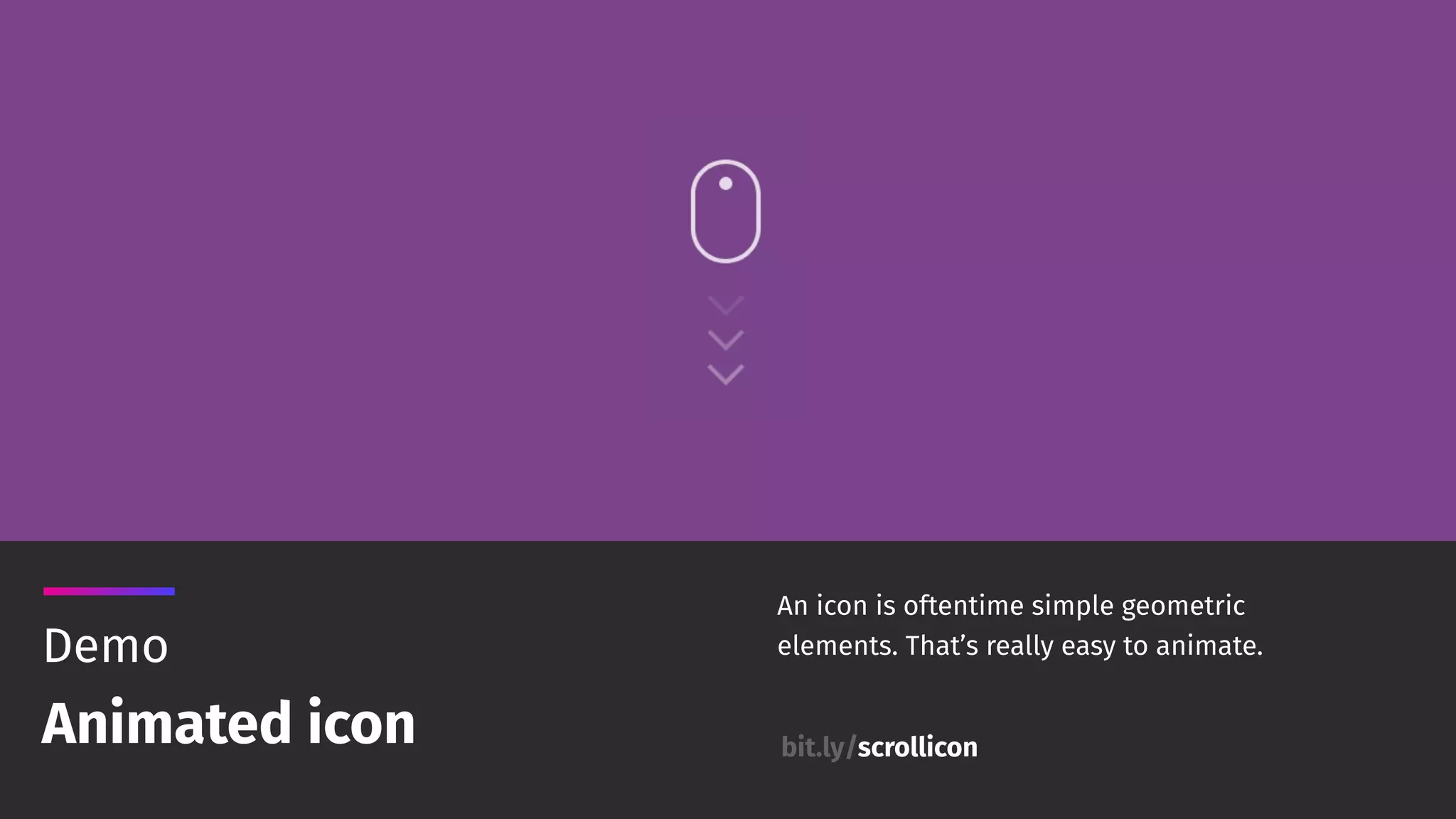

106. Demo
Animated icon
An icon is oftentime simple geometric
elements. That’s really easy to animate.
bit.ly/scrollicon

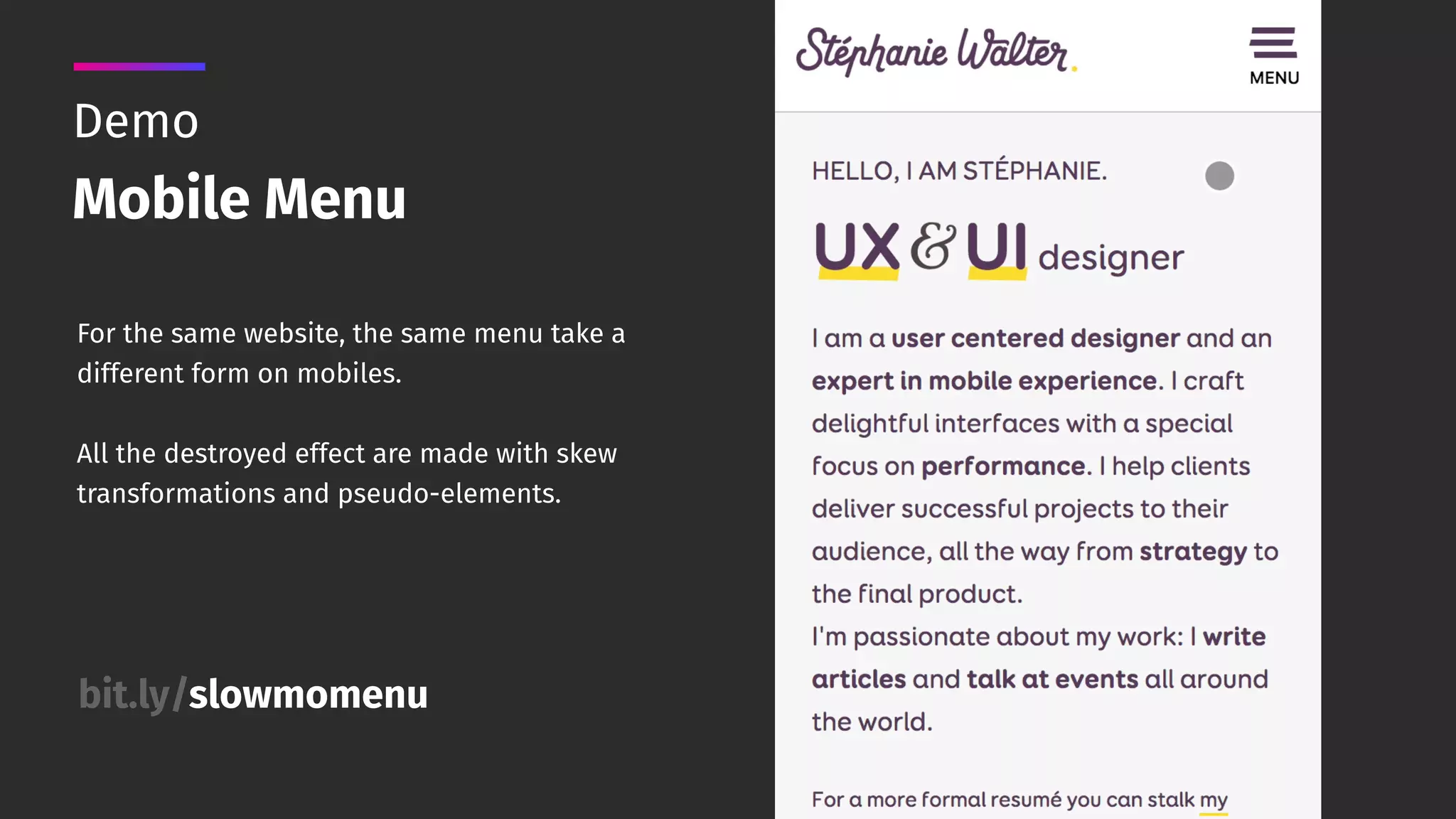

108. Demo
Mobile Menu
For the same website, the same menu take a
different form on mobiles.
All the destroyed effect are made with skew
transformations and pseudo-elements.
bit.ly/slowmomenu

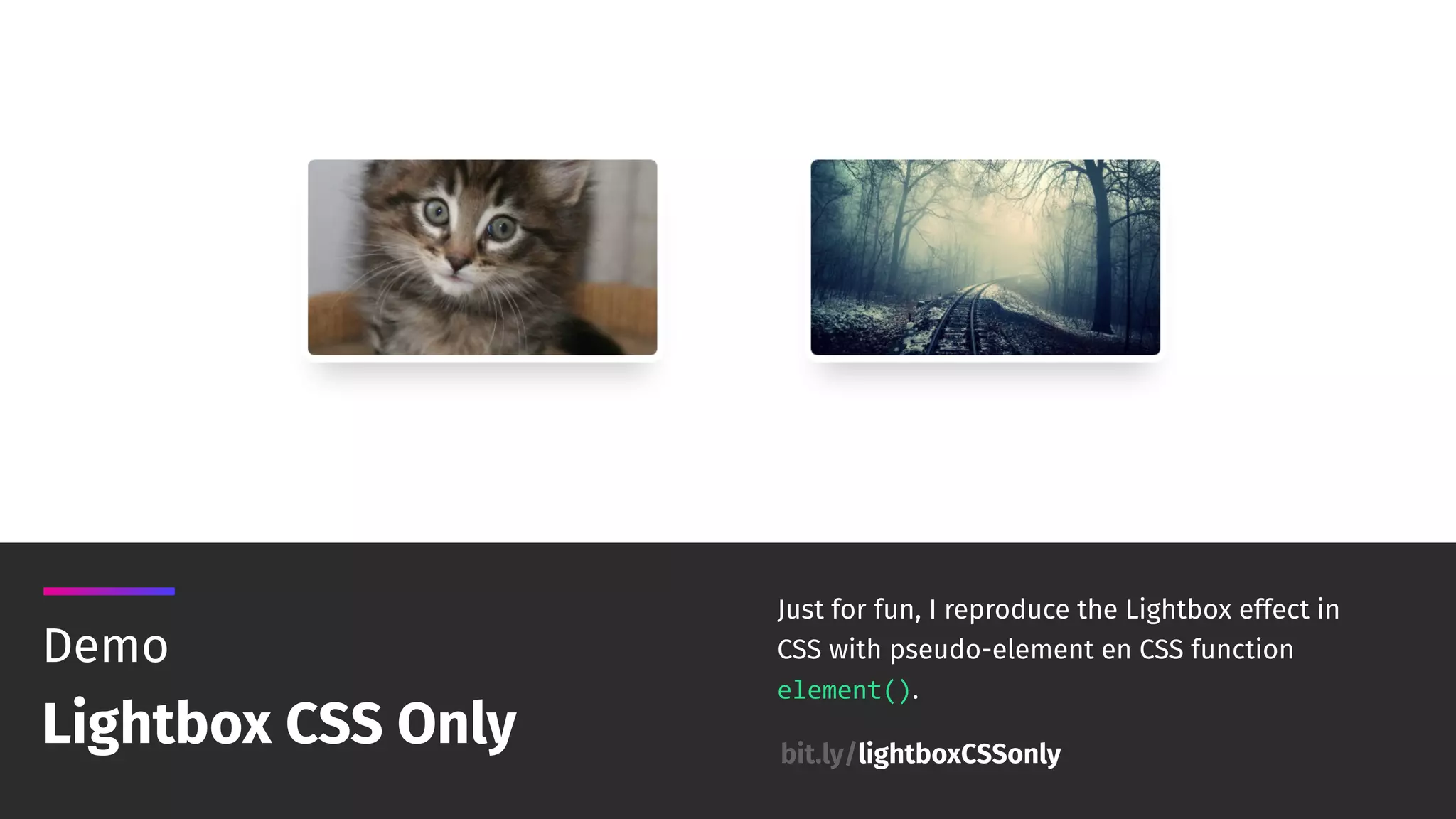

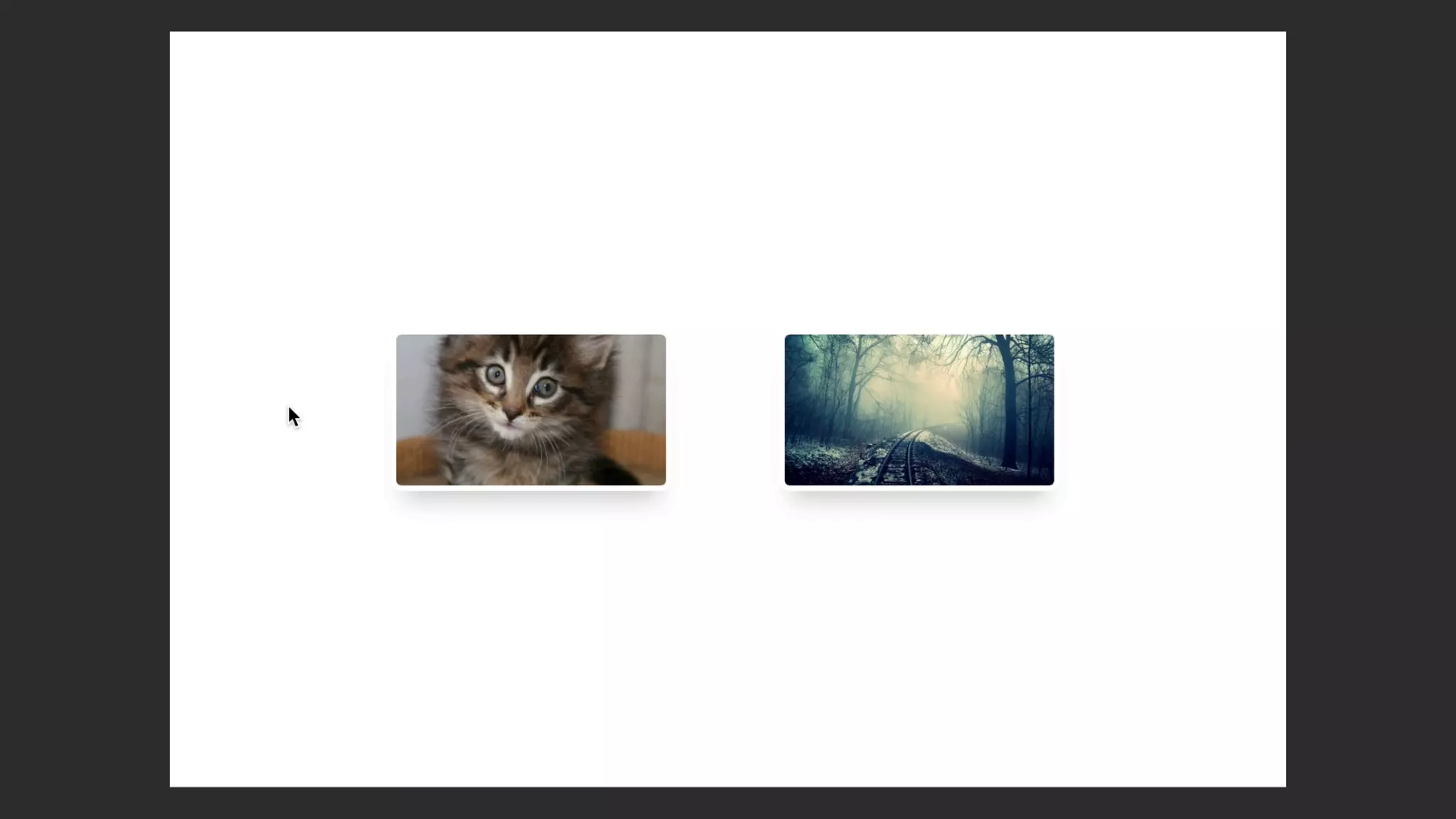

109. Demo
Lightbox CSS Only
Just for fun, I reproduce the Lightbox effect in
CSS with pseudo-element en CSS function
element().
bit.ly/lightboxCSSonly
110.

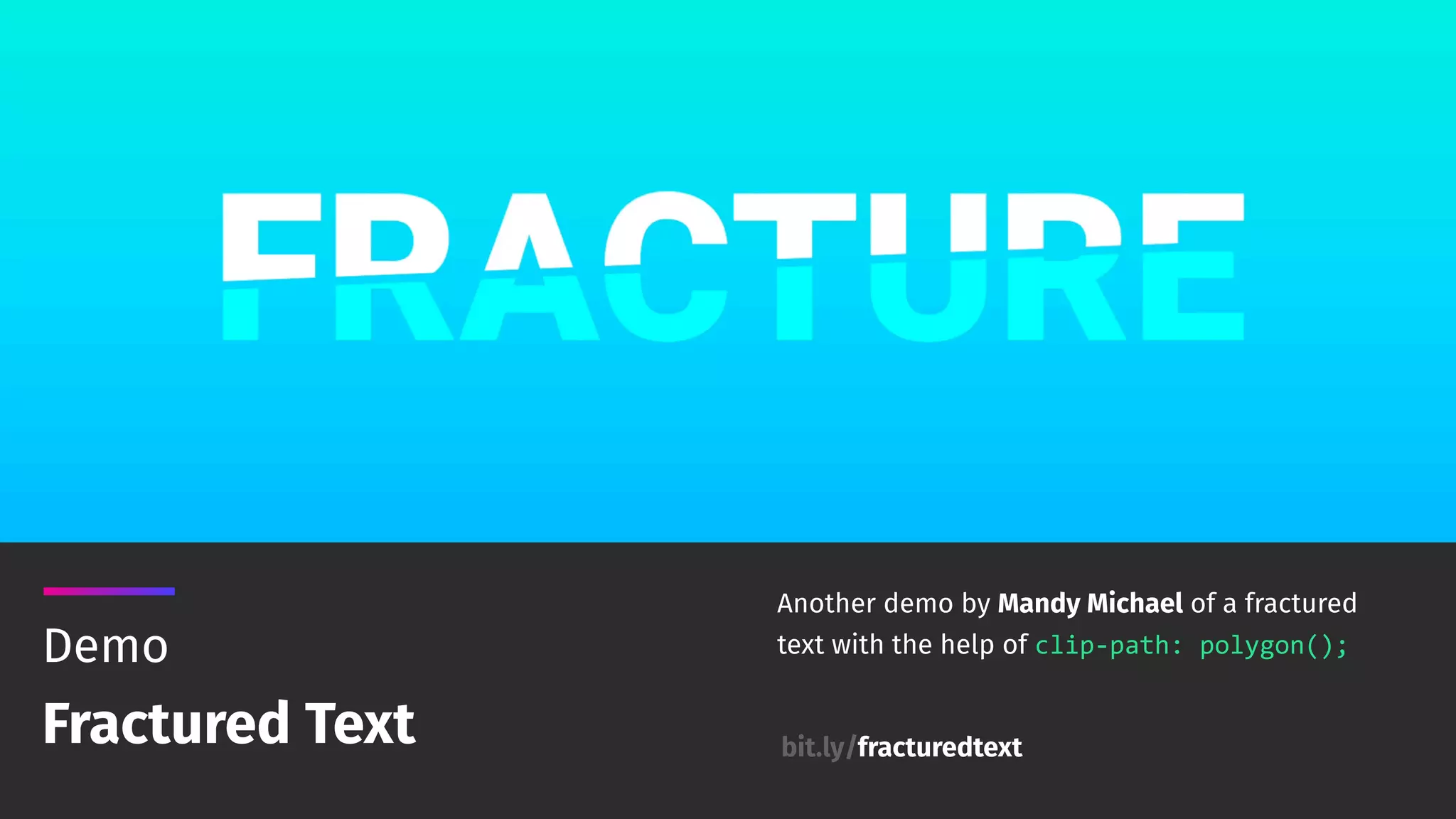

111. Demo
Fractured Text
Another demo by Mandy Michael of a fractured
text with the help of clip-path: polygon();
bit.ly/fracturedtext
114. Source : Styling Broken Images
* alt displayed only if image
dimensions allow it
* * font-styling property are
not applied
Compatibility: broken image
115. Fine tuning
You can revise your layout by
breaking things down. (grid
manipulation)
Shape things
They allow you to create visual
things with only CSS (no need for
empty divs)
Responsive
It’s CSS, so you can totally add
media-query conditions to your
pseudo-element styling.
Generated Content
Add custom content in the DOM
with no need to edit your HTML.
Advantage of using
pseudo-elements

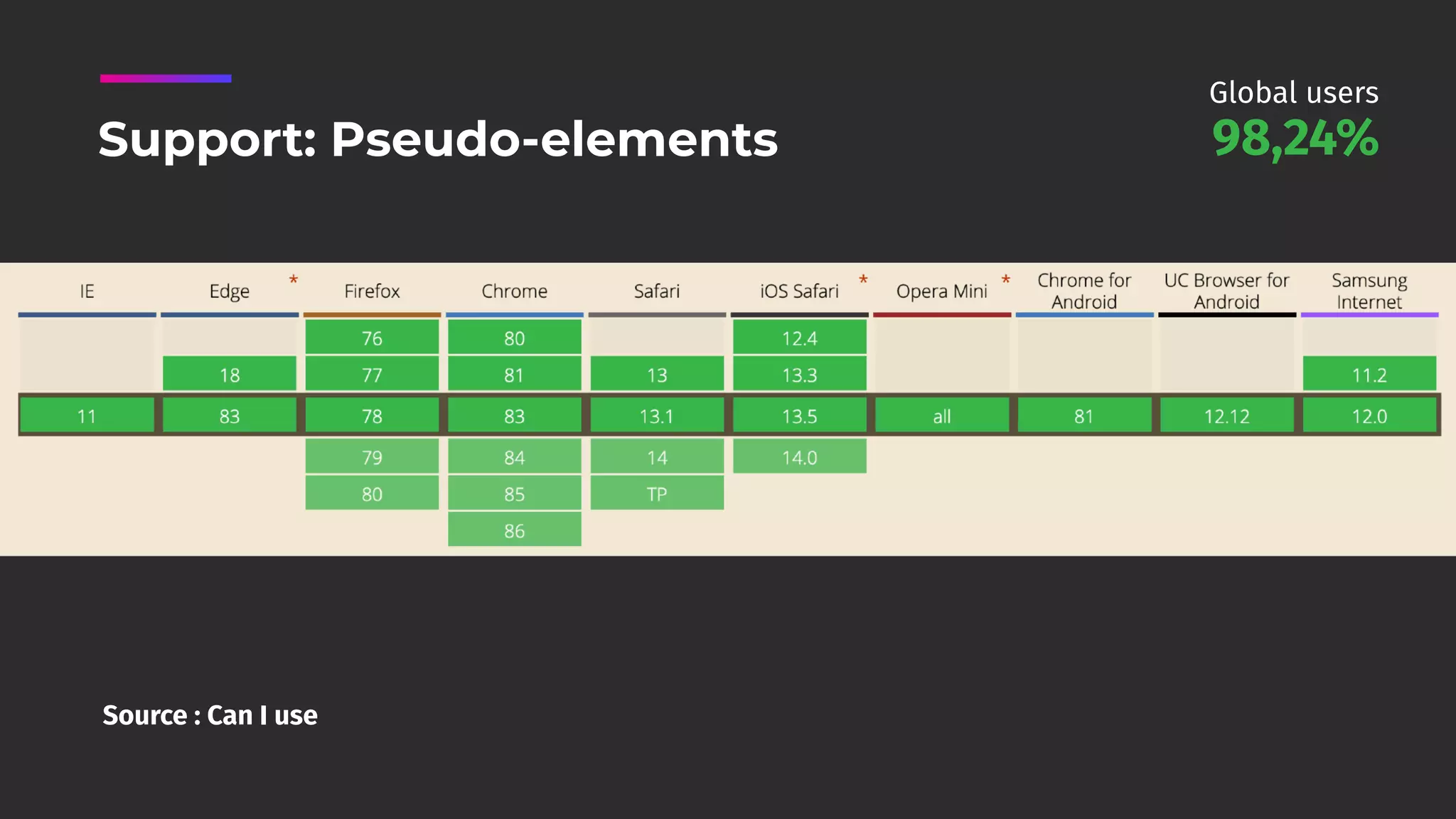

116. Source : Can I use
Support: Pseudo-elements 98,24%
Global users

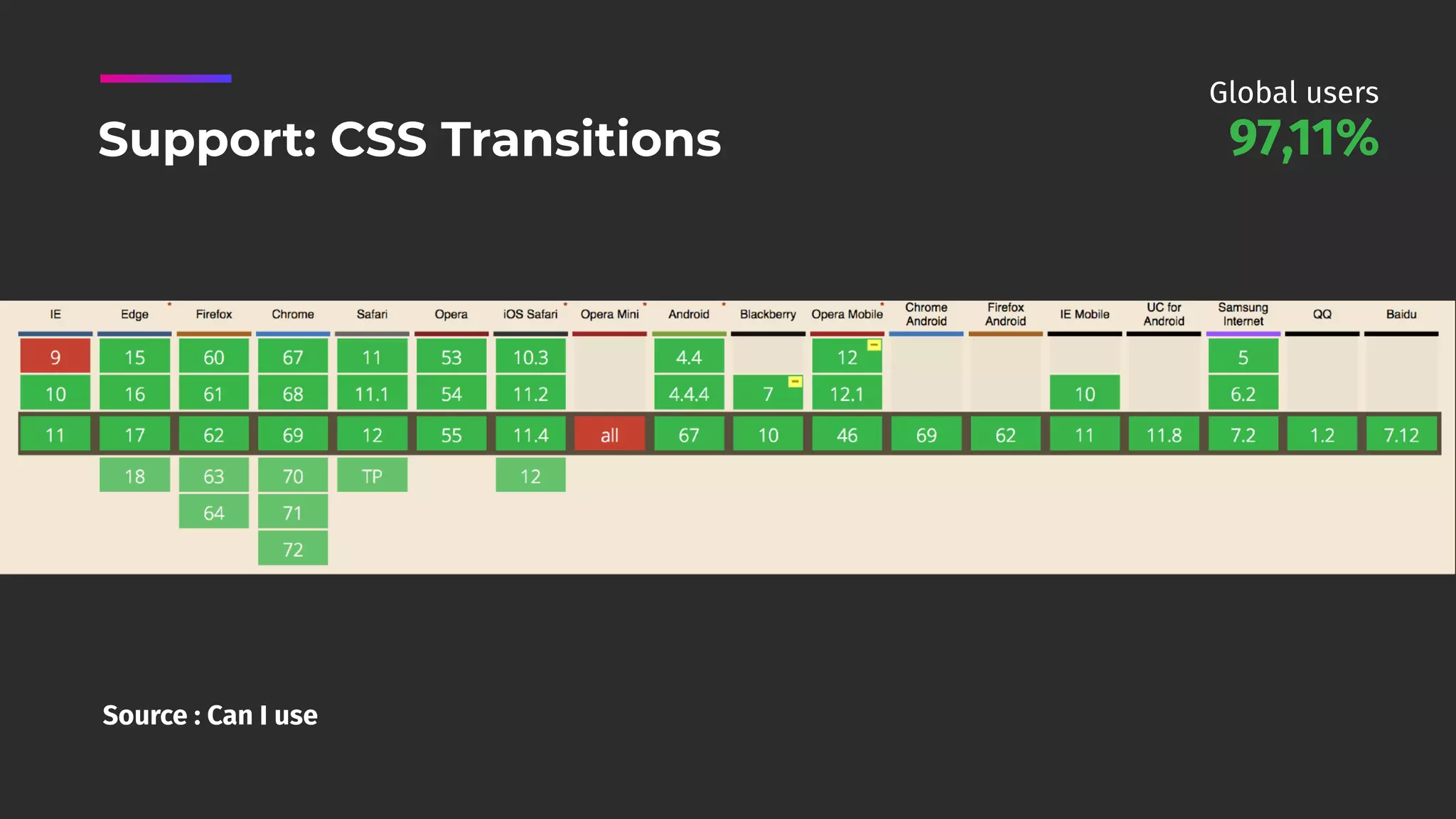

117. Source : Can I use
Support: CSS Transitions 97,11%
Global users

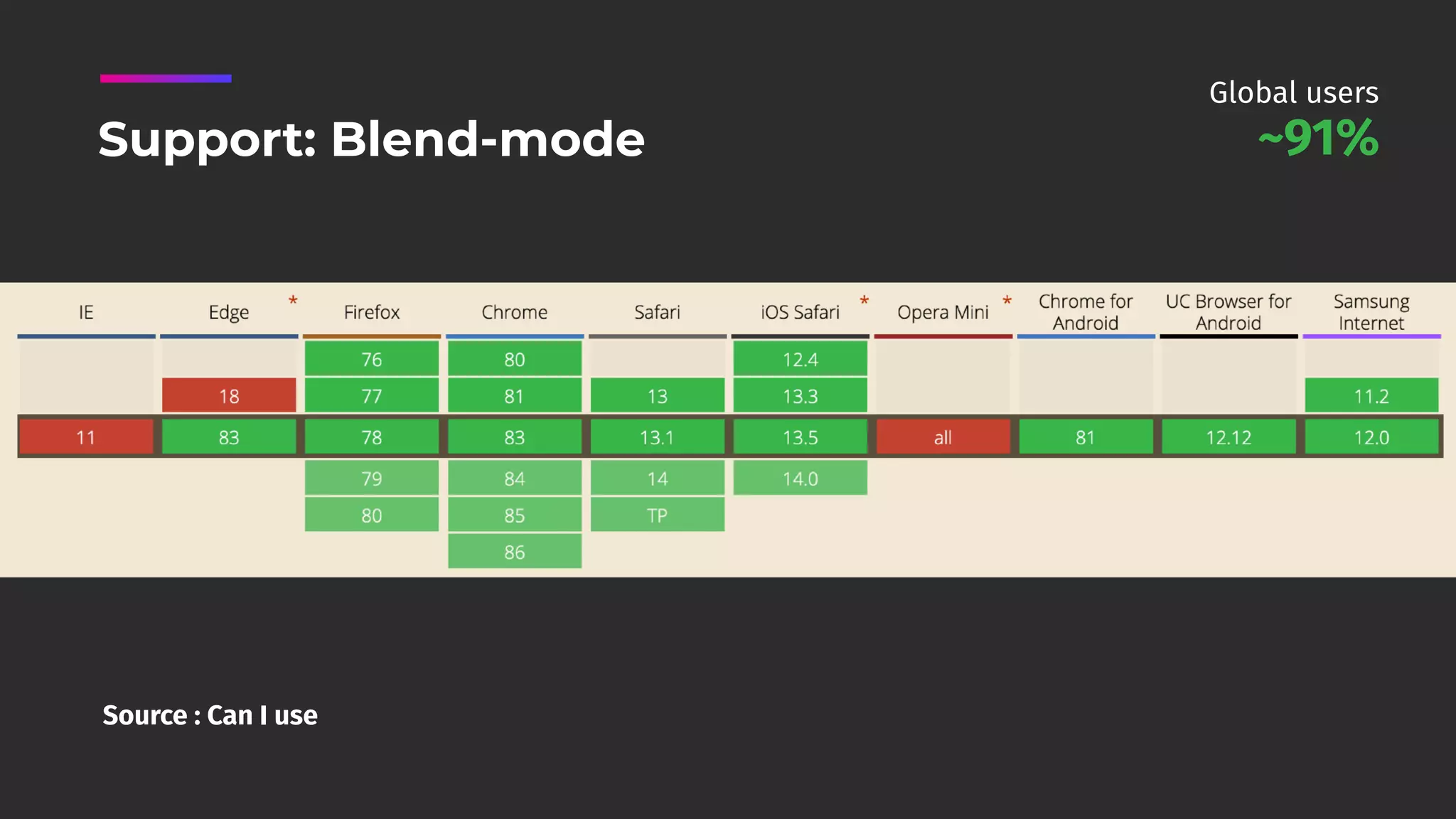

118. Source : Can I use
Support: Blend-mode ~91%
Global users

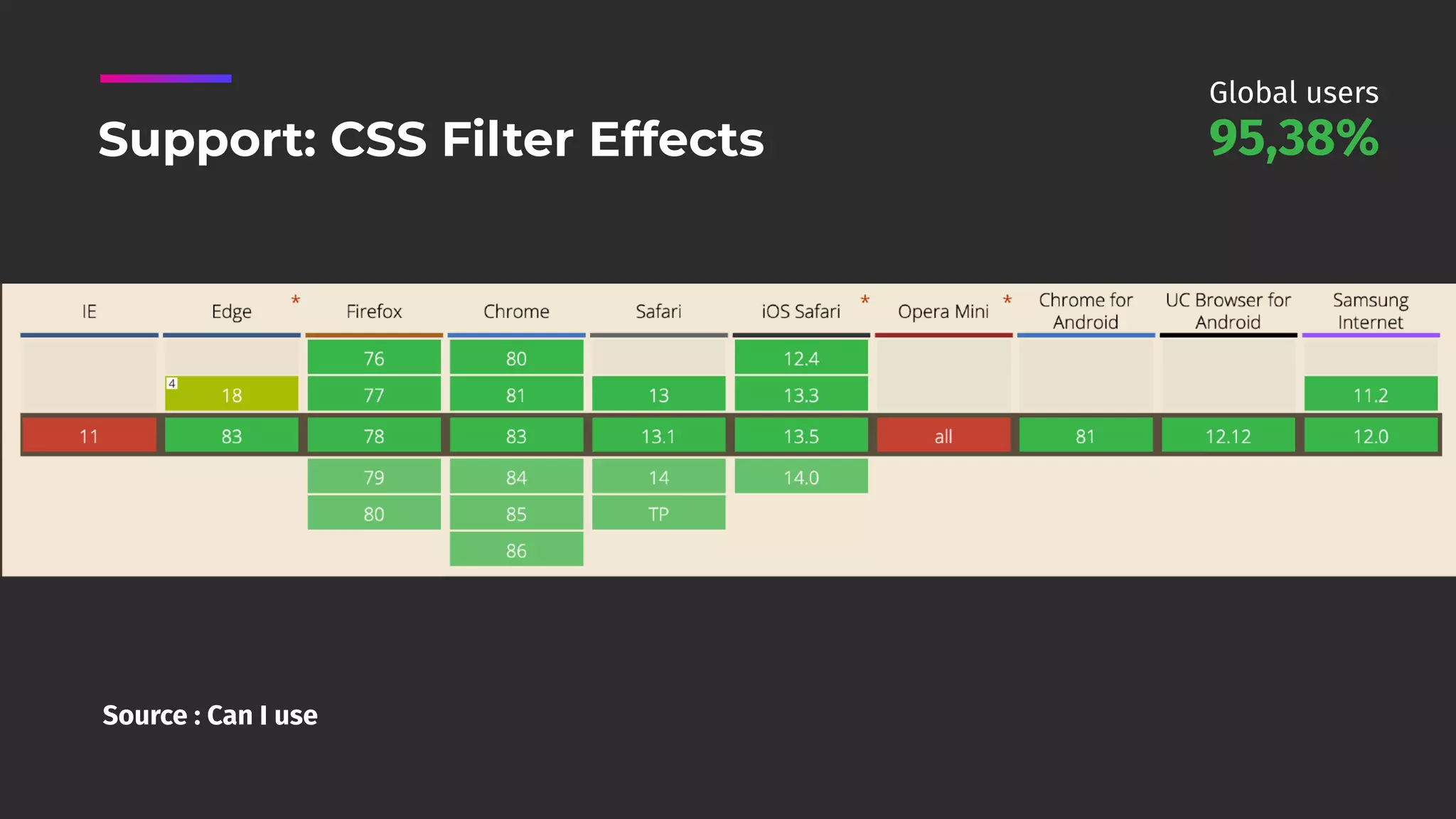

119. Source : Can I use
Support: CSS Filter Effects 95,38%
Global users

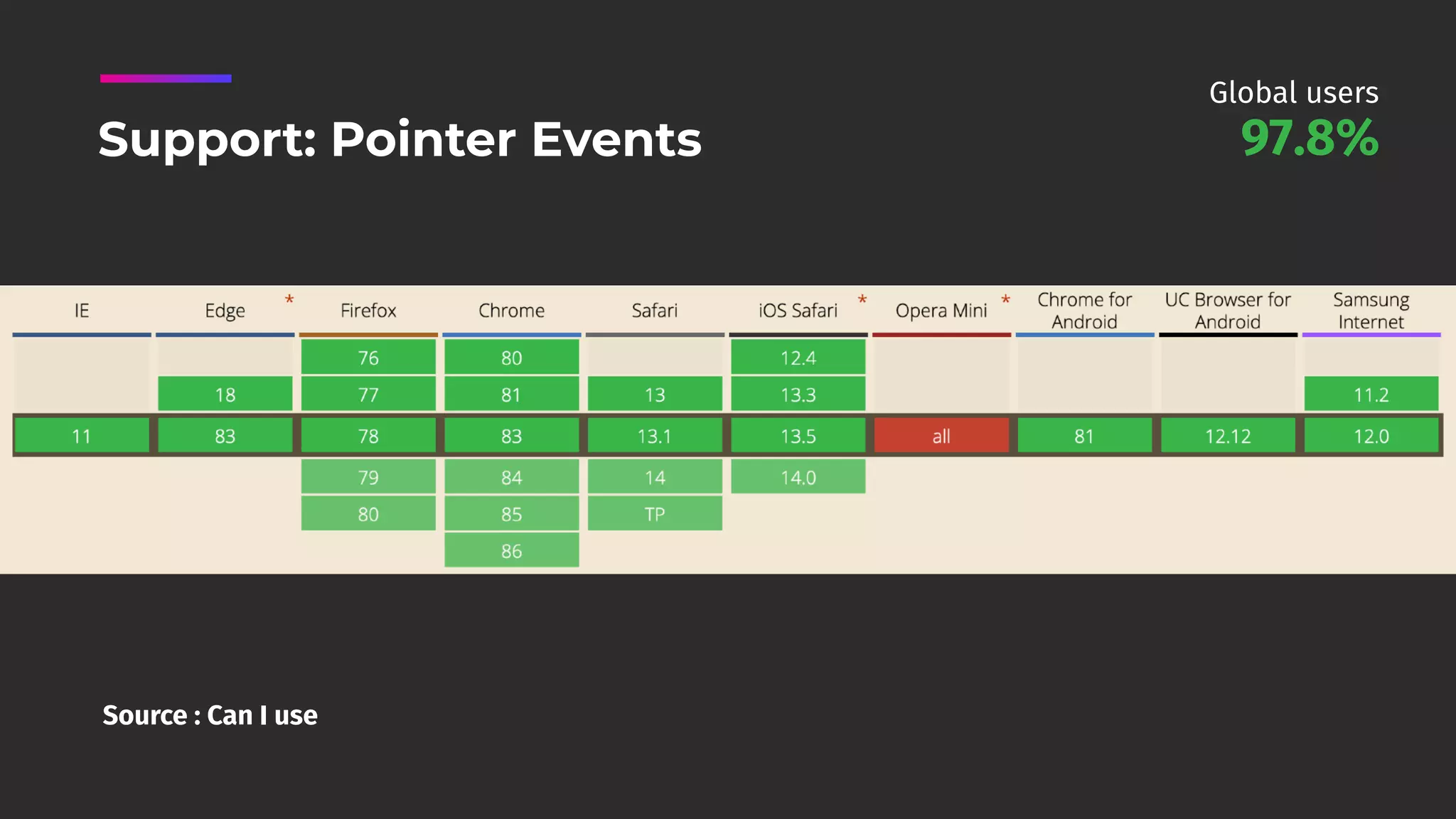

120. Source : Can I use
Support: Pointer Events 97.8%
Global users

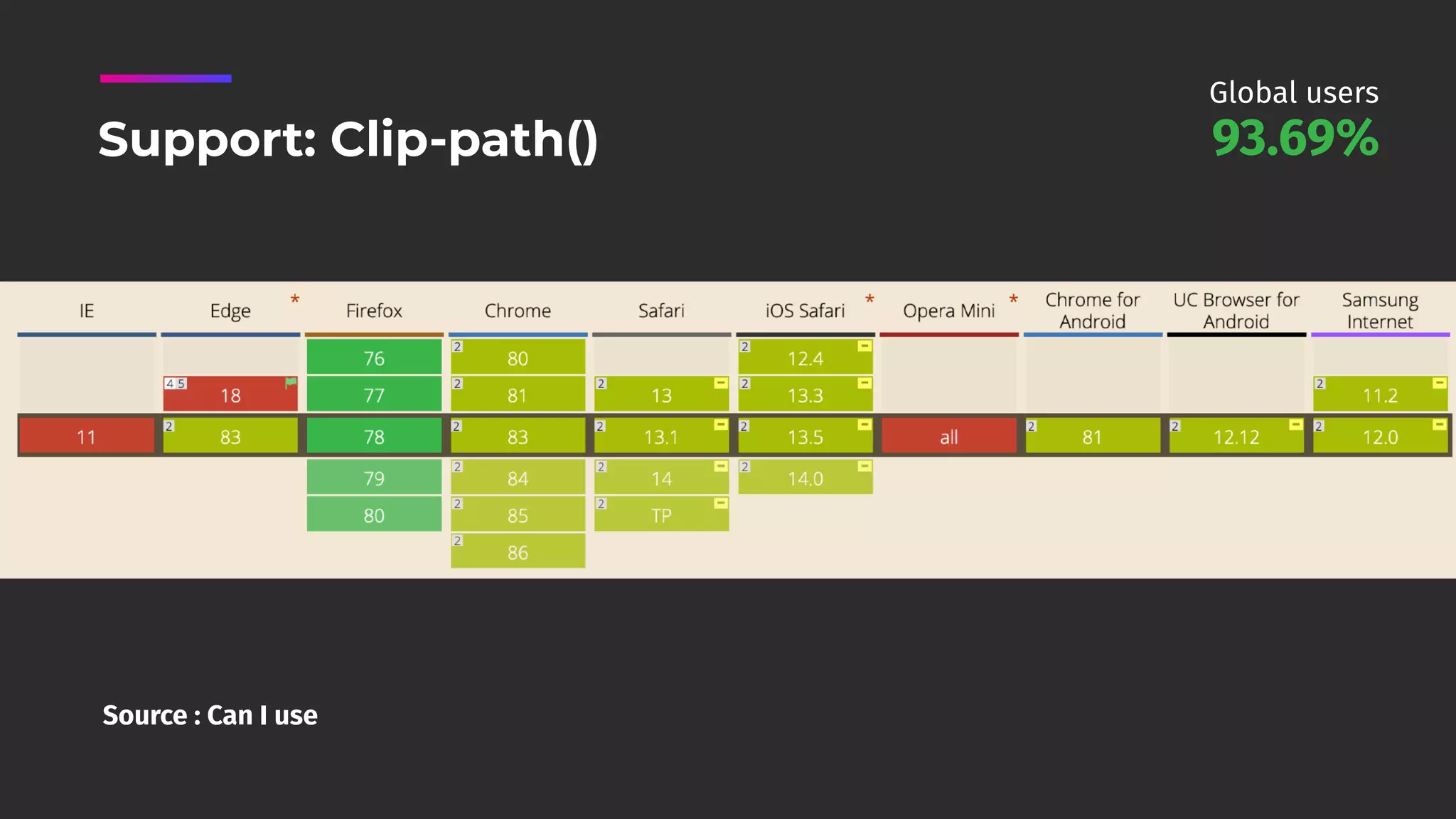

121. Source : Can I use
Support: Clip-path() 93.69%
Global users

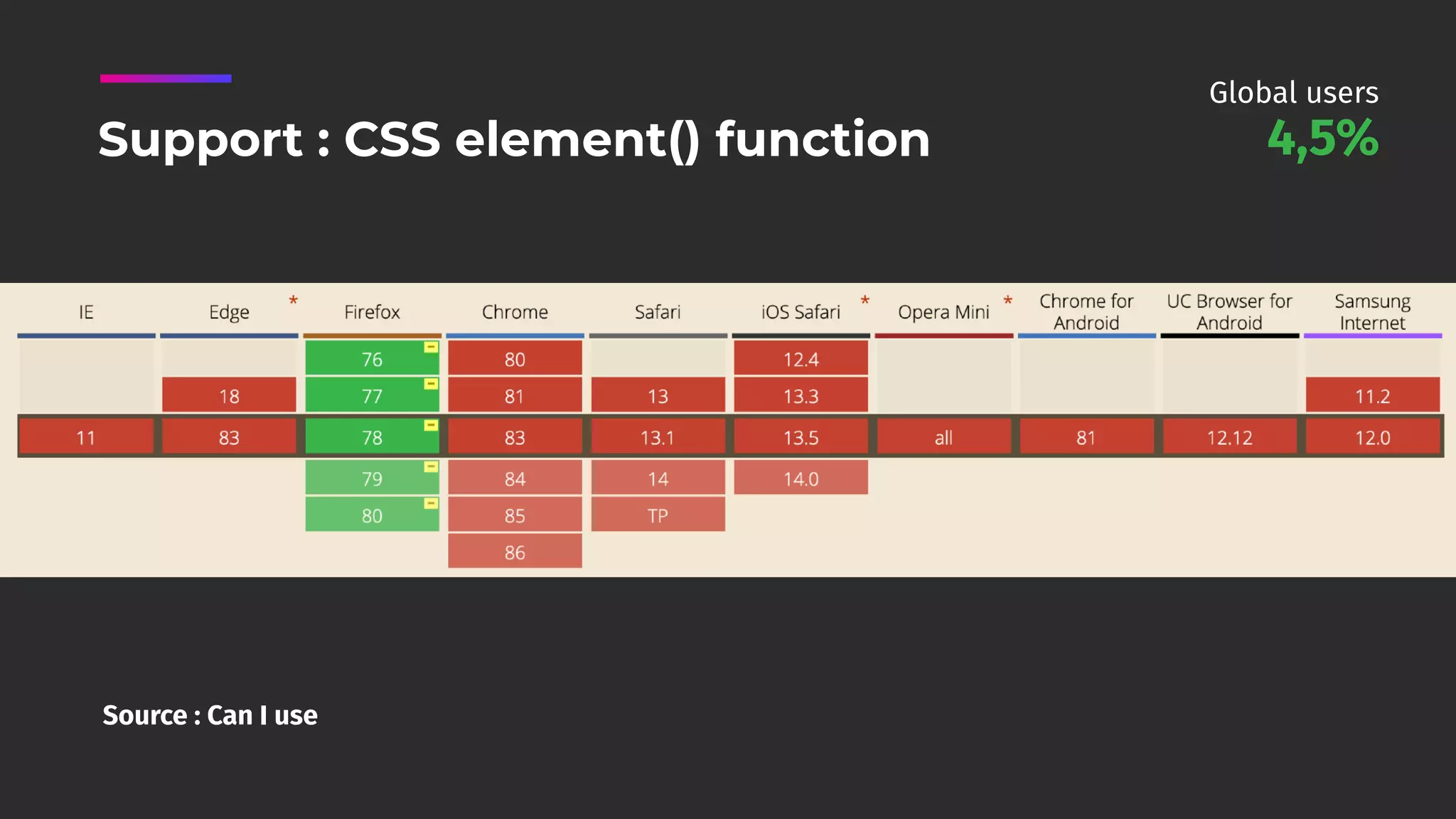

122. Source : Can I use
Support : CSS element() function 4,5%
Global users
124. target-counter()
Allows you to generate a
counter related to a targeted
element. The content here take
2 parameters: the href content
as target, and number of page
as template.
Other values for content
We talk about it page 23

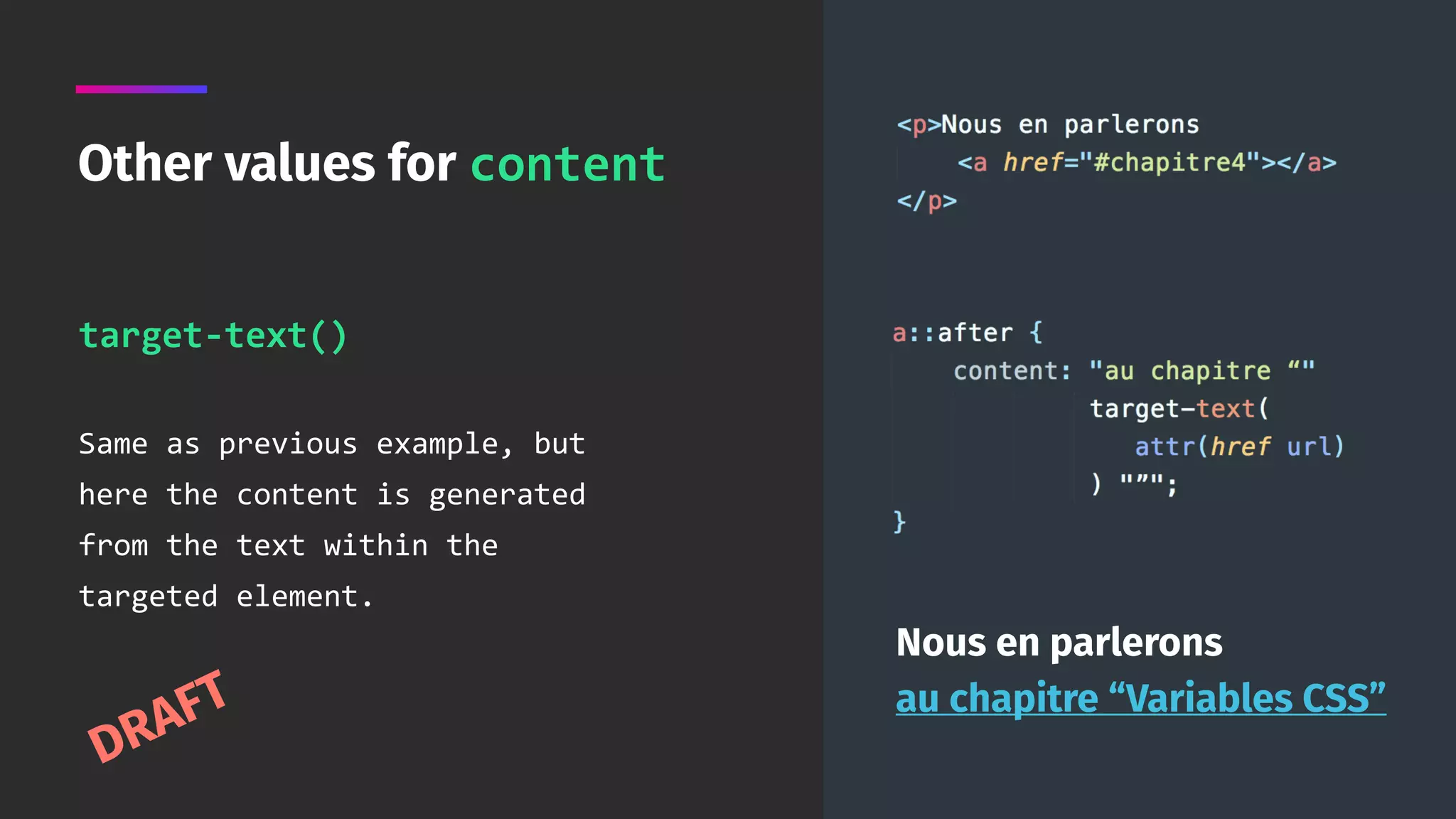

125. target-text()
Same as previous example, but
here the content is generated
from the text within the
targeted element.
Other values for content
Nous en parlerons
au chapitre “Variables CSS”
DRAFT

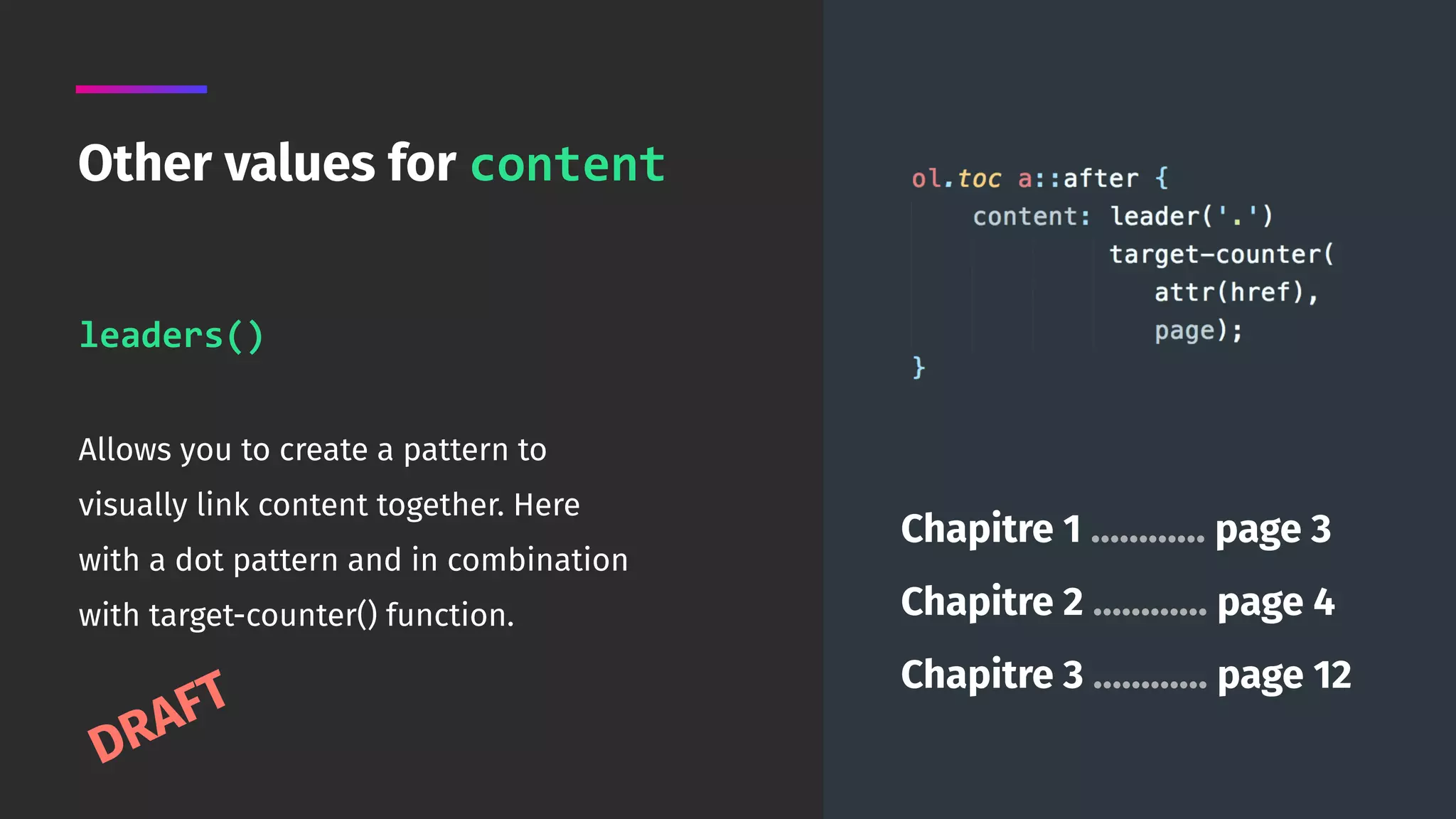

126. leaders()
Allows you to create a pattern to
visually link content together. Here
with a dot pattern and in combination
with target-counter() function.
Other values for content
Chapitre 1 ………… page 3
Chapitre 2 ………… page 4
Chapitre 3 ………… page 12
DRAFT

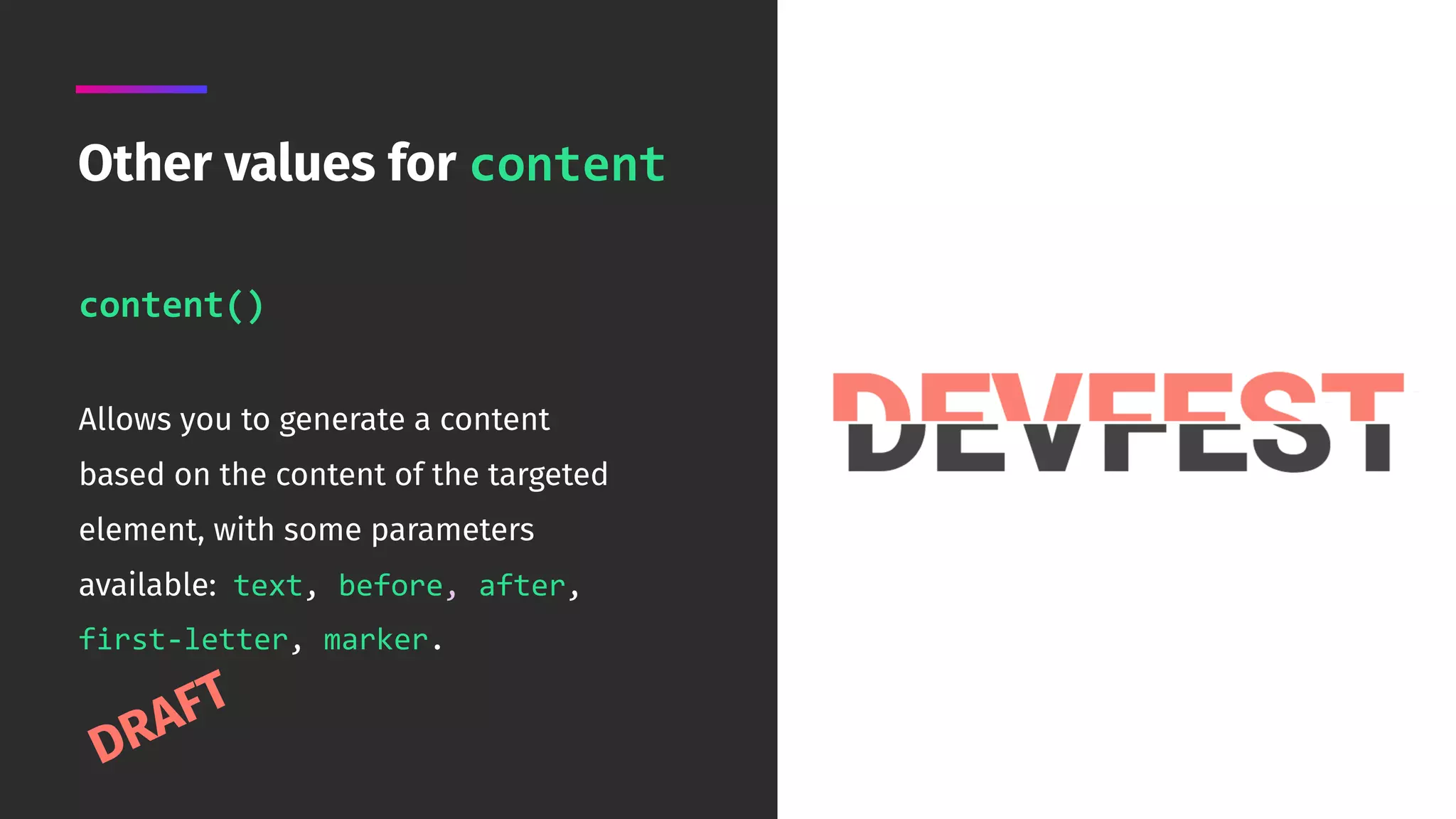

127. content()
Allows you to generate a content
based on the content of the targeted
element, with some parameters
available: text, before, after,
first-letter, marker.
Other values for content
DRAFT

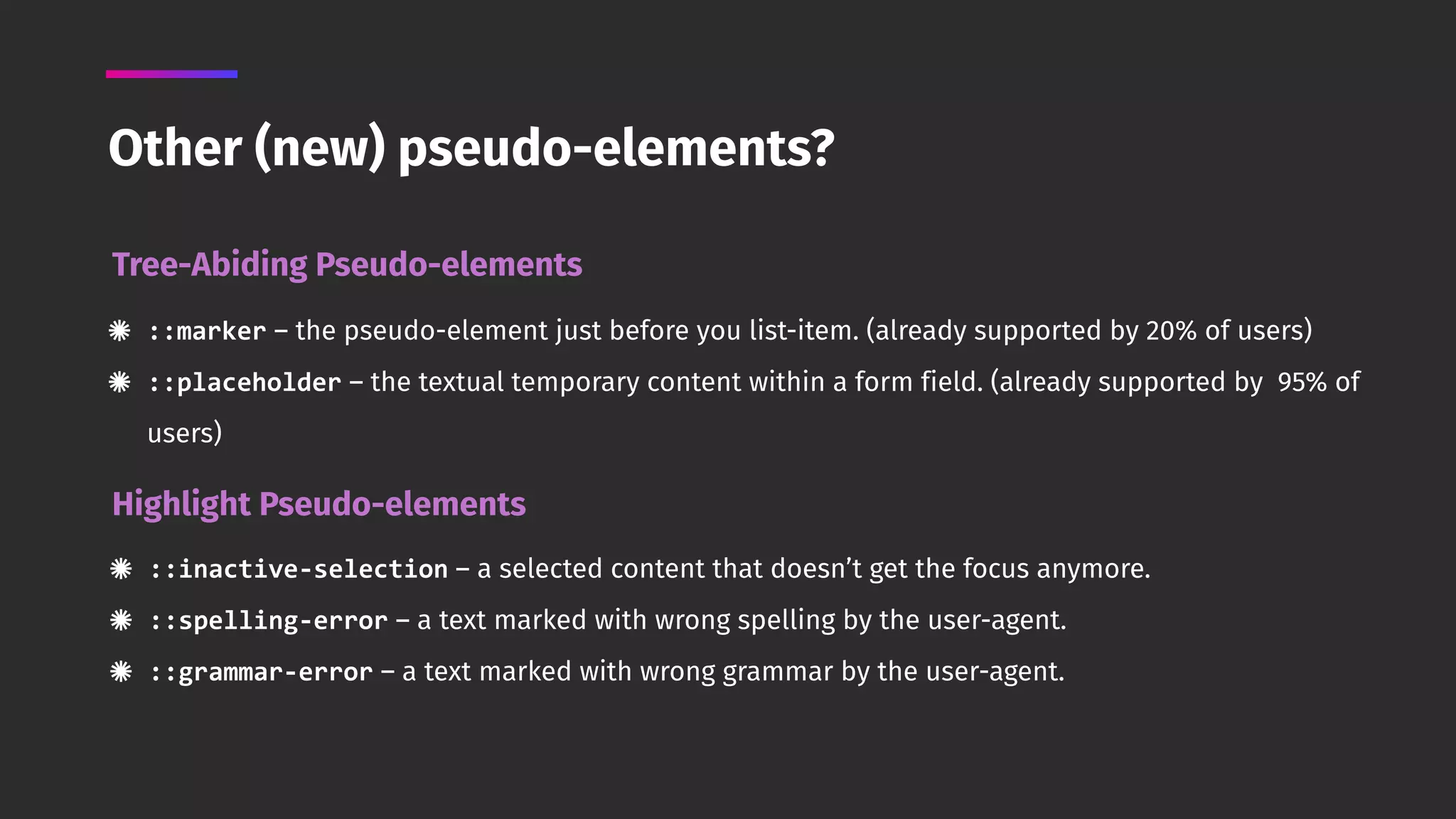

128. ::inactive-selection – a selected content that doesn’t get the focus anymore.
::spelling-error – a text marked with wrong spelling by the user-agent.
::grammar-error – a text marked with wrong grammar by the user-agent.
Highlight Pseudo-elements
::marker – the pseudo-element just before you list-item. (already supported by 20% of users)
::placeholder – the textual temporary content within a form field. (already supported by 95% of
users)
Tree-Abiding Pseudo-elements
Other (new) pseudo-elements?

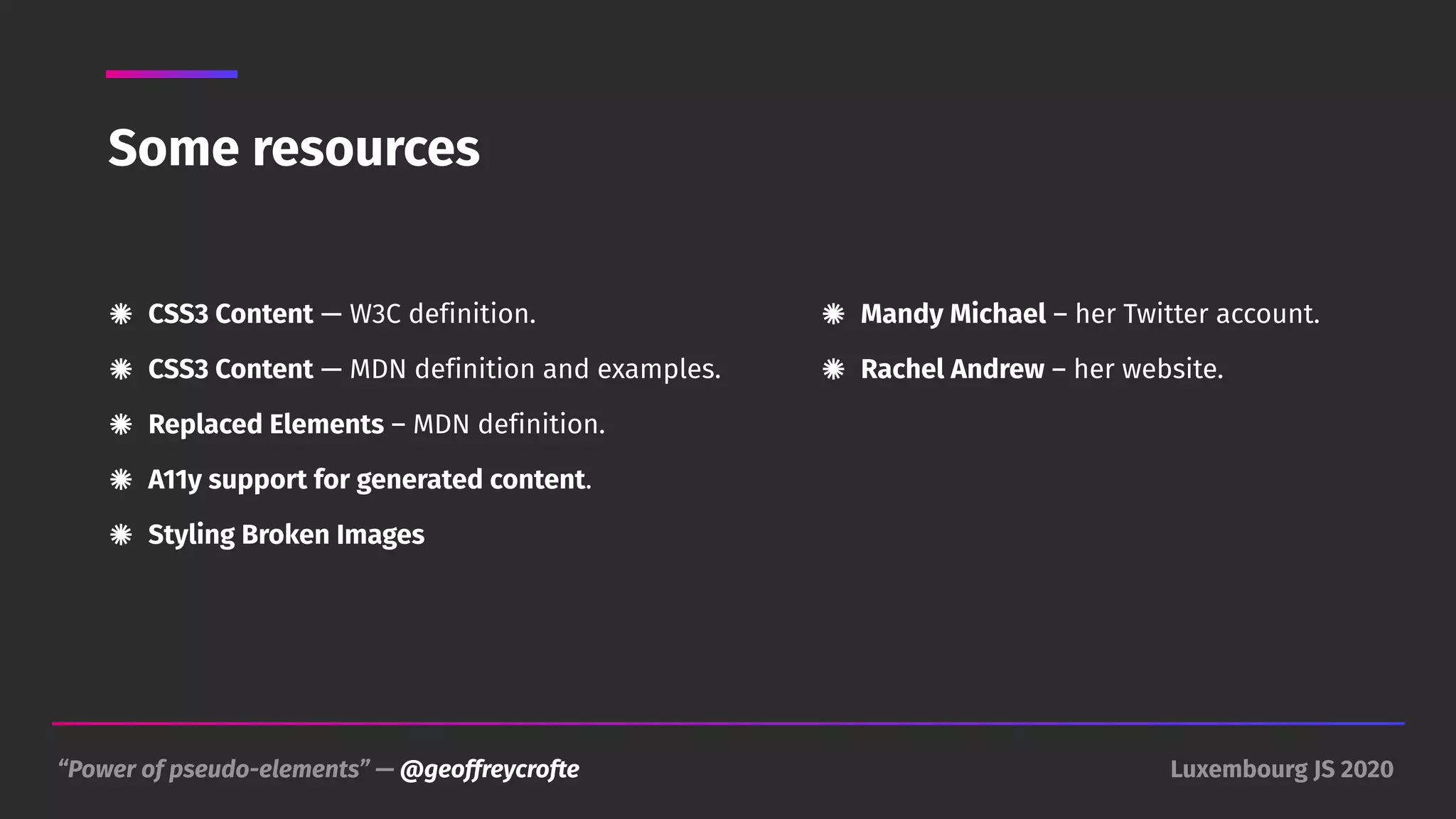

129. “Power of pseudo-elements” — @geoffreycrofte Luxembourg JS 2020
CSS3 Content — W3C definition.
CSS3 Content — MDN definition and examples.
Replaced Elements – MDN definition.
A11y support for generated content.
Styling Broken Images
Mandy Michael – her Twitter account.
Rachel Andrew – her website.
Some resources
