 It is a sorting algorithm that is used to sort numbers
and it is non comparative sorting method.
 Radix sort was developed for sorting large integers, but it
treats an integer as a string of digits, so it is really a string
sorting algorithm.
 There are two types of radix sorting:
MSD :-
Radix sort starts sorting from the beginning of strings (most
significant digit).
LSD :-
Radix sort starts sorting from the end of strings (least
significant digit)
 Suppose we have 3-digits number and total number
which we will sort are 5.
lets starts, we have numbers 120,234,204,101,230
We have 3-digits numbers so the number of passes will
be 3. suppose we have 5 buckets,
Pass 1: sorting 1 digit from right.
120 has 1st digit 0 put it in 0 bucket, this process repeats
as it is for remaining bucket
0 1 2 3 4
230
120
101 204
234

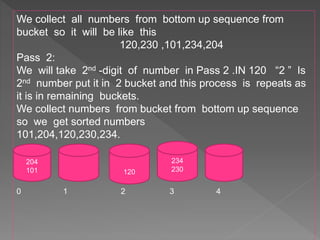

We collect all numbers from bottom up sequence from
bucket so it will be like this
120,230 ,101,234,204
Pass 2:
We will take 2nd -digit of number in Pass 2 .IN 120 “2 ” Is
2nd number put it in 2 bucket and this process is repeats as
it is in remaining buckets.
We collect numbers from bucket from bottom up sequence
so we get sorted numbers
101,204,120,230,234.
0 1 2 3 4
204
101
234
230120

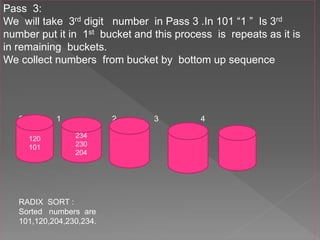

Pass 3:
We will take 3rd digit number in Pass 3 .In 101 “1 ” Is 3rd
number put it in 1st bucket and this process is repeats as it is
in remaining buckets.
We collect numbers from bucket by bottom up sequence
0 1 2 3 4
RADIX SORT :
Sorted numbers are
101,120,204,230,234.
120
101
234
230
204

RADIX SORT

  • 2.
     It isa sorting algorithm that is used to sort numbers and it is non comparative sorting method.  Radix sort was developed for sorting large integers, but it treats an integer as a string of digits, so it is really a string sorting algorithm.  There are two types of radix sorting: MSD :- Radix sort starts sorting from the beginning of strings (most significant digit). LSD :- Radix sort starts sorting from the end of strings (least significant digit)
  • 3.
     Suppose wehave 3-digits number and total number which we will sort are 5. lets starts, we have numbers 120,234,204,101,230 We have 3-digits numbers so the number of passes will be 3. suppose we have 5 buckets, Pass 1: sorting 1 digit from right. 120 has 1st digit 0 put it in 0 bucket, this process repeats as it is for remaining bucket 0 1 2 3 4 230 120 101 204 234
  • 4.
    We collect allnumbers from bottom up sequence from bucket so it will be like this 120,230 ,101,234,204 Pass 2: We will take 2nd -digit of number in Pass 2 .IN 120 “2 ” Is 2nd number put it in 2 bucket and this process is repeats as it is in remaining buckets. We collect numbers from bucket from bottom up sequence so we get sorted numbers 101,204,120,230,234. 0 1 2 3 4 204 101 234 230120
  • 5.
    Pass 3: We willtake 3rd digit number in Pass 3 .In 101 “1 ” Is 3rd number put it in 1st bucket and this process is repeats as it is in remaining buckets. We collect numbers from bucket by bottom up sequence 0 1 2 3 4 RADIX SORT : Sorted numbers are 101,120,204,230,234. 120 101 234 230 204
