Quick overview on mongo db

1. Quick
Overview on
MongoDB
Eman Abdel Ghaffar

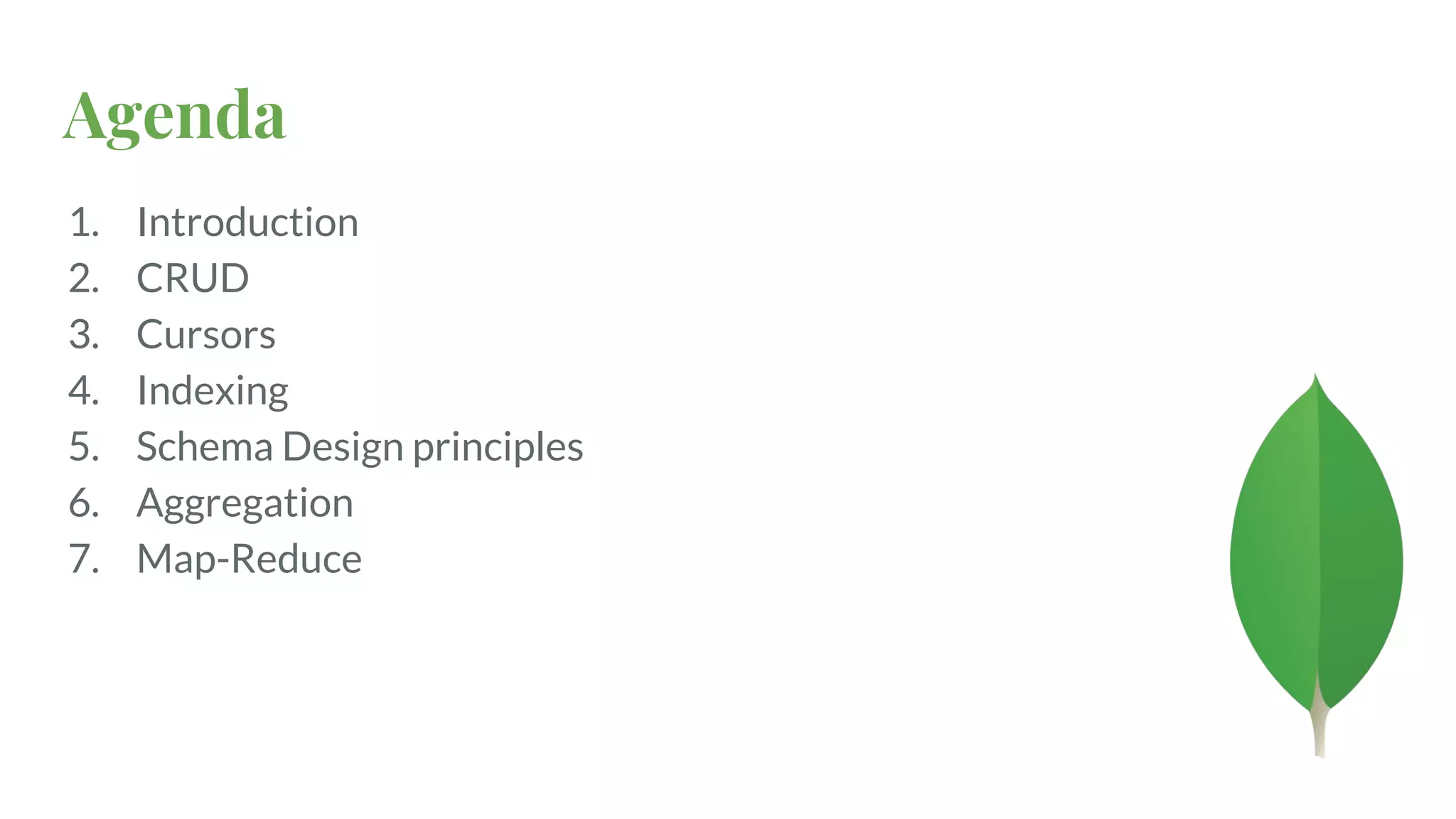

2. Agenda
1. Introduction
2. CRUD
3. Cursors
4. Indexing
5. Schema Design principles
6. Aggregation
7. Map-Reduce

3. Introduction - ACID
● Relational databases usually guarantee ACID properties related to how reliably
transactions (both reads and writes) are processed.
● The NoSQL movement trades off ACID compliance for other properties, such as
100% availability, and MongoDB is the leader in the field
● https://dzone.com/articles/how-acid-mongodb

4. Introduction - ACID
● Atomicity requires that each transaction is executed in its entirety, or fail
without any change being applied.
● Consistency requires that the database only passes from a valid state to the
next one, without intermediate points. Any data written to the database must
be valid according to all defined rules, including constraints, cascades, triggers.
● Isolation requires that if transactions are executed concurrently, the result is
equivalent to their serial execution.
● Durability means that the the result of a committed transaction is permanent,
even if the database crashes immediately or in the event of a power loss.

5. Introduction - CAP
● Consistency Every read receives the most recent write or an error.
● Availability Every request receives a (non-error) response – without
guarantee that it contains the most recent write.
● Partition tolerance The system continues to operate despite an arbitrary
number of messages being dropped (or delayed) by the network between
nodes.
“It is impossible for a distributed data store to simultaneously
provide more than two out of the following three guarantees”

6. Introduction - MongoDB
● MongoDB is written in C++, open source and licensed under the GNU -
AGPL .
● The core database server runs via an executable called mongod (
mongodb.exe on Windows)
● The MongoDB command shell is a JavaScript-based tool for
administering the database and manipulating data.
manual/reference/mongo-shell/

7. CRUD - Create
● Databases and collections are created only when documents are first inserted..
● Every MongoDB document requires an _id.
db.collection.insertOne()
db.collection.insertMany()
db.collection.insert()

8. CRUD - Read
db.collection.find(query, projection)
db.inventory.find( {} ) SELECT * FROM inventory
db.inventory.find( { status: "D" } ) SELECT * FROM inventory WHERE status = "D"
db.inventory.find( { status: {
$in: [ "A", "D" ] } } )
SELECT * FROM inventory WHERE status in ("A", "D")
db.inventory.find( { status: "A", qty:
{ $lt: 30 } } )
SELECT * FROM inventory WHERE status = "A" AND qty < 30
db.inventory.find( {
status: "A", $or: [ { qty:
{ $lt: 30 } }, { item: /^p/ }
] } )
SELECT * FROM inventory WHERE status = "A" AND ( qty <
30 OR item LIKE "p%")

9. CRUD - Update
● Some Update Operators
○ $currentDate
○ $inc
○ $min
○ $max
○ $mul
○ $rename
○ $set
db.collection.update()
db.collection.findAndModify()
db.collection.updateOne()
db.collection.updateMany()
db.collection.replaceOne()

10. CRUD - Delete
● Indexes
○ Delete operations do not drop indexes, even if deleting all documents from
a collection.
● Atomicity
○ All write operations in MongoDB are atomic on the level of a single
document.
db.collection.remove()
db.collection.deleteOne()
db.collection.deleteMany()

11. Cursors
● Cursors, found in many database systems, return query result sets in batches
for efficiency iteratively.
● Queries instantiate a cursor, which is then used to retrieve a resultset in
manageable chunks, successive calls to MongoDB occur as needed to fill the
driver’s cursor buffer.
● Returning a huge result right away would mean:
○ Copying all that data into memory.
○ Transferring it over the wire.
○ Deserializing it on the client side.

12. Indexing
● Introduction
● Indexing Types
● Indexing Properties

13. Indexing- Introduction
● Index keys are typically smaller than the documents they catalog, and indexes
are typically available in RAM or located sequentially on disk.
● Covered Queries
○ When the query criteria and the projection of a query include only the indexed fields
○ Results returned directly from the index without scanning any documents or bringing
documents into memory.
● Ensure Indexes Fit in RAM
○ use the db.collection.totalIndexSize() helper, which returns index size in bytes.

14. Indexing - Index Types
● Single Field
● Compound Index
● Multikey Index
● Geospatial Index
● Text Indexes
● Hashed Indexes

15. Indexing - Index Properties
● TTL Indexes
○ The TTL index is used for TTL collections, which expire data after a period of time.
● Unique Indexes
○ A unique index causes MongoDB to reject all documents that contain a duplicate value for the
indexed field.
● Partial Indexes
○ A partial index indexes only documents that meet specified filter criteria.
● Case Insensitive Indexes
○ A case insensitive index disregards the case of the index key values.
● Sparse Indexes
○ A sparse index does not index documents that do not have the indexed field.

16. Schema Design
principles ● Introduction
● Embedding Vs. Referencing
● Model One-to-One
Relationships
● Model One-to-Many
Relationships

17. Schema Design principles - Introduction
● The application’s data access patterns should govern schema design,
with specific understanding of
○ The read/write ratio of database operations.
○ The types of queries and updates performed by the database.
○ The life-cycle of the data and growth rate of documents.
● When designing a data model, consider how applications will use your database.
○ if your application only uses recently inserted documents, consider using Capped Collections
data-modeling

18. Embedding Vs. Refencing

19. Embedding Vs. Refencing
● Embedding provides better performance for read operations, as well as the
ability to request and retrieve related data in a single database operation.
● Not all 1:1 or 1:Many relationships should be embedded in a single document.

20. Embedding Vs. Refencing
● References store the relationships between data by including links or
references from one document to another.
○ When embedding would not provide sufficient read performance advantages
○ Where the object is referenced from many different sources.
○ To represent complex many-to-many relationships.
○ To model large, hierarchical data sets.

21. One-to-One Relationships - Embedding

22. One-to-Many Relationships
One-to-ManyOne-to-Few

23. One-to-Many Relationships
One-to-Squillions

24. Aggregation

25. Aggregation
● Aggregation operations group values from multiple documents together, and
can perform a variety of operations on the grouped data to return a single
result.
● The aggregate command operates on a single collection, logically passing the
entire collection into the aggregation pipeline.
● The $match and $sort pipeline operators can take advantage of an index when
they occur at the beginning of the pipeline.

27. Aggregation
https://docs.mongodb.com/manual/core/aggregation-pipeline-optimization/

28. Aggregation - Limitations
● If any single document that exceeds the BSON Document Size limit, the
command will produce an error.
● The $group stage has a limit of 100 megabytes of RAM. By default, if the stage
exceeds this limit, $group will produce an error.

29. Map-Reduce
● Map-reduce is a data processing paradigm for condensing large volumes of data
into useful aggregated results.
● Map-Reduce is less efficient and more complex than the aggregation pipeline.
● All map-reduce functions in MongoDB are JavaScript and run within the
mongod process.
● Map-reduce operations take the documents of a single collection.

31. Questions
