3. SUBMITTED TO
K.S.School Of Business Management And Research
Date of Submission: 15TH DECEMBER, 2015.
Project Guide
Kinnari Kotak
QUEUE MANAGEMENT SYSTEM
BY SEMESTER - 5Th OF 3RD YEAR. MSC (CA&IT)(2014-2015)
Student Name Roll No
Brahambhatt Rahul H. 3006
Kotiya Yash. 3030
Kungiri Akshay. 3031

4. 1.1 Defination
 Queue Management System

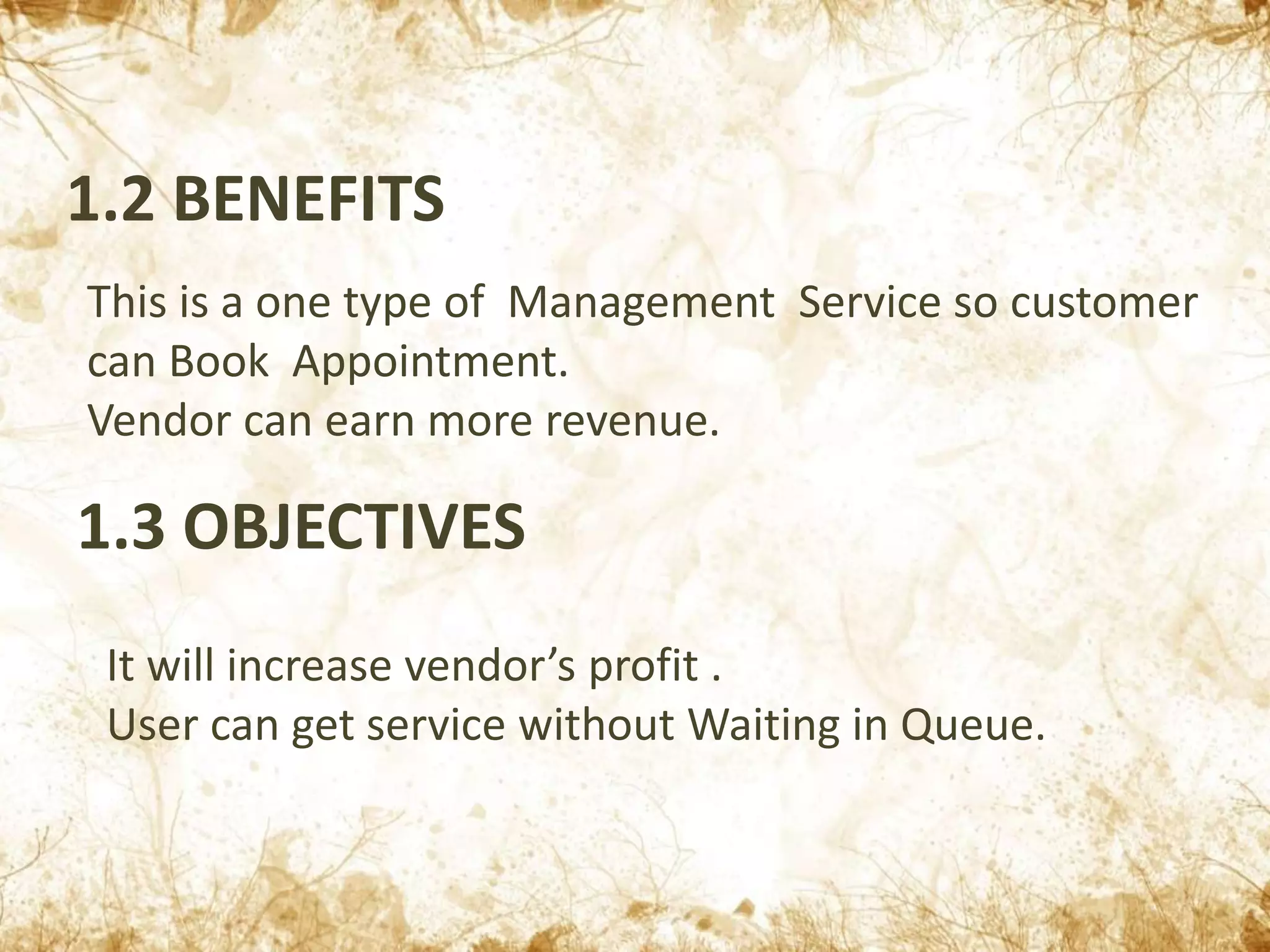

5. 1.2 BENEFITS
This is a one type of Management Service so customer
can Book Appointment.
Vendor can earn more revenue.
1.3 OBJECTIVES
It will increase vendor’s profit .
User can get service without Waiting in Queue.

7. 2.1 EXISTING SYSTEM
 All site are not user friendly
 In Many site vendor can not interact with
System easily
 Normal user can not interact easily

8. 2.2 PROPOSED SYSTEM
 Vendor can add Customer
 User can get service without waiting in Queue
 User can search any services place.
 User can get information about any firm

10. 3.1 FRONTED TECHNOLOGY
HTML5
CSS
BOOTSTRAP
JQUERY

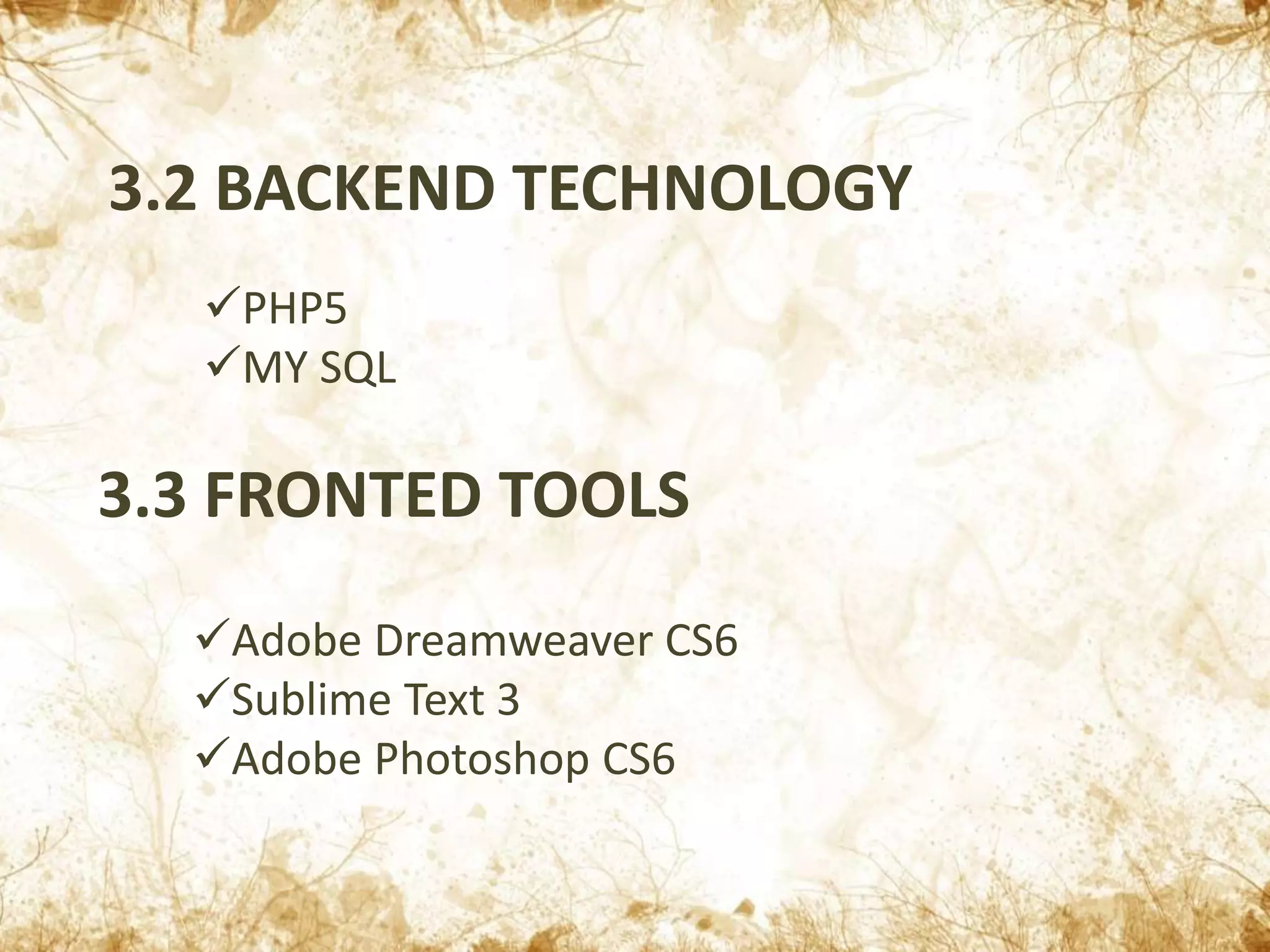

11. 3.2 BACKEND TECHNOLOGY
PHP5
MY SQL
3.3 FRONTED TOOLS
Adobe Dreamweaver CS6
Sublime Text 3
Adobe Photoshop CS6

12. 3.4 Operating Environment
Processor Core To Duo
RAM 512 MB or More
Hard Drive 20 GB Disk Drive Space (Available)
Internet Connection High speed internet connection
3.5 Hardware Interfaces
Client Side:
Processor : Core to Duo
RAM : 512 MB or More
Device : Printer

17. FIRST LEVEL

19. SECOND LEVEL

21. LEVEL SECOND-1

28. DATA DICTIONARY

29. Sr. No Table Name
1. Service Table
2. Customer Table
3. User Table
4. Queue Table
5. User Queue Table
Table Index

30. Services Table
SERIAL NO FIELD NAME DATATYPE KEY DESCRIPTION
1 ID INT(10) PRIMERY KEY SERVICE ID
2 SERVICE_NAME INT(10) -------- SERVICE NAME
3 SERVICE_DESCRIPTION VARCHAR(100) -------- SERVICE DESCRIPTION
4 SERVICE_CREATION_TIME TIMESTAMP -------- SERVICE DATE CREATED

31. Customer Table
SERIAL NO FIELD NAME DATATYPE KEY DESCRIPTION
1 ID INT(10) PRIMERY KEY CUSTOMER ID
2 NAME VARCHAR(50) -------- CUSTOMER NAME
3 MOBILE_NO INT(10) CUSTOMER MOBILE NO
4 PASSWORD VARCHAR(100) -------- PASSWORD
5 IS_ACTIVE INT(10) CUSTOMER IS ACTIVE OR
NOT
6 SERVICE_CREATION_TIME TIMESTAMP -------- CUSTOMER DATE CREATED

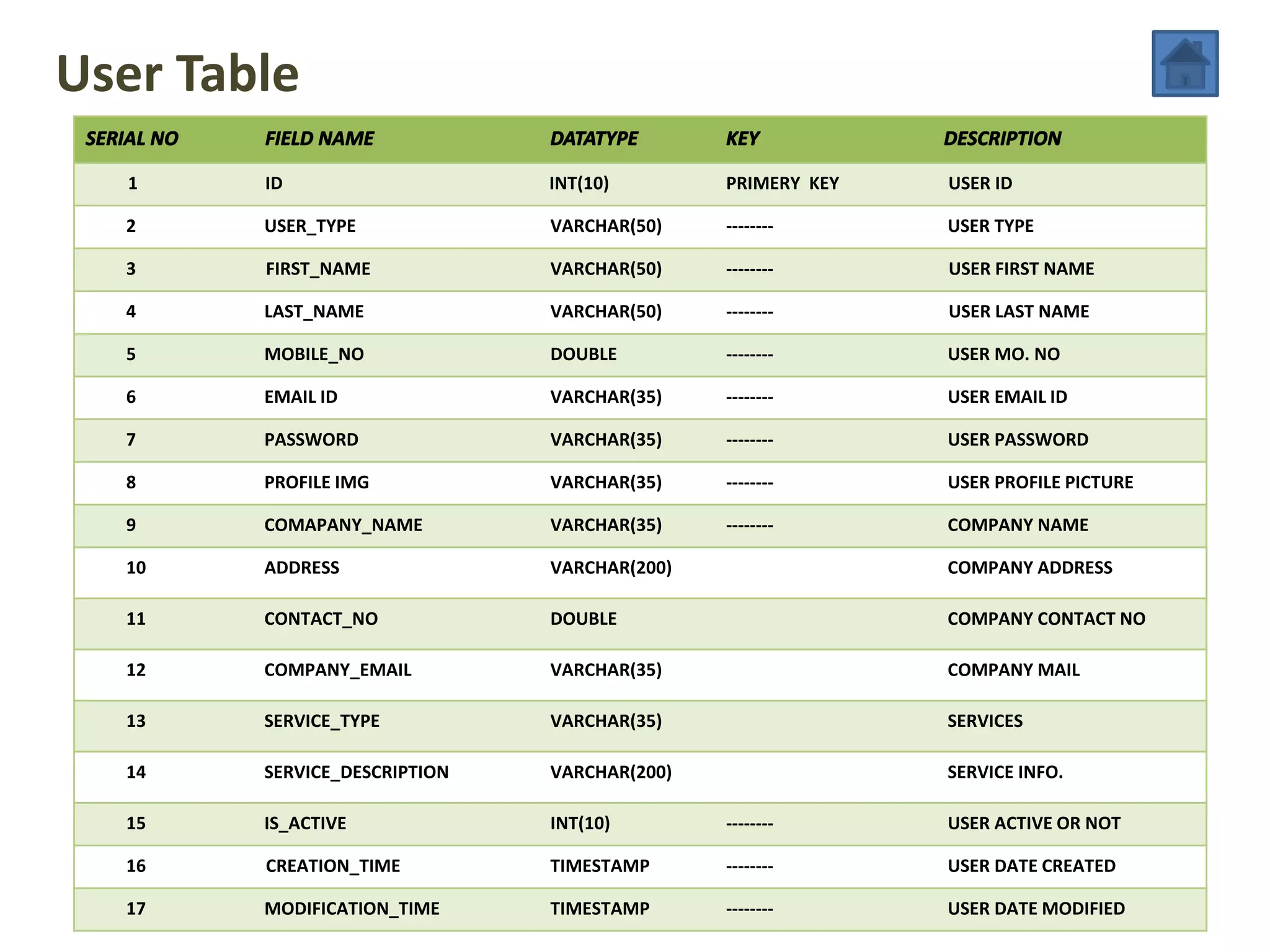

32. User Table
SERIAL NO FIELD NAME DATATYPE KEY DESCRIPTION
1 ID INT(10) PRIMERY KEY USER ID
2 USER_TYPE VARCHAR(50) -------- USER TYPE
3 FIRST_NAME VARCHAR(50) -------- USER FIRST NAME
4 LAST_NAME VARCHAR(50) -------- USER LAST NAME
5 MOBILE_NO DOUBLE -------- USER MO. NO
6 EMAIL ID VARCHAR(35) -------- USER EMAIL ID
7 PASSWORD VARCHAR(35) -------- USER PASSWORD
8 PROFILE IMG VARCHAR(35) -------- USER PROFILE PICTURE
9 COMAPANY_NAME VARCHAR(35) -------- COMPANY NAME
10 ADDRESS VARCHAR(200) COMPANY ADDRESS
11 CONTACT_NO DOUBLE COMPANY CONTACT NO
12 COMPANY_EMAIL VARCHAR(35) COMPANY MAIL
13 SERVICE_TYPE VARCHAR(35) SERVICES
14 SERVICE_DESCRIPTION VARCHAR(200) SERVICE INFO.
15 IS_ACTIVE INT(10) -------- USER ACTIVE OR NOT
16 CREATION_TIME TIMESTAMP -------- USER DATE CREATED
17 MODIFICATION_TIME TIMESTAMP -------- USER DATE MODIFIED

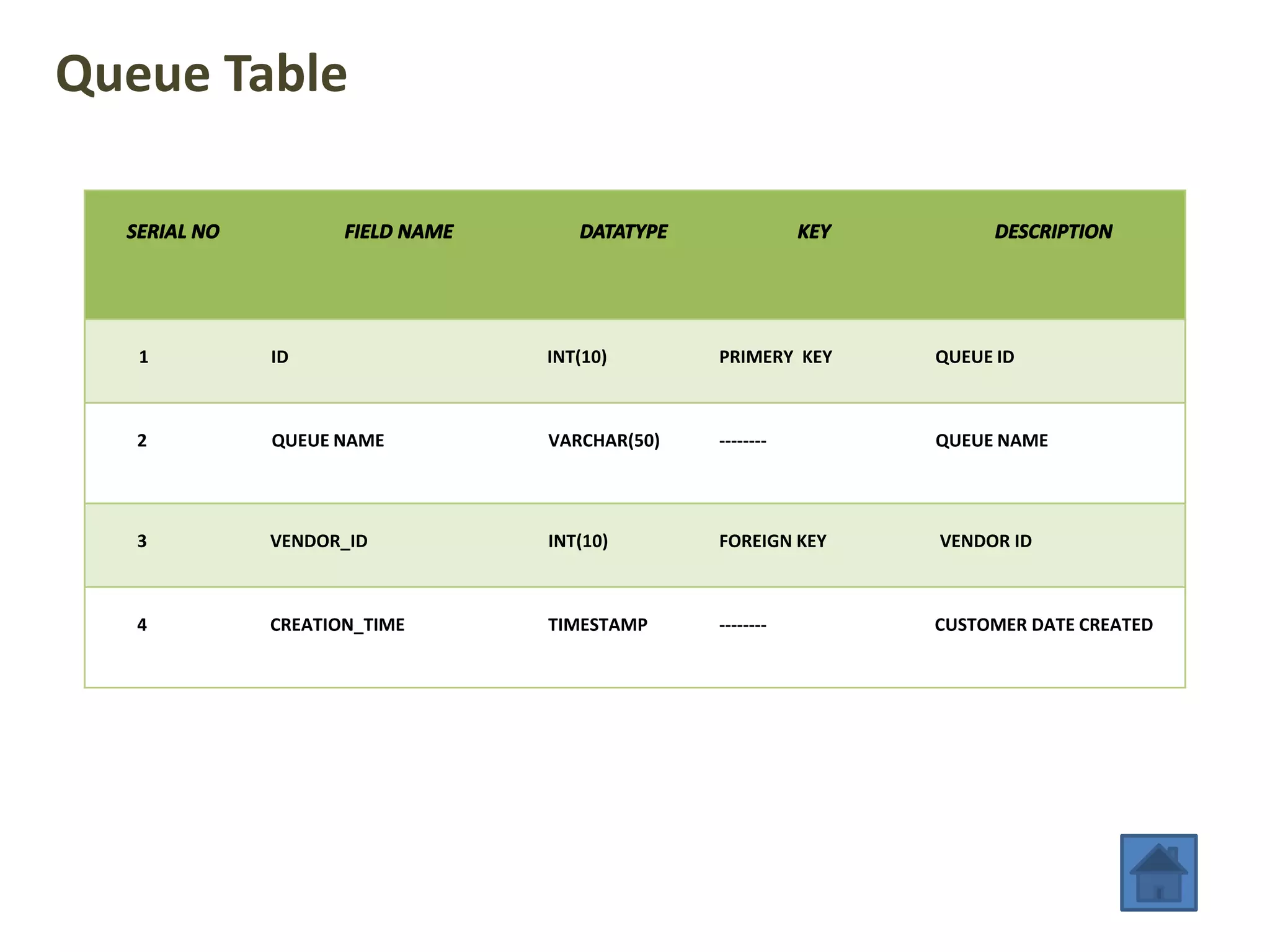

33. Queue Table
SERIAL NO FIELD NAME DATATYPE KEY DESCRIPTION
1 ID INT(10) PRIMERY KEY QUEUE ID
2 QUEUE NAME VARCHAR(50) -------- QUEUE NAME
3 VENDOR_ID INT(10) FOREIGN KEY VENDOR ID
4 CREATION_TIME TIMESTAMP -------- CUSTOMER DATE CREATED

34. User_Queue Table
SERIAL NO FIELD NAME DATATYPE KEY DESCRIPTION
1 ID INT(10) PRIMERY KEY CUSTOMER QUEUE ID
2 QUEUE_ID INT(10) FOREIGN KEY QUEUE ID
3 VENDOR_ID INT(10) FOREIGN KEY VENDOR ID
4 CUSTOMER_ID INT(10) FOREIGN KEY CUSTOMER ID
5 QUEUE_NO INT(10) QUEUE NO
6 QUEUE_STATUS INT(10) CURRENT STATUS
7 APPOINTMENT_DATE DATE APPOINTMENT DATE
8 IS_CANCELD INT(10)
APOINTMENT CANCELATION
9 CREATION_TIME TIMESTAMP -------- DATE CREATED

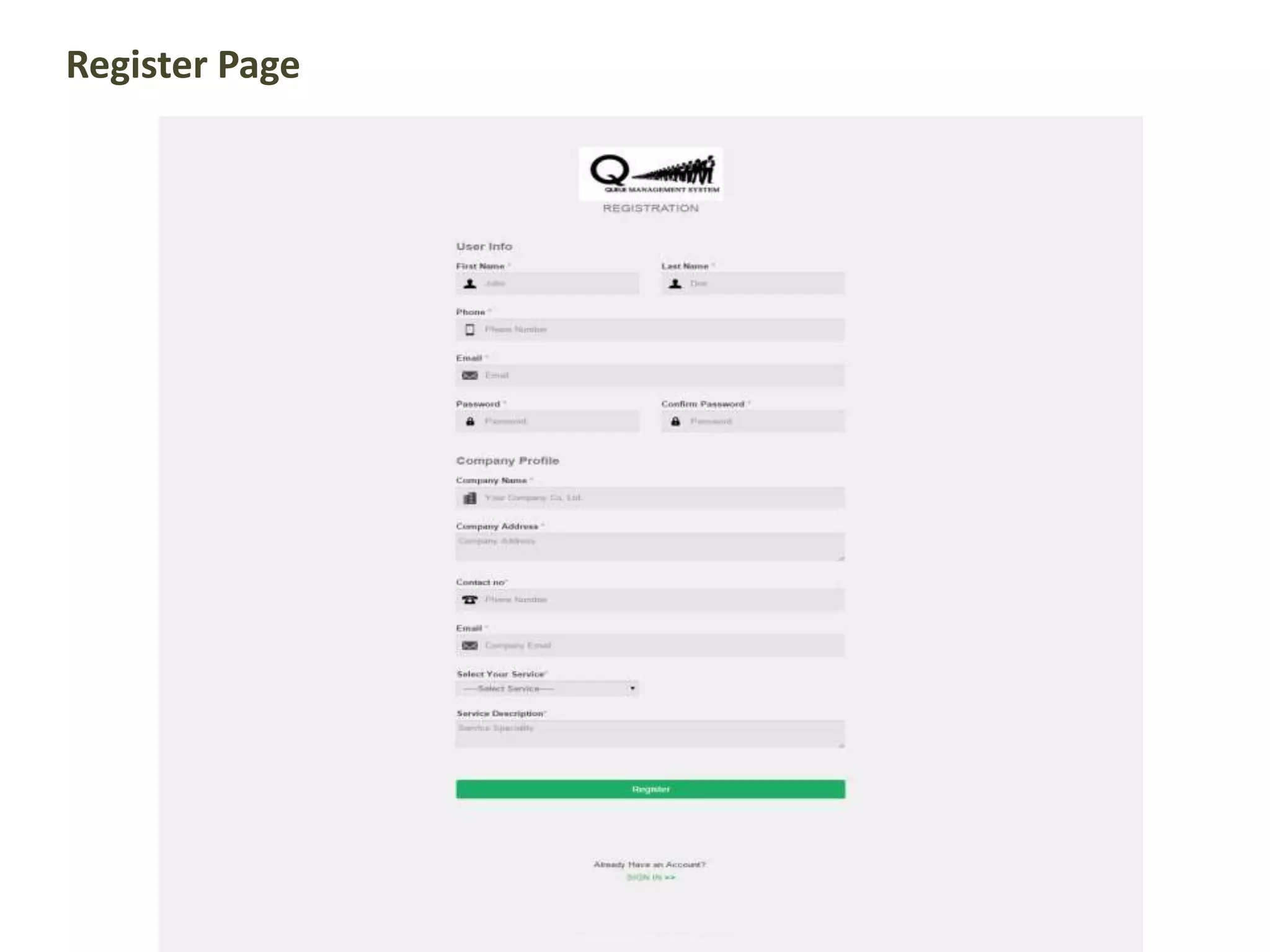

42. Register Page

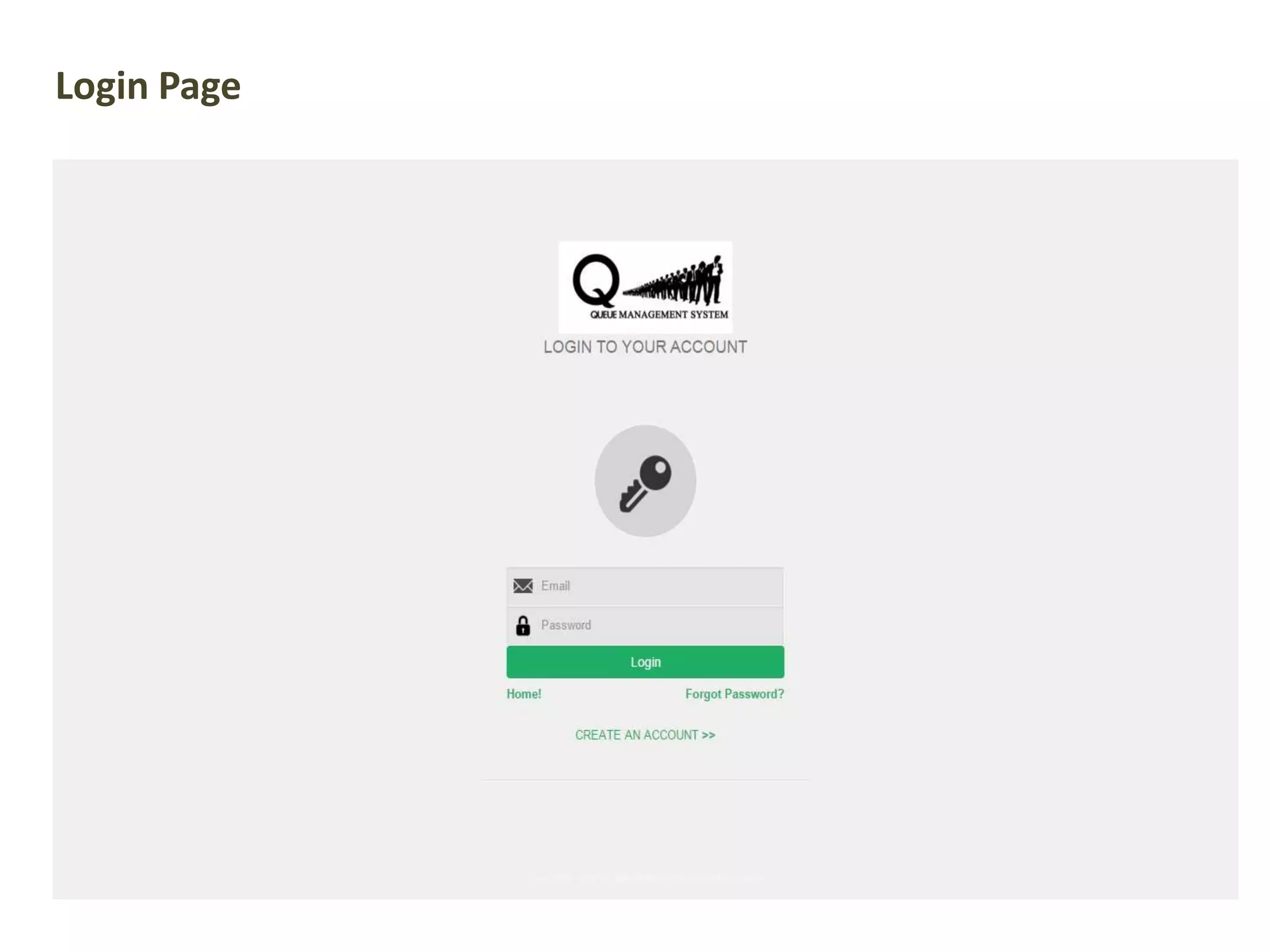

43. Login Page

51. Login Page

52. Login Page

56. Future Scope :
 In Future Customer Can get Appointment Online.

58. Any Work may not always be perfect:
There may be some defects or errors. We have taken enough
care to make the project user friendly and more interactive.
Major focus is to make proper responsive designing for this
project.
Any suggestion to make this project more useful is
Always most welcome.

59. BY,
RAHUL BRAHAMBAHATT
YASH KOTIYA
AKSHAY KUNGIRI
