Warranty management system

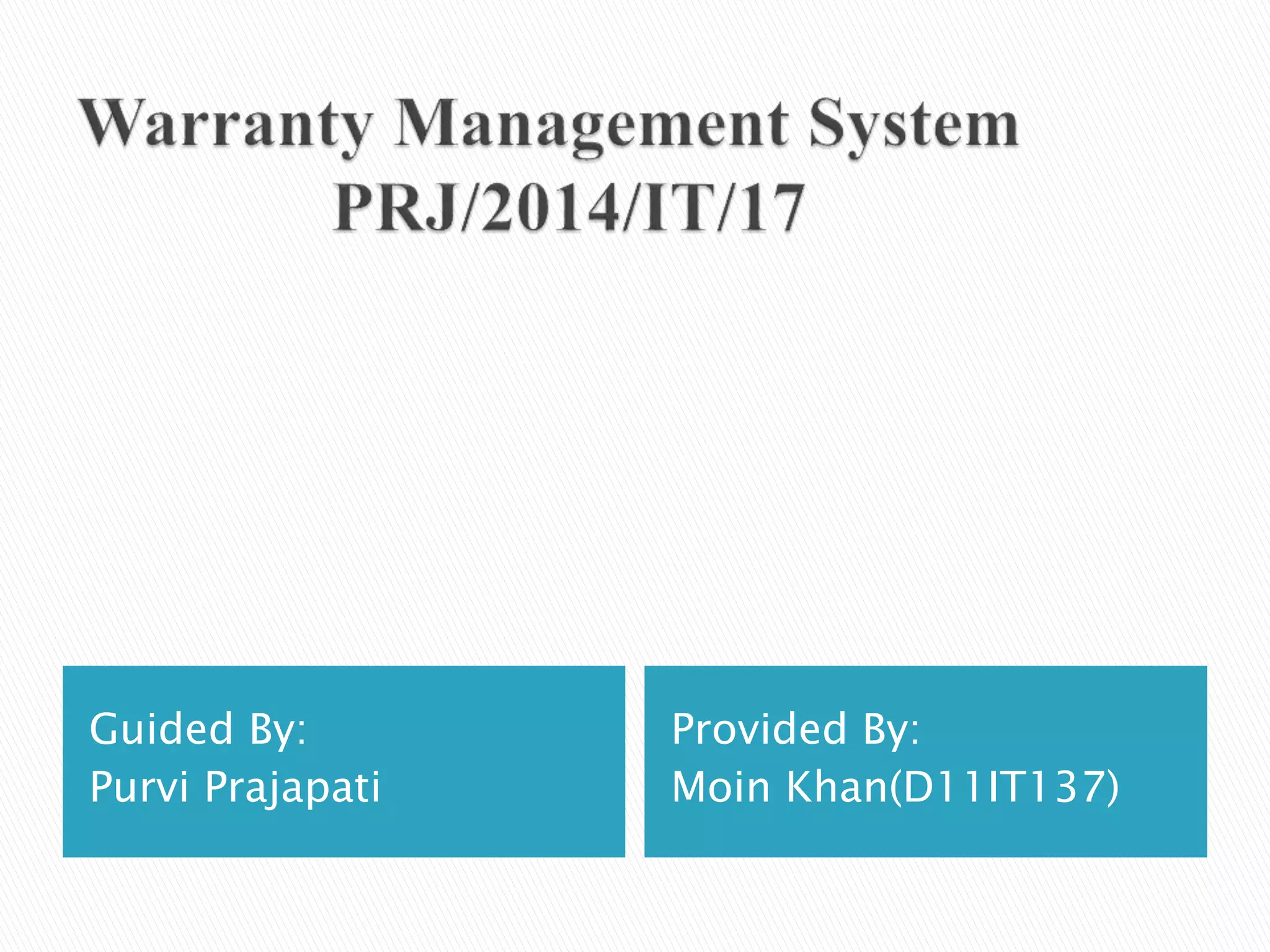

- 1. Guided By: Purvi Prajapati Provided By: Moin Khan(D11IT137)

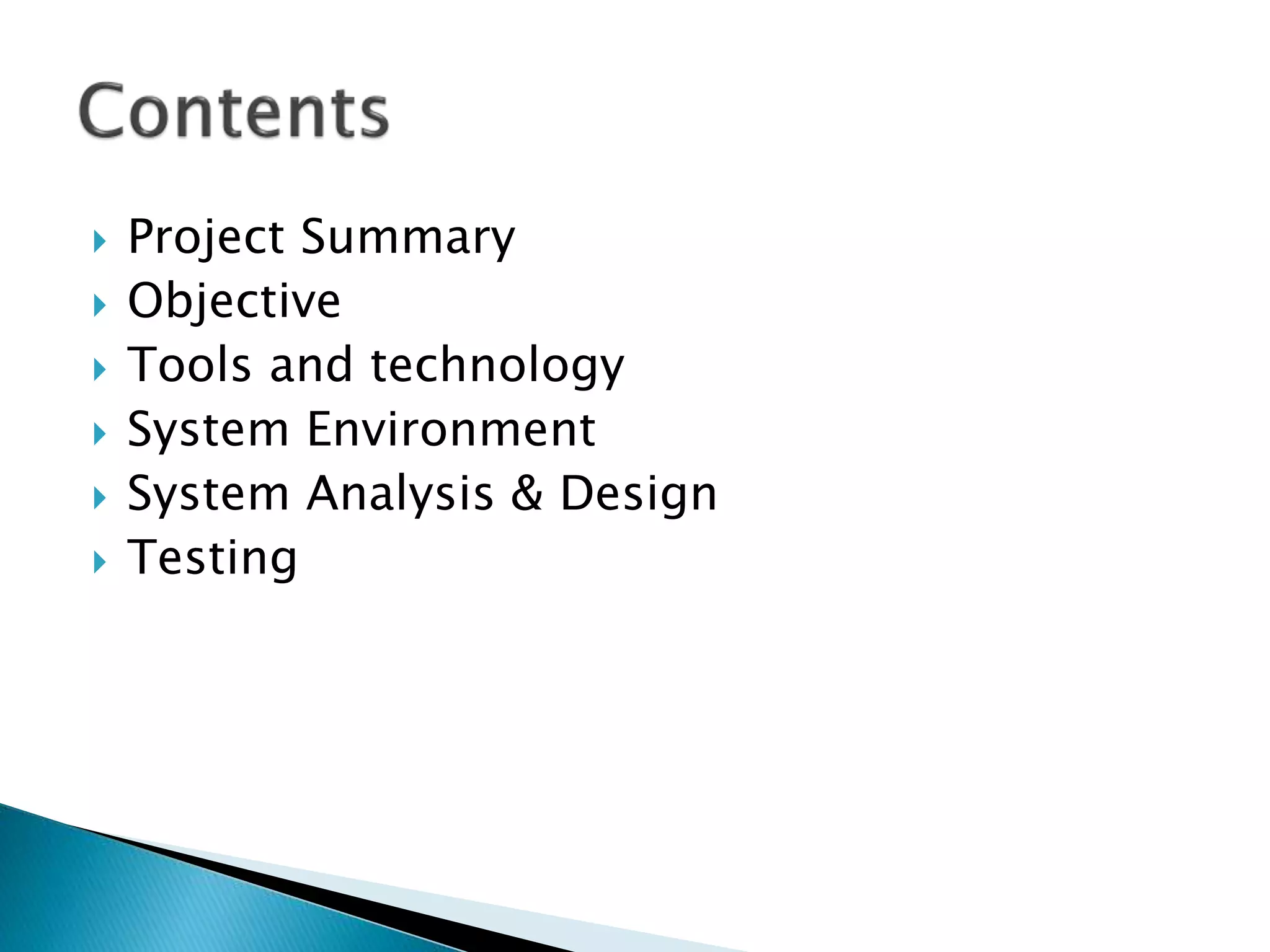

- 2. Project Summary Objective Tools and technology System Environment System Analysis & Design Testing

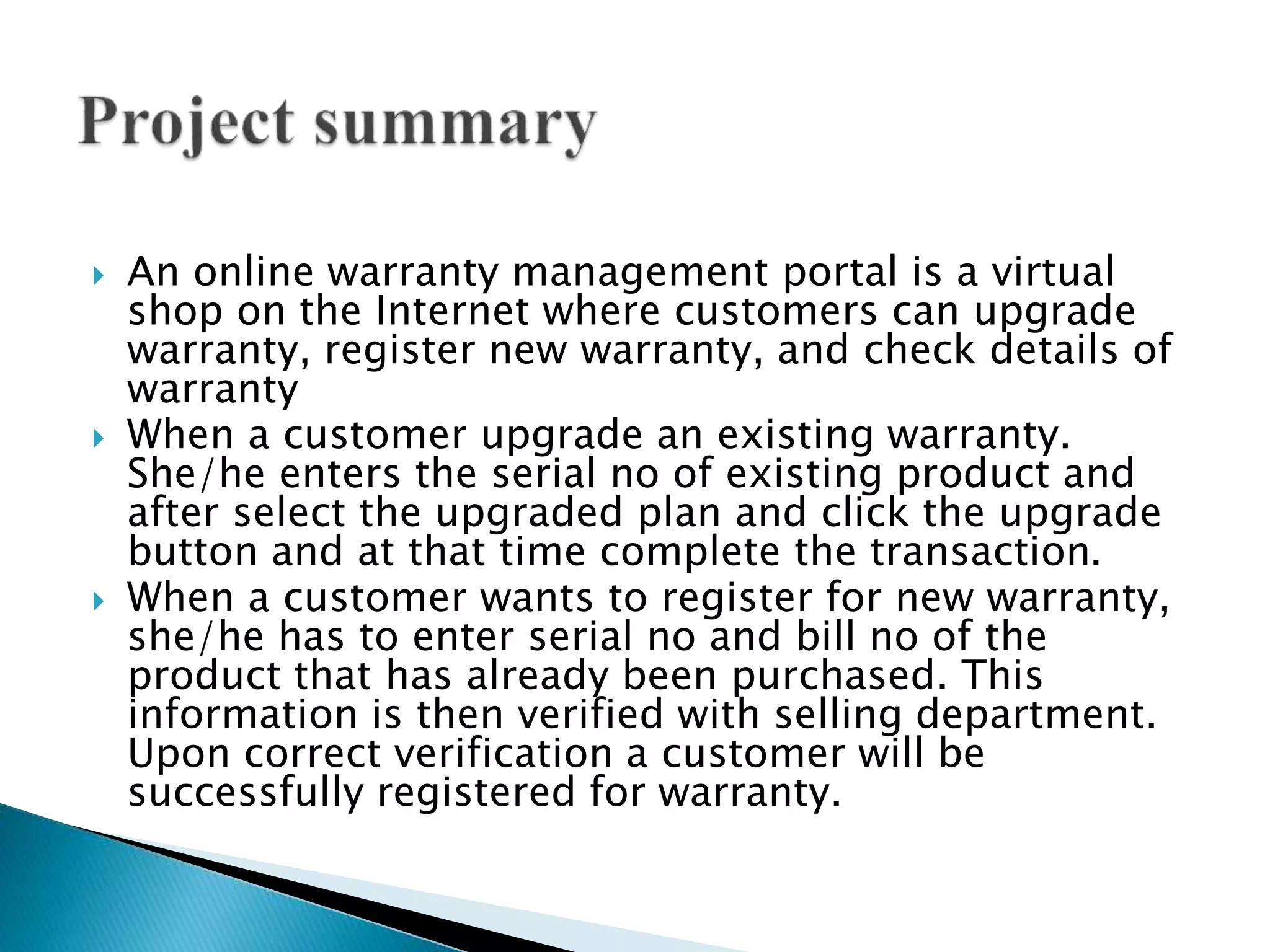

- 3. An online warranty management portal is a virtual shop on the Internet where customers can upgrade warranty, register new warranty, and check details of warranty When a customer upgrade an existing warranty. She/he enters the serial no of existing product and after select the upgraded plan and click the upgrade button and at that time complete the transaction. When a customer wants to register for new warranty, she/he has to enter serial no and bill no of the product that has already been purchased. This information is then verified with selling department. Upon correct verification a customer will be successfully registered for warranty.

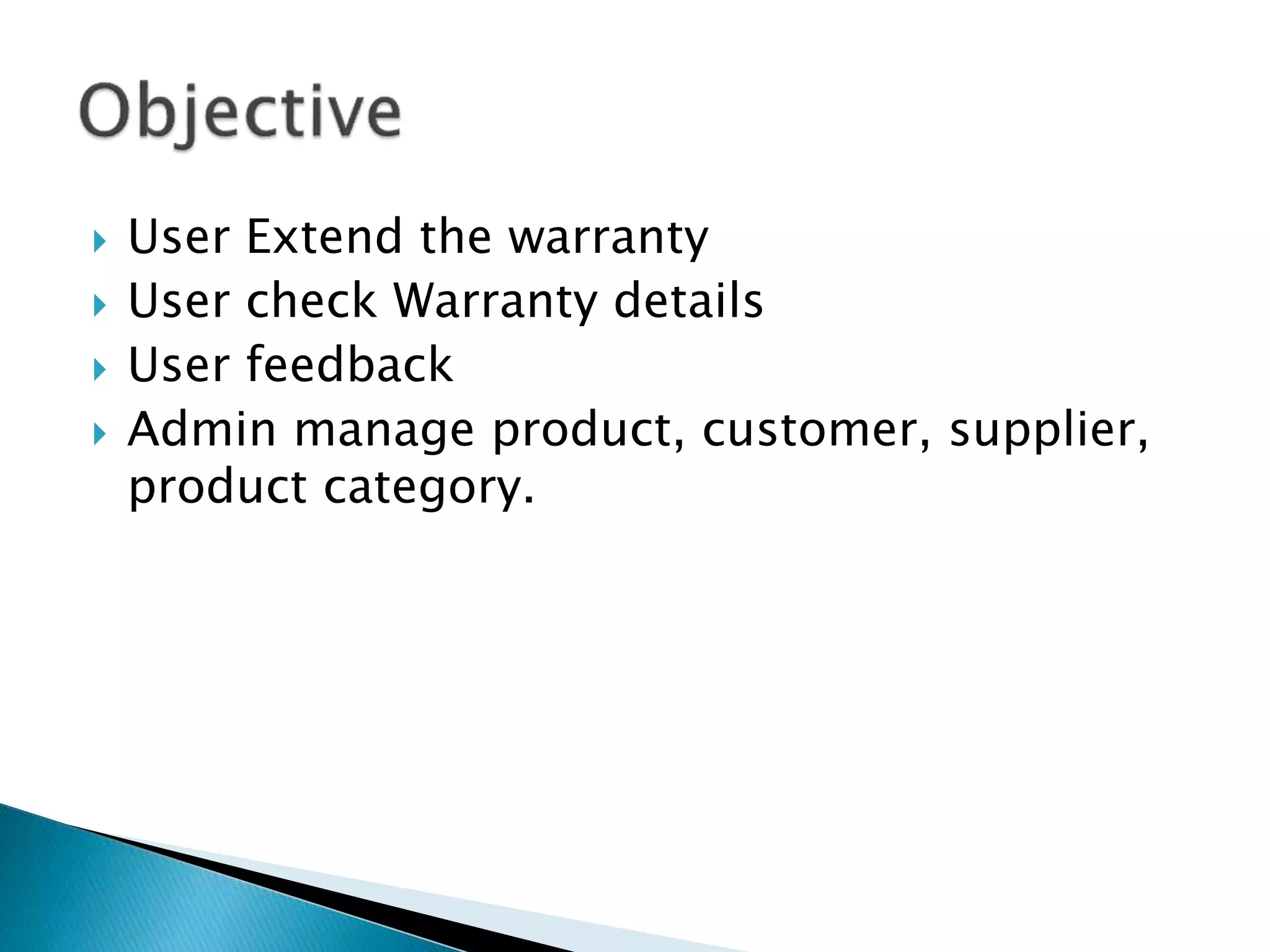

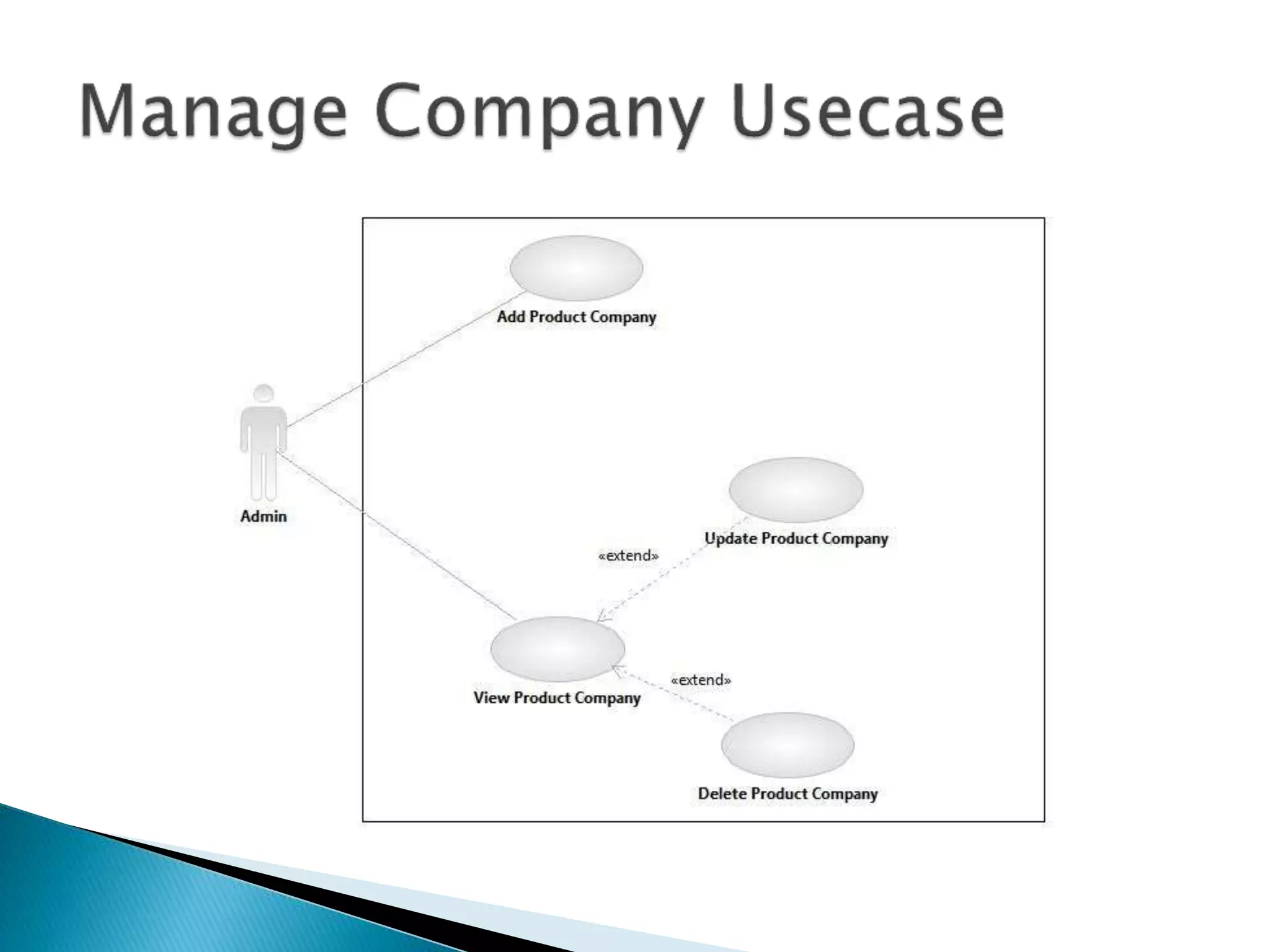

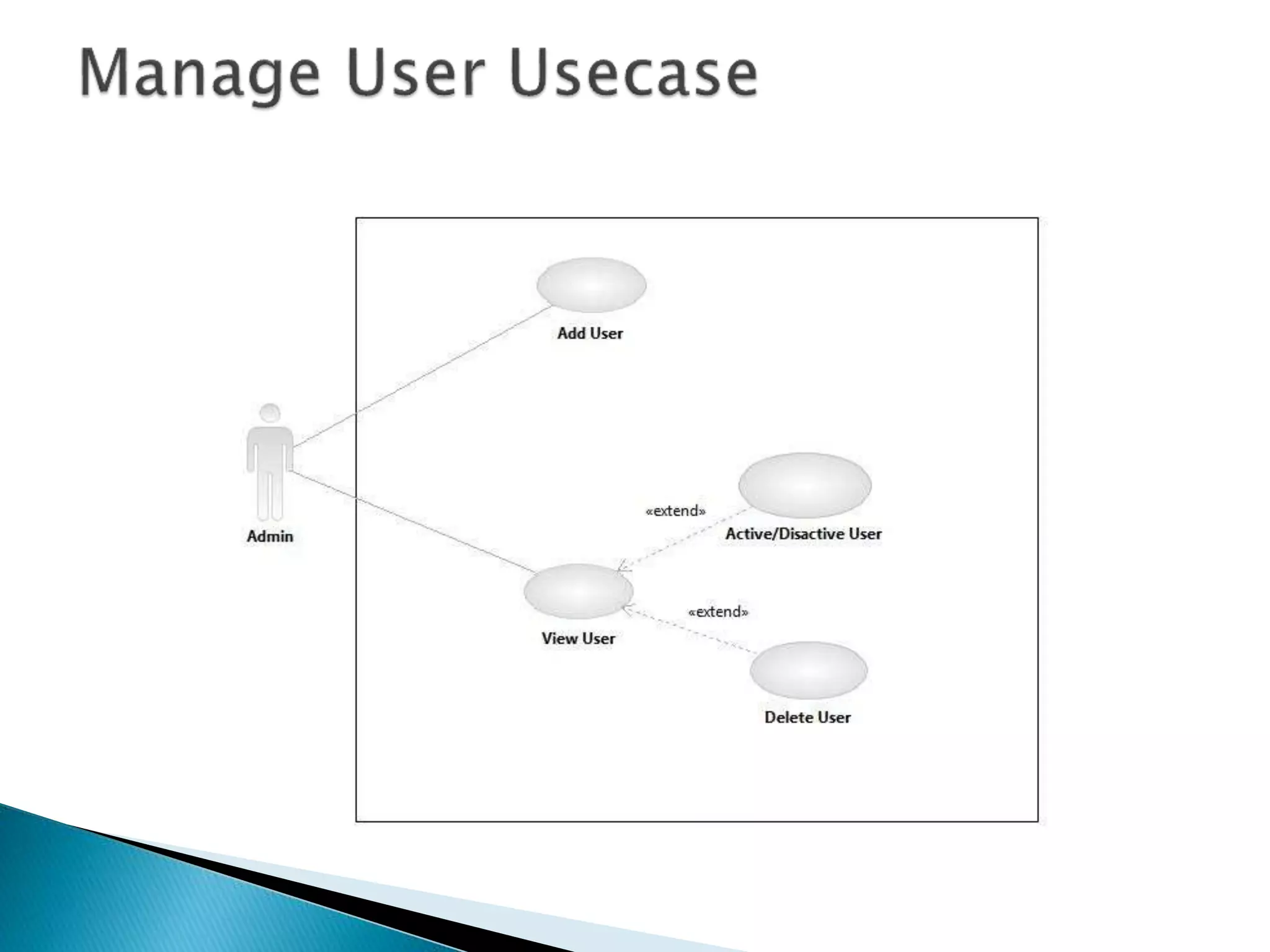

- 4. User Extend the warranty User check Warranty details User feedback Admin manage product, customer, supplier, product category.

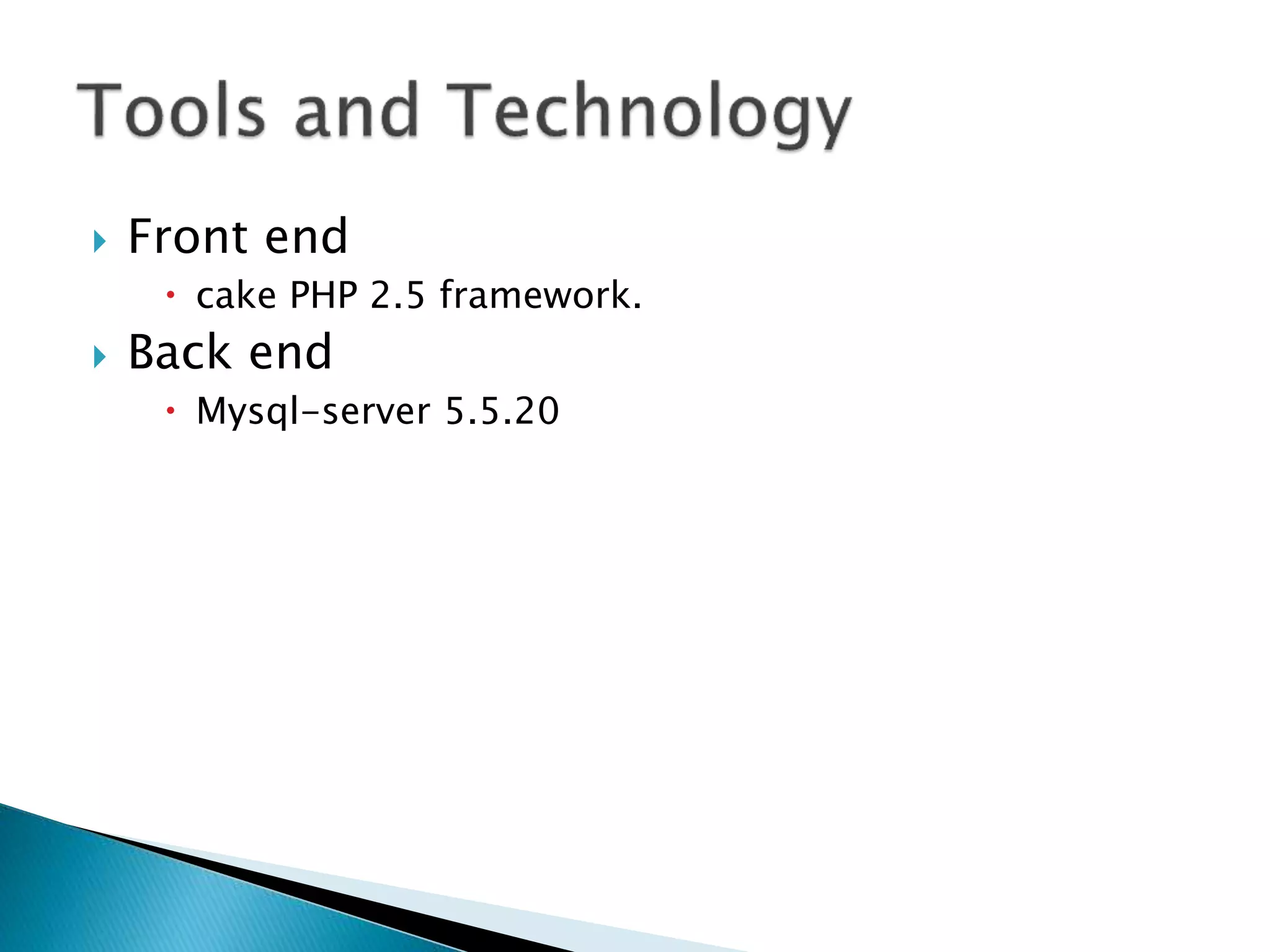

- 5. Front end cake PHP 2.5 framework. Back end Mysql-server 5.5.20

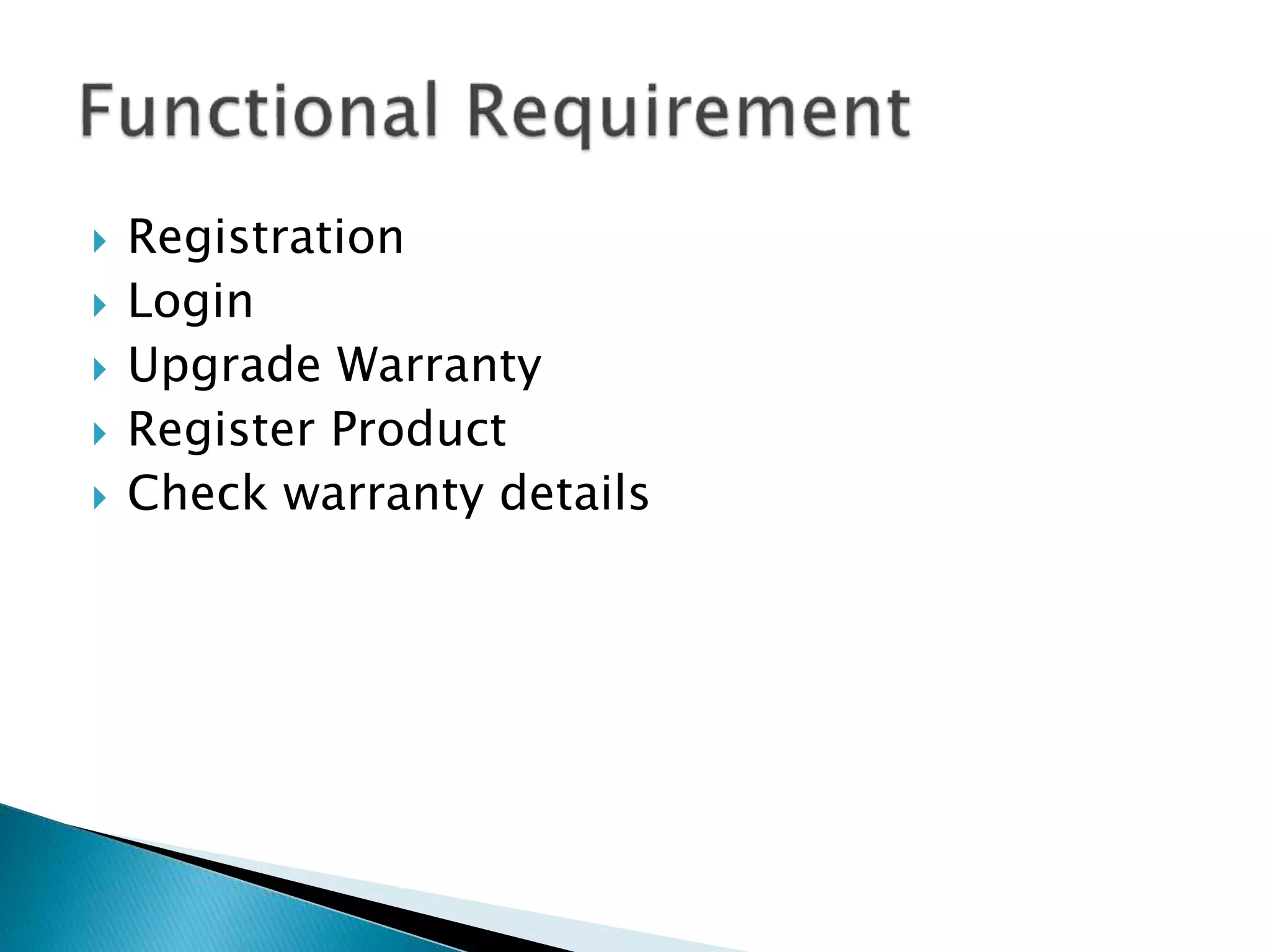

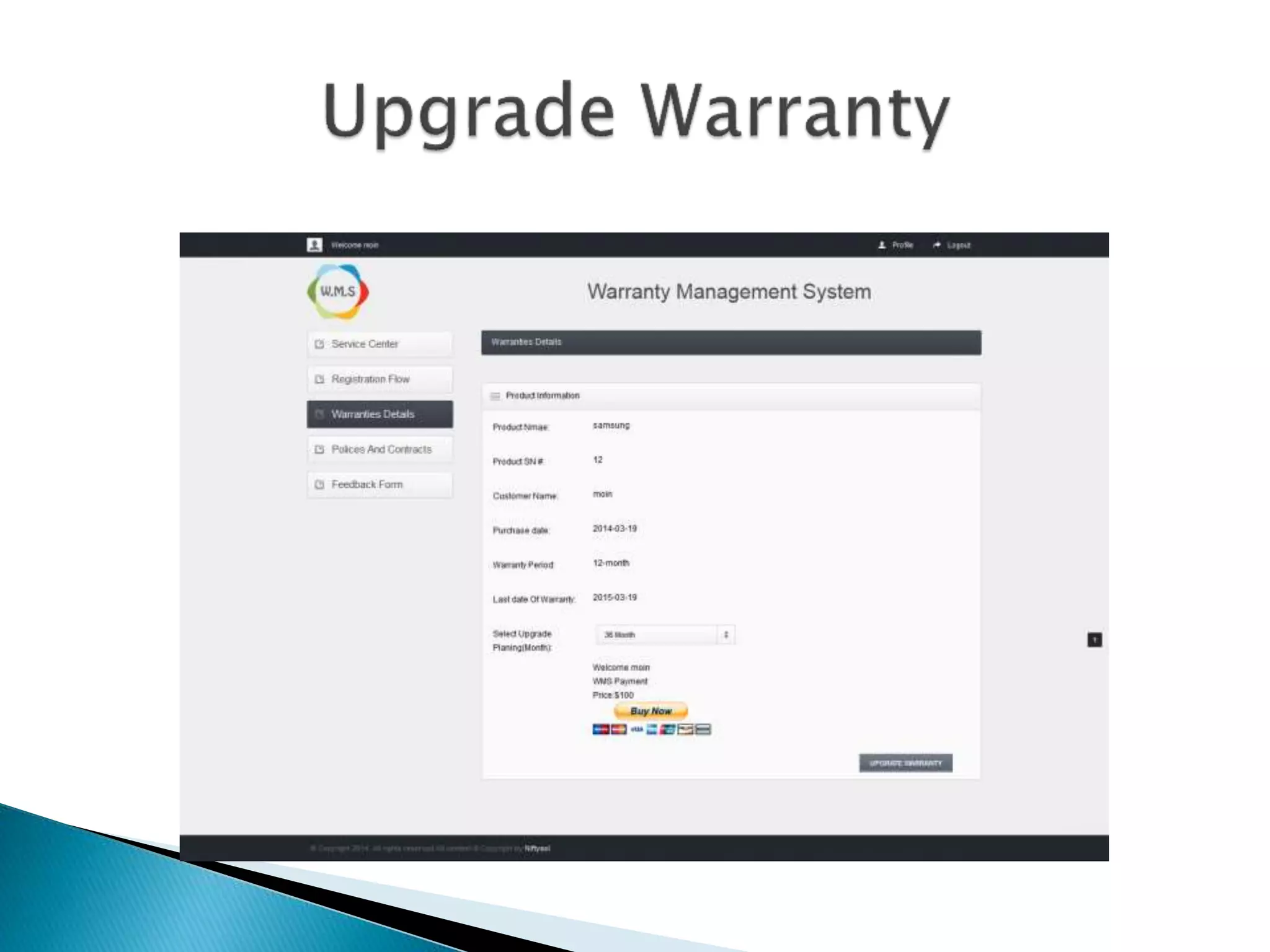

- 6. Registration Login Upgrade Warranty Register Product Check warranty details

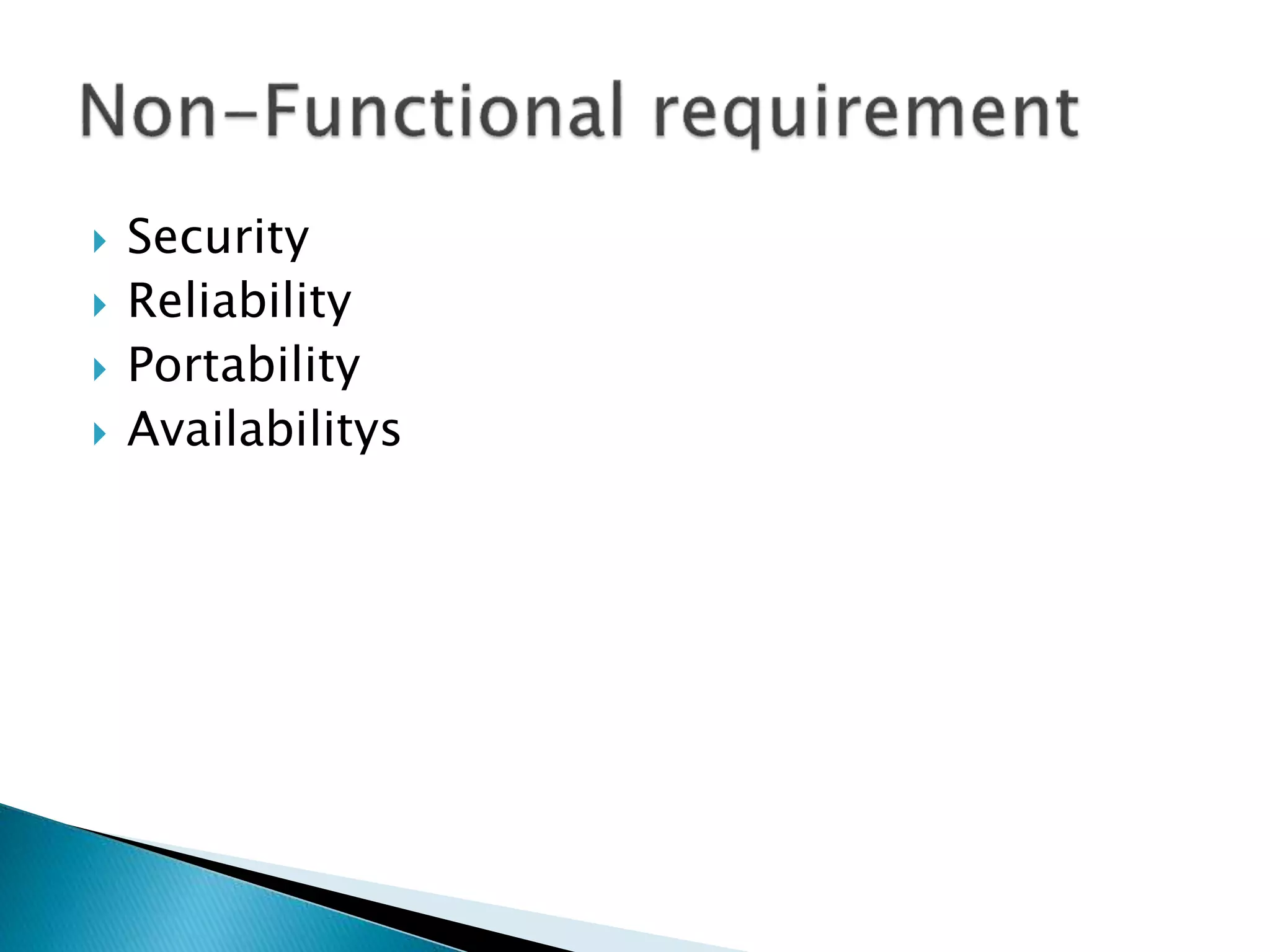

- 7. Security Reliability Portability Availabilitys

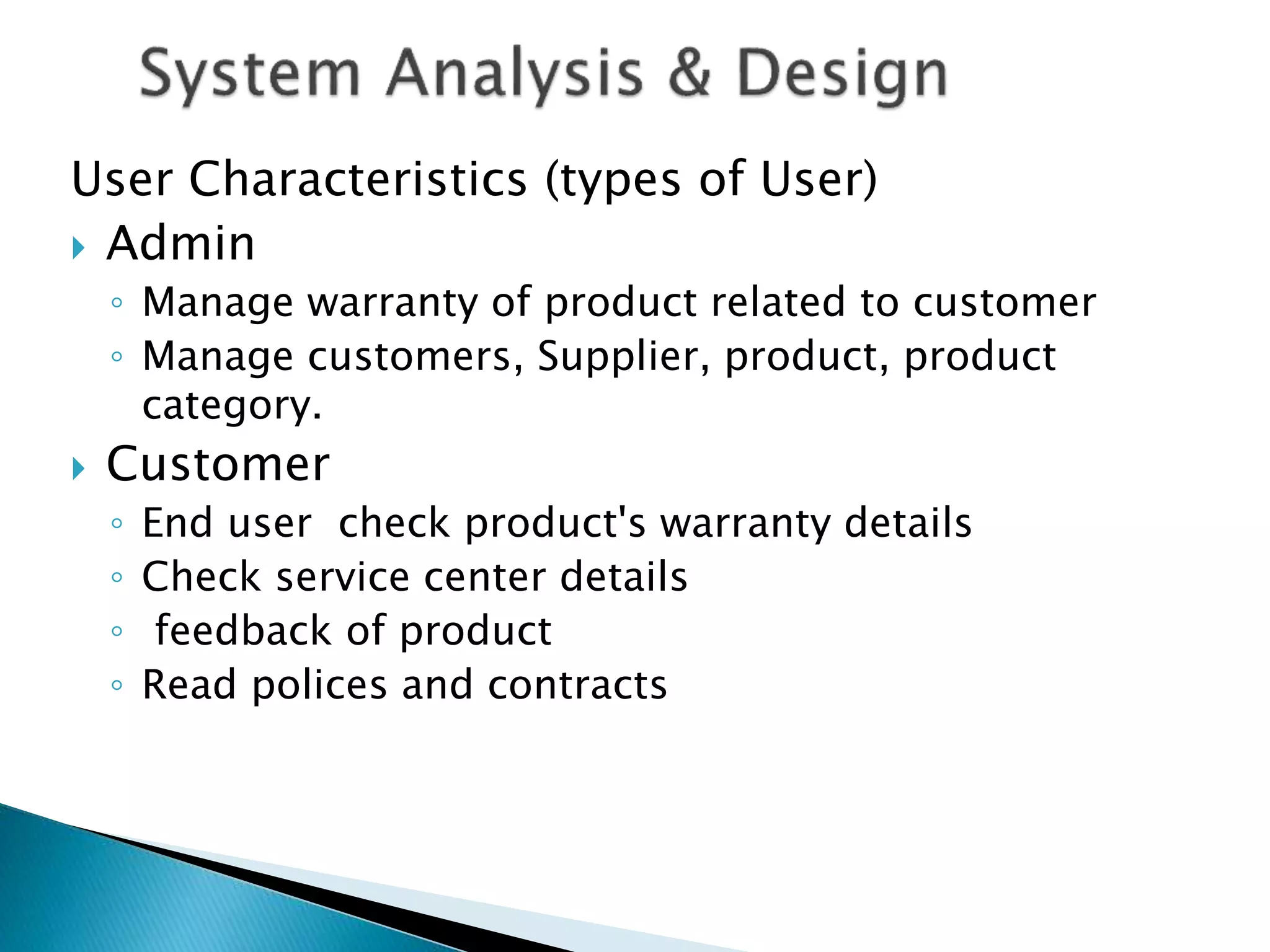

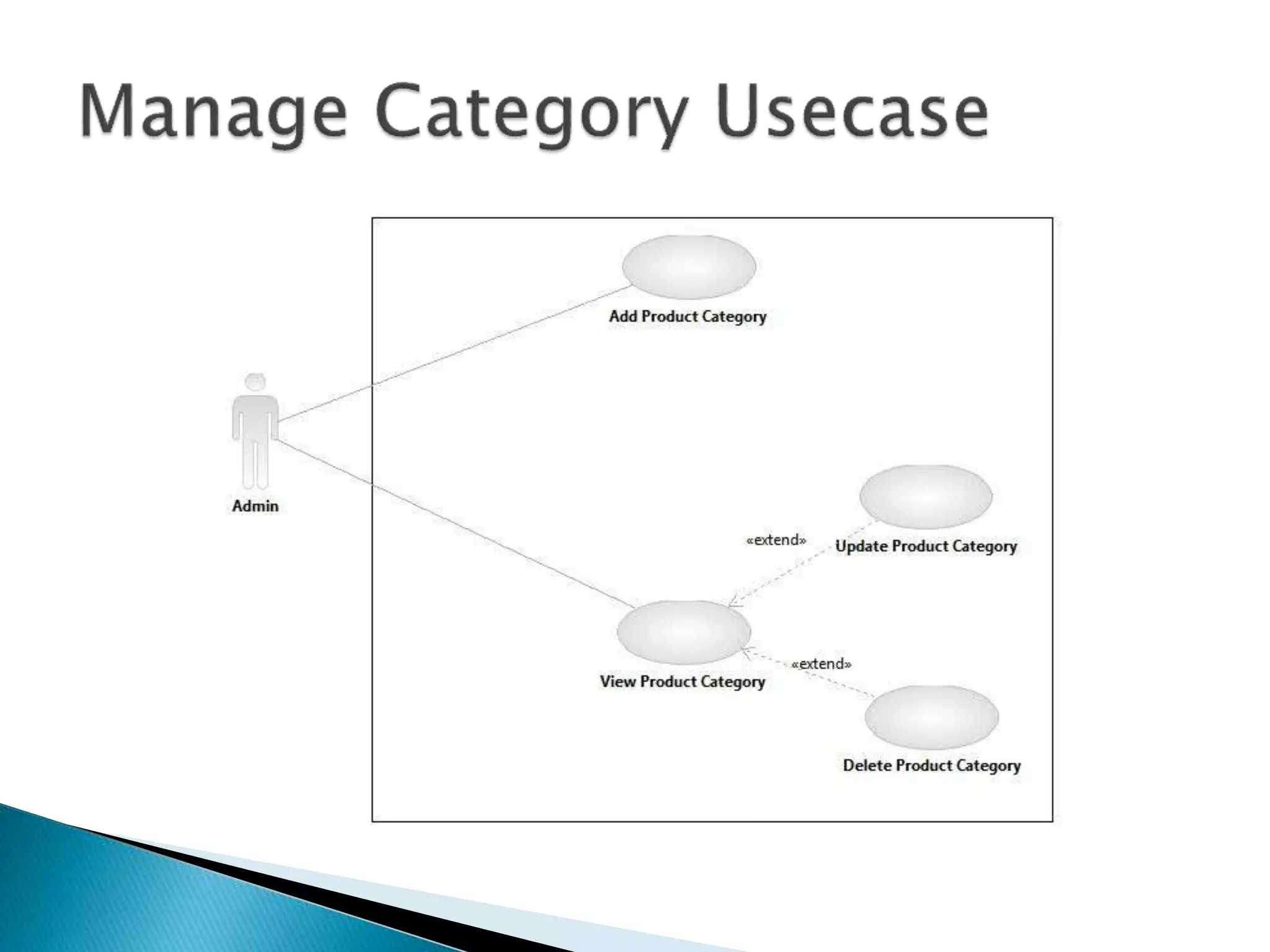

- 8. User Characteristics (types of User) Admin ◦ Manage warranty of product related to customer ◦ Manage customers, Supplier, product, product category. Customer ◦ End user check product's warranty details ◦ Check service center details ◦ feedback of product ◦ Read polices and contracts

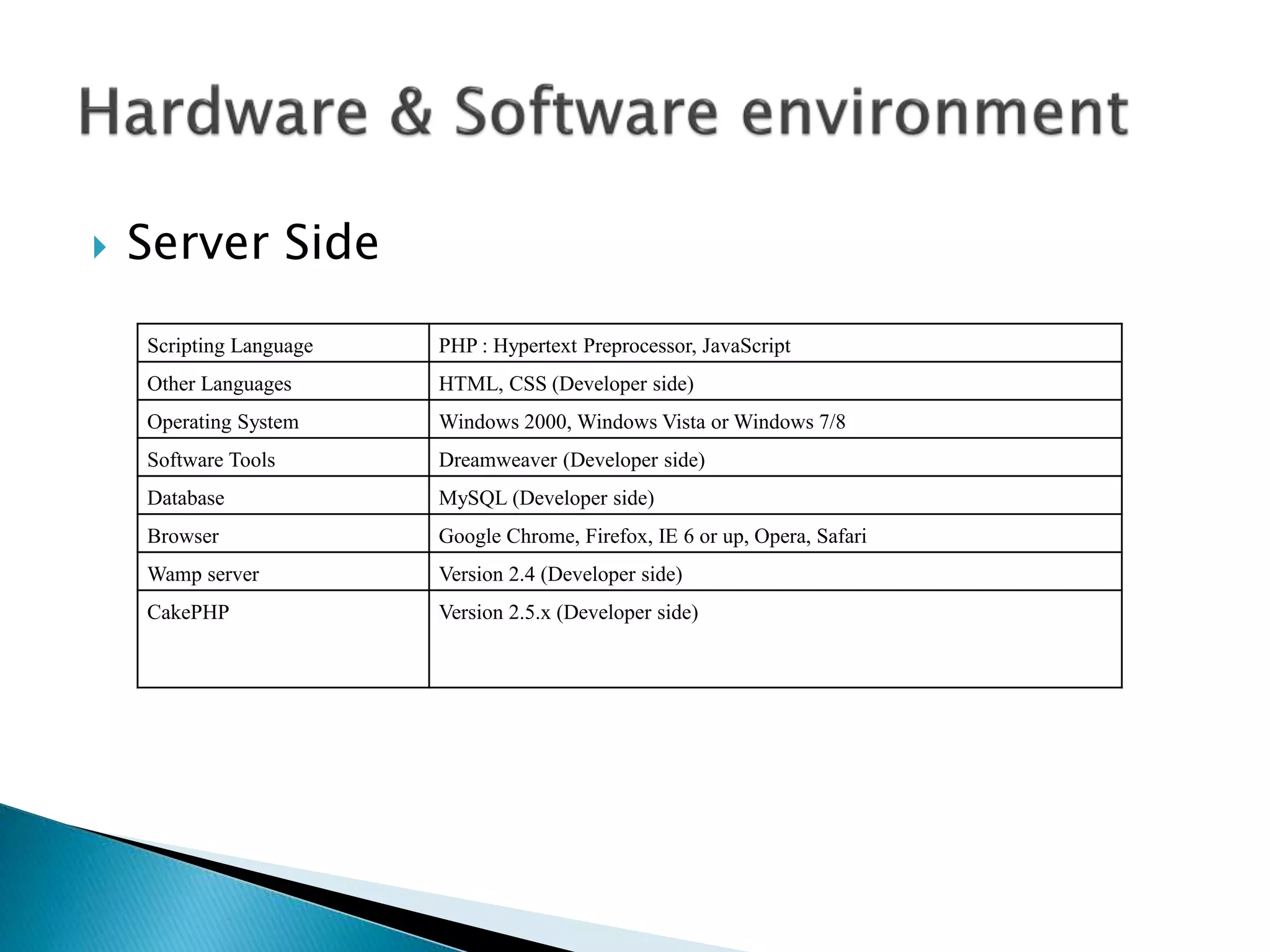

- 9. Server Side Scripting Language PHP : Hypertext Preprocessor, JavaScript Other Languages HTML, CSS (Developer side) Operating System Windows 2000, Windows Vista orWindows 7/8 Software Tools Dreamweaver (Developer side) Database MySQL (Developer side) Browser Google Chrome, Firefox, IE 6 or up, Opera, Safari Wamp server Version 2.4 (Developer side) CakePHP Version 2.5.x (Developer side)

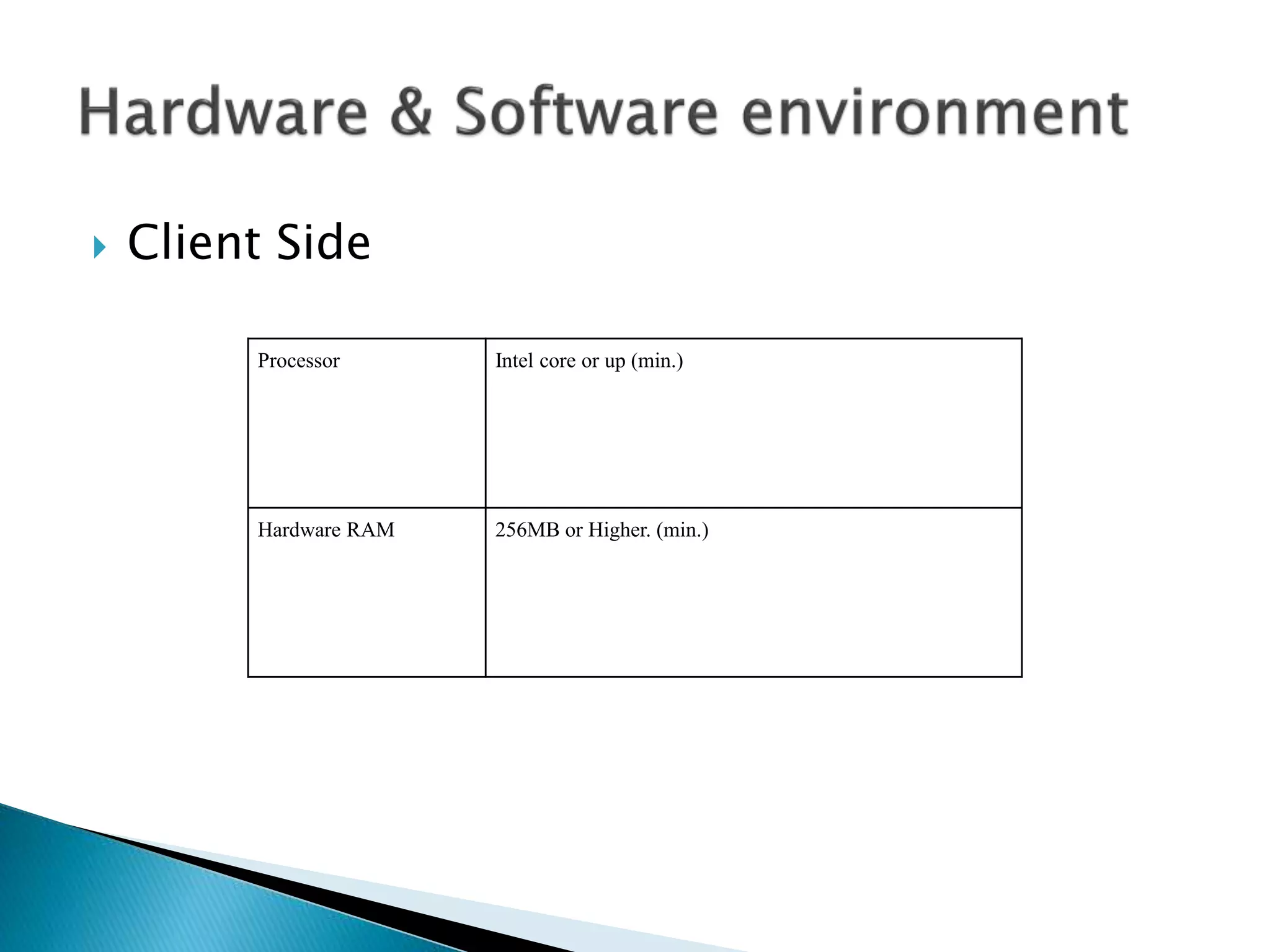

- 10. Client Side Processor Intel core or up (min.) Hardware RAM 256MB or Higher. (min.)

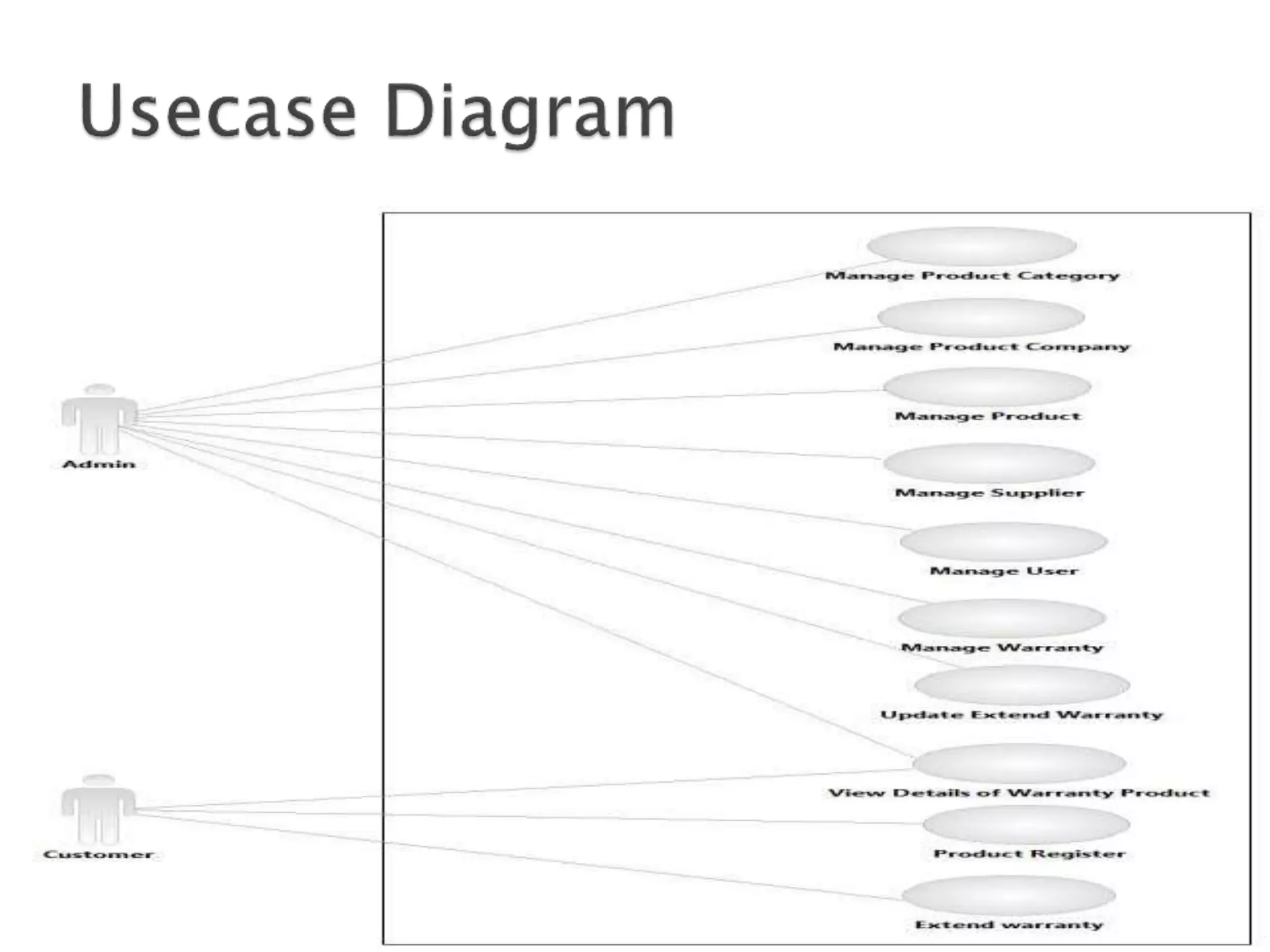

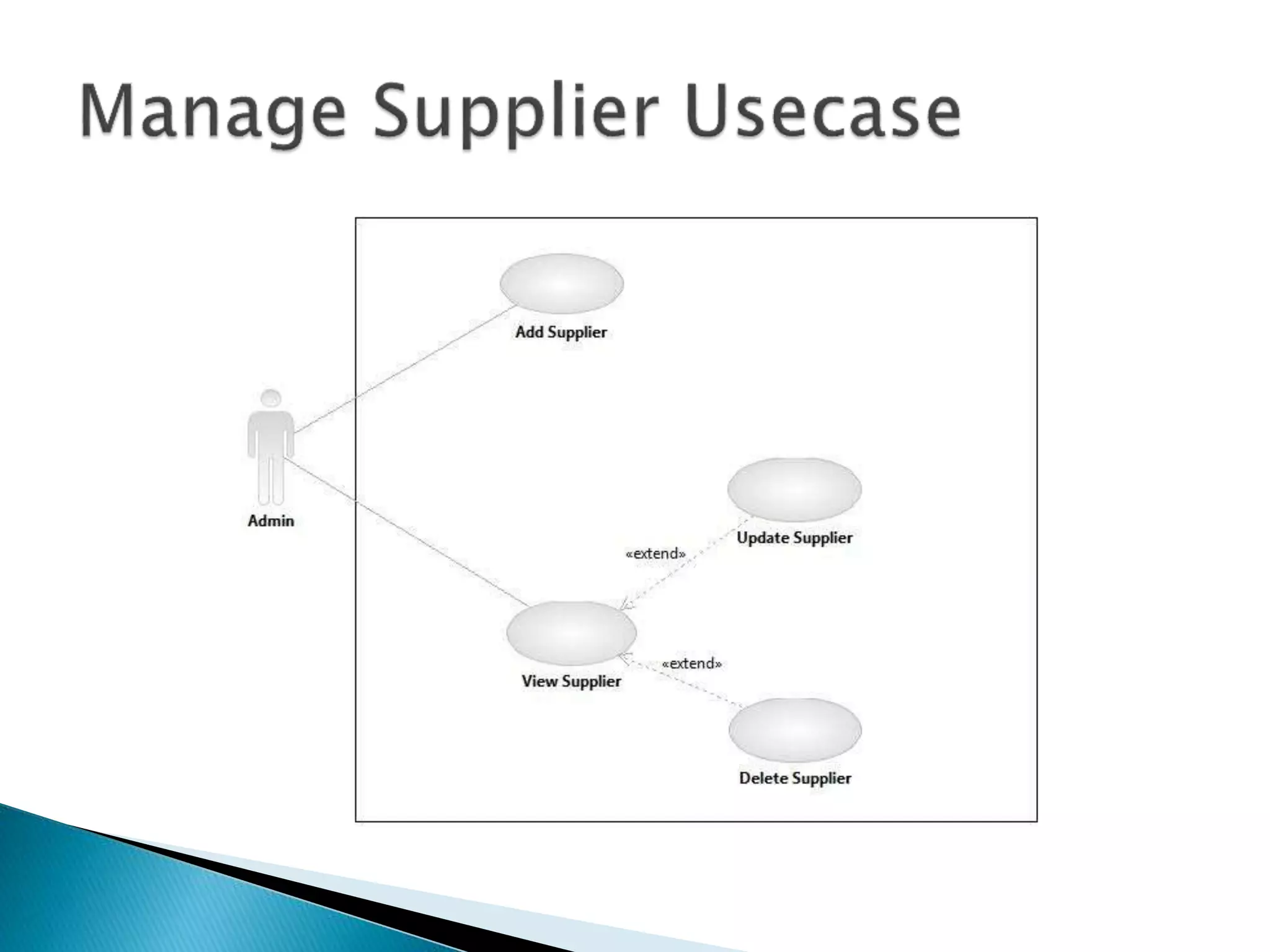

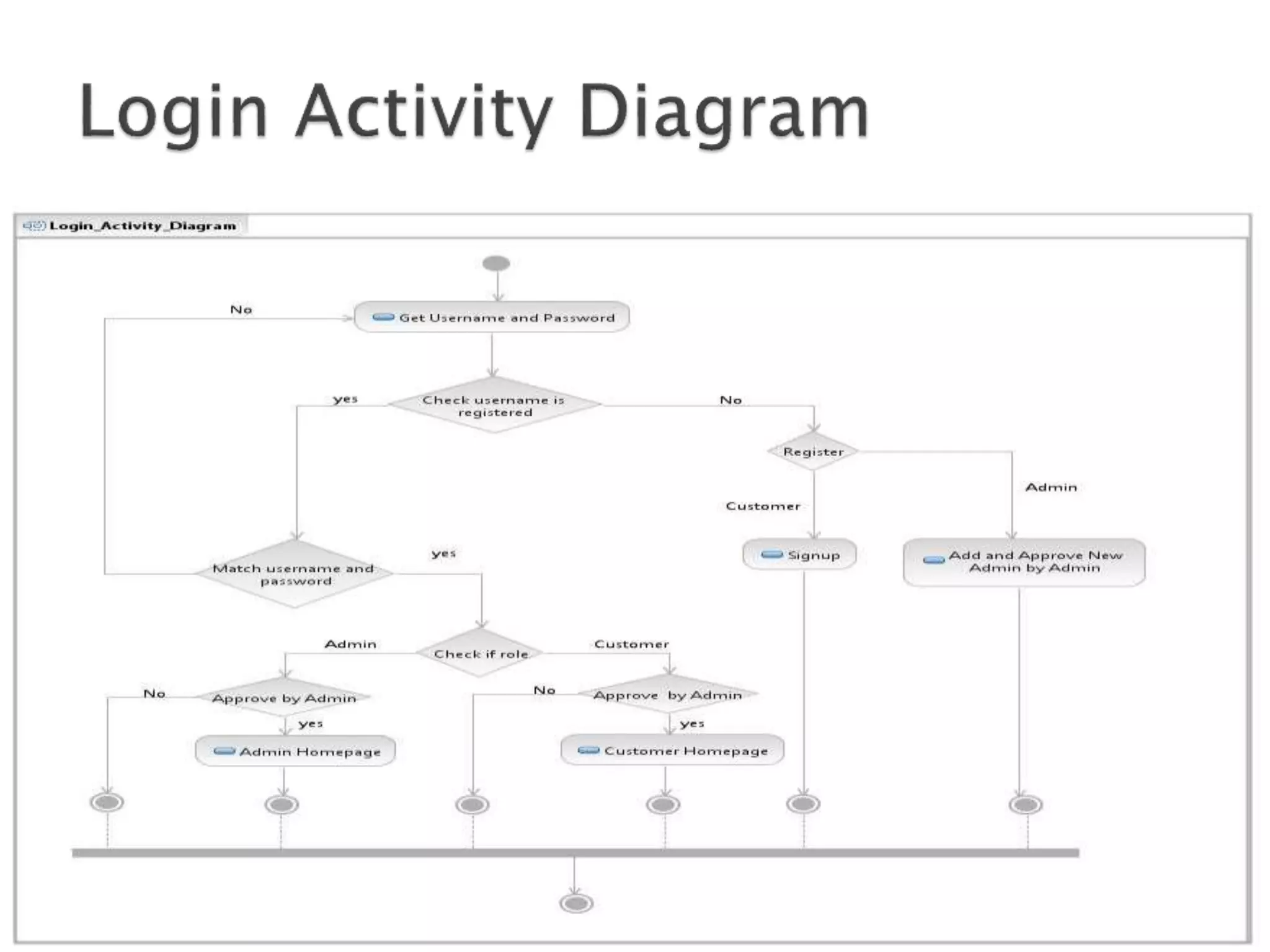

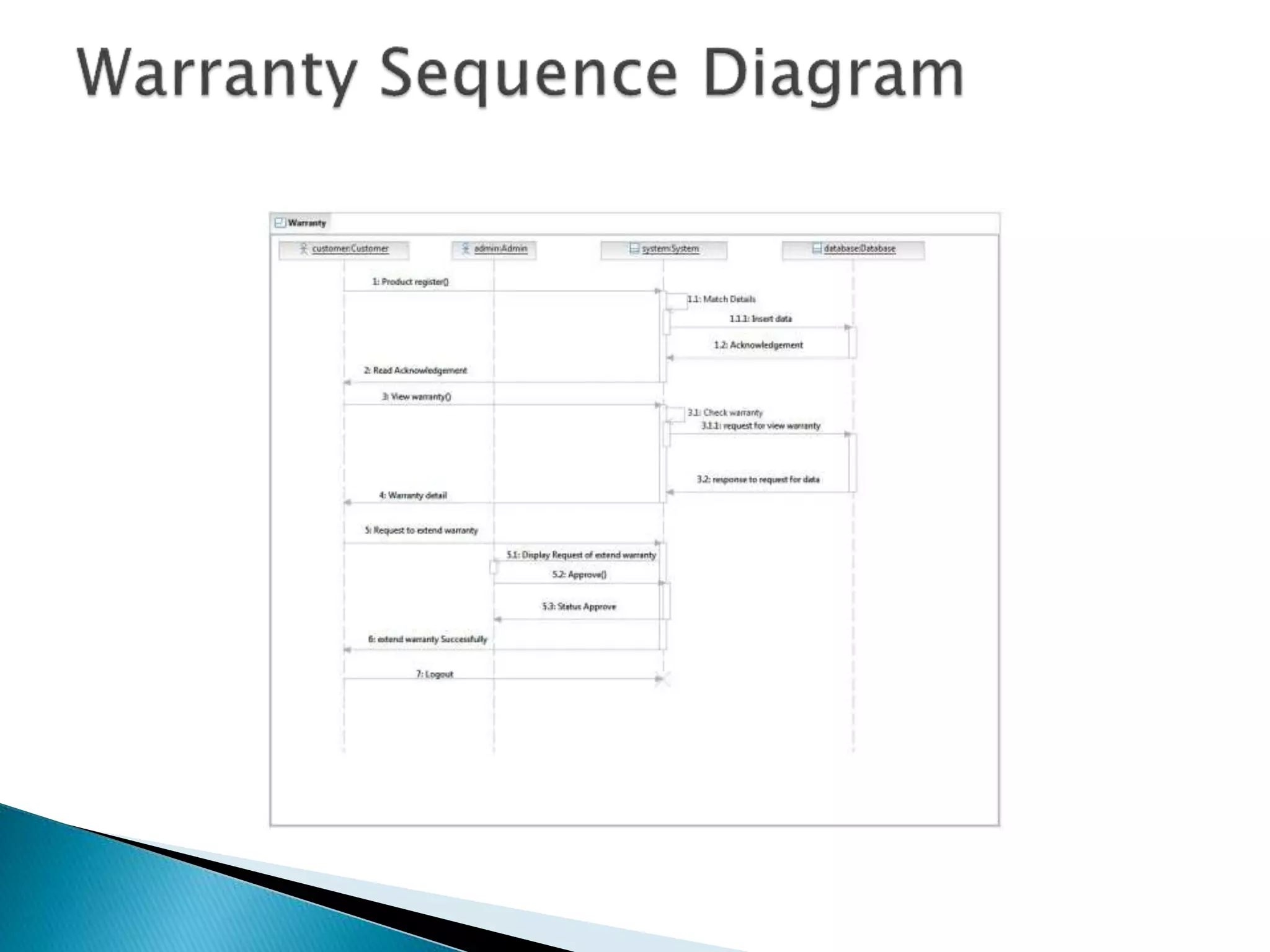

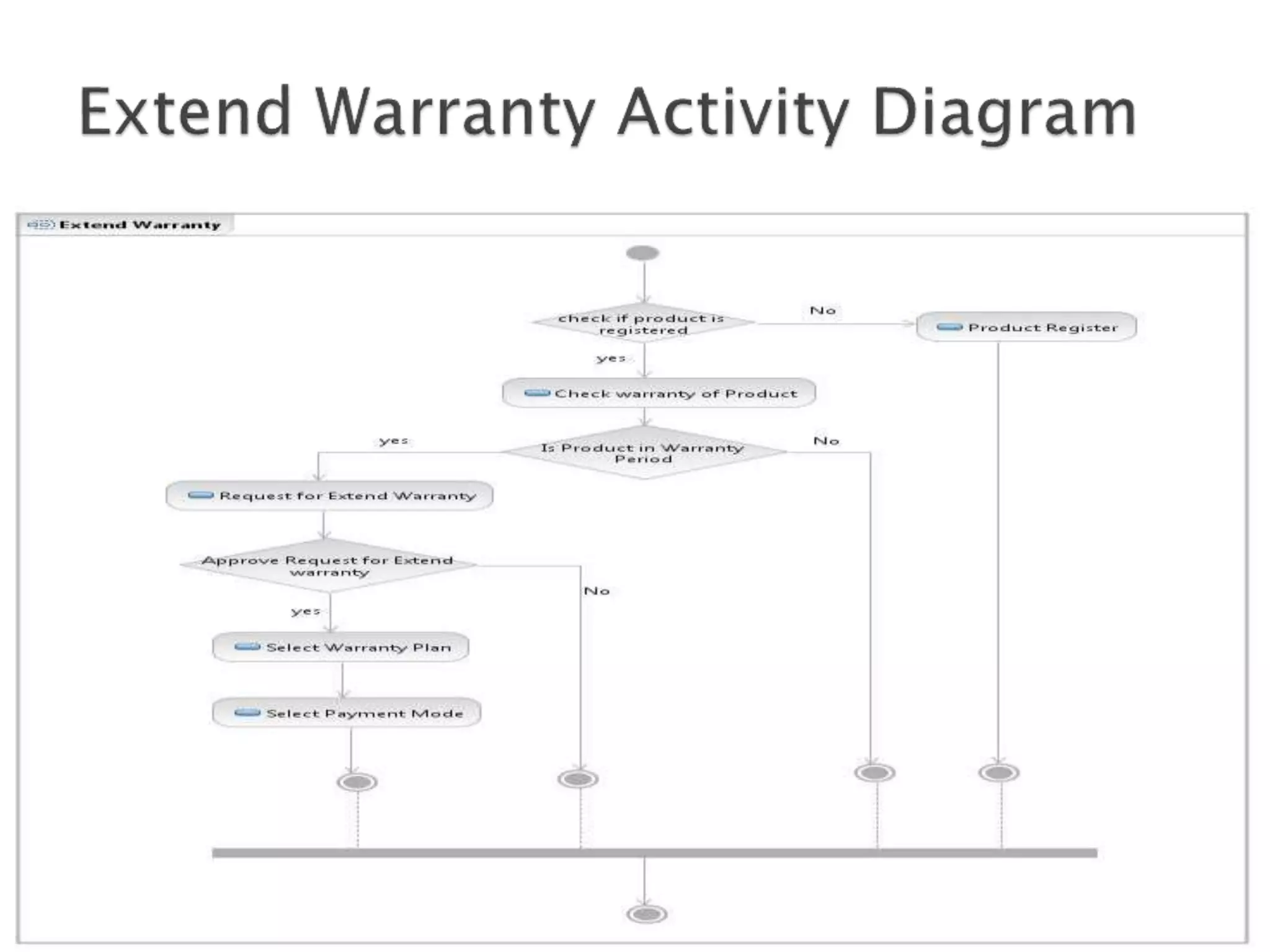

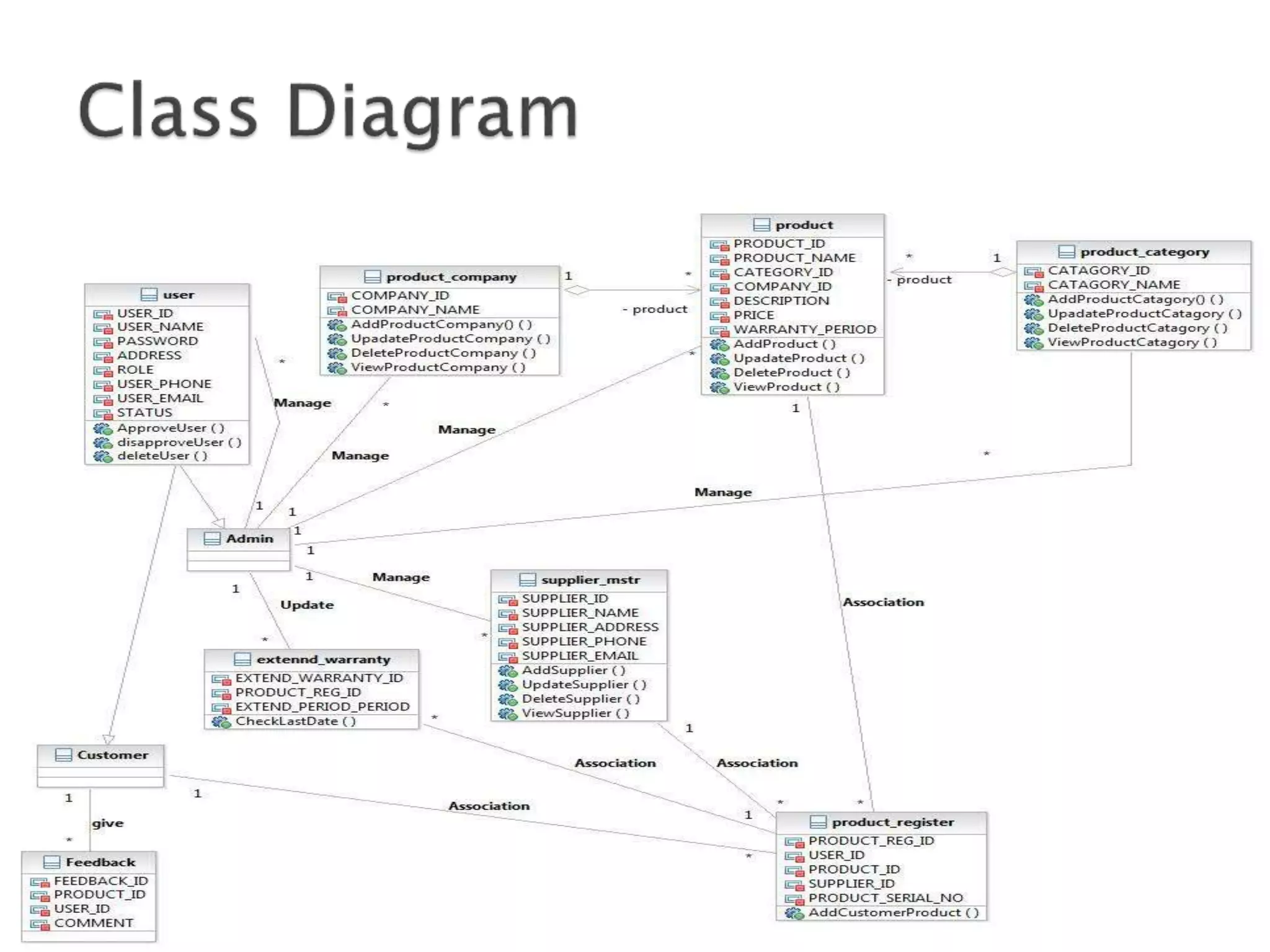

- 16. Data dictionary 1. User- : user_mstr Purpose: User Master will store the basic information of any User and Login Sr.No Field Name Data type Constraints Description 1 USER_ID Integer Primary Key 2 USER_NAME Varchar(100) Not Null 3 PASSWORD Varchar(50) Not Null 4 ADDRESS Varchar(150) Not Null 5 ROLE Varchar(50) Not Null 6 USER_PHONE Varchar(13) 7 USER_EMAIL Varchar(50) Not Null 8 STATUS BOOLEAN Not Null 1=confirmed and 0=pending

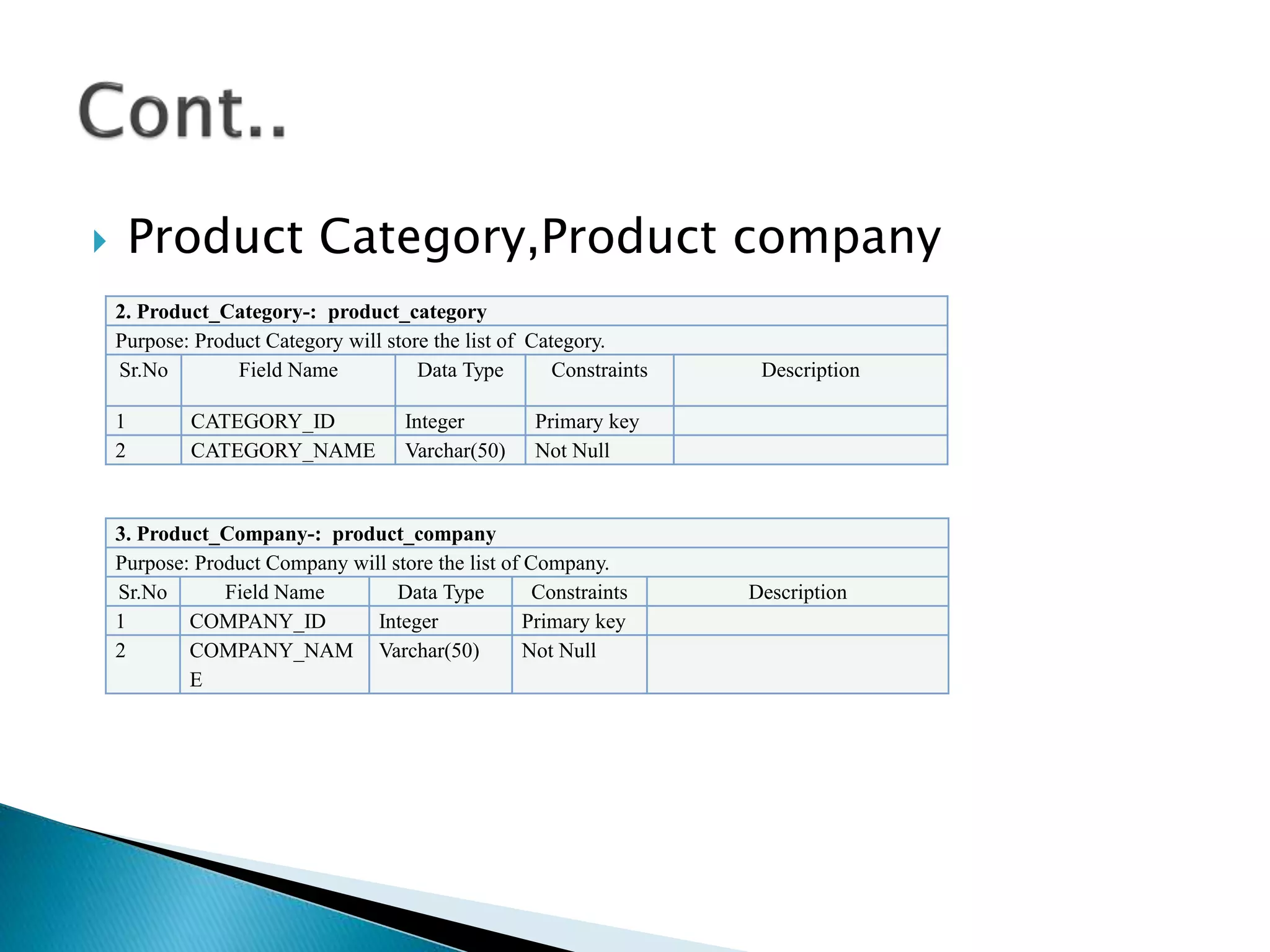

- 17. Product Category,Product company 2. Product_Category-: product_category Purpose: Product Category will store the list of Category. Sr.No Field Name Data Type Constraints Description 1 CATEGORY_ID Integer Primary key 2 CATEGORY_NAME Varchar(50) Not Null 3. Product_Company-: product_company Purpose: Product Company will store the list of Company. Sr.No Field Name Data Type Constraints Description 1 COMPANY_ID Integer Primary key 2 COMPANY_NAM E Varchar(50) Not Null
- 18. Product master 4. Product-: product_mstr Purpose: Product Master will store the basic information of any Product Sr.No Field Name Data Type Constraints Description 1 PRODUCT_ID Integer Primary key 2 PRODUCT_NAME Varchar(50) Not Null 3 CATEGORY_ID Integer Foreign key Reference product_category 4 COMPANY_ID Integer Foreign Key Reference product_company 5 DESCRIPTION Varchar(100) 6 PRICE Float (10,2) Not Null 7 WARRANTY_PERIOD Integer(2) Not Null

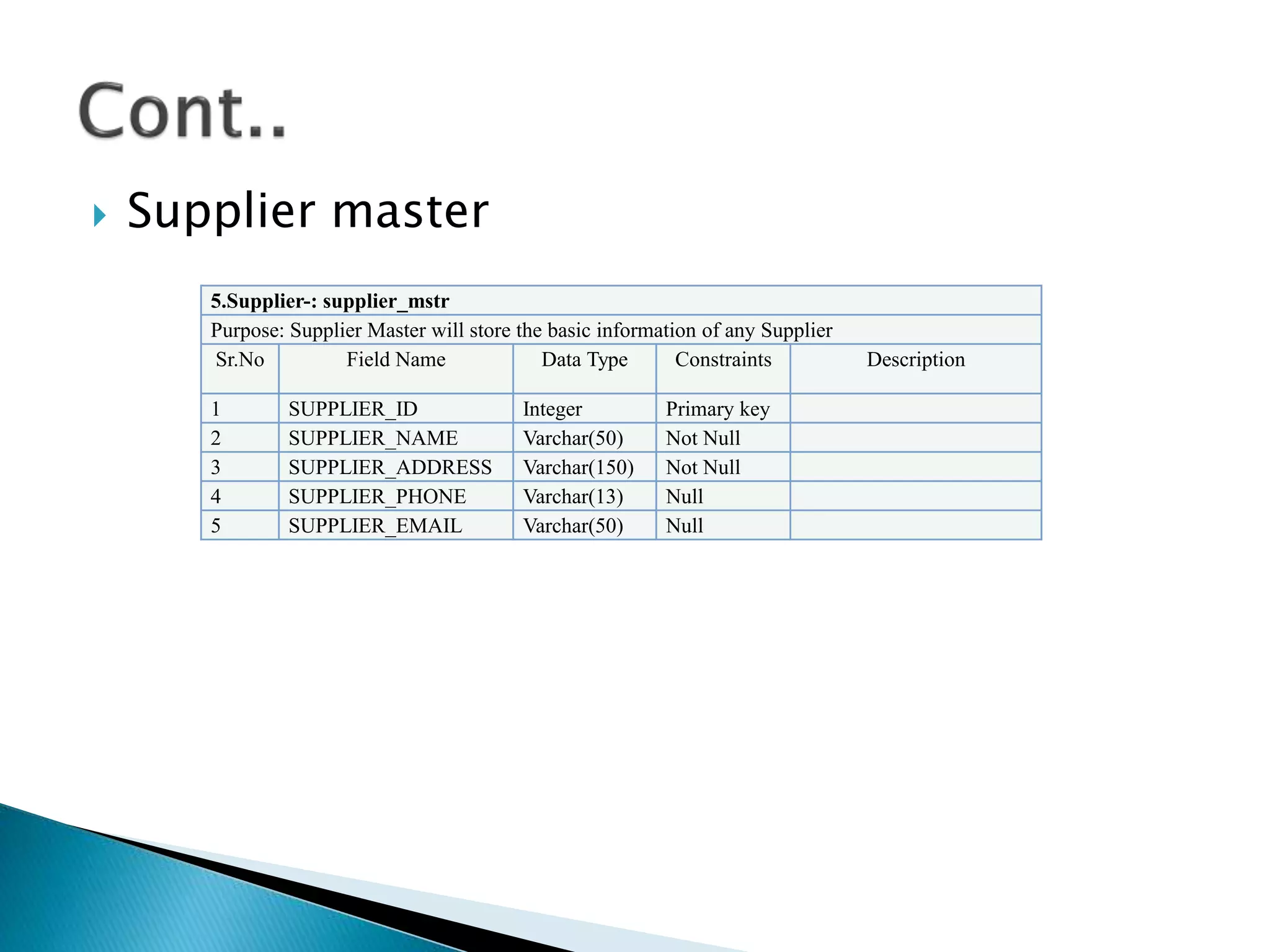

- 19. Supplier master 5.Supplier-: supplier_mstr Purpose: Supplier Master will store the basic information of any Supplier Sr.No Field Name Data Type Constraints Description 1 SUPPLIER_ID Integer Primary key 2 SUPPLIER_NAME Varchar(50) Not Null 3 SUPPLIER_ADDRESS Varchar(150) Not Null 4 SUPPLIER_PHONE Varchar(13) Null 5 SUPPLIER_EMAIL Varchar(50) Null

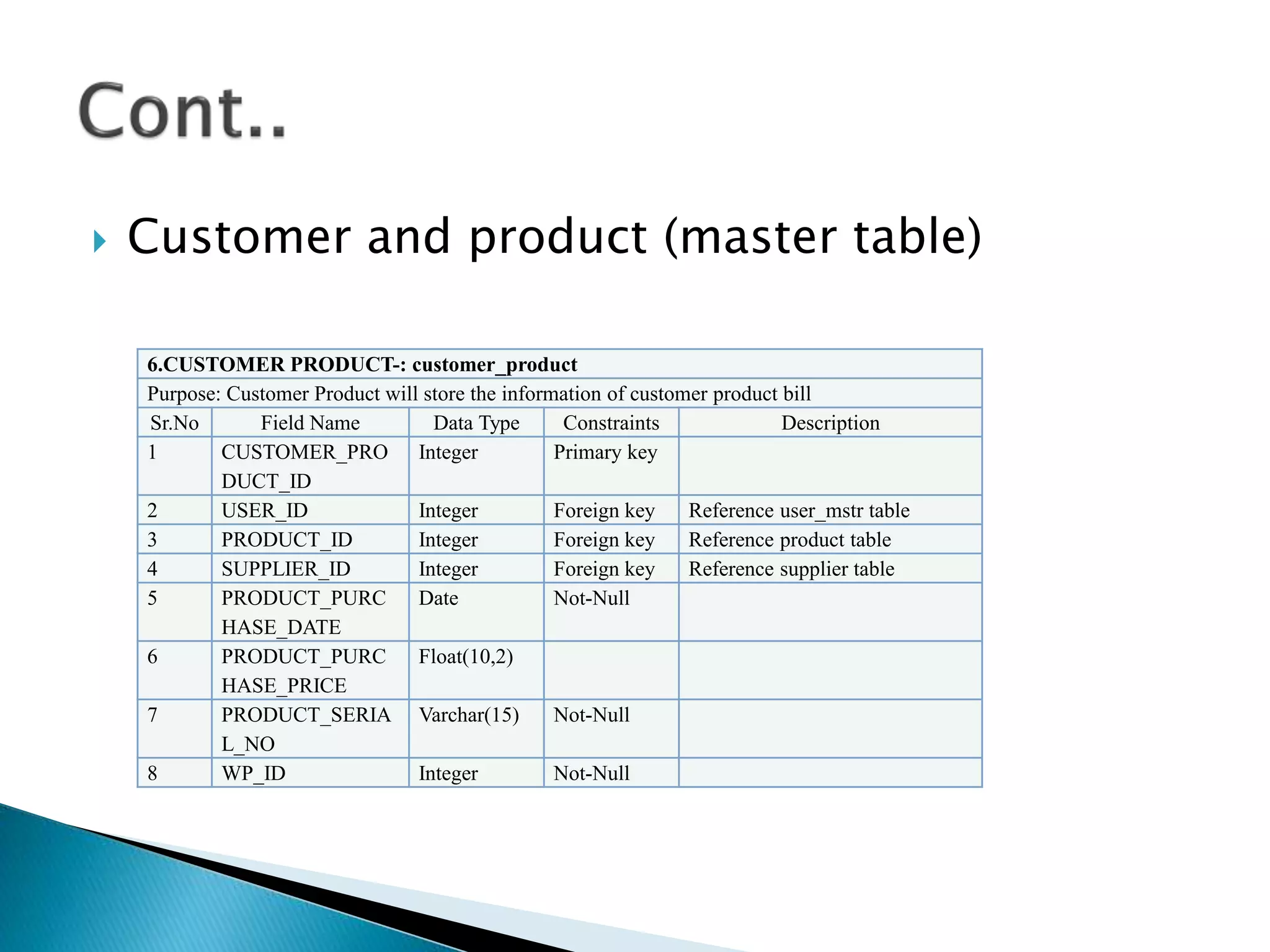

- 20. Customer and product (master table) 6.CUSTOMER PRODUCT-: customer_product Purpose: Customer Product will store the information of customer product bill Sr.No Field Name Data Type Constraints Description 1 CUSTOMER_PRO DUCT_ID Integer Primary key 2 USER_ID Integer Foreign key Reference user_mstr table 3 PRODUCT_ID Integer Foreign key Reference product table 4 SUPPLIER_ID Integer Foreign key Reference supplier table 5 PRODUCT_PURC HASE_DATE Date Not-Null 6 PRODUCT_PURC HASE_PRICE Float(10,2) 7 PRODUCT_SERIA L_NO Varchar(15) Not-Null 8 WP_ID Integer Not-Null

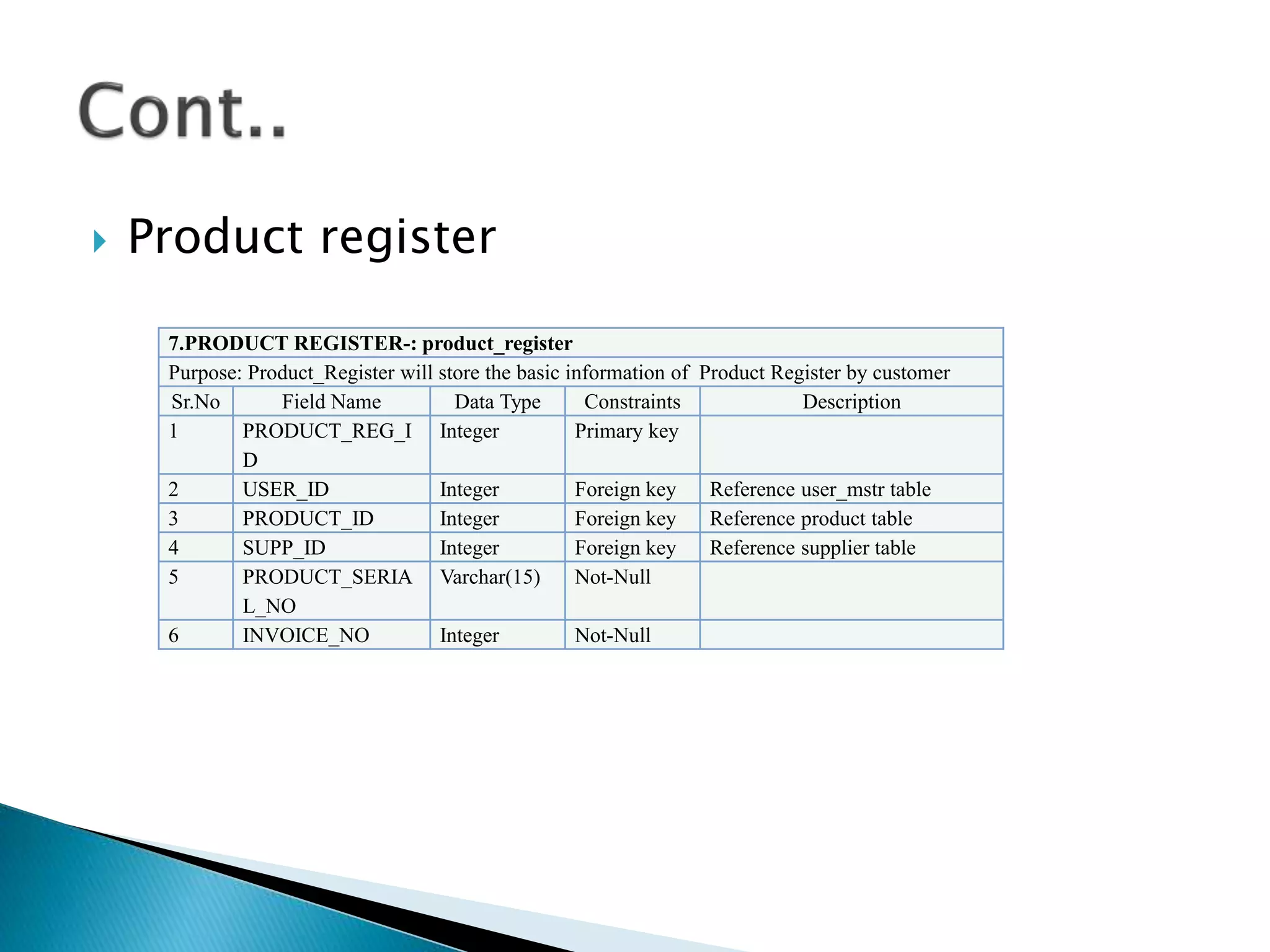

- 21. Product register 7.PRODUCT REGISTER-: product_register Purpose: Product_Register will store the basic information of Product Register by customer Sr.No Field Name Data Type Constraints Description 1 PRODUCT_REG_I D Integer Primary key 2 USER_ID Integer Foreign key Reference user_mstr table 3 PRODUCT_ID Integer Foreign key Reference product table 4 SUPP_ID Integer Foreign key Reference supplier table 5 PRODUCT_SERIA L_NO Varchar(15) Not-Null 6 INVOICE_NO Integer Not-Null

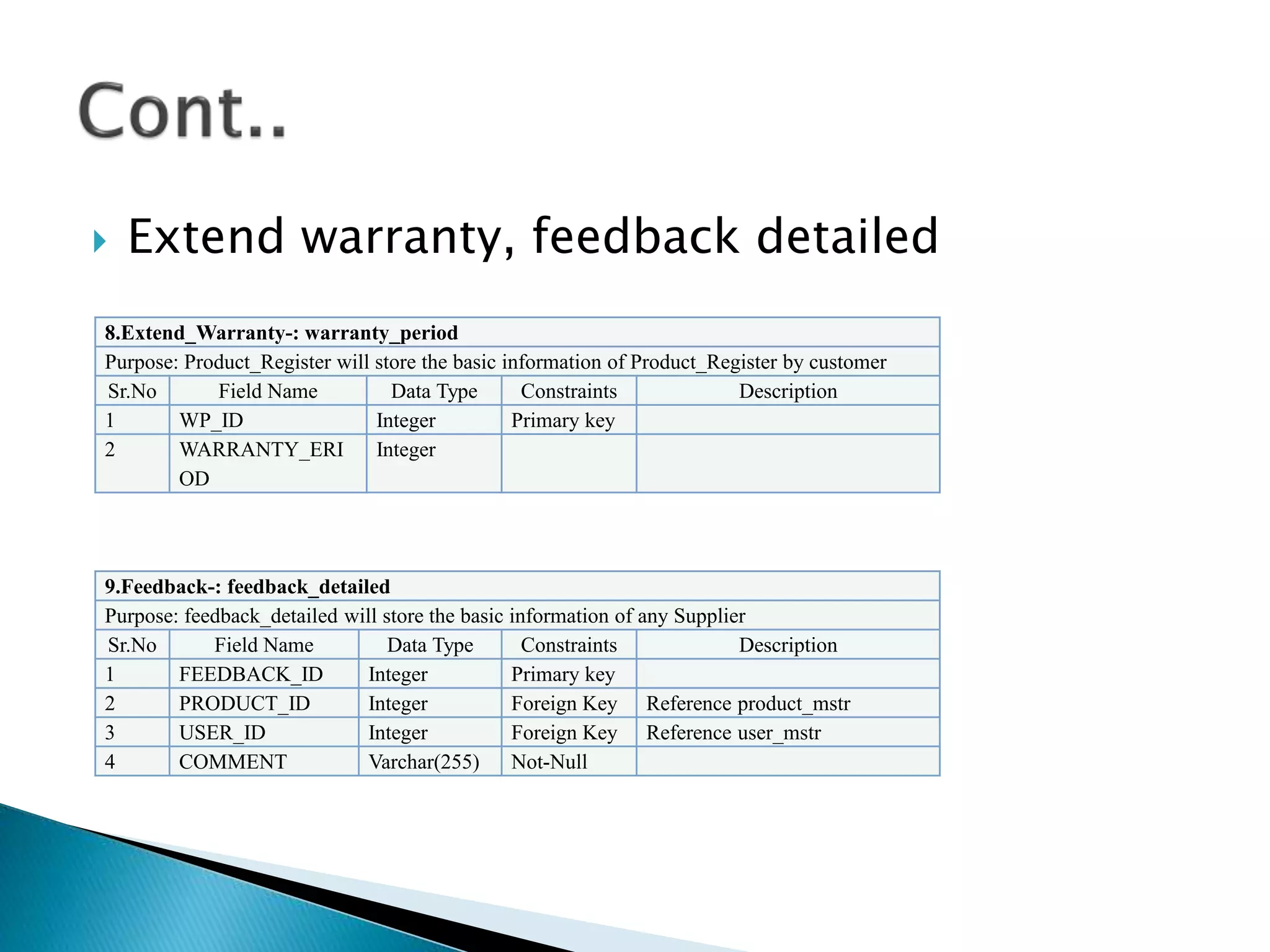

- 22. Extend warranty, feedback detailed 8.Extend_Warranty-: warranty_period Purpose: Product_Register will store the basic information of Product_Register by customer Sr.No Field Name Data Type Constraints Description 1 WP_ID Integer Primary key 2 WARRANTY_ERI OD Integer 9.Feedback-: feedback_detailed Purpose: feedback_detailed will store the basic information of any Supplier Sr.No Field Name Data Type Constraints Description 1 FEEDBACK_ID Integer Primary key 2 PRODUCT_ID Integer Foreign Key Reference product_mstr 3 USER_ID Integer Foreign Key Reference user_mstr 4 COMMENT Varchar(255) Not-Null
- 23. Country,state,city 10.Country -: country_mstr Purpose: State will store the basic information of any Country Sr.No Field Name Data Type Constraints Description 1 COUNTRY_ID Integer Primary key 2 COUNTRY_NAME Varchar(100) Not_Null 11.State-: state_mstr Purpose: State will store the basic information of any Country Sr.No Field Name Data Type Constraints Description 1 STATE_ID Integer Primary key 2 STATE_NAME Varchar(100) Not_Null 3 COUNTRY_ID Integer Foreign Key Reference country_mstr 12.City-: city_mstr Purpose: City will store the basic information of any City Sr.No Field Name Data Type Constraints Description 1 CITY_ID Integer Primary key 2 CITY_NAME Varchar(100) Not_Null 3 STATE_ID Integer Foreign Key Reference state_mstr

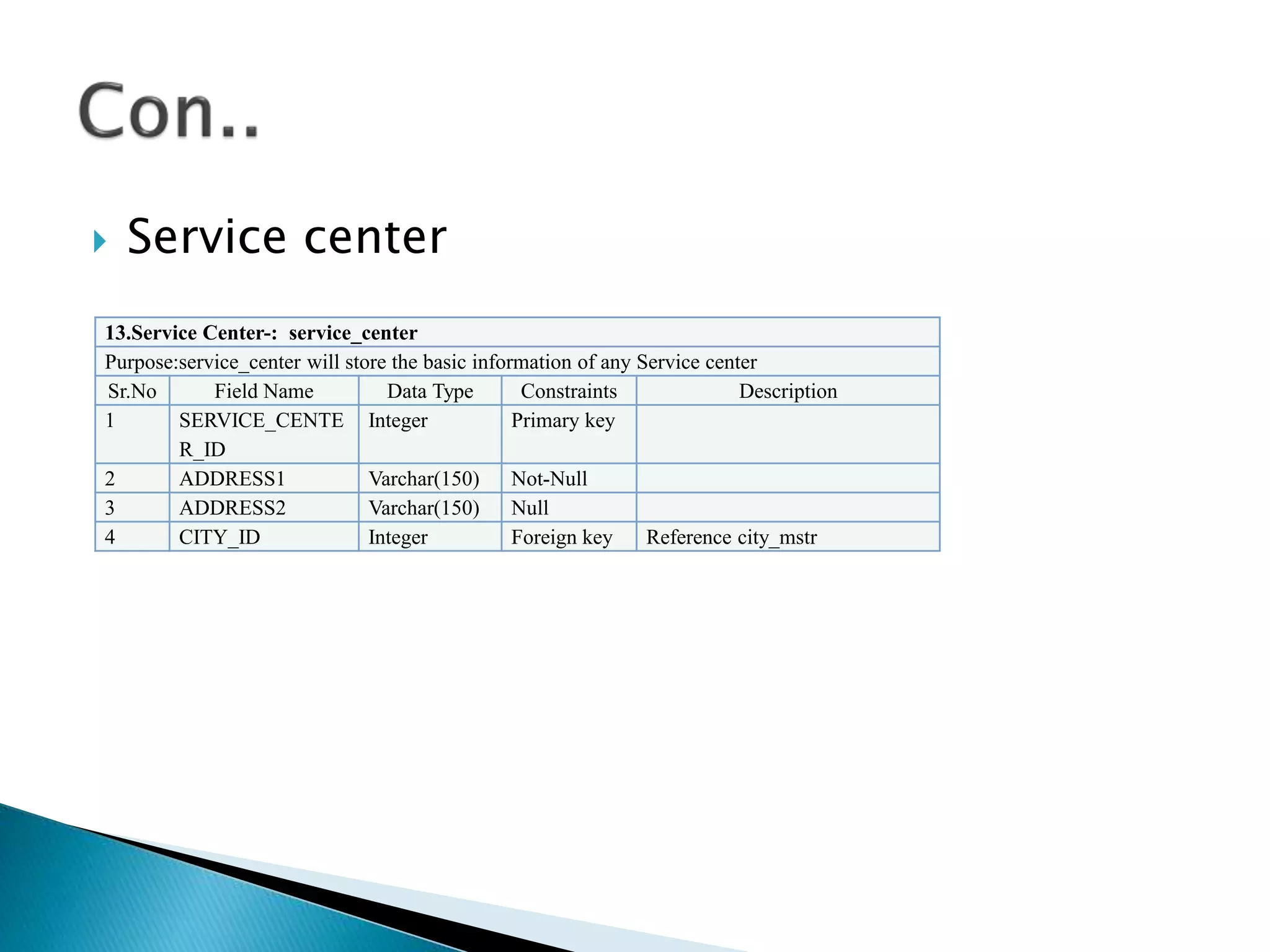

- 24. Service center 13.Service Center-: service_center Purpose:service_center will store the basic information of any Service center Sr.No Field Name Data Type Constraints Description 1 SERVICE_CENTE R_ID Integer Primary key 2 ADDRESS1 Varchar(150) Not-Null 3 ADDRESS2 Varchar(150) Null 4 CITY_ID Integer Foreign key Reference city_mstr

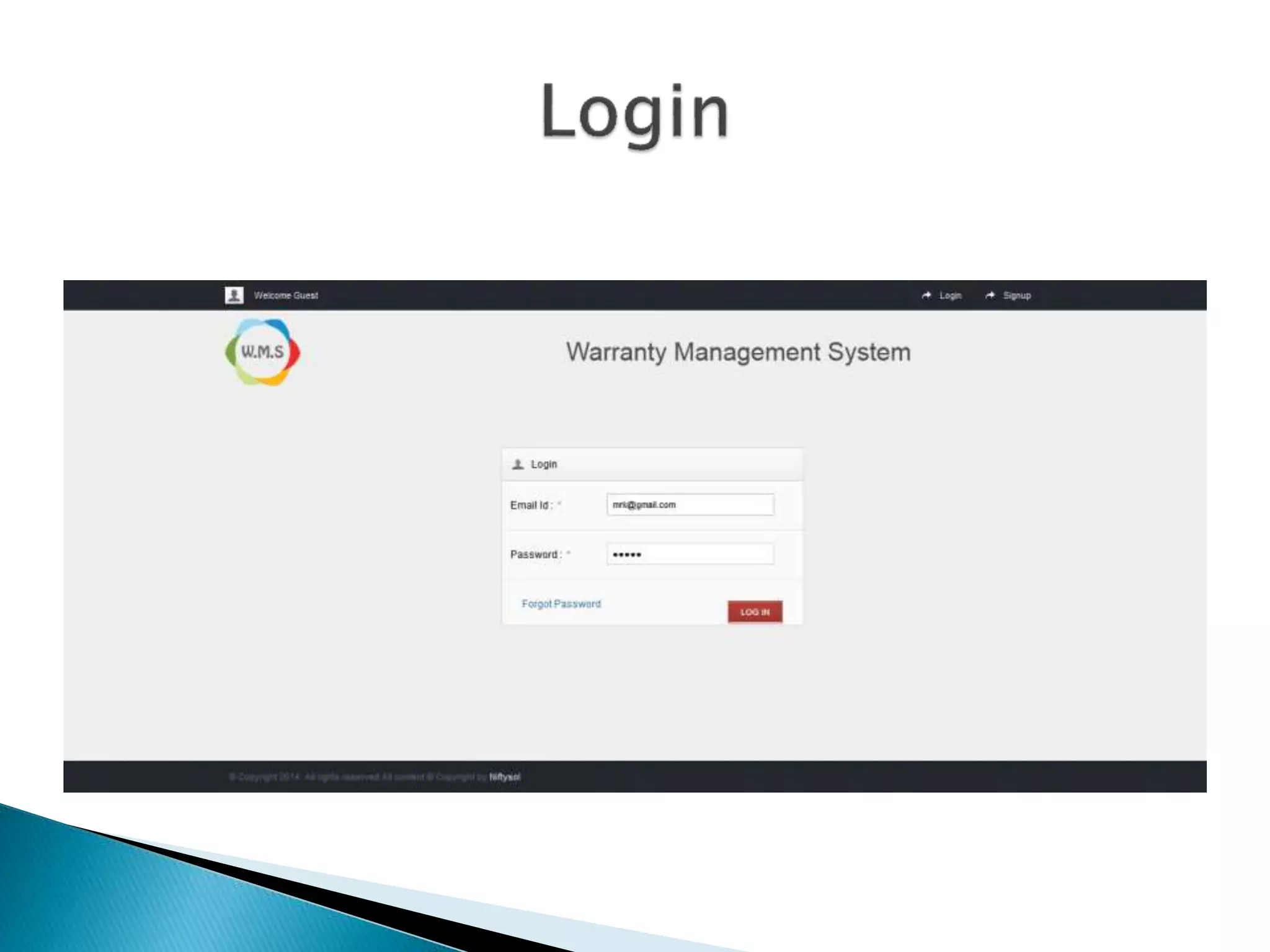

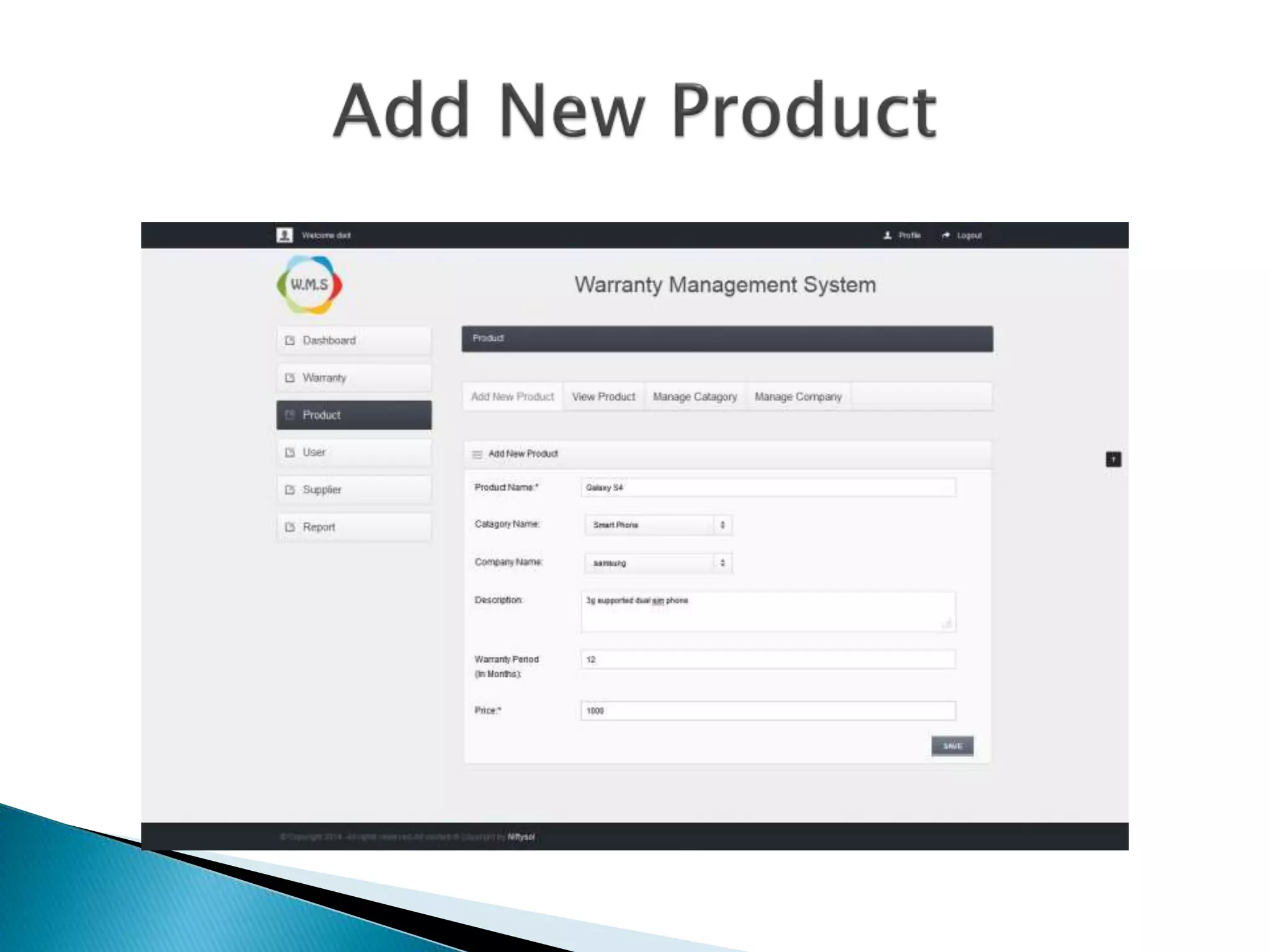

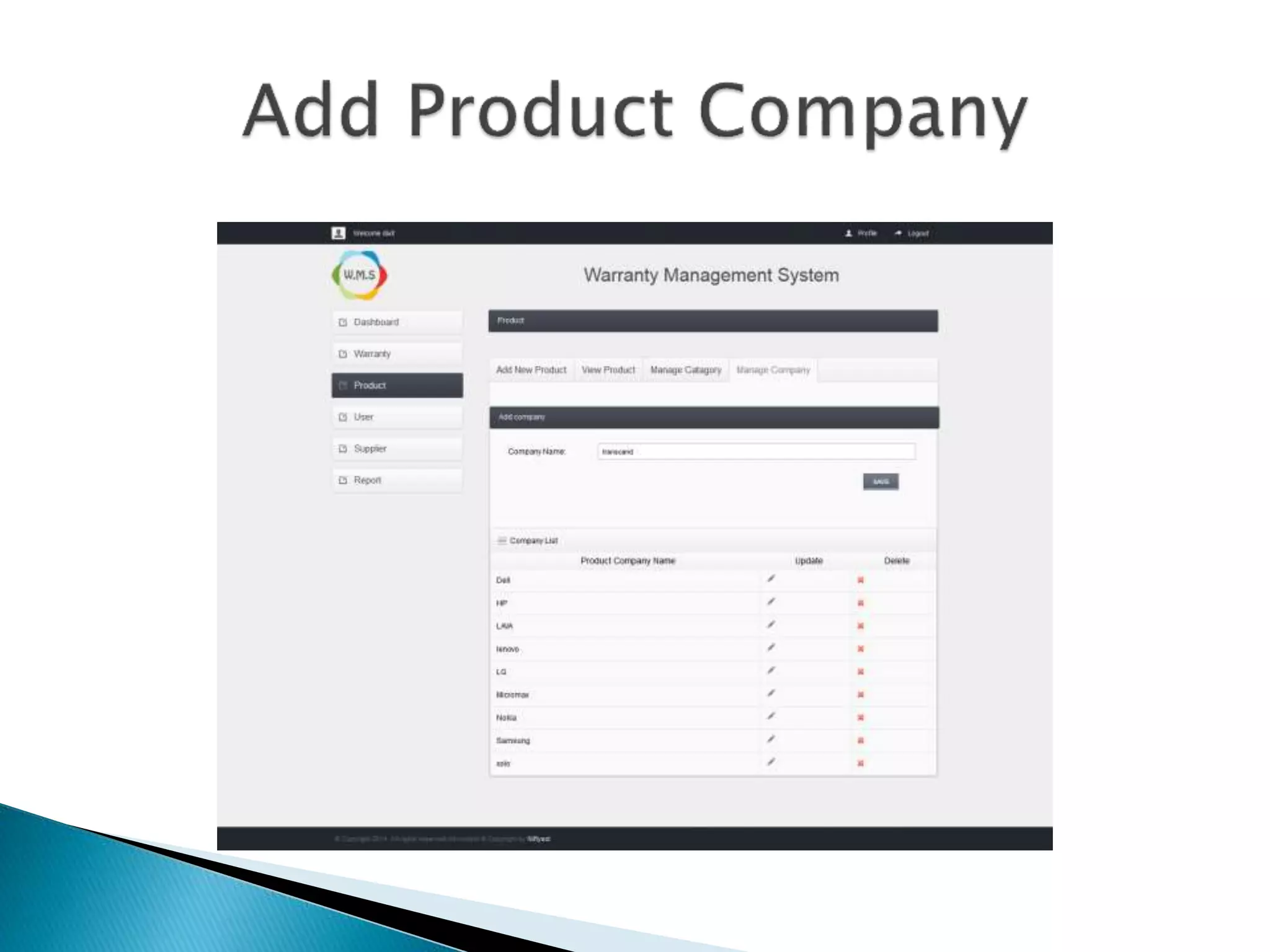

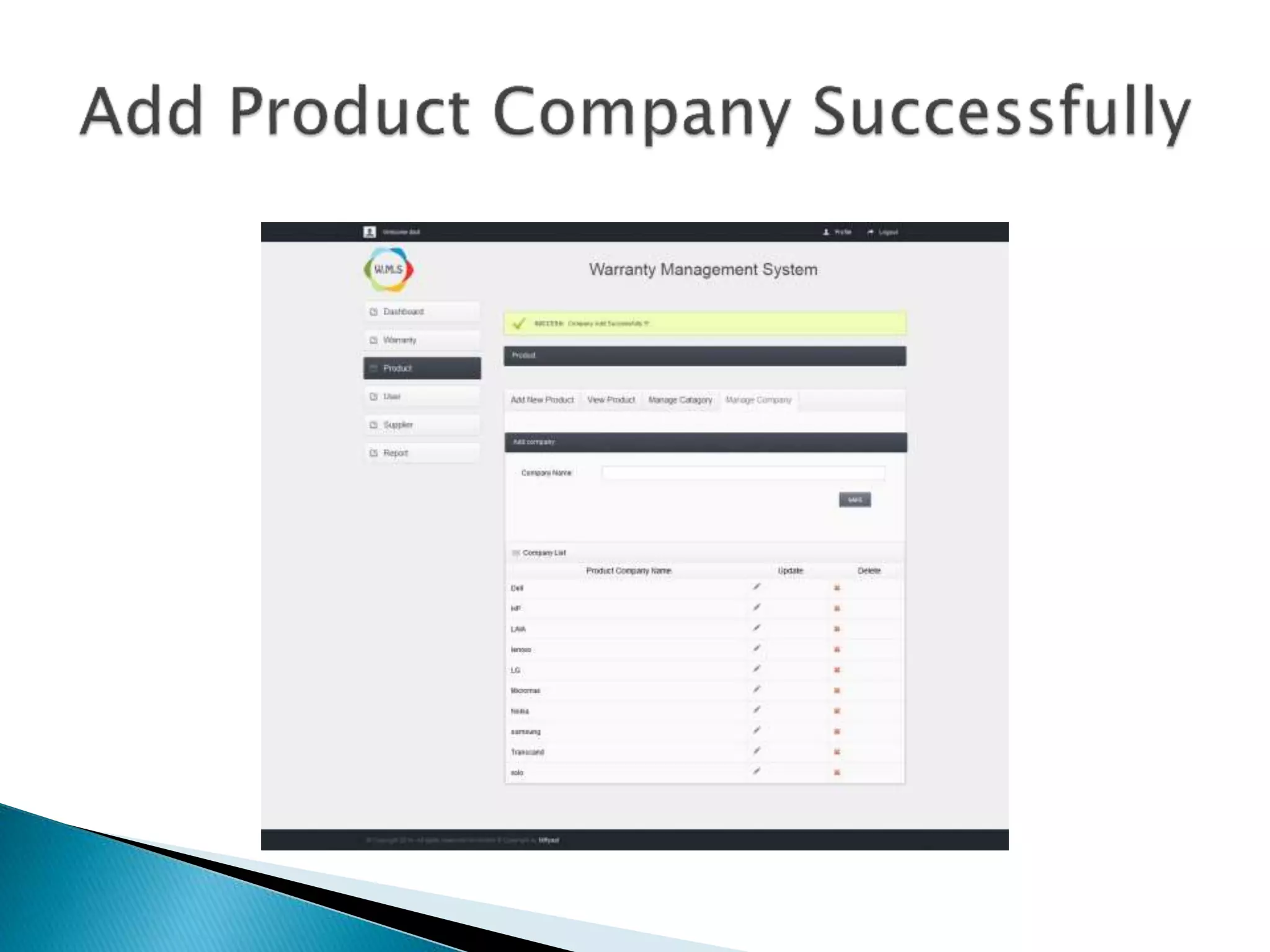

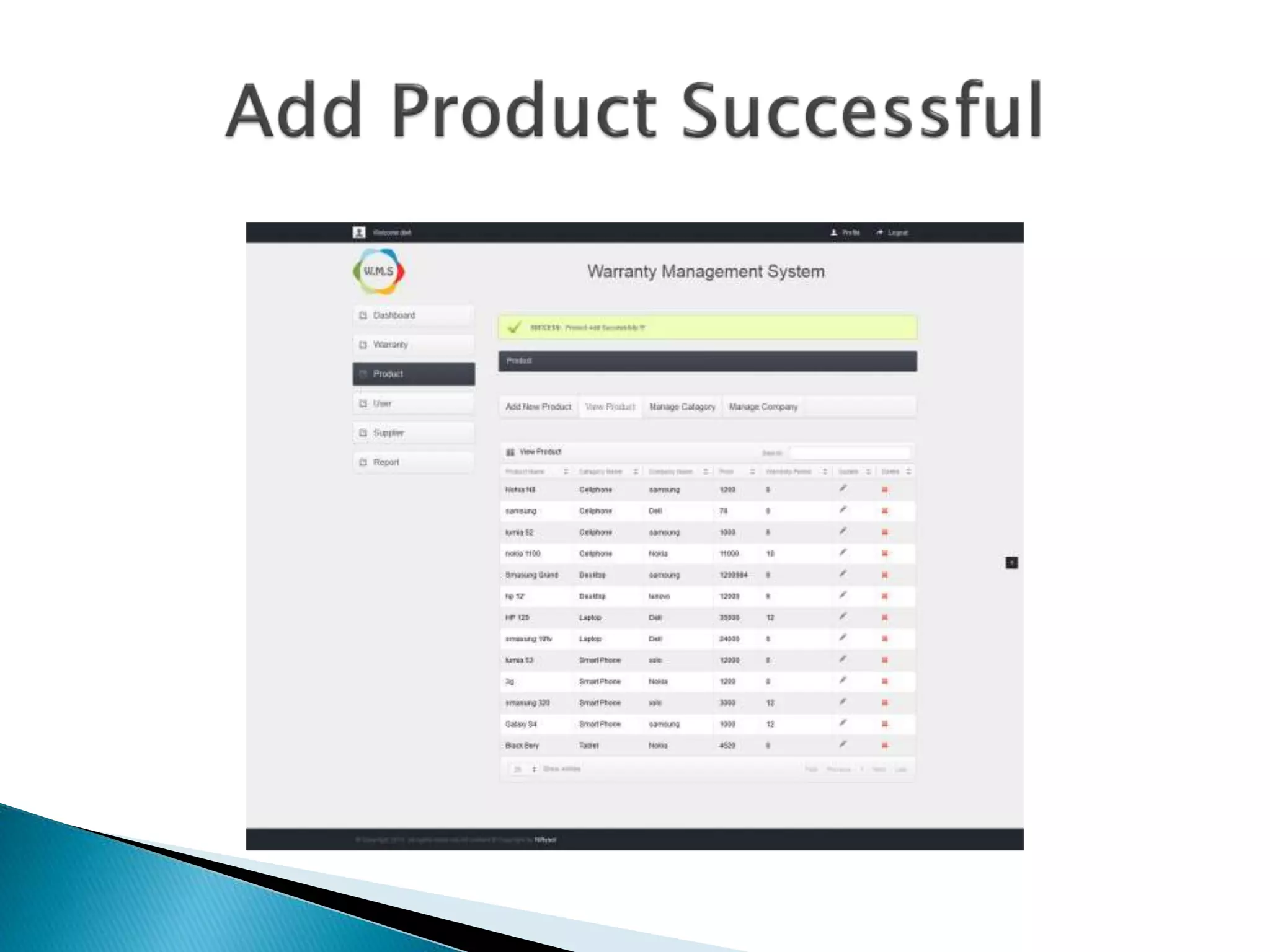

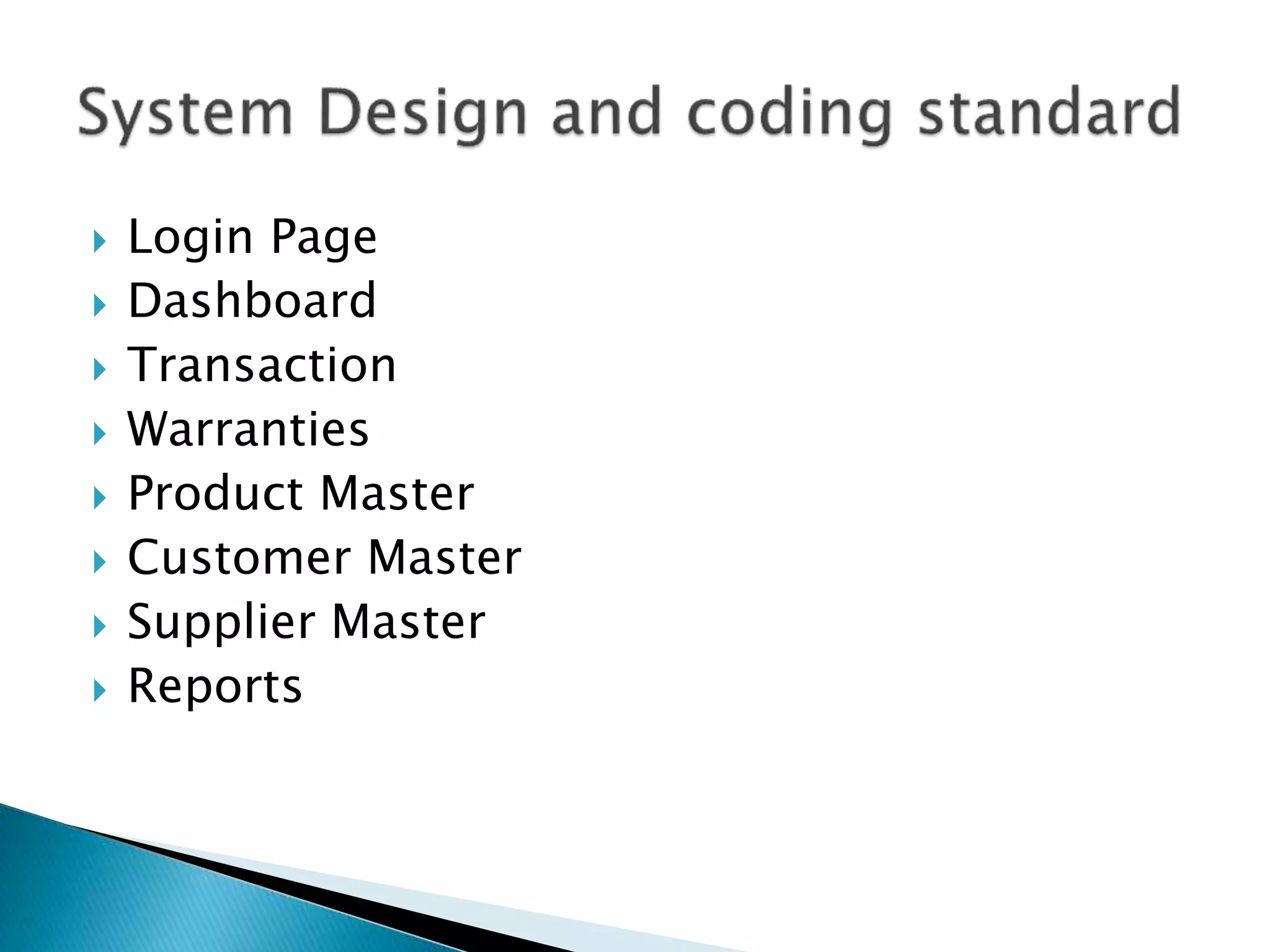

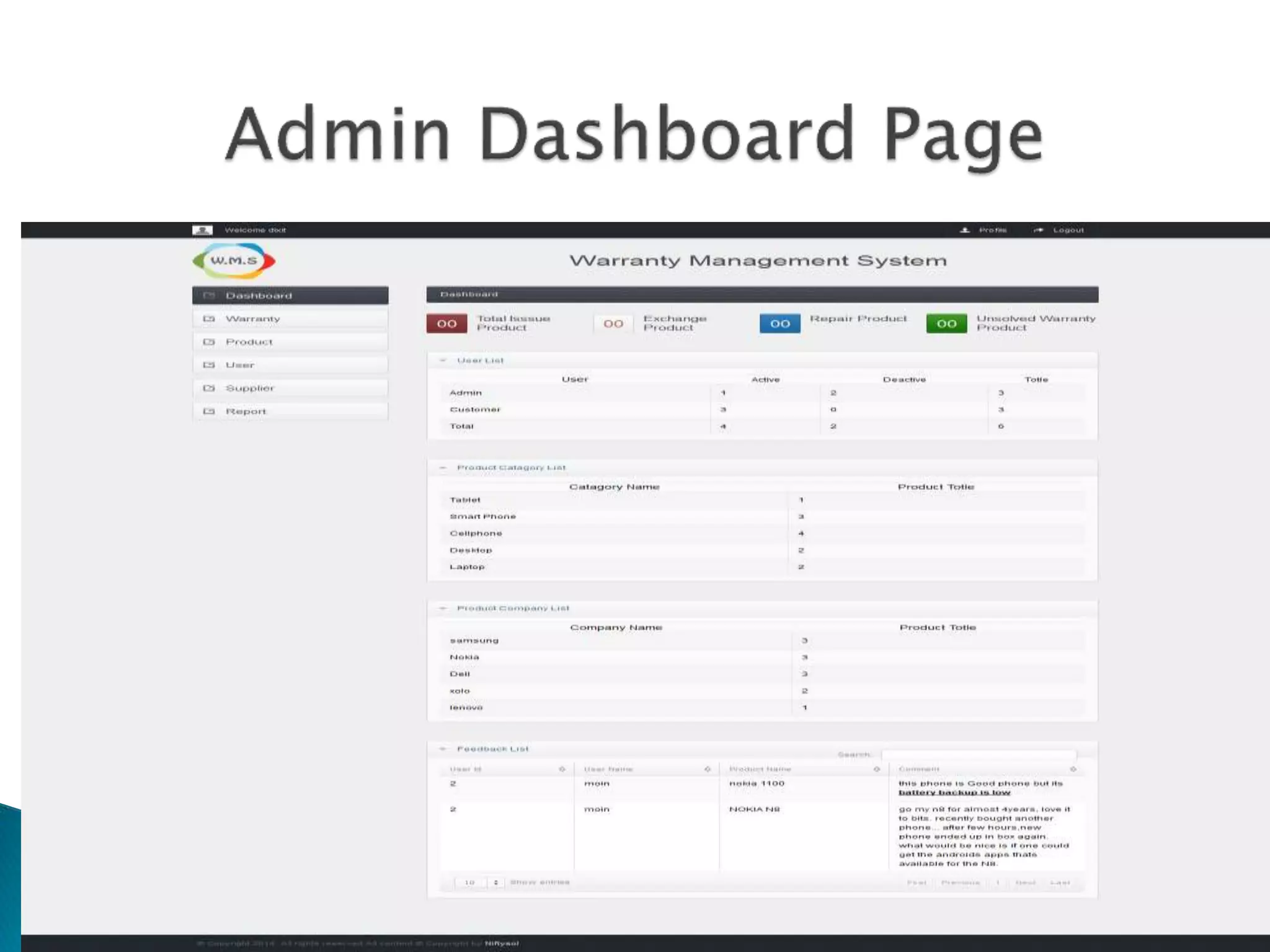

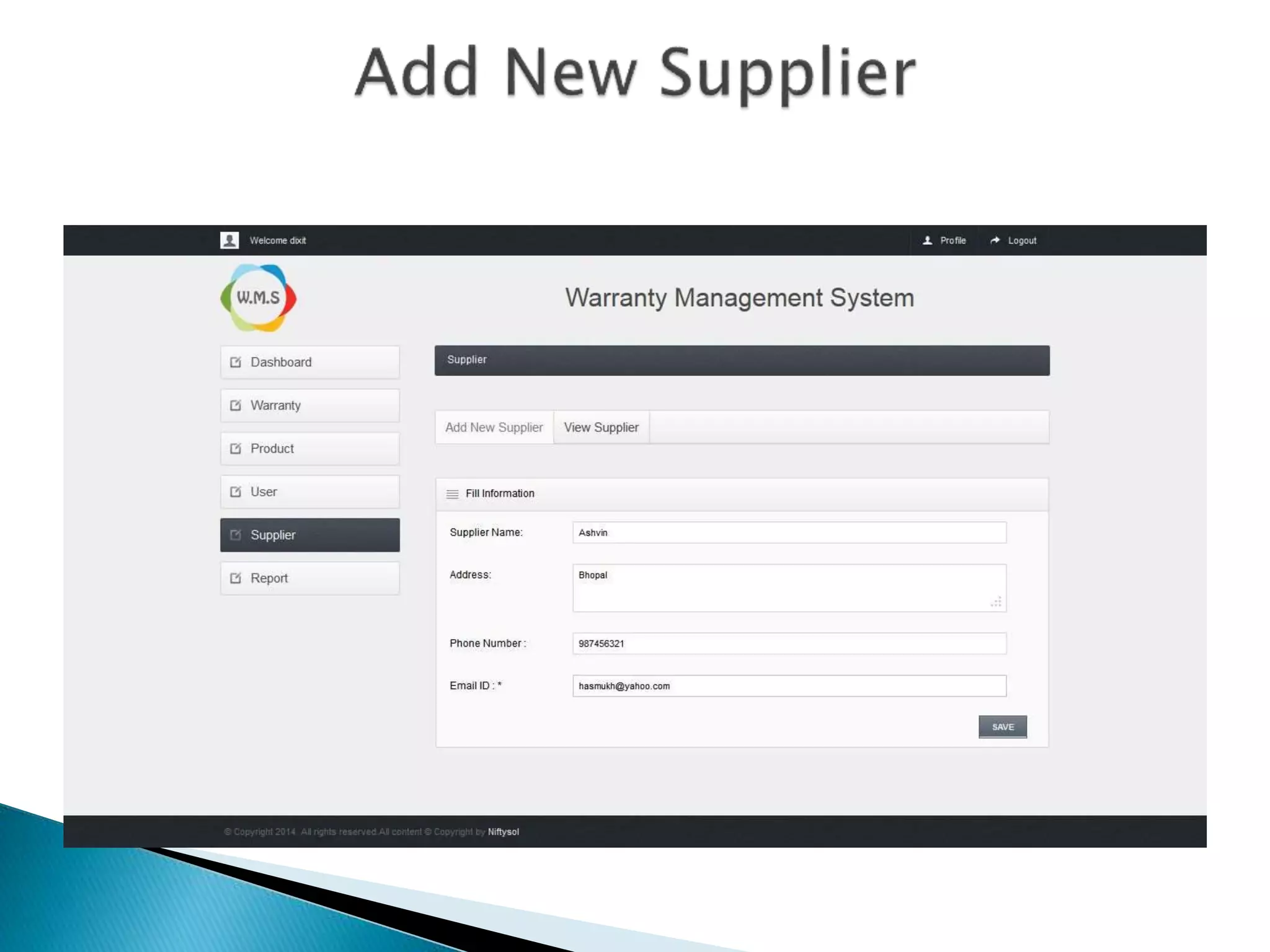

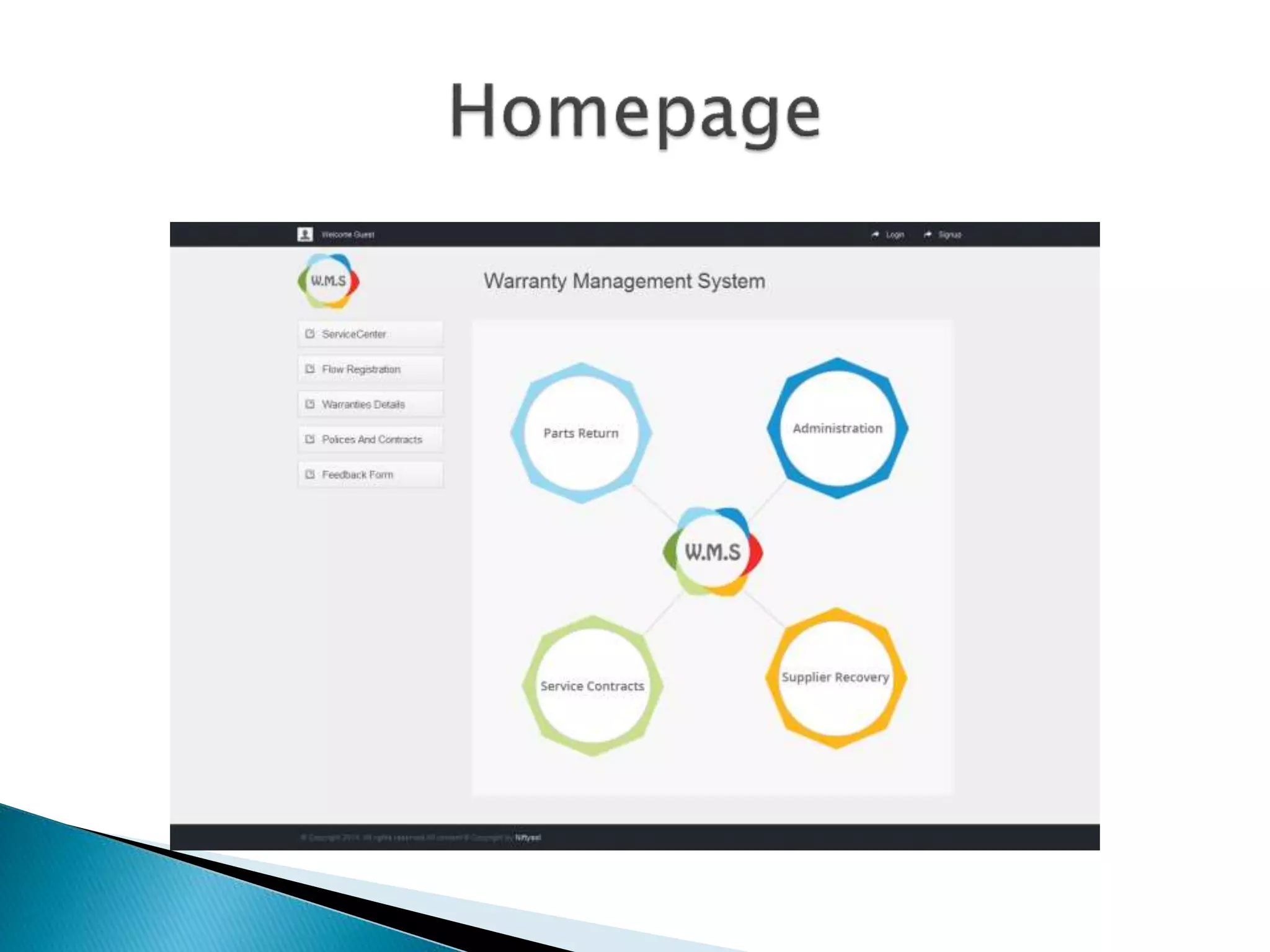

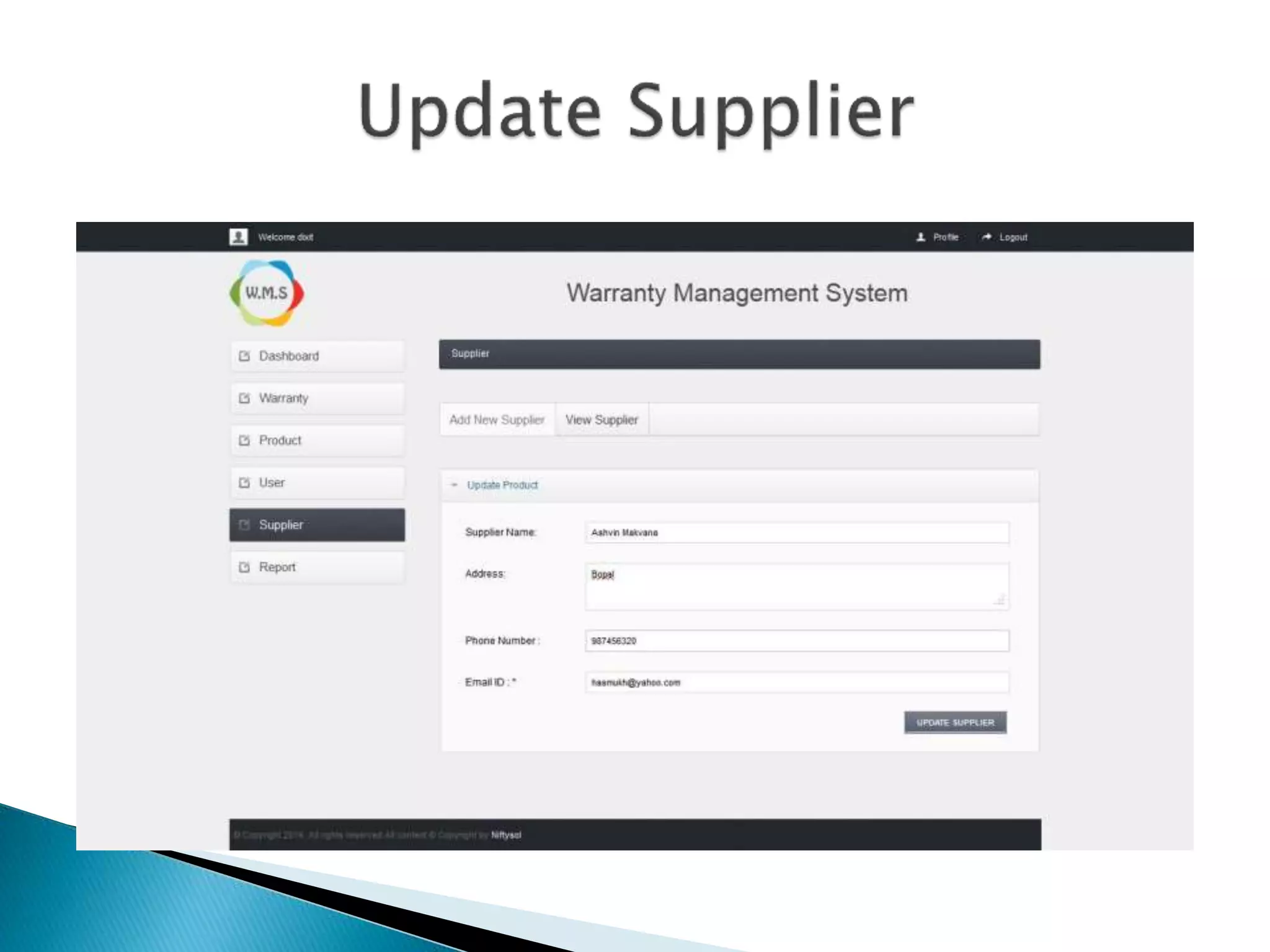

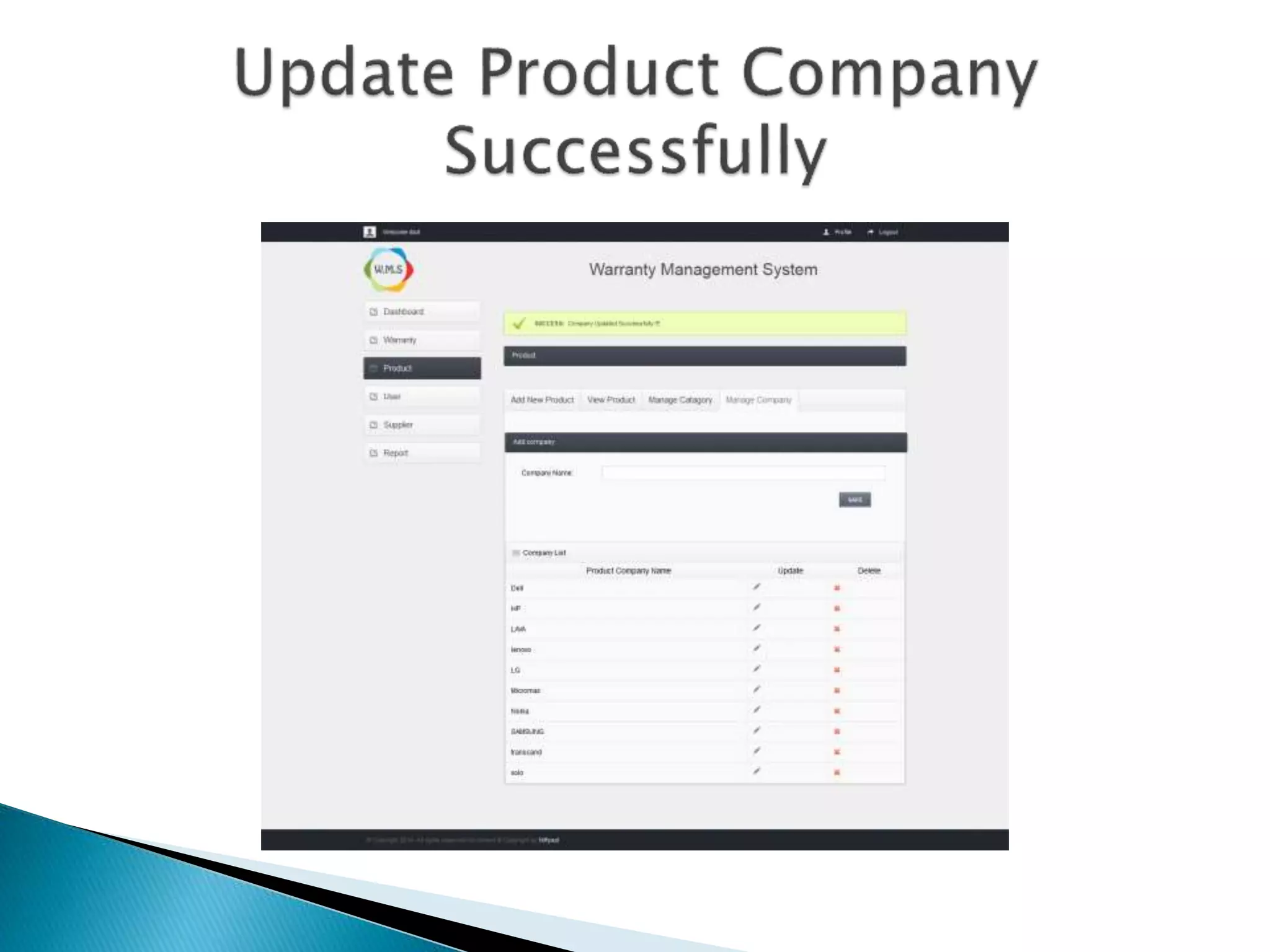

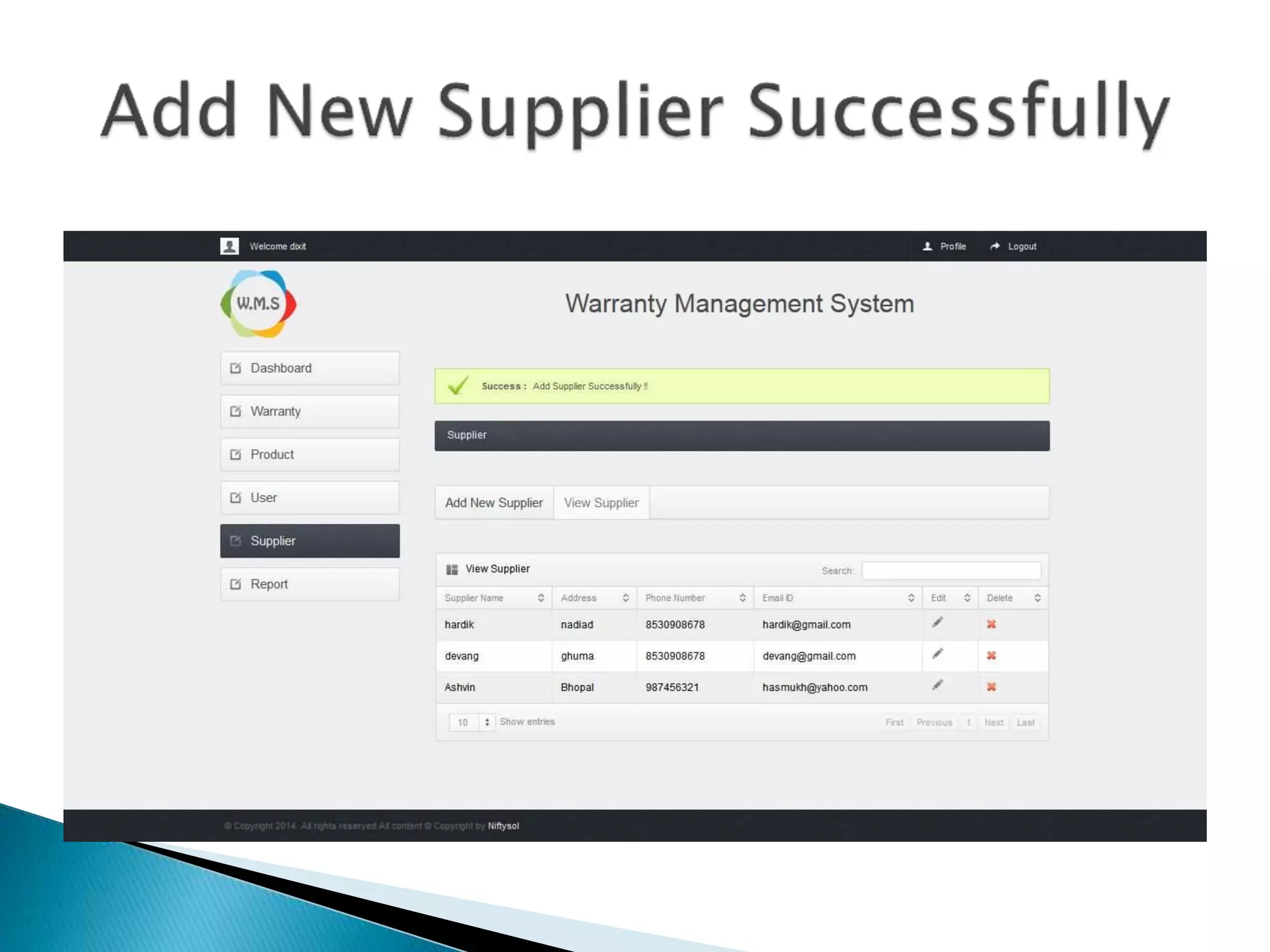

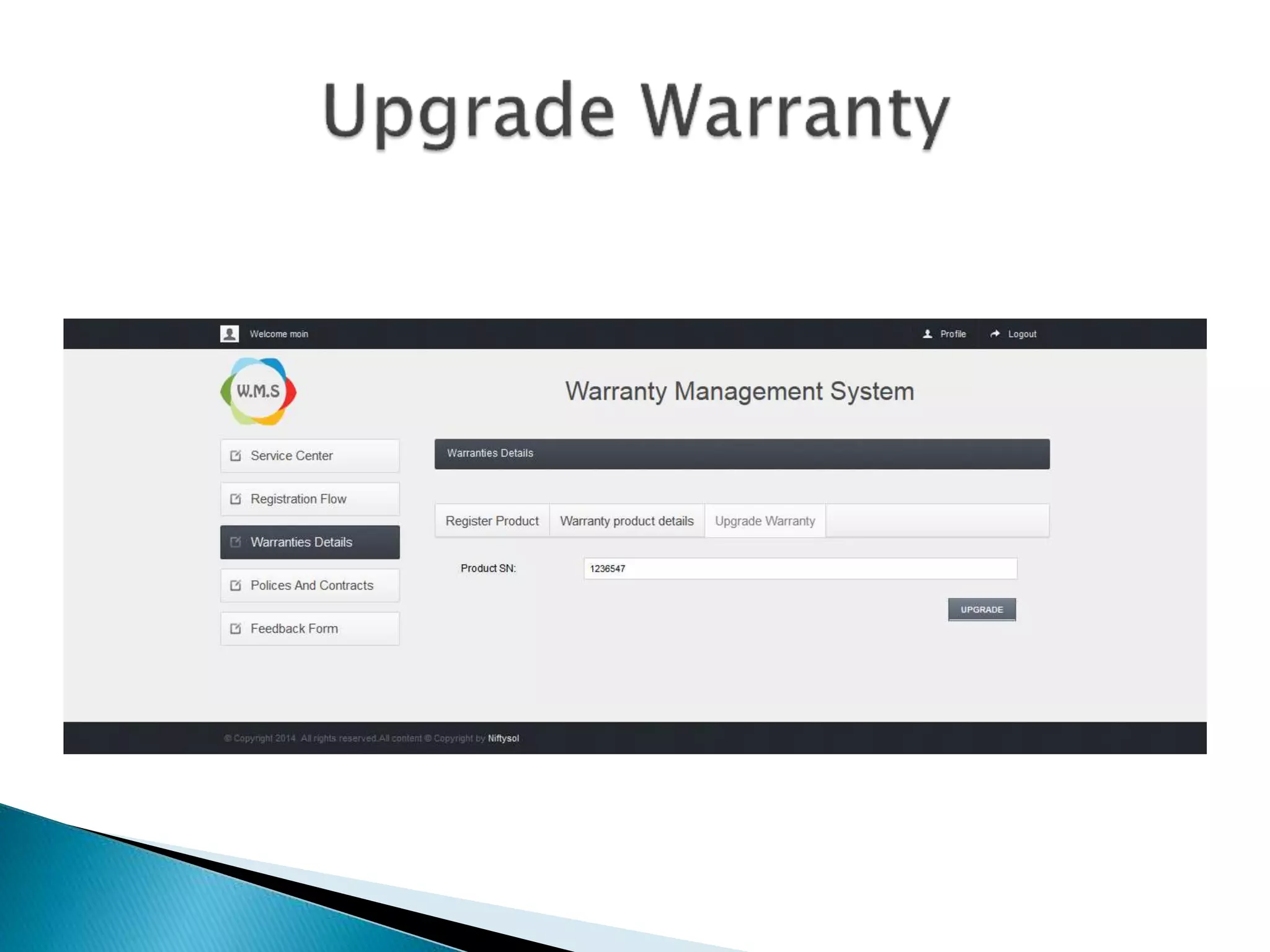

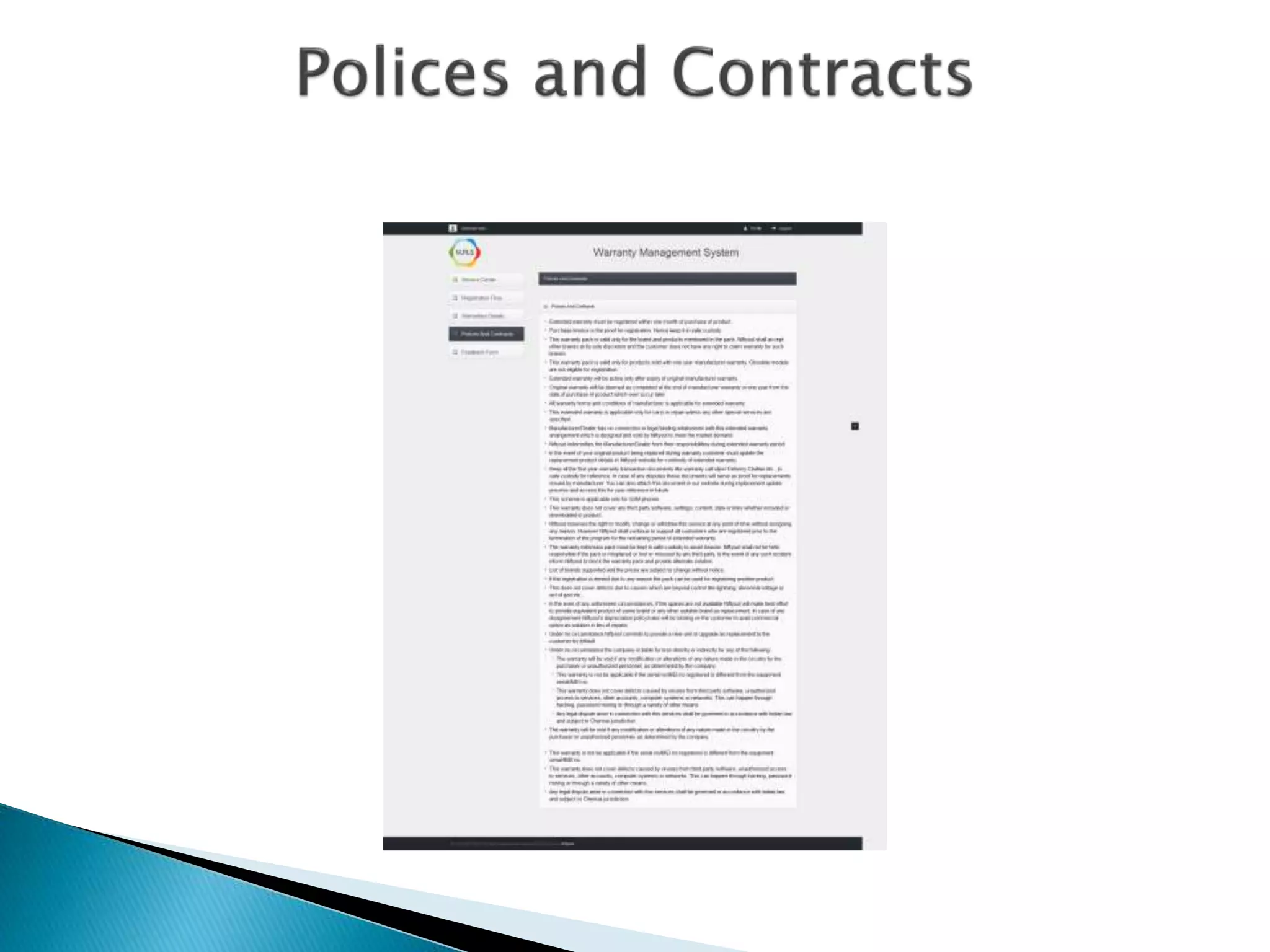

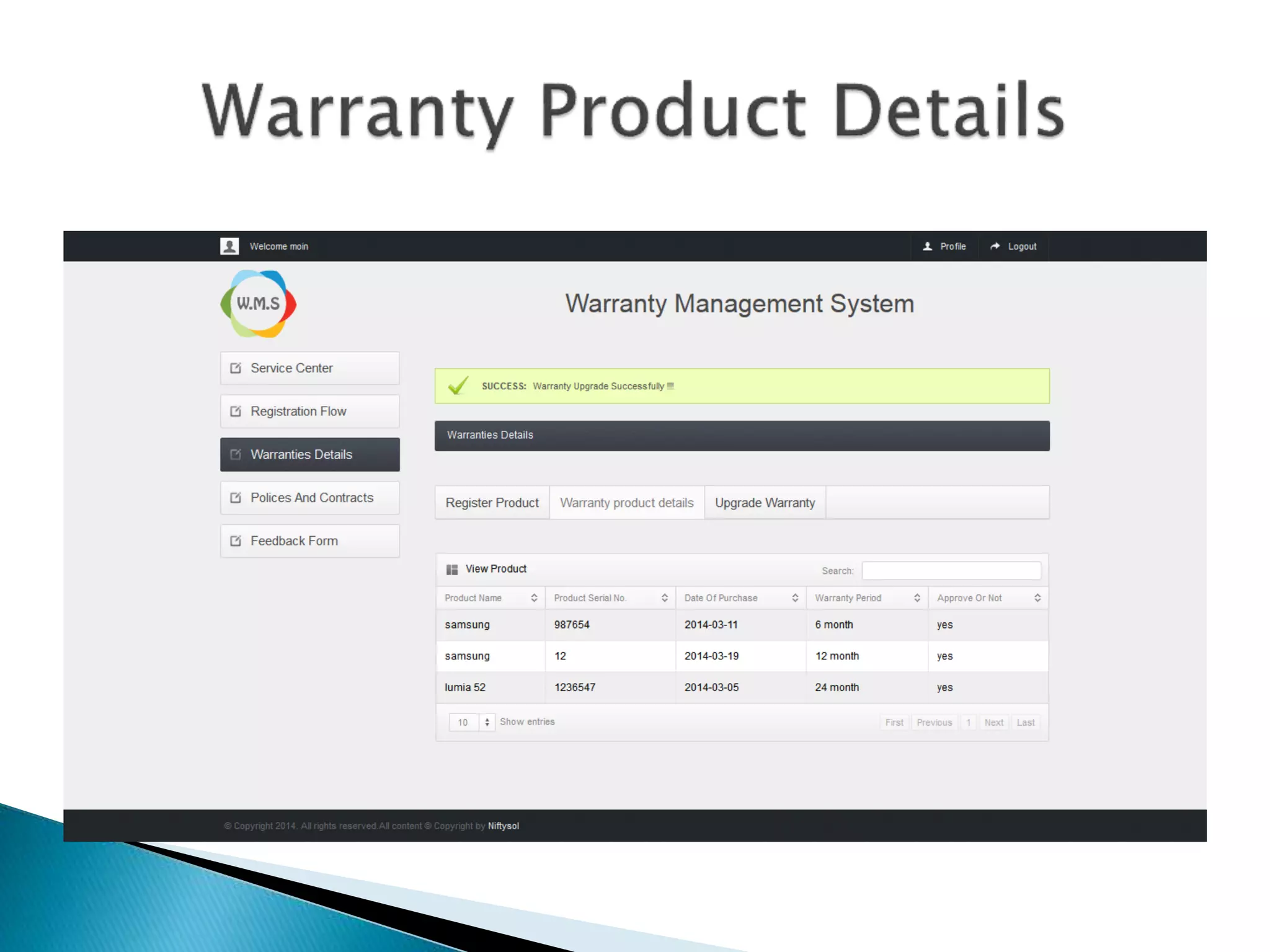

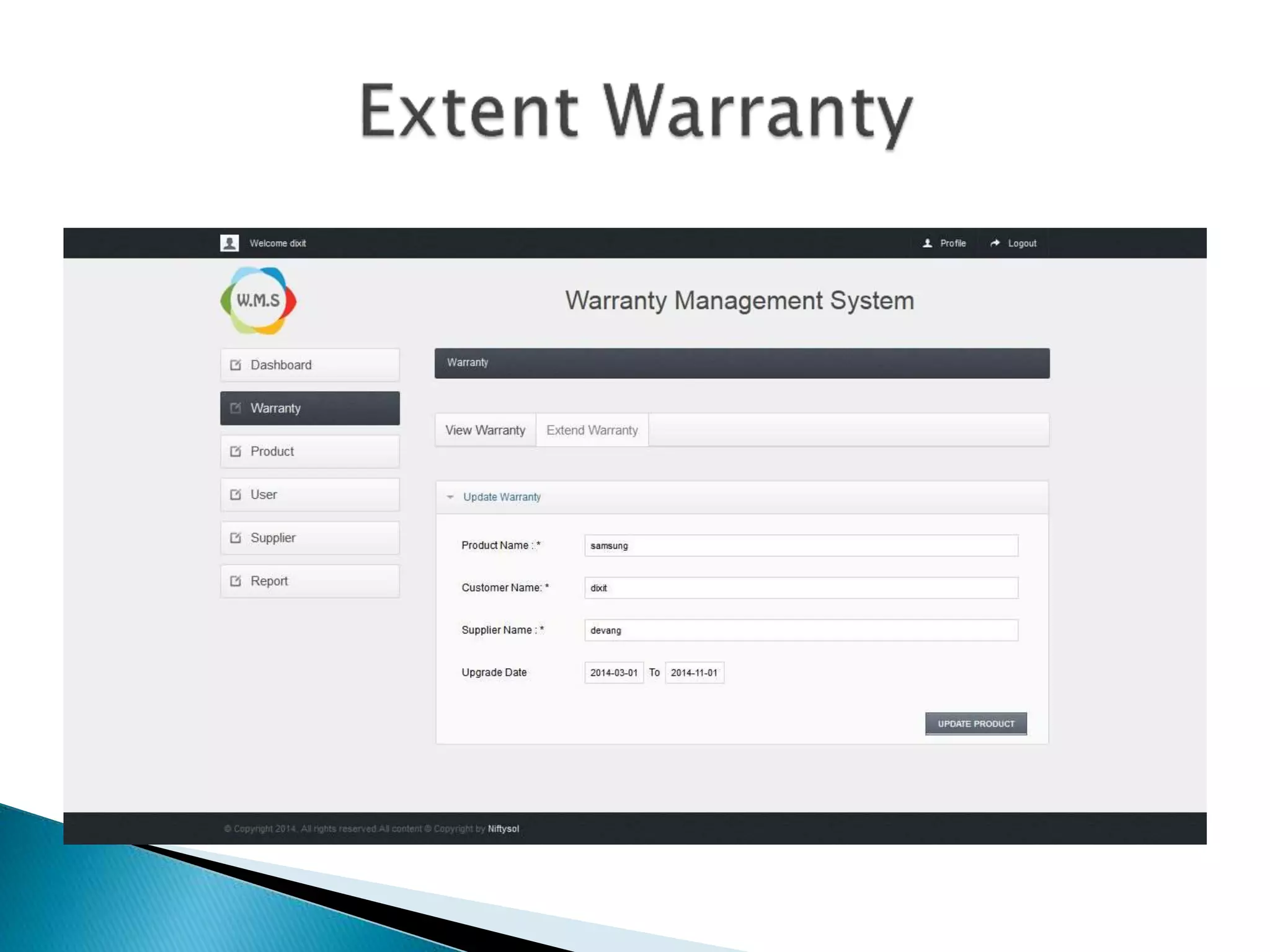

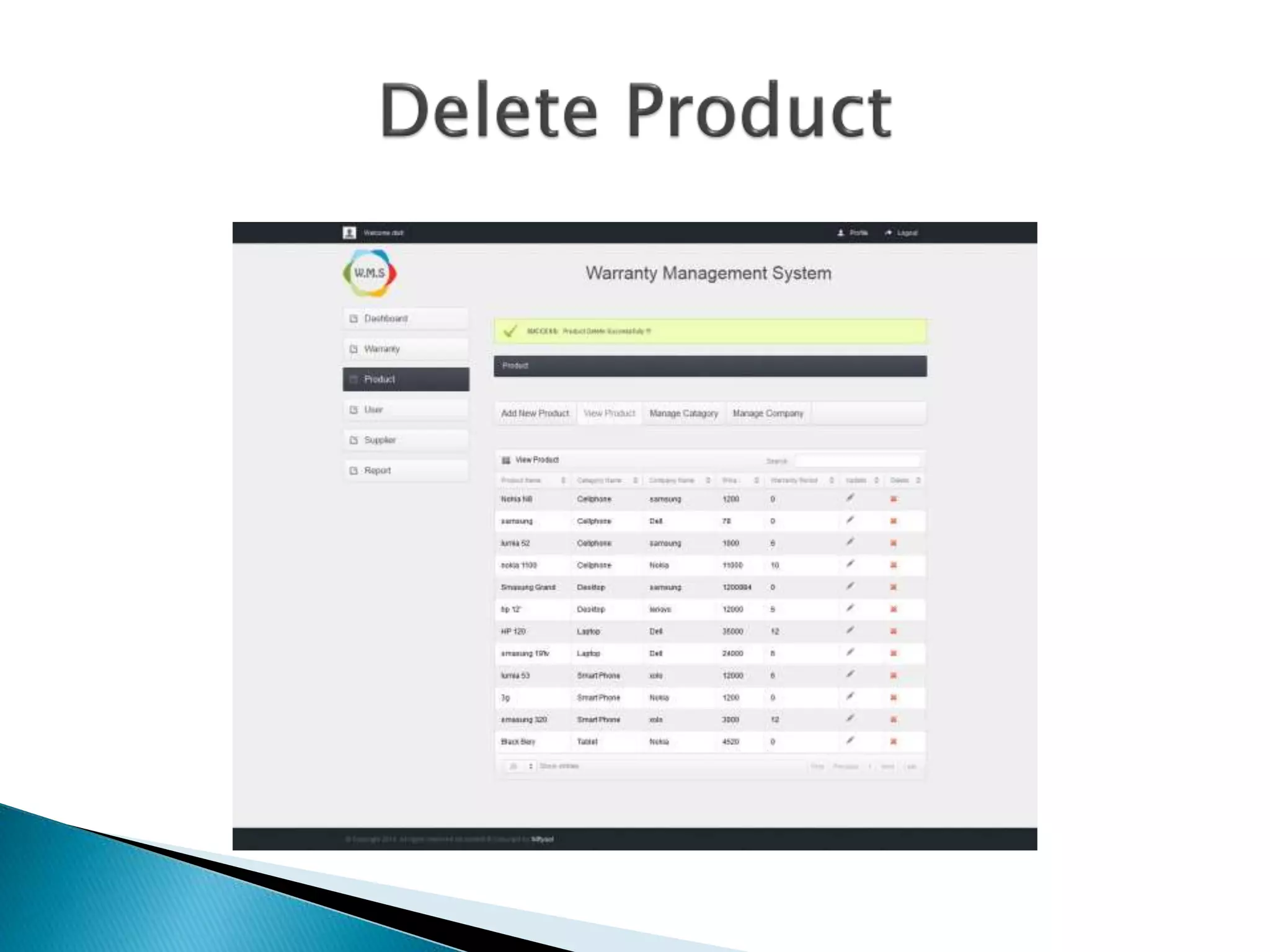

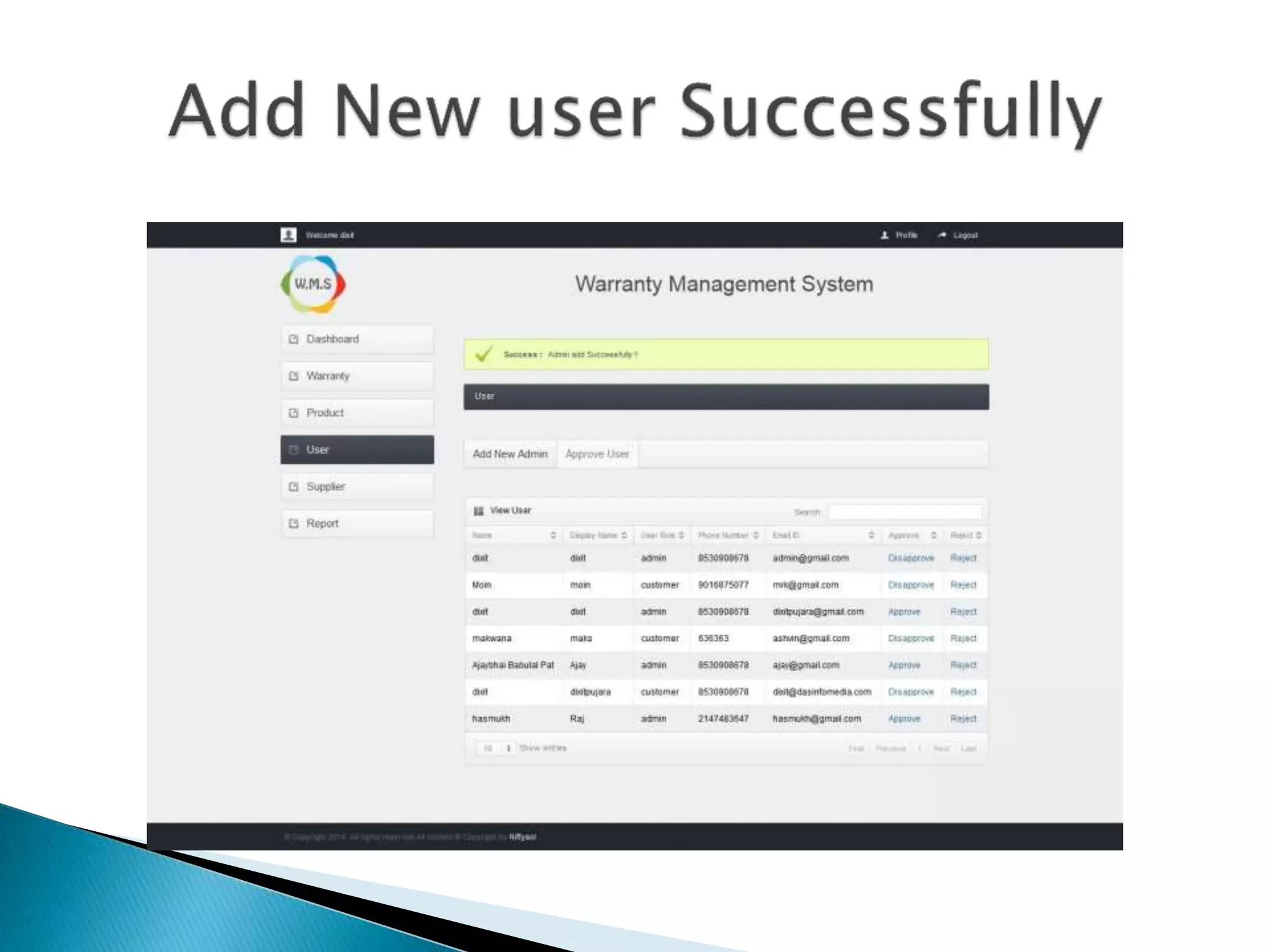

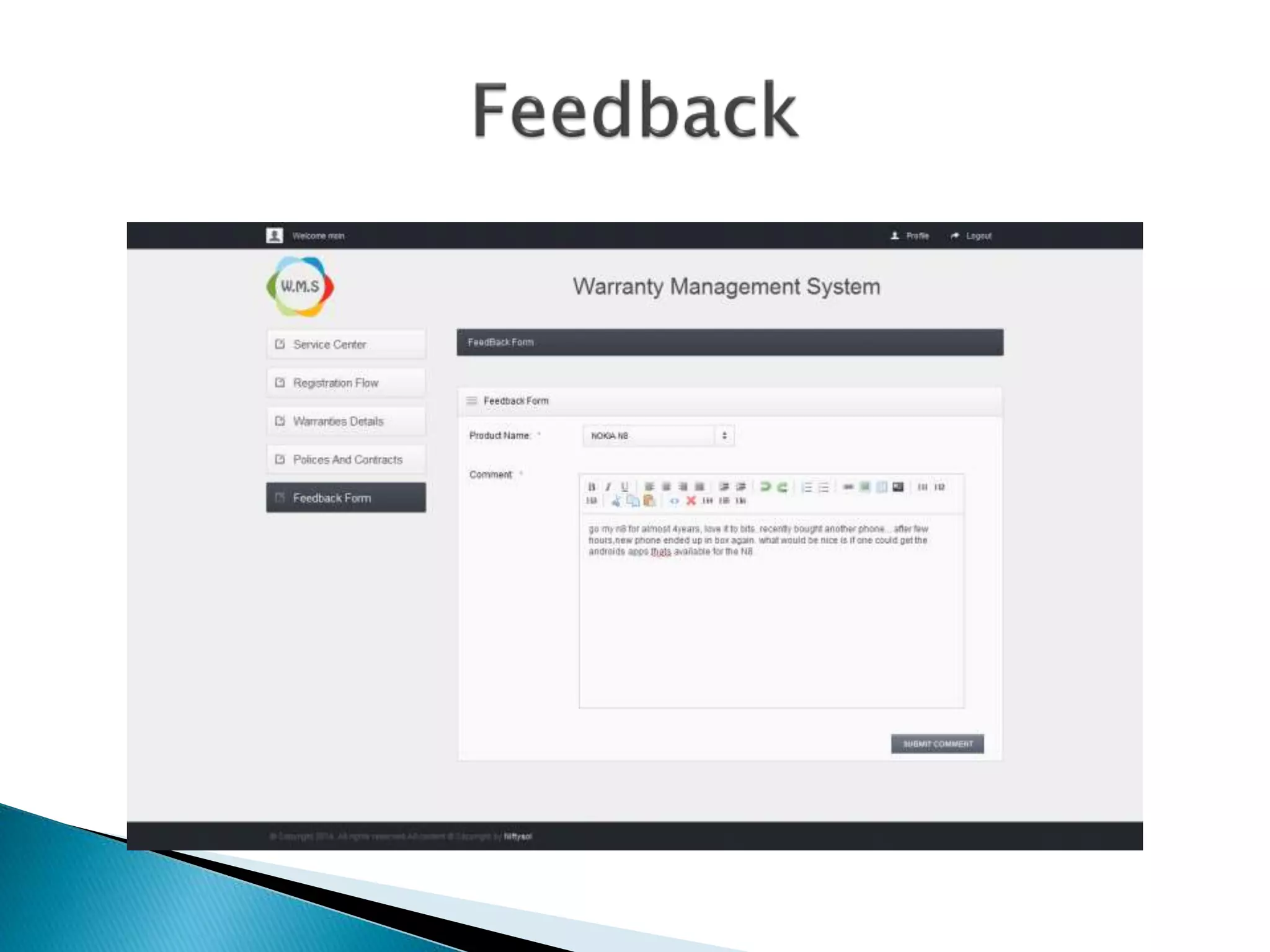

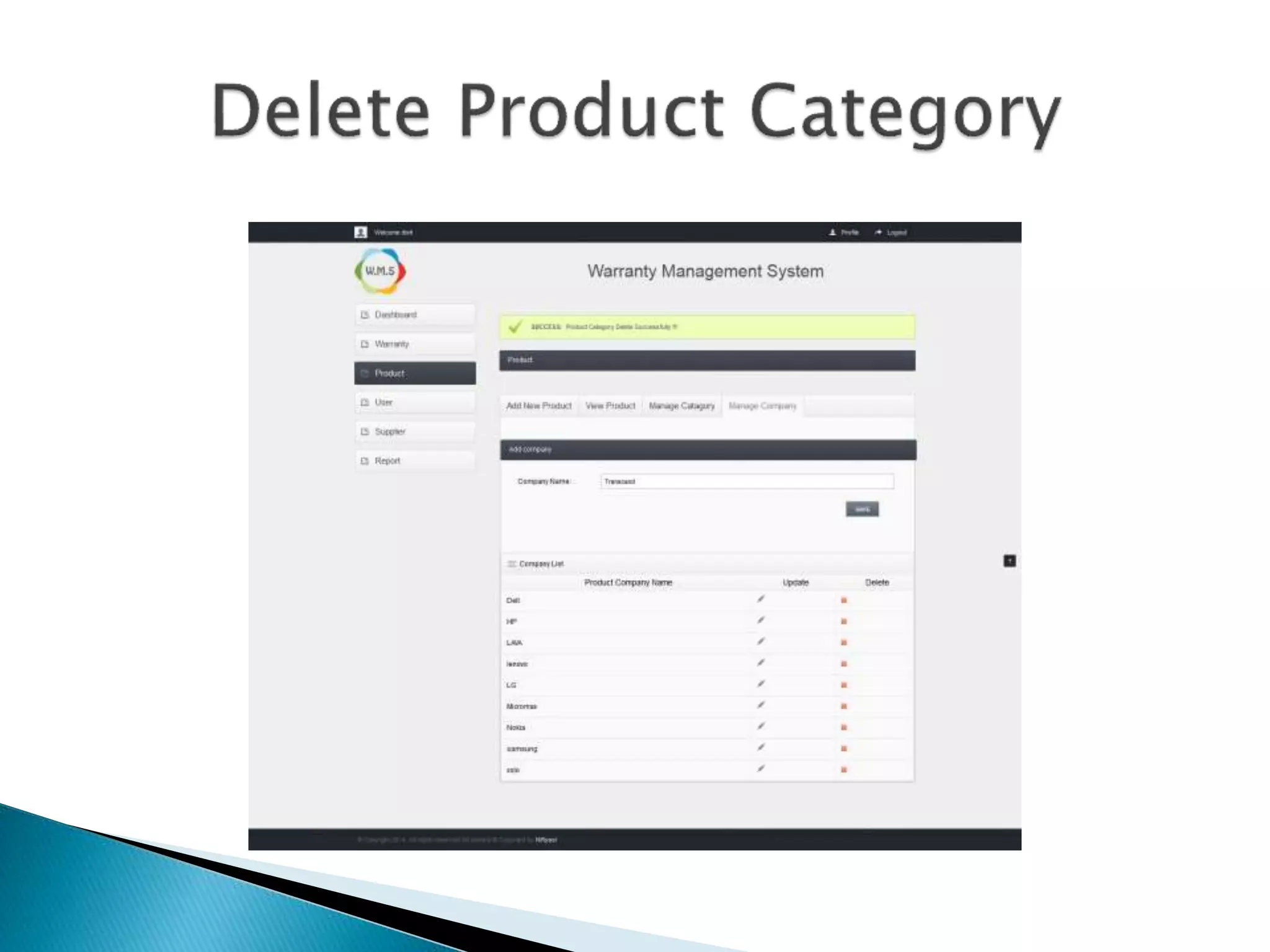

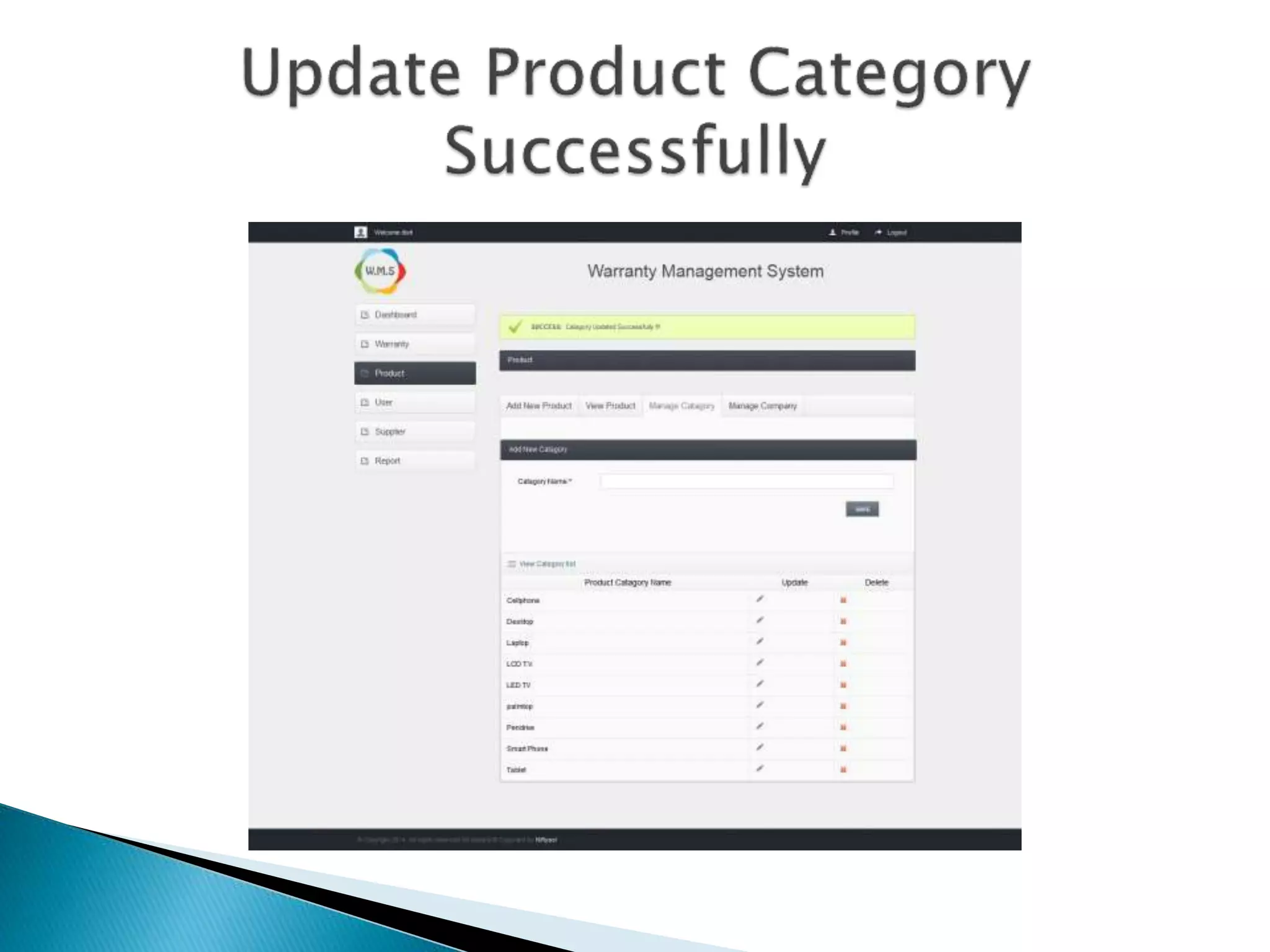

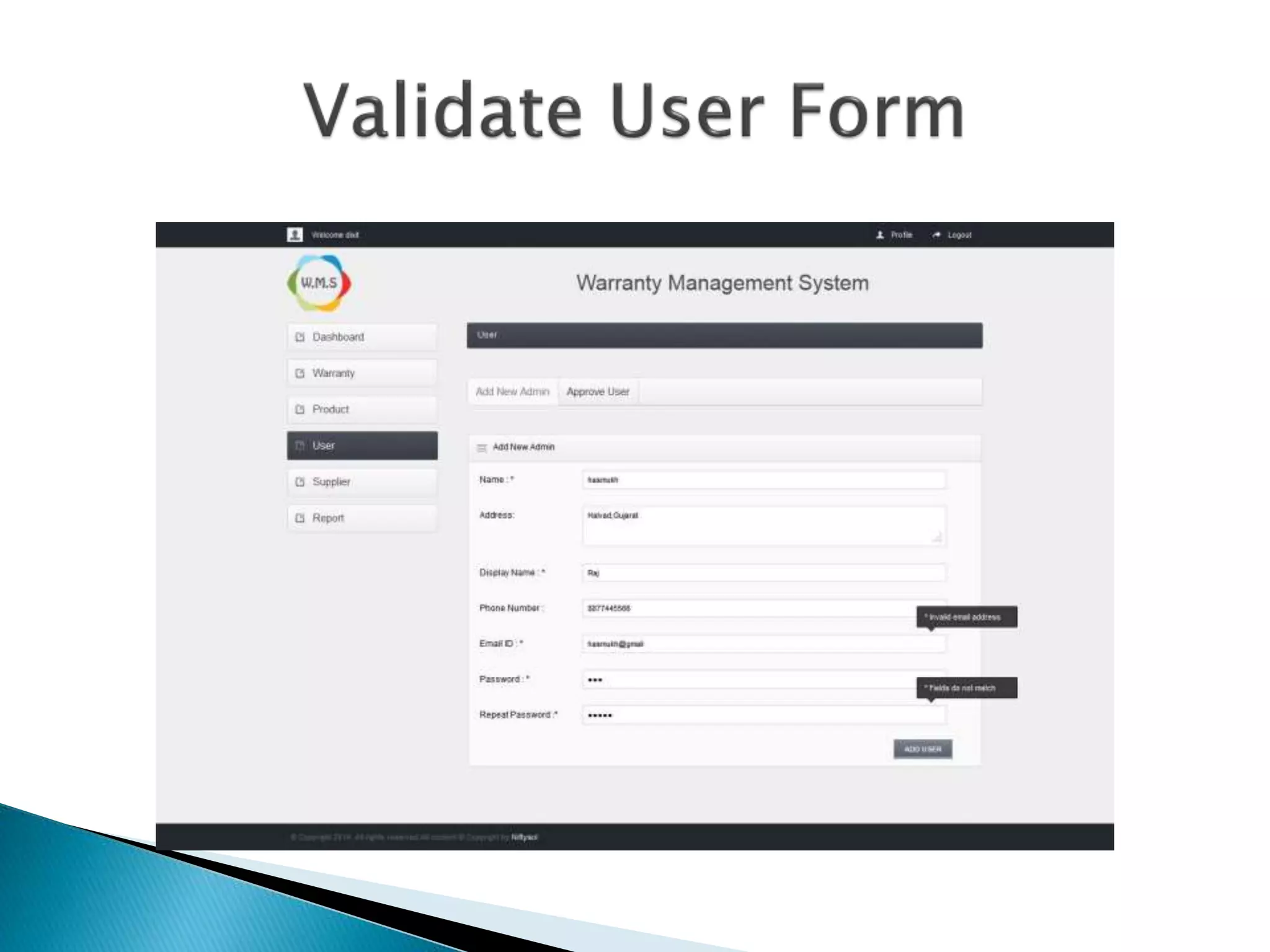

- 25. Login Page Dashboard Transaction Warranties Product Master Customer Master Supplier Master Reports

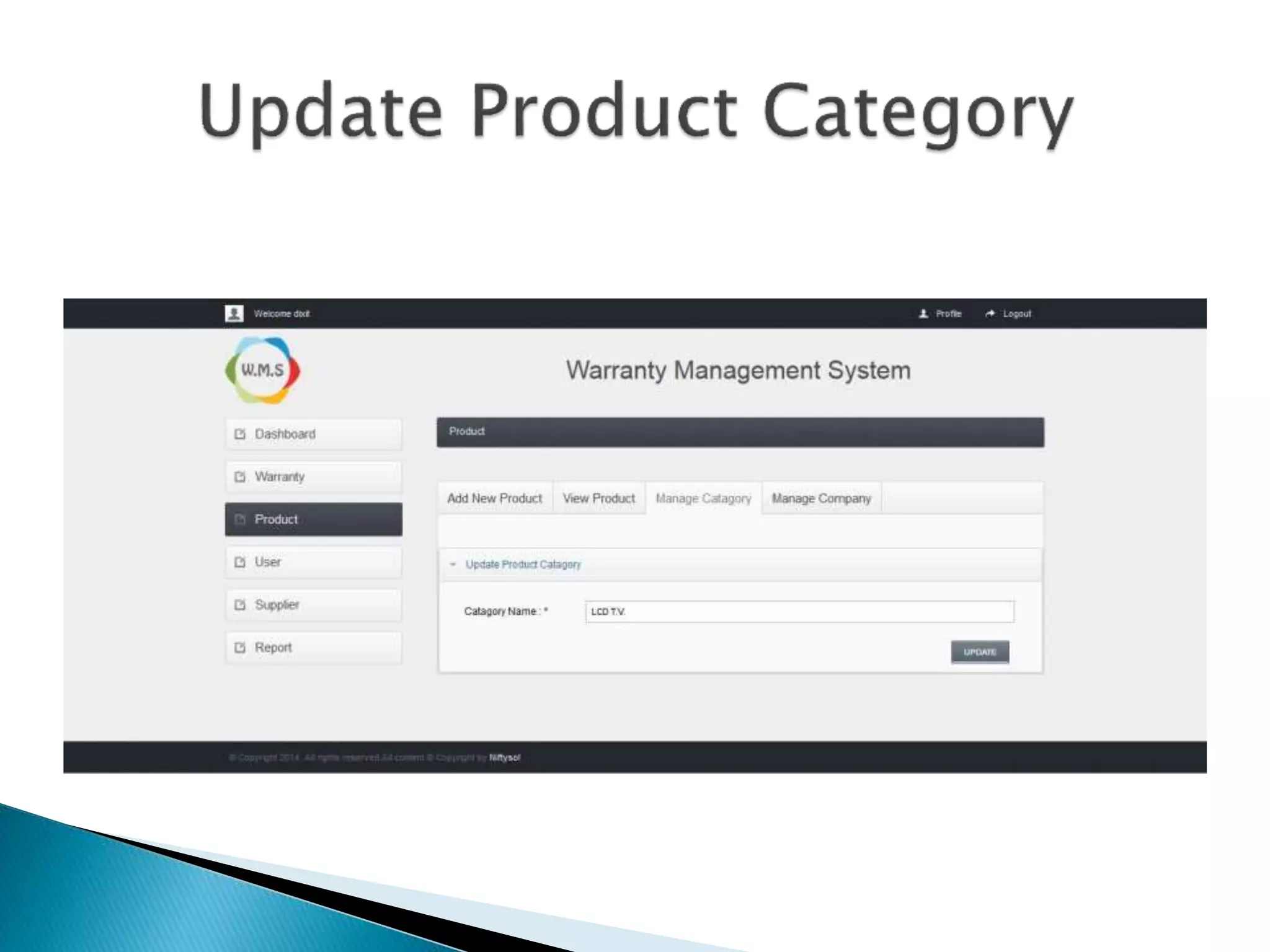

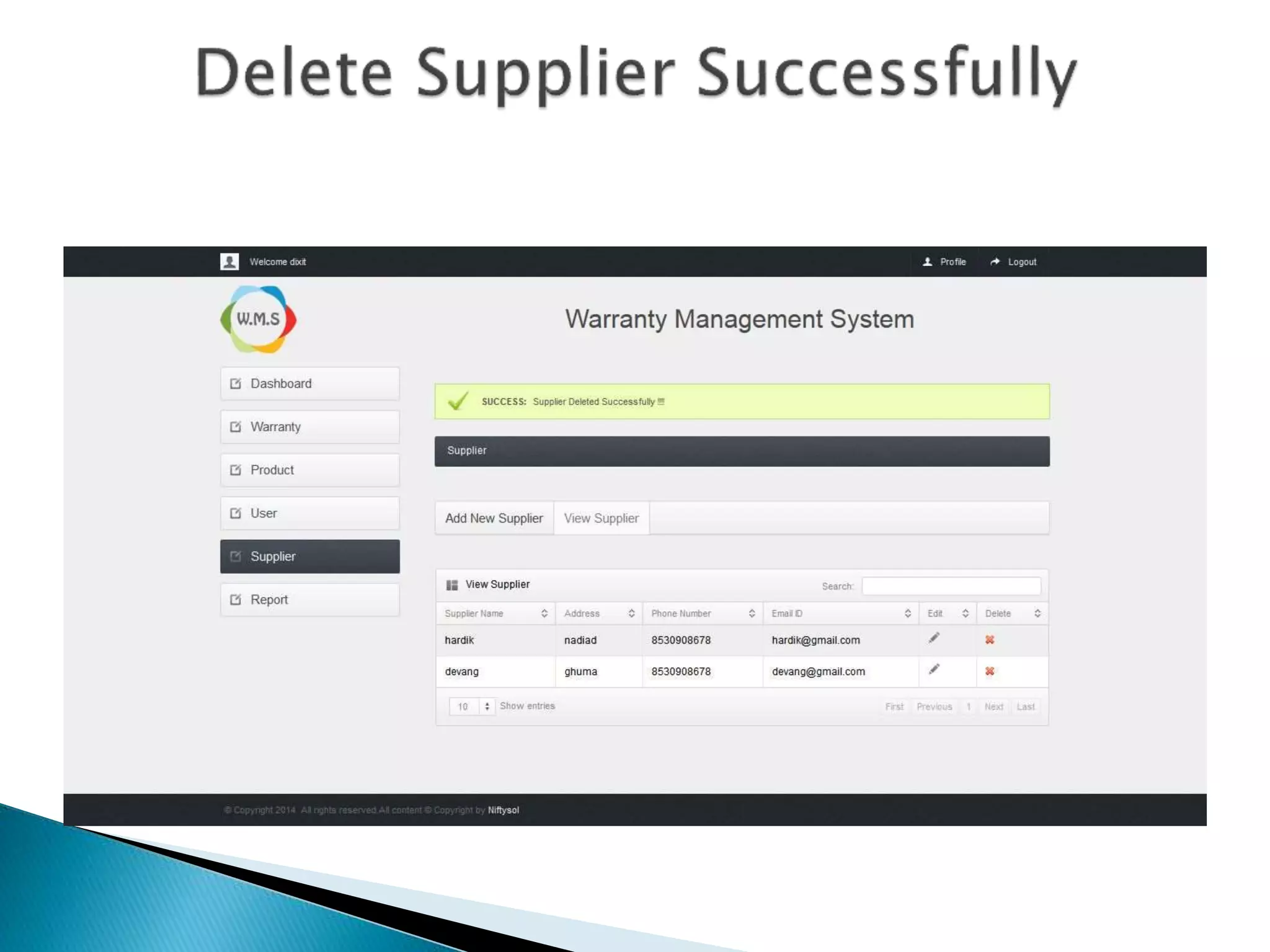

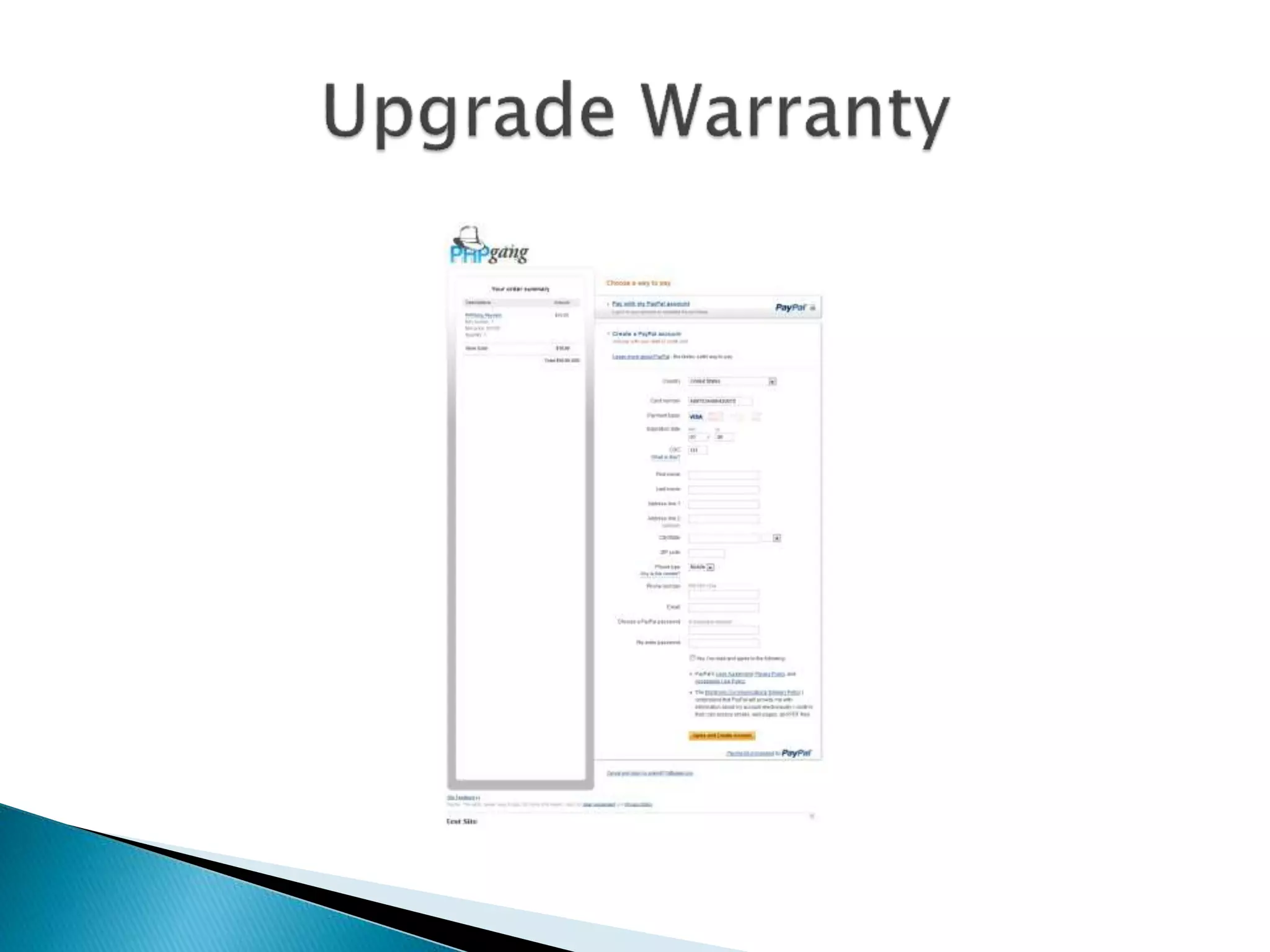

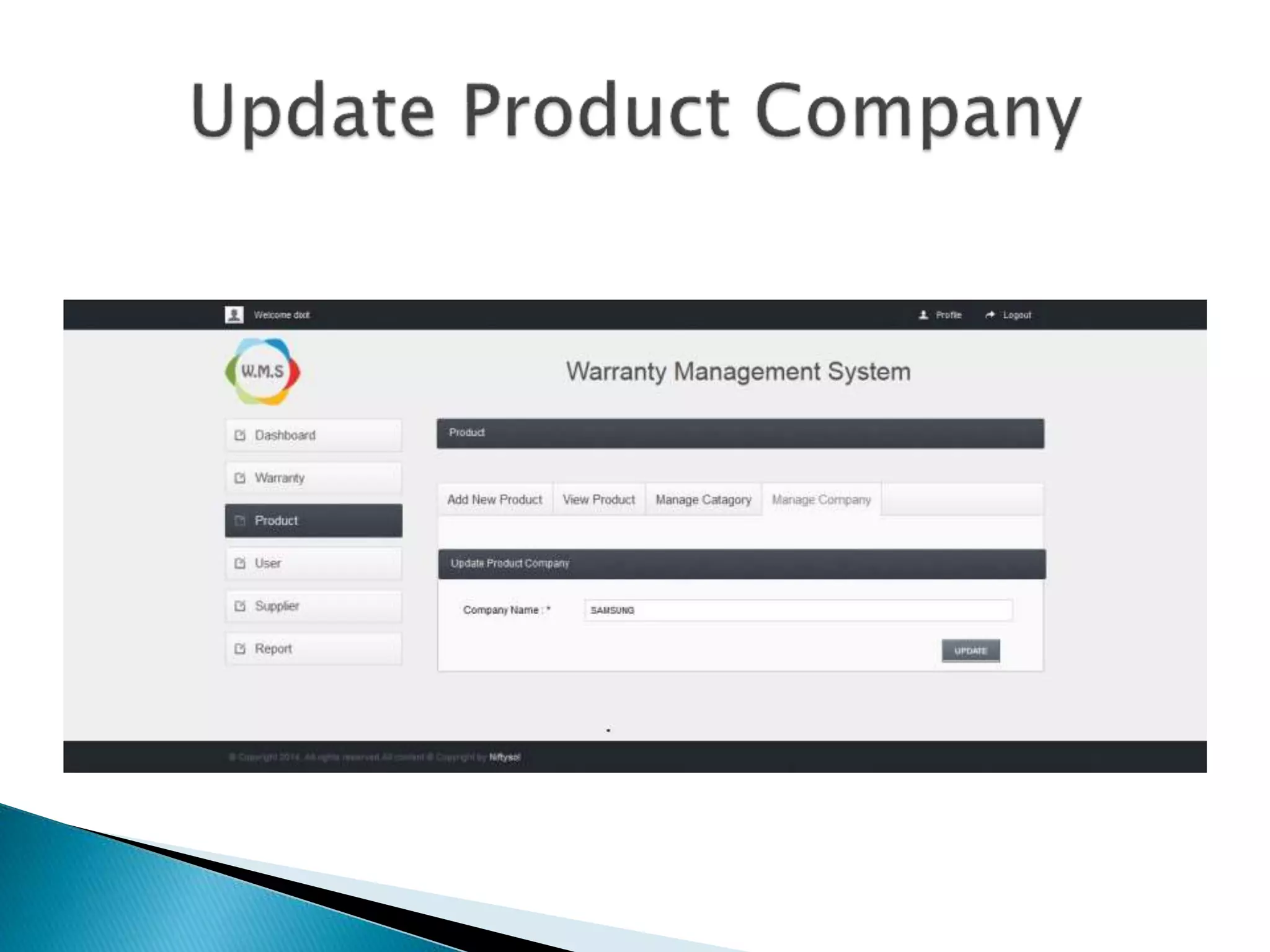

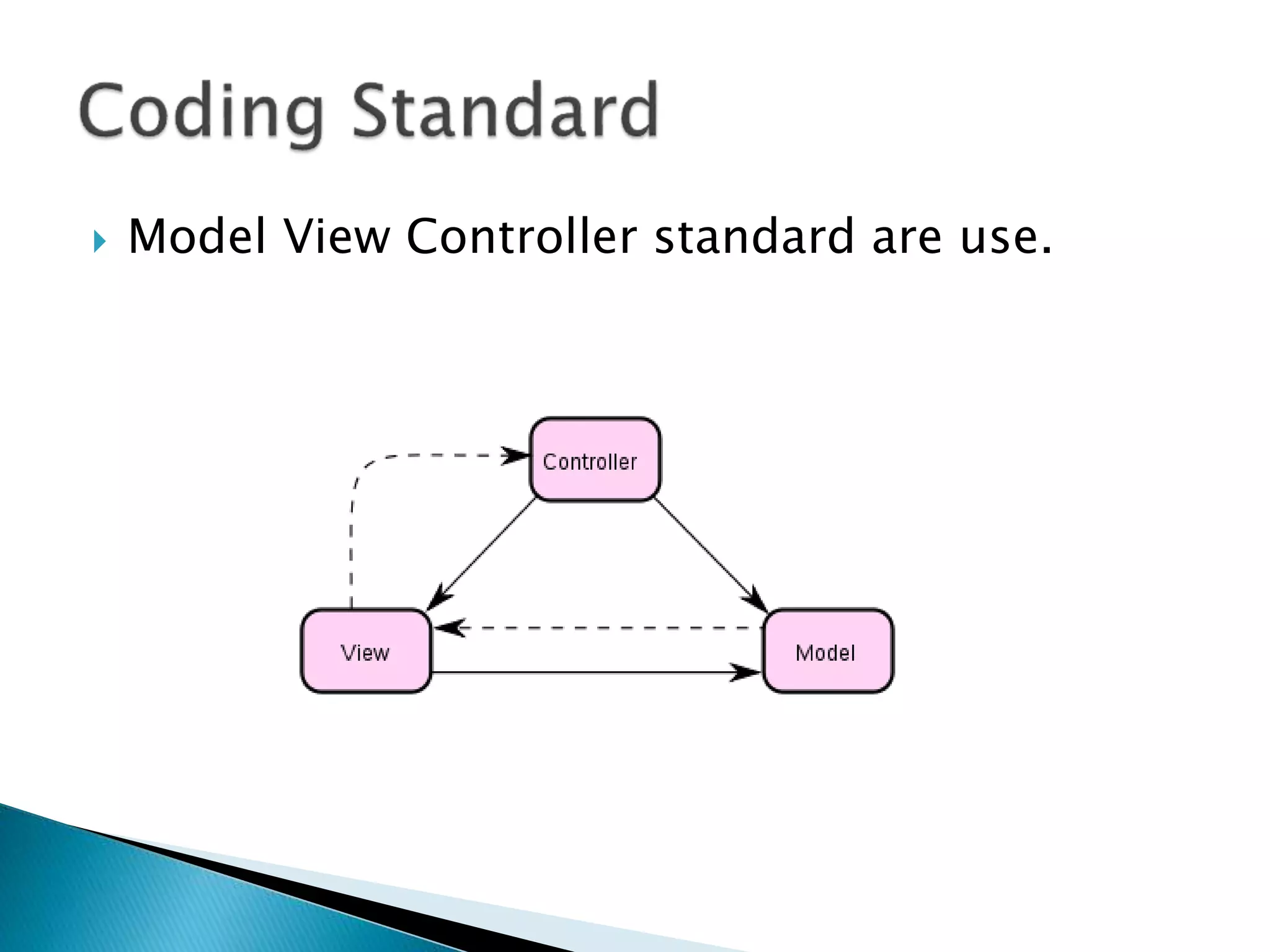

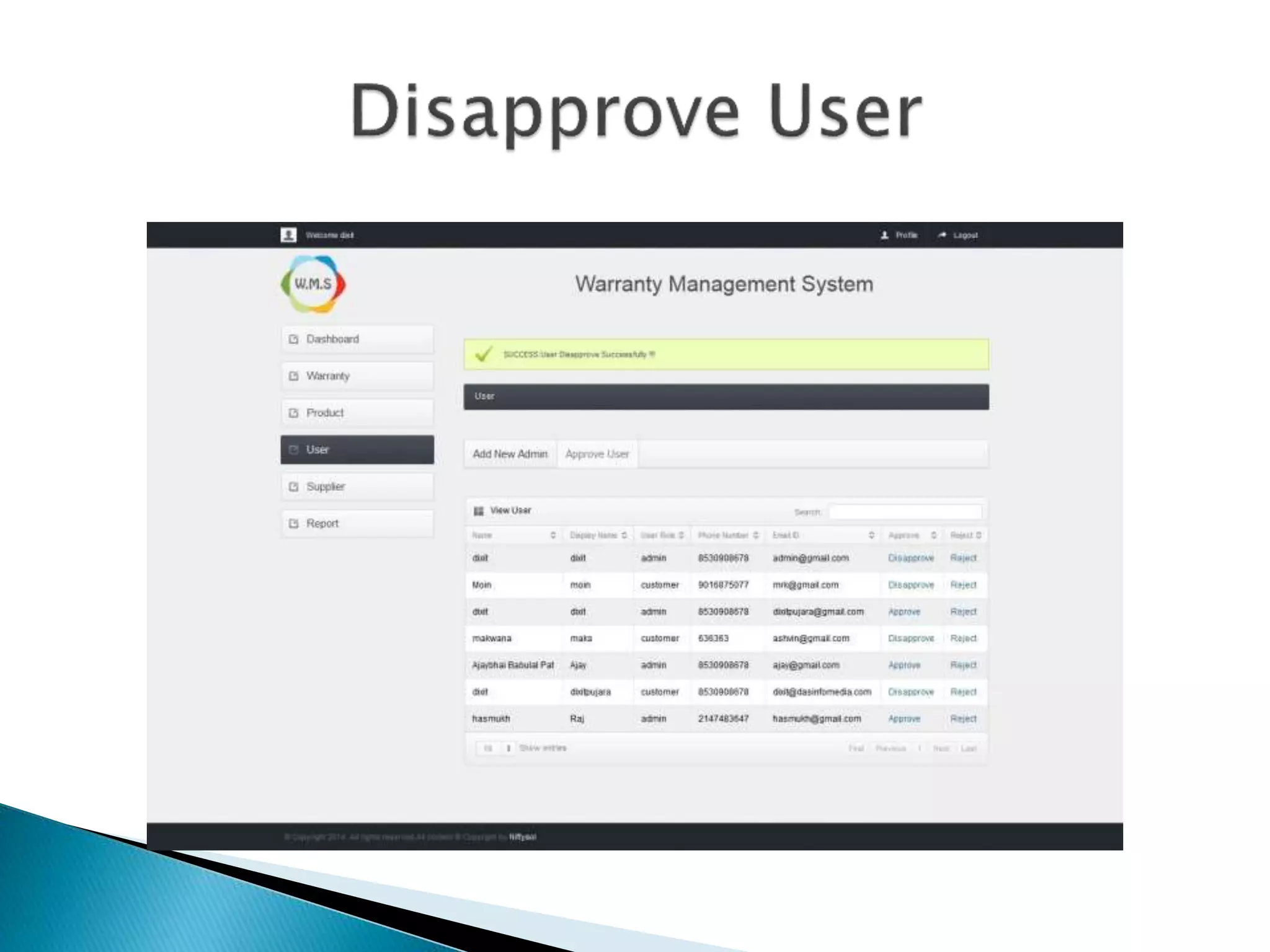

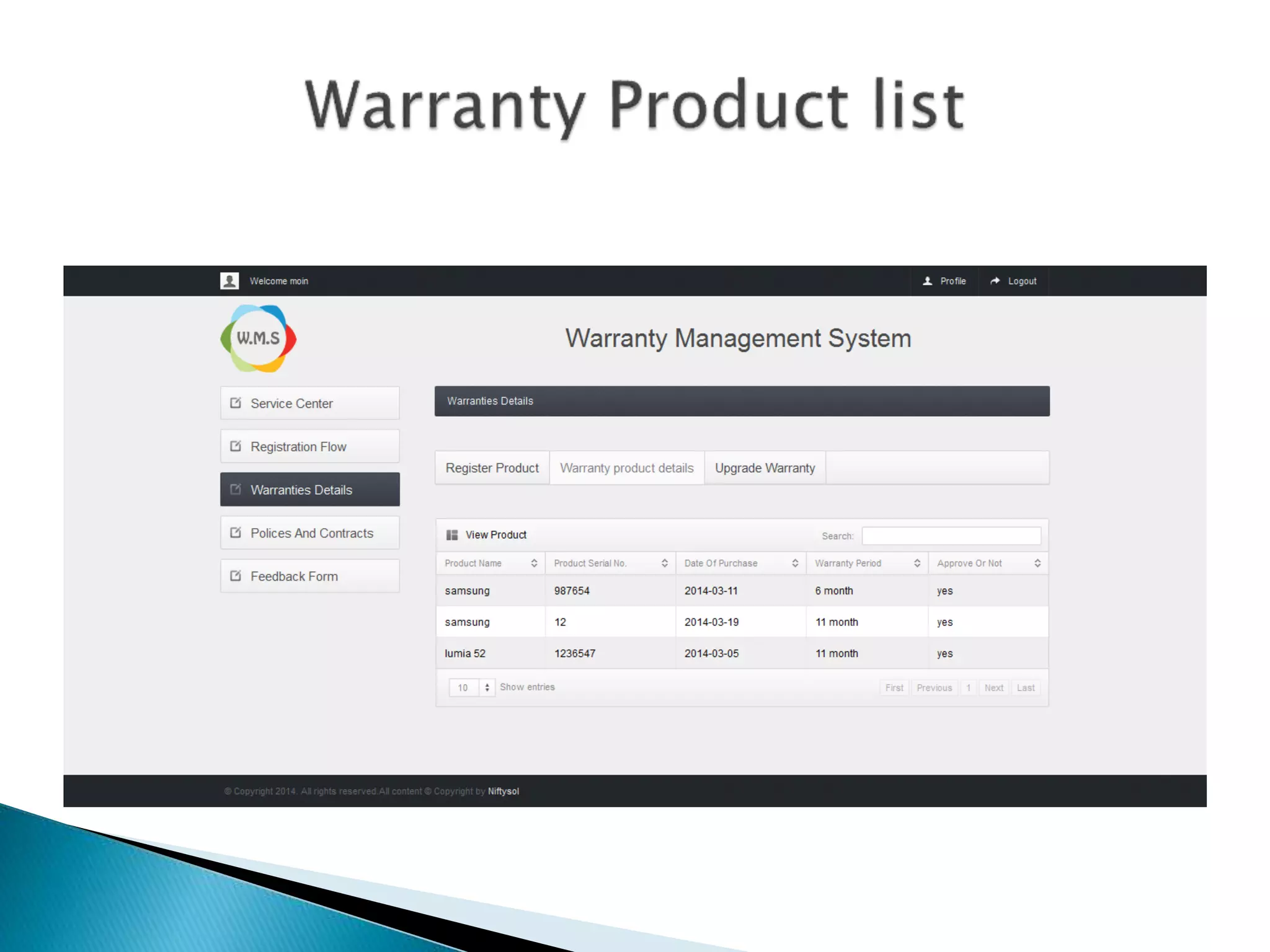

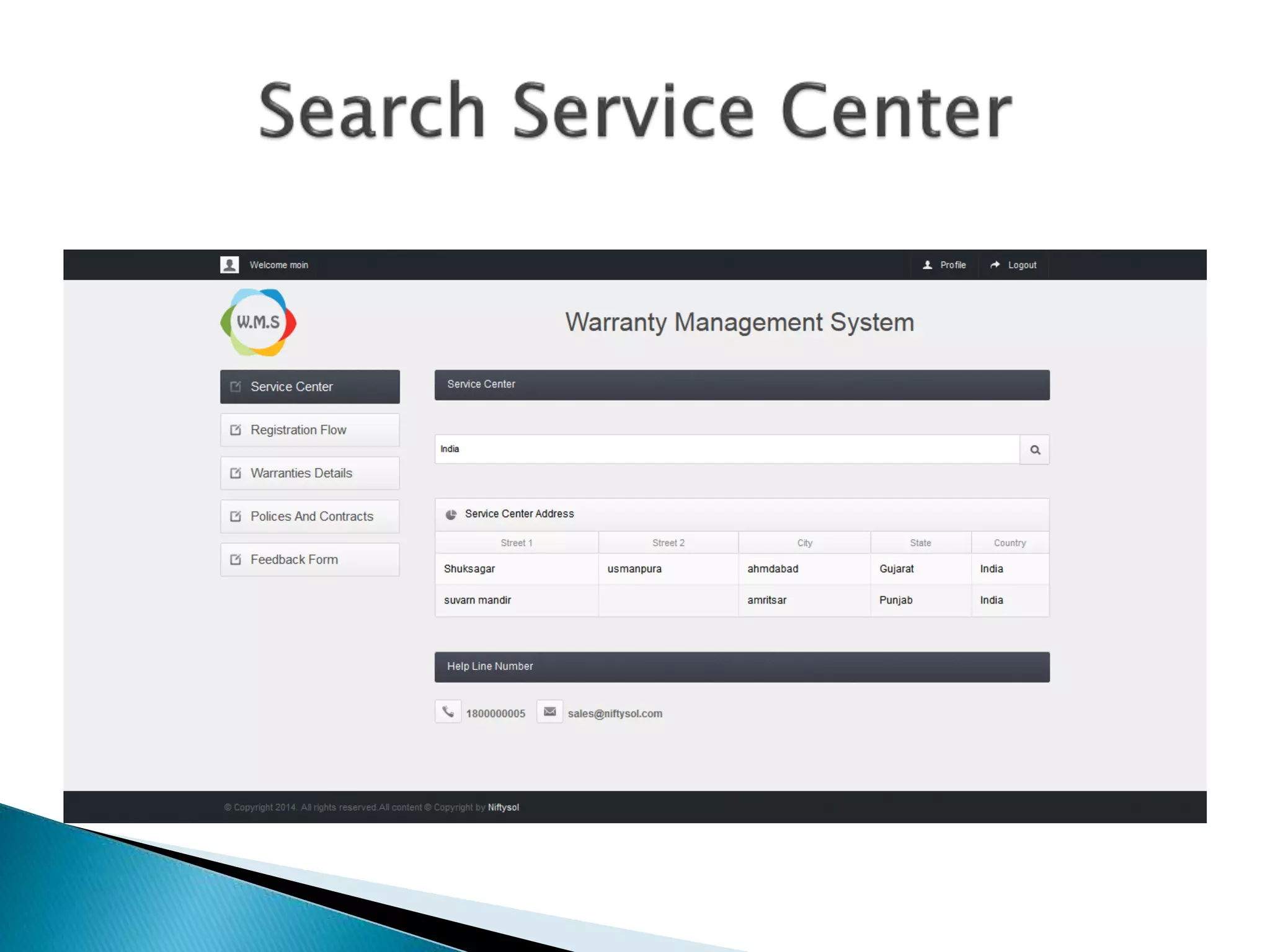

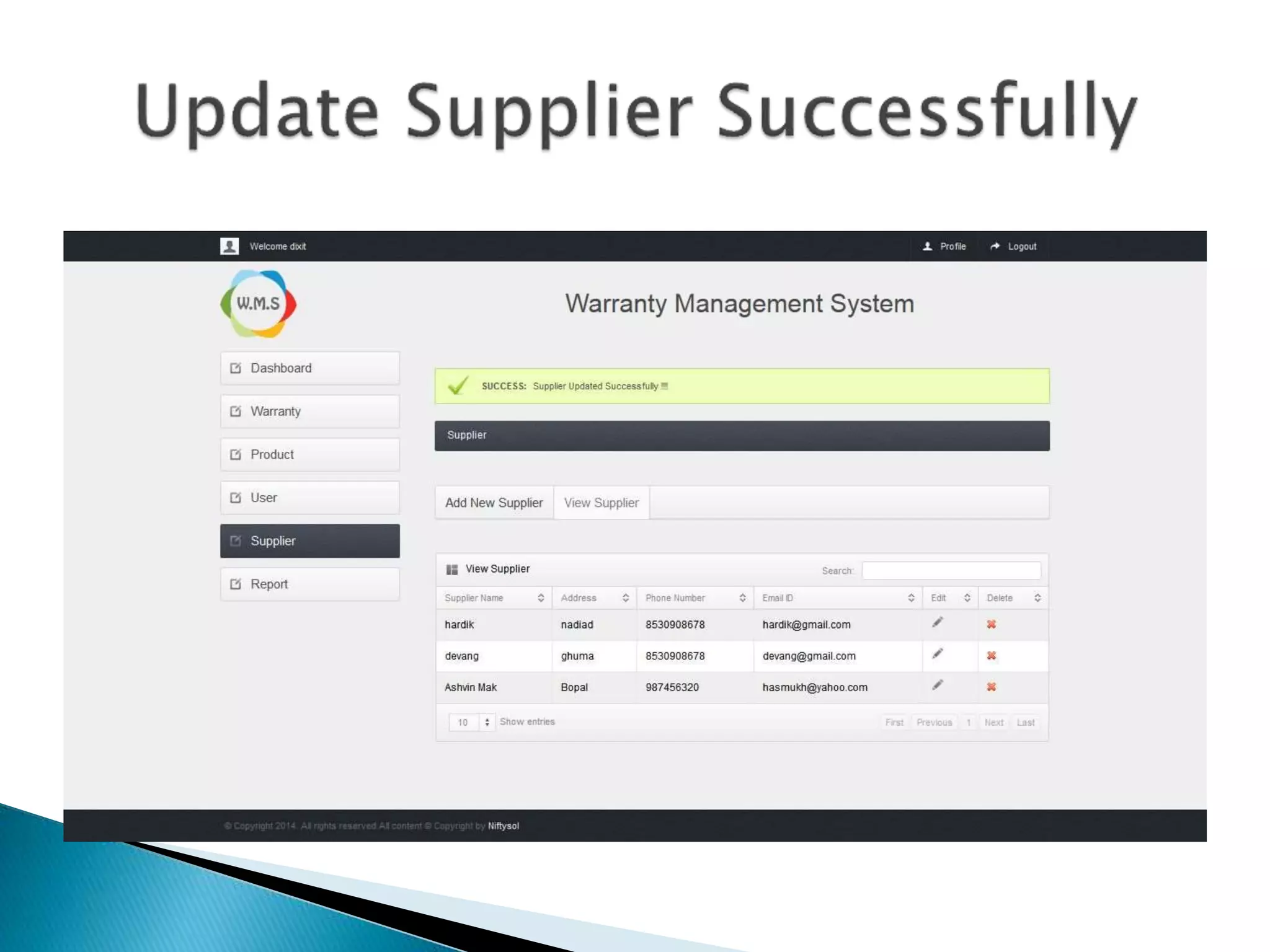

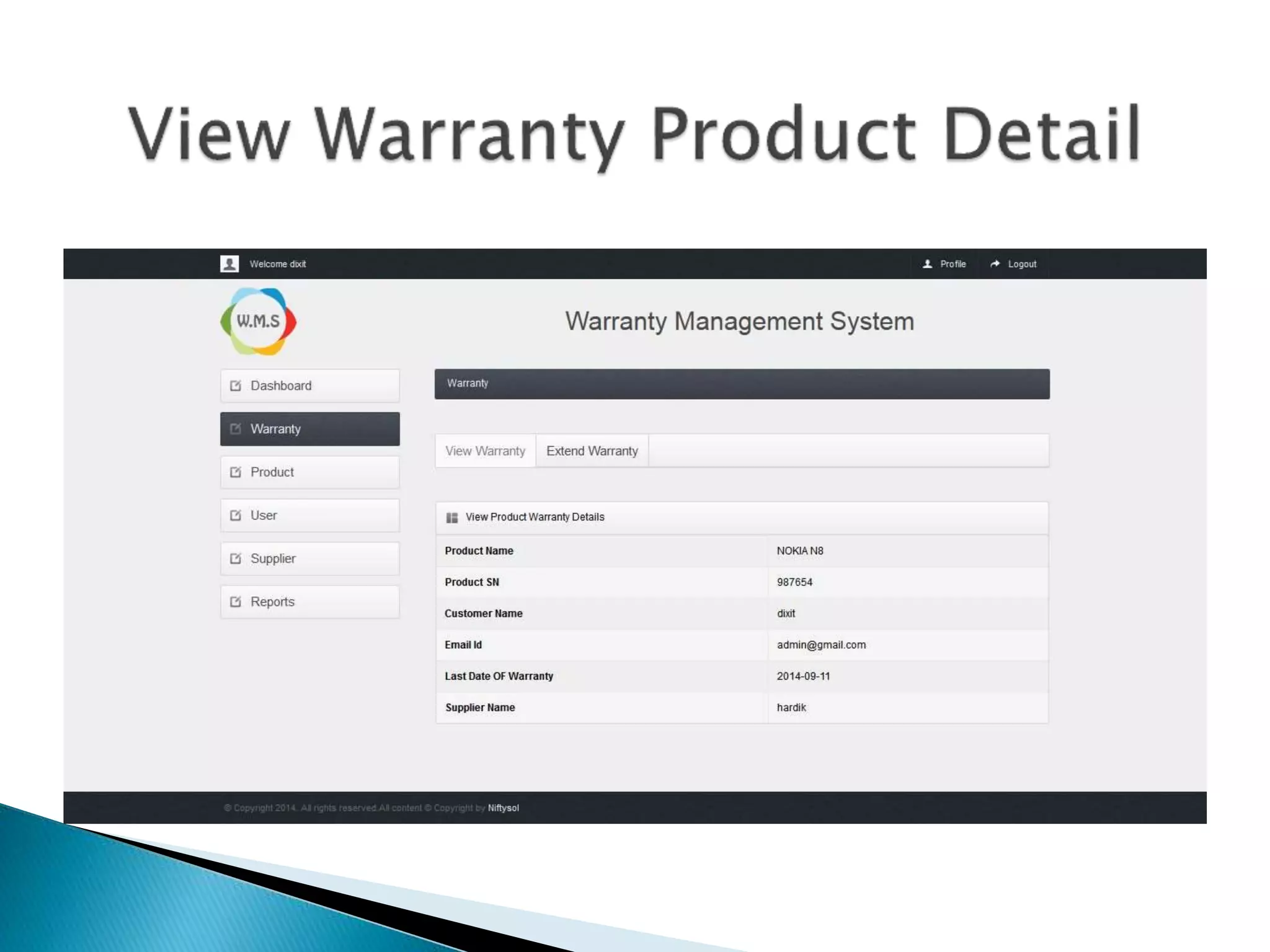

- 70. Model View Controller standard are use.

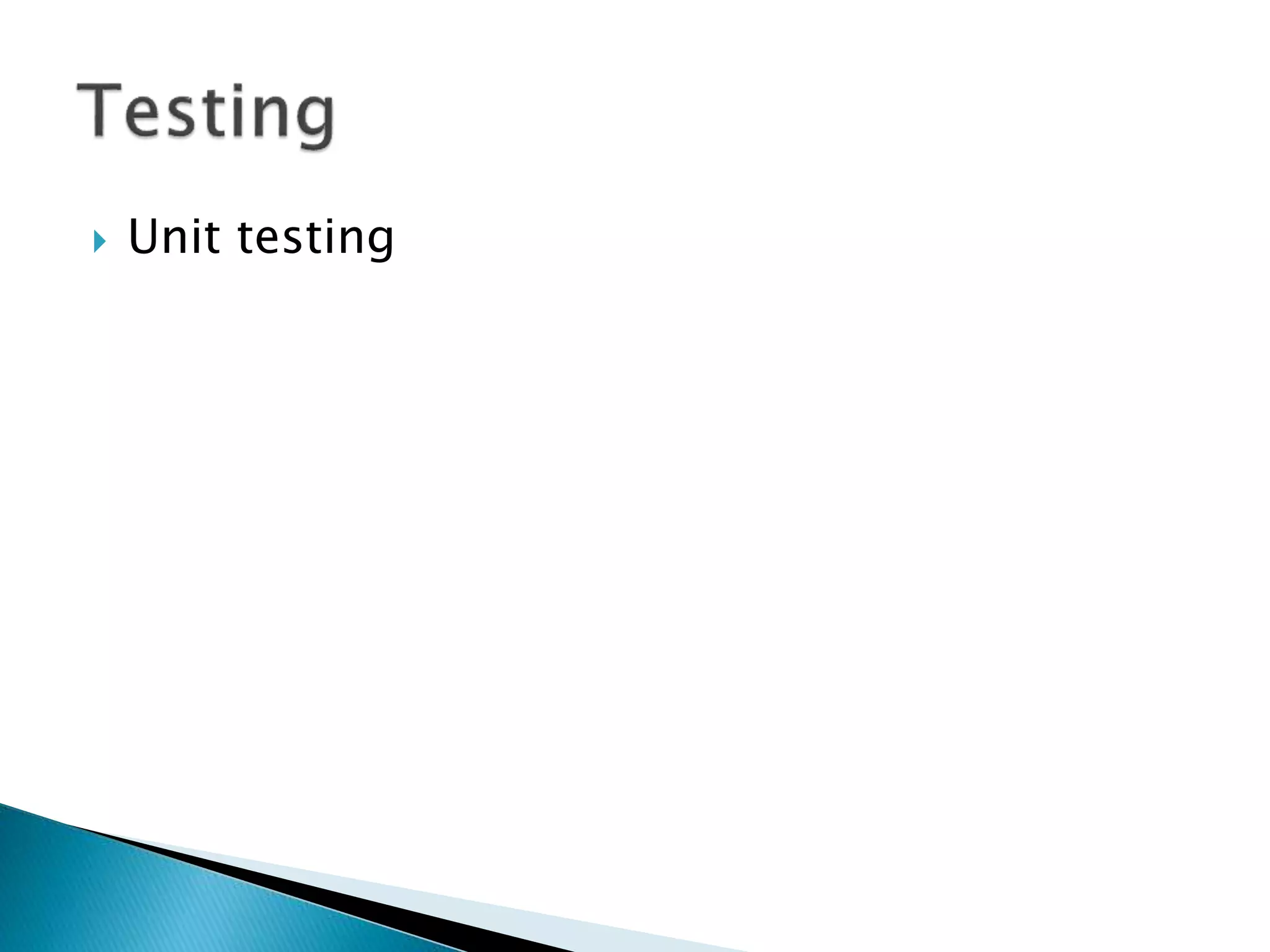

- 71. Unit testing

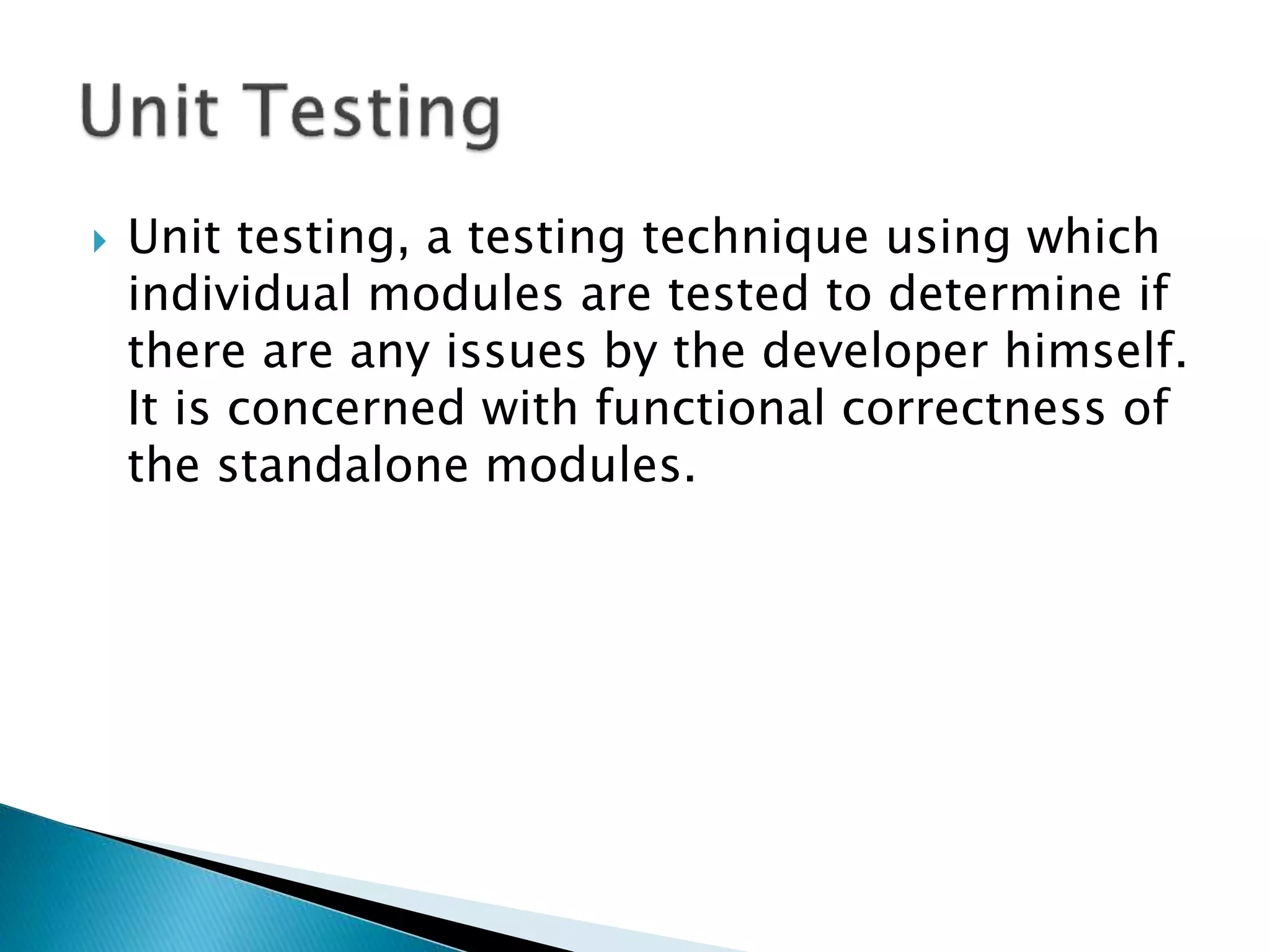

- 72. Unit testing, a testing technique using which individual modules are tested to determine if there are any issues by the developer himself. It is concerned with functional correctness of the standalone modules.

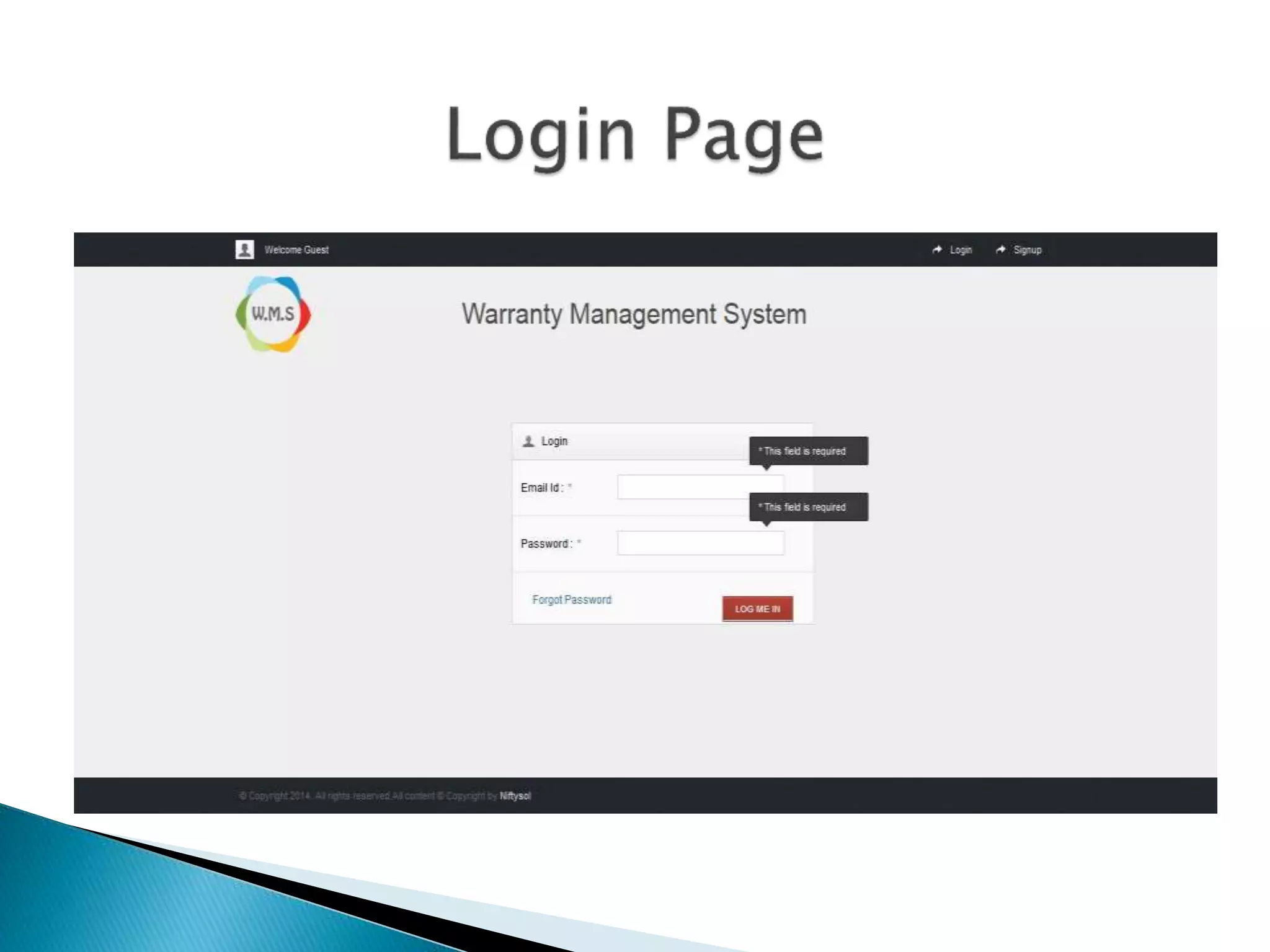

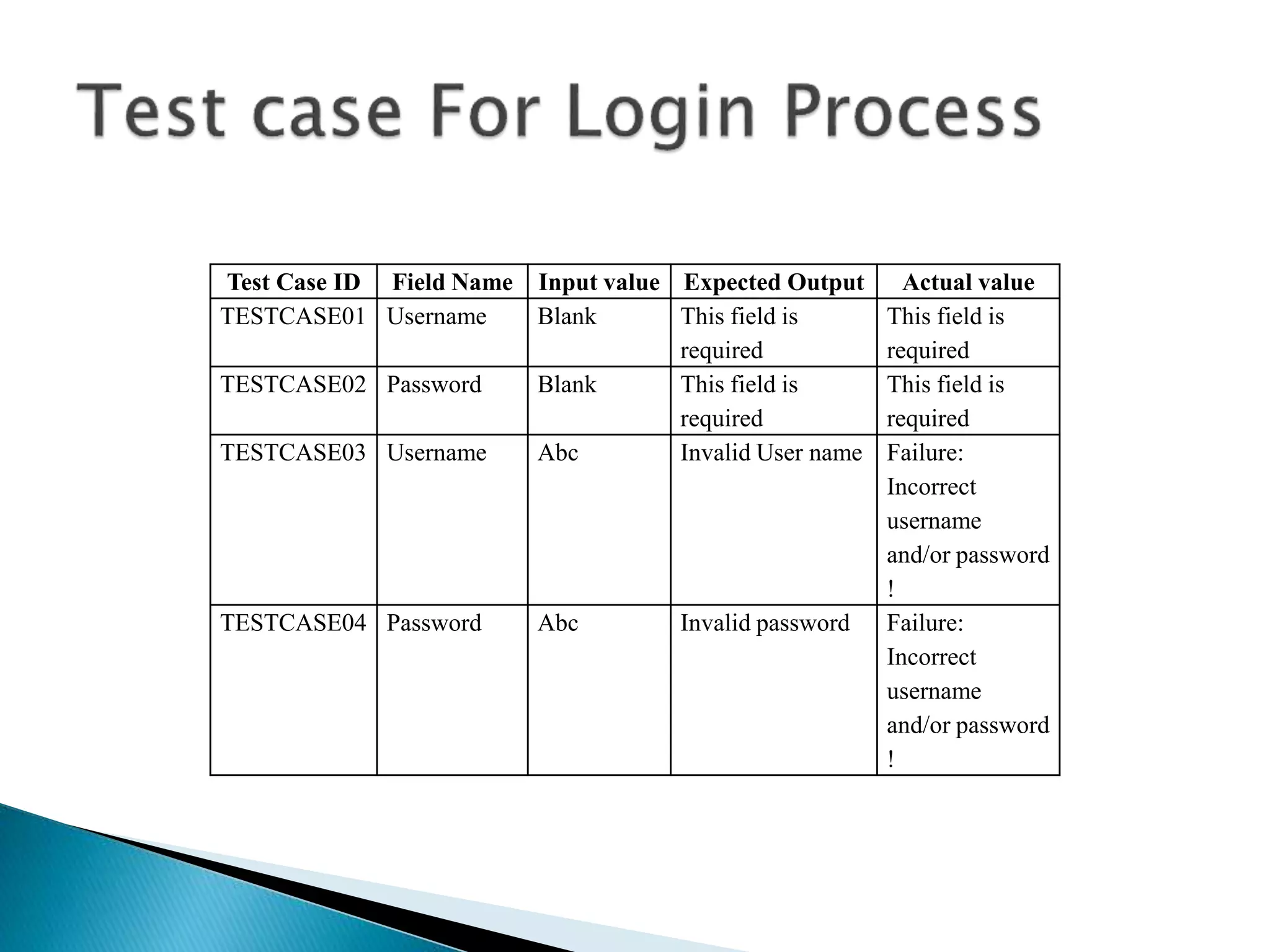

- 73. Test Case ID Field Name Input value Expected Output Actual value TESTCASE01 Username Blank This field is required This field is required TESTCASE02 Password Blank This field is required This field is required TESTCASE03 Username Abc Invalid User name Failure: Incorrect username and/or password ! TESTCASE04 Password Abc Invalid password Failure: Incorrect username and/or password !

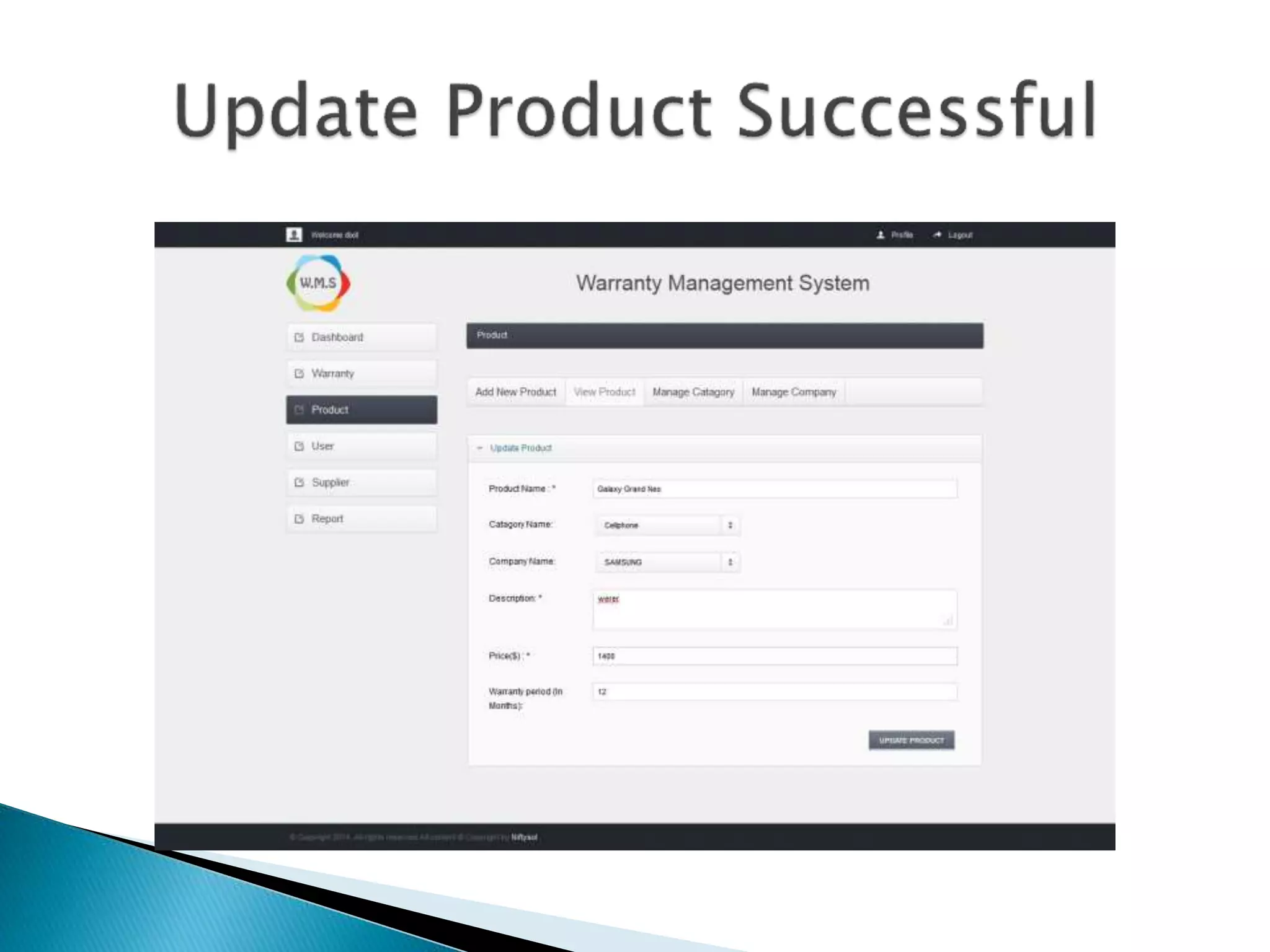

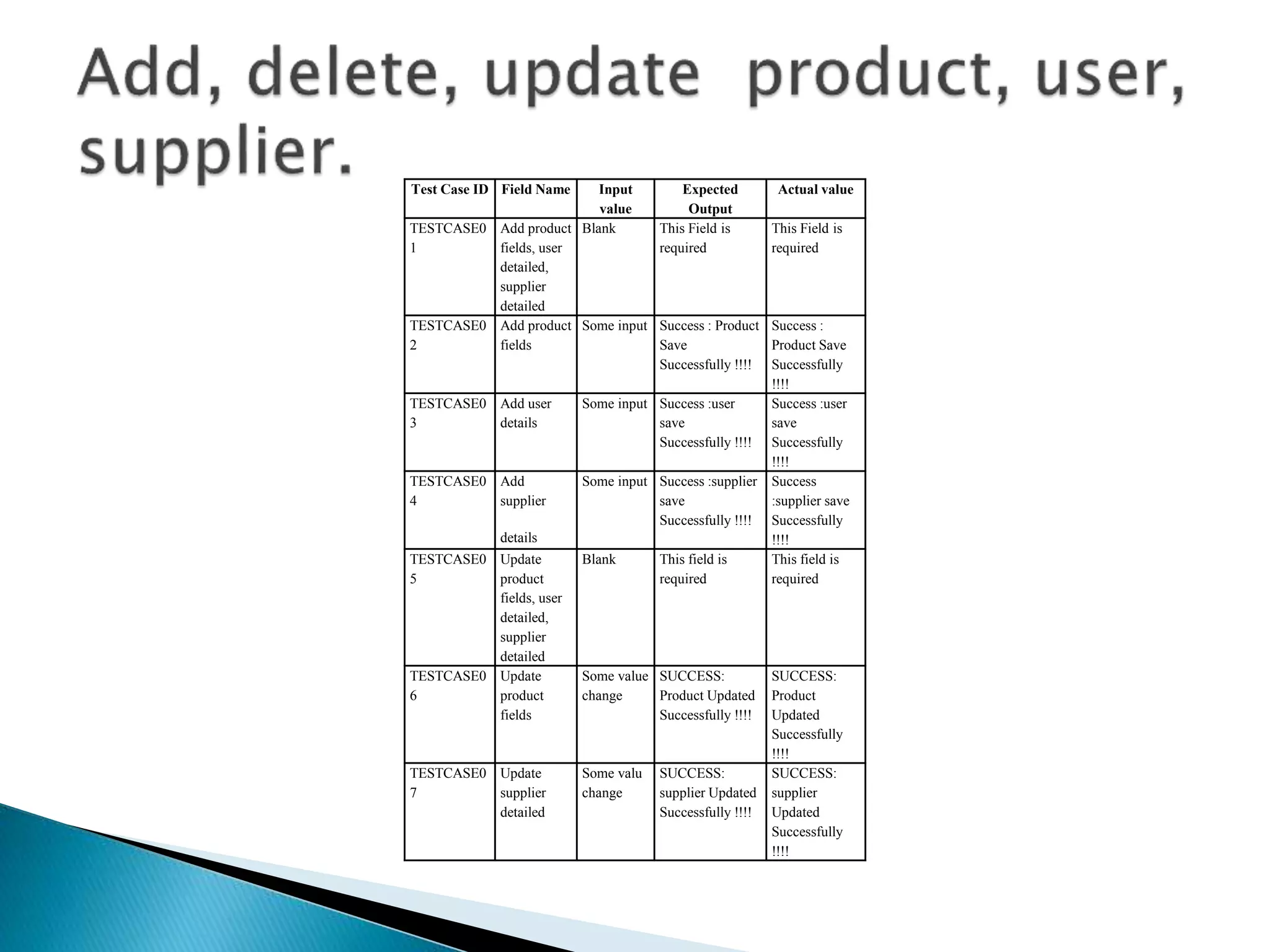

- 74. Test Case ID Field Name Input value Expected Output Actual value TESTCASE0 1 Add product fields, user detailed, supplier detailed Blank This Field is required This Field is required TESTCASE0 2 Add product fields Some input Success : Product Save Successfully !!!! Success : Product Save Successfully !!!! TESTCASE0 3 Add user details Some input Success :user save Successfully !!!! Success :user save Successfully !!!! TESTCASE0 4 Add supplier details Some input Success :supplier save Successfully !!!! Success :supplier save Successfully !!!! TESTCASE0 5 Update product fields, user detailed, supplier detailed Blank This field is required This field is required TESTCASE0 6 Update product fields Some value change SUCCESS: Product Updated Successfully !!!! SUCCESS: Product Updated Successfully !!!! TESTCASE0 7 Update supplier detailed Some valu change SUCCESS: supplier Updated Successfully !!!! SUCCESS: supplier Updated Successfully !!!!

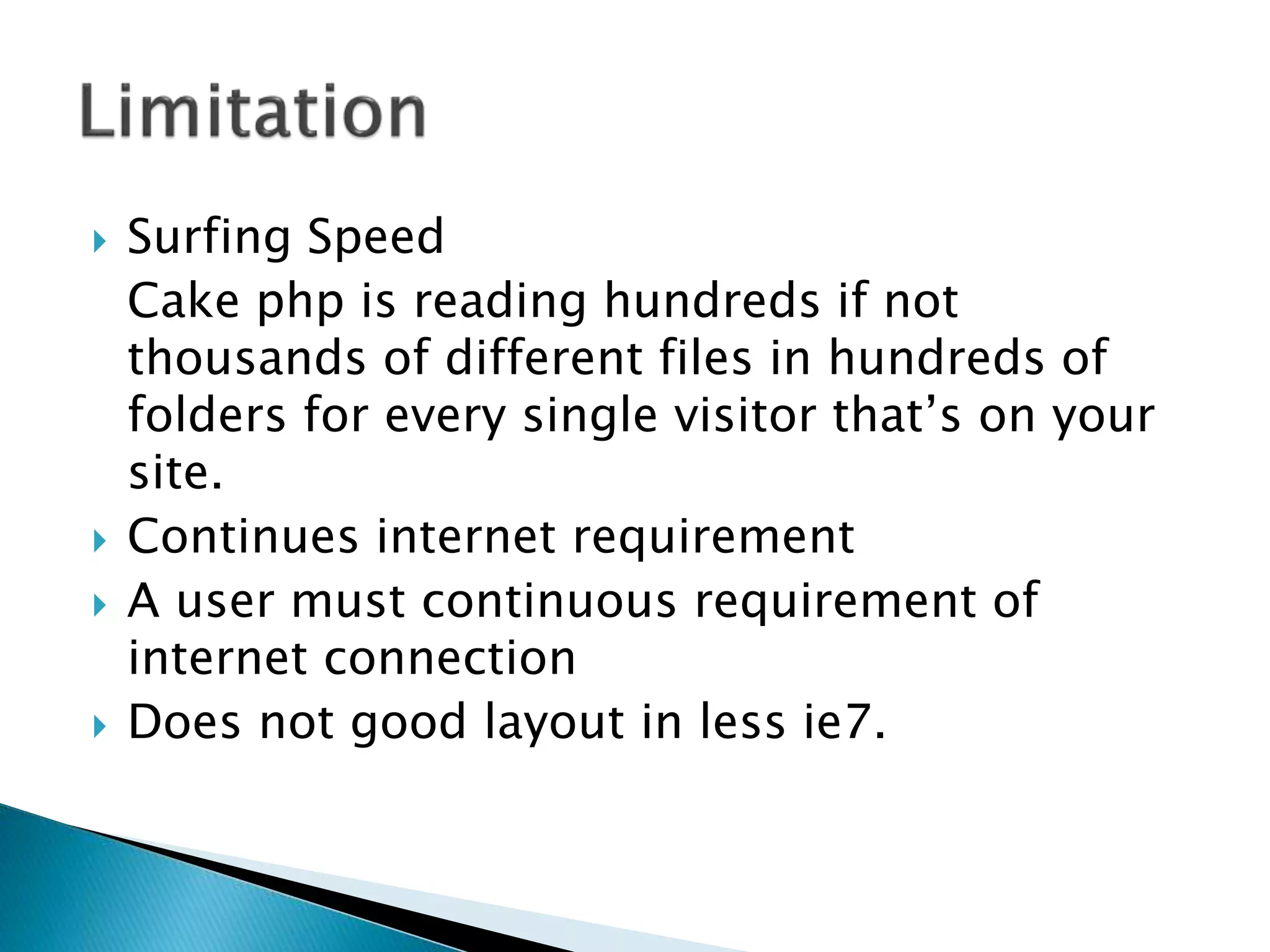

- 75. Surfing Speed Cake php is reading hundreds if not thousands of different files in hundreds of folders for every single visitor that’s on your site. Continues internet requirement A user must continuous requirement of internet connection Does not good layout in less ie7.
