1. Security Merchants An ASSA ABLOY Group company  www.security-merchants.com Protégé Access Control, Alarm Management and Building Automation ASSA ABLOY, the global leader in door opening solutions. SECURITY MERCHANTS PTY LTD ©  OCTOBER 2008

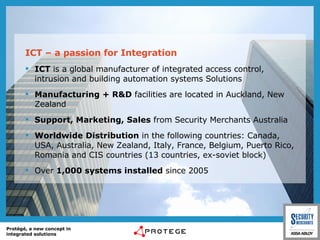

2. ICT – a passion for Integration ICT is a global manufacturer of integrated access control, intrusion and building automation systems Solutions Manufacturing + R&D facilities are located in Auckland, New Zealand Support, Marketing, Sales from Security Merchants Australia Worldwide Distribution in the following countries: Canada, USA, Australia, New Zealand, Italy, France, Belgium, Puerto Rico, Romania and CIS countries (13 countries, ex-soviet block) Over 1,000 systems installed since 2005

3. Introducing Protégé Protégé is a highly scalable and cost-effective security management platform Capable of managing access control, commercial alarm, condominium alarm, and building automation functions within a single user interface Can manage any of these functions individually or in any combination Can manage an unlimited number of remote sites by IP and/or dial-up Access Control Commercial Alarm Automation Condo Suite Alarm

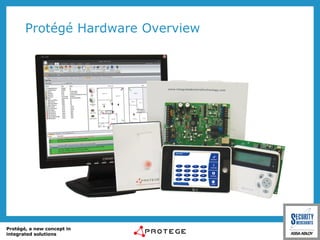

4. Protégé Hardware Overview

5. Standard Configuration RS-485 to Expansion Modules TCP/IP

6. PRT-CTRL System Controller On-board Ethernet port connects to LAN/WAN IP or Dial-Up reporting to Central Station Dual Dialers 8Mb Memory Onboard 32 Bit Processor Supports up to 128 Expansion Modules 16 alarm zones on-board, Selectable EOL All Outputs PTC Protected ( Positive Temperature Coefficient)

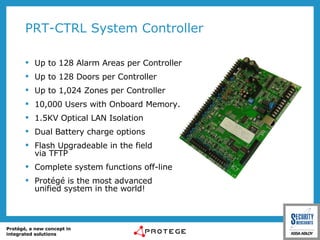

7. PRT-CTRL System Controller Up to 128 Alarm Areas per Controller Up to 128 Doors per Controller Up to 1,024 Zones per Controller 10,000 Users with Onboard Memory. 1.5KV Optical LAN Isolation Dual Battery charge options Flash Upgradeable in the field via TFTP Complete system functions off-line Protégé is the most advanced unified system in the world!

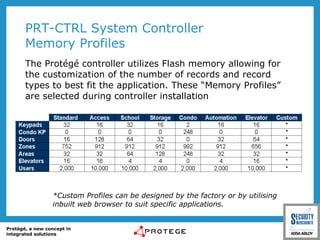

8. PRT-CTRL System Controller Memory Profiles The Protégé controller utilizes Flash memory allowing for the customization of the number of records and record types to best fit the application. These “Memory Profiles” are selected during controller installation *Custom Profiles can be designed by the factory or by utilising inbuilt web browser to suit specific applications.

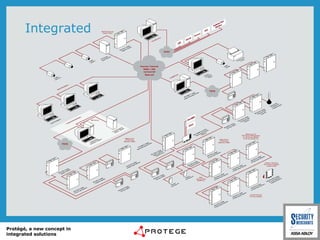

9. Integrated

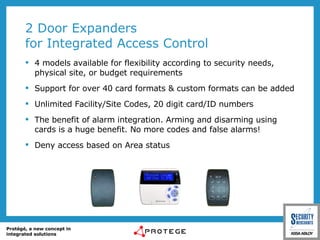

10. 2 Door Expanders for Integrated Access Control 4 models available for flexibility according to security needs, physical site, or budget requirements Support for over 40 card formats & custom formats can be added Unlimited Facility/Site Codes, 20 digit card/ID numbers The benefit of alarm integration. Arming and disarming using cards is a huge benefit. No more codes and false alarms! Deny access based on Area status

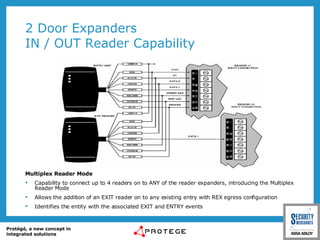

11. 2 Door Expanders IN / OUT Reader Capability Multiplex Reader Mode Capability to connect up to 4 readers on to ANY of the reader expanders, introducing the Multiplex Reader Mode Allows the addition of an EXIT reader on to any existing entry with REX egress configuration Identifies the entity with the associated EXIT and ENTRY events

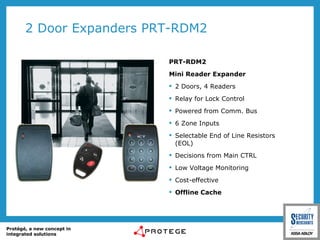

12. 2 Door Expanders PRT-RDM2 PRT-RDM2 Mini Reader Expander 2 Doors, 4 Readers Relay for Lock Control Powered from Comm. Bus 6 Zone Inputs Selectable End of Line Resistors (EOL) Decisions from Main CTRL Low Voltage Monitoring Cost-effective Offline Cache

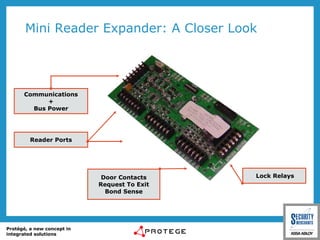

13. Mini Reader Expander: A Closer Look Door Contacts Request To Exit Bond Sense Lock Relays Communications + Bus Power Reader Ports

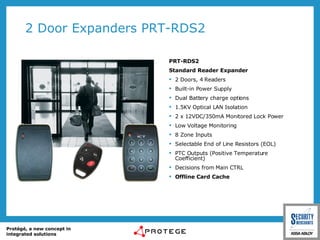

14. 2 Door Expanders PRT-RDS2 PRT-RDS2 Standard Reader Expander 2 Doors, 4 Readers Built-in Power Supply Dual Battery charge options 1.5KV Optical LAN Isolation 2 x 12VDC/350mA Monitored Lock Power Low Voltage Monitoring 8 Zone Inputs Selectable End of Line Resistors (EOL) PTC Outputs ( Positive Temperature Coefficient) Decisions from Main CTRL Offline Card Cache

15. 2 Door Expanders PRT-RDI2 PRT-RDI2 Intelligent Reader Expander 2 Doors, 4 Readers Built-in Power Supply Dual Battery charge options 1.5KV Optical LAN Isolation PTC Outputs ( Positive Temperature Coefficient) 2 x 12VDC/350mA Monitored Lock Power 8 Zone Inputs Selectable End of Line Resistors (EOL) Low Voltage Monitoring “ Request to Enter” Inputs Memory for full access decisions! * Ideal for mission critical doors

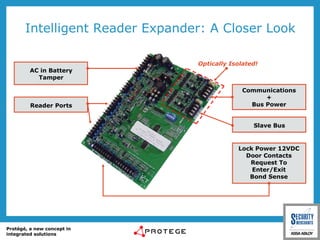

16. Intelligent Reader Expander: A Closer Look Lock Power 12VDC Door Contacts Request To Enter/Exit Bond Sense Slave Bus Optically Isolated! Communications + Bus Power Reader Ports AC in Battery Tamper

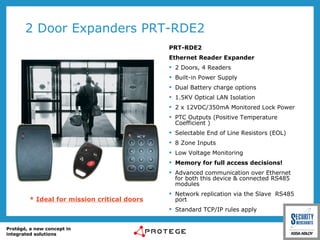

17. 2 Door Expanders PRT-RDE2 PRT-RDE2 Ethernet Reader Expander 2 Doors, 4 Readers Built-in Power Supply Dual Battery charge options 1.5KV Optical LAN Isolation 2 x 12VDC/350mA Monitored Lock Power PTC Outputs ( Positive Temperature Coefficient ) Selectable End of Line Resistors (EOL) 8 Zone Inputs Low Voltage Monitoring Memory for full access decisions! Advanced communication over Ethernet for both this device & connected RS485 modules Network replication via the Slave RS485 port Standard TCP/IP rules apply * Ideal for mission critical doors

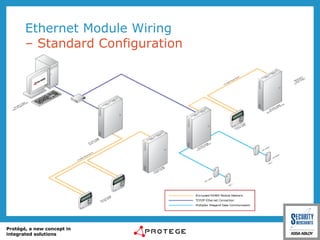

18. Ethernet Module Wiring – Standard Configuration

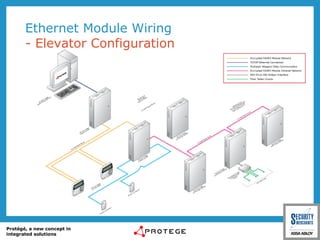

19. Ethernet Module Wiring - Elevator Configuration

20. Ethernet Module Wiring - Save Repeat Configuration

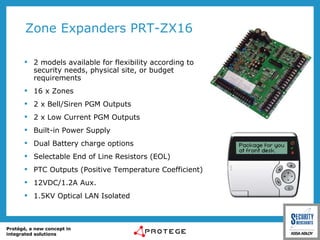

21. Zone Expanders PRT-ZX16 2 models available for flexibility according to security needs, physical site, or budget requirements 16 x Zones 2 x Bell/Siren PGM Outputs 2 x Low Current PGM Outputs Built-in Power Supply Dual Battery charge options Selectable End of Line Resistors (EOL) PTC Outputs ( Positive Temperature Coefficient) 12VDC/1.2A Aux. 1.5KV Optical LAN Isolated

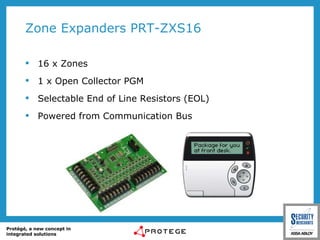

22. Zone Expanders PRT-ZXS16 16 x Zones 1 x Open Collector PGM Selectable End of Line Resistors (EOL) Powered from Communication Bus

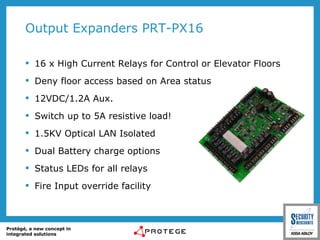

23. Output Expanders PRT-PX16 16 x High Current Relays for Control or Elevator Floors Deny floor access based on Area status 12VDC/1.2A Aux. Switch up to 5A resistive load! 1.5KV Optical LAN Isolated Dual Battery charge options Status LEDs for all relays Fire Input override facility

24. Floor Destination Reporting PRT-PX16-DRI Button feedback for floor selection audit Single badge, single floor selection Prevents elevator “tailgating” Daughter-board connection to PRT-RDI2 DRI PX16

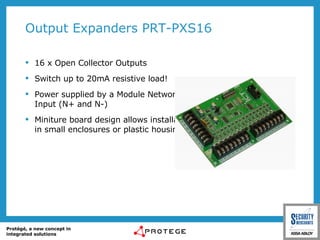

25. Output Expanders PRT-PXS16 16 x Open Collector Outputs Switch up to 20mA resistive load! Power supplied by a Module Network Input (N+ and N-) Miniture board design allows installation in small enclosures or plastic housings

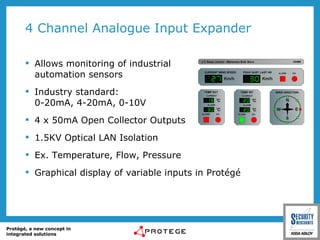

26. 4 Channel Analogue Input Expander Allows monitoring of industrial automation sensors Industry standard: 0-20mA, 4-20mA, 0-10V 4 x 50mA Open Collector Outputs 1.5KV Optical LAN Isolation Ex. Temperature, Flow, Pressure Graphical display of variable inputs in Protégé

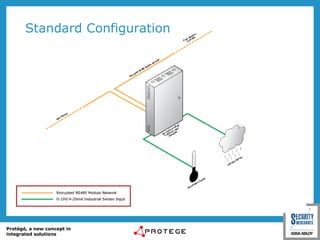

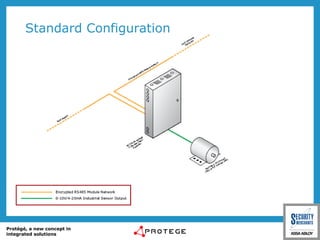

27. Standard Configuration

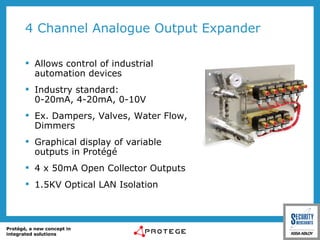

28. 4 Channel Analogue Output Expander Allows control of industrial automation devices Industry standard: 0-20mA, 4-20mA, 0-10V Ex. Dampers, Valves, Water Flow, Dimmers Graphical display of variable outputs in Protégé 4 x 50mA Open Collector Outputs 1.5KV Optical LAN Isolation

29. Standard Configuration

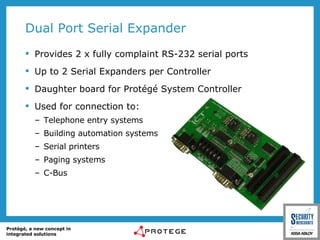

30. Dual Port Serial Expander Provides 2 x fully complaint RS-232 serial ports Up to 2 Serial Expanders per Controller Daughter board for Protégé System Controller Used for connection to: Telephone entry systems Building automation systems Serial printers Paging systems C-Bus

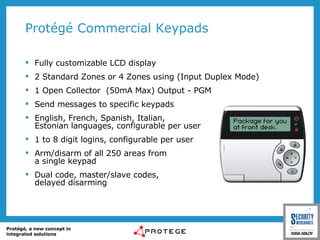

31. Protégé Commercial Keypads Fully customizable LCD display 2 Standard Zones or 4 Zones using (Input Duplex Mode) 1 Open Collector (50mA Max) Output - PGM Send messages to specific keypads English, French, Spanish, Italian, Estonian languages, configurable per user 1 to 8 digit logins, configurable per user Arm/disarm of all 250 areas from a single keypad Dual code, master/slave codes, delayed disarming

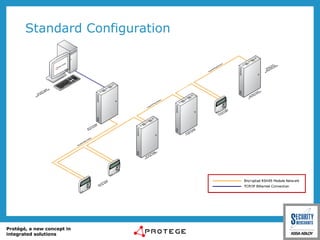

32. Standard Configuration

33. Elite Suite Condominium Keypad 4 zone Condominium Keypad (Input Duplex Mode) 3 Slave keypads per Master keypad (providing up to 16 zones) 1 Open Collector (50mA Max) Output – PGM (providing up to 4 PGMs per apartment) 8 users for Arming/Disarming + 1 Master user Programmed through Protégé software or at keypad Up to 248 keypads per System Controller Reports alarms to Protégé

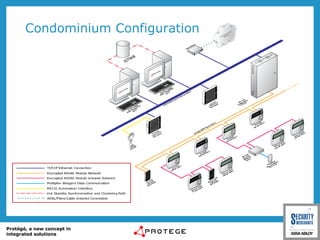

34. Condominium Configuration

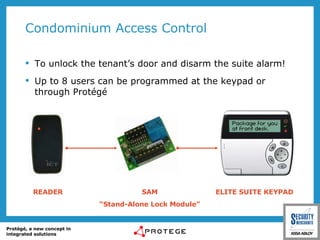

35. Condominium Access Control To unlock the tenant’s door and disarm the suite alarm! Up to 8 users can be programmed at the keypad or through Protégé READER SAM “ Stand-Alone Lock Module” ELITE SUITE KEYPAD

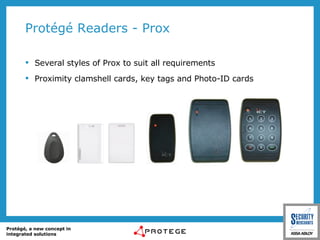

36. Protégé Readers - Prox Several styles of Prox to suit all requirements Proximity clamshell cards, key tags and Photo-ID cards

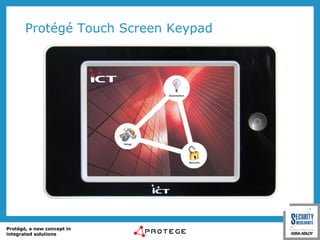

37. Protégé Touch Screen Keypad

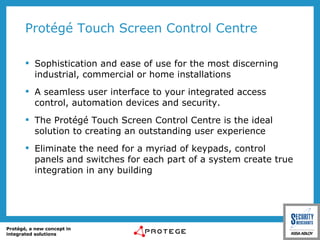

38. Protégé Touch Screen Control Centre Sophistication and ease of use for the most discerning industrial, commercial or home installations A seamless user interface to your integrated access control, automation devices and security. The Protégé Touch Screen Control Centre is the ideal solution to creating an outstanding user experience Eliminate the need for a myriad of keypads, control panels and switches for each part of a system create true integration in any building

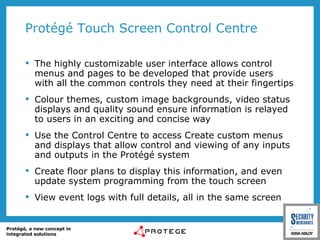

39. Protégé Touch Screen Control Centre The highly customizable user interface allows control menus and pages to be developed that provide users with all the common controls they need at their fingertips Colour themes, custom image backgrounds, video status displays and quality sound ensure information is relayed to users in an exciting and concise way Use the Control Centre to access Create custom menus and displays that allow control and viewing of any inputs and outputs in the Protégé system Create floor plans to display this information, and even update system programming from the touch screen View event logs with full details, all in the same screen

40. Standard Configuration

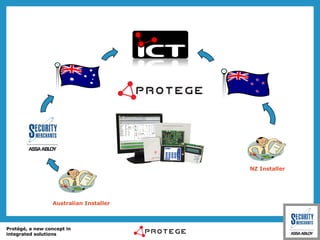

41. Australian Installer NZ Installer

42. Security Merchants proudly brings you the new leading edge technology PROTÉGÉ Thank you
