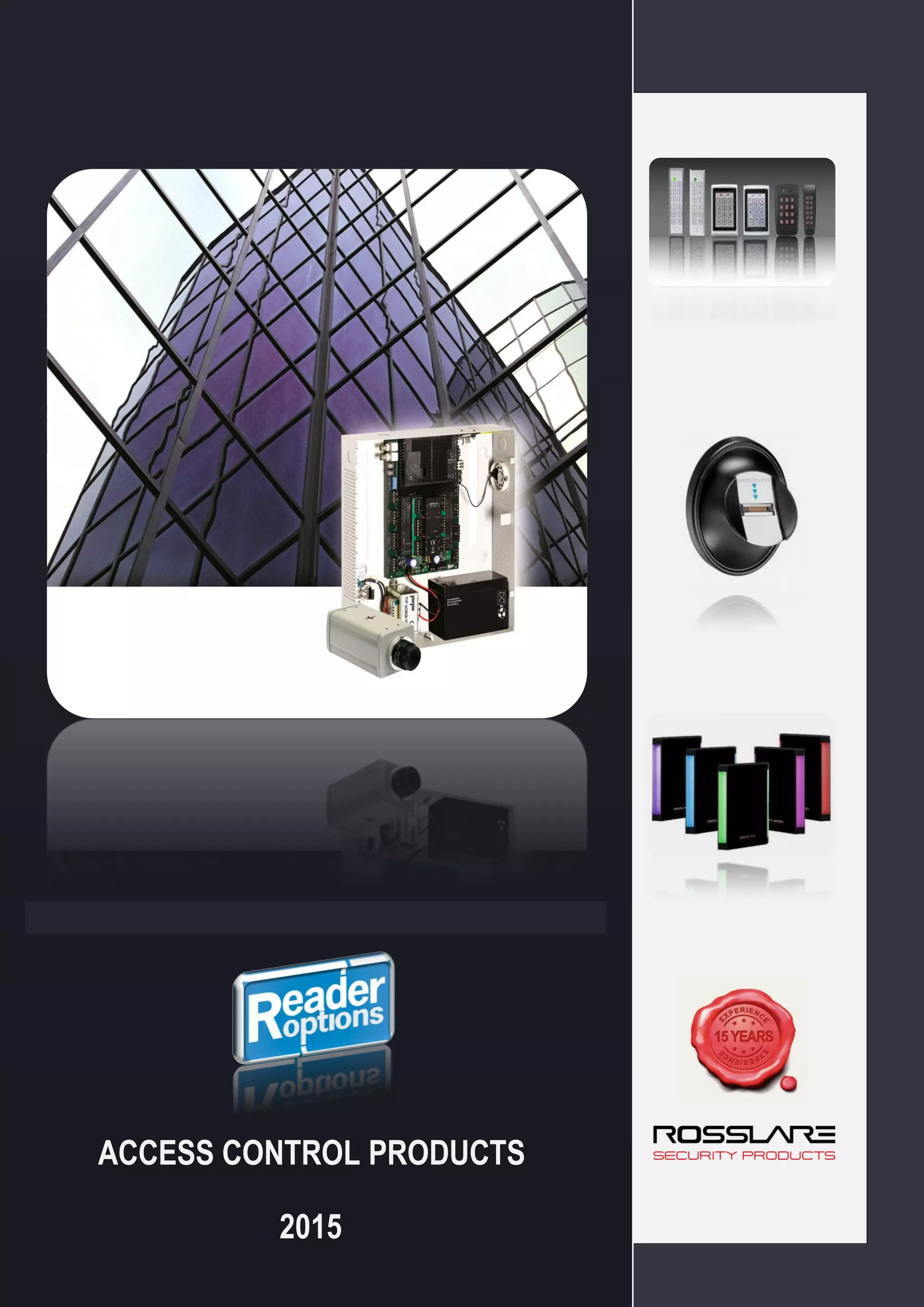

1. ACCESS CONTROL PRODUCTS
2015

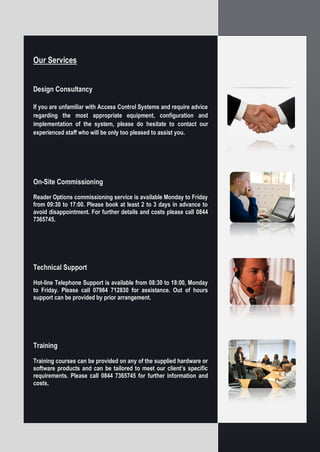

2. Our Services
Design Consultancy
If you are unfamiliar with Access Control Systems and require advice
regarding the most appropriate equipment, configuration and
implementation of the system, please do hesitate to contact our
experienced staff who will be only too pleased to assist you.
On-Site Commissioning
Reader Options commissioning service is available Monday to Friday
from 09:30 to 17:00. Please book at least 2 to 3 days in advance to
avoid disappointment. For further details and costs please call 0844
7365745.
Technical Support
Hot-line Telephone Support is available from 08:30 to 18:00, Monday
to Friday. Please call 07984 712830 for assistance. Out of hours
support can be provided by prior arrangement.
Training
Training courses can be provided on any of the supplied hardware or
software products and can be tailored to meet our client’s specific
requirements. Please call 0844 7365745 for further information and
costs.

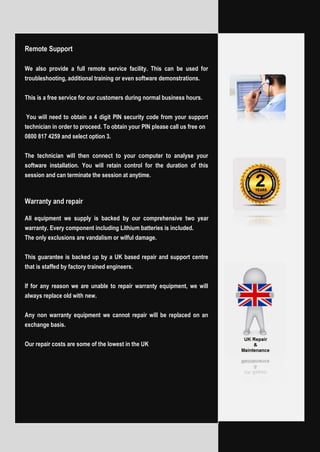

3. Remote Support
We also provide a full remote service facility. This can be used for
troubleshooting, additional training or even software demonstrations.
This is a free service for our customers during normal business hours.
You will need to obtain a 4 digit PIN security code from your support
technician in order to proceed. To obtain your PIN please call us free on
0800 817 4259 and select option 3.
The technician will then connect to your computer to analyse your
software installation. You will retain control for the duration of this
session and can terminate the session at anytime.
Warranty and repair
All equipment we supply is backed by our comprehensive two year
warranty. Every component including Lithium batteries is included.
The only exclusions are vandalism or wilful damage.
This guarantee is backed up by a UK based repair and support centre
that is staffed by factory trained engineers.
If for any reason we are unable to repair warranty equipment, we will
always replace old with new.
Any non warranty equipment we cannot repair will be replaced on an
exchange basis.
Our repair costs are some of the lowest in the UK

4. Networkable Access Control Units
AC–115
Compact Networked Single Door Controller
The AC-115 is a compact, powerful, quick and easy to install all-in-
one networked single door controller. It provides extremely cost-
effective solutions for small networked applications of up to 8 doors.
This unit can control 2400 users (In/Out), with advanced
security rules and features, and includes user-friendly PC software
for management, configuration, monitoring, and reporting.
The AC-115 includes a built-in sounder for doorbell, chime and alarm
sounds, and a built-in backup battery charger.
AC-215
The AC-215 is a networked, multi-door controller which provides
administrators with complete premise access control.
The AC-215U is suitable for applications with up to 5000 users
across a modular 2046 doors, allowing maximum flexibility for
securing a growing enterprise.
Each AC-215U Access Control Unit (ACU) supports two readers
(In/Out) of various formats including standard Wiegand 26-bit. Each
ACU can be set to work as a single or double door controller.
Starter Kits
The starter Kit is cost effective solution perfect for the basic access
control system where two doors or two readers are necessary to
maintain tight access control to your workspace, with the flexibility
of networking and real-time management software.
Each starter kit includes;
1 x Controller
1 x AY-K12 Micro Mullion readers with MP-K01 (optional mounting
spacers)
25 x AT-R11 ISO cards
1 x MP-K01 Mounting spacer for AY-K12 reader
1 x Software

5. Networkable Access Control Units (cont)
AC–225 /225IP
Advanced Scalable Networked Access Controller
The single/dual door AC-225 networked access controller is the
backbone of the system handling up to 30,000 users and 4092 doors.
Driven by our powerful, flexible and easy to use software, the system
provides an ideal, modular and expandable solution for commercial
and institutional needs. It provides seamless integration with our
range of RFID Proximity, PIN, PIN & PROX, Mifare, Smartcard and
biometric readers.
The AC225 can be expanded to a Four Door/Reader capacity with the
addition of the MD-02 Expansion Board
AC-825 IP
The AC-825IP is a state-of-the-art 4-door networked access controller
and is the backbone of a medium-scale to high-scale security
system. The controller comes with one onboard expansion slot and
can be further expanded by connecting up to 16 expansion boards
via OSDP*. Using only D-805 door expansion boards, a single AC-
825IP can handle up to 72 doors and 60,000 users. Driven by
AxTraxNG™ our powerful, flexible, and easy-to-use software – the
system provides an ideal modular and expandable solution for
commercial and institutional needs.
The AC-825IP features a spacious and lockable metal enclosure that
includes a control board, power switcher, built-in power
management board/charger, sounder, and a revolutionary enclosure
illumination bar that lights up when the enclosure is opened.
Each AC-825IP access control unit (ACU) supports up to 4 doors
(In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2
inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary
outputs are also on board.
The AC-825IP includes AES128-bit encrypted communication via
TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for
expansion connectivity.

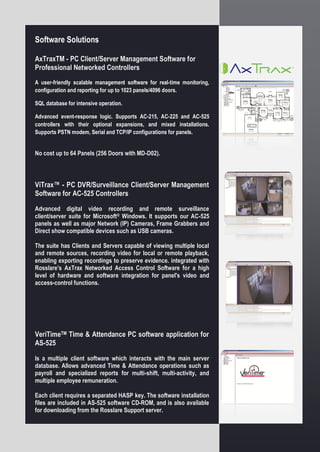

6. Software Solutions
AxTraxTM - PC Client/Server Management Software for
Professional Networked Controllers
A user-friendly scalable management software for real-time monitoring,
configuration and reporting for up to 1023 panels/4096 doors.
SQL database for intensive operation.
Advanced event-response logic. Supports AC-215, AC-225 and AC-525
controllers with their optional expansions, and mixed installations.
Supports PSTN modem, Serial and TCP/IP configurations for panels.
No cost up to 64 Panels (256 Doors with MD-D02).
ViTrax™ - PC DVR/Surveillance Client/Server Management
Software for AC-525 Controllers
Advanced digital video recording and remote surveillance
client/server suite for Microsoft® Windows. It supports our AC-525
panels as well as major Network (IP) Cameras, Frame Grabbers and
Direct show compatible devices such as USB cameras.
The suite has Clients and Servers capable of viewing multiple local
and remote sources, recording video for local or remote playback,
enabling exporting recordings to preserve evidence. integrated with
Rosslare’s AxTrax Networked Access Control Software for a high
level of hardware and software integration for panel's video and
access-control functions.
VeriTimeTM Time & Attendance PC software application for
AS-525
Is a multiple client software which interacts with the main server
database. Allows advanced Time & Attendance operations such as
payroll and specialized reports for multi-shift, multi-activity, and
multiple employee remuneration.
Each client requires a separated HASP key. The software installation
files are included in AS-525 software CD-ROM, and is also available
for downloading from the Rosslare Support server.

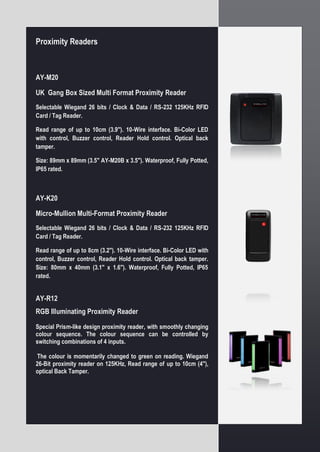

7. Proximity Readers
AY-M20
UK Gang Box Sized Multi Format Proximity Reader
Selectable Wiegand 26 bits / Clock & Data / RS-232 125KHz RFID
Card / Tag Reader.
Read range of up to 10cm (3.9"). 10-Wire interface. Bi-Color LED
with control, Buzzer control, Reader Hold control. Optical back
tamper.
Size: 89mm x 89mm (3.5" AY-M20B x 3.5"). Waterproof, Fully Potted,
IP65 rated.
AY-K20
Micro-Mullion Multi-Format Proximity Reader
Selectable Wiegand 26 bits / Clock & Data / RS-232 125KHz RFID
Card / Tag Reader.
Read range of up to 8cm (3.2"). 10-Wire interface. Bi-Color LED with
control, Buzzer control, Reader Hold control. Optical back tamper.
Size: 80mm x 40mm (3.1" x 1.6"). Waterproof, Fully Potted, IP65
rated.
AY-R12
RGB Illuminating Proximity Reader
Special Prism-like design proximity reader, with smoothly changing
colour sequence. The colour sequence can be controlled by
switching combinations of 4 inputs.
The colour is momentarily changed to green on reading. Wiegand
26-Bit proximity reader on 125KHz, Read range of up to 10cm (4"),
optical Back Tamper.

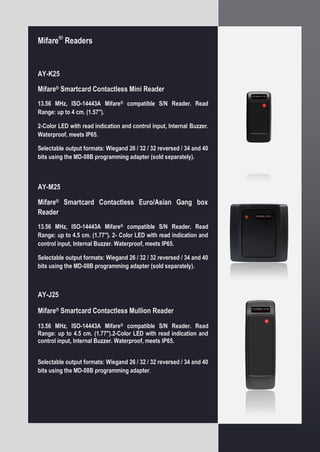

8. Mifare®
Readers
AY-K25
Mifare® Smartcard Contactless Mini Reader
13.56 MHz, ISO-14443A Mifare® compatible S/N Reader. Read
Range: up to 4 cm. (1.57").
2-Color LED with read indication and control input, Internal Buzzer.
Waterproof, meets IP65.
Selectable output formats: Wiegand 26 / 32 / 32 reversed / 34 and 40
bits using the MD-08B programming adapter (sold separately).
AY-M25
Mifare® Smartcard Contactless Euro/Asian Gang box
Reader
13.56 MHz, ISO-14443A Mifare® compatible S/N Reader. Read
Range: up to 4.5 cm. (1.77"). 2- Color LED with read indication and
control input, Internal Buzzer. Waterproof, meets IP65.
Selectable output formats: Wiegand 26 / 32 / 32 reversed / 34 and 40
bits using the MD-08B programming adapter (sold separately).
AY-J25
Mifare® Smartcard Contactless Mullion Reader
13.56 MHz, ISO-14443A Mifare® compatible S/N Reader. Read
Range: up to 4.5 cm. (1.77").2-Color LED with read indication and
control input, Internal Buzzer. Waterproof, meets IP65.
Selectable output formats: Wiegand 26 / 32 / 32 reversed / 34 and 40
bits using the MD-08B programming adapter.

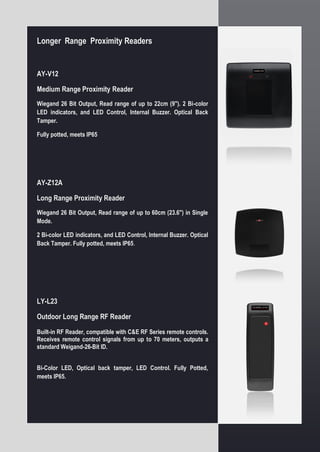

9. Longer Range Proximity Readers
AY-V12
Medium Range Proximity Reader
Wiegand 26 Bit Output, Read range of up to 22cm (9"). 2 Bi-color
LED indicators, and LED Control, Internal Buzzer. Optical Back
Tamper.
Fully potted, meets IP65
AY-Z12A
Long Range Proximity Reader
Wiegand 26 Bit Output, Read range of up to 60cm (23.6") in Single
Mode.
2 Bi-color LED indicators, and LED Control, Internal Buzzer. Optical
Back Tamper. Fully potted, meets IP65.
LY-L23
Outdoor Long Range RF Reader
Built-in RF Reader, compatible with C&E RF Series remote controls.
Receives remote control signals from up to 70 meters, outputs a
standard Weigand-26-Bit ID.
Bi-Color LED, Optical back tamper, LED Control. Fully Potted,
meets IP65.

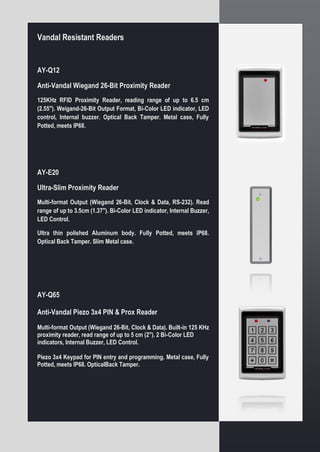

10. Vandal Resistant Readers
AY-Q12
Anti-Vandal Wiegand 26-Bit Proximity Reader
125KHz RFID Proximity Reader, reading range of up to 6.5 cm
(2.55"). Weigand-26-Bit Output Format, Bi-Color LED indicator, LED
control, Internal buzzer. Optical Back Tamper. Metal case, Fully
Potted, meets IP68.
AY-E20
Ultra-Slim Proximity Reader
Multi-format Output (Wiegand 26-Bit, Clock & Data, RS-232). Read
range of up to 3.5cm (1.37"). Bi-Color LED indicator, Internal Buzzer,
LED Control.
Ultra thin polished Aluminum body. Fully Potted, meets IP68.
Optical Back Tamper. Slim Metal case.
AY-Q65
Anti-Vandal Piezo 3x4 PIN & Prox Reader
Multi-format Output (Wiegand 26-Bit, Clock & Data). Built-in 125 KHz
proximity reader, read range of up to 5 cm (2"). 2 Bi-Color LED
indicators, Internal Buzzer, LED Control.
Piezo 3x4 Keypad for PIN entry and programming. Metal case, Fully
Potted, meets IP68. OpticalBack Tamper.

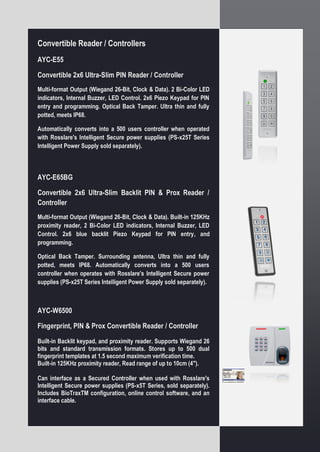

11. Convertible Reader / Controllers
AYC-E55
Convertible 2x6 Ultra-Slim PIN Reader / Controller
Multi-format Output (Wiegand 26-Bit, Clock & Data). 2 Bi-Color LED
indicators, Internal Buzzer, LED Control. 2x6 Piezo Keypad for PIN
entry and programming. Optical Back Tamper. Ultra thin and fully
potted, meets IP68.
Automatically converts into a 500 users controller when operated
with Rosslare's Intelligent Secure power supplies (PS-x25T Series
Intelligent Power Supply sold separately).
AYC-E65BG
Convertible 2x6 Ultra-Slim Backlit PIN & Prox Reader /
Controller
Multi-format Output (Wiegand 26-Bit, Clock & Data). Built-in 125KHz
proximity reader, 2 Bi-Color LED indicators, Internal Buzzer, LED
Control. 2x6 blue backlit Piezo Keypad for PIN entry, and
programming.
Optical Back Tamper. Surrounding antenna, Ultra thin and fully
potted, meets IP68. Automatically converts into a 500 users
controller when operates with Rosslare's Intelligent Secure power
supplies (PS-x25T Series Intelligent Power Supply sold separately).
AYC-W6500
Fingerprint, PIN & Prox Convertible Reader / Controller
Built-in Backlit keypad, and proximity reader. Supports Wiegand 26
bits and standard transmission formats. Stores up to 500 dual
fingerprint templates at 1.5 second maximum verification time.
Built-in 125KHz proximity reader, Read range of up to 10cm (4").
Can interface as a Secured Controller when used with Rosslare's
Intelligent Secure power supplies (PS-x5T Series, sold separately).
Includes BioTraxTM configuration, online control software, and an
interface cable.

12. Convertible Reader / Controllers
AYC-Q54B
Multi-format Output (Wiegand 26-Bit, Clock & Data). 2 Bi-Color LED
indicators, Internal Buzzer, LED Control. 3x4 Blue Backlit Keypad
for PIN entry and programming. Fully Potted, meets IP65. Optical
Back Tamper.
Automatically converts into a 500 user controller when operates
with Rosslare's Intelligent Secure power supplies (PS-x25T Series
Intelligent Power Supply sold separately).
AYC-Q64B
Multi-format Output (Wiegand 26-Bit, Clock & Data). Built-in 125KHz
proximity reader, Read range of up to 5cm (2"). 2 Bi-Color LED
indicators, Internal Buzzer, LED Control. 3x4 Blue Backlit Keypad
for PIN entry and programming. Fully Potted, meets IP65. Optical
Tamper.
Automatically converts into a 500 users controller when operates
with Rosslare's Intelligent Secure power supplies (PS-AYC-Q64B
x25T Series Intelligent Power Supply sold separately).
AYC-G64
Convertible 2x6 Backlit PIN & Prox Reader / Controller
Multi-format Output (Wiegand 26-Bit, Clock & Data). Built-in 125KHz
proximity reader, Read range of up to 10cm (4"). 2 Bi-Color LED
indicators, Internal Buzzer, LED Control. 2x6 Backlit Keypad for PIN
entry and programming. Optical Back Tamper. Waterproof and
Rugged,
meets IP65. Automatically converts into a 500 users controller when
operates with Rosslare's Intelligent Secure power supplies (PS-x5T
Series, sold separately).

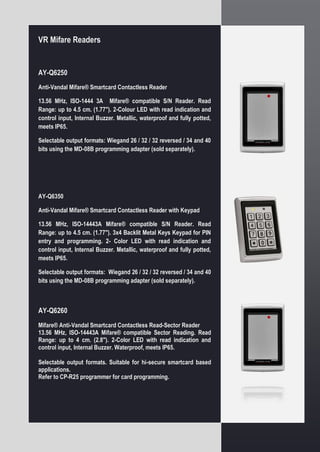

13. VR Mifare Readers
AY-Q6250
Anti-Vandal Mifare® Smartcard Contactless Reader
13.56 MHz, ISO-1444 3A Mifare® compatible S/N Reader. Read
Range: up to 4.5 cm. (1.77"). 2-Colour LED with read indication and
control input, Internal Buzzer. Metallic, waterproof and fully potted,
meets IP65.
Selectable output formats: Wiegand 26 / 32 / 32 reversed / 34 and 40
bits using the MD-08B programming adapter (sold separately).
AY-Q6350
Anti-Vandal Mifare® Smartcard Contactless Reader with Keypad
13.56 MHz, ISO-14443A Mifare® compatible S/N Reader. Read
Range: up to 4.5 cm. (1.77"). 3x4 Backlit Metal Keys Keypad for PIN
entry and programming. 2- Color LED with read indication and
control input, Internal Buzzer. Metallic, waterproof and fully potted,
meets IP65.
Selectable output formats: Wiegand 26 / 32 / 32 reversed / 34 and 40
bits using the MD-08B programming adapter (sold separately).
AY-Q6260
Mifare® Anti-Vandal Smartcard Contactless Read-Sector Reader
13.56 MHz, ISO-14443A Mifare® compatible Sector Reading. Read
Range: up to 4 cm. (2.8"). 2-Color LED with read indication and
control input, Internal Buzzer. Waterproof, meets IP65.
Selectable output formats. Suitable for hi-secure smartcard based
applications.
Refer to CP-R25 programmer for card programming.

14. VR Standalone Controllers
AC-Q41 SB Anti-Vandal Slim Backlit PIN Standalone
Controller
500 dual-code users, Slim Profile, 2 x 2Amp Relays, 2 Inputs with
user programmable logic. 2 Bi-Color LED indicators, metal 3x4 Blue
backlit keypad, local programming menu. 3 user levels and 3
security levels, Operation voltage range of 12-24 VAC or 12-24 VDC,
Optical tamper. Door Bell key function ( '*' key forBL-D40 Sounder).
Built-in Heater for low temperature environment. Fully potted, meets
IP65
AC-Q41HB
As above but has a Terminal block interface for wiring. Meets IP54.
AC-Q42SB
Anti-Vandal Slim Backlit PIN & Prox Standalone Controller
500 dual-code users, Slim Profile, 2 x 2Amp Relays, 2 Inputs with
user programmable logic. 2 Bi-Color LED indicators, metal Blue
Backlit 3x4 keypad, local programming menu.
Built-in 125 KHz proximity reader, with a read range of up to 5 cm
(2"). 3 user levels and 3 security levels, Operation voltage range of
16-24 VAC or 12-24 VDC, Optical tamper. Door Bell key function (
'*'key for BL-D40 Sounder).
Built-in Heater for low temperature environment. Fully potted, meets
IP65.
AC-Q42HB
As above but has a Terminal block interface for wiring. Meets IP54.

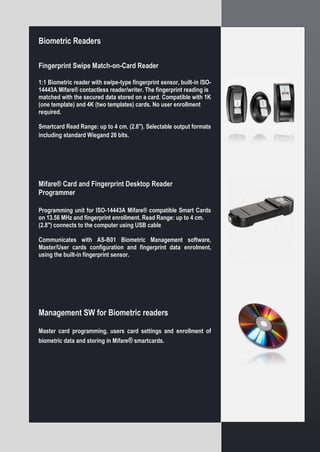

15. Biometric Readers
Fingerprint Swipe Match-on-Card Reader
1:1 Biometric reader with swipe-type fingerprint sensor, built-in ISO-
14443A Mifare® contactless reader/writer. The fingerprint reading is
matched with the secured data stored on a card. Compatible with 1K
(one template) and 4K (two templates) cards. No user enrollment
required.
Smartcard Read Range: up to 4 cm. (2.8"). Selectable output formats
including standard Wiegand 26 bits.
Mifare® Card and Fingerprint Desktop Reader
Programmer
Programming unit for ISO-14443A Mifare® compatible Smart Cards
on 13.56 MHz and fingerprint enrollment. Read Range: up to 4 cm.
(2.8") connects to the computer using USB cable
Communicates with AS-B01 Biometric Management software,
Master/User cards configuration and fingerprint data enrolment,
using the built-in fingerprint sensor.
Management SW for Biometric readers
Master card programming, users card settings and enrollment of
biometric data and storing in Mifare® smartcards.

16. Remote Communicator / Storage Station
Custom Security Codes for Each Unit.
Internal Real Time Calendar/Clock with Battery
Backup.
Advanced Microprocessor electronics Large
Embedded Internal Memory - can hold data from
over 32 full Readers (256,000 time-stamped events).
Battery backup - downloaded events can be stored
for up to 6 months when the DC input power is
removed...
Attractive design concept integrates all components
into one compact set.
User friendly operation.
The GC-50 DigiToolTM Data Storage “Station” with
integrated modem is an optimised hardware solution
for managing a distributed DigiToolTM Guard Patrol
monitoring system over a large geographic area.
Each GC-50 supports one GC-02 DigiToolTM
Downloader. Once the GC-02 is connected to the
GC-50, then the set can be installed in a remote
location, which is connected to DC power and to the
Public Switch Telephone Network (PSTN) system for
remote communications
Please be aware that the Digital Event Book and
Remote Communicator/Storage Station are only
supported by the Digitool Call Center Software.
Please refer to the Software Options page.

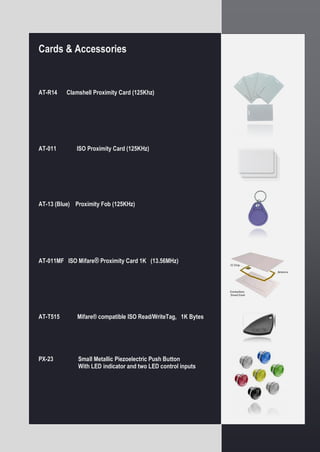

Cards & Accessories
AT-R14 Clamshell Proximity Card (125Khz)
AT-011 ISO Proximity Card (125KHz)
AT-13 (Blue) Proximity Fob (125KHz)
AT-011MF ISO Mifare® Proximity Card 1K (13.56MHz)
AT-T515 Mifare® compatible ISO Read/WriteTag, 1K Bytes
PX-23 Small Metallic Piezoelectric Push Button
With LED indicator and two LED control inputs

17. Contact Us
Reader Options Ltd
Unit E7
9 Nimrod Way
Ferndown
Dorset
BH21 7WH
UK
Telephone Number
0800 817 4259
Fax Number
0844 736 5729
Email : sales@readeroptions.com
Website: www.readeroptions.co.uk
