Security Catalogue MAY 2014 EN_2014_CATALOGO_SICUREZZA.indd 1 12/06/14 14:59
2 EN_2014_CATALOGO_SICUREZZA.indd 2 12/06/14 14:59
EN_2014_CATALOGO_SICUREZZA.indd 3 12/06/14 14:59
EN_2014_CATALOGO_SICUREZZA.indd 4 12/06/14 14:59

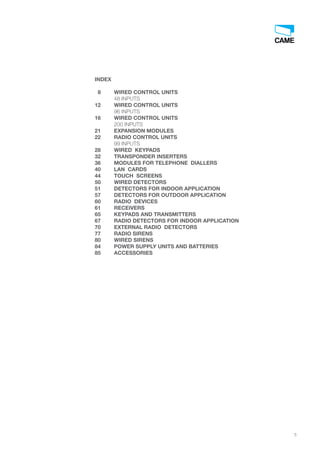

5 INDEX 8 WIRED CONTROL UNITS 48 INPUTS 12 WIRED CONTROL UNITS 96 INPUTS 16 WIRED CONTROL UNITS 200 INPUTS 21 EXPANSION MODULES 22 RADIO CONTROL UNITS 99 INPUTS 28 WIRED KEYPADS 32 TRANSPONDER INSERTERS 36 MODULES FOR TELEPHONE DIALLERS 40 LAN CARDS 44 TOUCH SCREENS 50 WIRED DETECTORS 51 DETECTORS FOR INDOOR APPLICATION 57 DETECTORS FOR OUTDOOR APPLICATION 60 RADIO DEVICES 61 RECEIVERS 65 KEYPADS AND TRANSMITTERS 67 RADIO DETECTORS FOR INDOOR APPLICATION 70 EXTERNAL RADIO DETECTORS 77 RADIO SIRENS 80 WIRED SIRENS 84 POWER SUPPLY UNITS AND BATTERIES 85 ACCESSORIES EN_2014_CATALOGO_SICUREZZA.indd 5 12/06/14 14:59
6 EN_2014_CATALOGO_SICUREZZA.indd 6 12/06/14 14:59

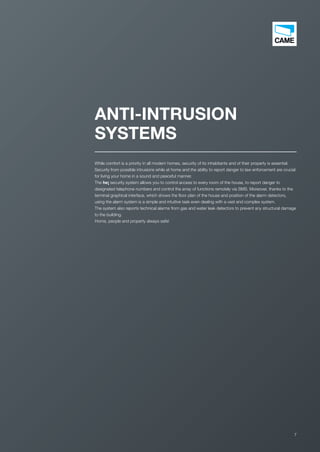

7 ANTI-INTRUSION SYSTEMS While comfort is a priority in all modern homes, security of its inhabitants and of their property is essential. Security from possible intrusions while at home and the ability to report danger to law enforcement are crucial for living your home in a sound and peaceful manner. The he¡ security system allows you to control access to every room of the house, to report danger to designated telephone numbers and control the array of functions remotely via SMS. Moreover, thanks to the terminal graphical interface, which shows the floor plan of the house and position of the alarm detectors, using the alarm system is a simple and intuitive task even dealing with a vast and complex system. The system also reports technical alarms from gas and water leak detectors to prevent any structural damage to the building. Home, people and property always safe! EN_2014_CATALOGO_SICUREZZA.indd 7 12/06/14 14:59
8 WIRED CONTROL UNITS 48 INPUTS EN_2014_CATALOGO_SICUREZZA.indd 8 12/06/14 14:59
9 002SCP8048 Intrusion alarm control unit with 48 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 24 inputs (with 1 001SEXP8 expansion card and 1 001SMR8ICI remote expansion modules, or 2 001SMR8ICI remote expansion modules); 4 outputs - expandable to 20 (with 2 001SMR8O4R expansion modules); 4 areas for system management. 24 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 305 x 215 x 70 mm DESCRIPTION Type 002SCP8048 - 002SCP8048TN - 002SCP8048TB Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 1 Transformer (VA) 20 Current draw (mA) 70 (excluding the battery charging) Battery (Ah) 7.2 Casing material Metal Dimensions (mm) 305x215x70 Weight (kg) 2.7 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 9 12/06/14 14:59

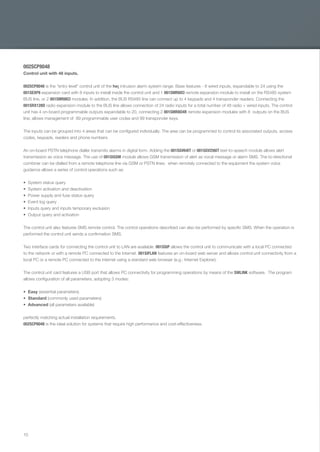

10 002SCP8048 Control unit with 48 inputs. 002SCP8048 is the "entry level" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 24 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 1 001SMR8ICI remote expansion module to install on the RS485 system BUS line, or 2 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 4 keypads and 4 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 24 radio inputs for a total number of 48 radio + wired inputs. The control unit has 4 on-board programmable outputs expandable to 20, connecting 2 001SMR8O4R remote expansion modules with 8 outputs on the BUS line; allows management of 99 programmable user codes and 99 transponder keys. The inputs can be grouped into 4 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8048 is the ideal solution for systems that require high performance and cost-effectiveness. EN_2014_CATALOGO_SICUREZZA.indd 10 12/06/14 14:59
11 001SEXP8 001SIGSM 001SGV64IT 001SGV256IT 0 HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 001STDCSN 002SCP8048 009SSP400 001SLUNA 001STLCDS 001SINTS001SKEYT Up to 4 transponder key inserters Up to 4 keypads RS485 LINE PSTN LINE LAN LINE MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 2 radio modules 001STX003WL 001SRC04WL 0 RS232 LINE 001STS550M SIGSM 0000 2SCP PS 001SIR215WL 001SIGSM GSM LINE Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control. NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 001SIFTS01 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules EN_2014_CATALOGO_SICUREZZA.indd 11 12/06/14 15:00

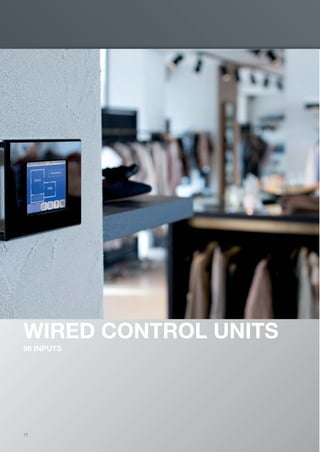

12 WIRED CONTROL UNITS 96 INPUTS EN_2014_CATALOGO_SICUREZZA.indd 12 12/06/14 15:00

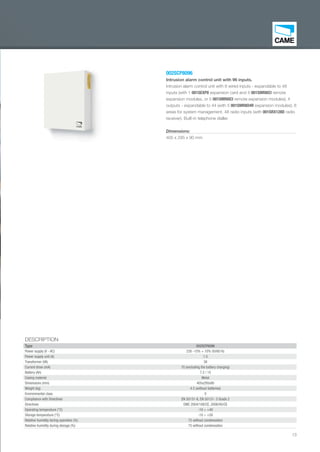

13 002SCP8096 Intrusion alarm control unit with 96 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 48 inputs (with 1 001SEXP8 expansion card and 4 001SMR8ICI remote expansion modules, or 5 001SMR8ICI remote expansion modules); 4 outputs - expandable to 44 (with 5 001SMR8O4R expansion modules); 8 areas for system management. 48 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 405 x 295 x 90 mm DESCRIPTION Type 002SCP8096 Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 1.5 Transformer (VA) 38 Current draw (mA) 70 (excluding the battery charging) Battery (Ah) 7.2 / 15 Casing material Metal Dimensions (mm) 405x295x90 Weight (kg) 4.5 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 13 12/06/14 15:00

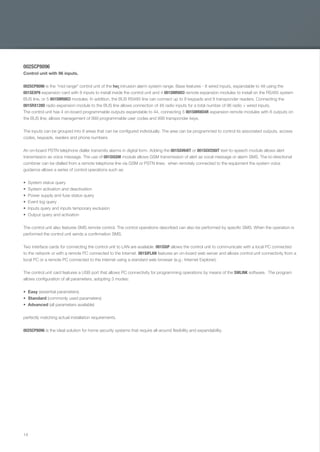

14 002SCP8096 Control unit with 96 inputs. 002SCP8096 is the "mid range" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 48 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 4 001SMR8ICI remote expansion modules to install on the RS485 system BUS line, or 5 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 8 keypads and 8 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 48 radio inputs for a total number of 96 radio + wired inputs. The control unit has 4 on-board programmable outputs expandable to 44, connecting 5 001SMR8O4R expansion remote modules with 8 outputs on the BUS line; allows management of 999 programmable user codes and 999 transponder keys. The inputs can be grouped into 8 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8096 is the ideal solution for home security systems that require all-around flexibility and expandability. EN_2014_CATALOGO_SICUREZZA.indd 14 12/06/14 15:00
15 001SIGSM 001SGV64IT 001SGV256IT 001SIGSM GSM LINE Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control. 001SEXP80 HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 002SCP8096 009SSP400 001SLUNA 001SINTS001SKEYT Up to 8 transponder key inserters RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 8 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 002 PS A d 001SIFTS01 001STLCDS 001SRC04WL 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules 001STDCSN Up to 8 keypads 15 EN_2014_CATALOGO_SICUREZZA.indd 15 12/06/14 15:00

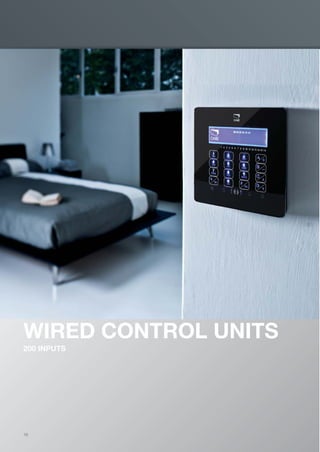

16 16 WIRED CONTROL UNITS 200 INPUTS 16 EN_2014_CATALOGO_SICUREZZA.indd 16 12/06/14 15:00

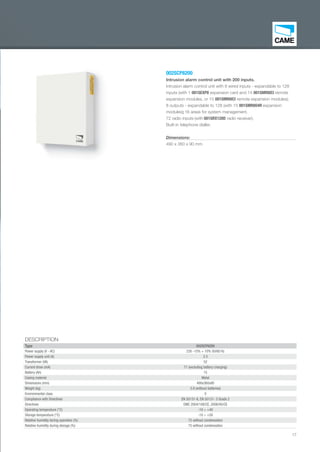

17 002SCP8200 Intrusion alarm control unit with 200 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 128 inputs (with 1 001SEXP8 expansion card and 14 001SMR8ICI remote expansion modules, or 15 001SMR8ICI remote expansion modules); 8 outputs - expandable to 128 (with 15 001SMR8O4R expansion modules); 16 areas for system management. 72 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 490 x 360 x 90 mm DESCRIPTION Type 002SCP8200 Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 2.5 Transformer (VA) 52 Current draw (mA) 71 (excluding battery charging) Battery (Ah) 15 Casing material Metal Dimensions (mm) 490x360x90 Weight (kg) 5.9 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 17 12/06/14 15:00

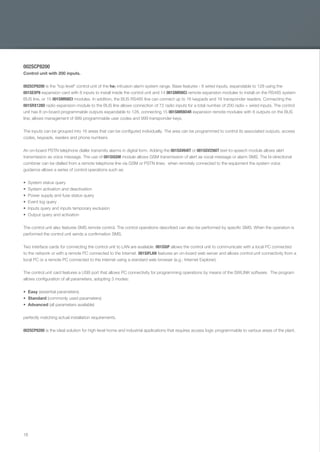

18 002SCP8200 Control unit with 200 inputs. 002SCP8200 is the "top level" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 128 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 14 001SMR8ICI remote expansion modules to install on the RS485 system BUS line, or 15 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 16 keypads and 16 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 72 radio inputs for a total number of 200 radio + wired inputs. The control unit has 8 on-board programmable outputs expandable to 128, connecting 15 001SMR8O4R expansion remote modules with 8 outputs on the BUS line; allows management of 999 programmable user codes and 999 transponder keys. The inputs can be grouped into 16 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8200 is the ideal solution for high-level home and industrial applications that requires access logic programmable to various areas of the plant. EN_2014_CATALOGO_SICUREZZA.indd 18 12/06/14 15:00

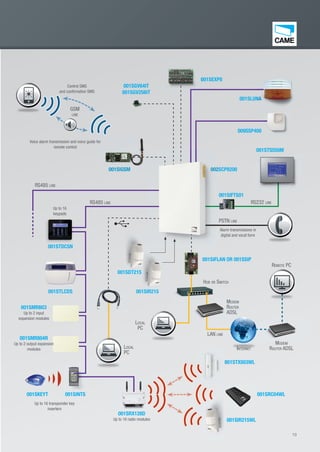

19 001SIGSM 001SGV64IT 001SGV256IT 001SIGSM GSM LINE Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control 001SEXP80 HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 002SCP8200 009SSP400 001SLUNA 001SINTS001SKEYT Up to 16 transponder key inserters RS485 LINE RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 16 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 002 001SIFTS01 001STLCDS 001SRC04WL 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules 001STDCSN Up to 16 keypads EN_2014_CATALOGO_SICUREZZA.indd 19 12/06/14 15:01

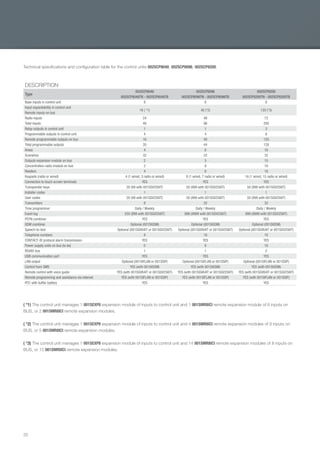

20 Technical specifications and configuration table for the control units 002SCP8048, 002SCP8096, 002SCP8200. DESCRIPTION Type 002SCP8048 002SCP8048TN - 002SCP8048TB 002SCP8096 002SCP8096TN - 002SCP8096TB 002SCP8200 002SCP8200TN - 002SCP8200TB Base inputs in control unit 8 8 8 Input expandability in control unit 16 ( *1) 40 (*2) 120 (*3) Remote inputs on bus Radio inputs 24 48 72 Total inputs 48 96 200 Relay outputs in control unit 1 1 3 Programmable outputs in control unit 4 4 8 Remote programmable outputs on bus 16 40 120 Total programmable outputs 20 44 128 Areas 4 8 16 Scenarios 32 32 32 Outputs expansion module on bus 2 5 15 Concentration radio module on bus 2 8 16 Readers 4 8 16 Keypads (radio or wired) 4 (1 wired, 3 radio or wired) 8 (1 wired, 7 radio or wired) 16 (1 wired, 15 radio or wired) Connection to touch screen terminals YES YES YES Transponder keys 20 (99 with 001SGV256IT) 50 (999 with 001SGV256IT) 50 (999 with 001SGV256IT) Installer codes 1 1 1 User codes 20 (99 with 001SGV256IT) 50 (999 with 001SGV256IT) 50 (999 with 001SGV256IT) Transmitters 8 32 32 Time programmer Daily / Weekly Daily / Weekly Daily / Weekly Event log 250 (999 with 001SGV256IT) 999 (9999 with 001SGV256IT) 999 (9999 with 001SGV256IT) PSTN combiner YES YES YES GSM combiner Optional (001SIGSM) Optional (001SIGSM) Optional (001SIGSM) Speech-to-text Optional (001SGV64IT or 001SGV256IT) Optional (001SGV64IT or 001SGV256IT) Optional (001SGV64IT or 001SGV256IT) Telephone numbers 8 16 16 CONTACT-ID protocol alarm transmission YES YES YES Power supply units on bus (to be) 0 8 16 RS485 bus 1 1 2 USB communication port YES YES YES LAN output Optional (001SIFLAN or 001SSIP) Optional (001SIFLAN or 001SSIP) Optional (001SIFLAN or 001SSIP) Control from SMS YES (with 001SIGSM) YES (with 001SIGSM) YES (with 001SIGSM) Remote control with voice guide YES (with 001SGV64IT or 001SGV256IT) YES (with 001SGV64IT or 001SGV256IT) YES (with 001SGV64IT or 001SGV256IT) Remote programming and assistance via internet YES (with 001SIFLAN or 001SSIP) YES (with 001SIFLAN or 001SSIP) YES (with 001SIFLAN or 001SSIP) RTC with buffer battery YES YES YES ( *1) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 1 001SMR8ICI remote expansion module of 8 inputs on BUS, or 2 001SMR8ICI remote expansion modules. ( *2) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 4 001SMR8ICI remote expansion modules of 8 inputs on BUS, or 5 001SMR8ICI remote expansion modules. ( *3) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 14 001SMR8ICI remote expansion modules of 8 inputs on BUS, or 15 001SMR8ICI remote expansion modules. EN_2014_CATALOGO_SICUREZZA.indd 20 12/06/14 15:01
21 001SEXP8 Expansion card for 8 inputs to control unit. Features 8 individually programmable inputs for control units: 002SCP8048, 002SCP8096, 002SCP8200. Dimensions: 37 x 63 x 23 mm 001SMR8ICI Remote expansion module with 8 inputs. Features 8 individually programmable inputs for control units: 002SCP8048, 002SCP8096, 002SCP8200. With plastic casing. Connection on RS 485 4-cable bus. Dimensions: 22 x 90 x 55 mm 001SMR8O4R Remote expansion module with 8 outputs. Features 8 outputs: 4 relay outputs with NO-NC selectable contacts and 4 open collector outputs, for control units: 002SCP8048, 002SCP8096, 002SCP8200. With plastic casing. Connection on RS485 4-cable bus. Dimensions: 22 x 90 x 55 mm DESCRIPTION Type 001SEXP8 001SMR8ICI 001SMR8O4R 001SRS485 Power supply (V - DC) 12 ÷ 15 Connection to control unit Direct Via RS485 BUS Current draw (mA) 20 40 50 40 Outputs - - 4 open collector outputs and 4 relay outputs - Open collector output operation - - Closes to negative - Open collector output current (mA) - - 50 - Relay output operation - - NO or NC selectable by jumper - Relay contact range - - 0.3 A 60 V AC - 1 A 30 V DC Casing material - Plastic Dimensions (mm) 37x63x23 22x90x55 Weight (g) 26 62 67 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SRS485 RS485 Bus signal amplifier. Recommended for long bus lines (> 400 m) or with several branches. Dimensions: 22 x 90 x 55 mm EXPANSION MODULES EN_2014_CATALOGO_SICUREZZA.indd 21 12/06/14 15:01

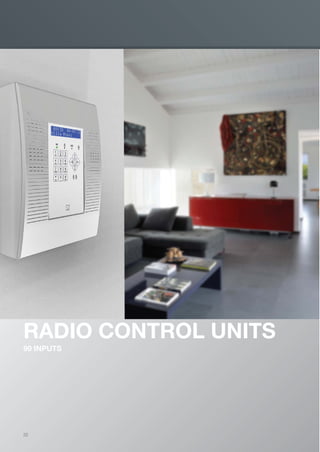

22 RADIO CONTROL UNITS 99 INPUTS EN_2014_CATALOGO_SICUREZZA.indd 22 12/06/14 15:01

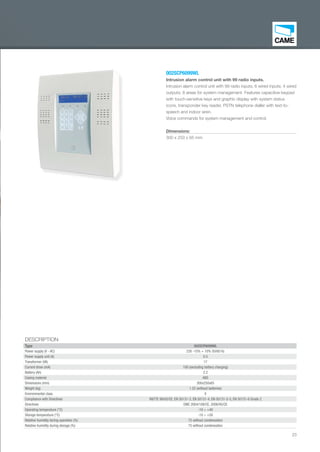

23 002SCP6099WL Intrusion alarm control unit with 99 radio inputs. Intrusion alarm control unit with 99 radio inputs, 6 wired inputs; 4 wired outputs; 8 areas for system management. Features capacitive keypad with touch-sensitive keys and graphic display with system status icons, transponder key reader, PSTN telephone dialler with text-to- speech and indoor siren. Voice commands for system management and control. Dimensions: 300 x 250 x 65 mm DESCRIPTION Type 002SCP6099WL Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 0.5 Transformer (VA) 17 Current draw (mA) 100 (excluding battery charging) Battery (Ah) 2.2 Casing material ABS Dimensions (mm) 300x250x65 Weight (kg) 1.52 (without batteries) Environmental class II Compliance with Directives R&TTE 99/05/CE, EN 50131-3, EN 50131-4, EN 50131-5-3, EN 50131-6 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 002SC Intrusi Intrusio outputs with tou icons, t speech Voice c Dimens 300 x 2 EN_2014_CATALOGO_SICUREZZA.indd 23 12/06/14 15:01

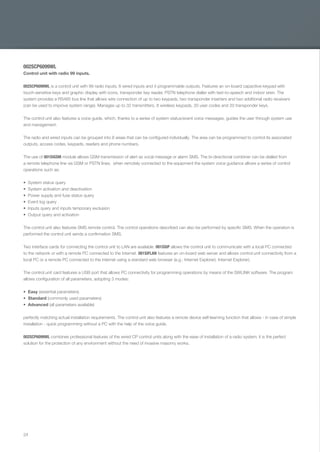

24 002SCP6099WL Control unit with radio 99 inputs. 002SCP6099WL is a control unit with 99 radio inputs, 6 wired inputs and 4 programmable outputs. Features an on-board capacitive keypad with touch-sensitive keys and graphic display with icons, transponder key reader, PSTN telephone dialler with text-to-speech and indoor siren. The system provides a RS485 bus line that allows wire connection of up to two keypads, two transponder inserters and two additional radio receivers (can be used to improve system range). Manages up to 32 transmitters, 8 wireless keypads, 20 user codes and 20 transponder keys. The control unit also features a voice guide, which, thanks to a series of system status/event voice messages, guides the user through system use and management. The radio and wired inputs can be grouped into 8 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. The control unit also features a remote device self-learning function that allows - in case of simple installation - quick programming without a PC with the help of the voice guide. 002SCP6099WL combines professional features of the wired CP control units along with the ease of installation of a radio system; it is the perfect solution for the protection of any environment without the need of invasive masonry works. EN_2014_CATALOGO_SICUREZZA.indd 24 12/06/14 15:01

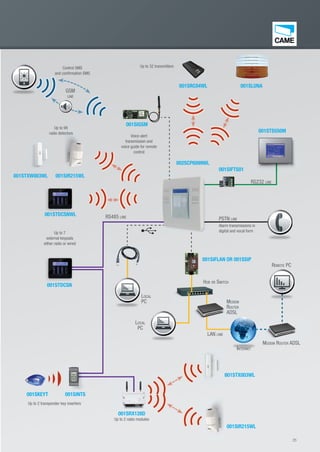

25 2525 001SIGSM HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 002SCP6099WL 001SINTS001SKEYT Up to 2 transponder key inserters RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 2 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL GSM LINE Control SMS and confirmation SMS Voice alert transmission and voice guide for remote control 001SIFLAN OR 001SSIP 001SIFTS01 Up to 32 transmitters 001SIR215WL001STXW003WL 001SLUNA001SRC04WL Up to 99 radio detectors Up to 7 external keypads either radio or wired 001STDCSN 001STDCSNWL001STDCSNW EN_2014_CATALOGO_SICUREZZA.indd 25 12/06/14 15:01

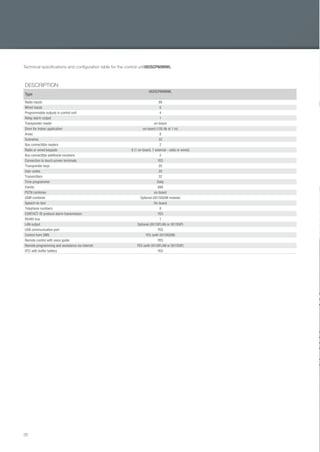

26 Technical specifications and configuration table for the control unit002SCP6099WL. DESCRIPTION Type 002SCP6099WL Radio inputs 99 Wired inputs 6 Programmable outputs in control unit 4 Relay alarm output 1 Transponder reader on-board Siren for indoor application on-board (100 db at 1 m) Areas 8 Scenarios 32 Bus connectible readers 2 Radio or wired keypads 8 (1 on-board, 7 external - radio or wired) Bus connectible additional receivers 2 Connection to touch screen terminals YES Transponder keys 20 User codes 20 Transmitters 32 Time programmer Daily Events 999 PSTN combiner on-board GSM combiner Optional (001SIGSM module) Speech-to-text On-board Telephone numbers 8 CONTACT-ID protocol alarm transmission YES RS485 bus 1 LAN output Optional (001SIFLAN or 001SSIP) USB communication port YES Control from SMS YES (with 001SIGSM) Remote control with voice guide YES Remote programming and assistance via internet YES (with 001SIFLAN or 001SSIP) RTC with buffer battery YES EN_2014_CATALOGO_SICUREZZA.indd 26 12/06/14 15:01
2727 EN_2014_CATALOGO_SICUREZZA.indd 27 12/06/14 15:01
28 WIRED KEYPADS EN_2014_CATALOGO_SICUREZZA.indd 28 12/06/14 15:01

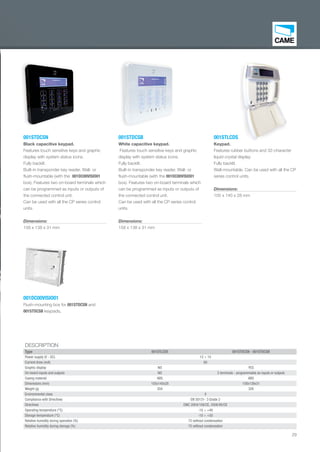

29 001DC00VISIO01 Flush-mounting box for 001STDCSN and 001STDCSB keypads. 001STLCDS Keypad. Features rubber buttons and 32-character liquid crystal display. Fully backlit. Wall-mountable. Can be used with all the CP series control units. Dimensions: 105 x 140 x 28 mm 001STDCSB White capacitive keypad. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall- or flush-mountable (with the 001DC00VISIO01 box). Features two on-board terminals which can be programmed as inputs or outputs of the connected control unit. Can be used with all the CP series control units. Dimensions: 158 x 138 x 31 mm 001STDCSN Black capacitive keypad. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall- or flush-mountable (with the 001DC00VISIO01 box). Features two on-board terminals which can be programmed as inputs or outputs of the connected control unit. Can be used with all the CP series control units. Dimensions: 158 x 138 x 31 mm DESCRIPTION Type 001STLCDS 001STDCSN - 001STDCSB Power supply (V - DC) 12 ÷ 15 Current draw (mA) 60 Graphic display NO YES On-board inputs and outputs NO 2 terminals - programmable as inputs or outputs Casing material ABS ABS Dimensions (mm) 105x140x28 158x138x31 Weight (g) 204 326 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation LCDS d EN_2014_CATALOGO_SICUREZZA.indd 29 12/06/14 15:02

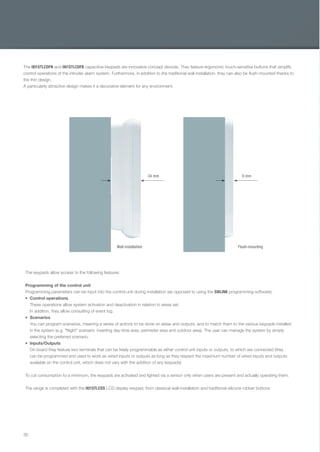

30 The 001STLCDFN and 001STLCDFB capacitive keypads are innovative concept devices. They feature ergonomic touch-sensitive buttons that simplify control operations of the intruder alarm system. Furthermore, in addition to the traditional wall installation, they can also be flush-mounted thanks to the thin design. A particularly attractive design makes it a decorative element for any environment. The keypads allow access to the following features: Programming of the control unit Programming parameters can be input into the control unit during installation (as opposed to using the SWLINK programming software). Control operations These operations allow system activation and deactivation in relation to areas set. In addition, they allow consulting of event log. Scenarios You can program scenarios, meaning a series of actions to be done on areas and outputs, and to match them to the various keypads installed in the system (e.g. "Night" scenario: inserting day-time area, perimeter area and outdoor area). The user can manage the system by simply selecting the preferred scenario. Inputs/Outputs On board they feature two terminals that can be freely programmable as either control unit inputs or outputs, to which are connected (they can be programmed and used to work as wired inputs or outputs as long as they respect the maximum number of wired inputs and outputs available on the control unit, which does not vary with the addition of any keypads) To cut consumption to a minimum, the keypads are activated and lighted via a sensor only when users are present and actually operating them. The range is completed with the 001STLCDS LCD display keypad, from classical wall-installation and traditional silicone rubber buttons Wall-installation Flush-mounting 34 mm 9 mm EN_2014_CATALOGO_SICUREZZA.indd 30 12/06/14 15:02
31313131 EN_2014_CATALOGO_SICUREZZA.indd 31 12/06/14 15:02
32 TRANSPONDER INSERTERS EN_2014_CATALOGO_SICUREZZA.indd 32 12/06/14 15:02

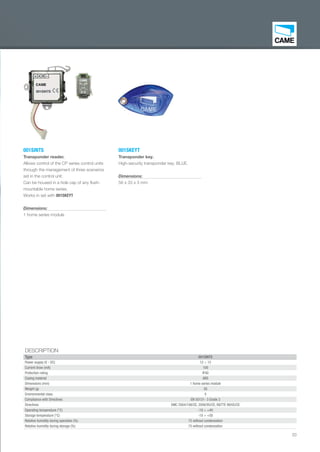

33 DESCRIPTION Type 001SINTS Power supply (V - DC) 12 ÷ 15 Current draw (mA) 100 Protection rating IP40 Casing material ABS Dimensions (mm) 1 home series module Weight (g) 30 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SINTS Transponder reader. Allows control of the CP series control units through the management of three scenarios set in the control unit. Can be housed in a hole cap of any flush- mountable home series. Works in set with 001SKEYT Dimensions: 1 home series module 001SKEYT Transponder key. High-security transponder key, BLUE. Dimensions: 56 x 33 x 3 mm EN_2014_CATALOGO_SICUREZZA.indd 33 12/06/14 15:02

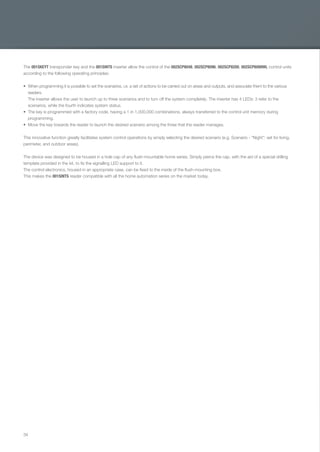

34 The 001SKEYT transponder key and the 001SINTS inserter allow the control of the 002SCP8048, 002SCP8096, 002SCP8200, 002SCP6099WL control units according to the following operating principles: When programming it is possible to set the scenarios, i.e. a set of actions to be carried out on areas and outputs, and associate them to the various readers. The inserter allows the user to launch up to three scenarios and to turn off the system completely. The inserter has 4 LEDs: 3 refer to the scenarios, while the fourth indicates system status. The key is programmed with a factory code, having a 1 in 1,000,000 combinations, always transferred to the control unit memory during programming. Move the key towards the reader to launch the desired scenario among the three that the reader manages. This innovative function greatly facilitates system control operations by simply selecting the desired scenario (e.g. Scenario - "Night": set for living, perimeter, and outdoor areas). The device was designed to be housed in a hole cap of any flush-mountable home series. Simply pierce the cap, with the aid of a special drilling template provided in the kit, to fix the signalling LED support to it. The control electronics, housed in an appropriate case, can be fixed to the inside of the flush-mounting box. This makes the 001SINTS reader compatible with all the home automation series on the market today. EN_2014_CATALOGO_SICUREZZA.indd 34 12/06/14 15:02

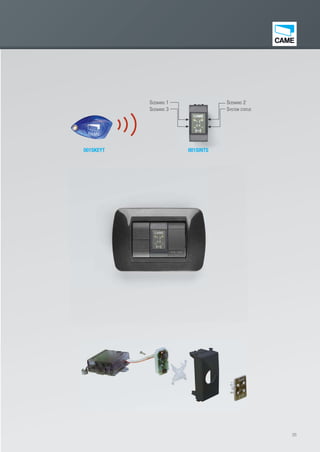

35 001SINTS001SKEYT SCENARIO 1 SCENARIO 3 SCENARIO 2 SYSTEM STATUS EN_2014_CATALOGO_SICUREZZA.indd 35 12/06/14 15:02
36 MODULES FOR TELEPHONE DIALLERS EN_2014_CATALOGO_SICUREZZA.indd 36 12/06/14 15:02

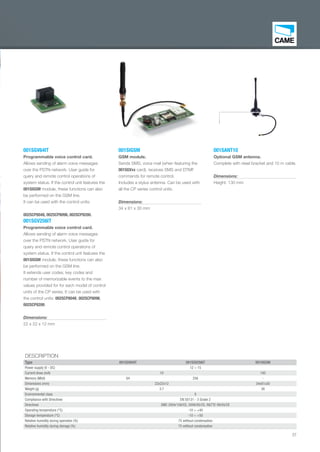

37 001SANT10 Optional GSM antenna. Complete with steel bracket and 10 m cable. Dimensions: Height: 130 mm 001SGV64IT Programmable voice control card. Allows sending of alarm voice messages over the PSTN network. User guide for query and remote control operations of system status. If the control unit features the 001SIGSM module, these functions can also be performed on the GSM line. It can be used with the control units: 002SCP8048, 002SCP8096, 002SCP8200. 001SGV256IT Programmable voice control card. Allows sending of alarm voice messages over the PSTN network. User guide for query and remote control operations of system status. If the control unit features the 001SIGSM module, these functions can also be performed on the GSM line. It extends user codes, key codes and number of memorizable events to the max values provided for for each model of control units of the CP series. It can be used with the control units: 002SCP8048, 002SCP8096, 002SCP8200. Dimensions: 22 x 22 x 12 mm 001SIGSM GSM module. Sends SMS, voice mail (when featuring the 001SGVxx card), receives SMS and DTMF commands for remote control. Includes a stylus antenna. Can be used with all the CP series control units. Dimensions: 34 x 81 x 30 mm DESCRIPTION Type 001SGV64IT 001SGV256IT 001SIGSM Power supply (V - DC) 12 ÷ 15 Current draw (mA) 10 100 Memory (Mbit) 64 256 - Dimensions (mm) 22x22x12 34x81x30 Weight (g) 3.7 38 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 37 12/06/14 15:02

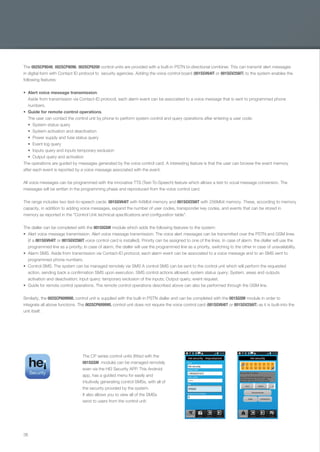

38 The 002SCP8048, 002SCP8096, 002SCP8200 control units are provided with a built-in PSTN bi-directional combiner. This can transmit alert messages in digital form with Contact ID protocol to security agencies. Adding the voice control board (001SGV64IT or 001SGV256IT) to the system enables the following features: Alert voice message transmission. Aside from transmission via Contact-ID protocol, each alarm event can be associated to a voice message that is sent to programmed phone numbers. Guide for remote control operations. The user can contact the control unit by phone to perform system control and query operations after entering a user code: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The operations are guided by messages generated by the voice control card. A interesting feature is that the user can browse the event memory after each event is reported by a voice message associated with the event. All voice messages can be programmed with the innovative TTS (Text-To-Speech) feature which allows a text to vocal message conversion. The messages will be written in the programming phase and reproduced from the voice control card. The range includes two text-to-speech cards: 001SGV64IT with 64Mbit memory and 001SGV256IT with 256Mbit memory. These, according to memory capacity, in addition to adding voice messages, expand the number of user codes, transponder key codes, and events that can be stored in memory as reported in the "Control Unit technical specifications and configuration table". The dialler can be completed with the 001SIGSM module which adds the following features to the system: Alert voice message transmission. Alert voice message transmission. The voice alert messages can be transmitted over the PSTN and GSM lines (if a 001SGV64IT or 001SGV256IT voice control card is installed). Priority can be assigned to one of the lines. In case of alarm, the dialler will use the programmed line as a priority; In case of alarm, the dialler will use the programmed line as a priority, switching to the other in case of unavailability. Alarm SMS. Aside from transmission via Contact-ID protocol, each alarm event can be associated to a voice message and to an SMS sent to programmed phone numbers. Control SMS. The system can be managed remotely via SMS A control SMS can be sent to the control unit which will perform the requested action, sending back a confirmation SMS upon execution. SMS control actions allowed: system status query; System, areas and outputs activation and deactivation; input query; temporary exclusion of the inputs; Output query; event request. Guide for remote control operations. The remote control operations described above can also be performed through the GSM line. Similarly, the 002SCP6099WL control unit is supplied with the built-in PSTN dialler and can be completed with the 001SGSM module in order to integrate all above functions. The 002SCP6099WL control unit does not require the voice control card (001SGV64IT or 001SGV256IT) as it is built-into the unit itself. The CP series control units (fitted with the 001SGSM module) can be managed remotely even via the HEI Security APP. This Android app, has a guided menu for easily and intuitively generating control SMSs, with all of the security provided by the system. It also allows you to view all of the SMSs send to users from the control unit. EN_2014_CATALOGO_SICUREZZA.indd 38 12/06/14 15:02
39 Transmission with digital protocol security monitoring agencies Transmission with digital protocol security monitoring agencies Control SMS and confirmation SMS Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control. Voice alarm transmission and voice guide for remote control Voice transmission of alarms and voice guide for remote control Voice transmission of alarms and voice guide for remote control 001001100110011001100011 0001100011001100110011001 GSM line GSM line PSTN LINE PSTN LINE and c PSSTN LI 002SCP8096 002SCP6099WL 001SIGSM 001SIGSM 001SGV64IT 001SGV256IT EN_2014_CATALOGO_SICUREZZA.indd 39 12/06/14 15:02
40 LAN CARDS EN_2014_CATALOGO_SICUREZZA.indd 40 12/06/14 15:02

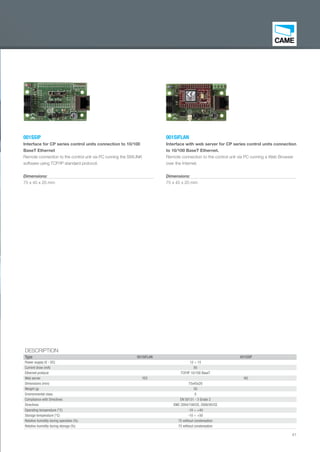

41 001SIFLAN Interface with web server for CP series control units connection to 10/100 BaseT Ethernet. Remote connection to the control unit via PC running a Web Browser over the Internet. Dimensions: 75 x 45 x 20 mm 001SSIP Interface for CP series control units connection to 10/100 BaseT Ethernet Remote connection to the control unit via PC running the SWLINK software using TCP/IP standard protocol. Dimensions: 75 x 45 x 20 mm DESCRIPTION Type 001SIFLAN 001SSIP Power supply (V - DC) 12 ÷ 15 Current draw (mA) 85 Ethernet protocol TCP/IP 10/100 BaseT Web server YES NO Dimensions (mm) 75x45x20 Weight (g) 50 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 41 12/06/14 15:02

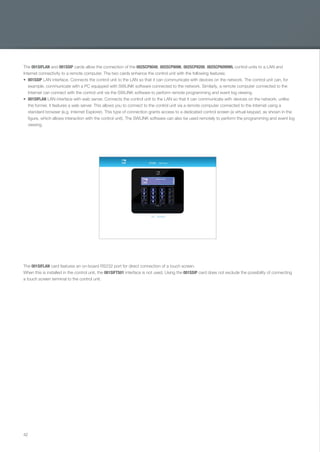

42 The 001SIFLAN and 001SSIP cards allow the connection of the 002SCP8048, 002SCP8096, 002SCP8200, 002SCP6099WL control units to a LAN and Internet connectivity to a remote computer. The two cards enhance the control unit with the following features: 001SSIP LAN interface. Connects the control unit to the LAN so that it can communicate with devices on the network. The control unit can, for example, communicate with a PC equipped with SWLINK software connected to the network. Similarly, a remote computer connected to the Internet can connect with the control unit via the SWLINK software to perform remote programming and event log viewing. 001SIFLAN LAN interface with web server. Connects the control unit to the LAN so that it can communicate with devices on the network; unlike the former, it features a web server. This allows you to connect to the control unit via a remote computer connected to the Internet using a standard browser (e.g. Internet Explorer). This type of connection grants access to a dedicated control screen (a virtual keypad, as shown in the figure, which allows interaction with the control unit). The SWLINK software can also be used remotely to perform the programming and event log viewing. The 001SIFLAN card features an on-board RS232 port for direct connection of a touch screen. When this is installed in the control unit, the 001SIFTS01 interface is not used. Using the 001SSIP card does not exclude the possibility of connecting a touch screen terminal to the control unit. EN_2014_CATALOGO_SICUREZZA.indd 42 12/06/14 15:02
43 001SMR8ICI HUB OR SWITCH HUB OR SWITCH 001SIR215 MODEM ROUTER ADSL MODEM ROUTER ADSL MODEM ROUTER ADSL ADSL MODEM ROUTER REMOTE PC REMOTE PC INTERNET INTERNET RS485 LINE 002SCP8096 RS485 LINE 002SCP809696 RREMOEMOTETE PPCC RREMOEMOTETE PPCC 001SIFLAN 001SSIP 001SIFLAN 001SSIP 002SCP6099WL RS232 LINE RS232 LINE 001STS550M 001STS550M 001STDCSN EN_2014_CATALOGO_SICUREZZA.indd 43 12/06/14 15:03
44 TOUCH SCREENS EN_2014_CATALOGO_SICUREZZA.indd 44 12/06/14 15:03

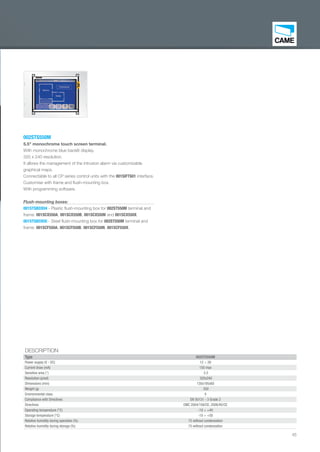

45 002STS550M 5.5" monochrome touch screen terminal. With monochrome blue backlit display. 320 x 240 resolution. It allows the management of the intrusion alarm via customizable graphical maps. Connectable to all CP series control units with the 001SIFTS01 interface. Customise with frame and flush-mounting box. With programming software. Flush-mounting boxes: 001STSBOX04 - Plastic flush-mounting box for 002ST550M terminal and frame: 001SCX550A, 001SCX550B, 001SCX550N and 001SCX550X. 001STSBOX05 - Steel flush-mounting box for 002ST550M terminal and frame: 001SCF550A, 001SCF550B, 001SCF550N, 001SCF550X. DESCRIPTION Type 002STS550M Power supply (V - DC) 12 ÷ 26 Current draw (mA) 150 max Sensitive area (") 5.5 Resolution (pixel) 320x240 Dimensions (mm) 130x195x60 Weight (g) 350 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 45 12/06/14 15:03

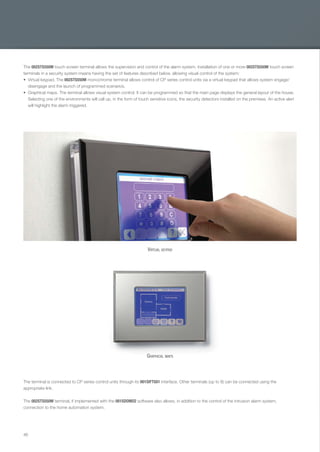

46 The 002STS550M touch screen terminal allows the supervision and control of the alarm system. Installation of one or more 002STS550M touch screen terminals in a security system means having the set of features described below, allowing visual control of the system: Virtual keypad. The 002STS550M monochrome terminal allows control of CP series control units via a virtual keypad that allows system engage/ disengage and the launch of programmed scenarios. Graphical maps. The terminal allows visual system control. It can be programmed so that the main page displays the general layout of the house. Selecting one of the environments will call up, in the form of touch sensitive icons, the security detectors installed on the premises. An active alert will highlight the alarm triggered. The terminal is connected to CP series control units through its 001SIFTS01 interface. Other terminals (up to 8) can be connected using the appropriate link. The 002STS550M terminal, if implemented with the 001SDOMO2 software also allows, in addition to the control of the intrusion alarm system, connection to the home automation system. VIRTUAL KEYPAD GRAPHICAL MAPS EN_2014_CATALOGO_SICUREZZA.indd 46 12/06/14 15:03

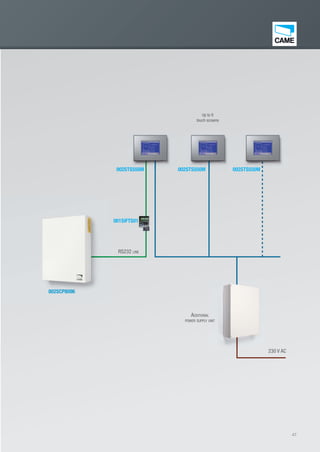

47 RS232 LINE 230 V AC 002SCP8096 002STS550M 002STS550M 002STS550M ADDITIONAL POWER SUPPLY UNITNIT 0002S2SCPCP80809696 Up to 8 touch screens 001SIFTS01 EN_2014_CATALOGO_SICUREZZA.indd 47 12/06/14 15:03

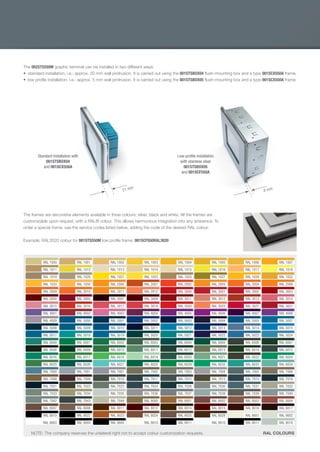

48 The 002STS550M graphic terminal can be installed in two different ways: standard installation, i.e.: approx. 20 mm wall protrusion. It is carried out using the 001STSBOX04 flush-mounting box and a type 001SCX550A frame. low profile installation, i.e.: approx. 5 mm wall protrusion. It is carried out using the 001STSBOX05 flush-mounting box and a type 001SCX550A frame. The frames are decorative elements available in three colours: silver, black and white. All the frames are customizable upon request, with a RAL® colour. This allows harmonious integration into any ambience. To order a special frame, use the service codes listed below, adding the code of the desired RAL colour. Example: RAL3020 colour for 001STS550M low profile frame: 001SCF550RAL3020 RAL COLOURS RAL 1007RAL 1006RAL 1005RAL 1004RAL 1003RAL 1002RAL 1001RAL 1000 RAL 1018RAL 1017RAL 1016RAL 1015RAL 1014RAL 1013RAL 1012RAL 1011 RAL 1032RAL 1028RAL 1027RAL 1024RAL 1023RAL 1021RAL 1020RAL 1019 RAL 2008RAL 2004RAL 2003RAL 2002RAL 2001RAL 2000RAL 1034RAL 1033 RAL 3003RAL 3002RAL 3001RAL 3000RAL 2012RAL 2011RAL 2010RAL 2009 RAL 3014RAL 3013RAL 3012RAL 3011RAL 3009RAL 3007RAL 3005RAL 3004 RAL 3031RAL 3027RAL 3022RAL 3020RAL 3018RAL 3017RAL 3016RAL 3015 RAL 4008RAL 4007RAL 4006RAL 4005RAL 4004RAL 4003RAL 4002RAL 4001 RAL 5007RAL 5005RAL 5004RAL 5003RAL 5002RAL 5001RAL 5000RAL 4009 RAL 5015RAL 5014RAL 5013RAL 5012RAL 5011RAL 5010RAL 5009RAL 5008 RAL 5024RAL 5023RAL 5022RAL 5021RAL 5020RAL 5019RAL 5018RAL 5017 RAL 6007RAL 6006RAL 6005RAL 6004RAL 6003RAL 6002RAL 6001RAL 6000 RAL 6015RAL 6014RAL 6013RAL 6012RAL 6011RAL 6010RAL 6009RAL 6008 RAL 6024RAL 6022RAL 6021RAL 6020RAL 6019RAL 6018RAL 6017RAL 6016 RAL 6034RAL 6033RAL 6032RAL 6029RAL 6028RAL 6027RAL 6026RAL 6025 RAL 7006RAL 7005RAL 7004RAL 7003RAL 7002RAL 7001RAL 7001RAL 7000 RAL 7016RAL 7015RAL 7013RAL 7012RAL 7011RAL 7010RAL 7009RAL 7008 RAL 7032RAL 7031RAL 7030RAL 7026RAL 7024RAL 7023RAL 7022RAL 7021 RAL 7040RAL 7039RAL 7038RAL 7037RAL 7036RAL 7035RAL 7034RAL 7033 RAL 8004RAL 8003RAL 8002RAL 8001RAL 8000RAL 7044RAL 7043RAL 7042 RAL 8017RAL 8016RAL 8015RAL 8014RAL 8012RAL 8011RAL 8008RAL 8007 RAL 9002RAL 9001RAL 8028RAL 8025RAL 8024RAL 8023RAL 8022RAL 8019 RAL 9018RAL 9017RAL 9016RAL 9011RAL 9010RAL 9005RAL 9004RAL 9003 21 mm X04 flush-mounting box and a type 001SCX550 X05 flush-mounting box and a type 001SCX550 8 mm Standard Installation with 001STSBOX04 and 001SCX550A Low-profile installation with stainless steel 001STSBOX05 and 001SCF550A NOTE: The company reserves the unilateral right not to accept colour customization requests. EN_2014_CATALOGO_SICUREZZA.indd 48 12/06/14 15:03

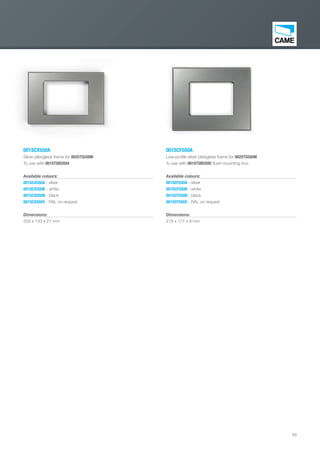

49 001SCF550A Low-profile silver plexiglass frame for 002STS550M To use with 001STSBOX05 flush-mounting box. Available colours: 001SCF550A - silver 001SCF550B - white 001SCF550N - black 001SCF550X - RAL on request Dimensions: 218 x 177 x 8 mm 001SCX550A Silver plexiglass frame for 002STS550M To use with 001STSBOX04 Available colours: 001SCX550A - silver 001SCX550B - white 001SCX550N - black 001SCX550X - RAL on request Dimensions: 209 x 143 x 21 mm EN_2014_CATALOGO_SICUREZZA.indd 49 12/06/14 15:03

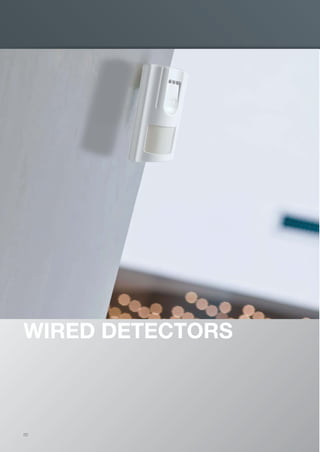

50 WIRED DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 50 12/06/14 15:03

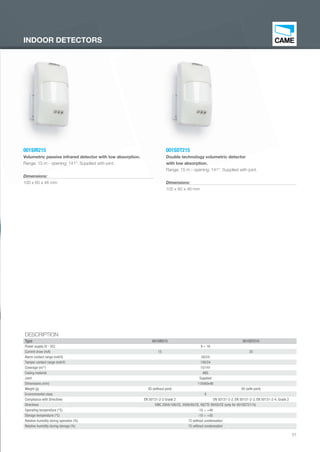

51 001SIR215 Volumetric passive infrared detector with low absorption. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 100 x 60 x 46 mm 001SDT215 Double technology volumetric detector with low absorption. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 100 x 60 x 46 mm DESCRIPTION Type 001SIR215 001SDT215 Power supply (V - DC) 9 ÷ 16 Current draw (mA) 15 25 Alarm contact range (mA/V) 50/24 Tamper contact range (mA/V) 100/24 Coverage (m/°) 15/141 Casing material ABS Joint Supplied Dimensions (mm) 110x60x46 Weight (g) 85 (without joint) 95 (with joint) Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-2, EN 50131-2-3, EN 50131-2-4, Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE (only for 001SDT2115) Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation INDOOR DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 51 12/06/14 15:03

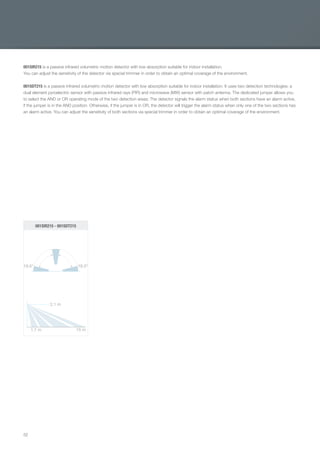

52 001SIR215 is a passive infrared volumetric motion detector with low absorption suitable for indoor installation. You can adjust the sensitivity of the detector via special trimmer in order to obtain an optimal coverage of the environment. 001SDT215 is a passive infrared volumetric motion detector with low absorption suitable for indoor installation. It uses two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The dedicated jumper allows you to select the AND or OR operating mode of the two detection areas; The detector signals the alarm status when both sections have an alarm active, if the jumper is in the AND position. Otherwise, if the jumper is in OR, the detector will trigger the alarm status when only one of the two sections has an alarm active. You can adjust the sensitivity of both sections via special trimmer in order to obtain an optimal coverage of the environment. 001SIR215 - 001SDT215 19.5° 19.5° 15 m1.7 m 2.1 m EN_2014_CATALOGO_SICUREZZA.indd 52 12/06/14 15:03

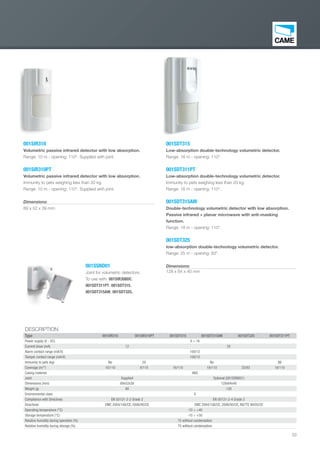

53 001SIR310 Volumetric passive infrared detector with low absorption. Range: 10 m - opening: 110°. Supplied with joint. 001SIR310PT Volumetric passive infrared detector with low absorption. Immunity to pets weighing less than 20 kg. Range: 10 m - opening: 110°. Supplied with joint. Dimensions: 89 x 52 x 39 mm 001SSND01 Joint for volumetric detectors. To use with: 001SIR308DC, 001SDT311PT, 001SDT315, 001SDT315AM, 001SDT325. DESCRIPTION Type 001SIR310 001SIR310PT 001SDT315 001SDT315AM 001SDT325 001SDT311PT Power supply (V - DC) 9 ÷ 16 Current draw (mA) 12 25 Alarm contact range (mA/V) 100/12 Tamper contact range (mA/V) 100/12 Immunity to pets (kg) No 20 No 20 Coverage (m/°) 10/110 8/110 16/110 18/110 25/83 16/110 Casing material ABS Joint Supplied Optional (001SSND01) Dimensions (mm) 89x52x39 128x64x40 Weight (g) 90 130 Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-4 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SDT315 Low-absorption double-technology volumetric detector. Range: 16 m - opening: 110°. 001SDT311PT Low-absorption double-technology volumetric detector. Immunity to pets weighing less than 20 kg. Range: 16 m - opening: 110°. 001SDT315AM Double-technology volumetric detector with low absorption. Passive infrared + planar microwave with anti-masking function. Range: 18 m - opening: 110°. 001SDT325 low-absorption double-technology volumetric detector. Range: 25 m - opening: 83°. Dimensions: 128 x 64 x 40 mm EN_2014_CATALOGO_SICUREZZA.indd 53 12/06/14 15:03
54 001SIR310 is a passive infrared volumetric motion detector with low absorption suitable for indoor installation. It uses a pyroelectric sensor with passive infrared rays (PIR). In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. To avoid false alarms, the number of detections required to trip the alarm can be adjusted. 001SIR310PT is a passive infrared volumetric motion detector with low absorption suitable for indoor environments with pets. 001SIR310, it features a special circuit that evaluates the physical mass of the body detected by avoiding to alarm tripping if an animal weighing less than 20 kg passes through the protected area. 001SDT315, 001SDT311PT, 001SDT315AM, 001SDT325, are volumetric motion detectors with low absorption suitable for indoor installation. Using two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. To avoid false alarms, microwave sensitivity can be adjusted. They have the following features: 001SDT311PT features a special circuit that evaluates the physical mass of the body detected avoiding alarm tripping if an animal weighing less than 20 kg passes through the protected area. 001SDT315AM has a separate circuit able to report any masking attempts. 001SDT325 allows to cover large areas due to the range of 25 m. 001SIR301 - 001SIR310PT 35° 35° top view 10 m0.4 m side view 001SSDT311PT - 001SDT315 35° 35° top view 10/16 m 10/18 m 10/18 m0.4 m 0.4 m 0.4 m side view 001SSDT315AM 35° 35° top view side view 001SSDT325 48° 48° top view side view 2 m 2.5 m 2.5 m 23 m 2.5 m 2.5 m 2.5 m 2.2 m EN_2014_CATALOGO_SICUREZZA.indd 54 12/06/14 15:03

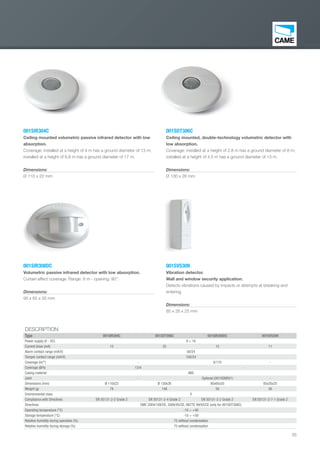

55 001SIR308DC Volumetric passive infrared detector with low absorption. Curtain effect coverage. Range: 8 m - opening: 90°. Dimensions: 95 x 65 x 35 mm 001SIR304C Ceiling mounted volumetric passive infrared detector with low absorption. Coverage: installed at a height of 4 m has a ground diameter of 13 m; installed at a height of 6.8 m has a ground diameter of 17 m. Dimensions: Ø 110 x 22 mm 001SDT306C Ceiling mounted, double-technology volumetric detector with low absorption. Coverage: installed at a height of 2.8 m has a ground diameter of 8 m; installed at a height of 4.5 m has a ground diameter of 13 m. Dimensions: Ø 130 x 26 mm 001SVS309 Vibration detector. Wall and window security application. Detects vibrations caused by impacts or attempts at breaking and entering. Dimensions: 85 x 26 x 25 mm DESCRIPTION Type 001SIR304C 001SDT306C 001SIR308DC 001SVS309 Power supply (V - DC) 9 ÷ 16 Current draw (mA) 15 25 15 11 Alarm contact range (mA/V) 50/24 Tamper contact range (mA/V) 100/24 Coverage (m/°) - 8/170 - Coverage (Ø/h) 13/4 - Casing material ABS Joint - Optional (001SSND01) - Dimensions (mm) Ø 110x22 Ø 130x26 95x65x35 85x26x25 Weight (g) 78 146 58 36 Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-4 Grade 2 EN 50131-2-2 Grade 2 EN 50131-2-7-1 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE (only for 001SDT306C) Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 55 12/06/14 15:03
56 001SIR308DC 5° 5° top view 8 m 0.75 m side viewtop viewtop view 001SIR304C 2.8 m 2.8 m 0 0 4 m 6 m 100° 100° front view front view 001SIR306C 001SIR304C and 001SDT306C are low-absorption volumetric motion detectors for indoor use. When installed on the ceiling allows a 360° coverage. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. They have the following features: 001SIR304C. It uses a dual element pyroelectric sensor with passive infrared rays (PIR). To avoid false alarms, the number of detections required to trip the alarm can be adjusted. 001SDT306C. It uses two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. To avoid false alarms, microwave sensitivity and the number of detections required to trip the alarm can be adjusted. 001SIR308DC is a volumetric motion detector with low absorption suitable for indoor installation with curtain effect coverage for the protection of doors and windows. It uses a dual element pyroelectric sensor with passive infrared rays (PIR). Wall or ceiling installable. It features a circuit for determining transit direction. The user can move freely inside the house while the intruder from outside is regularly detected. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. 001SVS309 is a vibration detector to be installed to protect doors and windows. Suitably positioned in the point to be protected, it detects vibrations arising from attempts of breaking and entering. Alarm trip sensitivity can be adjusted via an on-board trimmer. 7 m 8 m 12 m 17 m 001SV309 EN_2014_CATALOGO_SICUREZZA.indd 56 12/06/14 15:03

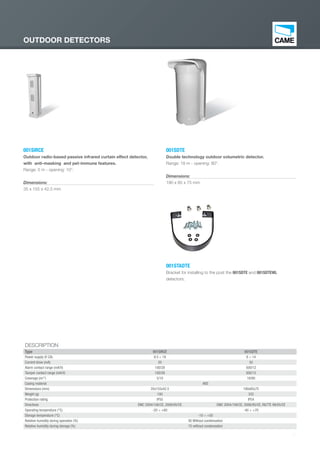

5757 001SIRCE Outdoor radio-based passive infrared curtain effect detector, with anti-masking and pet-immune features. Range: 5 m - opening: 10°. Dimensions: 35 x 155 x 42.5 mm 001SDTE Double technology outdoor volumetric detector. Range: 18 m - opening: 80°. Dimensions: 190 x 85 x 75 mm DESCRIPTION Type 001SIRCE 001SDTE Power supply (V CA) 9.5 ÷ 18 8 ÷ 14 Current draw (mA) 20 50 Alarm contact range (mA/V) 100/28 500/12 Tamper contact range (mA/V) 100/28 500/12 Coverage (m/°) 5/10 18/80 Casing material ABS Dimensions (mm) 35x155x42.5 190x85x75 Weight (g) 100 332 Protection rating IP55 IP54 Directives EMC 2004/108/CE, 2006/95/CE EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -20 ÷ +60 -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation 001STADTE Bracket for installing to the post the 001SDTE and 001SDTEWL detectors. OUTDOOR DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 57 12/06/14 15:03
58 The 001SIRCE is an outdoor curtain-effect motion detector. It uses a dual pyroelectric sensor with passive infrared rays (PIR). The IP55 protection rating and the guaranteed operating temperature (-20° ÷ +60°) make it suitable for outdoor walls and balconies. It comes with the anti-masking feature that automatically triggers the alarm in case the device is masked for over three consecutive minutes. A sophisticated signal processing logic optimizes the detection sensitivity. Every movement is analyzed in detail before triggering the alarm. This prevents false alarms or missed detections making the device immune to environmental and small pet disturbances. Thanks to it special mechanical structure the curtain effect coverage area may be adjusted from two to five meters and rotated along a 190° arc to avoid unwanted detections. The 001SDTE is an outdoor motion detector made with two detection heads, one is passive infrared and the other microwave with planar antenna, each can be oriented to provide the most effective coverage. The special mechanical structure complete with small roof, the IP54 protection rating and the guaranteed operation temperature (-40° ÷ +70°) make it particularly suitable for protecting outdoor walls, balconies and outdoor onto-pole installations. The maximum range of 18 m may be adjusted via special trimmers (one per head) so as to have an optimal coverage depending on the setting you wish to protect. Properly orienting the head also helps avoid alarms and ensures immunity from small household pets. Is supplied with lens cover in plastic, installable on the passive infrared detection head to obtain a curtain effect coverage area. It can be used to further optimize detection and reduce to a minimum any chance of erroneous alarms. top view 95° 95° 190° 0.8 0.8 0 1 2 3 4 5 m 1.0 1.0 1.2 1.2 001SIRCE001SIRCE top view 80° 12 m 0 20 m 12 m 0 2 4 6 8 10 20 m 001SDTE001SDTE 2.5 m Alarm No alarm EN_2014_CATALOGO_SICUREZZA.indd 58 12/06/14 15:04

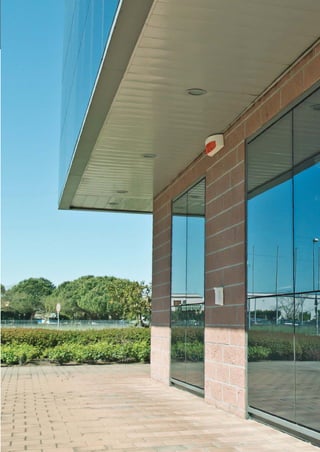

59 EN_2014_CATALOGO_SICUREZZA.indd 59 12/06/14 15:04

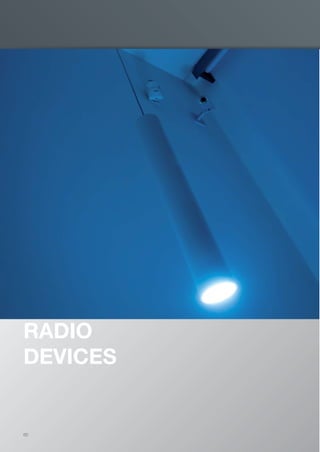

60 RADIO DEVICES EN_2014_CATALOGO_SICUREZZA.indd 60 12/06/14 15:04

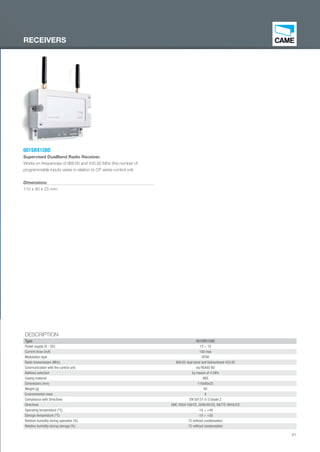

61 DESCRIPTION Type 001SRX128D Power supply (V - DC) 12 ÷ 15 Current draw (mA) 100 max Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Communication with the control unit via RS485 BU Address selection by means of 4 DIPs Casing material ABS Dimensions (mm) 110x80x25 Weight (g) 60 Environmental class II Compliance with Directives EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SRX128D Supervised DualBand Radio Receiver. Works on frequencies of 868.65 and 433.92 MHz (the number of programmable inputs varies in relation to CP series control unit. Dimensions: 110 x 80 x 25 mm RECEIVERS EN_2014_CATALOGO_SICUREZZA.indd 61 12/06/14 15:04

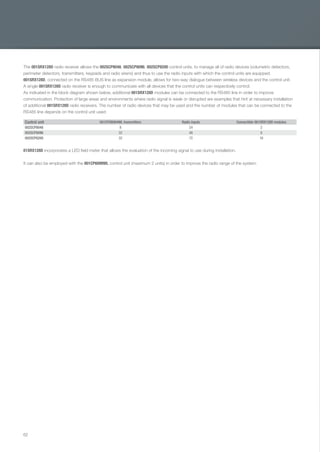

62 The 001SRX128D radio receiver allows the 002SCP8048, 002SCP8096, 002SCP8200 control units, to manage all of radio devices (volumetric detectors, perimeter detectors, transmitters, keypads and radio sirens) and thus to use the radio inputs with which the control units are equipped. 001SRX128D, connected on the RS485 BUS line as expansion module, allows for two-way dialogue between wireless devices and the control unit. A single 001SRX128D radio receiver is enough to communicate with all devices that the control units can respectively control. As indicated in the block diagram shown below, additional 001SRX128D modules can be connected to the RS485 line in order to improve communication. Protection of large areas and environments where radio signal is weak or disrupted are examples that hint at necessary installation of additional 001SRX128D radio receivers. The number of radio devices that may be used and the number of modules that can be connected to the RS485 line depends on the control unit used: 01SRX128D incorporates a LED field meter that allows the evaluation of the incoming signal to use during installation. Control unit 001STHB004WL transmitters Radio inputs Connectible 001SRX128D modules 002SCP8048 8 24 2 002SCP8096 32 48 8 002SCP8200 32 72 16 It can also be employed with the 001CP6099WL control unit (maximum 2 units) in order to improve the radio range of the system. EN_2014_CATALOGO_SICUREZZA.indd 62 12/06/14 15:04
63 RS485 LINE 001SMR804R 001STXW003WL 001STXW003WL 001STHB004WL 001SIR215WL 001SIR215WL 001SMR804R 001SRX128D 001SRX128D 001SRC04WL 01STXW003WL 01STXW003WL RS485 LINE 002SCP8096 001SLUNAWL 001STDCSN 001STDCSNWL001STDCSNW EN_2014_CATALOGO_SICUREZZA.indd 63 12/06/14 15:04
6464 EN_2014_CATALOGO_SICUREZZA.indd 64 12/06/14 15:04

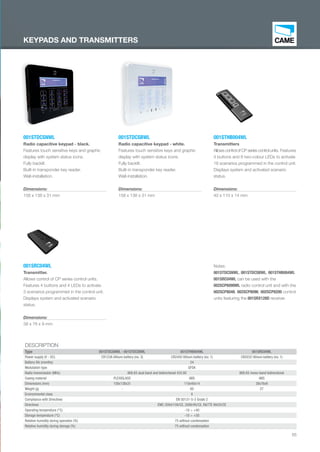

65 KEYPADS AND TRANSMITTERS DESCRIPTION Type 001STDCSNWL - 001STDCSBWL 001STHB004WL 001SRC04WL Power supply (V - DC) CR123A lithium battery (no. 3) CR2450 lithium battery (no. 1) CR2032 lithium battery (no. 1) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 868.65 mono-band bidirectional Casing material PLEXIGLASS ABS ABS Dimensions (mm) 158x138x31 110x40x14 38x76x9 Weight (g) - 60 27 Environmental class II Compliance with Directives EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001STDCSBWL Radio capacitive keypad - white. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall-installation. Dimensions: 158 x 138 x 31 mm 001STDCSNWL Radio capacitive keypad - black. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall-installation. Dimensions: 158 x 138 x 31 mm 001SRC04WL Transmitter. Allows control of CP series control units. Features 4 buttons and 4 LEDs to activate 3 scenarios programmed in the control unit. Displays system and activated scenario status. Dimensions: 38 x 76 x 9 mm Notes: 001STDCSNWL, 001STDCSBWL, 001STHB004WL 001SRC04WL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. 001STHB004WL Transmitters Allows control of CP series control units. Features 4 buttons and 9 two-colour LEDs to activate 16 scenarios programmed in the control unit. Displays system and activated scenario status. Dimensions: 40 x 110 x 14 mm EN_2014_CATALOGO_SICUREZZA.indd 65 12/06/14 15:04
66 001STDCSNWL are 001STDCSBWL the system radio keypads. Made with ergonomic touch capacitive keys, on board they feature a graphic display with system status icons and a transponder-based key reader. In order to reduce power consumption to a minimum and ensure long battery life, the keypads are activated via sensor only when the operator is in front of it. They feature two-way communication with the control unit with modes similar to the detectors, also supervised in the same manner. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D Control unit management is performed via two types of bidirectional transmitters: 001STHB004WL and 001SRC04WL. 001STHB004WL with 9 LEDs on board allows the launch of 16 scenarios programmed in the control unit and provides feedback on system status and activated scenario. Similarly 001SRC04WL with 4 LEDs on board allows the management of 4 scenarios. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. The radio range in open air and in the total absence of band noise is about 200 m for the keypads and 100 m for the transmitters. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 66 12/06/14 15:04
67 DESCRIPTION Type 001SIR215WL 001STXW003WL - 001STXB003WL Power supply (V - DC) 3V6 1/2AA lithium battery Battery life (months) 24 36 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Casing material ABS Dimensions (mm) 60x110x46 28x95x28 Weight (g) 100 80 Environmental class II Compliance with Directives EN 50131-2-2,EN 50131-5-3 Grade 2 EN 50131-2-6,EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001STXW003WL White perimeter radio detector. Window and door security application. In addition to alarm signal transmission, it allows signal transmission of two on-board inputs. Dimensions: 28 x 95 x 28 mm 001STXB003WL BROWN PERIMETER RADIO detector. Window and door security application. In addition to alarm signal transmission, it allows signal transmission of two on-board inputs. Dimensions: 28 x 95 x 28 mm 001SIR215WL Radio volumetric detector. Features the sensibility adjustment and the impulse-counter. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 60 x 110 x 46 mm RADIO DETECTORS FOR INDOOR APPLICATION Notes: 001SIR215WL, 001STXW003WL, 001STXB003WL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. 67 EN_2014_CATALOGO_SICUREZZA.indd 67 12/06/14 15:04

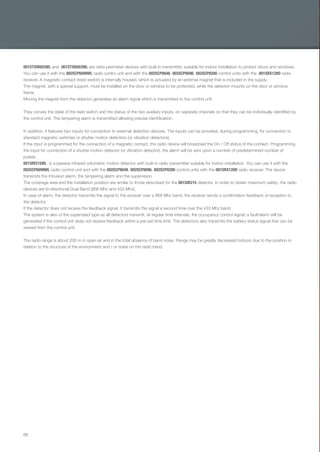

68 001STXW003WL and 001STXB003WL are radio perimeter devices with built-in transmitter, suitable for indoor installation to protect doors and windows. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. A magnetic contact (reed switch) is internally housed, which is actuated by an external magnet that is included in the supply. The magnet, with a special support, must be installed on the door or window to be protected, while the detector mounts on the door or window frame. Moving the magnet from the detector generates an alarm signal which is transmitted to the control unit. They convey the state of the reed switch and the status of the two auxiliary inputs, on separate channels so that they can be individually identified by the control unit. The tampering alarm is transmitted allowing precise identification. In addition, it features two inputs for connection to external detection devices. The inputs can be provided, during programming, for connection to standard magnetic switches or shutter motion detectors (or vibration detectors). If the input is programmed for the connection of a magnetic contact, the radio device will broadcast the On / Off status of the contact. Programming the input for connection of a shutter motion detector (or vibration detector), the alarm will be sent upon a number of predetermined number of pulses. 001SIR215WL is a passive infrared volumetric motion detector with built-in radio transmitter suitable for indoor installation. You can use it with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. The device transmits the intrusion alarm, the tampering alarm and the supervision. The coverage area and the installation position are similar to those described for the 001SIR215 detector. In order to obtain maximum safety, the radio devices are bi-directional Dual Band (868 Mhz and 433 Mhz). In case of alarm, the detector transmits the signal to the receiver over a 868 Mhz band, the receiver sends a confirmation feedback of reception to the detector. If the detector does not receive the feedback signal, it transmits the signal a second time over the 433 Mhz band. The system is also of the supervised type as all detectors transmit, at regular time intervals, the occupancy control signal; a fault/alarm will be generated if the control unit does not receive feedback within a pre-set time limit. The detectors also transmits the battery status signal that can be viewed from the control unit. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 68 12/06/14 15:04
69 EN_2014_CATALOGO_SICUREZZA.indd 69 12/06/14 15:04
70 EXTERNAL RADIO DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 70 12/06/14 15:04
71 001SDTCLWL Radio-based curtain effect double technology detector. Range: 3 m - opening: 28°.. Dimensions: 330 x 40 x 30 mm DESCRIPTION Type 001SDTCLWL Power supply (V - DC) CR123A lithium battery (no.2) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Coverage (m/°) 3/28 Casing material ABS Dimensions (mm) 330x40x30 Weight (g) 202 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation Notes: 001SDTCLWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 wired units featuring the 001SRX128D receiver. EN_2014_CATALOGO_SICUREZZA.indd 71 12/06/14 15:04

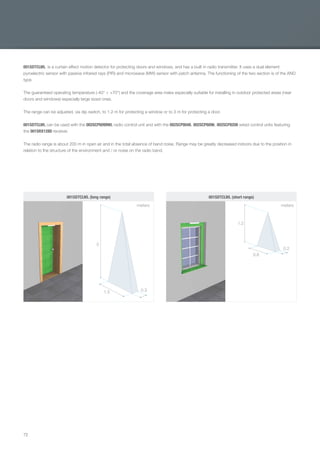

72 001SDTCLWL is a curtain effect motion detector for protecting doors and windows, and has a built in radio transmitter. It uses a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. The guaranteed operating temperature (-40° ÷ +70°) and the coverage area make especially suitable for installing in outdoor protected areas (near doors and windows) especially large sized ones. The range can be adjusted, via dip switch, to 1.2 m for protecting a window or to 3 m for protecting a door. 001SDTCLWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 wired control units featuring the 001SRX128D receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. 001SDTCLWL (short range)001SDTCLWL (long range) 0.31.5 3 meters 0.2 0.8 1.2 meters EN_2014_CATALOGO_SICUREZZA.indd 72 12/06/14 15:04

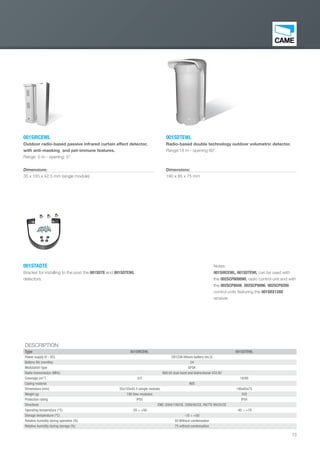

73 001SDTEWL Radio-based double technology outdoor volumetric detector. Range:18 m - opening 80°. Dimensions: 190 x 85 x 75 mm 001SIRCEWL Outdoor radio-based passive infrared curtain effect detector, with anti-masking and pet-immune features. Range: 5 m - opening: 5°. Dimensions: 35 x 155 x 42.5 mm (single module) DESCRIPTION Type 001SIRCEWL 001SDTEWL Power supply (V - DC) CR123A lithium battery (no.2) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Coverage (m/°) 5/5 18/80 Casing material ABS Dimensions (mm) 35x155x42.5 (single module) 190x85x75 Weight (g) 190 (two modules) 332 Protection rating IP55 IP54 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -20 ÷ +60 -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation 001STADTE Bracket for installing to the post the 001SDTE and 001SDTEWL detectors. Notes: 001SIRCEWL, 001SDTEWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. EN_2014_CATALOGO_SICUREZZA.indd 73 12/06/14 15:04

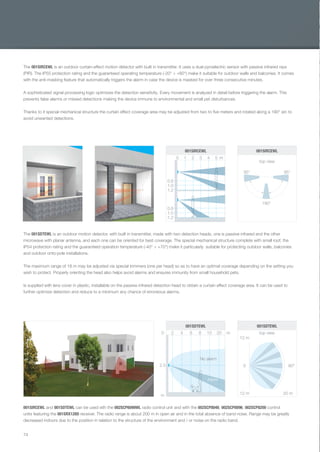

74 The 001SDTEWL is an outdoor motion detector, with built in transmitter, made with two detection heads, one is passive infrared and the other microwave with planar antenna, and each one can be oriented for best coverage. The special mechanical structure complete with small roof, the IP54 protection rating and the guaranteed operation temperature (-40° ÷ +70°) make it particularly suitable for protecting outdoor walls, balconies and outdoor onto-pole installations. The maximum range of 18 m may be adjusted via special trimmers (one per head) so as to have an optimal coverage depending on the setting you wish to protect. Properly orienting the head also helps avoid alarms and ensures immunity from small household pets. Is supplied with lens cover in plastic, installable on the passive infrared detection head to obtain a curtain effect coverage area. It can be used to further optimize detection and reduce to a minimum any chance of erroneous alarms. 001SIRCEWL and 001SDTEWL can be used eith the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. The 001SIRCEWL is an outdoor curtain-effect motion detector with built in transmitter. It uses a dual pyroelectric sensor with passive infrared rays (PIR). The IP55 protection rating and the guaranteed operating temperature (-20° ÷ +60°) make it suitable for outdoor walls and balconies. It comes with the anti-masking feature that automatically triggers the alarm in case the device is masked for over three consecutive minutes. A sophisticated signal processing logic optimizes the detection sensitivity. Every movement is analyzed in detail before triggering the alarm. This prevents false alarms or missed detections making the device immune to environmental and small pet disturbances. Thanks to it special mechanical structure the curtain effect coverage area may be adjusted from two to five meters and rotated along a 190° arc to avoid unwanted detections. top view 95° 95° 190° 0.8 0.8 0 1 2 3 4 5 m 1.0 1.0 1.2 1.2 001SIRCEWL001SIRCEWL top view 80° 12 m 0 20 m 12 m 0 2 4 6 8 10 20 m 001SDTEWL001SDTEWL 2.5 m Alarm No alarm EN_2014_CATALOGO_SICUREZZA.indd 74 12/06/14 15:05

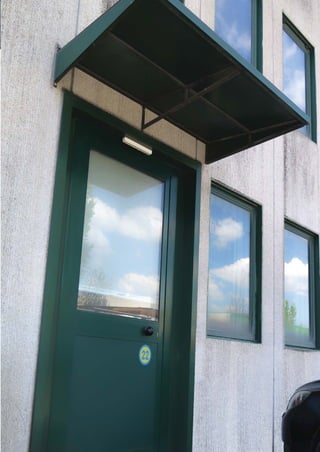

75 EN_2014_CATALOGO_SICUREZZA.indd 75 12/06/14 15:05
76777676767776767666667676667667767676767667676666666667676766666666666767666666666666667666666666666666666666666776666666666676666666666666666666666666 EN_2014_CATALOGO_SICUREZZA.indd 76 12/06/14 15:05

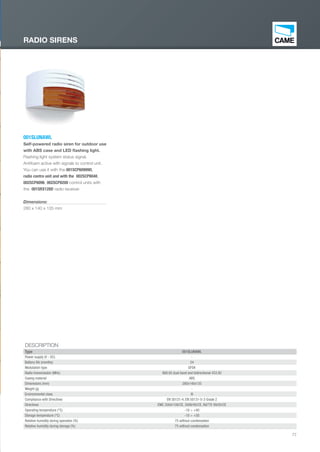

77 001SLUNAWL Self-powered radio siren for outdoor use with ABS case and LED flashing light. Flashing light system status signal. Antifoam active with signals to control unit. You can use it with the 001SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. Dimensions: 280 x 140 x 135 mm RADIO SIRENS DESCRIPTION Type 001SLUNAWL Power supply (V - DC) - Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Casing material ABS Dimensions (mm) 280x140x135 Weight (g) - Environmental class III Compliance with Directives EN 50131-4, EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 77 12/06/14 15:05

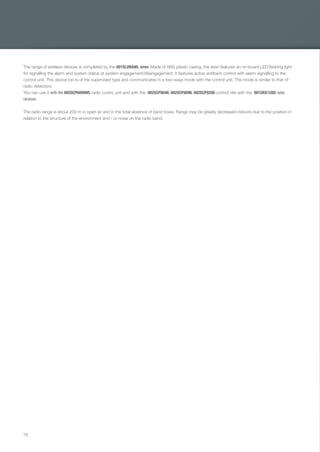

78 The range of wireless devices is completed by the 001SLUNAWL siren. Made of ABS plastic casing, the siren features an on-board LED flashing light for signalling the alarm and system status at system engagement/disengagement. It features active antifoam control with alarm signalling to the control unit. This device too is of the supervised type and communicates in a two-ways mode with the control unit. The mode is similar to that of radio detectors. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control nits with the 001SRX128D radio receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 78 12/06/14 15:05

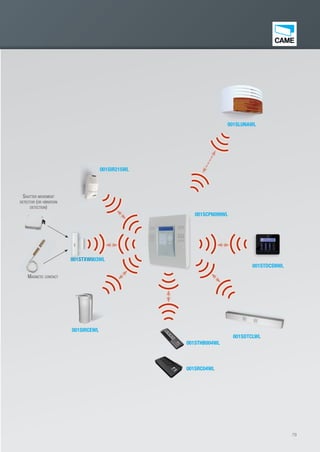

79 001SIR215WL 001STHB004WL 001SCP6099WL 001SRC04WL 001STXW003WL00001S1STXW0 SHUTTER MOVEMENT DETECTOR (OR VIBRATION DETECTION) MAGNETIC CONTACT 001SLUNAWL 001STDCSNWL 001SDTCLWL 001SIRCEWL 79 EN_2014_CATALOGO_SICUREZZA.indd 79 12/06/14 15:05

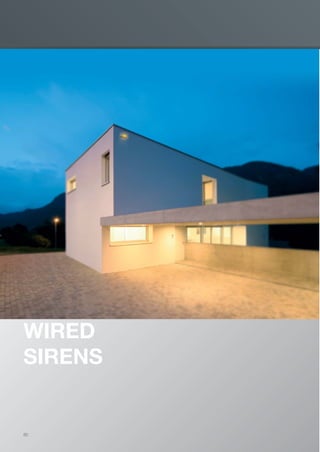

80 WIRED SIRENS EN_2014_CATALOGO_SICUREZZA.indd 80 12/06/14 15:05

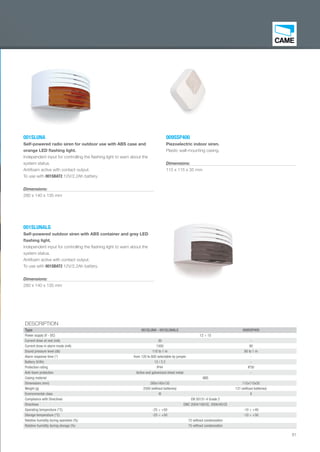

81 001SLUNA Self-powered radio siren for outdoor use with ABS case and orange LED flashing light. Independent input for controlling the flashing light to warn about the system status. Antifoam active with contact output. To use with 001SBAT2 12V/2,2Ah battery. Dimensions: 280 x 140 x 135 mm 001SLUNALG Self-powered outdoor siren with ABS container and grey LED flashing light. Independent input for controlling the flashing light to warn about the system status. Antifoam active with contact output. To use with 001SBAT2 12V/2,2Ah battery. Dimensions: 280 x 140 x 135 mm 009SSP400 Piezoelectric indoor siren. Plastic wall-mounting casing. Dimensions: 115 x 115 x 35 mm DESCRIPTION Type 001SLUNA - 001SLUNALG 009SSP400 Power supply (V - DC) 12 ÷ 15 Current draw at rest (mA) 30 - Current draw in alarm mode (mA) 1500 90 Sound pressure level (db) 110 to 1 m 80 to 1 m Alarm response time (") from 120 to 600 selectable by jumper - Battery (V/Ah) 12 / 2.2 - Protection rating IP44 IP30 Anti-foam protection Active and galvanized sheet metal - Casing material ABS Dimensions (mm) 280x140x135 115x115x35 Weight (g) 2500 (without batteries) 131 (without batteries) Environmental class III II Compliance with Directives EN 50131-4 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -25 ÷ +50 -10 ÷ +40 Storage temperature (°C) -25 ÷ +50 -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 81 12/06/14 15:05
82 001SLUNA is a self-powered siren with flashing light for outdoor installation. The ABS case contains two antifoam protections: the first is constituted by a suitable metal screen able to protect the electronics and the sound system, the second is comprised of a sensor capable of generating, if requested by the foaming material, a tamper alarm output. The flashing light comprises two groups of high-efficiency LEDs that guarantee a practically unlimited service life and allow standard maintenance operations for replacing the lamp to be avoided. The two sections of the flashing light can be controlled from the input of the alarm siren as well as separately via two dedicated inputs. This allows to use the flashing light, not only for the alarm signalling, but also for auxiliary signals sent by the control unit (e.g. system status). 001SLUNA offers protection against removal, against opening and siren block function to be used during installation or maintenance. The operation is determined by a series of dip-switches mounted directly onto the card. CONNECTOR FOR BATTERY CABLES AND CONE TEAR-RESISTANCE AND ANTIFOAM SWITCH TAMPERING PROTECTION SWITCH CONNECTORS FOR LED SIGNALLING LIGHTS DIP-SWITCH POWER SUPPLY AND ACCESSORIES TERMINAL BLOCK BOARD PROTECTION FUSE F 3.15 A BATTERY POLARITY REVERSE PROTECTION FUSE F 3.15 A SIGNALLING LED EN_2014_CATALOGO_SICUREZZA.indd 82 12/06/14 15:05

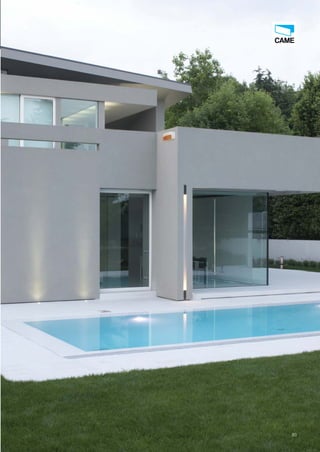

8383 EN_2014_CATALOGO_SICUREZZA.indd 83 12/06/14 15:05

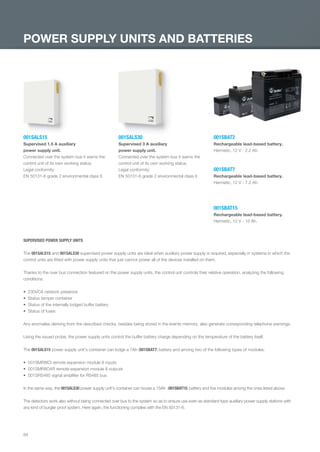

84 POWER SUPPLY UNITS AND BATTERIES 001SALS15 Supervised 1.5 A auxiliary power supply unit. Connected over the system bus it warns the control unit of its own working status. Legal conformity: EN 50131-6 grade 2 environmental class II. 001SALS30 Supervised 3 A auxiliary power supply unit. Connected over the system bus it warns the control unit of its own working status. Legal conformity: EN 50131-6 grade 2 environmental class II. 001SBAT2 Rechargeable lead-based battery. Hermetic, 12 V - 2.2 Ah. 001SBAT7 Rechargeable lead-based battery. Hermetic, 12 V - 7.2 Ah. 001SBAT15 Rechargeable lead-based battery. Hermetic, 12 V - 15 Ah. SUPERVISED POWER SUPPLY UNITS The 001SALS15 and 001SALS30 supervised power supply units are ideal when auxiliary power supply is required, especially in systems in which the control units are fitted with power supply units that just cannot power all of the devices installed on them. Thanks to the over bus connection featured on the power supply units, the control unit controls their relative operation, analyzing the following conditions: 230VCA network presence Status tamper container Status of the internally lodged buffer battery Status of fuses Any anomalies deriving from the described checks, besides being stored in the events memory, also generate corresponding telephone warnings. Using the issued probe, the power supply units control the buffer battery charge depending on the temperature of the battery itself. The 001SALS15 power supply unit's container can lodge a 7Ah (001SBAT7) battery and among two of the following types of modules: 001SMR8ICI remote expansion module 8 inputs 001SMR8O4R remote expansion module 8 outputs 001SRS485 signal amplifier for RS485 bus In the same way, the 001SALS30 power supply unit's container can house a 15Ah (001SBAT15) battery and five modules among the ones listed above. The detectors work also without being connected over bus to the system so as to ensure use even as standard-type auxiliary power supply stations with any kind of burglar proof system. Here again, the functioning complies with the EN 50131-6. EN_2014_CATALOGO_SICUREZZA.indd 84 12/06/14 15:05

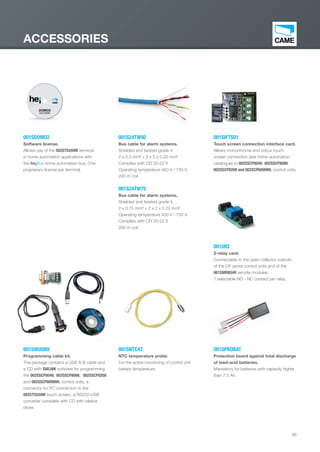

85 ACCESSORIES 001SR2 2-relay card. Connectable to the open collector outputs of the CP series control units and of the 001SMR8O4R remote modules. 1 selectable NO - NC contact per relay. 001SPROBAT Protection board against total discharge of lead-acid batteries. Mandatory for batteries with capacity higher than 7.5 Ah. 001SNTC47 NTC temperature probe. For the active monitoring of control unit battery temperature. 001S24TW50 Bus cable for alarm systems. Shielded and twisted grade 4. 2 x 0.5 mm² + 2 x 2 x 0.22 mm². Complies with CEI 20-22 II. Operating temperature 450 V / 750 V. 200 m coil. 001S24TW75 Bus cable for alarm systems. Shielded and twisted grade 4. 2 x 0.75 mm² + 2 x 2 x 0.22 mm². Operating temperature 450 V / 750 V. Complies with CEI 20-22 II. 200 m coil. 001SIFTS01 Touch screen connection interface card. Allows monochrome and colour touch screen connection (see home automation catalogue) to 002SSCP8048, 002SSCP8096, 002SSCP8200 and 002SCP6099WL control units. 001SDOMO2 Software license. Allows use of the 002STS550M terminal in home automation applications with the he¡Bus home automation bus. One proprietary license per terminal. 001SIRUSB8 Programming cable kit. The package contains a USB A-B cable and a CD with SWLINK software for programming the 002SSCP8048, 002SSCP8096, 002SSCP8200 and 002SSCP6099WL control units, a connector for PC connection to the 002STS550M touch screen, a RS232-USB converter complete with CD with relative driver. EN_2014_CATALOGO_SICUREZZA.indd 85 12/06/14 15:05

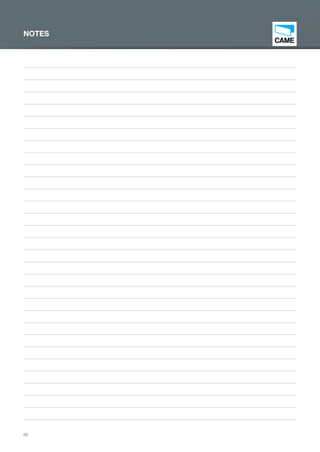

86 NOTES EN_2014_CATALOGO_SICUREZZA.indd 86 12/06/14 15:05

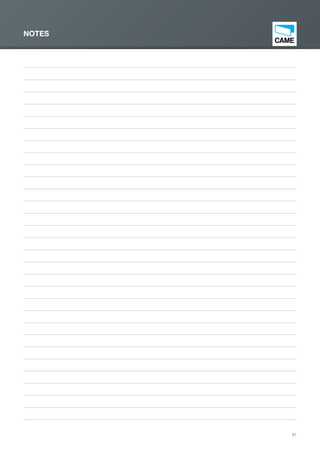

87 NOTES EN_2014_CATALOGO_SICUREZZA.indd 87 12/06/14 15:05

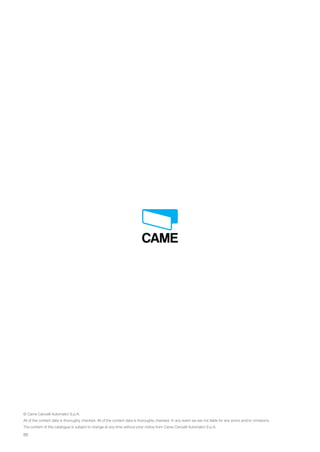

88 © Came Cancelli Automatici S.p.A. All of the content data is thoroughly checked. All of the content data is thoroughly checked. In any event we are not liable for any errors and/or omissions. The content of this catalogue is subject to change at any time without prior notice from Came Cancelli Automatici S.p.A. EN_2014_CATALOGO_SICUREZZA.indd 88 12/06/14 15:05
EN_2014_CATALOGO_SICUREZZA.indd 89 12/06/14 15:05

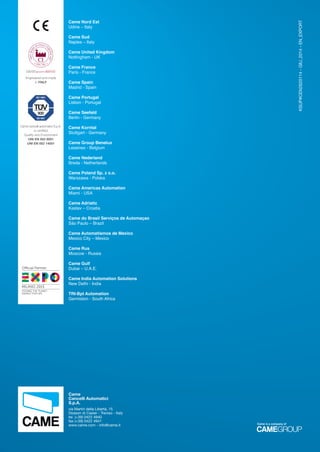

KSUP#CEN2620114-GIU_2014-EN_EXPORT Came Nord Est Udine – Italy Came Sud Naples – Italy Came United Kingdom Nottingham - UK Came France Paris - France Came Spain Madrid - Spain Came Portugal Lisbon - Portugal Came Seefeld Berlin - Germany Came Korntal Stuttgart - Germany Came Group Benelux Lessines - Belgium Came Nederland Breda - Netherlands Came Poland Sp. z o.o. Warszawa - Polska Came Americas Automation Miami - USA Came Adriatic Kastav – Croatia Came do Brasil Serviços de Automaçao São Paulo – Brazil Came Automatismos de Mexico Mexico City – Mexico Came Rus Moscow - Russia Came Gulf Dubai – U.A.E. Came India Automation Solutions New Delhi - India TRI-Bpt Automation Germiston - South Africa Came Cancelli Automatici S.p.A. via Martiri della Libertà, 15 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 fax (+39) 0422 4941 www.came.com - info@came.it Came cancelli automatici S.p.A. is certified Quality and Environment UNI EN ISO 9001 UNI EN ISO 14001 100%MAD E IN ITALY CERTIFICATE ITPI.386 GARANZIA QUALITÀ ORIGINALE Engineered and made in ITALY Came is a company of EN_2014_CATALOGO_SICUREZZA.indd 90 12/06/14 15:06

More Related Content

PDF
Panasonic fpx
bysteven qi

PDF
Vlt micro drive fc51
byToàn Huỳnh

PDF
Drager Regard 3900 Fixed Gas Detector Control System - Spec Sheet
byThorne & Derrick UK

PDF
Fx3 ge
byYashodip Chinagi

PDF
Fx 1 n 1s
byYashodip Chinagi

PDF
Fx3 s
byYashodip Chinagi

PDF
Fx3 3 g 3u
byYashodip Chinagi

PDF
MACBAT IV – EVC Electronic Volume Corrector - Kriti Trade Impex
bykimpex01

Panasonic fpx
bysteven qi

Vlt micro drive fc51
byToàn Huỳnh

Drager Regard 3900 Fixed Gas Detector Control System - Spec Sheet
byThorne & Derrick UK

Fx3 ge
byYashodip Chinagi

Fx 1 n 1s
byYashodip Chinagi

Fx3 s
byYashodip Chinagi

Fx3 3 g 3u
byYashodip Chinagi

MACBAT IV – EVC Electronic Volume Corrector - Kriti Trade Impex
bykimpex01


What's hot

PDF
Fx2 n spec
byYashodip Chinagi

PDF
GSM CONTROL OF ELECTRICAL APPLIANCES
byInternational Journal of Technical Research & Application

PDF
Q series brochure_2008-03
byYashodip Chinagi

PPT
SLC
byaescotom

PDF
United Electric One Series Safety Transmitter
byMiller Energy, Inc.

PDF
Z1000.01 Flyer
byJim Milbaugh

PDF
Ls catalog thiet bi tu dong i s5_e_1105_dienhathe.vn
byDien Ha The

PDF
Novatek Electro India presentation
bynovatek_india

PDF
IM 42 XX Series - Intelligent Monitoring System - 4 to 20mA catalogue
bySuyash Lad

PPTX
Triac based Speed control of an ac motor using DTMF technique
bybharath bharath

PDF
Catalog Frenic MULTI - www.haophuong.com
byCTY TNHH HẠO PHƯƠNG

PDF
Iskra MC 760 Network Analyzer - Datasheet Manual
byAngus Sankaran

PDF
5000g11s hpc
byCTY TNHH HẠO PHƯƠNG

DOCX
PREPARATION OF C&I CABLE SCHEDULES FOR DCS PANELS
byAjit Kumar

PPS
0 Sed2 Product Overview
bycarlhasselbring

PDF
PS-MSMX_en
byNicolas Fata

PDF
Biến tần FRENIC ACE
byCTY TNHH HẠO PHƯƠNG

PDF
Catalog Frenic mini(NEW) -www.haophuong.com
byCTY TNHH HẠO PHƯƠNG

PDF
One Series Safety Transmitter - Pressure and Temperature Transmitter-Switch
byMiller Energy, Inc.

PDF
Galil DMC 42x0 Catalog
byElectromate

Fx2 n spec
byYashodip Chinagi

GSM CONTROL OF ELECTRICAL APPLIANCES
byInternational Journal of Technical Research & Application

Q series brochure_2008-03
byYashodip Chinagi

SLC
byaescotom

United Electric One Series Safety Transmitter
byMiller Energy, Inc.

Z1000.01 Flyer
byJim Milbaugh

Ls catalog thiet bi tu dong i s5_e_1105_dienhathe.vn
byDien Ha The

Novatek Electro India presentation
bynovatek_india

IM 42 XX Series - Intelligent Monitoring System - 4 to 20mA catalogue
bySuyash Lad

Triac based Speed control of an ac motor using DTMF technique
bybharath bharath

Catalog Frenic MULTI - www.haophuong.com
byCTY TNHH HẠO PHƯƠNG

Iskra MC 760 Network Analyzer - Datasheet Manual
byAngus Sankaran

5000g11s hpc
byCTY TNHH HẠO PHƯƠNG

PREPARATION OF C&I CABLE SCHEDULES FOR DCS PANELS
byAjit Kumar

0 Sed2 Product Overview
bycarlhasselbring

PS-MSMX_en
byNicolas Fata

Biến tần FRENIC ACE
byCTY TNHH HẠO PHƯƠNG

Catalog Frenic mini(NEW) -www.haophuong.com
byCTY TNHH HẠO PHƯƠNG

One Series Safety Transmitter - Pressure and Temperature Transmitter-Switch
byMiller Energy, Inc.

Galil DMC 42x0 Catalog
byElectromate


Similar to Security catalogue

PDF
Data sheet en_us_1871726475
byamthanhbosch

PDF
Data sheet en_us_1871726475
byamthanhbosch

PDF
Data sheet en_us_1871224715
byamthanhbosch

PPTX
Blaze automation security product line sridhar ponugupati (2)
byBlaze_Hyd

PDF
Data sheet en_us_1870943371
byamthanhbosch

PDF
Ks 858 e intelligent network alarm systems panel user's manual
byVedard Security Alarm System Store

PDF
Vertx v1000 ds_en
bysanzen enterprises

PDF
IOS/Android Touch lcd gsm alarm system LS-GSM-215
byAlice Hsu

PDF
Zx range datasheet_0611
bysanzen enterprises

PDF
Vertx v100 ds_en
bysanzen enterprises

PDF
MAS Industries - lift components, Spare parts
bysmartjupiter1

PPTX
Blaze automation profile india 2009
byBlaze_Hyd

PDF
Vertx v2000 ds_en
bysanzen enterprises

PDF
Edgereadererw400 ds en
bysanzen enterprises

PDF
wireless alarm system do it yourself
byburglaralarm

DOC
Home automation and security using wireless network
byArun Kumar

PPT
Παρουσίαση του συστήματος Hunter-Pro
bysecuritydsecc

PPT
Παρουσίαση συστήματος Hunter-pro 896
bysecuritydsecc

PDF
Vertx v300 ds_en
bysanzen enterprises

PDF
Edgereaderer40 ds en
bysanzen enterprises

Data sheet en_us_1871726475
byamthanhbosch

Data sheet en_us_1871726475
byamthanhbosch

Data sheet en_us_1871224715
byamthanhbosch

Blaze automation security product line sridhar ponugupati (2)
byBlaze_Hyd

Data sheet en_us_1870943371
byamthanhbosch

Ks 858 e intelligent network alarm systems panel user's manual
byVedard Security Alarm System Store

Vertx v1000 ds_en
bysanzen enterprises

IOS/Android Touch lcd gsm alarm system LS-GSM-215
byAlice Hsu

Zx range datasheet_0611
bysanzen enterprises

Vertx v100 ds_en
bysanzen enterprises

MAS Industries - lift components, Spare parts
bysmartjupiter1

Blaze automation profile india 2009
byBlaze_Hyd

Vertx v2000 ds_en
bysanzen enterprises

Edgereadererw400 ds en
bysanzen enterprises

wireless alarm system do it yourself
byburglaralarm

Home automation and security using wireless network
byArun Kumar

Παρουσίαση του συστήματος Hunter-Pro
bysecuritydsecc

Παρουσίαση συστήματος Hunter-pro 896
bysecuritydsecc

Vertx v300 ds_en
bysanzen enterprises

Edgereaderer40 ds en
bysanzen enterprises


More from CAME India Automation Solutions Pvt.Ltd.

PDF
Newsletter Hitachi Systems Micro Clinic (3)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Zero E - SOLAR ENERGY POWER-SUPPLY SYSTEM
byCAME India Automation Solutions Pvt.Ltd.

PDF
V6000
byCAME India Automation Solutions Pvt.Ltd.

PDF
Twister light - ELECTROMECHANICAL TRIPOD TURNSTILE
byCAME India Automation Solutions Pvt.Ltd.

PDF
Super frog - Below-ground OPERATOR FOR SWING GATES UP TO 8 m (26 ft) per gat ...
byCAME India Automation Solutions Pvt.Ltd.

PDF
Stylo - PLAIN VIEW OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft) PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

PDF
Rodeo - AUTOMATIC SLIDING DOOR FOR LEAVES WEIGHING UP TO 125 KG (275.6 LB)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Rio system
byCAME India Automation Solutions Pvt.Ltd.

PDF
Radio control acessories
byCAME India Automation Solutions Pvt.Ltd.

PDF
Myto- PLAIN VIEW OR below -gro und OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft...
byCAME India Automation Solutions Pvt.Ltd.

PDF
Krono - PLAIN VIEW OPERATOR FOR SWING GATES UP TO 5 m / 16 ft PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

PDF
H4 - OPERATORS FOR ROLLING SHUTTERS WITH MAXIMUM HOISTING STRENGTH OF UP TO A...
byCAME India Automation Solutions Pvt.Ltd.

PDF
Gard12 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 12 m (29.3 ft)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Gard8 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 7.6 M (24.9 FT)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Gard4 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 3.75 M (12.3 FT)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Gard - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 6.5 M (21.3 FT)
byCAME India Automation Solutions Pvt.Ltd.

PDF
Gard 4 - Automatic road barriers for passages of up to 3.75 m / 12 ft
byCAME India Automation Solutions Pvt.Ltd.

PDF
Frog plus - Below-groundD OPERATOR FOR SWING GATES UP TO 7 m (22.9 ft) PER GA...
byCAME India Automation Solutions Pvt.Ltd.

PDF
Frog J- Below-ground OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft) PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

PDF
Fly - AUTOMATIC SWING-DOOR FOR LEAVES UP TO 250 KG (551 LB)
byCAME India Automation Solutions Pvt.Ltd.

Newsletter Hitachi Systems Micro Clinic (3)
byCAME India Automation Solutions Pvt.Ltd.

Zero E - SOLAR ENERGY POWER-SUPPLY SYSTEM
byCAME India Automation Solutions Pvt.Ltd.

V6000
byCAME India Automation Solutions Pvt.Ltd.

Twister light - ELECTROMECHANICAL TRIPOD TURNSTILE
byCAME India Automation Solutions Pvt.Ltd.

Super frog - Below-ground OPERATOR FOR SWING GATES UP TO 8 m (26 ft) per gat ...
byCAME India Automation Solutions Pvt.Ltd.

Stylo - PLAIN VIEW OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft) PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

Rodeo - AUTOMATIC SLIDING DOOR FOR LEAVES WEIGHING UP TO 125 KG (275.6 LB)
byCAME India Automation Solutions Pvt.Ltd.

Rio system
byCAME India Automation Solutions Pvt.Ltd.

Radio control acessories
byCAME India Automation Solutions Pvt.Ltd.

Myto- PLAIN VIEW OR below -gro und OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft...
byCAME India Automation Solutions Pvt.Ltd.

Krono - PLAIN VIEW OPERATOR FOR SWING GATES UP TO 5 m / 16 ft PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

H4 - OPERATORS FOR ROLLING SHUTTERS WITH MAXIMUM HOISTING STRENGTH OF UP TO A...
byCAME India Automation Solutions Pvt.Ltd.

Gard12 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 12 m (29.3 ft)
byCAME India Automation Solutions Pvt.Ltd.

Gard8 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 7.6 M (24.9 FT)
byCAME India Automation Solutions Pvt.Ltd.

Gard4 - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 3.75 M (12.3 FT)
byCAME India Automation Solutions Pvt.Ltd.

Gard - AUTOMATIC BARRIER FOR PASSAGE WIDTHS OF UP TO 6.5 M (21.3 FT)
byCAME India Automation Solutions Pvt.Ltd.

Gard 4 - Automatic road barriers for passages of up to 3.75 m / 12 ft
byCAME India Automation Solutions Pvt.Ltd.

Frog plus - Below-groundD OPERATOR FOR SWING GATES UP TO 7 m (22.9 ft) PER GA...
byCAME India Automation Solutions Pvt.Ltd.

Frog J- Below-ground OPERATOR FOR SWING GATES UP TO 1.8 m (6 ft) PER GATE LEAF
byCAME India Automation Solutions Pvt.Ltd.

Fly - AUTOMATIC SWING-DOOR FOR LEAVES UP TO 250 KG (551 LB)
byCAME India Automation Solutions Pvt.Ltd.


Security catalogue

  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
    5 INDEX 8 WIRED CONTROLUNITS 48 INPUTS 12 WIRED CONTROL UNITS 96 INPUTS 16 WIRED CONTROL UNITS 200 INPUTS 21 EXPANSION MODULES 22 RADIO CONTROL UNITS 99 INPUTS 28 WIRED KEYPADS 32 TRANSPONDER INSERTERS 36 MODULES FOR TELEPHONE DIALLERS 40 LAN CARDS 44 TOUCH SCREENS 50 WIRED DETECTORS 51 DETECTORS FOR INDOOR APPLICATION 57 DETECTORS FOR OUTDOOR APPLICATION 60 RADIO DEVICES 61 RECEIVERS 65 KEYPADS AND TRANSMITTERS 67 RADIO DETECTORS FOR INDOOR APPLICATION 70 EXTERNAL RADIO DETECTORS 77 RADIO SIRENS 80 WIRED SIRENS 84 POWER SUPPLY UNITS AND BATTERIES 85 ACCESSORIES EN_2014_CATALOGO_SICUREZZA.indd 5 12/06/14 14:59
  • 6.
  • 7.
    7 ANTI-INTRUSION SYSTEMS While comfort isa priority in all modern homes, security of its inhabitants and of their property is essential. Security from possible intrusions while at home and the ability to report danger to law enforcement are crucial for living your home in a sound and peaceful manner. The he¡ security system allows you to control access to every room of the house, to report danger to designated telephone numbers and control the array of functions remotely via SMS. Moreover, thanks to the terminal graphical interface, which shows the floor plan of the house and position of the alarm detectors, using the alarm system is a simple and intuitive task even dealing with a vast and complex system. The system also reports technical alarms from gas and water leak detectors to prevent any structural damage to the building. Home, people and property always safe! EN_2014_CATALOGO_SICUREZZA.indd 7 12/06/14 14:59
  • 8.
    8 WIRED CONTROL UNITS 48INPUTS EN_2014_CATALOGO_SICUREZZA.indd 8 12/06/14 14:59
  • 9.
    9 002SCP8048 Intrusion alarm controlunit with 48 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 24 inputs (with 1 001SEXP8 expansion card and 1 001SMR8ICI remote expansion modules, or 2 001SMR8ICI remote expansion modules); 4 outputs - expandable to 20 (with 2 001SMR8O4R expansion modules); 4 areas for system management. 24 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 305 x 215 x 70 mm DESCRIPTION Type 002SCP8048 - 002SCP8048TN - 002SCP8048TB Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 1 Transformer (VA) 20 Current draw (mA) 70 (excluding the battery charging) Battery (Ah) 7.2 Casing material Metal Dimensions (mm) 305x215x70 Weight (kg) 2.7 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 9 12/06/14 14:59
  • 10.
    10 002SCP8048 Control unit with48 inputs. 002SCP8048 is the "entry level" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 24 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 1 001SMR8ICI remote expansion module to install on the RS485 system BUS line, or 2 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 4 keypads and 4 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 24 radio inputs for a total number of 48 radio + wired inputs. The control unit has 4 on-board programmable outputs expandable to 20, connecting 2 001SMR8O4R remote expansion modules with 8 outputs on the BUS line; allows management of 99 programmable user codes and 99 transponder keys. The inputs can be grouped into 4 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8048 is the ideal solution for systems that require high performance and cost-effectiveness. EN_2014_CATALOGO_SICUREZZA.indd 10 12/06/14 14:59
  • 11.
    11 001SEXP8 001SIGSM 001SGV64IT 001SGV256IT 0 HUB OR SWITCH REMOTEPC LOCAL PC LOCAL PC INTERNET 001STDCSN 002SCP8048 009SSP400 001SLUNA 001STLCDS 001SINTS001SKEYT Up to 4 transponder key inserters Up to 4 keypads RS485 LINE PSTN LINE LAN LINE MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 2 radio modules 001STX003WL 001SRC04WL 0 RS232 LINE 001STS550M SIGSM 0000 2SCP PS 001SIR215WL 001SIGSM GSM LINE Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control. NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 001SIFTS01 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules EN_2014_CATALOGO_SICUREZZA.indd 11 12/06/14 15:00
  • 12.
    12 WIRED CONTROL UNITS 96INPUTS EN_2014_CATALOGO_SICUREZZA.indd 12 12/06/14 15:00
  • 13.
    13 002SCP8096 Intrusion alarm controlunit with 96 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 48 inputs (with 1 001SEXP8 expansion card and 4 001SMR8ICI remote expansion modules, or 5 001SMR8ICI remote expansion modules); 4 outputs - expandable to 44 (with 5 001SMR8O4R expansion modules); 8 areas for system management. 48 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 405 x 295 x 90 mm DESCRIPTION Type 002SCP8096 Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 1.5 Transformer (VA) 38 Current draw (mA) 70 (excluding the battery charging) Battery (Ah) 7.2 / 15 Casing material Metal Dimensions (mm) 405x295x90 Weight (kg) 4.5 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 13 12/06/14 15:00
  • 14.
    14 002SCP8096 Control unit with96 inputs. 002SCP8096 is the "mid range" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 48 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 4 001SMR8ICI remote expansion modules to install on the RS485 system BUS line, or 5 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 8 keypads and 8 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 48 radio inputs for a total number of 96 radio + wired inputs. The control unit has 4 on-board programmable outputs expandable to 44, connecting 5 001SMR8O4R expansion remote modules with 8 outputs on the BUS line; allows management of 999 programmable user codes and 999 transponder keys. The inputs can be grouped into 8 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8096 is the ideal solution for home security systems that require all-around flexibility and expandability. EN_2014_CATALOGO_SICUREZZA.indd 14 12/06/14 15:00
  • 15.
    15 001SIGSM 001SGV64IT 001SGV256IT 001SIGSM GSM LINE Control SMS and confirmationSMS Voice alarm transmission and voice guide for remote control. 001SEXP80 HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 002SCP8096 009SSP400 001SLUNA 001SINTS001SKEYT Up to 8 transponder key inserters RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 8 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 002 PS A d 001SIFTS01 001STLCDS 001SRC04WL 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules 001STDCSN Up to 8 keypads 15 EN_2014_CATALOGO_SICUREZZA.indd 15 12/06/14 15:00
  • 16.
    16 16 WIRED CONTROL UNITS 200INPUTS 16 EN_2014_CATALOGO_SICUREZZA.indd 16 12/06/14 15:00
  • 17.
    17 002SCP8200 Intrusion alarm controlunit with 200 inputs. Intrusion alarm control unit with 8 wired inputs - expandable to 128 inputs (with 1 001SEXP8 expansion card and 14 001SMR8ICI remote expansion modules, or 15 001SMR8ICI remote expansion modules); 8 outputs - expandable to 128 (with 15 001SMR8O4R expansion modules); 16 areas for system management. 72 radio inputs (with 001SRX128D radio receiver). Built-in telephone dialler. Dimensions: 490 x 360 x 90 mm DESCRIPTION Type 002SCP8200 Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 2.5 Transformer (VA) 52 Current draw (mA) 71 (excluding battery charging) Battery (Ah) 15 Casing material Metal Dimensions (mm) 490x360x90 Weight (kg) 5.9 (without batteries) Environmental class II Compliance with Directives EN 50131-6, EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 17 12/06/14 15:00
  • 18.
    18 002SCP8200 Control unit with200 inputs. 002SCP8200 is the "top level" control unit of the he¡ intrusion alarm system range. Base features - 8 wired inputs, expandable to 128 using the 001SEXP8 expansion card with 8 inputs to install inside the control unit and 14 001SMR8ICI remote expansion modules to install on the RS485 system BUS line, or 15 001SMR8ICI modules. In addition, the BUS RS485 line can connect up to 16 keypads and 16 transponder readers. Connecting the 001SRX128D radio expansion module to the BUS line allows connection of 72 radio inputs for a total number of 200 radio + wired inputs. The control unit has 8 on-board programmable outputs expandable to 128, connecting 15 001SMR8O4R expansion remote modules with 8 outputs on the BUS line; allows management of 999 programmable user codes and 999 transponder keys. The inputs can be grouped into 16 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. An on-board PSTN telephone dialler transmits alarms in digital form. Adding the 001SGV64IT or 001SGV256IT text-to-speech module allows alert transmission as voice message. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. 002SCP8200 is the ideal solution for high-level home and industrial applications that requires access logic programmable to various areas of the plant. EN_2014_CATALOGO_SICUREZZA.indd 18 12/06/14 15:00
  • 19.
    19 001SIGSM 001SGV64IT 001SGV256IT 001SIGSM GSM LINE Control SMS and confirmationSMS Voice alarm transmission and voice guide for remote control 001SEXP80 HUB OR SWITCH REMOTE PC LOCAL PC LOCAL PC INTERNET 002SCP8200 009SSP400 001SLUNA 001SINTS001SKEYT Up to 16 transponder key inserters RS485 LINE RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 16 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL NA 001SIFLAN OR 001SSIP 001SDT215 001SIR215 002 001SIFTS01 001STLCDS 001SRC04WL 001SMR804R Up to 2 output expansion modules 001SMR8ICI Up to 2 input expansion modules 001STDCSN Up to 16 keypads EN_2014_CATALOGO_SICUREZZA.indd 19 12/06/14 15:01
  • 20.
    20 Technical specifications andconfiguration table for the control units 002SCP8048, 002SCP8096, 002SCP8200. DESCRIPTION Type 002SCP8048 002SCP8048TN - 002SCP8048TB 002SCP8096 002SCP8096TN - 002SCP8096TB 002SCP8200 002SCP8200TN - 002SCP8200TB Base inputs in control unit 8 8 8 Input expandability in control unit 16 ( *1) 40 (*2) 120 (*3) Remote inputs on bus Radio inputs 24 48 72 Total inputs 48 96 200 Relay outputs in control unit 1 1 3 Programmable outputs in control unit 4 4 8 Remote programmable outputs on bus 16 40 120 Total programmable outputs 20 44 128 Areas 4 8 16 Scenarios 32 32 32 Outputs expansion module on bus 2 5 15 Concentration radio module on bus 2 8 16 Readers 4 8 16 Keypads (radio or wired) 4 (1 wired, 3 radio or wired) 8 (1 wired, 7 radio or wired) 16 (1 wired, 15 radio or wired) Connection to touch screen terminals YES YES YES Transponder keys 20 (99 with 001SGV256IT) 50 (999 with 001SGV256IT) 50 (999 with 001SGV256IT) Installer codes 1 1 1 User codes 20 (99 with 001SGV256IT) 50 (999 with 001SGV256IT) 50 (999 with 001SGV256IT) Transmitters 8 32 32 Time programmer Daily / Weekly Daily / Weekly Daily / Weekly Event log 250 (999 with 001SGV256IT) 999 (9999 with 001SGV256IT) 999 (9999 with 001SGV256IT) PSTN combiner YES YES YES GSM combiner Optional (001SIGSM) Optional (001SIGSM) Optional (001SIGSM) Speech-to-text Optional (001SGV64IT or 001SGV256IT) Optional (001SGV64IT or 001SGV256IT) Optional (001SGV64IT or 001SGV256IT) Telephone numbers 8 16 16 CONTACT-ID protocol alarm transmission YES YES YES Power supply units on bus (to be) 0 8 16 RS485 bus 1 1 2 USB communication port YES YES YES LAN output Optional (001SIFLAN or 001SSIP) Optional (001SIFLAN or 001SSIP) Optional (001SIFLAN or 001SSIP) Control from SMS YES (with 001SIGSM) YES (with 001SIGSM) YES (with 001SIGSM) Remote control with voice guide YES (with 001SGV64IT or 001SGV256IT) YES (with 001SGV64IT or 001SGV256IT) YES (with 001SGV64IT or 001SGV256IT) Remote programming and assistance via internet YES (with 001SIFLAN or 001SSIP) YES (with 001SIFLAN or 001SSIP) YES (with 001SIFLAN or 001SSIP) RTC with buffer battery YES YES YES ( *1) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 1 001SMR8ICI remote expansion module of 8 inputs on BUS, or 2 001SMR8ICI remote expansion modules. ( *2) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 4 001SMR8ICI remote expansion modules of 8 inputs on BUS, or 5 001SMR8ICI remote expansion modules. ( *3) The control unit manages 1 001SEXP8 expansion module of inputs to control unit and 14 001SMR8ICI remote expansion modules of 8 inputs on BUS, or 15 001SMR8ICI remote expansion modules. EN_2014_CATALOGO_SICUREZZA.indd 20 12/06/14 15:01
  • 21.
    21 001SEXP8 Expansion card for8 inputs to control unit. Features 8 individually programmable inputs for control units: 002SCP8048, 002SCP8096, 002SCP8200. Dimensions: 37 x 63 x 23 mm 001SMR8ICI Remote expansion module with 8 inputs. Features 8 individually programmable inputs for control units: 002SCP8048, 002SCP8096, 002SCP8200. With plastic casing. Connection on RS 485 4-cable bus. Dimensions: 22 x 90 x 55 mm 001SMR8O4R Remote expansion module with 8 outputs. Features 8 outputs: 4 relay outputs with NO-NC selectable contacts and 4 open collector outputs, for control units: 002SCP8048, 002SCP8096, 002SCP8200. With plastic casing. Connection on RS485 4-cable bus. Dimensions: 22 x 90 x 55 mm DESCRIPTION Type 001SEXP8 001SMR8ICI 001SMR8O4R 001SRS485 Power supply (V - DC) 12 ÷ 15 Connection to control unit Direct Via RS485 BUS Current draw (mA) 20 40 50 40 Outputs - - 4 open collector outputs and 4 relay outputs - Open collector output operation - - Closes to negative - Open collector output current (mA) - - 50 - Relay output operation - - NO or NC selectable by jumper - Relay contact range - - 0.3 A 60 V AC - 1 A 30 V DC Casing material - Plastic Dimensions (mm) 37x63x23 22x90x55 Weight (g) 26 62 67 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SRS485 RS485 Bus signal amplifier. Recommended for long bus lines (> 400 m) or with several branches. Dimensions: 22 x 90 x 55 mm EXPANSION MODULES EN_2014_CATALOGO_SICUREZZA.indd 21 12/06/14 15:01
  • 22.
    22 RADIO CONTROL UNITS 99INPUTS EN_2014_CATALOGO_SICUREZZA.indd 22 12/06/14 15:01
  • 23.
    23 002SCP6099WL Intrusion alarm controlunit with 99 radio inputs. Intrusion alarm control unit with 99 radio inputs, 6 wired inputs; 4 wired outputs; 8 areas for system management. Features capacitive keypad with touch-sensitive keys and graphic display with system status icons, transponder key reader, PSTN telephone dialler with text-to- speech and indoor siren. Voice commands for system management and control. Dimensions: 300 x 250 x 65 mm DESCRIPTION Type 002SCP6099WL Power supply (V - AC) 230 -15% + 10% 50/60 Hz Power supply unit (A) 0.5 Transformer (VA) 17 Current draw (mA) 100 (excluding battery charging) Battery (Ah) 2.2 Casing material ABS Dimensions (mm) 300x250x65 Weight (kg) 1.52 (without batteries) Environmental class II Compliance with Directives R&TTE 99/05/CE, EN 50131-3, EN 50131-4, EN 50131-5-3, EN 50131-6 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 002SC Intrusi Intrusio outputs with tou icons, t speech Voice c Dimens 300 x 2 EN_2014_CATALOGO_SICUREZZA.indd 23 12/06/14 15:01
  • 24.
    24 002SCP6099WL Control unit withradio 99 inputs. 002SCP6099WL is a control unit with 99 radio inputs, 6 wired inputs and 4 programmable outputs. Features an on-board capacitive keypad with touch-sensitive keys and graphic display with icons, transponder key reader, PSTN telephone dialler with text-to-speech and indoor siren. The system provides a RS485 bus line that allows wire connection of up to two keypads, two transponder inserters and two additional radio receivers (can be used to improve system range). Manages up to 32 transmitters, 8 wireless keypads, 20 user codes and 20 transponder keys. The control unit also features a voice guide, which, thanks to a series of system status/event voice messages, guides the user through system use and management. The radio and wired inputs can be grouped into 8 areas that can be configured individually. The area can be programmed to control its associated outputs, access codes, keypads, readers and phone numbers. The use of 001SIGSM module allows GSM transmission of alert as vocal message or alarm SMS. The bi-directional combiner can be dialled from a remote telephone line via GSM or PSTN lines; when remotely connected to the equipment the system voice guidance allows a series of control operations such as: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The control unit also features SMS remote control. The control operations described can also be performed by specific SMS. When the operation is performed the control unit sends a confirmation SMS. Two interface cards for connecting the control unit to LAN are available. 001SSIP allows the control unit to communicate with a local PC connected to the network or with a remote PC connected to the Internet. 001SIFLAN features an on-board web server and allows control unit connectivity from a local PC or a remote PC connected to the internet using a standard web browser (e.g.: Internet Explorer). Internet Explorer). The control unit card features a USB port that allows PC connectivity for programming operations by means of the SWLINK software. The program allows configuration of all parameters, adopting 3 modes: Easy (essential parameters) Standard (commonly used parameters) Advanced (all parameters available) perfectly matching actual installation requirements. The control unit also features a remote device self-learning function that allows - in case of simple installation - quick programming without a PC with the help of the voice guide. 002SCP6099WL combines professional features of the wired CP control units along with the ease of installation of a radio system; it is the perfect solution for the protection of any environment without the need of invasive masonry works. EN_2014_CATALOGO_SICUREZZA.indd 24 12/06/14 15:01
  • 25.
    25 2525 001SIGSM HUB OR SWITCH REMOTEPC LOCAL PC LOCAL PC INTERNET 002SCP6099WL 001SINTS001SKEYT Up to 2 transponder key inserters RS485 LINE PSTN LINE LAN LINE Alarm transmissions in digital and vocal form MODEM ROUTER ADSL MODEM ROUTER ADSL 001SRX128D Up to 2 radio modules 001STX003WL0 RS232 LINE 001STS550M 001SIR215WL GSM LINE Control SMS and confirmation SMS Voice alert transmission and voice guide for remote control 001SIFLAN OR 001SSIP 001SIFTS01 Up to 32 transmitters 001SIR215WL001STXW003WL 001SLUNA001SRC04WL Up to 99 radio detectors Up to 7 external keypads either radio or wired 001STDCSN 001STDCSNWL001STDCSNW EN_2014_CATALOGO_SICUREZZA.indd 25 12/06/14 15:01
  • 26.
    26 Technical specifications andconfiguration table for the control unit002SCP6099WL. DESCRIPTION Type 002SCP6099WL Radio inputs 99 Wired inputs 6 Programmable outputs in control unit 4 Relay alarm output 1 Transponder reader on-board Siren for indoor application on-board (100 db at 1 m) Areas 8 Scenarios 32 Bus connectible readers 2 Radio or wired keypads 8 (1 on-board, 7 external - radio or wired) Bus connectible additional receivers 2 Connection to touch screen terminals YES Transponder keys 20 User codes 20 Transmitters 32 Time programmer Daily Events 999 PSTN combiner on-board GSM combiner Optional (001SIGSM module) Speech-to-text On-board Telephone numbers 8 CONTACT-ID protocol alarm transmission YES RS485 bus 1 LAN output Optional (001SIFLAN or 001SSIP) USB communication port YES Control from SMS YES (with 001SIGSM) Remote control with voice guide YES Remote programming and assistance via internet YES (with 001SIFLAN or 001SSIP) RTC with buffer battery YES EN_2014_CATALOGO_SICUREZZA.indd 26 12/06/14 15:01
  • 27.
  • 28.
  • 29.
    29 001DC00VISIO01 Flush-mounting box for001STDCSN and 001STDCSB keypads. 001STLCDS Keypad. Features rubber buttons and 32-character liquid crystal display. Fully backlit. Wall-mountable. Can be used with all the CP series control units. Dimensions: 105 x 140 x 28 mm 001STDCSB White capacitive keypad. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall- or flush-mountable (with the 001DC00VISIO01 box). Features two on-board terminals which can be programmed as inputs or outputs of the connected control unit. Can be used with all the CP series control units. Dimensions: 158 x 138 x 31 mm 001STDCSN Black capacitive keypad. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall- or flush-mountable (with the 001DC00VISIO01 box). Features two on-board terminals which can be programmed as inputs or outputs of the connected control unit. Can be used with all the CP series control units. Dimensions: 158 x 138 x 31 mm DESCRIPTION Type 001STLCDS 001STDCSN - 001STDCSB Power supply (V - DC) 12 ÷ 15 Current draw (mA) 60 Graphic display NO YES On-board inputs and outputs NO 2 terminals - programmable as inputs or outputs Casing material ABS ABS Dimensions (mm) 105x140x28 158x138x31 Weight (g) 204 326 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation LCDS d EN_2014_CATALOGO_SICUREZZA.indd 29 12/06/14 15:02
  • 30.
    30 The 001STLCDFN and001STLCDFB capacitive keypads are innovative concept devices. They feature ergonomic touch-sensitive buttons that simplify control operations of the intruder alarm system. Furthermore, in addition to the traditional wall installation, they can also be flush-mounted thanks to the thin design. A particularly attractive design makes it a decorative element for any environment. The keypads allow access to the following features: Programming of the control unit Programming parameters can be input into the control unit during installation (as opposed to using the SWLINK programming software). Control operations These operations allow system activation and deactivation in relation to areas set. In addition, they allow consulting of event log. Scenarios You can program scenarios, meaning a series of actions to be done on areas and outputs, and to match them to the various keypads installed in the system (e.g. "Night" scenario: inserting day-time area, perimeter area and outdoor area). The user can manage the system by simply selecting the preferred scenario. Inputs/Outputs On board they feature two terminals that can be freely programmable as either control unit inputs or outputs, to which are connected (they can be programmed and used to work as wired inputs or outputs as long as they respect the maximum number of wired inputs and outputs available on the control unit, which does not vary with the addition of any keypads) To cut consumption to a minimum, the keypads are activated and lighted via a sensor only when users are present and actually operating them. The range is completed with the 001STLCDS LCD display keypad, from classical wall-installation and traditional silicone rubber buttons Wall-installation Flush-mounting 34 mm 9 mm EN_2014_CATALOGO_SICUREZZA.indd 30 12/06/14 15:02
  • 31.
  • 32.
  • 33.
    33 DESCRIPTION Type 001SINTS Power supply(V - DC) 12 ÷ 15 Current draw (mA) 100 Protection rating IP40 Casing material ABS Dimensions (mm) 1 home series module Weight (g) 30 Environmental class II Compliance with Directives EN 50131- 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SINTS Transponder reader. Allows control of the CP series control units through the management of three scenarios set in the control unit. Can be housed in a hole cap of any flush- mountable home series. Works in set with 001SKEYT Dimensions: 1 home series module 001SKEYT Transponder key. High-security transponder key, BLUE. Dimensions: 56 x 33 x 3 mm EN_2014_CATALOGO_SICUREZZA.indd 33 12/06/14 15:02
  • 34.
    34 The 001SKEYT transponderkey and the 001SINTS inserter allow the control of the 002SCP8048, 002SCP8096, 002SCP8200, 002SCP6099WL control units according to the following operating principles: When programming it is possible to set the scenarios, i.e. a set of actions to be carried out on areas and outputs, and associate them to the various readers. The inserter allows the user to launch up to three scenarios and to turn off the system completely. The inserter has 4 LEDs: 3 refer to the scenarios, while the fourth indicates system status. The key is programmed with a factory code, having a 1 in 1,000,000 combinations, always transferred to the control unit memory during programming. Move the key towards the reader to launch the desired scenario among the three that the reader manages. This innovative function greatly facilitates system control operations by simply selecting the desired scenario (e.g. Scenario - "Night": set for living, perimeter, and outdoor areas). The device was designed to be housed in a hole cap of any flush-mountable home series. Simply pierce the cap, with the aid of a special drilling template provided in the kit, to fix the signalling LED support to it. The control electronics, housed in an appropriate case, can be fixed to the inside of the flush-mounting box. This makes the 001SINTS reader compatible with all the home automation series on the market today. EN_2014_CATALOGO_SICUREZZA.indd 34 12/06/14 15:02
  • 35.
    35 001SINTS001SKEYT SCENARIO 1 SCENARIO 3 SCENARIO2 SYSTEM STATUS EN_2014_CATALOGO_SICUREZZA.indd 35 12/06/14 15:02
  • 36.
  • 37.
    37 001SANT10 Optional GSM antenna. Completewith steel bracket and 10 m cable. Dimensions: Height: 130 mm 001SGV64IT Programmable voice control card. Allows sending of alarm voice messages over the PSTN network. User guide for query and remote control operations of system status. If the control unit features the 001SIGSM module, these functions can also be performed on the GSM line. It can be used with the control units: 002SCP8048, 002SCP8096, 002SCP8200. 001SGV256IT Programmable voice control card. Allows sending of alarm voice messages over the PSTN network. User guide for query and remote control operations of system status. If the control unit features the 001SIGSM module, these functions can also be performed on the GSM line. It extends user codes, key codes and number of memorizable events to the max values provided for for each model of control units of the CP series. It can be used with the control units: 002SCP8048, 002SCP8096, 002SCP8200. Dimensions: 22 x 22 x 12 mm 001SIGSM GSM module. Sends SMS, voice mail (when featuring the 001SGVxx card), receives SMS and DTMF commands for remote control. Includes a stylus antenna. Can be used with all the CP series control units. Dimensions: 34 x 81 x 30 mm DESCRIPTION Type 001SGV64IT 001SGV256IT 001SIGSM Power supply (V - DC) 12 ÷ 15 Current draw (mA) 10 100 Memory (Mbit) 64 256 - Dimensions (mm) 22x22x12 34x81x30 Weight (g) 3.7 38 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 37 12/06/14 15:02
  • 38.
    38 The 002SCP8048, 002SCP8096,002SCP8200 control units are provided with a built-in PSTN bi-directional combiner. This can transmit alert messages in digital form with Contact ID protocol to security agencies. Adding the voice control board (001SGV64IT or 001SGV256IT) to the system enables the following features: Alert voice message transmission. Aside from transmission via Contact-ID protocol, each alarm event can be associated to a voice message that is sent to programmed phone numbers. Guide for remote control operations. The user can contact the control unit by phone to perform system control and query operations after entering a user code: System status query System activation and deactivation Power supply and fuse status query Event log query Inputs query and inputs temporary exclusion Output query and activation The operations are guided by messages generated by the voice control card. A interesting feature is that the user can browse the event memory after each event is reported by a voice message associated with the event. All voice messages can be programmed with the innovative TTS (Text-To-Speech) feature which allows a text to vocal message conversion. The messages will be written in the programming phase and reproduced from the voice control card. The range includes two text-to-speech cards: 001SGV64IT with 64Mbit memory and 001SGV256IT with 256Mbit memory. These, according to memory capacity, in addition to adding voice messages, expand the number of user codes, transponder key codes, and events that can be stored in memory as reported in the "Control Unit technical specifications and configuration table". The dialler can be completed with the 001SIGSM module which adds the following features to the system: Alert voice message transmission. Alert voice message transmission. The voice alert messages can be transmitted over the PSTN and GSM lines (if a 001SGV64IT or 001SGV256IT voice control card is installed). Priority can be assigned to one of the lines. In case of alarm, the dialler will use the programmed line as a priority; In case of alarm, the dialler will use the programmed line as a priority, switching to the other in case of unavailability. Alarm SMS. Aside from transmission via Contact-ID protocol, each alarm event can be associated to a voice message and to an SMS sent to programmed phone numbers. Control SMS. The system can be managed remotely via SMS A control SMS can be sent to the control unit which will perform the requested action, sending back a confirmation SMS upon execution. SMS control actions allowed: system status query; System, areas and outputs activation and deactivation; input query; temporary exclusion of the inputs; Output query; event request. Guide for remote control operations. The remote control operations described above can also be performed through the GSM line. Similarly, the 002SCP6099WL control unit is supplied with the built-in PSTN dialler and can be completed with the 001SGSM module in order to integrate all above functions. The 002SCP6099WL control unit does not require the voice control card (001SGV64IT or 001SGV256IT) as it is built-into the unit itself. The CP series control units (fitted with the 001SGSM module) can be managed remotely even via the HEI Security APP. This Android app, has a guided menu for easily and intuitively generating control SMSs, with all of the security provided by the system. It also allows you to view all of the SMSs send to users from the control unit. EN_2014_CATALOGO_SICUREZZA.indd 38 12/06/14 15:02
  • 39.
    39 Transmission with digital protocol securitymonitoring agencies Transmission with digital protocol security monitoring agencies Control SMS and confirmation SMS Control SMS and confirmation SMS Voice alarm transmission and voice guide for remote control. Voice alarm transmission and voice guide for remote control Voice transmission of alarms and voice guide for remote control Voice transmission of alarms and voice guide for remote control 001001100110011001100011 0001100011001100110011001 GSM line GSM line PSTN LINE PSTN LINE and c PSSTN LI 002SCP8096 002SCP6099WL 001SIGSM 001SIGSM 001SGV64IT 001SGV256IT EN_2014_CATALOGO_SICUREZZA.indd 39 12/06/14 15:02
  • 40.
  • 41.
    41 001SIFLAN Interface with webserver for CP series control units connection to 10/100 BaseT Ethernet. Remote connection to the control unit via PC running a Web Browser over the Internet. Dimensions: 75 x 45 x 20 mm 001SSIP Interface for CP series control units connection to 10/100 BaseT Ethernet Remote connection to the control unit via PC running the SWLINK software using TCP/IP standard protocol. Dimensions: 75 x 45 x 20 mm DESCRIPTION Type 001SIFLAN 001SSIP Power supply (V - DC) 12 ÷ 15 Current draw (mA) 85 Ethernet protocol TCP/IP 10/100 BaseT Web server YES NO Dimensions (mm) 75x45x20 Weight (g) 50 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 41 12/06/14 15:02
  • 42.
    42 The 001SIFLAN and001SSIP cards allow the connection of the 002SCP8048, 002SCP8096, 002SCP8200, 002SCP6099WL control units to a LAN and Internet connectivity to a remote computer. The two cards enhance the control unit with the following features: 001SSIP LAN interface. Connects the control unit to the LAN so that it can communicate with devices on the network. The control unit can, for example, communicate with a PC equipped with SWLINK software connected to the network. Similarly, a remote computer connected to the Internet can connect with the control unit via the SWLINK software to perform remote programming and event log viewing. 001SIFLAN LAN interface with web server. Connects the control unit to the LAN so that it can communicate with devices on the network; unlike the former, it features a web server. This allows you to connect to the control unit via a remote computer connected to the Internet using a standard browser (e.g. Internet Explorer). This type of connection grants access to a dedicated control screen (a virtual keypad, as shown in the figure, which allows interaction with the control unit). The SWLINK software can also be used remotely to perform the programming and event log viewing. The 001SIFLAN card features an on-board RS232 port for direct connection of a touch screen. When this is installed in the control unit, the 001SIFTS01 interface is not used. Using the 001SSIP card does not exclude the possibility of connecting a touch screen terminal to the control unit. EN_2014_CATALOGO_SICUREZZA.indd 42 12/06/14 15:02
  • 43.
    43 001SMR8ICI HUB OR SWITCH HUBOR SWITCH 001SIR215 MODEM ROUTER ADSL MODEM ROUTER ADSL MODEM ROUTER ADSL ADSL MODEM ROUTER REMOTE PC REMOTE PC INTERNET INTERNET RS485 LINE 002SCP8096 RS485 LINE 002SCP809696 RREMOEMOTETE PPCC RREMOEMOTETE PPCC 001SIFLAN 001SSIP 001SIFLAN 001SSIP 002SCP6099WL RS232 LINE RS232 LINE 001STS550M 001STS550M 001STDCSN EN_2014_CATALOGO_SICUREZZA.indd 43 12/06/14 15:03
  • 44.
  • 45.
    45 002STS550M 5.5" monochrome touchscreen terminal. With monochrome blue backlit display. 320 x 240 resolution. It allows the management of the intrusion alarm via customizable graphical maps. Connectable to all CP series control units with the 001SIFTS01 interface. Customise with frame and flush-mounting box. With programming software. Flush-mounting boxes: 001STSBOX04 - Plastic flush-mounting box for 002ST550M terminal and frame: 001SCX550A, 001SCX550B, 001SCX550N and 001SCX550X. 001STSBOX05 - Steel flush-mounting box for 002ST550M terminal and frame: 001SCF550A, 001SCF550B, 001SCF550N, 001SCF550X. DESCRIPTION Type 002STS550M Power supply (V - DC) 12 ÷ 26 Current draw (mA) 150 max Sensitive area (") 5.5 Resolution (pixel) 320x240 Dimensions (mm) 130x195x60 Weight (g) 350 Environmental class II Compliance with Directives EN 50131 - 3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 45 12/06/14 15:03
  • 46.
    46 The 002STS550M touchscreen terminal allows the supervision and control of the alarm system. Installation of one or more 002STS550M touch screen terminals in a security system means having the set of features described below, allowing visual control of the system: Virtual keypad. The 002STS550M monochrome terminal allows control of CP series control units via a virtual keypad that allows system engage/ disengage and the launch of programmed scenarios. Graphical maps. The terminal allows visual system control. It can be programmed so that the main page displays the general layout of the house. Selecting one of the environments will call up, in the form of touch sensitive icons, the security detectors installed on the premises. An active alert will highlight the alarm triggered. The terminal is connected to CP series control units through its 001SIFTS01 interface. Other terminals (up to 8) can be connected using the appropriate link. The 002STS550M terminal, if implemented with the 001SDOMO2 software also allows, in addition to the control of the intrusion alarm system, connection to the home automation system. VIRTUAL KEYPAD GRAPHICAL MAPS EN_2014_CATALOGO_SICUREZZA.indd 46 12/06/14 15:03
  • 47.
    47 RS232 LINE 230 VAC 002SCP8096 002STS550M 002STS550M 002STS550M ADDITIONAL POWER SUPPLY UNITNIT 0002S2SCPCP80809696 Up to 8 touch screens 001SIFTS01 EN_2014_CATALOGO_SICUREZZA.indd 47 12/06/14 15:03
  • 48.
    48 The 002STS550M graphicterminal can be installed in two different ways: standard installation, i.e.: approx. 20 mm wall protrusion. It is carried out using the 001STSBOX04 flush-mounting box and a type 001SCX550A frame. low profile installation, i.e.: approx. 5 mm wall protrusion. It is carried out using the 001STSBOX05 flush-mounting box and a type 001SCX550A frame. The frames are decorative elements available in three colours: silver, black and white. All the frames are customizable upon request, with a RAL® colour. This allows harmonious integration into any ambience. To order a special frame, use the service codes listed below, adding the code of the desired RAL colour. Example: RAL3020 colour for 001STS550M low profile frame: 001SCF550RAL3020 RAL COLOURS RAL 1007RAL 1006RAL 1005RAL 1004RAL 1003RAL 1002RAL 1001RAL 1000 RAL 1018RAL 1017RAL 1016RAL 1015RAL 1014RAL 1013RAL 1012RAL 1011 RAL 1032RAL 1028RAL 1027RAL 1024RAL 1023RAL 1021RAL 1020RAL 1019 RAL 2008RAL 2004RAL 2003RAL 2002RAL 2001RAL 2000RAL 1034RAL 1033 RAL 3003RAL 3002RAL 3001RAL 3000RAL 2012RAL 2011RAL 2010RAL 2009 RAL 3014RAL 3013RAL 3012RAL 3011RAL 3009RAL 3007RAL 3005RAL 3004 RAL 3031RAL 3027RAL 3022RAL 3020RAL 3018RAL 3017RAL 3016RAL 3015 RAL 4008RAL 4007RAL 4006RAL 4005RAL 4004RAL 4003RAL 4002RAL 4001 RAL 5007RAL 5005RAL 5004RAL 5003RAL 5002RAL 5001RAL 5000RAL 4009 RAL 5015RAL 5014RAL 5013RAL 5012RAL 5011RAL 5010RAL 5009RAL 5008 RAL 5024RAL 5023RAL 5022RAL 5021RAL 5020RAL 5019RAL 5018RAL 5017 RAL 6007RAL 6006RAL 6005RAL 6004RAL 6003RAL 6002RAL 6001RAL 6000 RAL 6015RAL 6014RAL 6013RAL 6012RAL 6011RAL 6010RAL 6009RAL 6008 RAL 6024RAL 6022RAL 6021RAL 6020RAL 6019RAL 6018RAL 6017RAL 6016 RAL 6034RAL 6033RAL 6032RAL 6029RAL 6028RAL 6027RAL 6026RAL 6025 RAL 7006RAL 7005RAL 7004RAL 7003RAL 7002RAL 7001RAL 7001RAL 7000 RAL 7016RAL 7015RAL 7013RAL 7012RAL 7011RAL 7010RAL 7009RAL 7008 RAL 7032RAL 7031RAL 7030RAL 7026RAL 7024RAL 7023RAL 7022RAL 7021 RAL 7040RAL 7039RAL 7038RAL 7037RAL 7036RAL 7035RAL 7034RAL 7033 RAL 8004RAL 8003RAL 8002RAL 8001RAL 8000RAL 7044RAL 7043RAL 7042 RAL 8017RAL 8016RAL 8015RAL 8014RAL 8012RAL 8011RAL 8008RAL 8007 RAL 9002RAL 9001RAL 8028RAL 8025RAL 8024RAL 8023RAL 8022RAL 8019 RAL 9018RAL 9017RAL 9016RAL 9011RAL 9010RAL 9005RAL 9004RAL 9003 21 mm X04 flush-mounting box and a type 001SCX550 X05 flush-mounting box and a type 001SCX550 8 mm Standard Installation with 001STSBOX04 and 001SCX550A Low-profile installation with stainless steel 001STSBOX05 and 001SCF550A NOTE: The company reserves the unilateral right not to accept colour customization requests. EN_2014_CATALOGO_SICUREZZA.indd 48 12/06/14 15:03
  • 49.
    49 001SCF550A Low-profile silver plexiglassframe for 002STS550M To use with 001STSBOX05 flush-mounting box. Available colours: 001SCF550A - silver 001SCF550B - white 001SCF550N - black 001SCF550X - RAL on request Dimensions: 218 x 177 x 8 mm 001SCX550A Silver plexiglass frame for 002STS550M To use with 001STSBOX04 Available colours: 001SCX550A - silver 001SCX550B - white 001SCX550N - black 001SCX550X - RAL on request Dimensions: 209 x 143 x 21 mm EN_2014_CATALOGO_SICUREZZA.indd 49 12/06/14 15:03
  • 50.
  • 51.
    51 001SIR215 Volumetric passive infrareddetector with low absorption. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 100 x 60 x 46 mm 001SDT215 Double technology volumetric detector with low absorption. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 100 x 60 x 46 mm DESCRIPTION Type 001SIR215 001SDT215 Power supply (V - DC) 9 ÷ 16 Current draw (mA) 15 25 Alarm contact range (mA/V) 50/24 Tamper contact range (mA/V) 100/24 Coverage (m/°) 15/141 Casing material ABS Joint Supplied Dimensions (mm) 110x60x46 Weight (g) 85 (without joint) 95 (with joint) Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-2, EN 50131-2-3, EN 50131-2-4, Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE (only for 001SDT2115) Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation INDOOR DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 51 12/06/14 15:03
  • 52.
    52 001SIR215 is apassive infrared volumetric motion detector with low absorption suitable for indoor installation. You can adjust the sensitivity of the detector via special trimmer in order to obtain an optimal coverage of the environment. 001SDT215 is a passive infrared volumetric motion detector with low absorption suitable for indoor installation. It uses two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The dedicated jumper allows you to select the AND or OR operating mode of the two detection areas; The detector signals the alarm status when both sections have an alarm active, if the jumper is in the AND position. Otherwise, if the jumper is in OR, the detector will trigger the alarm status when only one of the two sections has an alarm active. You can adjust the sensitivity of both sections via special trimmer in order to obtain an optimal coverage of the environment. 001SIR215 - 001SDT215 19.5° 19.5° 15 m1.7 m 2.1 m EN_2014_CATALOGO_SICUREZZA.indd 52 12/06/14 15:03
  • 53.
    53 001SIR310 Volumetric passive infrareddetector with low absorption. Range: 10 m - opening: 110°. Supplied with joint. 001SIR310PT Volumetric passive infrared detector with low absorption. Immunity to pets weighing less than 20 kg. Range: 10 m - opening: 110°. Supplied with joint. Dimensions: 89 x 52 x 39 mm 001SSND01 Joint for volumetric detectors. To use with: 001SIR308DC, 001SDT311PT, 001SDT315, 001SDT315AM, 001SDT325. DESCRIPTION Type 001SIR310 001SIR310PT 001SDT315 001SDT315AM 001SDT325 001SDT311PT Power supply (V - DC) 9 ÷ 16 Current draw (mA) 12 25 Alarm contact range (mA/V) 100/12 Tamper contact range (mA/V) 100/12 Immunity to pets (kg) No 20 No 20 Coverage (m/°) 10/110 8/110 16/110 18/110 25/83 16/110 Casing material ABS Joint Supplied Optional (001SSND01) Dimensions (mm) 89x52x39 128x64x40 Weight (g) 90 130 Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-4 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SDT315 Low-absorption double-technology volumetric detector. Range: 16 m - opening: 110°. 001SDT311PT Low-absorption double-technology volumetric detector. Immunity to pets weighing less than 20 kg. Range: 16 m - opening: 110°. 001SDT315AM Double-technology volumetric detector with low absorption. Passive infrared + planar microwave with anti-masking function. Range: 18 m - opening: 110°. 001SDT325 low-absorption double-technology volumetric detector. Range: 25 m - opening: 83°. Dimensions: 128 x 64 x 40 mm EN_2014_CATALOGO_SICUREZZA.indd 53 12/06/14 15:03
  • 54.
    54 001SIR310 is apassive infrared volumetric motion detector with low absorption suitable for indoor installation. It uses a pyroelectric sensor with passive infrared rays (PIR). In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. To avoid false alarms, the number of detections required to trip the alarm can be adjusted. 001SIR310PT is a passive infrared volumetric motion detector with low absorption suitable for indoor environments with pets. 001SIR310, it features a special circuit that evaluates the physical mass of the body detected by avoiding to alarm tripping if an animal weighing less than 20 kg passes through the protected area. 001SDT315, 001SDT311PT, 001SDT315AM, 001SDT325, are volumetric motion detectors with low absorption suitable for indoor installation. Using two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. To avoid false alarms, microwave sensitivity can be adjusted. They have the following features: 001SDT311PT features a special circuit that evaluates the physical mass of the body detected avoiding alarm tripping if an animal weighing less than 20 kg passes through the protected area. 001SDT315AM has a separate circuit able to report any masking attempts. 001SDT325 allows to cover large areas due to the range of 25 m. 001SIR301 - 001SIR310PT 35° 35° top view 10 m0.4 m side view 001SSDT311PT - 001SDT315 35° 35° top view 10/16 m 10/18 m 10/18 m0.4 m 0.4 m 0.4 m side view 001SSDT315AM 35° 35° top view side view 001SSDT325 48° 48° top view side view 2 m 2.5 m 2.5 m 23 m 2.5 m 2.5 m 2.5 m 2.2 m EN_2014_CATALOGO_SICUREZZA.indd 54 12/06/14 15:03
  • 55.
    55 001SIR308DC Volumetric passive infrareddetector with low absorption. Curtain effect coverage. Range: 8 m - opening: 90°. Dimensions: 95 x 65 x 35 mm 001SIR304C Ceiling mounted volumetric passive infrared detector with low absorption. Coverage: installed at a height of 4 m has a ground diameter of 13 m; installed at a height of 6.8 m has a ground diameter of 17 m. Dimensions: Ø 110 x 22 mm 001SDT306C Ceiling mounted, double-technology volumetric detector with low absorption. Coverage: installed at a height of 2.8 m has a ground diameter of 8 m; installed at a height of 4.5 m has a ground diameter of 13 m. Dimensions: Ø 130 x 26 mm 001SVS309 Vibration detector. Wall and window security application. Detects vibrations caused by impacts or attempts at breaking and entering. Dimensions: 85 x 26 x 25 mm DESCRIPTION Type 001SIR304C 001SDT306C 001SIR308DC 001SVS309 Power supply (V - DC) 9 ÷ 16 Current draw (mA) 15 25 15 11 Alarm contact range (mA/V) 50/24 Tamper contact range (mA/V) 100/24 Coverage (m/°) - 8/170 - Coverage (Ø/h) 13/4 - Casing material ABS Joint - Optional (001SSND01) - Dimensions (mm) Ø 110x22 Ø 130x26 95x65x35 85x26x25 Weight (g) 78 146 58 36 Environmental class II Compliance with Directives EN 50131-2-2 Grade 2 EN 50131-2-4 Grade 2 EN 50131-2-2 Grade 2 EN 50131-2-7-1 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE (only for 001SDT306C) Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 55 12/06/14 15:03
  • 56.
    56 001SIR308DC 5° 5° top view 8m 0.75 m side viewtop viewtop view 001SIR304C 2.8 m 2.8 m 0 0 4 m 6 m 100° 100° front view front view 001SIR306C 001SIR304C and 001SDT306C are low-absorption volumetric motion detectors for indoor use. When installed on the ceiling allows a 360° coverage. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. They have the following features: 001SIR304C. It uses a dual element pyroelectric sensor with passive infrared rays (PIR). To avoid false alarms, the number of detections required to trip the alarm can be adjusted. 001SDT306C. It uses two detection technologies: a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. To avoid false alarms, microwave sensitivity and the number of detections required to trip the alarm can be adjusted. 001SIR308DC is a volumetric motion detector with low absorption suitable for indoor installation with curtain effect coverage for the protection of doors and windows. It uses a dual element pyroelectric sensor with passive infrared rays (PIR). Wall or ceiling installable. It features a circuit for determining transit direction. The user can move freely inside the house while the intruder from outside is regularly detected. In order to ensure high reliability at high temperatures, it is equipped with a special temperature compensation circuit. 001SVS309 is a vibration detector to be installed to protect doors and windows. Suitably positioned in the point to be protected, it detects vibrations arising from attempts of breaking and entering. Alarm trip sensitivity can be adjusted via an on-board trimmer. 7 m 8 m 12 m 17 m 001SV309 EN_2014_CATALOGO_SICUREZZA.indd 56 12/06/14 15:03
  • 57.
    5757 001SIRCE Outdoor radio-based passiveinfrared curtain effect detector, with anti-masking and pet-immune features. Range: 5 m - opening: 10°. Dimensions: 35 x 155 x 42.5 mm 001SDTE Double technology outdoor volumetric detector. Range: 18 m - opening: 80°. Dimensions: 190 x 85 x 75 mm DESCRIPTION Type 001SIRCE 001SDTE Power supply (V CA) 9.5 ÷ 18 8 ÷ 14 Current draw (mA) 20 50 Alarm contact range (mA/V) 100/28 500/12 Tamper contact range (mA/V) 100/28 500/12 Coverage (m/°) 5/10 18/80 Casing material ABS Dimensions (mm) 35x155x42.5 190x85x75 Weight (g) 100 332 Protection rating IP55 IP54 Directives EMC 2004/108/CE, 2006/95/CE EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -20 ÷ +60 -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation 001STADTE Bracket for installing to the post the 001SDTE and 001SDTEWL detectors. OUTDOOR DETECTORS EN_2014_CATALOGO_SICUREZZA.indd 57 12/06/14 15:03
  • 58.
    58 The 001SIRCE isan outdoor curtain-effect motion detector. It uses a dual pyroelectric sensor with passive infrared rays (PIR). The IP55 protection rating and the guaranteed operating temperature (-20° ÷ +60°) make it suitable for outdoor walls and balconies. It comes with the anti-masking feature that automatically triggers the alarm in case the device is masked for over three consecutive minutes. A sophisticated signal processing logic optimizes the detection sensitivity. Every movement is analyzed in detail before triggering the alarm. This prevents false alarms or missed detections making the device immune to environmental and small pet disturbances. Thanks to it special mechanical structure the curtain effect coverage area may be adjusted from two to five meters and rotated along a 190° arc to avoid unwanted detections. The 001SDTE is an outdoor motion detector made with two detection heads, one is passive infrared and the other microwave with planar antenna, each can be oriented to provide the most effective coverage. The special mechanical structure complete with small roof, the IP54 protection rating and the guaranteed operation temperature (-40° ÷ +70°) make it particularly suitable for protecting outdoor walls, balconies and outdoor onto-pole installations. The maximum range of 18 m may be adjusted via special trimmers (one per head) so as to have an optimal coverage depending on the setting you wish to protect. Properly orienting the head also helps avoid alarms and ensures immunity from small household pets. Is supplied with lens cover in plastic, installable on the passive infrared detection head to obtain a curtain effect coverage area. It can be used to further optimize detection and reduce to a minimum any chance of erroneous alarms. top view 95° 95° 190° 0.8 0.8 0 1 2 3 4 5 m 1.0 1.0 1.2 1.2 001SIRCE001SIRCE top view 80° 12 m 0 20 m 12 m 0 2 4 6 8 10 20 m 001SDTE001SDTE 2.5 m Alarm No alarm EN_2014_CATALOGO_SICUREZZA.indd 58 12/06/14 15:04
  • 59.
  • 60.
  • 61.
    61 DESCRIPTION Type 001SRX128D Power supply(V - DC) 12 ÷ 15 Current draw (mA) 100 max Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Communication with the control unit via RS485 BU Address selection by means of 4 DIPs Casing material ABS Dimensions (mm) 110x80x25 Weight (g) 60 Environmental class II Compliance with Directives EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001SRX128D Supervised DualBand Radio Receiver. Works on frequencies of 868.65 and 433.92 MHz (the number of programmable inputs varies in relation to CP series control unit. Dimensions: 110 x 80 x 25 mm RECEIVERS EN_2014_CATALOGO_SICUREZZA.indd 61 12/06/14 15:04
  • 62.
    62 The 001SRX128D radioreceiver allows the 002SCP8048, 002SCP8096, 002SCP8200 control units, to manage all of radio devices (volumetric detectors, perimeter detectors, transmitters, keypads and radio sirens) and thus to use the radio inputs with which the control units are equipped. 001SRX128D, connected on the RS485 BUS line as expansion module, allows for two-way dialogue between wireless devices and the control unit. A single 001SRX128D radio receiver is enough to communicate with all devices that the control units can respectively control. As indicated in the block diagram shown below, additional 001SRX128D modules can be connected to the RS485 line in order to improve communication. Protection of large areas and environments where radio signal is weak or disrupted are examples that hint at necessary installation of additional 001SRX128D radio receivers. The number of radio devices that may be used and the number of modules that can be connected to the RS485 line depends on the control unit used: 01SRX128D incorporates a LED field meter that allows the evaluation of the incoming signal to use during installation. Control unit 001STHB004WL transmitters Radio inputs Connectible 001SRX128D modules 002SCP8048 8 24 2 002SCP8096 32 48 8 002SCP8200 32 72 16 It can also be employed with the 001CP6099WL control unit (maximum 2 units) in order to improve the radio range of the system. EN_2014_CATALOGO_SICUREZZA.indd 62 12/06/14 15:04
  • 63.
  • 64.
  • 65.
    65 KEYPADS AND TRANSMITTERS DESCRIPTION Type001STDCSNWL - 001STDCSBWL 001STHB004WL 001SRC04WL Power supply (V - DC) CR123A lithium battery (no. 3) CR2450 lithium battery (no. 1) CR2032 lithium battery (no. 1) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 868.65 mono-band bidirectional Casing material PLEXIGLASS ABS ABS Dimensions (mm) 158x138x31 110x40x14 38x76x9 Weight (g) - 60 27 Environmental class II Compliance with Directives EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001STDCSBWL Radio capacitive keypad - white. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall-installation. Dimensions: 158 x 138 x 31 mm 001STDCSNWL Radio capacitive keypad - black. Features touch sensitive keys and graphic display with system status icons. Fully backlit. Built-in transponder key reader. Wall-installation. Dimensions: 158 x 138 x 31 mm 001SRC04WL Transmitter. Allows control of CP series control units. Features 4 buttons and 4 LEDs to activate 3 scenarios programmed in the control unit. Displays system and activated scenario status. Dimensions: 38 x 76 x 9 mm Notes: 001STDCSNWL, 001STDCSBWL, 001STHB004WL 001SRC04WL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. 001STHB004WL Transmitters Allows control of CP series control units. Features 4 buttons and 9 two-colour LEDs to activate 16 scenarios programmed in the control unit. Displays system and activated scenario status. Dimensions: 40 x 110 x 14 mm EN_2014_CATALOGO_SICUREZZA.indd 65 12/06/14 15:04
  • 66.
    66 001STDCSNWL are 001STDCSBWLthe system radio keypads. Made with ergonomic touch capacitive keys, on board they feature a graphic display with system status icons and a transponder-based key reader. In order to reduce power consumption to a minimum and ensure long battery life, the keypads are activated via sensor only when the operator is in front of it. They feature two-way communication with the control unit with modes similar to the detectors, also supervised in the same manner. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D Control unit management is performed via two types of bidirectional transmitters: 001STHB004WL and 001SRC04WL. 001STHB004WL with 9 LEDs on board allows the launch of 16 scenarios programmed in the control unit and provides feedback on system status and activated scenario. Similarly 001SRC04WL with 4 LEDs on board allows the management of 4 scenarios. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. The radio range in open air and in the total absence of band noise is about 200 m for the keypads and 100 m for the transmitters. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 66 12/06/14 15:04
  • 67.
    67 DESCRIPTION Type 001SIR215WL 001STXW003WL- 001STXB003WL Power supply (V - DC) 3V6 1/2AA lithium battery Battery life (months) 24 36 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Casing material ABS Dimensions (mm) 60x110x46 28x95x28 Weight (g) 100 80 Environmental class II Compliance with Directives EN 50131-2-2,EN 50131-5-3 Grade 2 EN 50131-2-6,EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation 001STXW003WL White perimeter radio detector. Window and door security application. In addition to alarm signal transmission, it allows signal transmission of two on-board inputs. Dimensions: 28 x 95 x 28 mm 001STXB003WL BROWN PERIMETER RADIO detector. Window and door security application. In addition to alarm signal transmission, it allows signal transmission of two on-board inputs. Dimensions: 28 x 95 x 28 mm 001SIR215WL Radio volumetric detector. Features the sensibility adjustment and the impulse-counter. Range: 15 m - opening: 141°. Supplied with joint. Dimensions: 60 x 110 x 46 mm RADIO DETECTORS FOR INDOOR APPLICATION Notes: 001SIR215WL, 001STXW003WL, 001STXB003WL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. 67 EN_2014_CATALOGO_SICUREZZA.indd 67 12/06/14 15:04
  • 68.
    68 001STXW003WL and 001STXB003WLare radio perimeter devices with built-in transmitter, suitable for indoor installation to protect doors and windows. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. A magnetic contact (reed switch) is internally housed, which is actuated by an external magnet that is included in the supply. The magnet, with a special support, must be installed on the door or window to be protected, while the detector mounts on the door or window frame. Moving the magnet from the detector generates an alarm signal which is transmitted to the control unit. They convey the state of the reed switch and the status of the two auxiliary inputs, on separate channels so that they can be individually identified by the control unit. The tampering alarm is transmitted allowing precise identification. In addition, it features two inputs for connection to external detection devices. The inputs can be provided, during programming, for connection to standard magnetic switches or shutter motion detectors (or vibration detectors). If the input is programmed for the connection of a magnetic contact, the radio device will broadcast the On / Off status of the contact. Programming the input for connection of a shutter motion detector (or vibration detector), the alarm will be sent upon a number of predetermined number of pulses. 001SIR215WL is a passive infrared volumetric motion detector with built-in radio transmitter suitable for indoor installation. You can use it with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. The device transmits the intrusion alarm, the tampering alarm and the supervision. The coverage area and the installation position are similar to those described for the 001SIR215 detector. In order to obtain maximum safety, the radio devices are bi-directional Dual Band (868 Mhz and 433 Mhz). In case of alarm, the detector transmits the signal to the receiver over a 868 Mhz band, the receiver sends a confirmation feedback of reception to the detector. If the detector does not receive the feedback signal, it transmits the signal a second time over the 433 Mhz band. The system is also of the supervised type as all detectors transmit, at regular time intervals, the occupancy control signal; a fault/alarm will be generated if the control unit does not receive feedback within a pre-set time limit. The detectors also transmits the battery status signal that can be viewed from the control unit. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 68 12/06/14 15:04
  • 69.
  • 70.
  • 71.
    71 001SDTCLWL Radio-based curtain effectdouble technology detector. Range: 3 m - opening: 28°.. Dimensions: 330 x 40 x 30 mm DESCRIPTION Type 001SDTCLWL Power supply (V - DC) CR123A lithium battery (no.2) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Coverage (m/°) 3/28 Casing material ABS Dimensions (mm) 330x40x30 Weight (g) 202 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation Notes: 001SDTCLWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 wired units featuring the 001SRX128D receiver. EN_2014_CATALOGO_SICUREZZA.indd 71 12/06/14 15:04
  • 72.
    72 001SDTCLWL is acurtain effect motion detector for protecting doors and windows, and has a built in radio transmitter. It uses a dual element pyroelectric sensor with passive infrared rays (PIR) and microwave (MW) sensor with patch antenna. The functioning of the two section is of the AND type. The guaranteed operating temperature (-40° ÷ +70°) and the coverage area make especially suitable for installing in outdoor protected areas (near doors and windows) especially large sized ones. The range can be adjusted, via dip switch, to 1.2 m for protecting a window or to 3 m for protecting a door. 001SDTCLWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 wired control units featuring the 001SRX128D receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. 001SDTCLWL (short range)001SDTCLWL (long range) 0.31.5 3 meters 0.2 0.8 1.2 meters EN_2014_CATALOGO_SICUREZZA.indd 72 12/06/14 15:04
  • 73.
    73 001SDTEWL Radio-based double technologyoutdoor volumetric detector. Range:18 m - opening 80°. Dimensions: 190 x 85 x 75 mm 001SIRCEWL Outdoor radio-based passive infrared curtain effect detector, with anti-masking and pet-immune features. Range: 5 m - opening: 5°. Dimensions: 35 x 155 x 42.5 mm (single module) DESCRIPTION Type 001SIRCEWL 001SDTEWL Power supply (V - DC) CR123A lithium battery (no.2) Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Coverage (m/°) 5/5 18/80 Casing material ABS Dimensions (mm) 35x155x42.5 (single module) 190x85x75 Weight (g) 190 (two modules) 332 Protection rating IP55 IP54 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -20 ÷ +60 -40 ÷ +70 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 95 Without condensation Relative humidity during storage (%) 75 without condensation 001STADTE Bracket for installing to the post the 001SDTE and 001SDTEWL detectors. Notes: 001SIRCEWL, 001SDTEWL can be used with the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. EN_2014_CATALOGO_SICUREZZA.indd 73 12/06/14 15:04
  • 74.
    74 The 001SDTEWL isan outdoor motion detector, with built in transmitter, made with two detection heads, one is passive infrared and the other microwave with planar antenna, and each one can be oriented for best coverage. The special mechanical structure complete with small roof, the IP54 protection rating and the guaranteed operation temperature (-40° ÷ +70°) make it particularly suitable for protecting outdoor walls, balconies and outdoor onto-pole installations. The maximum range of 18 m may be adjusted via special trimmers (one per head) so as to have an optimal coverage depending on the setting you wish to protect. Properly orienting the head also helps avoid alarms and ensures immunity from small household pets. Is supplied with lens cover in plastic, installable on the passive infrared detection head to obtain a curtain effect coverage area. It can be used to further optimize detection and reduce to a minimum any chance of erroneous alarms. 001SIRCEWL and 001SDTEWL can be used eith the 002SCP6099WL radio control unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units featuring the 001SRX128D receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. The 001SIRCEWL is an outdoor curtain-effect motion detector with built in transmitter. It uses a dual pyroelectric sensor with passive infrared rays (PIR). The IP55 protection rating and the guaranteed operating temperature (-20° ÷ +60°) make it suitable for outdoor walls and balconies. It comes with the anti-masking feature that automatically triggers the alarm in case the device is masked for over three consecutive minutes. A sophisticated signal processing logic optimizes the detection sensitivity. Every movement is analyzed in detail before triggering the alarm. This prevents false alarms or missed detections making the device immune to environmental and small pet disturbances. Thanks to it special mechanical structure the curtain effect coverage area may be adjusted from two to five meters and rotated along a 190° arc to avoid unwanted detections. top view 95° 95° 190° 0.8 0.8 0 1 2 3 4 5 m 1.0 1.0 1.2 1.2 001SIRCEWL001SIRCEWL top view 80° 12 m 0 20 m 12 m 0 2 4 6 8 10 20 m 001SDTEWL001SDTEWL 2.5 m Alarm No alarm EN_2014_CATALOGO_SICUREZZA.indd 74 12/06/14 15:05
  • 75.
  • 76.
  • 77.
    77 001SLUNAWL Self-powered radio sirenfor outdoor use with ABS case and LED flashing light. Flashing light system status signal. Antifoam active with signals to control unit. You can use it with the 001SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control units with the 001SRX128D radio receiver. Dimensions: 280 x 140 x 135 mm RADIO SIRENS DESCRIPTION Type 001SLUNAWL Power supply (V - DC) - Battery life (months) 24 Modulation type GFSK Radio transmission (MHz) 868.65 dual band and bidirectional 433.92 Casing material ABS Dimensions (mm) 280x140x135 Weight (g) - Environmental class III Compliance with Directives EN 50131-4, EN 50131-5-3 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE, R&TTE 99/05/CE Operating temperature (°C) -10 ÷ +40 Storage temperature (°C) -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 77 12/06/14 15:05
  • 78.
    78 The range ofwireless devices is completed by the 001SLUNAWL siren. Made of ABS plastic casing, the siren features an on-board LED flashing light for signalling the alarm and system status at system engagement/disengagement. It features active antifoam control with alarm signalling to the control unit. This device too is of the supervised type and communicates in a two-ways mode with the control unit. The mode is similar to that of radio detectors. You can use it with the 002SCP6099WL radio contro unit and with the 002SCP8048, 002SCP8096, 002SCP8200 control nits with the 001SRX128D radio receiver. The radio range is about 200 m in open air and in the total absence of band noise. Range may be greatly decreased indoors due to the position in relation to the structure of the environment and / or noise on the radio band. EN_2014_CATALOGO_SICUREZZA.indd 78 12/06/14 15:05
  • 79.
    79 001SIR215WL 001STHB004WL 001SCP6099WL 001SRC04WL 001STXW003WL00001S1STXW0 SHUTTER MOVEMENT DETECTOR (ORVIBRATION DETECTION) MAGNETIC CONTACT 001SLUNAWL 001STDCSNWL 001SDTCLWL 001SIRCEWL 79 EN_2014_CATALOGO_SICUREZZA.indd 79 12/06/14 15:05
  • 80.
  • 81.
    81 001SLUNA Self-powered radio sirenfor outdoor use with ABS case and orange LED flashing light. Independent input for controlling the flashing light to warn about the system status. Antifoam active with contact output. To use with 001SBAT2 12V/2,2Ah battery. Dimensions: 280 x 140 x 135 mm 001SLUNALG Self-powered outdoor siren with ABS container and grey LED flashing light. Independent input for controlling the flashing light to warn about the system status. Antifoam active with contact output. To use with 001SBAT2 12V/2,2Ah battery. Dimensions: 280 x 140 x 135 mm 009SSP400 Piezoelectric indoor siren. Plastic wall-mounting casing. Dimensions: 115 x 115 x 35 mm DESCRIPTION Type 001SLUNA - 001SLUNALG 009SSP400 Power supply (V - DC) 12 ÷ 15 Current draw at rest (mA) 30 - Current draw in alarm mode (mA) 1500 90 Sound pressure level (db) 110 to 1 m 80 to 1 m Alarm response time (") from 120 to 600 selectable by jumper - Battery (V/Ah) 12 / 2.2 - Protection rating IP44 IP30 Anti-foam protection Active and galvanized sheet metal - Casing material ABS Dimensions (mm) 280x140x135 115x115x35 Weight (g) 2500 (without batteries) 131 (without batteries) Environmental class III II Compliance with Directives EN 50131-4 Grade 2 Directives EMC 2004/108/CE, 2006/95/CE Operating temperature (°C) -25 ÷ +50 -10 ÷ +40 Storage temperature (°C) -25 ÷ +50 -10 ÷ +50 Relative humidity during operation (%) 75 without condensation Relative humidity during storage (%) 75 without condensation EN_2014_CATALOGO_SICUREZZA.indd 81 12/06/14 15:05
  • 82.
    82 001SLUNA is aself-powered siren with flashing light for outdoor installation. The ABS case contains two antifoam protections: the first is constituted by a suitable metal screen able to protect the electronics and the sound system, the second is comprised of a sensor capable of generating, if requested by the foaming material, a tamper alarm output. The flashing light comprises two groups of high-efficiency LEDs that guarantee a practically unlimited service life and allow standard maintenance operations for replacing the lamp to be avoided. The two sections of the flashing light can be controlled from the input of the alarm siren as well as separately via two dedicated inputs. This allows to use the flashing light, not only for the alarm signalling, but also for auxiliary signals sent by the control unit (e.g. system status). 001SLUNA offers protection against removal, against opening and siren block function to be used during installation or maintenance. The operation is determined by a series of dip-switches mounted directly onto the card. CONNECTOR FOR BATTERY CABLES AND CONE TEAR-RESISTANCE AND ANTIFOAM SWITCH TAMPERING PROTECTION SWITCH CONNECTORS FOR LED SIGNALLING LIGHTS DIP-SWITCH POWER SUPPLY AND ACCESSORIES TERMINAL BLOCK BOARD PROTECTION FUSE F 3.15 A BATTERY POLARITY REVERSE PROTECTION FUSE F 3.15 A SIGNALLING LED EN_2014_CATALOGO_SICUREZZA.indd 82 12/06/14 15:05
  • 83.
  • 84.
    84 POWER SUPPLY UNITSAND BATTERIES 001SALS15 Supervised 1.5 A auxiliary power supply unit. Connected over the system bus it warns the control unit of its own working status. Legal conformity: EN 50131-6 grade 2 environmental class II. 001SALS30 Supervised 3 A auxiliary power supply unit. Connected over the system bus it warns the control unit of its own working status. Legal conformity: EN 50131-6 grade 2 environmental class II. 001SBAT2 Rechargeable lead-based battery. Hermetic, 12 V - 2.2 Ah. 001SBAT7 Rechargeable lead-based battery. Hermetic, 12 V - 7.2 Ah. 001SBAT15 Rechargeable lead-based battery. Hermetic, 12 V - 15 Ah. SUPERVISED POWER SUPPLY UNITS The 001SALS15 and 001SALS30 supervised power supply units are ideal when auxiliary power supply is required, especially in systems in which the control units are fitted with power supply units that just cannot power all of the devices installed on them. Thanks to the over bus connection featured on the power supply units, the control unit controls their relative operation, analyzing the following conditions: 230VCA network presence Status tamper container Status of the internally lodged buffer battery Status of fuses Any anomalies deriving from the described checks, besides being stored in the events memory, also generate corresponding telephone warnings. Using the issued probe, the power supply units control the buffer battery charge depending on the temperature of the battery itself. The 001SALS15 power supply unit's container can lodge a 7Ah (001SBAT7) battery and among two of the following types of modules: 001SMR8ICI remote expansion module 8 inputs 001SMR8O4R remote expansion module 8 outputs 001SRS485 signal amplifier for RS485 bus In the same way, the 001SALS30 power supply unit's container can house a 15Ah (001SBAT15) battery and five modules among the ones listed above. The detectors work also without being connected over bus to the system so as to ensure use even as standard-type auxiliary power supply stations with any kind of burglar proof system. Here again, the functioning complies with the EN 50131-6. EN_2014_CATALOGO_SICUREZZA.indd 84 12/06/14 15:05
  • 85.
    85 ACCESSORIES 001SR2 2-relay card. Connectable tothe open collector outputs of the CP series control units and of the 001SMR8O4R remote modules. 1 selectable NO - NC contact per relay. 001SPROBAT Protection board against total discharge of lead-acid batteries. Mandatory for batteries with capacity higher than 7.5 Ah. 001SNTC47 NTC temperature probe. For the active monitoring of control unit battery temperature. 001S24TW50 Bus cable for alarm systems. Shielded and twisted grade 4. 2 x 0.5 mm² + 2 x 2 x 0.22 mm². Complies with CEI 20-22 II. Operating temperature 450 V / 750 V. 200 m coil. 001S24TW75 Bus cable for alarm systems. Shielded and twisted grade 4. 2 x 0.75 mm² + 2 x 2 x 0.22 mm². Operating temperature 450 V / 750 V. Complies with CEI 20-22 II. 200 m coil. 001SIFTS01 Touch screen connection interface card. Allows monochrome and colour touch screen connection (see home automation catalogue) to 002SSCP8048, 002SSCP8096, 002SSCP8200 and 002SCP6099WL control units. 001SDOMO2 Software license. Allows use of the 002STS550M terminal in home automation applications with the he¡Bus home automation bus. One proprietary license per terminal. 001SIRUSB8 Programming cable kit. The package contains a USB A-B cable and a CD with SWLINK software for programming the 002SSCP8048, 002SSCP8096, 002SSCP8200 and 002SSCP6099WL control units, a connector for PC connection to the 002STS550M touch screen, a RS232-USB converter complete with CD with relative driver. EN_2014_CATALOGO_SICUREZZA.indd 85 12/06/14 15:05
  • 86.
  • 87.
  • 88.
    88 © Came CancelliAutomatici S.p.A. All of the content data is thoroughly checked. All of the content data is thoroughly checked. In any event we are not liable for any errors and/or omissions. The content of this catalogue is subject to change at any time without prior notice from Came Cancelli Automatici S.p.A. EN_2014_CATALOGO_SICUREZZA.indd 88 12/06/14 15:05
  • 89.
  • 90.
    KSUP#CEN2620114-GIU_2014-EN_EXPORT Came Nord Est Udine– Italy Came Sud Naples – Italy Came United Kingdom Nottingham - UK Came France Paris - France Came Spain Madrid - Spain Came Portugal Lisbon - Portugal Came Seefeld Berlin - Germany Came Korntal Stuttgart - Germany Came Group Benelux Lessines - Belgium Came Nederland Breda - Netherlands Came Poland Sp. z o.o. Warszawa - Polska Came Americas Automation Miami - USA Came Adriatic Kastav – Croatia Came do Brasil Serviços de Automaçao São Paulo – Brazil Came Automatismos de Mexico Mexico City – Mexico Came Rus Moscow - Russia Came Gulf Dubai – U.A.E. Came India Automation Solutions New Delhi - India TRI-Bpt Automation Germiston - South Africa Came Cancelli Automatici S.p.A. via Martiri della Libertà, 15 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 fax (+39) 0422 4941 www.came.com - info@came.it Came cancelli automatici S.p.A. is certified Quality and Environment UNI EN ISO 9001 UNI EN ISO 14001 100%MAD E IN ITALY CERTIFICATE ITPI.386 GARANZIA QUALITÀ ORIGINALE Engineered and made in ITALY Came is a company of EN_2014_CATALOGO_SICUREZZA.indd 90 12/06/14 15:06
