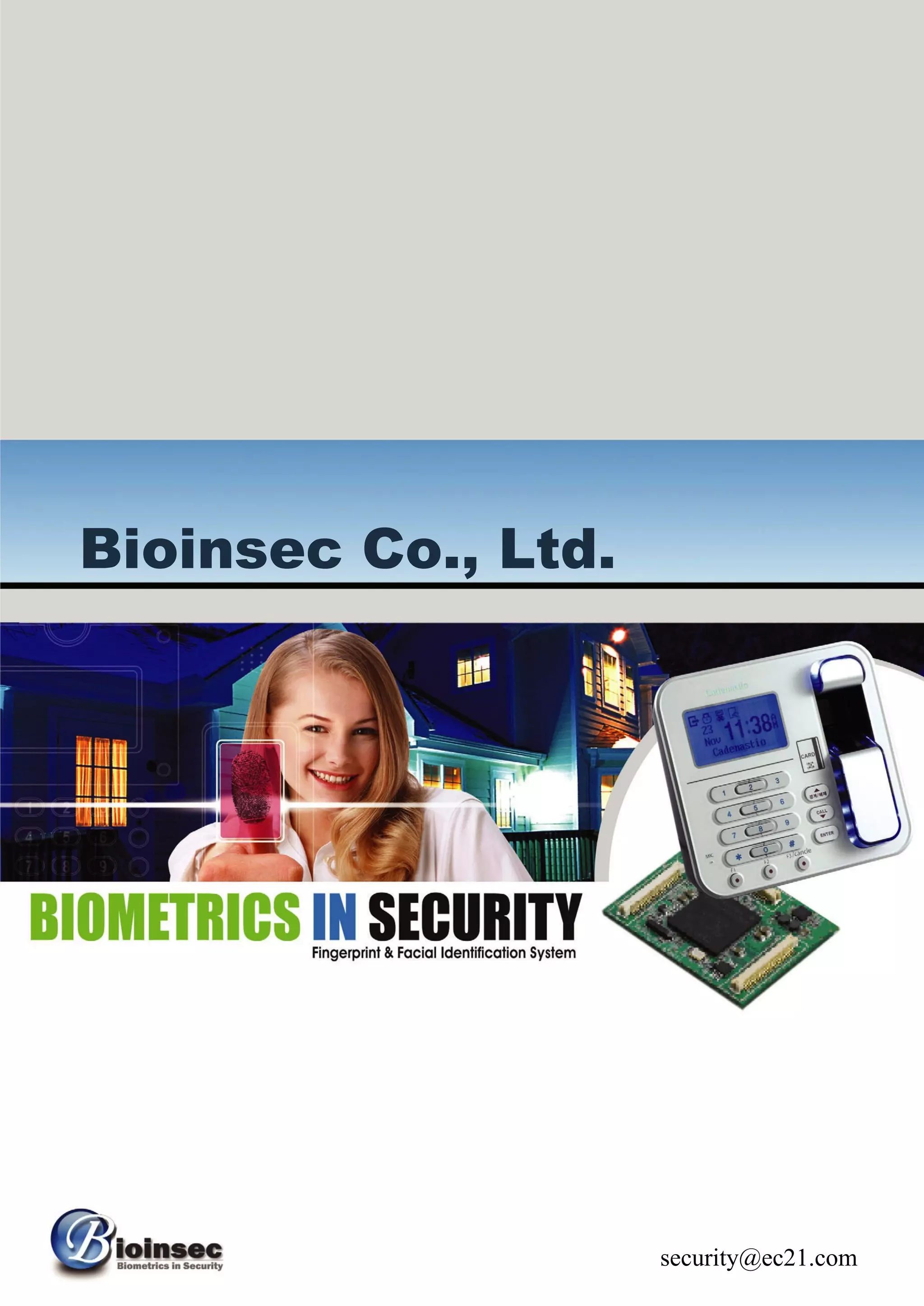

1. Bioinsec Co., Ltd. [email_address]

2. Cadenacio Biometrics In Security • Color LCD Color graphic LCD completes stylish design and displays camera images. • Touchpad Touch keypad makes a semi-permanent operation and good design. • Waterproof Protects from water exposure such as, water flowing down from top or spray. • Check visitors via video image When a guest pages, access is granted by checking the guest through a door program. • Connectivity (optional) with internal telephone (key phone). The built-in key phone module allows the simple setup of a connection to internal phone line without the need for separate equipment. It connects to the company’s internal telephone line, allowing a visitor to contact with a relevant party; doors can be opened through a telephone set. • User voice play Various voice messages can be recorded in the wave format and played after download it through the network. Also, company introduction and informational messages can be recorded. • RF card reader expandability Two external Wiegand RF readers are controlled from the device without a separate controller. • Apply DHCP method The DHCP method automatically issues a device IP address INTELLIGENT ACCESS CONTROL/TIME & ATTENDANCE SYSTEM

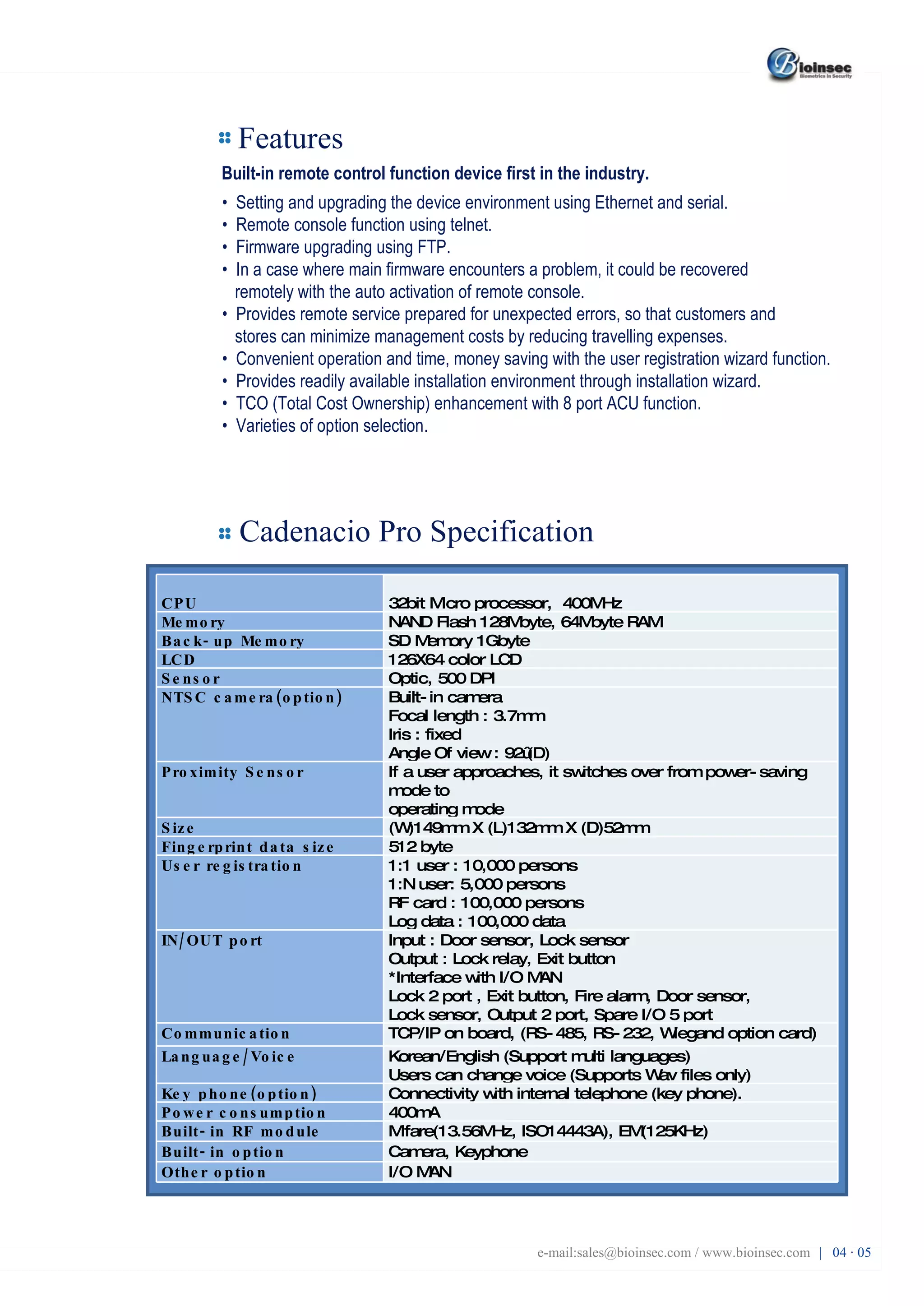

3. Features Built-in remote control function device first in the industry. • Setting and upgrading the device environment using Ethernet and serial. • Remote console function using telnet. • Firmware upgrading using FTP. • In a case where main firmware encounters a problem, it could be recovered remotely with the auto activation of remote console. • Provides remote service prepared for unexpected errors, so that customers and stores can minimize management costs by reducing travelling expenses. • Convenient operation and time, money saving with the user registration wizard function. • Provides readily available installation environment through installation wizard. • TCO (Total Cost Ownership) enhancement with 8 port ACU function. • Varieties of option selection. Cadenacio Pro Specification e-mail:sales@bioinsec.com / www.bioinsec.com | 04 · 05 CPU 32bit Micro processor, 400MHz Memory NAND Flash 128Mbyte, 64Mbyte RAM Back-up Memory SD Memory 1Gbyte LCD 126X64 color LCD Sensor Optic, 500 DPI NTSC camera(option) Built-in camera Focal length : 3.7mm Iris : fixed Angle Of view : 92˚(D) Proximity Sensor If a user approaches, it switches over from power-saving mode to operating mode Size (W)149mm X (L)132mm X (D)52mm Fingerprint data size 512 byte User registration 1:1 user : 10,000 persons 1:N user: 5,000 persons RF card : 100,000 persons Log data : 100,000 data IN/OUT port Input : Door sensor, Lock sensor Output : Lock relay, Exit button *Interface with I/O MAN Lock 2 port , Exit button, Fire alarm, Door sensor, Lock sensor, Output 2 port, Spare I/O 5 port Communication TCP/IP on board, (RS-485, RS-232, Wiegand option card) Language/Voice Korean/English (Support multi languages) Users can change voice (Supports Wav files only) Key phone(option) Connectivity with internal telephone (key phone). Power consumption 400mA Built-in RF module Mifare(13.56MHz, ISO14443A), EM(125KHz) Built-in option Camera, Keyphone Other option I/O MAN

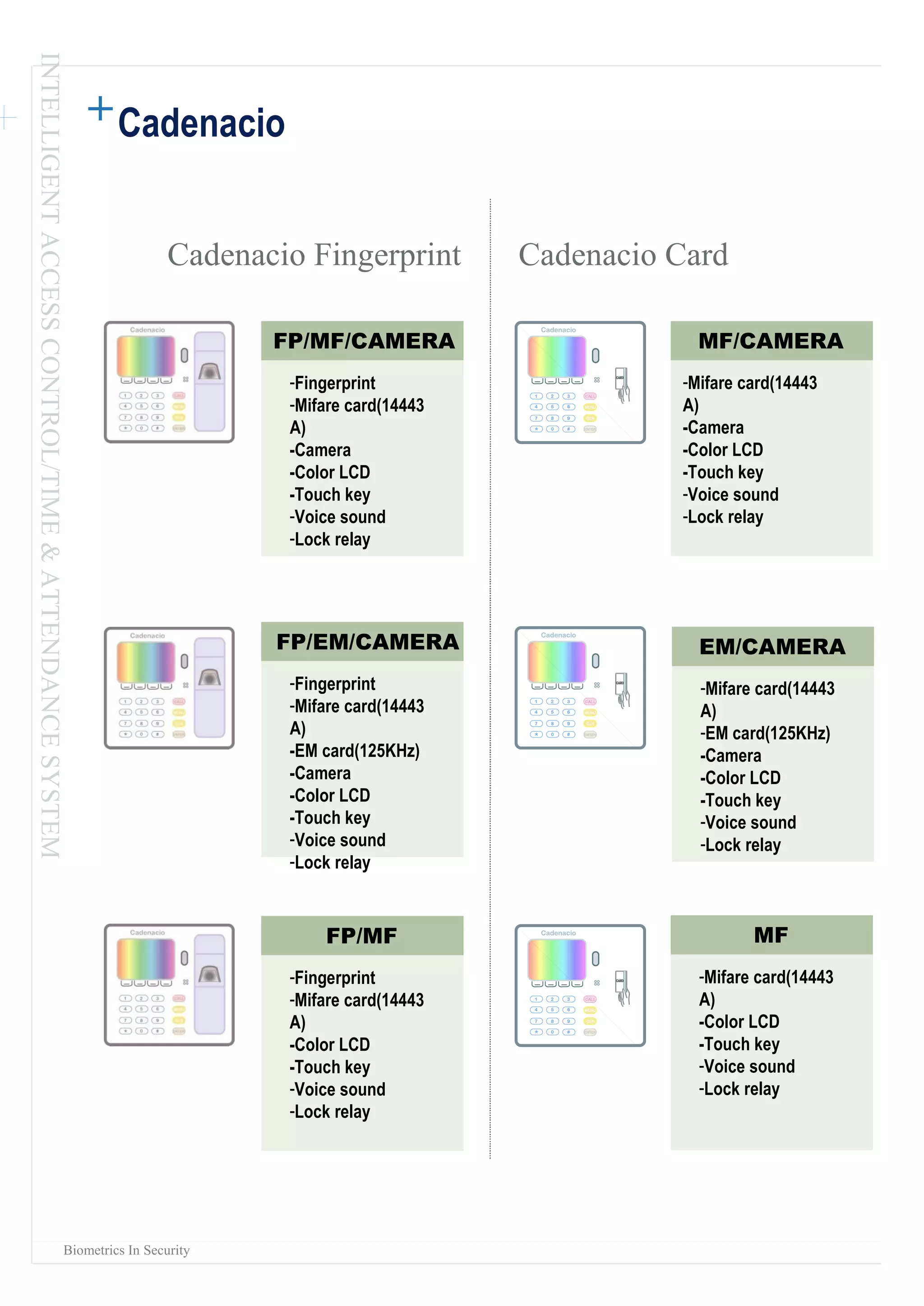

4. INTELLIGENT ACCESS CONTROL/TIME & ATTENDANCE SYSTEM Cadenacio Biometrics In Security Cadenacio Fingerprint Cadenacio Card FP/MF/CAMERA Fingerprint Mifare card(14443 A) -Camera -Color LCD -Touch key Voice sound Lock relay FP/EM/CAMERA Fingerprint Mifare card(14443 A) -EM card(125KHz) -Camera -Color LCD -Touch key Voice sound Lock relay MF/CAMERA Mifare card(14443 A) -Camera -Color LCD -Touch key Voice sound Lock relay EM/CAMERA Mifare card(14443 A) EM card(125KHz) -Camera -Color LCD -Touch key Voice sound Lock relay FP/MF Fingerprint Mifare card(14443 A) -Color LCD -Touch key Voice sound Lock relay MF Mifare card(14443 A) -Color LCD -Touch key Voice sound Lock relay

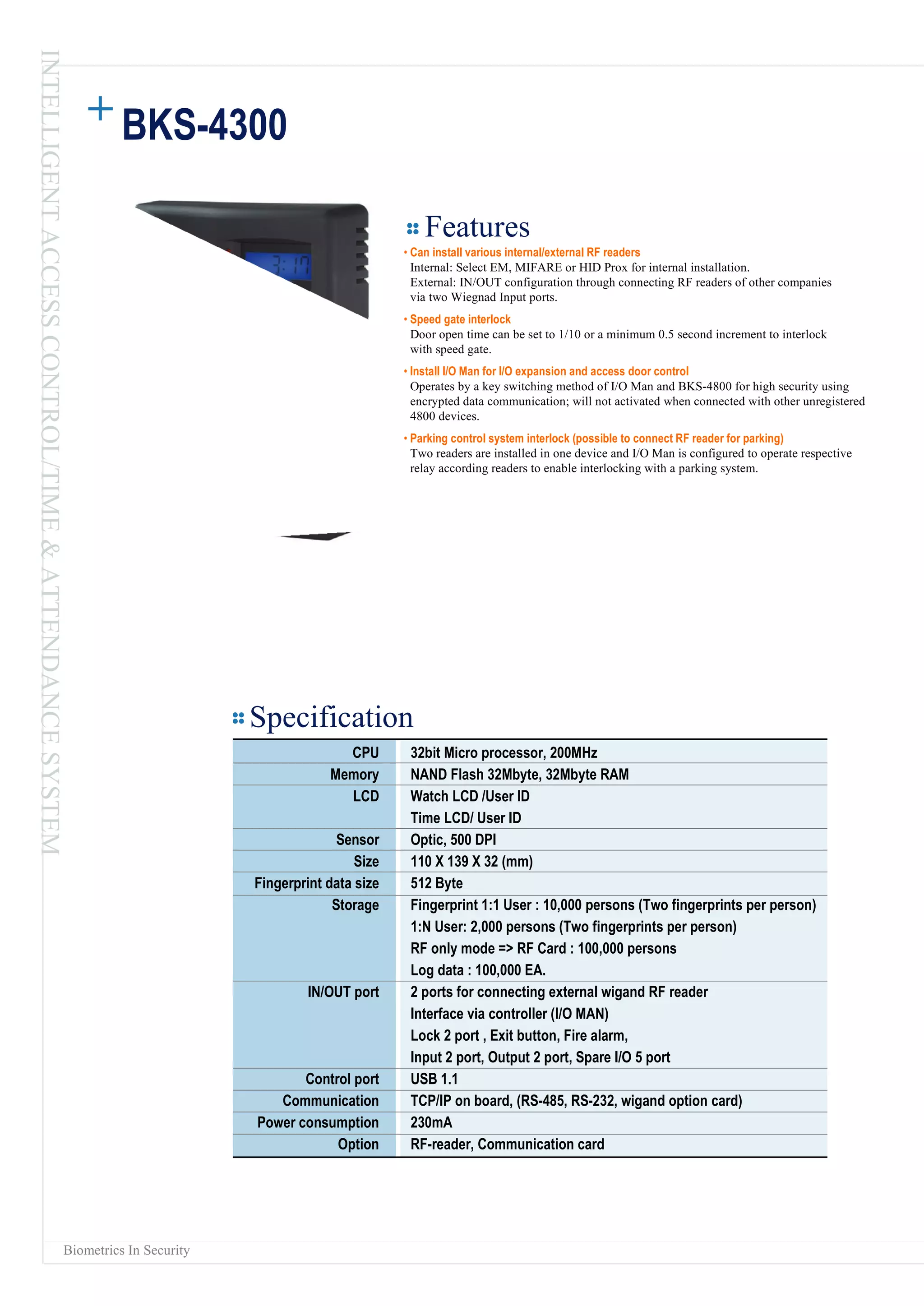

5. BKS-4300 Features • Can install various internal/external RF readers Internal: Select EM, MIFARE or HID Prox for internal installation. External: IN/OUT configuration through connecting RF readers of other companies via two Wiegnad Input ports. • Speed gate interlock Door open time can be set to 1/10 or a minimum 0.5 second increment to interlock with speed gate. • Install I/O Man for I/O expansion and access door control Operates by a key switching method of I/O Man and BKS-4800 for high security using encrypted data communication; will not activated when connected with other unregistered 4800 devices. • Parking control system interlock (possible to connect RF reader for parking) Two readers are installed in one device and I/O Man is configured to operate respective relay according readers to enable interlocking with a parking system. Biometrics In Security Specification CPU Memory LCD Sensor Size Fingerprint data size Storage IN/OUT port Control port Communication Power consumption Option 32bit Micro processor, 200MHz NAND Flash 32Mbyte, 32Mbyte RAM Watch LCD /User ID Time LCD/ User ID Optic, 500 DPI 110 X 139 X 32 (mm) 512 Byte Fingerprint 1:1 User : 10,000 persons (Two fingerprints per person) 1:N User: 2,000 persons (Two fingerprints per person) RF only mode => RF Card : 100,000 persons Log data : 100,000 EA. 2 ports for connecting external wigand RF reader Interface via controller (I/O MAN) Lock 2 port , Exit button, Fire alarm, Input 2 port, Output 2 port, Spare I/O 5 port USB 1.1 TCP/IP on board, (RS-485, RS-232, wigand option card) 230mA RF-reader, Communication card INTELLIGENT ACCESS CONTROL/TIME & ATTENDANCE SYSTEM

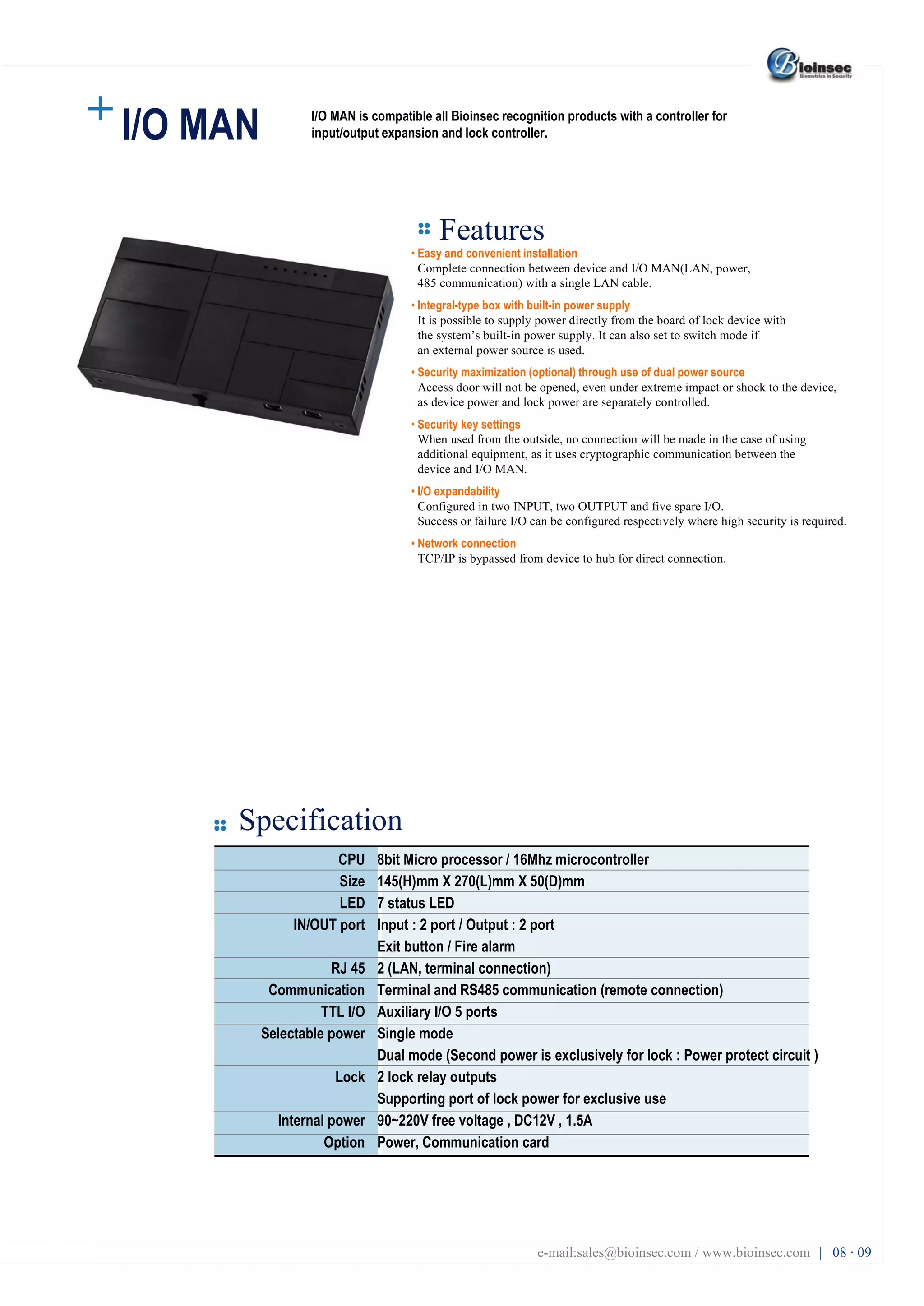

6. I/O MAN Features Specification • Easy and convenient installation Complete connection between device and I/O MAN(LAN, power, 485 communication) with a single LAN cable. • Integral-type box with built-in power supply It is possible to supply power directly from the board of lock device with the system’s built-in power supply. It can also set to switch mode if an external power source is used. • Security maximization (optional) through use of dual power source Access door will not be opened, even under extreme impact or shock to the device, as device power and lock power are separately controlled. • Security key settings When used from the outside, no connection will be made in the case of using additional equipment, as it uses cryptographic communication between the device and I/O MAN. • I/O expandability Configured in two INPUT, two OUTPUT and five spare I/O. Success or failure I/O can be configured respectively where high security is required. • Network connection TCP/IP is bypassed from device to hub for direct connection. CPU Size LED IN/OUT port RJ 45 Communication TTL I/O Selectable power Lock Internal power Option 8bit Micro processor / 16Mhz microcontroller 145(H)mm X 270(L)mm X 50(D)mm 7 status LED Input : 2 port / Output : 2 port Exit button / Fire alarm 2 (LAN, terminal connection) Terminal and RS485 communication (remote connection) Auxiliary I/O 5 ports Single mode Dual mode (Second power is exclusively for lock : Power protect circuit ) 2 lock relay outputs Supporting port of lock power for exclusive use 90~220V free voltage , DC12V , 1.5A Power, Communication card e-mail:sales@bioinsec.com / www.bioinsec.com | 08 · 09 I/O MAN is compatible all Bioinsec recognition products with a controller for input/output expansion and lock controller.

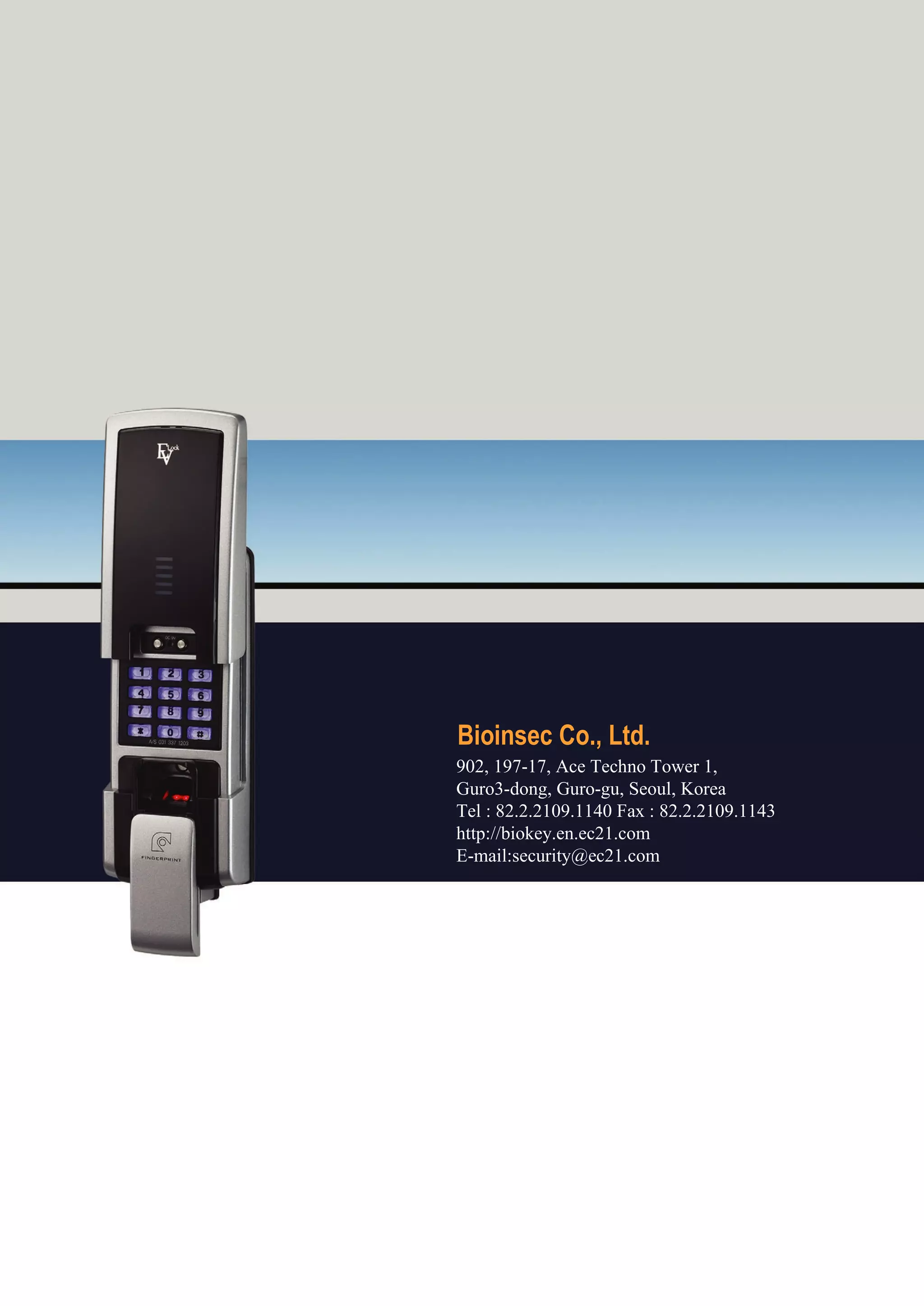

7. Bioinsec Co., Ltd. 902, 197-17, Ace Techno Tower 1, Guro3-dong, Guro-gu, Seoul, Korea Tel : 82.2.2109.1140 Fax : 82.2.2109.1143 http://biokey.en.ec21.com E-mail:security@ec21.com
