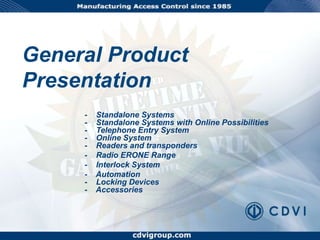

2. www.cdvigroup.com General Product Presentation - Standalone Systems- Standalone Systems with Online Possibilities- Telephone Entry System- Online System- Readers and transponders - Radio ERONE Range - Interlock System - Automation- Locking Devices- Accessories

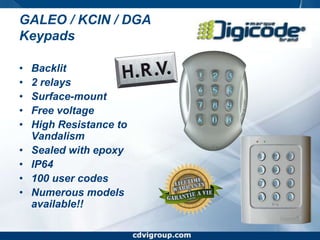

4. www.cdvigroup.com GALEO / KCIN / DGAKeypads Backlit 2 relays Surface-mount Free voltage High Resistance to Vandalism Sealed with epoxy IP64 100 user codes Numerous models available!!
5. www.cdvigroup.com VR3 RF Magnet Surface mount 300kgs Holding Force EM Lock with Built-In RF Receiver No mechanical wear Easy and fast installation Direct enrolment of the tags on the receiver Up to 10 users Audible feedback Adjustable opening times (1 to 10s)

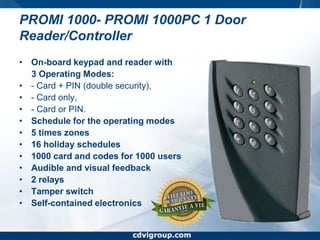

13. www.cdvigroup.com On-board keypad and reader with 3 Operating Modes: -Card + PIN (double security), - Card only, - Card or PIN. Schedule for the operating modes 5 times zones 16 holiday schedules 1000 card and codes for 1000 users Audible and visual feedback 2 relays Tamper switch Self-contained electronics PROMI 1000- PROMI 1000PC 1 Door Reader/Controller

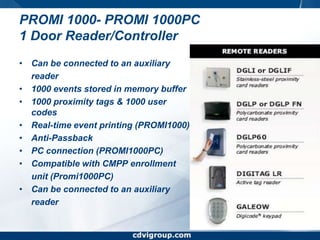

14. www.cdvigroup.com PROMI 1000- PROMI 1000PC1 Door Reader/Controller Can be connected to an auxiliary reader 1000 events stored in memory buffer 1000 proximity tags & 1000 user codes Real-time event printing (PROMI1000) Anti-Passback PC connection (PROMI1000PC) Compatible with CMPP enrollment unit (Promi1000PC) Can be connected to an auxiliary reader

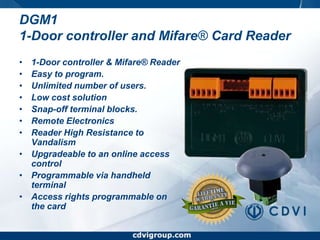

15. www.cdvigroup.com DGM1 1-Door controller and Mifare® Card Reader 1-Door controller & Mifare® Reader Easy to program. Unlimited number of users. Low cost solution Snap-off terminal blocks. Remote Electronics Reader High Resistance to Vandalism Upgradeable to an online access control Programmable via handheld terminal Access rights programmable on the card

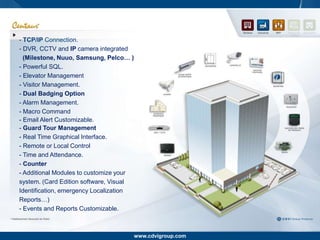

40. www.cdvigroup.com World-class, time-tested access control system – small or large – simple or complex Manage, track and control doors, elevators, barriers, employees, members and more Solutions for commercial, industrial, governmental, public and private buildings, educational institutions and many others Centaur Free Starter Pack,Standard, Professional and Enterprise Editions are designed to tackle any challenge

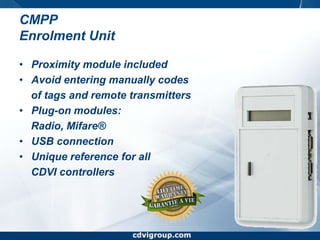

63. www.cdvigroup.com CMPP Enrolment Unit Proximity module included Avoid entering manually codes of tags and remote transmitters Plug-on modules: Radio, Mifare® USB connection Unique reference for all CDVI controllers

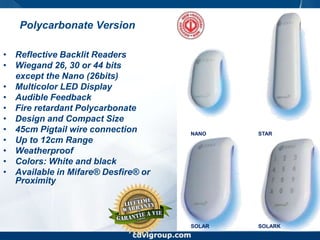

65. www.cdvigroup.com Polycarbonate Version Reflective Backlit Readers Wiegand 26, 30 or 44 bits except the Nano (26bits) Multicolor LED Display Audible Feedback Fire retardant Polycarbonate Design and Compact Size 45cm Pigtail wire connection Up to 12cm Range Weatherproof Colors: White and black Available in Mifare® Desfire® or Proximity NANO STAR SOLAR SOLARK

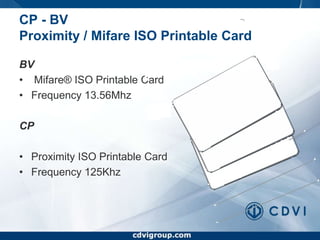

73. www.cdvigroup.com CP - BV Proximity / Mifare ISO Printable Card BV Mifare® ISO Printable Card Frequency 13.56Mhz CP Proximity ISO Printable Card Frequency 125Khz

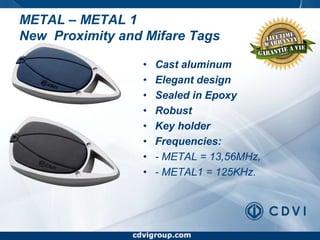

74. www.cdvigroup.com METAL – METAL 1 New Proximity and Mifare Tags Cast aluminum Elegant design Sealed in Epoxy Robust Key holder Frequencies: - METAL = 13,56MHz, - METAL1 = 125KHz.

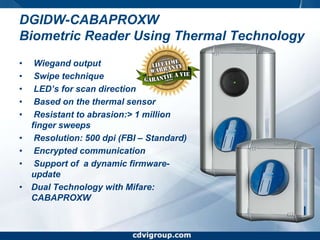

77. www.cdvigroup.com DGIDW-CABAPROXW Biometric Reader Using Thermal Technology Wiegand output Swipe technique LED’s for scan direction Based on the thermal sensor Resistant to abrasion:> 1 million finger sweeps Resolution: 500 dpi (FBI – Standard) Encrypted communication Support of a dynamic firmware-update Dual Technology with Mifare: CABAPROXW

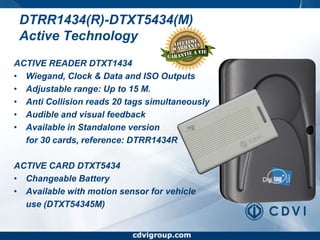

78. www.cdvigroup.com DTRR1434(R)-DTXT5434(M) Active Technology ACTIVE READER DTXT1434 Wiegand, Clock & Data and ISO Outputs Adjustable range: Up to 15 M. Anti Collision reads 20 tags simultaneously Audible and visual feedback Available in Standalone version for 30 cards, reference: DTRR1434R ACTIVE CARD DTXT5434 Changeable Battery Available with motion sensor for vehicle use (DTXT54345M)

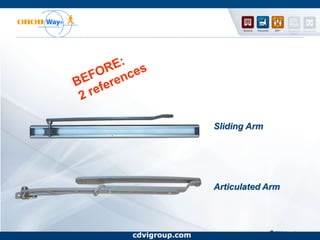

80. www.cdvigroup.com ProductPresentation PLUS Digiway - Automatic Door Operator A new high quality, high performance, automatic door operator which is easy to install. The PLUS version completes its full self-learning features and includes a communication technology which is unique. Digiway is the result of two years development from the CDVI Group. The unit went through a rigorous procedure in excess of 1 million cycles, to ensure that Digiway would provide the performance needed to satisfy today’s expectations.

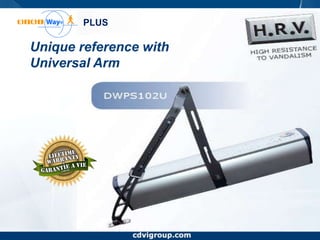

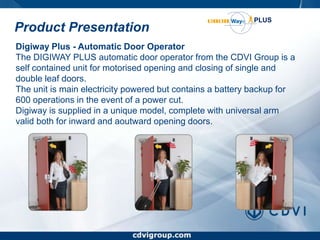

81. www.cdvigroup.com Product Presentation PLUS Digiway Plus - Automatic Door Operator The DIGIWAY PLUS automatic door operator from the CDVI Group is a self contained unit for motorised opening and closing of single and double leaf doors. The unit is main electricity powered but contains a battery backup for 600 operations in the event of a power cut. Digiway is supplied in a unique model, complete with universal arm valid both for inward and aoutward opening doors.

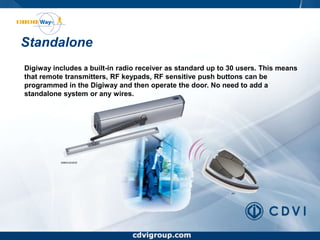

97. www.cdvigroup.com Standalone Digiway includes a built-in radio receiver as standard up to 30 users. This means that remote transmitters, RF keypads, RF sensitive push buttons can be programmed in the Digiway and then operate the door. No need to add a standalone system or any wires.
98. www.cdvigroup.com With Access Control Digiway can be connected to any switching devices like Centaur Integrated access control systems to operate the door. IMPORTANT!! Digiway is not a lock But a door automation!

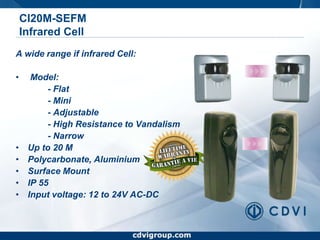

138. www.cdvigroup.com CI20M-SEFMInfrared Cell A wide range if infrared Cell: Model: - Flat - Mini - Adjustable - High Resistance to Vandalism - Narrow Up to 20 M Polycarbonate, Aluminium Surface Mount IP 55 Input voltage: 12 to 24V AC-DC www.cdvigroup.com

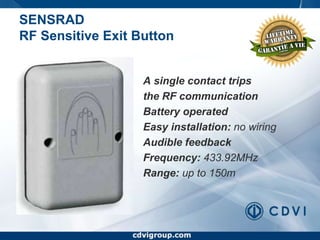

139. www.cdvigroup.com SENSRAD RF Sensitive Exit Button A single contact trips the RF communication Battery operated Easy installation: no wiring Audible feedback Frequency: 433.92MHz Range: up to 150m

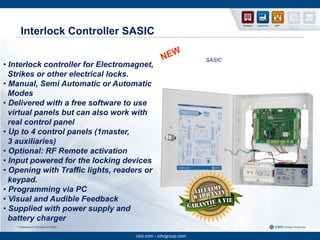

145. Supplied with power supply and battery charger NEW SASIC cdvi.com - cdvigroup.com

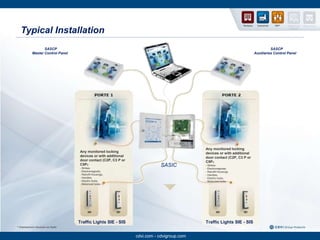

146. www.cdvigroup.com Accessories SIS SIE SASCP Control Panel Traffic lights available surface or mortice with or without calling keys cdvi.com - cdvigroup.com 60 24/02/2011

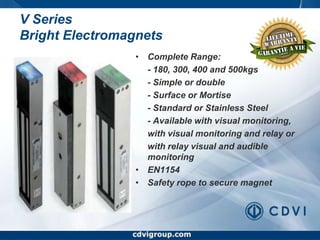

155. www.cdvigroup.com V SeriesBright Electromagnets Complete Range: - 180, 300, 400 and 500kgs - Simple or double - Surface or Mortise - Standard or Stainless Steel - Available with visual monitoring, with visual monitoring and relay or with relay visual and audible monitoring EN1154 Safety rope to secure magnet

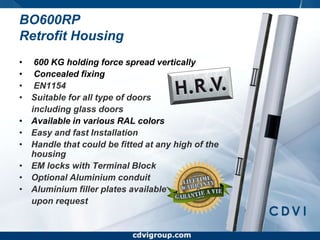

156. www.cdvigroup.com BO600RP Retrofit Housing 600 KG holding force spread vertically Concealed fixing EN1154 Suitable for all type of doors including glass doors Available in various RAL colors Easy and fast Installation Handle that could be fitted at any high of the housing EM locks with Terminal Block Optional Aluminium conduit Aluminium filler plates available upon request

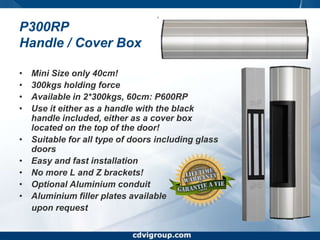

157. www.cdvigroup.com P300RP Handle / Cover Box Mini Size only 40cm! 300kgs holding force Available in 2*300kgs, 60cm: P600RP Use it either as a handle with the black handle included, either as a cover box located on the top of the door! Suitable for all type of doors including glass doors Easy and fast installation No more L and Z brackets! Optional Aluminium conduit Aluminium filler plates available upon request
158.

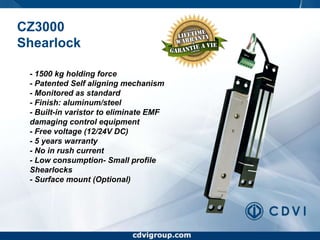

159. www.cdvigroup.com CZ3000 Shearlock - 1500 kg holding force - Patented Self aligning mechanism - Monitored as standard - Finish: aluminum/steel - Built-in varistor to eliminate EMF damaging control equipment - Free voltage (12/24V DC) - 5 years warranty - No in rush current - Low consumption- Small profile Shearlocks - Surface mount (Optional)

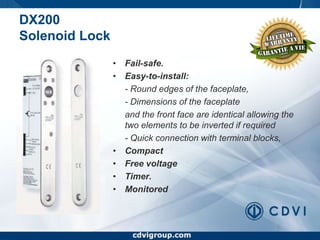

160. www.cdvigroup.com DX200 Solenoid Lock Fail-safe. Easy-to-install: - Round edges of the faceplate, - Dimensions of the faceplate and the front face are identical allowing the two elements to be inverted if required - Quick connection with terminal blocks, Compact Free voltage Timer. Monitored

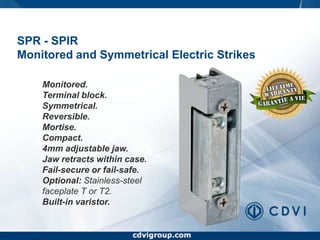

161. www.cdvigroup.com SPR - SPIR Monitored and Symmetrical Electric Strikes Monitored. Terminal block. Symmetrical. Reversible. Mortise. Compact. 4mm adjustable jaw. Jaw retracts within case. Fail-secure or fail-safe. Optional: Stainless-steel faceplate T or T2. Built-in varistor.

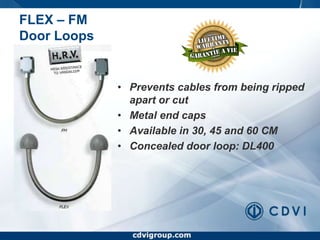

163. www.cdvigroup.com FLEX – FMDoor Loops Prevents cables from being ripped apart or cut Metal end caps Available in 30, 45 and 60 CM Concealed door loop: DL400
164. www.cdvigroup.com BP NO NF CHOCGreen PUSH BTTON Ergonomic design with ultra-sensitive contact. Easy mounting on existing support (single 19mm drill hole). The high-quality Mini-Switch makes it possible to pass the nut without removing the switch buzzer and LED. Available in the following versions: - Flush-mount with stainless-steel panel, - Surface-mount with stainless-steel housing. Color: green or chrome
