2. PROJECT MANAGEMENT
– AN INSIGHT
M.V.Kannan Planet Aerospace
2
“Project” is an Unique, well defined effort to accomplish a
specified task with certain specified result at a particular
point of time.
3. PROJECT MANAGEMENT
– AN INSIGHT
M.V.Kannan Planet Aerospace
3
Characteristics of a Project !
Projects are unique
Projects are temporary in nature and have a definite
beginning and end date
Projects are completed when project goals are
achieved
A successful project is one that meets or exceeds the
expectations of stake holders
4. M.V.Kannan Planet Aerospace
4

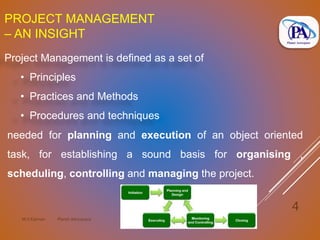

Project Management is defined as a set of
• Principles
• Practices and Methods
• Procedures and techniques
needed for planning and execution of an object oriented
task, for establishing a sound basis for organising ,
scheduling, controlling and managing the project.
PROJECT MANAGEMENT
– AN INSIGHT

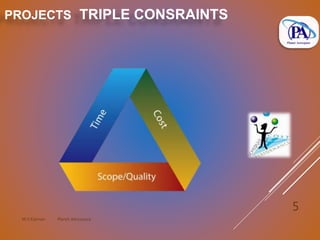

6. M.V.Kannan Planet Aerospace
6

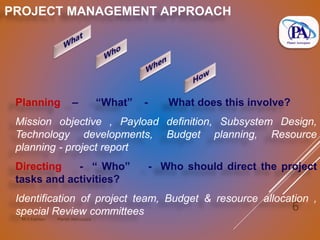

Planning – “What” - What does this involve?
Mission objective , Payload definition, Subsystem Design,
Technology developments, Budget planning, Resource
planning - project report
Directing - “ Who” - Who should direct the project
tasks and activities?
Identification of project team, Budget & resource allocation ,
special Review committees
PROJECT MANAGEMENT APPROACH
7. M.V.Kannan Planet Aerospace
7

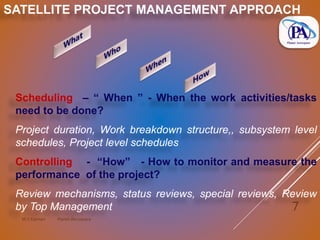

Scheduling – “ When ” - When the work activities/tasks
need to be done?
Project duration, Work breakdown structure,, subsystem level
schedules, Project level schedules
Controlling - “How” - How to monitor and measure the
performance of the project?
Review mechanisms, status reviews, special reviews, Review
by Top Management
SATELLITE PROJECT MANAGEMENT APPROACH

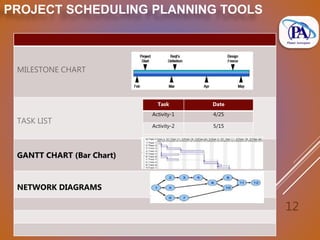

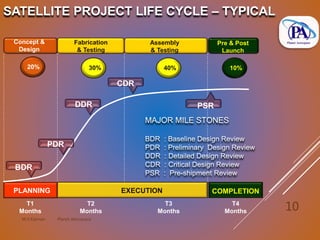

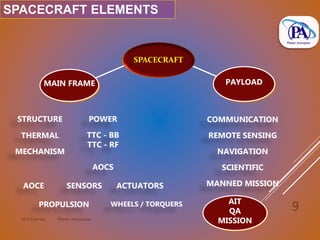

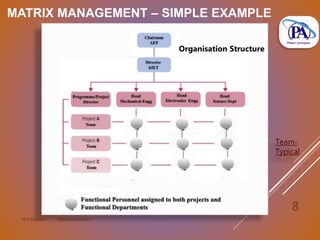

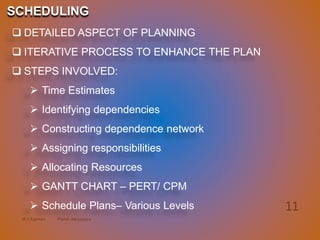

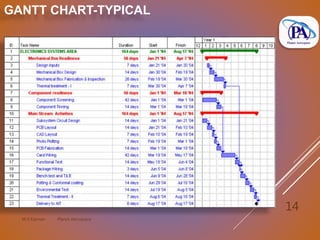

15. M.V.Kannan Planet Aerospace
15

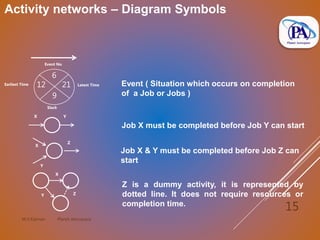

Activity networks – Diagram Symbols
12
6
21
9
Event No
Slack
Latest TimeEarliest Time
X Y
X
Y
Z
X
Y Z
Event ( Situation which occurs on completion
of a Job or Jobs )
Job X must be completed before Job Y can start
Job X & Y must be completed before Job Z can
start
Z is a dummy activity, it is represented by
dotted line. It does not require resources or
completion time.
16. M.V.Kannan Planet Aerospace
16

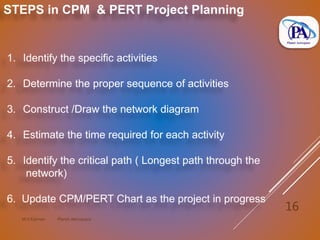

STEPS in CPM & PERT Project Planning
1. Identify the specific activities
2. Determine the proper sequence of activities
3. Construct /Draw the network diagram
4. Estimate the time required for each activity
5. Identify the critical path ( Longest path through the
network)
6. Update CPM/PERT Chart as the project in progress
17. M.V.Kannan Planet Aerospace
17

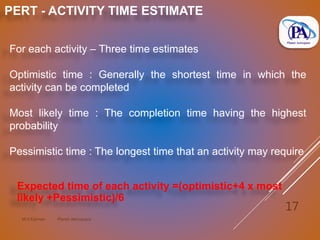

PERT - ACTIVITY TIME ESTIMATE
For each activity – Three time estimates
Optimistic time : Generally the shortest time in which the
activity can be completed
Most likely time : The completion time having the highest
probability
Pessimistic time : The longest time that an activity may require
Expected time of each activity =(optimistic+4 x most
likely +Pessimistic)/6

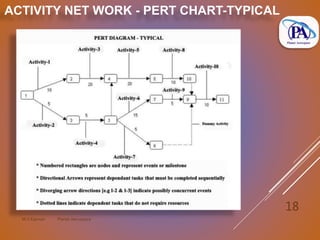

19. 19
M.V.Kannan Planet Aerospace

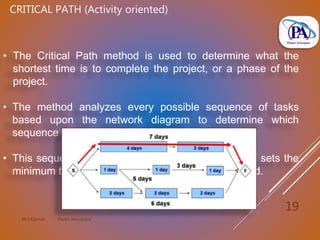

CRITICAL PATH (Activity oriented)
• The Critical Path method is used to determine what the
shortest time is to complete the project, or a phase of the
project.
• The method analyzes every possible sequence of tasks
based upon the network diagram to determine which
sequence is the longest.
• This sequence is called the critical path because it sets the
minimum time in which the project can be completed.
20. M.V.Kannan Planet Aerospace
20

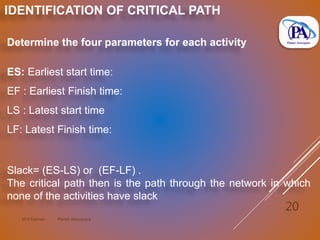

IDENTIFICATION OF CRITICAL PATH
Determine the four parameters for each activity
ES: Earliest start time:
EF : Earliest Finish time:
LS : Latest start time
LF: Latest Finish time:
Slack= (ES-LS) or (EF-LF) .
The critical path then is the path through the network in which
none of the activities have slack
21. M.V.Kannan Planet Aerospace
21

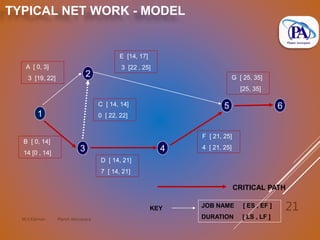

TYPICAL NET WORK - MODEL
1
2
3 4
5 6
E [14, 17]
3 [22 , 25]A [ 0, 3]
3 [19, 22] G [ 25, 35]
[25, 35]
B [ 0, 14]
14 [0 , 14]
D [ 14, 21]
7 [ 14, 21]
F [ 21, 25]
4 [ 21, 25]
CRITICAL PATH
JOB NAME [ ES , EF ]
DURATION [ LS , LF ]
KEY
C [ 14, 14]
0 [ 22, 22]
22. M.V.Kannan Planet Aerospace
22

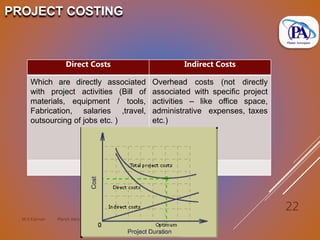

PROJECT COSTING
Direct Costs Indirect Costs
Which are directly associated
with project activities (Bill of
materials, equipment / tools,
Fabrication, salaries ,travel,
outsourcing of jobs etc. )
Overhead costs (not directly
associated with specific project
activities – like office space,
administrative expenses, taxes
etc.)
24. M.V.Kannan Planet Aerospace
24

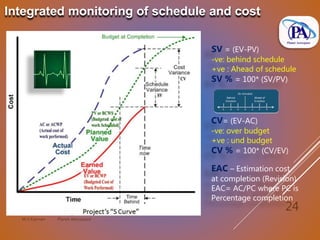

Integrated monitoring of schedule and cost
SV = (EV-PV)
-ve: behind schedule
+ve : Ahead of schedule
SV % = 100* (SV/PV)
CV= (EV-AC)
-ve: over budget
+ve : und budget
CV % = 100* (CV/EV)
EAC – Estimation cost
at completion (Revision)
EAC= AC/PC where PC is
Percentage completion
25. M.V.Kannan Planet Aerospace
25
PROJECT MANAGEMENT SOFTWARE
Microsoft Project is a project management software program
developed and sold by Microsoft
Designed to assist project managers in developing plans,
assigning resources to tasks, tracking progress, managing
budgets and analyzing workloads
The application creates critical path schedules, and critical
chain which can be visualized in a Gantt chart.
27. M.V.Kannan Planet Aerospace
27

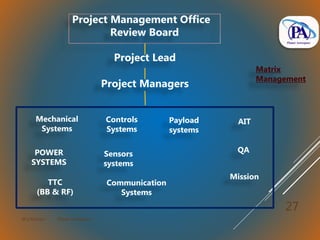

Project Lead
Project Managers
Mechanical
Systems
POWER
SYSTEMS
TTC
(BB & RF)
Communication
Systems
Controls
Systems
Sensors
systems
Payload
systems
AIT
QA
Mission
Project Management Office
Review Board
Matrix
Management
28. M.V.Kannan Planet Aerospace
28
CRITICAL CHAIN : (1997 Eliyahu.M.Goldartt)
Longest Chain of the tasks that consider both task
dependencies and resource dependencies . Critical chain
recognises that a delay in resource availability can delay a
schedule just as a delay in dependent tasks
Theory of constraints based “ Any system must have
constraint .Otherwise its output would increase without
bound or go to zero”
Relay race approach : As fast as possible
Buffer Management aproach
Example
29. M.V.Kannan Planet Aerospace
29
CRITICAL CHAIN : (1997 Eliyahu.M.Goldartt)

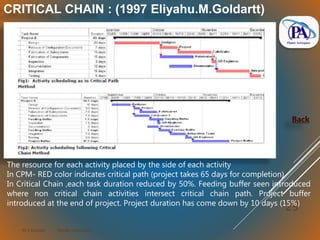

The resource for each activity placed by the side of each activity
In CPM- RED color indicates critical path (project takes 65 days for completion)
In Critical Chain ,each task duration reduced by 50%. Feeding buffer seen introduced
where non critical chain activities intersect critical chain path. Project buffer
introduced at the end of project. Project duration has come down by 10 days (15%)
Back
