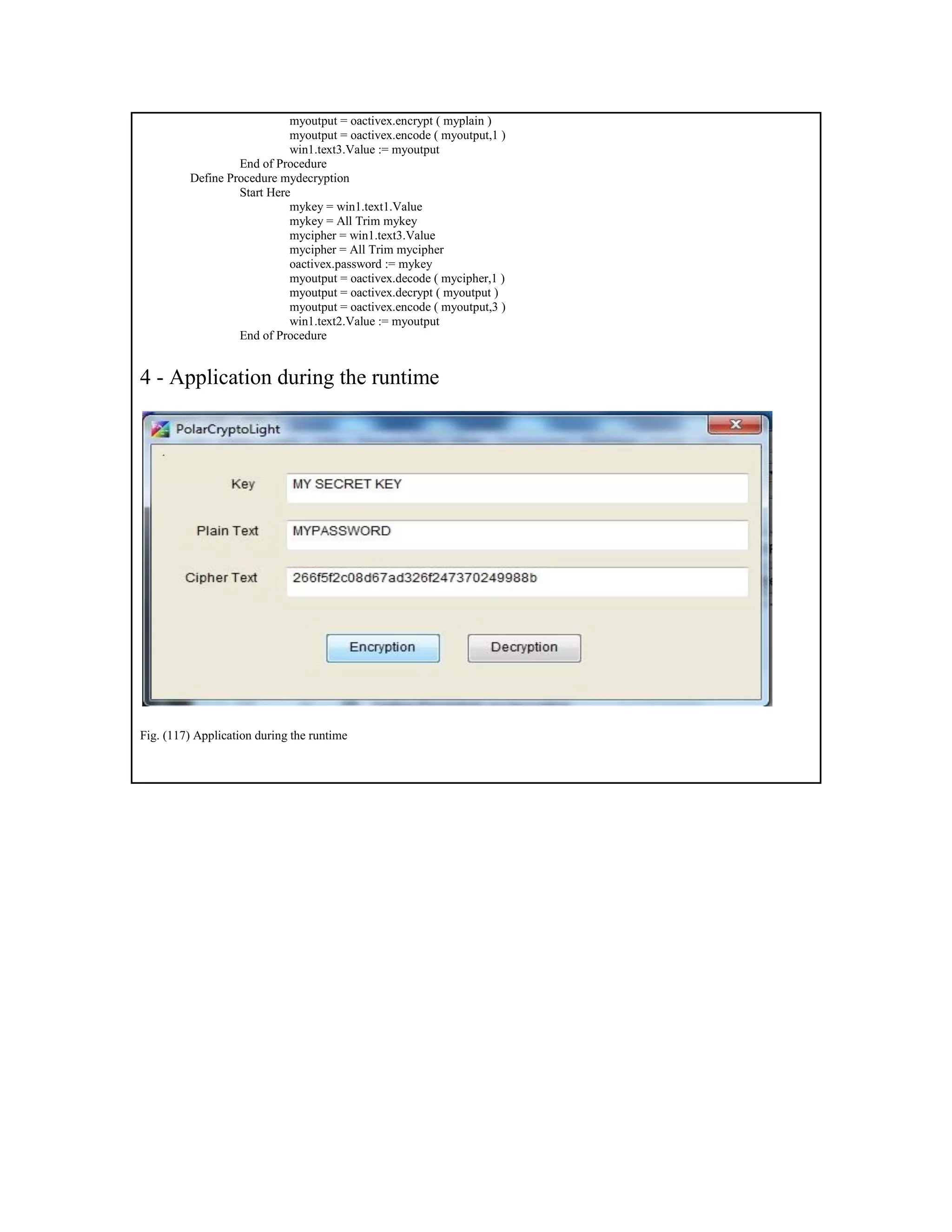

4 - Application during the runtime

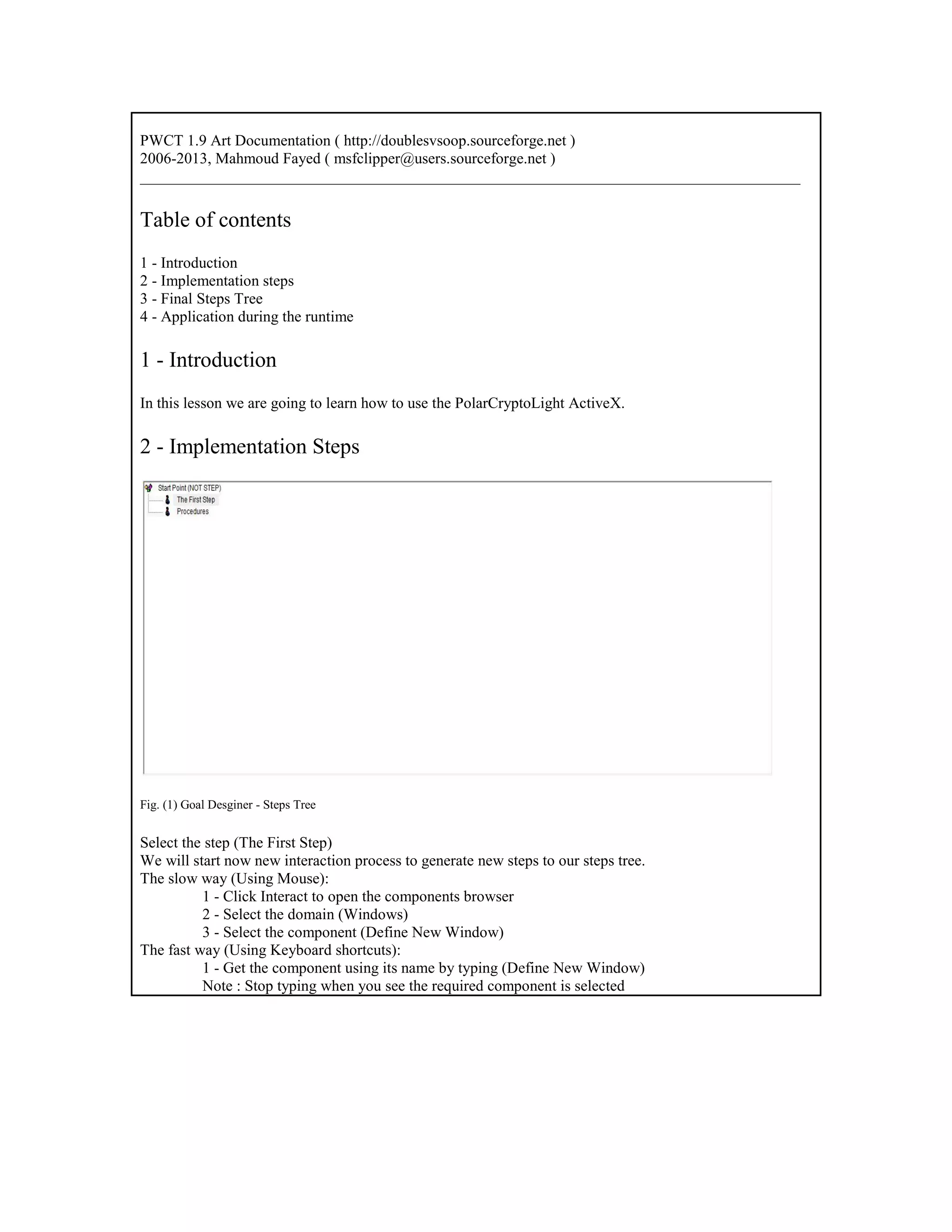

1 - Introduction
In this lesson we are going to learn how to use the PolarCryptoLight ActiveX.
2 - Implementation Steps
Fig. (1) Goal Desginer - Steps Tree
Select the step (The First Step)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Windows)
3 - Select the component (Define New Window)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define New Window)
Note : Stop typing when you see the required component is selected

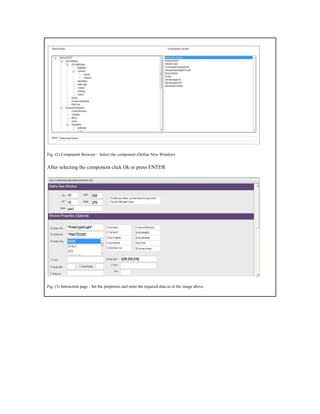

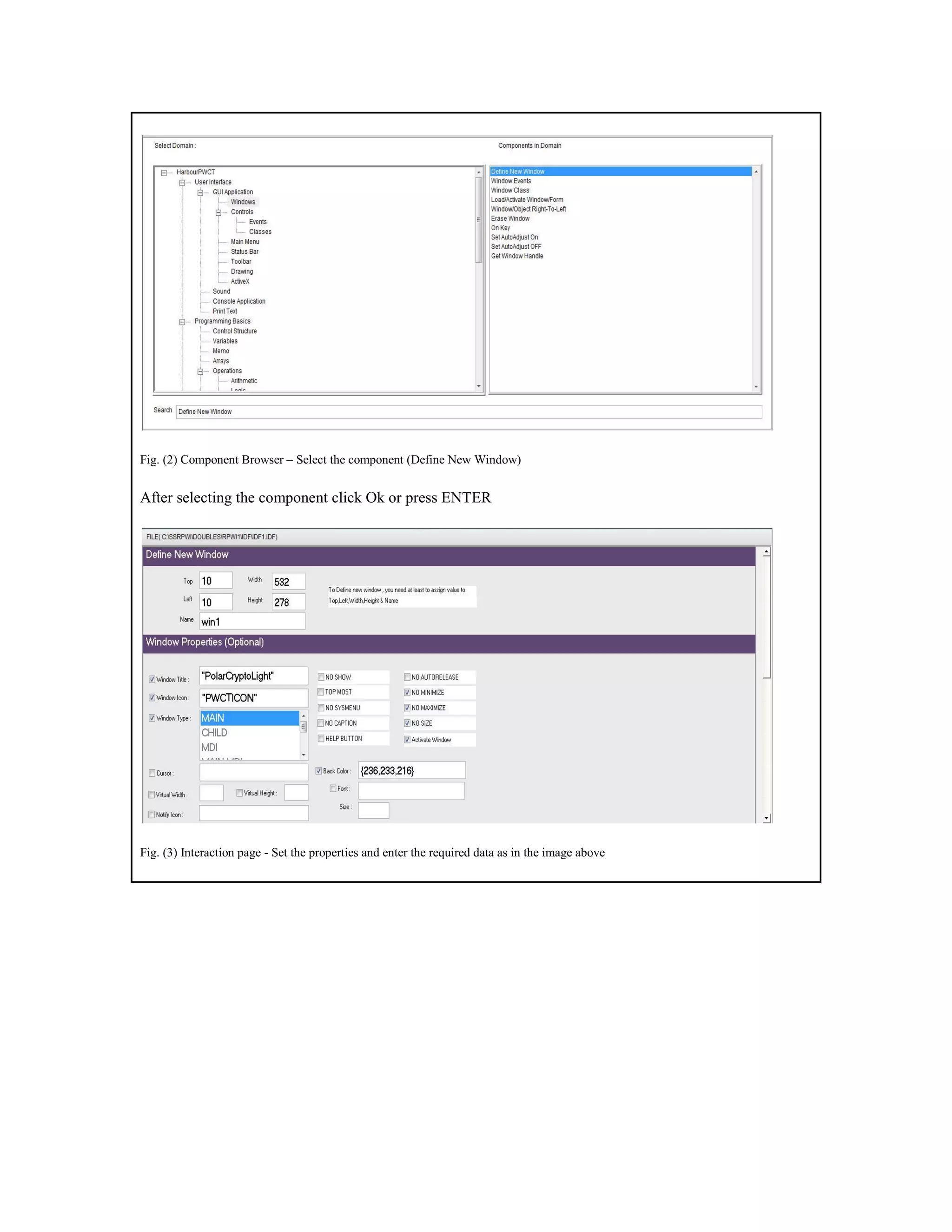

2. Fig. (2) Component Browser – Select the component (Define New Window)
After selecting the component click Ok or press ENTER
Fig. (3) Interaction page - Set the properties and enter the required data as in the image above

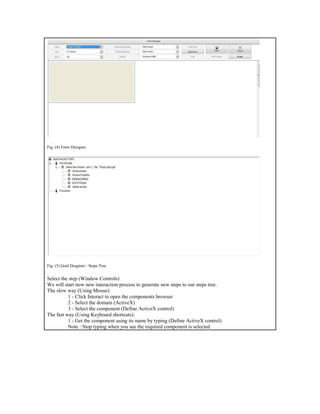

3. Fig. (4) Form Designer
Fig. (5) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (Define ActiveX control)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define ActiveX control)
Note : Stop typing when you see the required component is selected

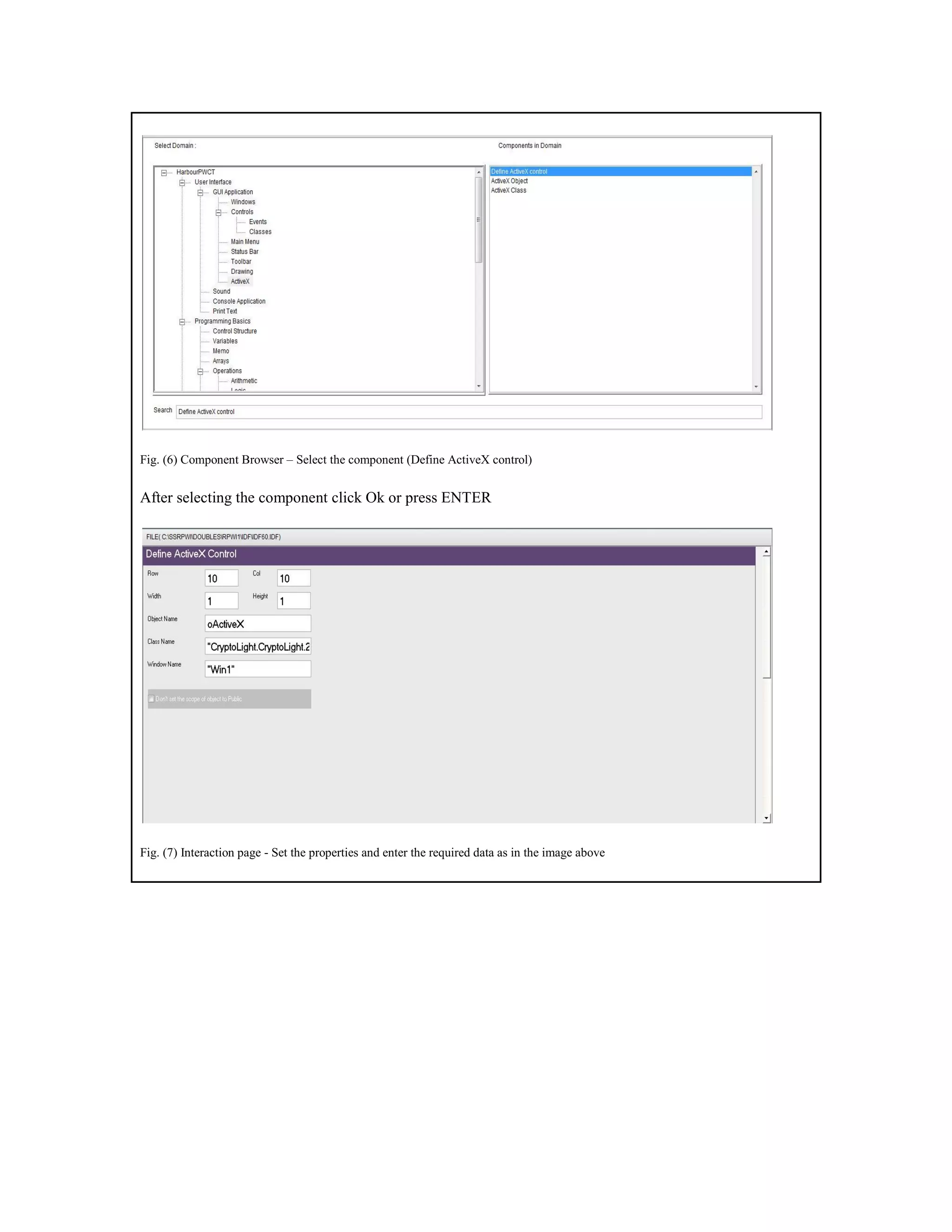

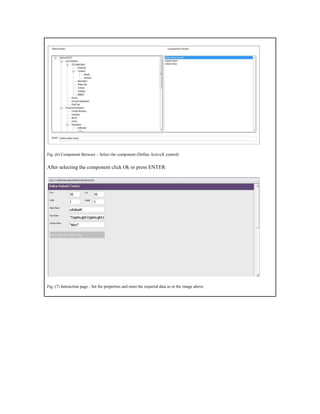

4. Fig. (6) Component Browser – Select the component (Define ActiveX control)
After selecting the component click Ok or press ENTER
Fig. (7) Interaction page - Set the properties and enter the required data as in the image above

5. Fig. (8) Form Designer
Fig. (9) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Label)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Label)
Note : Stop typing when you see the required component is selected

6. Fig. (10) Component Browser – Select the component (Label)
After selecting the component click Ok or press ENTER
Fig. (11) Interaction page - Set the properties and enter the required data as in the image above

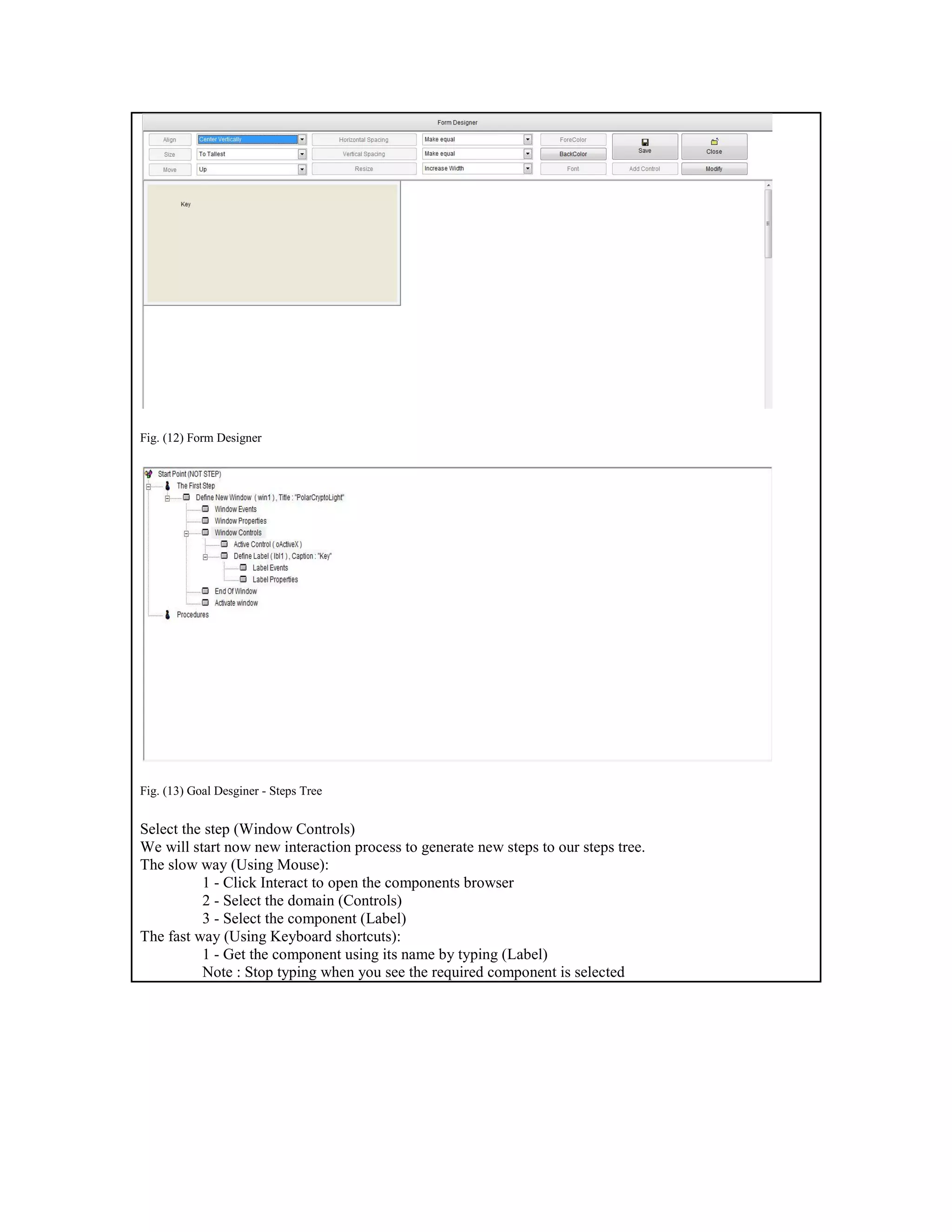

7. Fig. (12) Form Designer
Fig. (13) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Label)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Label)
Note : Stop typing when you see the required component is selected

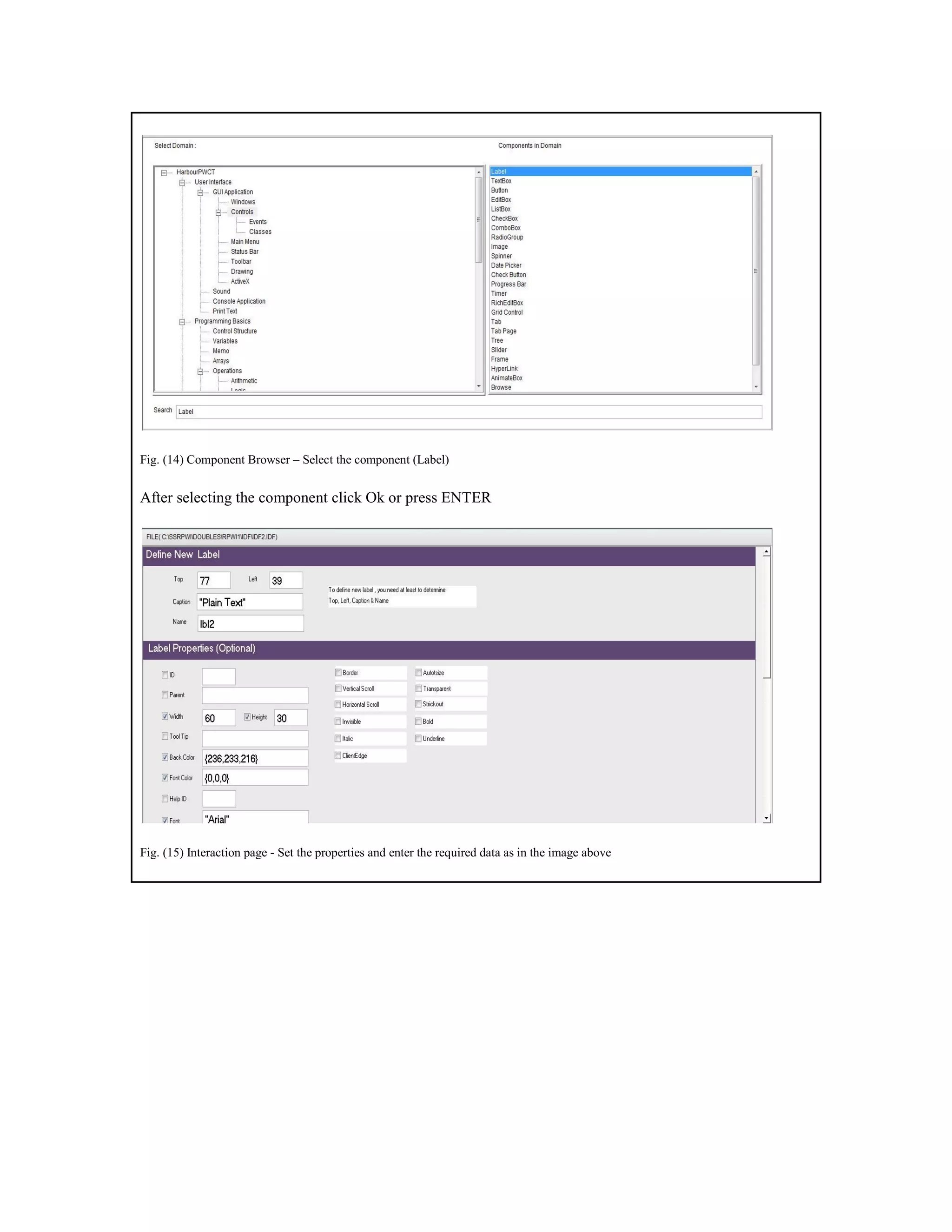

8. Fig. (14) Component Browser – Select the component (Label)
After selecting the component click Ok or press ENTER
Fig. (15) Interaction page - Set the properties and enter the required data as in the image above

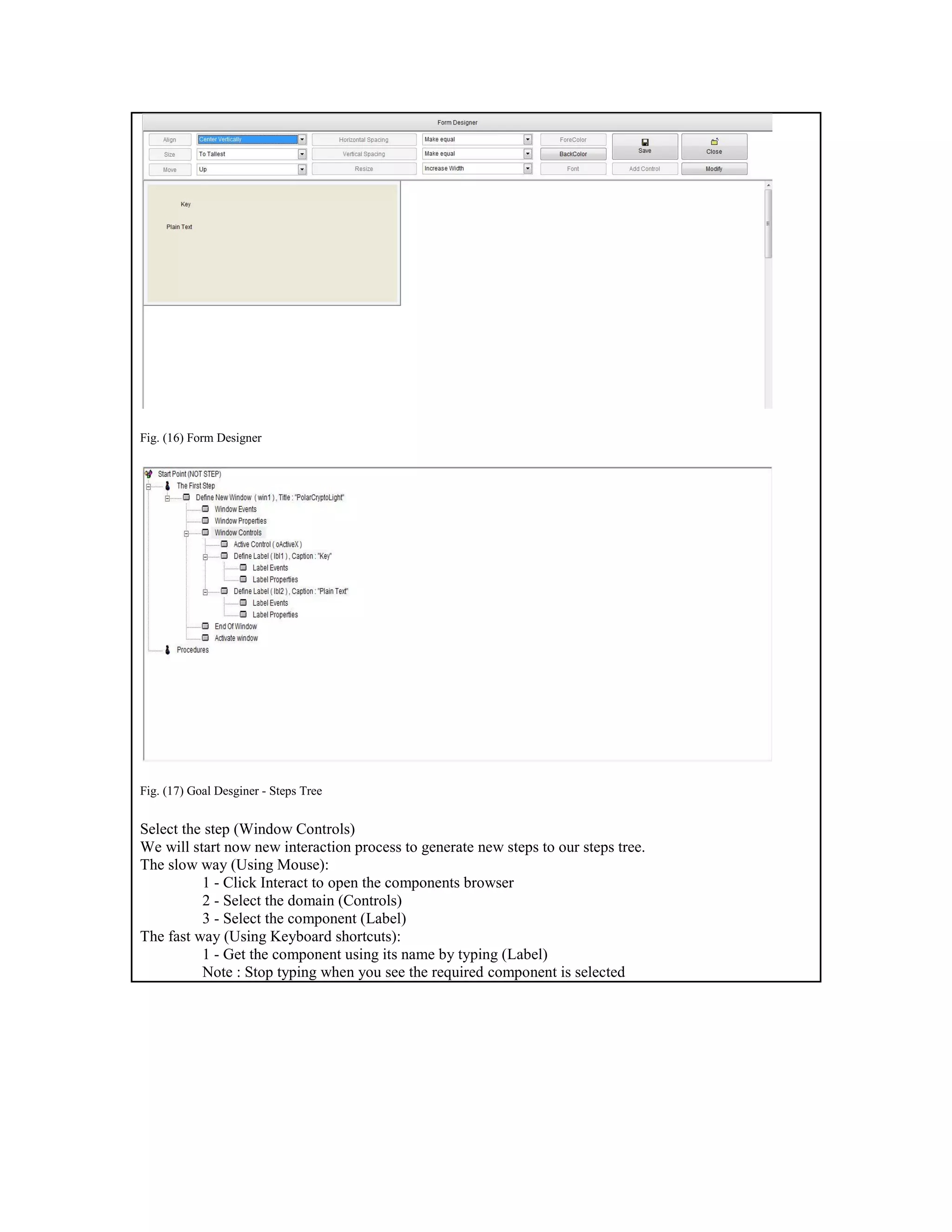

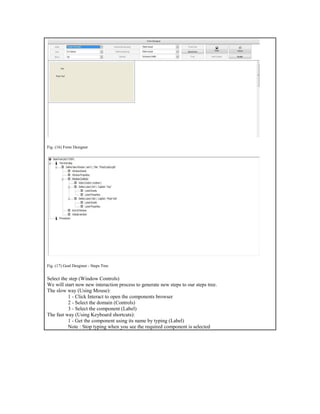

9. Fig. (16) Form Designer
Fig. (17) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Label)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Label)
Note : Stop typing when you see the required component is selected

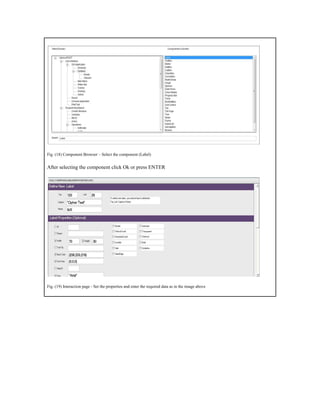

10. Fig. (18) Component Browser – Select the component (Label)
After selecting the component click Ok or press ENTER
Fig. (19) Interaction page - Set the properties and enter the required data as in the image above

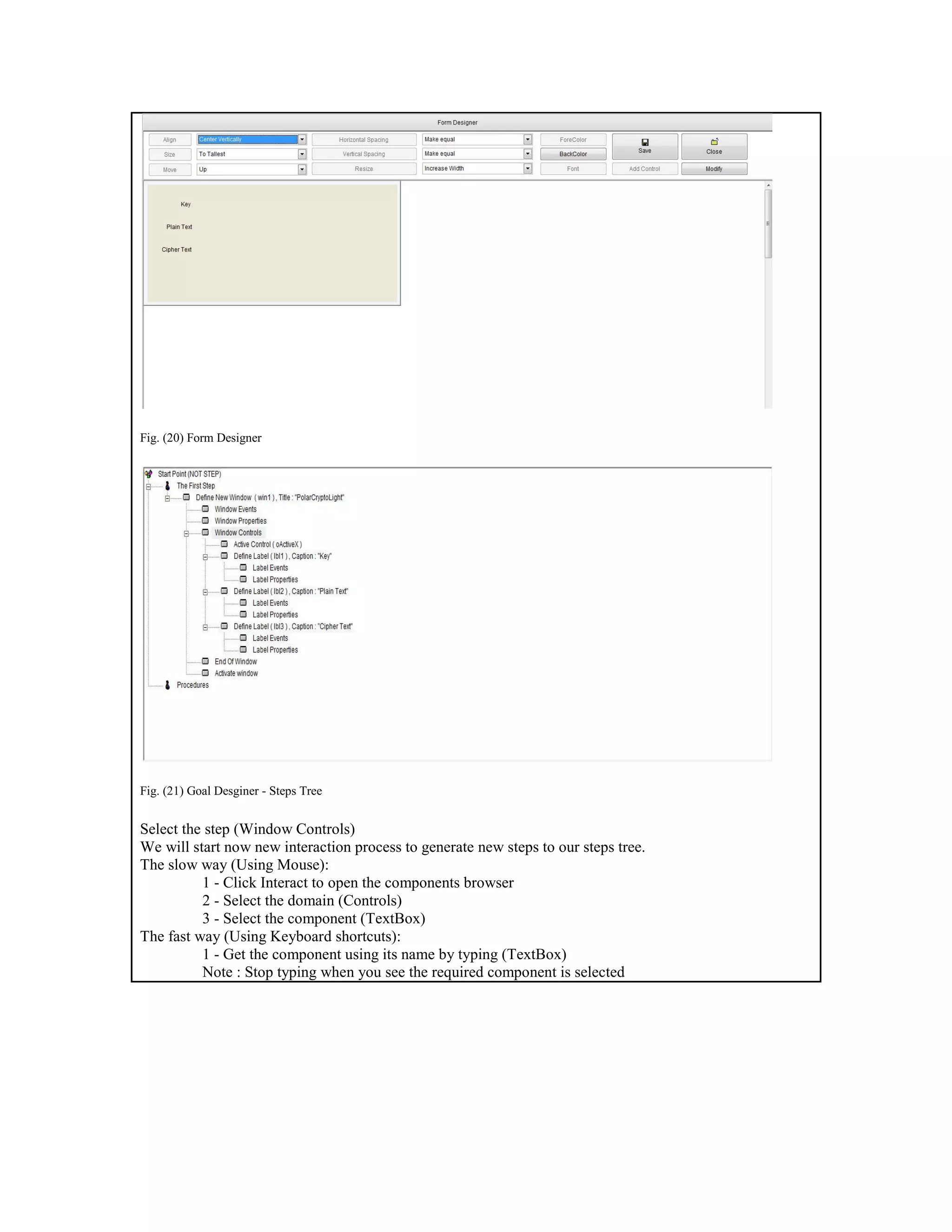

11. Fig. (20) Form Designer
Fig. (21) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (TextBox)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (TextBox)
Note : Stop typing when you see the required component is selected

12. Fig. (22) Component Browser – Select the component (TextBox)
After selecting the component click Ok or press ENTER
Fig. (23) Interaction page - Set the properties and enter the required data as in the image above

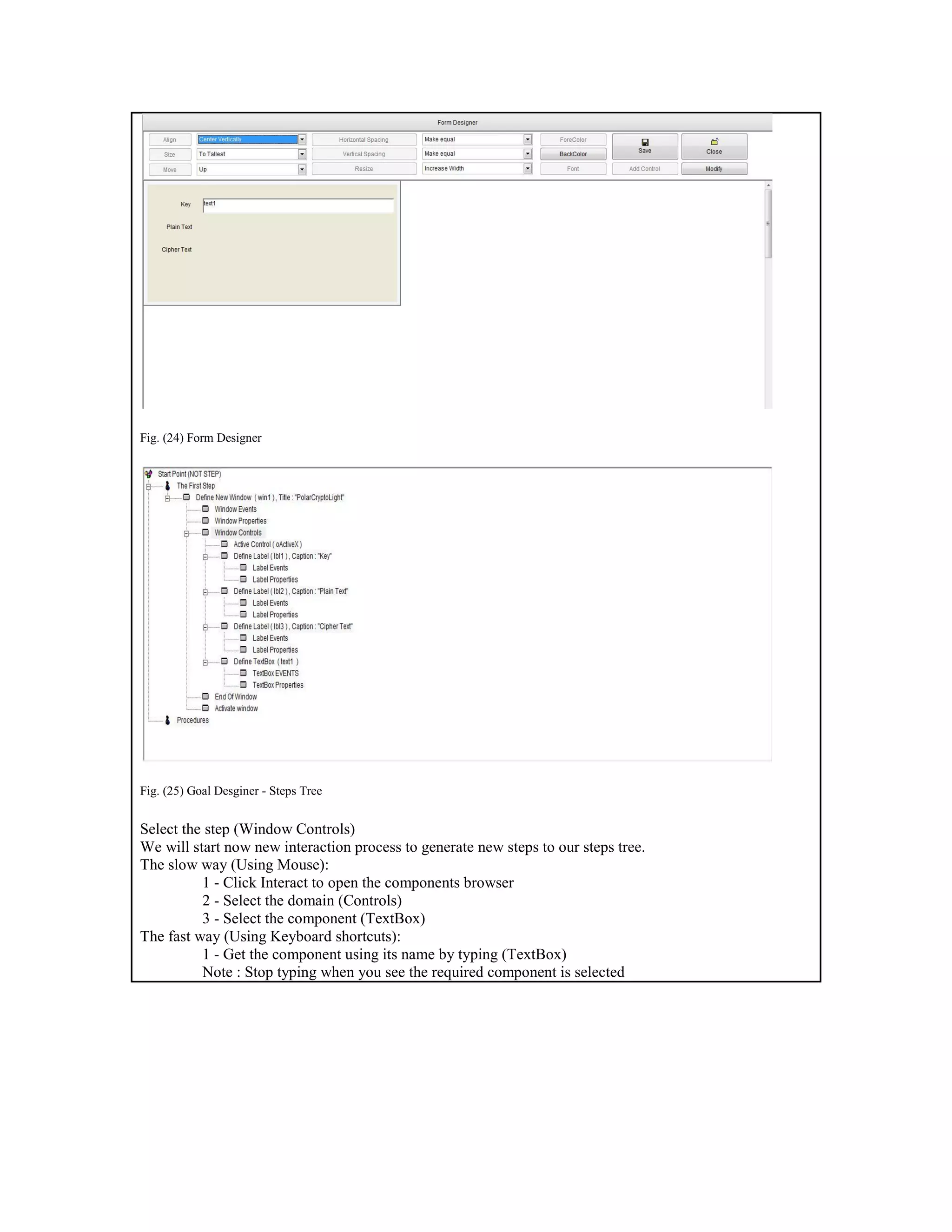

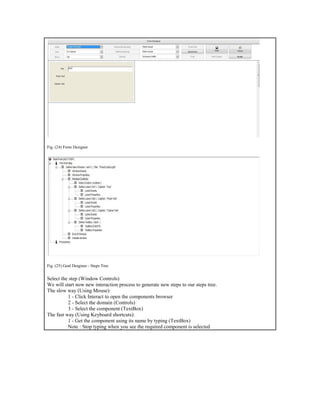

13. Fig. (24) Form Designer
Fig. (25) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (TextBox)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (TextBox)
Note : Stop typing when you see the required component is selected

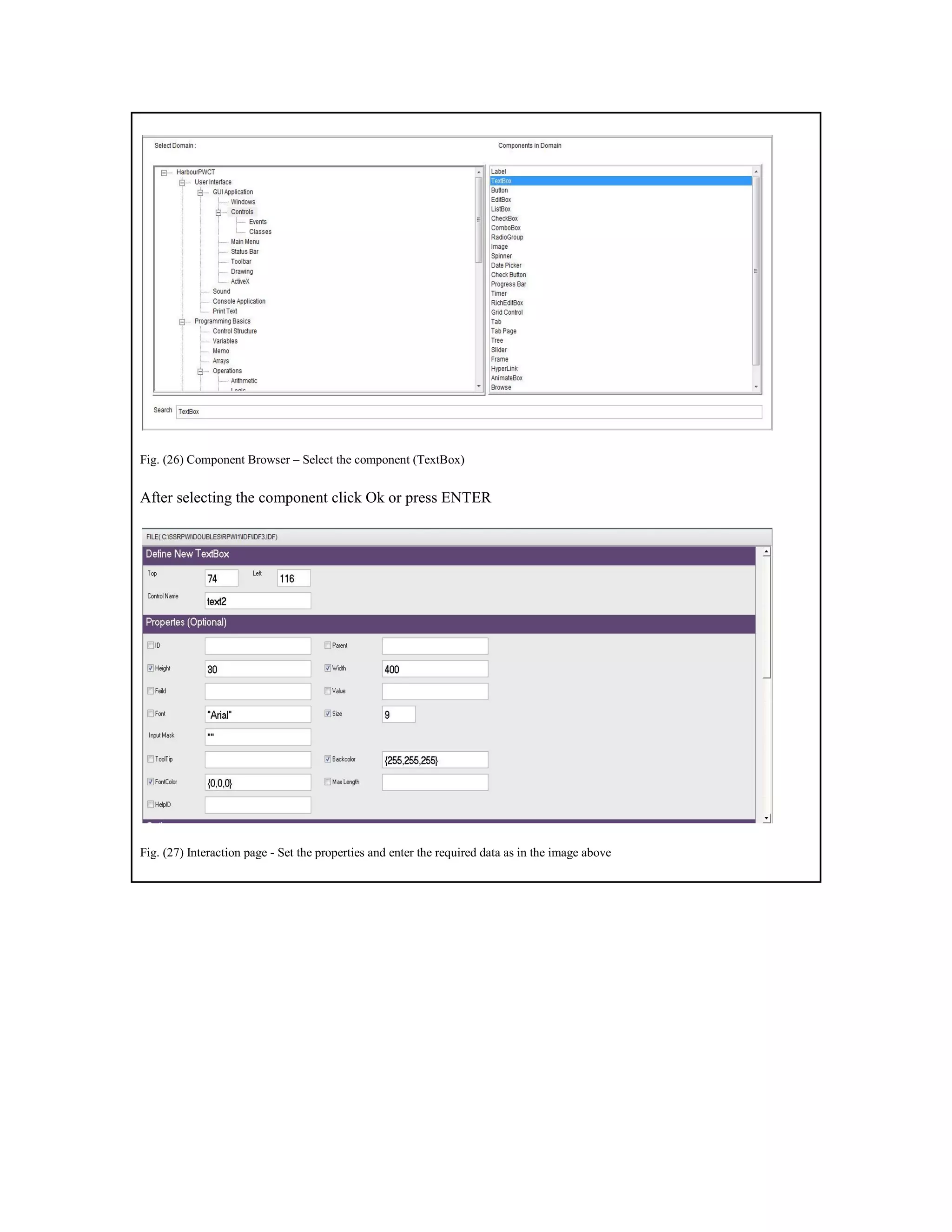

14. Fig. (26) Component Browser – Select the component (TextBox)
After selecting the component click Ok or press ENTER
Fig. (27) Interaction page - Set the properties and enter the required data as in the image above

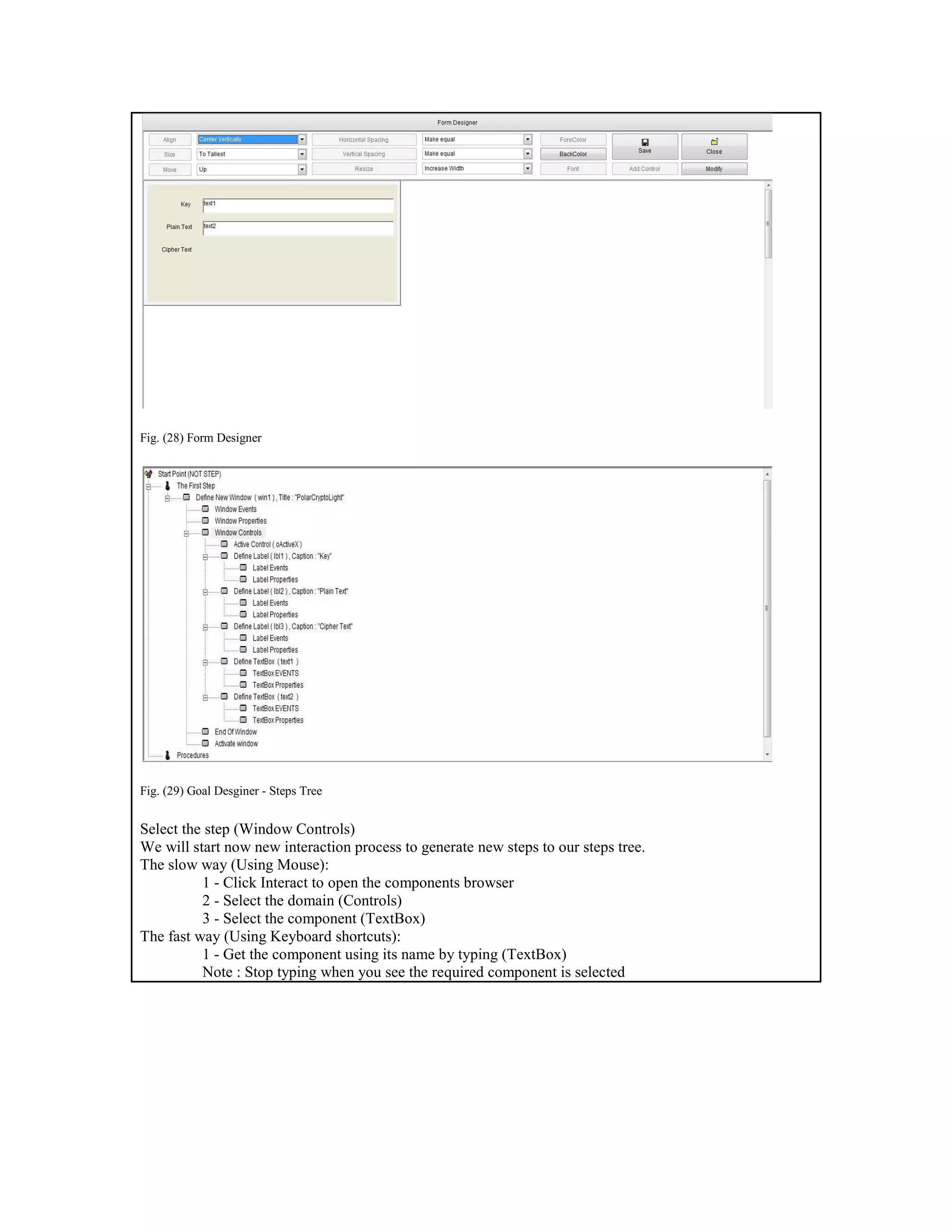

15. Fig. (28) Form Designer
Fig. (29) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (TextBox)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (TextBox)
Note : Stop typing when you see the required component is selected

16. Fig. (30) Component Browser – Select the component (TextBox)
After selecting the component click Ok or press ENTER
Fig. (31) Interaction page - Set the properties and enter the required data as in the image above

17. Fig. (32) Form Designer
Fig. (33) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Button)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button)
Note : Stop typing when you see the required component is selected

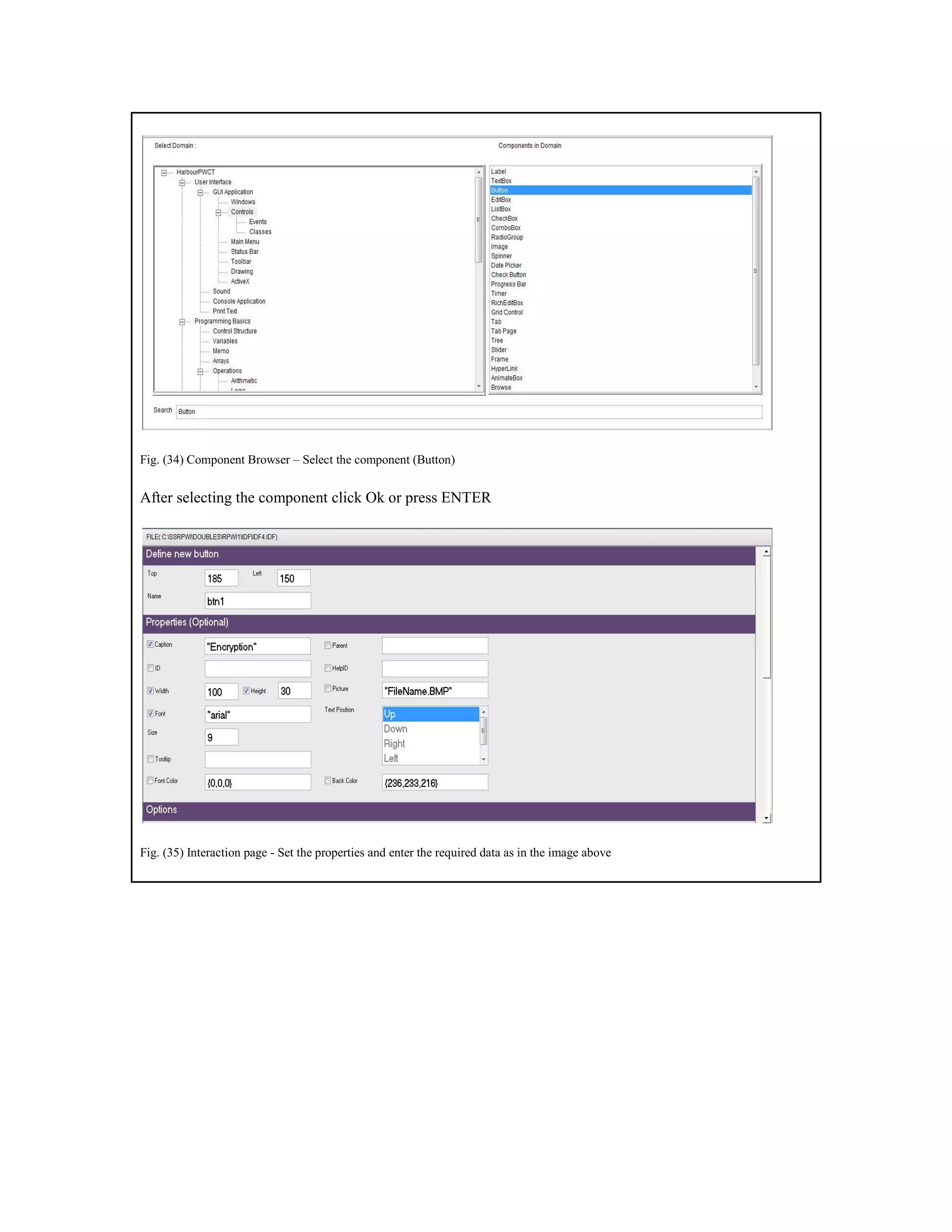

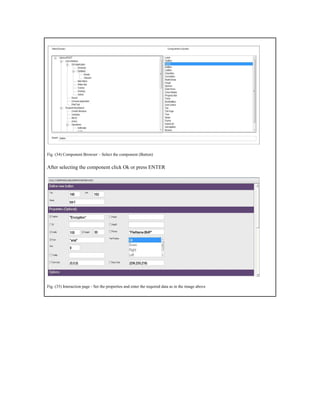

18. Fig. (34) Component Browser – Select the component (Button)
After selecting the component click Ok or press ENTER
Fig. (35) Interaction page - Set the properties and enter the required data as in the image above

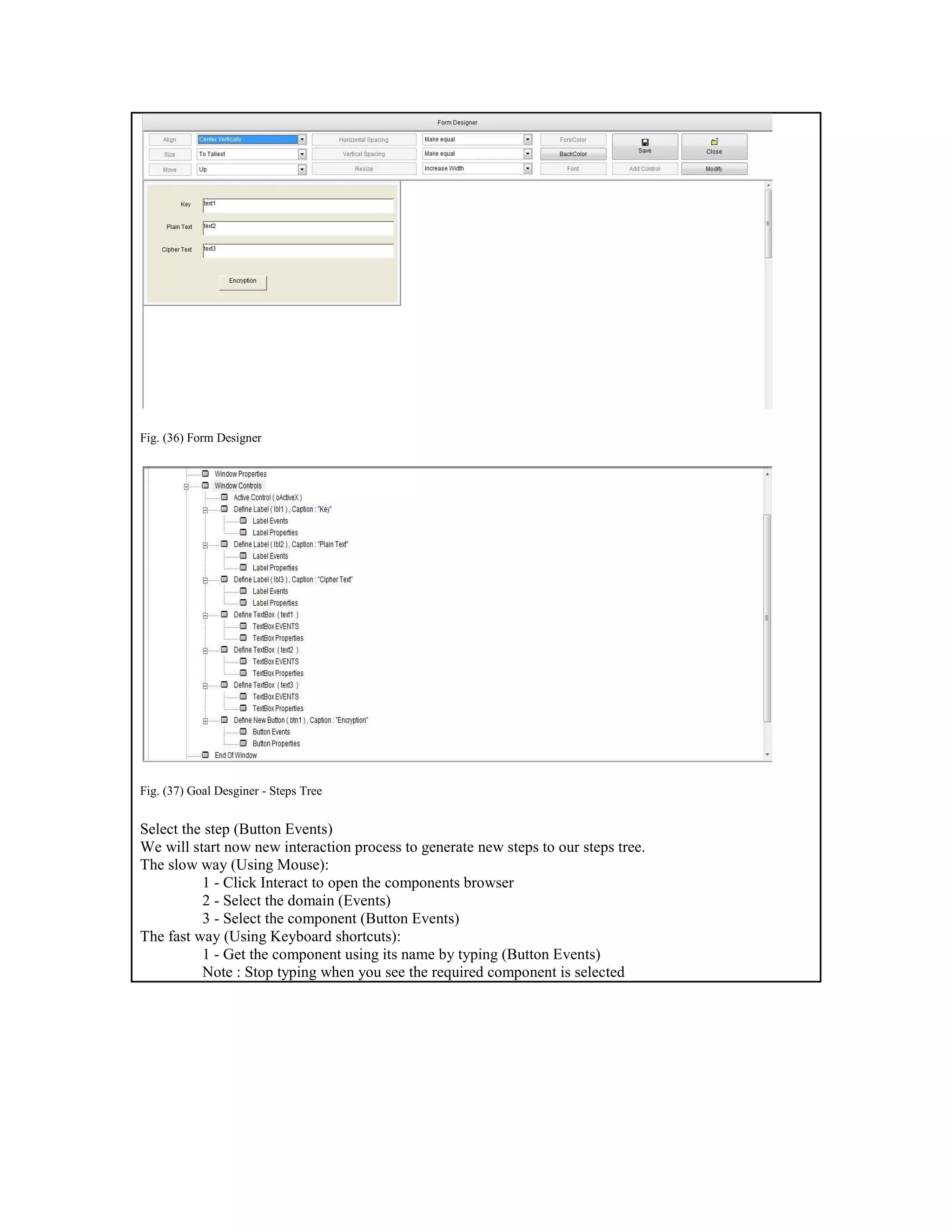

19. Fig. (36) Form Designer
Fig. (37) Goal Desginer - Steps Tree
Select the step (Button Events)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Events)
3 - Select the component (Button Events)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button Events)
Note : Stop typing when you see the required component is selected

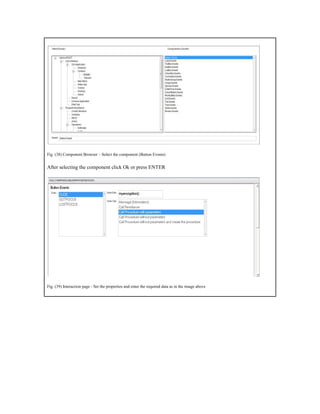

20. Fig. (38) Component Browser – Select the component (Button Events)
After selecting the component click Ok or press ENTER
Fig. (39) Interaction page - Set the properties and enter the required data as in the image above

21. Fig. (40) Goal Desginer - Steps Tree
Select the step (Window Controls)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Controls)
3 - Select the component (Button)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button)
Note : Stop typing when you see the required component is selected

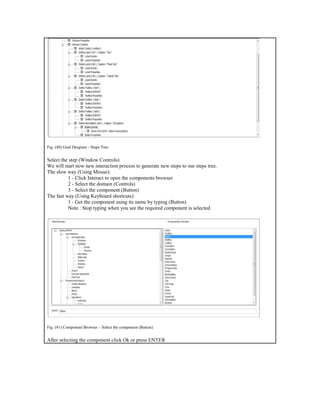

Fig. (41) Component Browser – Select the component (Button)
After selecting the component click Ok or press ENTER

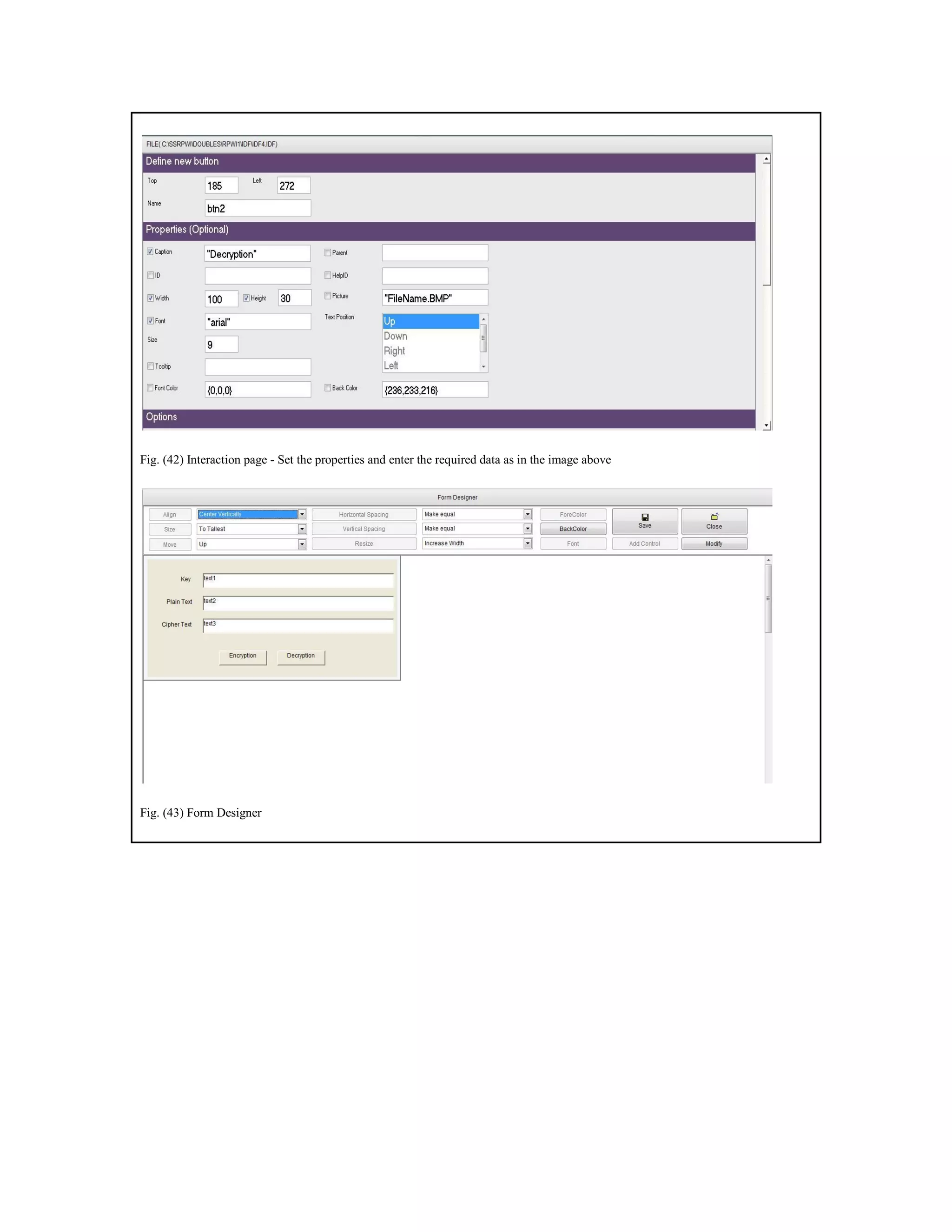

22. Fig. (42) Interaction page - Set the properties and enter the required data as in the image above
Fig. (43) Form Designer

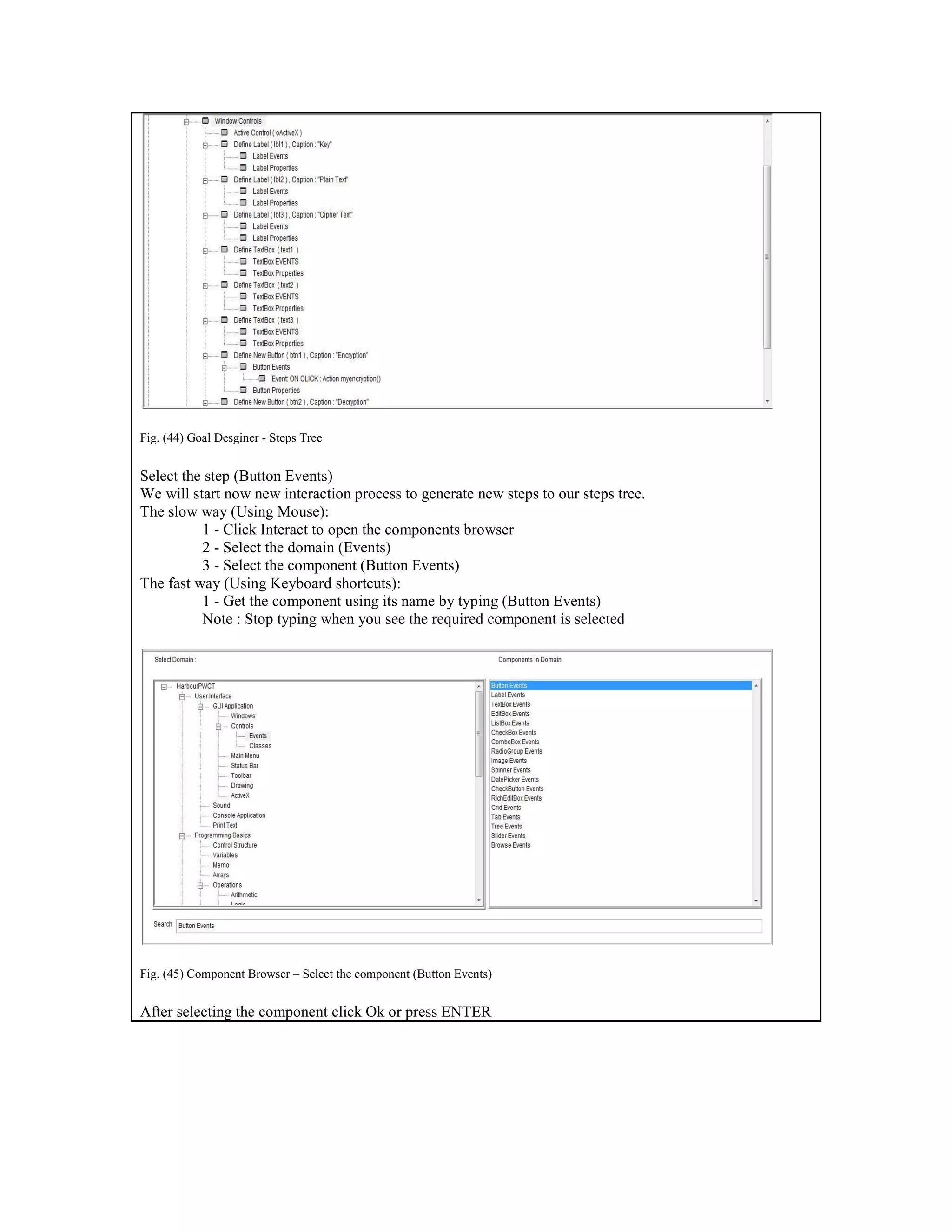

23. Fig. (44) Goal Desginer - Steps Tree
Select the step (Button Events)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Events)
3 - Select the component (Button Events)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Button Events)
Note : Stop typing when you see the required component is selected

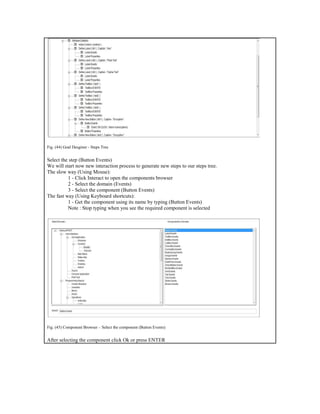

Fig. (45) Component Browser – Select the component (Button Events)
After selecting the component click Ok or press ENTER

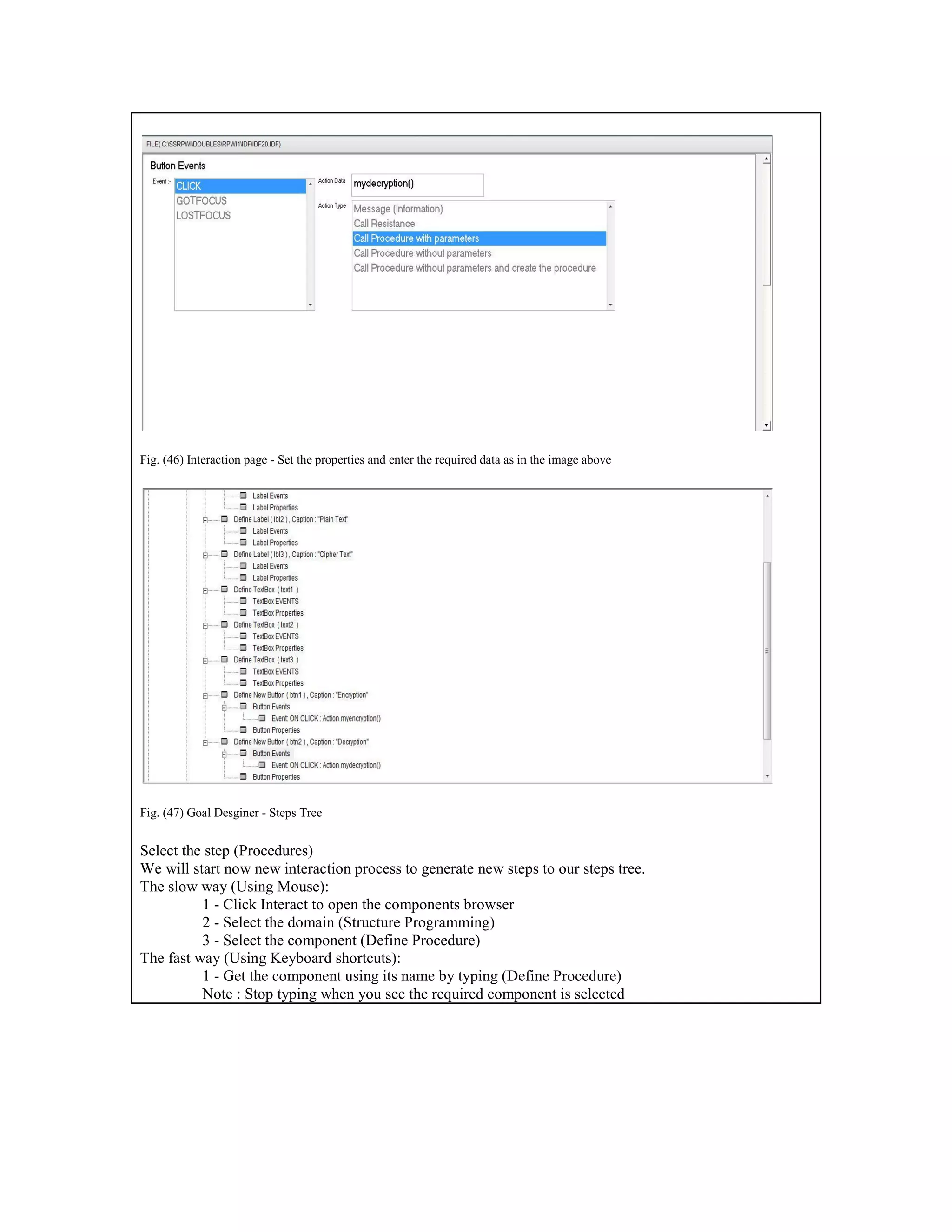

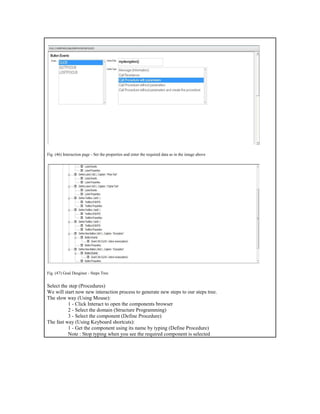

24. Fig. (46) Interaction page - Set the properties and enter the required data as in the image above
Fig. (47) Goal Desginer - Steps Tree
Select the step (Procedures)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Structure Programming)
3 - Select the component (Define Procedure)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define Procedure)
Note : Stop typing when you see the required component is selected

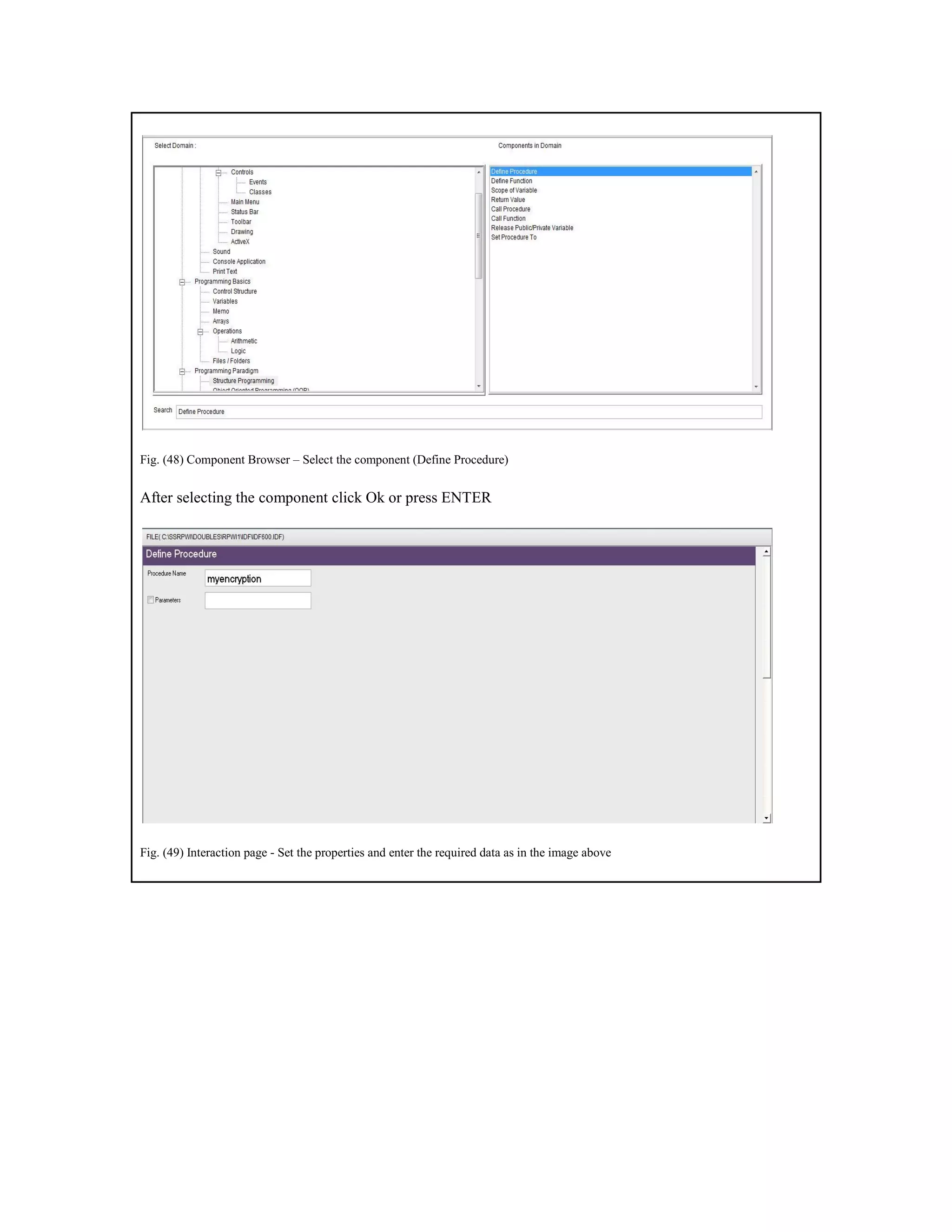

25. Fig. (48) Component Browser – Select the component (Define Procedure)
After selecting the component click Ok or press ENTER
Fig. (49) Interaction page - Set the properties and enter the required data as in the image above

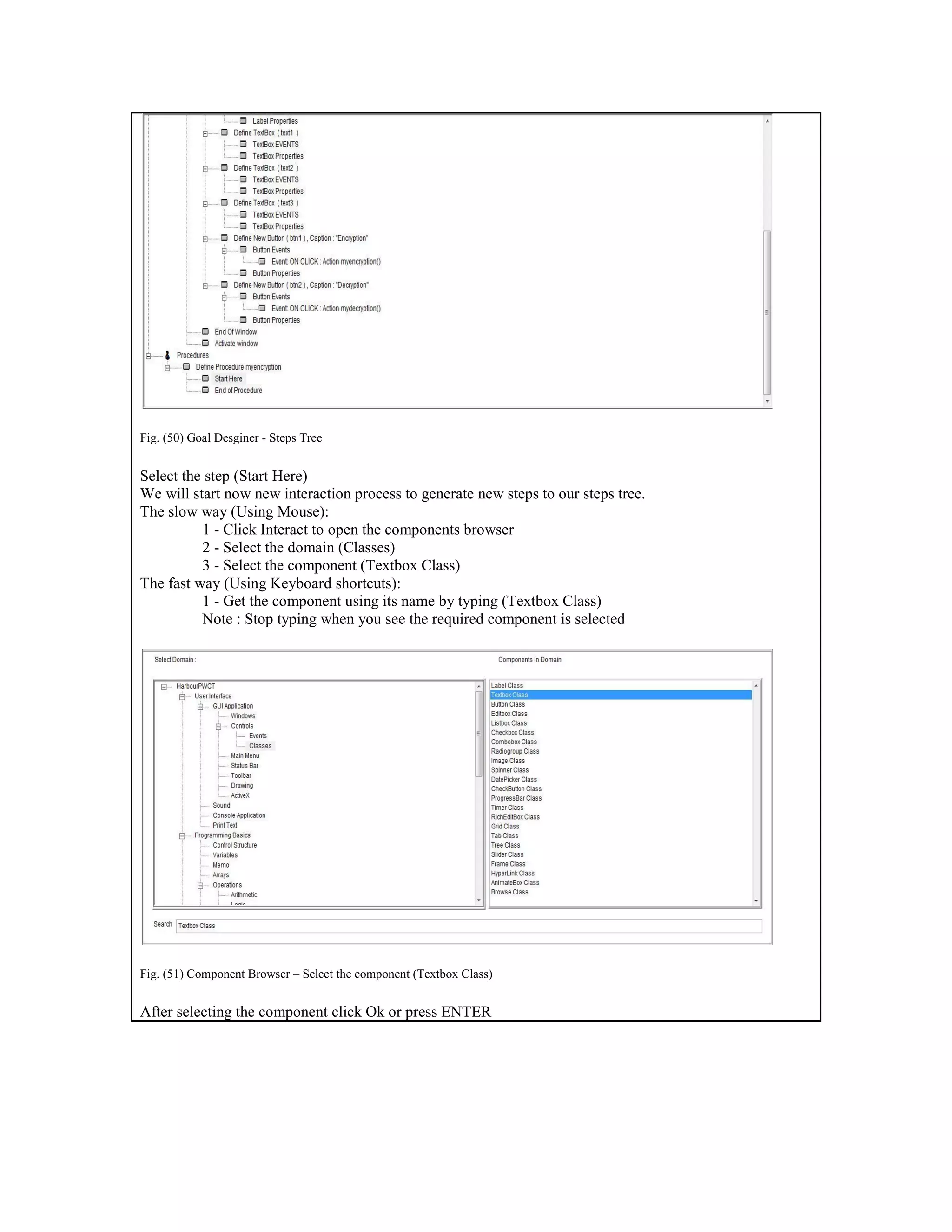

26. Fig. (50) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected
Fig. (51) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER

27. Fig. (52) Interaction page - Set the properties and enter the required data as in the image above
Fig. (53) Interaction page - Set the properties and enter the required data as in the image above

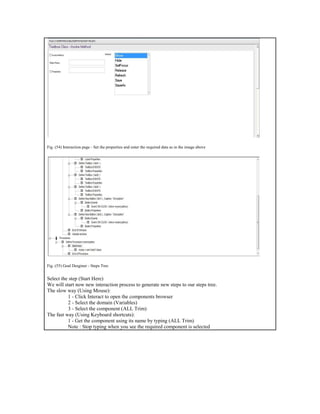

28. Fig. (54) Interaction page - Set the properties and enter the required data as in the image above
Fig. (55) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (ALL Trim)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ALL Trim)
Note : Stop typing when you see the required component is selected

29. Fig. (56) Component Browser – Select the component (ALL Trim)
After selecting the component click Ok or press ENTER
Fig. (57) Interaction page - Set the properties and enter the required data as in the image above

30. Fig. (58) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected
Fig. (59) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER

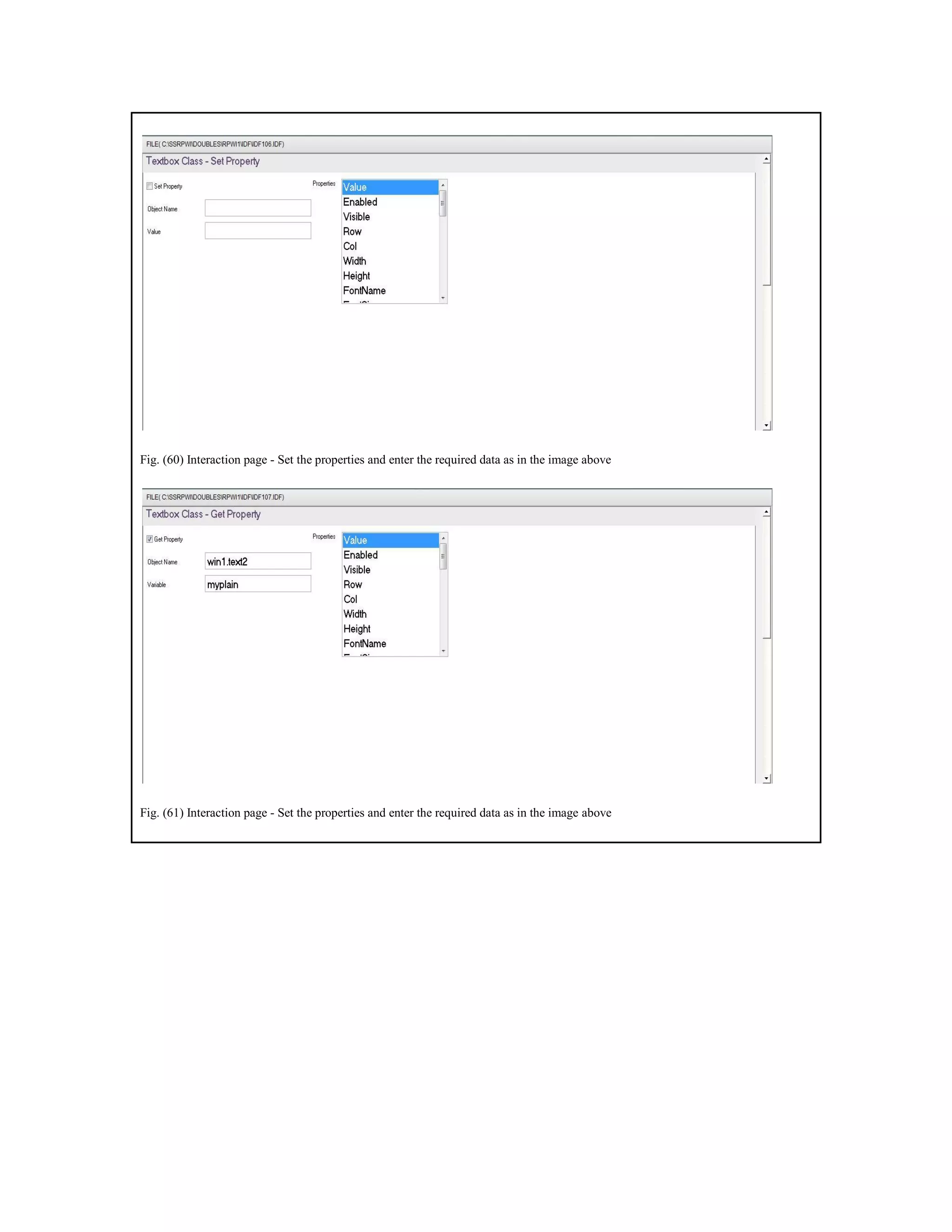

31. Fig. (60) Interaction page - Set the properties and enter the required data as in the image above
Fig. (61) Interaction page - Set the properties and enter the required data as in the image above

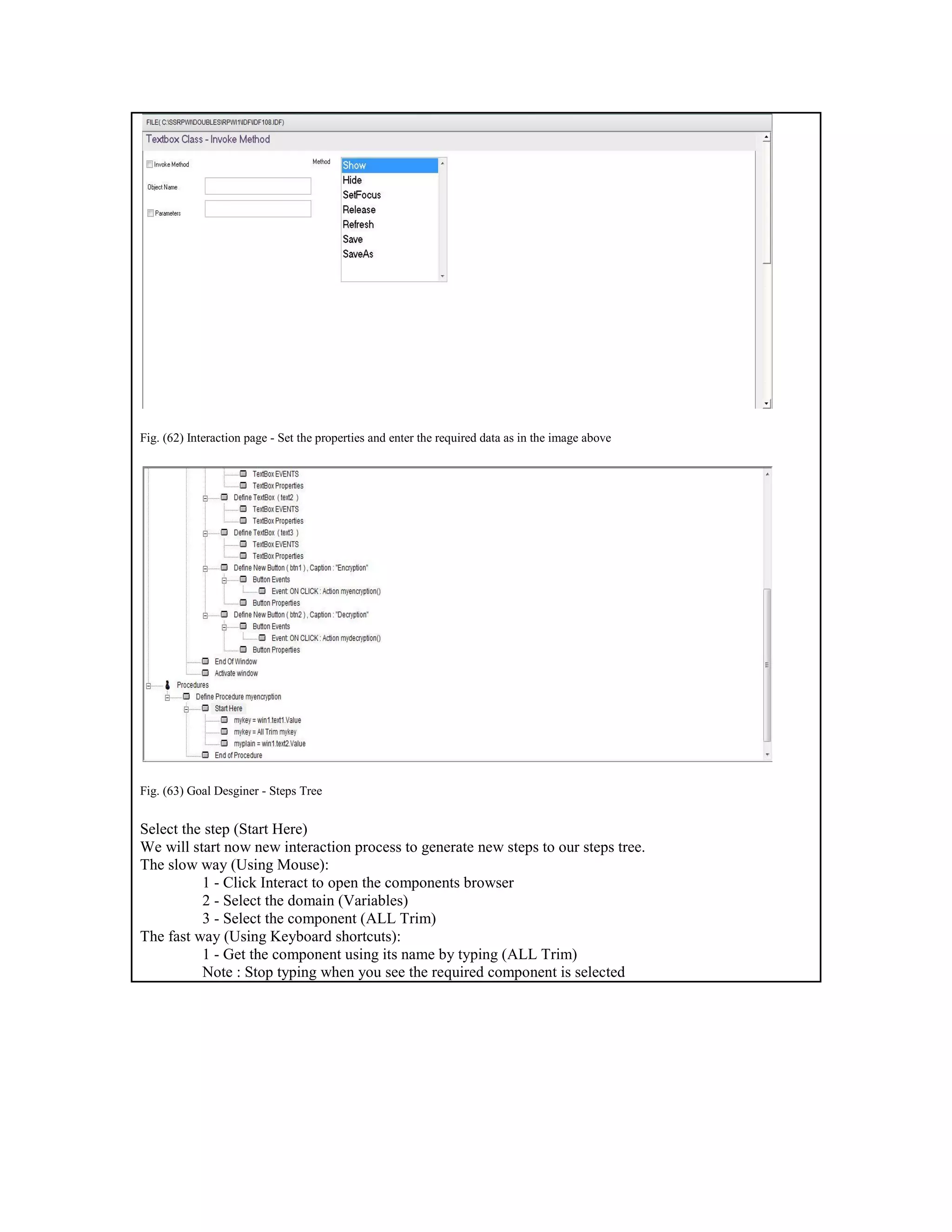

32. Fig. (62) Interaction page - Set the properties and enter the required data as in the image above
Fig. (63) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (ALL Trim)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ALL Trim)
Note : Stop typing when you see the required component is selected

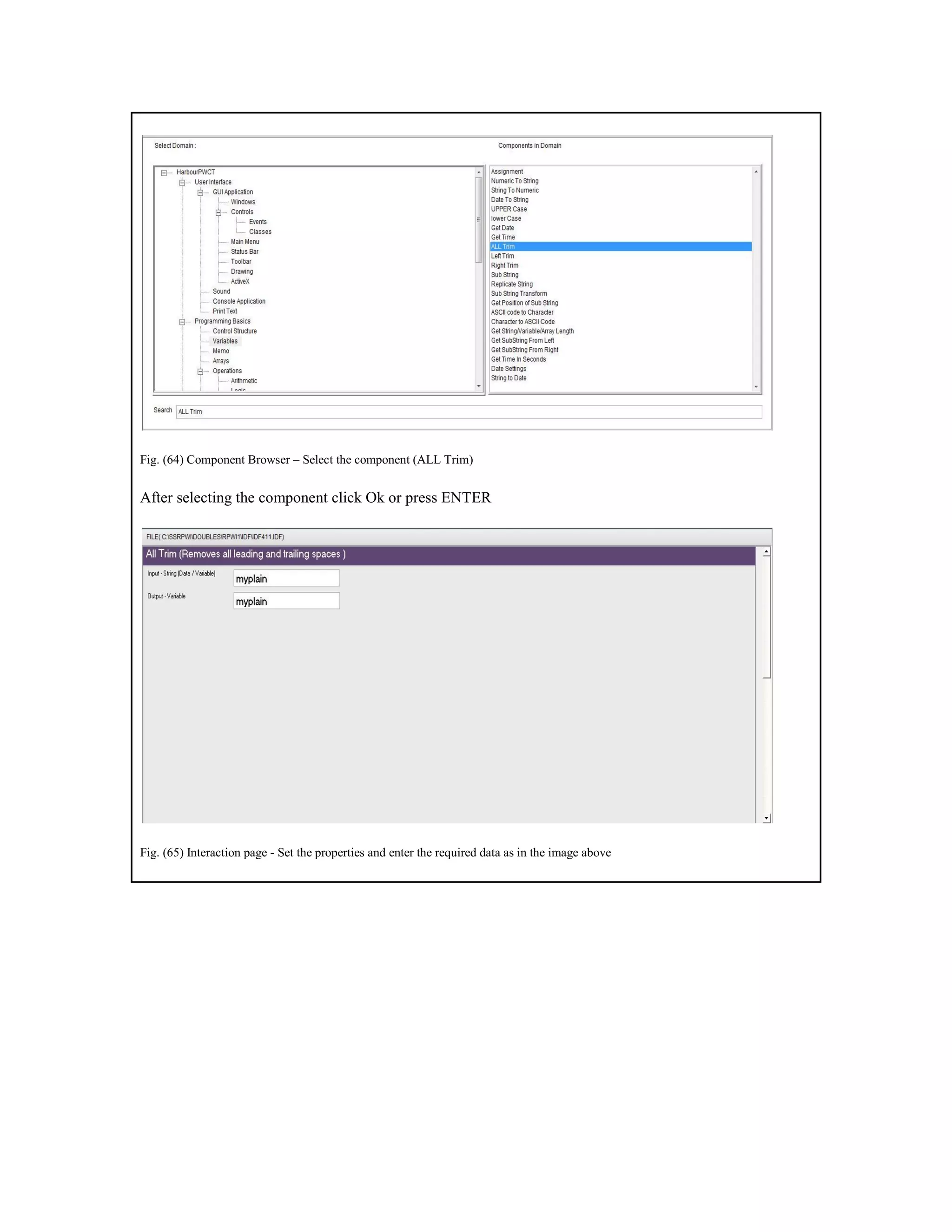

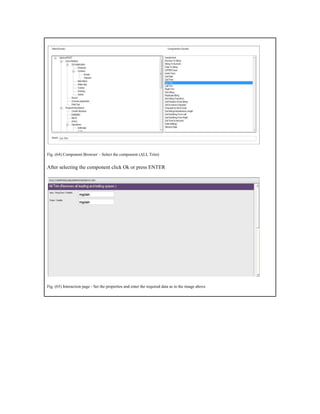

33. Fig. (64) Component Browser – Select the component (ALL Trim)
After selecting the component click Ok or press ENTER
Fig. (65) Interaction page - Set the properties and enter the required data as in the image above

34. Fig. (66) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected
Fig. (67) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER

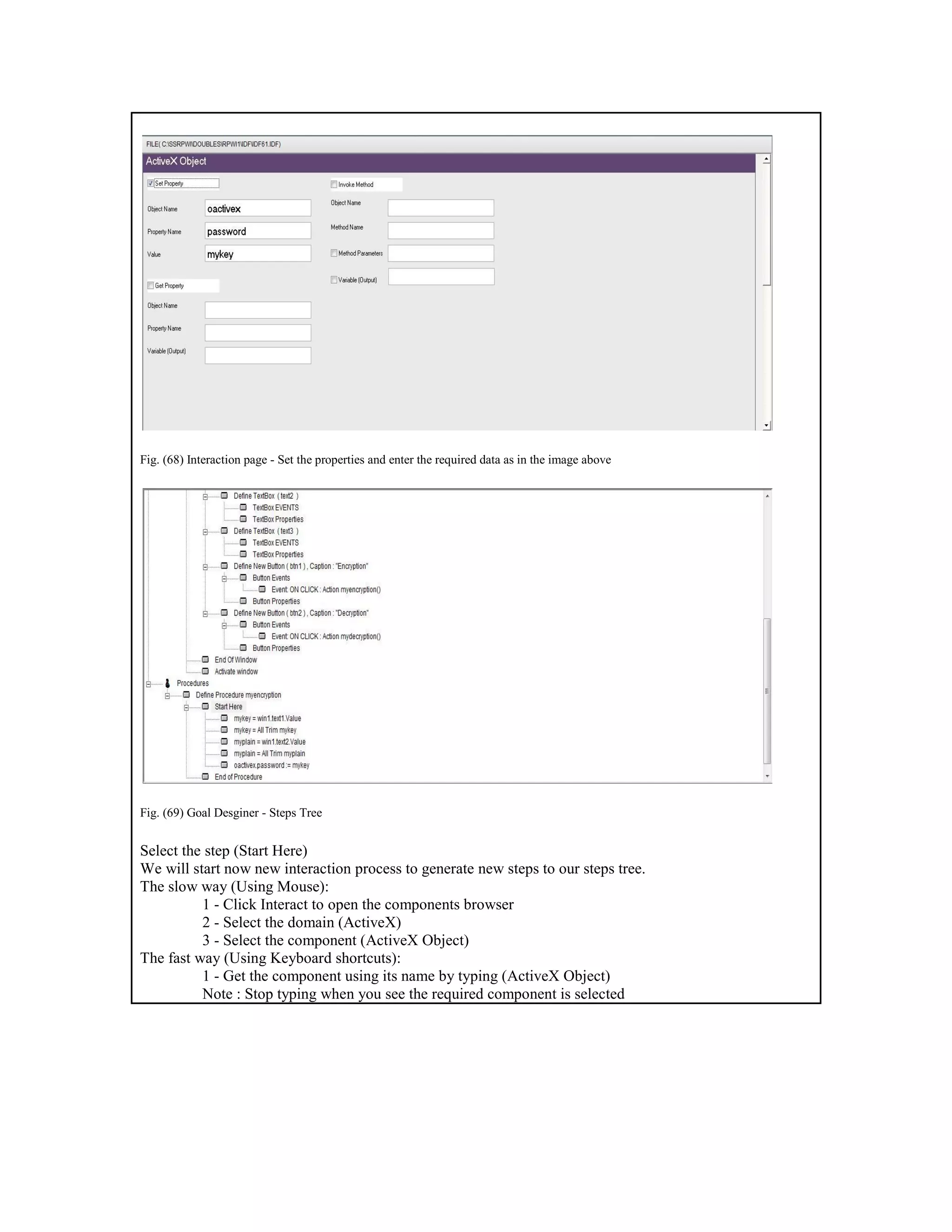

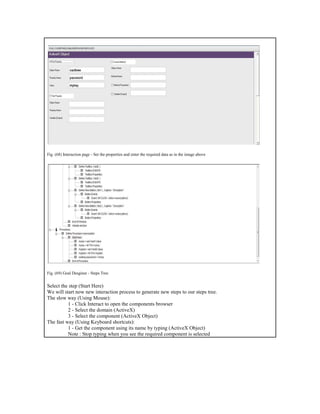

35. Fig. (68) Interaction page - Set the properties and enter the required data as in the image above
Fig. (69) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected

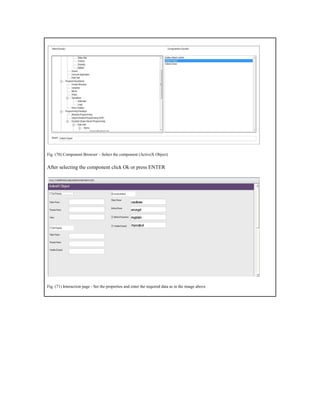

36. Fig. (70) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER
Fig. (71) Interaction page - Set the properties and enter the required data as in the image above

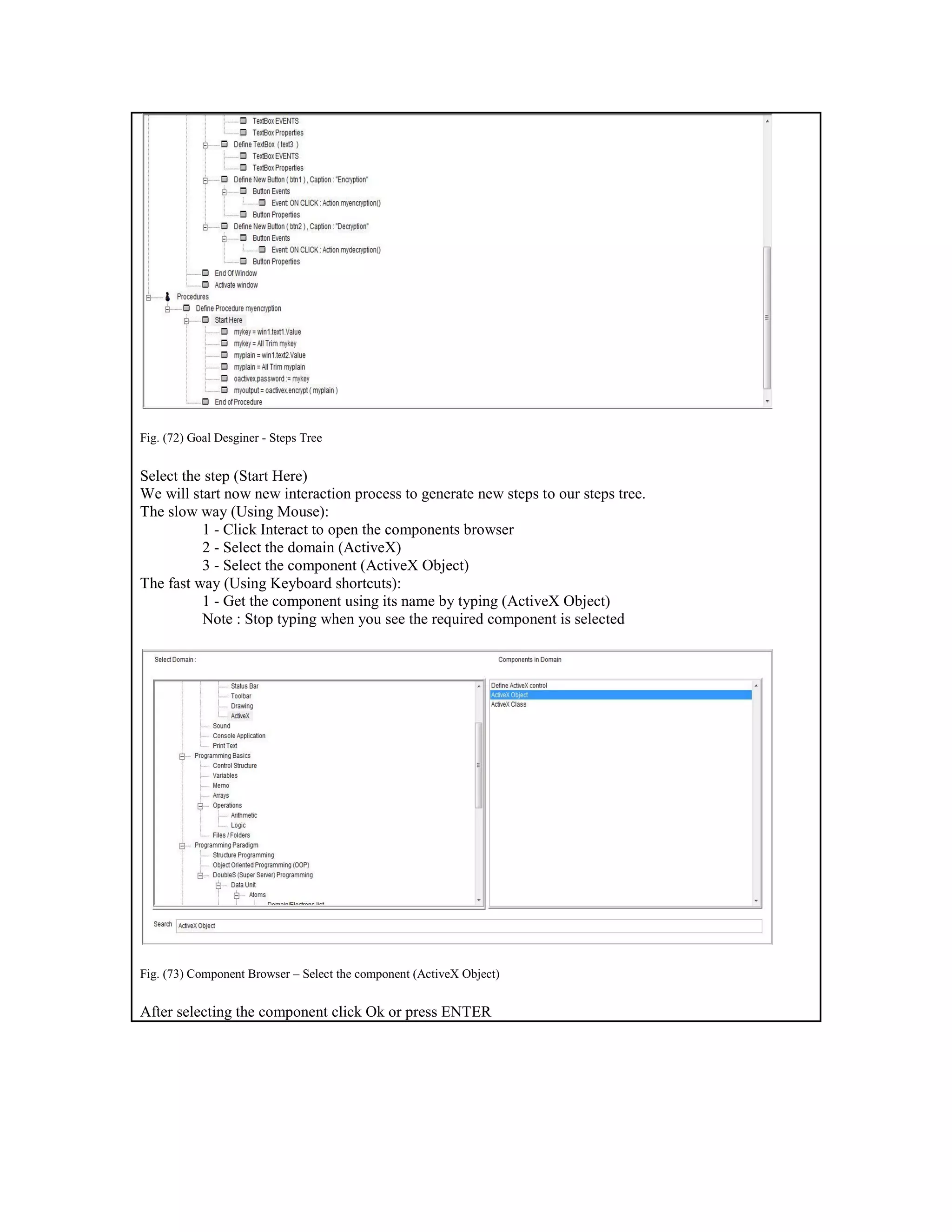

37. Fig. (72) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected
Fig. (73) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER

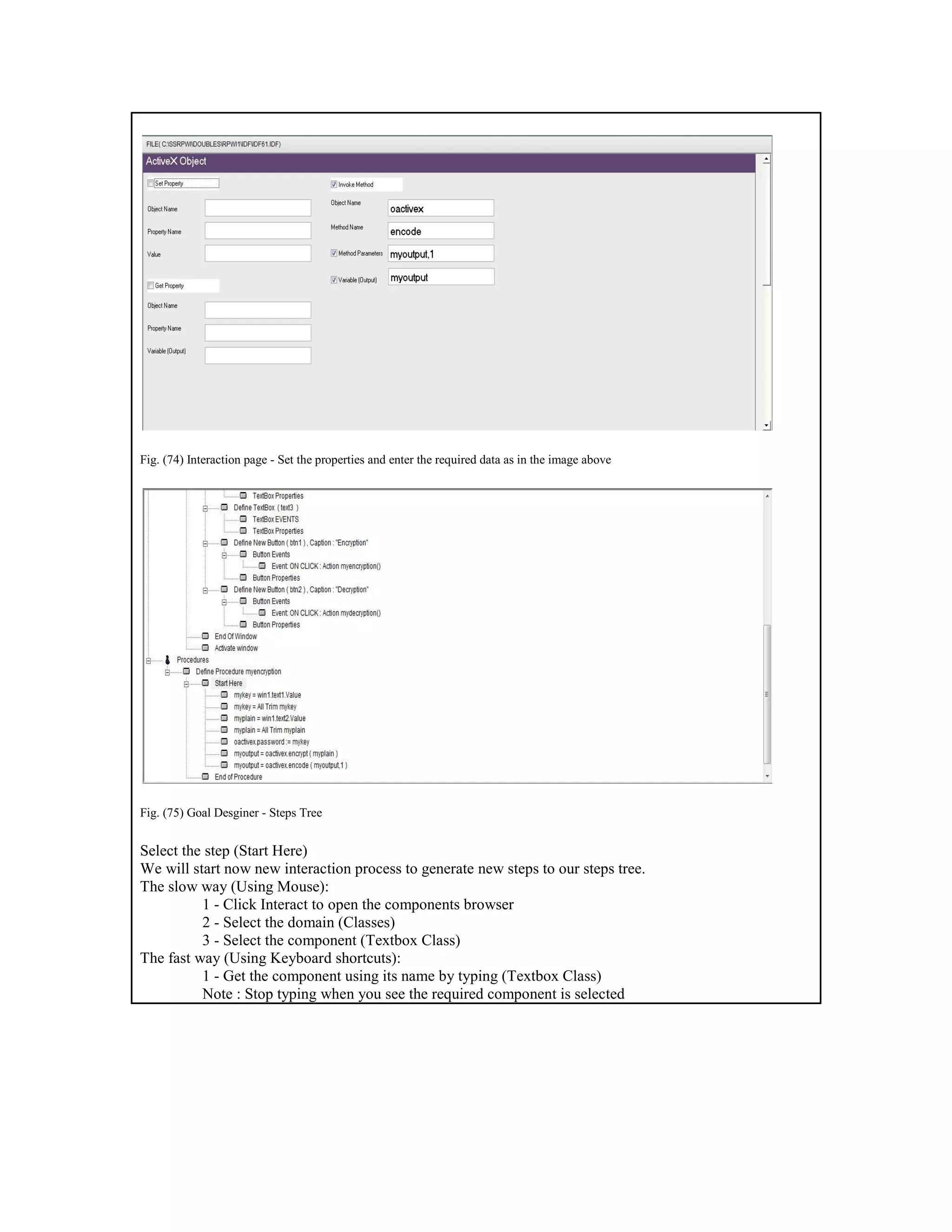

38. Fig. (74) Interaction page - Set the properties and enter the required data as in the image above
Fig. (75) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected

39. Fig. (76) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER
Fig. (77) Interaction page - Set the properties and enter the required data as in the image above

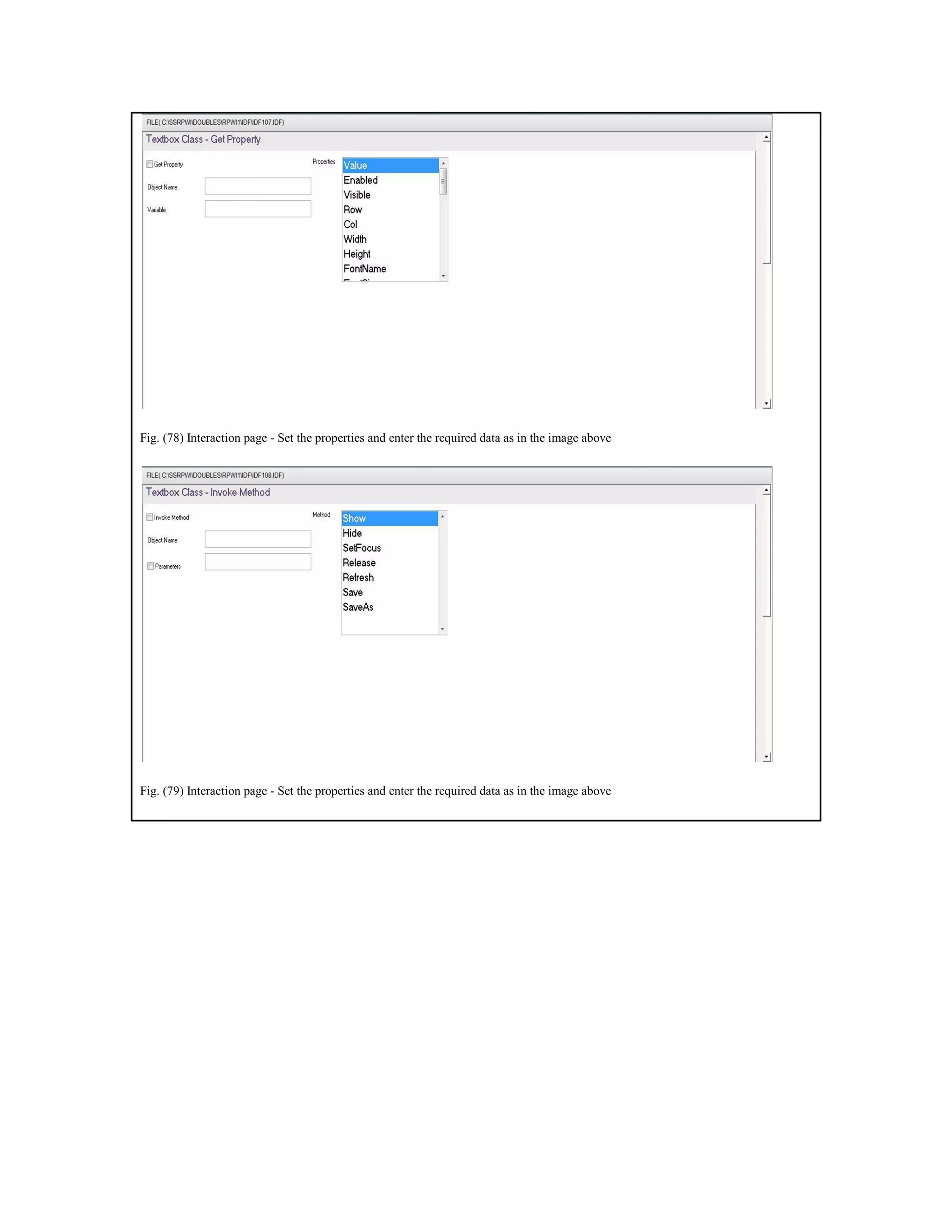

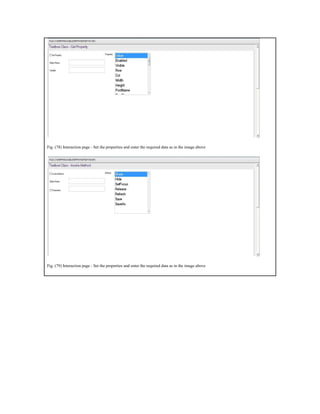

40. Fig. (78) Interaction page - Set the properties and enter the required data as in the image above
Fig. (79) Interaction page - Set the properties and enter the required data as in the image above

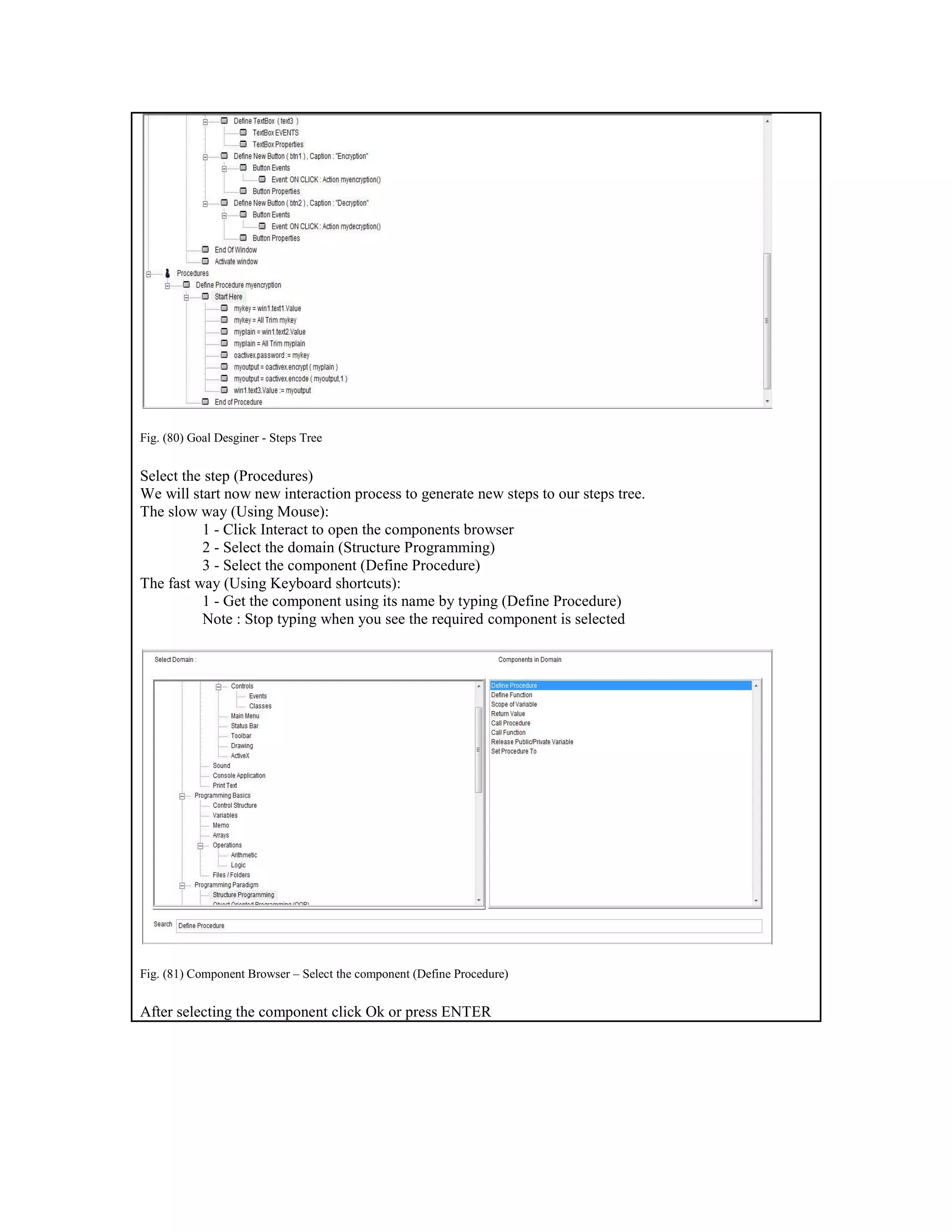

41. Fig. (80) Goal Desginer - Steps Tree
Select the step (Procedures)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Structure Programming)
3 - Select the component (Define Procedure)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Define Procedure)
Note : Stop typing when you see the required component is selected
Fig. (81) Component Browser – Select the component (Define Procedure)
After selecting the component click Ok or press ENTER

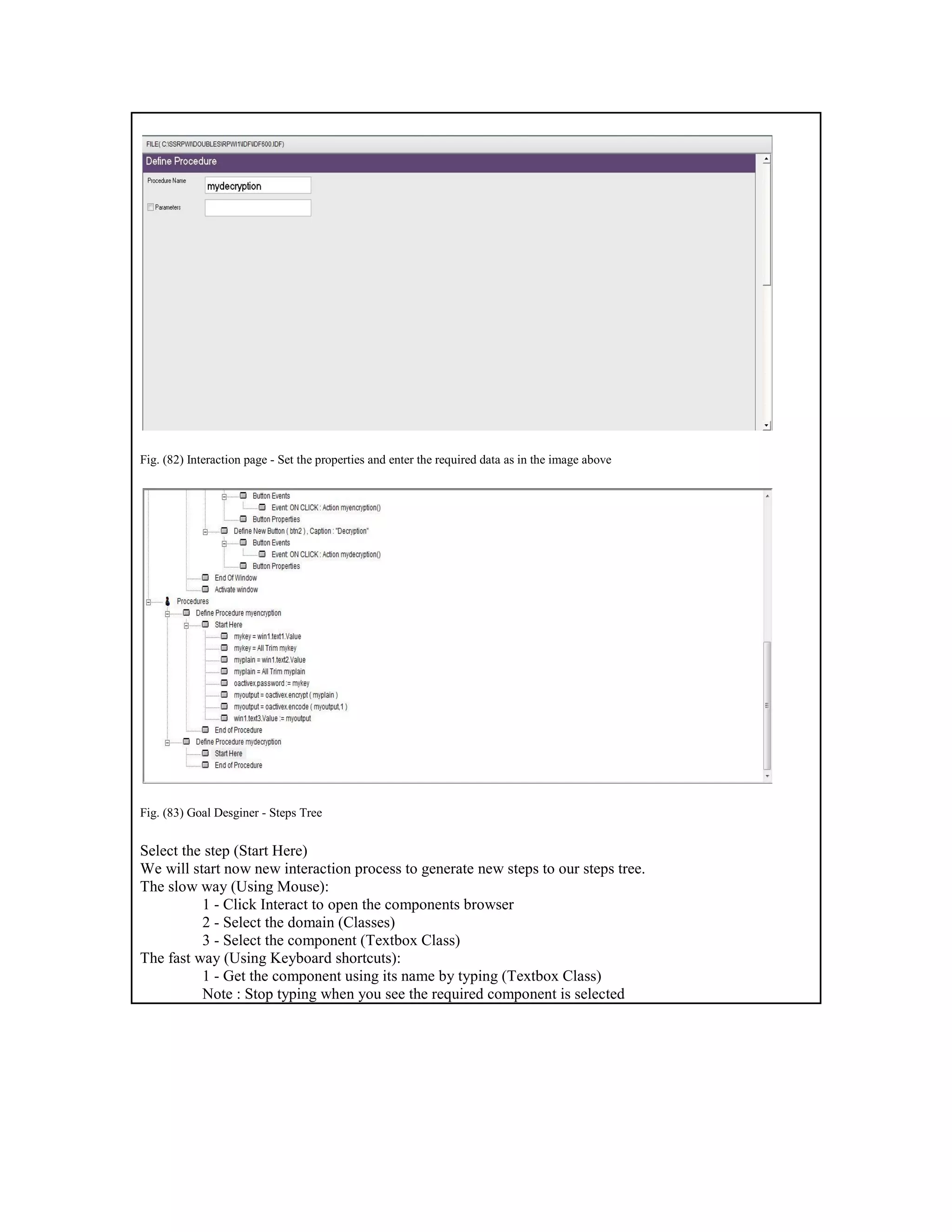

42. Fig. (82) Interaction page - Set the properties and enter the required data as in the image above
Fig. (83) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected

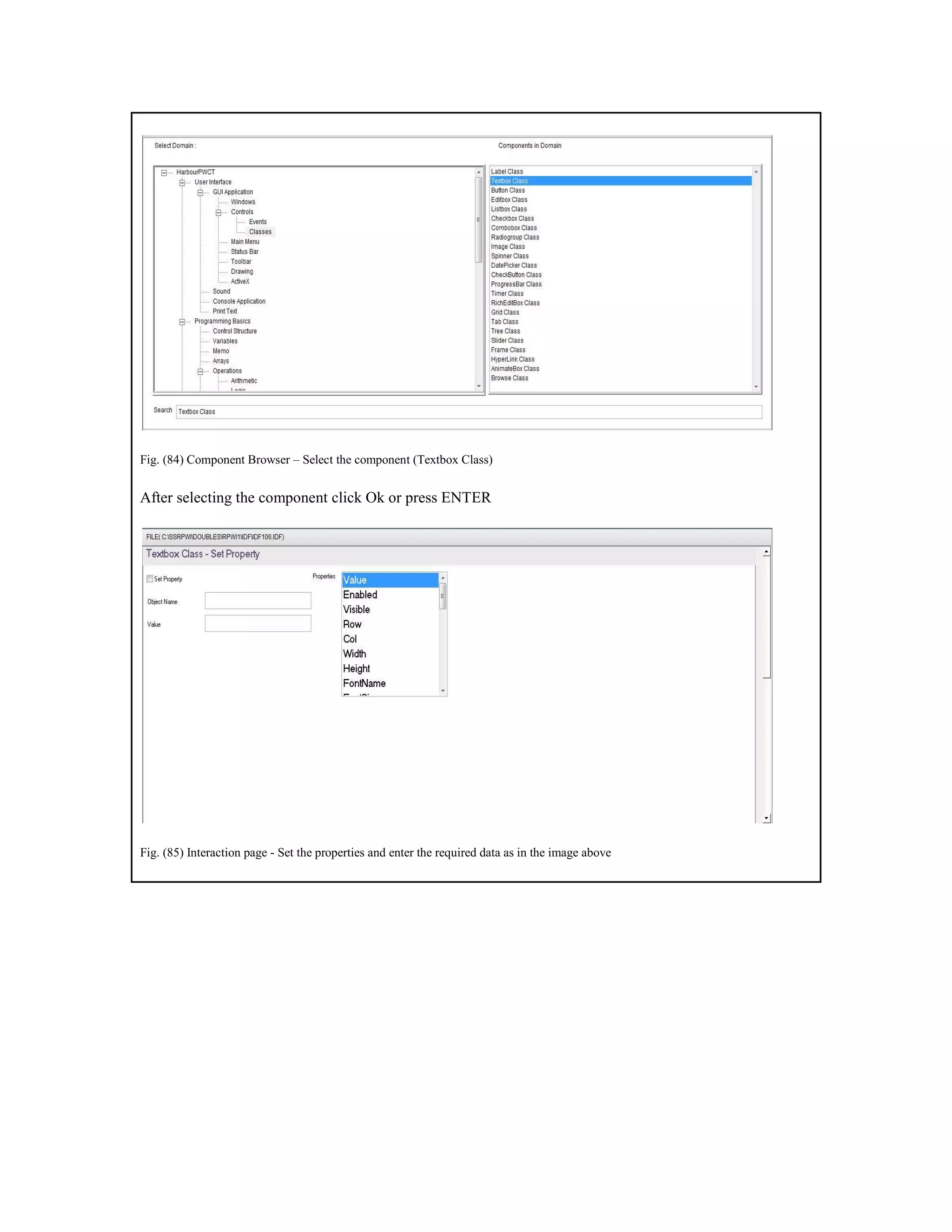

43. Fig. (84) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER
Fig. (85) Interaction page - Set the properties and enter the required data as in the image above

44. Fig. (86) Interaction page - Set the properties and enter the required data as in the image above
Fig. (87) Interaction page - Set the properties and enter the required data as in the image above

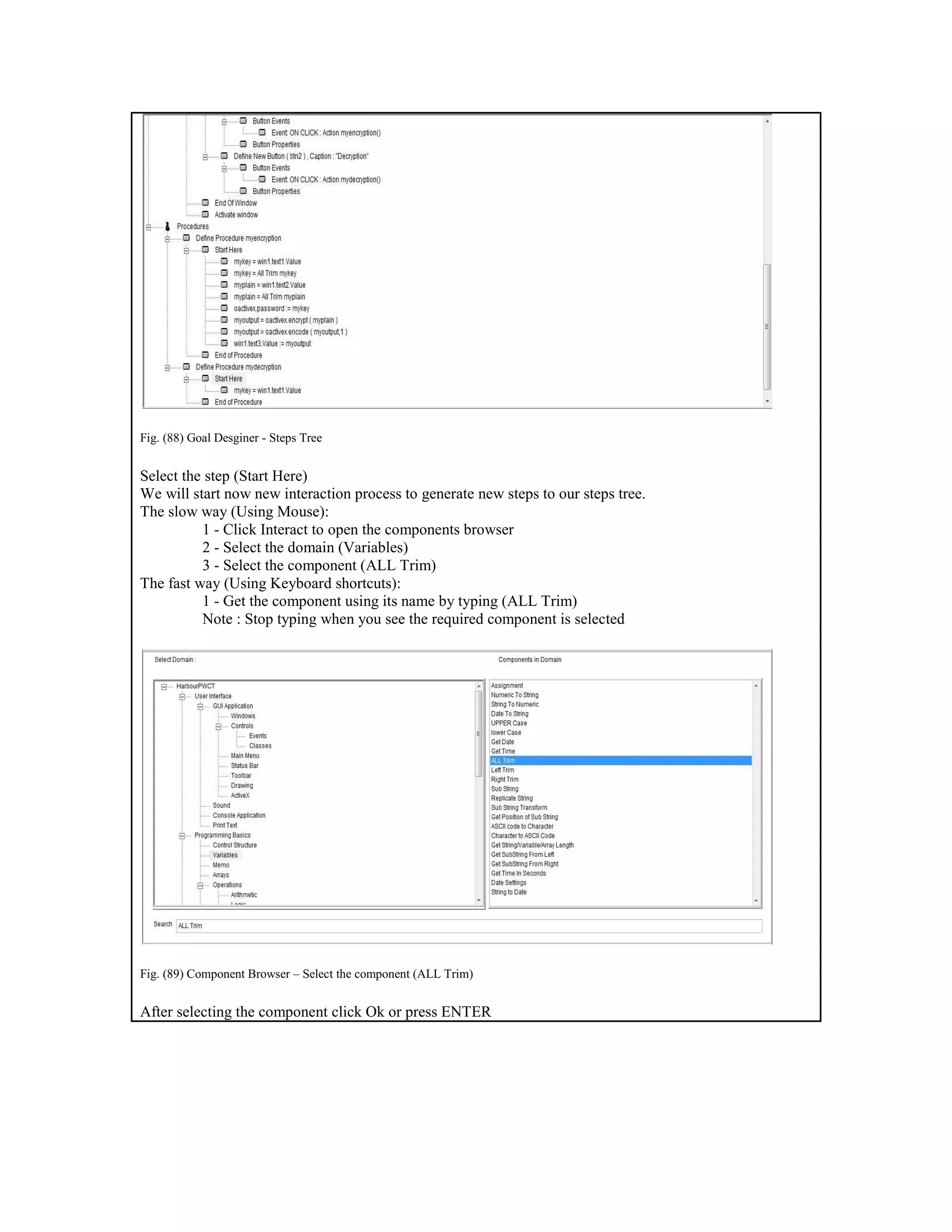

45. Fig. (88) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (ALL Trim)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ALL Trim)
Note : Stop typing when you see the required component is selected
Fig. (89) Component Browser – Select the component (ALL Trim)
After selecting the component click Ok or press ENTER

46. Fig. (90) Interaction page - Set the properties and enter the required data as in the image above
Fig. (91) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected

47. Fig. (92) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER
Fig. (93) Interaction page - Set the properties and enter the required data as in the image above

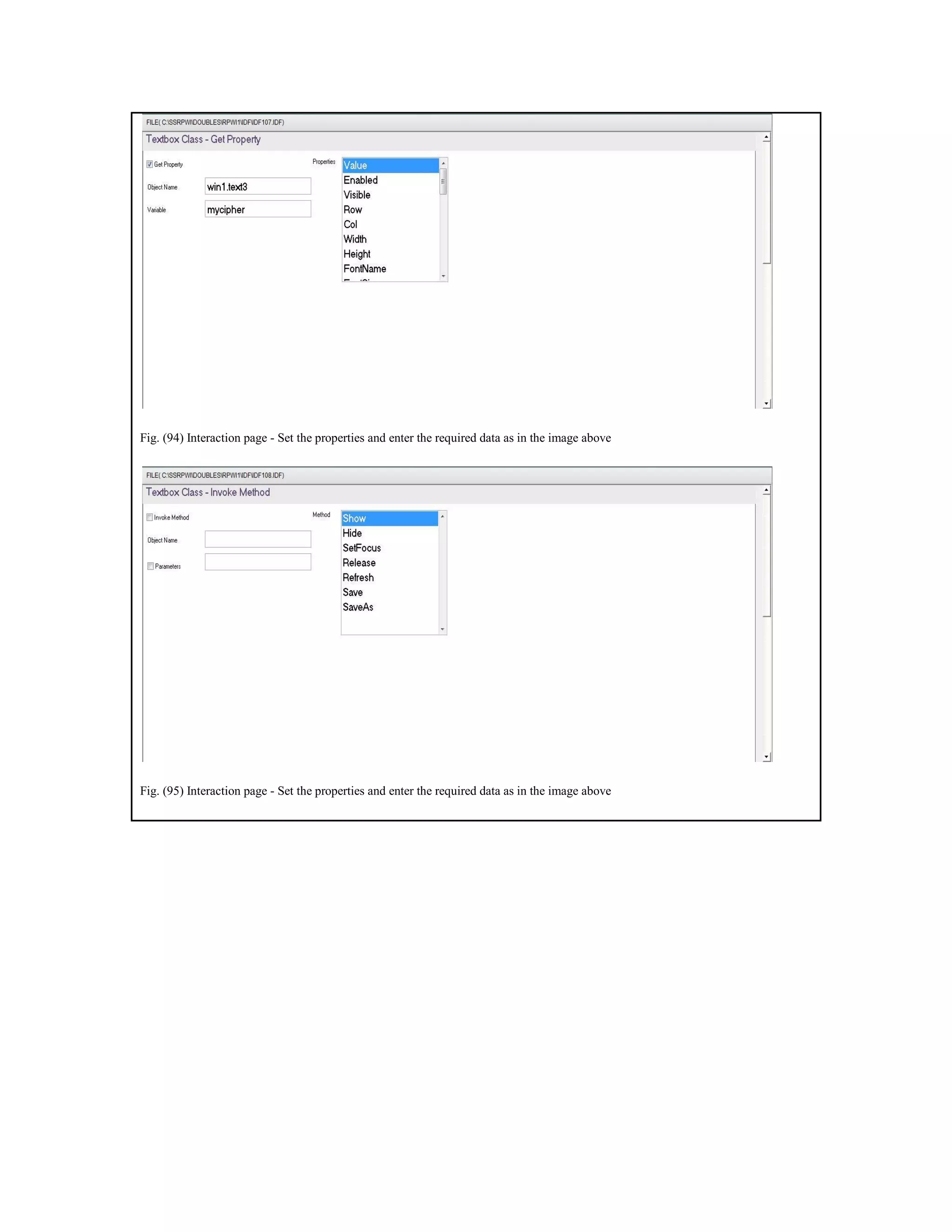

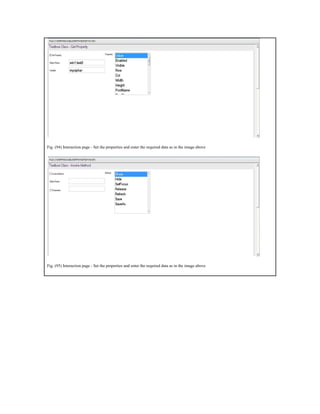

48. Fig. (94) Interaction page - Set the properties and enter the required data as in the image above
Fig. (95) Interaction page - Set the properties and enter the required data as in the image above

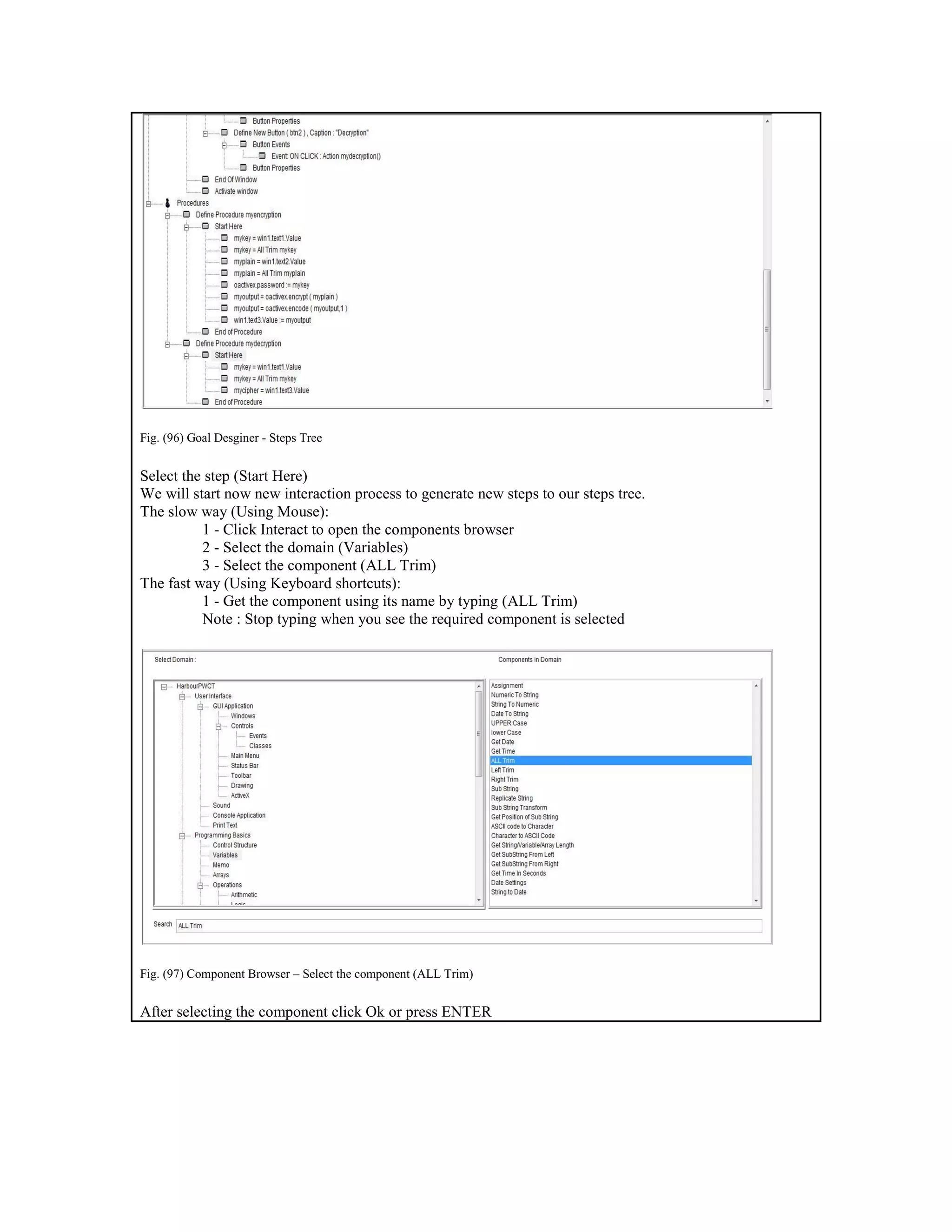

49. Fig. (96) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Variables)
3 - Select the component (ALL Trim)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ALL Trim)
Note : Stop typing when you see the required component is selected
Fig. (97) Component Browser – Select the component (ALL Trim)
After selecting the component click Ok or press ENTER

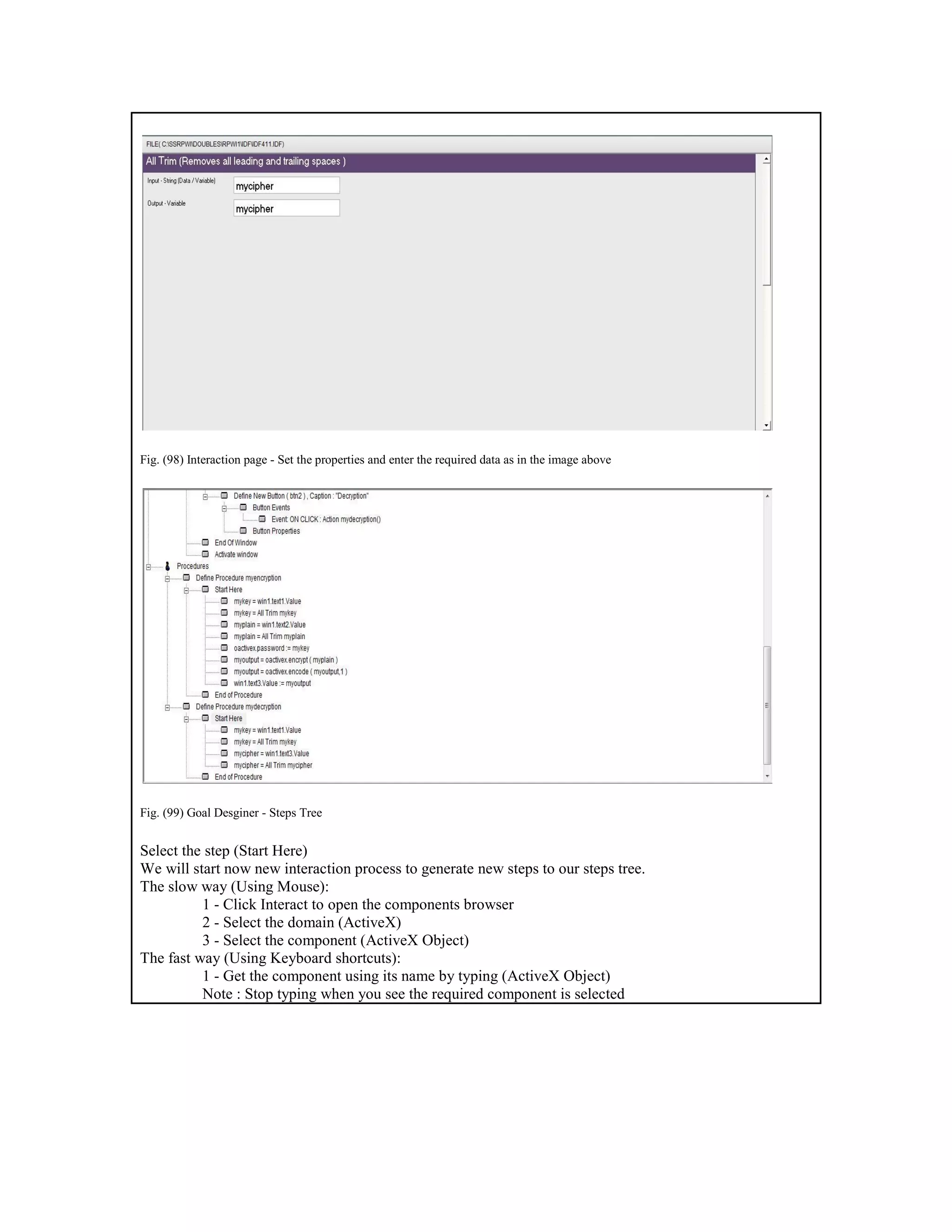

50. Fig. (98) Interaction page - Set the properties and enter the required data as in the image above
Fig. (99) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected

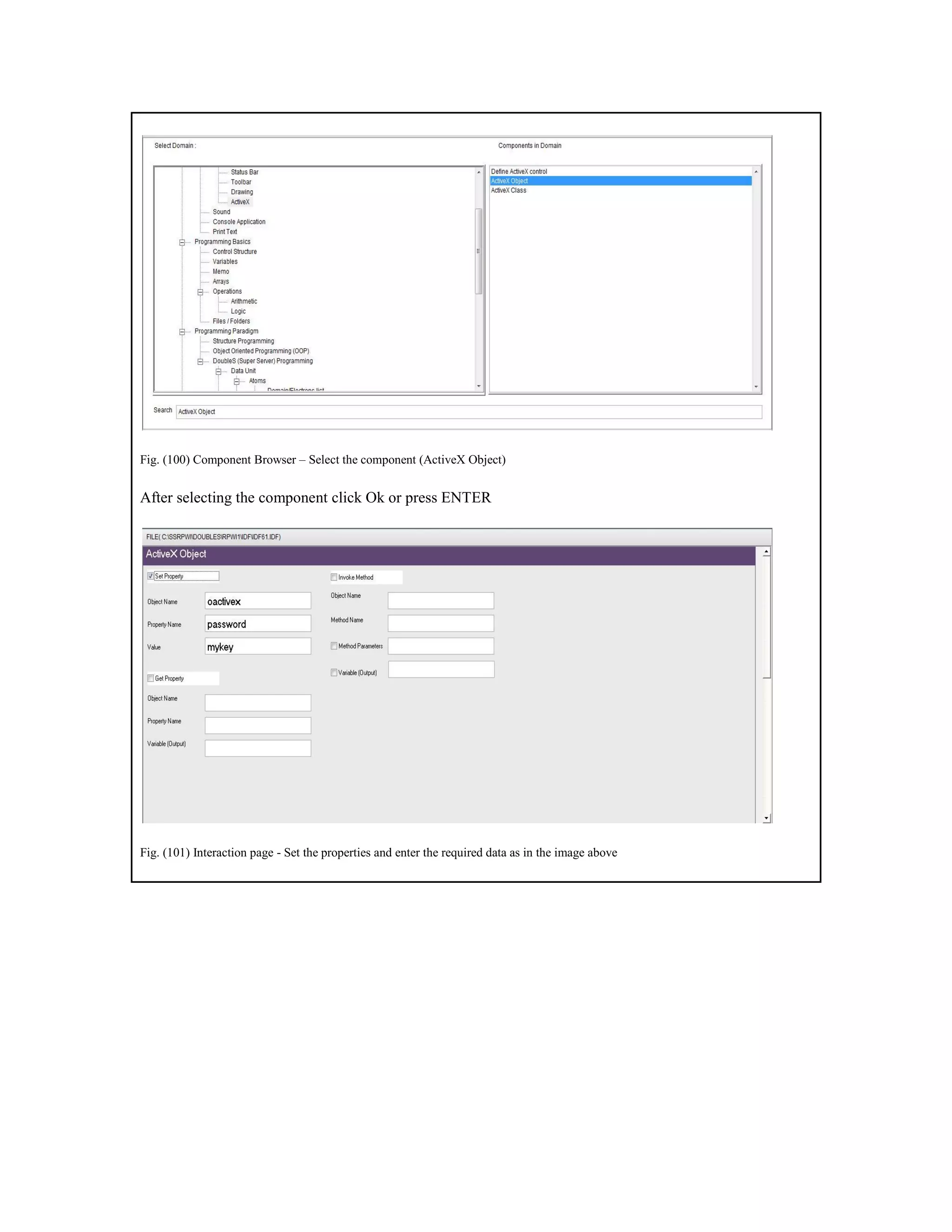

51. Fig. (100) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER
Fig. (101) Interaction page - Set the properties and enter the required data as in the image above

52. Fig. (102) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected
Fig. (103) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER

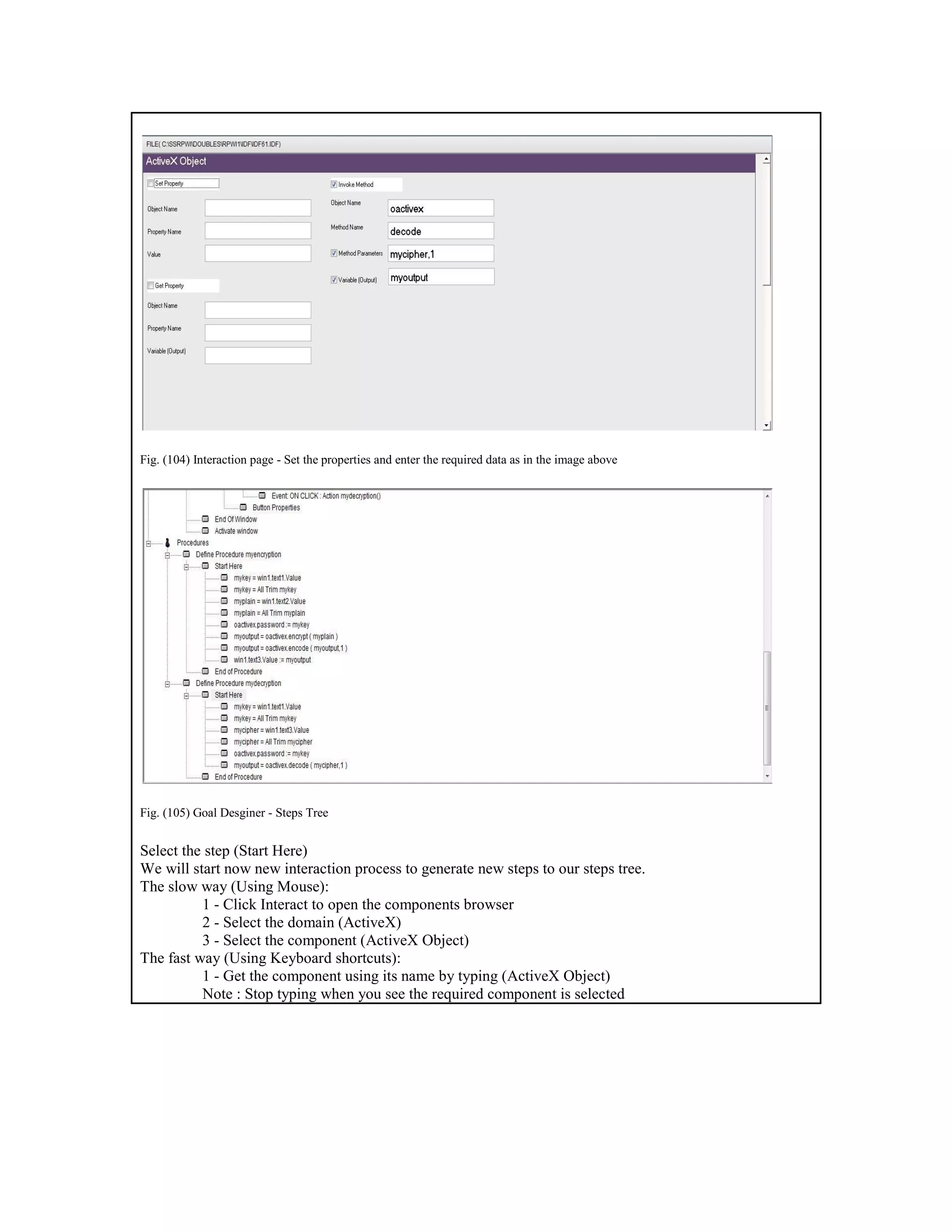

53. Fig. (104) Interaction page - Set the properties and enter the required data as in the image above
Fig. (105) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected

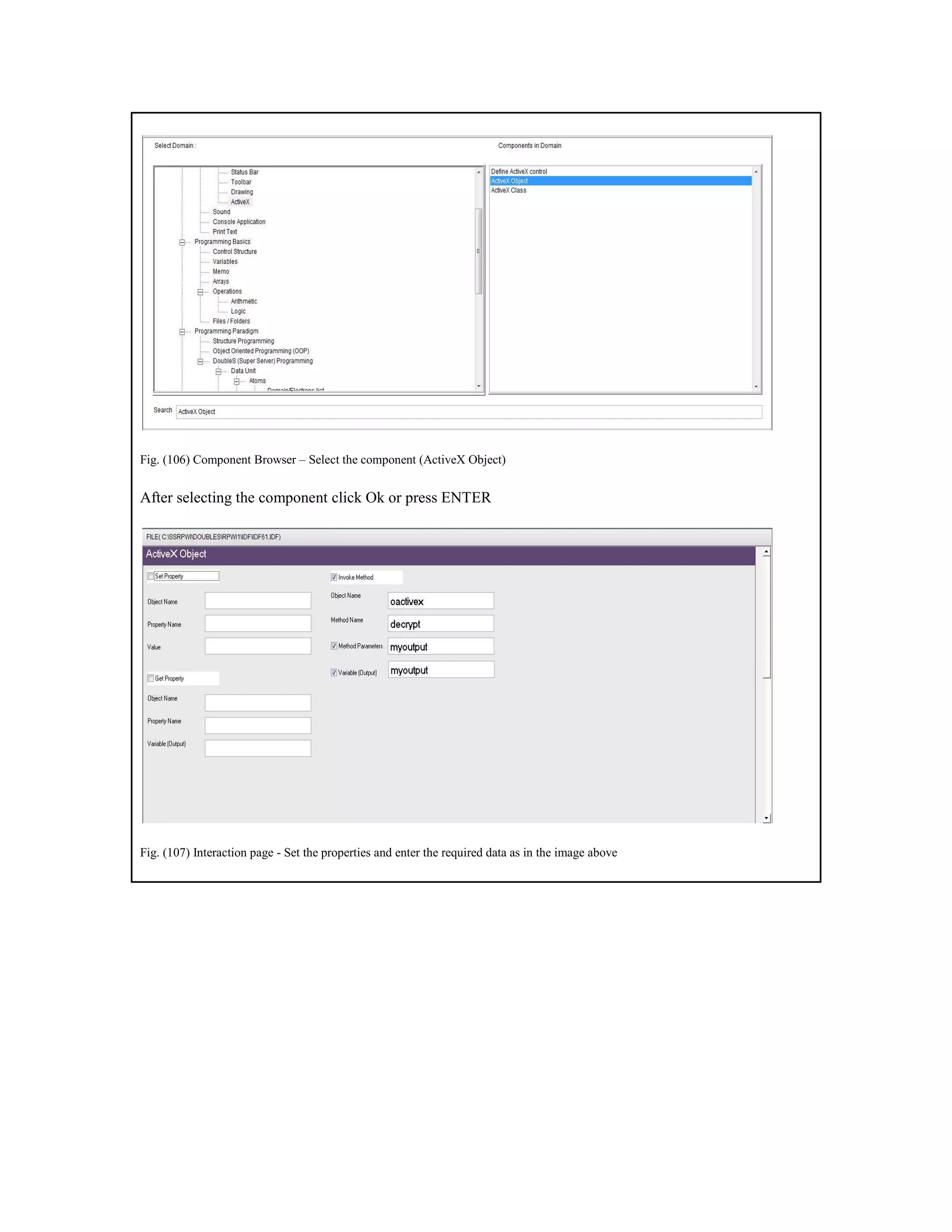

54. Fig. (106) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER
Fig. (107) Interaction page - Set the properties and enter the required data as in the image above

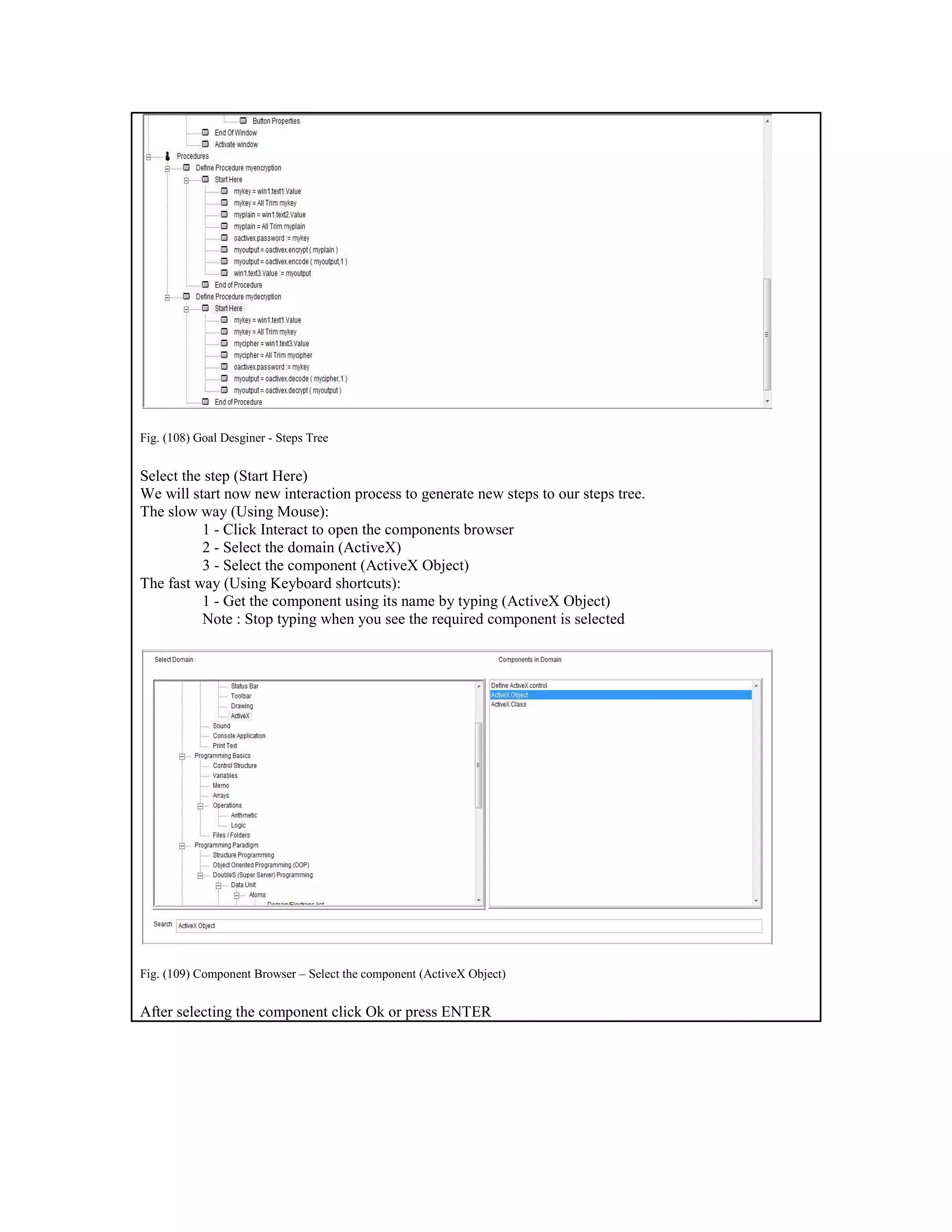

55. Fig. (108) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (ActiveX)
3 - Select the component (ActiveX Object)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (ActiveX Object)
Note : Stop typing when you see the required component is selected
Fig. (109) Component Browser – Select the component (ActiveX Object)
After selecting the component click Ok or press ENTER

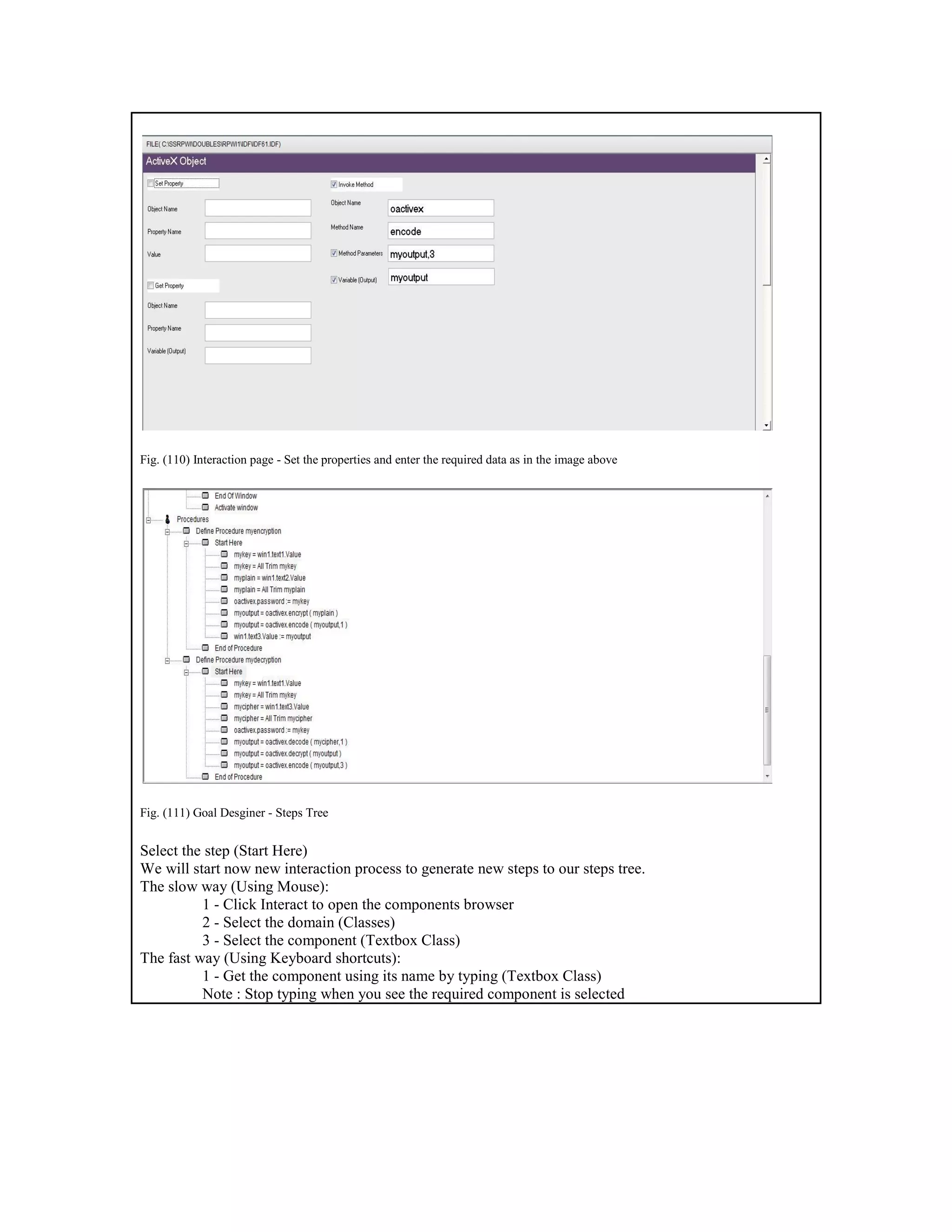

56. Fig. (110) Interaction page - Set the properties and enter the required data as in the image above
Fig. (111) Goal Desginer - Steps Tree
Select the step (Start Here)
We will start now new interaction process to generate new steps to our steps tree.
The slow way (Using Mouse):
1 - Click Interact to open the components browser
2 - Select the domain (Classes)
3 - Select the component (Textbox Class)
The fast way (Using Keyboard shortcuts):
1 - Get the component using its name by typing (Textbox Class)
Note : Stop typing when you see the required component is selected

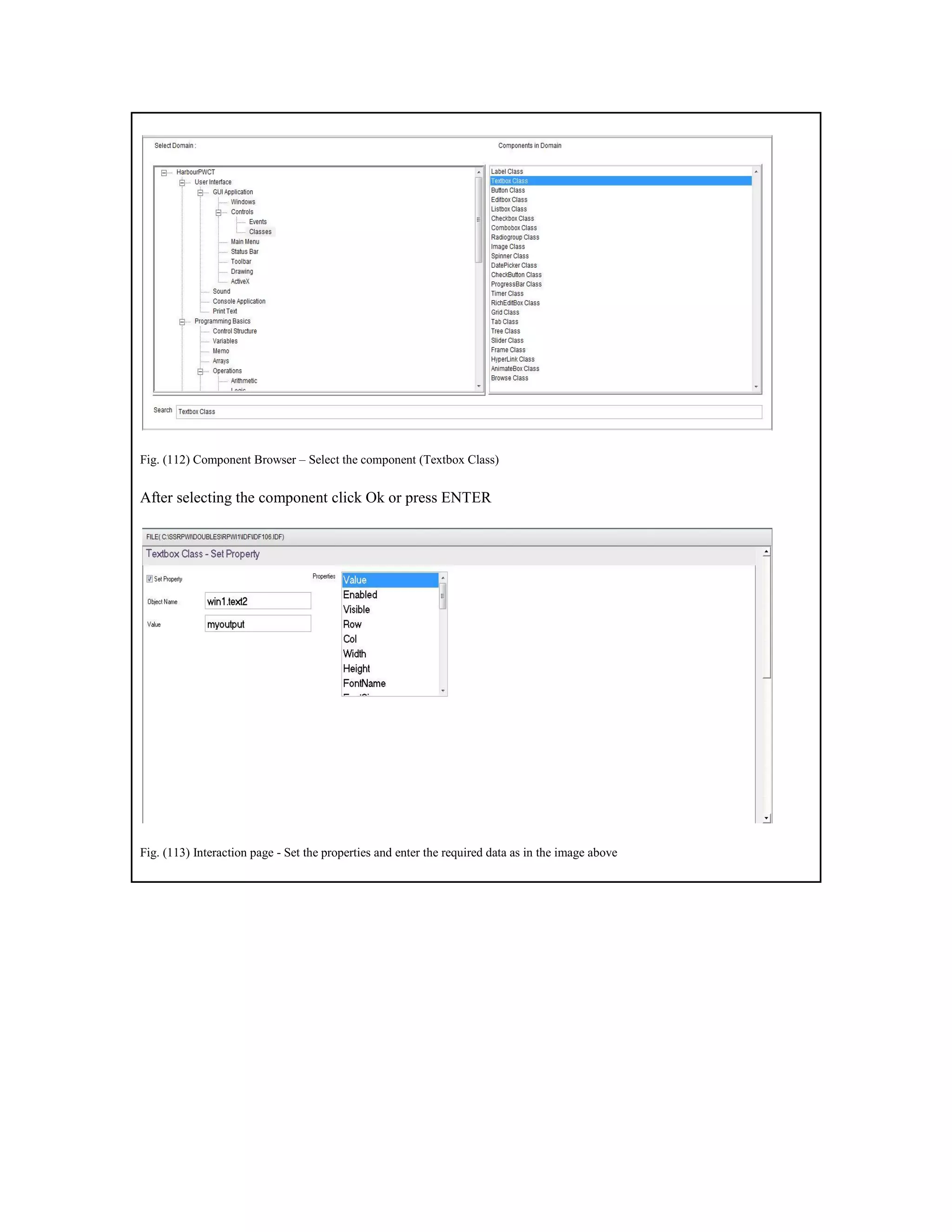

57. Fig. (112) Component Browser – Select the component (Textbox Class)
After selecting the component click Ok or press ENTER
Fig. (113) Interaction page - Set the properties and enter the required data as in the image above

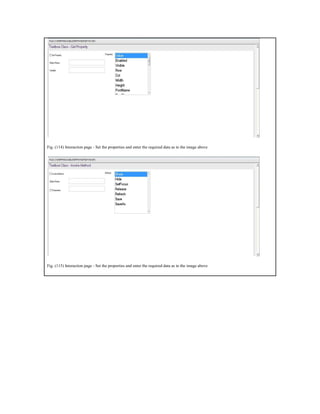

58. Fig. (114) Interaction page - Set the properties and enter the required data as in the image above
Fig. (115) Interaction page - Set the properties and enter the required data as in the image above

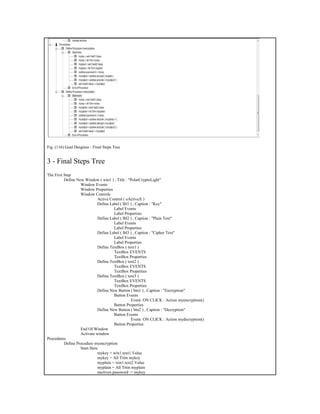

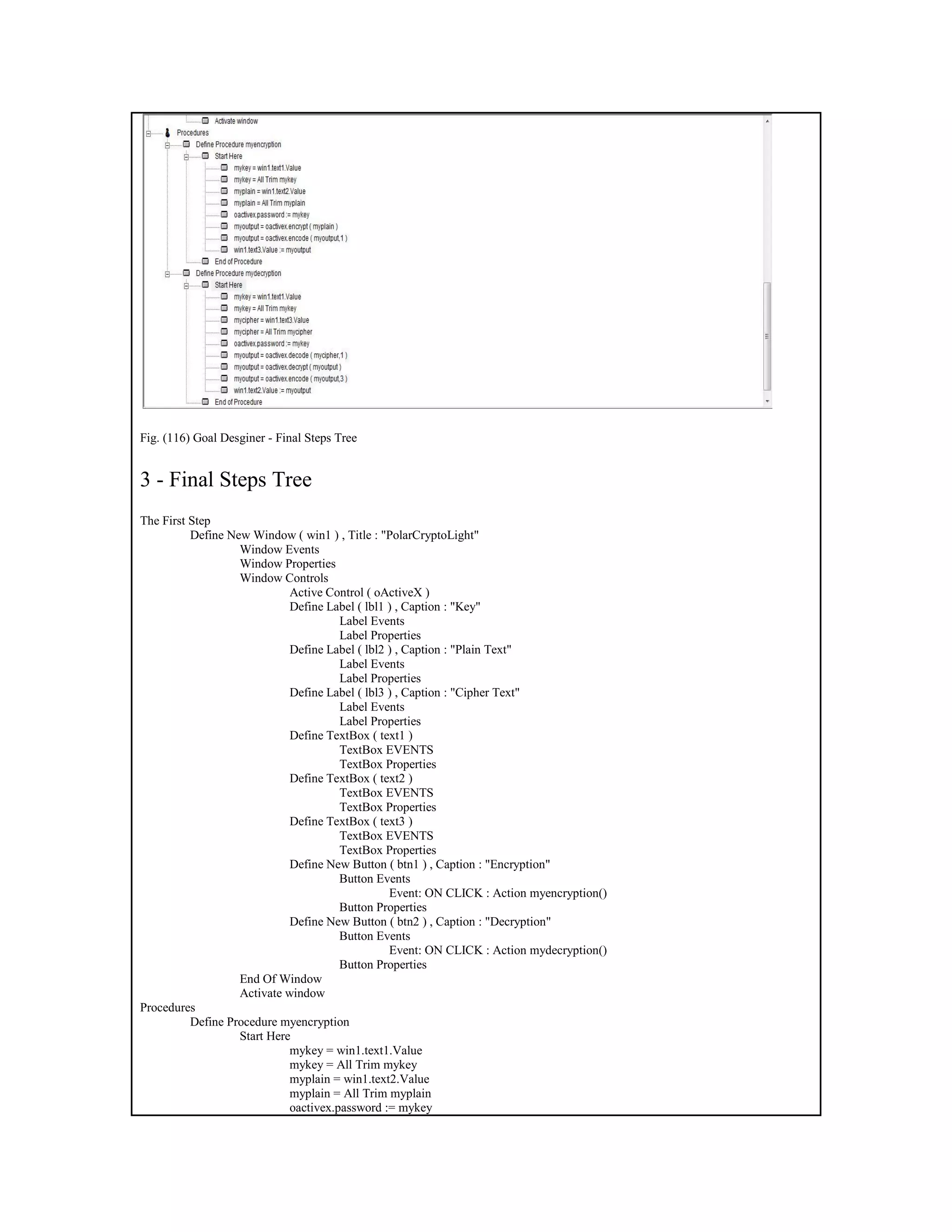

59. Fig. (116) Goal Desginer - Final Steps Tree
3 - Final Steps Tree
The First Step
Define New Window ( win1 ) , Title : "PolarCryptoLight"
Window Events
Window Properties
Window Controls
Active Control ( oActiveX )
Define Label ( lbl1 ) , Caption : "Key"
Label Events
Label Properties
Define Label ( lbl2 ) , Caption : "Plain Text"
Label Events
Label Properties
Define Label ( lbl3 ) , Caption : "Cipher Text"
Label Events
Label Properties
Define TextBox ( text1 )
TextBox EVENTS
TextBox Properties
Define TextBox ( text2 )
TextBox EVENTS
TextBox Properties
Define TextBox ( text3 )
TextBox EVENTS
TextBox Properties
Define New Button ( btn1 ) , Caption : "Encryption"
Button Events
Event: ON CLICK : Action myencryption()
Button Properties
Define New Button ( btn2 ) , Caption : "Decryption"
Button Events
Event: ON CLICK : Action mydecryption()
Button Properties
End Of Window
Activate window
Procedures
Define Procedure myencryption
Start Here
mykey = win1.text1.Value
mykey = All Trim mykey
myplain = win1.text2.Value
myplain = All Trim myplain
oactivex.password := mykey

60. myoutput = oactivex.encrypt ( myplain )
myoutput = oactivex.encode ( myoutput,1 )
win1.text3.Value := myoutput
End of Procedure
Define Procedure mydecryption
Start Here
mykey = win1.text1.Value
mykey = All Trim mykey
mycipher = win1.text3.Value
mycipher = All Trim mycipher
oactivex.password := mykey
myoutput = oactivex.decode ( mycipher,1 )
myoutput = oactivex.decrypt ( myoutput )
myoutput = oactivex.encode ( myoutput,3 )
win1.text2.Value := myoutput
End of Procedure
4 - Application during the runtime
Fig. (117) Application during the runtime
