Product Analysis & Development
This document provides an analysis of developing a men's formal shirt product. It discusses objectives of learning the product development process. Key activities included fabric and trim selection, testing, sample development, and production planning. Details are given on the shirt components, selected cotton-poly fabric, and sourcing of materials. The development plan, patterns, production process, marker planning, manpower planning, and costing are outlined to provide an overview of analyzing and creating the shirt product.
More Related Content
Similar to Product Analysis & Development
Product Analysis & Development
- 1. PODUCT ANALYSIS AND DEVELOPMET PRESENTED BY: MUKESH KUMAR RAJEEV SHARAN 1 DEPARTMENT OF FASHION TECHNOLOGY

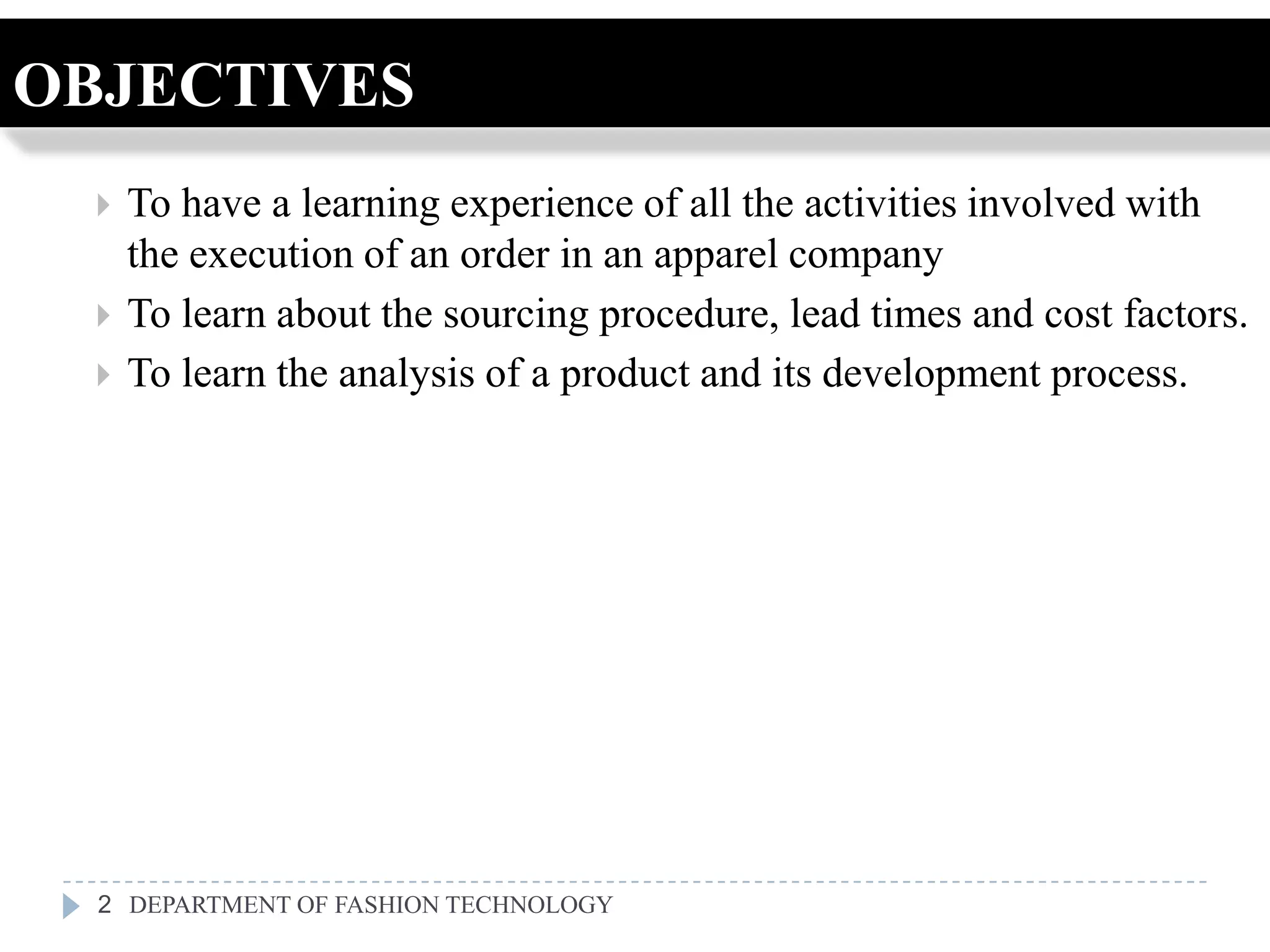

- 2. OBJECTIVES To have a learning experience of all the activities involved with the execution of an order in an apparel company To learn about the sourcing procedure, lead times and cost factors. To learn the analysis of a product and its development process. 2 DEPARTMENT OF FASHION TECHNOLOGY

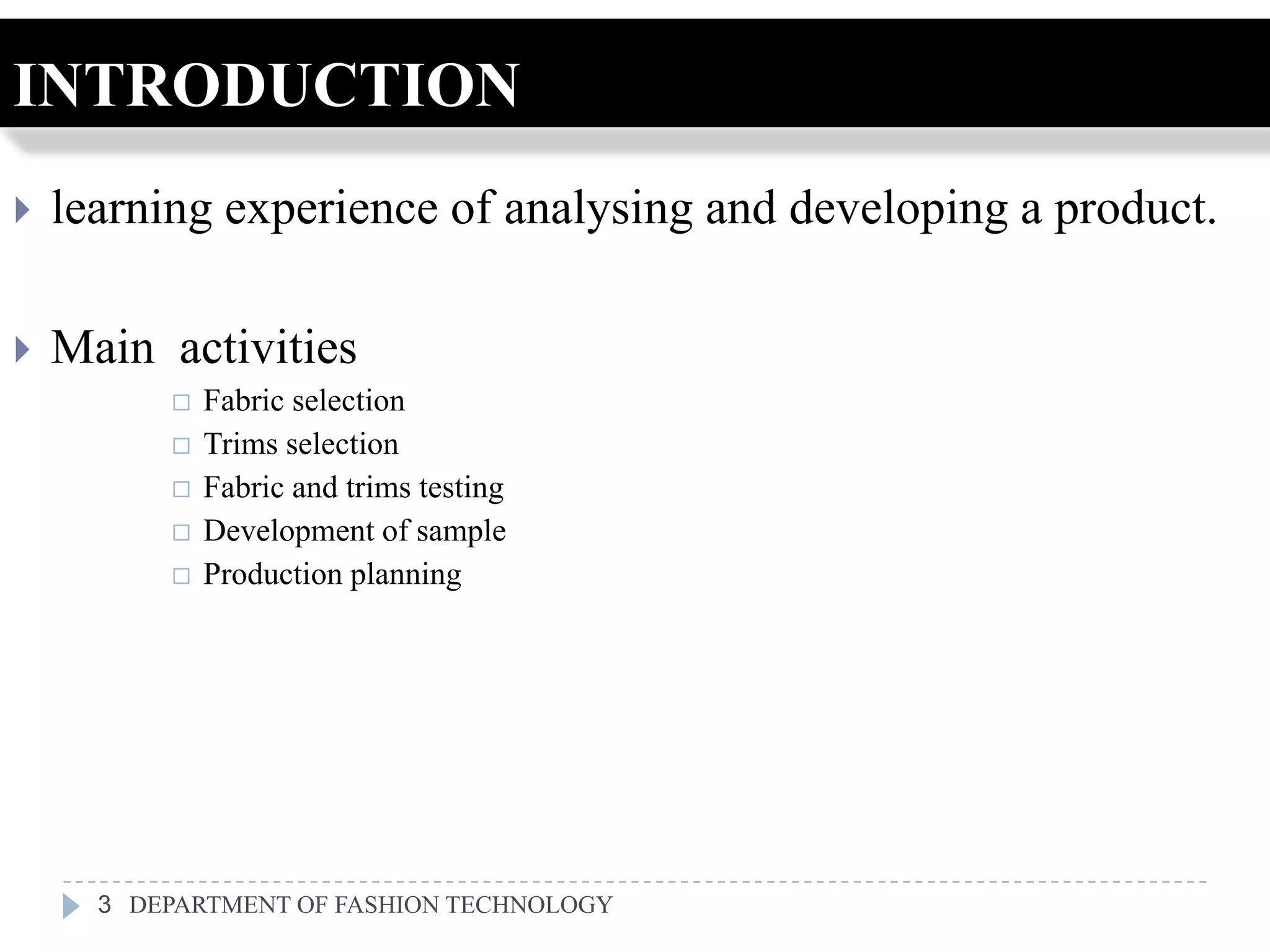

- 3. INTRODUCTION learning experience of analysing and developing a product. Main activities Fabric selection Trims selection Fabric and trims testing Development of sample Production planning 3 DEPARTMENT OF FASHION TECHNOLOGY

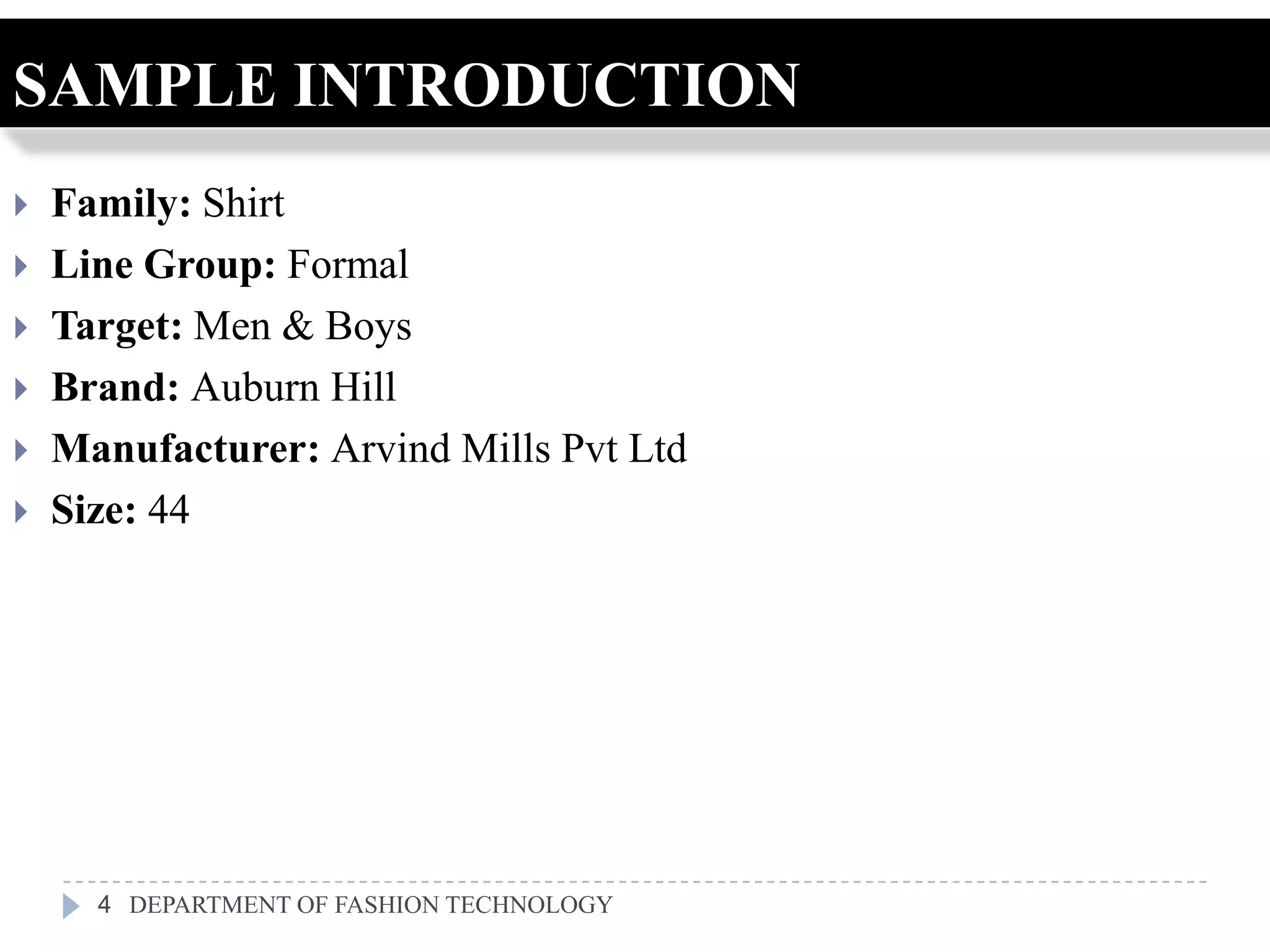

- 4. SAMPLE INTRODUCTION Family: Shirt Line Group: Formal Target: Men & Boys Brand: Auburn Hill Manufacturer: Arvind Mills Pvt Ltd Size: 44 4 DEPARTMENT OF FASHION TECHNOLOGY

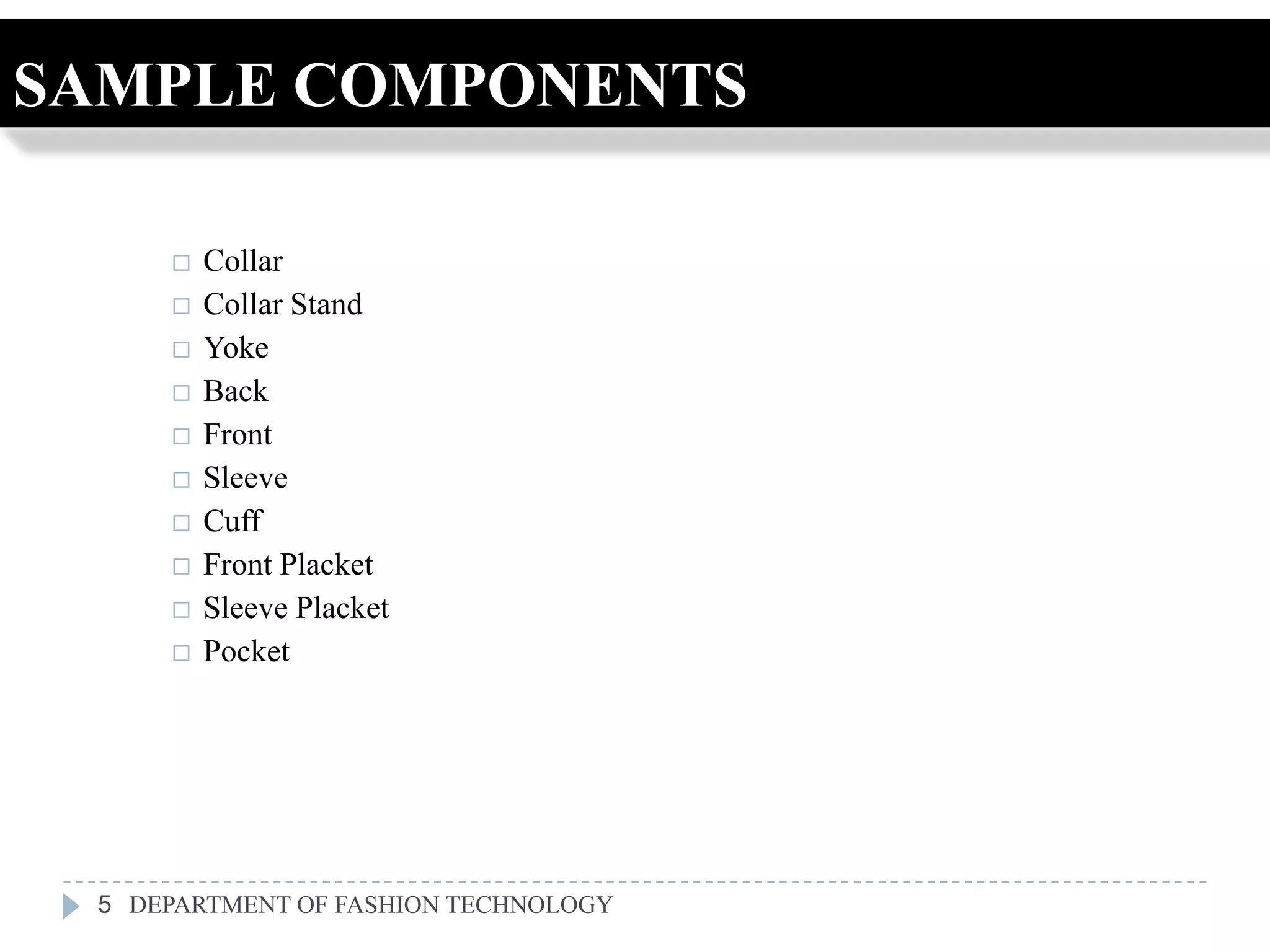

- 5. SAMPLE COMPONENTS Collar Collar Stand Yoke Back Front Sleeve Cuff Front Placket Sleeve Placket Pocket 5 DEPARTMENT OF FASHION TECHNOLOGY

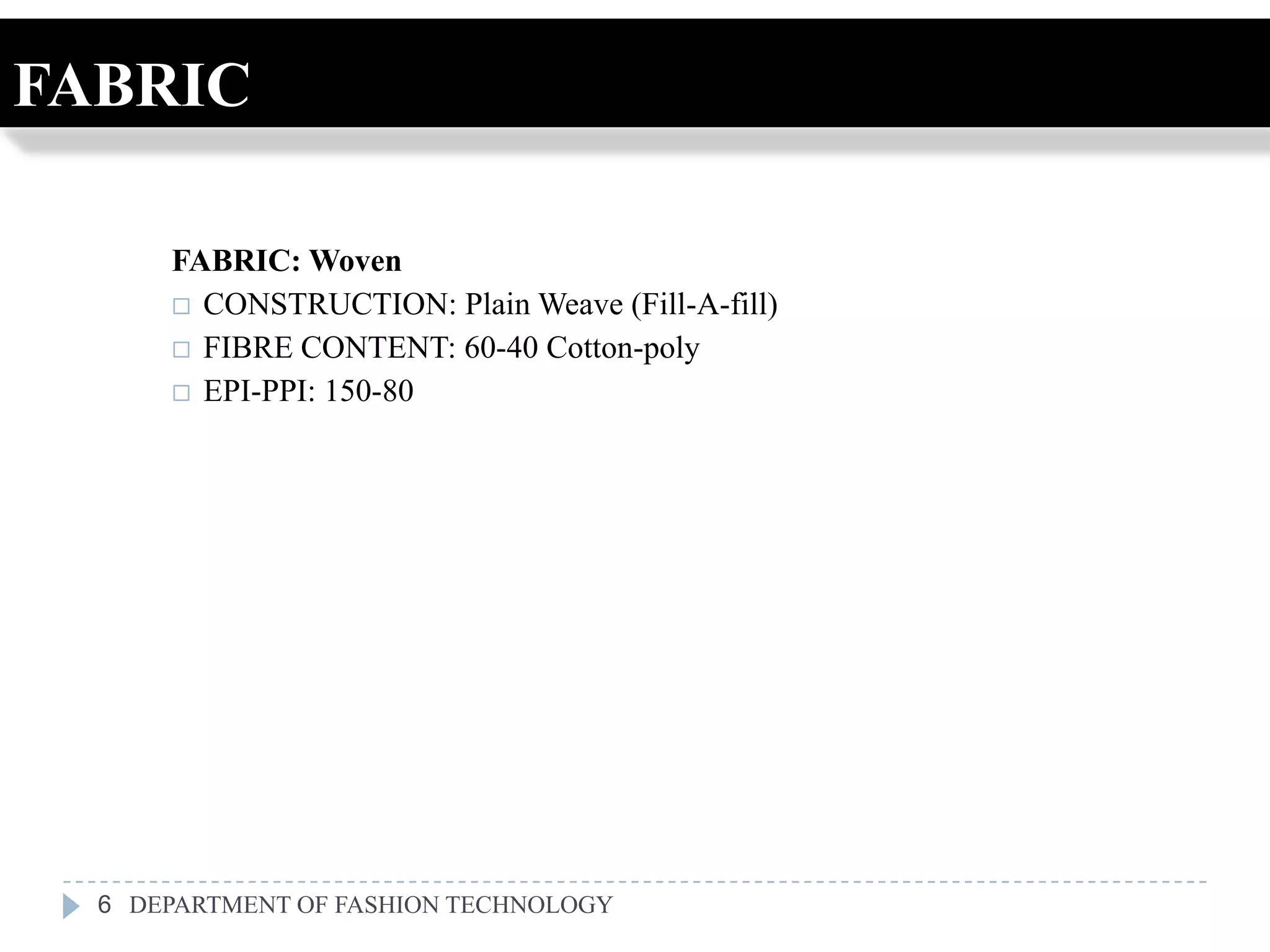

- 6. FABRIC FABRIC: Woven CONSTRUCTION: Plain Weave (Fill-A-fill) FIBRE CONTENT: 60-40 Cotton-poly EPI-PPI: 150-80 6 DEPARTMENT OF FASHION TECHNOLOGY

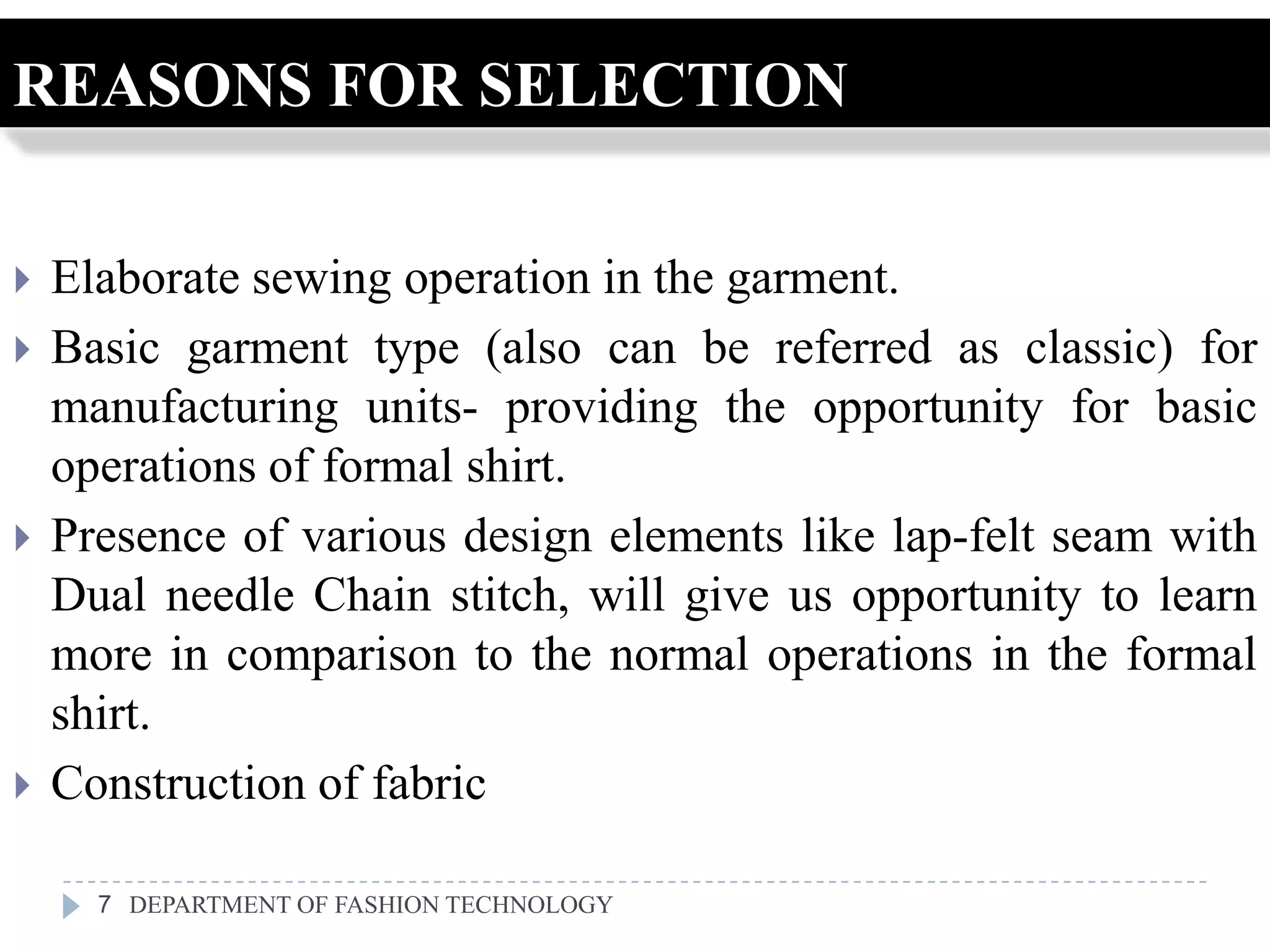

- 7. REASONS FOR SELECTION Elaborate sewing operation in the garment. Basic garment type (also can be referred as classic) for manufacturing units- providing the opportunity for basic operations of formal shirt. Presence of various design elements like lap-felt seam with Dual needle Chain stitch, will give us opportunity to learn more in comparison to the normal operations in the formal shirt. Construction of fabric 7 DEPARTMENT OF FASHION TECHNOLOGY

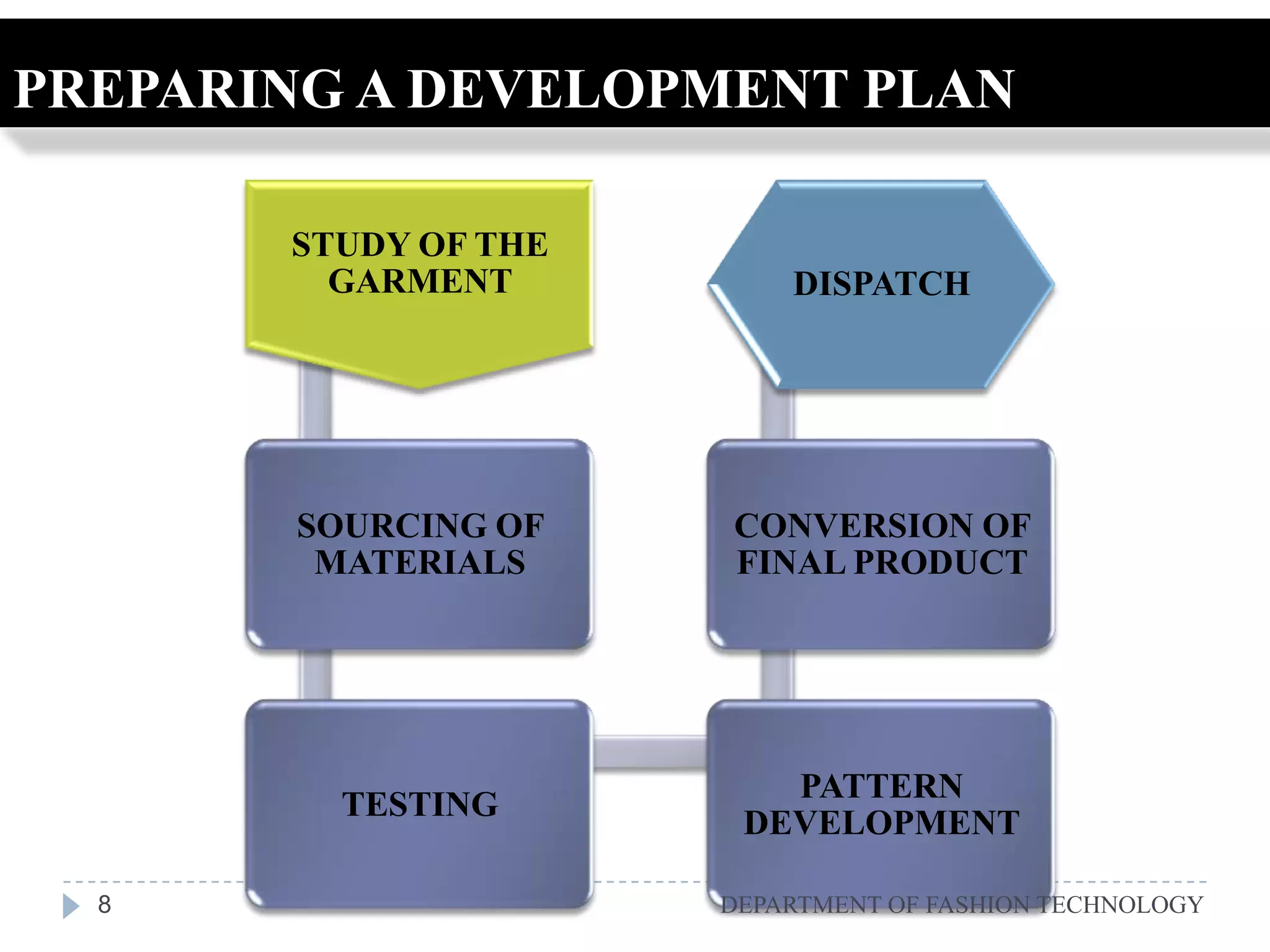

- 8. PREPARING A DEVELOPMENTPLAN STUDY OF THE GARMENT DISPATCH SOURCING OF CONVERSION OF MATERIALS FINAL PRODUCT PATTERN TESTING DEVELOPMENT 8 DEPARTMENT OF FASHION TECHNOLOGY

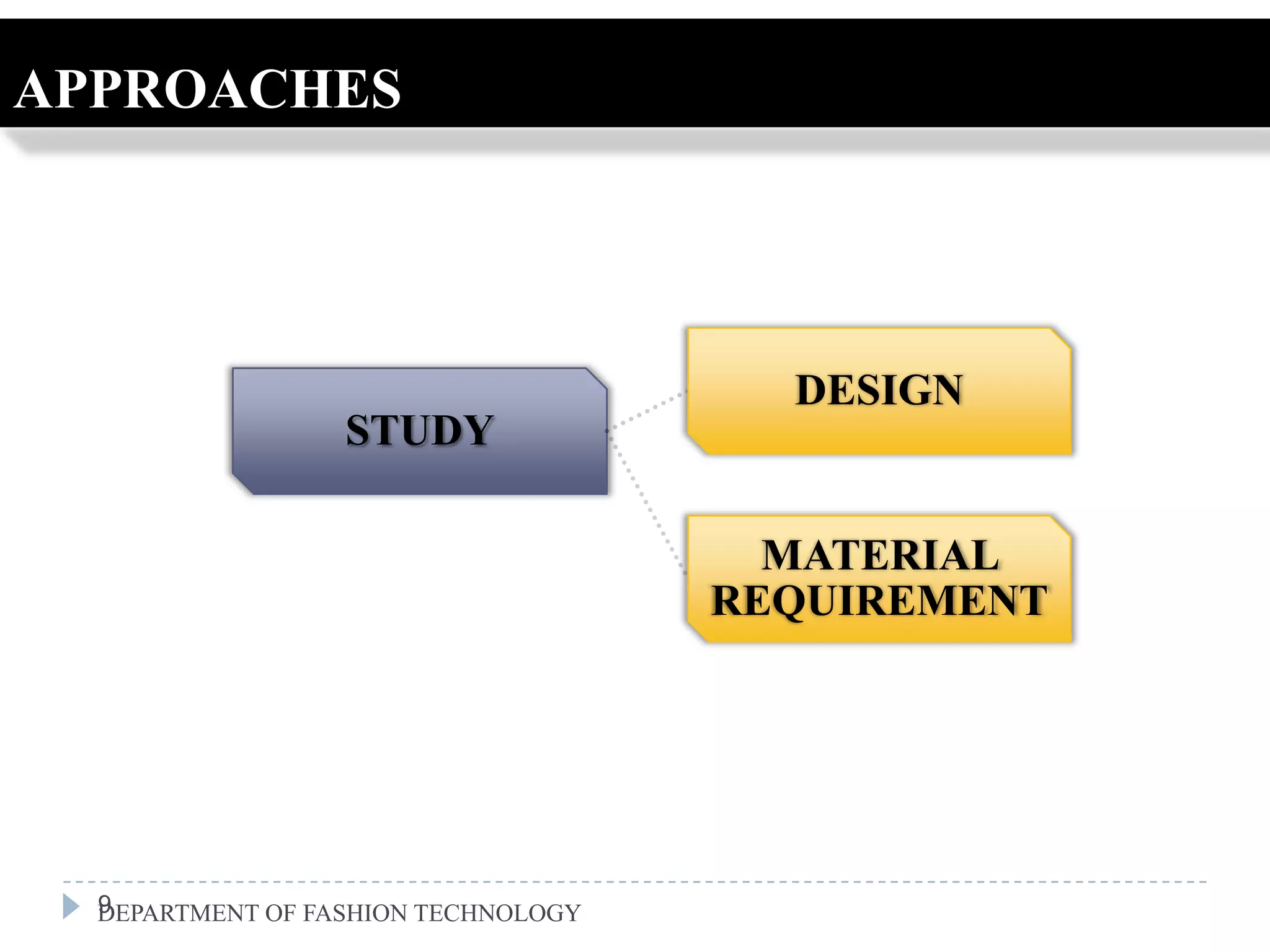

- 9. APPROACHES DESIGN STUDY MATERIAL REQUIREMENT 9 DEPARTMENT OF FASHION TECHNOLOGY

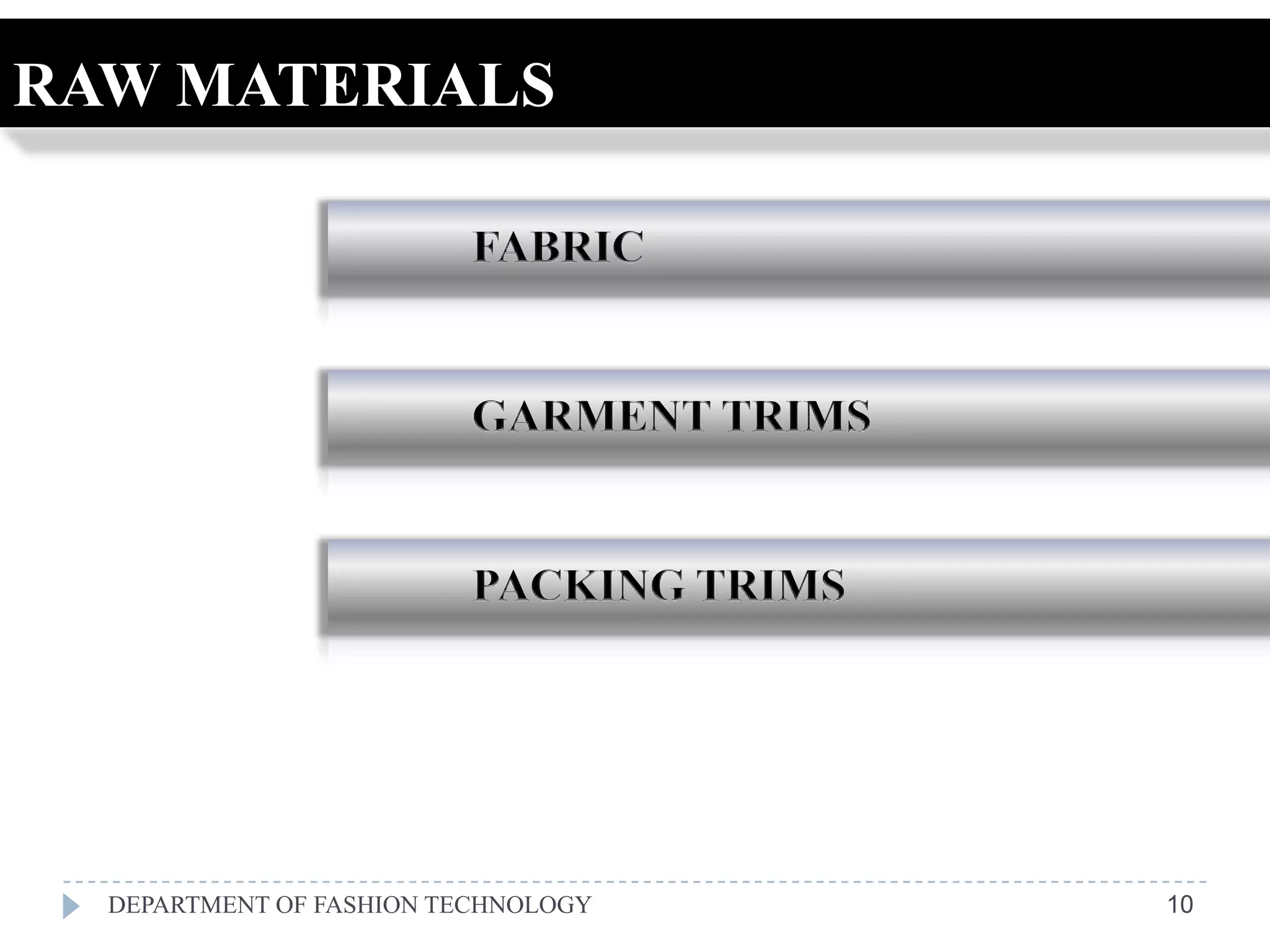

- 10. RAW MATERIALS FABRIC GARMENT TRIMS PACKING TRIMS DEPARTMENT OF FASHION TECHNOLOGY 10

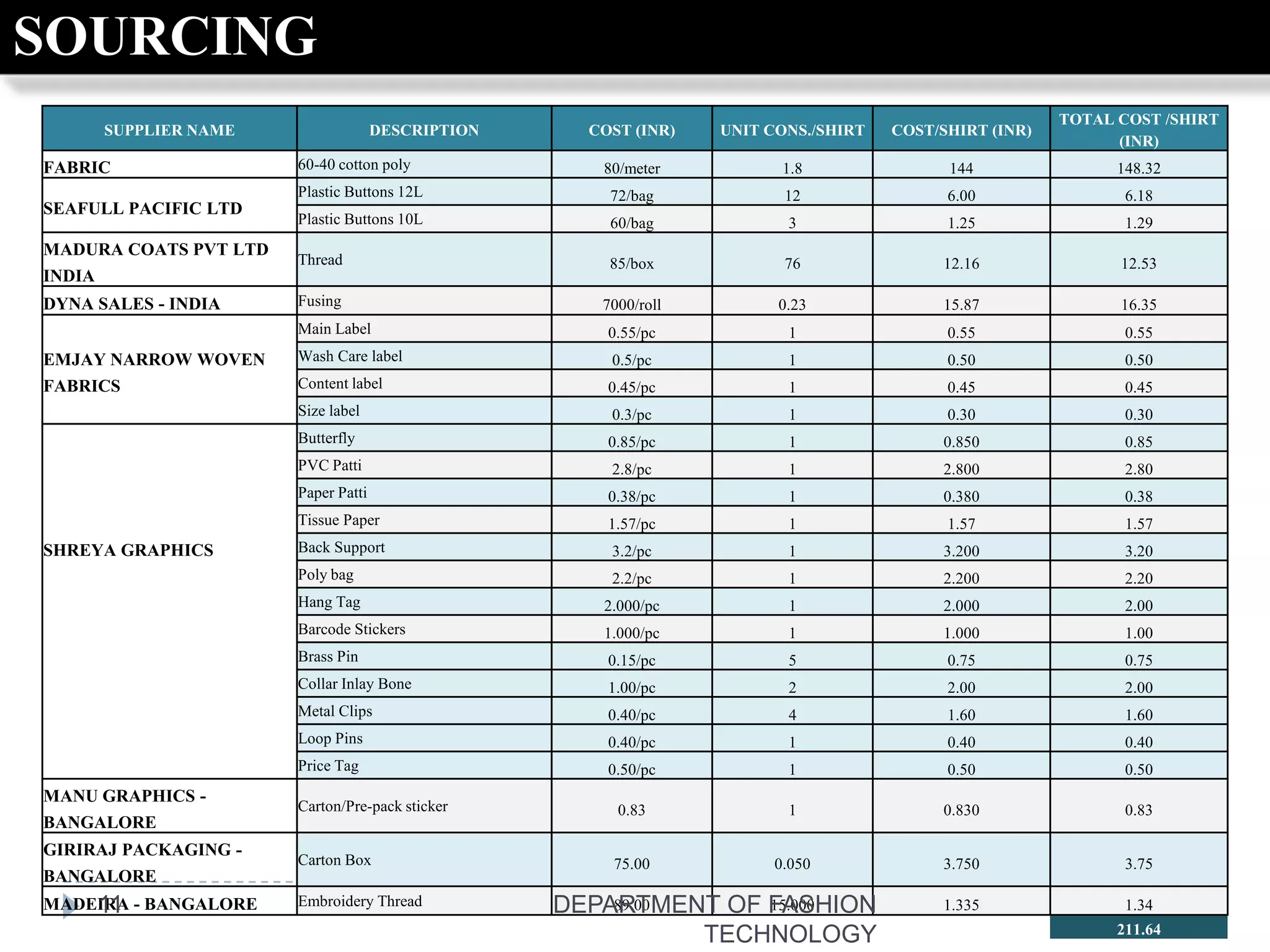

- 11. SOURCING TOTAL COST /SHIRT SUPPLIER NAME DESCRIPTION COST (INR) UNIT CONS./SHIRT COST/SHIRT (INR) (INR) FABRIC 60-40 cotton poly 80/meter 1.8 144 148.32 Plastic Buttons 12L 72/bag 12 6.00 6.18 SEAFULL PACIFIC LTD Plastic Buttons 10L 60/bag 3 1.25 1.29 MADURA COATS PVT LTD Thread 85/box 76 12.16 12.53 INDIA DYNA SALES - INDIA Fusing 7000/roll 0.23 15.87 16.35 Main Label 0.55/pc 1 0.55 0.55 EMJAY NARROW WOVEN Wash Care label 0.5/pc 1 0.50 0.50 FABRICS Content label 0.45/pc 1 0.45 0.45 Size label 0.3/pc 1 0.30 0.30 Butterfly 0.85/pc 1 0.850 0.85 PVC Patti 2.8/pc 1 2.800 2.80 Paper Patti 0.38/pc 1 0.380 0.38 Tissue Paper 1.57/pc 1 1.57 1.57 SHREYA GRAPHICS Back Support 3.2/pc 1 3.200 3.20 Poly bag 2.2/pc 1 2.200 2.20 Hang Tag 2.000/pc 1 2.000 2.00 Barcode Stickers 1.000/pc 1 1.000 1.00 Brass Pin 0.15/pc 5 0.75 0.75 Collar Inlay Bone 1.00/pc 2 2.00 2.00 Metal Clips 0.40/pc 4 1.60 1.60 Loop Pins 0.40/pc 1 0.40 0.40 Price Tag 0.50/pc 1 0.50 0.50 MANU GRAPHICS - Carton/Pre-pack sticker 0.83 1 0.830 0.83 BANGALORE GIRIRAJ PACKAGING - Carton Box 75.00 0.050 3.750 3.75 BANGALORE 11 MADEIRA - BANGALORE Embroidery Thread DEPARTMENT OF FASHION 89.00 15.000 1.335 1.34 TECHNOLOGY 211.64

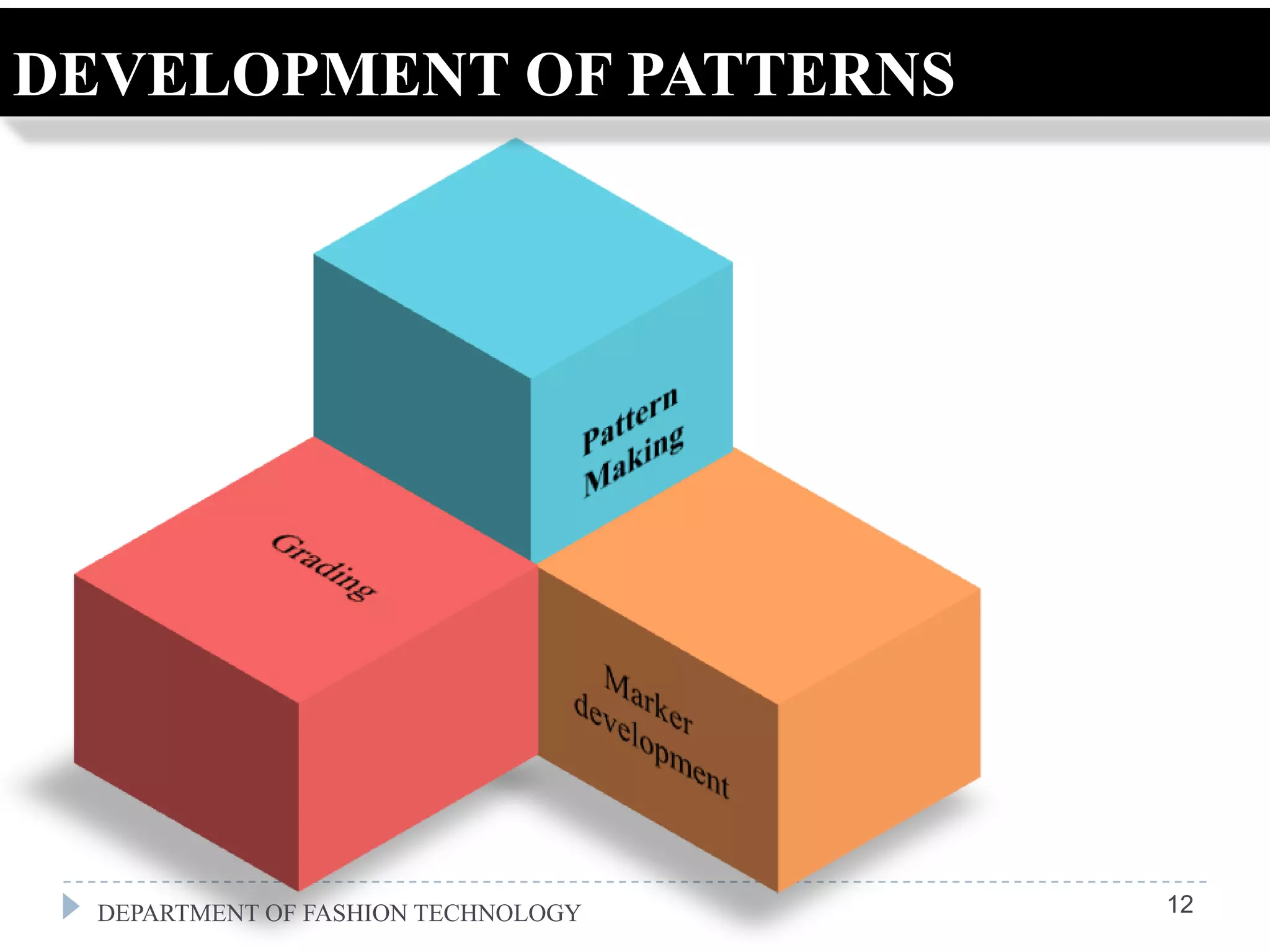

- 12. DEVELOPMENT OF PATTERNS DEPARTMENT OF FASHION TECHNOLOGY 12

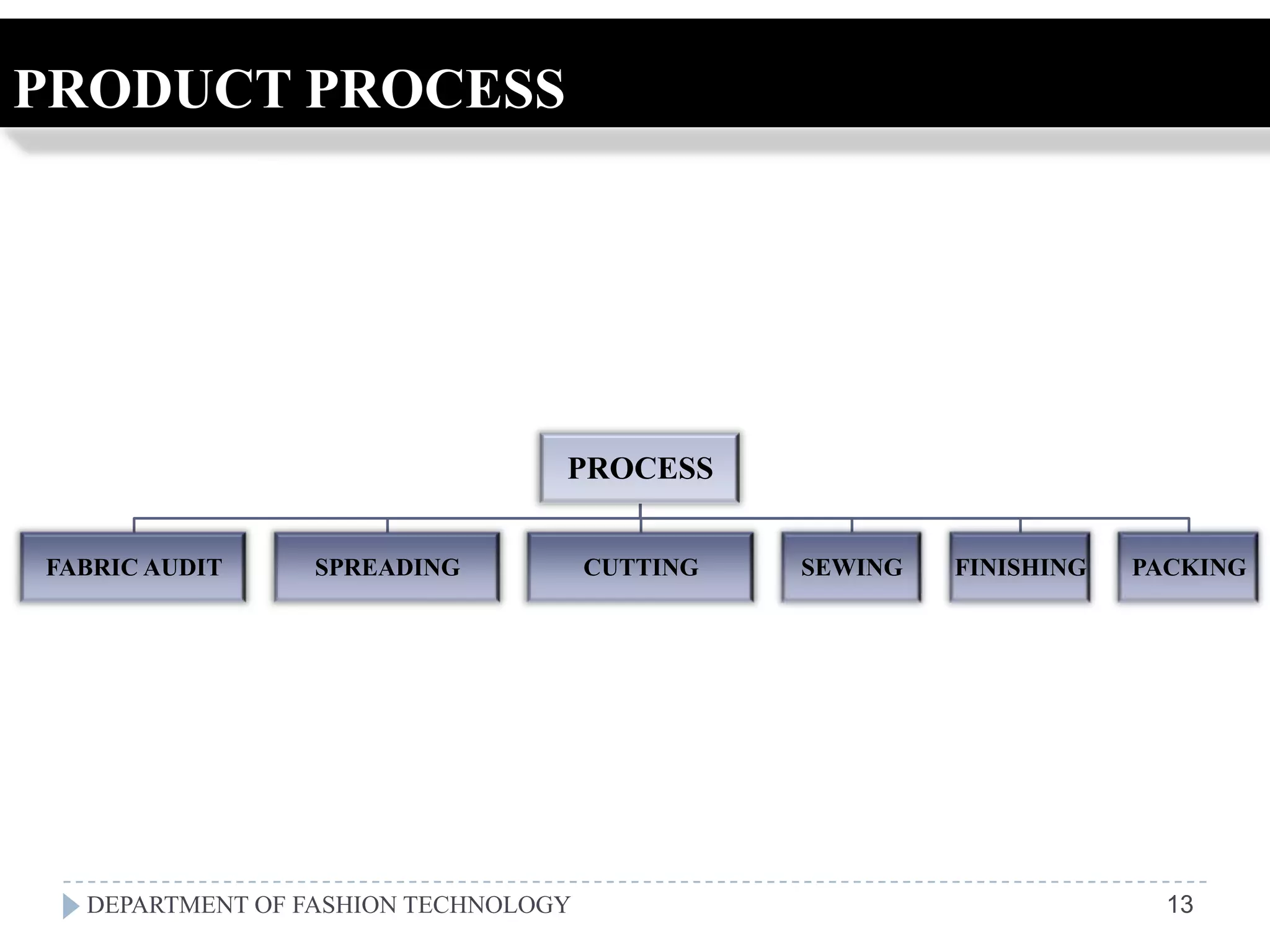

- 13. PRODUCT PROCESS PROCESS FABRIC AUDIT SPREADING CUTTING SEWING FINISHING PACKING DEPARTMENT OF FASHION TECHNOLOGY 13
- 14. PRODUCTION PLANNING PROCESS MAN POWER STORES PLANNING MARKER PLANNING LINE PLANNING PLANNING DEPARTMENT OF FASHION TECHNOLOGY 14
- 15. MARKER PLANNING •EachLay consist 50 plies 20 lays 38 44 44 38 30 lays 40 42 42 40 DEPARTMENT OF FASHION TECHNOLOGY 15

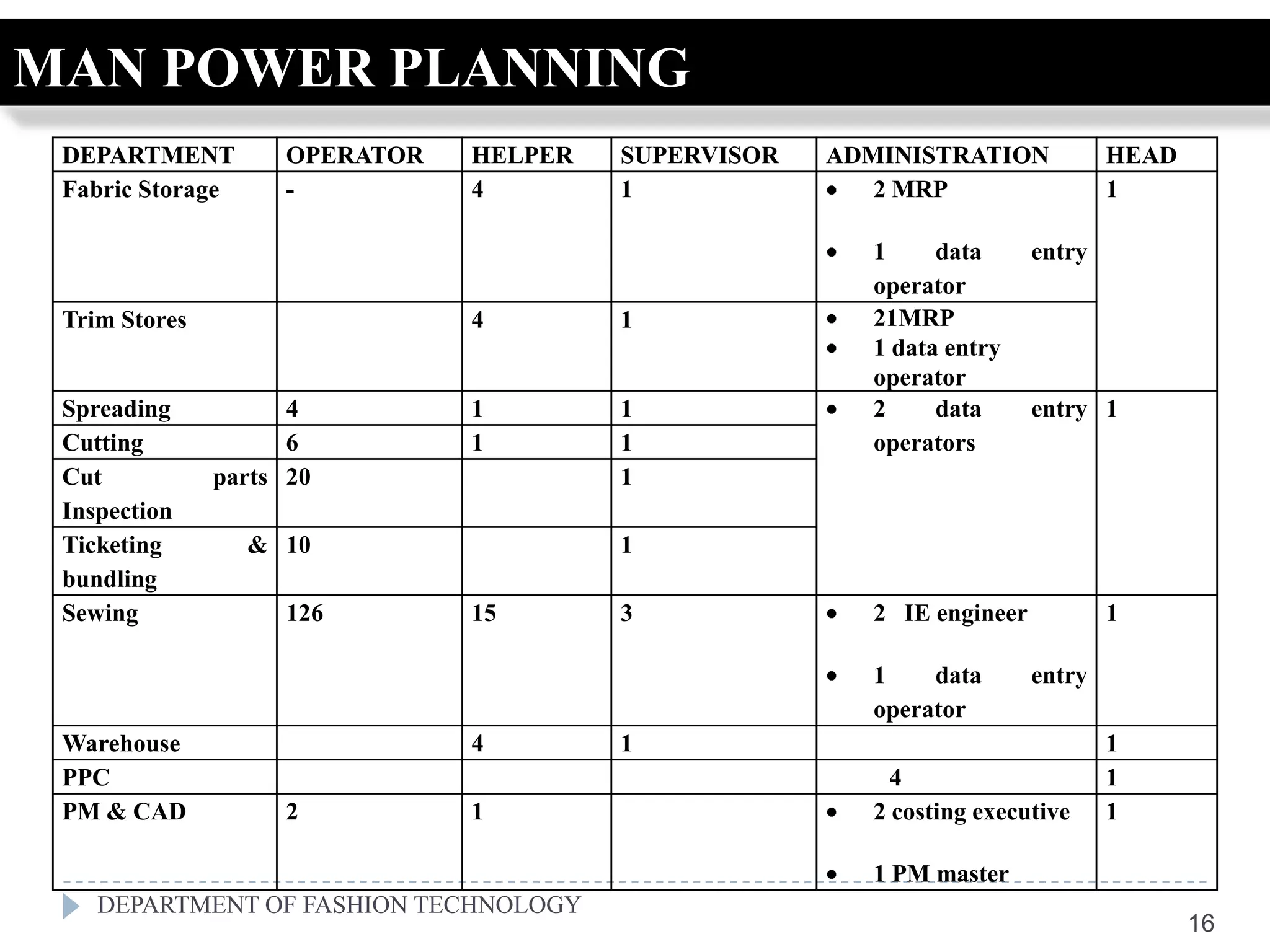

- 16. MAN POWER PLANNING DEPARTMENT OPERATOR HELPER SUPERVISOR ADMINISTRATION HEAD Fabric Storage - 4 1 2 MRP 1 1 data entry operator Trim Stores 4 1 21MRP 1 data entry operator Spreading 4 1 1 2 data entry 1 Cutting 6 1 1 operators Cut parts 20 1 Inspection Ticketing & 10 1 bundling Sewing 126 15 3 2 IE engineer 1 1 data entry operator Warehouse 4 1 1 PPC 4 1 PM & CAD 2 1 2 costing executive 1 1 PM master DEPARTMENT OF FASHION TECHNOLOGY 16

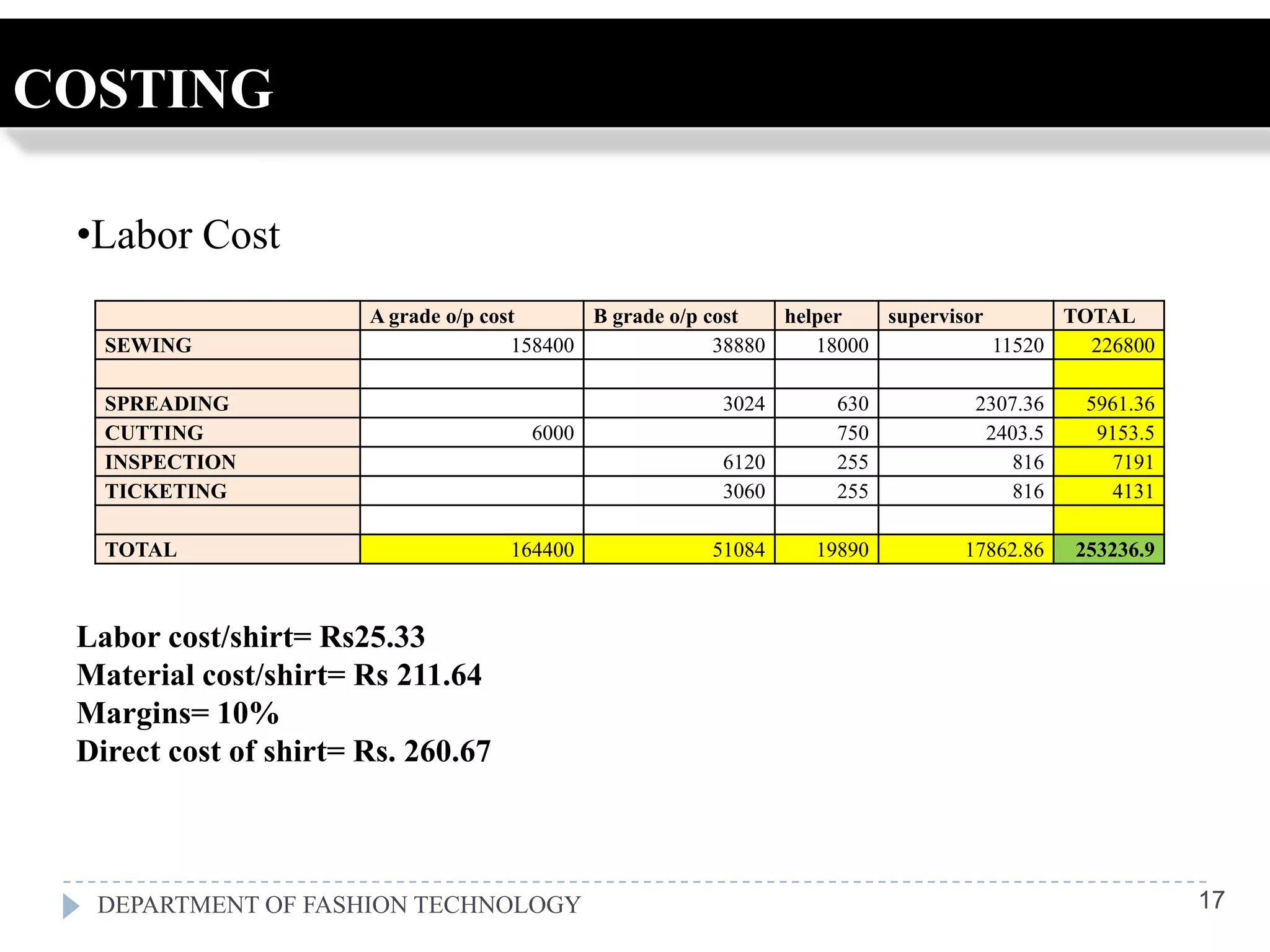

- 17. COSTING •Labor Cost A grade o/p cost B grade o/p cost helper supervisor TOTAL SEWING 158400 38880 18000 11520 226800 SPREADING 3024 630 2307.36 5961.36 CUTTING 6000 750 2403.5 9153.5 INSPECTION 6120 255 816 7191 TICKETING 3060 255 816 4131 TOTAL 164400 51084 19890 17862.86 253236.9 Labor cost/shirt= Rs25.33 Material cost/shirt= Rs 211.64 Margins= 10% Direct cost of shirt= Rs. 260.67 DEPARTMENT OF FASHION TECHNOLOGY 17
- 18. Thank you DEPARTMENT OFFASHION TECHNOLOGY 18
