| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

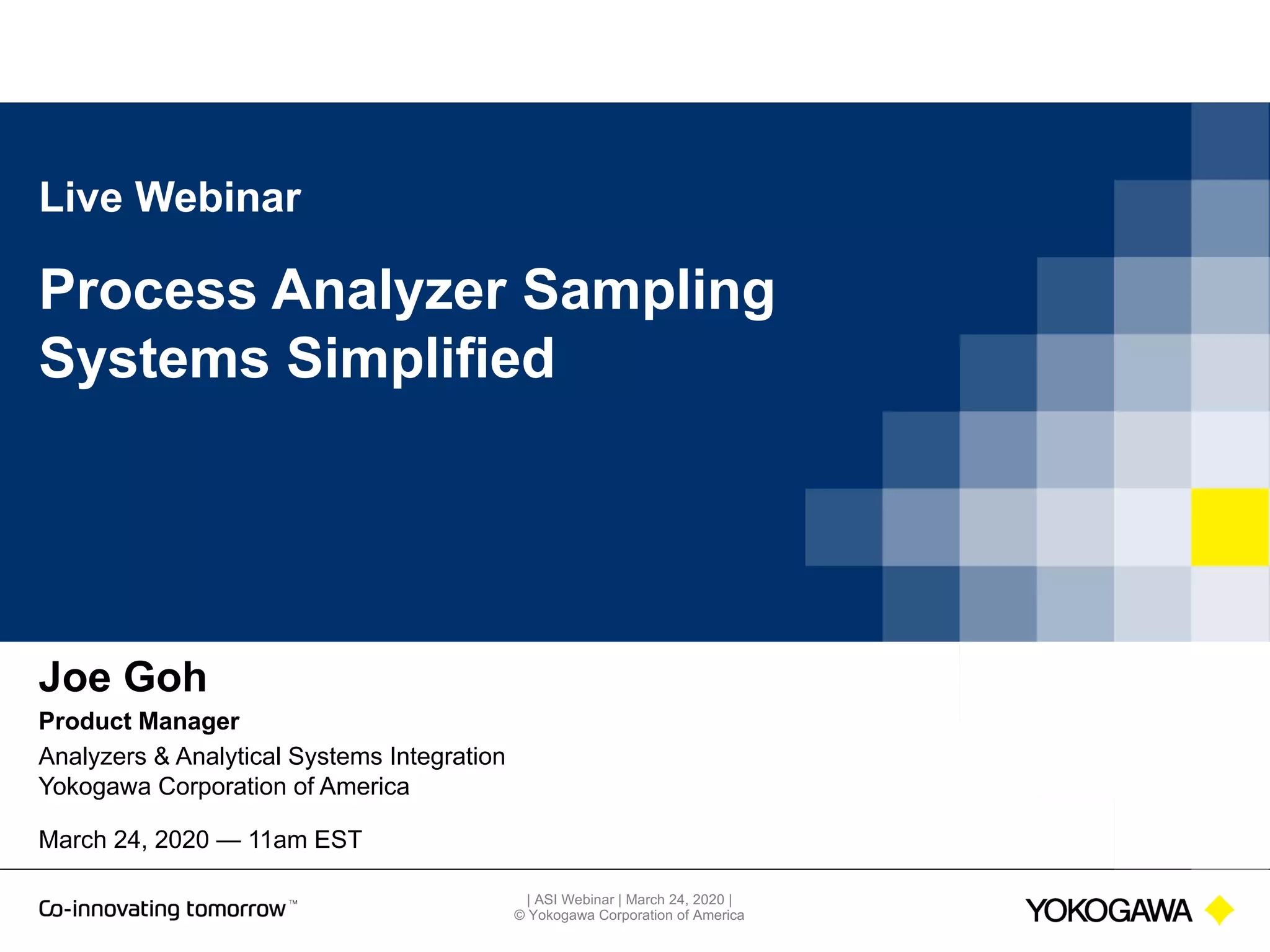

Live Webinar
Process Analyzer Sampling
Systems Simplified
Joe Goh
Product Manager
Analyzers & Analytical Systems Integration
Yokogawa Corporation of America
March 24, 2020 — 11am EST
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
Presenter
1
Joe Goh
Analytical Product Manager
281-325-1871
Joe.Goh@yokogawa.com
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

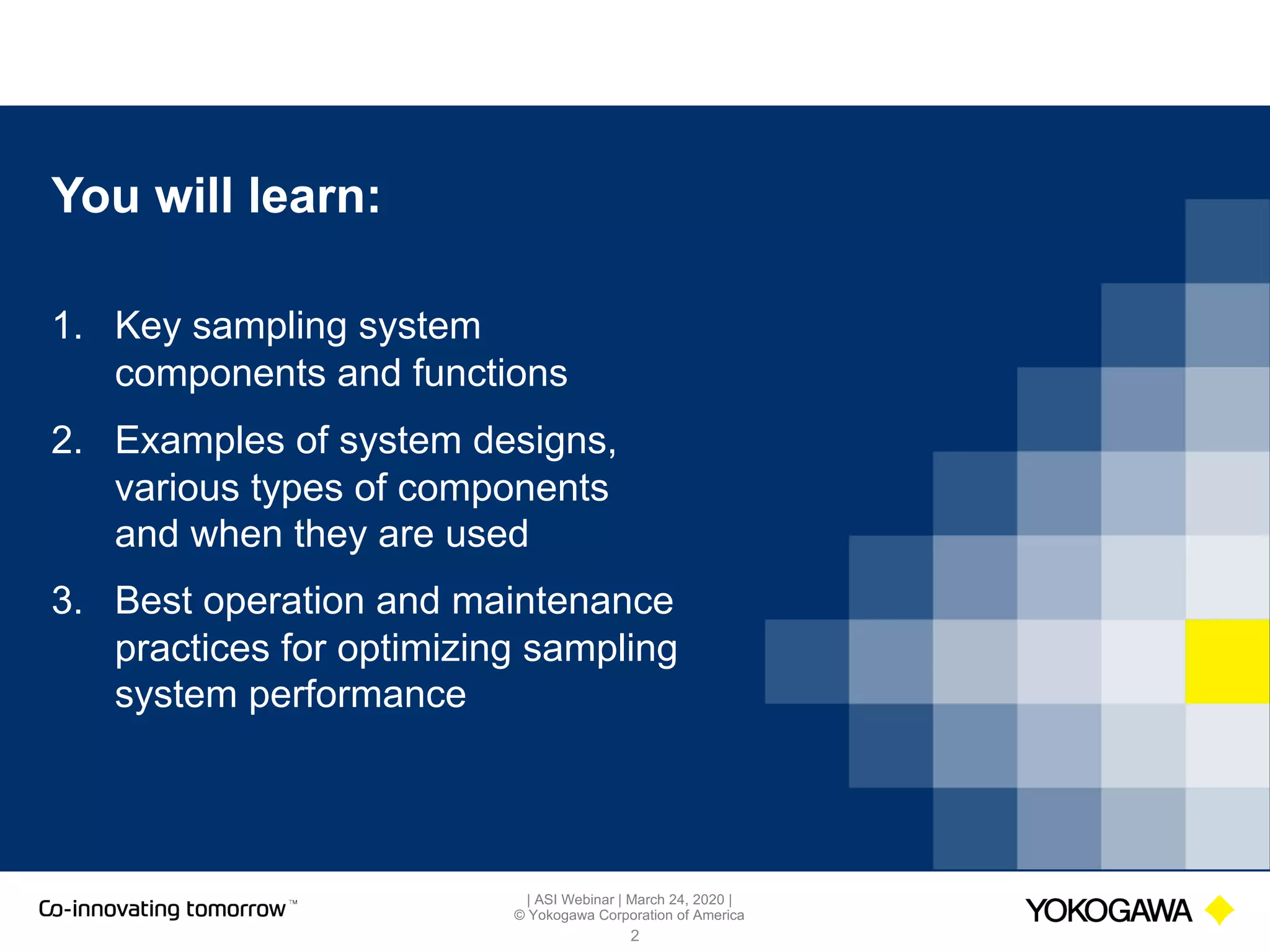

You will learn:
2
1. Key sampling system
components and functions
2. Examples of system designs,
various types of components
and when they are used
3. Best operation and maintenance
practices for optimizing sampling
system performance
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

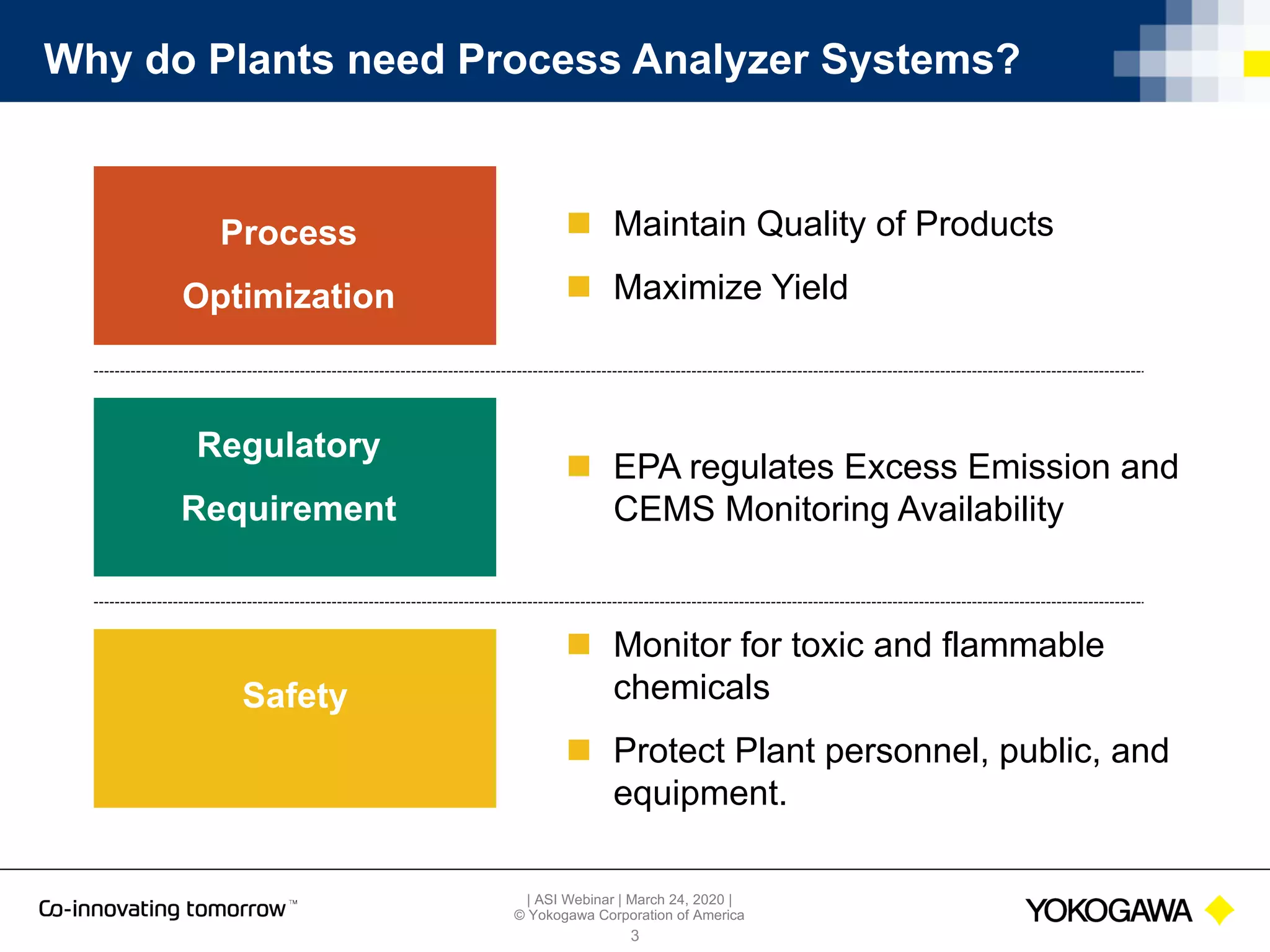

Why do Plants need Process Analyzer Systems?
3
n Maintain Quality of Products
n Maximize Yield
Regulatory
Requirement
Safety
n EPA regulates Excess Emission and
CEMS Monitoring Availability
n Monitor for toxic and flammable
chemicals
n Protect Plant personnel, public, and
equipment.
Process
Optimization
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

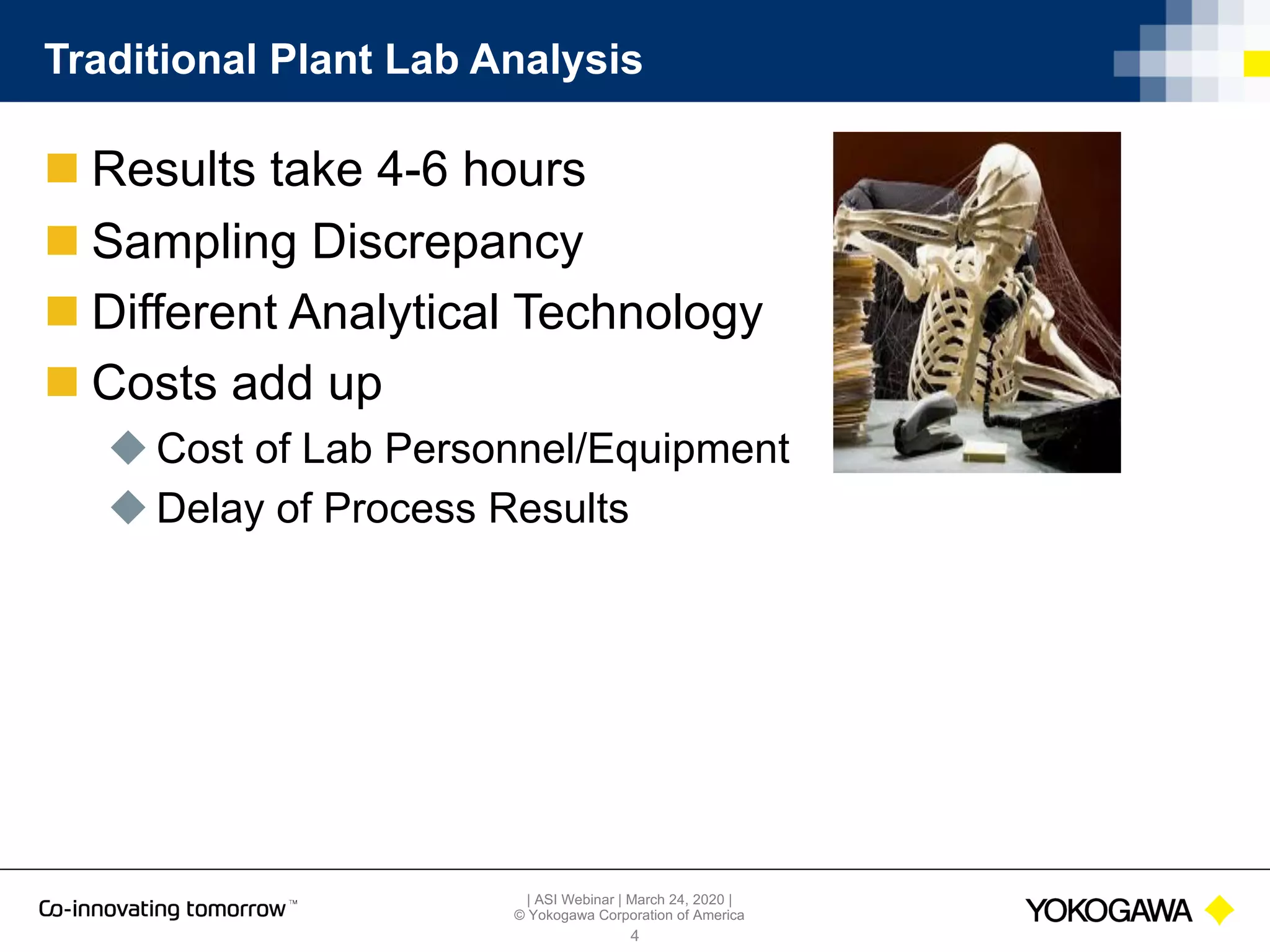

Traditional Plant Lab Analysis
n Results take 4-6 hours
n Sampling Discrepancy
n Different Analytical Technology
n Costs add up
u Cost of Lab Personnel/Equipment
u Delay of Process Results
4
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

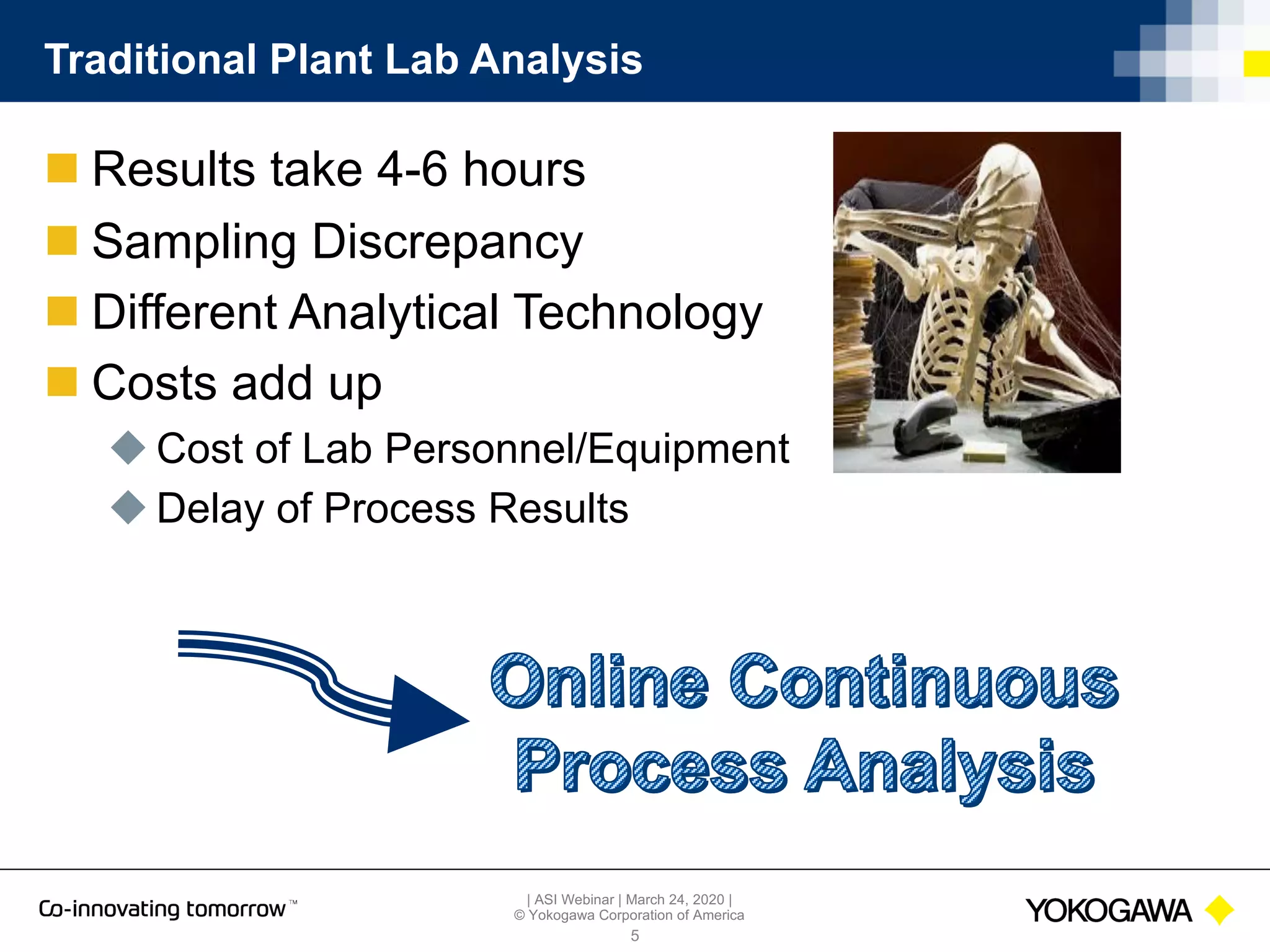

Traditional Plant Lab Analysis
n Results take 4-6 hours
n Sampling Discrepancy
n Different Analytical Technology
n Costs add up
u Cost of Lab Personnel/Equipment
u Delay of Process Results
5
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

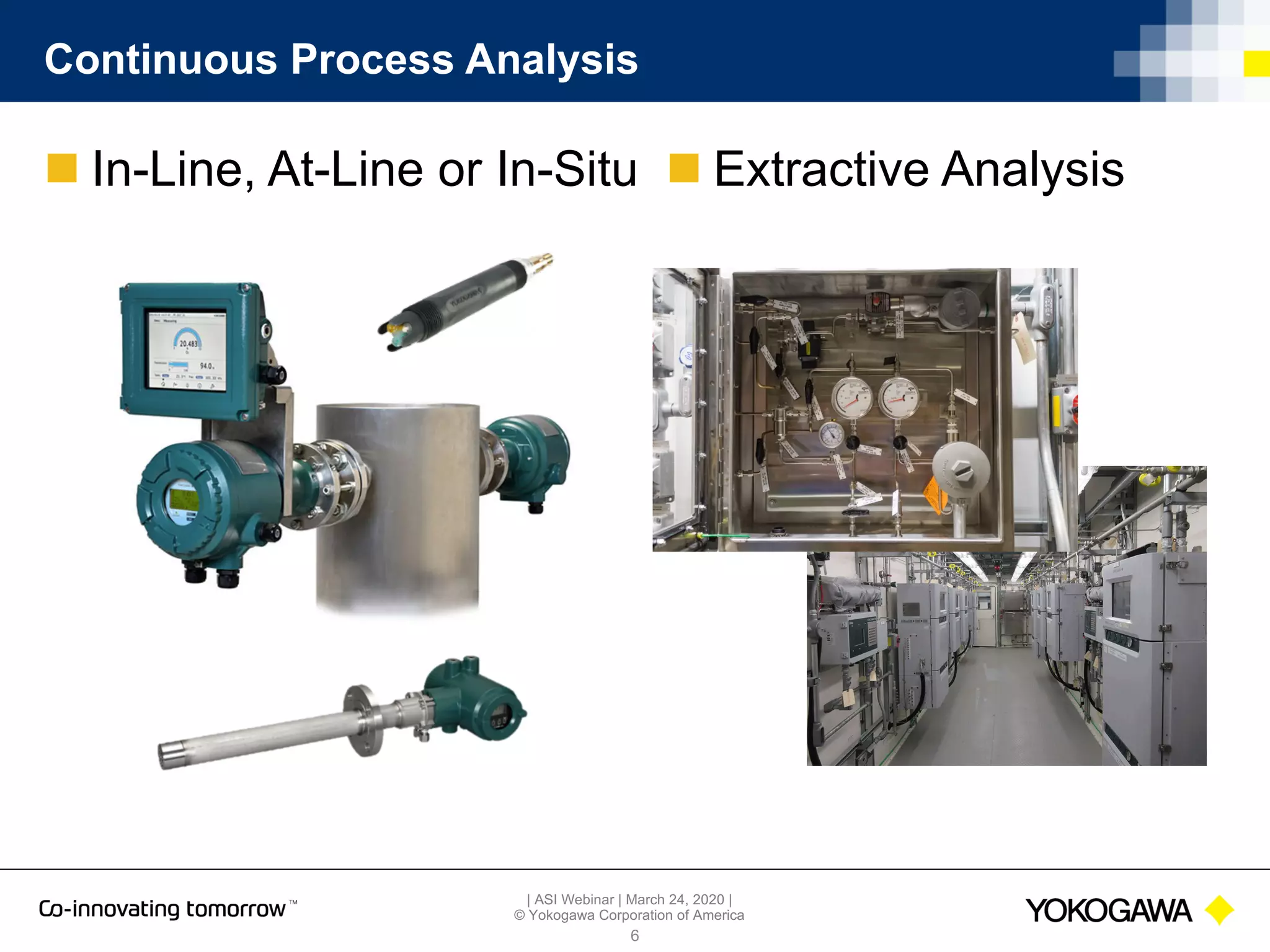

Continuous Process Analysis
n In-Line, At-Line or In-Situ
6
n Extractive Analysis
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

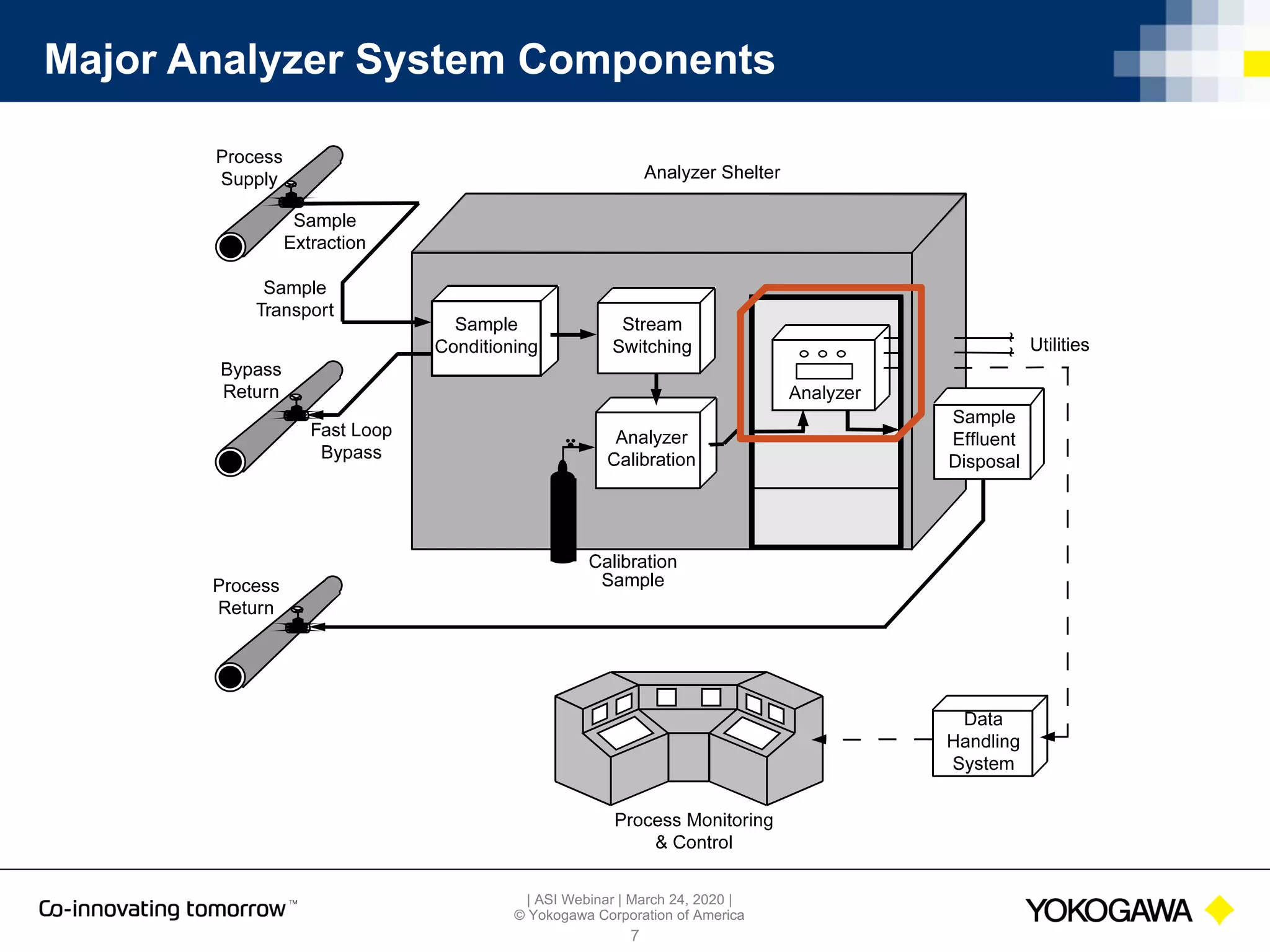

Major Analyzer System Components
7
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

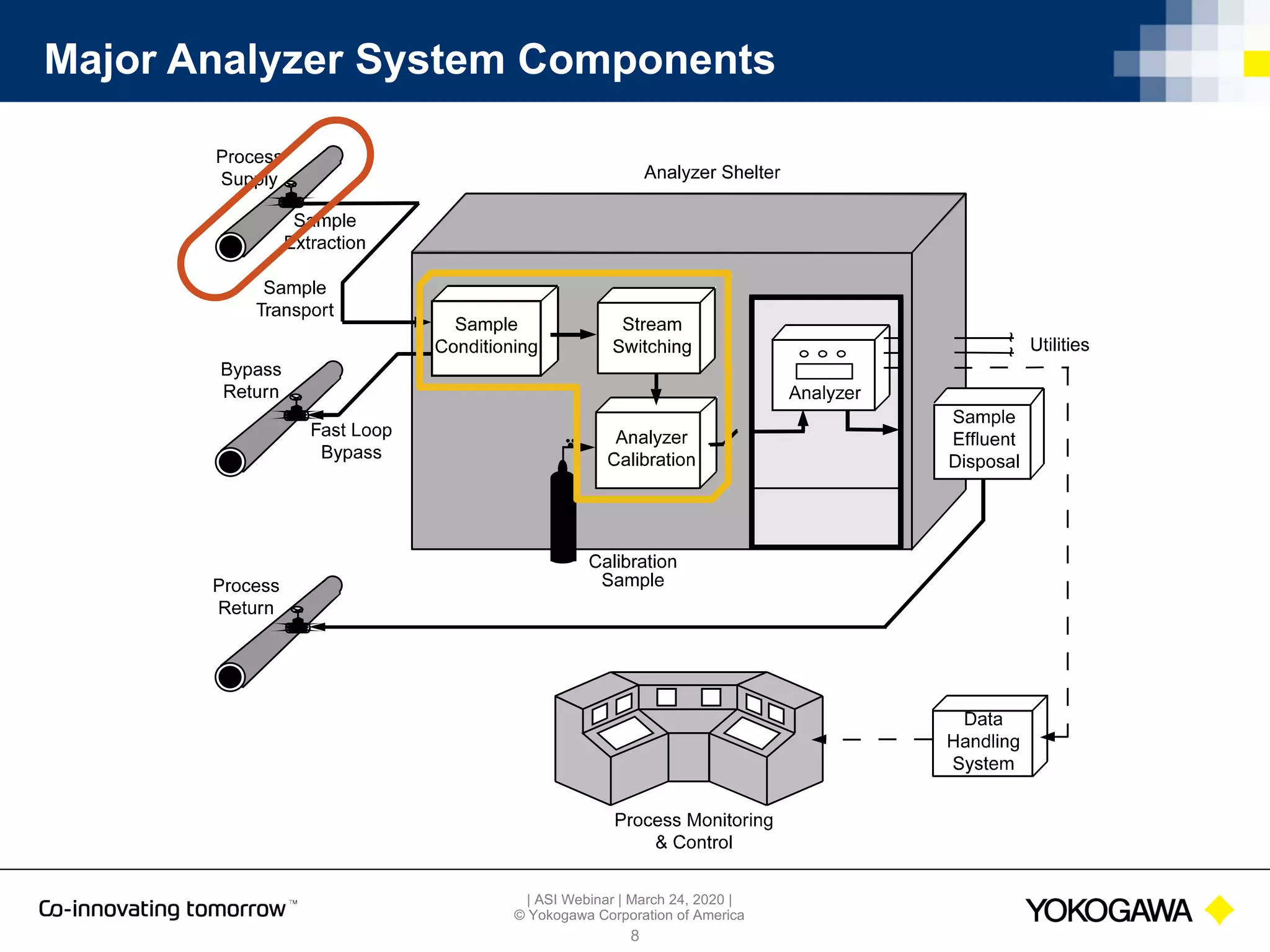

Major Analyzer System Components
8
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
Major Analyzer System Components
9

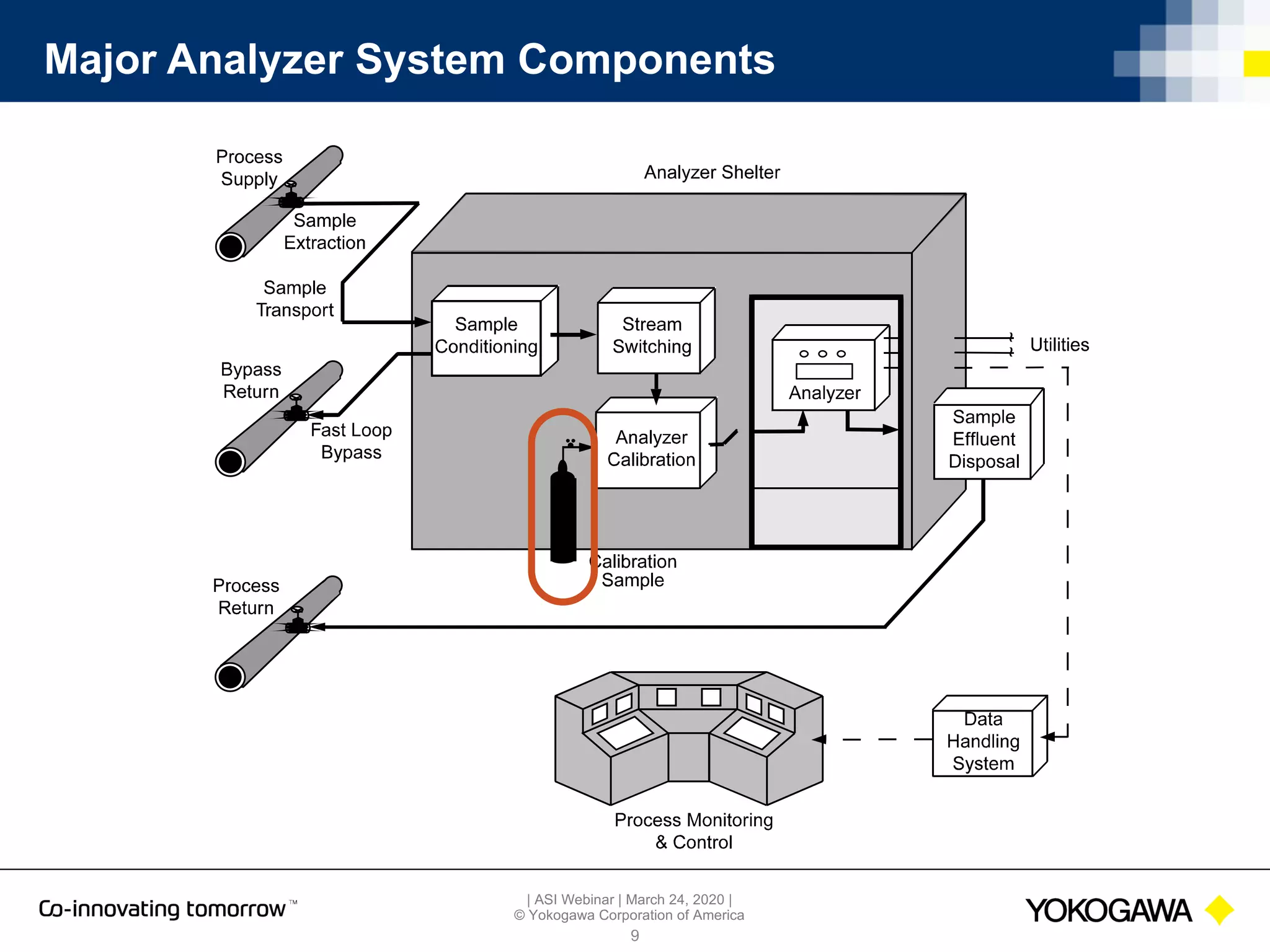

| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

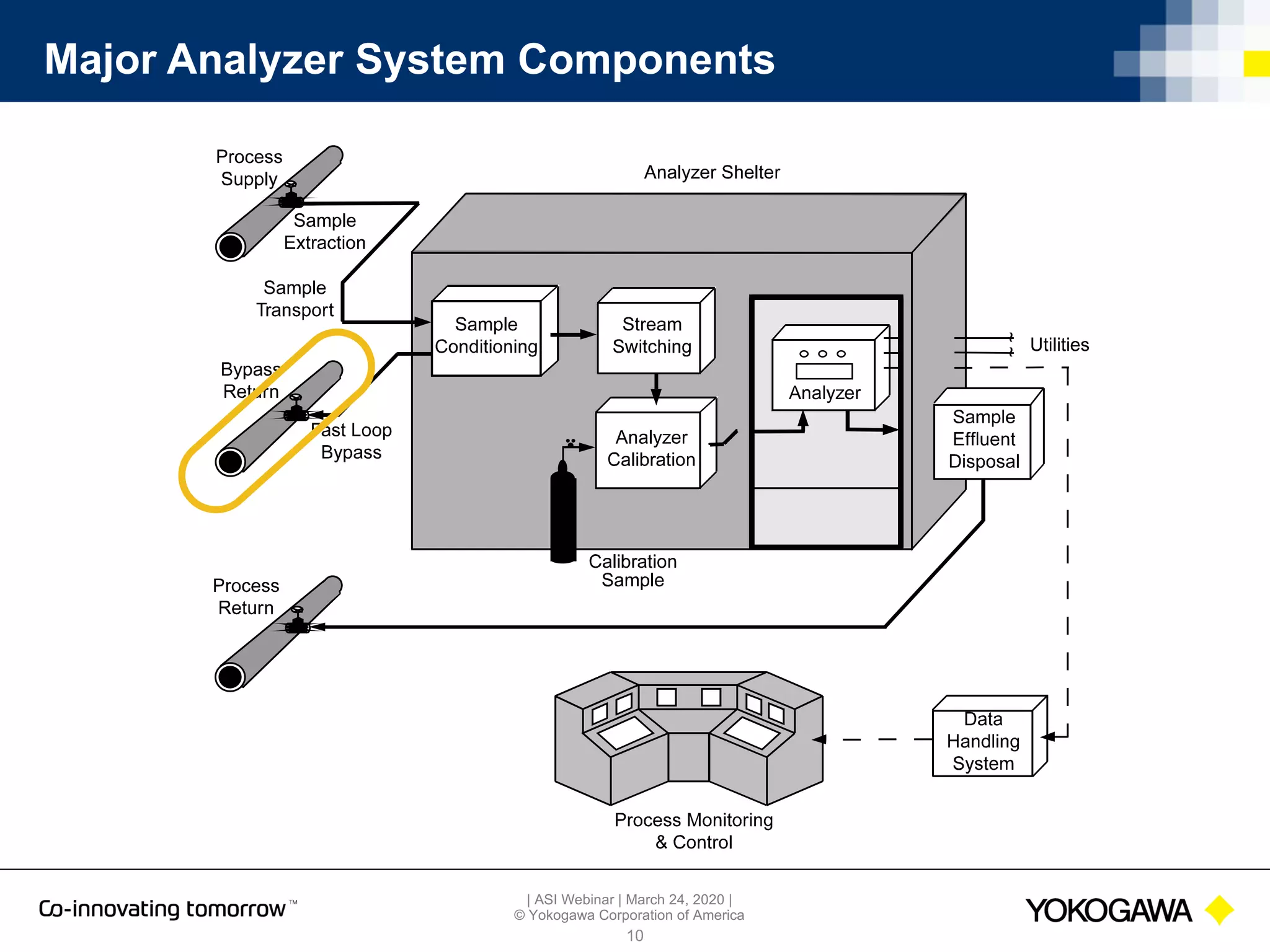

Major Analyzer System Components
10
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

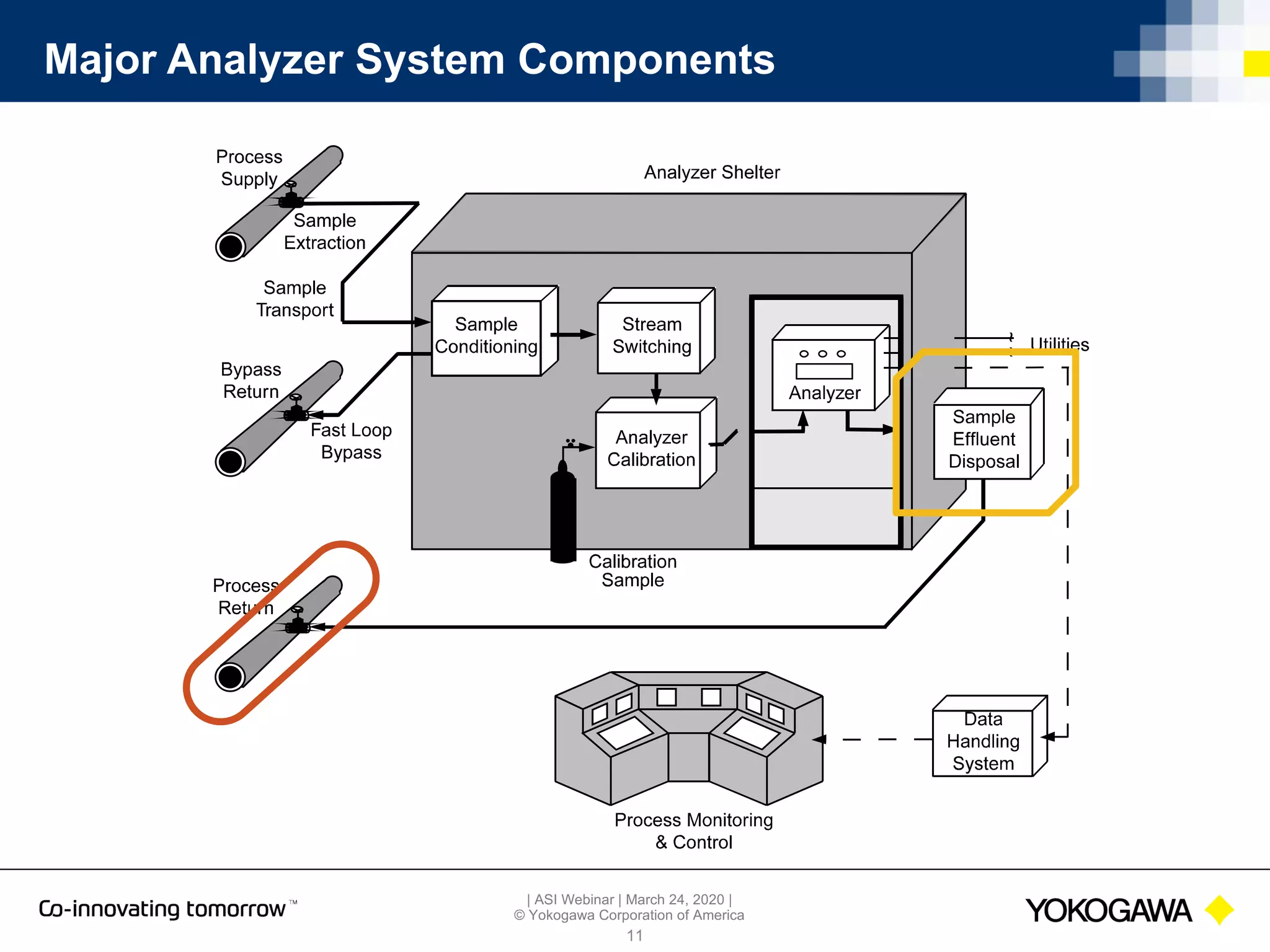

Major Analyzer System Components
11
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

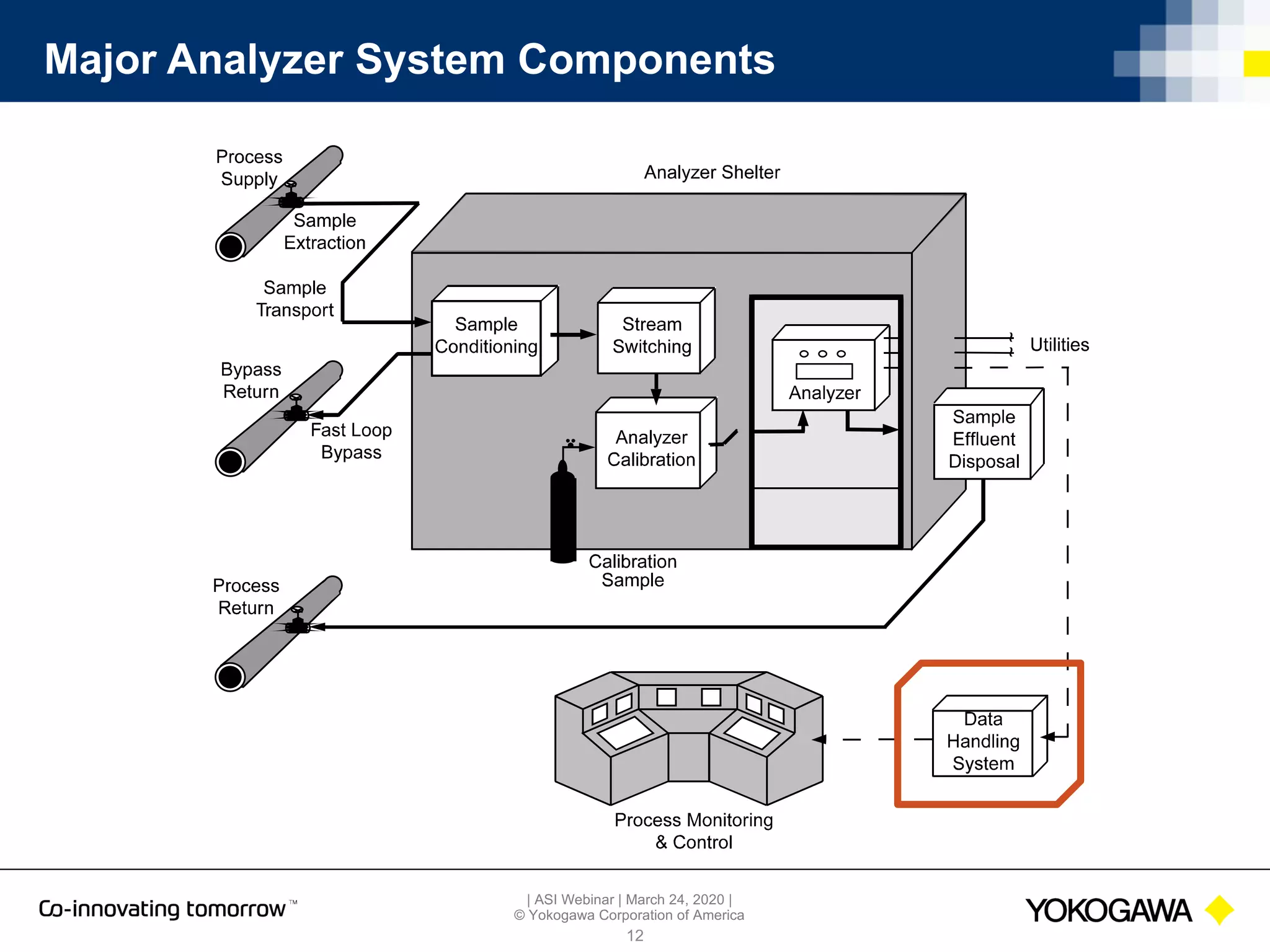

Major Analyzer System Components
12
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
Key Sampling System Components
13
Shelter Safety
System
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

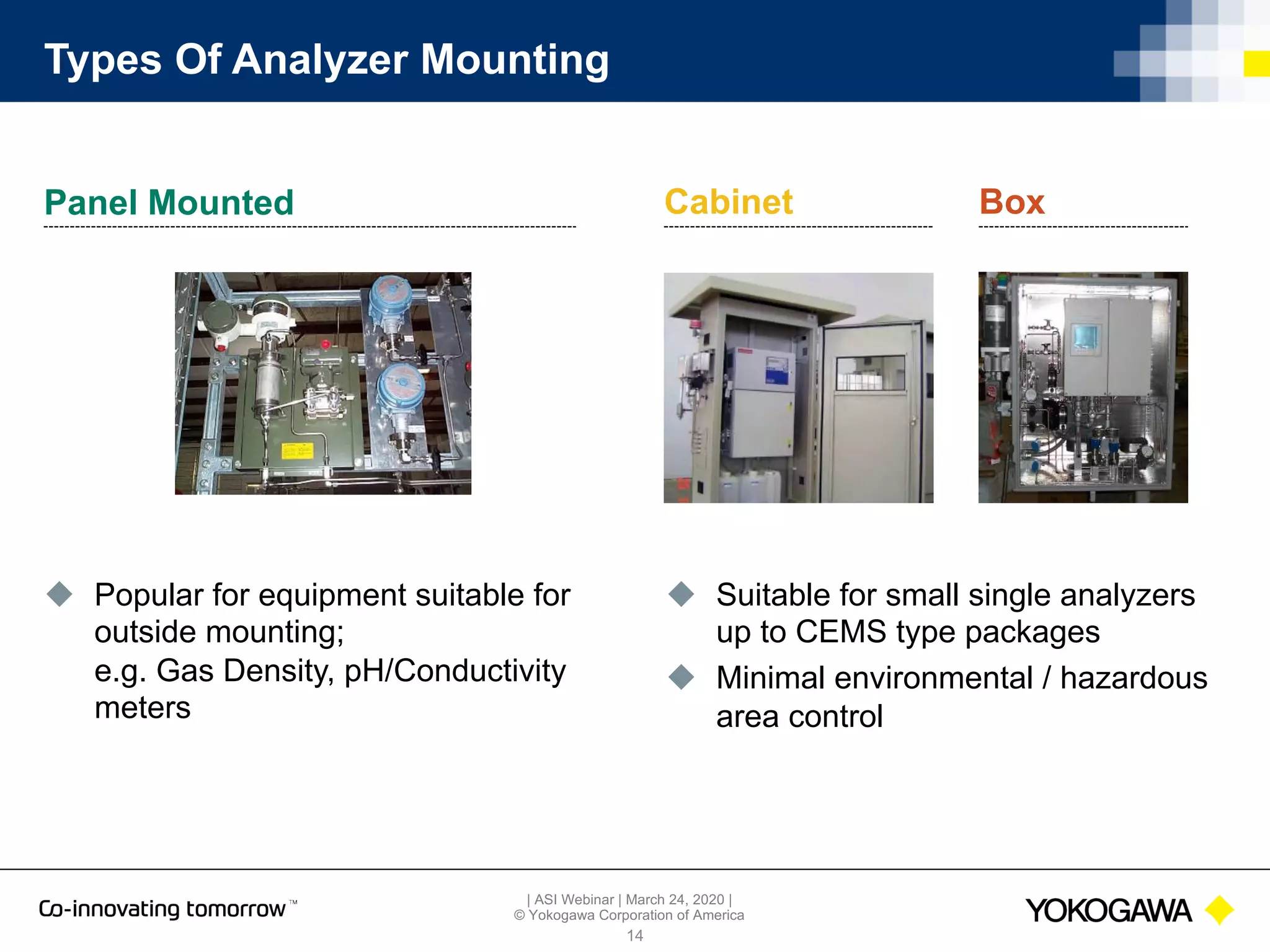

Types Of Analyzer Mounting
u Popular for equipment suitable for
outside mounting;
e.g. Gas Density, pH/Conductivity
meters
14
u Suitable for small single analyzers
up to CEMS type packages
u Minimal environmental / hazardous
area control
Panel Mounted BoxCabinet
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

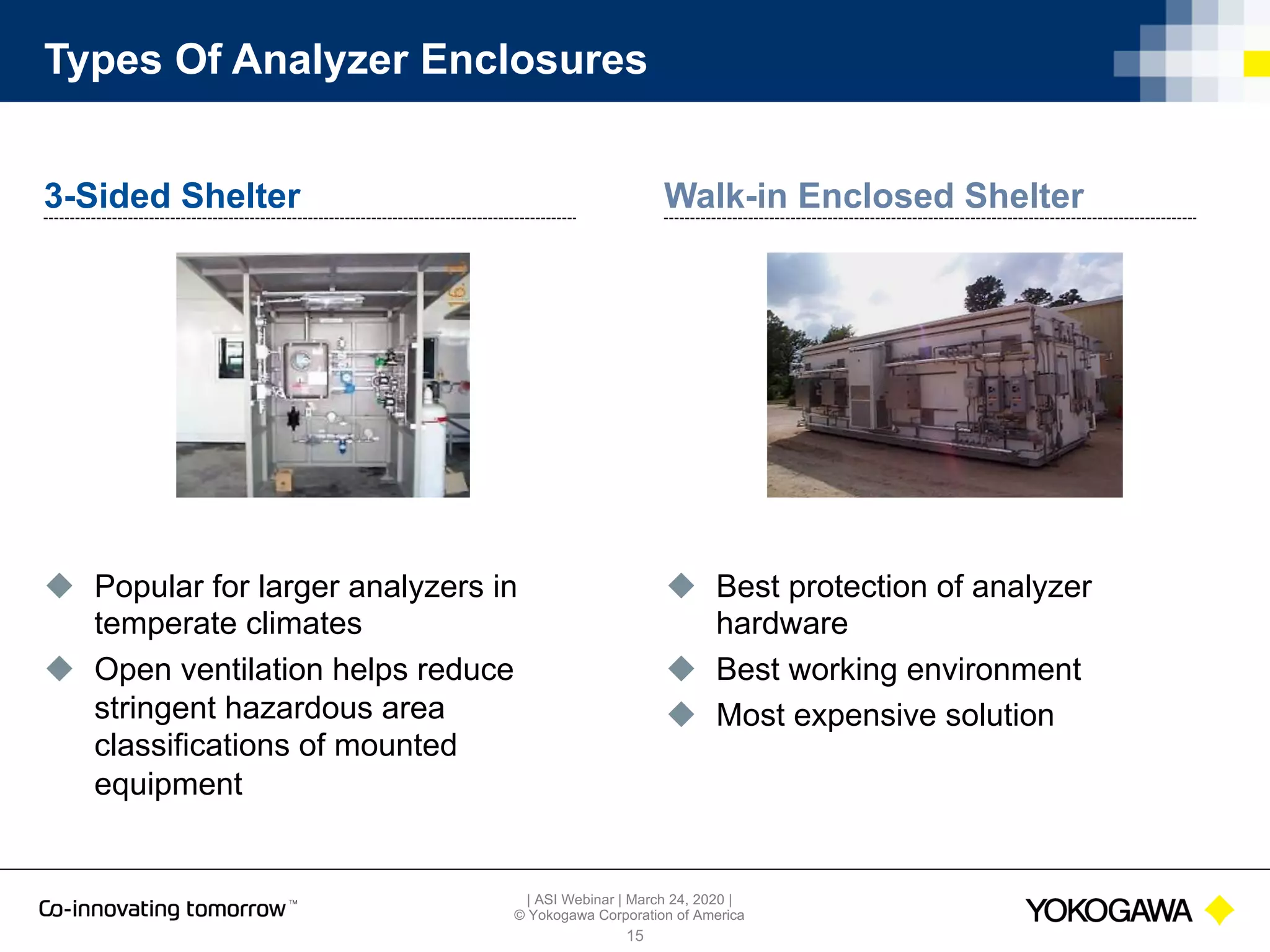

Types Of Analyzer Enclosures
u Popular for larger analyzers in
temperate climates
u Open ventilation helps reduce
stringent hazardous area
classifications of mounted
equipment
15
u Best protection of analyzer
hardware
u Best working environment
u Most expensive solution
3-Sided Shelter Walk-in Enclosed Shelter
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

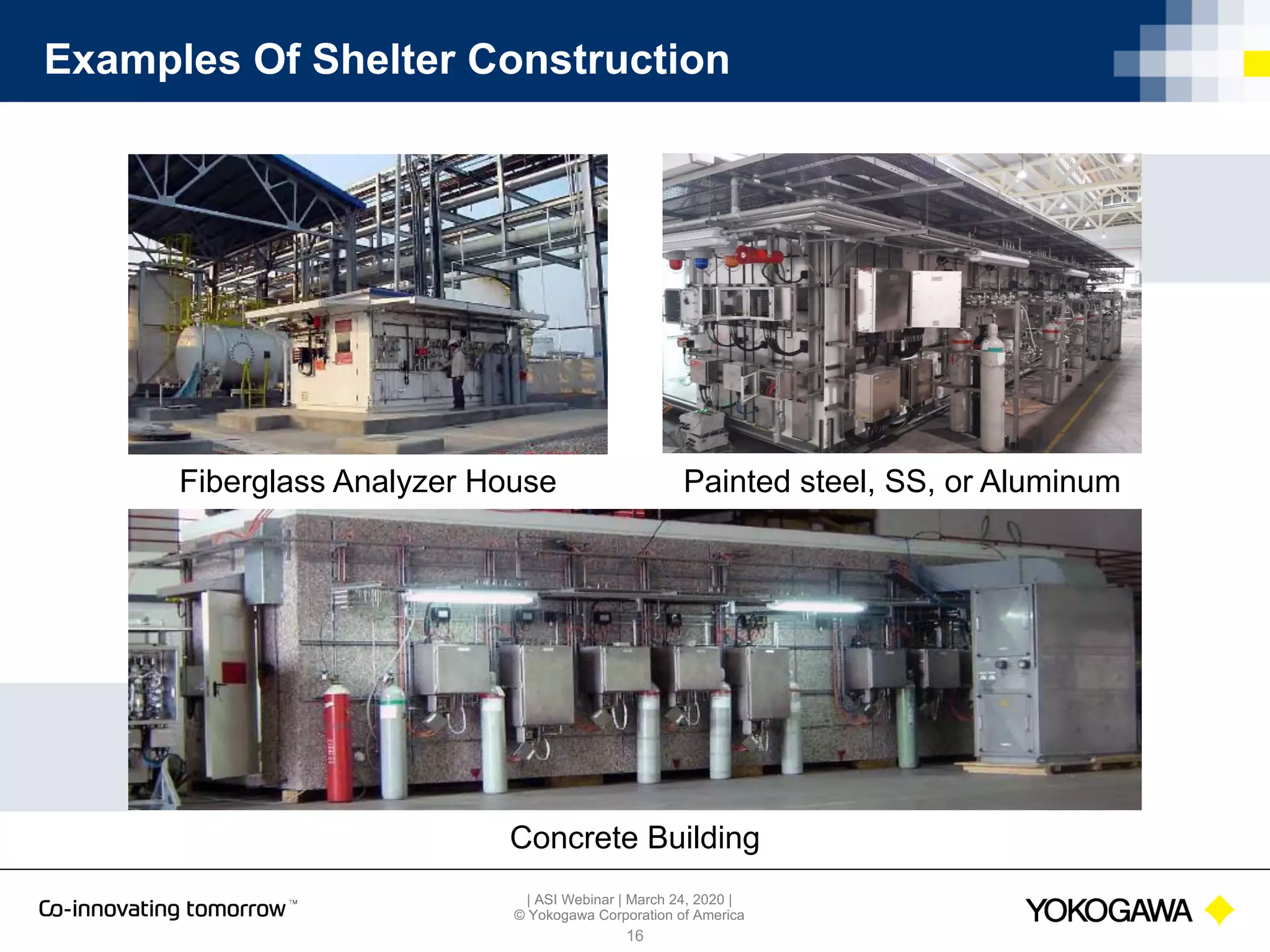

Examples Of Shelter Construction
16
Fiberglass Analyzer House Painted steel, SS, or Aluminum
Concrete Building
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

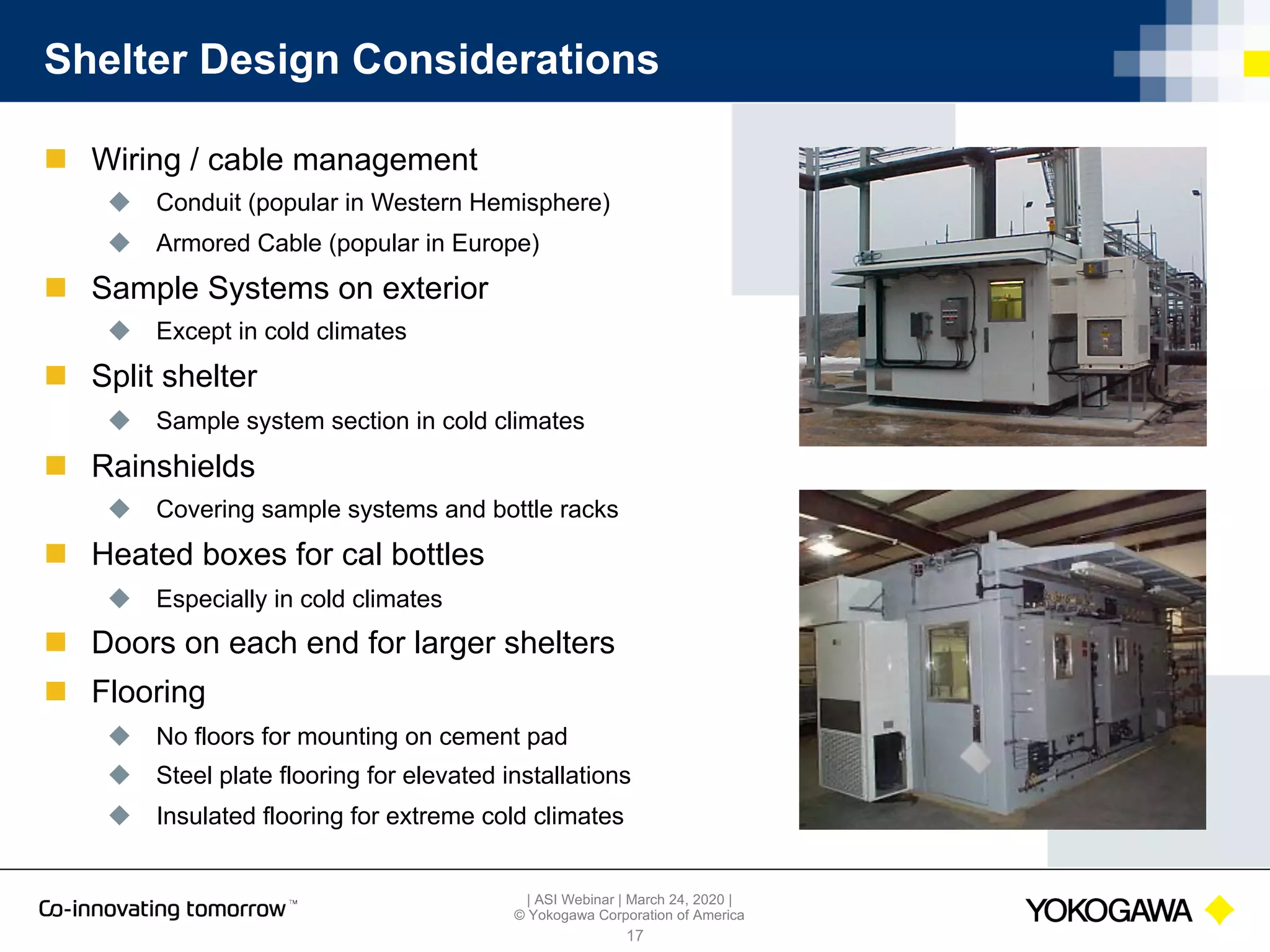

Shelter Design Considerations
n Wiring / cable management
u Conduit (popular in Western Hemisphere)
u Armored Cable (popular in Europe)
n Sample Systems on exterior
u Except in cold climates
n Split shelter
u Sample system section in cold climates
n Rainshields
u Covering sample systems and bottle racks
n Heated boxes for cal bottles
u Especially in cold climates
n Doors on each end for larger shelters
n Flooring
u No floors for mounting on cement pad
u Steel plate flooring for elevated installations
u Insulated flooring for extreme cold climates
17
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

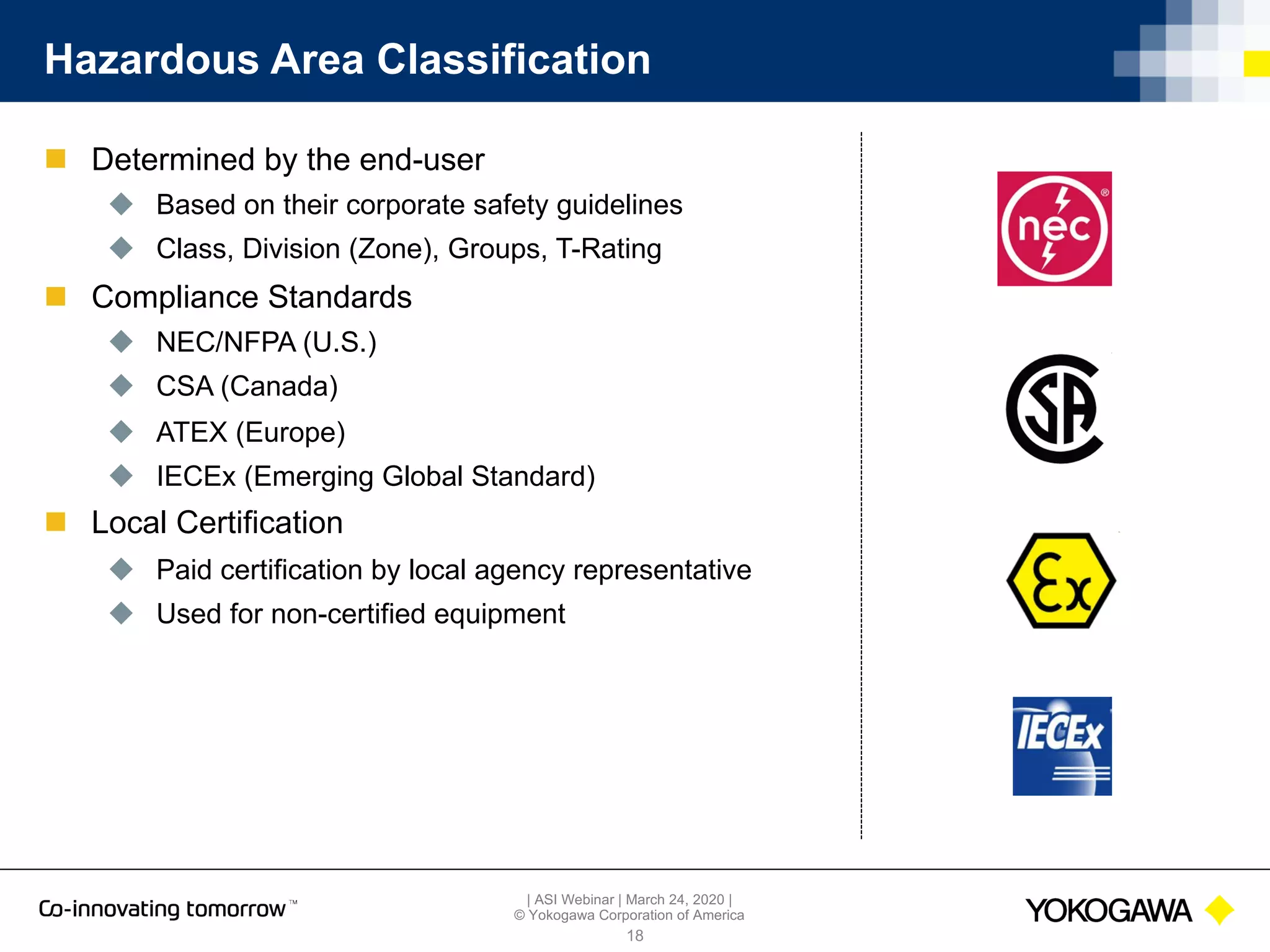

Hazardous Area Classification
n Determined by the end-user
u Based on their corporate safety guidelines
u Class, Division (Zone), Groups, T-Rating
n Compliance Standards
u NEC/NFPA (U.S.)
u CSA (Canada)
u ATEX (Europe)
u IECEx (Emerging Global Standard)
n Local Certification
u Paid certification by local agency representative
u Used for non-certified equipment
18
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

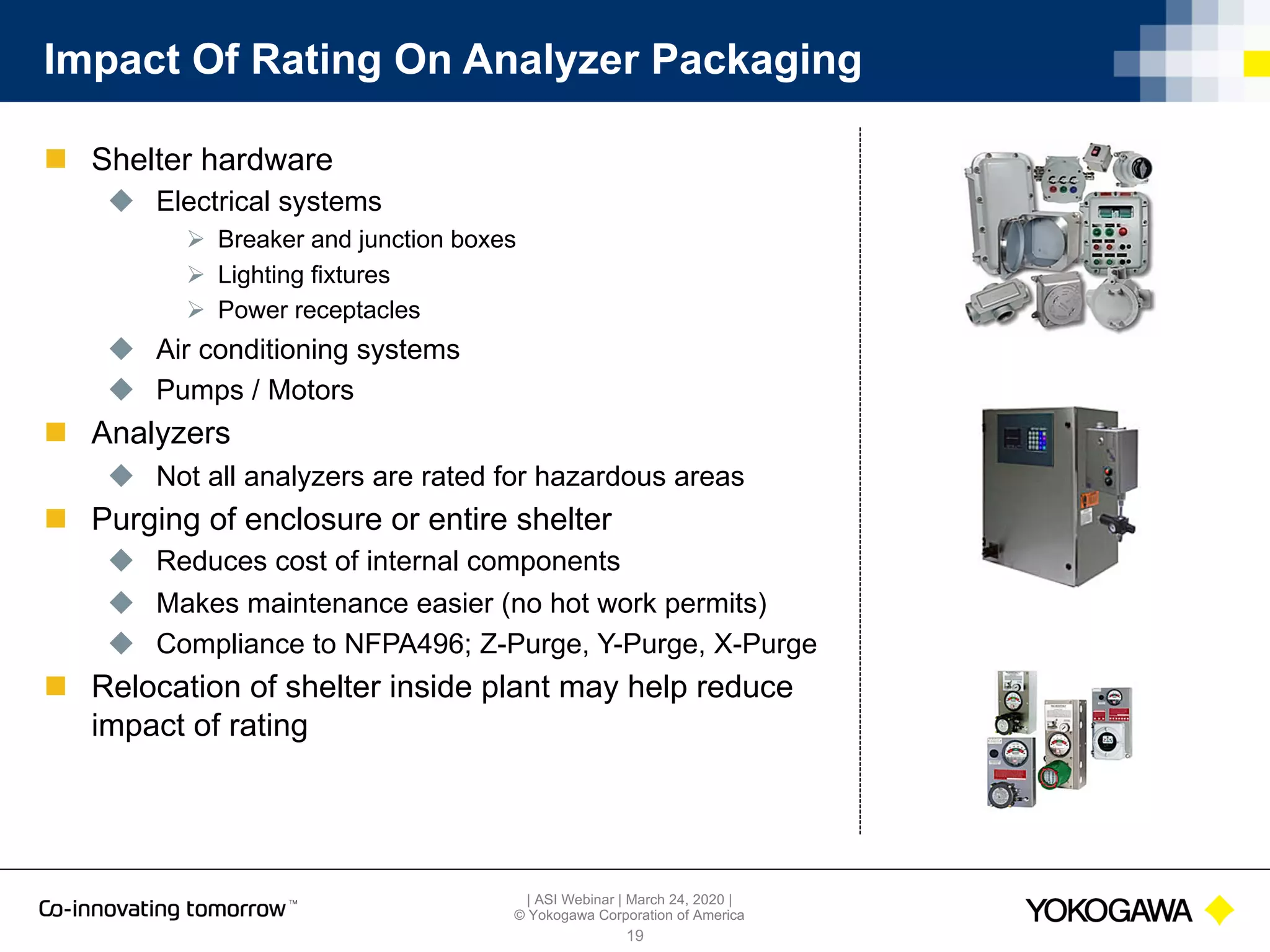

Impact Of Rating On Analyzer Packaging
n Shelter hardware
u Electrical systems
Ø Breaker and junction boxes
Ø Lighting fixtures
Ø Power receptacles
u Air conditioning systems
u Pumps / Motors
n Analyzers
u Not all analyzers are rated for hazardous areas
n Purging of enclosure or entire shelter
u Reduces cost of internal components
u Makes maintenance easier (no hot work permits)
u Compliance to NFPA496; Z-Purge, Y-Purge, X-Purge
n Relocation of shelter inside plant may help reduce
impact of rating
19
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

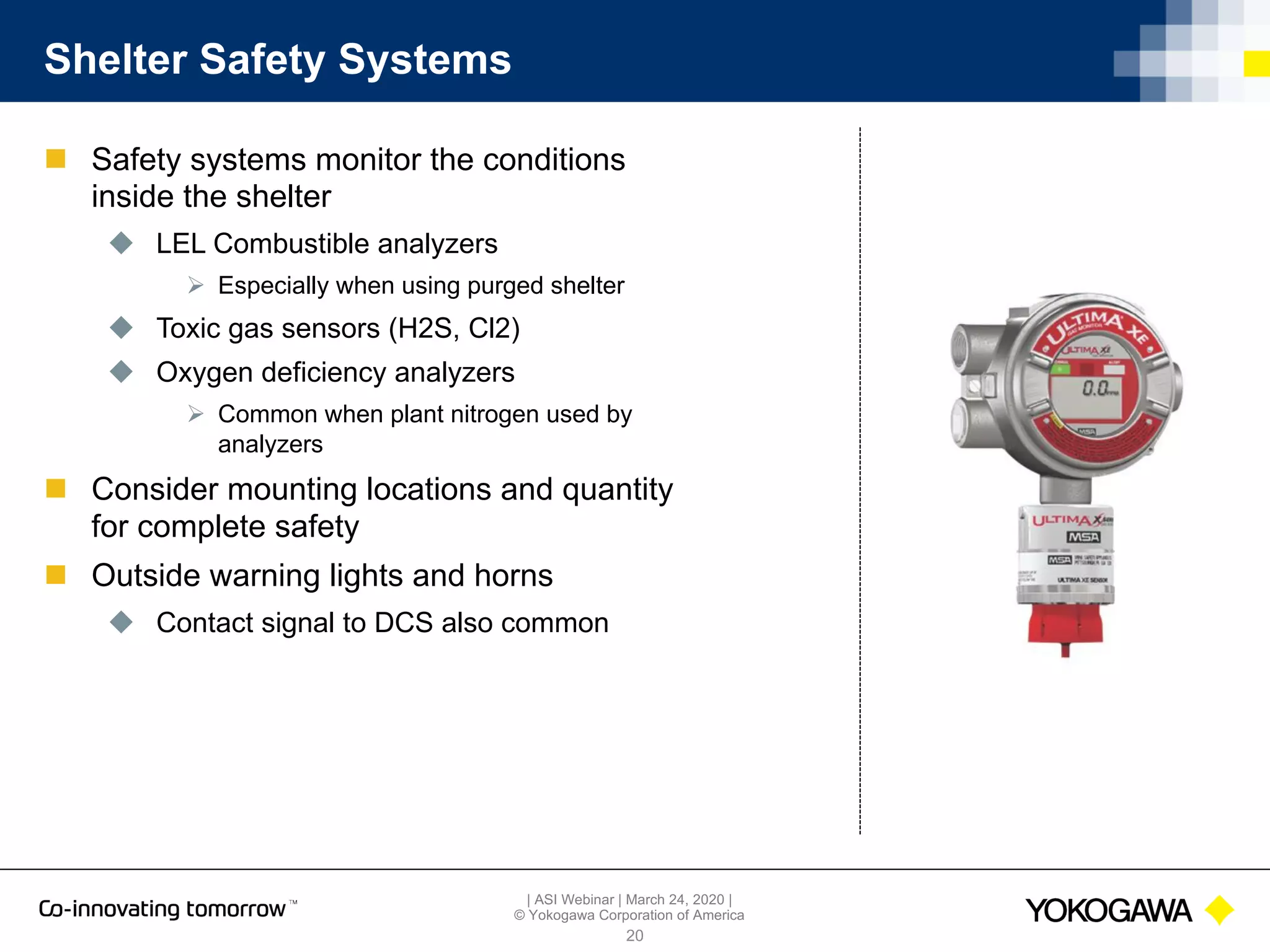

Shelter Safety Systems
n Safety systems monitor the conditions
inside the shelter
u LEL Combustible analyzers
Ø Especially when using purged shelter
u Toxic gas sensors (H2S, Cl2)
u Oxygen deficiency analyzers
Ø Common when plant nitrogen used by
analyzers
n Consider mounting locations and quantity
for complete safety
n Outside warning lights and horns
u Contact signal to DCS also common
20
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

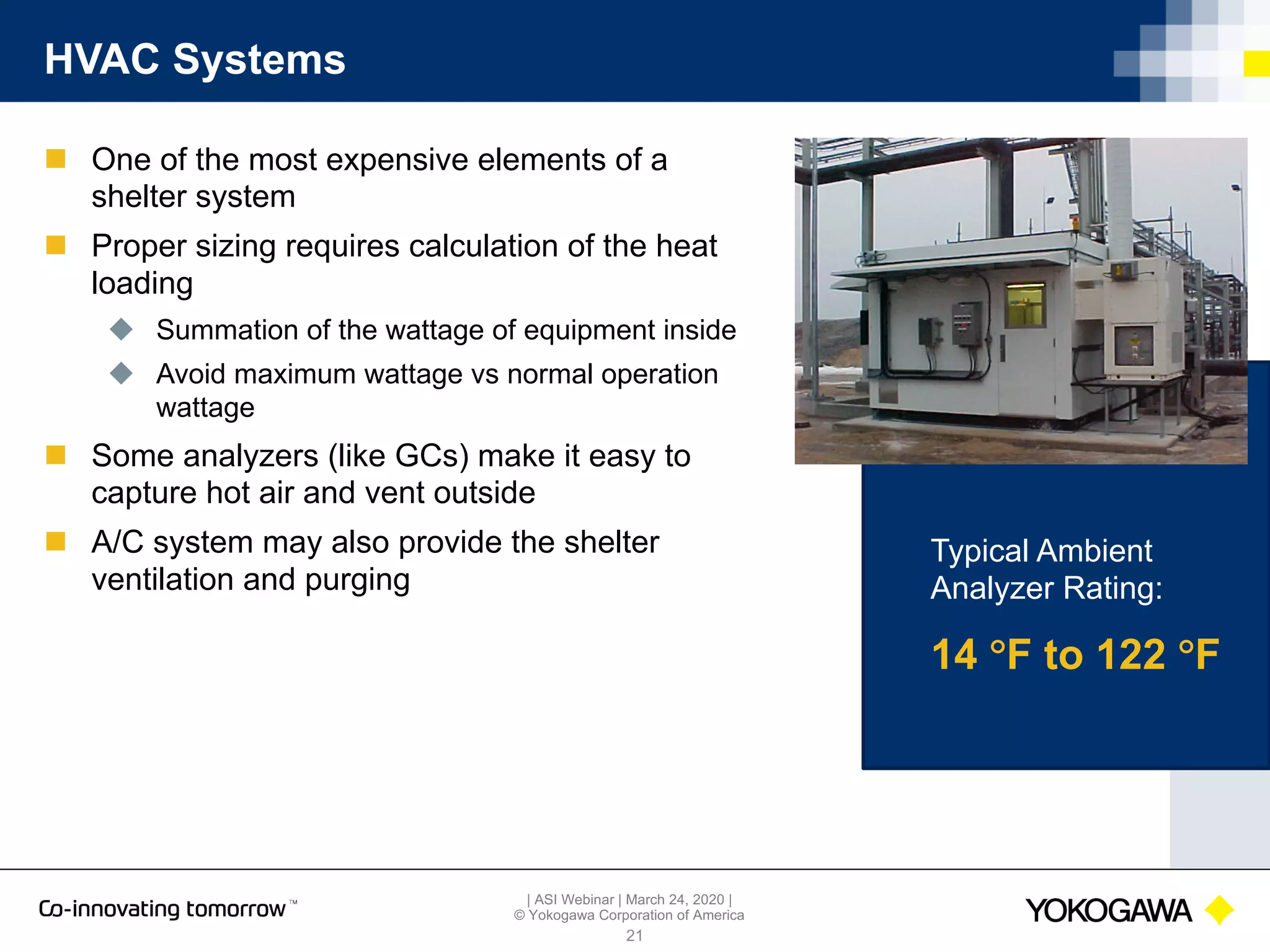

HVAC Systems
n One of the most expensive elements of a
shelter system
n Proper sizing requires calculation of the heat
loading
u Summation of the wattage of equipment inside
u Avoid maximum wattage vs normal operation
wattage
n Some analyzers (like GCs) make it easy to
capture hot air and vent outside
n A/C system may also provide the shelter
ventilation and purging
21
Typical Ambient
Analyzer Rating:
14 °F to 122 °F
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

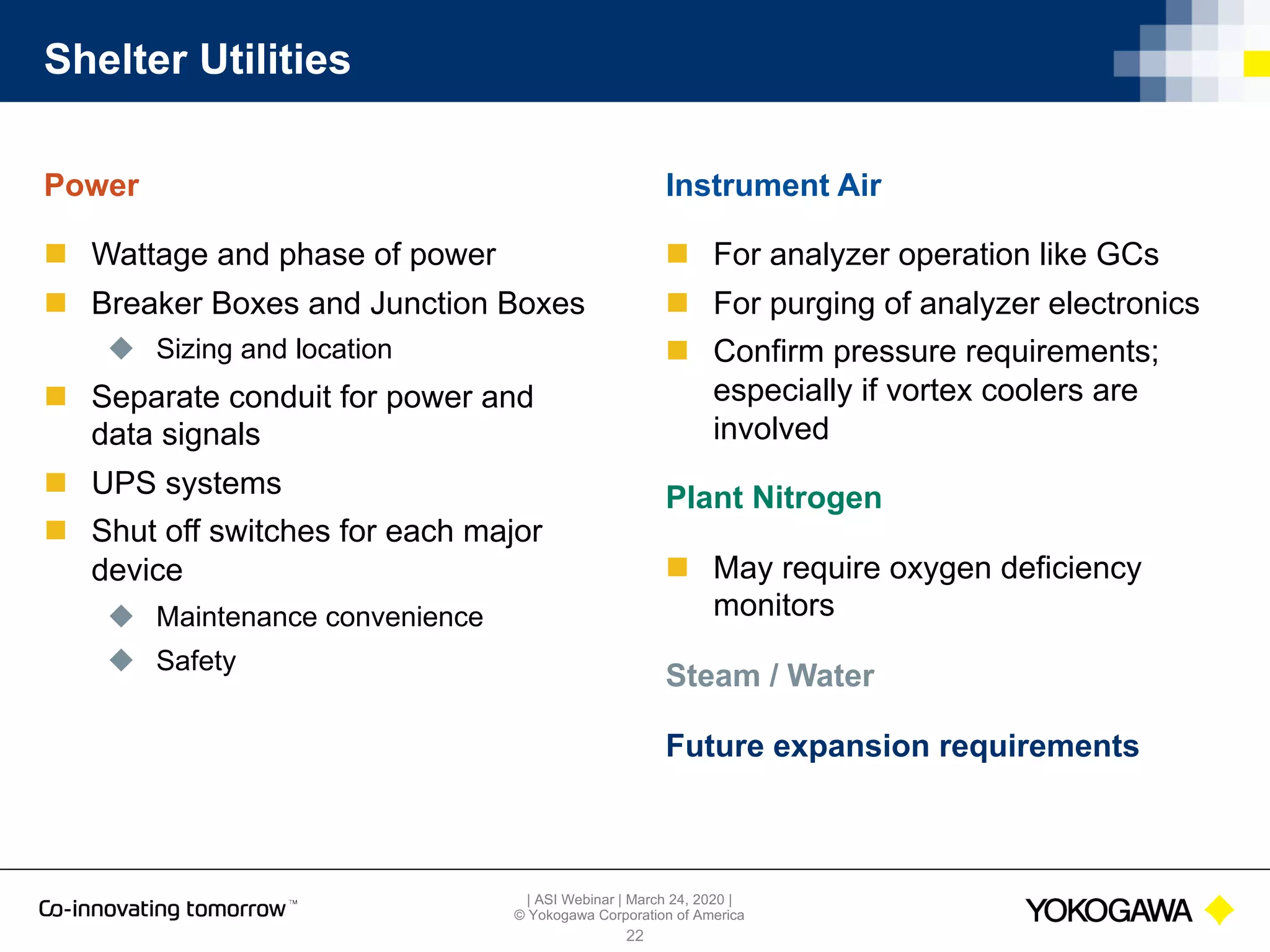

Shelter Utilities
Power
n Wattage and phase of power
n Breaker Boxes and Junction Boxes
u Sizing and location
n Separate conduit for power and
data signals
n UPS systems
n Shut off switches for each major
device
u Maintenance convenience
u Safety
22
Instrument Air
n For analyzer operation like GCs
n For purging of analyzer electronics
n Confirm pressure requirements;
especially if vortex coolers are
involved
Plant Nitrogen
n May require oxygen deficiency
monitors
Steam / Water
Future expansion requirements
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

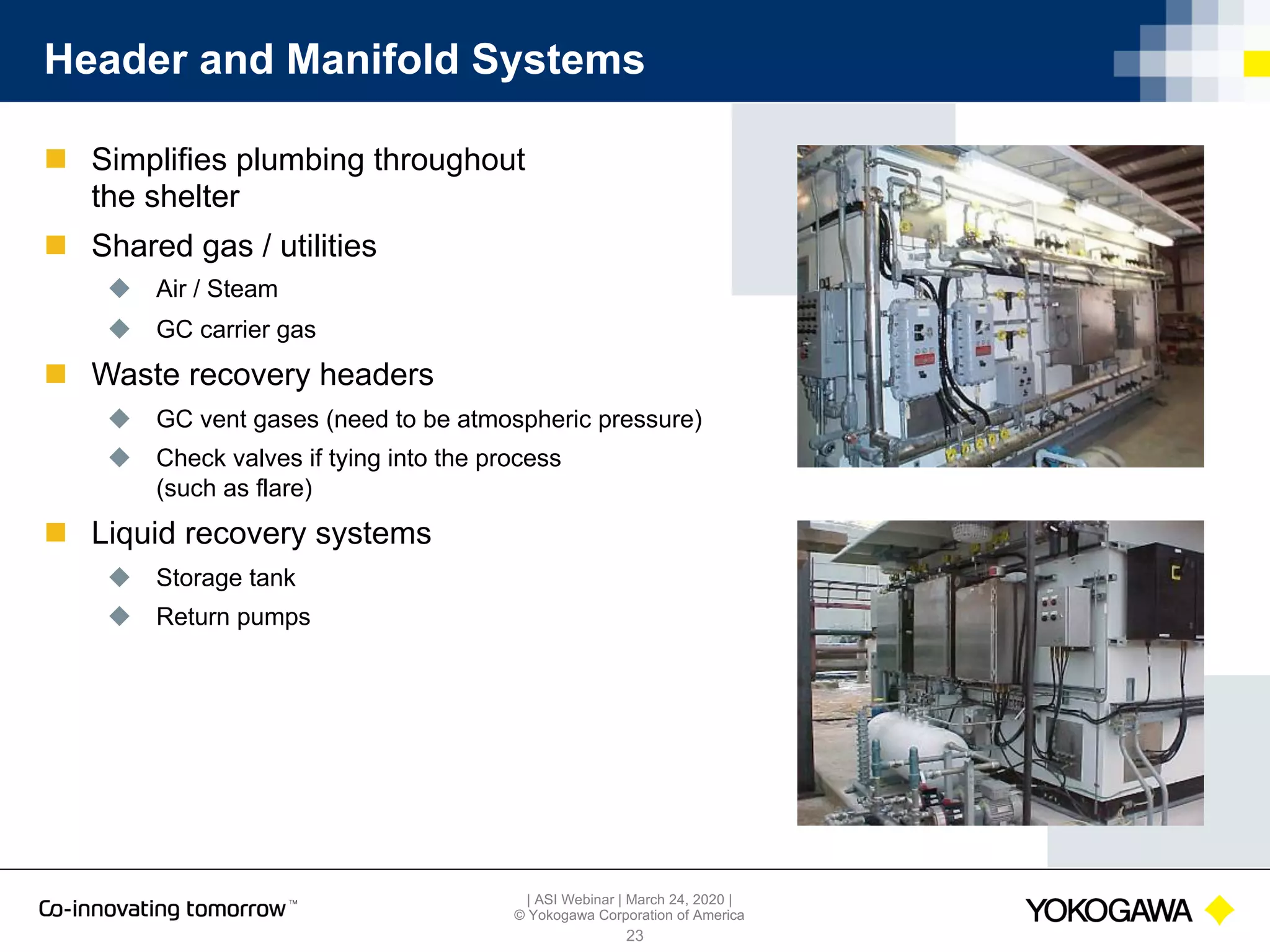

Header and Manifold Systems
n Simplifies plumbing throughout
the shelter
n Shared gas / utilities
u Air / Steam
u GC carrier gas
n Waste recovery headers
u GC vent gases (need to be atmospheric pressure)
u Check valves if tying into the process
(such as flare)
n Liquid recovery systems
u Storage tank
u Return pumps
23
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

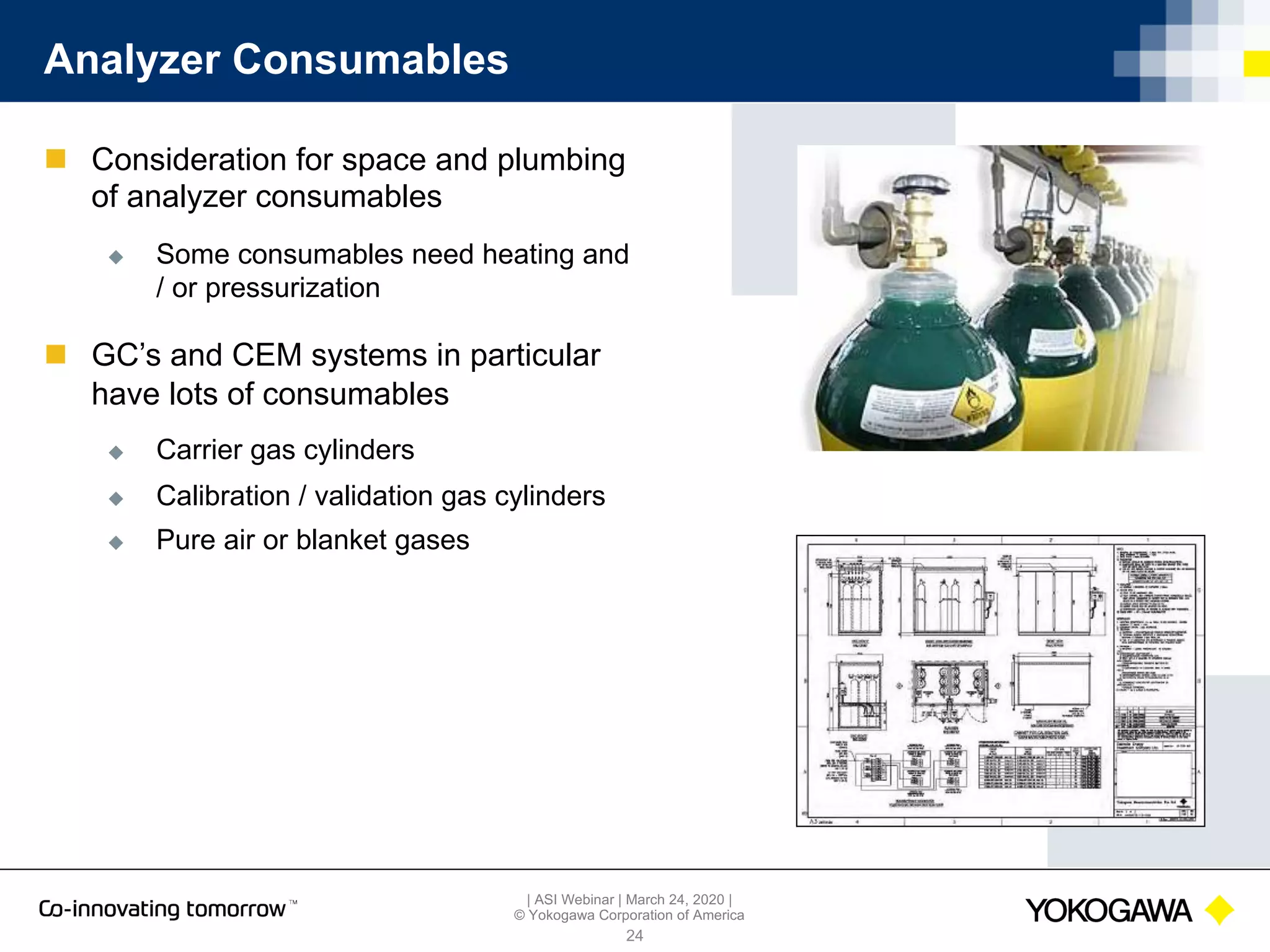

Analyzer Consumables
24
n Consideration for space and plumbing
of analyzer consumables
u Some consumables need heating and
/ or pressurization
n GC’s and CEM systems in particular
have lots of consumables
u Carrier gas cylinders
u Calibration / validation gas cylinders
u Pure air or blanket gases
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

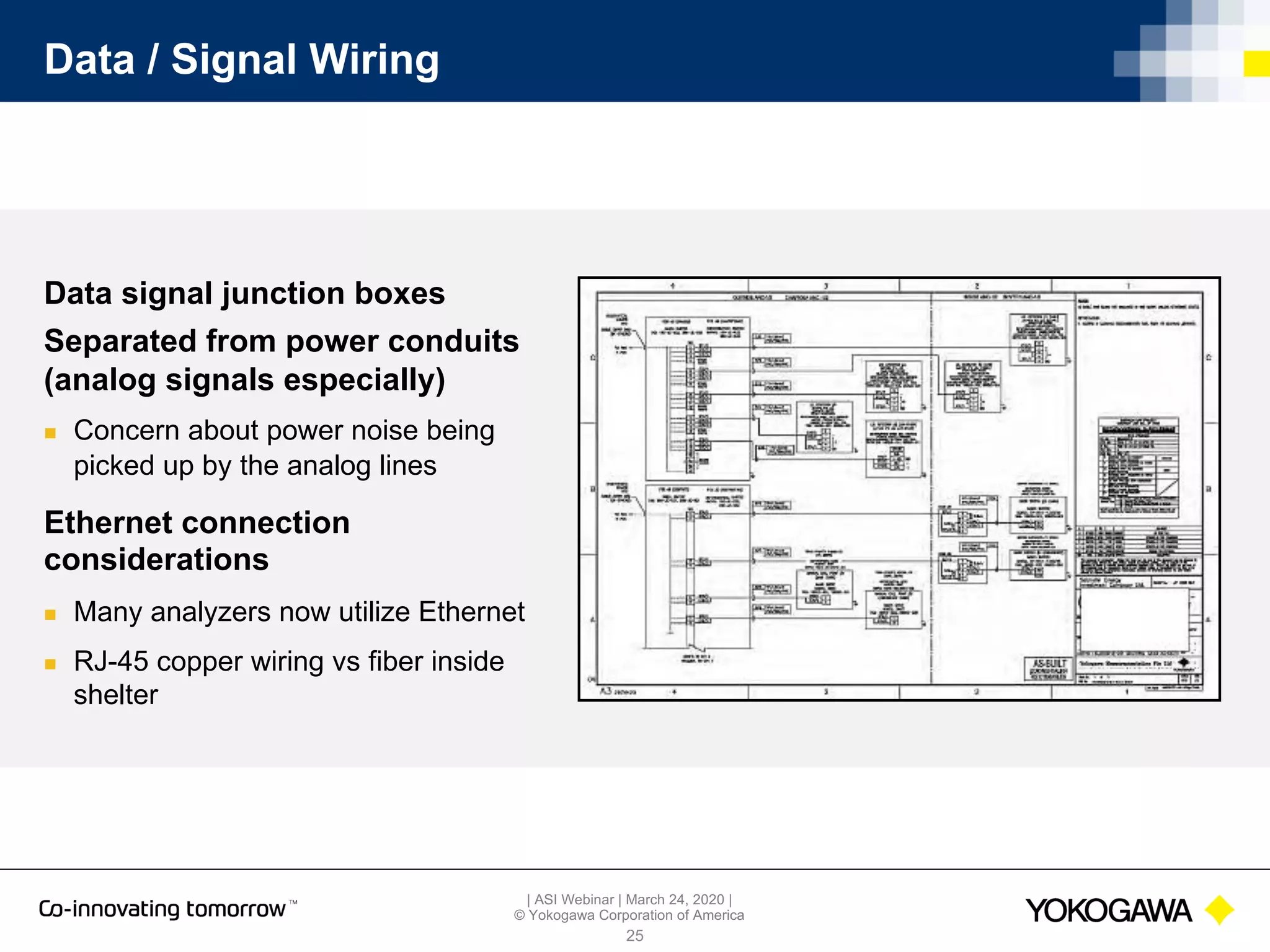

Data / Signal Wiring
25
Data signal junction boxes
Separated from power conduits
(analog signals especially)
n Concern about power noise being
picked up by the analog lines
Ethernet connection
considerations
n Many analyzers now utilize Ethernet
n RJ-45 copper wiring vs fiber inside
shelter
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

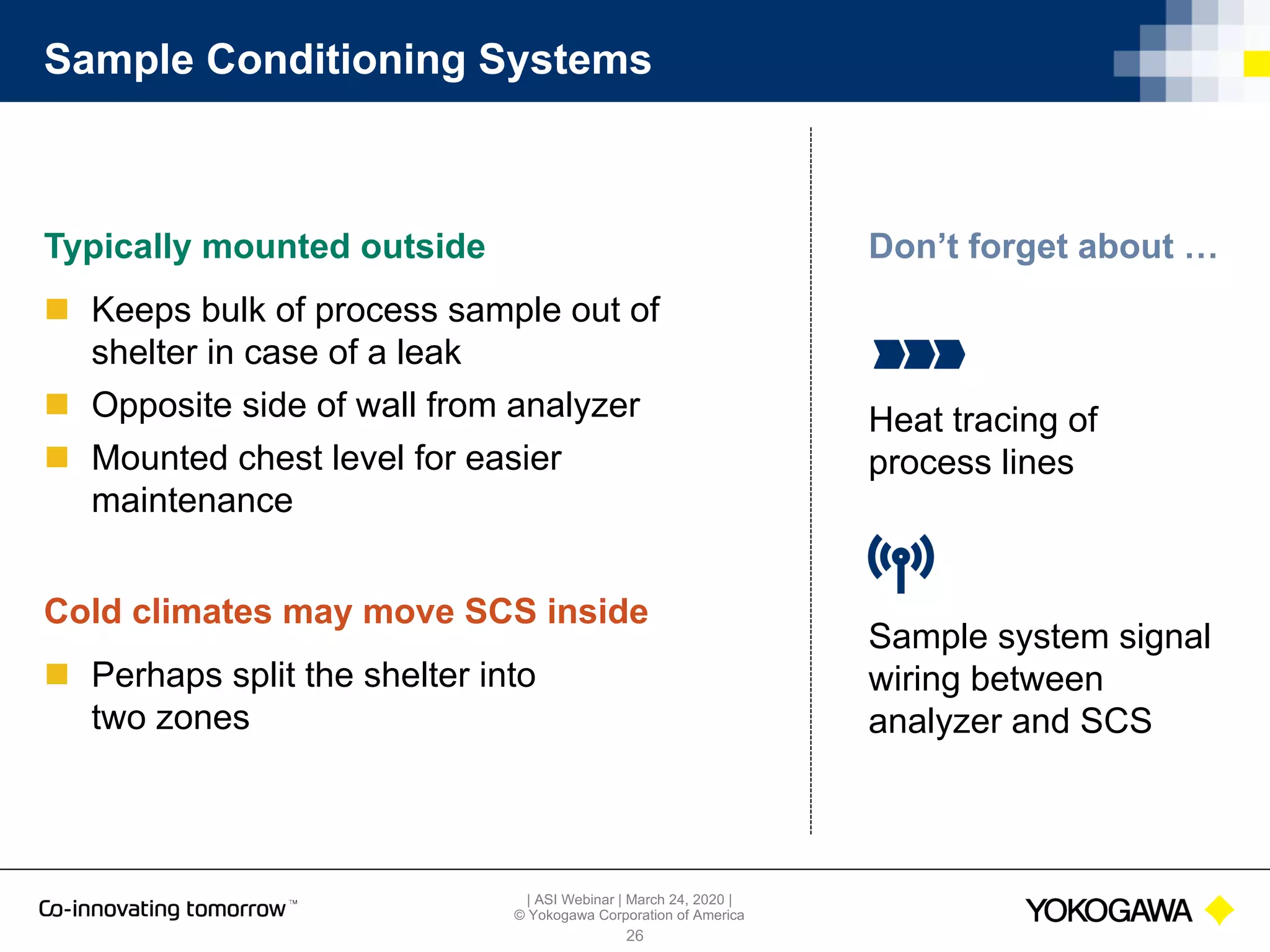

Sample Conditioning Systems
Typically mounted outside
n Keeps bulk of process sample out of
shelter in case of a leak
n Opposite side of wall from analyzer
n Mounted chest level for easier
maintenance
26
Cold climates may move SCS inside
n Perhaps split the shelter into
two zones
Heat tracing of
process lines
Don’t forget about …
Sample system signal
wiring between
analyzer and SCS
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

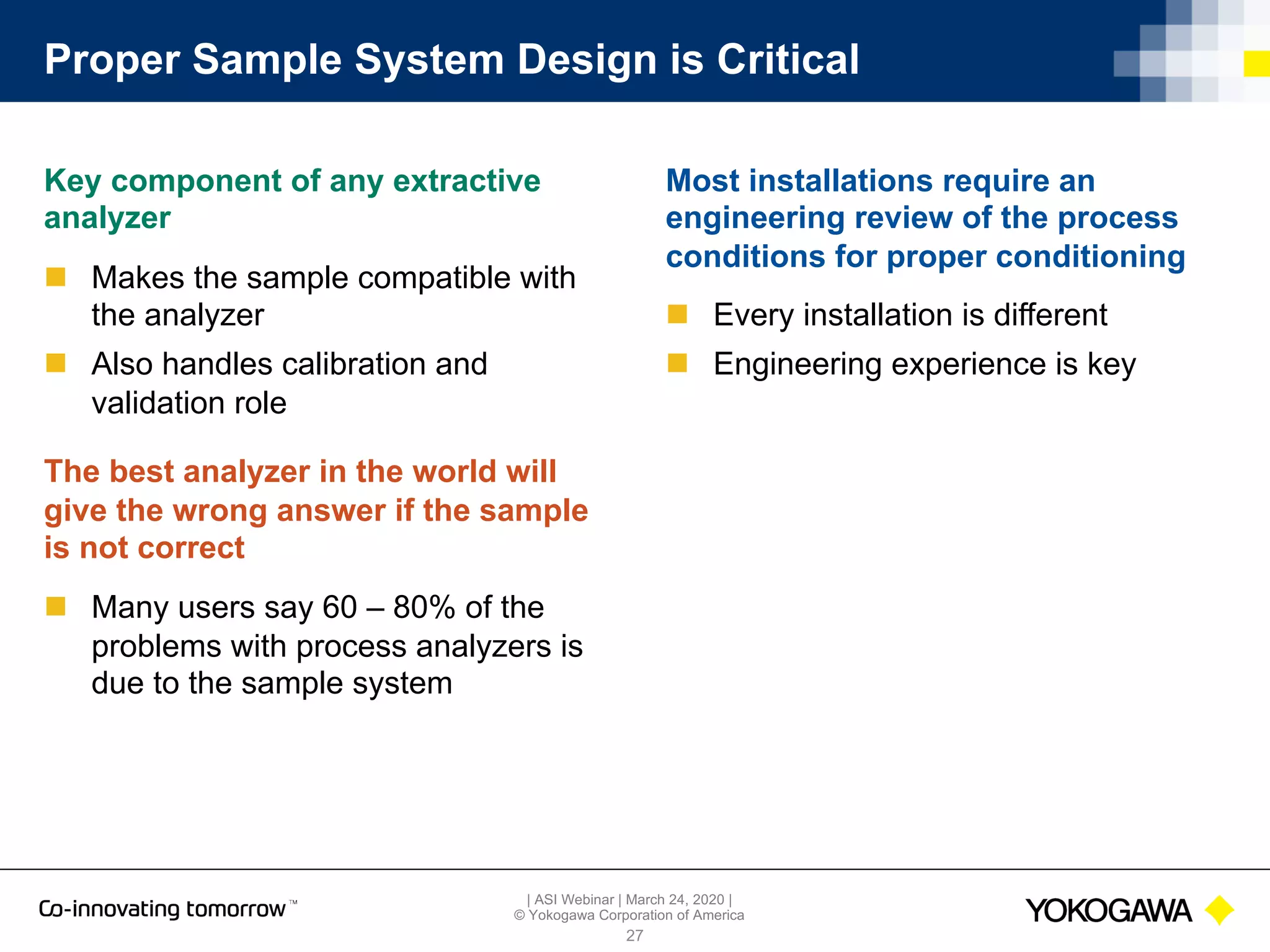

Proper Sample System Design is Critical
Key component of any extractive
analyzer
n Makes the sample compatible with
the analyzer
n Also handles calibration and
validation role
The best analyzer in the world will
give the wrong answer if the sample
is not correct
n Many users say 60 – 80% of the
problems with process analyzers is
due to the sample system
27
Most installations require an
engineering review of the process
conditions for proper conditioning
n Every installation is different
n Engineering experience is key
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

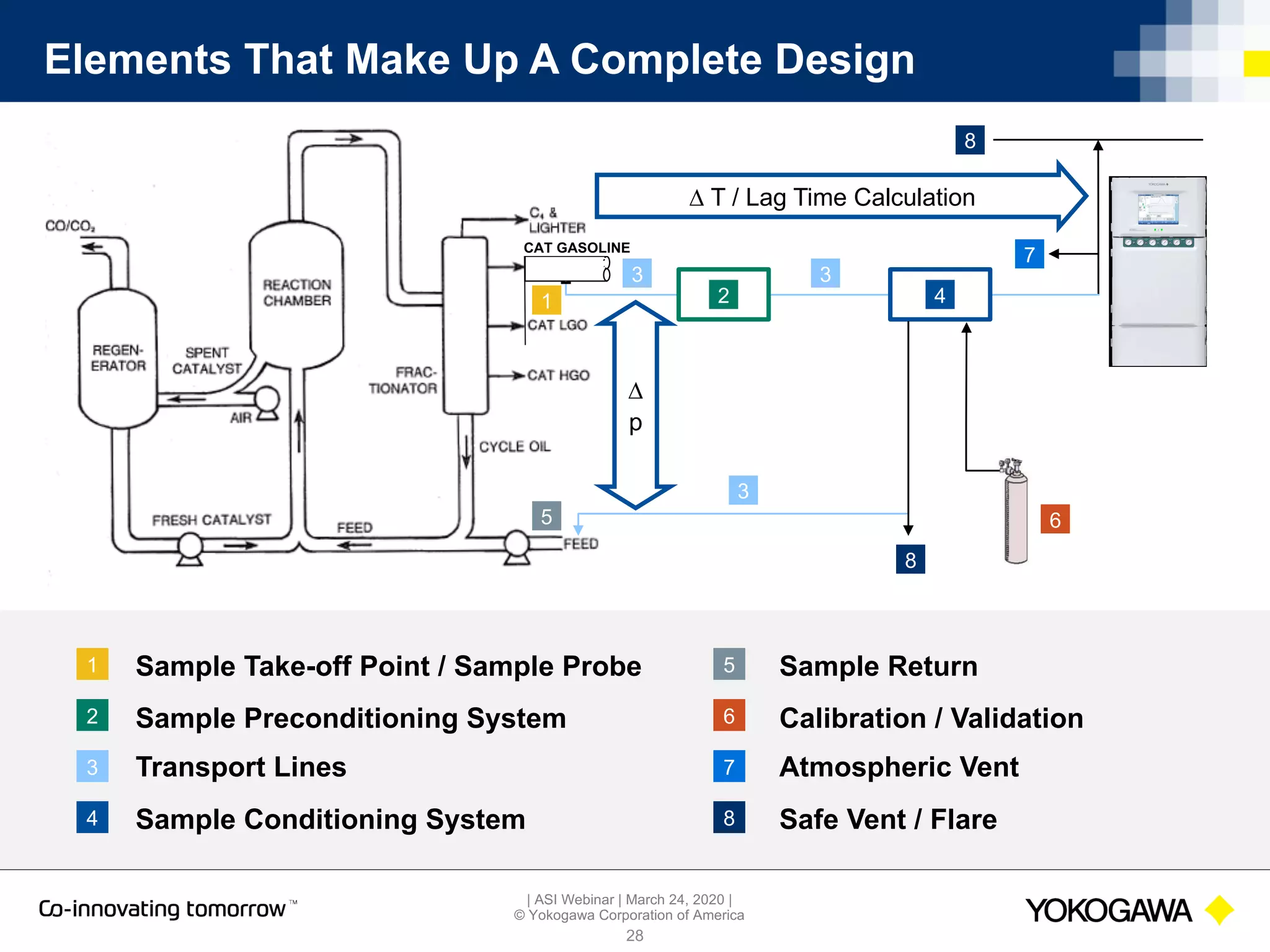

Elements That Make Up A Complete Design
28
CAT GASOLINE
1
1
2
3
4
5
6
7
8
Sample Take-off Point / Sample Probe
Sample Preconditioning System
Transport Lines
Sample Conditioning System
Sample Return
Calibration / Validation
Atmospheric Vent
Safe Vent / Flare
2 4
3 3
7
8
6
8
3
5
D T / Lag Time Calculation
D
p
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

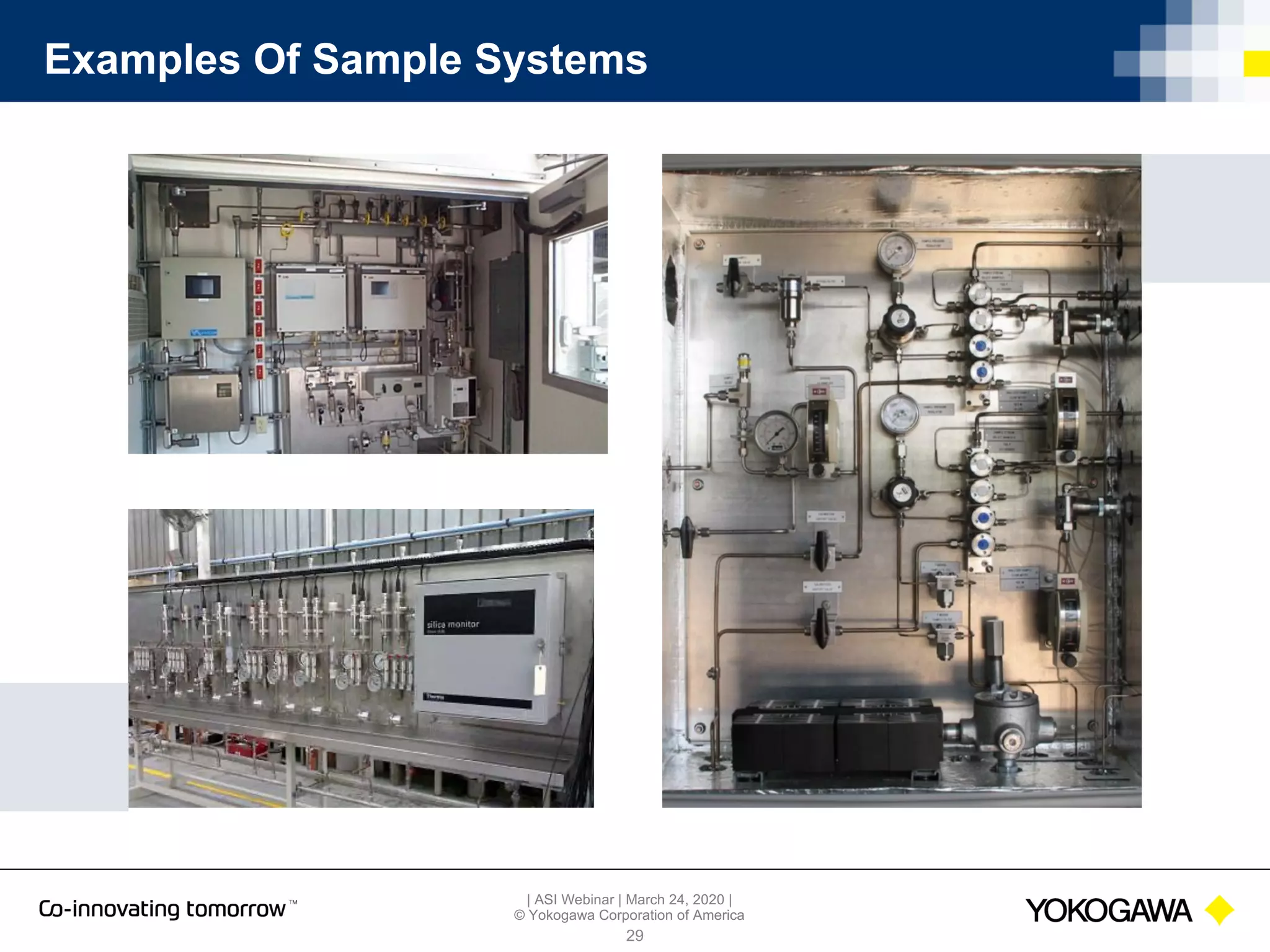

Examples Of Sample Systems
29
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

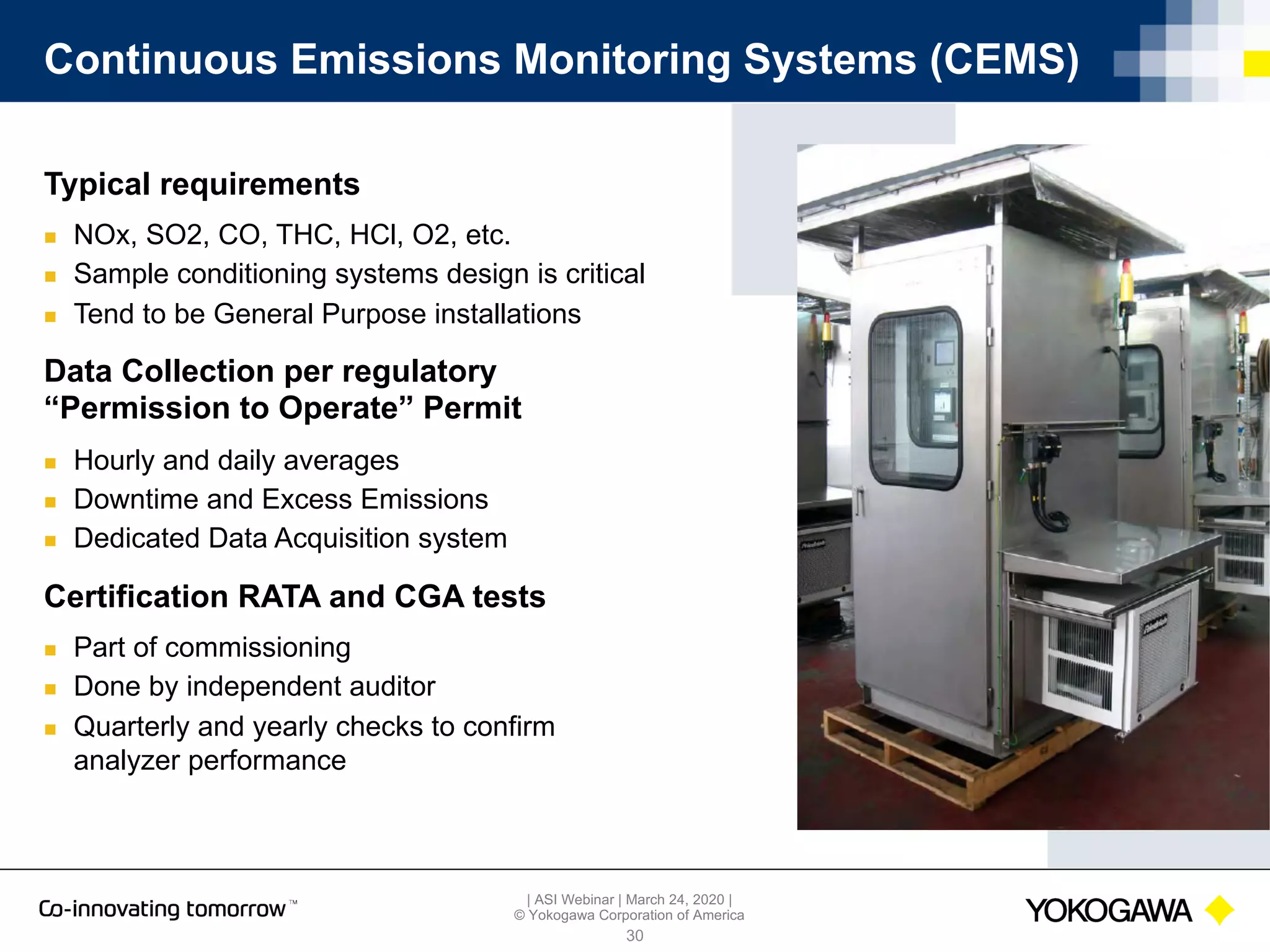

Continuous Emissions Monitoring Systems (CEMS)
30
Typical requirements
n NOx, SO2, CO, THC, HCl, O2, etc.
n Sample conditioning systems design is critical
n Tend to be General Purpose installations
Data Collection per regulatory
“Permission to Operate” Permit
n Hourly and daily averages
n Downtime and Excess Emissions
n Dedicated Data Acquisition system
Certification RATA and CGA tests
n Part of commissioning
n Done by independent auditor
n Quarterly and yearly checks to confirm
analyzer performance
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

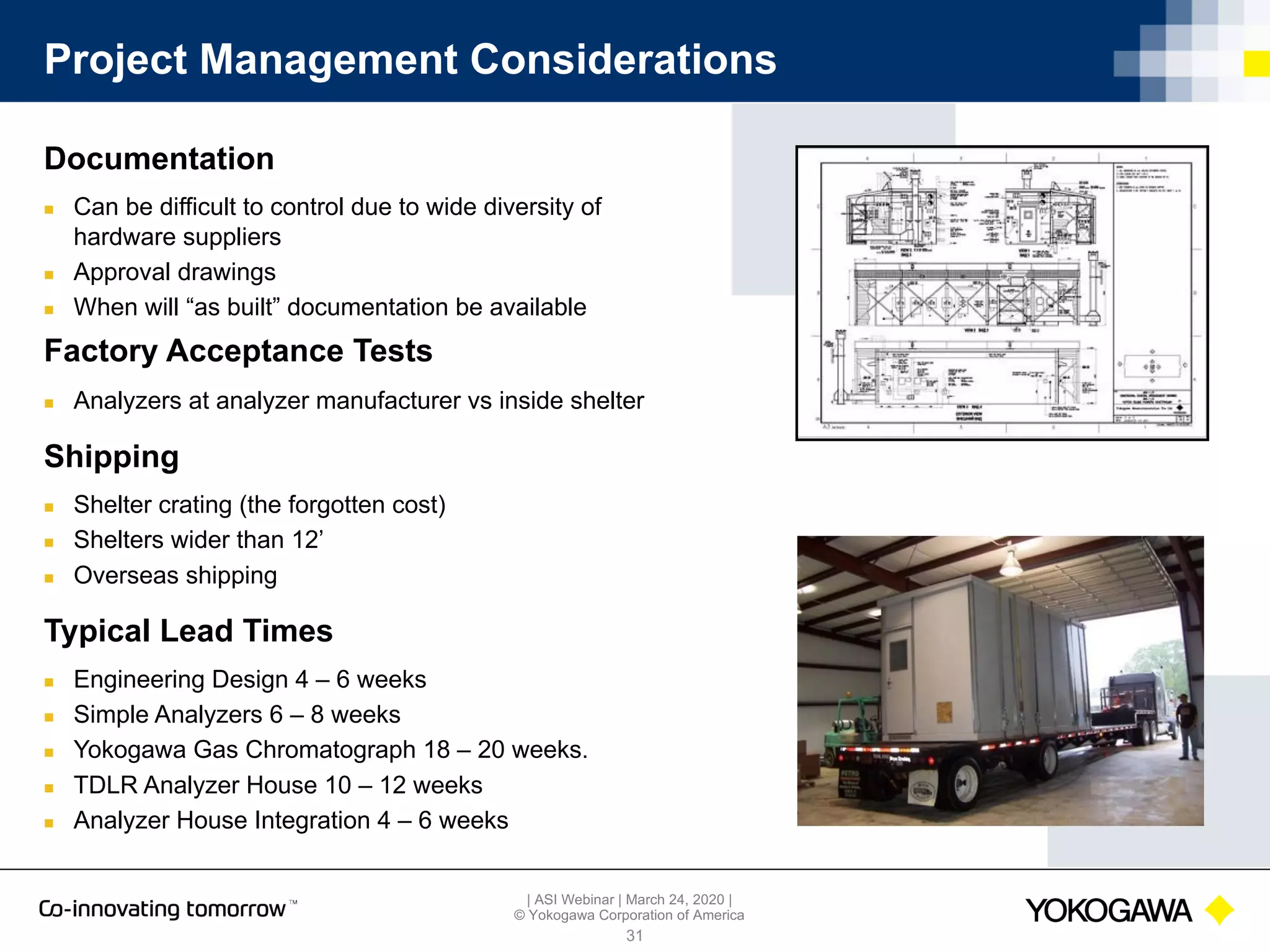

Project Management Considerations
31
Documentation
n Can be difficult to control due to wide diversity of
hardware suppliers
n Approval drawings
n When will “as built” documentation be available
Factory Acceptance Tests
n Analyzers at analyzer manufacturer vs inside shelter
Shipping
n Shelter crating (the forgotten cost)
n Shelters wider than 12’
n Overseas shipping
Typical Lead Times
n Engineering Design 4 – 6 weeks
n Simple Analyzers 6 – 8 weeks
n Yokogawa Gas Chromatograph 18 – 20 weeks.
n TDLR Analyzer House 10 – 12 weeks
n Analyzer House Integration 4 – 6 weeks
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
Shelter Purchase
Documentation
Project Mgmt.
FAT Inspections
Commissioning
Training
Spare Parts
Crating & Shipping

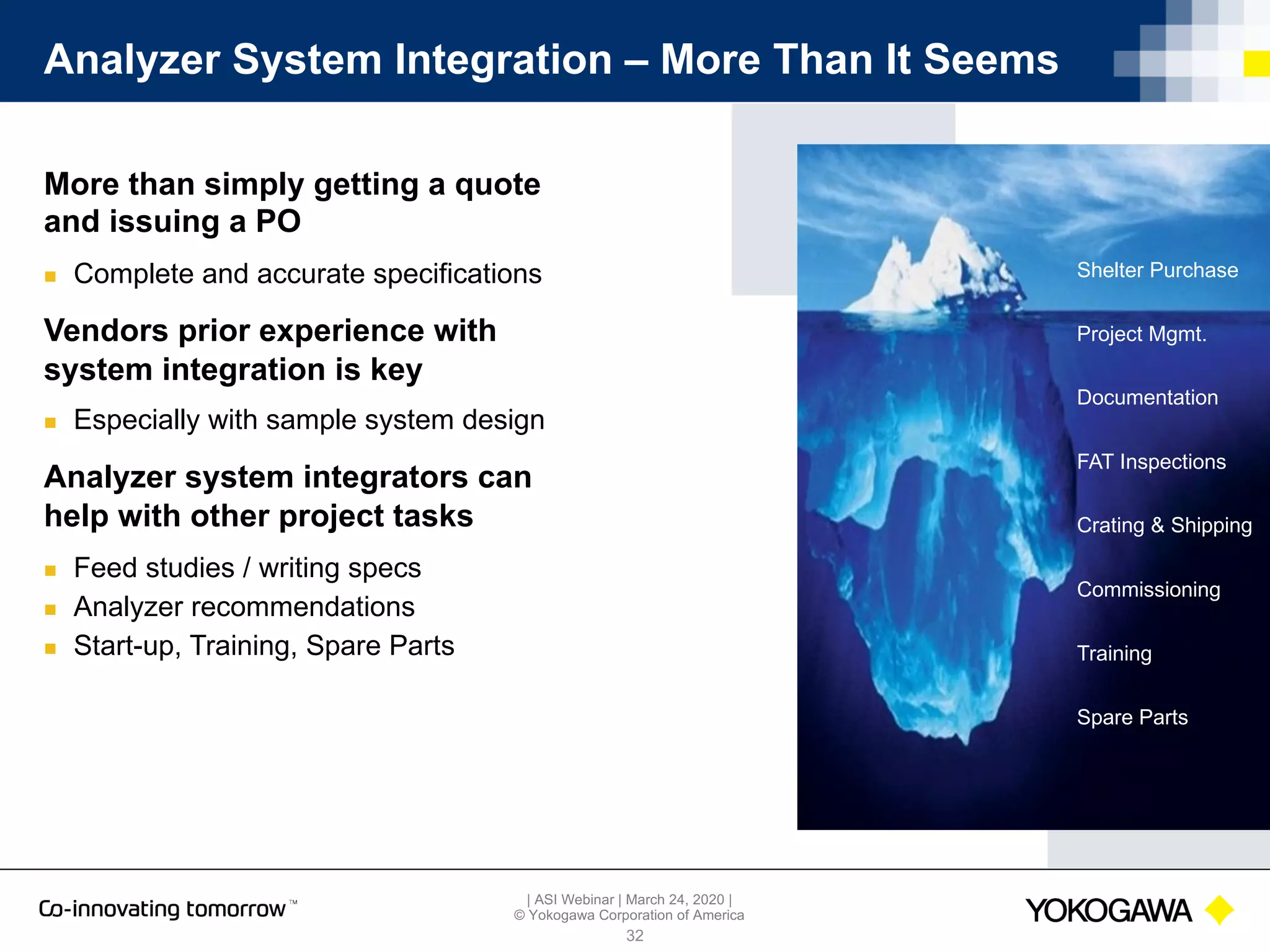

Analyzer System Integration – More Than It Seems
32
More than simply getting a quote
and issuing a PO
n Complete and accurate specifications
Vendors prior experience with
system integration is key
n Especially with sample system design
Analyzer system integrators can
help with other project tasks
n Feed studies / writing specs
n Analyzer recommendations
n Start-up, Training, Spare Parts
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

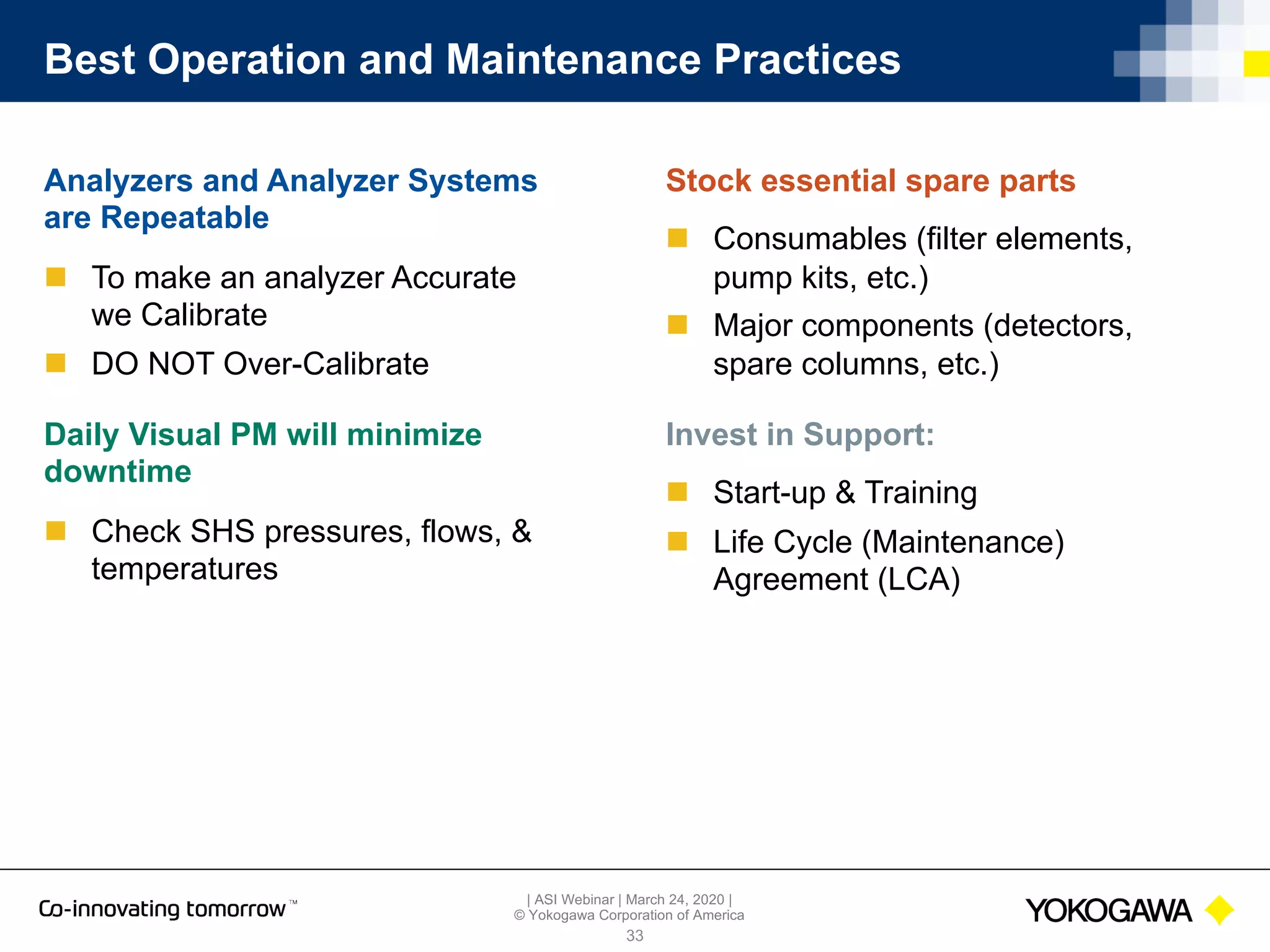

Best Operation and Maintenance Practices
Analyzers and Analyzer Systems
are Repeatable
n To make an analyzer Accurate
we Calibrate
n DO NOT Over-Calibrate
Daily Visual PM will minimize
downtime
n Check SHS pressures, flows, &
temperatures
33
Stock essential spare parts
n Consumables (filter elements,
pump kits, etc.)
n Major components (detectors,
spare columns, etc.)
Invest in Support:
n Start-up & Training
n Life Cycle (Maintenance)
Agreement (LCA)
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America

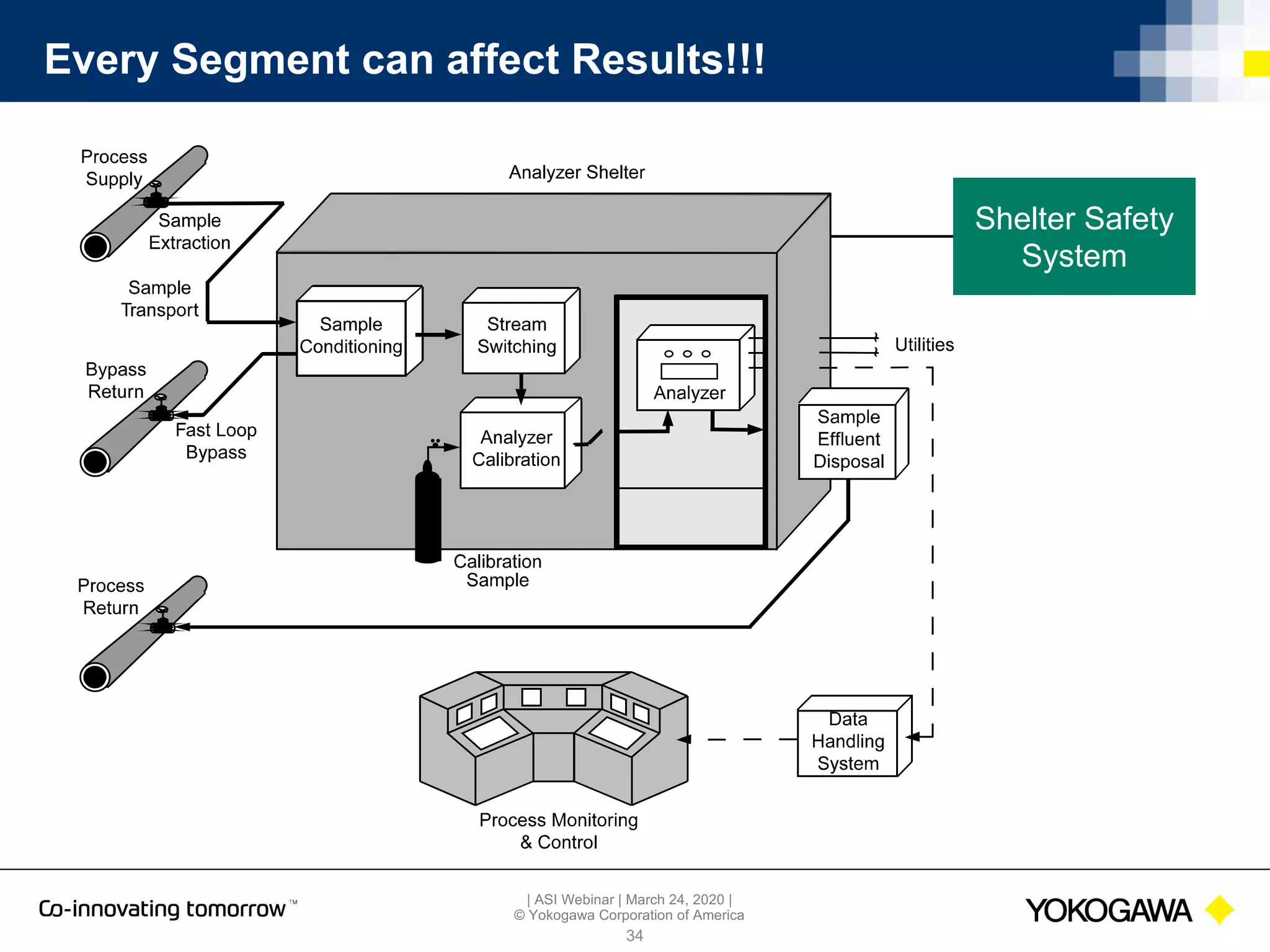

Every Segment can affect Results!!!
34
Shelter Safety
System
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
35
Q&A
Select and send all questions to “Panelist” now so that
we can address these
Questions
If you have any questions for this Webinar topic, please
send them to webinars@us.yokogawa.com
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
Questions?
36
Joe Goh
Analytical Product Manager
281-325-1871
Joe.Goh@yokogawa.com
Scott Eddleman
Analytical Technical Sales
936-520-1854
Scott.Eddleman@yokogawa.com
Nathan Bourque
Analytical Technical Sales
225-402-9550
Nathan.Bourque@yokogawa.com
| ASI Webinar | March 24, 2020 |
© Yokogawa Corporation of America
The names of corporations, organizations, products and logos herein are either registered trademarks or
trademarks of Yokogawa Electric Corporation and their respective holders.
Thank you for attending
37

More Related Content

What's hot

Hazardous Area Classification
Hazardous Area ClassificationHazardous Area Classification
Hazardous Area Classification
Gaurav Singh Rajput

Basic training water based fire protection
Basic training  water based fire protectionBasic training  water based fire protection
Basic training water based fire protection
Sabrul Jamil

Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...
Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...
Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...
Gan Chun Chet

Areas clasificadas iec_nec
Areas clasificadas iec_necAreas clasificadas iec_nec
Areas clasificadas iec_nec
fgarcia_2011

Concept of hazardous area classification.
Concept of hazardous area classification.Concept of hazardous area classification.
Concept of hazardous area classification.
HareshYadav4

Building Electronics (Fire Detection and Alarm System and CCTV)
Building Electronics (Fire Detection and Alarm System and CCTV)Building Electronics (Fire Detection and Alarm System and CCTV)
Building Electronics (Fire Detection and Alarm System and CCTV)
Jed Concepcion

Fire suppression-system
Fire suppression-systemFire suppression-system
Fire suppression-system
FireEngineeringTechn

Hazloc overview
Hazloc overviewHazloc overview
Hazloc overview
John Kingsley

Fire and Gas Detection System : Part 1_The Field Devices and Its Panels
Fire and Gas Detection System : Part 1_The Field Devices and Its PanelsFire and Gas Detection System : Part 1_The Field Devices and Its Panels
Fire and Gas Detection System : Part 1_The Field Devices and Its Panels
Gan Chun Chet

Fire, flame & smoke detectors
Fire, flame & smoke detectorsFire, flame & smoke detectors
Fire, flame & smoke detectors
Akaash Sahoo

Classification of hazardous area for lighting
Classification of hazardous area   for lightingClassification of hazardous area   for lighting
Classification of hazardous area for lightingHarendra Vishwakarma

Electrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by FlukeElectrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by Fluke
Transcat

Intro to basic fire alarm technology
Intro to basic fire alarm technologyIntro to basic fire alarm technology
Intro to basic fire alarm technology
Arman Nasar

Fundamentals of Fire Alarm System
Fundamentals of Fire Alarm SystemFundamentals of Fire Alarm System
Fundamentals of Fire Alarm System
Subhendu Bikash Santra

Hazardous Area Classification.pdf
Hazardous Area Classification.pdfHazardous Area Classification.pdf
Hazardous Area Classification.pdf
SMTauseef1

A te x wall chart
A te x wall chartA te x wall chart
A te x wall chart
Syamsul Nizam

Hazardous Area Classification
Hazardous Area ClassificationHazardous Area Classification
Hazardous Area Classificationguest81e1c7

Carbon dioxide fire suppression
Carbon dioxide fire suppressionCarbon dioxide fire suppression
Carbon dioxide fire suppression
tasander

Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...
Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...
Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...
Thorne & Derrick International


What's hot (20)

Hazardous Area Classification
Hazardous Area ClassificationHazardous Area Classification
Hazardous Area Classification

fire & gas detection system
fire & gas detection systemfire & gas detection system
fire & gas detection system

Basic training water based fire protection
Basic training  water based fire protectionBasic training  water based fire protection
Basic training water based fire protection

Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...
Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...
Fire and Gas Detection System : Part 2_Block Diagram_Philosophy, Signal Types...

Areas clasificadas iec_nec
Areas clasificadas iec_necAreas clasificadas iec_nec
Areas clasificadas iec_nec

Concept of hazardous area classification.
Concept of hazardous area classification.Concept of hazardous area classification.
Concept of hazardous area classification.

Building Electronics (Fire Detection and Alarm System and CCTV)
Building Electronics (Fire Detection and Alarm System and CCTV)Building Electronics (Fire Detection and Alarm System and CCTV)
Building Electronics (Fire Detection and Alarm System and CCTV)

Fire suppression-system
Fire suppression-systemFire suppression-system
Fire suppression-system

Hazloc overview
Hazloc overviewHazloc overview
Hazloc overview

Fire and Gas Detection System : Part 1_The Field Devices and Its Panels
Fire and Gas Detection System : Part 1_The Field Devices and Its PanelsFire and Gas Detection System : Part 1_The Field Devices and Its Panels
Fire and Gas Detection System : Part 1_The Field Devices and Its Panels

Fire, flame & smoke detectors
Fire, flame & smoke detectorsFire, flame & smoke detectors
Fire, flame & smoke detectors

Classification of hazardous area for lighting
Classification of hazardous area   for lightingClassification of hazardous area   for lighting
Classification of hazardous area for lighting

Electrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by FlukeElectrical Measurement Safety and Best Practices Webinar Presented by Fluke
Electrical Measurement Safety and Best Practices Webinar Presented by Fluke

Intro to basic fire alarm technology
Intro to basic fire alarm technologyIntro to basic fire alarm technology
Intro to basic fire alarm technology

Fundamentals of Fire Alarm System
Fundamentals of Fire Alarm SystemFundamentals of Fire Alarm System
Fundamentals of Fire Alarm System

Hazardous Area Classification.pdf
Hazardous Area Classification.pdfHazardous Area Classification.pdf
Hazardous Area Classification.pdf

A te x wall chart
A te x wall chartA te x wall chart
A te x wall chart

Hazardous Area Classification
Hazardous Area ClassificationHazardous Area Classification
Hazardous Area Classification

Carbon dioxide fire suppression
Carbon dioxide fire suppressionCarbon dioxide fire suppression
Carbon dioxide fire suppression

Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...
Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...
Pfisterer Cable Systems - Cable Fittings For High Voltage Networks - HV-CONN...


Similar to Process Analyzer Sampling Systems Simplified

Measuring Up to Chemical Compliance Challenges
Measuring Up to Chemical Compliance ChallengesMeasuring Up to Chemical Compliance Challenges
Measuring Up to Chemical Compliance Challenges
Yokogawa1

The top 3 reasons to consider tdls
The top 3 reasons to consider tdlsThe top 3 reasons to consider tdls
The top 3 reasons to consider tdls
Yokogawa1

Converge 2008 - MPMSAA GreenPlumbers Online
Converge 2008 - MPMSAA GreenPlumbers OnlineConverge 2008 - MPMSAA GreenPlumbers Online
Converge 2008 - MPMSAA GreenPlumbers OnlineMaster Plumbers

PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf
PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdfPPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf
PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf
biswajitnandi96

Efficiency environment and innovation
Efficiency environment and innovationEfficiency environment and innovation
Efficiency environment and innovation
Servizi a rete

Converge Short ECMP Sept 2015
Converge Short ECMP Sept 2015Converge Short ECMP Sept 2015
Converge Short ECMP Sept 2015Jo_Vann

Slope Final Review Meeting - WP3
Slope Final Review Meeting - WP3Slope Final Review Meeting - WP3
Slope Final Review Meeting - WP3
SLOPE Project

CV_Electrical and Instrumentation Engineer
CV_Electrical and Instrumentation EngineerCV_Electrical and Instrumentation Engineer
CV_Electrical and Instrumentation EngineerDeva Narayanan

Oil sensors for wind turbines
Oil sensors for wind turbinesOil sensors for wind turbines
Oil sensors for wind turbines
Edgar Martinez De Aguas

Oil Sensors for Wind Turbines
Oil Sensors for Wind TurbinesOil Sensors for Wind Turbines
Oil Sensors for Wind Turbines
Edgar Martinez De Aguas

201105 ureason introduction
201105 ureason introduction201105 ureason introduction
201105 ureason introduction
UReasonChannel

Introduction to energy audit part 2
Introduction to energy audit part 2Introduction to energy audit part 2
Introduction to energy audit part 2
ZAINI ABDUL WAHAB

Workforce Development Program
Workforce Development ProgramWorkforce Development Program
Workforce Development Program
Prolific Systems And Technologies Pvt. Ltd.

Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...
Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...
Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...
Yokogawa1

Safe Hose Assemble: From Factory to Field
Safe Hose Assemble: From Factory to FieldSafe Hose Assemble: From Factory to Field
Safe Hose Assemble: From Factory to Field
Design World

Gas chromatography practical approach2
Gas chromatography   practical approach2Gas chromatography   practical approach2
Gas chromatography practical approach2
ie-net ingenieursvereniging vzw

steam-turbine-generator-overhaul-and-inspection-epri.pdf
steam-turbine-generator-overhaul-and-inspection-epri.pdfsteam-turbine-generator-overhaul-and-inspection-epri.pdf
steam-turbine-generator-overhaul-and-inspection-epri.pdf
chintanraval24

S lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentationS lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentation
EECO2

WTW catalog process instrumentation in water industry
WTW catalog process instrumentation in water industryWTW catalog process instrumentation in water industry
WTW catalog process instrumentation in water industry
ENVIMART

SUOKAS Kuwait s-2015 slides_FINAL
SUOKAS Kuwait s-2015 slides_FINALSUOKAS Kuwait s-2015 slides_FINAL
SUOKAS Kuwait s-2015 slides_FINALJouko Suokas


Similar to Process Analyzer Sampling Systems Simplified (20)

Measuring Up to Chemical Compliance Challenges
Measuring Up to Chemical Compliance ChallengesMeasuring Up to Chemical Compliance Challenges
Measuring Up to Chemical Compliance Challenges

The top 3 reasons to consider tdls
The top 3 reasons to consider tdlsThe top 3 reasons to consider tdls
The top 3 reasons to consider tdls

Converge 2008 - MPMSAA GreenPlumbers Online
Converge 2008 - MPMSAA GreenPlumbers OnlineConverge 2008 - MPMSAA GreenPlumbers Online
Converge 2008 - MPMSAA GreenPlumbers Online

PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf
PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdfPPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf
PPT _ 2022 Norway Customer Event_Introduction to CEMS .pdf

Efficiency environment and innovation
Efficiency environment and innovationEfficiency environment and innovation
Efficiency environment and innovation

Converge Short ECMP Sept 2015
Converge Short ECMP Sept 2015Converge Short ECMP Sept 2015
Converge Short ECMP Sept 2015

Slope Final Review Meeting - WP3
Slope Final Review Meeting - WP3Slope Final Review Meeting - WP3
Slope Final Review Meeting - WP3

CV_Electrical and Instrumentation Engineer
CV_Electrical and Instrumentation EngineerCV_Electrical and Instrumentation Engineer
CV_Electrical and Instrumentation Engineer

Oil sensors for wind turbines
Oil sensors for wind turbinesOil sensors for wind turbines
Oil sensors for wind turbines

Oil Sensors for Wind Turbines
Oil Sensors for Wind TurbinesOil Sensors for Wind Turbines
Oil Sensors for Wind Turbines

201105 ureason introduction
201105 ureason introduction201105 ureason introduction
201105 ureason introduction

Introduction to energy audit part 2
Introduction to energy audit part 2Introduction to energy audit part 2
Introduction to energy audit part 2

Workforce Development Program
Workforce Development ProgramWorkforce Development Program
Workforce Development Program

Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...
Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...
Vibrating Element Technology for Gas Density, Specific Gravity, and Hydrogen ...

Safe Hose Assemble: From Factory to Field
Safe Hose Assemble: From Factory to FieldSafe Hose Assemble: From Factory to Field
Safe Hose Assemble: From Factory to Field

Gas chromatography practical approach2
Gas chromatography   practical approach2Gas chromatography   practical approach2
Gas chromatography practical approach2

steam-turbine-generator-overhaul-and-inspection-epri.pdf
steam-turbine-generator-overhaul-and-inspection-epri.pdfsteam-turbine-generator-overhaul-and-inspection-epri.pdf
steam-turbine-generator-overhaul-and-inspection-epri.pdf

S lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentationS lab 2014 eeco2 tel - presentation
S lab 2014 eeco2 tel - presentation

WTW catalog process instrumentation in water industry
WTW catalog process instrumentation in water industryWTW catalog process instrumentation in water industry
WTW catalog process instrumentation in water industry

SUOKAS Kuwait s-2015 slides_FINAL
SUOKAS Kuwait s-2015 slides_FINALSUOKAS Kuwait s-2015 slides_FINAL
SUOKAS Kuwait s-2015 slides_FINAL


More from Yokogawa1

Data, Data, Everywhere...GA10 Brings It All Together
Data, Data, Everywhere...GA10 Brings It All TogetherData, Data, Everywhere...GA10 Brings It All Together
Data, Data, Everywhere...GA10 Brings It All Together
Yokogawa1

202102 attaining proficiency in industrial pressure measurement r7
202102 attaining proficiency in industrial pressure measurement r7202102 attaining proficiency in industrial pressure measurement r7
202102 attaining proficiency in industrial pressure measurement r7
Yokogawa1

An Economic X-ray of Digital Transformation
An Economic X-ray of Digital TransformationAn Economic X-ray of Digital Transformation
An Economic X-ray of Digital Transformation
Yokogawa1

Using A Unique, Next Generation APC Solution To Address Common Problems In Th...
Using A Unique, Next Generation APC Solution To Address Common Problems In Th...Using A Unique, Next Generation APC Solution To Address Common Problems In Th...
Using A Unique, Next Generation APC Solution To Address Common Problems In Th...
Yokogawa1

Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...
Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...
Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...
Yokogawa1

The Value-driven Approach to Digitalizing Assets and their Supply Chains
The Value-driven Approach to Digitalizing Assets and their Supply ChainsThe Value-driven Approach to Digitalizing Assets and their Supply Chains
The Value-driven Approach to Digitalizing Assets and their Supply Chains
Yokogawa1

The Role And Evolution Of Advanced Analytics In The Process Industries
The Role And Evolution Of Advanced Analytics In The Process IndustriesThe Role And Evolution Of Advanced Analytics In The Process Industries
The Role And Evolution Of Advanced Analytics In The Process Industries
Yokogawa1

The Digital Twin For Production Optimization
The Digital Twin For Production OptimizationThe Digital Twin For Production Optimization
The Digital Twin For Production Optimization
Yokogawa1

Multi-Site Optimization To Drive Value Creation In Chevron
Multi-Site Optimization To Drive Value Creation In ChevronMulti-Site Optimization To Drive Value Creation In Chevron
Multi-Site Optimization To Drive Value Creation In Chevron
Yokogawa1

Keeping PACE with Advanced Process Control
Keeping PACE with Advanced Process ControlKeeping PACE with Advanced Process Control
Keeping PACE with Advanced Process Control
Yokogawa1

Yokogawa’s DX and Smart Manufacturing Vision for Building our Future
Yokogawa’s DX and Smart Manufacturing Vision for Building our FutureYokogawa’s DX and Smart Manufacturing Vision for Building our Future
Yokogawa’s DX and Smart Manufacturing Vision for Building our Future
Yokogawa1

Business Model Disruption - The Step-wise Transition to Remote Operations
Business Model Disruption - The Step-wise Transition to Remote OperationsBusiness Model Disruption - The Step-wise Transition to Remote Operations
Business Model Disruption - The Step-wise Transition to Remote Operations
Yokogawa1

A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...
A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...
A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...
Yokogawa1

Shift team effectiveness: Don't bother if you can't change "shop floor" shift...
Shift team effectiveness: Don't bother if you can't change "shop floor" shift...Shift team effectiveness: Don't bother if you can't change "shop floor" shift...
Shift team effectiveness: Don't bother if you can't change "shop floor" shift...
Yokogawa1

Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...
Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...
Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...
Yokogawa1

Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...
Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...
Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...
Yokogawa1

Transforming Decision Making in Scheduling of Terminal Operations
Transforming Decision Making in Scheduling of Terminal OperationsTransforming Decision Making in Scheduling of Terminal Operations
Transforming Decision Making in Scheduling of Terminal Operations
Yokogawa1

Contributing to the Development and Application of Cybersecurity Standards
Contributing to the Development and Application of Cybersecurity StandardsContributing to the Development and Application of Cybersecurity Standards
Contributing to the Development and Application of Cybersecurity Standards
Yokogawa1

Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...
Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...
Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...
Yokogawa1

Achieving the Autonomous Terminal
Achieving the Autonomous TerminalAchieving the Autonomous Terminal
Achieving the Autonomous Terminal
Yokogawa1


More from Yokogawa1 (20)

Data, Data, Everywhere...GA10 Brings It All Together
Data, Data, Everywhere...GA10 Brings It All TogetherData, Data, Everywhere...GA10 Brings It All Together
Data, Data, Everywhere...GA10 Brings It All Together

202102 attaining proficiency in industrial pressure measurement r7
202102 attaining proficiency in industrial pressure measurement r7202102 attaining proficiency in industrial pressure measurement r7
202102 attaining proficiency in industrial pressure measurement r7

An Economic X-ray of Digital Transformation
An Economic X-ray of Digital TransformationAn Economic X-ray of Digital Transformation
An Economic X-ray of Digital Transformation

Using A Unique, Next Generation APC Solution To Address Common Problems In Th...
Using A Unique, Next Generation APC Solution To Address Common Problems In Th...Using A Unique, Next Generation APC Solution To Address Common Problems In Th...
Using A Unique, Next Generation APC Solution To Address Common Problems In Th...

Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...
Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...
Open Process Automation: Status of the O-PAS™ Standard, Conformance Certifica...

The Value-driven Approach to Digitalizing Assets and their Supply Chains
The Value-driven Approach to Digitalizing Assets and their Supply ChainsThe Value-driven Approach to Digitalizing Assets and their Supply Chains
The Value-driven Approach to Digitalizing Assets and their Supply Chains

The Role And Evolution Of Advanced Analytics In The Process Industries
The Role And Evolution Of Advanced Analytics In The Process IndustriesThe Role And Evolution Of Advanced Analytics In The Process Industries
The Role And Evolution Of Advanced Analytics In The Process Industries

The Digital Twin For Production Optimization
The Digital Twin For Production OptimizationThe Digital Twin For Production Optimization
The Digital Twin For Production Optimization

Multi-Site Optimization To Drive Value Creation In Chevron
Multi-Site Optimization To Drive Value Creation In ChevronMulti-Site Optimization To Drive Value Creation In Chevron
Multi-Site Optimization To Drive Value Creation In Chevron

Keeping PACE with Advanced Process Control
Keeping PACE with Advanced Process ControlKeeping PACE with Advanced Process Control
Keeping PACE with Advanced Process Control

Yokogawa’s DX and Smart Manufacturing Vision for Building our Future
Yokogawa’s DX and Smart Manufacturing Vision for Building our FutureYokogawa’s DX and Smart Manufacturing Vision for Building our Future
Yokogawa’s DX and Smart Manufacturing Vision for Building our Future

Business Model Disruption - The Step-wise Transition to Remote Operations
Business Model Disruption - The Step-wise Transition to Remote OperationsBusiness Model Disruption - The Step-wise Transition to Remote Operations
Business Model Disruption - The Step-wise Transition to Remote Operations

A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...
A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...
A New Digital Maintenance Platform in a Large Petrochemical Facility to Ident...

Shift team effectiveness: Don't bother if you can't change "shop floor" shift...
Shift team effectiveness: Don't bother if you can't change "shop floor" shift...Shift team effectiveness: Don't bother if you can't change "shop floor" shift...
Shift team effectiveness: Don't bother if you can't change "shop floor" shift...

Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...
Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...
Adversity Drives Innovation and Enterprise Resilience to Best Leverage a Hist...

Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...
Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...
Improved Upstream Production Efficiency with Remote Optimization Centers, Fie...

Transforming Decision Making in Scheduling of Terminal Operations
Transforming Decision Making in Scheduling of Terminal OperationsTransforming Decision Making in Scheduling of Terminal Operations
Transforming Decision Making in Scheduling of Terminal Operations

Contributing to the Development and Application of Cybersecurity Standards
Contributing to the Development and Application of Cybersecurity StandardsContributing to the Development and Application of Cybersecurity Standards
Contributing to the Development and Application of Cybersecurity Standards

Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...
Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...
Asia NOC Bridges Business-wide Performance Objectives and KPIs through an Adv...

Achieving the Autonomous Terminal
Achieving the Autonomous TerminalAchieving the Autonomous Terminal
Achieving the Autonomous Terminal


Recently uploaded

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
R&R Consult

一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理
zwunae

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Teleport Manpower Consultant

Student information management system project report ii.pdf
Student information management system project report ii.pdfStudent information management system project report ii.pdf
Student information management system project report ii.pdf
Kamal Acharya

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
WENKENLI1

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf
Kamal Acharya

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.
ankuprajapati0525

AP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specificAP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specific
BrazilAccount1

MCQ Soil mechanics questions (Soil shear strength).pdf
MCQ Soil mechanics questions (Soil shear strength).pdfMCQ Soil mechanics questions (Soil shear strength).pdf
MCQ Soil mechanics questions (Soil shear strength).pdf
Osamah Alsalih

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
obonagu

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf
Pipe Restoration Solutions

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Dr.Costas Sachpazis

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation & Control

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
AJAYKUMARPUND1

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx
SupreethSP4

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf
Pratik Pawar

Final project report on grocery store management system..pdf
Final project report on grocery store management system..pdfFinal project report on grocery store management system..pdf
Final project report on grocery store management system..pdf
Kamal Acharya

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
SamSarthak3

DESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docxDESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docx
FluxPrime1


Recently uploaded (20)

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptxCFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx
CFD Simulation of By-pass Flow in a HRSG module by R&R Consult.pptx

一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单专业办理

Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdfTop 10 Oil and Gas Projects in Saudi Arabia 2024.pdf
Top 10 Oil and Gas Projects in Saudi Arabia 2024.pdf

Student information management system project report ii.pdf
Student information management system project report ii.pdfStudent information management system project report ii.pdf
Student information management system project report ii.pdf

Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdfGoverning Equations for Fundamental Aerodynamics_Anderson2010.pdf
Governing Equations for Fundamental Aerodynamics_Anderson2010.pdf

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.

AP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specificAP LAB PPT.pdf ap lab ppt no title specific
AP LAB PPT.pdf ap lab ppt no title specific

MCQ Soil mechanics questions (Soil shear strength).pdf
MCQ Soil mechanics questions (Soil shear strength).pdfMCQ Soil mechanics questions (Soil shear strength).pdf
MCQ Soil mechanics questions (Soil shear strength).pdf

在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样
在线办理(ANU毕业证书)澳洲国立大学毕业证录取通知书一模一样

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf

Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf

Final project report on grocery store management system..pdf
Final project report on grocery store management system..pdfFinal project report on grocery store management system..pdf
Final project report on grocery store management system..pdf

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf

DESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docxDESIGN A COTTON SEED SEPARATION MACHINE.docx
DESIGN A COTTON SEED SEPARATION MACHINE.docx


Process Analyzer Sampling Systems Simplified

  • 1. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Live Webinar Process Analyzer Sampling Systems Simplified Joe Goh Product Manager Analyzers & Analytical Systems Integration Yokogawa Corporation of America March 24, 2020 — 11am EST
  • 2. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Presenter 1 Joe Goh Analytical Product Manager 281-325-1871 Joe.Goh@yokogawa.com
  • 3. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America You will learn: 2 1. Key sampling system components and functions 2. Examples of system designs, various types of components and when they are used 3. Best operation and maintenance practices for optimizing sampling system performance
  • 4. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Why do Plants need Process Analyzer Systems? 3 n Maintain Quality of Products n Maximize Yield Regulatory Requirement Safety n EPA regulates Excess Emission and CEMS Monitoring Availability n Monitor for toxic and flammable chemicals n Protect Plant personnel, public, and equipment. Process Optimization
  • 5. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Traditional Plant Lab Analysis n Results take 4-6 hours n Sampling Discrepancy n Different Analytical Technology n Costs add up u Cost of Lab Personnel/Equipment u Delay of Process Results 4
  • 6. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Traditional Plant Lab Analysis n Results take 4-6 hours n Sampling Discrepancy n Different Analytical Technology n Costs add up u Cost of Lab Personnel/Equipment u Delay of Process Results 5
  • 7. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Continuous Process Analysis n In-Line, At-Line or In-Situ 6 n Extractive Analysis
  • 8. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 7
  • 9. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 8
  • 10. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 9
  • 11. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 10
  • 12. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 11
  • 13. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Major Analyzer System Components 12
  • 14. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Key Sampling System Components 13 Shelter Safety System
  • 15. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Types Of Analyzer Mounting u Popular for equipment suitable for outside mounting; e.g. Gas Density, pH/Conductivity meters 14 u Suitable for small single analyzers up to CEMS type packages u Minimal environmental / hazardous area control Panel Mounted BoxCabinet
  • 16. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Types Of Analyzer Enclosures u Popular for larger analyzers in temperate climates u Open ventilation helps reduce stringent hazardous area classifications of mounted equipment 15 u Best protection of analyzer hardware u Best working environment u Most expensive solution 3-Sided Shelter Walk-in Enclosed Shelter
  • 17. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Examples Of Shelter Construction 16 Fiberglass Analyzer House Painted steel, SS, or Aluminum Concrete Building
  • 18. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Shelter Design Considerations n Wiring / cable management u Conduit (popular in Western Hemisphere) u Armored Cable (popular in Europe) n Sample Systems on exterior u Except in cold climates n Split shelter u Sample system section in cold climates n Rainshields u Covering sample systems and bottle racks n Heated boxes for cal bottles u Especially in cold climates n Doors on each end for larger shelters n Flooring u No floors for mounting on cement pad u Steel plate flooring for elevated installations u Insulated flooring for extreme cold climates 17
  • 19. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Hazardous Area Classification n Determined by the end-user u Based on their corporate safety guidelines u Class, Division (Zone), Groups, T-Rating n Compliance Standards u NEC/NFPA (U.S.) u CSA (Canada) u ATEX (Europe) u IECEx (Emerging Global Standard) n Local Certification u Paid certification by local agency representative u Used for non-certified equipment 18
  • 20. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Impact Of Rating On Analyzer Packaging n Shelter hardware u Electrical systems Ø Breaker and junction boxes Ø Lighting fixtures Ø Power receptacles u Air conditioning systems u Pumps / Motors n Analyzers u Not all analyzers are rated for hazardous areas n Purging of enclosure or entire shelter u Reduces cost of internal components u Makes maintenance easier (no hot work permits) u Compliance to NFPA496; Z-Purge, Y-Purge, X-Purge n Relocation of shelter inside plant may help reduce impact of rating 19
  • 21. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Shelter Safety Systems n Safety systems monitor the conditions inside the shelter u LEL Combustible analyzers Ø Especially when using purged shelter u Toxic gas sensors (H2S, Cl2) u Oxygen deficiency analyzers Ø Common when plant nitrogen used by analyzers n Consider mounting locations and quantity for complete safety n Outside warning lights and horns u Contact signal to DCS also common 20
  • 22. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America HVAC Systems n One of the most expensive elements of a shelter system n Proper sizing requires calculation of the heat loading u Summation of the wattage of equipment inside u Avoid maximum wattage vs normal operation wattage n Some analyzers (like GCs) make it easy to capture hot air and vent outside n A/C system may also provide the shelter ventilation and purging 21 Typical Ambient Analyzer Rating: 14 °F to 122 °F
  • 23. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Shelter Utilities Power n Wattage and phase of power n Breaker Boxes and Junction Boxes u Sizing and location n Separate conduit for power and data signals n UPS systems n Shut off switches for each major device u Maintenance convenience u Safety 22 Instrument Air n For analyzer operation like GCs n For purging of analyzer electronics n Confirm pressure requirements; especially if vortex coolers are involved Plant Nitrogen n May require oxygen deficiency monitors Steam / Water Future expansion requirements
  • 24. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Header and Manifold Systems n Simplifies plumbing throughout the shelter n Shared gas / utilities u Air / Steam u GC carrier gas n Waste recovery headers u GC vent gases (need to be atmospheric pressure) u Check valves if tying into the process (such as flare) n Liquid recovery systems u Storage tank u Return pumps 23
  • 25. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Analyzer Consumables 24 n Consideration for space and plumbing of analyzer consumables u Some consumables need heating and / or pressurization n GC’s and CEM systems in particular have lots of consumables u Carrier gas cylinders u Calibration / validation gas cylinders u Pure air or blanket gases
  • 26. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Data / Signal Wiring 25 Data signal junction boxes Separated from power conduits (analog signals especially) n Concern about power noise being picked up by the analog lines Ethernet connection considerations n Many analyzers now utilize Ethernet n RJ-45 copper wiring vs fiber inside shelter
  • 27. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Sample Conditioning Systems Typically mounted outside n Keeps bulk of process sample out of shelter in case of a leak n Opposite side of wall from analyzer n Mounted chest level for easier maintenance 26 Cold climates may move SCS inside n Perhaps split the shelter into two zones Heat tracing of process lines Don’t forget about … Sample system signal wiring between analyzer and SCS
  • 28. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Proper Sample System Design is Critical Key component of any extractive analyzer n Makes the sample compatible with the analyzer n Also handles calibration and validation role The best analyzer in the world will give the wrong answer if the sample is not correct n Many users say 60 – 80% of the problems with process analyzers is due to the sample system 27 Most installations require an engineering review of the process conditions for proper conditioning n Every installation is different n Engineering experience is key
  • 29. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Elements That Make Up A Complete Design 28 CAT GASOLINE 1 1 2 3 4 5 6 7 8 Sample Take-off Point / Sample Probe Sample Preconditioning System Transport Lines Sample Conditioning System Sample Return Calibration / Validation Atmospheric Vent Safe Vent / Flare 2 4 3 3 7 8 6 8 3 5 D T / Lag Time Calculation D p
  • 30. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Examples Of Sample Systems 29
  • 31. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Continuous Emissions Monitoring Systems (CEMS) 30 Typical requirements n NOx, SO2, CO, THC, HCl, O2, etc. n Sample conditioning systems design is critical n Tend to be General Purpose installations Data Collection per regulatory “Permission to Operate” Permit n Hourly and daily averages n Downtime and Excess Emissions n Dedicated Data Acquisition system Certification RATA and CGA tests n Part of commissioning n Done by independent auditor n Quarterly and yearly checks to confirm analyzer performance
  • 32. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Project Management Considerations 31 Documentation n Can be difficult to control due to wide diversity of hardware suppliers n Approval drawings n When will “as built” documentation be available Factory Acceptance Tests n Analyzers at analyzer manufacturer vs inside shelter Shipping n Shelter crating (the forgotten cost) n Shelters wider than 12’ n Overseas shipping Typical Lead Times n Engineering Design 4 – 6 weeks n Simple Analyzers 6 – 8 weeks n Yokogawa Gas Chromatograph 18 – 20 weeks. n TDLR Analyzer House 10 – 12 weeks n Analyzer House Integration 4 – 6 weeks
  • 33. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Shelter Purchase Documentation Project Mgmt. FAT Inspections Commissioning Training Spare Parts Crating & Shipping Analyzer System Integration – More Than It Seems 32 More than simply getting a quote and issuing a PO n Complete and accurate specifications Vendors prior experience with system integration is key n Especially with sample system design Analyzer system integrators can help with other project tasks n Feed studies / writing specs n Analyzer recommendations n Start-up, Training, Spare Parts
  • 34. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Best Operation and Maintenance Practices Analyzers and Analyzer Systems are Repeatable n To make an analyzer Accurate we Calibrate n DO NOT Over-Calibrate Daily Visual PM will minimize downtime n Check SHS pressures, flows, & temperatures 33 Stock essential spare parts n Consumables (filter elements, pump kits, etc.) n Major components (detectors, spare columns, etc.) Invest in Support: n Start-up & Training n Life Cycle (Maintenance) Agreement (LCA)
  • 35. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Every Segment can affect Results!!! 34 Shelter Safety System
  • 36. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America 35 Q&A Select and send all questions to “Panelist” now so that we can address these Questions If you have any questions for this Webinar topic, please send them to webinars@us.yokogawa.com
  • 37. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America Questions? 36 Joe Goh Analytical Product Manager 281-325-1871 Joe.Goh@yokogawa.com Scott Eddleman Analytical Technical Sales 936-520-1854 Scott.Eddleman@yokogawa.com Nathan Bourque Analytical Technical Sales 225-402-9550 Nathan.Bourque@yokogawa.com
  • 38. | ASI Webinar | March 24, 2020 | © Yokogawa Corporation of America The names of corporations, organizations, products and logos herein are either registered trademarks or trademarks of Yokogawa Electric Corporation and their respective holders. Thank you for attending 37
