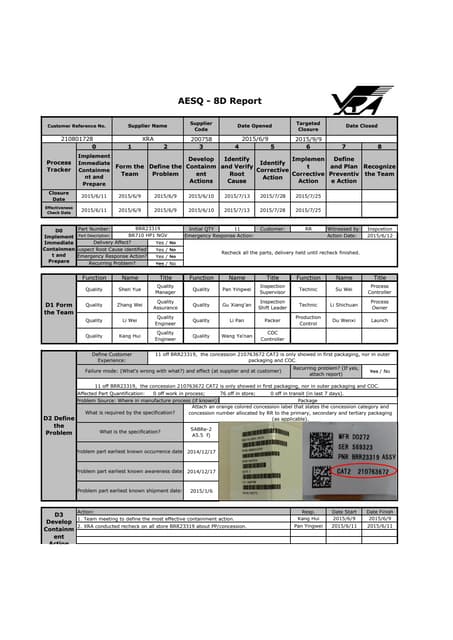

This document summarizes an 8D report from a supplier to address a problem where concession labels were missing from packaging. It involved the following key steps:
1. An immediate containment action of rechecking all stored parts to identify the scope of the problem and holding further deliveries.
2. Forming a team to define the problem of missing concession labels and develop a containment action of rechecking all stored parts.
3. Identifying the root causes as misunderstanding of packaging standards, lack of inspector oversight, and packer not taking packaging seriously.
4. Implementing corrective actions such as establishing a process to track concessions, training on packaging standards, and assigning oversight of information updates.
This document provides an overview of root cause analysis (RCA). RCA is a process used to investigate events that impact safety, quality, reliability and production. It involves collecting data, identifying causal factors, determining root causes, and generating recommendations. Root causes are underlying issues that management can control and for which effective recommendations can be made to prevent recurrence. The document outlines the four major steps of RCA and provides examples of using RCA to improve software processes, support agile development, and address issues with third party integrations.
Corrective and Preventive Action (CAPA) systems are important tools for addressing issues and preventing recurrences. However, CAPAs require careful planning and execution to be effective. Common pitfalls include opening CAPAs without stakeholder buy-in, failing to thoroughly investigate root causes, and establishing unrealistic timelines. Keys to success are gaining management support, using root cause analysis tools, defining specific action items, conducting effectiveness checks, and maintaining thorough documentation. The FDA scrutinizes CAPA systems and may issue observations for deficiencies.
Test beyond the obvious- Root Cause AnalysisPractiTest
Kevin Wilkes - Senior Test Consultant at QualiTest and Richard Morgan - UK Delivery Manager at QualiTest, Co-present "Test beyond the obvious- Root Cause Analysis" at OnlineTestConf.com
Operating Excellence is built on Corrective & Preventive ActionsAtanu Dhar
This document provides an overview of Corrective Action Preventive Action (CAPA) and how to implement an effective CAPA process. It defines CAPA and explains the difference between corrective and preventative actions. It outlines the benefits of a mature CAPA system, including increased quality, reduced costs from problems, and improved customer satisfaction. The document then discusses various tools that can be used in the CAPA process, including root cause analysis techniques like 5 Whys, fishbone diagrams, and Pareto charts to identify causes and prioritize actions. Examples are provided for how to apply these tools to analyze specific business processes.
# 3 PPT - Expose Your Hidden Problems Using Visual ManagementRhonda Kovera
The document discusses using visual management and standard work to drive continuous improvement. It provides examples of how establishing a standard, monitoring for variances from the standard, and problem-solving the variances can create workflow. Specific visual management tools are presented, such as fishbone diagrams, andon lights, accountability boards, and standard work documents, that can be used to establish standards, identify problems, and drive improvements. The overall message is that visual management and standard work are important Lean techniques for exposing problems and waste, and driving continuous process improvement.
Six Sigma is a data-driven approach and methodology for process improvement originally developed by Motorola. It aims to reduce defects and variation in manufacturing and business processes. The document discusses the history and key aspects of Six Sigma such as the DMAIC approach, tools used in each phase like process mapping, root cause analysis, and improvement techniques like 5S, poka-yoke, and FMEA. Implementing Six Sigma through the DMAIC approach can help organizations optimize processes and improve quality, productivity, and customer satisfaction.
From Teacher to OnlyFans: Brianna Coppage's Story at 28get joys
At 28, Brianna Coppage left her teaching career to become an OnlyFans content creator. This bold move into digital entrepreneurship allowed her to harness her creativity and build a new identity. Brianna's experience highlights the intersection of technology and personal branding in today's economy.
The Future of Independent Filmmaking Trends and Job OpportunitiesLetsFAME
The landscape of independent filmmaking is evolving at an unprecedented pace. Technological advancements, changing consumer preferences, and new distribution models are reshaping the industry, creating new opportunities and challenges for filmmakers and film industry jobs. This article explores the future of independent filmmaking, highlighting key trends and emerging job opportunities.
Orpah Winfrey Dwayne Johnson: Titans of Influence and Inspirationgreendigital
Introduction
In the realm of entertainment, few names resonate as Orpah Winfrey Dwayne Johnson. Both figures have carved unique paths in the industry. achieving unparalleled success and becoming iconic symbols of perseverance, resilience, and inspiration. This article delves into the lives, careers. and enduring legacies of Orpah Winfrey Dwayne Johnson. exploring how their journeys intersect and what we can learn from their remarkable stories.
Follow us on: Pinterest
Early Life and Backgrounds
Orpah Winfrey: From Humble Beginnings to Media Mogul
Orpah Winfrey, often known as Oprah due to a misspelling on her birth certificate. was born on January 29, 1954, in Kosciusko, Mississippi. Raised in poverty by her grandmother, Winfrey's early life was marked by hardship and adversity. Despite these challenges. she demonstrated a keen intellect and an early talent for public speaking.
Winfrey's journey to success began with a scholarship to Tennessee State University. where she studied communication. Her first job in media was as a co-anchor for the local evening news in Nashville. This role paved the way for her eventual transition to talk show hosting. where she found her true calling.
Dwayne Johnson: From Wrestling Royalty to Hollywood Superstar
Dwayne Johnson, also known by his ring name "The Rock," was born on May 2, 1972, in Hayward, California. He comes from a family of professional wrestlers, with both his father, Rocky Johnson. and his grandfather, Peter Maivia, being notable figures in the wrestling world. Johnson's early life was spent moving between New Zealand and the United States. experiencing a variety of cultural influences.
Before entering the world of professional wrestling. Johnson had aspirations of becoming a professional football player. He played college football at the University of Miami. where he was part of a national championship team. But, injuries curtailed his football career, leading him to follow in his family's footsteps and enter the wrestling ring.
Career Milestones
Orpah Winfrey: The Queen of All Media
Winfrey's career breakthrough came in 1986 when she launched "The Oprah Winfrey Show." The show became a cultural phenomenon. drawing millions of viewers daily and earning many awards. Winfrey's empathetic and candid interviewing style resonated with audiences. helping her tackle diverse and often challenging topics.
Beyond her talk show, Winfrey expanded her empire to include the creation of Harpo Productions. a multimedia production company. She also launched "O, The Oprah Magazine" and OWN: Oprah Winfrey Network, further solidifying her status as a media mogul.
Dwayne Johnson: From The Ring to The Big Screen
Dwayne Johnson's wrestling career took off in the late 1990s. when he became one of the most charismatic and popular figures in WWE. His larger-than-life persona and catchphrases endeared him to fans. making him a household name. But, Johnson had ambitions beyond the wrestling ring.
In the early 20
The Unbelievable Tale of Dwayne Johnson Kidnapping: A Riveting Sagagreendigital
Introduction
The notion of Dwayne Johnson kidnapping seems straight out of a Hollywood thriller. Dwayne "The Rock" Johnson, known for his larger-than-life persona, immense popularity. and action-packed filmography, is the last person anyone would envision being a victim of kidnapping. Yet, the bizarre and riveting tale of such an incident, filled with twists and turns. has captured the imagination of many. In this article, we delve into the intricate details of this astonishing event. exploring every aspect, from the dramatic rescue operation to the aftermath and the lessons learned.
Follow us on: Pinterest
The Origins of the Dwayne Johnson Kidnapping Saga
Dwayne Johnson: A Brief Background
Before discussing the specifics of the kidnapping. it is crucial to understand who Dwayne Johnson is and why his kidnapping would be so significant. Born May 2, 1972, Dwayne Douglas Johnson is an American actor, producer, businessman. and former professional wrestler. Known by his ring name, "The Rock," he gained fame in the World Wrestling Federation (WWF, now WWE) before transitioning to a successful career in Hollywood.
Johnson's filmography includes blockbuster hits such as "The Fast and the Furious" series, "Jumanji," "Moana," and "San Andreas." His charismatic personality, impressive physique. and action-star status have made him a beloved figure worldwide. Thus, the news of his kidnapping would send shockwaves across the globe.
Setting the Scene: The Day of the Kidnapping
The incident of Dwayne Johnson's kidnapping began on an ordinary day. Johnson was filming his latest high-octane action film set to break box office records. The location was a remote yet scenic area. chosen for its rugged terrain and breathtaking vistas. perfect for the film's climactic scenes.
But, beneath the veneer of normalcy, a sinister plot was unfolding. Unbeknownst to Johnson and his team, a group of criminals had planned his abduction. hoping to leverage his celebrity status for a hefty ransom. The stage was set for an event that would soon dominate worldwide headlines and social media feeds.
The Abduction: Unfolding the Dwayne Johnson Kidnapping
The Moment of Capture
On the day of the kidnapping, everything seemed to be proceeding as usual on set. Johnson and his co-stars and crew were engrossed in shooting a particularly demanding scene. As the day wore on, the production team took a short break. providing the kidnappers with the perfect opportunity to strike.
The abduction was executed with military precision. A group of masked men, armed and organized, infiltrated the set. They created chaos, taking advantage of the confusion to isolate Johnson. Johnson was outnumbered and caught off guard despite his formidable strength and fighting skills. The kidnappers overpowered him, bundled him into a waiting vehicle. and sped away, leaving everyone on set in a state of shock and disbelief.
The Immediate Aftermath
The immediate aftermath of the Dwayne Johnson kidnappin
Top IPTV UK Providers of A Comprehensive Review.pdfXtreame HDTV
The television landscape in the UK has evolved significantly with the rise of Internet Protocol Television (IPTV). IPTV offers a modern alternative to traditional cable and satellite TV, allowing viewers to stream live TV, on-demand videos, and other multimedia content directly to their devices over the internet. This review provides an in-depth look at the top IPTV UK providers, their features, pricing, and what sets them apart.
Sara Saffari: Turning Underweight into Fitness Success at 23get joys
Uncover the remarkable journey of Sara Saffari, whose transformation from underweight struggles to being recognized as a fitness icon at 23 underscores the importance of perseverance, discipline, and embracing a healthy lifestyle.
At Digidev, we are working to be the leader in interactive streaming platforms of choice by smart device users worldwide.
Our goal is to become the ultimate distribution service of entertainment content. The Digidev application will offer the next generation television highway for users to discover and engage in a variety of content. While also providing a fresh and
innovative approach towards advertainment with vast revenue opportunities. Designed and developed by Joe Q. Bretz
Leonardo DiCaprio House: A Journey Through His Extravagant Real Estate Portfoliogreendigital
Introduction
Leonardo DiCaprio, A name synonymous with Hollywood excellence. is not only known for his stellar acting career but also for his impressive real estate investments. The "Leonardo DiCaprio house" is a topic that piques the interest of many. as the Oscar-winning actor has amassed a diverse portfolio of luxurious properties. DiCaprio's homes reflect his varied tastes and commitment to sustainability. from retreats to historic mansions. This article will delve into the fascinating world of Leonardo DiCaprio's real estate. Exploring the details of his most notable residences. and the unique aspects that make them stand out.
Follow us on: Pinterest
Leonardo DiCaprio House: Malibu Beachfront Retreat
A Prime Location
His Malibu beachfront house is one of the most famous properties in Leonardo DiCaprio's real estate portfolio. Situated in the exclusive Carbon Beach. also known as "Billionaire's Beach," this property boasts stunning ocean views and private beach access. The "Leonardo DiCaprio house" in Malibu is a testament to the actor's love for the sea and his penchant for luxurious living.
Architectural Highlights
The Malibu house features a modern design with clean lines, large windows. and open spaces blending indoor and outdoor living. The expansive deck and patio areas provide ample space for entertaining guests or enjoying a quiet sunset. The house has state-of-the-art amenities. including a gourmet kitchen, a home theatre, and many guest suites.
Sustainable Features
Leonardo DiCaprio is a well-known environmental activist. whose Malibu house reflects his commitment to sustainability. The property incorporates solar panels, energy-efficient appliances, and sustainable building materials. The landscaping around the house is also designed to be water-efficient. featuring drought-resistant plants and intelligent irrigation systems.
Leonardo DiCaprio House: Hollywood Hills Hideaway
Privacy and Seclusion
Another remarkable property in Leonardo DiCaprio's collection is his Hollywood Hills house. This secluded retreat offers privacy and tranquility. making it an ideal escape from the hustle and bustle of Los Angeles. The "Leonardo DiCaprio house" in Hollywood Hills nestled among lush greenery. and offers panoramic views of the city and surrounding landscapes.
Design and Amenities
The Hollywood Hills house is a mid-century modern gem characterized by its sleek design and floor-to-ceiling windows. The open-concept living space is perfect for entertaining. while the cozy bedrooms provide a comfortable retreat. The property also features a swimming pool, and outdoor dining area. and a spacious deck that overlooks the cityscape.
Environmental Initiatives
The Hollywood Hills house incorporates several green features that are in line with DiCaprio's environmental values. The home has solar panels, energy-efficient lighting, and a rainwater harvesting system. Additionally, the landscaping designed to support local wildlife and promote
The Evolution of the Leonardo DiCaprio Haircut: A Journey Through Style and C...greendigital
Leonardo DiCaprio, a name synonymous with Hollywood stardom and acting excellence. has captivated audiences for decades with his talent and charisma. But, the Leonardo DiCaprio haircut is one aspect of his public persona that has garnered attention. From his early days as a teenage heartthrob to his current status as a seasoned actor and environmental activist. DiCaprio's hairstyles have evolved. reflecting both his personal growth and the changing trends in fashion. This article delves into the many phases of the Leonardo DiCaprio haircut. exploring its significance and impact on pop culture.
2. Page

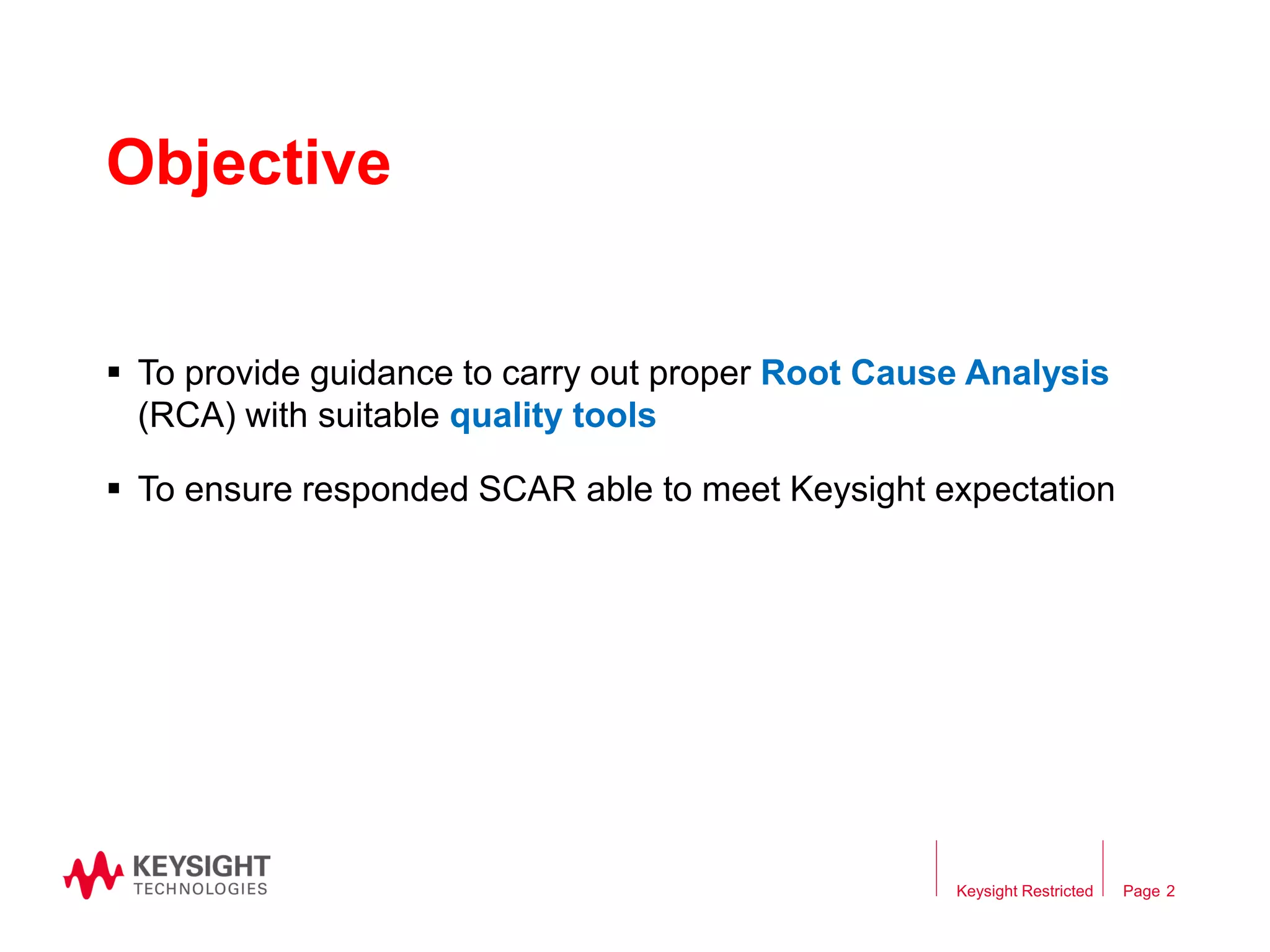

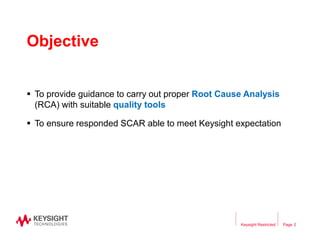

Objective
To provide guidance to carry out proper Root Cause Analysis
(RCA) with suitable quality tools
To ensure responded SCAR able to meet Keysight expectation
Keysight Restricted 2
3. Page

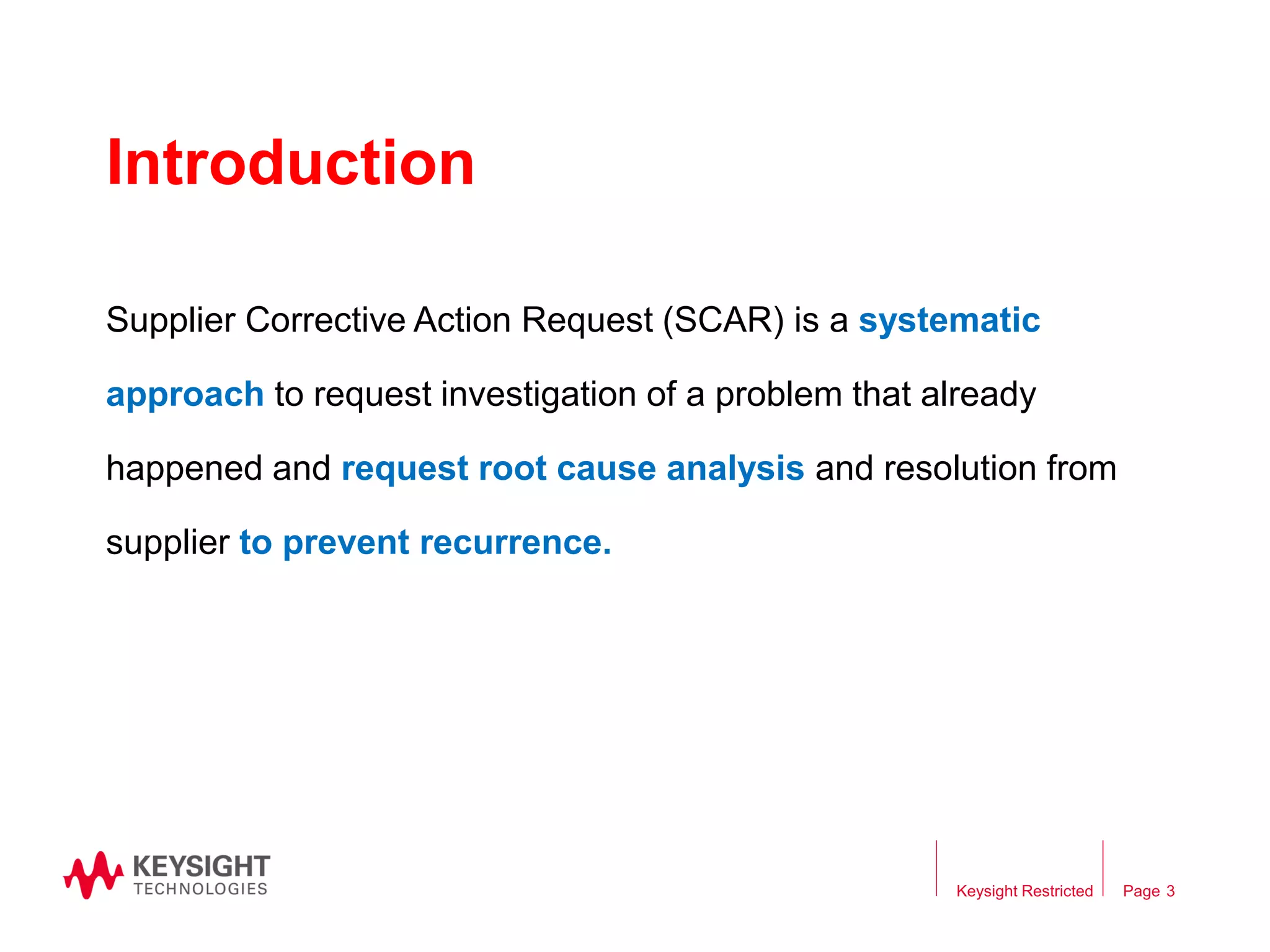

Introduction
Supplier Corrective Action Request (SCAR) is a systematic
approach to request investigation of a problem that already
happened and request root cause analysis and resolution from
supplier to prevent recurrence.
Keysight Restricted 3
5. Page

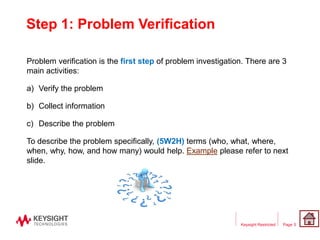

Step 1: Problem Verification
Problem verification is the first step of problem investigation. There are 3
main activities:
a) Verify the problem
b) Collect information
c) Describe the problem
To describe the problem specifically, (5W2H) terms (who, what, where,
when, why, how, and how many) would help. Example please refer to next
slide.
Keysight Restricted 5
6. Page

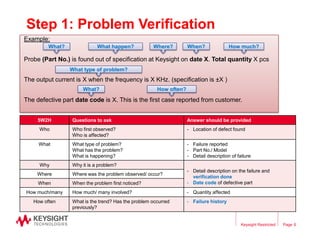

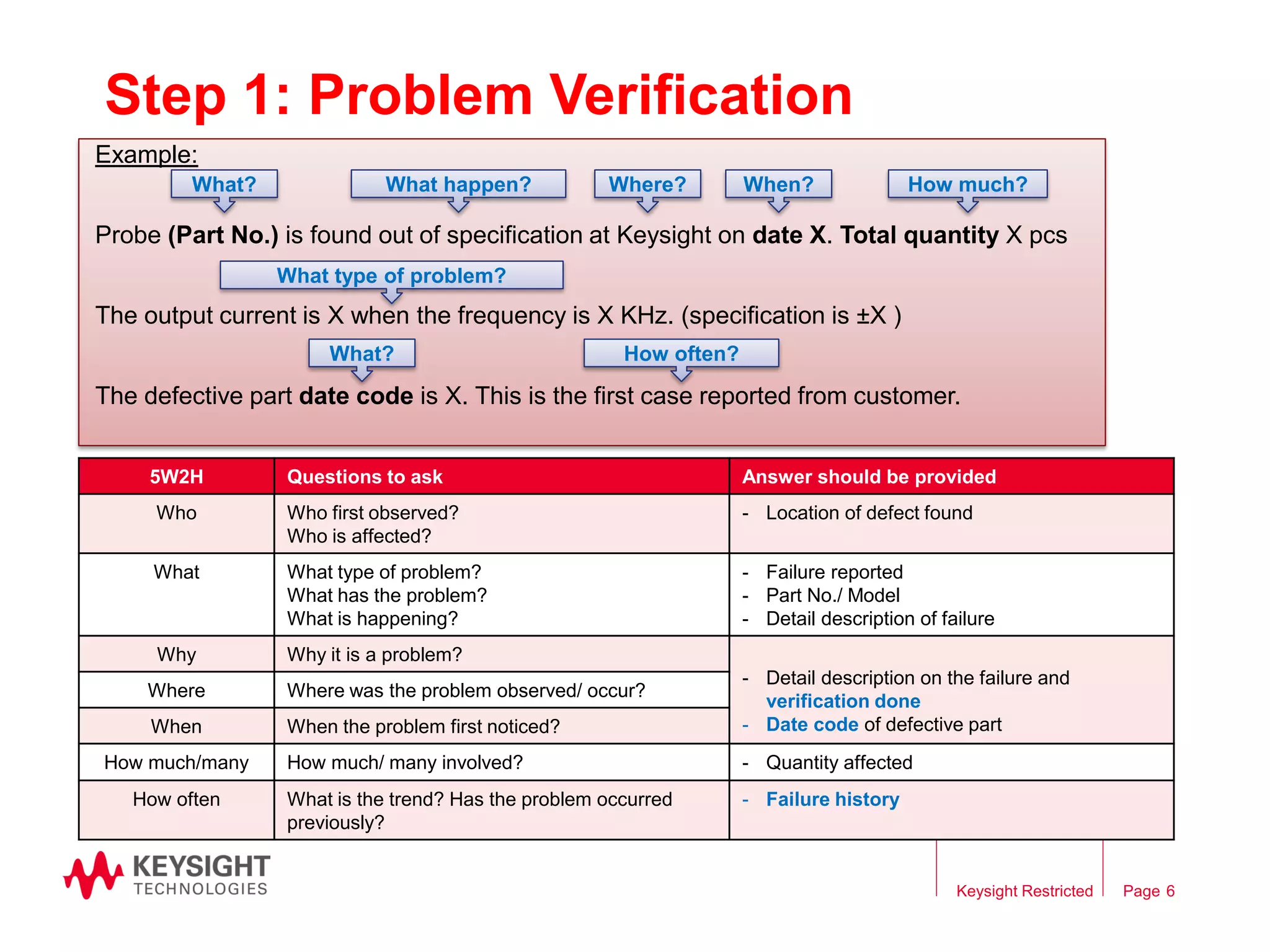

Step 1: Problem Verification
Example:
Probe (Part No.) is found out of specification at Keysight on date X. Total quantity X pcs
The output current is X when the frequency is X KHz. (specification is ±X )
The defective part date code is X. This is the first case reported from customer.
Keysight Restricted 6
5W2H Questions to ask Answer should be provided
Who Who first observed?
Who is affected?
- Location of defect found
What What type of problem?
What has the problem?
What is happening?
- Failure reported
- Part No./ Model
- Detail description of failure
Why Why it is a problem?
- Detail description on the failure and
verification done
- Date code of defective part
Where Where was the problem observed/ occur?
When When the problem first noticed?
How much/many How much/ many involved? - Quantity affected
How often What is the trend? Has the problem occurred
previously?
- Failure history
What? What happen? When?
What type of problem?
Where?
What? How often?
How much?
7. Page

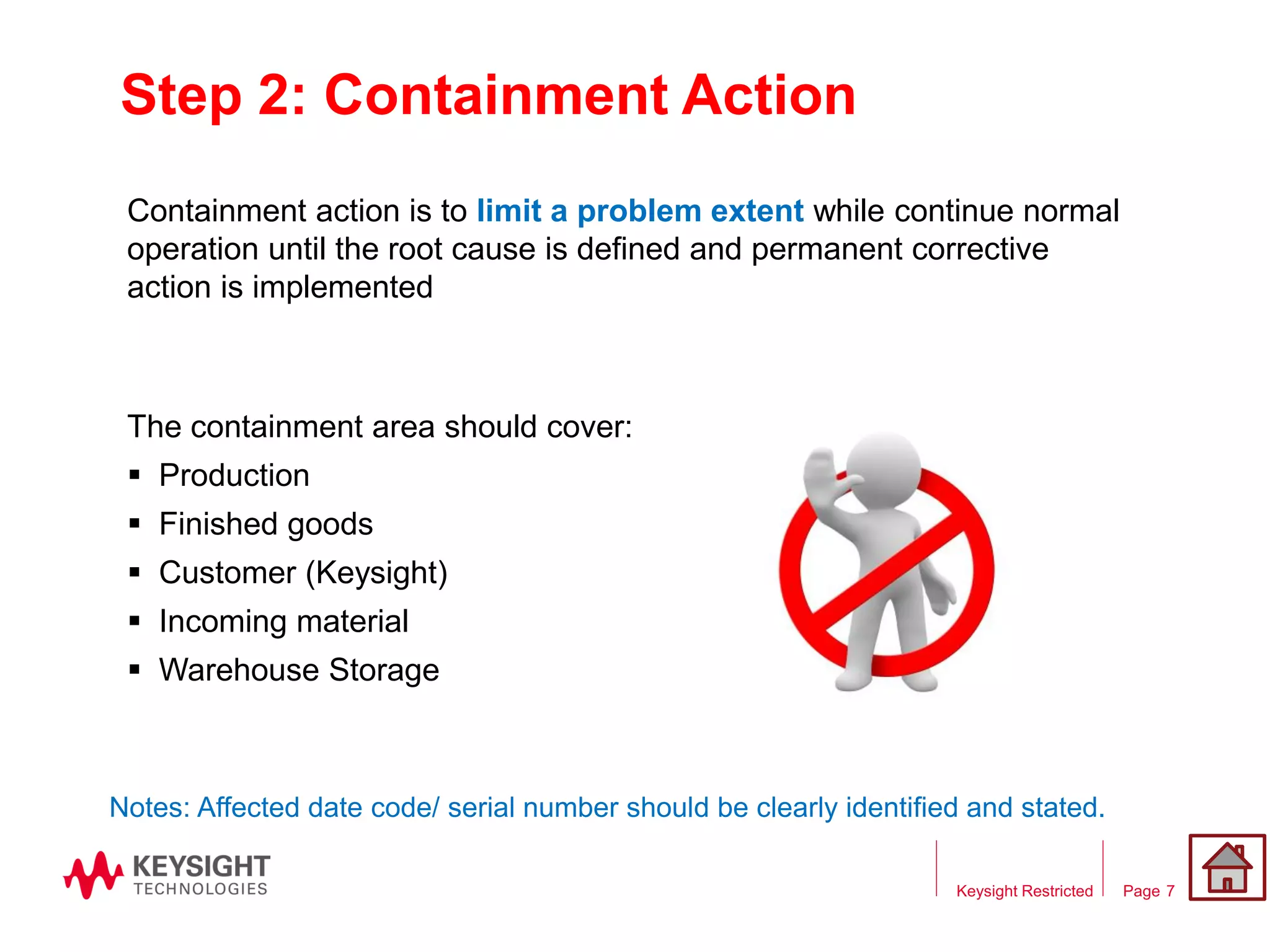

Step 2: Containment Action
Containment action is to limit a problem extent while continue normal
operation until the root cause is defined and permanent corrective
action is implemented
The containment area should cover:
Production
Finished goods
Customer (Keysight)
Incoming material
Warehouse Storage
Keysight Restricted 7
Notes: Affected date code/ serial number should be clearly identified and stated.
8. Page

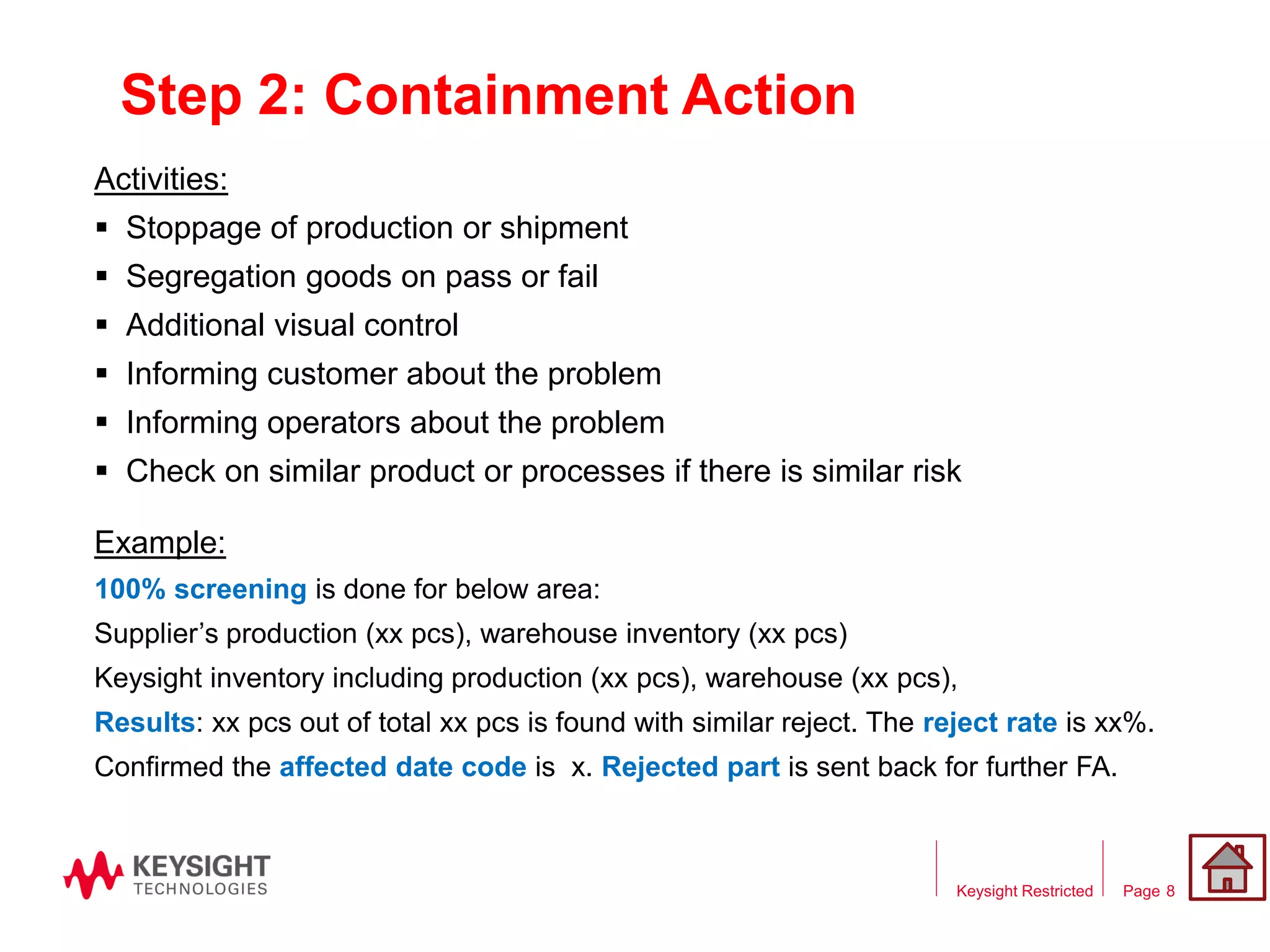

Step 2: Containment Action
Activities:
Stoppage of production or shipment
Segregation goods on pass or fail
Additional visual control
Informing customer about the problem
Informing operators about the problem
Check on similar product or processes if there is similar risk
Keysight Restricted 8
Example:
100% screening is done for below area:
Supplier’s production (xx pcs), warehouse inventory (xx pcs)
Keysight inventory including production (xx pcs), warehouse (xx pcs),
Results: xx pcs out of total xx pcs is found with similar reject. The reject rate is xx%.
Confirmed the affected date code is x. Rejected part is sent back for further FA.

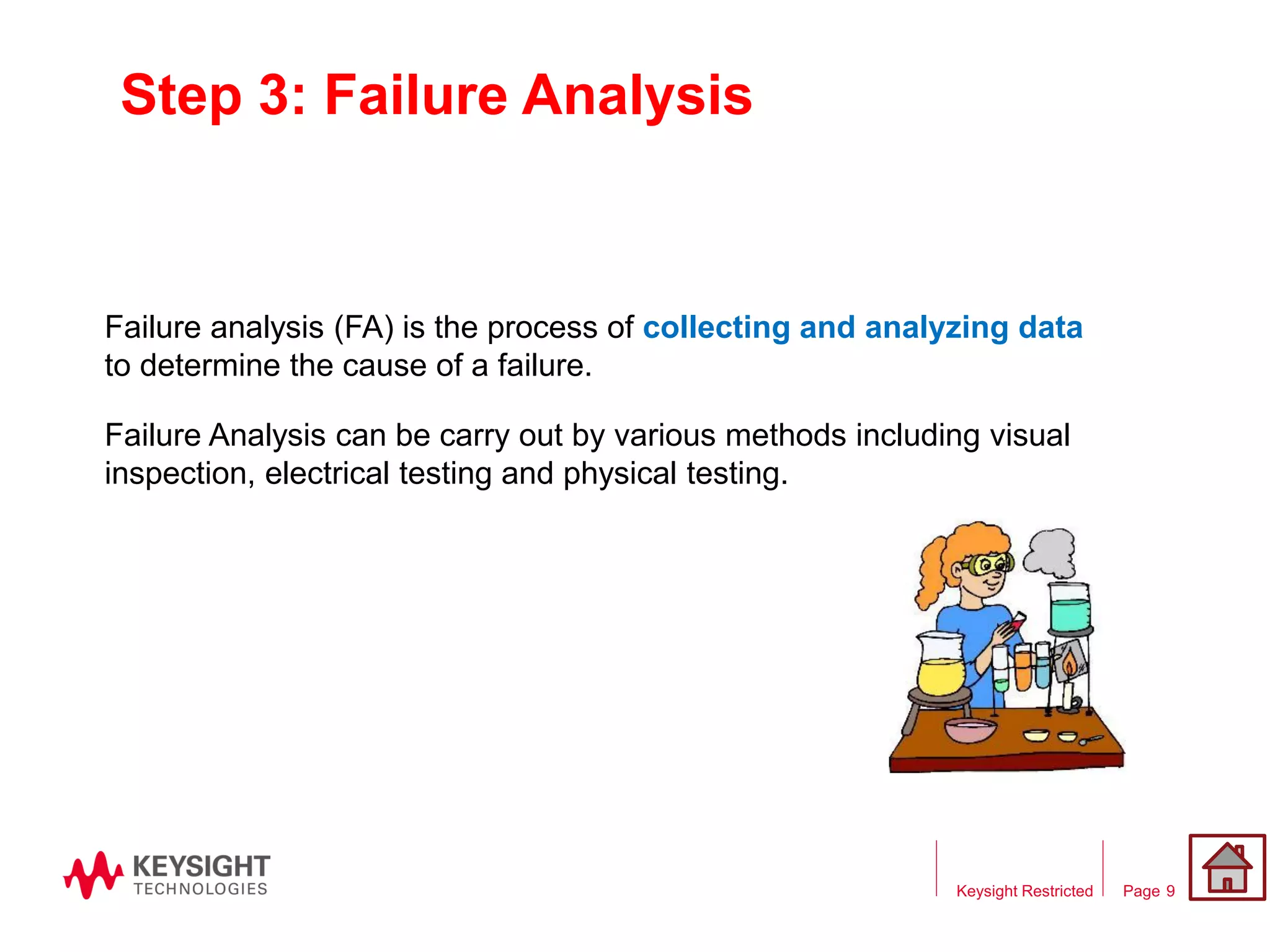

9. Page
Step 3: Failure Analysis
Failure analysis (FA) is the process of collecting and analyzing data
to determine the cause of a failure.
Failure Analysis can be carry out by various methods including visual
inspection, electrical testing and physical testing.
Keysight Restricted 9
10. Page

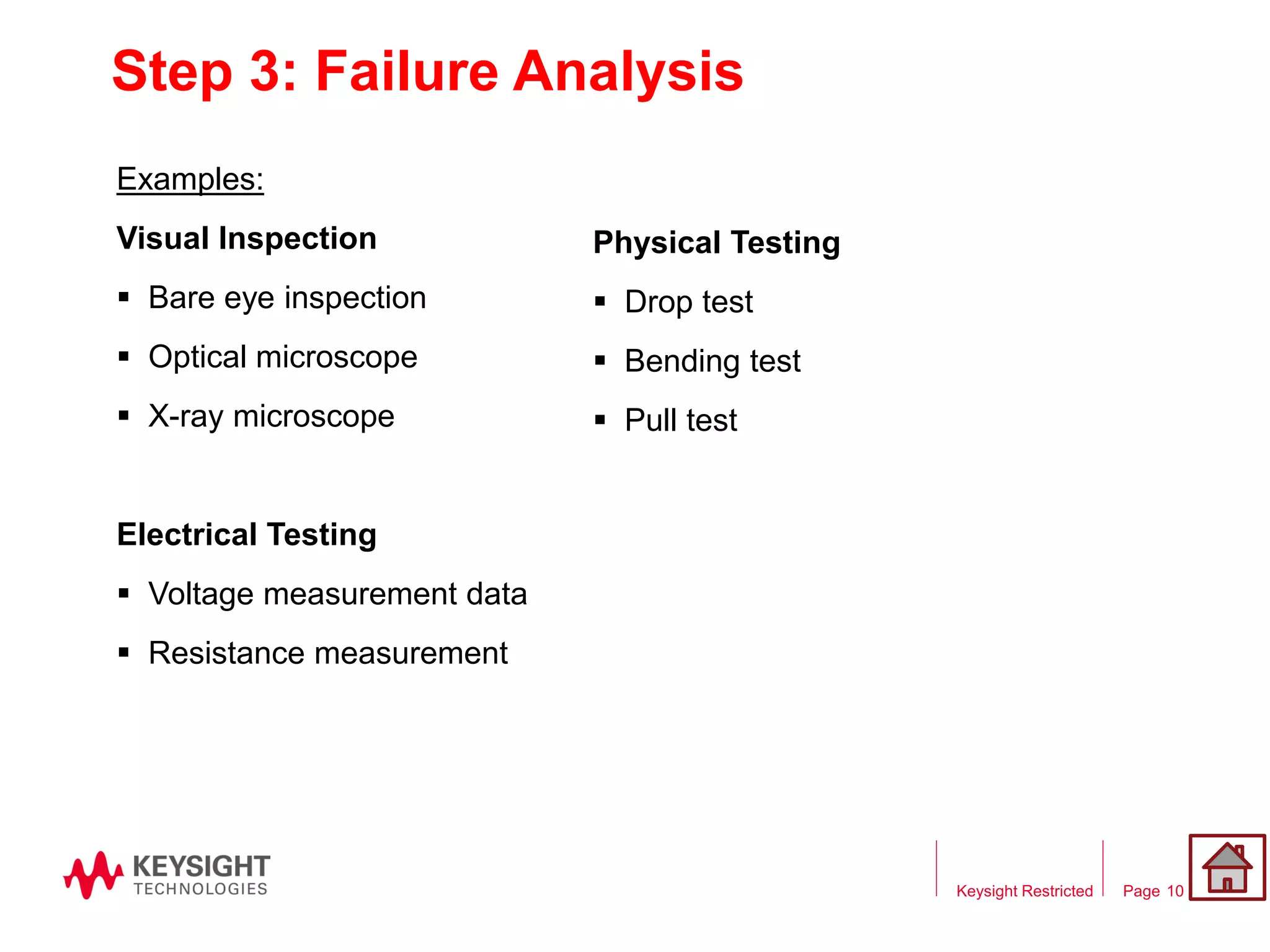

Step 3: Failure Analysis
Examples:
Visual Inspection
Bare eye inspection
Optical microscope
X-ray microscope
Electrical Testing
Voltage measurement data
Resistance measurement
Keysight Restricted 10
Physical Testing
Drop test
Bending test
Pull test

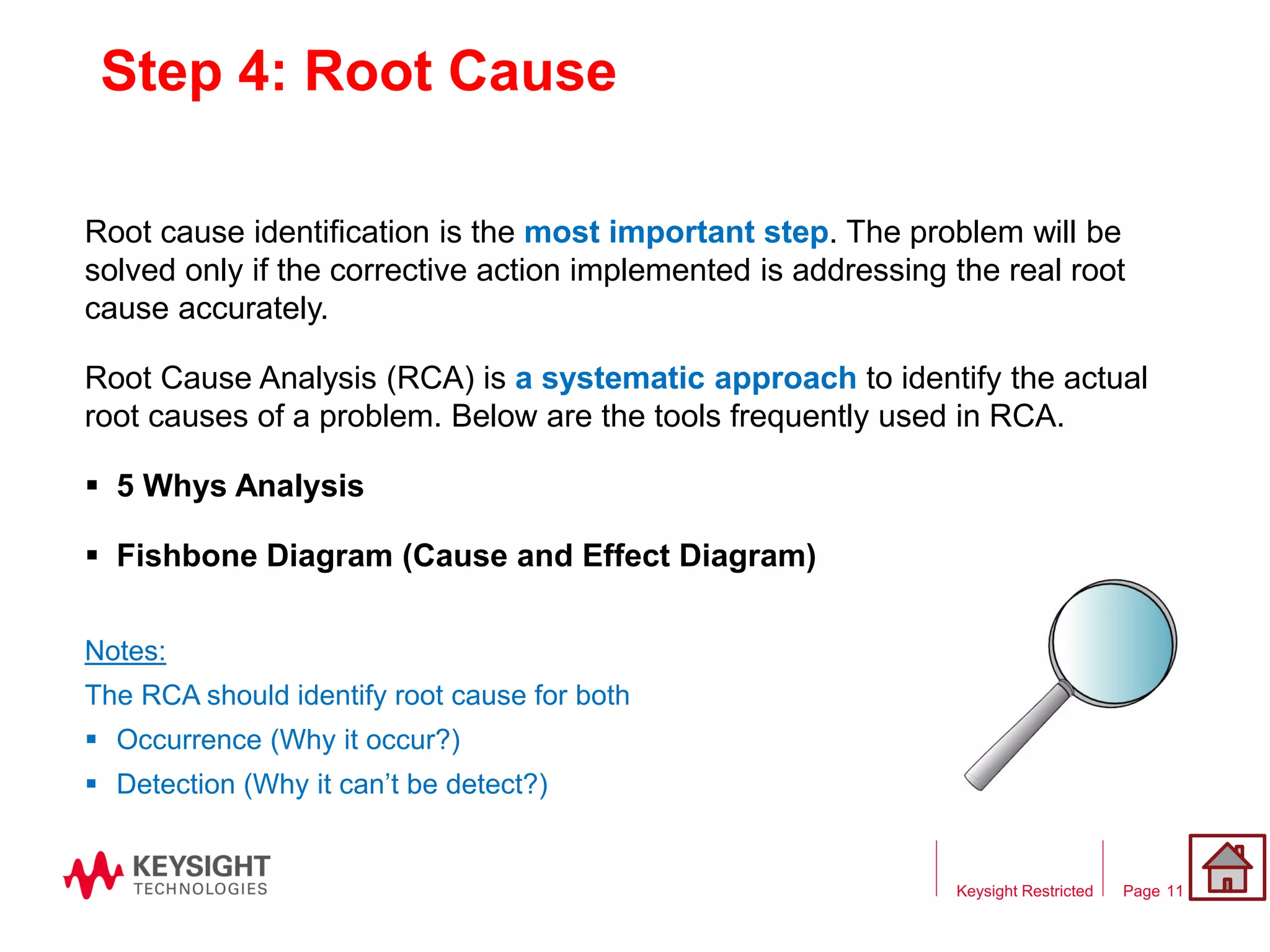

11. Page

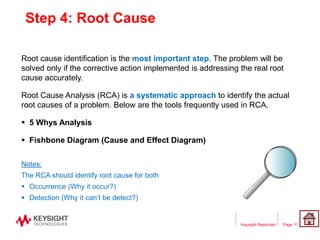

Step 4: Root Cause
Root cause identification is the most important step. The problem will be
solved only if the corrective action implemented is addressing the real root
cause accurately.
Root Cause Analysis (RCA) is a systematic approach to identify the actual
root causes of a problem. Below are the tools frequently used in RCA.
5 Whys Analysis
Fishbone Diagram (Cause and Effect Diagram)
Notes:
The RCA should identify root cause for both
Occurrence (Why it occur?)
Detection (Why it can’t be detect?)
Keysight Restricted 11
12. Page

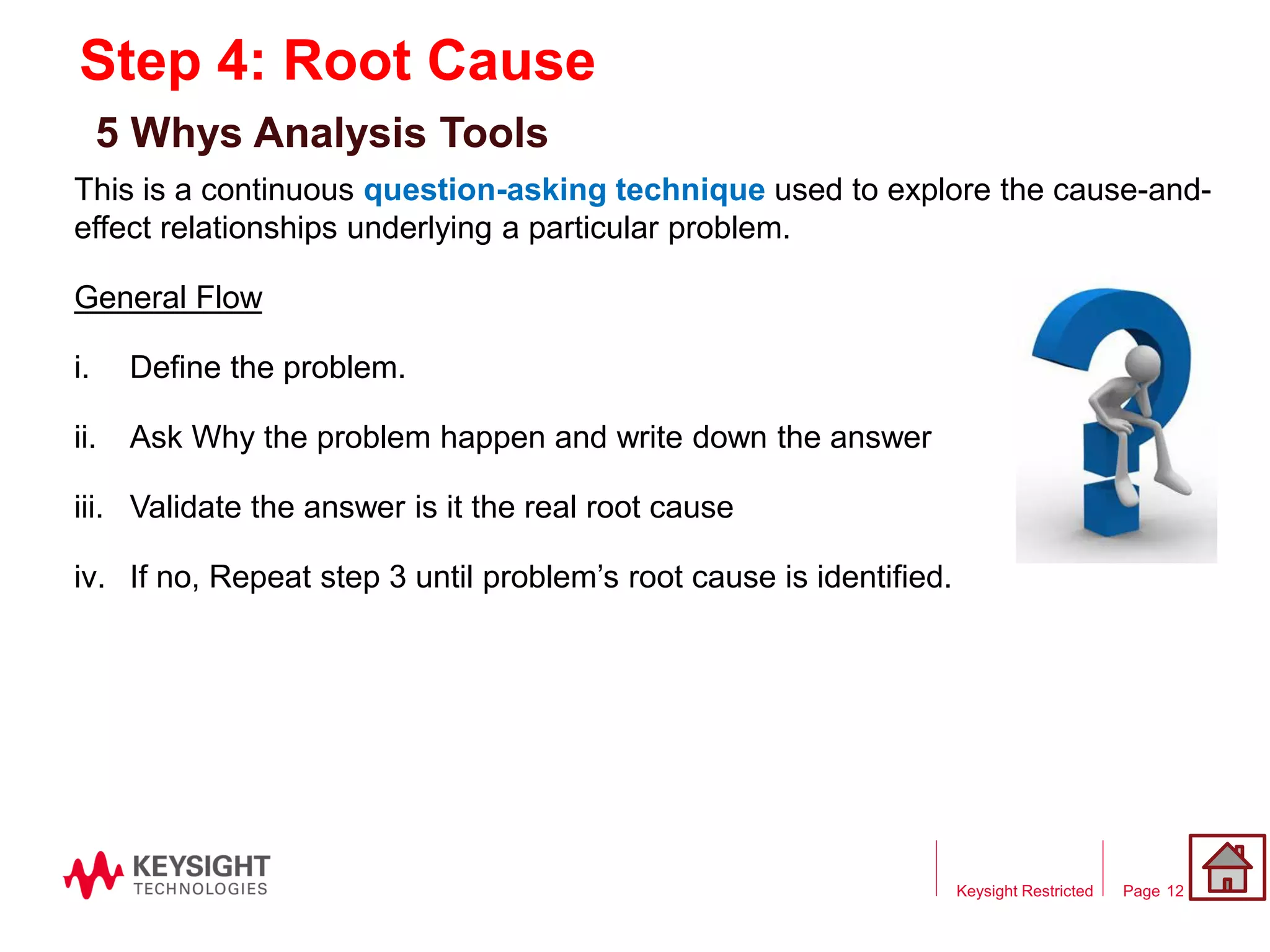

Step 4: Root Cause
This is a continuous question-asking technique used to explore the cause-and-
effect relationships underlying a particular problem.
General Flow
i. Define the problem.
ii. Ask Why the problem happen and write down the answer
iii. Validate the answer is it the real root cause
iv. If no, Repeat step 3 until problem’s root cause is identified.
Keysight Restricted 12
5 Whys Analysis Tools
13. Page

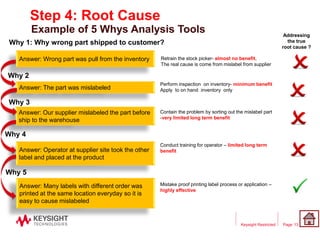

Step 4: Root Cause
.
Keysight Restricted 13
Example of 5 Whys Analysis Tools
Answer: Wrong part was pull from the inventory
Answer: The part was mislabeled
Answer: Our supplier mislabeled the part before
ship to the warehouse
Answer: Operator at supplier site took the other
label and placed at the product
Answer: Many labels with different order was
printed at the same location everyday so it is
easy to cause mislabeled
Retrain the stock picker- almost no benefit.
The real cause is come from mislabel from supplier
Perform inspection on inventory- minimum benefit
Apply to on hand inventory only
Contain the problem by sorting out the mislabel part
-very limited long term benefit
Conduct training for operator – limited long term
benefit
Mistake proof printing label process or application –
highly effective
Why 1: Why wrong part shipped to customer?
Why 2
Why 3
Why 4
Why 5
Addressing
the true
root cause ?
14. Page

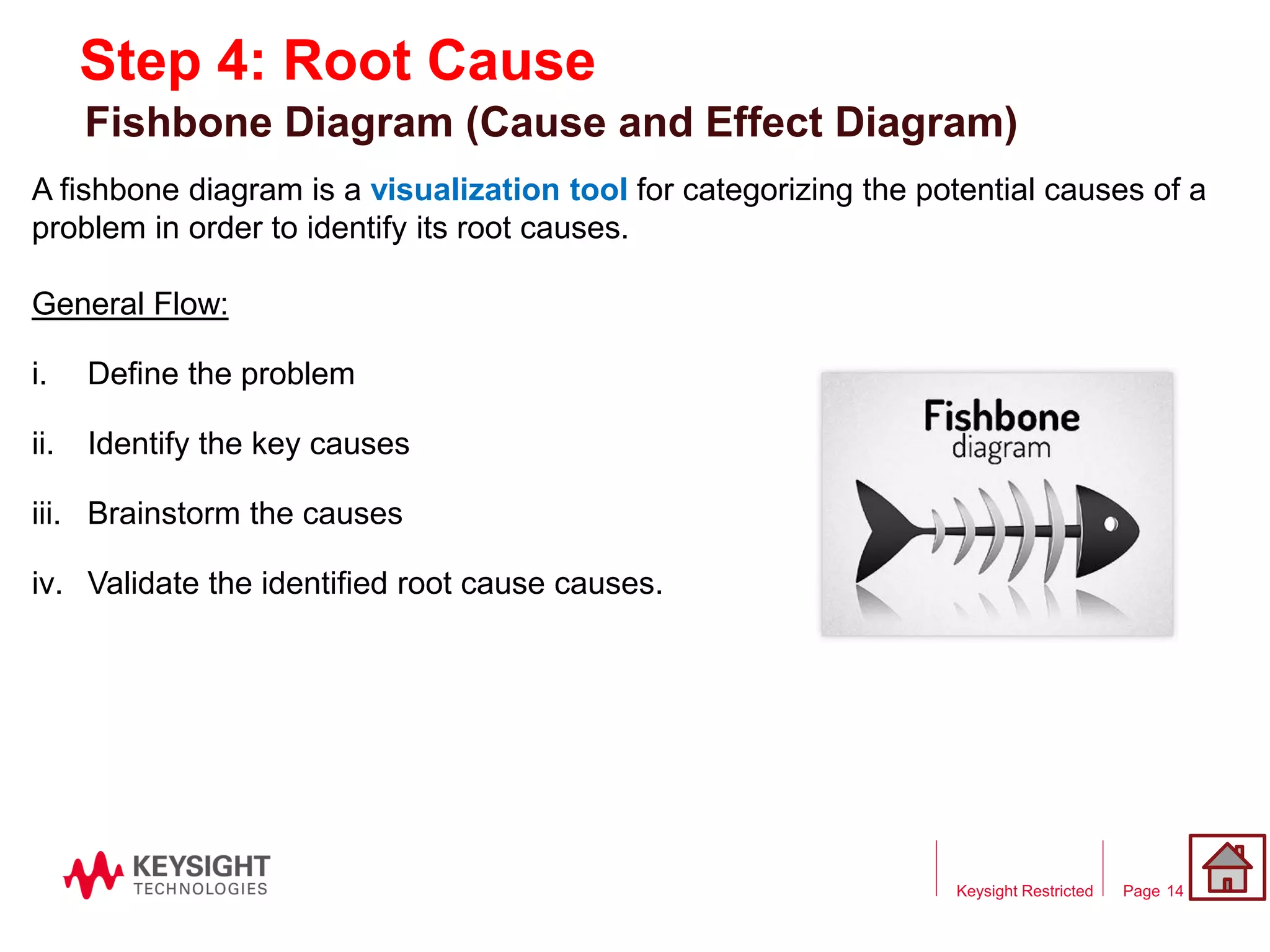

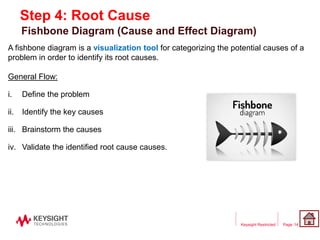

Step 4: Root Cause
A fishbone diagram is a visualization tool for categorizing the potential causes of a
problem in order to identify its root causes.
General Flow:
i. Define the problem
ii. Identify the key causes
iii. Brainstorm the causes
iv. Validate the identified root cause causes.
Keysight Restricted 14
Fishbone Diagram (Cause and Effect Diagram)
15. PageKeysight Restricted 15

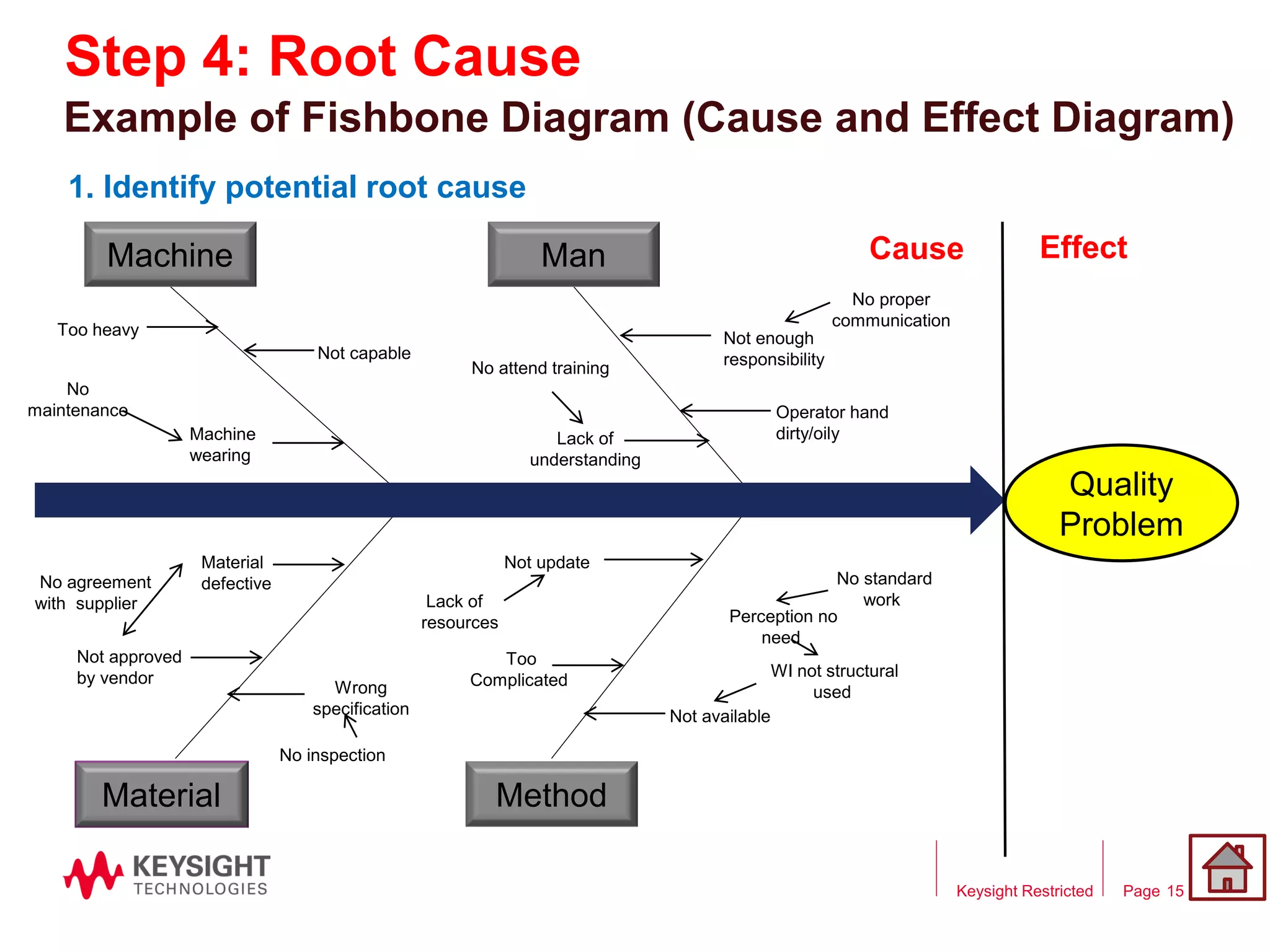

Example of Fishbone Diagram (Cause and Effect Diagram)
Machine
Material Method
Man
Not update
Not available
Lack of
understanding
Not enough
responsibility
Machine
wearing
Material
defective
Not capable
Not approved
by vendor
Wrong
specification
No
maintenance
No proper
communication
Too
Complicated
Too heavy
Lack of
resources
WI not structural
used
Perception no
need
No standard
work
No agreement
with supplier
No inspection
Operator hand
dirty/oily
No attend training
Quality
Problem
EffectCause
Step 4: Root Cause
1. Identify potential root cause
16. Page

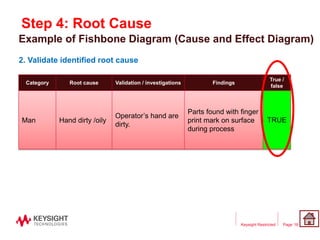

Step 4: Root Cause
Keysight Restricted 16
Example of Fishbone Diagram (Cause and Effect Diagram)
Category Root cause Validation / investigations Findings
True /
false
Man Hand dirty /oily
Operator’s hand are
dirty.
Parts found with finger
print mark on surface
during process
TRUE
2. Validate identified root cause
17. Page

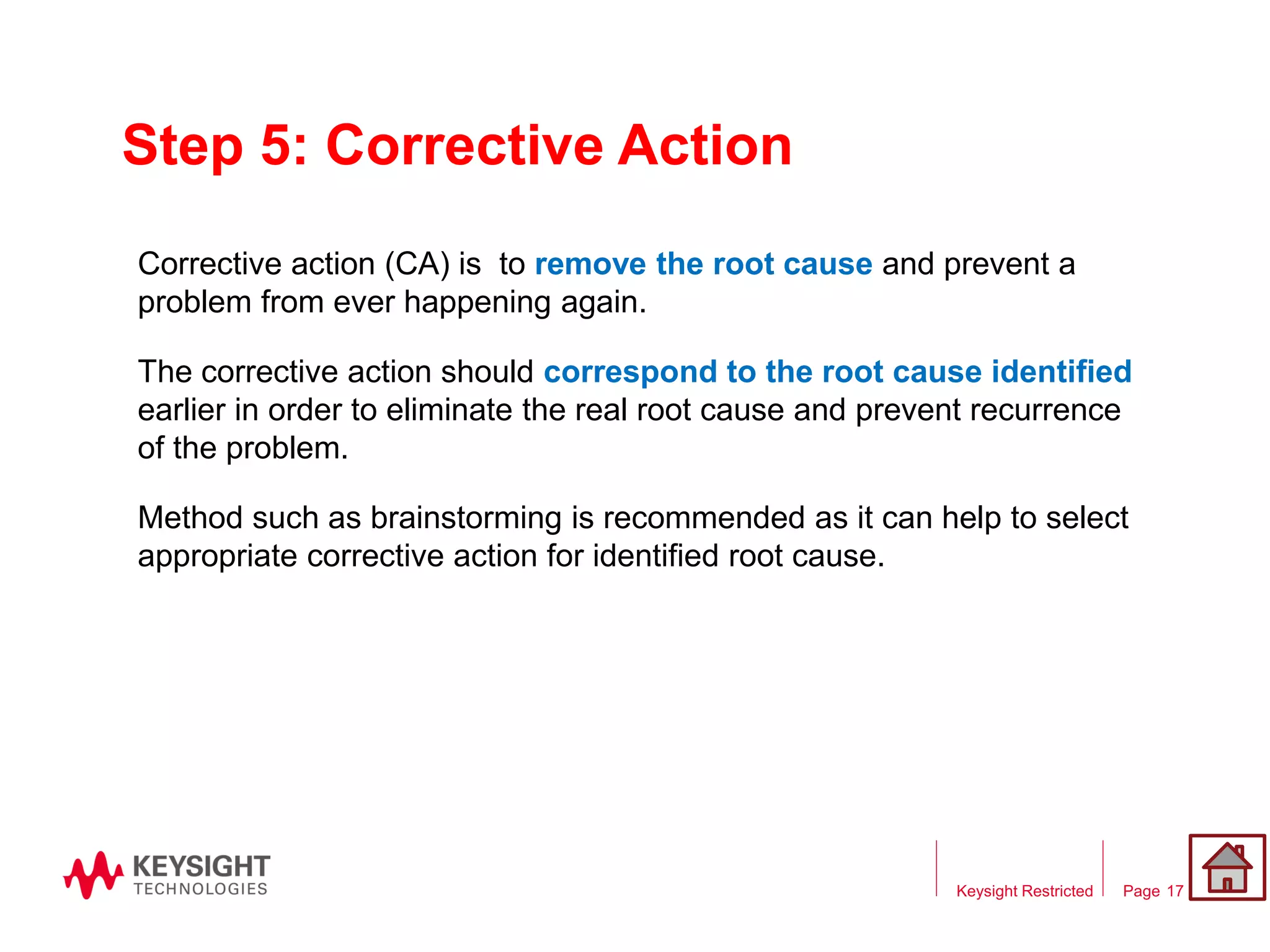

Step 5: Corrective Action
Corrective action (CA) is to remove the root cause and prevent a
problem from ever happening again.
The corrective action should correspond to the root cause identified
earlier in order to eliminate the real root cause and prevent recurrence
of the problem.
Method such as brainstorming is recommended as it can help to select
appropriate corrective action for identified root cause.
Keysight Restricted 17

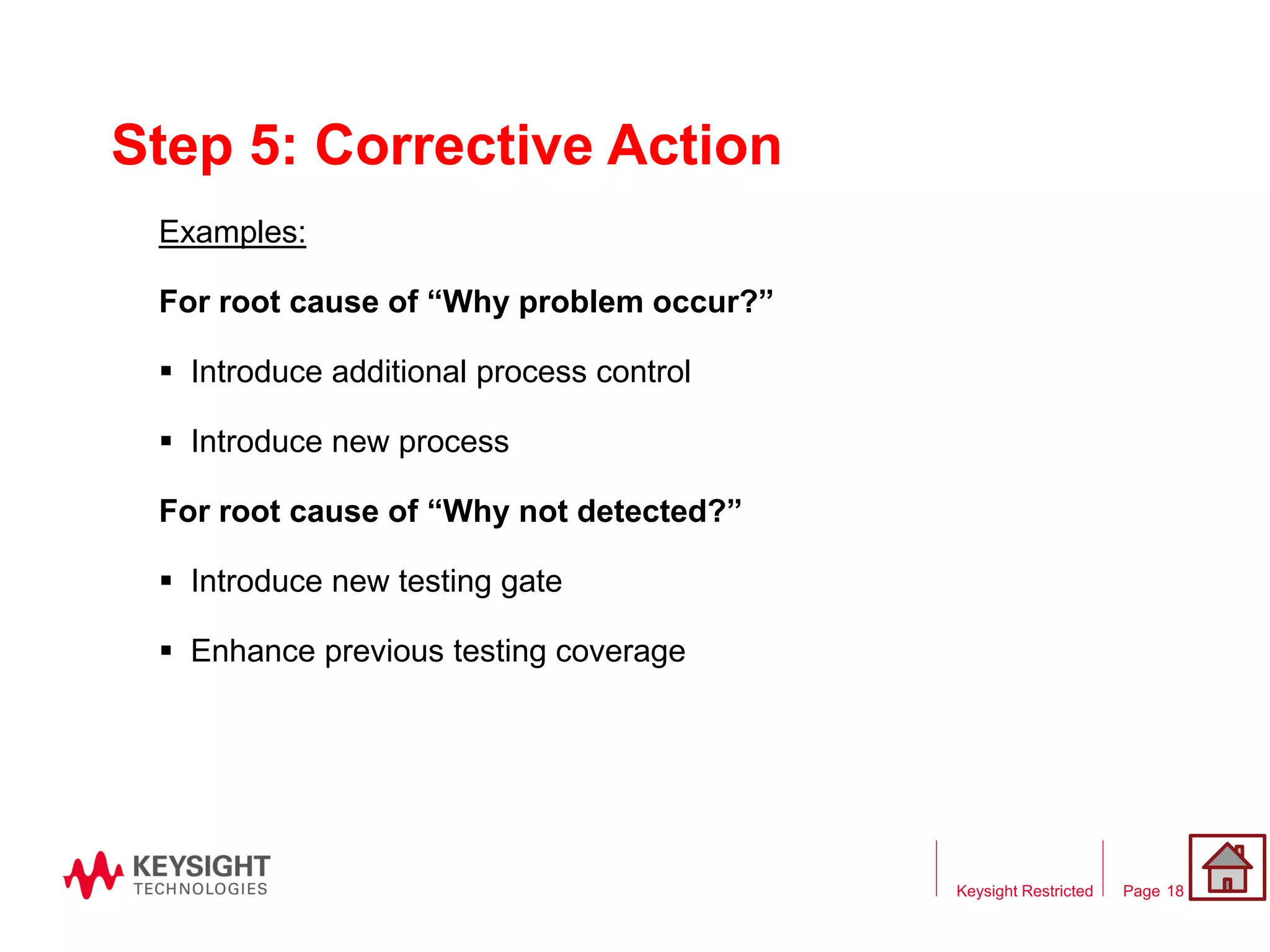

18. Page
Step 5: Corrective Action
Examples:
For root cause of “Why problem occur?”
Introduce additional process control
Introduce new process
For root cause of “Why not detected?”
Introduce new testing gate
Enhance previous testing coverage
Keysight Restricted 18

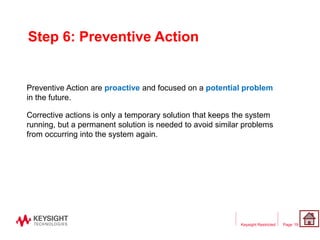

19. Page
Step 6: Preventive Action
Preventive Action are proactive and focused on a potential problem
in the future.
Corrective actions is only a temporary solution that keeps the system
running, but a permanent solution is needed to avoid similar problems
from occurring into the system again.
Keysight Restricted 19

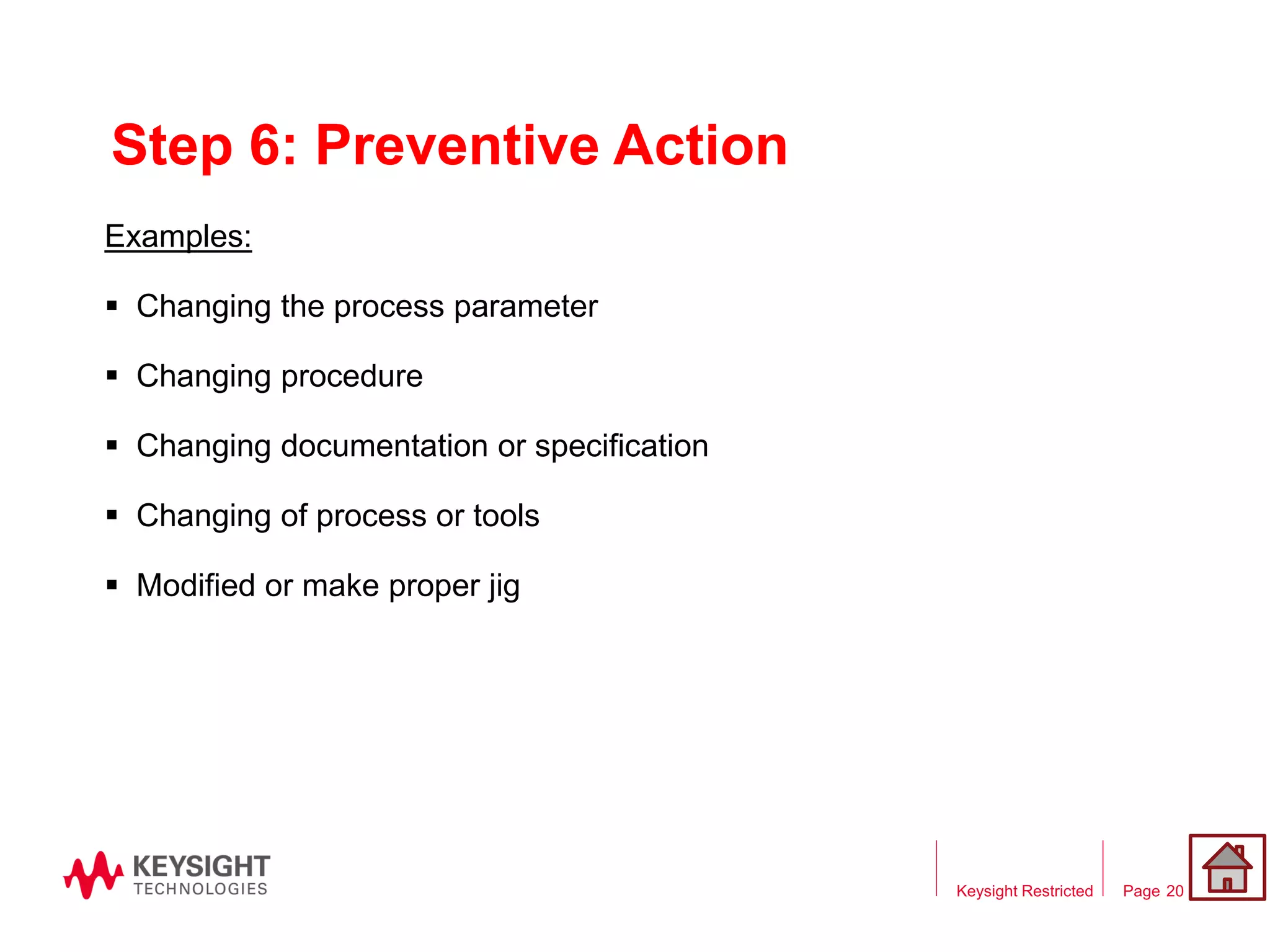

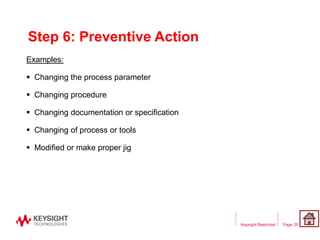

20. Page
Step 6: Preventive Action
Examples:
Changing the process parameter
Changing procedure
Changing documentation or specification
Changing of process or tools
Modified or make proper jig
Keysight Restricted 20
21. Page
Step 7: Effectiveness Verification
After the corrective and preventive actions are implemented, the
effectiveness should be validate.
The key to verification is evidence. This evidence usually takes the
form of data, records or first-hand observations.
It is recommended the verification made by monitoring the quality of
next deliveries.
Keysight Restricted 21

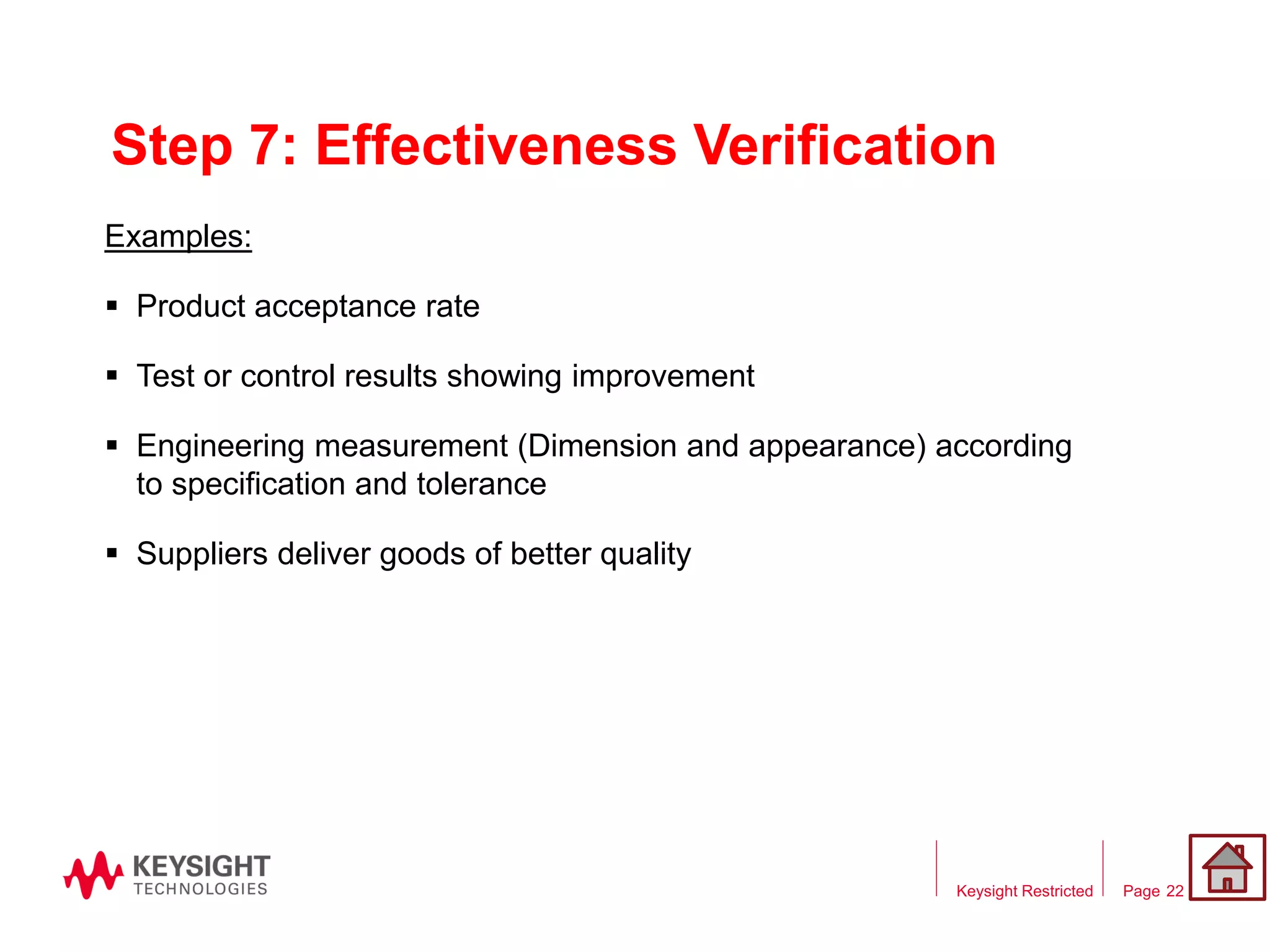

22. Page
Step 7: Effectiveness Verification
Examples:
Product acceptance rate
Test or control results showing improvement
Engineering measurement (Dimension and appearance) according
to specification and tolerance
Suppliers deliver goods of better quality
Keysight Restricted 22
23. Page

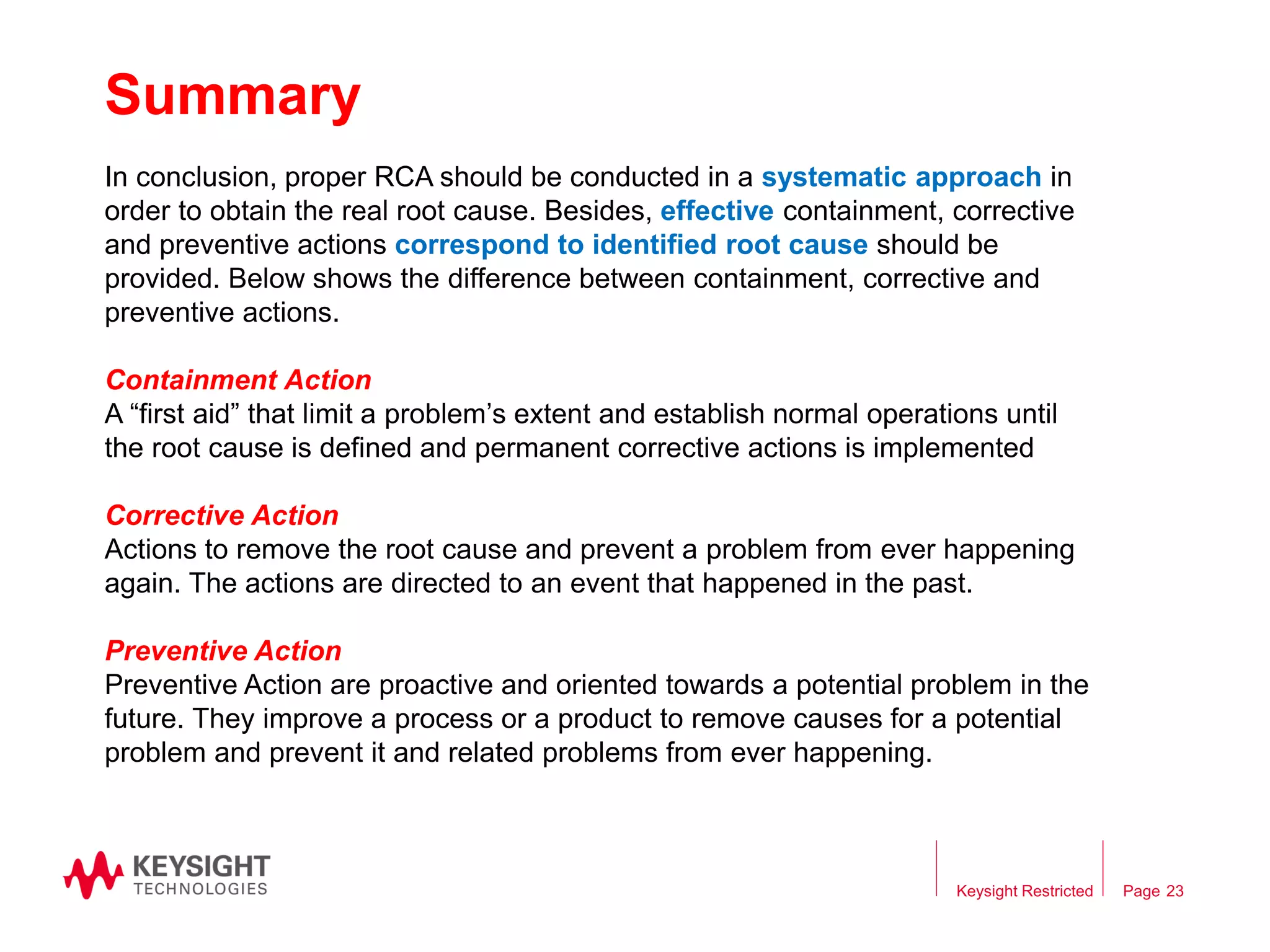

Summary
In conclusion, proper RCA should be conducted in a systematic approach in
order to obtain the real root cause. Besides, effective containment, corrective
and preventive actions correspond to identified root cause should be
provided. Below shows the difference between containment, corrective and
preventive actions.
Containment Action
A “first aid” that limit a problem’s extent and establish normal operations until
the root cause is defined and permanent corrective actions is implemented
Corrective Action
Actions to remove the root cause and prevent a problem from ever happening
again. The actions are directed to an event that happened in the past.
Preventive Action
Preventive Action are proactive and oriented towards a potential problem in the
future. They improve a process or a product to remove causes for a potential
problem and prevent it and related problems from ever happening.
Keysight Restricted 23

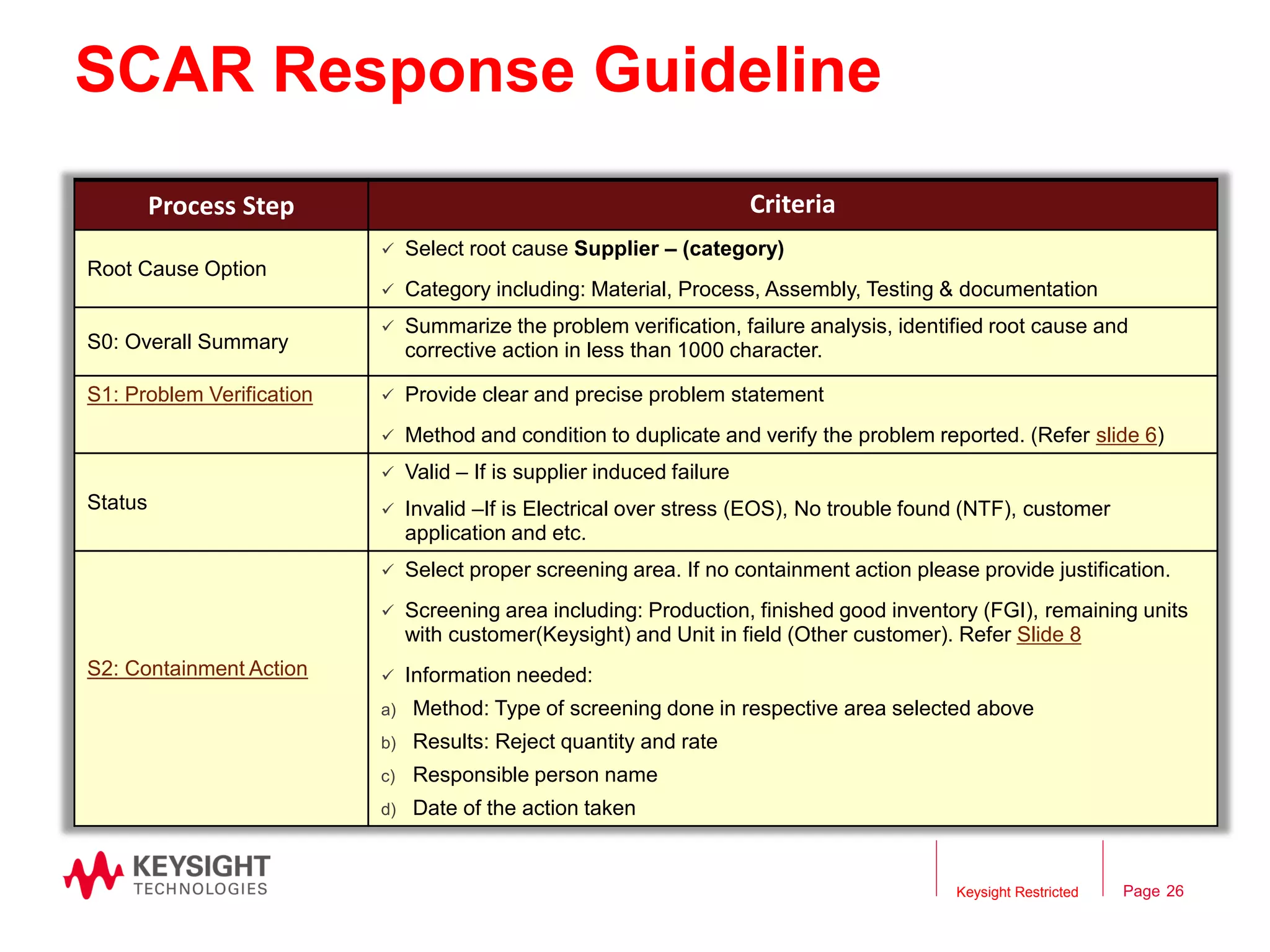

26. Page
SCAR Response Guideline
Keysight Restricted 26
Process Step Criteria
Root Cause Option
Select root cause Supplier – (category)
Category including: Material, Process, Assembly, Testing & documentation
S0: Overall Summary
Summarize the problem verification, failure analysis, identified root cause and
corrective action in less than 1000 character.
S1: Problem Verification Provide clear and precise problem statement
Method and condition to duplicate and verify the problem reported. (Refer slide 6)
Status
Valid – If is supplier induced failure
Invalid –If is Electrical over stress (EOS), No trouble found (NTF), customer
application and etc.
S2: Containment Action
Select proper screening area. If no containment action please provide justification.
Screening area including: Production, finished good inventory (FGI), remaining units
with customer(Keysight) and Unit in field (Other customer). Refer Slide 8
Information needed:
a) Method: Type of screening done in respective area selected above
b) Results: Reject quantity and rate
c) Responsible person name
d) Date of the action taken
Page 26

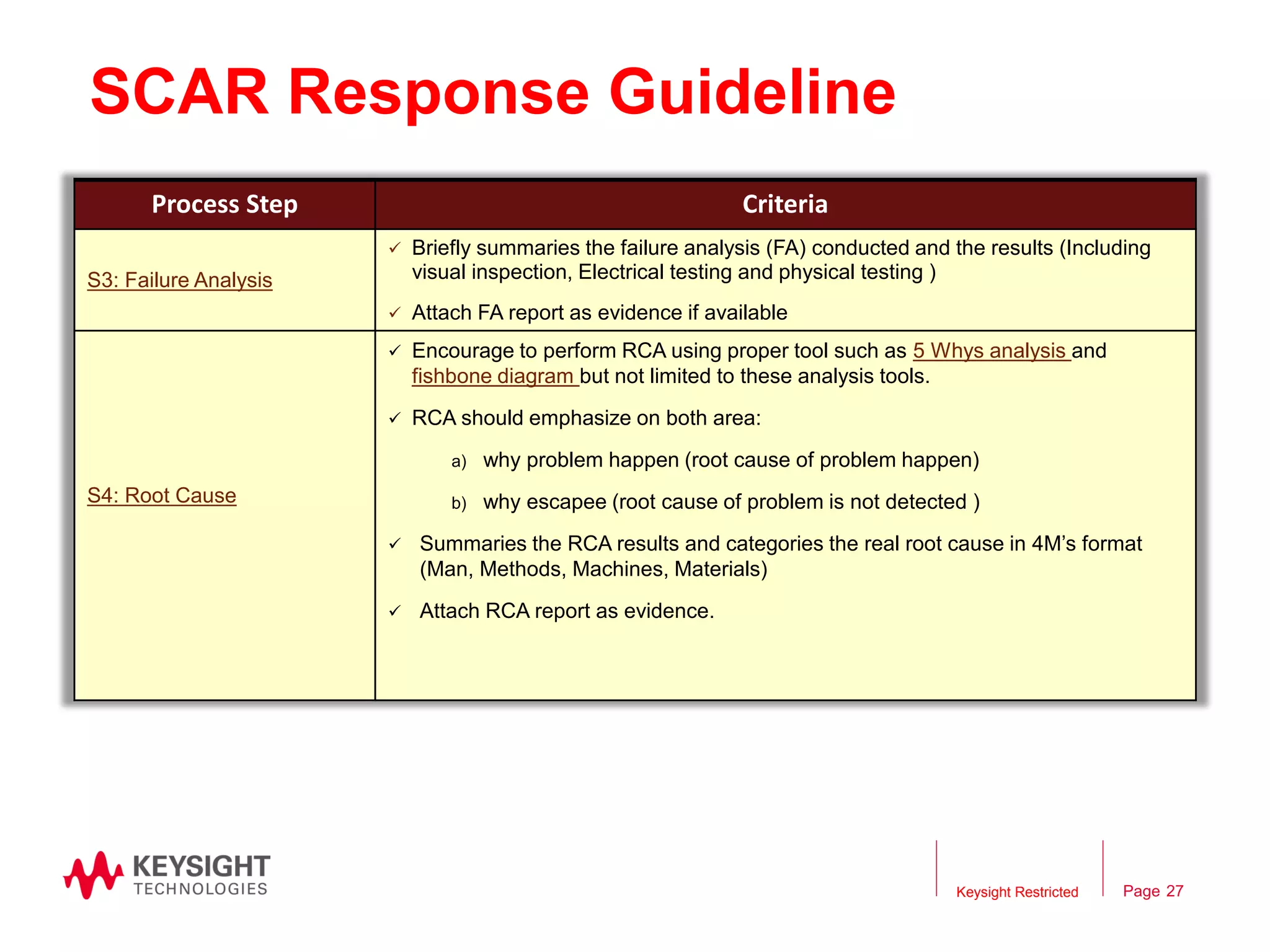

27. PageKeysight Restricted 27
Process Step Criteria
S3: Failure Analysis
Briefly summaries the failure analysis (FA) conducted and the results (Including
visual inspection, Electrical testing and physical testing )
Attach FA report as evidence if available
S4: Root Cause
Encourage to perform RCA using proper tool such as 5 Whys analysis and
fishbone diagram but not limited to these analysis tools.
RCA should emphasize on both area:
a) why problem happen (root cause of problem happen)
b) why escapee (root cause of problem is not detected )
Summaries the RCA results and categories the real root cause in 4M’s format
(Man, Methods, Machines, Materials)
Attach RCA report as evidence.
Page 27
SCAR Response Guideline

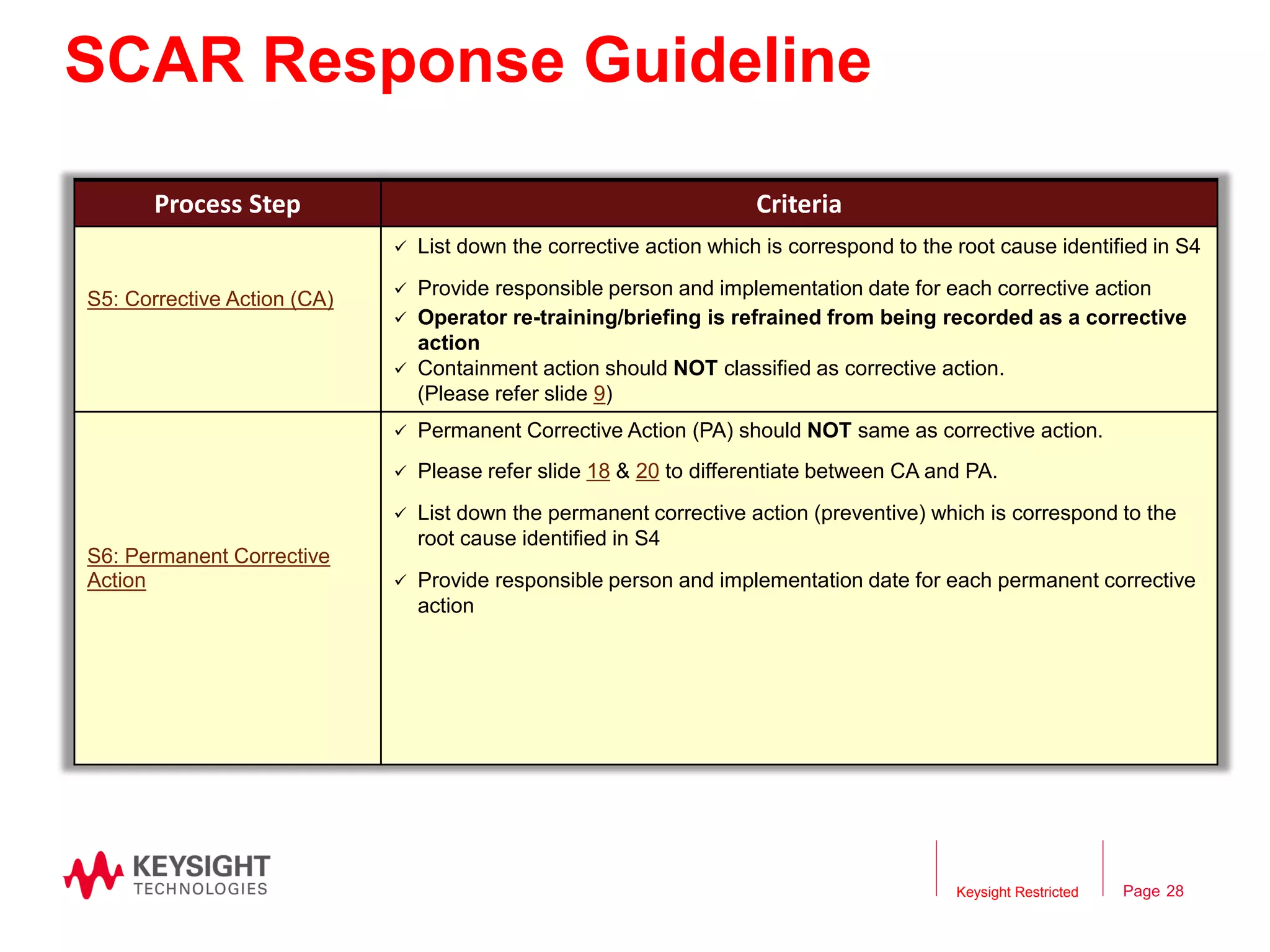

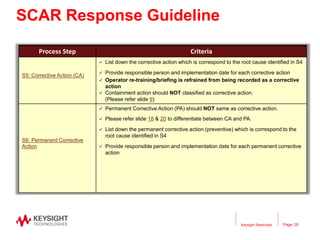

28. PageKeysight Restricted 28
Process Step Criteria
S5: Corrective Action (CA)
List down the corrective action which is correspond to the root cause identified in S4
Provide responsible person and implementation date for each corrective action
Operator re-training/briefing is refrained from being recorded as a corrective
action
Containment action should NOT classified as corrective action.
(Please refer slide 9)
S6: Permanent Corrective
Action
Permanent Corrective Action (PA) should NOT same as corrective action.
Please refer slide 18 & 20 to differentiate between CA and PA.
List down the permanent corrective action (preventive) which is correspond to the
root cause identified in S4
Provide responsible person and implementation date for each permanent corrective
action
Page 28
SCAR Response Guideline

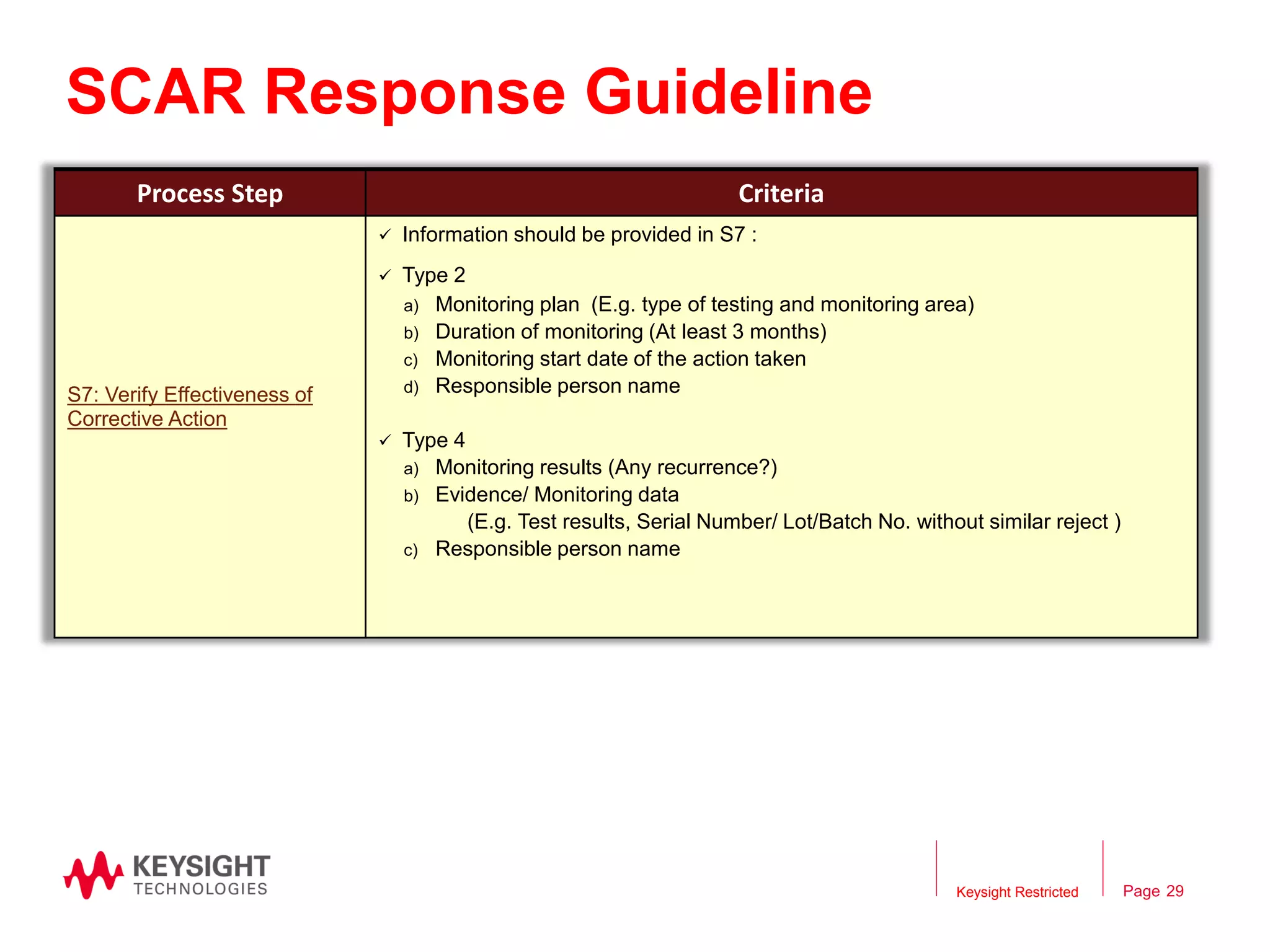

29. PageKeysight Restricted 29
Process Step Criteria
S7: Verify Effectiveness of
Corrective Action
Information should be provided in S7 :
Type 2
a) Monitoring plan (E.g. type of testing and monitoring area)
b) Duration of monitoring (At least 3 months)
c) Monitoring start date of the action taken
d) Responsible person name
Type 4
a) Monitoring results (Any recurrence?)
b) Evidence/ Monitoring data
(E.g. Test results, Serial Number/ Lot/Batch No. without similar reject )
c) Responsible person name
Page 29
SCAR Response Guideline
