1. Principal Components Analysis:
Calculation and Visualization
Author: Marjan Sterjev
Every day humans and machines produce tremendous amount of data that is collected by the
systems they are interacting with. The value of that data is enormous if we can analyze it and
digest some conclusions that will help the humans improve their lives, increase the business
revenues and so on. However, that information is very often hidden deep in the data and data
analysts shall dig for valuable clue.
Usually the data is provided in a columnar format with M samples, each sample having N
dimensions (example dimensions could be color, weight, height etc.) The spreadsheet
representation of the Data is:
Dimension 1 Dimension 2 Dimension 3 ... Dimension N
Sample 1 value11 value12 value13 ... value1N
Sample 2 value21 value22 value23 ... value2N
Sample 3 value31 value32 value32 ... value3N
... ... ... ... ... ...
Sample M valueM1 valueM2 valueM2 ... valueMN
The first step in each data science related work is data exploration. During the process of
exploration the data analyst shall get quick first impression about the data like what
dimensions are useful and what are not, is there any grouping (clustering) among the
samples in the data etc. Particular dimension is more useful than some other dimension if the
values in that dimension vary more compared with the values in the other dimension. For
example if all of the values in the Dimension 1 are the same, than that dimension is useless
because it gives us no information that will help us distinguish one data sample from another.
We can safely drop that dimension (column) and proceed the data analysis without it.
Data visualization can help the data analyst with detecting some clustering among the data
samples. Humans can understand 2-D or 3-D plots. However, the data usually has tens or
hundreds of dimensions. How can we plot that data?
In order to produce 2-D plot from high-dimensional data we need to:
1. Transform the existing N dimensions of the data into a new set of N dimensions. The
data value variance in some of the new dimensions will be large compared with the
variance in the others. Simply speaking some of the new dimensions will be more
important and the others will be less important.
2. Order the new dimensions based on the data value variance therein (order by
importance). The dimension with the highest variance of the values shall come first (it
shall become the leftmost dimension column in the tabular view above).
1

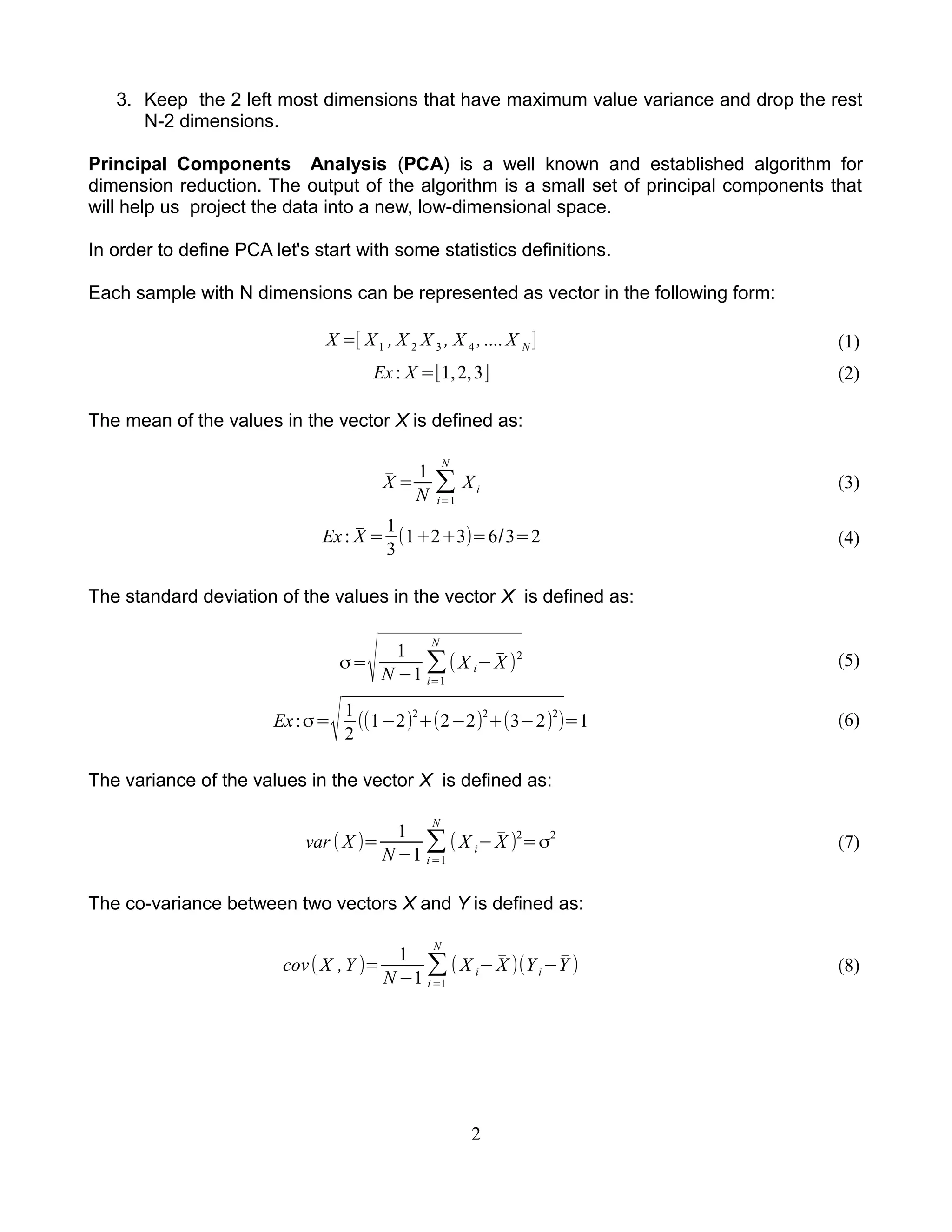

2. 3. Keep the 2 left most dimensions that have maximum value variance and drop the rest
N-2 dimensions.
Principal Components Analysis (PCA) is a well known and established algorithm for
dimension reduction. The output of the algorithm is a small set of principal components that
will help us project the data into a new, low-dimensional space.
In order to define PCA let's start with some statistics definitions.
Each sample with N dimensions can be represented as vector in the following form:
X =[ X1 , X 2 X 3 , X 4 ,.... X N ] (1)
Ex: X =[1,2,3] (2)
The mean of the values in the vector X is defined as:
̄X =
1
N
∑
i=1
N
Xi (3)
Ex: ̄X =
1
3
(1+2+3)=6/3=2 (4)
The standard deviation of the values in the vector X is defined as:
σ=
√ 1
N −1
∑
i=1
N
( X i− ̄X )
2
(5)
Ex:σ=
√1
2
((1−2)2
+(2−2)2
+(3−2)2
)=1 (6)
The variance of the values in the vector X is defined as:
var ( X )=
1
N −1
∑
i=1
N
( X i− ̄X )2
=σ2
(7)
The co-variance between two vectors X and Y is defined as:
cov( X ,Y )=
1
N −1
∑
i=1
N
( X i− ̄X )(Yi−̄Y ) (8)
2

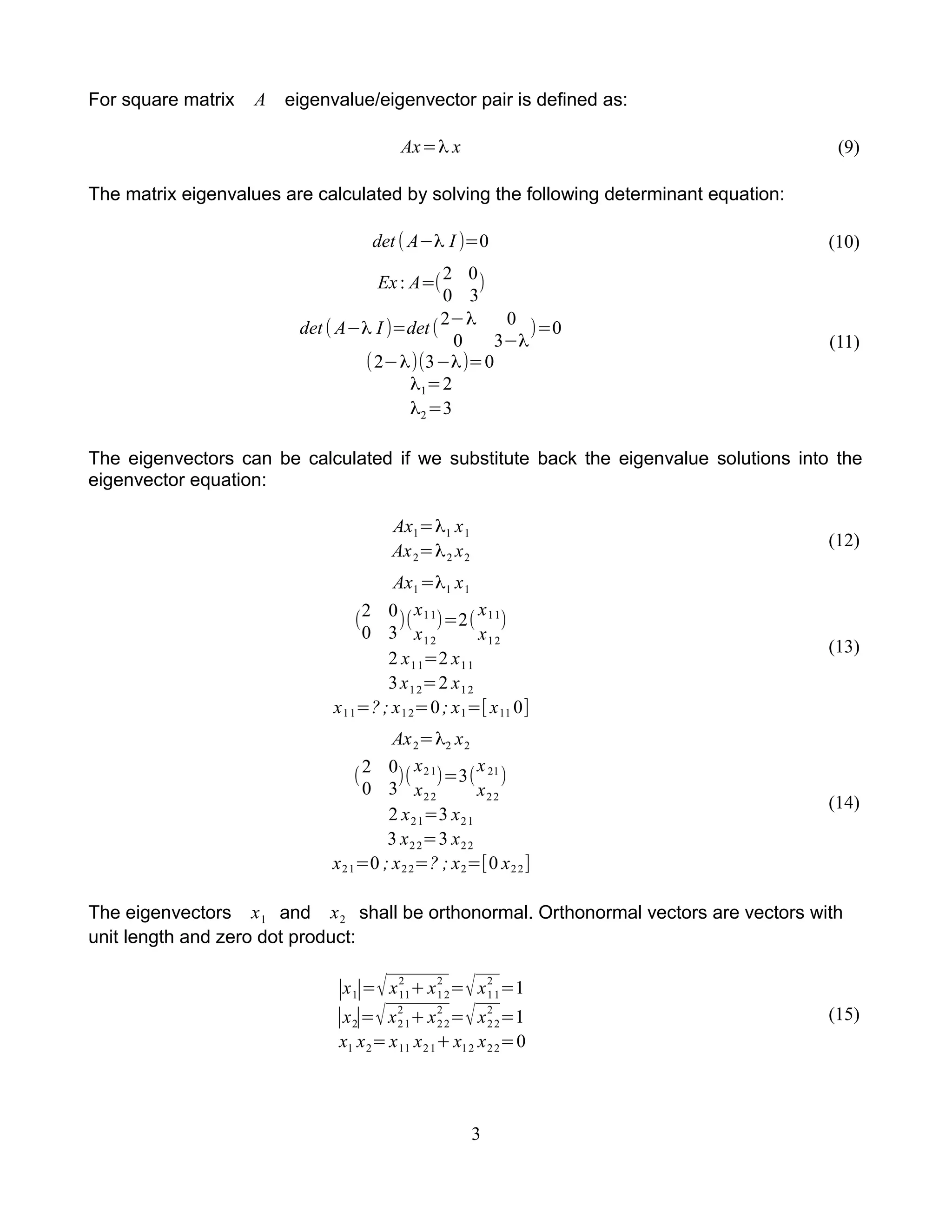

3. For square matrix A eigenvalue/eigenvector pair is defined as:
Ax=λ x (9)
The matrix eigenvalues are calculated by solving the following determinant equation:
det ( A−λ I )=0 (10)
Ex: A=(2 0
0 3
)
det( A−λ I )=det(
2−λ 0
0 3−λ
)=0
(2−λ)(3−λ)=0
λ1=2
λ2=3
(11)
The eigenvectors can be calculated if we substitute back the eigenvalue solutions into the
eigenvector equation:
Ax1=λ1 x1
Ax2=λ2 x2
(12)
Ax1=λ1 x1
(
2 0
0 3
)(
x11
x12
)=2(
x11
x12
)
2 x11=2 x11
3x12=2 x12
x11=?; x12=0; x1=[ x11 0]
(13)
Ax2=λ2 x2
(
2 0
0 3
)(
x21
x22
)=3(
x21
x22
)
2 x21=3 x21
3 x22=3 x22
x21=0 ; x22=? ; x2=[0 x22]
(14)
The eigenvectors x1 and x2 shall be orthonormal. Orthonormal vectors are vectors with
unit length and zero dot product:
∣x1∣=√x11
2
+x12
2
=√x11
2
=1
∣x2∣=√x21
2
+x22
2
=√x22
2
=1
x1 x2=x11 x21+x12 x22=0
(15)
3

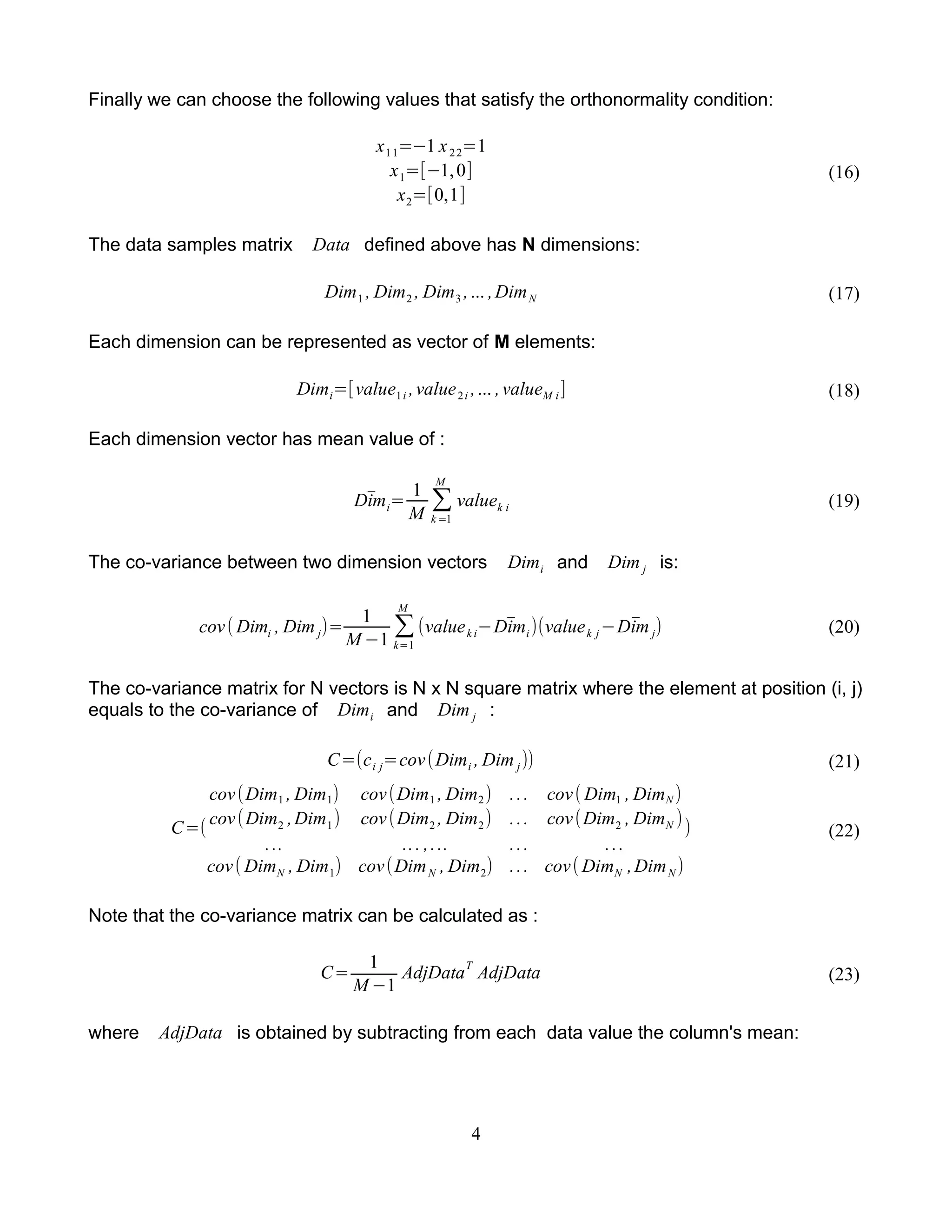

4. Finally we can choose the following values that satisfy the orthonormality condition:
x11=−1 x22=1
x1=[−1,0]
x2=[0,1]
(16)
The data samples matrix Data defined above has N dimensions:
Dim1 , Dim2 , Dim3 ,... ,DimN (17)
Each dimension can be represented as vector of M elements:
Dimi=[value1i ,value2i ,... ,valueM i] (18)
Each dimension vector has mean value of :
̄Dimi=
1
M
∑
k =1
M
valuek i (19)
The co-variance between two dimension vectors Dimi and Dim j is:
cov( Dimi , Dim j)=
1
M −1
∑
k=1
M
(valuek i− ̄Dimi)(valuek j− ̄Dim j) (20)
The co-variance matrix for N vectors is N x N square matrix where the element at position (i, j)
equals to the co-variance of Dimi and Dim j :
C=(ci j=cov(Dimi , Dim j)) (21)
C=(
cov(Dim1 , Dim1) cov(Dim1 , Dim2) ... cov( Dim1 , DimN )
cov(Dim2 ,Dim1) cov(Dim2 , Dim2) ... cov(Dim2 , DimN )
... ... ,... ... ...
cov( DimN , Dim1) cov(DimN , Dim2) ... cov( DimN ,DimN )
) (22)
Note that the co-variance matrix can be calculated as :
C=
1
M −1
AdjData
T
AdjData (23)
where AdjData is obtained by subtracting from each data value the column's mean:
4

5. AdjData=(
value11− ̄Dim1 value12− ̄Dim2 ... value1N − ̄DimN
value21− ̄Dim1 value22− ̄Dim2 ... value2N − ̄DimN
... ...,... ... ...
valueM 1− ̄Dim1 valueM 2− ̄Dim2 ... valueM N − ̄DimN
) (24)
Principal components of the matrix Data can be obtained by eigen decomposition of the co-
variance matrix C . The eigenvalues shall be sorted in descending order, the largest comes
the first. Associated eigenvectors shall be ordered the same way from left to right. We can
choose the first K eigenvectors (principal components) and discard the others that are
considered as lest significant. The principal components matrix PC with N rows and
K columns is transformation matrix where each column is principal component.
Finally, the projection of the original data Data into the space with K dimensions is
calculated as dot product between the AdjData and PC :
PData=AdjData PC (25)

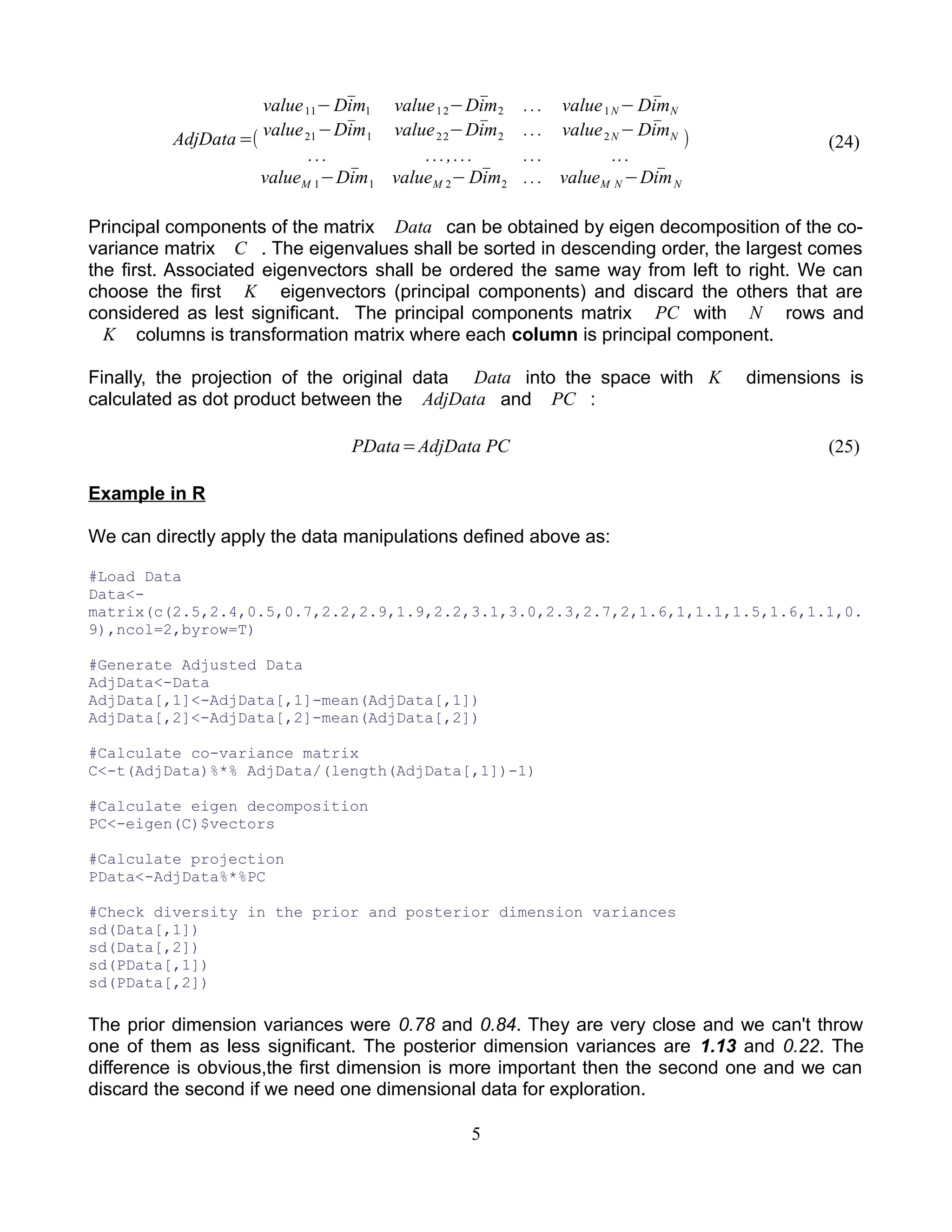

Example in R
We can directly apply the data manipulations defined above as:
#Load Data
Data<-
matrix(c(2.5,2.4,0.5,0.7,2.2,2.9,1.9,2.2,3.1,3.0,2.3,2.7,2,1.6,1,1.1,1.5,1.6,1.1,0.
9),ncol=2,byrow=T)
#Generate Adjusted Data
AdjData<-Data
AdjData[,1]<-AdjData[,1]-mean(AdjData[,1])
AdjData[,2]<-AdjData[,2]-mean(AdjData[,2])
#Calculate co-variance matrix
C<-t(AdjData)%*% AdjData/(length(AdjData[,1])-1)
#Calculate eigen decomposition
PC<-eigen(C)$vectors
#Calculate projection
PData<-AdjData%*%PC
#Check diversity in the prior and posterior dimension variances
sd(Data[,1])
sd(Data[,2])
sd(PData[,1])
sd(PData[,2])
The prior dimension variances were 0.78 and 0.84. They are very close and we can't throw
one of them as less significant. The posterior dimension variances are 1.13 and 0.22. The
difference is obvious,the first dimension is more important then the second one and we can
discard the second if we need one dimensional data for exploration.
5

6. In R there are ready to use functions for PCA that encapsulate all of the above calculations.
For example:
pca<-princomp(Data)
PC<-pca$loadings
PData<-predict(pca,Data)
Example in Python
import numpy as np
#Load Data
Data=np.array([[2.5,2.4],[0.5,0.7],[2.2,2.9],[1.9,2.2],[3.1,3.0],[2.3,2.7],[2,1.6],
[1,1.1],[1.5,1.6],[1.1,0.9]])
#Generate Adjusted Data
DimMeans=Data.mean(axis=0)
AdjData=Data-DimMeans
#Calculate co-variance matrix
C=AdjData.transpose().dot(AdjData)/(AdjData.shape[0]-1)
#Calculate eigen decomposition
EigenValues,PC=np.linalg.eig(C)
idx=EigenValues.argsort()[::-1]
PC = PC[:,idx]
#Calculate projection
PData=AdjData.dot(PC)
#Compare if we have increased diversity in the prior and posterior dimension
variances
Data.std(axis=0,ddof=1)
PData.std(axis=0,ddof=1)
The Python machine learning library scikit-learn contains ready to use PCA functionality:
from sklearn.decomposition import PCA
pca = PCA(n_components=2)
pca.fit(Data)
PData=pca.transform(Data)
Example in Apache Spark
Apache Spark is a framework for lighting-fast cluster computing (http://spark.apache.org/).
Spark can handle extremely large data sets in almost real time that is a huge improvement
over the Hadoop's batch processing nature. Machine learning in Spark is supported through
the MLlib library. One of the distributed algorithms implemented in there is the PCA algorithm
for dimensionality reduction.
For illustration purposes I will use the Iris Flower Data Set:
6

7. https://en.wikipedia.org/wiki/Iris_flower_data_set

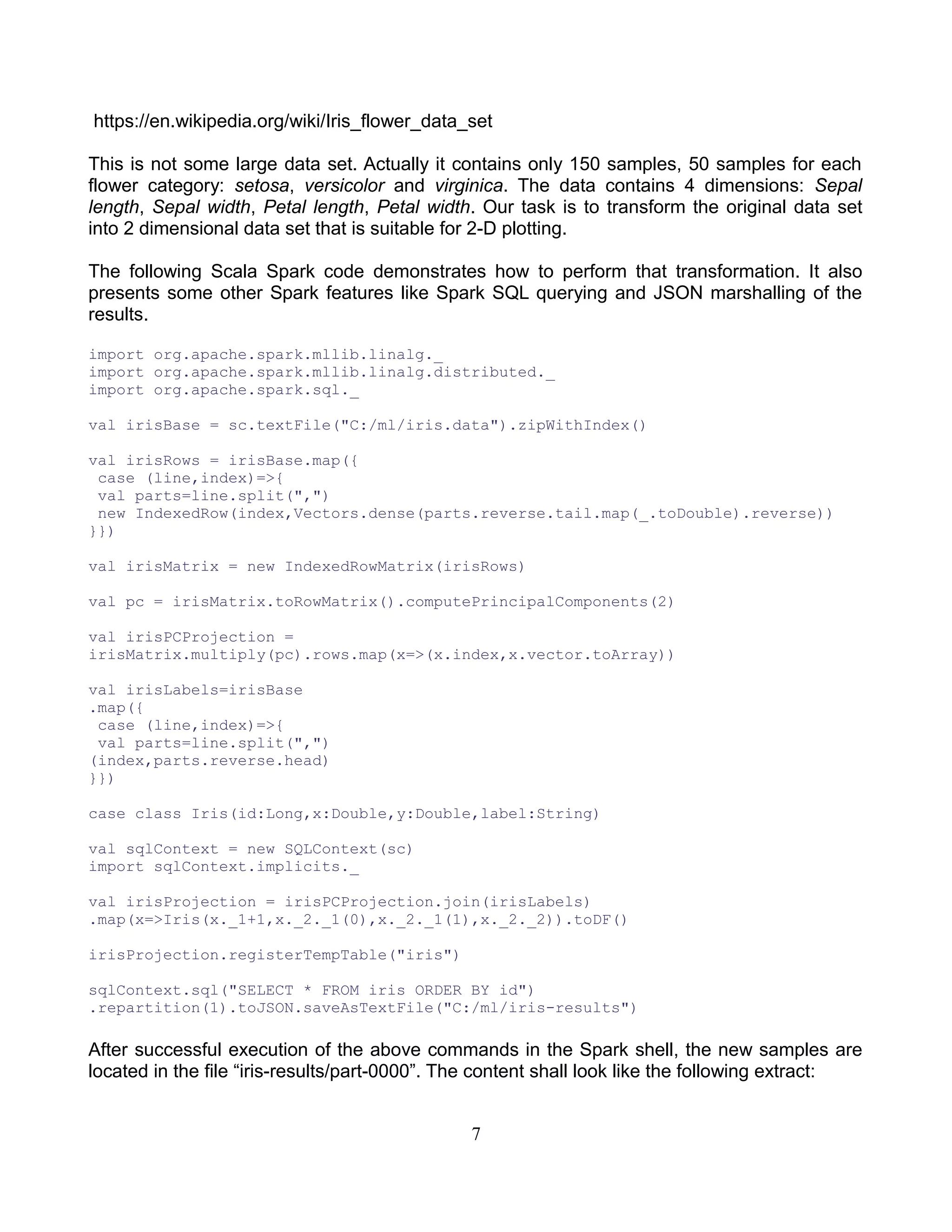

This is not some large data set. Actually it contains only 150 samples, 50 samples for each
flower category: setosa, versicolor and virginica. The data contains 4 dimensions: Sepal
length, Sepal width, Petal length, Petal width. Our task is to transform the original data set
into 2 dimensional data set that is suitable for 2-D plotting.
The following Scala Spark code demonstrates how to perform that transformation. It also
presents some other Spark features like Spark SQL querying and JSON marshalling of the
results.
import org.apache.spark.mllib.linalg._
import org.apache.spark.mllib.linalg.distributed._
import org.apache.spark.sql._
val irisBase = sc.textFile("C:/ml/iris.data").zipWithIndex()
val irisRows = irisBase.map({
case (line,index)=>{
val parts=line.split(",")
new IndexedRow(index,Vectors.dense(parts.reverse.tail.map(_.toDouble).reverse))
}})
val irisMatrix = new IndexedRowMatrix(irisRows)
val pc = irisMatrix.toRowMatrix().computePrincipalComponents(2)
val irisPCProjection =
irisMatrix.multiply(pc).rows.map(x=>(x.index,x.vector.toArray))
val irisLabels=irisBase
.map({
case (line,index)=>{
val parts=line.split(",")
(index,parts.reverse.head)
}})
case class Iris(id:Long,x:Double,y:Double,label:String)
val sqlContext = new SQLContext(sc)
import sqlContext.implicits._
val irisProjection = irisPCProjection.join(irisLabels)
.map(x=>Iris(x._1+1,x._2._1(0),x._2._1(1),x._2._2)).toDF()
irisProjection.registerTempTable("iris")
sqlContext.sql("SELECT * FROM iris ORDER BY id")
.repartition(1).toJSON.saveAsTextFile("C:/ml/iris-results")
After successful execution of the above commands in the Spark shell, the new samples are
located in the file “iris-results/part-0000”. The content shall look like the following extract:
7

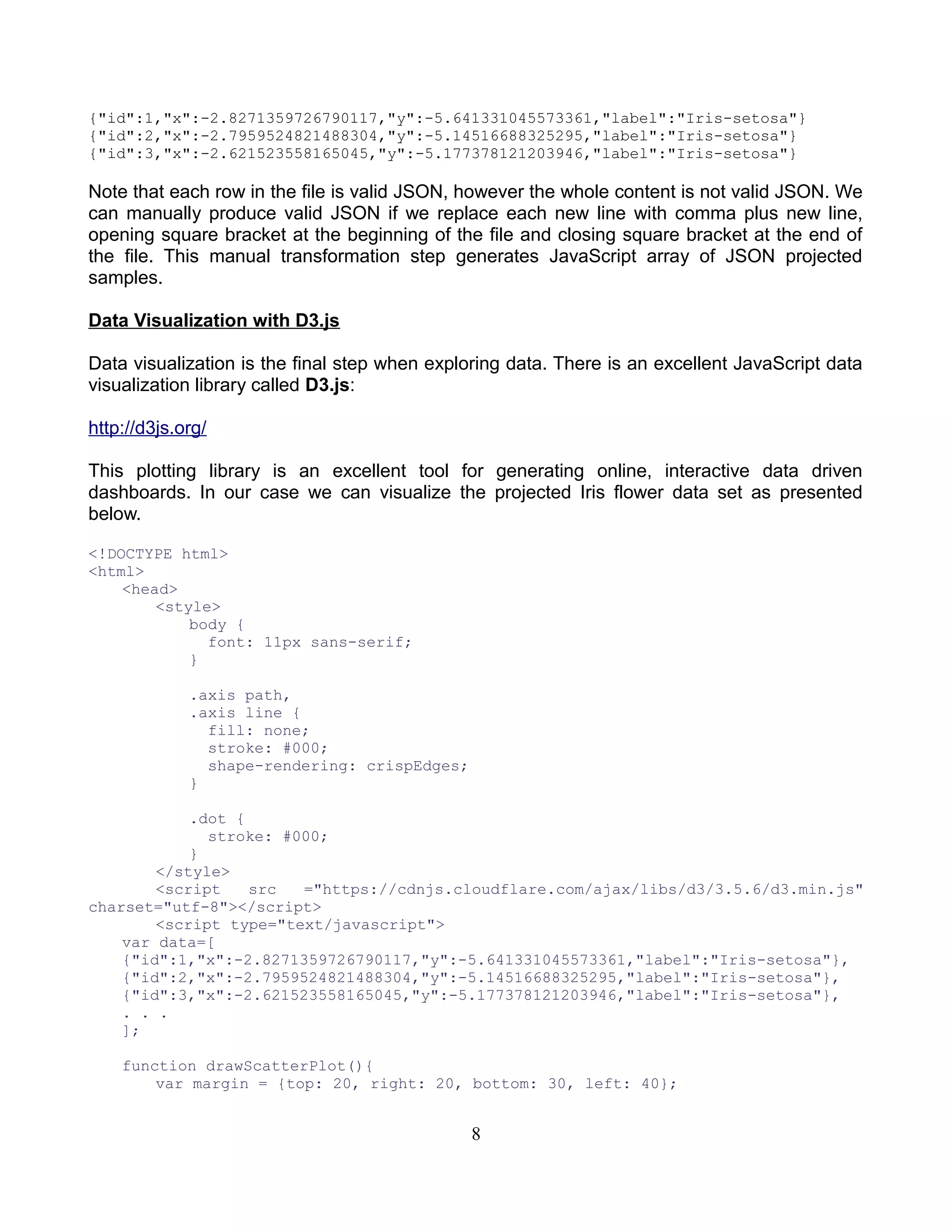

8. {"id":1,"x":-2.8271359726790117,"y":-5.641331045573361,"label":"Iris-setosa"}
{"id":2,"x":-2.7959524821488304,"y":-5.14516688325295,"label":"Iris-setosa"}
{"id":3,"x":-2.621523558165045,"y":-5.177378121203946,"label":"Iris-setosa"}
Note that each row in the file is valid JSON, however the whole content is not valid JSON. We
can manually produce valid JSON if we replace each new line with comma plus new line,
opening square bracket at the beginning of the file and closing square bracket at the end of
the file. This manual transformation step generates JavaScript array of JSON projected
samples.
Data Visualization with D3.js
Data visualization is the final step when exploring data. There is an excellent JavaScript data
visualization library called D3.js:
http://d3js.org/
This plotting library is an excellent tool for generating online, interactive data driven

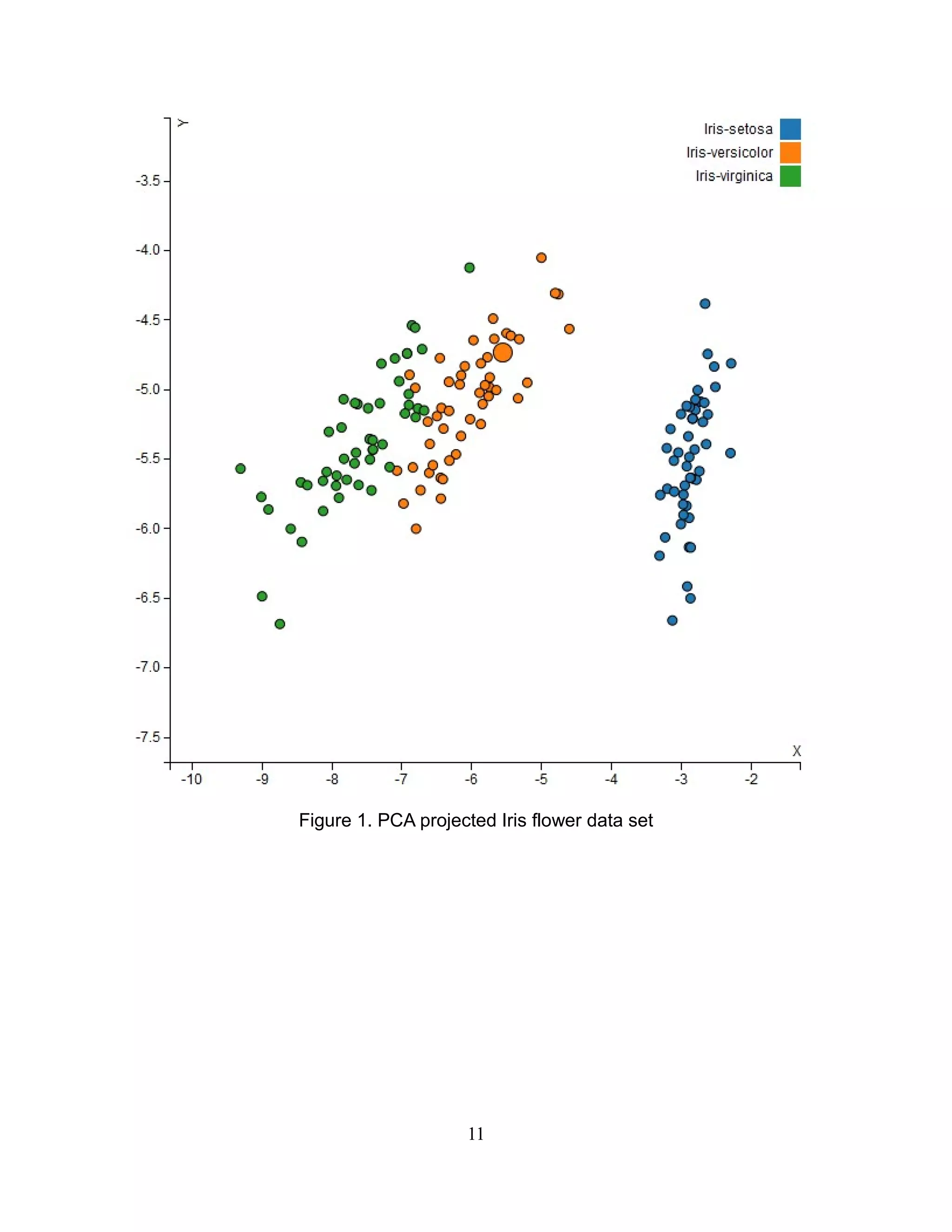

dashboards. In our case we can visualize the projected Iris flower data set as presented
below.
<!DOCTYPE html>
<html>
<head>
<style>
body {
font: 11px sans-serif;
}
.axis path,
.axis line {
fill: none;
stroke: #000;
shape-rendering: crispEdges;
}
.dot {
stroke: #000;
}
</style>

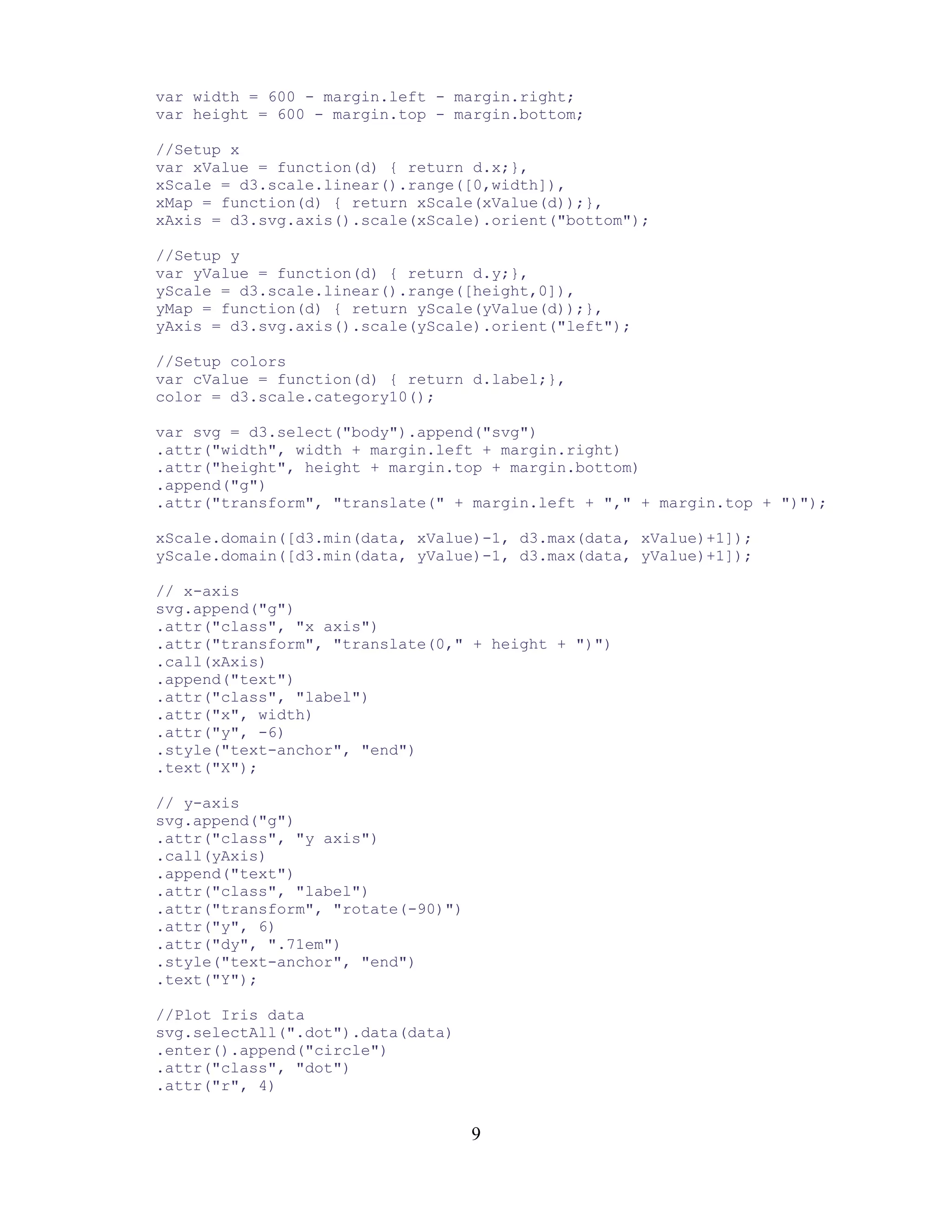

<script src ="https://cdnjs.cloudflare.com/ajax/libs/d3/3.5.6/d3.min.js"
charset="utf-8"></script>
<script type="text/javascript">
var data=[
{"id":1,"x":-2.8271359726790117,"y":-5.641331045573361,"label":"Iris-setosa"},
{"id":2,"x":-2.7959524821488304,"y":-5.14516688325295,"label":"Iris-setosa"},
{"id":3,"x":-2.621523558165045,"y":-5.177378121203946,"label":"Iris-setosa"},
. . .
];
function drawScatterPlot(){
var margin = {top: 20, right: 20, bottom: 30, left: 40};
8

9. var width = 600 - margin.left - margin.right;
var height = 600 - margin.top - margin.bottom;
//Setup x
var xValue = function(d) { return d.x;},
xScale = d3.scale.linear().range([0,width]),
xMap = function(d) { return xScale(xValue(d));},
xAxis = d3.svg.axis().scale(xScale).orient("bottom");
//Setup y
var yValue = function(d) { return d.y;},
yScale = d3.scale.linear().range([height,0]),
yMap = function(d) { return yScale(yValue(d));},
yAxis = d3.svg.axis().scale(yScale).orient("left");
//Setup colors
var cValue = function(d) { return d.label;},
color = d3.scale.category10();
var svg = d3.select("body").append("svg")
.attr("width", width + margin.left + margin.right)
.attr("height", height + margin.top + margin.bottom)
.append("g")
.attr("transform", "translate(" + margin.left + "," + margin.top + ")");
xScale.domain([d3.min(data, xValue)-1, d3.max(data, xValue)+1]);
yScale.domain([d3.min(data, yValue)-1, d3.max(data, yValue)+1]);
// x-axis
svg.append("g")
.attr("class", "x axis")
.attr("transform", "translate(0," + height + ")")
.call(xAxis)
.append("text")
.attr("class", "label")
.attr("x", width)
.attr("y", -6)
.style("text-anchor", "end")
.text("X");
// y-axis
svg.append("g")
.attr("class", "y axis")
.call(yAxis)
.append("text")
.attr("class", "label")
.attr("transform", "rotate(-90)")
.attr("y", 6)
.attr("dy", ".71em")
.style("text-anchor", "end")
.text("Y");
//Plot Iris data
svg.selectAll(".dot").data(data)
.enter().append("circle")
.attr("class", "dot")
.attr("r", 4)
9

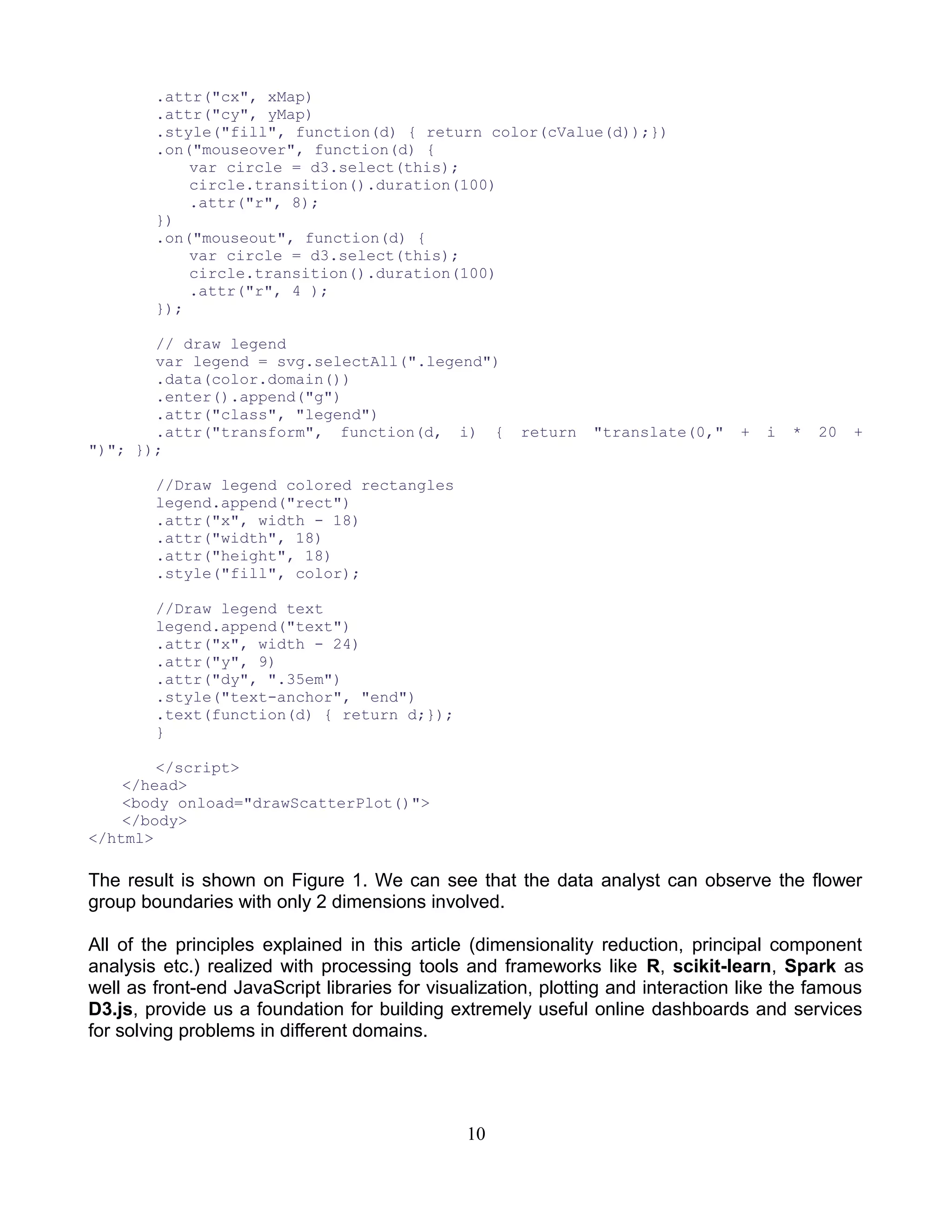

10. .attr("cx", xMap)
.attr("cy", yMap)
.style("fill", function(d) { return color(cValue(d));})
.on("mouseover", function(d) {
var circle = d3.select(this);
circle.transition().duration(100)
.attr("r", 8);
})
.on("mouseout", function(d) {
var circle = d3.select(this);
circle.transition().duration(100)
.attr("r", 4 );
});
// draw legend
var legend = svg.selectAll(".legend")
.data(color.domain())
.enter().append("g")
.attr("class", "legend")
.attr("transform", function(d, i) { return "translate(0," + i * 20 +
")"; });
//Draw legend colored rectangles
legend.append("rect")
.attr("x", width - 18)
.attr("width", 18)
.attr("height", 18)
.style("fill", color);
//Draw legend text
legend.append("text")
.attr("x", width - 24)
.attr("y", 9)
.attr("dy", ".35em")
.style("text-anchor", "end")
.text(function(d) { return d;});
}
</script>
</head>
<body onload="drawScatterPlot()">
</body>
</html>
The result is shown on Figure 1. We can see that the data analyst can observe the flower
group boundaries with only 2 dimensions involved.
All of the principles explained in this article (dimensionality reduction, principal component
analysis etc.) realized with processing tools and frameworks like R, scikit-learn, Spark as
well as front-end JavaScript libraries for visualization, plotting and interaction like the famous
D3.js, provide us a foundation for building extremely useful online dashboards and services
for solving problems in different domains.
10

11. Figure 1. PCA projected Iris flower data set
11
