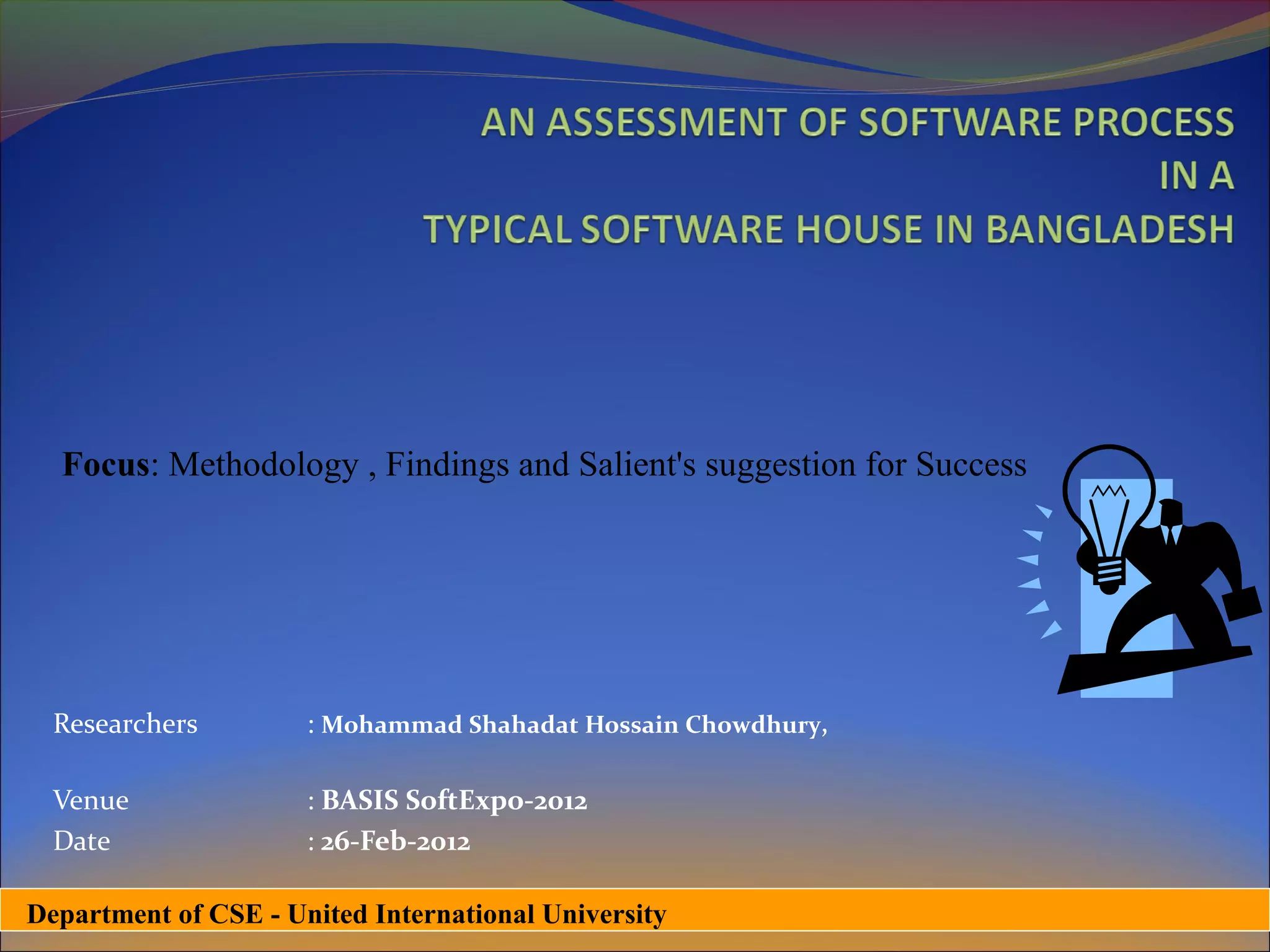

Presentation on software assessment in bangladesh basis soft_expo2012_final

Focus: Methodology , Findings and Salient's suggestion for Success

Researchers : Mohammad Shahadat Hossain Chowdhury,

Venue : BASIS SoftExpo-2012
Date : 26-Feb-2012

Department of CSE - United International University

1. Hazard of Using Process

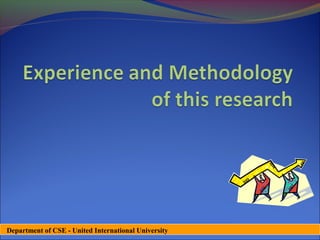

2. Experience and Methodology of Research
3. Strength and Weakness of Current Practice
activity
4. Salient Suggestion and Findings
5. Conclusion and Future Work
6. Q& A

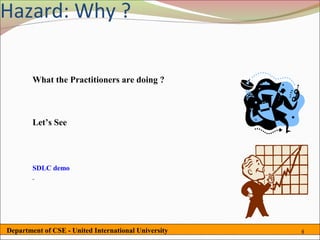

Hazard: Why ?

What the Practitioners are doing ?

Let’s See

SDLC demo

Department of CSE - United International University 4

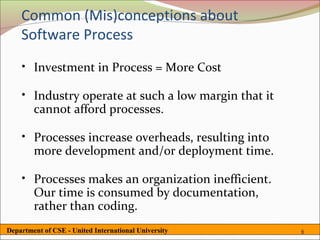

Common (Mis)conceptions about
Software Process
• Investment in Process = More Cost

• Industry operate at such a low margin that it
cannot afford processes.

• Processes increase overheads, resulting into
more development and/or deployment time.

• Processes makes an organization inefficient.
Our time is consumed by documentation,
rather than coding.

Questions about Process and
Practice
• Is software process
improvement worth the
investment?
• Can a mature process really
pay for itself?
?
• Is ISO/CMMI or Six Sigma
goals worth pursuing?
• Or Can we go for such Model
which leads profit as well as
ensure minimum Process
Quality

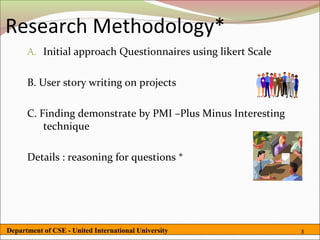

Research Methodology*
A. Initial approach Questionnaires using likert Scale

B. User story writing on projects

C. Finding demonstrate by PMI –Plus Minus Interesting
technique

Details : reasoning for questions *

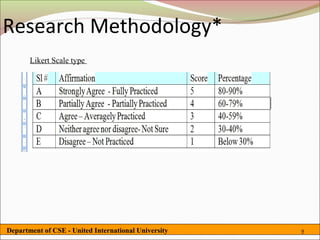

Likert Scale type

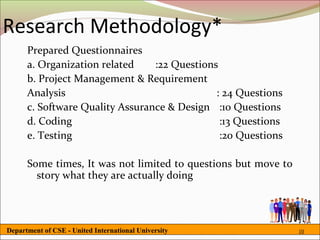

Prepared Questionnaires
a. Organization related :22 Questions
b. Project Management & Requirement
Analysis : 24 Questions
c. Software Quality Assurance & Design :10 Questions
d. Coding :13 Questions
e. Testing :20 Questions

Some times, It was not limited to questions but move to
story what they are actually doing

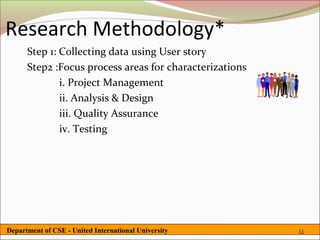

Step 1: Collecting data using User story
Step2 :Focus process areas for characterizations
i. Project Management
ii. Analysis & Design
iii. Quality Assurance
iv. Testing

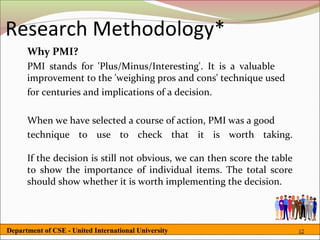

Why PMI?
PMI stands for 'Plus/Minus/Interesting'. It is a valuable
improvement to the 'weighing pros and cons' technique used
for centuries and implications of a decision.

When we have selected a course of action, PMI was a good
technique to use to check that it is worth taking.

If the decision is still not obvious, we can then score the table
to show the importance of individual items. The total score
should show whether it is worth implementing the decision.

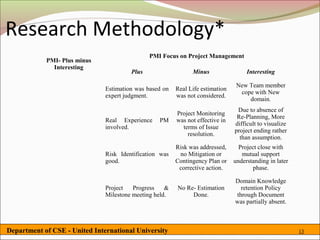

PMI Focus on Project Management
PMI- Plus minus
Interesting
Plus Minus Interesting

New Team member
Estimation was based on Real Life estimation
cope with New
expert judgment. was not considered.
domain.
Due to absence of
Project Monitoring
Re-Planning, More
Real Experience PM was not effective in
difficult to visualize
involved. terms of Issue
project ending rather
resolution.
than assumption.
Risk was addressed, Project close with
Risk Identification was no Mitigation or mutual support
good. Contingency Plan or understanding in later
corrective action. phase.

Domain Knowledge
Project Progress & No Re- Estimation retention Policy
Milestone meeting held. Done. through Document
was partially absent.

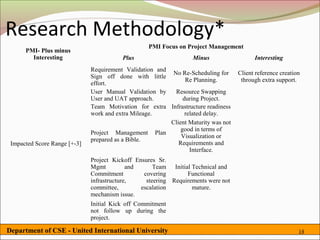

PMI Focus on Project Management
PMI- Plus minus
Interesting Plus Minus Interesting
Requirement Validation and
No Re-Scheduling for Client reference creation
Sign off done with little
Re Planning. through extra support.
effort.
User Manual Validation by Resource Swapping
User and UAT approach. during Project.
Team Motivation for extra Infrastructure readiness
work and extra Mileage. related delay.
Client Maturity was not
good in terms of
Project Management Plan
Visualization or
prepared as a Bible.
Impacted Score Range [+-3] Requirements and
Interface.
Project Kickoff Ensures Sr.
Mgmt and Team Initial Technical and
Commitment covering Functional
infrastructure, steering Requirements were not
committee, escalation mature.
mechanism issue.
Initial Kick off Commitment
not follow up during the
project.

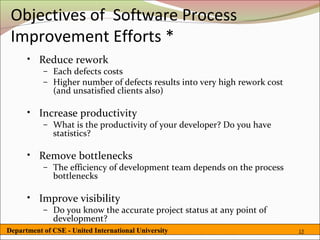

Objectives of Software Process
Improvement Efforts *
• Reduce rework
– Each defects costs
– Higher number of defects results into very high rework cost
(and unsatisfied clients also)

• Increase productivity
– What is the productivity of your developer? Do you have
statistics?

• Remove bottlenecks
– The efficiency of development team depends on the process
bottlenecks

• Improve visibility
– Do you know the accurate project status at any point of
development?

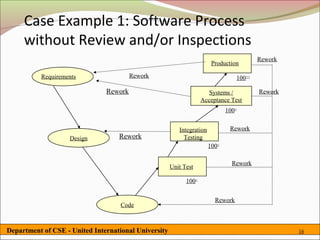

Case Example 1: Software Process
without Review and/or Inspections
Rework
Production

Requirements Rework 100++

Rework Systems / Rework
Acceptance Test
100+

Integration Rework
Design Rework Testing
100+

Rework
Unit Test

100+

Rework
Code

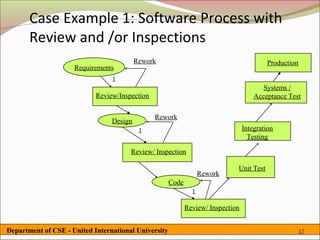

Case Example 1: Software Process with
Review and /or Inspections
Rework Production
Requirements
Requirements
1
Systems /
Review/Inspection Acceptance Test

Design Rework
Design
1 Integration
Testing

Review/ Inspection

Unit Test
Rework
Code
Code
1

Review/ Inspection


Cost of Review/Inspection Process Efforts

Req. Defects
Cost of Defect Removal (Tk. in 000)

20
18 Analysis Defects

16
14 Design Defects

12 Code Defects
10
8
6
4
2

Req. Analysis Design Code Test Acceptance Operations
Defect Removal Stage


Limitation of Research Methodology*
* Limitations of this Research only 4 to 5 company visit.
* Lesson Learn from this research yet to incorporate in
the next research
•* Only SME local Organization selected but not
categorized based on Practitioners and expert
•

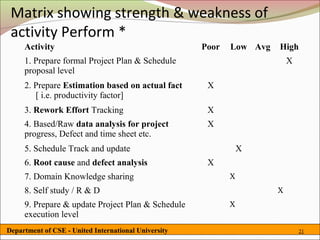

Matrix showing strength & weakness of
activity Perform *
Activity Poor Low Avg High
1. Prepare formal Project Plan & Schedule X
proposal level
2. Prepare Estimation based on actual fact X
[ i.e. productivity factor]
3. Rework Effort Tracking X
4. Based/Raw data analysis for project X
progress, Defect and time sheet etc.
5. Schedule Track and update X
6. Root cause and defect analysis X
7. Domain Knowledge sharing X
8. Self study / R & D X
9. Prepare & update Project Plan & Schedule X
execution level

Matrix showing strength & weakness of
activity Perform *
Activity Poor Low Avg High
10. Practice of Self study / R & D by team X

11. Response on Bug fixing and changing X
requirements of client
12. Track internal or external changes in X
requirements, its cost and dead line fail
13. Schedule and Effort Variance Track X

14. Maintenance period support and extra work X
15. Quality and Testing activity X
16. Skill and Role based Training X
17. Client dealing and Negotiation in effective X
manner

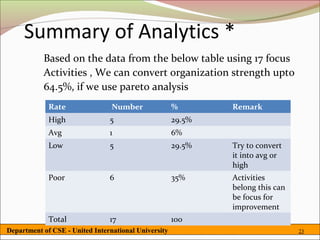

Summary of Analytics *
Based on the data from the below table using 17 focus
Activities , We can convert organization strength upto
64.5%, if we use pareto analysis
Rate Number % Remark
High 5 29.5%
Avg 1 6%
Low 5 29.5% Try to convert
it into avg or
high
Poor 6 35% Activities
belong this can
be focus for
improvement
Total 17 100

Salient Suggestions for Success *
1. Life cycle selection and validation for specific project type and
size based on client Maturity.
Key Benefit: Help project to focus on reality and maturity of
application, as well as ensure client expectations [in terms of time
and deliverables]

2. Emphasis on Estimation and share the reality with client sponsor
showing ROI-Return on Investment.
Key Benefit: Visualize and change clients target & create
Impression as well as productivity for future.

3. A small project charter / management plan need to ensure for
keeping overview of project
Key Benefit: Reduce Impact of resource swapping

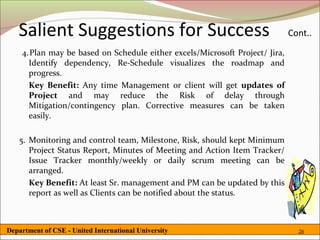

Salient Suggestions for Success Cont..
4.Plan may be based on Schedule either excels/Microsoft Project/ Jira,
Identify dependency, Re-Schedule visualizes the roadmap and
progress.
Key Benefit: Any time Management or client will get updates of
Project and may reduce the Risk of delay through
Mitigation/contingency plan. Corrective measures can be taken
easily.

5. Monitoring and control team, Milestone, Risk, should kept Minimum
Project Status Report, Minutes of Meeting and Action Item Tracker/
Issue Tracker monthly/weekly or daily scrum meeting can be
arranged.
Key Benefit: At least Sr. management and PM can be updated by this
report as well as Clients can be notified about the status.



6. Separate Measurement can be tracked for Rework, Defect, skill,
costing, which may be calculated and analyzed for Cost and Benefit
analysis
Key Benefit: Cost and Benefit Analysis can be done [If management
focuses on it]

7. Resource Allocation and Release details need to be updated from
schedule with skill.
Key Benefit: Helps to plan for Future Project and skill

8. Knowledge Share culture may impose through Key Performance
Indicator.
Key Benefit: It helps to prevent another project committing the
same mistake and increase skilled resource


9.ERD design needs to verify effectively before implementation.
Key Benefit: Helps to reduce rework in implementation phase

10.Need to follow Software Security, Maintainability issue.
Key Benefit: It will help to increase customer satisfaction will
create option for reuse

11. Need to follow Minimum tools for version control or bug tracking
and effort of rework.
Key Benefit: Its help to identify the bug and reasoning for it and help
to calculate extra cost for re-work effort.

12. Ensure Domain Experts in Analysis Phase
Key Benefit: Overcome the project failure because of lack of Domain
Knowledge and experience of analyst and end users.

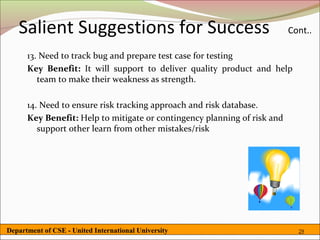

13. Need to track bug and prepare test case for testing
Key Benefit: It will support to deliver quality product and help
team to make their weakness as strength.

14. Need to ensure risk tracking approach and risk database.
Key Benefit: Help to mitigate or contingency planning of risk and
support other learn from other mistakes/risk

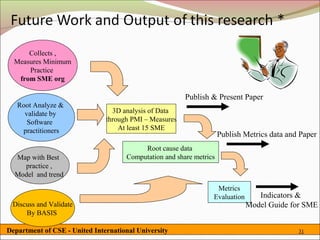

Collects ,
Measures Minimum
Practice
from SME org

Publish & Present Paper
Root Analyze &
validate by 3D analysis of Data
Software through PMI – Measures
practitioners At least 15 SME
Publish Metrics data and Paper
Root cause data
Map with Best Computation and share metrics
practice ,
Model and trend
Metrics
Evaluation Indicators &
Discuss and Validate Model Guide for SME
By BASIS


How to have Successful Basic Process in
your project

Get services of a good Software Process Improvement
coach. Don’t follow do it yourself approach unless you
have the required expertise.

Confirm executive level (CxO) sponsorship and
commitment.

Treat Basic Process as a routine work and part of project.
Develop plan, outline key success factors and provide
resources.

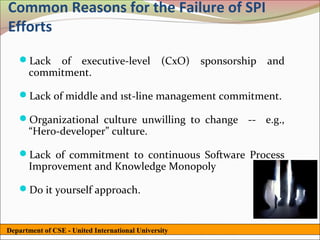

Common Reasons for the Failure of SPI
Efforts
Lack of executive-level (CxO) sponsorship and
commitment.

Lack of middle and 1st-line management commitment.

Organizational culture unwilling to change -- e.g.,
“Hero-developer” culture.

Lack of commitment to continuous Software Process
Improvement and Knowledge Monopoly

Do it yourself approach.

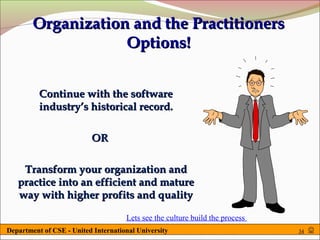

Organization and the Practitioners
Options!

Continue with the software
industry’s historical record.

OR

Transform your organization and
practice into an efficient and mature
way with higher profits and quality

Lets see the culture build the process
Department of CSE - United International University 34 

But anyone can start now and
create a successful ending.

Mistakes are painful when they
happen & enjoyed by the competitors

But year's later collection of mistakes
is called experience, which leads to
success.
It allow Learn from Others Mistake

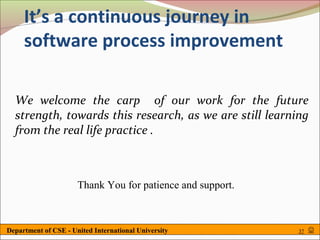

It’s a continuous journey in
software process improvement

We welcome the carp of our work for the future
strength, towards this research, as we are still learning
from the real life practice .

Thank You for patience and support.


Q&A


Presentation on software assessment in bangladesh basis soft_expo2012_final

More Related Content

What's hot

Viewers also liked

Similar to Presentation on software assessment in bangladesh basis soft_expo2012_final

More from Mohammad Shahadat Hossain Chowdhury, CSSB,ITIL, PRINCE2

Recently uploaded

Presentation on software assessment in bangladesh basis soft_expo2012_final

Editor's Notes
