1. Filtration Services Ltd
Rotary Drum Vacuum Filters

2. Definition: Filtration is the mechanical
separation of solid particulates from a fluid.
Purpose of the filter is to:-
• remove the solids (filter cake)
• recover the liquid (filtrate)
Filtration and Separation

3. Filter System Requirements
• Continuous operation
• System can be automated for incorporation
within the entire plant
• Minimum labour requirement for maintenance
• High equipment reliability
• Robust construction

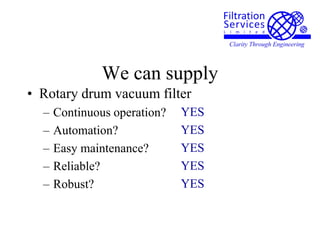

4. We can supply
• Rotary drum vacuum filter
– Continuous operation?
– Automation?
– Easy maintenance?
– Reliable?
– Robust?
YES
YES
YES
YES
YES

5. How a rotary drum vacuum filter works ...

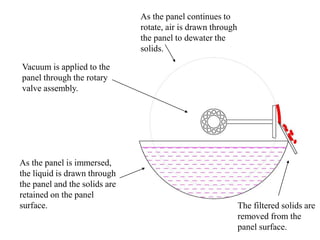

6. As the panel is immersed,
the liquid is drawn through
the panel and the solids are
retained on the panel
surface.
As the panel continues to
rotate, air is drawn through
the panel to dewater the
solids.
The filtered solids are
removed from the
panel surface.
Vacuum is applied to the
panel through the rotary
valve assembly.

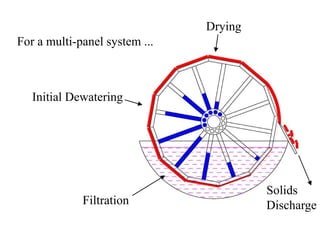

7. Solids
DischargeFiltration
Drying
Initial Dewatering
For a multi-panel system ...

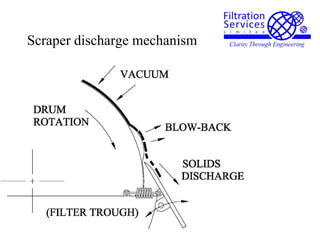

8. Scraper discharge mechanism

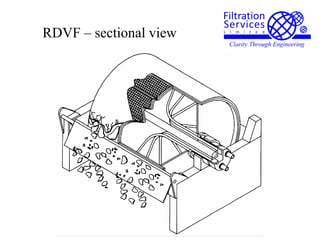

9. RDVF – sectional view

10. Scraper Discharge
Rotary Drum Vacuum Filter (RDVF)
Filtration area from <1m2 to >60m2

11. Standard Scraper Filtration Circuit

12. Ancillary Equipment
All of the ancillary equipment is sized to
suit the RDVF installation
• Filtrate receiver
• Filtrate pump
• Vacuum pump
• Blower
