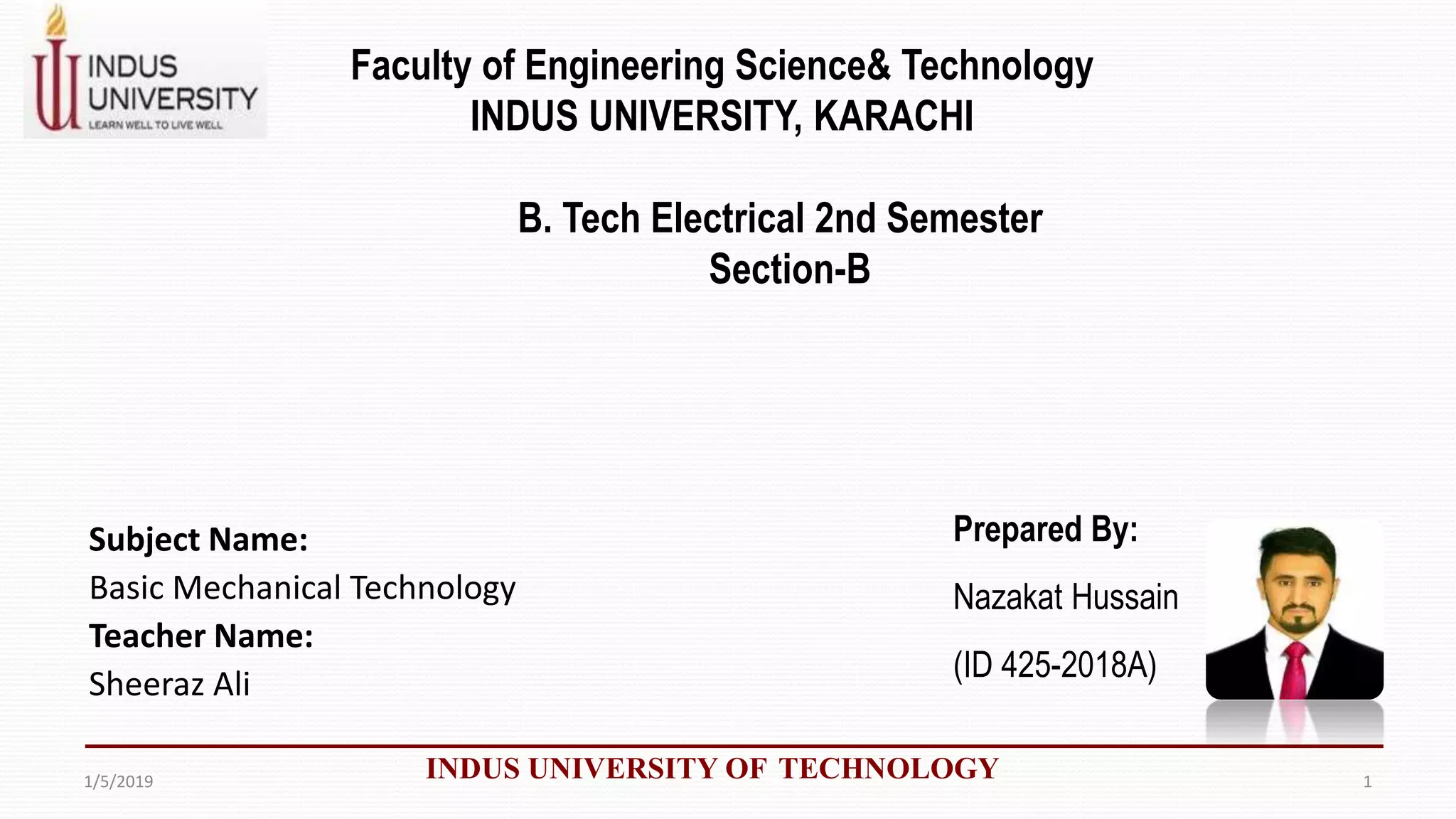

1. Subject Name:
Basic Mechanical Technology
Teacher Name:
Sheeraz Ali
INDUS UNIVERSITY OF TECHNOLOGY
Faculty of Engineering Science& Technology
INDUS UNIVERSITY, KARACHI
B. Tech Electrical 2nd Semester
Section-B
Prepared By:
Nazakat Hussain
(ID 425-2018A)
1/5/2019 1

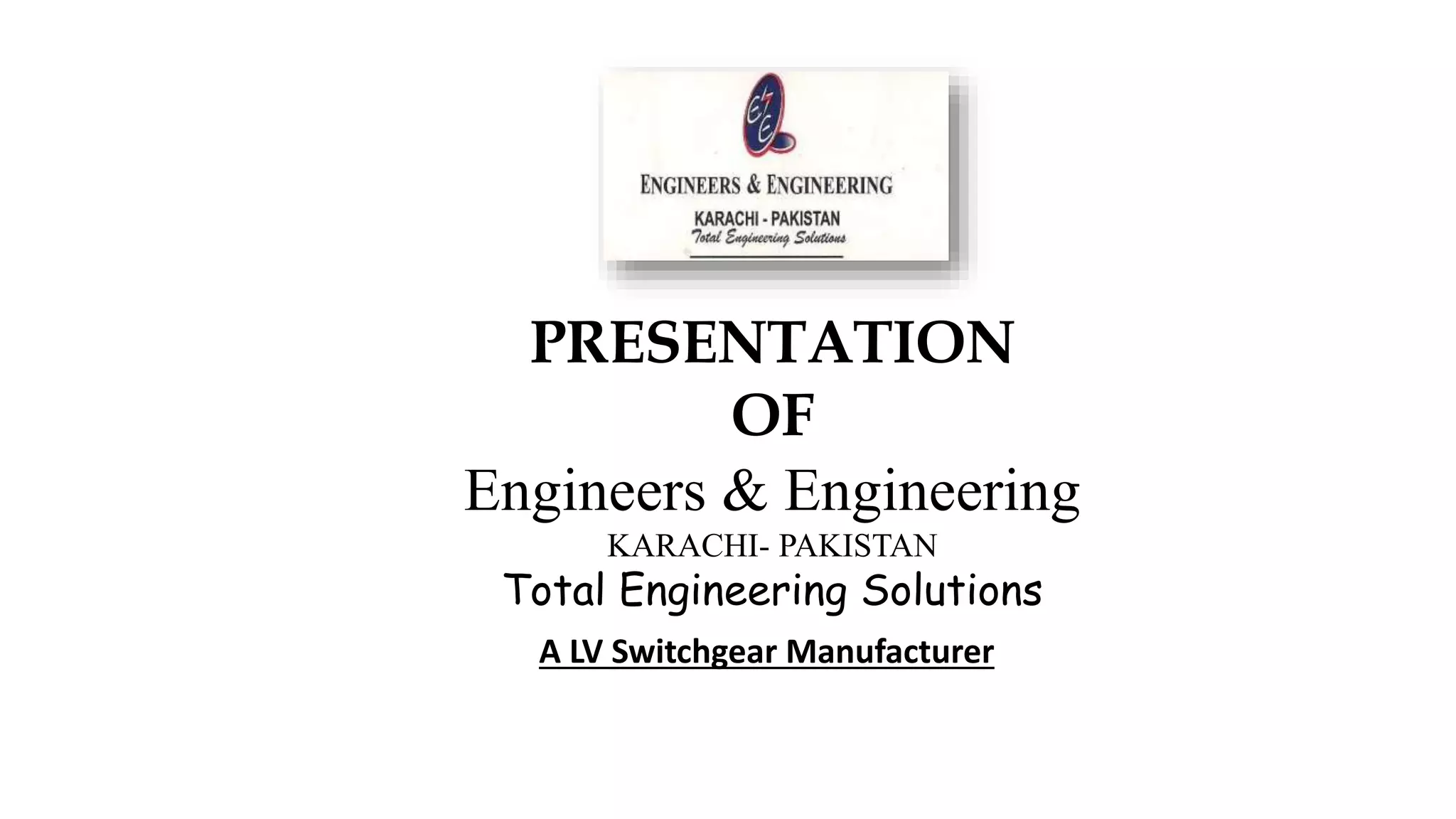

2. PRESENTATION
OF
Engineers & Engineering
KARACHI- PAKISTAN
Total Engineering Solutions
A LV Switchgear Manufacturer

3. Introduction of Engineers & Engineering
• Its is switchgear manufacturing company, It established in 2006
• It deals only in low voltage switchgear
• Designs, manufactures & sales low voltage switchgear
• Manufactures all types of LV Switchgear including MCC Panels,
Power panels, PFI Panels, ATS/AMF Panels, Distribution boards,
Cable Trays & busway trunk system.
1/5/2019 3

4. About Switchgear
WHAT IS SWITCHGEAR
Switchgear is a assembly of protecting, switching, controlling &
measuring devices.
TYPES OF SWITCHGEAR
There are three types switchgear categorized by power system voltage.
1. Low Voltage Switchgear
2. Medium Voltage Switchgear
3. High Voltage Switchgear
1/5/2019 4

5. 1/5/2019
Continue…
5

6. HEIRARCHY OF ENGINEERS & ENGINEERING
ENGINEERS
&
ENGINEEIRNG
DIRECTOR
BASIT BAWA
ACCOUNTS
DEPARTMENT
DESIGN &
DRAFTING
DEPARTEMNT
MECHANICAL
& PAINT
DEPARTMENT
OPERATION &
Testing
DEPARTMENT
DIRECTOR
ALI JAMEEL
SALES
DEPARTMENT
ESTIMATION
DEPARTMENT
1/5/2019 6

7. SEQUENCE OF OPERATION
1/5/2019
First Inquiry From Client Comes
to Sales Department
Sales Department
7

8. Estimation Department
1/5/2019
Estimates Total Cost of a
Particular Project.
8

9. Accounts Department
1/5/2019
After Finalizing Order of Switchgear
By Client ,then Client will send
Advance Payment for Proceeding
Further.
9

10. Designing & Drafting Department
1/5/2019
A inquiry will be provided for
designing and drafting shop drawing
by following IEC----- standards
10

11. Mechanical Department
1/5/2019 11

12. Paint Department
1/5/2019
In paint department switchgear items
like DBs/Panels are painted mostly color
is used is powder coated RAL 7032
(Pebble Grey )/RAL 7035 (Light Grey).
12

13. Operation Department
1/5/2019
Number of cubical/mounting plates will
first be placed and then switchgear
components will be mounted according to
approved shop drawings.
13

14. Operation Department
1/5/2019
Power & Control wiring will start
after mounting switchgear
components
14

15. Testing Department
1/5/2019
Before delivering Panels/DBs at site,
Testing Engineers will inspect switchgear
completely from manufacturing fault to
cable wiring and system functioning.
15

16. Service at site
1/5/2019
Engineers & Engineering also
gives services after Sale.
16
