2. Announcing Oracle Secure Backup 10.3:
Fastest, Most Cost-Effective Oracle Backup
Donna Cooksey
Principal Product Manager
Richard McClain
Senior Oracle DBA
CSX Technology

3. 3
<Insert Picture Here>
Program Agenda
• Introducing Oracle Secure Backup
• Oracle Secure Backup Functionality
– Oracle Integrated Solution
– Data Protection
– Device Utilization
– Advanced Media Management
• Summary
• Success Story: CSX Technology
• Q & A

4. 4

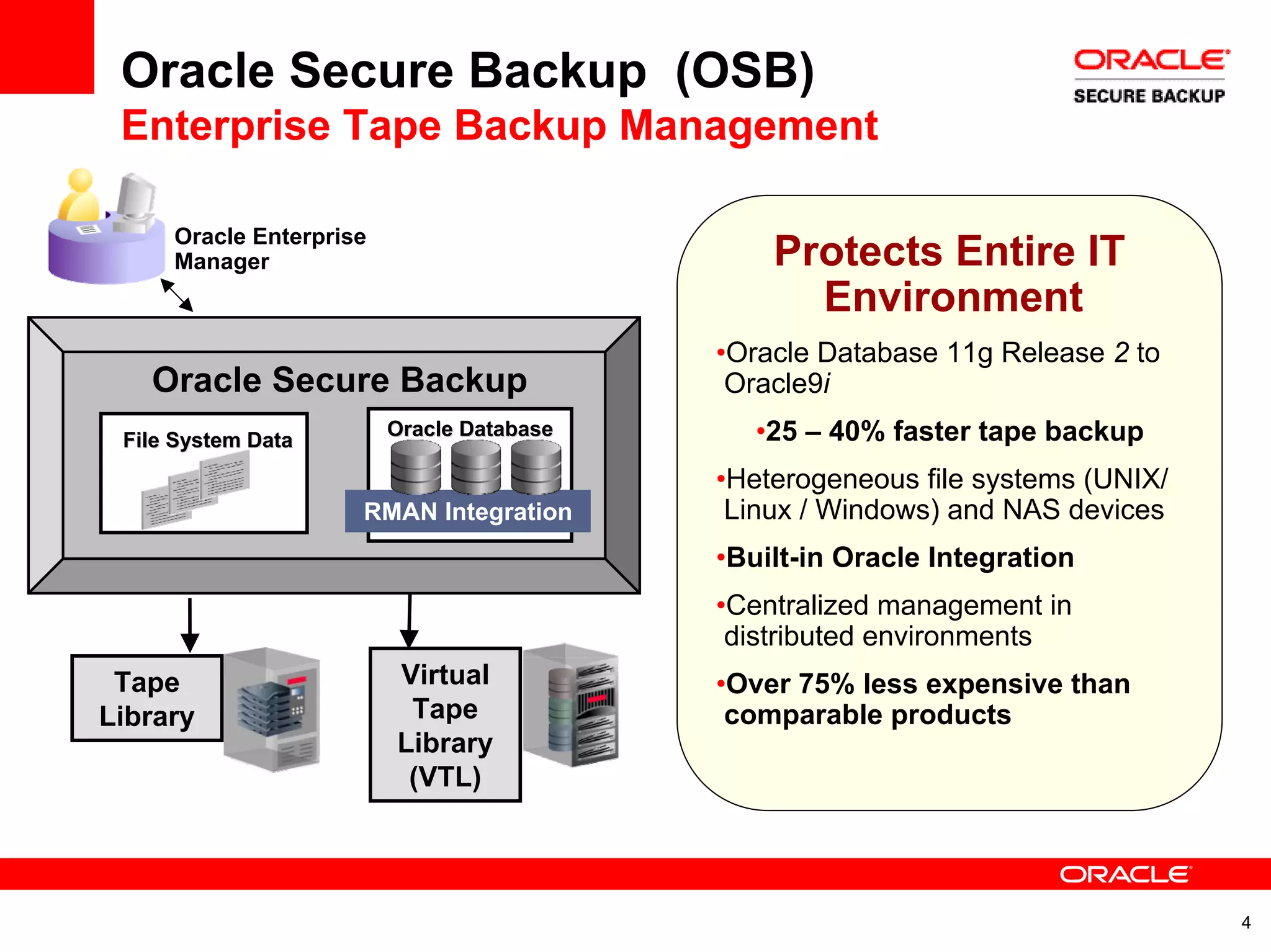

Oracle Secure Backup (OSB)
Enterprise Tape Backup Management
Oracle Enterprise
Manager
Oracle DatabaseOracle Database
RMAN Integration
Oracle Secure Backup
Tape
Library
Virtual
Tape
Library
(VTL)
Protects Entire IT
Environment
•Oracle Database 11g Release 2 to
Oracle9i
•25 – 40% faster tape backup
•Heterogeneous file systems (UNIX/
Linux / Windows) and NAS devices
•Built-in Oracle Integration
•Centralized management in
distributed environments
•Over 75% less expensive than
comparable products
File System DataFile System Data

5. 5

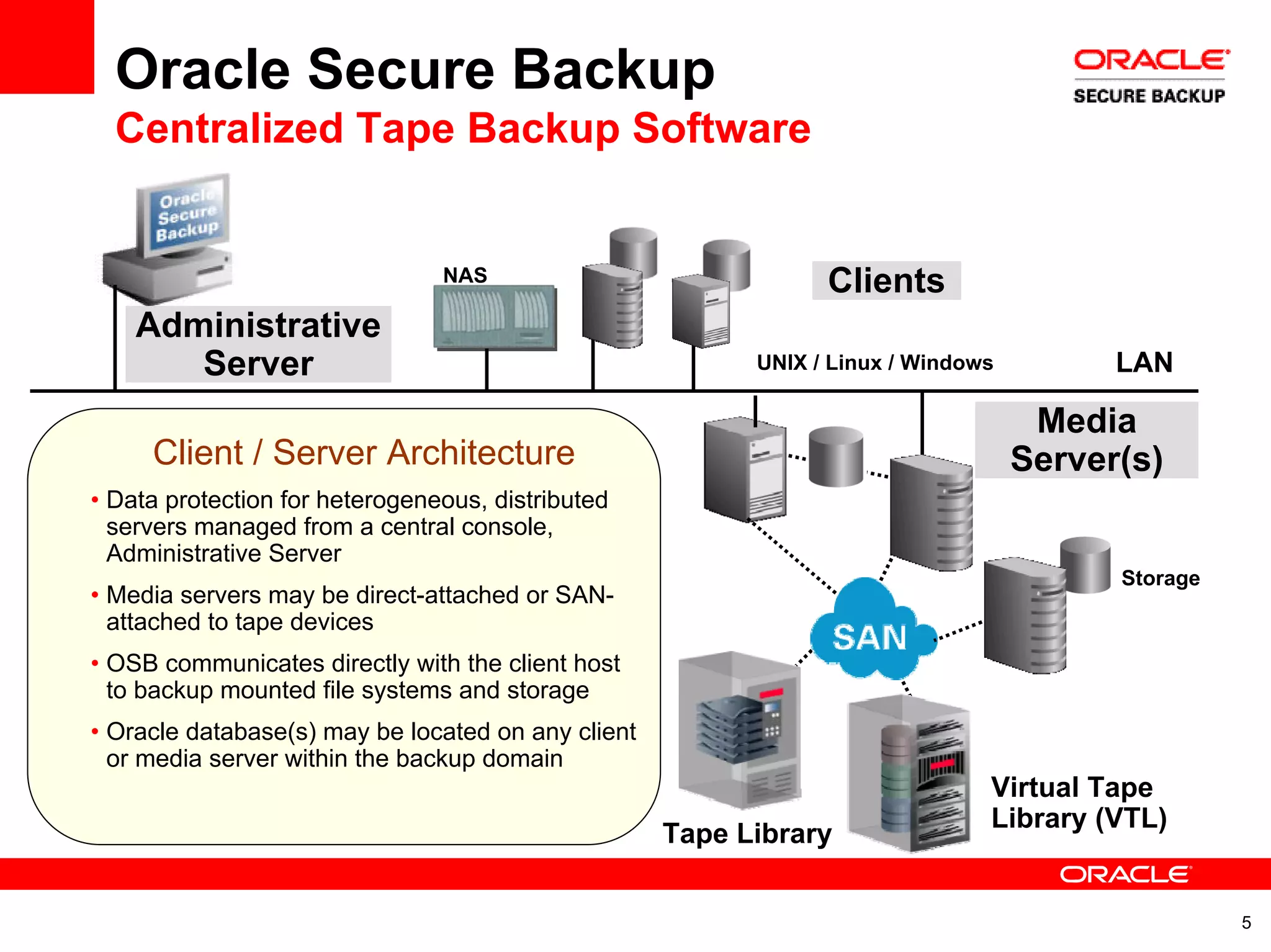

Oracle Secure Backup
Centralized Tape Backup Software
LAN
Administrative
Server
Clients
Media
Server(s)
Tape Library
Virtual Tape
Library (VTL)
NAS
UNIX / Linux / Windows
Storage
Client / Server Architecture
• Data protection for heterogeneous, distributed
servers managed from a central console,
Administrative Server
• Media servers may be direct-attached or SAN-
attached to tape devices
• OSB communicates directly with the client host
to backup mounted file systems and storage
• Oracle database(s) may be located on any client
or media server within the backup domain

6. 6

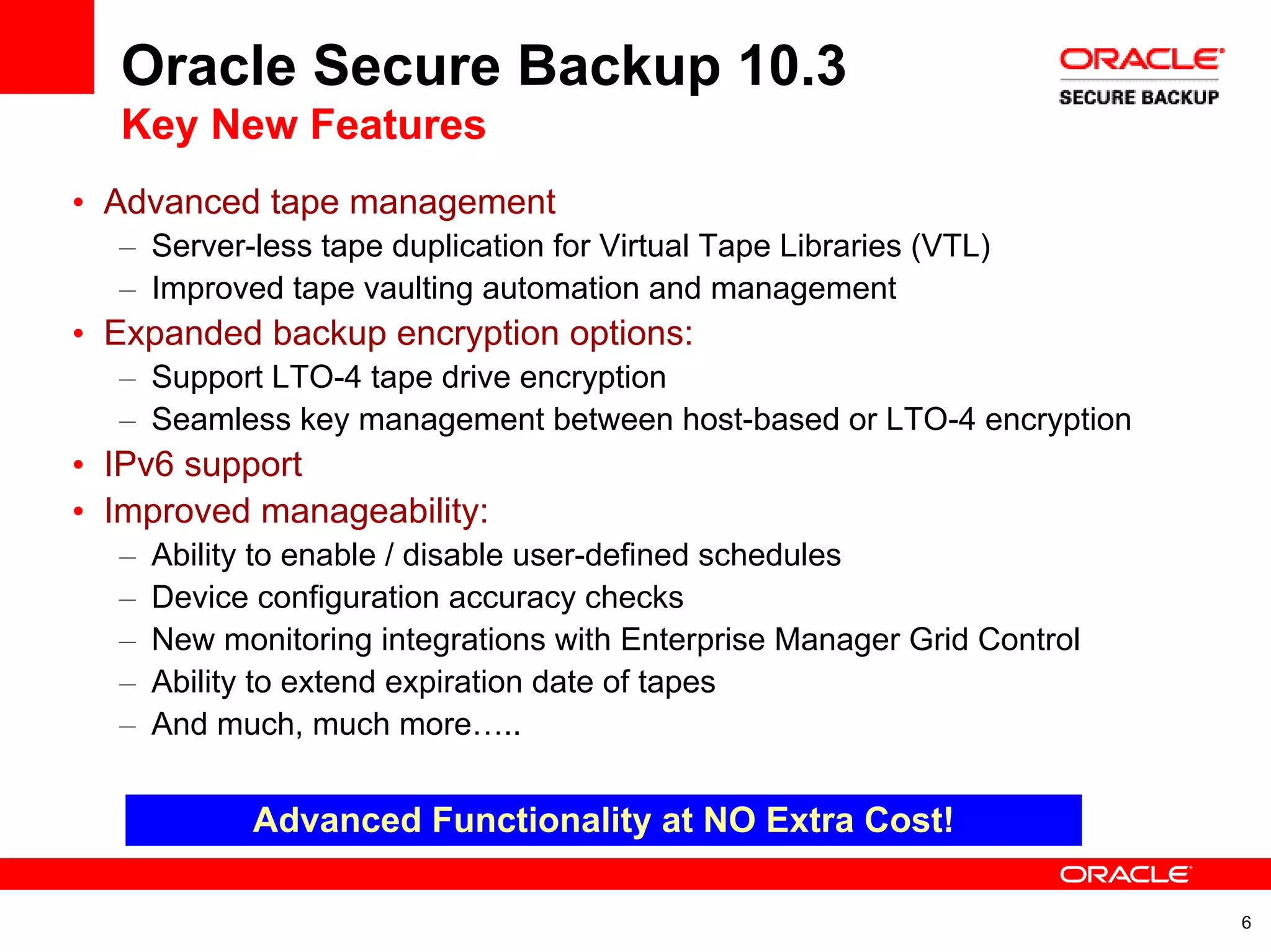

Oracle Secure Backup 10.3
Key New Features
• Advanced tape management
– Server-less tape duplication for Virtual Tape Libraries (VTL)
– Improved tape vaulting automation and management
• Expanded backup encryption options:
– Support LTO-4 tape drive encryption
– Seamless key management between host-based or LTO-4 encryption
• IPv6 support
• Improved manageability:
– Ability to enable / disable user-defined schedules
– Device configuration accuracy checks
– New monitoring integrations with Enterprise Manager Grid Control
– Ability to extend expiration date of tapes
– And much, much more…..
Advanced Functionality at NO Extra Cost!

7. 7

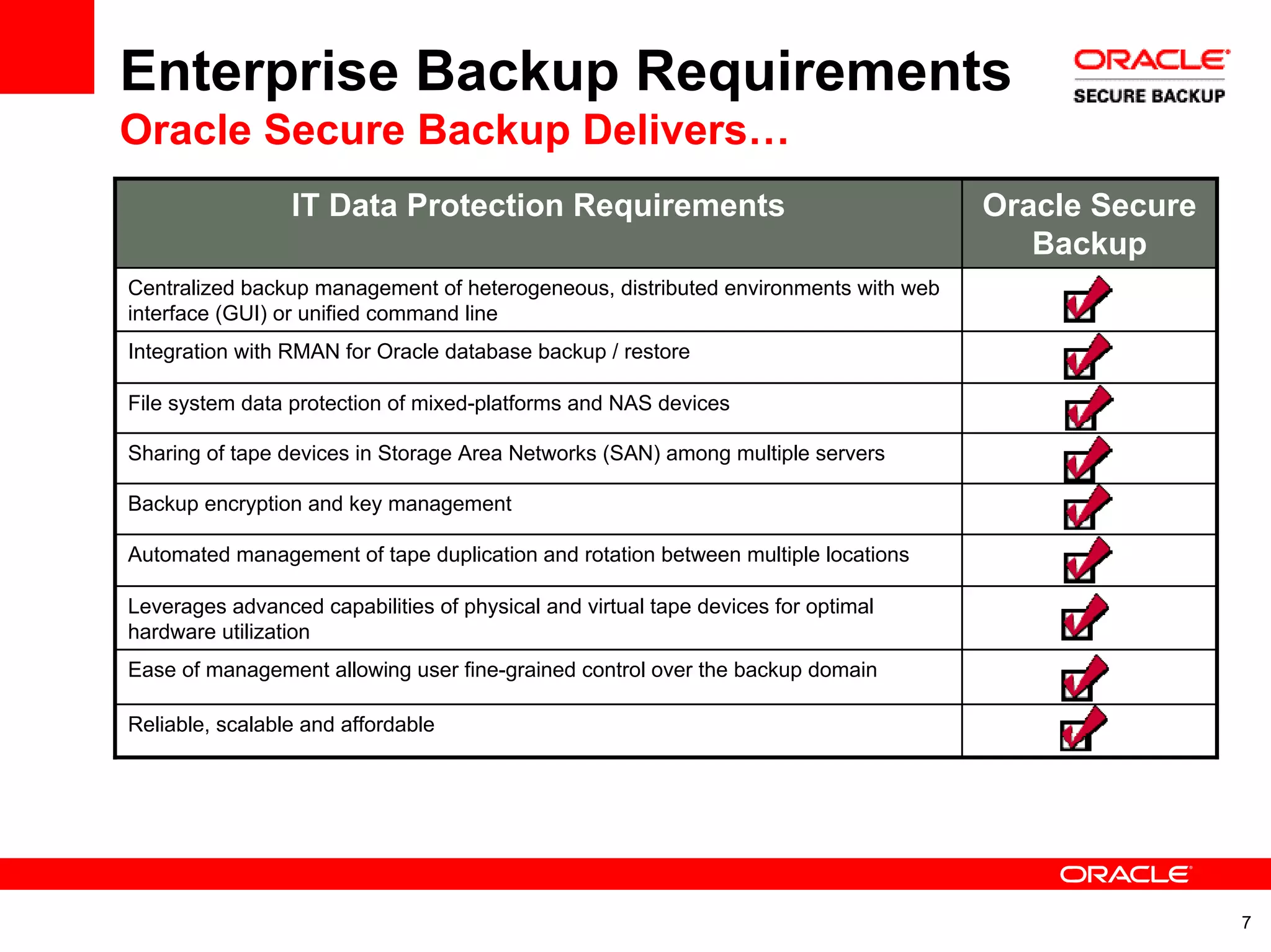

IT Data Protection Requirements Oracle Secure
Backup
Centralized backup management of heterogeneous, distributed environments with web
interface (GUI) or unified command line
Integration with RMAN for Oracle database backup / restore
File system data protection of mixed-platforms and NAS devices
Sharing of tape devices in Storage Area Networks (SAN) among multiple servers
Leverages advanced capabilities of physical and virtual tape devices for optimal
hardware utilization
Ease of management allowing user fine-grained control over the backup domain
Backup encryption and key management
Automated management of tape duplication and rotation between multiple locations
Reliable, scalable and affordable
Enterprise Backup Requirements
Oracle Secure Backup Delivers…

8. 8

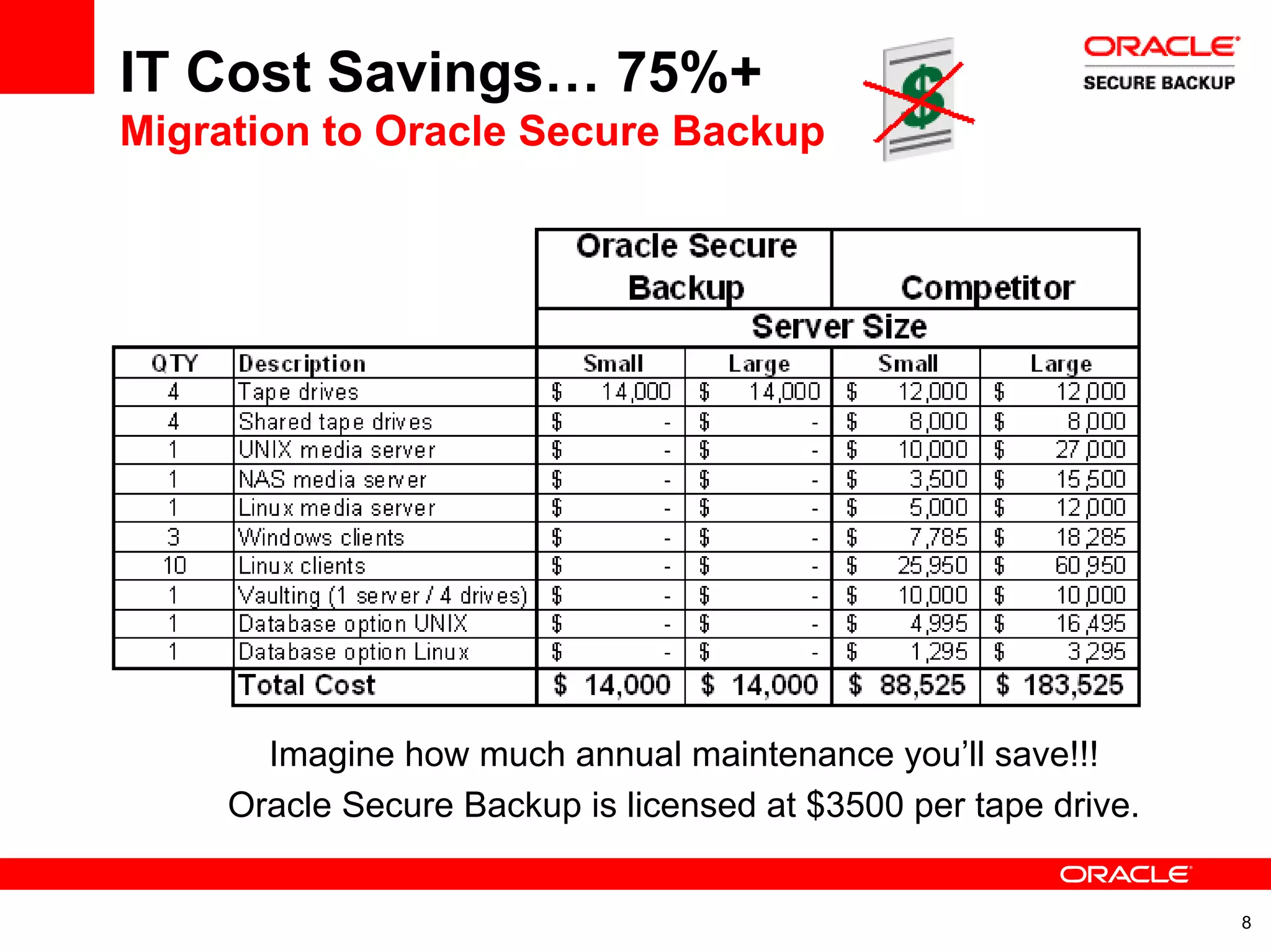

IT Cost Savings… 75%+
Migration to Oracle Secure Backup
Imagine how much annual maintenance you’ll save!!!
Oracle Secure Backup is licensed at $3500 per tape drive.

9. 9
Oracle Integrated
Solution

10. 10

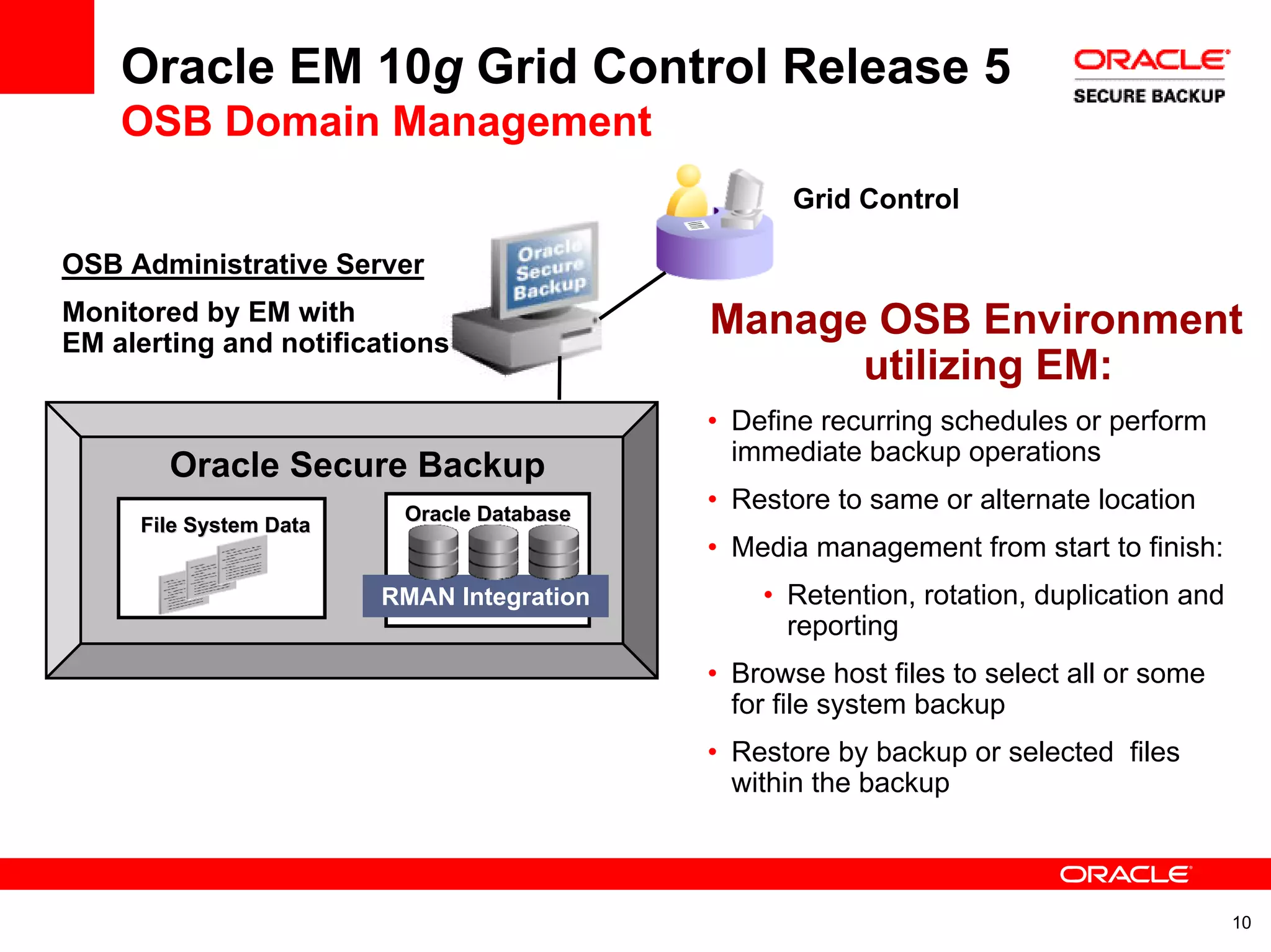

Oracle EM 10g Grid Control Release 5
OSB Domain Management
Grid Control
Manage OSB Environment
utilizing EM:
• Define recurring schedules or perform
immediate backup operations
• Restore to same or alternate location
• Media management from start to finish:
• Retention, rotation, duplication and
reporting
• Browse host files to select all or some
for file system backup
• Restore by backup or selected files
within the backup
Oracle DatabaseOracle Database
RMAN Integration
Oracle Secure Backup
File System DataFile System Data
OSB Administrative Server
Monitored by EM with
EM alerting and notifications

11. 11

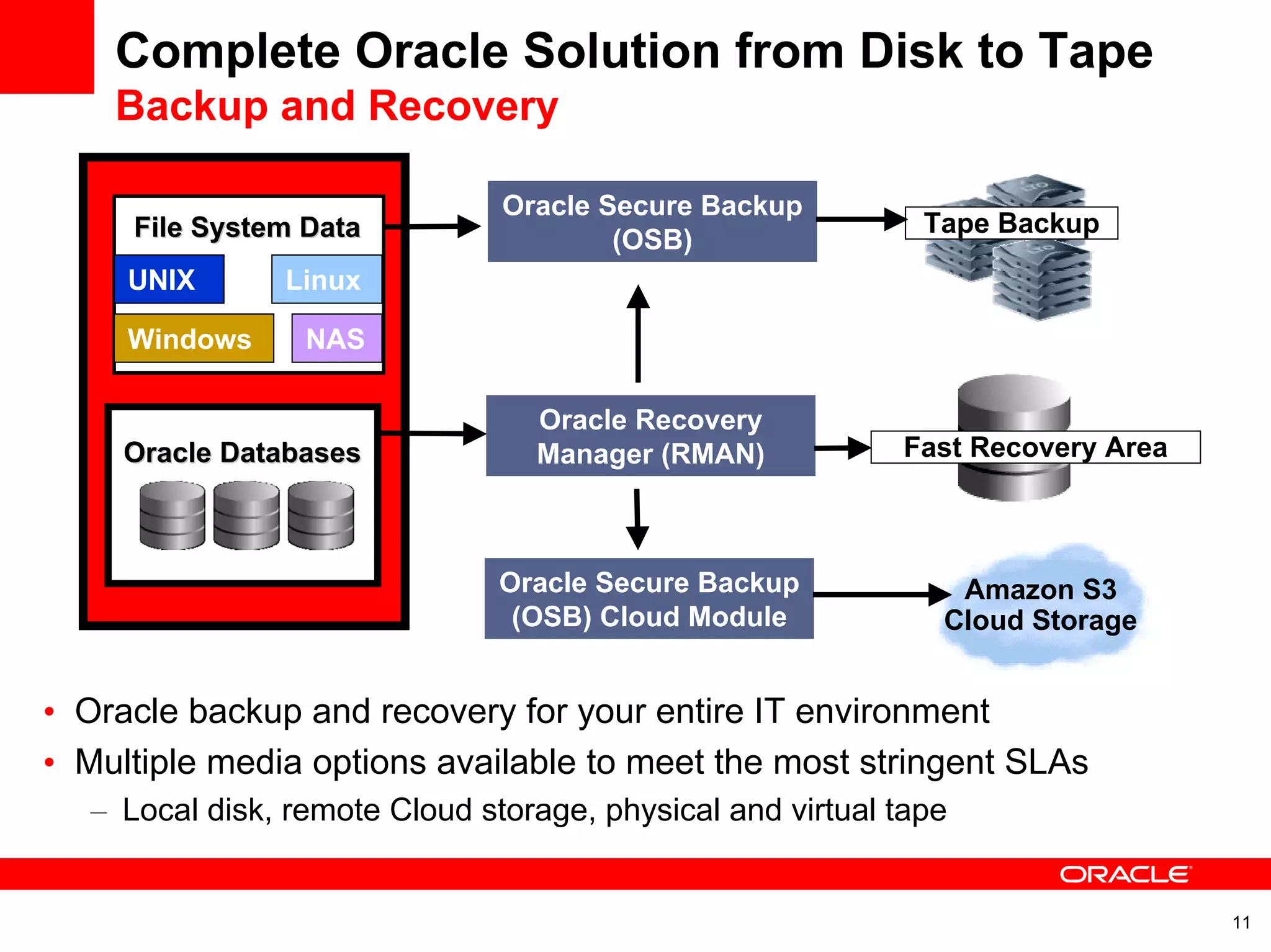

Complete Oracle Solution from Disk to Tape
Backup and Recovery
File System DataFile System Data
UNIX Linux
Windows NAS
Oracle DatabasesOracle Databases
• Oracle backup and recovery for your entire IT environment
• Multiple media options available to meet the most stringent SLAs
– Local disk, remote Cloud storage, physical and virtual tape
Oracle Recovery
Manager (RMAN) Fast Recovery Area
Tape Backup
Amazon S3
Cloud Storage
Oracle Secure Backup
(OSB)
Oracle Secure Backup
(OSB) Cloud Module

12. 12

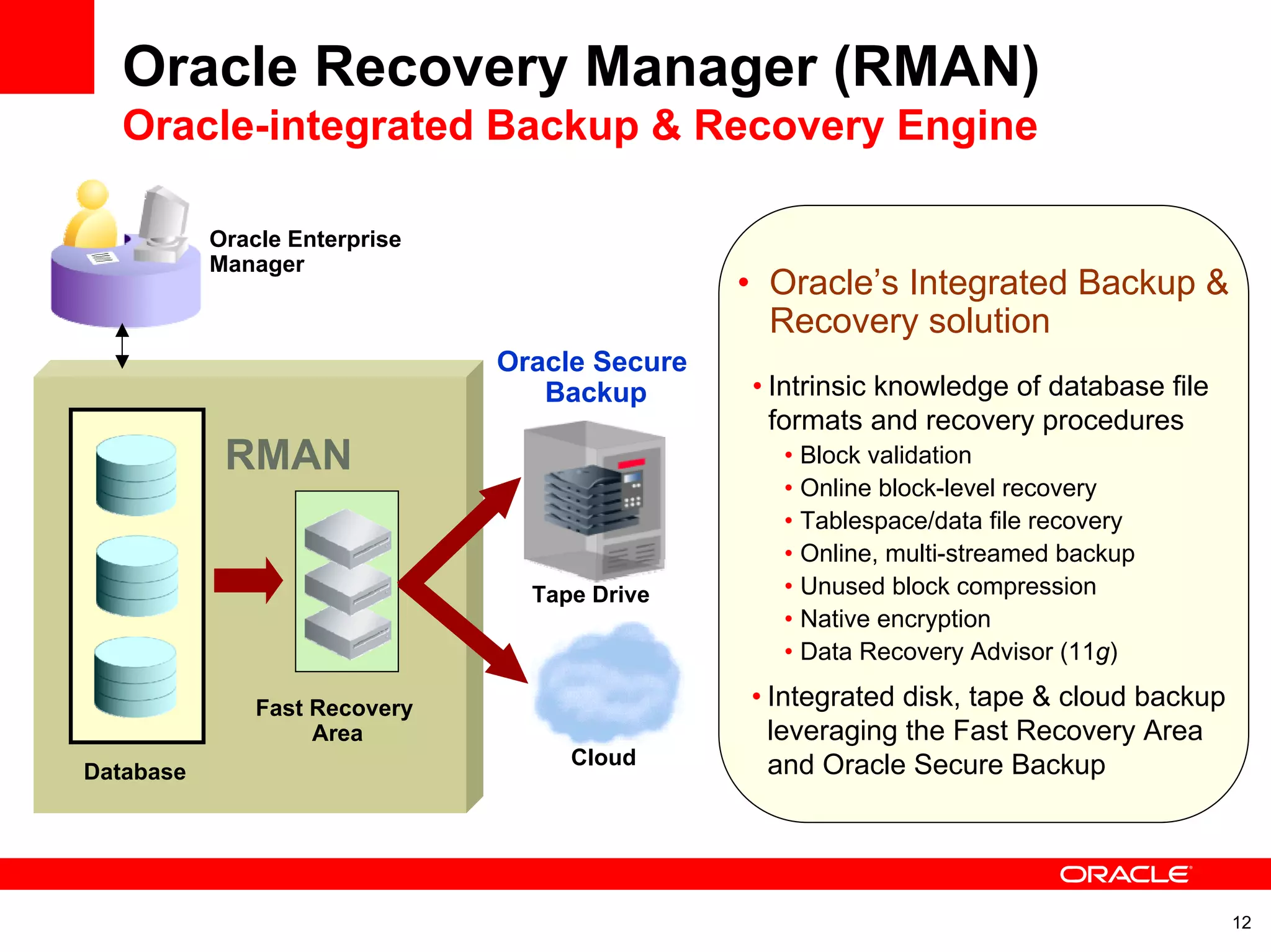

Oracle Recovery Manager (RMAN)
Oracle-integrated Backup & Recovery Engine
Oracle Enterprise
Manager
RMAN
Database
Fast Recovery
Area
Tape Drive
Oracle Secure
Backup • Intrinsic knowledge of database file
formats and recovery procedures
• Block validation
• Online block-level recovery
• Tablespace/data file recovery
• Online, multi-streamed backup
• Unused block compression
• Native encryption
• Data Recovery Advisor (11g)
• Oracle’s Integrated Backup &
Recovery solution
• Integrated disk, tape & cloud backup
leveraging the Fast Recovery Area
and Oracle Secure BackupCloud

13. 13

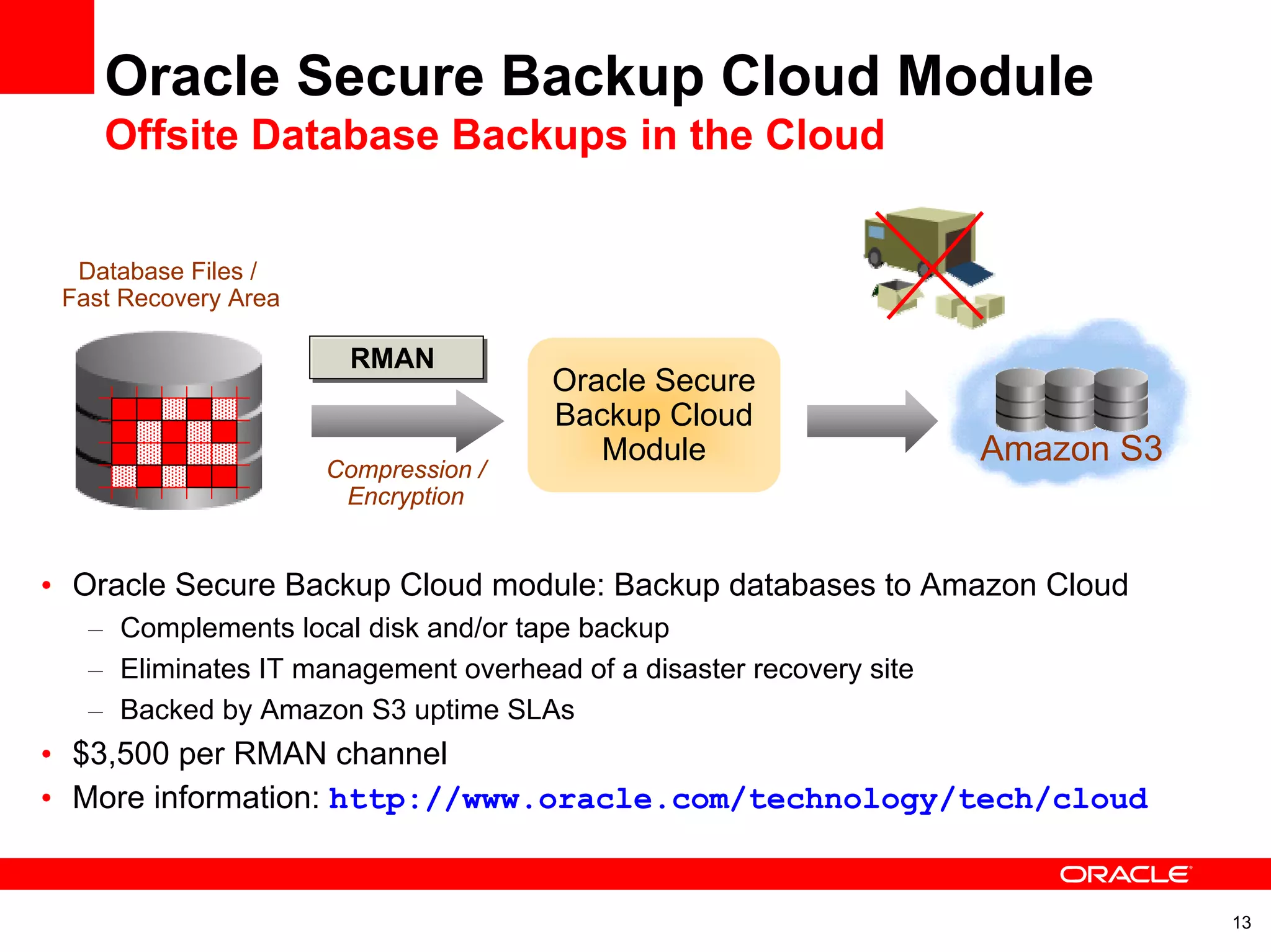

Amazon S3
Oracle Secure Backup Cloud Module
Offsite Database Backups in the Cloud
• Oracle Secure Backup Cloud module: Backup databases to Amazon Cloud
– Complements local disk and/or tape backup
– Eliminates IT management overhead of a disaster recovery site
– Backed by Amazon S3 uptime SLAs
• $3,500 per RMAN channel
• More information: http://www.oracle.com/technology/tech/cloud
Oracle Secure
Backup Cloud
Module
Database Files /
Fast Recovery Area
RMANRMAN
Compression /
Encryption

14. 14
Data Protection

15. 15

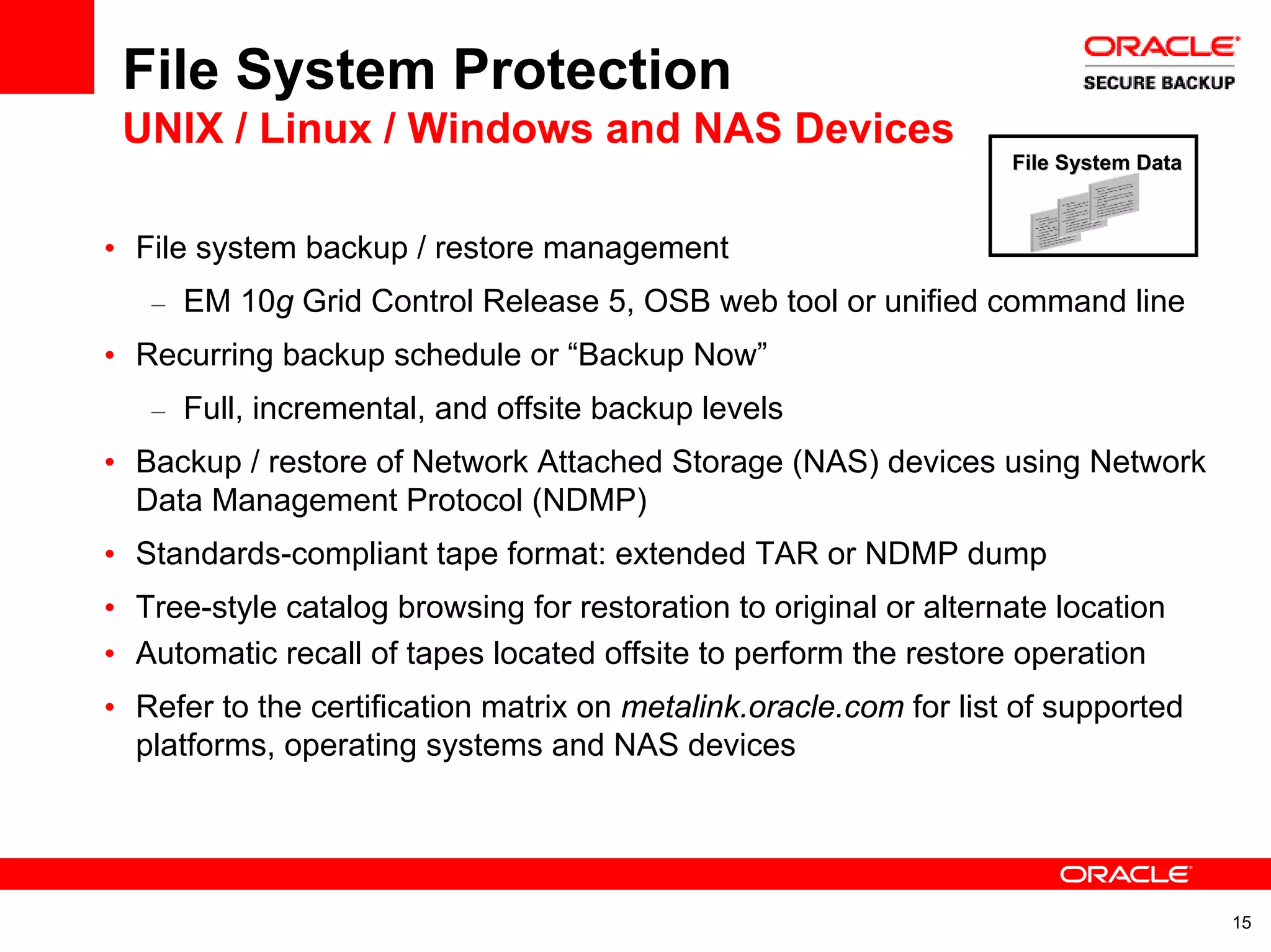

File System Protection
UNIX / Linux / Windows and NAS Devices
File System DataFile System Data
• File system backup / restore management
– EM 10g Grid Control Release 5, OSB web tool or unified command line
• Recurring backup schedule or “Backup Now”
– Full, incremental, and offsite backup levels
• Backup / restore of Network Attached Storage (NAS) devices using Network
Data Management Protocol (NDMP)
• Standards-compliant tape format: extended TAR or NDMP dump
• Tree-style catalog browsing for restoration to original or alternate location
• Automatic recall of tapes located offsite to perform the restore operation
• Refer to the certification matrix on metalink.oracle.com for list of supported
platforms, operating systems and NAS devices

16. 16

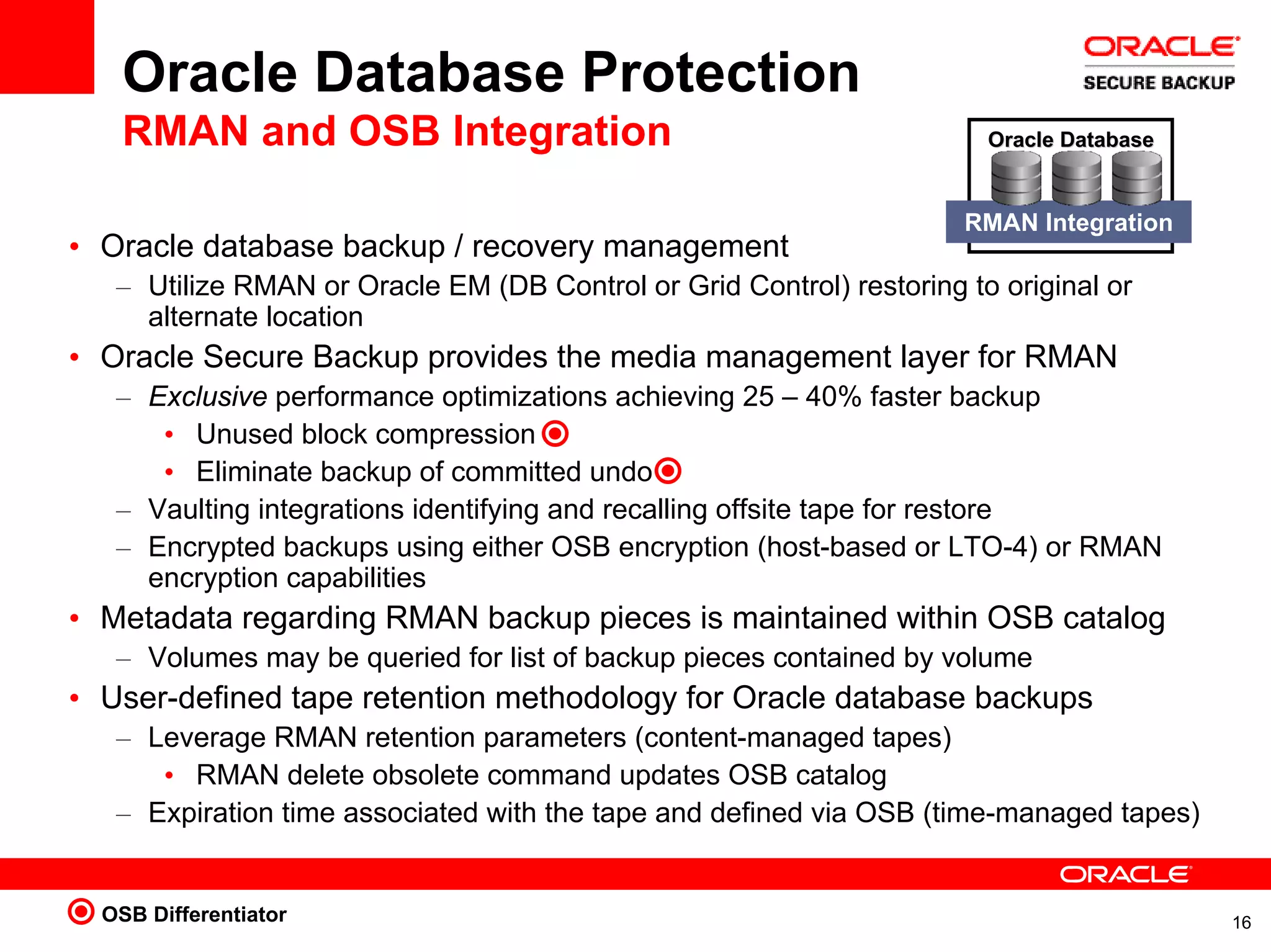

Oracle Database Protection
RMAN and OSB Integration
• Oracle database backup / recovery management
– Utilize RMAN or Oracle EM (DB Control or Grid Control) restoring to original or
alternate location
• Oracle Secure Backup provides the media management layer for RMAN
– Exclusive performance optimizations achieving 25 – 40% faster backup
• Unused block compression
• Eliminate backup of committed undo
– Vaulting integrations identifying and recalling offsite tape for restore
– Encrypted backups using either OSB encryption (host-based or LTO-4) or RMAN
encryption capabilities
• Metadata regarding RMAN backup pieces is maintained within OSB catalog
– Volumes may be queried for list of backup pieces contained by volume
• User-defined tape retention methodology for Oracle database backups
– Leverage RMAN retention parameters (content-managed tapes)
• RMAN delete obsolete command updates OSB catalog
– Expiration time associated with the tape and defined via OSB (time-managed tapes)
Oracle DatabaseOracle Database
RMAN Integration
OSB Differentiator

17. 17

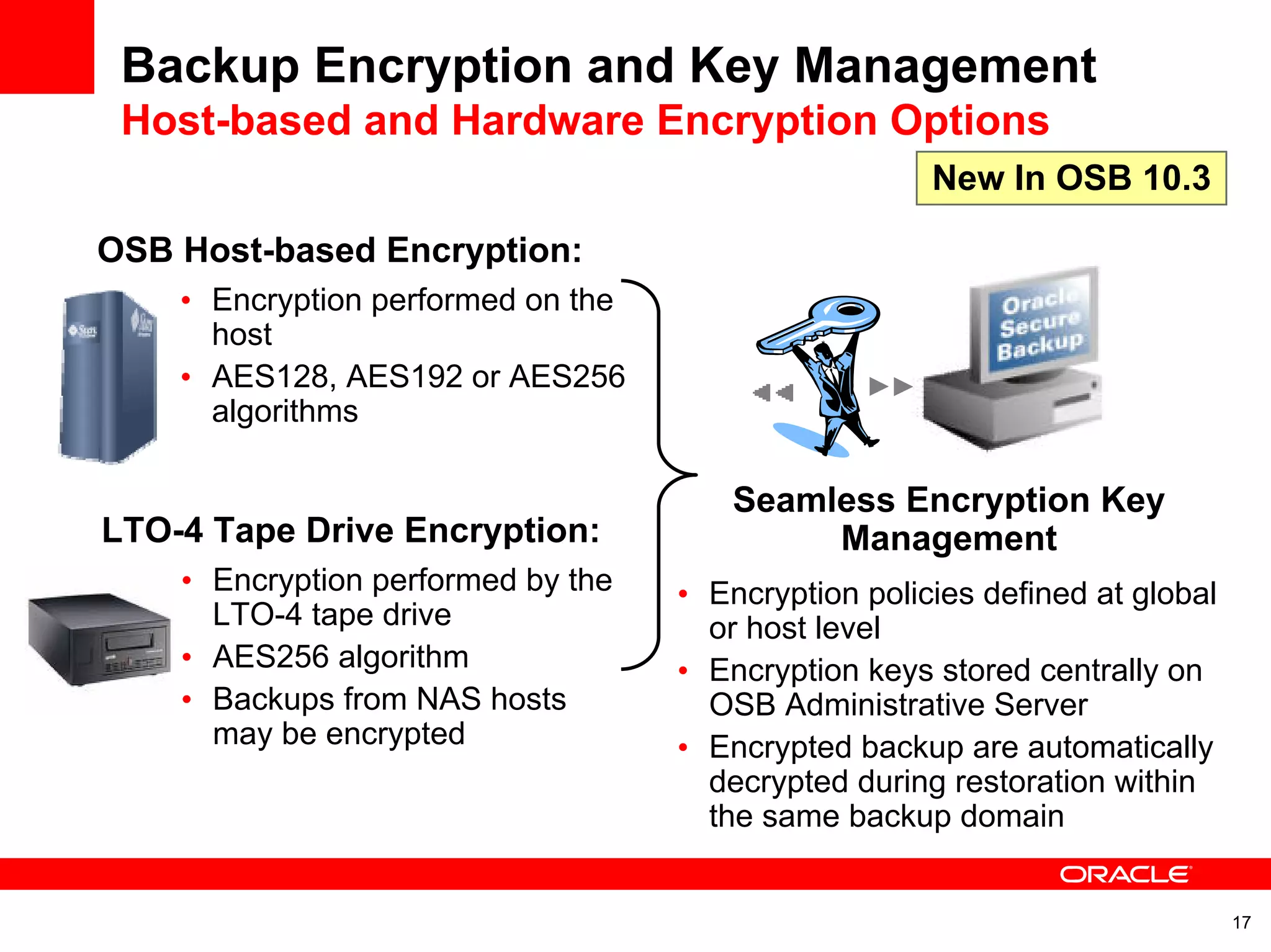

Backup Encryption and Key Management
Host-based and Hardware Encryption Options
OSB Host-based Encryption:
• Encryption performed on the
host
• AES128, AES192 or AES256
algorithms
Seamless Encryption Key
ManagementLTO-4 Tape Drive Encryption:
• Encryption performed by the
LTO-4 tape drive
• AES256 algorithm
• Backups from NAS hosts
may be encrypted
New In OSB 10.3
• Encryption policies defined at global
or host level
• Encryption keys stored centrally on
OSB Administrative Server
• Encrypted backup are automatically
decrypted during restoration within
the same backup domain

18. 18

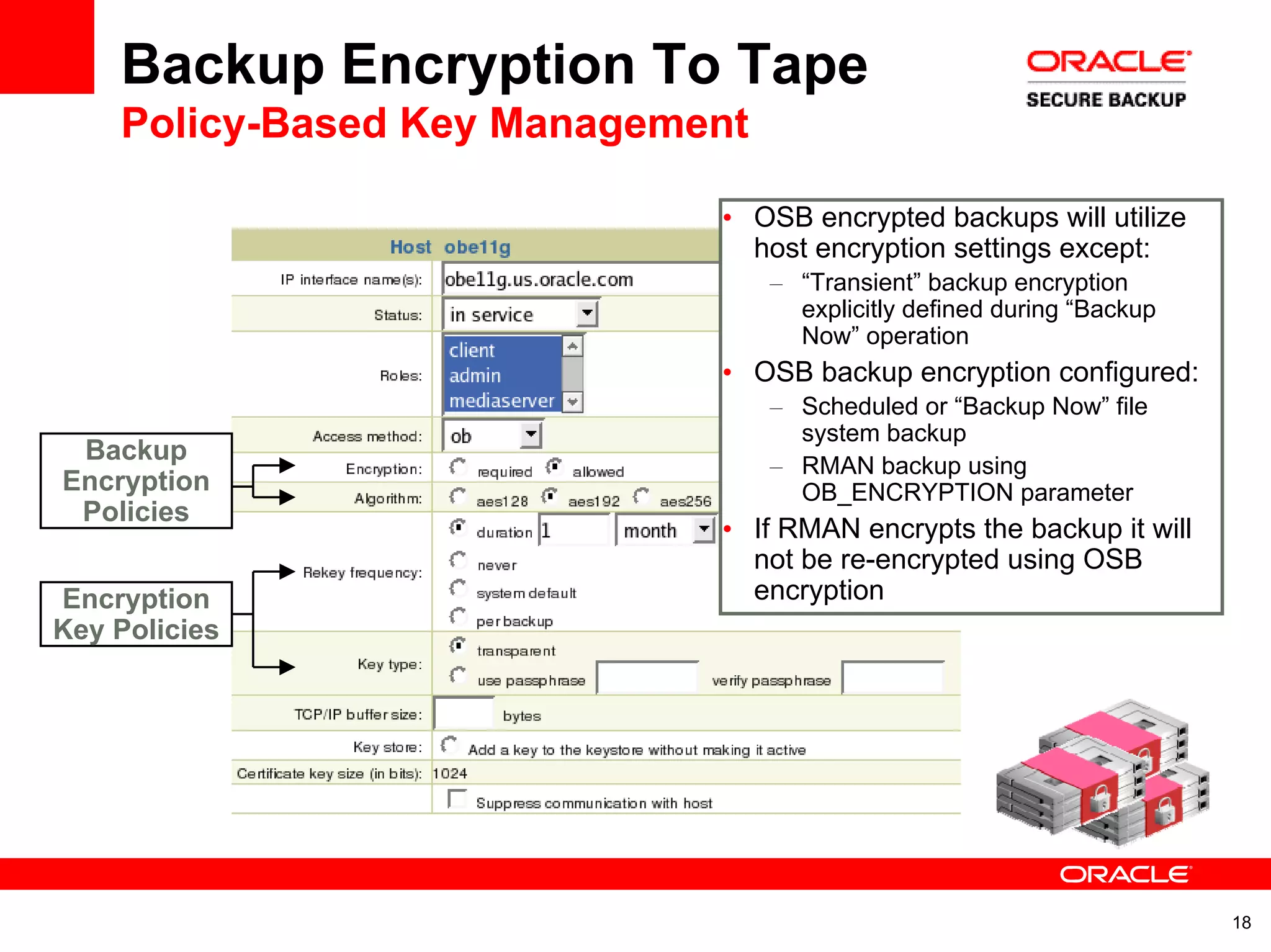

Backup Encryption To Tape
Policy-Based Key Management
• OSB encrypted backups will utilize
host encryption settings except:
– “Transient” backup encryption
explicitly defined during “Backup
Now” operation
• OSB backup encryption configured:
– Scheduled or “Backup Now” file
system backup
– RMAN backup using
OB_ENCRYPTION parameter
• If RMAN encrypts the backup it will
not be re-encrypted using OSB
encryptionEncryption
Key Policies
Backup
Encryption
Policies

19. 19
Device Utilization

20. 20

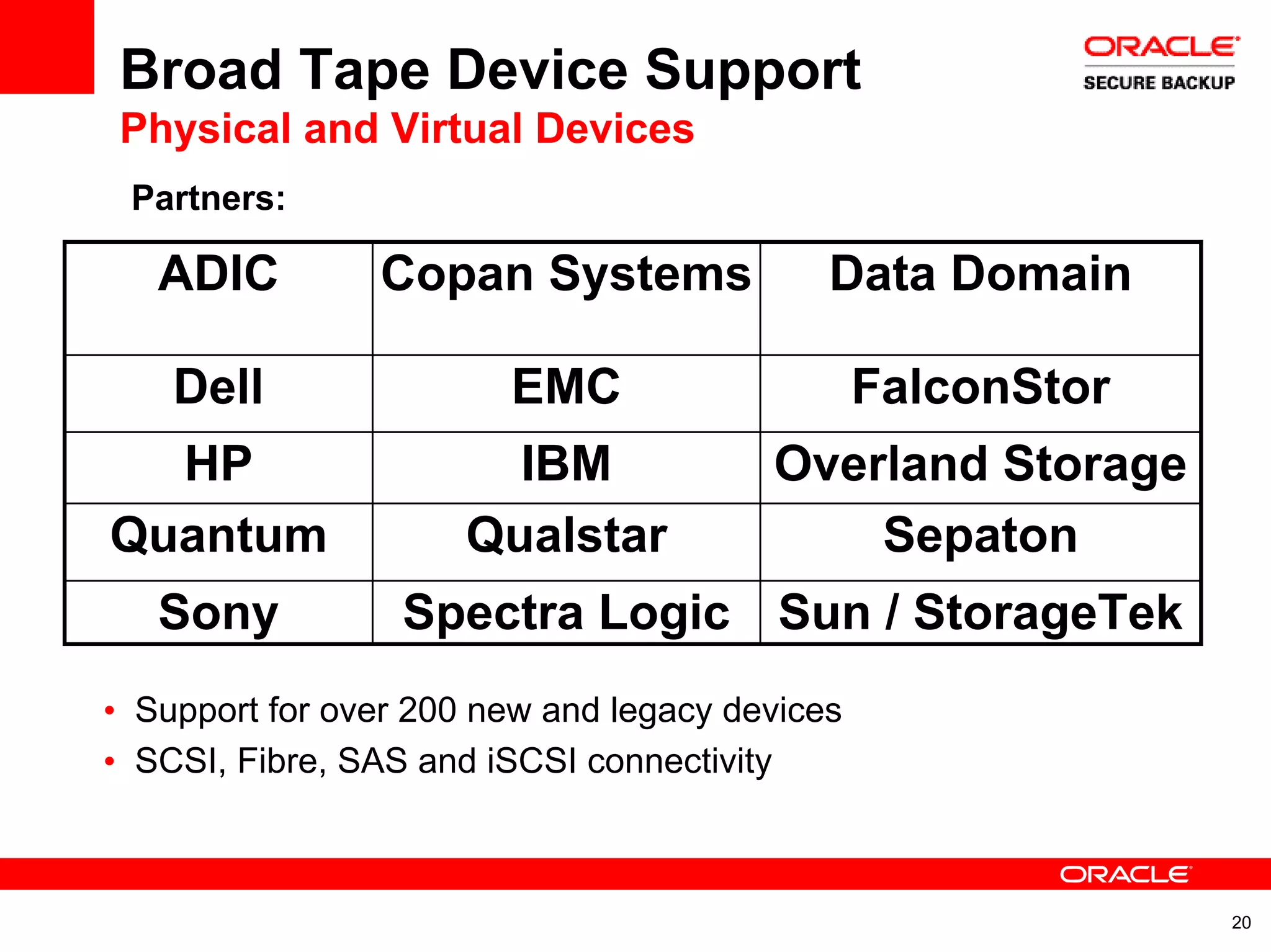

Broad Tape Device Support
Physical and Virtual Devices
• Support for over 200 new and legacy devices
• SCSI, Fibre, SAS and iSCSI connectivity
Partners:
ADIC Copan Systems Data Domain
Dell EMC FalconStor
HP IBM Overland Storage
Quantum Qualstar Sepaton
Sony Spectra Logic Sun / StorageTek

21. 21

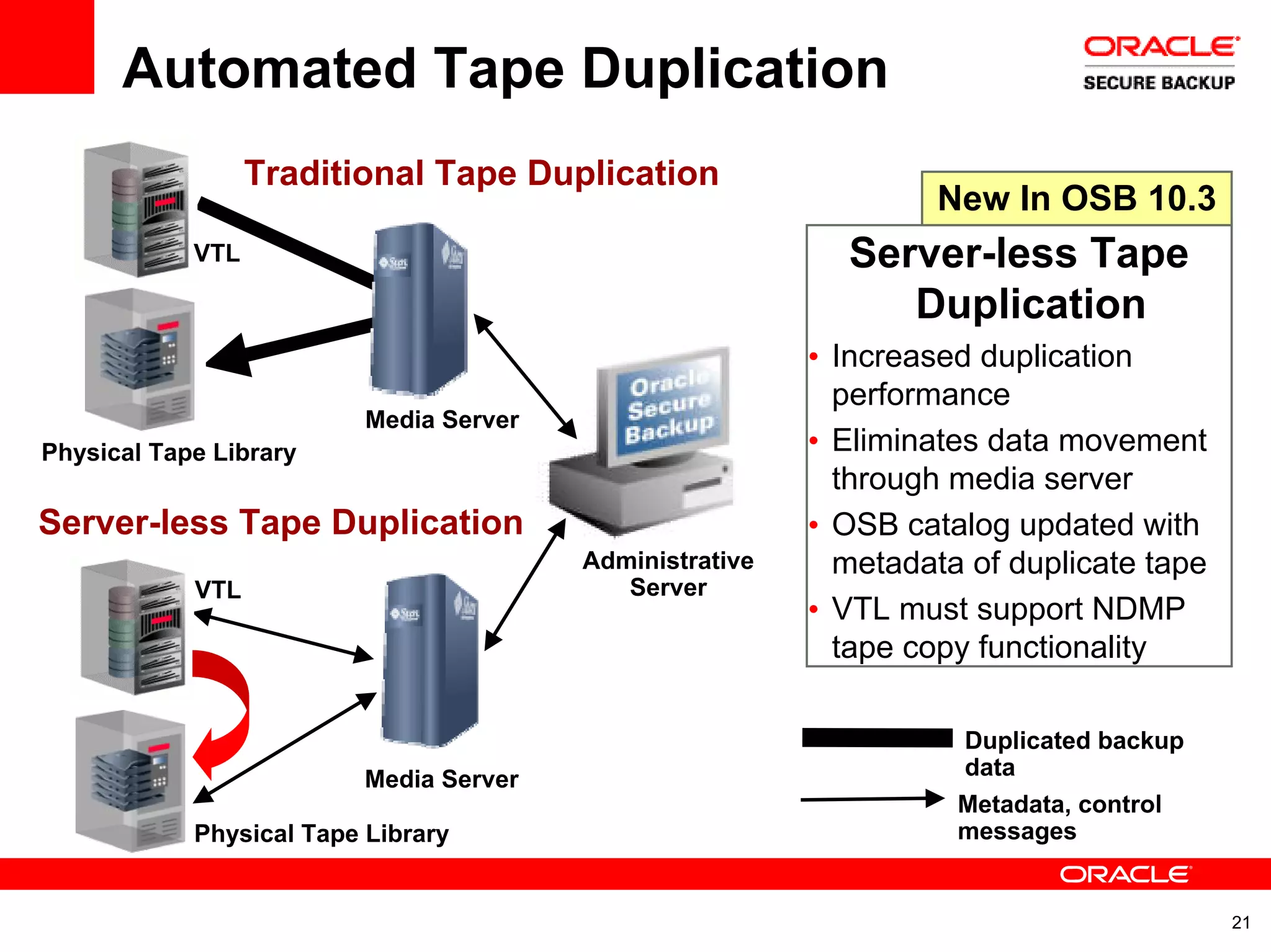

Automated Tape Duplication
Traditional Tape Duplication
Media Server
Administrative
Server
VTL
Physical Tape Library
Duplicated backup
data
Metadata, control
messages
Server-less Tape Duplication
Media Server
VTL
Physical Tape Library
New In OSB 10.3
Server-less Tape
Duplication
• Increased duplication
performance
• Eliminates data movement
through media server
• OSB catalog updated with
metadata of duplicate tape
• VTL must support NDMP
tape copy functionality

22. 22

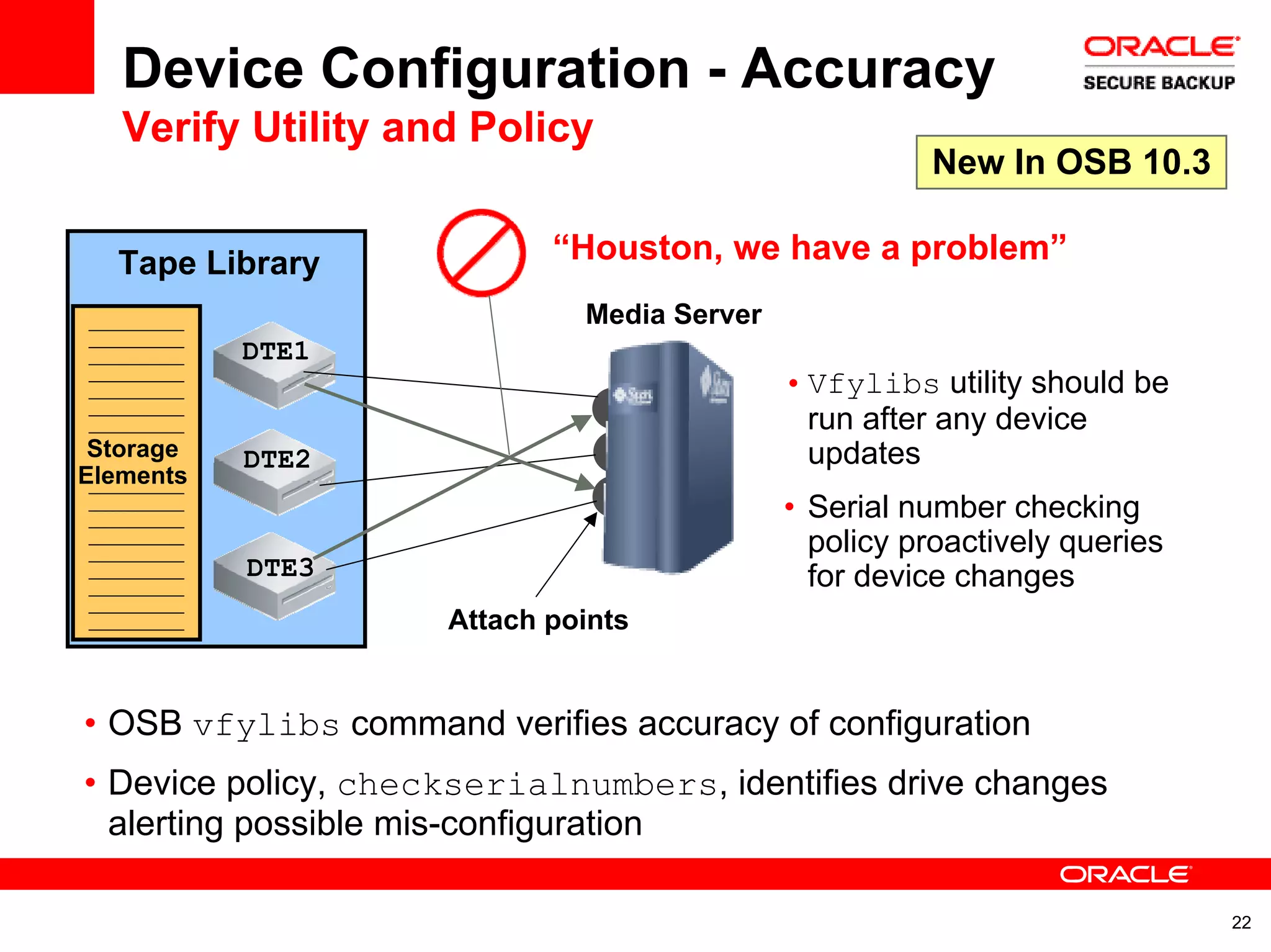

Device Configuration - Accuracy
Verify Utility and Policy
• OSB vfylibs command verifies accuracy of configuration
• Device policy, checkserialnumbers, identifies drive changes
alerting possible mis-configuration
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
____________
DTE1
DTE2
DTE3
Tape Library
Storage
Elements
Media Server
New In OSB 10.3
•Vfylibs utility should be
run after any device
updates
• Serial number checking
policy proactively queries
for device changes
Attach points
“Houston, we have a problem”

23. 23
Advanced
Media Management

24. 24

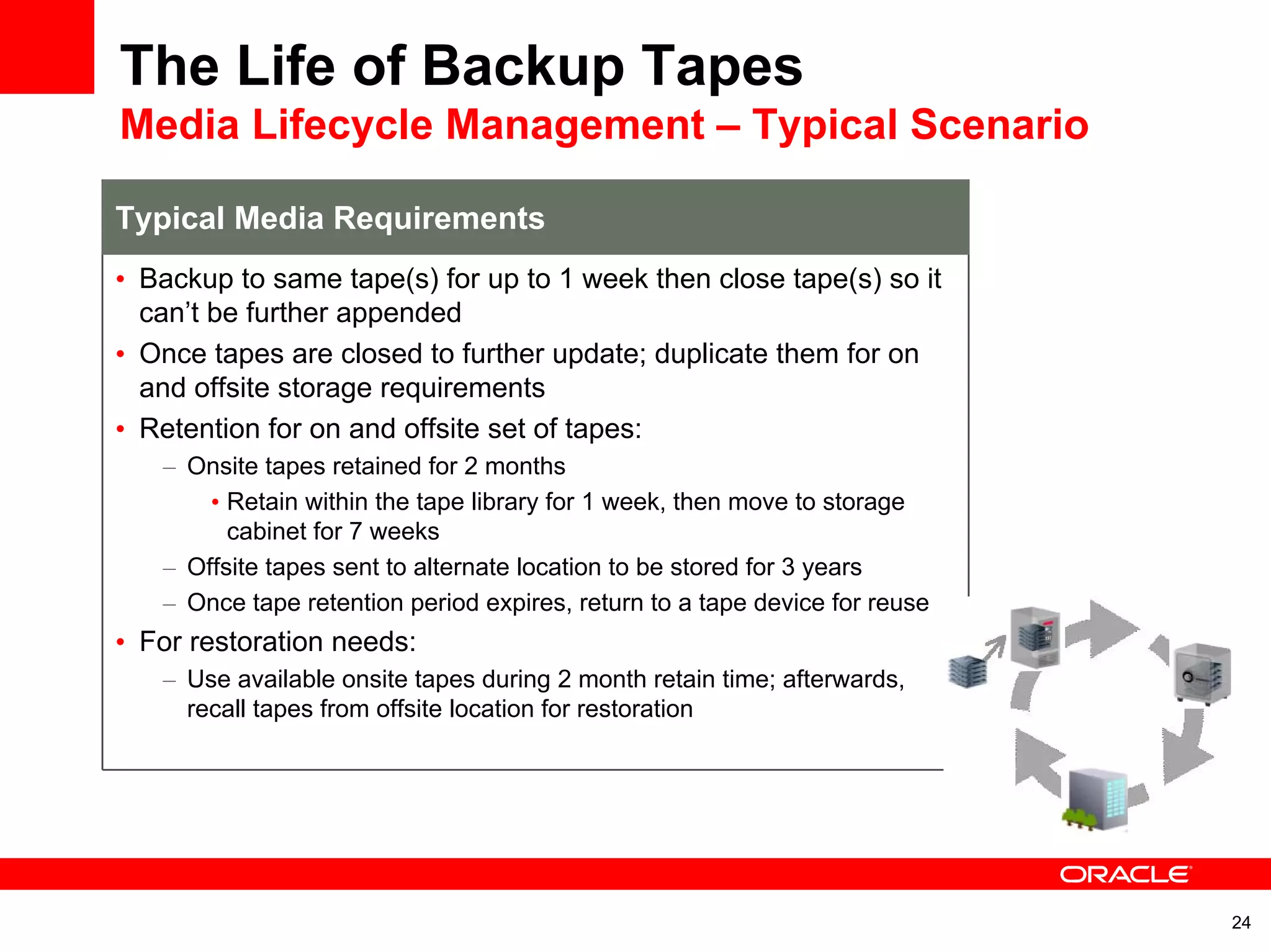

The Life of Backup Tapes
Media Lifecycle Management – Typical Scenario
Typical Media Requirements
• Backup to same tape(s) for up to 1 week then close tape(s) so it
can’t be further appended
• Once tapes are closed to further update; duplicate them for on
and offsite storage requirements
• Retention for on and offsite set of tapes:
– Onsite tapes retained for 2 months
• Retain within the tape library for 1 week, then move to storage
cabinet for 7 weeks
– Offsite tapes sent to alternate location to be stored for 3 years
– Once tape retention period expires, return to a tape device for reuse
• For restoration needs:
– Use available onsite tapes during 2 month retain time; afterwards,
recall tapes from offsite location for restoration

25. 25

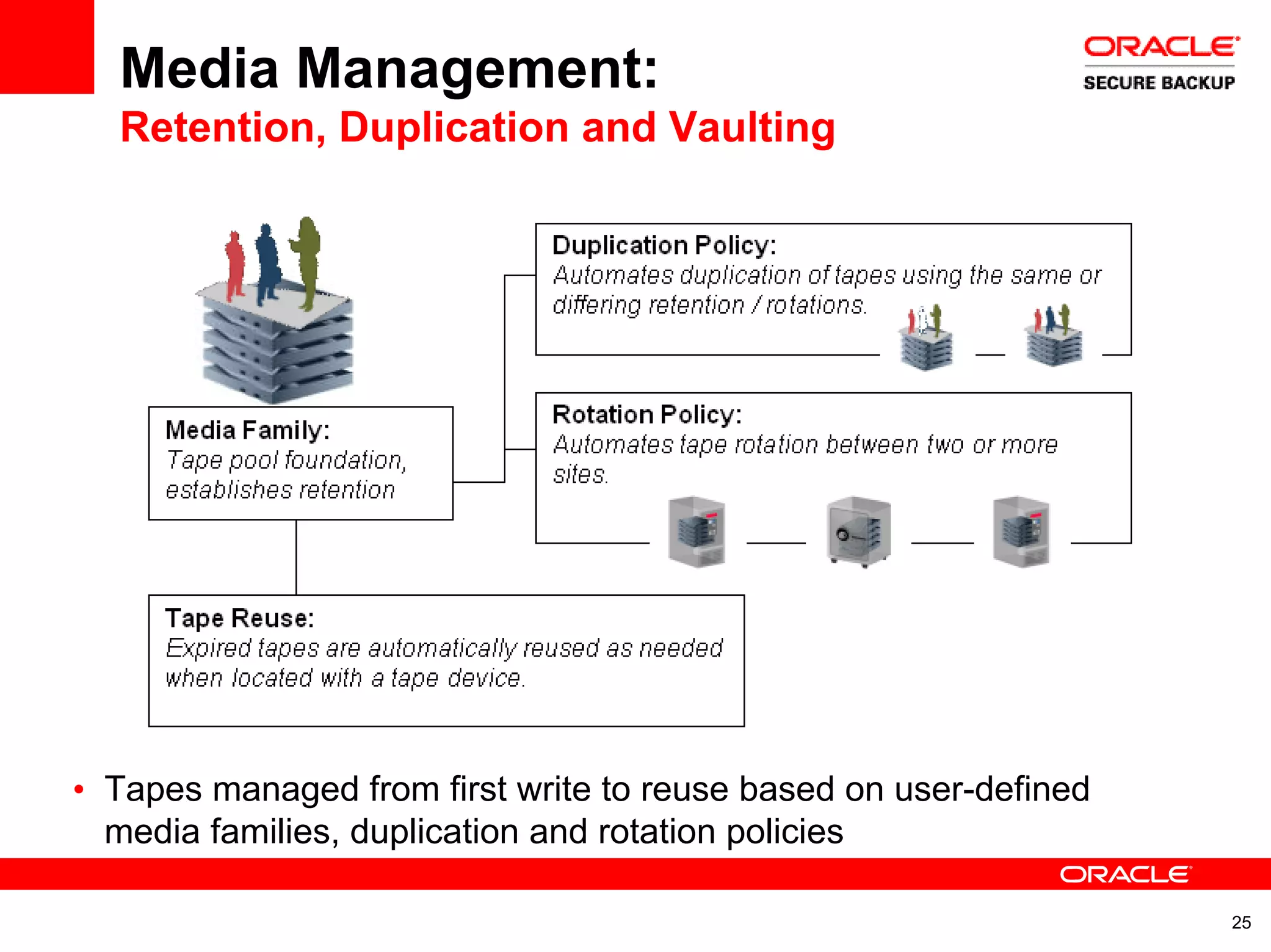

Media Management:
Retention, Duplication and Vaulting
• Tapes managed from first write to reuse based on user-defined
media families, duplication and rotation policies

26. 26

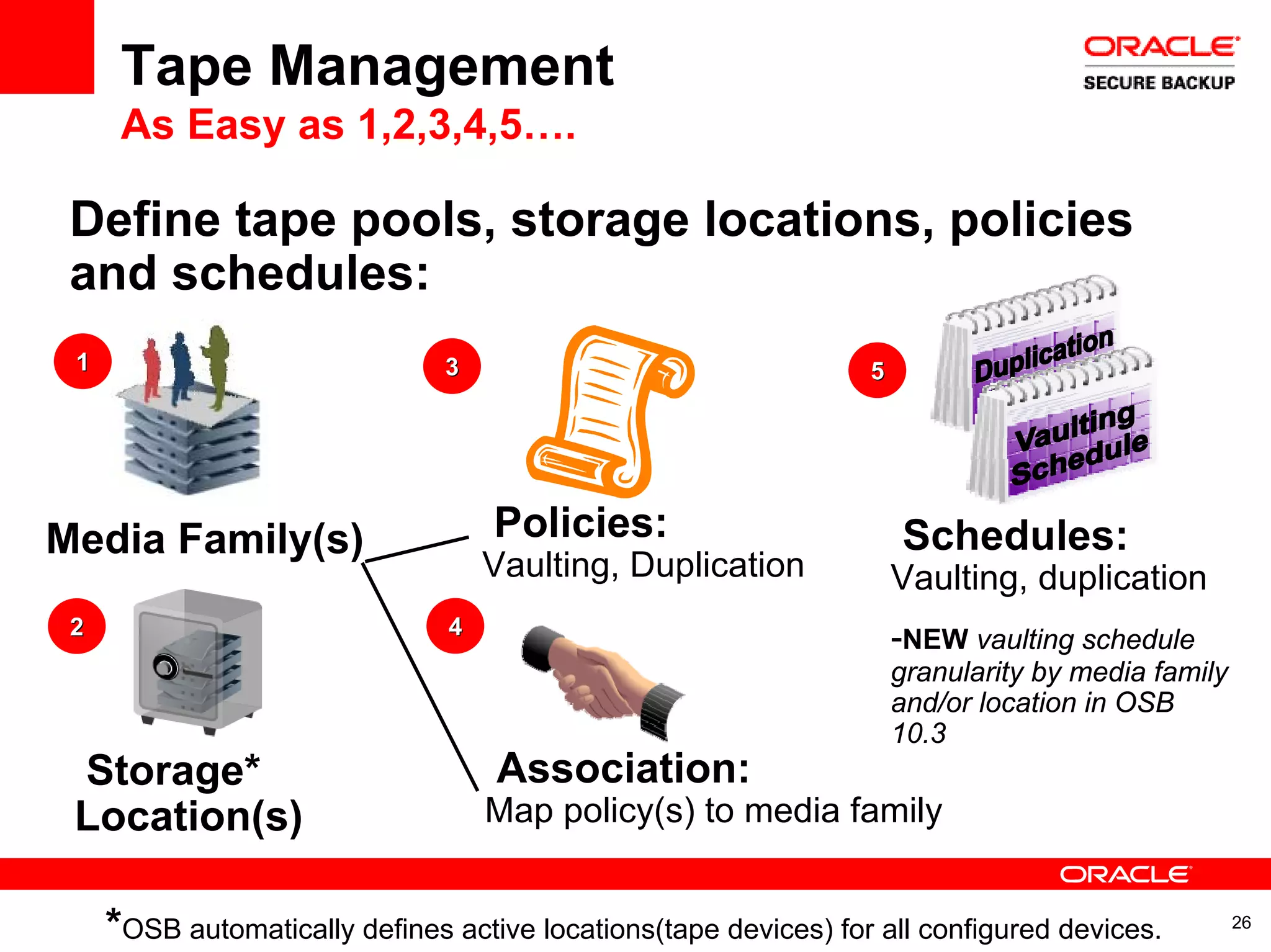

Tape Management
As Easy as 1,2,3,4,5….
Define tape pools, storage locations, policies
and schedules:
Media Family(s)
11
Association:
Map policy(s) to media family
44
Schedules:
Vaulting, duplication
-NEW vaulting schedule
granularity by media family
and/or location in OSB
10.3
55
Policies:
Vaulting, Duplication
33
Storage*
Location(s)
22
*OSB automatically defines active locations(tape devices) for all configured devices.

27. 27

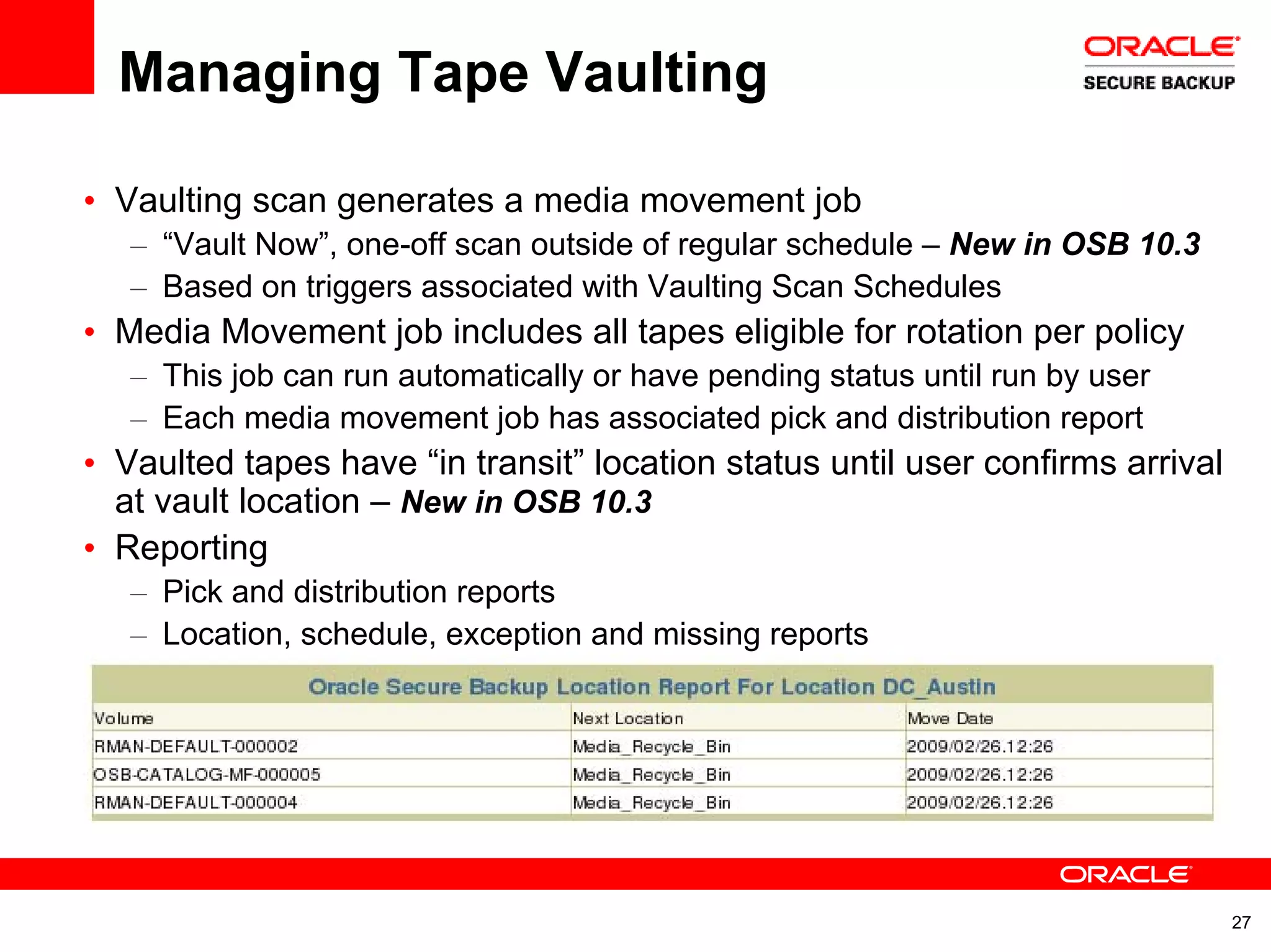

Managing Tape Vaulting
• Vaulting scan generates a media movement job
– “Vault Now”, one-off scan outside of regular schedule – New in OSB 10.3
– Based on triggers associated with Vaulting Scan Schedules
• Media Movement job includes all tapes eligible for rotation per policy
– This job can run automatically or have pending status until run by user
– Each media movement job has associated pick and distribution report
• Vaulted tapes have “in transit” location status until user confirms arrival
at vault location – New in OSB 10.3
• Reporting
– Pick and distribution reports
– Location, schedule, exception and missing reports

28. 28

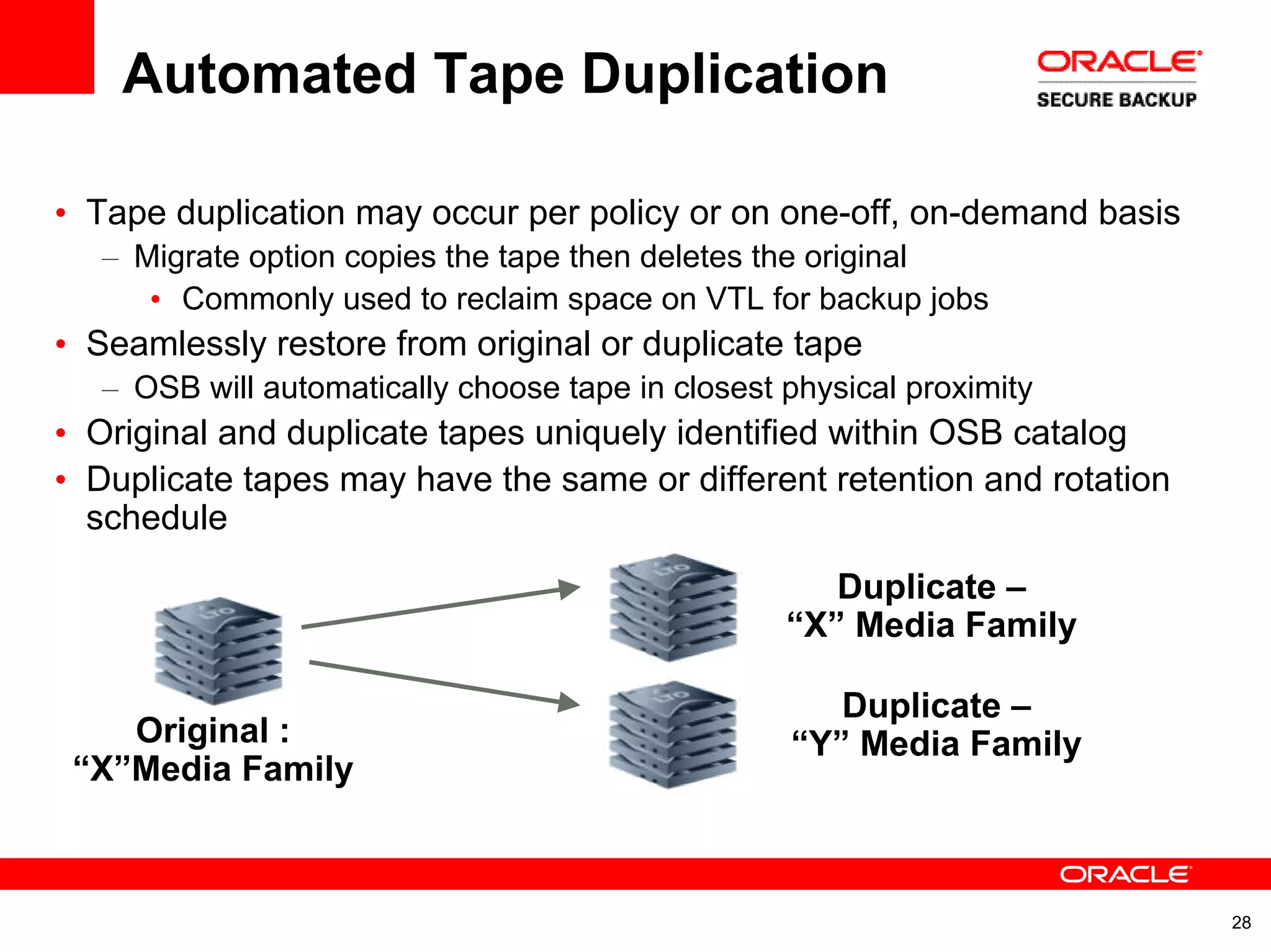

Automated Tape Duplication
• Tape duplication may occur per policy or on one-off, on-demand basis
– Migrate option copies the tape then deletes the original
• Commonly used to reclaim space on VTL for backup jobs
• Seamlessly restore from original or duplicate tape
– OSB will automatically choose tape in closest physical proximity
• Original and duplicate tapes uniquely identified within OSB catalog
• Duplicate tapes may have the same or different retention and rotation
schedule
Original :
“X”Media Family
Duplicate –
“X” Media Family
Duplicate –
“Y” Media Family

29. 29

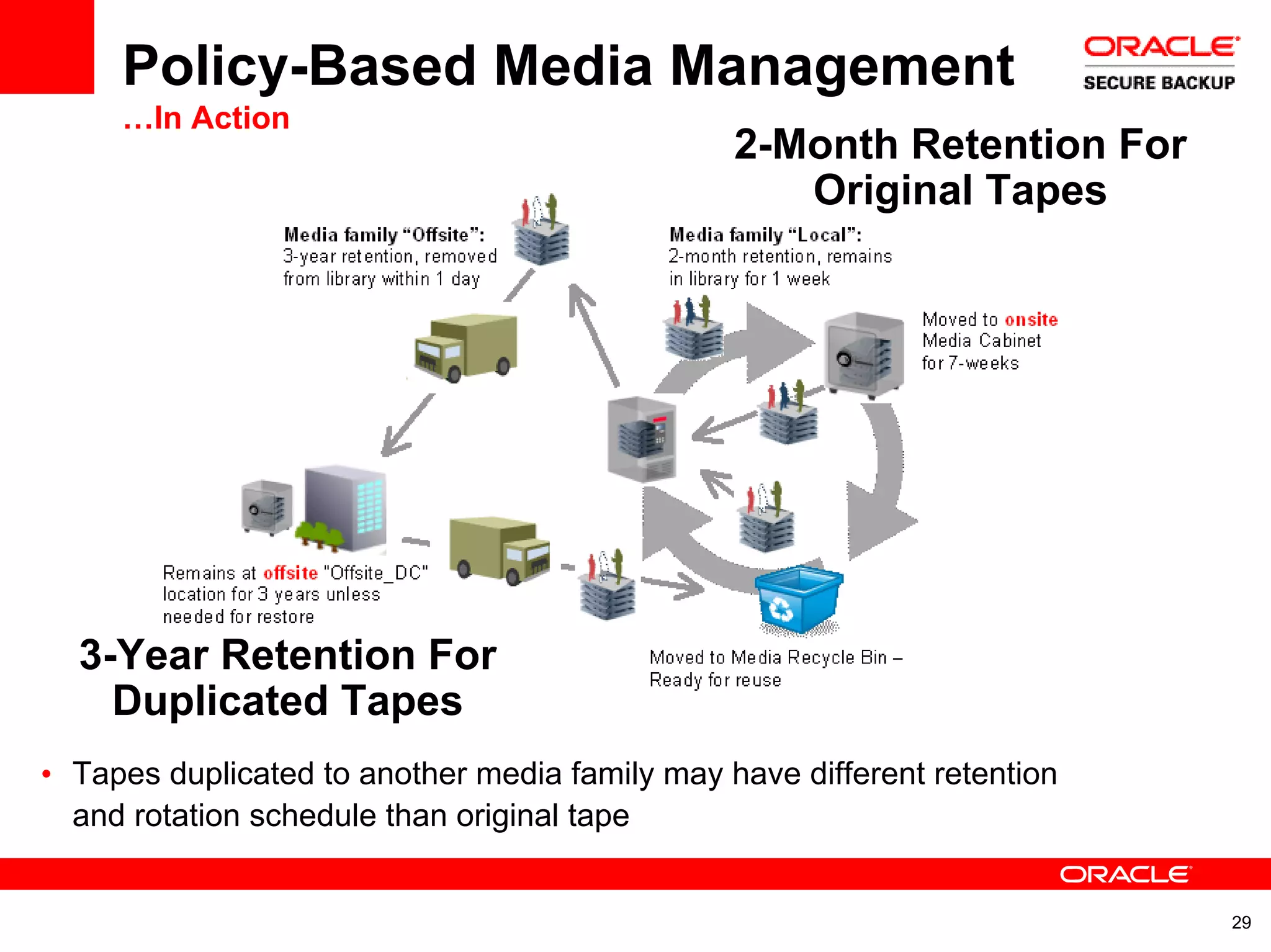

Policy-Based Media Management
…In Action
• Tapes duplicated to another media family may have different retention
and rotation schedule than original tape
2-Month Retention For
Original Tapes
3-Year Retention For
Duplicated Tapes

30. 30
OSB Summary
Features & Benefits

31. 31

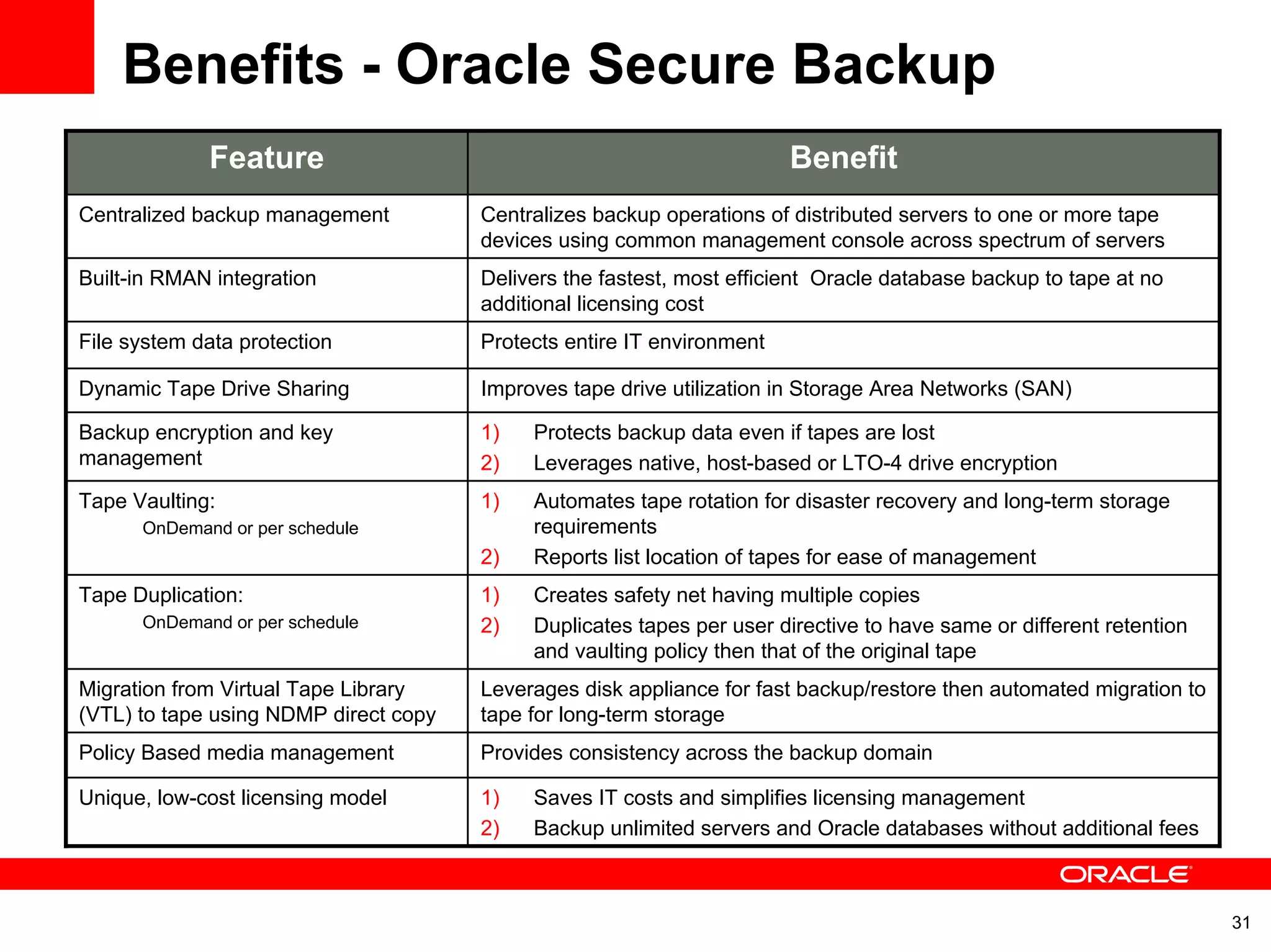

Feature Benefit
Centralized backup management Centralizes backup operations of distributed servers to one or more tape
devices using common management console across spectrum of servers
Policy Based media management Provides consistency across the backup domain
Unique, low-cost licensing model 1) Saves IT costs and simplifies licensing management
2) Backup unlimited servers and Oracle databases without additional fees
Built-in RMAN integration Delivers the fastest, most efficient Oracle database backup to tape at no
additional licensing cost
File system data protection Protects entire IT environment
Dynamic Tape Drive Sharing Improves tape drive utilization in Storage Area Networks (SAN)
Tape Duplication:
OnDemand or per schedule
1) Creates safety net having multiple copies
2) Duplicates tapes per user directive to have same or different retention
and vaulting policy then that of the original tape
Migration from Virtual Tape Library
(VTL) to tape using NDMP direct copy
Leverages disk appliance for fast backup/restore then automated migration to
tape for long-term storage
Backup encryption and key
management
1) Protects backup data even if tapes are lost
2) Leverages native, host-based or LTO-4 drive encryption
Tape Vaulting:
OnDemand or per schedule
1) Automates tape rotation for disaster recovery and long-term storage
requirements
2) Reports list location of tapes for ease of management
Benefits - Oracle Secure Backup

32. 32
Success Story:
CSX Technology

33. 33
HA Sessions, Labs, & Demos by Oracle Development
Sunday, 11 October – Hilton Hotel Imperial Ballroom B
3:45p Online Application Upgrade
Monday, 12 October – Marriott Hotel Golden Gate B1
11:30a Introducing Oracle GoldenGate Products
Monday, 12 October – Moscone South
1:00p Oracle’s HA Vision: What’s New in 11.2, Room 103
4:00p Database 11g: Performance Innovations, Room 103
5:30p Comparing Data Protection Solutions, Room 102
Tuesday, 13 October – Moscone South
11:30a Oracle Streams: Replication Made Easy, Room 308
11:30a Backup & Recovery on the Database Machine, Room 307
11:30a Next-Generation Database Grid Overview, Room 103
1:00p Oracle Data Guard: What’s New in 11.2, Room 104
2:30p Oracle Streams: What's New in 11.2, Room 308
2:30p Backup & Recovery Best Practices, Room 104
2:30p Single-Instance RAC, Room 300
4:00p Enterprise Manager HA Best Practices, Room 303
Tuesday, 13 October – Marriott Hotel Golden Gate B1
11:30a GoldenGate Zero-Downtime Application Upgrades
1:00p GoldenGate Deep Dive: Architecture for Real-Time
Wednesday, 14 October – Moscone South
10:15a Announcing OSB 10.3, Room 300
11:45a Active Data Guard, Room 103
5:00p Exadata Storage & Database Machine, Room 104
Thursday, 15 October – Moscone South
9:00a Empowering Availability for Apps, Room 300
12:00p Exadata Technical Deep Dive, Room 307
1:30p Zero-Downtime DB Maintenance, Room 103
Hands-on Labs Marriott Hotel Golden Gate B2
Monday 11:30a-2:00p Oracle Active Data Guard, Parts I & II
Thursday 9:00a-11:30a Oracle Active Data Guard, Parts I & II
Demos Moscone West DEMOGrounds
Mon & Tue 10:30a - 6:30p; Wed 9:15a - 5:15p
Maximum Availability Architecture (MAA), W-045
Oracle Streams: Replication & Advanced Queuing, W-043
Oracle Active Data Guard, W-048
Oracle Secure Backup, W-044
Oracle Recovery Manager & Flashback, W-046
Oracle GoldenGate, 3709

34. 34
