Copyright © 2009, Oracle. All rights reserved.
Exploring the Oracle Database Architecture
Copyright © 2009, Oracle. All rights reserved.
1 - 2

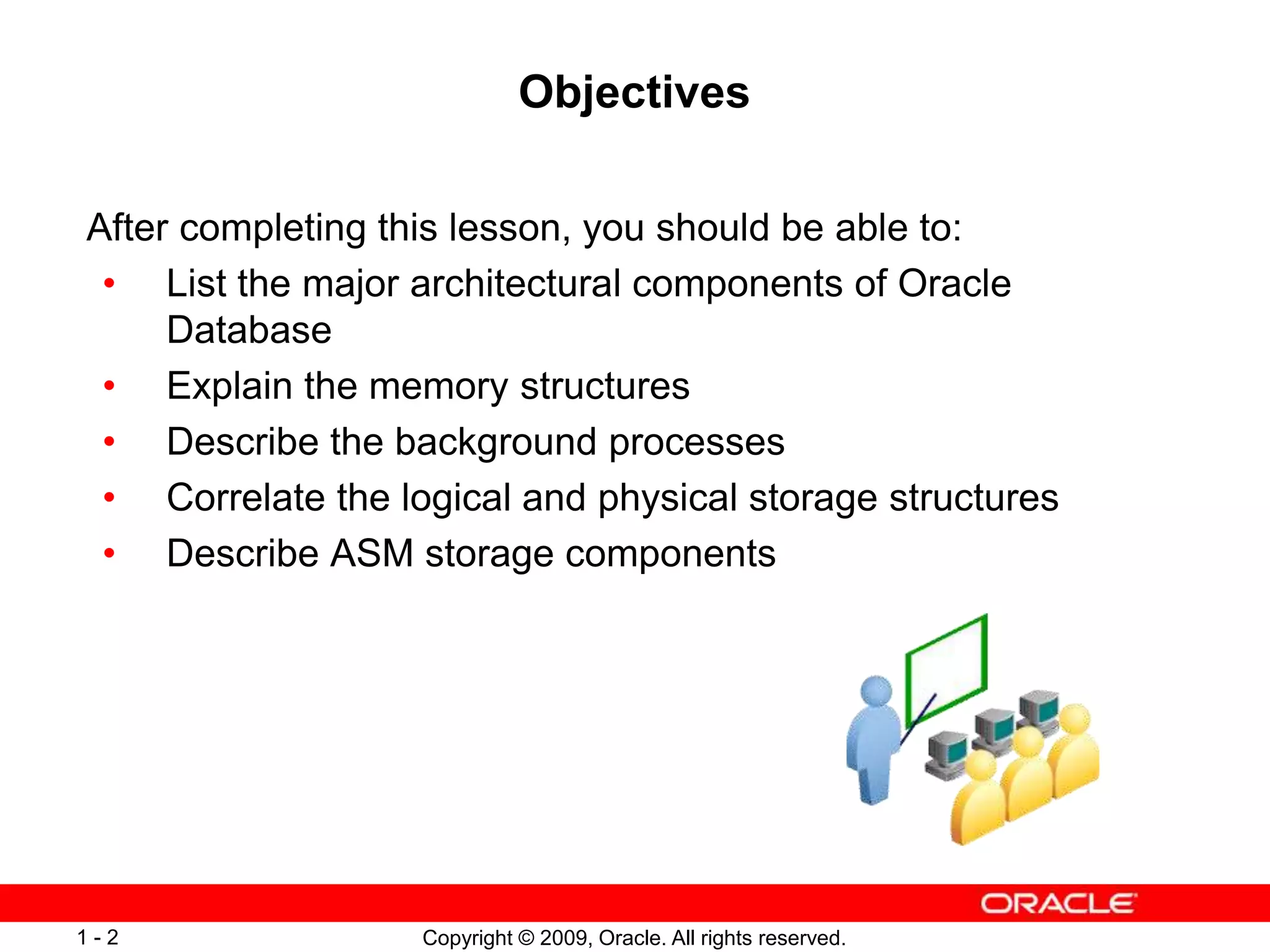

Objectives
After completing this lesson, you should be able to:
• List the major architectural components of Oracle
Database
• Explain the memory structures
• Describe the background processes
• Correlate the logical and physical storage structures
• Describe ASM storage components
Copyright © 2009, Oracle. All rights reserved.
1 - 3

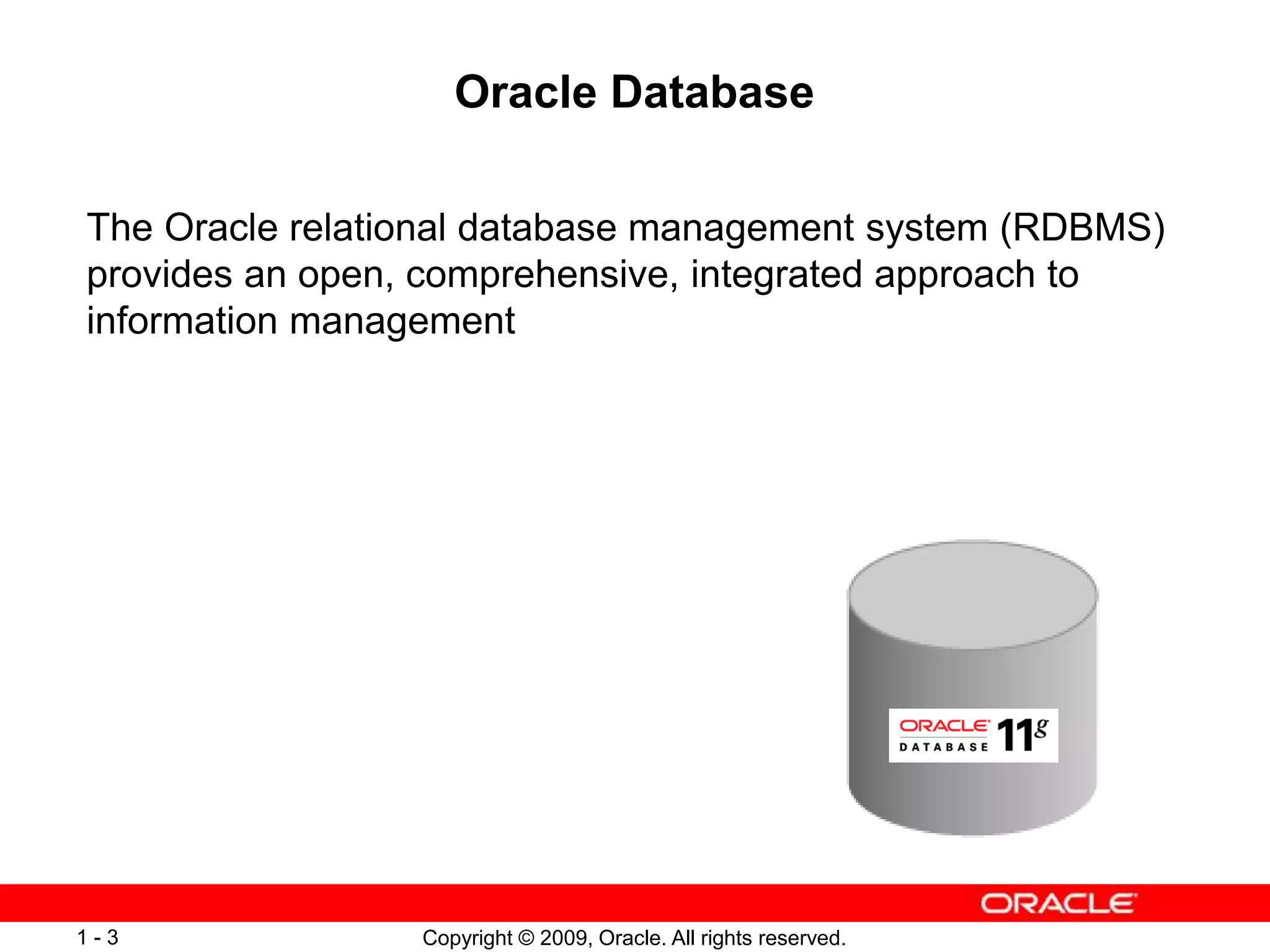

Oracle Database
The Oracle relational database management system (RDBMS)
provides an open, comprehensive, integrated approach to
information management
Copyright © 2009, Oracle. All rights reserved.
1 - 4

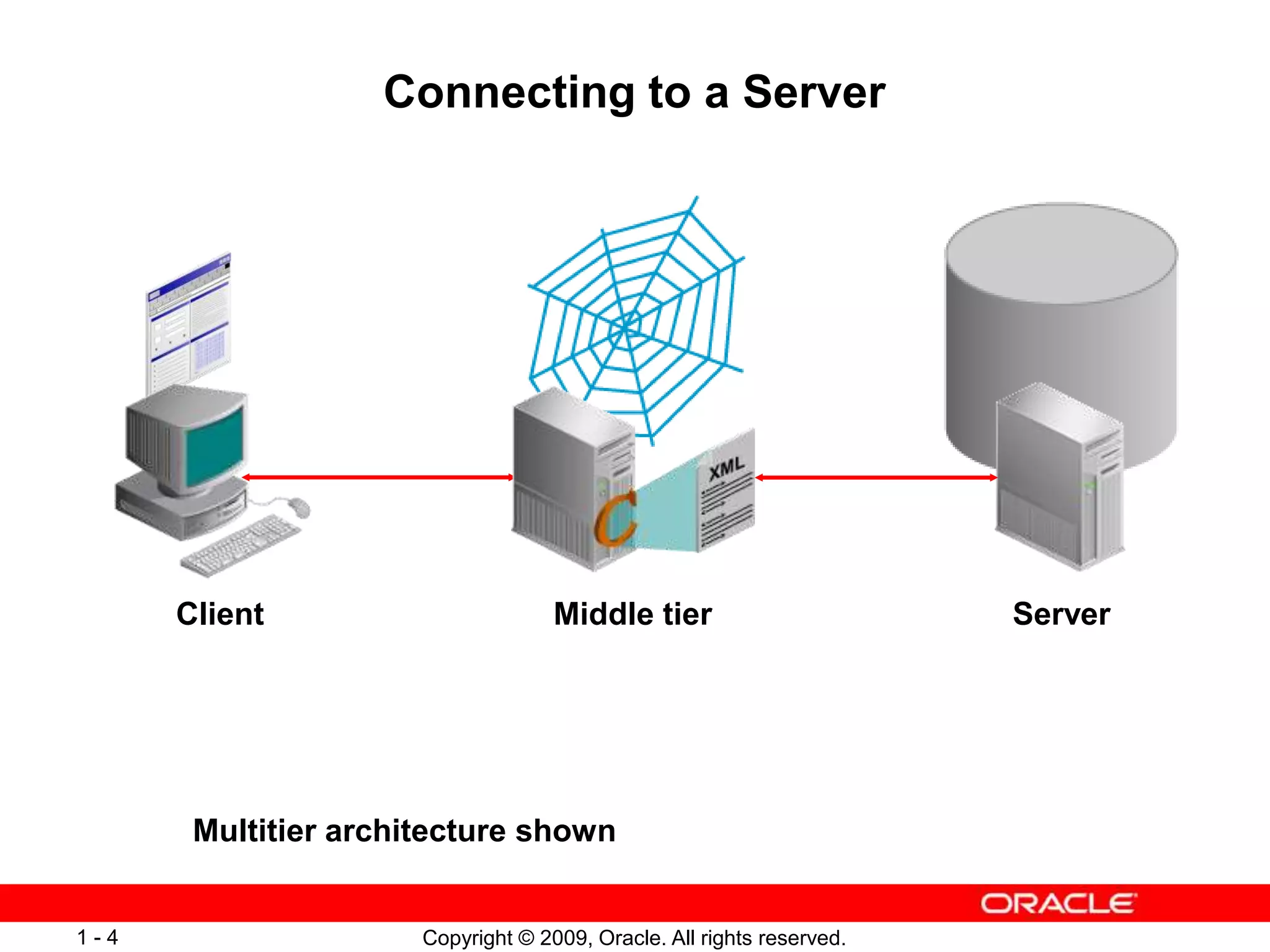

Connecting to a Server
Client Middle tier Server
Multitier architecture shown
Copyright © 2009, Oracle. All rights reserved.
1 - 6

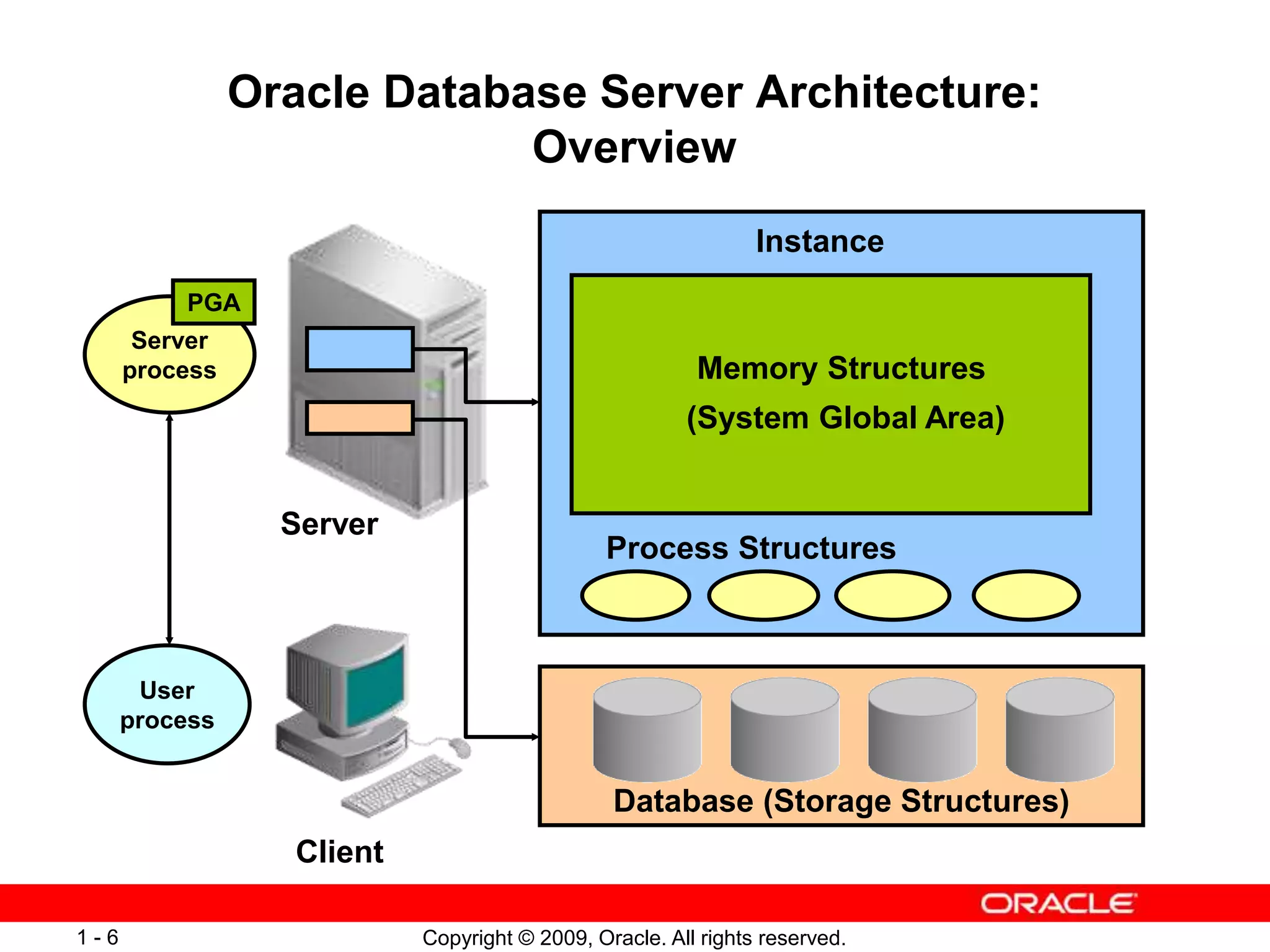

Database (Storage Structures)
Oracle Database Server Architecture:
Overview
Server
process
PGA
User
process
Instance
Memory Structures
(System Global Area)
Process Structures
Client
Server
Copyright © 2009, Oracle. All rights reserved.
1 - 7

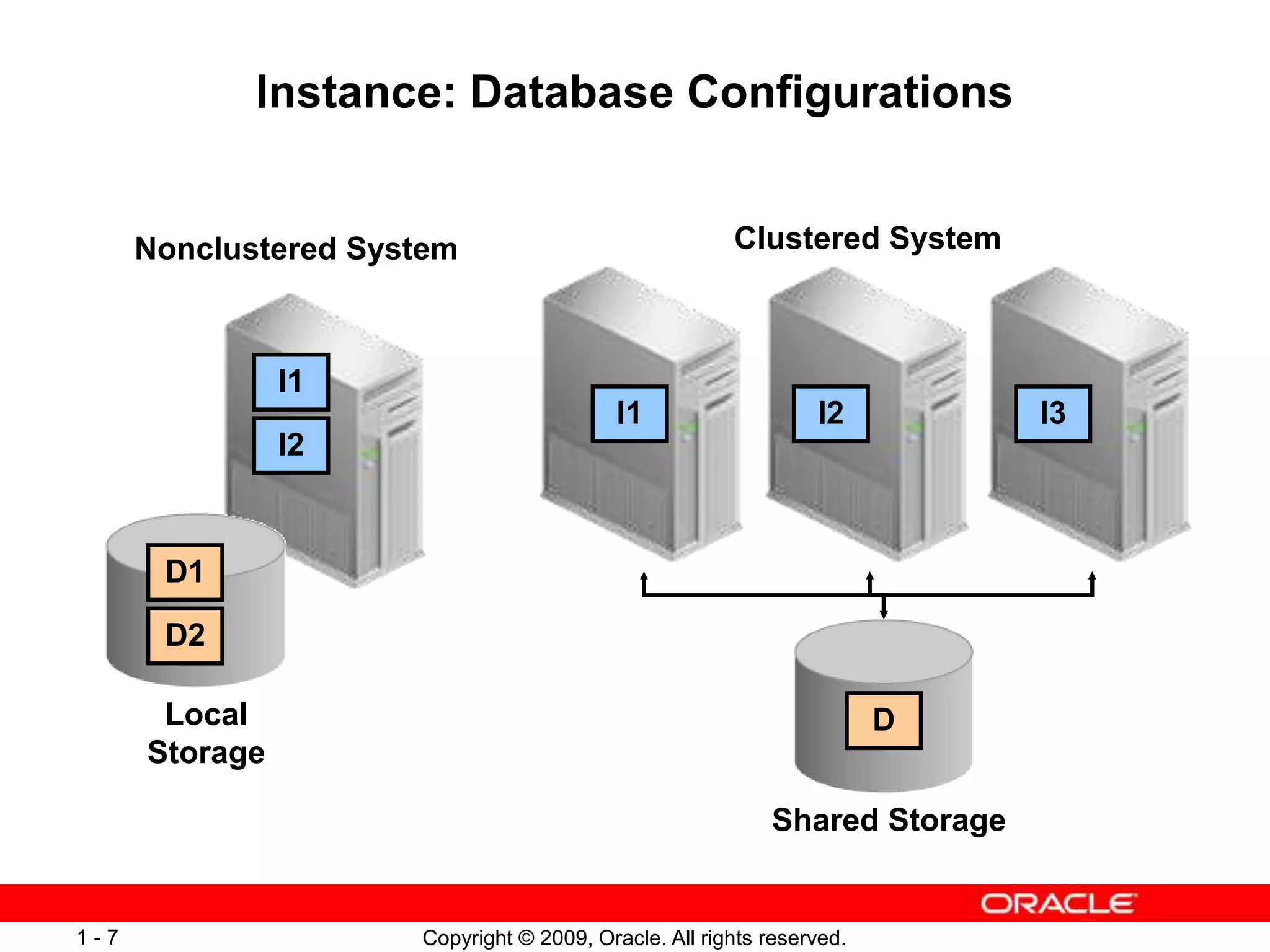

Instance: Database Configurations
D1
D2
I1
I2
I1 I2 I3
D
Clustered System
Nonclustered System
Local
Storage
Shared Storage
Copyright © 2009, Oracle. All rights reserved.
1 - 8

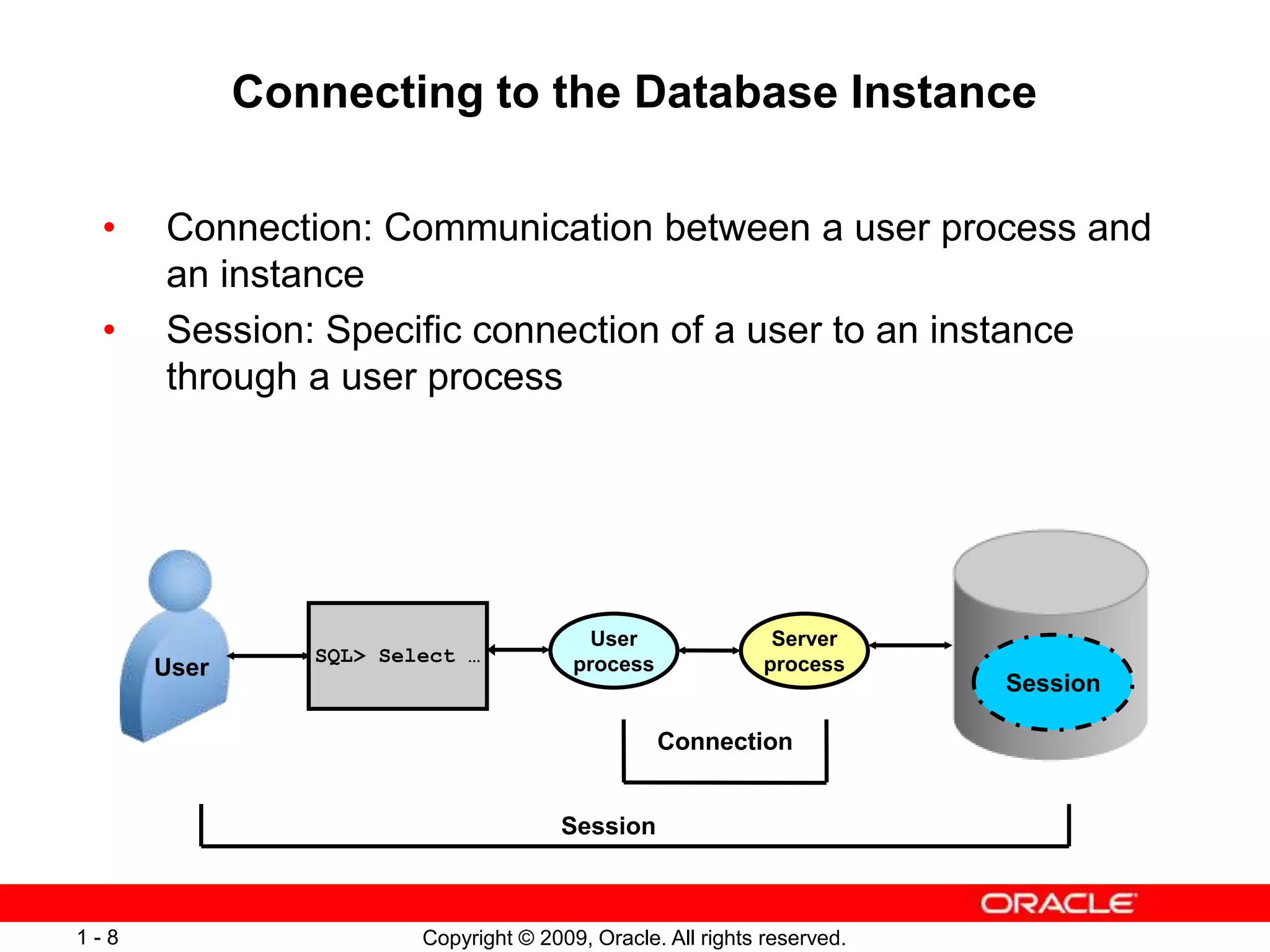

Connecting to the Database Instance
• Connection: Communication between a user process and
an instance
• Session: Specific connection of a user to an instance
through a user process
SQL> Select …
Session
Connection
User
User
process
Server
process
Session
Copyright © 2009, Oracle. All rights reserved.
1 - 9

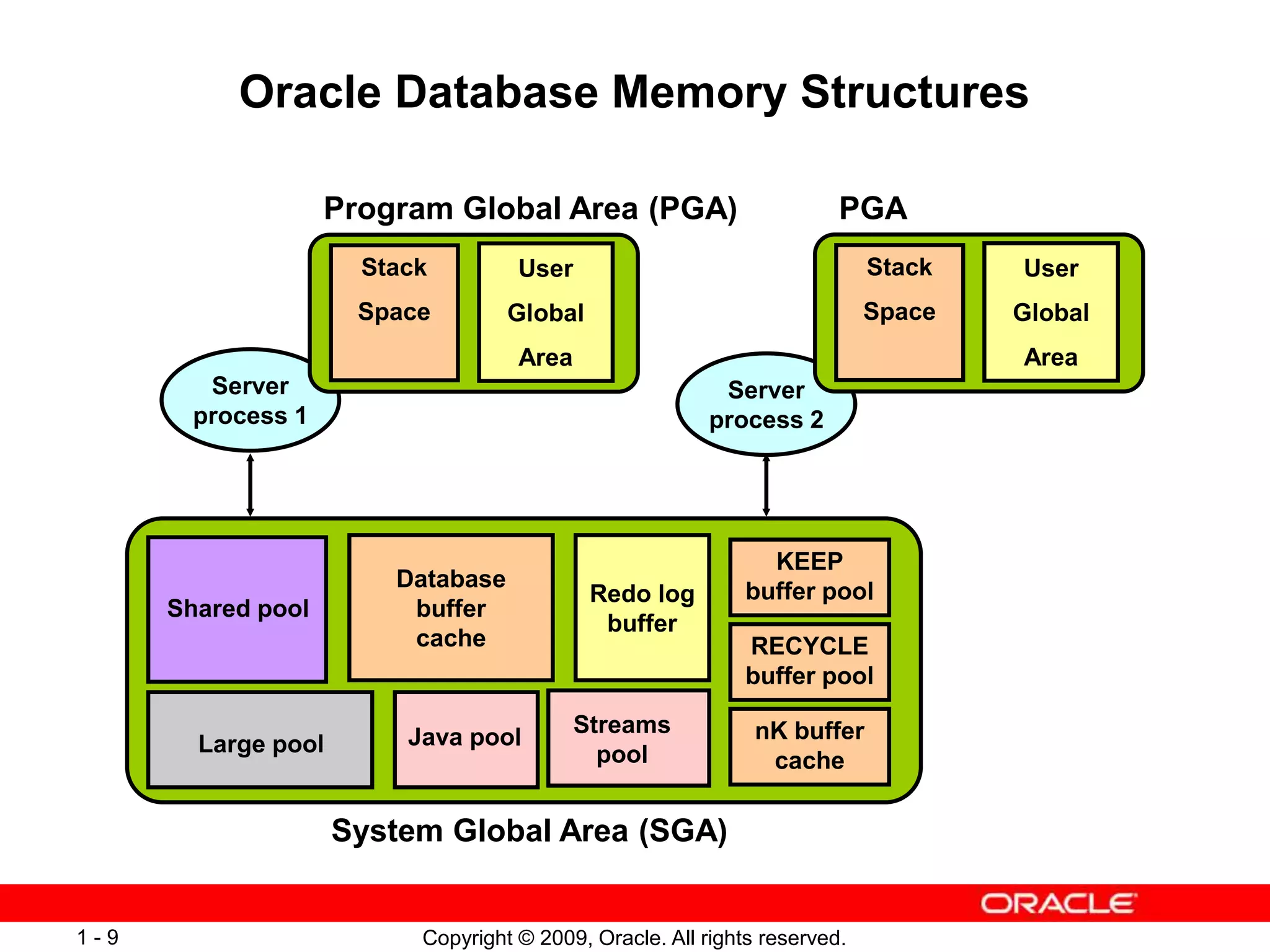

Oracle Database Memory Structures
Server
process 1
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
Stack
Space
System Global Area (SGA)
Program Global Area (PGA)
Server
process 2
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache
User
Global
Area
Stack
Space
User
Global
Area
PGA
Copyright © 2009, Oracle. All rights reserved.
1 - 11
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
System Global Area (SGA)
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache

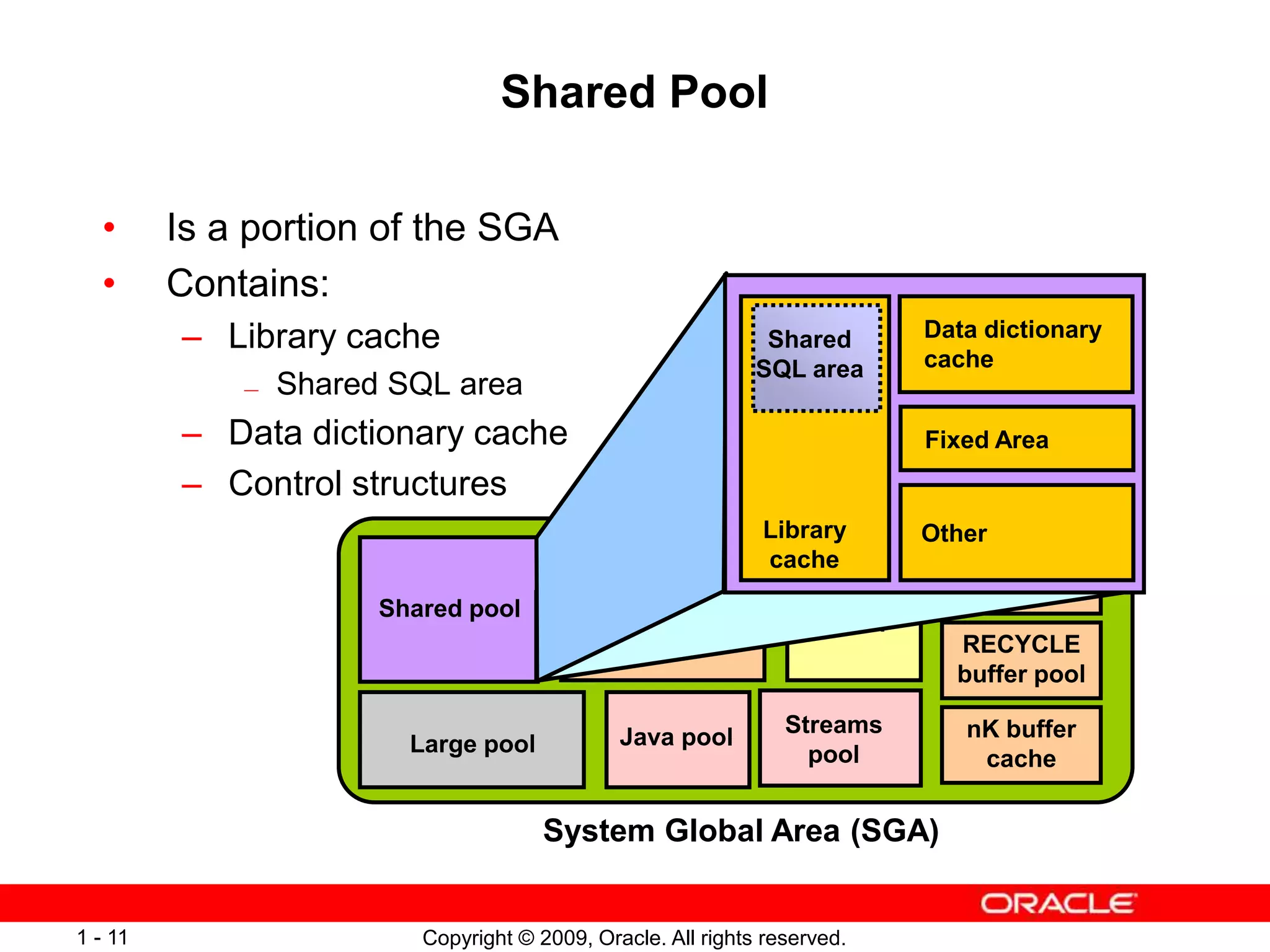

Shared Pool
• Is a portion of the SGA
• Contains:
– Library cache
— Shared SQL area
– Data dictionary cache
– Control structures
Shared
SQL area
Library
cache
Data dictionary
cache
Other
Fixed Area
Copyright © 2009, Oracle. All rights reserved.
1 - 13
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
System Global Area (SGA)
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache

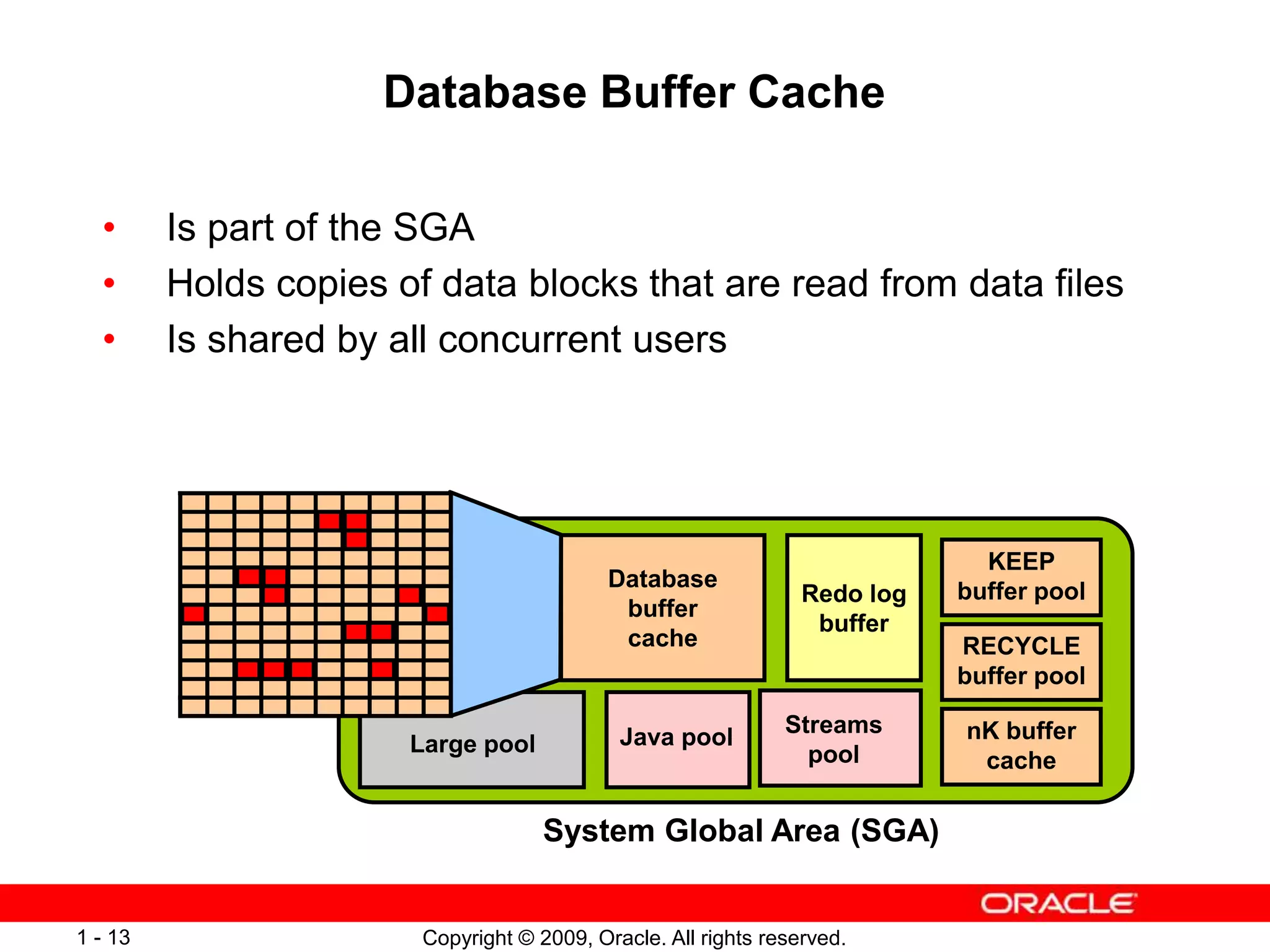

Database Buffer Cache
• Is part of the SGA
• Holds copies of data blocks that are read from data files
• Is shared by all concurrent users
Copyright © 2009, Oracle. All rights reserved.
1 - 14

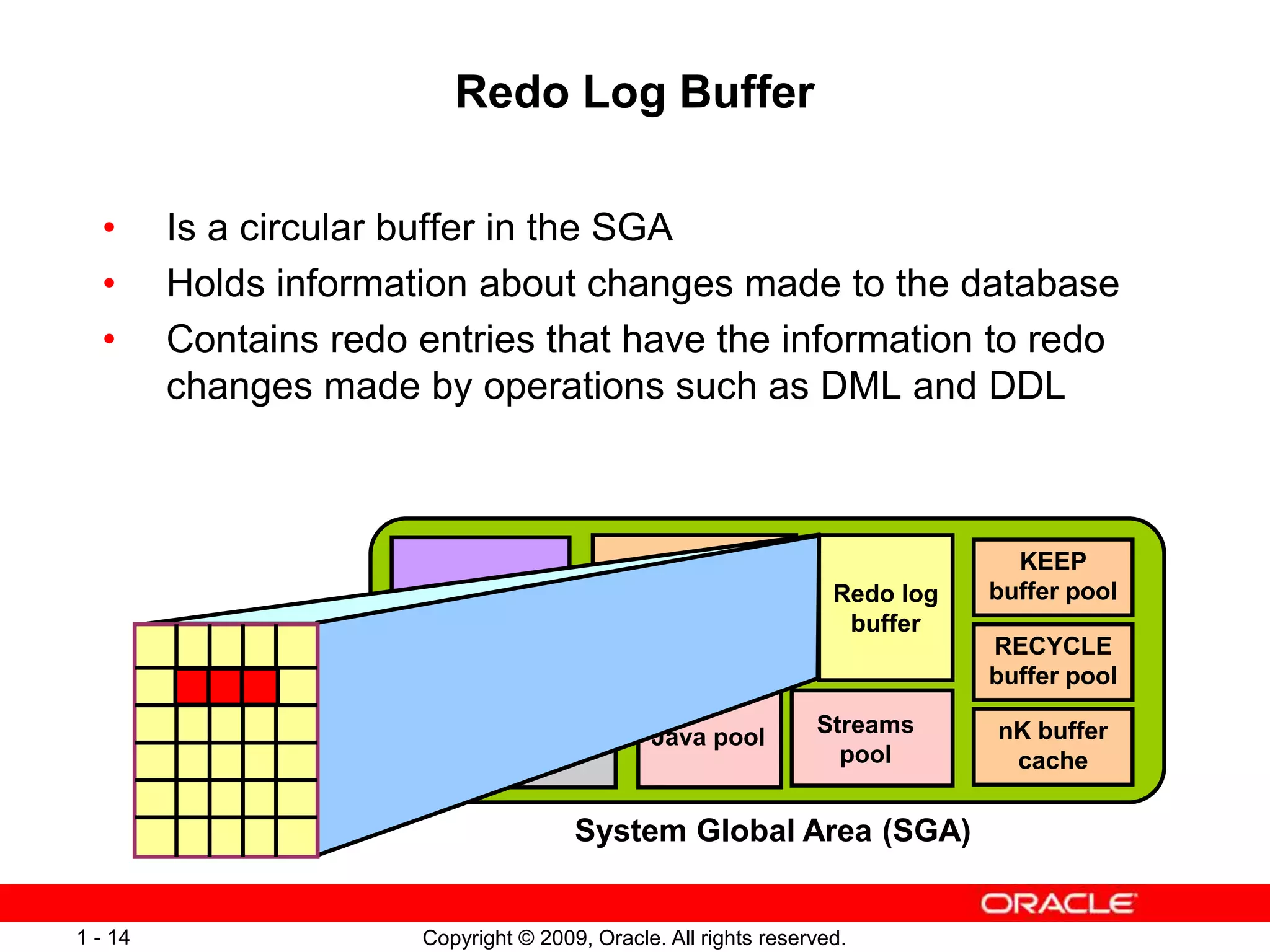

Redo Log Buffer
• Is a circular buffer in the SGA
• Holds information about changes made to the database
• Contains redo entries that have the information to redo
changes made by operations such as DML and DDL
Shared pool
Database
buffer
cache
Streams
pool
Large pool Java pool
System Global Area (SGA)
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache
Redo log
buffer
Copyright © 2009, Oracle. All rights reserved.
1 - 15
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
System Global Area (SGA)
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache

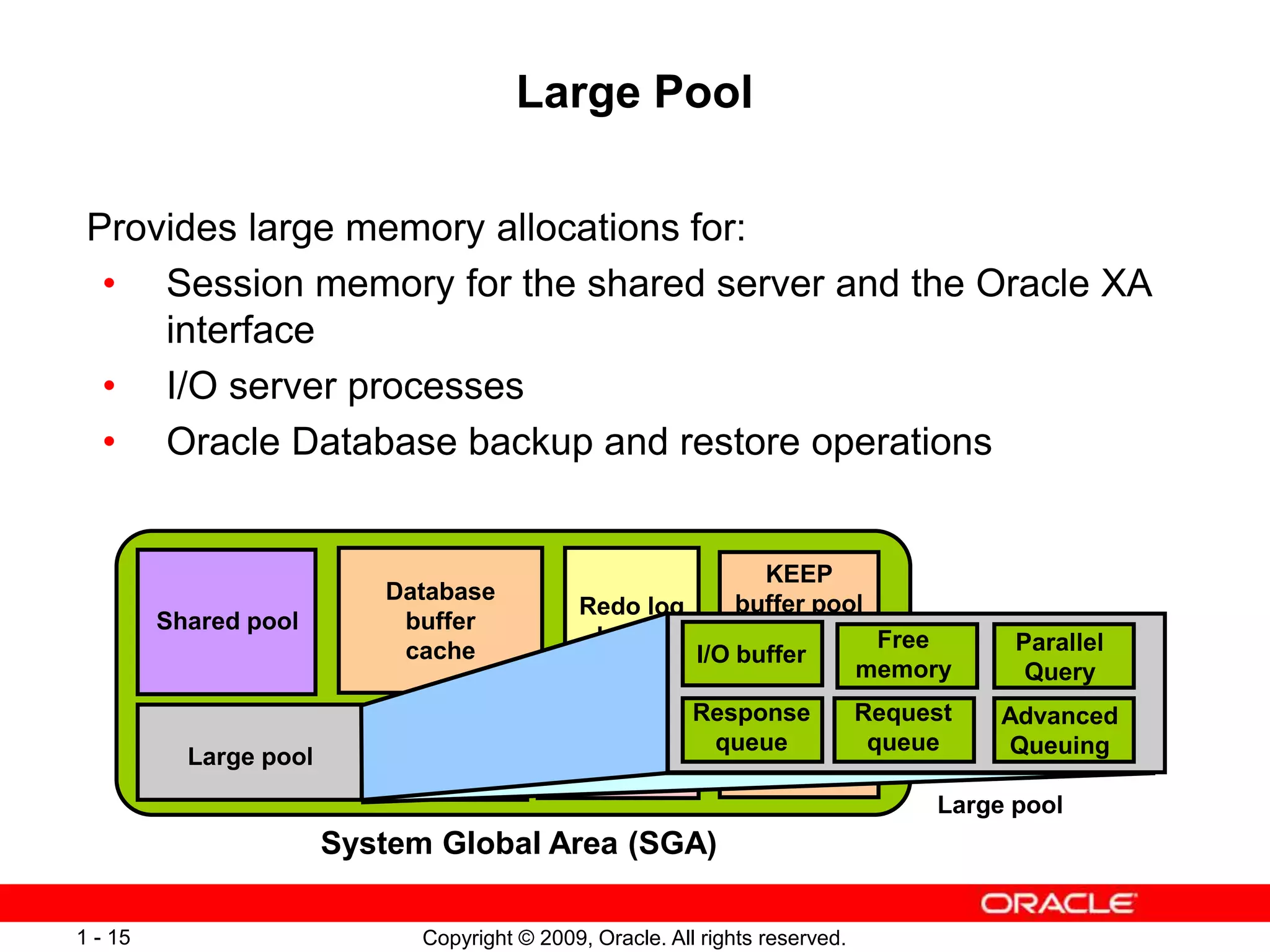

Large Pool
Provides large memory allocations for:
• Session memory for the shared server and the Oracle XA
interface
• I/O server processes
• Oracle Database backup and restore operations
Large pool
I/O buffer
Response
queue
Request
queue
Free
memory
Parallel
Query
Advanced
Queuing
Copyright © 2009, Oracle. All rights reserved.
1 - 16
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
System Global Area (SGA)
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache

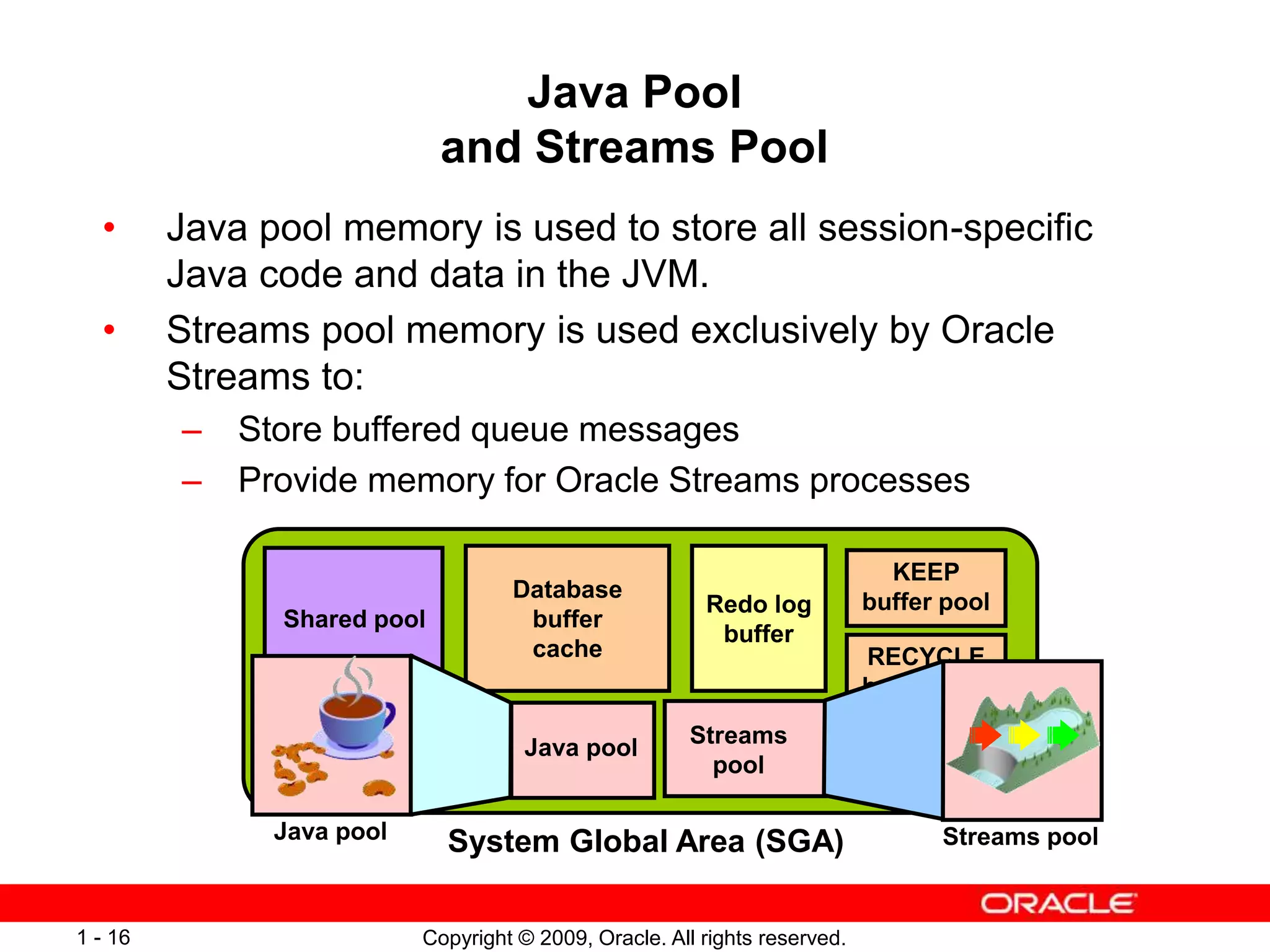

Java Pool
and Streams Pool
• Java pool memory is used to store all session-specific
Java code and data in the JVM.
• Streams pool memory is used exclusively by Oracle
Streams to:
– Store buffered queue messages
– Provide memory for Oracle Streams processes
Java pool Streams pool
Copyright © 2009, Oracle. All rights reserved.
1 - 17

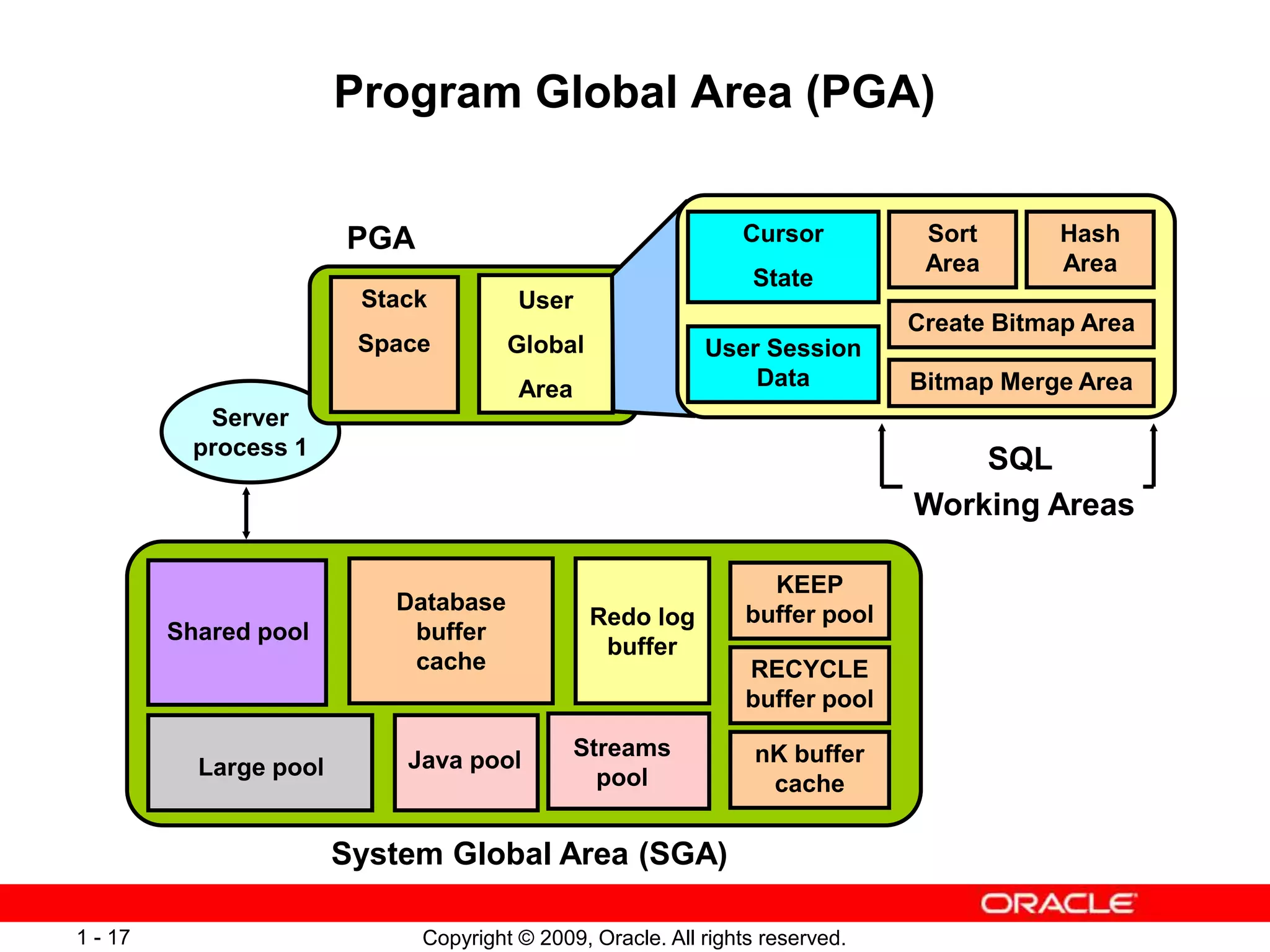

Program Global Area (PGA)
Server
process 1
Stack
Space
System Global Area (SGA)
PGA
Shared pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool Java pool
KEEP
buffer pool
RECYCLE
buffer pool
nK buffer
cache
User
Global
Area
User Session
Data
Cursor
State
Sort
Area
Hash
Area
Create Bitmap Area
SQL
Working Areas
Bitmap Merge Area
Copyright © 2009, Oracle. All rights reserved.
1 - 18

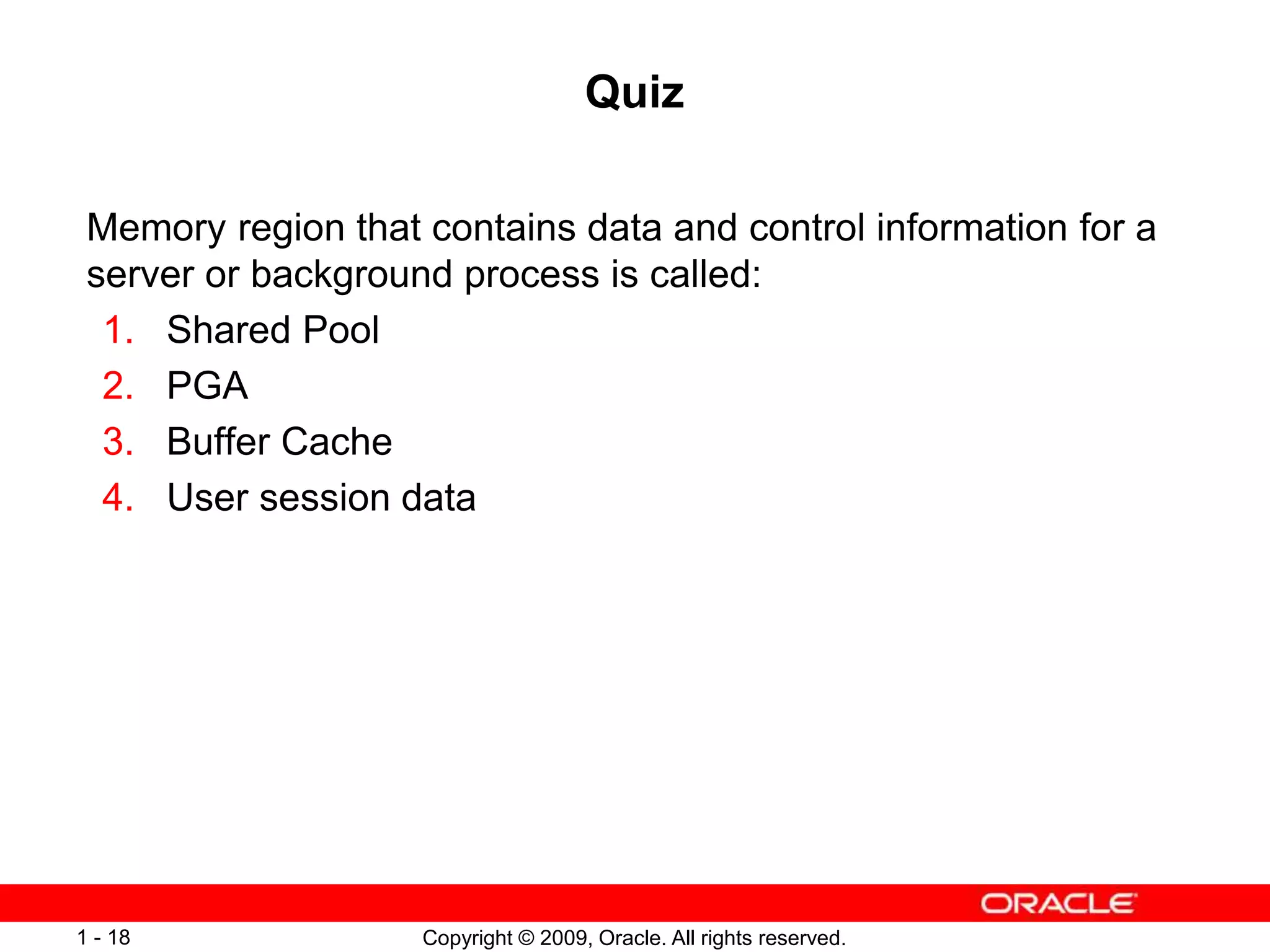

Quiz
Memory region that contains data and control information for a
server or background process is called:
1. Shared Pool
2. PGA
3. Buffer Cache
4. User session data
Copyright © 2009, Oracle. All rights reserved.
1 - 19
Quiz
What is read into the Database Buffer Cache from the data
files?
1. Rows
2. Changes
3. Blocks
4. SQL
Copyright © 2009, Oracle. All rights reserved.
1 - 20

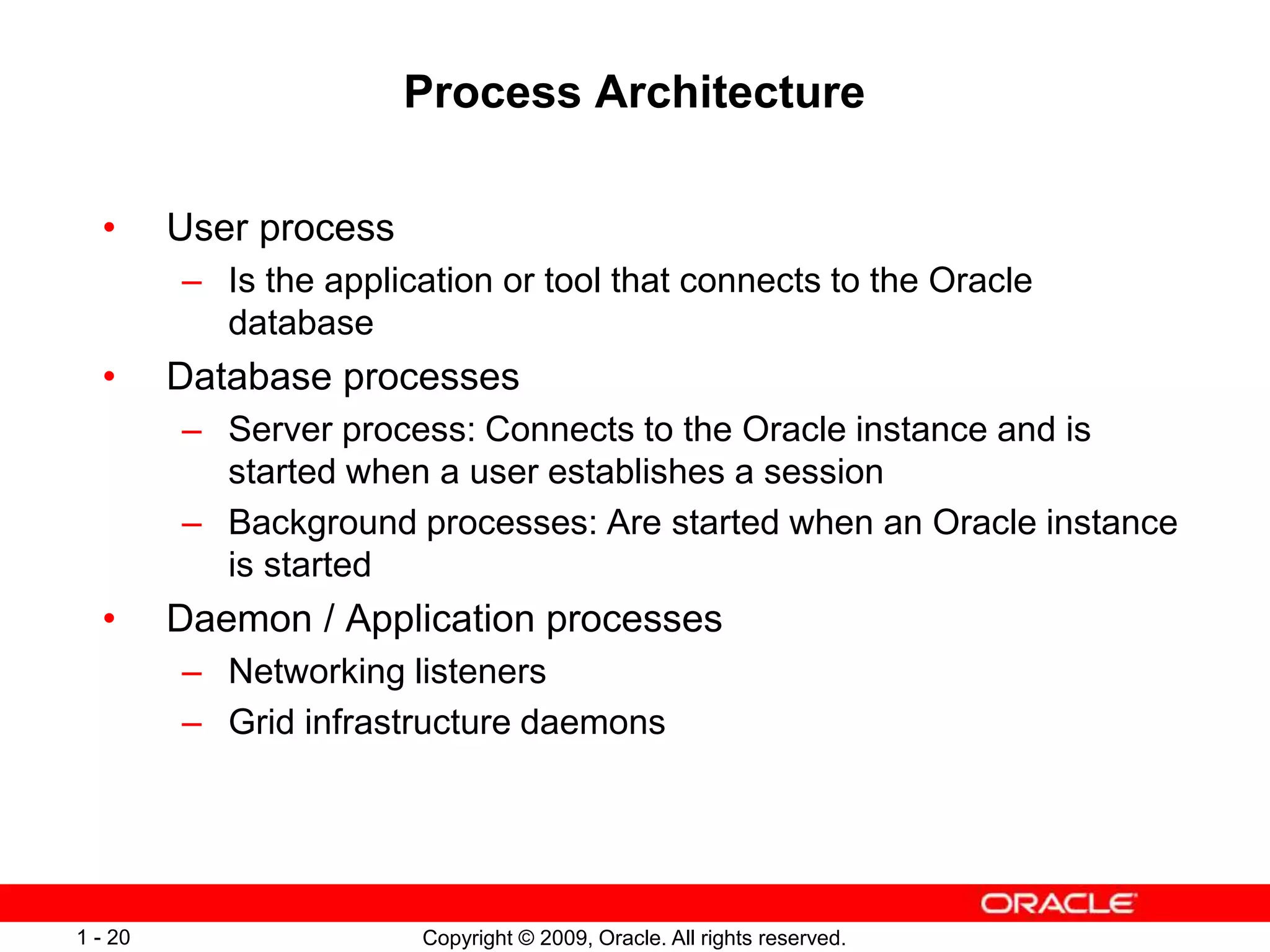

Process Architecture
• User process
– Is the application or tool that connects to the Oracle
database
• Database processes
– Server process: Connects to the Oracle instance and is
started when a user establishes a session
– Background processes: Are started when an Oracle instance
is started
• Daemon / Application processes
– Networking listeners
– Grid infrastructure daemons
Copyright © 2009, Oracle. All rights reserved.
1 - 21

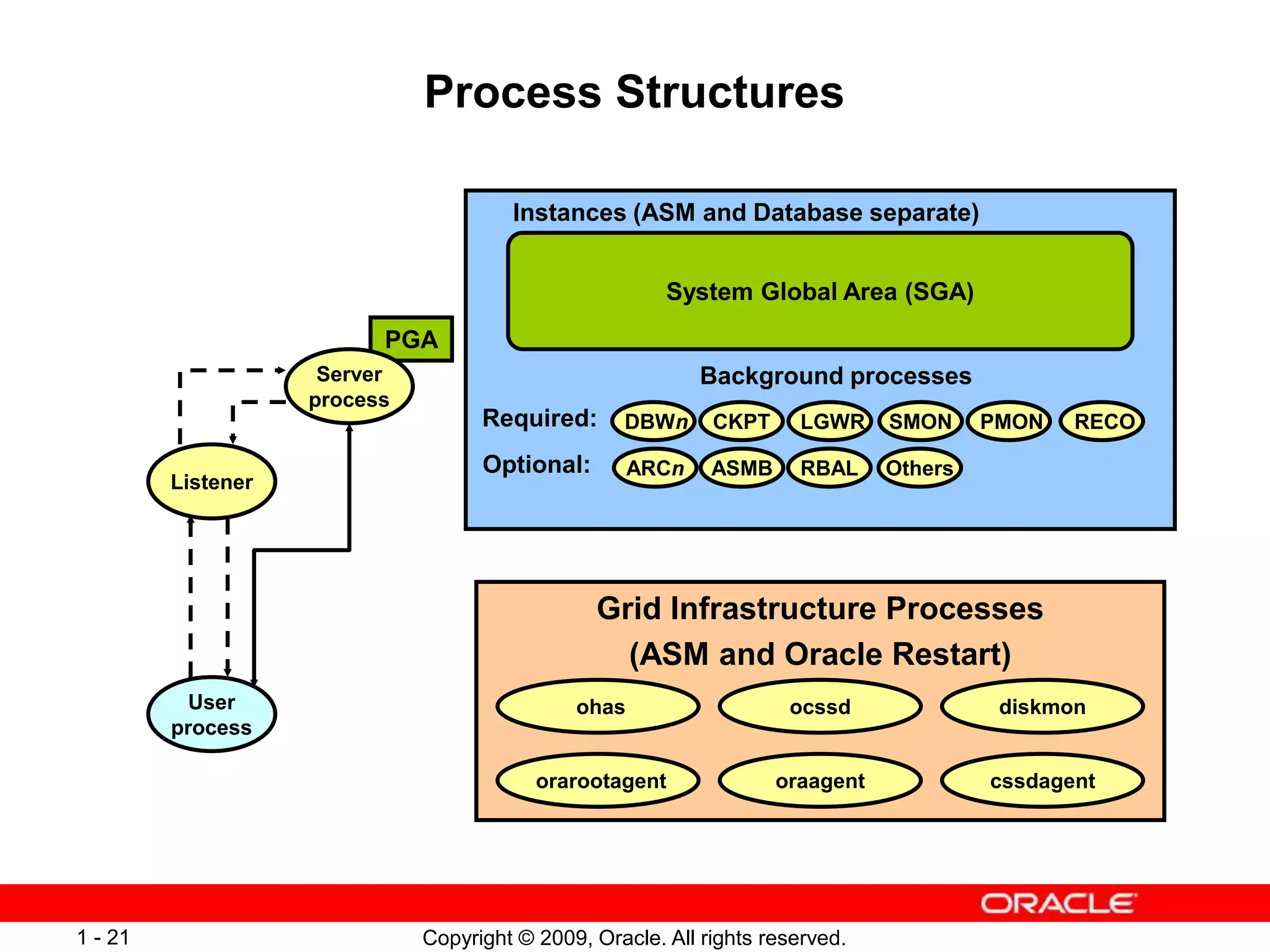

Process Structures
PMON
SMON
Others
Instances (ASM and Database separate)
RECO
ARCn
DBWn LGWR
CKPT
PGA
Background processes
System Global Area (SGA)
Required:
ASMB RBAL
Optional:
Grid Infrastructure Processes
(ASM and Oracle Restart)
orarootagent
ohas ocssd diskmon
oraagent cssdagent
User
process
Server
process
Listener
Copyright © 2009, Oracle. All rights reserved.
1 - 23

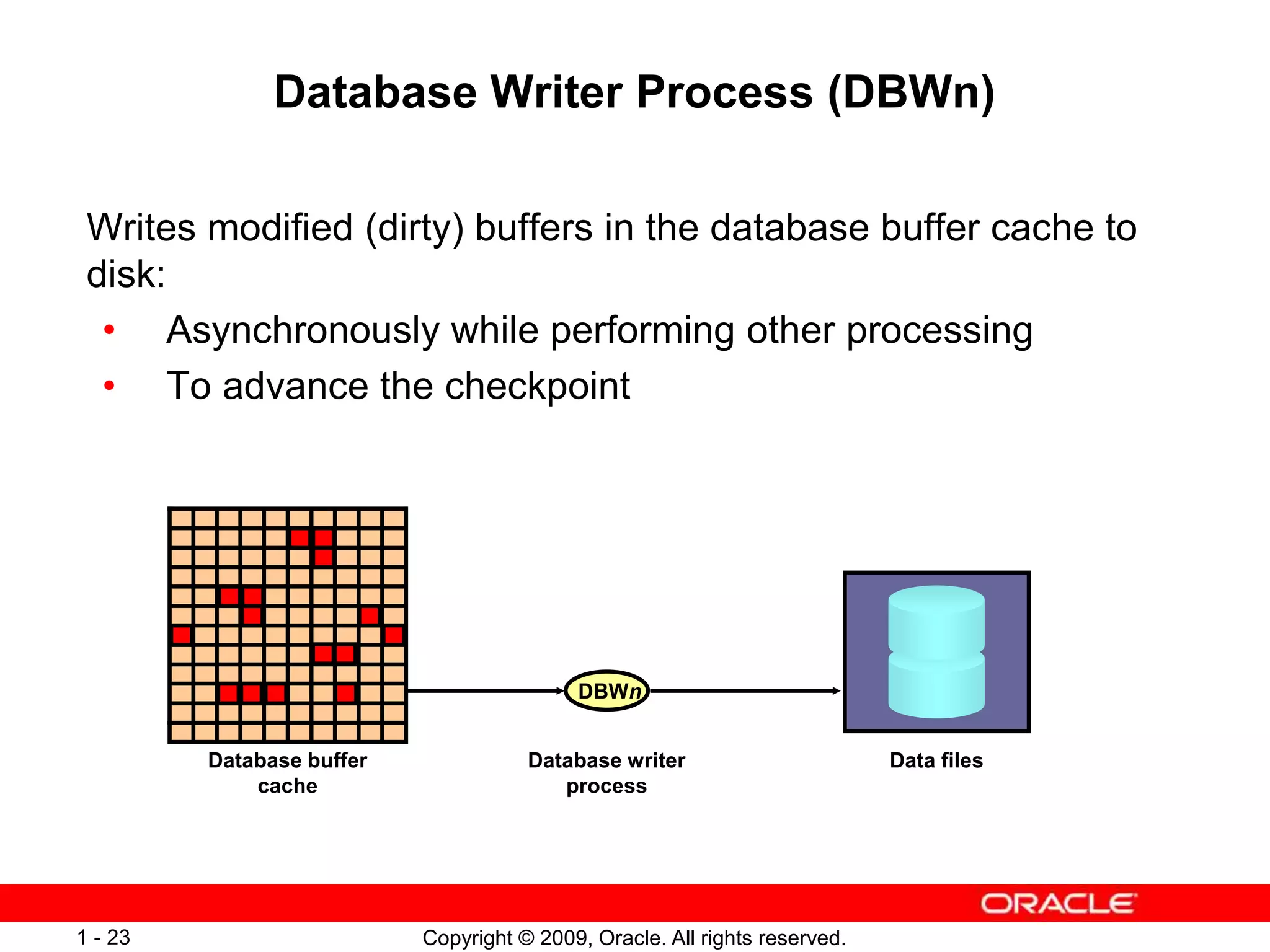

Database Writer Process (DBWn)
Writes modified (dirty) buffers in the database buffer cache to
disk:
• Asynchronously while performing other processing
• To advance the checkpoint
Database buffer
cache
Database writer
process
Data files
DBWn
Copyright © 2009, Oracle. All rights reserved.
1 - 25

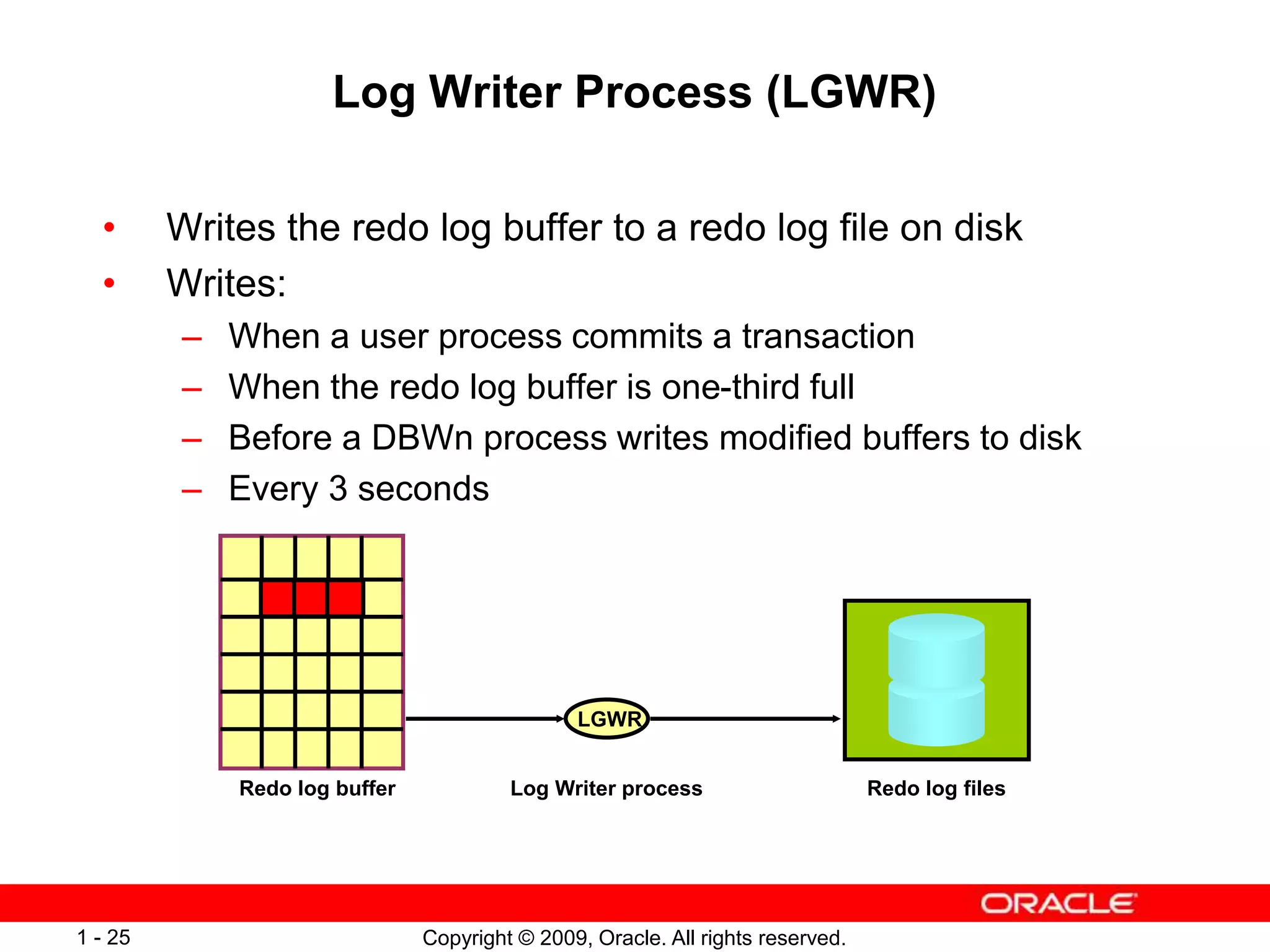

Log Writer Process (LGWR)
• Writes the redo log buffer to a redo log file on disk
• Writes:
– When a user process commits a transaction
– When the redo log buffer is one-third full
– Before a DBWn process writes modified buffers to disk
– Every 3 seconds
Redo log buffer Log Writer process Redo log files
LGWR
Copyright © 2009, Oracle. All rights reserved.
1 - 27

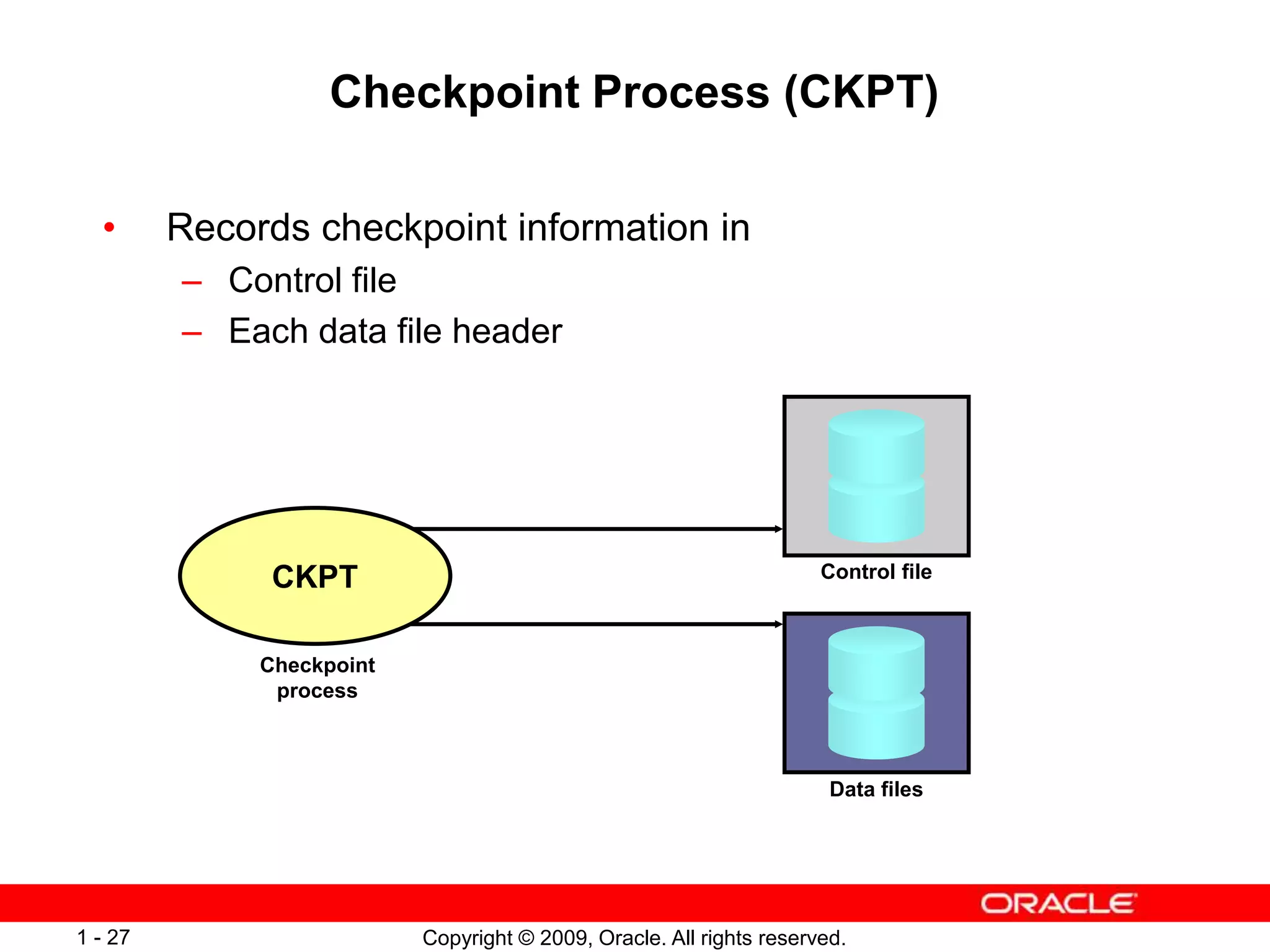

Checkpoint Process (CKPT)
• Records checkpoint information in
– Control file
– Each data file header
Checkpoint
process
Data files
Control file
CKPT
Copyright © 2009, Oracle. All rights reserved.
1 - 28

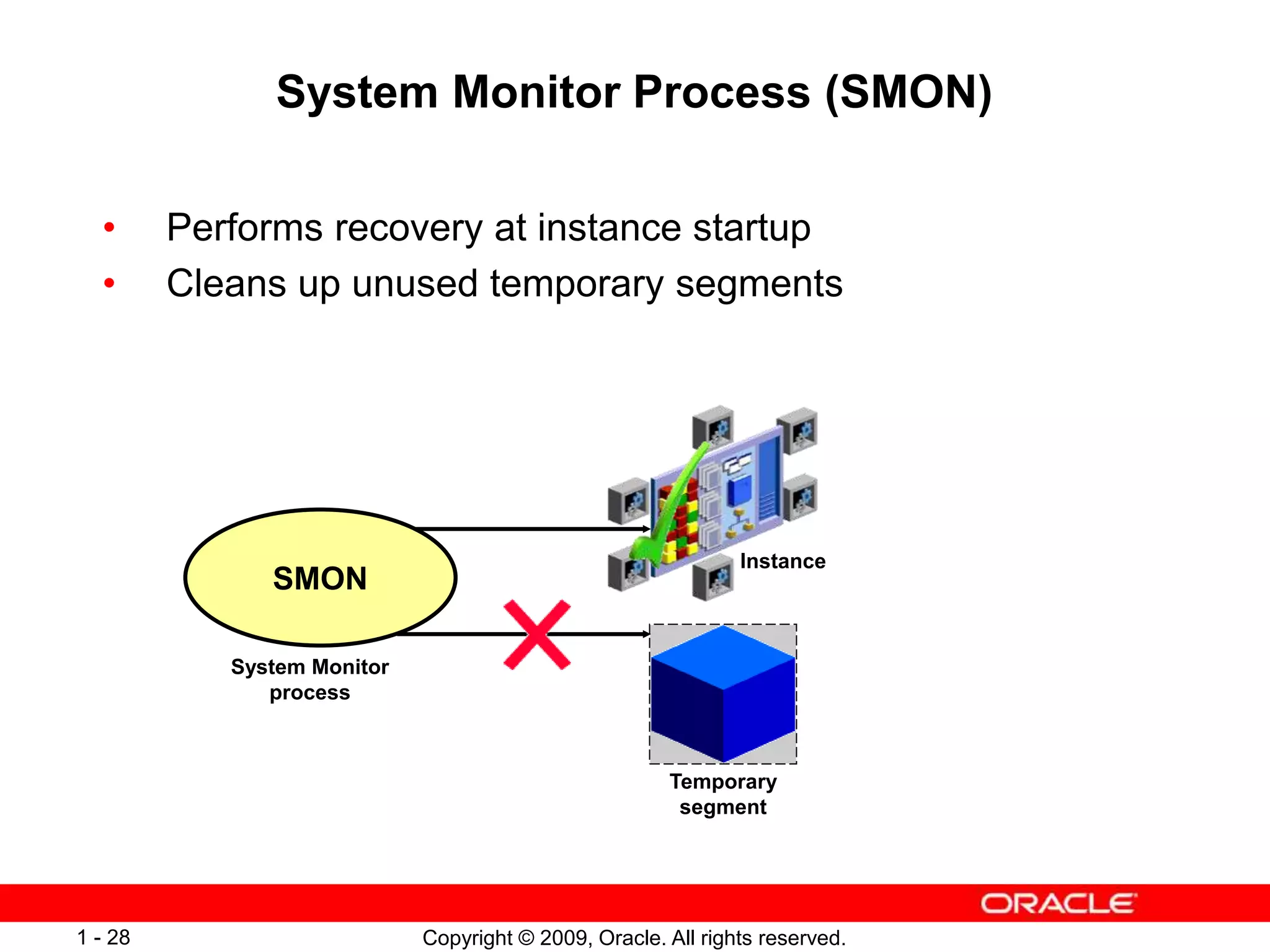

System Monitor Process (SMON)
• Performs recovery at instance startup
• Cleans up unused temporary segments
Instance
Temporary
segment
System Monitor
process
SMON
Copyright © 2009, Oracle. All rights reserved.
1 - 29

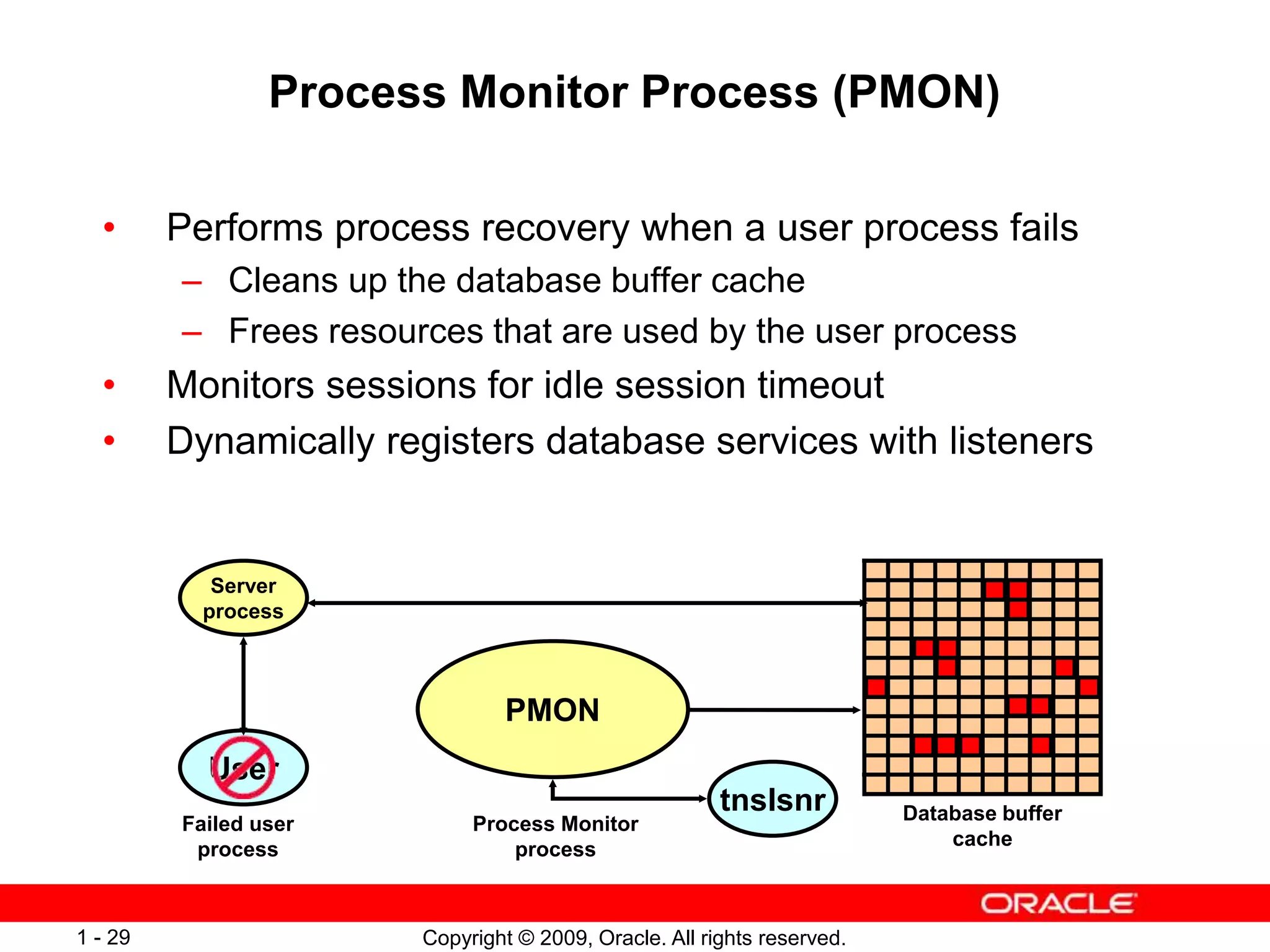

Process Monitor Process (PMON)
• Performs process recovery when a user process fails
– Cleans up the database buffer cache
– Frees resources that are used by the user process
• Monitors sessions for idle session timeout
• Dynamically registers database services with listeners
Process Monitor
process
Database buffer
cache
Failed user
process
User
PMON
Server
process
tnslsnr
Copyright © 2009, Oracle. All rights reserved.
1 - 30

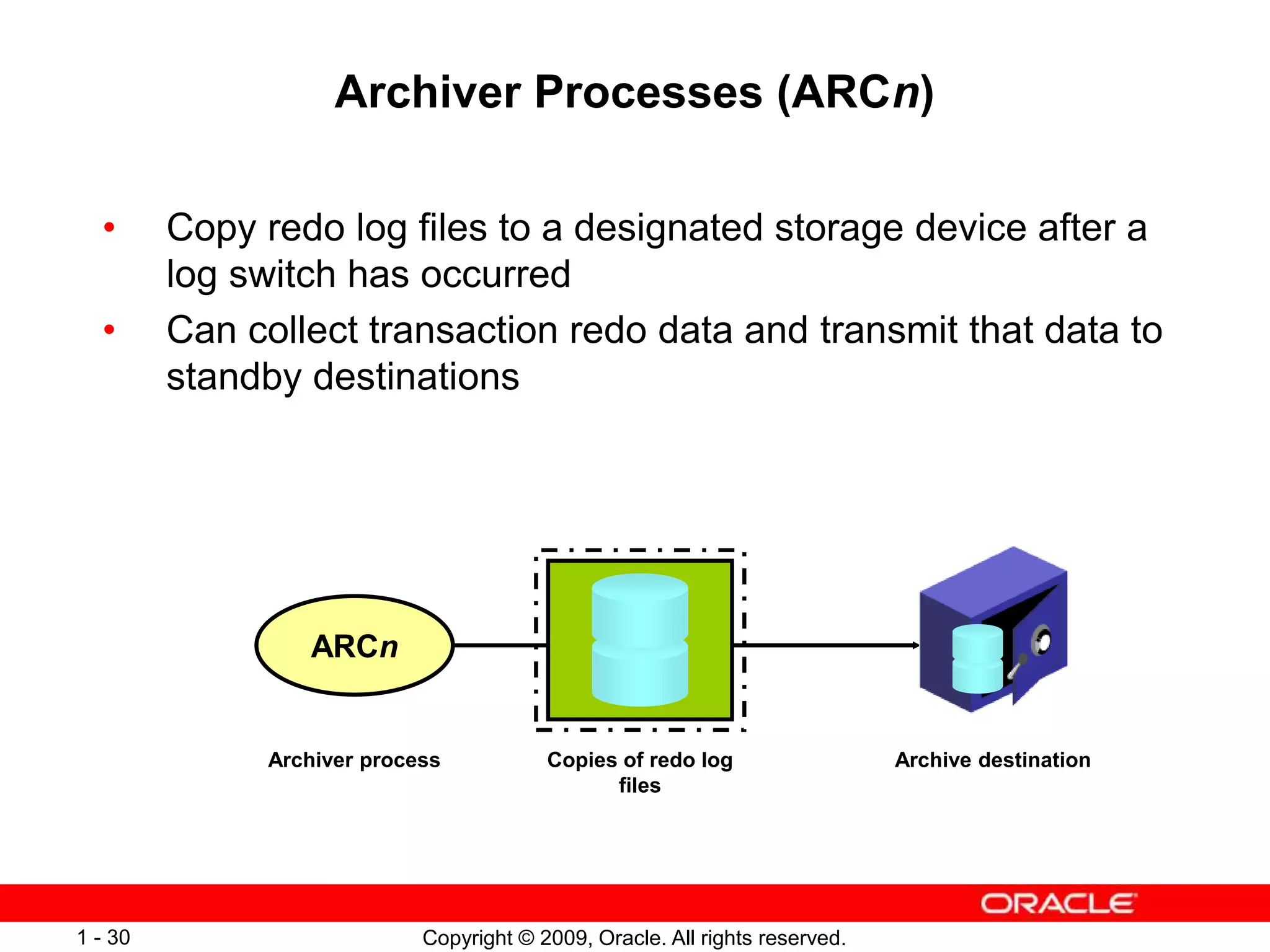

Archiver Processes (ARCn)
• Copy redo log files to a designated storage device after a
log switch has occurred
• Can collect transaction redo data and transmit that data to
standby destinations
Archiver process Archive destination
Copies of redo log
files
ARCn
Copyright © 2009, Oracle. All rights reserved.
1 - 31

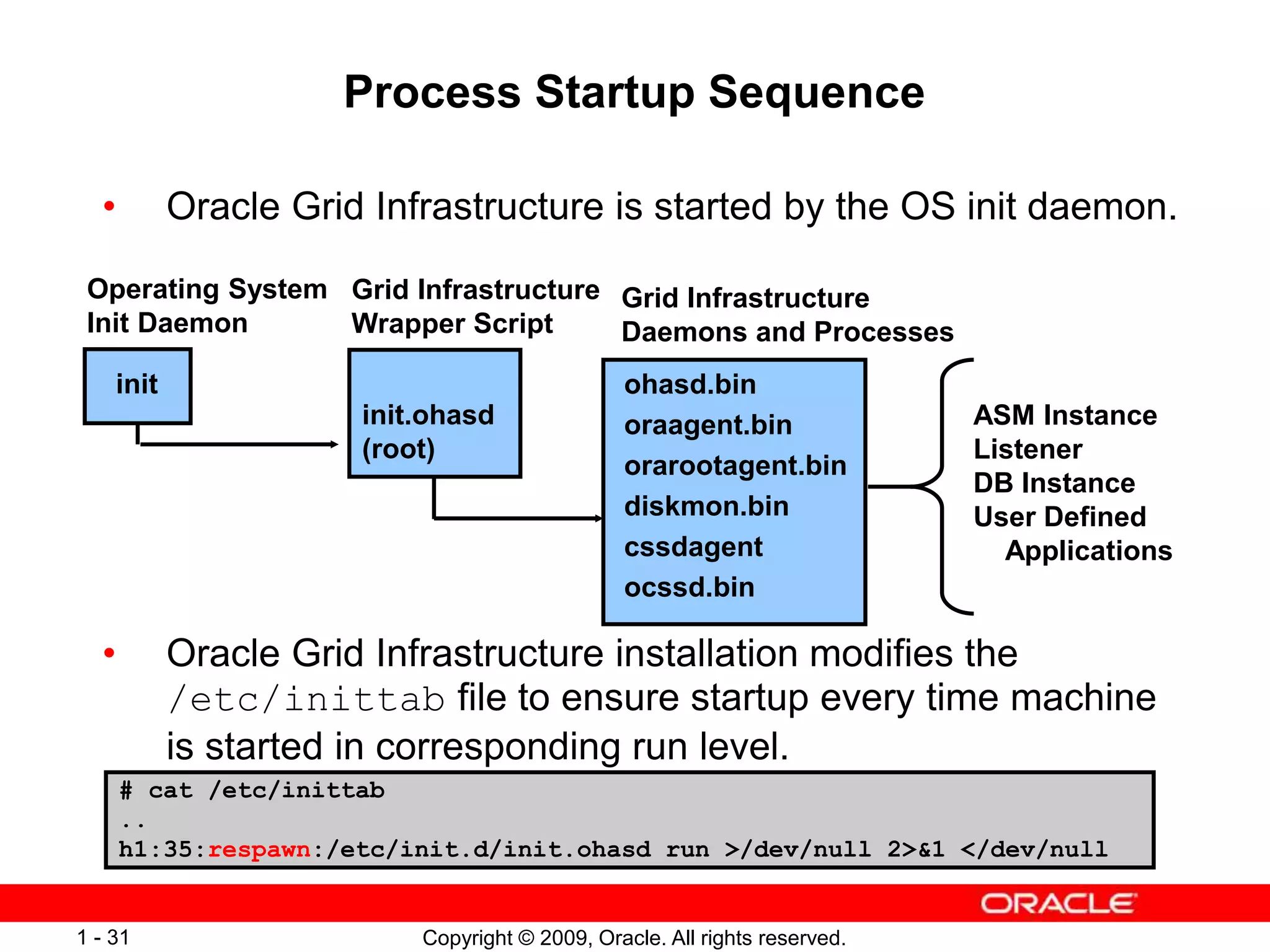

• Oracle Grid Infrastructure is started by the OS init daemon.
• Oracle Grid Infrastructure installation modifies the
/etc/inittab file to ensure startup every time machine
is started in corresponding run level.
Process Startup Sequence
init.ohasd
(root)
ohasd.bin
oraagent.bin
orarootagent.bin
diskmon.bin
cssdagent
ocssd.bin
init
Grid Infrastructure
Wrapper Script
Grid Infrastructure
Daemons and Processes
Operating System
Init Daemon
# cat /etc/inittab
..
h1:35:respawn:/etc/init.d/init.ohasd run >/dev/null 2>&1 </dev/null
ASM Instance
Listener
DB Instance
User Defined
Applications
Copyright © 2009, Oracle. All rights reserved.
1 - 32

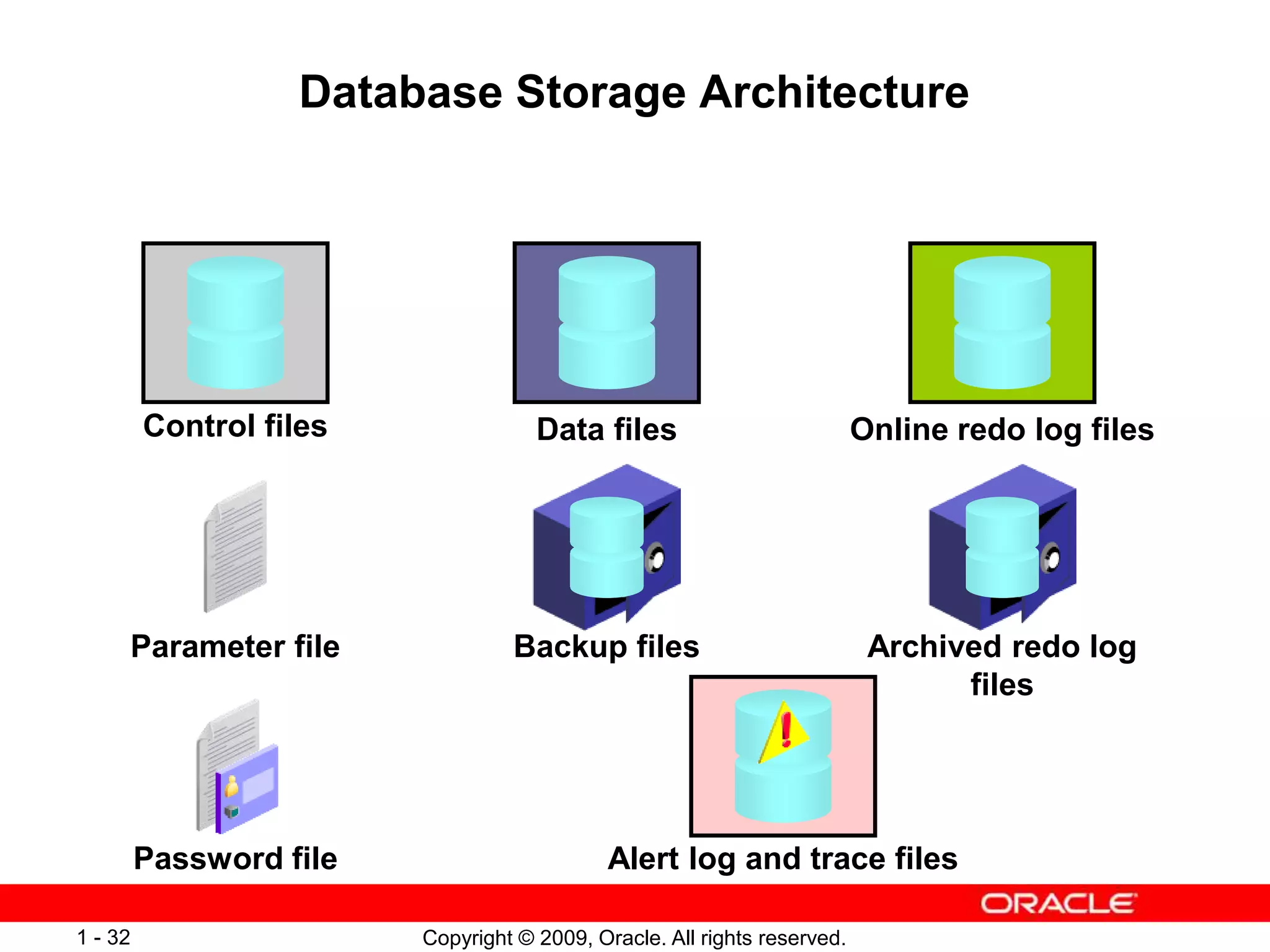

Database Storage Architecture
Online redo log files
Password file
Parameter file Archived redo log
files
Control files Data files
Alert log and trace files
Backup files
Copyright © 2009, Oracle. All rights reserved.
1 - 34

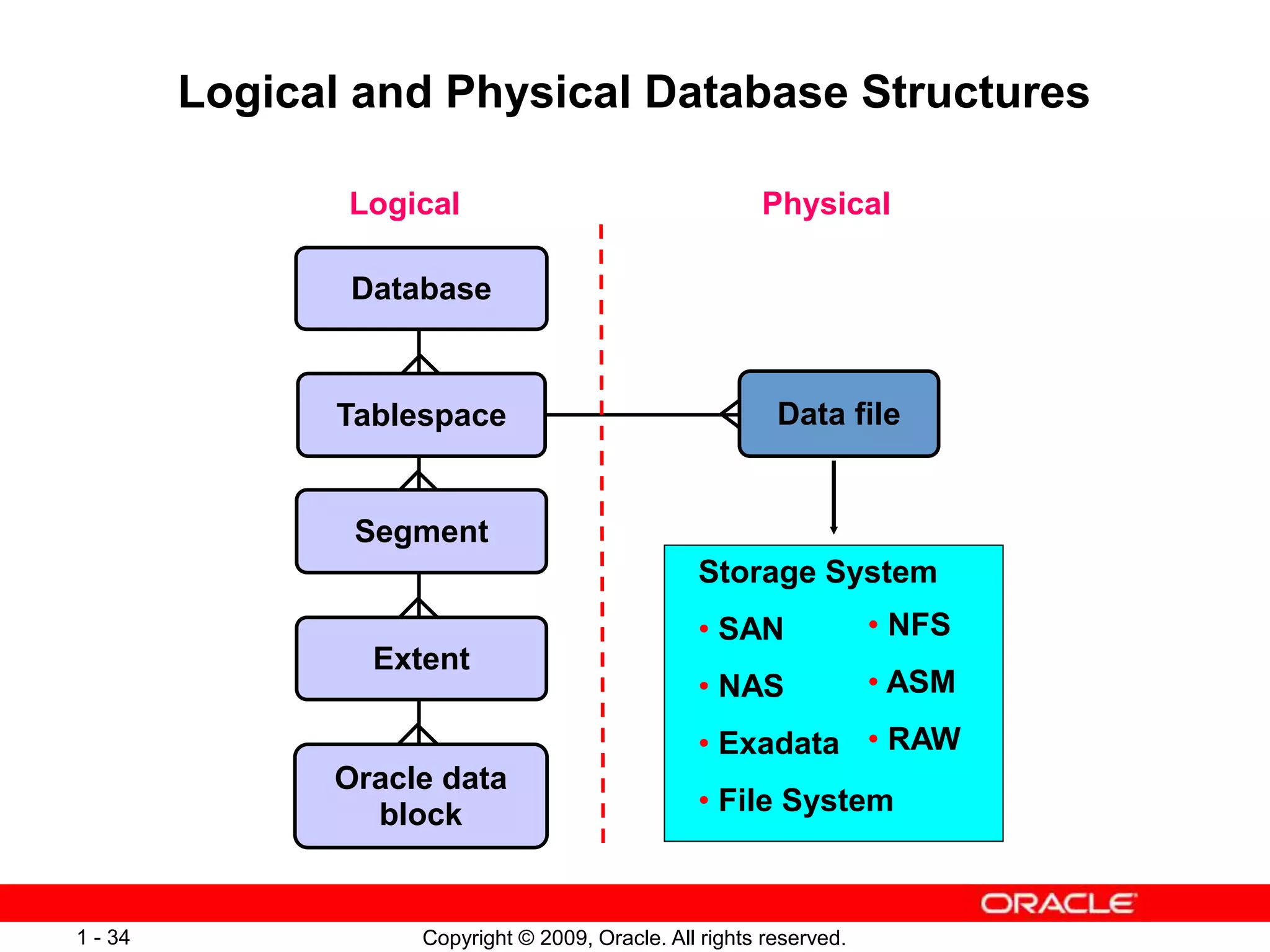

Logical and Physical Database Structures
Database
Logical Physical
Tablespace Data file
Segment
Extent
Oracle data
block
Storage System
• SAN
• NAS
• Exadata
• File System
• NFS
• ASM
• RAW
Copyright © 2009, Oracle. All rights reserved.
1 - 36

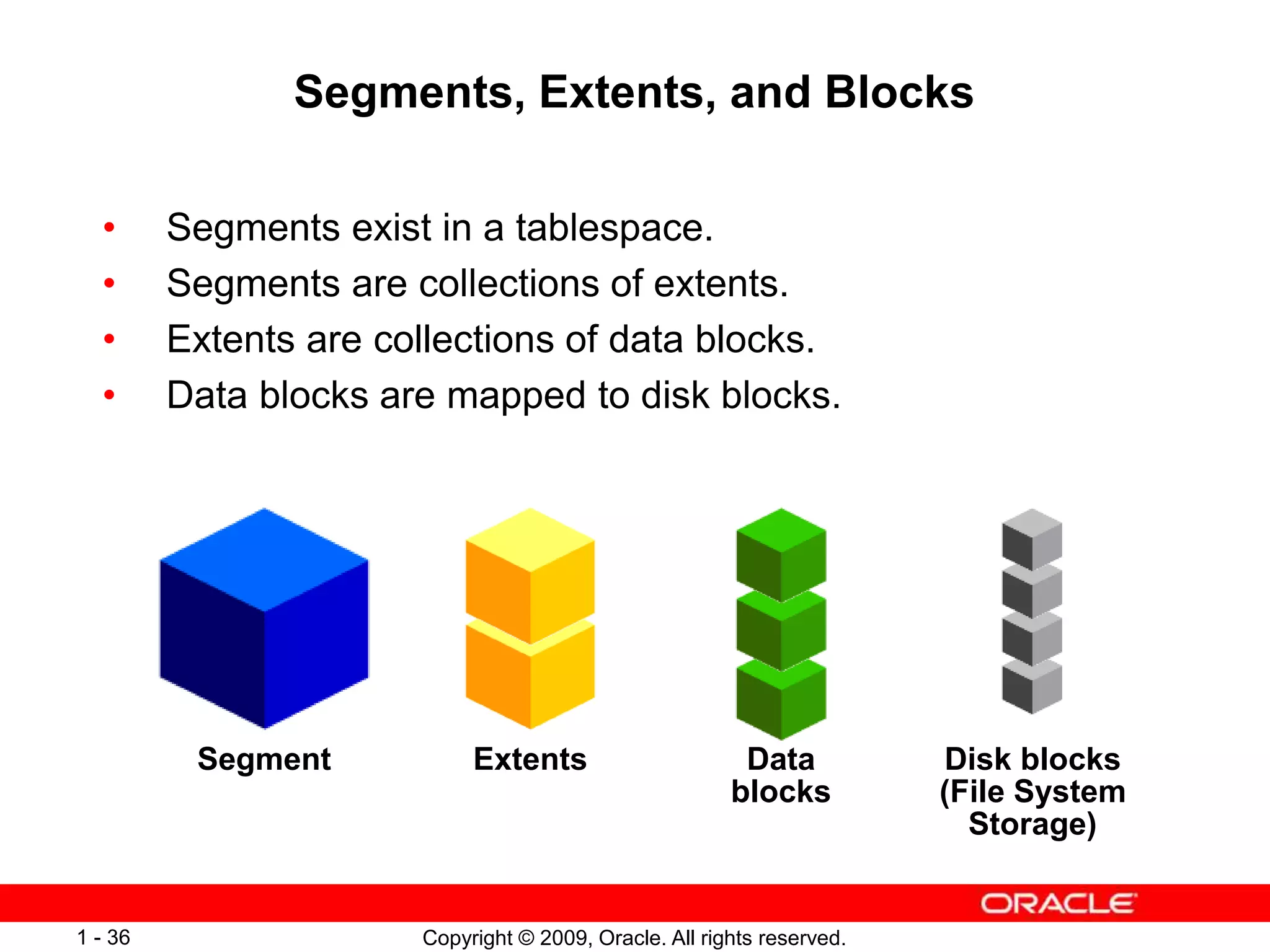

Segments, Extents, and Blocks
• Segments exist in a tablespace.
• Segments are collections of extents.
• Extents are collections of data blocks.
• Data blocks are mapped to disk blocks.
Segment Extents Data
blocks
Disk blocks
(File System
Storage)
Copyright © 2009, Oracle. All rights reserved.
1 - 37

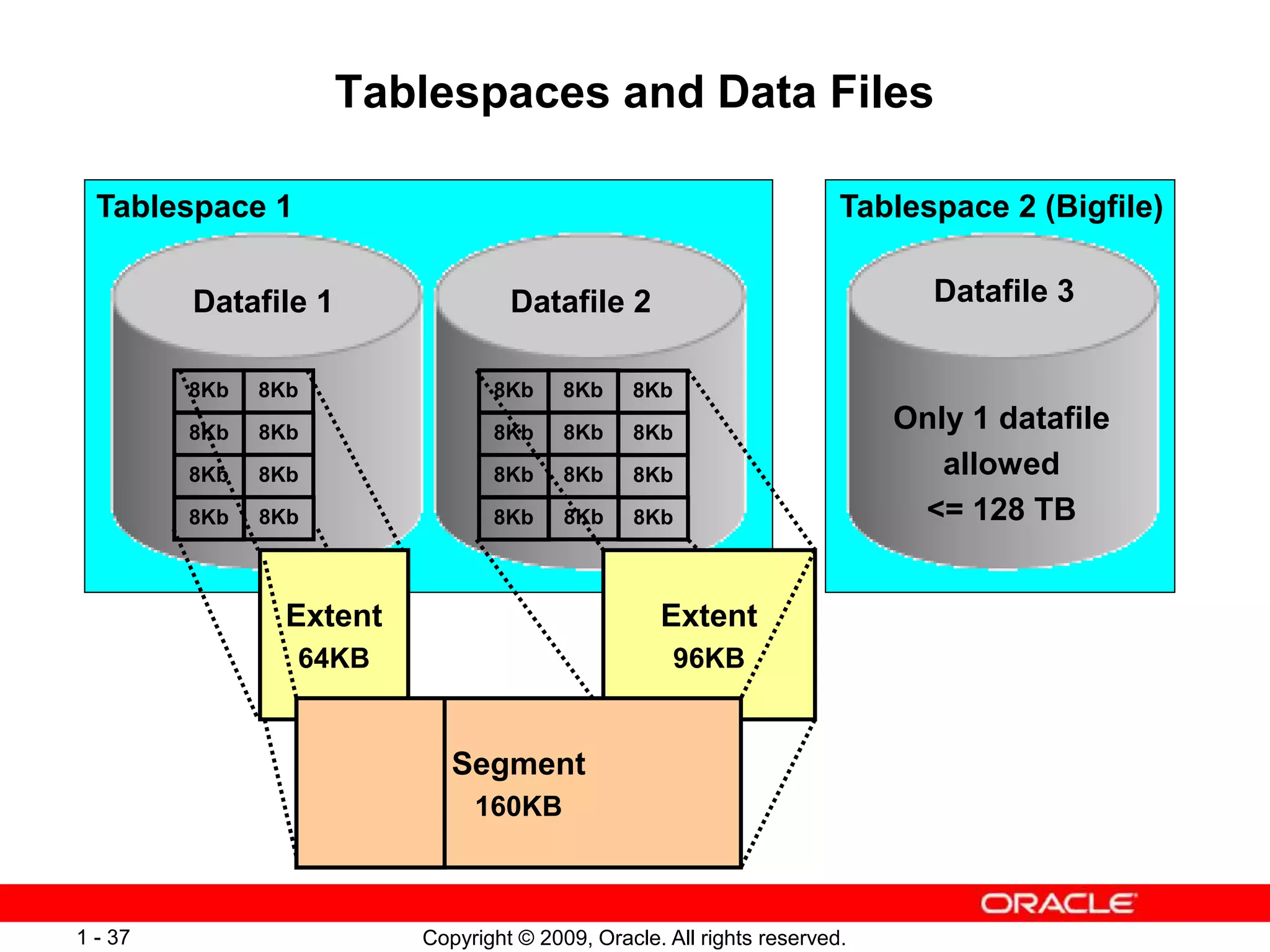

Tablespaces and Data Files
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb 8Kb
8Kb
8Kb
8Kb
8Kb
Tablespace 1
Datafile 1 Datafile 2
Extent
64KB
Extent
96KB
Segment
160KB
Tablespace 2 (Bigfile)
Datafile 3
Only 1 datafile
allowed
<= 128 TB
Copyright © 2009, Oracle. All rights reserved.
1 - 38

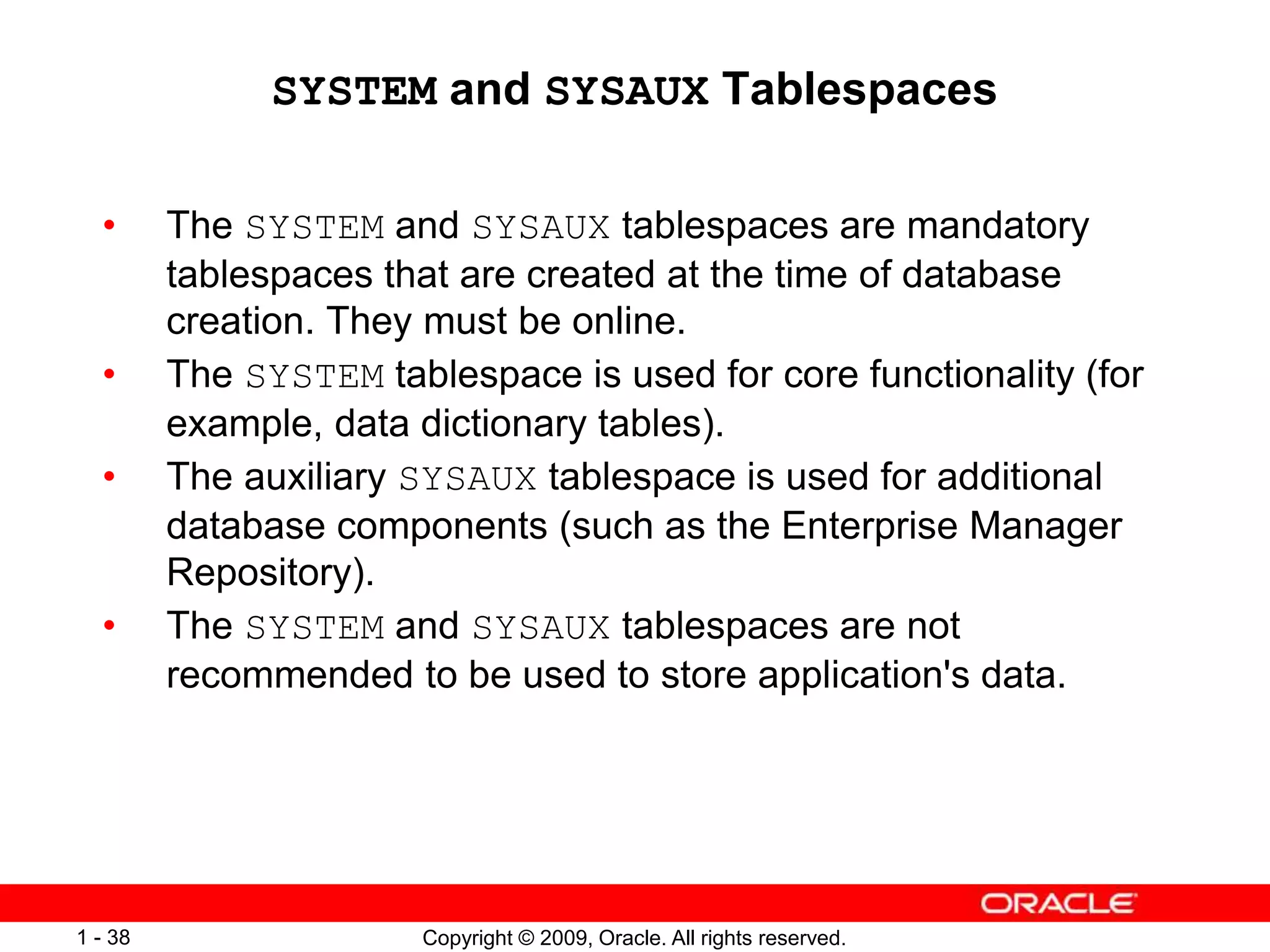

SYSTEM and SYSAUX Tablespaces
• The SYSTEM and SYSAUX tablespaces are mandatory
tablespaces that are created at the time of database
creation. They must be online.
• The SYSTEM tablespace is used for core functionality (for
example, data dictionary tables).
• The auxiliary SYSAUX tablespace is used for additional
database components (such as the Enterprise Manager
Repository).
• The SYSTEM and SYSAUX tablespaces are not
recommended to be used to store application's data.
Copyright © 2009, Oracle. All rights reserved.
1 - 39

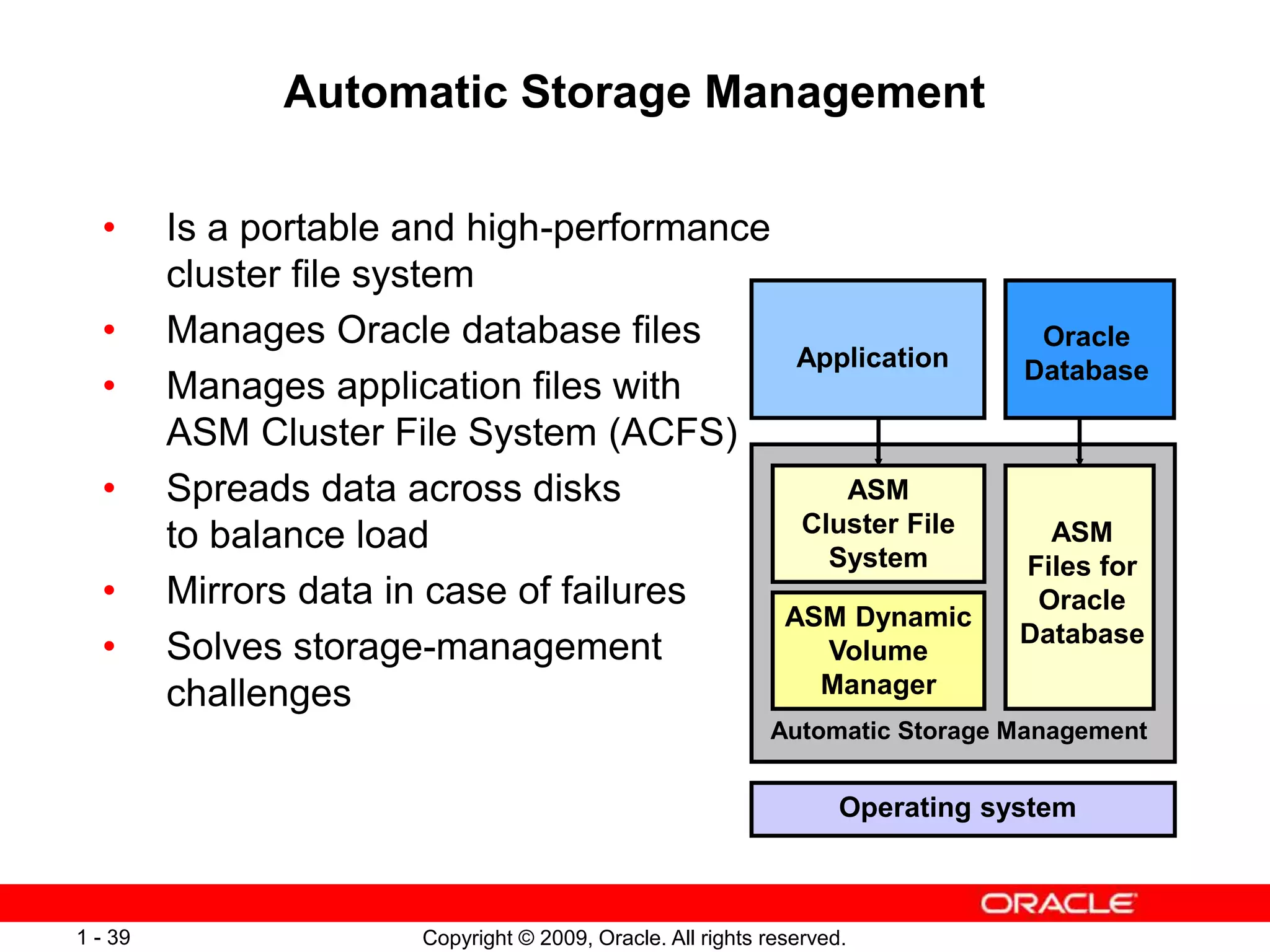

Automatic Storage Management
• Is a portable and high-performance
cluster file system
• Manages Oracle database files
• Manages application files with
ASM Cluster File System (ACFS)
• Spreads data across disks
to balance load
• Mirrors data in case of failures
• Solves storage-management
challenges
ASM
Cluster File
System
ASM Dynamic
Volume
Manager
Application
Oracle
Database
Operating system
ASM
Files for
Oracle
Database
Automatic Storage Management
Copyright © 2009, Oracle. All rights reserved.
1 - 40

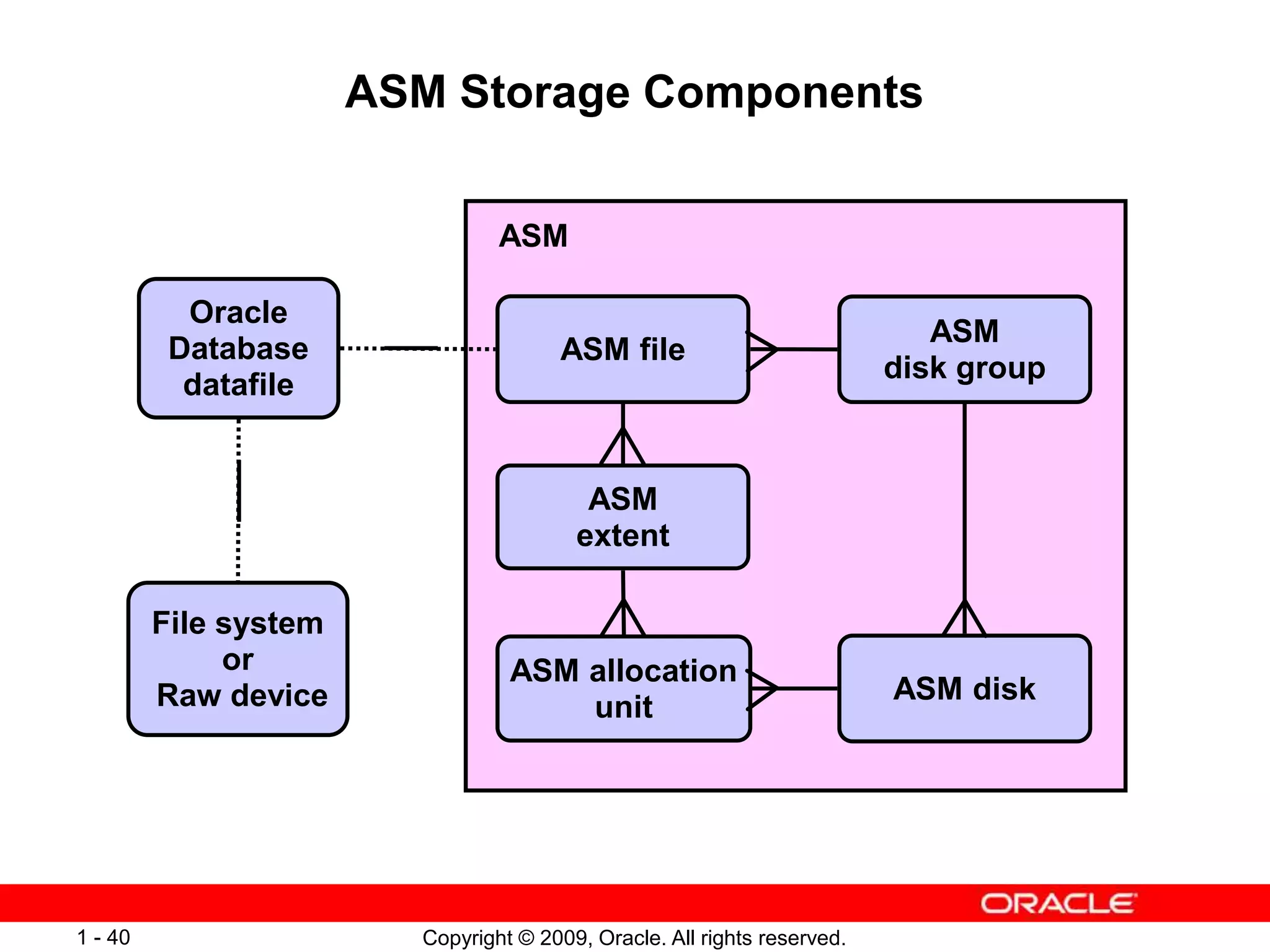

ASM Storage Components
Oracle
Database
datafile
ASM allocation
unit
ASM
disk group
ASM disk
ASM file
ASM
extent
File system
or
Raw device
ASM
Copyright © 2009, Oracle. All rights reserved.
1 - 41

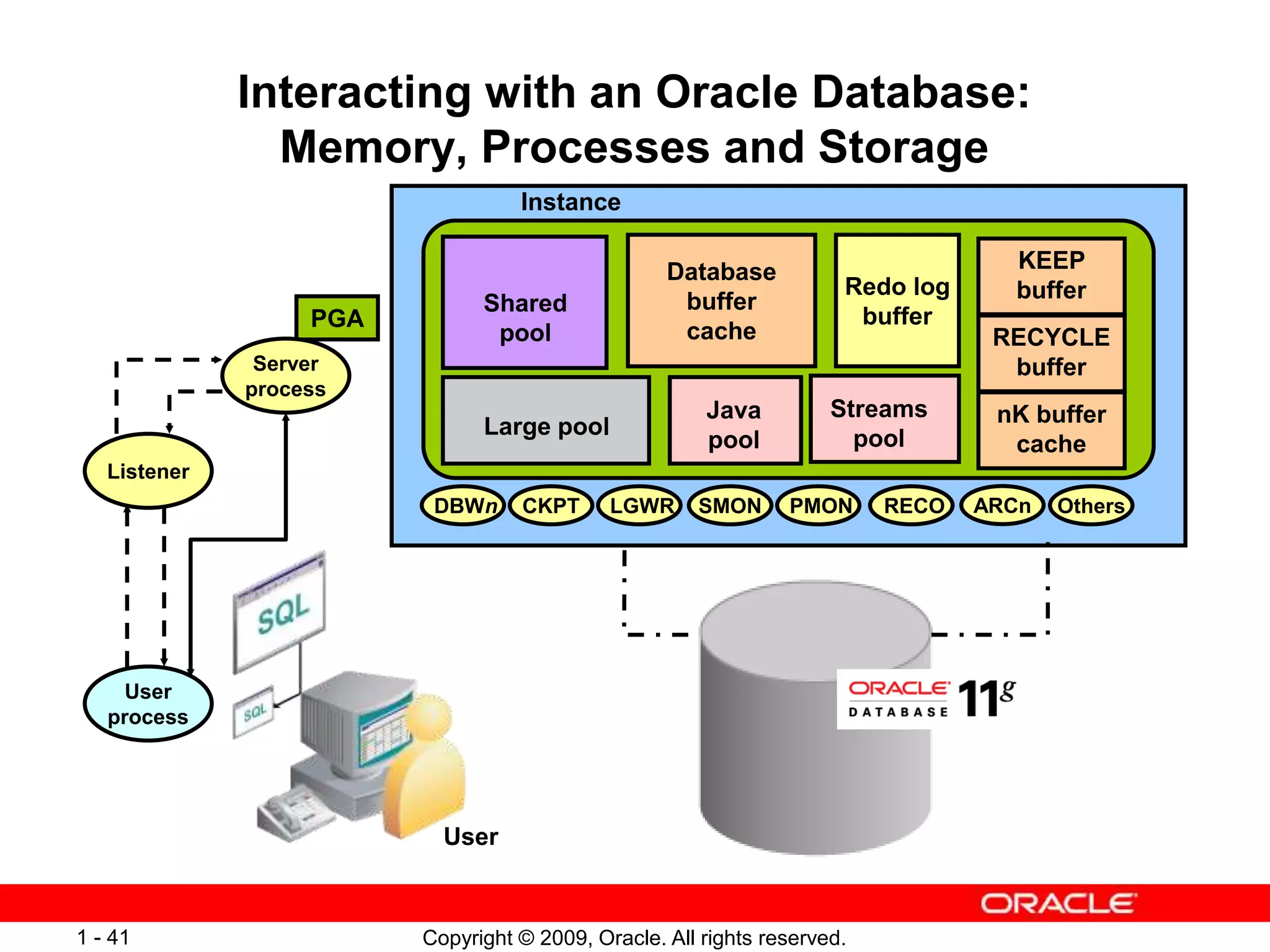

Interacting with an Oracle Database:
Memory, Processes and Storage
User
PGA
User
process
Server
process
Listener
PMON
SMON Others
Instance
RECO
DBWn LGWR
CKPT
Shared
pool
Database
buffer
cache
Redo log
buffer
Streams
pool
Large pool
Java
pool
KEEP
buffer
RECYCLE
buffer
nK buffer
cache
ARCn
Copyright © 2009, Oracle. All rights reserved.
1 - 43

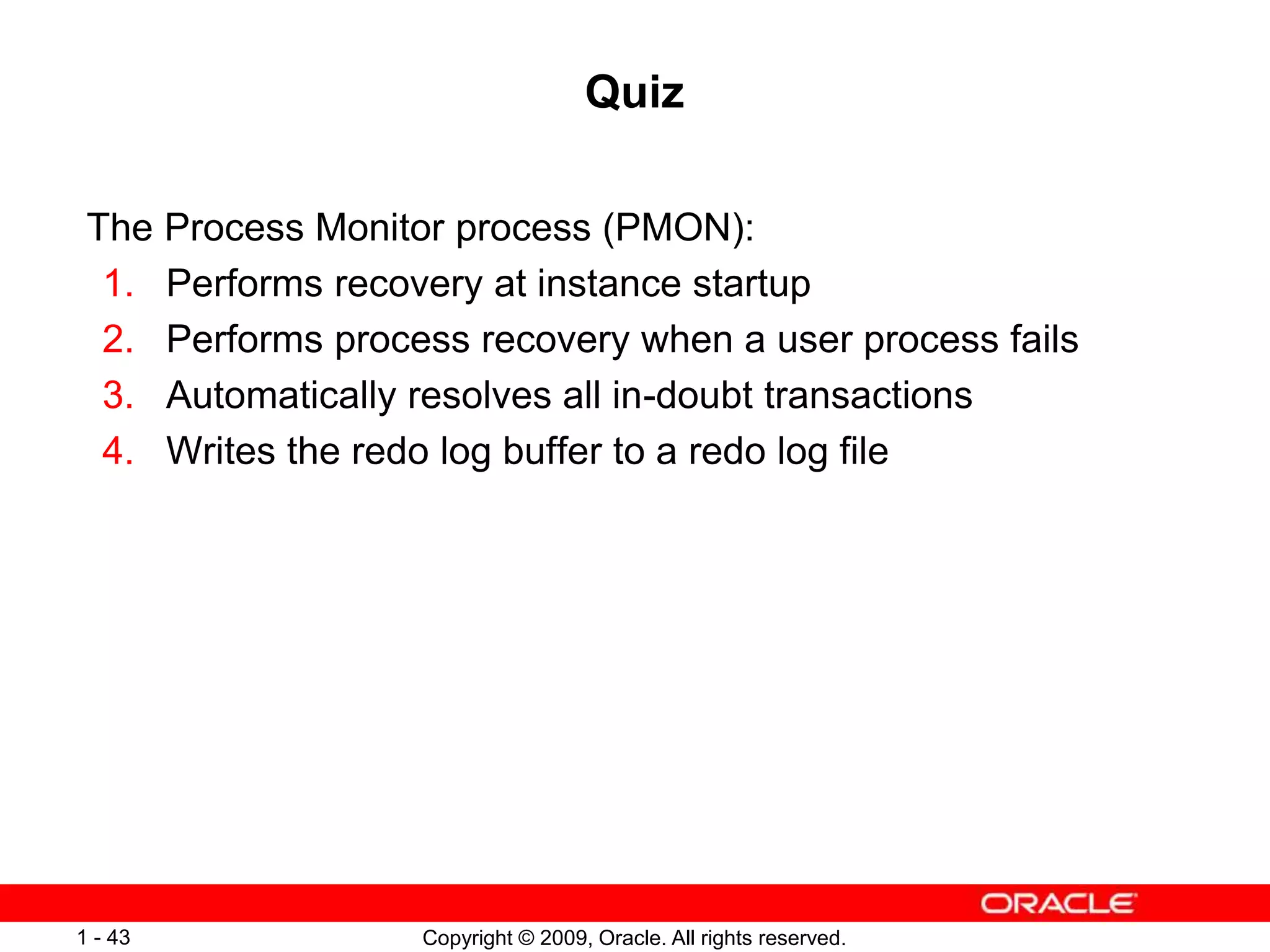

Quiz
The Process Monitor process (PMON):
1. Performs recovery at instance startup
2. Performs process recovery when a user process fails
3. Automatically resolves all in-doubt transactions
4. Writes the redo log buffer to a redo log file
Copyright © 2009, Oracle. All rights reserved.
1 - 44

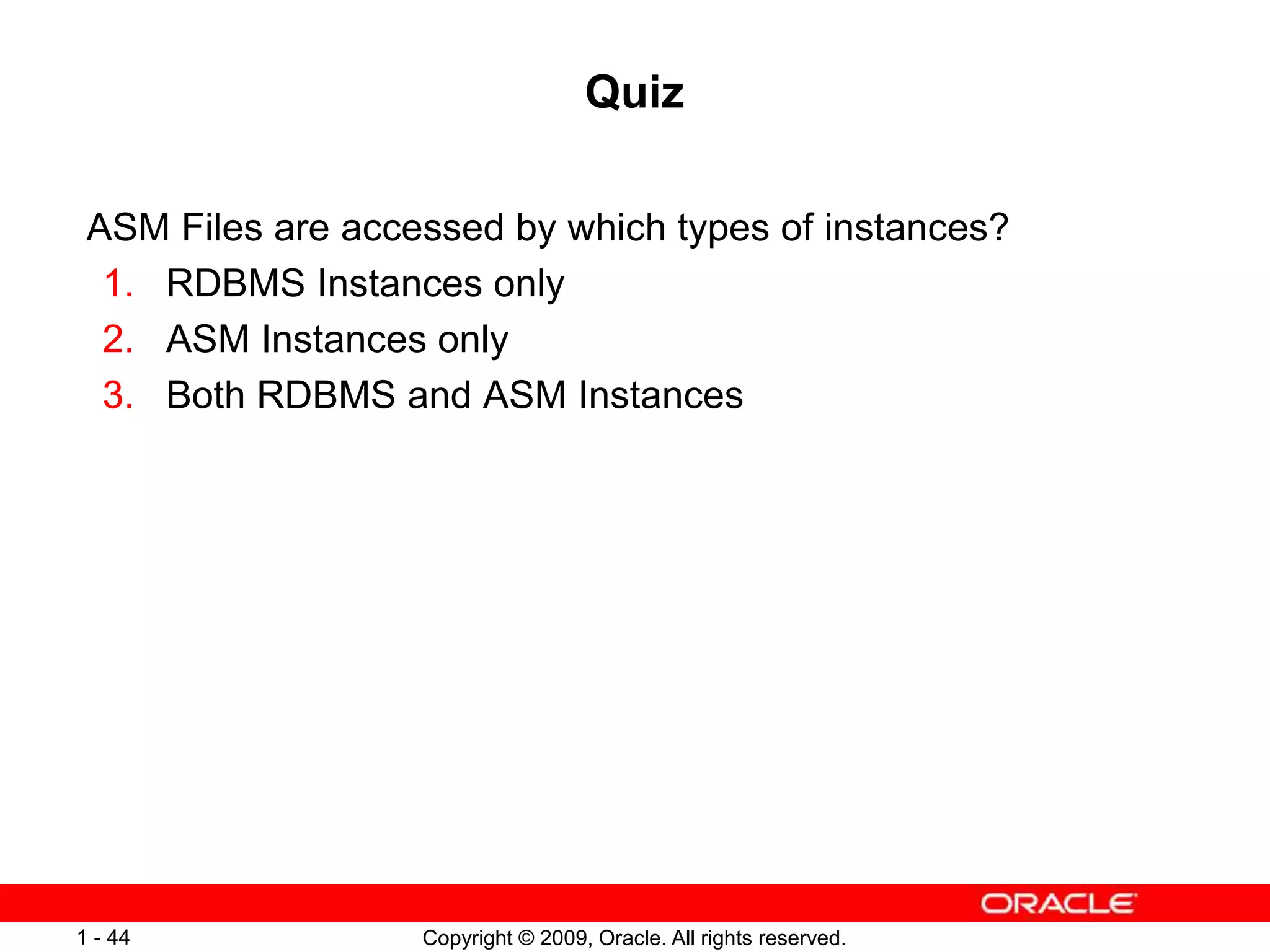

Quiz
ASM Files are accessed by which types of instances?
1. RDBMS Instances only
2. ASM Instances only
3. Both RDBMS and ASM Instances
Copyright © 2009, Oracle. All rights reserved.
1 - 45

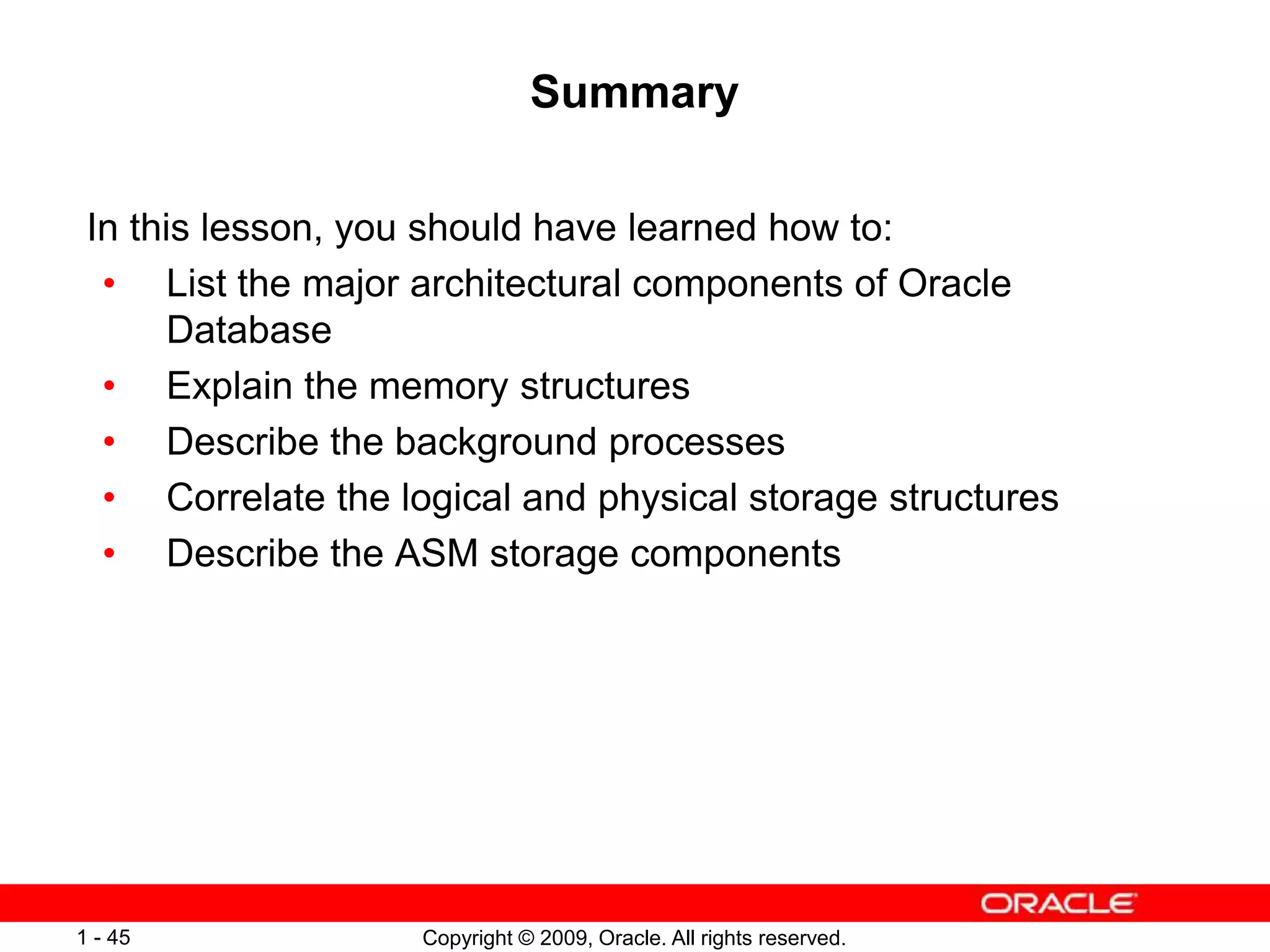

Summary
In this lesson, you should have learned how to:
• List the major architectural components of Oracle
Database
• Explain the memory structures
• Describe the background processes
• Correlate the logical and physical storage structures
• Describe the ASM storage components
Copyright © 2009, Oracle. All rights reserved.
1 - 46

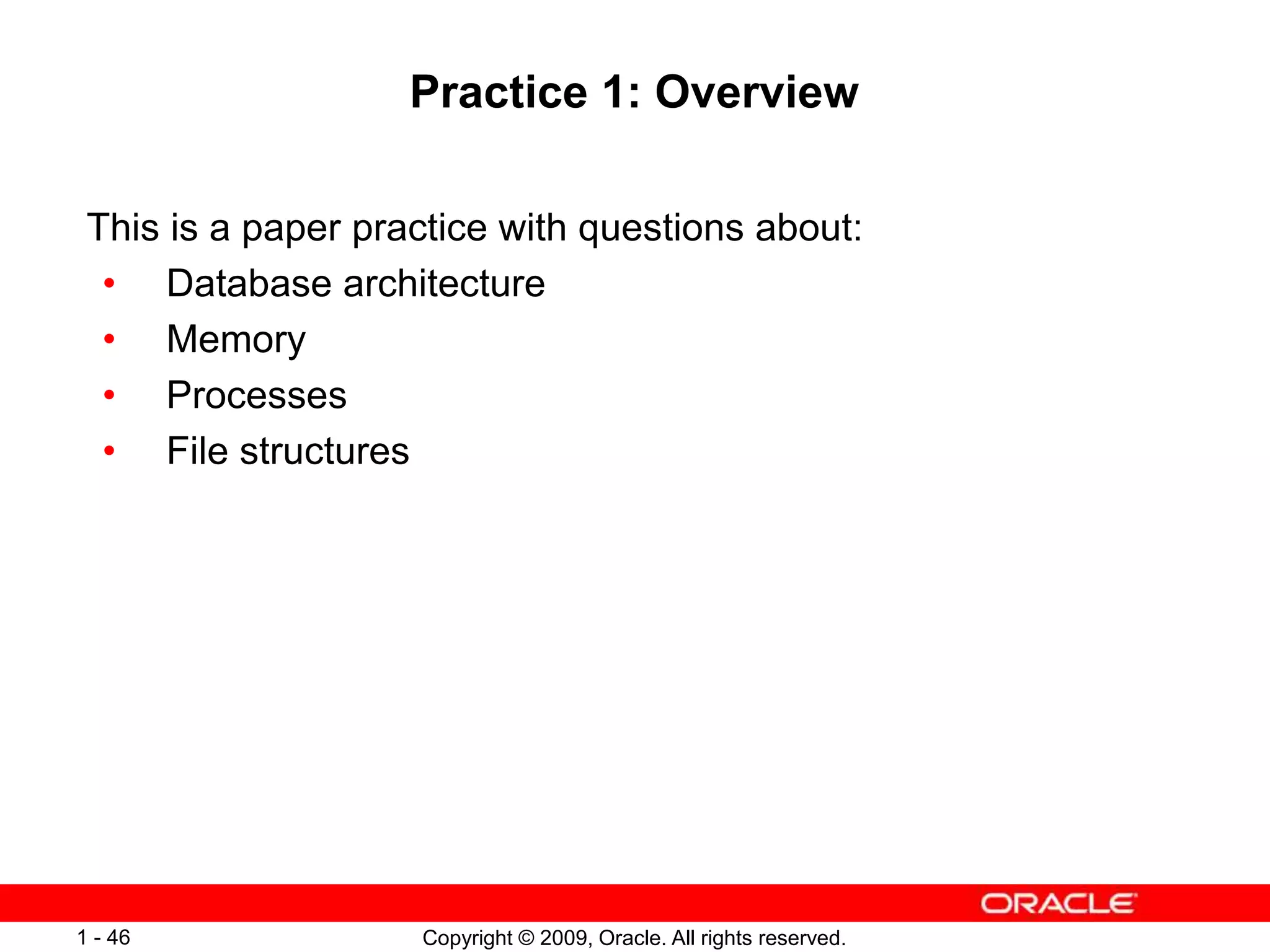

Practice 1: Overview
This is a paper practice with questions about:
• Database architecture
• Memory
• Processes
• File structures

More Related Content

What's hot

Oracle Flex ASM - What’s New and Best Practices by Jim Williams
Oracle Flex ASM - What’s New and Best Practices by Jim WilliamsOracle Flex ASM - What’s New and Best Practices by Jim Williams
Oracle Flex ASM - What’s New and Best Practices by Jim Williams
Markus Michalewicz

MySQL Query And Index Tuning
MySQL Query And Index TuningMySQL Query And Index Tuning
MySQL Query And Index TuningManikanda kumar

Securefile LOBs
Securefile LOBsSecurefile LOBs
Securefile LOBs
Martin Berger

Oracle Partitioning for DBAs and Developers
Oracle Partitioning for DBAs and DevelopersOracle Partitioning for DBAs and Developers
Oracle Partitioning for DBAs and Developers
Franky Weber Faust

Overview of oracle database
Overview of oracle databaseOverview of oracle database
Overview of oracle databaseSamar Prasad

Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and AdministerOracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
Andrejs Karpovs

Solving the DB2 LUW Administration Dilemma
Solving the DB2 LUW Administration DilemmaSolving the DB2 LUW Administration Dilemma
Solving the DB2 LUW Administration Dilemma
Randy Goering

Backup and recovery in oracle
Backup and recovery in oracleBackup and recovery in oracle
Backup and recovery in oracle
sadegh salehi

Less01 architecture
Less01 architectureLess01 architecture
Less01 architectureAmit Bhalla

Database performance tuning and query optimization
Database performance tuning and query optimizationDatabase performance tuning and query optimization
Database performance tuning and query optimization
Usman Tariq

Guide To Mastering The MySQL Query Execution Plan
Guide To Mastering The MySQL Query Execution PlanGuide To Mastering The MySQL Query Execution Plan
Guide To Mastering The MySQL Query Execution Plan
Optimiz DBA

Less07 storage
Less07 storageLess07 storage
Less07 storage
Amit Bhalla

Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and AdministerOracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer
Andrejs Karpovs

Exadata Performance Optimization
Exadata Performance OptimizationExadata Performance Optimization
Exadata Performance OptimizationEnkitec

Visual Approach to Essbase Calcs: 2018
Visual Approach to Essbase Calcs: 2018Visual Approach to Essbase Calcs: 2018
Visual Approach to Essbase Calcs: 2018
Joseph Alaimo Jr

JSON and PL/SQL: A Match Made in Database
JSON and PL/SQL: A Match Made in DatabaseJSON and PL/SQL: A Match Made in Database
JSON and PL/SQL: A Match Made in Database
Steven Feuerstein

Release and patching strategy
Release and patching strategyRelease and patching strategy
Release and patching strategy
Jitendra Singh

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and EngineAbdul Manaf

Practical Partitioning in Production with Postgres
Practical Partitioning in Production with PostgresPractical Partitioning in Production with Postgres
Practical Partitioning in Production with Postgres
EDB

Advanced PLSQL Optimizing for Better Performance
Advanced PLSQL Optimizing for Better PerformanceAdvanced PLSQL Optimizing for Better Performance
Advanced PLSQL Optimizing for Better Performance
Zohar Elkayam


What's hot (20)

Oracle Flex ASM - What’s New and Best Practices by Jim Williams
Oracle Flex ASM - What’s New and Best Practices by Jim WilliamsOracle Flex ASM - What’s New and Best Practices by Jim Williams
Oracle Flex ASM - What’s New and Best Practices by Jim Williams

MySQL Query And Index Tuning
MySQL Query And Index TuningMySQL Query And Index Tuning
MySQL Query And Index Tuning

Securefile LOBs
Securefile LOBsSecurefile LOBs
Securefile LOBs

Oracle Partitioning for DBAs and Developers
Oracle Partitioning for DBAs and DevelopersOracle Partitioning for DBAs and Developers
Oracle Partitioning for DBAs and Developers

Overview of oracle database
Overview of oracle databaseOverview of oracle database
Overview of oracle database

Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and AdministerOracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.5 on Database 12c: Install, Patch and Administer

Solving the DB2 LUW Administration Dilemma
Solving the DB2 LUW Administration DilemmaSolving the DB2 LUW Administration Dilemma
Solving the DB2 LUW Administration Dilemma

Backup and recovery in oracle
Backup and recovery in oracleBackup and recovery in oracle
Backup and recovery in oracle

Less01 architecture
Less01 architectureLess01 architecture
Less01 architecture

Database performance tuning and query optimization
Database performance tuning and query optimizationDatabase performance tuning and query optimization
Database performance tuning and query optimization

Guide To Mastering The MySQL Query Execution Plan
Guide To Mastering The MySQL Query Execution PlanGuide To Mastering The MySQL Query Execution Plan
Guide To Mastering The MySQL Query Execution Plan

Less07 storage
Less07 storageLess07 storage
Less07 storage

Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and AdministerOracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer
Oracle E-Business Suite R12.2.6 on Database 12c: Install, Patch and Administer

Exadata Performance Optimization
Exadata Performance OptimizationExadata Performance Optimization
Exadata Performance Optimization

Visual Approach to Essbase Calcs: 2018
Visual Approach to Essbase Calcs: 2018Visual Approach to Essbase Calcs: 2018
Visual Approach to Essbase Calcs: 2018

JSON and PL/SQL: A Match Made in Database
JSON and PL/SQL: A Match Made in DatabaseJSON and PL/SQL: A Match Made in Database
JSON and PL/SQL: A Match Made in Database

Release and patching strategy
Release and patching strategyRelease and patching strategy
Release and patching strategy

MySQL Architecture and Engine
MySQL Architecture and EngineMySQL Architecture and Engine
MySQL Architecture and Engine

Practical Partitioning in Production with Postgres
Practical Partitioning in Production with PostgresPractical Partitioning in Production with Postgres
Practical Partitioning in Production with Postgres

Advanced PLSQL Optimizing for Better Performance
Advanced PLSQL Optimizing for Better PerformanceAdvanced PLSQL Optimizing for Better Performance
Advanced PLSQL Optimizing for Better Performance


Similar to Less01_Architecture.ppt

exploring-the-oracle-database-architecture.ppt
exploring-the-oracle-database-architecture.pptexploring-the-oracle-database-architecture.ppt
exploring-the-oracle-database-architecture.ppt
AmitavaRoy49

Exploring the Oracle Database Architecture.ppt
Exploring the Oracle Database Architecture.pptExploring the Oracle Database Architecture.ppt
Exploring the Oracle Database Architecture.ppt
MohammedHdi1

Oracle architecture ppt
Oracle architecture pptOracle architecture ppt
Oracle architecture ppt
Deepak Shetty

Adavanced Databases and Mangement system
Adavanced Databases and Mangement systemAdavanced Databases and Mangement system
Adavanced Databases and Mangement system
MurtazaMughal13

Les 01 core
Les 01 coreLes 01 core
Les 01 core
Femi Adeyemi

les_01_core.ppt
les_01_core.pptles_01_core.ppt
les_01_core.ppt
SoloParaTi7

Oracle Database 11g SQL Tuning Workshop - Student Guide.pdf
Oracle Database 11g SQL Tuning Workshop - Student Guide.pdfOracle Database 11g SQL Tuning Workshop - Student Guide.pdf
Oracle Database 11g SQL Tuning Workshop - Student Guide.pdf
Rajendra Jain

Less01 db architecture
Less01 db architectureLess01 db architecture
Less01 db architectureImran Ali

les_01_arch_presentation_asm_oracle_rac_
les_01_arch_presentation_asm_oracle_rac_les_01_arch_presentation_asm_oracle_rac_
les_01_arch_presentation_asm_oracle_rac_
tricantino1973

DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)
Gustavo Rene Antunez

Oracle Instance Architecture.ppt
Oracle Instance Architecture.pptOracle Instance Architecture.ppt
Oracle Instance Architecture.ppt
HODCA1

Ora01_OraArc.pdf
Ora01_OraArc.pdfOra01_OraArc.pdf
Ora01_OraArc.pdf
NamNguynMu

Oracle 10g Introduction 1
Oracle 10g Introduction 1Oracle 10g Introduction 1
Oracle 10g Introduction 1
Eryk Budi Pratama

Oracle apps dba training dba technologies
Oracle apps dba training   dba technologiesOracle apps dba training   dba technologies
Oracle apps dba training dba technologiessanind88

Less01 Dba1
Less01 Dba1Less01 Dba1
Less01 Dba1
vivaankumar

ORACLE ARCHITECTURE
ORACLE ARCHITECTUREORACLE ARCHITECTURE
ORACLE ARCHITECTURE
Manohar Tatwawadi


Similar to Less01_Architecture.ppt (20)

exploring-the-oracle-database-architecture.ppt
exploring-the-oracle-database-architecture.pptexploring-the-oracle-database-architecture.ppt
exploring-the-oracle-database-architecture.ppt

Exploring the Oracle Database Architecture.ppt
Exploring the Oracle Database Architecture.pptExploring the Oracle Database Architecture.ppt
Exploring the Oracle Database Architecture.ppt

Oracle architecture ppt
Oracle architecture pptOracle architecture ppt
Oracle architecture ppt

Adavanced Databases and Mangement system
Adavanced Databases and Mangement systemAdavanced Databases and Mangement system
Adavanced Databases and Mangement system

Les 01 core
Les 01 coreLes 01 core
Les 01 core

les_01_core.ppt
les_01_core.pptles_01_core.ppt
les_01_core.ppt

Oracle Database 11g SQL Tuning Workshop - Student Guide.pdf
Oracle Database 11g SQL Tuning Workshop - Student Guide.pdfOracle Database 11g SQL Tuning Workshop - Student Guide.pdf
Oracle Database 11g SQL Tuning Workshop - Student Guide.pdf

Less01 db architecture
Less01 db architectureLess01 db architecture
Less01 db architecture

Resize sga
Resize sgaResize sga
Resize sga

les_01_arch_presentation_asm_oracle_rac_
les_01_arch_presentation_asm_oracle_rac_les_01_arch_presentation_asm_oracle_rac_
les_01_arch_presentation_asm_oracle_rac_

Lecture2 oracle ppt
Lecture2 oracle pptLecture2 oracle ppt
Lecture2 oracle ppt

DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)DBA 101 : Calling all New Database Administrators (PPT)
DBA 101 : Calling all New Database Administrators (PPT)

Oracle Instance Architecture.ppt
Oracle Instance Architecture.pptOracle Instance Architecture.ppt
Oracle Instance Architecture.ppt

Ora01_OraArc.pdf
Ora01_OraArc.pdfOra01_OraArc.pdf
Ora01_OraArc.pdf

Oracle 10g Introduction 1
Oracle 10g Introduction 1Oracle 10g Introduction 1
Oracle 10g Introduction 1

Oracle apps dba training dba technologies
Oracle apps dba training   dba technologiesOracle apps dba training   dba technologies
Oracle apps dba training dba technologies

Less01 Dba1
Less01 Dba1Less01 Dba1
Less01 Dba1

App D
App DApp D
App D

ORACLE ARCHITECTURE
ORACLE ARCHITECTUREORACLE ARCHITECTURE
ORACLE ARCHITECTURE

Introduction to oracle
Introduction to oracleIntroduction to oracle
Introduction to oracle


Recently uploaded

Opendatabay - Open Data Marketplace.pptx
Opendatabay - Open Data Marketplace.pptxOpendatabay - Open Data Marketplace.pptx
Opendatabay - Open Data Marketplace.pptx
Opendatabay

Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...
Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...
Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...
Subhajit Sahu

一比一原版(TWU毕业证)西三一大学毕业证成绩单
一比一原版(TWU毕业证)西三一大学毕业证成绩单一比一原版(TWU毕业证)西三一大学毕业证成绩单
一比一原版(TWU毕业证)西三一大学毕业证成绩单
ocavb

原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样
原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样
原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样
u86oixdj

standardisation of garbhpala offhgfffghh
standardisation of garbhpala offhgfffghhstandardisation of garbhpala offhgfffghh
standardisation of garbhpala offhgfffghh
ArpitMalhotra16

一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单
ewymefz

一比一原版(CBU毕业证)卡普顿大学毕业证如何办理
一比一原版(CBU毕业证)卡普顿大学毕业证如何办理一比一原版(CBU毕业证)卡普顿大学毕业证如何办理
一比一原版(CBU毕业证)卡普顿大学毕业证如何办理
ahzuo

做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样
做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样
做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样
axoqas

哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样
哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样
哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样
axoqas

Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...
Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...
Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...
Subhajit Sahu

一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理
一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理
一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理
oz8q3jxlp

一比一原版(NYU毕业证)纽约大学毕业证成绩单
一比一原版(NYU毕业证)纽约大学毕业证成绩单一比一原版(NYU毕业证)纽约大学毕业证成绩单
一比一原版(NYU毕业证)纽约大学毕业证成绩单
ewymefz

Ch03-Managing the Object-Oriented Information Systems Project a.pdf
Ch03-Managing the Object-Oriented Information Systems Project a.pdfCh03-Managing the Object-Oriented Information Systems Project a.pdf
Ch03-Managing the Object-Oriented Information Systems Project a.pdf
haila53

一比一原版(CU毕业证)卡尔顿大学毕业证成绩单
一比一原版(CU毕业证)卡尔顿大学毕业证成绩单一比一原版(CU毕业证)卡尔顿大学毕业证成绩单
一比一原版(CU毕业证)卡尔顿大学毕业证成绩单
yhkoc

Q1’2024 Update: MYCI’s Leap Year Rebound
Q1’2024 Update: MYCI’s Leap Year ReboundQ1’2024 Update: MYCI’s Leap Year Rebound
Q1’2024 Update: MYCI’s Leap Year Rebound
Oppotus

Predicting Product Ad Campaign Performance: A Data Analysis Project Presentation
Predicting Product Ad Campaign Performance: A Data Analysis Project PresentationPredicting Product Ad Campaign Performance: A Data Analysis Project Presentation
Predicting Product Ad Campaign Performance: A Data Analysis Project Presentation
Boston Institute of Analytics

社内勉強会資料_LLM Agents                              .
社内勉強会資料_LLM Agents                              .社内勉強会資料_LLM Agents                              .
社内勉強会資料_LLM Agents                              .
NABLAS株式会社

Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...
Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...
Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...
John Andrews

一比一原版(QU毕业证)皇后大学毕业证成绩单
一比一原版(QU毕业证)皇后大学毕业证成绩单一比一原版(QU毕业证)皇后大学毕业证成绩单
一比一原版(QU毕业证)皇后大学毕业证成绩单
enxupq

Machine learning and optimization techniques for electrical drives.pptx
Machine learning and optimization techniques for electrical drives.pptxMachine learning and optimization techniques for electrical drives.pptx
Machine learning and optimization techniques for electrical drives.pptx
balafet


Recently uploaded (20)

Opendatabay - Open Data Marketplace.pptx
Opendatabay - Open Data Marketplace.pptxOpendatabay - Open Data Marketplace.pptx
Opendatabay - Open Data Marketplace.pptx

Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...
Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...
Levelwise PageRank with Loop-Based Dead End Handling Strategy : SHORT REPORT ...

一比一原版(TWU毕业证)西三一大学毕业证成绩单
一比一原版(TWU毕业证)西三一大学毕业证成绩单一比一原版(TWU毕业证)西三一大学毕业证成绩单
一比一原版(TWU毕业证)西三一大学毕业证成绩单

原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样
原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样
原版制作(Deakin毕业证书)迪肯大学毕业证学位证一模一样

standardisation of garbhpala offhgfffghh
standardisation of garbhpala offhgfffghhstandardisation of garbhpala offhgfffghh
standardisation of garbhpala offhgfffghh

一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单
一比一原版(IIT毕业证)伊利诺伊理工大学毕业证成绩单

一比一原版(CBU毕业证)卡普顿大学毕业证如何办理
一比一原版(CBU毕业证)卡普顿大学毕业证如何办理一比一原版(CBU毕业证)卡普顿大学毕业证如何办理
一比一原版(CBU毕业证)卡普顿大学毕业证如何办理

做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样
做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样
做(mqu毕业证书)麦考瑞大学毕业证硕士文凭证书学费发票原版一模一样

哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样
哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样
哪里卖(usq毕业证书)南昆士兰大学毕业证研究生文凭证书托福证书原版一模一样

Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...
Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...
Algorithmic optimizations for Dynamic Levelwise PageRank (from STICD) : SHORT...

一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理
一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理
一比一原版(Deakin毕业证书)迪肯大学毕业证如何办理

一比一原版(NYU毕业证)纽约大学毕业证成绩单
一比一原版(NYU毕业证)纽约大学毕业证成绩单一比一原版(NYU毕业证)纽约大学毕业证成绩单
一比一原版(NYU毕业证)纽约大学毕业证成绩单

Ch03-Managing the Object-Oriented Information Systems Project a.pdf
Ch03-Managing the Object-Oriented Information Systems Project a.pdfCh03-Managing the Object-Oriented Information Systems Project a.pdf
Ch03-Managing the Object-Oriented Information Systems Project a.pdf

一比一原版(CU毕业证)卡尔顿大学毕业证成绩单
一比一原版(CU毕业证)卡尔顿大学毕业证成绩单一比一原版(CU毕业证)卡尔顿大学毕业证成绩单
一比一原版(CU毕业证)卡尔顿大学毕业证成绩单

Q1’2024 Update: MYCI’s Leap Year Rebound
Q1’2024 Update: MYCI’s Leap Year ReboundQ1’2024 Update: MYCI’s Leap Year Rebound
Q1’2024 Update: MYCI’s Leap Year Rebound

Predicting Product Ad Campaign Performance: A Data Analysis Project Presentation
Predicting Product Ad Campaign Performance: A Data Analysis Project PresentationPredicting Product Ad Campaign Performance: A Data Analysis Project Presentation
Predicting Product Ad Campaign Performance: A Data Analysis Project Presentation

社内勉強会資料_LLM Agents                              .
社内勉強会資料_LLM Agents                              .社内勉強会資料_LLM Agents                              .
社内勉強会資料_LLM Agents                              .

Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...
Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...
Chatty Kathy - UNC Bootcamp Final Project Presentation - Final Version - 5.23...

一比一原版(QU毕业证)皇后大学毕业证成绩单
一比一原版(QU毕业证)皇后大学毕业证成绩单一比一原版(QU毕业证)皇后大学毕业证成绩单
一比一原版(QU毕业证)皇后大学毕业证成绩单

Machine learning and optimization techniques for electrical drives.pptx
Machine learning and optimization techniques for electrical drives.pptxMachine learning and optimization techniques for electrical drives.pptx
Machine learning and optimization techniques for electrical drives.pptx


Less01_Architecture.ppt

  • 1. Copyright © 2009, Oracle. All rights reserved. Exploring the Oracle Database Architecture
  • 2. Copyright © 2009, Oracle. All rights reserved. 1 - 2 Objectives After completing this lesson, you should be able to: • List the major architectural components of Oracle Database • Explain the memory structures • Describe the background processes • Correlate the logical and physical storage structures • Describe ASM storage components
  • 3. Copyright © 2009, Oracle. All rights reserved. 1 - 3 Oracle Database The Oracle relational database management system (RDBMS) provides an open, comprehensive, integrated approach to information management
  • 4. Copyright © 2009, Oracle. All rights reserved. 1 - 4 Connecting to a Server Client Middle tier Server Multitier architecture shown
  • 5. Copyright © 2009, Oracle. All rights reserved. 1 - 6 Database (Storage Structures) Oracle Database Server Architecture: Overview Server process PGA User process Instance Memory Structures (System Global Area) Process Structures Client Server
  • 6. Copyright © 2009, Oracle. All rights reserved. 1 - 7 Instance: Database Configurations D1 D2 I1 I2 I1 I2 I3 D Clustered System Nonclustered System Local Storage Shared Storage
  • 7. Copyright © 2009, Oracle. All rights reserved. 1 - 8 Connecting to the Database Instance • Connection: Communication between a user process and an instance • Session: Specific connection of a user to an instance through a user process SQL> Select … Session Connection User User process Server process Session
  • 8. Copyright © 2009, Oracle. All rights reserved. 1 - 9 Oracle Database Memory Structures Server process 1 Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool Stack Space System Global Area (SGA) Program Global Area (PGA) Server process 2 KEEP buffer pool RECYCLE buffer pool nK buffer cache User Global Area Stack Space User Global Area PGA
  • 9. Copyright © 2009, Oracle. All rights reserved. 1 - 11 Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool System Global Area (SGA) KEEP buffer pool RECYCLE buffer pool nK buffer cache Shared Pool • Is a portion of the SGA • Contains: – Library cache — Shared SQL area – Data dictionary cache – Control structures Shared SQL area Library cache Data dictionary cache Other Fixed Area
  • 10. Copyright © 2009, Oracle. All rights reserved. 1 - 13 Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool System Global Area (SGA) KEEP buffer pool RECYCLE buffer pool nK buffer cache Database Buffer Cache • Is part of the SGA • Holds copies of data blocks that are read from data files • Is shared by all concurrent users
  • 11. Copyright © 2009, Oracle. All rights reserved. 1 - 14 Redo Log Buffer • Is a circular buffer in the SGA • Holds information about changes made to the database • Contains redo entries that have the information to redo changes made by operations such as DML and DDL Shared pool Database buffer cache Streams pool Large pool Java pool System Global Area (SGA) KEEP buffer pool RECYCLE buffer pool nK buffer cache Redo log buffer
  • 12. Copyright © 2009, Oracle. All rights reserved. 1 - 15 Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool System Global Area (SGA) KEEP buffer pool RECYCLE buffer pool nK buffer cache Large Pool Provides large memory allocations for: • Session memory for the shared server and the Oracle XA interface • I/O server processes • Oracle Database backup and restore operations Large pool I/O buffer Response queue Request queue Free memory Parallel Query Advanced Queuing
  • 13. Copyright © 2009, Oracle. All rights reserved. 1 - 16 Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool System Global Area (SGA) KEEP buffer pool RECYCLE buffer pool nK buffer cache Java Pool and Streams Pool • Java pool memory is used to store all session-specific Java code and data in the JVM. • Streams pool memory is used exclusively by Oracle Streams to: – Store buffered queue messages – Provide memory for Oracle Streams processes Java pool Streams pool
  • 14. Copyright © 2009, Oracle. All rights reserved. 1 - 17 Program Global Area (PGA) Server process 1 Stack Space System Global Area (SGA) PGA Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool KEEP buffer pool RECYCLE buffer pool nK buffer cache User Global Area User Session Data Cursor State Sort Area Hash Area Create Bitmap Area SQL Working Areas Bitmap Merge Area
  • 15. Copyright © 2009, Oracle. All rights reserved. 1 - 18 Quiz Memory region that contains data and control information for a server or background process is called: 1. Shared Pool 2. PGA 3. Buffer Cache 4. User session data
  • 16. Copyright © 2009, Oracle. All rights reserved. 1 - 19 Quiz What is read into the Database Buffer Cache from the data files? 1. Rows 2. Changes 3. Blocks 4. SQL
  • 17. Copyright © 2009, Oracle. All rights reserved. 1 - 20 Process Architecture • User process – Is the application or tool that connects to the Oracle database • Database processes – Server process: Connects to the Oracle instance and is started when a user establishes a session – Background processes: Are started when an Oracle instance is started • Daemon / Application processes – Networking listeners – Grid infrastructure daemons
  • 18. Copyright © 2009, Oracle. All rights reserved. 1 - 21 Process Structures PMON SMON Others Instances (ASM and Database separate) RECO ARCn DBWn LGWR CKPT PGA Background processes System Global Area (SGA) Required: ASMB RBAL Optional: Grid Infrastructure Processes (ASM and Oracle Restart) orarootagent ohas ocssd diskmon oraagent cssdagent User process Server process Listener
  • 19. Copyright © 2009, Oracle. All rights reserved. 1 - 23 Database Writer Process (DBWn) Writes modified (dirty) buffers in the database buffer cache to disk: • Asynchronously while performing other processing • To advance the checkpoint Database buffer cache Database writer process Data files DBWn
  • 20. Copyright © 2009, Oracle. All rights reserved. 1 - 25 Log Writer Process (LGWR) • Writes the redo log buffer to a redo log file on disk • Writes: – When a user process commits a transaction – When the redo log buffer is one-third full – Before a DBWn process writes modified buffers to disk – Every 3 seconds Redo log buffer Log Writer process Redo log files LGWR
  • 21. Copyright © 2009, Oracle. All rights reserved. 1 - 27 Checkpoint Process (CKPT) • Records checkpoint information in – Control file – Each data file header Checkpoint process Data files Control file CKPT
  • 22. Copyright © 2009, Oracle. All rights reserved. 1 - 28 System Monitor Process (SMON) • Performs recovery at instance startup • Cleans up unused temporary segments Instance Temporary segment System Monitor process SMON
  • 23. Copyright © 2009, Oracle. All rights reserved. 1 - 29 Process Monitor Process (PMON) • Performs process recovery when a user process fails – Cleans up the database buffer cache – Frees resources that are used by the user process • Monitors sessions for idle session timeout • Dynamically registers database services with listeners Process Monitor process Database buffer cache Failed user process User PMON Server process tnslsnr
  • 24. Copyright © 2009, Oracle. All rights reserved. 1 - 30 Archiver Processes (ARCn) • Copy redo log files to a designated storage device after a log switch has occurred • Can collect transaction redo data and transmit that data to standby destinations Archiver process Archive destination Copies of redo log files ARCn
  • 25. Copyright © 2009, Oracle. All rights reserved. 1 - 31 • Oracle Grid Infrastructure is started by the OS init daemon. • Oracle Grid Infrastructure installation modifies the /etc/inittab file to ensure startup every time machine is started in corresponding run level. Process Startup Sequence init.ohasd (root) ohasd.bin oraagent.bin orarootagent.bin diskmon.bin cssdagent ocssd.bin init Grid Infrastructure Wrapper Script Grid Infrastructure Daemons and Processes Operating System Init Daemon # cat /etc/inittab .. h1:35:respawn:/etc/init.d/init.ohasd run >/dev/null 2>&1 </dev/null ASM Instance Listener DB Instance User Defined Applications
  • 26. Copyright © 2009, Oracle. All rights reserved. 1 - 32 Database Storage Architecture Online redo log files Password file Parameter file Archived redo log files Control files Data files Alert log and trace files Backup files
  • 27. Copyright © 2009, Oracle. All rights reserved. 1 - 34 Logical and Physical Database Structures Database Logical Physical Tablespace Data file Segment Extent Oracle data block Storage System • SAN • NAS • Exadata • File System • NFS • ASM • RAW
  • 28. Copyright © 2009, Oracle. All rights reserved. 1 - 36 Segments, Extents, and Blocks • Segments exist in a tablespace. • Segments are collections of extents. • Extents are collections of data blocks. • Data blocks are mapped to disk blocks. Segment Extents Data blocks Disk blocks (File System Storage)
  • 29. Copyright © 2009, Oracle. All rights reserved. 1 - 37 Tablespaces and Data Files 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb 8Kb Tablespace 1 Datafile 1 Datafile 2 Extent 64KB Extent 96KB Segment 160KB Tablespace 2 (Bigfile) Datafile 3 Only 1 datafile allowed <= 128 TB
  • 30. Copyright © 2009, Oracle. All rights reserved. 1 - 38 SYSTEM and SYSAUX Tablespaces • The SYSTEM and SYSAUX tablespaces are mandatory tablespaces that are created at the time of database creation. They must be online. • The SYSTEM tablespace is used for core functionality (for example, data dictionary tables). • The auxiliary SYSAUX tablespace is used for additional database components (such as the Enterprise Manager Repository). • The SYSTEM and SYSAUX tablespaces are not recommended to be used to store application's data.
  • 31. Copyright © 2009, Oracle. All rights reserved. 1 - 39 Automatic Storage Management • Is a portable and high-performance cluster file system • Manages Oracle database files • Manages application files with ASM Cluster File System (ACFS) • Spreads data across disks to balance load • Mirrors data in case of failures • Solves storage-management challenges ASM Cluster File System ASM Dynamic Volume Manager Application Oracle Database Operating system ASM Files for Oracle Database Automatic Storage Management
  • 32. Copyright © 2009, Oracle. All rights reserved. 1 - 40 ASM Storage Components Oracle Database datafile ASM allocation unit ASM disk group ASM disk ASM file ASM extent File system or Raw device ASM
  • 33. Copyright © 2009, Oracle. All rights reserved. 1 - 41 Interacting with an Oracle Database: Memory, Processes and Storage User PGA User process Server process Listener PMON SMON Others Instance RECO DBWn LGWR CKPT Shared pool Database buffer cache Redo log buffer Streams pool Large pool Java pool KEEP buffer RECYCLE buffer nK buffer cache ARCn
  • 34. Copyright © 2009, Oracle. All rights reserved. 1 - 43 Quiz The Process Monitor process (PMON): 1. Performs recovery at instance startup 2. Performs process recovery when a user process fails 3. Automatically resolves all in-doubt transactions 4. Writes the redo log buffer to a redo log file
  • 35. Copyright © 2009, Oracle. All rights reserved. 1 - 44 Quiz ASM Files are accessed by which types of instances? 1. RDBMS Instances only 2. ASM Instances only 3. Both RDBMS and ASM Instances
  • 36. Copyright © 2009, Oracle. All rights reserved. 1 - 45 Summary In this lesson, you should have learned how to: • List the major architectural components of Oracle Database • Explain the memory structures • Describe the background processes • Correlate the logical and physical storage structures • Describe the ASM storage components
  • 37. Copyright © 2009, Oracle. All rights reserved. 1 - 46 Practice 1: Overview This is a paper practice with questions about: • Database architecture • Memory • Processes • File structures
