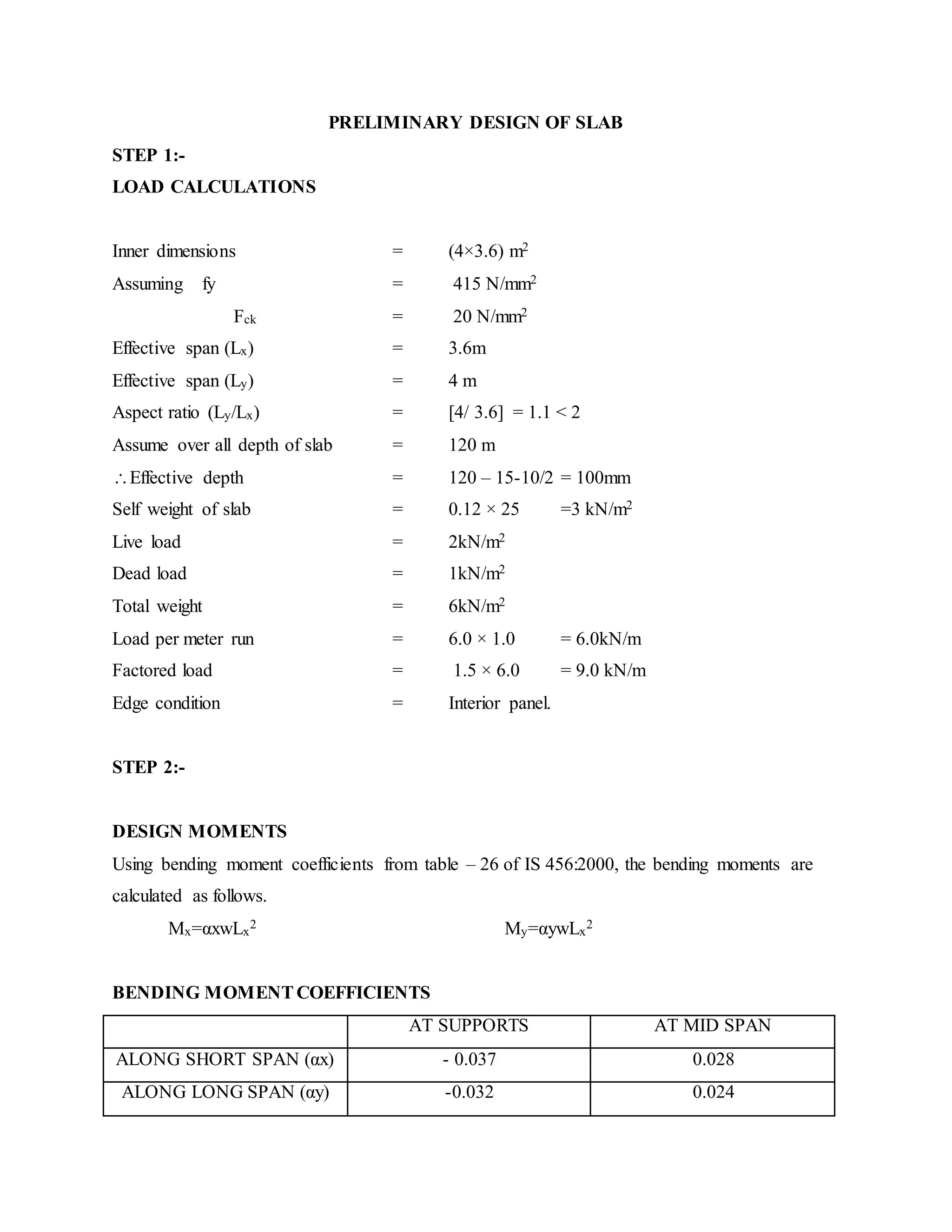

1) The document outlines the preliminary design steps for a slab with inner dimensions of 4x3.6 meters.
2) In step 1, load calculations are performed to determine the factored load of 9 kN/m.

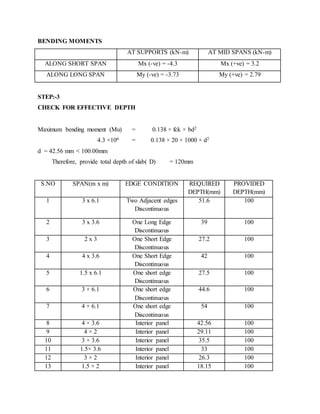

3) In step 2, design moments are calculated at supports and mid-spans along the short and long spans.
4) In step 3, the effective depth is checked and found to be sufficient at 42.56mm, so the total depth is set at 120mm.
