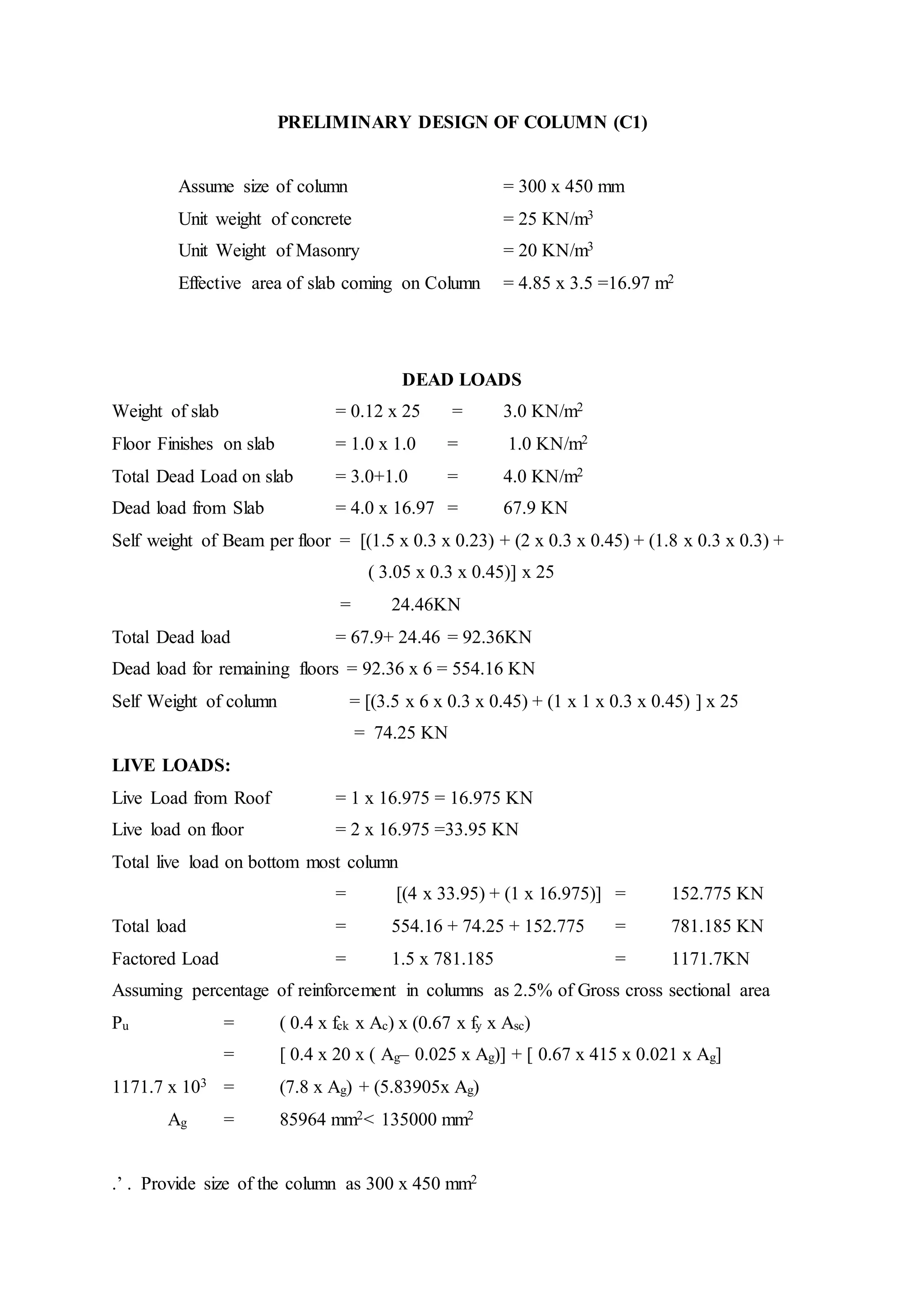

1. PRELIMINARY DESIGN OF COLUMN (C1)
Assume size of column = 300 x 450 mm
Unit weight of concrete = 25 KN/m3
Unit Weight of Masonry = 20 KN/m3
Effective area of slab coming on Column = 4.85 x 3.5 =16.97 m2
DEAD LOADS
Weight of slab = 0.12 x 25 = 3.0 KN/m2
Floor Finishes on slab = 1.0 x 1.0 = 1.0 KN/m2
Total Dead Load on slab = 3.0+1.0 = 4.0 KN/m2
Dead load from Slab = 4.0 x 16.97 = 67.9 KN
Self weight of Beam per floor = [(1.5 x 0.3 x 0.23) + (2 x 0.3 x 0.45) + (1.8 x 0.3 x 0.3) +
( 3.05 x 0.3 x 0.45)] x 25
= 24.46KN
Total Dead load = 67.9+ 24.46 = 92.36KN
Dead load for remaining floors = 92.36 x 6 = 554.16 KN
Self Weight of column = [(3.5 x 6 x 0.3 x 0.45) + (1 x 1 x 0.3 x 0.45) ] x 25
= 74.25 KN
LIVE LOADS:
Live Load from Roof = 1 x 16.975 = 16.975 KN
Live load on floor = 2 x 16.975 =33.95 KN
Total live load on bottom most column
= [(4 x 33.95) + (1 x 16.975)] = 152.775 KN
Total load = 554.16 + 74.25 + 152.775 = 781.185 KN
Factored Load = 1.5 x 781.185 = 1171.7KN
Assuming percentage of reinforcement in columns as 2.5% of Gross cross sectional area
Pu = ( 0.4 x fck x Ac) x (0.67 x fy x Asc)
= [ 0.4 x 20 x ( Ag– 0.025 x Ag)] + [ 0.67 x 415 x 0.021 x Ag]
1171.7 x 103 = (7.8 x Ag) + (5.83905x Ag)
Ag = 85964 mm2< 135000 mm2
.’ . Provide size of the column as 300 x 450 mm2

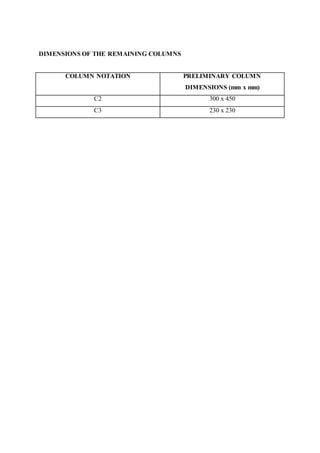

2. DIMENSIONS OF THE REMAINING COLUMNS
COLUMN NOTATION PRELIMINARY COLUMN
DIMENSIONS (mm x mm)
C2 300 x 450
C3 230 x 230
