This document discusses advanced operations on arrays in Java, including searching, sorting, insertions, and removals. It covers linear and binary search algorithms, selection, bubble, and insertion sort methods, and how to implement searches and sorts for arrays of objects. It also introduces the ArrayList class in Java and how it provides a more flexible alternative to arrays.

1. Chapter 11
Arrays Continued
Fundamentals of Java

2. Fundamentals of Java
2
Objectives
 Use string methods appropriately.
 Write a method for searching an array.
 Understand why a sorted array can be
searched more efficiently than an unsorted
array.
 Write a method to sort an array.

3. Fundamentals of Java
3
Objectives (cont.)
 Write methods to perform insertions and
removals at given positions in an array.
 Understand the issues involved when
working with arrays of objects.
 Perform simple operations with Java’s
ArrayList class.

4. Fundamentals of Java
4
Vocabulary
 Array list
 Binary search
 Bubble sort
 Immutable object
 Insertion sort

5. Fundamentals of Java
5
Vocabulary (cont.)
 Linear search
 Selection sort
 Substring
 Wrapper class

6. Fundamentals of Java
6

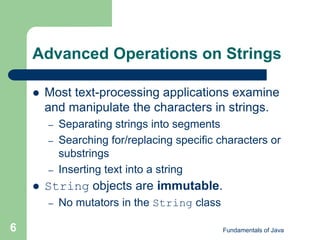

Advanced Operations on Strings
 Most text-processing applications examine
and manipulate the characters in strings.
– Separating strings into segments
– Searching for/replacing specific characters or
substrings
– Inserting text into a string
 String objects are immutable.
– No mutators in the String class

7. Fundamentals of Java
7
Advanced Operations on
Strings (cont.)
Table 11-1: Some commonly used String methods

8. Fundamentals of Java
8
Advanced Operations on
Strings (cont.)
Table 11-1: Some commonly used String methods (cont.)

9. Fundamentals of Java
9
Advanced Operations on
Strings (cont.)
Table 11-1: Some commonly used String methods (cont.)

10. Fundamentals of Java
10
Advanced Operations on
Strings (cont.)
Example 11.2: Count the words and compute
the average word length in a sentence.

11. Fundamentals of Java
11
Advanced Operations on
Strings (cont.)
Example 11.2: Count the words and compute the
average word length in a sentence (cont.).

12. Fundamentals of Java
12
Searching
 Linear search: Search a data structure (such
as an array) from beginning to end
 Searching an array of objects:

13. Fundamentals of Java
13
Searching (cont.)
 Binary search: An efficient search algorithm
based on eliminating half of the data from the
search at each iteration
– Data must be sorted first.
– Examine midpoint of data, then decide which
half of the data to continue searching on.
 Discard other half of data.

14. Fundamentals of Java
14
Searching (cont.)
 Binary search code:

15. Fundamentals of Java
15
Searching (cont.)
Figure 11-1: Trace of a binary search of an array

16. Fundamentals of Java
16

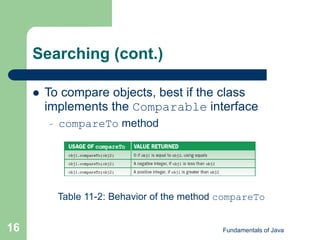

Searching (cont.)
 To compare objects, best if the class
implements the Comparable interface
– compareTo method
Table 11-2: Behavior of the method compareTo

17. Fundamentals of Java
17
Searching (cont.)
 Binary search for objects:

18. Fundamentals of Java
18

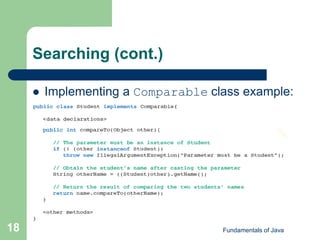

Searching (cont.)
 Implementing a Comparable class example:

19. Fundamentals of Java
19

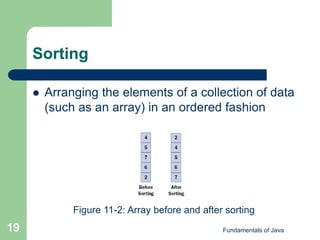

Sorting
 Arranging the elements of a collection of data
(such as an array) in an ordered fashion
Figure 11-2: Array before and after sorting

20. Fundamentals of Java
20
Sorting: Selection Sort
 Basic idea:
Table 11-3: Trace of data during a selection sort

21. Fundamentals of Java
21
Sorting: Selection Sort (cont.)
 Must be able to find smallest number in an
array and swap items in an array

22. Fundamentals of Java
22

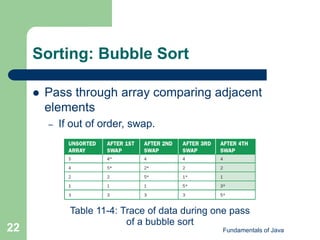

Sorting: Bubble Sort
 Pass through array comparing adjacent
elements
– If out of order, swap.
Table 11-4: Trace of data during one pass
of a bubble sort

23. Fundamentals of Java
23

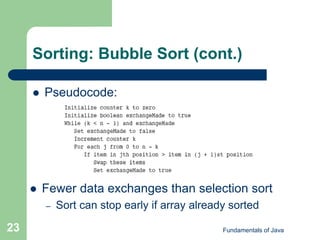

Sorting: Bubble Sort (cont.)
 Pseudocode:
 Fewer data exchanges than selection sort
– Sort can stop early if array already sorted

24. Fundamentals of Java
24

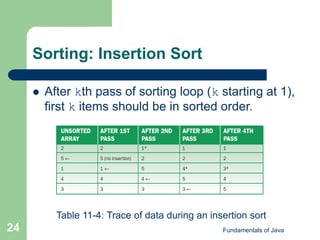

Sorting: Insertion Sort
 After kth pass of sorting loop (k starting at 1),
first k items should be in sorted order.
Table 11-4: Trace of data during an insertion sort

25. Fundamentals of Java
25
Sorting: Insertion Sort (cont.)
 Pseduocode:

26. Fundamentals of Java
26
Sorting (cont.)
 Any of the search algorithms can be altered
to support sorting of objects.
– Object’s class(es) should implement Comparable
 Have compareTo method
 Example:

27. Fundamentals of Java
27

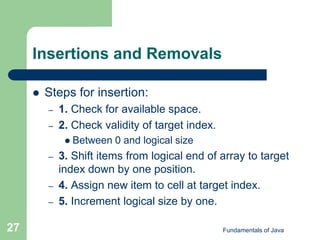

Insertions and Removals
 Steps for insertion:
– 1. Check for available space.
– 2. Check validity of target index.
 Between 0 and logical size
– 3. Shift items from logical end of array to target
index down by one position.
– 4. Assign new item to cell at target index.
– 5. Increment logical size by one.

28. Fundamentals of Java
28
Insertions and Removals (cont.)
Figure 11-3: Inserting an item into an array

29. Fundamentals of Java
29
Insertions and Removals (cont.)
 Steps for removal:
– 1. Check validity of target index.
 Between 0 and logical size
– 2. Shift items from target index to logical end of
array up by one position.
– 3. Decrement logical size by one.

30. Fundamentals of Java
30
Insertions and Removals (cont.)
Figure 11-4: Removing an item from an array

31. Fundamentals of Java
31
 When array type is an interface type, abstract
class, or superclass of 1+ other classes, array
may contain different object types.
– Might not all respond to common set of
messages
Working with Arrays of Objects

32. Fundamentals of Java
32

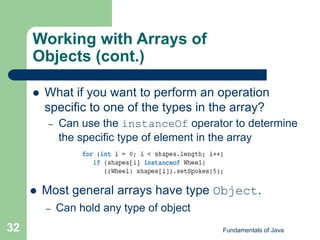

Working with Arrays of
Objects (cont.)
 What if you want to perform an operation
specific to one of the types in the array?
– Can use the instanceOf operator to determine
the specific type of element in the array
 Most general arrays have type Object.
– Can hold any type of object

33. Fundamentals of Java
33
The Class java.util.ArrayList
 Contains sequence of elements ordered by
position
– Unlike an array in that:
 It uses methods rather than [] to manipulate
elements.
 It tracks the logical size and physical size.
 The logical size is 0 when created.
– Size automatically adjusted as needed
 The positions available for access range from 0 to
the logical size minus 1.

34. Fundamentals of Java
34
The Class java.util.ArrayList
(cont.)
 Generic array list: Programmer must specify
element type for the list
 Raw array list: Can contain objects of any
reference type
 Declaring/instantiating a generic array list:

35. Fundamentals of Java
35
The Class java.util.ArrayList
(cont.)
Table 11-6: Some commonly used ArrayList methods

36. Fundamentals of Java
36
The Class java.util.ArrayList
(cont.)
 ArrayList objects cannot directly store
primitive types.
– Must use wrapper classes
 Classes that contain the value of a primitive type
 Boolean, Integer, Double, Character

37. Fundamentals of Java
37
The Class java.util.ArrayList
(cont.)
 ArrayList objects automatically “box” and
“unbox” primitive values when used with
ArrayList methods.

38. Fundamentals of Java
38
The Class java.util.ArrayList
(cont.)
 Advantages of ArrayList over arrays:
– Includes many methods for tasks such as
insertions, removals, and searches
– Tracks own logical size and grows or shrinks
automatically with the number of elements
contained in it

39. Fundamentals of Java
39
Graphics and GUIs: Menus
 A drop-down menu system consists of a
menu bar, a number of menus, and several
selections for each menu.
– May have sub-menus
– Menu item object for each menu selection
(class JMenuItem)
– Menu object for each menu (class JMenu)
– Menu bar object in which all of the menu
objects will appear (class JMenuBar)

40. Fundamentals of Java
40
Graphics and GUIs: Menus (cont.)
Figure 11-6: New user interface for the
student test scores program
 Listener objects are attached to menus.
– When menu items are selected, events are fired
and the listener objects respond.

41. Fundamentals of Java
41
Graphics and GUIs: Menus (cont.)
Example 11.6: TestScoresView class (with menus)

42. Fundamentals of Java
42
Graphics and GUIs: Menus (Cont.)
Example 11.6: TestScoresView class (with menus, cont.)

43. Fundamentals of Java
43
Summary
 Linear search: Simple search that works
well for small- and medium-sized arrays
 Binary search: Clever search that works
well for large arrays but assumes that the
elements are sorted
 Comparisons of objects are accomplished by
implementing the Comparable interface,
which requires the compareTo method.

44. Fundamentals of Java
44
Summary (cont.)
 Selection sort, bubble sort, and insertion sort
are simple sort methods that work well for
small- and medium-sized arrays.
 Insertions and removals of elements at
arbitrary positions are complex operations
that require careful design and
implementation.

45. Fundamentals of Java
45

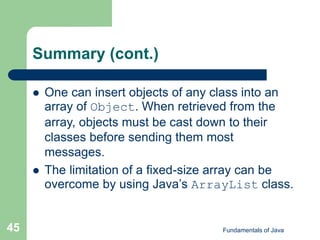

Summary (cont.)
 One can insert objects of any class into an
array of Object. When retrieved from the
array, objects must be cast down to their
classes before sending them most
messages.
 The limitation of a fixed-size array can be
overcome by using Java’s ArrayList class.

46. Fundamentals of Java
46

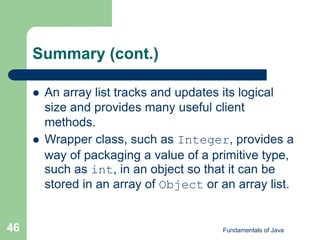

Summary (cont.)
 An array list tracks and updates its logical
size and provides many useful client
methods.
 Wrapper class, such as Integer, provides a
way of packaging a value of a primitive type,
such as int, in an object so that it can be
stored in an array of Object or an array list.
