1. Web Design Principles
5th
Edition
Chapter Five
Creating Web Typography

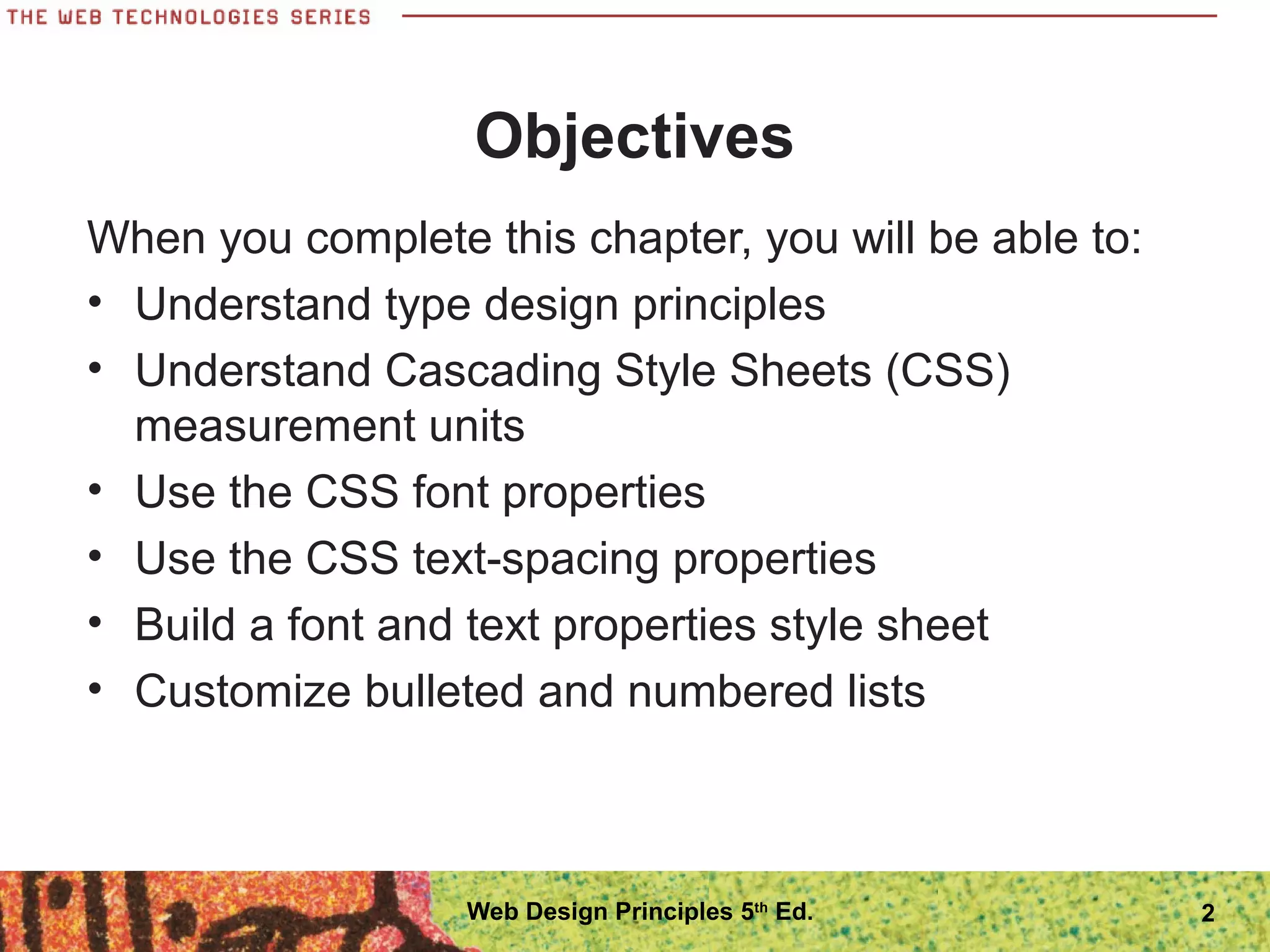

2. Objectives
When you complete this chapter, you will be able to:
• Understand type design principles
• Understand Cascading Style Sheets (CSS)
measurement units
• Use the CSS font properties
• Use the CSS text-spacing properties
• Build a font and text properties style sheet
• Customize bulleted and numbered lists
2Web Design Principles 5th
Ed.

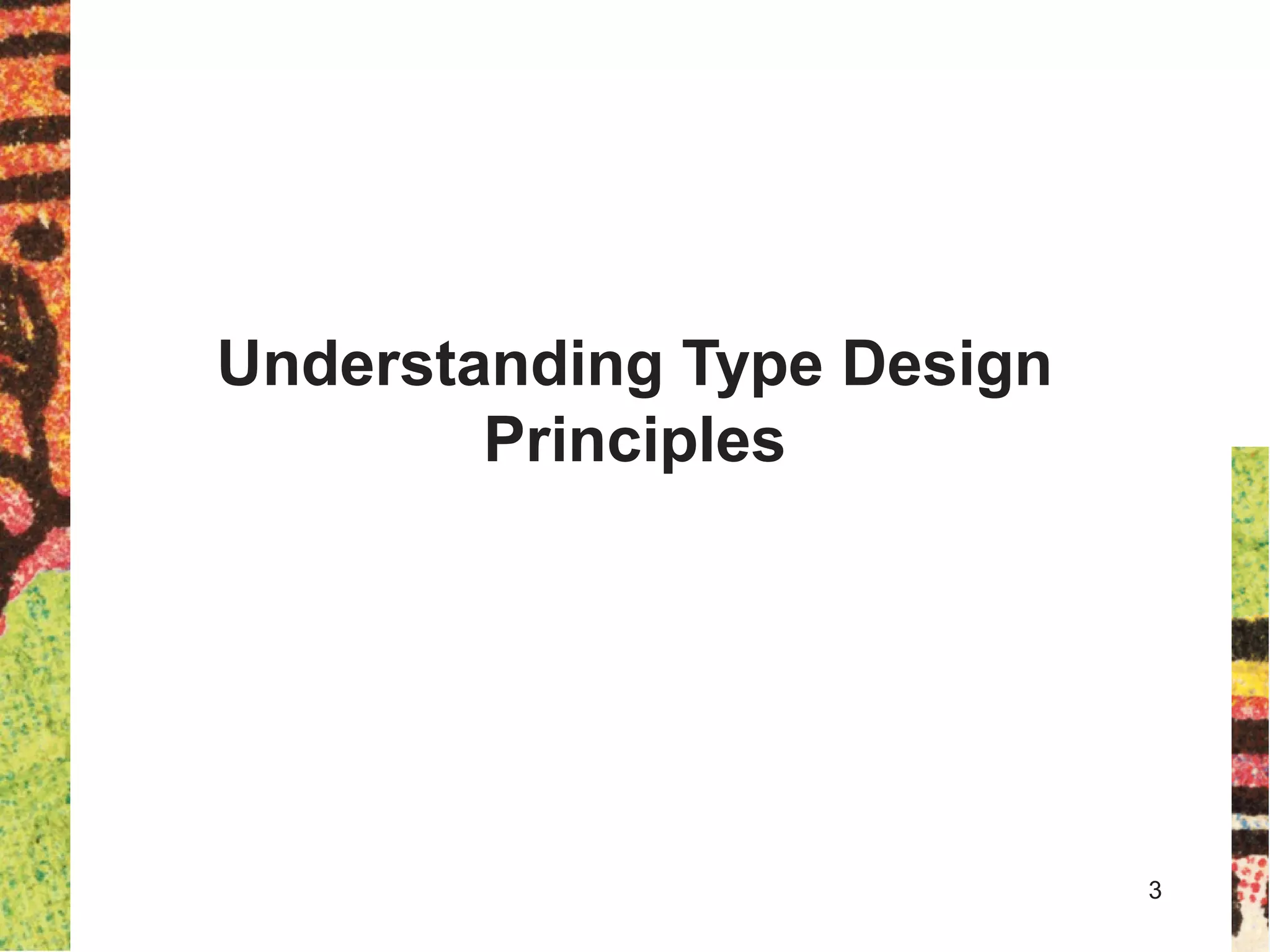

3. Understanding Type Design
Principles
3

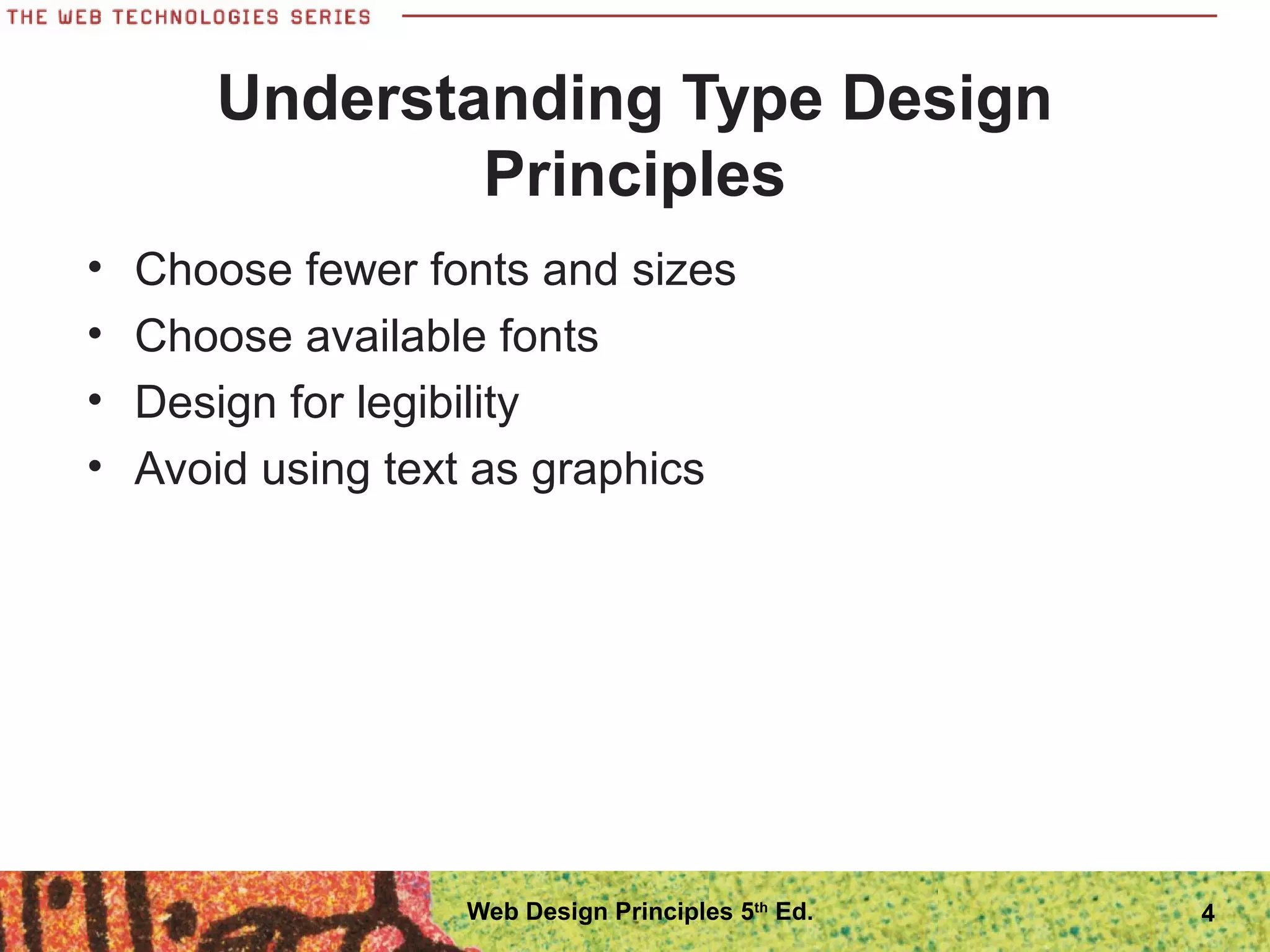

4. Understanding Type Design
Principles
• Choose fewer fonts and sizes
• Choose available fonts
• Design for legibility
• Avoid using text as graphics
Web Design Principles 5th
Ed. 4

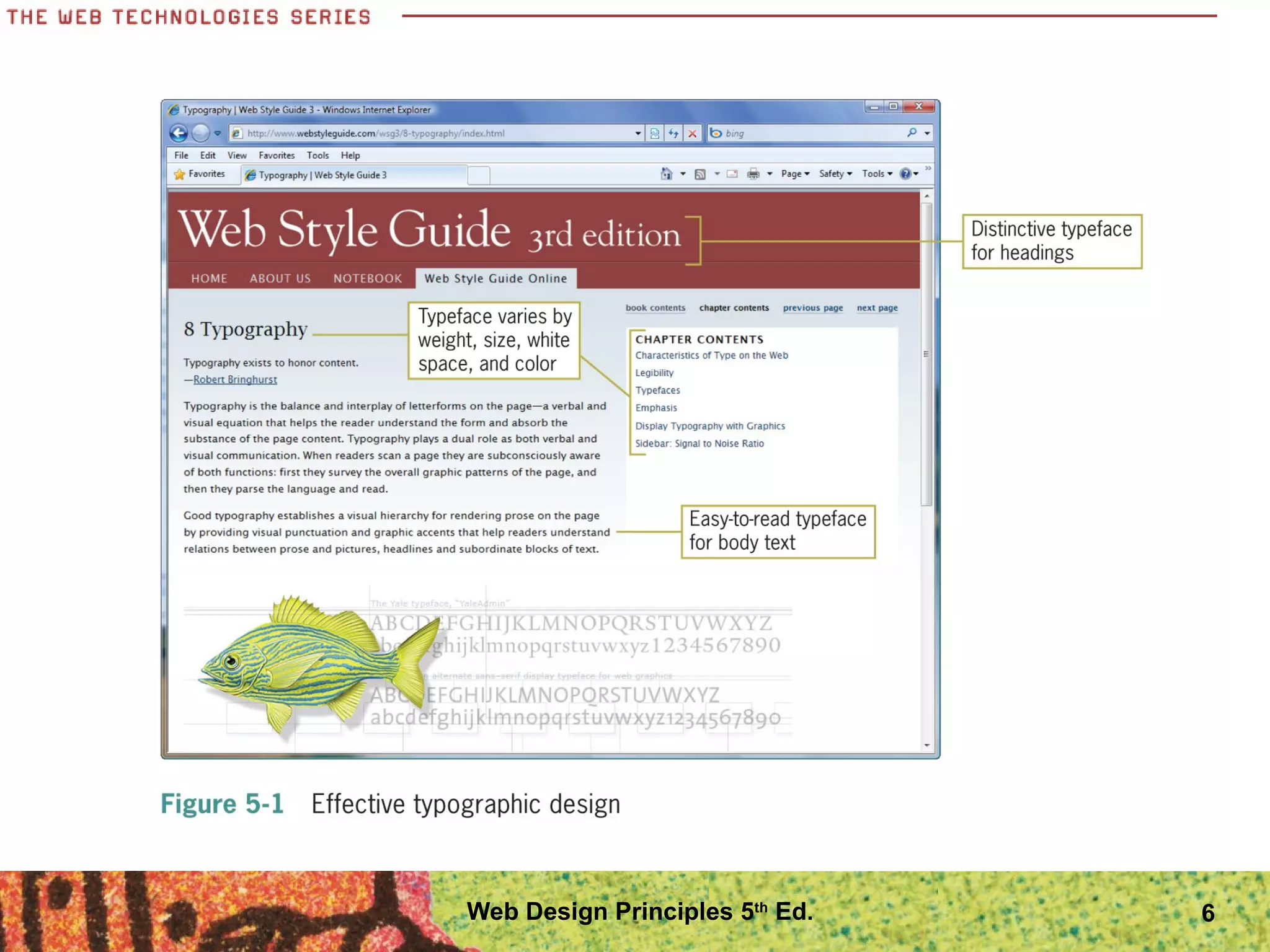

5. Choose Fewer Fonts and Sizes
• Your pages will look cleaner when you choose fewer
fonts and sizes of type
• Decide on a font for each different level of topic
importance, such as page headings, section headings,
and body text
• Communicate the hierarchy of information with changes
in the size, weight, or color of the typeface
5Web Design Principles 5th
Ed.

6. 6Web Design Principles 5th
Ed.

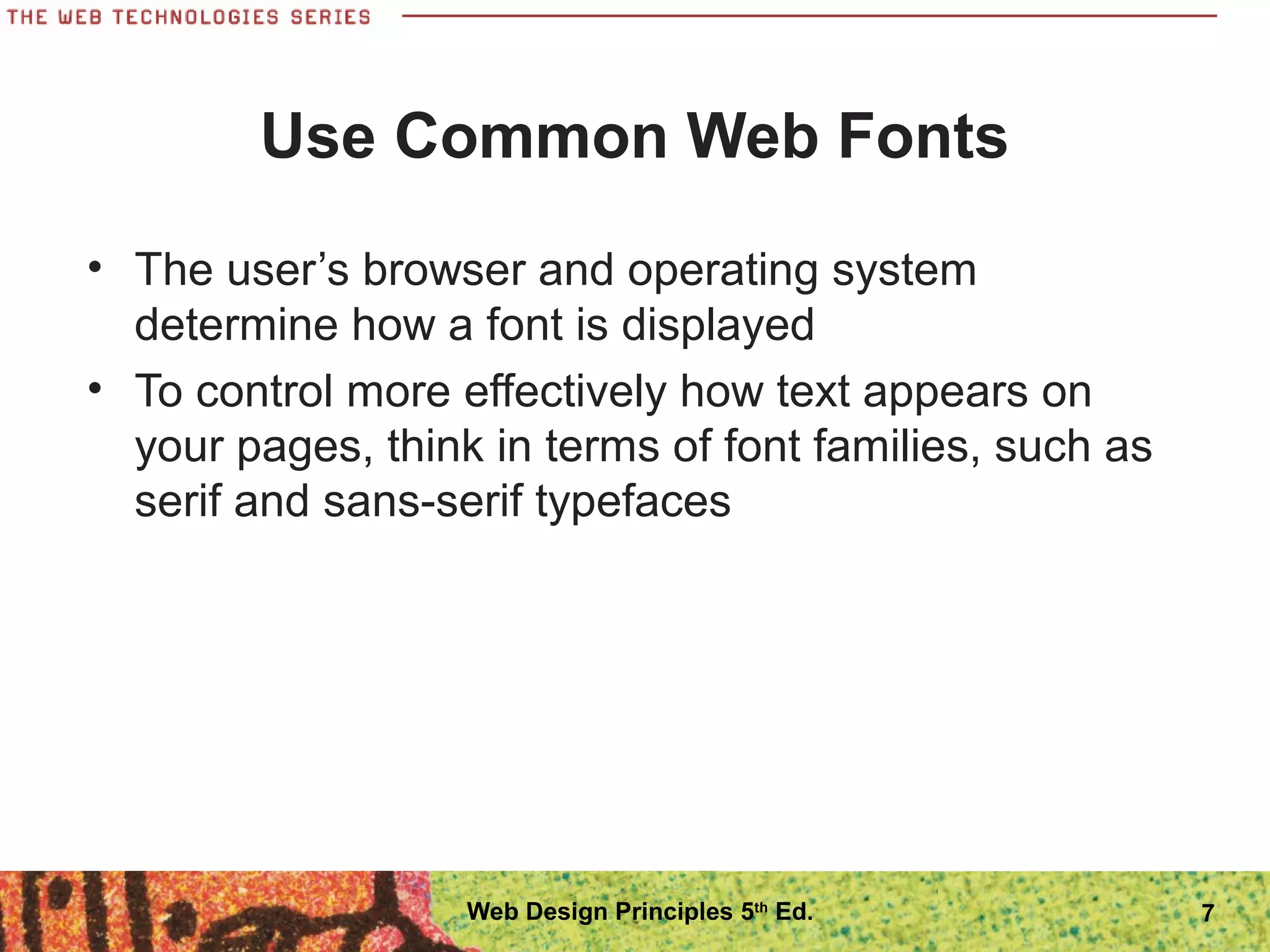

7. Use Common Web Fonts
• The user’s browser and operating system
determine how a font is displayed
• To control more effectively how text appears on
your pages, think in terms of font families, such as

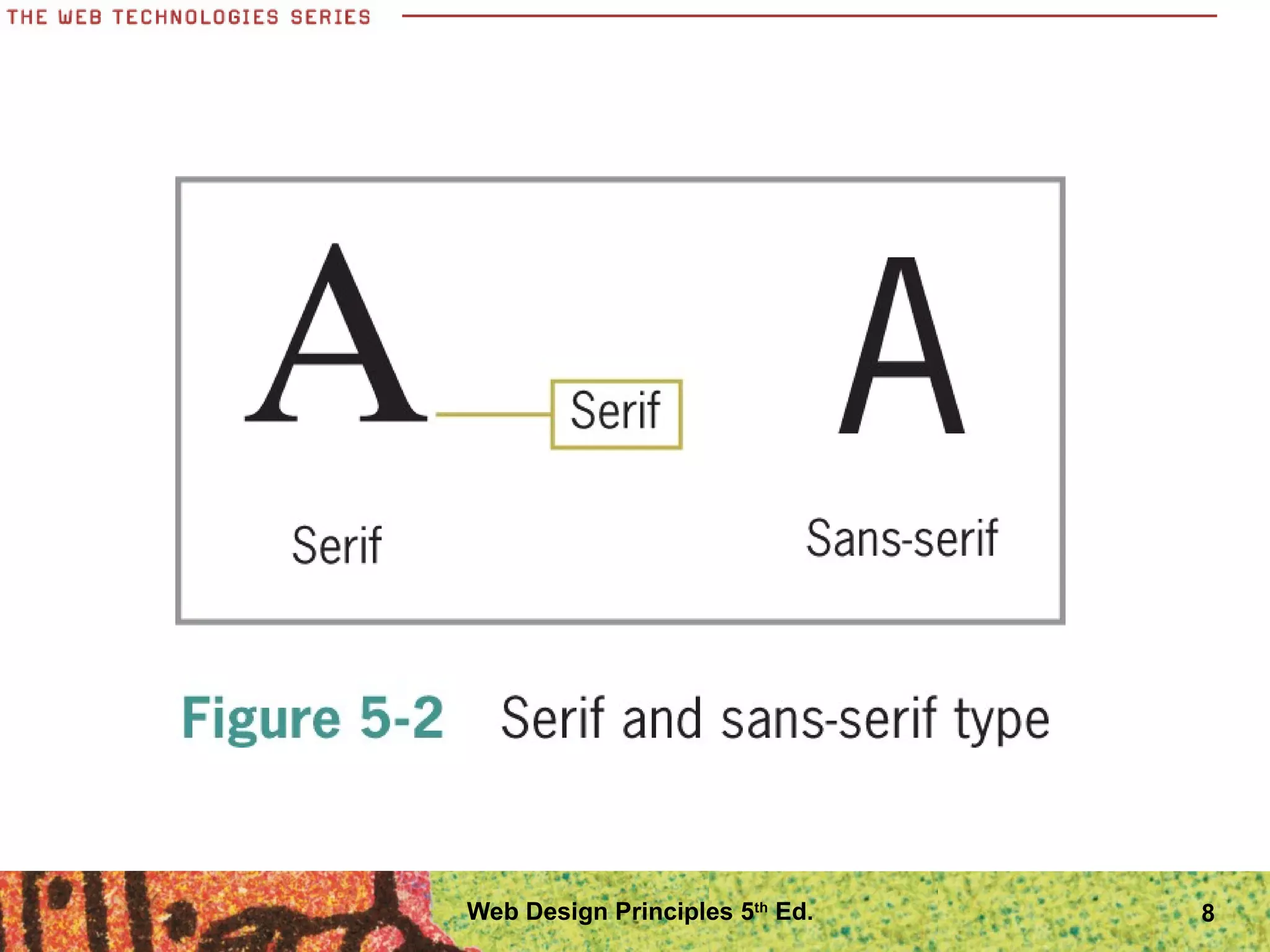

serif and sans-serif typefaces
7Web Design Principles 5th
Ed.

8. 8Web Design Principles 5th
Ed.

9. 9Web Design Principles 5th
Ed.

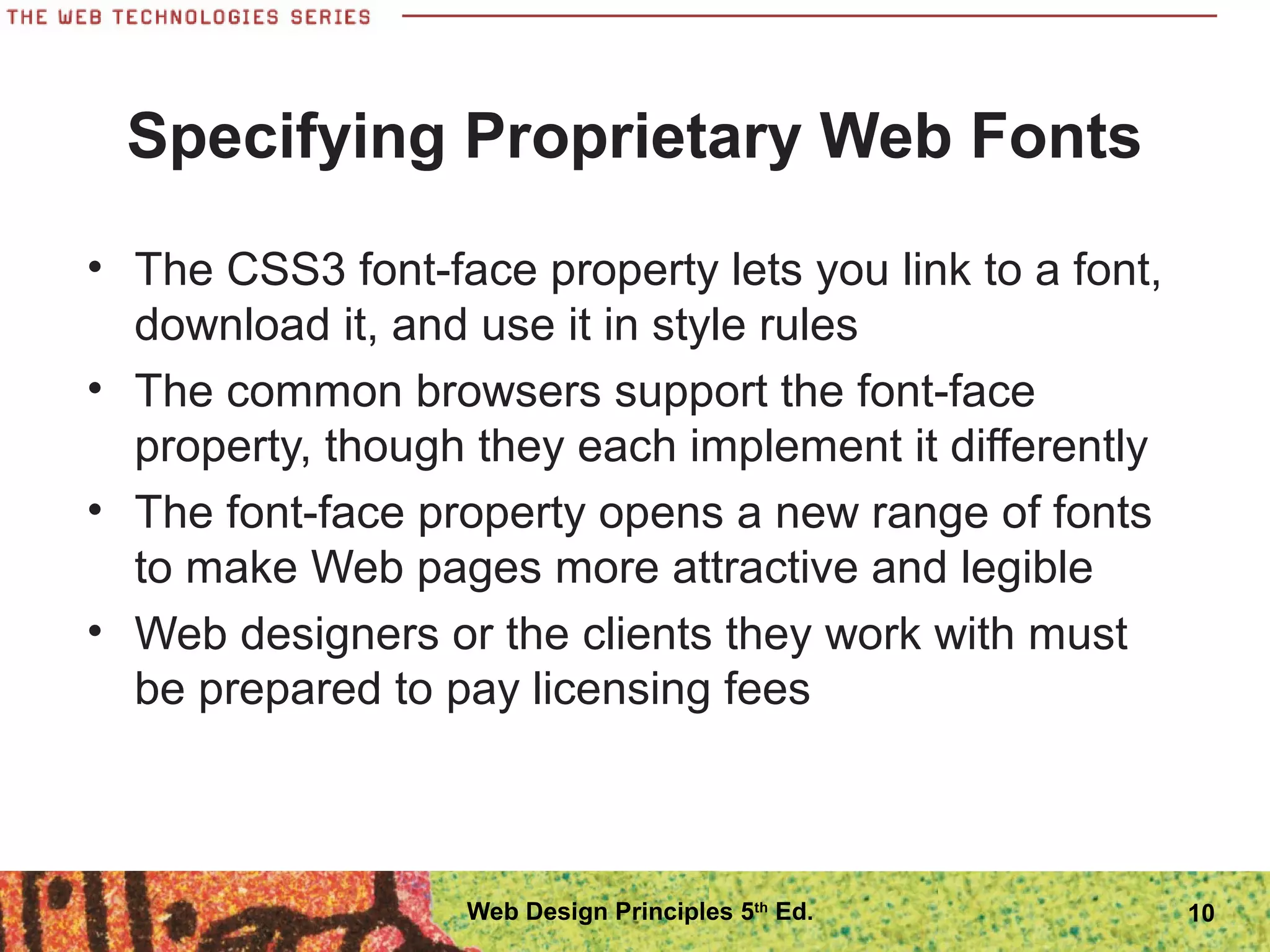

10. Specifying Proprietary Web Fonts
• The CSS3 font-face property lets you link to a font,
download it, and use it in style rules
• The common browsers support the font-face
property, though they each implement it differently
• The font-face property opens a new range of fonts
to make Web pages more attractive and legible
• Web designers or the clients they work with must
be prepared to pay licensing fees
10Web Design Principles 5th
Ed.

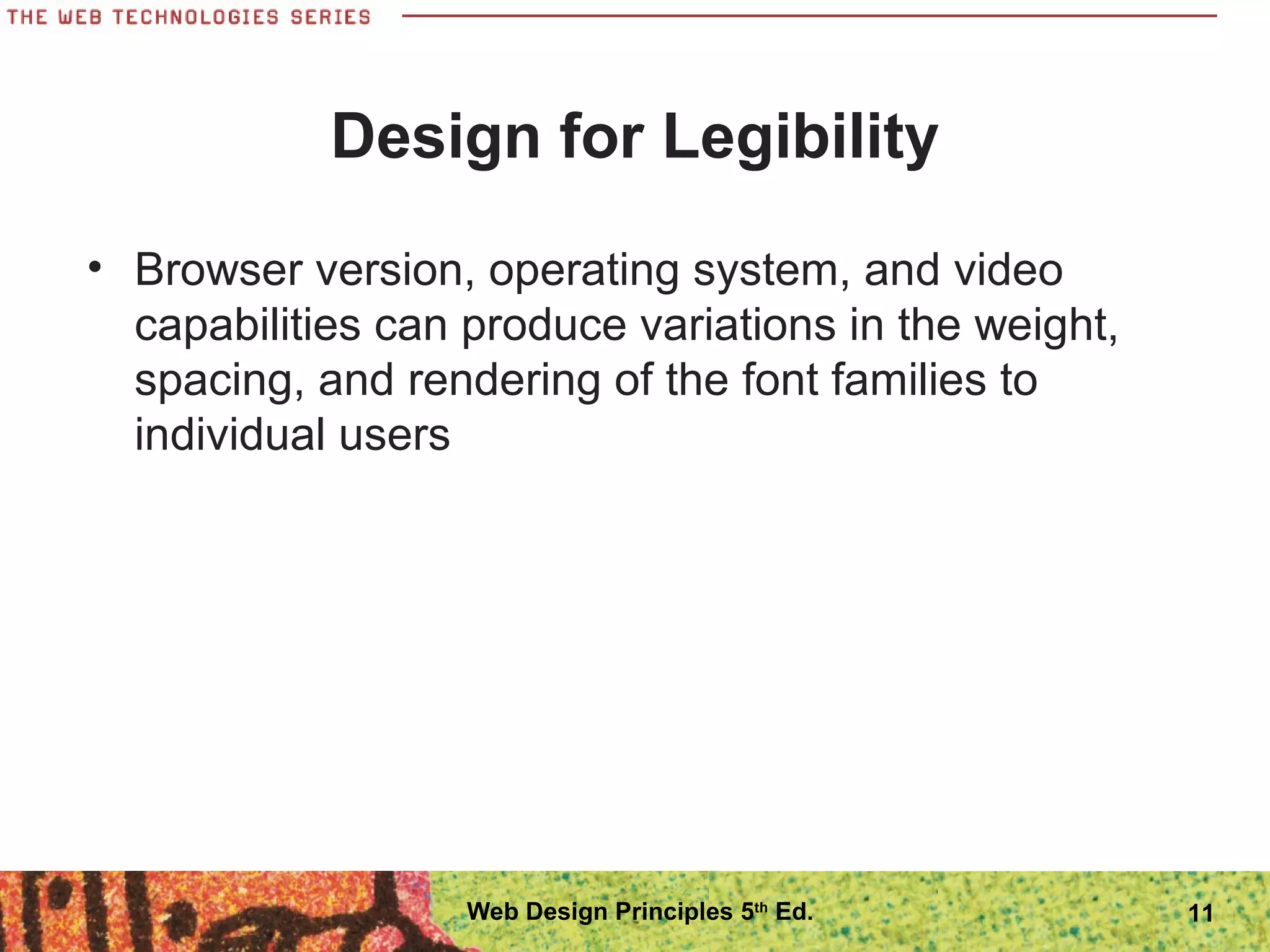

11. Design for Legibility
• Browser version, operating system, and video
capabilities can produce variations in the weight,
spacing, and rendering of the font families to
individual users
11Web Design Principles 5th
Ed.

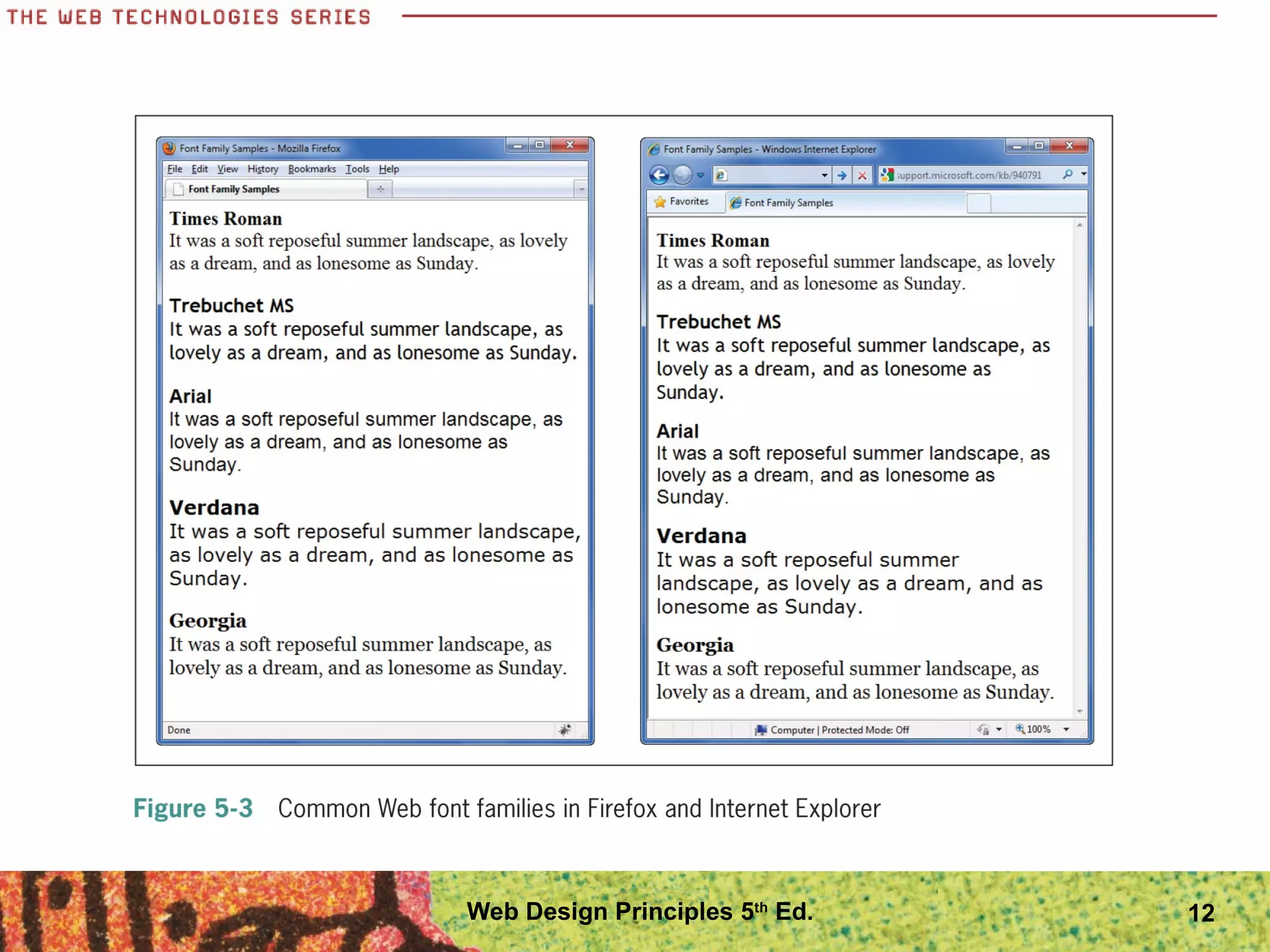

12. 12Web Design Principles 5th
Ed.

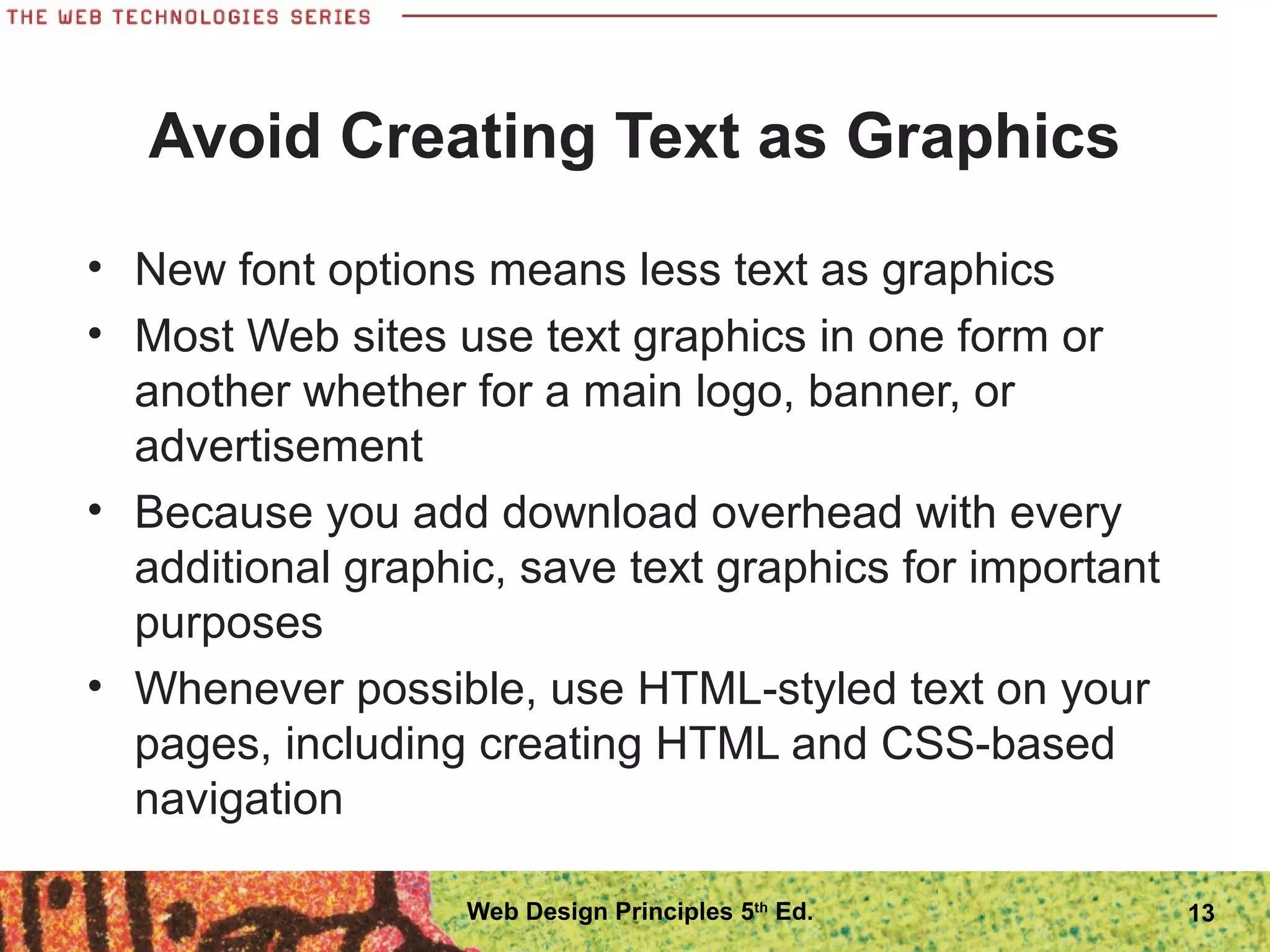

13. Avoid Creating Text as Graphics
• New font options means less text as graphics
• Most Web sites use text graphics in one form or
another whether for a main logo, banner, or
advertisement
• Because you add download overhead with every
additional graphic, save text graphics for important
purposes
• Whenever possible, use HTML-styled text on your
pages, including creating HTML and CSS-based
navigation
13Web Design Principles 5th
Ed.

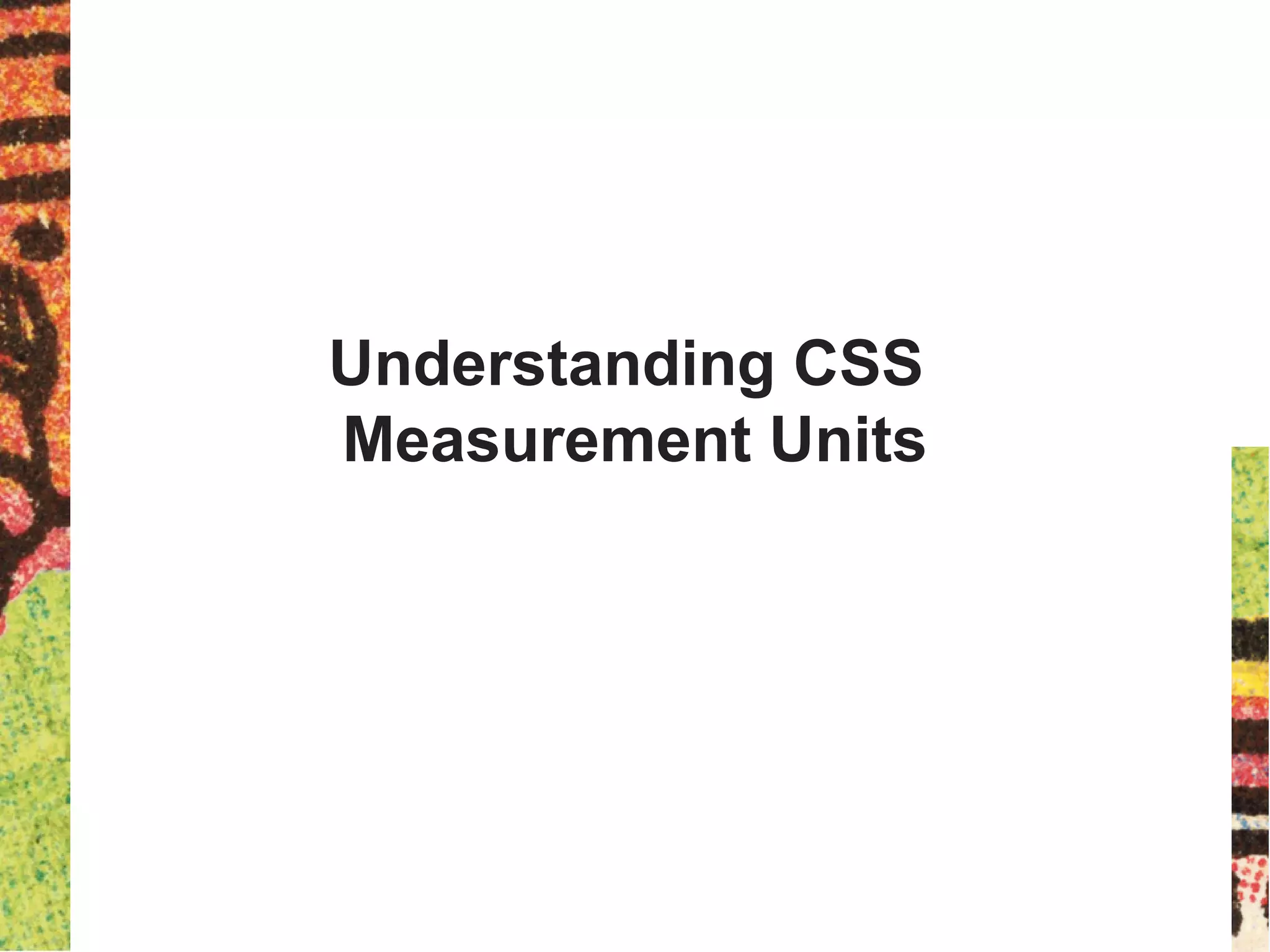

14. Understanding CSS
Measurement Units

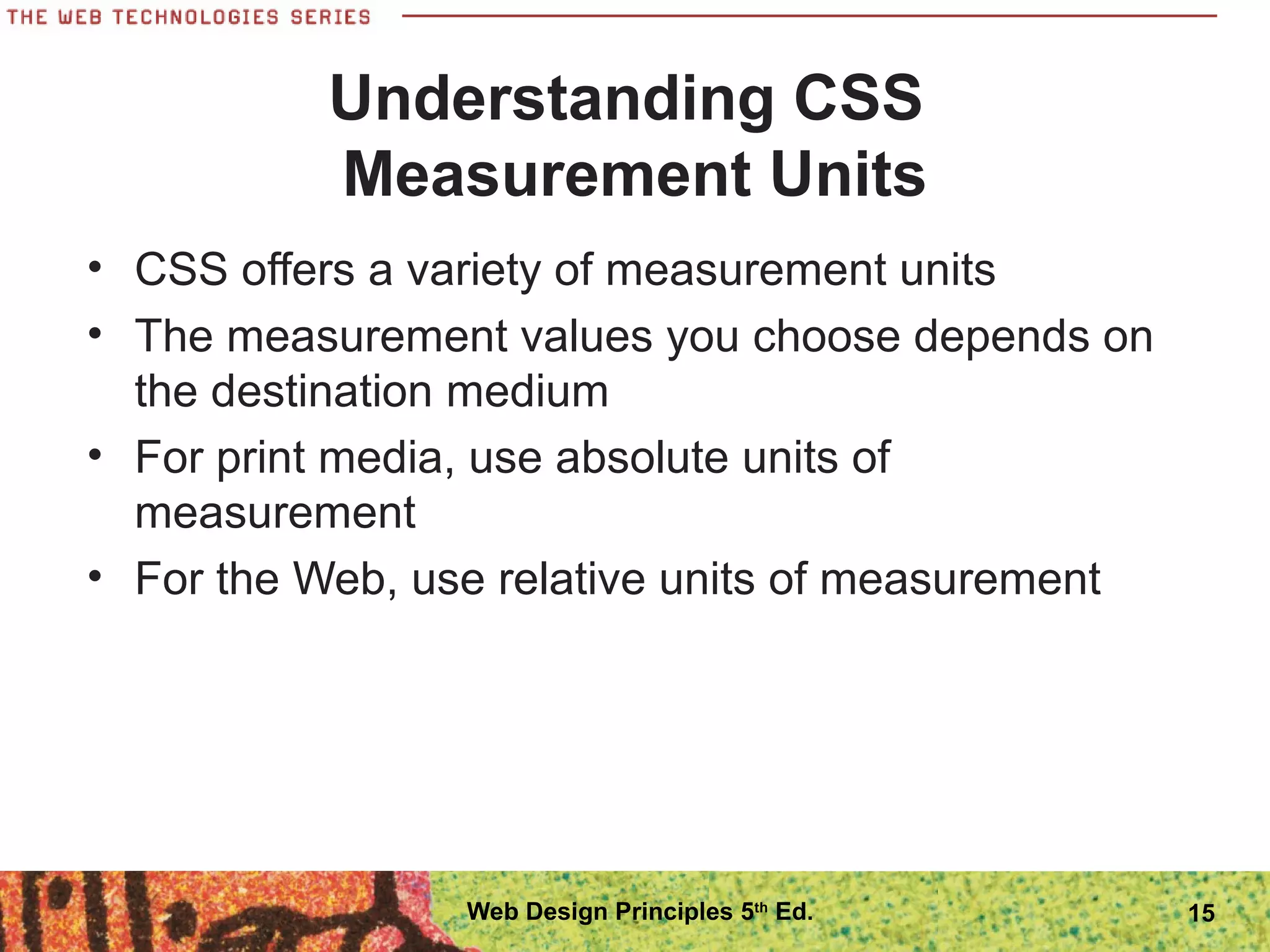

15. Understanding CSS
Measurement Units
• CSS offers a variety of measurement units
• The measurement values you choose depends on
the destination medium
• For print media, use absolute units of
measurement
• For the Web, use relative units of measurement
15Web Design Principles 5th
Ed.

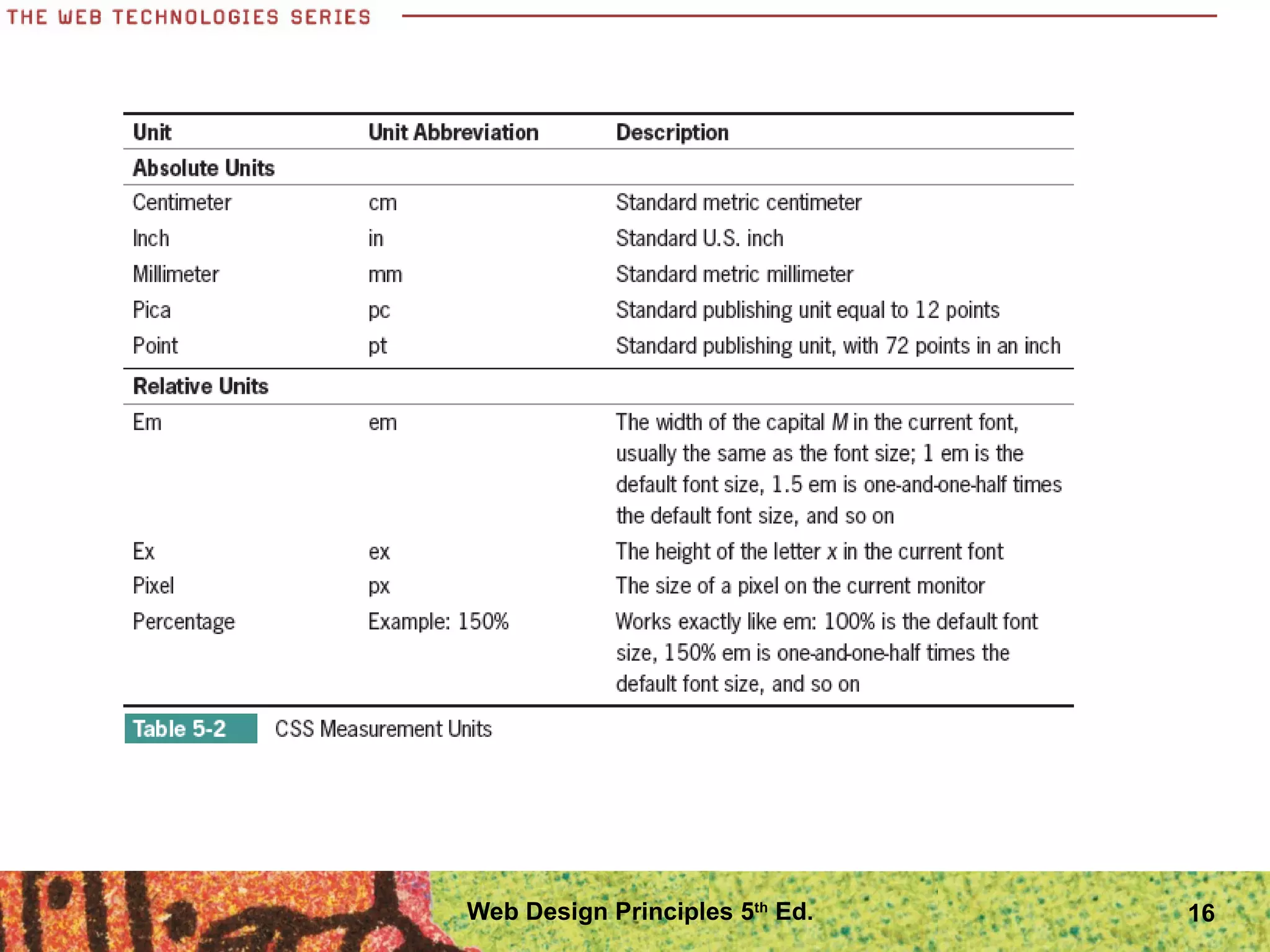

16. 16Web Design Principles 5th
Ed.

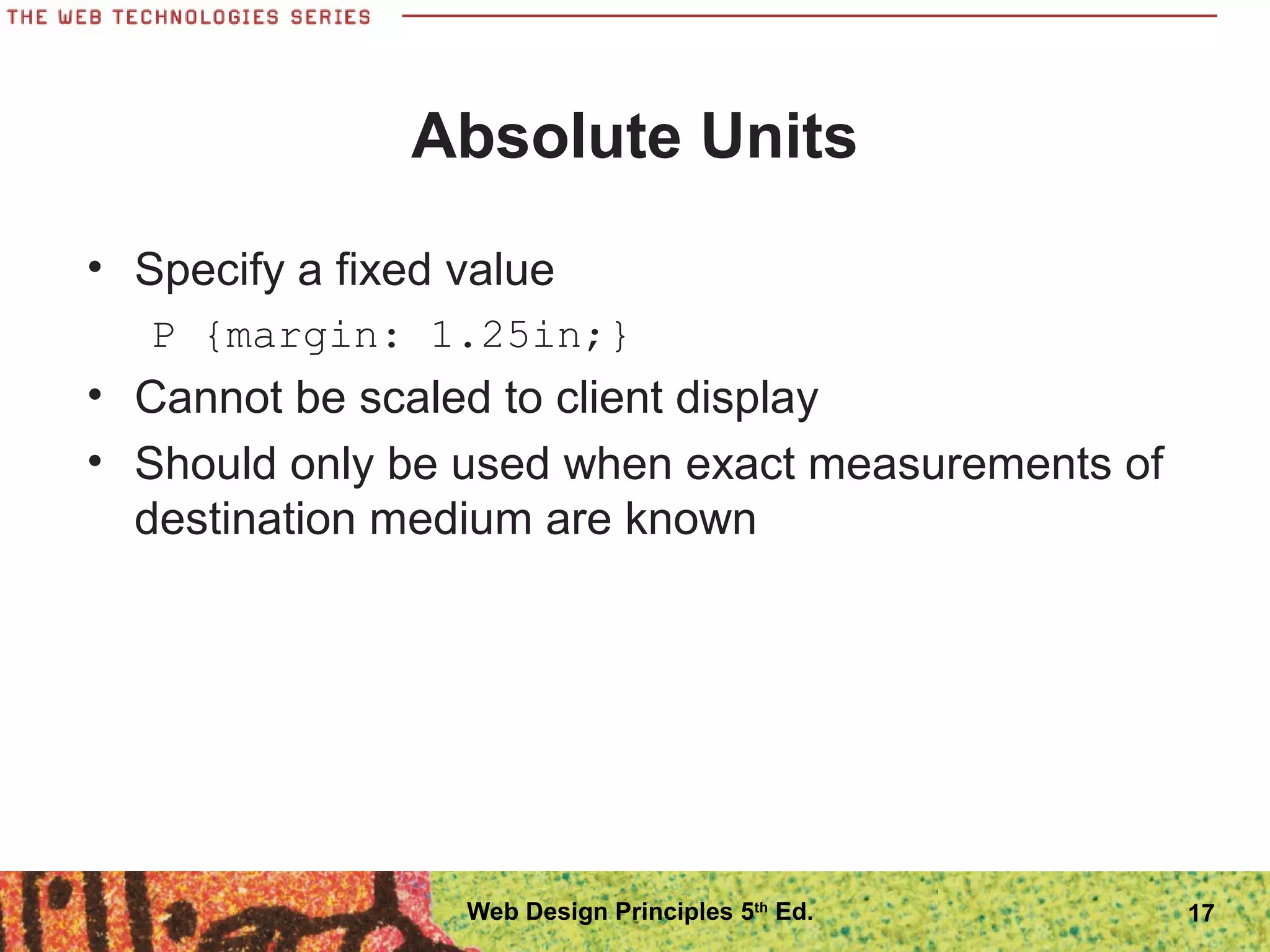

17. Absolute Units
• Specify a fixed value
P {margin: 1.25in;}
• Cannot be scaled to client display
• Should only be used when exact measurements of
destination medium are known
17Web Design Principles 5th
Ed.

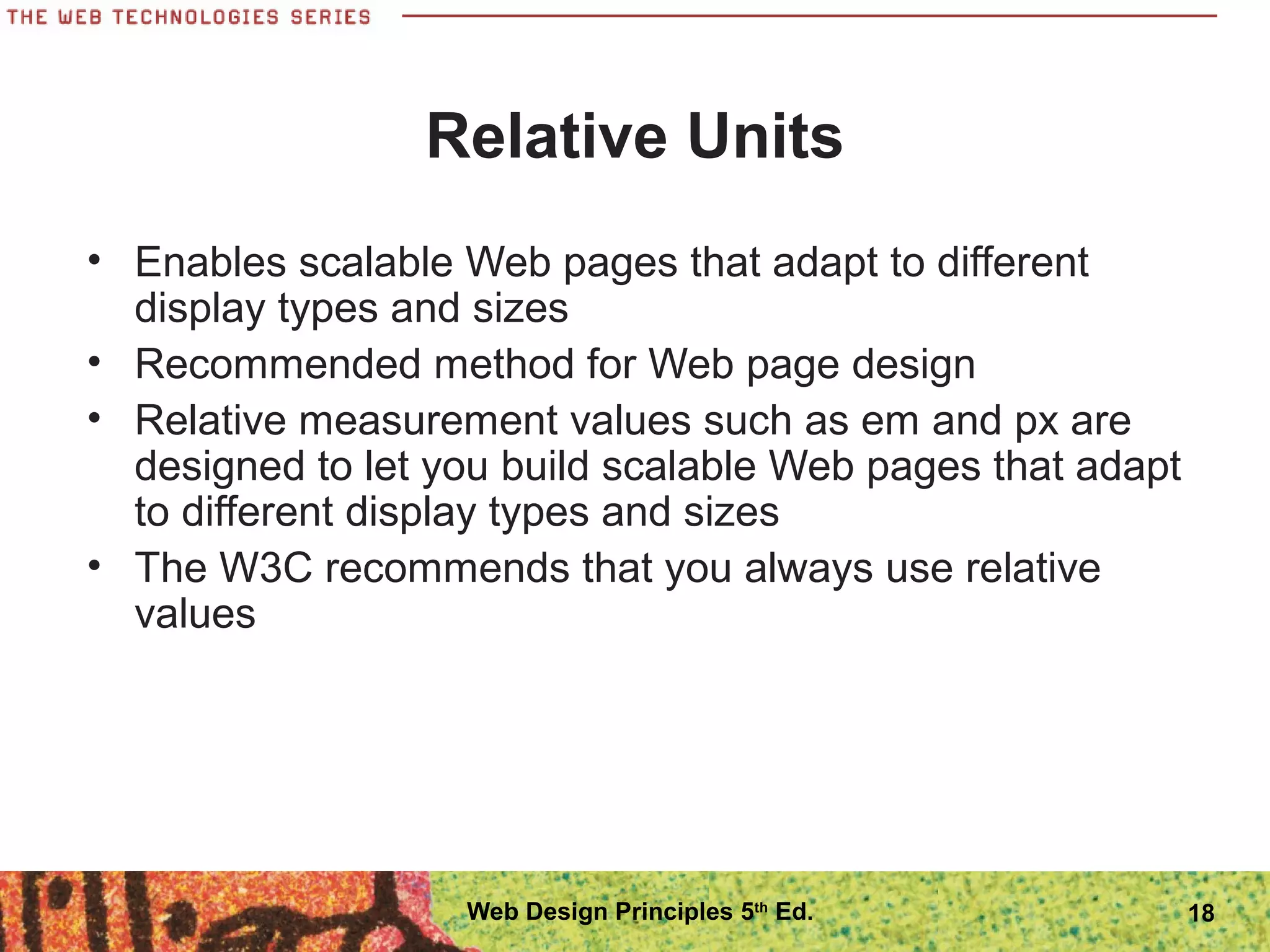

18. Relative Units
• Enables scalable Web pages that adapt to different
display types and sizes
• Recommended method for Web page design
• Relative measurement values such as em and px are
designed to let you build scalable Web pages that adapt
to different display types and sizes
• The W3C recommends that you always use relative
values
18Web Design Principles 5th
Ed.

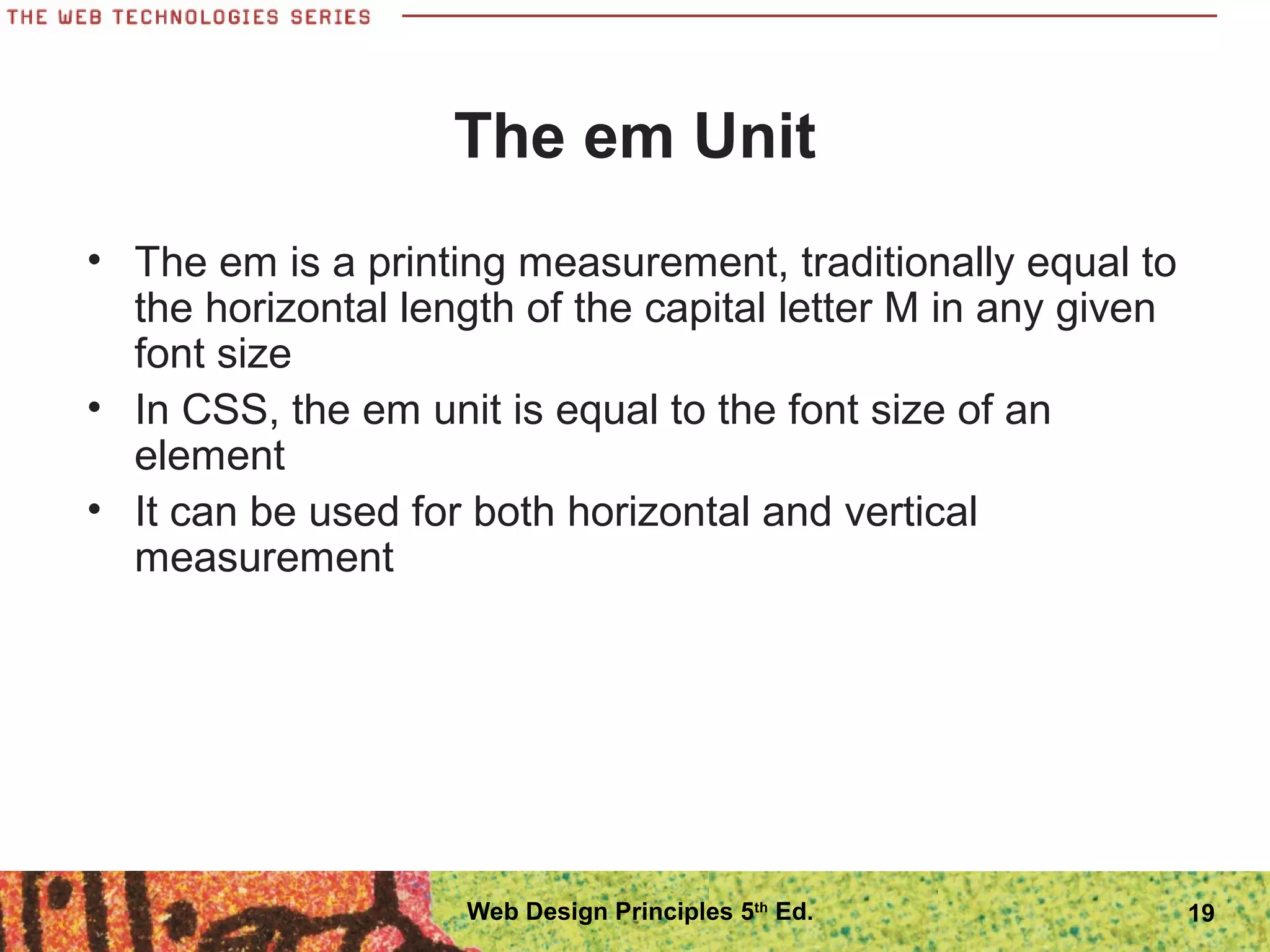

19. The em Unit
• The em is a printing measurement, traditionally equal to
the horizontal length of the capital letter M in any given
font size
• In CSS, the em unit is equal to the font size of an
element
• It can be used for both horizontal and vertical
measurement
19Web Design Principles 5th
Ed.

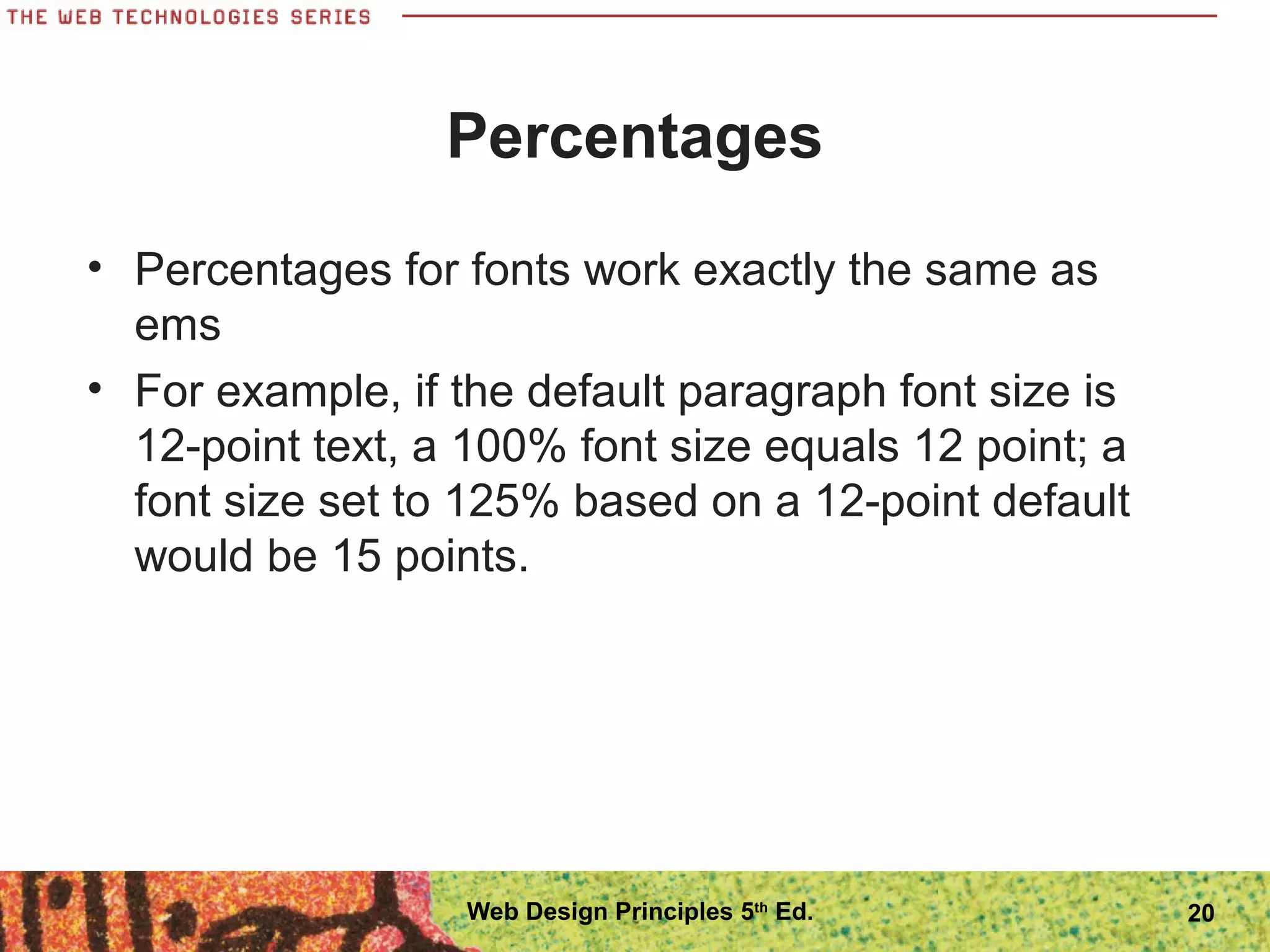

20. Percentages
• Percentages for fonts work exactly the same as
ems
• For example, if the default paragraph font size is
12-point text, a 100% font size equals 12 point; a
font size set to 125% based on a 12-point default
would be 15 points.
20Web Design Principles 5th
Ed.

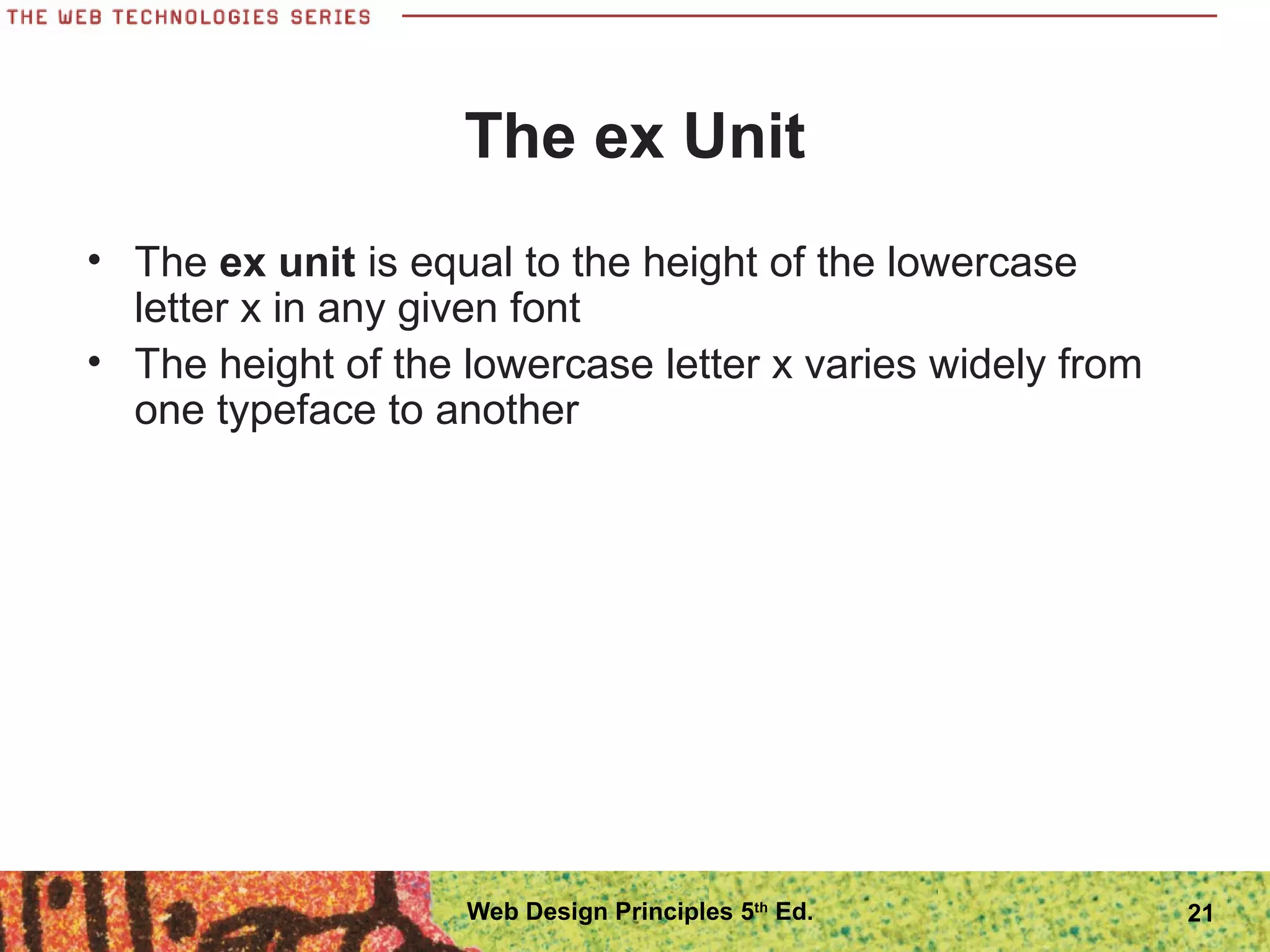

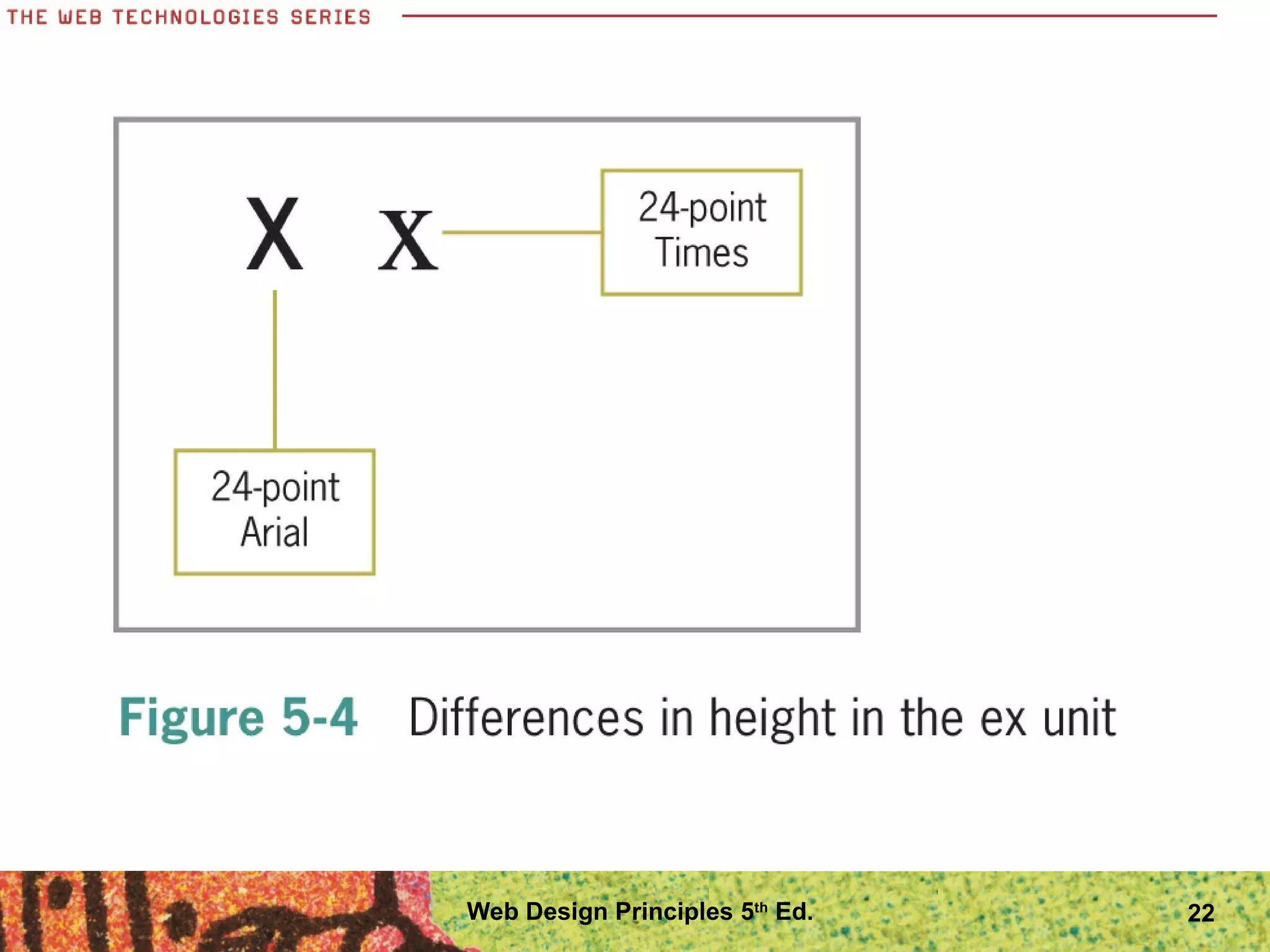

21. The ex Unit
• The ex unit is equal to the height of the lowercase
letter x in any given font
• The height of the lowercase letter x varies widely from
one typeface to another
21Web Design Principles 5th
Ed.

22. 22Web Design Principles 5th
Ed.

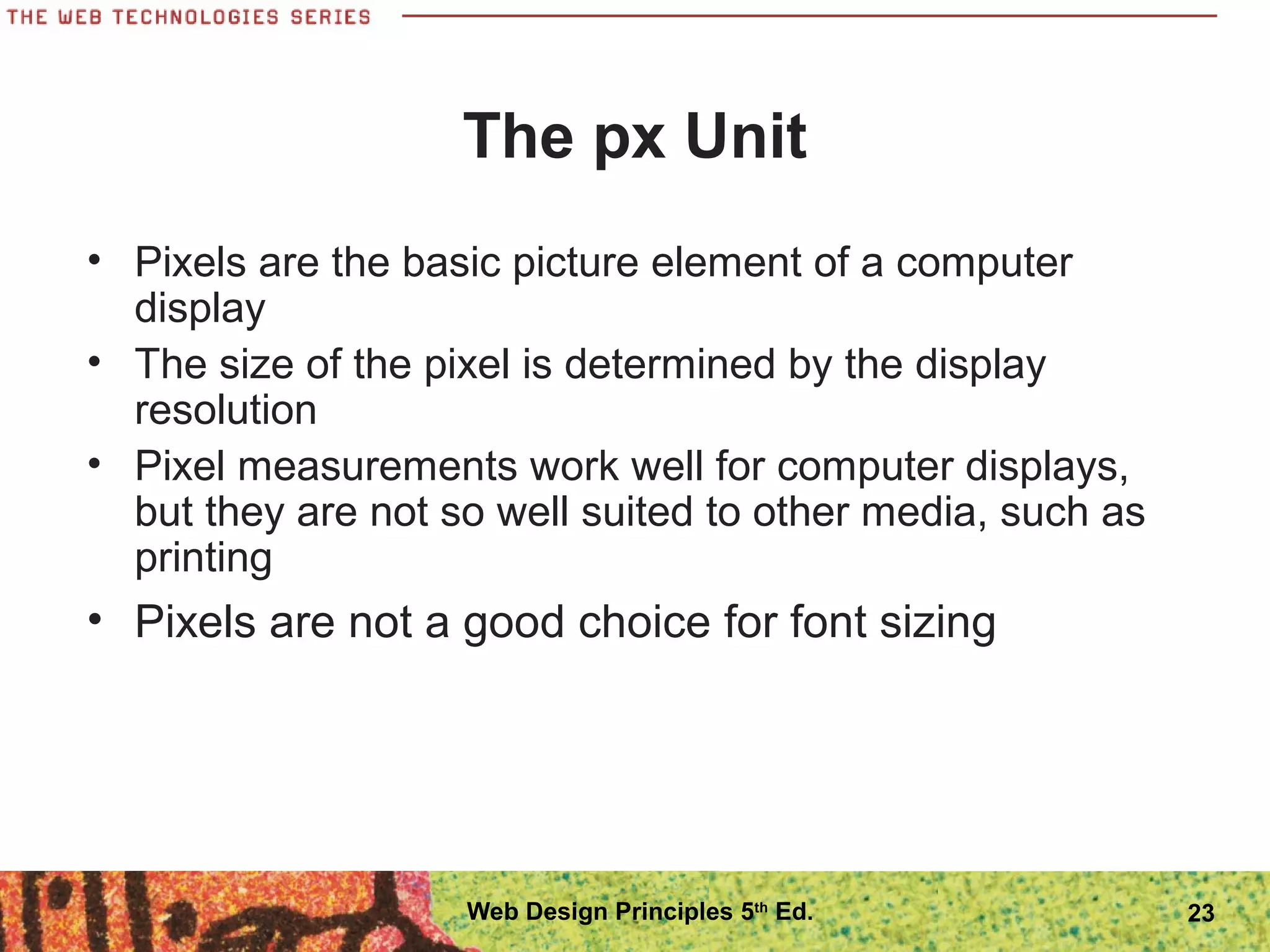

23. The px Unit
• Pixels are the basic picture element of a computer
display
• The size of the pixel is determined by the display
resolution
• Pixel measurements work well for computer displays,
but they are not so well suited to other media, such as
printing
• Pixels are not a good choice for font sizing
23Web Design Principles 5th
Ed.

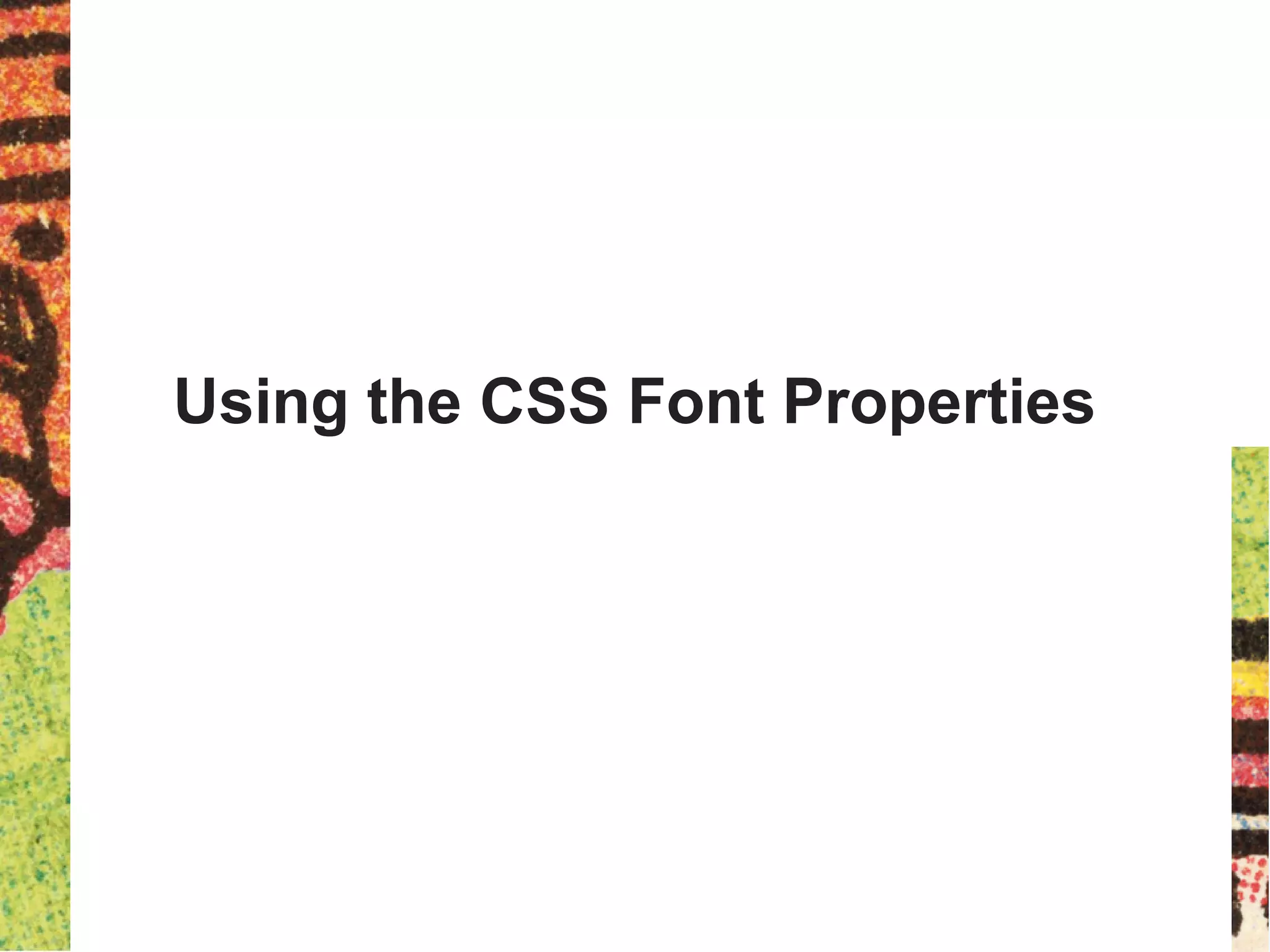

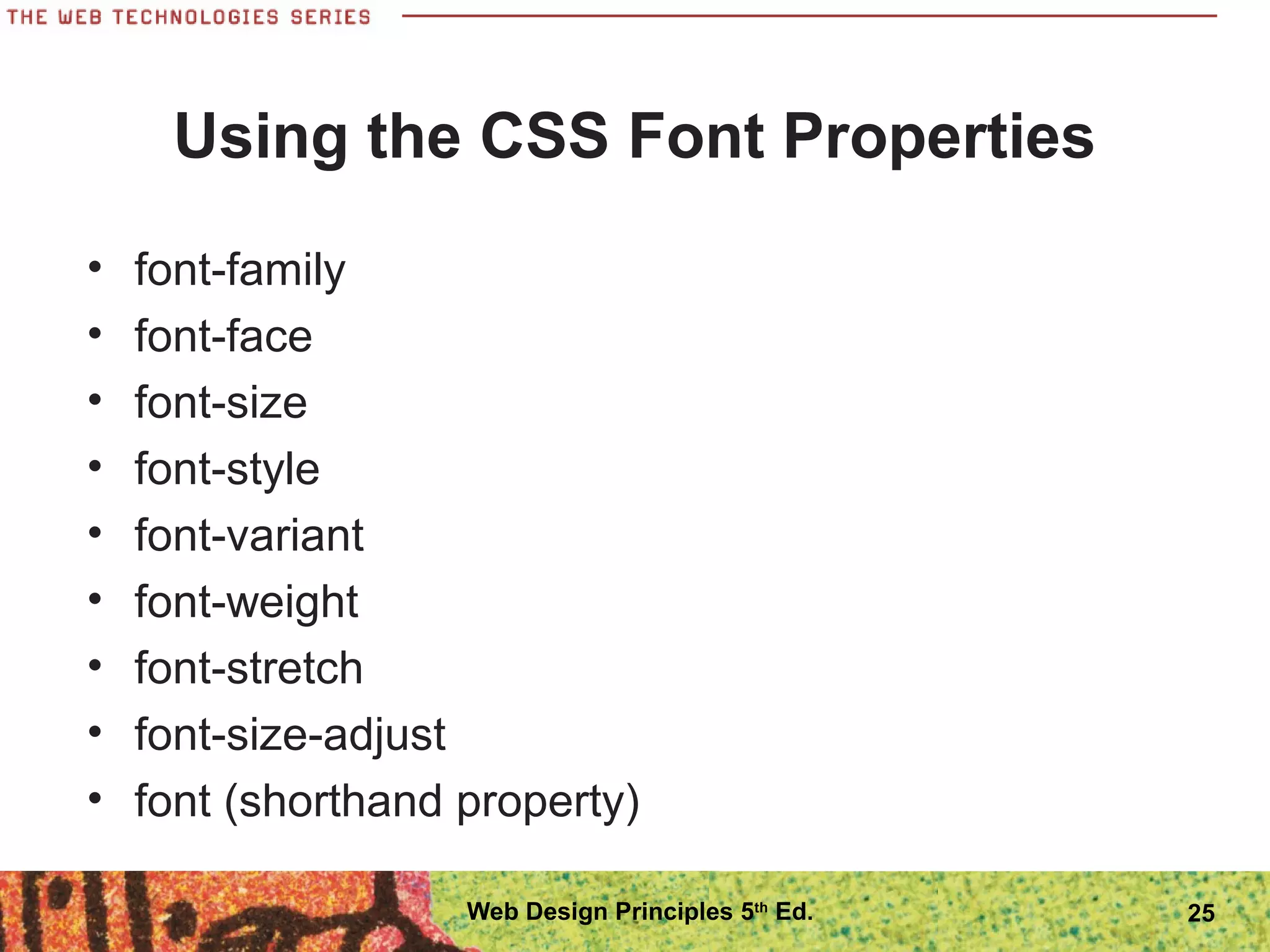

24. Using the CSS Font Properties

25. Using the CSS Font Properties
• font-family
• font-face
• font-size
• font-style
• font-variant
• font-weight
• font-stretch
• font-size-adjust
• font (shorthand property)
25Web Design Principles 5th
Ed.

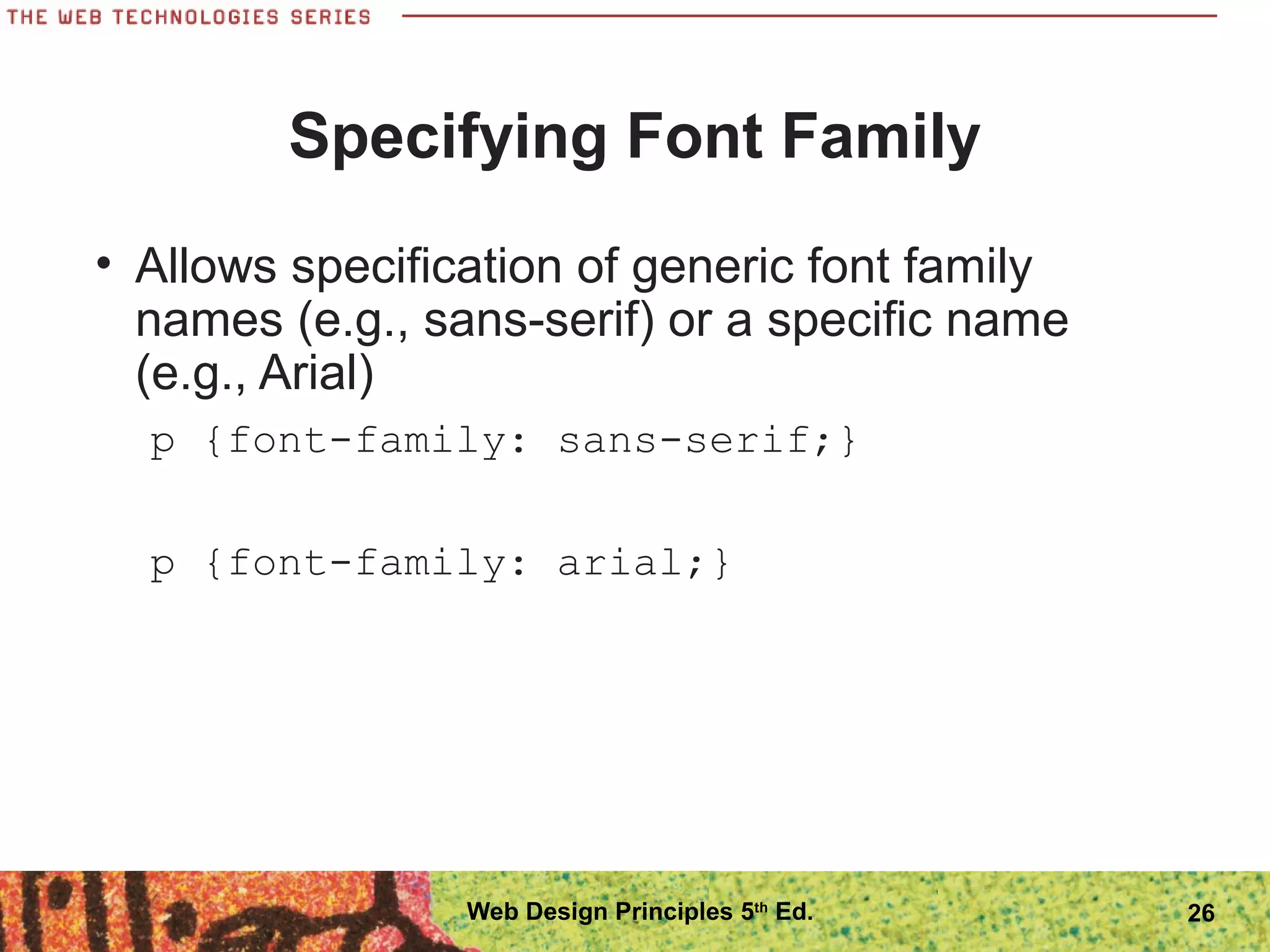

26. Specifying Font Family
• Allows specification of generic font family
names (e.g., sans-serif) or a specific name
(e.g., Arial)
p {font-family: sans-serif;}
p {font-family: arial;}
26Web Design Principles 5th
Ed.

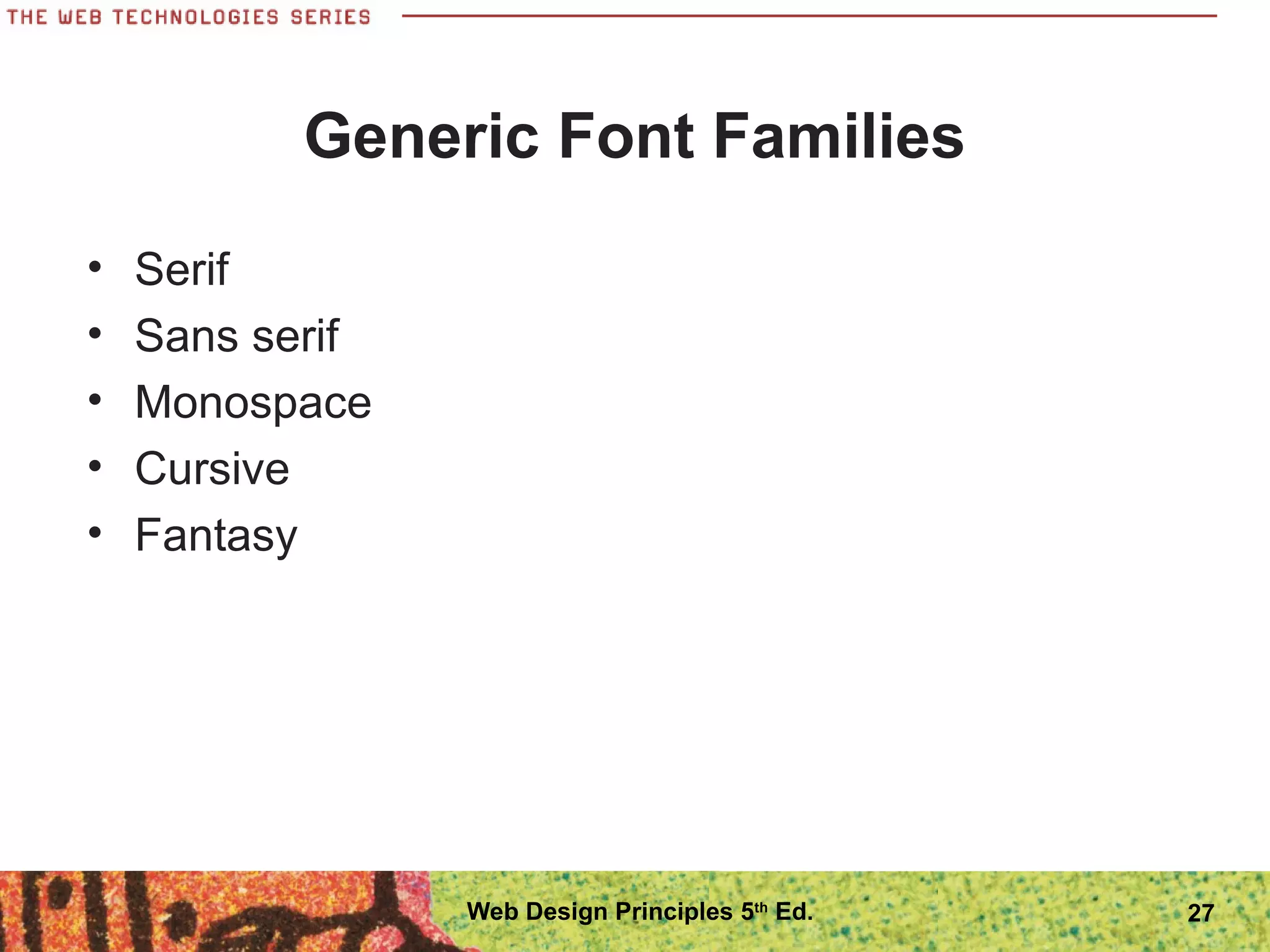

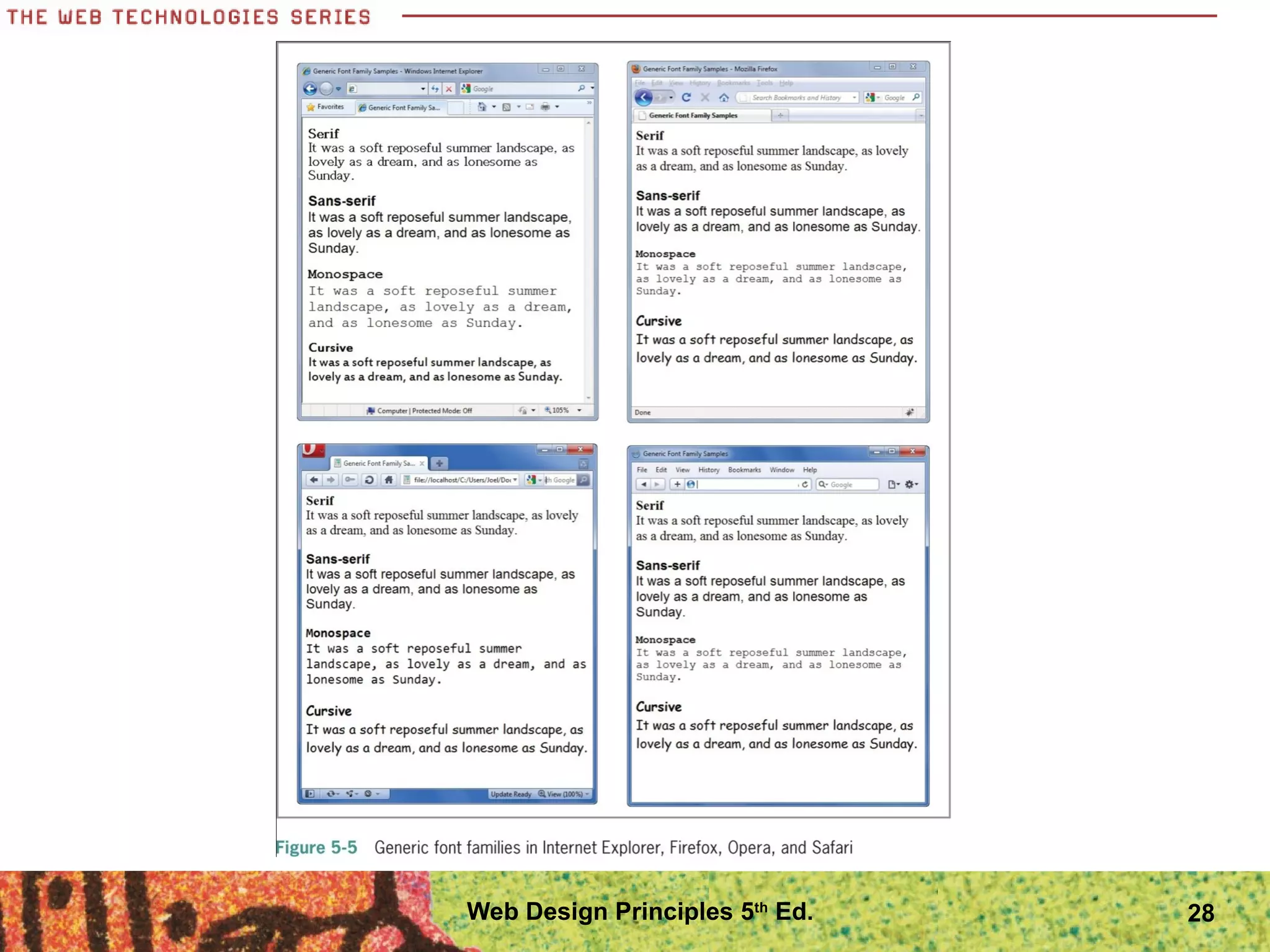

27. Generic Font Families
• Serif
• Sans serif
• Monospace
• Cursive
• Fantasy
27Web Design Principles 5th
Ed.

28. 28Web Design Principles 5th
Ed.

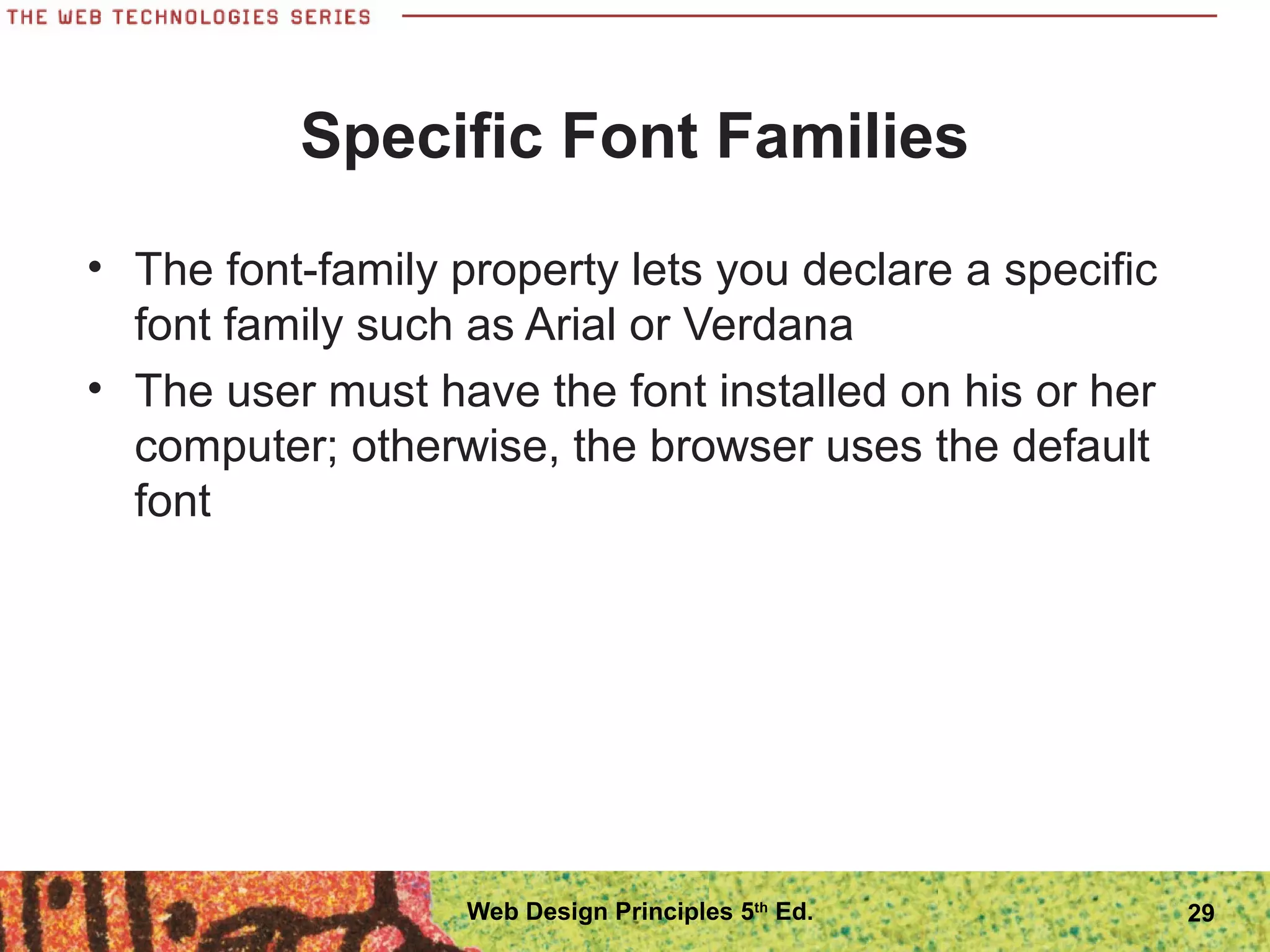

29. Specific Font Families
• The font-family property lets you declare a specific
font family such as Arial or Verdana
• The user must have the font installed on his or her
computer; otherwise, the browser uses the default
font
29Web Design Principles 5th
Ed.

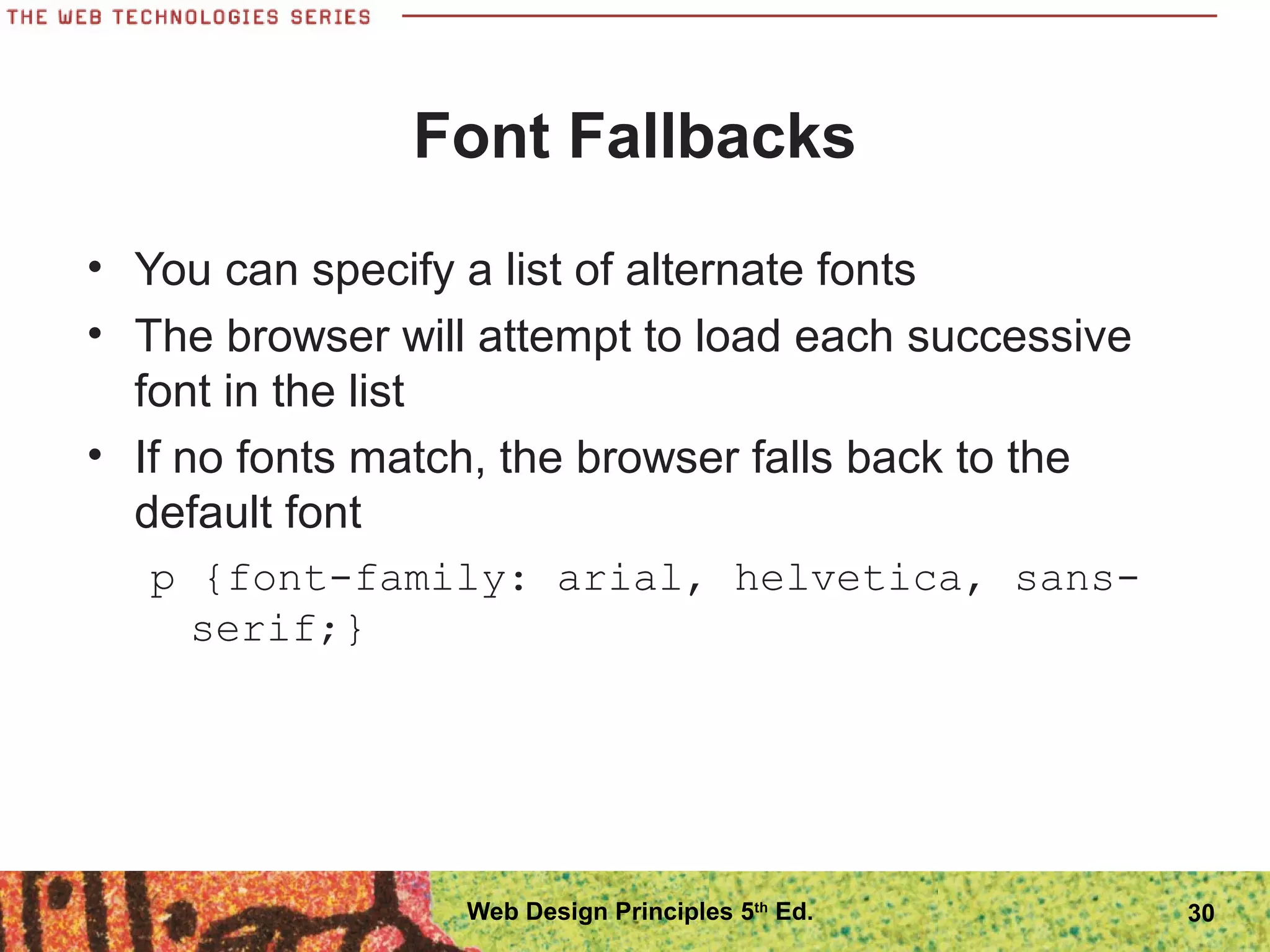

30. Font Fallbacks
• You can specify a list of alternate fonts
• The browser will attempt to load each successive
font in the list
• If no fonts match, the browser falls back to the
default font
p {font-family: arial, helvetica, sans-
serif;}
30Web Design Principles 5th
Ed.

31. Specifying Font Face
• The @font-face property lets you specify a font to
be downloaded
• In the style sheet:
@font-face {font-family: Generica;
src: url(http://www.generic.com/fonts/generica.ttf)}
• In the document:
h1 {font-family: generica, serif;}
31Web Design Principles 5th
Ed.

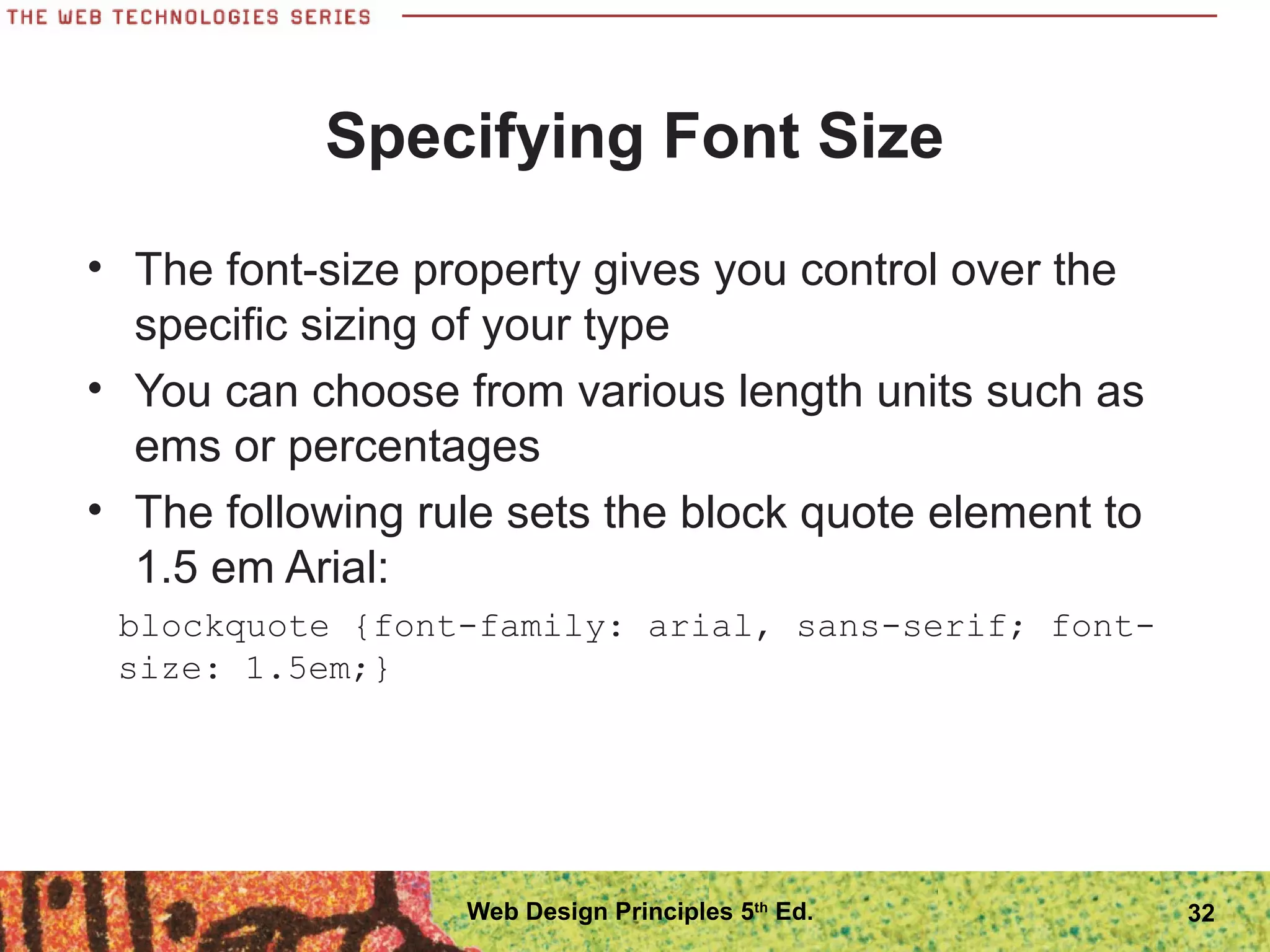

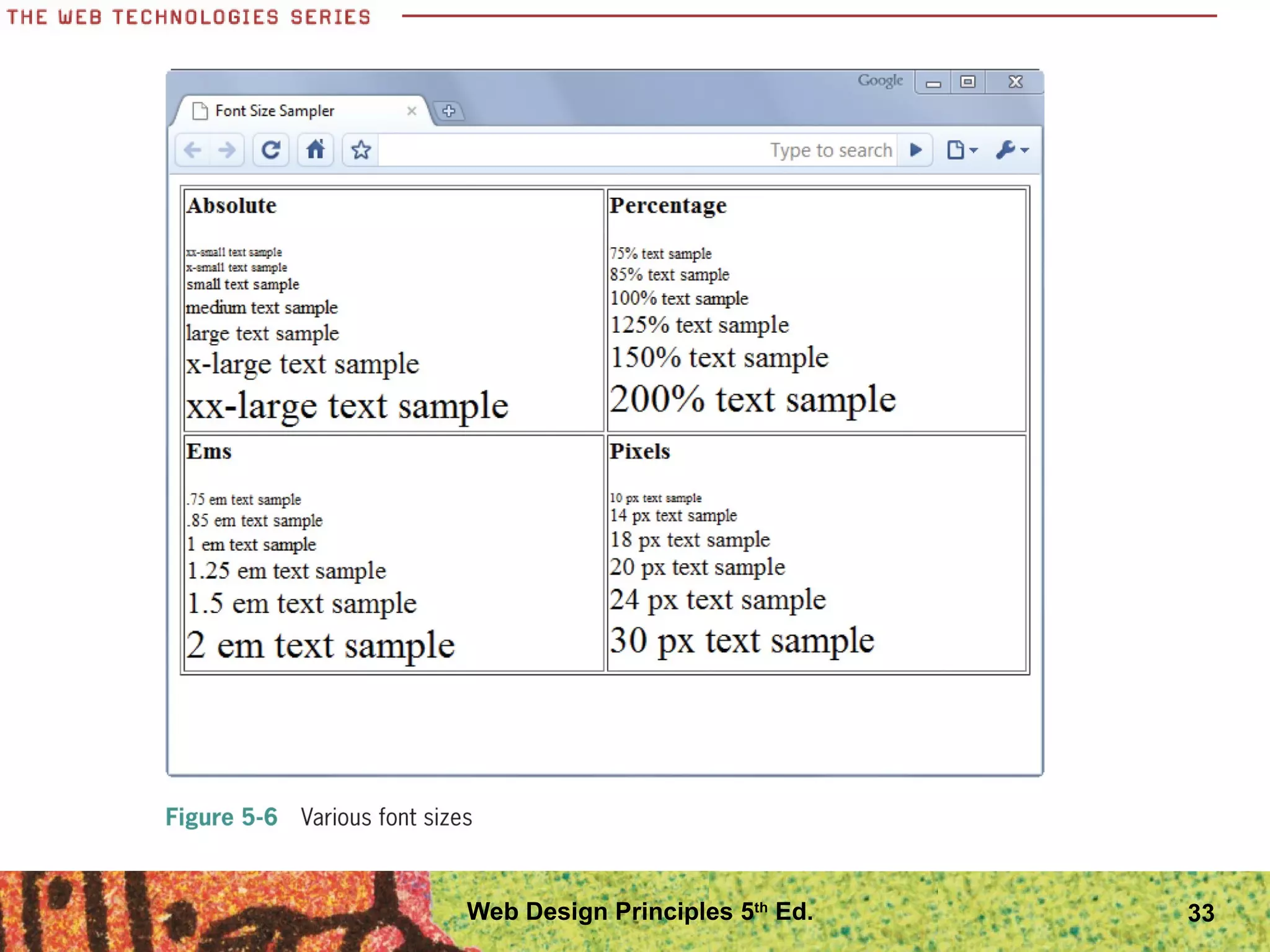

32. Specifying Font Size
• The font-size property gives you control over the
specific sizing of your type
• You can choose from various length units such as
ems or percentages
• The following rule sets the block quote element to
1.5 em Arial:
blockquote {font-family: arial, sans-serif; font-
size: 1.5em;}
32Web Design Principles 5th
Ed.

33. 33Web Design Principles 5th
Ed.

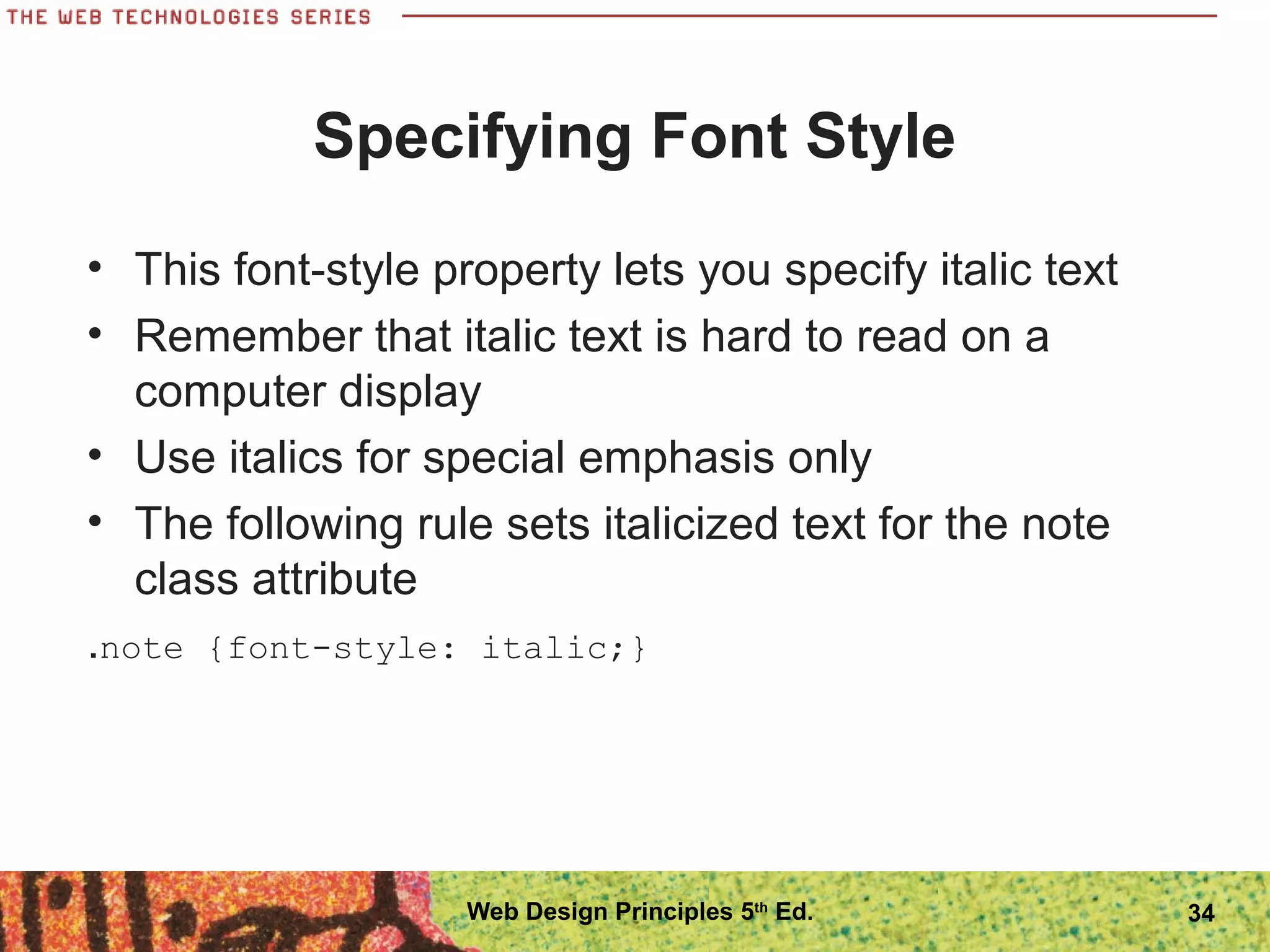

34. Specifying Font Style
• This font-style property lets you specify italic text
• Remember that italic text is hard to read on a
computer display
• Use italics for special emphasis only
• The following rule sets italicized text for the note
class attribute
.note {font-style: italic;}
34Web Design Principles 5th
Ed.

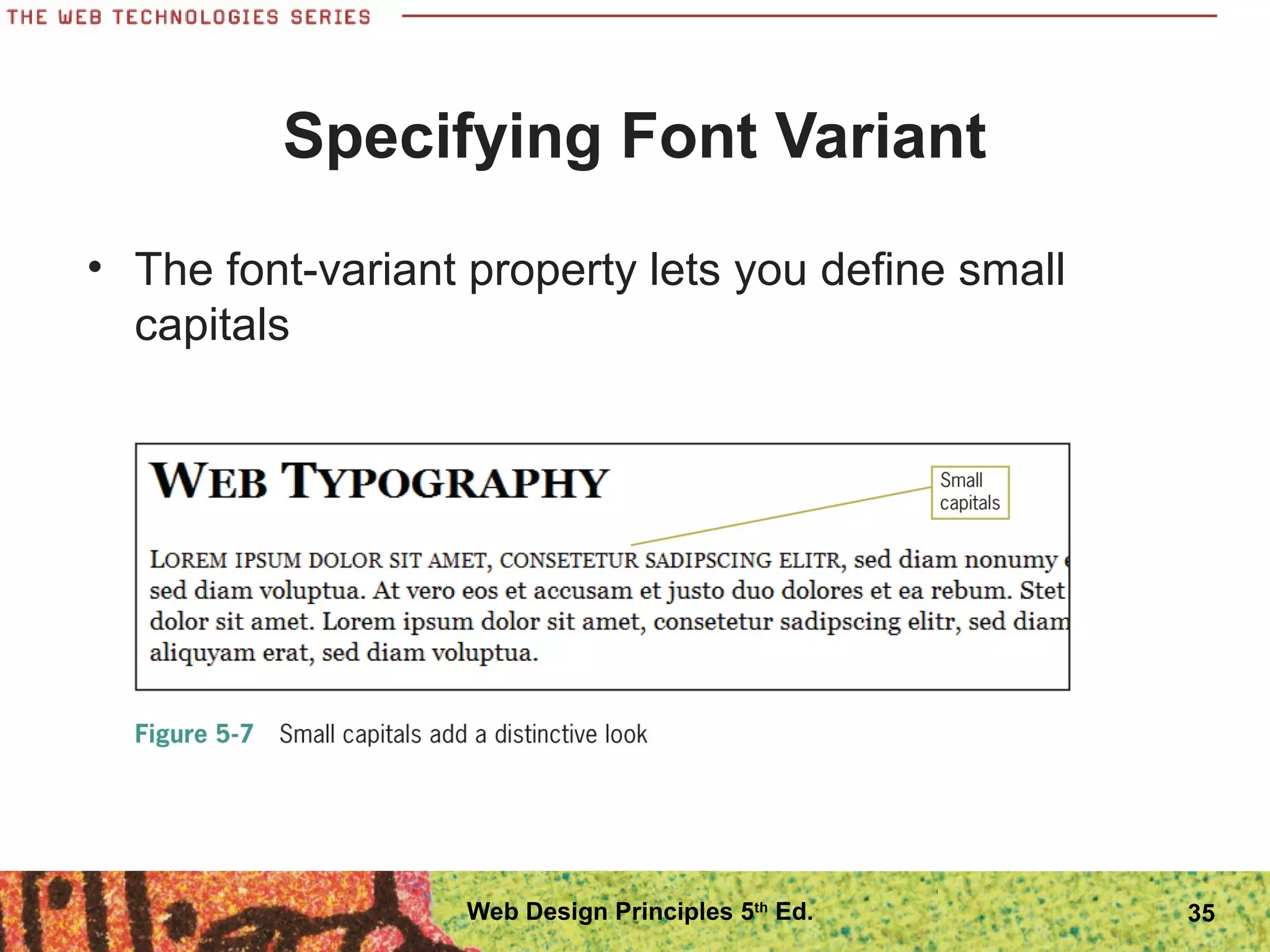

35. Specifying Font Variant
• The font-variant property lets you define small
capitals
35Web Design Principles 5th
Ed.

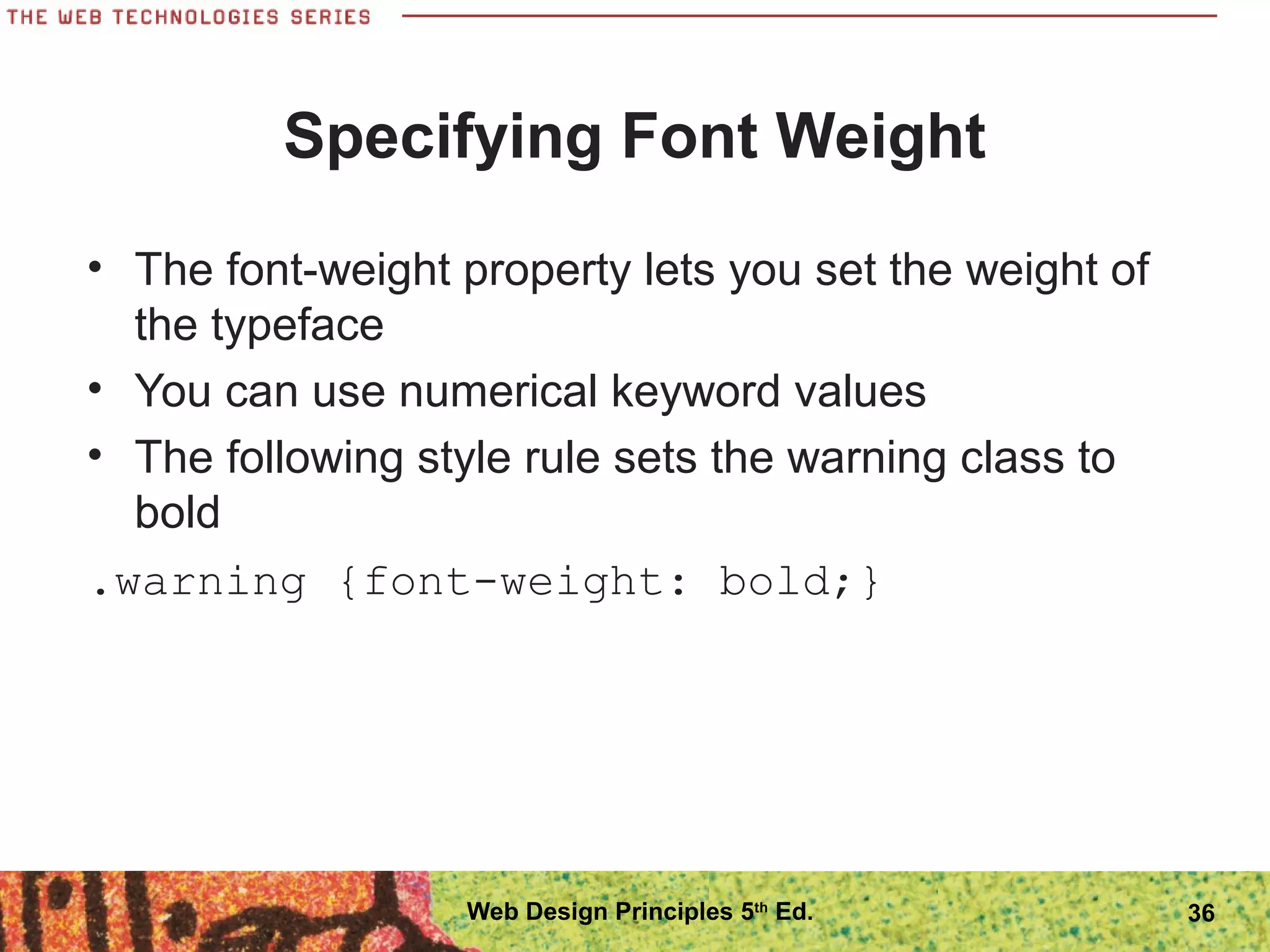

36. Specifying Font Weight
• The font-weight property lets you set the weight of
the typeface
• You can use numerical keyword values
• The following style rule sets the warning class to
bold
.warning {font-weight: bold;}
36Web Design Principles 5th
Ed.

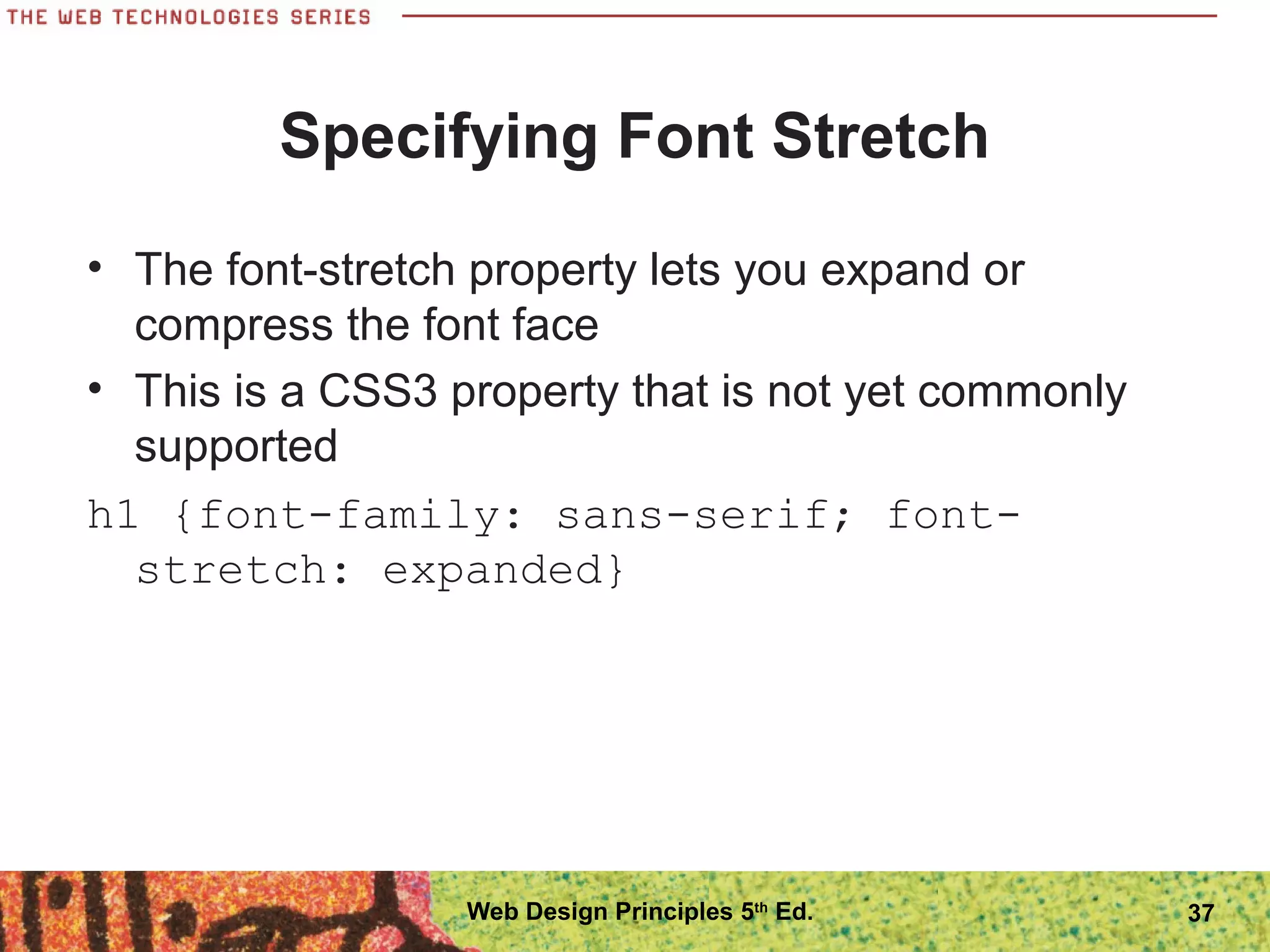

37. Specifying Font Stretch
• The font-stretch property lets you expand or
compress the font face
• This is a CSS3 property that is not yet commonly
supported
h1 {font-family: sans-serif; font-
stretch: expanded}
37Web Design Principles 5th
Ed.

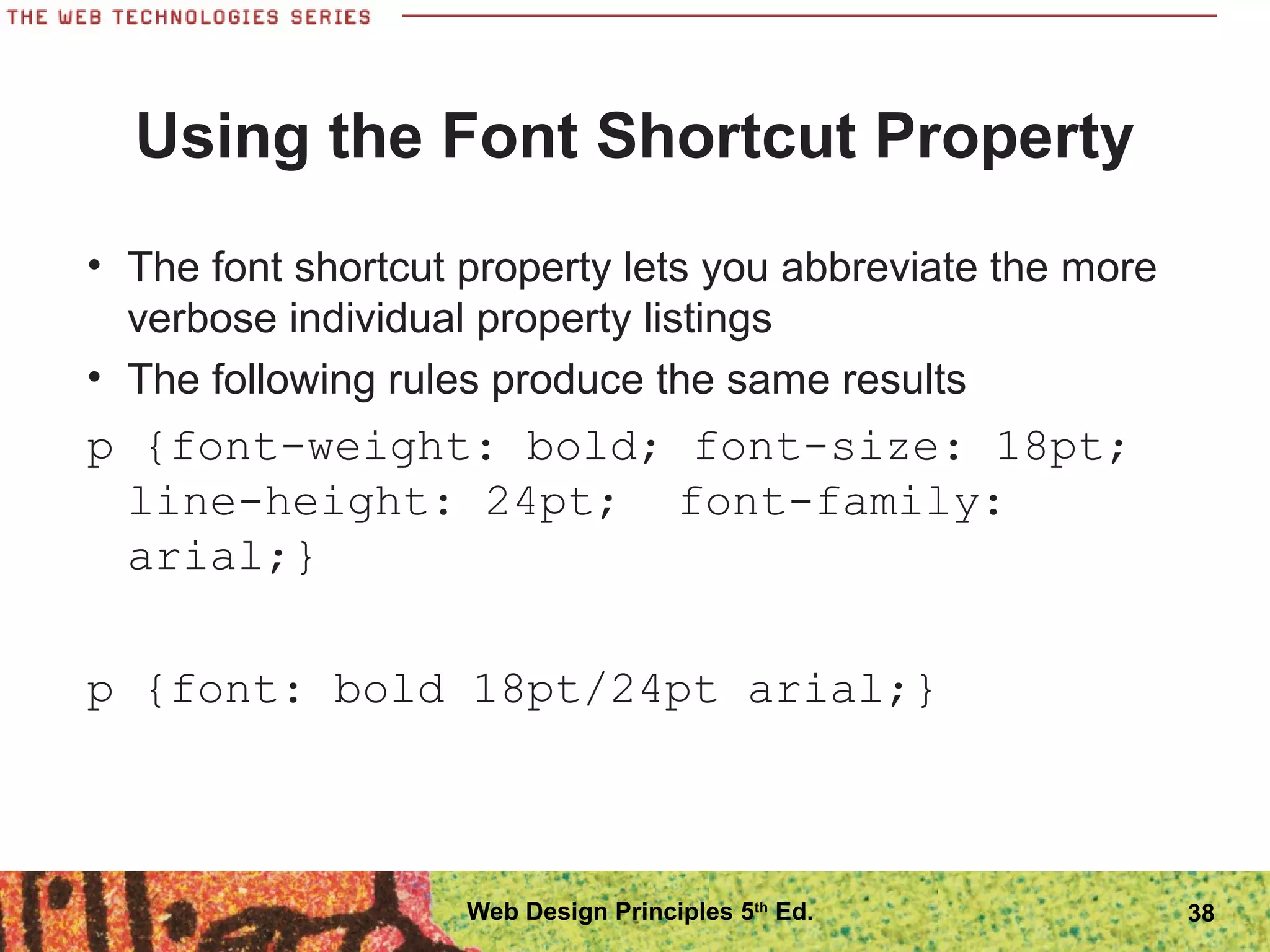

38. Using the Font Shortcut Property
• The font shortcut property lets you abbreviate the more
verbose individual property listings
• The following rules produce the same results
p {font-weight: bold; font-size: 18pt;
line-height: 24pt; font-family:
arial;}
p {font: bold 18pt/24pt arial;}
38Web Design Principles 5th
Ed.

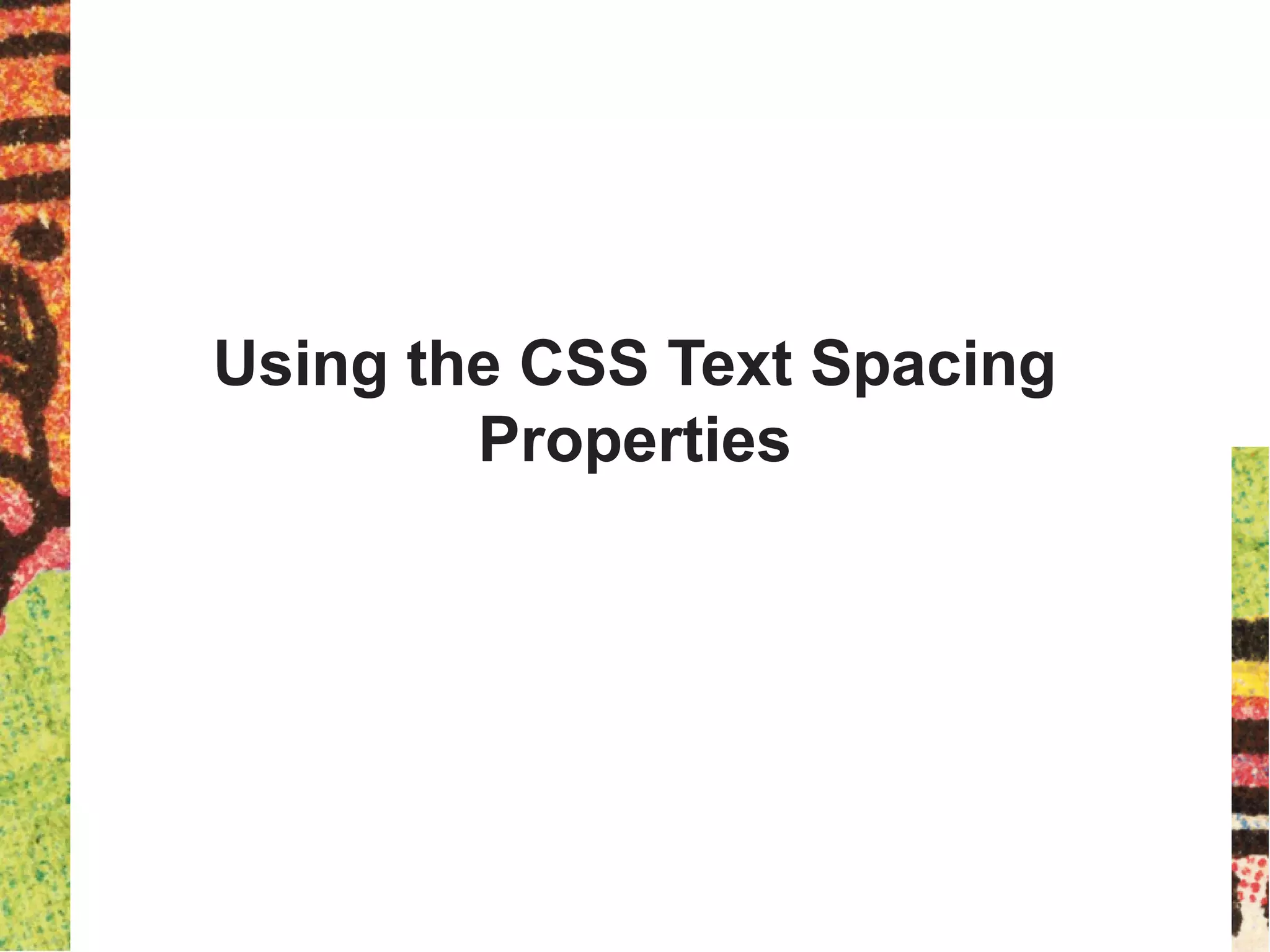

39. Using the CSS Text Spacing
Properties

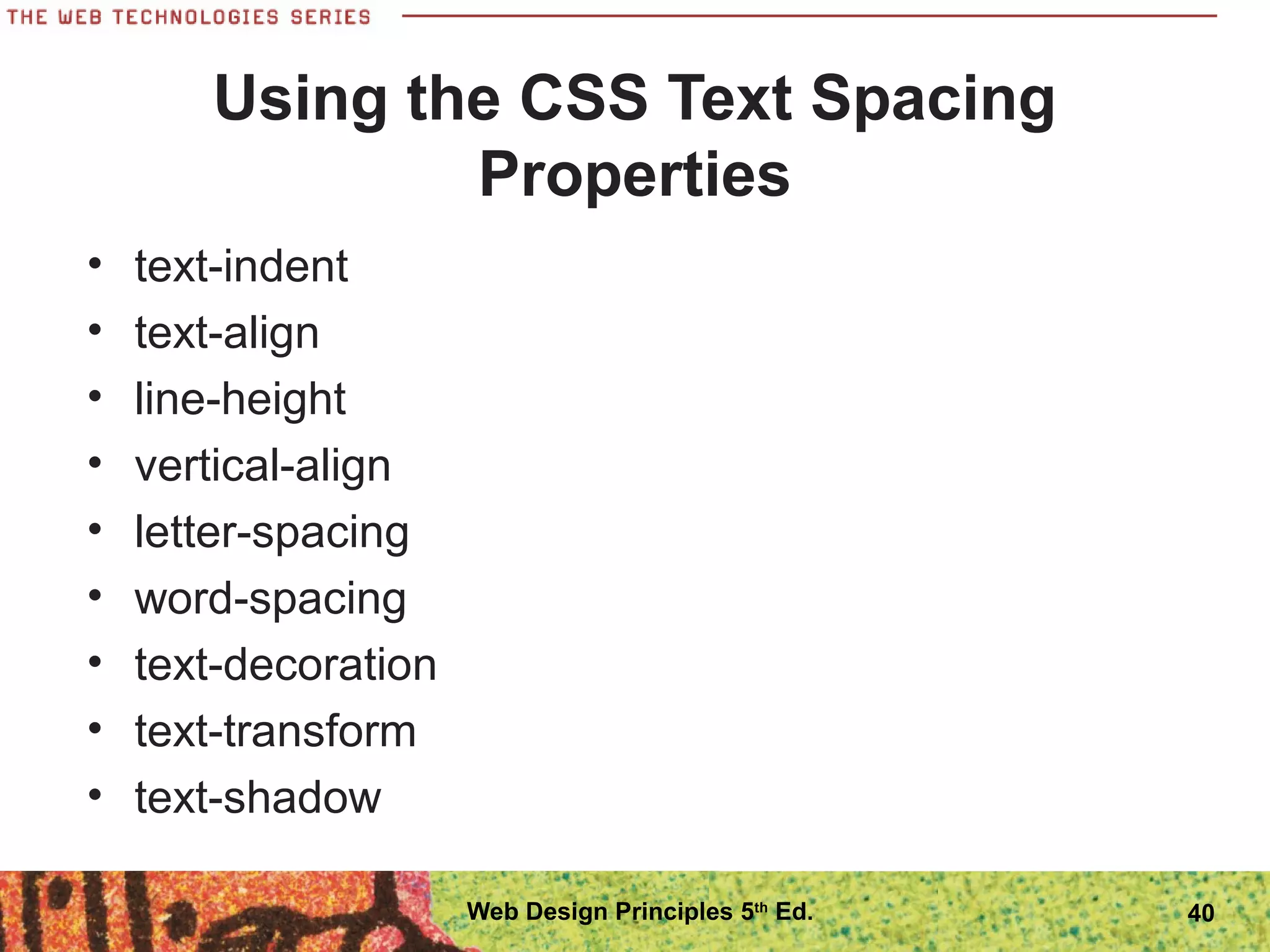

40. Using the CSS Text Spacing
Properties
• text-indent
• text-align
• line-height
• vertical-align
• letter-spacing
• word-spacing
• text-decoration
• text-transform
• text-shadow
40Web Design Principles 5th
Ed.

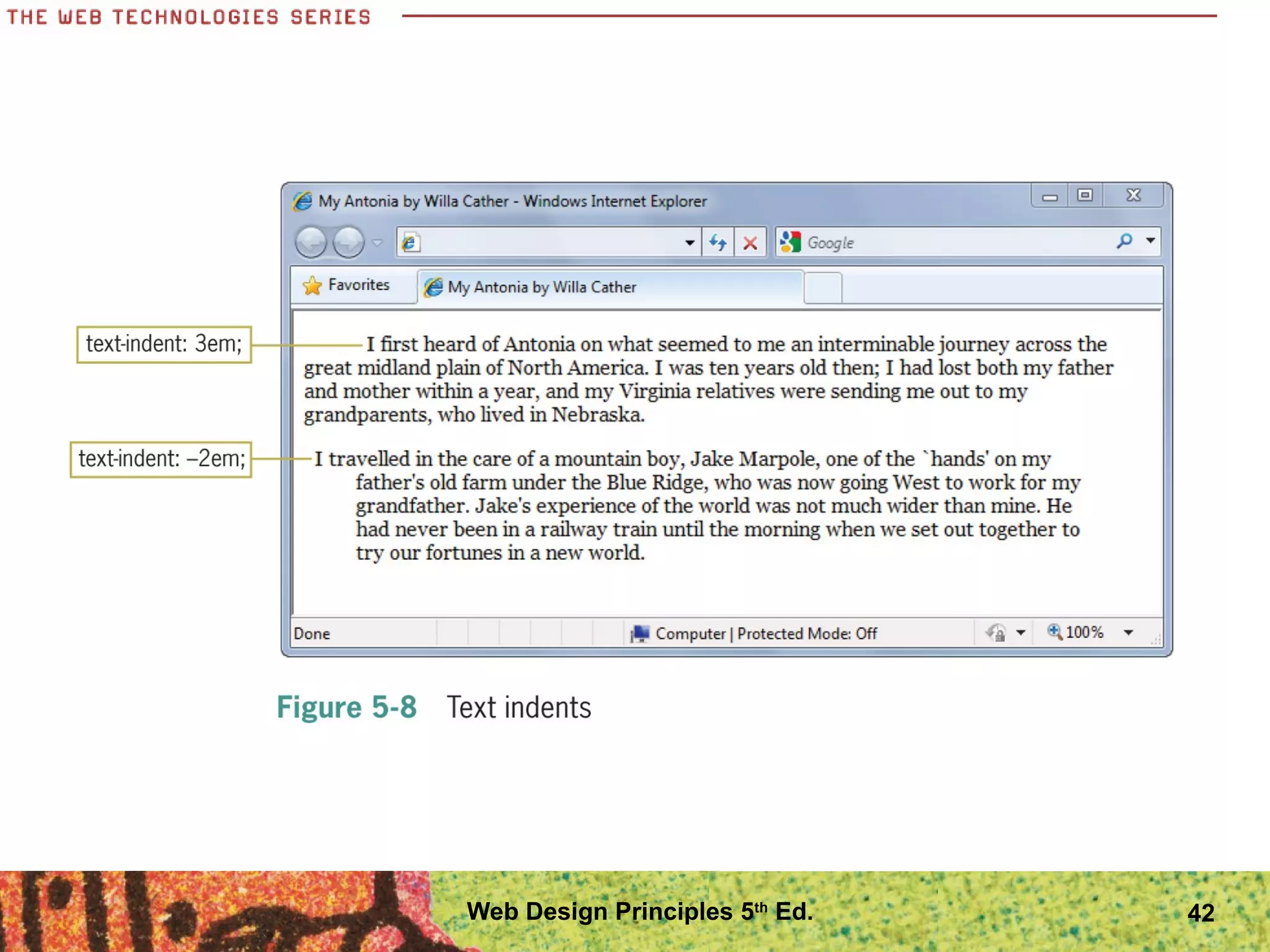

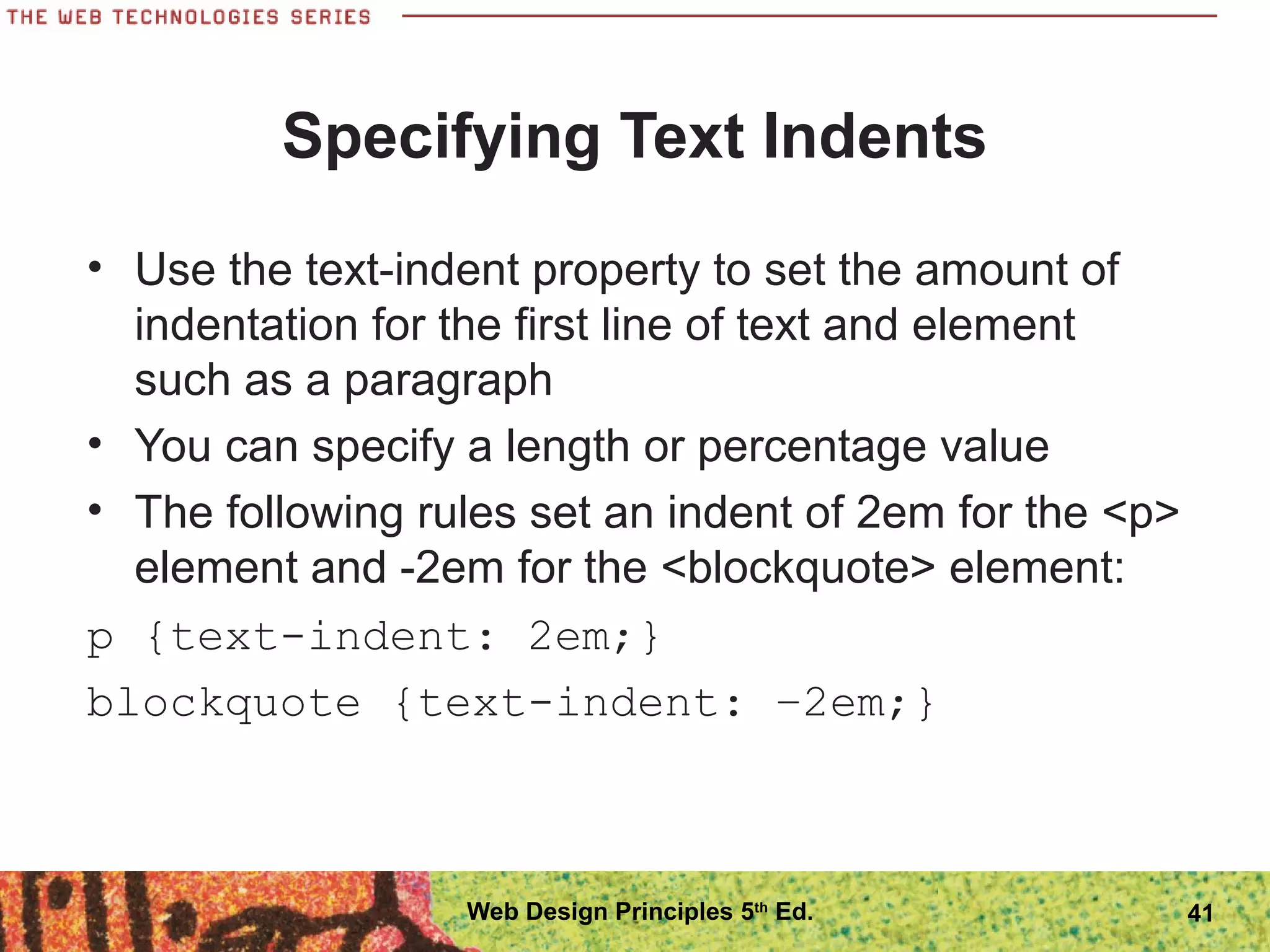

41. Specifying Text Indents
• Use the text-indent property to set the amount of
indentation for the first line of text and element
such as a paragraph
• You can specify a length or percentage value
• The following rules set an indent of 2em for the <p>
element and -2em for the <blockquote> element:
p {text-indent: 2em;}
blockquote {text-indent: −2em;}
41Web Design Principles 5th
Ed.

42. 42Web Design Principles 5th
Ed.

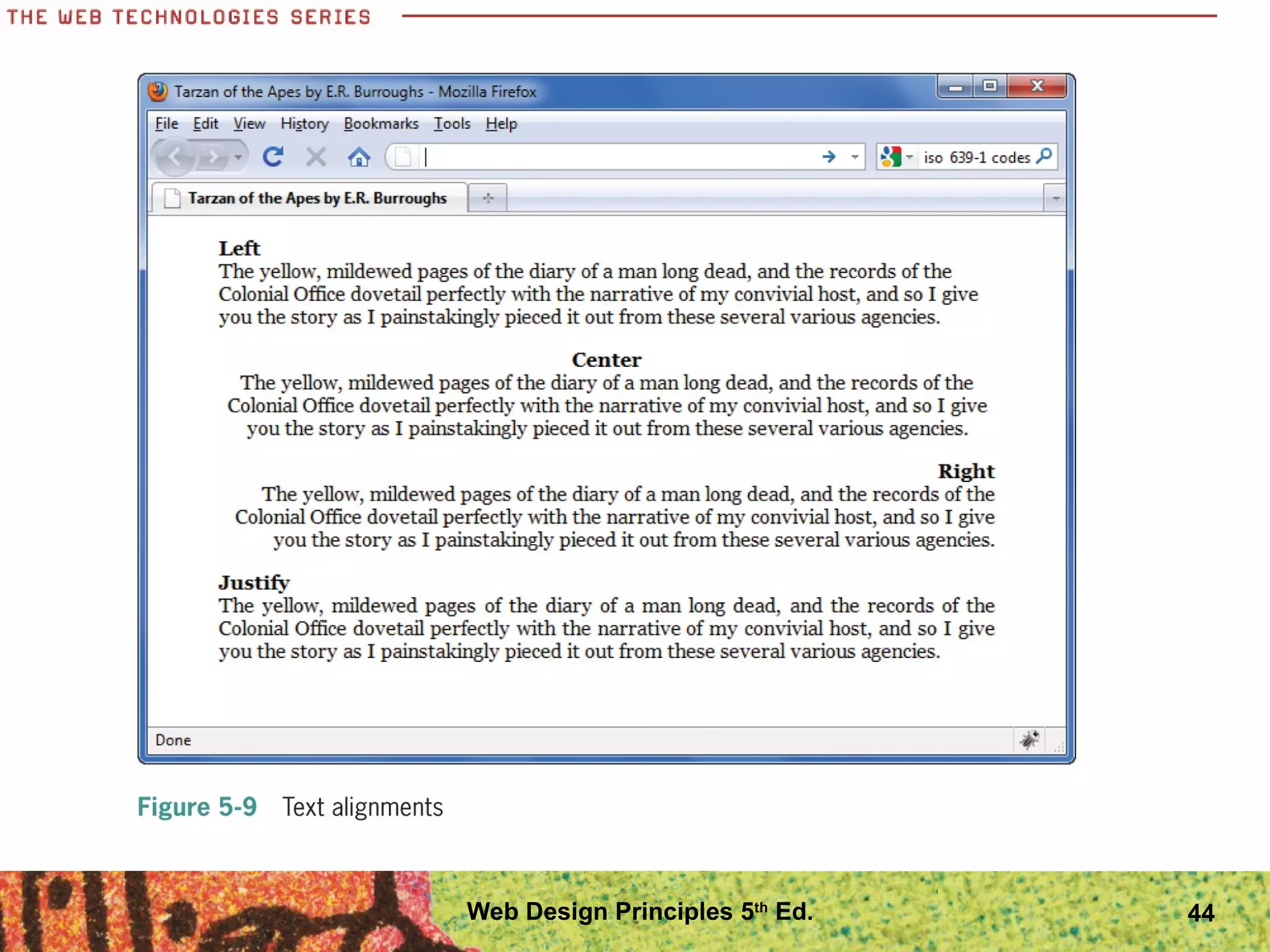

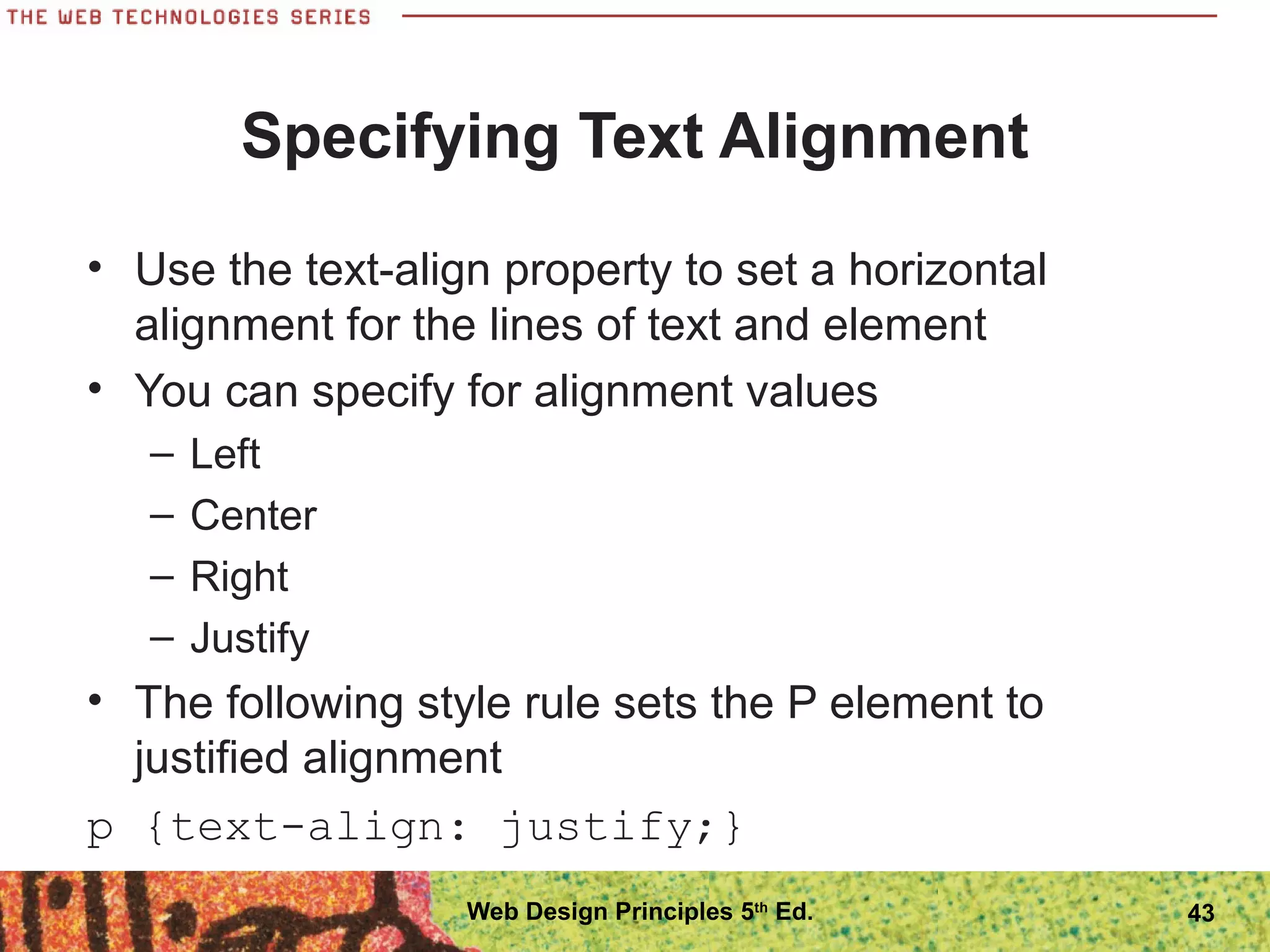

43. Specifying Text Alignment
• Use the text-align property to set a horizontal
alignment for the lines of text and element
• You can specify for alignment values
– Left
– Center
– Right
– Justify
• The following style rule sets the P element to
justified alignment
p {text-align: justify;}
43Web Design Principles 5th
Ed.

44. 44Web Design Principles 5th
Ed.

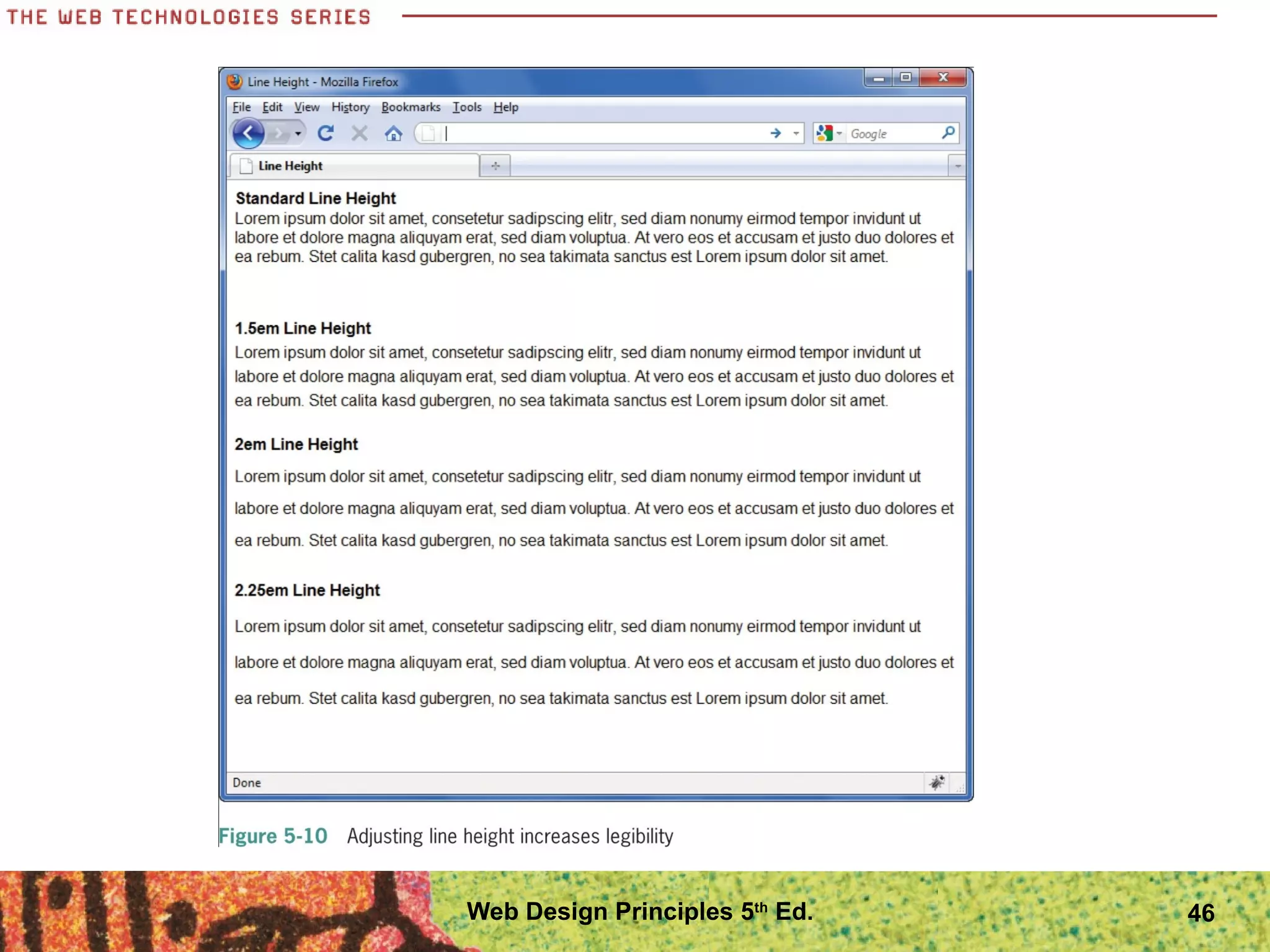

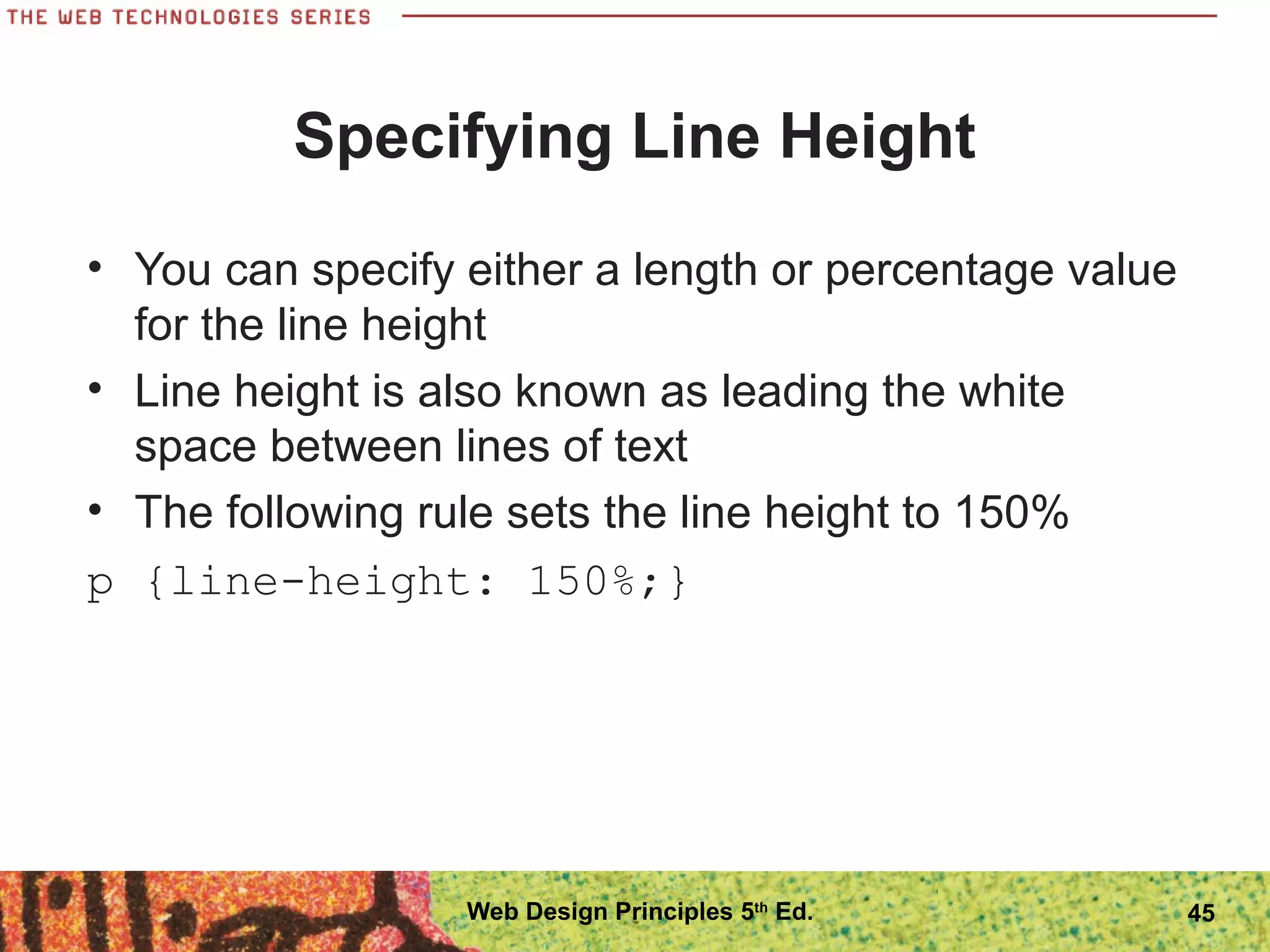

45. Specifying Line Height
• You can specify either a length or percentage value
for the line height
• Line height is also known as leading the white
space between lines of text
• The following rule sets the line height to 150%
p {line-height: 150%;}
45Web Design Principles 5th
Ed.

46. 46Web Design Principles 5th
Ed.

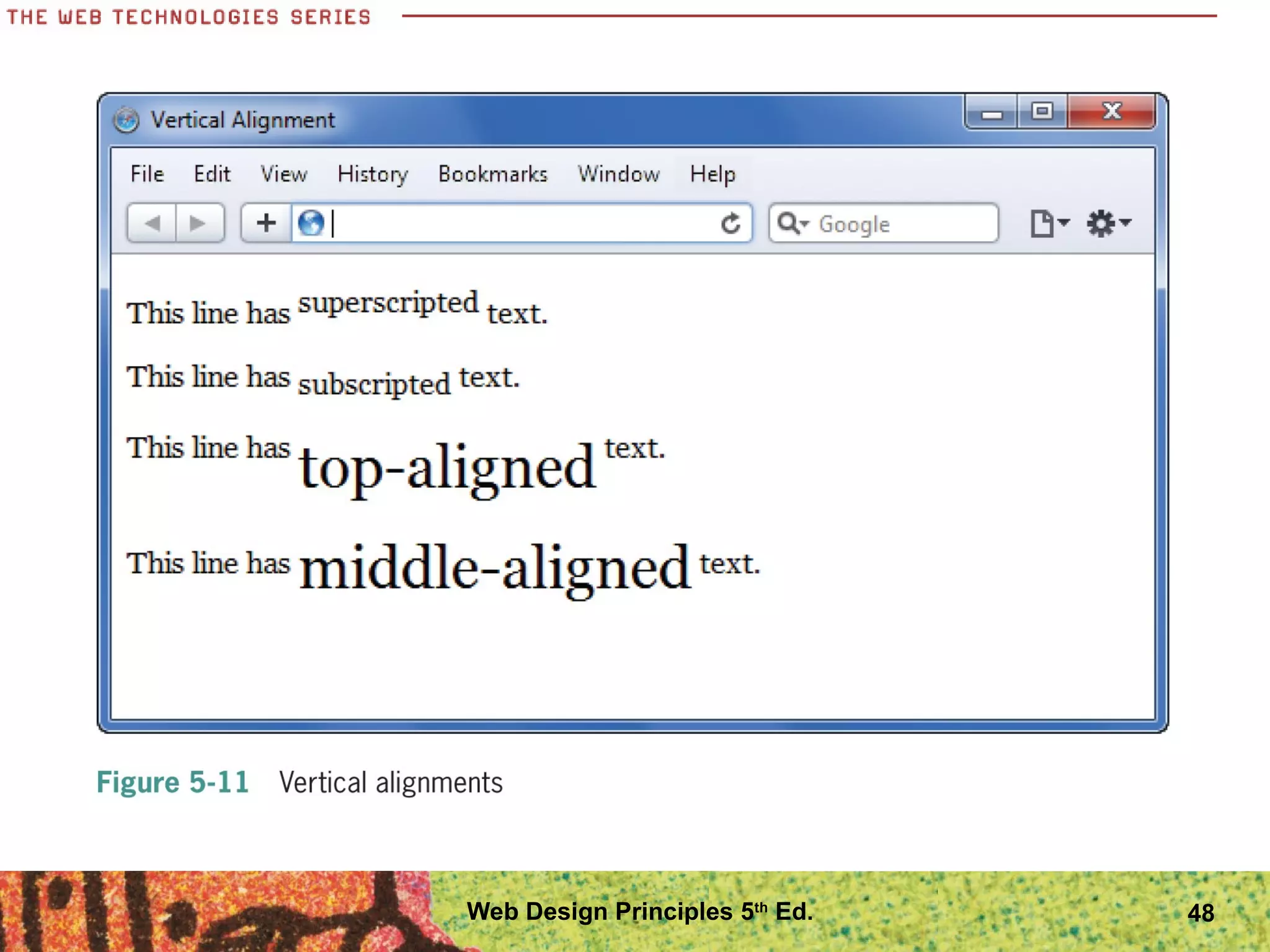

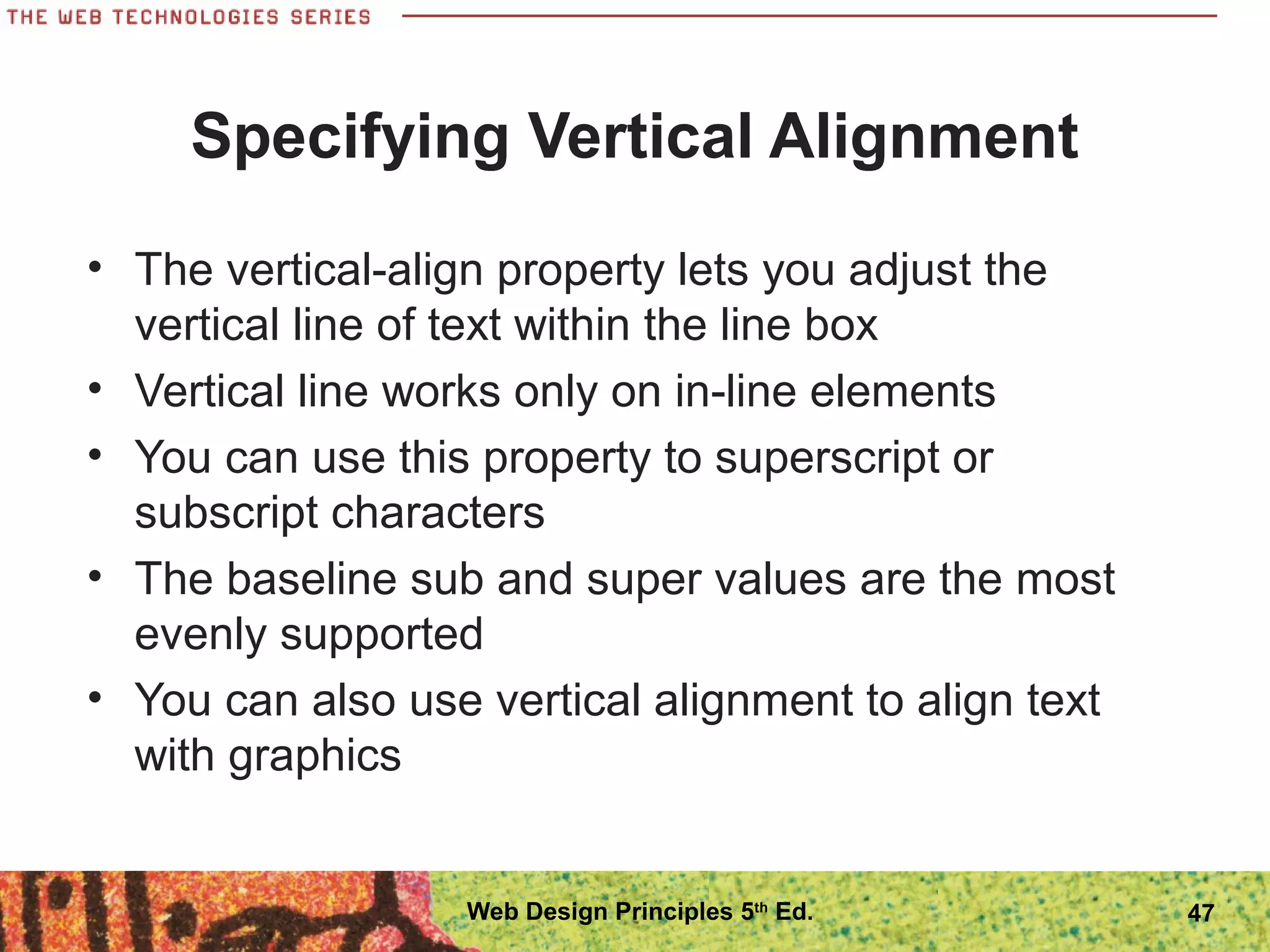

47. Specifying Vertical Alignment
• The vertical-align property lets you adjust the
vertical line of text within the line box
• Vertical line works only on in-line elements
• You can use this property to superscript or
subscript characters
• The baseline sub and super values are the most
evenly supported

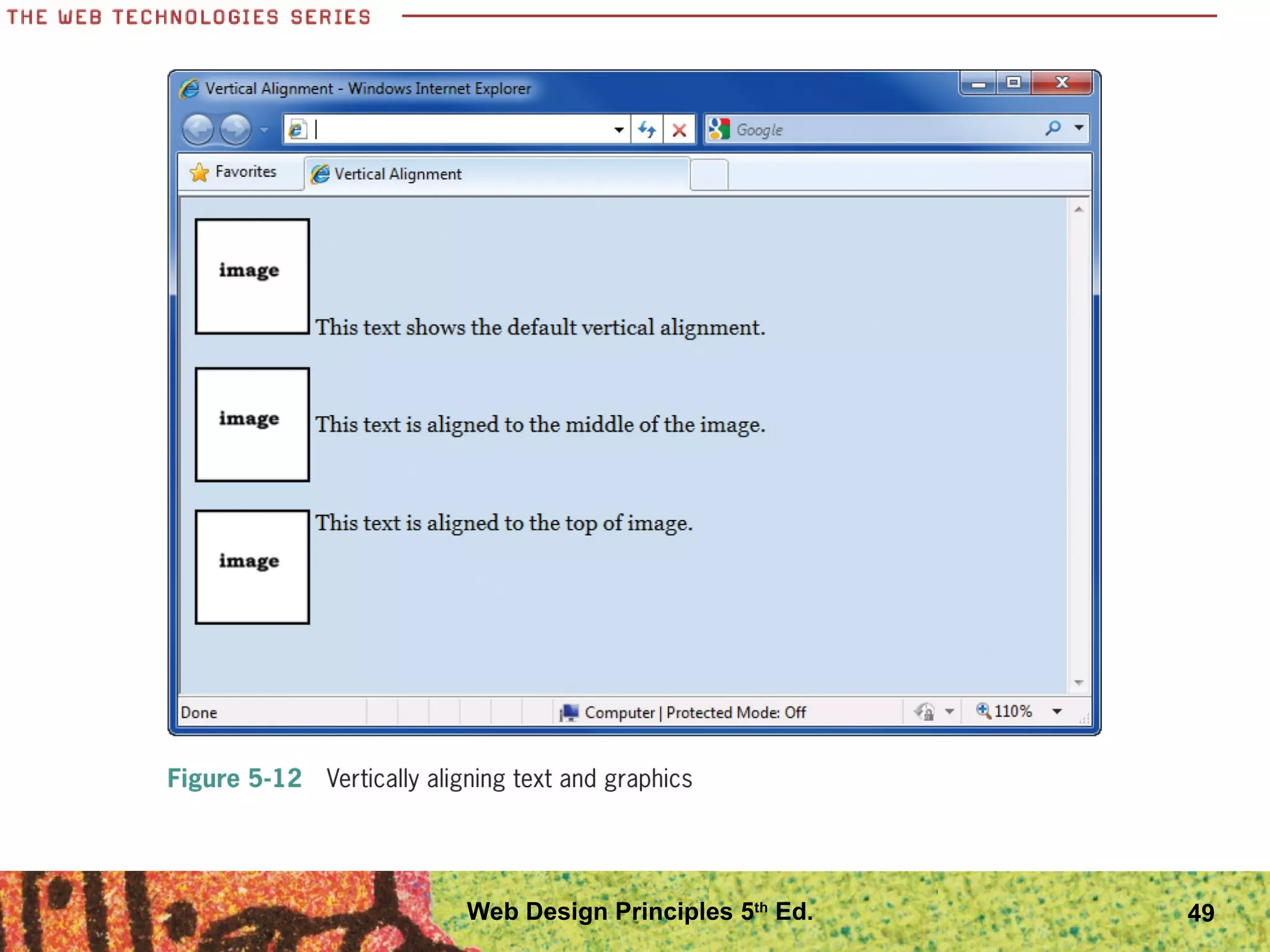

• You can also use vertical alignment to align text
with graphics
47Web Design Principles 5th
Ed.

48. 48Web Design Principles 5th
Ed.

49. 49Web Design Principles 5th
Ed.

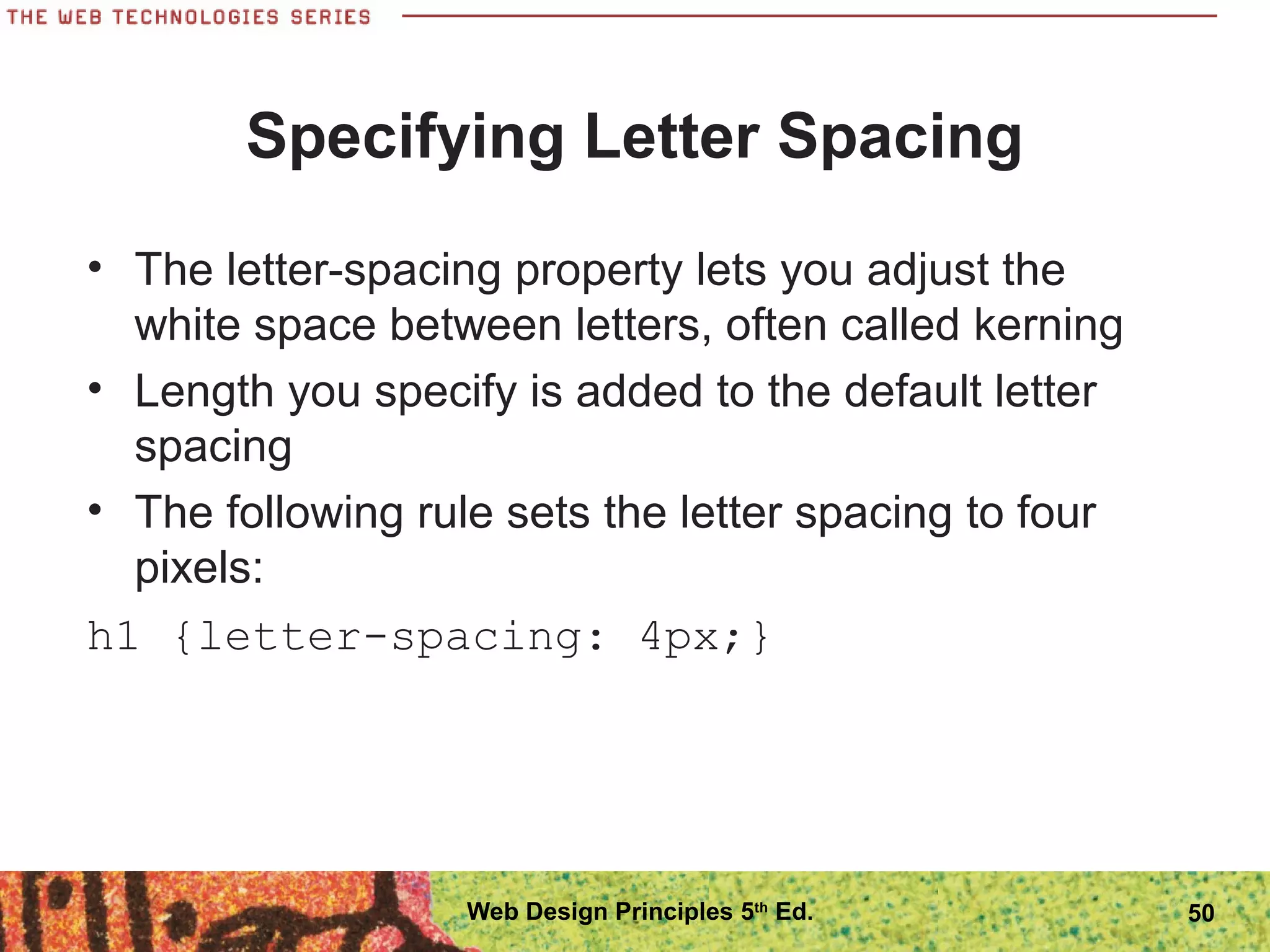

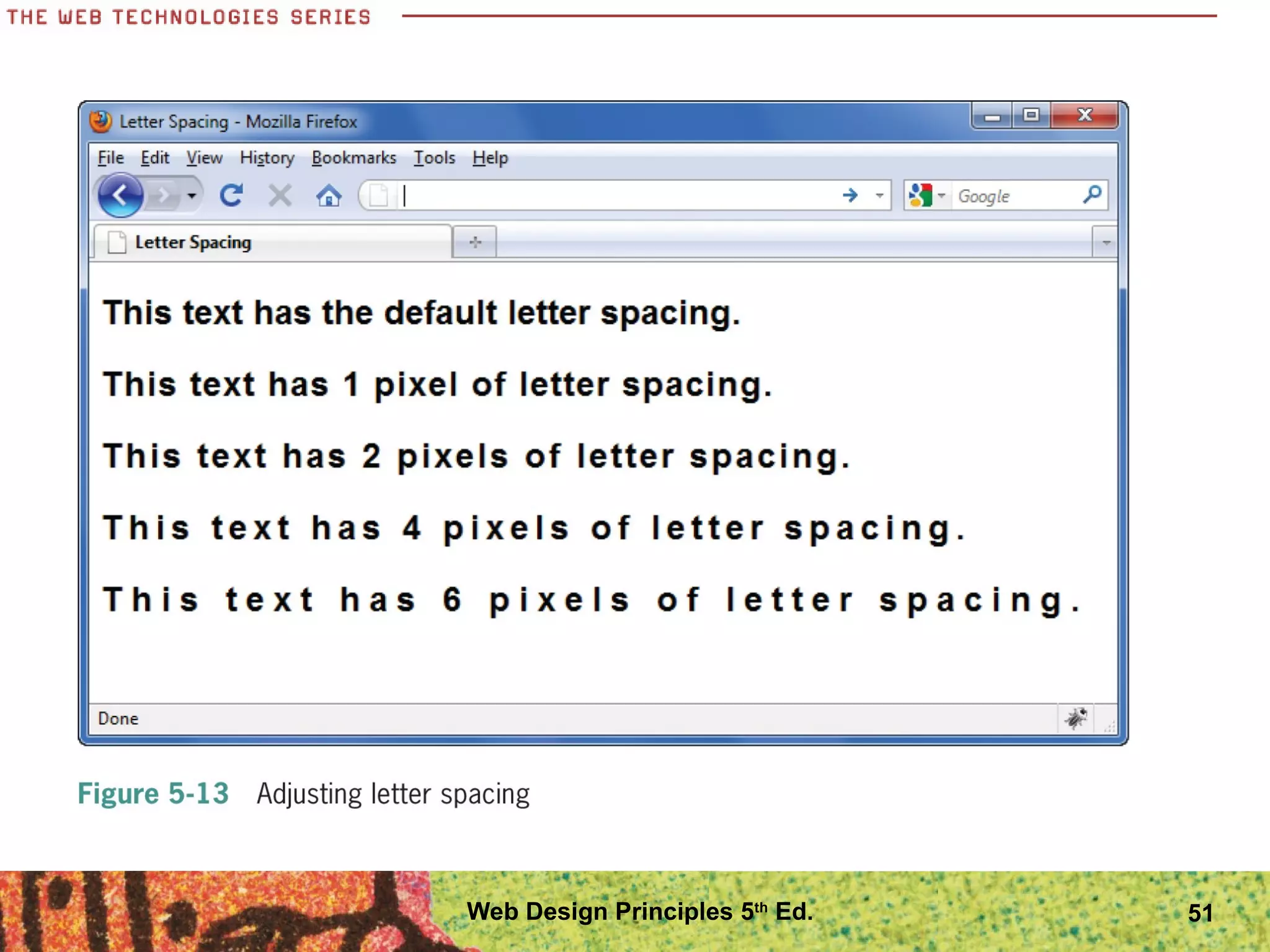

50. Specifying Letter Spacing
• The letter-spacing property lets you adjust the
white space between letters, often called kerning
• Length you specify is added to the default letter
spacing
• The following rule sets the letter spacing to four
pixels:
h1 {letter-spacing: 4px;}
50Web Design Principles 5th
Ed.

51. 51Web Design Principles 5th
Ed.

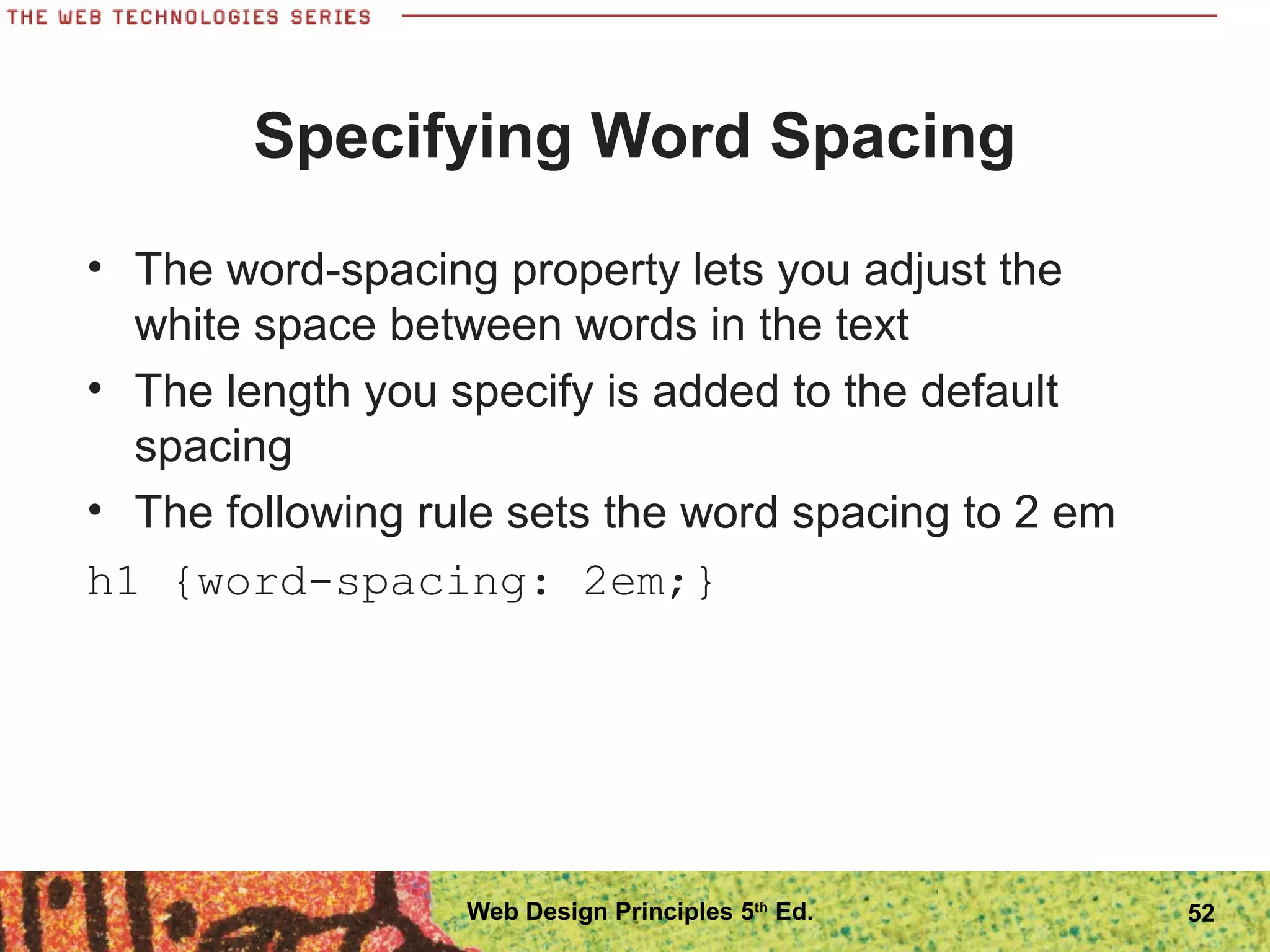

52. Specifying Word Spacing
• The word-spacing property lets you adjust the
white space between words in the text
• The length you specify is added to the default
spacing
• The following rule sets the word spacing to 2 em
h1 {word-spacing: 2em;}
52Web Design Principles 5th
Ed.

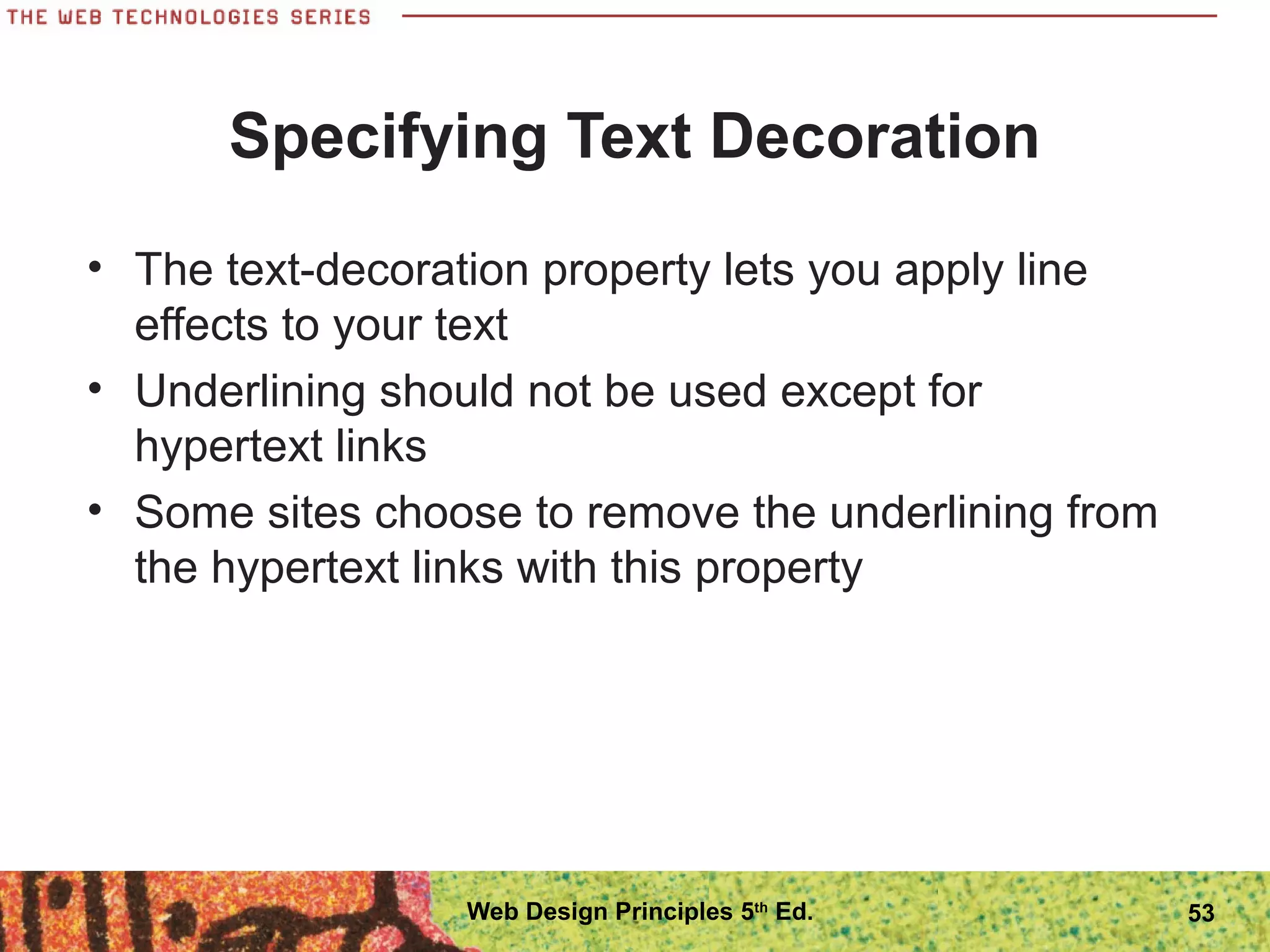

53. Specifying Text Decoration
• The text-decoration property lets you apply line
effects to your text
• Underlining should not be used except for
hypertext links
• Some sites choose to remove the underlining from
the hypertext links with this property
53Web Design Principles 5th
Ed.

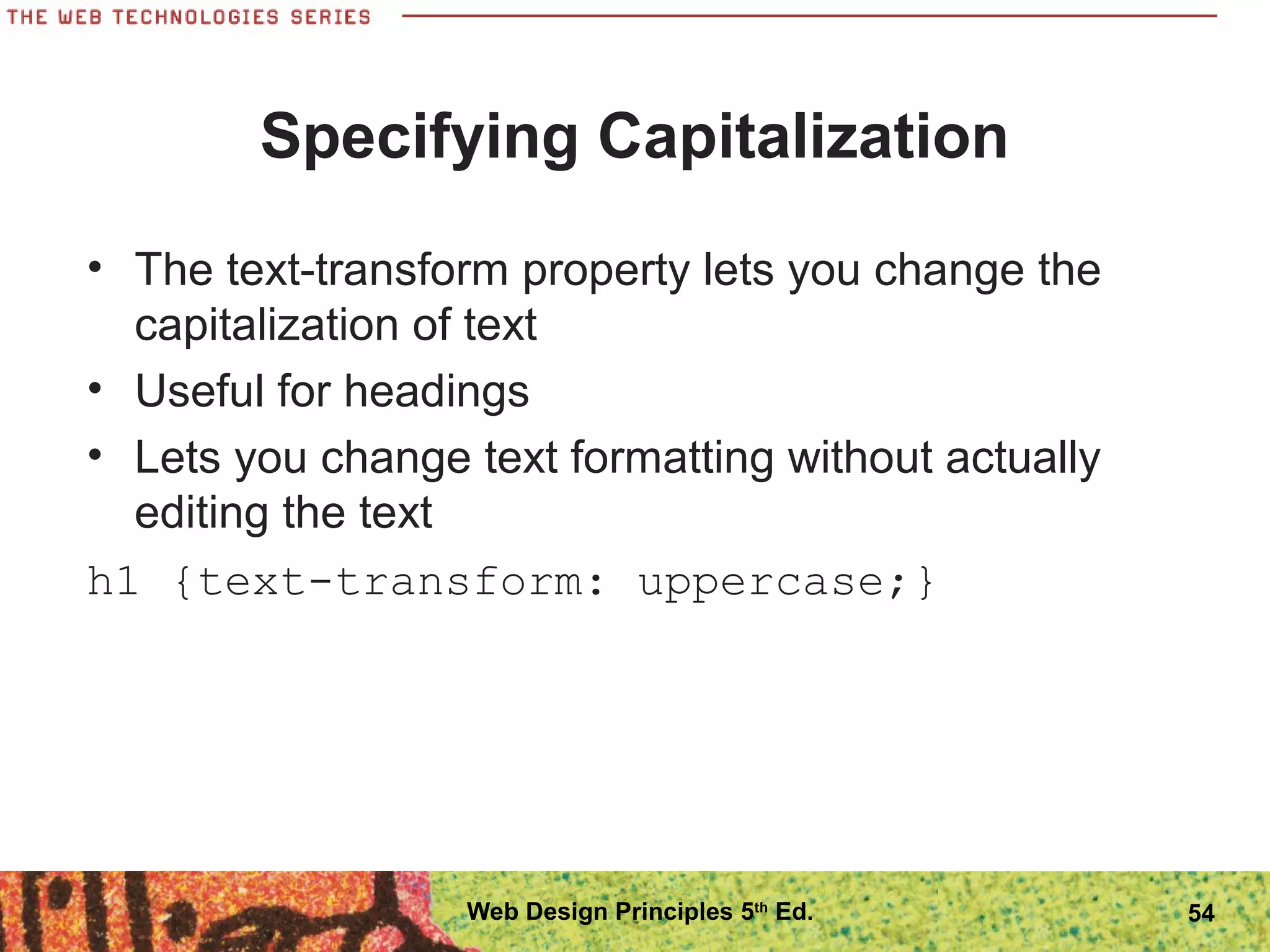

54. Specifying Capitalization
• The text-transform property lets you change the
capitalization of text
• Useful for headings
• Lets you change text formatting without actually
editing the text
h1 {text-transform: uppercase;}
54Web Design Principles 5th
Ed.

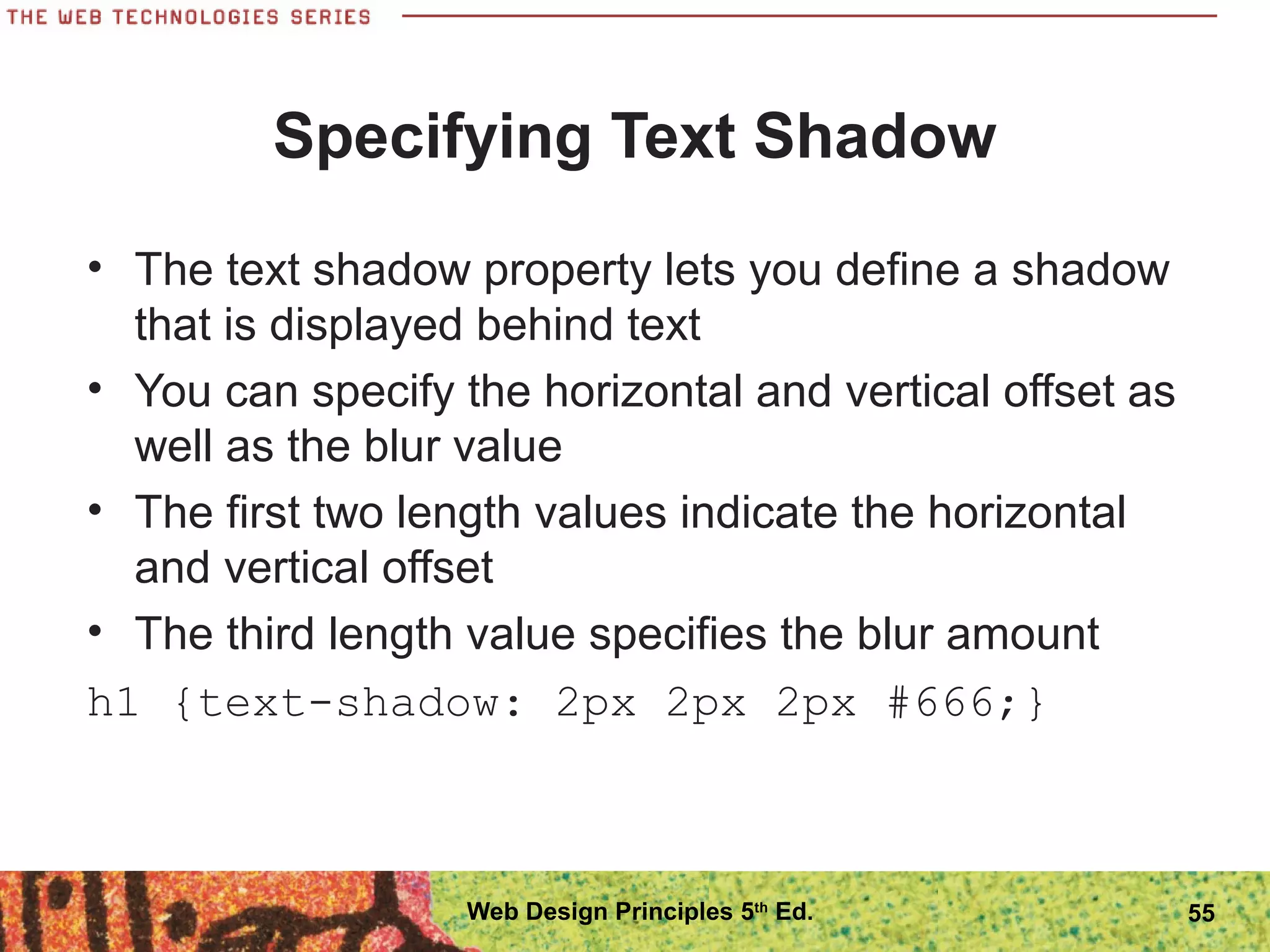

55. Specifying Text Shadow
• The text shadow property lets you define a shadow
that is displayed behind text
• You can specify the horizontal and vertical offset as
well as the blur value
• The first two length values indicate the horizontal
and vertical offset
• The third length value specifies the blur amount
h1 {text-shadow: 2px 2px 2px #666;}
55Web Design Principles 5th
Ed.

56. 56Web Design Principles 5th
Ed.

57. Customizing Bulleted and
Numbered Lists

58. Customizing Bulleted and
Numbered Lists
• The list-style properties let you control the visual
characteristics of bulleted and numbered lists
58Web Design Principles 5th
Ed.

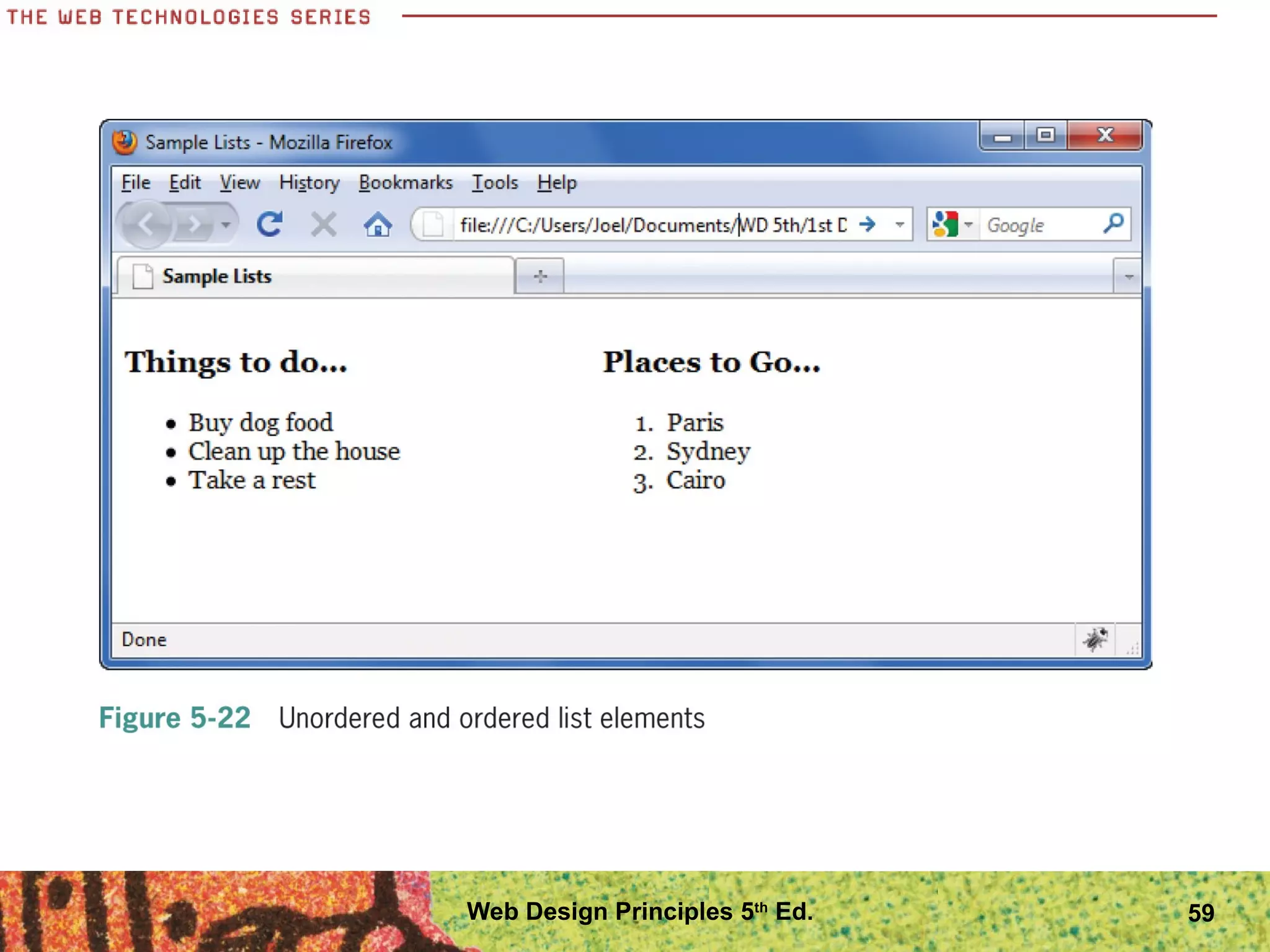

59. 59Web Design Principles 5th
Ed.

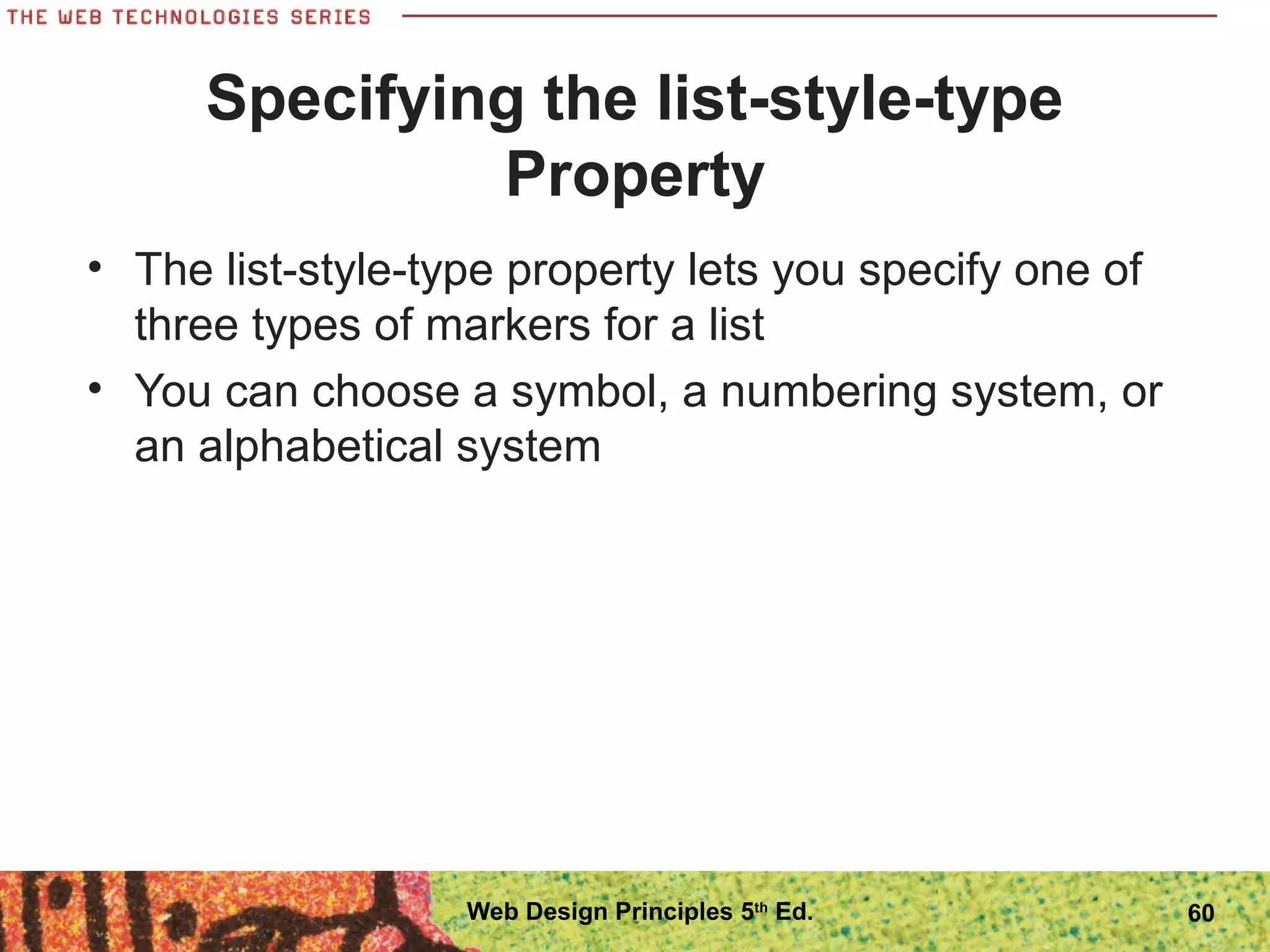

60. Specifying the list-style-type
Property
• The list-style-type property lets you specify one of
three types of markers for a list
• You can choose a symbol, a numbering system, or
an alphabetical system
60Web Design Principles 5th
Ed.

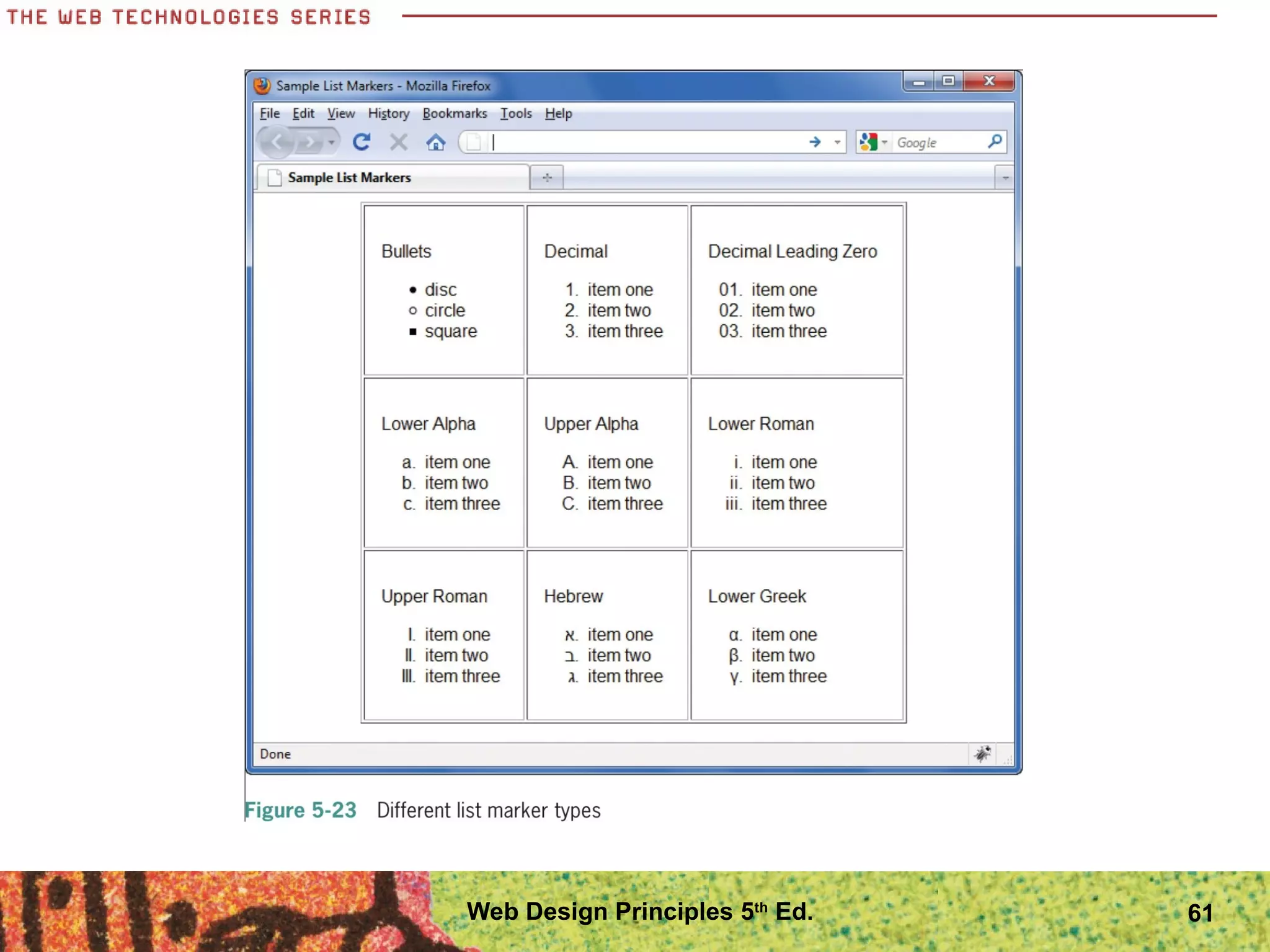

61. 61Web Design Principles 5th
Ed.

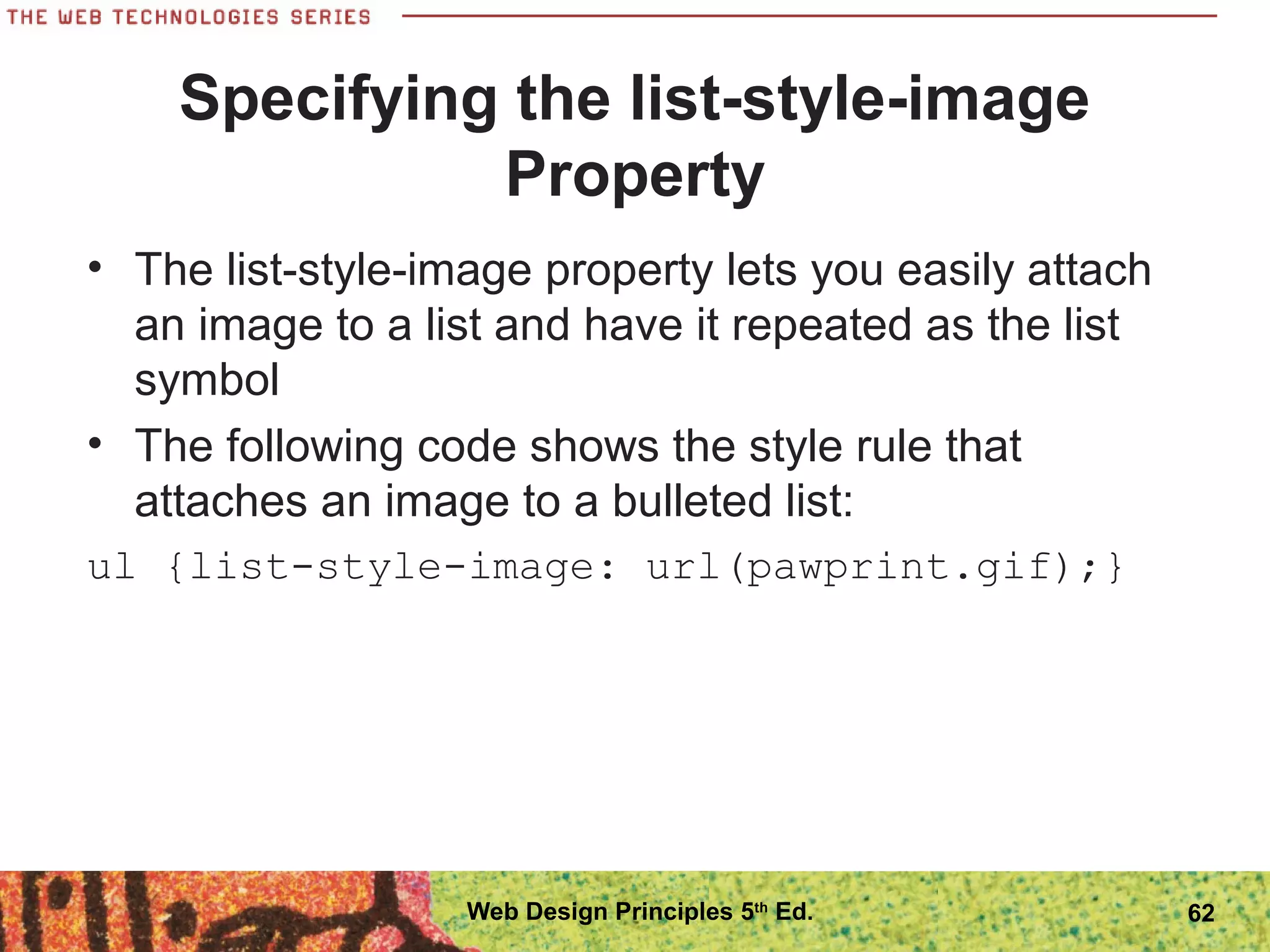

62. Specifying the list-style-image
Property
• The list-style-image property lets you easily attach
an image to a list and have it repeated as the list
symbol
• The following code shows the style rule that
attaches an image to a bulleted list:
ul {list-style-image: url(pawprint.gif);}
62Web Design Principles 5th
Ed.

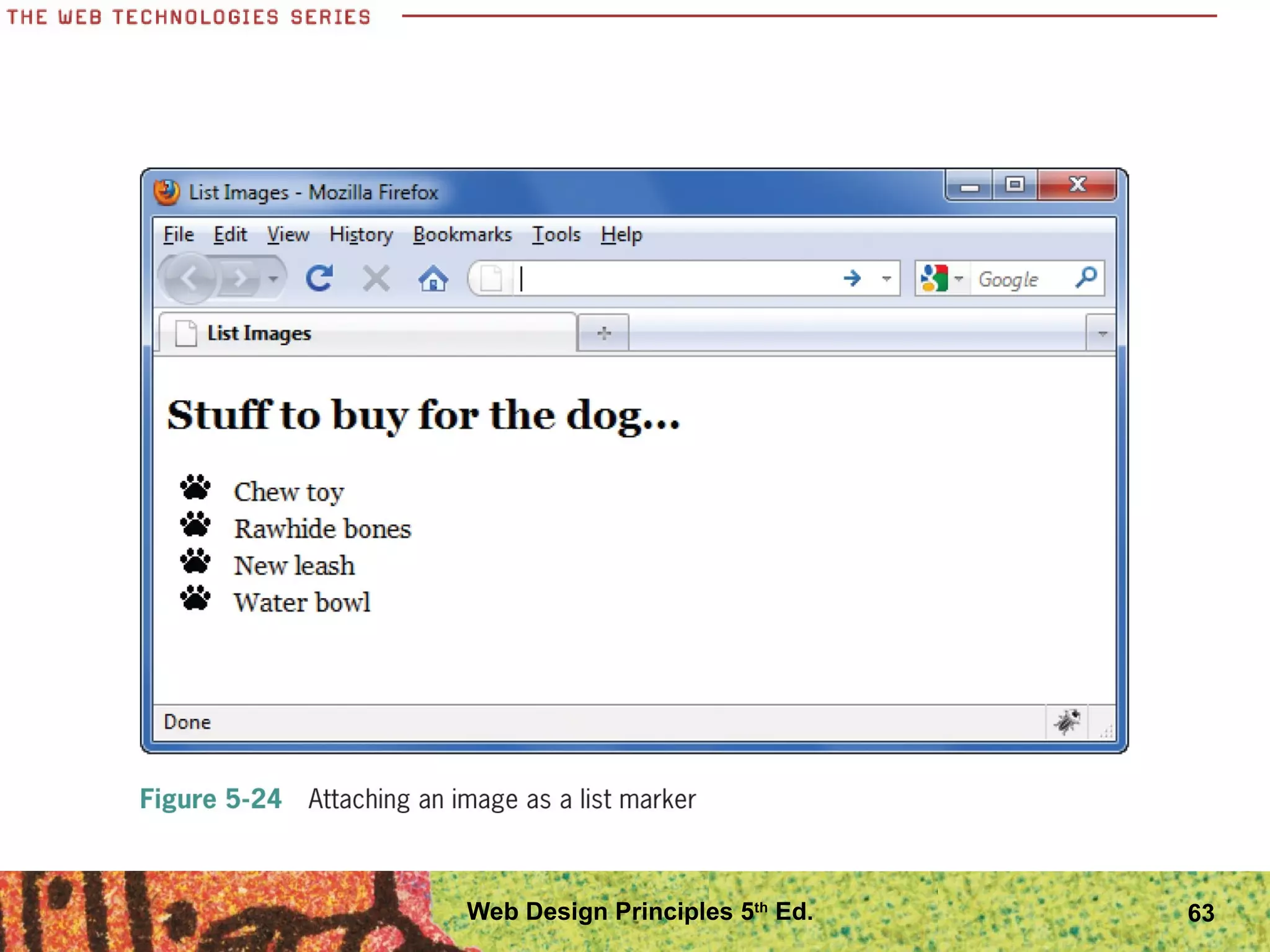

63. 63Web Design Principles 5th
Ed.

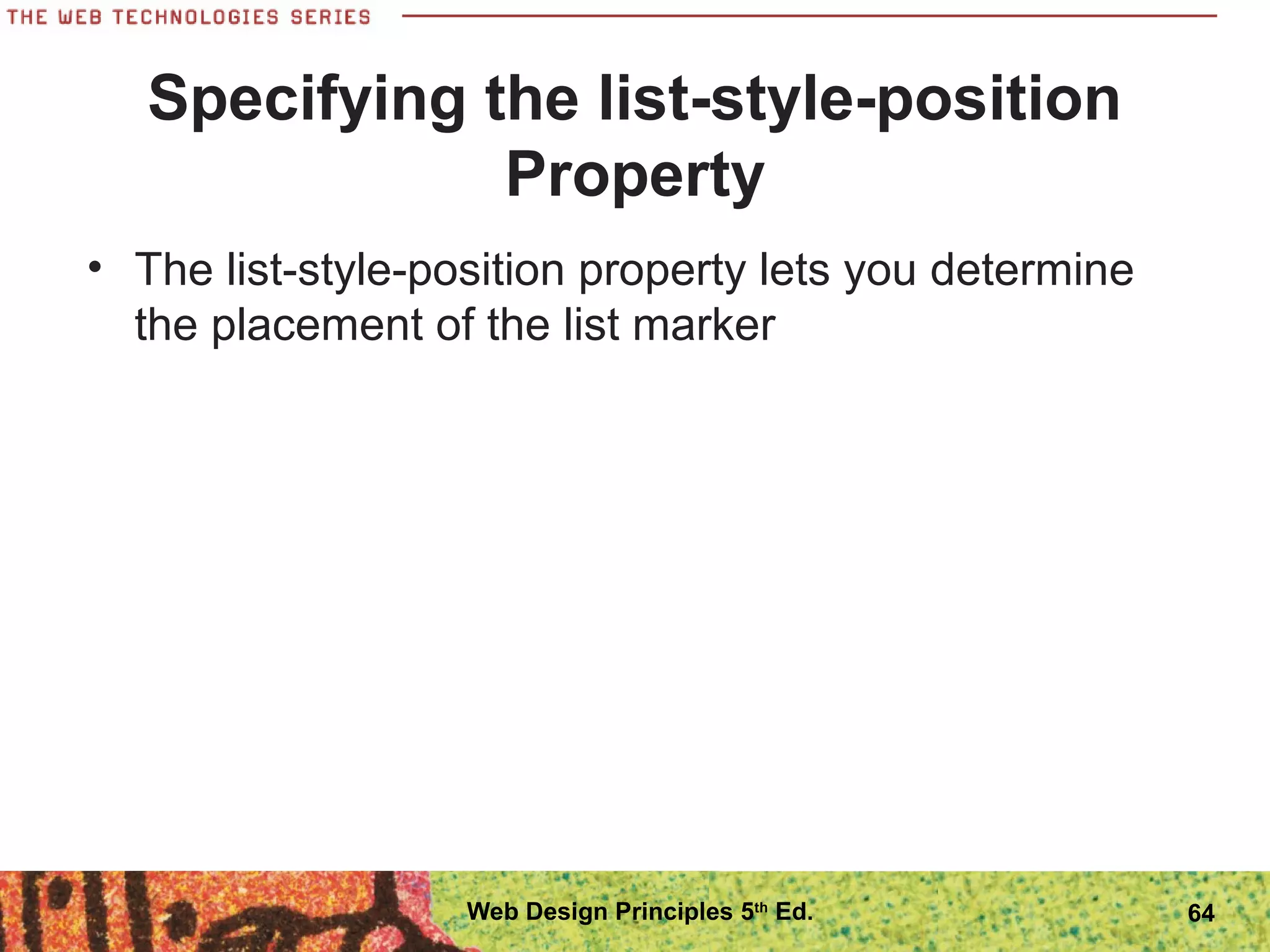

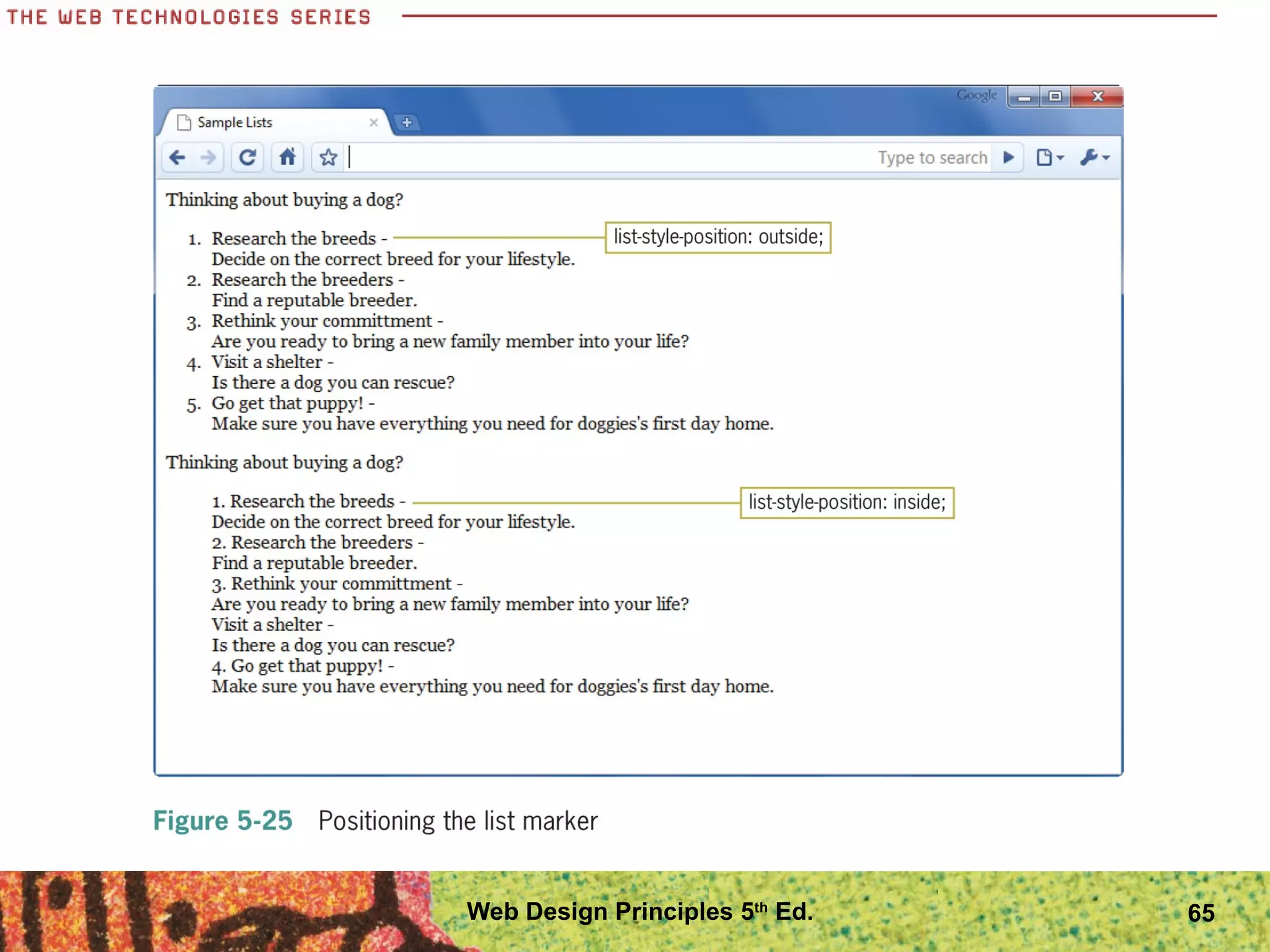

64. Specifying the list-style-position
Property
• The list-style-position property lets you determine
the placement of the list marker
64Web Design Principles 5th
Ed.

65. 65Web Design Principles 5th
Ed.

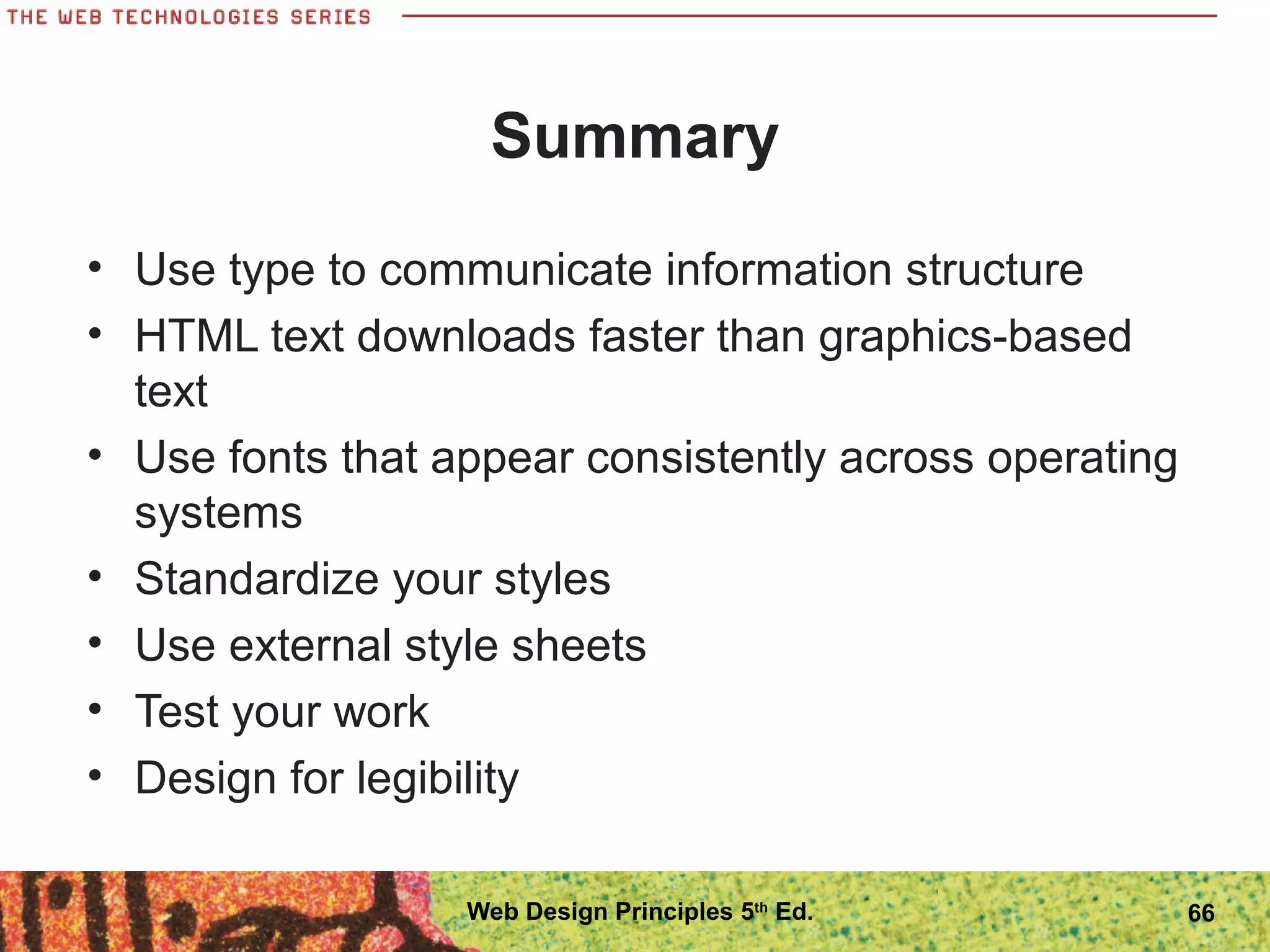

66. Summary
• Use type to communicate information structure
• HTML text downloads faster than graphics-based
text
• Use fonts that appear consistently across operating
systems
• Standardize your styles
• Use external style sheets
• Test your work
• Design for legibility
66Web Design Principles 5th
Ed.

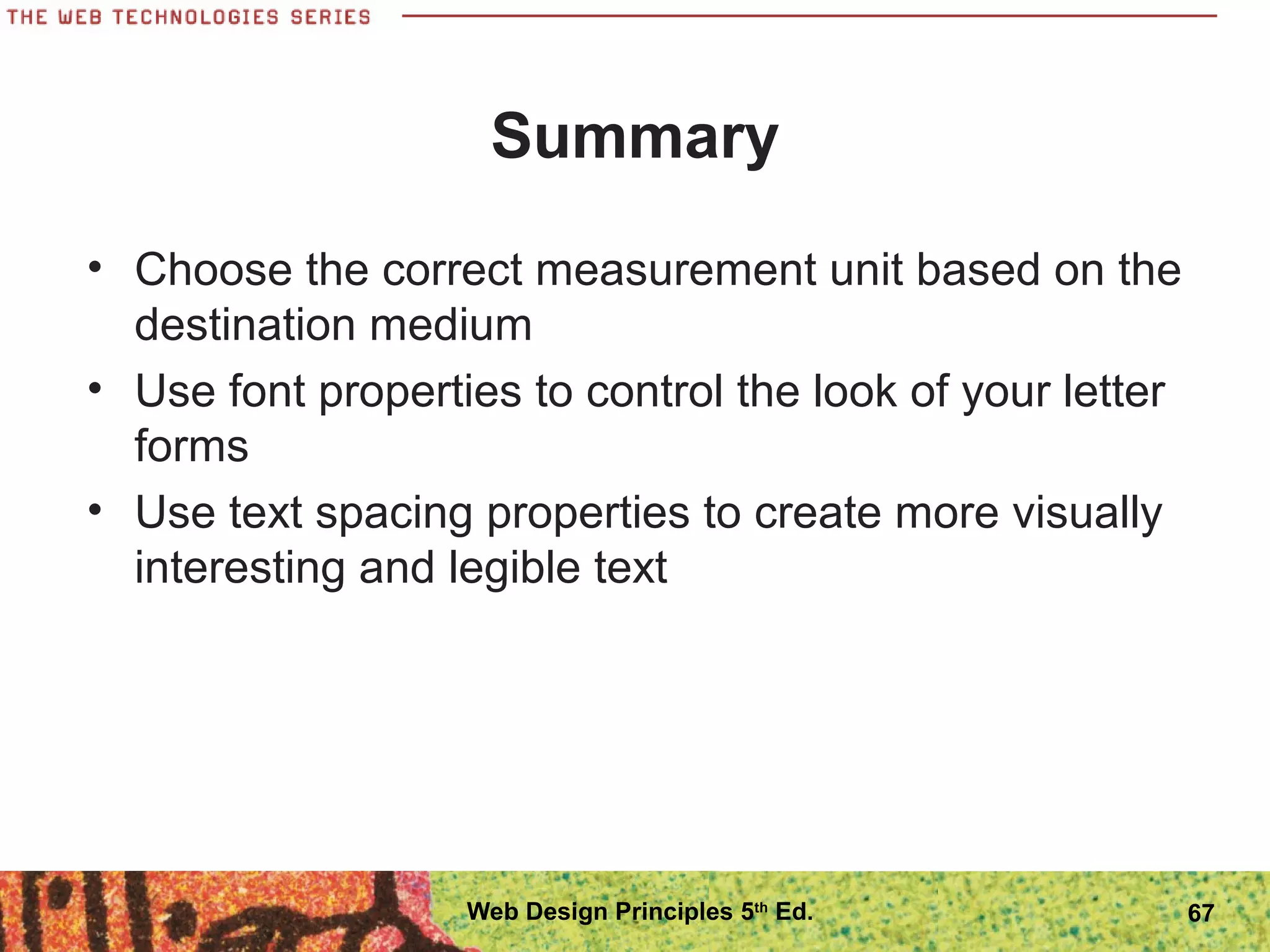

67. Summary
• Choose the correct measurement unit based on the
destination medium
• Use font properties to control the look of your letter
forms
• Use text spacing properties to create more visually
interesting and legible text
67Web Design Principles 5th
Ed.
