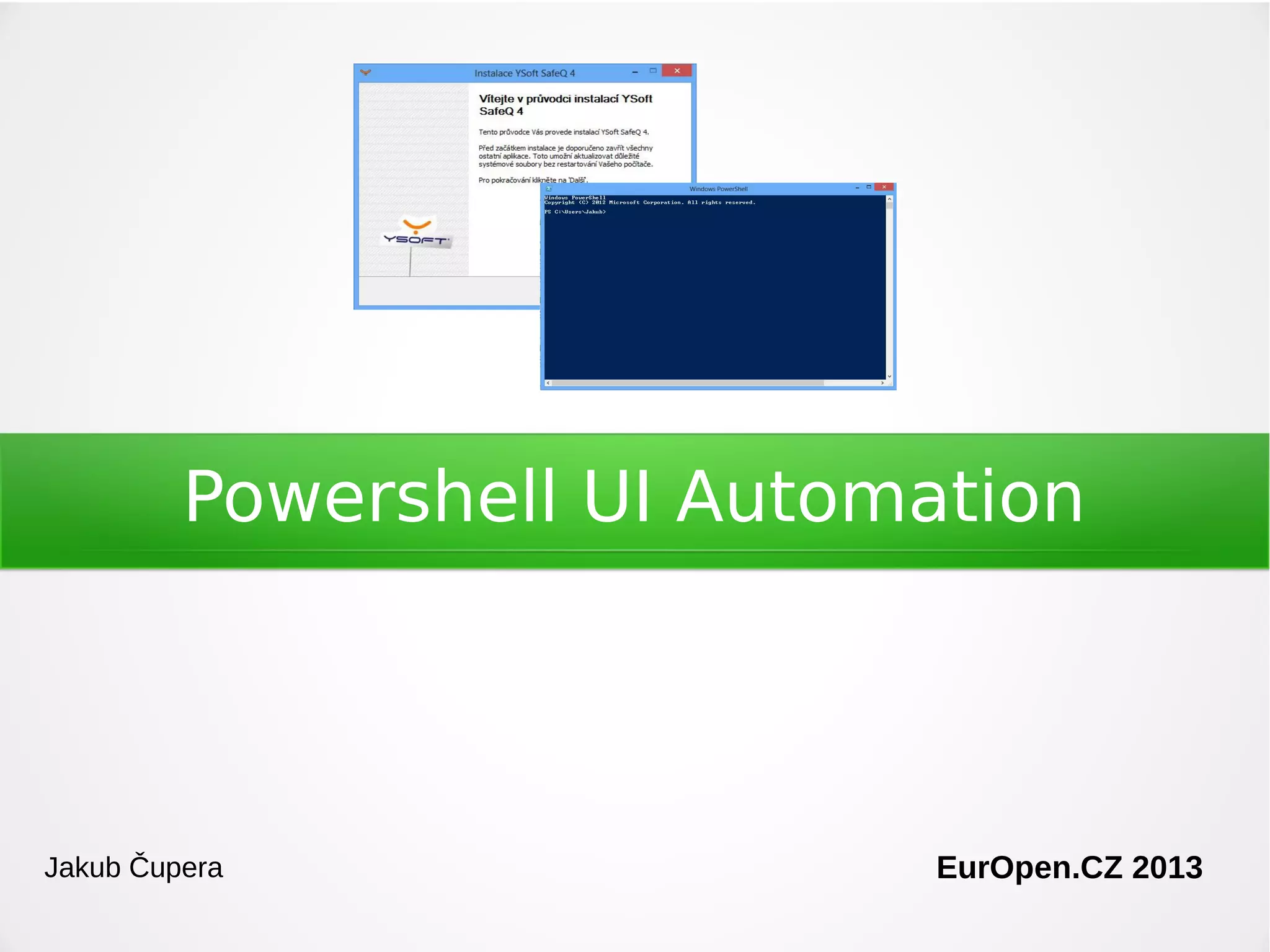

1. Powershell UI Automation
Jakub Čupera
Technology Hour 24.10.2013

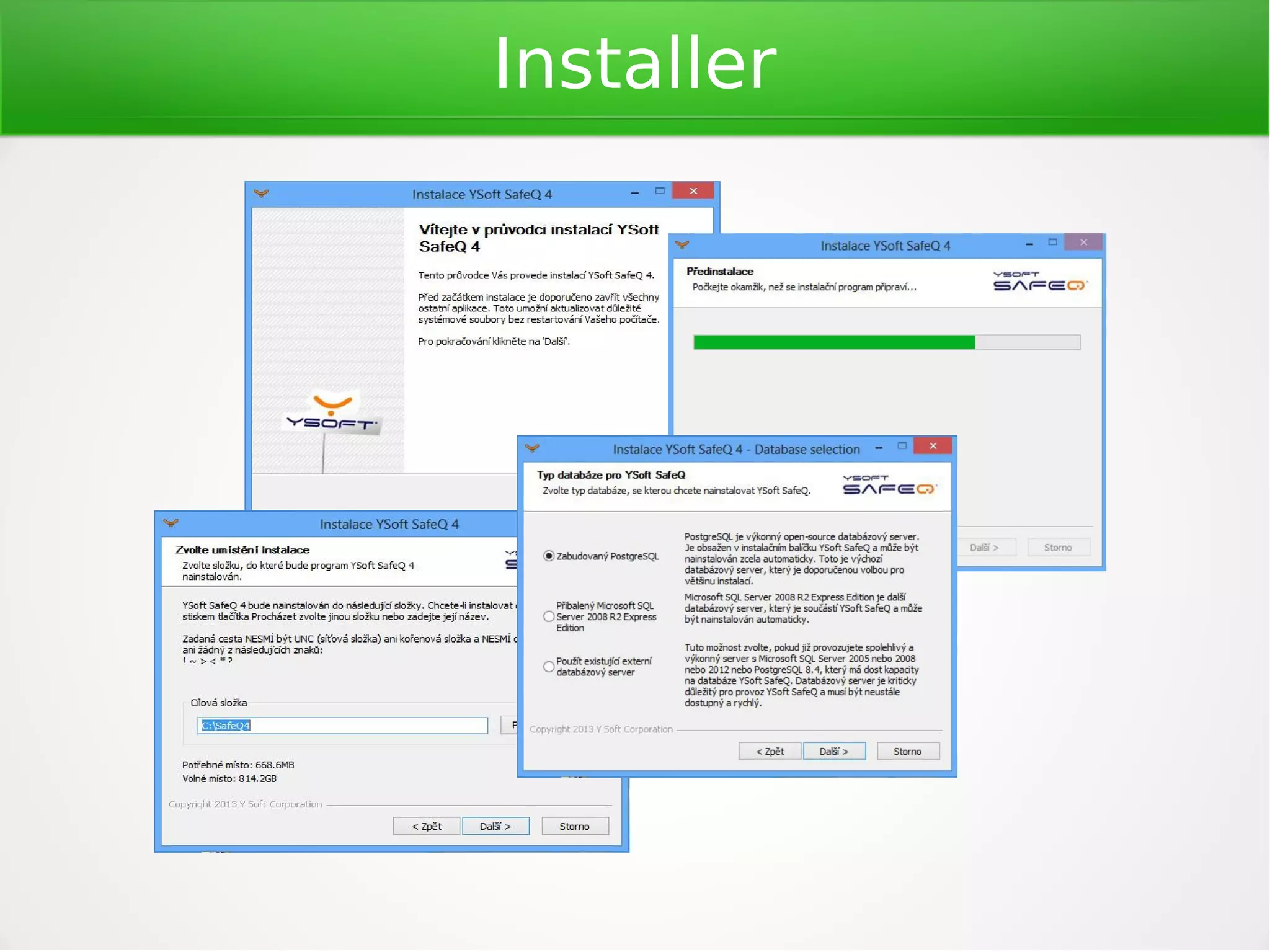

2. Installer

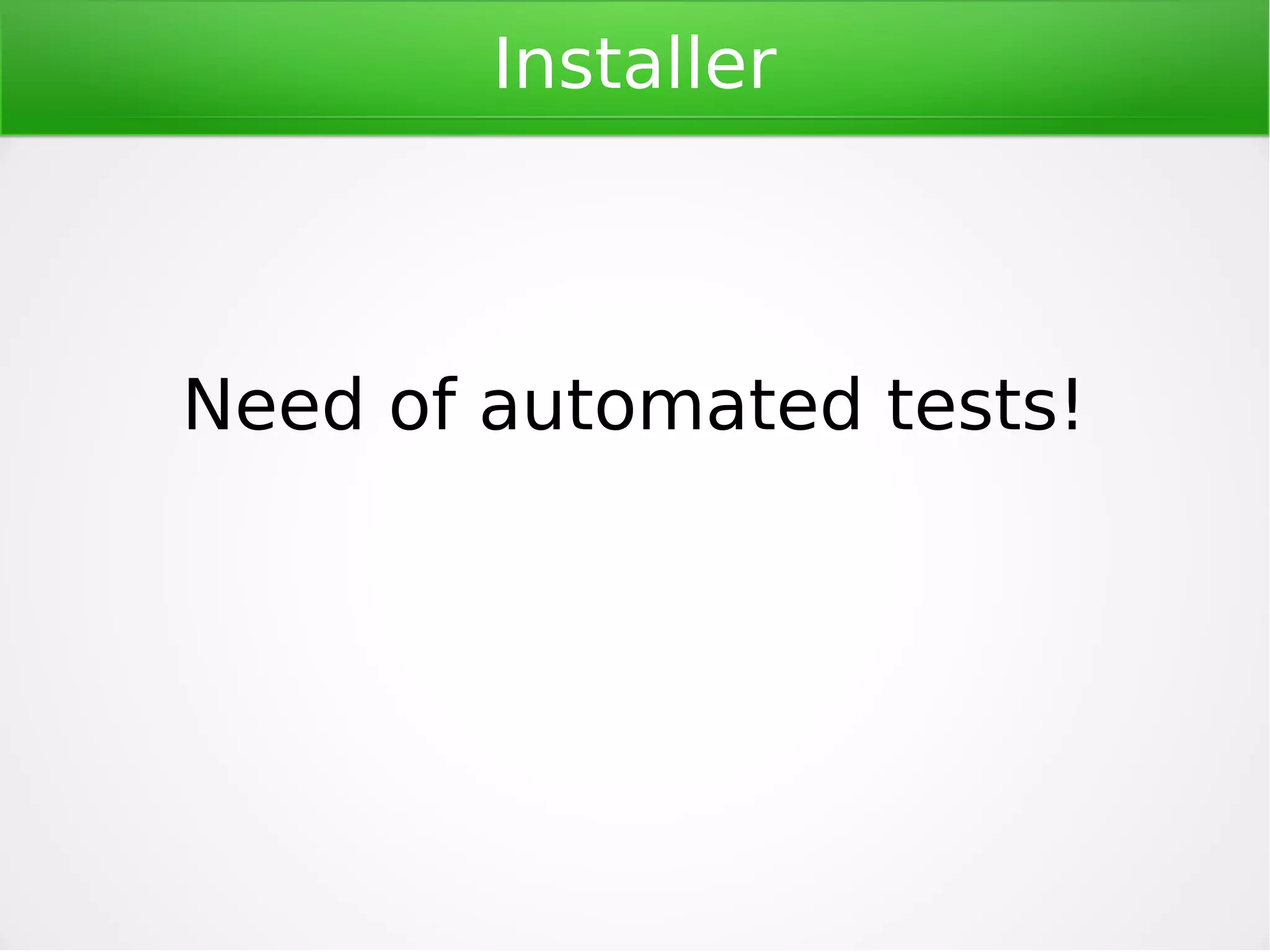

3. Installer
Need of automated GUI tests!

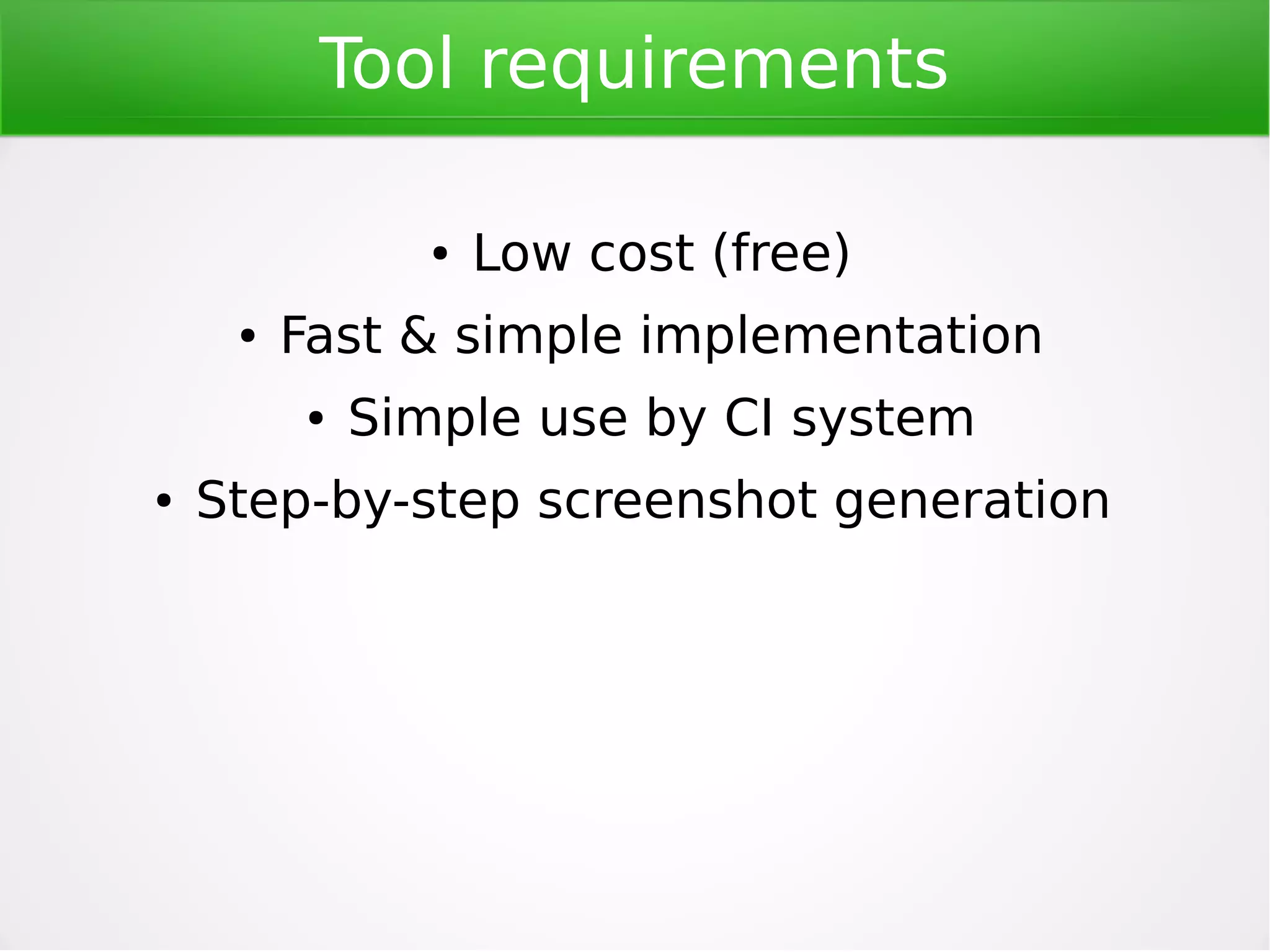

4. Which tool?
GUI Tools
●
Scripting languages / API
●
QAliber
●
.NET, Java libraries
●
SilkTest (Java, .NET, ...)
●
Plugins into VS/Eclipse
●
Jemmy (Java)
●
UI Automation (.NET)
●
Powershell UI Automation
●
TestComplete
●
TestAutomationFX
●
AutoHotkey (macros)
●
Sikuli (image recognition)
●
Selenium (web)
...

5. And winner is...
Powershell UI Automation

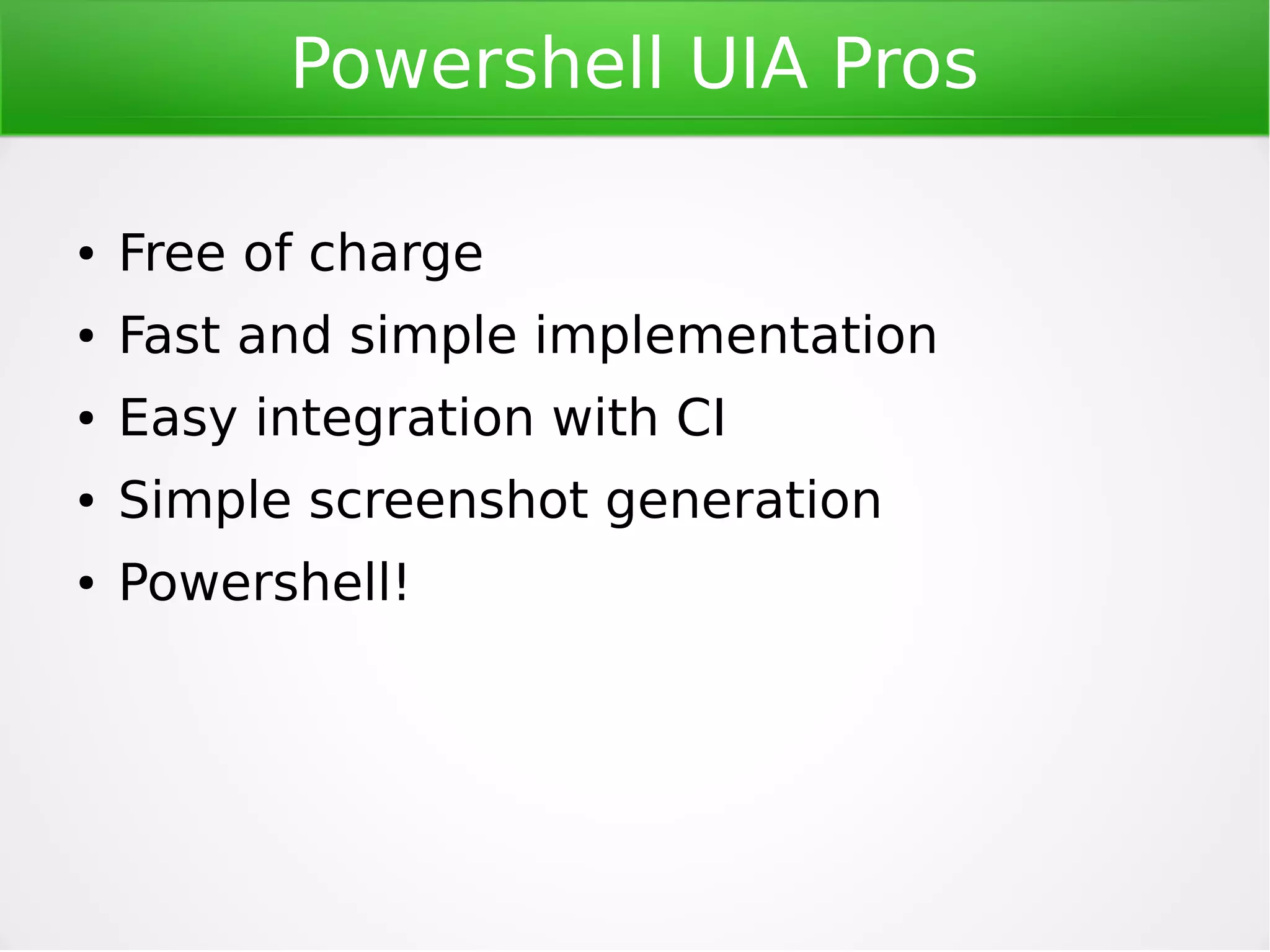

6. Why?
●
Free tool, open-source
●
●
Simple implementation
●
●
●
Known technology
Jenkins integration
Other tools (Pester)
Screenshot generation

7. Powershell
●
Scripting language
●
Management framework
●
Integrated since Windows XP

8. Powershell
Scripting language
●
Dynamically typed variables ($)
●
Conditions
●
Loops (while, do, for, foreach)
●
Lambda expressions
●
Exception handling
●
Access to .NET ( [string]::Format(...) )
●
Can run Cmdlets, PS scripts, functions,
executables

9. Powershell
Scripting language
●
Pipeline (| operator)
●
Tab completion
●
Support wildcards (*)
●
External modules

10. Powershell Cmdlets
Management Framework
●
Services
●
Server Management
●
Windows Server Update
●
Scheduled Tasks
●
DNS/IP management
●
Active Directory
●
Exchange
●
...

11. UI Automation
●
API to access/manipulate GUI elements
●
Successor to MSAA
●
Released by Microsoft in 2005
●
Native part since Vista/Server 2008
●
Separate packages down to Windows XP
●
Managed API since .NET 3.0
●
Used also for assistive technologies

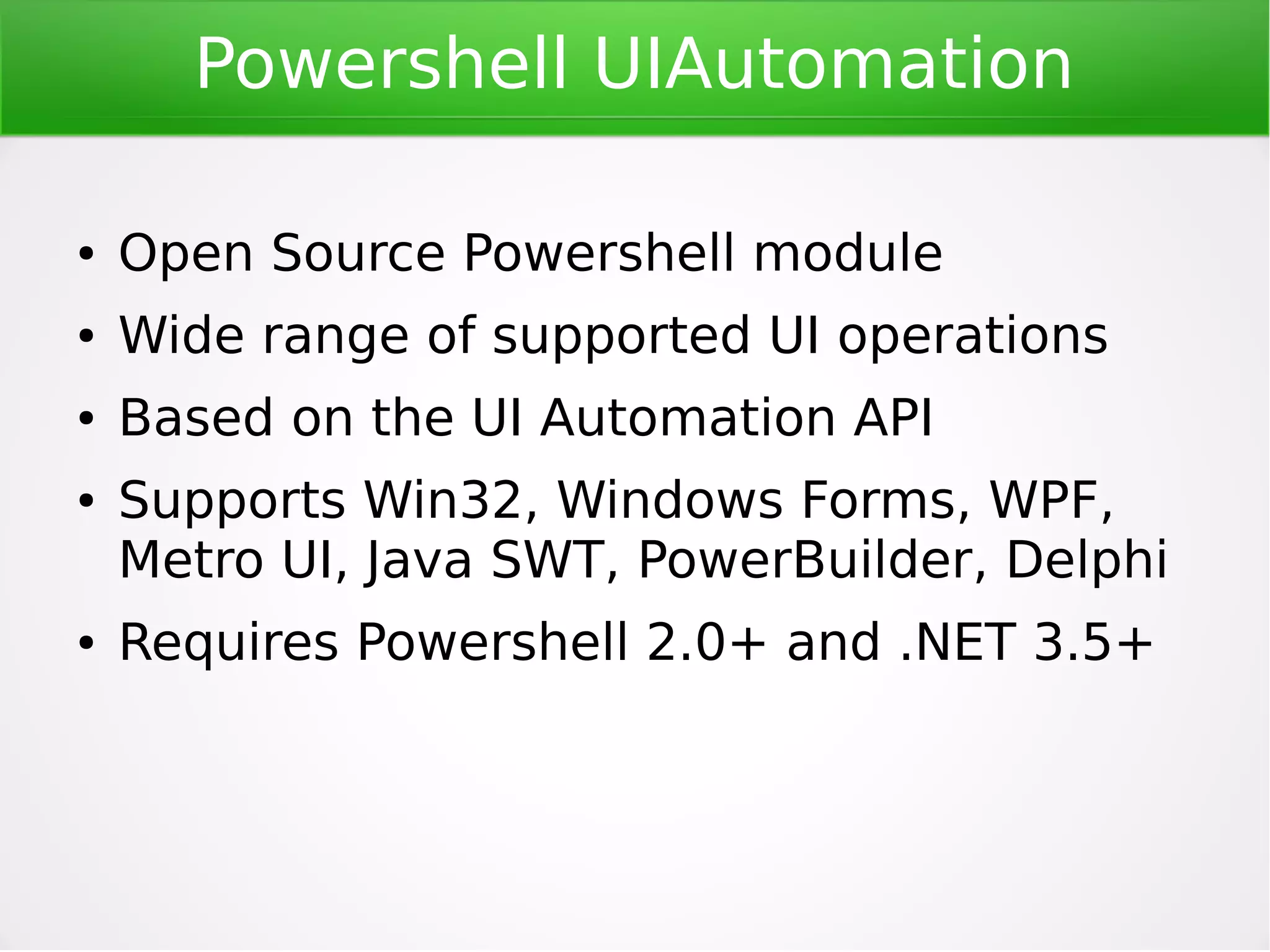

12. Powershell UI Automation
●
Powershell module using UIA API
●
Wide range of supported UI operations
●
●
Supports Win32, Windows Forms, WPF,
Metro UI, Java SWT, PowerBuilder, Delphi
Requires Powershell 2.0+ and .NET 3.5+

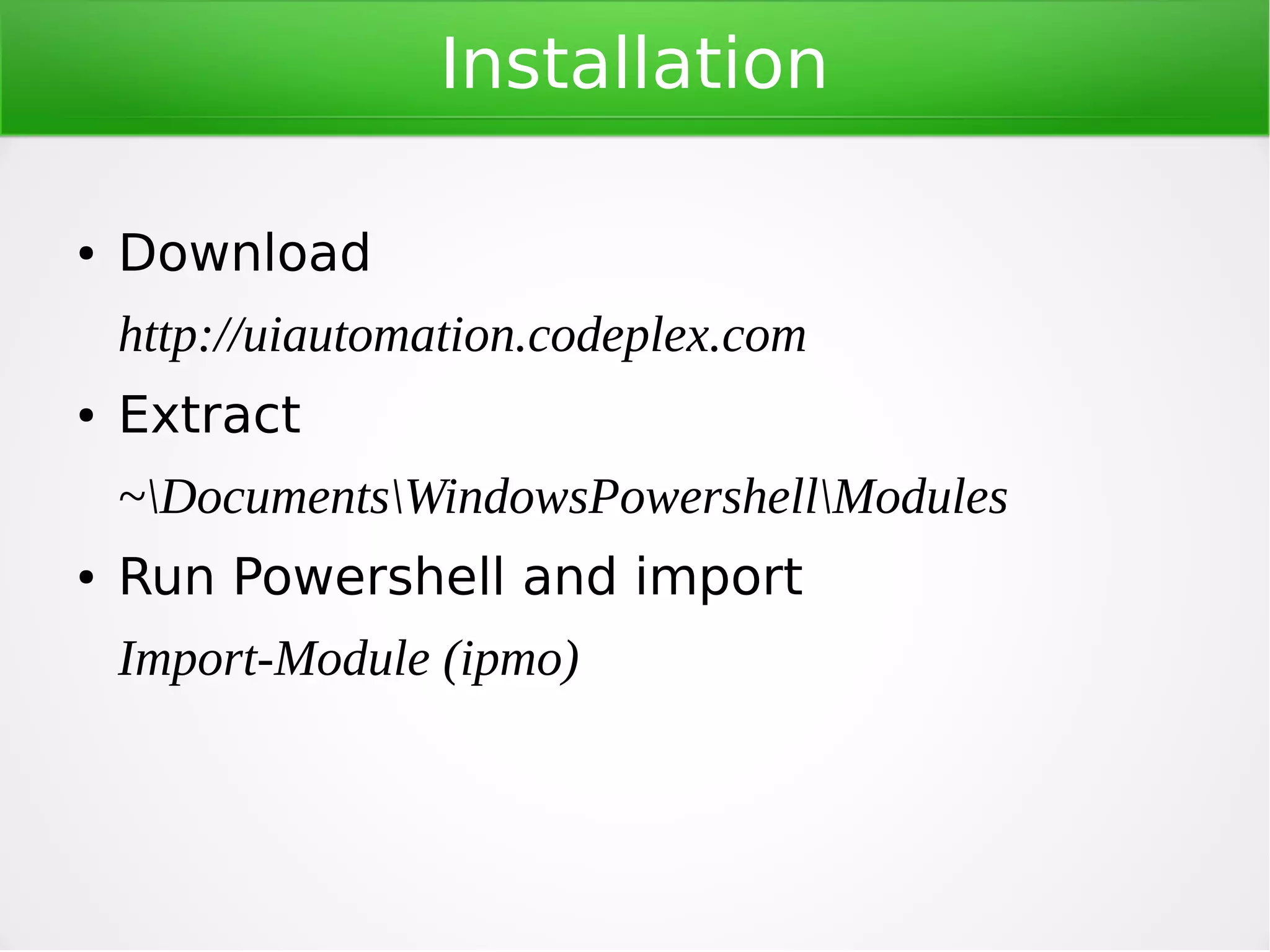

13. Installation
●
Download
http://uiautomation.codeplex.com
●
Extract
~DocumentsWindowsPowershellModules
●
Run Powershell and import
Import-Module (ipmo)

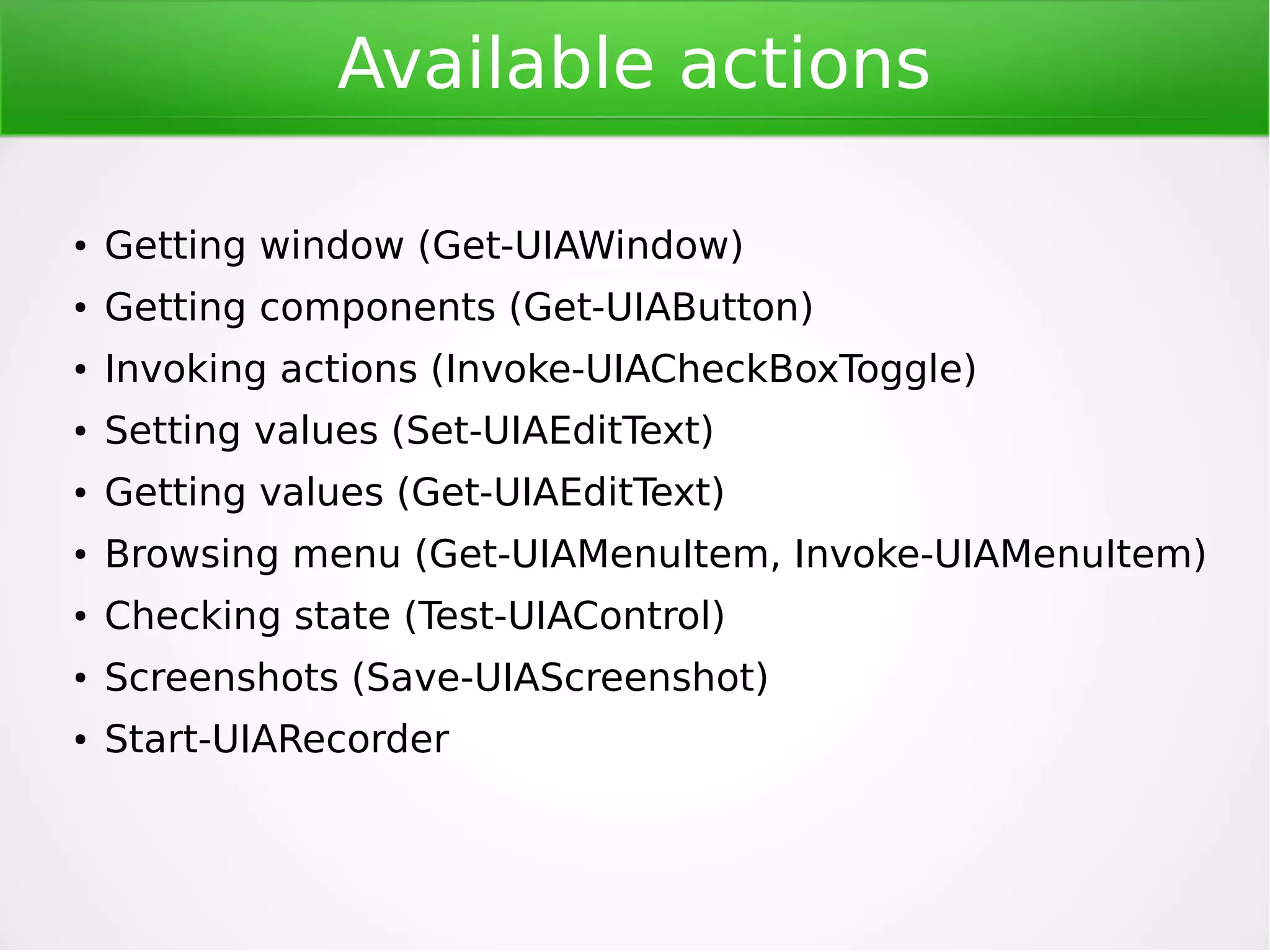

14. Available actions
●
Getting window (Get-UIAWindow)
●
Getting components (Get-UIAButton, Get-UIAEdit,)
●
Invoking actions (Invoke-UIACheckBoxToggle)
●
Setting values (Set-UIAEditText)
●
Getting values (Get-UIAEditText)
●
Browsing menu (Get-UIAMenuItem, Invoke-UIAMenuItem)
●
Checking state (Test-UIAControl)
●
Screenshots (Save-UIAScreenshot)
●
Get component attributes (Read-UIAControlName)
●
Waiting for element state (Wait-UIAButtonEnabled)
●
Start-UIARecorder
●
…....

15. Getting Window
Get-UIAWindow
●
Process Name (-ProcessName, -pn)
●
Process Id (-ProcessId, -pid)
●
By Title (-Name)
●
From process
●
Wildcards can be used
●
Returns AutomationElement object
●
Get-UIAActiveWindow
●
What if more processes are started?

16. Getting a Control
Get-UIAControl
●
Various Cmdlets to obtain all possible GUI elements
Get-UIAButton, Get-UIAEdit, Get-UIARadioButton, ...
●
Returns AutomationElement object
●
Many aliases
Get-UIAEdit = Get-UIATextBox
●
Cmdlets wrap Get-UIAControl
●
Name (-Name, -n)
●
Automation Id (-AutomationId)
●
Wildcards can be used
●
Multiple objects can be selected ([x-y])
●
Popups are also processed

17. Actions
Invoke-UIAAction
●
Mouse clicking
Invoke-UIAButtonClick, Invoke-UIAMenuItemClick, Invoke-UIACheckBoxToggle ...
●
Scrolling
Invoke-UIAScrollBarScroll
●
Handling texts
Get-UIAEditText, Set-UIAEditText
●
And many others
Invoke-UIAMenuItemExpand, Invoke-UIACalendarScroll, Set-UIAFocus,...
●
Actions are type and context specific

18. Other Cmdlets
Other Cmdlets
●
Read-UIAControlName, Read-UIAControlAutomationId
Get-UIAButton | Read-UIAControlName
●
Save-UIAScreenshot
Save-UIAScreenShot -Path “c:temp“ -Name 'test.jpg' -As jpeg
●
Test-UIAControlState
Test-UIAControlState -SearchCriteria @{Name=“OK“, ControlType=“button“ }
●
Wait-UIAControlState
Get-UIAButton | Wait-UIAButtonEnabled -Timeout 20
●
Start-UIARecorder
●
Move-UIACursor
●
...

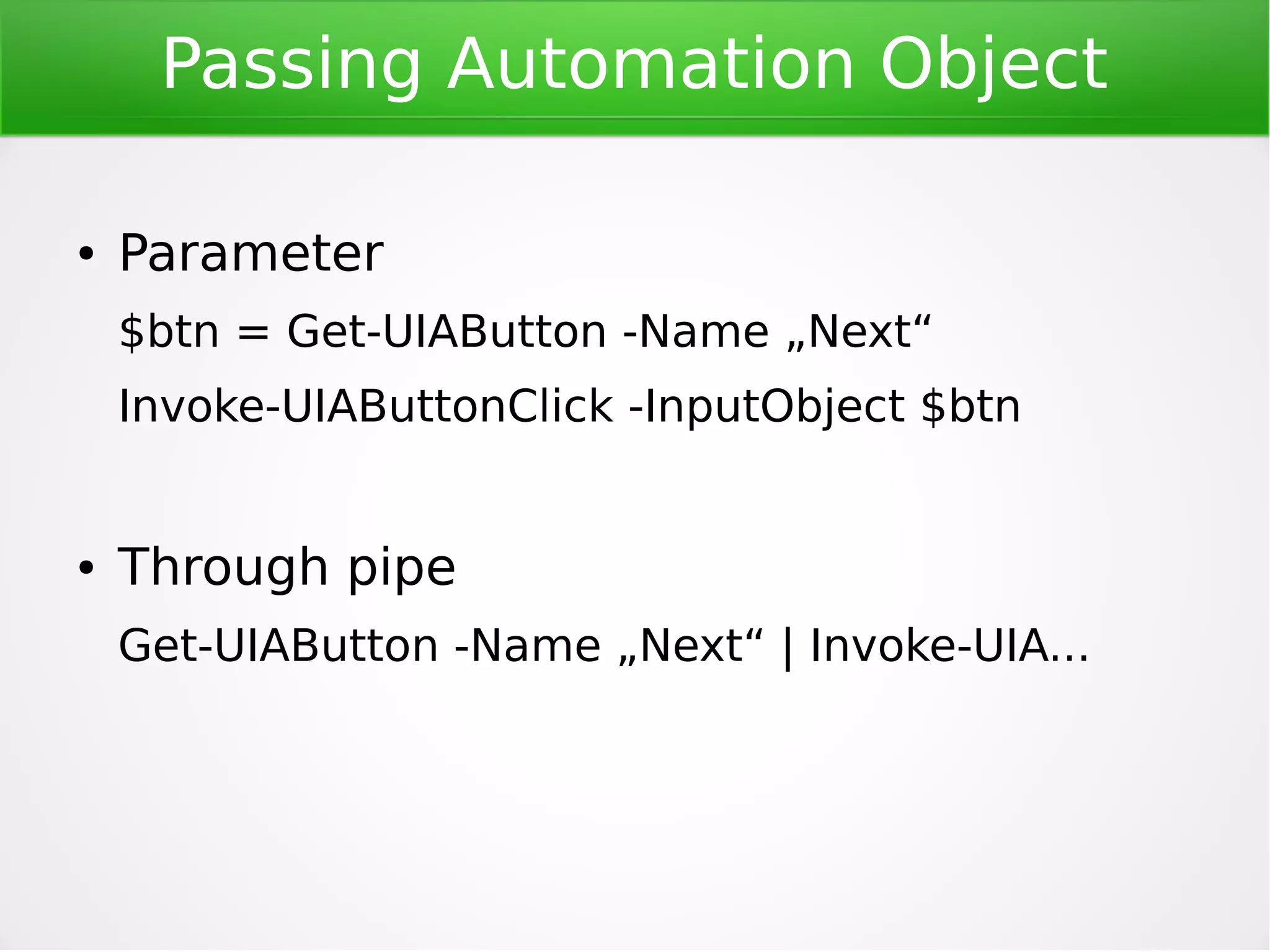

19. Passing Objects
●
Passing control object as parameter
$btn = Get-UIAButton -Name „Next“
Invoke-UIAButtonClick -InputObject $btn
●
Passing object through pipe
Get-UIAButton -Name „Next“ | Invoke-UIAButtonClick
●
No need to pass window

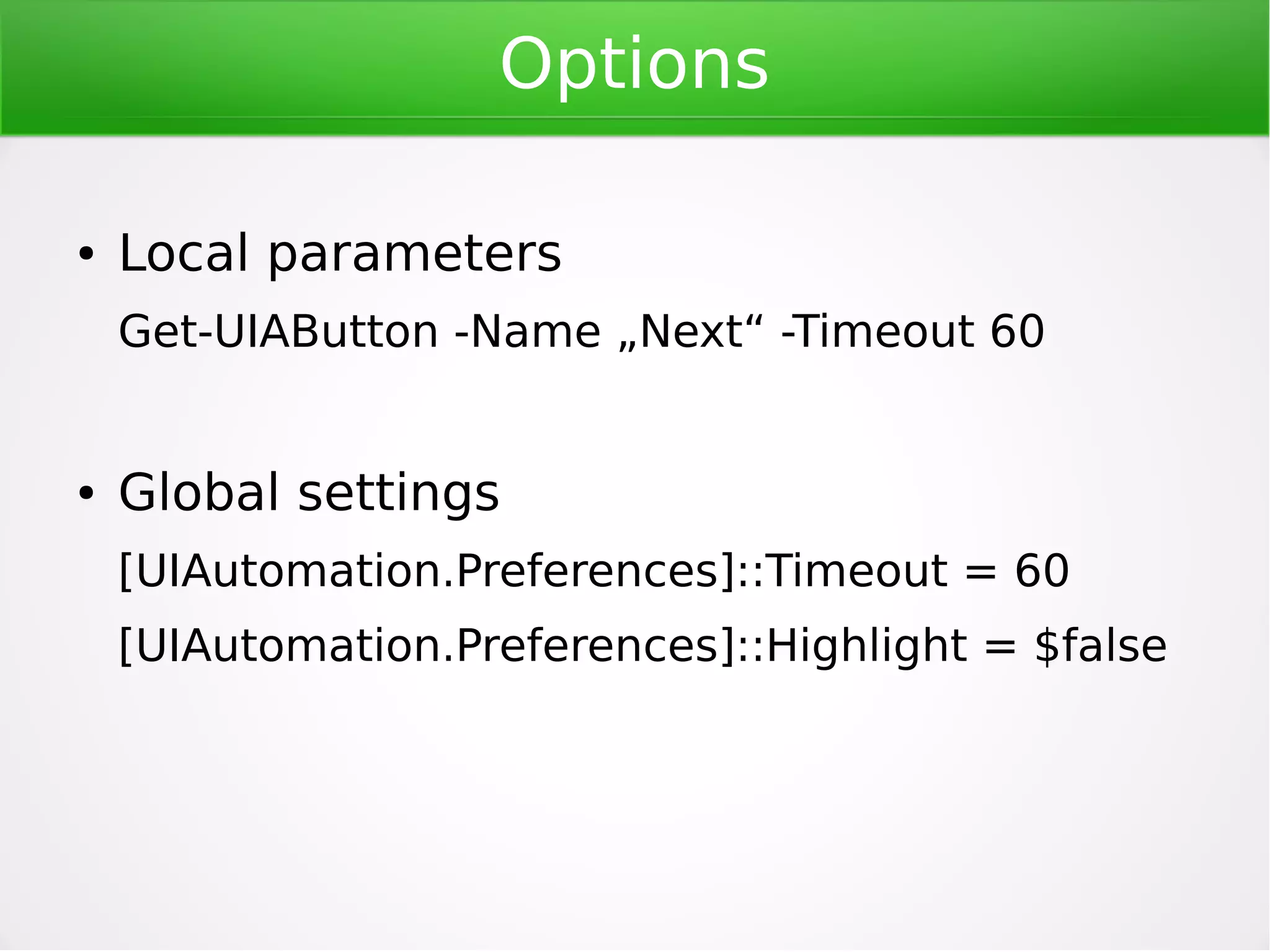

20. Global Settings
●
Global settings can be modified
Logging, Timeouts, Highlighting, Screenshots, Error handling, ...
●
Usage:
[UIAutomation.Preferences]::Key = $value
●
Cmdlet Show-UIAModuleSettings
●
Some settings can be overriden locally
Get-UIAButton -Timeout 20

21. Other Functionality
Other Functionality
●
●
Custom event handling
-OnErrorEvent, -OnSuccess
Cmdlets as tests
-TestResultName
●
Save screenshot on error
●
Detailed logging

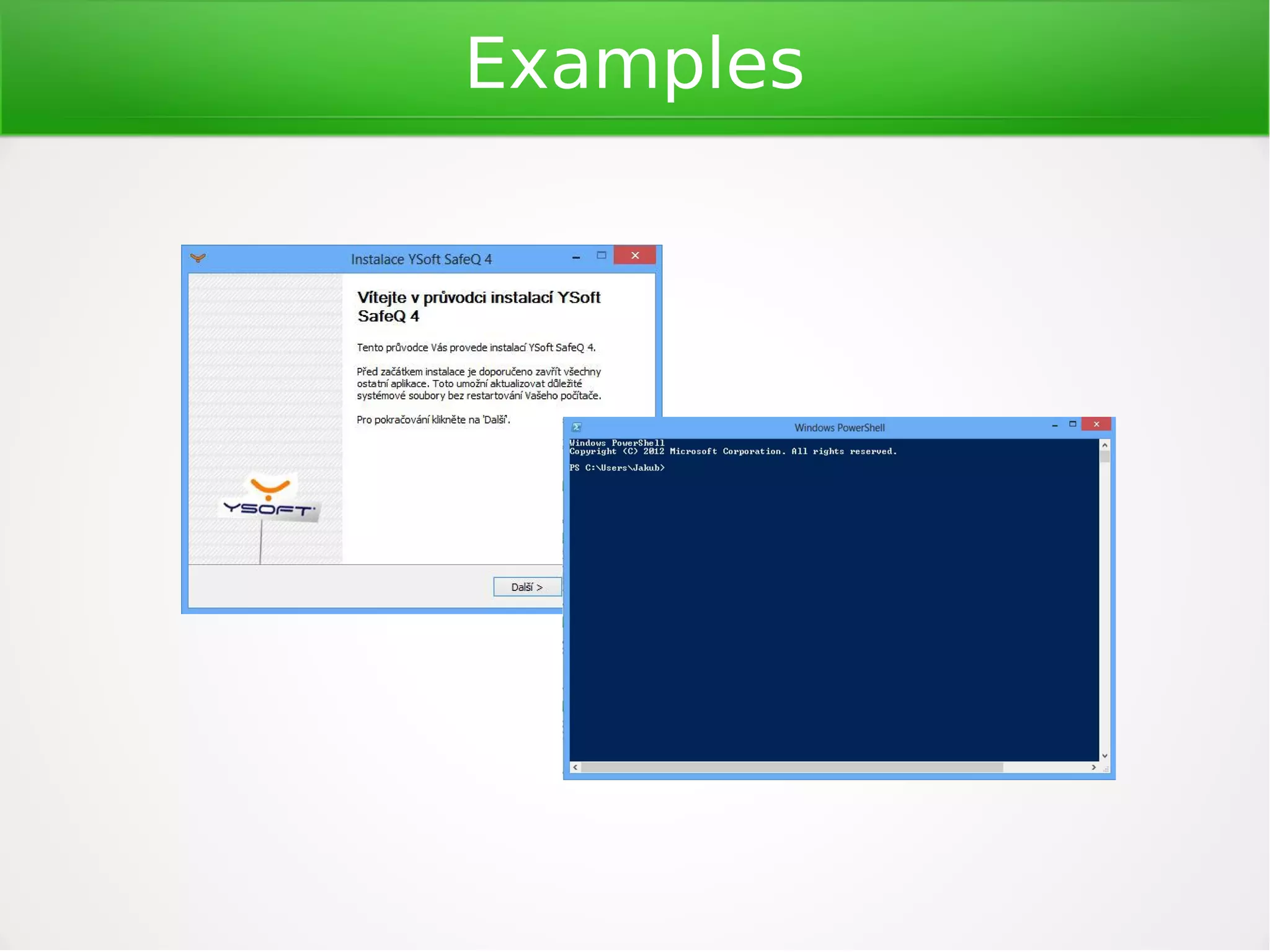

22. Examples

23. Tips & Tricks
●
Tools
UIVerify, UISpy, Spy++
●
Getting control nane
Get-UIAWindow | Get-UIAButton | Read-UIAControlName
Get-UIAWindow | Get-UIAControl | Read-UIAControlName
●
Get cmdlets related to control
Get-Command -Module UIA* *Button*

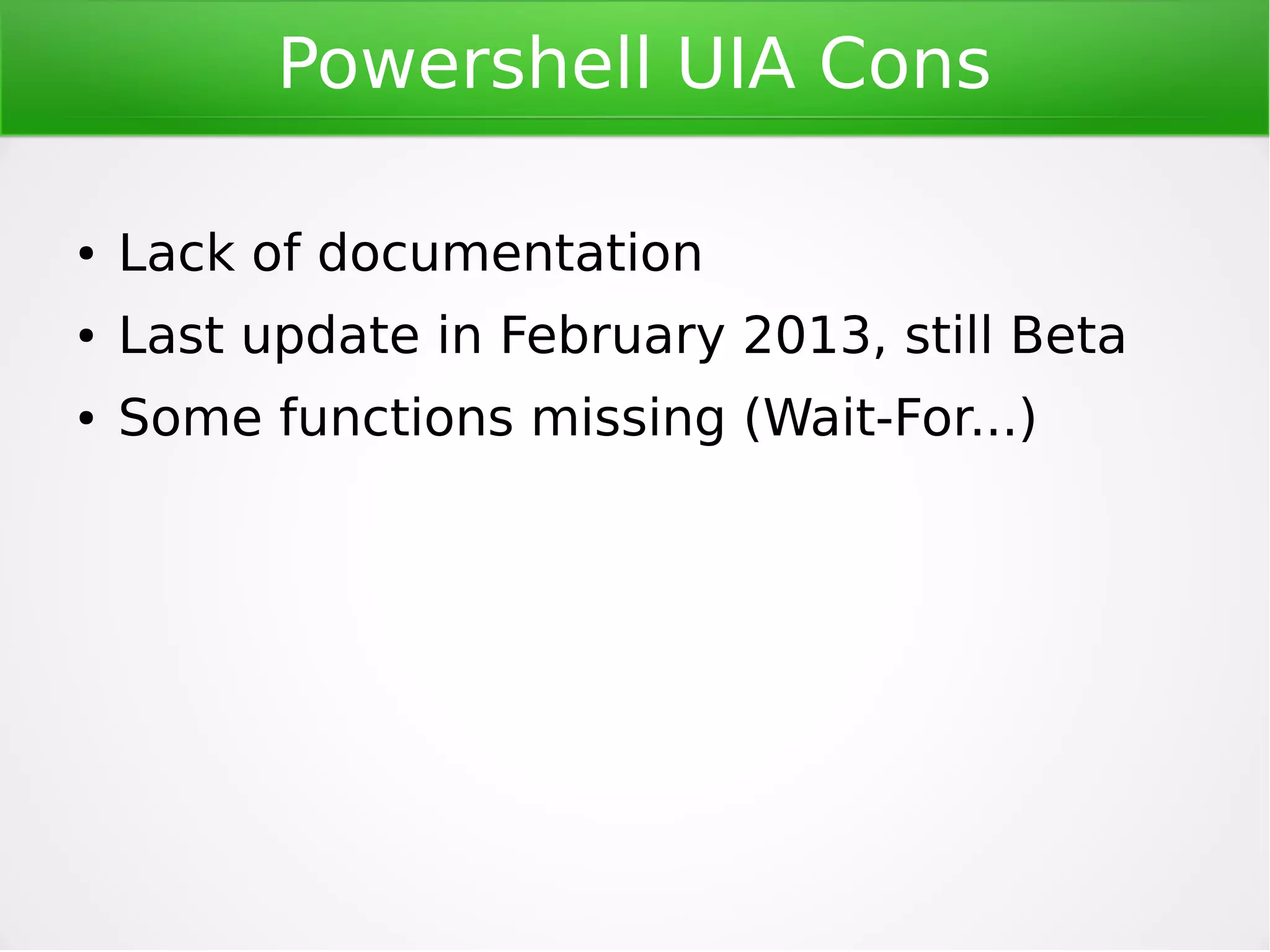

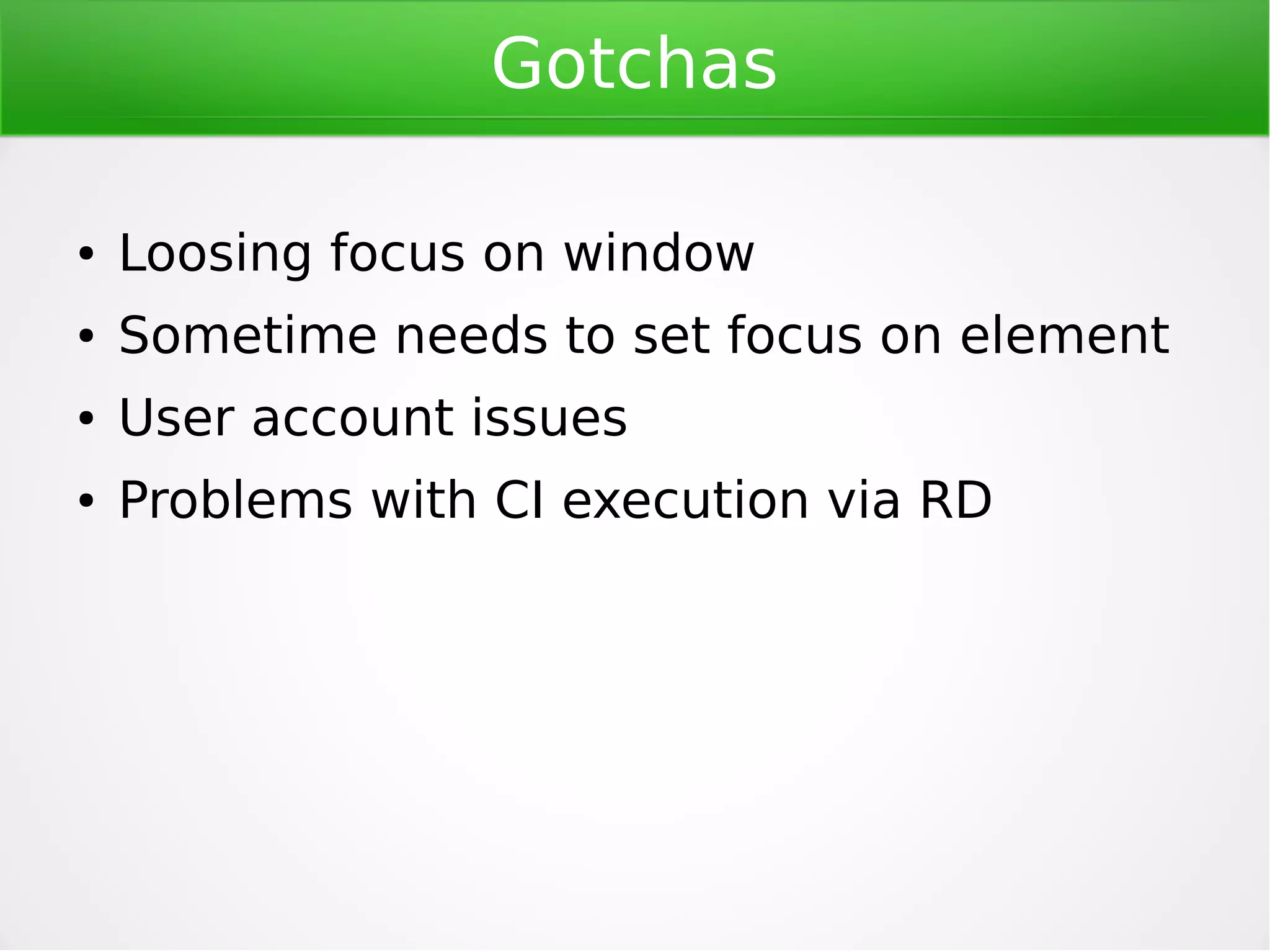

24. Gotchas
●
Lack of documentation
●
Last update in February 2013
●
Still officially Beta
●
Loosing focus on window
●
Needs to set focus on element to perform action
●
User account limitations
●
Save screenshot on error by default

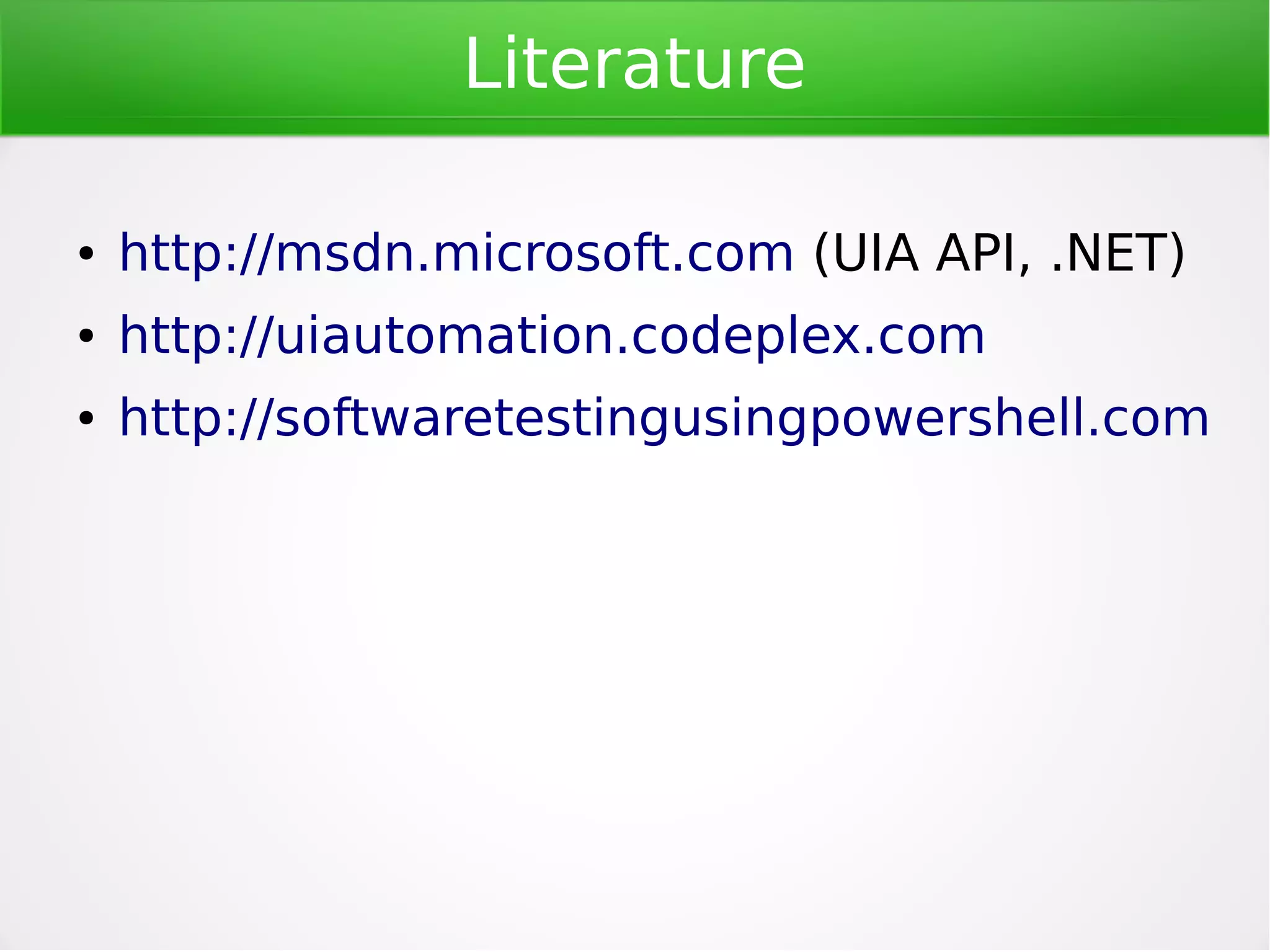

25. Do you want to know more?
●
http://msdn.microsoft.com (UIA API, .NET)
●
http://uiautomation.codeplex.com
●
http://softwaretestingusingpowershell.com
