1. Puppet Bolt
Easy Cross-Platform PowerShell Automation

2. Speakers
James Pogran
Senior Engineer
2
Ethan Brown
Principal Engineer

3. What is Puppet Bolt?
PowerShell 6
Remote PowerShell with Bolt
Q & A
Agenda

4. What is Puppet Bolt?
Commands, Scripts, Tasks, Plans and PE integration
4

5. Sometimes you just need to
run commands on servers

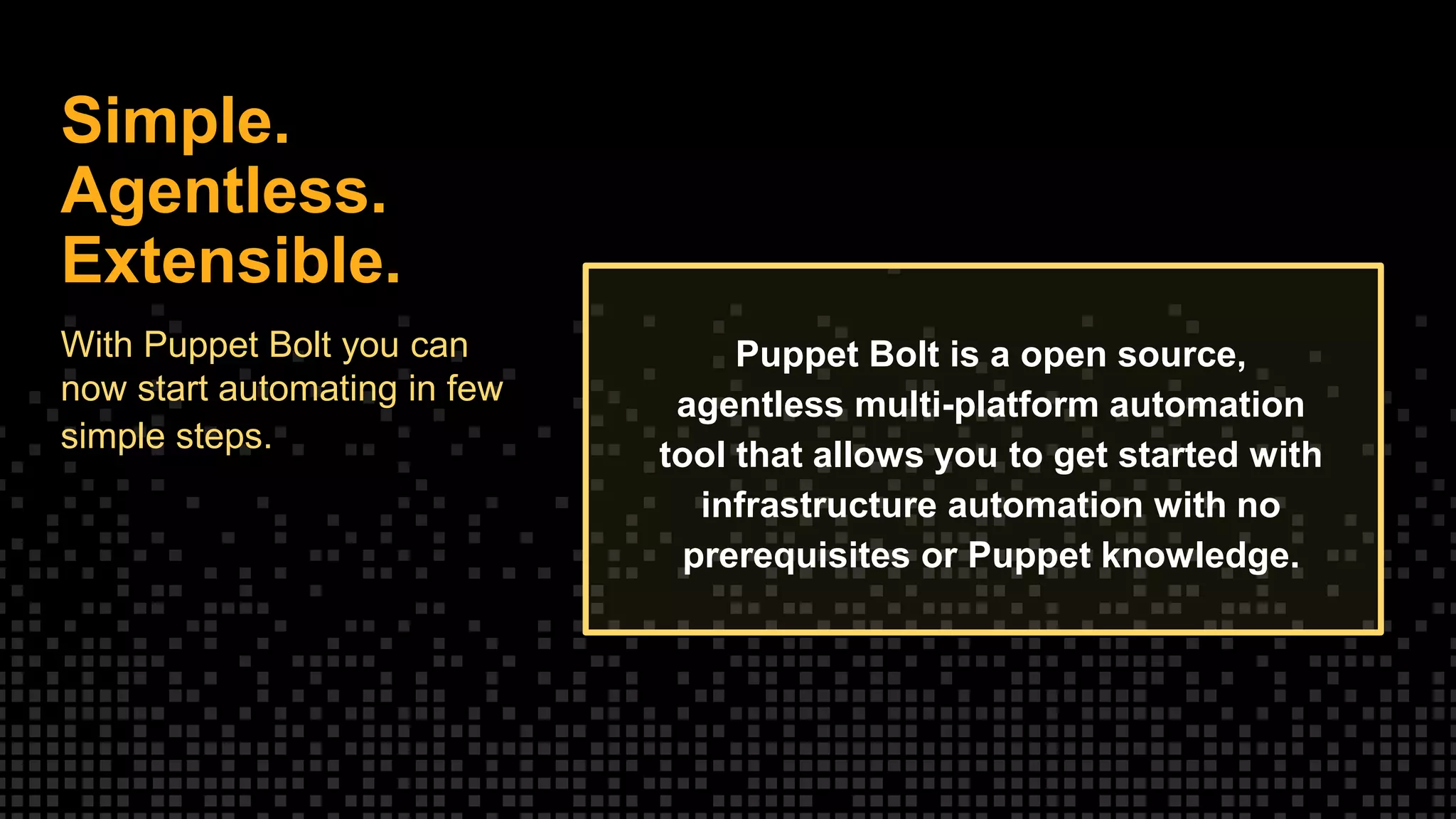

6. Simple.
Agentless.
Extensible.
With Puppet Bolt you can
now start automating in few
simple steps.
Puppet Bolt is a open source,
agentless multi-platform automation
tool that allows you to get started with
infrastructure automation with no
prerequisites or Puppet knowledge.

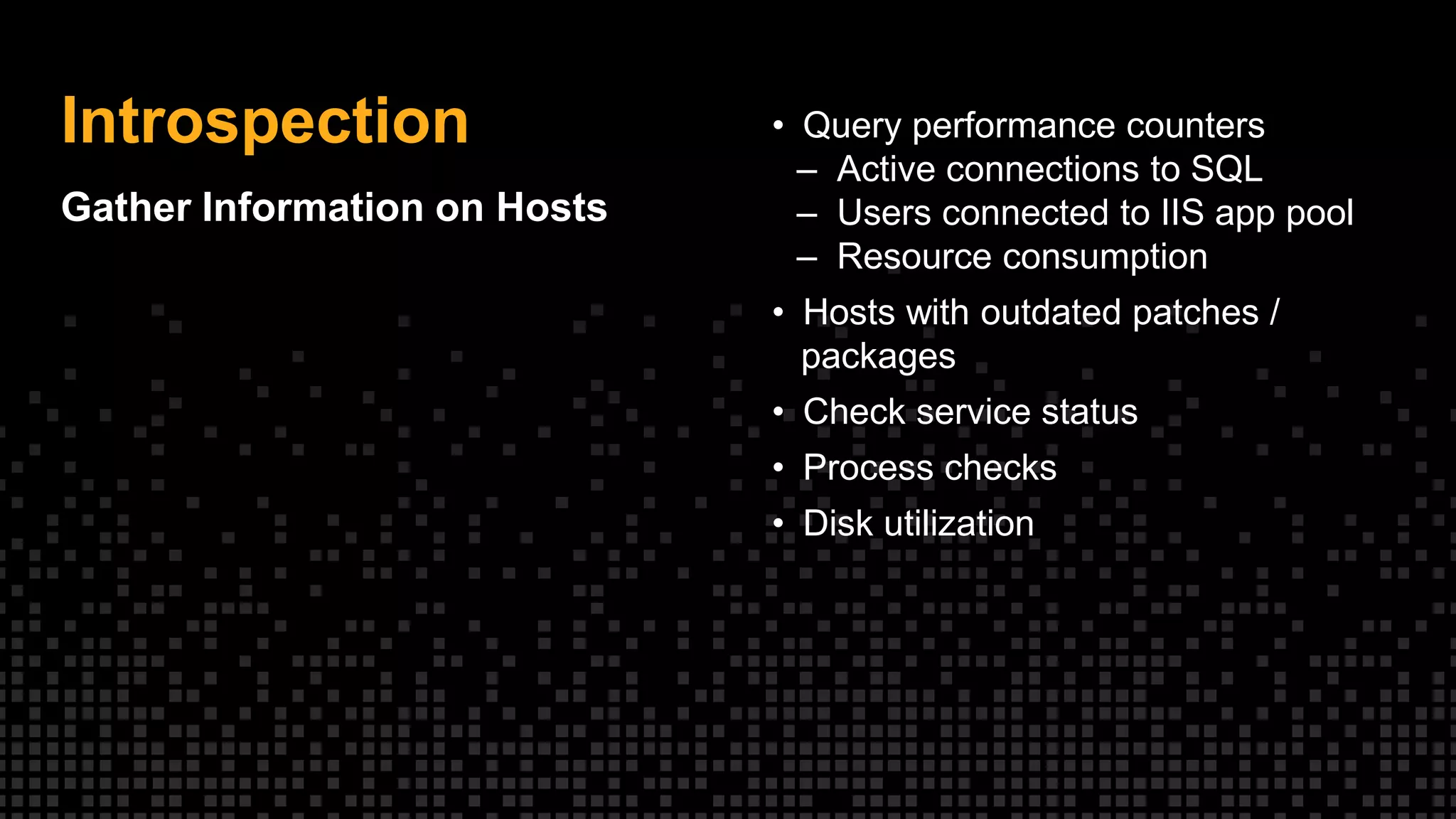

7. Introspection
Gather Information on Hosts
• Query performance counters
– Active connections to SQL
– Users connected to IIS app pool
– Resource consumption
• Hosts with outdated patches /
packages
• Check service status
• Process checks
• Disk utilization

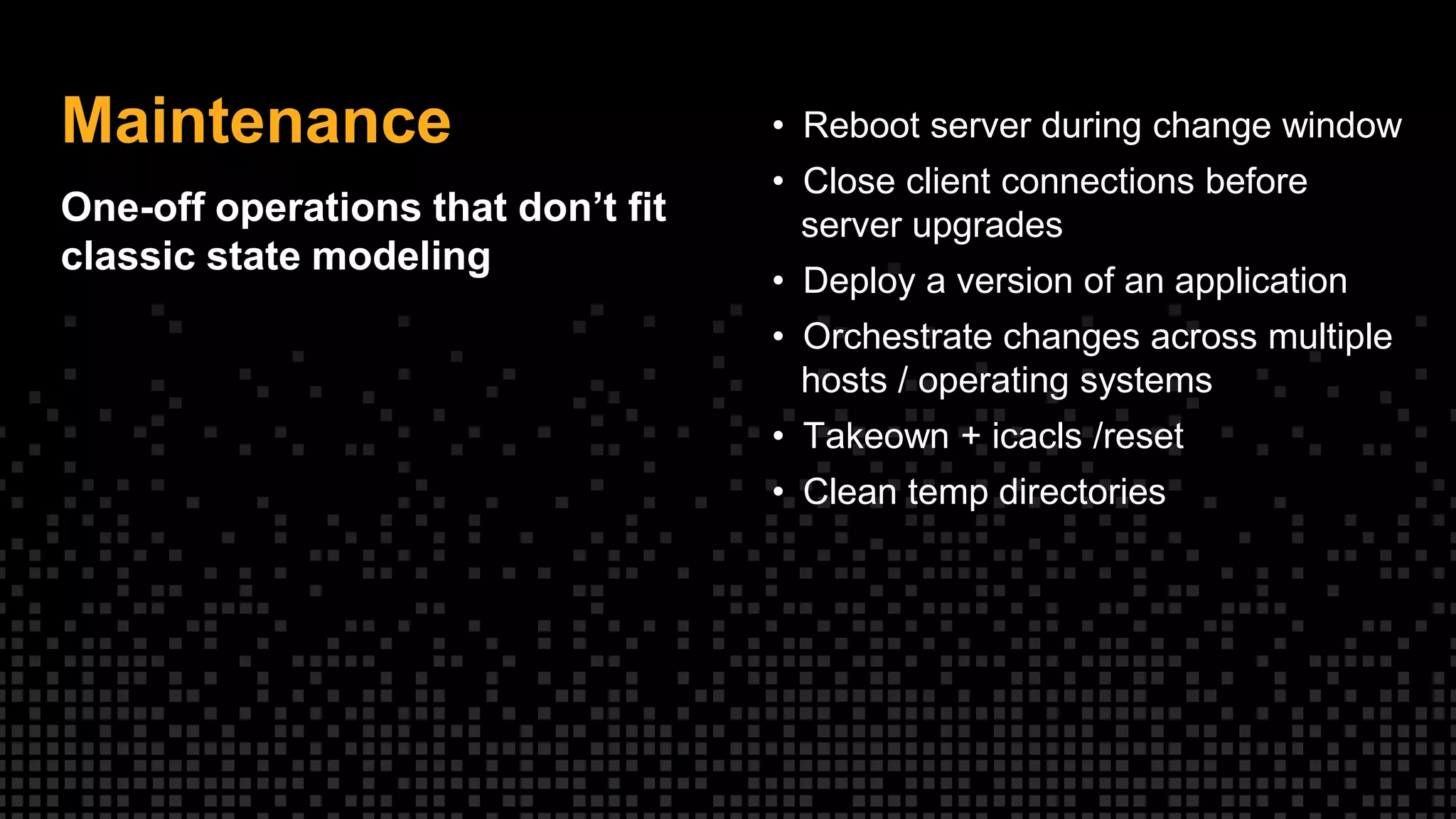

8. Maintenance
One-off operations that don’t fit
classic state modeling
• Reboot server during change window
• Close client connections before
server upgrades
• Deploy a version of an application
• Orchestrate changes across multiple
hosts / operating systems
• Takeown + icacls /reset
• Clean temp directories

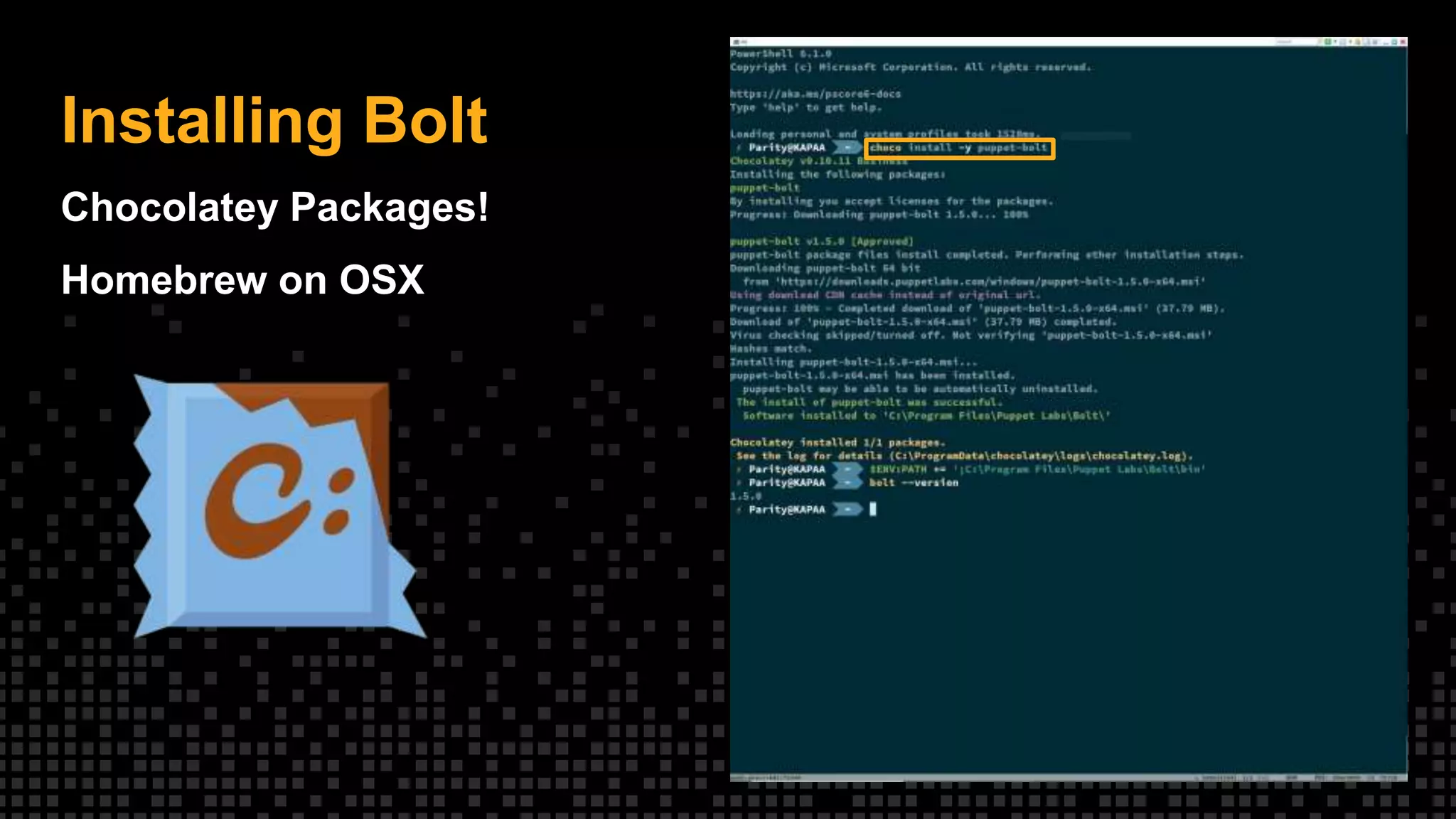

9. Installing Bolt
Chocolatey Packages!
Homebrew on OSX

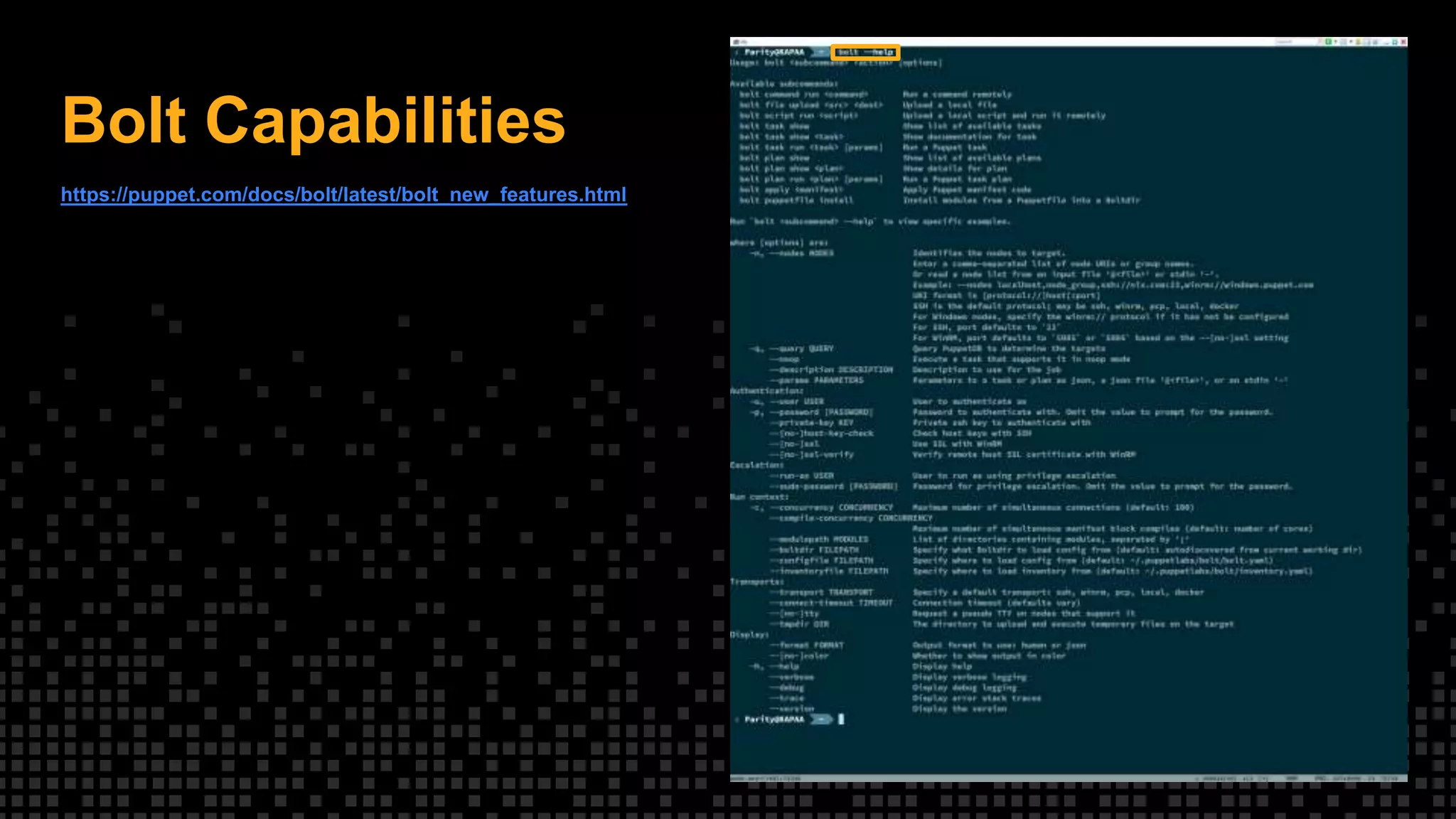

10. Bolt Capabilities
https://puppet.com/docs/bolt/latest/bolt_new_features.html

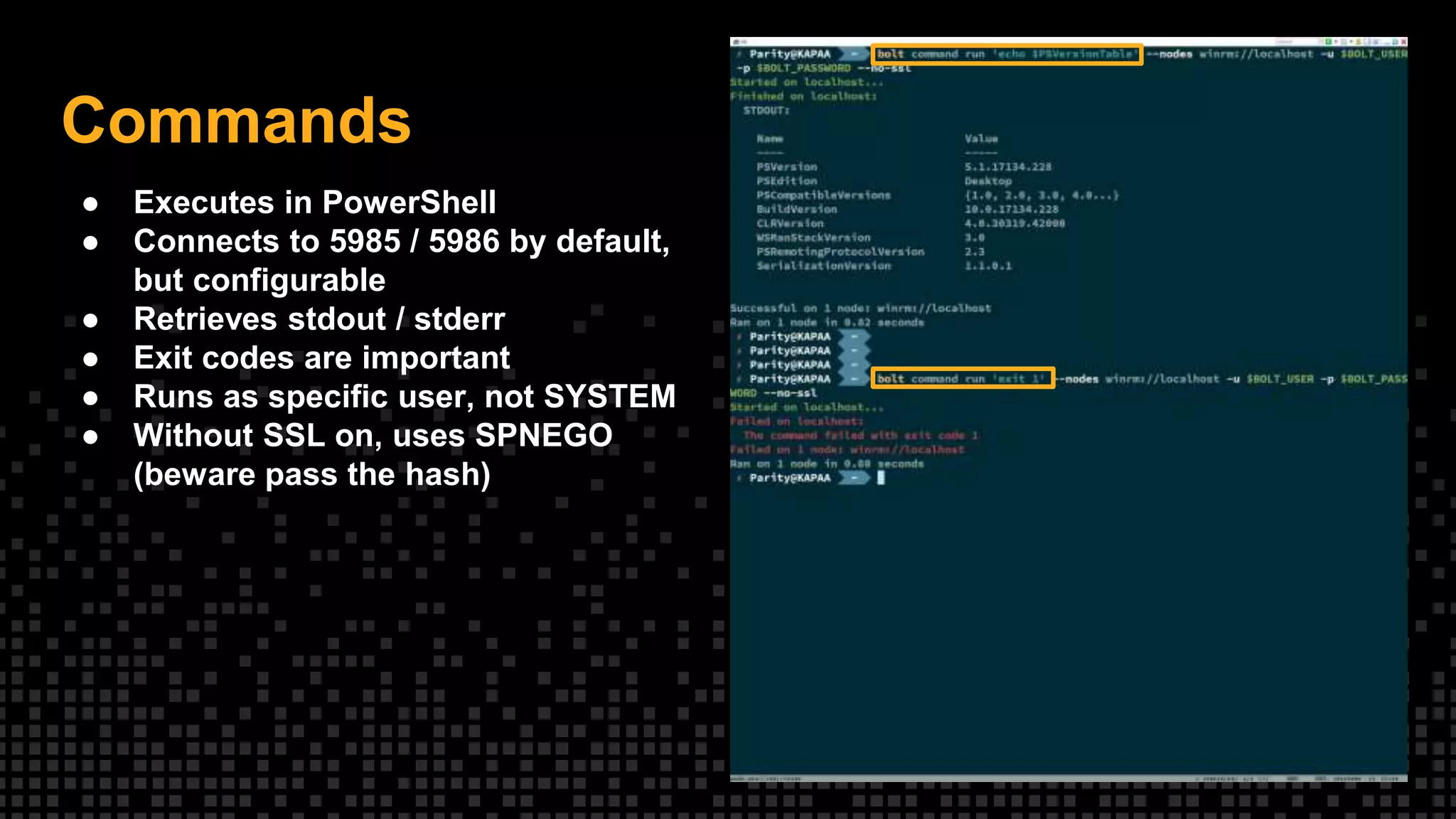

11. Commands
● Executes in PowerShell
● Connects to 5985 / 5986 by default,
but configurable
● Retrieves stdout / stderr
● Exit codes are important
● Runs as specific user, not SYSTEM
● Without SSL on, uses SPNEGO
(beware pass the hash)

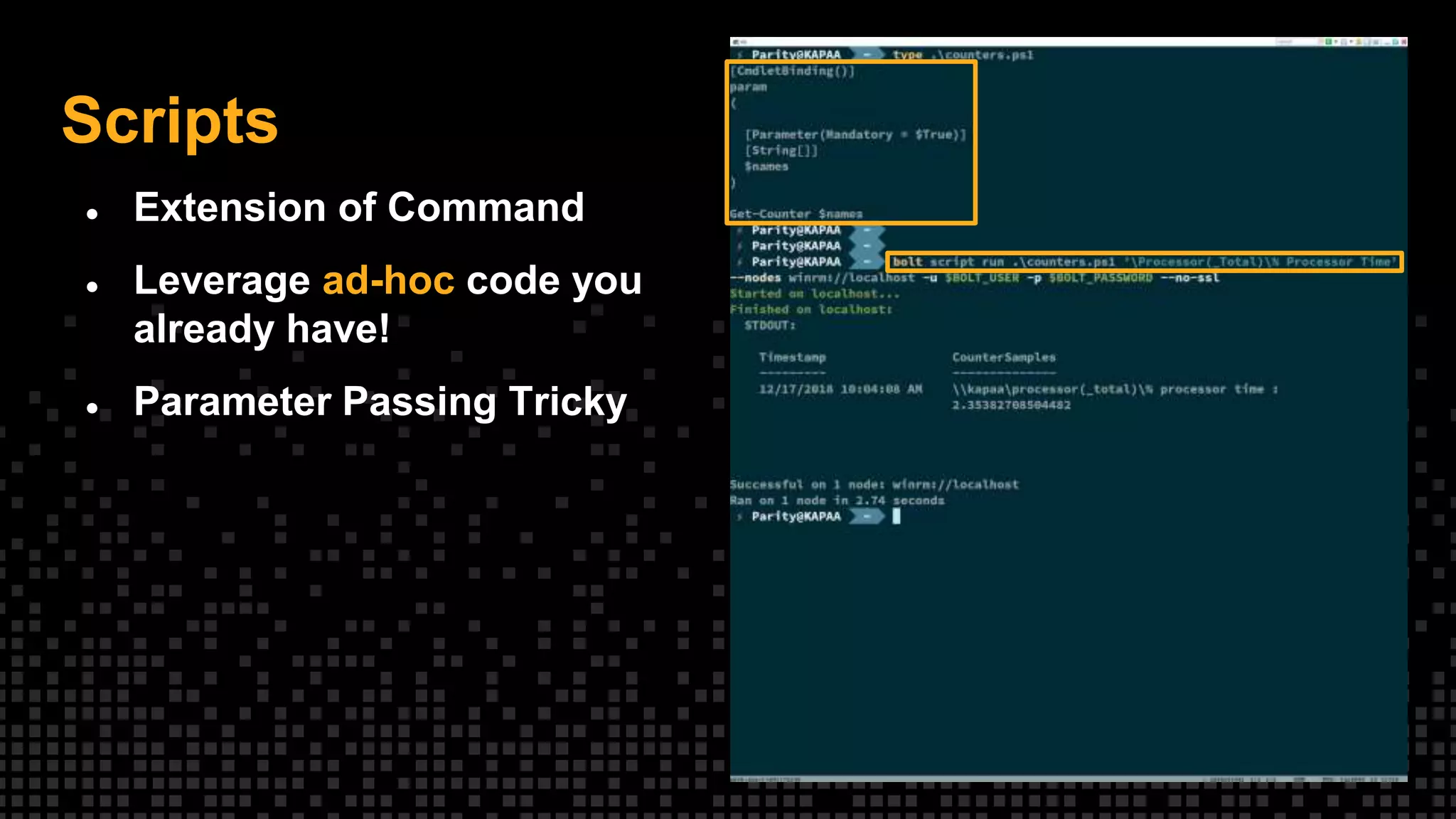

12. Scripts
● Extension of Command
● Leverage ad-hoc code you
already have!
● Parameter Passing Tricky

13. Tasks

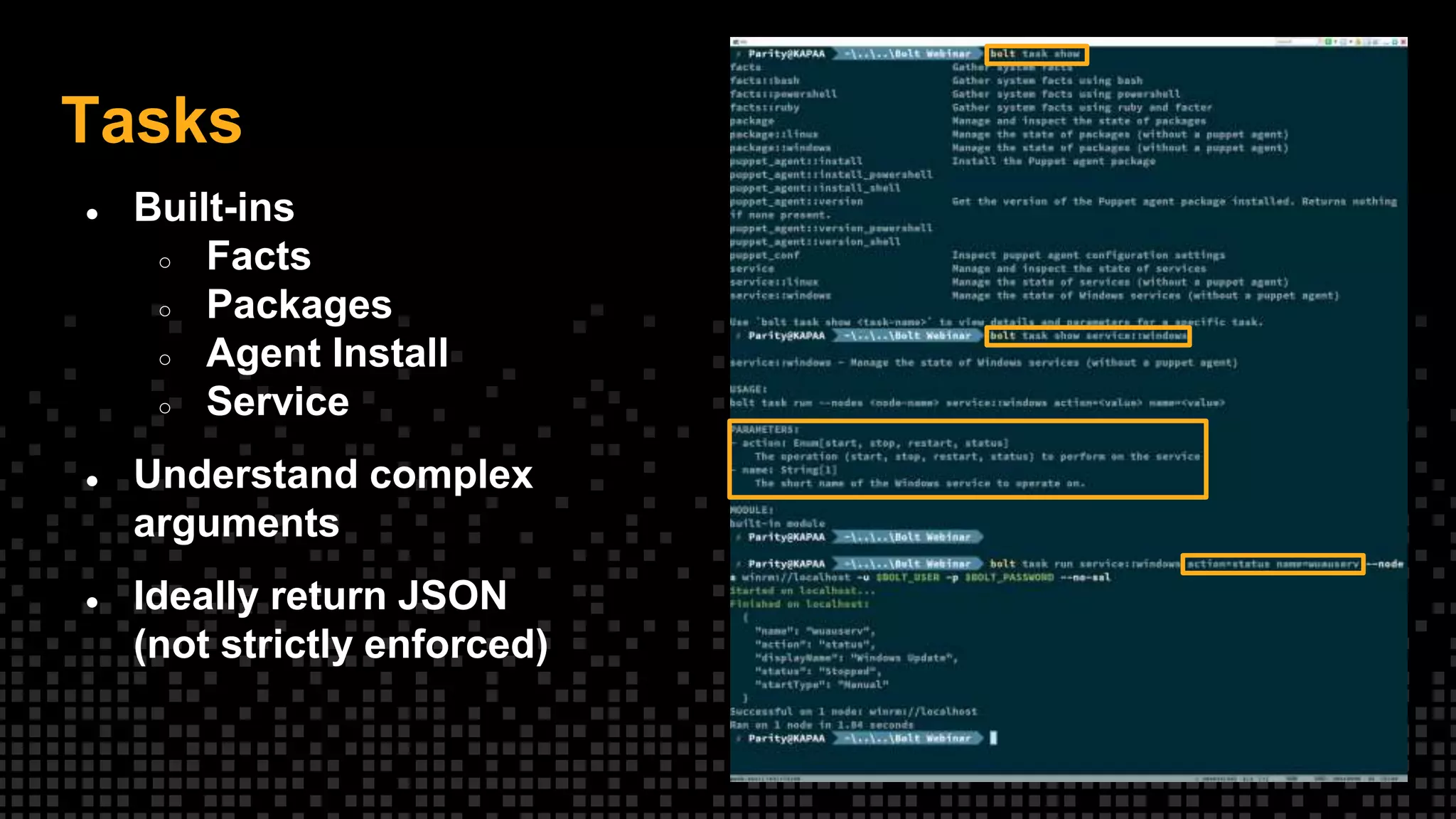

● Built-ins
○ Facts
○ Packages
○ Agent Install
○ Service
● Understand complex
arguments
● Ideally return JSON
(not strictly enforced)

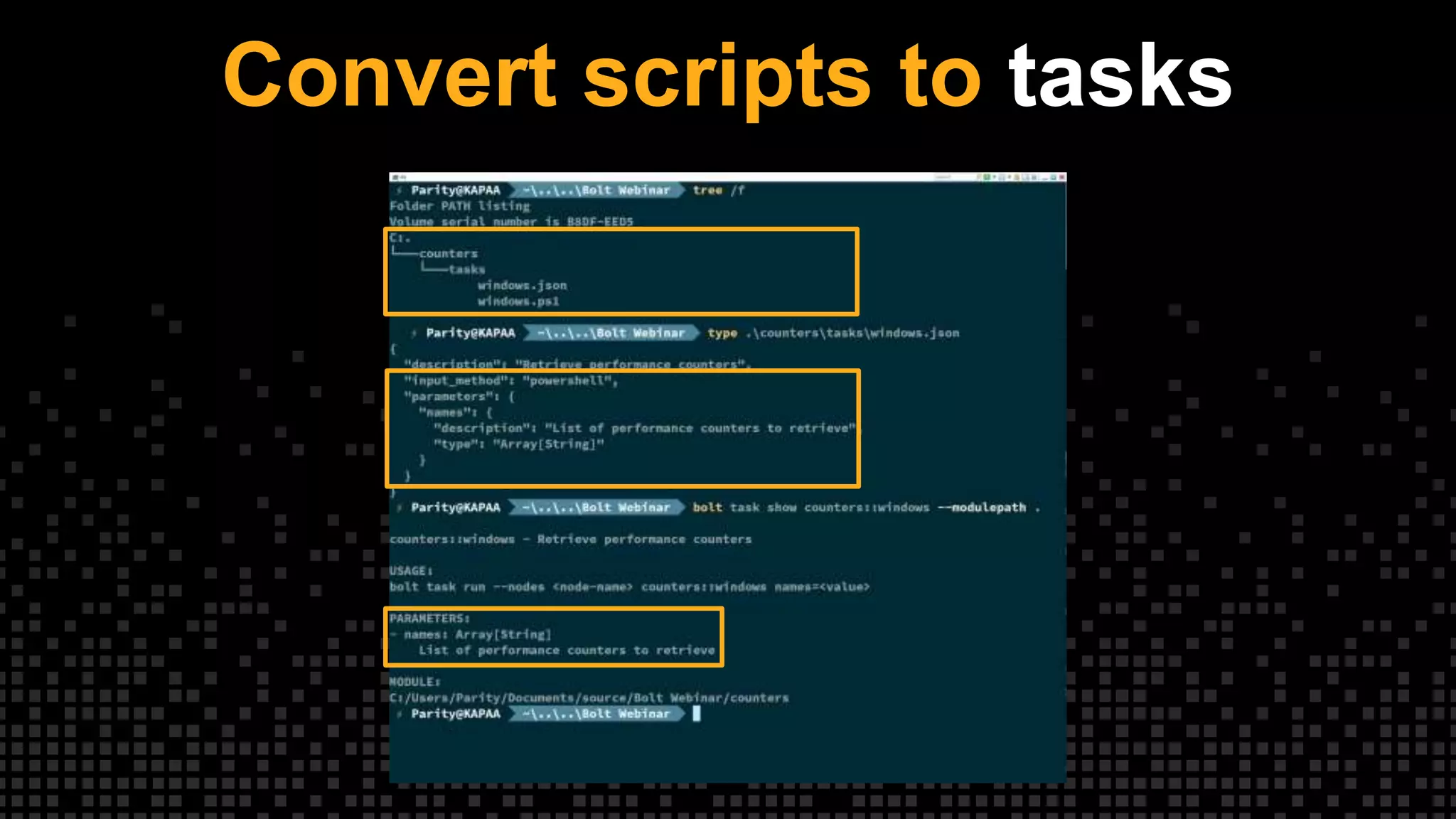

14. Convert scripts to tasks

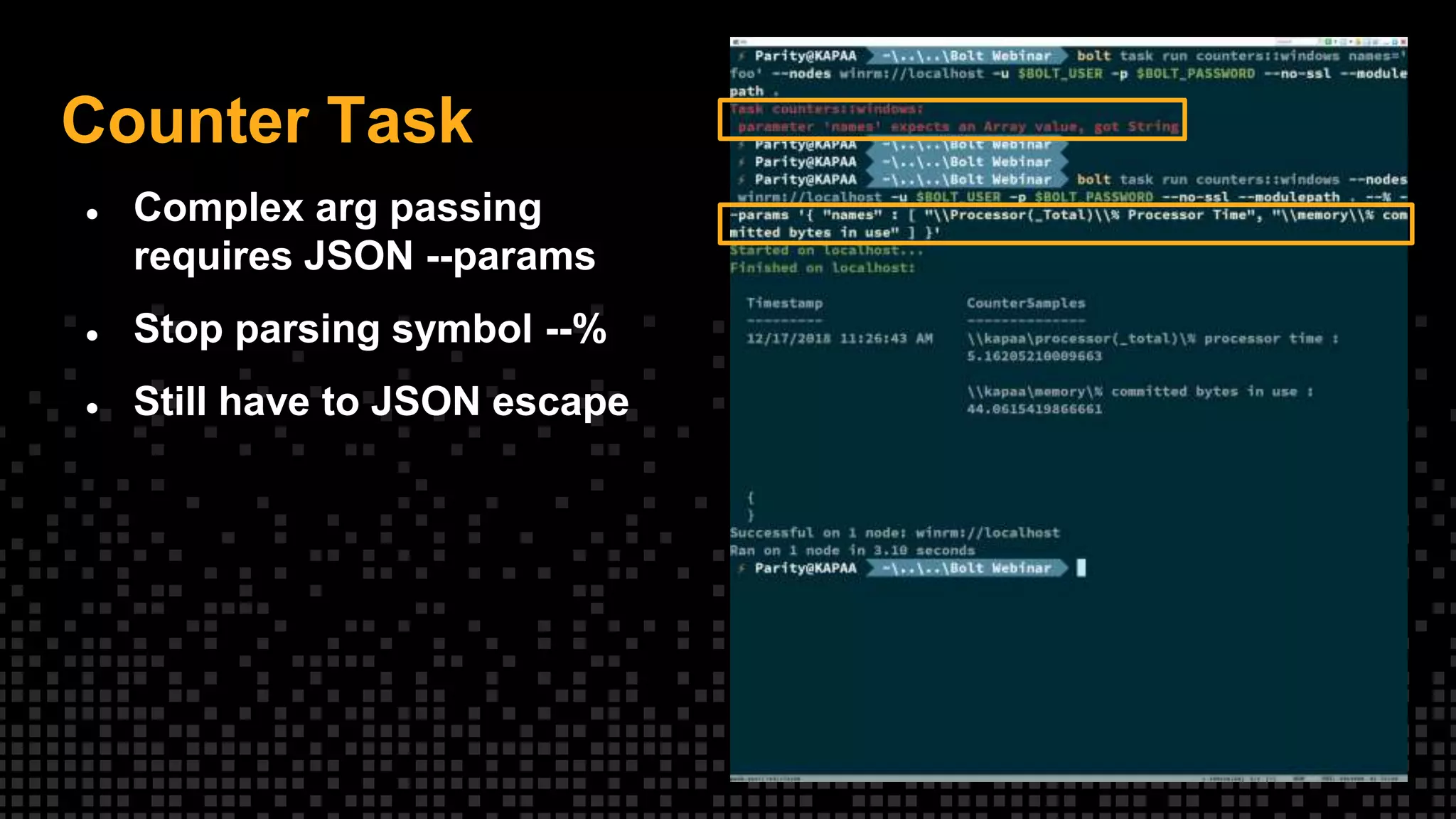

15. Counter Task
● Complex arg passing
requires JSON --params
● Stop parsing symbol --%
● Still have to JSON escape

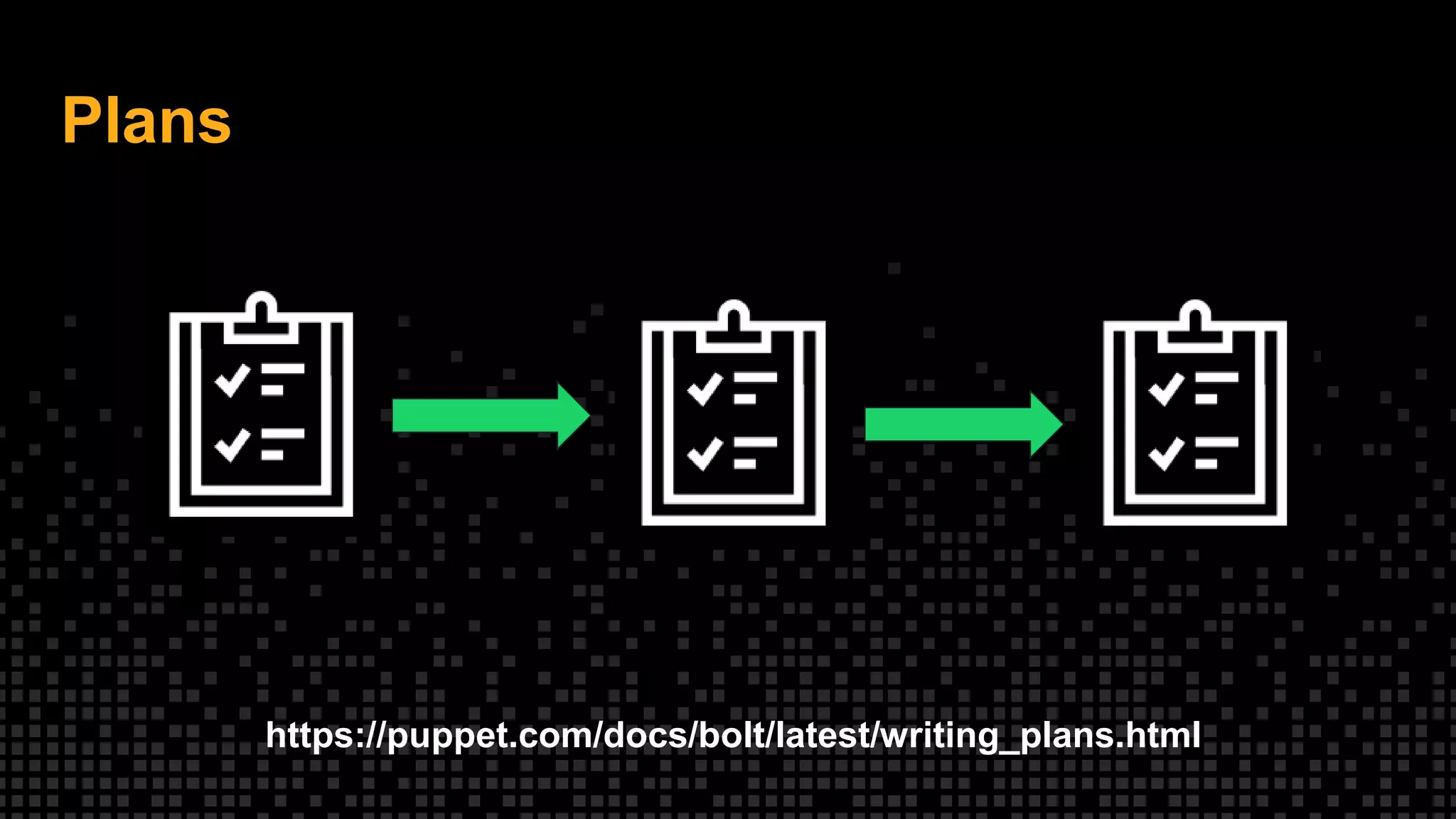

16. Plans
https://puppet.com/docs/bolt/latest/writing_plans.html

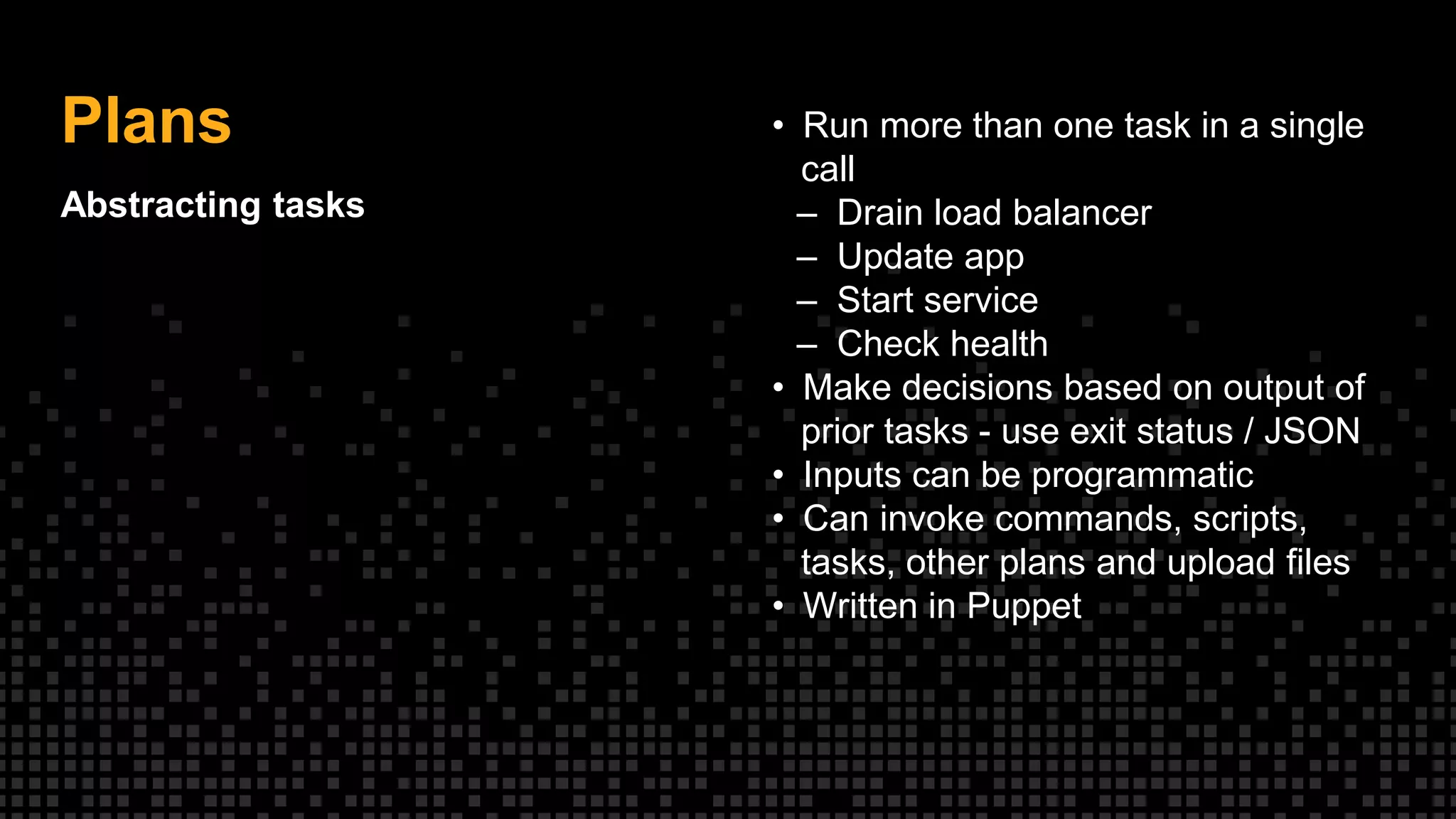

17. Plans
Abstracting tasks
• Run more than one task in a single
call
– Drain load balancer
– Update app
– Start service
– Check health
• Make decisions based on output of
prior tasks - use exit status / JSON
• Inputs can be programmatic
• Can invoke commands, scripts,
tasks, other plans and upload files
• Written in Puppet

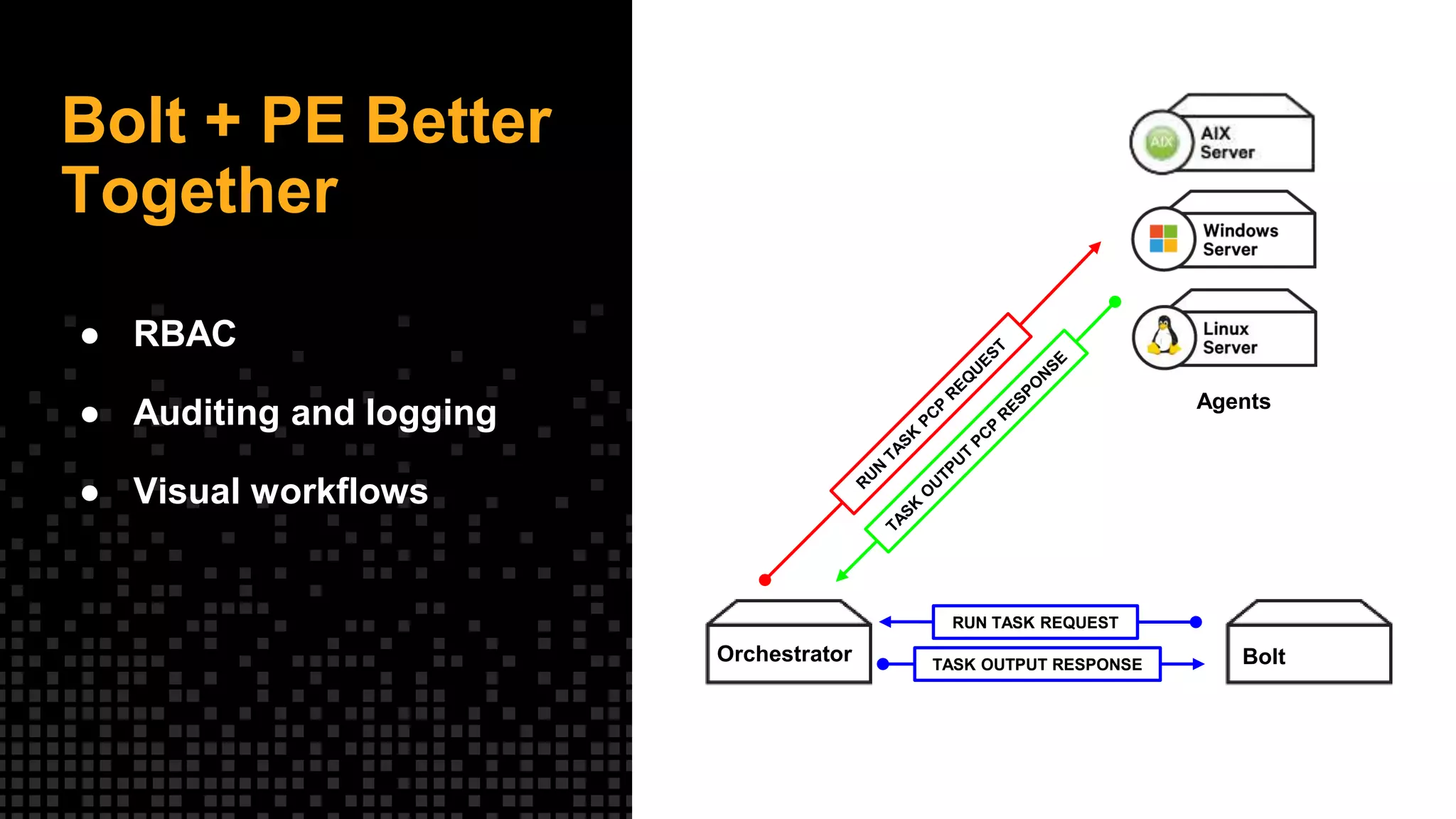

18. Bolt + PE Better
Together
● RBAC
● Auditing and logging
● Visual workflows
BoltOrchestrator
RUN TASK REQUEST
TASK OUTPUT RESPONSE
Agents

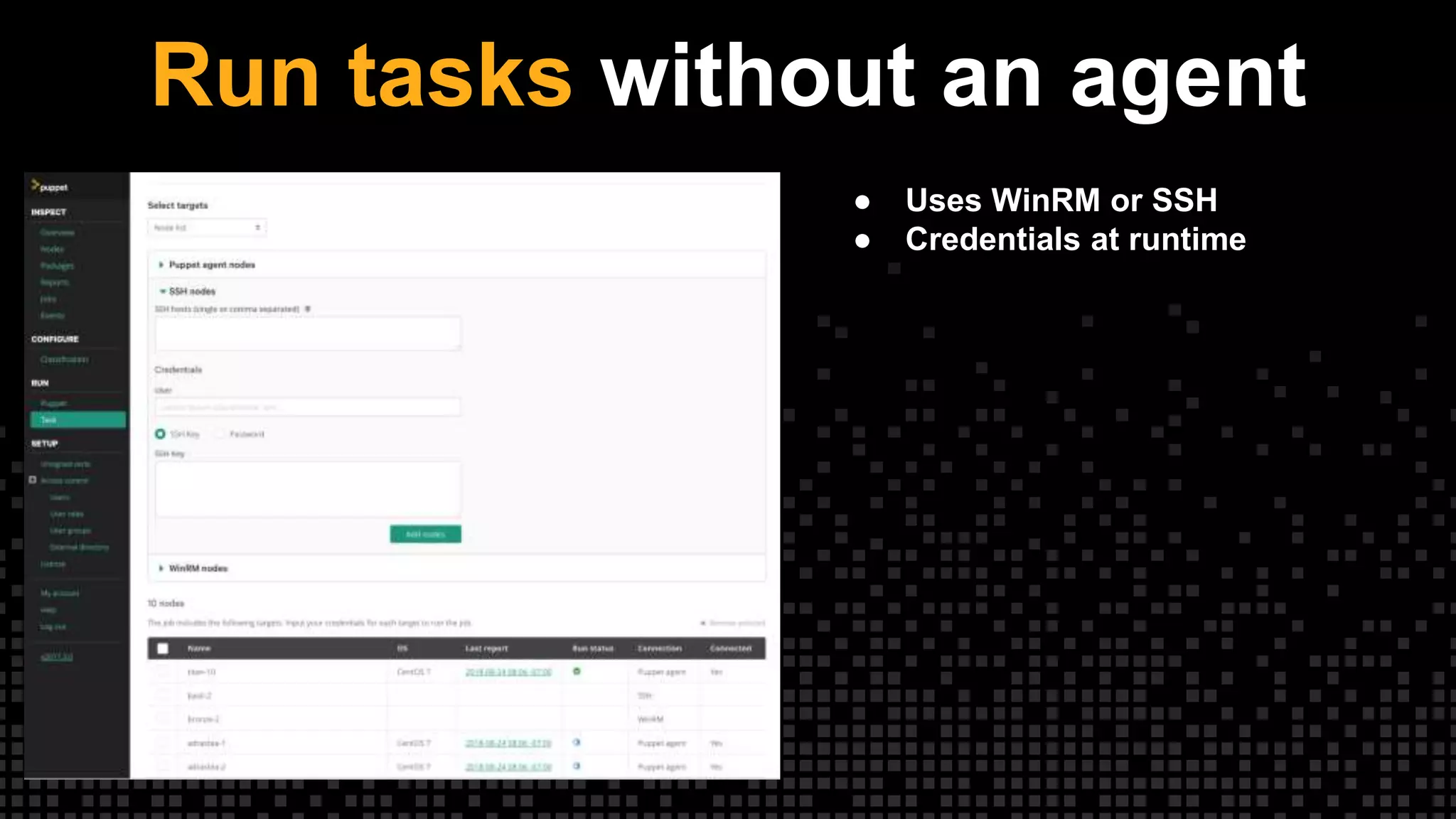

19. Run tasks without an agent
● Uses WinRM or SSH
● Credentials at runtime

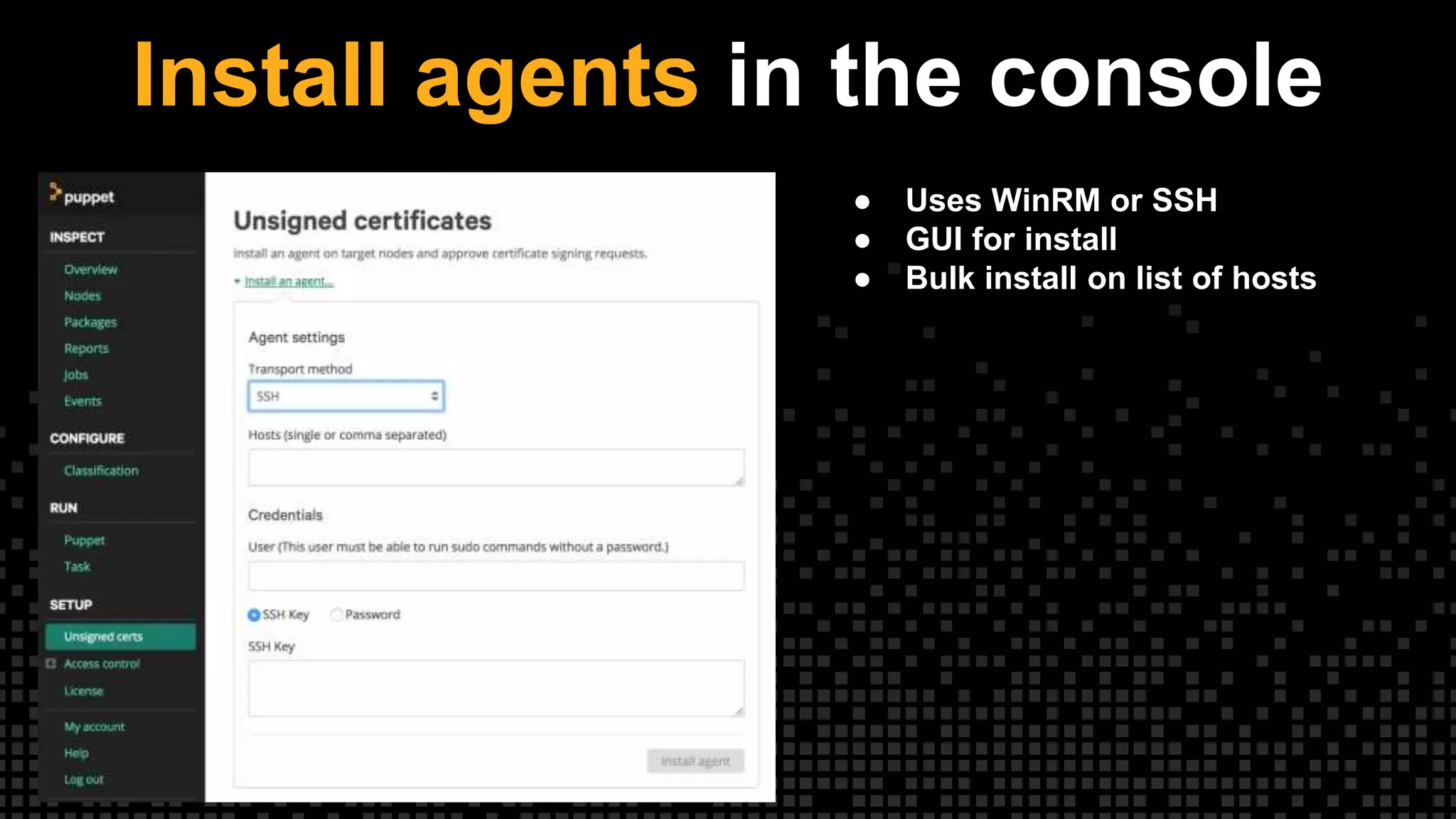

20. Install agents in the console
● Uses WinRM or SSH
● GUI for install
● Bulk install on list of hosts

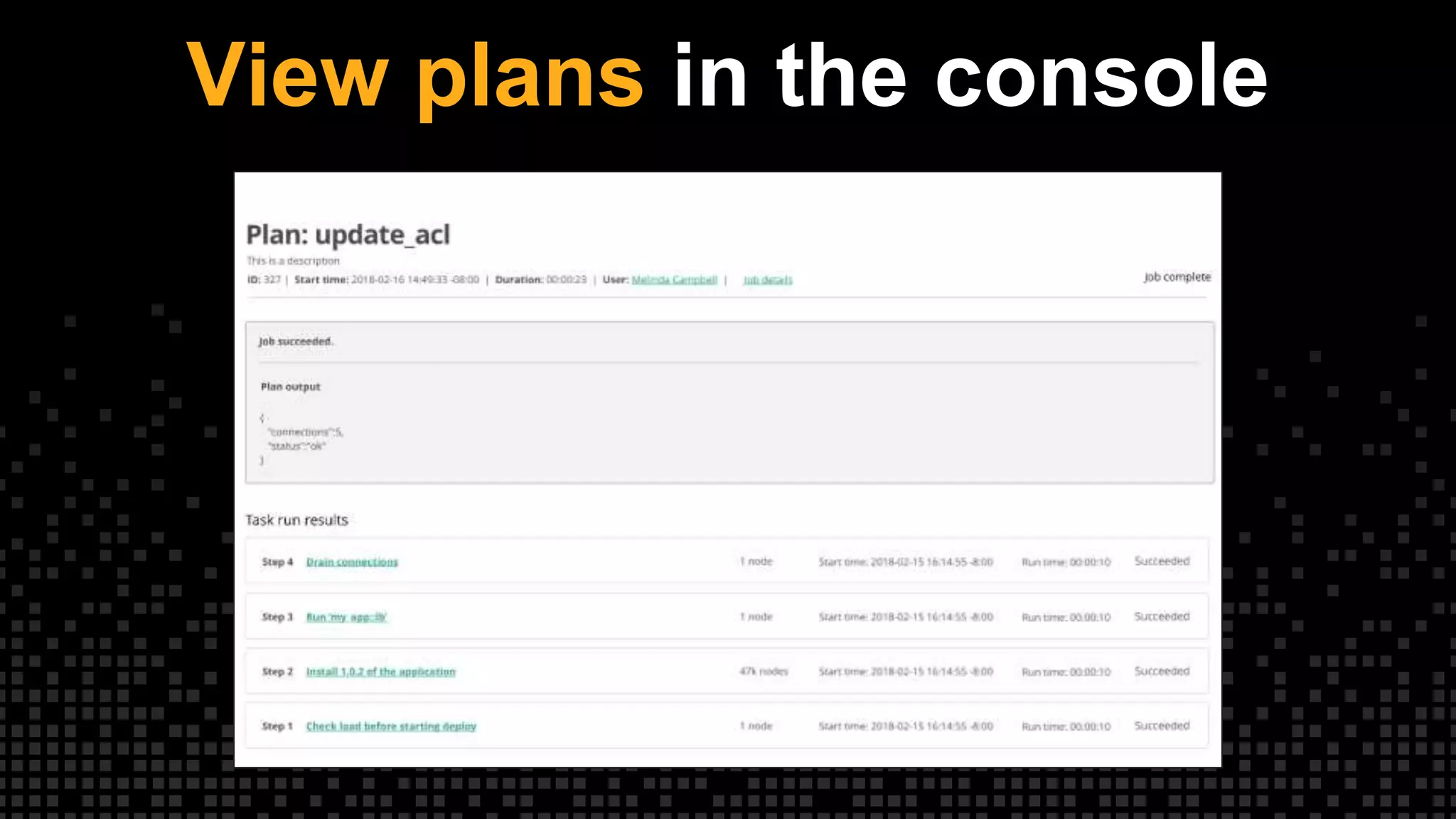

21. View plans in the console

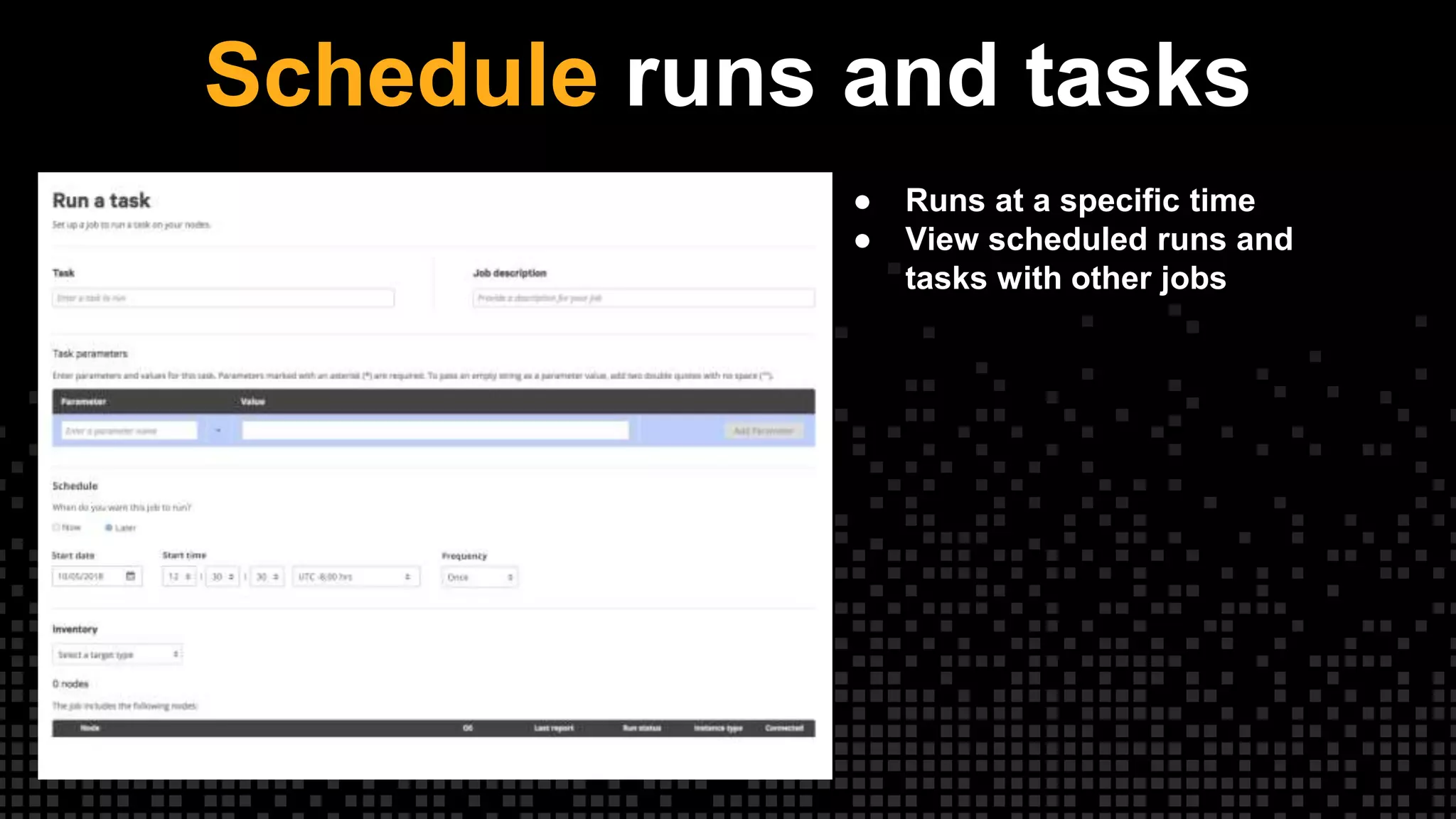

22. Schedule runs and tasks
● Runs at a specific time
● View scheduled runs and
tasks with other jobs

23. PowerShell Core
Not just Windows anymore!
23

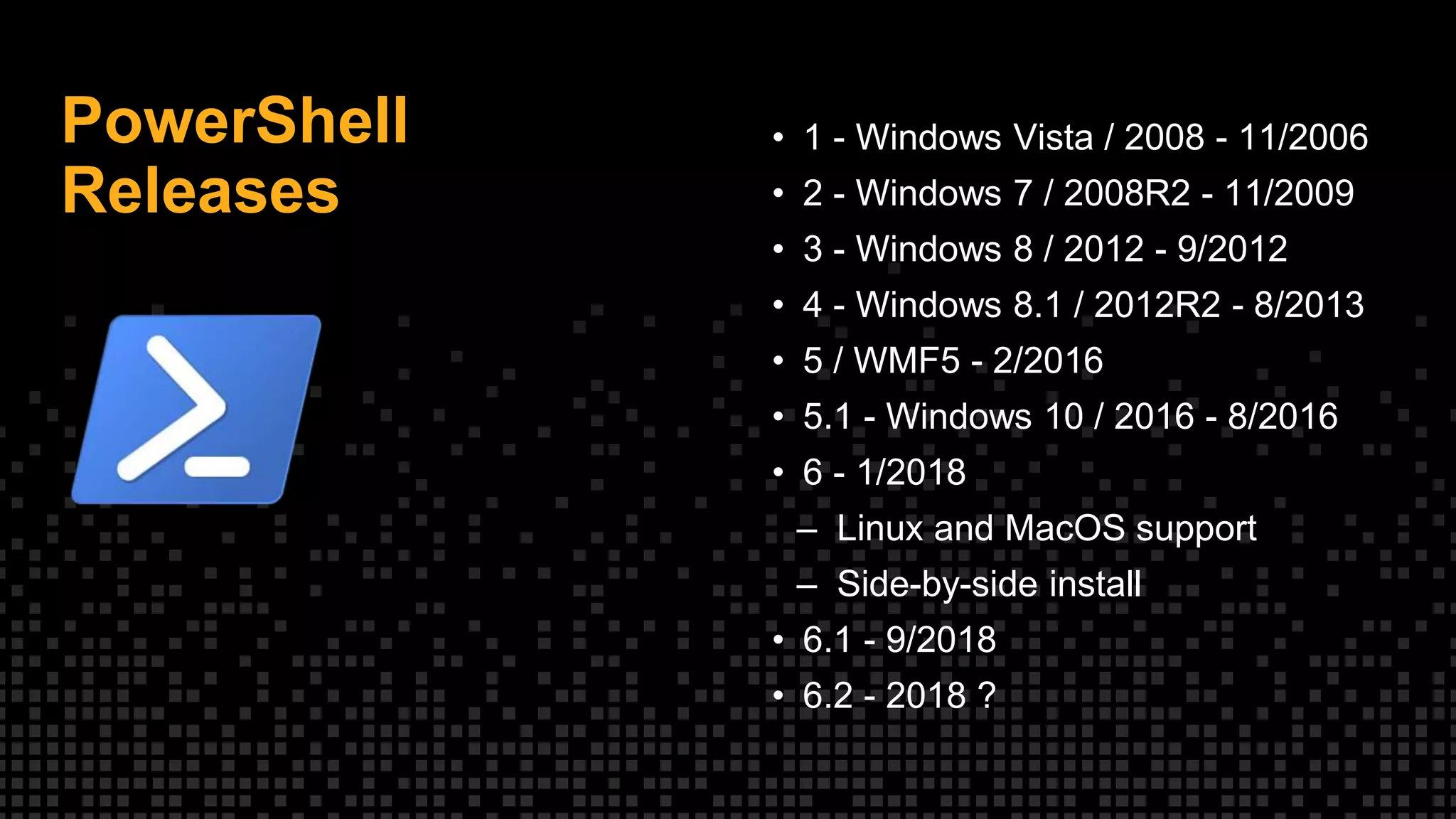

24. PowerShell
Releases
• 1 - Windows Vista / 2008 - 11/2006
• 2 - Windows 7 / 2008R2 - 11/2009
• 3 - Windows 8 / 2012 - 9/2012
• 4 - Windows 8.1 / 2012R2 - 8/2013
• 5 / WMF5 - 2/2016
• 5.1 - Windows 10 / 2016 - 8/2016
• 6 - 1/2018
– Linux and MacOS support
– Side-by-side install
• 6.1 - 9/2018
• 6.2 - 2018 ?

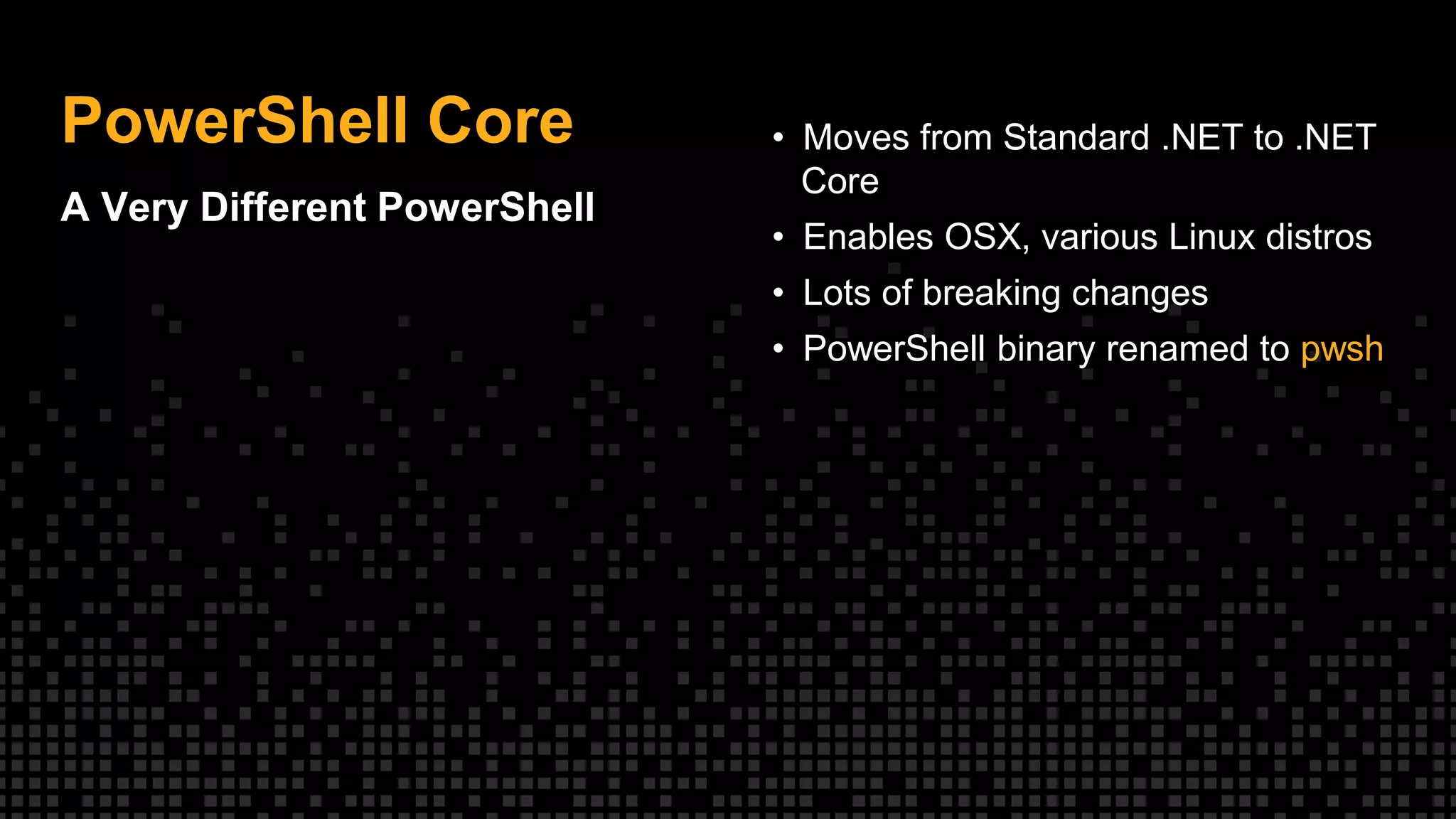

25. PowerShell Core
A Very Different PowerShell
• Moves from Standard .NET to .NET
Core
• Enables OSX, various Linux distros
• Lots of breaking changes
• PowerShell binary renamed to pwsh

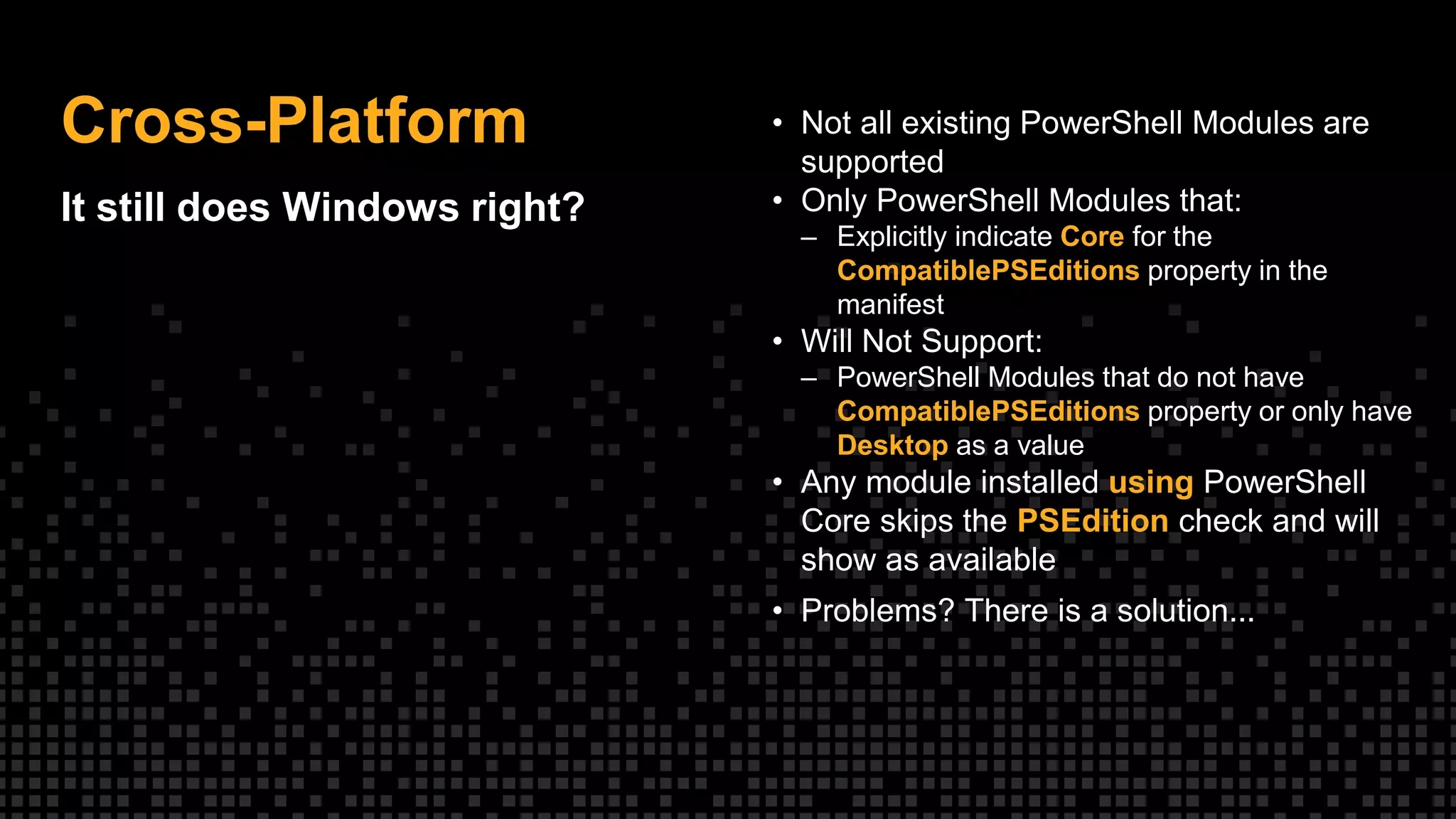

26. Cross-Platform
It still does Windows right?
• Not all existing PowerShell Modules are
supported
• Only PowerShell Modules that:
– Explicitly indicate Core for the
CompatiblePSEditions property in the
manifest
• Will Not Support:
– PowerShell Modules that do not have
CompatiblePSEditions property or only have
Desktop as a value
• Any module installed using PowerShell
Core skips the PSEdition check and will
show as available
• Problems? There is a solution...

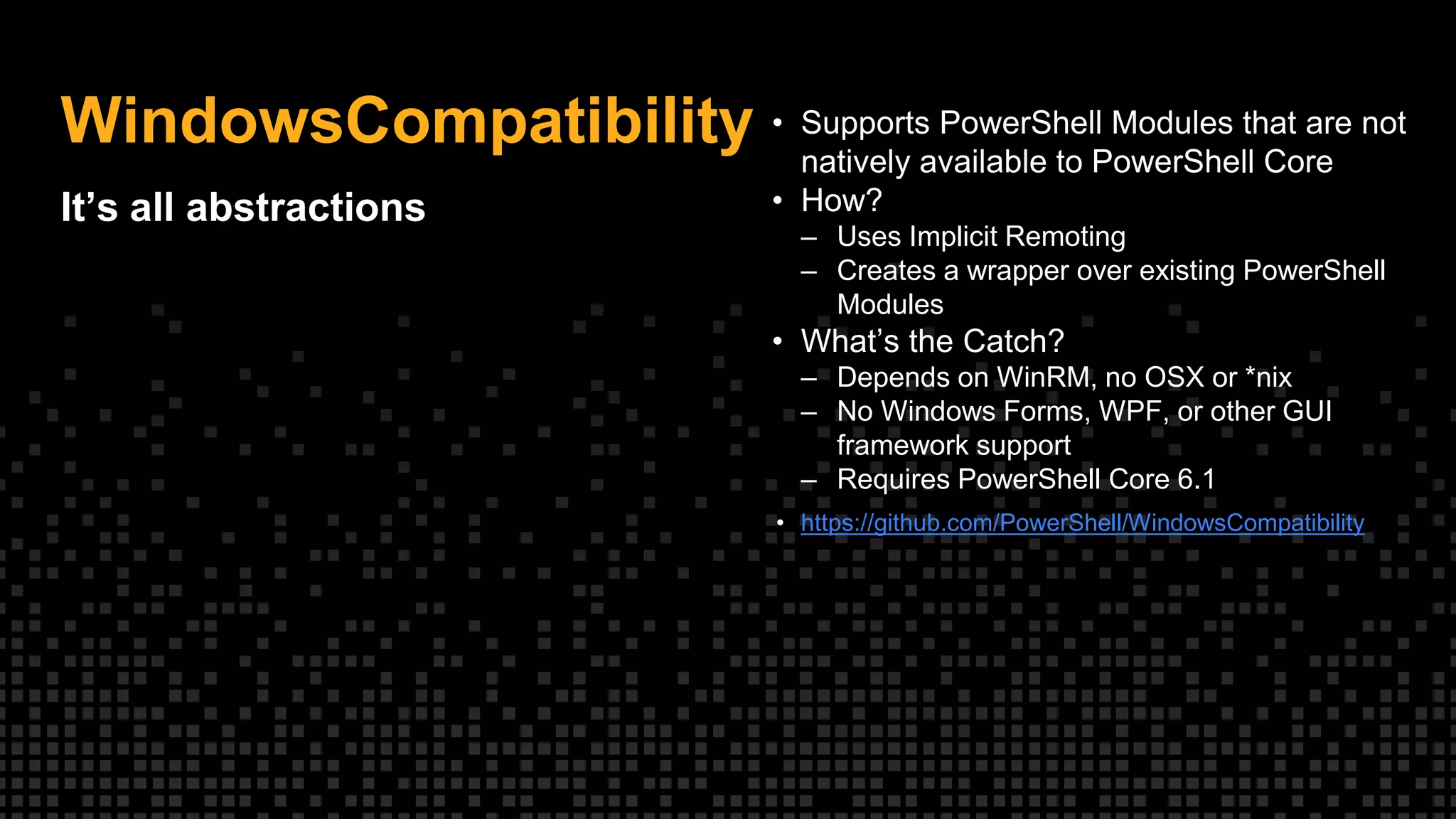

27. WindowsCompatibility
It’s all abstractions
• Supports PowerShell Modules that are not
natively available to PowerShell Core
• How?
– Uses Implicit Remoting
– Creates a wrapper over existing PowerShell
Modules
• What’s the Catch?
– Depends on WinRM, no OSX or *nix
– No Windows Forms, WPF, or other GUI
framework support
– Requires PowerShell Core 6.1
• https://github.com/PowerShell/WindowsCompatibility

28. Beware Paths
Paths are your friend,
not your enemy
• Do:
– Use Join-Path and other path cmdlets!
– Use [IO.Path]::PathSeparator
• Don’t
– “$($Directory1)$($Directory2)wakka.exe”
• General notes
– Most cmdlets accept forward or back slashes
– Paths won’t always make sense to the
system you think you are on, but are valid
anway.
– Rely on the system to validate
– PowerShell is case insensitive but the
platform may not be!

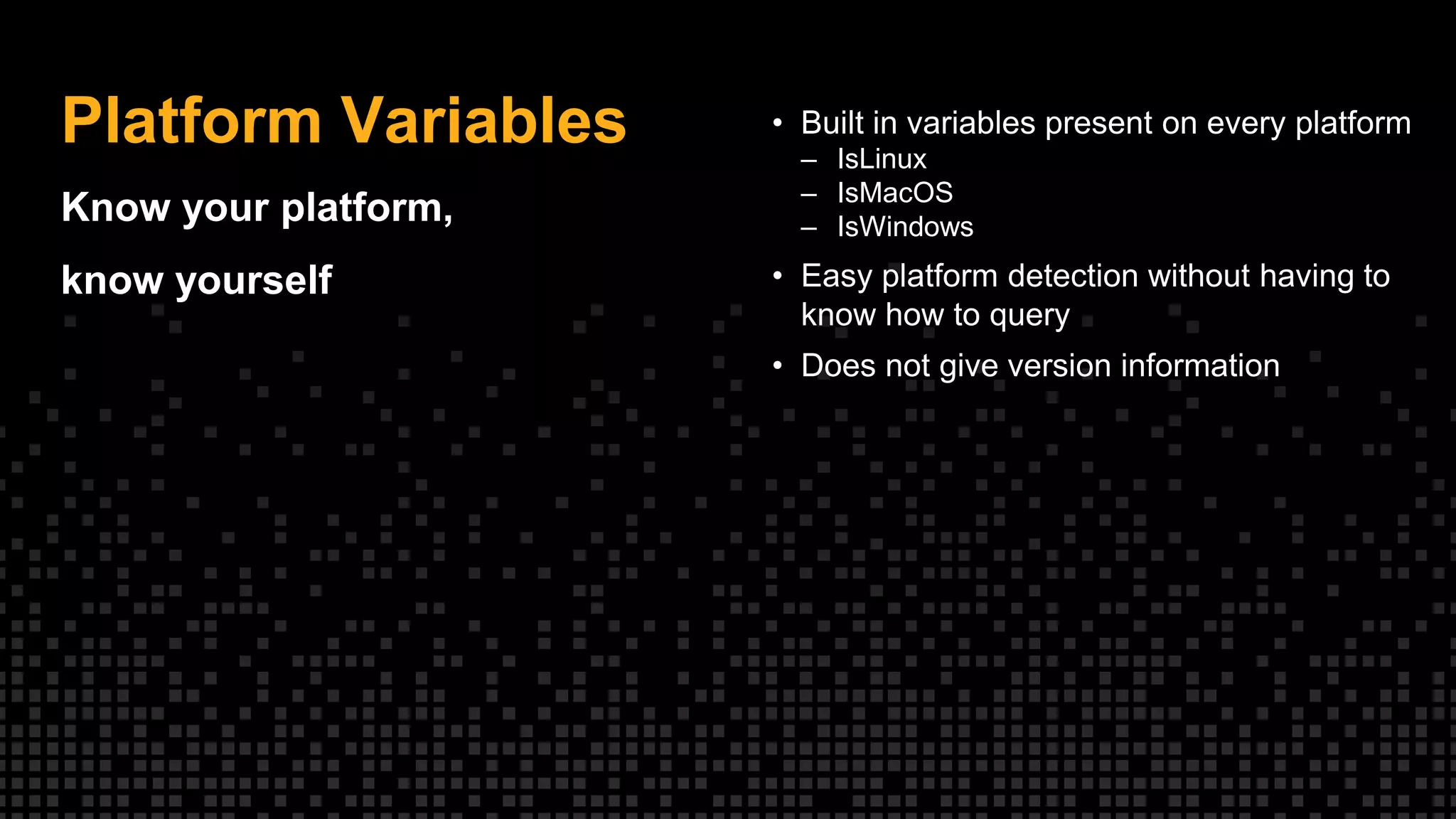

29. Platform Variables
Know your platform,
know yourself
• Built in variables present on every platform
– IsLinux
– IsMacOS
– IsWindows
• Easy platform detection without having to
know how to query
• Does not give version information

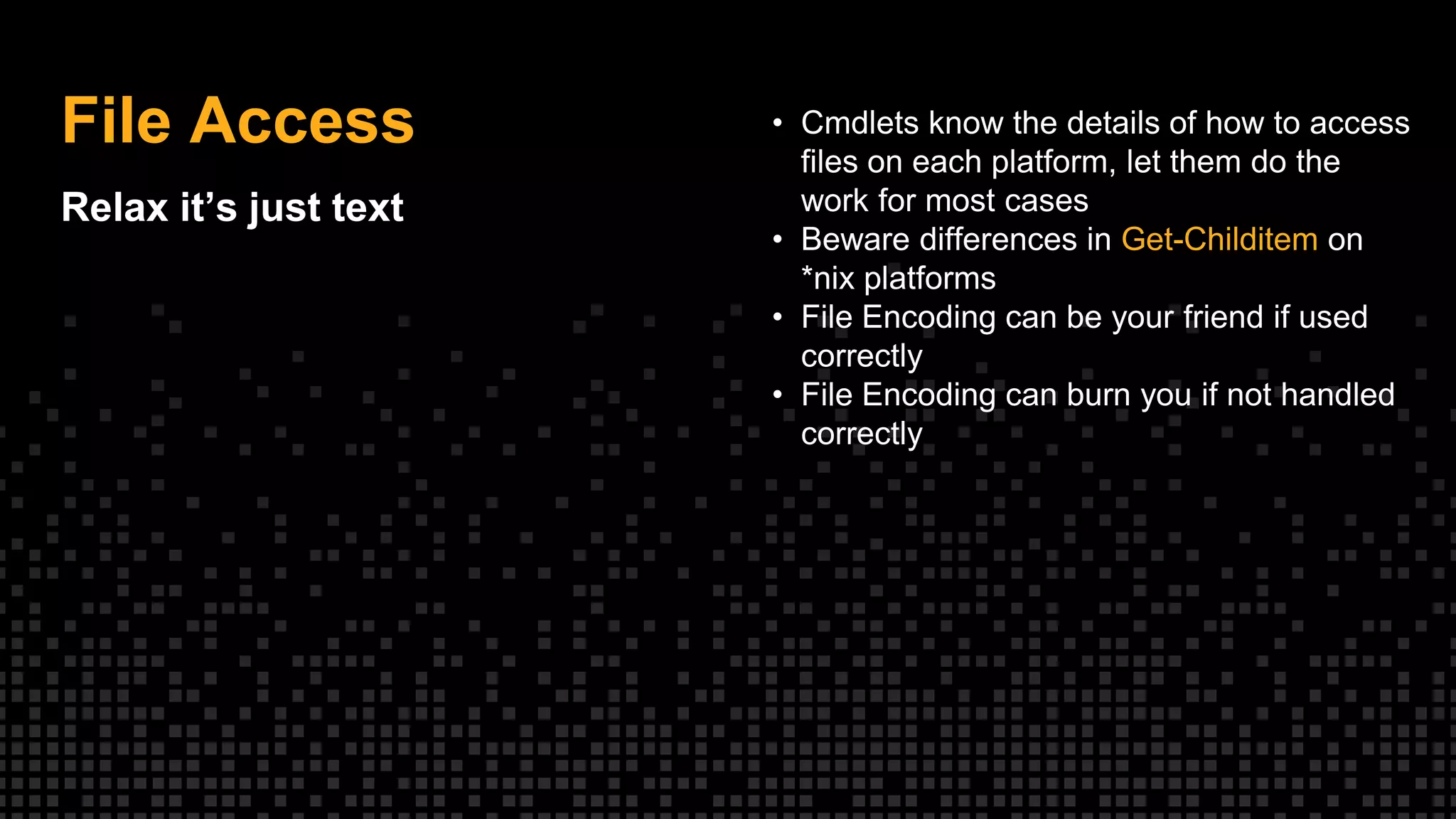

30. File Access
Relax it’s just text
• Cmdlets know the details of how to access
files on each platform, let them do the
work for most cases
• Beware differences in Get-Childitem on
*nix platforms
• File Encoding can be your friend if used
correctly
• File Encoding can burn you if not handled
correctly

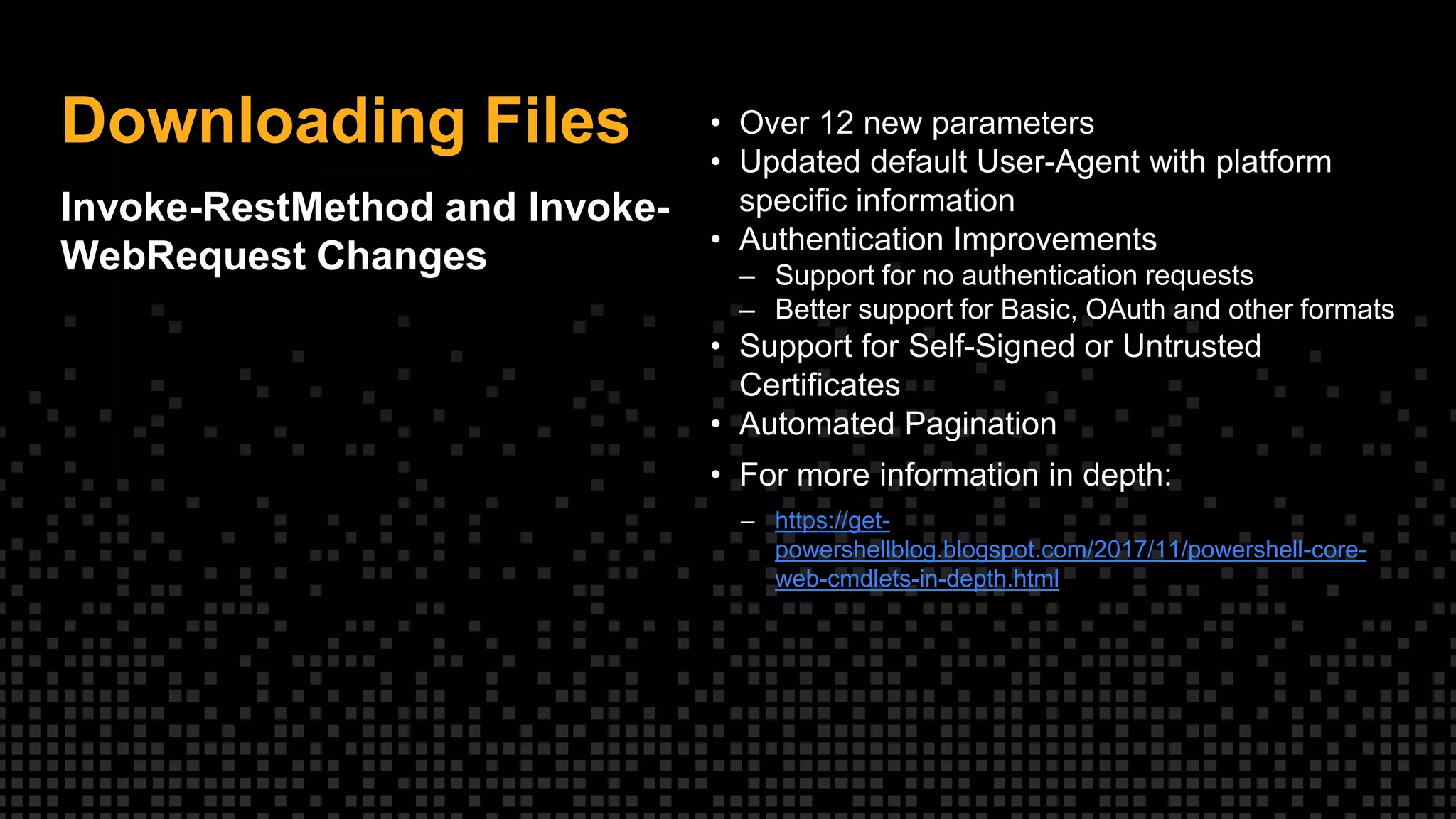

31. Downloading Files
Invoke-RestMethod and Invoke-
WebRequest Changes
• Over 12 new parameters
• Updated default User-Agent with platform
specific information
• Authentication Improvements
– Support for no authentication requests
– Better support for Basic, OAuth and other formats
• Support for Self-Signed or Untrusted
Certificates
• Automated Pagination
• For more information in depth:
– https://get-
powershellblog.blogspot.com/2017/11/powershell-core-
web-cmdlets-in-depth.html

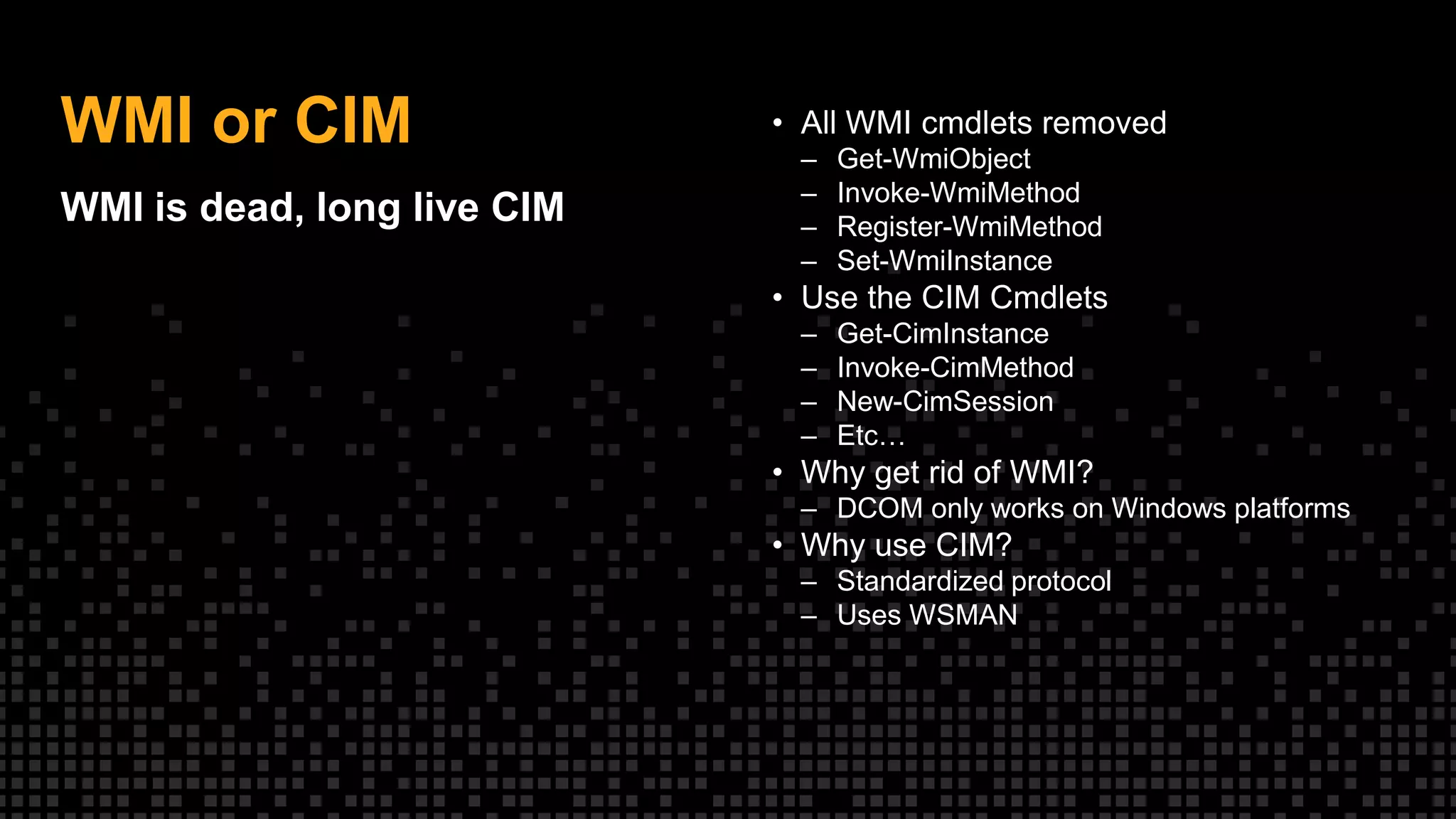

32. WMI or CIM
WMI is dead, long live CIM
• All WMI cmdlets removed
– Get-WmiObject
– Invoke-WmiMethod
– Register-WmiMethod
– Set-WmiInstance
• Use the CIM Cmdlets
– Get-CimInstance
– Invoke-CimMethod
– New-CimSession
– Etc…
• Why get rid of WMI?
– DCOM only works on Windows platforms
• Why use CIM?
– Standardized protocol
– Uses WSMAN

33. Bolt + PowerShell 6

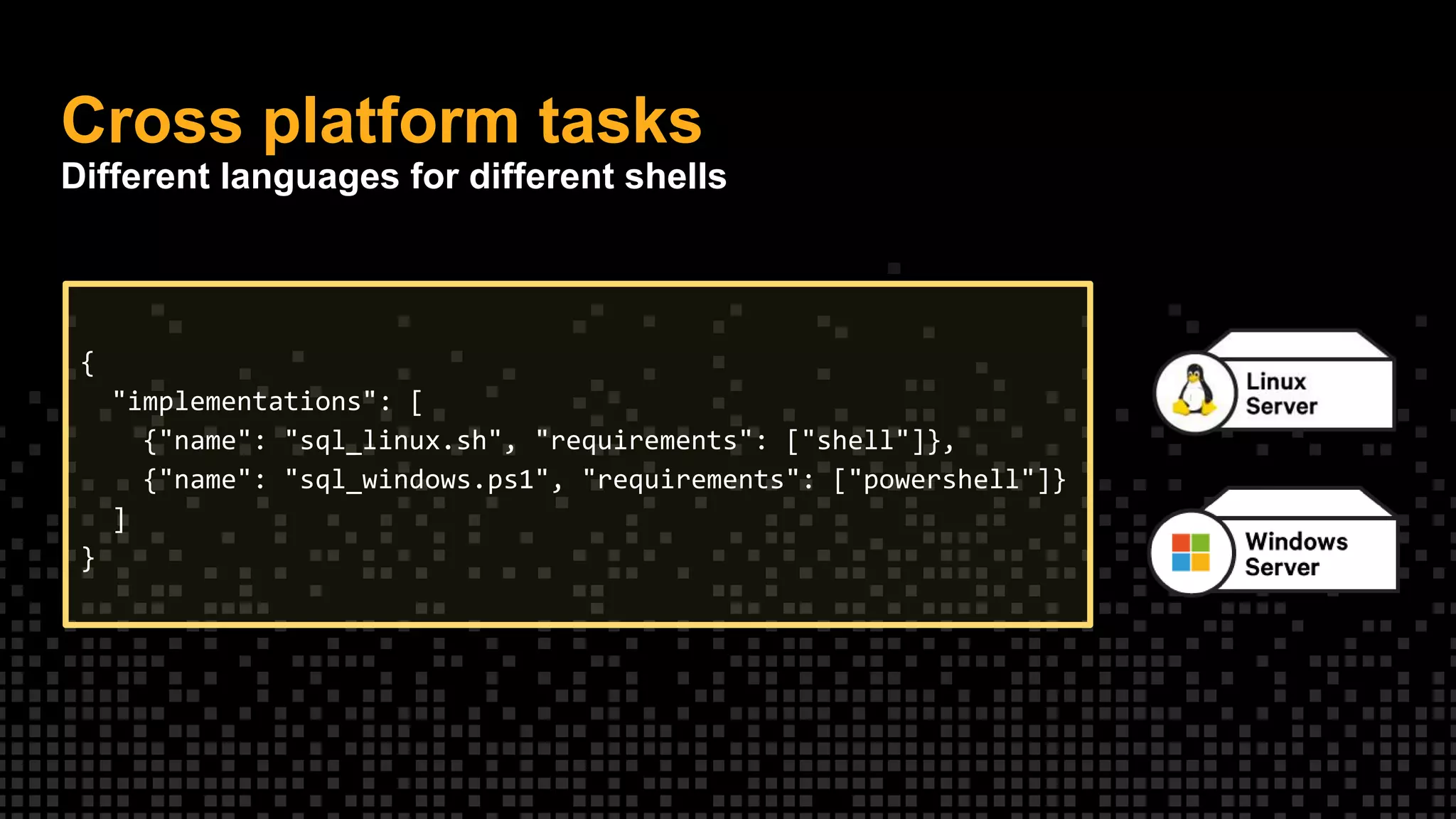

34. Cross platform tasks
Different languages for different shells
{
"implementations": [
{"name": "sql_linux.sh", "requirements": ["shell"]},
{"name": "sql_windows.ps1", "requirements": ["powershell"]}
]
}

35. But PowerShell is cross-
platform?

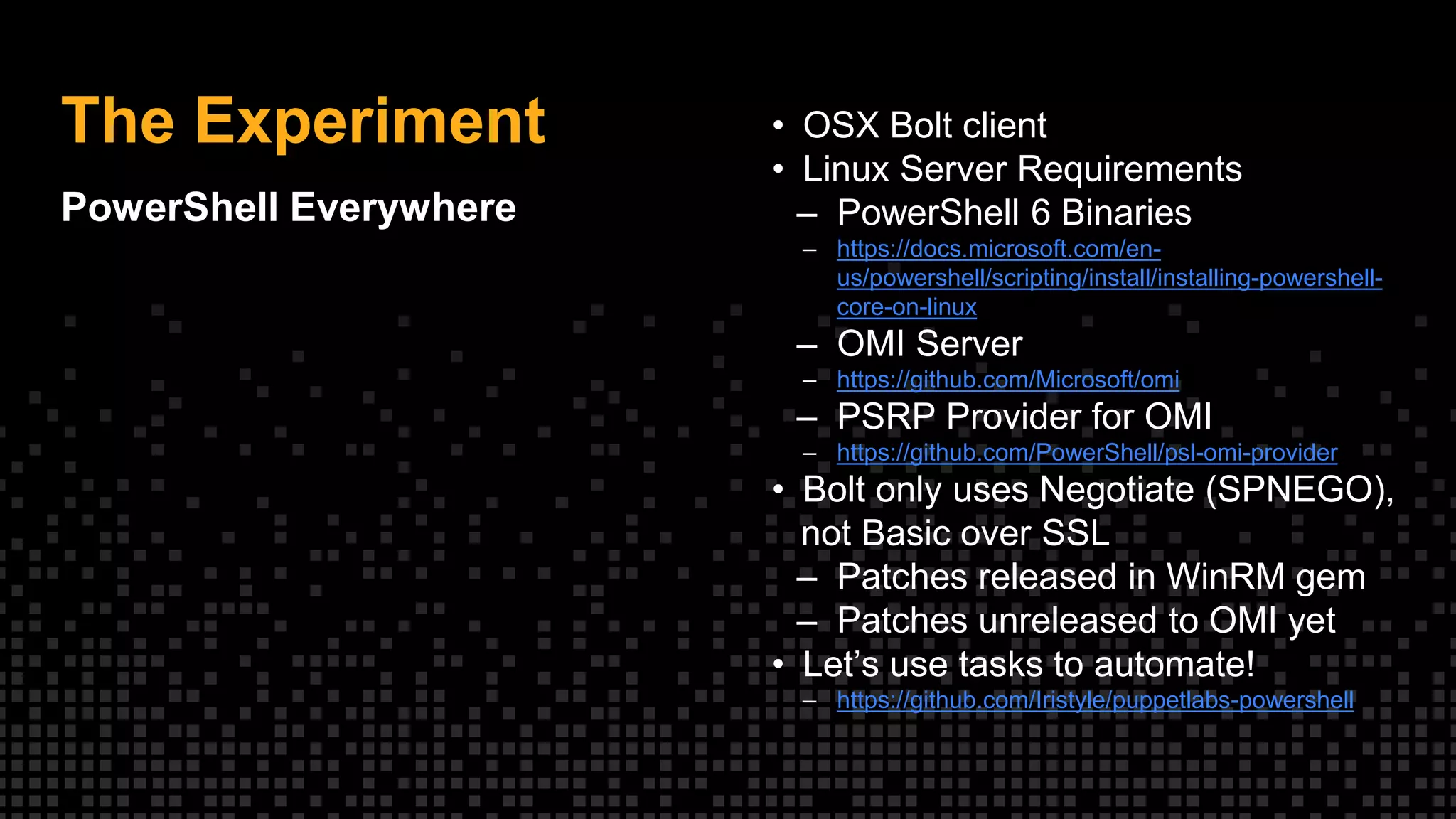

36. The Experiment
PowerShell Everywhere
• OSX Bolt client
• Linux Server Requirements
– PowerShell 6 Binaries
– https://docs.microsoft.com/en-
us/powershell/scripting/install/installing-powershell-
core-on-linux
– OMI Server
– https://github.com/Microsoft/omi
– PSRP Provider for OMI
– https://github.com/PowerShell/psl-omi-provider
• Bolt only uses Negotiate (SPNEGO),
not Basic over SSL
– Patches released in WinRM gem
– Patches unreleased to OMI yet
• Let’s use tasks to automate!
– https://github.com/Iristyle/puppetlabs-powershell

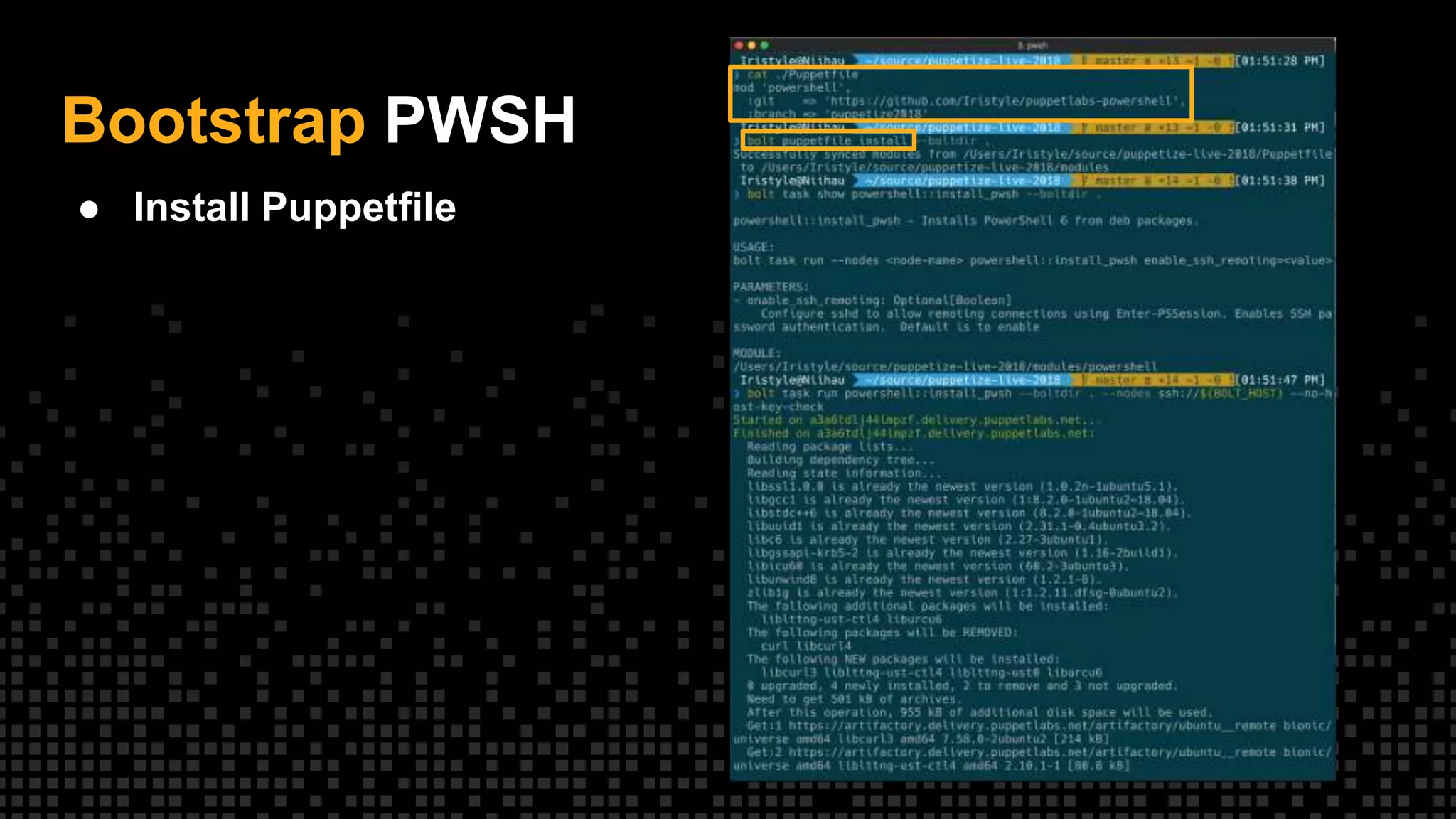

37. Bootstrap PWSH
● Install Puppetfile

38. Bootstrap PWSH
● Install Puppetfile
● Use install_pwsh task
● Modifies sshd_config

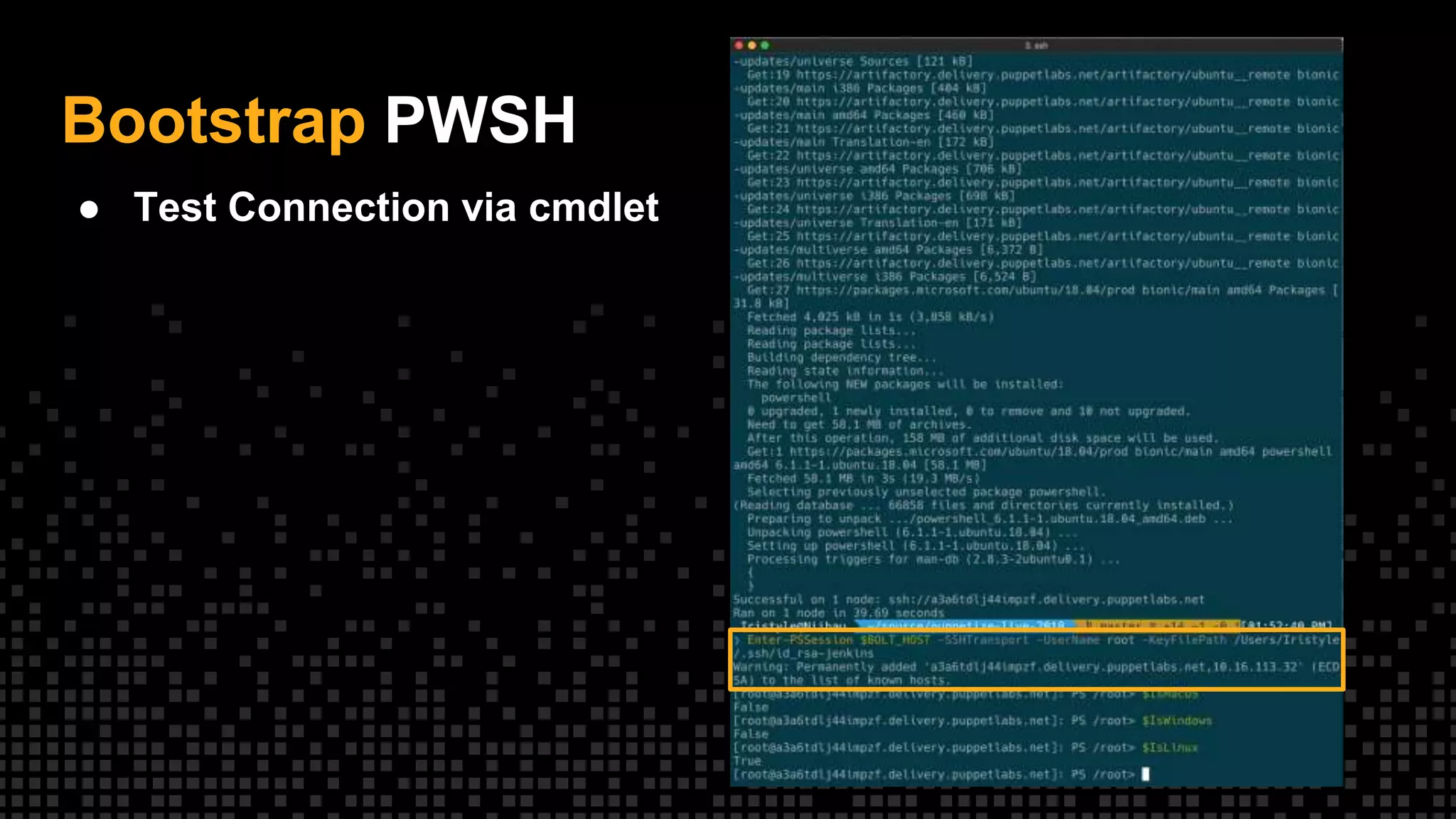

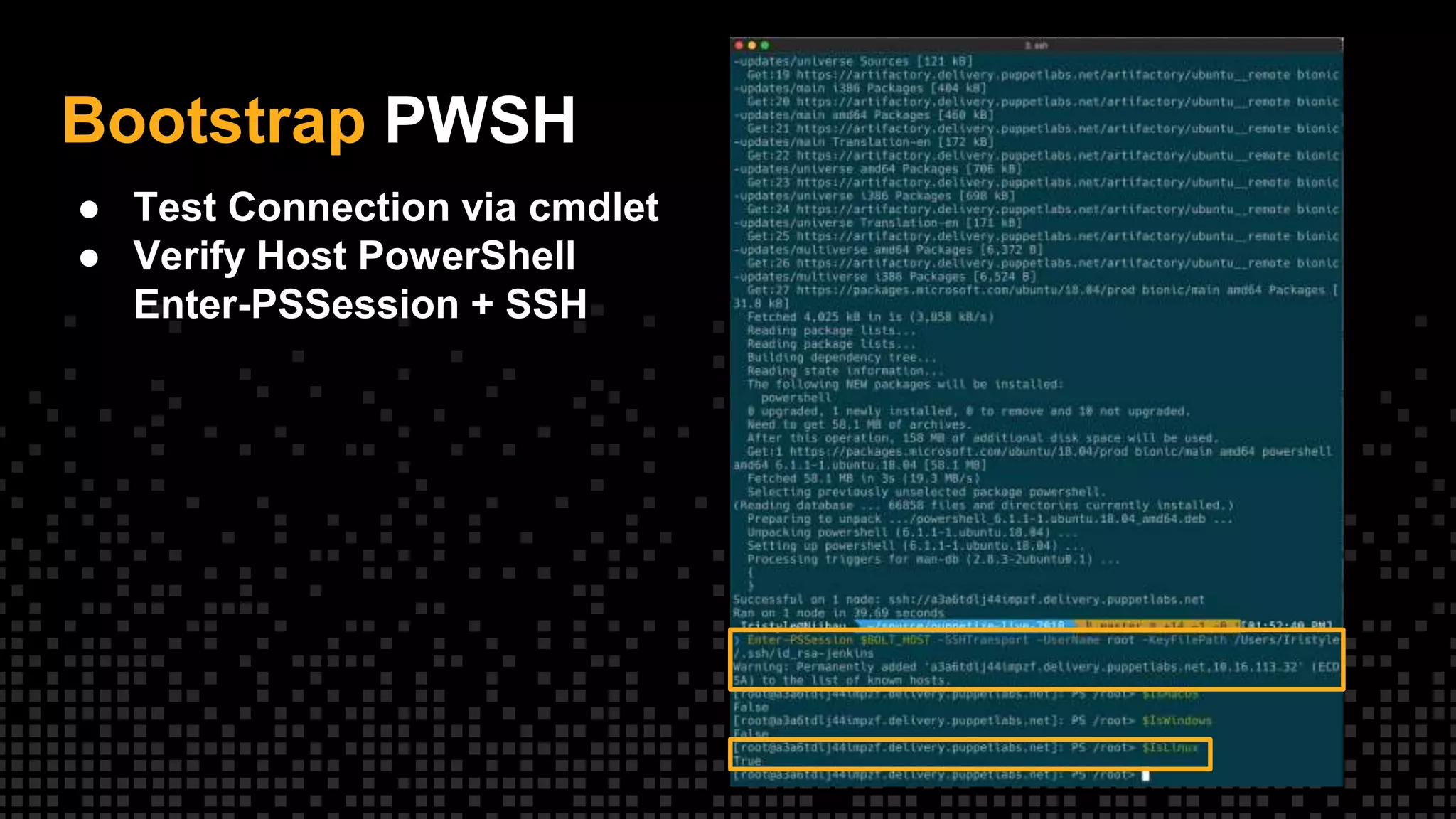

39. Bootstrap PWSH
● Test Connection via cmdlet

40. Bootstrap PWSH
● Test Connection via cmdlet
● Verify Host PowerShell
Enter-PSSession + SSH

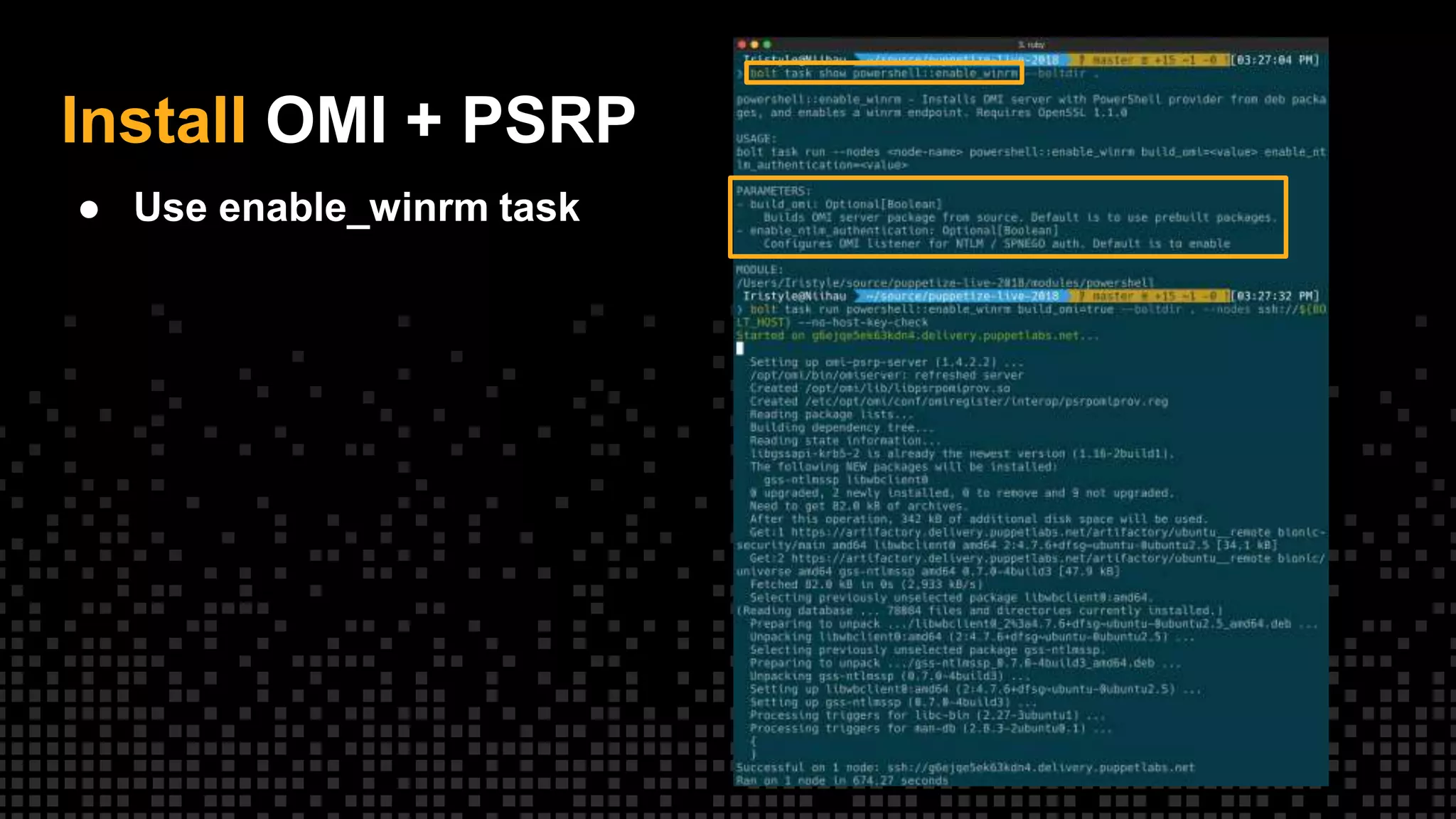

41. Install OMI + PSRP
● Use enable_winrm task

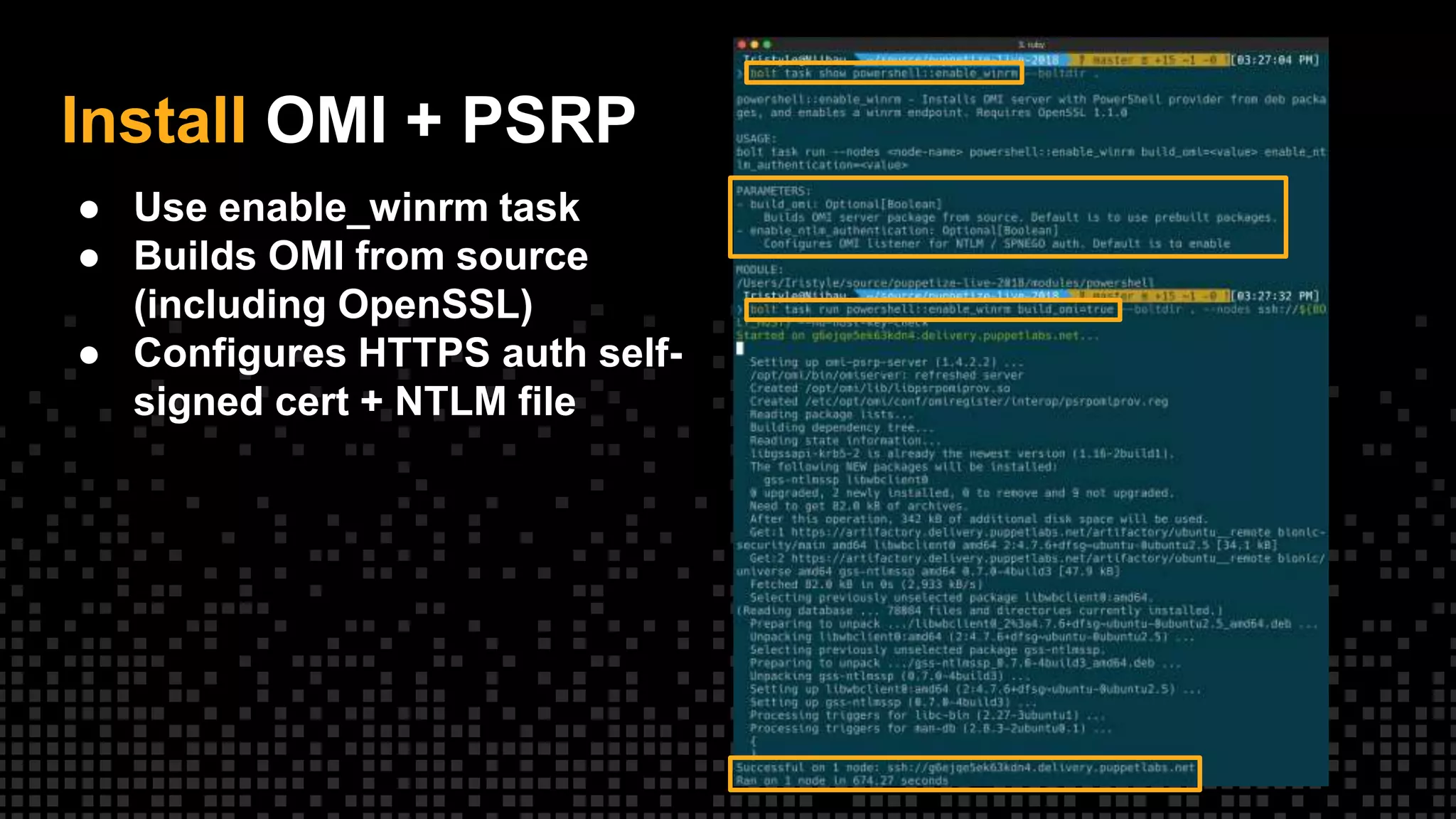

42. Install OMI + PSRP
● Use enable_winrm task
● Builds OMI from source
(including OpenSSL)
● Configures HTTPS auth self-
signed cert + NTLM file

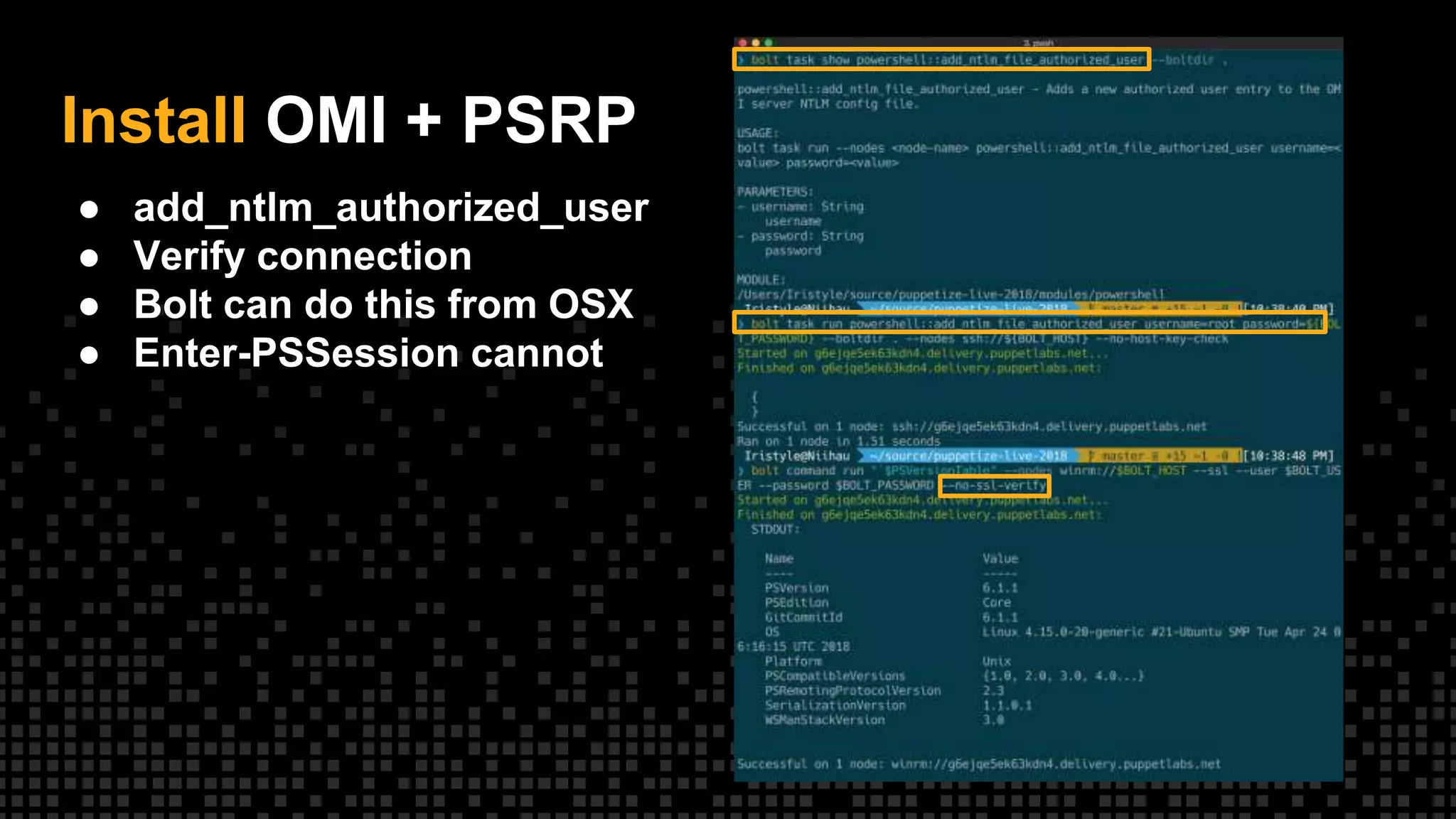

43. Install OMI + PSRP
● add_ntlm_authorized_user

44. Install OMI + PSRP
● add_ntlm_authorized_user
● Verify connection
● Bolt can do this from OSX
● Enter-PSSession cannot

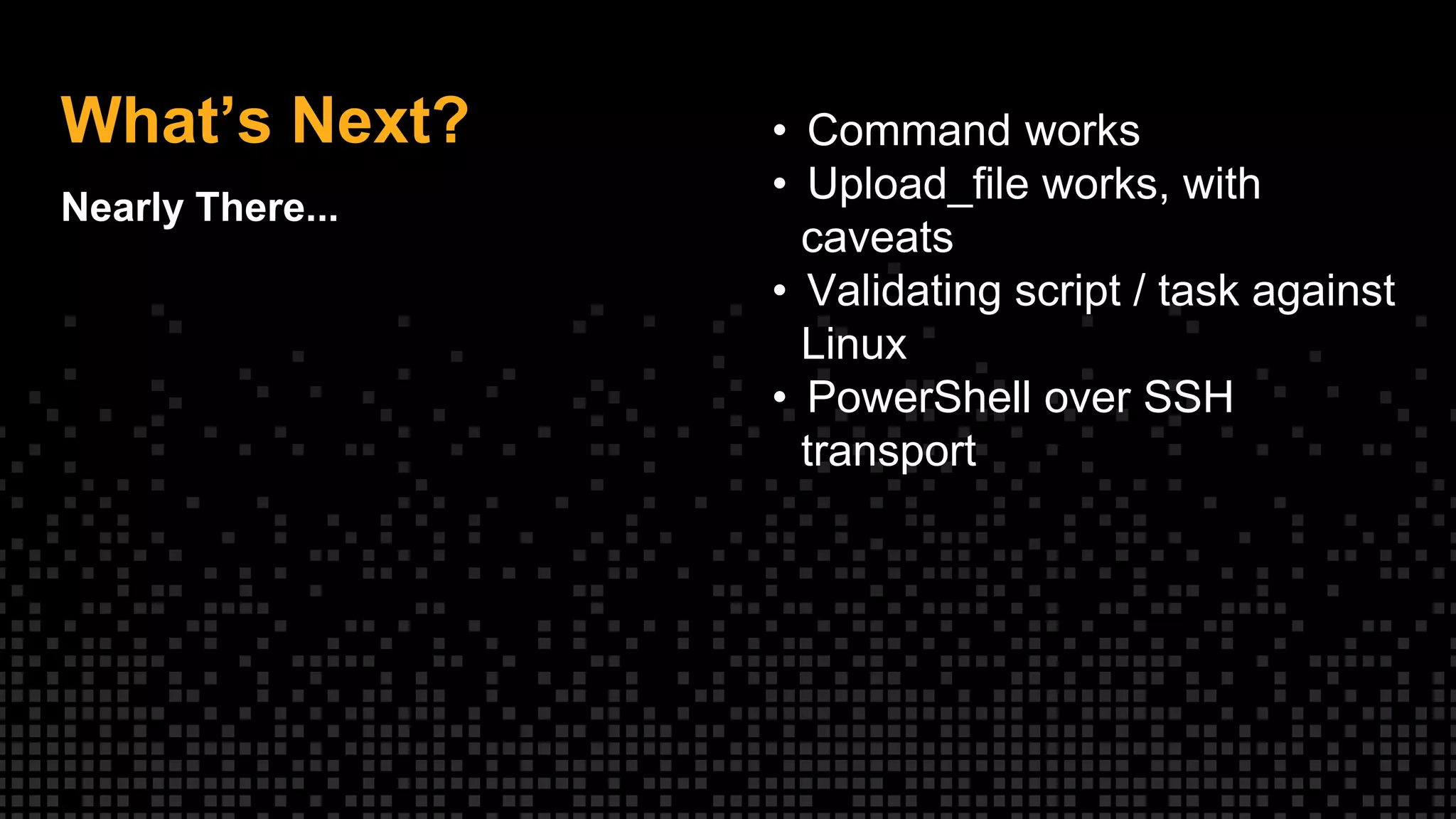

45. What’s Next?
Nearly There...
• Command works
• Upload_file works, with
caveats
• Validating script / task against
Linux
• PowerShell over SSH
transport

46. Q & A
