A very brief review of how to do PostgreSQL 9.3 Streaming Replication. Meant to accompany a demo.

1. PostgreSQL Replication
in 10 Minutes
Josh Berkus
PostgreSQL Experts, Inc.
SCALE 2014

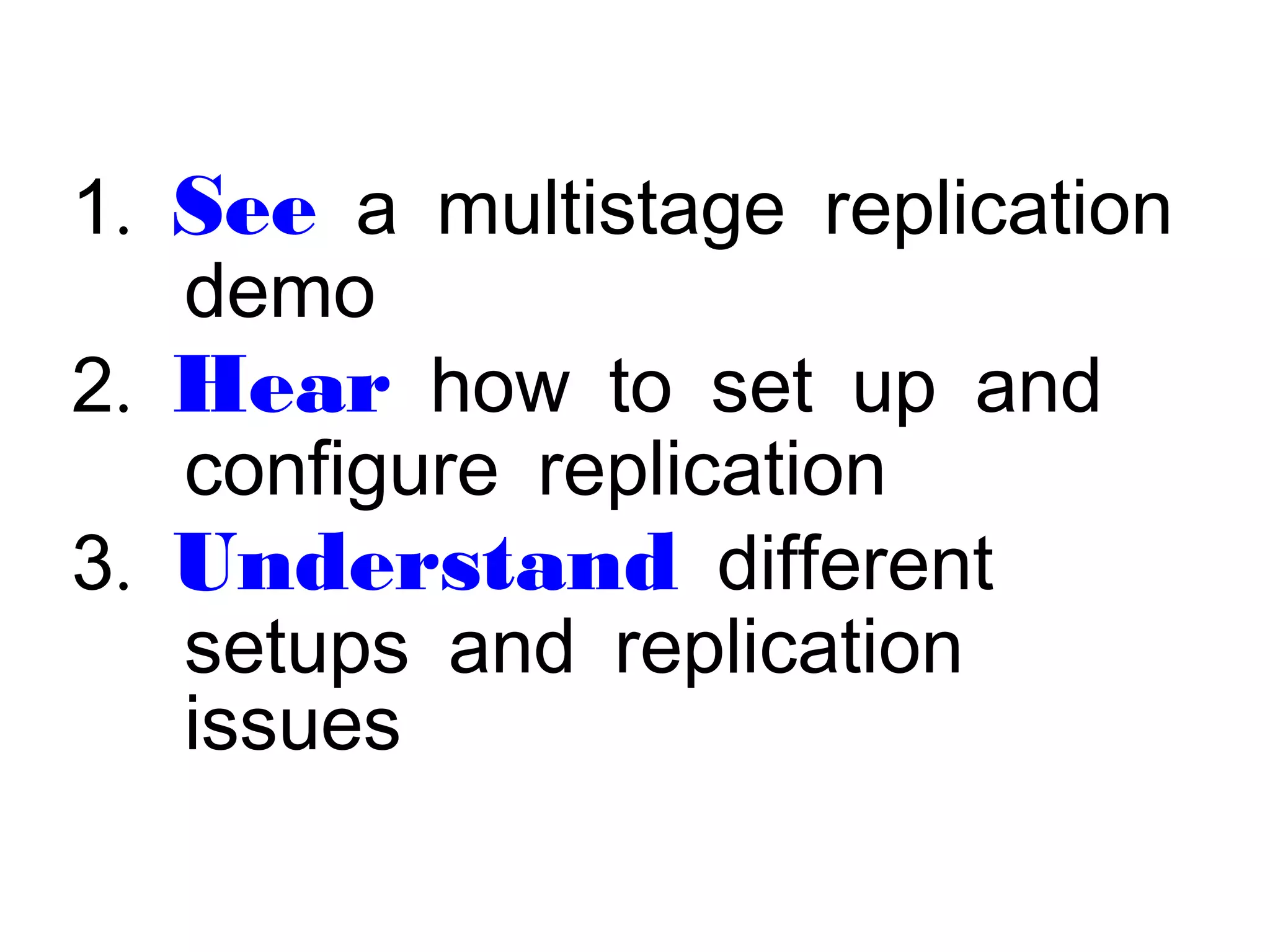

2. 1. See a multistage replication
demo
2. Hear how to set up and
configure replication
3. Understand different
setups and replication
issues

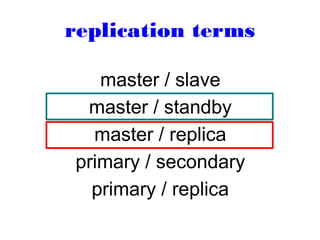

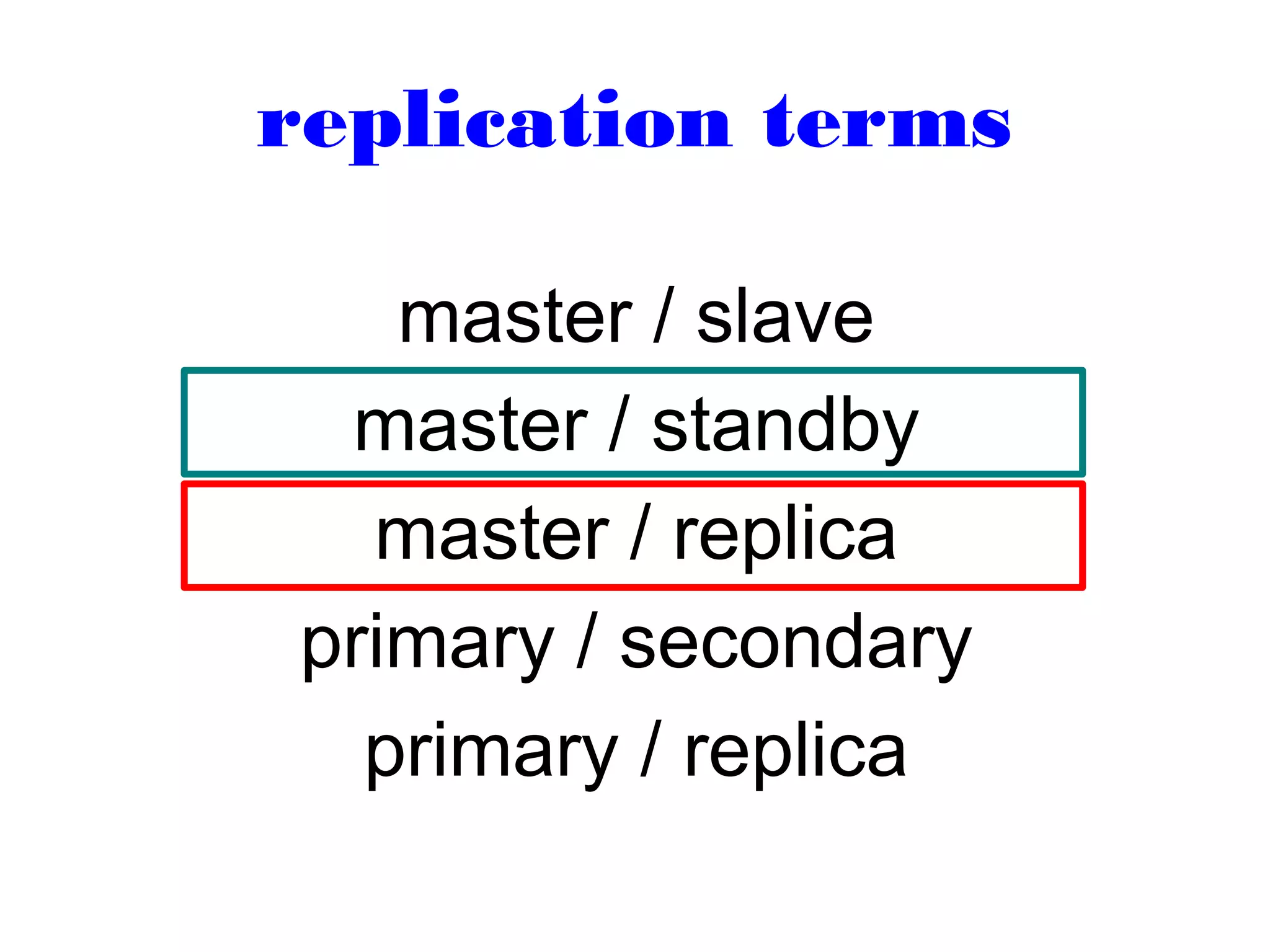

7. replication terms
master / slave
master / standby
master / replica
primary / secondary
primary / replica

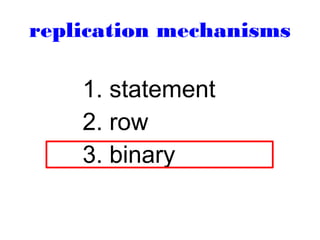

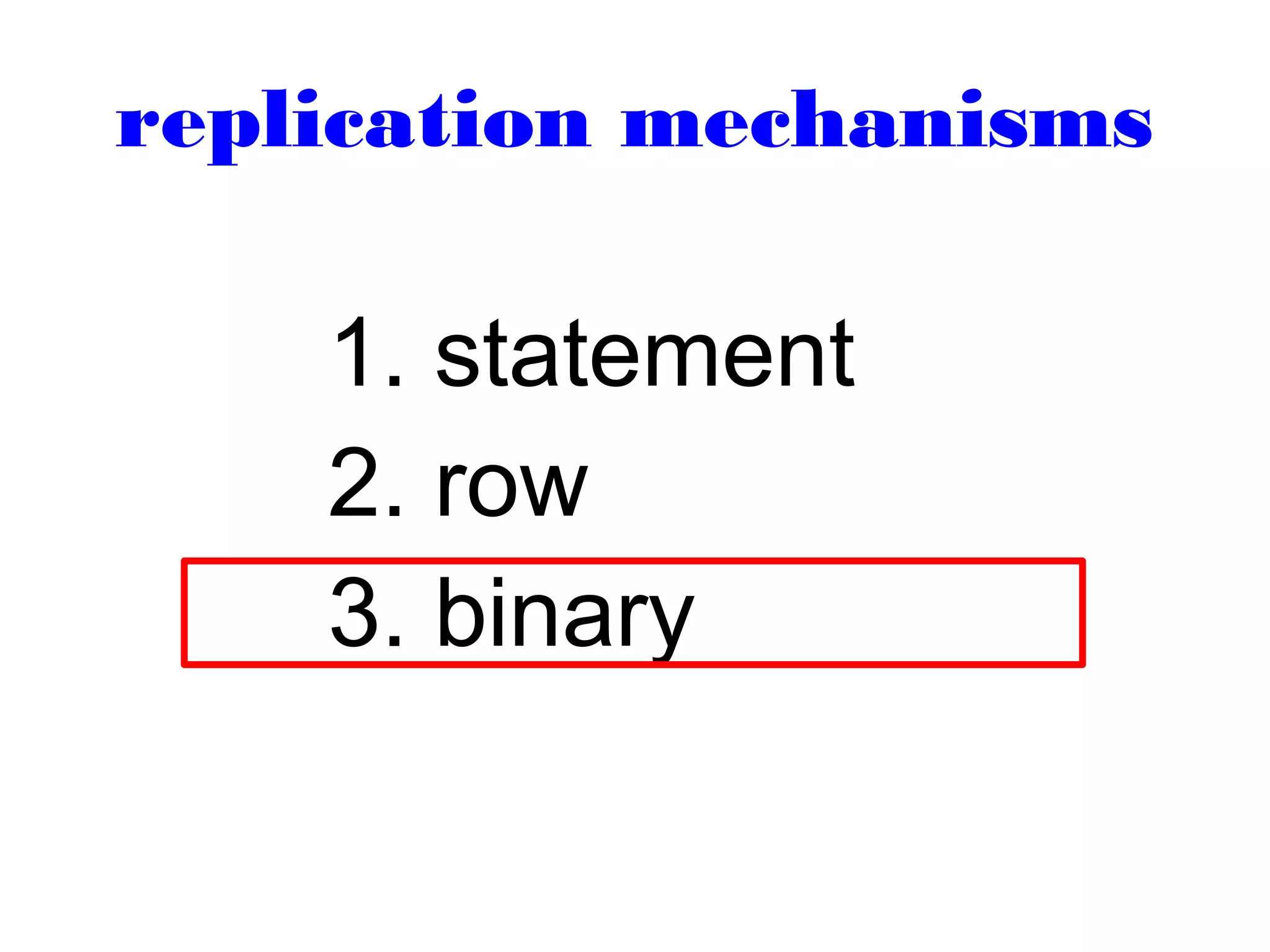

8. replication mechanisms
1. statement
2. row
3. binary

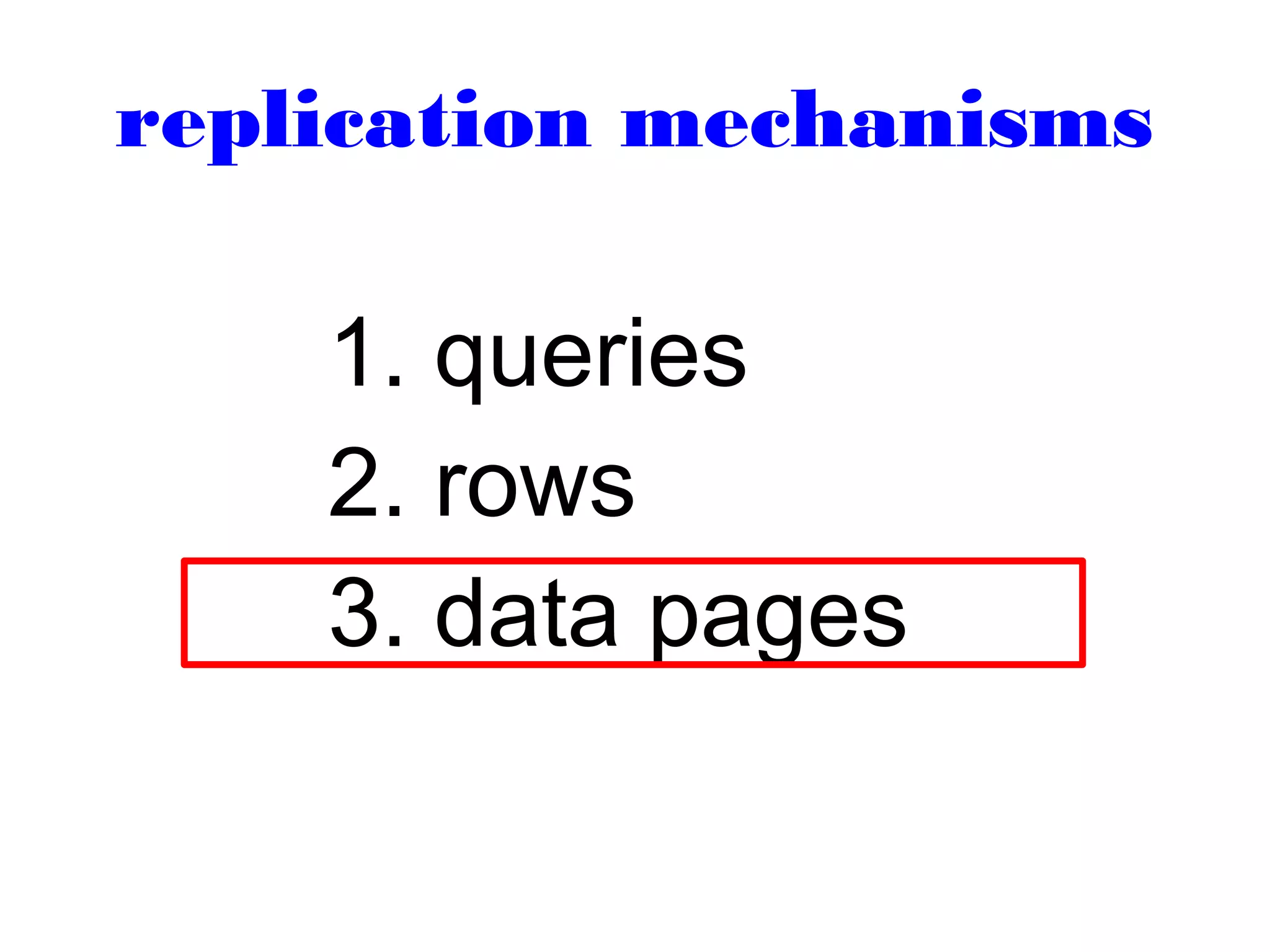

9. replication mechanisms
1. queries
2. rows
3. data pages

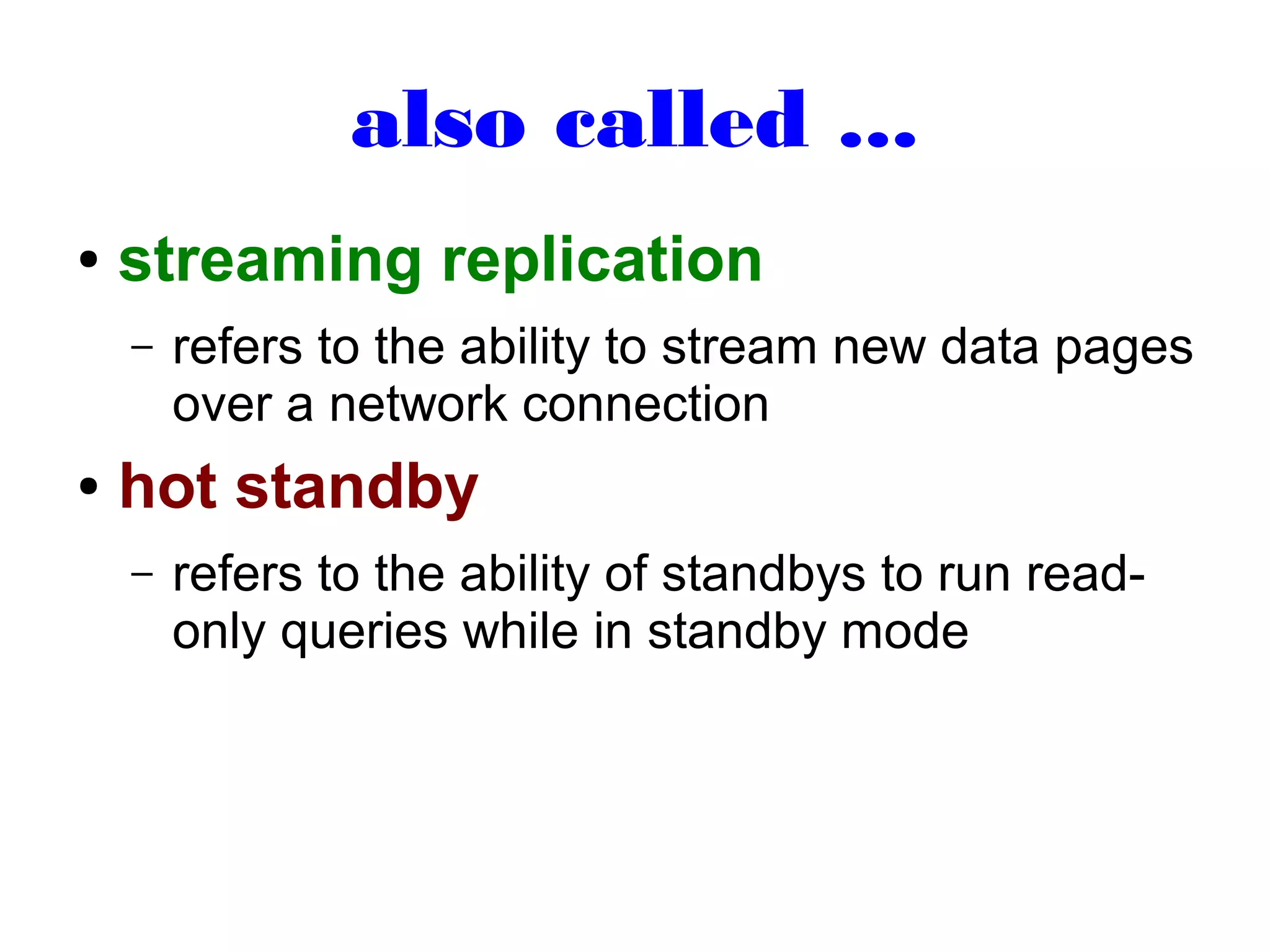

10. also called ...
●
streaming replication
–
●
refers to the ability to stream new data pages
over a network connection
hot standby
–
refers to the ability of standbys to run readonly queries while in standby mode

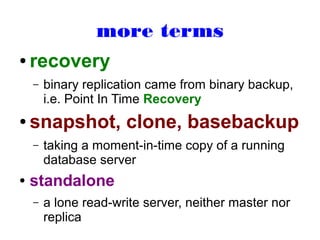

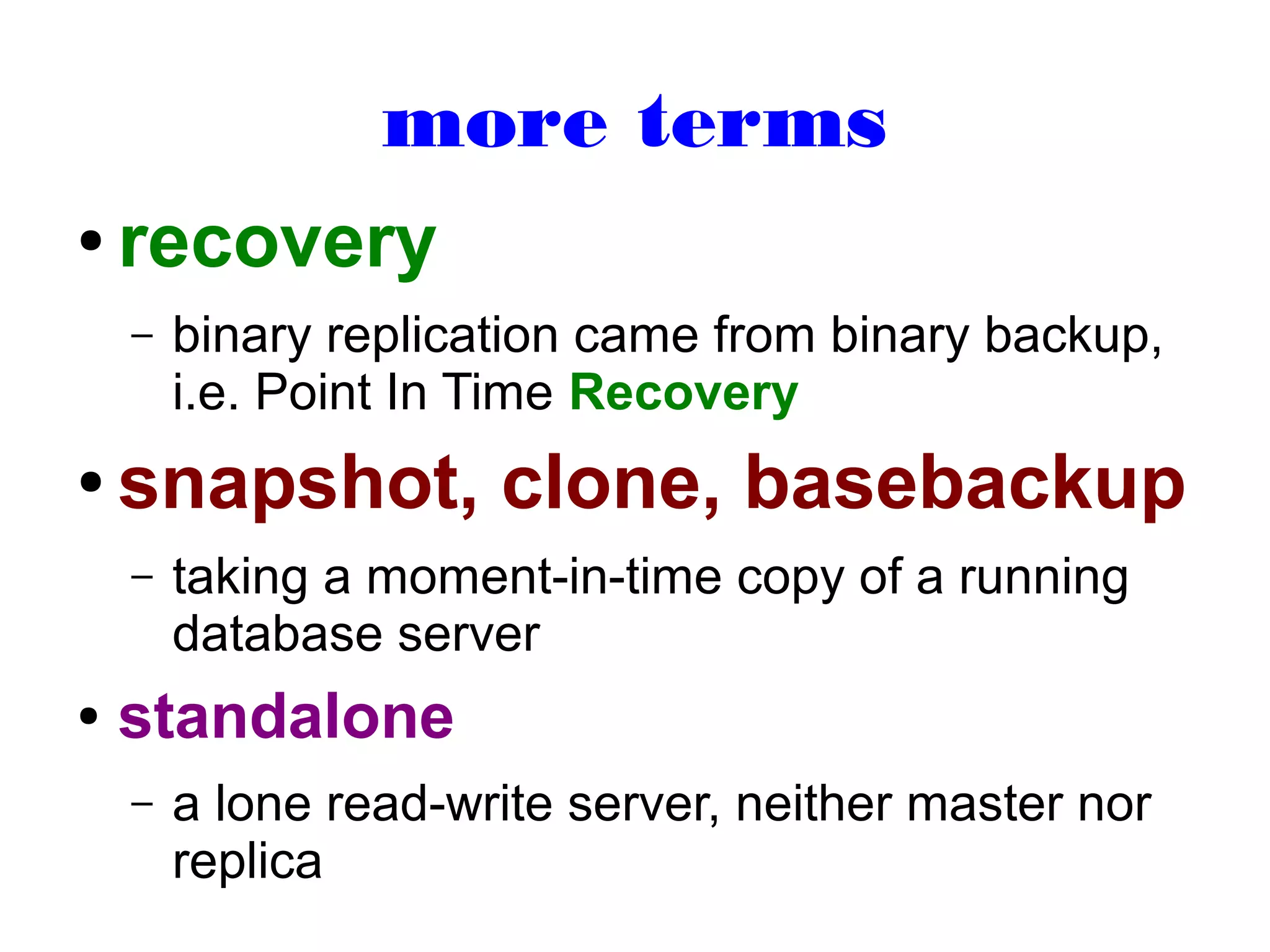

11. more terms
●
recovery
–
●
snapshot, clone, basebackup
–
●
binary replication came from binary backup,
i.e. Point In Time Recovery
taking a moment-in-time copy of a running
database server
standalone
–
a lone read-write server, neither master nor
replica

12. administering
replication

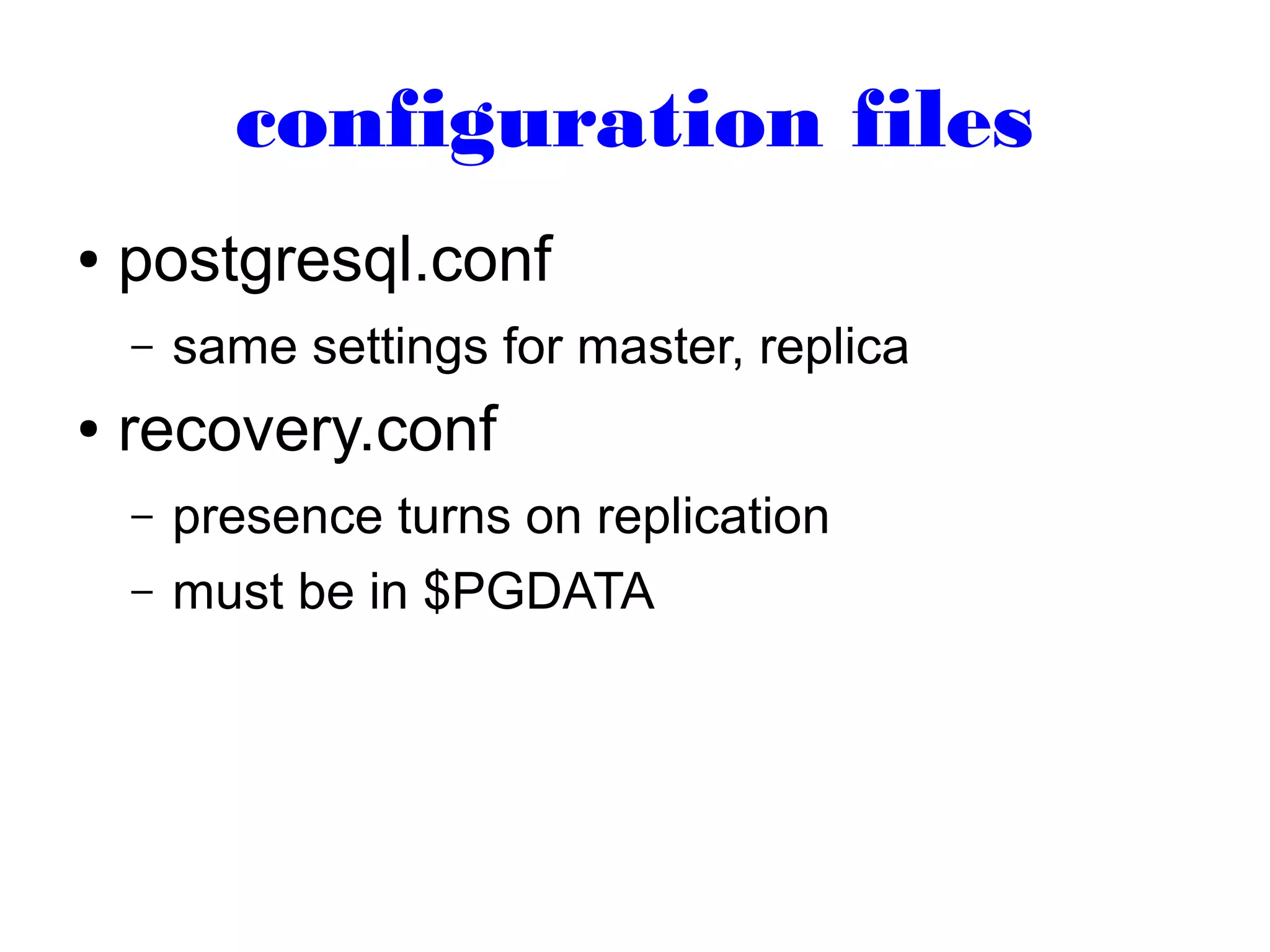

13. configuration files
●
postgresql.conf
–
●
same settings for master, replica
recovery.conf
–
–
presence turns on replication
must be in $PGDATA

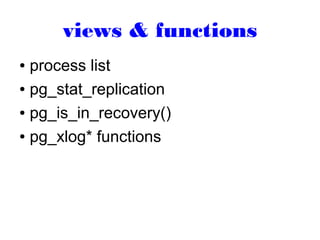

14. views & functions
process list
● pg_stat_replication
● pg_is_in_recovery()
● pg_xlog* functions
●

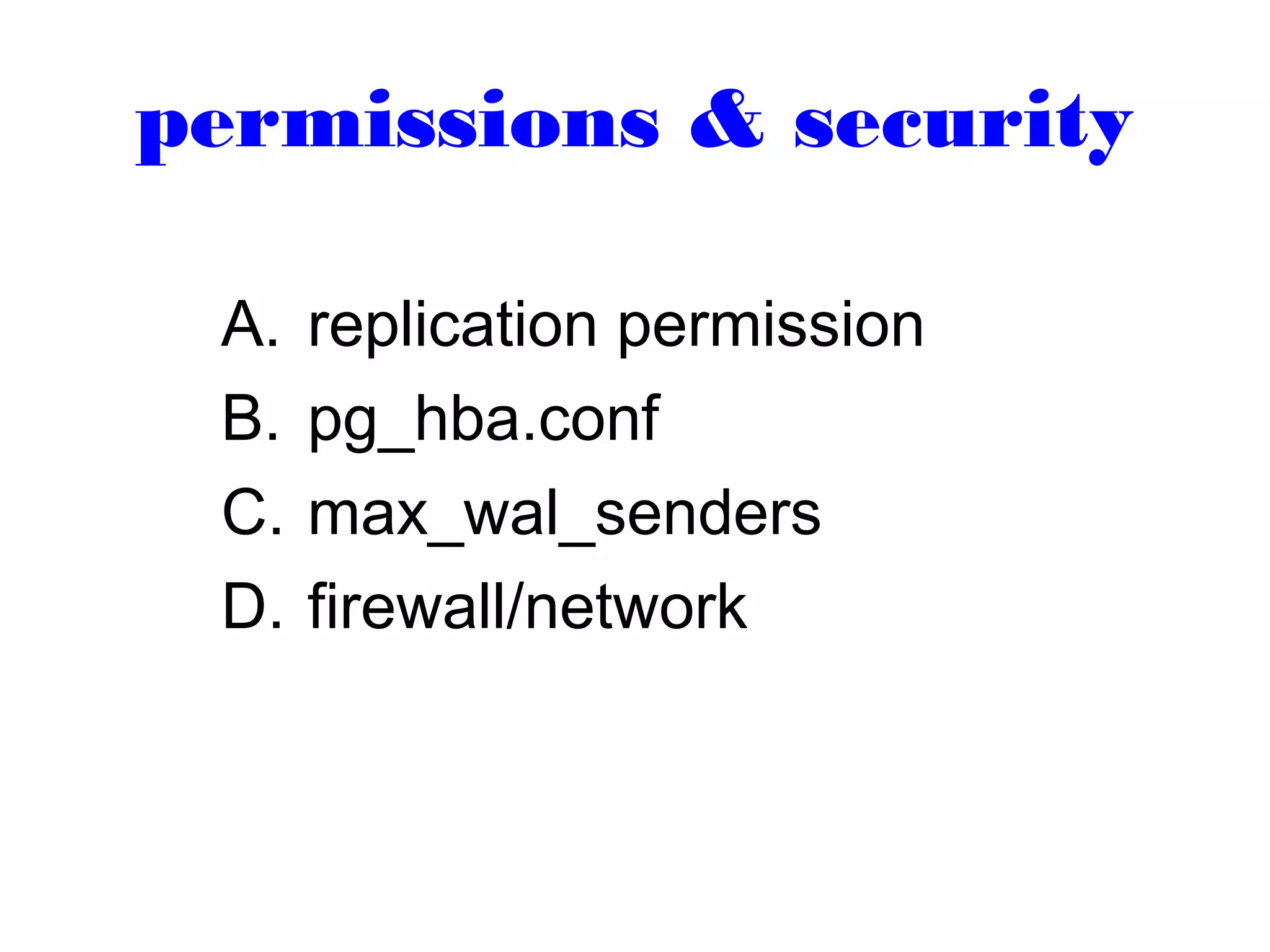

15. permissions & security
A.
B.
C.
D.
replication permission
pg_hba.conf
max_wal_senders
firewall/network

16. archiving replication

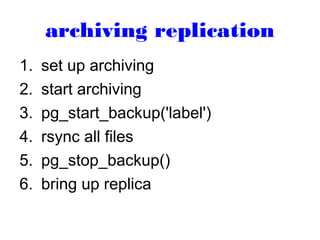

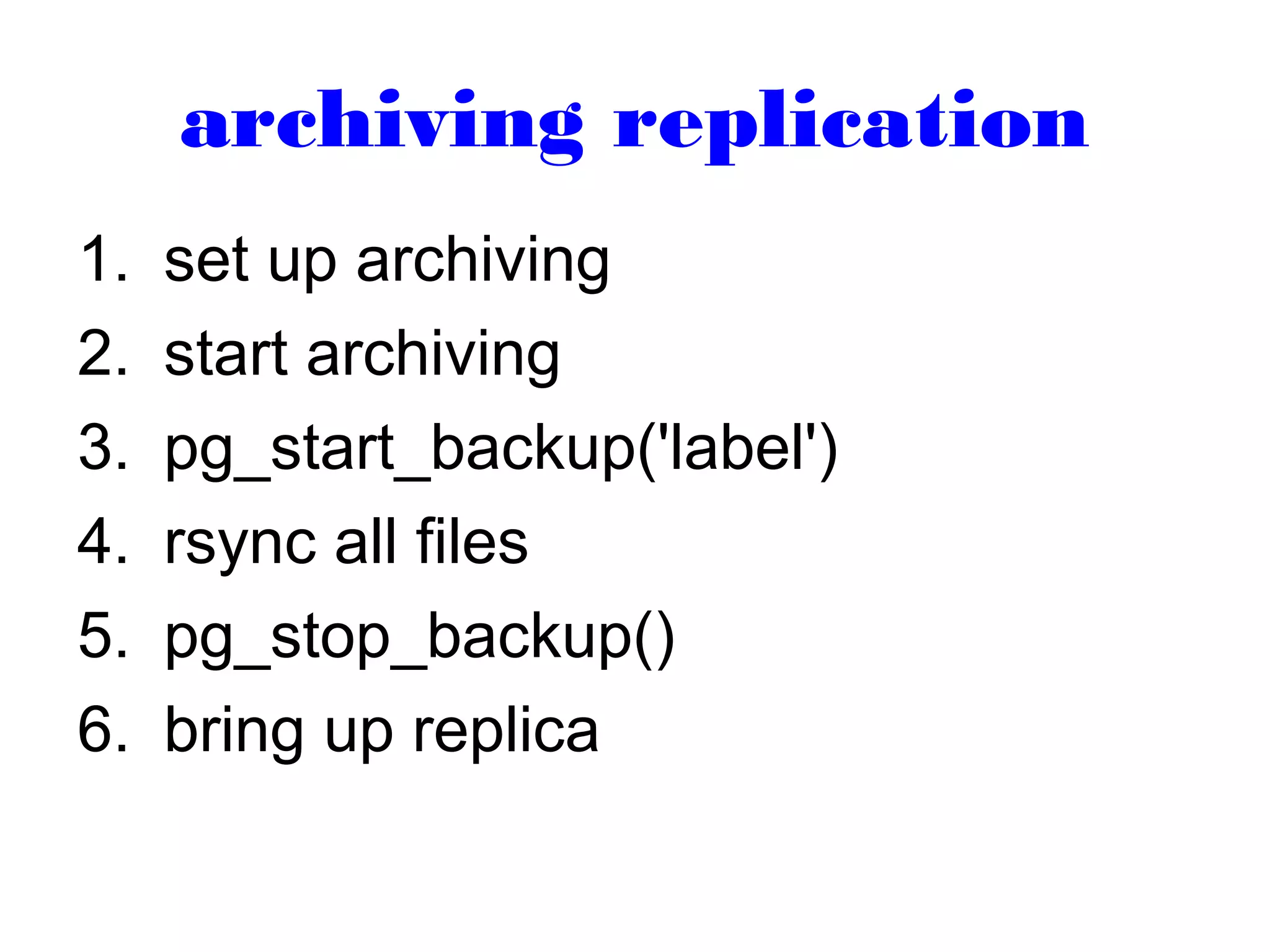

17. archiving replication
1.
2.
3.
4.
5.
6.
set up archiving
start archiving
pg_start_backup('label')
rsync all files
pg_stop_backup()
bring up replica

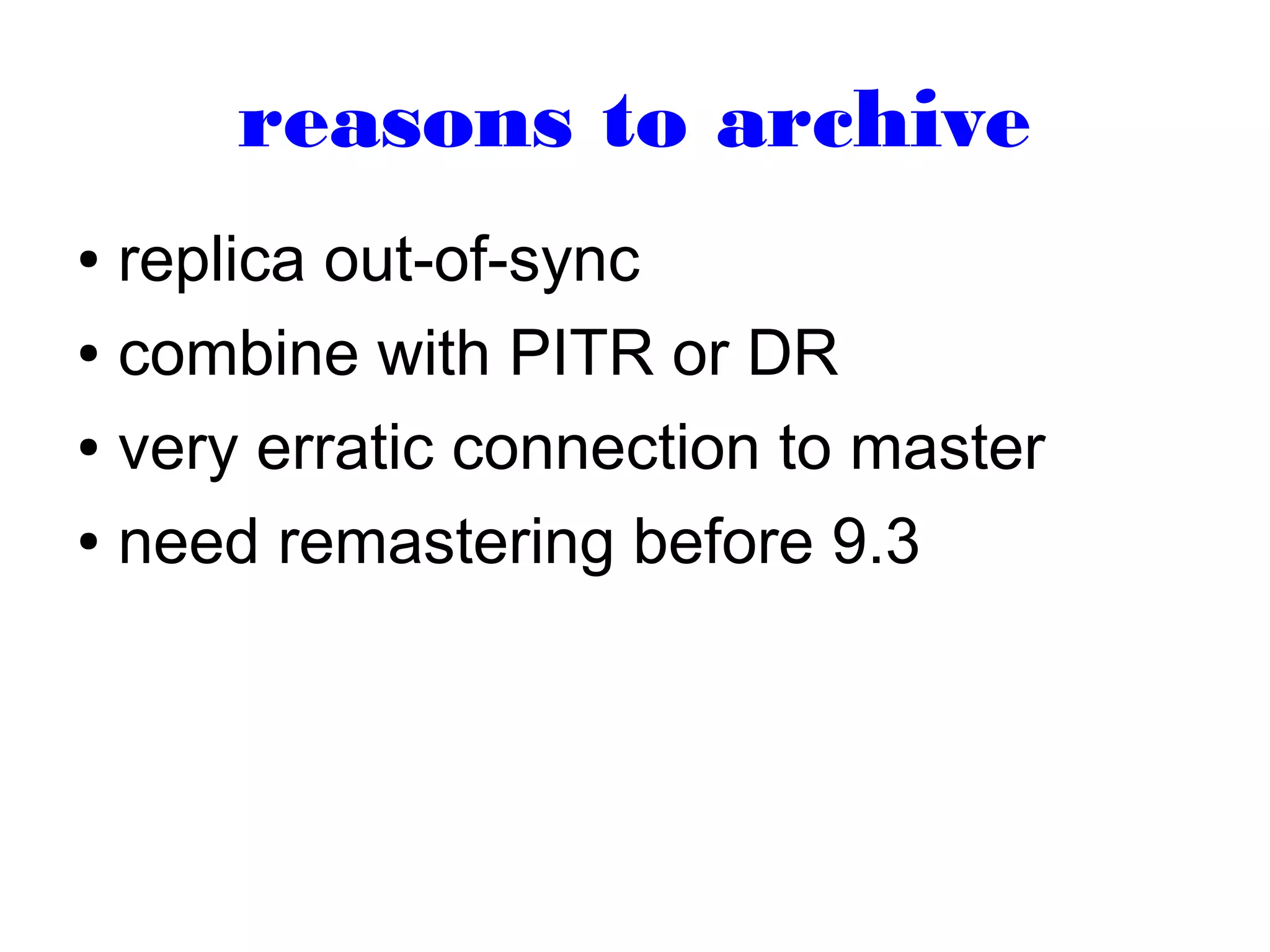

18. reasons to archive
replica out-of-sync
● combine with PITR or DR
● very erratic connection to master
● need remastering before 9.3
●

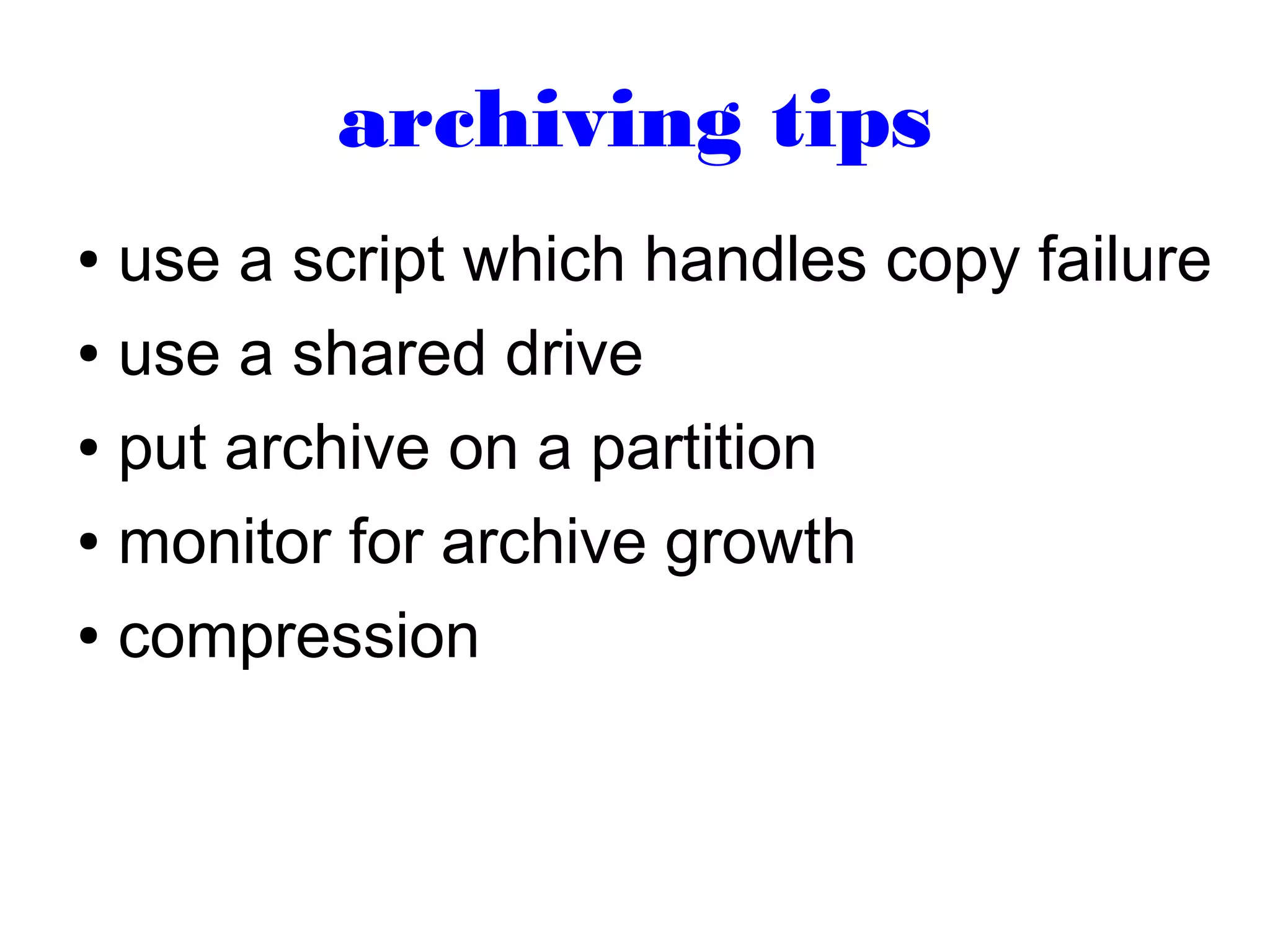

19. archiving tips
use a script which handles copy failure
● use a shared drive
● put archive on a partition
● monitor for archive growth
● compression
●

20. failover, failback
& remastering

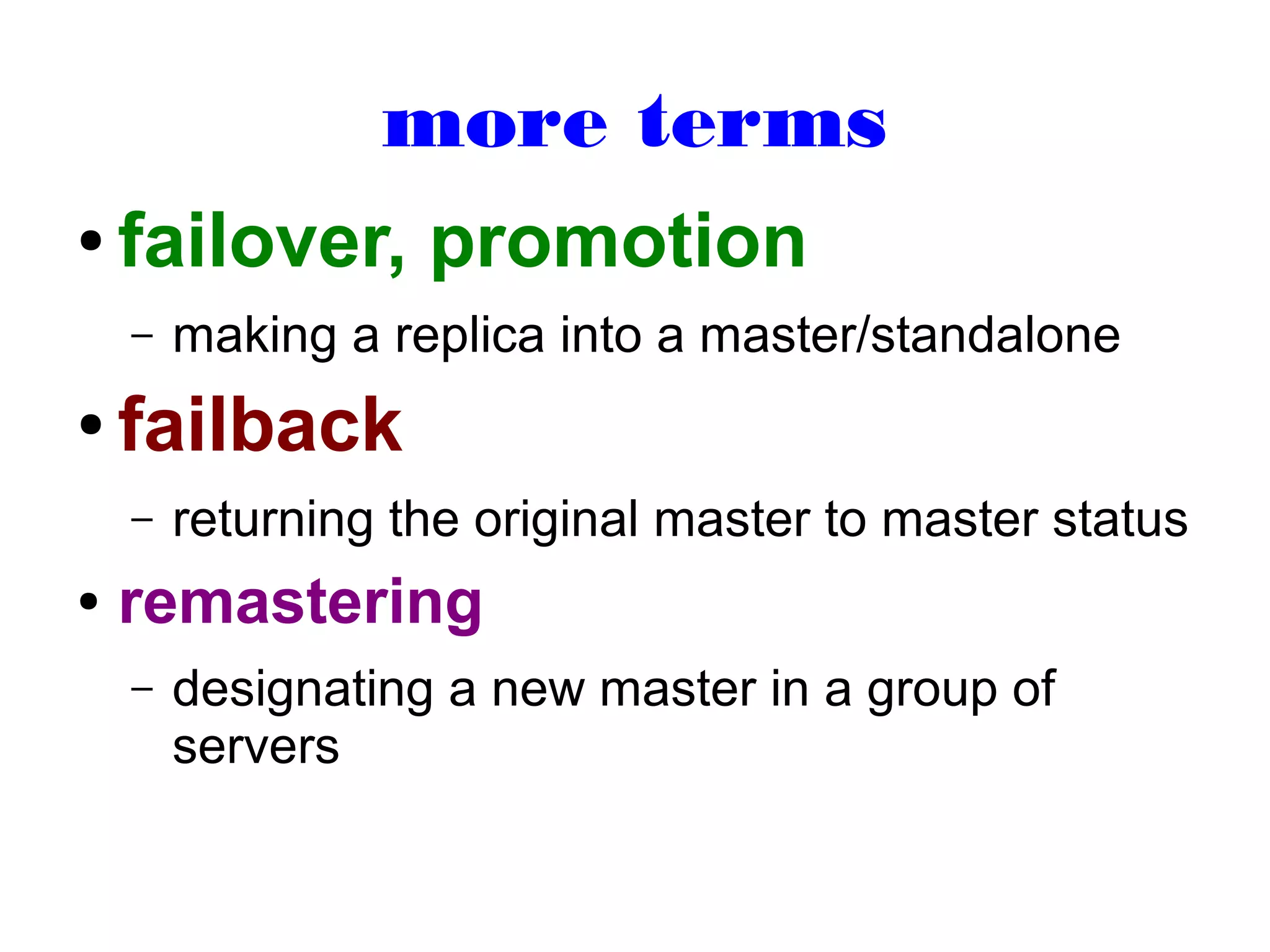

21. more terms
●
failover, promotion
–
●
failback
–
●
making a replica into a master/standalone
returning the original master to master status
remastering
–
designating a new master in a group of
servers

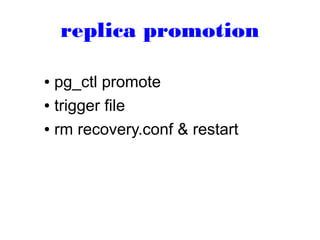

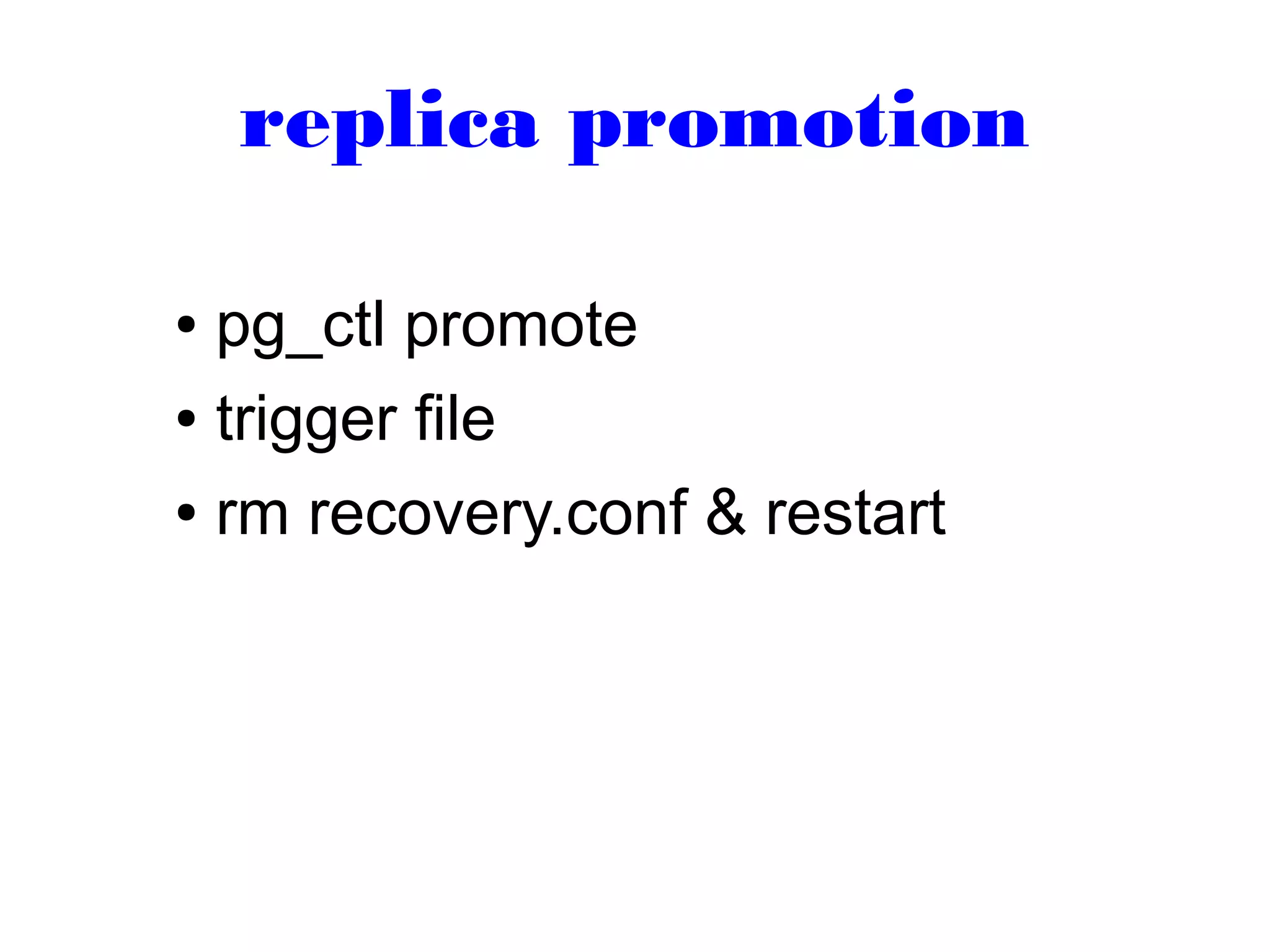

22. replica promotion
pg_ctl promote
● trigger file
● rm recovery.conf & restart
●

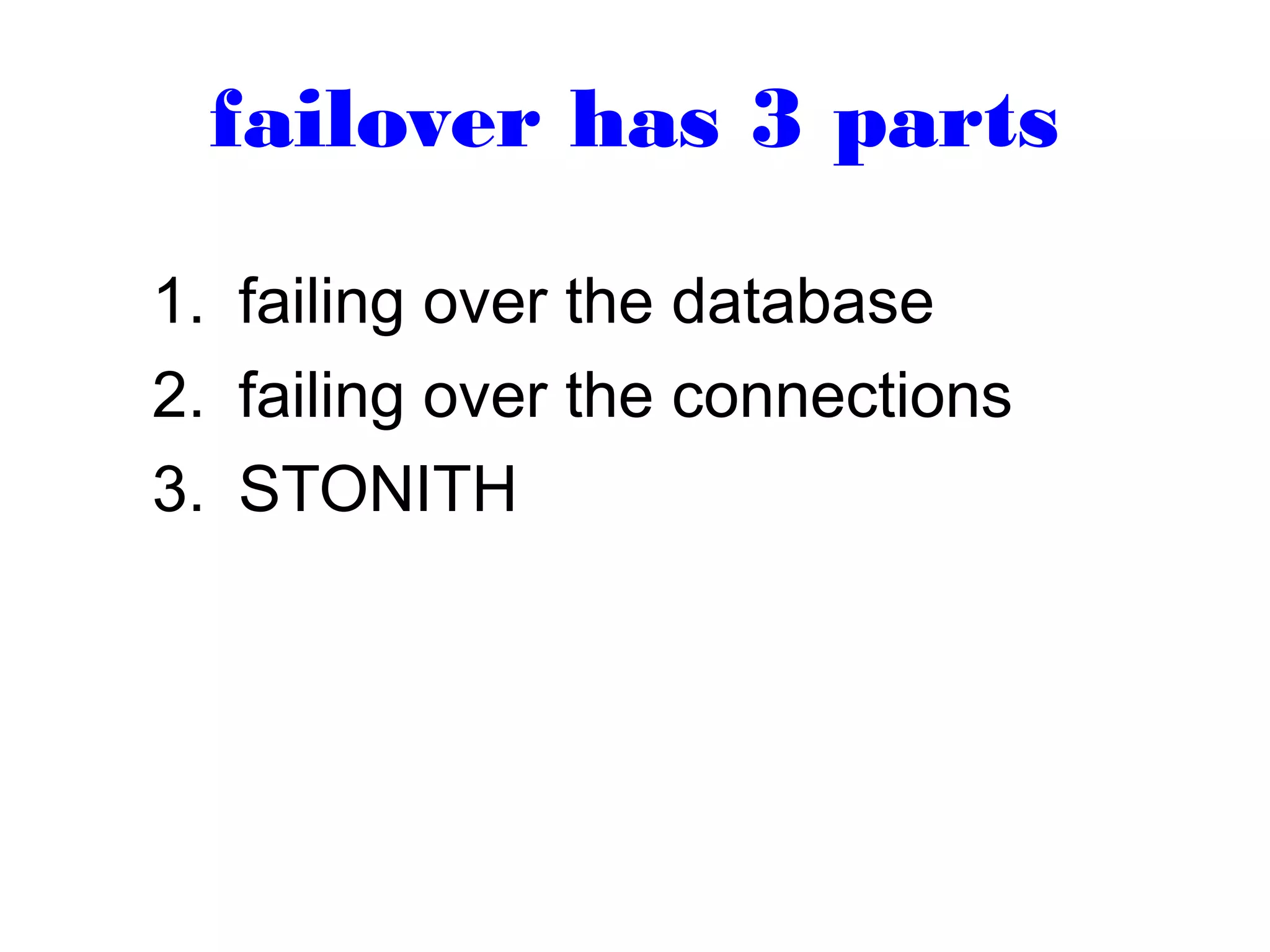

23. failover has 3 parts
1. failing over the database
2. failing over the connections
3. STONITH

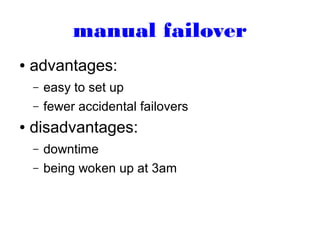

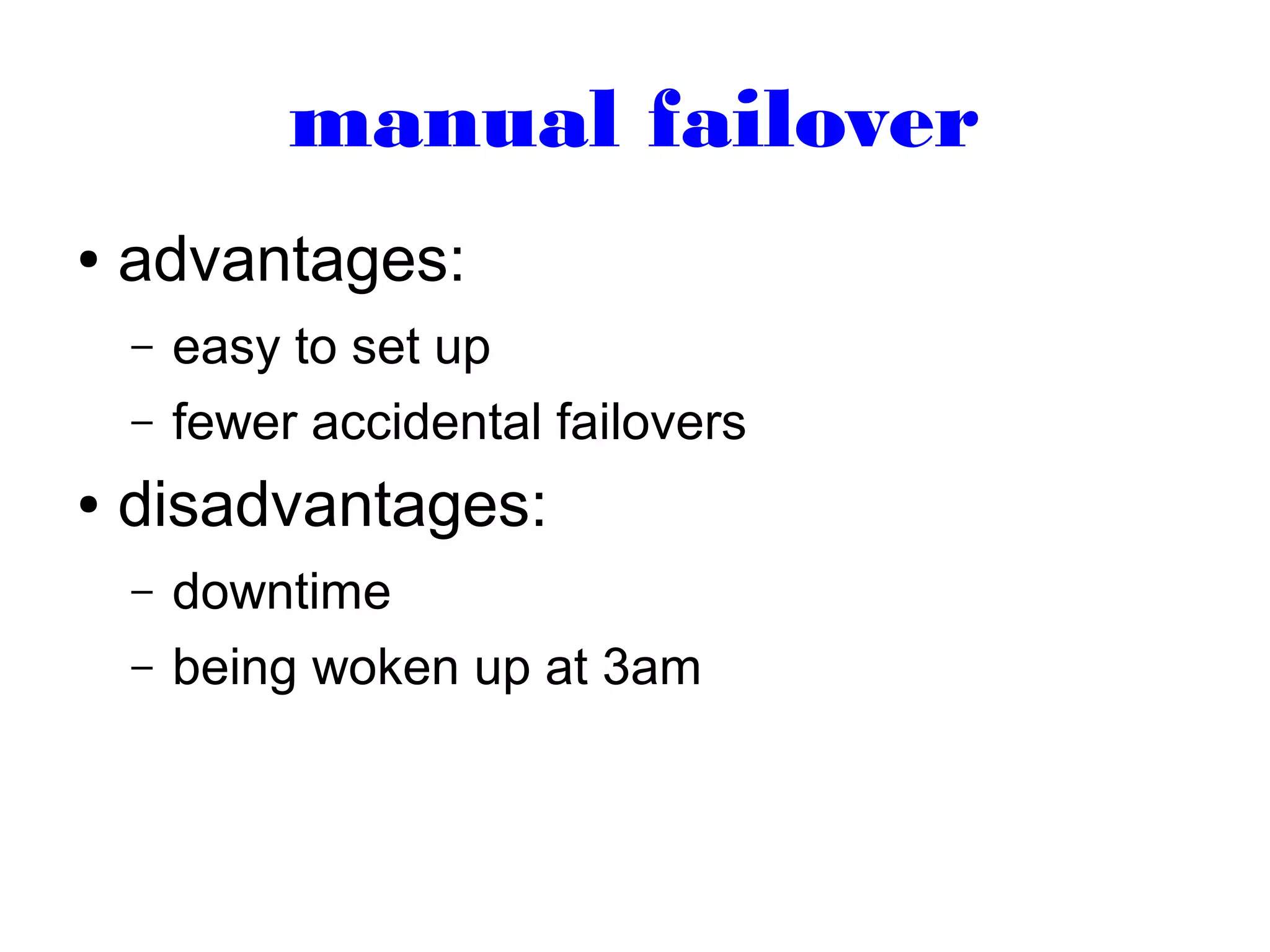

24. manual failover
●
advantages:
–
–
●
easy to set up
fewer accidental failovers
disadvantages:
–
–
downtime
being woken up at 3am

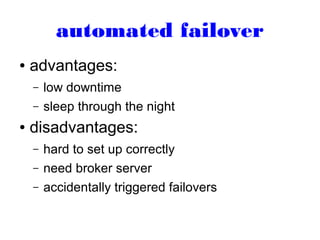

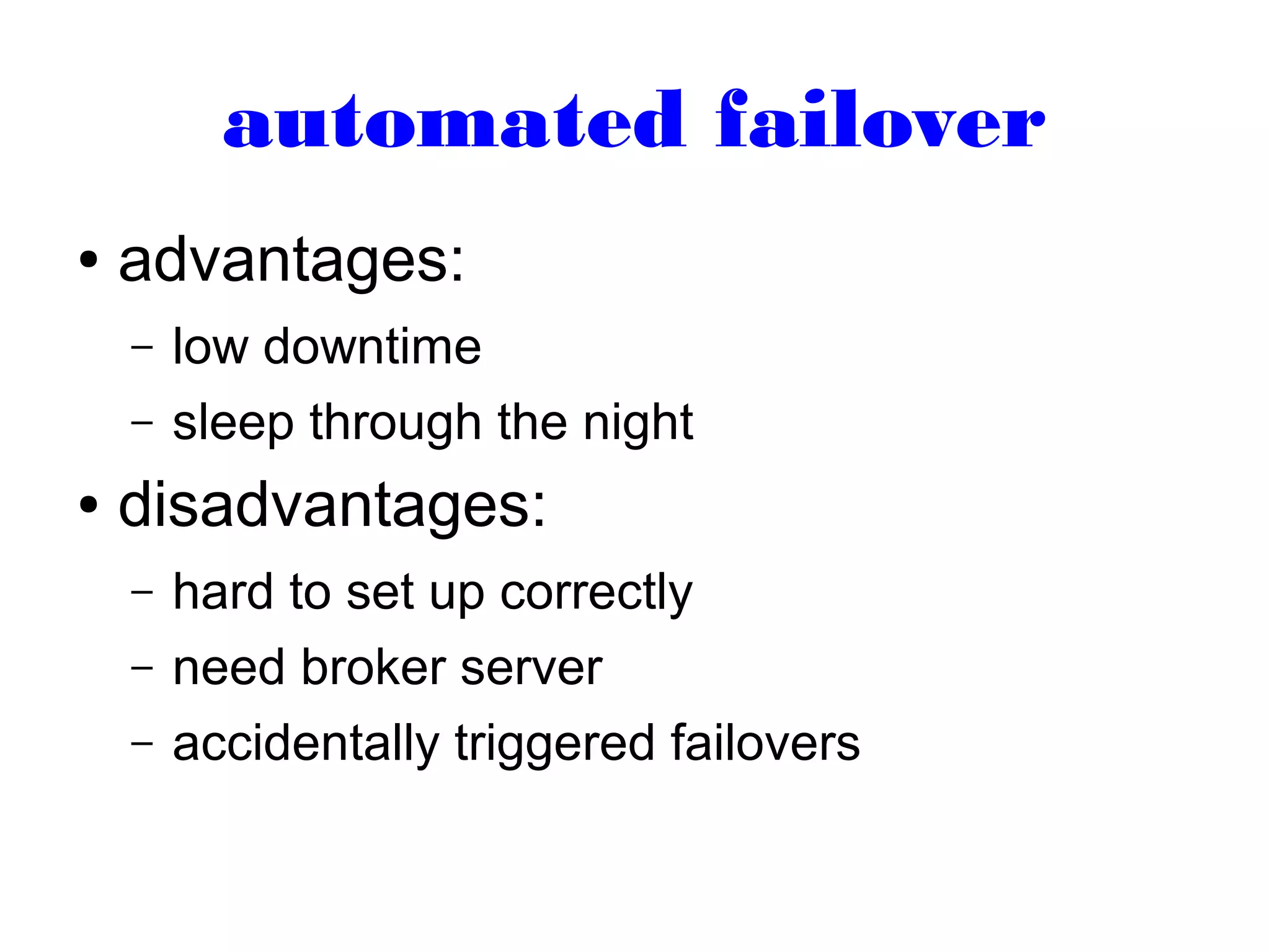

25. automated failover
●
advantages:
–
–
●
low downtime
sleep through the night
disadvantages:
–
–
–
hard to set up correctly
need broker server
accidentally triggered failovers

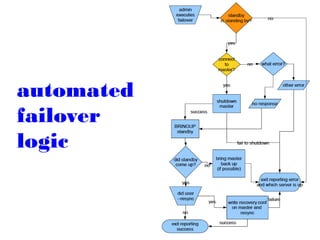

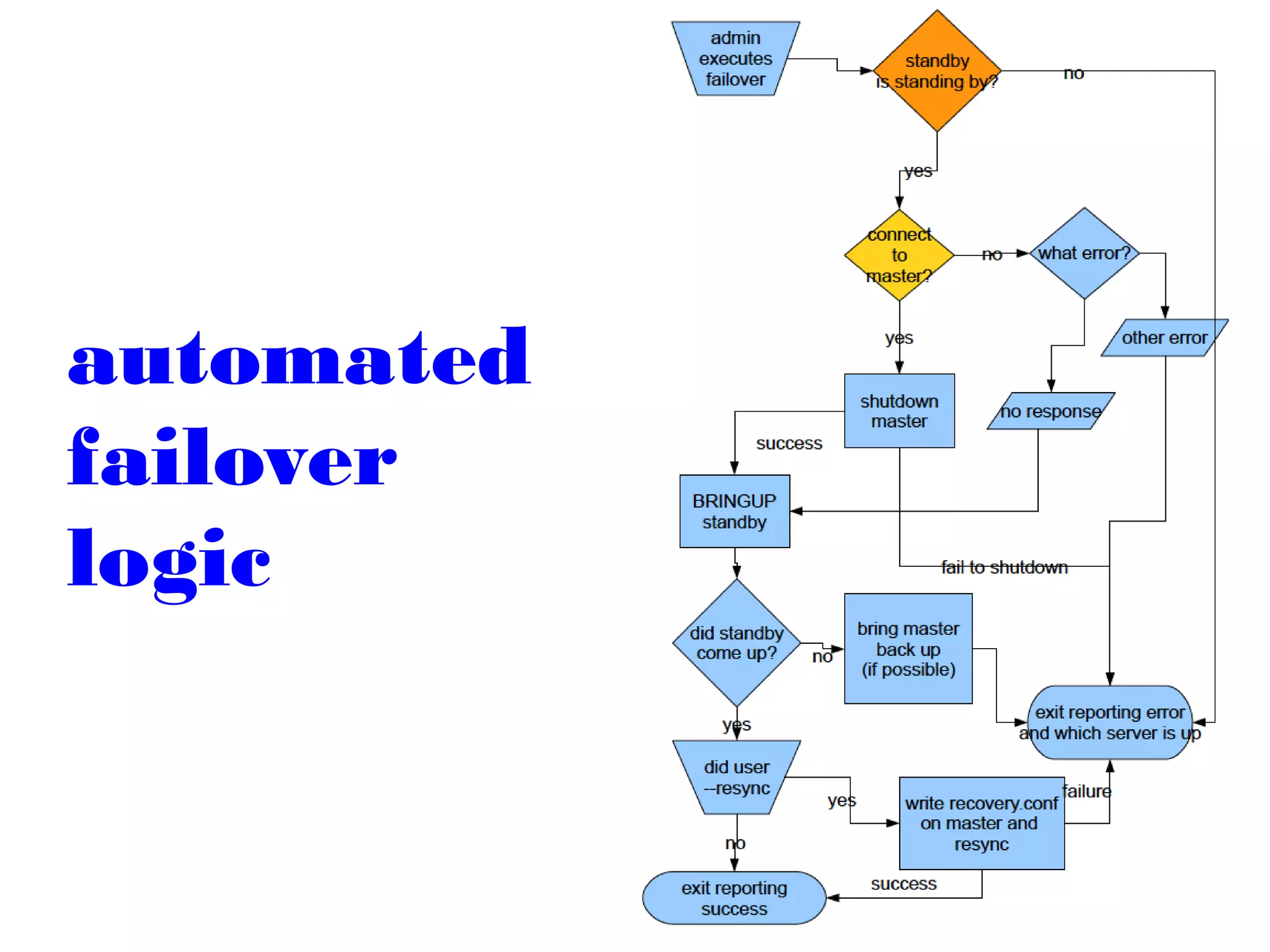

26. automated
failover
logic

27. www.handyrep.org

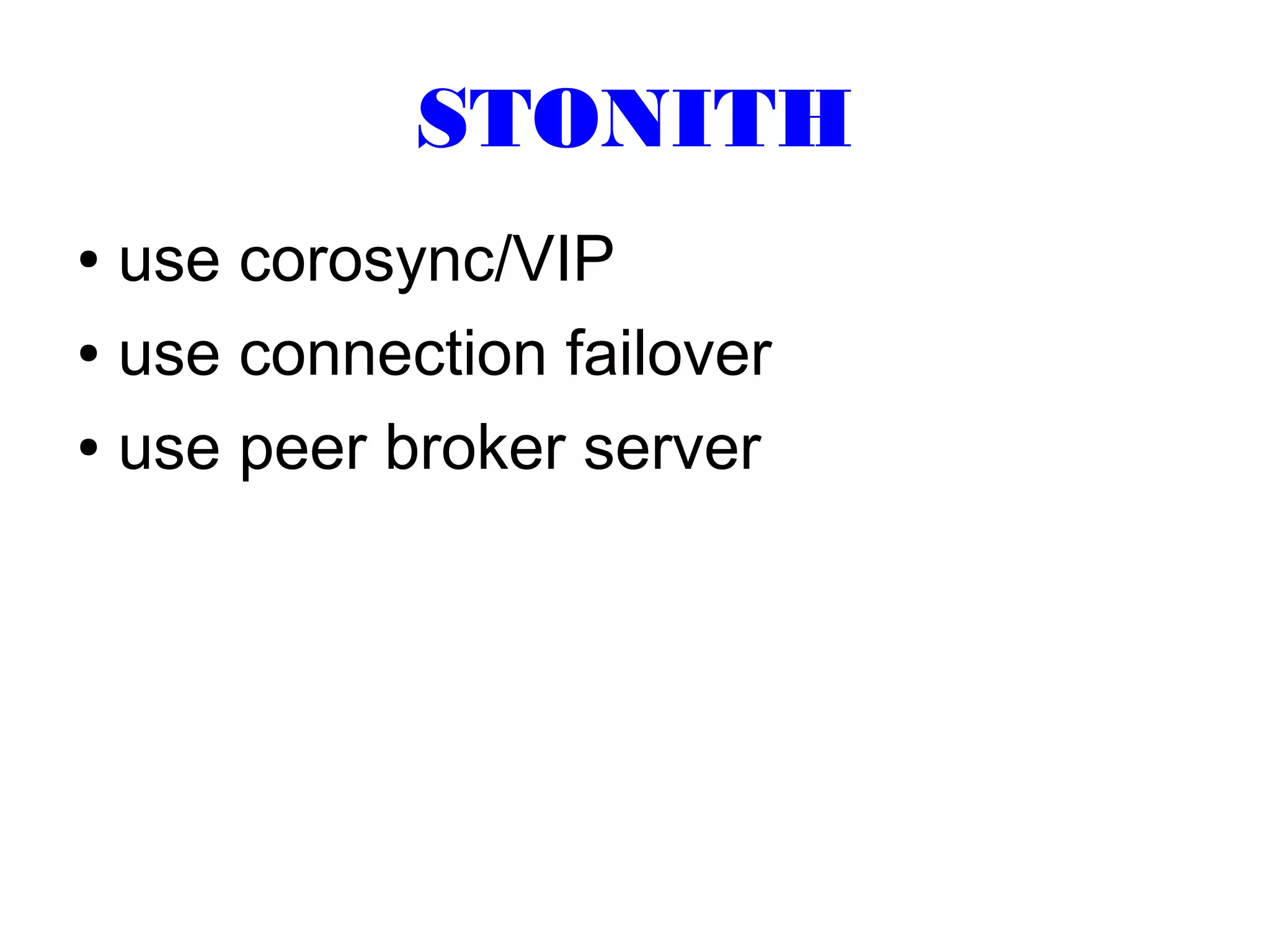

28. STONITH
use corosync/VIP
● use connection failover
● use peer broker server
●

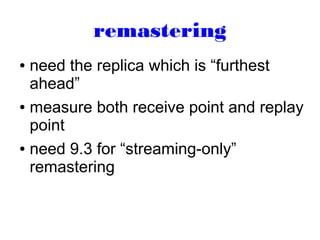

29. remastering
need the replica which is “furthest
ahead”
● measure both receive point and replay
point
● need 9.3 for “streaming-only”
remastering
●

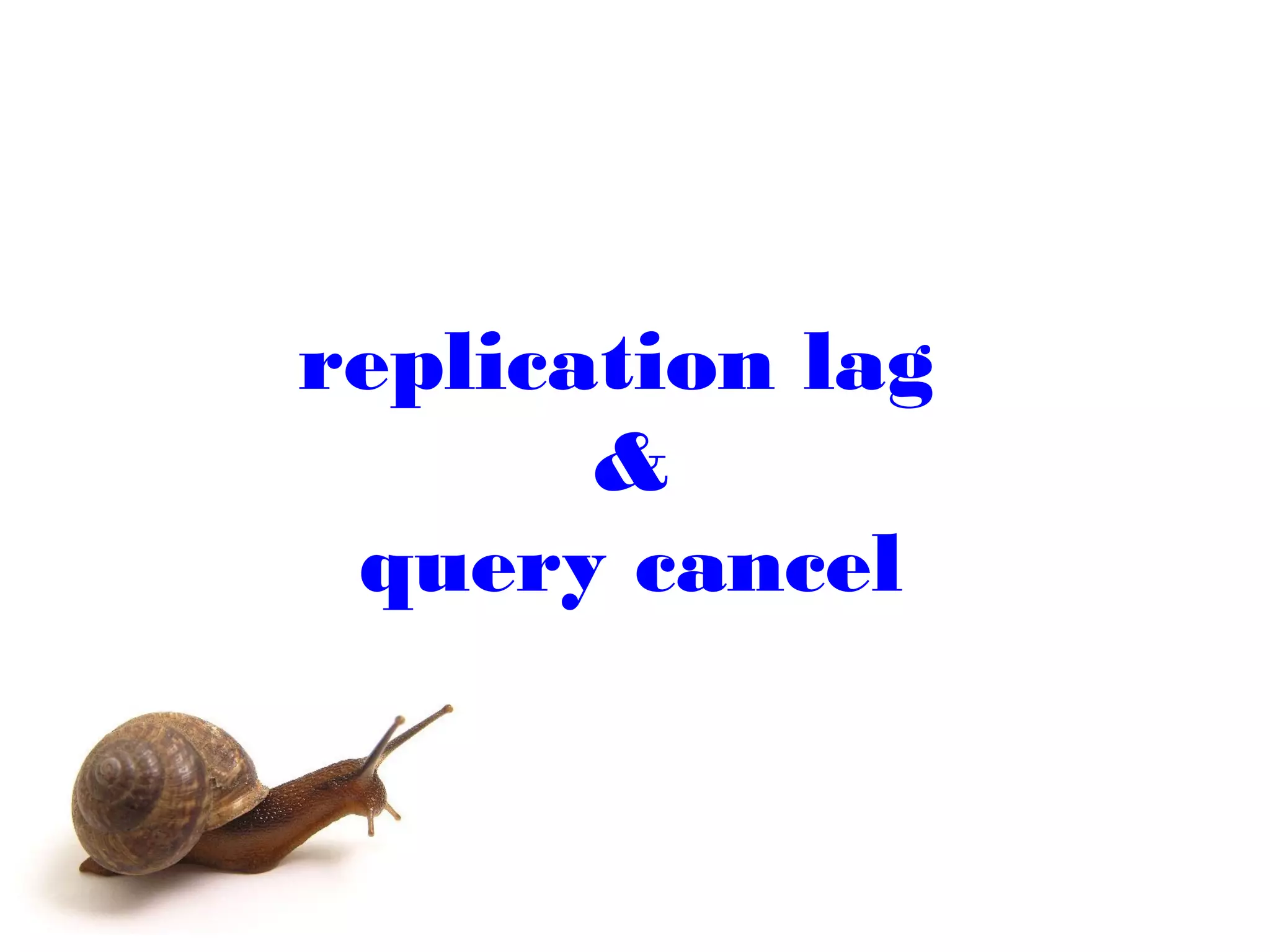

30. replication lag
&
query cancel

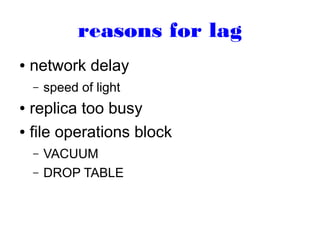

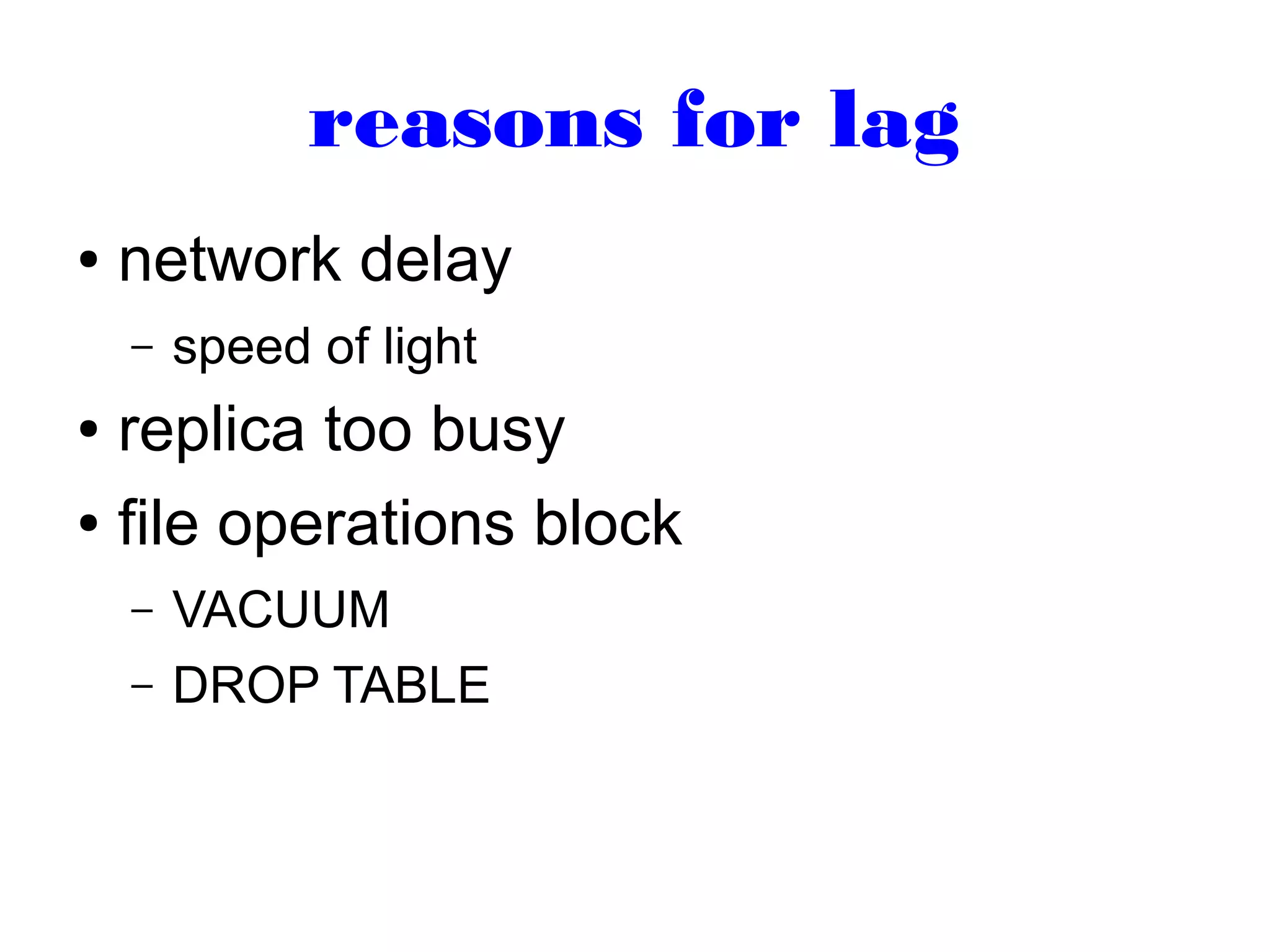

31. reasons for lag
●
network delay
–
speed of light
replica too busy
● file operations block
●
–
–
VACUUM
DROP TABLE

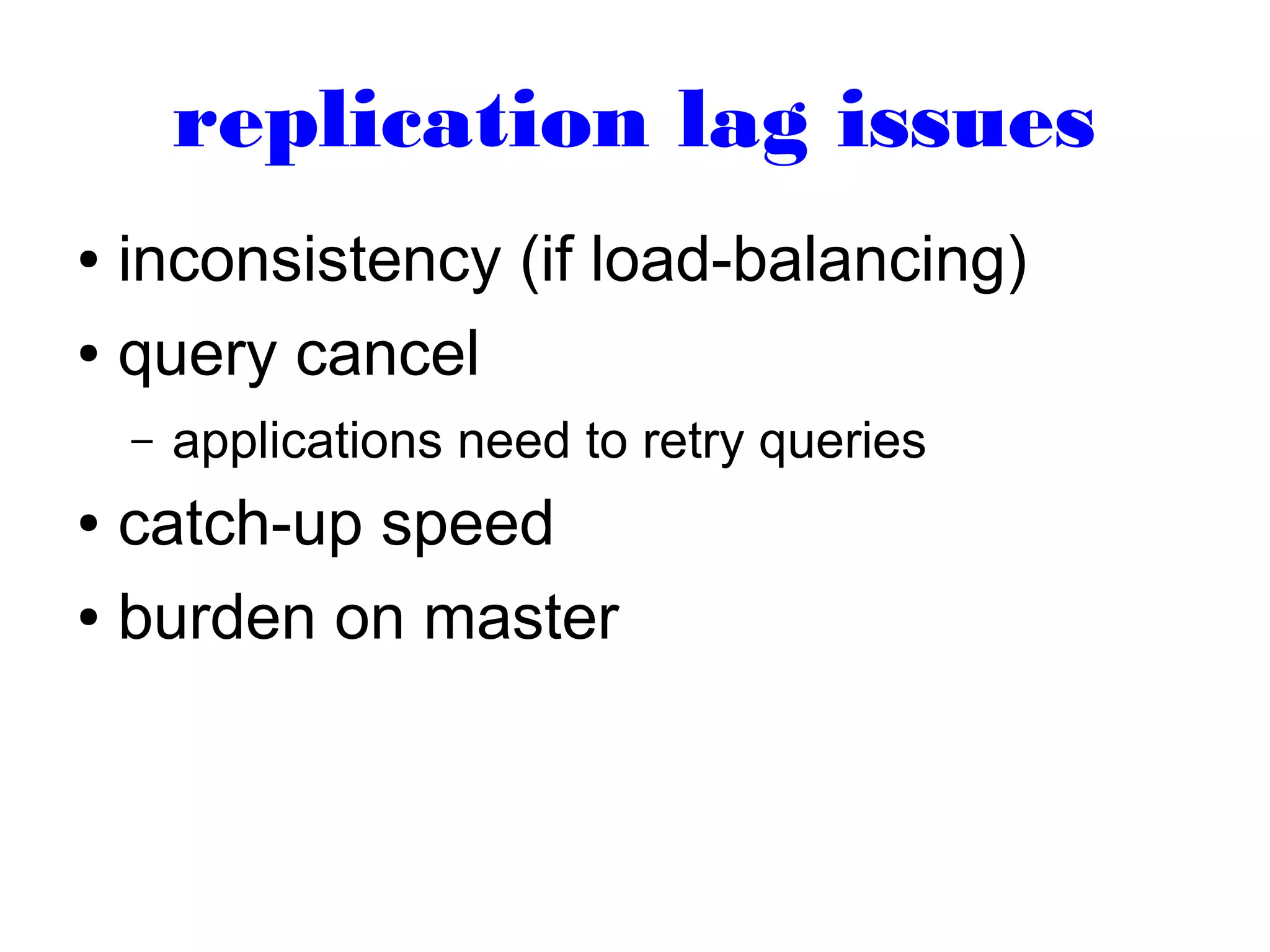

32. replication lag issues
inconsistency (if load-balancing)
● query cancel
●
–
applications need to retry queries
catch-up speed
● burden on master
●

33. synchronous
replication

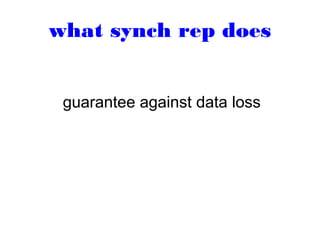

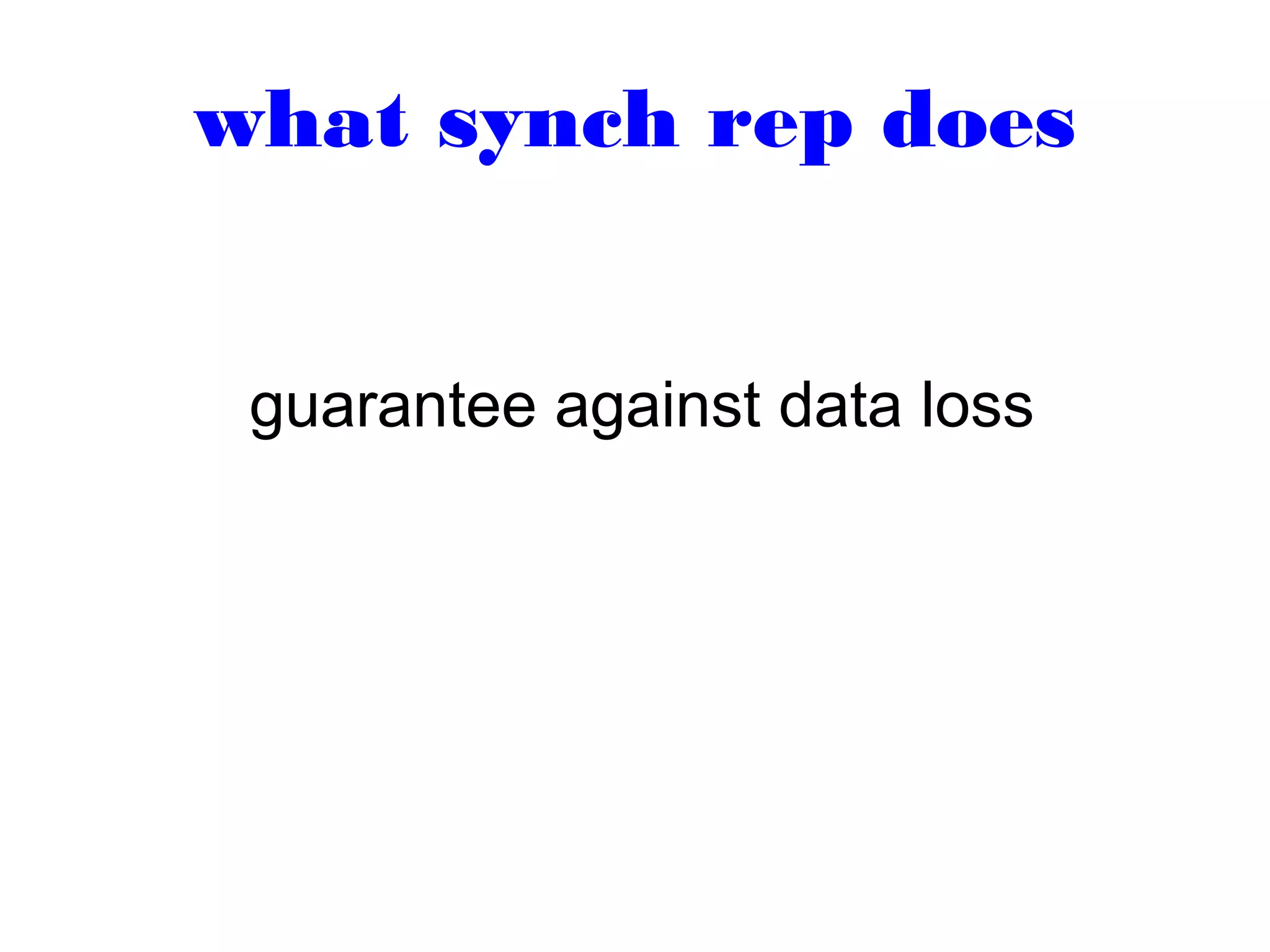

34. what synch rep does
guarantee against data loss

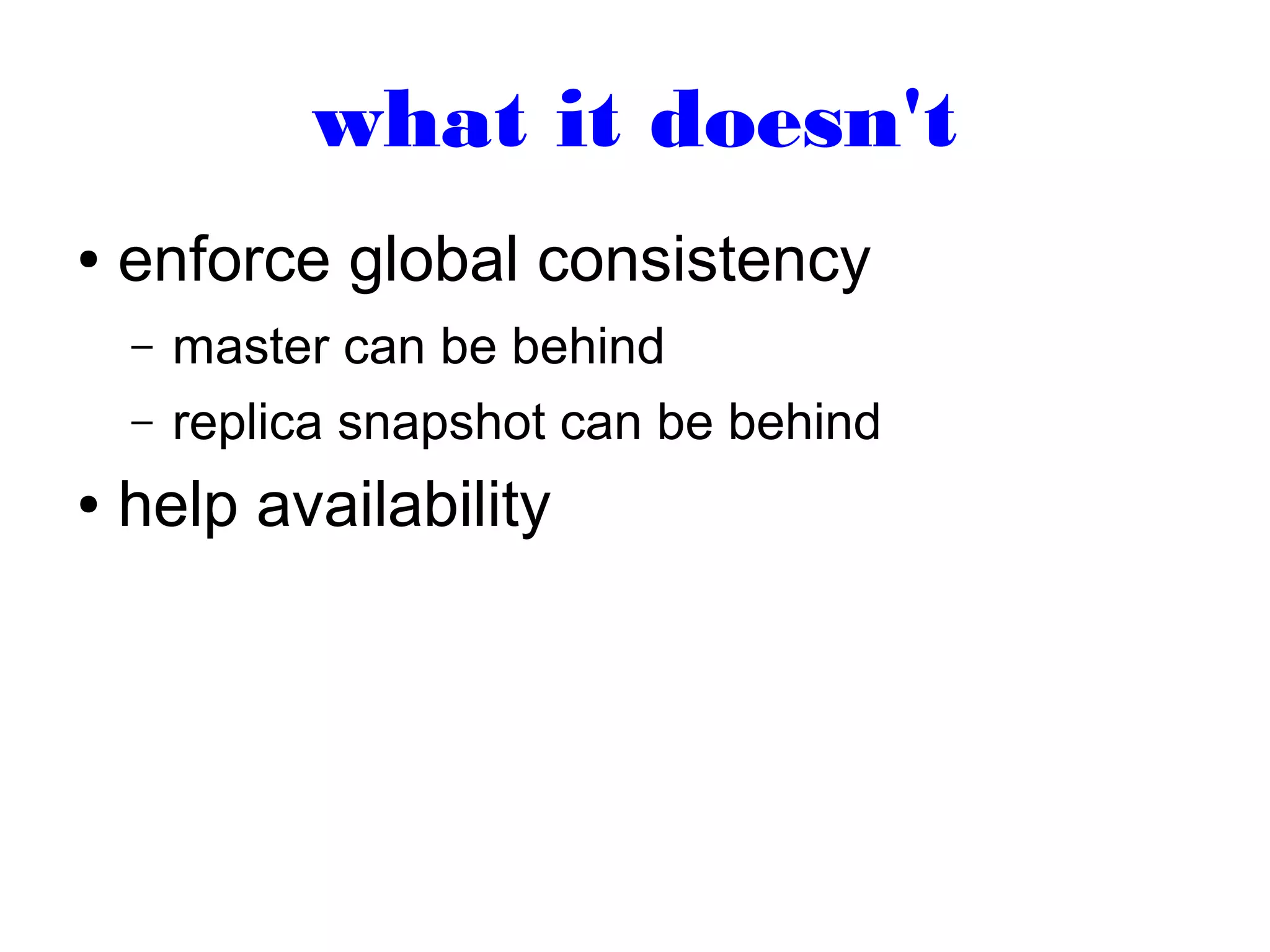

35. what it doesn't
●
enforce global consistency
–
–
●
master can be behind
replica snapshot can be behind
help availability

36. “I would rather be down
than potentially lose
data.”

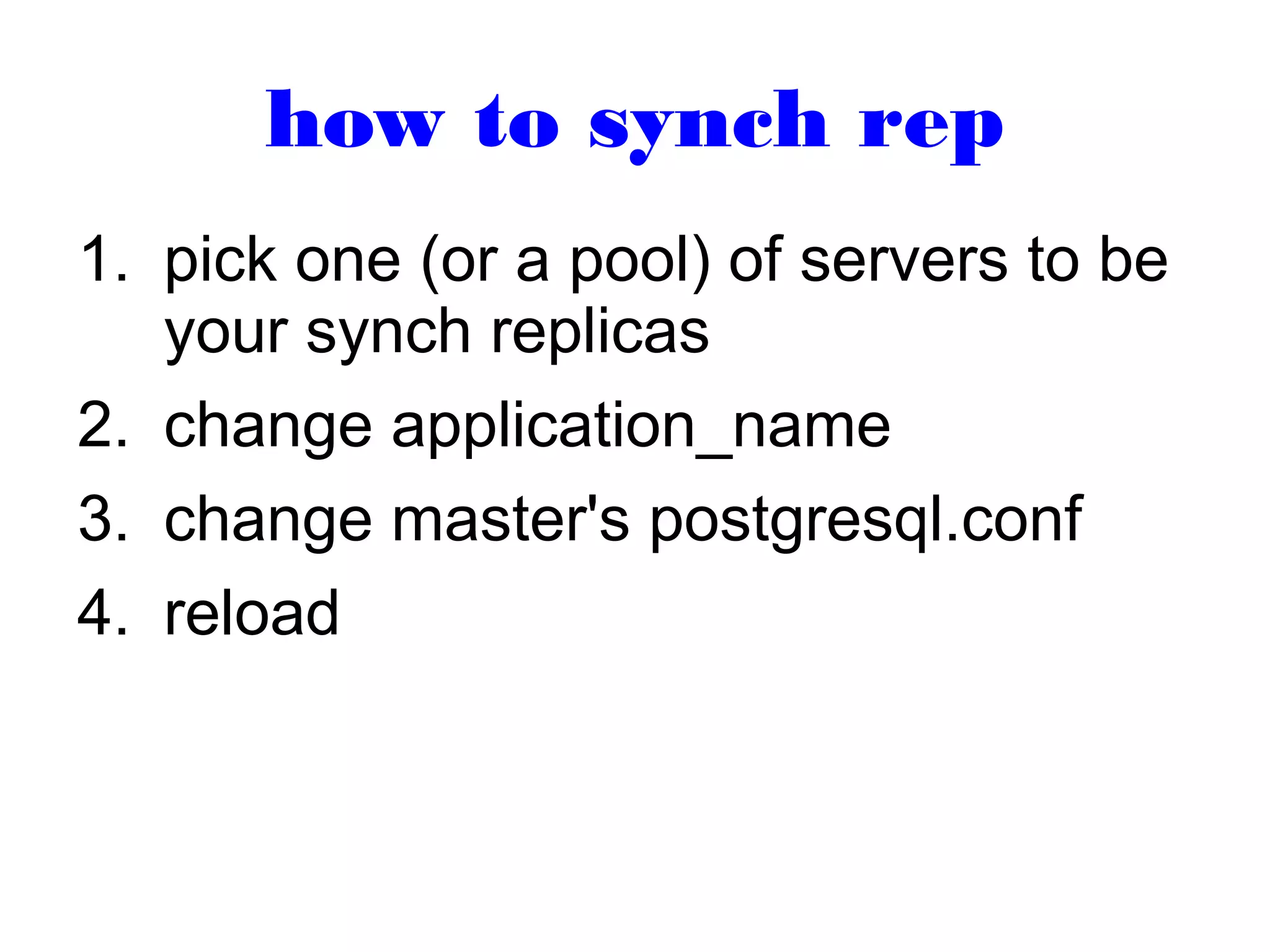

37. how to synch rep
1. pick one (or a pool) of servers to be
your synch replicas
2. change application_name
3. change master's postgresql.conf
4. reload

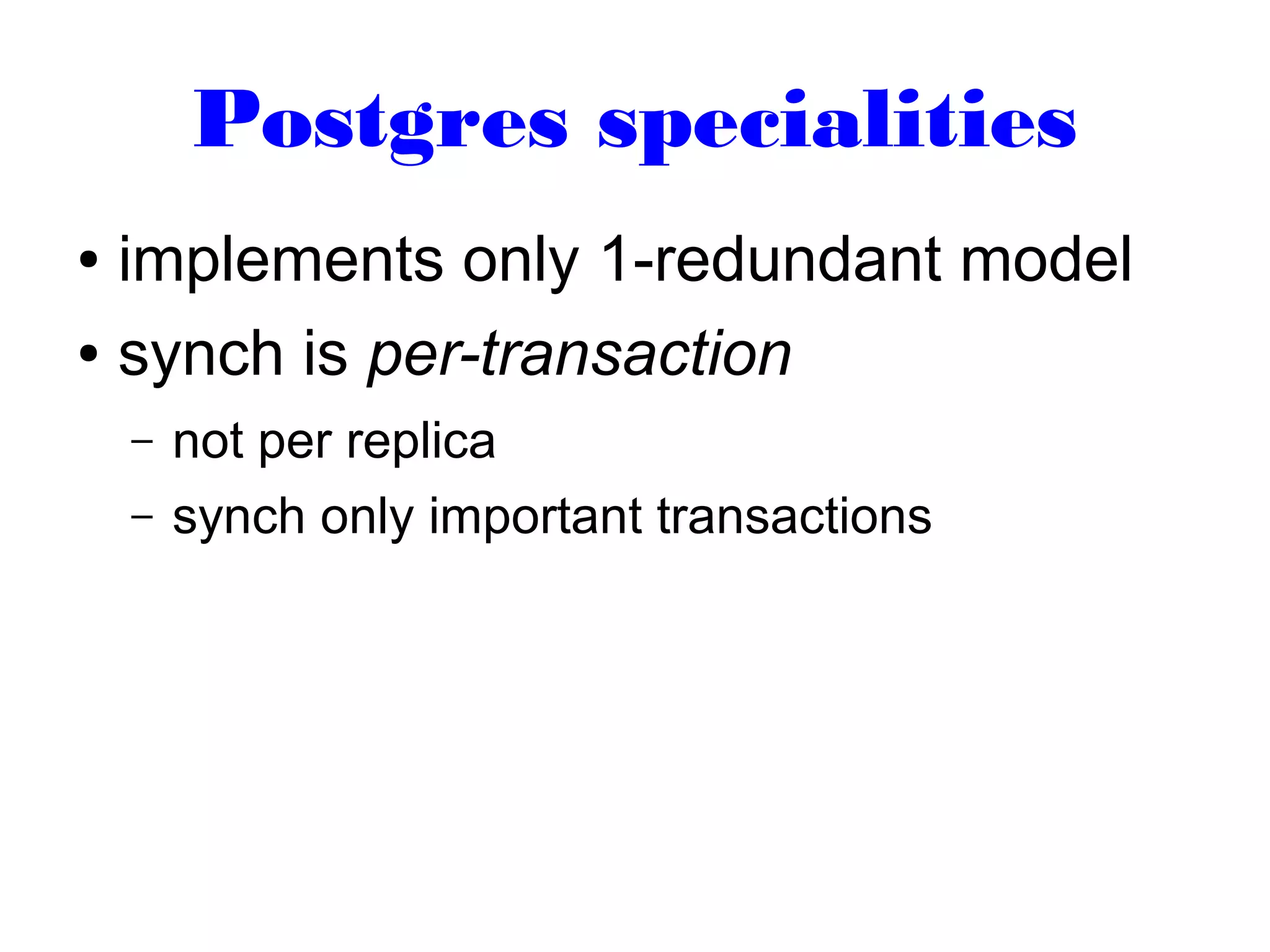

38. Postgres specialities
implements only 1-redundant model
● synch is per-transaction
●
–
–
not per replica
synch only important transactions

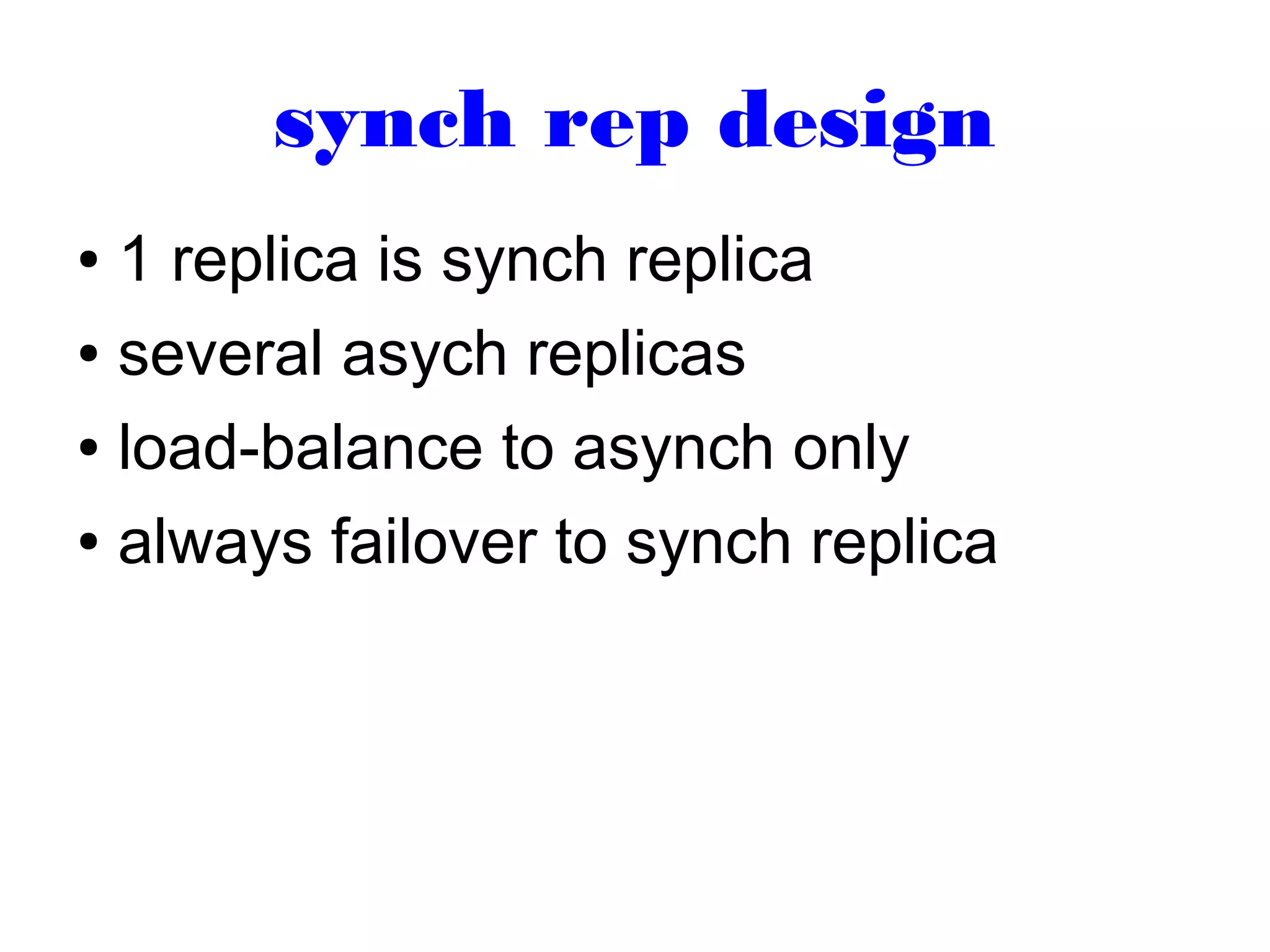

39. synch rep design
1 replica is synch replica
● several asych replicas
● load-balance to asynch only
● always failover to synch replica
●

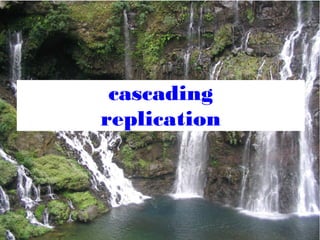

40. cascading
replication

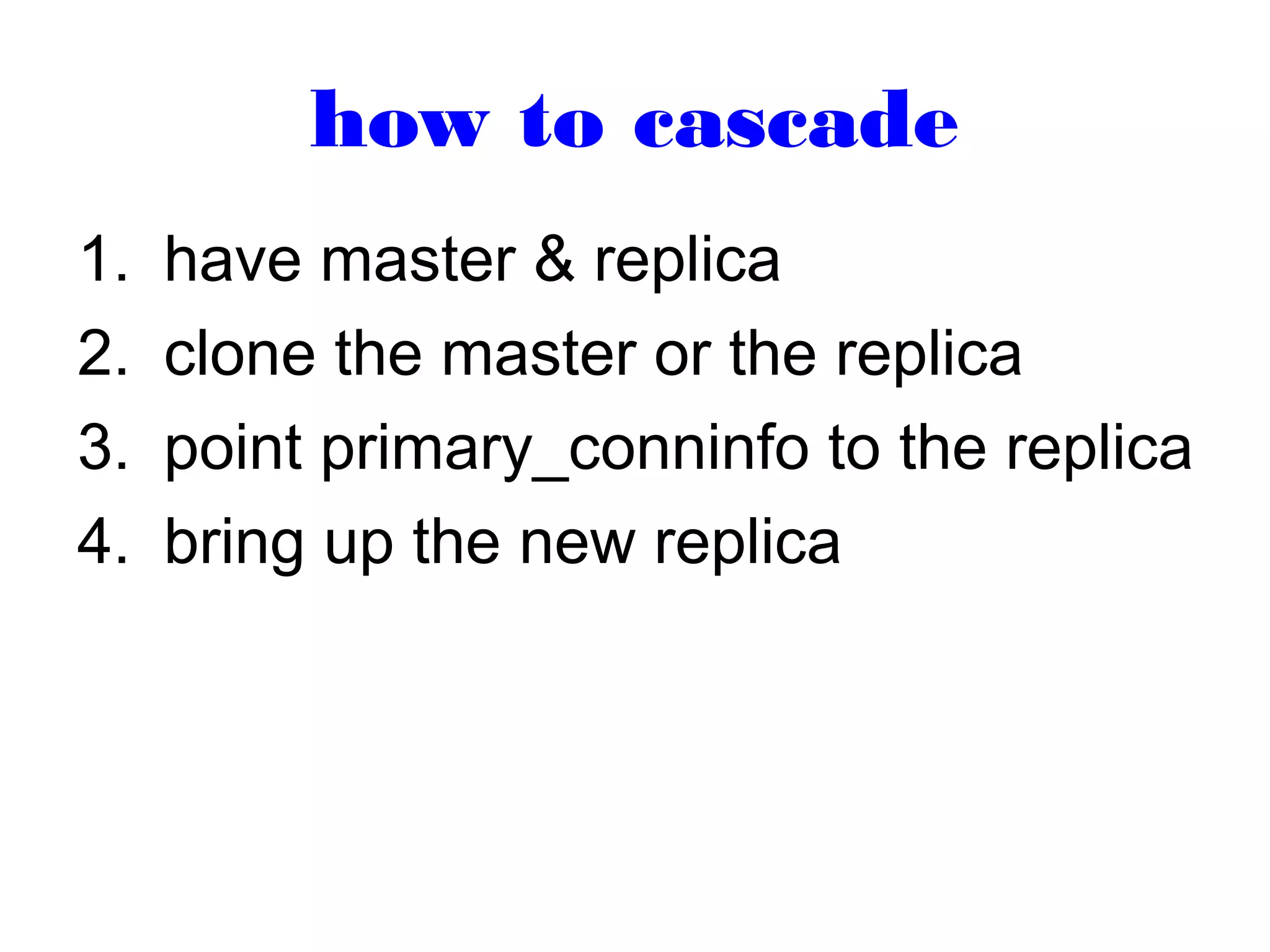

41. how to cascade
1.
2.
3.
4.
have master & replica
clone the master or the replica
point primary_conninfo to the replica
bring up the new replica

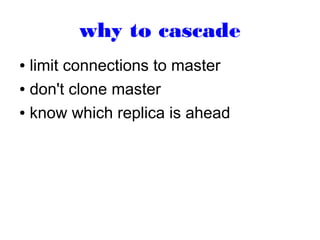

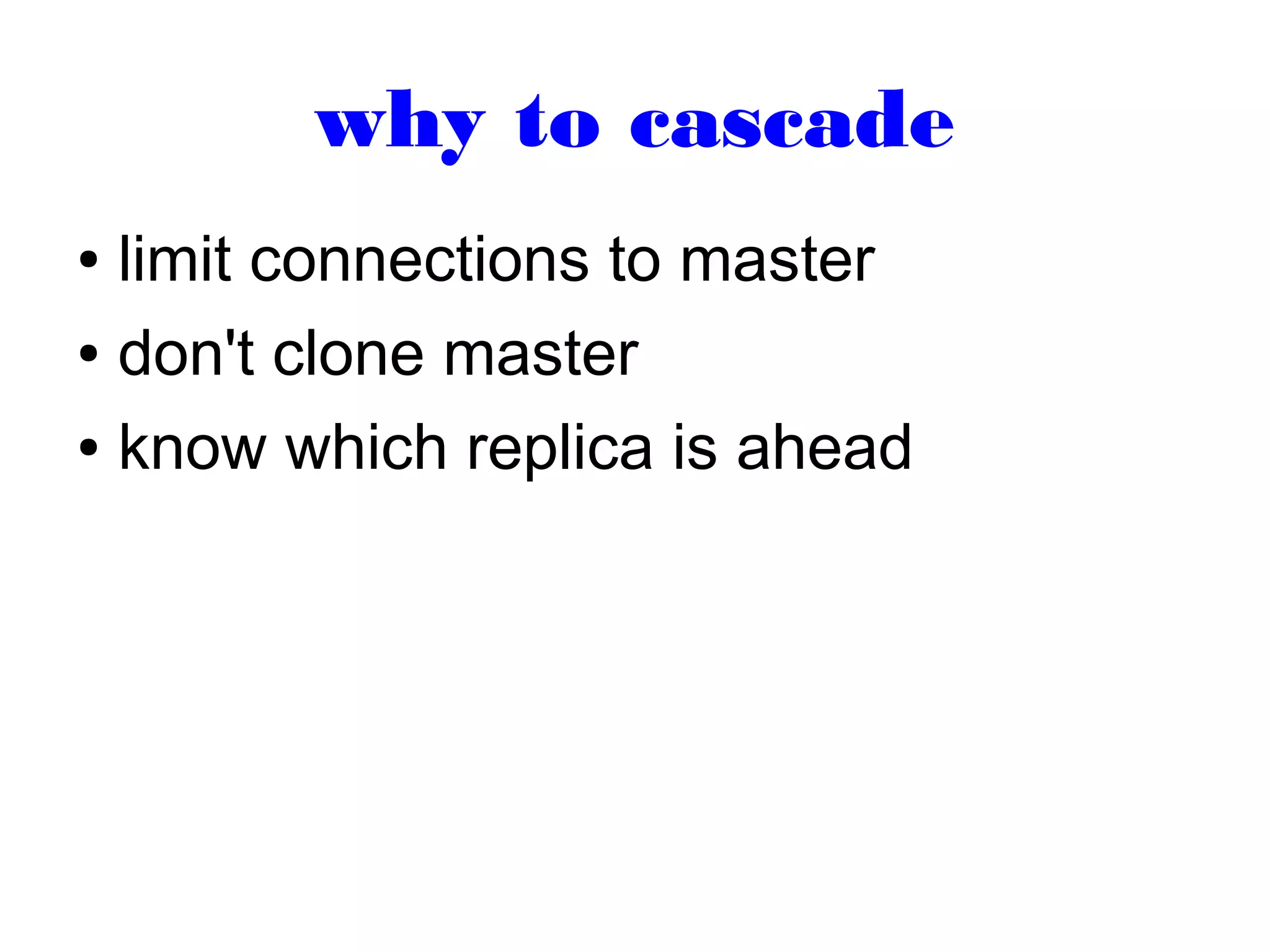

42. why to cascade
limit connections to master
● don't clone master
● know which replica is ahead
●

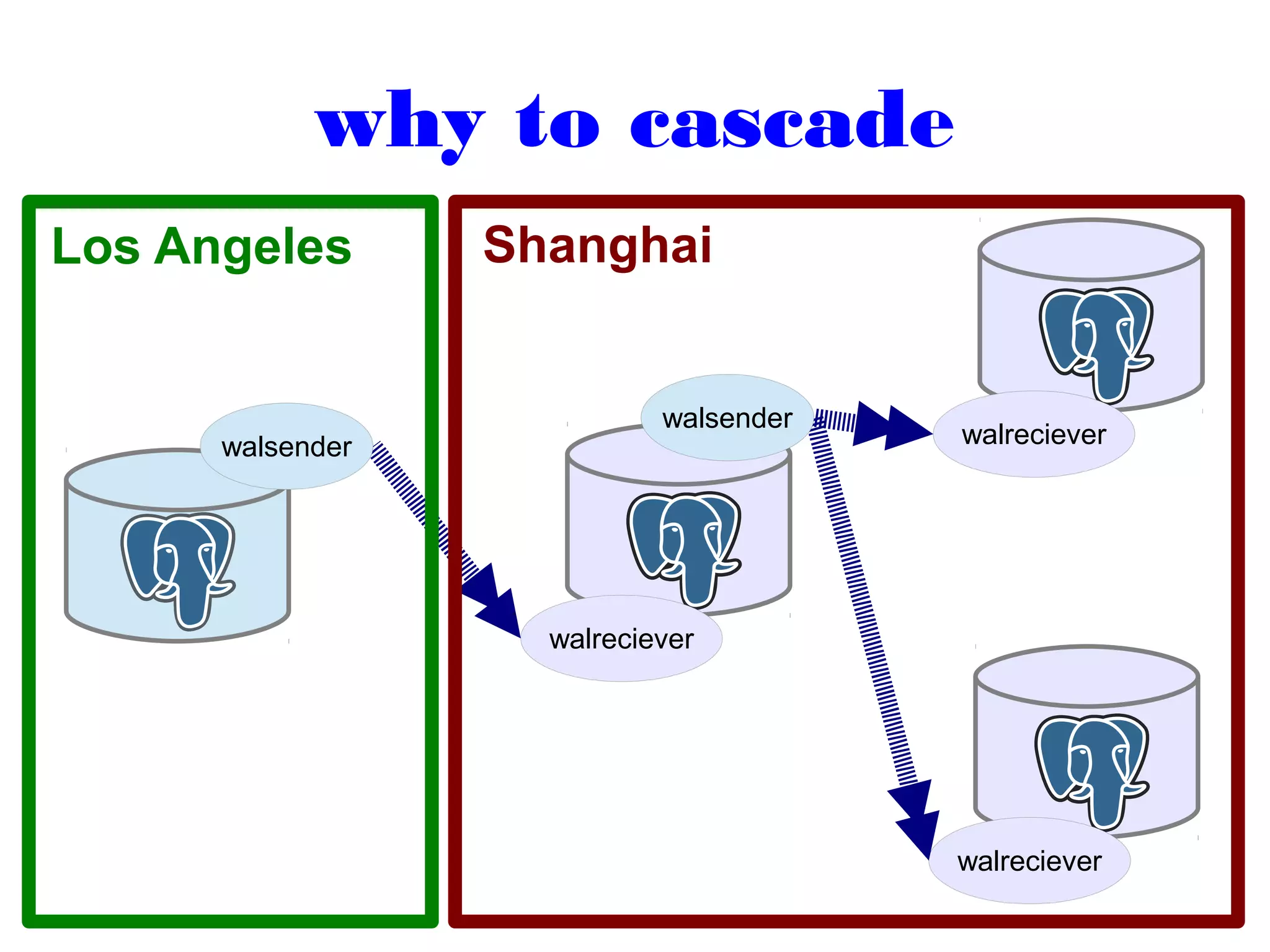

43. why to cascade
Los Angeles
walsender
Shanghai
walsender
walreciever
walreciever
walreciever

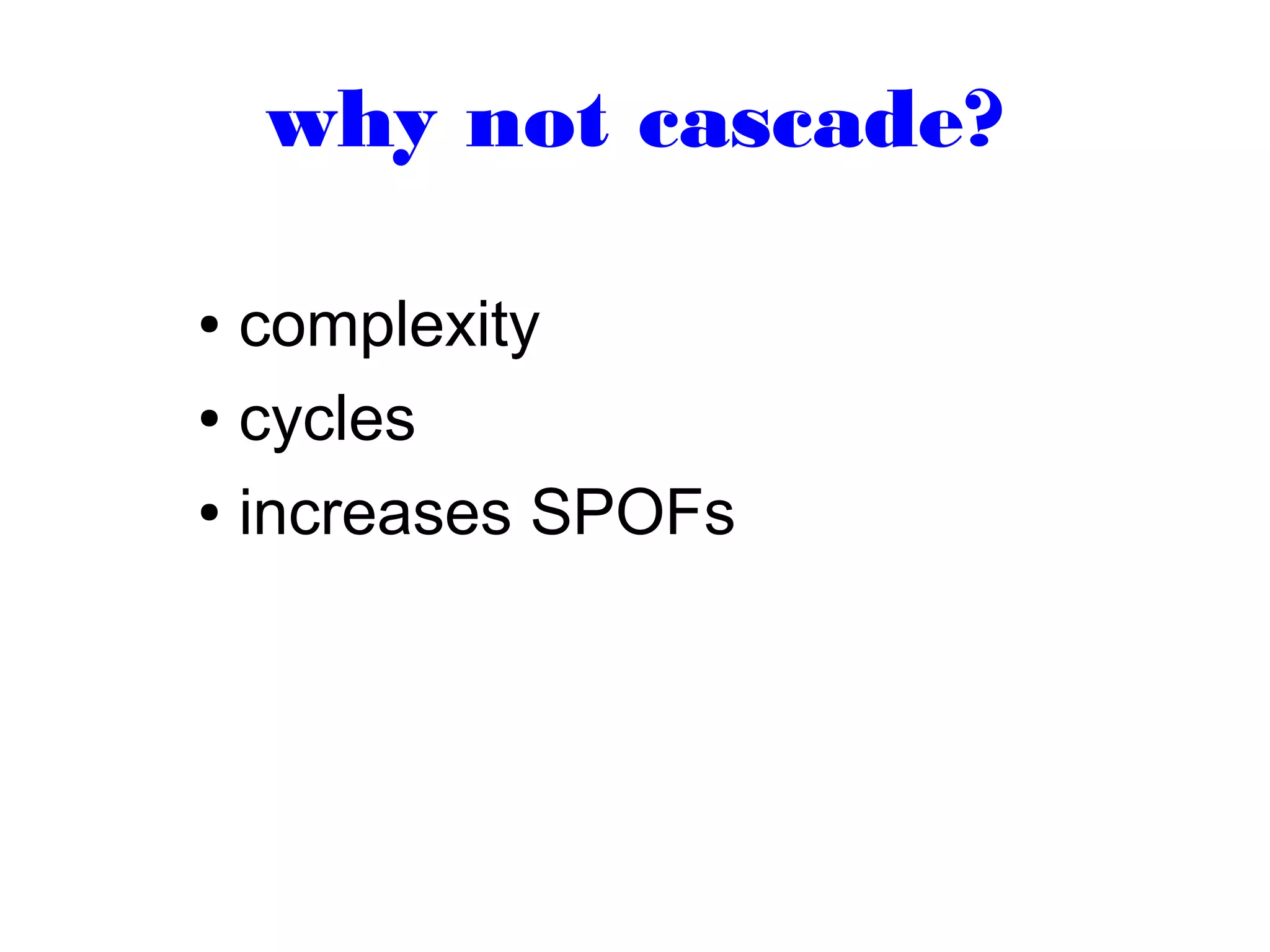

44. why not cascade?
complexity
● cycles
● increases SPOFs
●

45. replication
in the
cloud

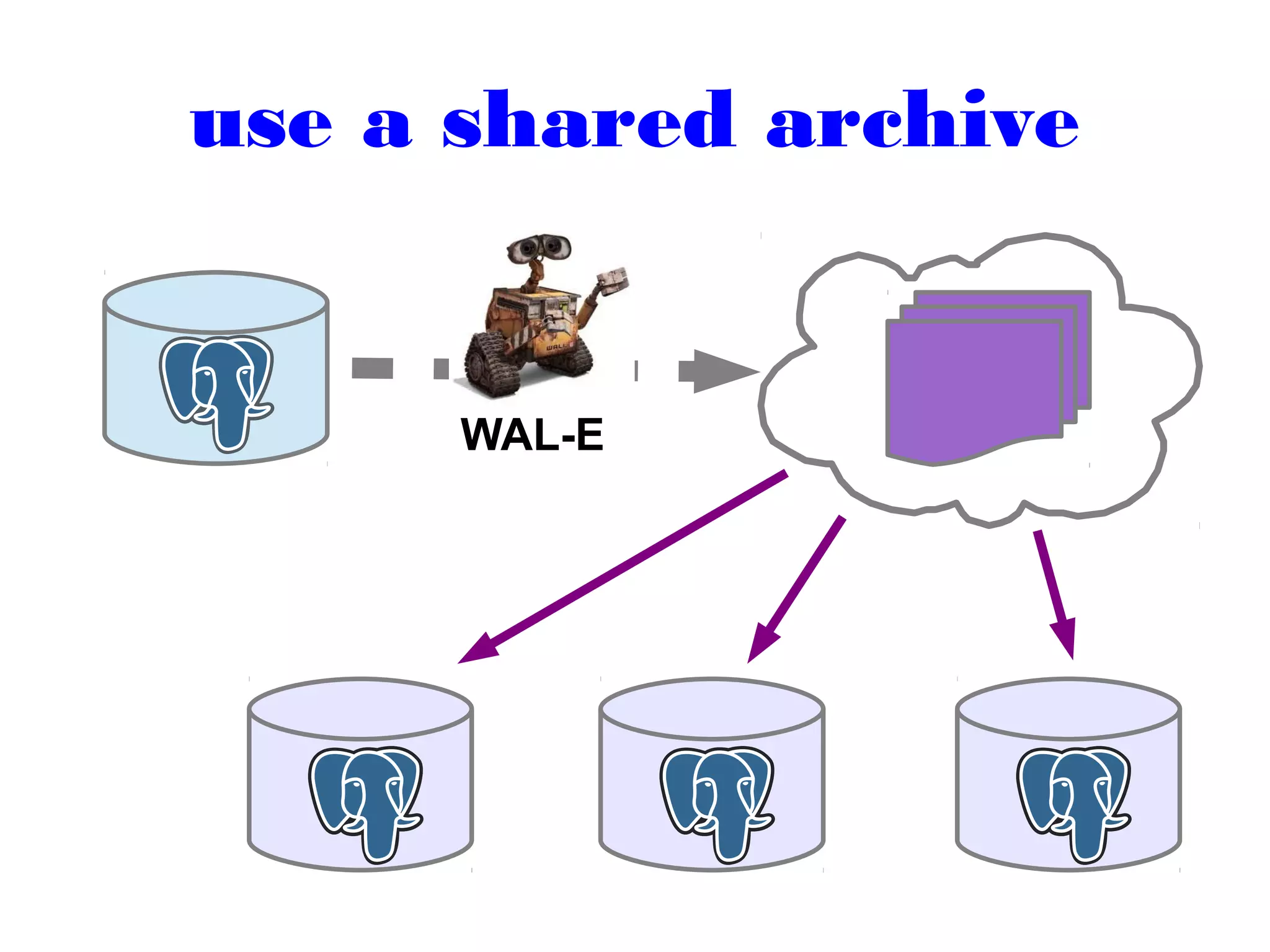

46. use a shared archive
WAL-E

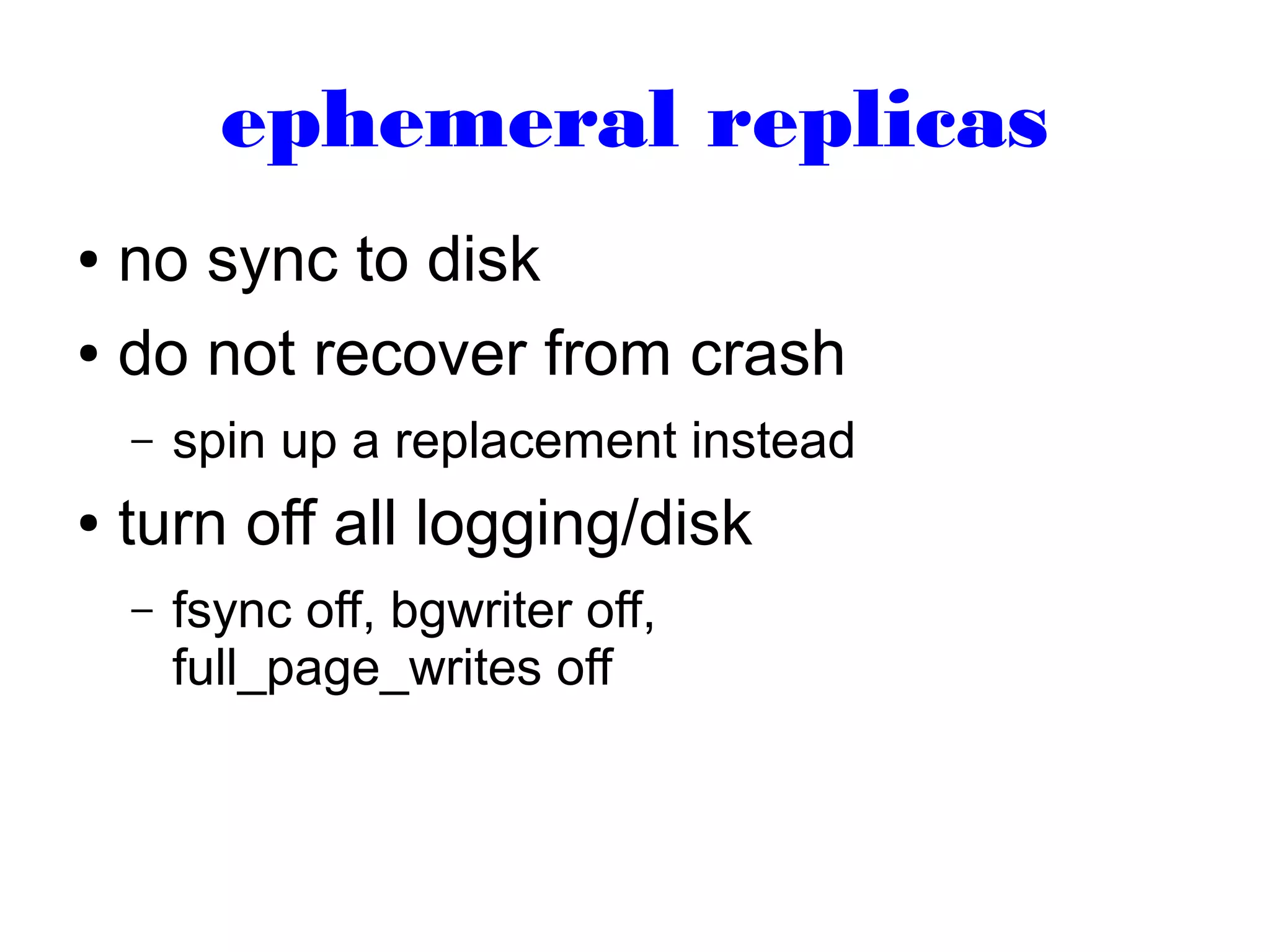

47. ephemeral replicas
no sync to disk
● do not recover from crash
●
–
●
spin up a replacement instead
turn off all logging/disk
–
fsync off, bgwriter off,
full_page_writes off

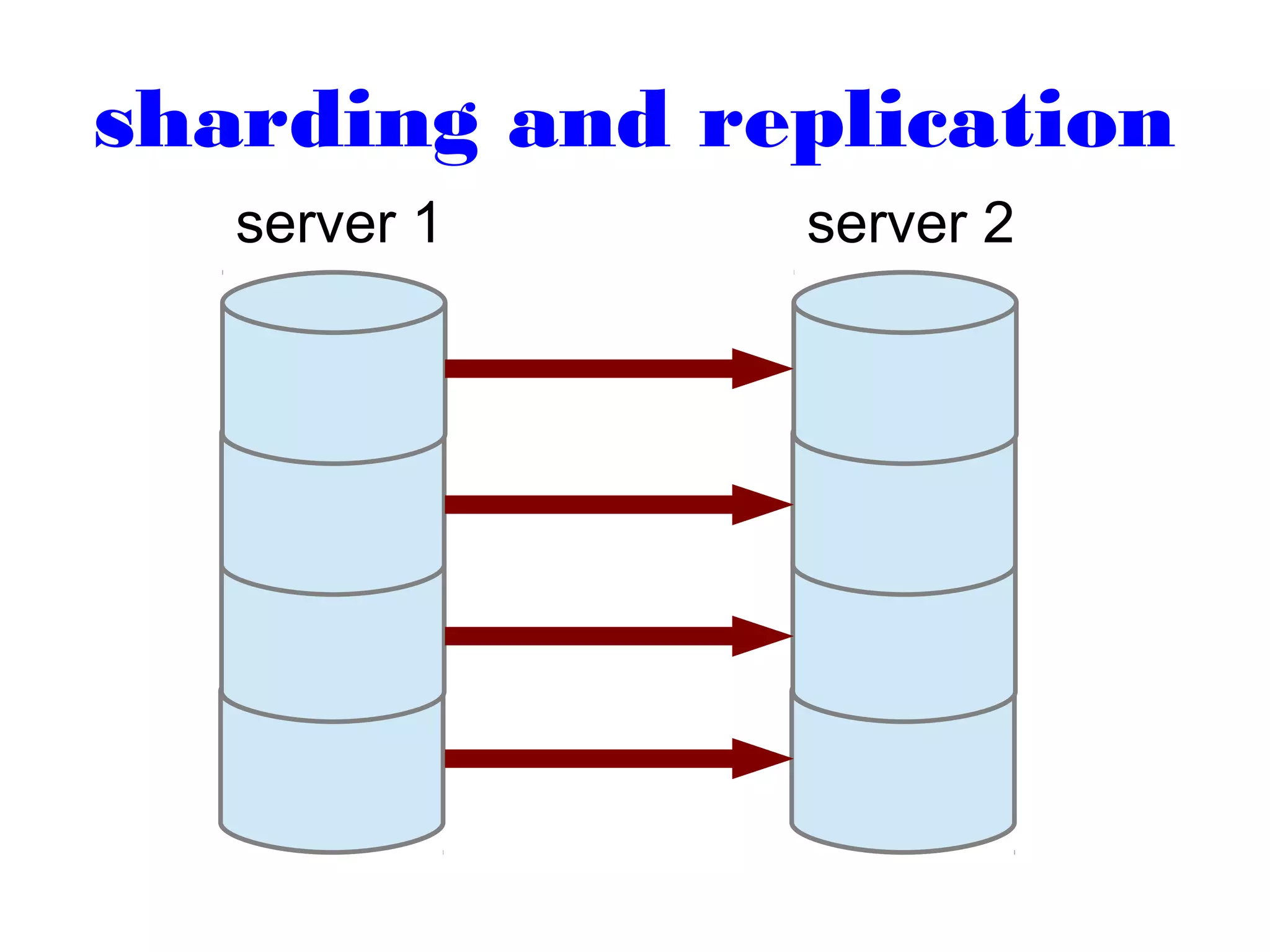

48. sharding and replication
server 1
server 2

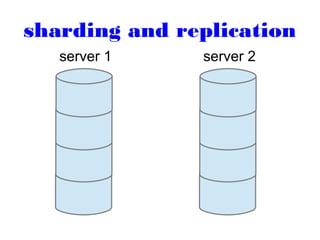

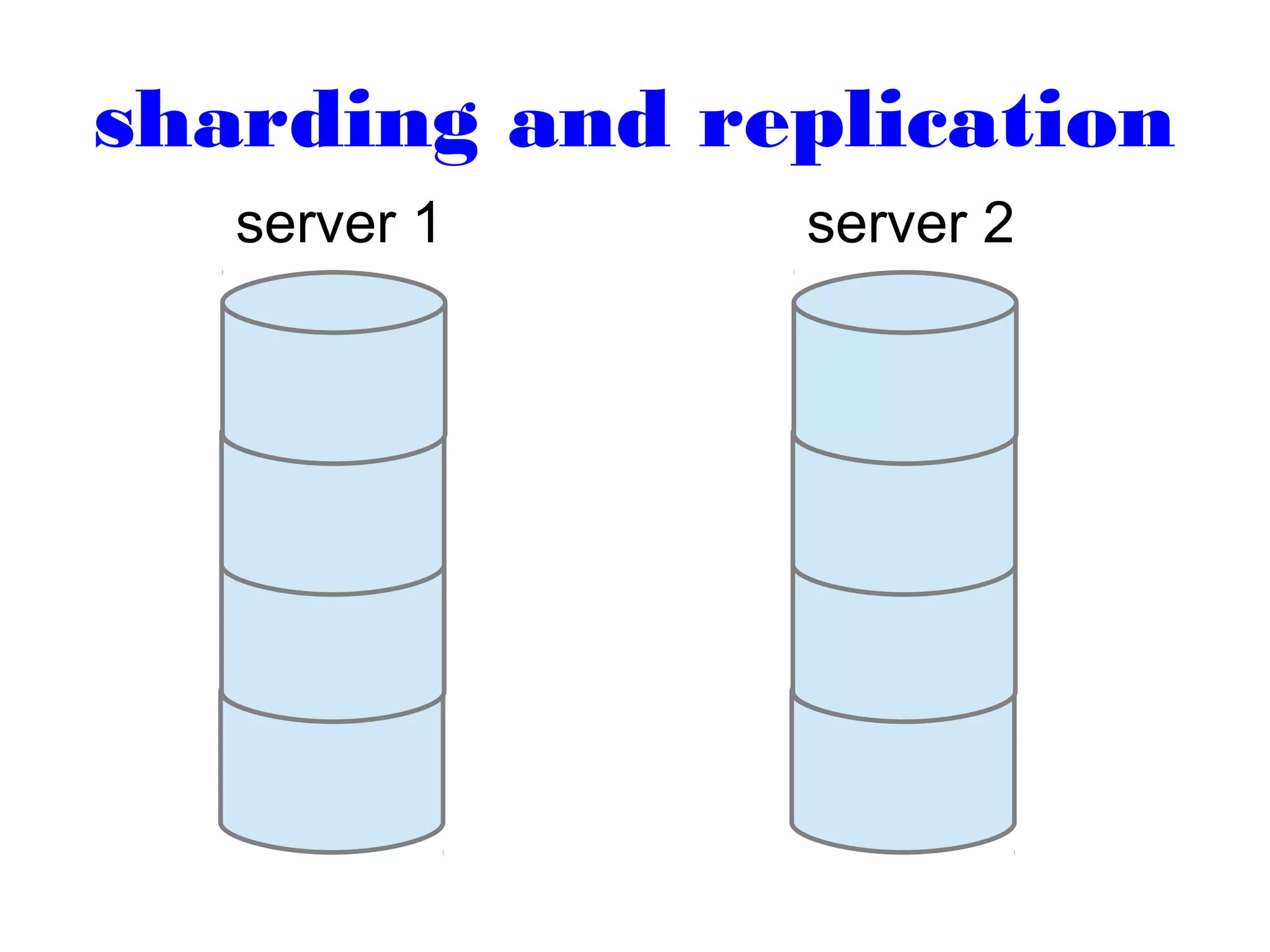

49. sharding and replication
server 1
server 2

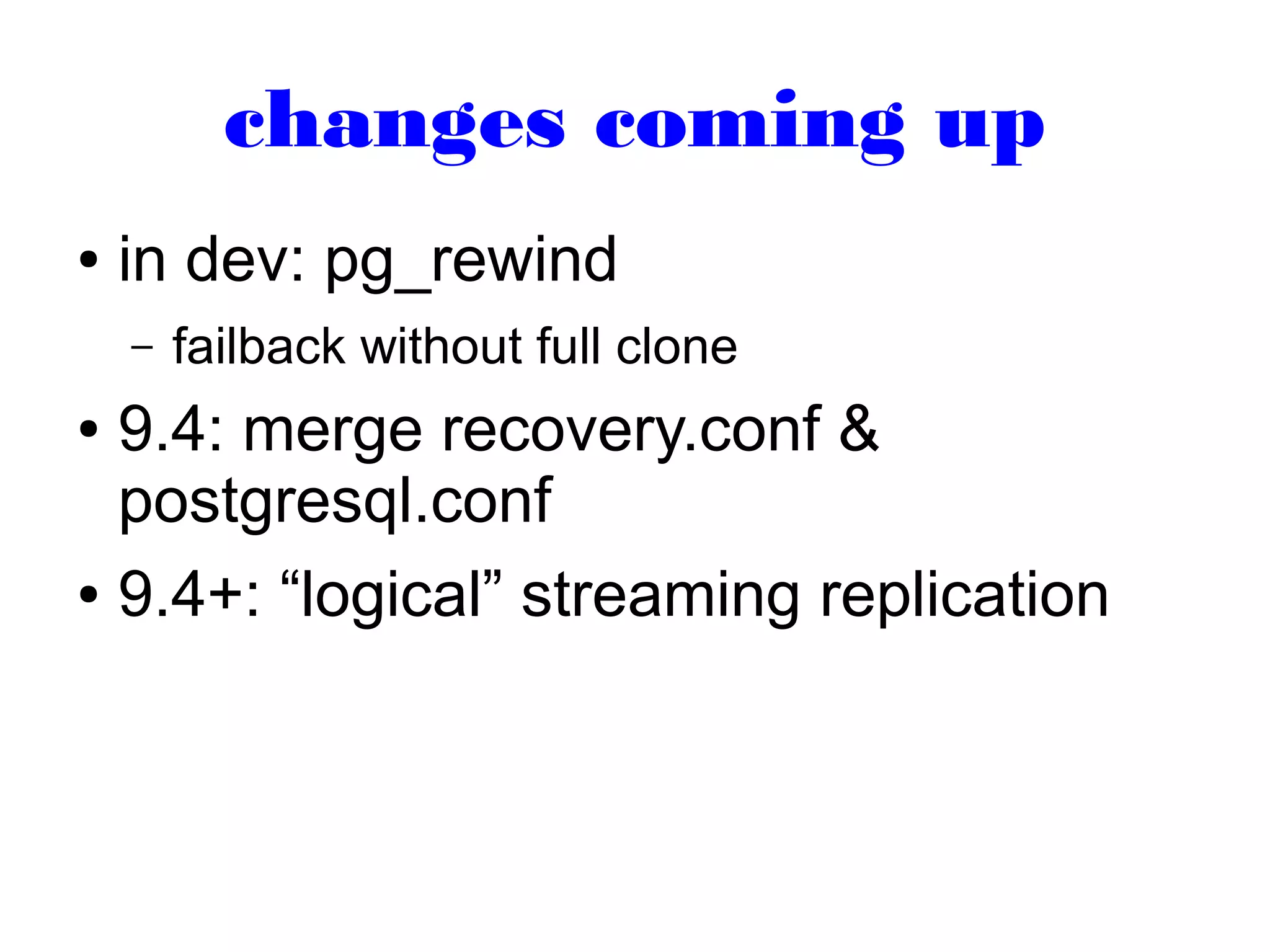

50. changes coming up
●
in dev: pg_rewind
–
failback without full clone
9.4: merge recovery.conf &
postgresql.conf
● 9.4+: “logical” streaming replication
●

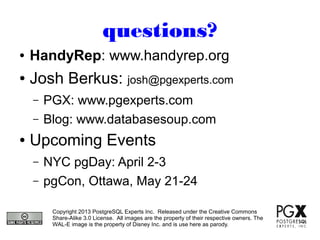

51. questions?
●
HandyRep: www.handyrep.org
●
Josh Berkus: josh@pgexperts.com
–
–
●
PGX: www.pgexperts.com
Blog: www.databasesoup.com
Upcoming Events
–
–
NYC pgDay: April 2-3
pgCon, Ottawa, May 21-24
