The document explains pointers and dynamic memory allocation in C programming, covering topics such as pointer declaration, initialization, accessing variables, and chains of pointers. It details memory allocation types, including fixed and dynamic memory allocation using functions like malloc, calloc, and realloc. Additionally, the document discusses the use of pointers with arrays, functions, and structures, along with common pitfalls encountered when using pointers.

1. Pointers and Dynamic
Memory Allocations
1Presented by: Group-E (The Anonymous)
Bikash Dhakal
Bimal Pradhan
Gagan Puri
Bikram Bhurtel
Rabin BK

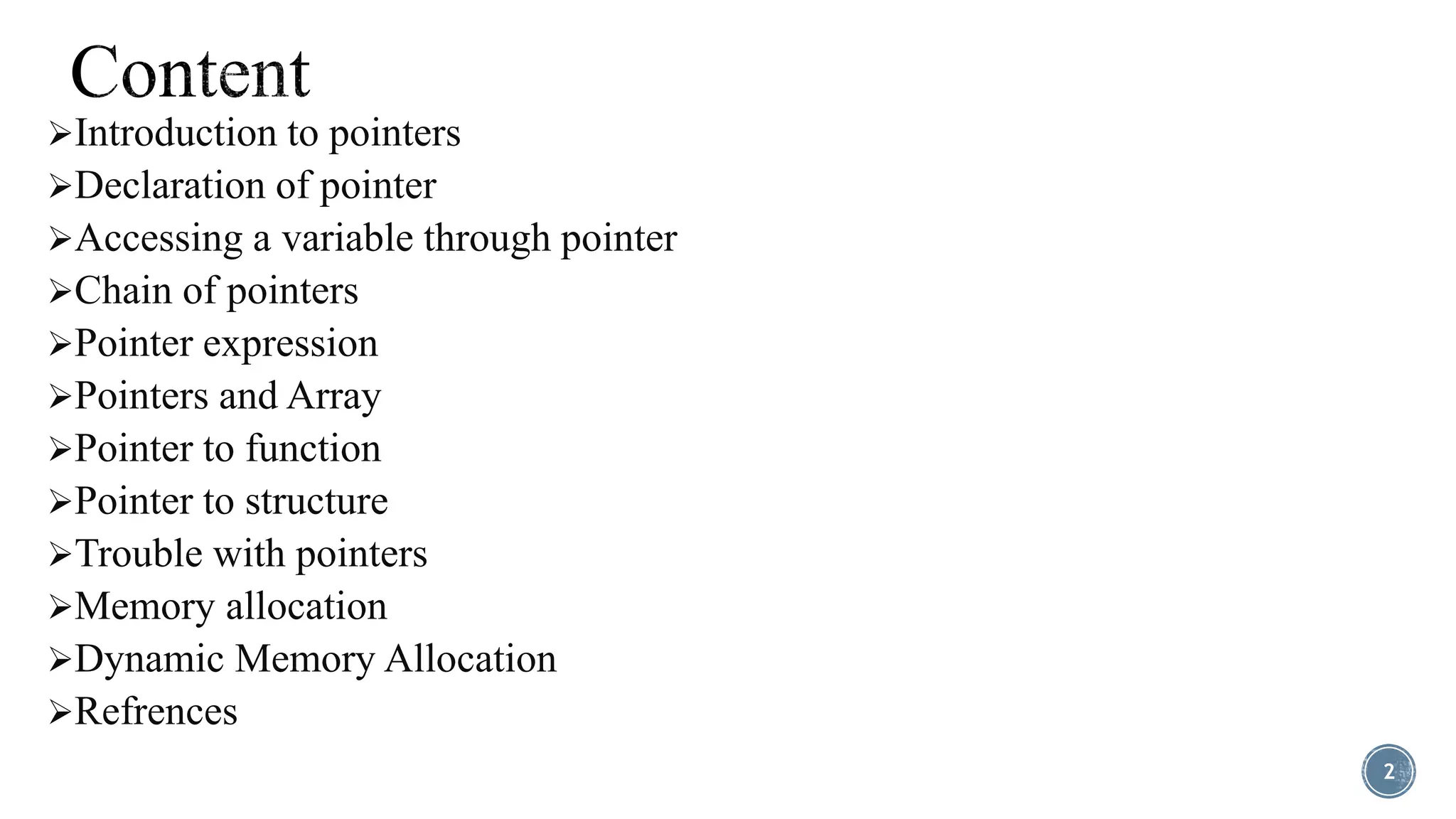

2. Introduction to pointers
Declaration of pointer
Accessing a variable through pointer
Chain of pointers
Pointer expression
Pointers and Array
Pointer to function
Pointer to structure
Trouble with pointers
Memory allocation
Dynamic Memory Allocation
Refrences
2

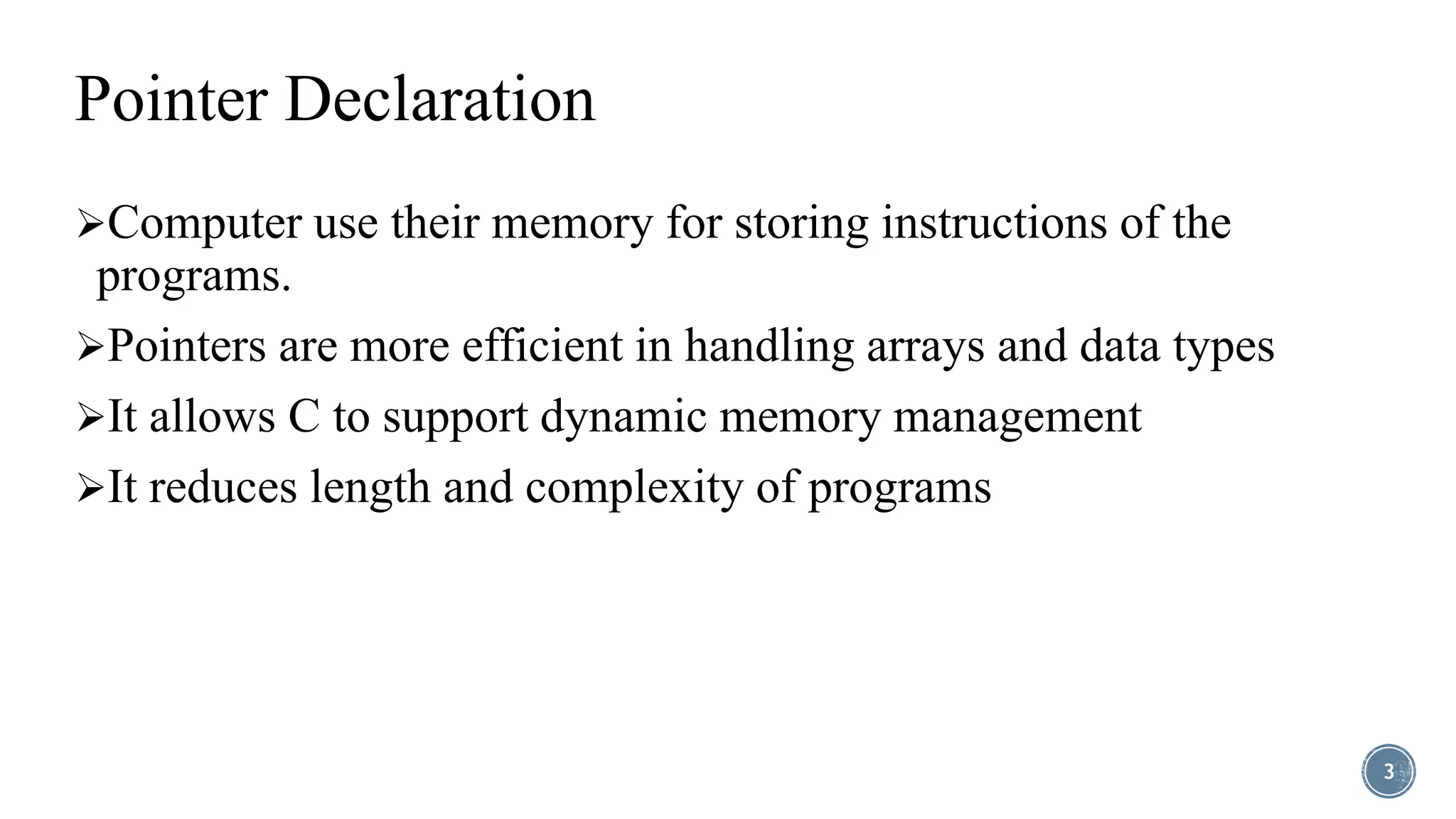

3. 3
Computer use their memory for storing instructions of the
programs.
Pointers are more efficient in handling arrays and data types
It allows C to support dynamic memory management
It reduces length and complexity of programs
Pointer Declaration

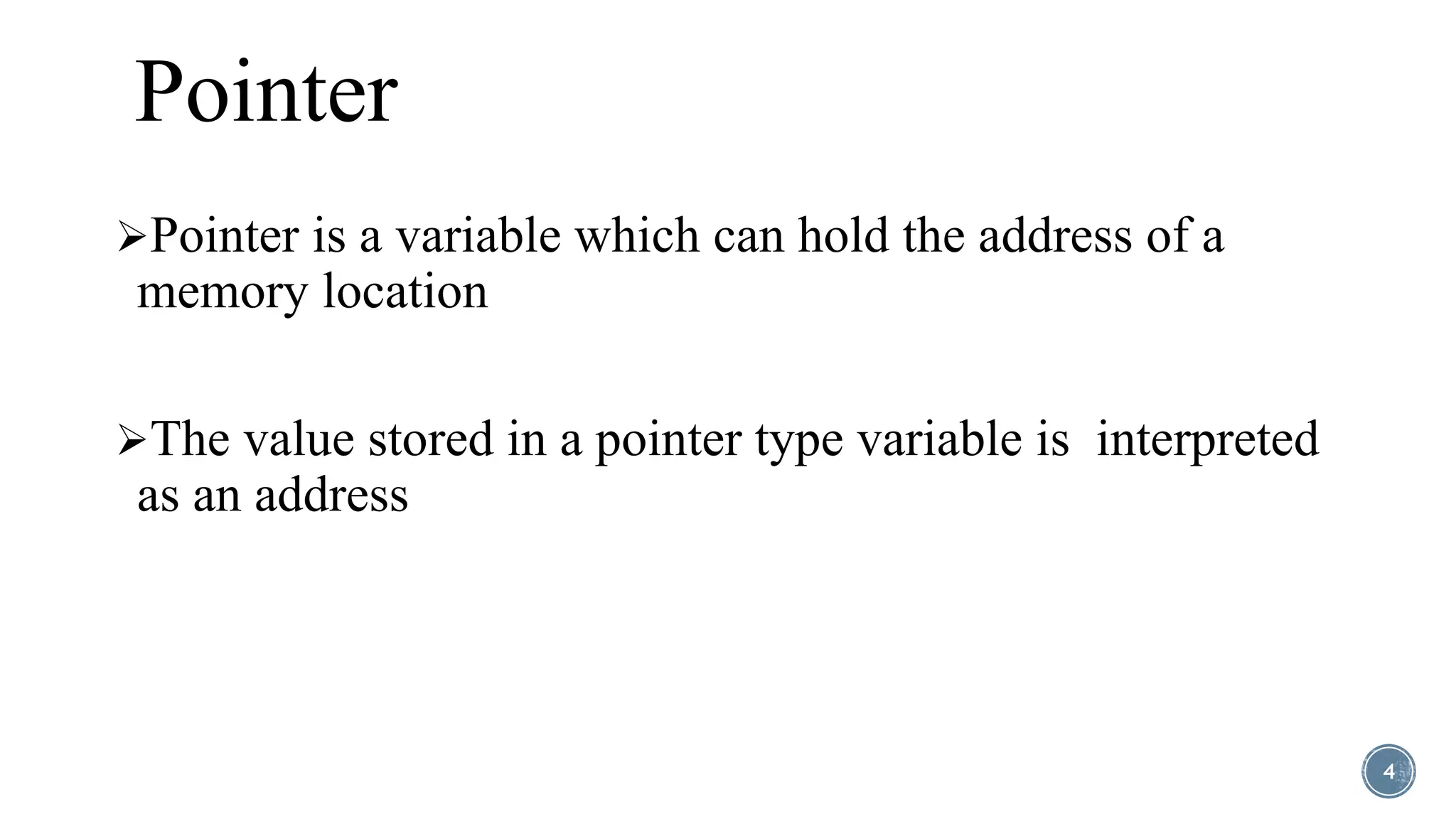

4. 4
Pointer is a variable which can hold the address of a
memory location
The value stored in a pointer type variable is interpreted
as an address
Pointer

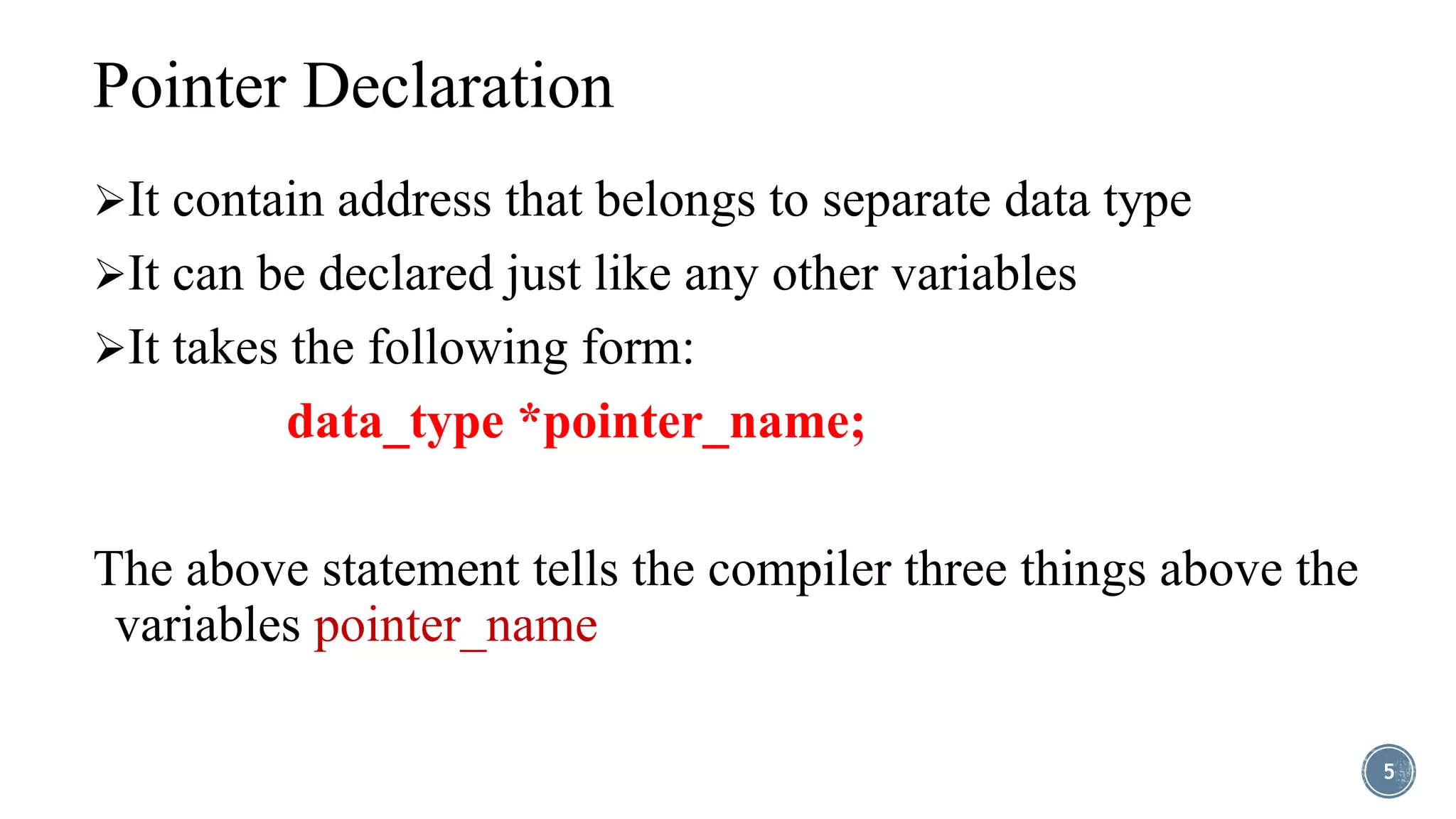

5. It contain address that belongs to separate data type
It can be declared just like any other variables
It takes the following form:
data_type *pointer_name;
The above statement tells the compiler three things above the
variables pointer_name
5
Pointer Declaration

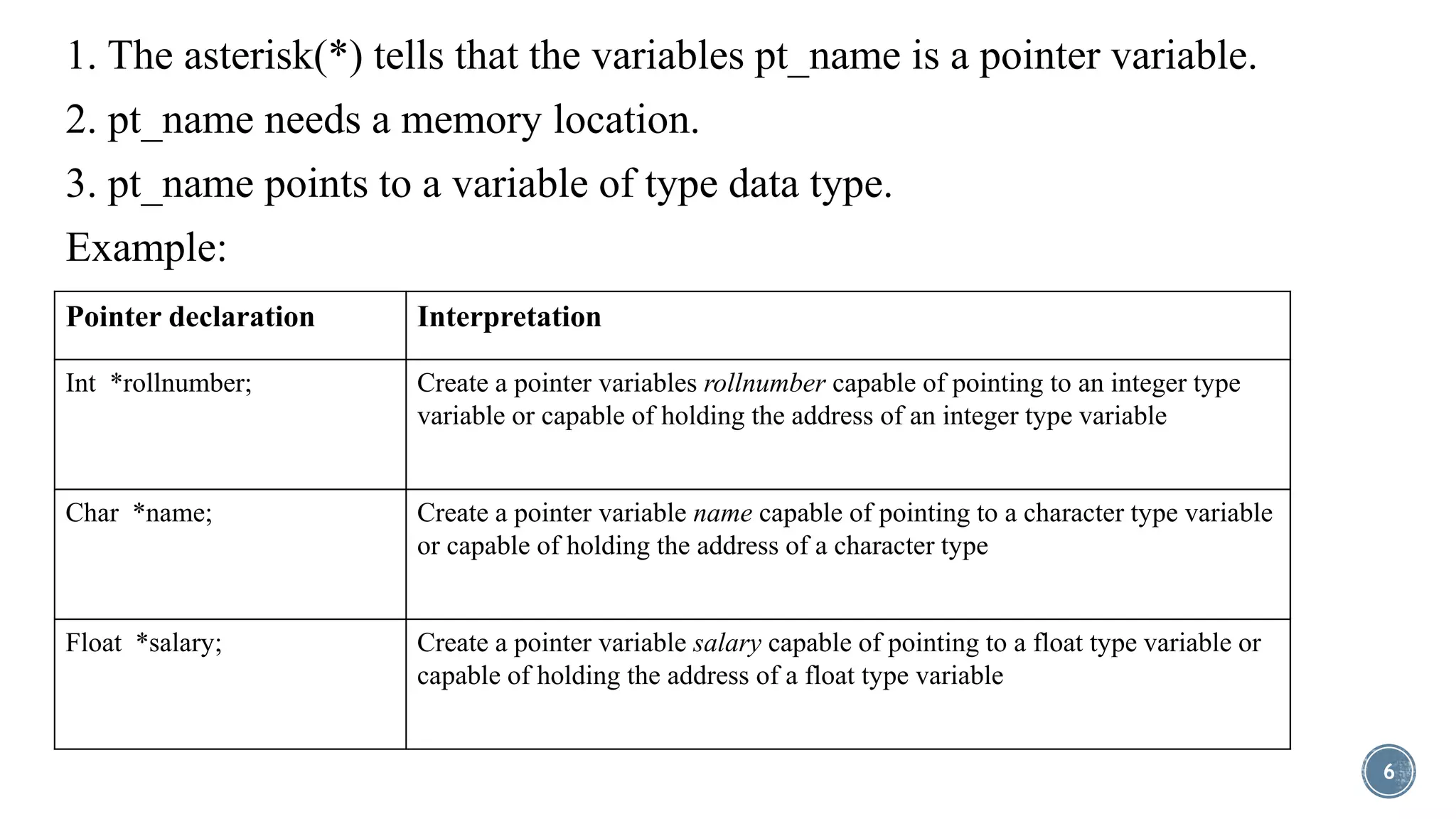

6. 1. The asterisk(*) tells that the variables pt_name is a pointer variable.
2. pt_name needs a memory location.
3. pt_name points to a variable of type data type.
Example:
Pointer declaration Interpretation
Int *rollnumber; Create a pointer variables rollnumber capable of pointing to an integer type
variable or capable of holding the address of an integer type variable
Char *name; Create a pointer variable name capable of pointing to a character type variable
or capable of holding the address of a character type
Float *salary; Create a pointer variable salary capable of pointing to a float type variable or
capable of holding the address of a float type variable
6

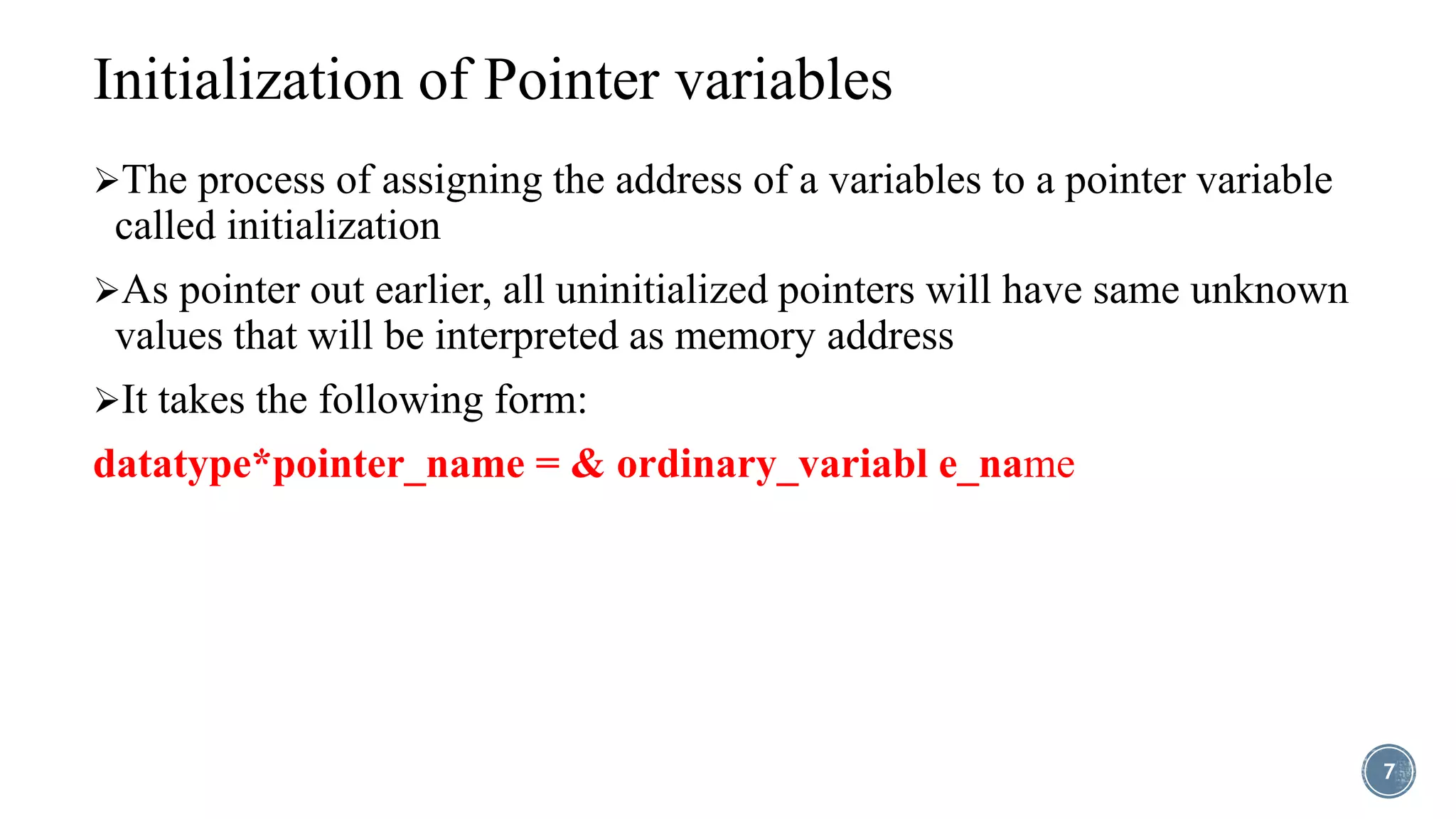

7. The process of assigning the address of a variables to a pointer variable
called initialization
As pointer out earlier, all uninitialized pointers will have same unknown
values that will be interpreted as memory address
It takes the following form:
datatype*pointer_name = & ordinary_variabl e_name
7
Initialization of Pointer variables

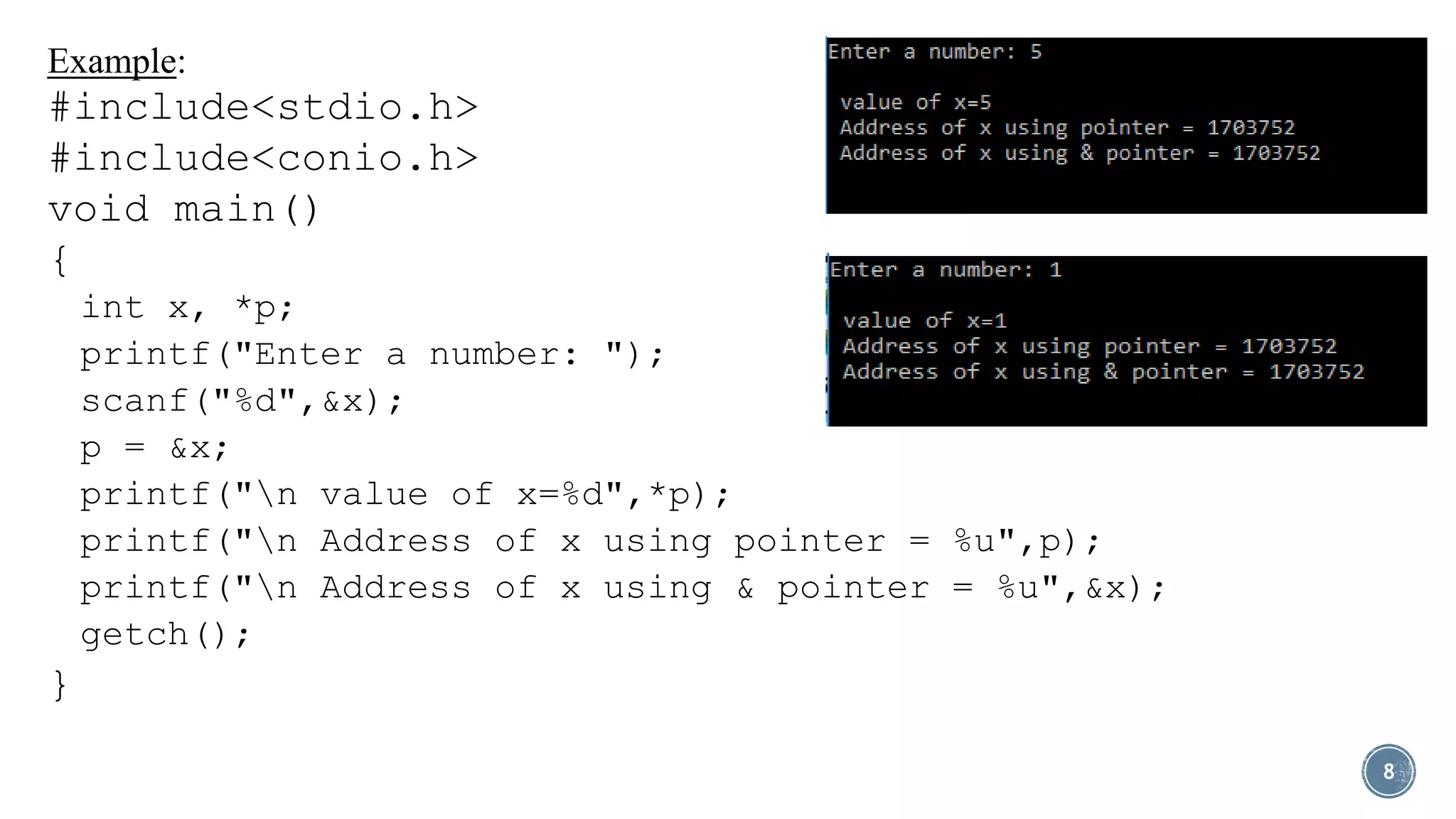

8. Example:
#include<stdio.h>
#include<conio.h>
void main()
{
int x, *p;
printf("Enter a number: ");
scanf("%d",&x);
p = &x;
printf("n value of x=%d",*p);
printf("n Address of x using pointer = %u",p);
printf("n Address of x using & pointer = %u",&x);
getch();
}
8

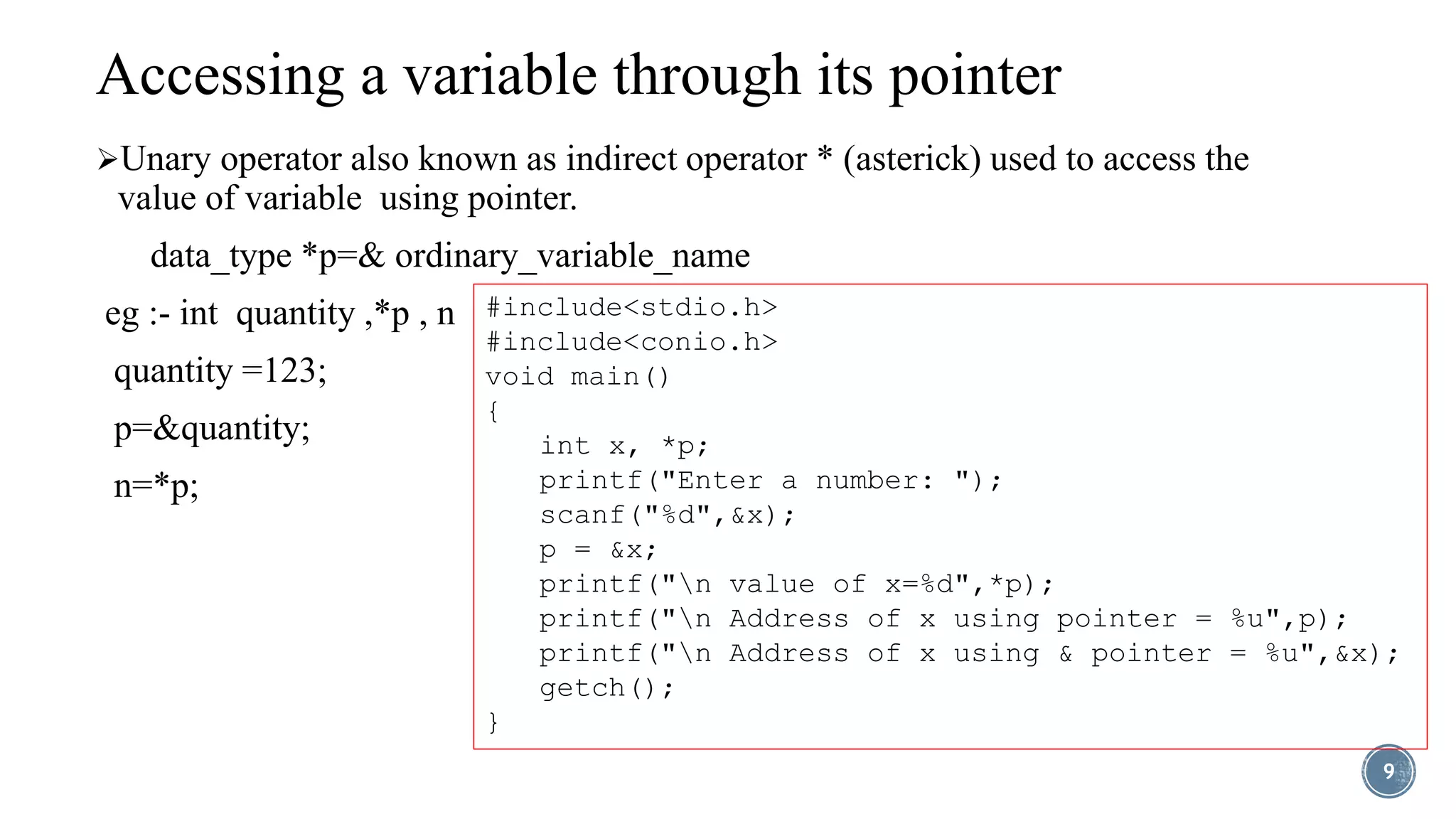

9. Unary operator also known as indirect operator * (asterick) used to access the
value of variable using pointer.
data_type *p=& ordinary_variable_name
eg :- int quantity ,*p , n
quantity =123;
p=&quantity;
n=*p;
#include<stdio.h>
#include<conio.h>
void main()
{
int x, *p;
printf("Enter a number: ");
scanf("%d",&x);
p = &x;
printf("n value of x=%d",*p);
printf("n Address of x using pointer = %u",p);
printf("n Address of x using & pointer = %u",&x);
getch();
}
9
Accessing a variable through its pointer

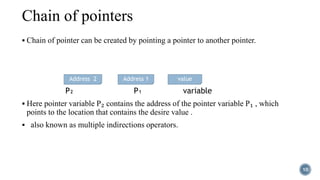

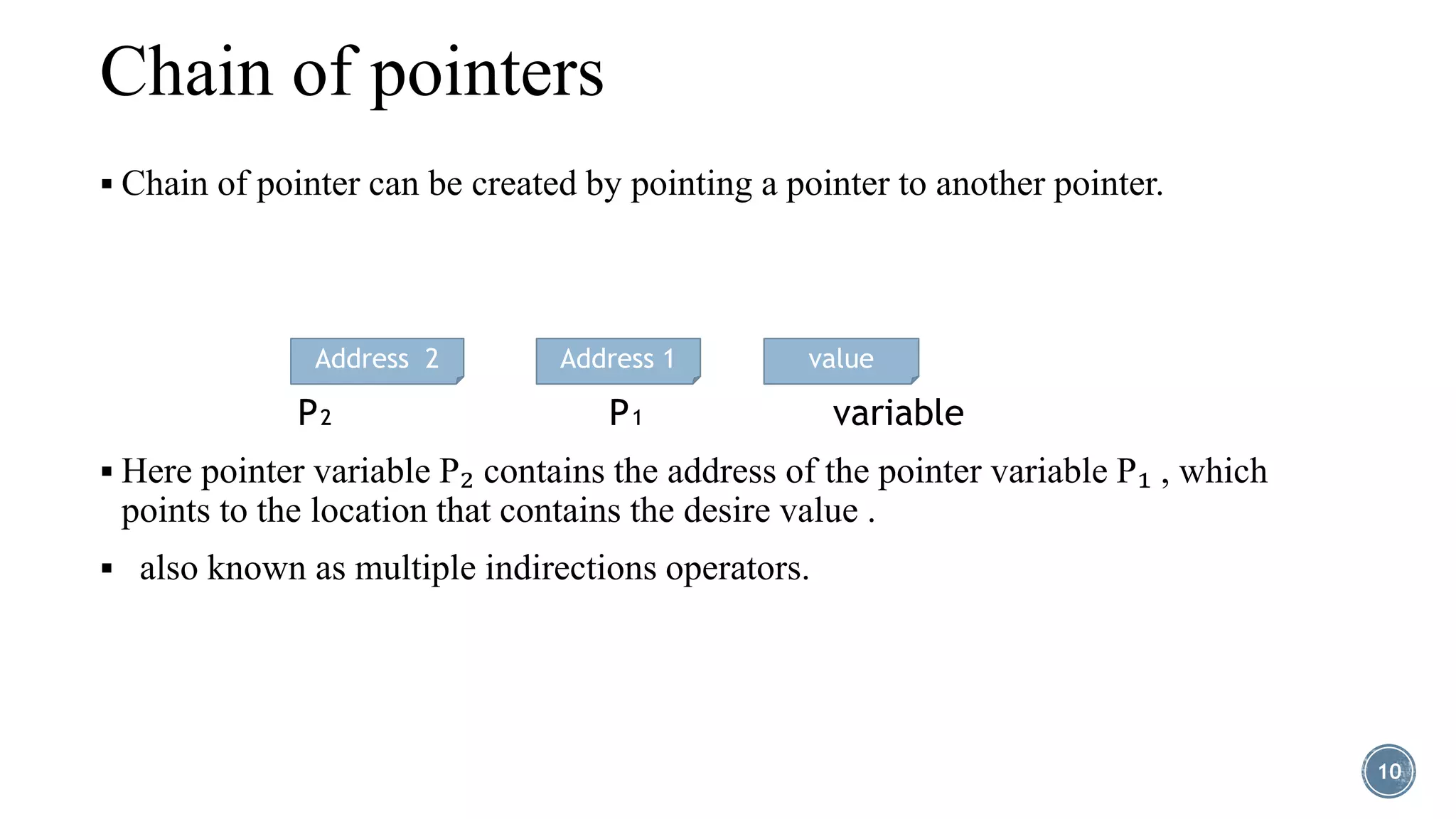

10.  Chain of pointer can be created by pointing a pointer to another pointer.
P₂ P₁ variable
 Here pointer variable P₂ contains the address of the pointer variable P₁ , which
points to the location that contains the desire value .
 also known as multiple indirections operators.
Address 2 Address 1 value
10
Chain of pointers

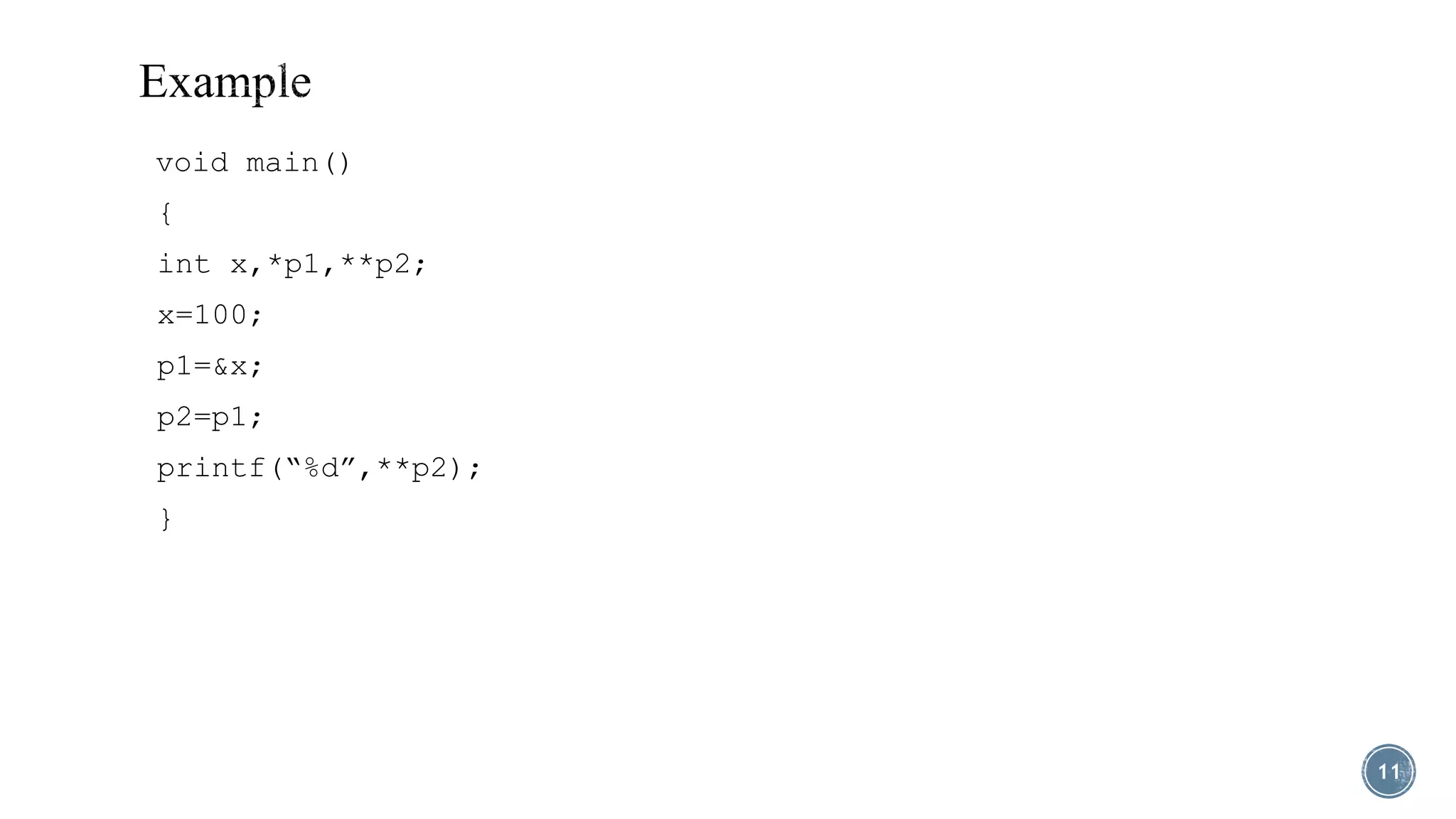

11. void main()
{
int x,*p1,**p2;
x=100;
p1=&x;
p2=p1;
printf(“%d”,**p2);
}
11

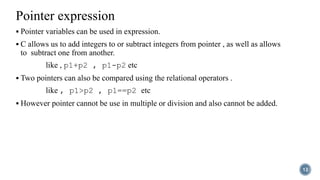

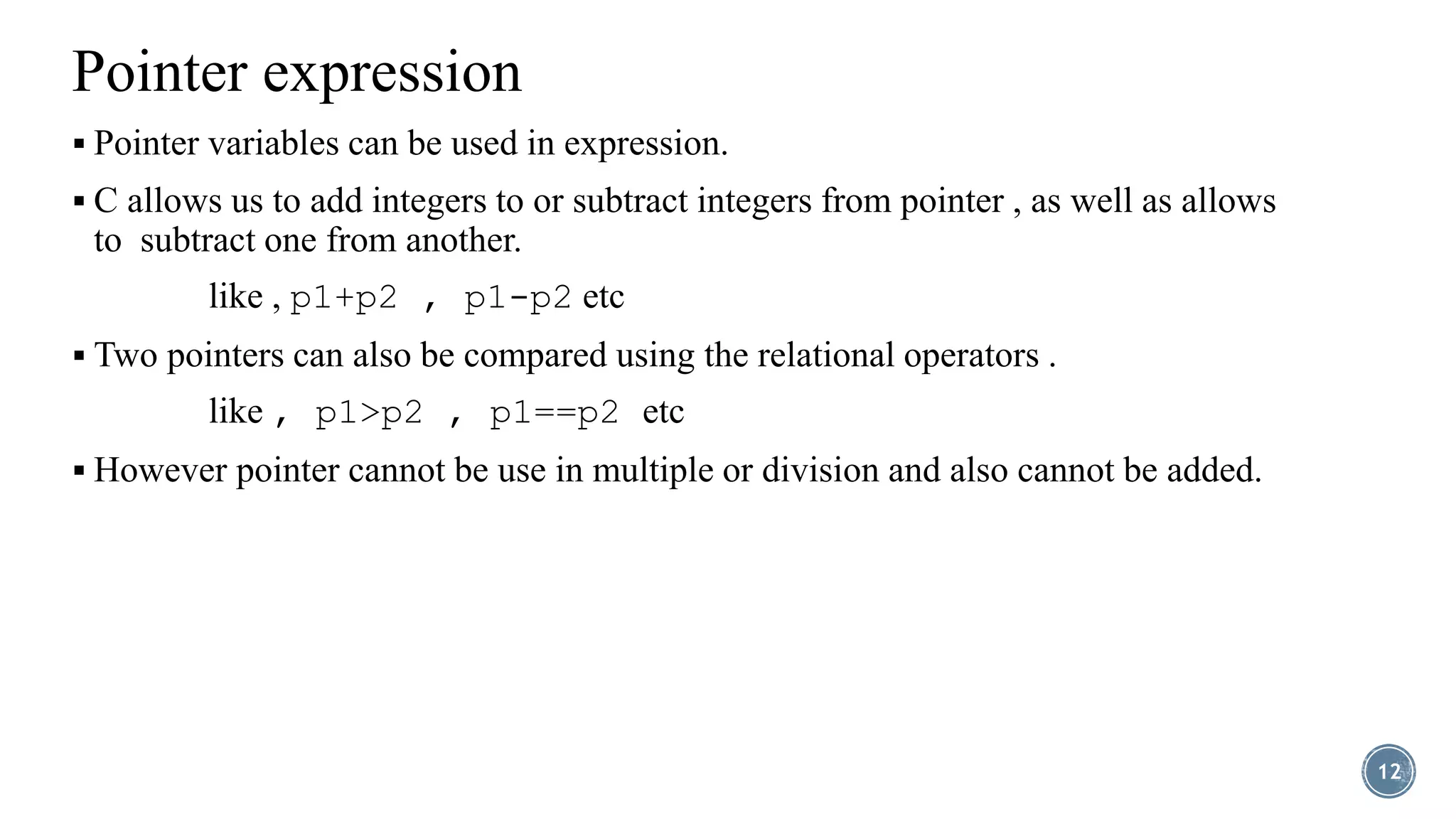

12.  Pointer variables can be used in expression.
 C allows us to add integers to or subtract integers from pointer , as well as allows
to subtract one from another.
like , p1+p2 , p1-p2 etc
 Two pointers can also be compared using the relational operators .
like , p1>p2 , p1==p2 etc
 However pointer cannot be use in multiple or division and also cannot be added.
12
Pointer expression

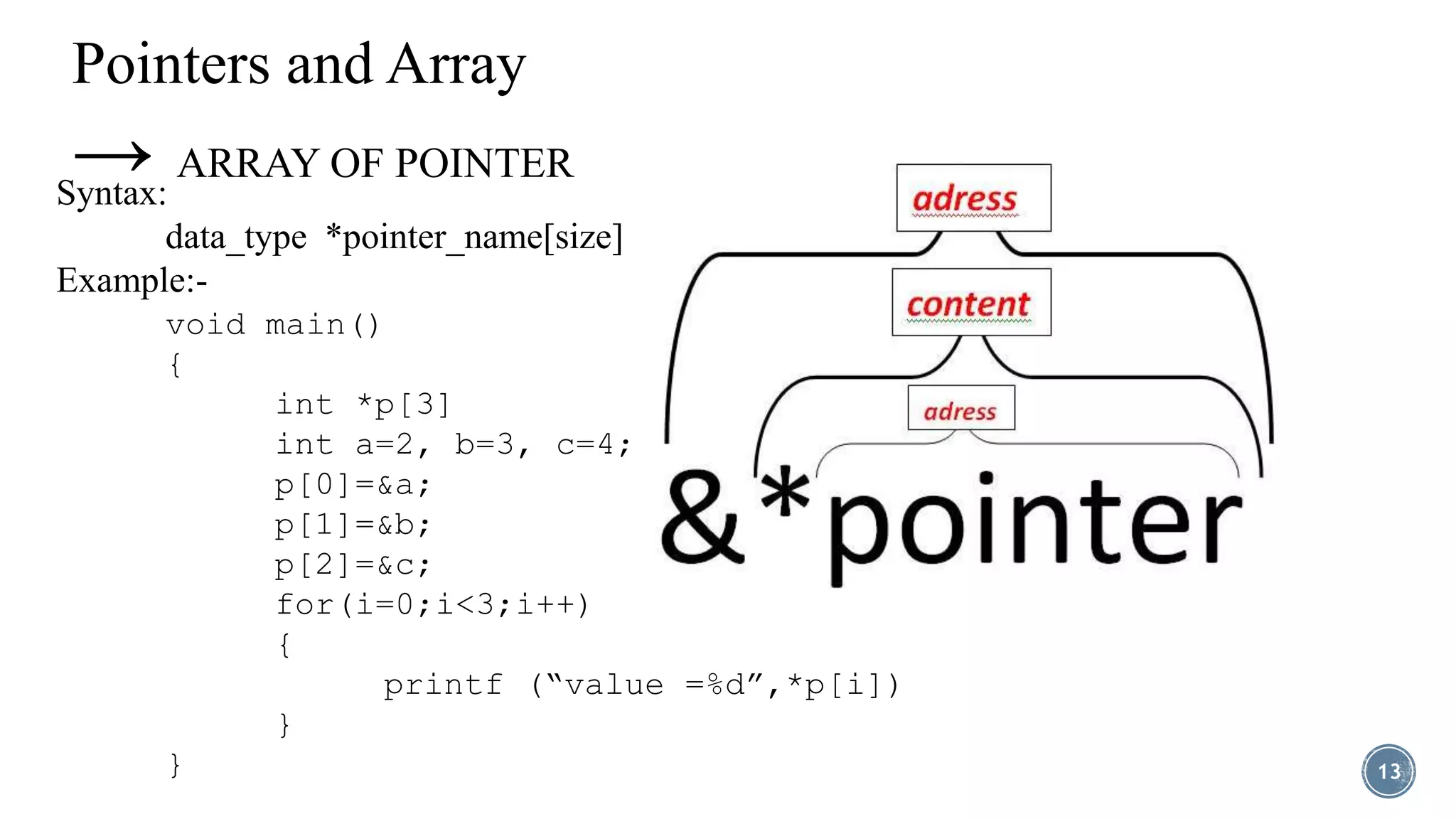

13. Syntax:
data_type *pointer_name[size]
Example:-
void main()
{
int *p[3]
int a=2, b=3, c=4;
p[0]=&a;
p[1]=&b;
p[2]=&c;
for(i=0;i<3;i++)
{
printf (“value =%d”,*p[i])
}
} 13
Pointers and Array
→ ARRAY OF POINTER

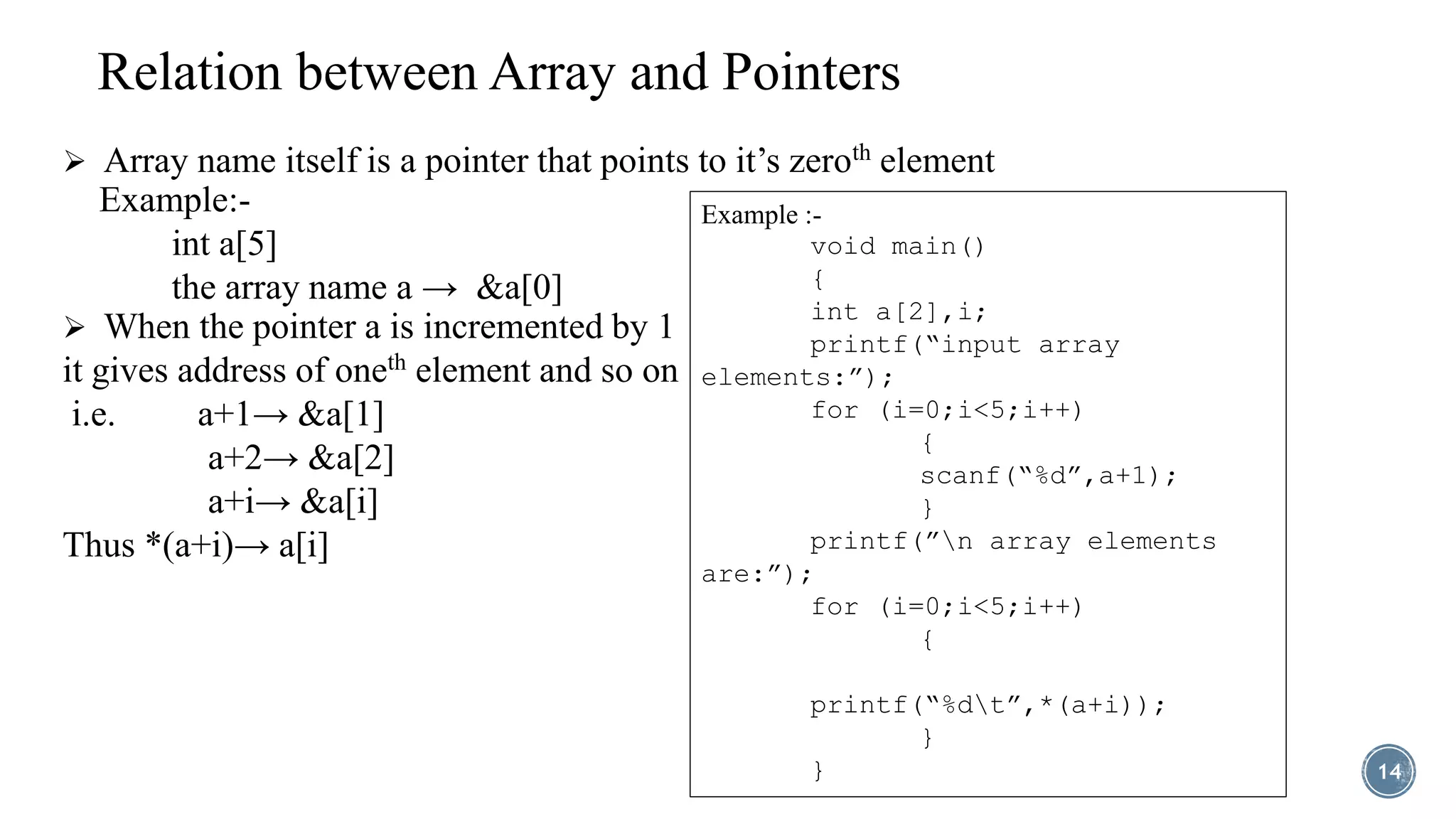

14.  Array name itself is a pointer that points to it’s zeroth element
Example:-
int a[5]
the array name a → &a[0]
 When the pointer a is incremented by 1
it gives address of oneth element and so on
i.e. a+1→ &a[1]
a+2→ &a[2]
a+i→ &a[i]
Thus *(a+i)→ a[i]
Example :-
void main()
{
int a[2],i;
printf(“input array
elements:”);
for (i=0;i<5;i++)
{
scanf(“%d”,a+1);
}
printf(”n array elements
are:”);
for (i=0;i<5;i++)
{
printf(“%dt”,*(a+i));
}
}
Relation between Array and Pointers
14

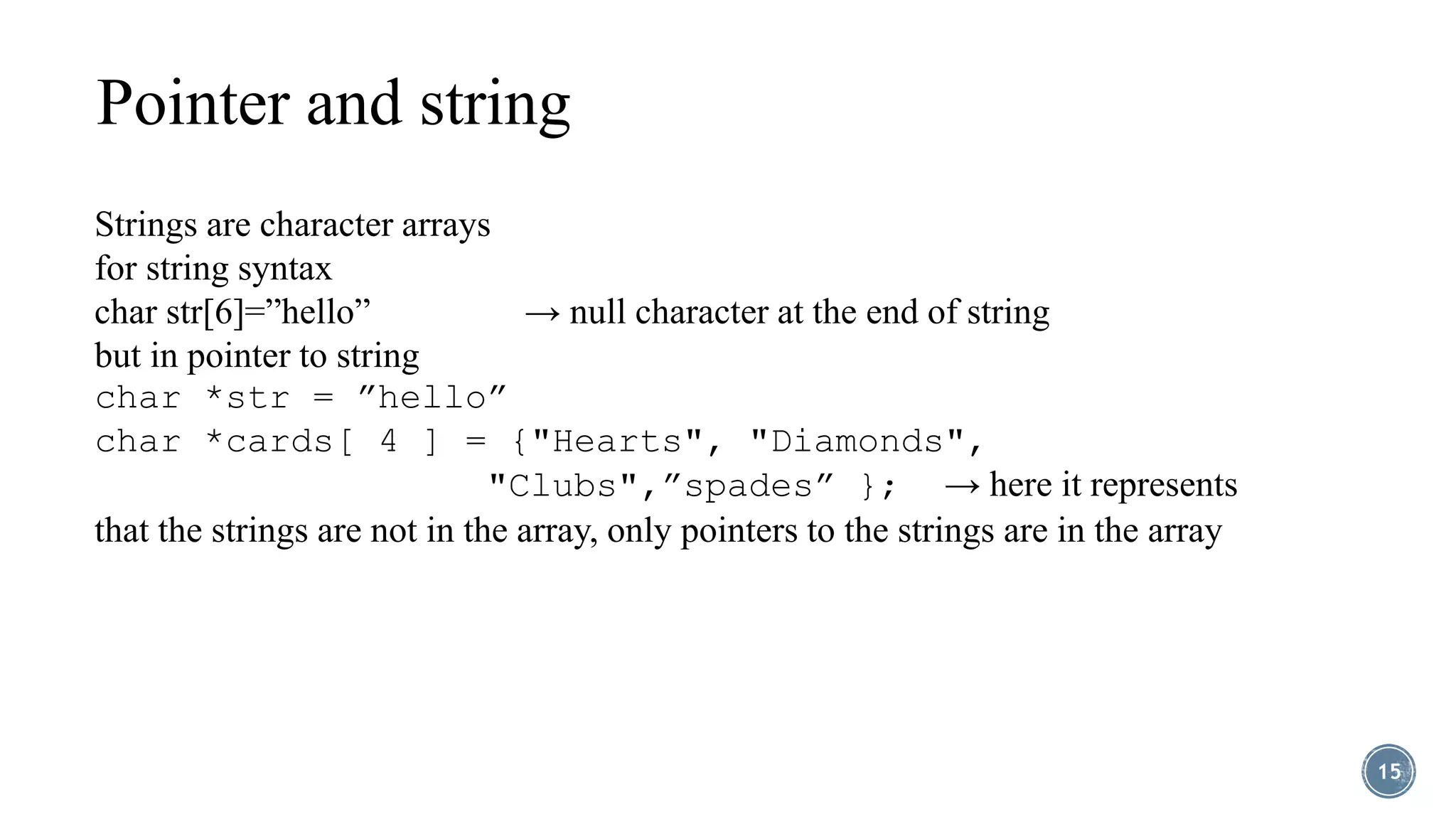

15. Pointer and string
Strings are character arrays
for string syntax
char str[6]=”hello” → null character at the end of string
but in pointer to string
char *str = ”hello”
char *cards[ 4 ] = {"Hearts", "Diamonds",
"Clubs",”spades” }; → here it represents
that the strings are not in the array, only pointers to the strings are in the array
15

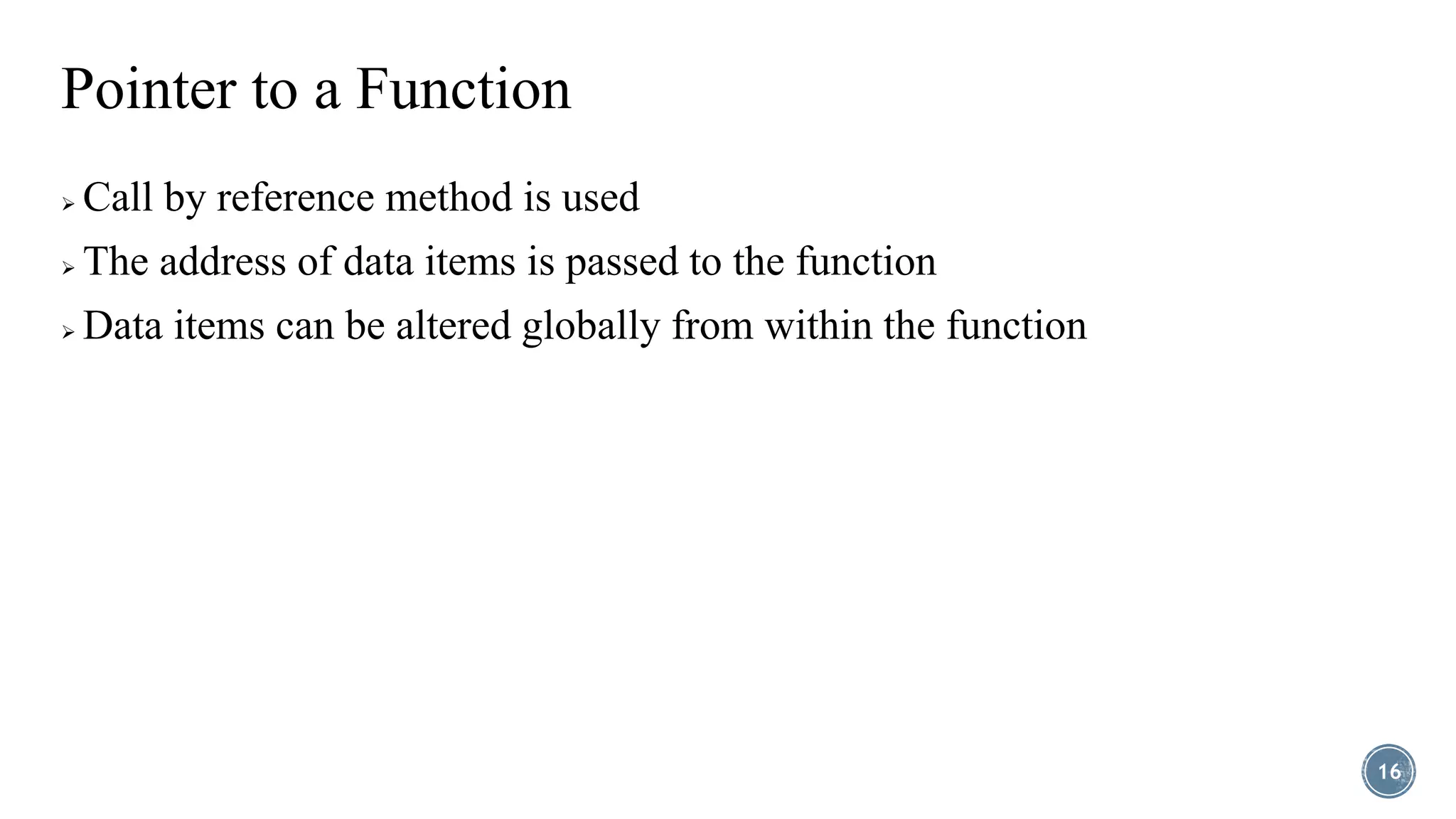

16.  Call by reference method is used
 The address of data items is passed to the function
 Data items can be altered globally from within the function
Pointer to a Function
16

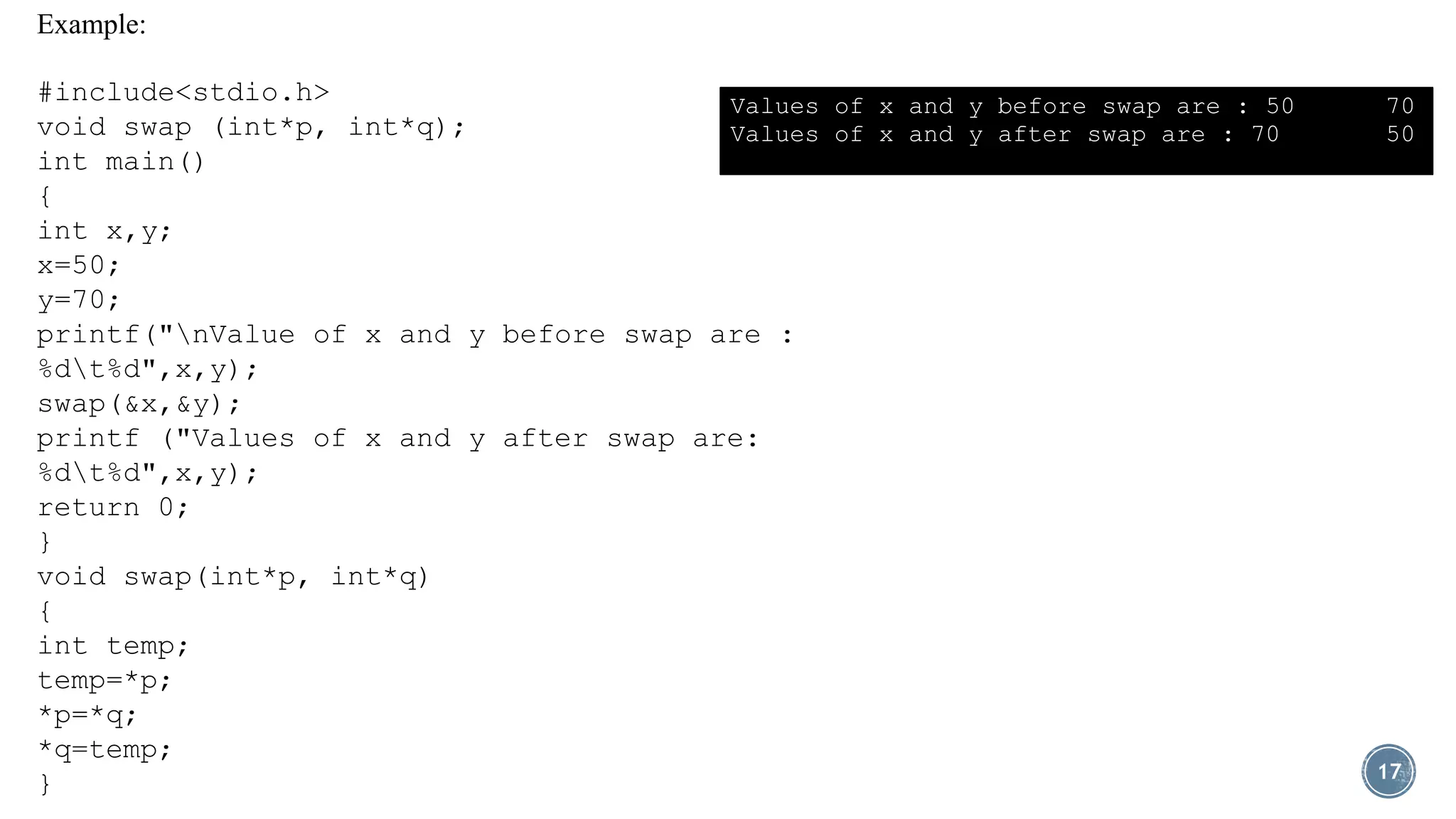

17. Example:
#include<stdio.h>
void swap (int*p, int*q);
int main()
{
int x,y;
x=50;
y=70;
printf("nValue of x and y before swap are :
%dt%d",x,y);
swap(&x,&y);
printf ("Values of x and y after swap are:
%dt%d",x,y);
return 0;
}
void swap(int*p, int*q)
{
int temp;
temp=*p;
*p=*q;
*q=temp;
}
Values of x and y before swap are : 50 70
Values of x and y after swap are : 70 50
17

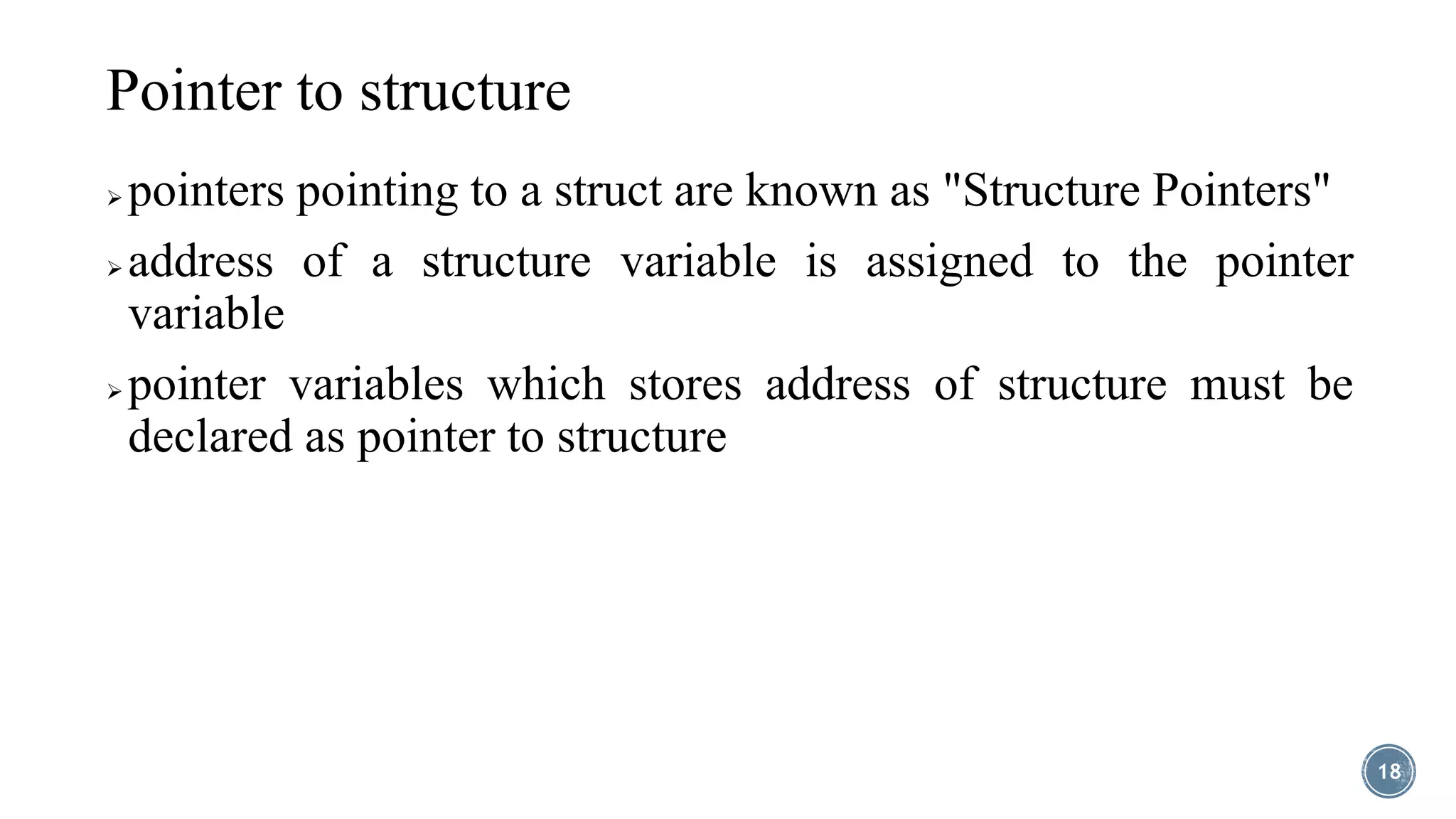

18.  pointers pointing to a struct are known as "Structure Pointers"
 address of a structure variable is assigned to the pointer
variable
 pointer variables which stores address of structure must be
declared as pointer to structure
18
Pointer to structure

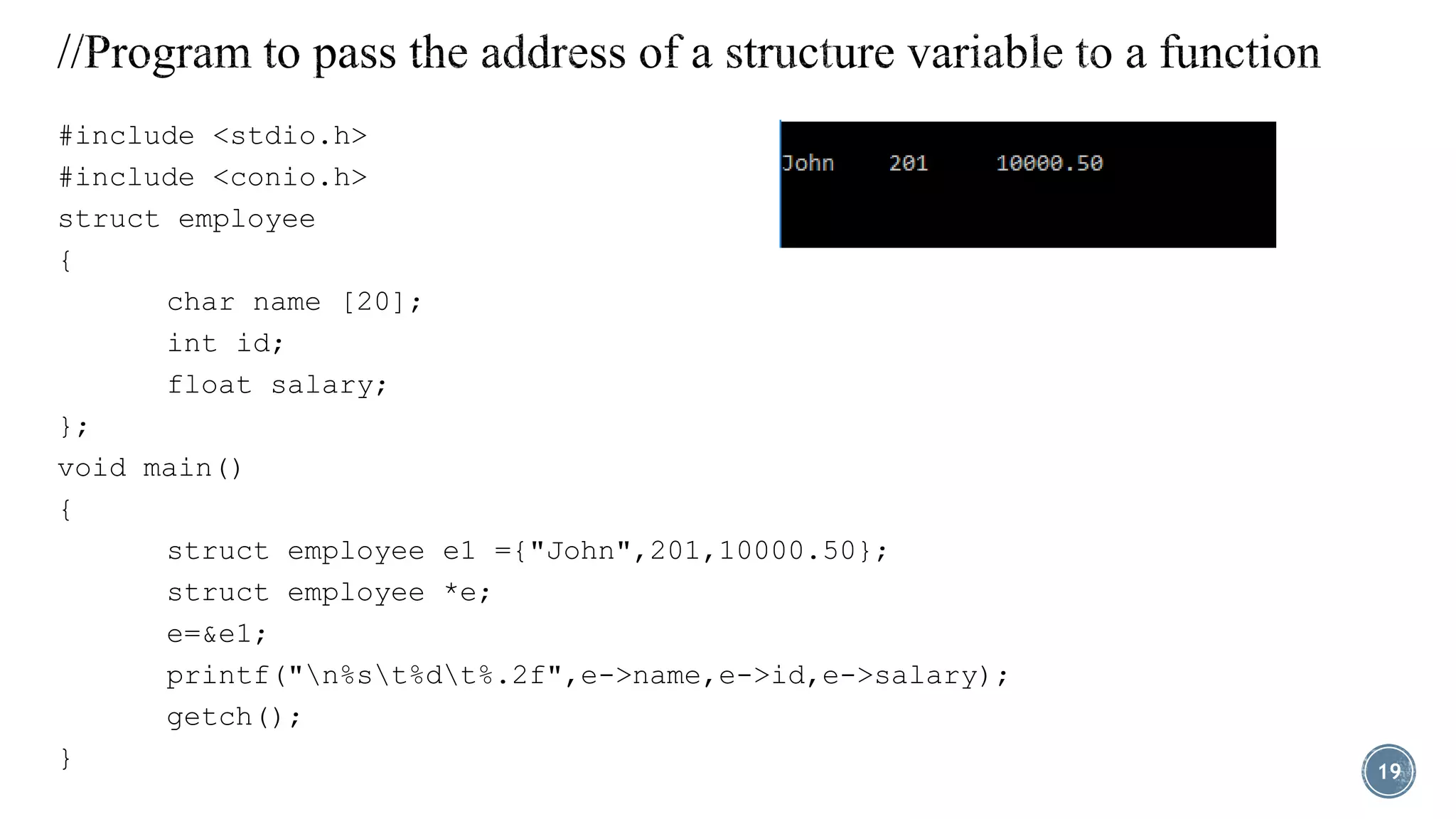

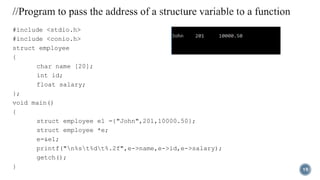

19. #include <stdio.h>
#include <conio.h>
struct employee
{
char name [20];
int id;
float salary;
};
void main()
{
struct employee e1 ={"John",201,10000.50};
struct employee *e;
e=&e1;
printf("n%st%dt%.2f",e->name,e->id,e->salary);
getch();
} 19

20. 20

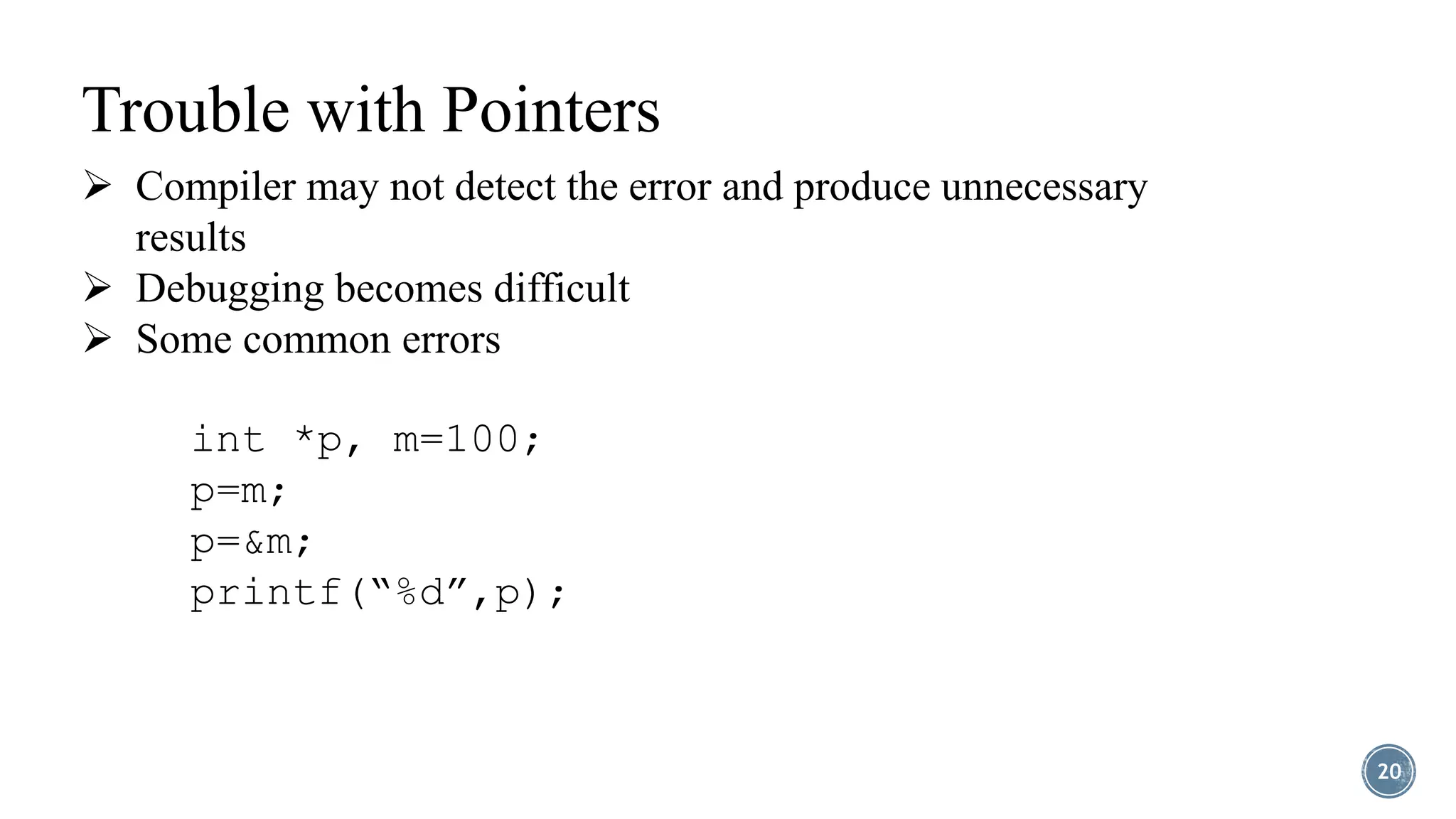

Trouble with Pointers
 Compiler may not detect the error and produce unnecessary
results
 Debugging becomes difficult
 Some common errors
int *p, m=100;
p=m;
p=&m;
printf(“%d”,p);

21. 21

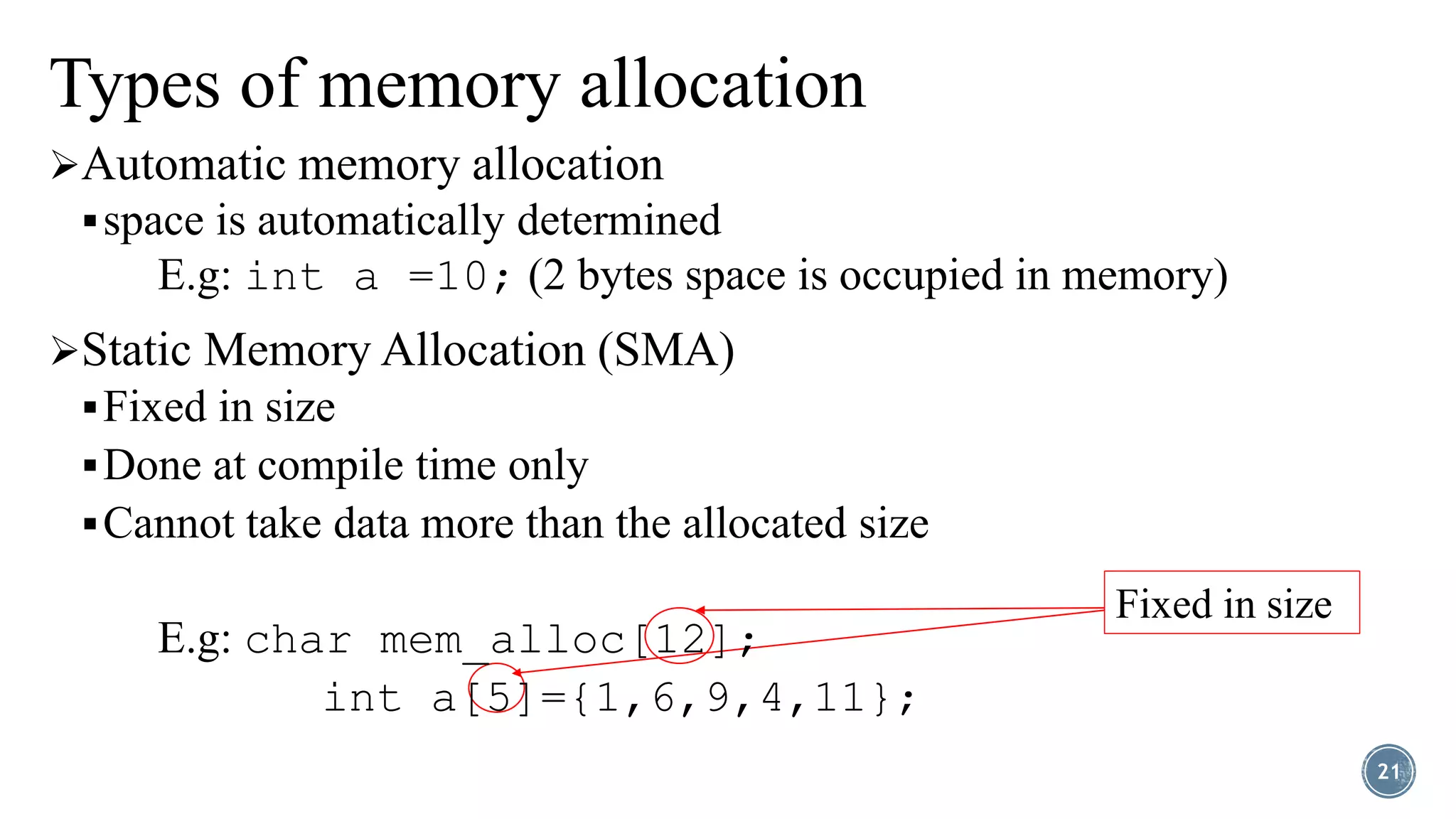

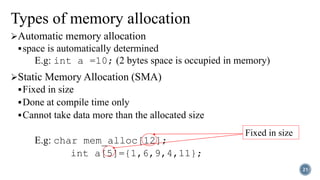

Types of memory allocation
Fixed in size
Automatic memory allocation
space is automatically determined
E.g: int a =10; (2 bytes space is occupied in memory)
Static Memory Allocation (SMA)
Fixed in size
Done at compile time only
Cannot take data more than the allocated size
E.g: char mem_alloc[12];
int a[5]={1,6,9,4,11};

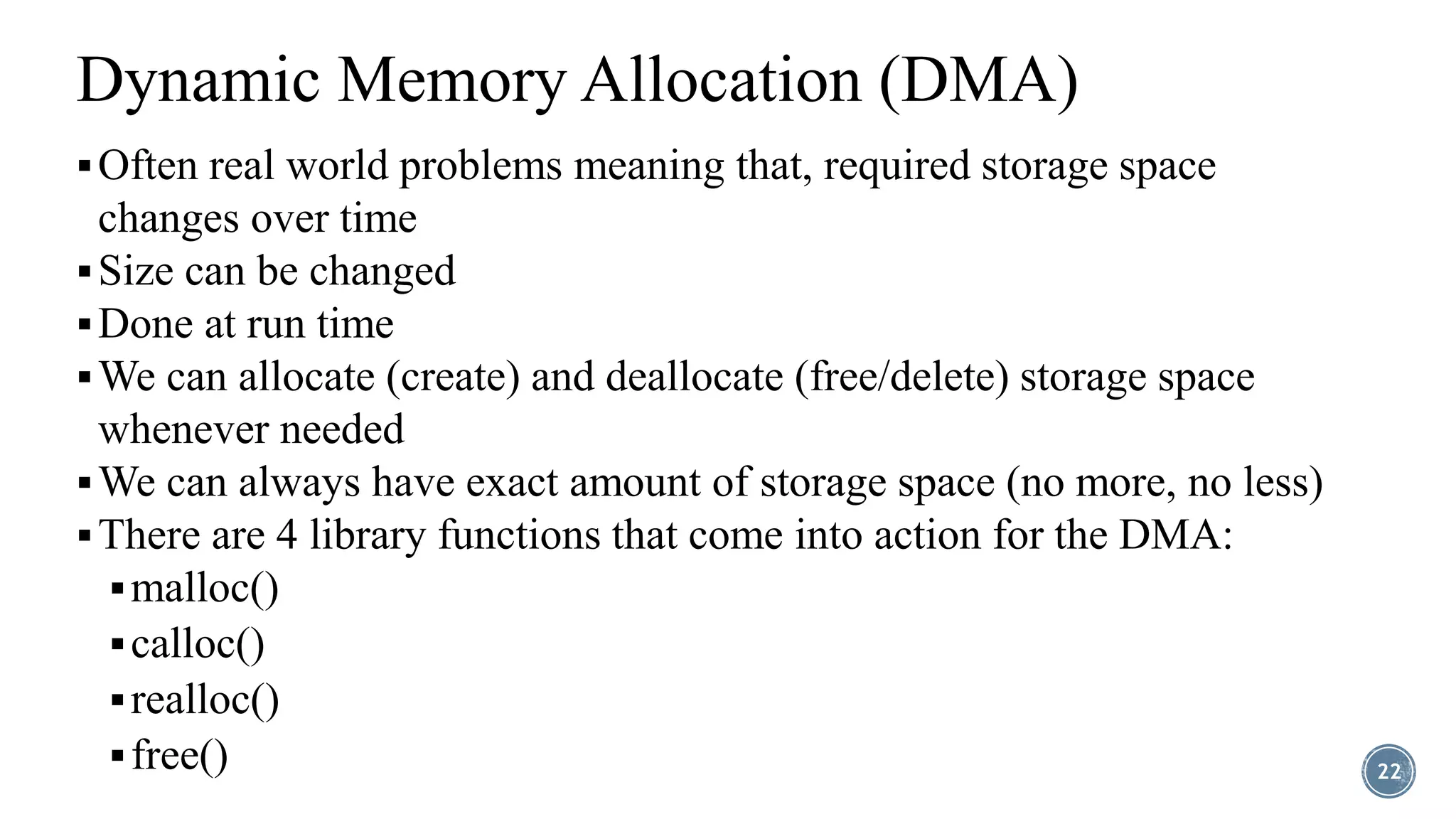

22. Often real world problems meaning that, required storage space
changes over time
Size can be changed
Done at run time
We can allocate (create) and deallocate (free/delete) storage space
whenever needed
We can always have exact amount of storage space (no more, no less)
There are 4 library functions that come into action for the DMA:
malloc()
calloc()
realloc()
free() 22
Dynamic Memory Allocation (DMA)

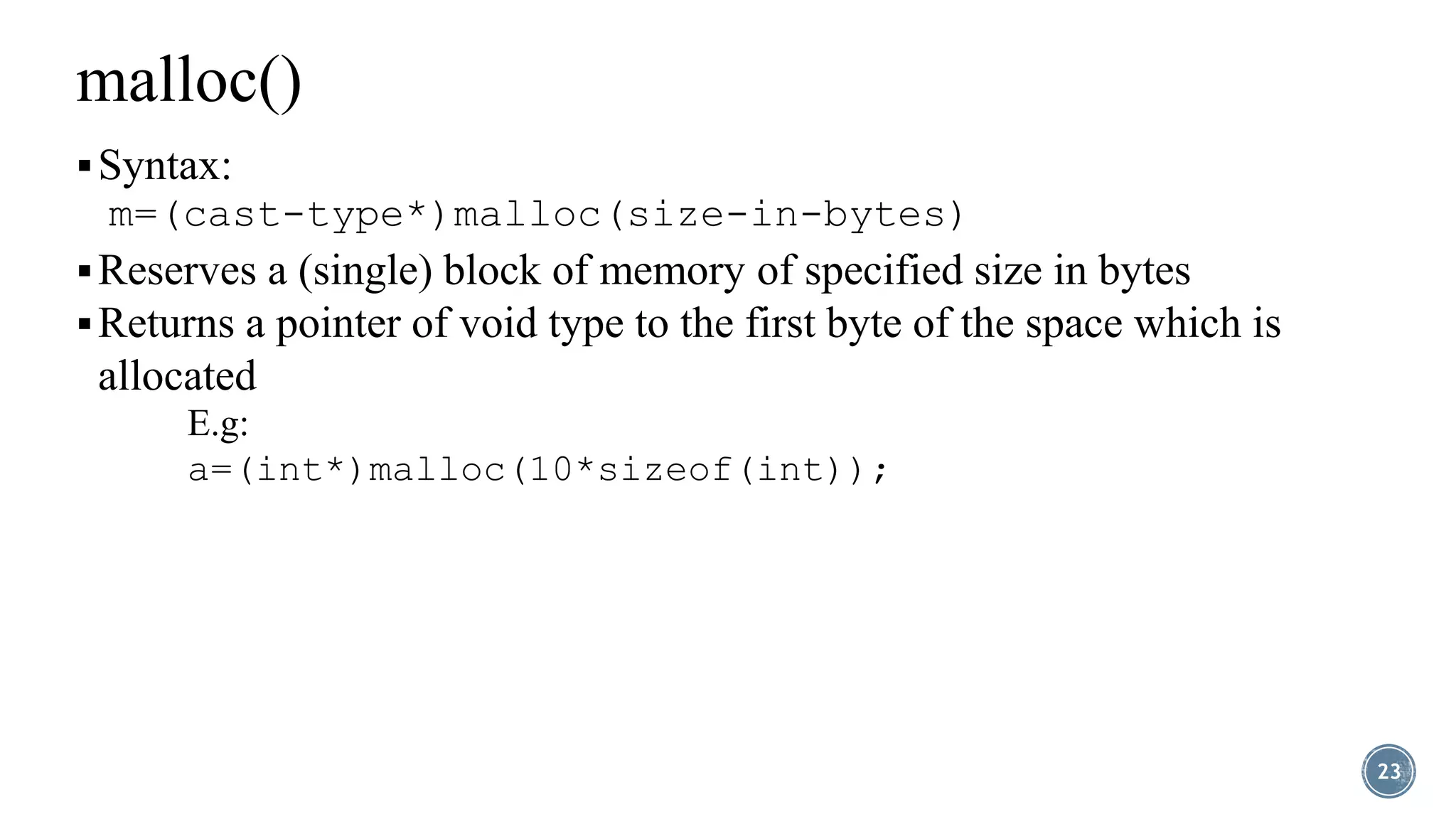

23. Syntax:
m=(cast-type*)malloc(size-in-bytes)
Reserves a (single) block of memory of specified size in bytes
Returns a pointer of void type to the first byte of the space which is
allocated
23
malloc()
E.g:
a=(int*)malloc(10*sizeof(int));

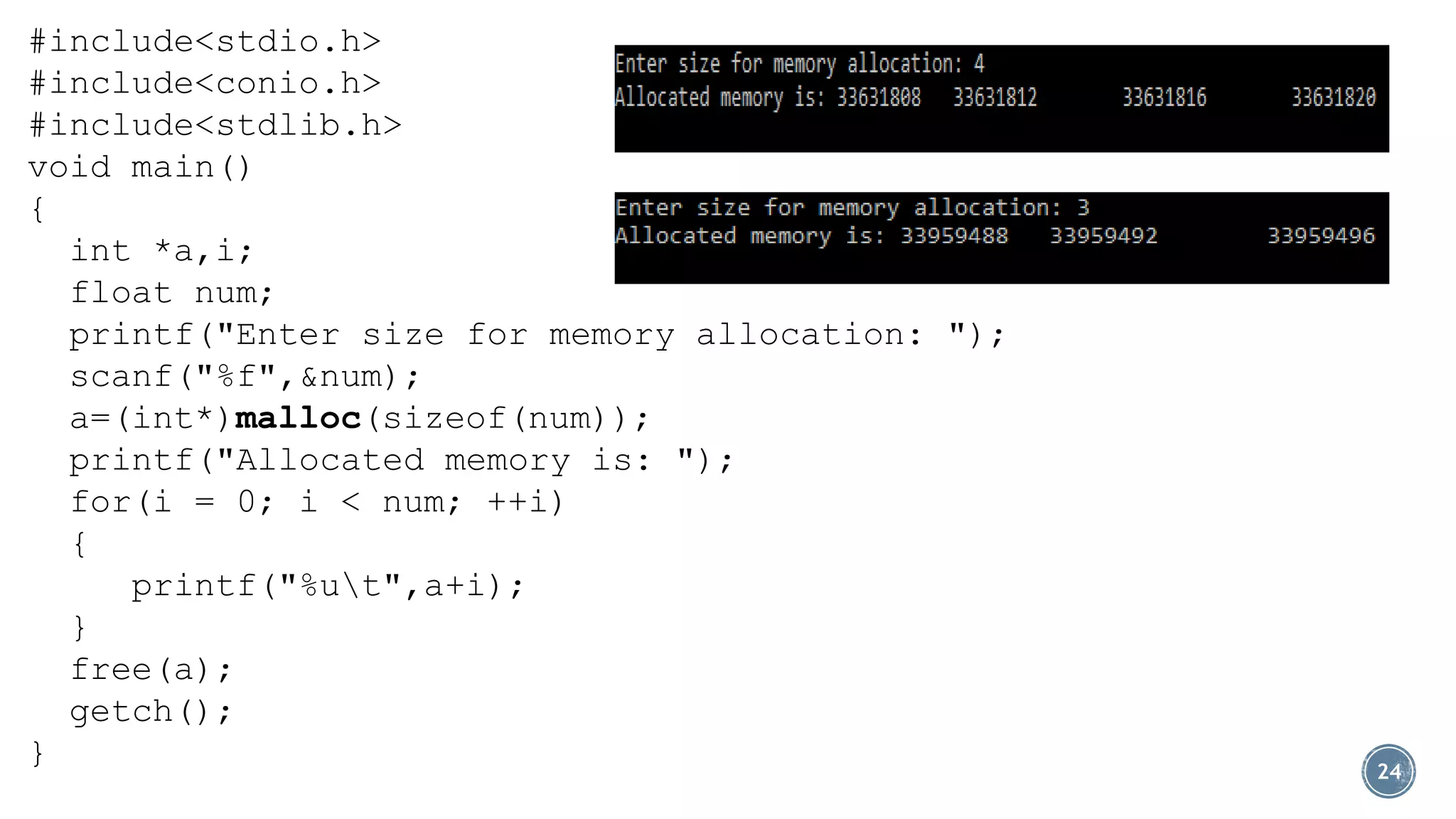

24. #include<stdio.h>
#include<conio.h>
#include<stdlib.h>
void main()
{
int *a,i;
float num;
printf("Enter size for memory allocation: ");
scanf("%f",&num);
a=(int*)malloc(sizeof(num));
printf("Allocated memory is: ");
for(i = 0; i < num; ++i)
{
printf("%ut",a+i);
}
free(a);
getch();
} 24

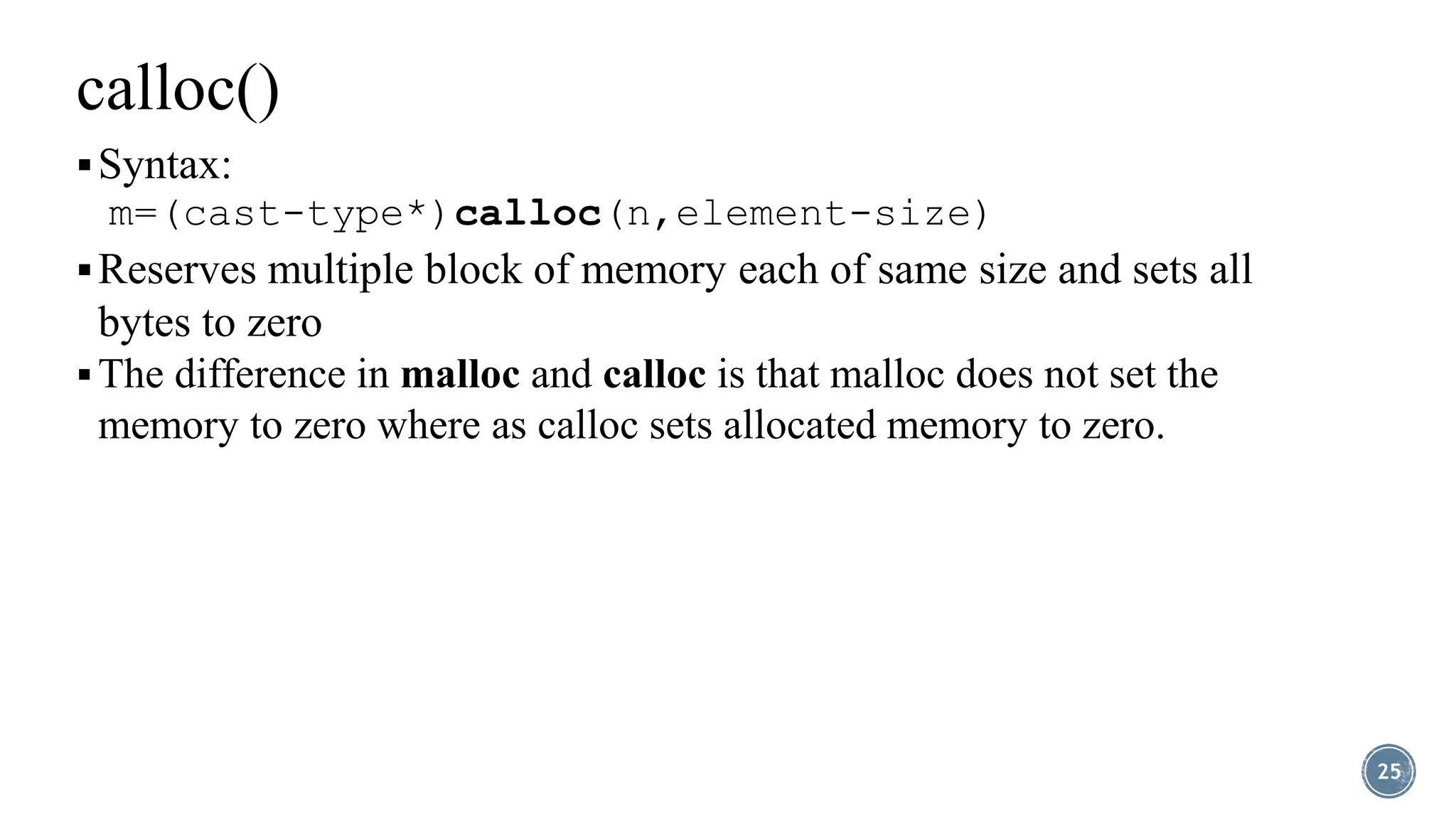

25. calloc()
Syntax:
m=(cast-type*)calloc(n,element-size)
Reserves multiple block of memory each of same size and sets all
bytes to zero
The difference in malloc and calloc is that malloc does not set the
memory to zero where as calloc sets allocated memory to zero.
25

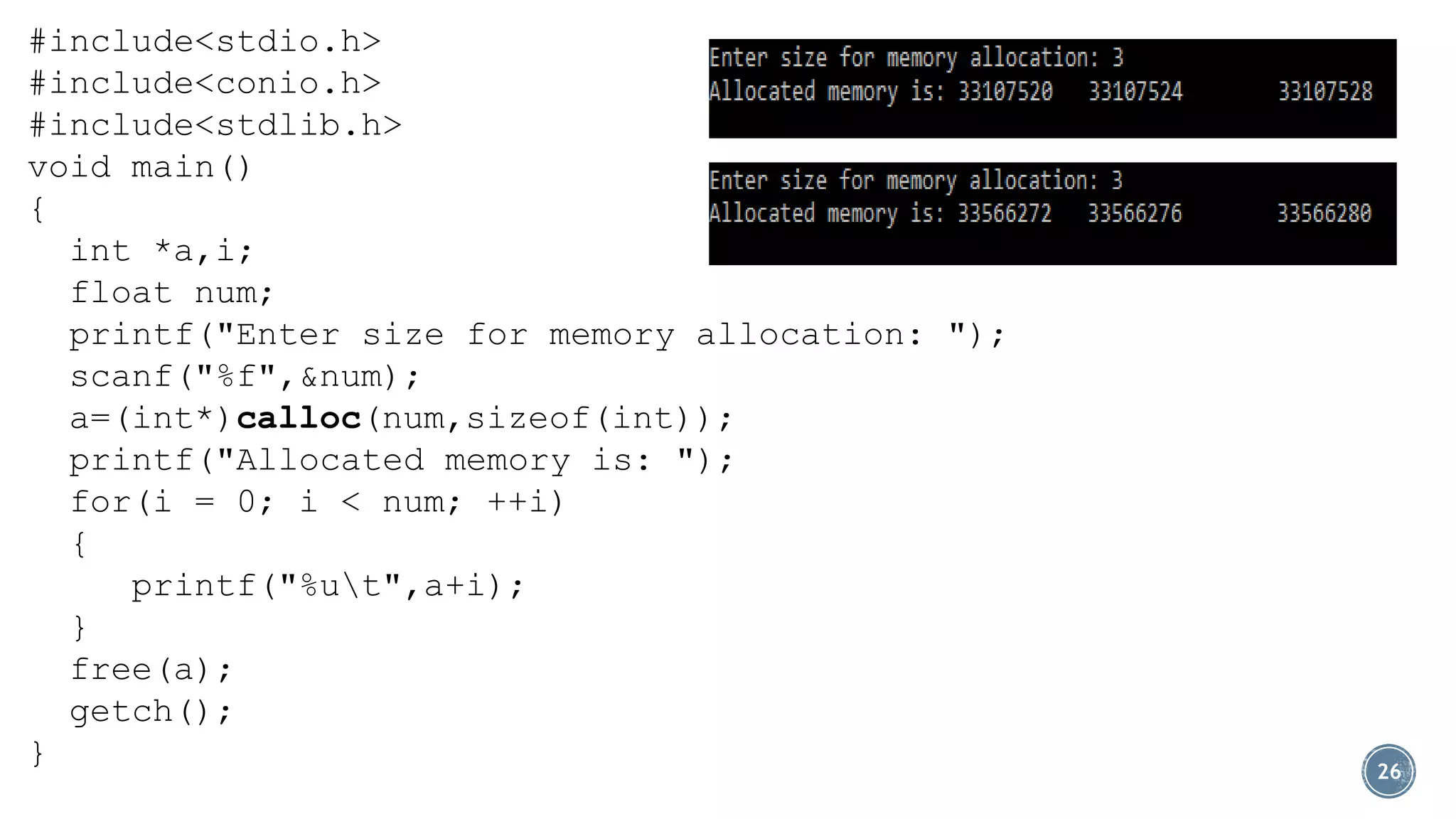

26. #include<stdio.h>
#include<conio.h>
#include<stdlib.h>
void main()
{
int *a,i;
float num;
printf("Enter size for memory allocation: ");
scanf("%f",&num);
a=(int*)calloc(num,sizeof(int));
printf("Allocated memory is: ");
for(i = 0; i < num; ++i)
{
printf("%ut",a+i);
}
free(a);
getch();
} 26

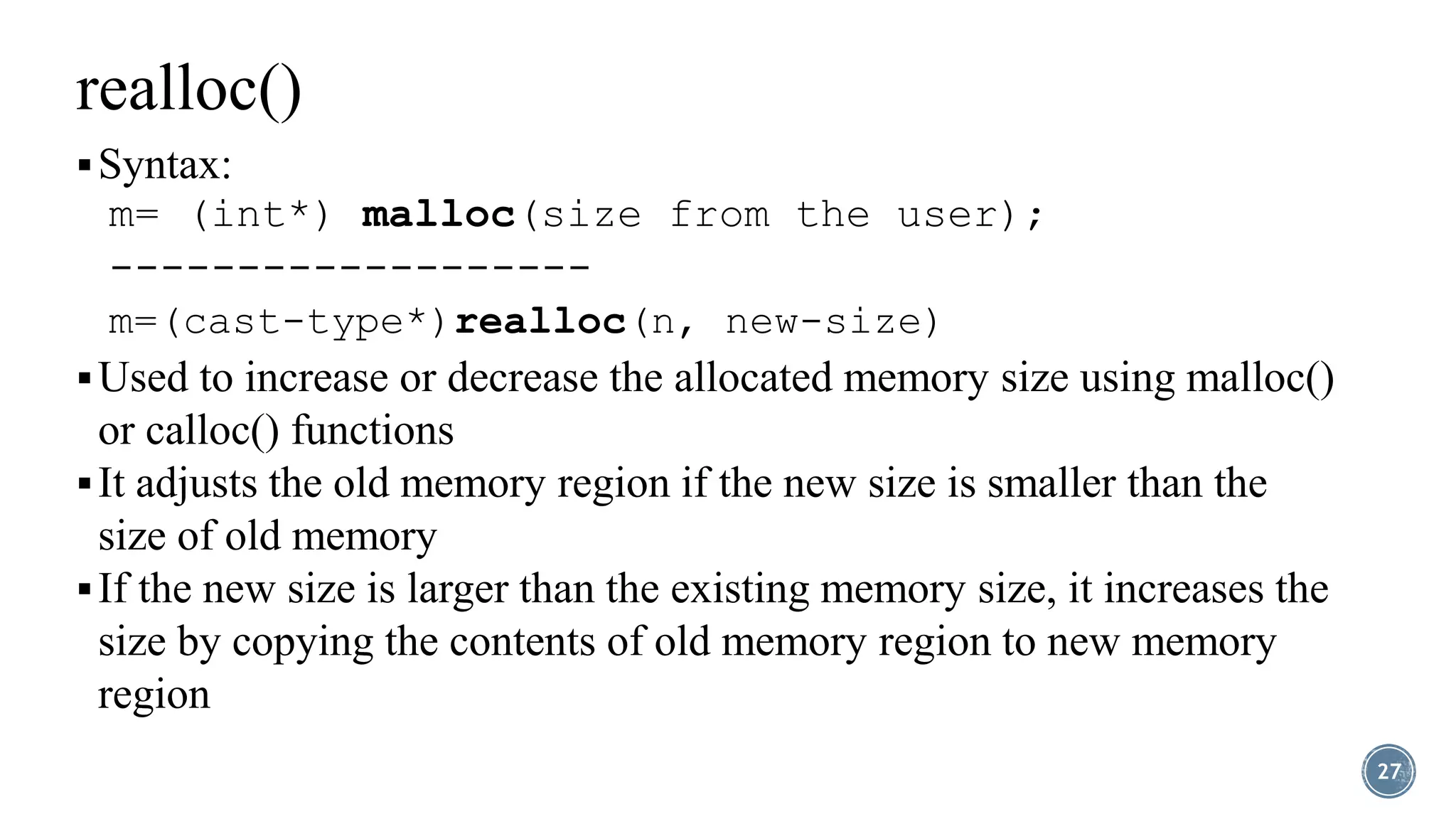

27. realloc()
Syntax:
m= (int*) malloc(size from the user);
-------------------
m=(cast-type*)realloc(n, new-size)
Used to increase or decrease the allocated memory size using malloc()
or calloc() functions
It adjusts the old memory region if the new size is smaller than the
size of old memory
If the new size is larger than the existing memory size, it increases the
size by copying the contents of old memory region to new memory
region
27

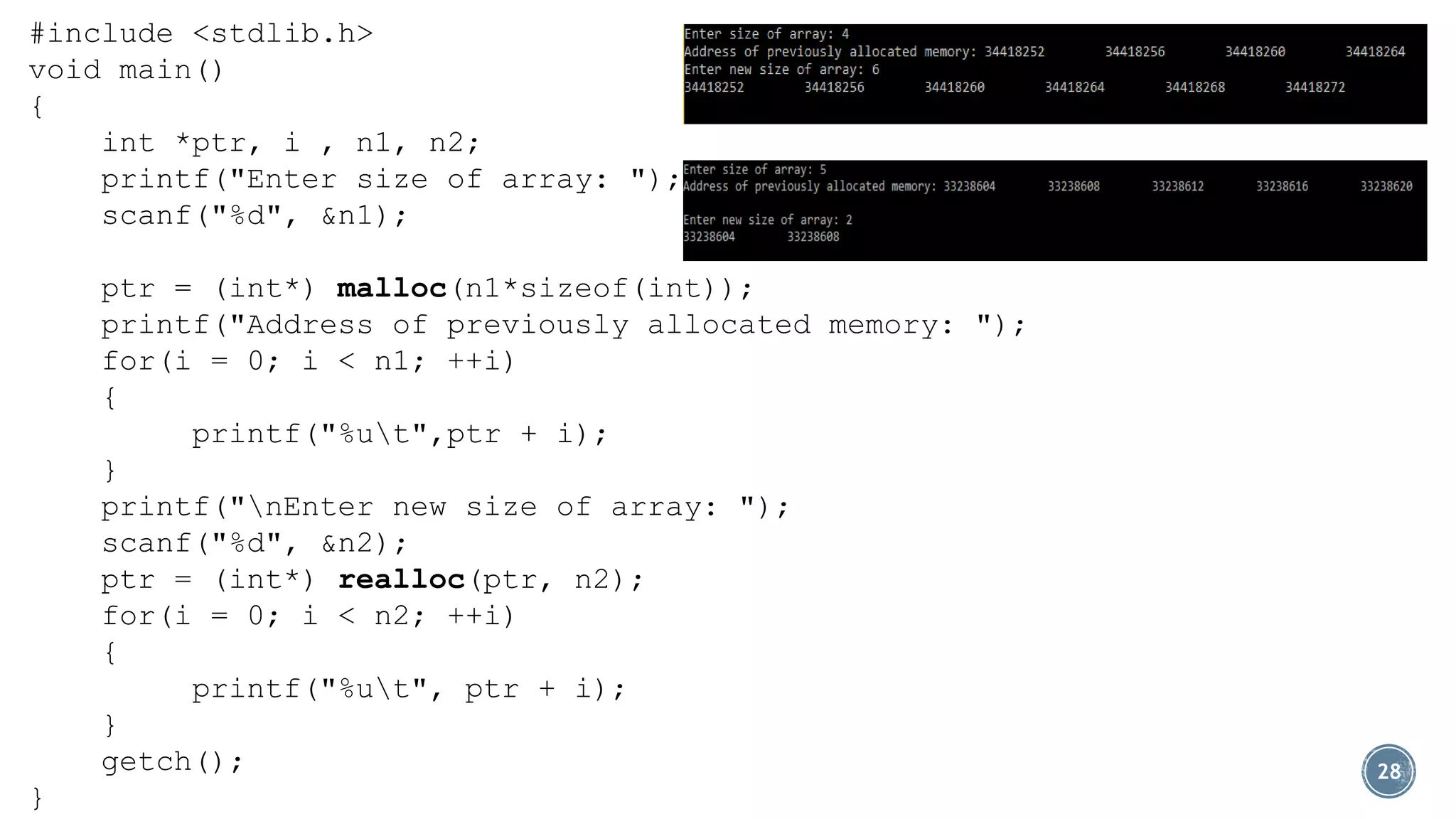

28. #include <stdlib.h>
void main()
{
int *ptr, i , n1, n2;
printf("Enter size of array: ");
scanf("%d", &n1);
ptr = (int*) malloc(n1*sizeof(int));
printf("Address of previously allocated memory: ");
for(i = 0; i < n1; ++i)
{
printf("%ut",ptr + i);
}
printf("nEnter new size of array: ");
scanf("%d", &n2);
ptr = (int*) realloc(ptr, n2);
for(i = 0; i < n2; ++i)
{
printf("%ut", ptr + i);
}
getch();
}
28

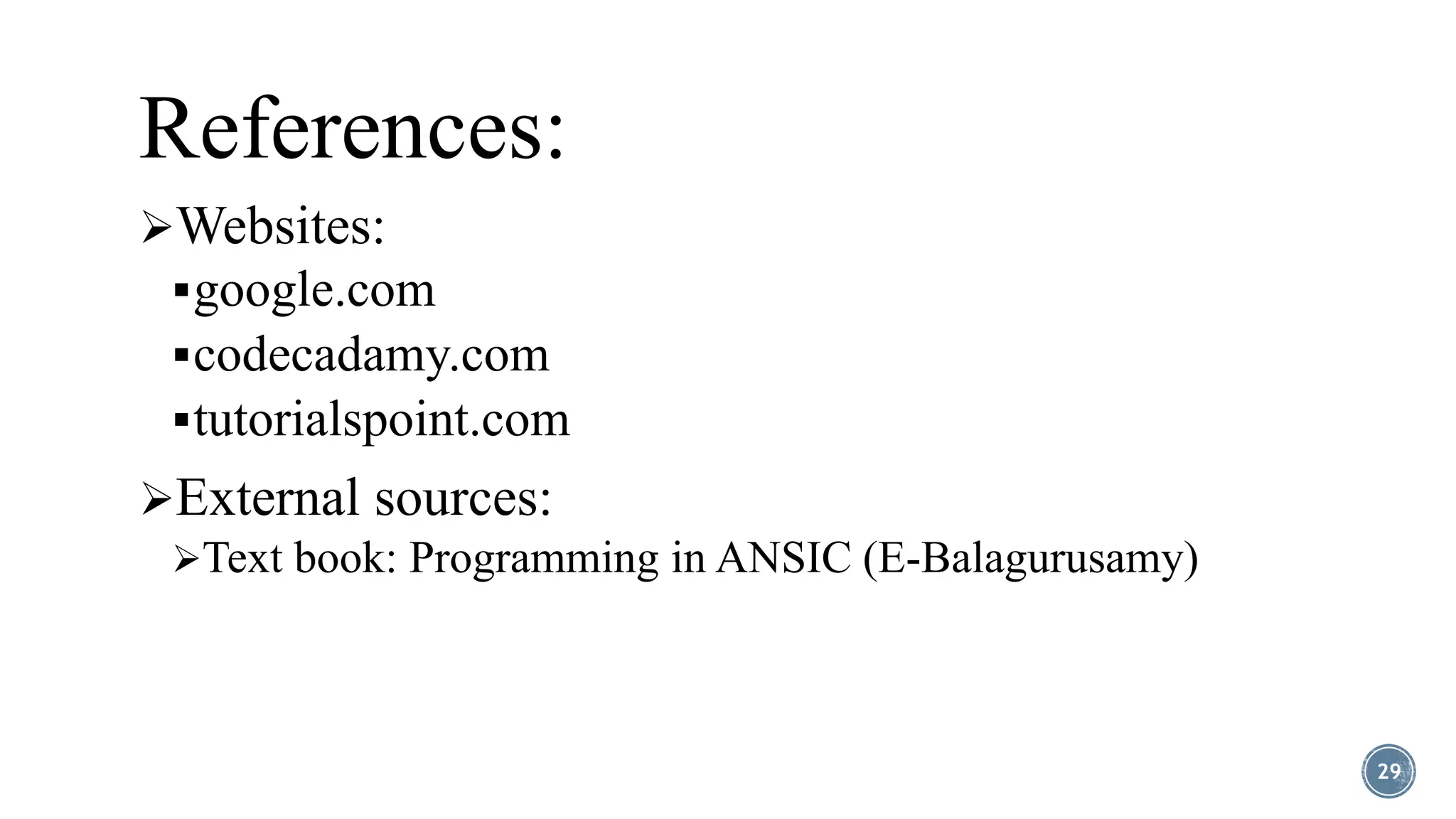

29. References:
Websites:
google.com
codecadamy.com
tutorialspoint.com
External sources:
Text book: Programming in ANSIC (E-Balagurusamy)
29
