Plastic Molding Technology, Inc. (PMT) is a plastic injection molding company that specializes in insert molding and overmolding. They have over 40 years of experience in the industry and operate out of a 60,000 square foot facility with 59 injection molding machines. PMT produces over 150 million parts per year and has a focus on complex insert molding applications for automotive and industrial customers.

1. Over 40 Years of Excellence in Quality & Service!
OVERMOLDING & INSERT MOLDING SPECIALIZATION
2014
MANUFACTURER
OF THE YEAR

2. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
 40+ Year Heritage
 Privately Owned
 60,000 Sq. Ft. Facility
 59 Injection Molding
Machines: 40 – 500 tons
 98 Employees
 Produce 150MM Parts Per Yr.
 24/5 Operations

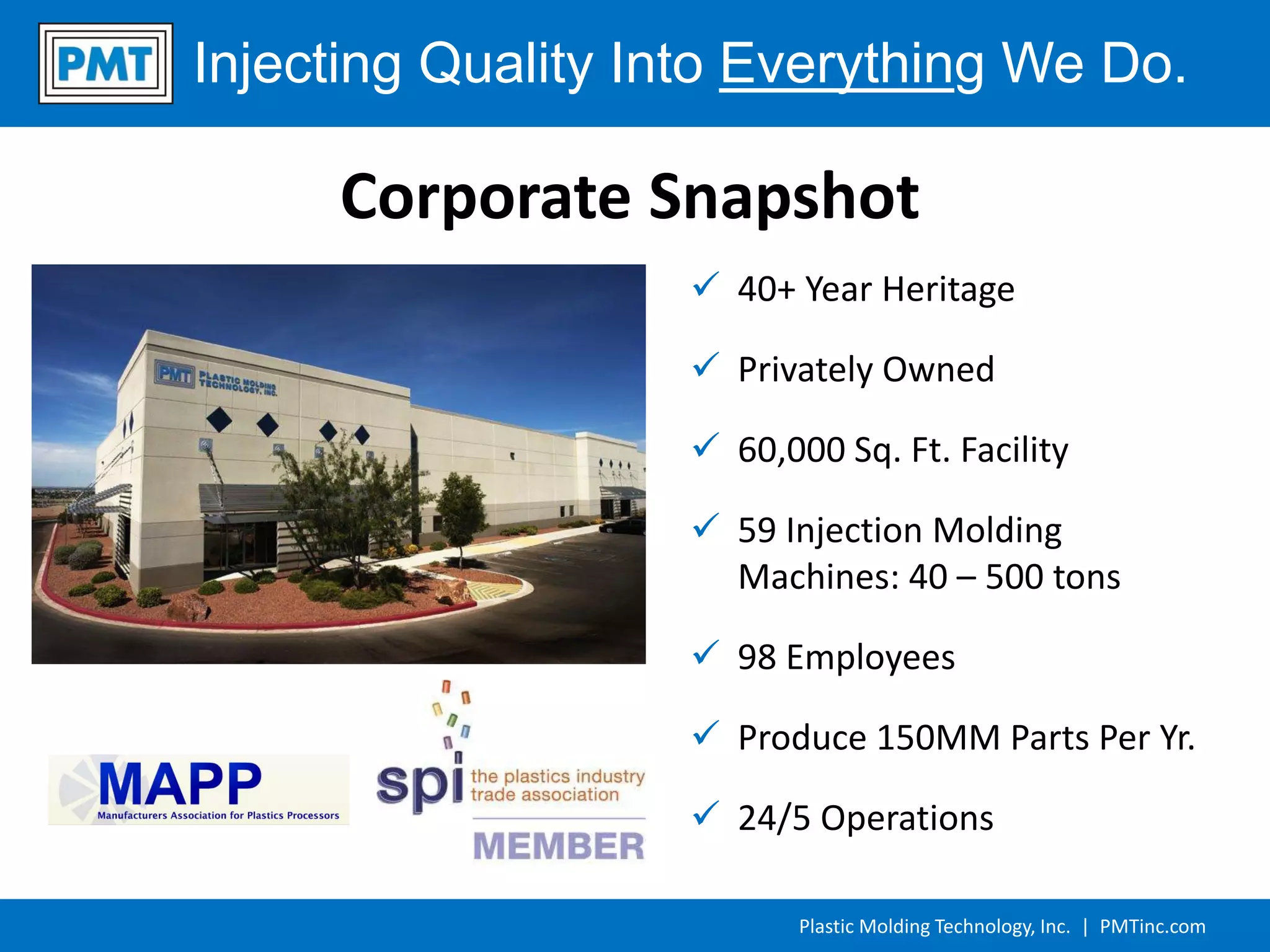

Corporate Snapshot

3. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Complex Insert Molding is Our Specialty
Types of Inserts
 Terminals / Contacts
 Screw Machine Components
 Cold-Headed Components
 Wound Coil / Bobbins
 Over-Molded Plastic Components
 Photo-Etched Components
 Magnetic Compounds
Automation
 Feeder Bowl
 Continuous Strip Feeding
 Robotic Pick and
Placement/Retrieval
 Mechanical / Electrical Testing
 Custom Automation

4. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Automated vs. Manual Insert Molding
Automated
Volume:
 >500m Units
Benefits:
 Cost Reduction Opportunities
 Secondary Operations
 Reliability
 Dimensional Stability
 Lower Scrap – nearly zero PPM
 Reduced Inventory Part Count
Manual
Volume:
 Small: 500 - 100m Units
 Medium: 100m - 500m Units
Benefits:
 Lower Start-Up Investment
 Faster Start-Ups

5. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.

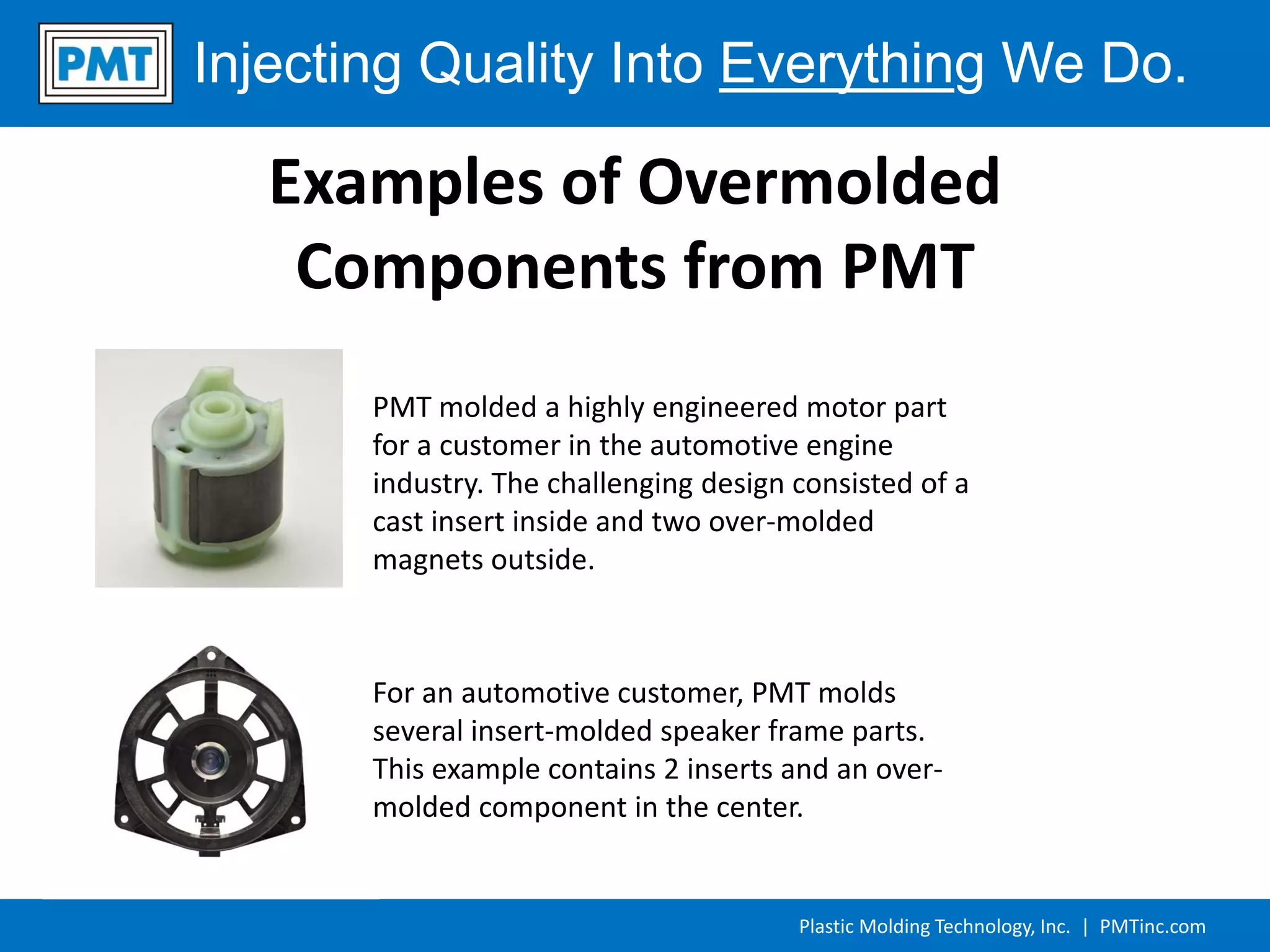

Examples of Overmolded
Components from PMT
PMT molded a highly engineered motor part
for a customer in the automotive engine
industry. The challenging design consisted of a
cast insert inside and two over-molded
magnets outside.
For an automotive customer, PMT molds
several insert-molded speaker frame parts.
This example contains 2 inserts and an over-
molded component in the center.

6. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Overmolding Applications
PMT molds this valve seal for a throttle air
control valve for an automotive customer,
containing 3 inserts and an overmolded PPS
shell.
This overmolded magnetic shaft assembly for
an air-intake motor was molded by PMT for an
appliance motor application.

7. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Injection Molding Capabilities
 Precision Molding
 Tight-Tolerances
 Insert Molding
 Micro-Molding
 Gear Molding
 Overmolding
 Medical Molding
 Automation

8. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Key Molding Equipment
OEM Tonnage Qty.
Arburg 150 1
Autojector 40 – 70 2
Battenfield 60 – 110 4
Cincinnati 85 1
Engel 55 – 85 2
Milacron/Fanuc 71.5 – 198 4
Nissei 55—154 17
Toshiba 45 – 390 27
Toyo 500 1
Total 40 – 500 59
Including 30 Clean, Efficient All-Electric Molding Presses

9. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Mold Design, Sourcing & Repair
On-Site, Full-Service Tooling Shop and Major Mold Repair Facility
 Design and 3-D Modeling
 Prototype Molds
 High-Volume Production Molds
 Hardened Steel Core & Cavities
 Class 101 Tooling
 SPI/DIN Standards
 Global Sourcing – Asia & East Europe

10. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Complex Molding Specialists
PMT is a leading North American supplier of
insert- and over-molded plastic components.
See more examples and learn more on on website:
http://www.pmtinc.com/plastic-insert-molding-insert-injection-
molding/

11. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Committed to Leadership & Excellence
Also, Recognized for Operational Excellence and Sustainability Leadership.
Recipient of the 2013 Plastics News Award
for Excellence in Customer Relations

12. Plastic Molding Technology, Inc. | PMTinc.com
Injecting Quality Into Everything We Do.
Plastic Molding Technology, Inc.
12280 Rojas
El Paso, TX 79936
915-593-6922
PMTinc.com
