1. Analog Input Output Module-G7F ADHA
Engr. Jahangir Alam
ldlogic@yahoo.com
Skype-ld.logic
01737784651

2. Introduction

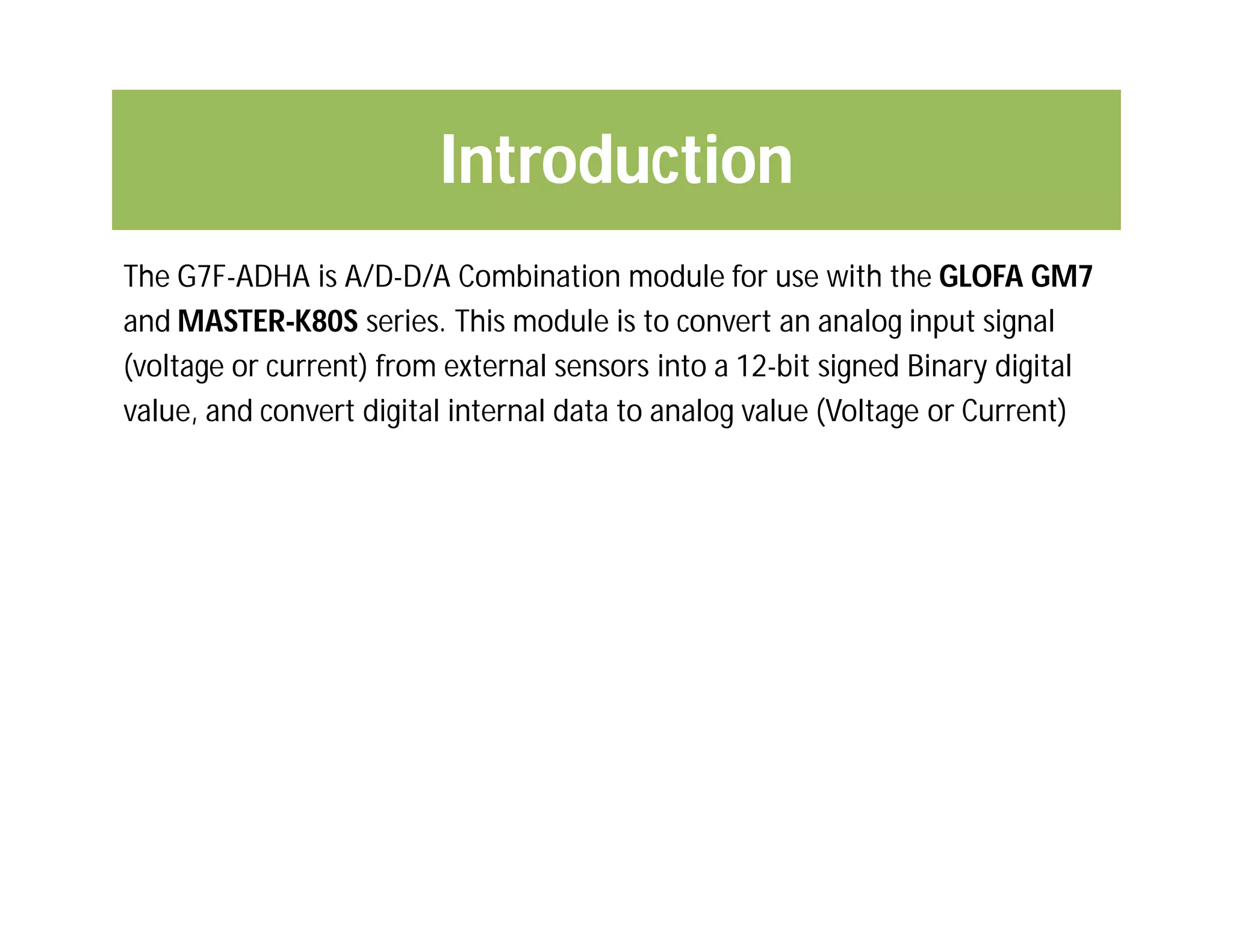

The G7F-ADHA is A/D-D/A Combination module for use with the GLOFA GM7
and MASTER-K80S series. This module is to convert an analog input signal
(voltage or current) from external sensors into a 12-bit signed Binary digital
value, and convert digital internal data to analog value (Voltage or Current)

3. Input Specifications

4. Output Specifications

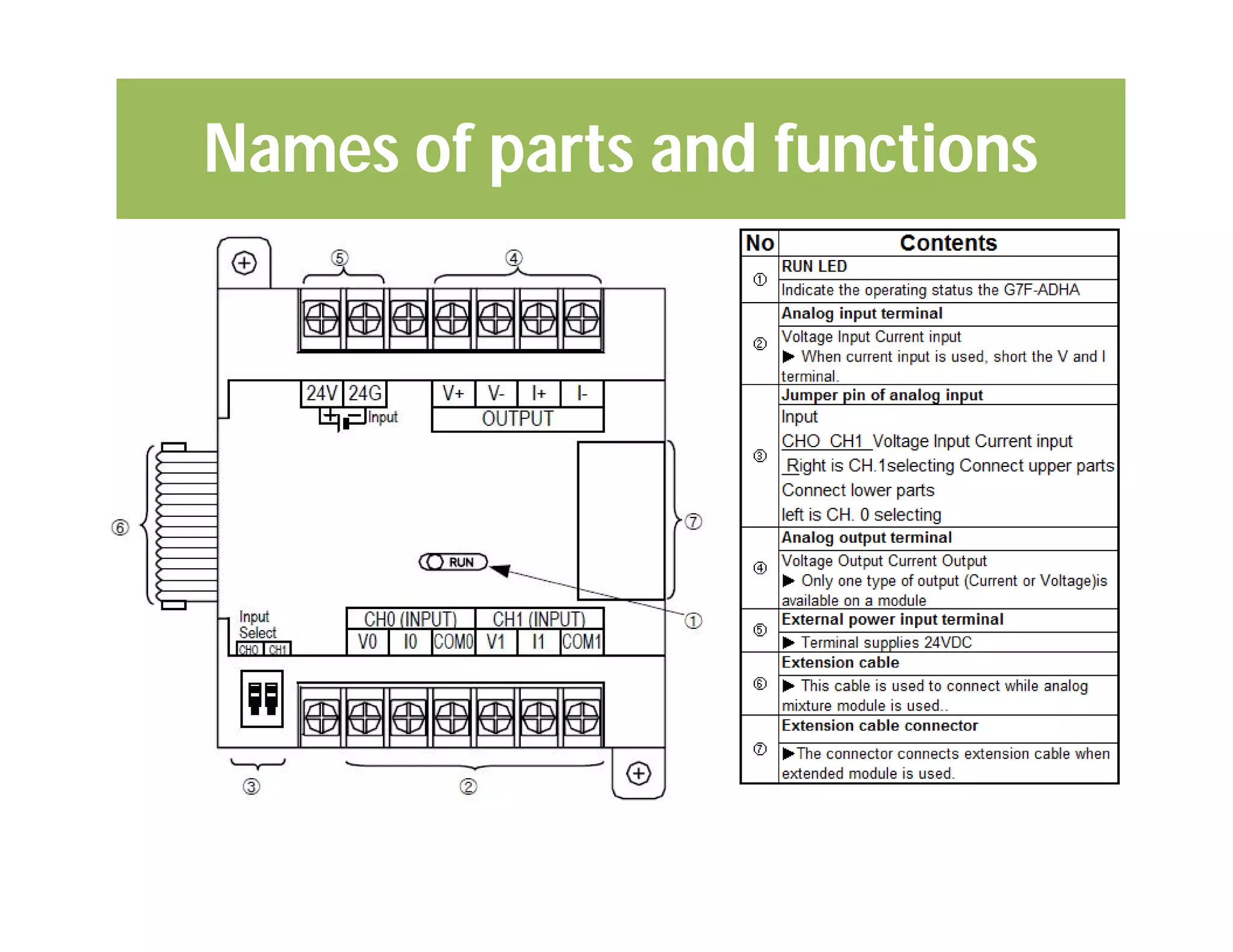

5. Names of parts and functions

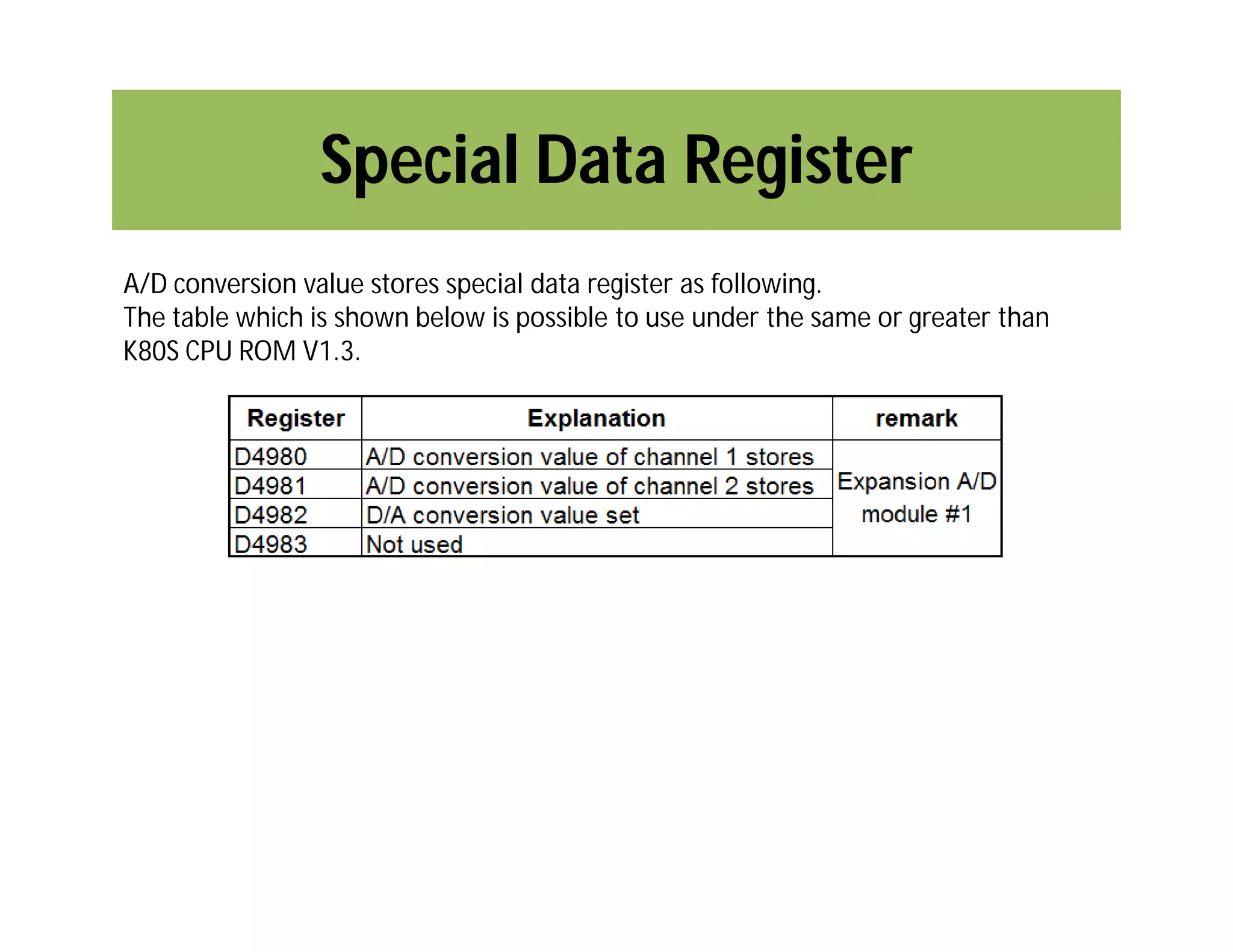

6. Special Data Register
A/D conversion value stores special data register as following.
The table which is shown below is possible to use under the same or greater than
K80S CPU ROM V1.3.

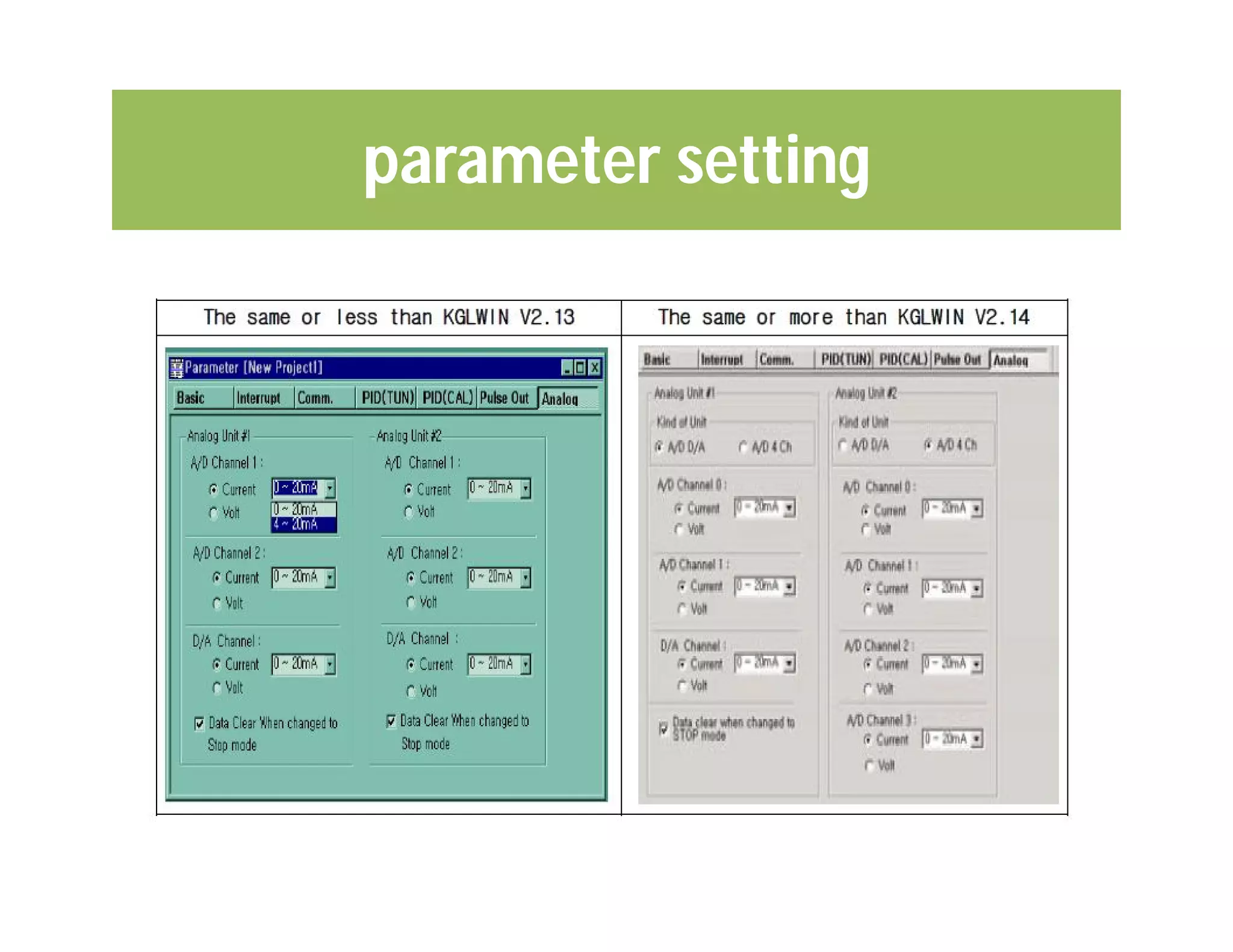

7. parameter setting

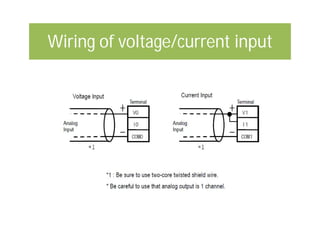

8. Wiring of voltage/current input

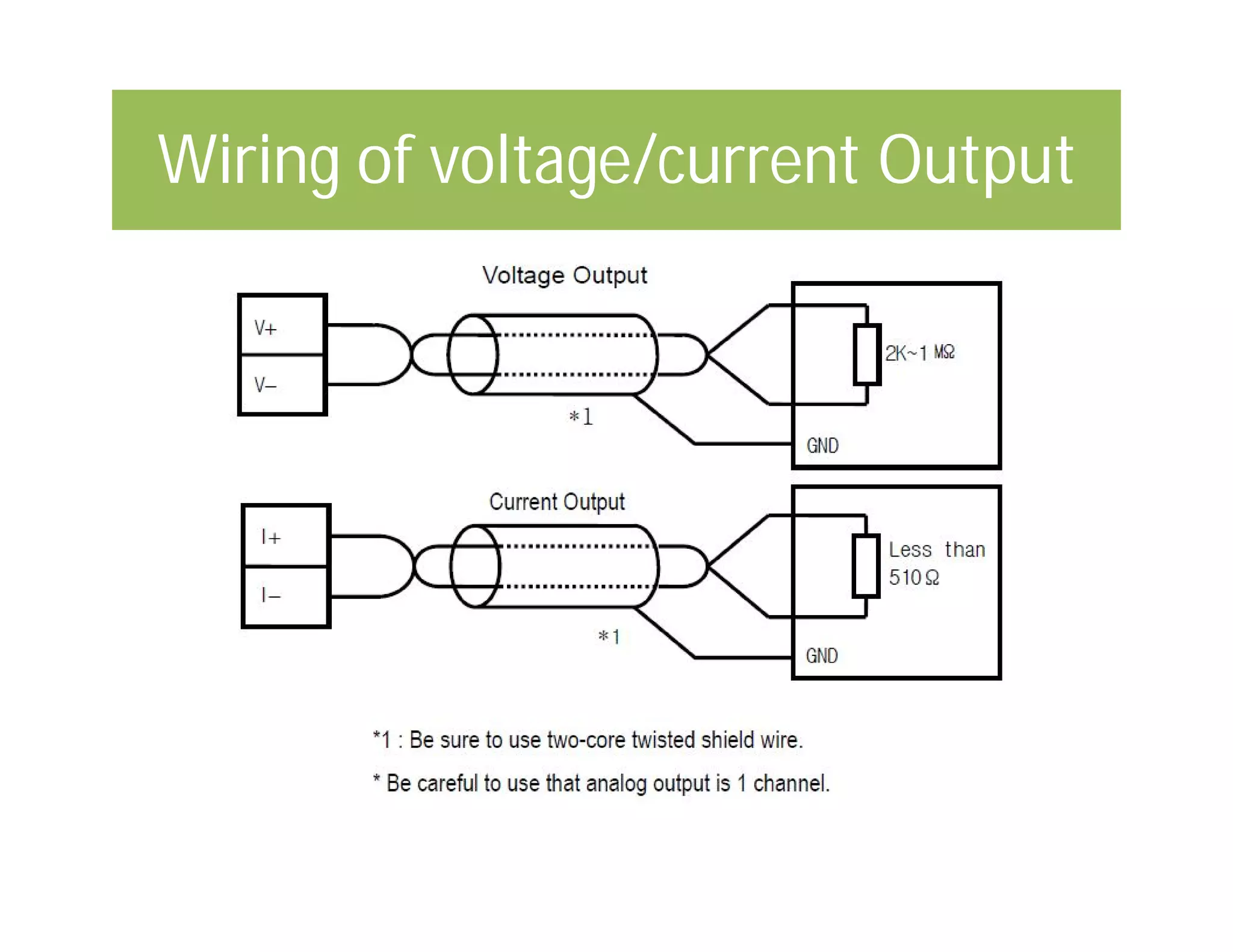

9. Wiring of voltage/current Output

10. ADC Characteristics (voltage input)
In voltage input, digital amount 0 is output by 0V input and 4,000 is output by 10V
input.
Therefore input 2.5mV equals to digital amount 1, but value less than 2.5mV can’t be
converted.

11. ADC Characteristics (Current input)
Current input 0mA becomes output 0, 10mA does 2000 and 20mA does 4000.
Therefore input 5 ㎂ equals to digital amount 1, but value less tan 5 ㎂ can’t be
converted. So abandon it.

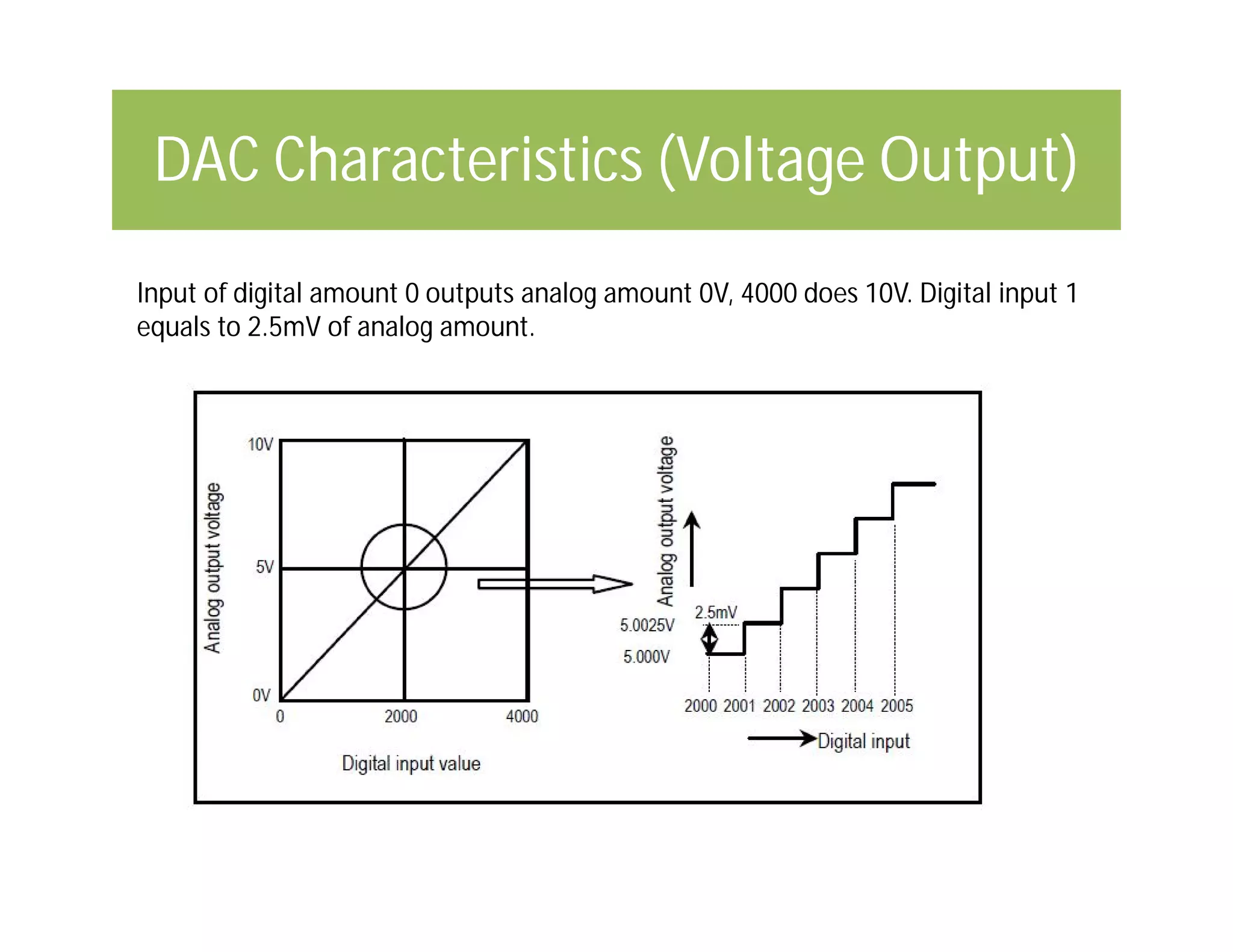

12. DAC Characteristics (Voltage Output)
Input of digital amount 0 outputs analog amount 0V, 4000 does 10V. Digital input 1
equals to 2.5mV of analog amount.

13. DAC Characteristics (Current Output)
In current output, digital amount 0 exchanges to 0mA, and 4,000 does 20mA. Analog
amount of digital input 1 equals to 5 ㎂.

14. Examples

15. Examples

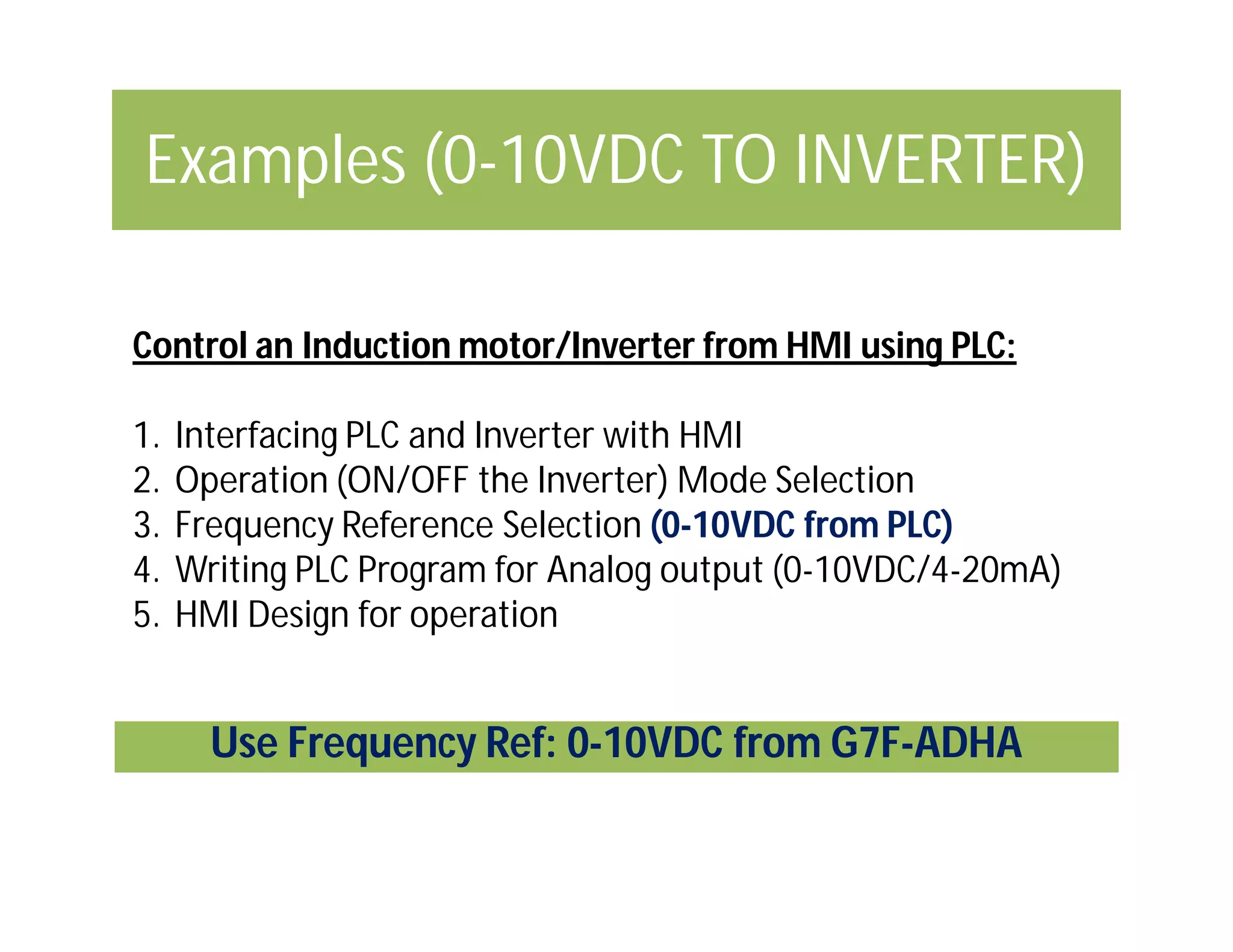

16. Examples (0-10VDC TO INVERTER)
Control an Induction motor/Inverter from HMI using PLC:
1. Interfacing PLC and Inverter with HMI
2. Operation (ON/OFF the Inverter) Mode Selection
3. Frequency Reference Selection (0-10VDC from PLC)
4. Writing PLC Program for Analog output (0-10VDC/4-20mA)
5. HMI Design for operation
Use Frequency Ref: 0-10VDC from G7F-ADHAUse Frequency Ref: 0-10VDC from G7F-ADHA

17. Examples (0-10VDC TO INVERTER)

18. Examples (0-10VDC TO INVERTER)

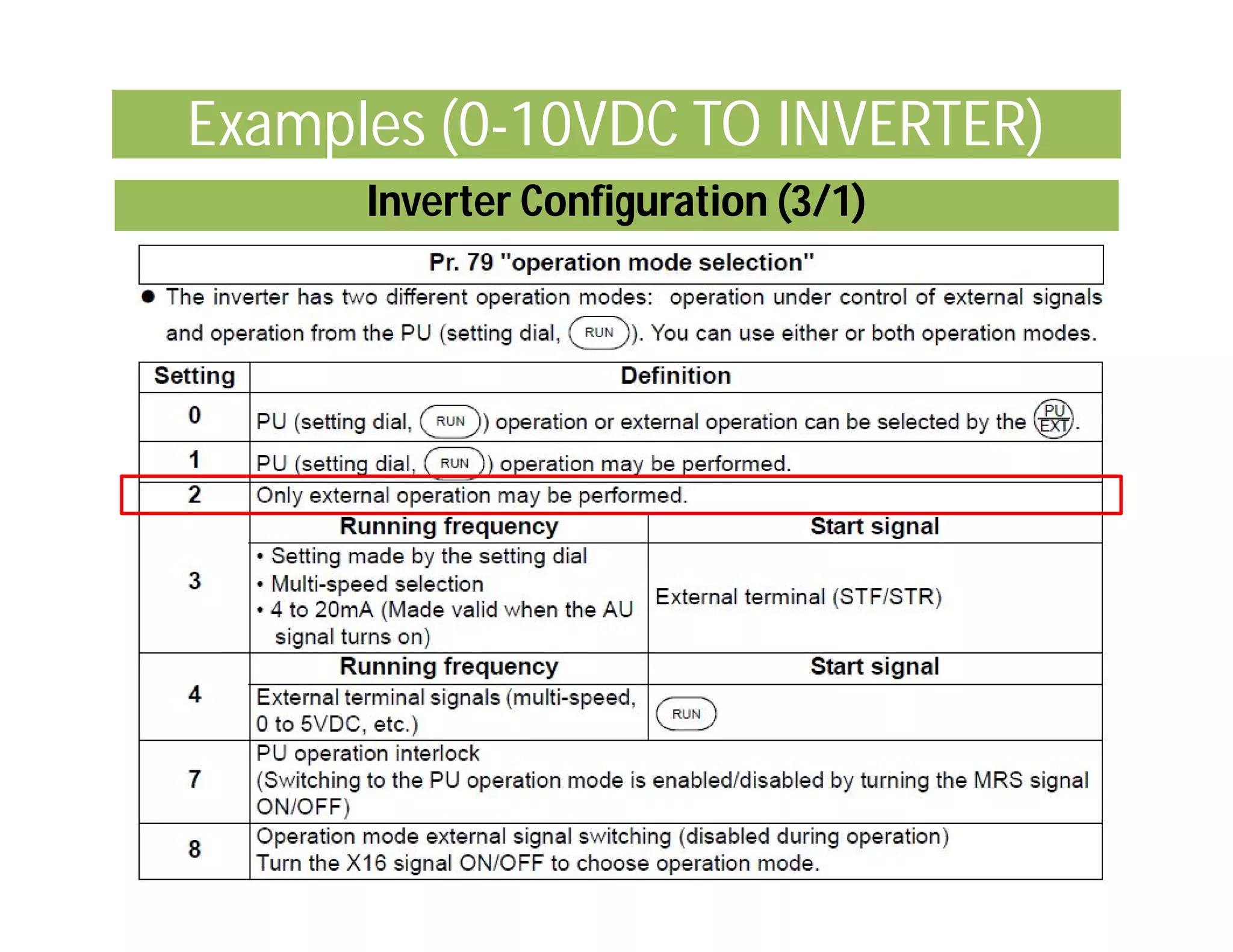

Inverter Configuration (3/1)Inverter Configuration (3/1)

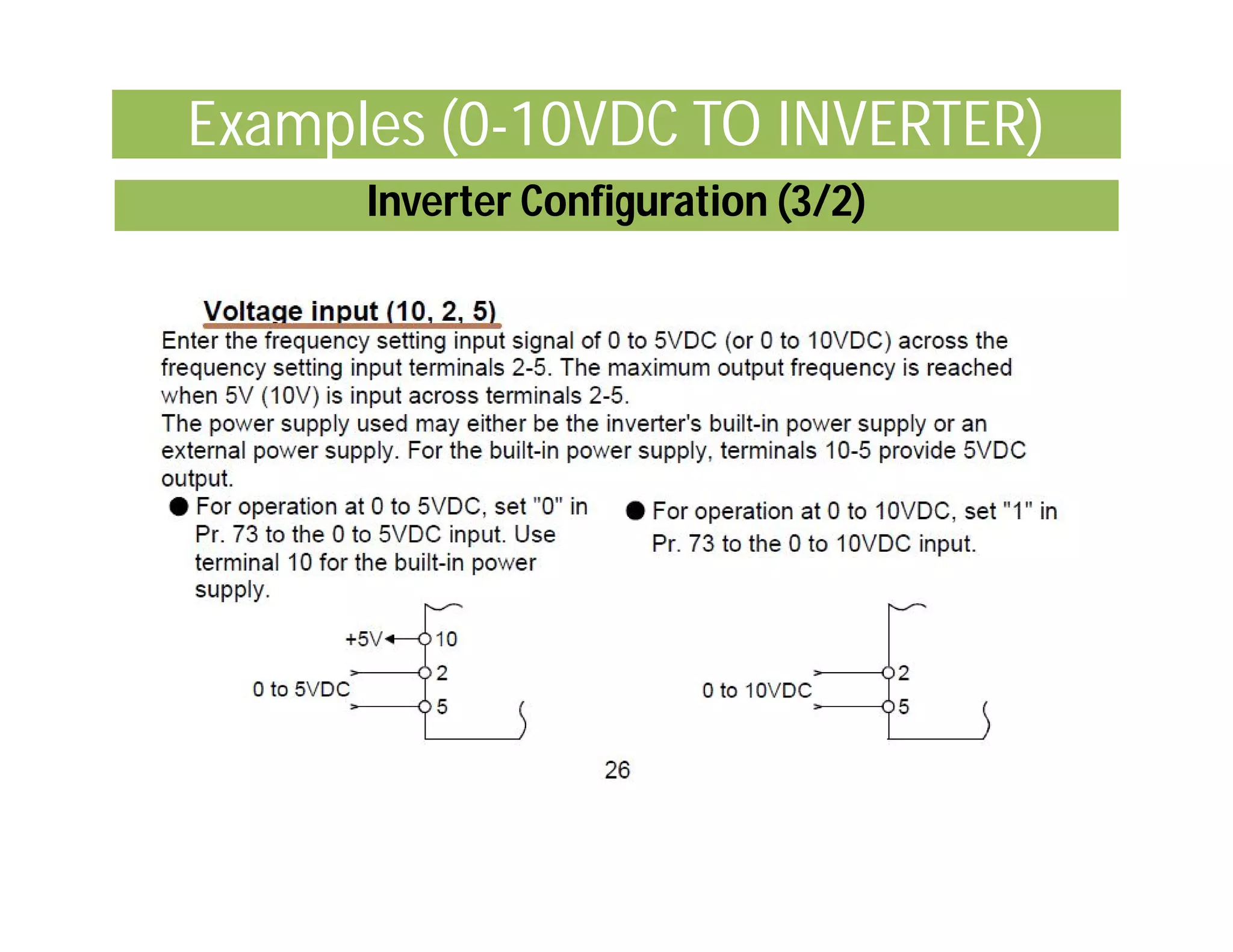

19. Examples (0-10VDC TO INVERTER)
Inverter Configuration (3/2)Inverter Configuration (3/2)

20. Examples (0-10VDC TO INVERTER)

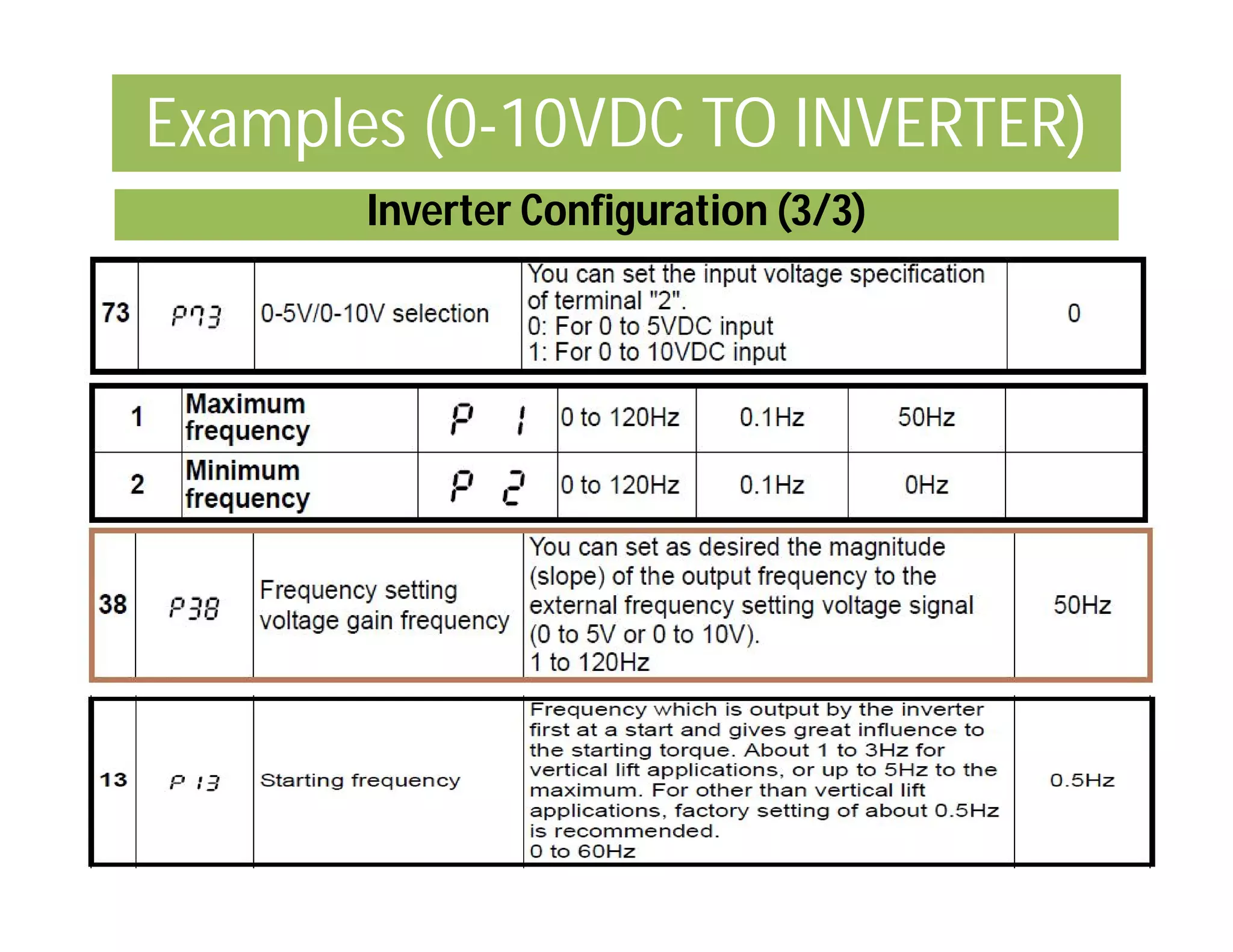

Inverter Configuration (3/3)Inverter Configuration (3/3)

21. Examples (0-10VDC TO INVERTER)

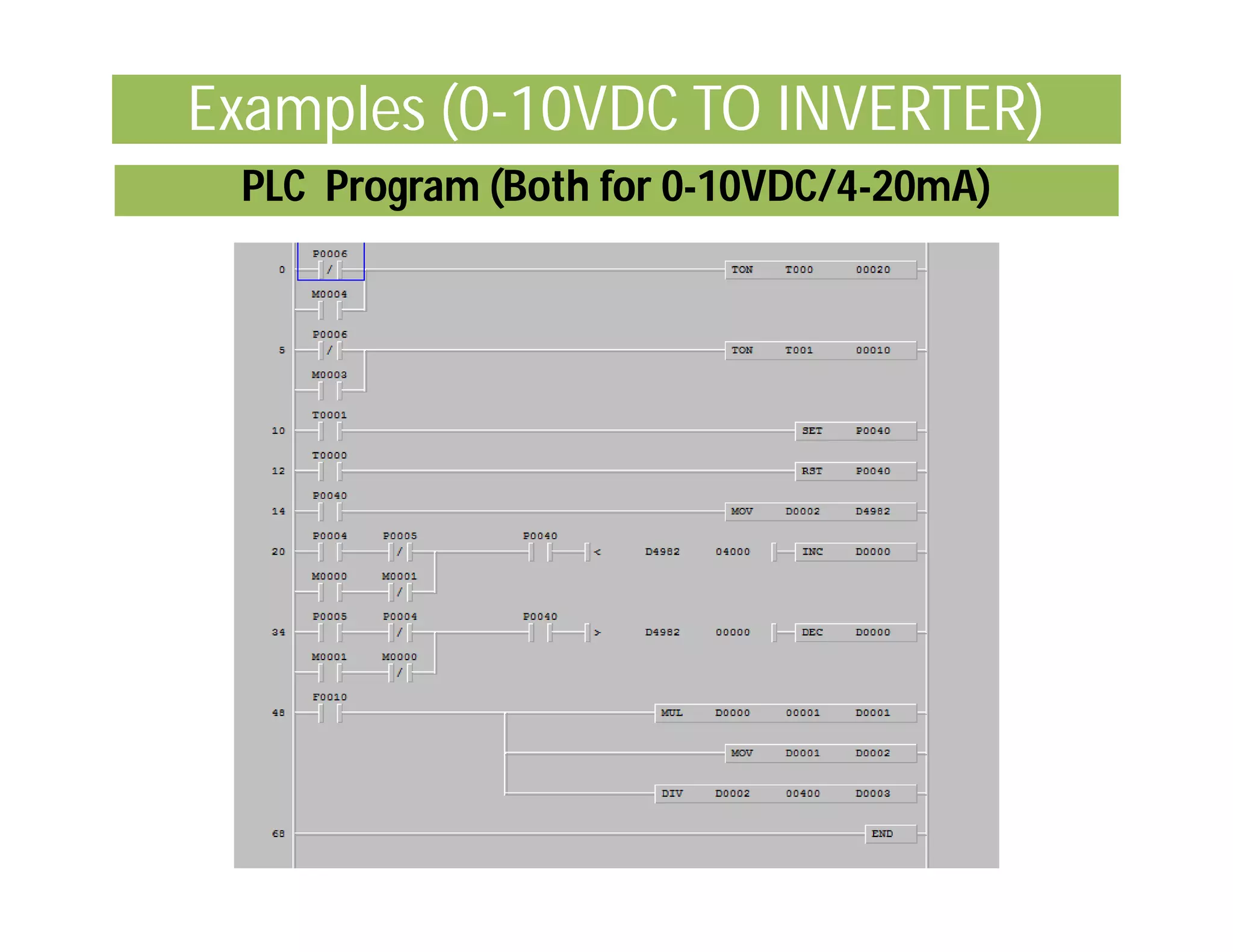

PLC Program (Both for 0-10VDC/4-20mA)PLC Program (Both for 0-10VDC/4-20mA)

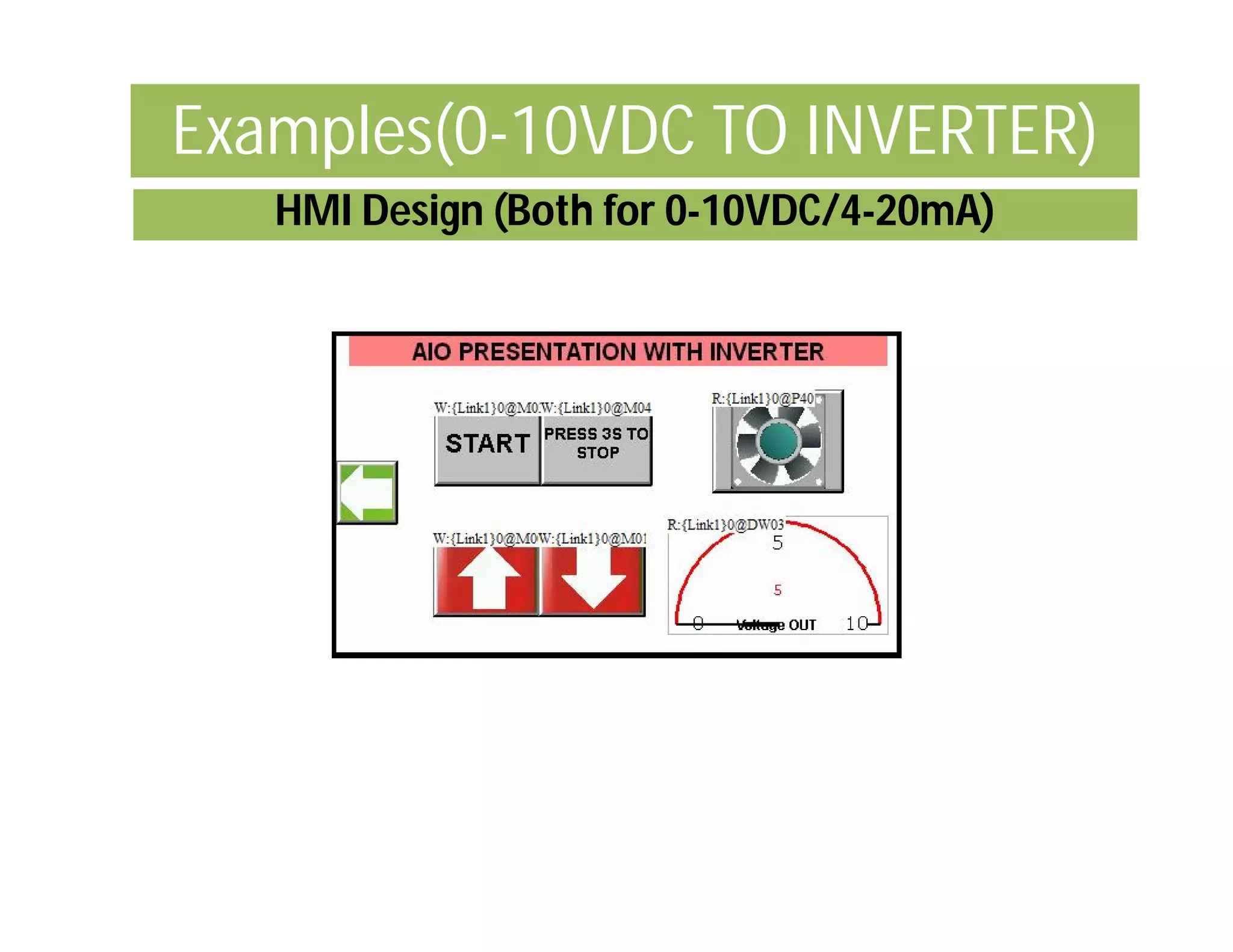

22. HMI Design (Both for 0-10VDC/4-20mA)HMI Design (Both for 0-10VDC/4-20mA)
Examples(0-10VDC TO INVERTER)

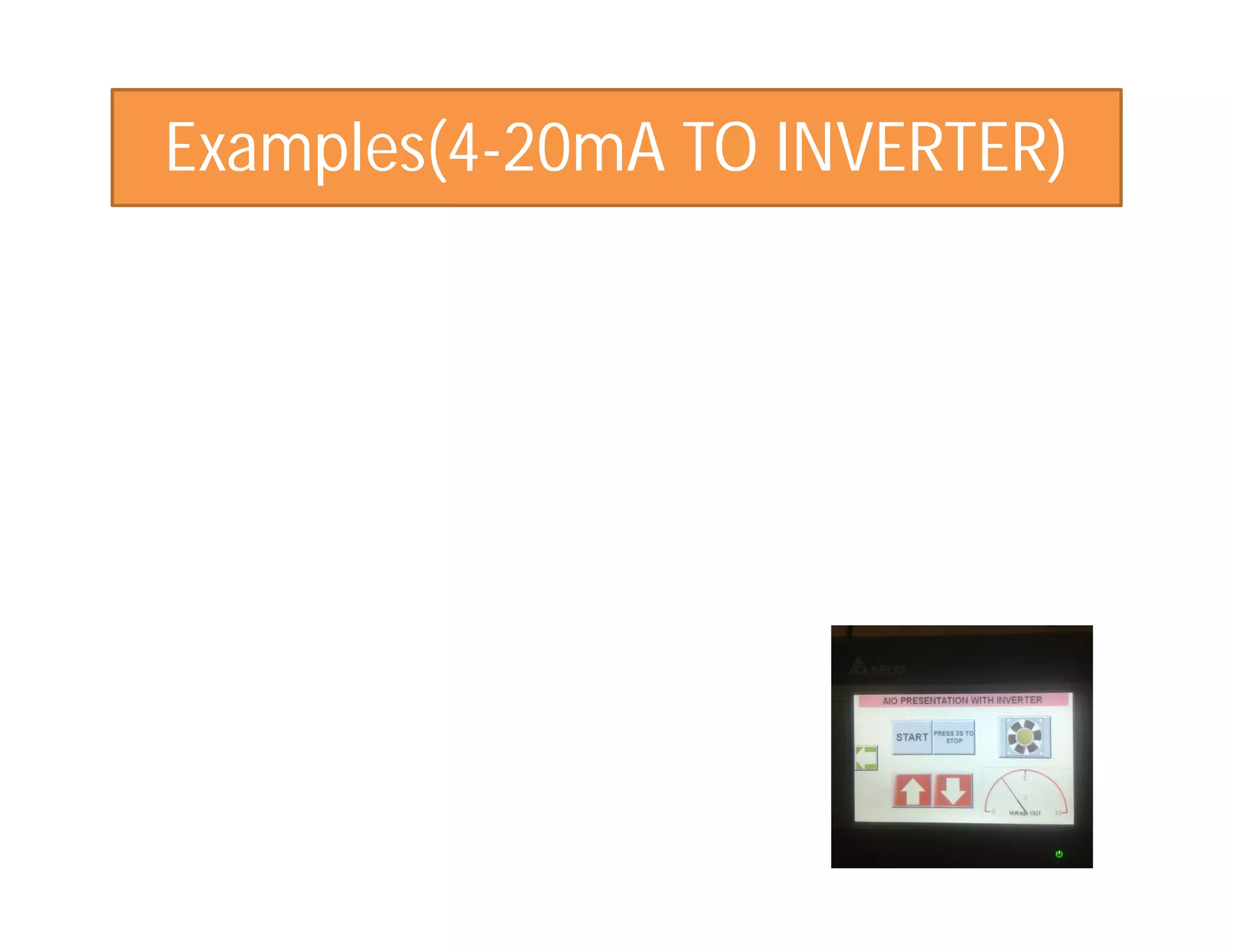

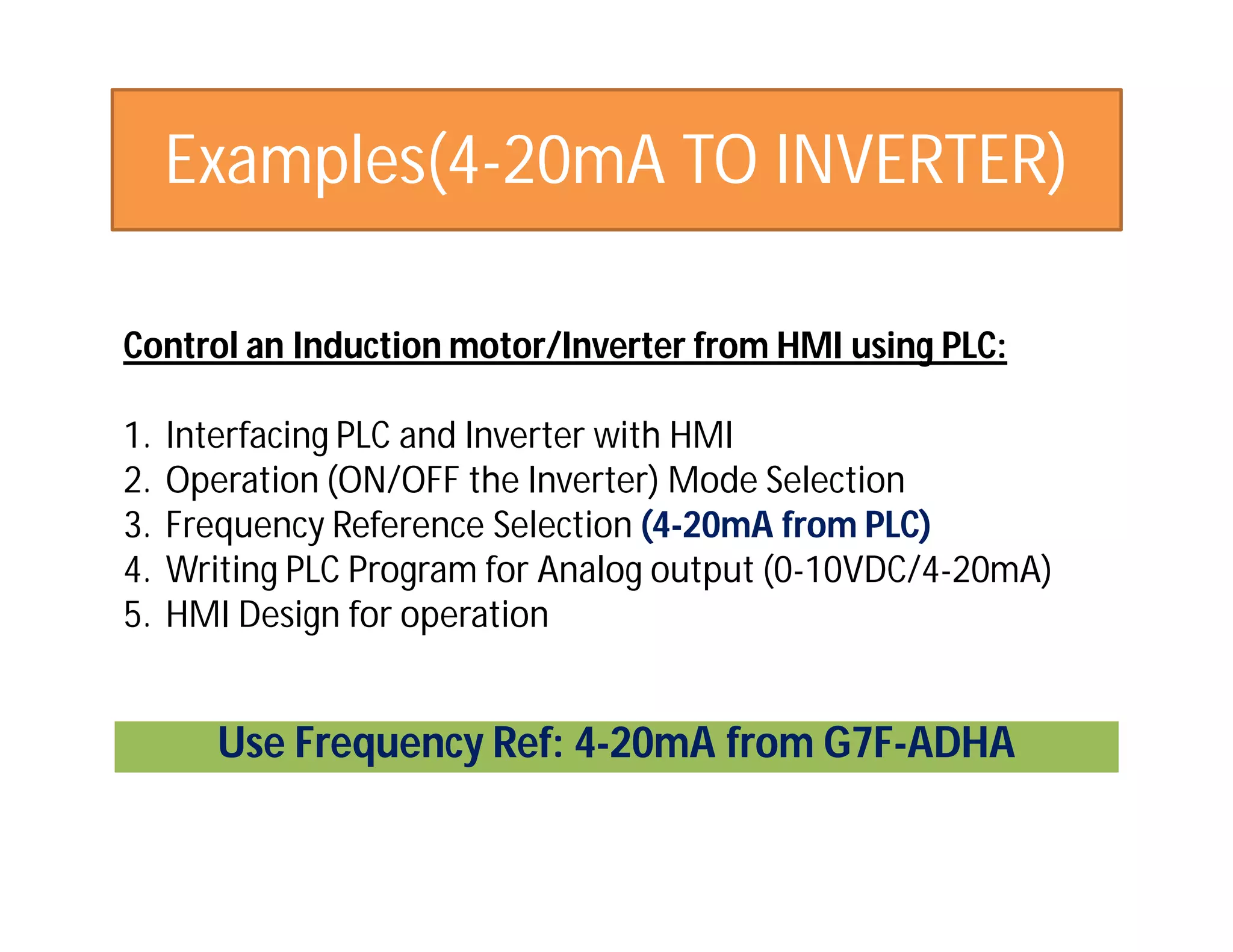

23. Examples(4-20mA TO INVERTER)
Control an Induction motor/Inverter from HMI using PLC:
1. Interfacing PLC and Inverter with HMI
2. Operation (ON/OFF the Inverter) Mode Selection
3. Frequency Reference Selection (4-20mA from PLC)
4. Writing PLC Program for Analog output (0-10VDC/4-20mA)
5. HMI Design for operation
Use Frequency Ref: 4-20mA from G7F-ADHAUse Frequency Ref: 4-20mA from G7F-ADHA

24. Examples(4-20mA TO INVERTER)

25. Examples(4-20mA TO INVERTER)
Inverter Configuration (3/1)Inverter Configuration (3/1)

26. Examples(4-20mA TO INVERTER)
Inverter Configuration (3/2)Inverter Configuration (3/2)

27. Examples(4-20mA TO INVERTER)
Inverter Configuration (3/3)Inverter Configuration (3/3)

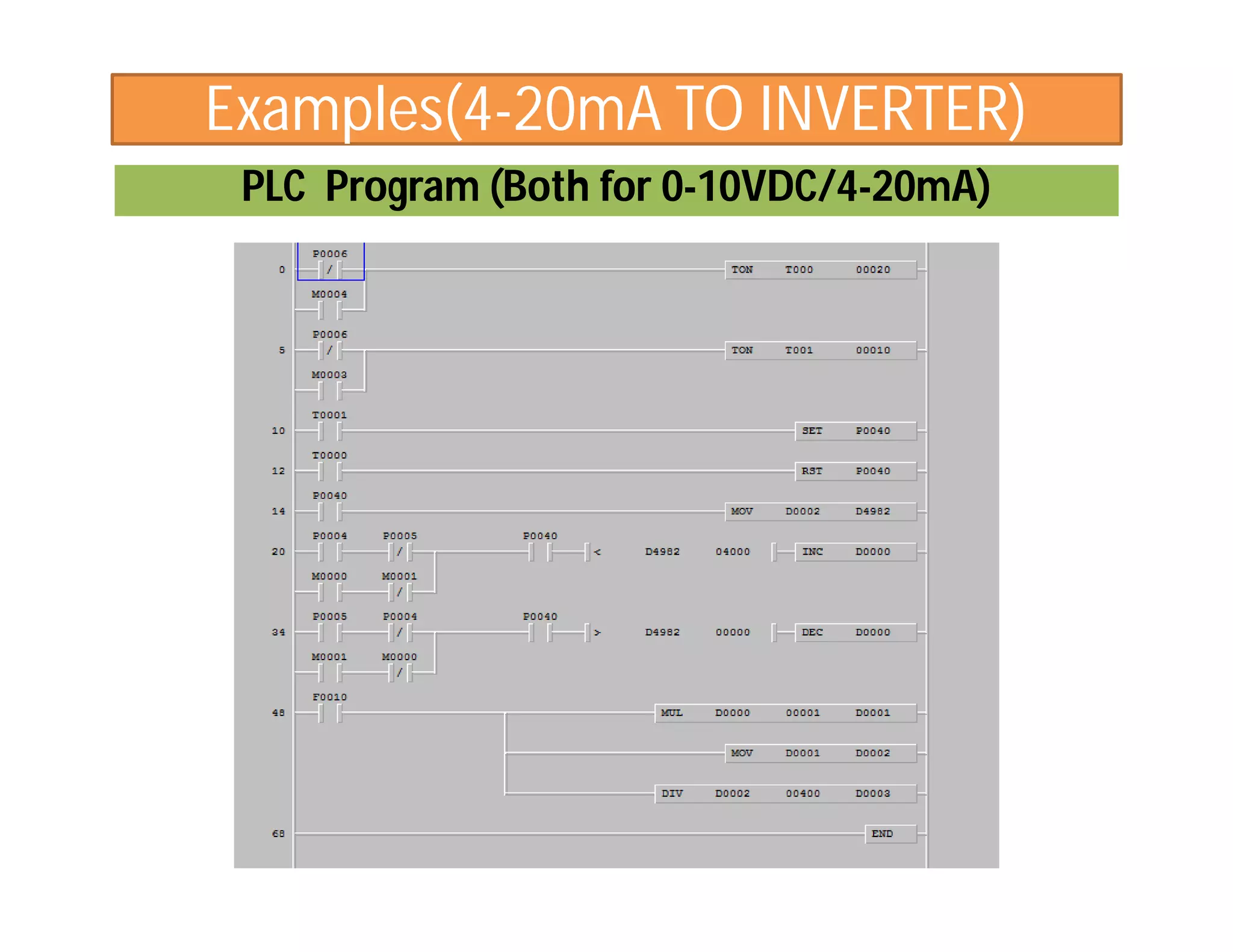

28. Examples(4-20mA TO INVERTER)
PLC Program (Both for 0-10VDC/4-20mA)PLC Program (Both for 0-10VDC/4-20mA)

29. HMI Design (Both for 0-10VDC/4-20mA)HMI Design (Both for 0-10VDC/4-20mA)
Examples(4-20mA TO INVERTER)

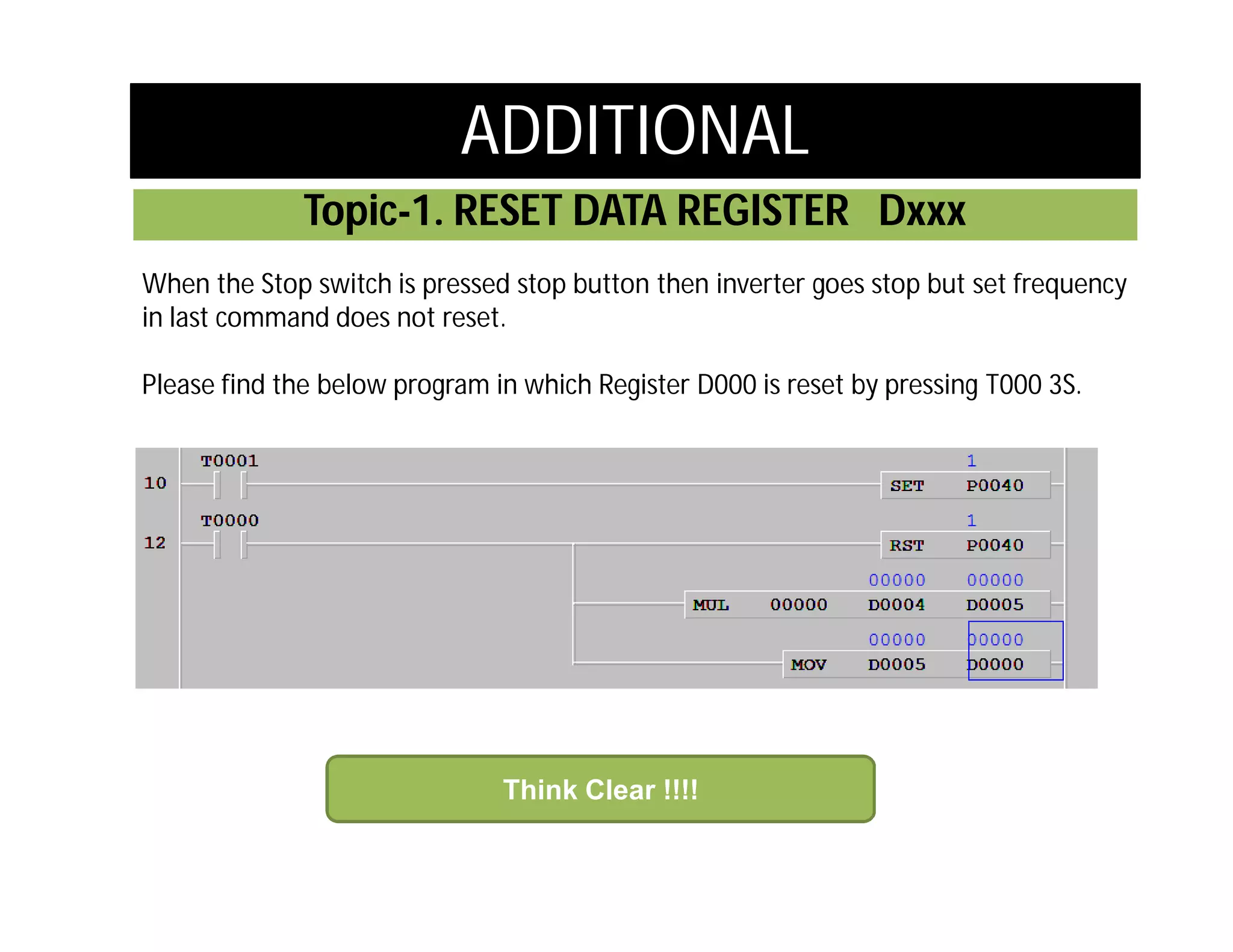

30. Topic-1. RESET DATA REGISTER DxxxTopic-1. RESET DATA REGISTER Dxxx
ADDITIONAL
When the Stop switch is pressed stop button then inverter goes stop but set frequency
in last command does not reset.
Please find the below program in which Register D000 is reset by pressing T000 3S.
Think Clear !!!!

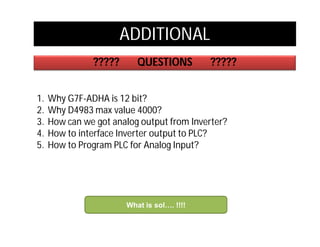

31. ????? QUESTIONS ?????
ADDITIONAL
1. Why G7F-ADHA is 12 bit?
2. Why D4983 max value 4000?
3. How can we got analog output from Inverter?
4. How to interface Inverter output to PLC?
5. How to Program PLC for Analog Input?
What is sol…. !!!!

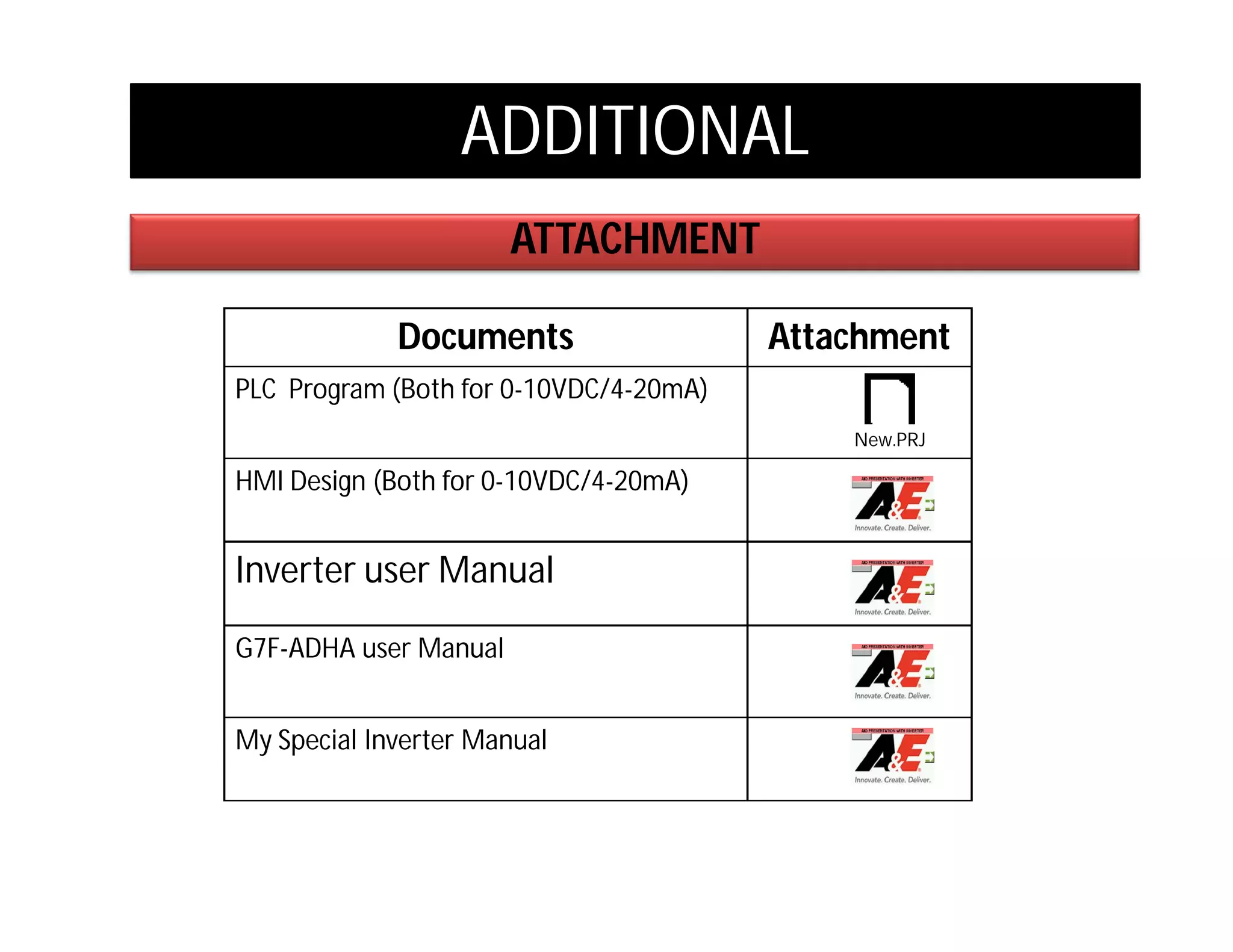

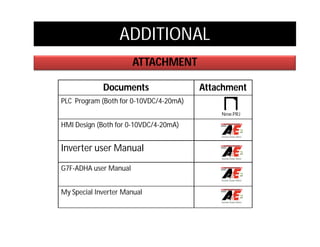

32. ATTACHMENT
ADDITIONAL
Documents Attachment
PLC Program (Both for 0-10VDC/4-20mA)
HMI Design (Both for 0-10VDC/4-20mA)
New.PRJ
Inverter user Manual
G7F-ADHA user Manual
My Special Inverter Manual

33. Thank You
Engr. Jahangir Alam
ldlogic@yahoo.com
Skype-ld.logic
01737784651
