We are at your disposal with pipe types
from 10 mm up to 1000 mm. Our range of
products are like these: Petroleum pipes,
industrial pipes, boiler tubes, seemless
pipes, stainless steel pipes, titanium tube,
high-alloy pipes, spiral welded pipes in
accordance AISI/ASTM/EN Standarts
Manufacturing iron – steel products in
accordance with international standards
and perform sales of products in domestic
and foreign markets through a customer
focused approach.
BERR since its establishment
fabrication process equipment, pressure
vessel, storage tanks, heat exchanger,
reactor, blender, mixer, piping,
prefabricated piping spool, moduler and
pre-assembled skids, steel construction
etc. especially from made of stainless
steel, fine grain carbon steel and special
alloy material.
INDUSTRIAL PIPING MATERIALS

DotheBestBERRIndustry::www.berrindustry.com
BASIC CLASSIFICATION OF THE PIPING MATERIAL
PIPES
MATERIAL
FERROUS
CARBON STEEL
STAINLESS STEEL
LOW ALLOY STEEL
NON - FEROUS
NICKEL
MONEL
BRASSES
METHOD OF MANUFACTURING
SEAMLESS WELDED
SAW
SUBMERGED ARC
WELD
STRAIGHT SAW HELICAL SAW
ERW / EFW / HFW
RESISTANCE & HIGH
FREQUENCE & FUSSION
WELD
FUSSION WELDING
APPLICATION
PRESSURE PIPE LINE PIPE
STRUCTURAL
PIPE

DotheBest
PIPES & TUBES
WELDED PIPES SEAMLESS BOILER PIPES STAINLESS STEEL PIPES
WELDED PIPES AND TUBES (ERW, EFW, DSAW )
Ferrostaal Piping Supply is a leading supplier of welded
pipes and tubes providing an extensive selection of all
grades and dimensions to the oil & gas, petrochemical,
chemical and power industries. We work closely together
with certified pipe manufacturers from around the world
and have a huge range of different welded pipes constantly
on stock ranging from Electric Resistance Welded (ERW)
Pipes, Fusion Welded (EFW) Pipes to Double Submerged
Arc Welded (DSAW) Pipes.
Whenever the supply and delivery of high quality welded
steel pipes and tubes are concerned, we are in the
foremost competitive position on an international scale.
SEAMLESS STEEL PIPES (DIN / EN , ASTM A / ASME SA)
We supply all types of boiler pipes, including seamless,
heat-resistant steel pipes in accordance with DIN / EN
and ASTM A / ASME SA. Overview of standards and
types of boiler pipes:
DIN 17175 EN 10216-2 ASTM A 335
St 35.8, I + III P 235 GH, 1 + 2 P 5
15 Mo 3 16 Mo 3 P 11
13 CrMo 44 13 CrMo 4-5 P 22
10 CrMo 910 10 CrMo 9-10 P 9
X 10 CrMo VNb 9-1 X 10 CrMo VNb 9-1 P 91
X 20 CrMo V 12-1 X 20 CrMo V 11-1
STAINLESS STEEL PIPES Stainless steel pipes with different
dimensions and materials (DIN, ISO and ASTM)
For special requirements, we also supply material packages
including pipe bends, T-pieces, reducers and flanges. Different
material grades available in accordance with DIN, ISO and
ASTM.
Our seamless and welded stainless steel pipes are used in many
areas of the manufacturing sector, such as the sugar industry,
chemical plants, fertilizer plants, pharmaceuticals, railways,
refrigeration engineering, metal industry, oil and gas industry,
water wells, decoration, dairy and food sectors,
instrumentation, power stations, heat exchangers, pulp and
paper mills, energy industry, shipbuilding, automotive industry,
plumbing/heating, boilers, aerospace industry and others.

COPPER - NICKEL TUBES TITANIUM TUBES SPIRAL FINNED EXCHANGER TUBES
COPPER NICKEL CU-NI90/10 PIPES & TUBES
Copper Nickel (Cu-Ni 90 / 10) Pipes and Tubes that are
being sourced by using high quality of raw material and
makes sure to provide durability of highest quality of
industry standard products. Copper Nickel ASTM B466 UNS
C70600 90/10 Pipes is an alloy of copper and nickel, along
with fortification elements such as manganese and iron.
These Copper Nickel Alloy 90/10 Tubes shows some higher
corrosion resistance in seawater. And thus because of this,
it is being used for piping systems, marine hardware, and at
times for the crankshafts, propellers and hulls of finest
fishing boats, tugboats, and other working boats.
Meanwhile, these Copper Nickel pipes and tubes can
further be customized in terms of sizes and thicknesses as
per specific requirements given by our esteemed clients.
We offer these Copper Nickel Pipes and Tubes at market
leading prices.
TITANIUM PIPE & TUBES
We stock more than 1200 tons of Titanium tubes. Every
one of our exercises are guided towards consumer
loyalty. We intend to convey first conveyance model,
which accommodates moment dispatch consequently of
the receipt of bank exchange duplicate. The client does
not need to hold up to get the products after that. We
stay away from container neck delays at each stage. For
us consumer loyalty is the above all else venture to be
taken amid business. Our clients trust us in light of the
fabulous item quality and fantastic items that are tough
and manageable.
We likewise exceed expectations at executing both little
and mass size requests. We give same day delivery to
our customers on urgent solicitations.
SPIRAL FINNED HEAT TRANSFER TUBES
According to customer demands, electro galvanize or hot-dip
galvanize coating can be applied to carbon steel tube-St2 finned
serpentine types; tin or solder coating can be applied to copper
and copper alloyed tube copper finned serpentine types. With
the help of these coatings oxidation is decreased whereas heat
transfer is increased.
Main use areas of serpentines can be summarized like this:
» Air heaters for textile machines, » Air heaters for drying
machines, » Air heaters for air handling units
» Air coolers » Turbo charge coolers
» Oil coolers » Water coolers » Air coolers for vessels
Spiral finned serpentine types which we produce are classified
according to production methods:
PIPES & TUBES

DotheBest
SEAMLESS STEEL PIPES
A - CARBON STEEL PIPES B - STAINLESS STEEL PIPES C - ALLOY STEEL PIPES
Seamless Pipe Manufacturing Process:
Steel pipes and tubes can be manufactured in different
methods, the main methods are electric resistance
welding (ERW), fusion welding (EFW), double
submerged arc welding (DSAW) and seamless pipe
manufacturing (SMLS). The seamless pipe
manufacturing process starts with the transformation of
raw materials into steel bars. In different types of rolling
mills steel bars are formed into a solid round shape,
called billet, which is heated and pushed or pulled over
a piercing rod producing a hollow tube or shell. Due to
the heating production process seamless pipes are
normalized and should have a consistent steel pattern
throughout its range.
Seamless Pipe Sizes And Dimensions:
Seamless pipes are finished in accordance
with customer needs regarding dimensional
and wall thickness specifications as well as
heat treatment for more demanding
applications. In general a seamless pipe is
manufactured in sizes from 1/8” to 24”
according to current standards API, ASTM, and
ASME. Seamless tubing is available for
different materials such as carbon steel,
stainless steel and alloy steel. If required for
special projects we can also supply seamless
pipes for bigger sizes starting from outside
diameter 26” up to 48”
SMLS Pipes For Various Industries :
Seamless tubes are mostly used to transport
high pressure gas or fluid within the oil & gas,
petrochemical, chemical and power industries.
As the manufacturing process does not
include any welding, seamless pipes are
perceived to be more non-corroding and to
withstand higher operating pressure and
mechanical stress than welded steel pipes
(according to ASME). Despite higher initial
costs seamless pipes are more cost-effective
when taking potential of defects, replacement
and comprehensive tests for welded pipes
into consideration.

DotheBest
The ASTM standards of the Seamless Steel Pipes & Fittings
 A53 - A53/A53M-99b - Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
 A106 - A106-99e1 - Specification for Seamless Carbon Steel Pipe for High-Temperature Service
 A252 - A252-98 - Specification for Welded and Seamless Steel Pipe Piles
 A312 - A312/A312M-00 - Specification for Seamless and Welded Austenitic Stainless Steel Pipes
 A335 - A335/A335M-99 - Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
 A376 - A376/A376M-98 - Specification for Seamless Austenitic Steel Pipe for High-Temperature Central-Station Service
 A790 - A790/A790M-99 - Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
 A943 - A943/A943M-95e1 - Specification for Spray-Formed Seamless Austenitic Stainless Steel Pipes
 A179 - Specification for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
 A192 - A192/A192M-91 (1996) e1 - Specification for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
 A270 - A270-98ae1 - Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing
 A423 - A423/A423M-95 - Specification for Seamless and Electric-Welded Low-Alloy Steel Tubes
 A214 - A214/A214M-96 - Specification for Electric-Resistance-Welded Carbon Steel Heat-Exchanger and Condenser Tubes
 A498 - Specification for Seamless and Welded Carbon, Ferritic, and Austenitic Alloy Steel Heat-Exchanger Tubes with Integral Fins
 A851 - A851-96 - Specification for High-Frequency Induction Welded, Unannealed, Austenitic Steel Condenser Tubes
 A519 - A519-96 - Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
 A512 - A512-96 - Specification for Cold-Drawn Buttweld Carbon Steel Mechanical Tubing
 A758 - A758/A758M-98 - Specification for Wrought-Carbon Steel Butt-Welding Piping Fittings with Improved Notch Toughness

DotheBest
SEAMLESS CARBON STEEL STD PIPE DESCRIPTION
NPS Outside diameter Wall thickness Schedule Weight DN Weight API A/SA-53
[inch] [mm] [inch] [mm] No class [lbs/ft] [kg/m] Spec 5L
1/8 0.405 10,3 0.068 1,73 40 STD 6 0.24 0,37 API √
1/4 0.540 13,7 0.088 2,24 40 STD 8 0.42 0,63 API √
3/8 0.675 17,1 0.091 2,31 40 STD 10 0.57 0,84 API √
1/2 0.840 21,3 0.109 2,77 40 STD 15 0.85 1,27 API √
3/4 1.050 26,7 0.219 5,56 160 ... 20 1.94 2,90 API √
1 1.315 33,4 0.065 1,65 5 ... 25 0.87 1,29 -
1 1/4 1.660 42,2 0.140 3,56 40 STD 32 2.27 3,39 API √
1 1/2 1.900 48,3 0.145 3,68 40 STD 40 2.72 4,05 API √
2 2.375 60,3 0.154 3,91 40 STD 50 3.65 5,44 API √
2 1/2 2.875 73,0 0.203 5,16 40 STD 65 5.79 8,63 API √
3 3.500 88,9 0.216 5,49 40 STD 80 7.58 11,29 API √
3 1/2 4.000 101,6 0.226 5,74 40 STD 90 9.11 13,57 API √
4 4.500 114,3 0.237 6,02 40 STD 100 10.79 16,07 API √

DotheBest
ANSI B36.19 STAINLESS STEEL PIPE DIMENSION IN MM & WEIGHT PER KG.
Nominal Pipe
Size
Outside
Diameter
Schedule 5 S Schedule 10 S Schedule 20 S Schedule 40 S Schedule 80 S Schedule 160 S XXS
mm inch mm WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
WT mm WEIGHT
(KGM)
3 1/8 10.3 1.2 0.20 1.24 0.28 1.5 0.33 1.73 0.37 2.41 0.47 - - - -
6 1/4 13.7 1.2 0.37 1.65 0.49 2.00 0.58 2.24 0.630 3.02 0.80 - - - -
10 3/8 17.1 1.2 0.47 1.65 0.63 2.00 0.74 2.31 0.840 3.20 1.10 - - - -
15 1/2 21.3 1.65 0.80 2.11 1.00 2.30 1.07 2.77 1.27 3.73 1.62 4.75 1.94 7.47 2.55
20 3/4 26.7 1.65 1.03 2.11 1.28 2.55 1.52 2.87 1.69 3.91 2.20 5.56 2.90 7.82 3.64
25 1 33.4 1.65 1.30 2.77 2.09 2.55 1.94 3.38 2.50 4.55 3.24 6.35 4.24 9.09 5.45
32 1.1/4 42.2 1.65 1.65 2.77 2.70 3.00 2.90 3.56 3.39 4.85 4.47 6.35 5.61 9.70 7.77
40 1.1/2 48.3 1.65 1.91 2.77 3.11 3.00 3.55 3.68 4.05 5.08 5.41 7.14 7.25 11.1 10.18
50 2 60.3 1.65 2.40 2.77 3.93 3.00 4.24 3.91 5.44 5.54 7.48 8.74 11.11 11.07 13.44
65 2.1/2 73.0 2.11 3.69 3.05 5.26 4.00 6.81 5.16 8.63 7.01 11.41 9.53 14.91 14.02 20.39
80 3 88.9 2.11 4.51 3.05 6.45 4.00 8.37 5.49 11.29 7.62 15.27 11.1 21.30 15.24 27.68
100 4 114.3 2.11 5.84 3.05 8.36 4.50 12.18 6.02 16.07 8.56 22.32 13.49 33.54 17.12 41.03
125 5 141.3 2.77 9.47 3.40 11.57 5.00 16.80 6.55 21.8 9.53 30.97 15.88 49.11 19.05 57.43
150 6 168.3 2.77 11.32 3.40 13.84 6.35 25.36 7.11 28.26 10.97 42.56 18.25 67.53 21.95 79.22
200 8 219.1 2.77 14.79 3.76 19.96 6.35 33.31 8.18 42.55 12.7 64.64 23.01 111.27 22.23 107.92
250 10 273.1 3.40 22.63 4.19 27.78 6.35 41.77 9.27 60.31 12.7 96.01 28.58 172.33 25.40 155.15
300 12 323.8 3.96 31.25 4.57 36.00 6.35 49.7 9.53 73.88 12.7 132.05 33.32 238.76 25.40 186.97
350 14 355.6 3.96 34.36 4.78 41.3 7.92 67.80 11.13 94.59
400 16 406.4 4.19 41.56 4.78 47.29 7.92 77.83 12.7 123.30
450 18 457.2 4.19 46.81 4.78 53.26 7.92 87.71 14.27 155.80
500 20 508.0 4.78 59.25 5.54 68.61 9.53 117.14 15.09 183.42
600 24 610.0s 5.54s 82.47 6.35 94.45 9.53 141.12 17.48 255.41

DotheBest
ANSI B36.10 CARBON STEEL SEAMLESS PIPE WEIGHT PER KG/MTR
ASTM PIPE SCHEDULE - Wall = Wall Thickness Millimeter - Wt - Weights in Kg. / Mtr.
Nominal Pipe
Size
O/D Schedule 10 Schedule 20 Schedule 30 Schedule STD Schedule 40 Schedule 60 Schedule Extra
Strong (XS)
mm inch Mm mm Kg/m mm Kg/m mm Kg/m Wall wt. Wall wt. Wall wt. Wall wt.
32 1.1/4 42.2 3.56 3.39 3.56 3.39 4.85 4.47
40 1.1/2 48.3 3.68 4.05 3.68 4.05 5.08 5.41
50 2 60.3 3.9 5.44 3.9 5.44 5.5 7.48
65 2.1/2 73/0 5.16 8.63 5.16 8.63 7.0 11.41
80 3 88.9 5.5 11.3 5.5 11.3 7.62 15.3
90 3.1/2 101.6 5.74 13.57 5.74 13.57 8.08 18.63
100 4 114.3 6.02 16.07 6.02 16.07 8.56 22.3
125 5 141.3 6.55 21.77 6.55 21.77 9.53 30.9
150 6 168.3 7.11 28.26 7.11 28.26 10.97 42.5
200 8 219.1 6.35 33.3 7.0 36.8 8.2 42.5 8.2 42.5 10.3 53.1 12.7 64.6
250 10 273.0 6.35 41.7 7.8 51.3 9.27 60.3 9.27 60.3 12.7 81.5 12.7 81.5
300 12 323.8 6.35 49.7 8.4 65.2 9.53 73.8 10.3 79.7 14.3 109.0 12.7 97.4
350 14 355.6 6.35 54.6 7.92 68.1 9.53 81.3 9.53 81.3 11.13 94.6 15.1 126.4 12.7 107.0
400 16 406.4 6.35 62.6 7.92 77.9 9.5 93.3 9.53 93.3 12.7 123.0 16.7 160.0 12.7 123.0
450 18 457.2 6.35 70.5 7.92 87.7 11.1 122.0 9.53 105.0 14.3 156.0 19.0c 206.0 12.7 130.0
500 20 508.0 6.35 78.5 9.53 117.2 12.7 155.1 9.53 117.2 15.1 183.0 20.6 248.0 12.7 155.1
550 22 558.8 6.35 86.4 9.53 129.0 12.7 171.0 9.53 129.0 22.2 294.0 12.7 171.0

DotheBest
PIPE SPOOL FABRICATION
BERR can offer pipe spool fabrication to most specifications including API, ASME,
AS/NZ, EN or custom client standards. We provide specialised fabrication,
welding and machining for pipe spooling with high quality professional
workmanship. We can also provide CAD drawings in 2D or 3D for our pipe spools
if required.
We can also meet any client inspection and testing requirements, including
internal or external third party inspections (with witness hold points as required)
and testing including ultrasonic (UT), dye penetrant (PT), magnetic particle (MT)
or any other special requirement. We manufacture pipe spools and prefabricated
piping systems in the following materials:
 Titanium
 Nickel Alloys
 Duplex, Superduplex
 904L, 254 SMO
 Austenitic and Superaustenitic stainless steels
 Welding methods: EFW, PAW, GTAW, SAW.
Our welding operators have been qualified according to: ASME IX, EN1418,
EN9606-4, EN287-1. Products can be supplied according to: ASTM, ASME, EN,
PED, DNV, NACE, NORSOK.
This fabrication capability offers a complete synergie to the other key product
types within the group to allow Proclad to offer a complete "Turnkey Supply" to
our customers.
Applications: Oil & Gas, Pulp & Paper, Chemical, Petrochemical, Water treatment,
Fume treatment, Mining, Shipbuilding, Power Generation.

DotheBest
PIPE SPOOL FABRICATION

DotheBest
FITTINGS / FLANGES – ELBOW - REDUCER

DotheBest

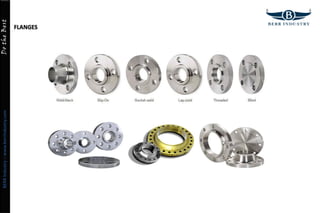

FLANGES

DotheBest
FLANGES
THREADED FLANGE WELDING NECK FLANGE BLIND FLANGE

DotheBest
FLANGES
ANSI B16.5 FORGED FLANGES

DotheBest
FLANGES
Nominal Pipe Size
NPS (inches)
Class 150 Flange Dimensions
Diameter of Flange
(inches)
No. Of Bolts
Diameter of Bolts
(inches)
Diameter of Bolt
Holes (inches)
Bolt Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2

EXPANTION JOINT / COMPENSATOR
EXPANTION JOINTS

INDUSTRIAL VALVES & FITTINGS
WELD END
EXPANTION JOINT
FIXED FLANGED
EXPANTION JOINT
FLOATING FLANGED
EXPANTION JOINT
EXTERNALLY PRESSURIZED
EXPANTION JOINT
EXPANTION JOINTS

PIPE SUPPORT & HANGERS

PIPE SUPPORT & HANGERS
PIPE HANGERS

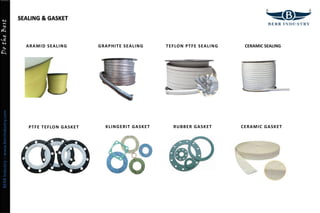

SEALING & GASKET
ARAMID SEALING GRAPHITE SEALING TEFLON PTFE SEALING CERAMIC SEALING
PTFE TEFLON GASKET KLINGERIT GASKET RUBBER GASKET CERAMIC GASKET

DotheBest
Adress:
TR - Postane, Levent Sitesi, I6 No:7 34940 Tuzla, Istanbul, TURKIYE
UK - Kingston Upon Hull (England) United Kingdom
Telephones:
Support Center : +90 532 163 62 90 ( TR ) & +44 743 246 14 62 ( UK )
URL:
http://www.berrindustry.com
E-Mail:
General Information
Skype:
Berr.Industry
SlideShare Link for all brochures and referances Go >>>
26
: info@berrindustry.com

Pipe & Equipment 2018

More Related Content

What's hot

Similar to Pipe & Equipment 2018

More from Murat Cengiz

Recently uploaded

Pipe & Equipment 2018
