DICOM AND PACS PACS provides efficient storage and access to medical images from multiple modalities. It has several key components: an image acquisition component which collects images, a PACS controller which manages images, a database server for storage, and workstations where images can be viewed. Images are stored both short term and long term. Communication between components uses standards like DICOM and HL7. Current PACS products provide features like remote access and workflow management. MATLAB can also be used to work with DICOM files, including reading, writing, and viewing medical images.

1. DICOM AND PACS

2. Presentation outline
Introduction
Components and architecture of PACS
Application of PACS

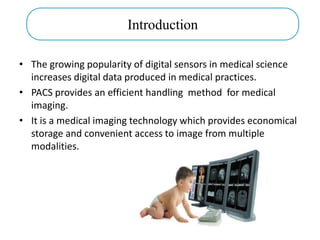

3. • The growing popularity of digital sensors in medical science
increases digital data produced in medical practices.
• PACS provides an efficient handling method for medical
imaging.
• It is a medical imaging technology which provides economical
storage and convenient access to image from multiple
modalities.
Introduction

4. Image acquisition component
PACS controller
Database server and archiving system
Workstations
Network
Communication Protocol
Components and architecture of PACS

5. Image Acquisition Component

6. PACS Controller
The PACS controller is the main engine of the PACS
PACS Controller performs:
Automatically retrieve images, optimization of
pictures ,image data compression,etc

7. Database Server and Archiving System
Short term archive
• Images from last recent studies and
examination are firstly stored there
Long term archive
• long-term archival of image data
Kintronics
NSM DVD
Jukeboxes

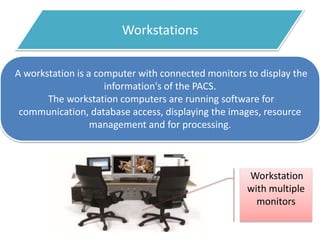

8. Workstations
A workstation is a computer with connected monitors to display the
information's of the PACS.
The workstation computers are running software for
communication, database access, displaying the images, resource
management and for processing.
Workstation
with multiple
monitors

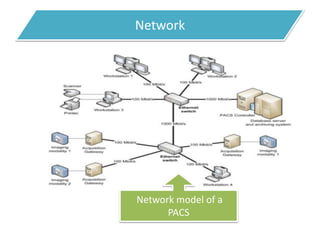

9. Network
Network model of a
PACS

10. Communication Protocols
DICOM
Standard
Communication
and exchange of
digital medical
rapid progress in
medical
information
technology.
improving the
workflow of
digital medical
images.
HL7
exchange of data
between multiple
departments in
hospitals
textual
orientated

11. Current PACS products and software
UltraLink:
See ultrasound and medical imaging exams,share,evaluate and archive
Your imaging exams and report using web-based PACS.
Carestream Vue PACS:
web based solution that offers image-rich reporting ,dictation,lesion
management,3D post processing and mammography module
Vidistar PACS:
multimodality PACS that offers image management,
datamining,decision support and predictive analytics for value-based
medicine

12. Current PACS products and software

13. Application of PACS
A
• Hard copy replacement
• Remote access
• Electronic image integration platform
• Radiology workflow management

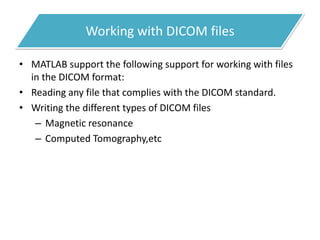

14. Working with DICOM files
• MATLAB support the following support for working with files
in the DICOM format:
• Reading any file that complies with the DICOM standard.
• Writing the different types of DICOM files
– Magnetic resonance
– Computed Tomography,etc

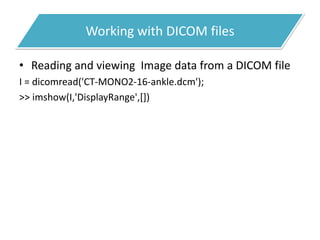

15. Working with DICOM files

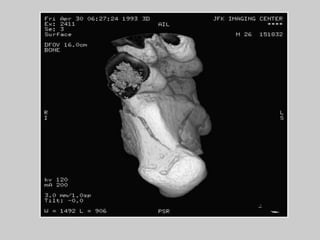

• Reading and viewing Image data from a DICOM file
I = dicomread('CT-MONO2-16-ankle.dcm');
>> imshow(I,'DisplayRange',[])

17. Working with DICOM files

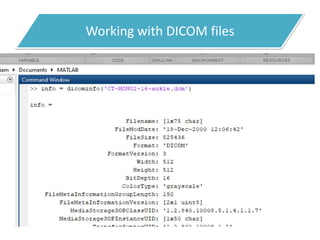

• Reading Metadata from A DICOM file

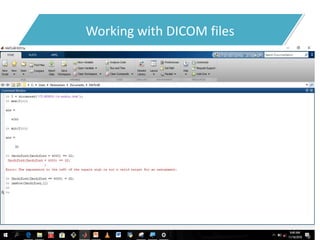

18. Working with DICOM files

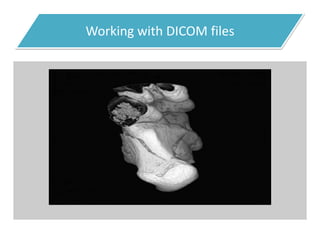

19. Working with DICOM files

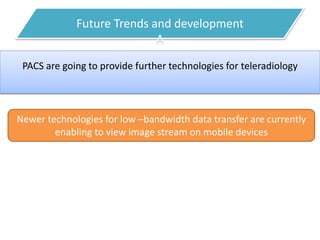

20. Future Trends and development
A
PACS are going to provide further technologies for teleradiology
Newer technologies for low –bandwidth data transfer are currently
enabling to view image stream on mobile devices
