The document discusses the installation and use of the PICkit 2 programmer. It can program most Microchip Flash microcontrollers and EEPROM devices. The PICkit 2 connects to a computer via USB and has status LEDs. It can check communication, calibrate its voltage, load and write hex files, erase memory, and program devices in-circuit using ICSP. MPLAB is used to select devices, add files, configure settings, and load programs onto the PICkit 2.

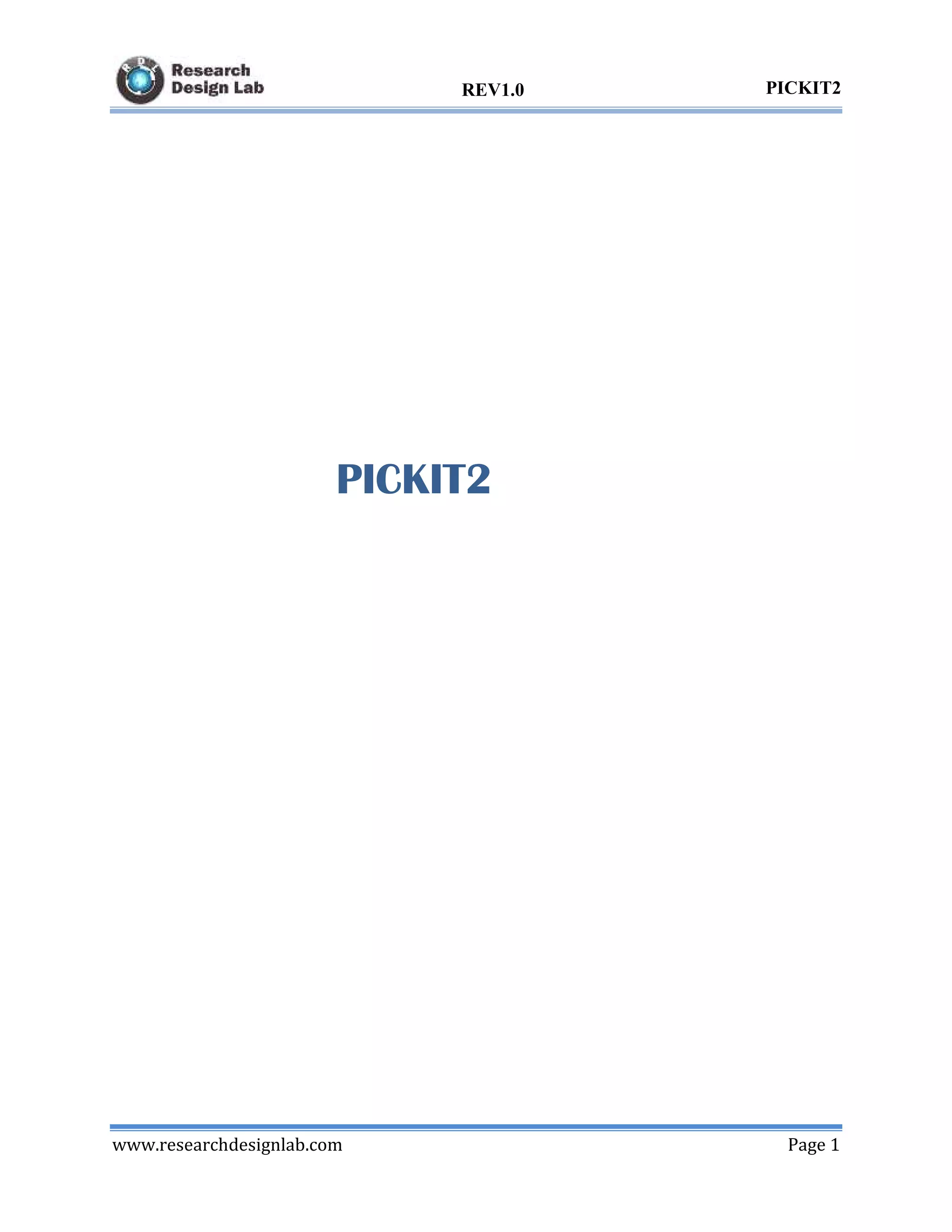

1. www.researchdesignlab.com Page 1
PICKIT2REV1.0
PICKIT2

2. www.researchdesignlab.com Page 2
PICKIT2REV1.0

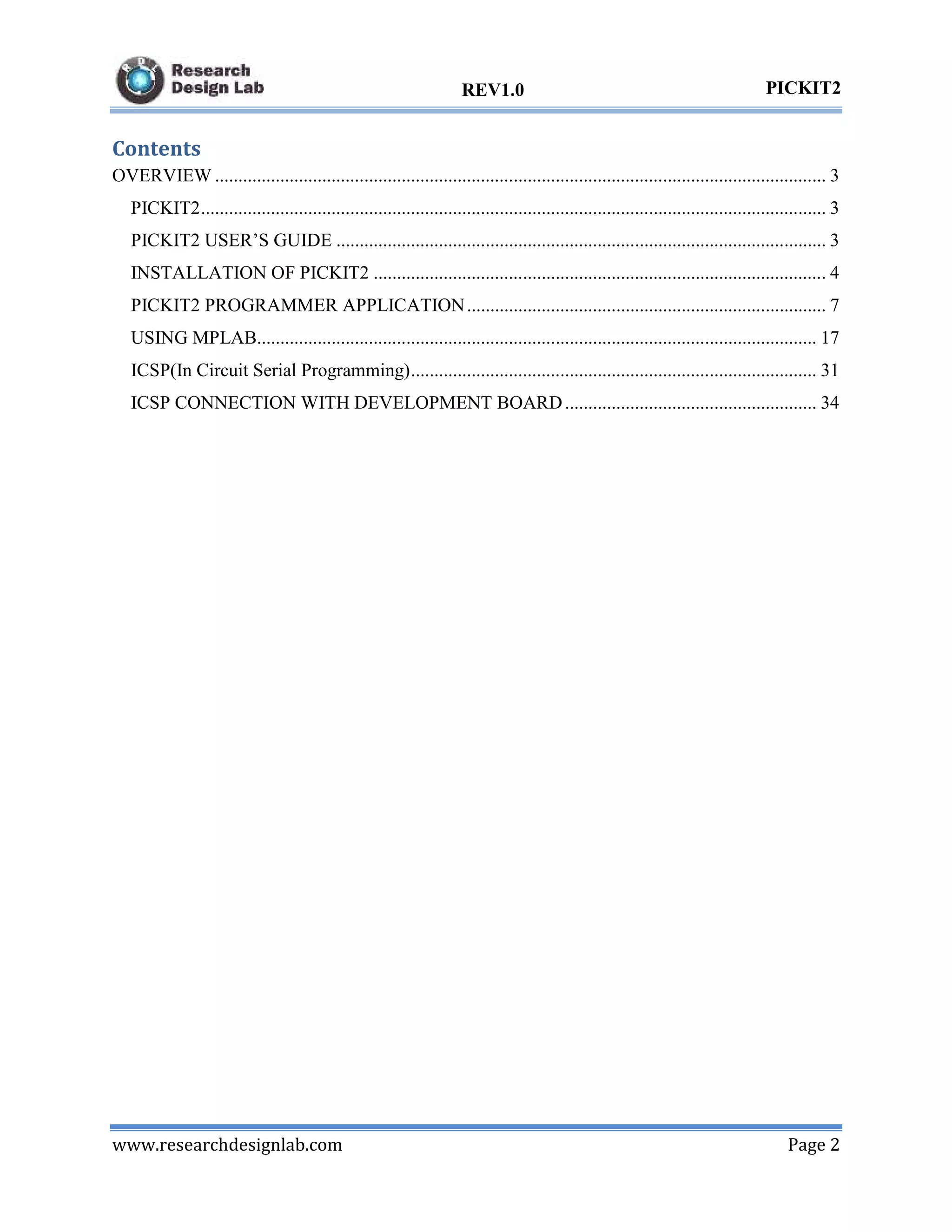

Contents
OVERVIEW ................................................................................................................................... 3
PICKIT2...................................................................................................................................... 3
PICKIT2 USER’S GUIDE ......................................................................................................... 3
INSTALLATION OF PICKIT2 ................................................................................................. 4
PICKIT2 PROGRAMMER APPLICATION............................................................................. 7
USING MPLAB........................................................................................................................ 17
ICSP(In Circuit Serial Programming)....................................................................................... 31
ICSP CONNECTION WITH DEVELOPMENT BOARD...................................................... 34

3. www.researchdesignlab.com Page 3
PICKIT2REV1.0
OVERVIEW
PICKIT2
The PICkit 2 Development Programmer/Debugger is a low-cost development programmer.
It is capable of programming most of Microchip.s Flash microcontrollers and serial
EEPROM devices.
The PICkit 2 Development Programmer/Debugger kit contains the following items:
1. The PICkit 2 Development Programmer/Debugger
2. USB cable
3. PICkit Starter Kit and MPLAB IDE
PICKIT2 USER’S GUIDE
USB Port Connection
The USB port connection is a USB mini-B connector. Connect the PICkit 2 to the PC using
the supplied USB cable.
Status LEDs
The Status LEDs indicate the status of the PICkit 2.
1. Power (green) . Power is applied to the PICkit 2 via the USB port.
2. Target (yellow) . The PICkit 2 is powering the target device.
3. Busy (red) . The PICkit 2 is busy with a function in progress, such asprogramming.

4. www.researchdesignlab.com Page 4
PICKIT2REV1.0
INSTALLATION OF PICKIT2
 Download the pickkit2 software.
 Run the setup.exe file
 Click on next.

5. www.researchdesignlab.com Page 5
PICKIT2REV1.0

6. www.researchdesignlab.com Page 6
PICKIT2REV1.0
 Click on next ->Exit

7. www.researchdesignlab.com Page 7
PICKIT2REV1.0
PICKIT2 PROGRAMMER APPLICATION

8. www.researchdesignlab.com Page 8
PICKIT2REV1.0
Check communication
Check Communication . Verifies USB communication with the PICkit 2 and ICSP
communication with a target device by attempting to identify the connected device
by its device ID.

9. www.researchdesignlab.com Page 9
PICKIT2REV1.0
Setting the VDD
 This will automatically set VDD when external supply is given .
 If there is no external supply
Calibrate VDD & Set Unit ID . Opens a wizard that steps the user through calibrating
the PICkit 2 VDD supplied voltage so it is more accurate, and optionally
assigning a Unit ID to identify between multiple PICkit 2 devices

10. www.researchdesignlab.com Page 10
PICKIT2REV1.0

11. www.researchdesignlab.com Page 11
PICKIT2REV1.0
After setting the VDD

12. www.researchdesignlab.com Page 12
PICKIT2REV1.0
Load the hex file

13. www.researchdesignlab.com Page 13
PICKIT2REV1.0

14. www.researchdesignlab.com Page 14
PICKIT2REV1.0
 Click on open

15. www.researchdesignlab.com Page 15
PICKIT2REV1.0
 Click on Write

16. www.researchdesignlab.com Page 16
PICKIT2REV1.0
To erase the memory
Click on erase
The Blank Check function will read the entire device to determine if Program Memory,
EEPROM Data memory, User IDs and Configuration bits are erased.

17. www.researchdesignlab.com Page 17
PICKIT2REV1.0
USING MPLAB
1) Open MPLAB
2) Create a folder in any drive.

18. www.researchdesignlab.com Page 18
PICKIT2REV1.0
SELECT DEVICE
SELECT LANGUAGE SUITE

19. www.researchdesignlab.com Page 19
PICKIT2REV1.0
CREATE NEW PROJECT
ADD FILES

20. www.researchdesignlab.com Page 20
PICKIT2REV1.0

21. www.researchdesignlab.com Page 21
PICKIT2REV1.0
PROJECT WIZARD SUMMARY

22. www.researchdesignlab.com Page 22
PICKIT2REV1.0
Write the Program

23. www.researchdesignlab.com Page 23
PICKIT2REV1.0
Save the program in respective folder

24. www.researchdesignlab.com Page 24
PICKIT2REV1.0
Add file

25. www.researchdesignlab.com Page 25
PICKIT2REV1.0
Select the .c file

26. www.researchdesignlab.com Page 26
PICKIT2REV1.0
CONFIGURATION BIT SETTINGS

27. www.researchdesignlab.com Page 27
PICKIT2REV1.0

28. www.researchdesignlab.com Page 28
PICKIT2REV1.0
SELECT DEVICE DIALOG

29. www.researchdesignlab.com Page 29
PICKIT2REV1.0
Choosing the pick kit 2 IC (16F877A)

30. www.researchdesignlab.com Page 30
PICKIT2REV1.0
Selecting PICkit 2 as the Debug Tool
Load the program on to pickit2

31. www.researchdesignlab.com Page 31
PICKIT2REV1.0
ICSP(In Circuit Serial Programming)
Pin 1: Ground
Pin 2: VCC
Pin 3: MCLR
Pin 4:PGC
Pin 5:PGD

32. www.researchdesignlab.com Page 32
PICKIT2REV1.0
NOTE:Connect Red strip to PGD

33. www.researchdesignlab.com Page 33
PICKIT2REV1.0
ICSP is a technique where programmable device is programmed after device is placed in the
circuit board

34. www.researchdesignlab.com Page 34
PICKIT2REV1.0
ICSP CONNECTION WITH DEVELOPMENT BOARD
