Golang Project Layout and Practice

Go Project Layout
and Practice
Bo-Yi Wu
2019.08.29
ModernWeb

About me
• Software Engineer in Mediatek
• Member of Drone CI/CD Platform
• Member of Gitea Platform
• Member of Gin Golang Framework
• Teacher of Udemy Platform: Golang + Drone
https://blog.wu-boy.com

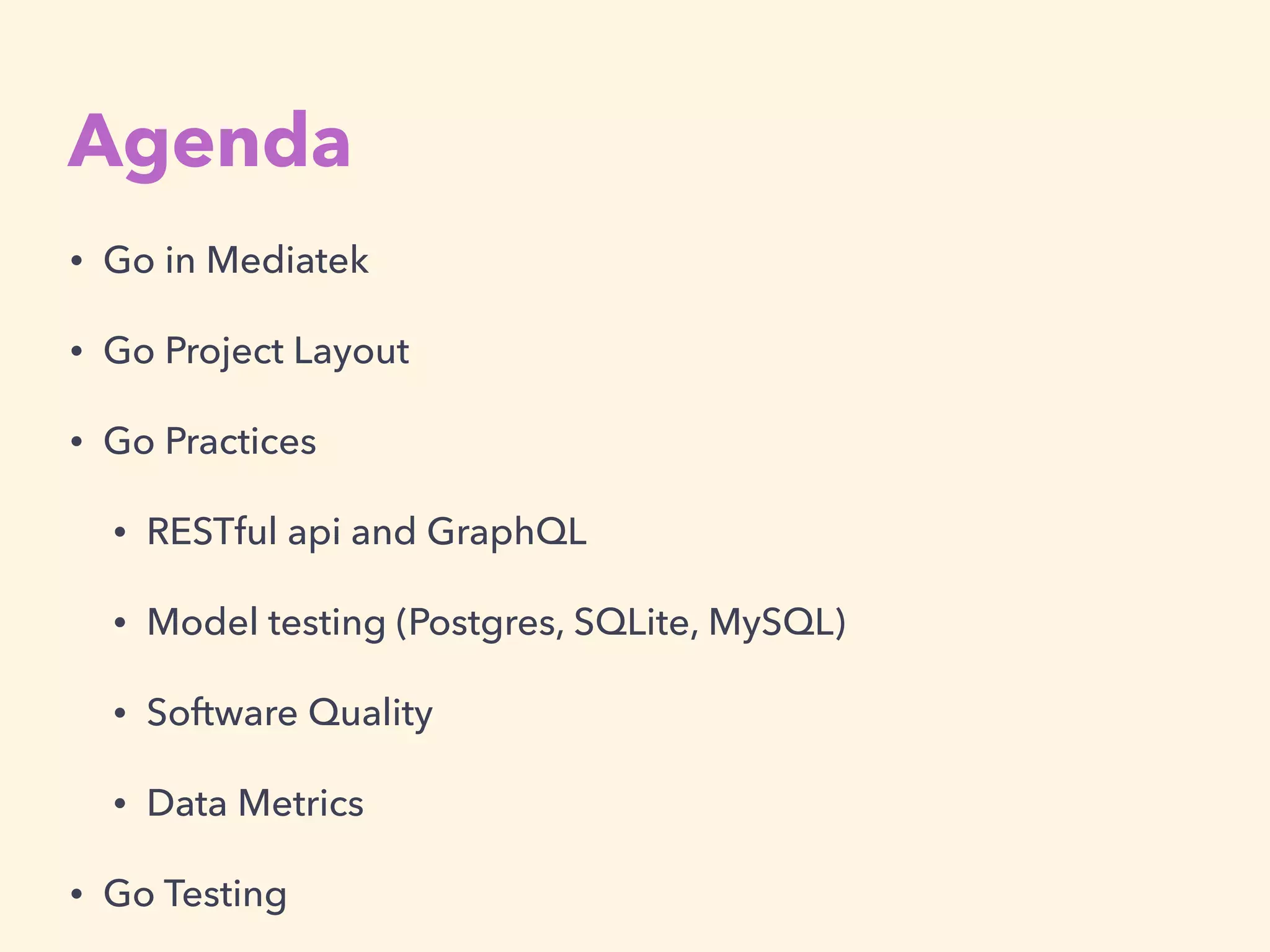

Agenda
• Go in Mediatek
• Go Project Layout
• Go Practices
• RESTful api and GraphQL
• Model testing (Postgres, SQLite, MySQL)
• Software Quality
• Data Metrics
• Go Testing

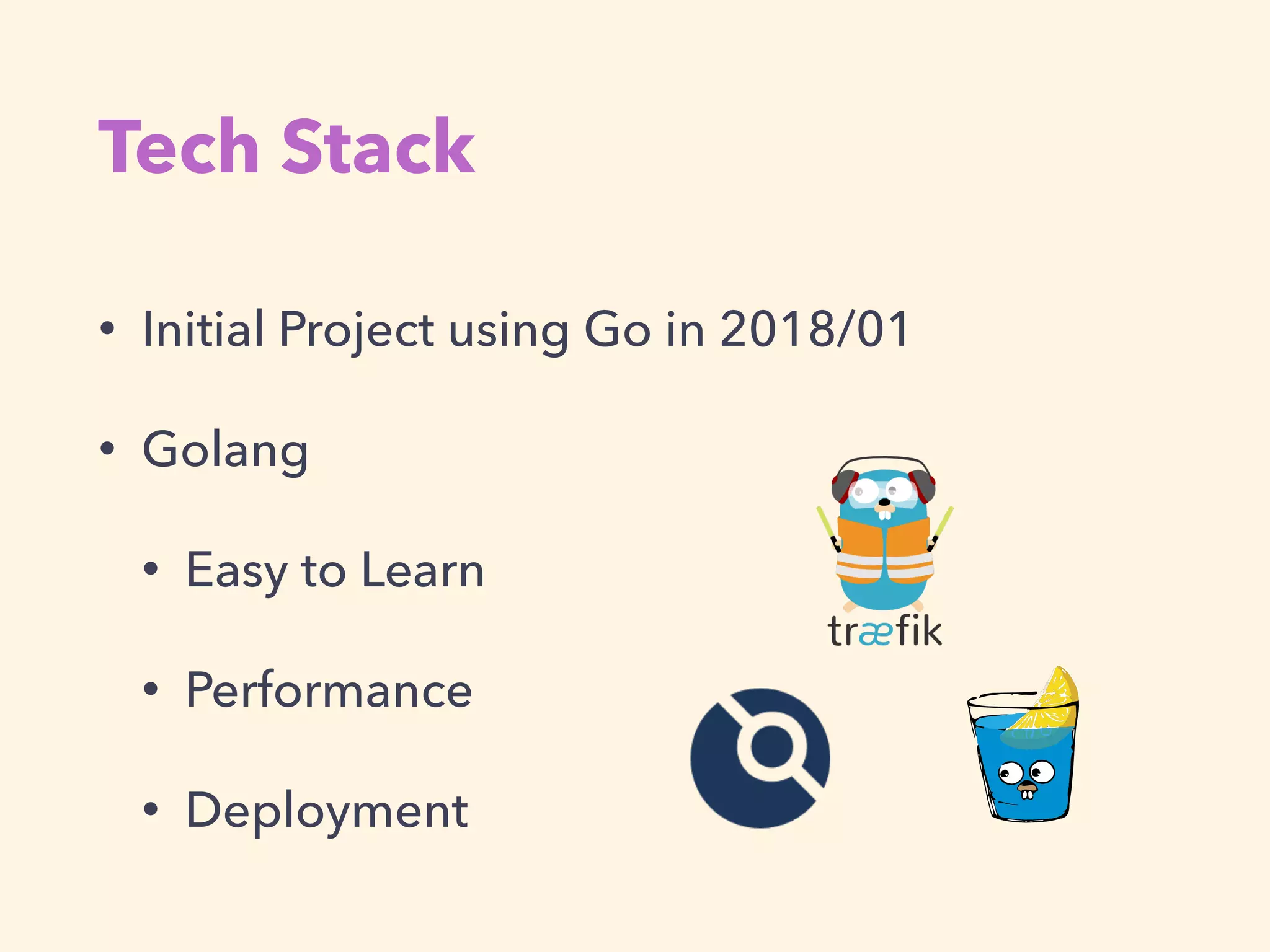

Tech Stack
• Initial Project using Go in 2018/01
• Golang
• Easy to Learn
• Performance
• Deployment

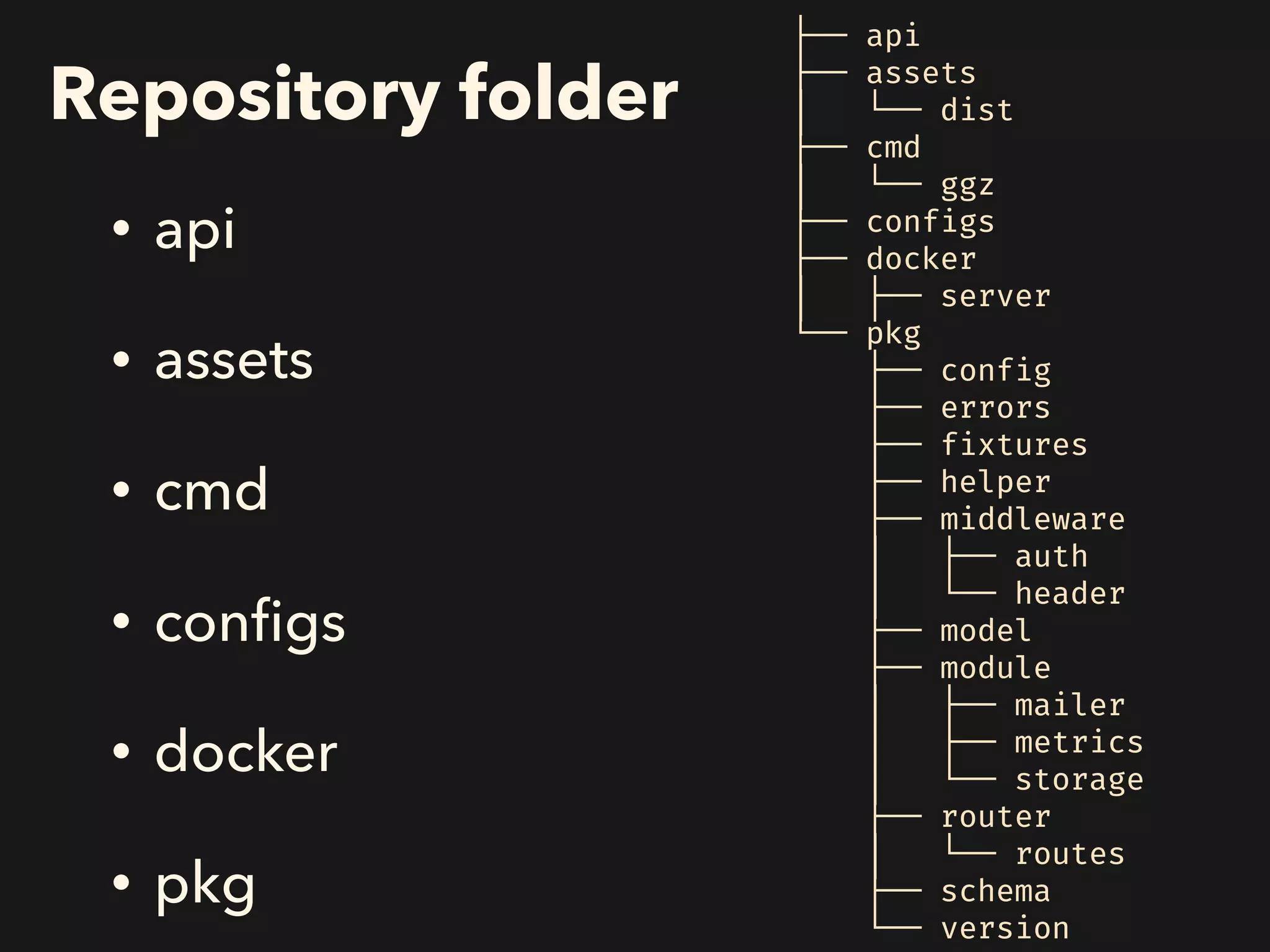

Repository folder
• api
• assets
• cmd
• conﬁgs
• docker
• pkg
├── api
├── assets
│   └── dist
├── cmd
│   └── ggz
├── configs
├── docker
│   ├── server
└── pkg
├── config
├── errors
├── fixtures
├── helper
├── middleware
│   ├── auth
│   └── header
├── model
├── module
│   ├── mailer
│   ├── metrics
│   └── storage
├── router
│   └── routes
├── schema
└── version

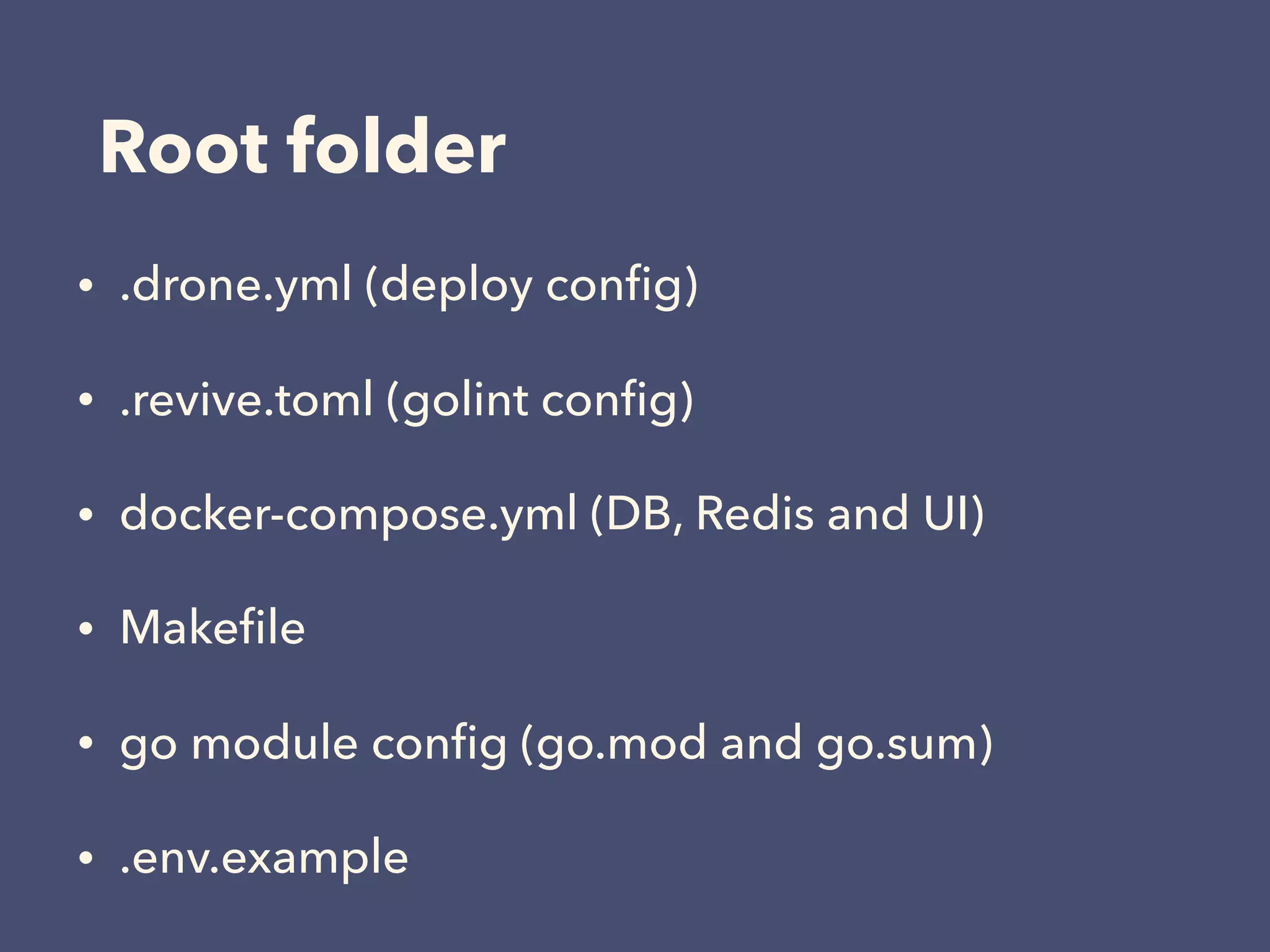

Root folder
• .drone.yml (deploy config)
• .revive.toml (golint config)
• docker-compose.yml (DB, Redis and UI)
• Makefile
• go module config (go.mod and go.sum)
• .env.example

Go Module
https://blog.golang.org/using-go-modules

Improve Deployment
Using Go Module Proxy
https://github.com/gomods/athens

save time
with proxy
97s -> 6s

Makeﬁle
Build, Testing, Deploy

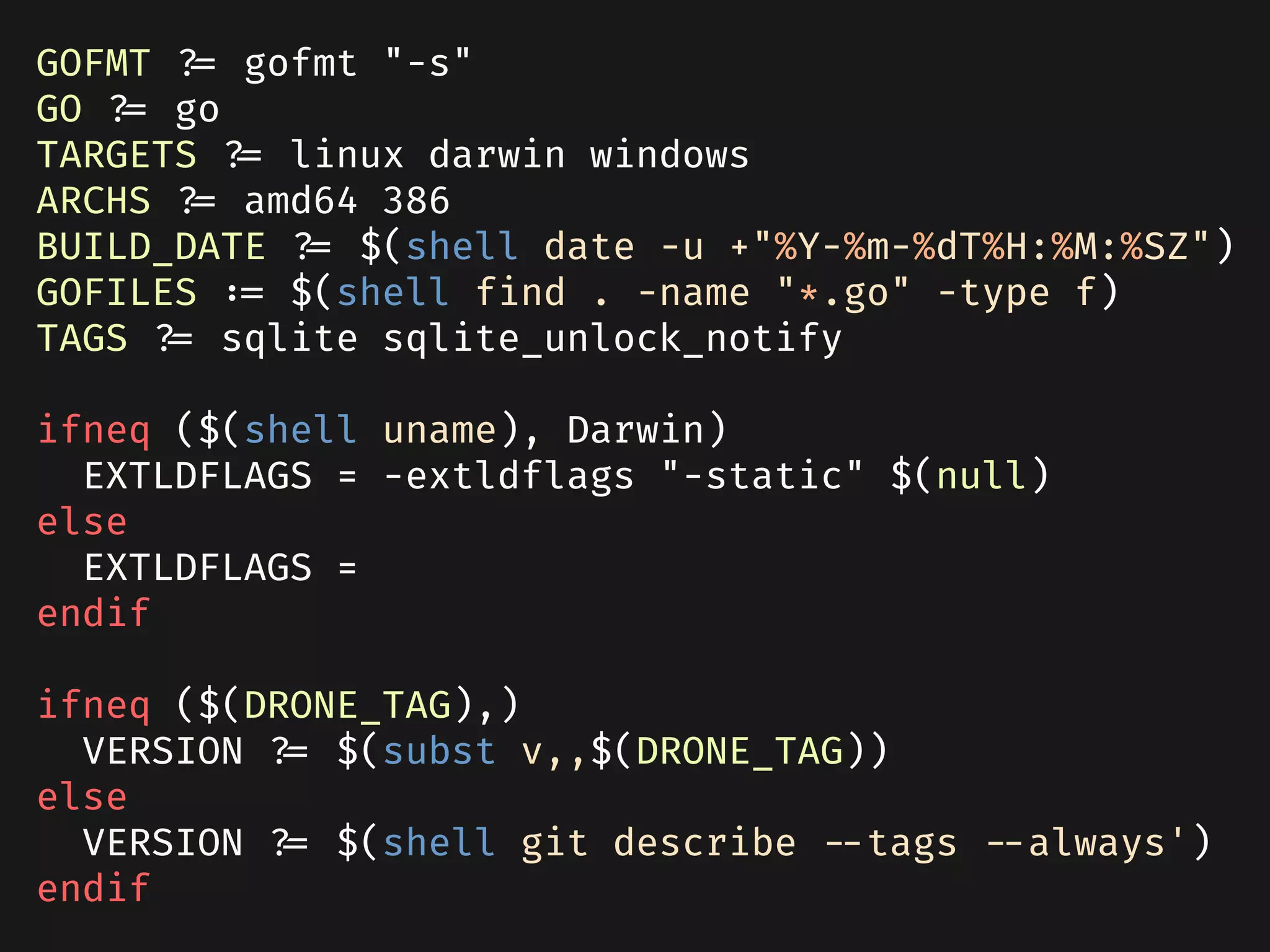

GOFMT ?= gofmt "-s"
GO ?= go
TARGETS ?= linux darwin windows
ARCHS ?= amd64 386
BUILD_DATE ?= $(shell date -u +"%Y-%m-%dT%H:%M:%SZ")
GOFILES := $(shell find . -name "*.go" -type f)
TAGS ?= sqlite sqlite_unlock_notify
ifneq ($(shell uname), Darwin)
  EXTLDFLAGS = -extldflags "-static" $(null)
else
  EXTLDFLAGS =
endif
ifneq ($(DRONE_TAG),)
  VERSION ?= $(subst v,,$(DRONE_TAG))
else
  VERSION ?= $(shell git describe --tags --always')
endif

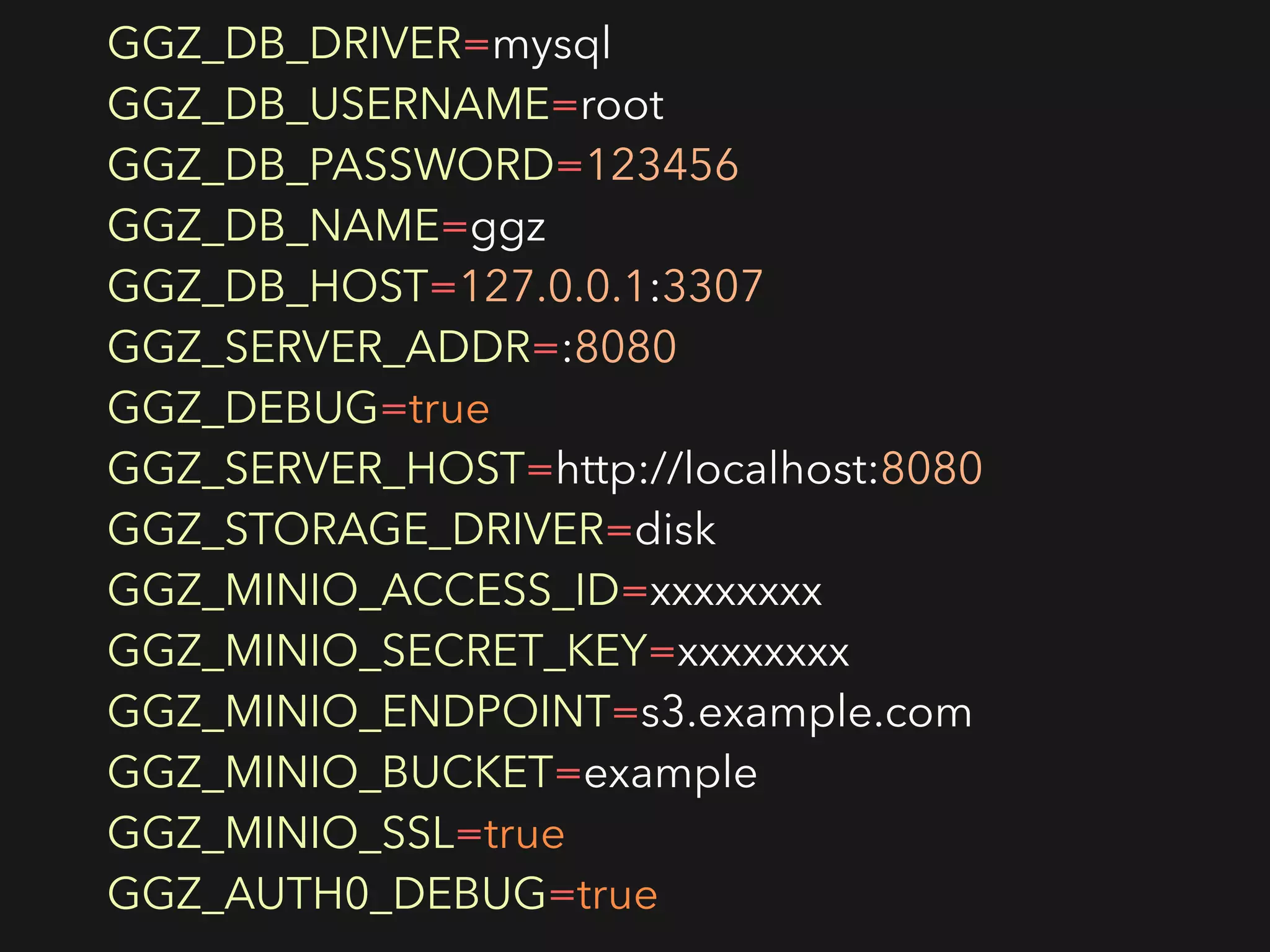

GGZ_DB_DRIVER=mysql
GGZ_DB_USERNAME=root
GGZ_DB_PASSWORD=123456
GGZ_DB_NAME=ggz
GGZ_DB_HOST=127.0.0.1:3307
GGZ_SERVER_ADDR=:8080
GGZ_DEBUG=true
GGZ_SERVER_HOST=http://localhost:8080
GGZ_STORAGE_DRIVER=disk
GGZ_MINIO_ACCESS_ID=xxxxxxxx
GGZ_MINIO_SECRET_KEY=xxxxxxxx
GGZ_MINIO_ENDPOINT=s3.example.com
GGZ_MINIO_BUCKET=example
GGZ_MINIO_SSL=true
GGZ_AUTH0_DEBUG=true

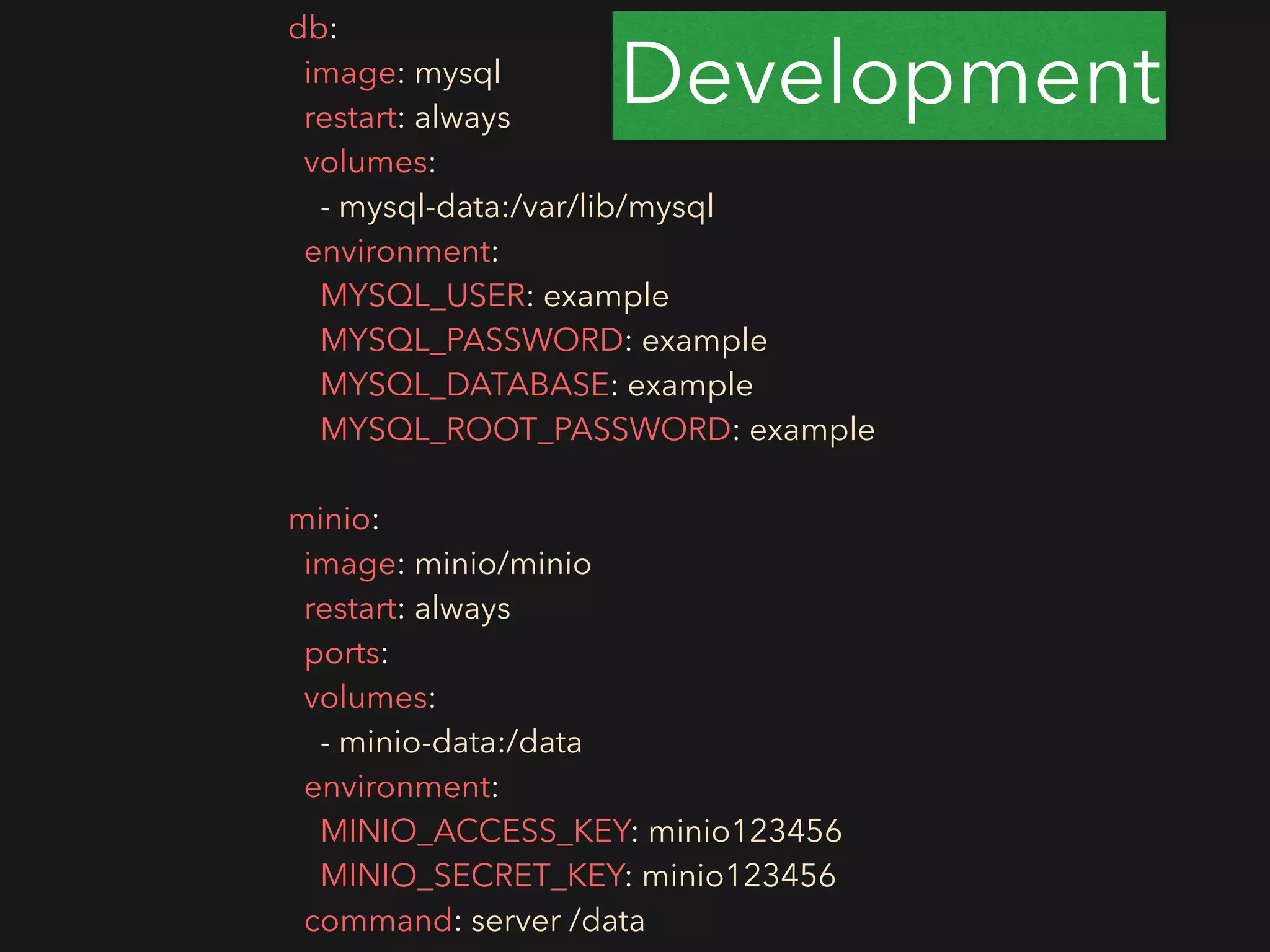

db:
image: mysql
restart: always
volumes:
- mysql-data:/var/lib/mysql
environment:
MYSQL_USER: example
MYSQL_PASSWORD: example
MYSQL_DATABASE: example
MYSQL_ROOT_PASSWORD: example
minio:
image: minio/minio
restart: always
ports:
volumes:
- minio-data:/data
environment:
MINIO_ACCESS_KEY: minio123456
MINIO_SECRET_KEY: minio123456
command: server /data
Development

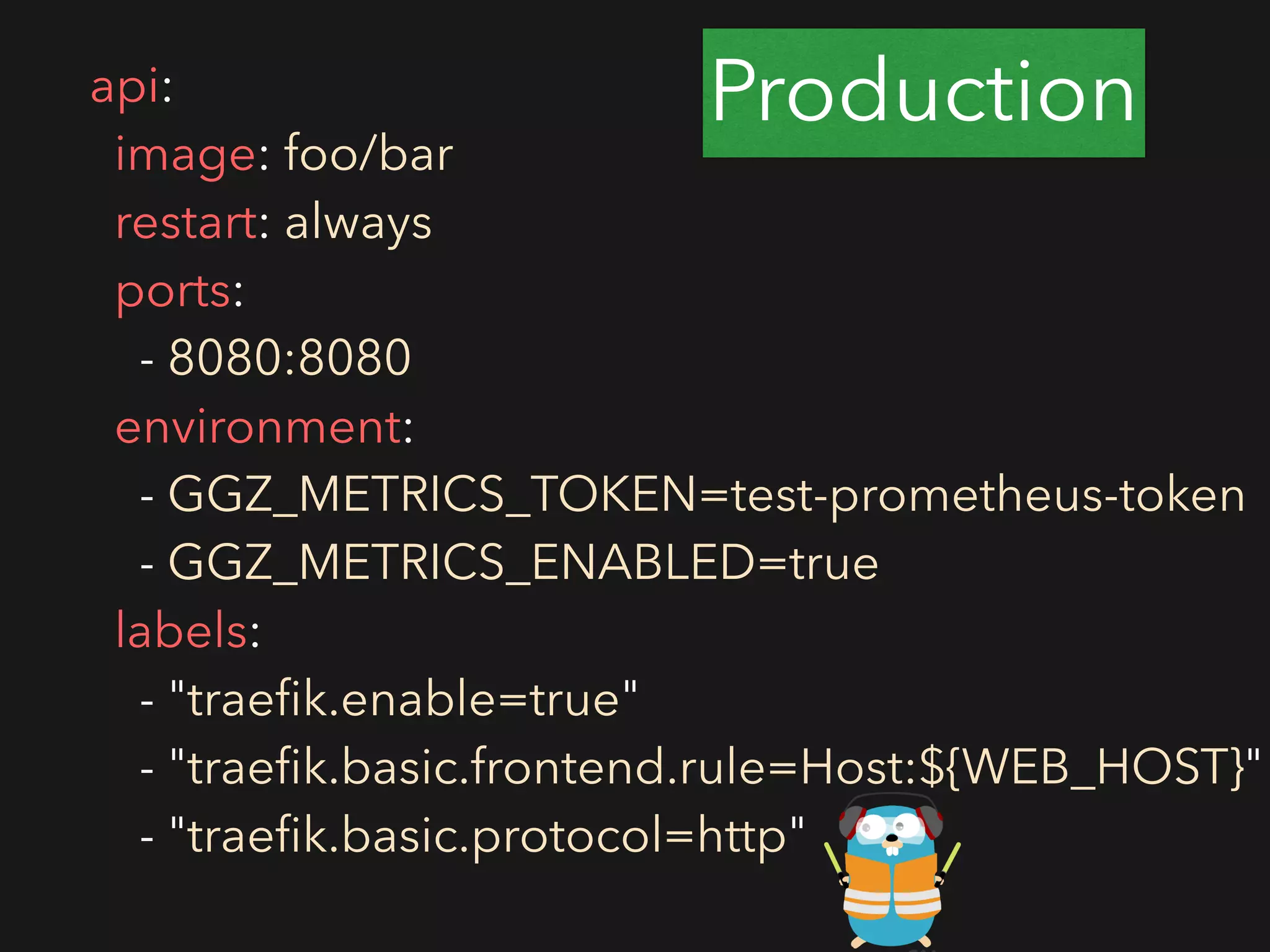

Productionapi:
image: foo/bar
restart: always
ports:
- 8080:8080
environment:
- GGZ_METRICS_TOKEN=test-prometheus-token
- GGZ_METRICS_ENABLED=true
labels:
- "traefik.enable=true"
- "traefik.basic.frontend.rule=Host:${WEB_HOST}"
- "traefik.basic.protocol=http"

VersionCompile version info into Go binary

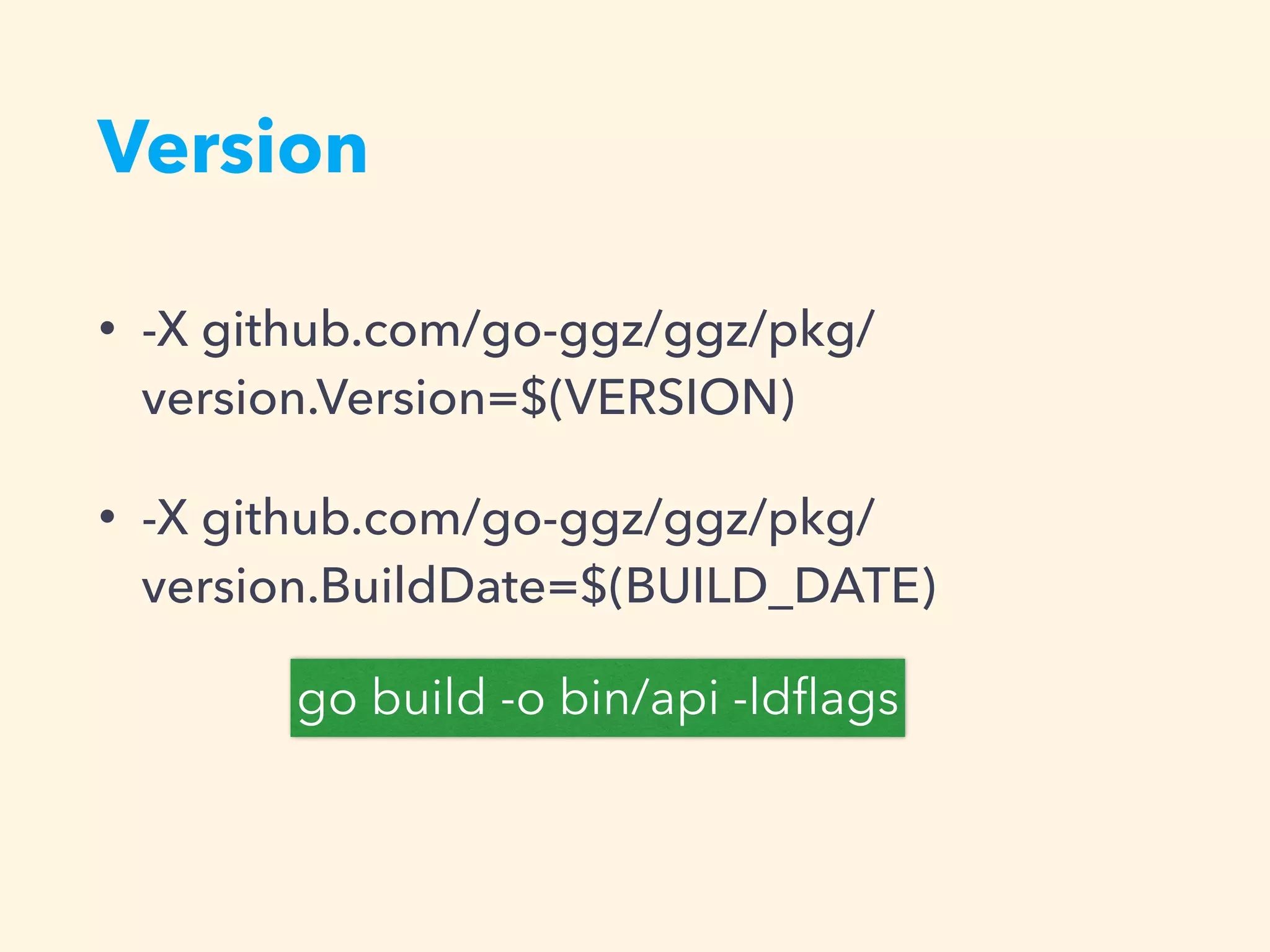

Version
• -X github.com/go-ggz/ggz/pkg/
version.Version=$(VERSION)
• -X github.com/go-ggz/ggz/pkg/
version.BuildDate=$(BUILD_DATE)
go build -o bin/api -ldﬂags

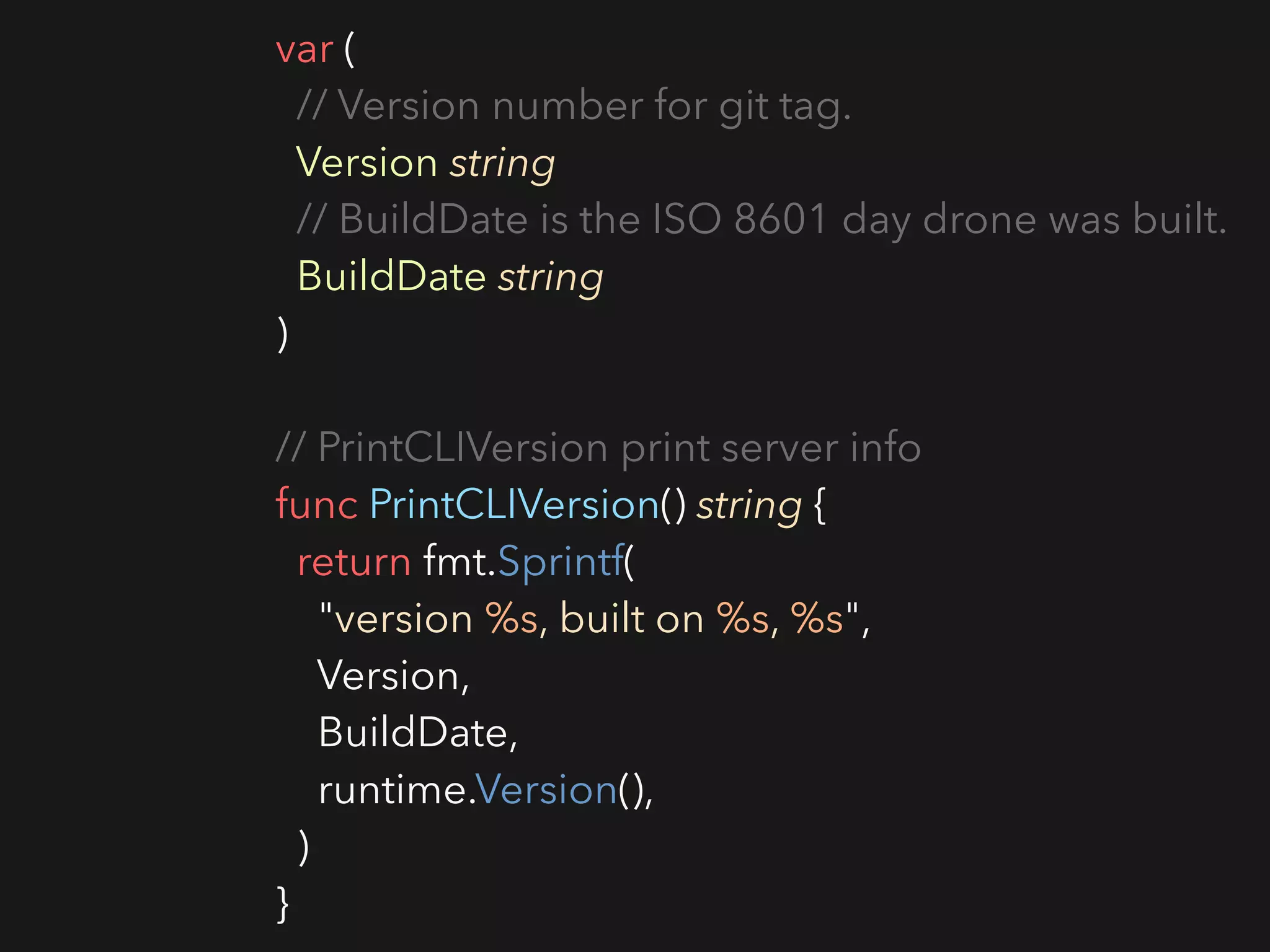

var (
  // Version number for git tag.
  Version string
  // BuildDate is the ISO 8601 day drone was built.
  BuildDate string
)
// PrintCLIVersion print server info
func PrintCLIVersion() string {
  return fmt.Sprintf(
    "version %s, built on %s, %s",
    Version,
    BuildDate,
    runtime.Version(),
  )
}

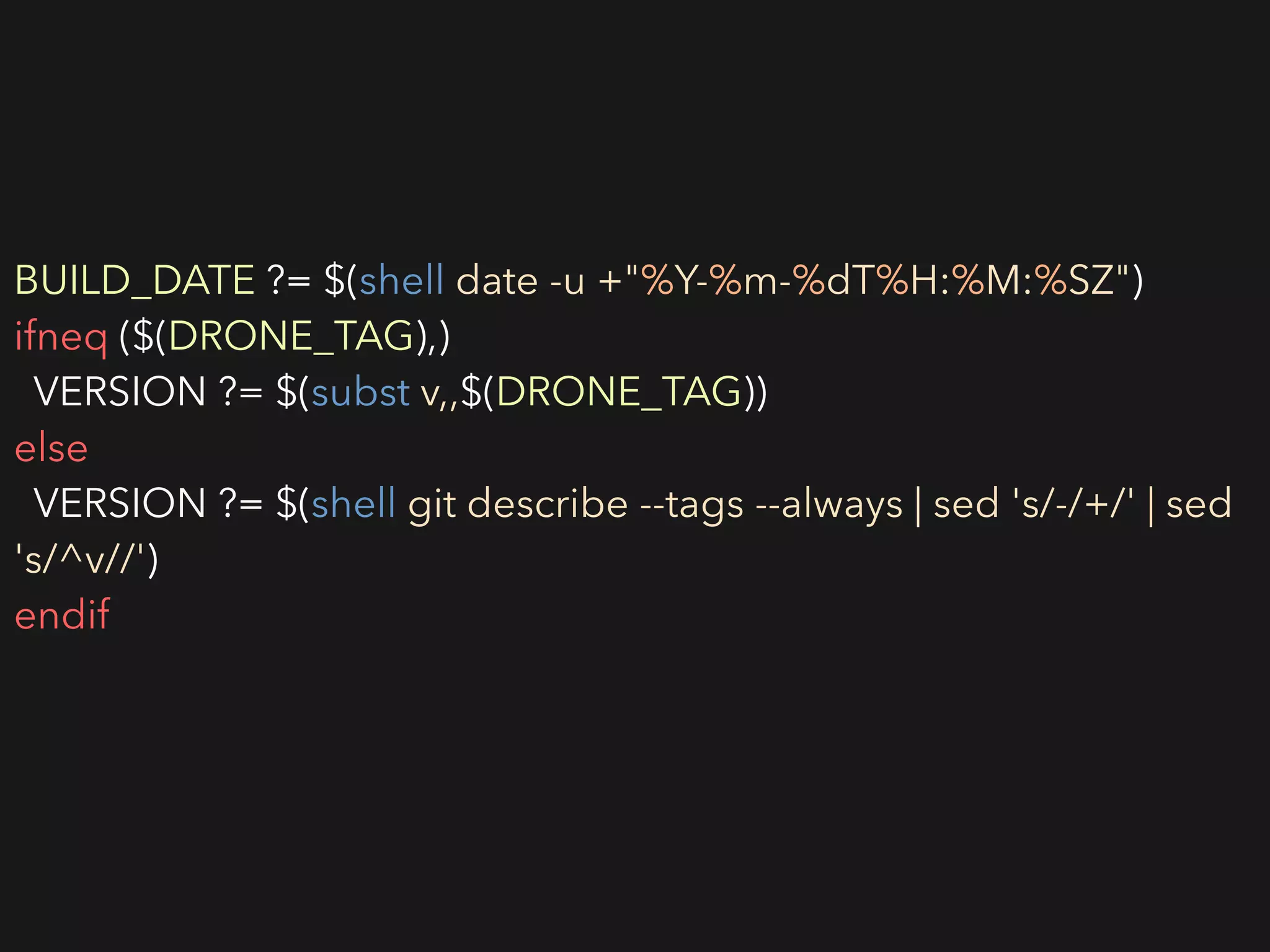

BUILD_DATE ?= $(shell date -u +"%Y-%m-%dT%H:%M:%SZ")
ifneq ($(DRONE_TAG),)
VERSION ?= $(subst v,,$(DRONE_TAG))
else
VERSION ?= $(shell git describe --tags --always | sed 's/-/+/' | sed
's/^v//')
endif

AssetsEmbed ﬁles in Go
https://github.com/UnnoTed/ﬁleb0x

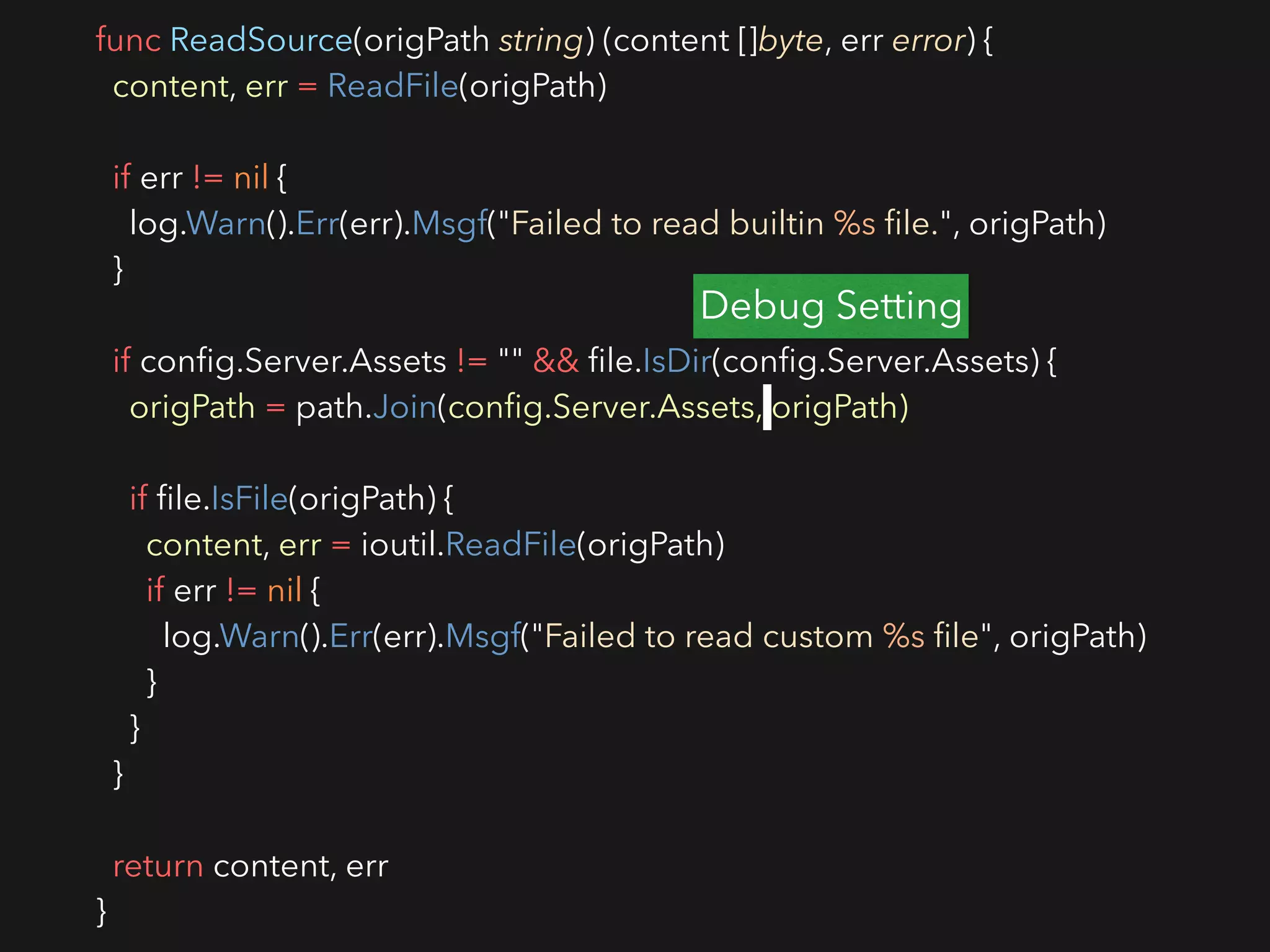

func ReadSource(origPath string) (content []byte, err error) {
  content, err = ReadFile(origPath)
  if err != nil {
    log.Warn().Err(err).Msgf("Failed to read builtin %s file.", origPath)
  }
  if config.Server.Assets != "" && file.IsDir(config.Server.Assets) {
    origPath = path.Join(config.Server.Assets, origPath)
    if file.IsFile(origPath) {
      content, err = ioutil.ReadFile(origPath)
      if err != nil {
        log.Warn().Err(err).Msgf("Failed to read custom %s file", origPath)
      }
    }
  }
  return content, err
}
Debug Setting

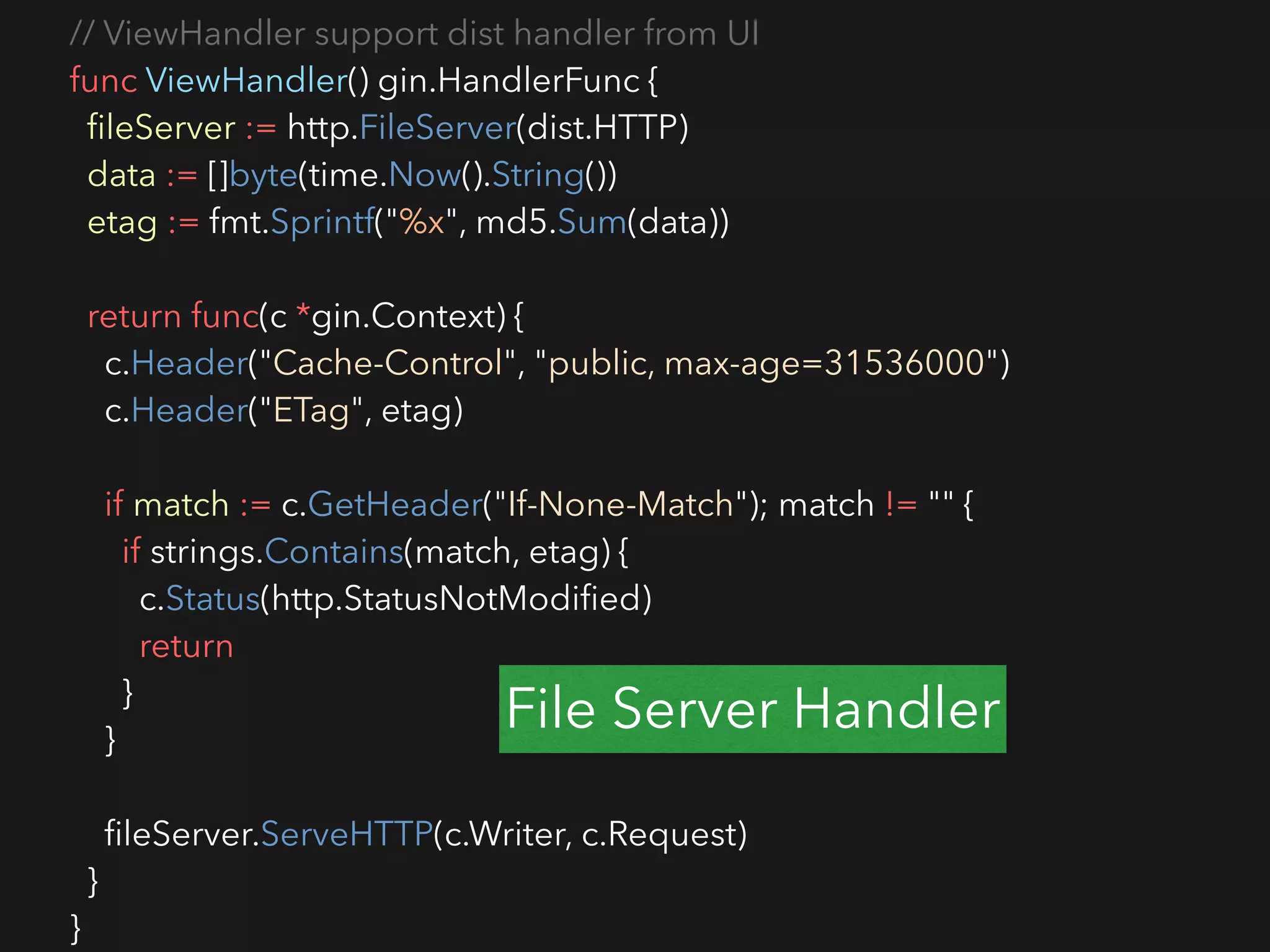

// ViewHandler support dist handler from UI
func ViewHandler() gin.HandlerFunc {
  fileServer := http.FileServer(dist.HTTP)
  data := []byte(time.Now().String())
  etag := fmt.Sprintf("%x", md5.Sum(data))
  return func(c *gin.Context) {
    c.Header("Cache-Control", "public, max-age=31536000")
    c.Header("ETag", etag)
    if match := c.GetHeader("If-None-Match"); match != "" {
      if strings.Contains(match, etag) {
        c.Status(http.StatusNotModified)
        return
      }
    }
    fileServer.ServeHTTP(c.Writer, c.Request)
  }
}
File Server Handler

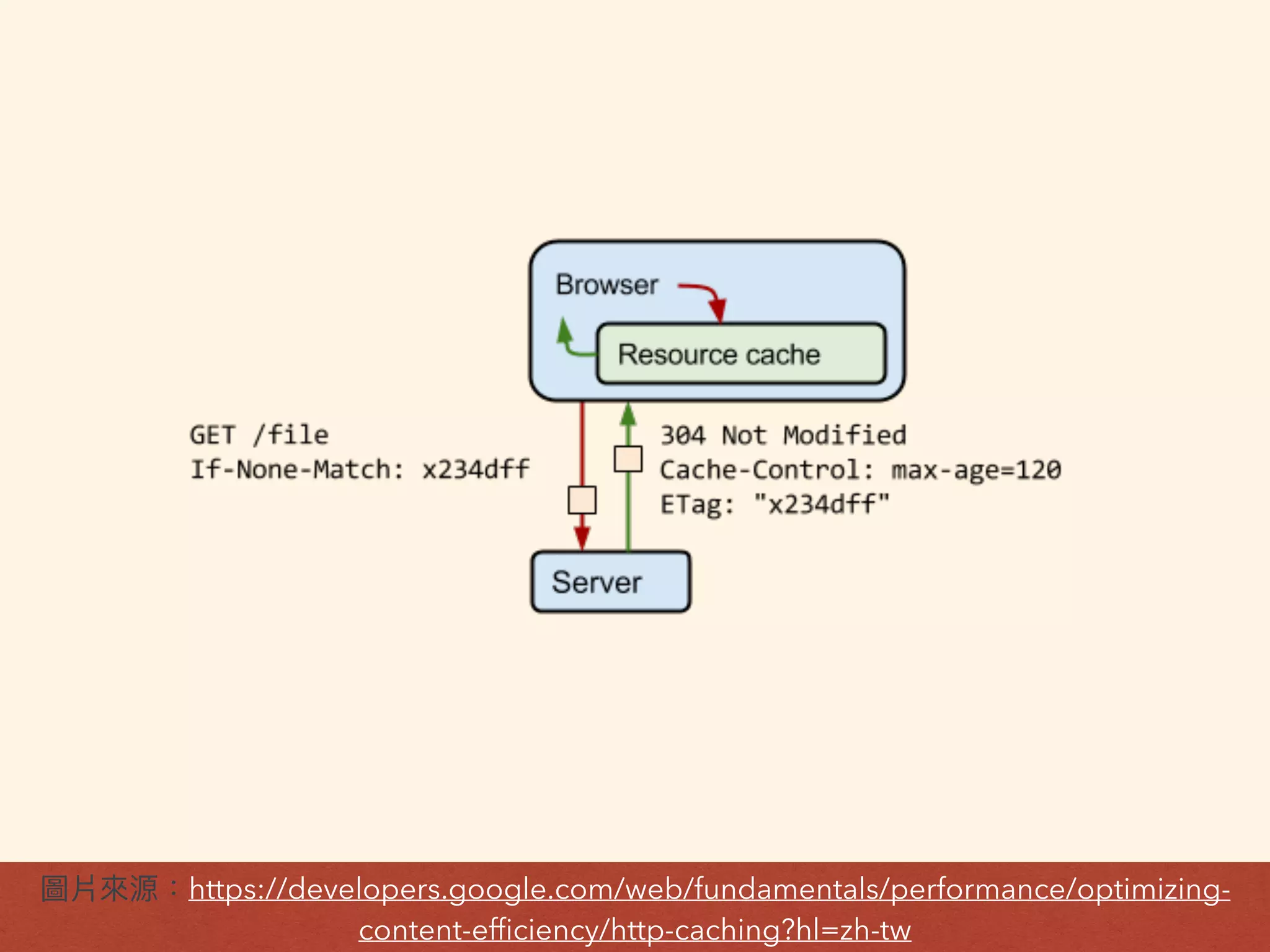

圖片來來源：https://developers.google.com/web/fundamentals/performance/optimizing-
content-efﬁciency/http-caching?hl=zh-tw

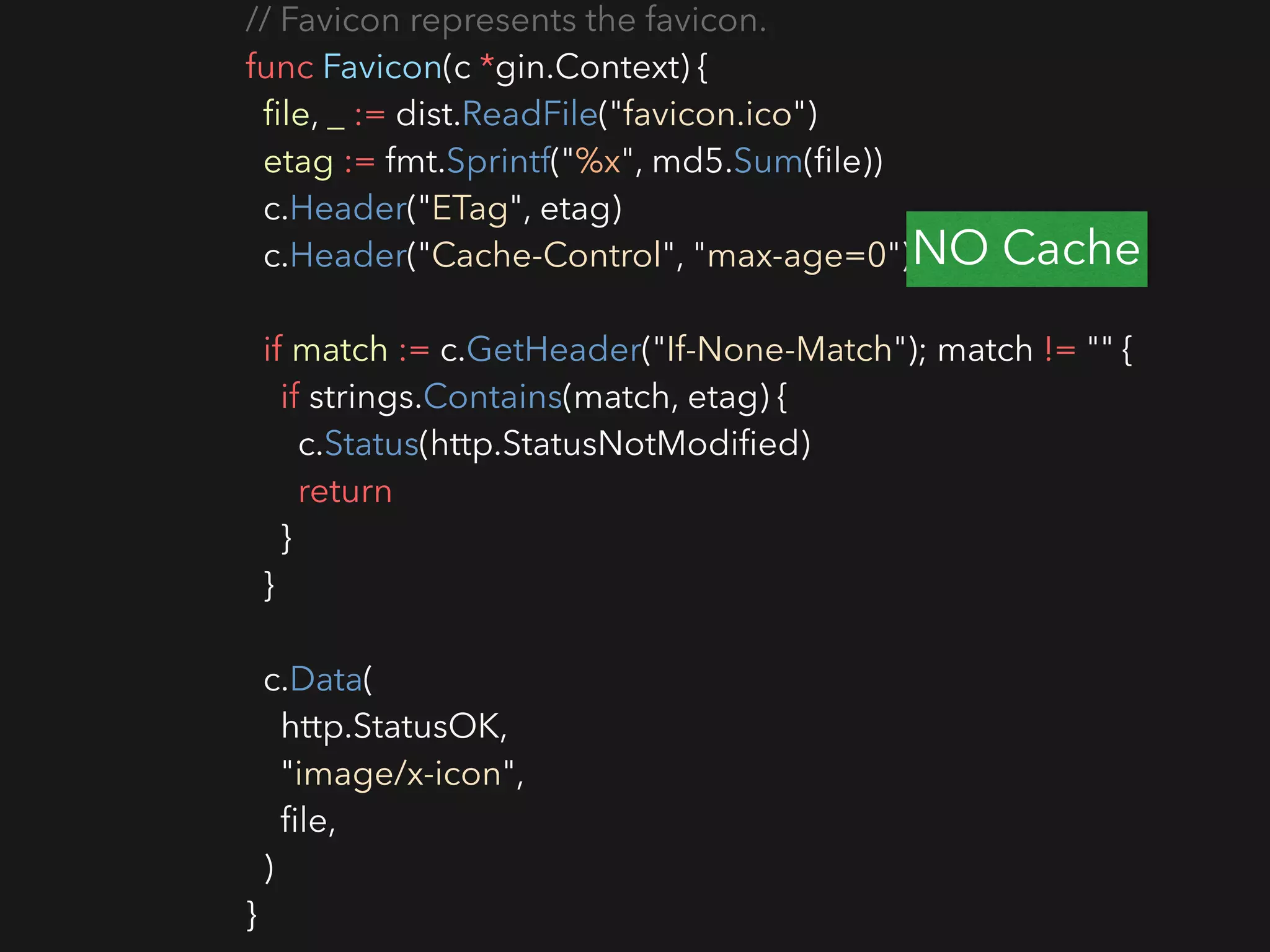

// Favicon represents the favicon.
func Favicon(c *gin.Context) {
  file, _ := dist.ReadFile("favicon.ico")
  etag := fmt.Sprintf("%x", md5.Sum(file))
  c.Header("ETag", etag)
  c.Header("Cache-Control", "max-age=0")
  if match := c.GetHeader("If-None-Match"); match != "" {
    if strings.Contains(match, etag) {
      c.Status(http.StatusNotModified)
      return
    }
  }
  c.Data(
    http.StatusOK,
    "image/x-icon",
    file,
  )
}
NO Cache

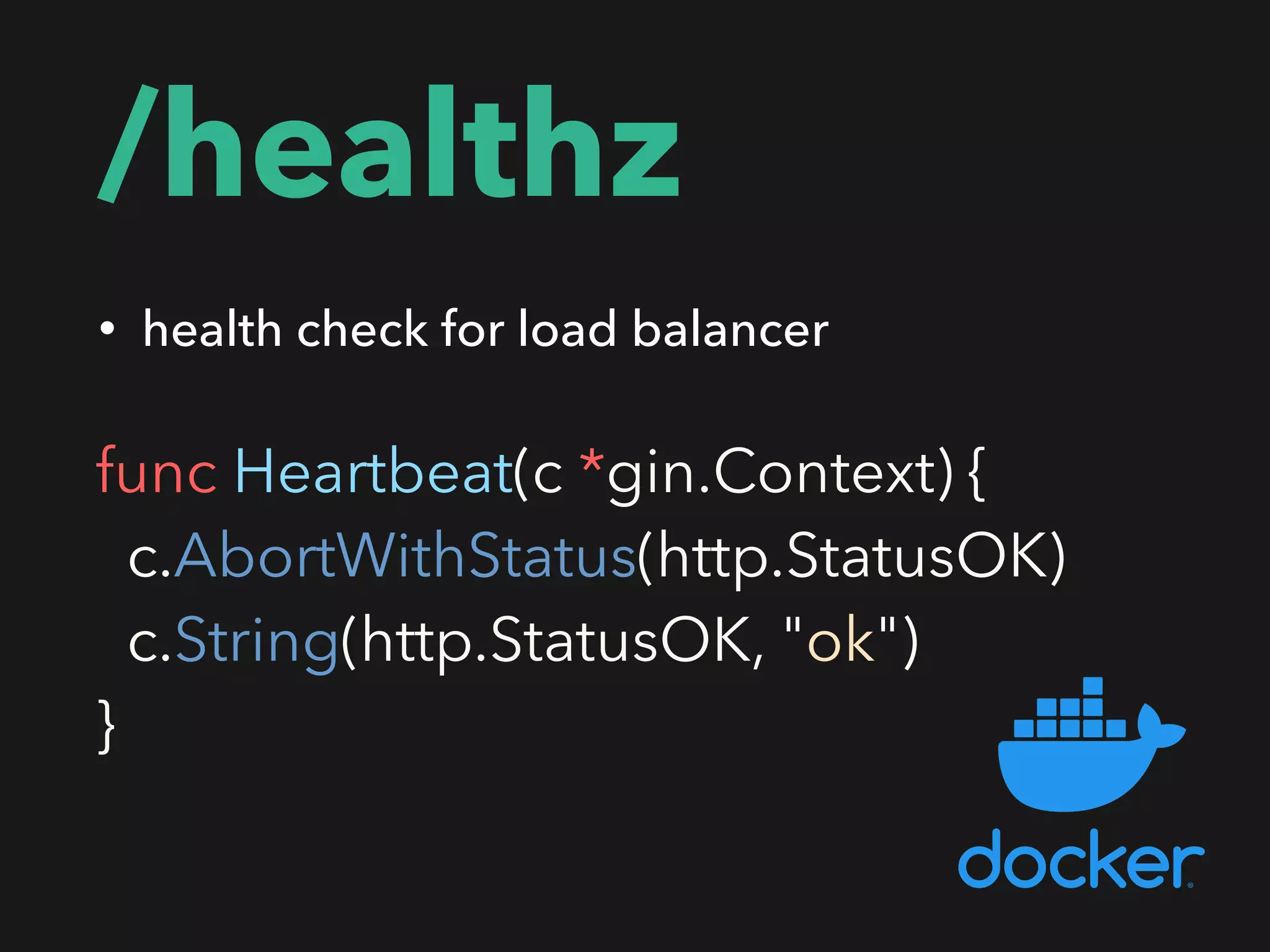

/healthz
• health check for load balancer
func Heartbeat(c *gin.Context) {
c.AbortWithStatus(http.StatusOK)
c.String(http.StatusOK, "ok")
}

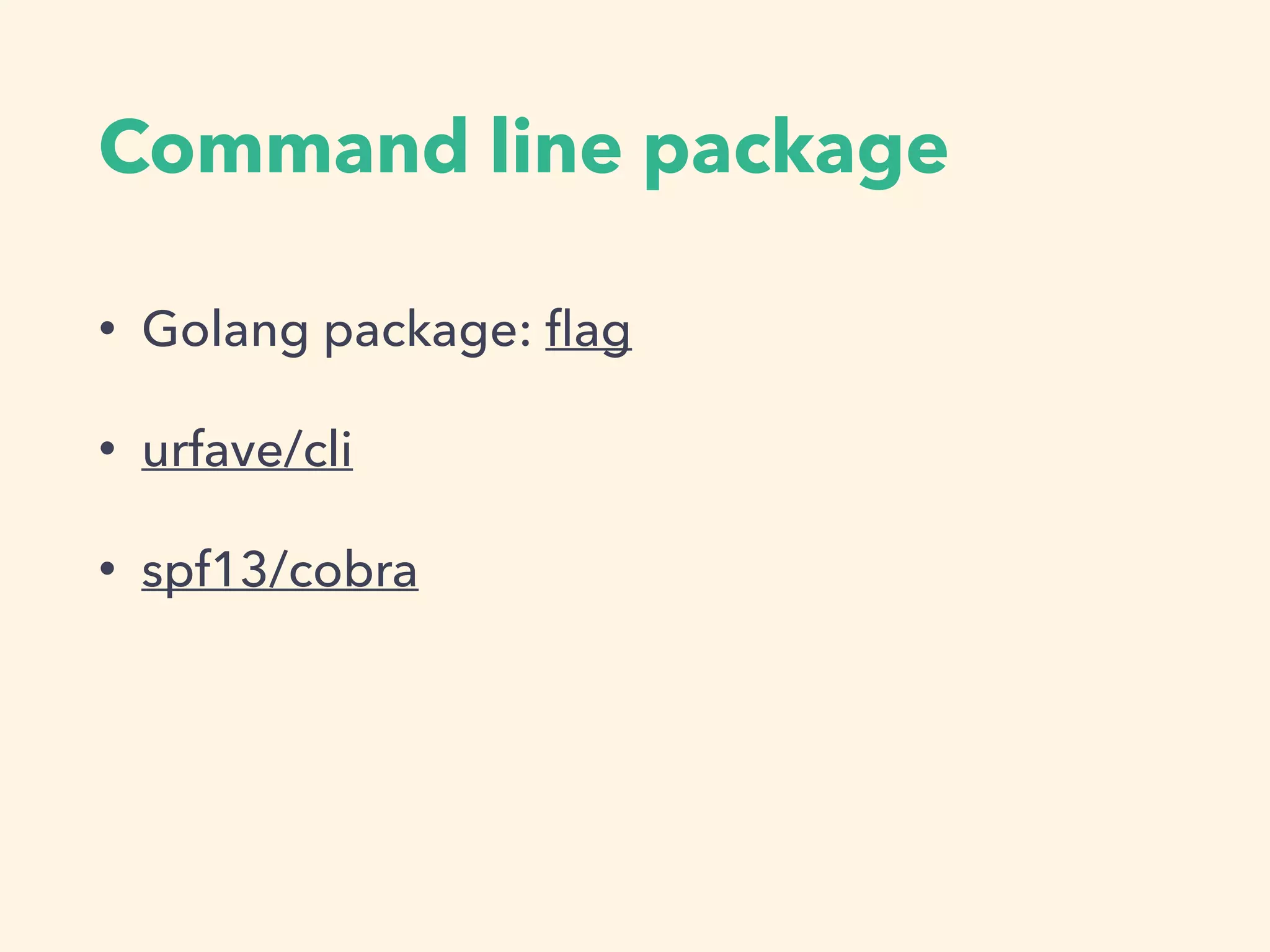

Command line package
• Golang package: ﬂag
• urfave/cli
• spf13/cobra

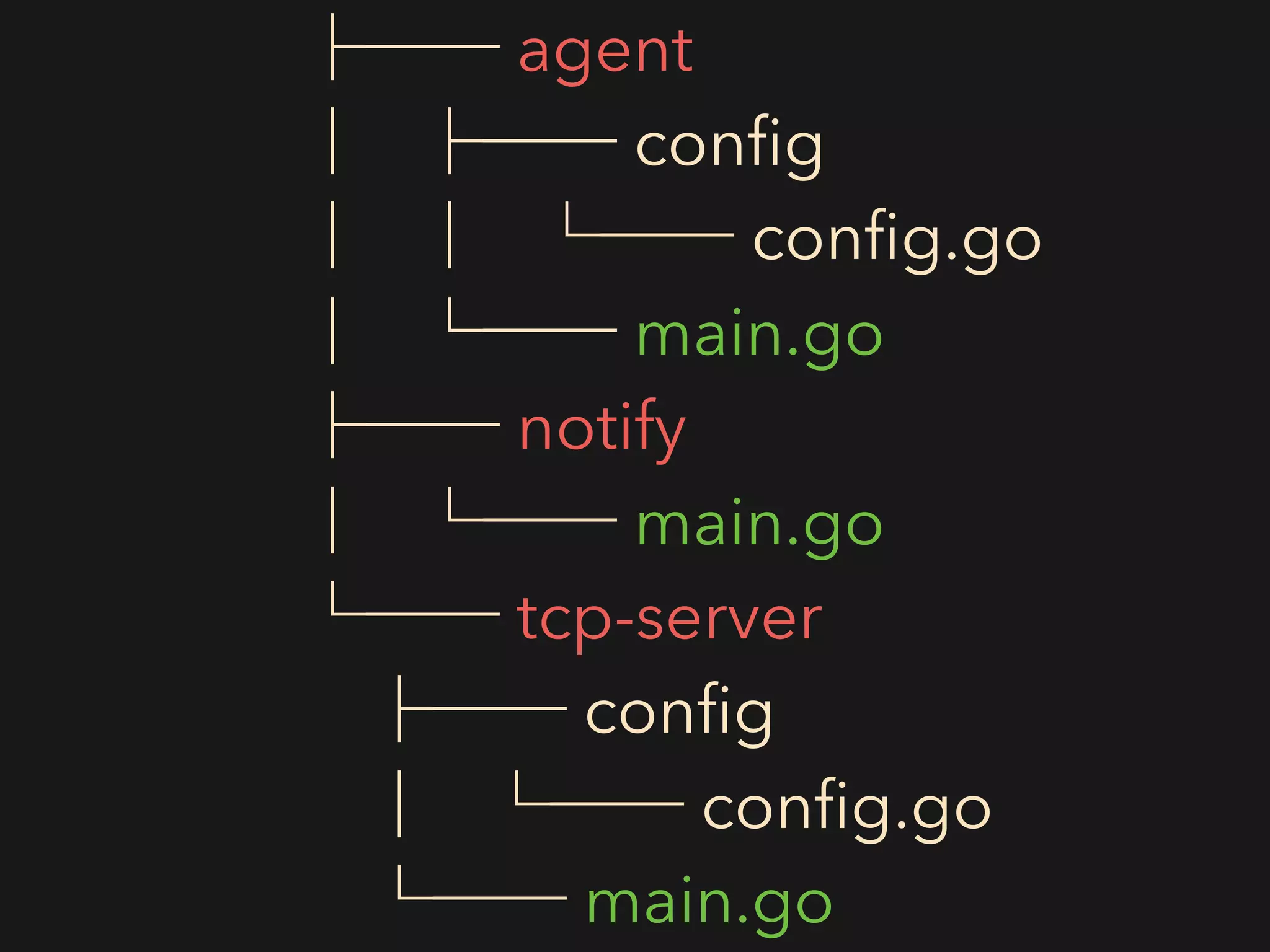

├── agent
│   ├── config
│   │   └── config.go
│   └── main.go
├── notify
│   └── main.go
└── tcp-server
├── config
│   └── config.go
└── main.go

Conﬁg
Management
github.com/spf13/viper

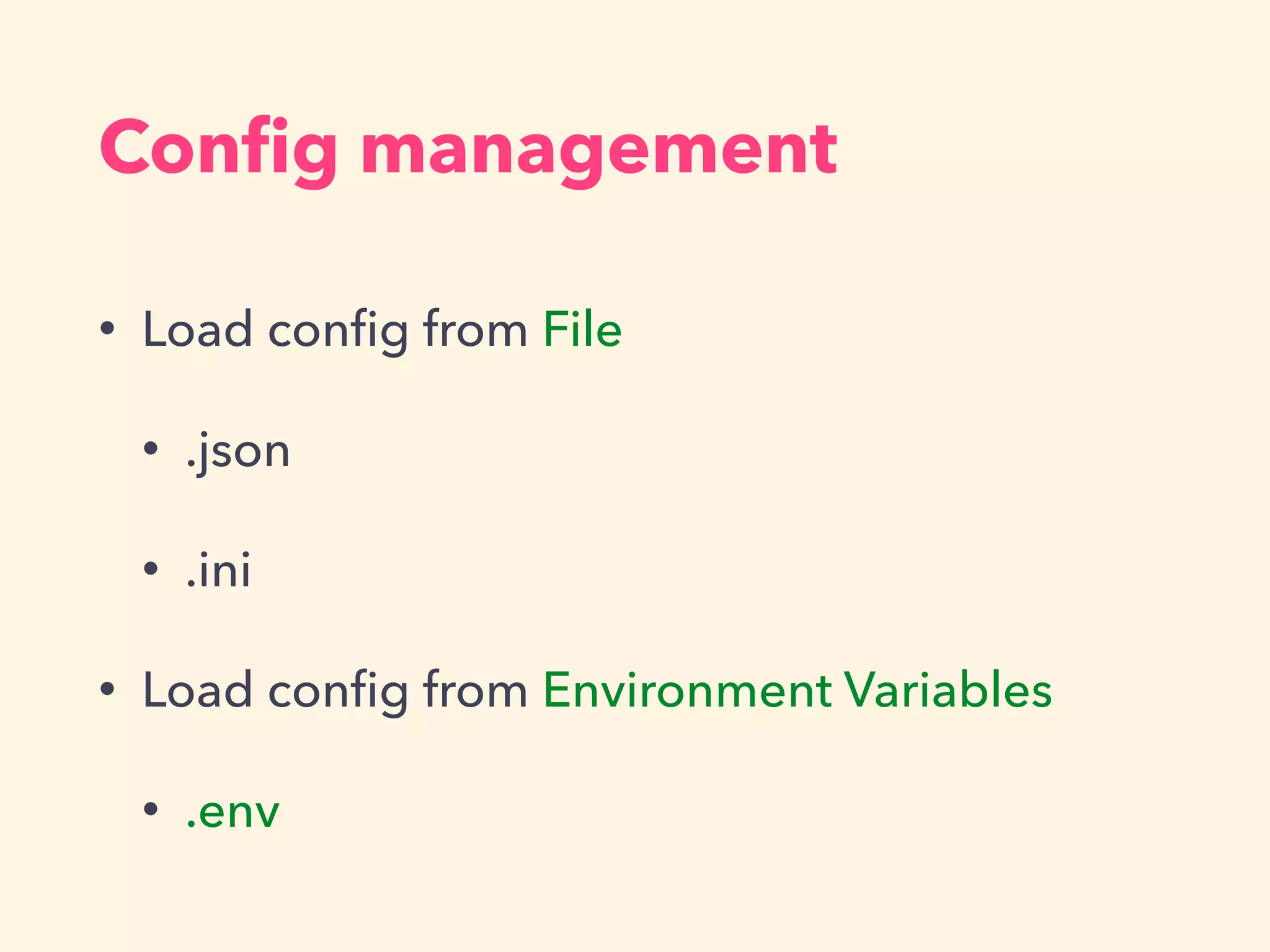

Config management
• Load config from File
• .json
• .ini
• Load config from Environment Variables
• .env

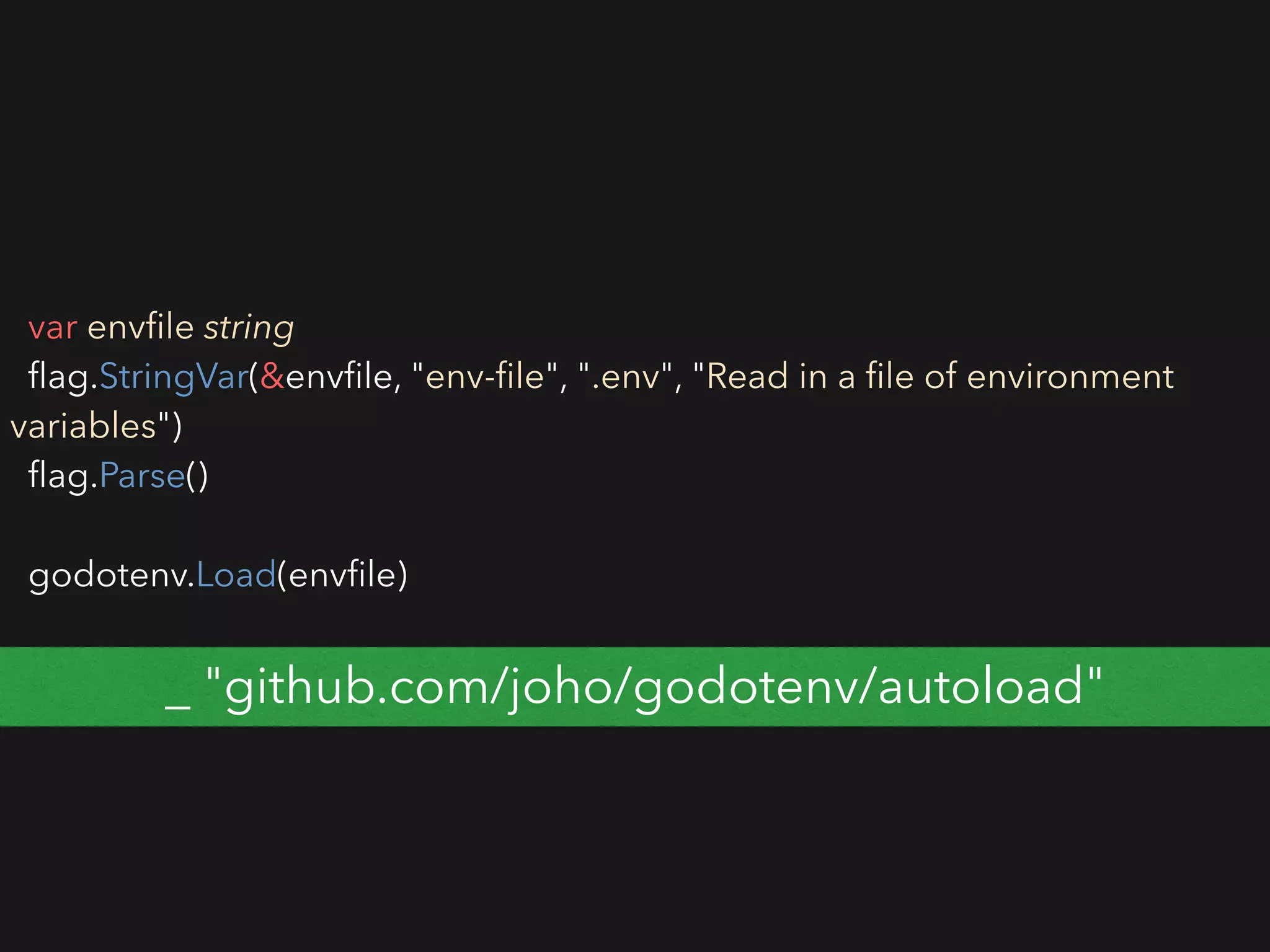

var envfile string
flag.StringVar(&envfile, "env-file", ".env", "Read in a file of environment
variables")
flag.Parse()
godotenv.Load(envfile)
_ "github.com/joho/godotenv/autoload"

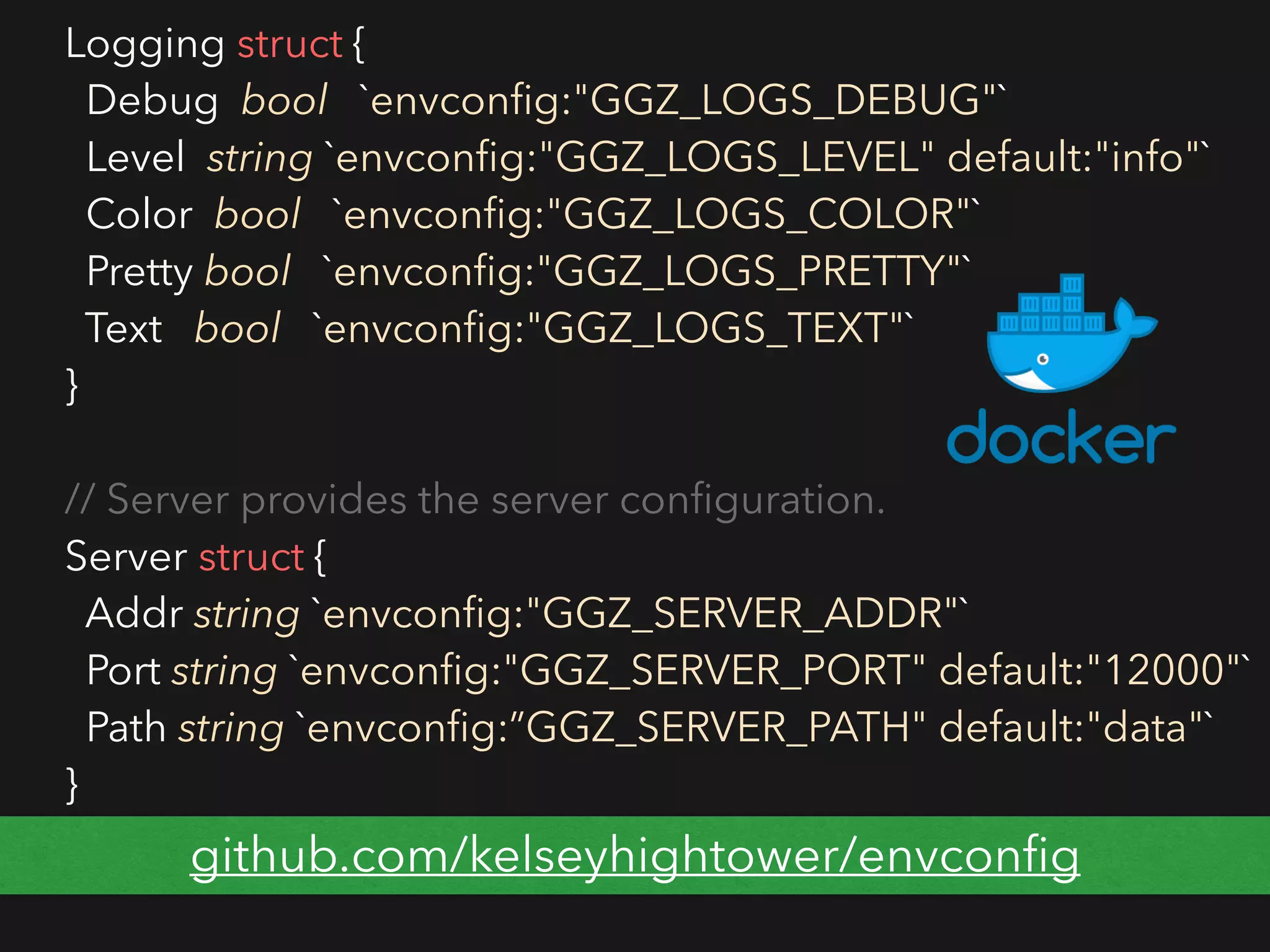

Logging struct {
    Debug bool ènvconfig:"GGZ_LOGS_DEBUG"`
    Level string ènvconfig:"GGZ_LOGS_LEVEL" default:"info"`
    Color bool ènvconfig:"GGZ_LOGS_COLOR"`
    Pretty bool ènvconfig:"GGZ_LOGS_PRETTY"`
    Text bool ènvconfig:"GGZ_LOGS_TEXT"`
  }
  // Server provides the server configuration.
  Server struct {
    Addr string ènvconfig:"GGZ_SERVER_ADDR"`
    Port string ènvconfig:"GGZ_SERVER_PORT" default:"12000"`
    Path string ènvconfig:”GGZ_SERVER_PATH" default:"data"`
  }
github.com/kelseyhightower/envconfig

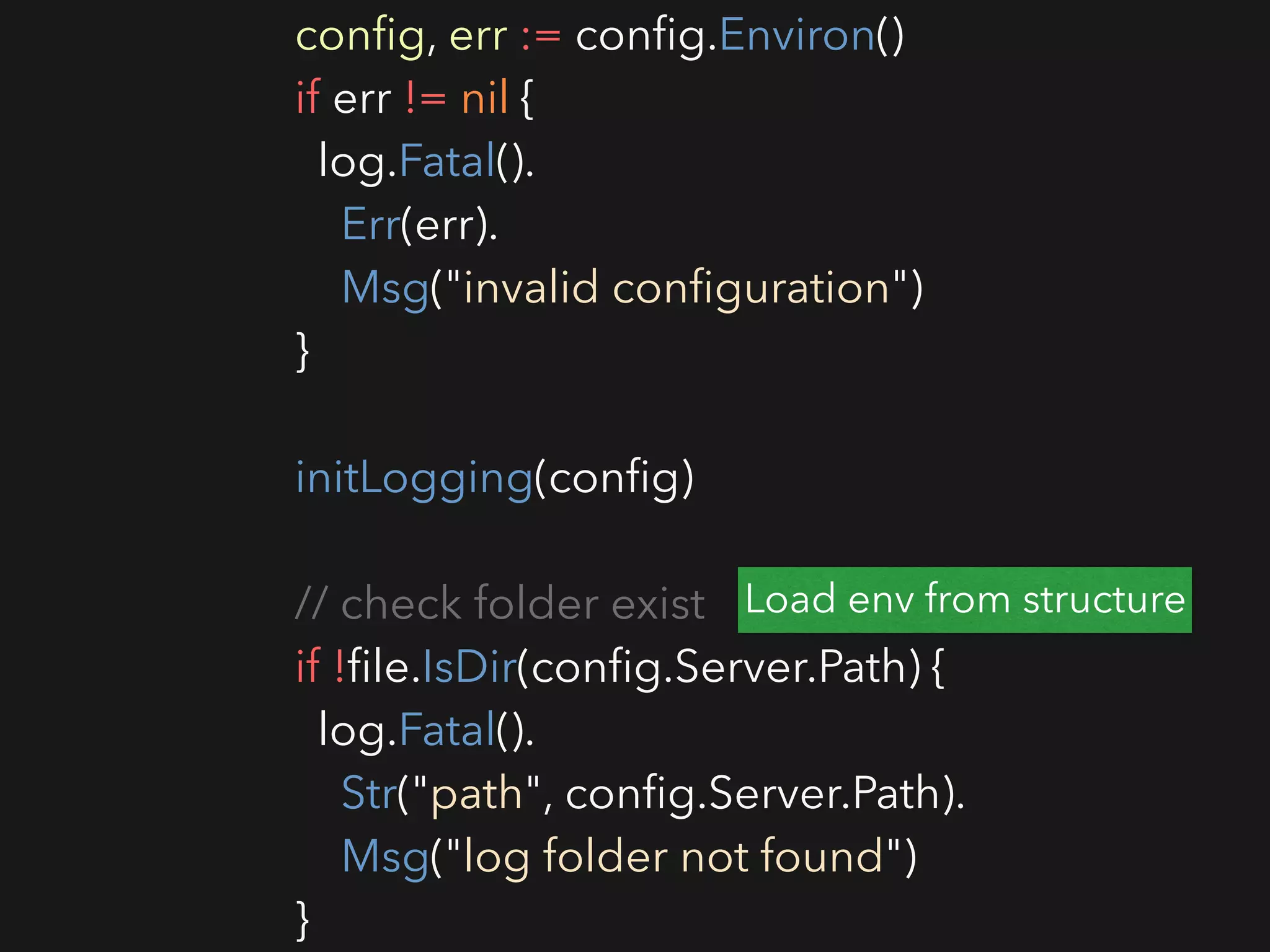

config, err := config.Environ()
  if err != nil {
    log.Fatal().
      Err(err).
      Msg("invalid configuration")
  }
  initLogging(config)
  // check folder exist
  if !file.IsDir(config.Server.Path) {
    log.Fatal().
      Str("path", config.Server.Path).
      Msg("log folder not found")
  }
Load env from structure

/configs
Configuration file templates or default config

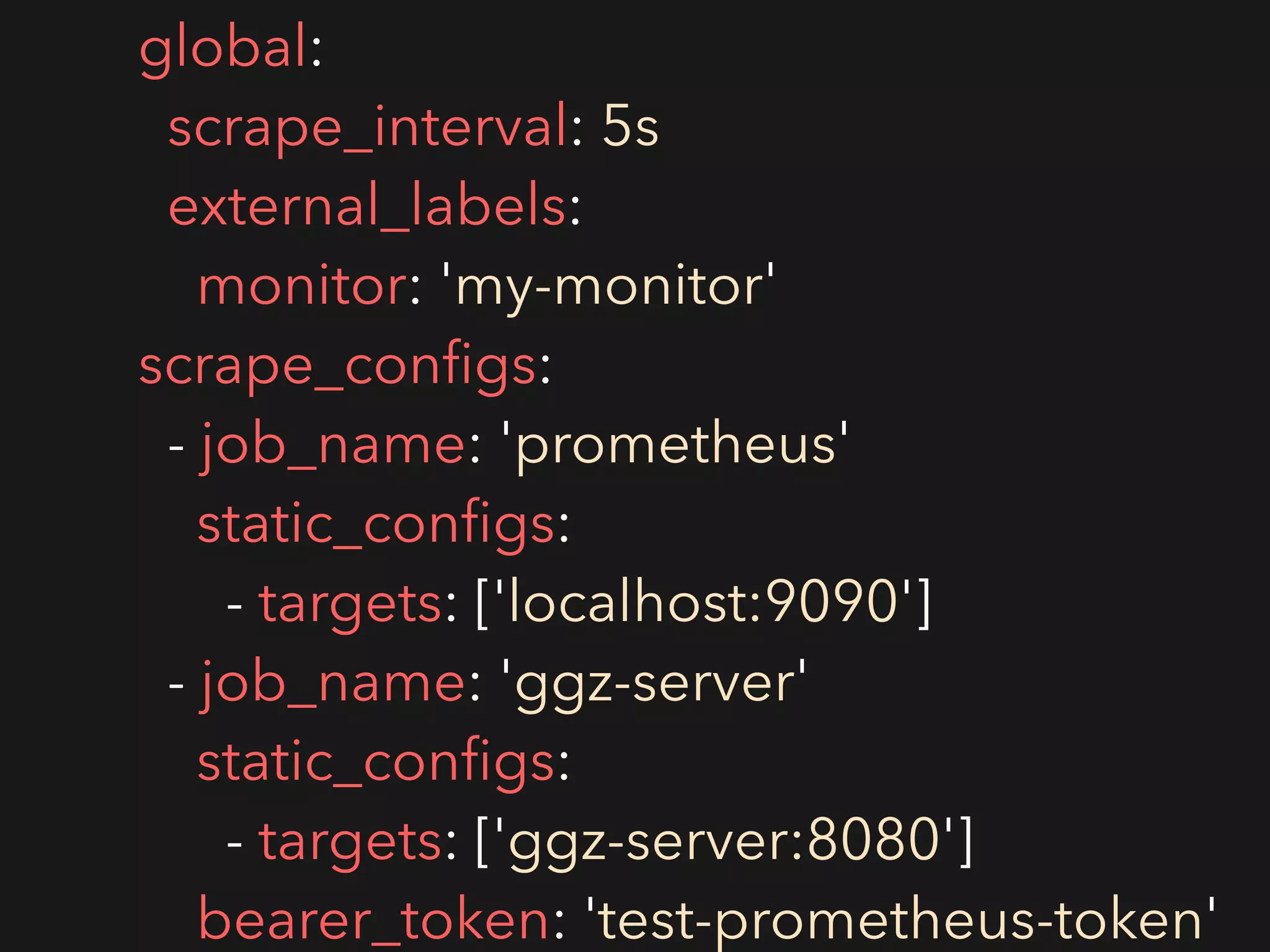

global:
scrape_interval: 5s
external_labels:
monitor: 'my-monitor'
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'ggz-server'
static_configs:
- targets: ['ggz-server:8080']
bearer_token: 'test-prometheus-token'

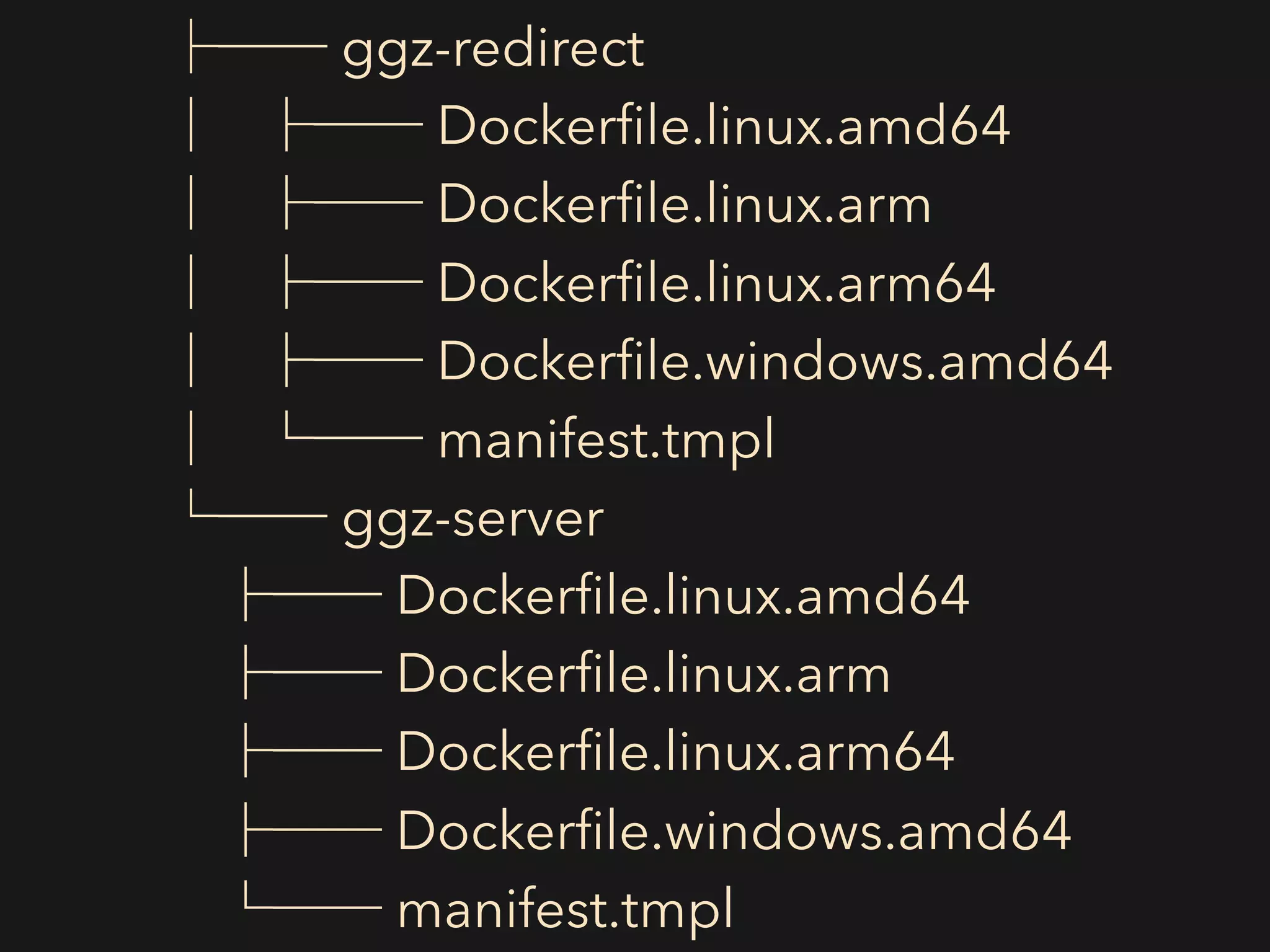

├── ggz-redirect
│ ├── Dockerfile.linux.amd64
│ ├── Dockerfile.linux.arm
│ ├── Dockerfile.linux.arm64
│ ├── Dockerfile.windows.amd64
│ └── manifest.tmpl
└── ggz-server
├── Dockerfile.linux.amd64
├── Dockerfile.linux.arm
├── Dockerfile.linux.arm64
├── Dockerfile.windows.amd64
└── manifest.tmpl

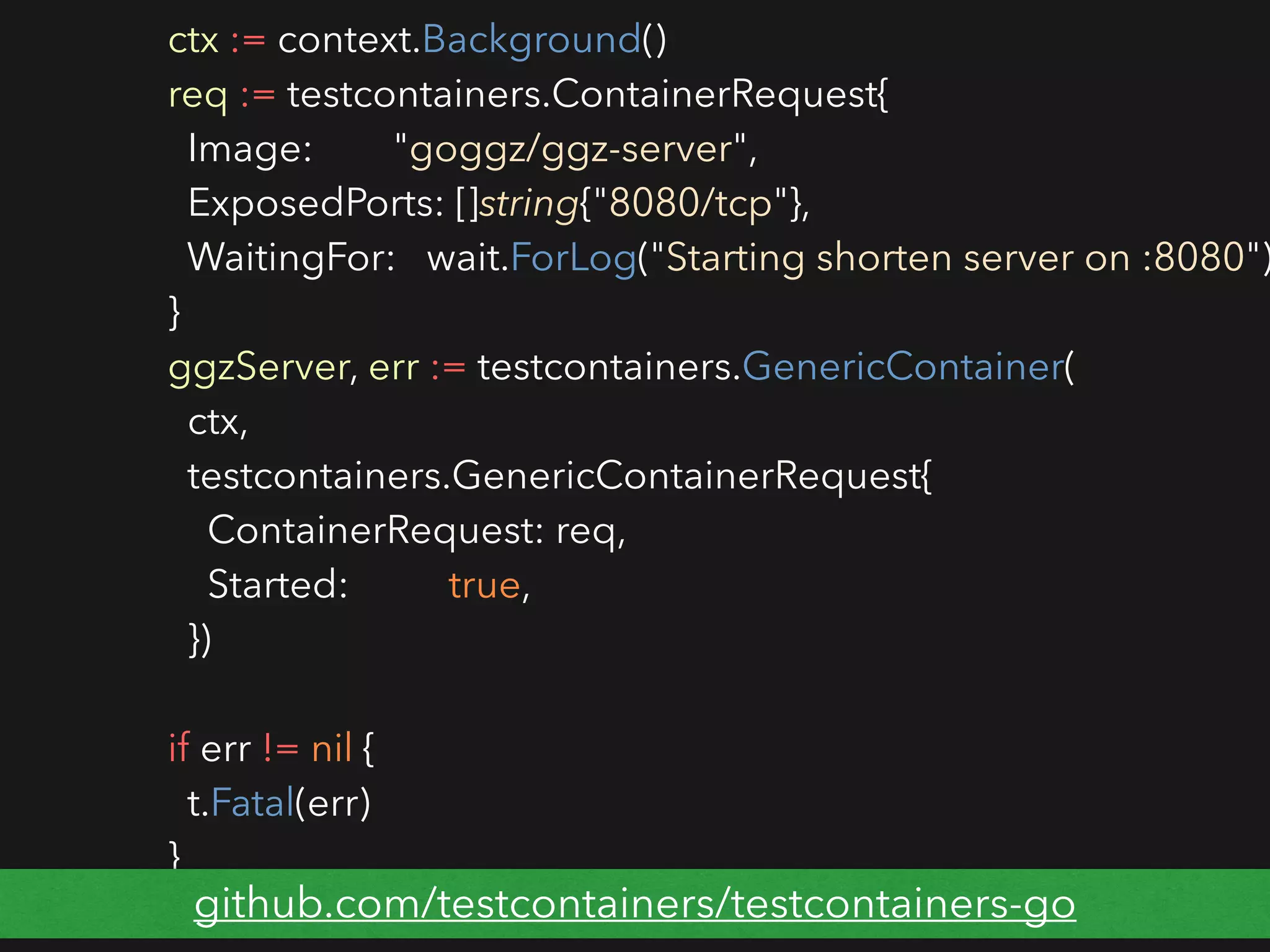

ctx := context.Background()
  req := testcontainers.ContainerRequest{
    Image: "goggz/ggz-server",
    ExposedPorts: []string{"8080/tcp"},
    WaitingFor: wait.ForLog("Starting shorten server on :8080")
  }
  ggzServer, err := testcontainers.GenericContainer(
    ctx,
    testcontainers.GenericContainerRequest{
      ContainerRequest: req,
      Started: true,
    })
  if err != nil {
    t.Fatal(err)
  }
github.com/testcontainers/testcontainers-go

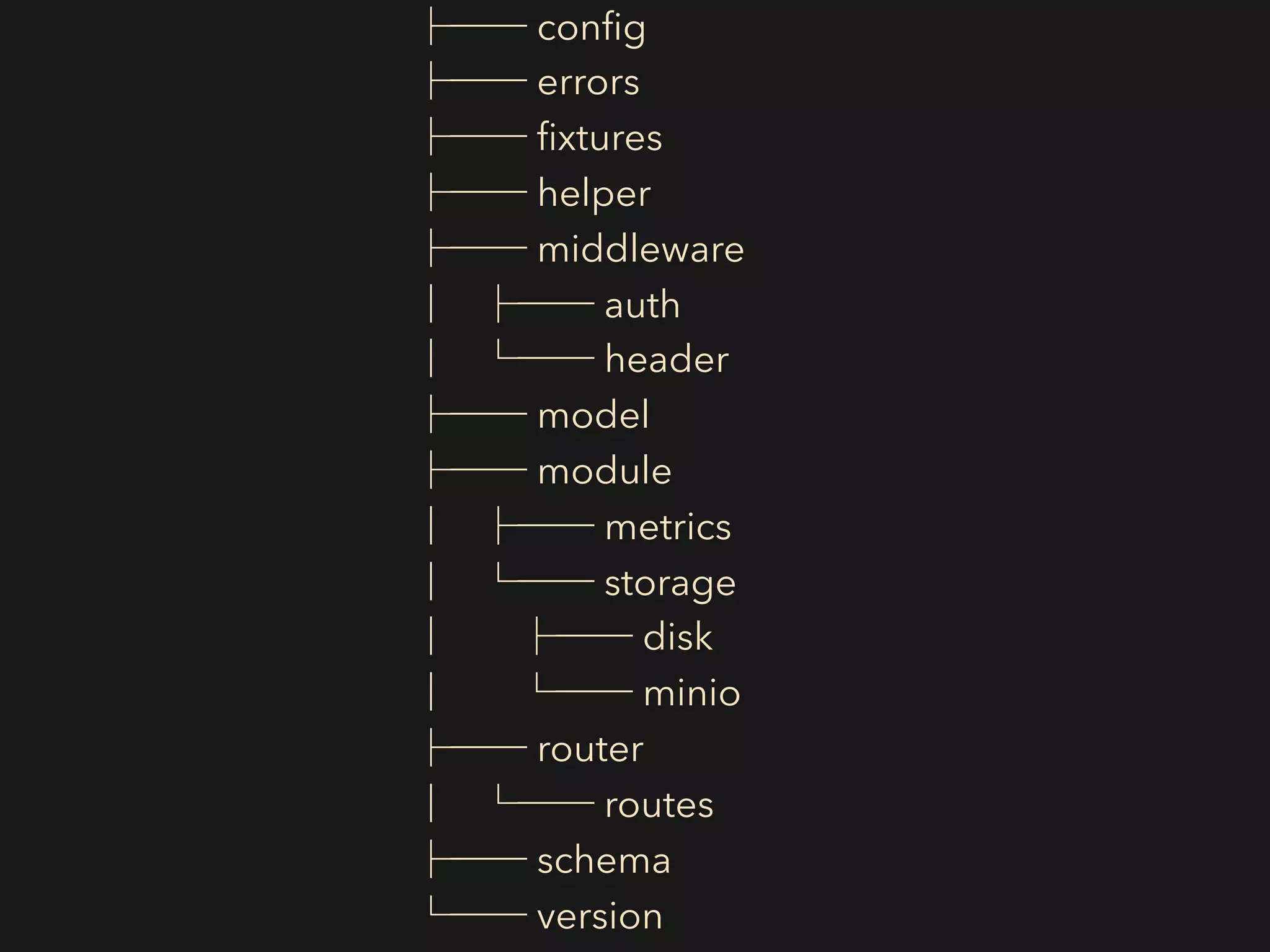

├── conﬁg
├── errors
├── ﬁxtures
├── helper
├── middleware
│ ├── auth
│ └── header
├── model
├── module
│ ├── metrics
│ └── storage
│ ├── disk
│ └── minio
├── router
│ └── routes
├── schema
└── version

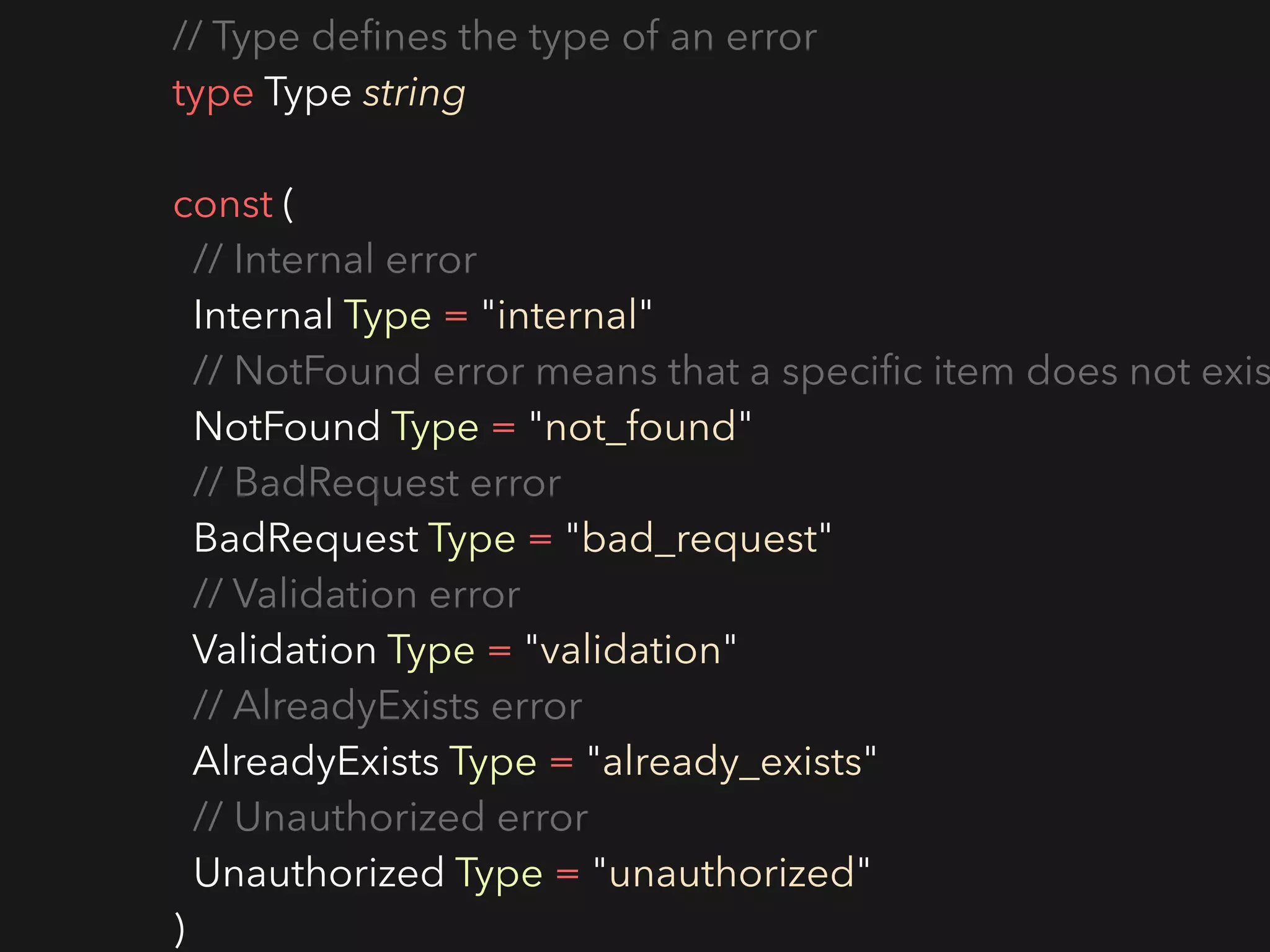

// Type deﬁnes the type of an error
type Type string
const (
  // Internal error
  Internal Type = "internal"
  // NotFound error means that a speciﬁc item does not exis
  NotFound Type = "not_found"
  // BadRequest error
  BadRequest Type = "bad_request"
  // Validation error
  Validation Type = "validation"
  // AlreadyExists error
  AlreadyExists Type = "already_exists"
  // Unauthorized error
  Unauthorized Type = "unauthorized"
)

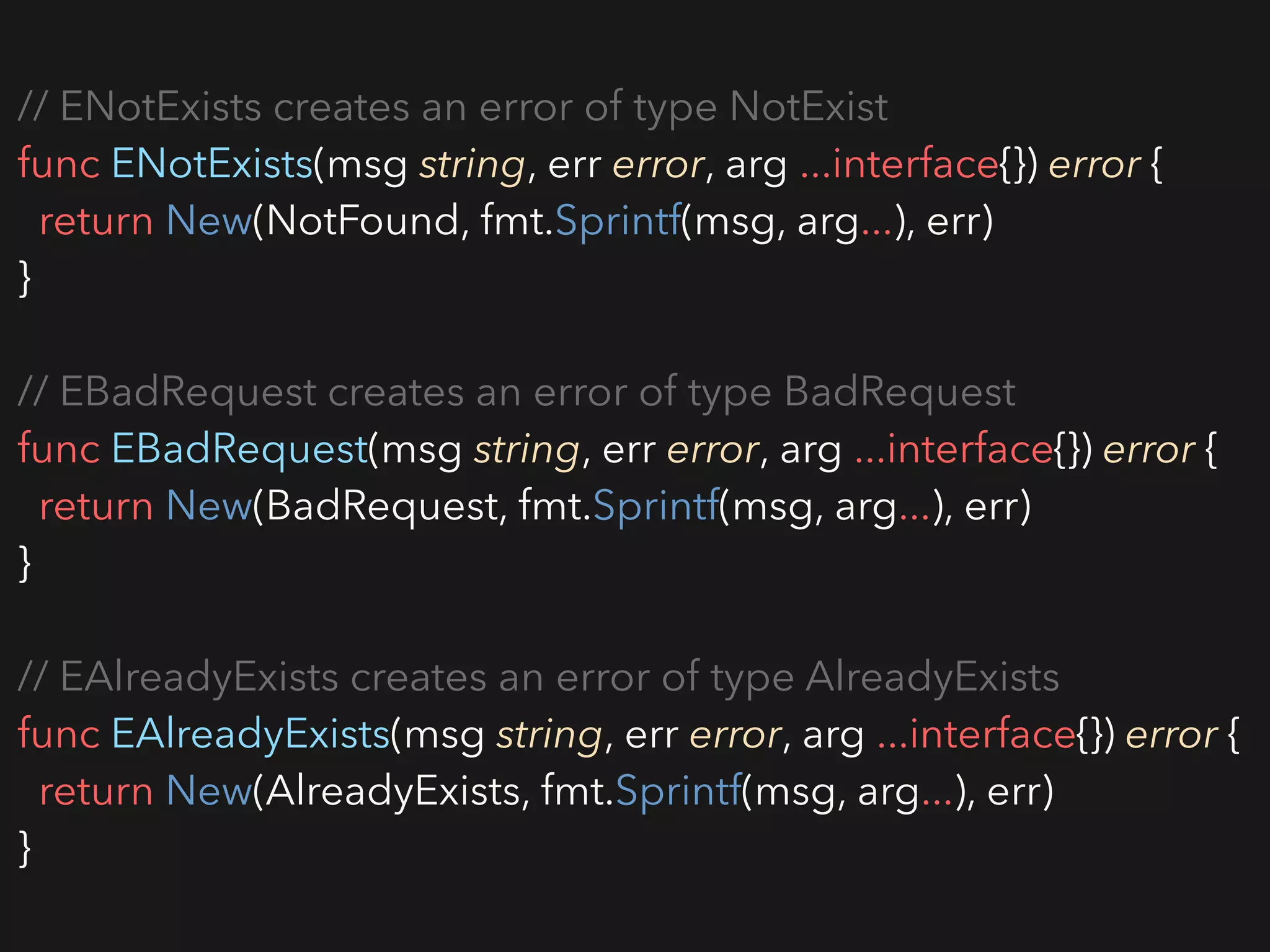

// ENotExists creates an error of type NotExist
func ENotExists(msg string, err error, arg ...interface{}) error {
  return New(NotFound, fmt.Sprintf(msg, arg...), err)
}
// EBadRequest creates an error of type BadRequest
func EBadRequest(msg string, err error, arg ...interface{}) error {
  return New(BadRequest, fmt.Sprintf(msg, arg...), err)
}
// EAlreadyExists creates an error of type AlreadyExists
func EAlreadyExists(msg string, err error, arg ...interface{}) error {
  return New(AlreadyExists, fmt.Sprintf(msg, arg...), err)
}

Rails-like test fixtures
Write tests against a real database
github.com/go-testfixtures/testfixtures

ﬁxtures/
posts.yml
comments.yml
tags.yml
posts_tags.yml
users.yml

-

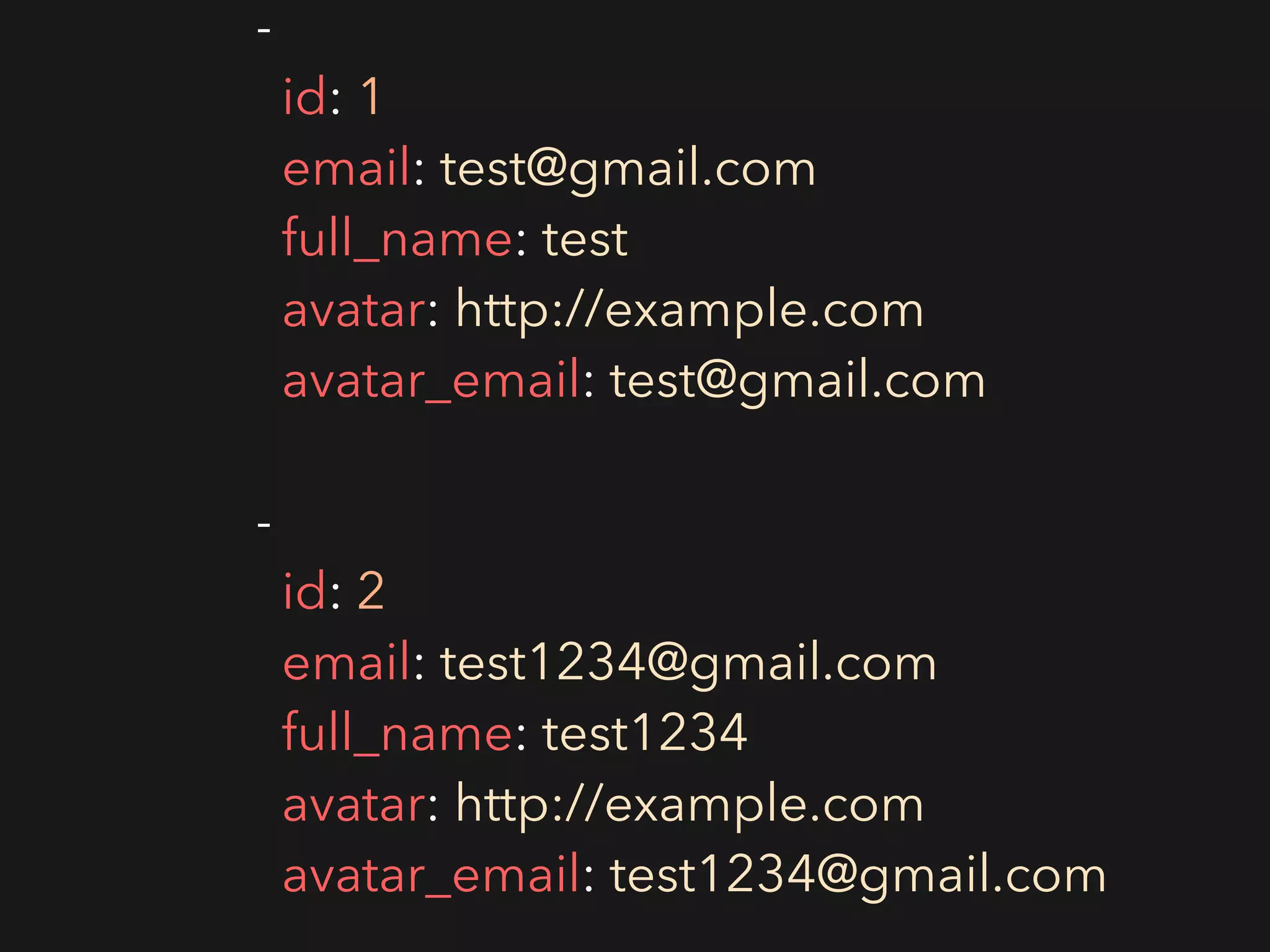

id: 1
email: test@gmail.com
full_name: test
avatar: http://example.com
avatar_email: test@gmail.com
-
id: 2
email: test1234@gmail.com
full_name: test1234
avatar: http://example.com
avatar_email: test1234@gmail.com

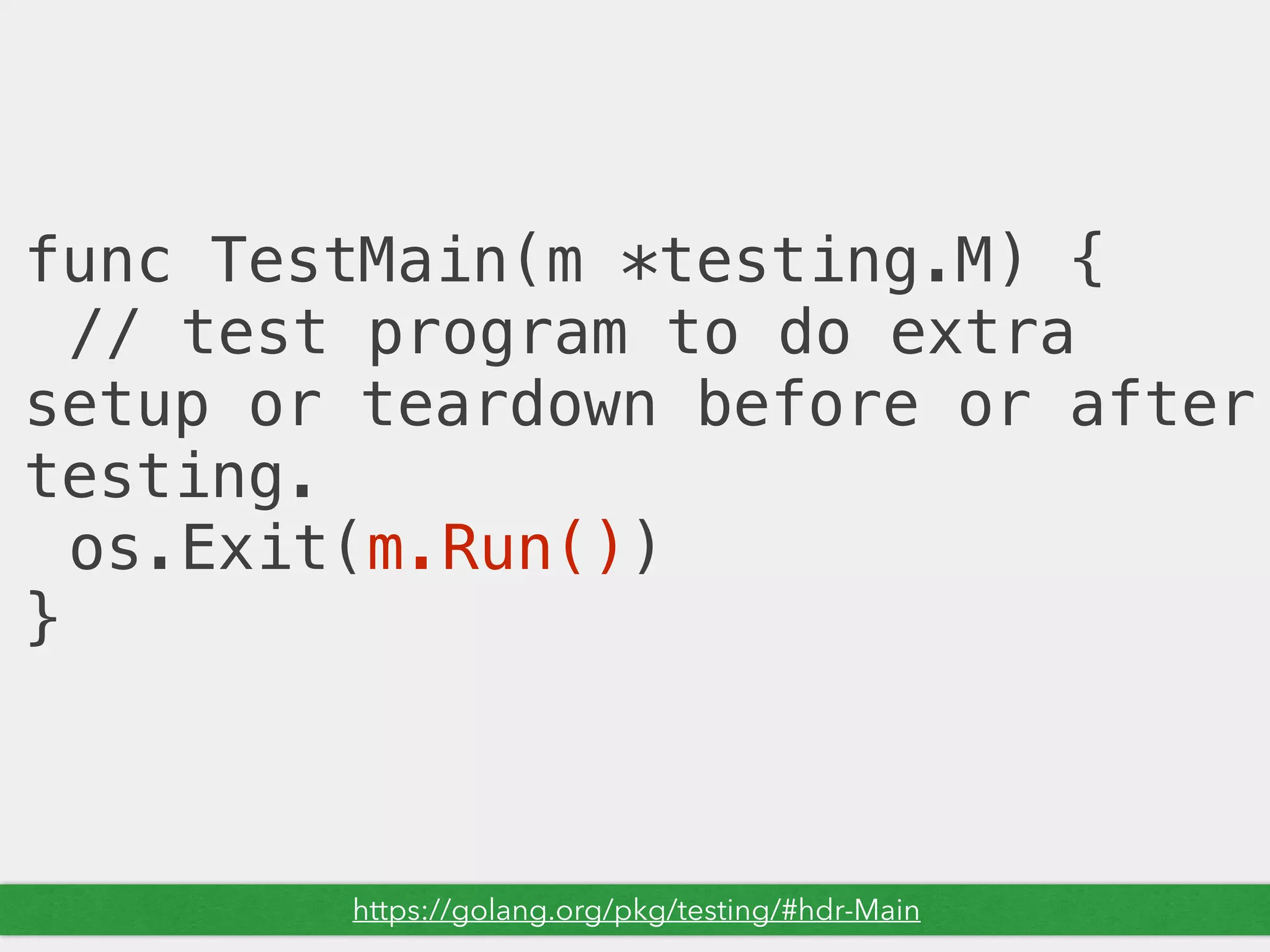

func TestMain(m *testing.M) {
// test program to do extra
setup or teardown before or after
testing.
os.Exit(m.Run())
}
https://golang.org/pkg/testing/#hdr-Main

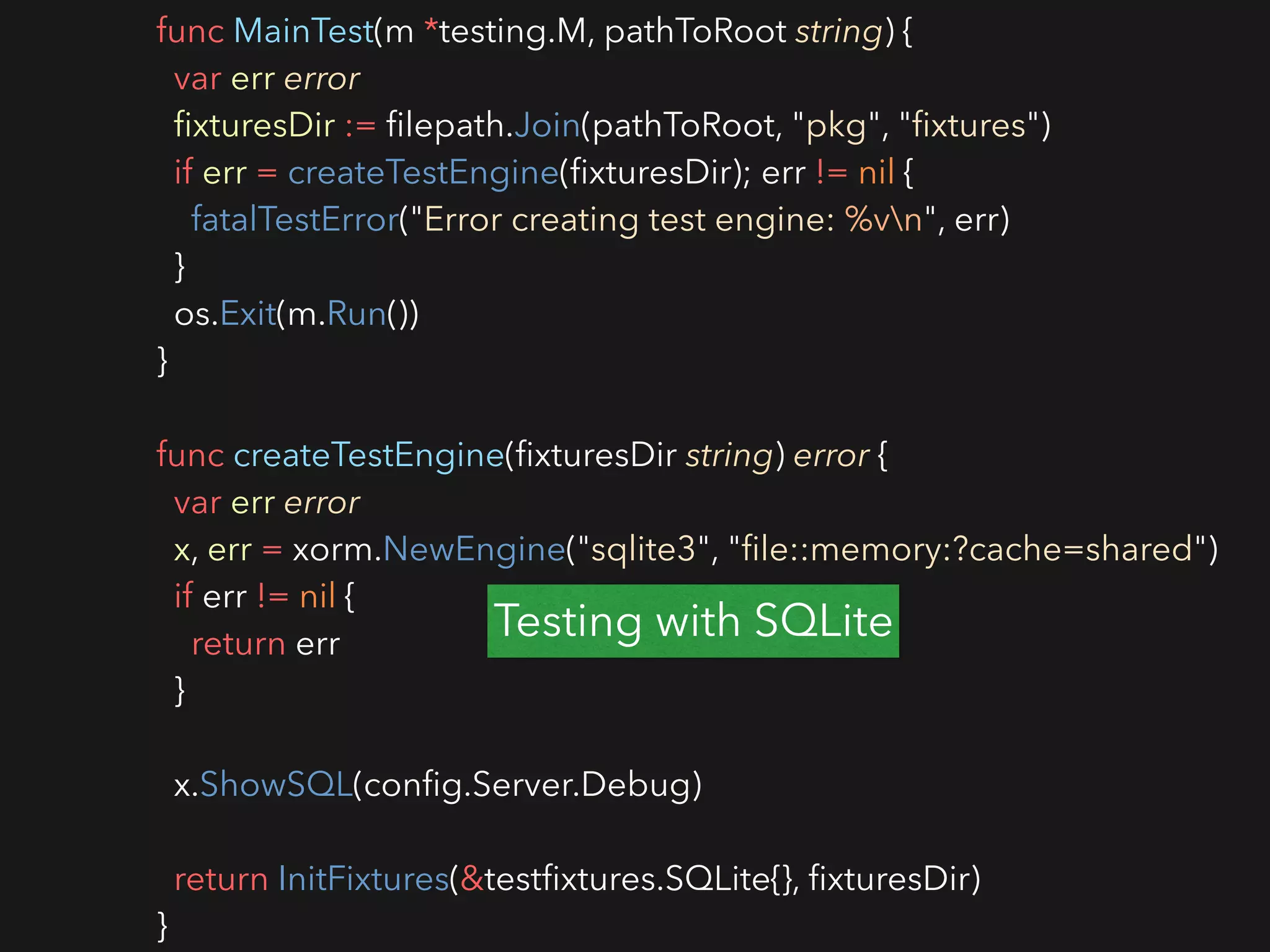

func MainTest(m *testing.M, pathToRoot string) {
  var err error
  fixturesDir := filepath.Join(pathToRoot, "pkg", "fixtures")
  if err = createTestEngine(fixturesDir); err != nil {
    fatalTestError("Error creating test engine: %vn", err)
  }
  os.Exit(m.Run())
}
func createTestEngine(fixturesDir string) error {
  var err error
  x, err = xorm.NewEngine("sqlite3", "file::memory:?cache=shared")
  if err != nil {
    return err
  }
  x.ShowSQL(config.Server.Debug)
  return InitFixtures(&testfixtures.SQLite{}, fixturesDir)
}
Testing with SQLite

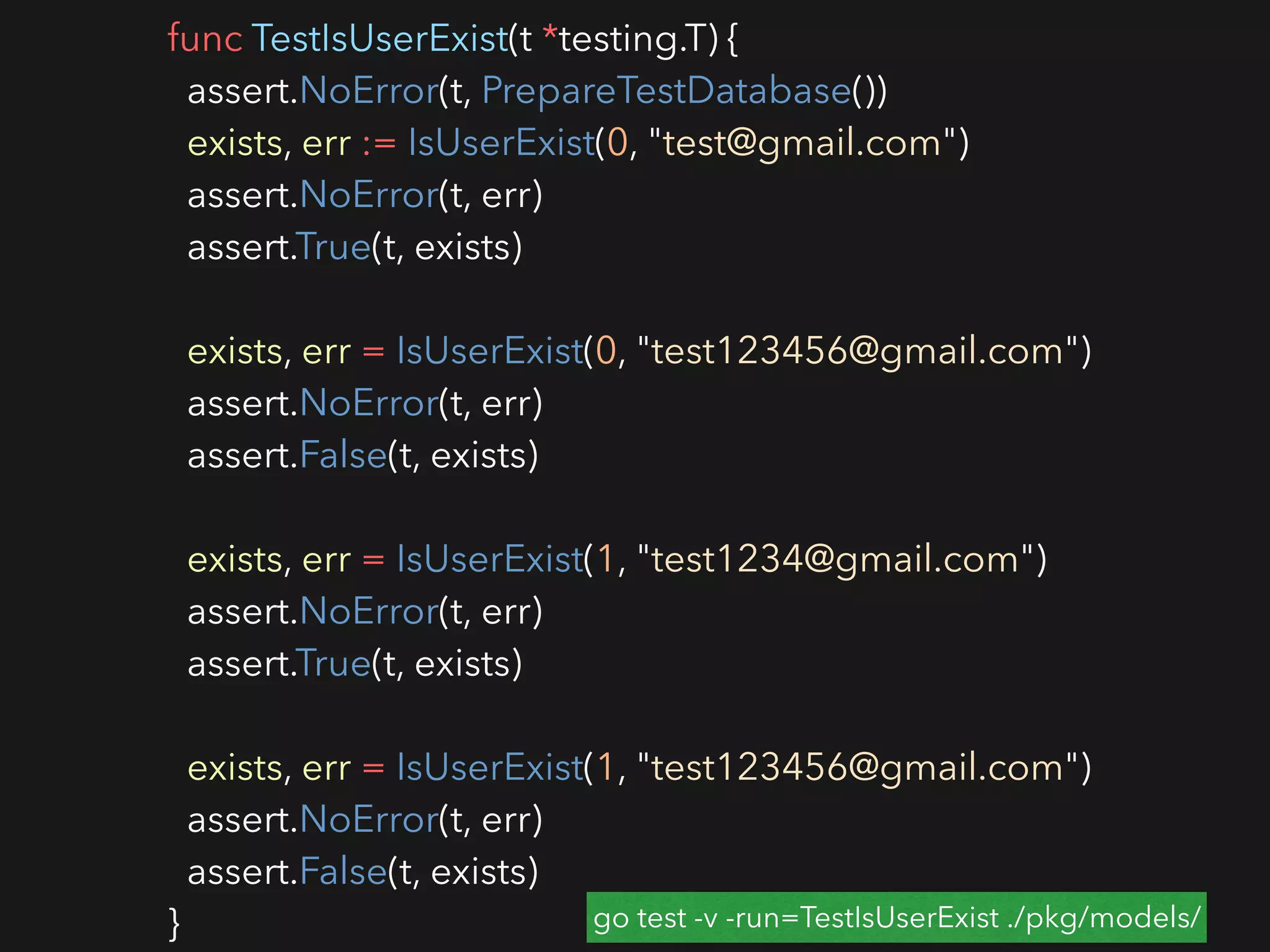

func TestIsUserExist(t *testing.T) {
  assert.NoError(t, PrepareTestDatabase())
  exists, err := IsUserExist(0, "test@gmail.com")
  assert.NoError(t, err)
  assert.True(t, exists)
  exists, err = IsUserExist(0, "test123456@gmail.com")
  assert.False(t, exists)
  assert.True(t, exists)
  assert.False(t, exists)
} go test -v -run=TestIsUserExist ./pkg/models/

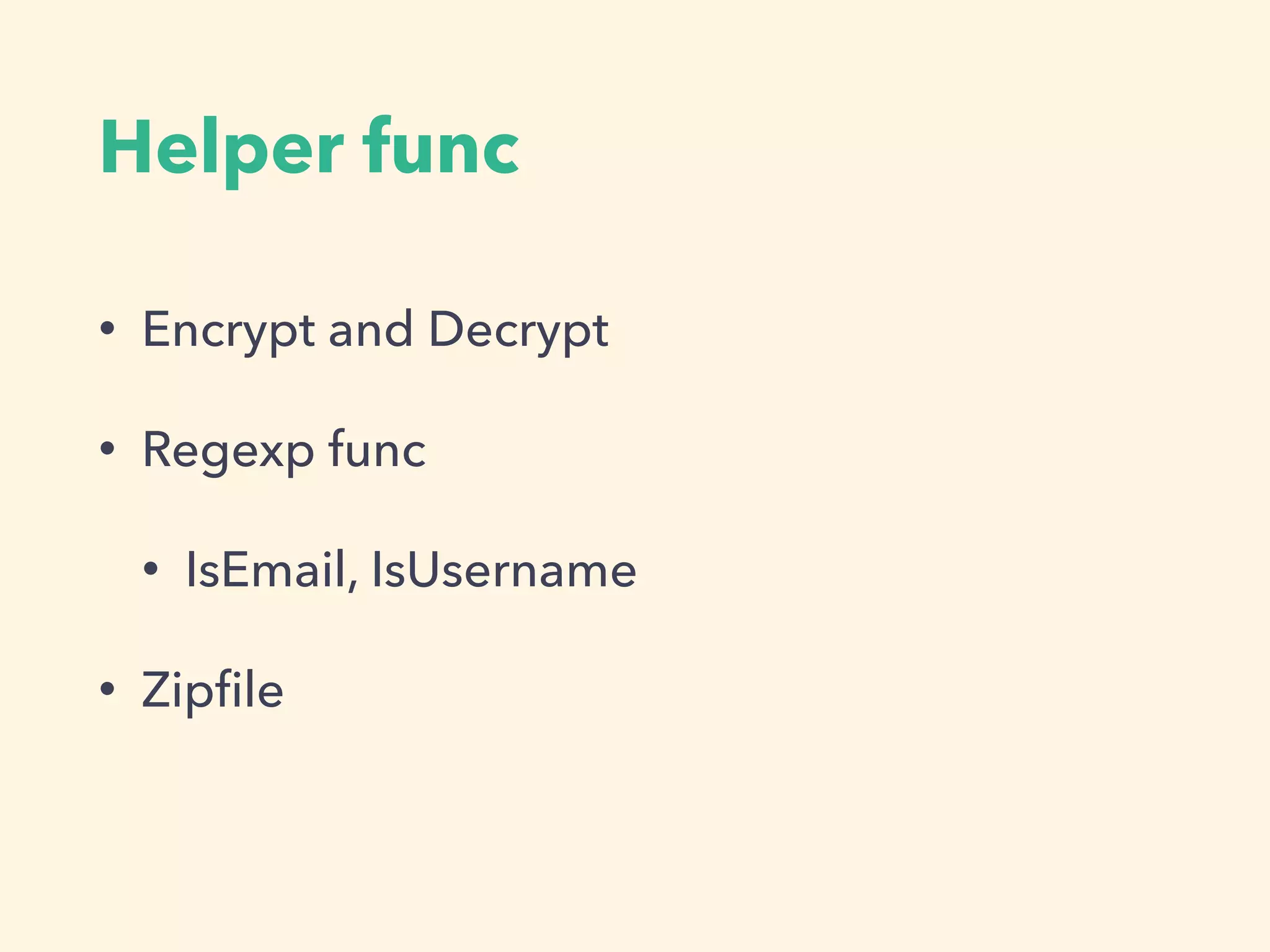

Helper func
• Encrypt and Decrypt
• Regexp func
• IsEmail, IsUsername
• Zipﬁle

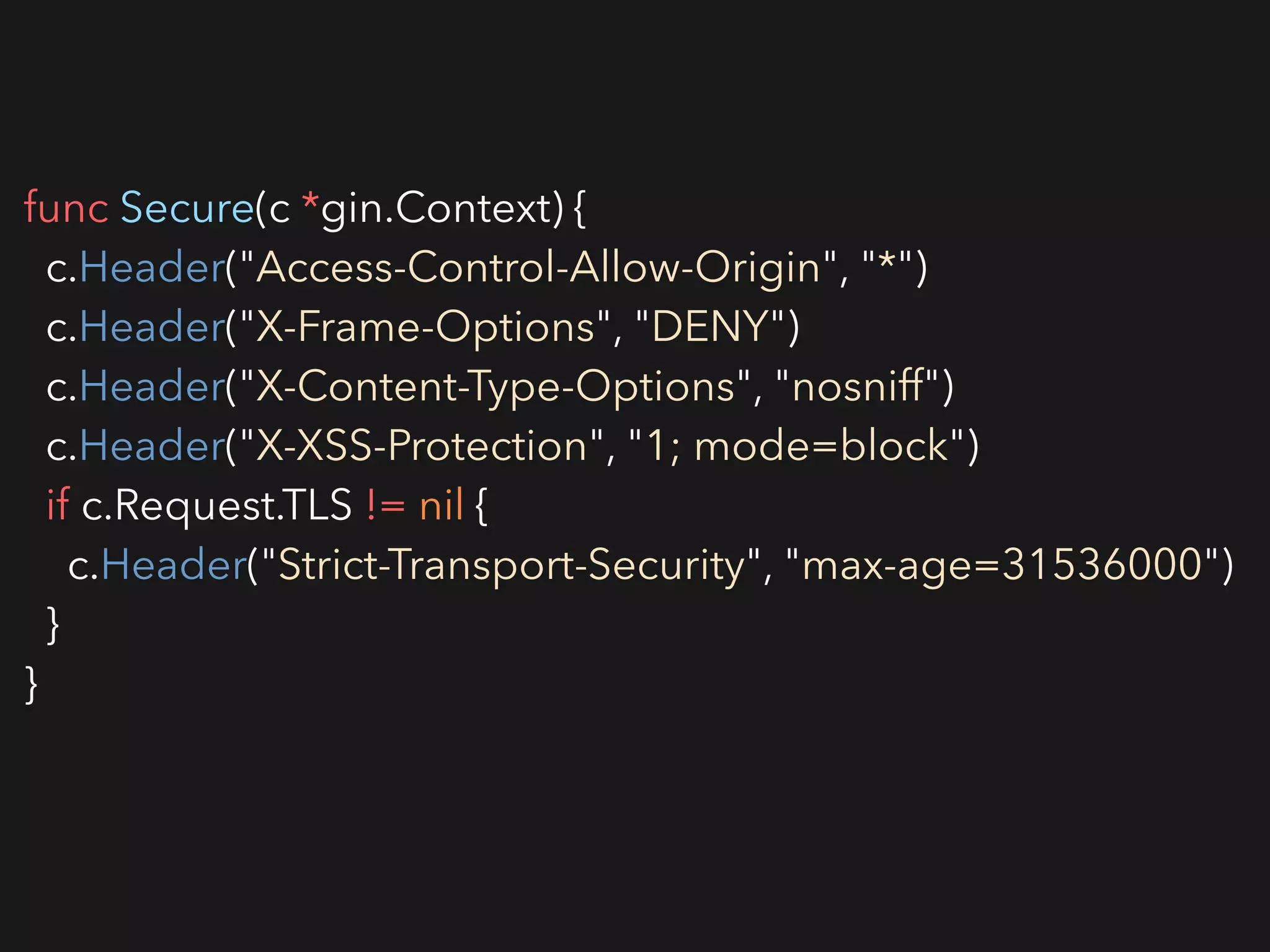

func Secure(c *gin.Context) {
  c.Header("Access-Control-Allow-Origin", "*")
  c.Header("X-Frame-Options", "DENY")
  c.Header("X-Content-Type-Options", "nosniff")
  c.Header("X-XSS-Protection", "1; mode=block")
  if c.Request.TLS != nil {
    c.Header("Strict-Transport-Security", "max-age=31536000")
  }
}

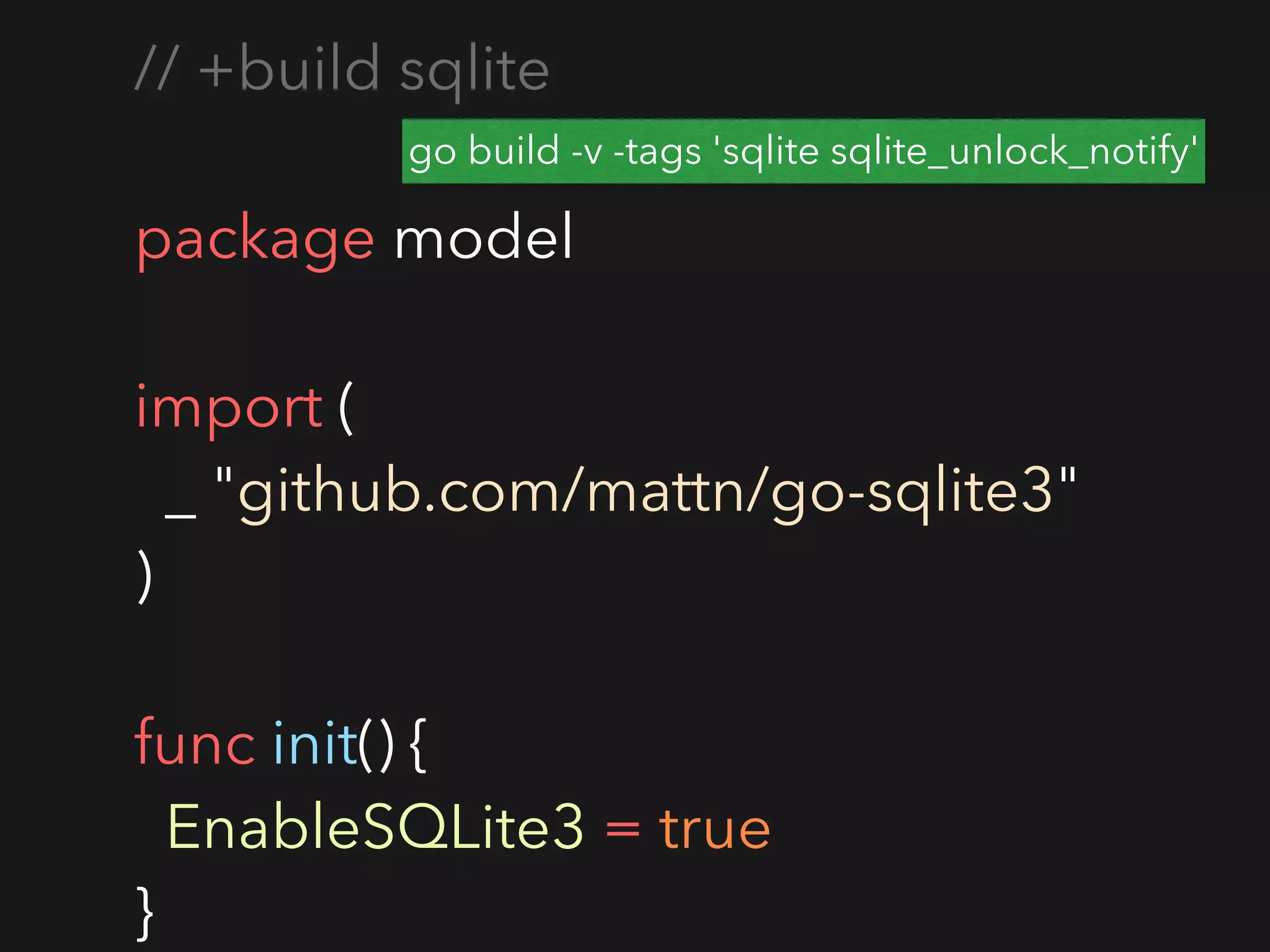

// +build sqlite
package model
import (
_ "github.com/mattn/go-sqlite3"
)
func init() {
EnableSQLite3 = true
}
go build -v -tags 'sqlite sqlite_unlock_notify'

├── cron
├── download
├── jwt
├── ldap
├── mailer
│ ├── ses
│ └── smtp
├── queue
├── metrics
├── redis
└── storage
├── disk
└── minio

Integration with
Prometheus + Grafana

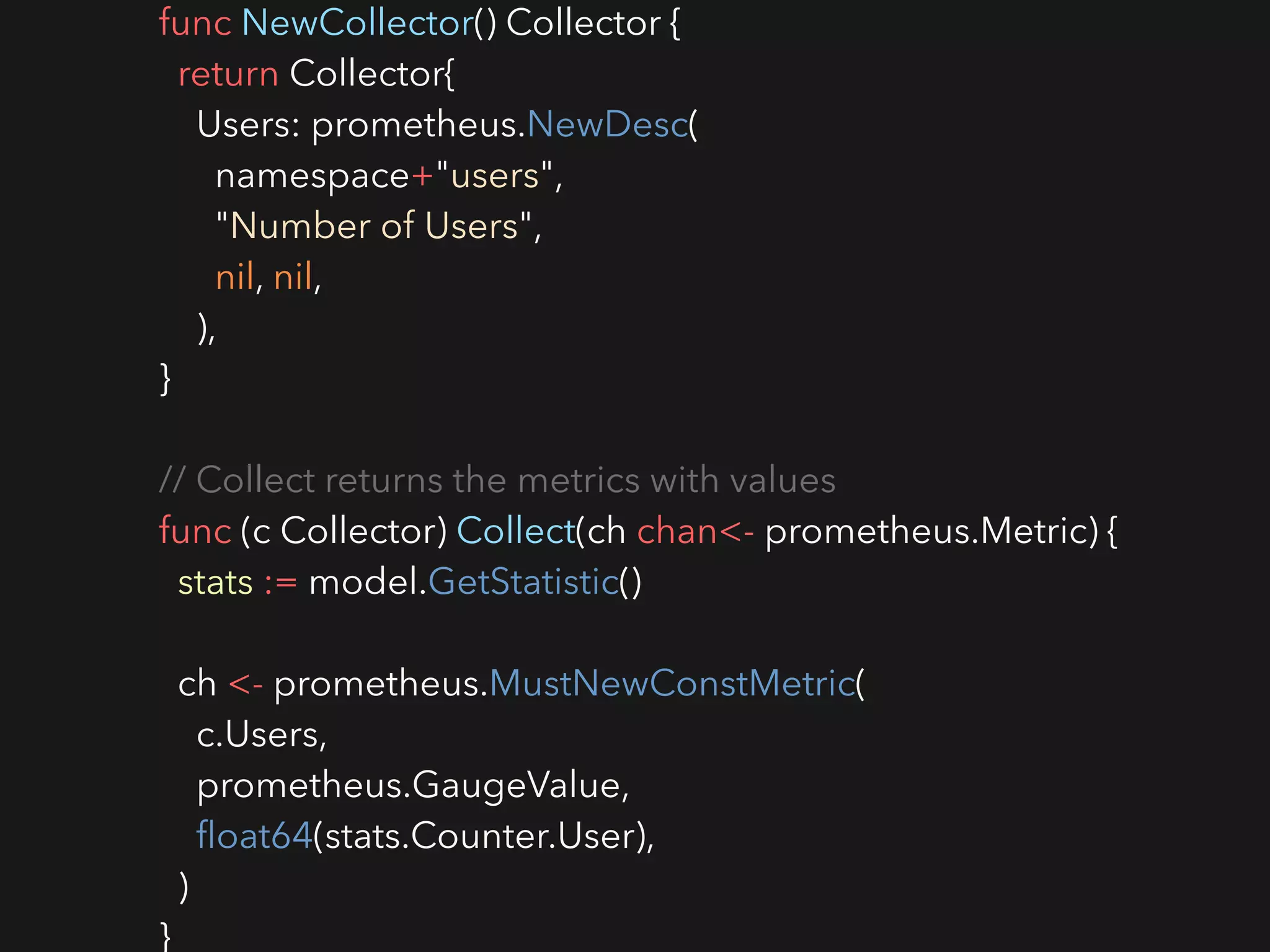

func NewCollector() Collector {
  return Collector{
    Users: prometheus.NewDesc(
      namespace+"users",
      "Number of Users",
      nil, nil,
    ),
}
// Collect returns the metrics with values
func (c Collector) Collect(ch chan<- prometheus.Metric) {
  stats := model.GetStatistic()
  ch <- prometheus.MustNewConstMetric(
    c.Users,
    prometheus.GaugeValue,
    ﬂoat64(stats.Counter.User),
  )
}

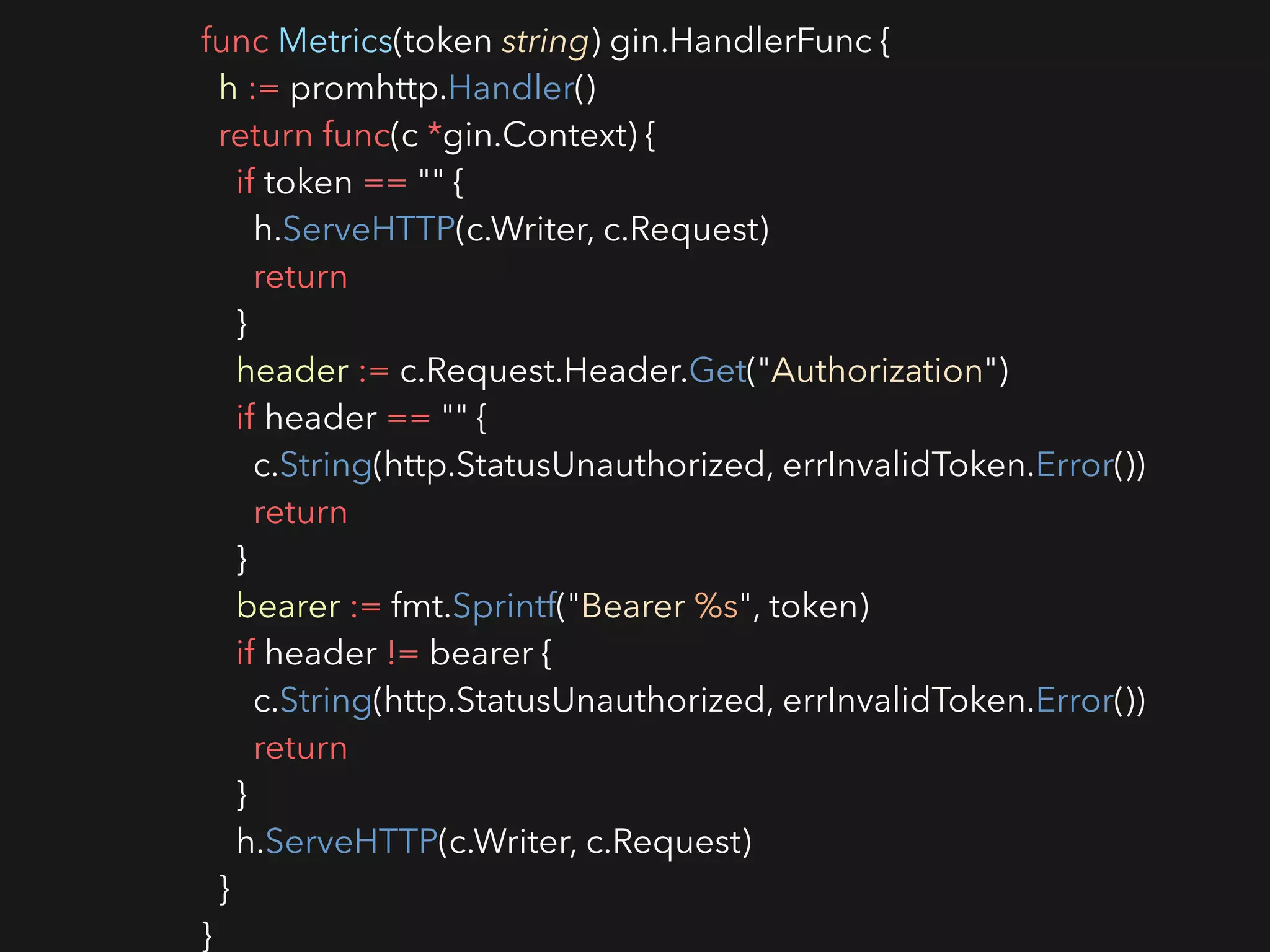

func Metrics(token string) gin.HandlerFunc {
  h := promhttp.Handler()
  return func(c *gin.Context) {
    if token == "" {
      h.ServeHTTP(c.Writer, c.Request)
      return
    }
    header := c.Request.Header.Get("Authorization")
    if header == "" {
      c.String(http.StatusUnauthorized, errInvalidToken.Error())
      return
    }
    bearer := fmt.Sprintf("Bearer %s", token)
    if header != bearer {
      c.String(http.StatusUnauthorized, errInvalidToken.Error())
      return
    }
    h.ServeHTTP(c.Writer, c.Request)
  }
}

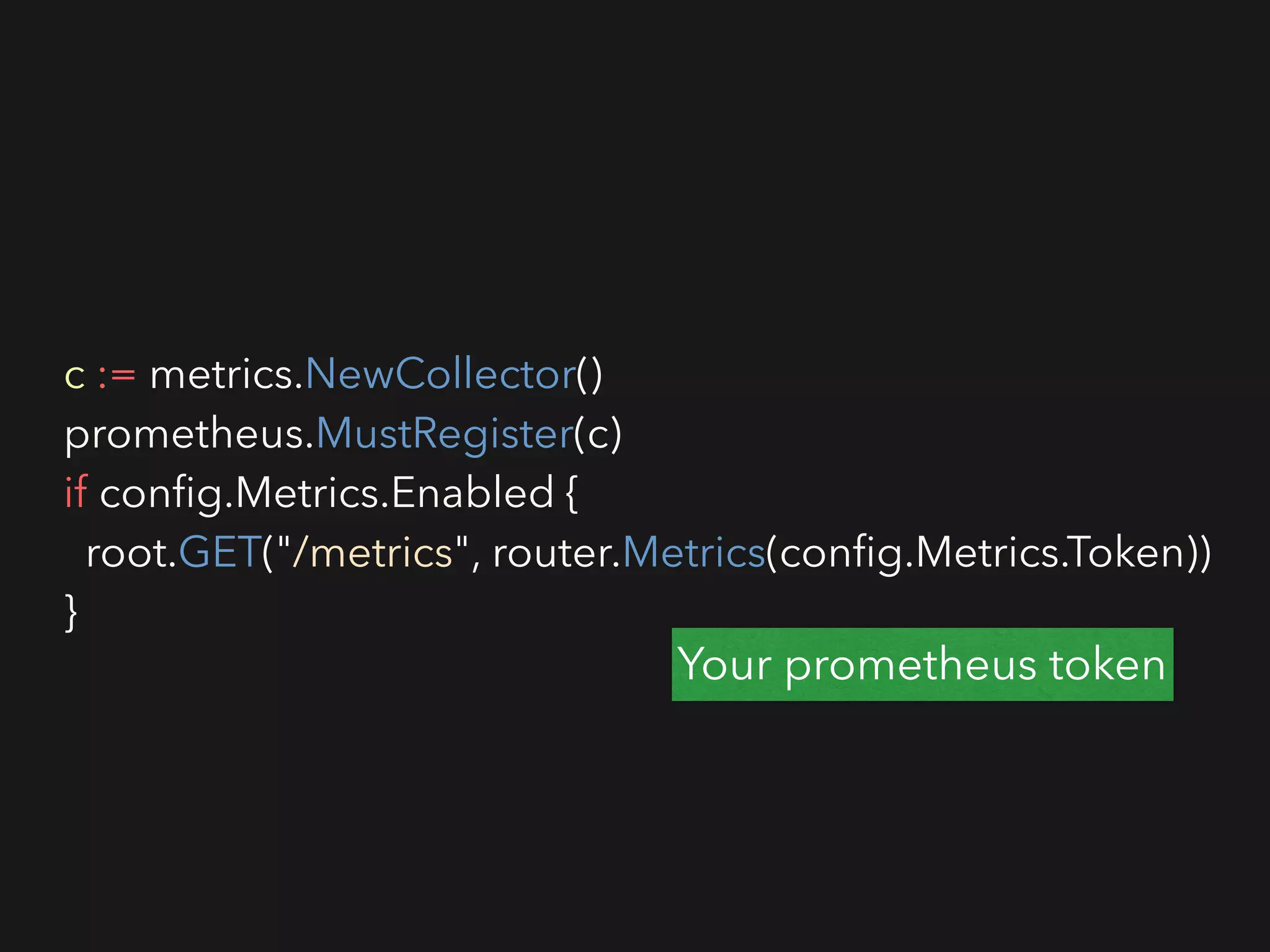

c := metrics.NewCollector()
    prometheus.MustRegister(c)
    if conﬁg.Metrics.Enabled {
      root.GET("/metrics", router.Metrics(conﬁg.Metrics.Token))
    }
Your prometheus token

RESTful vs GraphQL
See the Slide: GraphQL in Go

var rootQuery = graphql.NewObject(
  graphql.ObjectConfig{
    Name: "RootQuery",
    Description: "Root Query",
    Fields: graphql.Fields{
      "queryShortenURL": &queryShortenURL,
      "queryMe": &queryMe,
    },
  })
var rootMutation = graphql.NewObject(
  graphql.ObjectConfig{
    Name: "RootMutation",
    Description: "Root Mutation",
    Fields: graphql.Fields{
      "createUser": &createUser,
    },
  })
// Schema is the GraphQL schema served by the server.
var Schema, _ = graphql.NewSchema(
  graphql.SchemaConfig{
    Query: rootQuery,
    Mutation: rootMutation,
  })

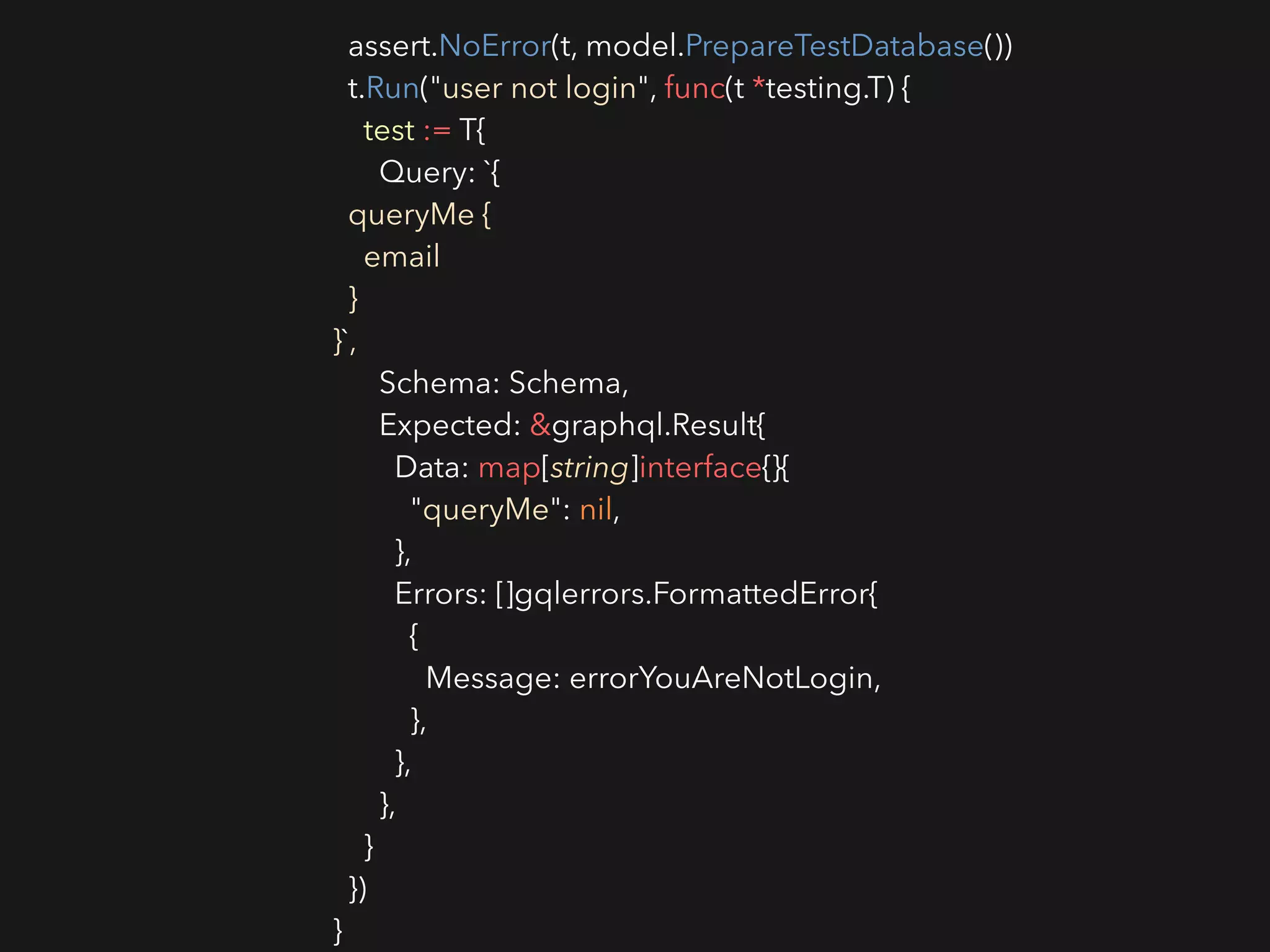

assert.NoError(t, model.PrepareTestDatabase())
  t.Run("user not login", func(t *testing.T) {
    test := T{
      Query: `{
queryMe {
email
}
}`,
      Schema: Schema,
      Expected: &graphql.Result{
        Data: map[string]interface{}{
          "queryMe": nil,
        },
        Errors: []gqlerrors.FormattedError{
          {
            Message: errorYouAreNotLogin,
          },
        },
      },
    }
  })
}

Best Practice
Testing your Go code

Testable Code
• Code Quality
• Readability
• Maintainability
• Testability

#1. Testing in Go
func TestFooBar(t *testing.T) {}
func ExampleFooBar(t *testing.T) {}
func BenchmarkFooBar(b *testing.B) {}
go test package_name

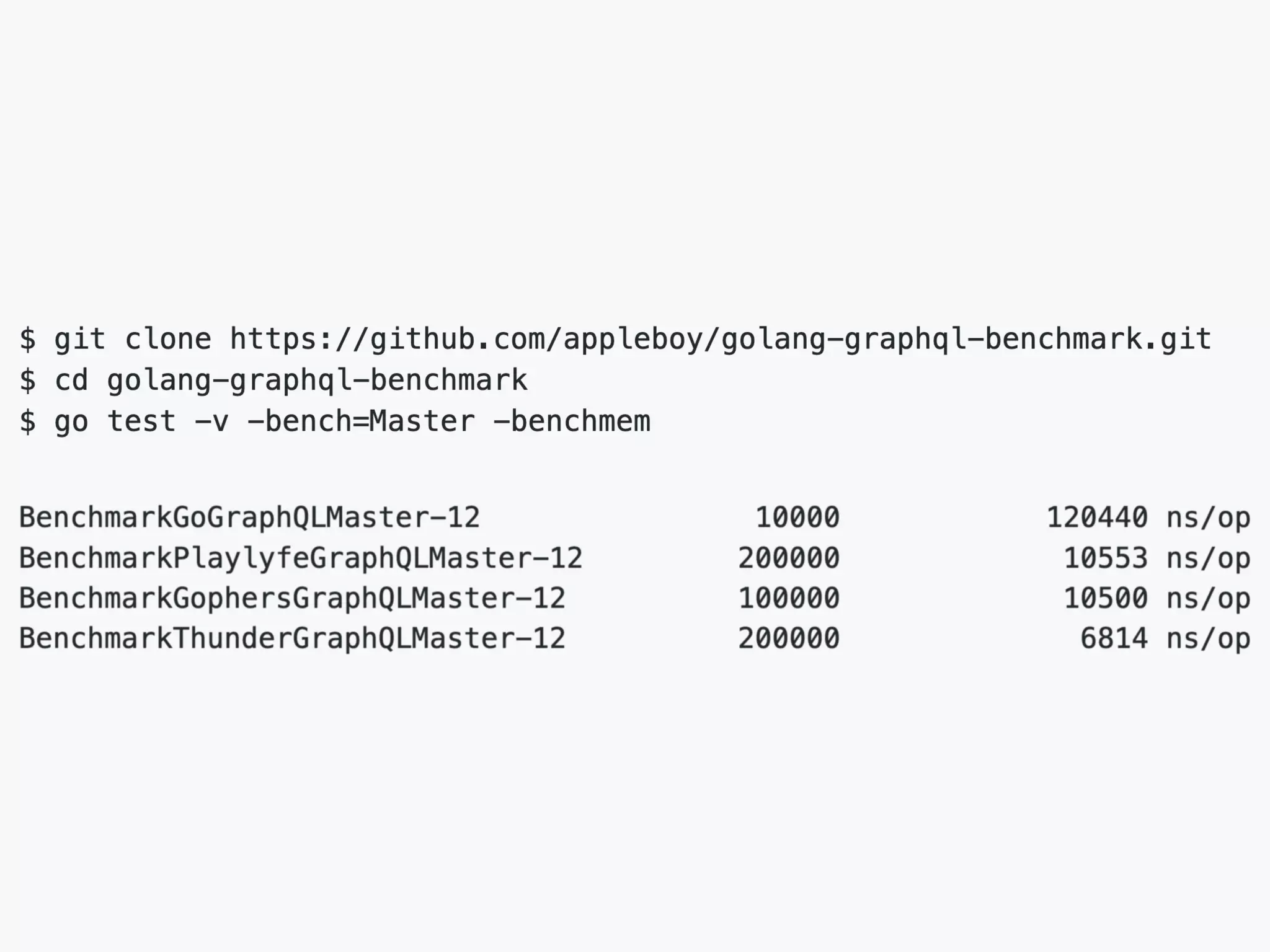

#2. Benchmark Testing
Proﬁling: CPU, Memory, Goroutine Block

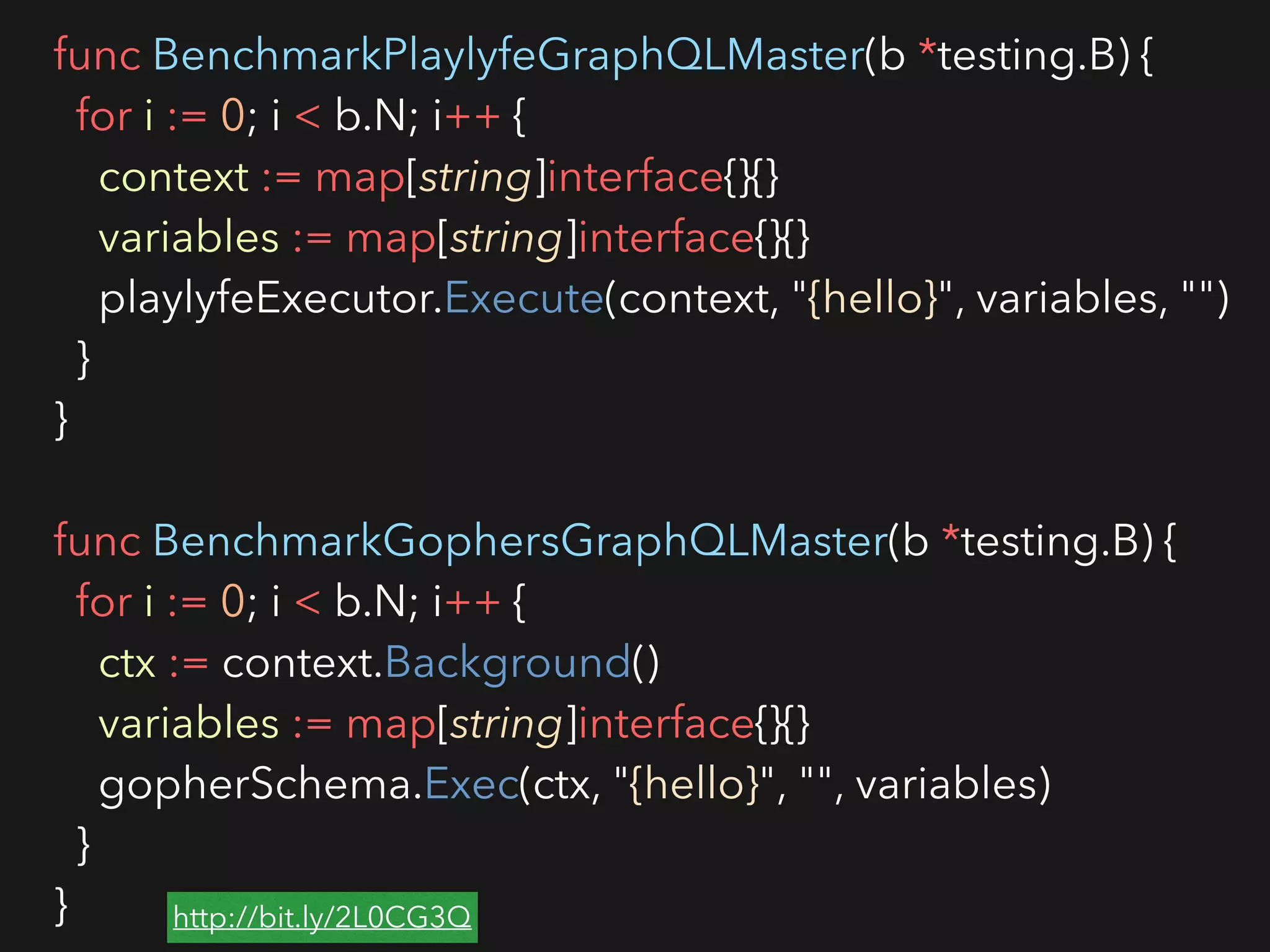

func BenchmarkPlaylyfeGraphQLMaster(b *testing.B) {
  for i := 0; i < b.N; i++ {
    context := map[string]interface{}{}
    variables := map[string]interface{}{}
    playlyfeExecutor.Execute(context, "{hello}", variables, "")
  }
}
func BenchmarkGophersGraphQLMaster(b *testing.B) {
  for i := 0; i < b.N; i++ {
    ctx := context.Background()
    variables := map[string]interface{}{}
    gopherSchema.Exec(ctx, "{hello}", "", variables)
  }
} http://bit.ly/2L0CG3Q

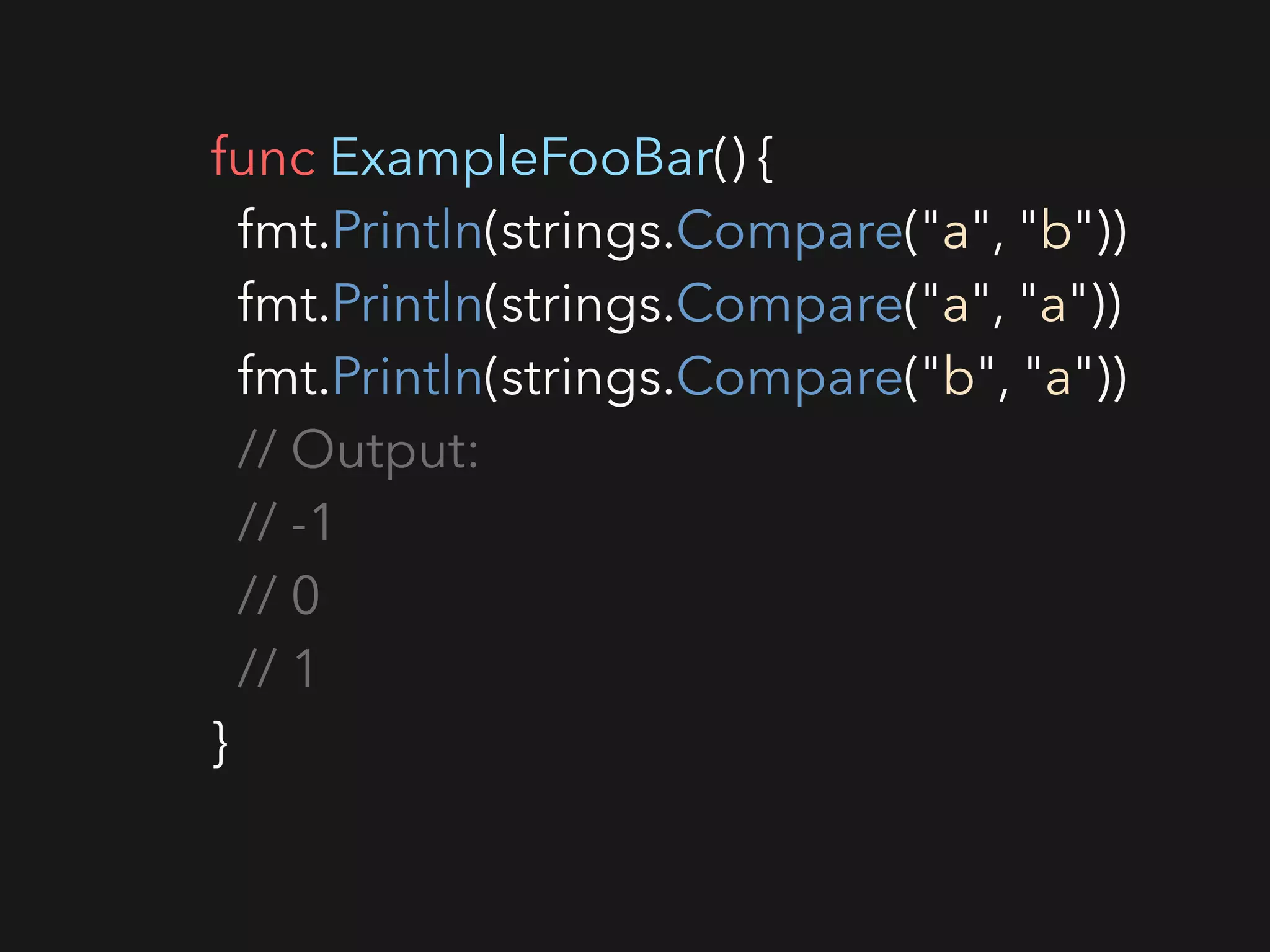

#3. Example Testing
Examples on how to use your code

func ExampleFooBar() {
  fmt.Println(strings.Compare("a", "b"))
  fmt.Println(strings.Compare("a", "a"))
  fmt.Println(strings.Compare("b", "a"))
  // Output:
  // -1
  // 0
  // 1
}

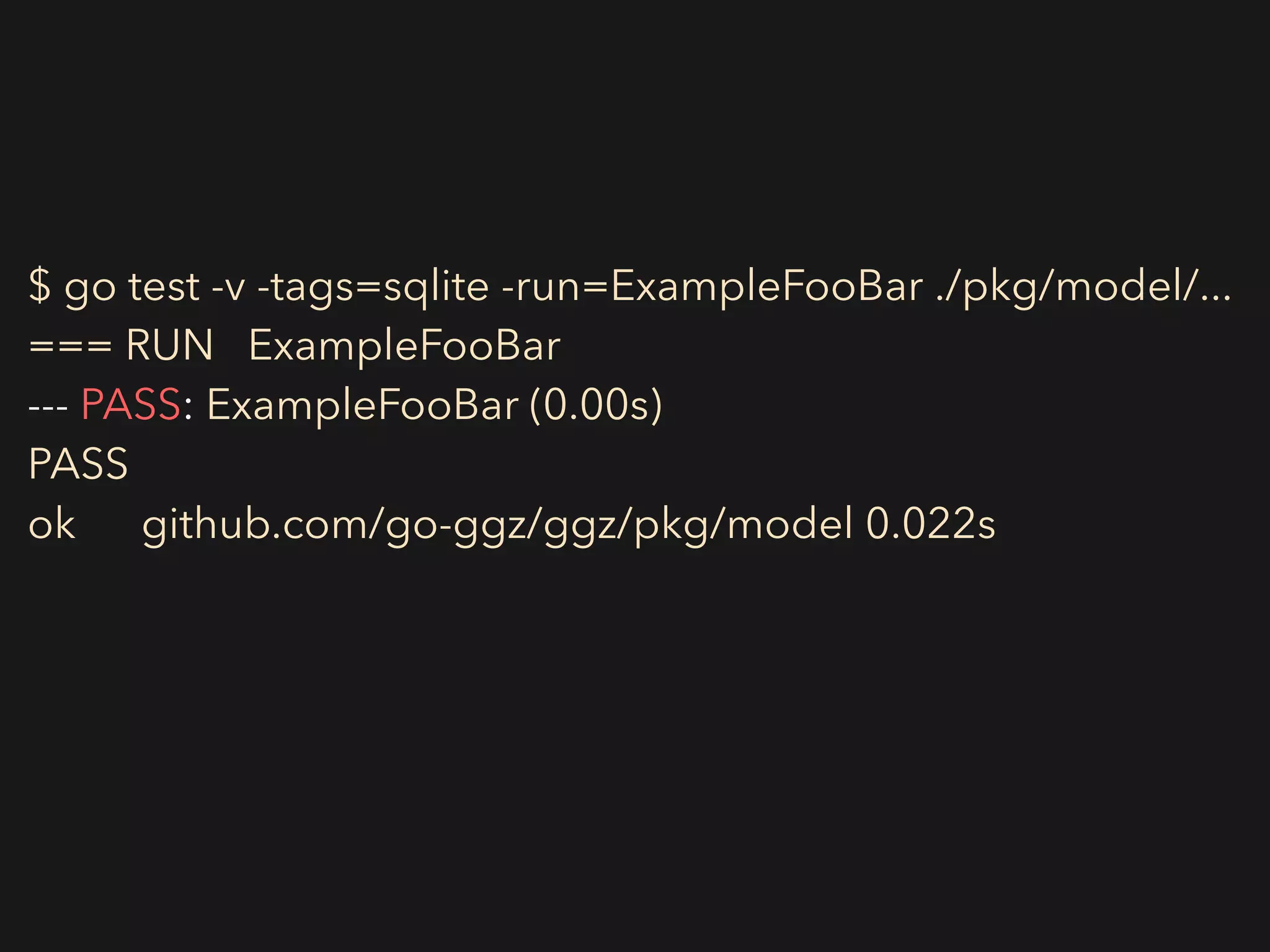

$ go test -v -tags=sqlite -run=ExampleFooBar ./pkg/model/...
=== RUN ExampleFooBar
--- PASS: ExampleFooBar (0.00s)
PASS
ok github.com/go-ggz/ggz/pkg/model 0.022s

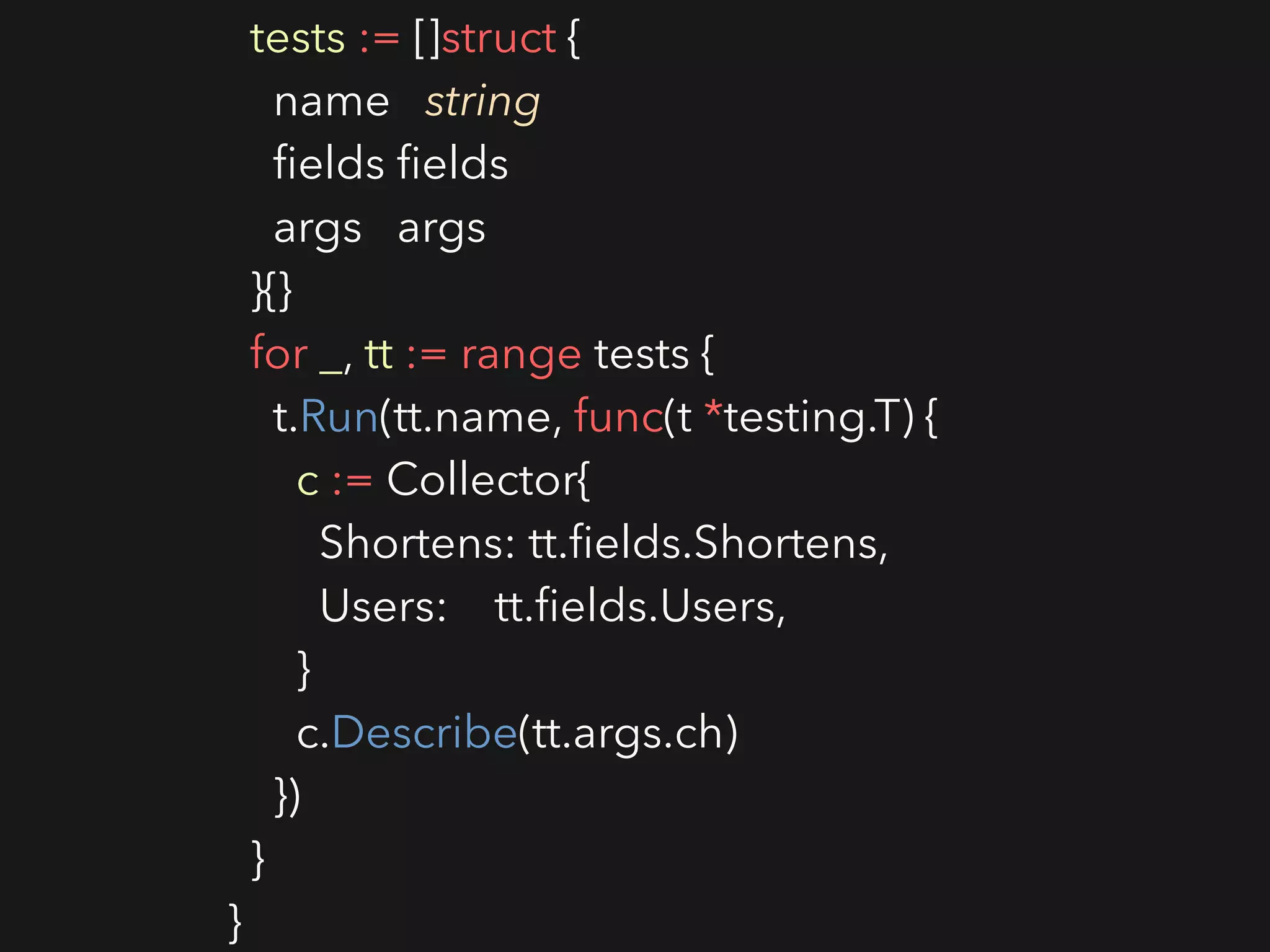

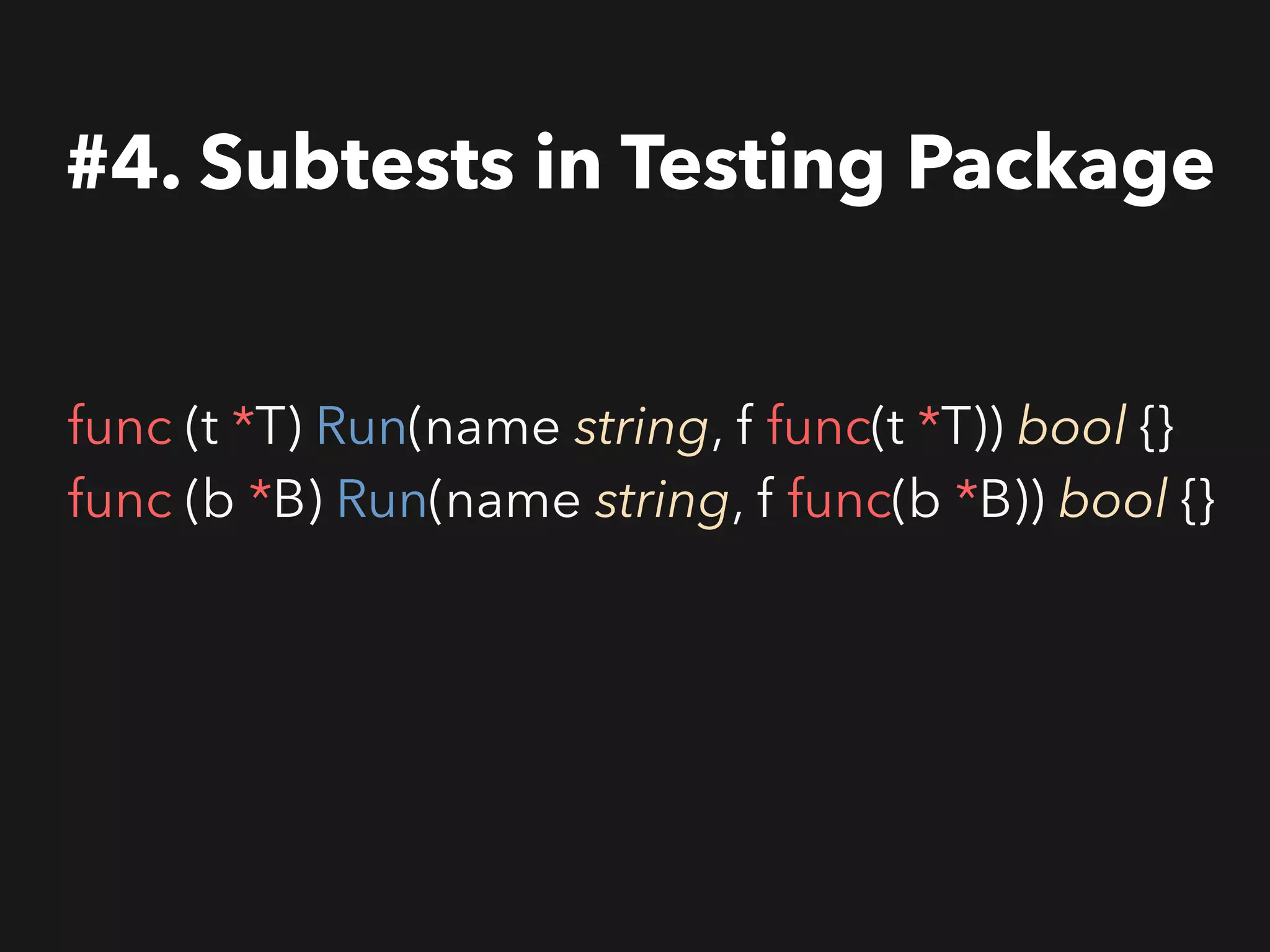

#4. Subtests in Testing Package
func (t *T) Run(name string, f func(t *T)) bool {}
func (b *B) Run(name string, f func(b *B)) bool {}

tests := []struct {
    name string
    fields fields
    args args
  }{}
  for _, tt := range tests {
    t.Run(tt.name, func(t *testing.T) {
      c := Collector{
        Shortens: tt.fields.Shortens,
        Users: tt.fields.Users,
      }
      c.Describe(tt.args.ch)
    })
  }
}

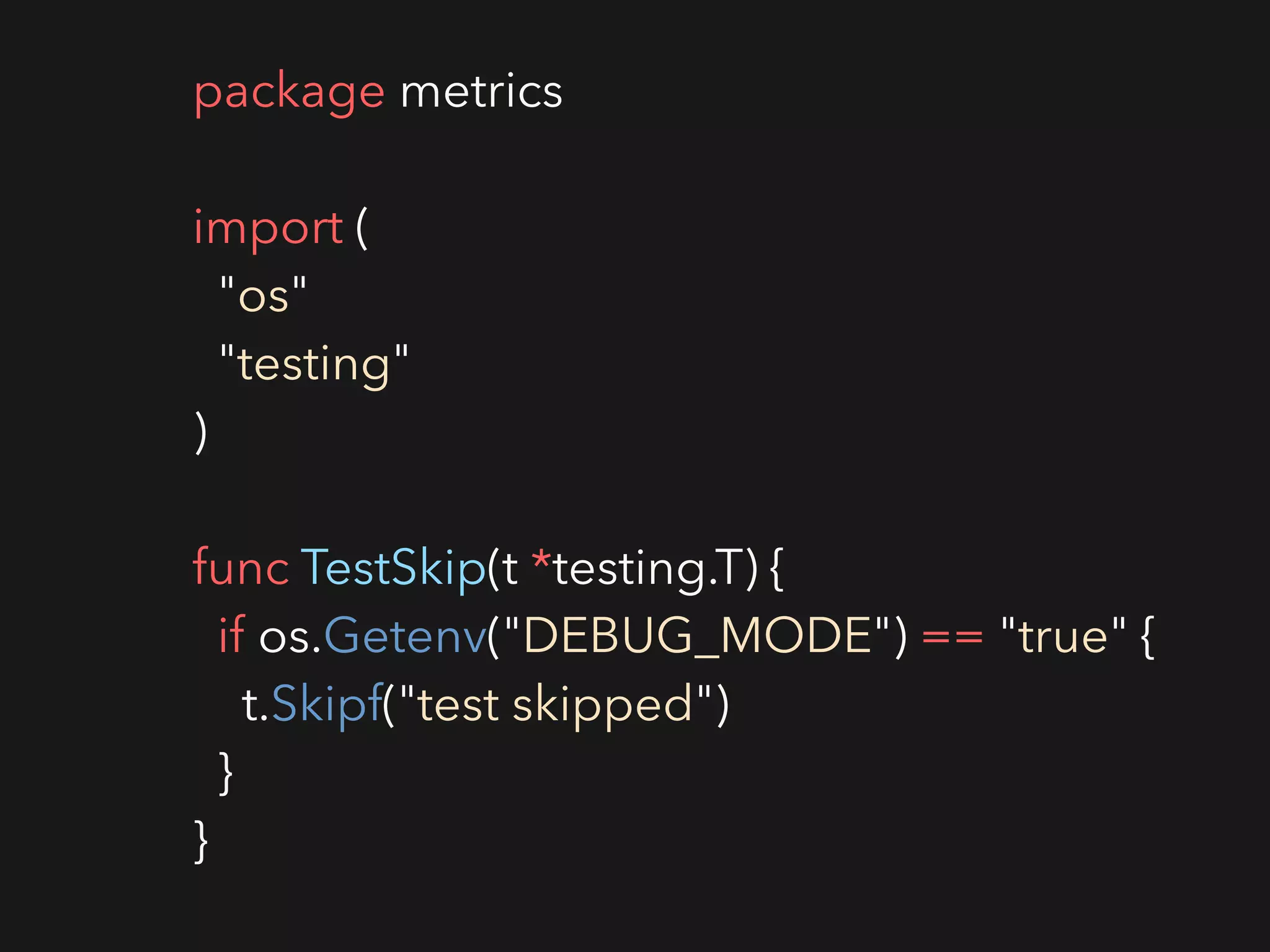

package metrics
import (
  "os"
  "testing"
)
func TestSkip(t *testing.T) {
  if os.Getenv("DEBUG_MODE") == "true" {
    t.Skipf("test skipped")
  }
}

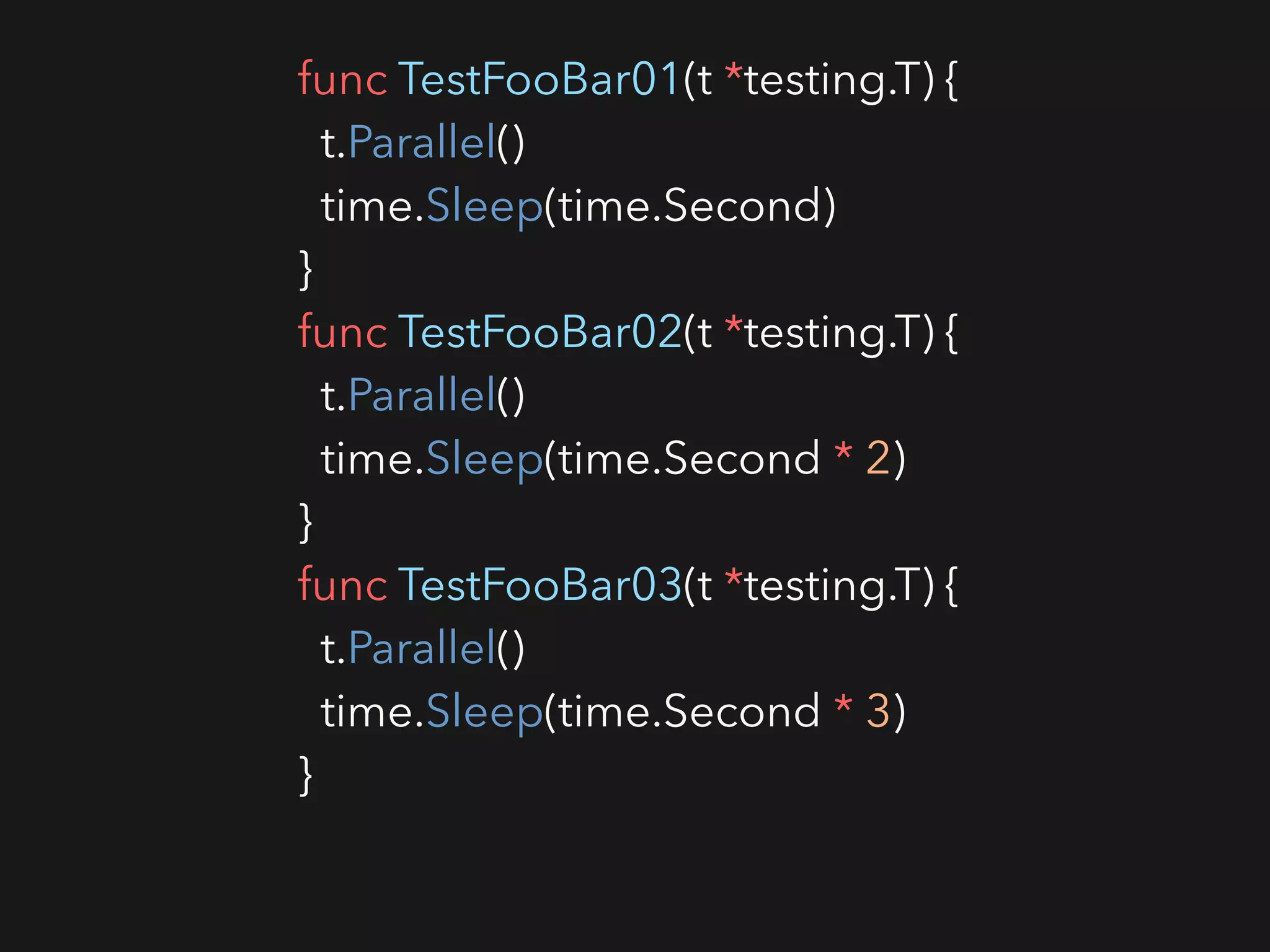

#6. Running Tests in Parallel
Speedup your CI/CD Flow
t.Parallel()

func TestFooBar01(t *testing.T) {
  t.Parallel()
  time.Sleep(time.Second)
}
  t.Parallel()
  time.Sleep(time.Second * 2)
}
  t.Parallel()
  time.Sleep(time.Second * 3)
}

Just only use
one package
github.com/stretchr/testify

https://www.udemy.com/course/golang-ﬁght/?couponCode=GOLANG2019

https://www.udemy.com/course/devops-oneday/?couponCode=DRONE2019

Golang Project Layout and Practice

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Golang Project Layout and Practice

Similar to Golang Project Layout and Practice (20)

More from Bo-Yi Wu

More from Bo-Yi Wu (20)

Recently uploaded

Recently uploaded (20)

Golang Project Layout and Practice
