Middleware as Code with mruby
Details of mruby usage in production
self.introduce
=>
{
name: “SHIBATA Hiroshi”,
nickname: “hsbt”,
title: “Chief engineer at GMO Pepabo, Inc.”,
commit_bits: [“ruby”, “rake”, “rubygems”, “rdoc”, “tdiary”,
“hiki”, “railsgirls”, “railsgirls-jp”],
sites: [“ruby-lang.org”, “rubyci.com”, “railsgirls.com”,
“railsgirls.jp”],
}

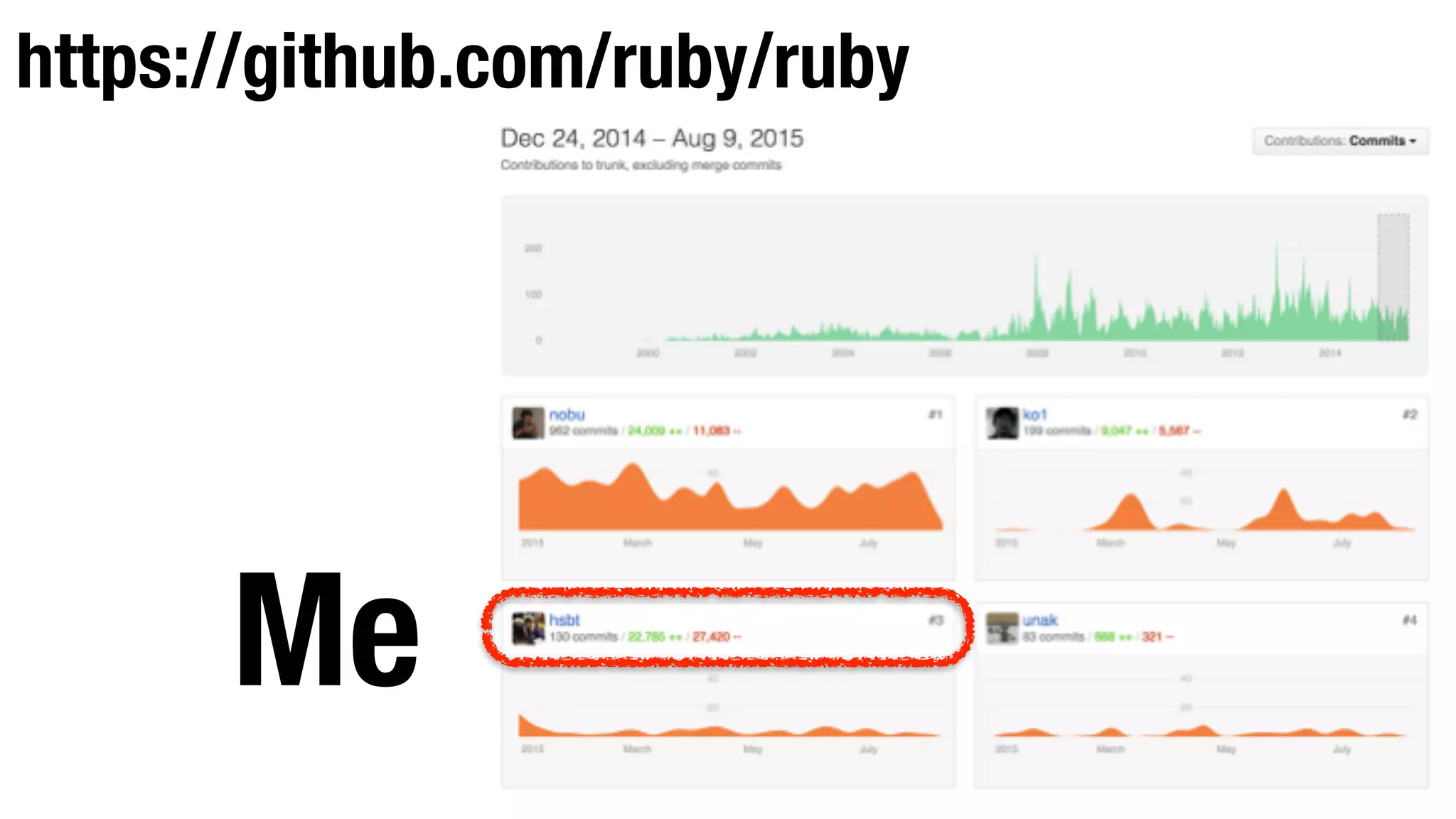

Me
https://github.com/ruby/ruby
I’m from Tokyo, Japan
Tokyo
Matze
Taiwan
I’m from Asakusa.rb
Asakusa.rb is one of the most active meet-ups in Tokyo, Japan.
@a_matsuda (Ruby/Rails committer, RubyKaigi organizer)
@kakutani (RubyKaigi organizer)
@ko1 (Ruby committer)
@takkanm (Ruby/Rails programmer)
@gunjisatoshi (Rubyist Magazine editor)
@hsbt (Me!)

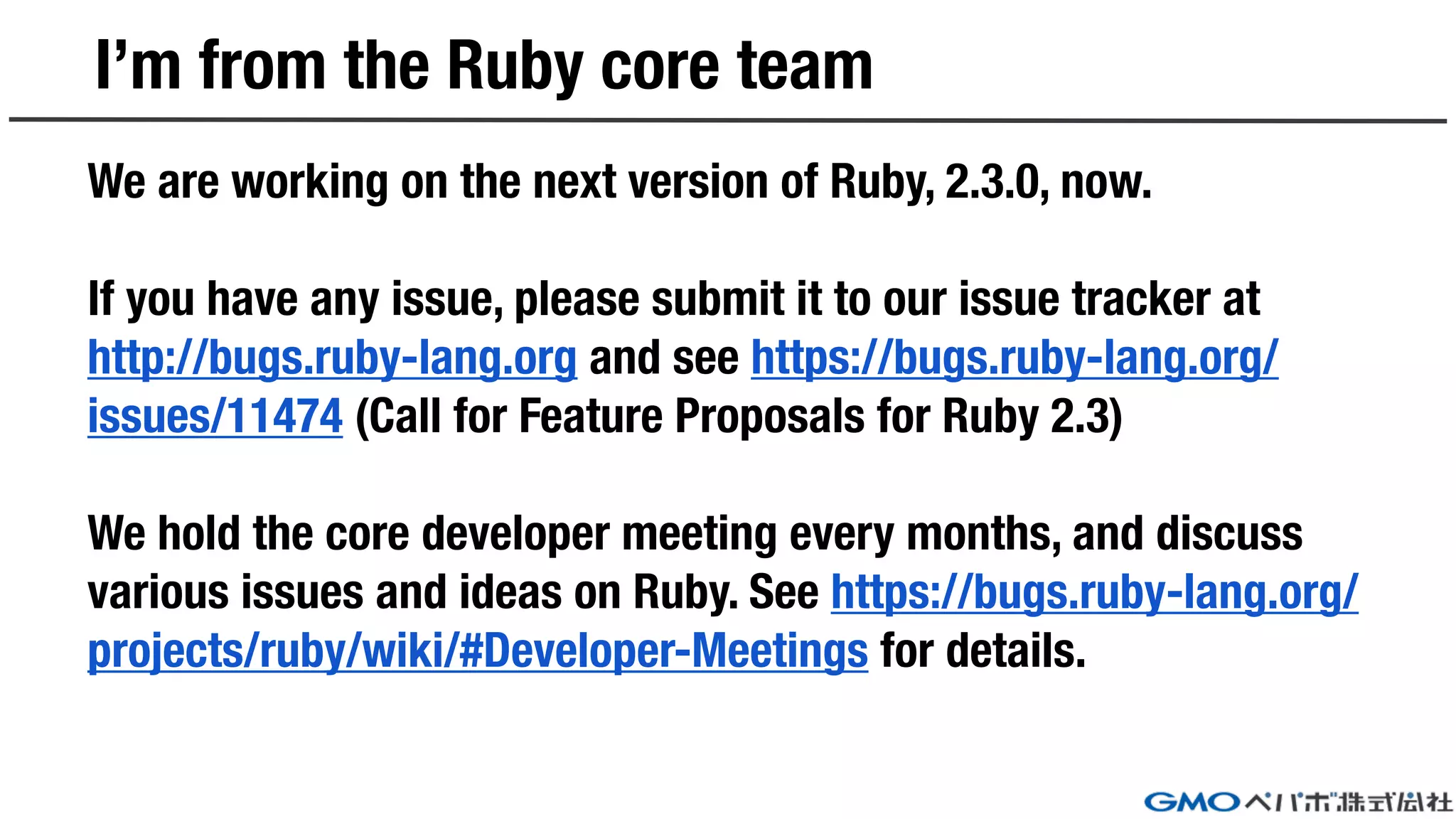

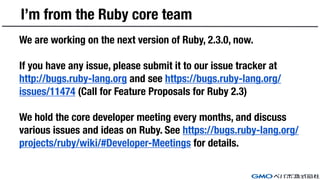

I’m from the Ruby core team
We are working on the next version of Ruby, 2.3.0, now.
If you have any issue, please submit it to our issue tracker at
http://bugs.ruby-lang.org and see https://bugs.ruby-lang.org/
issues/11474 (Call for Feature Proposals for Ruby 2.3)
We hold the core developer meeting every months, and discuss
various issues and ideas on Ruby. See https://bugs.ruby-lang.org/
projects/ruby/wiki/#Developer-Meetings for details.
mruby

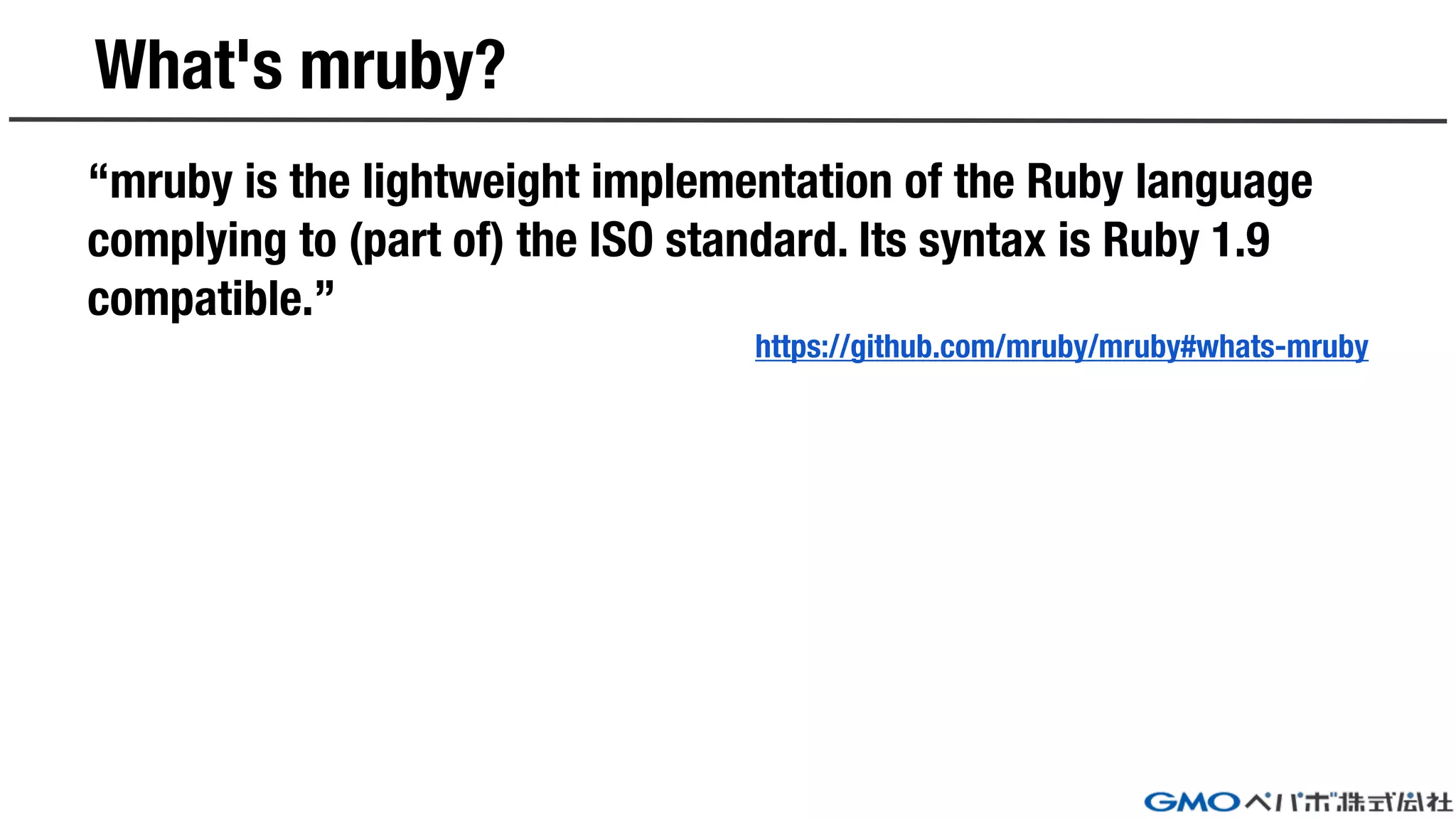

What's mruby?
“mruby is the lightweight implementation of the Ruby language
complying to (part of) the ISO standard. Its syntax is Ruby 1.9
compatible.”
https://github.com/mruby/mruby#whats-mruby

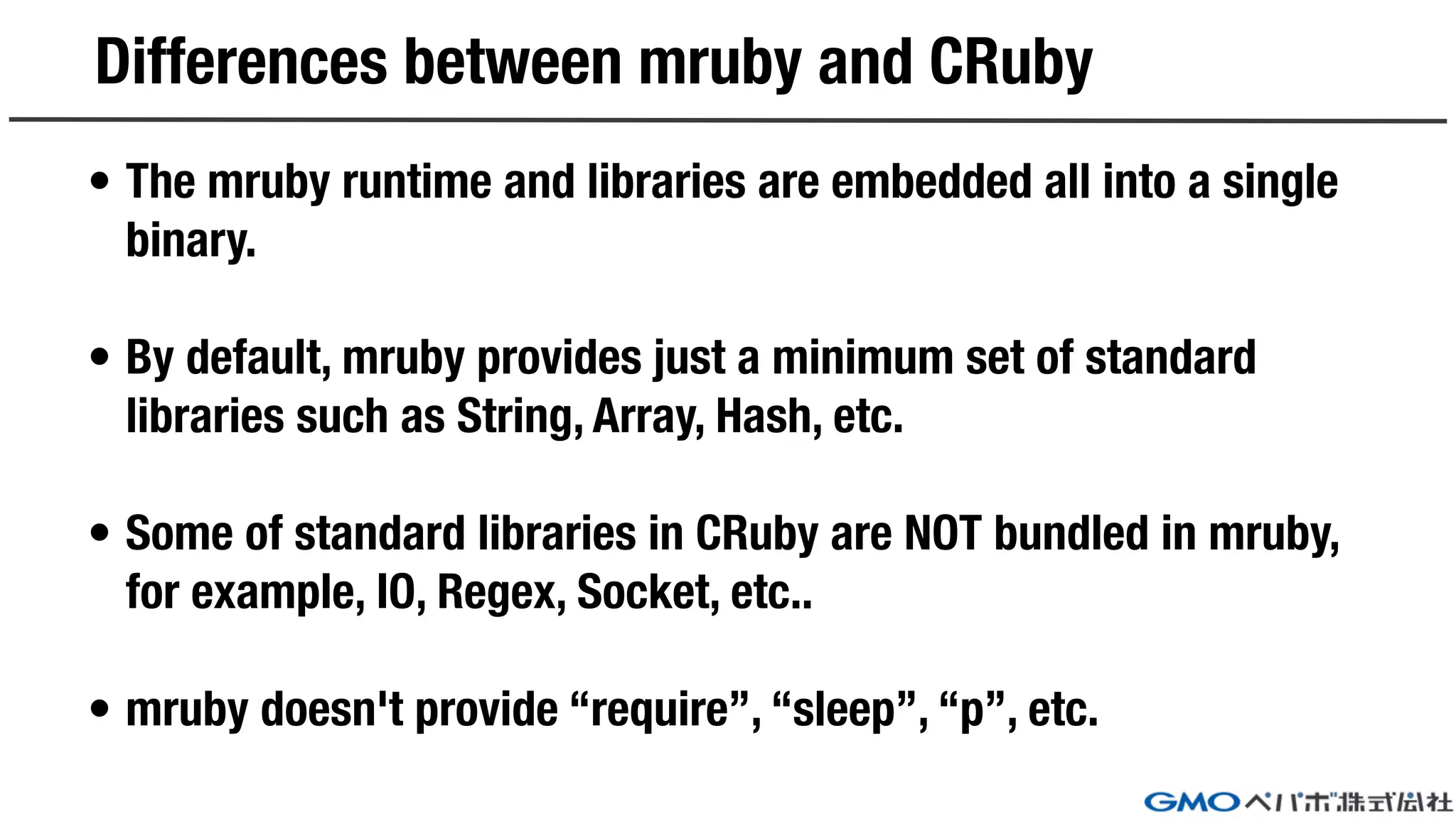

Differences between mruby and CRuby
• The mruby runtime and libraries are embedded all into a single
binary.
• By default, mruby provides just a minimum set of standard
libraries such as String, Array, Hash, etc.
• Some of standard libraries in CRuby are NOT bundled in mruby,
for example, IO, Regex, Socket, etc..
• mruby doesn't provide “require”, “sleep”, “p”, etc.

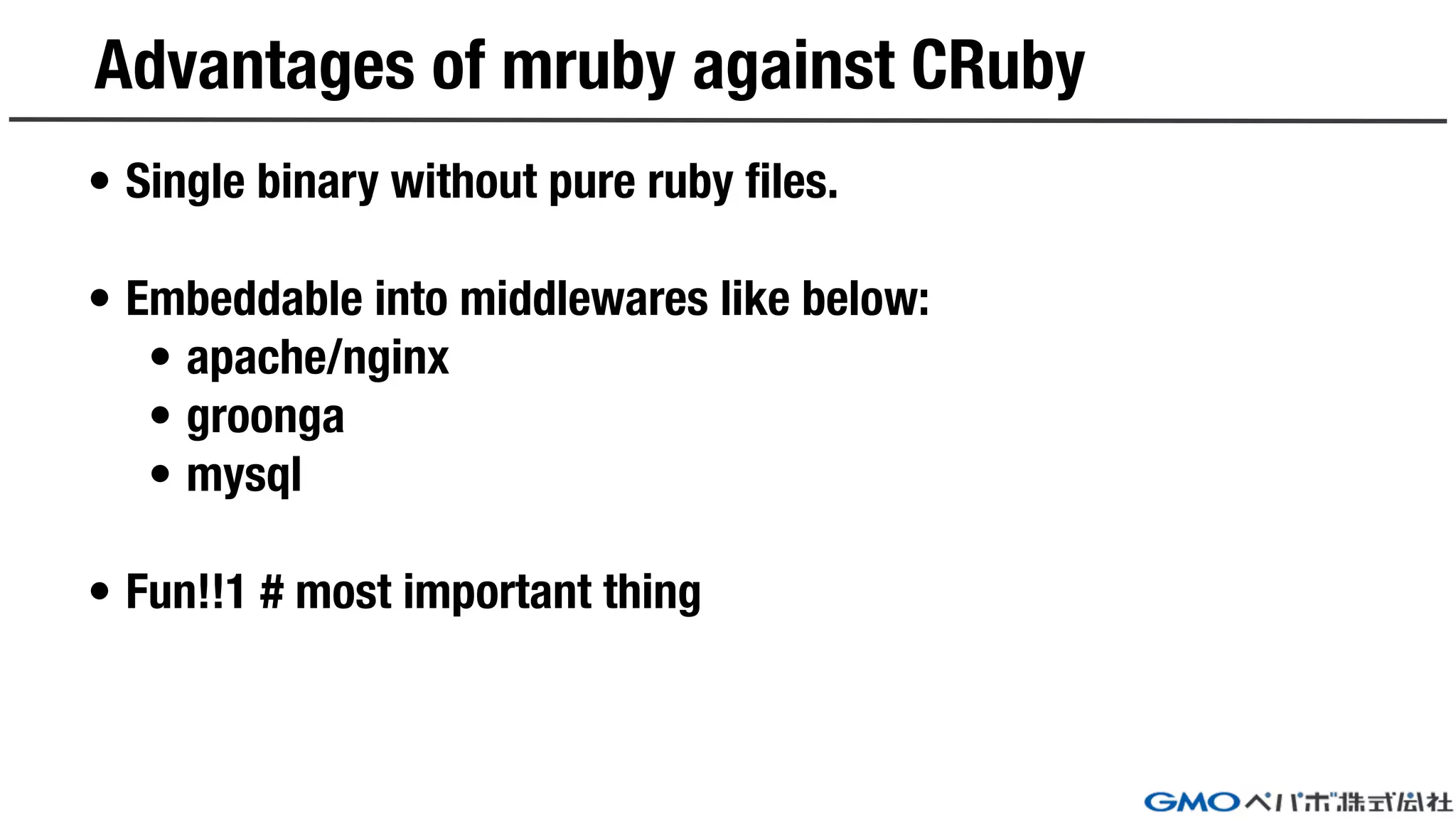

Advantages of mruby against CRuby
• Single binary without pure ruby files.
• Embeddable into middlewares like below:
• apache/nginx
• groonga
• mysql
• Fun!!1 # most important thing

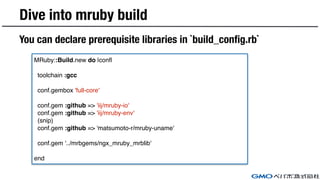

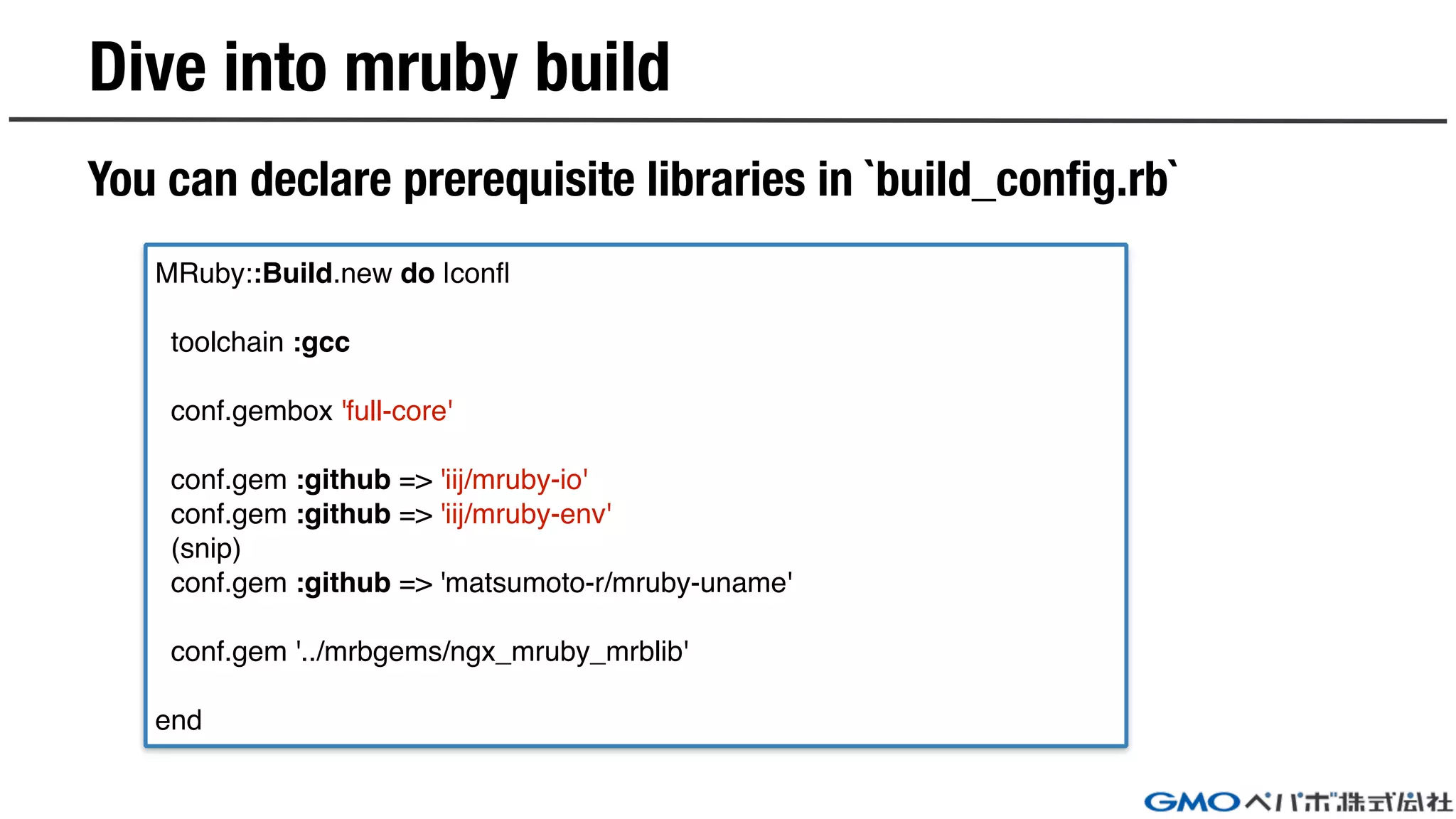

Dive into mruby build
You can declare prerequisite libraries in `build_config.rb`
MRuby::Build.new do |conf|
toolchain :gcc
conf.gembox 'full-core'
conf.gem :github => 'iij/mruby-io'
conf.gem :github => 'iij/mruby-env'
(snip)
conf.gem :github => 'matsumoto-r/mruby-uname'
conf.gem '../mrbgems/ngx_mruby_mrblib'
end

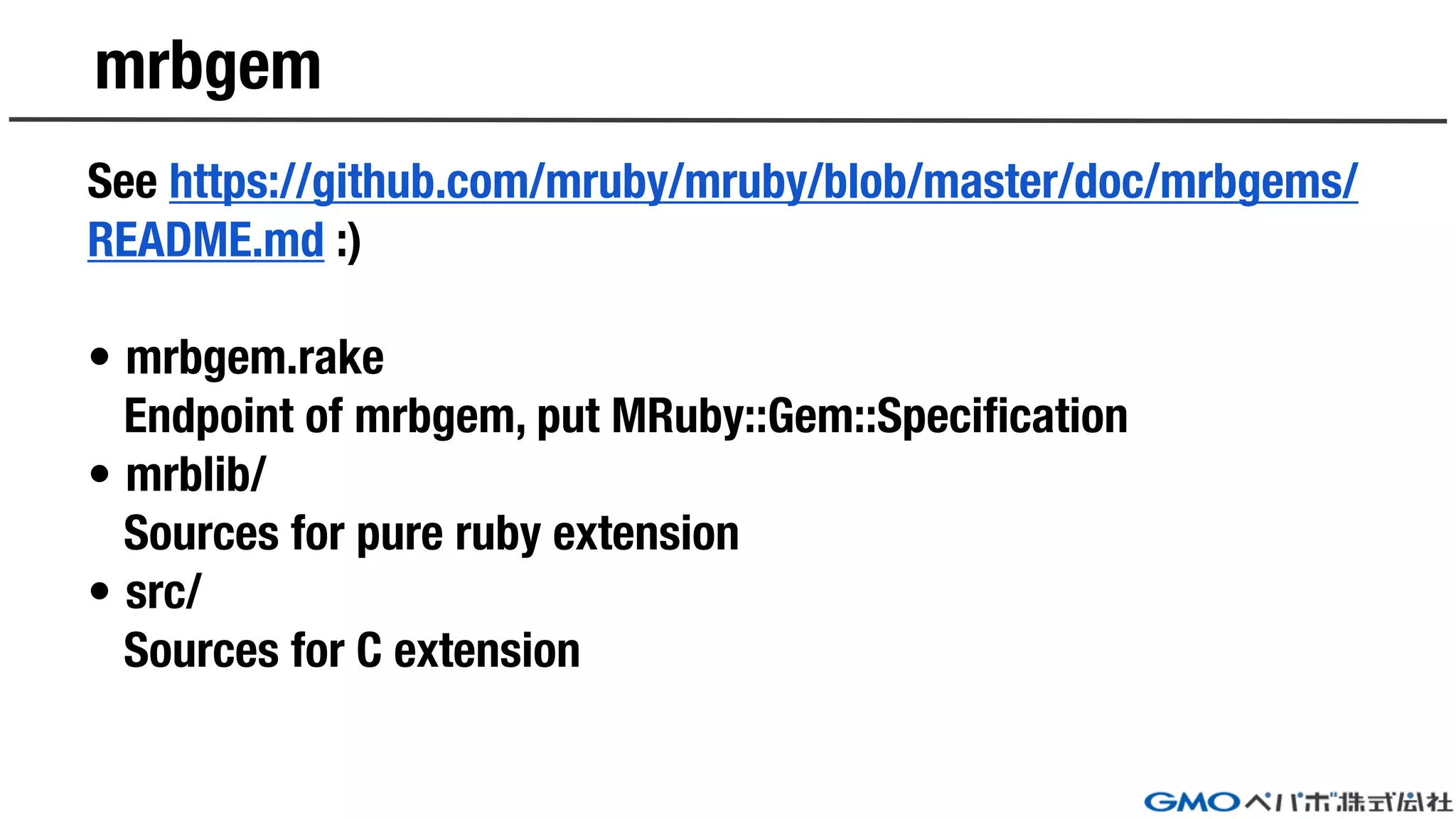

mrbgem
See https://github.com/mruby/mruby/blob/master/doc/mrbgems/
README.md :)
• mrbgem.rake
Endpoint of mrbgem, put MRuby::Gem::Specification
• mrblib/
Sources for pure ruby extension
• src/
Sources for C extension
🐙 Demo 🐱

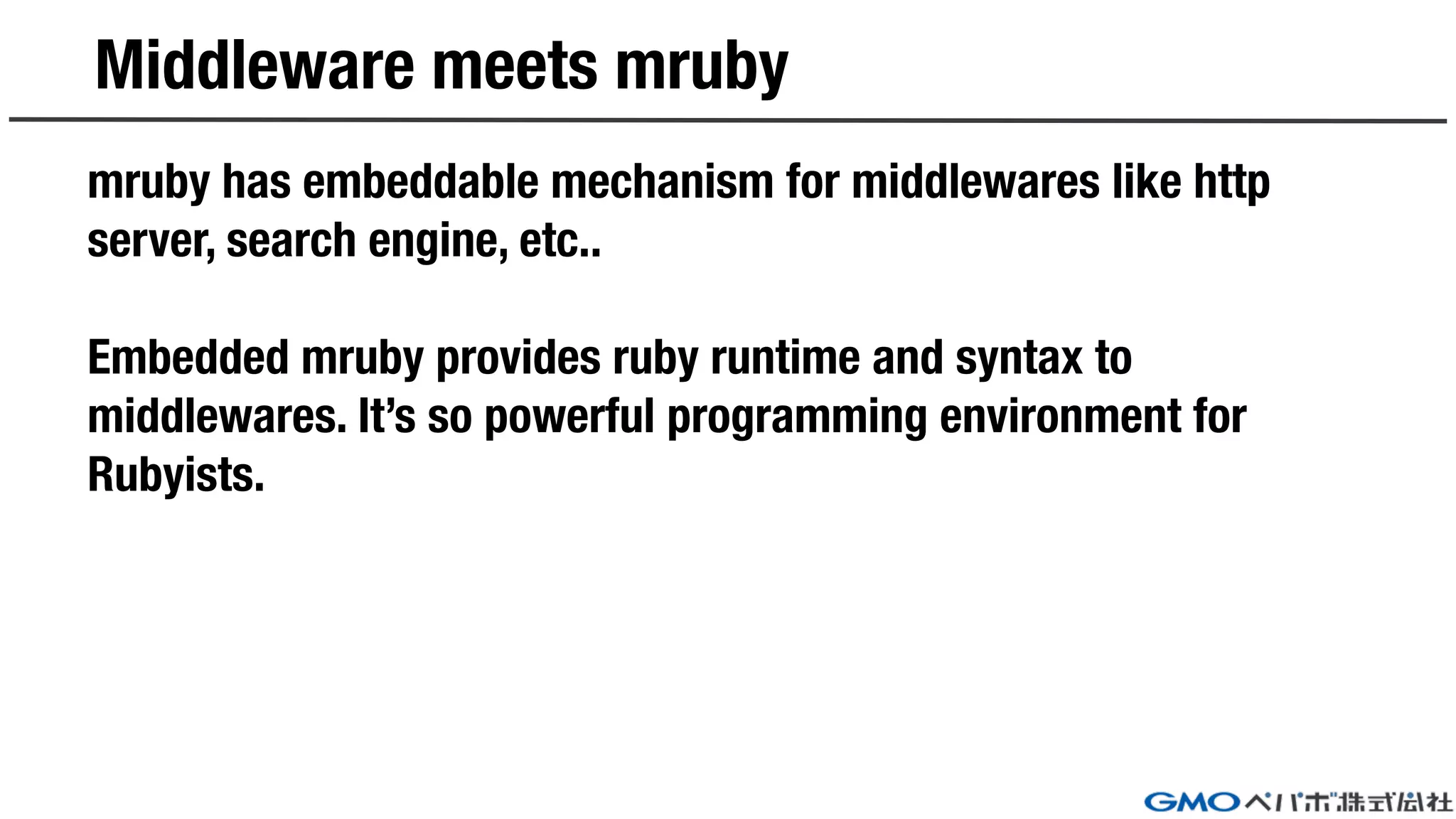

Middleware meets mruby
mruby has embeddable mechanism for middlewares like http
server, search engine, etc..
Embedded mruby provides ruby runtime and syntax to
middlewares. It’s so powerful programming environment for
Rubyists.
ngx_mruby

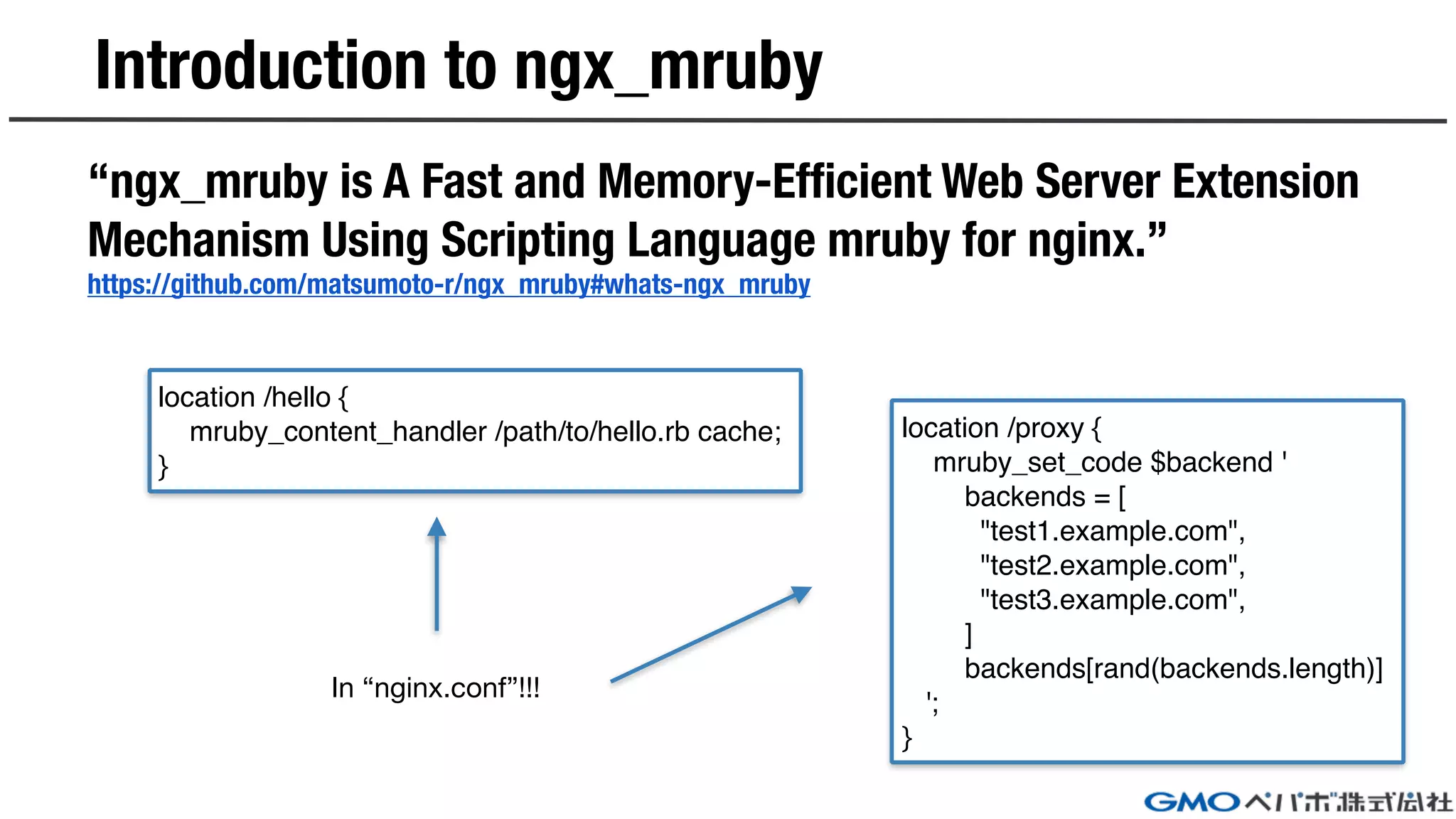

Introduction to ngx_mruby
“ngx_mruby is A Fast and Memory-Efficient Web Server Extension
Mechanism Using Scripting Language mruby for nginx.”
https://github.com/matsumoto-r/ngx_mruby#whats-ngx_mruby
location /proxy {
mruby_set_code $backend '
backends = [
"test1.example.com",
"test2.example.com",
"test3.example.com",
]
backends[rand(backends.length)]
';
}
location /hello {
mruby_content_handler /path/to/hello.rb cache;
}
In “nginx.conf”!!!

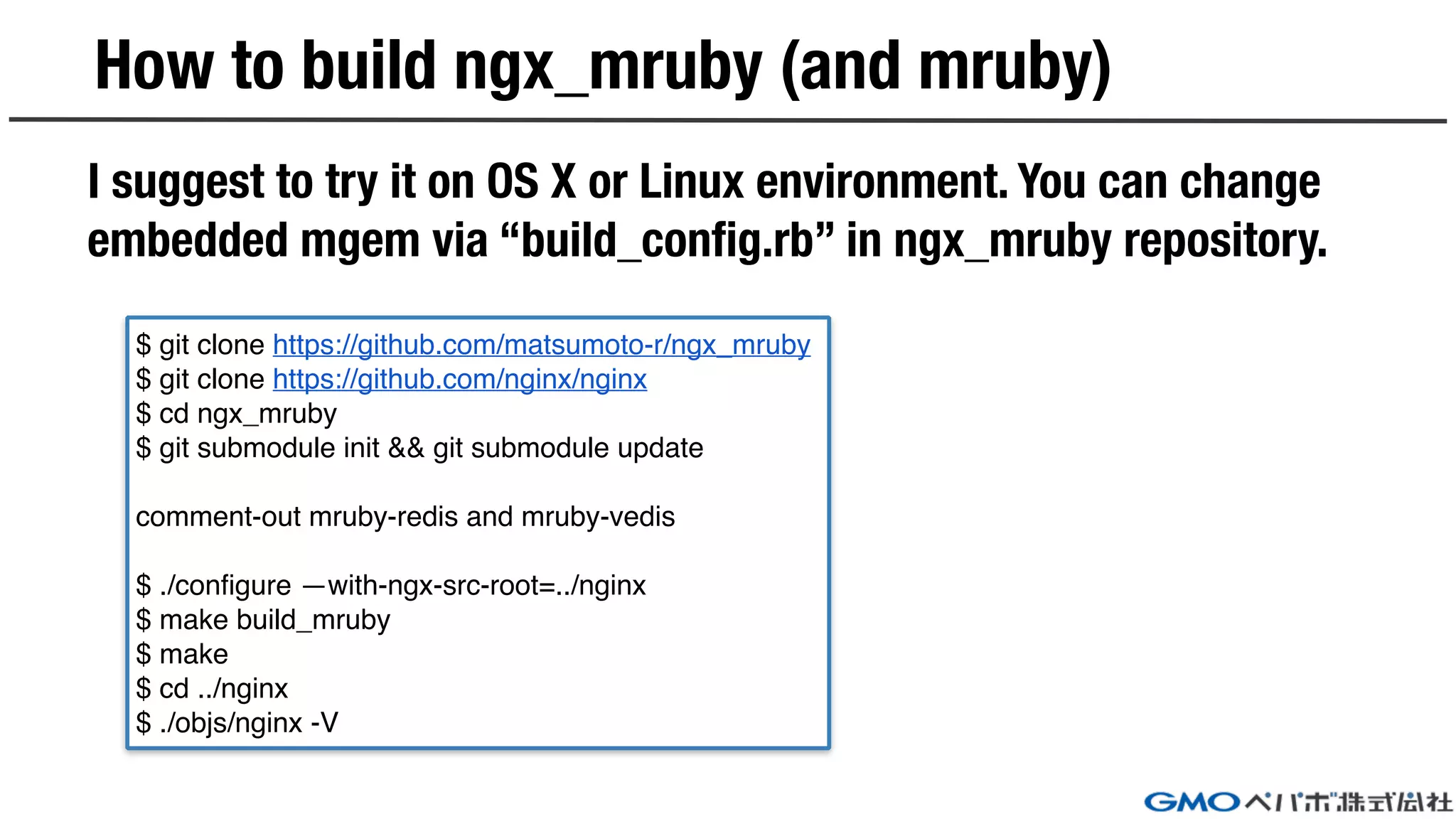

How to build ngx_mruby (and mruby)
I suggest to try it on OS X or Linux environment. You can change
embedded mgem via “build_config.rb” in ngx_mruby repository.
$ git clone https://github.com/matsumoto-r/ngx_mruby
$ git clone https://github.com/nginx/nginx
$ cd ngx_mruby
$ git submodule init && git submodule update
comment-out mruby-redis and mruby-vedis
$ ./configure —with-ngx-src-root=../nginx
$ make build_mruby
$ make
$ cd ../nginx
$ ./objs/nginx -V

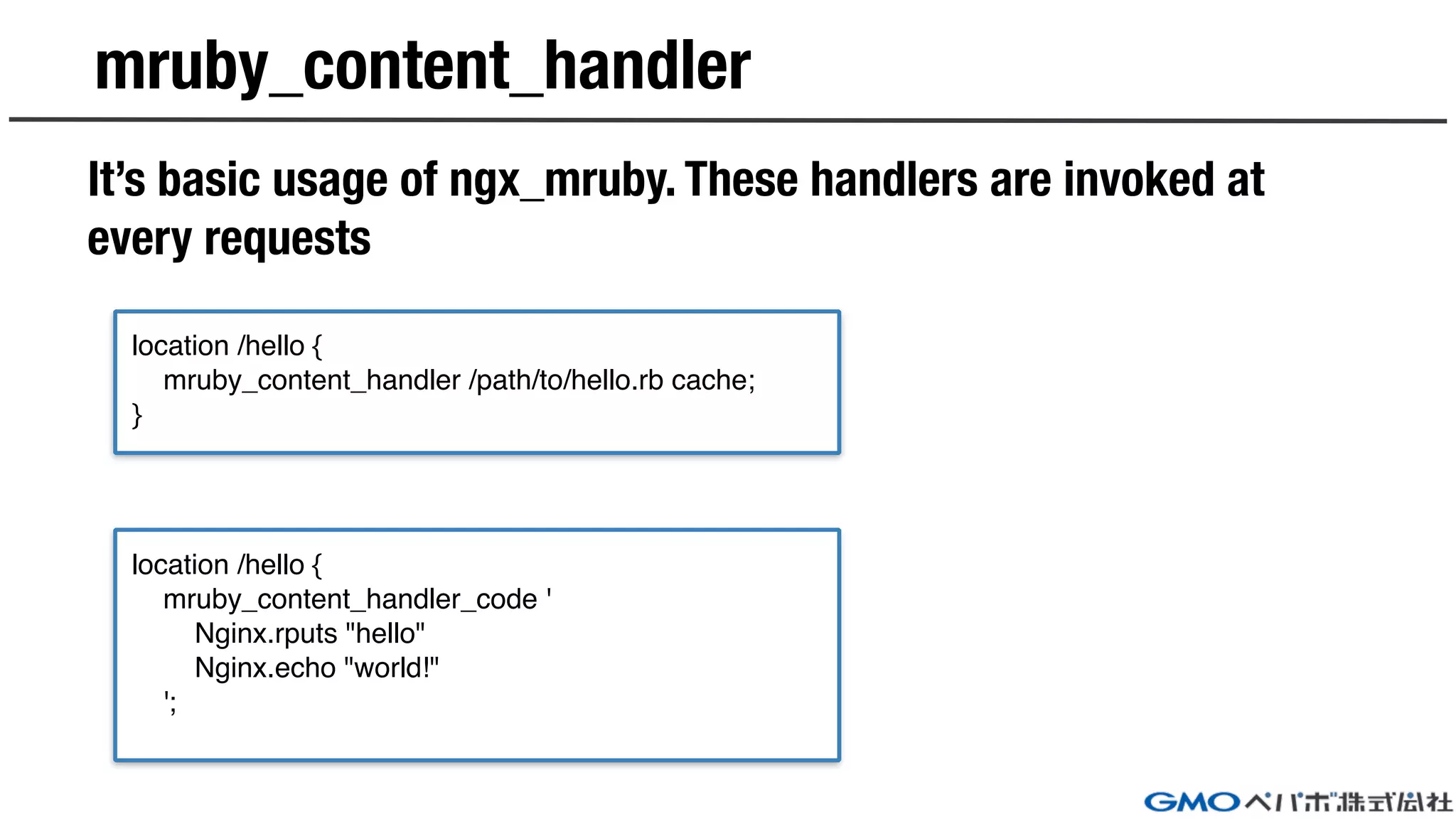

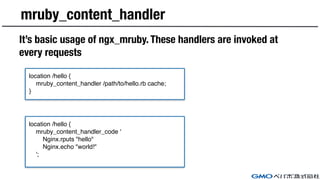

mruby_content_handler
location /hello {
mruby_content_handler /path/to/hello.rb cache;
}
location /hello {
mruby_content_handler_code '
Nginx.rputs "hello"
Nginx.echo "world!"
';
It’s basic usage of ngx_mruby. These handlers are invoked at
every requests

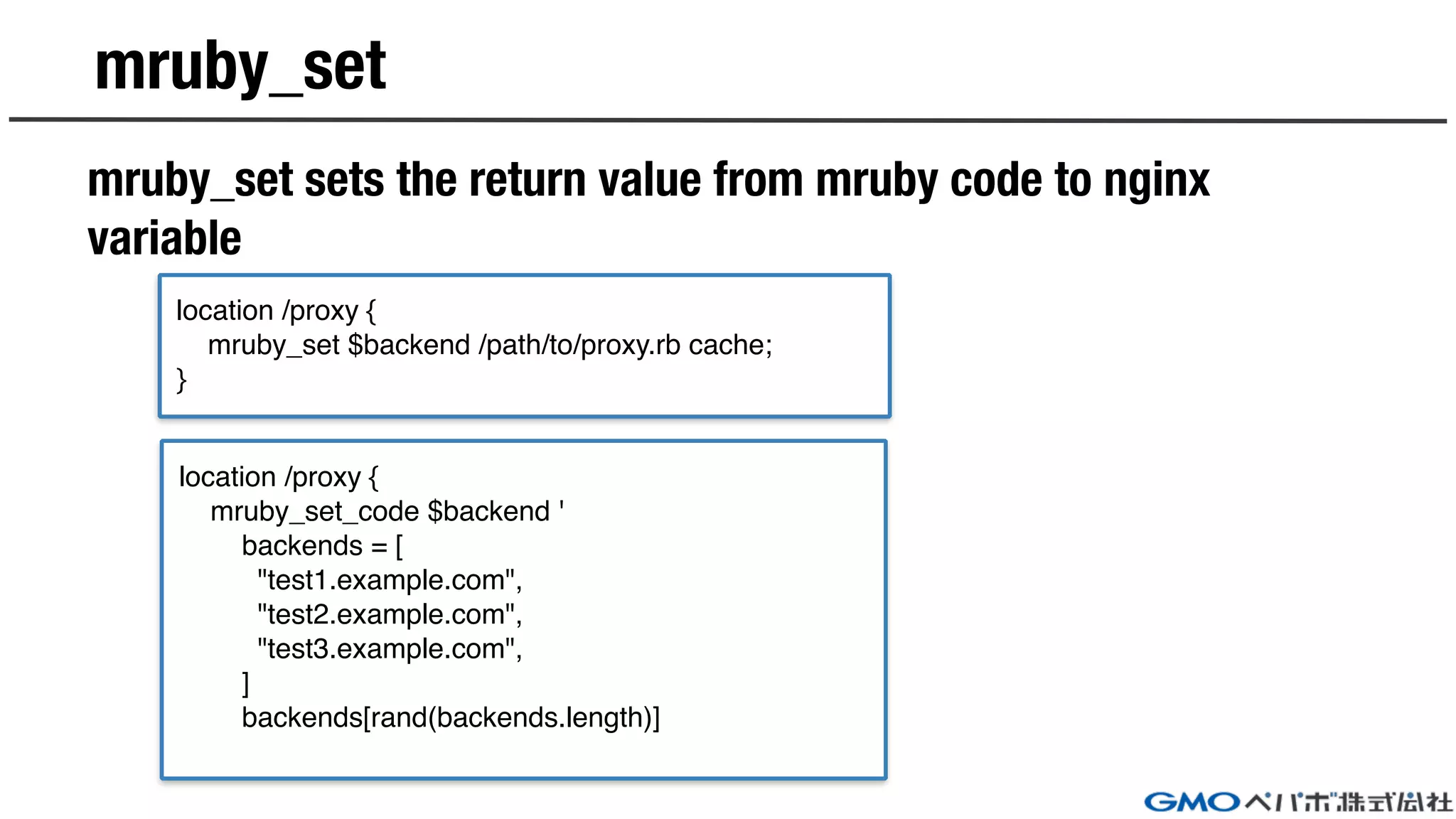

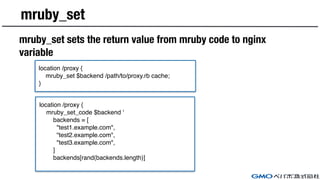

mruby_set
location /proxy {
mruby_set $backend /path/to/proxy.rb cache;
}
location /proxy {
mruby_set_code $backend '
backends = [
"test1.example.com",
"test2.example.com",
"test3.example.com",
]
backends[rand(backends.length)]
mruby_set sets the return value from mruby code to nginx
variable

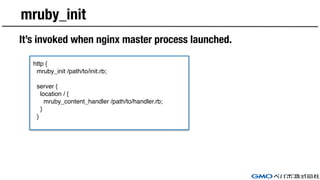

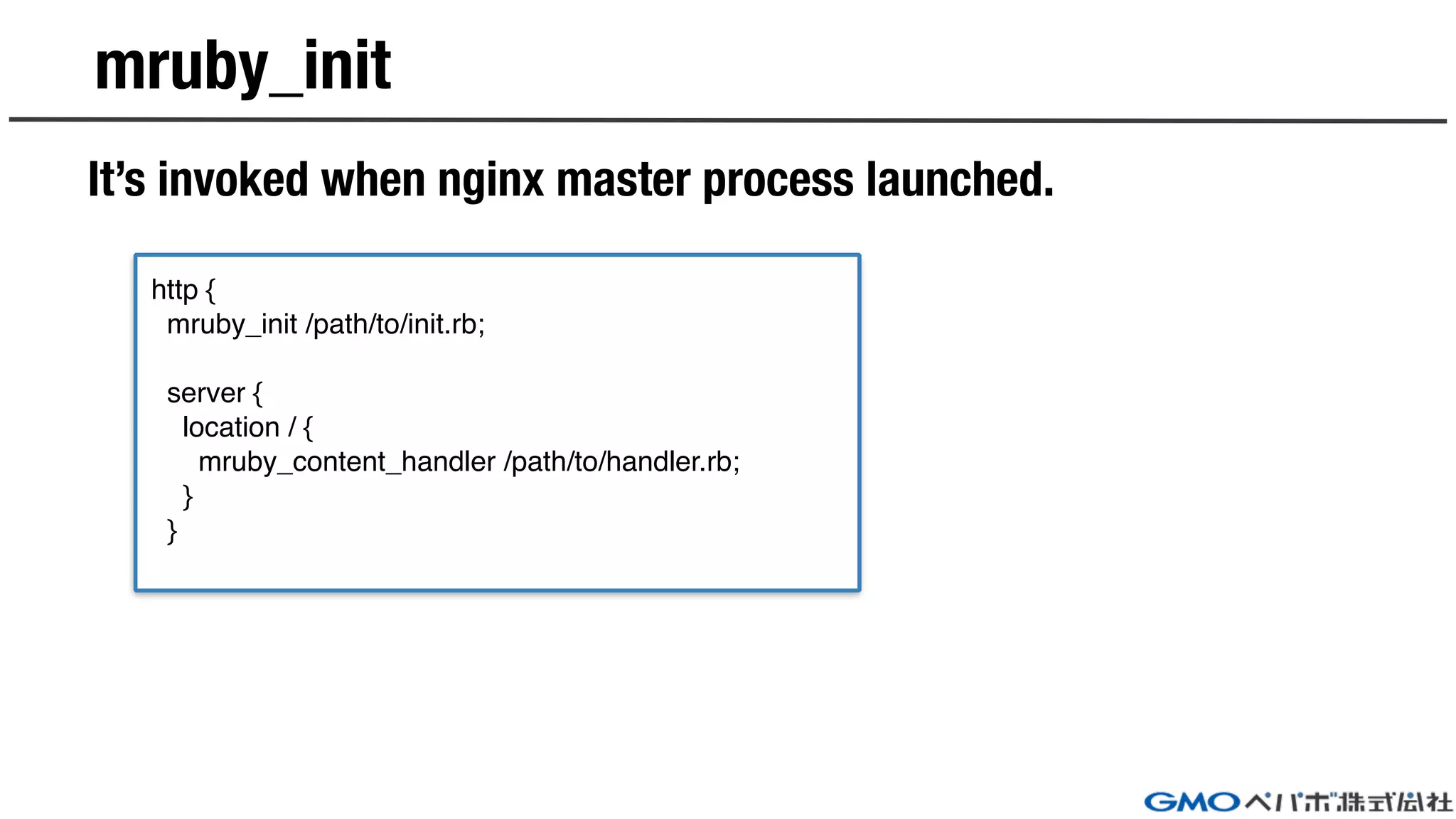

mruby_init
http {
mruby_init /path/to/init.rb;
server {
location / {
mruby_content_handler /path/to/handler.rb;
}
}
It’s invoked when nginx master process launched.

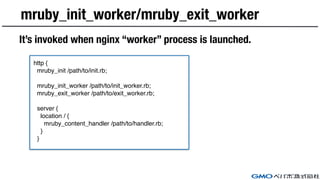

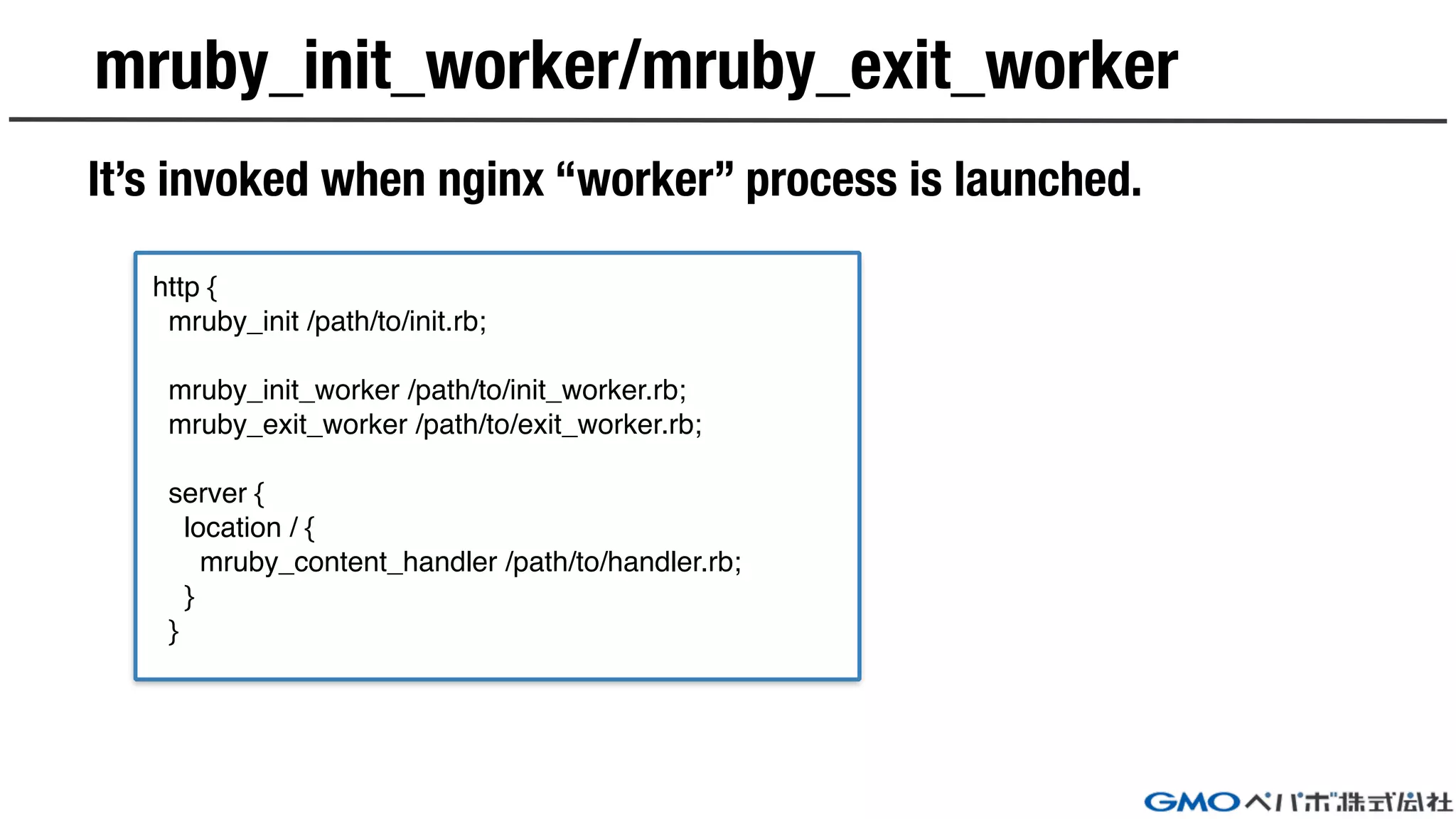

mruby_init_worker/mruby_exit_worker
http {
mruby_init /path/to/init.rb;
mruby_init_worker /path/to/init_worker.rb;
mruby_exit_worker /path/to/exit_worker.rb;
server {
location / {
mruby_content_handler /path/to/handler.rb;
}
}
It’s invoked when nginx “worker” process is launched.

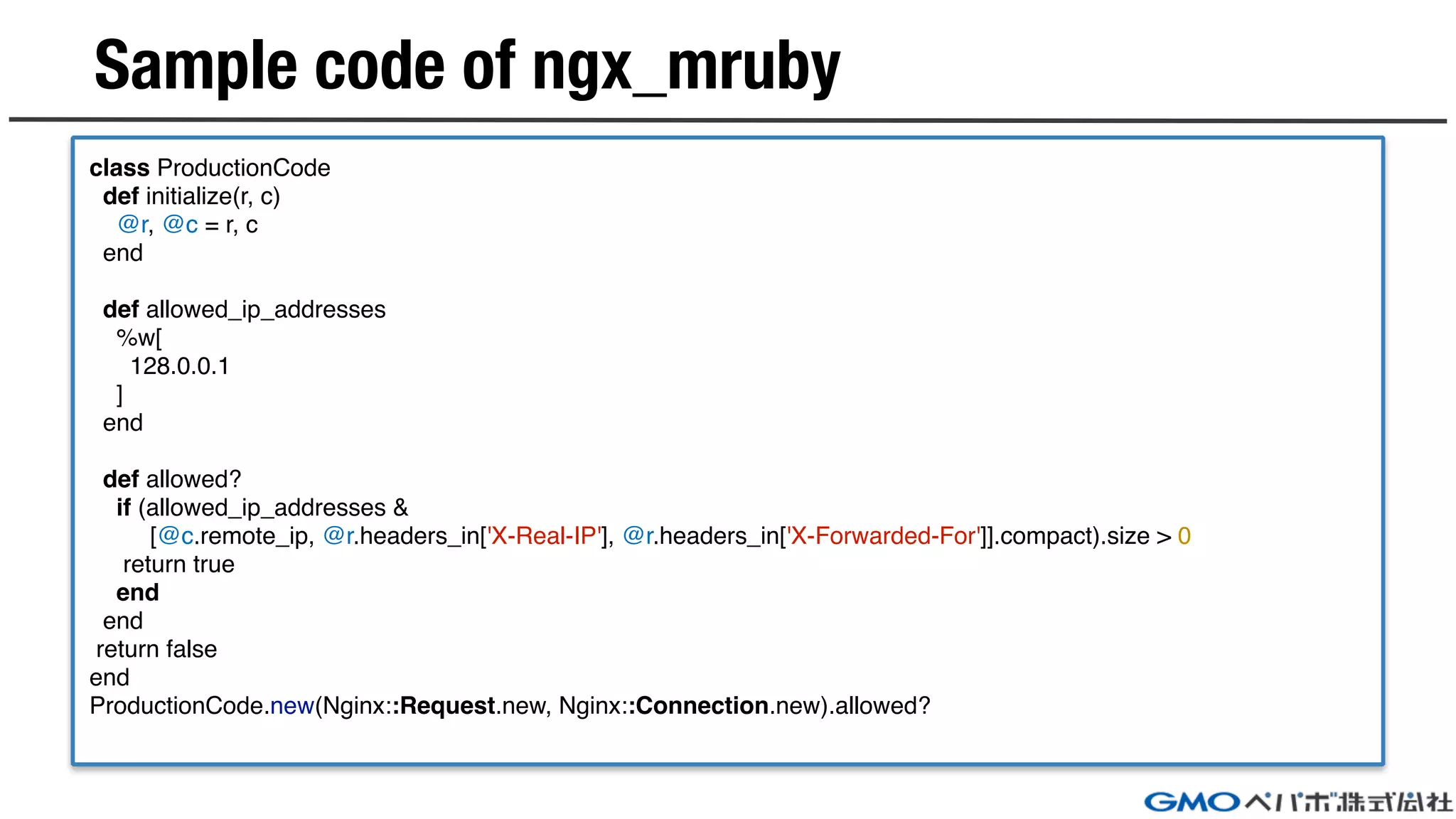

Sample code of ngx_mruby
class ProductionCode
def initialize(r, c)
@r, @c = r, c
end
def allowed_ip_addresses
%w[
128.0.0.1
]
end
def allowed?
if (allowed_ip_addresses &
[@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0
return true
end
end
return false
end
ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?

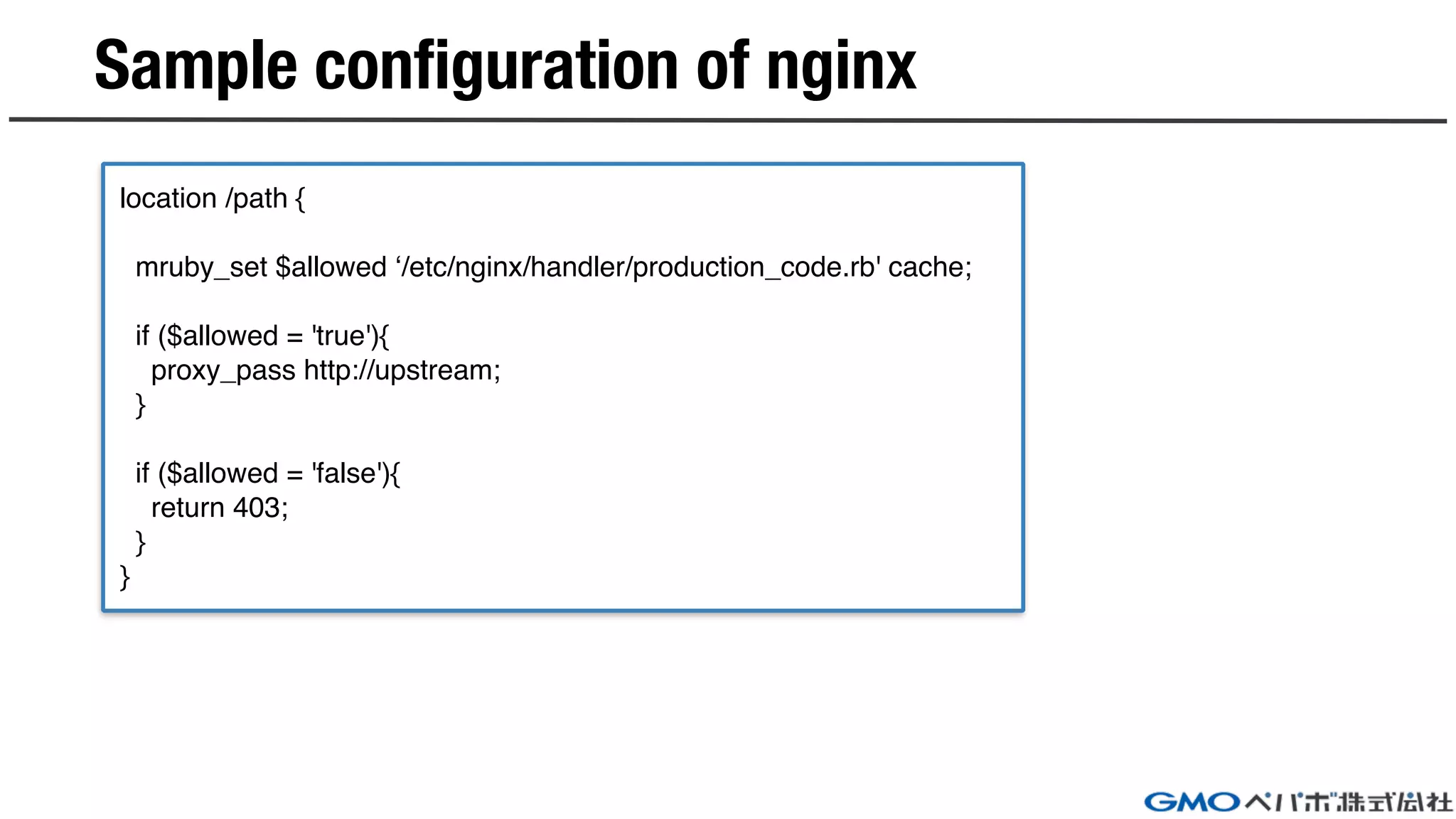

Sample configuration of nginx
location /path {
mruby_set $allowed ‘/etc/nginx/handler/production_code.rb' cache;
if ($allowed = 'true'){
proxy_pass http://upstream;
}
if ($allowed = 'false'){
return 403;
}
}

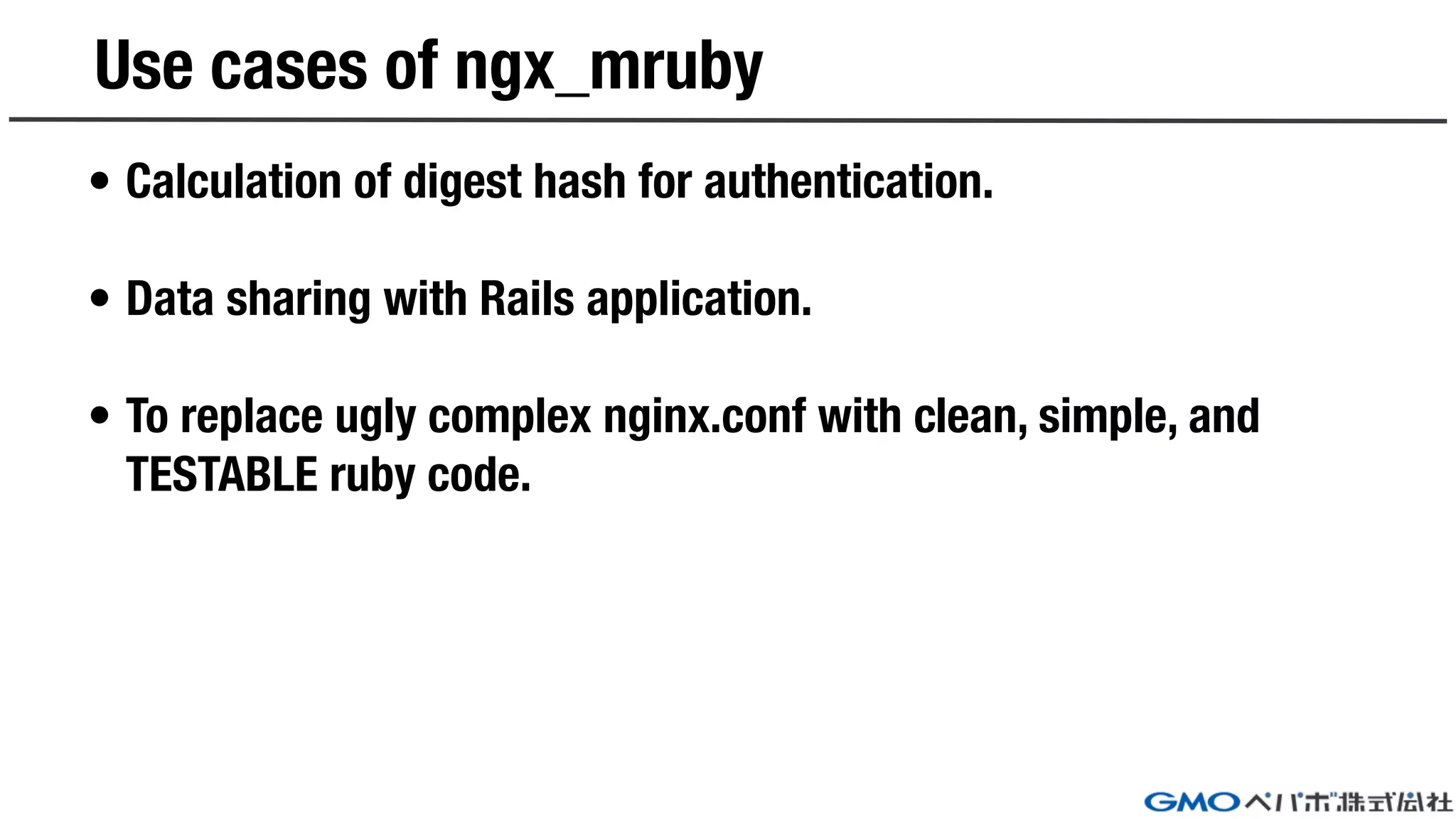

Use cases of ngx_mruby
• Calculation of digest hash for authentication.
• Data sharing with Rails application.
• To replace ugly complex nginx.conf with clean, simple, and
TESTABLE ruby code.
Middleware
as Code
Our use cases

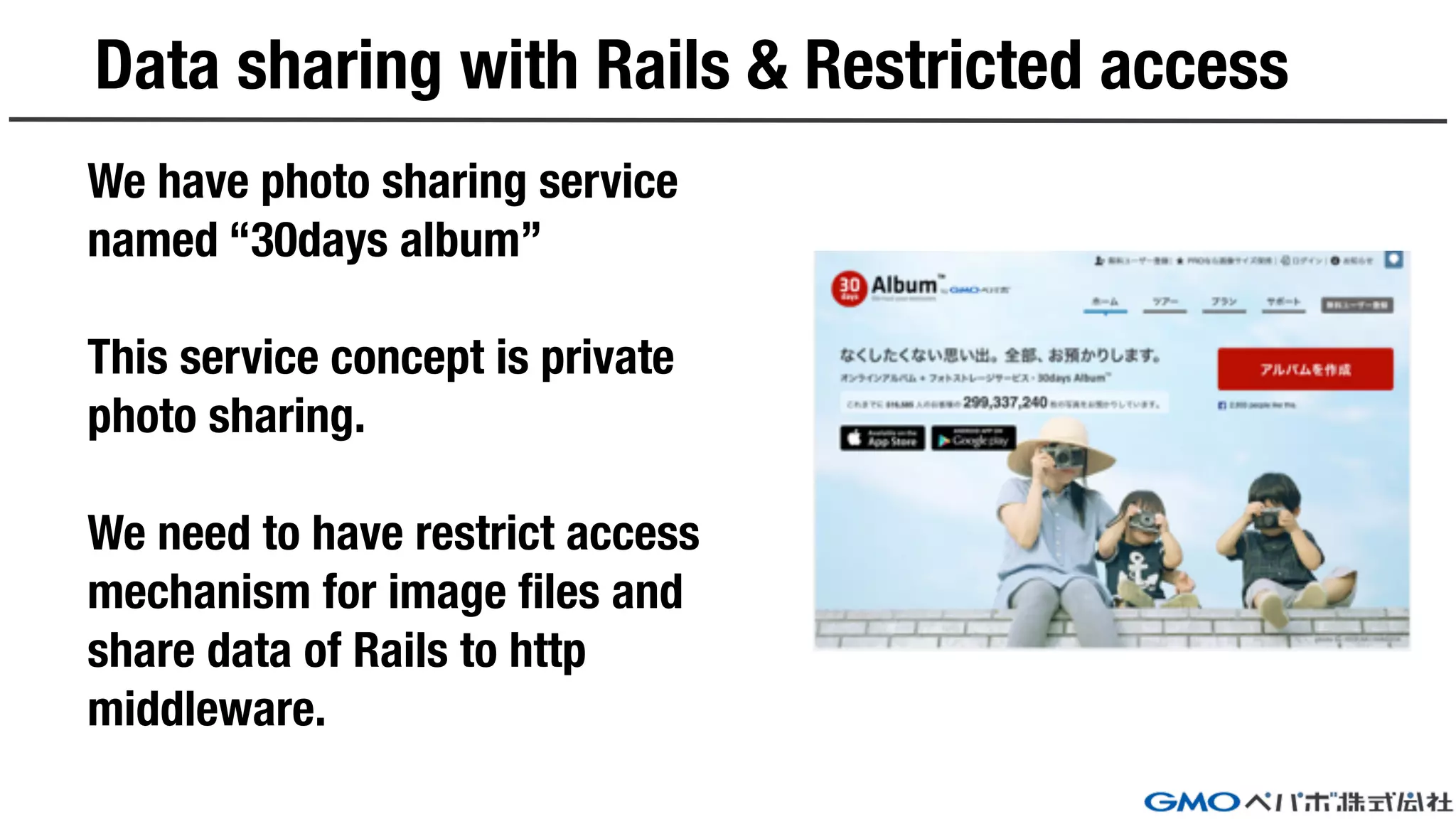

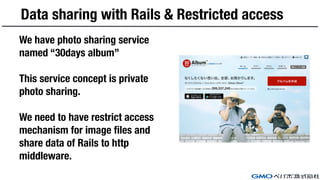

Data sharing with Rails & Restricted access
We have photo sharing service
named “30days album”
This service concept is private
photo sharing.
We need to have restrict access
mechanism for image files and
share data of Rails to http
middleware.

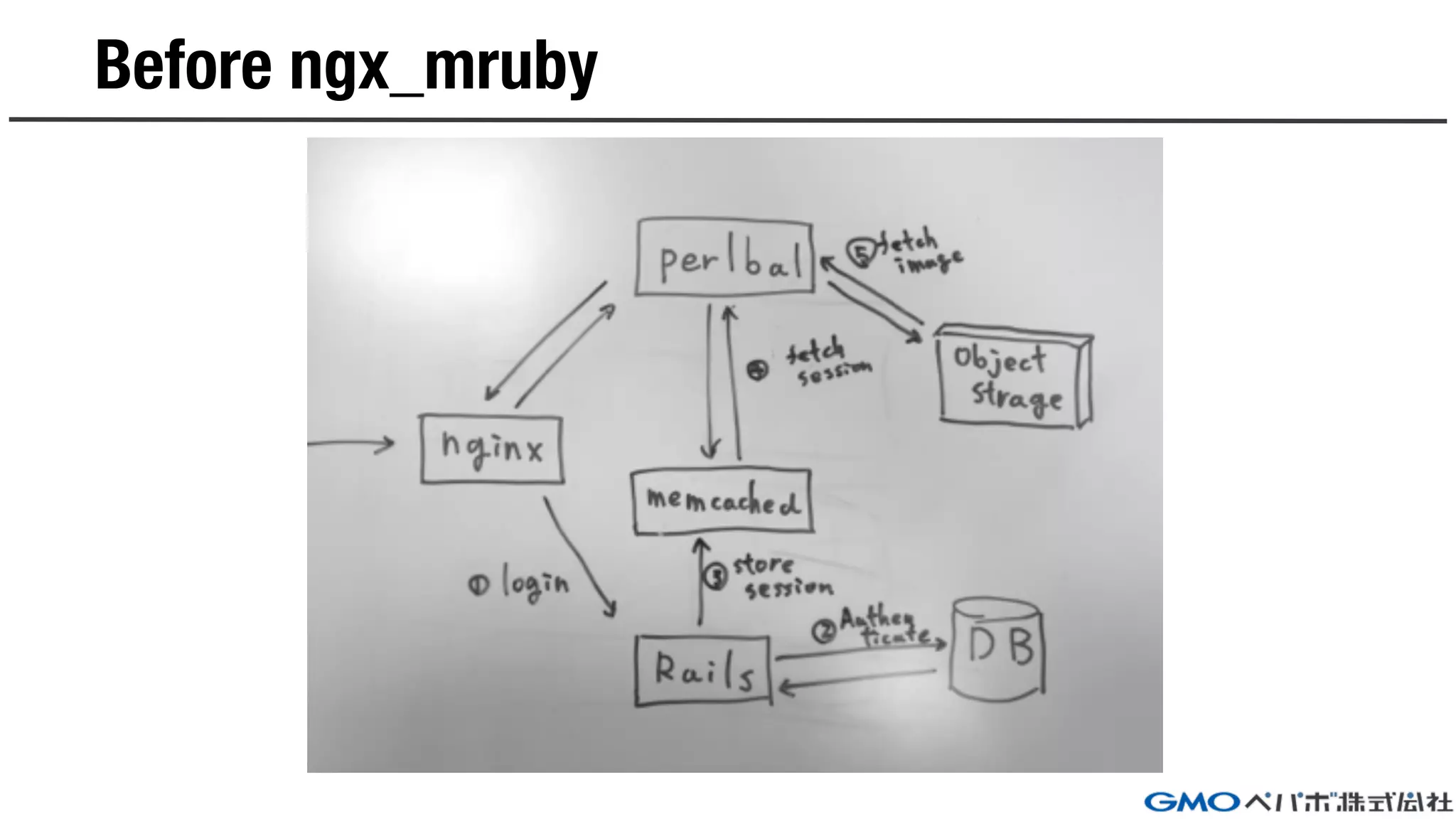

Before ngx_mruby

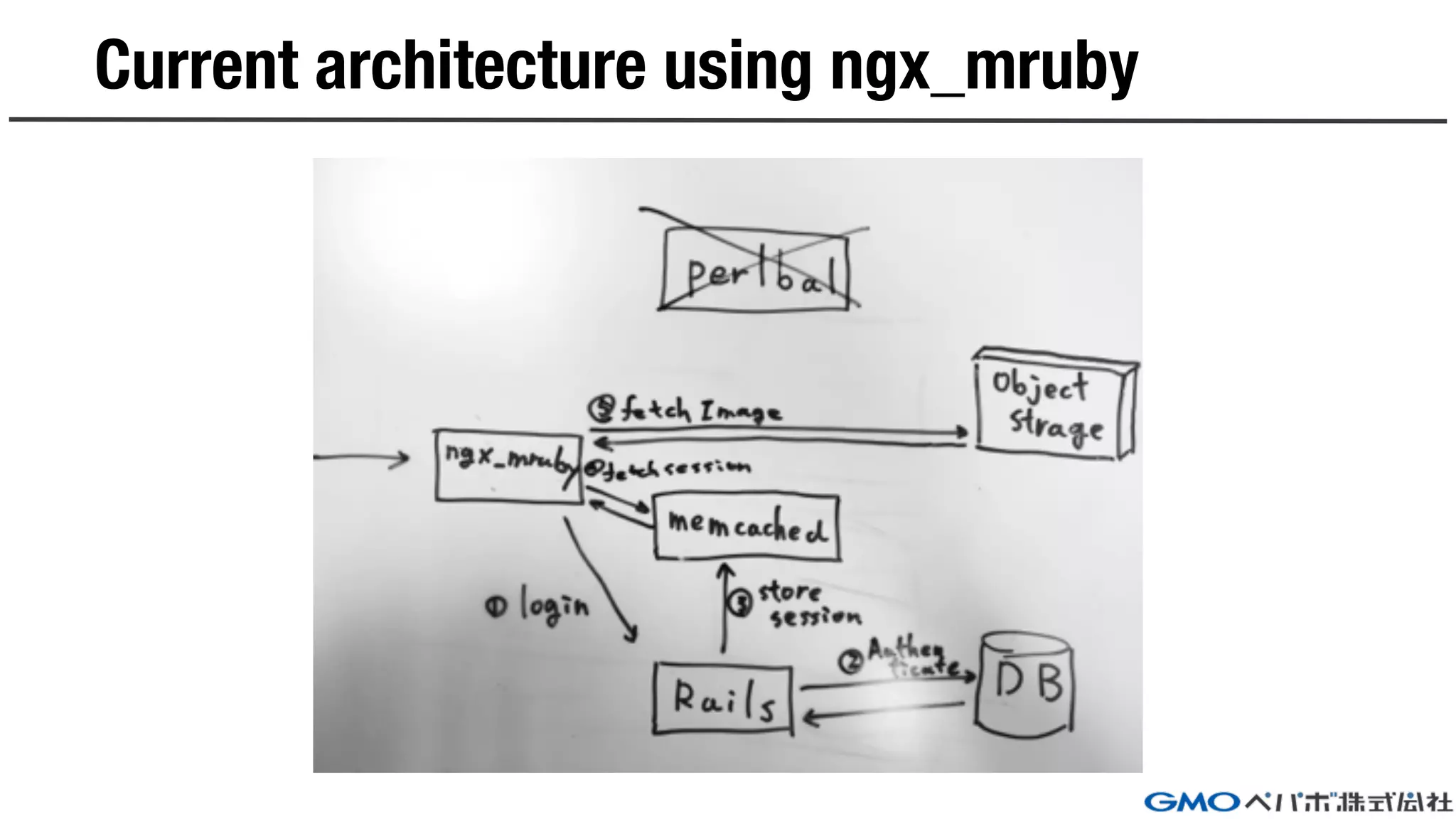

Current architecture using ngx_mruby

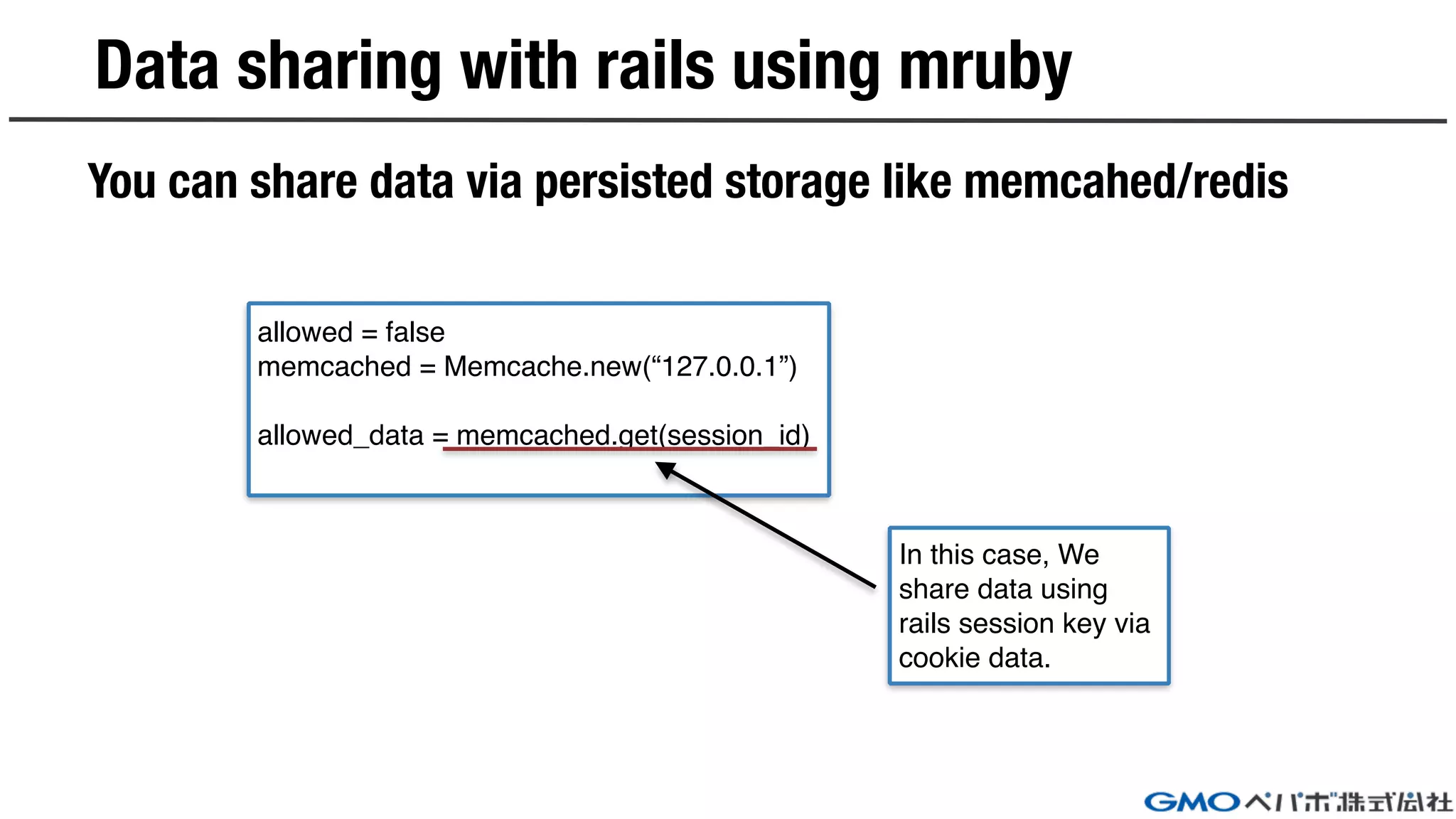

Data sharing with rails using mruby
allowed = false
memcached = Memcache.new(“127.0.0.1”)
allowed_data = memcached.get(session_id)
You can share data via persisted storage like memcahed/redis
In this case, We
share data using
rails session key via
cookie data.

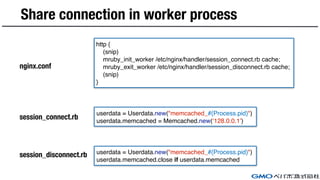

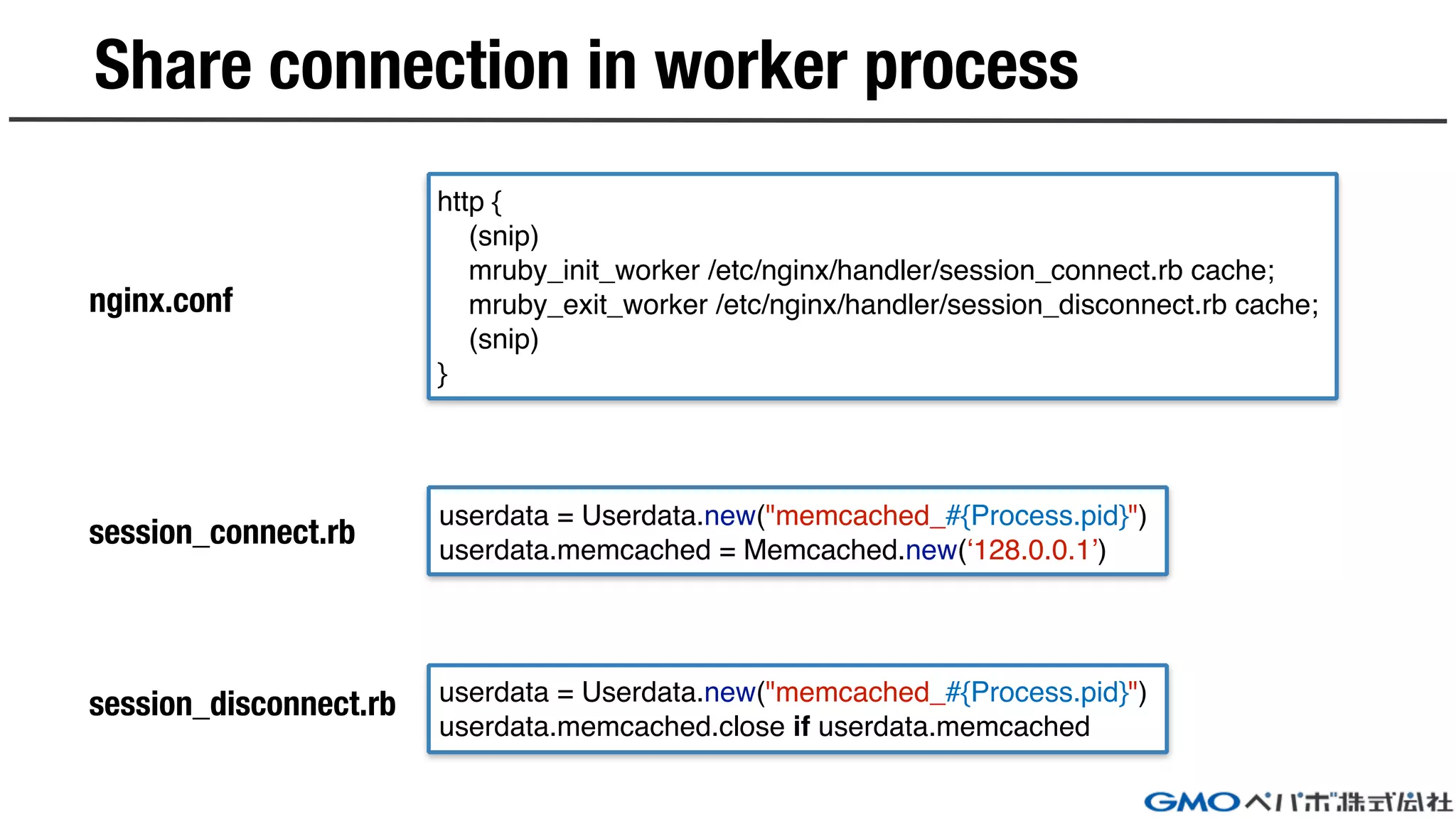

Share connection in worker process
userdata = Userdata.new("memcached_#{Process.pid}")
userdata.memcached = Memcached.new(‘128.0.0.1’)
userdata = Userdata.new("memcached_#{Process.pid}")
userdata.memcached.close if userdata.memcached
http {
(snip)
mruby_init_worker /etc/nginx/handler/session_connect.rb cache;
mruby_exit_worker /etc/nginx/handler/session_disconnect.rb cache;
(snip)
}
session_connect.rb
session_disconnect.rb
nginx.conf

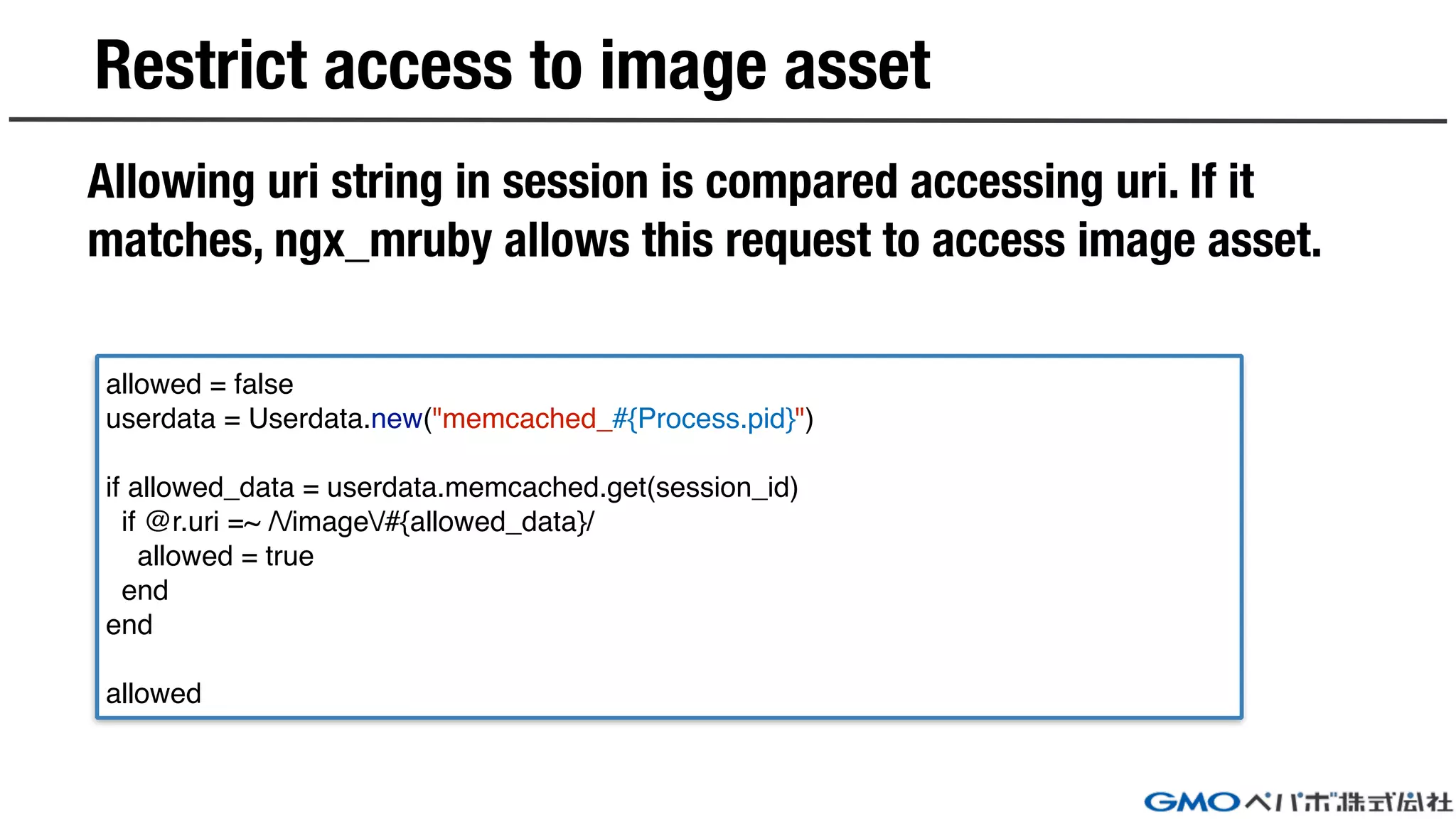

Restrict access to image asset
allowed = false
userdata = Userdata.new("memcached_#{Process.pid}")
if allowed_data = userdata.memcached.get(session_id)
if @r.uri =~ //image/#{allowed_data}/
allowed = true
end
end
allowed
Allowing uri string in session is compared accessing uri. If it
matches, ngx_mruby allows this request to access image asset.

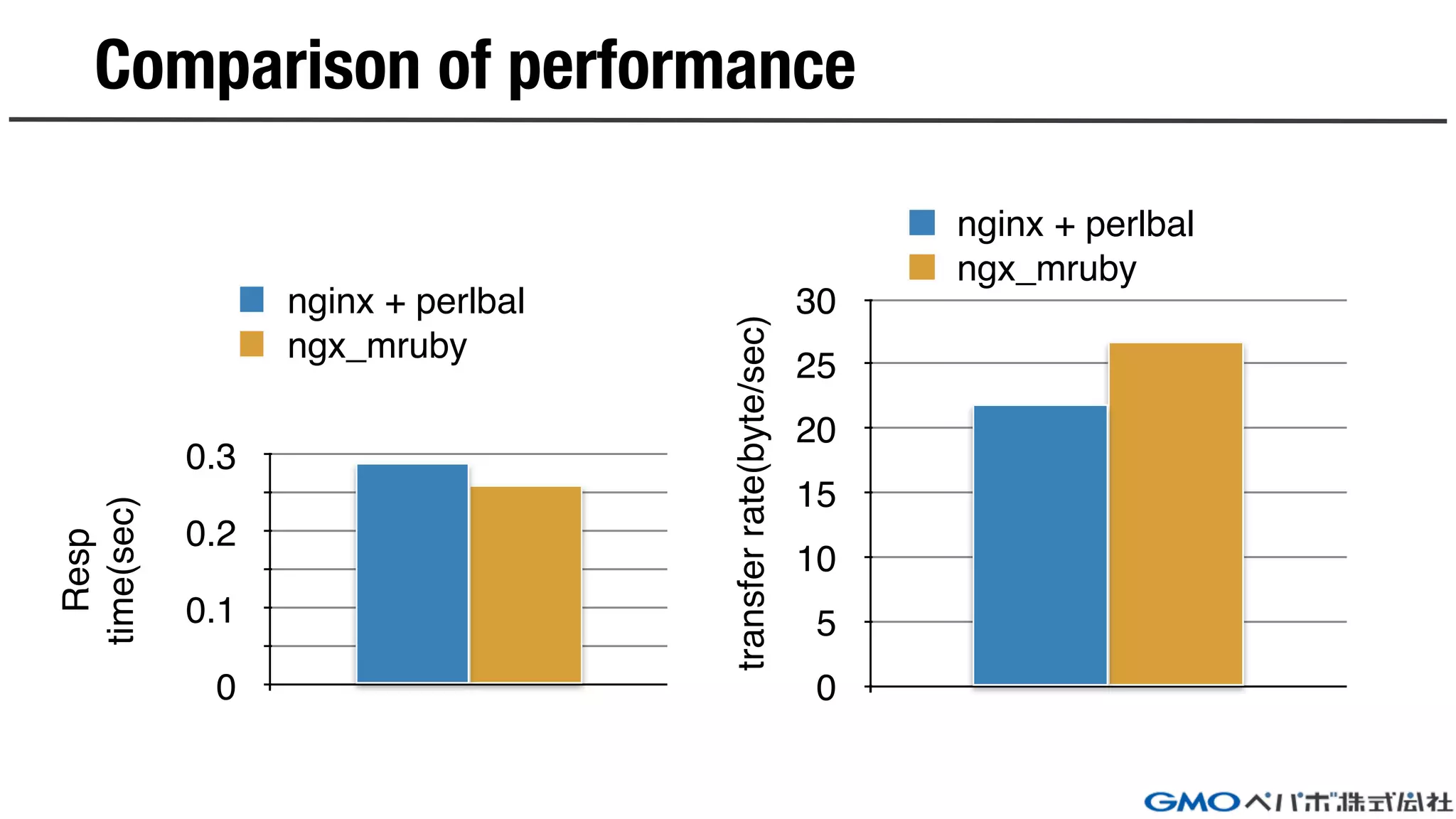

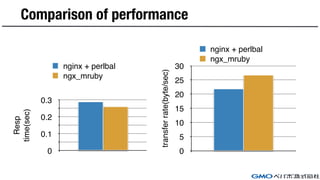

Comparison of performanceResp
time(sec)
0
0.1
0.2
0.3
nginx + perlbal
ngx_mruby
transferrate(byte/sec)
0
5
10
15
20
25
30
nginx + perlbal
ngx_mruby
Testing
code of mruby

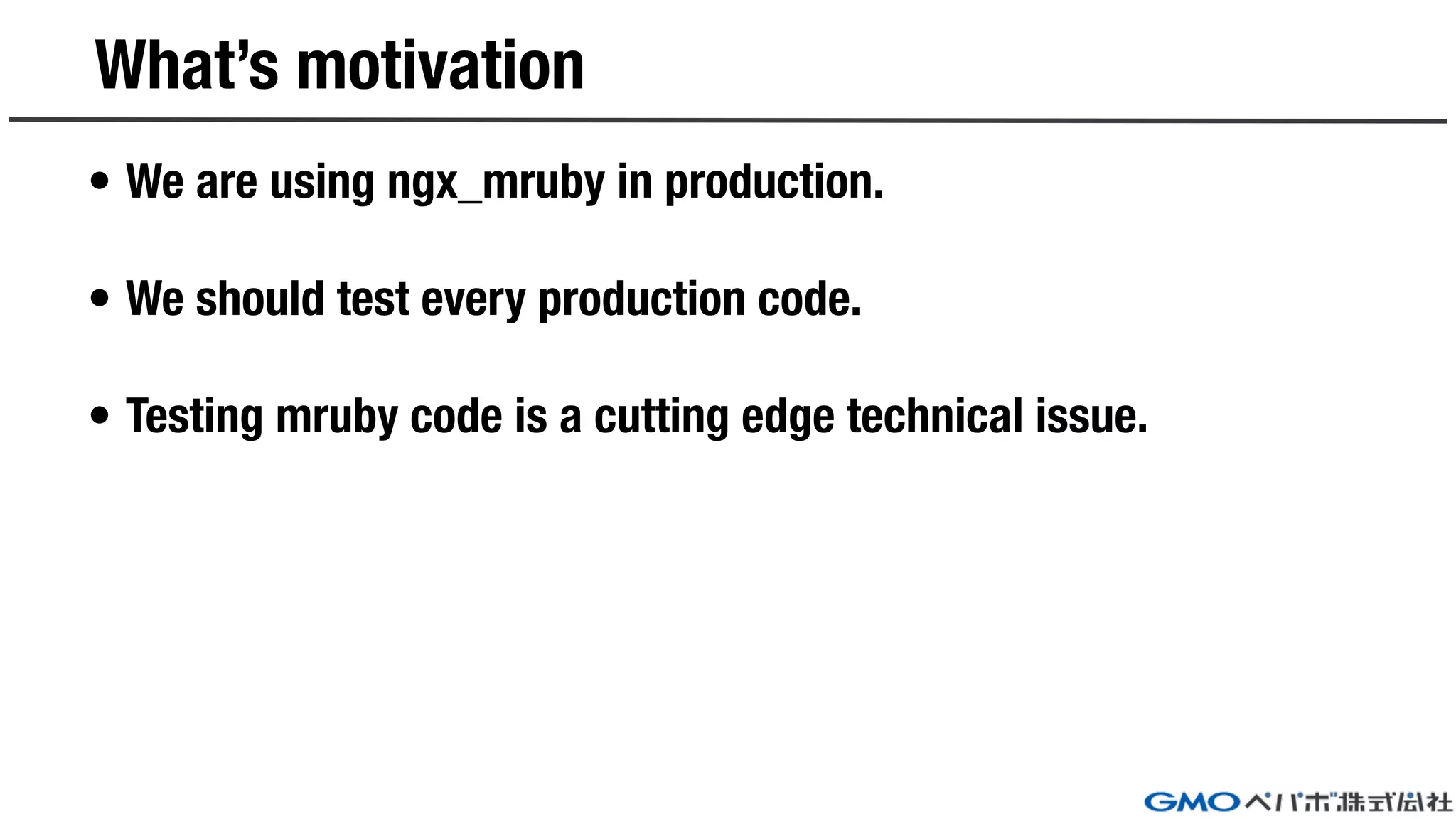

What’s motivation
• We are using ngx_mruby in production.
• We should test every production code.
• Testing mruby code is a cutting edge technical issue.

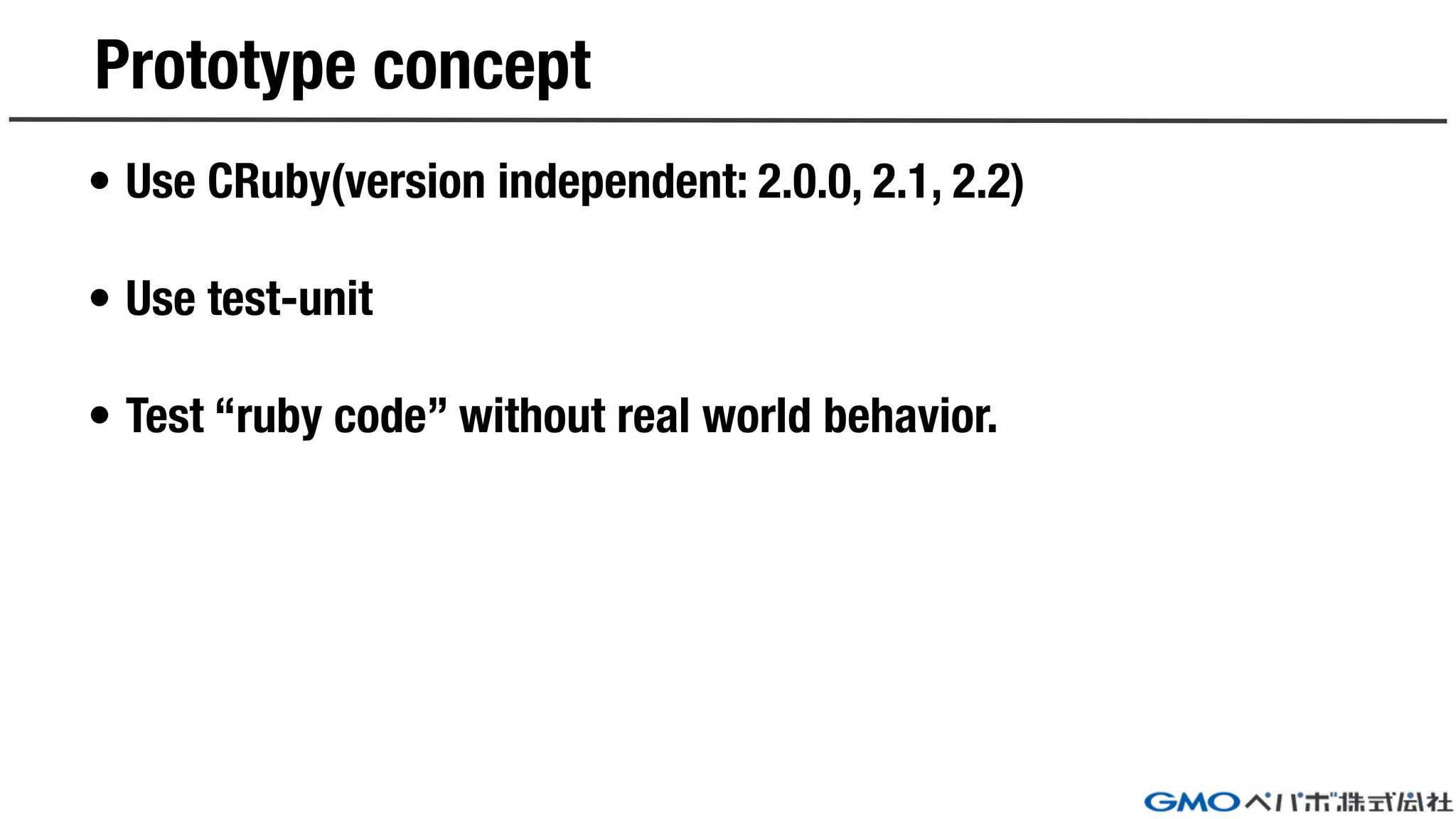

Prototype concept
• Use CRuby(version independent: 2.0.0, 2.1, 2.2)
• Use test-unit
• Test “ruby code” without real world behavior.

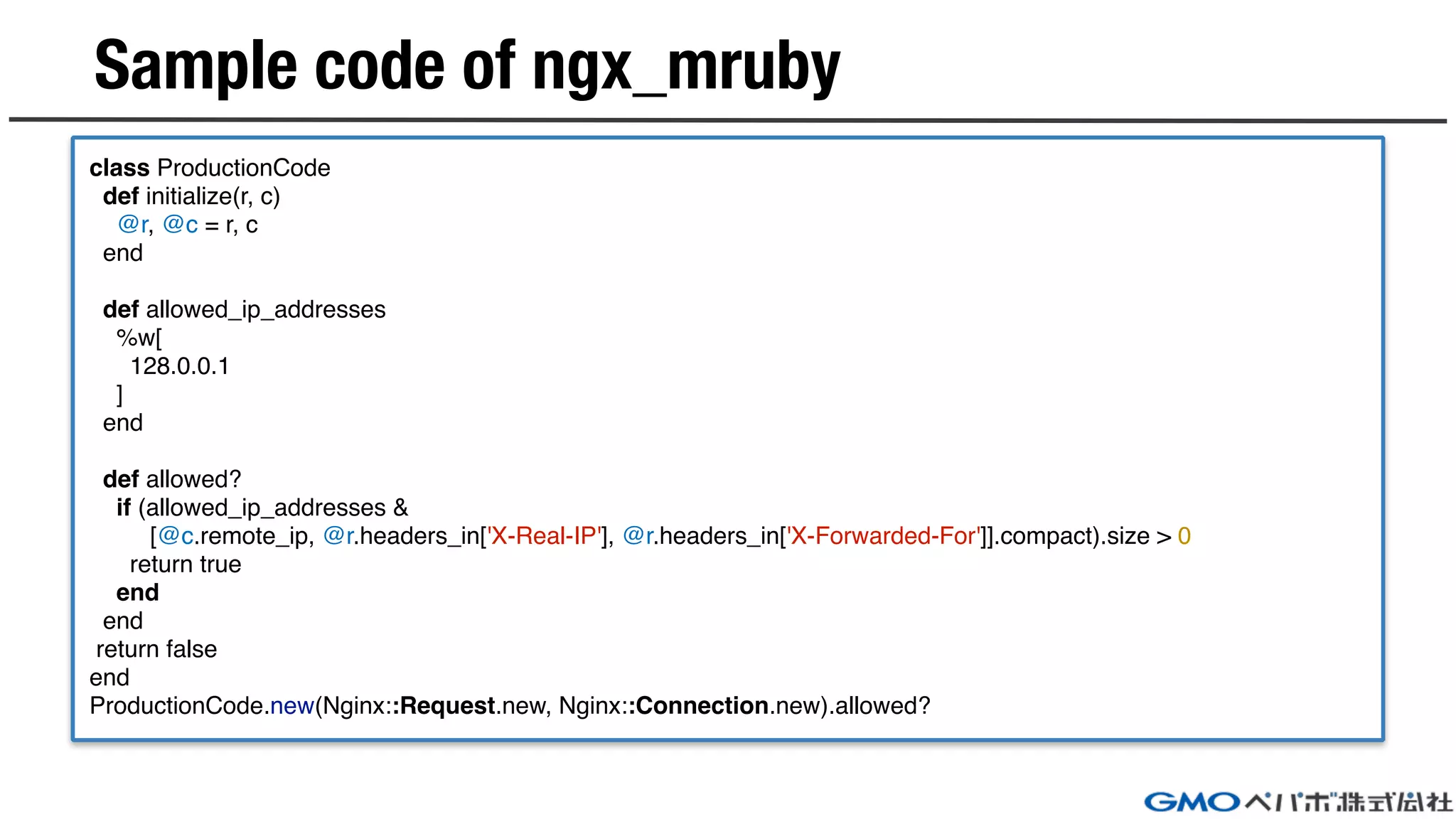

Sample code of ngx_mruby
class ProductionCode
def initialize(r, c)
@r, @c = r, c
end
def allowed_ip_addresses
%w[
128.0.0.1
]
end
def allowed?
if (allowed_ip_addresses &
[@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0
return true
end
end
return false
end
ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?

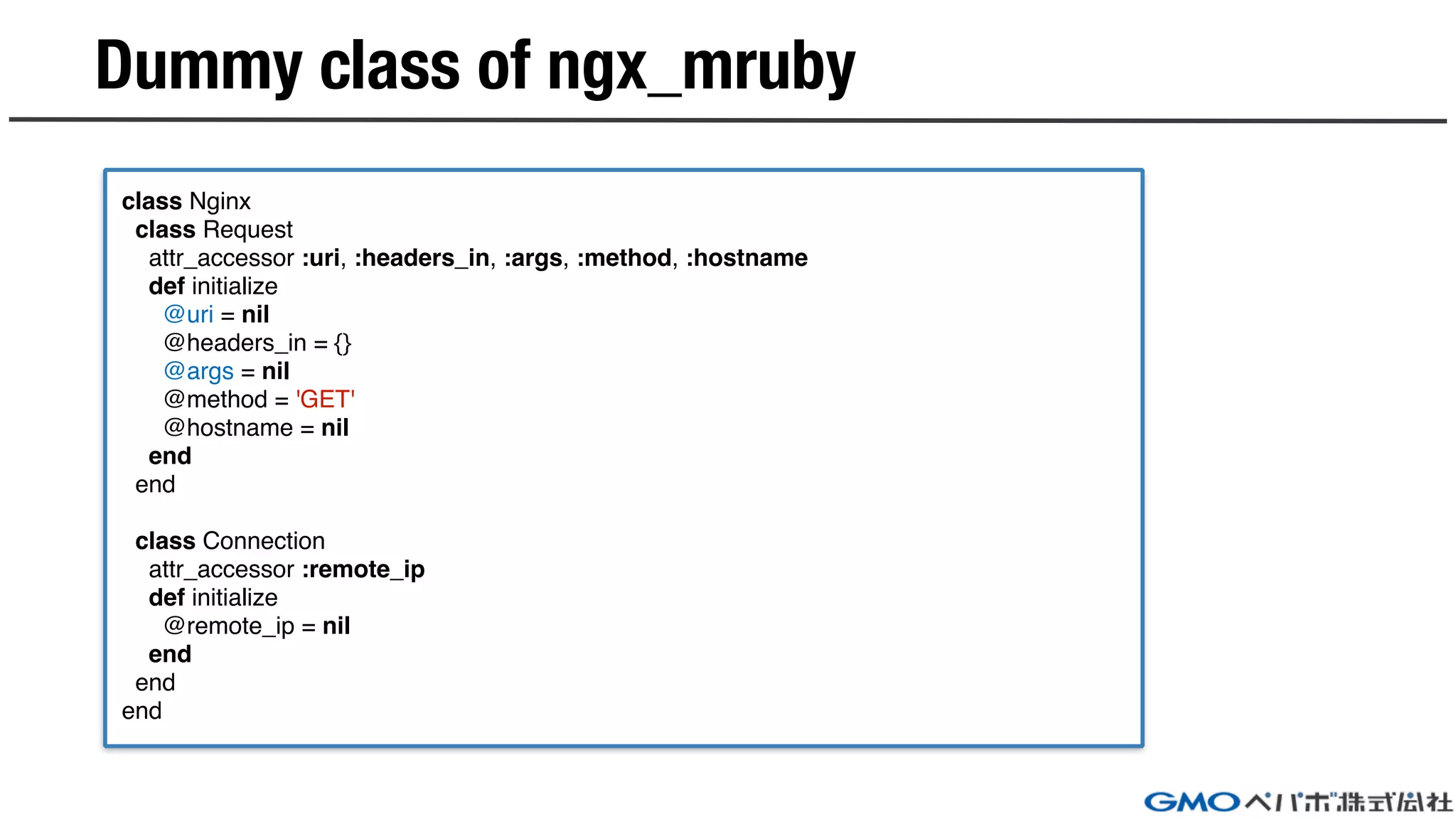

Dummy class of ngx_mruby
class Nginx
class Request
attr_accessor :uri, :headers_in, :args, :method, :hostname
def initialize
@uri = nil
@headers_in = {}
@args = nil
@method = 'GET'
@hostname = nil
end
end
class Connection
attr_accessor :remote_ip
def initialize
@remote_ip = nil
end
end
end

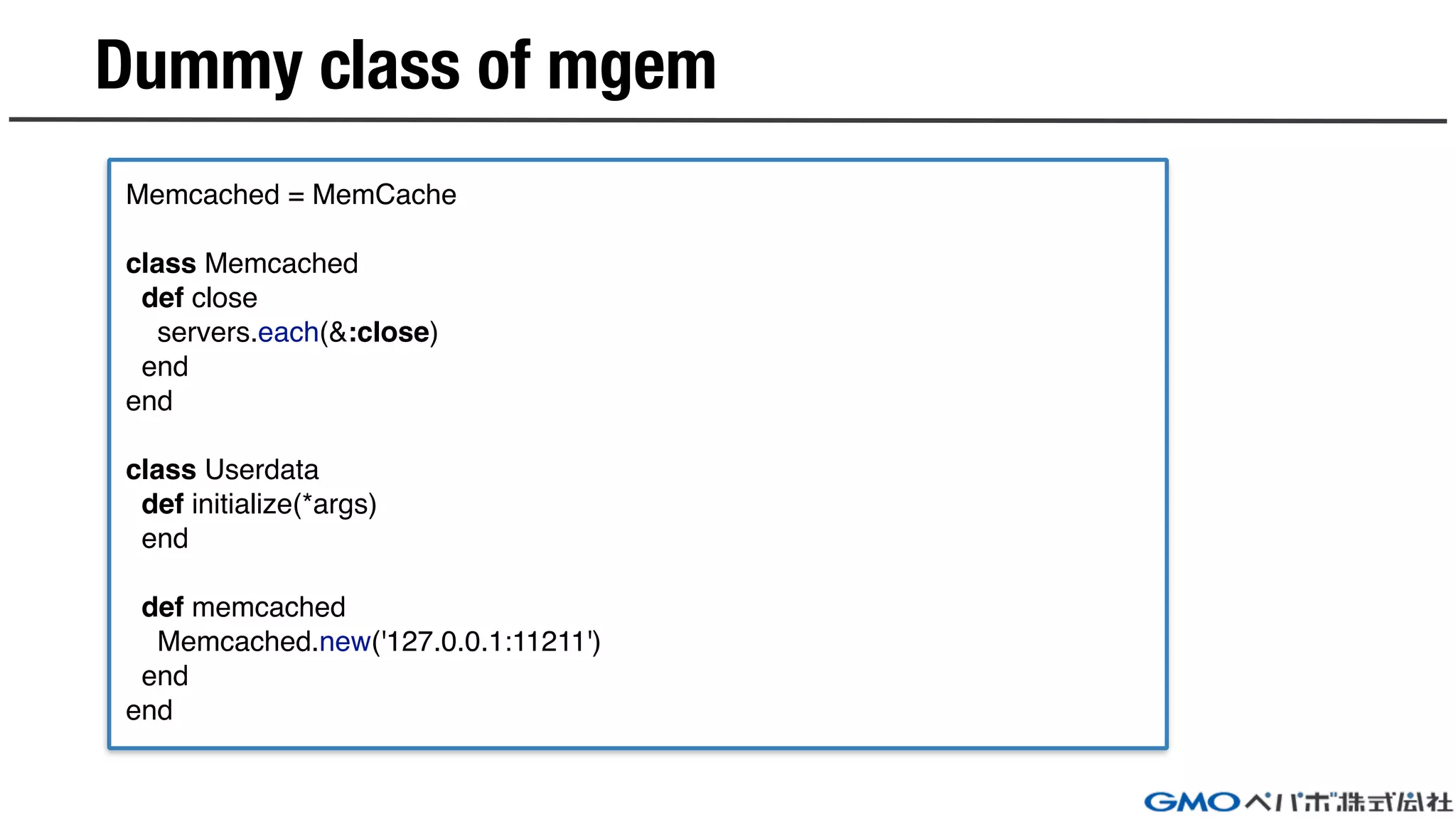

Dummy class of mgem
Memcached = MemCache
class Memcached
def close
servers.each(&:close)
end
end
class Userdata
def initialize(*args)
end
def memcached
Memcached.new('127.0.0.1:11211')
end
end

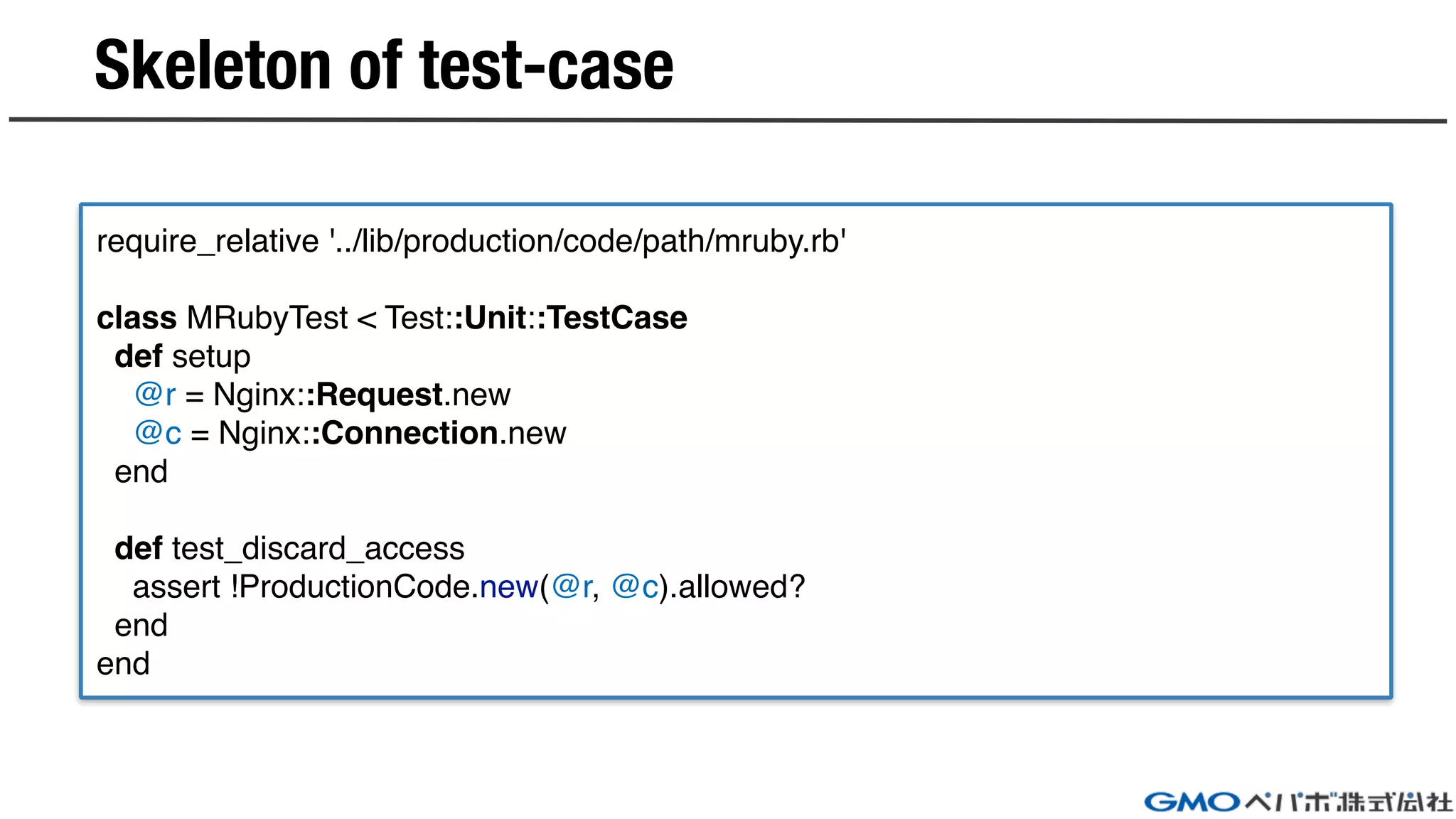

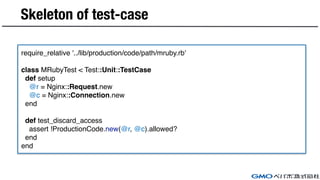

Skeleton of test-case
require_relative '../lib/production/code/path/mruby.rb'
class MRubyTest < Test::Unit::TestCase
def setup
@r = Nginx::Request.new
@c = Nginx::Connection.new
end
def test_discard_access
assert !ProductionCode.new(@r, @c).allowed?
end
end

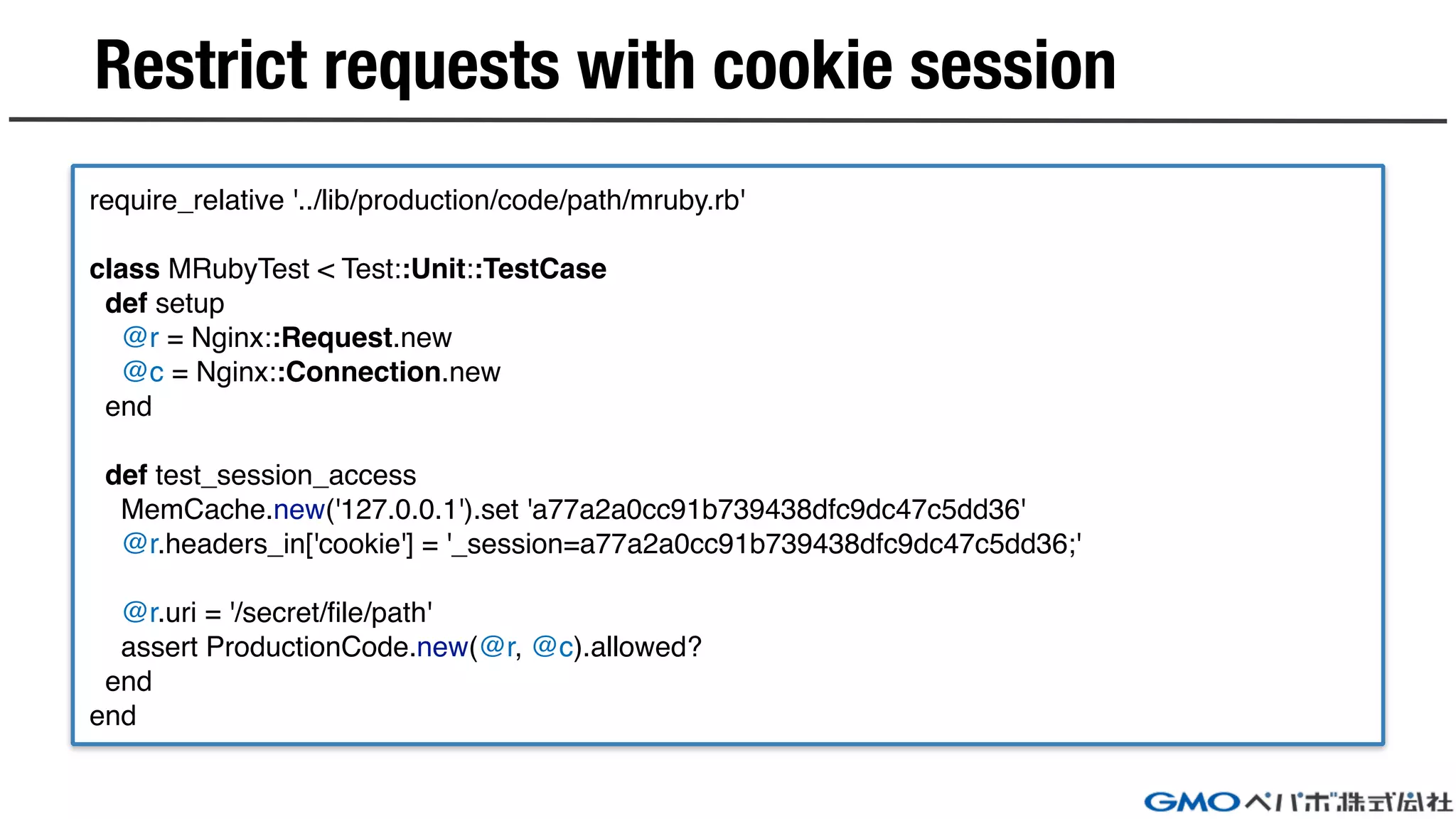

Restrict requests with cookie session
require_relative '../lib/production/code/path/mruby.rb'
class MRubyTest < Test::Unit::TestCase
def setup
@r = Nginx::Request.new
@c = Nginx::Connection.new
end
def test_session_access
MemCache.new('127.0.0.1').set 'a77a2a0cc91b739438dfc9dc47c5dd36'
@r.headers_in['cookie'] = '_session=a77a2a0cc91b739438dfc9dc47c5dd36;'
@r.uri = '/secret/file/path'
assert ProductionCode.new(@r, @c).allowed?
end
end

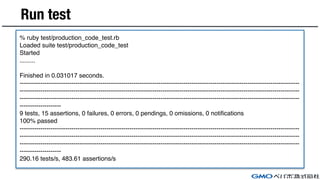

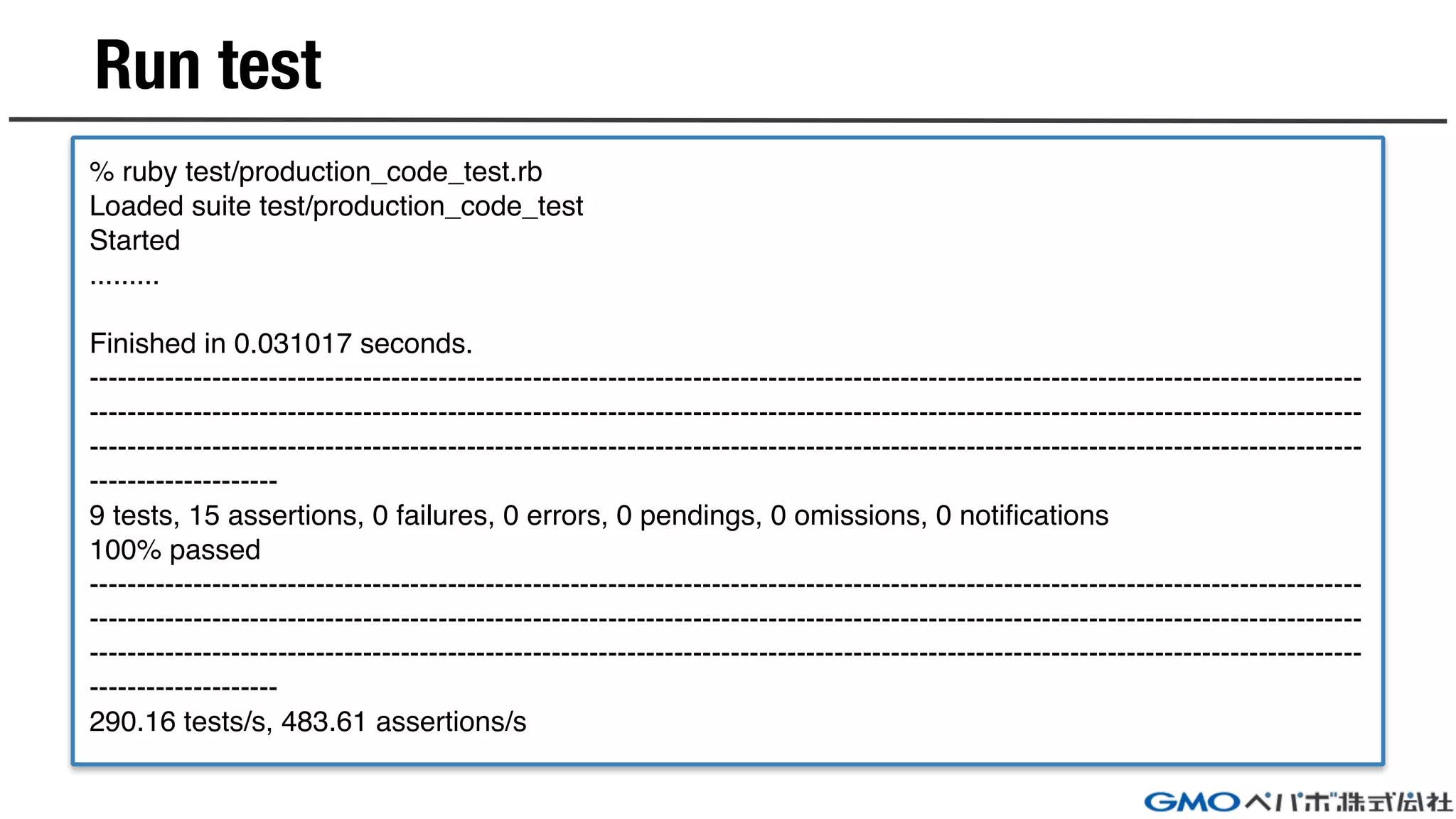

Run test
% ruby test/production_code_test.rb
Loaded suite test/production_code_test
Started
.........
Finished in 0.031017 seconds.
---------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------
--------------------
9 tests, 15 assertions, 0 failures, 0 errors, 0 pendings, 0 omissions, 0 notifications
100% passed
---------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------
--------------------
290.16 tests/s, 483.61 assertions/s

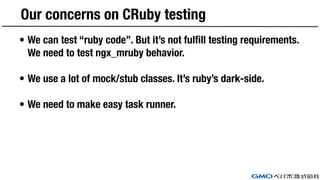

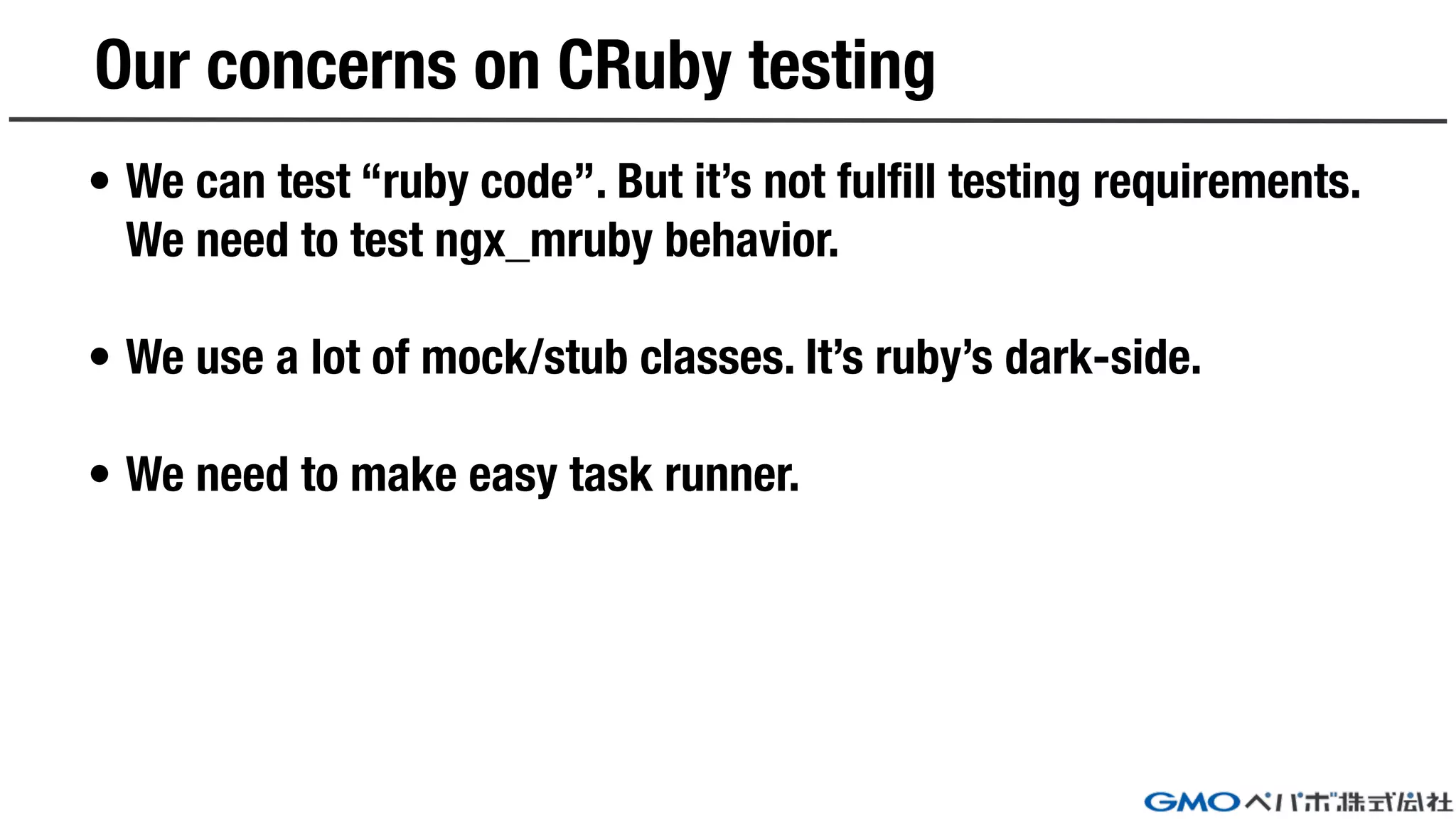

Our concerns on CRuby testing
• We can test “ruby code”. But it’s not fulfill testing requirements.
We need to test ngx_mruby behavior.
• We use a lot of mock/stub classes. It’s ruby’s dark-side.
• We need to make easy task runner.
Testing
code of mruby
using mruby

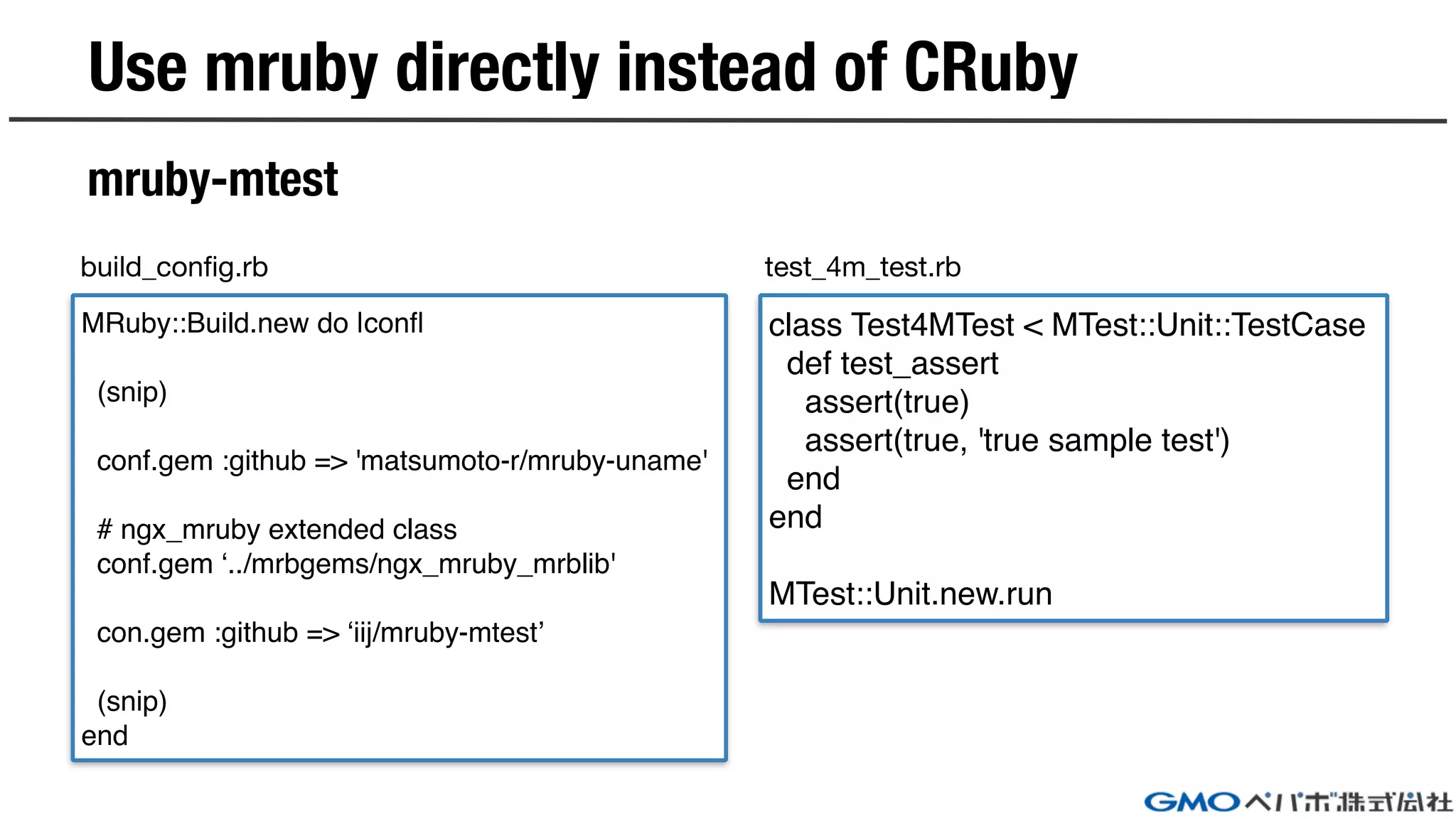

Use mruby directly instead of CRuby
mruby-mtest
class Test4MTest < MTest::Unit::TestCase
def test_assert
assert(true)
assert(true, 'true sample test')
end
end
MTest::Unit.new.run
MRuby::Build.new do |conf|
(snip)
conf.gem :github => 'matsumoto-r/mruby-uname'
# ngx_mruby extended class
conf.gem ‘../mrbgems/ngx_mruby_mrblib'
con.gem :github => ‘iij/mruby-mtest’
(snip)
end
build_config.rb test_4m_test.rb

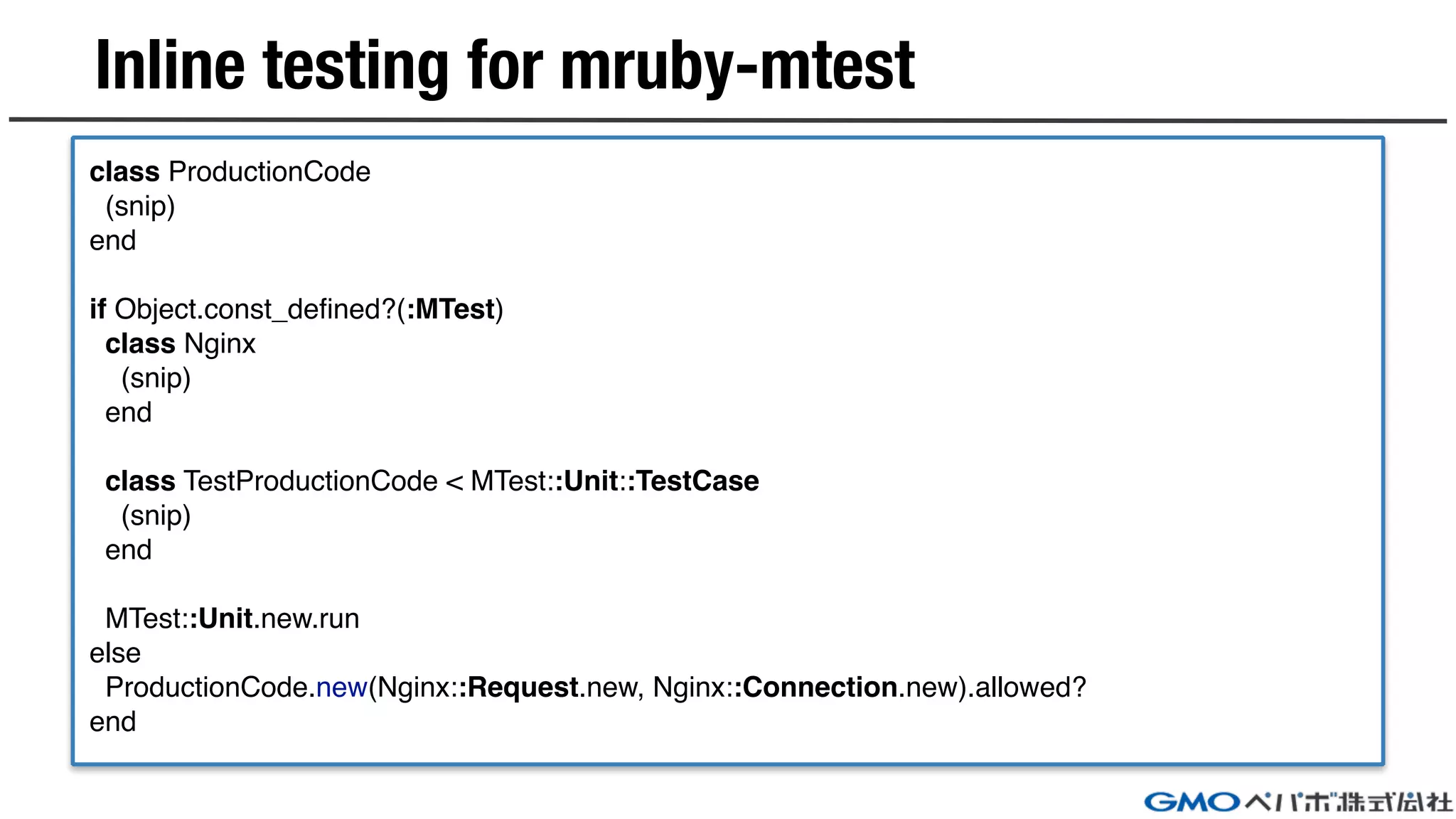

Inline testing for mruby-mtest
class ProductionCode
(snip)
end
if Object.const_defined?(:MTest)
class Nginx
(snip)
end
class TestProductionCode < MTest::Unit::TestCase
(snip)
end
MTest::Unit.new.run
else
ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?
end

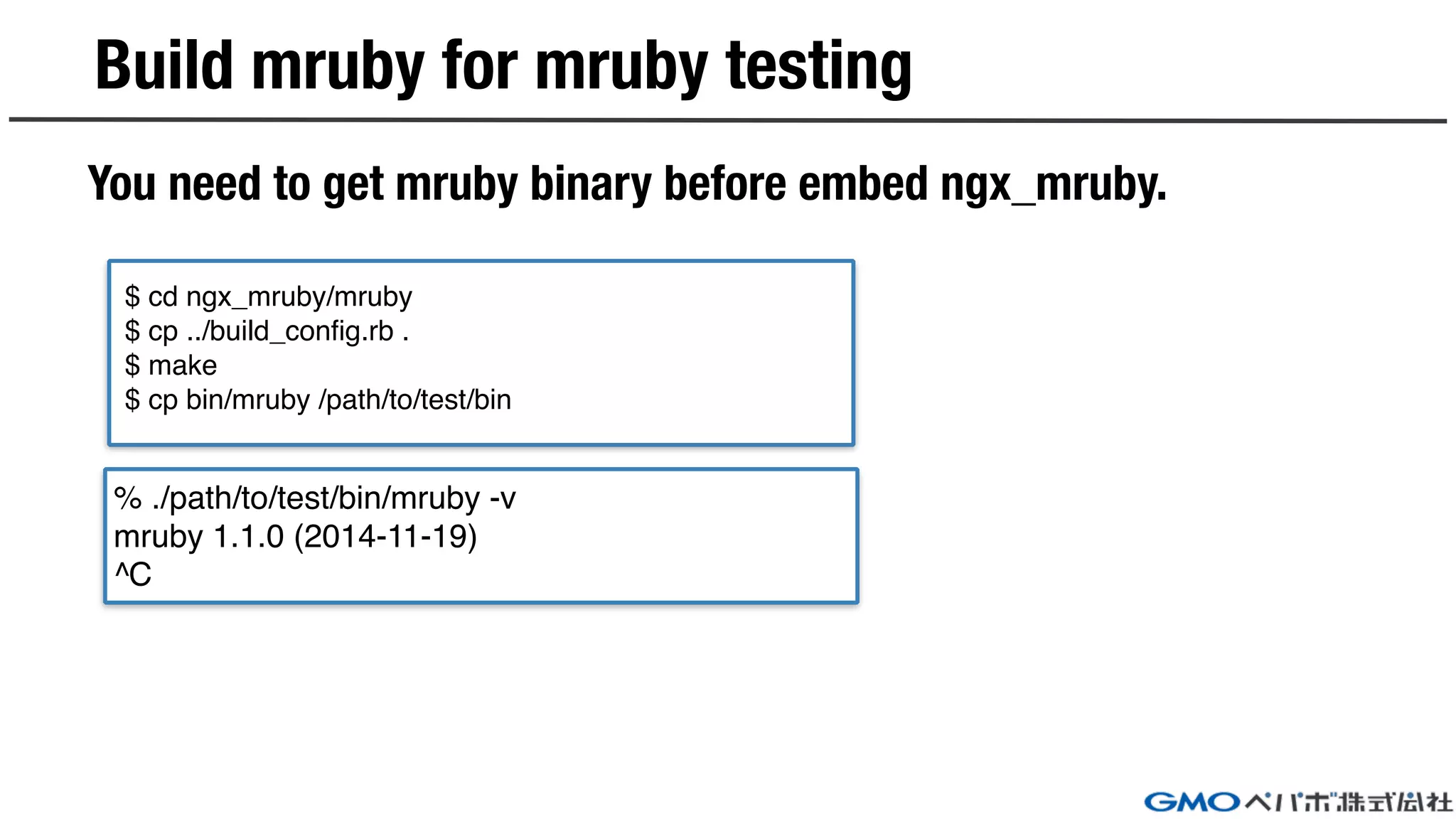

Build mruby for mruby testing
$ cd ngx_mruby/mruby
$ cp ../build_config.rb .
$ make
$ cp bin/mruby /path/to/test/bin
You need to get mruby binary before embed ngx_mruby.
% ./path/to/test/bin/mruby -v
mruby 1.1.0 (2014-11-19)
^C

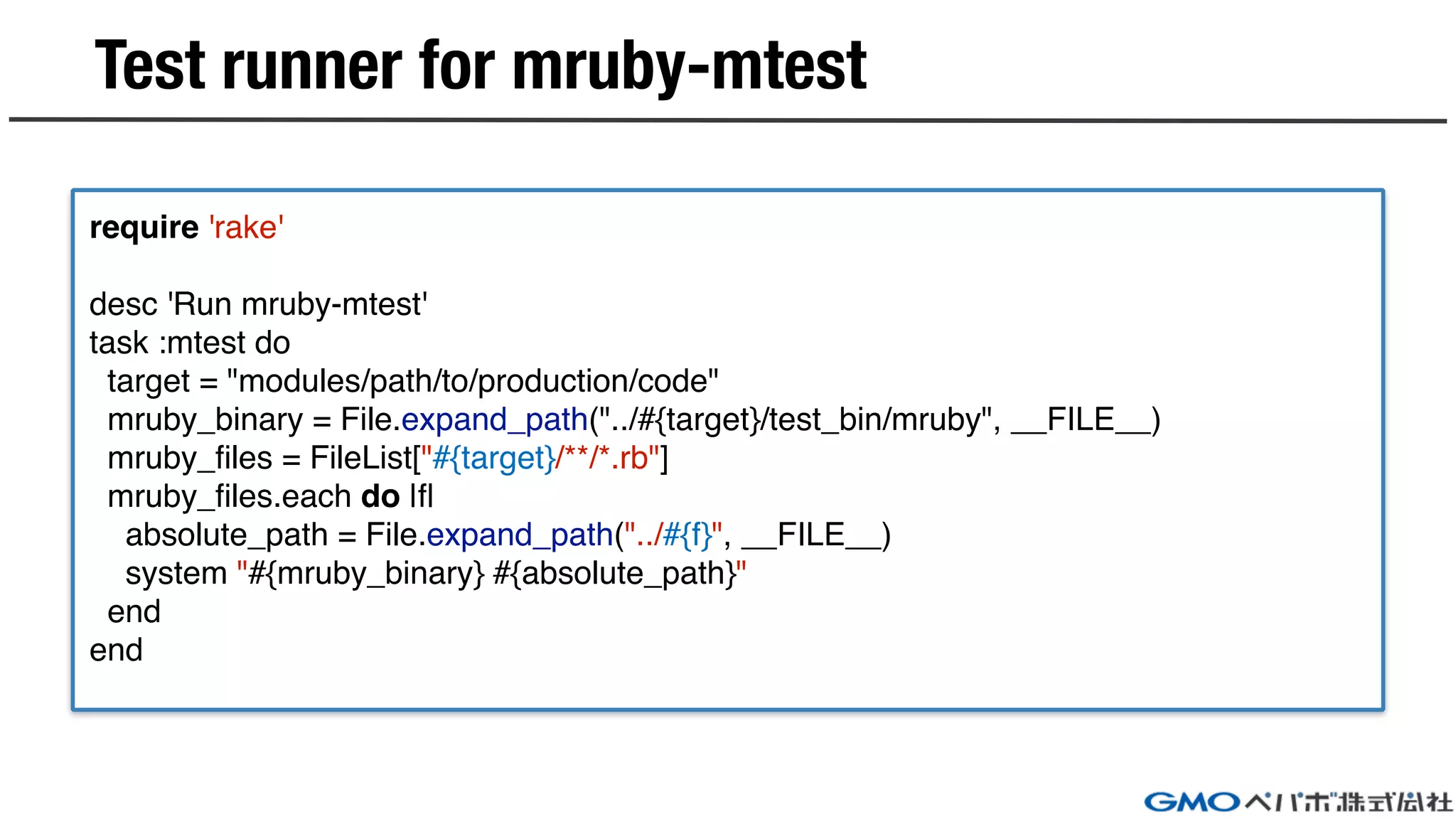

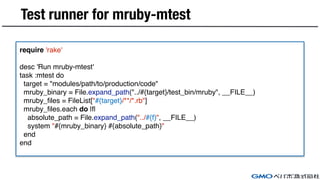

Test runner for mruby-mtest
require 'rake'
desc 'Run mruby-mtest'
task :mtest do
target = "modules/path/to/production/code"
mruby_binary = File.expand_path("../#{target}/test_bin/mruby", __FILE__)
mruby_files = FileList["#{target}/**/*.rb"]
mruby_files.each do |f|
absolute_path = File.expand_path("../#{f}", __FILE__)
system "#{mruby_binary} #{absolute_path}"
end
end

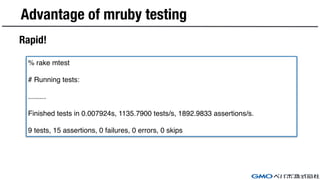

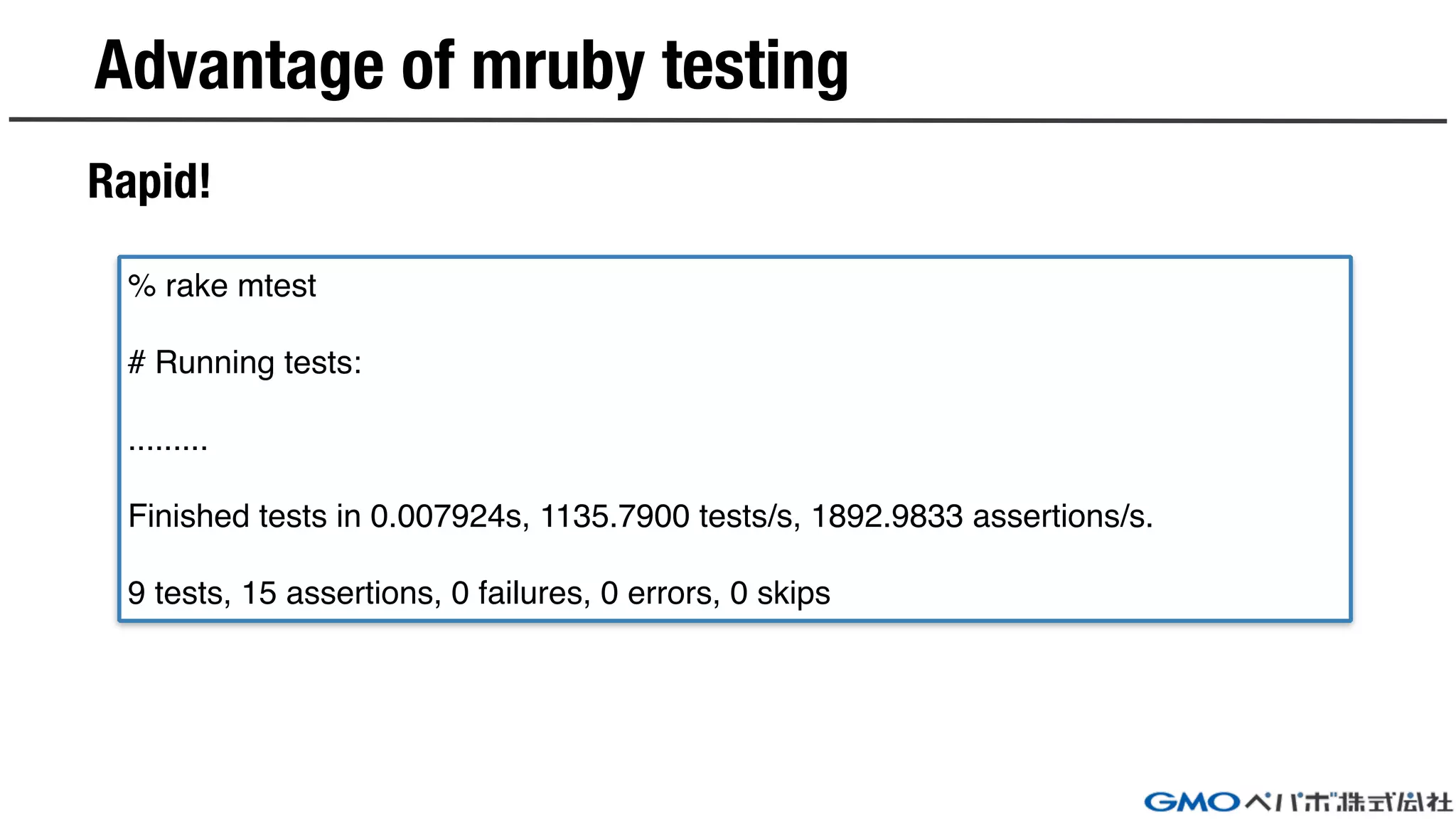

Advantage of mruby testing
Rapid!
% rake mtest
# Running tests:
.........
Finished tests in 0.007924s, 1135.7900 tests/s, 1892.9833 assertions/s.
9 tests, 15 assertions, 0 failures, 0 errors, 0 skips
Deployment

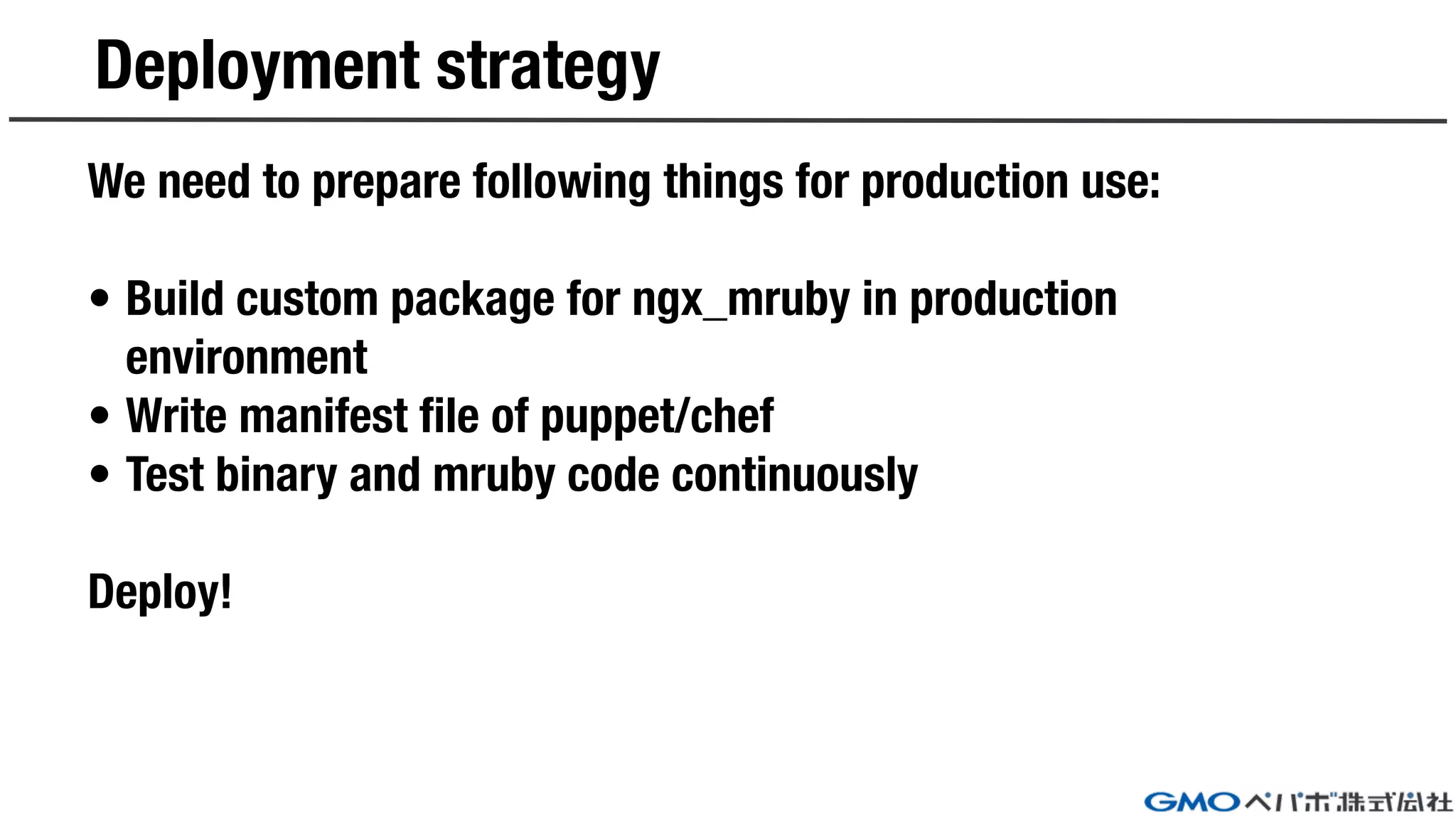

Deployment strategy
We need to prepare following things for production use:
• Build custom package for ngx_mruby in production
environment
• Write manifest file of puppet/chef
• Test binary and mruby code continuously
Deploy!

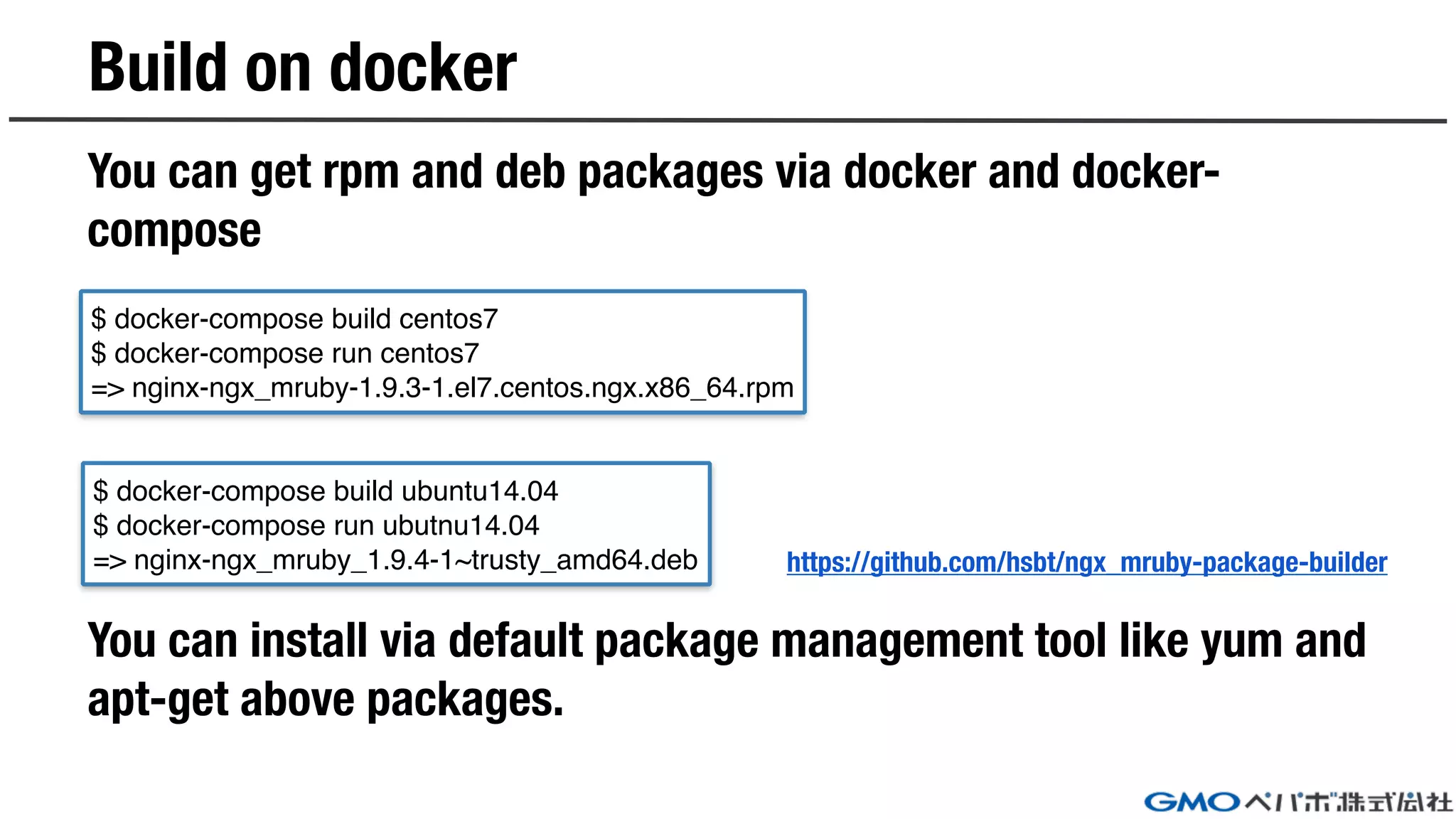

You can get rpm and deb packages via docker and docker-
compose
You can install via default package management tool like yum and
apt-get above packages.
Build on docker
https://github.com/hsbt/ngx_mruby-package-builder
$ docker-compose build centos7
$ docker-compose run centos7
=> nginx-ngx_mruby-1.9.3-1.el7.centos.ngx.x86_64.rpm
$ docker-compose build ubuntu14.04
$ docker-compose run ubutnu14.04
=> nginx-ngx_mruby_1.9.4-1~trusty_amd64.deb
Next Challenge

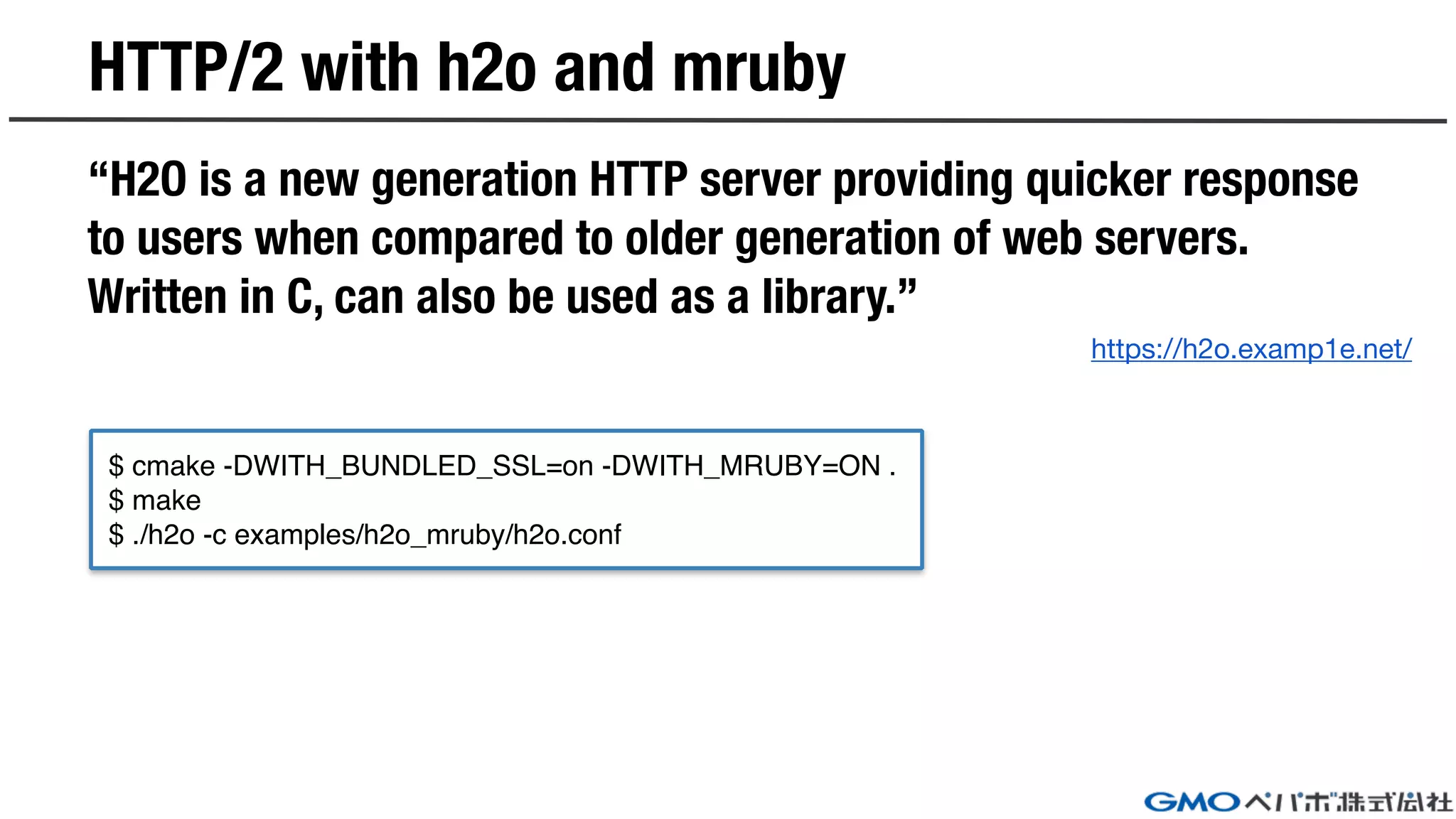

HTTP/2 with h2o and mruby
“H2O is a new generation HTTP server providing quicker response
to users when compared to older generation of web servers.
Written in C, can also be used as a library.”
https://h2o.examp1e.net/
$ cmake -DWITH_BUNDLED_SSL=on -DWITH_MRUBY=ON .
$ make
$ ./h2o -c examples/h2o_mruby/h2o.conf

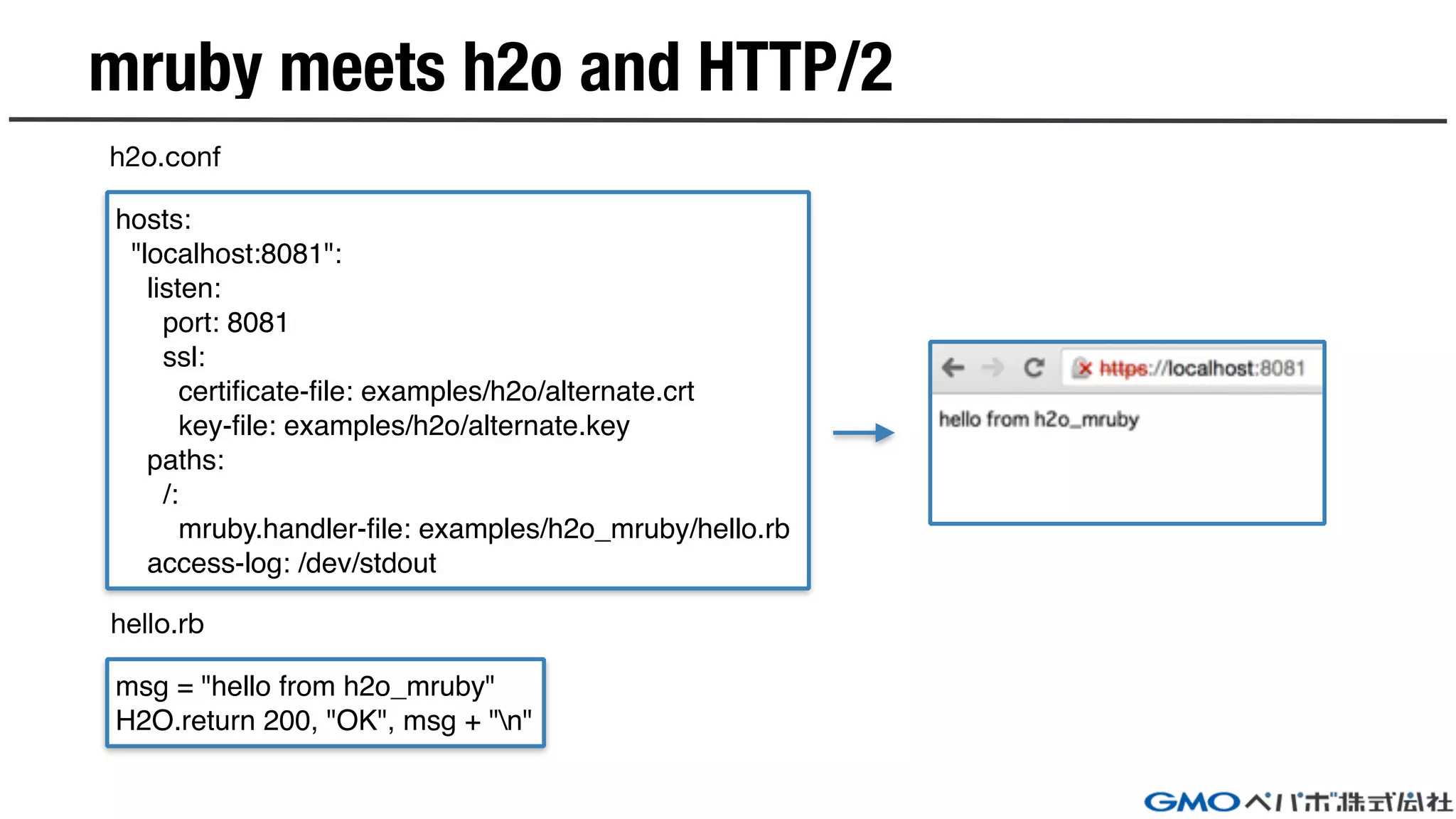

mruby meets h2o and HTTP/2
hosts:
"localhost:8081":
listen:
port: 8081
ssl:
certificate-file: examples/h2o/alternate.crt
key-file: examples/h2o/alternate.key
paths:
/:
mruby.handler-file: examples/h2o_mruby/hello.rb
access-log: /dev/stdout
msg = "hello from h2o_mruby"
H2O.return 200, "OK", msg + "n"
h2o.conf
hello.rb

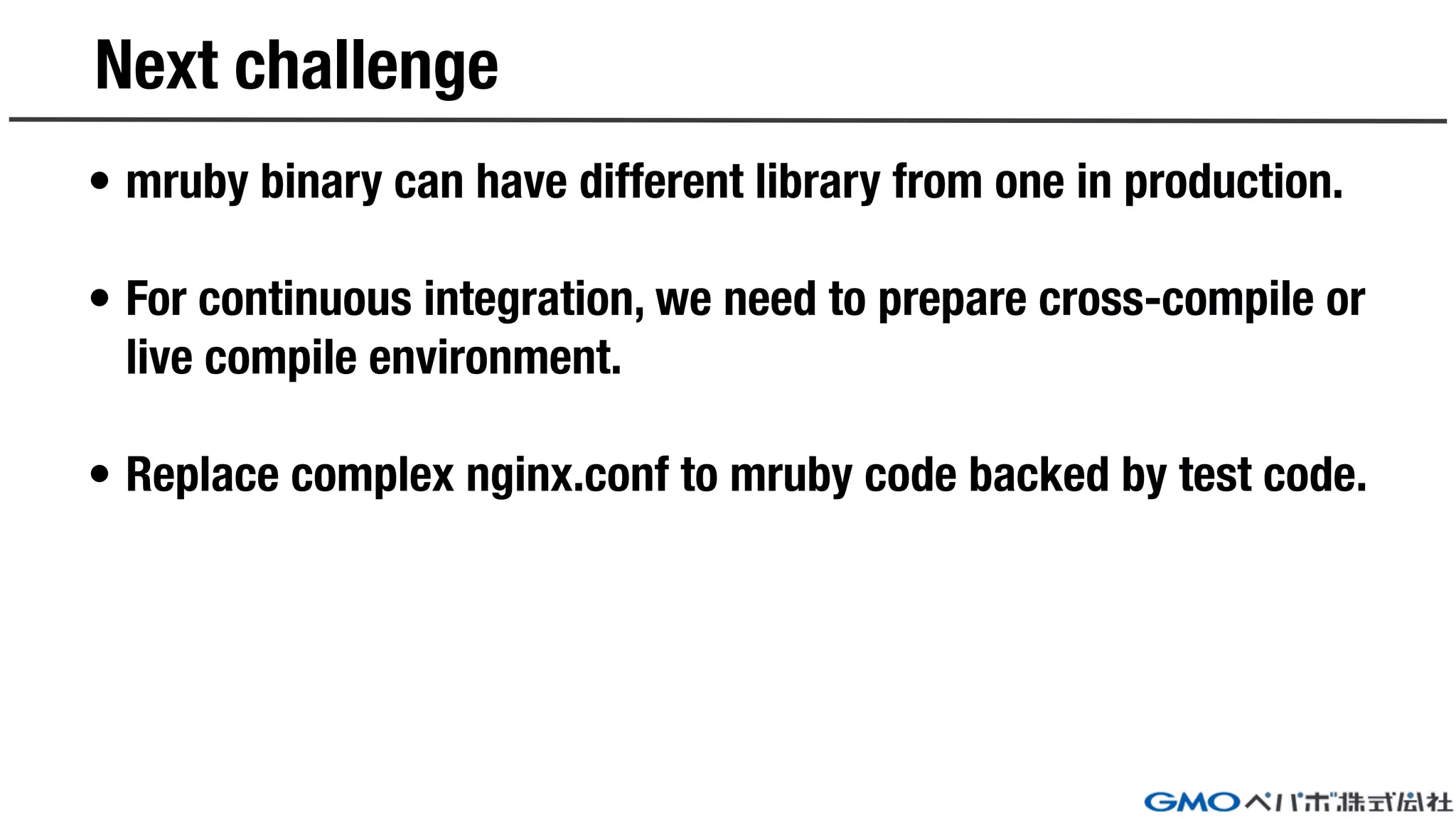

Next challenge
• mruby binary can have different library from one in production.
• For continuous integration, we need to prepare cross-compile or
live compile environment.
• Replace complex nginx.conf to mruby code backed by test code.
We should use
mruby!

More Related Content

What's hot

The details of CI/CD environment for Ruby
The details of CI/CD environment for RubyThe details of CI/CD environment for Ruby
The details of CI/CD environment for Ruby
Hiroshi SHIBATA

20141210 rakuten techtalk
20141210 rakuten techtalk20141210 rakuten techtalk
20141210 rakuten techtalk
Hiroshi SHIBATA

How DSL works on Ruby
How DSL works on RubyHow DSL works on Ruby
How DSL works on Ruby
Hiroshi SHIBATA

mruby で mackerel のプラグインを作るはなし
mruby で mackerel のプラグインを作るはなしmruby で mackerel のプラグインを作るはなし
mruby で mackerel のプラグインを作るはなし
Hiroshi SHIBATA

Practical ngx_mruby
Practical ngx_mrubyPractical ngx_mruby
Practical ngx_mruby
Hiroshi SHIBATA

What's new in RubyGems3
What's new in RubyGems3What's new in RubyGems3
What's new in RubyGems3
Hiroshi SHIBATA

How to distribute Ruby to the world
How to distribute Ruby to the worldHow to distribute Ruby to the world
How to distribute Ruby to the world
Hiroshi SHIBATA

RubyGems 3 & 4
RubyGems 3 & 4RubyGems 3 & 4
RubyGems 3 & 4
Hiroshi SHIBATA

The Future of library dependency management of Ruby
 The Future of library dependency management of Ruby The Future of library dependency management of Ruby
The Future of library dependency management of Ruby
Hiroshi SHIBATA

OSS Security the hard way
OSS Security the hard wayOSS Security the hard way
OSS Security the hard way
Hiroshi SHIBATA

RubyGems 3 & 4
RubyGems 3 & 4RubyGems 3 & 4
RubyGems 3 & 4
Hiroshi SHIBATA

Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0
Hiroshi SHIBATA

The Future of Dependency Management for Ruby
The Future of Dependency Management for RubyThe Future of Dependency Management for Ruby
The Future of Dependency Management for Ruby
Hiroshi SHIBATA

How to develop Jenkins plugin using to ruby and Jenkins.rb
How to develop Jenkins plugin using to ruby and Jenkins.rbHow to develop Jenkins plugin using to ruby and Jenkins.rb
How to develop Jenkins plugin using to ruby and Jenkins.rb
Hiroshi SHIBATA

Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0
Hiroshi SHIBATA

How to distribute Ruby to the world
How to distribute Ruby to the worldHow to distribute Ruby to the world
How to distribute Ruby to the world
Hiroshi SHIBATA

How to develop the Standard Libraries of Ruby?
How to develop the Standard Libraries of Ruby?How to develop the Standard Libraries of Ruby?
How to develop the Standard Libraries of Ruby?
Hiroshi SHIBATA

Gems on Ruby
Gems on RubyGems on Ruby
Gems on Ruby
Hiroshi SHIBATA

The Future of Bundled Bundler
The Future of Bundled BundlerThe Future of Bundled Bundler
The Future of Bundled Bundler
Hiroshi SHIBATA

20140918 ruby kaigi2014
20140918 ruby kaigi201420140918 ruby kaigi2014
20140918 ruby kaigi2014
Hiroshi SHIBATA


What's hot (20)

The details of CI/CD environment for Ruby
The details of CI/CD environment for RubyThe details of CI/CD environment for Ruby
The details of CI/CD environment for Ruby

20141210 rakuten techtalk
20141210 rakuten techtalk20141210 rakuten techtalk
20141210 rakuten techtalk

How DSL works on Ruby
How DSL works on RubyHow DSL works on Ruby
How DSL works on Ruby

mruby で mackerel のプラグインを作るはなし
mruby で mackerel のプラグインを作るはなしmruby で mackerel のプラグインを作るはなし
mruby で mackerel のプラグインを作るはなし

Practical ngx_mruby
Practical ngx_mrubyPractical ngx_mruby
Practical ngx_mruby

What's new in RubyGems3
What's new in RubyGems3What's new in RubyGems3
What's new in RubyGems3

How to distribute Ruby to the world
How to distribute Ruby to the worldHow to distribute Ruby to the world
How to distribute Ruby to the world

RubyGems 3 & 4
RubyGems 3 & 4RubyGems 3 & 4
RubyGems 3 & 4

The Future of library dependency management of Ruby
 The Future of library dependency management of Ruby The Future of library dependency management of Ruby
The Future of library dependency management of Ruby

OSS Security the hard way
OSS Security the hard wayOSS Security the hard way
OSS Security the hard way

RubyGems 3 & 4
RubyGems 3 & 4RubyGems 3 & 4
RubyGems 3 & 4

Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0

The Future of Dependency Management for Ruby
The Future of Dependency Management for RubyThe Future of Dependency Management for Ruby
The Future of Dependency Management for Ruby

How to develop Jenkins plugin using to ruby and Jenkins.rb
How to develop Jenkins plugin using to ruby and Jenkins.rbHow to develop Jenkins plugin using to ruby and Jenkins.rb
How to develop Jenkins plugin using to ruby and Jenkins.rb

Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0Gemification for Ruby 2.5/3.0
Gemification for Ruby 2.5/3.0

How to distribute Ruby to the world
How to distribute Ruby to the worldHow to distribute Ruby to the world
How to distribute Ruby to the world

How to develop the Standard Libraries of Ruby?
How to develop the Standard Libraries of Ruby?How to develop the Standard Libraries of Ruby?
How to develop the Standard Libraries of Ruby?

Gems on Ruby
Gems on RubyGems on Ruby
Gems on Ruby

The Future of Bundled Bundler
The Future of Bundled BundlerThe Future of Bundled Bundler
The Future of Bundled Bundler

20140918 ruby kaigi2014
20140918 ruby kaigi201420140918 ruby kaigi2014
20140918 ruby kaigi2014


Viewers also liked

High Performance tDiary
High Performance tDiaryHigh Performance tDiary
High Performance tDiary
Hiroshi SHIBATA

GitHub Enterprise with GMO Pepabo
GitHub Enterprise with GMO PepaboGitHub Enterprise with GMO Pepabo
GitHub Enterprise with GMO Pepabo
Hiroshi SHIBATA

成長を加速する minne の技術基盤戦略
成長を加速する minne の技術基盤戦略成長を加速する minne の技術基盤戦略
成長を加速する minne の技術基盤戦略
Hiroshi SHIBATA

Practical Testing of Ruby Core
Practical Testing of Ruby CorePractical Testing of Ruby Core
Practical Testing of Ruby Core
Hiroshi SHIBATA

The story of language development
The story of language developmentThe story of language development
The story of language development
Hiroshi SHIBATA

Advanced technic for OS upgrading in 3 minutes
Advanced technic for OS upgrading in 3 minutesAdvanced technic for OS upgrading in 3 minutes
Advanced technic for OS upgrading in 3 minutes
Hiroshi SHIBATA

Usecase examples of Packer
Usecase examples of Packer Usecase examples of Packer
Usecase examples of Packer
Hiroshi SHIBATA

技術的負債との付き合い方
技術的負債との付き合い方技術的負債との付き合い方
技術的負債との付き合い方
Hiroshi SHIBATA

Music recommendations @ MLConf 2014
Music recommendations @ MLConf 2014Music recommendations @ MLConf 2014
Music recommendations @ MLConf 2014
Erik Bernhardsson


Viewers also liked (9)

High Performance tDiary
High Performance tDiaryHigh Performance tDiary
High Performance tDiary

GitHub Enterprise with GMO Pepabo
GitHub Enterprise with GMO PepaboGitHub Enterprise with GMO Pepabo
GitHub Enterprise with GMO Pepabo

成長を加速する minne の技術基盤戦略
成長を加速する minne の技術基盤戦略成長を加速する minne の技術基盤戦略
成長を加速する minne の技術基盤戦略

Practical Testing of Ruby Core
Practical Testing of Ruby CorePractical Testing of Ruby Core
Practical Testing of Ruby Core

The story of language development
The story of language developmentThe story of language development
The story of language development

Advanced technic for OS upgrading in 3 minutes
Advanced technic for OS upgrading in 3 minutesAdvanced technic for OS upgrading in 3 minutes
Advanced technic for OS upgrading in 3 minutes

Usecase examples of Packer
Usecase examples of Packer Usecase examples of Packer
Usecase examples of Packer

技術的負債との付き合い方
技術的負債との付き合い方技術的負債との付き合い方
技術的負債との付き合い方

Music recommendations @ MLConf 2014
Music recommendations @ MLConf 2014Music recommendations @ MLConf 2014
Music recommendations @ MLConf 2014


Similar to Middleware as Code with mruby

Toolbox of a Ruby Team
Toolbox of a Ruby TeamToolbox of a Ruby Team
Toolbox of a Ruby Team
Arto Artnik

Gems on Ruby
Gems on RubyGems on Ruby
Gems on Ruby
Hiroshi SHIBATA

Exploring Ruby on Rails and PostgreSQL
Exploring Ruby on Rails and PostgreSQLExploring Ruby on Rails and PostgreSQL
Exploring Ruby on Rails and PostgreSQL
Barry Jones

Rspec and Capybara Intro Tutorial at RailsConf 2013
Rspec and Capybara Intro Tutorial at RailsConf 2013Rspec and Capybara Intro Tutorial at RailsConf 2013
Rspec and Capybara Intro Tutorial at RailsConf 2013
Brian Sam-Bodden

Dragoncraft Architectural Overview
Dragoncraft Architectural OverviewDragoncraft Architectural Overview
Dragoncraft Architectural Overview
jessesanford

Ruby C extensions at the Ruby drink-up of Sophia, April 2012
Ruby C extensions at the Ruby drink-up of Sophia, April 2012Ruby C extensions at the Ruby drink-up of Sophia, April 2012
Ruby C extensions at the Ruby drink-up of Sophia, April 2012
rivierarb

Leveraging zeromq for node.js
Leveraging zeromq for node.jsLeveraging zeromq for node.js
Leveraging zeromq for node.js
Ruben Tan

Mongodb
MongodbMongodb
Mongodb
Scott Motte

Developing cross platform desktop application with Ruby
Developing cross platform desktop application with RubyDeveloping cross platform desktop application with Ruby
Developing cross platform desktop application with Ruby
Anis Ahmad

Node.js - The New, New Hotness
Node.js - The New, New HotnessNode.js - The New, New Hotness
Node.js - The New, New Hotness
Daniel Shaw

Jruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-javaJruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-java
Keith Bennett

Ruby for C#-ers (ScanDevConf 2010)
Ruby for C#-ers (ScanDevConf 2010)Ruby for C#-ers (ScanDevConf 2010)
Ruby for C#-ers (ScanDevConf 2010)
Thomas Lundström

Get your teeth into Plack
Get your teeth into PlackGet your teeth into Plack
Get your teeth into Plack
Workhorse Computing

Hacking with ruby2ruby
Hacking with ruby2rubyHacking with ruby2ruby
Hacking with ruby2ruby
Marc Chung

Mac ruby deployment
Mac ruby deploymentMac ruby deployment
Mac ruby deployment
Thilo Utke

RubyMotion Introduction
RubyMotion IntroductionRubyMotion Introduction
RubyMotion Introduction
Marc Rendl Ignacio

How to control physical devices with mruby
How to control physical devices with mrubyHow to control physical devices with mruby
How to control physical devices with mruby
yamanekko

Rails Performance
Rails PerformanceRails Performance
Rails Performance
Wen-Tien Chang

rubyonrails
rubyonrailsrubyonrails
rubyonrails
tutorialsruby

rubyonrails
rubyonrailsrubyonrails
rubyonrails
tutorialsruby


Similar to Middleware as Code with mruby (20)

Toolbox of a Ruby Team
Toolbox of a Ruby TeamToolbox of a Ruby Team
Toolbox of a Ruby Team

Gems on Ruby
Gems on RubyGems on Ruby
Gems on Ruby

Exploring Ruby on Rails and PostgreSQL
Exploring Ruby on Rails and PostgreSQLExploring Ruby on Rails and PostgreSQL
Exploring Ruby on Rails and PostgreSQL

Rspec and Capybara Intro Tutorial at RailsConf 2013
Rspec and Capybara Intro Tutorial at RailsConf 2013Rspec and Capybara Intro Tutorial at RailsConf 2013
Rspec and Capybara Intro Tutorial at RailsConf 2013

Dragoncraft Architectural Overview
Dragoncraft Architectural OverviewDragoncraft Architectural Overview
Dragoncraft Architectural Overview

Ruby C extensions at the Ruby drink-up of Sophia, April 2012
Ruby C extensions at the Ruby drink-up of Sophia, April 2012Ruby C extensions at the Ruby drink-up of Sophia, April 2012
Ruby C extensions at the Ruby drink-up of Sophia, April 2012

Leveraging zeromq for node.js
Leveraging zeromq for node.jsLeveraging zeromq for node.js
Leveraging zeromq for node.js

Mongodb
MongodbMongodb
Mongodb

Developing cross platform desktop application with Ruby
Developing cross platform desktop application with RubyDeveloping cross platform desktop application with Ruby
Developing cross platform desktop application with Ruby

Node.js - The New, New Hotness
Node.js - The New, New HotnessNode.js - The New, New Hotness
Node.js - The New, New Hotness

Jruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-javaJruby synergy-of-ruby-and-java
Jruby synergy-of-ruby-and-java

Ruby for C#-ers (ScanDevConf 2010)
Ruby for C#-ers (ScanDevConf 2010)Ruby for C#-ers (ScanDevConf 2010)
Ruby for C#-ers (ScanDevConf 2010)

Get your teeth into Plack
Get your teeth into PlackGet your teeth into Plack
Get your teeth into Plack

Hacking with ruby2ruby
Hacking with ruby2rubyHacking with ruby2ruby
Hacking with ruby2ruby

Mac ruby deployment
Mac ruby deploymentMac ruby deployment
Mac ruby deployment

RubyMotion Introduction
RubyMotion IntroductionRubyMotion Introduction
RubyMotion Introduction

How to control physical devices with mruby
How to control physical devices with mrubyHow to control physical devices with mruby
How to control physical devices with mruby

Rails Performance
Rails PerformanceRails Performance
Rails Performance

rubyonrails
rubyonrailsrubyonrails
rubyonrails

rubyonrails
rubyonrailsrubyonrails
rubyonrails


More from Hiroshi SHIBATA

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024
Hiroshi SHIBATA

Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024
Hiroshi SHIBATA

Deep dive into Ruby's require - RubyConf Taiwan 2023
Deep dive into Ruby's require - RubyConf Taiwan 2023Deep dive into Ruby's require - RubyConf Taiwan 2023
Deep dive into Ruby's require - RubyConf Taiwan 2023
Hiroshi SHIBATA

How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?
Hiroshi SHIBATA

How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?
Hiroshi SHIBATA

Ruby コミッターと歩む Ruby を用いたプロダクト開発
Ruby コミッターと歩む Ruby を用いたプロダクト開発Ruby コミッターと歩む Ruby を用いたプロダクト開発
Ruby コミッターと歩む Ruby を用いたプロダクト開発
Hiroshi SHIBATA

Why ANDPAD commit Ruby and RubyKaigi?
Why ANDPAD commit Ruby and RubyKaigi?Why ANDPAD commit Ruby and RubyKaigi?
Why ANDPAD commit Ruby and RubyKaigi?
Hiroshi SHIBATA

RailsGirls から始める エンジニアリングはじめの一歩
RailsGirls から始める エンジニアリングはじめの一歩RailsGirls から始める エンジニアリングはじめの一歩
RailsGirls から始める エンジニアリングはじめの一歩
Hiroshi SHIBATA

Roadmap for RubyGems 4 and Bundler 3
Roadmap for RubyGems 4 and Bundler 3Roadmap for RubyGems 4 and Bundler 3
Roadmap for RubyGems 4 and Bundler 3
Hiroshi SHIBATA

Ruby Security the Hard Way
Ruby Security the Hard WayRuby Security the Hard Way
Ruby Security the Hard Way
Hiroshi SHIBATA

The Future of library dependency manageement of Ruby
The Future of library dependency manageement of RubyThe Future of library dependency manageement of Ruby
The Future of library dependency manageement of Ruby
Hiroshi SHIBATA

Productive Organization with Ruby
Productive Organization with RubyProductive Organization with Ruby
Productive Organization with Ruby
Hiroshi SHIBATA


More from Hiroshi SHIBATA (13)

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024Long journey of Ruby Standard library at RubyKaigi 2024
Long journey of Ruby Standard library at RubyKaigi 2024

Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024Long journey of Ruby standard library at RubyConf AU 2024
Long journey of Ruby standard library at RubyConf AU 2024

Deep dive into Ruby's require - RubyConf Taiwan 2023
Deep dive into Ruby's require - RubyConf Taiwan 2023Deep dive into Ruby's require - RubyConf Taiwan 2023
Deep dive into Ruby's require - RubyConf Taiwan 2023

How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?

How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?How resolve Gem dependencies in your code?
How resolve Gem dependencies in your code?

Ruby コミッターと歩む Ruby を用いたプロダクト開発
Ruby コミッターと歩む Ruby を用いたプロダクト開発Ruby コミッターと歩む Ruby を用いたプロダクト開発
Ruby コミッターと歩む Ruby を用いたプロダクト開発

Why ANDPAD commit Ruby and RubyKaigi?
Why ANDPAD commit Ruby and RubyKaigi?Why ANDPAD commit Ruby and RubyKaigi?
Why ANDPAD commit Ruby and RubyKaigi?

RailsGirls から始める エンジニアリングはじめの一歩
RailsGirls から始める エンジニアリングはじめの一歩RailsGirls から始める エンジニアリングはじめの一歩
RailsGirls から始める エンジニアリングはじめの一歩

Roadmap for RubyGems 4 and Bundler 3
Roadmap for RubyGems 4 and Bundler 3Roadmap for RubyGems 4 and Bundler 3
Roadmap for RubyGems 4 and Bundler 3

Ruby Security the Hard Way
Ruby Security the Hard WayRuby Security the Hard Way
Ruby Security the Hard Way

The Future of library dependency manageement of Ruby
The Future of library dependency manageement of RubyThe Future of library dependency manageement of Ruby
The Future of library dependency manageement of Ruby

Productive Organization with Ruby
Productive Organization with RubyProductive Organization with Ruby
Productive Organization with Ruby


Recently uploaded

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
saastr

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx
MichaelKnudsen27

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx
marufrahmanstratejm

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
alexjohnson7307

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
Data Hops

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Tatiana Kojar

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
Alex Pruden

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday
Ivanti

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf
Tosin Akinosho

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |
AstuteBusiness

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
panagenda

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Alpen-Adria-Universität

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - HiikeSystem Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
Hiike

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides
DanBrown980551

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf
Shinana2


Recently uploaded (20)

Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...
Overcoming the PLG Trap: Lessons from Canva's Head of Sales & Head of EMEA Da...

Nordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptxNordic Marketo Engage User Group_June 13_ 2024.pptx
Nordic Marketo Engage User Group_June 13_ 2024.pptx

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

FREE A4 Cyber Security Awareness Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3FREE A4 Cyber Security Awareness  Posters-Social Engineering part 3
FREE A4 Cyber Security Awareness Posters-Social Engineering part 3

Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...
Skybuffer AI: Advanced Conversational and Generative AI Solution on SAP Busin...

zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...
zkStudyClub - LatticeFold: A Lattice-based Folding Scheme and its Application...

June Patch Tuesday
June Patch TuesdayJune Patch Tuesday
June Patch Tuesday

Monitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdfMonitoring and Managing Anomaly Detection on OpenShift.pdf
Monitoring and Managing Anomaly Detection on OpenShift.pdf

Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |Astute Business Solutions | Oracle Cloud Partner |
Astute Business Solutions | Oracle Cloud Partner |

HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUHCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAU

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

Energy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing InstancesEnergy Efficient Video Encoding for Cloud and Edge Computing Instances
Energy Efficient Video Encoding for Cloud and Edge Computing Instances

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

System Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - HiikeSystem Design Case Study: Building a Scalable E-Commerce Platform - Hiike
System Design Case Study: Building a Scalable E-Commerce Platform - Hiike

5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides5th LF Energy Power Grid Model Meet-up Slides
5th LF Energy Power Grid Model Meet-up Slides

dbms calicut university B. sc Cs 4th sem.pdf
dbms  calicut university B. sc Cs 4th sem.pdfdbms  calicut university B. sc Cs 4th sem.pdf
dbms calicut university B. sc Cs 4th sem.pdf


Middleware as Code with mruby

  • 1. Middleware as Code with mruby Details of mruby usage in production
  • 2. self.introduce => { name: “SHIBATA Hiroshi”, nickname: “hsbt”, title: “Chief engineer at GMO Pepabo, Inc.”, commit_bits: [“ruby”, “rake”, “rubygems”, “rdoc”, “tdiary”, “hiki”, “railsgirls”, “railsgirls-jp”], sites: [“ruby-lang.org”, “rubyci.com”, “railsgirls.com”, “railsgirls.jp”], }
  • 4. I’m from Tokyo, Japan Tokyo Matze Taiwan
  • 5. I’m from Asakusa.rb Asakusa.rb is one of the most active meet-ups in Tokyo, Japan. @a_matsuda (Ruby/Rails committer, RubyKaigi organizer) @kakutani (RubyKaigi organizer) @ko1 (Ruby committer) @takkanm (Ruby/Rails programmer) @gunjisatoshi (Rubyist Magazine editor) @hsbt (Me!)
  • 6. I’m from the Ruby core team We are working on the next version of Ruby, 2.3.0, now. If you have any issue, please submit it to our issue tracker at http://bugs.ruby-lang.org and see https://bugs.ruby-lang.org/ issues/11474 (Call for Feature Proposals for Ruby 2.3) We hold the core developer meeting every months, and discuss various issues and ideas on Ruby. See https://bugs.ruby-lang.org/ projects/ruby/wiki/#Developer-Meetings for details.
  • 8. What's mruby? “mruby is the lightweight implementation of the Ruby language complying to (part of) the ISO standard. Its syntax is Ruby 1.9 compatible.” https://github.com/mruby/mruby#whats-mruby
  • 9. Differences between mruby and CRuby • The mruby runtime and libraries are embedded all into a single binary. • By default, mruby provides just a minimum set of standard libraries such as String, Array, Hash, etc. • Some of standard libraries in CRuby are NOT bundled in mruby, for example, IO, Regex, Socket, etc.. • mruby doesn't provide “require”, “sleep”, “p”, etc.
  • 10. Advantages of mruby against CRuby • Single binary without pure ruby files. • Embeddable into middlewares like below: • apache/nginx • groonga • mysql • Fun!!1 # most important thing
  • 11. Dive into mruby build You can declare prerequisite libraries in `build_config.rb` MRuby::Build.new do |conf| toolchain :gcc conf.gembox 'full-core' conf.gem :github => 'iij/mruby-io' conf.gem :github => 'iij/mruby-env' (snip) conf.gem :github => 'matsumoto-r/mruby-uname' conf.gem '../mrbgems/ngx_mruby_mrblib' end
  • 12. mrbgem See https://github.com/mruby/mruby/blob/master/doc/mrbgems/ README.md :) • mrbgem.rake Endpoint of mrbgem, put MRuby::Gem::Specification • mrblib/ Sources for pure ruby extension • src/ Sources for C extension
  • 14. Middleware meets mruby mruby has embeddable mechanism for middlewares like http server, search engine, etc.. Embedded mruby provides ruby runtime and syntax to middlewares. It’s so powerful programming environment for Rubyists.
  • 16. Introduction to ngx_mruby “ngx_mruby is A Fast and Memory-Efficient Web Server Extension Mechanism Using Scripting Language mruby for nginx.” https://github.com/matsumoto-r/ngx_mruby#whats-ngx_mruby location /proxy { mruby_set_code $backend ' backends = [ "test1.example.com", "test2.example.com", "test3.example.com", ] backends[rand(backends.length)] '; } location /hello { mruby_content_handler /path/to/hello.rb cache; } In “nginx.conf”!!!
  • 17. How to build ngx_mruby (and mruby) I suggest to try it on OS X or Linux environment. You can change embedded mgem via “build_config.rb” in ngx_mruby repository. $ git clone https://github.com/matsumoto-r/ngx_mruby $ git clone https://github.com/nginx/nginx $ cd ngx_mruby $ git submodule init && git submodule update comment-out mruby-redis and mruby-vedis $ ./configure —with-ngx-src-root=../nginx $ make build_mruby $ make $ cd ../nginx $ ./objs/nginx -V
  • 18. mruby_content_handler location /hello { mruby_content_handler /path/to/hello.rb cache; } location /hello { mruby_content_handler_code ' Nginx.rputs "hello" Nginx.echo "world!" '; It’s basic usage of ngx_mruby. These handlers are invoked at every requests
  • 19. mruby_set location /proxy { mruby_set $backend /path/to/proxy.rb cache; } location /proxy { mruby_set_code $backend ' backends = [ "test1.example.com", "test2.example.com", "test3.example.com", ] backends[rand(backends.length)] mruby_set sets the return value from mruby code to nginx variable
  • 20. mruby_init http { mruby_init /path/to/init.rb; server { location / { mruby_content_handler /path/to/handler.rb; } } It’s invoked when nginx master process launched.
  • 21. mruby_init_worker/mruby_exit_worker http { mruby_init /path/to/init.rb; mruby_init_worker /path/to/init_worker.rb; mruby_exit_worker /path/to/exit_worker.rb; server { location / { mruby_content_handler /path/to/handler.rb; } } It’s invoked when nginx “worker” process is launched.
  • 22. Sample code of ngx_mruby class ProductionCode def initialize(r, c) @r, @c = r, c end def allowed_ip_addresses %w[ 128.0.0.1 ] end def allowed? if (allowed_ip_addresses & [@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0 return true end end return false end ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?
  • 23. Sample configuration of nginx location /path { mruby_set $allowed ‘/etc/nginx/handler/production_code.rb' cache; if ($allowed = 'true'){ proxy_pass http://upstream; } if ($allowed = 'false'){ return 403; } }
  • 24. Use cases of ngx_mruby • Calculation of digest hash for authentication. • Data sharing with Rails application. • To replace ugly complex nginx.conf with clean, simple, and TESTABLE ruby code.
  • 27. Data sharing with Rails & Restricted access We have photo sharing service named “30days album” This service concept is private photo sharing. We need to have restrict access mechanism for image files and share data of Rails to http middleware.
  • 30. Data sharing with rails using mruby allowed = false memcached = Memcache.new(“127.0.0.1”) allowed_data = memcached.get(session_id) You can share data via persisted storage like memcahed/redis In this case, We share data using rails session key via cookie data.
  • 31. Share connection in worker process userdata = Userdata.new("memcached_#{Process.pid}") userdata.memcached = Memcached.new(‘128.0.0.1’) userdata = Userdata.new("memcached_#{Process.pid}") userdata.memcached.close if userdata.memcached http { (snip) mruby_init_worker /etc/nginx/handler/session_connect.rb cache; mruby_exit_worker /etc/nginx/handler/session_disconnect.rb cache; (snip) } session_connect.rb session_disconnect.rb nginx.conf
  • 32. Restrict access to image asset allowed = false userdata = Userdata.new("memcached_#{Process.pid}") if allowed_data = userdata.memcached.get(session_id) if @r.uri =~ //image/#{allowed_data}/ allowed = true end end allowed Allowing uri string in session is compared accessing uri. If it matches, ngx_mruby allows this request to access image asset.
  • 33. Comparison of performanceResp time(sec) 0 0.1 0.2 0.3 nginx + perlbal ngx_mruby transferrate(byte/sec) 0 5 10 15 20 25 30 nginx + perlbal ngx_mruby
  • 35. What’s motivation • We are using ngx_mruby in production. • We should test every production code. • Testing mruby code is a cutting edge technical issue.
  • 36. Prototype concept • Use CRuby(version independent: 2.0.0, 2.1, 2.2) • Use test-unit • Test “ruby code” without real world behavior.
  • 37. Sample code of ngx_mruby class ProductionCode def initialize(r, c) @r, @c = r, c end def allowed_ip_addresses %w[ 128.0.0.1 ] end def allowed? if (allowed_ip_addresses & [@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0 return true end end return false end ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?
  • 38. Dummy class of ngx_mruby class Nginx class Request attr_accessor :uri, :headers_in, :args, :method, :hostname def initialize @uri = nil @headers_in = {} @args = nil @method = 'GET' @hostname = nil end end class Connection attr_accessor :remote_ip def initialize @remote_ip = nil end end end
  • 39. Dummy class of mgem Memcached = MemCache class Memcached def close servers.each(&:close) end end class Userdata def initialize(*args) end def memcached Memcached.new('127.0.0.1:11211') end end
  • 40. Skeleton of test-case require_relative '../lib/production/code/path/mruby.rb' class MRubyTest < Test::Unit::TestCase def setup @r = Nginx::Request.new @c = Nginx::Connection.new end def test_discard_access assert !ProductionCode.new(@r, @c).allowed? end end
  • 41. Restrict requests with cookie session require_relative '../lib/production/code/path/mruby.rb' class MRubyTest < Test::Unit::TestCase def setup @r = Nginx::Request.new @c = Nginx::Connection.new end def test_session_access MemCache.new('127.0.0.1').set 'a77a2a0cc91b739438dfc9dc47c5dd36' @r.headers_in['cookie'] = '_session=a77a2a0cc91b739438dfc9dc47c5dd36;' @r.uri = '/secret/file/path' assert ProductionCode.new(@r, @c).allowed? end end
  • 42. Run test % ruby test/production_code_test.rb Loaded suite test/production_code_test Started ......... Finished in 0.031017 seconds. --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- -------------------- 9 tests, 15 assertions, 0 failures, 0 errors, 0 pendings, 0 omissions, 0 notifications 100% passed --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- -------------------- 290.16 tests/s, 483.61 assertions/s
  • 43. Our concerns on CRuby testing • We can test “ruby code”. But it’s not fulfill testing requirements. We need to test ngx_mruby behavior. • We use a lot of mock/stub classes. It’s ruby’s dark-side. • We need to make easy task runner.
  • 45. Use mruby directly instead of CRuby mruby-mtest class Test4MTest < MTest::Unit::TestCase def test_assert assert(true) assert(true, 'true sample test') end end MTest::Unit.new.run MRuby::Build.new do |conf| (snip) conf.gem :github => 'matsumoto-r/mruby-uname' # ngx_mruby extended class conf.gem ‘../mrbgems/ngx_mruby_mrblib' con.gem :github => ‘iij/mruby-mtest’ (snip) end build_config.rb test_4m_test.rb
  • 46. Inline testing for mruby-mtest class ProductionCode (snip) end if Object.const_defined?(:MTest) class Nginx (snip) end class TestProductionCode < MTest::Unit::TestCase (snip) end MTest::Unit.new.run else ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed? end
  • 47. Build mruby for mruby testing $ cd ngx_mruby/mruby $ cp ../build_config.rb . $ make $ cp bin/mruby /path/to/test/bin You need to get mruby binary before embed ngx_mruby. % ./path/to/test/bin/mruby -v mruby 1.1.0 (2014-11-19) ^C
  • 48. Test runner for mruby-mtest require 'rake' desc 'Run mruby-mtest' task :mtest do target = "modules/path/to/production/code" mruby_binary = File.expand_path("../#{target}/test_bin/mruby", __FILE__) mruby_files = FileList["#{target}/**/*.rb"] mruby_files.each do |f| absolute_path = File.expand_path("../#{f}", __FILE__) system "#{mruby_binary} #{absolute_path}" end end
  • 49. Advantage of mruby testing Rapid! % rake mtest # Running tests: ......... Finished tests in 0.007924s, 1135.7900 tests/s, 1892.9833 assertions/s. 9 tests, 15 assertions, 0 failures, 0 errors, 0 skips
  • 51. Deployment strategy We need to prepare following things for production use: • Build custom package for ngx_mruby in production environment • Write manifest file of puppet/chef • Test binary and mruby code continuously Deploy!
  • 52. You can get rpm and deb packages via docker and docker- compose You can install via default package management tool like yum and apt-get above packages. Build on docker https://github.com/hsbt/ngx_mruby-package-builder $ docker-compose build centos7 $ docker-compose run centos7 => nginx-ngx_mruby-1.9.3-1.el7.centos.ngx.x86_64.rpm $ docker-compose build ubuntu14.04 $ docker-compose run ubutnu14.04 => nginx-ngx_mruby_1.9.4-1~trusty_amd64.deb
  • 54. HTTP/2 with h2o and mruby “H2O is a new generation HTTP server providing quicker response to users when compared to older generation of web servers. Written in C, can also be used as a library.” https://h2o.examp1e.net/ $ cmake -DWITH_BUNDLED_SSL=on -DWITH_MRUBY=ON . $ make $ ./h2o -c examples/h2o_mruby/h2o.conf
  • 55. mruby meets h2o and HTTP/2 hosts: "localhost:8081": listen: port: 8081 ssl: certificate-file: examples/h2o/alternate.crt key-file: examples/h2o/alternate.key paths: /: mruby.handler-file: examples/h2o_mruby/hello.rb access-log: /dev/stdout msg = "hello from h2o_mruby" H2O.return 200, "OK", msg + "n" h2o.conf hello.rb
  • 56. Next challenge • mruby binary can have different library from one in production. • For continuous integration, we need to prepare cross-compile or live compile environment. • Replace complex nginx.conf to mruby code backed by test code.
