This document summarizes Phone Home, a system to collect client-side errors from users' browsers. The Phone Home client runs JavaScript in users' browsers to collect errors and send them via HTTP POST requests to the Phone Home server. The server is built with Scalatra and saves the error data to MongoDB. It was created to debug unreproducible jQuery errors in IE browsers. Features include error handling, page load timing collection, custom field support, and an admin UI with stats and a recent events list. The server uses CORS to allow cross-domain requests from the Phone Home client. Data can also be analyzed using the ltsv4s library to parse and query the log files in Scala.

1. Phone Home
Chris Birchall
2013/08/16
#m3dev

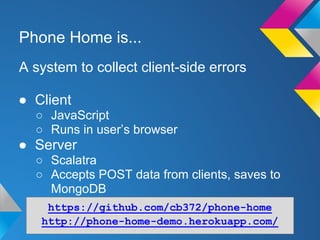

2. Phone Home is...
A system to collect client-side errors
● Client
○ JavaScript
○ Runs in user’s browser
● Server
○ Scalatra
○ Accepts POST data from clients, saves to
MongoDB
https://github.com/cb372/phone-home
http://phone-home-demo.herokuapp.com/

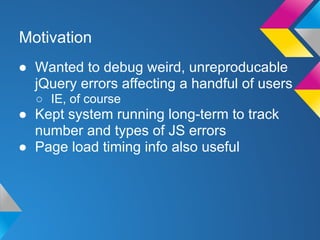

3. Motivation
● Wanted to debug weird, unreproducable
jQuery errors affecting a handful of users
○ IE, of course
● Kept system running long-term to track
number and types of JS errors
● Page load timing info also useful

4. Error collection

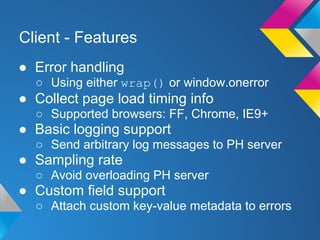

5. Client - Features
● Error handling
○ Using either wrap() or window.onerror
● Collect page load timing info
○ Supported browsers: FF, Chrome, IE9+
● Basic logging support
○ Send arbitrary log messages to PH server
● Sampling rate
○ Avoid overloading PH server
● Custom field support
○ Attach custom key-value metadata to errors

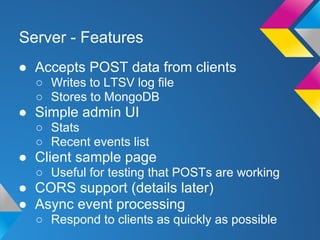

6. Server - Features
● Accepts POST data from clients
○ Writes to LTSV log file
○ Stores to MongoDB
● Simple admin UI
○ Stats
○ Recent events list
● Client sample page
○ Useful for testing that POSTs are working
● CORS support (details later)
● Async event processing
○ Respond to clients as quickly as possible

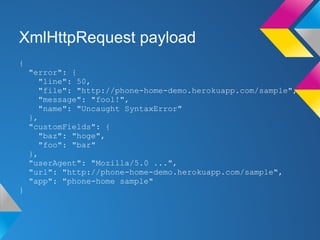

7. XmlHttpRequest payload
{
"error": {
"line": 50,
"file": "http://phone-home-demo.herokuapp.com/sample",
"message": "fool!",
"name": "Uncaught SyntaxError"
},
"customFields": {
"baz": "hoge",
"foo": "bar"
},
"userAgent": "Mozilla/5.0 ...",
"url": "http://phone-home-demo.herokuapp.com/sample",
"app": "phone-home sample"
}

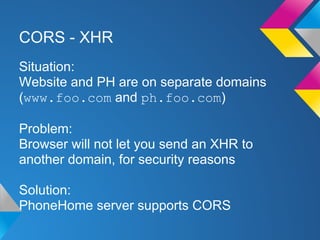

8. CORS - XHR
Situation:
Website and PH are on separate domains
(www.foo.com and ph.foo.com)
Problem:
Browser will not let you send an XHR to
another domain, for security reasons
Solution:
PhoneHome server supports CORS

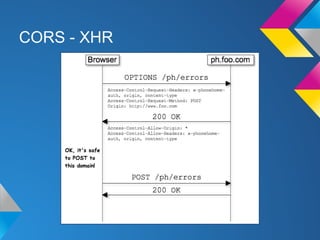

9. CORS - XHR

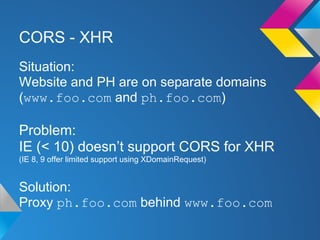

10. CORS - XHR
Situation:
Website and PH are on separate domains
(www.foo.com and ph.foo.com)
Problem:
IE (< 10) doesn’t support CORS for XHR
(IE 8, 9 offer limited support using XDomainRequest)
Solution:
Proxy ph.foo.com behind www.foo.com

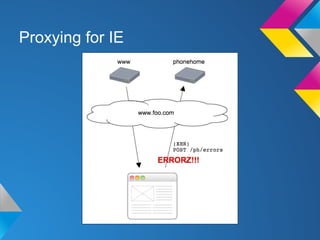

11. Proxying for IE

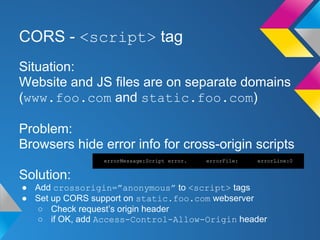

12. CORS - <script> tag
Situation:
Website and JS files are on separate domains
(www.foo.com and static.foo.com)
Problem:
Browsers hide error info for cross-origin scripts
Solution:
● Add crossorigin=”anonymous” to <script> tags
● Set up CORS support on static.foo.com webserver
○ Check request’s origin header
○ if OK, add Access-Control-Allow-Origin header
errorMessage:Script error. errorFile: errorLine:0

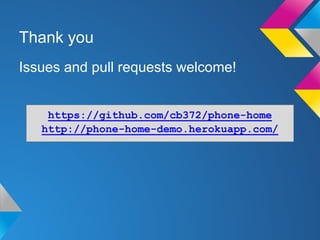

13. Thank you
Issues and pull requests welcome!
https://github.com/cb372/phone-home
http://phone-home-demo.herokuapp.com/

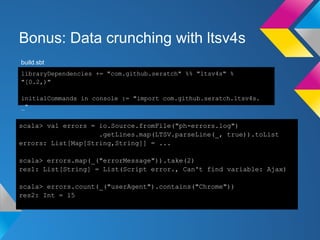

14. Bonus: Data crunching with ltsv4s
scala> val errors = io.Source.fromFile("ph-errors.log")
.getLines.map(LTSV.parseLine(_, true)).toList
errors: List[Map[String,String]] = ...
scala> errors.map(_("errorMessage")).take(2)
res1: List[String] = List(Script error., Can't find variable: Ajax)
scala> errors.count(_("userAgent").contains("Chrome"))
res2: Int = 15
libraryDependencies += "com.github.seratch" %% "ltsv4s" %
"[0.2,)"
initialCommands in console := "import com.github.seratch.ltsv4s.
_"
build.sbt
