1. Integrating With
Third-Party APIs
Randy Hoyt
@randyhoyt

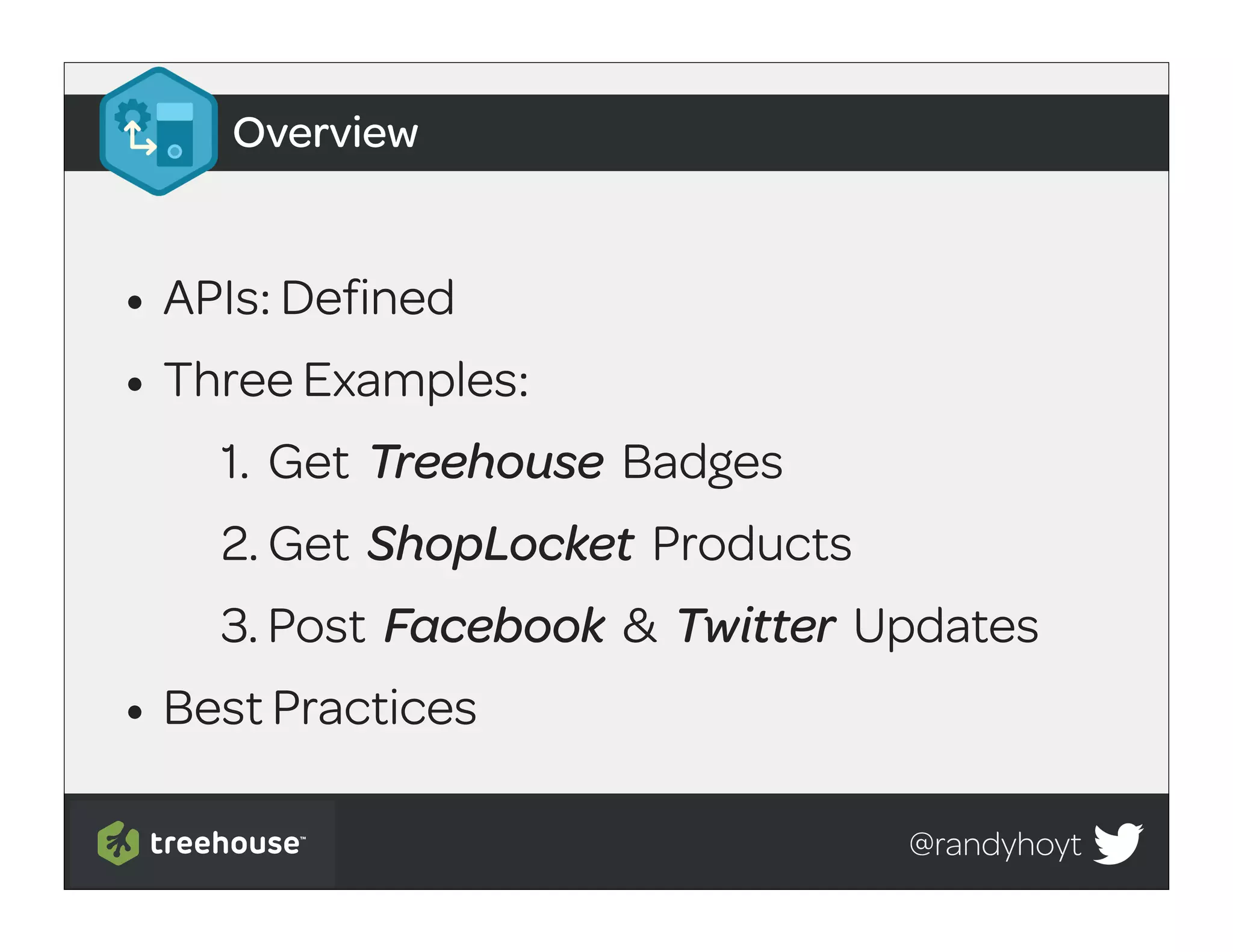

3. Overview
• APIs: Defined
• Three Examples:
1. Get Treehouse Badges
2. Get ShopLocket Products
3. Post Facebook & Twitter Updates
• Best Practices
@randyhoyt

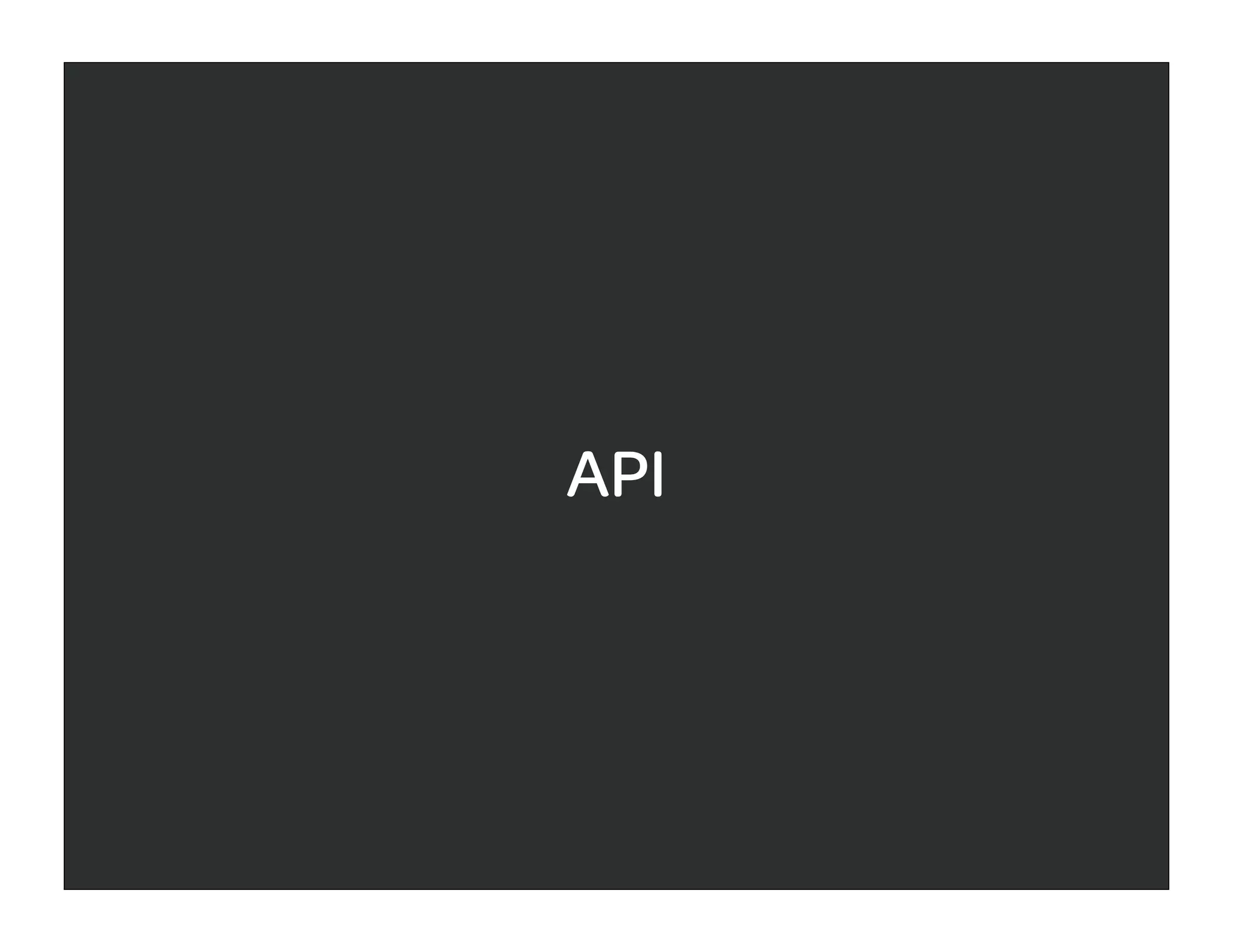

4. API

5. Application Programming Interface

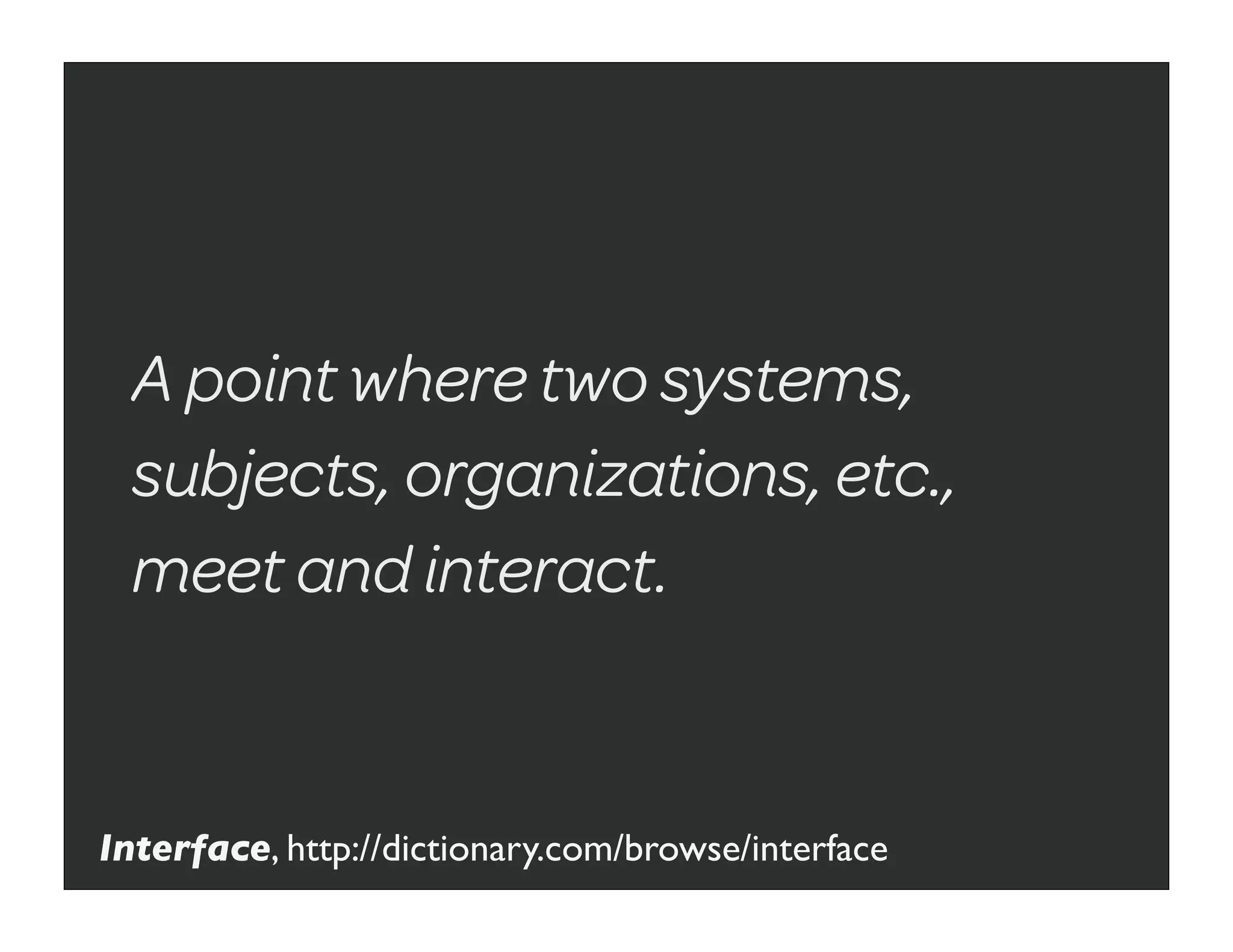

6. A point where two systems,
subjects, organizations, etc.,
meet and interact.
Interface, http://dictionary.com/browse/interface

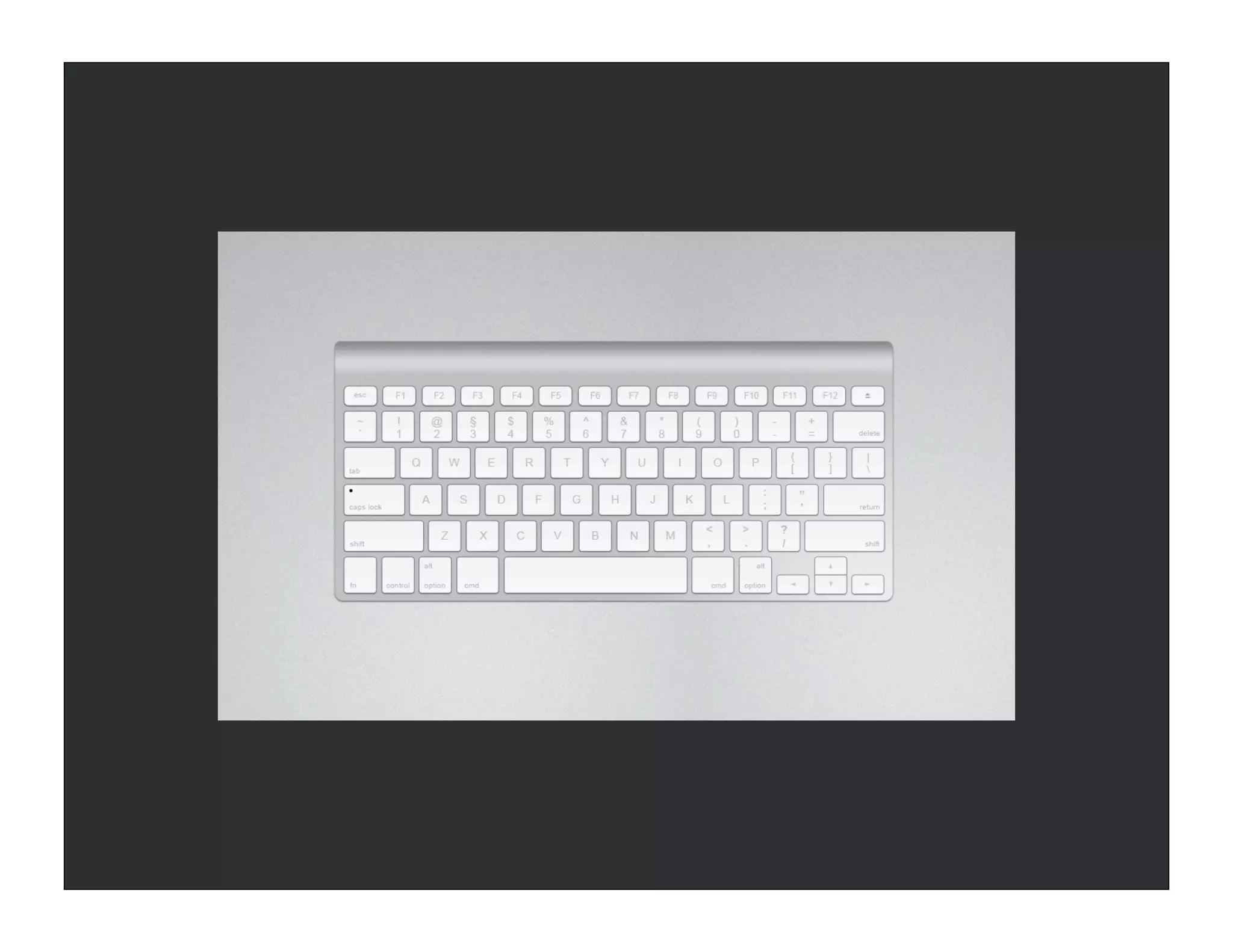

7. [Keyboard]

8. [Remote Control]

9. [Remote Control]

10. [Lock and Key]

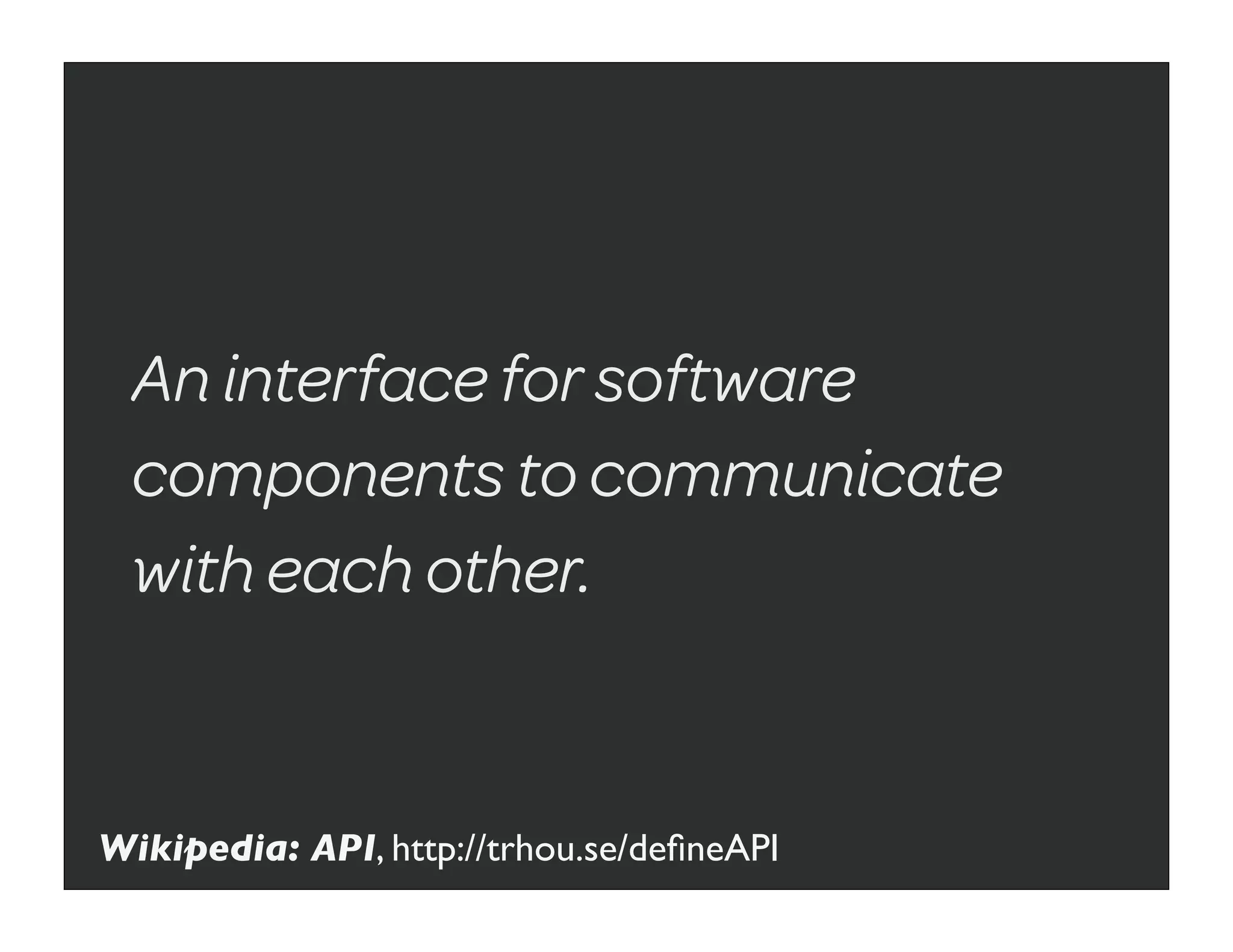

11. An interface for software
components to communicate
with each other.
Wikipedia: API, http://trhou.se/defineAPI

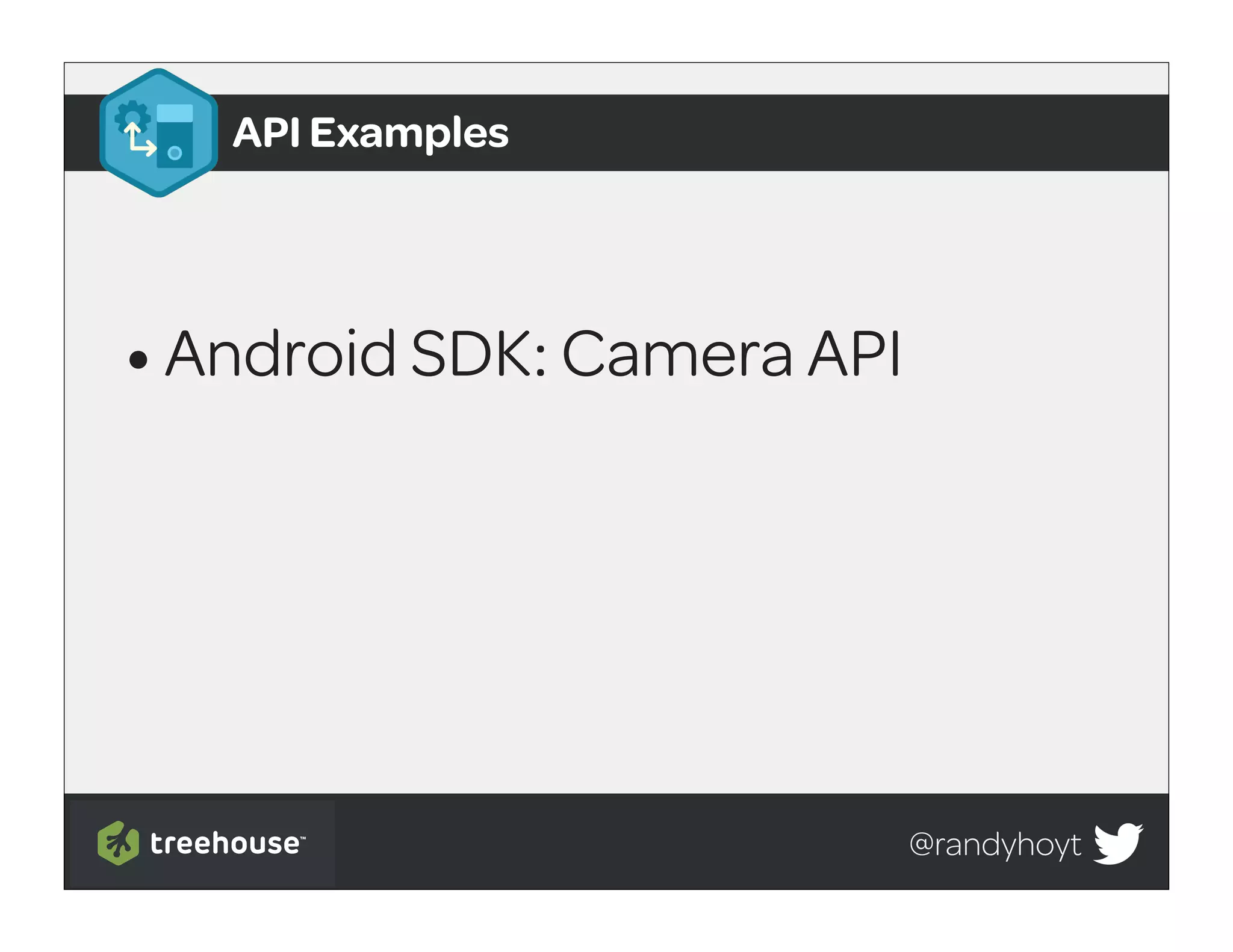

12. API Examples
• Android SDK: Camera API
@randyhoyt

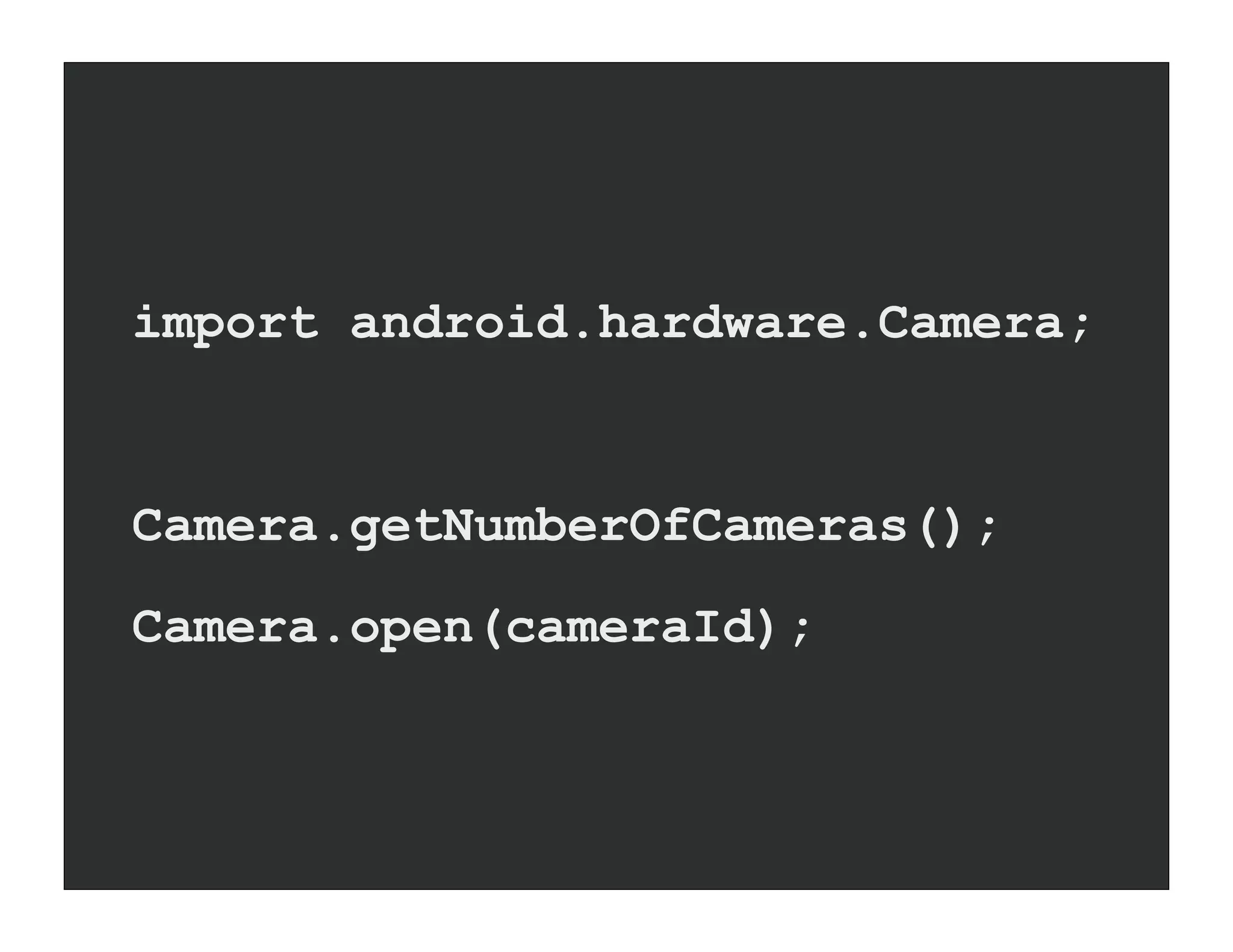

13. import android.hardware.Camera;
Camera.getNumberOfCameras();
Camera.open(cameraId);

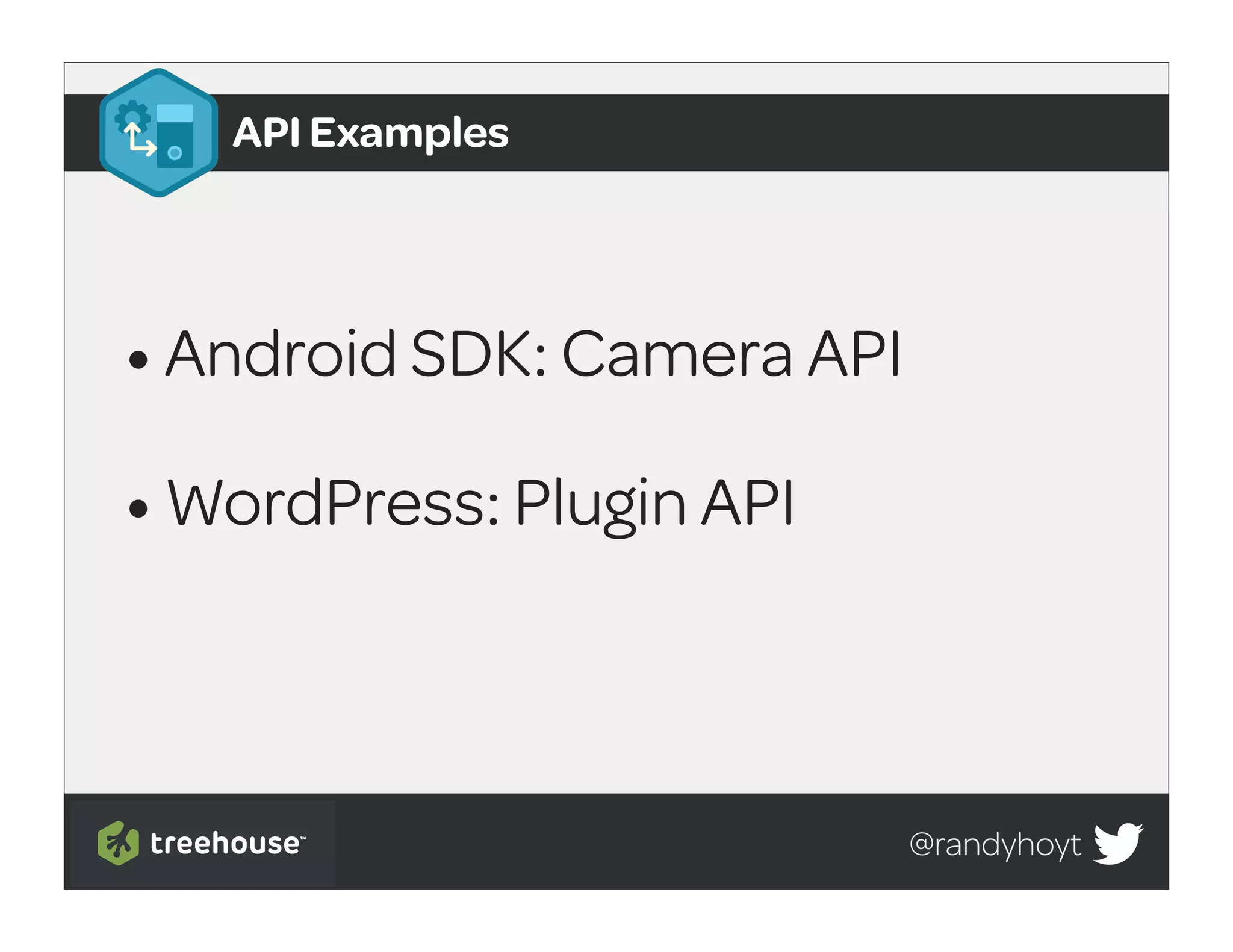

14. API Examples
• Android SDK: Camera API
• WordPress: Plugin API
@randyhoyt

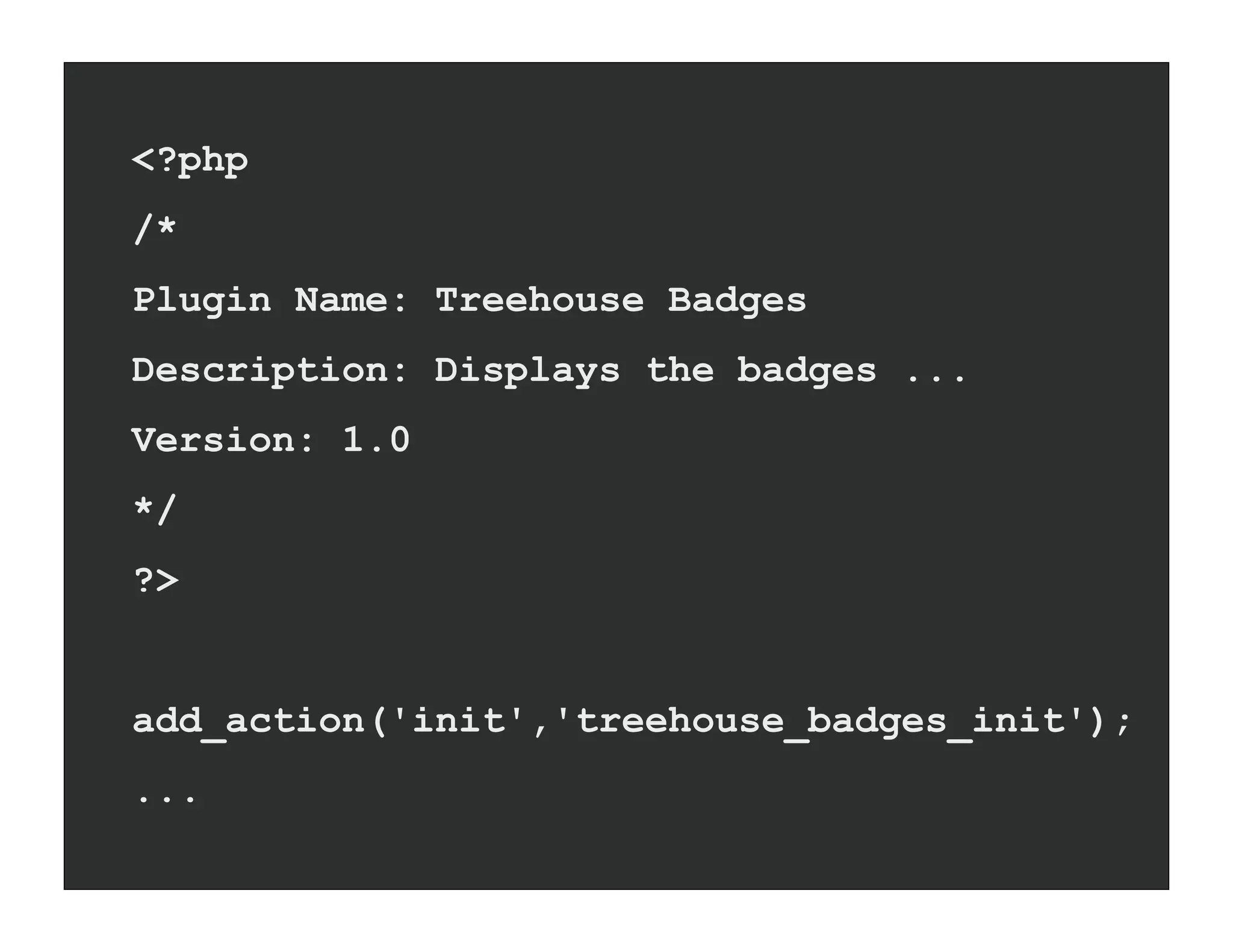

15. <?php
/*
Plugin Name: Treehouse Badges
Description: Displays the badges ...
Version: 1.0
*/
?>
add_action('init','treehouse_badges_init');
...

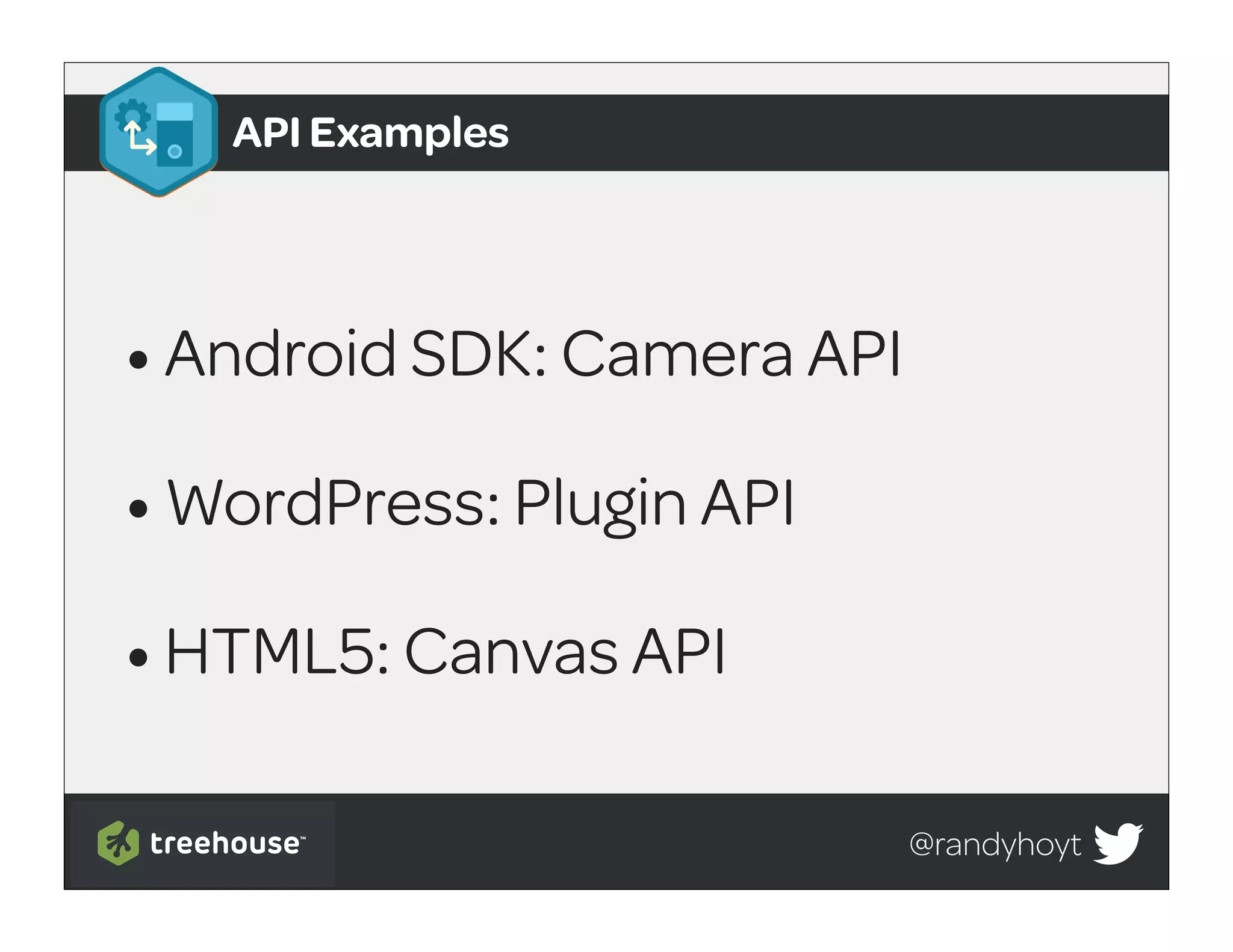

16. API Examples
• Android SDK: Camera API
• WordPress: Plugin API
• HTML5: Canvas API
@randyhoyt

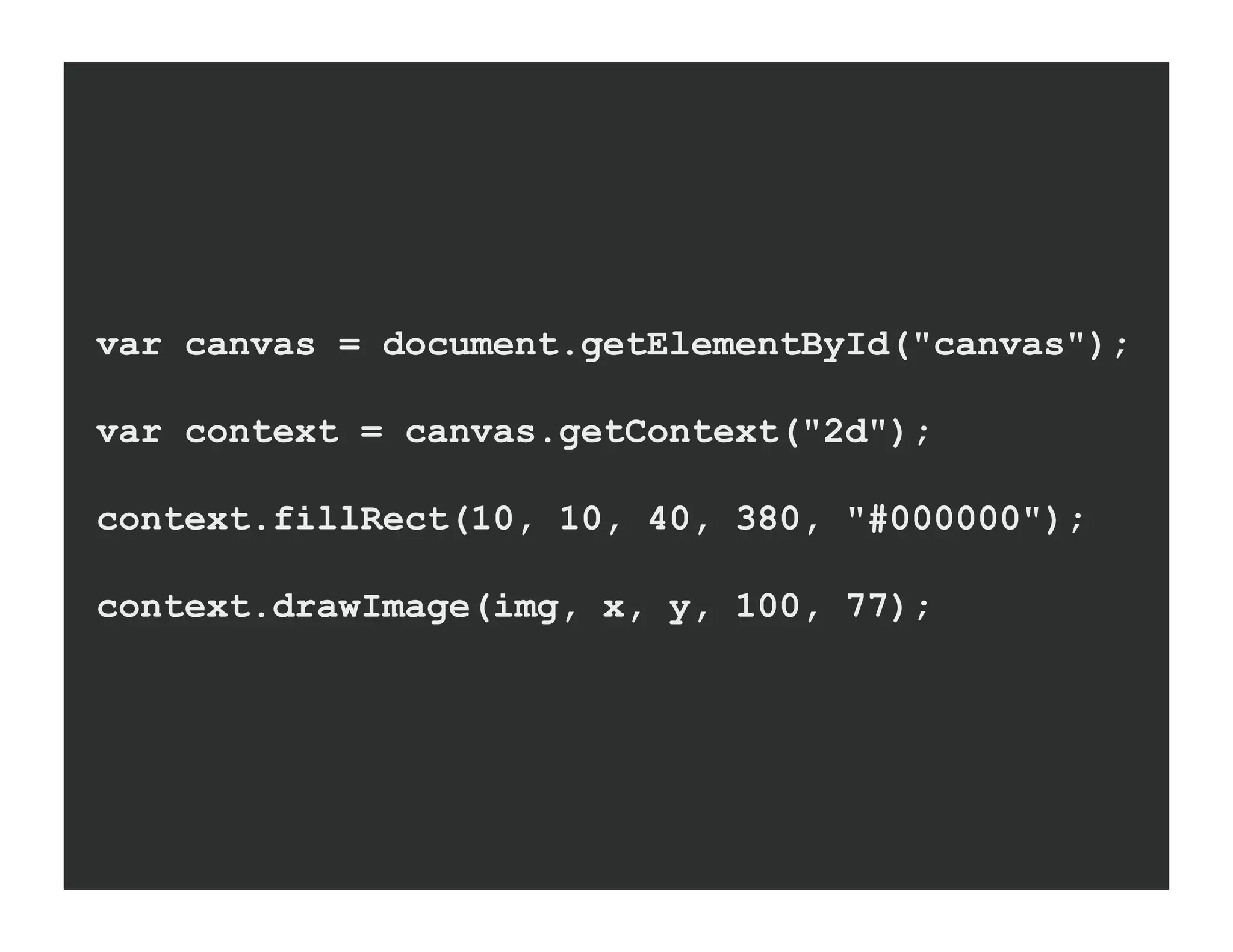

17. var canvas = document.getElementById("canvas");
var context = canvas.getContext("2d");
context.fillRect(10, 10, 40, 380, "#000000");
context.drawImage(img, x, y, 100, 77);

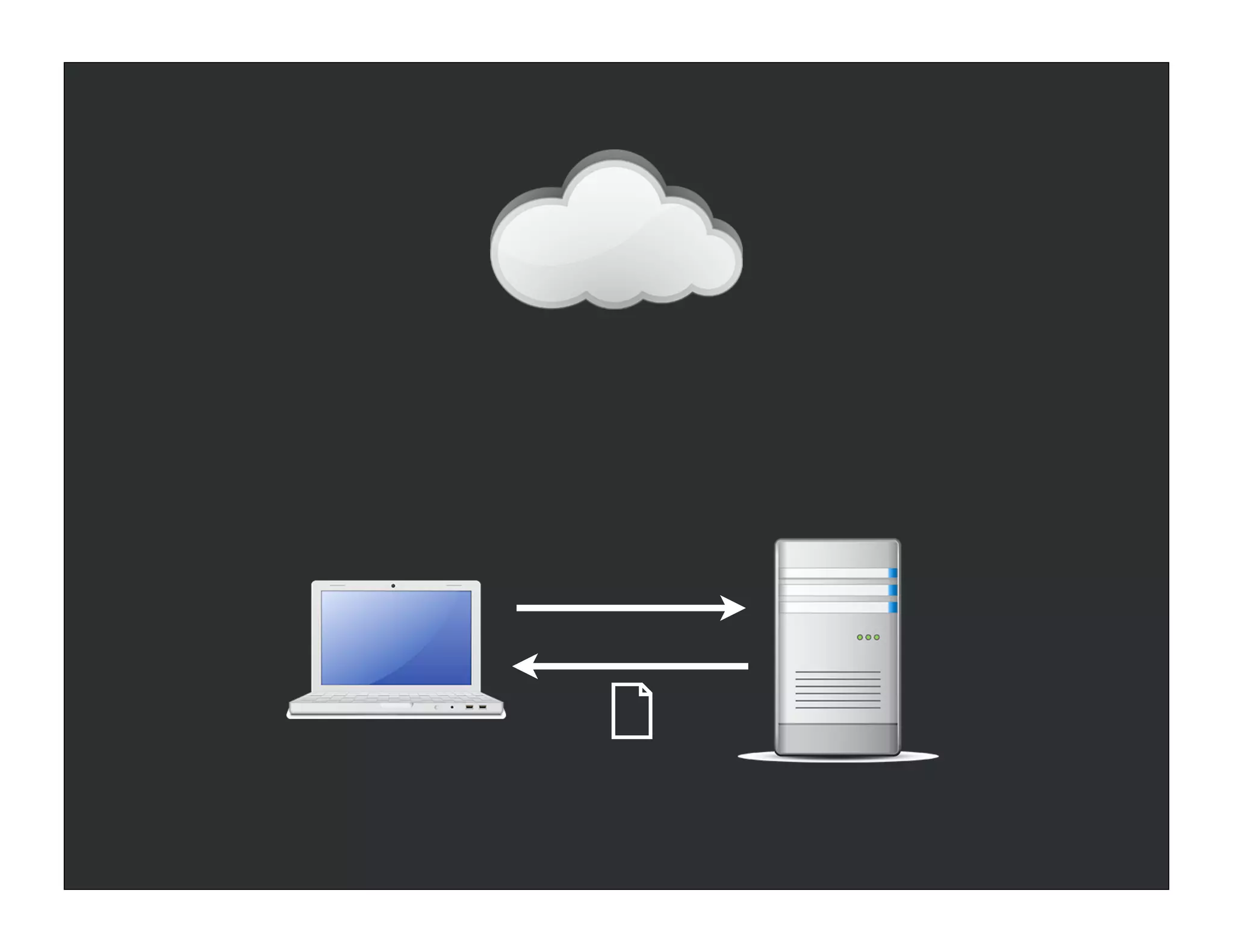

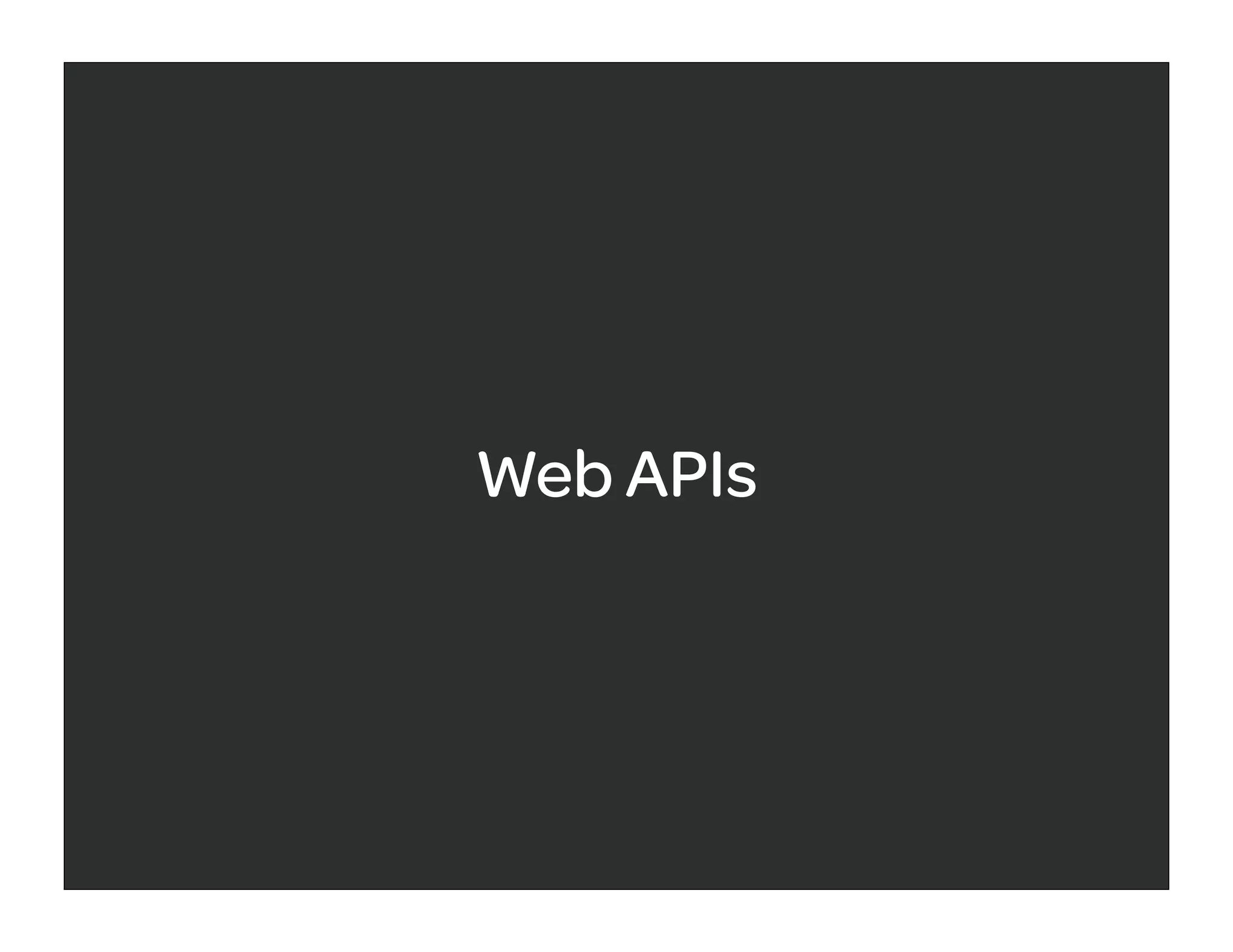

18. Web APIs

19. REST

20. Representational State Transfer

21. RESTful API

22. Example #1: Treehouse

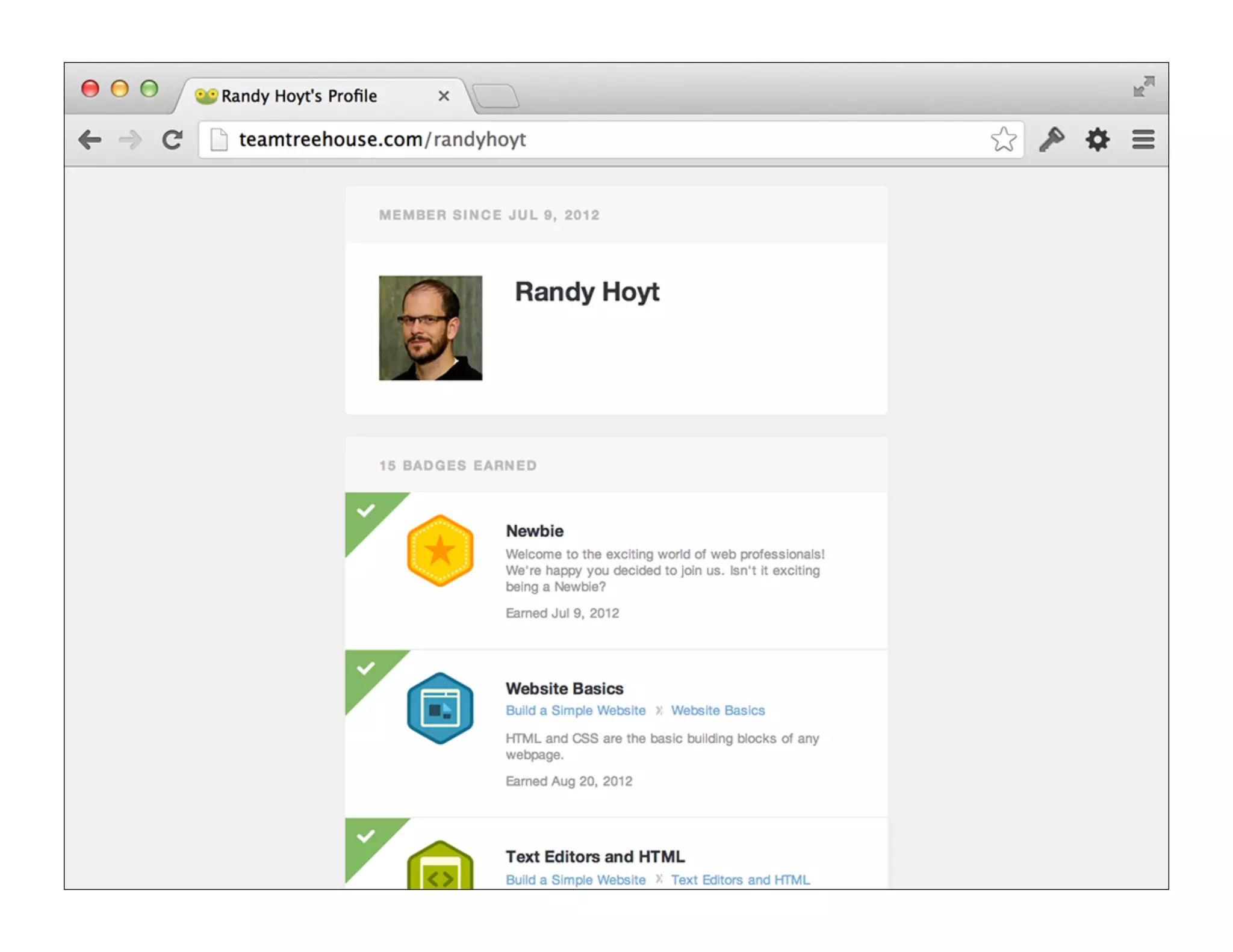

23. [Treehouse screenshot]

24. JavaScript Object Notation:
Text-based open standard
designed for human-readable
data interchange.
Wikipedia: JSON, http://trhou.se/defineJSON

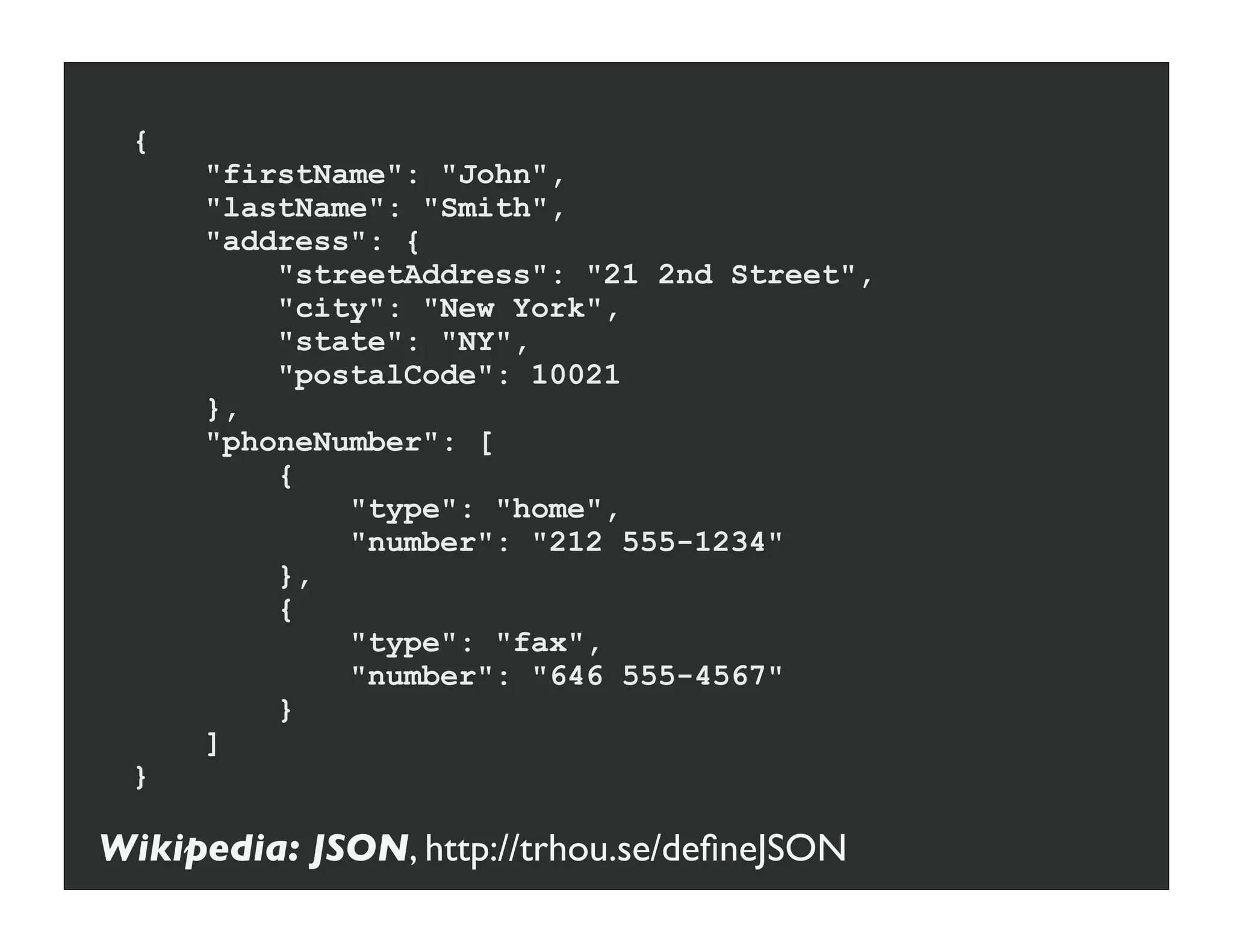

25. {
"firstName": "John",
"lastName": "Smith",
"address": {
"streetAddress": "21 2nd Street",
"city": "New York",
"state": "NY",
"postalCode": 10021
},
"phoneNumber": [
{
"type": "home",
"number": "212 555-1234"
},
{
"type": "fax",
"number": "646 555-4567"
}
]
}
Wikipedia: JSON, http://trhou.se/defineJSON

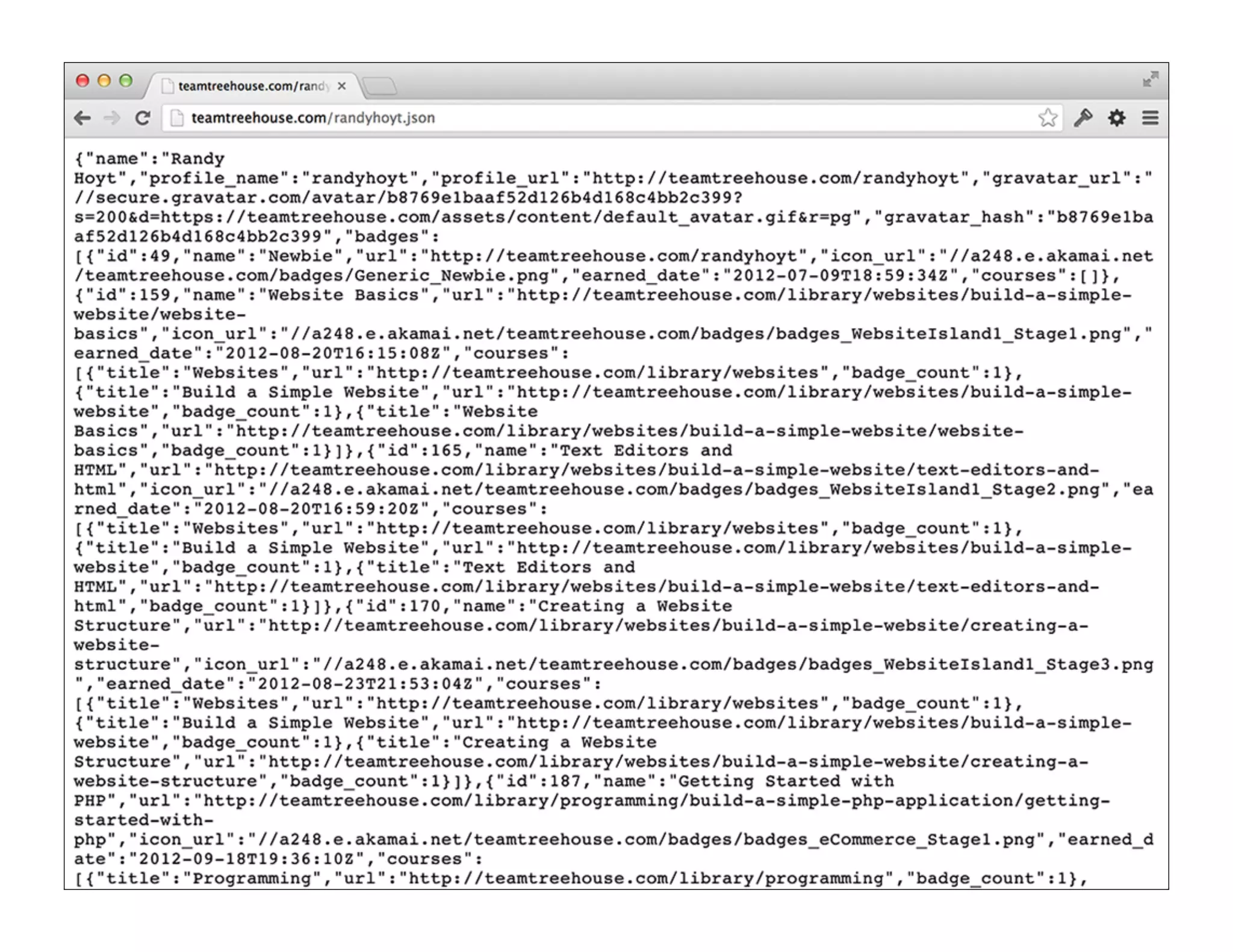

26. [Treehouse JSON]

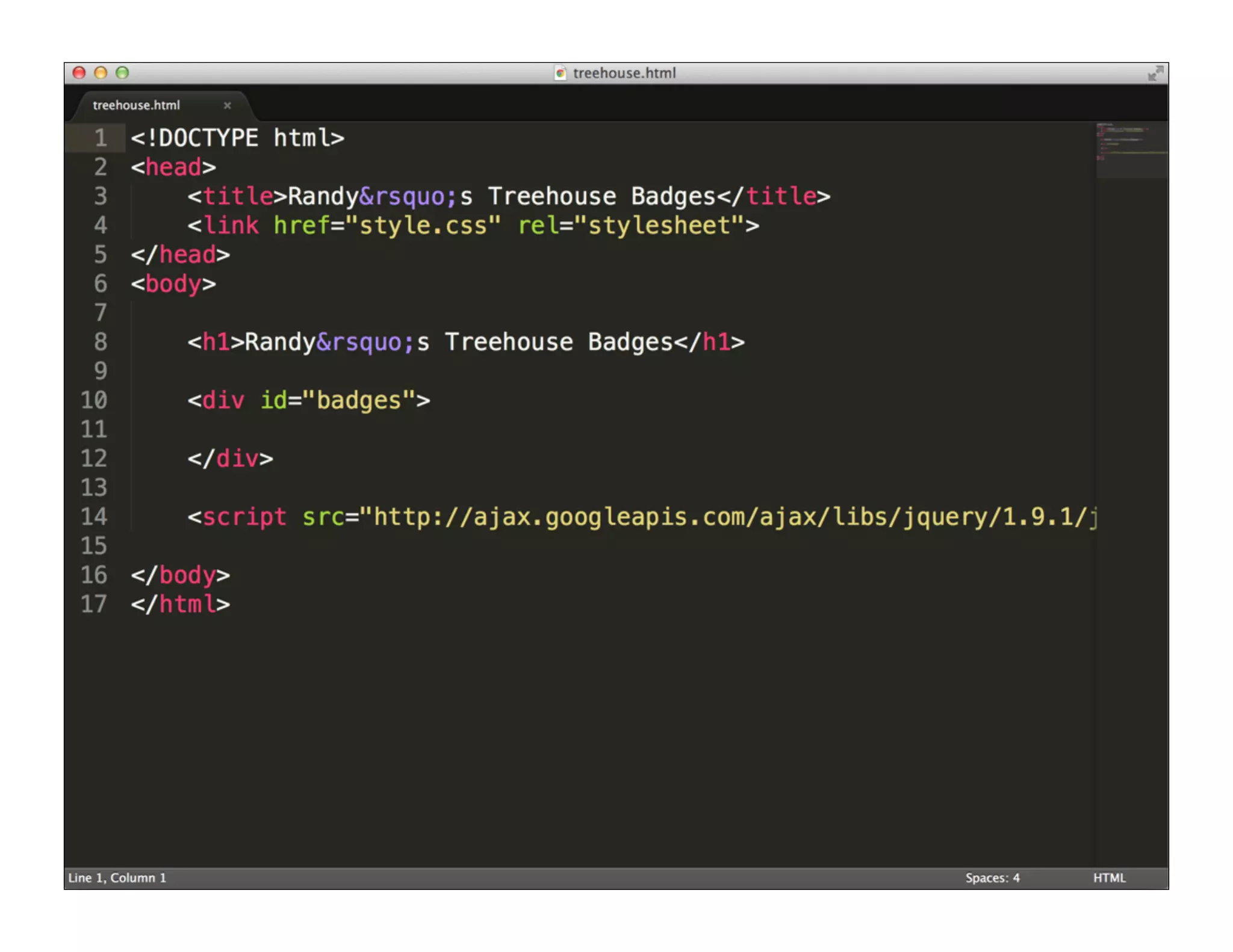

27. [HTML]

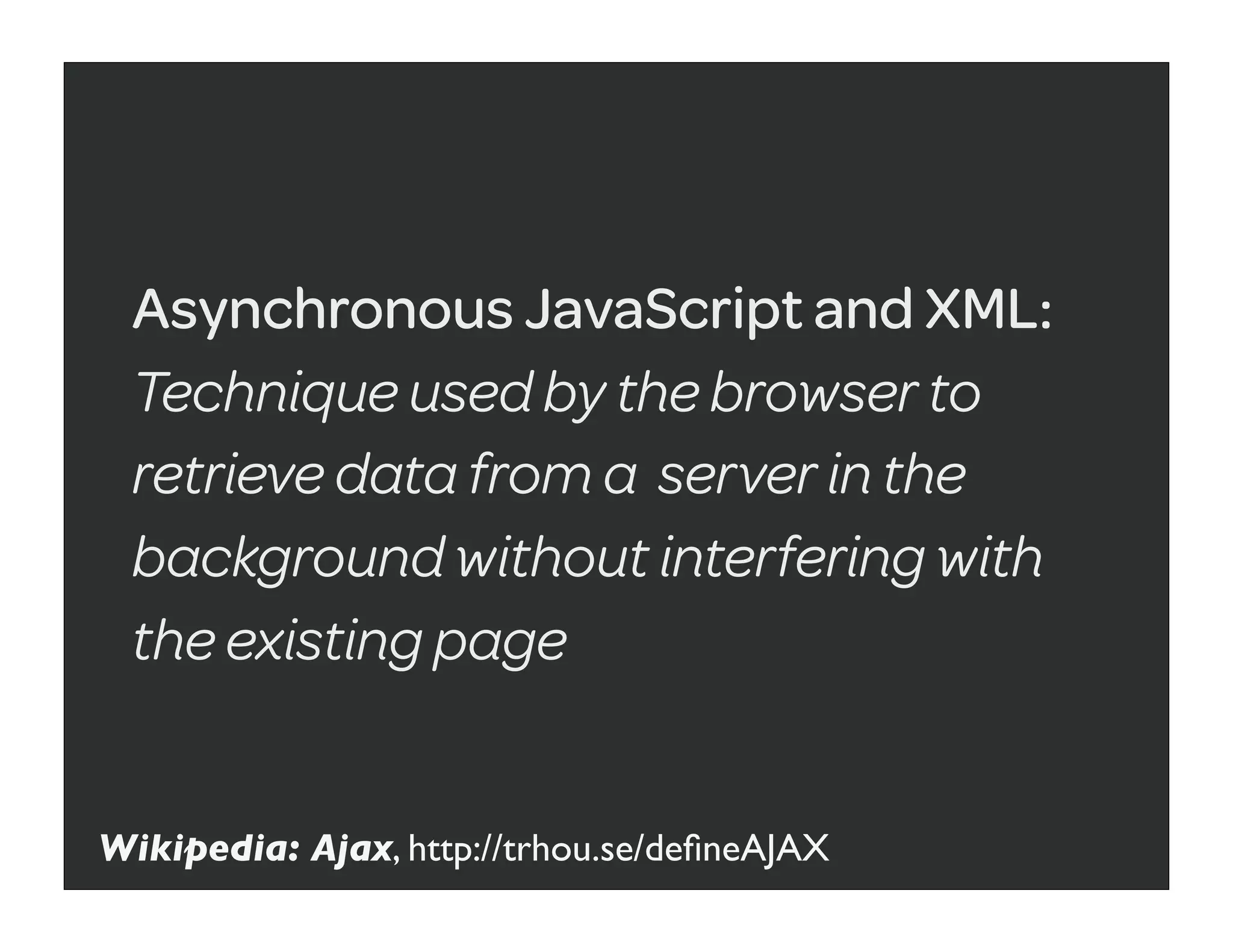

28. Asynchronous JavaScript and XML:
Technique used by the browser to
retrieve data from a server in the
background without interfering with
the existing page
Wikipedia: Ajax, http://trhou.se/defineAJAX

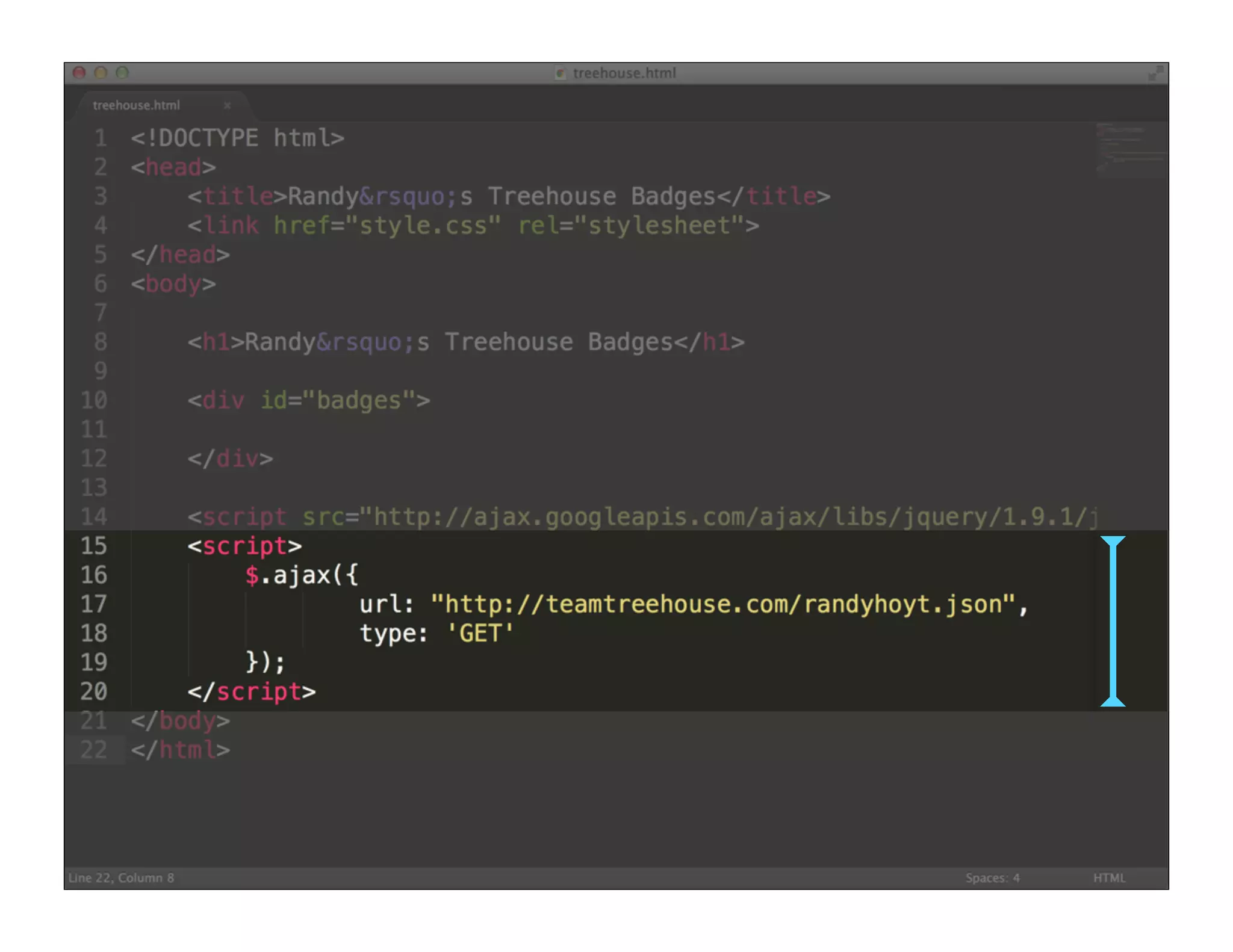

29. [AJAX Request Code]

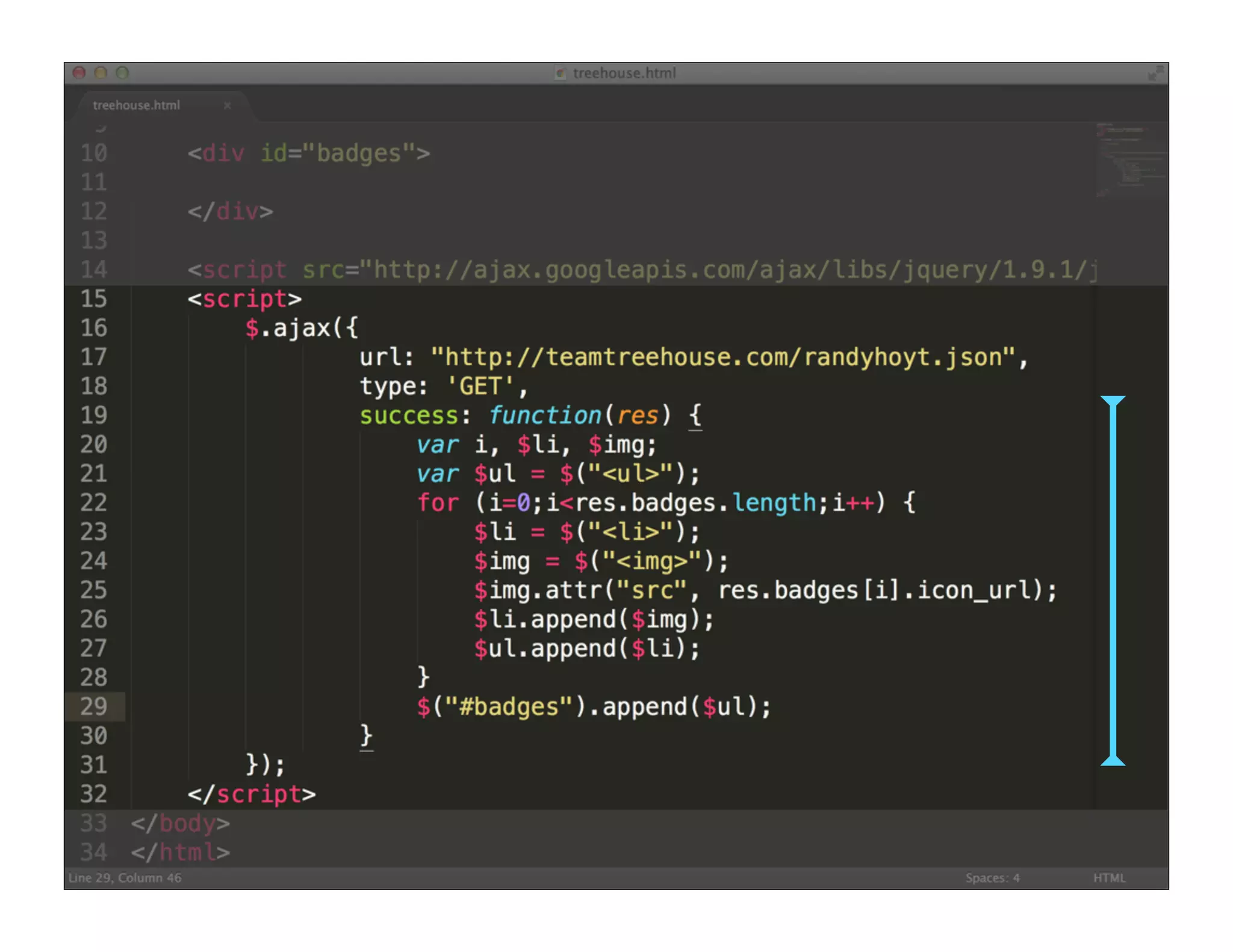

30. [Badge Code]

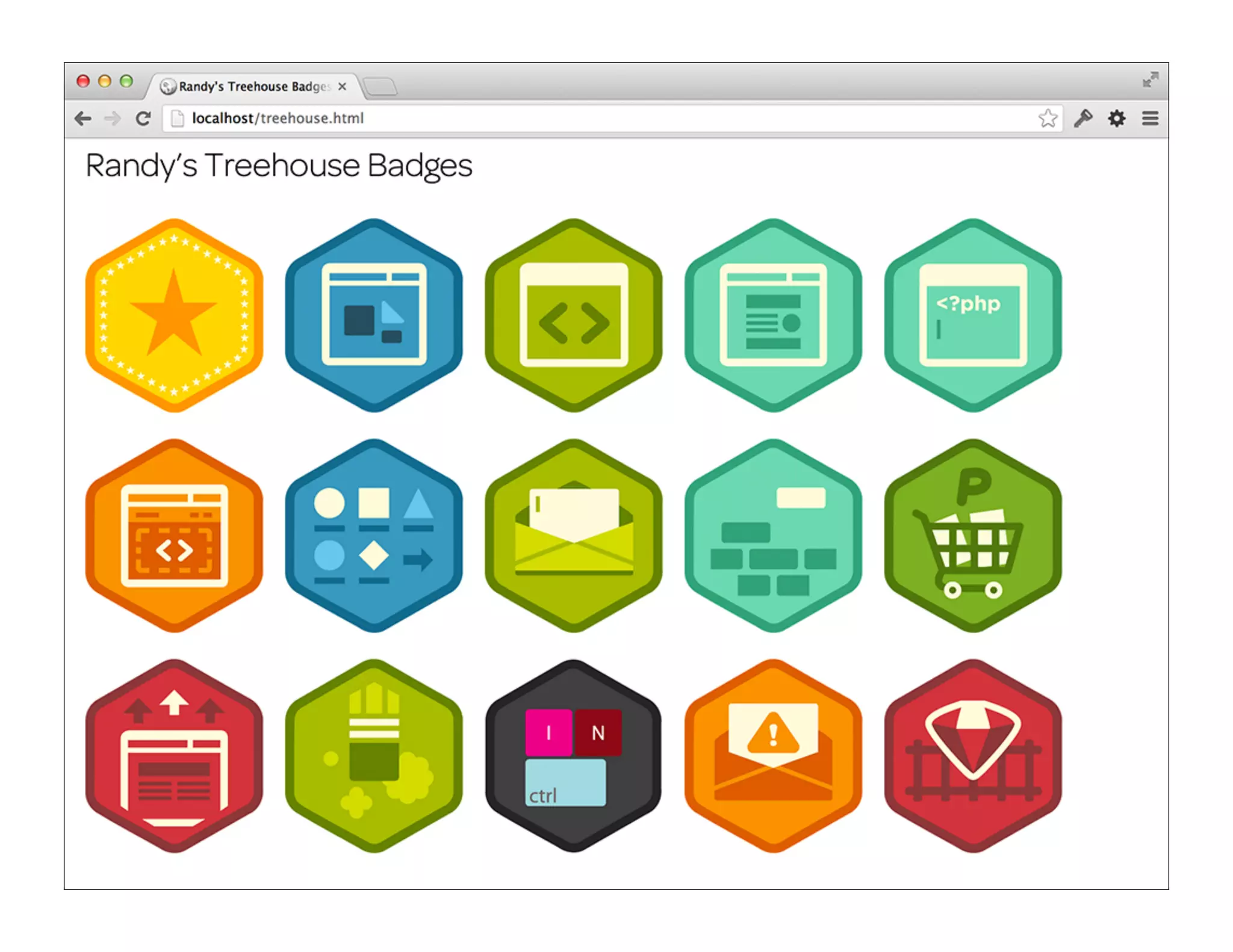

31. [Badge Display]

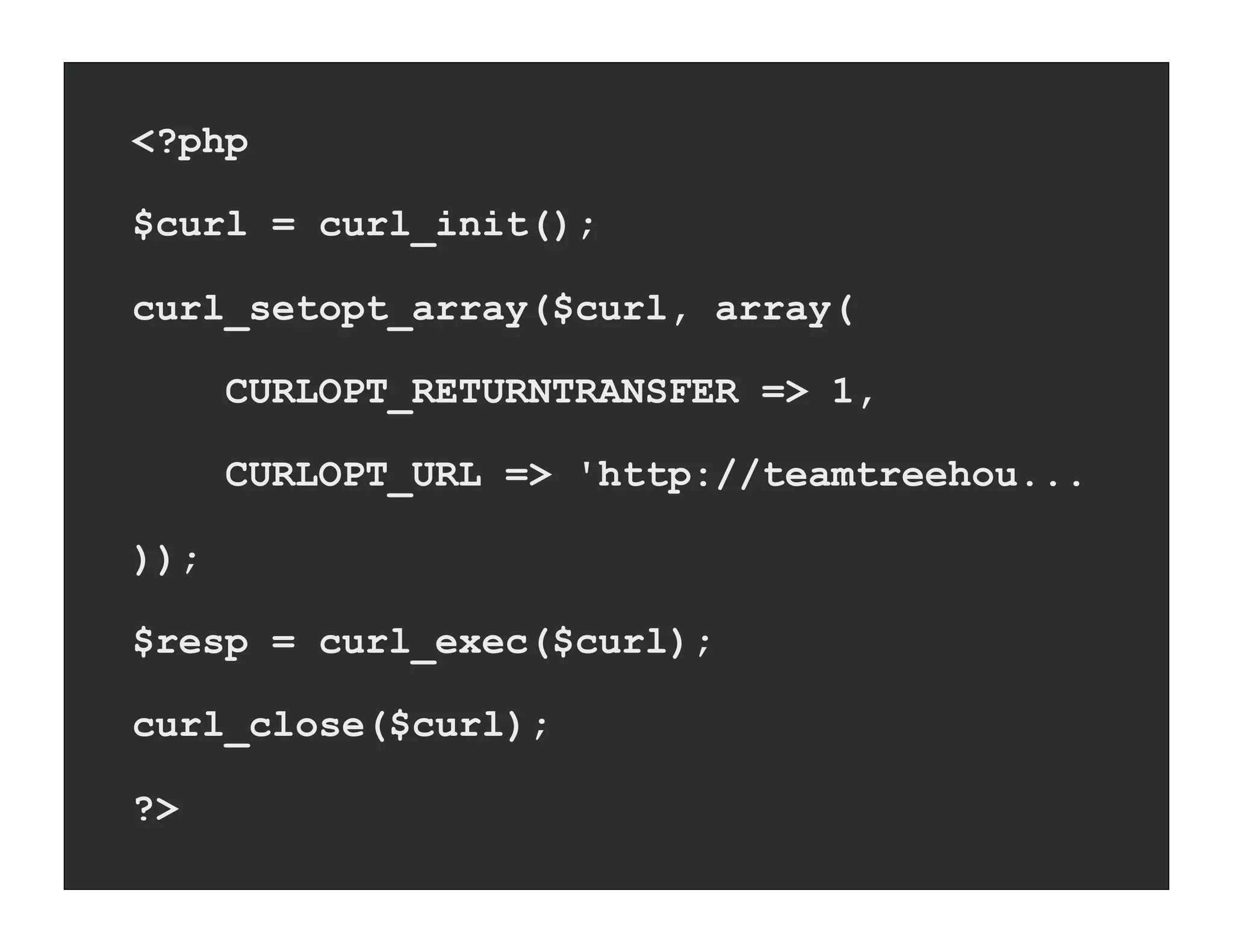

40. <?php
$curl = curl_init();
curl_setopt_array($curl, array(
CURLOPT_RETURNTRANSFER => 1,
CURLOPT_URL => 'http://teamtreehou...
));
$resp = curl_exec($curl);
curl_close($curl);
?>

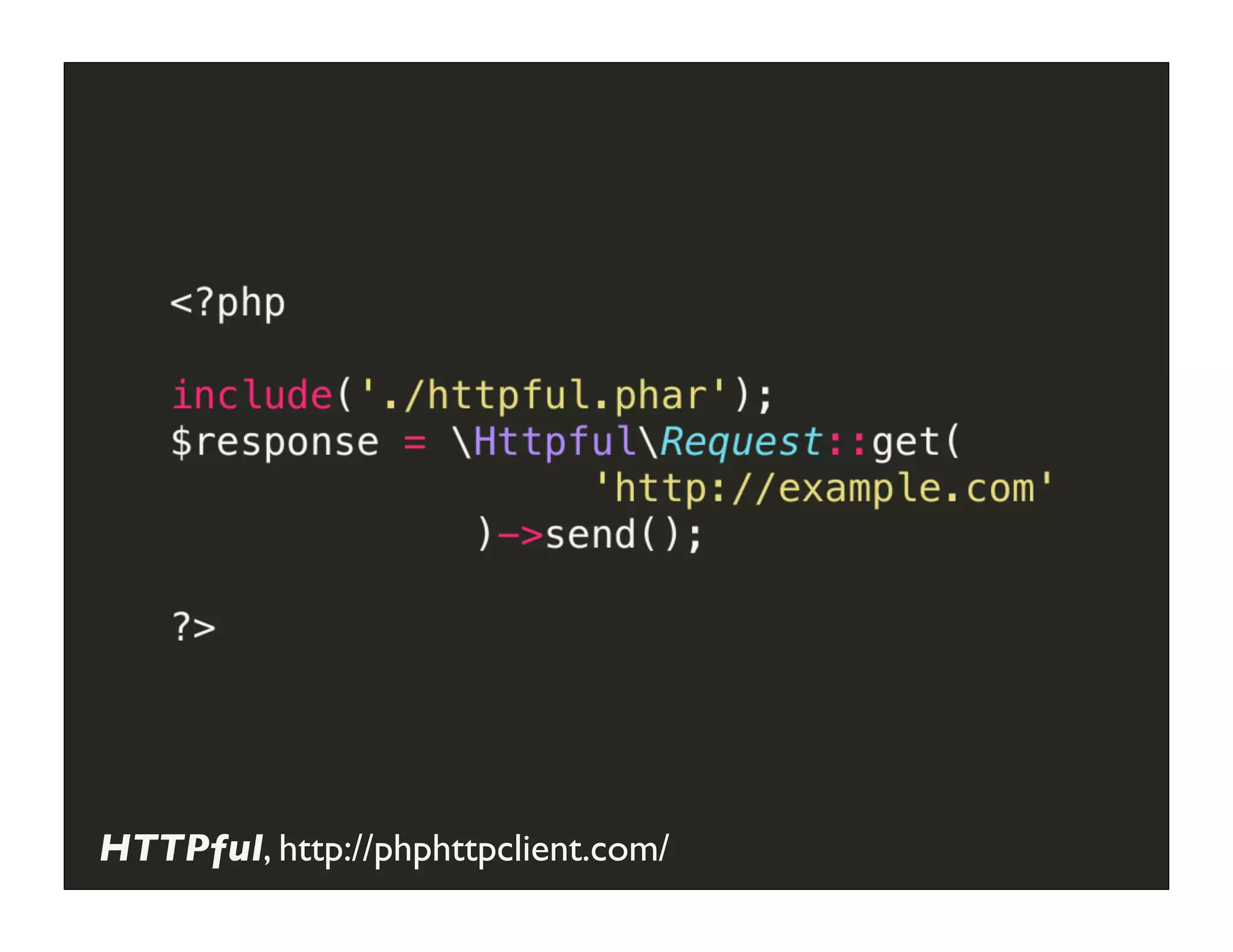

41. GET
Request
with
HTTPful
HTTPful, http://phphttpclient.com/

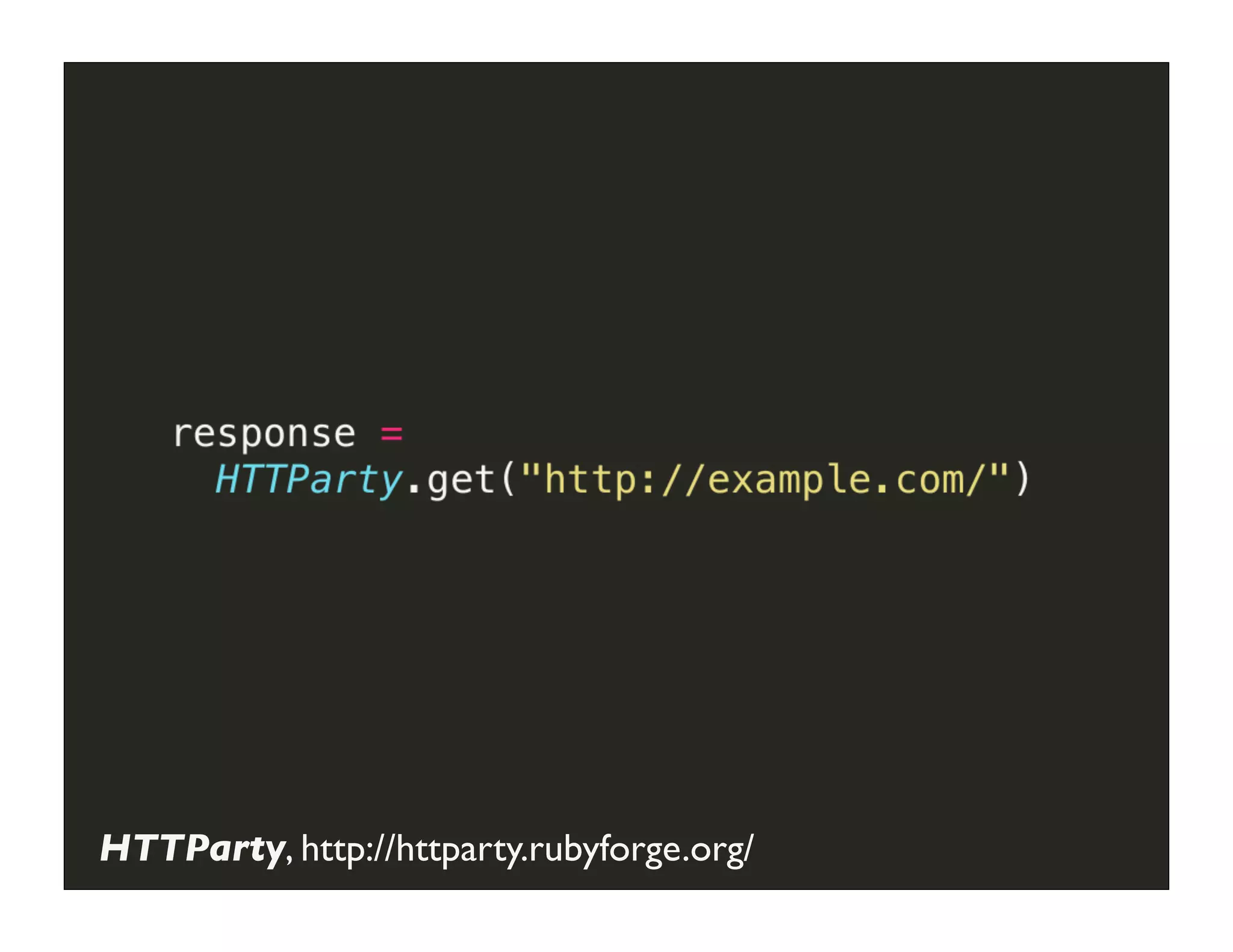

42. GET
Request
with
HTTParty
HTTParty, http://httparty.rubyforge.org/

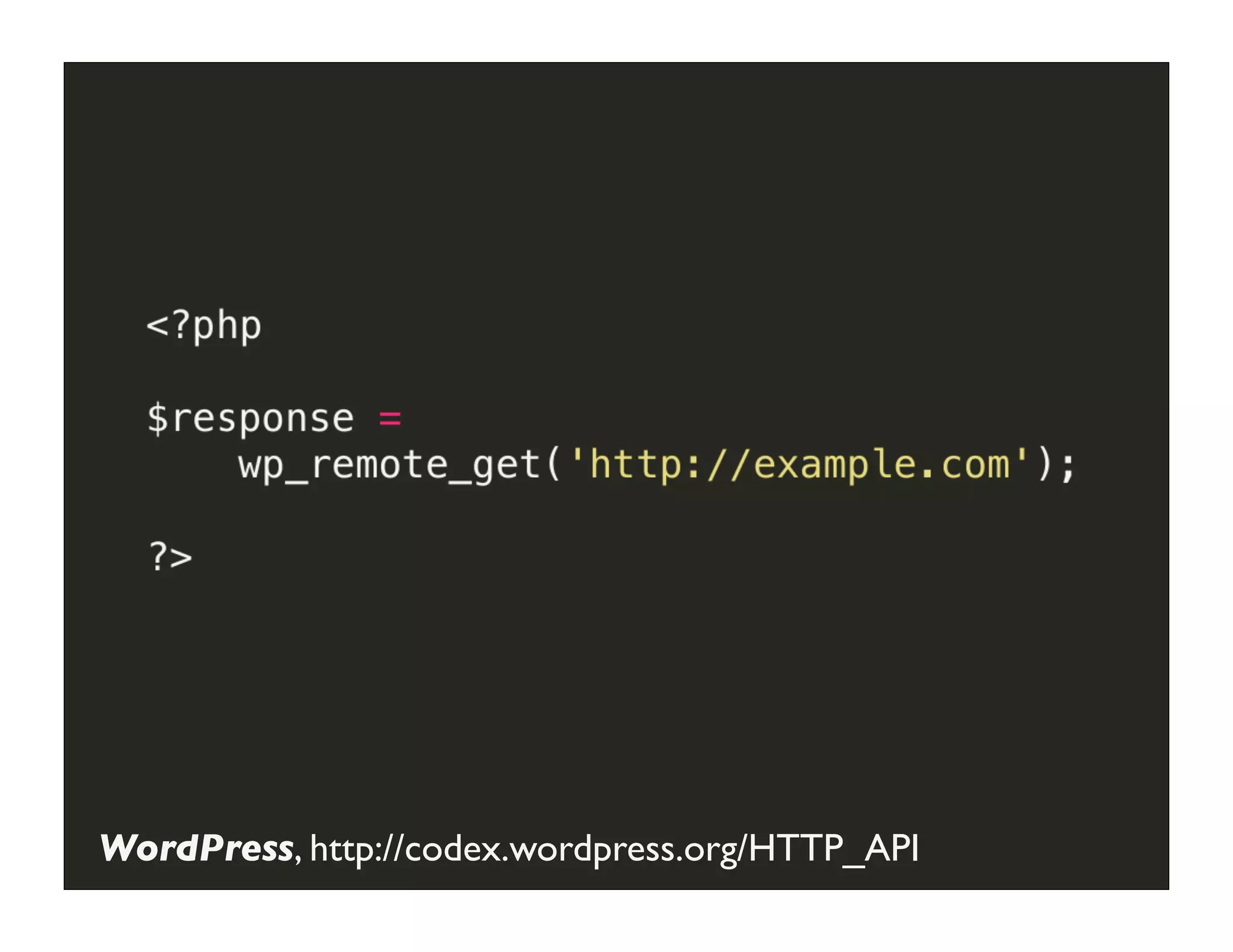

43. GET
Request
with
WordPress
HTTP
API
WordPress, http://codex.wordpress.org/HTTP_API

49. API Questions
• Does it have to
be real time?
• What if something
goes wrong?
@randyhoyt

50. Example #2: ShopLocket

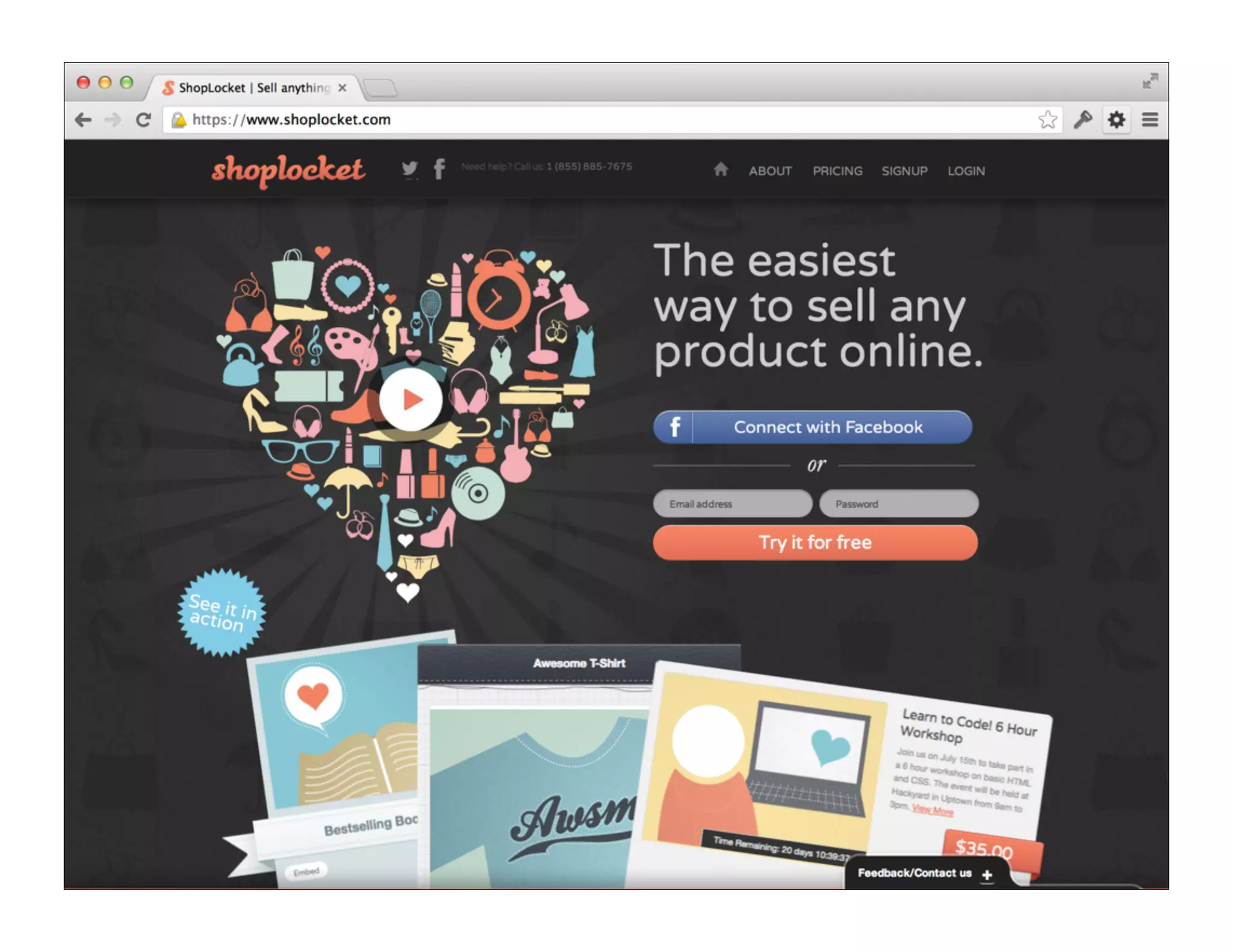

51. [Screenshot of WP]

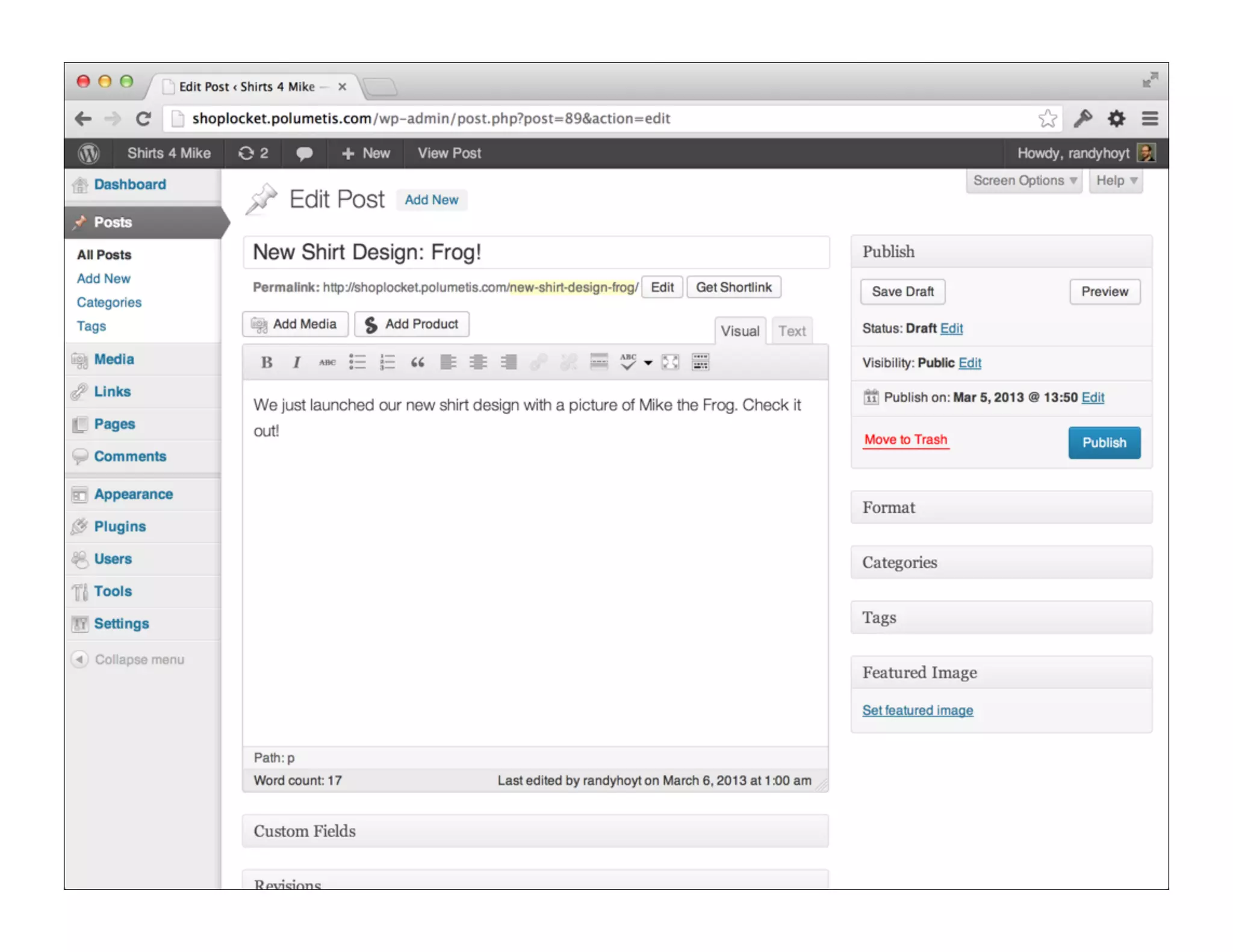

52. [Screenshot of WordPress]

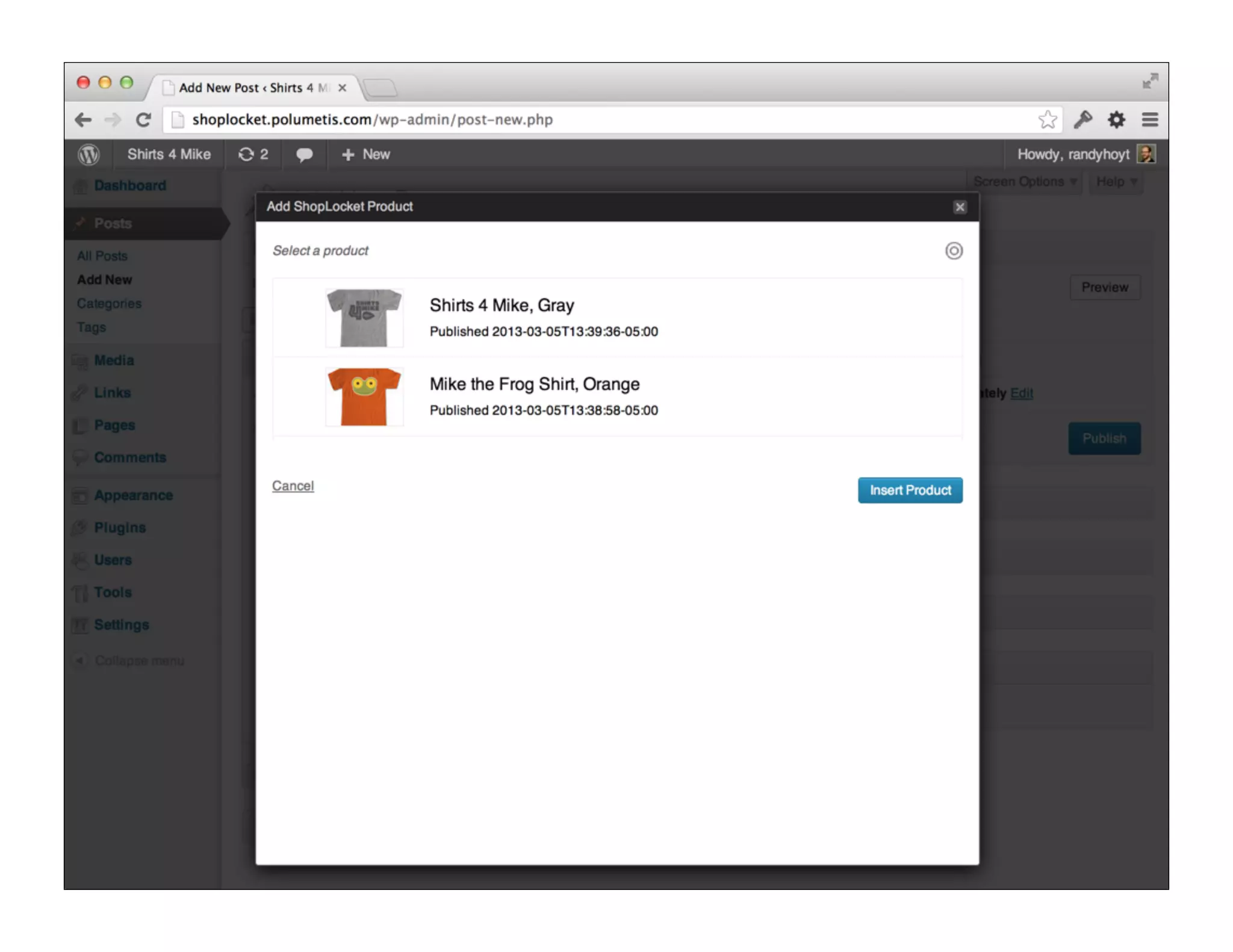

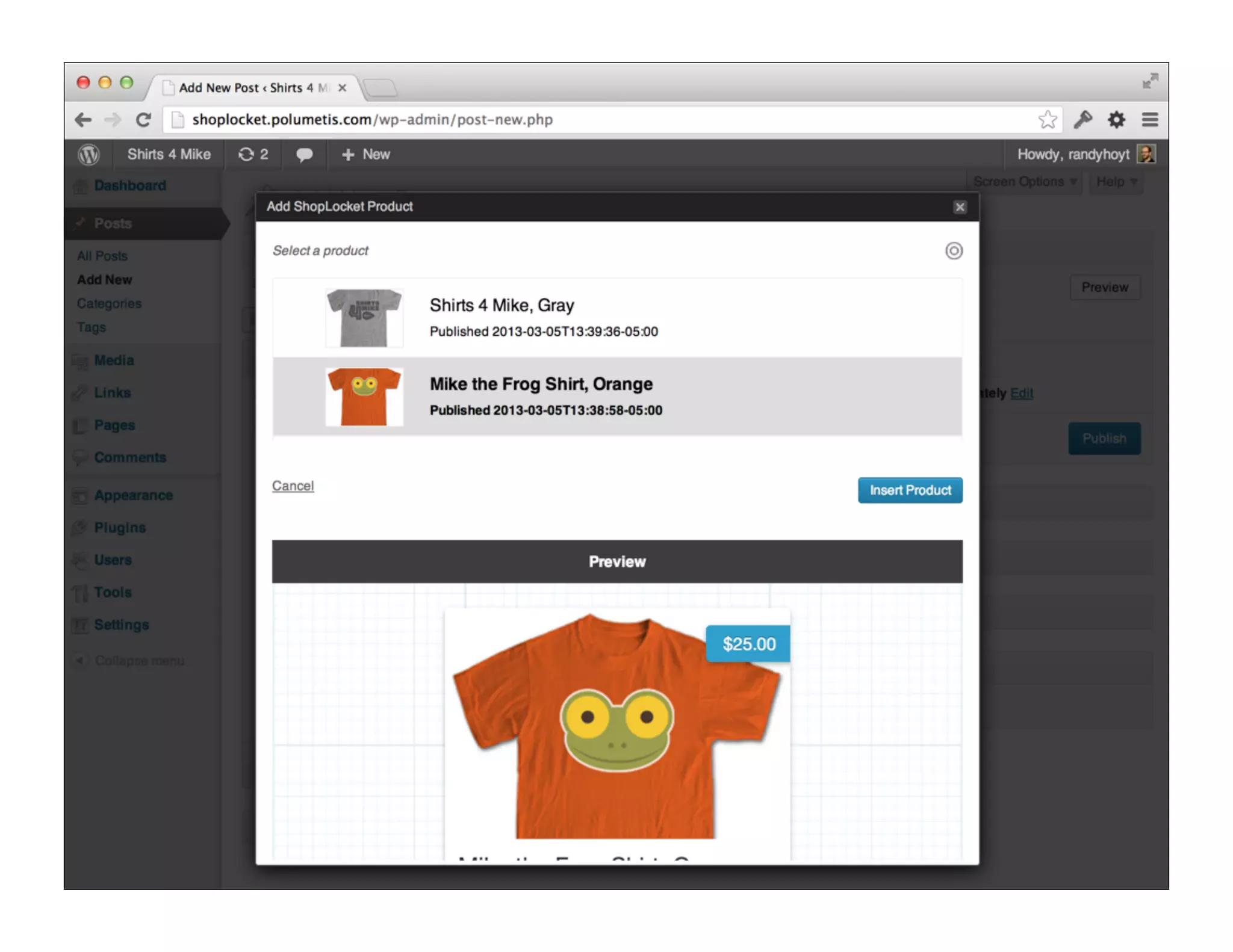

53. [Screenshot of Product Picker]

54. [Screenshot of Product Picker]

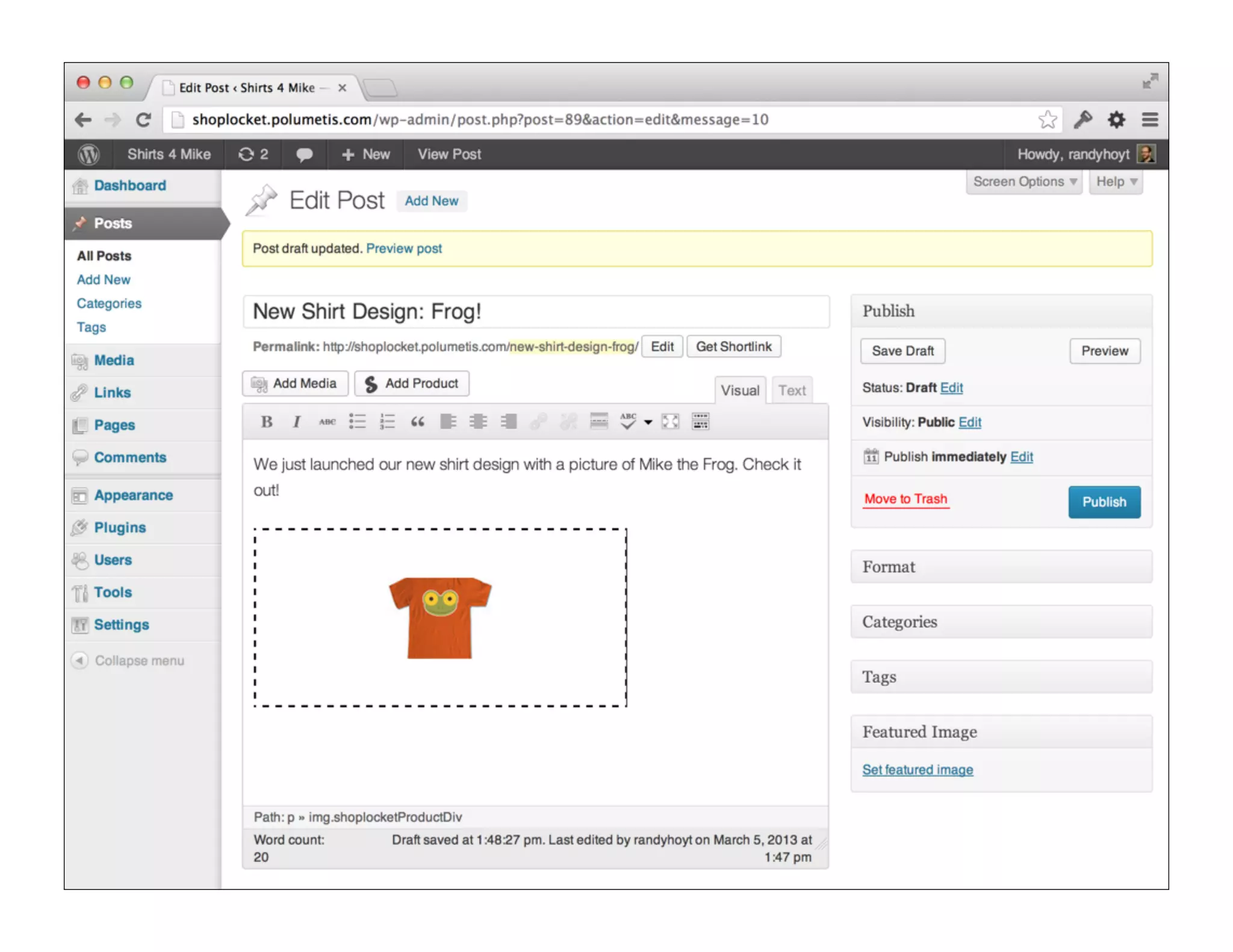

55. [Screenshot of Shortcode]

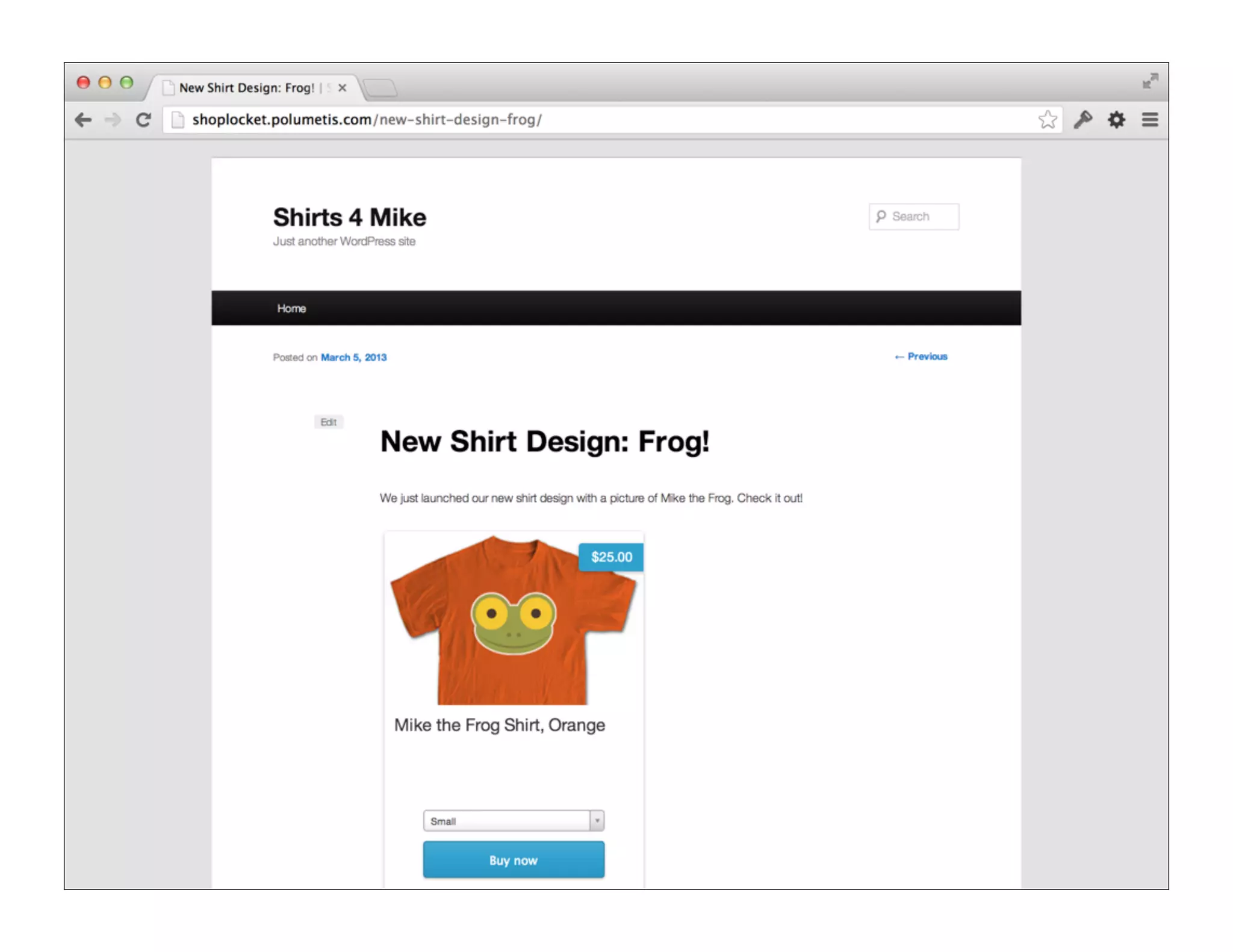

56. [Screenshot of Website]

57. Authentication

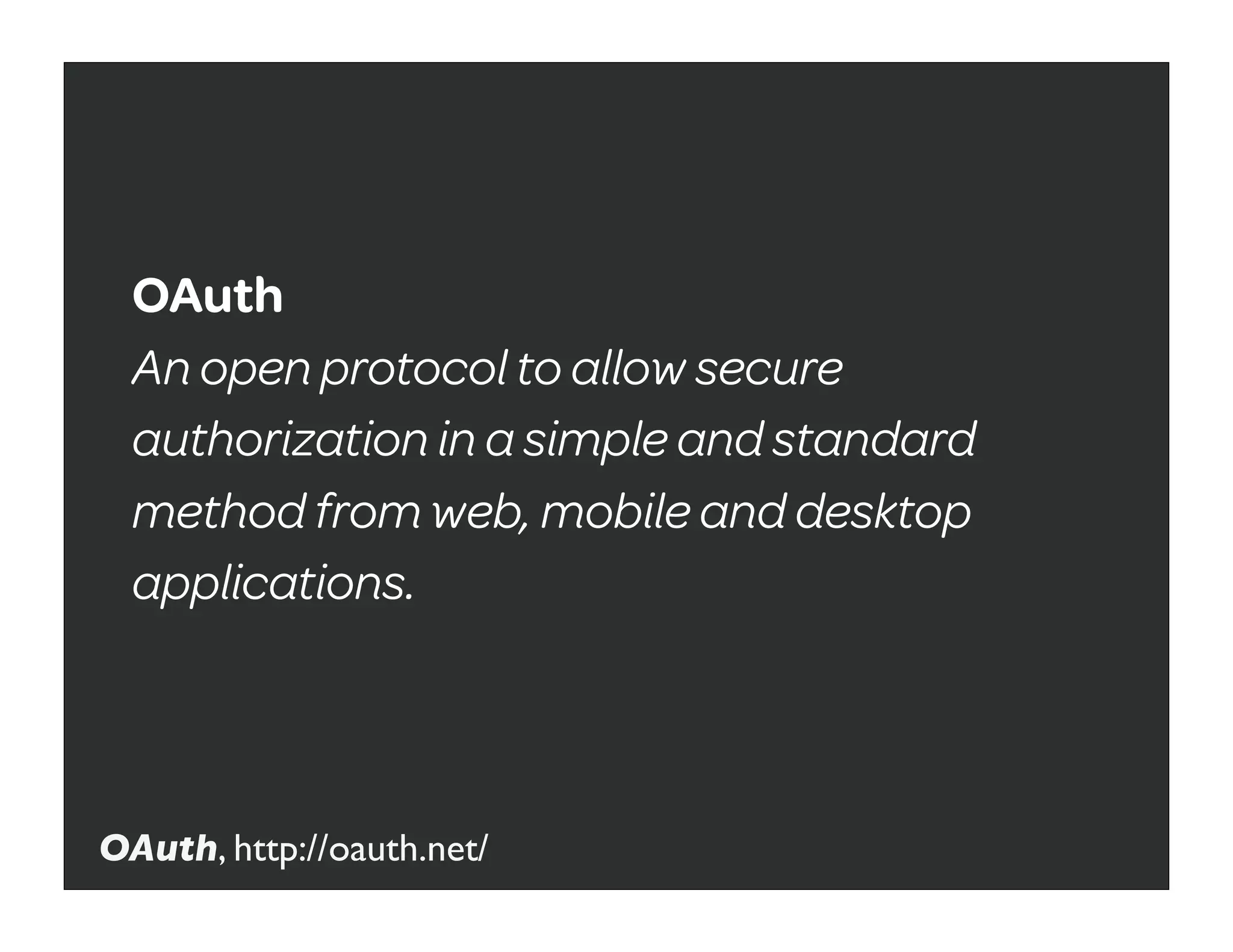

58. OAuth
An open protocol to allow secure
authorization in a simple and standard
method from web, mobile and desktop
applications.
OAuth, http://oauth.net/

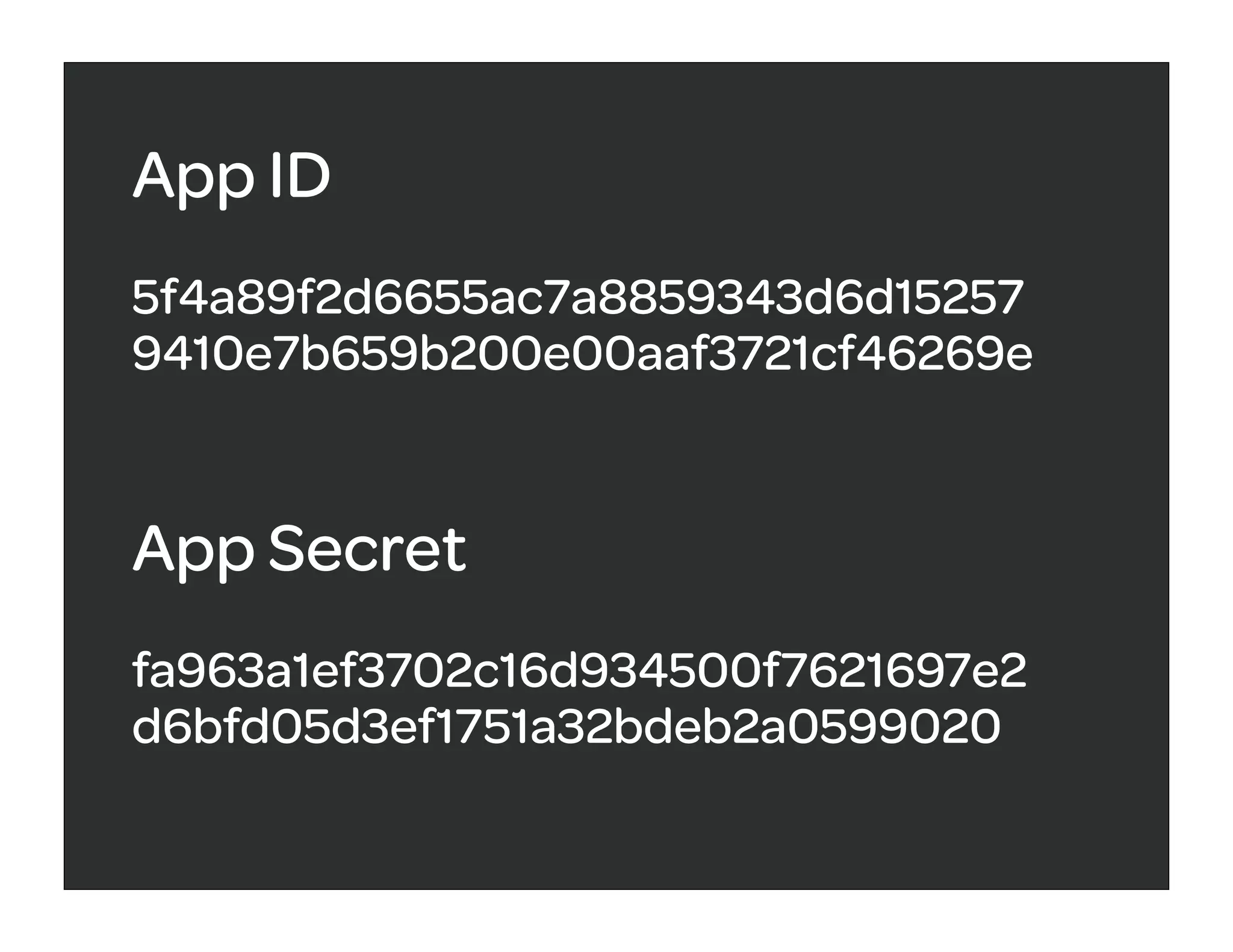

59. App ID
5f4a89f2d6655ac7a8859343d6d15257
9410e7b659b200e00aaf3721cf46269e
App Secret
fa963a1ef3702c16d934500f7621697e2
d6bfd05d3ef1751a32bdeb2a0599020

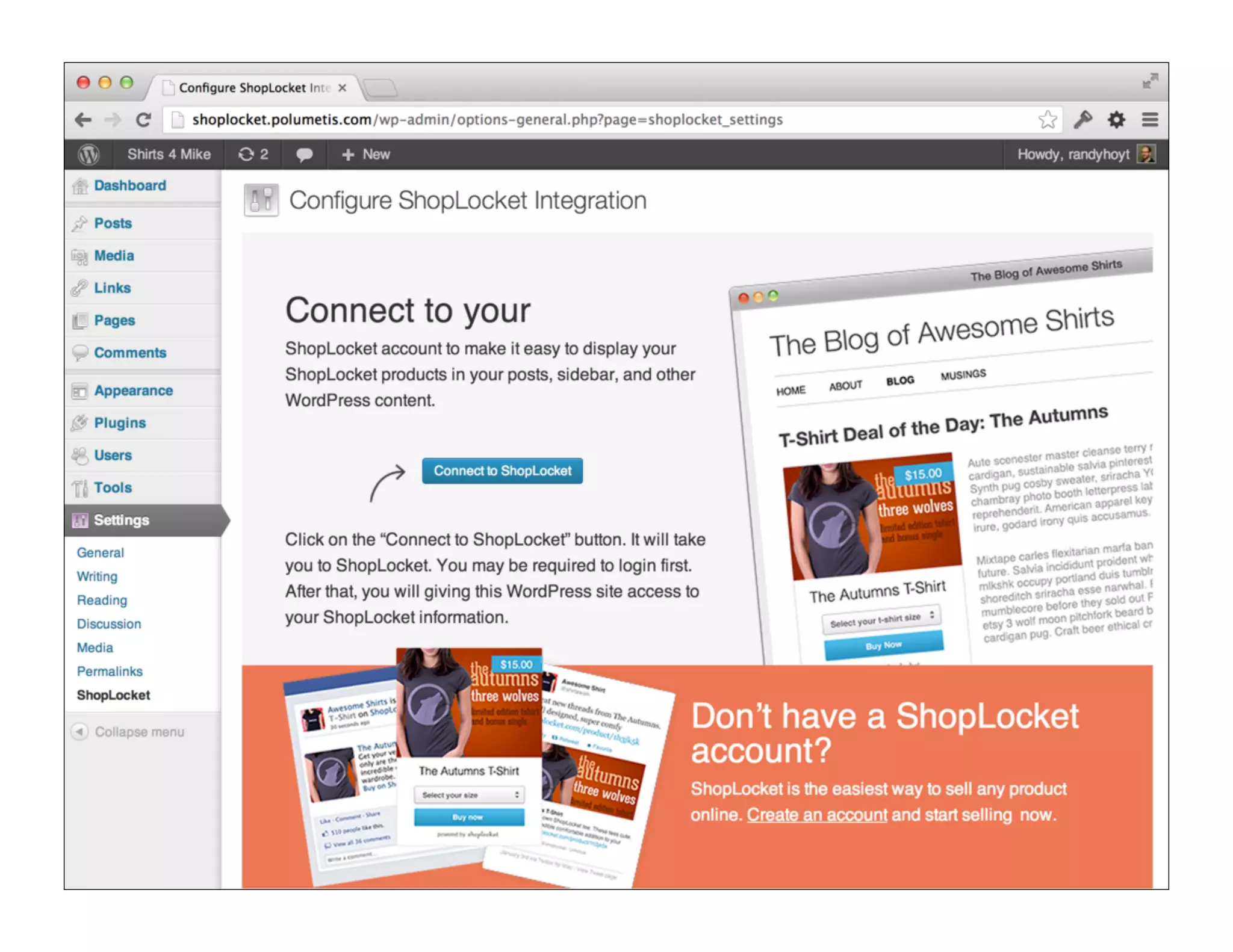

60. [ShopLocket]

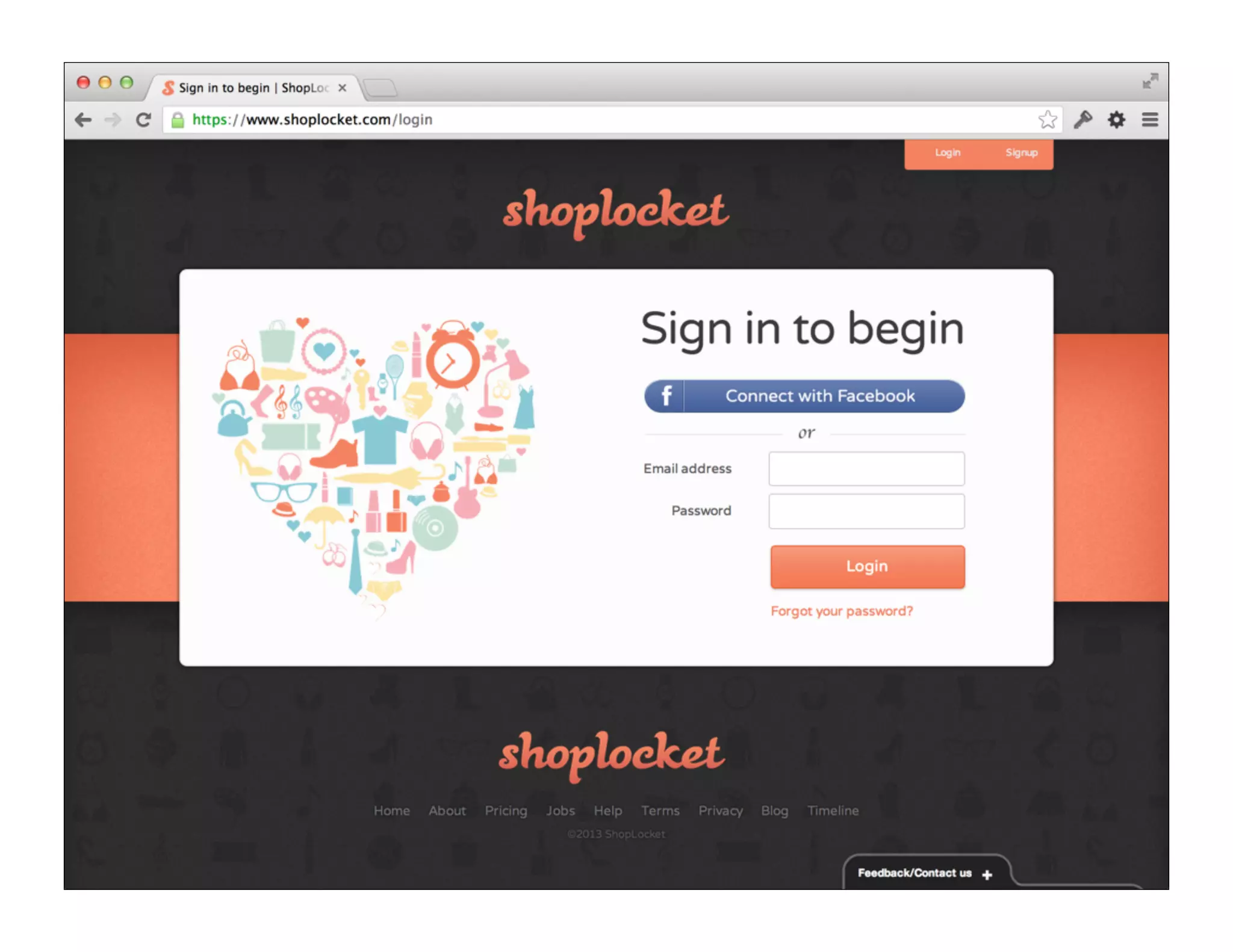

61. [ShopLocket Login]

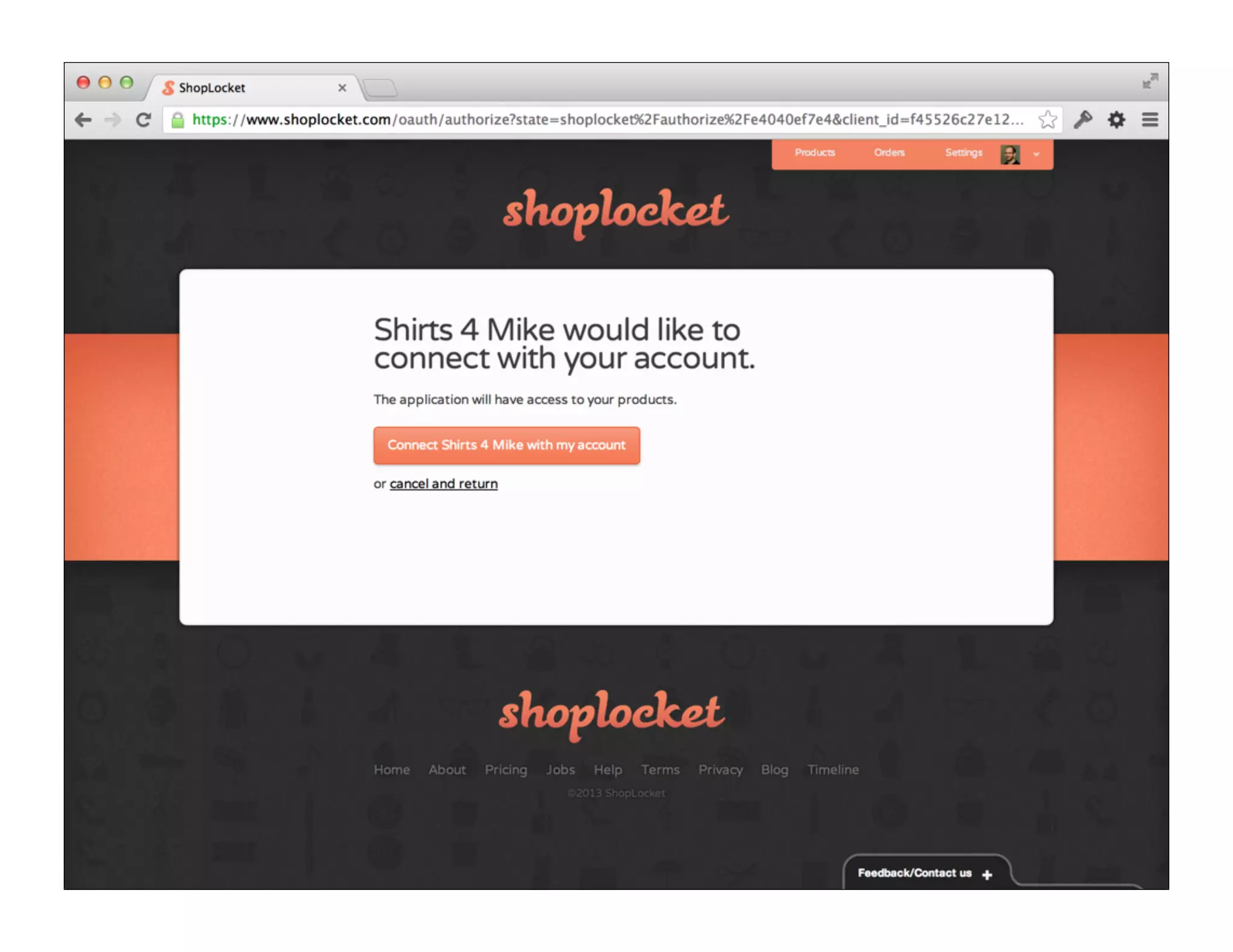

62. [ShopLocket]

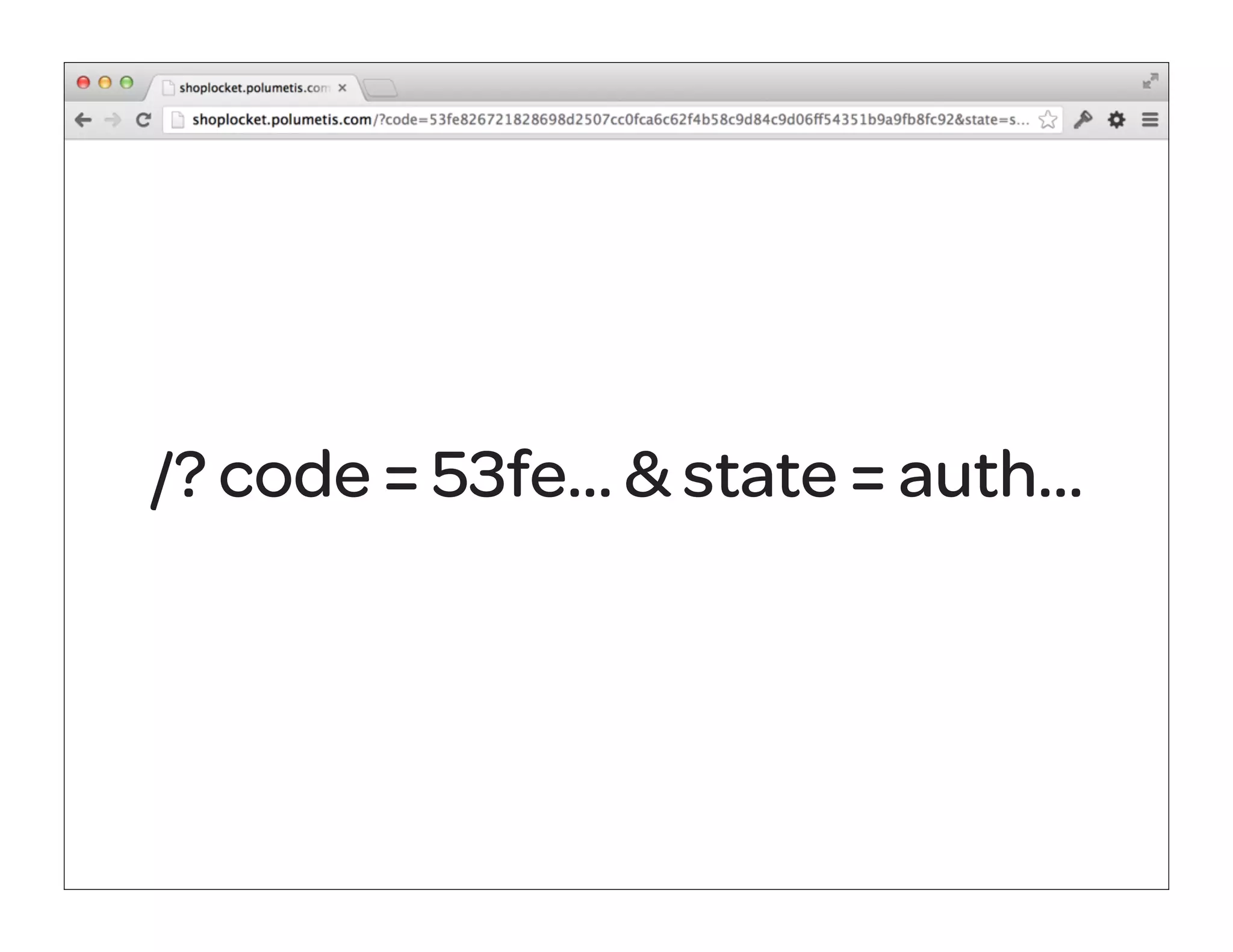

63. /? code = 53fe... & state = auth...

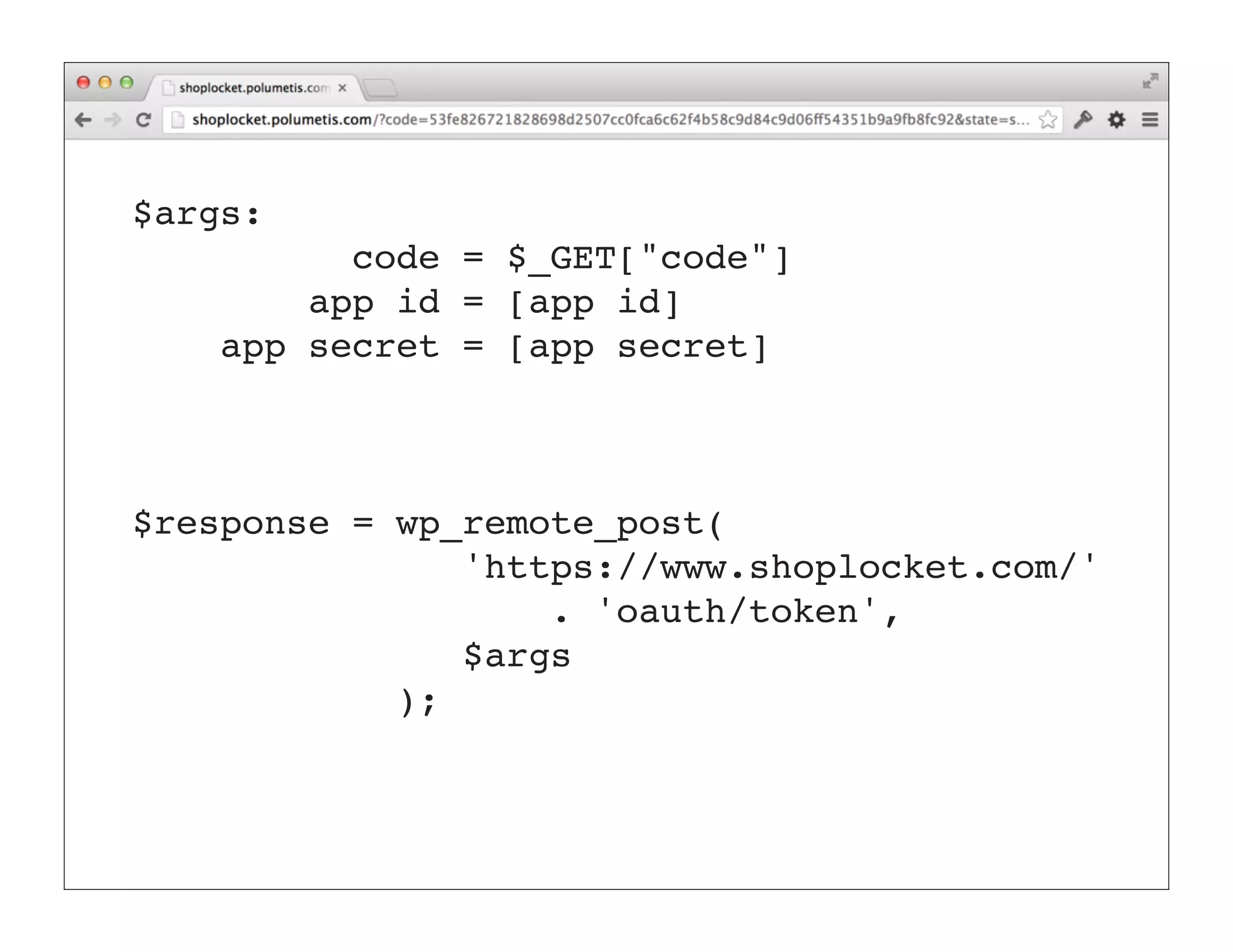

64. $args:
code = $_GET["code"]
app id = [app id]
app secret = [app secret]
[GET Request]
$response = wp_remote_post(
'https://www.shoplocket.com/'
. 'oauth/token',
$args
);

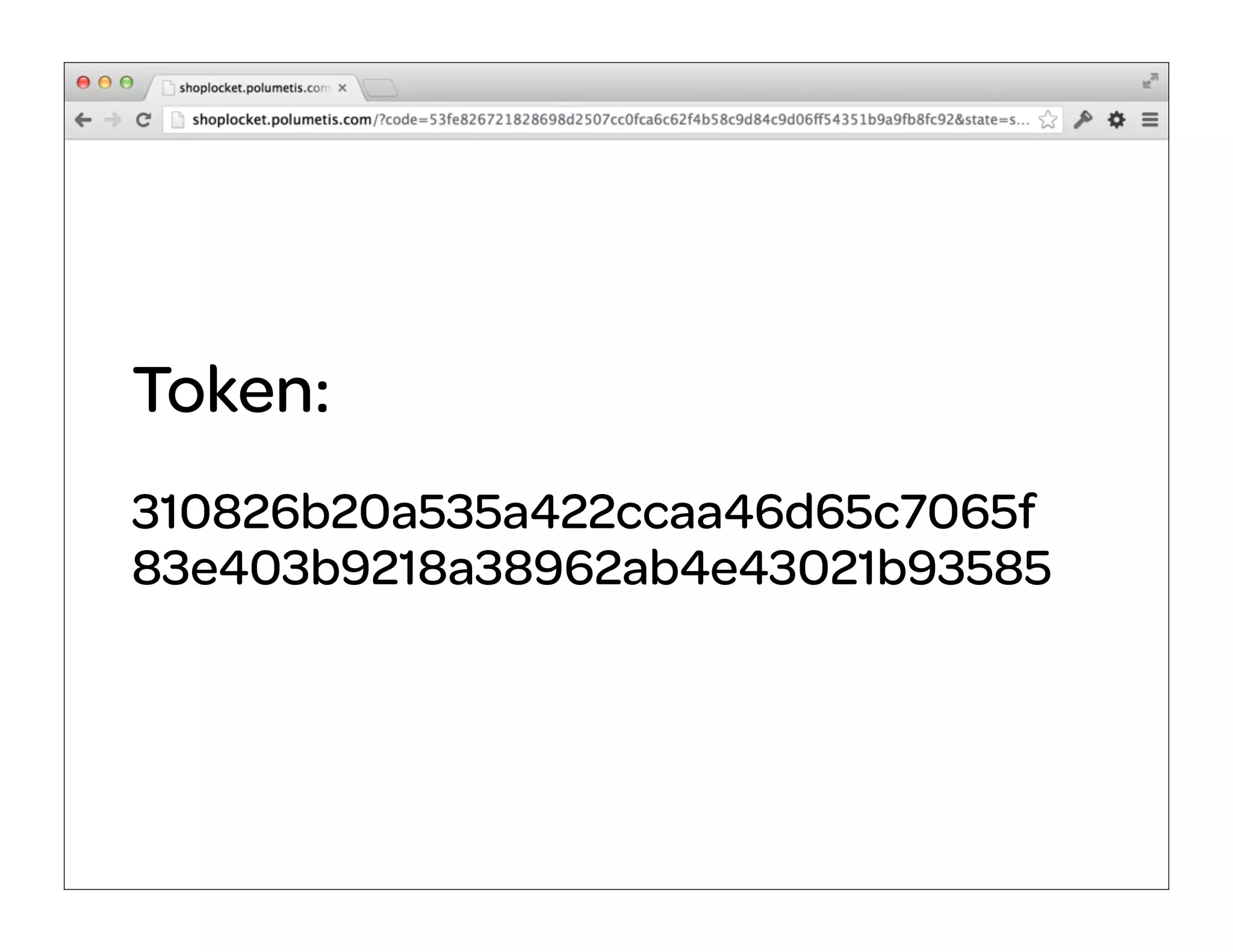

65. Token:
310826b20a535a422ccaa46d65c7065f
83e403b9218a38962ab4e43021b93585

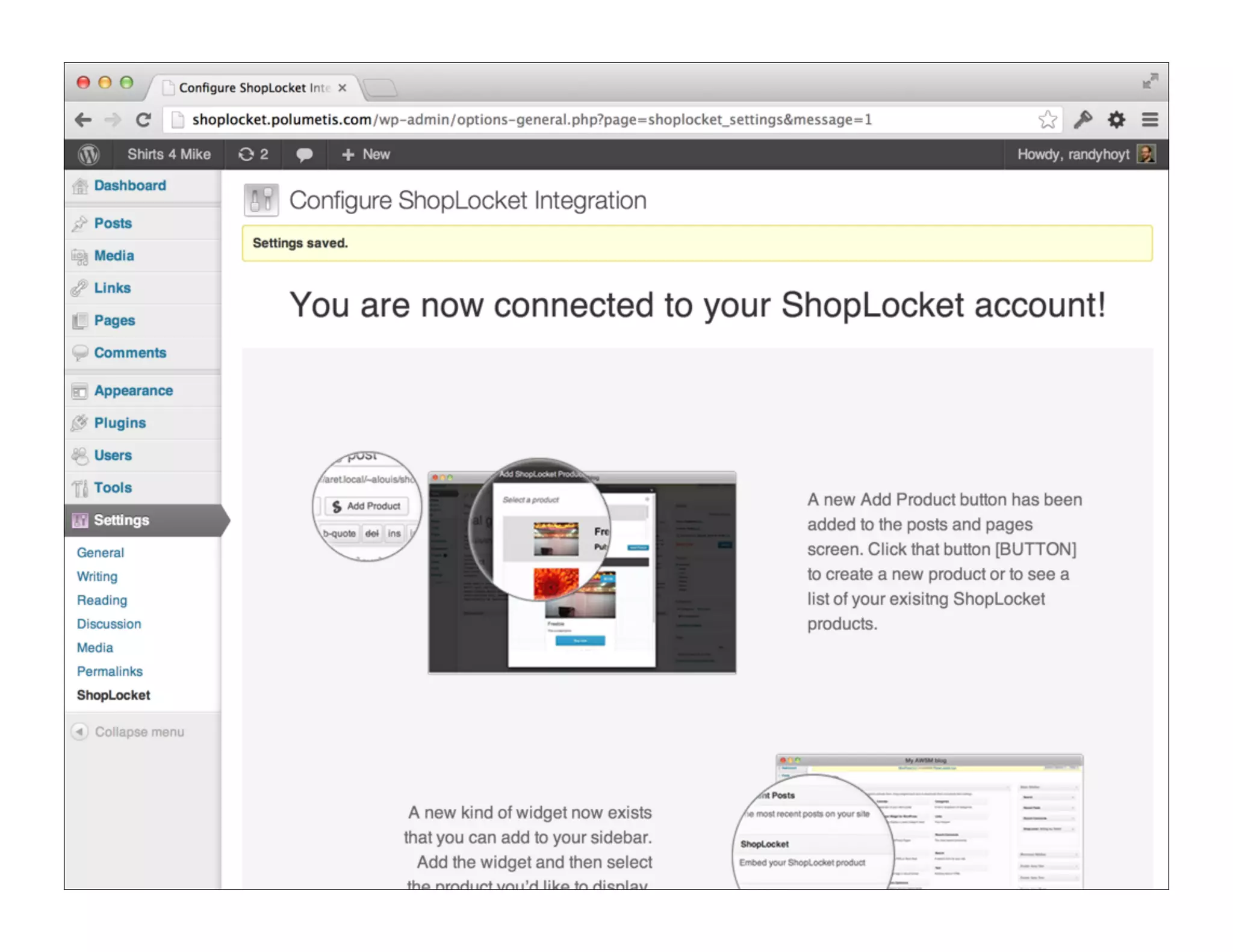

66. [Token]

67. API Questions
• Does it have to
be real time?
• What if something
goes wrong?
@randyhoyt

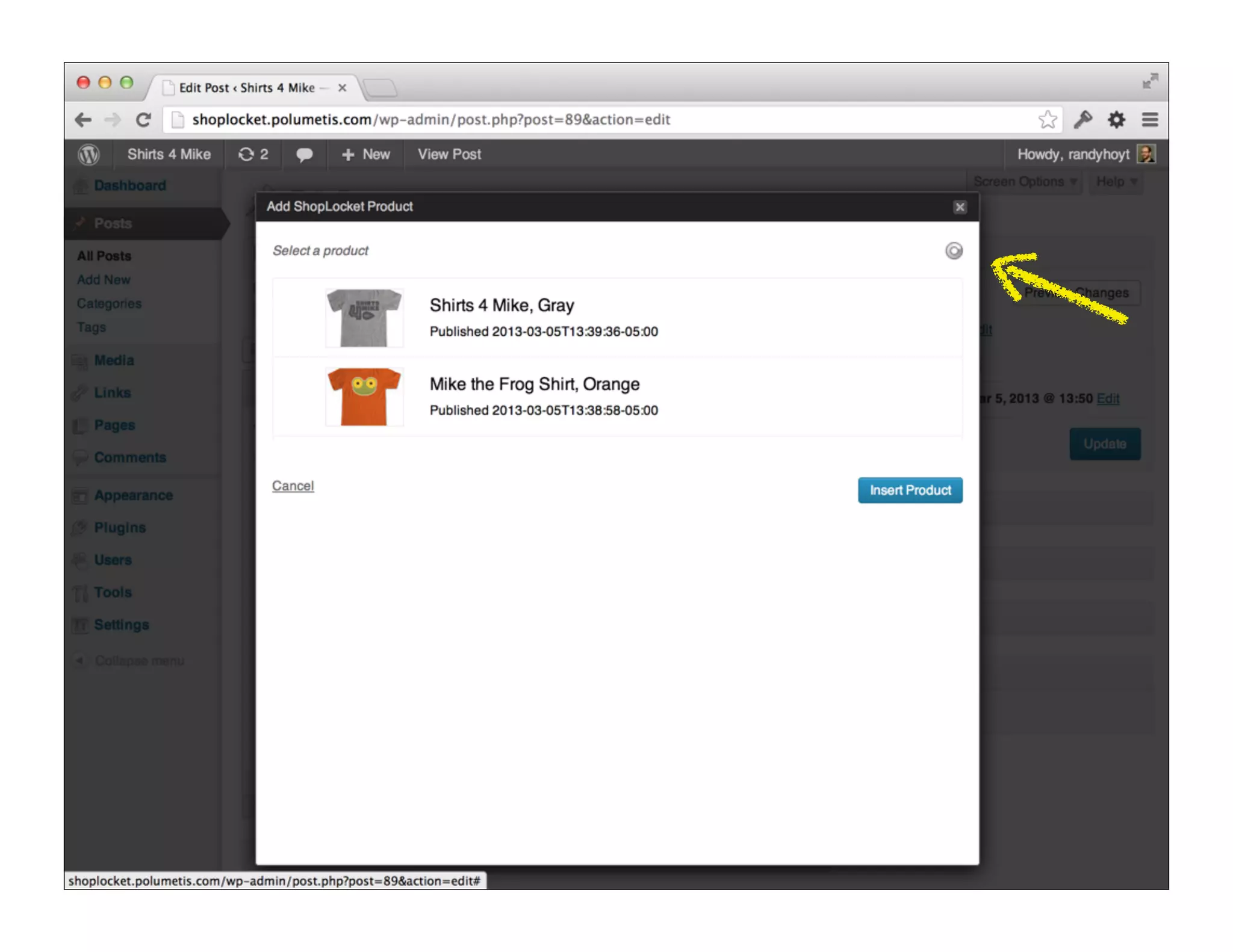

76. [Refresh Button]

78. Example #3: Facebook & Twitter

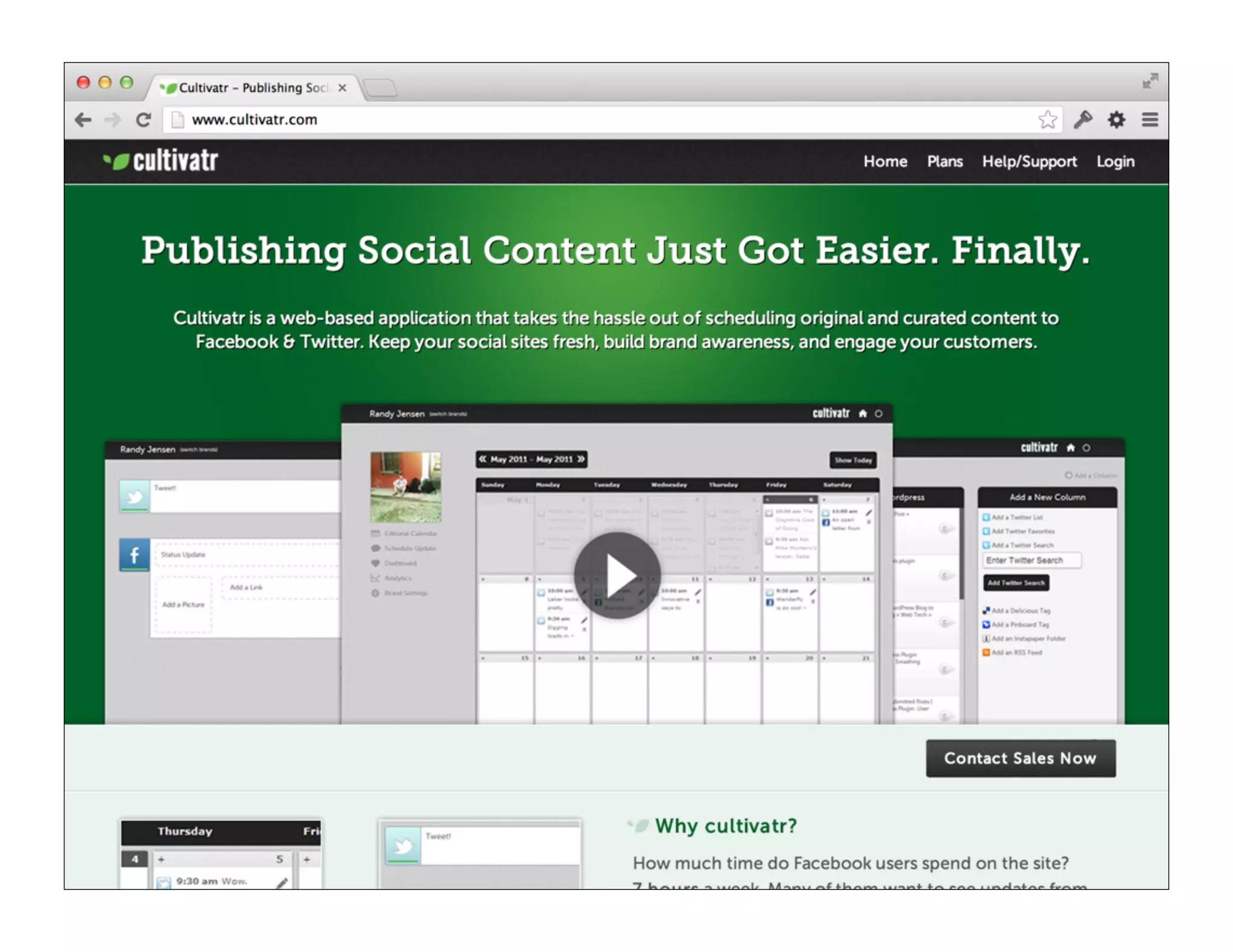

79. [Screenshot of Cultivatr]

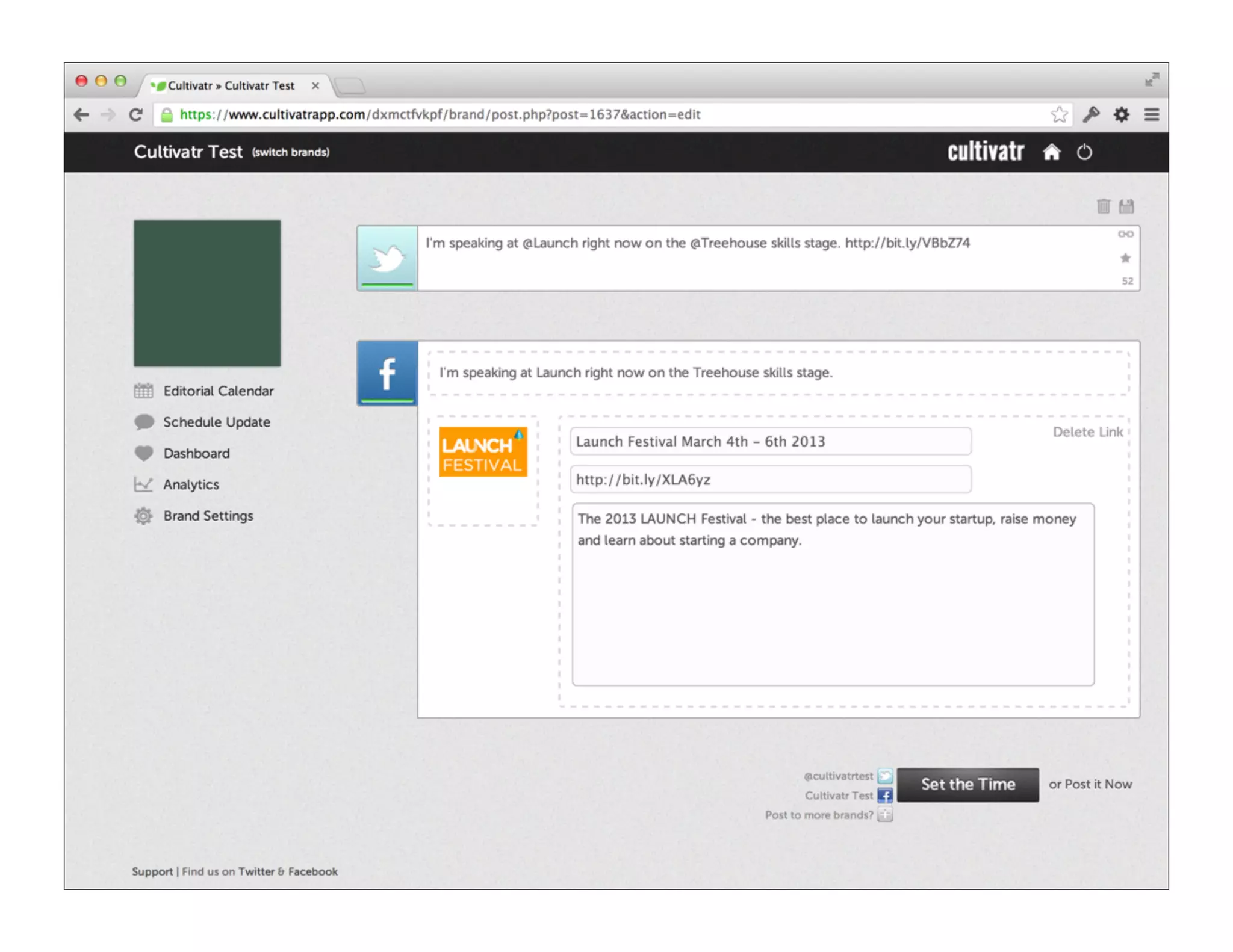

80. [Screenshot of Edit Screen]

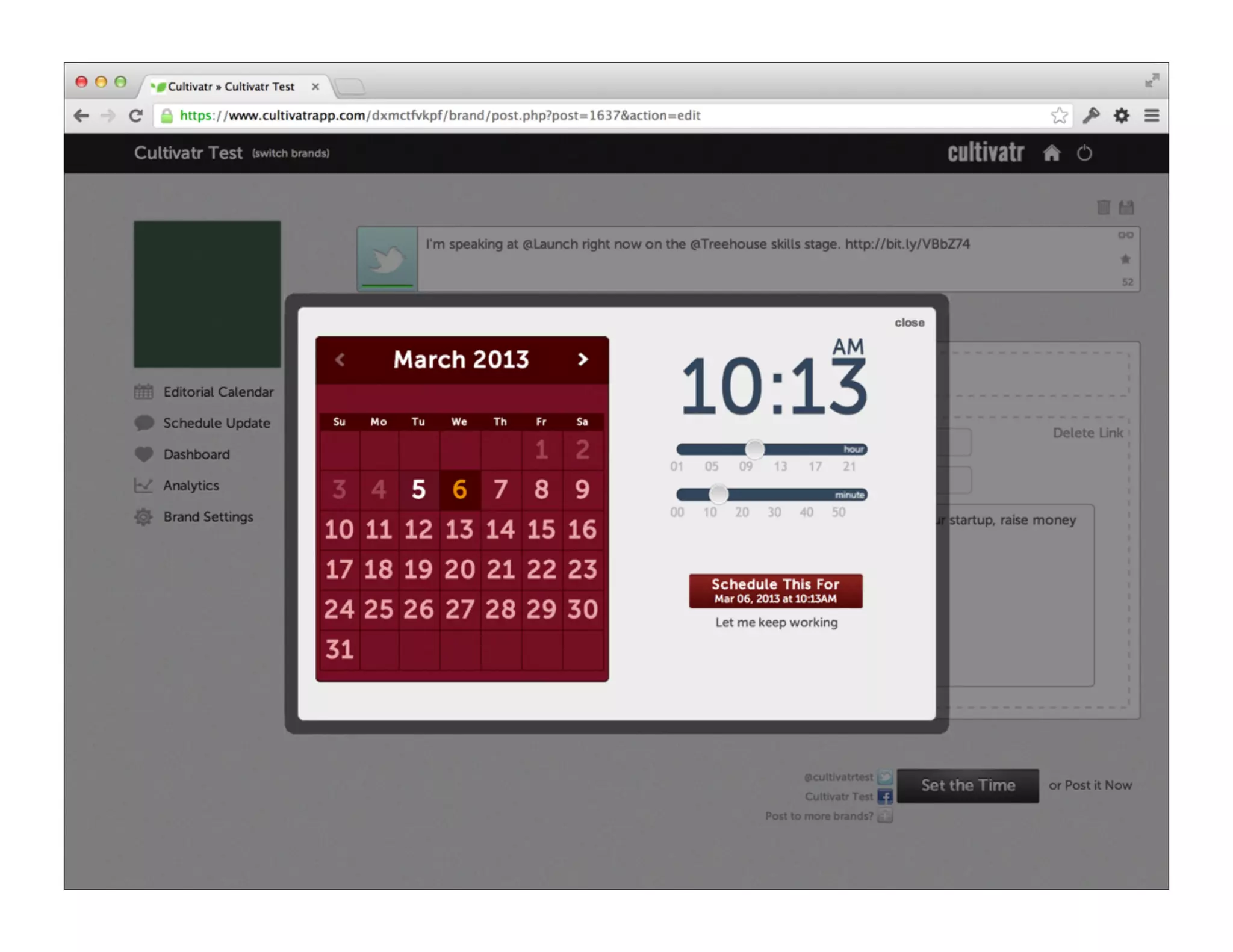

81. [Screenshot of Date Picker]

82. [Diagram]

87. API Questions
• Does it have to
be real time?
• What if something
goes wrong?
@randyhoyt

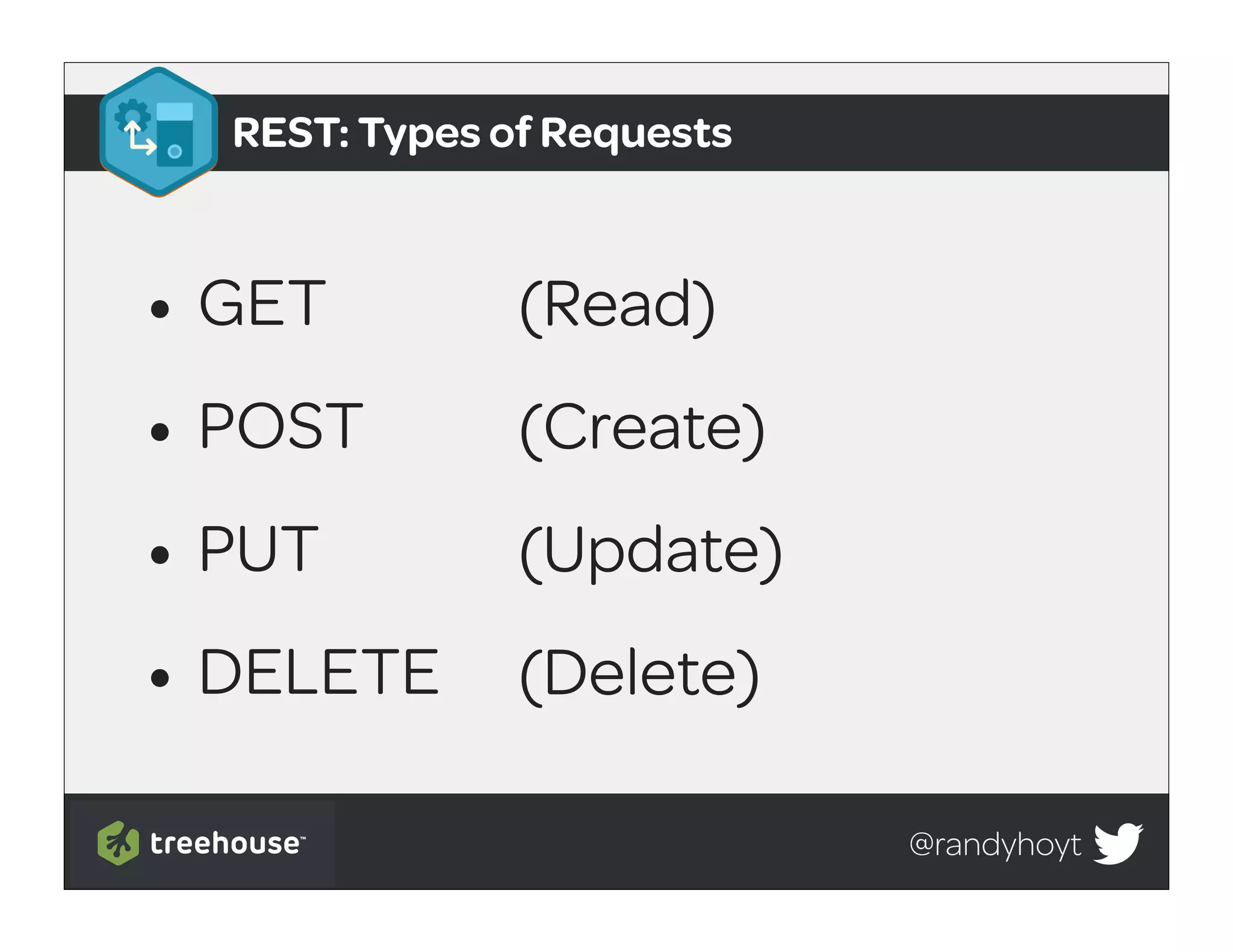

88. REST: Types of Requests
• GET (Read)
• POST (Create)
• PUT (Update)
• DELETE (Delete)
@randyhoyt

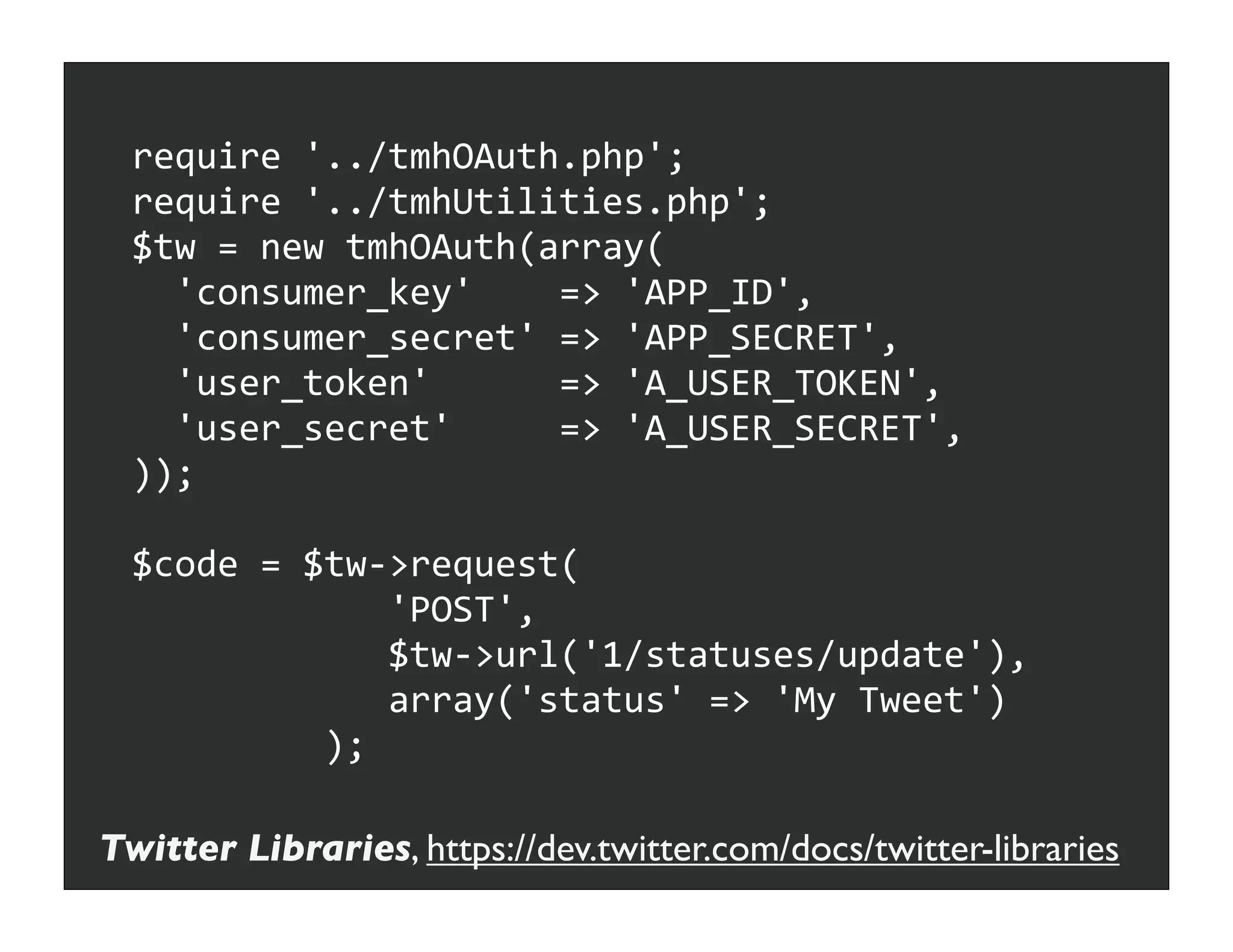

89. require
'../tmhOAuth.php';
require
'../tmhUtilities.php';
$tw
=
new
tmhOAuth(array(
'consumer_key'
=>
'APP_ID',
'consumer_secret'
=>
'APP_SECRET',
'user_token'
=>
'A_USER_TOKEN',
'user_secret'
=>
'A_USER_SECRET',
));
$code
=
$tw-­‐>request(
'POST',
$tw-­‐>url('1/statuses/update'),
array('status'
=>
'My
Tweet')
);
Twitter Libraries, https://dev.twitter.com/docs/twitter-libraries

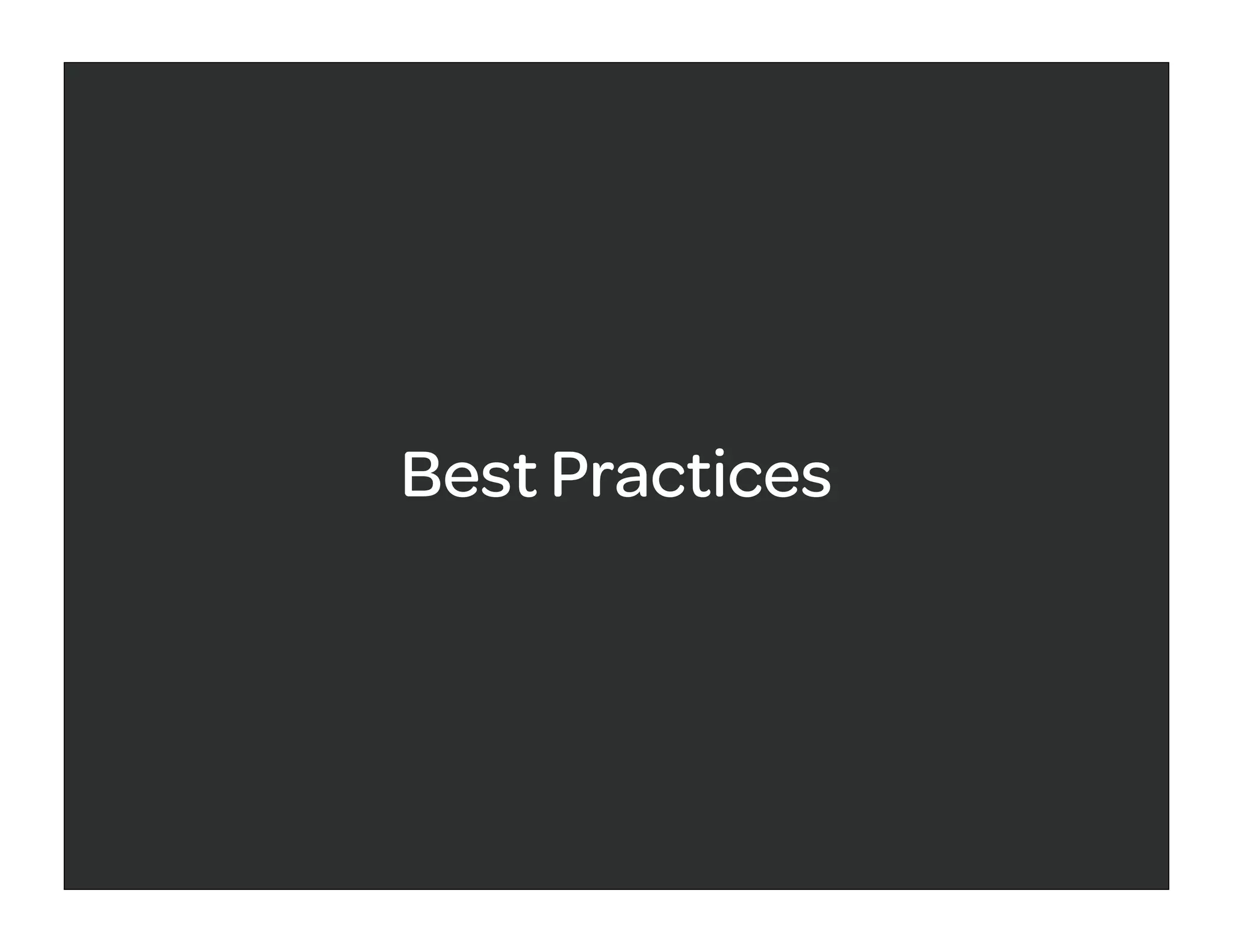

90. Best Practices

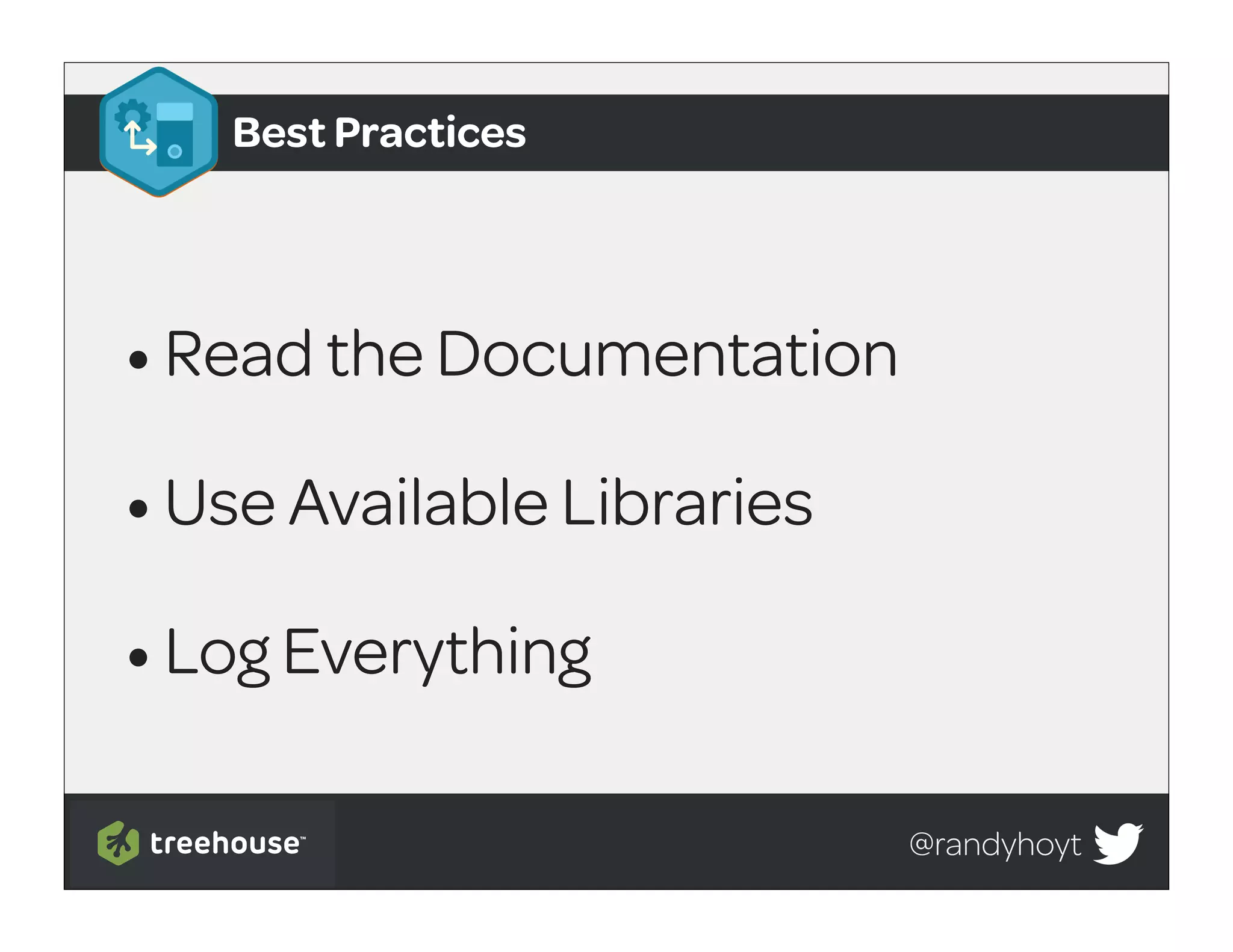

91. Best Practices
• Read the Documentation
• Use Available Libraries
• Log Everything
@randyhoyt

92. Questions?
@randyhoyt
