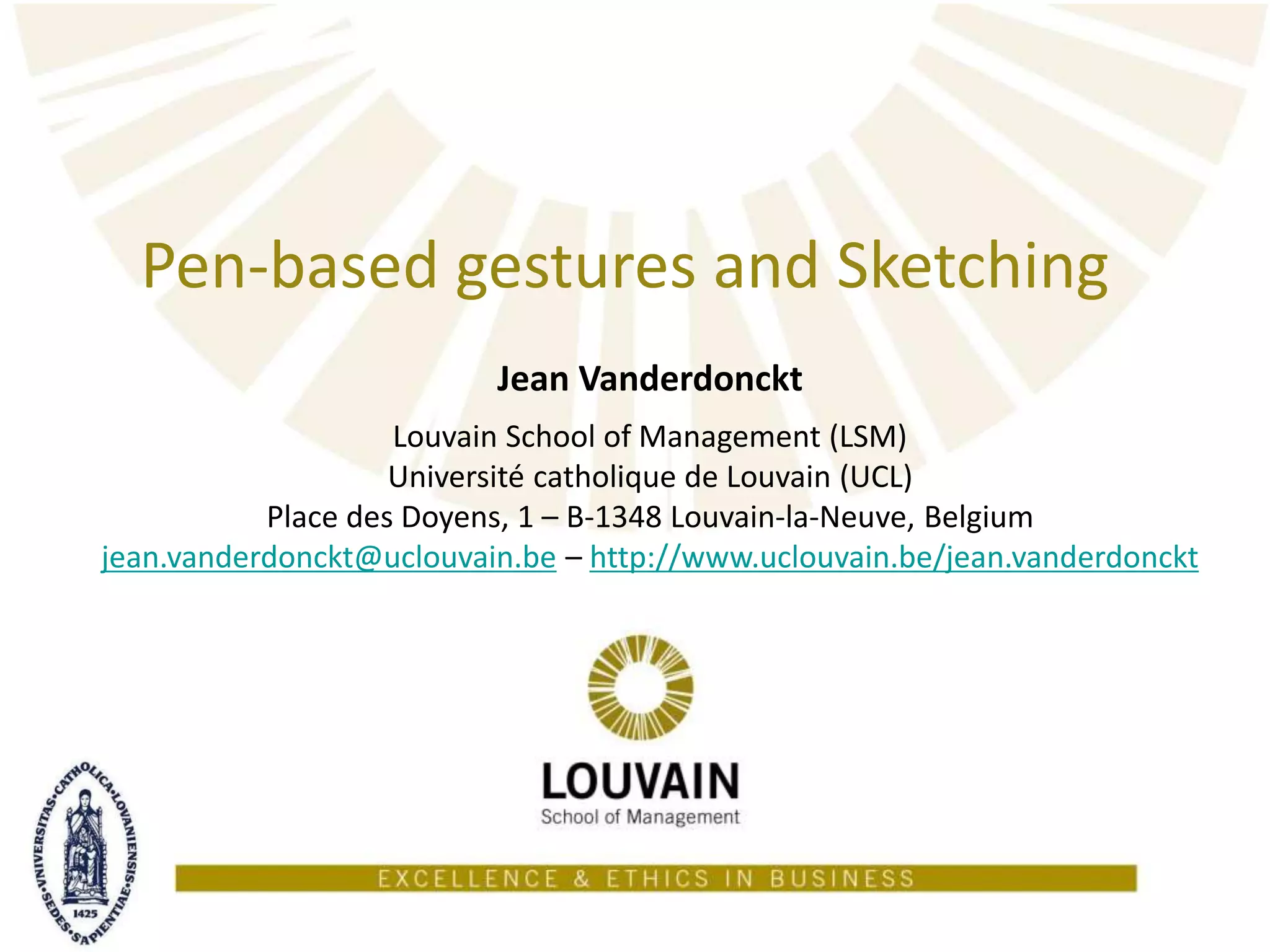

Pen-based Gestures and Sketching User Interfaces

Jean Vanderdonckt
Louvain School of Management (LSM)
Université catholique de Louvain (UCL)
Place des Doyens, 1 – B-1348 Louvain-la-Neuve, Belgium
jean.vanderdonckt@uclouvain.be – http://www.uclouvain.be/jean.vanderdonckt

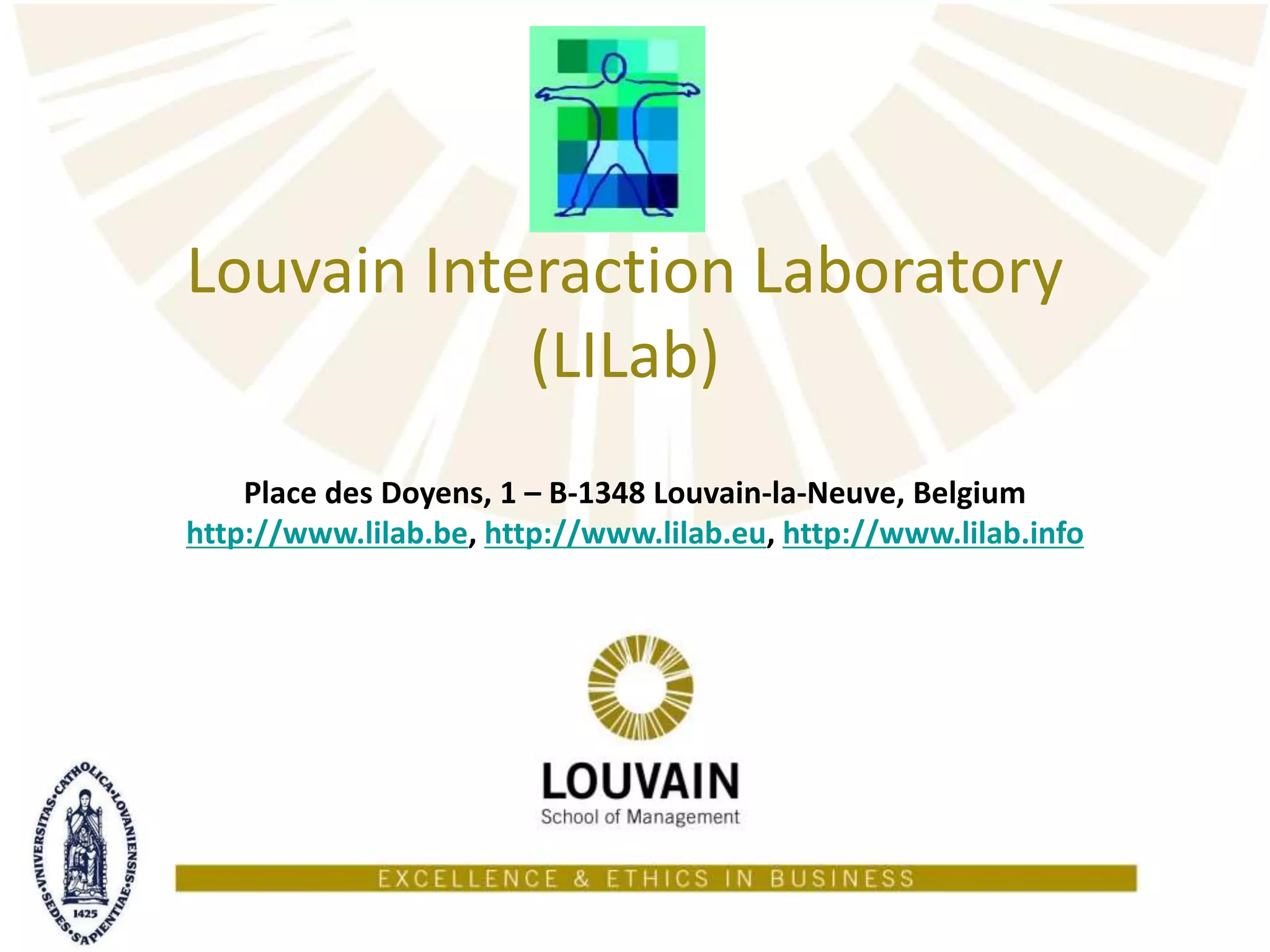

Pen-based gestures and Sketching

Place des Doyens, 1 – B-1348 Louvain-la-Neuve, Belgium
http://www.lilab.be, http://www.lilab.eu, http://www.lilab.info
Louvain Interaction Laboratory
(LILab)

Who is talking?
• Jean VANDERDONCKT
– Lic. & Agreg. Mathematics, Univ. Namur, 1987
– Lic. & Master in Computer Science, Univ. Namur, 1989
– PhD in Computer Science, Univ. Namur, 1997
– Post-doc in eLearning, Univ. Lille 1, 1998
– Post-doc in HCI, Stanford Univ., 2000
• Researcher in Human-Computer Interaction (HCI) since 1988
• Full professor at UCL, Past President of LSM Research Institute
• Involvement in various R&D projects
– local level, Walloon Region
– Federal level, Belgium
– In Europe and outside (e.g., with USA)
• Scientific coordinator of the UsiXML Consortium
• See profile at
– DBLP: http://www.informatik.uni-trier.de/~ley/pers/hd/v/Vanderdonckt:Jean
– Google Scholar: http://scholar.google.com/citations?user=U-FgGrkAAAAJ&hl=fr
– Microsoft Academic: http://academic.research.microsoft.com/Author/495619.aspx
– ArnetMiner: http://arnetminer.org/person/j-vanderdonckt-1306161.html
3

• LinkedIn Profile: http://www.linkedin.com/in/jeanvdd
• Academia Profile:
http://uclouvain.academia.edu/JeanVanderdonckt
• YouTube:
http://www.youtube.com/results?search_query=usixml
• Slides: http://www.slideshare.net/jeanvdd
• Books
4
Who is talking?

• Introduction and motivations
• What Sketching as a Service is made for?
• What can we do with a Skaas tool?
• Perspectives
• Conclusion
Overview
Ștefan cel Mare University of Suceava - Suceava, November 15th, 2018

• Ink-based interaction, pen-based interaction
Introduction and motivations

• Gesture interaction (2D, 2D½ , 3D): EdgeWrite

• Gesture interaction (2D, 2D½ , 3D): DocToon

• Gesture interaction (2D, 2D½ , 3D): DocToon
– In an other room, a person is operating remotely an
avatar with gestures on WACOM Cintiq
Backgrounds
Room cameras
Animation

• Drawing
Source: Luca Galuzzi [CC-BY-SA-2.5] via Wikimedia Commons

• Sketching
Source: http://min-linesonpaper.blogspot.be/2011_12_01_archive.html

• Sketching: workspace activity of design teams
Source: [Tang88]
Action/function List Draw Gesture Total
Store
information
40 19 1 60 (27%)
Convey ideas 0 22 24 46 (20%)
Represent
ideas
2 41 9 52 (23%)
Engage
attention
0 21 46 67 (30%)
Total 42 (19%) 103 (46%) 80 (35%) 225 (100%)

• Sketching for User Interface Prototyping

• Functions of Sketching
– Externalize ideas
– Interpret each other’s ideas
– Stimulate use of early ideas

• UI design is a wicked problem
– There is no definitive statement of the problem
– The search for solutions is open ended
– Constraints are constantly changing
• UI development life cycle is
– Open
– Ill-defined
– Incomplete
– Iterative (e.g., Spiral model)
• Three strategies
– Authoritative: impose a solution (maybe sub-optimal)
– Competitive: race for a solution (maybe not the best one)
– Collaborative: gather for a solution (perhaps the most accepted)

• Observations
• Comments
– To register design sessions was a problem
– Designers and users worked together
– Both sketches on paper and pixel-perfect drawings
– “Test on the device”
Source: [Sangiorgi2014]

• How previous work addressed the four activities

• Requirements
– R1 Support iterative design of interfaces
• Wicked Nature of UI design
– R2 Support collaboration between designers and
users
• UCD, brainstorming, collaborative solution to wicked problems

• Sketching evolves from informal to more formal
– Different levels of fidelity: low, medium, high
Source: [Coyette2007]
Low
Check box
Identification label
Medium Final
SketchiXML

• Sketching evolves from informal to more formal
– Different levels of fidelity: low, medium, high
Source: [Coyette2007]

• Requirements
users
– R3 Support different levels of fidelity
• Designers used sketches and pixel-perfect UIs

• Multiple devices
Source: [Google 2012. The New Multi-screen World: Understanding Cross-platform Consumer Behavior]

– By the end of 2015, the number of connected mobile devices will
exceed the Earth’s population.
– By 2018 there will be 1.4 devices per person on the planet
Source: [CISCO Visual Networking Index
http://www.cisco.com/c/en/us/solutions/collateral/service-provider/
visual-networking-index-vni/white_paper_c11-520862.html]

– Design with/for multiple devices
– Responsive design = graceful degradation + progressive
enhancement
Source: http://smartwebsiteguide.com/2013/11/responsive-web-design/

• Requirements
users
– R3 Support different levels of fidelity
• Designers used sketches and pixel-perfect UI’s
– R4 Support the design of interfaces on multiple
platforms
• Contemporary context, Designers used multiple devices
– R5 Support the prototyping of interfaces on multiple
platforms
• Contemporary context, Test on the device

• Sketching as a Service (Skaas) is a delivery model where
the sketching activity is offered as a service for
– Multiple users
– Multiple platforms
– Multiple environments
– Multiple purposes
• A significant example:
GAMBIT
What Skaas is made for?

• GAMBIT configurations

– Single User, Single Device (SUSD)

– Single User, Multiple Devices (SUMD)

– Multiple Users, Single Device (MUSD)

– Multiple Users, Multiple Devices (MUMD)

• GAMBIT: infinite workspace

• GAMBIT: architecture

• GAMBIT: Step 1= define structure

• GAMBIT: Step 2= define behavior

• GAMBIT: Step 3= test

• GAMBIT: Step 4= reflect: video
Gambit

• Experiment #1
– 9 UI designers
What can we do with a Skaas tool?

• Experiment #1: configuration

• Experiment #1: results
– Preferred devices for Sketching were: Other (Pen and paper),
Tabletop, Wall Screen, Tablet, Smartphone
– The tool did not have all the functions designers expected (CSUQ)

• Experiment #2:
– 6 UI designers

• Experiment #2: setup

• Experiment #2: results = 11.529 words

– Qualitative impact – designers talked about different aspects while
using different devices
– Quantitative impact – designers talked more or less according to
which device they were using
Smartphone Tablet Tabletop
0
500
1000
1500
2000
Words
0
500
1000
1500
2000
Words
TabletSmartphone Tabletop
r2= 0.43

• Experiment #3: real-world case study
– Factory for steel galvanisation

• Experiment #3: real-world case study
– Mobile application

• Experiment #3: brainstorming

• Experiment #3: GAMBIT prototype

• Experiment #3: setup

– Prototyping with GAMBIT represented only 8% of the project
lifecycle and the satisfaction with the system (CSUQ) increased by
30%.
– Prototyping with multiple devices is possible on realistic contexts

• Prototyping
different UI types:
Zoomable UIs
Perspectives

• Sketching as a Service (Skaas) is appropriate for
– Sketching any diagram
• An informal sketch: e.g., a graphical user interface (at any CRF level)
• A formal sketch: e.g., a UML model
– From any input material
• E.g., for UI design: screenshot, picture, mockup, sketch, wireframe,…
– With any level of fidelity
• Low, medium, high
• With/out recognition for transition
– On/for multiple devices
• Any interaction surface in principle
– By multiple users
• Different categories, profiles
– In various environments
• Stationary vs mobile, centralized vs distributed
• Same time vs asynchronous – Same space vs remote
Conclusion
