The document provides an overview of Elasticsearch, comparing it to traditional SQL databases and discussing its advantages in handling complex, flexible searches and indexing. Key features include full-text indexing, relevance scoring, geocoding, and the ability to manage nested documents, with an emphasis on ease of use and scalability. It also addresses common challenges in search functionality and the importance of performance monitoring and optimization.

1. elasticsearch
by Yervand Aghababyan
from SFL
user of elastic for 3+ years

2. Thanks to
Jurriaan Persin
CTO of Engagor
For “Introduction to Elasticsearch”
On SlideShare.net

3. Suppose: We have a CRM

4. Example 1 (addresses)
• Address has many fields ( 30+ on our
screenshot)
• Some of the fields may have complex data
• Search in that complex data, parse language
• You need to have a flexible search interface for
that scary thing

5. What to do?

6. FULL TEXT indexes
• Are not easy to maintain/work with
• Are hard to change
• Not many frameworks support them
• Operations: AND, OR, NOT, nesting, wildcard
• Example: SELECT … FROM ADDRESS WHERE
a=a1 and b=b1 and c in (c1, c2, c3) and
match(d) against (d1)

7. Address And Company
• Remember address? Add Company data
• Company has lots of fields as well
• SQL becomes something like this:
SELECT … FROM ADDRESS A
INNER JOIN COMPANY C ON…
WHERE a.a=a1 and a.b=b1 and a.c in (c1, c2, c3)
and c.a=a2 and c.b=c2 and match(a.d,a.e) against
(d1) and match(c.d, c.e) against (d2)

8. Problems?
• Hard to program, too structured
• SQL’s worry performance and no way to
optimize it
• FULL TEXT indexes SUCK big time
• Search is too dependent on the data
model
• Inability to create unified (in
everything) search solutions

9. SQL’s worry performance?

10. Can you do this?

11. DB vs Search Engine
DBs
• Data model & consistency
• Transaction support/
Atomicity
• Triggers/Stored procedures
• Data store ( put/get)
Search Engine
• Language recognition
• Flexible searching
• Flexible data

12. Search Engine
• Efficient Indexing
– On all fields / combination of fields
• Analyzing data
– Text search
• Tokenizing
• Stemming
• Filtering
– Understanding/parsing locations
– Date parsing
• Relevance scoring

13. Tokenizing
• Finding word boundaries
– Not just .split(‘ ‘)
– Chinese has no spaces ( Not every character is a
word)
• Parse patterns
– URLs
– Emails
– #hashtags
– Twitter @usernames

14. Stemming
• “Stemming is the process for reducing inflected (or
sometimes derived) words to their stem, base or root
form.”
– Conjurations
– Plurals
• Example
– Fishing, Fished, Fish, Fisher -> fish
– Better -> Good
• Ways to do this
– Lookup tables
– Suffix/Prefix stripping
– Etc.
• Each language has it’s own specific stemmer

15. Filtering
• Remove certain words that do not matter
(stop-words)
– Different for every language
• Example: HTML
– If you’re indexing web content, most of the tags
do not matter

16. Location Awareness
• Geocoding of locations (longitudes and
latitudes)
• Search on location
– Bounding box searches
– Radius searches ( nearby )
– Searching by polygons (countries, states)

17. Relevance Scoring
• Score based on certain word matches
• Complex scoring:
– Score geo matching better than keyword
matching
– Score better if more of the context words match
– Score some keywords better than other keywords

18. Who does all this?

19. • Open Source
• Actively maintained ( last release 2015
April )
• Initially written in 1999
• Written in Java

20. Why not Lucene?
• It’s a library not a “database”
• It’s hard to configure and use
• Using the same index from multiple
applications/hosts is not possible
• You need to handle it’s availability/reliability
issues
• You need to handle the scaling issues

21. elastic
• Open Source, free to use
• Written in 2010
• Based on Lucene
• Uses same language as Lucene: Java
• Standalone server
• Has REST API
• Provides horizontal scaling
• Addresses availability issues
• Is f**king easy to use!

22. elastic as MySQL
Elastic MySQL
Index (and mapping) Database/Schema
Type Table
Document Row
Field Column
All stored data Index

23. Distributed-ness

24. Distributed-ness

25. Setup/Run

26. Yes, it’s NoSQL

27. Master node
• Only one in the cluster
• Many master eligible nodes
• Automatic master election from eligible nodes
• Warnings!
– Split brain
– Requires configuration

28. Discovery
• Unicast (this is the thing you know)
• Multicast
• Azure discovery
• EC2 discovery
• Google Compute Engine discovery

29. elastic clients
• REST Client ( the slowest option )
• Native protocol client to a single node
• Smart client ( ES node )

30. How to use it
1. Start it
2. Index your data into it
3. Query it
4. Index some more data into it
5. Query it some more 

31. Queries and Filters
Query
• Answers to: If document
matches, how well does it
match?
• Results can’t be cached
Filter
• Answers to: is the
document matching?
(yes/no)
• Fast, always use this if you
can
• Cached ( read: even more
fast)

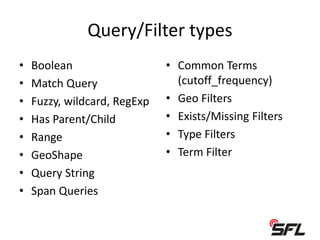

32. Query/Filter types
• Boolean
• Match Query
• Fuzzy, wildcard, RegExp
• Has Parent/Child
• Range
• GeoShape
• Query String
• Span Queries
• Common Terms
(cutoff_frequency)
• Geo Filters
• Exists/Missing Filters
• Type Filters
• Term Filter

33. Performance
• Never had any problems with it (was lucky
with the hardware)
• Fuzzy, wildcard queries are slow
• Use Bulk indexes
• Monitor disk IO
• Monitor memory usage
• Monitor CPU usage

34. Inverted indexes
• These are not your normal B-Tree indexes

35. Memory usage
• Reduce GC time maximally
• Do not give ES too much RAM, better start 2
instances
• Disable swap

36. Online backups
• All nodes do simultaneous backup
• The backup should be done to a network
mounted FS
• The backup is incremental

37. Nested documents
• Need a JSONdocument inside another JSON
document? Do it!

38. Percolator
• This is the opposite of default searching
• Store your queries in the DB
• Match your documents against your query
database

39. Index warming
• During startup pre-warm a node so it has all
the indexes and caches in the memory and
responds fast to the very first client requests

40. Marvel

41. How we use it
• Bayazet (40M docs, 100Gb data)
• Qlim
• CallMonkey
• Greetz
• iGind

42. Questions?
