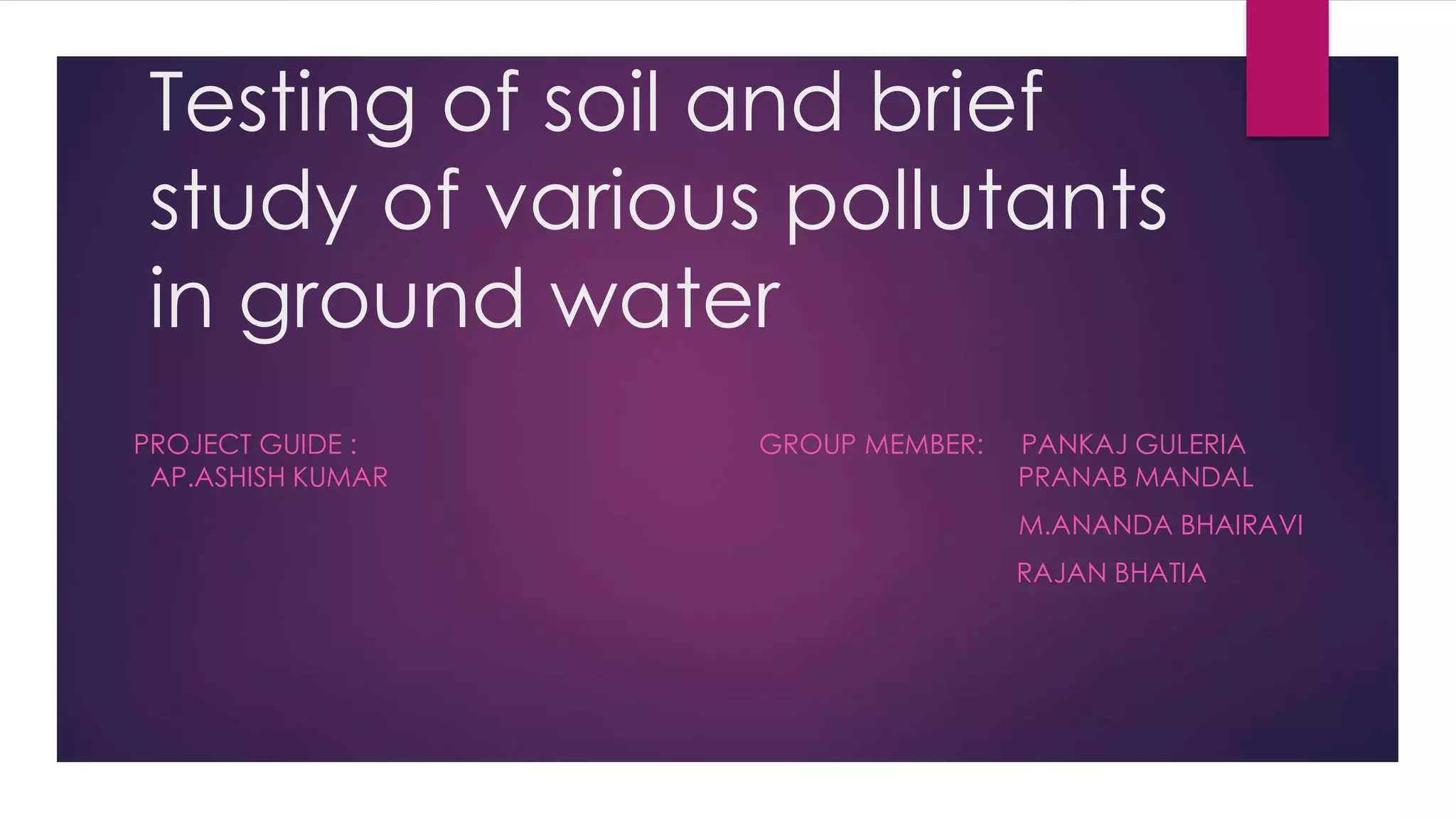

Testing of soil and brief
study of various pollutants
in ground water
PROJECT GUIDE : GROUP MEMBER: PANKAJ GULERIA
AP.ASHISH KUMAR PRANAB MANDAL
M.ANANDA BHAIRAVI
RAJAN BHATIA

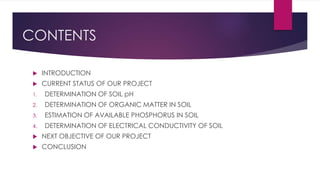

CONTENTS
 INTRODUCTION
 CURRENT STATUS OF OUR PROJECT
1. DETERMINATION OF SOIL pH
2. DETERMINATION OF ORGANIC MATTER IN SOIL
3. ESTIMATION OF AVAILABLE PHOSPHORUS IN SOIL
4. DETERMINATION OF ELECTRICAL CONDUCTIVITY OF SOIL
 NEXT OBJECTIVE OF OUR PROJECT
 CONCLUSION

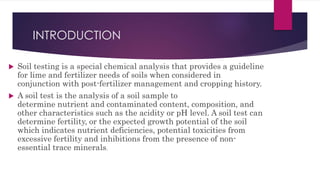

INTRODUCTION
 Soil testing is a special chemical analysis that provides a guideline
for lime and fertilizer needs of soils when considered in
conjunction with post-fertilizer management and cropping history.
 A soil test is the analysis of a soil sample to
determine nutrient and contaminated content, composition, and
other characteristics such as the acidity or pH level. A soil test can
determine fertility, or the expected growth potential of the soil
which indicates nutrient deficiencies, potential toxicities from
excessive fertility and inhibitions from the presence of non-
essential trace minerals.

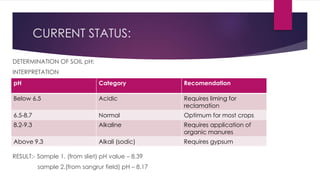

CURRENT STATUS:
DETERMINATION OF SOIL pH:
INTERPRETATION
R
RESULT:- Sample 1. (from sliet) pH value – 8.39
sample 2.(from sangrur field) pH – 8.17
pH Category Recomendation
Below 6.5 Acidic Requires liming for
reclamation
6.5-8.7 Normal Optimum for most crops
8.2-9.3 Alkaline Requires application of
organic manures
Above 9.3 Alkali (sodic) Requires gypsum

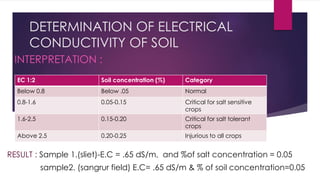

DETERMINATION OF ELECTRICAL
CONDUCTIVITY OF SOIL
INTERPRETATION :
RESULT : Sample 1.(sliet)-E.C = .65 dS/m, and %of salt concentration = 0.05
sample2. (sangrur field) E.C= .65 dS/m & % of soil concentration=0.05
EC 1:2 Soil concentration (%) Category
Below 0.8 Below .05 Normal
0.8-1.6 0.05-0.15 Critical for salt sensitive
crops
1.6-2.5 0.15-0.20 Critical for salt tolerant
crops
Above 2.5 0.20-0.25 Injurious to all crops

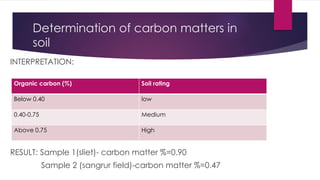

Determination of carbon matters in
soil
INTERPRETATION:
RESULT: Sample 1(sliet)- carbon matter %=0.90
Sample 2 (sangrur field)-carbon matter %=0.47
Organic carbon (%) Soil rating
Below 0.40 low
0.40-0.75 Medium
Above 0.75 High

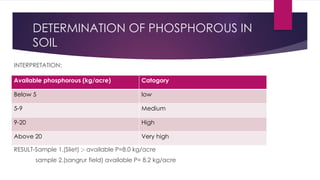

DETERMINATION OF PHOSPHOROUS IN
SOIL
INTERPRETATION:
RESULT-Sample 1.(Sliet) :- available P=8.0 kg/acre
sample 2.(sangrur field) available P= 8.2 kg/acre
Available phosphorous (kg/acre) Catogory
Below 5 low
5-9 Medium
9-20 High
Above 20 Very high

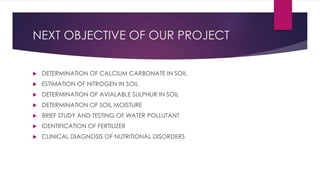

NEXT OBJECTIVE OF OUR PROJECT
 DETERMINATION OF CALCIUM CARBONATE IN SOIL
 ESTIMATION OF NITROGEN IN SOIL
 DETERMINATION OF AVIALABLE SULPHUR IN SOIL
 DETERMINATION OF SOIL MOISTURE
 BRIEF STUDY AND TESTING OF WATER POLLUTANT
 IDENTIFICATION OF FERTILIZER
 CLINICAL DIAGNOSIS OF NUTRITIONAL DISORDERS
