The document describes OXiGen, a tool that translates C code into optimized FPGA implementations using a dataflow intermediate representation. OXiGen performs (1) automatic design space exploration to optimize for resources and performance, (2) extraction of dataflow computations from C functions, and (3) generation of backend-specific code and FPGA bitstreams. Two case studies on image filtering and option pricing show speedups of up to 88x over software and efficient FPGA resource utilization. Future work aims to support more languages, designs, and optimizations.

1. 1 / 30
OXiGen
Dataflow acceleration from C for FPGA
Francesco Peverelli: francesco1.peverelli@mail.polimi.it
Marco Rabozzi: marco.rabozzi@mail.polimi.it
Emanuele Del Sozzo: emanuele.delsozzo@polimi.it
May 21 2018, Kitsilano C
JW Marriott Parq Vancouver
Vancouver, British Columbia CANADA

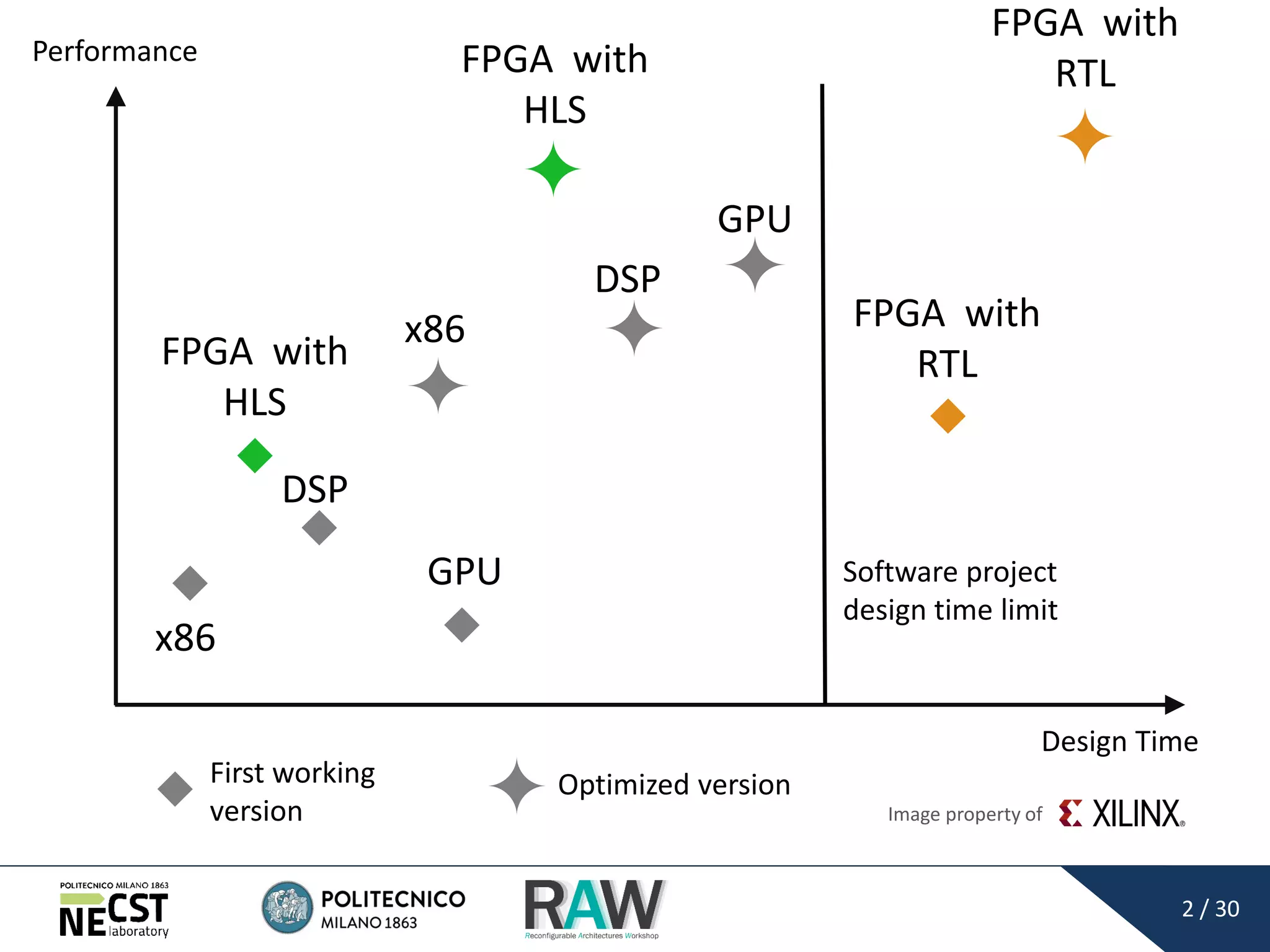

2. 2 / 30
FPGA with
RTL
Image property of
Design Time
Performance FPGA with
HLS
FPGA with
HLS
FPGA with
RTL
x86
GPU
DSP
x86
DSP
GPU
First working
version
Optimized version
Software project
design time limit

3. 3 / 30
Image property of
Design Time
Performance FPGA with
HLS
FPGA with
HLS
FPGA with
RTL
FPGA with
RTL
x86
GPU
DSP
x86
DSP
GPU
First working
version
Optimized version
Software project
design time limit

4. 4 / 30
Courtesy of: Maxeler Technology
DATAFLOW BACKGROUND

5. 5 / 30
CONTRIBUTIONS
DIRECT TRANSLATION FROM A WIDELY USED
HIGH LEVEL LANGUAGE
AUTOMATIC DESIGN SPACE EXPLORATION
AND OPTIMAL SYSTEM IMPLEMENTATION
AUTOMATIC DESIGN SPACE EXPLORATION
AND OPTIMAL SYSTEM IMPLEMENTATION
IDENTIFICATION AND EXTRACTION
OF DATAFLOW COMPUTATIONS

6. 6 / 30
OXIGEN TOOL OVERVIEW
FRONTEND
HLL source code
Target
function
Target board
specifications
OXIGEN
LLVM IR
BACKEND
BACKEND-SPECIFIC
OPTIMIZED CODE
FPGA bitstream

7. 7 / 30
OXIGEN TOOL OVERVIEW
FRONTEND
HLL source code
Target
function
BACKENDOXIGENFRONTEND

8. 8 / 30
OXIGEN TOOL OVERVIEW
HLL source code
Target
function
LLVM IR
BACKENDOXIGENFRONTEND

9. 9 / 30
OXIGEN TOOL OVERVIEW
LLVM IR
Target board
specifications
RESOURCES AND
PERFORMANCE
OPTIMIZATION
IR PREPROCESSING
FUNCTION
ANALYSIS
DFG
CONSTRUCTION
OPTIMIZATION
CONFIGURATION
INSTRUCTION
COUNT REPORT
BACKEND
TRANSLATION
BACKEND-SPECIFIC
OPTIMIZED CODE
OXIGEN
BACKENDOXIGENFRONTEND

10. 10 / 30
OXIGEN TOOL OVERVIEW
LLVM IR
Target board
specifications
RESOURCES AND
PERFORMANCE
OPTIMIZATION
IR PREPROCESSING
FUNCTION
ANALYSIS
DFG
CONSTRUCTION
OPTIMIZATION
CONFIGURATION
INSTRUCTION
COUNT REPORT
BACKEND
TRANSLATION
Translation flow
Optimization flow
BACKEND-SPECIFIC
OPTIMIZED CODE
BACKENDOXIGENFRONTEND

11. 11 / 30
OXIGEN TOOL OVERVIEW
BACKENDOXIGENFRONTEND
BACKEND-SPECIFIC
OPTIMIZED CODE
FPGA
bitstream
COMMERCIAL
SYNTHESIS TOOLBACKEND

12. 12 / 30
OXIGEN TOOL OVERVIEW
BACKENDOXIGENFRONTEND
BACKEND-SPECIFIC
OPTIMIZED CODE
FPGA
bitstream
HDL GENERATION
IMPLEMENTATION AND
BITSTREAM
GENERATION

13. 13 / 30
DATAFLOW INTERMEDIATE REPRESENTATION
NESTED
LOOP
NODES
LOOP CARRIED
DEPENDENCY
ARC
OUTER LOOPS
void foo(type_1* in_1, type_2* in_2
type_1* out_1, scalar_type_1* v_1){
for(int i = offs; i < I_SIZE – offs_2; i++){
S1: …statements…
for(int j = …; j < 15; j++){
S2: …statements…
}
S3: …statements…
for(int j = … ){
S4: …statements…
}
}
for(int i = offs_3; … ){
S5: …statements…
}
}

14. 14 / 30
OPTIMIZATION OPTIONS
Throughput
Required
resources
Resources driven
design
Throughput driven
design
Unoptimized design
VECTORIZATION
REROLLING

15. 15 / 30
queue
computational
element
input
output
Replicated compute
elements from unrolled
nested loop body
REROLLING

16. 16 / 30
computational
elements
input
output
vectorized input
replicate the
computation across
elements of vectorized
input / output
VECTORIZATION

17. 17 / 30
DESIGN SPACE EXPLORATION
RESOURCE ESTIMATION MODEL
PERFORMANCE MODEL

18. 18 / 30
𝑇 = {𝐷𝑆𝑃, 𝐵𝑅𝐴𝑀, 𝐹𝐹, 𝐿𝑈𝑇}
Nodes number of nodes of type n
Resource consumption of the
node given its implementation
Overall use of resources of
type t ∊ T
Optimization parameters
θ : Target specific configuration (e.g. DSP / LUT balance ...)
RESOURCE ESTIMATION MODEL
𝑟𝑡 = σ 𝑛∊𝑁 𝑐 𝑛,𝑡,θ ∗ 𝑞(𝑓0, … , 𝑓𝑖)

19. 19 / 30
Rerolling factor
Occurrences of operations n
outside nested loops
Iterations of l after
rerolling
Number of
operations of type n
Original iterations
of nested loop l
Occurrences of operations
n in nested loop l
Loops that can be
rerolled
OPERATION COUNT(REROLLING)

20. 20 / 30
Number of
operations of type n
Vectorization factor
Overall
occurrences of n
OPERATION COUNT(VECTORIZATION)

21. 21 / 30
Rerolling performance
Vectorization performance
Output production rate
Maximum output
bandwidth
Maximum input
bandwidth
Input consume rateVectorization factor
Rerolling factor
PERFORMANCE MODEL
𝑝 𝑓0 = min
𝑅 𝑜𝑢𝑡
𝑓𝑜
, 𝐵 𝑜𝑢𝑡 ,
𝑅 𝑜𝑢𝑡
𝑅𝑖𝑛
∙ 𝐵𝑖𝑛
𝑝 𝑓0 = min 𝑓0 ∙ 𝑅 𝑜𝑢𝑡, 𝐵 𝑜𝑢𝑡,
𝑅 𝑜𝑢𝑡
𝑅𝑖𝑛
∙ 𝐵𝑖𝑛

22. 22 / 30
Maximum available
resources of type t
Resources of type t used
Find the configuration of parameters that
maximizes performance
Resource types
available on the board
DESIGN SPACE EXPLORATION
𝑂𝑃𝑇𝐼𝑀𝐼𝑍𝐴𝑇𝐼𝑂𝑁 𝐹𝑈𝑁𝐶𝑇𝐼𝑂𝑁
𝑅𝐸𝑆𝑂𝑈𝑅𝐶𝐸𝑆 𝐶𝑂𝑁𝑆𝑇𝑅𝐴𝐼𝑁𝑇𝑆
𝑎𝑟𝑔𝑚𝑎𝑥 𝑓0
, … , 𝑓 𝑖
,θ 𝑝(𝑓0, … , 𝑓𝑖)
𝑟𝑡 ≤ 𝑀𝑡 ∀ t ∊ T

23. 23 / 30
CASE STUDIES
• Sharpen image filter
• Asian option pricing
APPLICATIONS
• A compute intensive and a data intensive design
• Test diverse optimization options
CHARACTERISTICS
• Test the use of built-in library functions in the target language

24. 24 / 30
• Speedup over software
• Hardware resources utilization
• MaxCompiler
• Galava MAX4 board
• Stratix V FPGA
EXPERIMENTAL SETTING
EVALUATED METRICS
ENVIRONMENT

25. 25 / 30
BEFORE AFTER
SHARPENER IMAGE FILTER

26. 26 / 30
Vector. Factor Speedup
1 4.58
2 8.86
4 15.37
8 15.85
16 15.62
Total Resources
DSP BRAM FF LUT
5.86 9.81 4.85 7.28
11.72 13.57 7.07 10.75
23.44 21.14 11.52 17.55
46.88 36.72 20.43 31.17
93.75 67.29 38.16 58.51
Compared to an Intel® CoreTM i7-6700 single threaded
implementation compiled with gcc 4.4.7 using –O3
SHARPENER IMAGE FILTER

27. 27 / 30
ASIAN OPTION PRICING

28. 28 / 30
Total Resources
DSP BRAM FF LUT
39.06 37.65 21.86 37.15
55.08 42.09 24.47 40.71
29.30 41.50 31.55 52.32
87.11 54.30 29.60 47.73
41.02 59.13 39.51 64.31
46.88 63.96 43.31 70.09
Rerol.
Factor
Speedup
DSP/LUT
Balance
30 15.83 1.0
15 31.22 1.0
10 45.95 0.1
8 56.91 1.0
6 74.35 0.1
5 88.10 0.1
About a day of work vs several weeks*!
*A. M. Nestorov, E. Reggiani, H. Palikareva, P. Burovskiy, T. Becker, and
M. D. Santambrogio, “A scalable dataflow implementation of curran’s approximation algorithm”
ASIAN OPTION PRICING

29. 29 / 30
CONCLUSION AND FUTURE WORK
CONTRIBUTIONS
• Translation of high-level language functions into dataflow
kernels implemented on FPGA
• Design space exploration and automatic design optimization
• Validation of the proposed approach on two different C designs
using MaxCompiler as a backend
FUTURE WORK
• Expansion of the translation capabilities of the tool
• Verification on a broader set of case studies
• Integration of more optimization options and design space
parameters

30. 30 / 30
Thank you!
Francesco Peverelli: francesco1.peverelli@mail.polimi.it
Marco Rabozzi: marco.rabozzi@mail.polimi.it
Emanuele Del Sozzo: emanuele.delsozzo@polimi.it
May 21 2018, Kitsilano C
JW Marriott Parq Vancouver
Vancouver, British Columbia CANADA
