This document provides an overview of climate variability and climate change impacts on agriculture in the Greater Mekong Sub-region. It discusses observed changes in temperature and precipitation trends based on historical data. Climate models project further increases in temperatures and changes in precipitation patterns, which could impact agriculture through changes in climate suitability and more frequent extreme weather events. The document emphasizes understanding historical climate variability and using downscaled climate projections to better assess impacts and develop adaptation strategies for agricultural systems in the region.

1. Overview of climate variability
and climate change
Eitzinger Anton, Giang Linh, Lefroy Rod
Laderach Peter, Carmona Stephania
Overview of climate variability and likely climate change impacts on
agriculture across the Greater Mekong Sub-region (GMS)
10 – 11 March, 2014, Hanoi, Vietnam

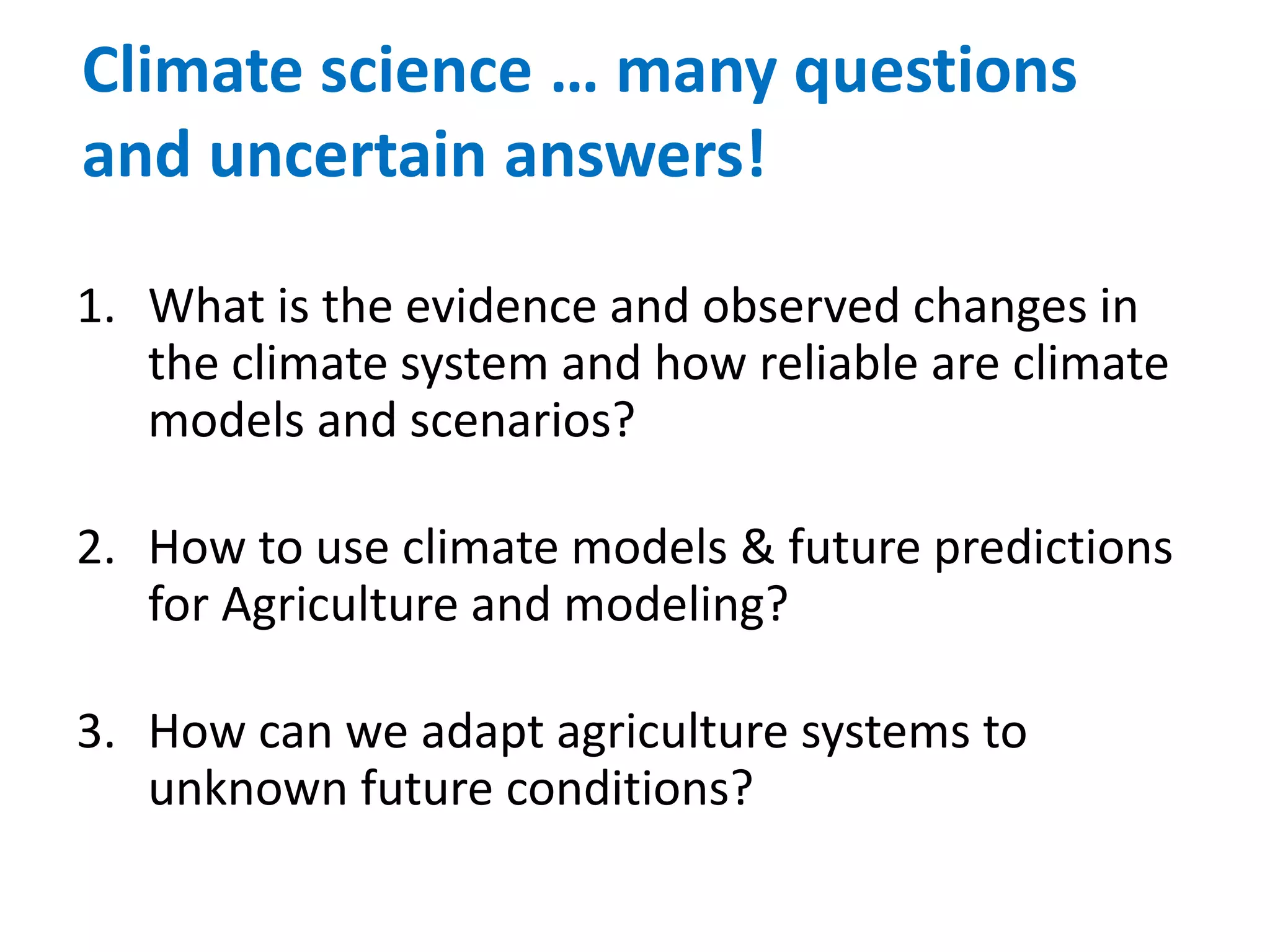

2. Climate science … many questions
and uncertain answers!
1. What is the evidence and observed changes in
the climate system and how reliable are climate
models and scenarios?
2. How to use climate models & future predictions
for Agriculture and modeling?
3. How can we adapt agriculture systems to
unknown future conditions?

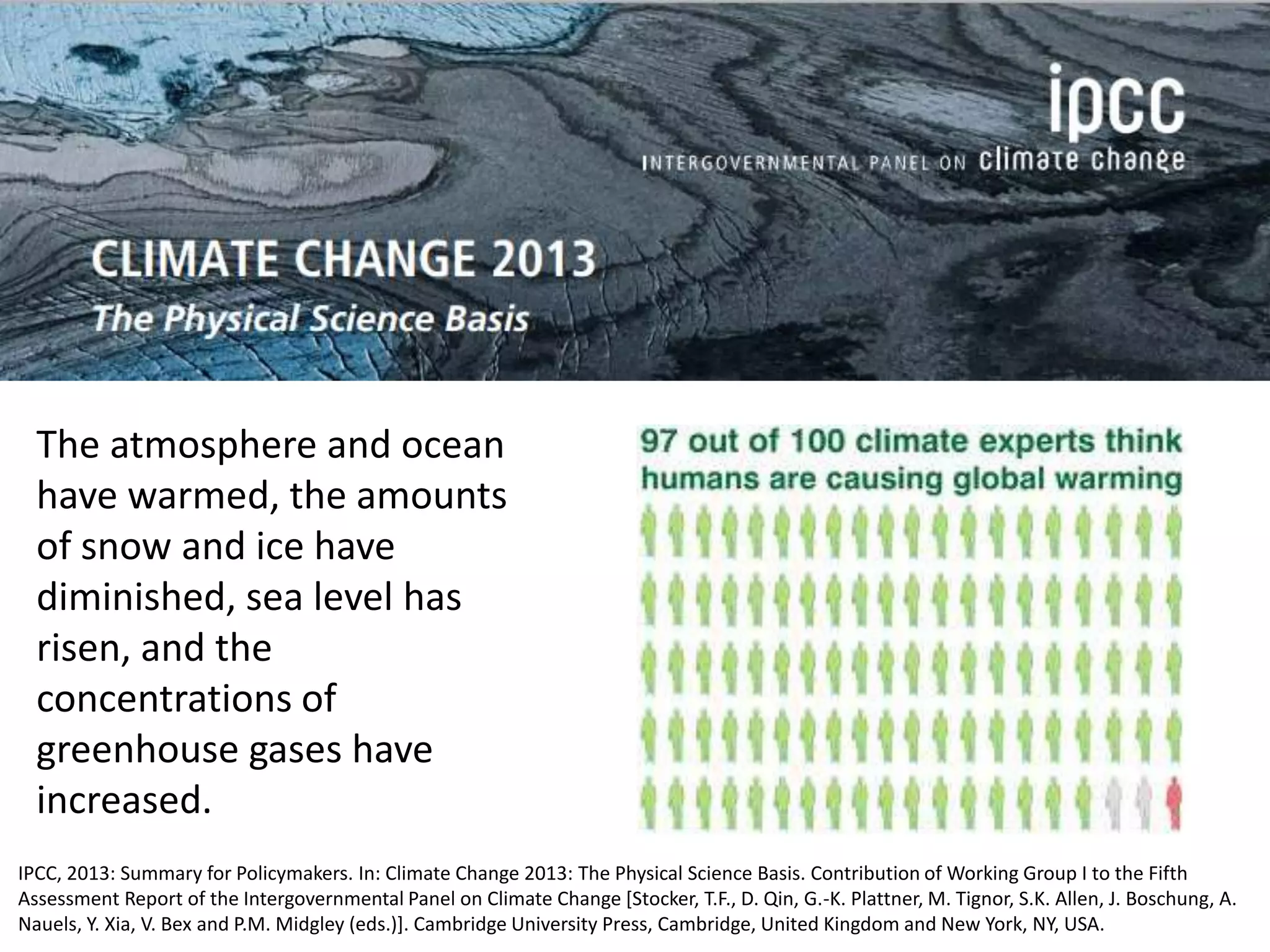

3. The atmosphere and ocean
have warmed, the amounts
of snow and ice have
diminished, sea level has
risen, and the
concentrations of
greenhouse gases have
increased.
IPCC, 2013: Summary for Policymakers. In: Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth
Assessment Report of the Intergovernmental Panel on Climate Change [Stocker, T.F., D. Qin, G.-K. Plattner, M. Tignor, S.K. Allen, J. Boschung, A.
Nauels, Y. Xia, V. Bex and P.M. Midgley (eds.)]. Cambridge University Press, Cambridge, United Kingdom and New York, NY, USA.

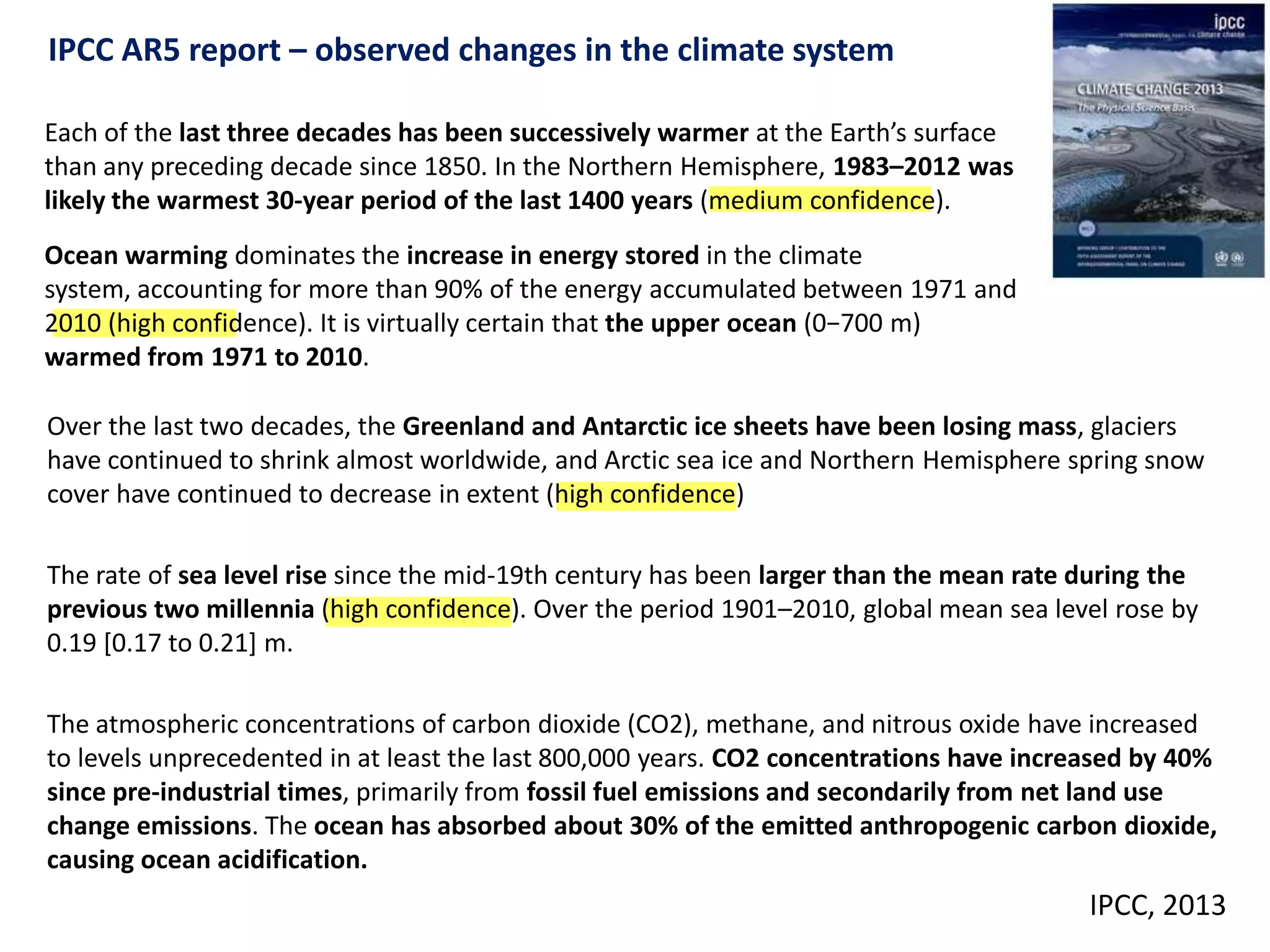

4. Each of the last three decades has been successively warmer at the Earth’s surface
than any preceding decade since 1850. In the Northern Hemisphere, 1983–2012 was
likely the warmest 30-year period of the last 1400 years (medium confidence).
Ocean warming dominates the increase in energy stored in the climate
system, accounting for more than 90% of the energy accumulated between 1971 and
2010 (high confidence). It is virtually certain that the upper ocean (0−700 m)
warmed from 1971 to 2010.
IPCC AR5 report – observed changes in the climate system
Over the last two decades, the Greenland and Antarctic ice sheets have been losing mass, glaciers
have continued to shrink almost worldwide, and Arctic sea ice and Northern Hemisphere spring snow
cover have continued to decrease in extent (high confidence)
The rate of sea level rise since the mid-19th century has been larger than the mean rate during the
previous two millennia (high confidence). Over the period 1901–2010, global mean sea level rose by
0.19 [0.17 to 0.21] m.
The atmospheric concentrations of carbon dioxide (CO2), methane, and nitrous oxide have increased
to levels unprecedented in at least the last 800,000 years. CO2 concentrations have increased by 40%
since pre-industrial times, primarily from fossil fuel emissions and secondarily from net land use
change emissions. The ocean has absorbed about 30% of the emitted anthropogenic carbon dioxide,
causing ocean acidification.
IPCC, 2013

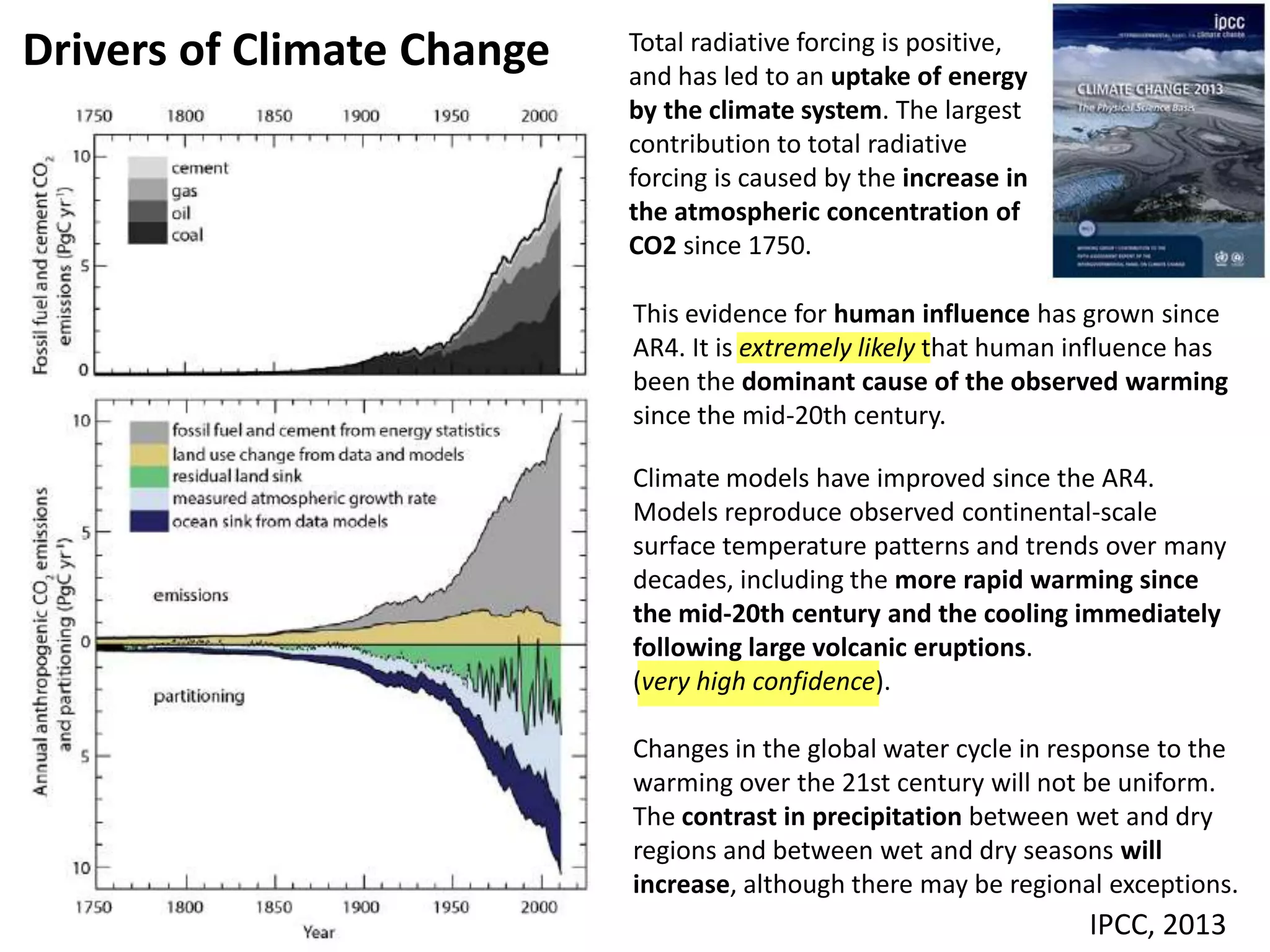

5. Drivers of Climate Change Total radiative forcing is positive,
and has led to an uptake of energy
by the climate system. The largest
contribution to total radiative
forcing is caused by the increase in
the atmospheric concentration of
CO2 since 1750.
Climate models have improved since the AR4.
Models reproduce observed continental-scale
surface temperature patterns and trends over many
decades, including the more rapid warming since
the mid-20th century and the cooling immediately
following large volcanic eruptions.
(very high confidence).
This evidence for human influence has grown since
AR4. It is extremely likely that human influence has
been the dominant cause of the observed warming
since the mid-20th century.
Changes in the global water cycle in response to the
warming over the 21st century will not be uniform.
The contrast in precipitation between wet and dry
regions and between wet and dry seasons will
increase, although there may be regional exceptions.
IPCC, 2013

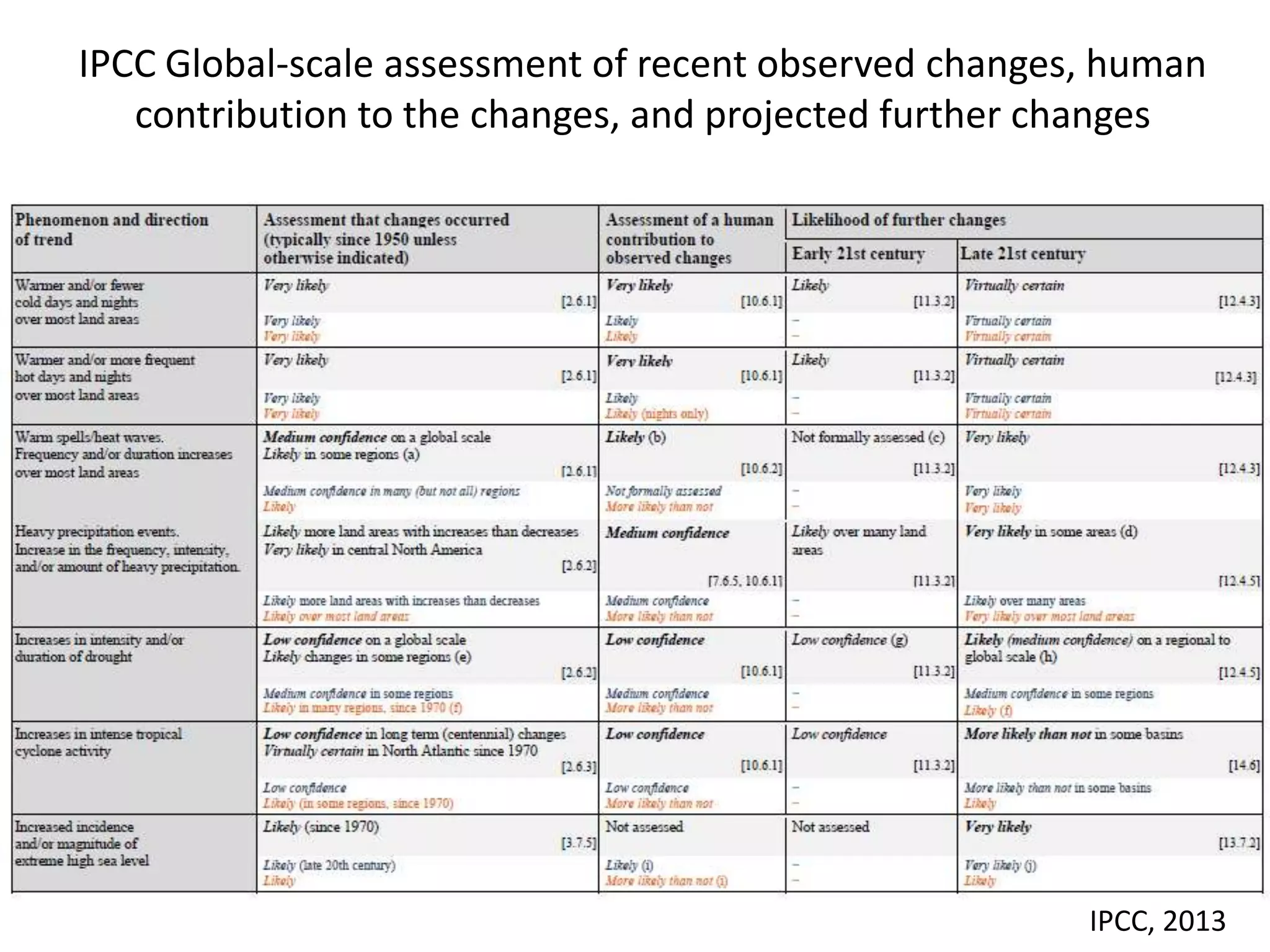

6. IPCC Global-scale assessment of recent observed changes, human
contribution to the changes, and projected further changes
IPCC, 2013

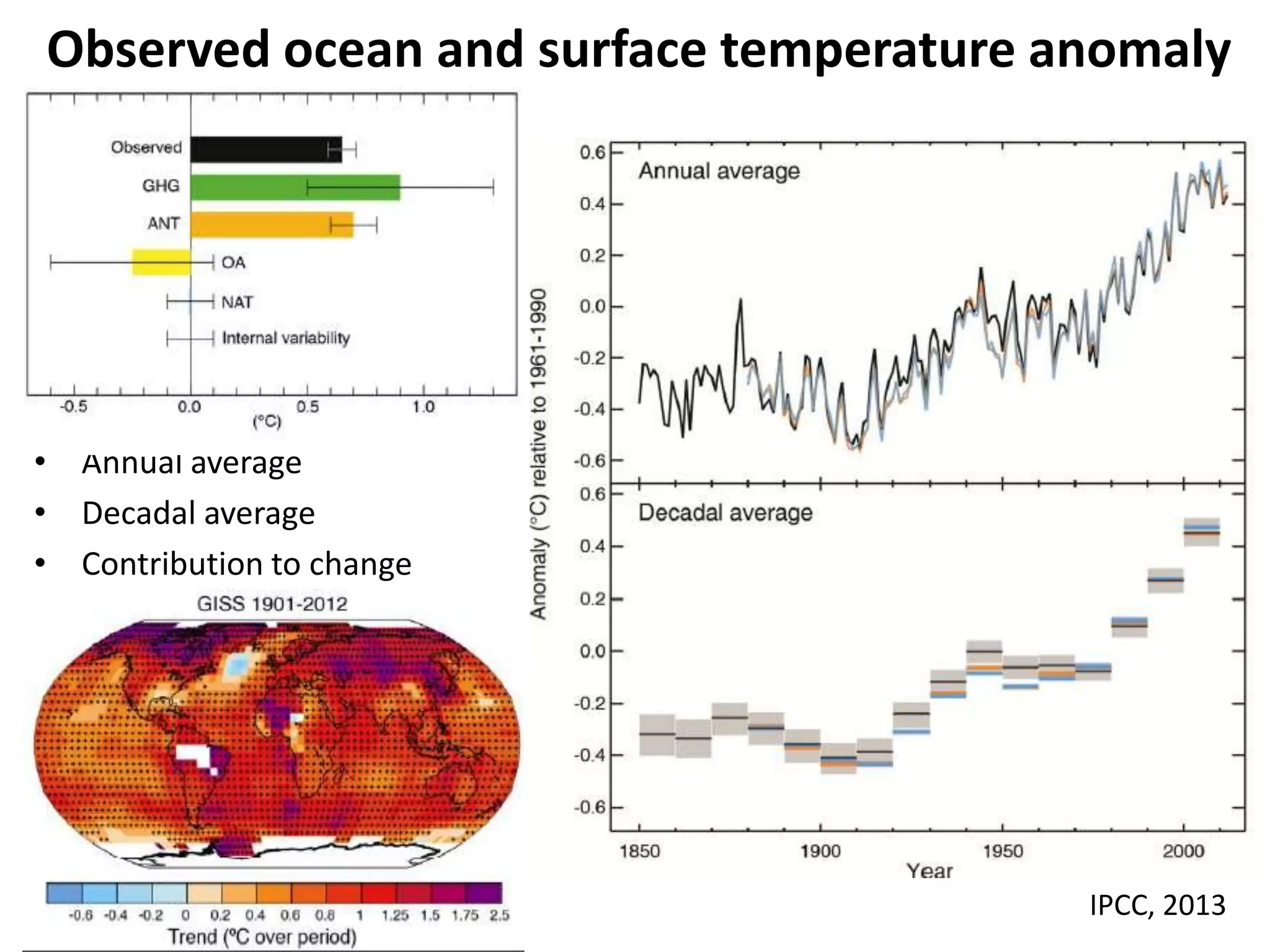

7. Observed ocean and surface temperature anomaly
• Annual average
• Decadal average
• Contribution to change
IPCC, 2013

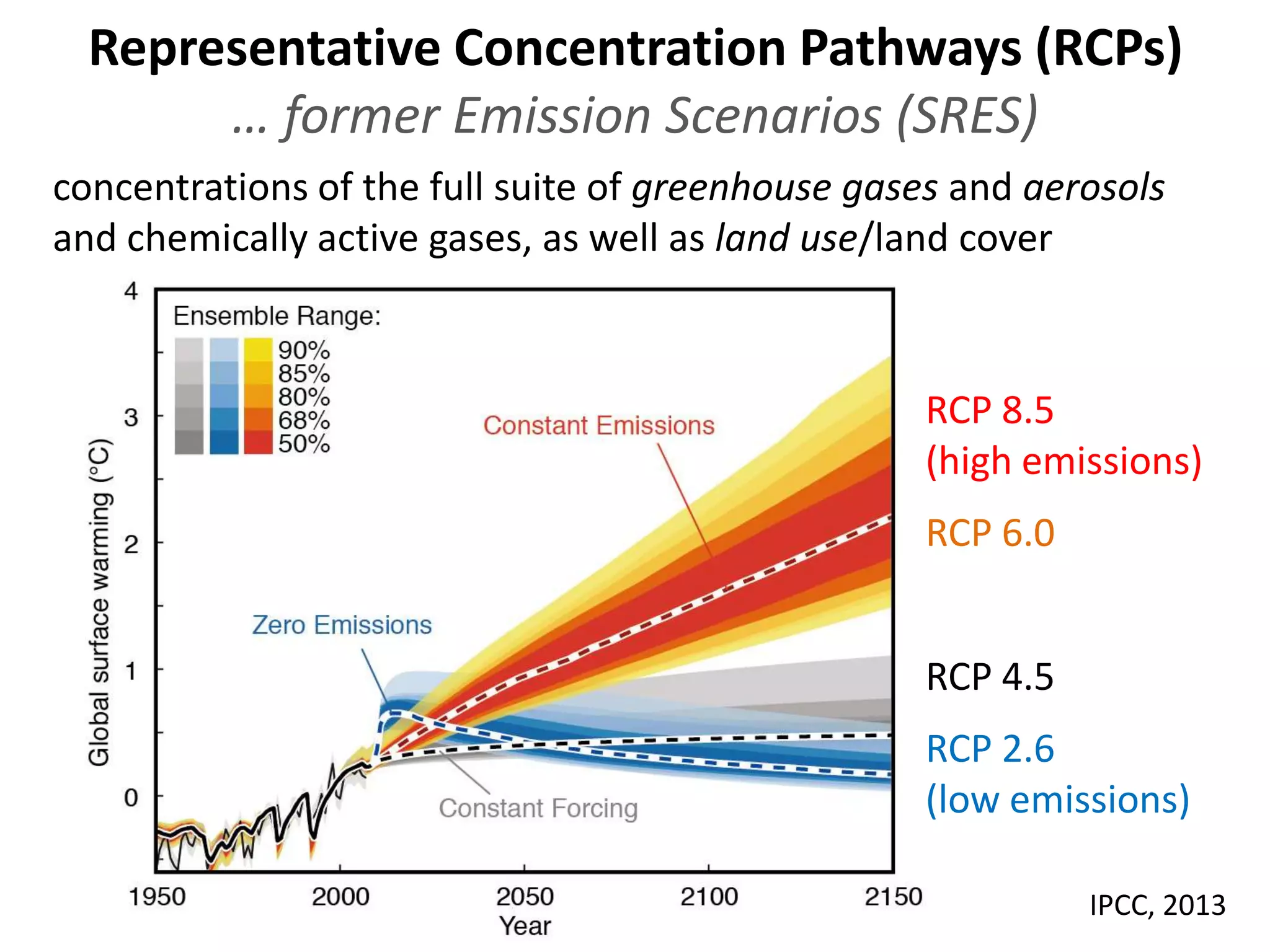

8. Representative Concentration Pathways (RCPs)
… former Emission Scenarios (SRES)
concentrations of the full suite of greenhouse gases and aerosols
and chemically active gases, as well as land use/land cover
RCP 8.5
(high emissions)
RCP 6.0
RCP 4.5
RCP 2.6
(low emissions)
IPCC, 2013

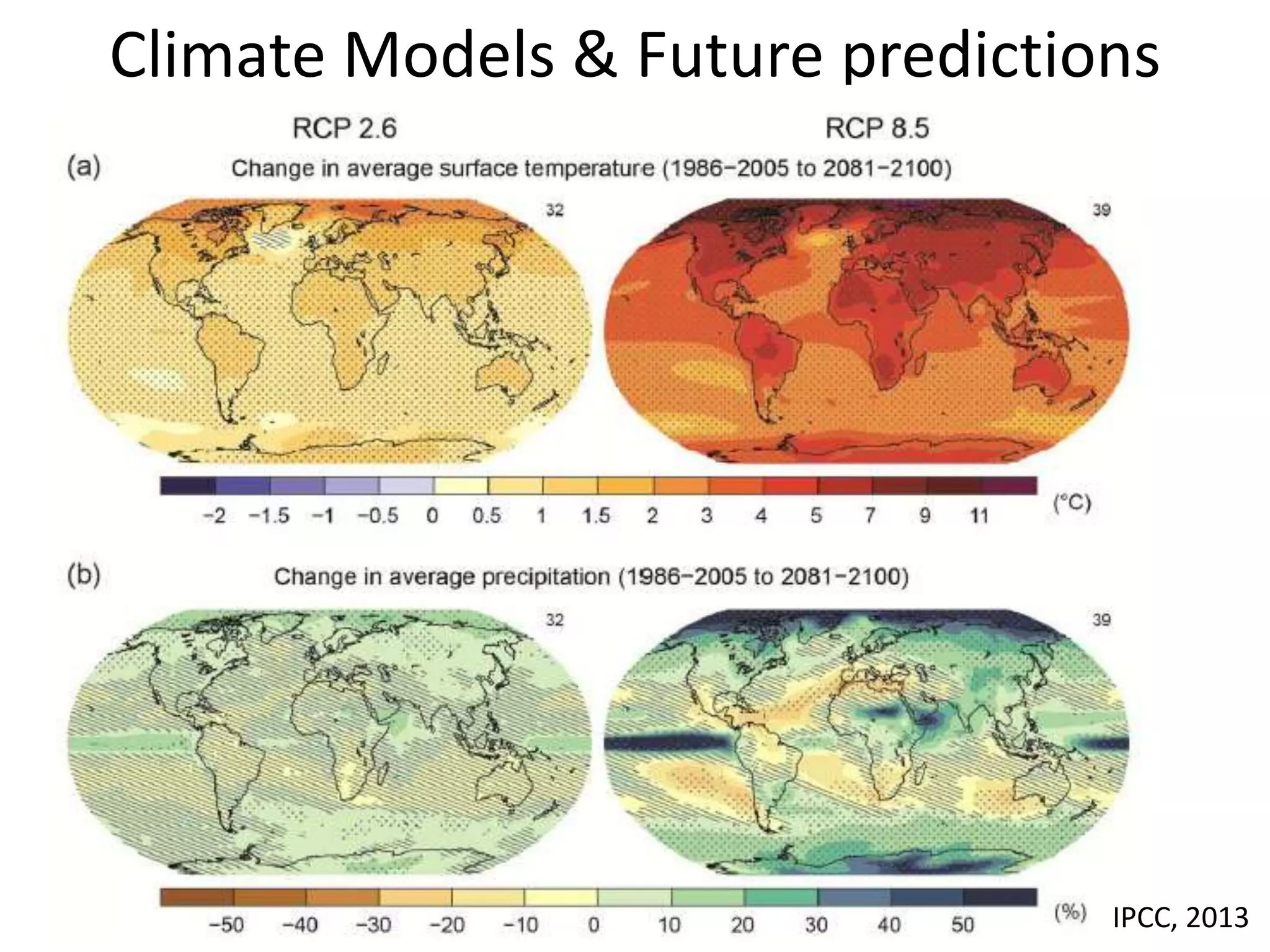

9. Climate Models & Future predictions
IPCC, 2013

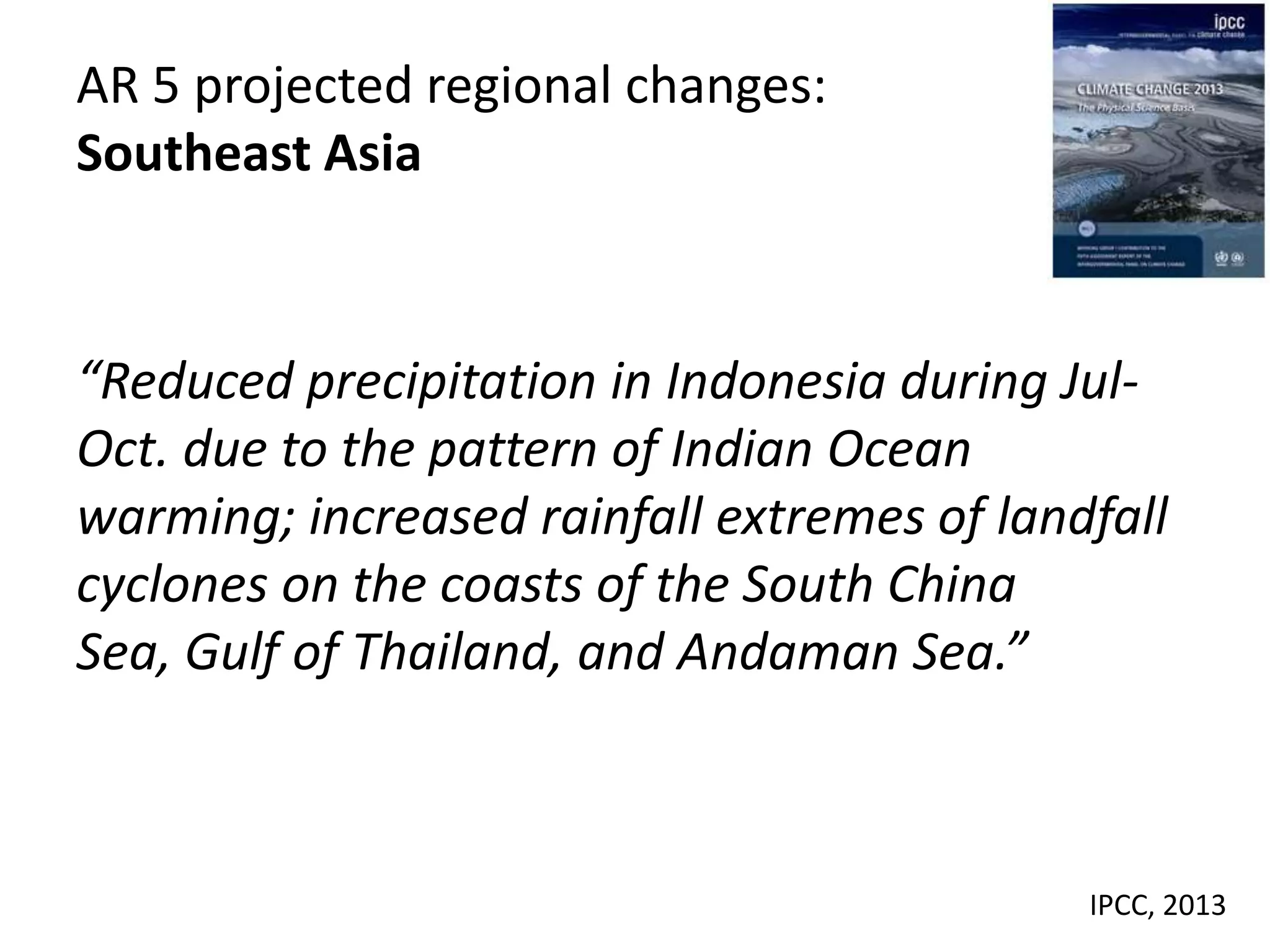

10. AR 5 projected regional changes:
Southeast Asia
“Reduced precipitation in Indonesia during Jul-
Oct. due to the pattern of Indian Ocean
warming; increased rainfall extremes of landfall
cyclones on the coasts of the South China
Sea, Gulf of Thailand, and Andaman Sea.”
IPCC, 2013

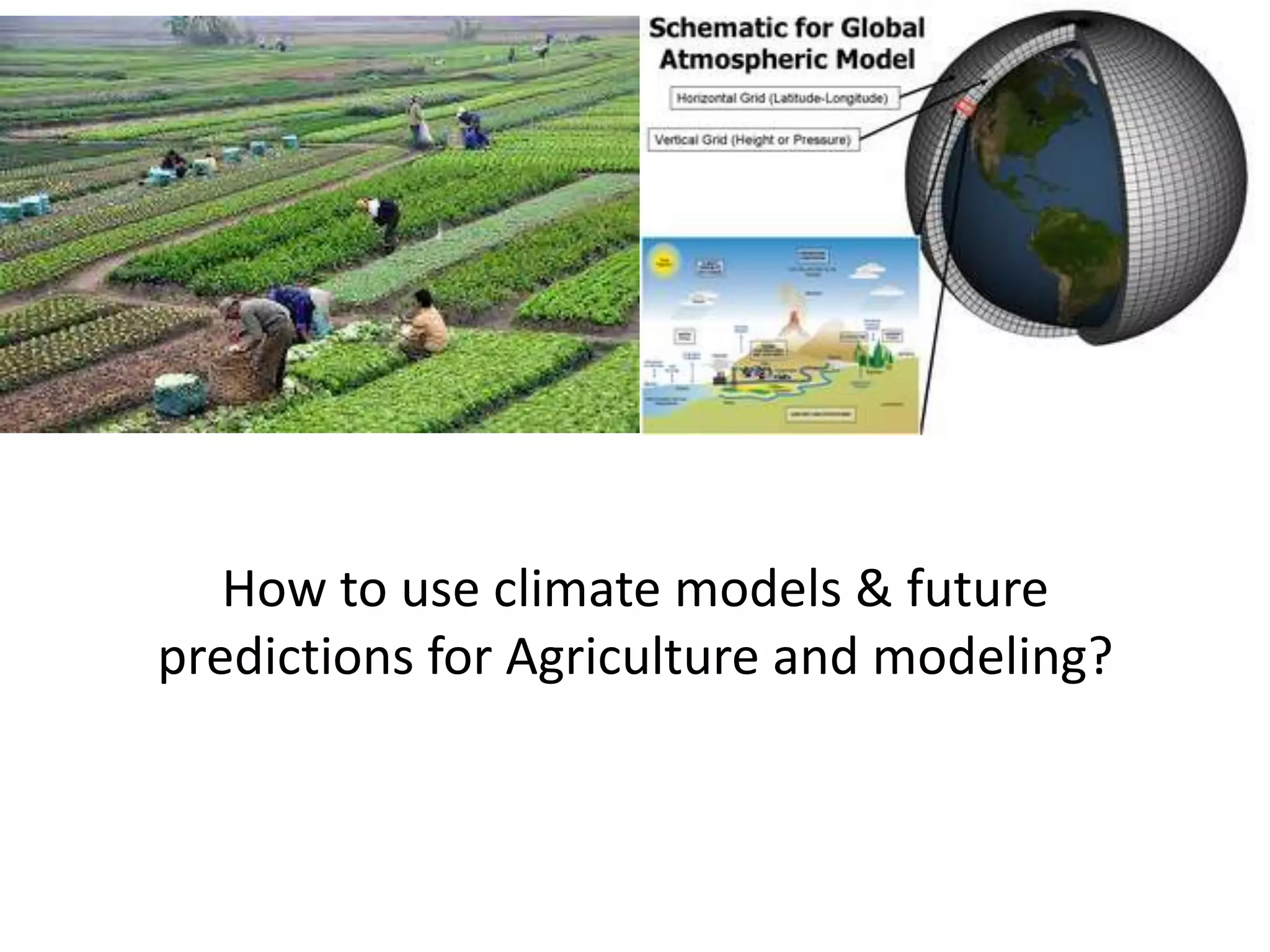

11. How to use climate models & future
predictions for Agriculture and modeling?

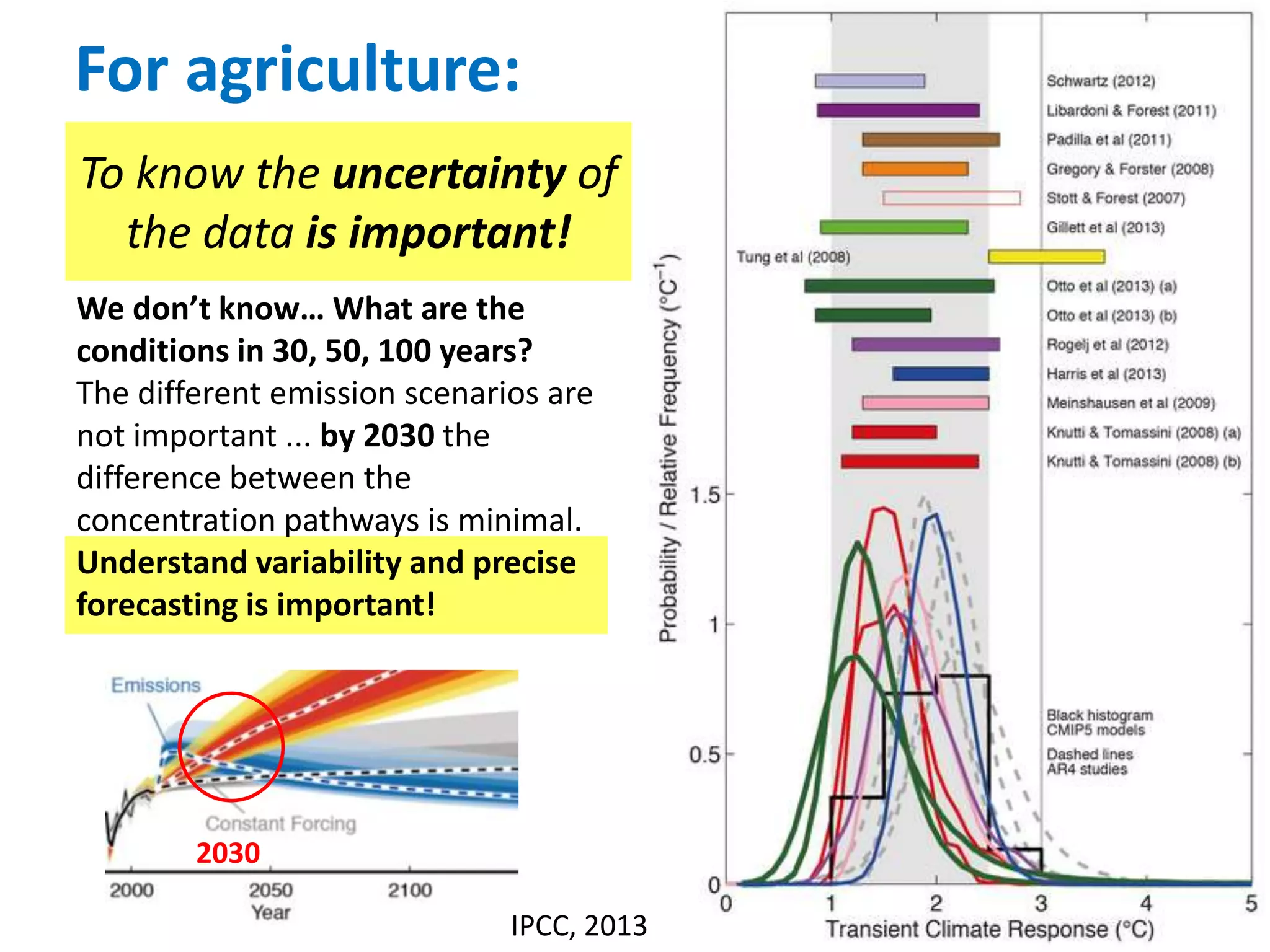

12. To know the uncertainty of
the data is important!
We don’t know… What are the
conditions in 30, 50, 100 years?
The different emission scenarios are
not important ... by 2030 the
difference between the
concentration pathways is minimal.
Understand variability and precise
forecasting is important!
2030
For agriculture:
IPCC, 2013

13. Climate variability
• There is still uncertainty on climate models
when it comes to variability
• Historical observations of weather and climate
can help to understand better variability
• We need a better forecasting for Agriculture

14. Historical climate in GMS
Presentation: Linh Giang

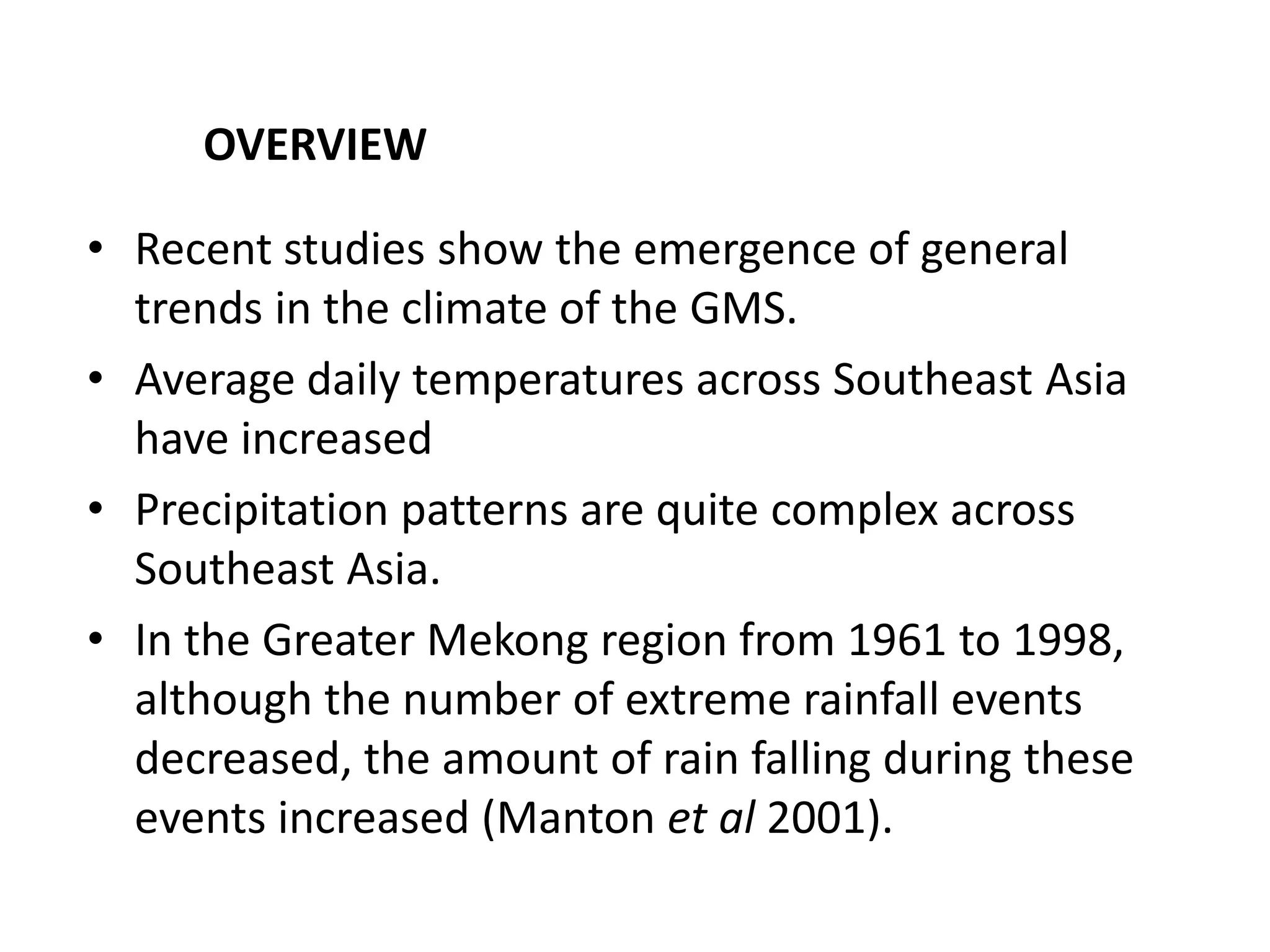

15. • Recent studies show the emergence of general
trends in the climate of the GMS.
• Average daily temperatures across Southeast Asia
have increased
• Precipitation patterns are quite complex across
Southeast Asia.
• In the Greater Mekong region from 1961 to 1998,
although the number of extreme rainfall events
decreased, the amount of rain falling during these
events increased (Manton et al 2001).
OVERVIEW

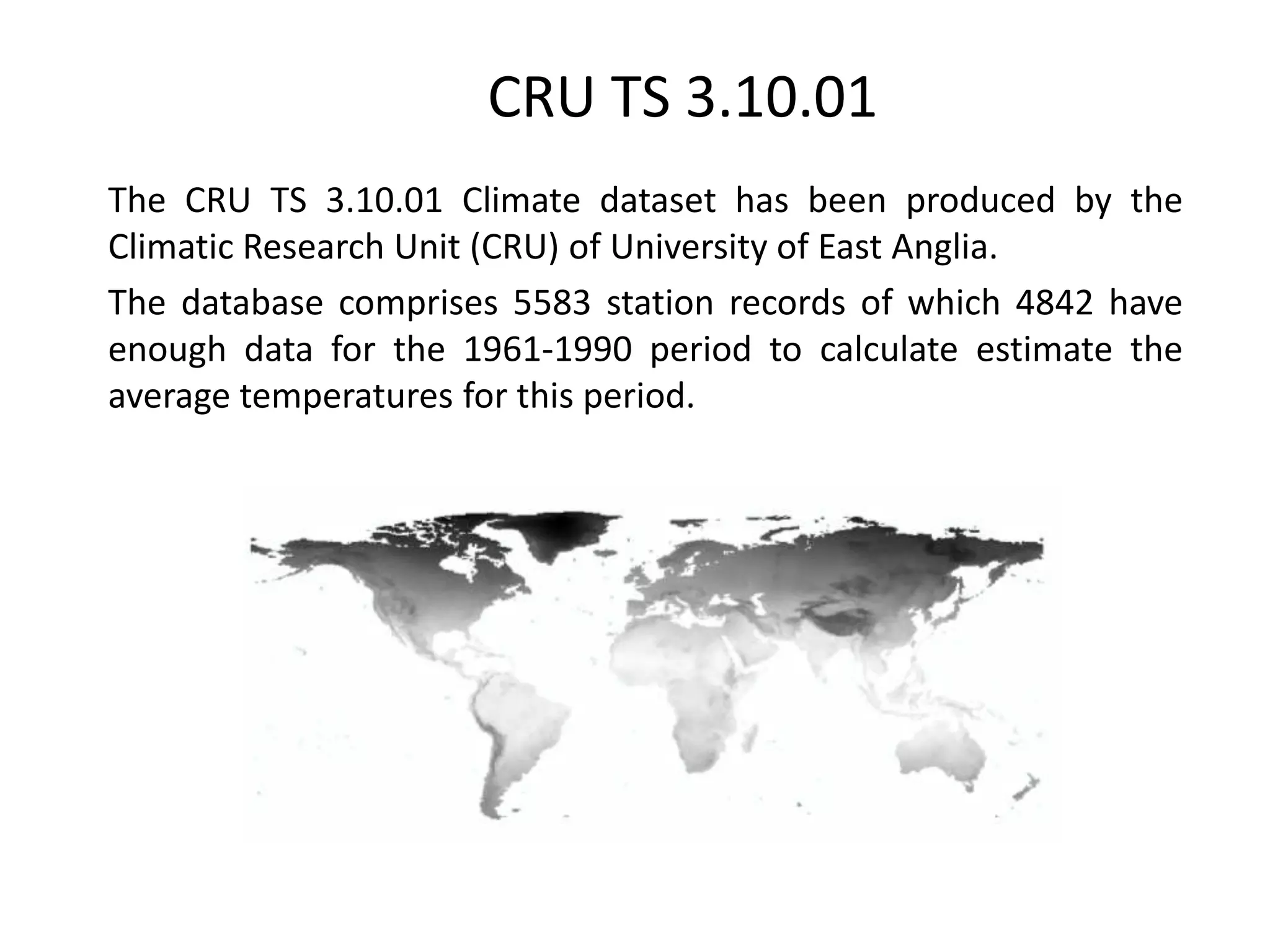

16. CRU TS 3.10.01
The CRU TS 3.10.01 Climate dataset has been produced by the
Climatic Research Unit (CRU) of University of East Anglia.
The database comprises 5583 station records of which 4842 have
enough data for the 1961-1990 period to calculate estimate the
average temperatures for this period.

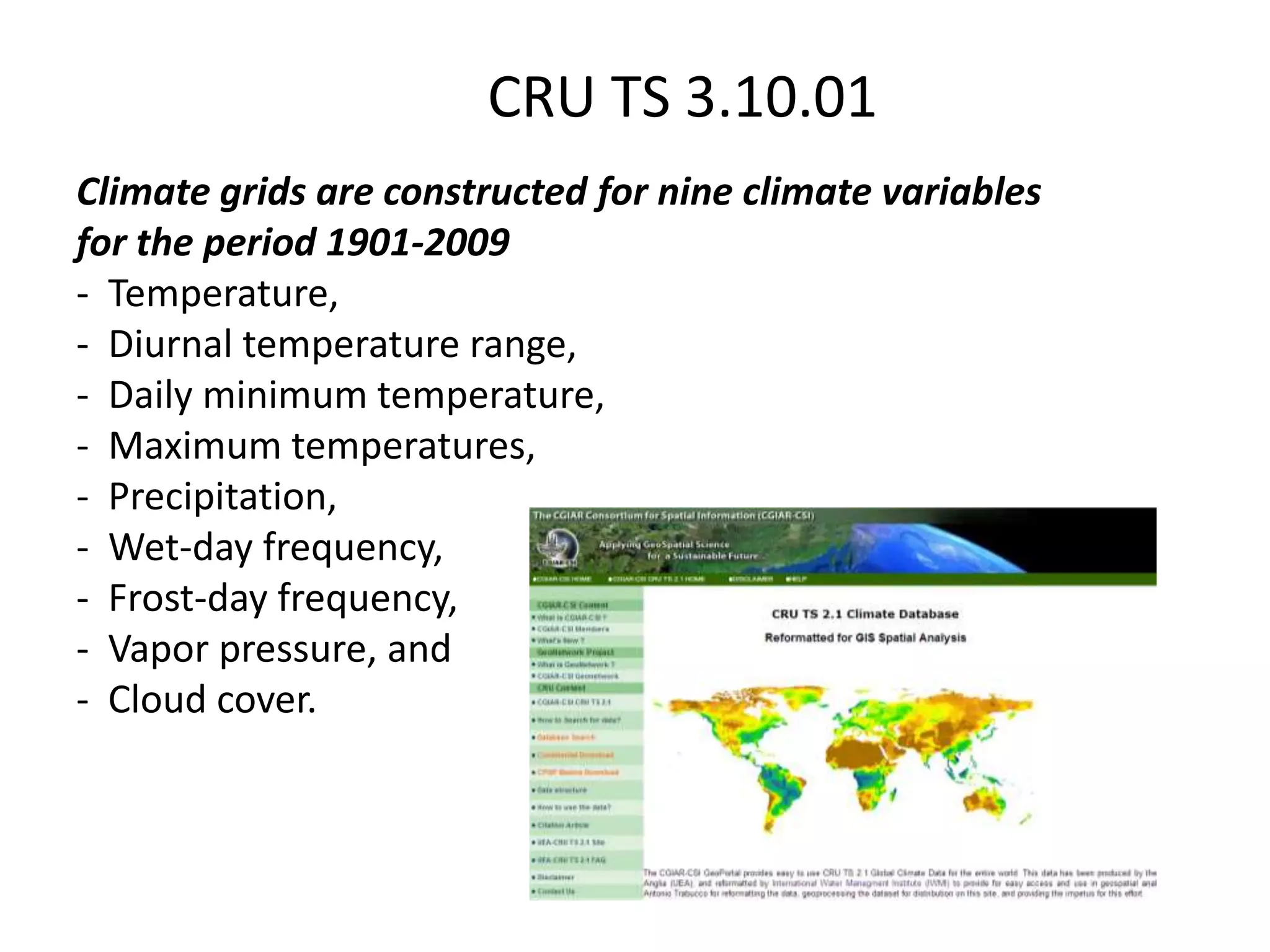

17. Climate grids are constructed for nine climate variables
for the period 1901-2009
- Temperature,
- Diurnal temperature range,
- Daily minimum temperature,
- Maximum temperatures,
- Precipitation,
- Wet-day frequency,
- Frost-day frequency,
- Vapor pressure, and
- Cloud cover.
CRU TS 3.10.01

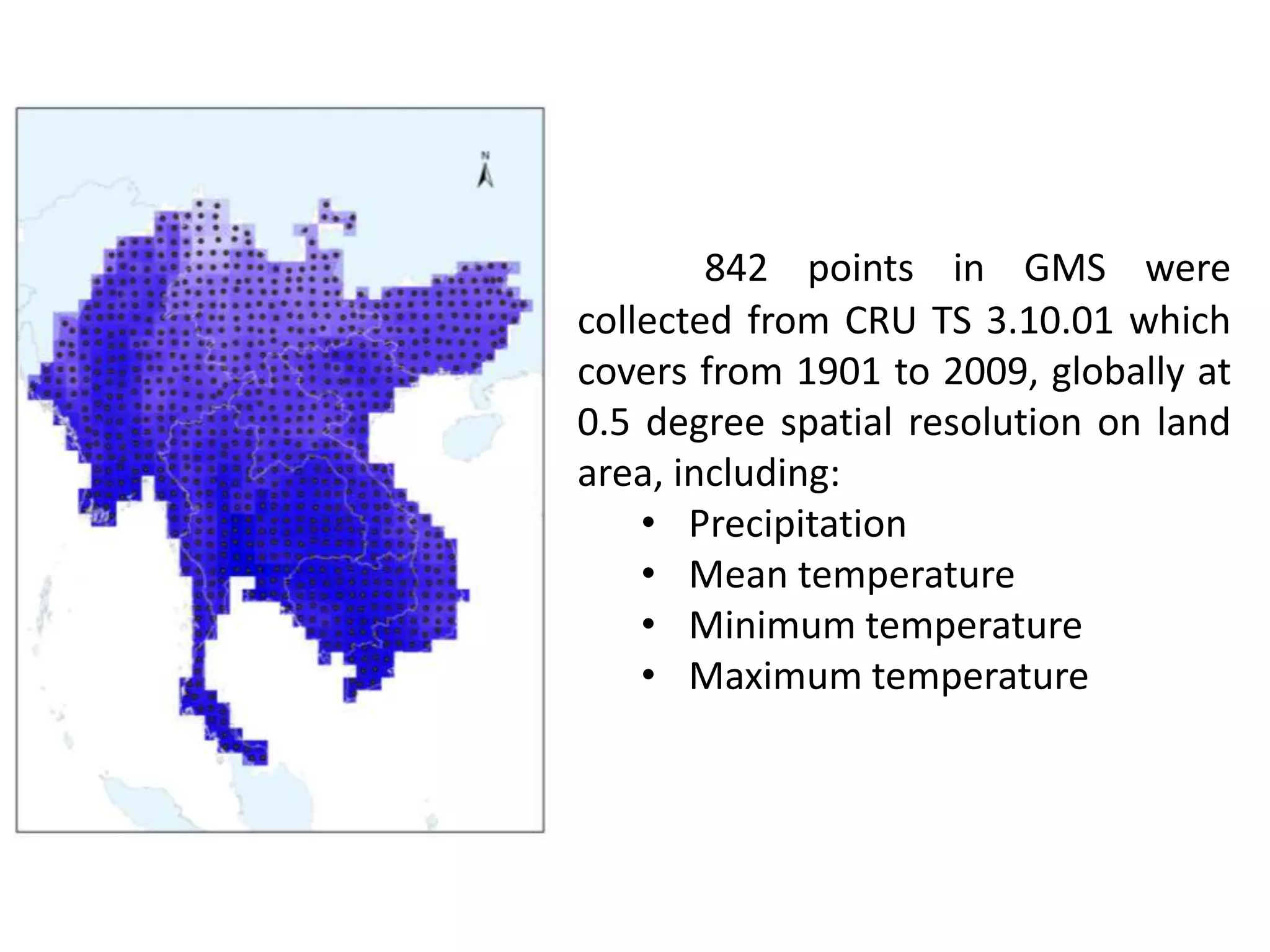

18. 842 points in GMS were
collected from CRU TS 3.10.01 which
covers from 1901 to 2009, globally at
0.5 degree spatial resolution on land
area, including:
• Precipitation
• Mean temperature
• Minimum temperature
• Maximum temperature

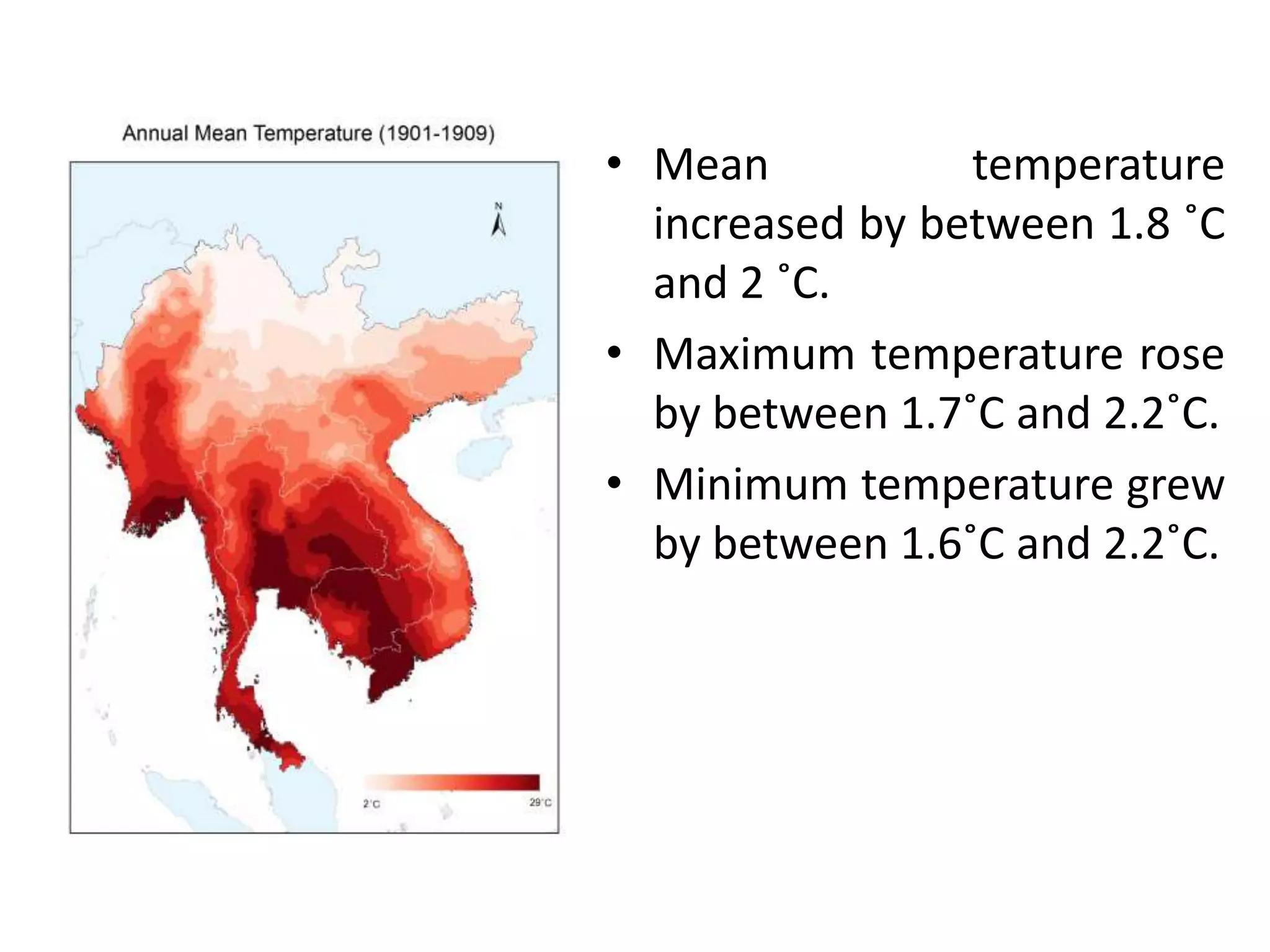

19. • Mean temperature
increased by between 1.8 ˚C
and 2 ˚C.
• Maximum temperature rose
by between 1.7˚C and 2.2˚C.
• Minimum temperature grew
by between 1.6˚C and 2.2˚C.

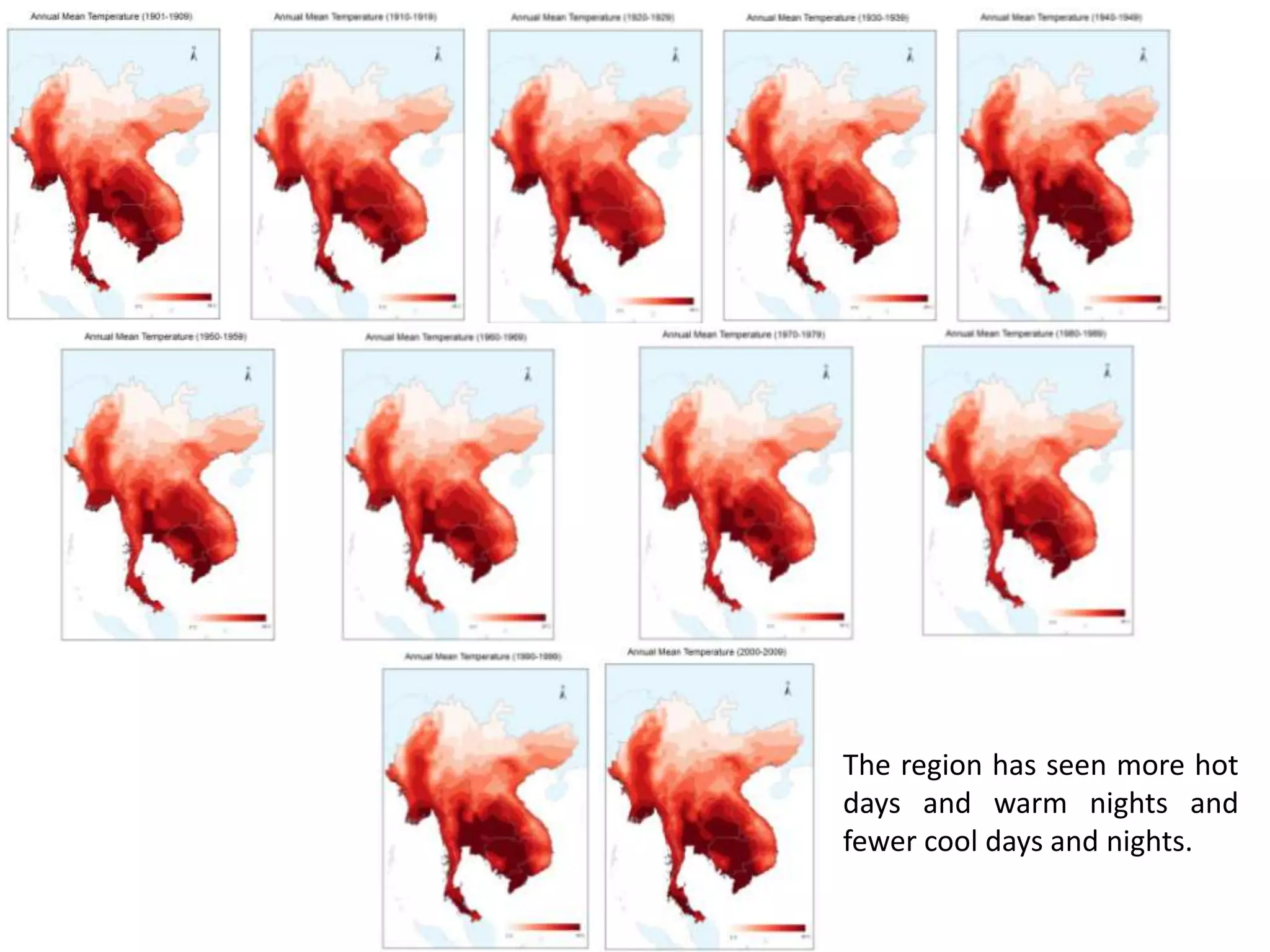

20. The region has seen more hot
days and warm nights and
fewer cool days and nights.

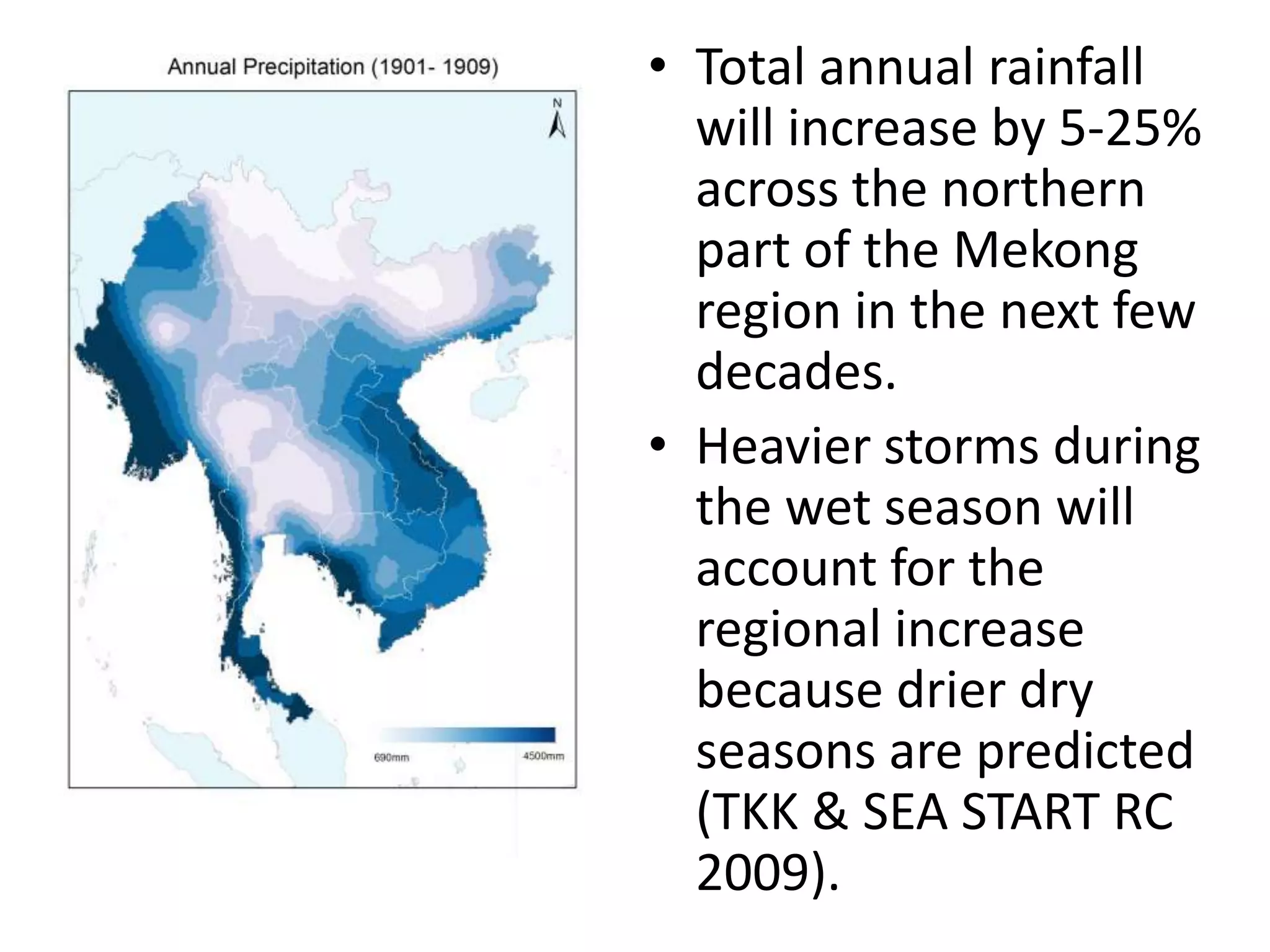

21. • Total annual rainfall
will increase by 5-25%
across the northern
part of the Mekong
region in the next few
decades.
• Heavier storms during
the wet season will
account for the
regional increase
because drier dry
seasons are predicted
(TKK & SEA START RC
2009).

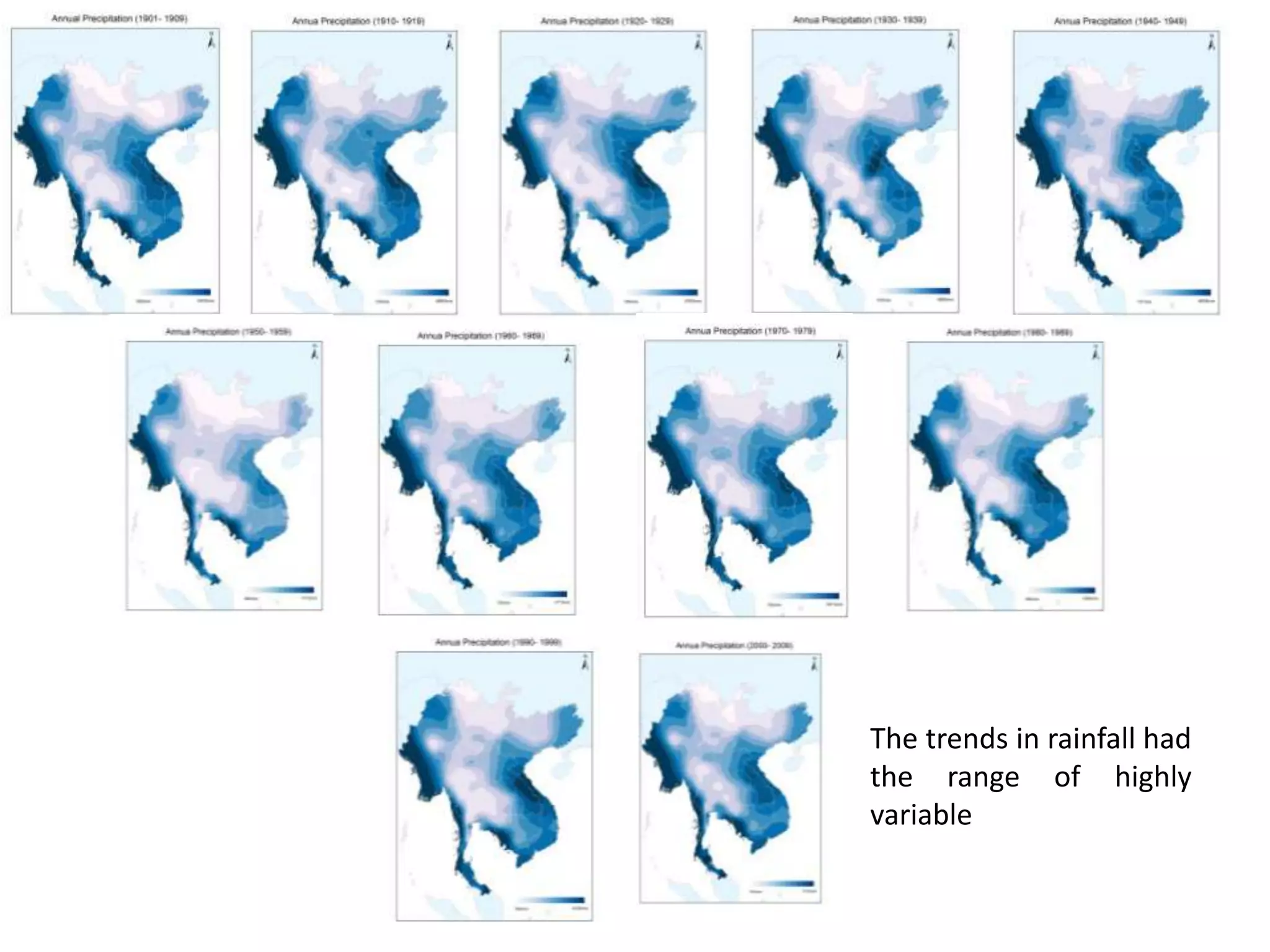

22. The trends in rainfall had
the range of highly
variable

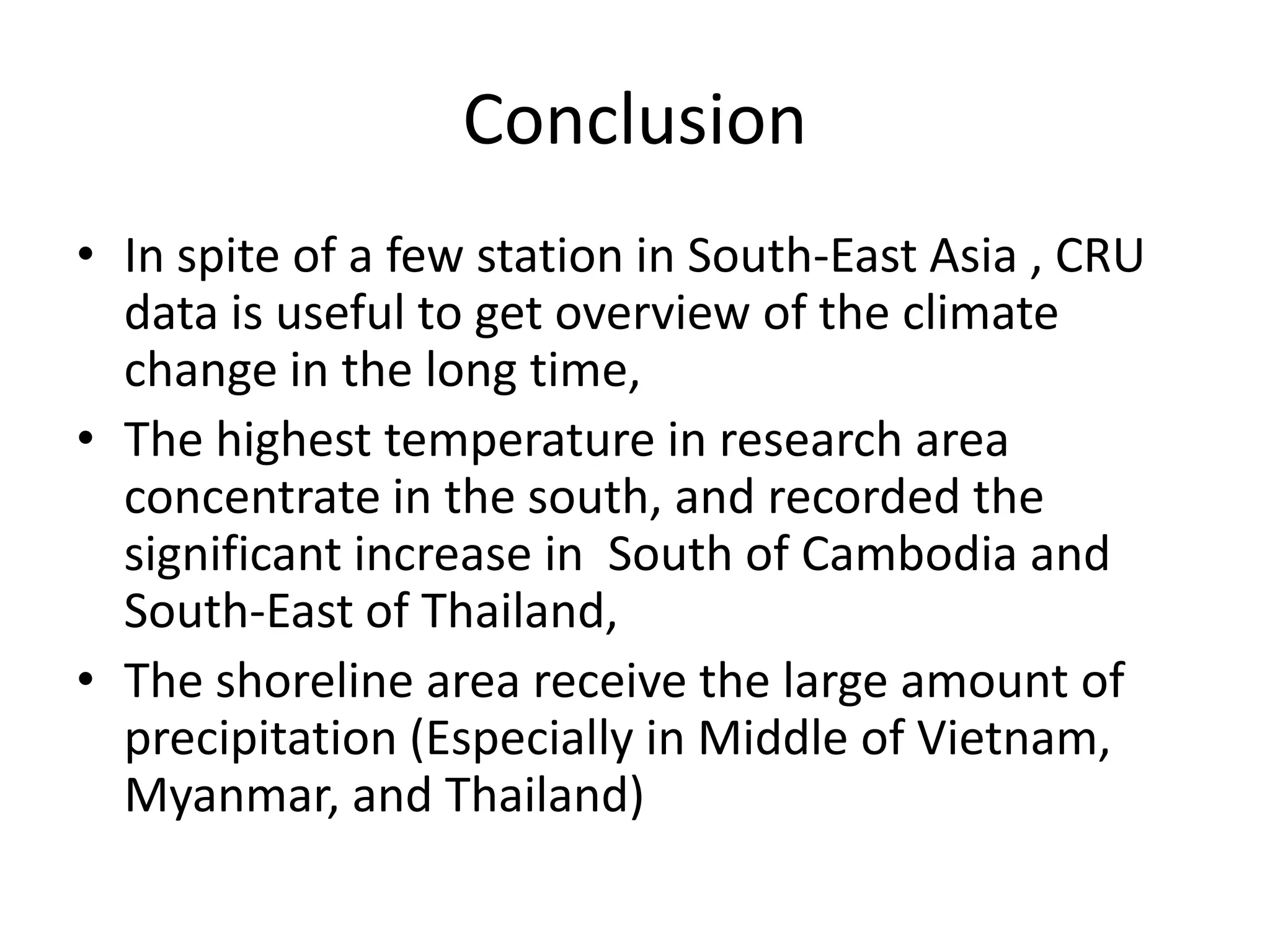

23. Conclusion
• In spite of a few station in South-East Asia , CRU
data is useful to get overview of the climate
change in the long time,
• The highest temperature in research area
concentrate in the south, and recorded the
significant increase in South of Cambodia and
South-East of Thailand,
• The shoreline area receive the large amount of
precipitation (Especially in Middle of Vietnam,
Myanmar, and Thailand)

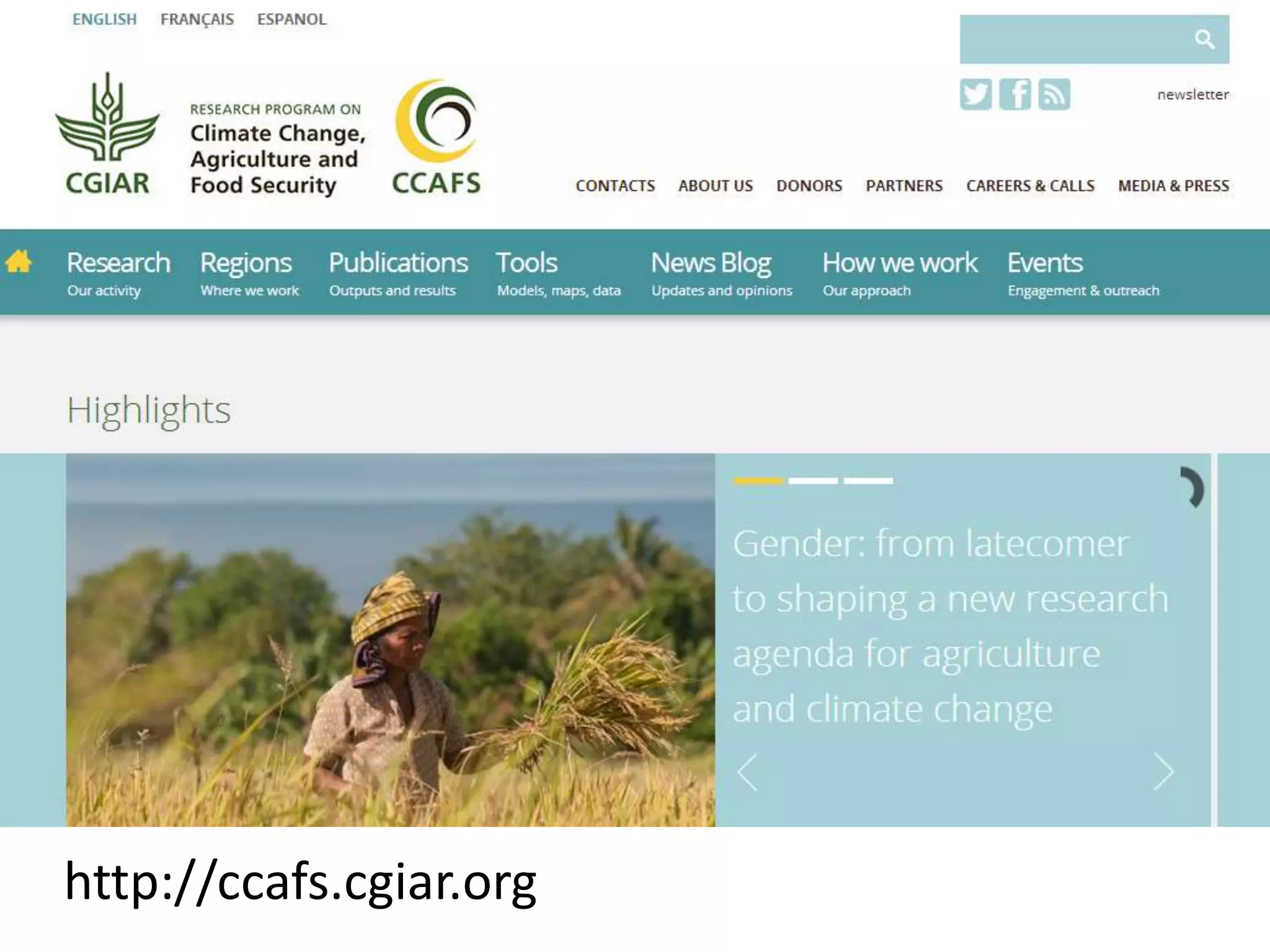

24. http://ccafs.cgiar.org

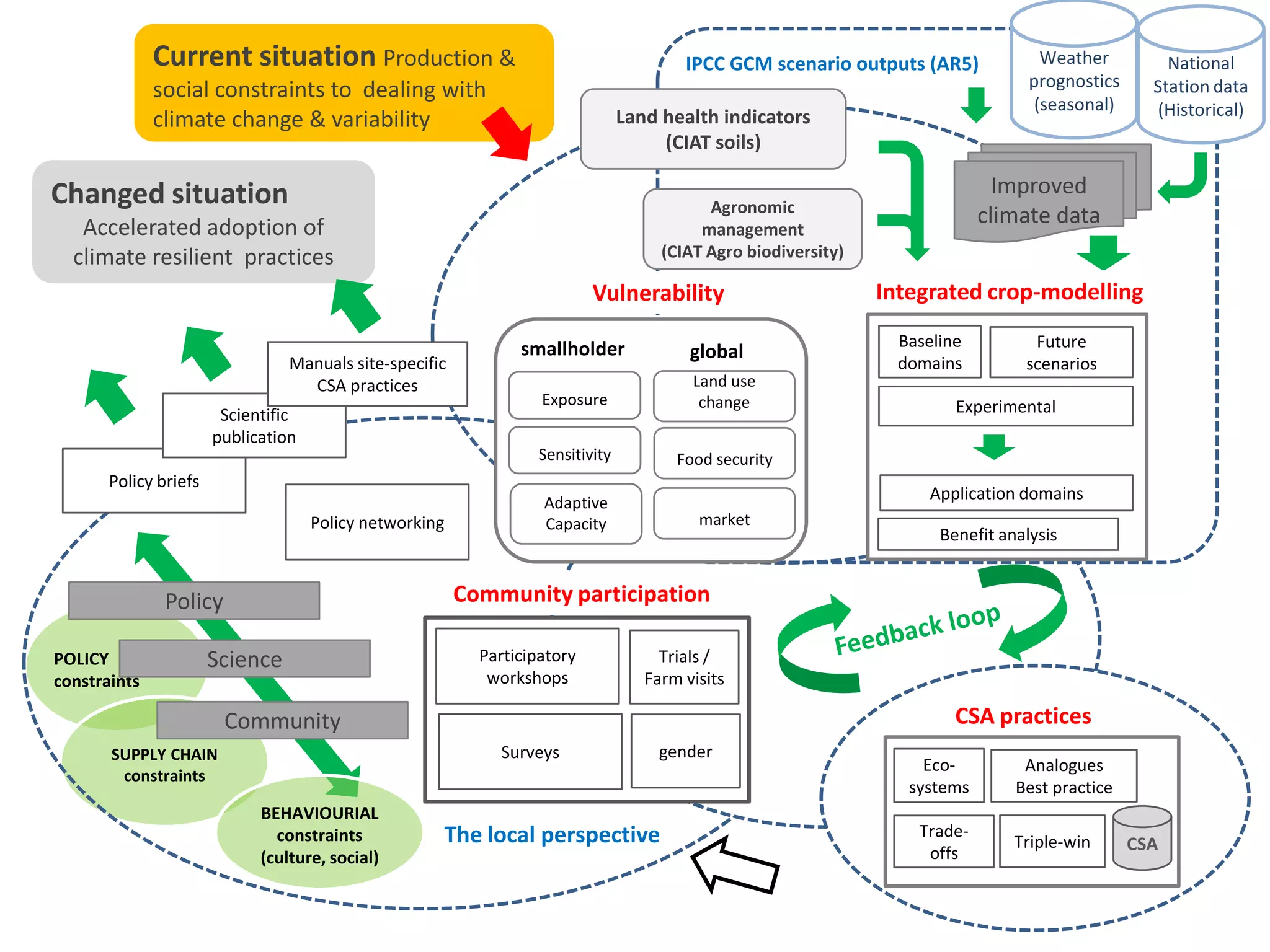

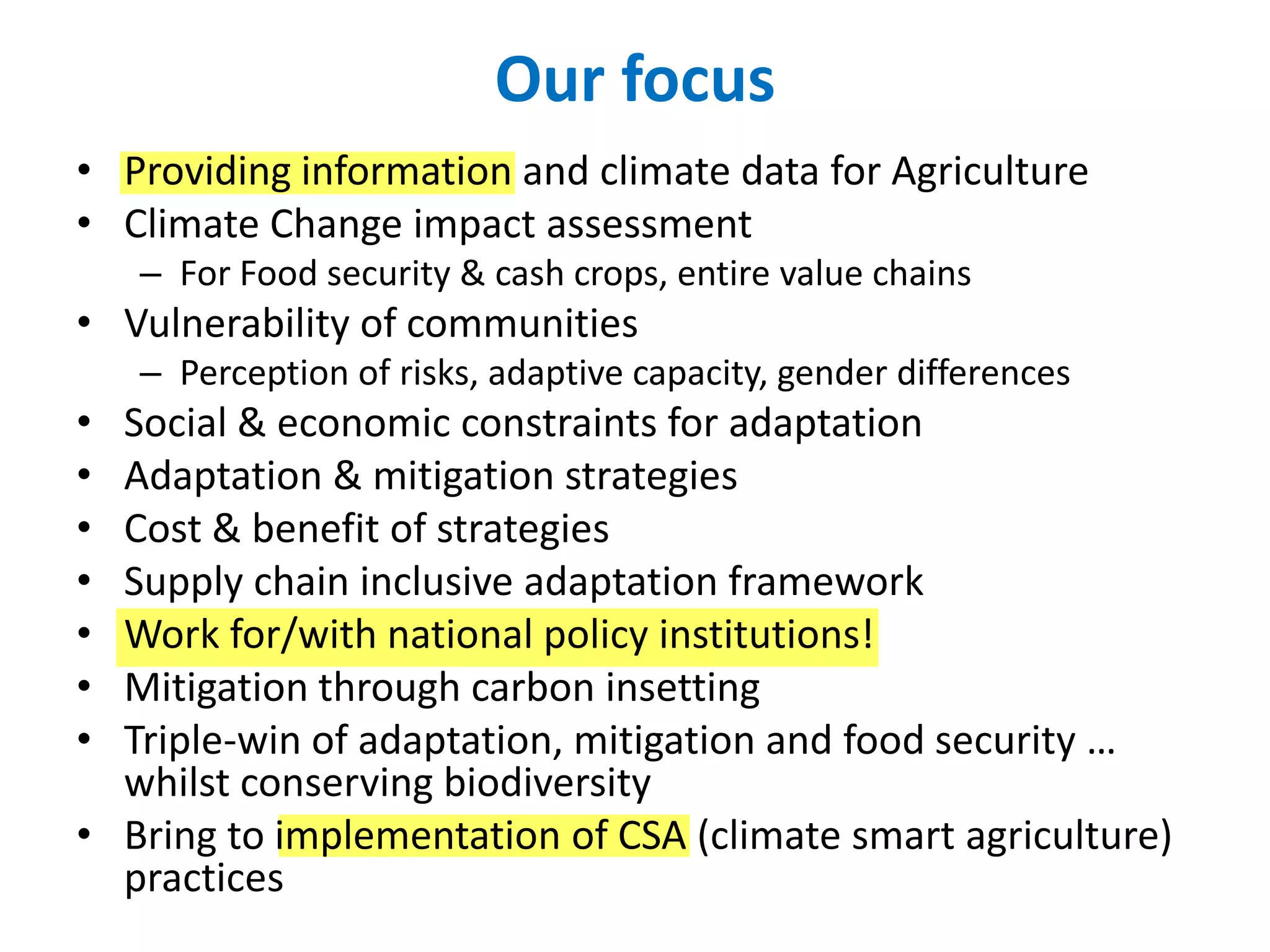

26. Our focus
• Providing information and climate data for Agriculture
• Climate Change impact assessment
– For Food security & cash crops, entire value chains
• Vulnerability of communities
– Perception of risks, adaptive capacity, gender differences
• Social & economic constraints for adaptation
• Adaptation & mitigation strategies
• Cost & benefit of strategies
• Supply chain inclusive adaptation framework
• Work for/with national policy institutions!
• Mitigation through carbon insetting
• Triple-win of adaptation, mitigation and food security …
whilst conserving biodiversity
• Bring to implementation of CSA (climate smart agriculture)
practices

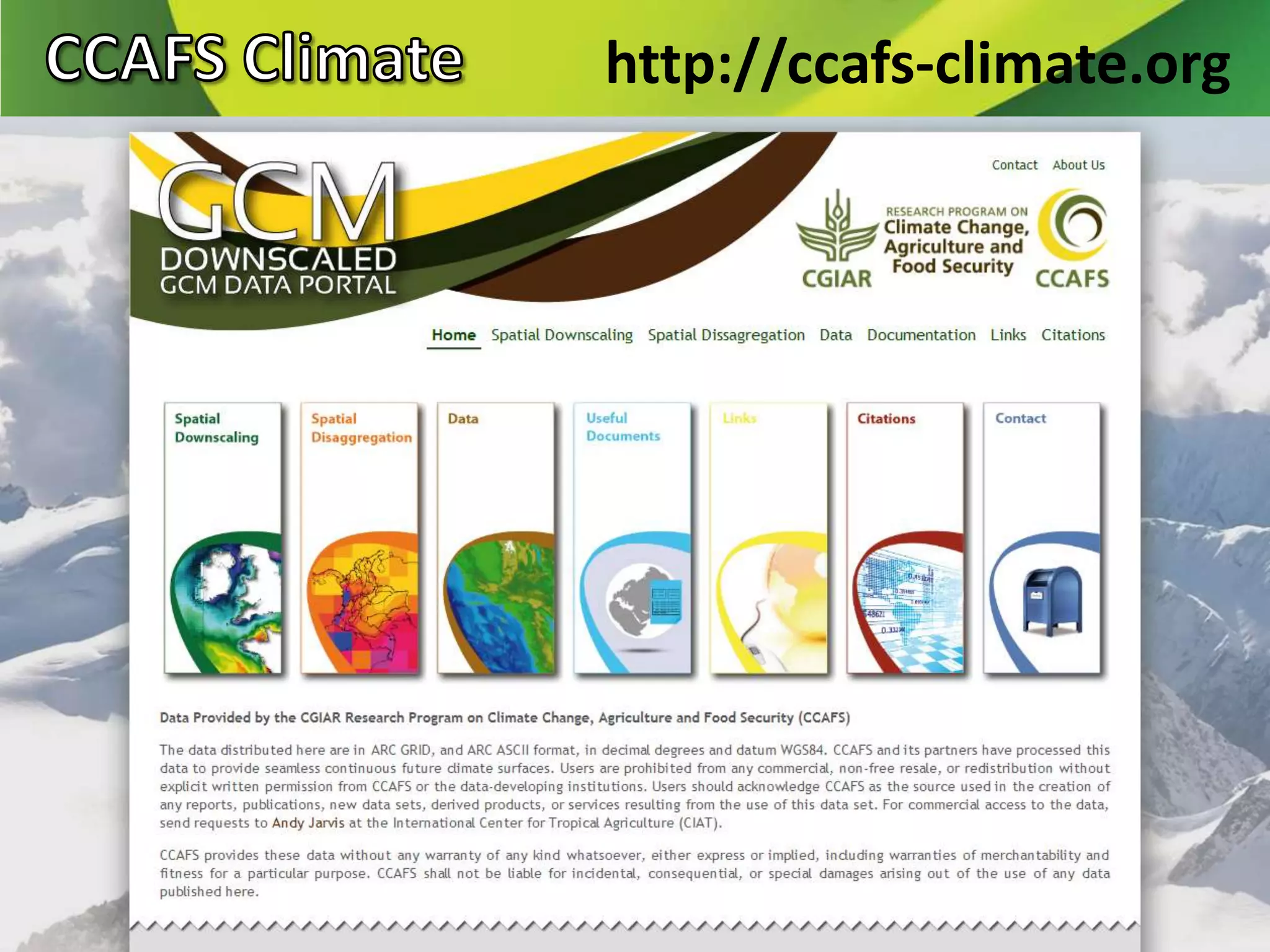

27. http://ccafs-climate.org

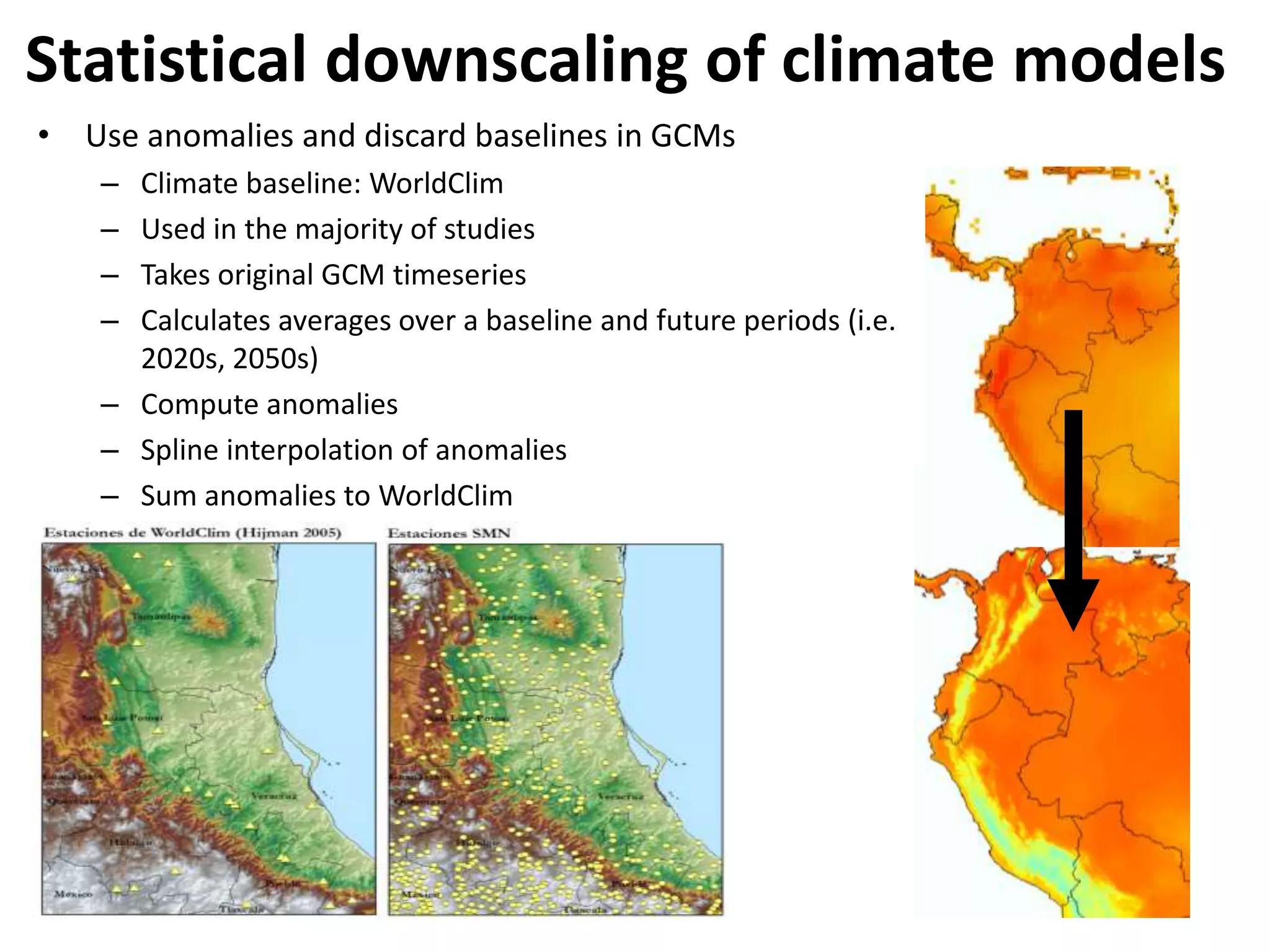

28. Statistical downscaling of climate models
• Use anomalies and discard baselines in GCMs
– Climate baseline: WorldClim
– Used in the majority of studies
– Takes original GCM timeseries
– Calculates averages over a baseline and future periods (i.e.
2020s, 2050s)
– Compute anomalies
– Spline interpolation of anomalies
– Sum anomalies to WorldClim

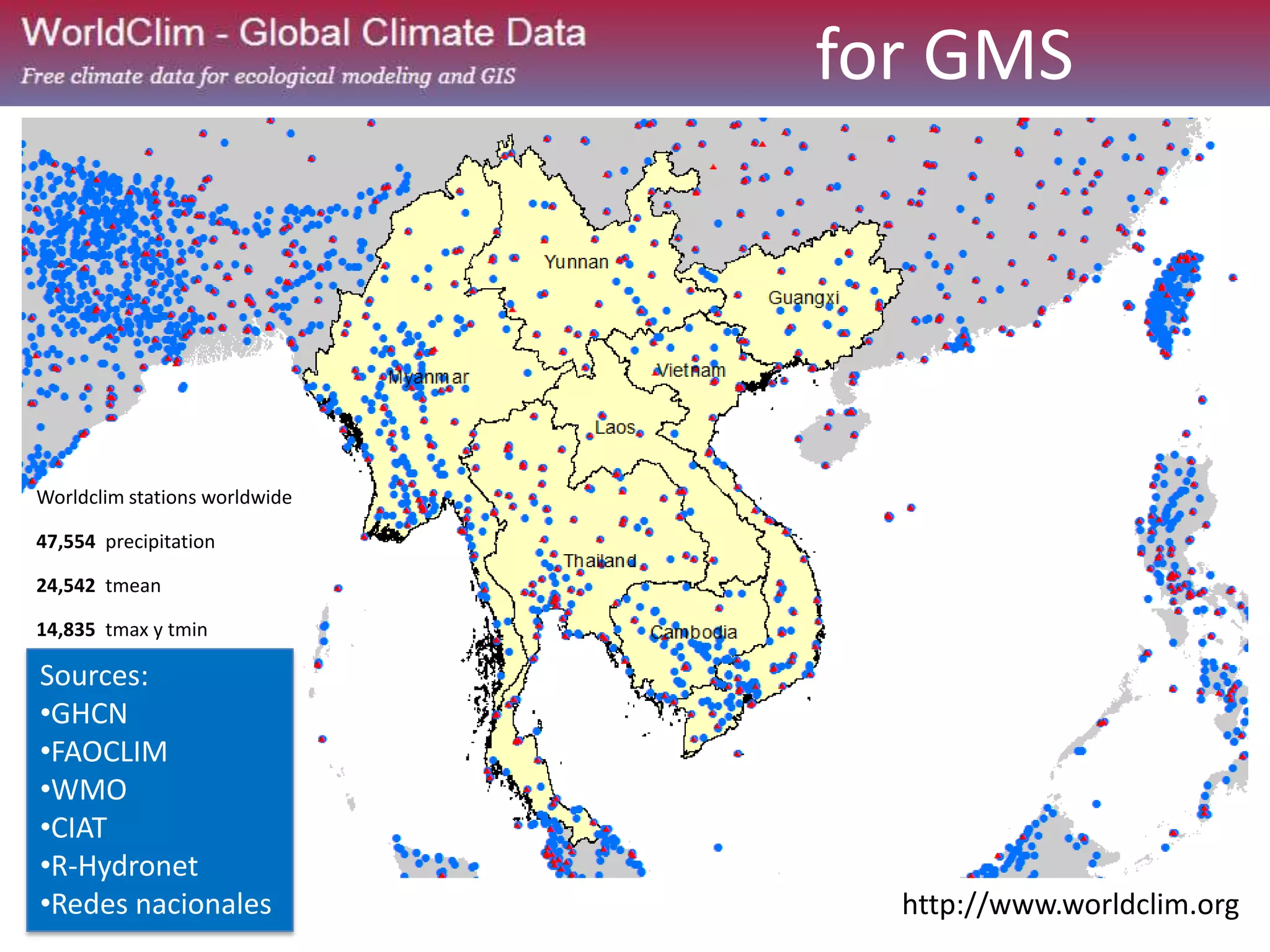

29. http://www.worldclim.org
Worldclim stations worldwide
47,554 precipitation
24,542 tmean
14,835 tmax y tmin
Sources:
•GHCN
•FAOCLIM
•WMO
•CIAT
•R-Hydronet
•Redes nacionales
for GMS

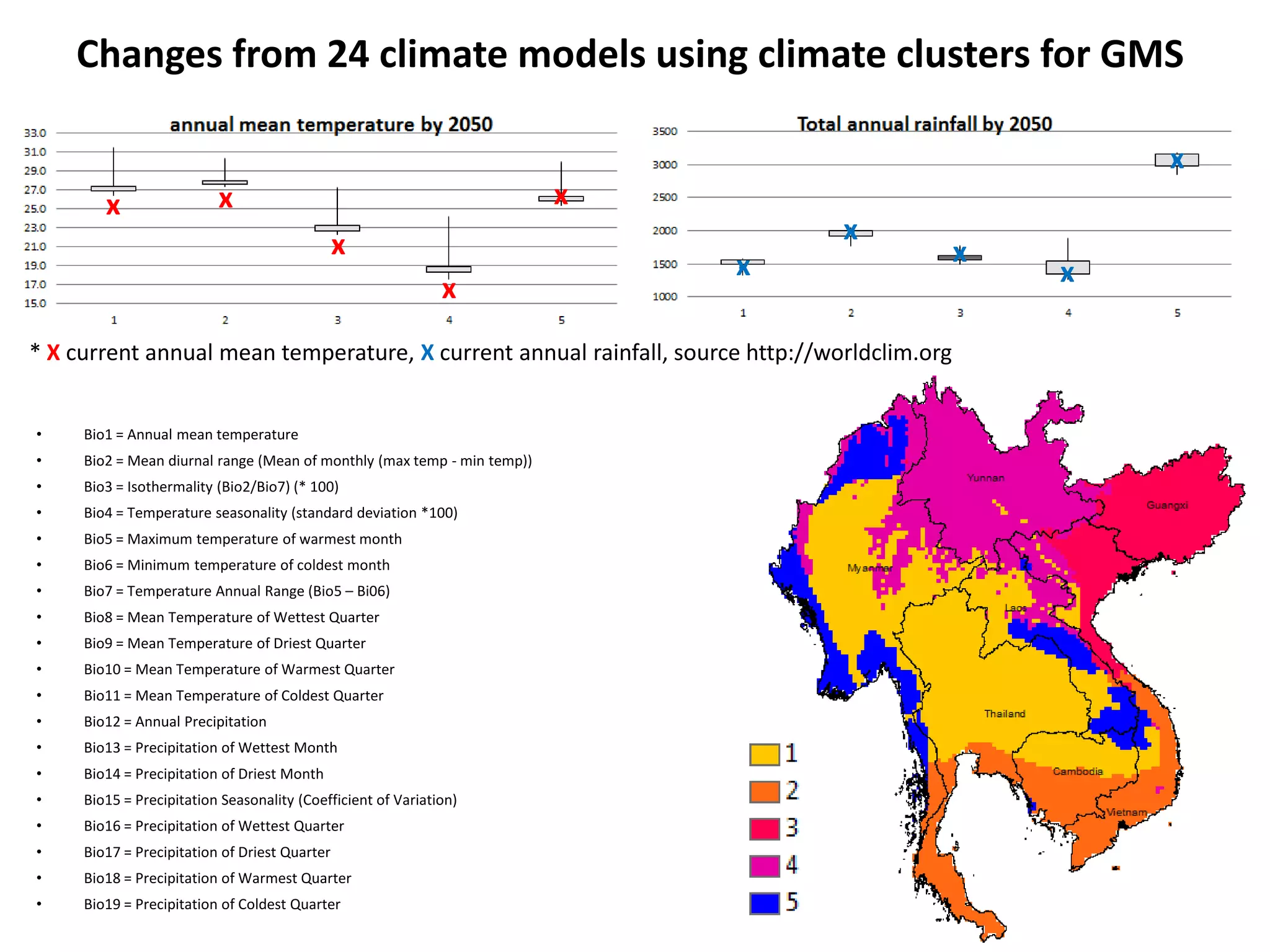

30. • Bio1 = Annual mean temperature
• Bio2 = Mean diurnal range (Mean of monthly (max temp - min temp))
• Bio3 = Isothermality (Bio2/Bio7) (* 100)
• Bio4 = Temperature seasonality (standard deviation *100)
• Bio5 = Maximum temperature of warmest month
• Bio6 = Minimum temperature of coldest month
• Bio7 = Temperature Annual Range (Bio5 – Bi06)
• Bio8 = Mean Temperature of Wettest Quarter
• Bio9 = Mean Temperature of Driest Quarter
• Bio10 = Mean Temperature of Warmest Quarter
• Bio11 = Mean Temperature of Coldest Quarter
• Bio12 = Annual Precipitation
• Bio13 = Precipitation of Wettest Month
• Bio14 = Precipitation of Driest Month
• Bio15 = Precipitation Seasonality (Coefficient of Variation)
• Bio16 = Precipitation of Wettest Quarter
• Bio17 = Precipitation of Driest Quarter
• Bio18 = Precipitation of Warmest Quarter
• Bio19 = Precipitation of Coldest Quarter
Changes from 24 climate models using climate clusters for GMS
* X current annual mean temperature, X current annual rainfall, source http://worldclim.org
x x
x
x
x
x
x
x
x
x

31. B
31
Examples of DAPA research

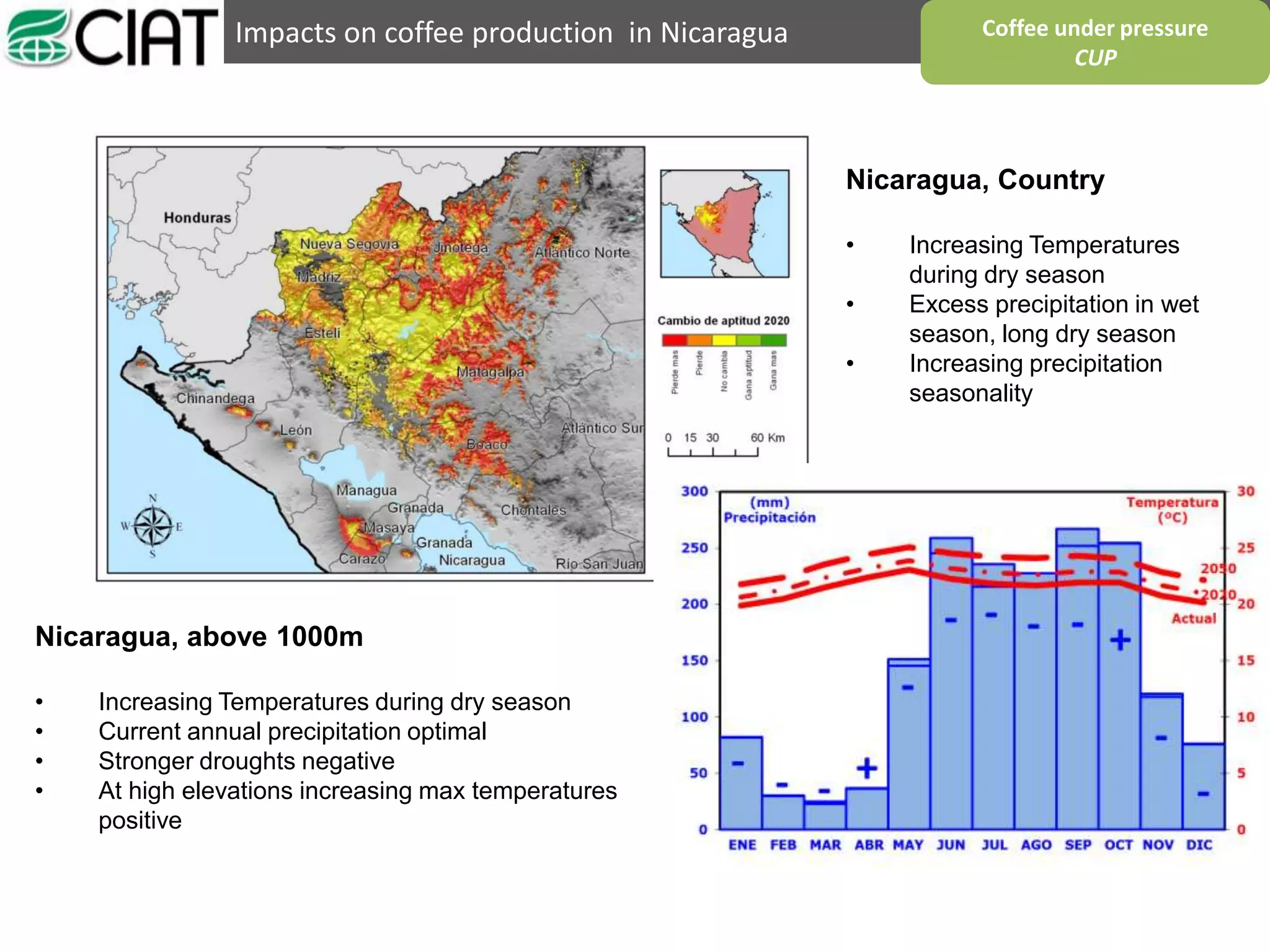

32. Impacts on coffee production in Nicaragua Coffee under pressure
CUP
Nicaragua, Country
• Increasing Temperatures
during dry season
• Excess precipitation in wet
season, long dry season
• Increasing precipitation
seasonality
Nicaragua, above 1000m
• Increasing Temperatures during dry season
• Current annual precipitation optimal
• Stronger droughts negative
• At high elevations increasing max temperatures
positive

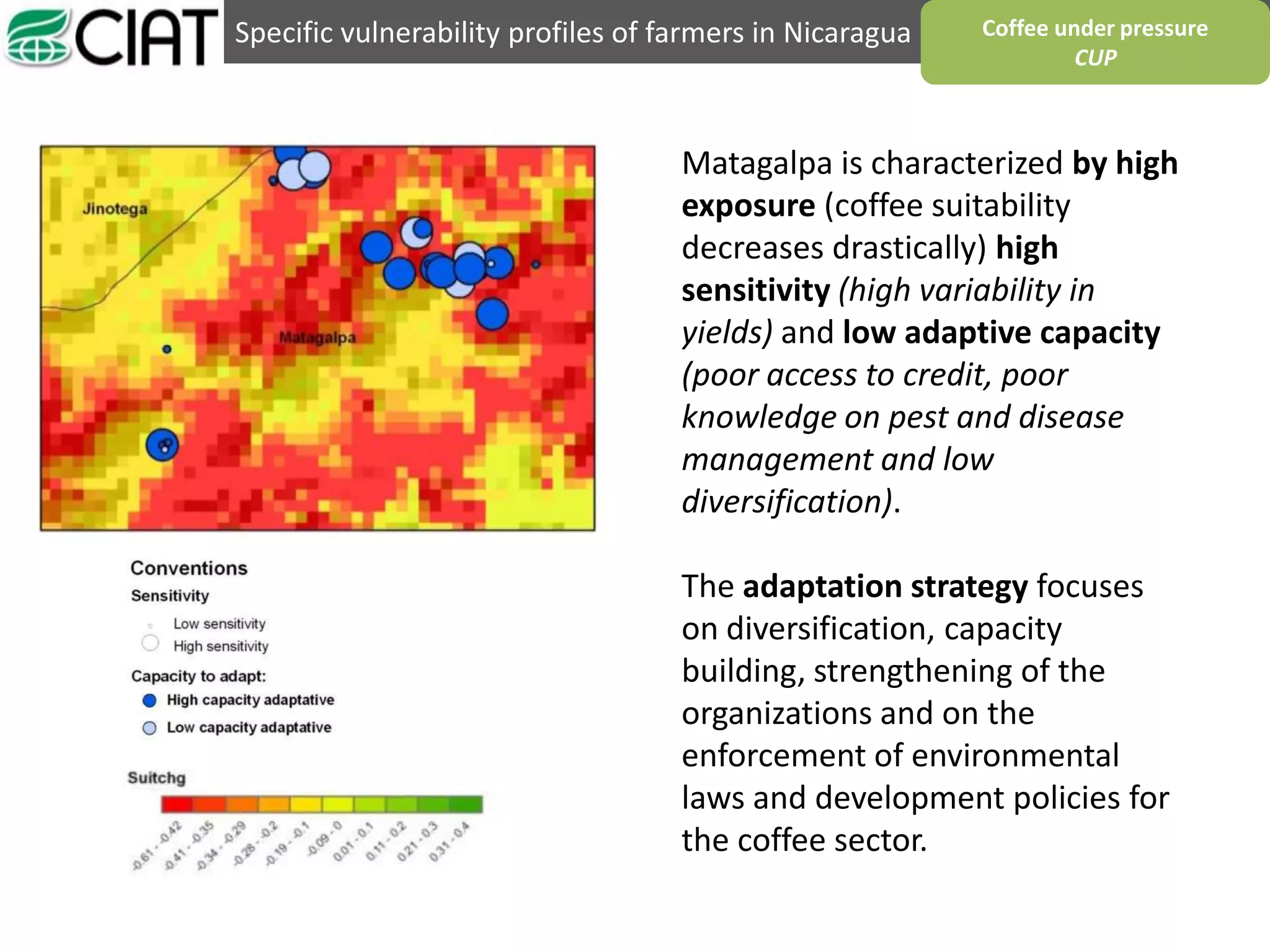

33. Specific vulnerability profiles of farmers in Nicaragua Coffee under pressure
CUP
Matagalpa is characterized by high
exposure (coffee suitability
decreases drastically) high
sensitivity (high variability in
yields) and low adaptive capacity
(poor access to credit, poor
knowledge on pest and disease
management and low
diversification).
The adaptation strategy focuses
on diversification, capacity
building, strengthening of the
organizations and on the
enforcement of environmental
laws and development policies for
the coffee sector.

34. 34

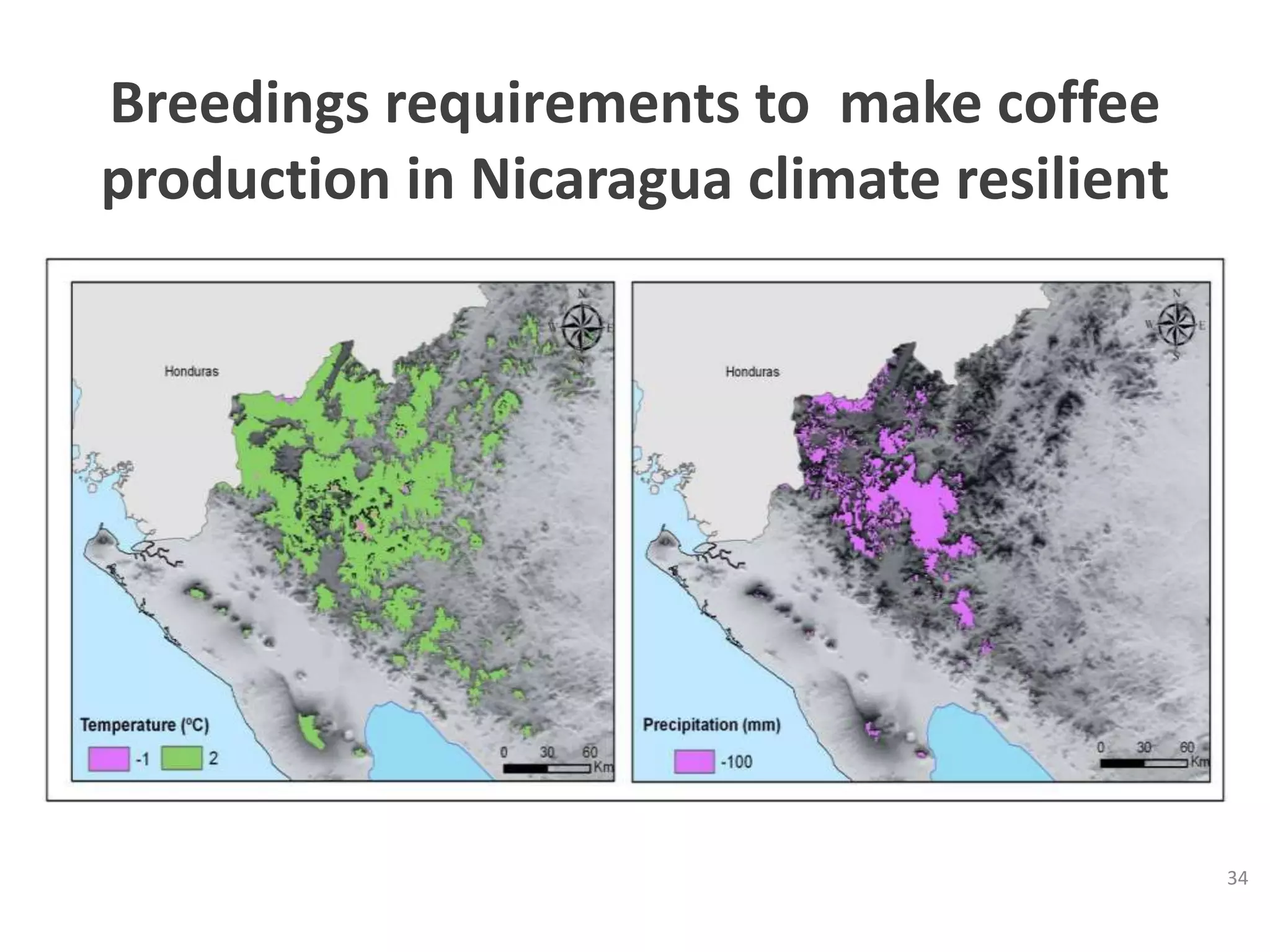

Breedings requirements to make coffee
production in Nicaragua climate resilient

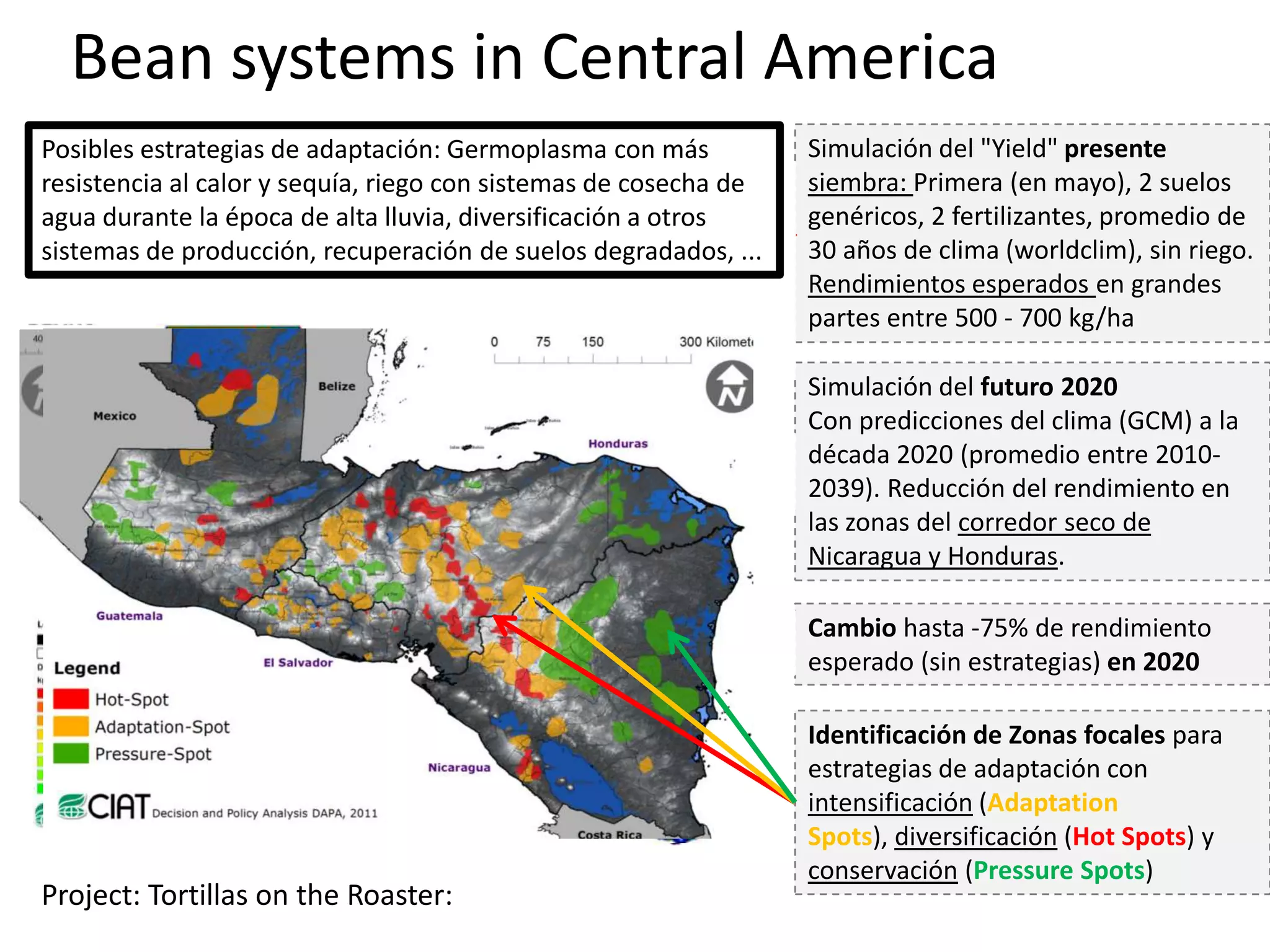

35. Simulación del "Yield" presente
siembra: Primera (en mayo), 2 suelos
genéricos, 2 fertilizantes, promedio de
30 años de clima (worldclim), sin riego.
Rendimientos esperados en grandes
partes entre 500 - 700 kg/ha
Simulación del futuro 2020
Con predicciones del clima (GCM) a la
década 2020 (promedio entre 2010-
2039). Reducción del rendimiento en
las zonas del corredor seco de
Nicaragua y Honduras.
Cambio hasta -75% de rendimiento
esperado (sin estrategias) en 2020
Zonas de alta producción
Identificación de Zonas focales para
estrategias de adaptación con
intensificación (Adaptation
Spots), diversificación (Hot Spots) y
conservación (Pressure Spots)
Posibles estrategias de adaptación: Germoplasma con más
resistencia al calor y sequía, riego con sistemas de cosecha de
agua durante la época de alta lluvia, diversificación a otros
sistemas de producción, recuperación de suelos degradados, ...
Bean systems in Central America
Project: Tortillas on the Roaster:

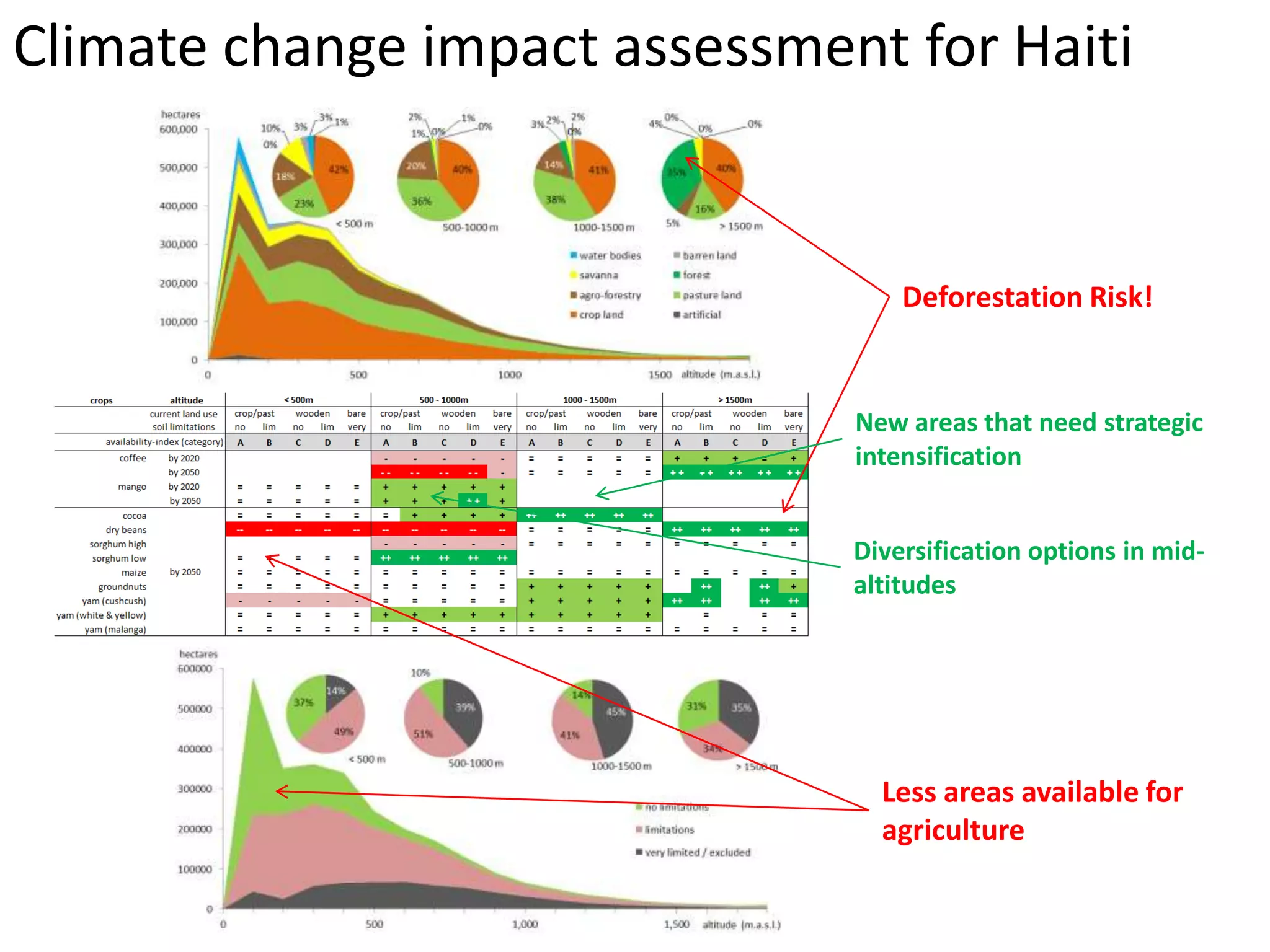

36. Deforestation Risk!
Less areas available for
agriculture
Diversification options in mid-
altitudes
Climate change impact assessment for Haiti
New areas that need strategic
intensification

37. Transformative adaptation of current production
systems to climate resilient systems in the future
When, where, how and with whom?
How can we adapt agriculture systems to unknown future conditions?

38. POLICY
constraints
SUPPLY CHAIN
constraints
IPCC GCM scenario outputs (AR5)
Changed situation
Accelerated adoption of
climate resilient practices
Current situation Production &
social constraints to dealing with
climate change & variability
Baseline
domains
Future
scenarios
Experimental
Application domains
Benefit analysis
Science
Policy
Improved
climate data
Land health indicators
(CIAT soils)
Community
Participatory
workshops
Surveys
Trials /
Farm visits
National
Station data
(Historical)
Weather
prognostics
(seasonal)
Integrated crop-modelling
Agronomic
management
(CIAT Agro biodiversity)
CSA practices
CSA
Analogues
Best practice
Triple-win
Eco-
systems
Exposure
Sensitivity
Adaptive
Capacity
The local perspective
Community participation
Trade-
offs
Land use
change
market
Vulnerability
Food security
smallholder global
gender
Policy briefs
Scientific
publication
Manuals site-specific
CSA practices
Policy networking
BEHAVIOURIAL
constraints
(culture, social)

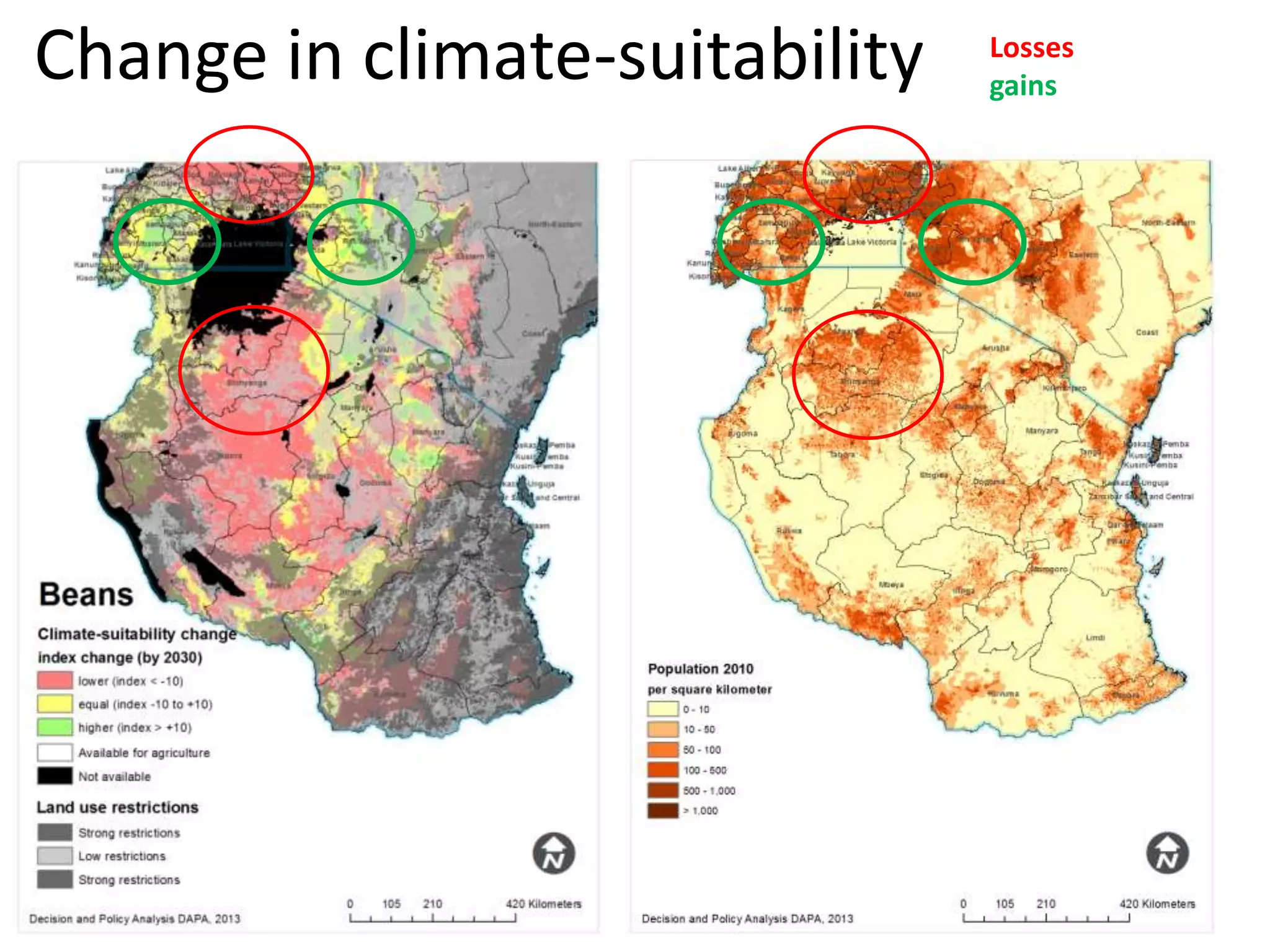

39. Change in climate-suitability Losses
gains
