1. +
Otitis media
Abdullatif Sami Al Rashed
College of Medicine, King Faisal University
Al Ahsa, KSA

2. +
ACUTE SUPPURATIVE
OTITIS MEDIA

3. +
Introduction
 more common especially in infants and children of lower
socioeconomic group.
 the disease follows viral infection of upper respiratory tract but
soon the pyogenic organisms invade the middle ear.
 Breast or bottle feeding in a young infant in horizontal position,
Swimming and diving are risk factors
 Streptococcus pneumoniae (30%), Haemophilus influenzae
(20%) and Moraxella catarrhalis

4. +

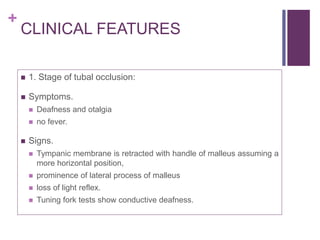

CLINICAL FEATURES
 1. Stage of tubal occlusion:
 Symptoms.
 Deafness and otalgia
 no fever.
 Signs.
 Tympanic membrane is retracted with handle of malleus assuming a
more horizontal position,
 prominence of lateral process of malleus
 loss of light reflex.
 Tuning fork tests show conductive deafness.

5. +
CLINICAL FEATURES
 2. Stage of presuppuration
 Symptoms.
 Severe otalgia affects the sleep, throbbing in nature.
 Deafness and tinnitus but complained only by adults.
 children runs high degree of fever and is restless.
 Signs.
 congestion of pars tensa.
 Leash of blood vessels appear along the handle of malleus and at the
periphery of tympanic membrane imparting it a cart-wheel appearance.
 then, whole of tympanic membrane including pars flaccida becomes
uniformly red.
 Conductive hearing loss.

6. +
CLINICAL FEATURES
 3. Stage of suppuration.
 Symptoms.
 Otalgia becomes very severe.
 Deafness increases,
 Children may run fever of 39-40 C A/W vomiting and convulsions.
 Pain disappear when there is discharge
 Signs.
 Tympanic membrane appears red and bulging with loss of landmarks.
 Handle of malleus may be engulfed by the swollen and protruding tympanic
membrane and may not be discernible.
 A yellow spot may be seen on the tympanic membrane where rupture is clear.
 Tenderness may be elicited over the mastoid antrum.
 X-rays of mastoid will show clouding of air cells because of exudate.

7. +

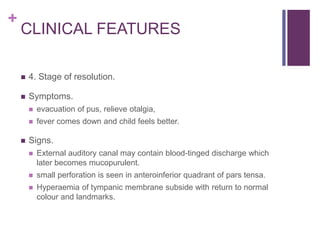

CLINICAL FEATURES
 4. Stage of resolution.
 Symptoms.
 evacuation of pus, relieve otalgia,
 fever comes down and child feels better.
 Signs.
 External auditory canal may contain blood-tinged discharge which
later becomes mucopurulent.
 small perforation is seen in anteroinferior quadrant of pars tensa.
 Hyperaemia of tympanic membrane subside with return to normal
colour and landmarks.

8. +

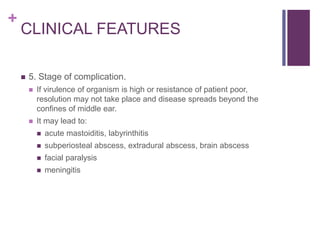

CLINICAL FEATURES
 5. Stage of complication.
 If virulence of organism is high or resistance of patient poor,
resolution may not take place and disease spreads beyond the
confines of middle ear.
 It may lead to:
 acute mastoiditis, labyrinthitis
 subperiosteal abscess, extradural abscess, brain abscess
 facial paralysis
 meningitis

9. +
TREATMENT
 Antibiotics:
 amoxicillin (40 mg/kg/day in three divided doses)
 When there is discharge we give topical antibiotic
 Decongestant nasal drops: Ephedrine
 Oral nasal decongestants: Pseudoephedrine
 Analgesics: paracetamol
 Ear toilet. If there is discharge in the ear
 Myringotomy: indicated when
 Failure of medical TTT
 drum is bulging and there is acute pain,
 persistent effusion more the an 12 weeks.

10. +
OTITIS MEDIA WITH
EFFUSION

11. +
ETIOLOGY
 Adenoid hyperplasia
 Chronic rhinitis and sinusitis
 Chronic tonsillitis
 Benign and malignant tumours of nasopharynx
 Unresolved acute otitis media
 Viral

12. +

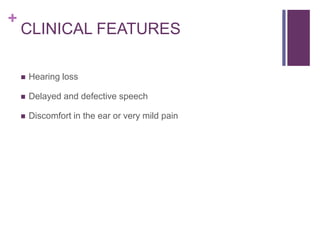

CLINICAL FEATURES
 Hearing loss
 Delayed and defective speech
 Discomfort in the ear or very mild pain

13. +

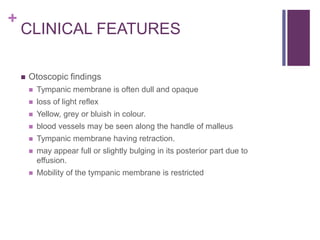

CLINICAL FEATURES
 Otoscopic findings
 Tympanic membrane is often dull and opaque
 loss of light reflex
 Yellow, grey or bluish in colour.
 blood vessels may be seen along the handle of malleus
 Tympanic membrane having retraction.
 may appear full or slightly bulging in its posterior part due to
effusion.
 Mobility of the tympanic membrane is restricted

14. +

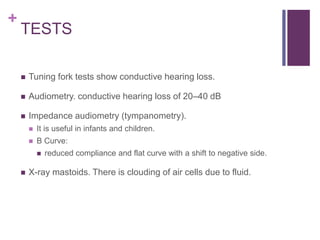

TESTS
 Tuning fork tests show conductive hearing loss.
 Audiometry. conductive hearing loss of 20–40 dB
 Impedance audiometry (tympanometry).
 It is useful in infants and children.
 B Curve:
 reduced compliance and flat curve with a shift to negative side.
 X-ray mastoids. There is clouding of air cells due to fluid.

15. +

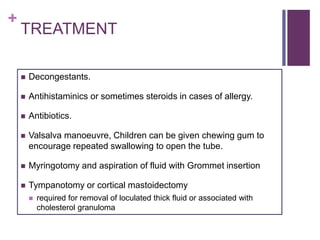

TREATMENT
 Decongestants.
 Antihistaminics or sometimes steroids in cases of allergy.
 Antibiotics.
 Valsalva manoeuvre, Children can be given chewing gum to
encourage repeated swallowing to open the tube.
 Myringotomy and aspiration of fluid with Grommet insertion
 Tympanotomy or cortical mastoidectomy
 required for removal of loculated thick fluid or associated with
cholesterol granuloma

16. +
SEQUELAE OF CHRONIC OTITIS
MEDIA with effusion
 Atrophy of tympanic membrane and atelectasis of the middle
ear.
 Ossicular necrosis
 Most commonly, long process of incus gets necrosed.
 Tympanosclerosis
 Hyalinized collagen with chalky deposits may be seen
 Retraction pockets and cholesteatoma
 Cholesterol granuloma

17. +

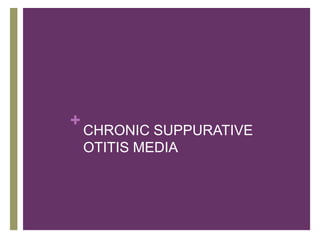

CHRONIC SUPPURATIVE
OTITIS MEDIA

18. +
TYPES
 Tubotympanic. Also called the safe or benign type. There is no
risk of serious complications.
 Atticoantral. Also called unsafe or dangerous type. risk of
serious complications is high.

20. +
TUBOTYMPANIC TYPE
 After recurrent or untreated acute OM
 Pseudomonas aeruginosa, Proteus, Escherichia coli and
Staphylococcus aureus, while anaerobes include Bacteroides
fragilis and anaerobic Streptococci

21. +

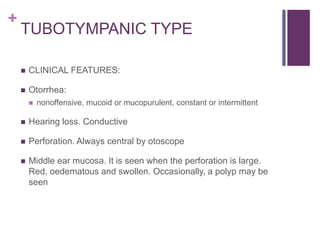

TUBOTYMPANIC TYPE
 CLINICAL FEATURES:
 Otorrhea:
 nonoffensive, mucoid or mucopurulent, constant or intermittent
 Hearing loss. Conductive
 Perforation. Always central by otoscope
 Middle ear mucosa. It is seen when the perforation is large.
Red, oedematous and swollen. Occasionally, a polyp may be
seen

22. +
TUBOTYMPANIC TYPE
 INVESTIGATIONS
 Examination under microscope
 To check presence of granulations, in-growth of squamous
epithelium from the edges of perforation, status of ossicular chain,
tympanosclerosis and adhesions
 Audiogram. Conductive mainly but SNHL can A/W
 Culture and sensitivity of ear discharge
 Mastoid X-rays/CT scan temporal bone

23. +
TUBOTYMPANIC TYPE
 TREATMENT
 Ear toilet.
 Antibiotic ear drops containing neomycin
 Systemic antibiotics. They are useful only in acute exacerbation
of CSOM
 Instructions to patients:
 keep water out of the ear during bathing, and swimming.
 Rubber inserts can be used.
 Hard nose blowing ( ‫ينفخ‬‫بخشمه‬‫بقوه‬ )can also push the infection from
nasopharynx to middle ear and should b e avoided.

24. +

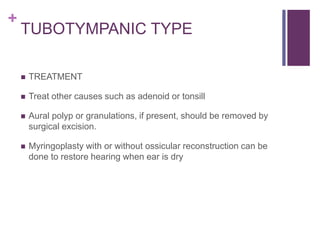

TUBOTYMPANIC TYPE
 TREATMENT
 Treat other causes such as adenoid or tonsill
 Aural polyp or granulations, if present, should be removed by
surgical excision.
 Myringoplasty with or without ossicular reconstruction can be
done to restore hearing when ear is dry

25. +
ATTICOANTRAL TYPE
 A/W:
 Cholesteatoma.
 Osteitis and granulation tissue
 Ossicular necrosis.
 Cholesterol granuloma
 SYMPTOMS
 Otorrhea; Usually scanty, but always foul-smelling due to bone
destruction.
 Hearing loss.
 Bleeding.

26. +
ATTICOANTRAL TYPE
 SIGNS
 Perforation either attic or posterosuperior marginal type
 Retraction pocket
 Cholesteatoma: Pearly-white flakes
 INVESTIGATIONS
 Examination under microscope
 Tuning fork tests and audiogram
 X-ray mastoids/CT scan temporal bone
 Culture and sensitivity of ear discharge

27. Only study the yellow color

28. +
ATTICOANTRAL TYPE
 TREATMENT: surgery is main TTT
 Mastiodectomy
 Canal wall down procedures
 Canal wall up procedures
 Hearing can be restored by myringoplasty or tympanoplasty

29. +
adhesive otitis media.
 Tympanic membrane is very thin and wraps the promontory
and ossicles.
 There is no middle ear space, mucosal lining of the middle ear
is absent and tympanic membrane gets adherent to the
promontory.
 Retraction pockets are formed which may collect keratin plugs
and form cholesteatoma.
 Erosion of the long process of incus and stapes superstructure
is common in such cases

30. +
Complications of Suppurative
Otitis Media

31. +

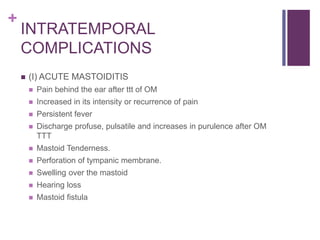

INTRATEMPORAL
COMPLICATIONS
 (I) ACUTE MASTOIDITIS
 Pain behind the ear after ttt of OM
 Increased in its intensity or recurrence of pain
 Persistent fever
 Discharge profuse, pulsatile and increases in purulence after OM
TTT
 Mastoid Tenderness.
 Perforation of tympanic membrane.
 Swelling over the mastoid
 Hearing loss
 Mastoid fistula

32. +

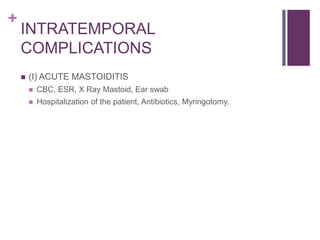

INTRATEMPORAL
COMPLICATIONS
 (I) ACUTE MASTOIDITIS
 CBC, ESR, X Ray Mastoid, Ear swab
 Hospitalization of the patient, Antibiotics, Myringotomy.

35. +
INTRATEMPORAL
COMPLICATIONS
 2. Gradenigo syndrome
 triad of
 (i) external rectus palsy (VIth nerve palsy),
 (ii) deep-seated ear or retro-orbital pain (Vth nerve involvement)
 and (iii) persistent ear discharge
 CT scan and MRI For Dx.
 CT scan of temporal bone will show bony details of the petrous apex
and the air cells
 MRI helps to differentiate diploic marrow-containing apex from the
fluid or pus.
 TTT  Cortical, modified radical or radical mastoidectomy

36. +
INTRATEMPORAL
COMPLICATIONS
 3. FACIAL PARALYSIS
 Both OM and Facial palsy must be treated
 Nerve decompression + OM TTT
 4. LABYRINTHITIS
 Fistula of labyrinth TTT  mastoid exploration to eliminate the
cause + Systemic antibiotic
 Diffuse Serous Labyrinthitis and Diffuse suppurative
Labyrinthitis TTT  same SNHL lecture + OM TTT

37. +

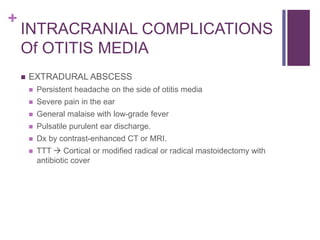

INTRACRANIAL COMPLICATIONS
Of OTITIS MEDIA
 EXTRADURAL ABSCESS
 Persistent headache on the side of otitis media
 Severe pain in the ear
 General malaise with low-grade fever
 Pulsatile purulent ear discharge.
 Dx by contrast-enhanced CT or MRI.
 TTT  Cortical or modified radical or radical mastoidectomy with
antibiotic cover

38. +
INTRACRANIAL COMPLICATIONS
Of OTITIS MEDIA
 SUBDURAL ABSCESS
 Meningeal irritation symptoms
 Aphasia, hemiplegia and hemianopia.
 Jacksonian type of epileptic fits
 Raised intracranial tension Symptoms and signs
 Lumbar puncture should not be done as it can cause herniation of
the cerebellar tonsils.
 TTT  A series of burr holes or a craniotomy is done to drain
subdural empyema. Intravenous antibiotics are administered to
control infection then AFTER THAT MASTIODECTOMY

39. +
INTRACRANIAL COMPLICATIONS
Of OTITIS MEDIA
 MENINGITIS
 Fever, chills and rigors.
 Headache.
 Neck rigidity.
 Photophobia and mental irritability.
 Nausea and vomiting (sometimes projectile).
 positive Kernig’s Sign (extension of leg with thigh flexed on
abdomen causing pain)
 positive Brudzinski’s sign (flexion of neck causes flexion of hip and
knee)
 CT with contrast or MRI and LP for Dx
 TTT  antibiotics + OM TTT (Mastoidectomy)

40. +

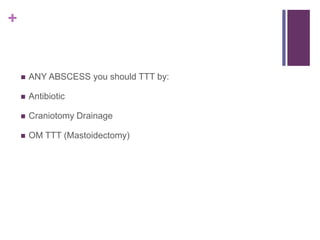

 ANY ABSCESS you should TTT by:
 Antibiotic
 Craniotomy Drainage
 OM TTT (Mastoidectomy)

41. THANK YOU
