3. OSPF Protocol Introduction
OSPF (open shortest path first) is an IGP (interior gateway protocol)
routing protocol and it is based on link state algorithm.
OSPF runs on IP layer directly and the value of IP protocol field is 89
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page2
OSPF Packet Types
OSPF Protocol
Header
Frame
Checksu
m
OSPF Protocol
Packet
IP Packet
Header
Link
Layer
Header
IP protocol value is 89

4. OSPF Basic Features
Supporting classless inter-domain routing (CIDR)
Dividing the whole routing domain into different areas
Loop-free
Fast route update and convergence
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page3
Fast route update and convergence
Using IP multicast address to send and receive protocol
message
Supporting ECMP (equal cost multi-path)
Supporting authentication

5. OSPF Multiple Areas
Area 0
Area 1
Area 4
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page4
Area 2
Area 3
Area 0 is backbone area,
all the ABRs have one
interface belongs to Area
0 at least.

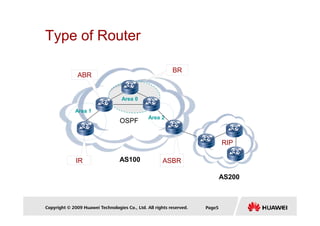

6. Type of Router
ABR
BR
Area 0
Area 1
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page5
IR ASBR
Area 1
Area 2
AS100
AS200
OSPF
RIP

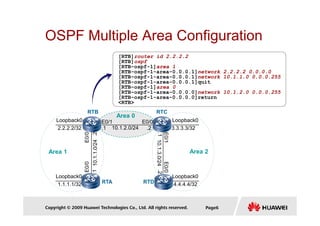

7. OSPF Multiple Area Configuration
Area 0
RTC
RTB
[RTB]router id 2.2.2.2
[RTB]ospf
[RTB-ospf-1]area 1
[RTB-ospf-1-area-0.0.0.1]network 2.2.2.2 0.0.0.0
[RTB-ospf-1-area-0.0.0.1]network 10.1.1.0 0.0.0.255
[RTB-ospf-1-area-0.0.0.1]quit
[RTB-ospf-1]area 0
[RTB-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
[RTB-ospf-1-area-0.0.0.0]return
<RTB>
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page6
Area 0
Area 1 Area 2
RTA
Loopback0
RTC
RTD
2.2.2.2/32
Loopback0
1.1.1.1/32
RTB
E0/0
10.1.1.0/24
E0/0
.2
.1
Loopback0
3.3.3.3/32
Loopback0
4.4.4.4/32
E0/1
10.1.2.0/24
.1 .2
E0/0
E0/1
E0/0
10.1.3.0/24
.1
.2

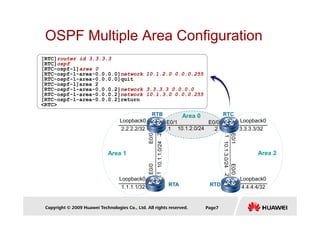

8. OSPF Multiple Area Configuration
Area 0 RTC
RTB
[RTC]router id 3.3.3.3
[RTC]ospf
[RTC-ospf-1]area 0
[RTC-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
[RTC-ospf-1-area-0.0.0.0]quit
[RTC-ospf-1]area 2
[RTC-ospf-1-area-0.0.0.2]network 3.3.3.3 0.0.0.0
[RTC-ospf-1-area-0.0.0.2]network 10.1.3.0 0.0.0.255
[RTC-ospf-1-area-0.0.0.2]return
<RTC>
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page7
Area 0
Area 1 Area 2
RTA
Loopback0
RTC
RTD
2.2.2.2/32
Loopback0
1.1.1.1/32
RTB
E0/0
10.1.1.0/24
E0/0
.2
.1
Loopback0
3.3.3.3/32
Loopback0
4.4.4.4/32
E0/1
10.1.2.0/24
.1 .2
E0/0
E0/1
E0/0
10.1.3.0/24
.1
.2

9. OSPF Multiple Area Configuration
Area 0
Area 1 Area 2
Loopback0
RTC
2.2.2.2/32
RTB
10.1.1.0/24
E0/0
.2
Loopback0
3.3.3.3/32
E0/1
10.1.2.0/24
.1 .2
E0/0
E0/1
10.1.3.0/24
.1
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page8
RTA RTD
Loopback0
1.1.1.1/32
E0/0
10.1.1.0/24
.1
Loopback0
4.4.4.4/32
E0/0
10.1.3.0/24
.2
[RTD]router id 4.4.4.4
[RTD]ospf
[RTD-ospf-1]area 2
[RTD-ospf-1-area-0.0.0.2]network 4.4.4.4 0.0.0.0
[RTD-ospf-1-area-0.0.0.2]network 10.1.3.0 0.0.0.255
[RTD-ospf-1-area-0.0.0.2]return
<RTD>

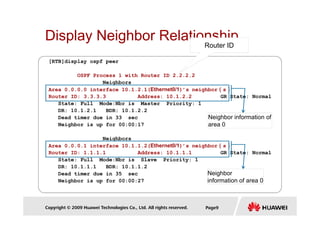

10. Display Neighbor Relationship
[RTB]display ospf peer
OSPF Process 1 with Router ID 2.2.2.2
Neighbors
Area 0.0.0.0 interface 10.1.2.1(Ethernet0/1)’s neighbor（
（
（
（s）
）
）
）
Router ID: 3.3.3.3 Address: 10.1.2.2 GR State: Normal
State: Full Mode:Nbr is Master Priority: 1
DR: 10.1.2.1 BDR: 10.1.2.2
Router ID
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page9
DR: 10.1.2.1 BDR: 10.1.2.2
Dead timer due in 33 sec
Neighbor is up for 00:00:17
Neighbors
Area 0.0.0.1 interface 10.1.1.2(Ethernet0/1)’s neighbor（
（
（
（s）
）
）
）
Router ID: 1.1.1.1 Address: 10.1.1.1 GR State: Normal
State: Full Mode:Nbr is Slave Priority: 1
DR: 10.1.1.1 BDR: 10.1.1.2
Dead timer due in 35 sec
Neighbor is up for 00:00:27
Neighbor information of
area 0
Neighbor
information of area 0

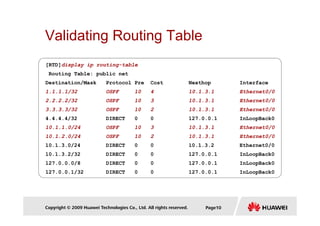

11. Validating Routing Table
[RTD]display ip routing-table
Routing Table: public net
Destination/Mask Protocol Pre Cost Nexthop Interface
1.1.1.1/32 OSPF 10 4 10.1.3.1 Ethernet0/0
2.2.2.2/32 OSPF 10 3 10.1.3.1 Ethernet0/0
3.3.3.3/32 OSPF 10 2 10.1.3.1 Ethernet0/0
Copyright © 2009 Huawei Technologies Co., Ltd. All rights reserved. Page10
4.4.4.4/32 DIRECT 0 0 127.0.0.1 InLoopBack0
10.1.1.0/24 OSPF 10 3 10.1.3.1 Ethernet0/0
10.1.2.0/24 OSPF 10 2 10.1.3.1 Ethernet0/0
10.1.3.0/24 DIRECT 0 0 10.1.3.2 Ethernet0/0
10.1.3.2/32 DIRECT 0 0 127.0.0.1 InLoopBack0
127.0.0.0/8 DIRECT 0 0 127.0.0.1 InLoopBack0
127.0.0.1/32 DIRECT 0 0 127.0.0.1 InLoopBack0
