OSGi Blueprint Services




                     Blueprint Services

                          DI brought to OSGi


                             Guillaume Nodet
OSGi Blueprint Services

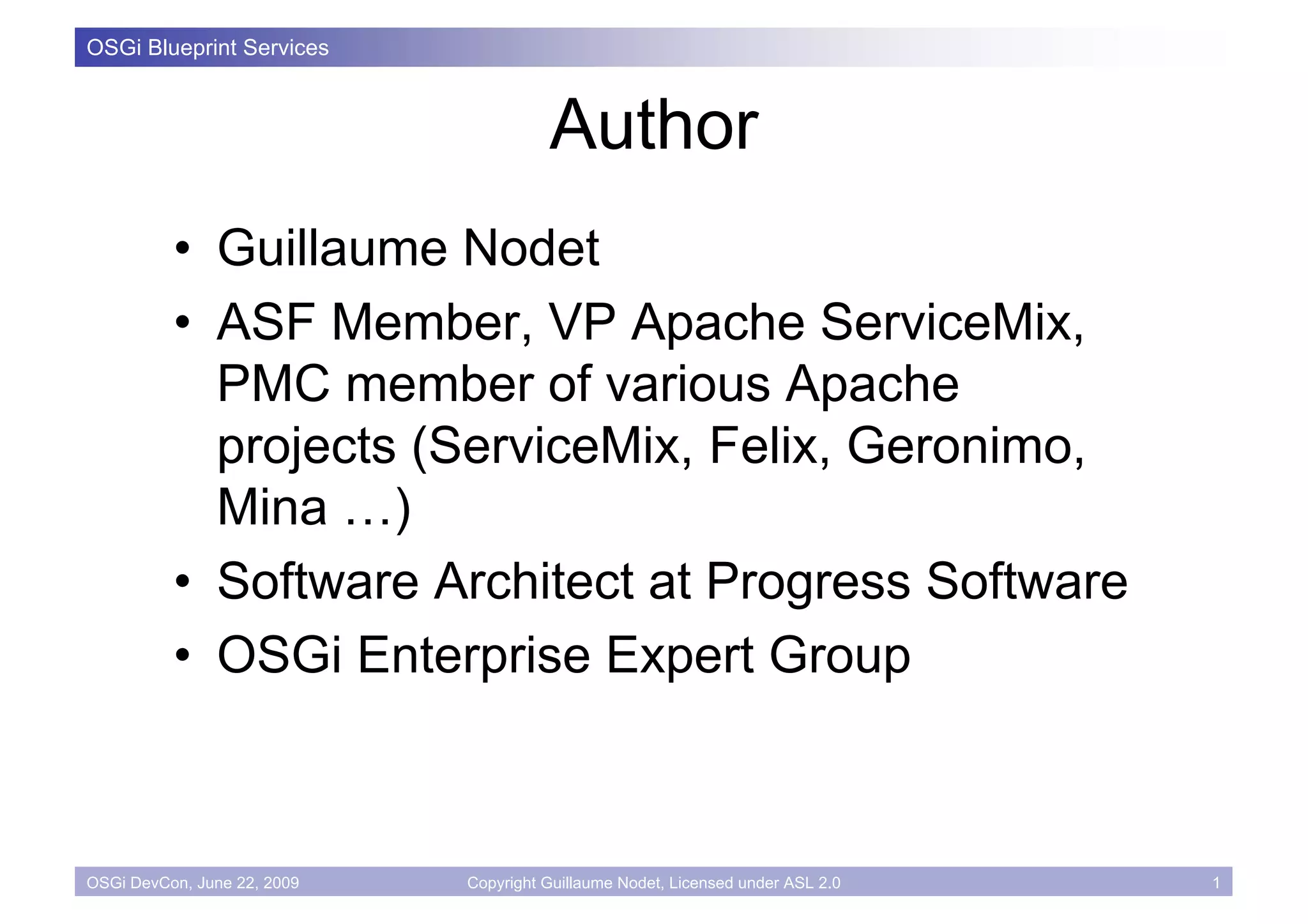

                                       Author
          • Guillaume Nodet
          • ASF Member, VP Apache ServiceMix,
            PMC member of various Apache
            projects (ServiceMix, Felix, Geronimo,
            Mina …)
          • Software Architect at Progress Software
          • OSGi Enterprise Expert Group



OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   1
OSGi Blueprint Services

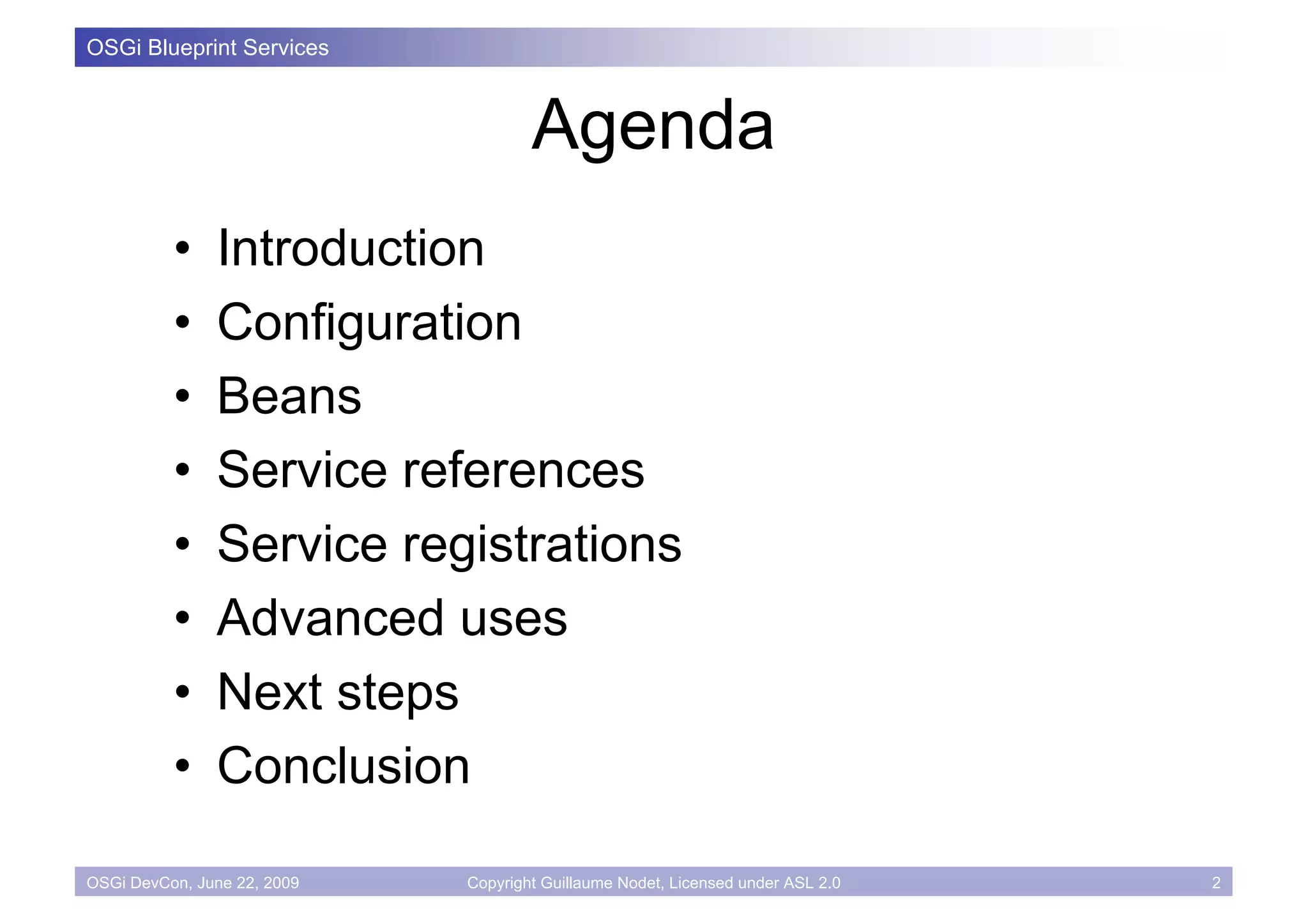

                                     Agenda
          •    Introduction
          •    Configuration
          •    Beans
          •    Service references
          •    Service registrations
          •    Advanced uses
          •    Next steps
          •    Conclusion

OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   2
OSGi Blueprint Services

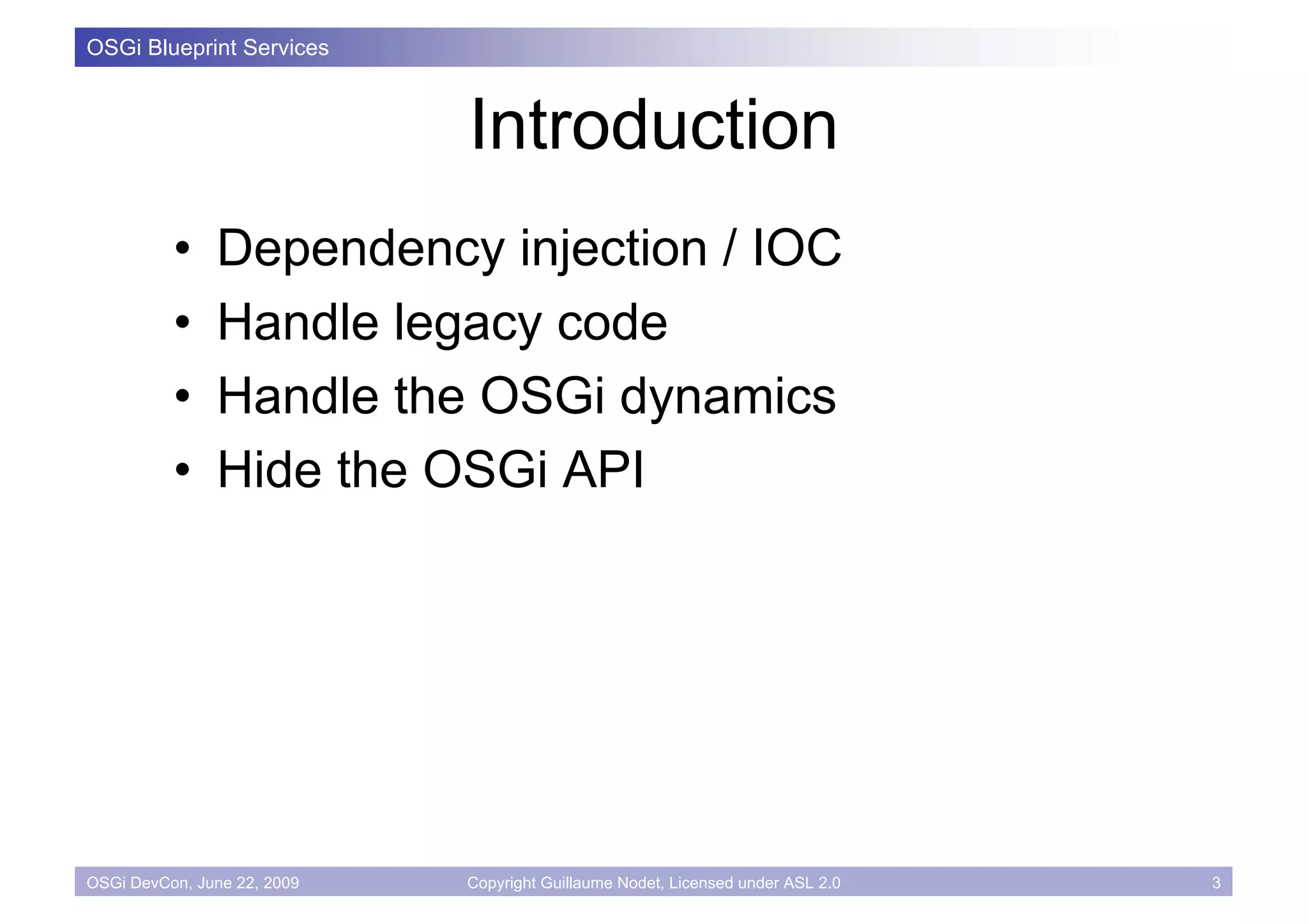

                             Introduction
          •    Dependency injection / IOC
          •    Handle legacy code
          •    Handle the OSGi dynamics
          •    Hide the OSGi API




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   3
OSGi Blueprint Services

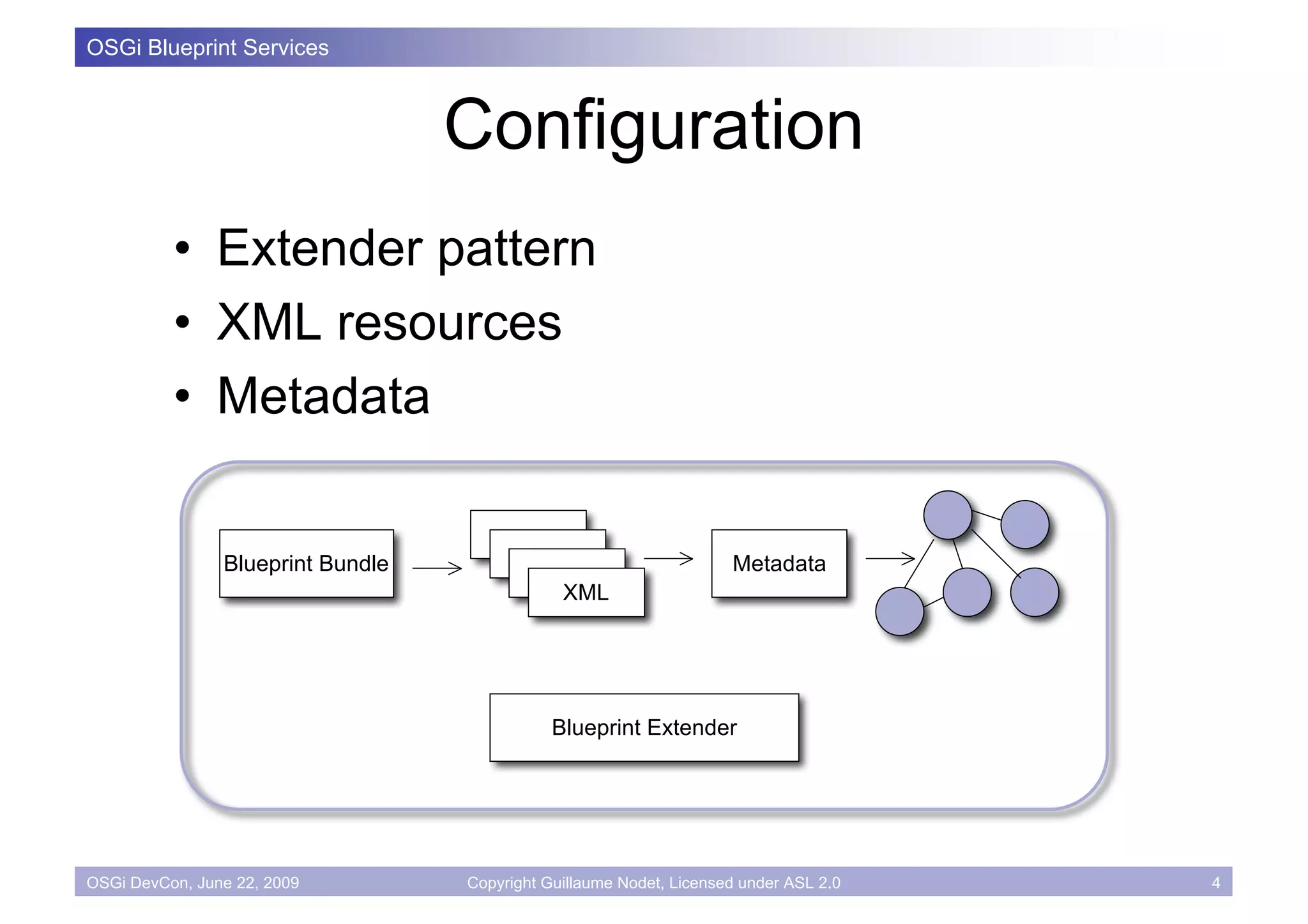

                                   Configuration
          • Extender pattern
          • XML resources
          • Metadata


                Blueprint Bundle                                     Metadata
                                               XML




                                              Blueprint Extender




OSGi DevCon, June 22, 2009         Copyright Guillaume Nodet, Licensed under ASL 2.0   4
OSGi Blueprint Services

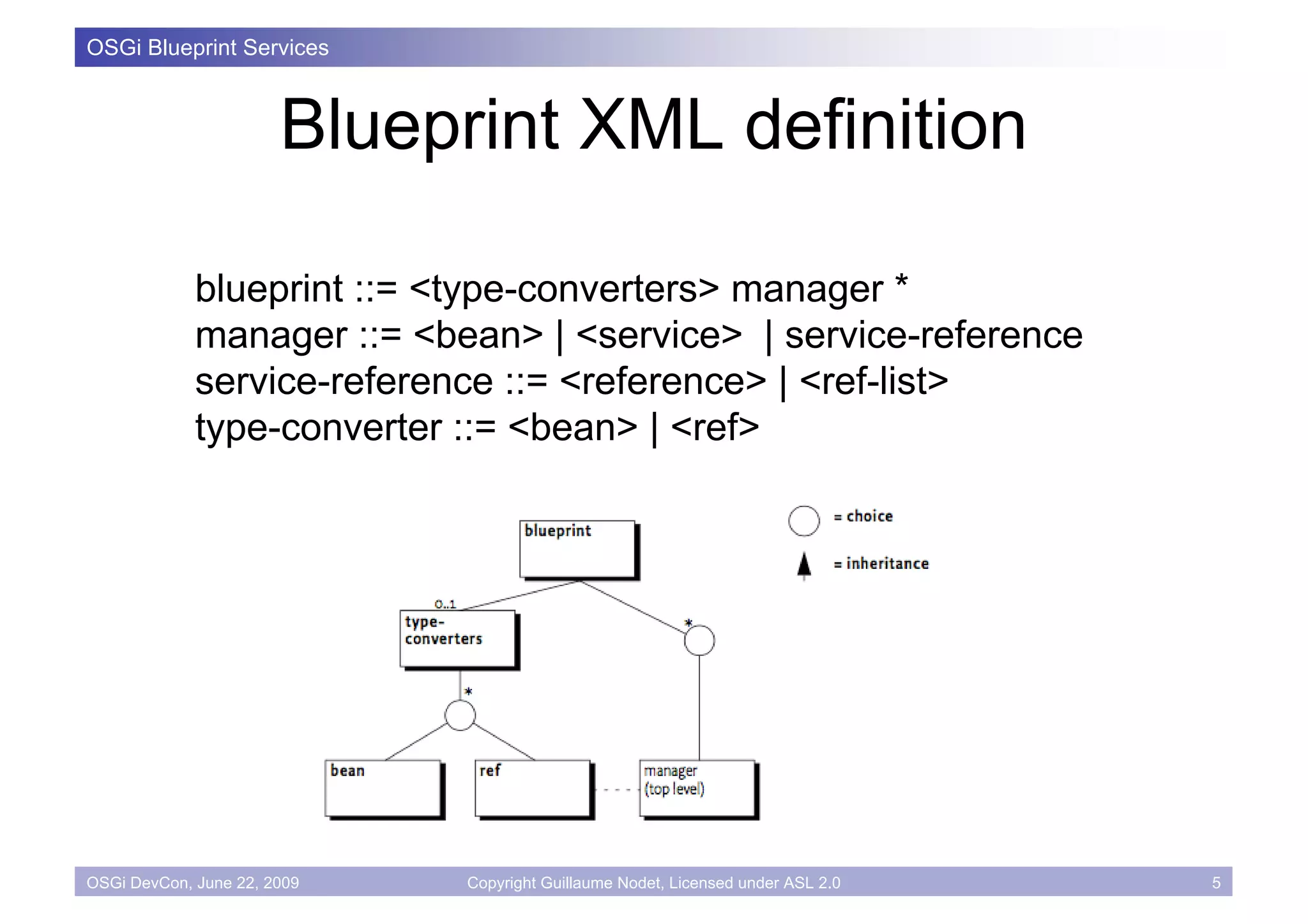

                       Blueprint XML definition

             blueprint ::= <type-converters> manager *
             manager ::= <bean> | <service> | service-reference
             service-reference ::= <reference> | <ref-list>
             type-converter ::= <bean> | <ref>




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   5
OSGi Blueprint Services

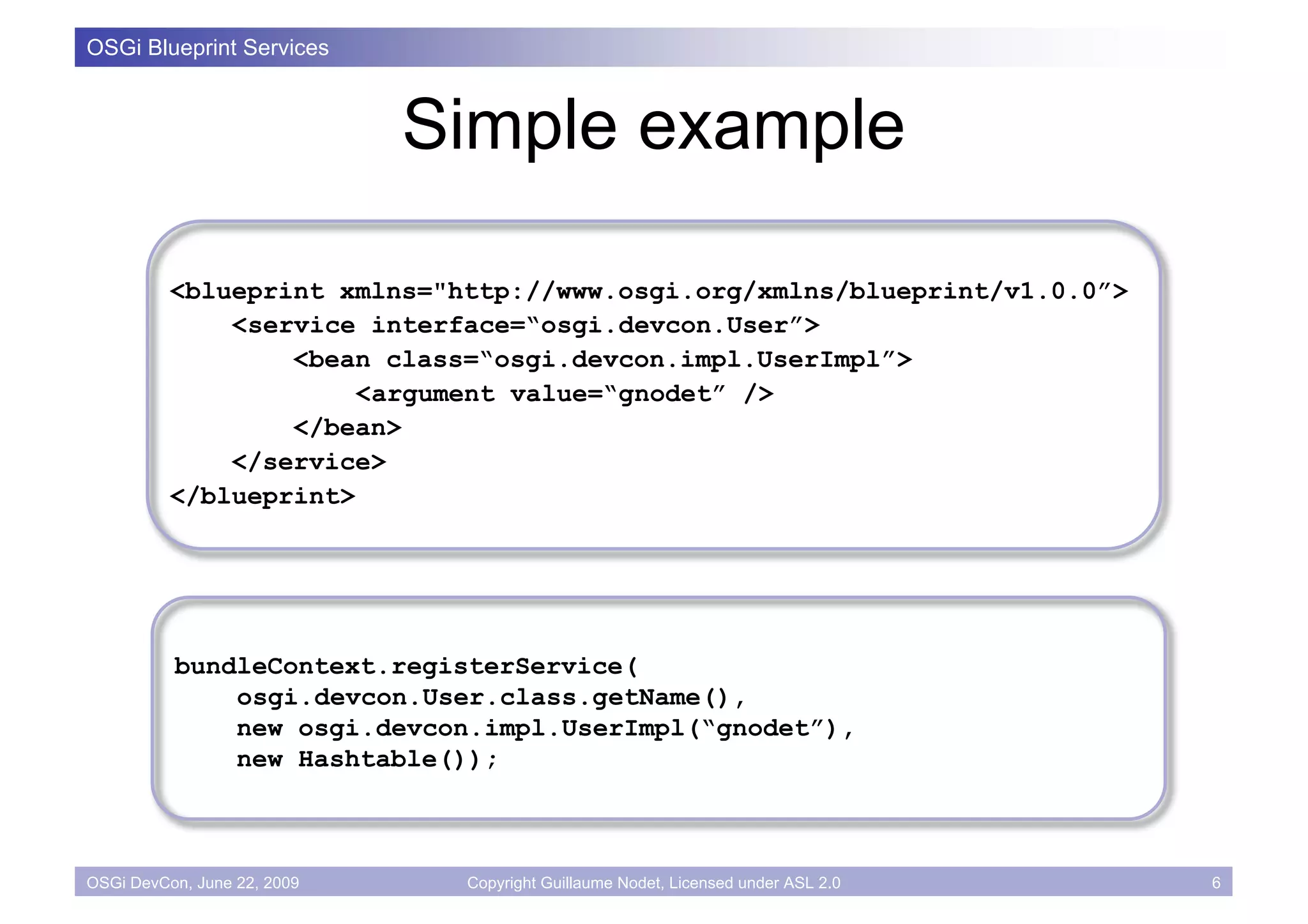

                             Simple example

          <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”>
              <service interface=“osgi.devcon.User”>
                  <bean class=“osgi.devcon.impl.UserImpl”>
                       <argument value=“gnodet” />
                  </bean>
              </service>
          </blueprint>




          bundleContext.registerService(
              osgi.devcon.User.class.getName(),
              new osgi.devcon.impl.UserImpl(“gnodet”),
              new Hashtable());



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   6
OSGi Blueprint Services

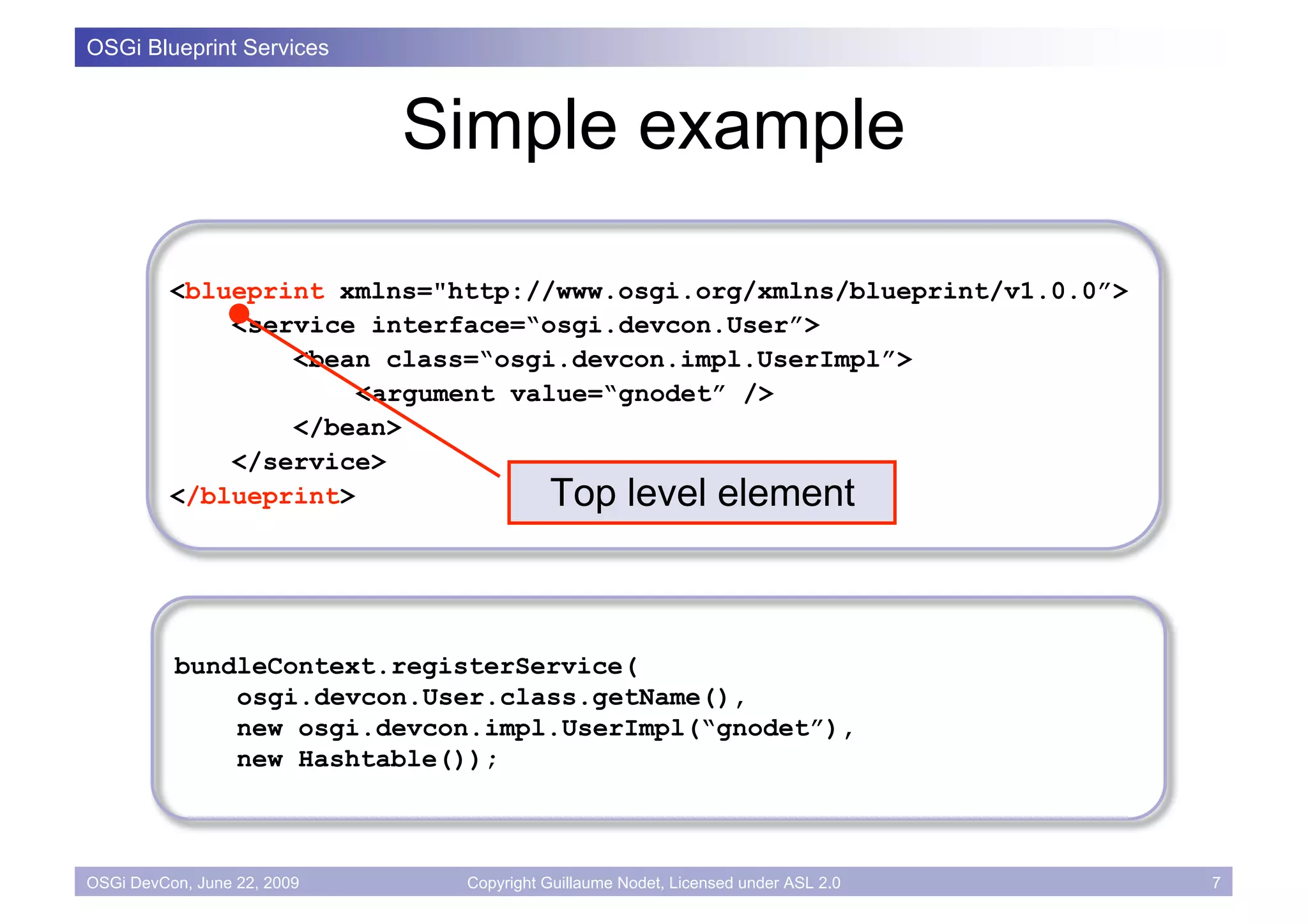

                             Simple example

          <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”>
              <service interface=“osgi.devcon.User”>
                  <bean class=“osgi.devcon.impl.UserImpl”>
                       <argument value=“gnodet” />
                  </bean>
              </service>
          </blueprint>              Top level element



          bundleContext.registerService(
              osgi.devcon.User.class.getName(),
              new osgi.devcon.impl.UserImpl(“gnodet”),
              new Hashtable());



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   7
OSGi Blueprint Services

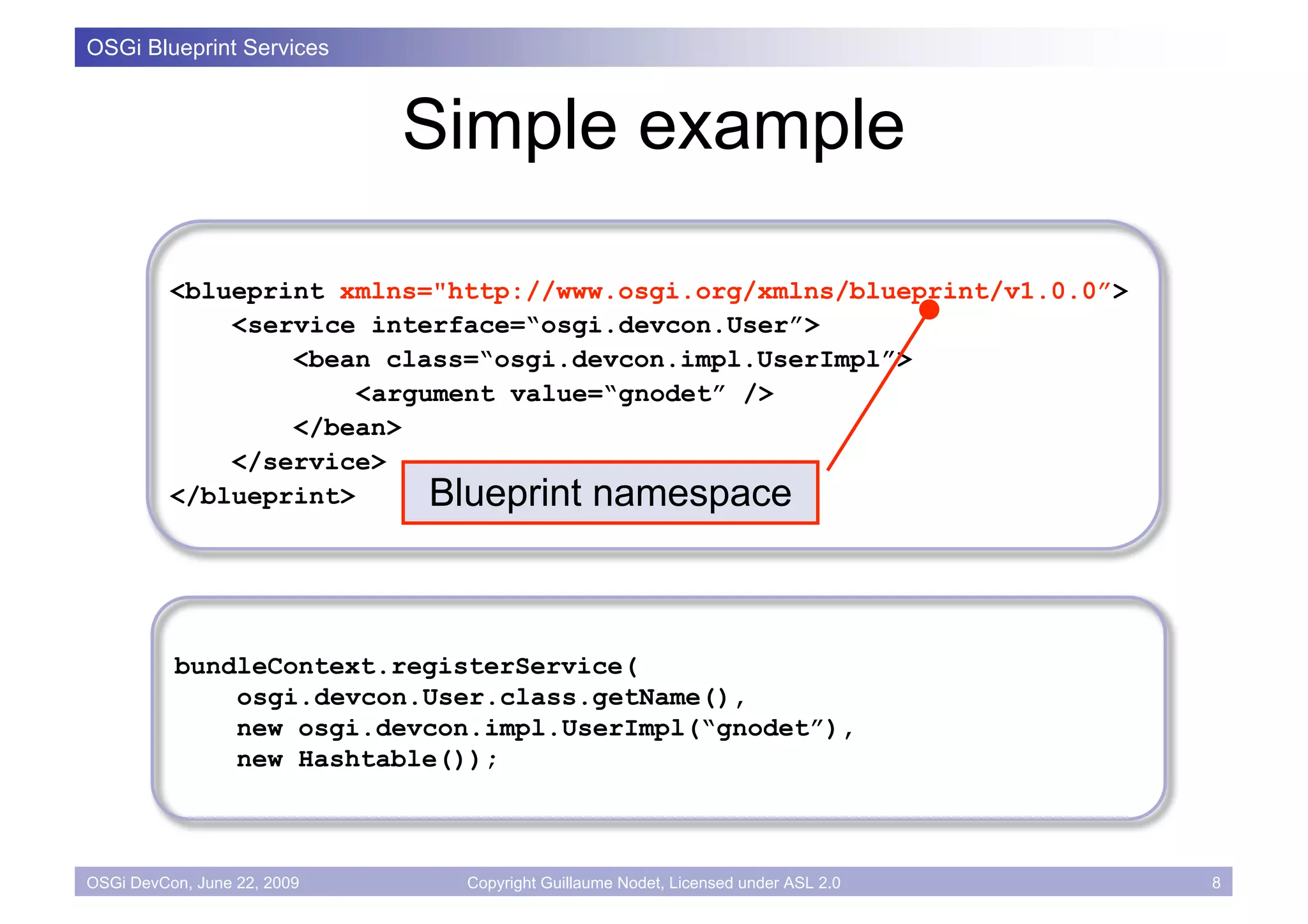

                             Simple example

          <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”>
              <service interface=“osgi.devcon.User”>
                  <bean class=“osgi.devcon.impl.UserImpl”>
                       <argument value=“gnodet” />
                  </bean>
              </service>
          </blueprint>      Blueprint namespace



          bundleContext.registerService(
              osgi.devcon.User.class.getName(),
              new osgi.devcon.impl.UserImpl(“gnodet”),
              new Hashtable());



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   8
OSGi Blueprint Services

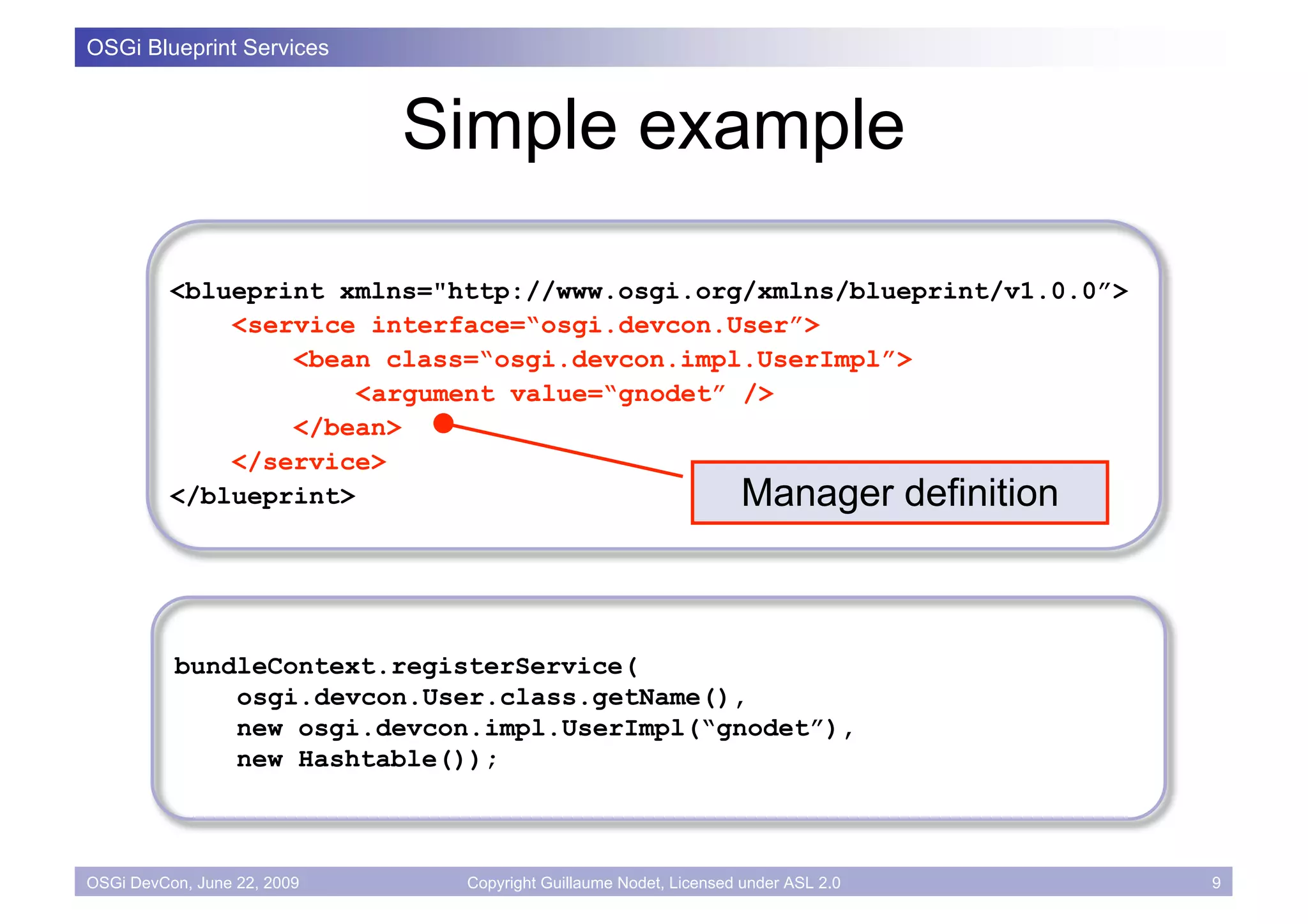

                             Simple example

          <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”>
              <service interface=“osgi.devcon.User”>
                  <bean class=“osgi.devcon.impl.UserImpl”>
                       <argument value=“gnodet” />
                  </bean>
              </service>
          </blueprint>                          Manager definition



          bundleContext.registerService(
              osgi.devcon.User.class.getName(),
              new osgi.devcon.impl.UserImpl(“gnodet”),
              new Hashtable());



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   9
OSGi Blueprint Services

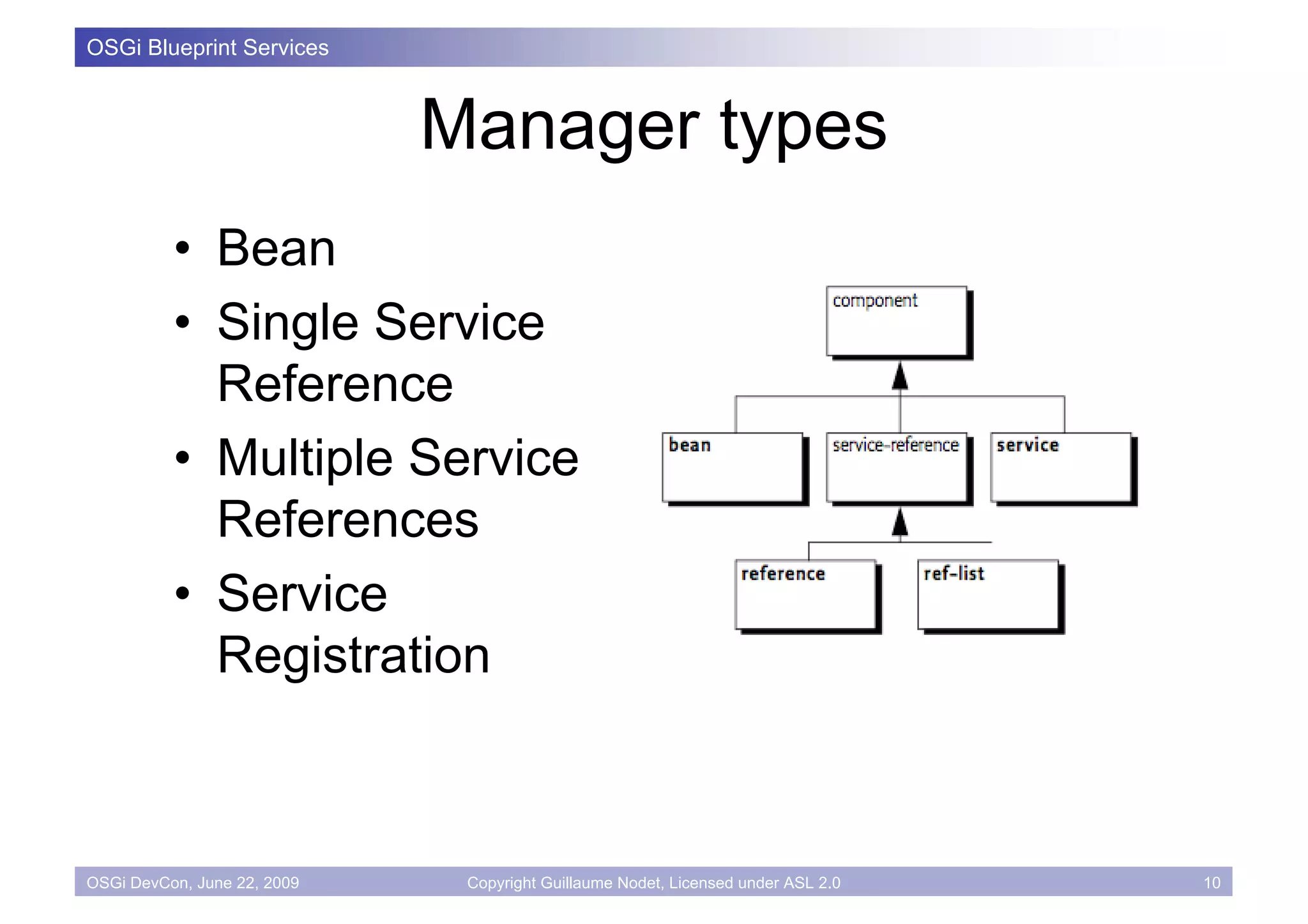

                             Manager types
          • Bean
          • Single Service
            Reference
          • Multiple Service
            References
          • Service
            Registration



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   10
OSGi Blueprint Services

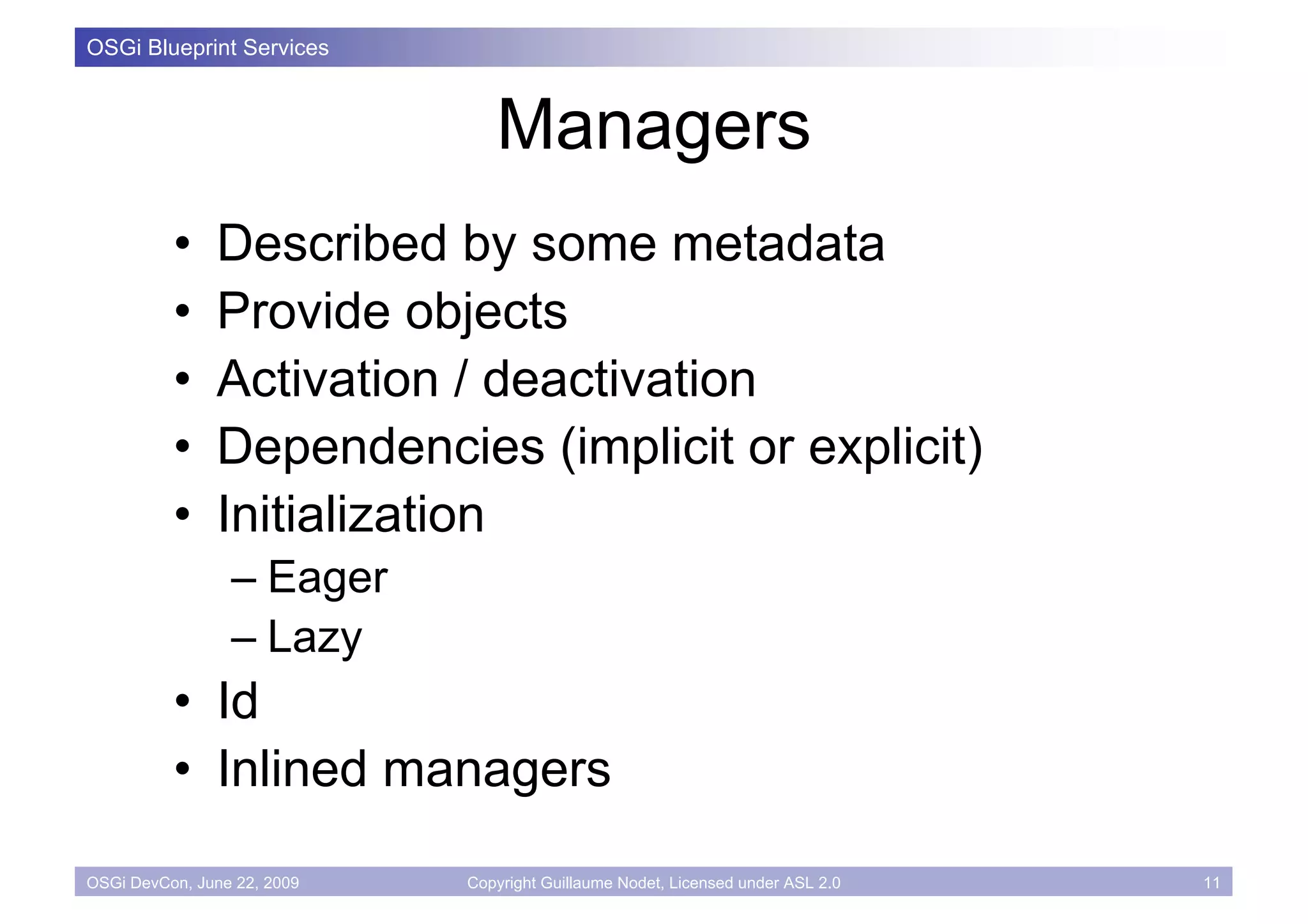

                                Managers
          •    Described by some metadata
          •    Provide objects
          •    Activation / deactivation
          •    Dependencies (implicit or explicit)
          •    Initialization
                 – Eager
                 – Lazy
          • Id
          • Inlined managers
OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   11
OSGi Blueprint Services

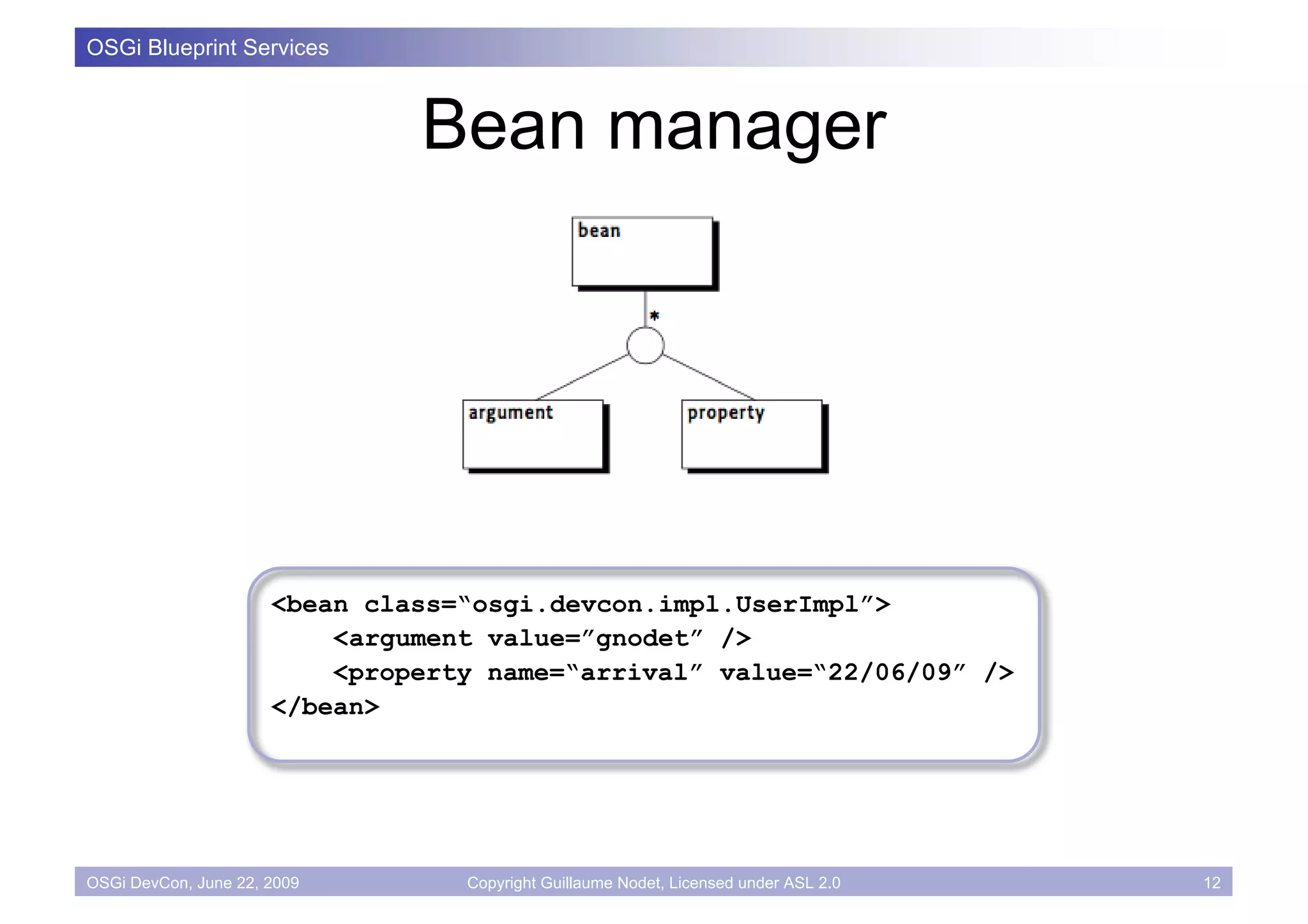

                               Bean manager




                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <argument value=”gnodet” />
                          <property name=“arrival” value=“22/06/09” />
                      </bean>




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   12
OSGi Blueprint Services

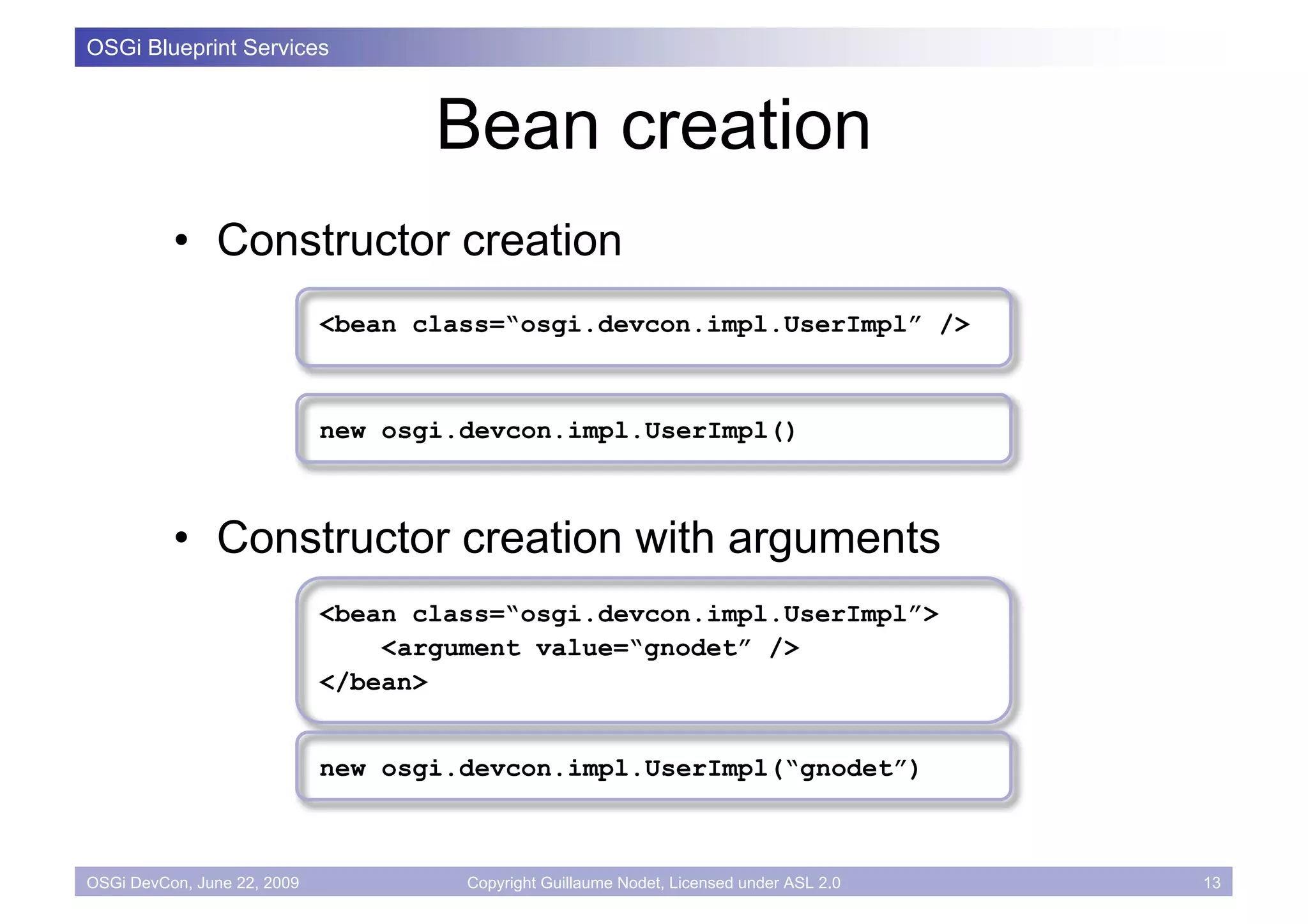

                                    Bean creation
          • Constructor creation
                             <bean class=“osgi.devcon.impl.UserImpl” />



                             new osgi.devcon.impl.UserImpl()



          • Constructor creation with arguments
                             <bean class=“osgi.devcon.impl.UserImpl”>
                                 <argument value=“gnodet” />
                             </bean>


                             new osgi.devcon.impl.UserImpl(“gnodet”)



OSGi DevCon, June 22, 2009            Copyright Guillaume Nodet, Licensed under ASL 2.0   13
OSGi Blueprint Services

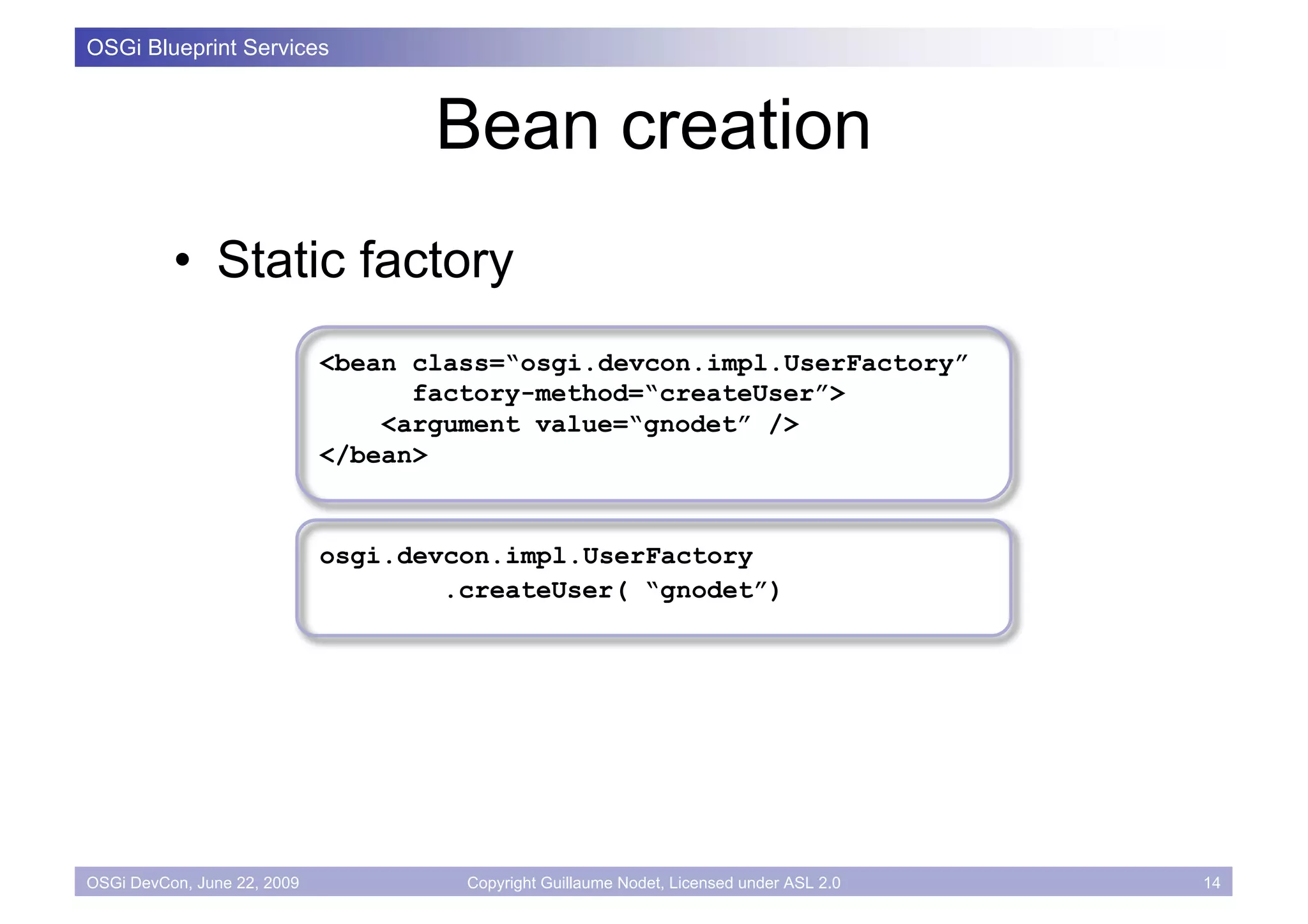

                                    Bean creation
          • Static factory
                             <bean class=“osgi.devcon.impl.UserFactory”
                                   factory-method=“createUser”>
                                 <argument value=“gnodet” />
                             </bean>


                             osgi.devcon.impl.UserFactory
                                     .createUser( “gnodet”)




OSGi DevCon, June 22, 2009            Copyright Guillaume Nodet, Licensed under ASL 2.0   14
OSGi Blueprint Services

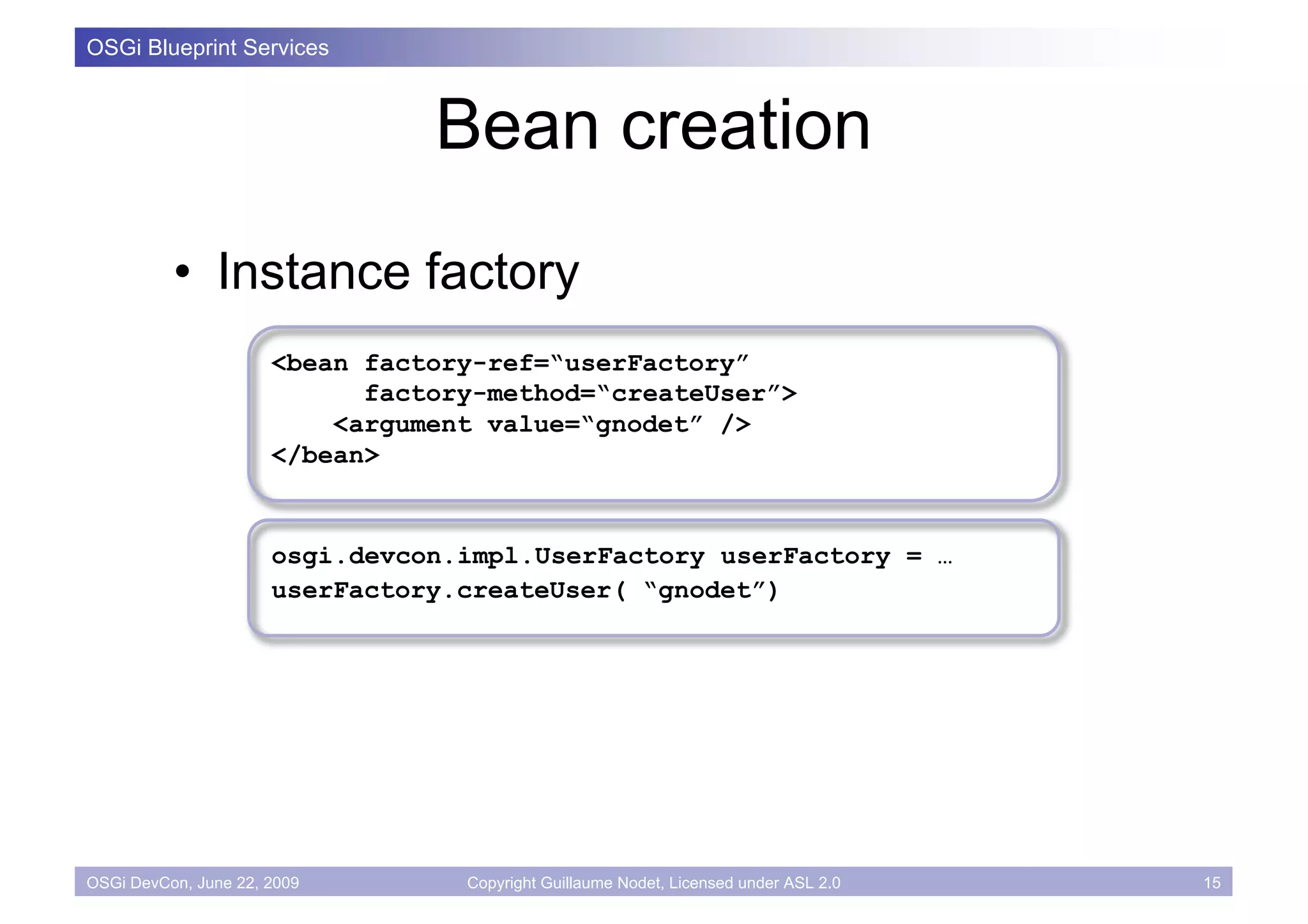

                                Bean creation
          • Instance factory
                      <bean factory-ref=“userFactory”
                            factory-method=“createUser”>
                          <argument value=“gnodet” />
                      </bean>


                      osgi.devcon.impl.UserFactory userFactory = …
                      userFactory.createUser( “gnodet”)




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   15
OSGi Blueprint Services

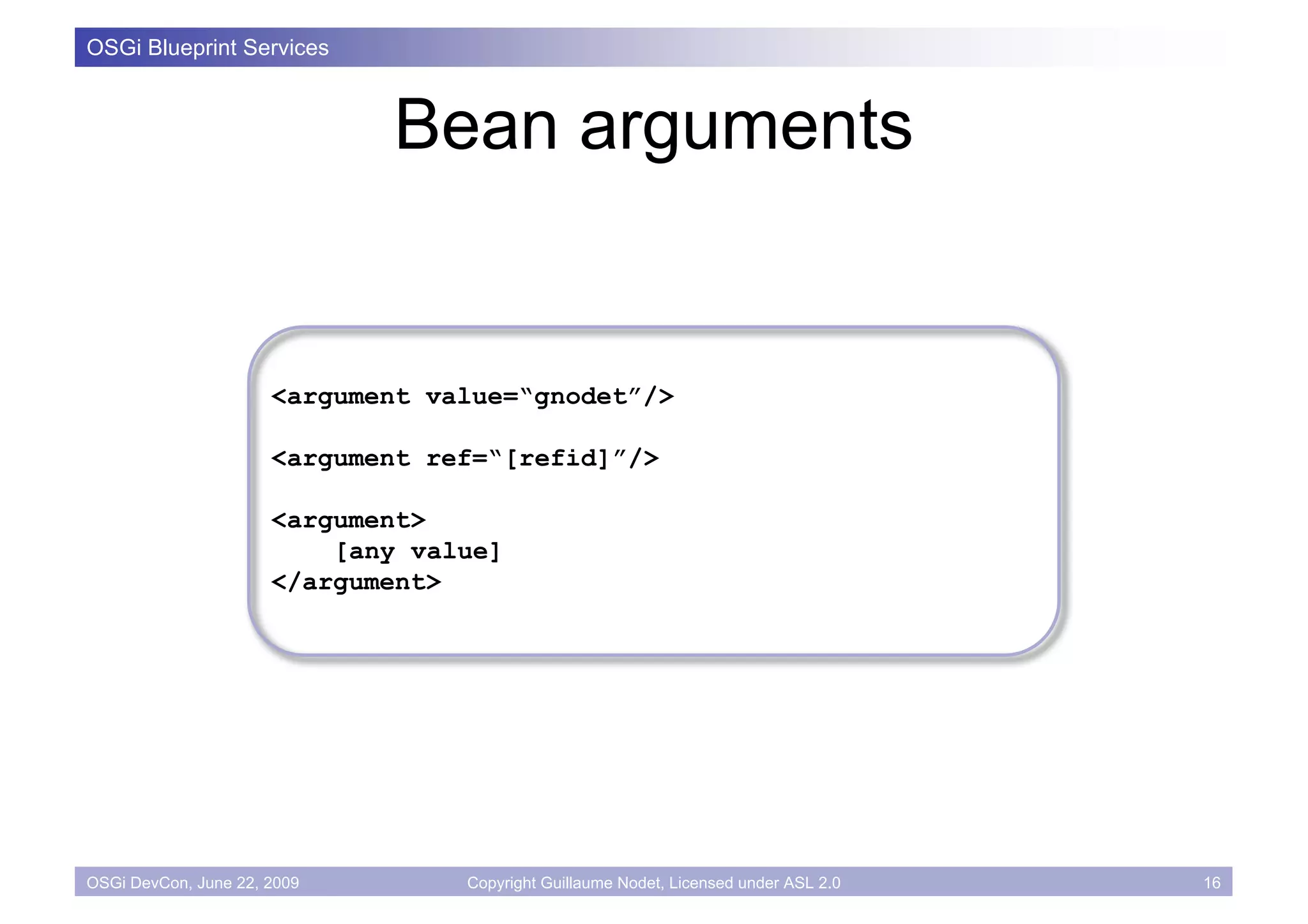

                             Bean arguments


                      <argument value=“gnodet”/>

                      <argument ref=“[refid]”/>

                      <argument>
                          [any value]
                      </argument>




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   16
OSGi Blueprint Services

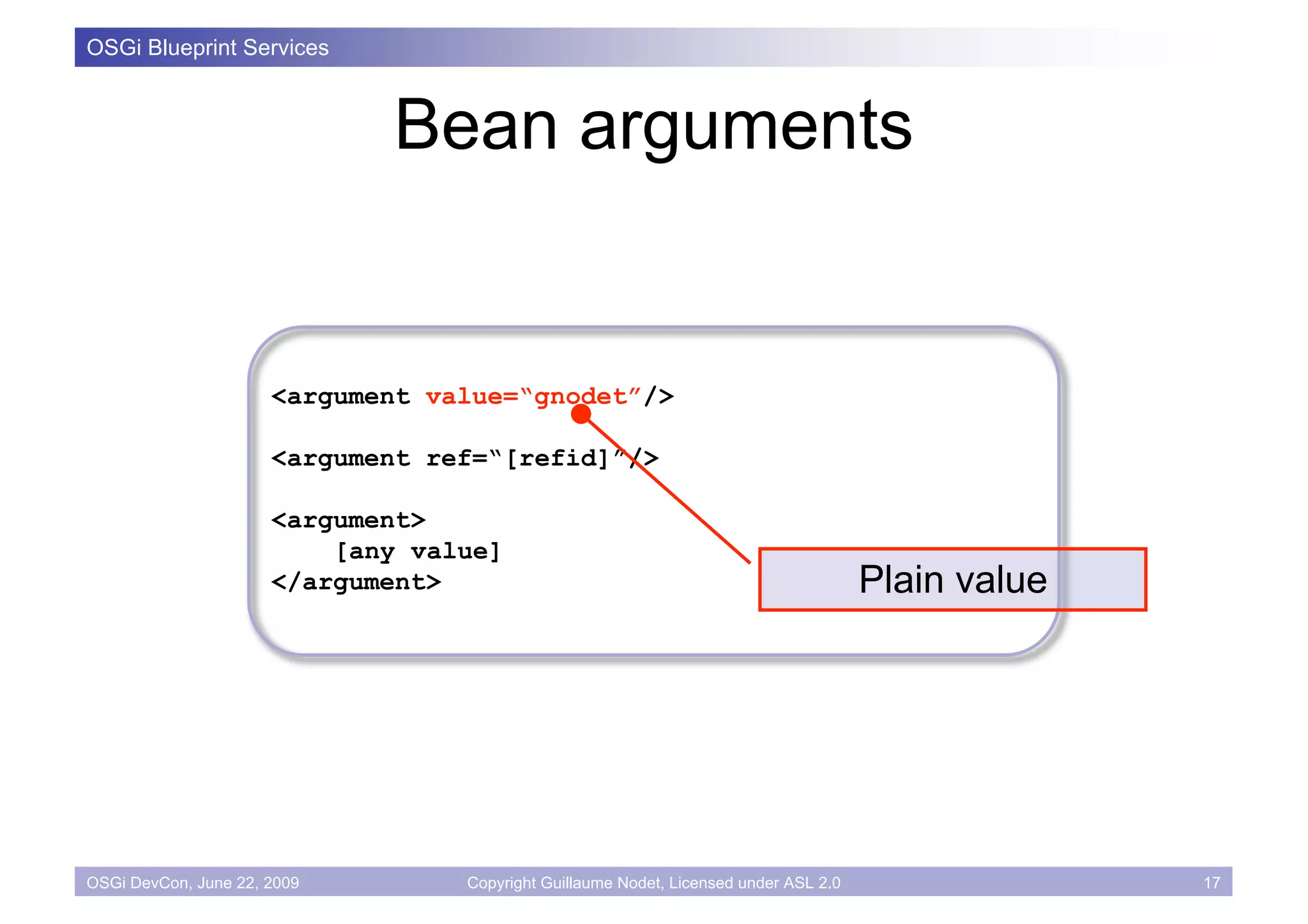

                             Bean arguments


                      <argument value=“gnodet”/>

                      <argument ref=“[refid]”/>

                      <argument>
                          [any value]
                      </argument>                                                     Plain value




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0                 17
OSGi Blueprint Services

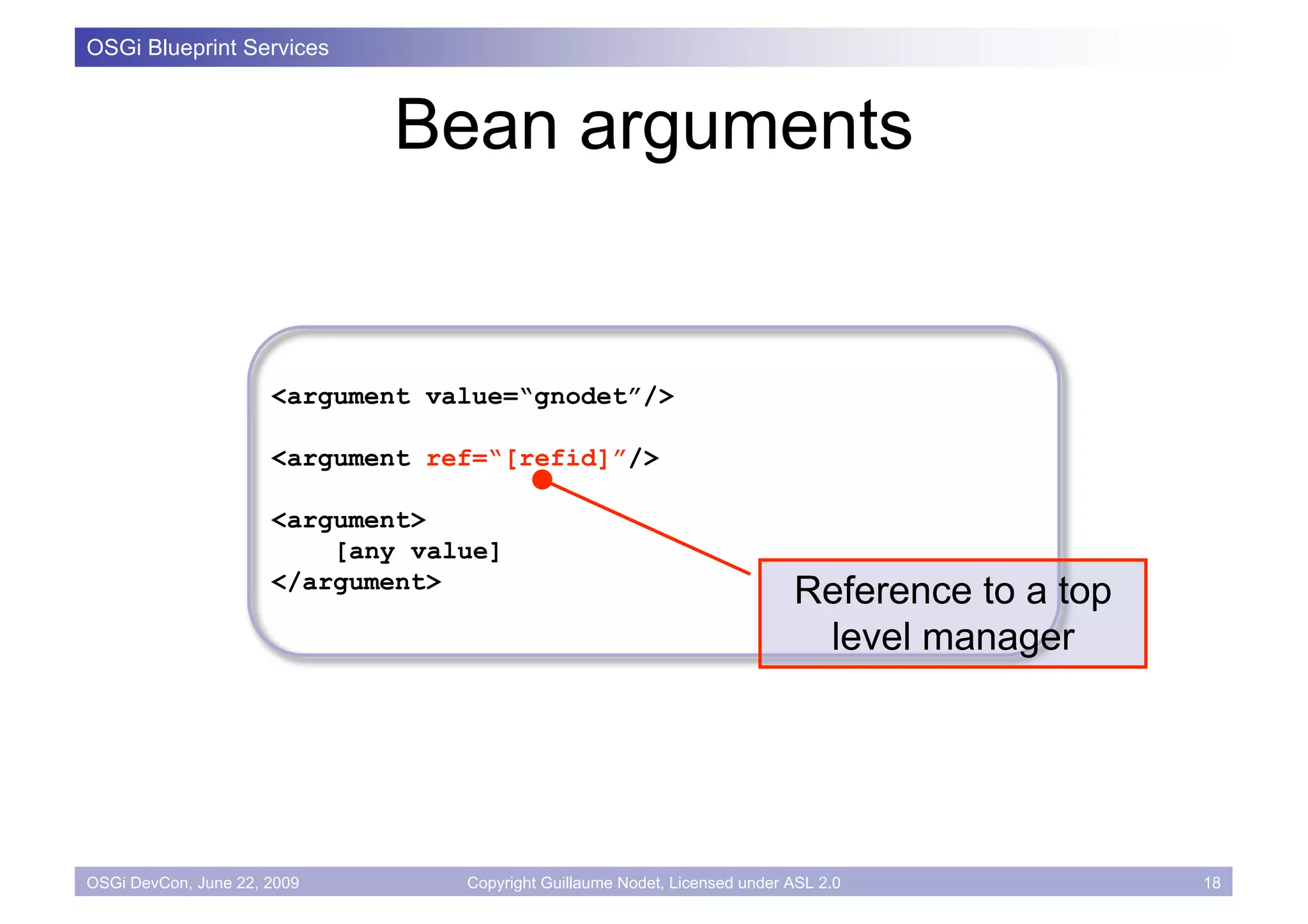

                             Bean arguments


                      <argument value=“gnodet”/>

                      <argument ref=“[refid]”/>

                      <argument>
                          [any value]
                      </argument>
                                                                            Reference to a top
                                                                             level manager




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0              18
OSGi Blueprint Services

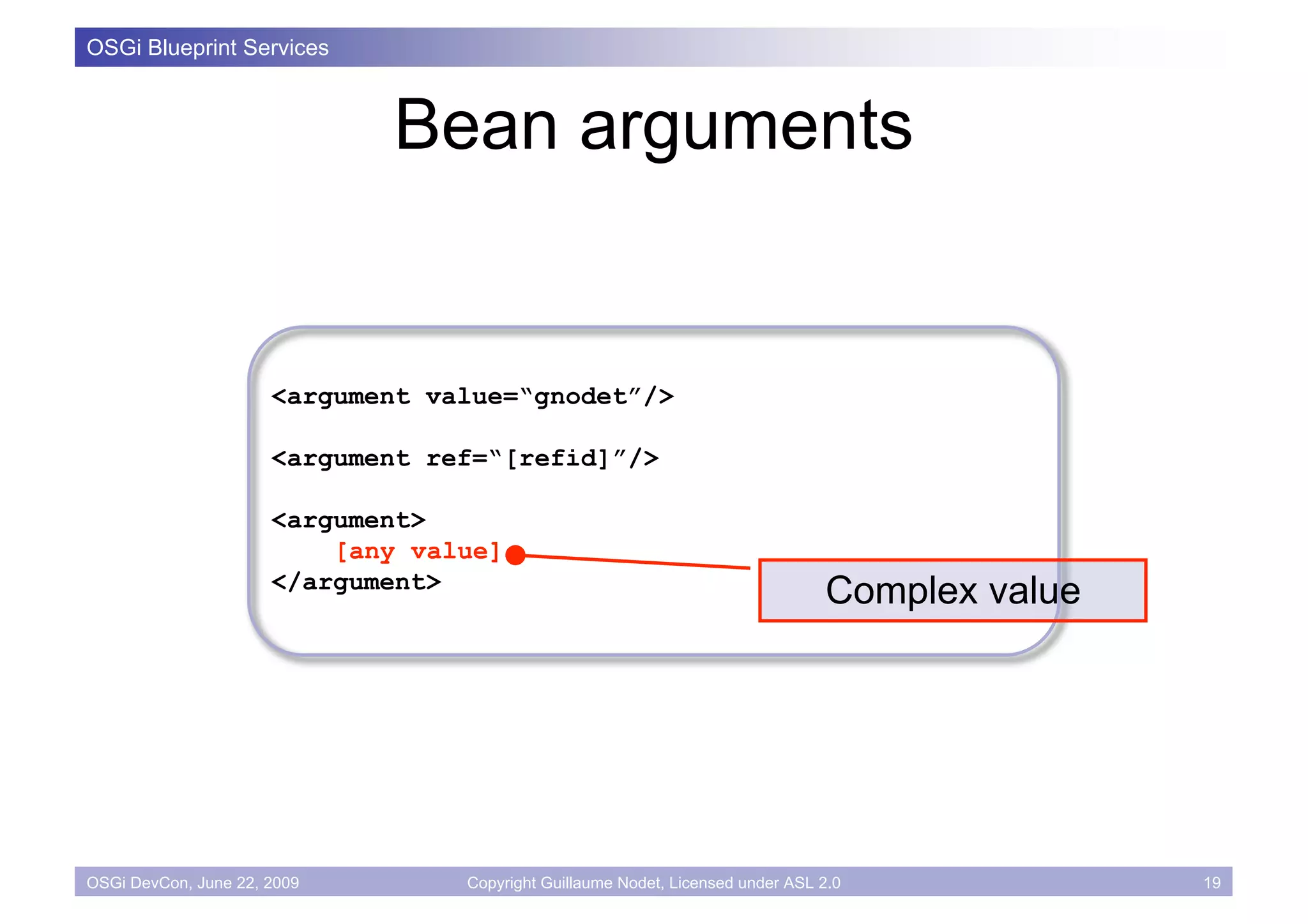

                             Bean arguments


                      <argument value=“gnodet”/>

                      <argument ref=“[refid]”/>

                      <argument>
                          [any value]
                      </argument>
                                                                                Complex value




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0             19
OSGi Blueprint Services

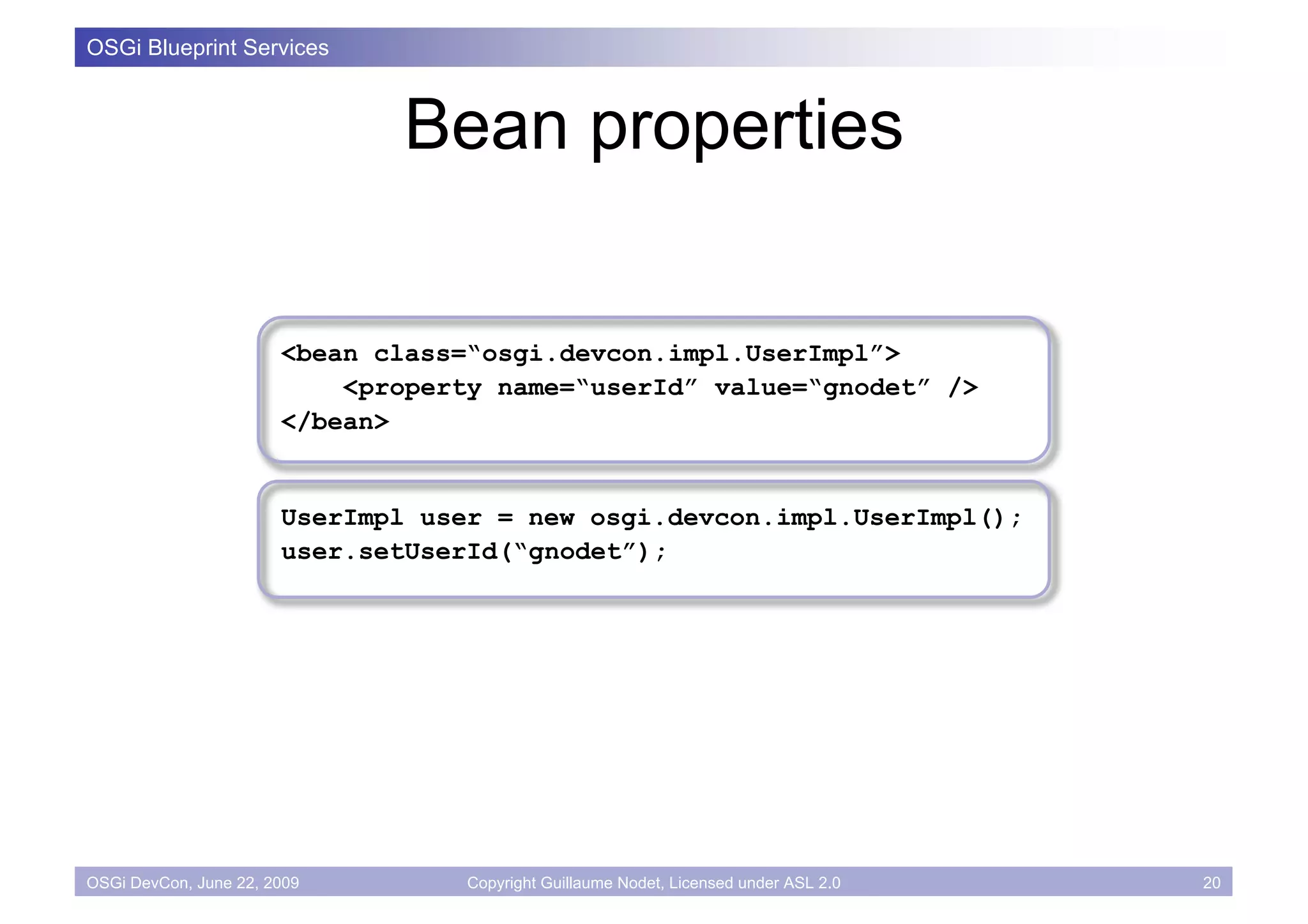

                              Bean properties

                       <bean class=“osgi.devcon.impl.UserImpl”>
                           <property name=“userId” value=“gnodet” />
                       </bean>


                       UserImpl user = new osgi.devcon.impl.UserImpl();
                       user.setUserId(“gnodet”);




OSGi DevCon, June 22, 2009         Copyright Guillaume Nodet, Licensed under ASL 2.0   20

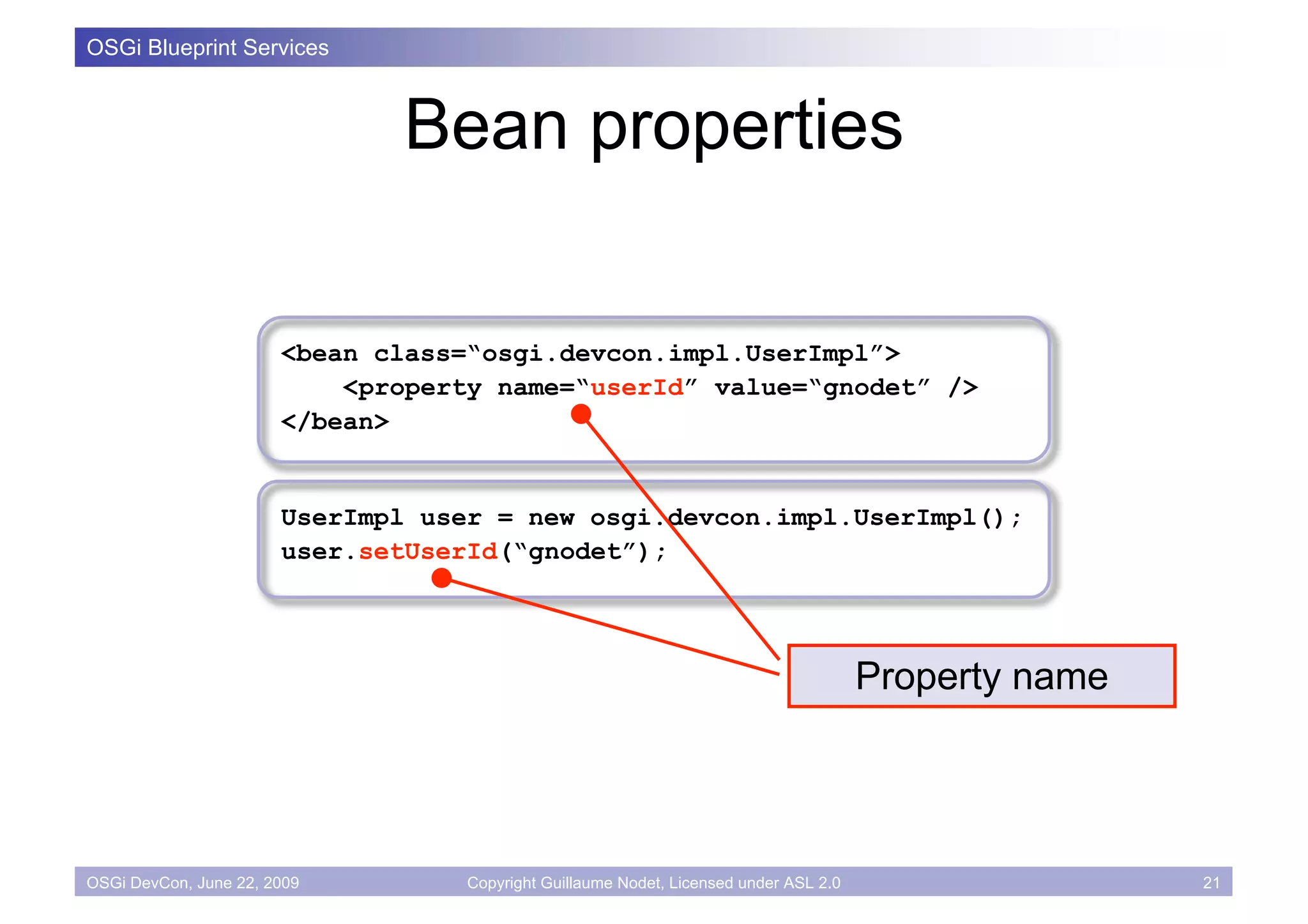

OSGi Blueprint Services



                              Bean properties

                       <bean class=“osgi.devcon.impl.UserImpl”>
                           <property name=“userId” value=“gnodet” />
                       </bean>


                       UserImpl user = new osgi.devcon.impl.UserImpl();
                       user.setUserId(“gnodet”);




                                                                                       Property name




OSGi DevCon, June 22, 2009         Copyright Guillaume Nodet, Licensed under ASL 2.0                   21
OSGi Blueprint Services

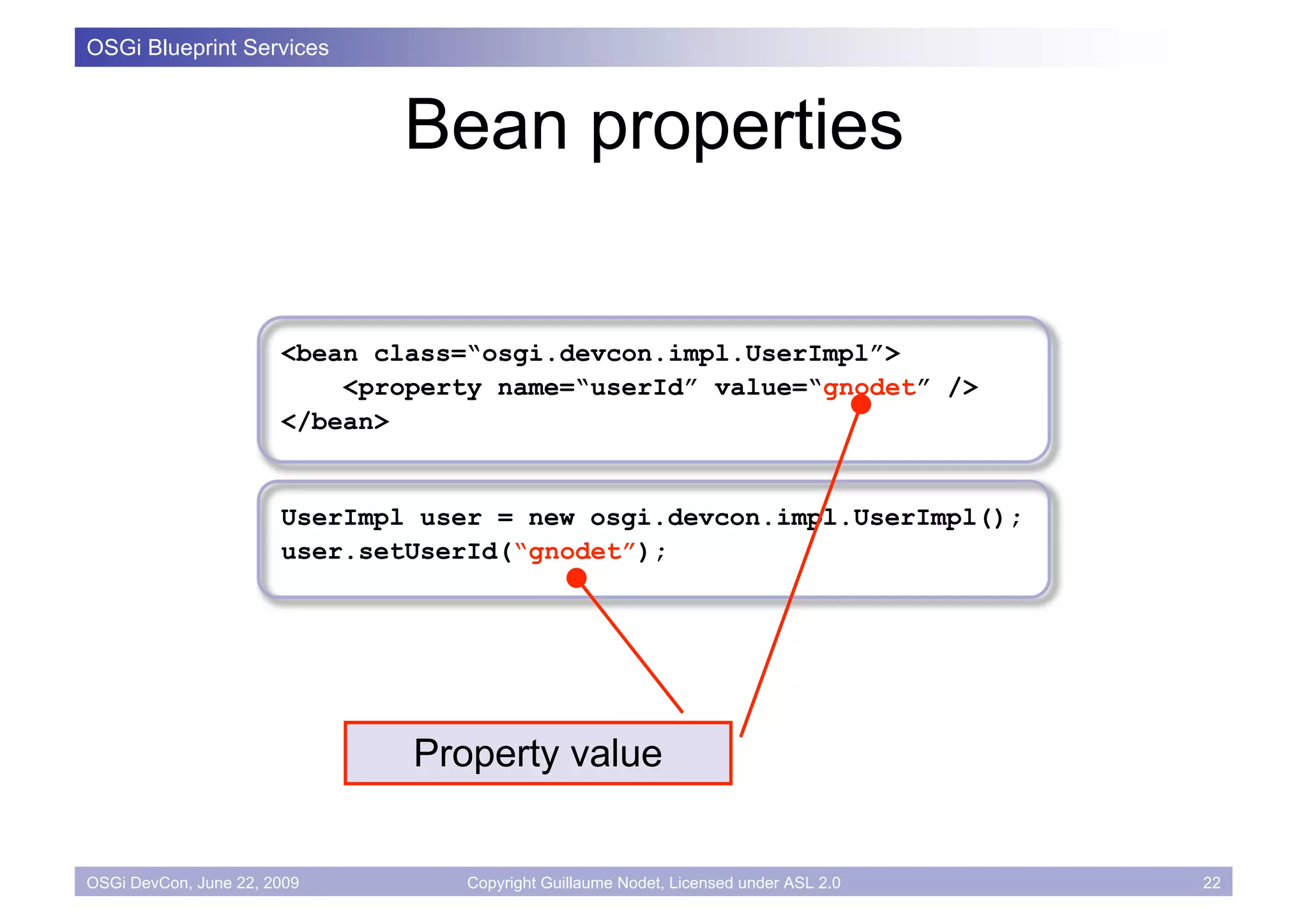

                              Bean properties

                       <bean class=“osgi.devcon.impl.UserImpl”>
                           <property name=“userId” value=“gnodet” />
                       </bean>


                       UserImpl user = new osgi.devcon.impl.UserImpl();
                       user.setUserId(“gnodet”);




                               Property value


OSGi DevCon, June 22, 2009         Copyright Guillaume Nodet, Licensed under ASL 2.0   22
OSGi Blueprint Services

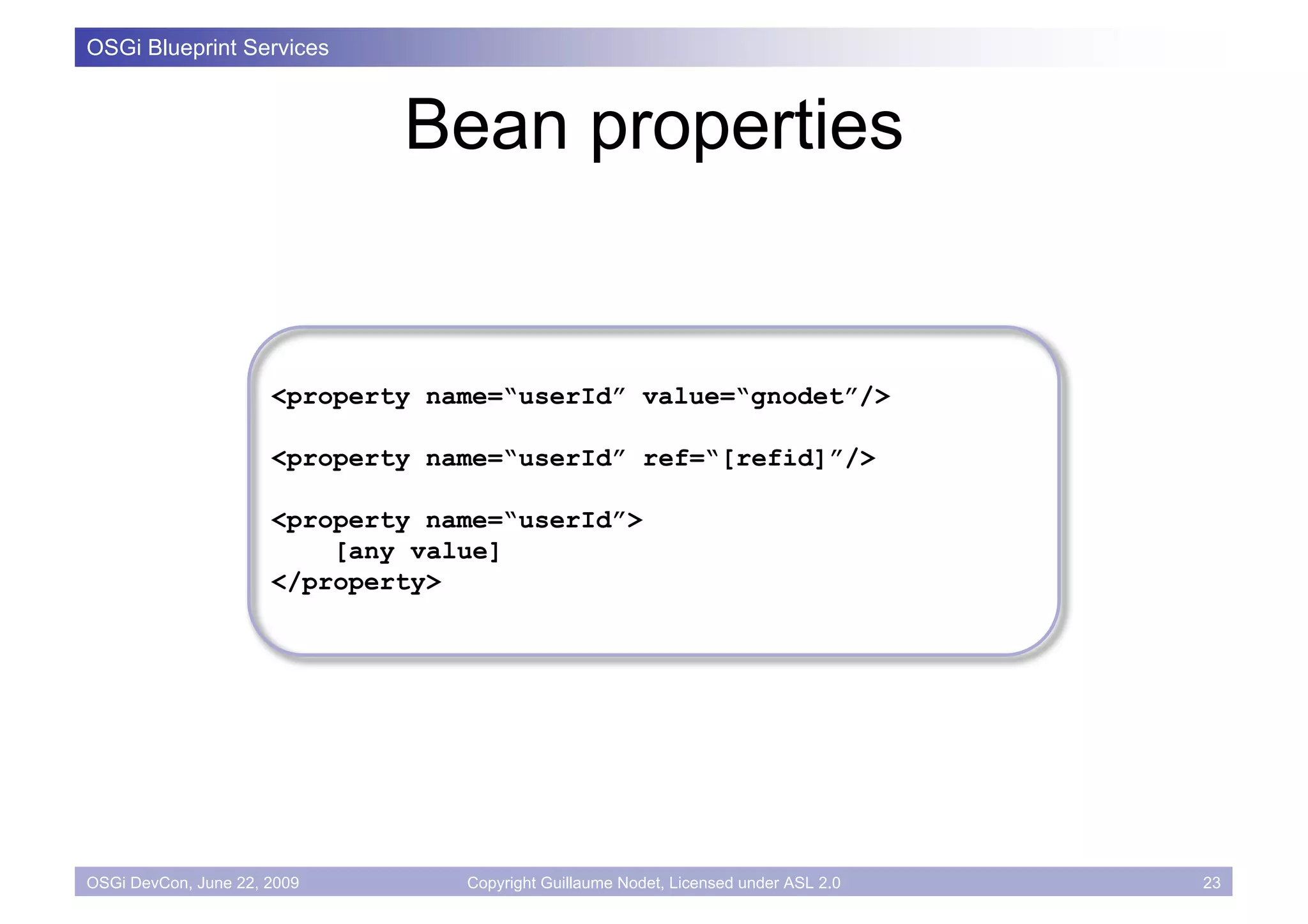

                              Bean properties


                      <property name=“userId” value=“gnodet”/>

                      <property name=“userId” ref=“[refid]”/>

                      <property name=“userId”>
                          [any value]
                      </property>




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   23
OSGi Blueprint Services

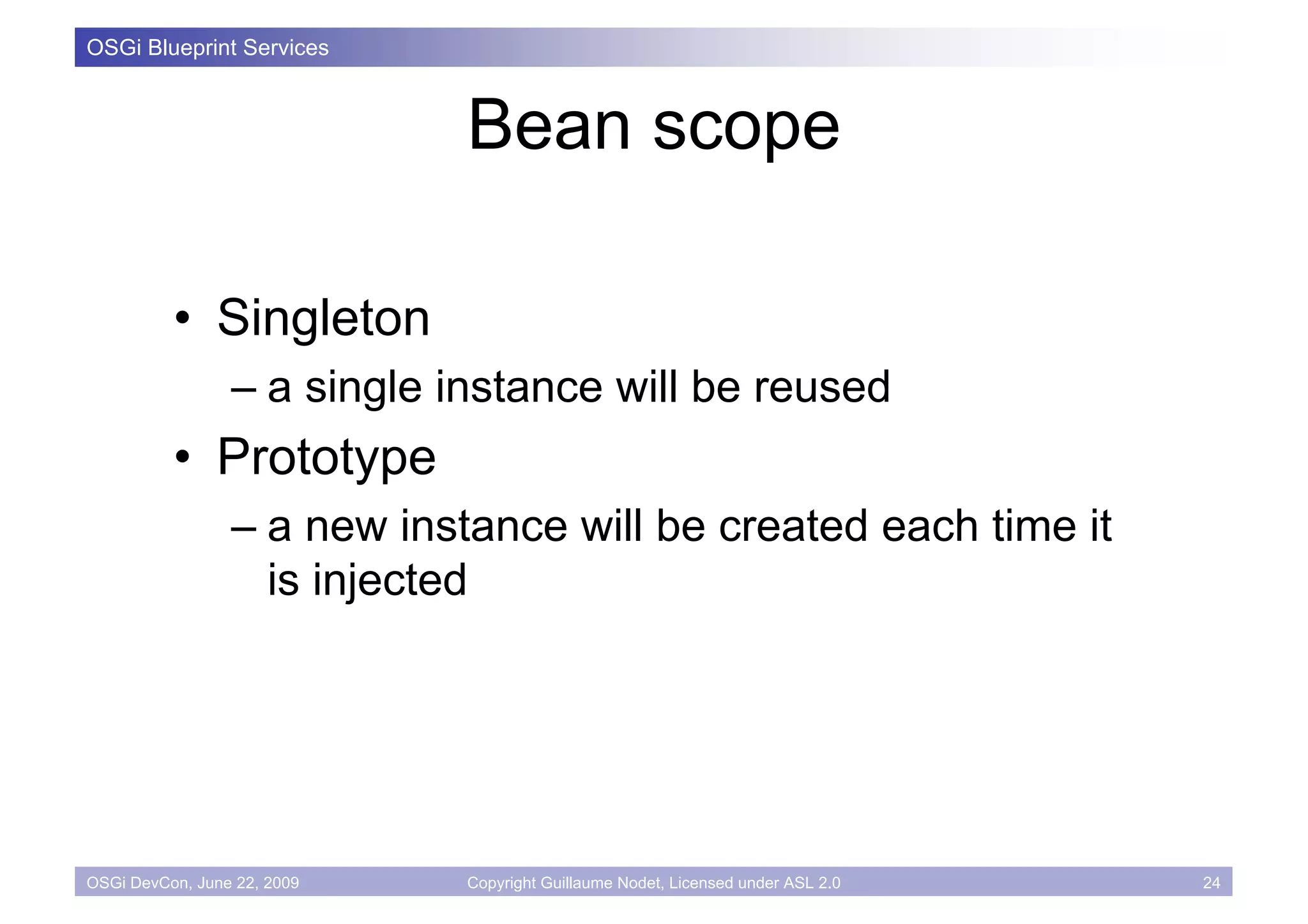

                             Bean scope

          • Singleton
                 – a single instance will be reused
          • Prototype
                 – a new instance will be created each time it
                   is injected




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   24
OSGi Blueprint Services

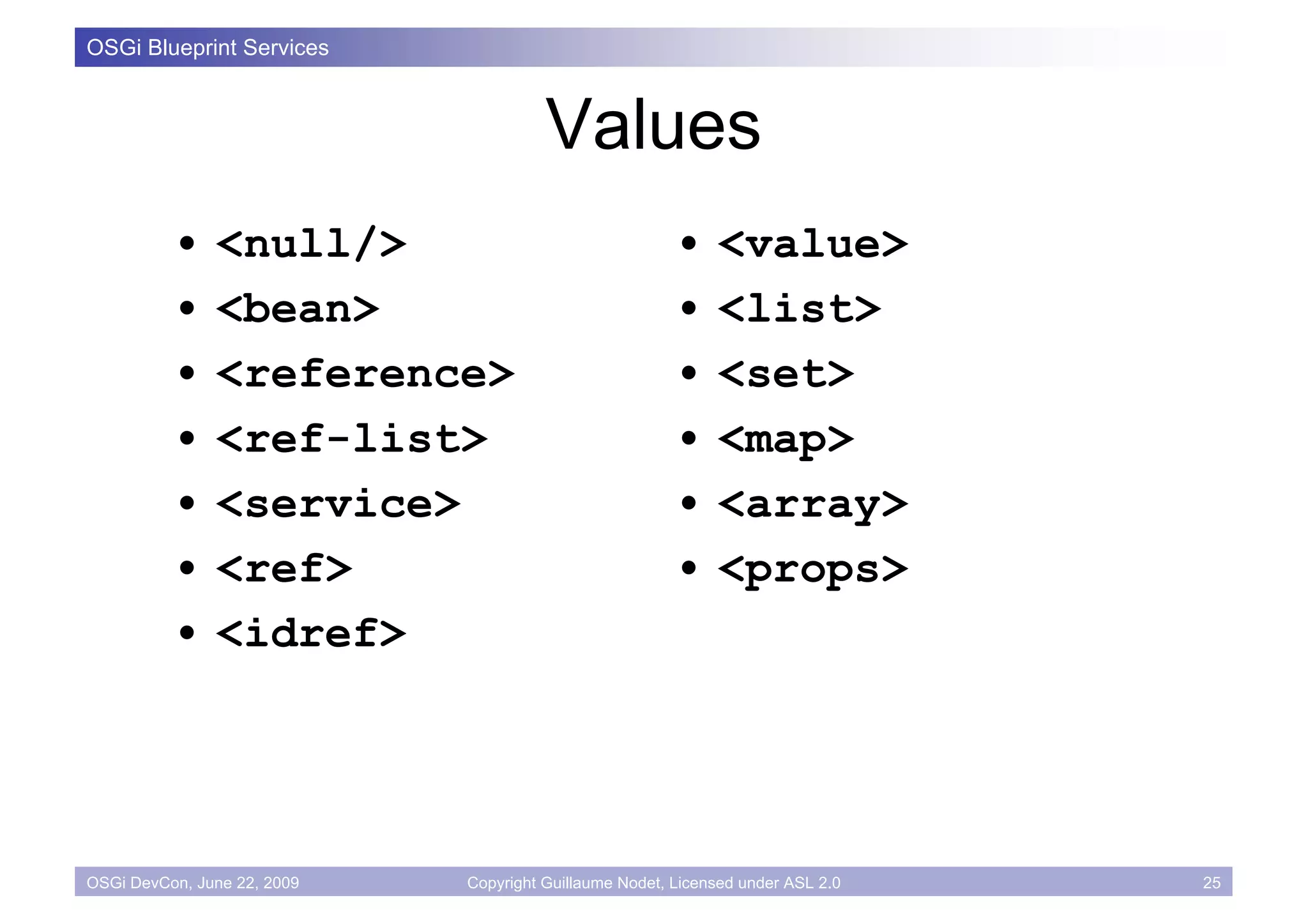

                                       Values
          •    <null/>                                  •    <value>
          •    <bean>                                   •    <list>
          •    <reference>                              •    <set>
          •    <ref-list>                               •    <map>
          •    <service>                                •    <array>
          •    <ref>                                    •    <props>
          •    <idref>




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   25
OSGi Blueprint Services

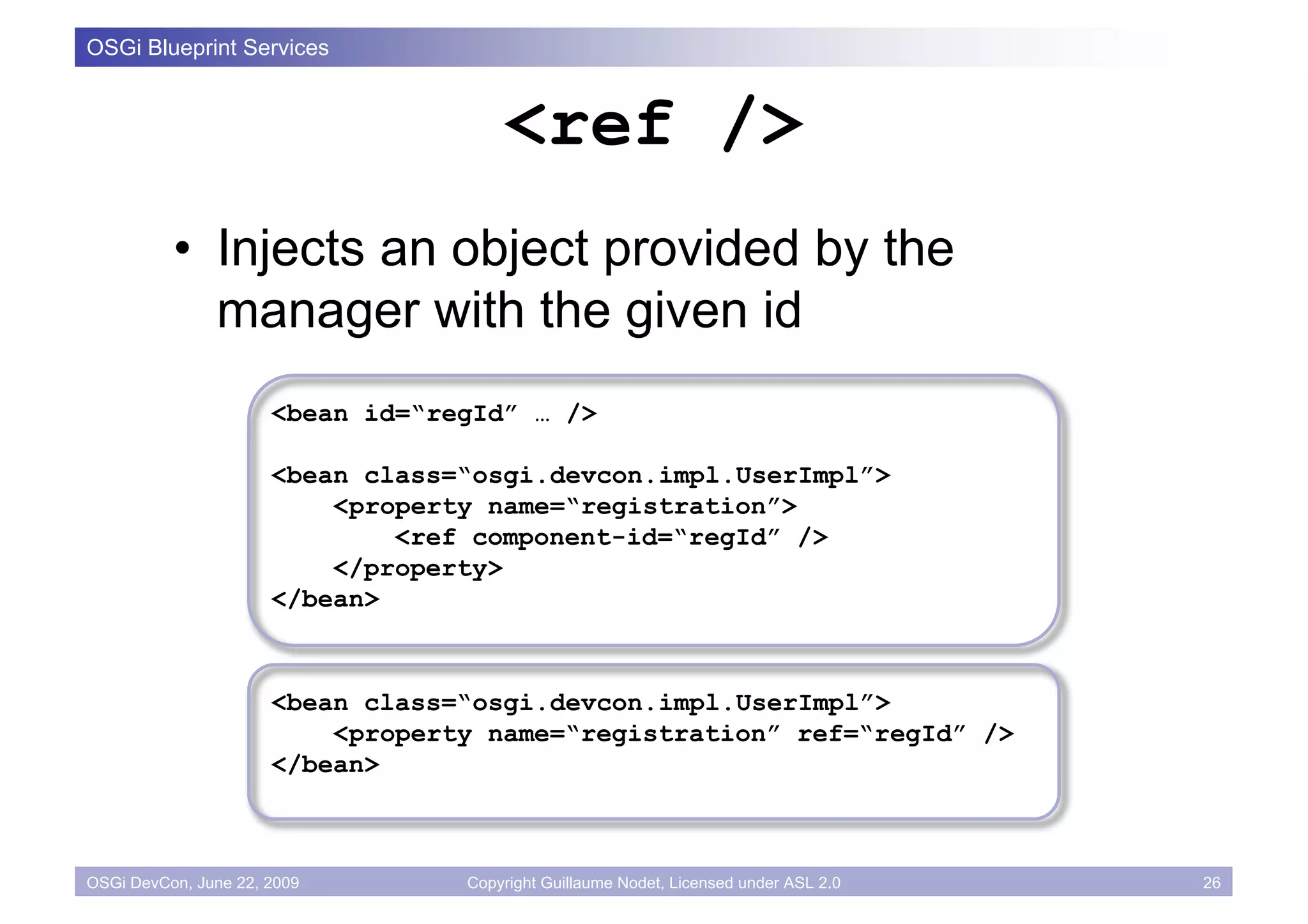

                                      <ref />
          • Injects an object provided by the
            manager with the given id
                      <bean id=“regId” … />

                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <property name=“registration”>
                              <ref component-id=“regId” />
                          </property>
                      </bean>



                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <property name=“registration” ref=“regId” />
                      </bean>



OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   26
OSGi Blueprint Services

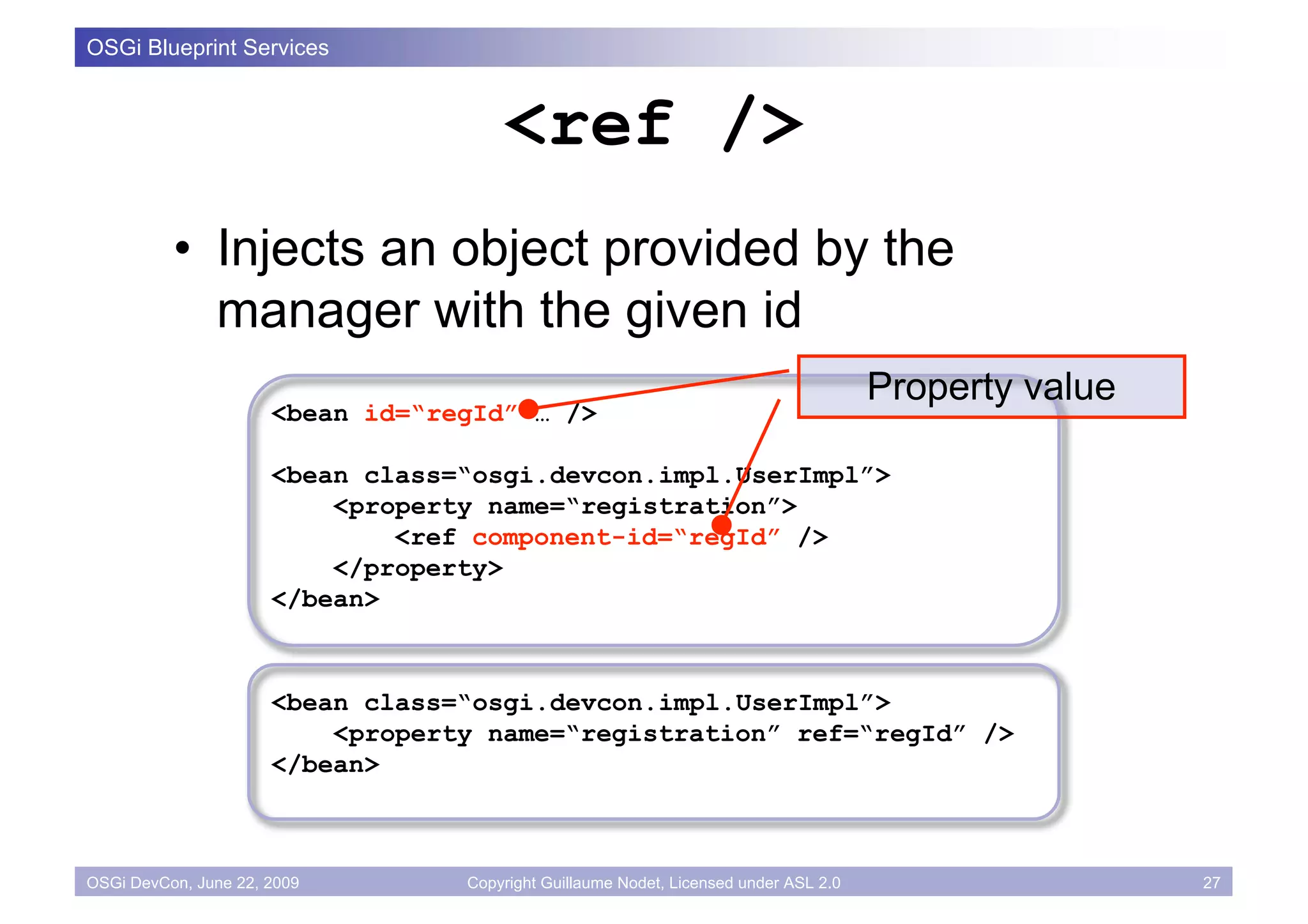

                                      <ref />
          • Injects an object provided by the
            manager with the given id
                                                                                      Property value
                      <bean id=“regId” … />

                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <property name=“registration”>
                              <ref component-id=“regId” />
                          </property>
                      </bean>



                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <property name=“registration” ref=“regId” />
                      </bean>



OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0                    27
OSGi Blueprint Services

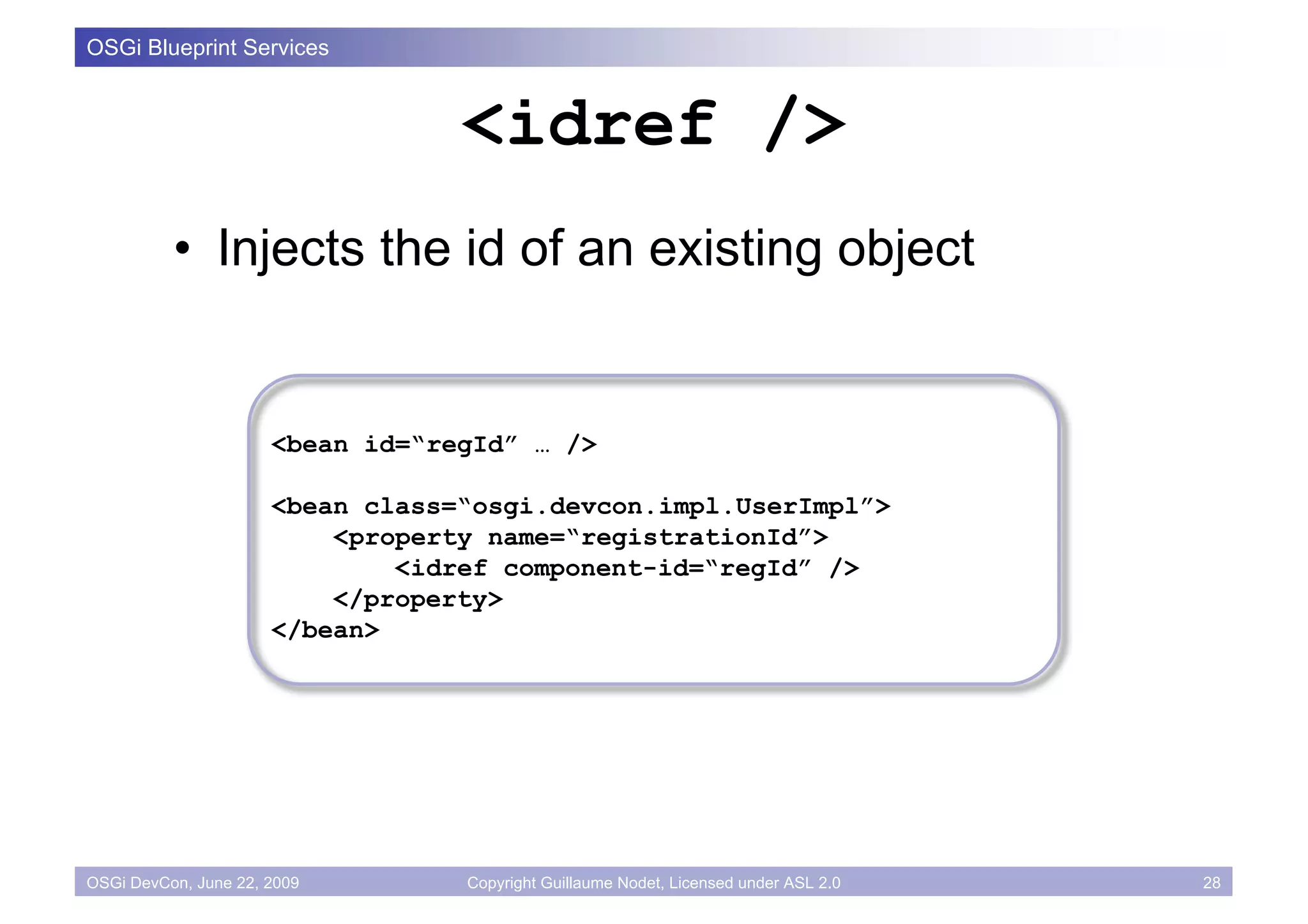

                                  <idref />
          • Injects the id of an existing object


                      <bean id=“regId” … />

                      <bean class=“osgi.devcon.impl.UserImpl”>
                          <property name=“registrationId”>
                              <idref component-id=“regId” />
                          </property>
                      </bean>




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   28
OSGi Blueprint Services

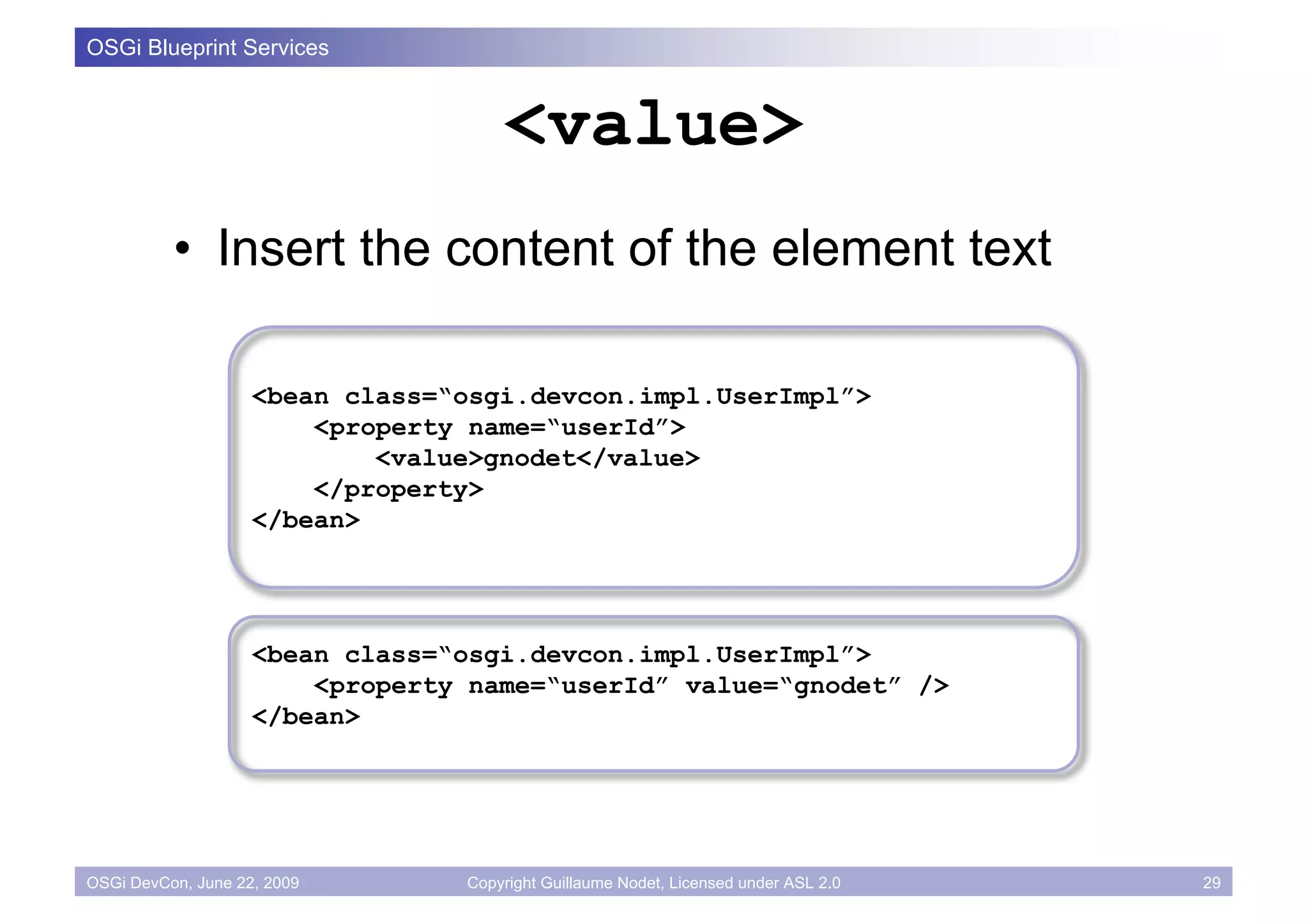

                                     <value>
          • Insert the content of the element text

                    <bean class=“osgi.devcon.impl.UserImpl”>
                        <property name=“userId”>
                            <value>gnodet</value>
                        </property>
                    </bean>




                    <bean class=“osgi.devcon.impl.UserImpl”>
                        <property name=“userId” value=“gnodet” />
                    </bean>




OSGi DevCon, June 22, 2009       Copyright Guillaume Nodet, Licensed under ASL 2.0   29
OSGi Blueprint Services

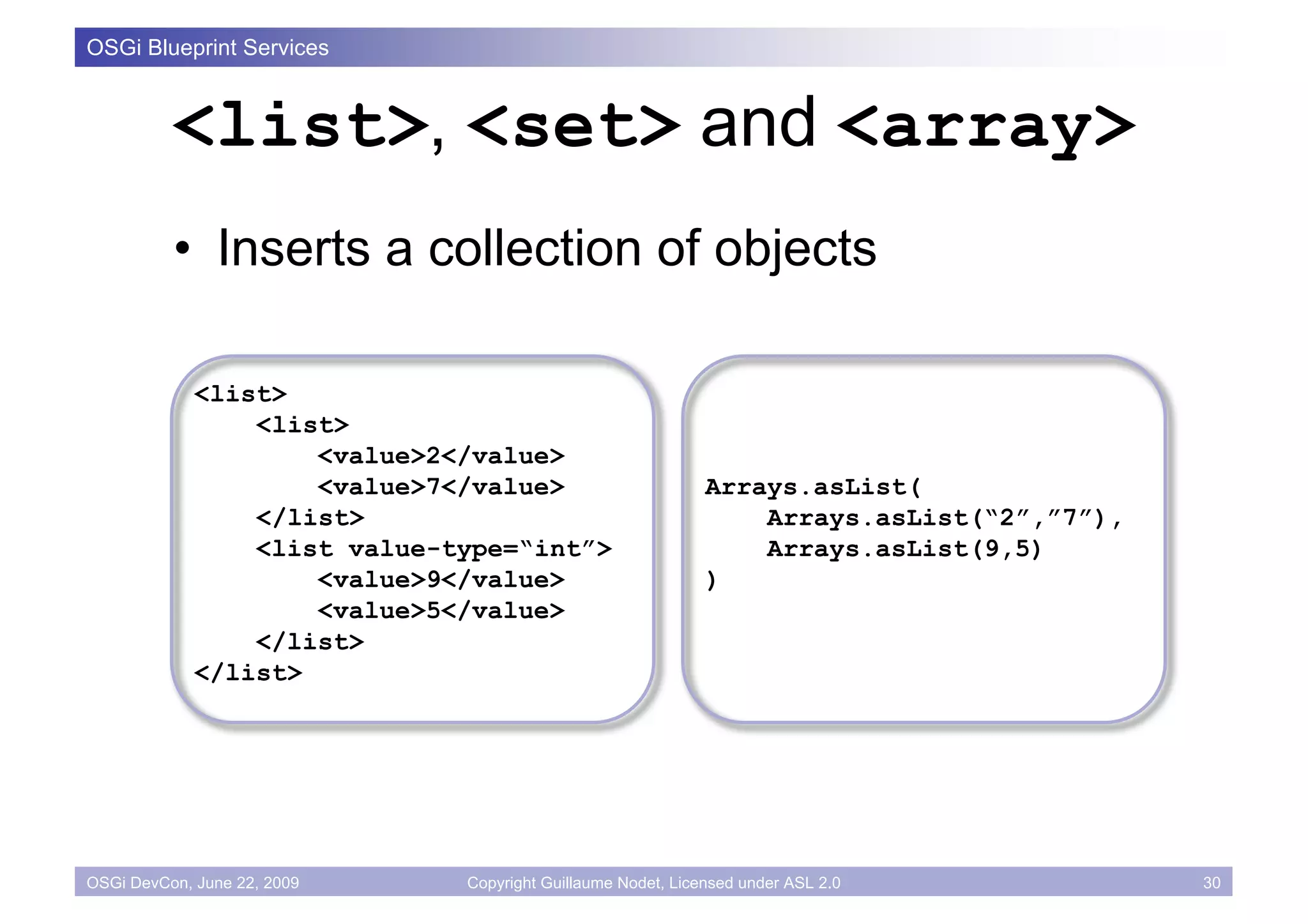

          <list>, <set> and <array>
          • Inserts a collection of objects

             <list>
                 <list>
                     <value>2</value>
                     <value>7</value>                        Arrays.asList(
                 </list>                                         Arrays.asList(“2”,”7”),
                 <list value-type=“int”>                         Arrays.asList(9,5)
                     <value>9</value>                        )
                     <value>5</value>
                 </list>
             </list>




OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0            30
OSGi Blueprint Services

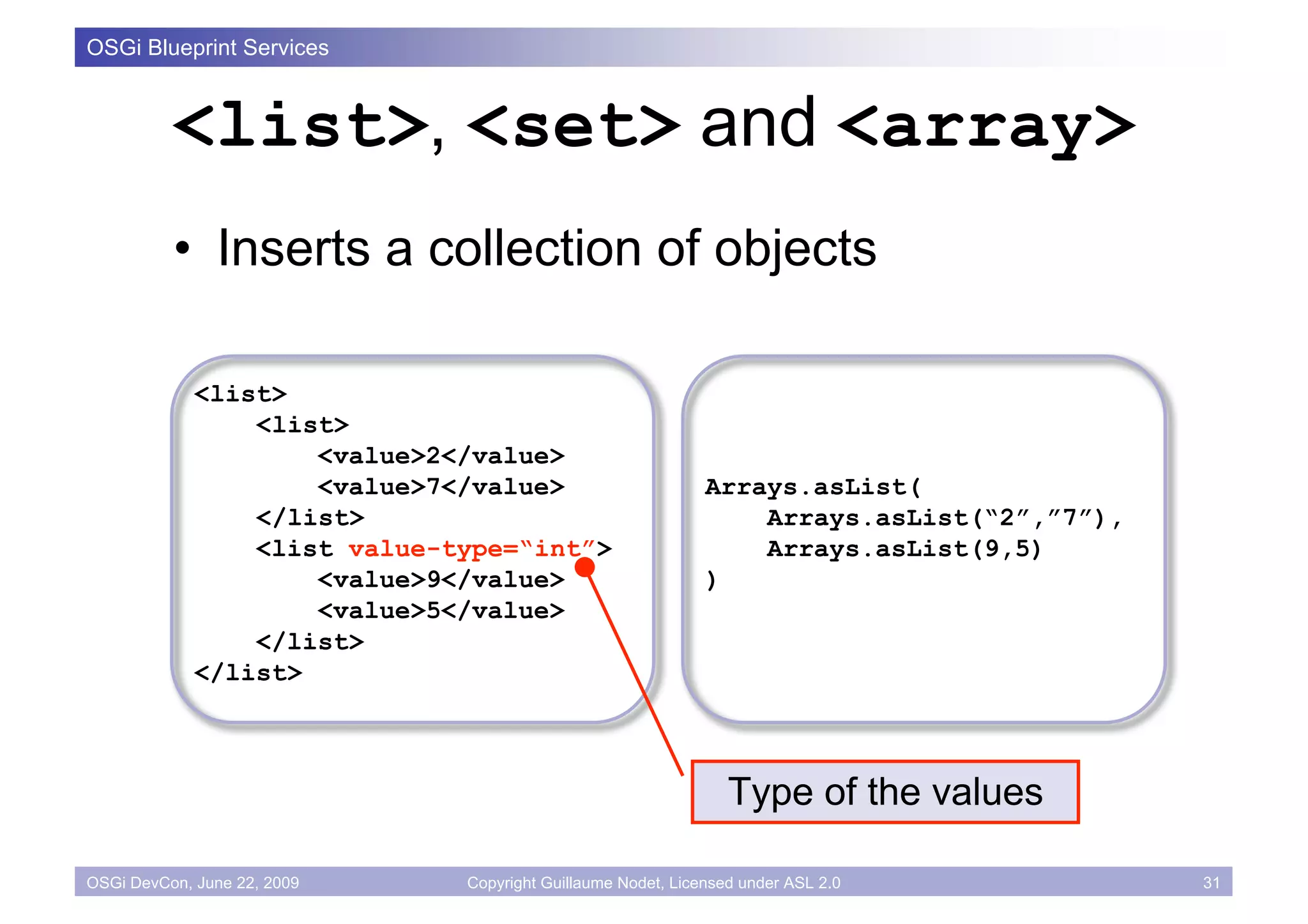

          <list>, <set> and <array>
          • Inserts a collection of objects

             <list>
                 <list>
                     <value>2</value>
                     <value>7</value>                        Arrays.asList(
                 </list>                                         Arrays.asList(“2”,”7”),
                 <list value-type=“int”>                         Arrays.asList(9,5)
                     <value>9</value>                        )
                     <value>5</value>
                 </list>
             </list>



                                                                Type of the values

OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0            31
OSGi Blueprint Services

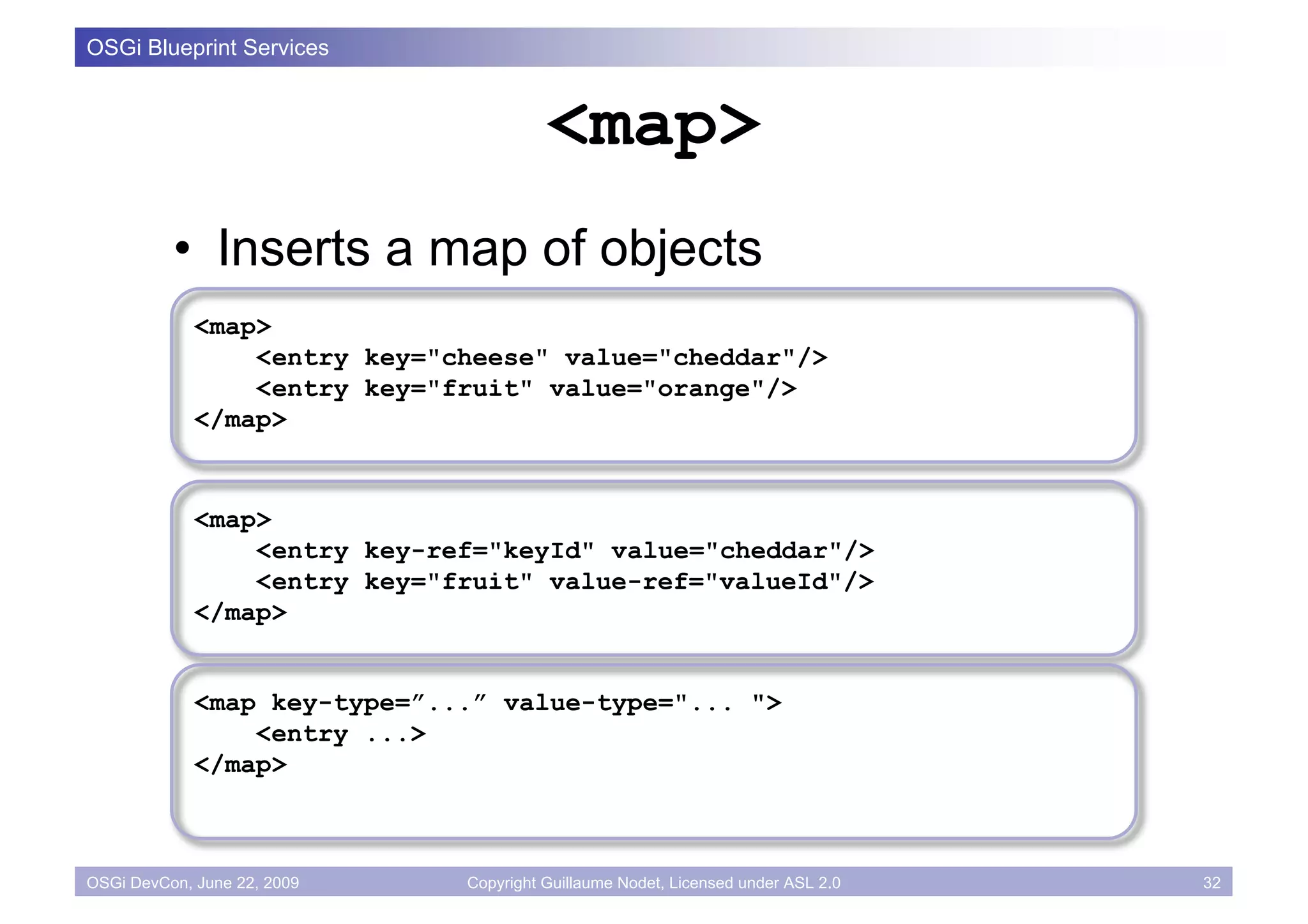

                                        <map>
          • Inserts a map of objects
             <map>
                 <entry key="cheese" value="cheddar"/>
                 <entry key="fruit" value="orange"/>
             </map>


             <map>
                 <entry key-ref="keyId" value="cheddar"/>
                 <entry key="fruit" value-ref="valueId"/>
             </map>


             <map key-type=”...” value-type="... ">
                 <entry ...>
             </map>



OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   32
OSGi Blueprint Services

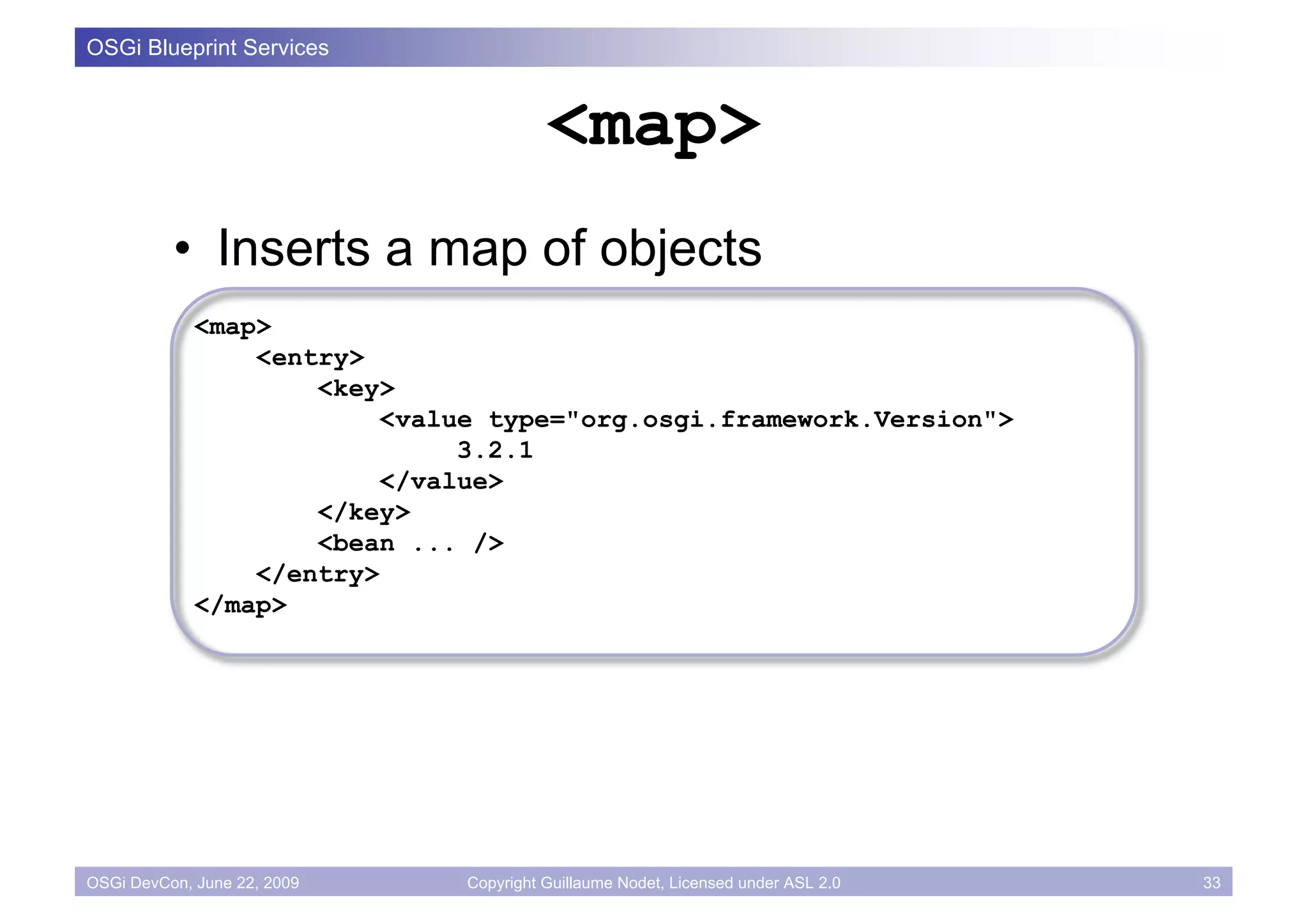

                                        <map>
          • Inserts a map of objects
             <map>
                 <entry>
                     <key>
                          <value type="org.osgi.framework.Version">
                               3.2.1
                          </value>
                     </key>
                     <bean ... />
                 </entry>
             </map>




OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   33
OSGi Blueprint Services

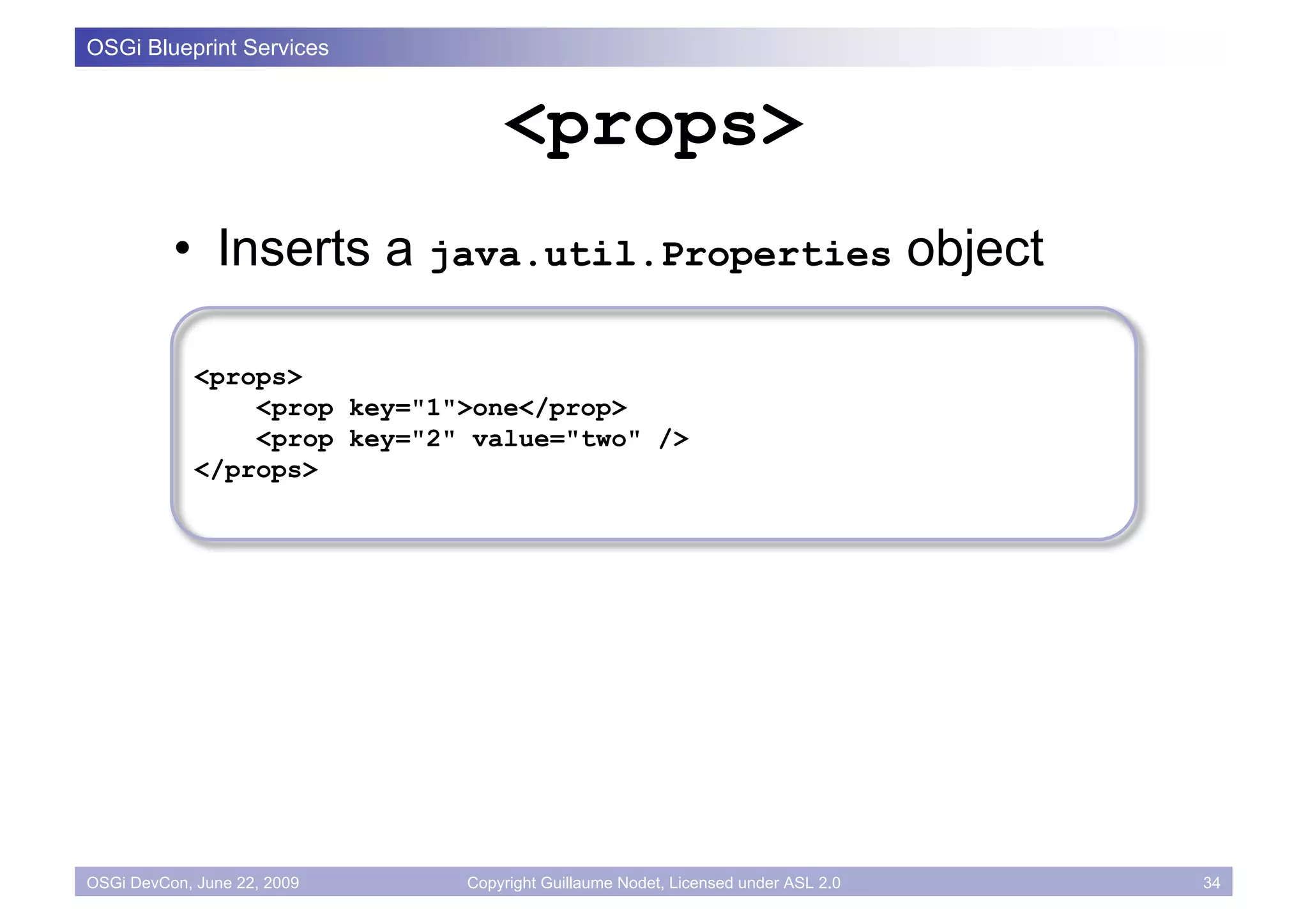

                                  <props>
          • Inserts a java.util.Properties object

             <props>
                 <prop key="1">one</prop>
                 <prop key="2" value="two" />
             </props>




OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   34

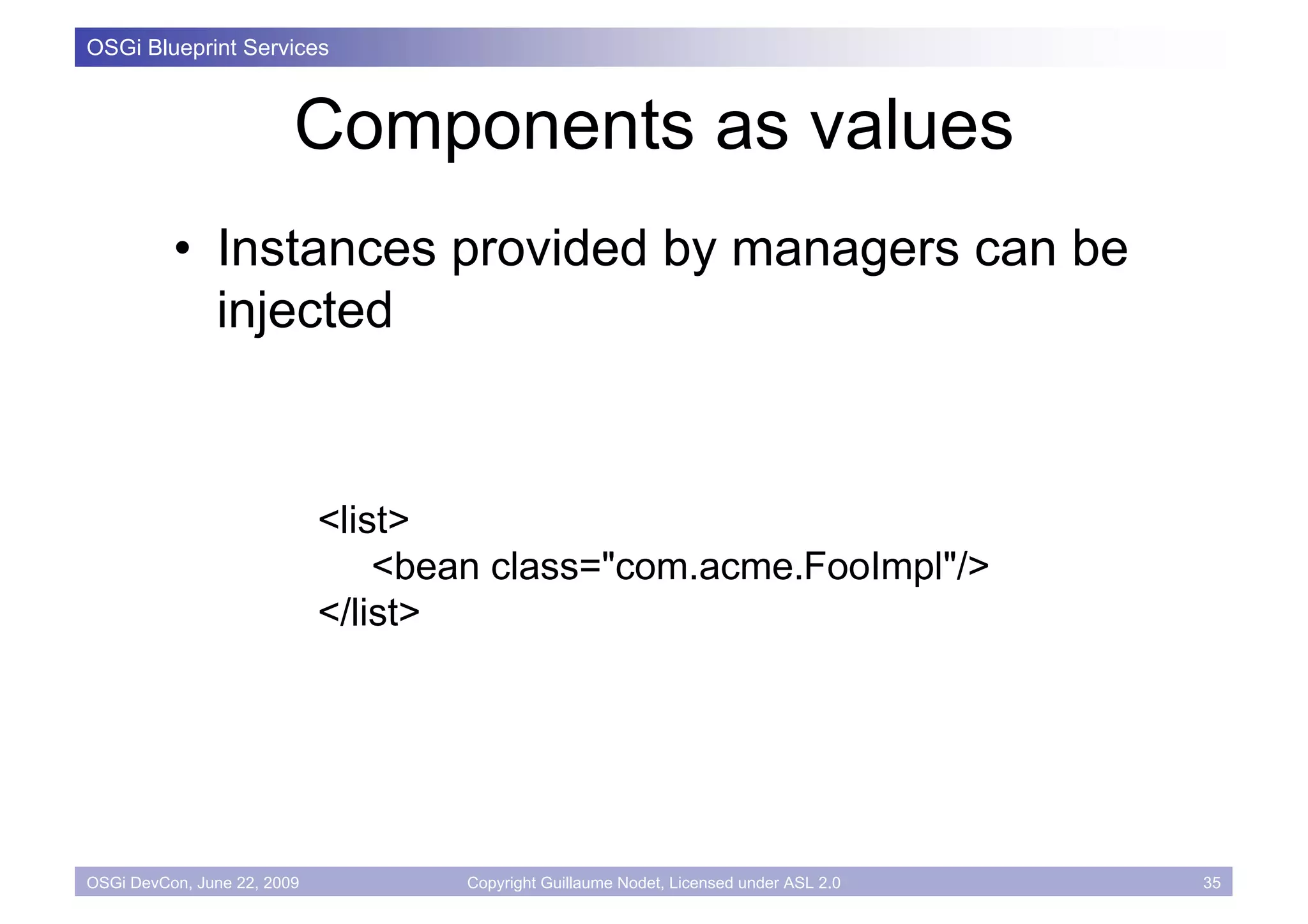

OSGi Blueprint Services



                         Components as values
          • Instances provided by managers can be
            injected



                             <list>
                                 <bean class="com.acme.FooImpl"/>
                             </list>




OSGi DevCon, June 22, 2009           Copyright Guillaume Nodet, Licensed under ASL 2.0   35
OSGi Blueprint Services



                             Service References
          • Single service: <reference>
          • Multiple services: <ref-list>

                 <reference id="user1"
                            interface="osgi.devcon.User"
                            filter="(name=gnodet)" />




                 <ref-list id=”all-users"
                           interface="osgi.devcon.User” />




OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   36
OSGi Blueprint Services

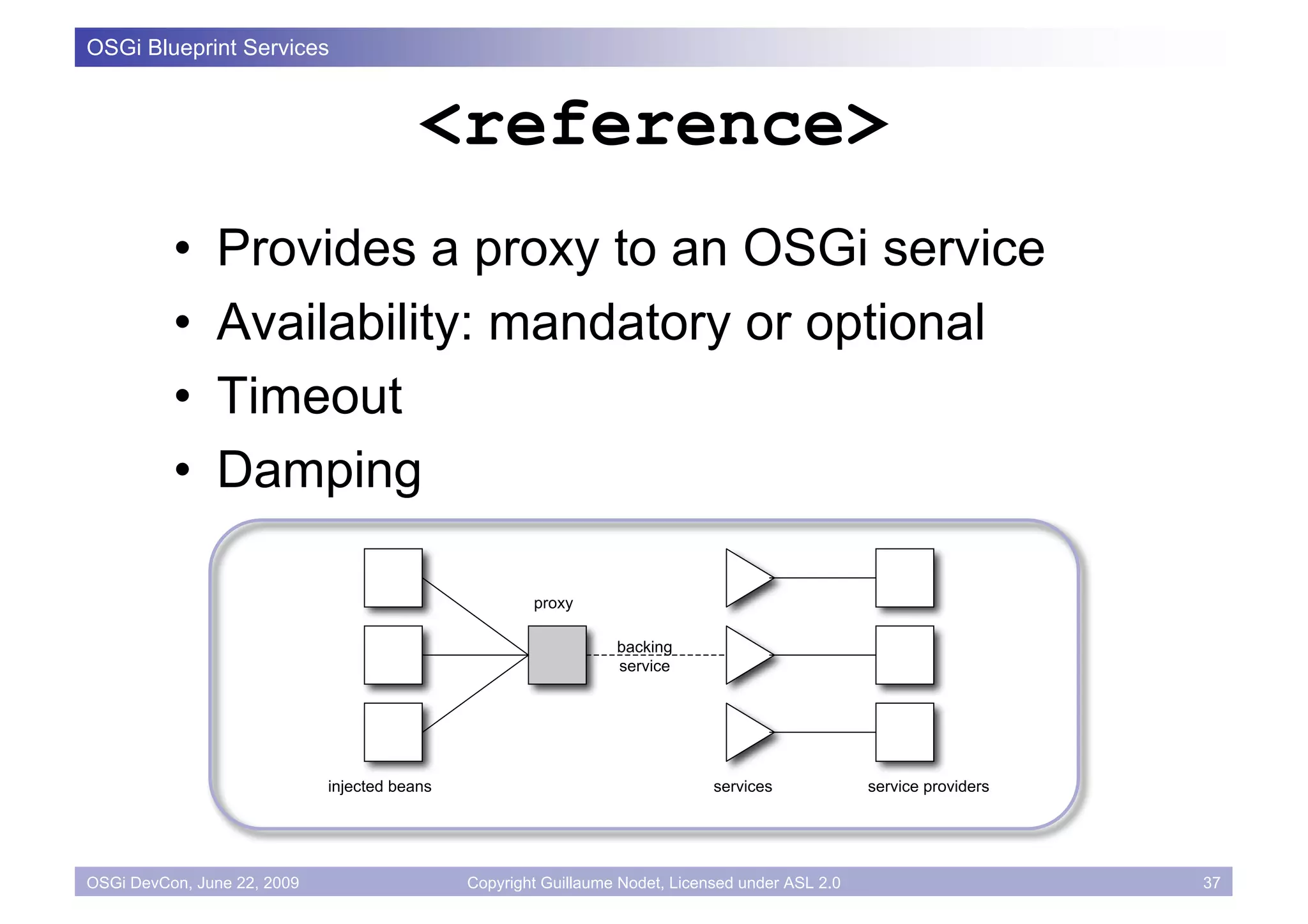

                                         <reference>
          •    Provides a proxy to an OSGi service
          •    Availability: mandatory or optional
          •    Timeout
          •    Damping

                                                      proxy

                                                                 backing
                                                                 service




                             injected beans                                   services            service providers




OSGi DevCon, June 22, 2009                    Copyright Guillaume Nodet, Licensed under ASL 2.0                       37
OSGi Blueprint Services


                                       <ref-list>
          • Provides a read-only and dynamic list of
            OSGi service
          • Availability: mandatory or optional



                                                                      backing
                                                                      service


                                       list



                      injected beans                      proxies                 services   service providers




OSGi DevCon, June 22, 2009             Copyright Guillaume Nodet, Licensed under ASL 2.0                         38

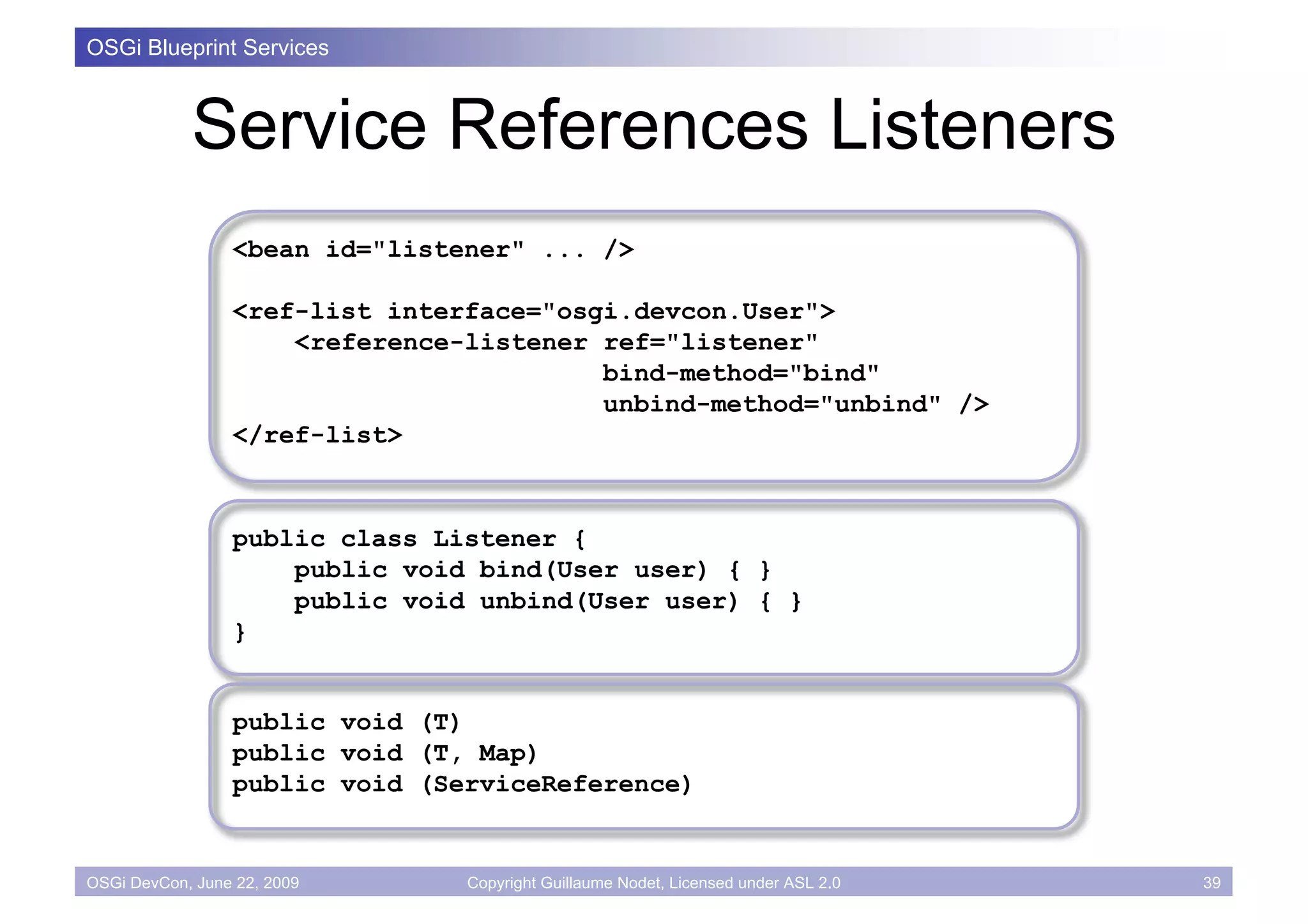

OSGi Blueprint Services



            Service References Listeners
                 <bean id="listener" ... />

                 <ref-list interface="osgi.devcon.User">
                     <reference-listener ref="listener"
                                         bind-method="bind"
                                         unbind-method="unbind" />
                 </ref-list>



                 public class Listener {
                     public void bind(User user) { }
                     public void unbind(User user) { }
                 }


                 public void (T)
                 public void (T, Map)
                 public void (ServiceReference)


OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   39
OSGi Blueprint Services

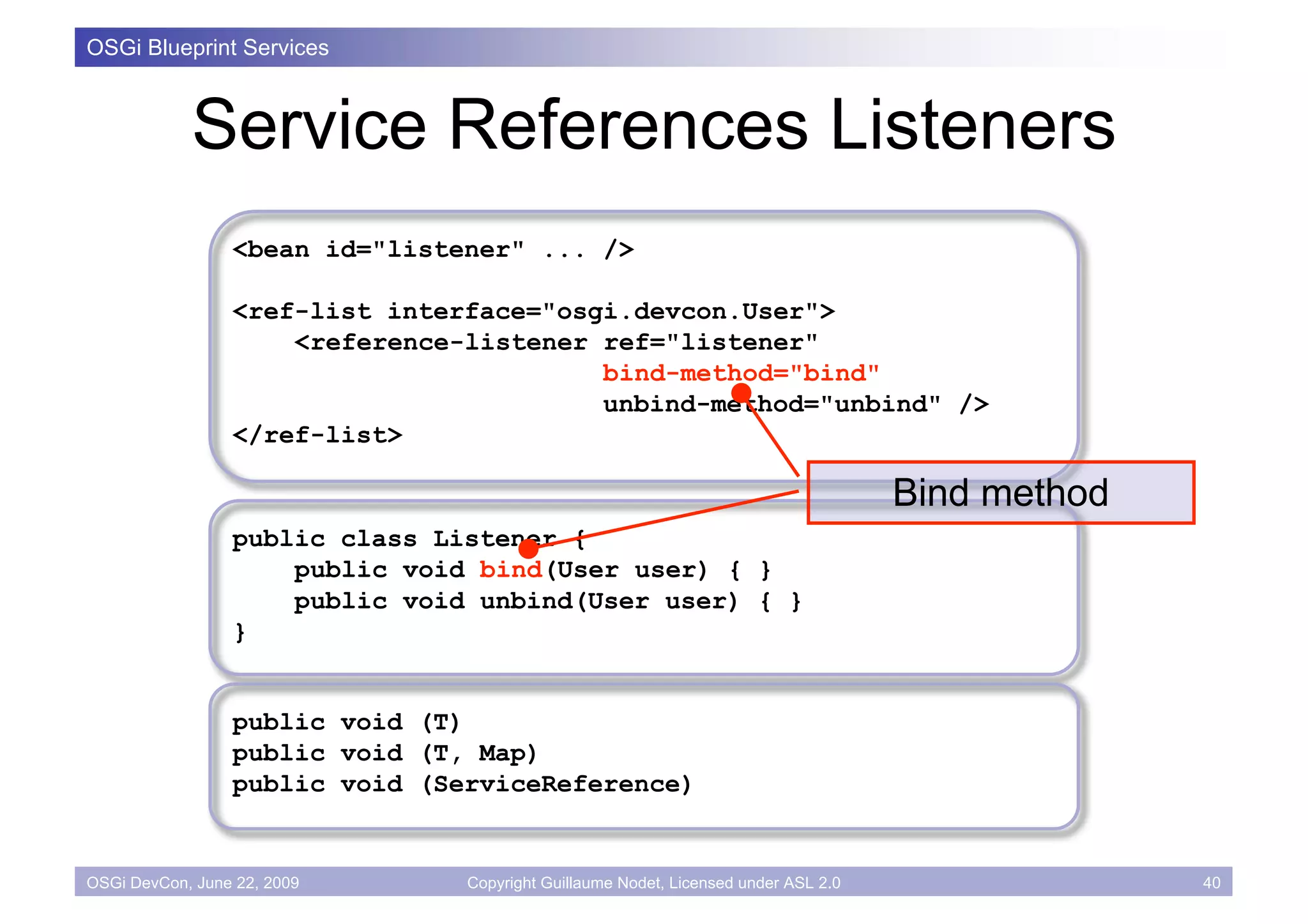

            Service References Listeners
                 <bean id="listener" ... />

                 <ref-list interface="osgi.devcon.User">
                     <reference-listener ref="listener"
                                         bind-method="bind"
                                         unbind-method="unbind" />
                 </ref-list>

                                                                                    Bind method
                 public class Listener {
                     public void bind(User user) { }
                     public void unbind(User user) { }
                 }


                 public void (T)
                 public void (T, Map)
                 public void (ServiceReference)


OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0                 40
OSGi Blueprint Services



                             Service registrations
          • Expose an object as an OSGi service
          • Register a ServiceFactory
          • Dependencies on service references

                 <service ref="user"
                          interface="osgi.devcon.User" />




                 <service auto-export="interfaces">
                     <bean class="osgi.devcon.impl.UserImpl” />
                 </service>



OSGi DevCon, June 22, 2009       Copyright Guillaume Nodet, Licensed under ASL 2.0   41

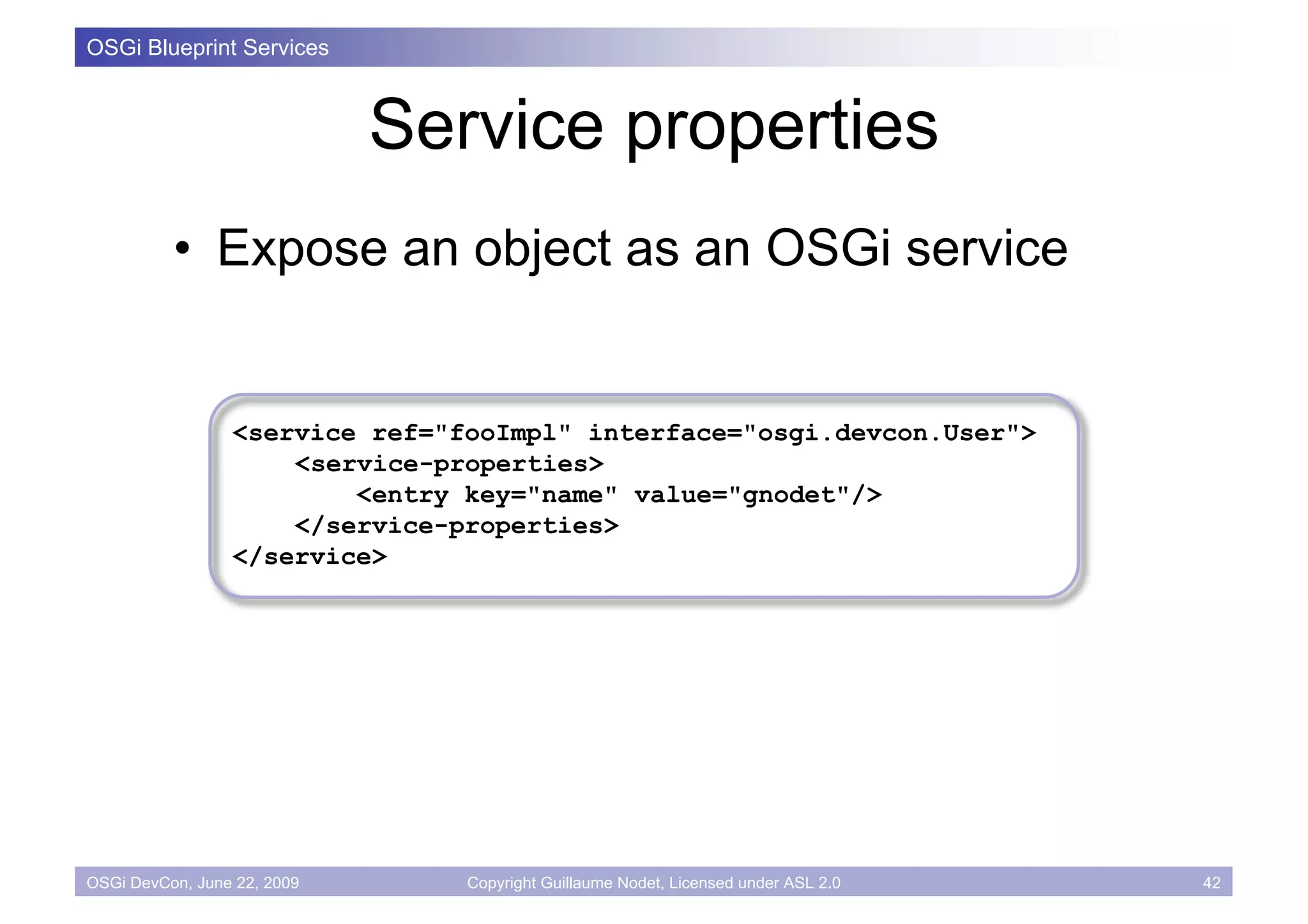

OSGi Blueprint Services



                             Service properties
          • Expose an object as an OSGi service


                 <service ref="fooImpl" interface="osgi.devcon.User">
                     <service-properties>
                         <entry key="name" value="gnodet"/>
                     </service-properties>
                 </service>




OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   42

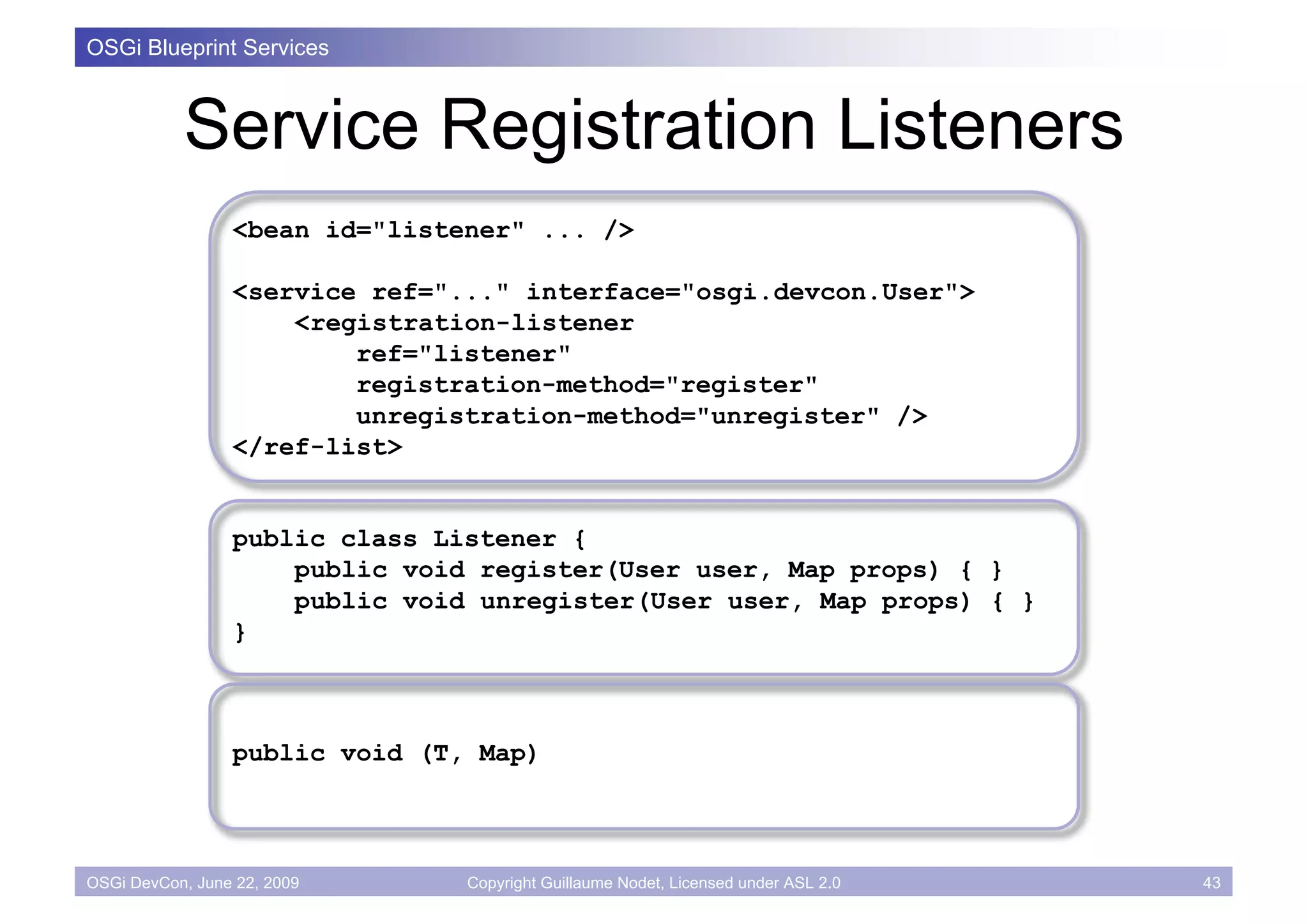

OSGi Blueprint Services



           Service Registration Listeners
                 <bean id="listener" ... />

                 <service ref="..." interface="osgi.devcon.User">
                     <registration-listener
                         ref="listener"
                         registration-method="register"
                         unregistration-method="unregister" />
                 </ref-list>


                 public class Listener {
                     public void register(User user, Map props) { }
                     public void unregister(User user, Map props) { }
                 }



                 public void (T, Map)



OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   43

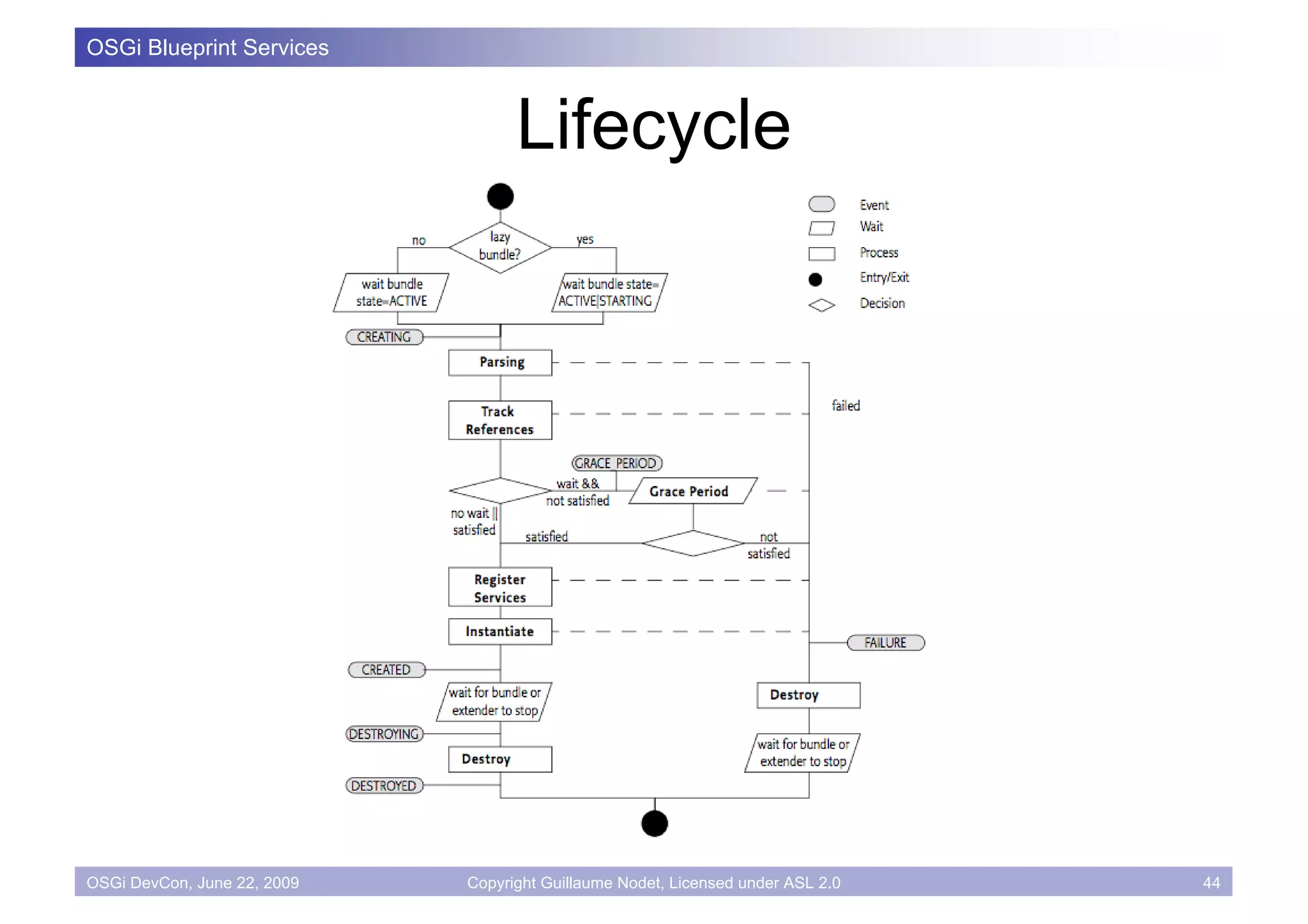

OSGi Blueprint Services



                                   Lifecycle




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   44

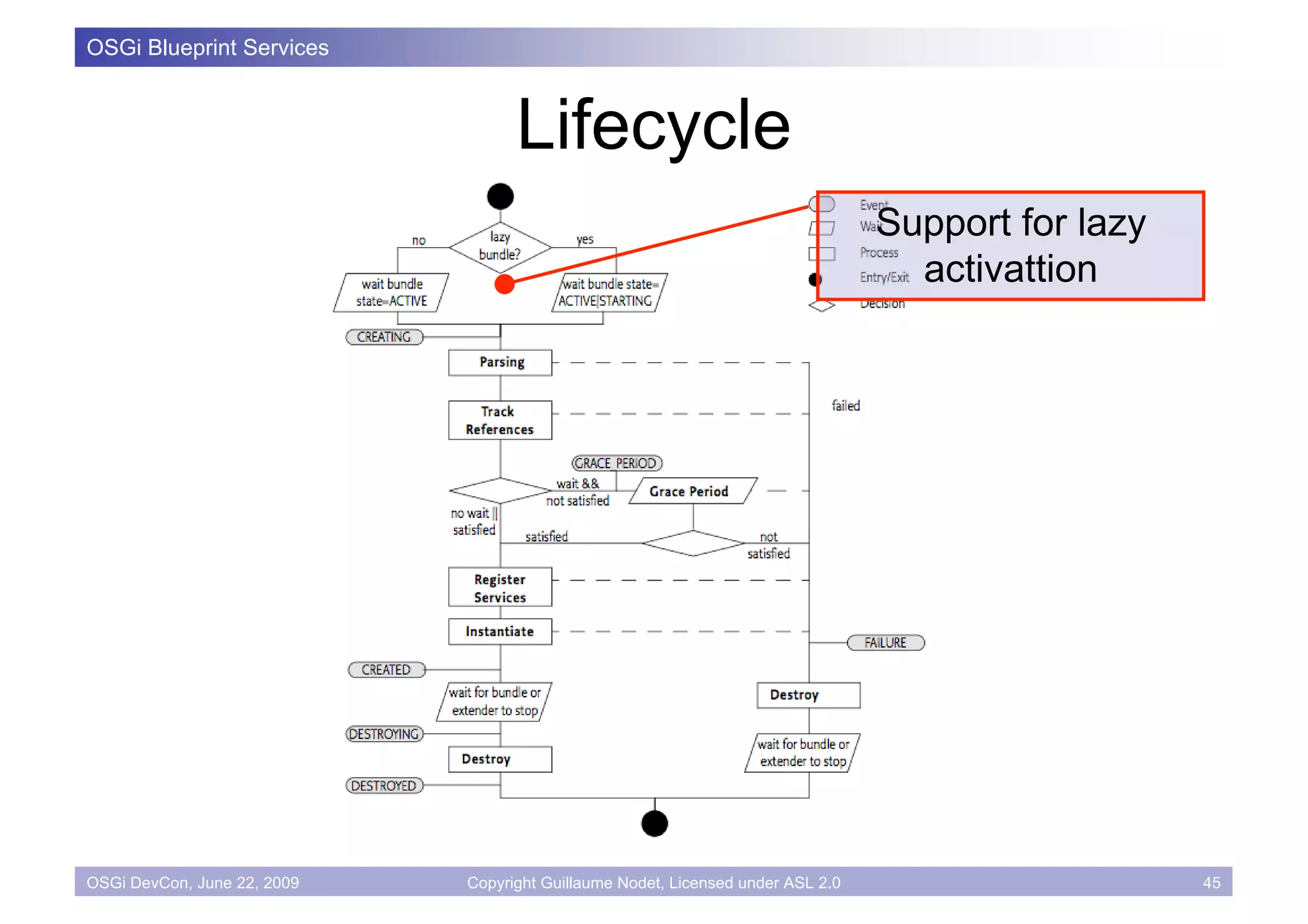

OSGi Blueprint Services



                                   Lifecycle
                                                                                 Support for lazy
                                                                                   activattion




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0                      45

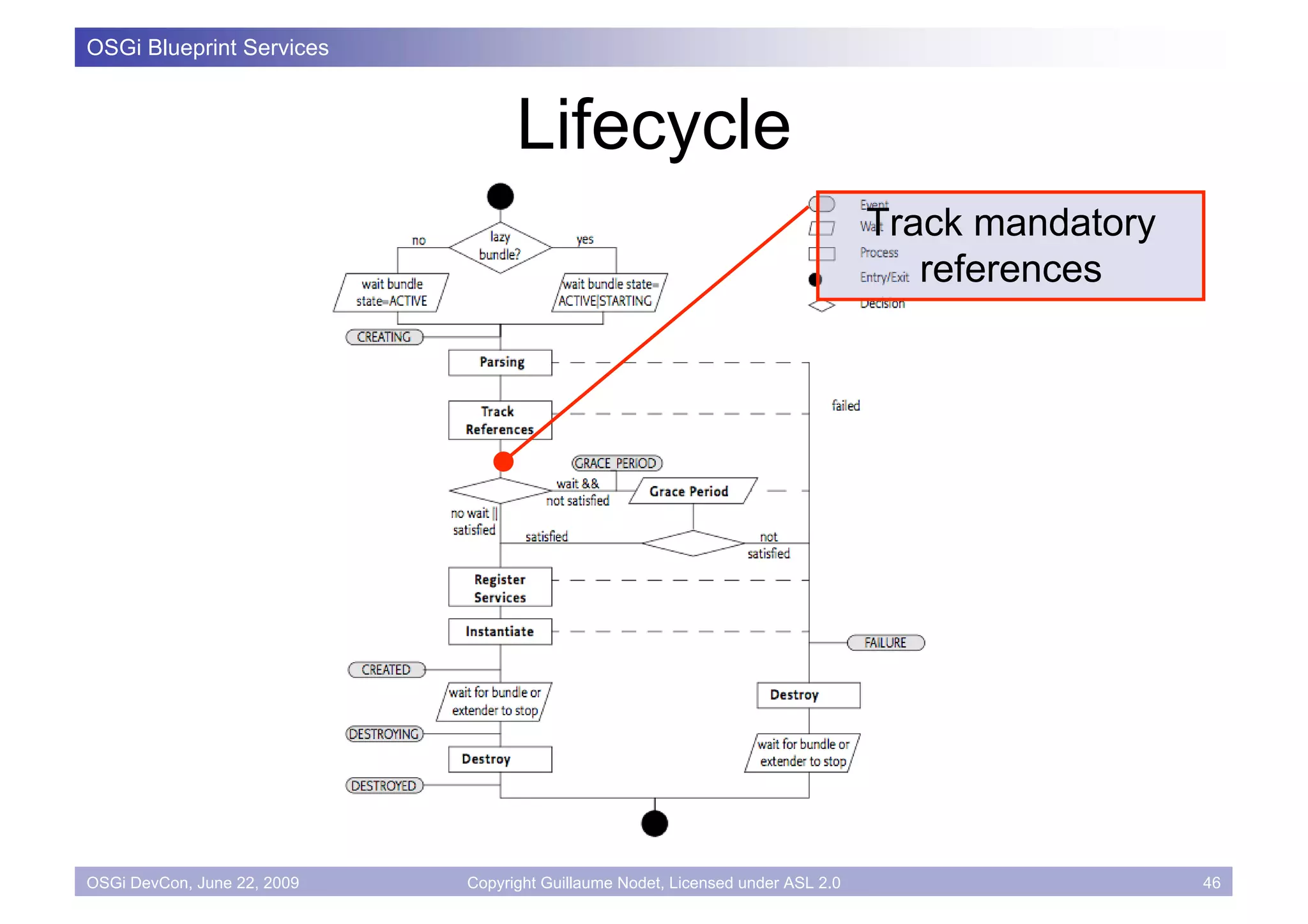

OSGi Blueprint Services



                                   Lifecycle
                                                                                 Track mandatory
                                                                                    references




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0                     46

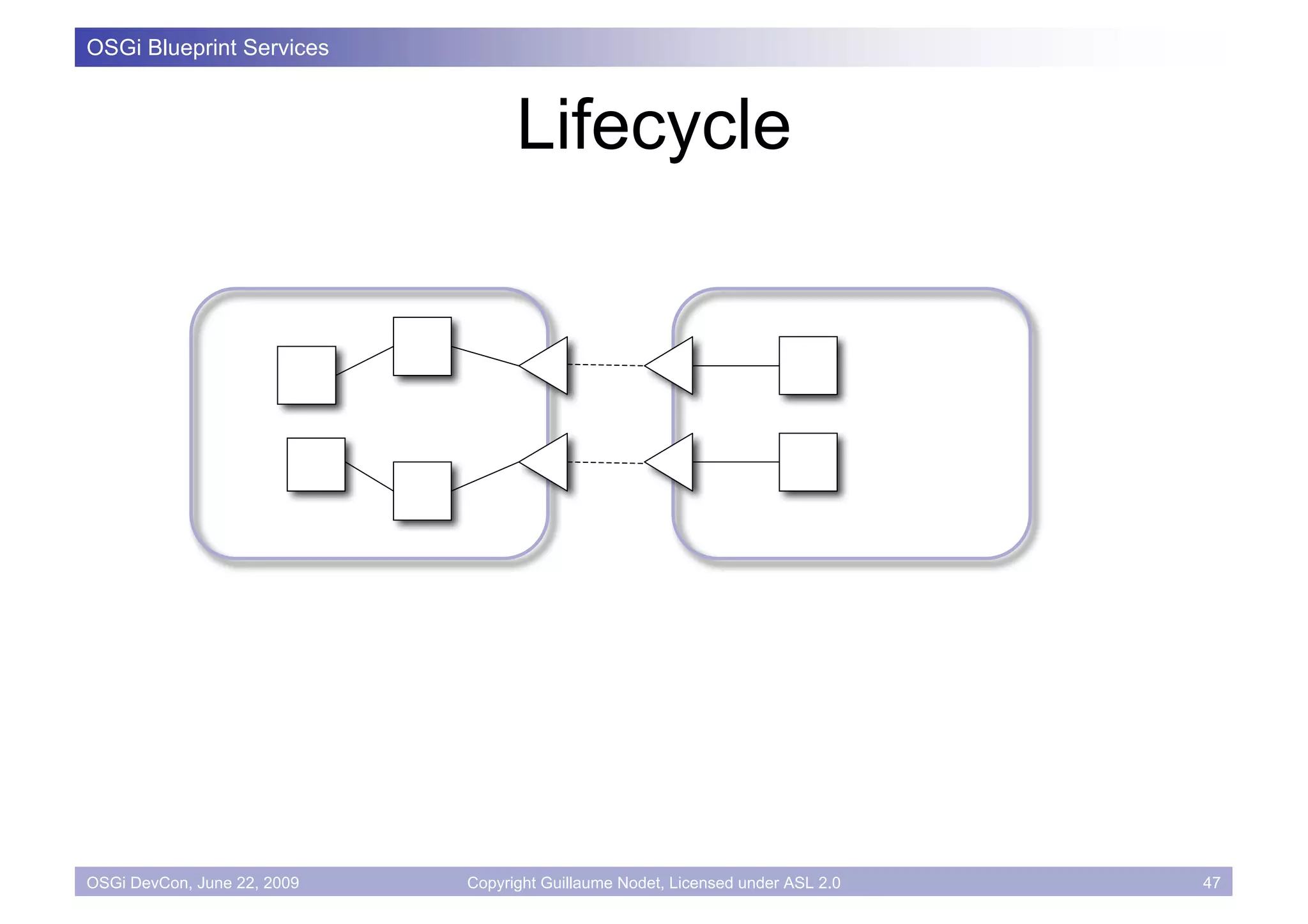

OSGi Blueprint Services



                                   Lifecycle




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   47
OSGi Blueprint Services



                             Advanced use
          • Conversions
          • Disambiguation
          • Creating custom converters
          • Use of <idref>
          • <ref-list> can be injected as
               List<ServiceReference>
          • Use of the ranking attribute on
               <service>
          • Blueprint Events

OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   48
OSGi Blueprint Services

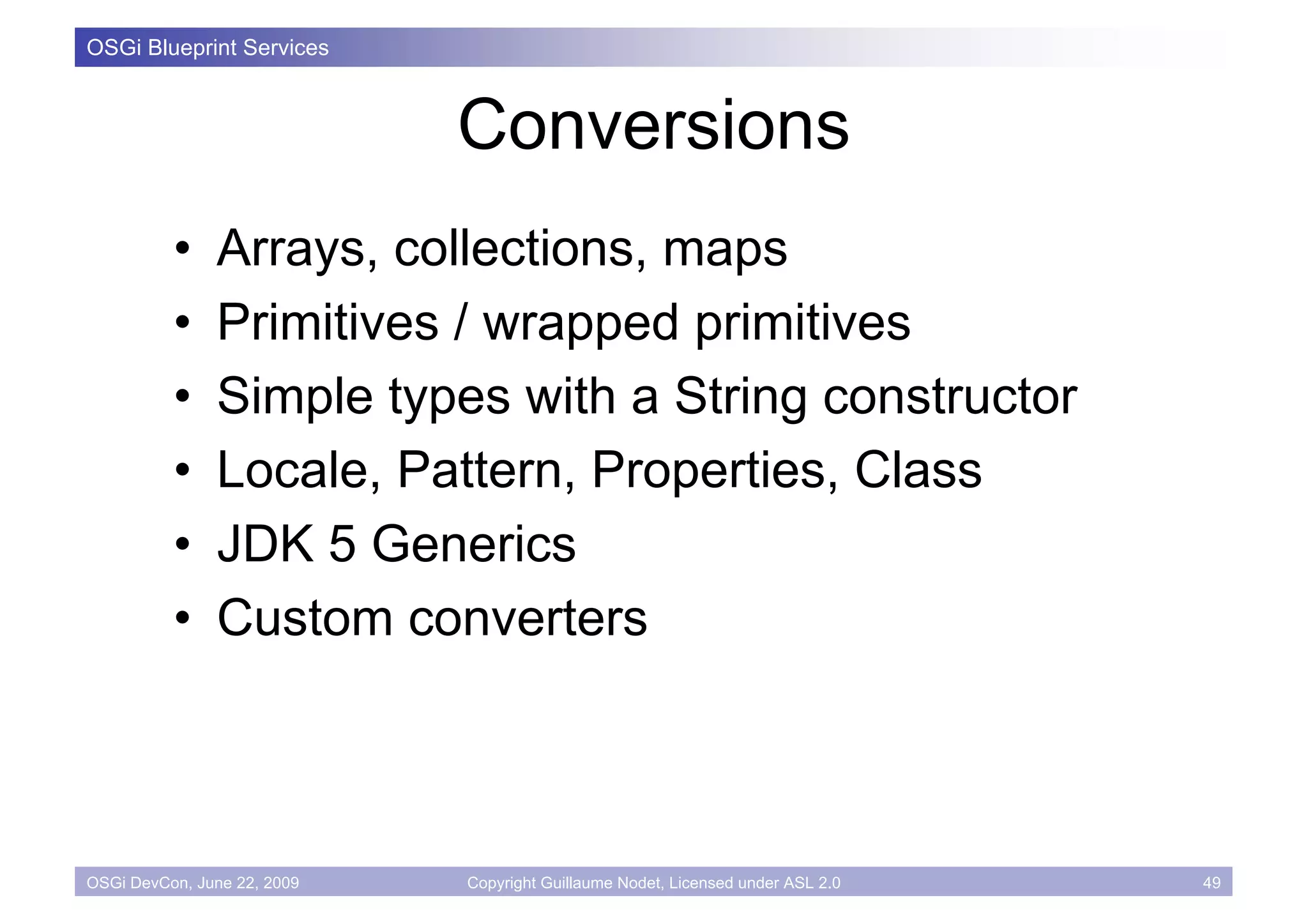

                             Conversions
          •    Arrays, collections, maps
          •    Primitives / wrapped primitives
          •    Simple types with a String constructor
          •    Locale, Pattern, Properties, Class
          •    JDK 5 Generics
          •    Custom converters



OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   49
OSGi Blueprint Services

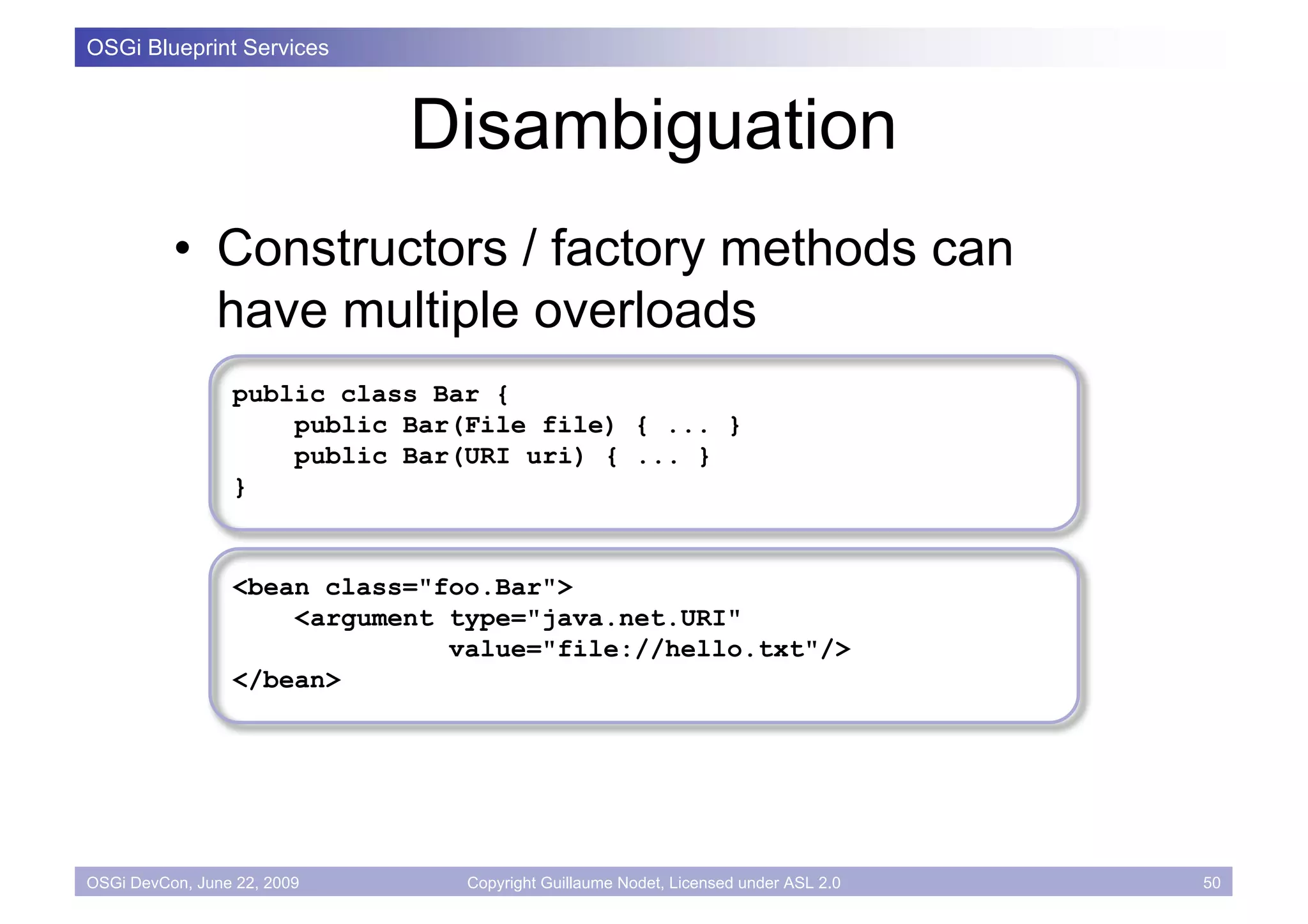

                             Disambiguation
          • Constructors / factory methods can
            have multiple overloads
                 public class Bar {
                     public Bar(File file) { ... }
                     public Bar(URI uri) { ... }
                 }


                 <bean class="foo.Bar">
                     <argument type="java.net.URI"
                               value="file://hello.txt"/>
                 </bean>




OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   50
OSGi Blueprint Services

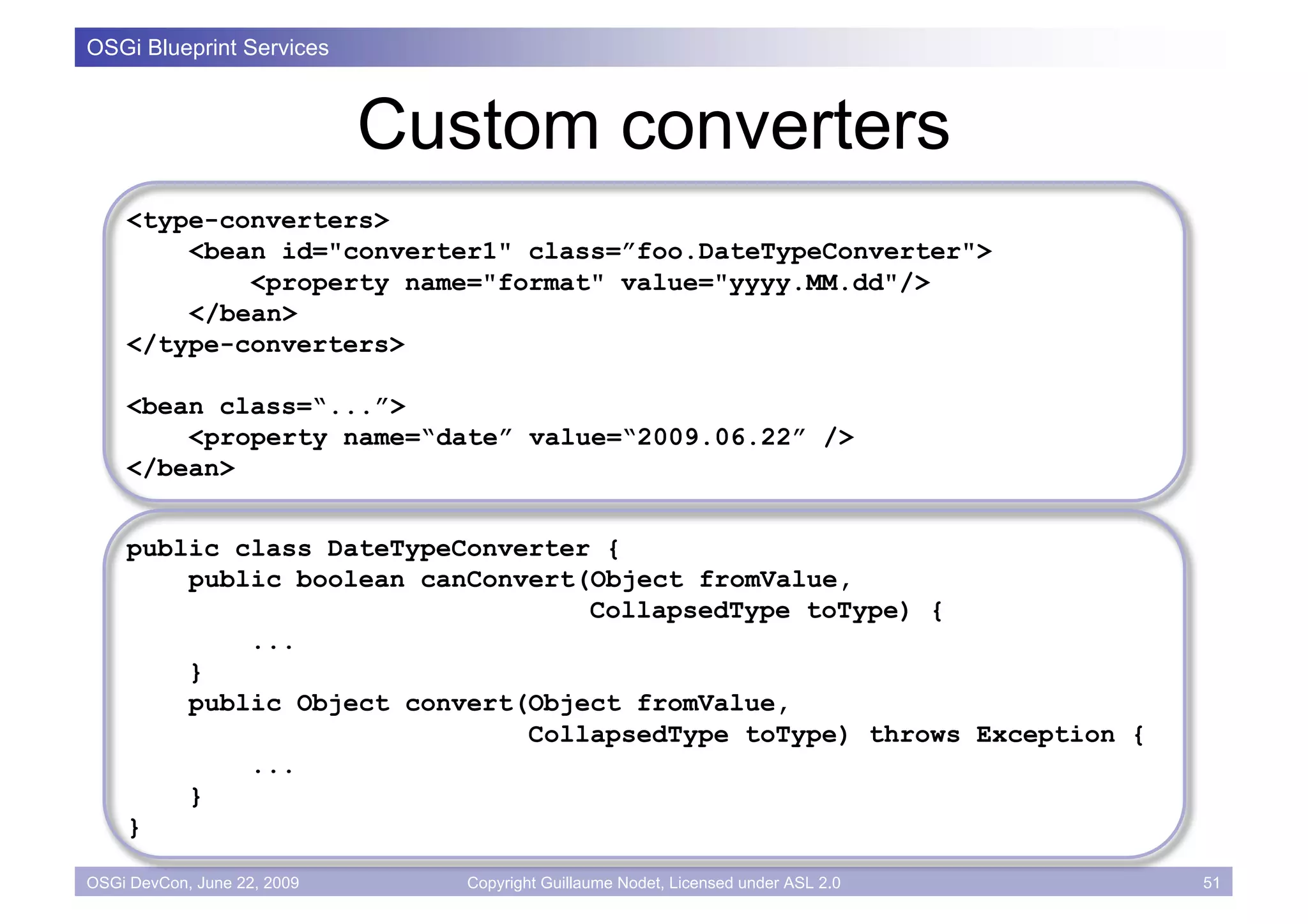

                             Custom converters
    <type-converters>
        <bean id="converter1" class=”foo.DateTypeConverter">
            <property name="format" value="yyyy.MM.dd"/>
        </bean>
    </type-converters>

    <bean class=“...”>
        <property name=“date” value=“2009.06.22” />
    </bean>


    public class DateTypeConverter {
        public boolean canConvert(Object fromValue,
                                  CollapsedType toType) {
            ...
        }
        public Object convert(Object fromValue,
                              CollapsedType toType) throws Exception {
            ...
        }
    }

OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   51

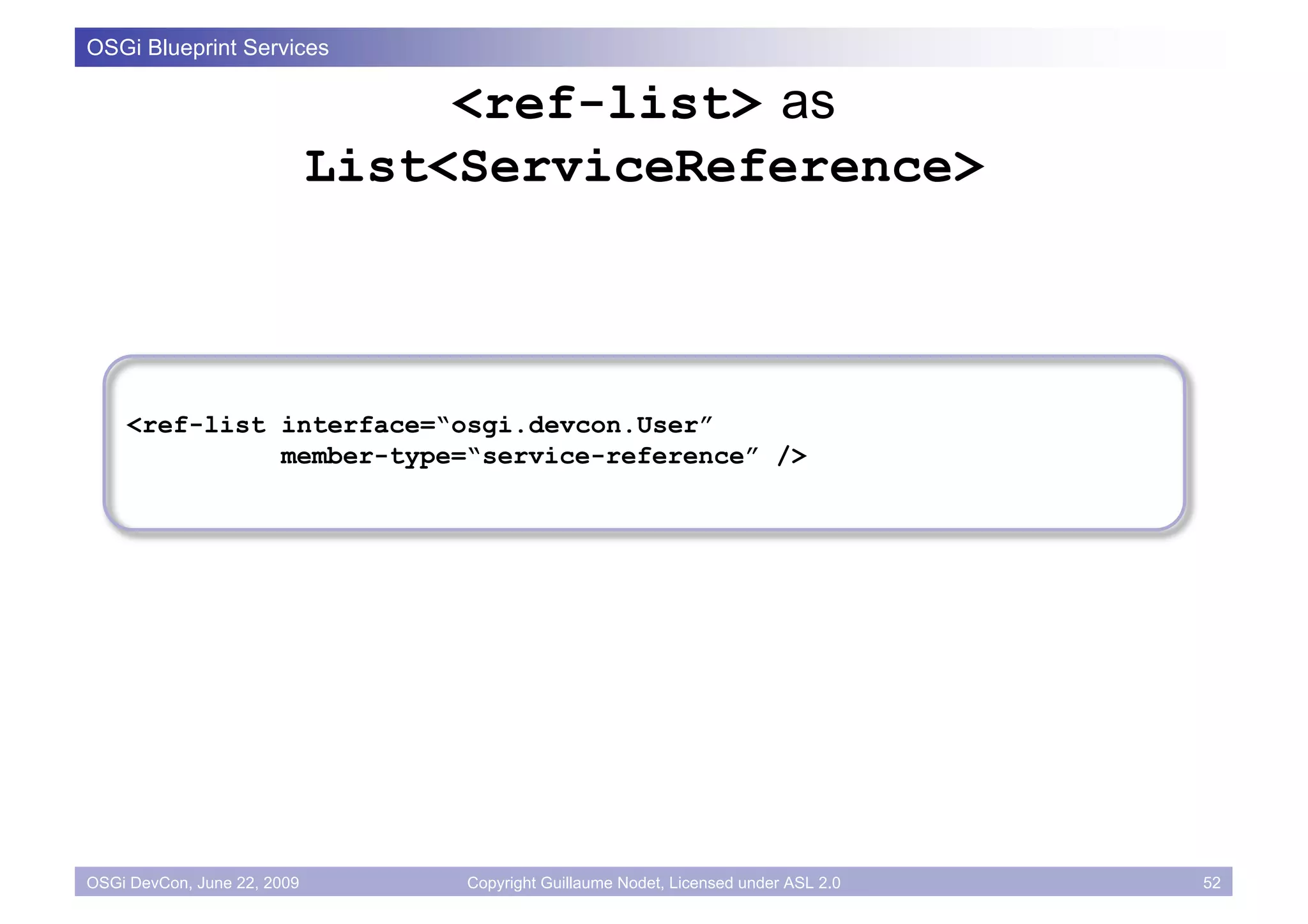

OSGi Blueprint Services

                                  <ref-list> as
                             List<ServiceReference>



    <ref-list interface=“osgi.devcon.User”
              member-type=“service-reference” />




OSGi DevCon, June 22, 2009        Copyright Guillaume Nodet, Licensed under ASL 2.0   52

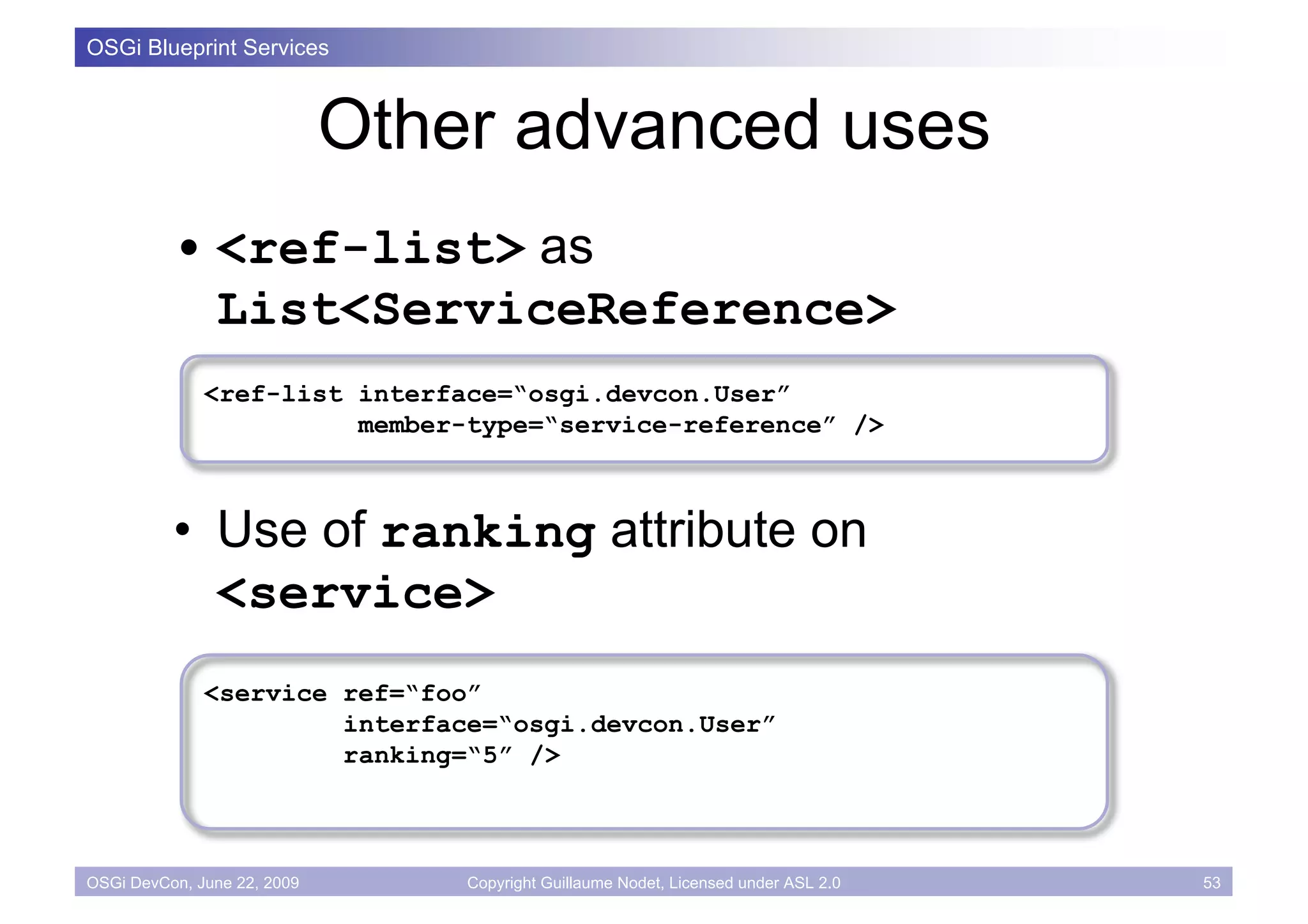

OSGi Blueprint Services



                             Other advanced uses
          • <ref-list> as
            List<ServiceReference>
              <ref-list interface=“osgi.devcon.User”
                        member-type=“service-reference” />



          • Use of ranking attribute on
            <service>
              <service ref=“foo”
                       interface=“osgi.devcon.User”
                       ranking=“5” />



OSGi DevCon, June 22, 2009       Copyright Guillaume Nodet, Licensed under ASL 2.0   53
OSGi Blueprint Services



                             Use of <idref>
          • Prototypes
          • Use of the Blueprint API
    <bean id=“bar” class=“foo.Bar” scope=“prototype”>
        <property name=“prop” value=“val” />
    </bean>

    <bean class=“foo.BarCreator”>
        <property name=“blueprintContainer” ref=“blueprintContainer” />
        <property name=“id”>
            <idref component-id=“bar” />
        </property>
    </bean>



    Bar bar = (Bar) blueprintContainer.getComponent(id)


OSGi DevCon, June 22, 2009    Copyright Guillaume Nodet, Licensed under ASL 2.0   54

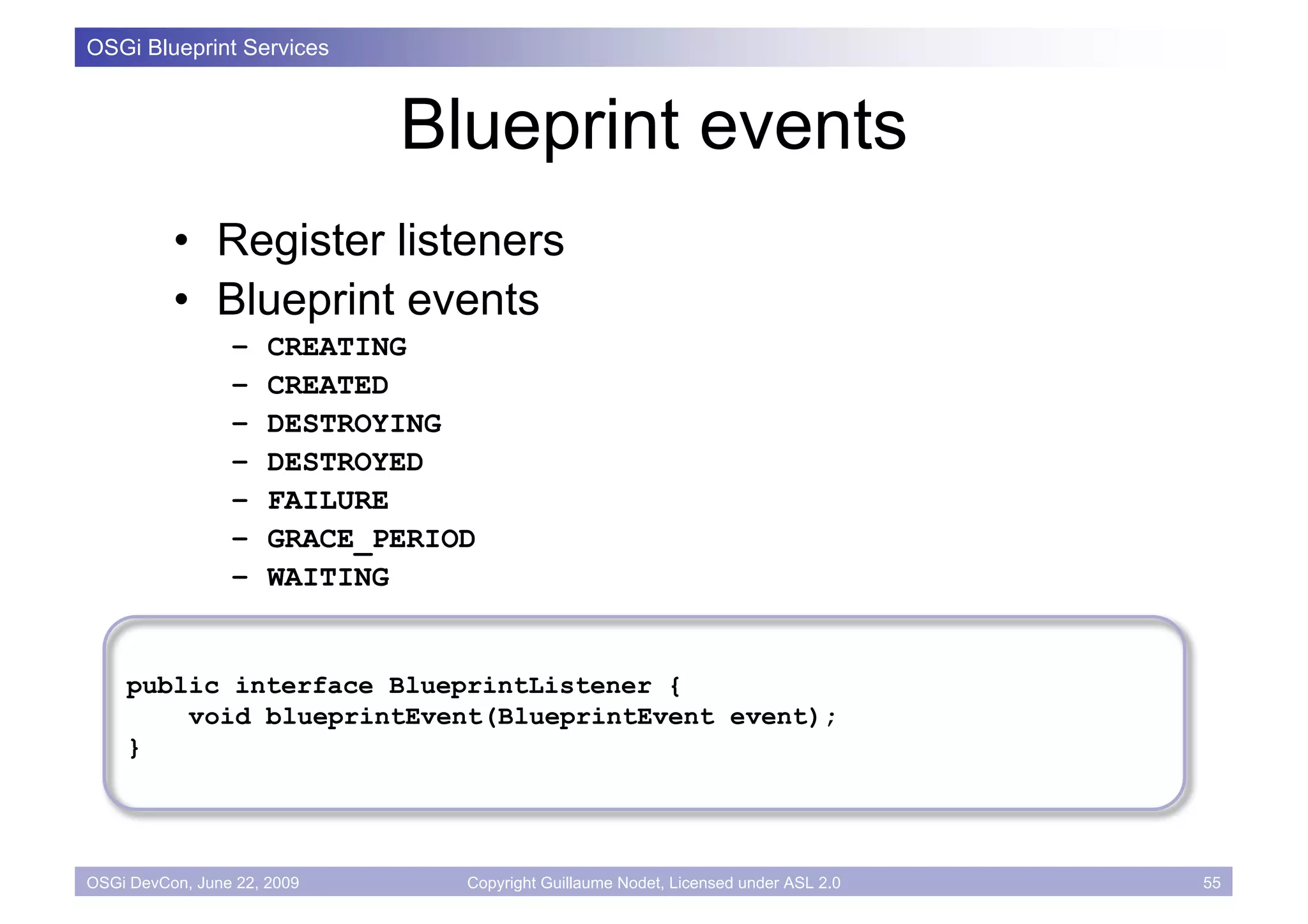

OSGi Blueprint Services



                             Blueprint events
          • Register listeners
          • Blueprint events
                 –    CREATING
                 –    CREATED
                 –    DESTROYING
                 –    DESTROYED
                 –    FAILURE
                 –    GRACE_PERIOD
                 –    WAITING


    public interface BlueprintListener {
        void blueprintEvent(BlueprintEvent event);
    }




OSGi DevCon, June 22, 2009       Copyright Guillaume Nodet, Licensed under ASL 2.0   55
OSGi Blueprint Services



                               Next steps
          • Custom namespace handlers
          • Config Admin support




OSGi DevCon, June 22, 2009   Copyright Guillaume Nodet, Licensed under ASL 2.0   56

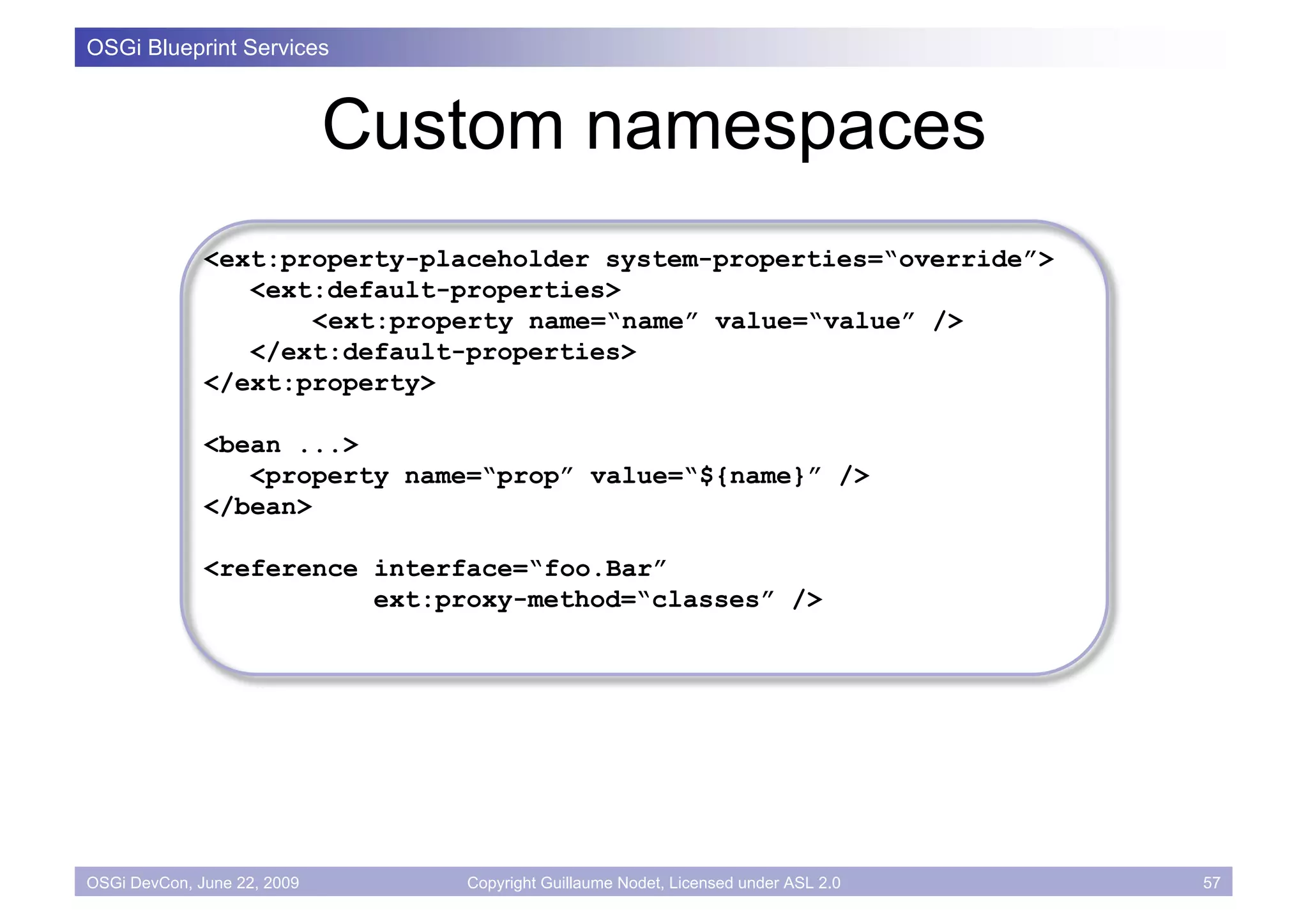

OSGi Blueprint Services



                             Custom namespaces
              <ext:property-placeholder system-properties=“override”>
                 <ext:default-properties>
                     <ext:property name=“name” value=“value” />
                 </ext:default-properties>
              </ext:property>

              <bean ...>
                 <property name=“prop” value=“${name}” />
              </bean>

              <reference interface=“foo.Bar”
                         ext:proxy-method=“classes” />




OSGi DevCon, June 22, 2009      Copyright Guillaume Nodet, Licensed under ASL 2.0   57
OSGi Blueprint Services

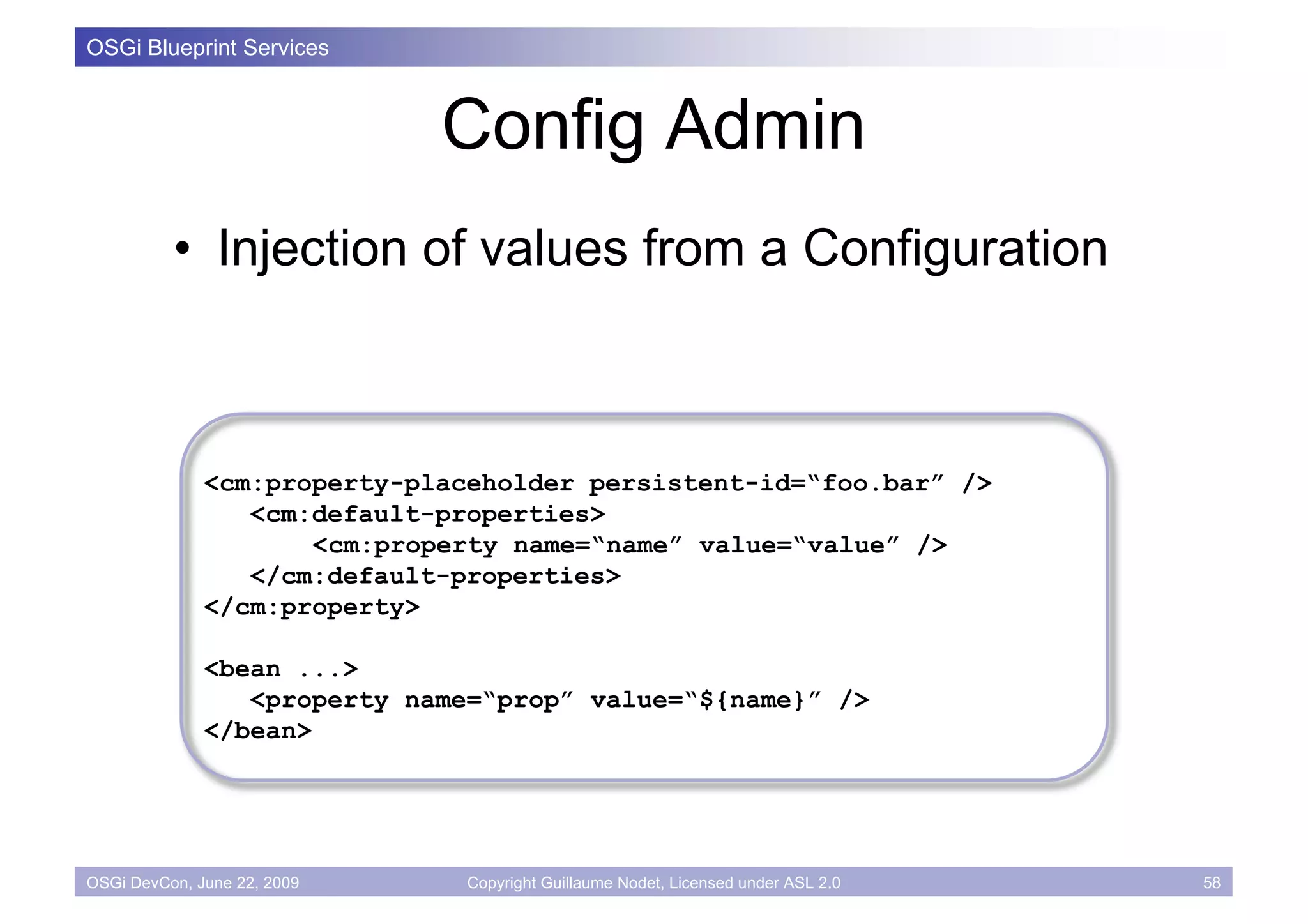

                             Config Admin
          • Injection of values from a Configuration



              <cm:property-placeholder persistent-id=“foo.bar” />
                 <cm:default-properties>
                     <cm:property name=“name” value=“value” />
                 </cm:default-properties>
              </cm:property>

              <bean ...>
                 <property name=“prop” value=“${name}” />
              </bean>




OSGi DevCon, June 22, 2009     Copyright Guillaume Nodet, Licensed under ASL 2.0   58
OSGi Blueprint Services

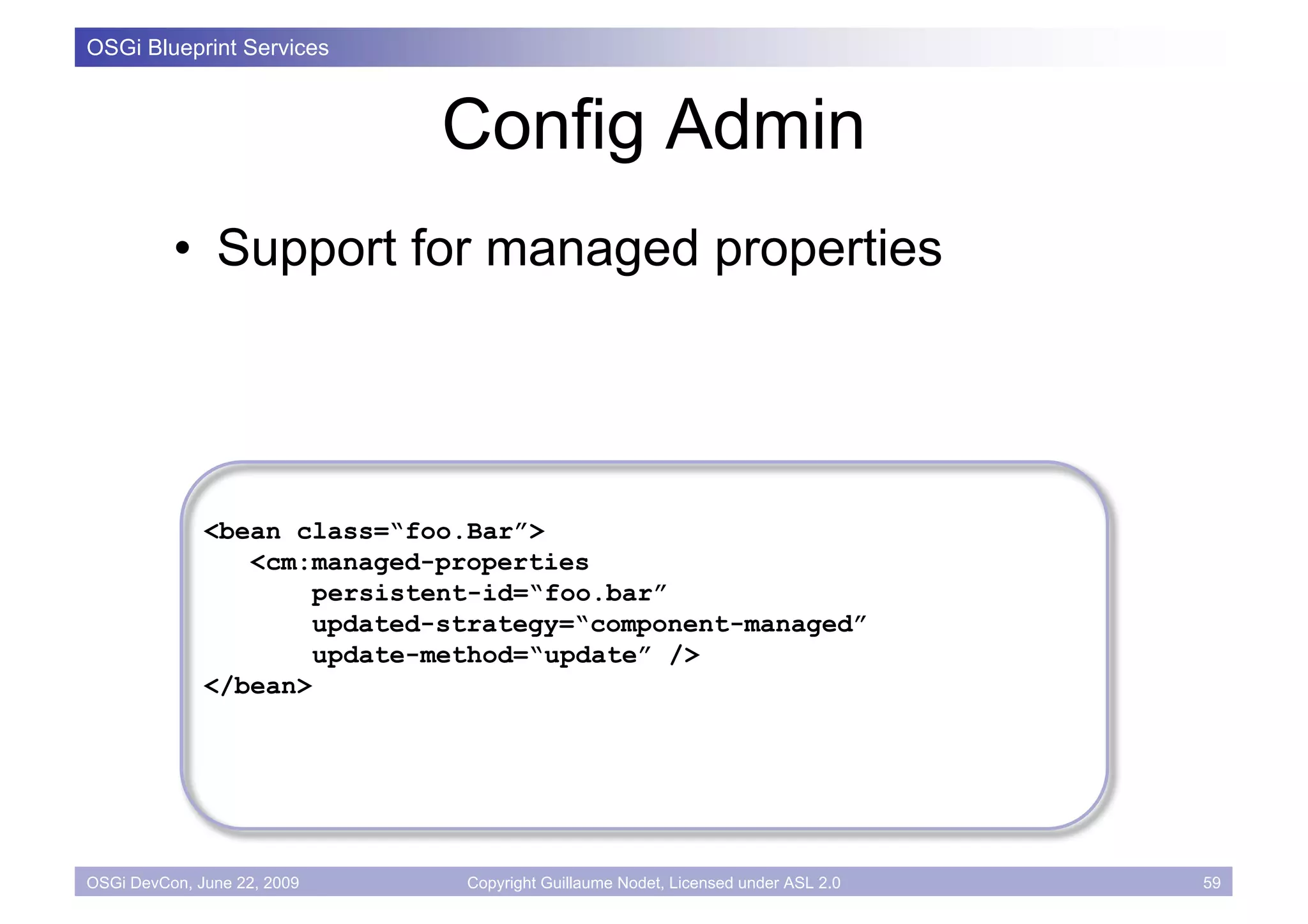

                             Config Admin
          • Support for managed properties




              <bean class=“foo.Bar”>
                 <cm:managed-properties
                      persistent-id=“foo.bar”
                     updated-strategy=“component-managed”
                      update-method=“update” />
              </bean>




OSGi DevCon, June 22, 2009     Copyright Guillaume Nodet, Licensed under ASL 2.0   59

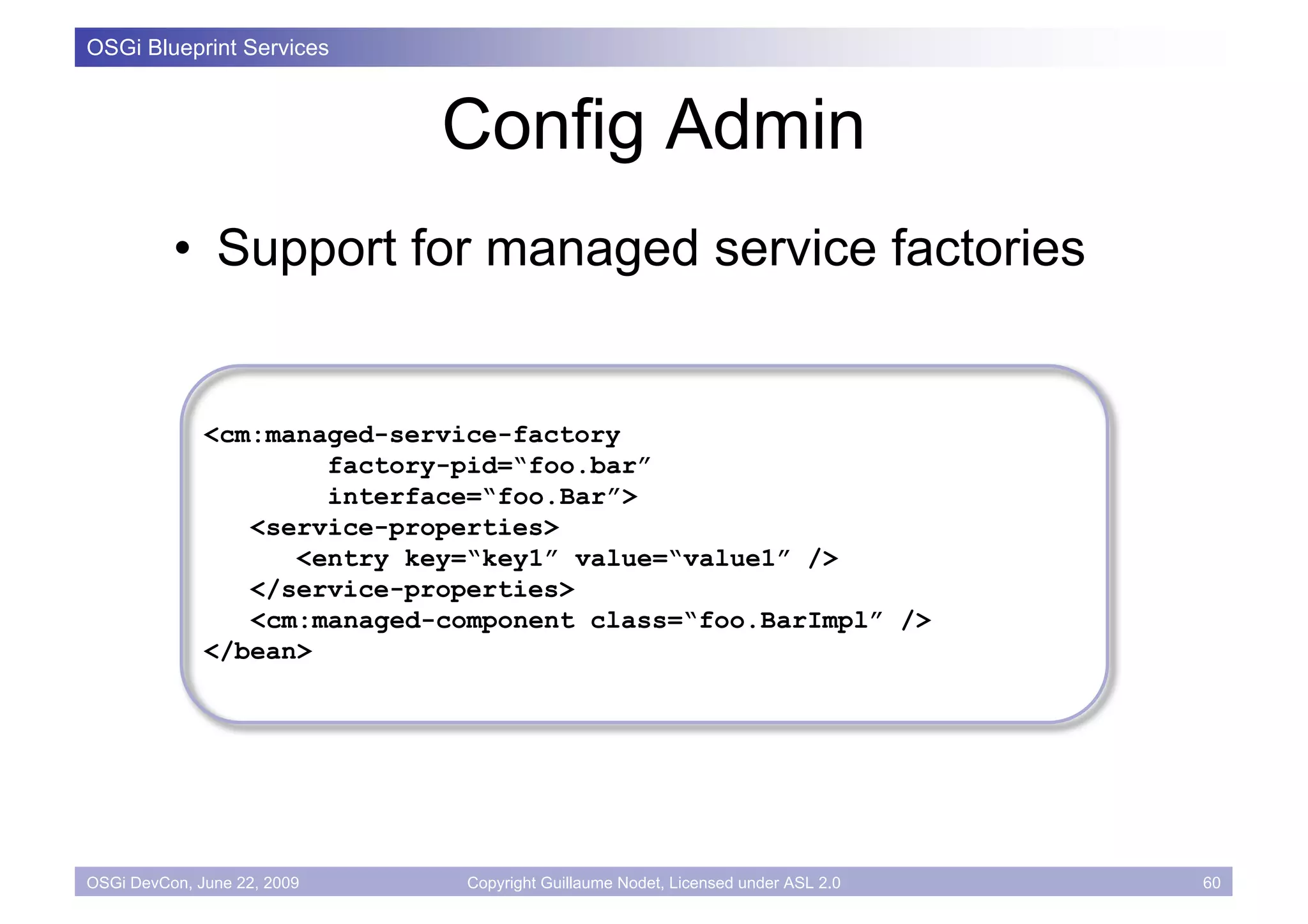

OSGi Blueprint Services



                             Config Admin
          • Support for managed service factories


              <cm:managed-service-factory
                      factory-pid=“foo.bar”
                      interface=“foo.Bar”>
                 <service-properties>
                    <entry key=“key1” value=“value1” />
                 </service-properties>
                 <cm:managed-component class=“foo.BarImpl” />
              </bean>




OSGi DevCon, June 22, 2009     Copyright Guillaume Nodet, Licensed under ASL 2.0   60
OSGi Blueprint Services

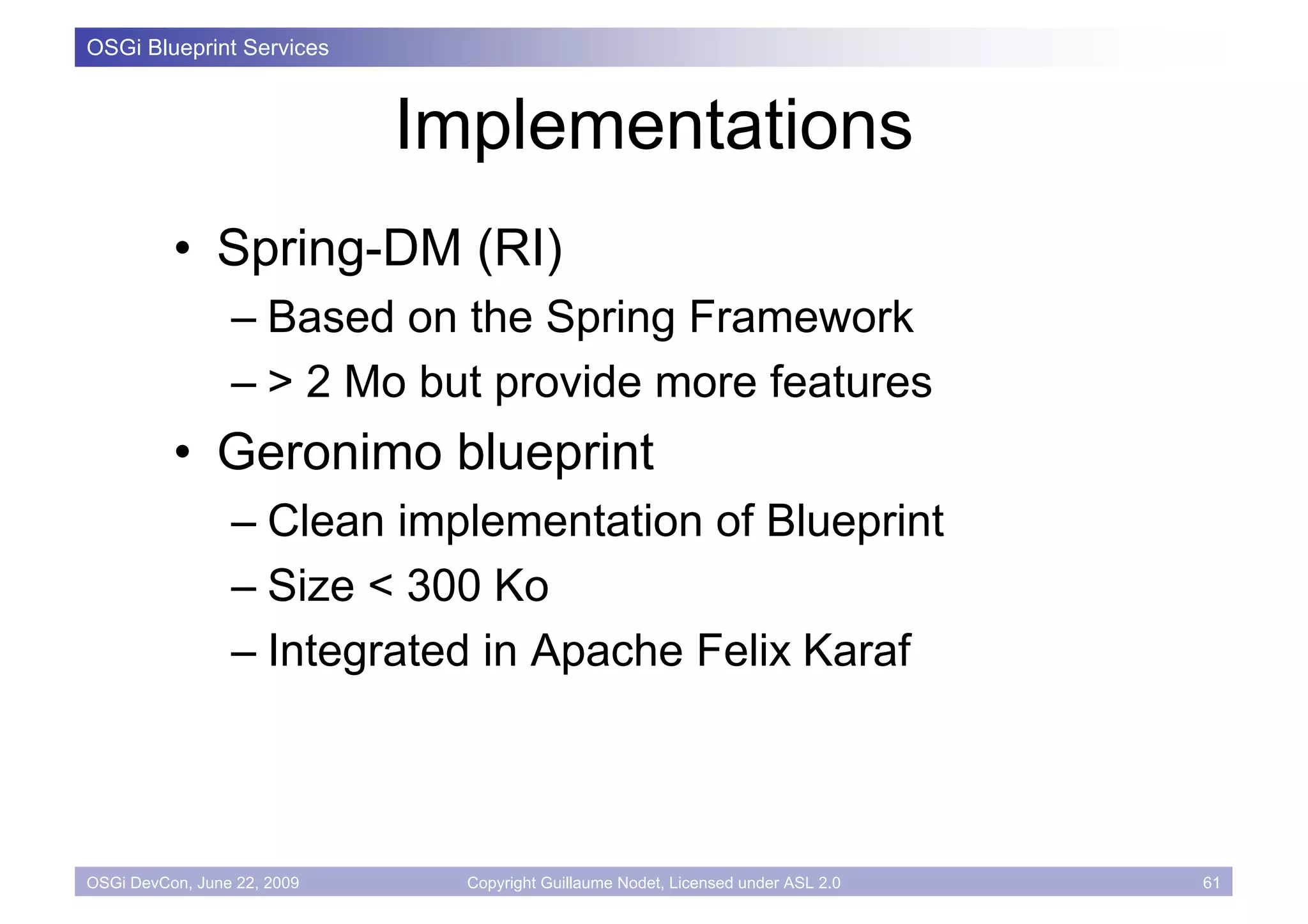

                             Implementations
          • Spring-DM (RI)
                 – Based on the Spring Framework
                 – > 2 Mo but provide more features
          • Geronimo blueprint
                 – Clean implementation of Blueprint
                 – Size < 300 Ko
                 – Integrated in Apache Felix Karaf



OSGi DevCon, June 22, 2009     Copyright Guillaume Nodet, Licensed under ASL 2.0   61
OSGi Blueprint Services



                                  Conclusion
          • Existing alternatives
                 – DS, iPojo, Peaberry
          • Strengths of blueprint
                 – Familiarity with Spring
                 – More powerful Dependency Injection
                 – Easily extensible through namespaces


                              gnodet@gmail.com
                 http://svn.apache.org/repos/asf/geronimo/sandbox/blueprint

OSGi DevCon, June 22, 2009       Copyright Guillaume Nodet, Licensed under ASL 2.0   62

More Related Content

What's hot

#살아있다 #자프링외길12년차 #코프링2개월생존기
#살아있다 #자프링외길12년차 #코프링2개월생존기#살아있다 #자프링외길12년차 #코프링2개월생존기
#살아있다 #자프링외길12년차 #코프링2개월생존기
Arawn Park

[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기
[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기
[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기
NHN FORWARD

Coroutines for Kotlin Multiplatform in Practise
Coroutines for Kotlin Multiplatform in PractiseCoroutines for Kotlin Multiplatform in Practise
Coroutines for Kotlin Multiplatform in Practise
Christian Melchior

Writing REST APIs with OpenAPI and Swagger Ada
Writing REST APIs with OpenAPI and Swagger AdaWriting REST APIs with OpenAPI and Swagger Ada
Writing REST APIs with OpenAPI and Swagger Ada
Stephane Carrez

Introduction To Containers - Builders Day Israel
Introduction To Containers - Builders Day IsraelIntroduction To Containers - Builders Day Israel
Introduction To Containers - Builders Day Israel
Amazon Web Services

AWS January 2016 Webinar Series - Managing your Infrastructure as Code
AWS January 2016 Webinar Series - Managing your Infrastructure as CodeAWS January 2016 Webinar Series - Managing your Infrastructure as Code
AWS January 2016 Webinar Series - Managing your Infrastructure as Code
Amazon Web Services

Maven tutorial
Maven tutorialMaven tutorial
Maven tutorial
Dragos Balan

Automate Software Deployments on EC2 with AWS CodeDeploy
Automate Software Deployments on EC2 with AWS CodeDeployAutomate Software Deployments on EC2 with AWS CodeDeploy
Automate Software Deployments on EC2 with AWS CodeDeploy
Amazon Web Services

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps
Tessa Mero

RESTful API - Best Practices
RESTful API - Best PracticesRESTful API - Best Practices
RESTful API - Best Practices
Tricode (part of Dept)

Containers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red HatContainers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red Hat
Amazon Web Services

Api gateway in microservices
Api gateway in microservicesApi gateway in microservices
Api gateway in microservices
Kunal Hire

ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk
ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech TalkArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk
ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk
Red Hat Developers

Docker & Kubernetes intro
Docker & Kubernetes introDocker & Kubernetes intro
Docker & Kubernetes intro
Arnon Rotem-Gal-Oz

Api pattern
Api patternApi pattern
Api pattern
Owen Rubel

Oracle Cloud deployment with Terraform
Oracle Cloud deployment with TerraformOracle Cloud deployment with Terraform
Oracle Cloud deployment with Terraform
Stefan Oehrli

Modern CI/CD Pipeline Using Azure DevOps
Modern CI/CD Pipeline Using Azure DevOpsModern CI/CD Pipeline Using Azure DevOps
Modern CI/CD Pipeline Using Azure DevOps
GlobalLogic Ukraine

Kubernetes internals (Kubernetes 해부하기)
Kubernetes internals (Kubernetes 해부하기)Kubernetes internals (Kubernetes 해부하기)
Kubernetes internals (Kubernetes 해부하기)
DongHyeon Kim

NestJS
NestJSNestJS
NestJS
Wilson Su

Jenkins CI presentation
Jenkins CI presentationJenkins CI presentation
Jenkins CI presentation
Jonathan Holloway


What's hot (20)

#살아있다 #자프링외길12년차 #코프링2개월생존기
#살아있다 #자프링외길12년차 #코프링2개월생존기#살아있다 #자프링외길12년차 #코프링2개월생존기
#살아있다 #자프링외길12년차 #코프링2개월생존기

[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기
[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기
[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기

Coroutines for Kotlin Multiplatform in Practise
Coroutines for Kotlin Multiplatform in PractiseCoroutines for Kotlin Multiplatform in Practise
Coroutines for Kotlin Multiplatform in Practise

Writing REST APIs with OpenAPI and Swagger Ada
Writing REST APIs with OpenAPI and Swagger AdaWriting REST APIs with OpenAPI and Swagger Ada
Writing REST APIs with OpenAPI and Swagger Ada

Introduction To Containers - Builders Day Israel
Introduction To Containers - Builders Day IsraelIntroduction To Containers - Builders Day Israel
Introduction To Containers - Builders Day Israel

AWS January 2016 Webinar Series - Managing your Infrastructure as Code
AWS January 2016 Webinar Series - Managing your Infrastructure as CodeAWS January 2016 Webinar Series - Managing your Infrastructure as Code
AWS January 2016 Webinar Series - Managing your Infrastructure as Code

Maven tutorial
Maven tutorialMaven tutorial
Maven tutorial

Automate Software Deployments on EC2 with AWS CodeDeploy
Automate Software Deployments on EC2 with AWS CodeDeployAutomate Software Deployments on EC2 with AWS CodeDeploy
Automate Software Deployments on EC2 with AWS CodeDeploy

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps

RESTful API - Best Practices
RESTful API - Best PracticesRESTful API - Best Practices
RESTful API - Best Practices

Containers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red HatContainers Anywhere with OpenShift by Red Hat
Containers Anywhere with OpenShift by Red Hat

Api gateway in microservices
Api gateway in microservicesApi gateway in microservices
Api gateway in microservices

ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk
ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech TalkArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk
ArgoCD and Tekton: Match made in Kubernetes heaven | DevNation Tech Talk

Docker & Kubernetes intro
Docker & Kubernetes introDocker & Kubernetes intro
Docker & Kubernetes intro

Api pattern
Api patternApi pattern
Api pattern

Oracle Cloud deployment with Terraform
Oracle Cloud deployment with TerraformOracle Cloud deployment with Terraform
Oracle Cloud deployment with Terraform

Modern CI/CD Pipeline Using Azure DevOps
Modern CI/CD Pipeline Using Azure DevOpsModern CI/CD Pipeline Using Azure DevOps
Modern CI/CD Pipeline Using Azure DevOps

Kubernetes internals (Kubernetes 해부하기)
Kubernetes internals (Kubernetes 해부하기)Kubernetes internals (Kubernetes 해부하기)
Kubernetes internals (Kubernetes 해부하기)

NestJS
NestJSNestJS
NestJS

Jenkins CI presentation
Jenkins CI presentationJenkins CI presentation
Jenkins CI presentation


Viewers also liked

Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik
Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A GrzesikApache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik
Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik
mfrancis

Teorema menelaya teorema_chevy
Teorema menelaya teorema_chevyTeorema menelaya teorema_chevy
Teorema menelaya teorema_chevy
Иван Иванов

SCR Annotations for Fun and Profit
SCR Annotations for Fun and ProfitSCR Annotations for Fun and Profit
SCR Annotations for Fun and Profit
Mike Pfaff

Incremental Evolving Grammar Fragments
Incremental Evolving Grammar FragmentsIncremental Evolving Grammar Fragments
Incremental Evolving Grammar Fragments
Nurfadhlina Mohd Sharef

The ultimate dependency manager shoot out - X Uiterlinden & S Mak
The ultimate dependency manager shoot out - X Uiterlinden & S MakThe ultimate dependency manager shoot out - X Uiterlinden & S Mak
The ultimate dependency manager shoot out - X Uiterlinden & S Mak
mfrancis

semantic web & natural language
semantic web & natural languagesemantic web & natural language
semantic web & natural language
Nurfadhlina Mohd Sharef

ORDER INDEPENDENT INCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER
ORDER INDEPENDENTINCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNERORDER INDEPENDENTINCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER
ORDER INDEPENDENT INCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER
Nurfadhlina Mohd Sharef

Incremental Evolving Grammar Fragments
Incremental Evolving Grammar FragmentsIncremental Evolving Grammar Fragments
Incremental Evolving Grammar Fragments
Nurfadhlina Mohd Sharef

P2 Introduction
P2 IntroductionP2 Introduction
P2 Introduction
irbull

New and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler
New and cool in OSGi R7 - David Bosschaert & Carsten ZiegelerNew and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler
New and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler
mfrancis

OSGi and Spring Data for simple (Web) Application Development
OSGi and Spring Data  for simple (Web) Application DevelopmentOSGi and Spring Data  for simple (Web) Application Development
OSGi and Spring Data for simple (Web) Application Development
Christian Baranowski

Many Worlds, the Born Rule, and Self-Locating Uncertainty
Many Worlds, the Born Rule, and Self-Locating UncertaintyMany Worlds, the Born Rule, and Self-Locating Uncertainty
Many Worlds, the Born Rule, and Self-Locating Uncertainty
Sean Carroll

7 bran Simonova Necronomiconu
7 bran Simonova Necronomiconu7 bran Simonova Necronomiconu
7 bran Simonova Necronomiconu
BloxxterMagick

Krystalická hrůza H. P. Lovecrafta ve filmu
Krystalická hrůza H. P. Lovecrafta ve filmuKrystalická hrůza H. P. Lovecrafta ve filmu
Krystalická hrůza H. P. Lovecrafta ve filmu
BloxxterMagick

Setting Time Aright
Setting Time ArightSetting Time Aright
Setting Time Aright
Sean Carroll

Microservices and OSGi: Better together?
Microservices and OSGi: Better together?Microservices and OSGi: Better together?
Microservices and OSGi: Better together?
Graham Charters

Self adaptive based natural language interface for disambiguation of
Self adaptive based natural language interface for disambiguation ofSelf adaptive based natural language interface for disambiguation of
Self adaptive based natural language interface for disambiguation of
Nurfadhlina Mohd Sharef

Magické myšlení aneb jak magie ovlivňuje náš život
Magické myšlení aneb jak magie ovlivňuje náš životMagické myšlení aneb jak magie ovlivňuje náš život
Magické myšlení aneb jak magie ovlivňuje náš život
BloxxterMagick

Tajemná krajina severovýchodních Čech
Tajemná krajina severovýchodních ČechTajemná krajina severovýchodních Čech
Tajemná krajina severovýchodních Čech
BloxxterMagick

Moved to https://slidr.io/azzazzel/osgi-for-outsiders
Moved to https://slidr.io/azzazzel/osgi-for-outsidersMoved to https://slidr.io/azzazzel/osgi-for-outsiders
Moved to https://slidr.io/azzazzel/osgi-for-outsiders
Milen Dyankov


Viewers also liked (20)

Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik
Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A GrzesikApache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik
Apache Karaf - Building OSGi applications on Apache Karaf - T Frank & A Grzesik

Teorema menelaya teorema_chevy
Teorema menelaya teorema_chevyTeorema menelaya teorema_chevy
Teorema menelaya teorema_chevy

SCR Annotations for Fun and Profit
SCR Annotations for Fun and ProfitSCR Annotations for Fun and Profit
SCR Annotations for Fun and Profit

Incremental Evolving Grammar Fragments
Incremental Evolving Grammar FragmentsIncremental Evolving Grammar Fragments
Incremental Evolving Grammar Fragments

The ultimate dependency manager shoot out - X Uiterlinden & S Mak
The ultimate dependency manager shoot out - X Uiterlinden & S MakThe ultimate dependency manager shoot out - X Uiterlinden & S Mak
The ultimate dependency manager shoot out - X Uiterlinden & S Mak

semantic web & natural language
semantic web & natural languagesemantic web & natural language
semantic web & natural language

ORDER INDEPENDENT INCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER
ORDER INDEPENDENTINCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNERORDER INDEPENDENTINCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER
ORDER INDEPENDENT INCREMENTAL EVOLVING FUZZY GRAMMAR FRAGMENT LEARNER

Incremental Evolving Grammar Fragments
Incremental Evolving Grammar FragmentsIncremental Evolving Grammar Fragments
Incremental Evolving Grammar Fragments

P2 Introduction
P2 IntroductionP2 Introduction
P2 Introduction

New and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler
New and cool in OSGi R7 - David Bosschaert & Carsten ZiegelerNew and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler
New and cool in OSGi R7 - David Bosschaert & Carsten Ziegeler

OSGi and Spring Data for simple (Web) Application Development
OSGi and Spring Data  for simple (Web) Application DevelopmentOSGi and Spring Data  for simple (Web) Application Development
OSGi and Spring Data for simple (Web) Application Development

Many Worlds, the Born Rule, and Self-Locating Uncertainty
Many Worlds, the Born Rule, and Self-Locating UncertaintyMany Worlds, the Born Rule, and Self-Locating Uncertainty
Many Worlds, the Born Rule, and Self-Locating Uncertainty

7 bran Simonova Necronomiconu
7 bran Simonova Necronomiconu7 bran Simonova Necronomiconu
7 bran Simonova Necronomiconu

Krystalická hrůza H. P. Lovecrafta ve filmu
Krystalická hrůza H. P. Lovecrafta ve filmuKrystalická hrůza H. P. Lovecrafta ve filmu
Krystalická hrůza H. P. Lovecrafta ve filmu

Setting Time Aright
Setting Time ArightSetting Time Aright
Setting Time Aright

Microservices and OSGi: Better together?
Microservices and OSGi: Better together?Microservices and OSGi: Better together?
Microservices and OSGi: Better together?

Self adaptive based natural language interface for disambiguation of
Self adaptive based natural language interface for disambiguation ofSelf adaptive based natural language interface for disambiguation of
Self adaptive based natural language interface for disambiguation of

Magické myšlení aneb jak magie ovlivňuje náš život
Magické myšlení aneb jak magie ovlivňuje náš životMagické myšlení aneb jak magie ovlivňuje náš život
Magické myšlení aneb jak magie ovlivňuje náš život

Tajemná krajina severovýchodních Čech
Tajemná krajina severovýchodních ČechTajemná krajina severovýchodních Čech
Tajemná krajina severovýchodních Čech

Moved to https://slidr.io/azzazzel/osgi-for-outsiders
Moved to https://slidr.io/azzazzel/osgi-for-outsidersMoved to https://slidr.io/azzazzel/osgi-for-outsiders
Moved to https://slidr.io/azzazzel/osgi-for-outsiders


Similar to OSGi Blueprint Services

OSGi DevCon 2009 Review
OSGi DevCon 2009 ReviewOSGi DevCon 2009 Review
OSGi DevCon 2009 Review
njbartlett

Building production-quality apps with Node.js
Building production-quality apps with Node.jsBuilding production-quality apps with Node.js
Building production-quality apps with Node.js
mattpardee

Hybrid Applications
Hybrid ApplicationsHybrid Applications
Hybrid Applications
Andreas Enbohm

CDI Integration in OSGi - Emily Jiang
CDI Integration in OSGi - Emily JiangCDI Integration in OSGi - Emily Jiang
CDI Integration in OSGi - Emily Jiang
mfrancis

OSGi for IoT: the good, the bad and the ugly - Tim Verbelen
OSGi for IoT: the good, the bad and the ugly - Tim VerbelenOSGi for IoT: the good, the bad and the ugly - Tim Verbelen
OSGi for IoT: the good, the bad and the ugly - Tim Verbelen
mfrancis

Javascript, the GNOME way (JSConf EU 2011)
Javascript, the GNOME way (JSConf EU 2011)Javascript, the GNOME way (JSConf EU 2011)
Javascript, the GNOME way (JSConf EU 2011)
Igalia

Introduction to OSGGi
Introduction to OSGGiIntroduction to OSGGi
Introduction to OSGGi
Marek Koniew

Saint2012 mod process security
Saint2012 mod process securitySaint2012 mod process security
Saint2012 mod process security
Ryosuke MATSUMOTO

GR8Conf 2009: Groovy Usage Patterns by Dierk König
GR8Conf 2009: Groovy Usage Patterns by Dierk KönigGR8Conf 2009: Groovy Usage Patterns by Dierk König
GR8Conf 2009: Groovy Usage Patterns by Dierk König
GR8Conf

Weld-OSGi, injecting easiness in OSGi
Weld-OSGi, injecting easiness in OSGiWeld-OSGi, injecting easiness in OSGi
Weld-OSGi, injecting easiness in OSGi
Mathieu Ancelin

Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...
Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...
Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...
mfrancis

Aws Deployment Tools - Overview, Details, Implementation
Aws Deployment Tools - Overview, Details, ImplementationAws Deployment Tools - Overview, Details, Implementation
Aws Deployment Tools - Overview, Details, Implementation
serkancapkan

Service oriented web development with OSGi
Service oriented web development with OSGiService oriented web development with OSGi
Service oriented web development with OSGi
Carsten Ziegeler

OSGi-based Workflow Engine
OSGi-based Workflow EngineOSGi-based Workflow Engine
OSGi-based Workflow Engine
yocaba

OSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application DevelopmentOSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development
Sanjeeb Sahoo

GWT Introduction for Eclipse Day
GWT Introduction for Eclipse Day GWT Introduction for Eclipse Day
GWT Introduction for Eclipse Day
DNG Consulting

JavaScript on the Desktop
JavaScript on the DesktopJavaScript on the Desktop
JavaScript on the Desktop
Domenic Denicola

Javascript as a target language - GWT KickOff - Part 2/2
Javascript as a target language - GWT KickOff - Part 2/2Javascript as a target language - GWT KickOff - Part 2/2
Javascript as a target language - GWT KickOff - Part 2/2
JooinK

OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...
OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...
OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...
OpenBlend society

Micro Services in JavaScript - Simon Kaegi
Micro Services in JavaScript - Simon KaegiMicro Services in JavaScript - Simon Kaegi
Micro Services in JavaScript - Simon Kaegi
mfrancis


Similar to OSGi Blueprint Services (20)

OSGi DevCon 2009 Review
OSGi DevCon 2009 ReviewOSGi DevCon 2009 Review
OSGi DevCon 2009 Review

Building production-quality apps with Node.js
Building production-quality apps with Node.jsBuilding production-quality apps with Node.js
Building production-quality apps with Node.js

Hybrid Applications
Hybrid ApplicationsHybrid Applications
Hybrid Applications

CDI Integration in OSGi - Emily Jiang
CDI Integration in OSGi - Emily JiangCDI Integration in OSGi - Emily Jiang
CDI Integration in OSGi - Emily Jiang

OSGi for IoT: the good, the bad and the ugly - Tim Verbelen
OSGi for IoT: the good, the bad and the ugly - Tim VerbelenOSGi for IoT: the good, the bad and the ugly - Tim Verbelen
OSGi for IoT: the good, the bad and the ugly - Tim Verbelen

Javascript, the GNOME way (JSConf EU 2011)
Javascript, the GNOME way (JSConf EU 2011)Javascript, the GNOME way (JSConf EU 2011)
Javascript, the GNOME way (JSConf EU 2011)

Introduction to OSGGi
Introduction to OSGGiIntroduction to OSGGi
Introduction to OSGGi

Saint2012 mod process security
Saint2012 mod process securitySaint2012 mod process security
Saint2012 mod process security

GR8Conf 2009: Groovy Usage Patterns by Dierk König
GR8Conf 2009: Groovy Usage Patterns by Dierk KönigGR8Conf 2009: Groovy Usage Patterns by Dierk König
GR8Conf 2009: Groovy Usage Patterns by Dierk König

Weld-OSGi, injecting easiness in OSGi
Weld-OSGi, injecting easiness in OSGiWeld-OSGi, injecting easiness in OSGi
Weld-OSGi, injecting easiness in OSGi

Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...
Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...
Prototyping IoT systems with a hybrid OSGi & Node-RED platform - Bruce Jackso...

Aws Deployment Tools - Overview, Details, Implementation
Aws Deployment Tools - Overview, Details, ImplementationAws Deployment Tools - Overview, Details, Implementation
Aws Deployment Tools - Overview, Details, Implementation

Service oriented web development with OSGi
Service oriented web development with OSGiService oriented web development with OSGi
Service oriented web development with OSGi

OSGi-based Workflow Engine
OSGi-based Workflow EngineOSGi-based Workflow Engine
OSGi-based Workflow Engine

OSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application DevelopmentOSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development
OSGi and Java EE: A Hybrid Approach to Enterprise Java Application Development

GWT Introduction for Eclipse Day
GWT Introduction for Eclipse Day GWT Introduction for Eclipse Day
GWT Introduction for Eclipse Day

JavaScript on the Desktop
JavaScript on the DesktopJavaScript on the Desktop
JavaScript on the Desktop

Javascript as a target language - GWT KickOff - Part 2/2
Javascript as a target language - GWT KickOff - Part 2/2Javascript as a target language - GWT KickOff - Part 2/2
Javascript as a target language - GWT KickOff - Part 2/2

OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...
OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...
OSGi & Java EE: A hybrid approach to Enterprise Java Application Development,...

Micro Services in JavaScript - Simon Kaegi
Micro Services in JavaScript - Simon KaegiMicro Services in JavaScript - Simon Kaegi
Micro Services in JavaScript - Simon Kaegi


Recently uploaded

2024 KWL Back 2 School Summer Conference
2024 KWL Back 2 School Summer Conference2024 KWL Back 2 School Summer Conference
2024 KWL Back 2 School Summer Conference
KlettWorldLanguages

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS
Celine George

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook
Celine George

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx
monicaaringo1

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening
MJDuyan

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website
Celine George

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17
Celine George

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cátedra Banco Santander

The basics of sentences session 10pptx.pptx
The basics of sentences session 10pptx.pptxThe basics of sentences session 10pptx.pptx
The basics of sentences session 10pptx.pptx
heathfieldcps1

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research
Abhik Roychoudhury

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)
Liyana Rozaini

Independence Day Quiz 2K17 - School India Quiz
Independence Day Quiz 2K17 - School India QuizIndependence Day Quiz 2K17 - School India Quiz
Independence Day Quiz 2K17 - School India Quiz
Kashyap J

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254
NurFitriah45

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
PhngThLmHnh

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf
Scholarhat

AZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdfAZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdf
OlivierLumeau1

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf
luzmilaglez334

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George


Recently uploaded (20)

2024 KWL Back 2 School Summer Conference
2024 KWL Back 2 School Summer Conference2024 KWL Back 2 School Summer Conference
2024 KWL Back 2 School Summer Conference

How to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POSHow to Manage Early Receipt Printing in Odoo 17 POS
How to Manage Early Receipt Printing in Odoo 17 POS

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook

Individual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docxIndividual Performance Commitment Review Form-Developmental Plan.docx
Individual Performance Commitment Review Form-Developmental Plan.docx

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening(T.L.E.) Agriculture: Essentials of Gardening
(T.L.E.) Agriculture: Essentials of Gardening

How to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 WebsiteHow to Create & Publish a Blog in Odoo 17 Website
How to Create & Publish a Blog in Odoo 17 Website

How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17How To Create a Transient Model in Odoo 17
How To Create a Transient Model in Odoo 17

Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)
Cómo crear video-tutoriales con ScreenPal (2 de julio de 2024)

The basics of sentences session 10pptx.pptx
The basics of sentences session 10pptx.pptxThe basics of sentences session 10pptx.pptx
The basics of sentences session 10pptx.pptx

Imagination in Computer Science Research
Imagination in Computer Science ResearchImagination in Computer Science Research
Imagination in Computer Science Research

Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)Bedok NEWater Photostory - COM322 Assessment (Story 2)
Bedok NEWater Photostory - COM322 Assessment (Story 2)

Independence Day Quiz 2K17 - School India Quiz
Independence Day Quiz 2K17 - School India QuizIndependence Day Quiz 2K17 - School India Quiz
Independence Day Quiz 2K17 - School India Quiz

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254

Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.docBài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc
Bài tập bộ trợ anh 7 I learn smart world kì 1 năm học 2022 2023 unit 1.doc

C# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdfC# Interview Questions PDF By ScholarHat.pdf
C# Interview Questions PDF By ScholarHat.pdf

AZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdfAZ-900 Microsoft Azure Fundamentals Summary.pdf
AZ-900 Microsoft Azure Fundamentals Summary.pdf

The Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdfThe Cruelty of Animal Testing in the Industry.pdf
The Cruelty of Animal Testing in the Industry.pdf

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides


OSGi Blueprint Services

  • 1. OSGi Blueprint Services Blueprint Services DI brought to OSGi Guillaume Nodet
  • 2. OSGi Blueprint Services Author • Guillaume Nodet • ASF Member, VP Apache ServiceMix, PMC member of various Apache projects (ServiceMix, Felix, Geronimo, Mina …) • Software Architect at Progress Software • OSGi Enterprise Expert Group OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 1
  • 3. OSGi Blueprint Services Agenda • Introduction • Configuration • Beans • Service references • Service registrations • Advanced uses • Next steps • Conclusion OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 2
  • 4. OSGi Blueprint Services Introduction • Dependency injection / IOC • Handle legacy code • Handle the OSGi dynamics • Hide the OSGi API OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 3
  • 5. OSGi Blueprint Services Configuration • Extender pattern • XML resources • Metadata Blueprint Bundle Metadata XML Blueprint Extender OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 4
  • 6. OSGi Blueprint Services Blueprint XML definition blueprint ::= <type-converters> manager * manager ::= <bean> | <service> | service-reference service-reference ::= <reference> | <ref-list> type-converter ::= <bean> | <ref> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 5
  • 7. OSGi Blueprint Services Simple example <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”> <service interface=“osgi.devcon.User”> <bean class=“osgi.devcon.impl.UserImpl”> <argument value=“gnodet” /> </bean> </service> </blueprint> bundleContext.registerService( osgi.devcon.User.class.getName(), new osgi.devcon.impl.UserImpl(“gnodet”), new Hashtable()); OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 6
  • 8. OSGi Blueprint Services Simple example <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”> <service interface=“osgi.devcon.User”> <bean class=“osgi.devcon.impl.UserImpl”> <argument value=“gnodet” /> </bean> </service> </blueprint> Top level element bundleContext.registerService( osgi.devcon.User.class.getName(), new osgi.devcon.impl.UserImpl(“gnodet”), new Hashtable()); OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 7
  • 9. OSGi Blueprint Services Simple example <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”> <service interface=“osgi.devcon.User”> <bean class=“osgi.devcon.impl.UserImpl”> <argument value=“gnodet” /> </bean> </service> </blueprint> Blueprint namespace bundleContext.registerService( osgi.devcon.User.class.getName(), new osgi.devcon.impl.UserImpl(“gnodet”), new Hashtable()); OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 8
  • 10. OSGi Blueprint Services Simple example <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0”> <service interface=“osgi.devcon.User”> <bean class=“osgi.devcon.impl.UserImpl”> <argument value=“gnodet” /> </bean> </service> </blueprint> Manager definition bundleContext.registerService( osgi.devcon.User.class.getName(), new osgi.devcon.impl.UserImpl(“gnodet”), new Hashtable()); OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 9
  • 11. OSGi Blueprint Services Manager types • Bean • Single Service Reference • Multiple Service References • Service Registration OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 10
  • 12. OSGi Blueprint Services Managers • Described by some metadata • Provide objects • Activation / deactivation • Dependencies (implicit or explicit) • Initialization – Eager – Lazy • Id • Inlined managers OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 11
  • 13. OSGi Blueprint Services Bean manager <bean class=“osgi.devcon.impl.UserImpl”> <argument value=”gnodet” /> <property name=“arrival” value=“22/06/09” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 12
  • 14. OSGi Blueprint Services Bean creation • Constructor creation <bean class=“osgi.devcon.impl.UserImpl” /> new osgi.devcon.impl.UserImpl() • Constructor creation with arguments <bean class=“osgi.devcon.impl.UserImpl”> <argument value=“gnodet” /> </bean> new osgi.devcon.impl.UserImpl(“gnodet”) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 13
  • 15. OSGi Blueprint Services Bean creation • Static factory <bean class=“osgi.devcon.impl.UserFactory” factory-method=“createUser”> <argument value=“gnodet” /> </bean> osgi.devcon.impl.UserFactory .createUser( “gnodet”) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 14
  • 16. OSGi Blueprint Services Bean creation • Instance factory <bean factory-ref=“userFactory” factory-method=“createUser”> <argument value=“gnodet” /> </bean> osgi.devcon.impl.UserFactory userFactory = … userFactory.createUser( “gnodet”) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 15
  • 17. OSGi Blueprint Services Bean arguments <argument value=“gnodet”/> <argument ref=“[refid]”/> <argument> [any value] </argument> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 16
  • 18. OSGi Blueprint Services Bean arguments <argument value=“gnodet”/> <argument ref=“[refid]”/> <argument> [any value] </argument> Plain value OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 17
  • 19. OSGi Blueprint Services Bean arguments <argument value=“gnodet”/> <argument ref=“[refid]”/> <argument> [any value] </argument> Reference to a top level manager OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 18
  • 20. OSGi Blueprint Services Bean arguments <argument value=“gnodet”/> <argument ref=“[refid]”/> <argument> [any value] </argument> Complex value OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 19
  • 21. OSGi Blueprint Services Bean properties <bean class=“osgi.devcon.impl.UserImpl”> <property name=“userId” value=“gnodet” /> </bean> UserImpl user = new osgi.devcon.impl.UserImpl(); user.setUserId(“gnodet”); OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 20
  • 22. OSGi Blueprint Services Bean properties <bean class=“osgi.devcon.impl.UserImpl”> <property name=“userId” value=“gnodet” /> </bean> UserImpl user = new osgi.devcon.impl.UserImpl(); user.setUserId(“gnodet”); Property name OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 21
  • 23. OSGi Blueprint Services Bean properties <bean class=“osgi.devcon.impl.UserImpl”> <property name=“userId” value=“gnodet” /> </bean> UserImpl user = new osgi.devcon.impl.UserImpl(); user.setUserId(“gnodet”); Property value OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 22
  • 24. OSGi Blueprint Services Bean properties <property name=“userId” value=“gnodet”/> <property name=“userId” ref=“[refid]”/> <property name=“userId”> [any value] </property> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 23
  • 25. OSGi Blueprint Services Bean scope • Singleton – a single instance will be reused • Prototype – a new instance will be created each time it is injected OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 24
  • 26. OSGi Blueprint Services Values • <null/> • <value> • <bean> • <list> • <reference> • <set> • <ref-list> • <map> • <service> • <array> • <ref> • <props> • <idref> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 25
  • 27. OSGi Blueprint Services <ref /> • Injects an object provided by the manager with the given id <bean id=“regId” … /> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“registration”> <ref component-id=“regId” /> </property> </bean> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“registration” ref=“regId” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 26
  • 28. OSGi Blueprint Services <ref /> • Injects an object provided by the manager with the given id Property value <bean id=“regId” … /> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“registration”> <ref component-id=“regId” /> </property> </bean> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“registration” ref=“regId” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 27
  • 29. OSGi Blueprint Services <idref /> • Injects the id of an existing object <bean id=“regId” … /> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“registrationId”> <idref component-id=“regId” /> </property> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 28
  • 30. OSGi Blueprint Services <value> • Insert the content of the element text <bean class=“osgi.devcon.impl.UserImpl”> <property name=“userId”> <value>gnodet</value> </property> </bean> <bean class=“osgi.devcon.impl.UserImpl”> <property name=“userId” value=“gnodet” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 29
  • 31. OSGi Blueprint Services <list>, <set> and <array> • Inserts a collection of objects <list> <list> <value>2</value> <value>7</value> Arrays.asList( </list> Arrays.asList(“2”,”7”), <list value-type=“int”> Arrays.asList(9,5) <value>9</value> ) <value>5</value> </list> </list> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 30
  • 32. OSGi Blueprint Services <list>, <set> and <array> • Inserts a collection of objects <list> <list> <value>2</value> <value>7</value> Arrays.asList( </list> Arrays.asList(“2”,”7”), <list value-type=“int”> Arrays.asList(9,5) <value>9</value> ) <value>5</value> </list> </list> Type of the values OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 31
  • 33. OSGi Blueprint Services <map> • Inserts a map of objects <map> <entry key="cheese" value="cheddar"/> <entry key="fruit" value="orange"/> </map> <map> <entry key-ref="keyId" value="cheddar"/> <entry key="fruit" value-ref="valueId"/> </map> <map key-type=”...” value-type="... "> <entry ...> </map> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 32
  • 34. OSGi Blueprint Services <map> • Inserts a map of objects <map> <entry> <key> <value type="org.osgi.framework.Version"> 3.2.1 </value> </key> <bean ... /> </entry> </map> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 33
  • 35. OSGi Blueprint Services <props> • Inserts a java.util.Properties object <props> <prop key="1">one</prop> <prop key="2" value="two" /> </props> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 34
  • 36. OSGi Blueprint Services Components as values • Instances provided by managers can be injected <list> <bean class="com.acme.FooImpl"/> </list> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 35
  • 37. OSGi Blueprint Services Service References • Single service: <reference> • Multiple services: <ref-list> <reference id="user1" interface="osgi.devcon.User" filter="(name=gnodet)" /> <ref-list id=”all-users" interface="osgi.devcon.User” /> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 36
  • 38. OSGi Blueprint Services <reference> • Provides a proxy to an OSGi service • Availability: mandatory or optional • Timeout • Damping proxy backing service injected beans services service providers OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 37
  • 39. OSGi Blueprint Services <ref-list> • Provides a read-only and dynamic list of OSGi service • Availability: mandatory or optional backing service list injected beans proxies services service providers OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 38
  • 40. OSGi Blueprint Services Service References Listeners <bean id="listener" ... /> <ref-list interface="osgi.devcon.User"> <reference-listener ref="listener" bind-method="bind" unbind-method="unbind" /> </ref-list> public class Listener { public void bind(User user) { } public void unbind(User user) { } } public void (T) public void (T, Map) public void (ServiceReference) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 39
  • 41. OSGi Blueprint Services Service References Listeners <bean id="listener" ... /> <ref-list interface="osgi.devcon.User"> <reference-listener ref="listener" bind-method="bind" unbind-method="unbind" /> </ref-list> Bind method public class Listener { public void bind(User user) { } public void unbind(User user) { } } public void (T) public void (T, Map) public void (ServiceReference) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 40
  • 42. OSGi Blueprint Services Service registrations • Expose an object as an OSGi service • Register a ServiceFactory • Dependencies on service references <service ref="user" interface="osgi.devcon.User" /> <service auto-export="interfaces"> <bean class="osgi.devcon.impl.UserImpl” /> </service> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 41
  • 43. OSGi Blueprint Services Service properties • Expose an object as an OSGi service <service ref="fooImpl" interface="osgi.devcon.User"> <service-properties> <entry key="name" value="gnodet"/> </service-properties> </service> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 42
  • 44. OSGi Blueprint Services Service Registration Listeners <bean id="listener" ... /> <service ref="..." interface="osgi.devcon.User"> <registration-listener ref="listener" registration-method="register" unregistration-method="unregister" /> </ref-list> public class Listener { public void register(User user, Map props) { } public void unregister(User user, Map props) { } } public void (T, Map) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 43
  • 45. OSGi Blueprint Services Lifecycle OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 44
  • 46. OSGi Blueprint Services Lifecycle Support for lazy activattion OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 45
  • 47. OSGi Blueprint Services Lifecycle Track mandatory references OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 46
  • 48. OSGi Blueprint Services Lifecycle OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 47
  • 49. OSGi Blueprint Services Advanced use • Conversions • Disambiguation • Creating custom converters • Use of <idref> • <ref-list> can be injected as List<ServiceReference> • Use of the ranking attribute on <service> • Blueprint Events OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 48
  • 50. OSGi Blueprint Services Conversions • Arrays, collections, maps • Primitives / wrapped primitives • Simple types with a String constructor • Locale, Pattern, Properties, Class • JDK 5 Generics • Custom converters OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 49
  • 51. OSGi Blueprint Services Disambiguation • Constructors / factory methods can have multiple overloads public class Bar { public Bar(File file) { ... } public Bar(URI uri) { ... } } <bean class="foo.Bar"> <argument type="java.net.URI" value="file://hello.txt"/> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 50
  • 52. OSGi Blueprint Services Custom converters <type-converters> <bean id="converter1" class=”foo.DateTypeConverter"> <property name="format" value="yyyy.MM.dd"/> </bean> </type-converters> <bean class=“...”> <property name=“date” value=“2009.06.22” /> </bean> public class DateTypeConverter { public boolean canConvert(Object fromValue, CollapsedType toType) { ... } public Object convert(Object fromValue, CollapsedType toType) throws Exception { ... } } OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 51
  • 53. OSGi Blueprint Services <ref-list> as List<ServiceReference> <ref-list interface=“osgi.devcon.User” member-type=“service-reference” /> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 52
  • 54. OSGi Blueprint Services Other advanced uses • <ref-list> as List<ServiceReference> <ref-list interface=“osgi.devcon.User” member-type=“service-reference” /> • Use of ranking attribute on <service> <service ref=“foo” interface=“osgi.devcon.User” ranking=“5” /> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 53
  • 55. OSGi Blueprint Services Use of <idref> • Prototypes • Use of the Blueprint API <bean id=“bar” class=“foo.Bar” scope=“prototype”> <property name=“prop” value=“val” /> </bean> <bean class=“foo.BarCreator”> <property name=“blueprintContainer” ref=“blueprintContainer” /> <property name=“id”> <idref component-id=“bar” /> </property> </bean> Bar bar = (Bar) blueprintContainer.getComponent(id) OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 54
  • 56. OSGi Blueprint Services Blueprint events • Register listeners • Blueprint events – CREATING – CREATED – DESTROYING – DESTROYED – FAILURE – GRACE_PERIOD – WAITING public interface BlueprintListener { void blueprintEvent(BlueprintEvent event); } OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 55
  • 57. OSGi Blueprint Services Next steps • Custom namespace handlers • Config Admin support OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 56
  • 58. OSGi Blueprint Services Custom namespaces <ext:property-placeholder system-properties=“override”> <ext:default-properties> <ext:property name=“name” value=“value” /> </ext:default-properties> </ext:property> <bean ...> <property name=“prop” value=“${name}” /> </bean> <reference interface=“foo.Bar” ext:proxy-method=“classes” /> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 57
  • 59. OSGi Blueprint Services Config Admin • Injection of values from a Configuration <cm:property-placeholder persistent-id=“foo.bar” /> <cm:default-properties> <cm:property name=“name” value=“value” /> </cm:default-properties> </cm:property> <bean ...> <property name=“prop” value=“${name}” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 58
  • 60. OSGi Blueprint Services Config Admin • Support for managed properties <bean class=“foo.Bar”> <cm:managed-properties persistent-id=“foo.bar” updated-strategy=“component-managed” update-method=“update” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 59
  • 61. OSGi Blueprint Services Config Admin • Support for managed service factories <cm:managed-service-factory factory-pid=“foo.bar” interface=“foo.Bar”> <service-properties> <entry key=“key1” value=“value1” /> </service-properties> <cm:managed-component class=“foo.BarImpl” /> </bean> OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 60
  • 62. OSGi Blueprint Services Implementations • Spring-DM (RI) – Based on the Spring Framework – > 2 Mo but provide more features • Geronimo blueprint – Clean implementation of Blueprint – Size < 300 Ko – Integrated in Apache Felix Karaf OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 61
  • 63. OSGi Blueprint Services Conclusion • Existing alternatives – DS, iPojo, Peaberry • Strengths of blueprint – Familiarity with Spring – More powerful Dependency Injection – Easily extensible through namespaces gnodet@gmail.com http://svn.apache.org/repos/asf/geronimo/sandbox/blueprint OSGi DevCon, June 22, 2009 Copyright Guillaume Nodet, Licensed under ASL 2.0 62
