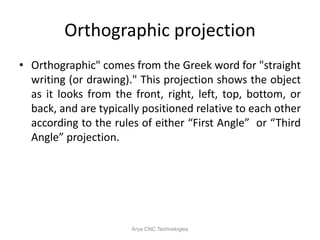

Orthographic projection
• Orthographic" comes from the Greek word for "straight
writing (or drawing)." This projection shows the object
as it looks from the front, right, left, top, bottom, or
back, and are typically positioned relative to each other

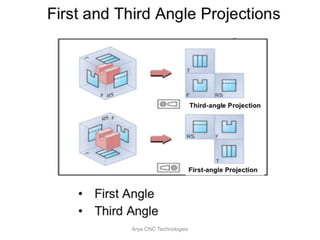

according to the rules of either “First Angle” or “Third
Angle” projection.

5
Orthographic projection is a parallel projection technique
in which the parallel lines of sight are perpendicular to the
projection plane
MEANING
Object views from top
Projection plane
1
2
3
4
51 2 3 4

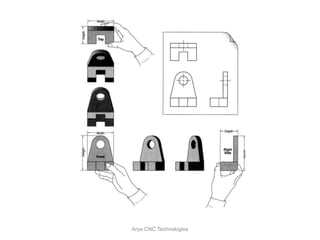

Six Principal Views

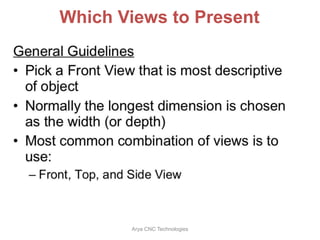

Which Views to Present

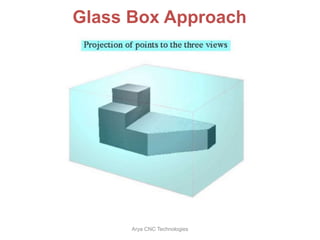

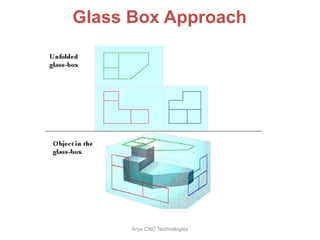

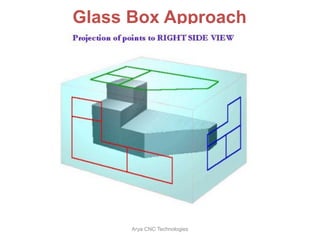

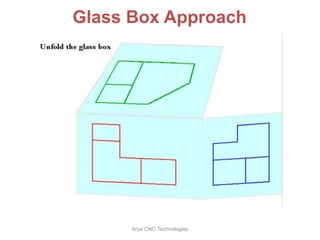

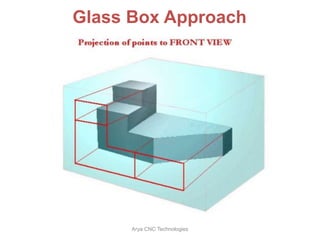

Glass Box Approach

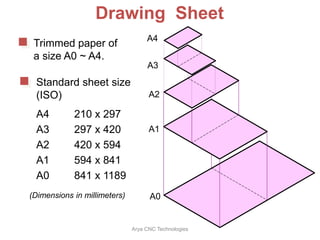

Drawing Sheet
Trimmed paper of
a size A0 ~ A4.
Standard sheet size
(ISO)
A4 210 x 297
A3 297 x 420
A2 420 x 594
A1 594 x 841
A0 841 x 1189
A4
A3
A2
A1
A0(Dimensions in millimeters)

Drawing Scales

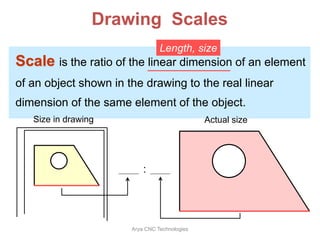

Scale is the ratio of the linear dimension of an element
of an object shown in the drawing to the real linear
dimension of the same element of the object.
Size in drawing Actual size
Length, size
:

Drawing Scales

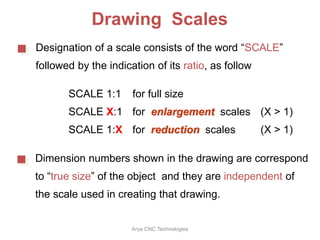

Designation of a scale consists of the word “SCALE”
followed by the indication of its ratio, as follow
SCALE 1:1 for full size
SCALE X:1 for enlargement scales (X > 1)
SCALE 1:X for reduction scales (X > 1)
Dimension numbers shown in the drawing are correspond
to “true size” of the object and they are independent of
the scale used in creating that drawing.

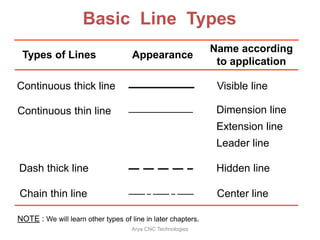

Basic Line Types
Types of Lines Appearance
Name according
to application
Continuous thick line Visible line
Continuous thin line Dimension line
Extension line
Leader line
Dash thick line Hidden line
Chain thin line Center line
NOTE : We will learn other types of line in later chapters.

Visible lines represent features that can be seen in the
current view

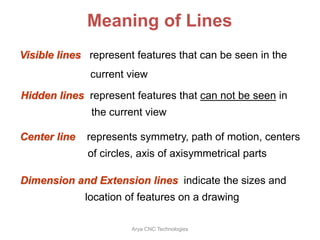

Meaning of Lines
Hidden lines represent features that can not be seen in
the current view
Center line represents symmetry, path of motion, centers
of circles, axis of axisymmetrical parts
Dimension and Extension lines indicate the sizes and
location of features on a drawing

For Example
1
2
3

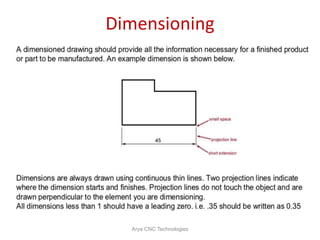

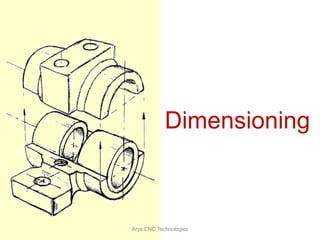

Dimensioning

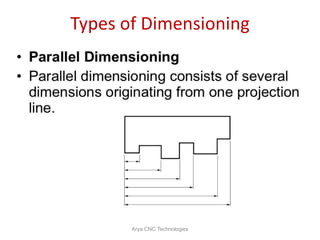

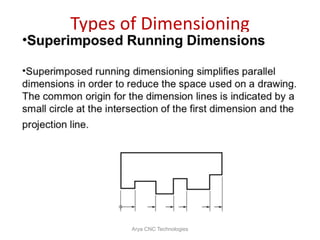

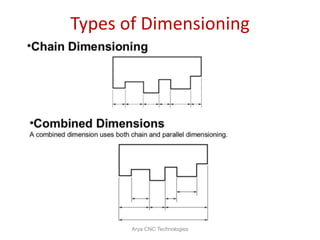

Types of Dimensioning

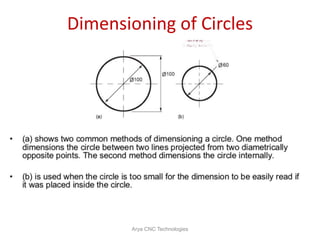

Dimensioning of Circles

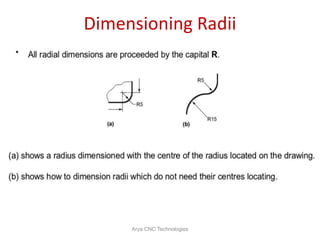

Dimensioning Radii

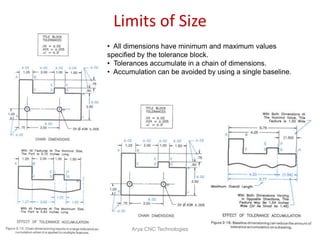

Limits of Size
• All dimensions have minimum and maximum values
specified by the tolerance block.
• Tolerances accumulate in a chain of dimensions.
• Accumulation can be avoided by using a single baseline.

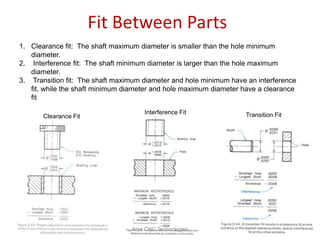

Fit Between Parts
Clearance Fit
Interference Fit Transition Fit
1. Clearance fit: The shaft maximum diameter is smaller than the hole minimum
diameter.
2. Interference fit: The shaft minimum diameter is larger than the hole maximum
diameter.
3. Transition fit: The shaft maximum diameter and hole minimum have an interference
fit, while the shaft minimum diameter and hole maximum diameter have a clearance
fit

Drawing Layout

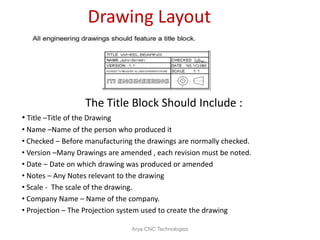

The Title Block Should Include :
• Title –Title of the Drawing
• Name –Name of the person who produced it
• Checked – Before manufacturing the drawings are normally checked.
• Version –Many Drawings are amended , each revision must be noted.
• Date – Date on which drawing was produced or amended
• Notes – Any Notes relevant to the drawing
• Scale - The scale of the drawing.
• Company Name – Name of the company.
• Projection – The Projection system used to create the drawing

Orthographic projections
